Article

Microbial Transformation of Yakuchinone A and Cytotoxicity Evaluation of Its Metabolites

1
College of Pharmacy, Chonnam National University, Gwangju 61186, Korea
2
College of Pharmacy and Natural Medicine Research Institute, Mokpo National University, Muan-gun 58554, Jeonnam, Korea
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(7), 3992; https://doi.org/10.3390/ijms23073992
Submission received: 18 March 2022 / Revised: 1 April 2022 / Accepted: 1 April 2022 / Published: 3 April 2022
(This article belongs to the Special Issue Enzymatic Synthesis of Novel and Bioactive Compounds)

Abstract

:
Yakuchinone A (1) is a bioactive diarylheptanoid isolated from the dried fruits of Alpinia oxyphylla. Microbial transformation has been recognized as an efficient method to produce new biologically active derivatives from natural products. In the present study, microbial transformation of yakuchinone A was performed with the fungus Mucor hiemalis KCTC 26779, which led to the isolation of nine new metabolites (2, 3a, 3b, and 49). Their structures were elucidated as (3S)-oxyphyllacinol (2), (3S,7R)- and (3S,7S)-7-hydroxyoxyphyllacinol (3a and 3b), (3S)-oxyphyllacinol-4′-O-β-d-glucopyranoside (4), (3S)-4″-hydroxyoxyphyllacinol (5), (3S)-3″-hydroxyoxyphyllacinol (6), (3S)-2″-hydroxyoxyphyllacinol (7), (3S)-2″-hydroxyoxyphyllacinol-2″-O-β-d-glucopyranoside (8), and (3S)-oxyphyllacinol-3-O-β-d-glucopyranoside (9) based on the comprehensive spectroscopic analyses and the application of modified Mosher’s method. All compounds were evaluated for their cytotoxic activities against melanoma, as well as breast, lung, and colorectal cancer cell lines. Compound 9, which was O-glucosylated on the diarylheptanoid alkyl chain, exhibited the most selective cytotoxic activities against melanoma cell lines with the IC50 values ranging from 6.09 to 9.74 μM, indicating that it might be considered as a possible anti-cancer lead compound.

Graphical Abstract

1. Introduction

Alpinia oxyphylla Miq. (Zingiberaceae) is a medicinal plant widely distributed in the subtropical parts of Asia. It has been used as traditional medicine for the treatment of nephrotic syndrome, ulceration, dementia, and intestinal disorders for more than a thousand years [1]. Pharmacological and phytochemical investigations of A. oxyphylla have led to the identification of a variety of biologically active components including fruit oil, flavonoids, sesquiterpenes, diarylheptanoids, and phenolic compounds [2,3]. Among them, diarylheptanoids have been identified as a major class of characteristic constituents in A. oxyphylla with diverse biological effects including anti-inflammatory, antioxidant, anti-hepatotoxic, antitumor, and anti-proliferative activities [4,5]. Especially, yakuchinone A (1), a major pungent ingredient of A. oxyphylla, has been reported to exhibit antioxidant, anti-inflammatory, antibacterial, antimutagenic, and gastroprotective activities [6,7,8]. It was also reported to show a strong inhibitory effect against prostaglandin synthase, which was considered to be associated with anti-platelet aggregation activity [9]. Moreover, the skin carcinogenesis and tumor promoter-induced inflammation in mice have been suppressed after treatment with 1 [10]. Compound 1 has been shown to induce apoptotic death in HL-60 cells and appeared to be relatively less cytotoxic to normal cells [11], indicating the potential of 1 as an effective agent for cancer chemoprevention. Considering the potential biological effects of 1, it is meaningful to expand its structural diversity and produce more derivatives with enhanced bioavailability and pharmacological activities.
Microbial transformation has been regarded as an efficient and green method for the conversion of bioactive compounds to structurally related derivatives with potential biological properties [12,13]. The transformation processes are facilitated by the enzymes produced by the microbial strains. Microbial transformation is usually used as an alternative method to produce bioactive compounds which are difficult to prepare by chemical approaches. These transformations are carried out under multiple enzymatic reactions including oxidation, reduction, hydroxylation, glycosylation, and isomerization [14]. Compared to chemical synthesis, microbial transformation exhibits higher enantio- and regioselectivity in aqueous solutions, and it can be performed under milder conditions without protection and deprotection of functional groups [15,16].
To identify bioactive derivatives of 1 and investigate their structure-activity relationships (SAR), microbial transformation of 1 was conducted using the selected fungus Mucor hiemalis, which resulted in the isolation of nine previously undescribed metabolites (2, 3a, 3b, and 49). The structures of all the compounds were characterized by spectroscopic methods, and their cytotoxic activities were evaluated against B16F1, B16F10, A375P, A549, MCF-7, and HT-29 cancer cell lines.

2. Results and Discussion

A total of 22 microbial strains were screened to identify microorganisms capable of metabolizing 1 (Supplementary Materials Table S1). TLC and HPLC analyses of the screening results revealed that Mucor hiemalis KCTC 26779 exhibited the highest transformation capability and thus selected for the scale-up studies. Subsequent preparative scale fermentation of 1 was successfully carried out with M. hiemalis, which led to the production of nine previously undescribed metabolites (2, 3a, 3b, and 49, Figure 1).

2.1. Structure Elucidation

Compound 2, obtained as a colorless oil, had a molecular formula of C20H26O3 which was established on the basis of its HRFDMS spectrum. The 1H NMR spectrum of 2 revealed two substituted benzene rings, in which the resonances at δH 6.75 (1H, d, J = 1.8 Hz, H-2′), 6.69 (1H, d, J = 8.0 Hz, H-5′), and 6.51 (1H, dd, J = 8.0, 1.8 Hz, H-6′) indicated a 1,3,4-trisubstituted benzene ring, and the resonances at δH 7.23 (2H, H-3″/H-5″), and 7.14 (3H, H-2″/H-4″/H-6″) suggested a monosubstituted benzene ring. Its 13C NMR data displayed twenty carbon signals, which were classified as one methoxy group (3′-OCH3), six methylenes, one oxygenated methine, and twelve aromatic carbons with the help of its HSQC spectrum. The NMR data of 2 were similar to those of parent compound 1, except for the appearance of the proton signal at δH 3.51 corresponding to the carbon signal at δC 71.8 and absence of the carbonyl signal at δC 212.0 (C-3), indicating that a hydroxyl group was attached at C-3 position in 2. In addition, the attachment of hydroxyl group at C-3 position was further confirmed by the correlations from H-1 to C-3/1′/2′/6′, H-2 to C-1′, and H-3 to C-1 in its HMBC spectrum (Figure 2). The locations of rings A and B were, respectively, assigned at C-1 and C-7 by the HMBC correlations from H-1 to C-1′/2′/6′, and from H-7 to C-1″/2″/6″. Detailed analysis of its 2D NMR data not only supported the above mentioned inferences but also verified the assignments of 2 (Supporting Figures S8–S10). The structure of 2 was identical to that of oxyphyllacinol whose absolute configuration was not assigned [17]. The absolute configuration of 2 at C-3 was determined using the advanced Mosher’s method by spectral analyses of its (R)- and (S)-MTPA ester derivatives [18,19,20]. The proton signals of the two esters were assigned based on the correlations shown in their 1H-1H COSY spectra, and the positive value of ΔδH (= δS−δR) at H-2 and the negative value of ΔδH at H-4 suggested the S configuration at C-3 (Supplementary Materials Figure S1). Finally, the structure of 2 was elucidated as (3S)-oxyphyllacinol.
Compound 3 was obtained as a yellow oil. It showed a molecular ion [M]+ peak at m/z 330.1830 (calcd m/z 330.1826) in the HRFDMS spectrum, corresponding to a molecular formula of C20H26O4. Analysis of 1D and 2D NMR data indicated that 3 contained the same benzene ring systems as those of 2 (Supplementary Materials Figures S13–S18). In addition, its 1D NMR data showed one new proton signal at δH 4.48 corresponding to the new oxygenated methine carbon signal at δC 72.8, indicating that 3 was a hydroxylated derivative of 2. The proton signal at δH 4.48 in 3 was significantly downfield-shifted from δH 2.60 (H-7) in 2, suggesting that the hydroxyl group was located at C-7. Moreover, the location was further confirmed by the long-range correlations from H-7 (δH 4.48) to C-1″ (δC 146.5)/C-2″/6″ (125.8) in the HMBC spectrum of 3 (Figure 2). Complete assignment of the proton and carbon signals of 3 was accomplished through the full interpretation of 1D and 2D NMR spectra.
Furthermore, compound 3 was identified as a diastereomeric mixture by HPLC using a YMC Amylose-SA chiral column (250 × 4.6 mm, 5 μm), which was effectively separated into 3a and 3b. The Mosher ester analysis was performed to determine the absolute configurations of the diol containing two secondary hydroxyl groups at C-3 and C-7. The 1H NMR data for bis-MTPA derivatives were assigned by analysis of COSY and NOE spectra and the calculated Δδ values (δH = δS−δR, ppm) are shown in Figure 3. The absolute configurations at C-3 and C-7 in 3a were assigned S and R, respectively, according to the Δδ values, which are consistent with the ΔδSR sign distribution proposed by Riguera and colleagues for the acyclic 1,5-diol systems [21,22,23,24]. Similarly, the absolute configurations at C-3 and C-7 in 3b were determined to be S and S, respectively. Consequently, 3a was assigned (3S,7R)-7-hydroxyoxyphyllacinol, and 3b (3S,7S)-7-hydroxyoxyphyllacinol.
The molecular formula of compound 4 was determined as C26H36O8 by the molecular ion [M]+ peak at m/z 476.2413 (calcd m/z 476.2405) based on the HRFDMS data, corresponding to the presence of an additional glucose unit (C6H10O5) compared with that of 2. In the 1H NMR spectrum of 4, seven new typical characteristic signals between δH 3.46 and 4.83 owing to s sugar moiety were observed. The 13C NMR spectrum of 4 exhibited six new carbon signals at δC 101.7, 76.7, 76.4, 73.5, 69.9, and 61.1, which are consistent with the characteristics of a glucose moiety [25,26,27]. Meanwhile, the anomeric proton signal at δH 4.83 (H-1‴) with a large coupling constant (J = 7.7 Hz) indicated that the glycosidic bond is in β-form. In addition, the aromatic proton signal of 4 at δH 7.08 (H-5′) was significantly downfield-shifted compared with that of 2 (Table 1), suggesting that the glucose moiety was located at C-4′ position through an ether linkage. The connection between the hydroxyl group at C-4′ and the glucose moiety was further confirmed by the HMBC correlation from H-1‴ to C-4′ (Figure 2). Ultimately, compound 4 was elucidated as (3S)-oxyphyllacinol-4′-O-β-d-glucopyranoside.
Compound 5 had the molecular formula of C20H26O4 as deduced by its HRFDMS data, which was 16 units higher than that of 2, suggesting that 5 was a hydroxylated derivative of 2. The 1H data of 5 closely resembled those of 2, except for the presence of p-substituted benzene signals at δH 6.97 (2H, d, J = 8.1 Hz, H-2″/6″), and 6.67 (2H, d, J = 8.1 Hz, H-3″/5″) instead of the signals for the monosubstituted ring B in 2, indicating that the hydroxyl group was substituted at C-4″ position. Additionally, the symmetric carbon signals of ring B provided further evidence for the para-substituted hydroxyl group that existed in 5. The HMBC cross-peaks from H-2″/6″ (δH 6.97) to C-4″ (δC 156.4) further confirmed the hydroxyl group was located at C-4″ (Figure 4). The absolute configuration at C-3 in 5 was assigned S according to the Δδ values calculated for the S- and R-MTPA esters (Supplementary Materials Figure S1). Accordingly, the structure of 5 was elucidated as (3S)-4″-hydroxyoxyphyllacinol.
Compound 6 was assigned the same molecular formula of C20H26O4 as 5 from its HRFDMS data at m/z 330.1832 (calcd for 330.1826). Analysis of its NMR spectra indicated that 6 was a regioisomer of 5, with a hydroxyl group at different location in ring B (Table 2). The resonances at δH 7.05 (1H, t, J = 7.7 Hz, H-5″), and δH 6.63 (3H, H-2″/H-4″/H-6″) revealed that the hydroxyl group was located at C-3″ in 6. The HMBC correlation from H-5″ (δH 7.05) to the hydroxylated aromatic carbon C-3″ (δC 158.4) further confirmed that the hydroxyl group was introduced at meta position of ring B in 6. The absolute configuration of 6 was determined as 3S according to the Δδ values calculated for the S- and R-MTPA esters (Supplementary Materials Figure S1). Hence, the structure of 6 was elucidated as (3S)-3″-hydroxyoxyphyllacinol.
Compound 7 displayed the same molecular formula of C20H26O4 as those of 5 and 6, according to its HRFDMS data at m/z 330.1832 [M]+ (calcd m/z 330.1826). Interpretation of the 1H and 13C NMR data in combination with 2D NMR (COSY, HSQC, and HMBC) spectra indicated that 7 was also a regioisomer of 5. The ortho-hydroxylated ring B system was identified by the sequential COSY correlations of H-3″, H-4″, H-5″ and H-6″. Its HMBC correlations from H-7 (δH 2.58) to C-2″ (δC 156.4)/ C-6″ (δC 131.2) provided further evidence for the ortho-hydroxylation in ring B. The absolute configuration of 7 was determined as 3S based on the Mosher’s method (Supplementary Materials Figure S1). Therefore, the entire structure of 7 was established as (3S)-2″-hydroxyoxyphyllacinol.
Compound 8 was found to possess a molecular formula of C26H36O9 on the basis of its HRFDMS peak at m/z 492.2370 (calcd m/z 492.2354). The 1H and 13C NMR spectra of 8 showed seven and six additional resonance signals, respectively, which are characteristic of a glucose moiety. Appearance of the anomeric proton signal at δH 4.89 (H-1‴) with a larger coupling constant (7.5 Hz) suggested that the glucose moiety has a β-configuration. Additionally, the 1H NMR data of the aglycone of 8 were similar to those of 7. However, the proton signal at δH 7.11 (2H, H-3″/H-5″) in 8 was significantly downfield-shifted compared with the signal at δH 6.71 (2H, H-3″/H-5″) in 7, which indicated that the glucose moiety was connected to the hydroxyl group at C-2″. The correlation from H-1‴ to C-2″ (δC 157.1) in the HMBC spectrum of 8 further confirmed that the glucose moiety was located at C-2″ (Figure 5). Therefore, the structure of 8 was elucidated as (3S)-2″-hydroxyoxyphyllacinol-2″-O-β-d-glucopyranoside.
Compound 9 was obtained as a yellow oil. Its molecular formula of C26H36O8 was supported by the HRFDMS data, indicating that it was a glucosylated derivative of 2. In the 1H and 13C NMR spectra of 9, the proton signals at δH 4.30 and 3.19-3.69 (6H) and carbon signals at δC 104.0, 78.4, 77.8, 75.5, 71.9, and 63.0 also established the presence of a glucose moiety. The glucose was determined to be in β-configuration by the large coupling constant (7.8 Hz) of the anomeric proton signal at δH 4.30. In comparison of its 1H NMR data with those of 2, the significantly downfield-shifted signals of H-3 (δH 3.69), and C-3 (δC 80.3) in 9 indicated that the sugar moiety was attached to the hydroxyl group at C-3 (Table 1 and Table 2). In addition, HMBC correlation of H-1‴ to C-3 confirmed that the glucose moiety was connected to the aglycone at C-3 in 9 (Figure 5). Based on the above analyses, the structure of 9 was elucidated as (3S)-oxyphyllacinol-3-O-β-d-glucopyranoside.

2.2. Cytotoxicity Evaluation

Cytotoxic activities of all the compounds (1-2, 3a, 3b, 49) were examined against two murine cancer cell lines (B16F1 and B16F10), and four human cancer cell lines (A375P, A549, MCF-7, and HT-29) using the modified MTT assay, and their IC50 values are summarized in Table 3. Most of the compounds showed more potent cytotoxic activities against melanoma cell lines than against lung, breast, and colorectal cancer cell lines. Compound 9 exhibited the strongest selective cytotoxic activities against melanoma cell lines with IC50 values ranging from 6.09 to 9.74 μM.

2.3. Discussion

Biotransformation is currently recognized as an efficient and environmentally-friendly technology for asymmetric synthesis with the high enantioselectivity [28,29]. It has been reported that fungi can be considered as a promising source of new biocatalysts, especially for chiral reactions [30]. Additionally, Mucor hiemalis was found to exhibit good catalytic activity in the reduction of carbonyl compounds and show high stereoselectivity [31]. In this experiment, the ketone at C-3 was stereoselectively reduced into the corresponding (S)-configured alcohol by this fungus, while hydroxylation at C-7 position at the aliphatic fragment proceeded regioselectively.
In the transformation process, 2 was thought to be formed by reduction of the carbonyl group in 1, and it is regarded as a precursor of the compounds 3a, 3b, and 49, which were produced through hydroxylation and glucosylation reactions. The methylene group at C-7 position in 2 was directly hydroxylated to form the corresponding alcohol group in metabolite 3. Similarly, the phenolic metabolites 5, 6 and 7 were directly converted from 2 via aromatic hydroxylation at the para (C-4″), meta (C-3″), and ortho (C-2″) positions in ring B, respectively. Further O-glucosylation at C-2″ in 7 led to the formation of metabolite 8, and similar modifications apparent at the C-4′ and C-3 positions in 2 led to the formation of 4 and 9, respectively. Noteworthily, it has been reported that hydroxylation of a mono-alkylated benzene ring usually takes place at para or ortho position, while, the meta-hydroxylation rarely occurs in nature [32]. In the present study, the yield of meta-hydroxylated metabolite 6 was quite low compared with that of para- and ortho-hydroxylated metabolites (5 and 7), suggesting that microbial transformation can be used to mimic the natural biosynthetic pathways for production of secondary metabolites [33].
SAR analysis could lead us to comprehend the compound characteristics and design more potent therapeutic agents in the future [34]. In this study, it is clear that all the active metabolites showed higher cytotoxic activity against melanoma cell lines than the other three cancer cell lines. Compound 1 showed potent cytotoxic activities against all six cancer cell lines. However, compound 2 showed lower cytotoxic activities than 1, indicating that the carbonyl group could be considered to play a significant role in biological activities of diarylheptanoids. In addition, the role of phenolic hydroxyl group in anti-melanoma activities seemed to be substantial due to the result that compounds 57 with an additional phenolic hydroxyl group exhibited stronger activity than compound 2. In addition, this was supported by the results observed by Ali and colleagues [35]. Meanwhile, compound 5 bearing a para-hydroxyl group in ring B showed greater activities against melanoma cell lines than the other two regioisomers. Furthermore, loss of activity was observed for compound 3, suggesting that the addition of a hydroxyl group on the alkyl chain could decrease its cytotoxic activity. On the other hand, among the three glucosylated metabolites (4, 8, and 9), compound 9 displayed the most potent and selective cytotoxic activities against melanoma cell lines, even stronger than its parent compounds 1 and 2, suggesting that glucosylation on the long alkyl chain of diarylheptanoids could improve their bioactivities.

3. Materials and Methods

3.1. General Experimental Procedures

UV spectra were taken with a Jasco V-530 spectrophotometer (Jasco, Tokyo, Japan), and IR spectra were obtained on a PerkinElmer Spectrum 400 FT-IR/NIR spectrometer (Waltham, MA, USA). Optical rotations were measured on a PerkinElmer 343 Plus polarimeter (Waltham, MA, USA). HRFDMS were measured on a JMS-T200GC AccuTOF™ GCx-plus High Performance Gas Chromatograph-Time-of-Flight Mass Spectrometer (Jeol Ltd., Tokyo, Japan). NMR experiments were performed on a Varian Unity Inova 500 spectrometer (Varian Inc., Palo Alto, CA, USA) or a Bruker Avance III HD 400 spectrometer (Bruker, Billerica, MA, USA) using DMSO-d6 and CD3OD as solvents and TMS as internal standard. Chemical shift values (δ) were reported in parts per million (ppm), and the coupling constants (J) were reported in hertz (Hz). Thin-layer chromatography (TLC) was carried out on precoated silica gel 60 F254 plates (Merck, Darmstadt, Germany). Reversed-phase HPLC was performed on a Waters 1525 Binary HPLC pump equipped with a 996 photodiode array (PDA) detector using a Phenomenex Luna C18 (250 × 10 mm, 5 μm) column or a Zorbax Rx C8 (150 × 4.6 mm, 5 μm) with MeOH-H2O at a flow rate of 2.0 mL/min or 1.0 mL/min, respectively. Separation of diastereomers was carried out on a YMC Amylose-SA chiral column (250 × 4.6 mm, 5 μm) with hexane-ethanol at a flow rate of 1.0 mL/min.

3.2. Chemicals and Ingredients

The fruits of A. oxyphylla were purchased from Sehwadang (Gwangju, Korea), which were identified by DaeHyo Pharmacy Co., Ltd. (Suwon, Korea), and a voucher specimen (SHD-B-230-161101) has been deposited at the College of Pharmacy, Chonnam National University. The powdered A. oxyphylla was extracted with methanol (9 L × 3) under ultrasonication (40 kHz), the suspension was filtered and then concentrated by rotary evaporation to obtain crude extract. The resulting residue was dissolved in water and partitioned with n-hexane, CH2Cl2, EtOAc, and BuOH. The CH2Cl2 extract was subjected to silica gel column, eluting with a gradient solvent system of CH2Cl2-MeOH (100:0→0:100) to give nine fractions. Briefly, compound 1 was isolated from Fr.2 and was identified as yakuchinone A by comparison of its NMR data (Supplementary Materials Figures S2–S6) with previously reported data [36]. Ingredients for microbial media including potato dextrose broth, D-glucose, peptone, malt extract, and yeast extract were purchased from Becton, Dickinson and Company (Sparks, MD, USA). 5-Fluorouracil (5-FU) and demethylzeylasteral (DZ) used as controls in the bioassay were purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan) and Biopurify Phytochemicals Ltd. (Chengdu, China), respectively. Phosphate buffered saline (PBS) tablets were purchased from Takara Korea Biomedical Inc. (Seoul, Korea), and fetal bovine serum (FBS) was from Welgene Inc. (Gyeongsan-si, Korea). Antibiotic-Antimycotic and Dulbecco’s Modified Eagle Medium (DMEM) were purchased from Gibco (Invitrogen, Carlsbad, CA, USA). Thiazolyl blue tetrazolium bromide (MTT) was purchased from Thermo Fisher Scientific (Waltham, MA, USA).

3.3. Fungal Strains and Culture Media

All the microorganisms used in the preliminary screening were obtained from the Korean Collection for Type Cultures (KCTC, Jeongeup, Korea) and the Korean Culture Center of Microorganisms (KCCM, Seoul, Korea). Twenty-two cultures were used for screening as follows: Absidia coerulea KCTC 6936, Alternaria alternata 6005, Aspergillus fumigatus 6145, Cunninghamella elegans var. elegans 6992, Filobasidium neoformans 7902, Fusarium merismoides 6153, Gliocladium deliquescens 6173, Glomerella cingulata 6075, Hormoconis resinae 6966, Kluyveromyces marxianus 7155, Mortierella ramanniana var. angulispora 6137, Monascus rubber 6122, Mucor hiemalis 26779, Penicillium chrysogenum 6933, Saccharomycodes ludwigii 7126, Torulaspora delbrueckii 7116, Trichoderma koningii 6042, Tremella mesenterica 7131, Aspergillus niger KCCM 60332, Aspergillus oryzae 60345, Mucor plumbeus 60265, and Rhizopus oryzae 60556. All the microorganisms were stored with 20% glycerol at −60 °C.
Three types of media were used including potato dextrose medium (24 g/L), malt medium (malt extract 20 g/L, dextrose 20 g/L, peptone 1 g/L), and yeast-malt medium (D-glucose 10 g/L, peptone 5 g/L, malt extract 3 g/L, and yeast extract 3 g/L).

3.4. Microbial Screening Procedure

All preliminary screening experiments were performed by a standard two-stage procedure [37,38]. The actively growing microbial cultures were inoculated in 100 mL flasks containing 20 mL of media and incubated for 24 h in a temperature-controlled shaking incubator operating at 200 rpm and 25 °C. Yakuchinone A (1) (2 mg) was dissolved in ethanol (100 μL) and added to each Erlenmeyer flask. During the fermentation period, general sampling and TLC monitoring were performed at an interval of 24 h in order to determine the capability of the microorganisms to transform 1. Culture controls consisted of fermentation cultures in which the microorganisms were grown without the addition of substrates under identical conditions.

3.5. Microbial Transformation of Yakuchinone A

Preparative scale fermentation was carried out with the fungus M. hiemalis in 500 mL flasks with 150 mL of malt medium under the same conditions. The culture flasks each containing 6 mg of 1, were incubated for 15 h, then extracted with an equal amount of EtOAc three times, and the combined organic layer was concentrated using a rotary evaporator. The EtOAc extracts (210 mg) were subjected to reversed-phase HPLC and eluted with a gradient solvent system of MeOH-H2O (55:45→68:32) at a flow rate of 1 mL/min to obtain 3 (23 mg, tR = 12.6 min), and 9 (2.35 mg, tR = 22.0 min), together with fractions A1 (2.8 mg, tR = 11.5 min), A2 (22.43 mg, tR = 17.9 min), and A3 (15.16 mg, tR = 19.4 min). Fraction A1 was further purified using HPLC eluted with a gradient solvent system of MeOH-H2O (65:35→75:25) at a flow rate of 2 mL/min to yield 8 (2.02 mg, tR = 14.9 min). Fraction A2 was further separated using a gradient solvent system of MeOH-H2O (65:35→75:25) at a flow rate of 2 mL/min to yield 5 (15.9 mg, tR = 17.2 min) and 6 (2.63 mg, tR = 17.9 min). Fraction A3 was further purified using a gradient solvent system of MeOH-H2O (55:45→65:35) at a flow rate of 1 mL/min to yield 4 (5.3 mg, tR = 14.0 min) and 7 (7.3 mg, tR = 14.9 min). To obtain compound 2, the scale-up procedure was further performed and the cultures were harvested within 8 h. The EtOAc extract was subjected to HPLC and eluted with a gradient solvent system of MeOH-H2O (65:35→85:15) at a flow rate of 2 mL/min to afford 2 (4.92 mg, tR = 33.3 min).
The metabolite 3 was effectively separated by HPLC using a chiral column eluted with an isocratic solvent system of hexane-EtOH (88:12) at a flow rate of 1 mL/min to obtain 3a (9.19 mg, tR = 25.0 min), and 3b (8.77 mg, tR = 27.8 min). Additionally, other metabolites were checked using the same method.
(3S)-Oxyphyllacinol (2): colorless oil; [ α ] D 20 –8.33° [c 0.60, MeOH]; UV (c 0.1, MeOH) λmax (log ε) 212, 280 nm; IR νmax 2920, 2856, 1602, 1515, 1270 cm−1; 1H (500 MHz) and 13C (125 MHz) NMR data, see Table 1; HRFDMS m/z 314.1878 [M]+ (calcd for C20H26O3, 314.1877).
(3S,7R)-7-Hydroxyoxyphyllacinol (3a): colorless oil; [ α ] D 20 –7.00° [c 0.73, MeOH]; UV (c 0.1, MeOH) λmax (log ε) 212, 280 nm; 1H (500 MHz) and 13C (125 MHz) NMR data, see Table 1; HRFDMS m/z 330.1824 [M]+ (calcd for C20H26O4, 330.1826).
(3S,7S)-7-Hydroxyoxyphyllacinol (3b): colorless oil; [ α ] D 20 –11.74° [c 0.86, MeOH]; UV (c 0.1, MeOH) λmax (log ε) 212, 280 nm; 1H (500 MHz) and 13C (125 MHz) NMR data, see Table 1; HRFDMS m/z 330.1823 [M]+ (calcd for C20H26O4, 330.1826).
(3S)-Oxyphyllacinol-4′-O-β-d-glucopyranoside (4): yellow oil; [ α ] D 20 –29.35° [c 0.55, MeOH]; UV (c 0.1, MeOH) λmax (log ε) 216, 275 nm; IR νmax 2930, 1585, 1512, 1273 cm−1; 1H (500 MHz) and 13C (125 MHz) NMR data, see Table 1; HRFDMS m/z 476.2413 [M]+ (calcd for C26H36O8, 476.2405).
(3S)-4″-Hydroxyoxyphyllacinol (5): colorless oil; [ α ] D 20 –12.12° [c 0.66, MeOH]; UV (c 0.1, MeOH) λmax (log ε) 225, 279 nm; IR νmax 3306, 1637 cm−1; 1H (500 MHz) and 13C (125 MHz) NMR data, see Table 2; HRFDMS m/z 330.1810 [M]+ (calcd for C20H26O4, 330.1826).
(3S)-3″-Hydroxyoxyphyllacinol (6): colorless oil; [ α ] D 20 –11.16° [c 0.36, MeOH]; UV (c 0.1, MeOH) λmax (log ε) 205, 278 nm; IR νmax 3307, 1637 cm−1; 1H (500 MHz) and 13C (125 MHz) NMR data, see Table 2; HRFDMS m/z 330.1821 [M]+ (calcd for C20H26O4, 330.1826).
(3S)-2″-Hydroxyoxyphyllacinol (7): colorless oil; [ α ] D 20 +10.23° [c 0.43, MeOH]; UV (c 0.1, MeOH) λmax (log ε) 219, 279 nm; IR νmax 3321, 2929, 1643 cm−1; 1H (500 MHz) and 13C (125 MHz) NMR data, see Table 2; HRFDMS m/z 330.1832 [M]+ (calcd for C20H26O4, 330.1826).
(3S)-2″Hydroxyoxyphyllacinol-2″-O-β-d-glucopyranoside (8): yellow oil; [ α ] D 20 –15.00° [c 0.32, MeOH]; UV (c 0.1, MeOH) λmax (log ε) 205, 275 nm; IR νmax 3321, 2946, 2934, 1019 cm−1; 1H (500 MHz) and 13C (125 MHz) NMR data, see Table 2; HRFDMS m/z 492.2370 [M]+ (calcd for C26H36O9, 492.2354).
(3S)-Oxyphyllacinol-3-O-β-d-glucopyranoside (9): yellow oil; [ α ] D 20 –23.57° [c 0.42, MeOH]; UV (c 0.1, MeOH) λmax (log ε) 206, 281 nm; IR νmax 3321, 2946, 2935 cm−1; 1H (500 MHz) and 13C (125 MHz) NMR data, see Table 2; HRFDMS m/z 476.2387 [M]+ (calcd for C26H36O8, 476.2405).

3.6. Preparation of Mosher’s Esters

(R)- and (S)-MTPA ester derivatives of compounds (2, 3a, 3b, 5, 6, and 7) were prepared using the Mosher ester procedure [18]. 1 mg of each compound was completely dried under vacuum, resuspended in 0.5 mL pyridine-d5, and transferred into a clean NMR tube. 6 μL of (R)-(−)-α-methoxy-α-(trifluoromethyl)phenylacetyl chloride (MTPA-chloride) was added into the NMR tube immediately under vacuum and the tube was shaken up carefully. Then the mixture was kept at room temperature for 48 h and afforded the (S)-MTPA ester derivatives (2S, 3aS, 3bS, 5S, 6S, and 7S). The (R)-MTPA ester derivatives (2R, 3aR, 3bR, 5R, 6R, and 7R) were prepared from (S)-(+)-MTPA-chloride following the same procedures.
1H NMR data (pyridine-d5, 500 MHz) for 2S: δ 2.73 (2H, m, H-1), 2.03 (2H, m, H-2), 5.31 (1H, m, H-3), 1.66 (2H, m, H-4), 1.31 (2H, m, H-5), 1.51 (2H, m, H-6), 2.50 (2H, m, H-7). 2R: δ 2.54 (2H, m, H-1), 1.95 (2H, m, H-2), 5.29 (1H, m, H-3), 1.71 (2H, m, H-4), 1.39 (2H, m, H-5), 1.59 (2H, m, H-6), 2.57 (2H, m, H-7).
1H NMR data (pyridine-d5, 500 MHz) for 3aS: δ 2.71 (2H, m, H-1), 2.05 (2H, m, H-2), 5.30 (1H, m, H-3), 1.70 (2H, m, H-4), 1.29 (2H, m, H-5), 1.99 (1H, m, H-6a), 1.86 (1H, m, H-6b), 6.07 (1H, t, J = 7.0 Hz, H-7), 7.37 (2H, m, H-2″/H-6″). 3aR: δ 2.51 (2H, m, H-1), 1.86 (2H, m, H-2), 5.23 (1H, m, H-3), 1.60 (2H, m, H-4), 1.34 (2H, m, H-5), 2.01 (1H, m, H-6a), 1.90 (1H, m, H-6b), 6.22 (1H, dd, J = 6.1, 6.2 Hz, H-7), 7.54 (2H, m, H-2″/H-6″). 3bS: δ 2.71 (2H, m, H-1), 2.01 (2H, m, H-2), 5.26 (1H, m, H-3), 1.61 (2H, m, H-4), 1.25 (2H, m, H-5), 2.01 (1H, m, H-6a), 1.74 (1H, m, H-6b), 6.14 (1H, dd, J = 6.0, 6.1 Hz, H-7), 7.50 (2H, m, H-2″/H-6″). 3bR: δ 2.53 (2H, m, H-1), 1.92 (2H, m, H-2), 5.29 (1H, m, H-3), 1.73 (2H, m, H-4), 1.48 (2H, m, H-5), 2.11 (1H, m, H-6a), 1.87 (1H, m, H-6b), 6.15 (1H, t, J = 7.0 Hz, H-7), 7.38 (2H, m, H-2″/H-6″).
1H NMR data (pyridine-d5, 500 MHz) for 5S: δ 2.75 (2H, m, H-1), 2.08 (2H, m, H-2), 5.34 (1H, m, H-3), 1.64 (2H, m, H-4), 1.29 (2H, m, H-5), 1.50 (2H, m, H-6), 2.50 (2H, m, H-7). 5R: δ 2.58 (2H, m, H-1), 1.95 (2H, m, H-2), 5.33 (1H, m, H-3), 1.71 (2H, m, H-4), 1.39 (2H, m, H-5), 1.59 (2H, m, H-6), 2.55 (2H, m, H-7).
1H NMR data (pyridine-d5, 500 MHz) for 6S: δ 2.73 (2H, m, H-1), 2.03 (2H, m, H-2), 5.31 (1H, m, H-3), 1.64 (2H, m, H-4), 1.26 (2H, m, H-5), 1.50 (2H, m, H-6), 2.52 (2H, m, H-7). 6R: δ 2.55 (2H, m, H-1), 1.93 (2H, m, H-2), 5.30 (1H, m, H-3), 1.69 (2H, m, H-4), 1.37 (2H, m, H-5), 1.55 (2H, m, H-6), 2.56 (2H, m, H-7).
1H NMR data (pyridine-d5, 500 MHz) for 7S: δ 2.53 (2H, m, H-1), 1.92 (2H, m, H-2), 5.31 (1H, m, H-3), 1.63 (2H, m, H-4), 1.28 (2H, m, H-5), 1.43 (2H, m, H-6), 2.47 (2H, m, H-7). 7R: δ 2.53 (2H, m, H-1), 1.92 (2H, m, H-2), 5.31 (1H, m, H-3), 1.72 (2H, m, H-4), 1.40 (2H, m, H-5), 1.51 (2H, m, H-6), 2.51 (2H, m, H-7).

3.7. Hydrolysis of Compounds 4, 8, and 9

Compound 4, 8, or 9 (1 mg) dissolved in 1 N HCl was heated for 2 h. After cooling, each reaction mixture was neutralized and extracted with EtOAc [38]. The aqueous layer was concentrated and the sugar unit was detected by means of TLC with authentic D-glucose. The aglycones of 4, 9, and 8 in the EtOAc extract were determined as the corresponding metabolites 2 and 7 by HPLC analyses.

3.8. Cytotoxicity Assay

Cytotoxic activity against murine melanoma (B16F1 and B16F10), human melanoma (A375P), human lung carcinoma (A549), human breast adenocarcinoma (MCF-7), and human colorectal adenocarcinoma (HT-29) cell lines, which were obtained from the Korean Cell Line Bank (Seoul, Korea), was evaluated using the modified 3-(4,5-dimethylthiazolyl-2)-2,5-diphenyltetrazolium bromide (MTT) assay [38]. Briefly, the cells were cultured in DMEM medium containing penicillin (100 units/mL)-streptomycin (100 µg/mL) and 5% heat-inactivated fetal bovine serum (FBS) in a humidified atmosphere with 5% CO2 at 37 °C. Cancer cells were seeded (5 × 103 cells/well) in 96-well plates and incubated for 24 h. Then the old medium was replaced with compound solutions at different concentrations (5, 10, 20, 40, and 80 μM), and further incubated for 24 h (B16, A375, MCF-7, HT-29) or 48 h (A549). After incubation, the medium was aspirated and the MTT solution was added to each well. The MTT solution was discarded after 4 h and DMSO was added to each well to dissolve the formed formazan. The absorbance was measured using a microplate reader at 490 nm. 5-Fluorouracil (5-FU) and demethylzeylasteral (DZ) were used as the positive control, and 0.2% DMSO was used as a negative control. The IC50 values were calculated by inhibiting 50% proliferation of the cancer cell population. The IC50 values of all tested compounds were calculated and shown in Table 3.

4. Conclusions

In summary, microbial transformation of yakuchinone A (1) by the fungus M. hiemalis provided nine new metabolites (2, 3a, 3b, and 49) through reduction, hydroxylation, and glucosylation reactions. Notably, the metabolites were determined to have a 3S configuration using the modified Mosher’s method. Subsequently, the absolute configurations at C-7 position for compounds 3a and 3b were elucidated as R and S, respectively. Cytotoxicity evaluation of substrate 1 and its metabolites (2, 3a, 3b, and 49) has been conducted to investigate the structure-activity relationship towards six different cancer cell lines. In contrast with compound 1, which displayed potent cytotoxic activities against all cancer cell lines, the metabolites 49 selectively inhibited the proliferation of melanoma cell lines (A375P and B16). In particular, compound 9 with a glucose moiety on the alkyl chain exhibited the most selective cytotoxic activities with the IC50 values ranging from 6.09 to 9.74 μM.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms23073992/s1.

Author Contributions

Conceptualization, H.J.K. and I.-S.L.; methodology, C.H., F.H., H.J.K. and I.-S.L.; validation, C.H.; formal analysis, C.H. and F.H.; investigation, C.H., F.H. and I.-S.L.; resources, C.H.; data curation, C.H., F.H. and Y.X.; writing-original draft preparation, C.H. and F.H.; writing-review and editing, Y.X., H.J.K. and I.-S.L.; visualization, C.H. and F.H.; supervision, H.J.K. and I.-S.L.; project administration, F.H. and I.-S.L.; funding acquisition, F.H. and I.-S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Education (NRF-2019R1I1A3A01043084 and NRF-2019R1I1A1A01059410).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors are grateful to Gwangju Branch of Korea Basic Science Institute (KBSI) for running NMR experiments. We also thank Chonnam National University Center for Research Facilities for their NMR, IR, and HRFDMS experimental supports.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, Y.; Tan, Y.; Cai, H.; Zhang, J. Metabonomic study of the fruits of Alpinia oxyphylla as an effective treatment for chronic renal injury in rats. J. Pharm. Biomed. 2016, 124, 236–245. [Google Scholar] [CrossRef] [PubMed]
  2. Yuan, Y.; Tan, Y.; Xu, P.; Li, H.; Li, Y.; Chen, W.; Zhang, J.; Chen, F.; Huang, G. Izalpinin from fruits of Alpinia oxyphylla with antagonistic activity against the rat bladder contractility. Afr. J. Tradit. Complement. Altern. Med. 2014, 11, 120–125. [Google Scholar] [CrossRef] [Green Version]
  3. Chen, P.; Wang, P.; Jiao, Z.; Xiang, L. Sesquiterpenoids from the fruits of Alpinia oxyphylla and their anti-acetylcholinesterase activity. Helv. Chim. Acta 2014, 97, 388–397. [Google Scholar] [CrossRef]
  4. Hikino, H.; Kiso, Y.; Kato, N.; Hamada, Y.; Shioiri, T.; Aiyama, R.; Itokawa, H.; Kiuchi, F.; Sankawa, U. Antihepatotoxic actions of gingerol and diarylheptanoids. J. Ethnopharmacol. 1985, 14, 31–39. [Google Scholar]
  5. Yu, S.H.; Kim, H.J.; Jeon, S.Y.; Kim, M.R.; Lee, B.S.; Lee, J.J.; Kim, D.; Lee, Y.C. Anti-inflammatory and anti-nociceptive activities of Alpinia oxyphylla Miquel extracts in animal models. J. Ethnopharmacol. 2020, 260, 112985. [Google Scholar] [CrossRef] [PubMed]
  6. Lee, H.J.; Kim, J.S.; Yoon, J.W.; Kim, H.; Ryu, J. Suppression of inducible nitric oxide synthase expression by yakuchinones and their analogues. Chem. Pharm. Bull. 2006, 54, 377–379. [Google Scholar] [CrossRef] [Green Version]
  7. Lin, R.; Yen, C.; Chou, T.; Chiang, F.; Wang, G.; Tseng, Y.; Wang, L.; Huang, T.; Wang, H.; Chan, L. Antioxidant, anti-adipocyte differentiation, antitumor activity and anthelmintic activities against Anisakis simplex and Hymenolepis nana of yakuchinone A from Alpinia oxyphylla. BMC Complement. Altern. Med. 2013, 13, 237. [Google Scholar] [CrossRef] [Green Version]
  8. Miyazawa, M.; Nakamura, Y.; Sakano, K.; Nakamura, S.I.; Kosaka, H. Suppression of SOS-inducing activity of chemical mutagens by yakuchinone A from Alpinia oxyphylla in the Salmonella typhimurium TA1535/pSK1002 umu test. J. Oleo Sci. 2001, 50, 485–489. [Google Scholar] [CrossRef] [Green Version]
  9. Kiuchi, F.; Iwakami, S.; Shibuya, M.; Hanaoka, F.; Sankawa, U. Inhibition of prostaglandin and leukotriene biosynthesis by gingerols and diarylheptanoids. Chem. Pharm. Bull. 1992, 40, 387–391. [Google Scholar] [CrossRef] [Green Version]
  10. Chun, K.S.; Park, K.K.; Lee, J.; Kang, M.; Surh, Y.J. Inhibition of mouse skin tumor promotion by anti-inflammatory diarylheptanoids derived from Alpinia oxyphylla Miquel (Zingiberaceae). Oncol. Res. 2002, 13, 37–45. [Google Scholar] [CrossRef] [PubMed]
  11. Chun, K.S.; Sohn, Y.; Kim, H.S.; Kim, O.H.; Park, K.K.; Lee, J.M.; Lee, J.; Lee, J.Y.; Moon, A.; Lee, S.S.; et al. Anti-tumor promoting potential of naturally occurring diarylheptanoids structurally related to curcumin. Mutat. Res. 1999, 428, 49–57. [Google Scholar] [CrossRef]
  12. Hegazy, M.E.F.; Mohamed, T.A.; ElShamy, A.I.; Abou-El-Hamd, H.M.; Mahalel, U.A.; Reda, E.H.; Shaheen, A.M.; Tawfik, W.A.; Shahat, A.A.; Shams, K.A. Microbial biotransformation as a tool for drug development based on natural products from mevalonic acid pathway: A review. J. Adv. Res. 2015, 6, 17–33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ponnusamy, S.; Zinjarde, S.; RaviKumar, A. Curcuminoid analogs via microbial biotransformation with improved therapeutic properties. In Food Biosynthesis; Grumezescu, A.M., Holban, A.M., Eds.; Elsevier: Amsterdam, The Netherlands, 2017; Volume 1, pp. 251–275. [Google Scholar]
  14. Venisetty, R.K.; Ciddi, V. Application of microbial biotransformation for the new drug discovery using natural drugs as substrates. Curr. Pharm. Biotechnol. 2003, 4, 153–167. [Google Scholar] [CrossRef] [PubMed]
  15. Bianchini, L.F.; Arruda, M.F.C.; Vieira, S.R.; Campelo, P.M.S.; Grégio, A.M.; Rosa, E.A.R. Microbial biotransformation to obtain new antifugals. Front. Microbiol. 2015, 6, 1433. [Google Scholar] [CrossRef] [Green Version]
  16. Perkins, C.; Siddique, S.; Puri, M.; Demain, A.L. Biotechnological applications of microbial bioconversions. Crit. Rev. Biotechnol. 2016, 36, 1050–1065. [Google Scholar] [CrossRef]
  17. Han, J.T.; Lee, S.Y.; Lee, Y.H.; Baek, N.I. Antioxidative diarylheptanoids from the fruits of Alpinia oxyphylla. Food Sci. Biotechnol. 2007, 16, 1060–1063. [Google Scholar]
  18. Su, B.; Park, E.J.; Mbwambo, Z.H.; Santarsiero, B.D.; Mesecar, A.D.; Fong, H.H.S.; Pezzuto, J.M.; Kinghorn, A.D. New chemical constituents of Euphorbia quinquecostata and absolute configuration assignment by a convenient mosher ester procedure carried out in NMR tubes. J. Nat. Prod. 2002, 65, 1278–1282. [Google Scholar] [CrossRef]
  19. Nam, J.W.; Kang, G.Y.; Han, A.R.; Lee, D.; Lee, Y.S.; Seo, E.K. Diarylheptanoids from the seeds of Alpinia katsumadai as heat shock factor 1 inducers. J. Nat. Prod. 2011, 74, 2109–2115. [Google Scholar] [CrossRef]
  20. Li, J.; Zhao, F.; Li, M.Z.; Chen, L.X.; Qiu, F. Diarylheptanoids from the rhizomes of Curcuma kwangsiensis. J. Nat. Prod. 2010, 73, 1667–1671. [Google Scholar] [CrossRef]
  21. Seco, J.; Quiñoá, E.; Riguera, R. Assignment of the absolute configuration of polyfunctional compounds by NMR using chiral derivatizing agents. Chem. Rev. 2012, 112, 4603–4641. [Google Scholar] [CrossRef]
  22. Freire, F.; Seco, J.M.; Quinoá, E.; Riguera, R. Determining the absolute stereochemistry of secondary/secondary diols by 1H NMR: Basis and applications. J. Org. Chem. 2005, 70, 3778–3790. [Google Scholar] [CrossRef] [PubMed]
  23. Jiang, Z.; Sun, S.; Yu, Y.; Mándi, A.; Luo, J.; Yang, M.; Kurtán, T.; Chen, W.; Shen, L.; Wu, J. Discovery of benthol A and its challenging stereochemical assignment: Opening up a new window for skeletal diversity of super-carbon-chain compounds. Chem. Sci. 2021, 12, 10197–10206. [Google Scholar] [CrossRef] [PubMed]
  24. Han, C.; Yamano, Y.; Kita, M.; Takamura, H.; Uemura, D. Determination of absolute configuration of C14–C23 fragment in symbiodinolide. Tetrahedron Lett. 2009, 50, 5280–5282. [Google Scholar] [CrossRef]
  25. Yang, Y.; Zhang, J.; Liu, Y.; Tang, Q.; Zhao, Z.; Xia, W. Structural elucidation of a 3-O-methyl-D-galactose-containing neutral polysaccharide from the fruiting bodies of Phellinus igniarius. Carbohydr. Res. 2007, 342, 1063–1070. [Google Scholar] [CrossRef]
  26. Köllmann, C.; Jones, P.G.; Werz, D.B. Synthesis of 5-C-methylated D-mannose, D-galactose, L-gulose, and L-altrose and their structural elucidation by NMR spectroscopy. Org. Lett. 2018, 20, 1220–1223. [Google Scholar] [CrossRef]
  27. Gubica, T.; Temeriusz, A.; Paradowska, K.; Ostrowski, A.; Klimentowska, P.; Cyrański, M.K. Single-crystal and powder X-ray diffraction and solid-state 13C NMR of p-nitrophenyl glycopyranosides, the derivatives of D-galactose, D-glucose, and D-mannose. Carbohydr. Res. 2009, 344, 1734–1744. [Google Scholar] [CrossRef]
  28. de María, P.D.; de Gonzalo, G.; Alcántara, A.R. Biocatalysis as useful tool in asymmetric synthesis: An assessment of recently granted patents (2014–2019). Catalysts 2019, 9, 802. [Google Scholar] [CrossRef] [Green Version]
  29. Albarrán-Velo, J.; González-Martínez, D.; Gotor-Fernández, V. Stereoselective biocatalysis: A mature technology for the asymmetric synthesis of pharmaceutical building blocks. Biocatal. Biotransform. 2018, 36, 102–130. [Google Scholar] [CrossRef] [Green Version]
  30. Borges, K.B.; de Souza Borges, W.; Durán-Patrón, R.; Pupo, M.T.; Bonato, P.S.; Collado, I.G. Stereoselective biotransformations using fungi as biocatalysts. Tetrahedron Asymmetry 2009, 20, 385–397. [Google Scholar] [CrossRef]
  31. Kozłowska, E.; Urbaniak, M.; Kancelista, A.; Dymarska, M.; Kostrzewa-Susłow, E.; Stępień, Ł.; Janeczko, T. Biotransformation of dehydroepiandrosterone (DHEA) by environmental strains of filamentous fungi. RSC Adv. 2017, 7, 31493–31501. [Google Scholar] [CrossRef] [Green Version]
  32. Zhang, Z.X.; Li, Z.H.; Yin, W.B.; Li, S.M. Biosynthesis of viridicatol in Penicillium palitans implies a cytochrome P450-mediated meta hydroxylation at a monoalkylated benzene ring. Org. Lett. 2022, 24, 262–267. [Google Scholar] [CrossRef] [PubMed]
  33. Rocha, B.A.; Pupo, M.T.; Antonucci, G.A.; Sampaio, S.V.; Paiva, R.M.A.; Said, S.; Gobbo-Neto, L.; Costa, F.B.D. Microbial transformation of the sesquiterpene lactone tagitinin C by the fungus Aspergillus terreus. J. Ind. Microbiol. Biotechnol. 2012, 39, 1719–1724. [Google Scholar] [CrossRef] [PubMed]
  34. Yang, H.; Du, Z.; Wang, W.; Song, M.; Sanidad, K.; Sukamtoh, E.; Zheng, J.; Tian, L.; Xiao, H.; Liu, Z. Structure–activity relationship of curcumin: Role of the methoxy group in anti-inflammatory and anticolitis effects of curcumin. J. Agric. Food Chem. 2017, 65, 4509–4515. [Google Scholar] [CrossRef] [PubMed]
  35. Ali, M.S.; Banskota, A.H.B.; Tezuka, Y.; Saiki, I.; Kadota, A. Antiproliferative activity of diarylheptanoids from the seeds of Alpinia blepharocalyx. Chem. Pharm. Bull. 2001, 24, 525–528. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Shi, X.; Deng, Y.; Kurtz, N.C.; Sun, Y.; Xue, M.; Wu, X. Concise and efficient total synthesis of oxyphyllacinol, yakuchione-A and yakuchione-B. Synth. Commun. 2022. [Google Scholar] [CrossRef]
  37. Xiao, Y.; Han, F.; Lee, I.-S. Biotransformation of the phenolic constituents from licorice and cytotoxicity evaluation of their metabolites. Int. J. Mol. Sci. 2021, 22, 10109. [Google Scholar] [CrossRef] [PubMed]
  38. Han, F.; Xiao, Y.; Lee, I.-S. Microbial conjugation studies of licochalcones and xanthohumol. Int. J. Mol. Sci. 2021, 22, 6893. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Compounds 2, 3a, 3b, and 49 obtained from microbial transformation of 1 with M. hiemalis.
Figure 1. Compounds 2, 3a, 3b, and 49 obtained from microbial transformation of 1 with M. hiemalis.
Ijms 23 03992 g001
Figure 2. Selected HMBC (1H→13C) and COSY (1H-1H) correlations of compounds 2, 3, and 4.
Figure 2. Selected HMBC (1H→13C) and COSY (1H-1H) correlations of compounds 2, 3, and 4.
Ijms 23 03992 g002

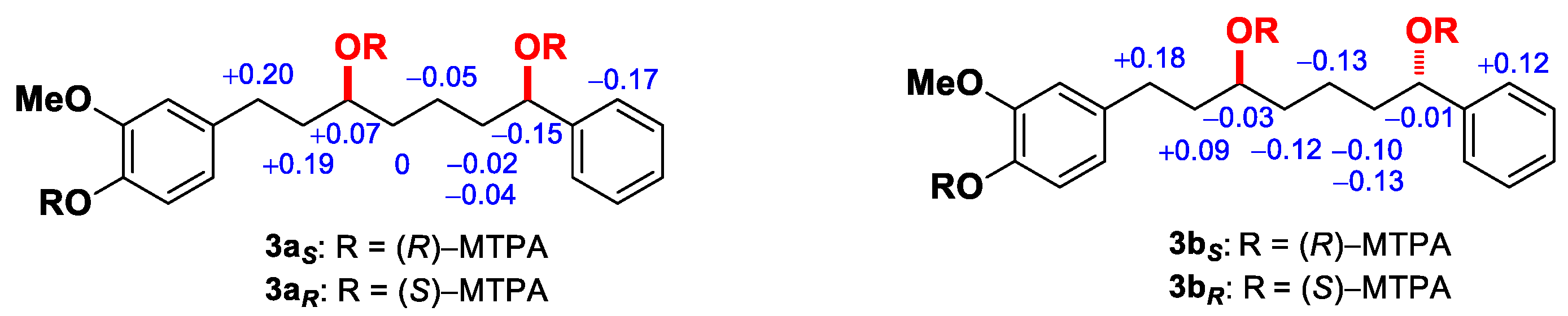

Figure 3. ΔδH (= δS − δR) values for the Mosher ester derivatives of 3a and 3b.
Figure 3. ΔδH (= δS − δR) values for the Mosher ester derivatives of 3a and 3b.
Ijms 23 03992 g003

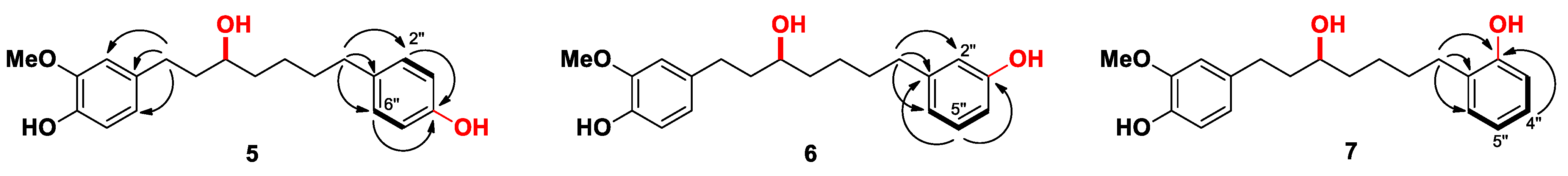

Figure 4. Selected HMBC (1H→13C) and COSY (1H-1H) correlations of compounds 5, 6, and 7.
Figure 4. Selected HMBC (1H→13C) and COSY (1H-1H) correlations of compounds 5, 6, and 7.
Ijms 23 03992 g004

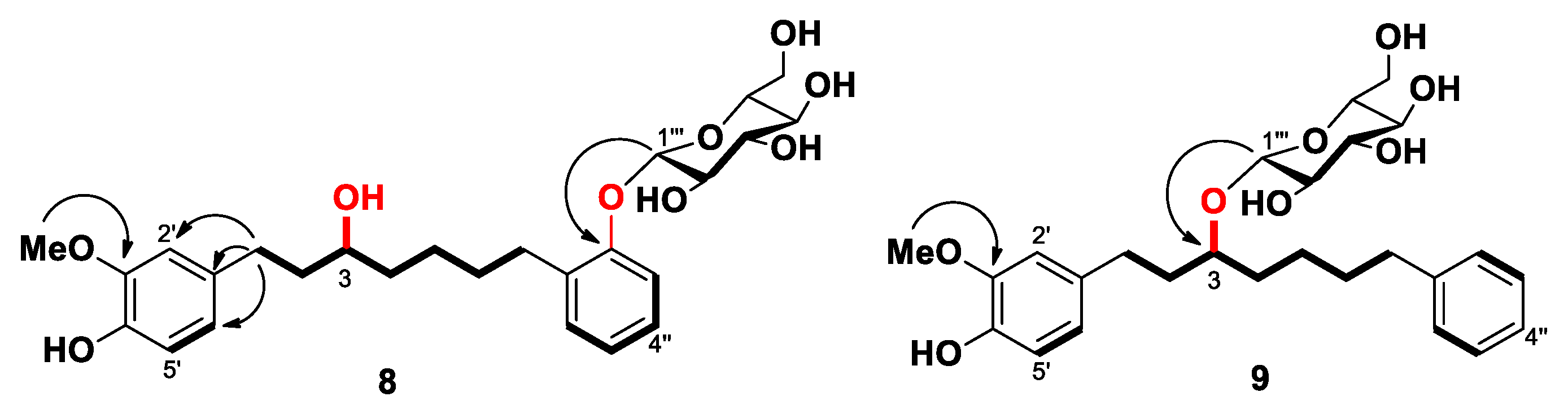

Figure 5. Selected HMBC (1H→13C) and COSY (1H-1H) correlations of compounds 8 and 9.
Figure 5. Selected HMBC (1H→13C) and COSY (1H-1H) correlations of compounds 8 and 9.
Ijms 23 03992 g005
Table 1. 1H and 13C NMR data for 2, 3a, 3b, and 4.
Table 1. 1H and 13C NMR data for 2, 3a, 3b, and 4.
C No.23a3b4
δH a (J/Hz)δC aδH b (J/Hz)δC bδH b (J/Hz)δC bδH a (J/Hz)δC a
12.55 m32.82.43 m31.12.43 m31.12.56 m31.2
2.67 m 2.56 m 2.56 m 2.70 m
21.66 m40.71.54 m39.41.54 m39.41.69 m39.0
33.51 m71.83.3469.03.3469.13.51 m70.2
41.47 m38.41.32 m37.11.32 m37.11.47 m36.8
51.41 m26.51.33 m21.71.33 m21.71.37 m25.0
61.61 m32.91.57 m39.71.57 m39.71.61 m31.4
72.60 t (7.6)37.04.48 m72.44.48 m72.32.60 m35.5
1′-135.5-133.3-133.3-137.5
2′6.75 d (1.8)113.36.70 d (1.8)112.46.70 d (1.8)112.46.84 d (1.8)112.6
3′-148.9-147.3-147.3-149.3
4′-144.0-144.3-144.3-144.6
5′6.69 d (8.0)116.26.65 d (8.1)115.26.64 d (8.1)115.27.08 d (8.3)116.9
6′6.61 dd121.96.54 dd120.26.54 dd120.26.74 dd120.5
(8.0, 1.8) (8.1, 1.8) (8.1, 1.8) (8.3, 1.8)
1″-145.6-146.5-146.5-142.4
2″7.14129.57.30 d (4.4)125.87.29 d (4.6)125.87.15128.0
3″7.23129.47.30 d (4.4)127.97.29 d (4.6)127.97.23127.8
4″7.12126.87.20 m126.57.20 m126.57.13125.3
5″7.23129.47.30 d (4.4)127.97.29 d (4.6)127.97.23127.8
6″7.14129.57.30 d (4.4)125.87.29 d (4.6)125.87.15128.0
1‴------4.83 d (7.7)101.7
2‴------3.48 m73.5
3‴------3.46 m76.4
4‴------3.39 m69.9
5‴------3.38 m76.7
6‴------3.69 m61.1
3.87 m
3-OH--4.32 d (4.4)-4.32 d (4.4)---
7-OH--5.07 d (4.4)-5.07 d (4.4)---
4′-OH--8.60 s-8.60 s---
3′-OCH33.81 s56.53.73 s55.53.72 s55.53.82 s55.3
a Data were measured in CD3OD. b Data were measured in DMSO-d6.
Table 2. 1H and 13C NMR data for 59.
Table 2. 1H and 13C NMR data for 59.
C No.56789
δH (J/Hz)δCδH (J/Hz)δCδH (J/Hz)δCδH (J/Hz)δCδH (J/Hz)δC
12.52 m32.72.55 m32.82.53 m32.82.54 m32.92.62 m31.9
2.65 m 2.66 m 2.67 m 2.68 m
21.66 m40.71.63 m40.81.64 m40.81.69 m40.81.79 m37.5
33.51 m71.83.52 m71.83.58, m71.93.51 m71.93.69 m80.3
41.46 m38.41.48 m38.41.46 m38.61.47 m38.41.59 m37.0
51.44 m26.41.35m26.51.37 m26.81.37 m26.71.42 m26.0
61.56 m33.21.59 m32.81.58 m31.31.61 m31.51.63 m32.9
72.50 t36.12.53 t37.02.58 t31.32.64 m31.22.62 m36.0
(7.4) (7.3) (7.7) 2.74 m
1′-135.5-135.5-135.5-135.5-135.6
2′6.75 d113.36.75 d113.36.75 d113.36.76 d113.36.79 d113.4
(1.4) (1.6) (1.7) (1.8) (1.8)
3′-148.9-148.9-148.9-148.9-148.9
4′-145.5-145.6-145.5-145.5-145.5
5′6.68 d116.26.69 d116.26.68 d116.26.69 d116.26.69 d116.2
(7.8) (8.0) (8.0) (8.1) (7.9)
6′6.62 dd121.96.60121.96.62 dd121.96.62 dd121.96.62 dd121.9
(7.8, 1.4) (8.0, 1.7) (8.1, 1.8) (7.9, 1.8)
1″-134.9-145.6-130.3-133.6-144.2
2″6.97 d (8.1)130.46.60116.4-156.4-157.17.15129.4
3″6.67 d (8.1)116.2-158.46.71116.07.11116.47.23129.6
4″-156.46.57 dd113.76.96 td120.66.91 m123.37.11126.7
(7.9, 2.1) (7.7, 1.7)
5″6.67 d (8.1)116.27.05 t (7.7)130.36.71127.87.11128.17.23129.6
6″6.97 d130.46.63121.97.02 dd131.27.10131.17.15129.4
(8.1) (7.7, 1.7)
1‴------4.89 d102.74.30 d104.0
(7.5) (7.8)
2‴------3.48 m75.23.19 m75.5
3‴------3.40 m78.23.18 m77.8
4‴------3.40 m71.63.32 m71.9
5‴------3.46 m78.53.34 m78.4
6‴------3.69 m62.73.67 m63.0
3.89 m 3.89 m
3′-OCH33.82 s56.53.82 s56.53.82 s56.53.82 s56.53.8256.6
All the data were measured in CD3OD.
Table 3. IC50 of all compounds against six cancer cell lines a.
Table 3. IC50 of all compounds against six cancer cell lines a.
CompoundIC50 ± SD (μM)
A375PB16F1B16F10A549MCF-7HT-29
114.75 ± 1.0031.73 ± 4.4621.71 ± 3.6526.07 ± 2.0811.50 ± 0.7111.96 ± 0.74
245.52 ± 1.0956.03 ± 0.7459.31 ± 0.4262.92 ± 3.0742.95 ± 0.8054.88 ± 4.16
3>80>80>80>80>80>80
3a>80>80>80>80>80>80
3b>80>80>80>80>80>80
445.62 ± 0.4122.97 ± 1.9446.13 ± 3.79>8060.04 ± 4.97>80
529.58 ± 0.4517.84 ± 0.7633.38 ± 2.76>8053.66 ± 2.5372.75 ± 2.50
647.91 ± 0.5433.73 ± 2.7146.55 ± 2.15>8051.46 ± 1.66>80
738.79 ± 1.4729.28 ± 0.7633.58 ± 2.20>8034.28 ± 1.76>80
875.23 ± 2.8938.37 ± 0.3064.58 ± 3.52>8076.34 ± 1.35>80
98.36 ± 0.056.09 ± 0.269.74 ± 0.20>8037.83 ± 1.5035.36 ± 1.17
5-FU b4.92 ± 0.285.18 ± 0.7811.22 ± 0.85---
DZ b---19.98 ± 0.308.28 ± 0.1314.98 ± 0.51
a Results are expressed as the mean values of three experiments ± SD; b 5-FU: 5-Fluorouracil; DZ: Demethylzeylasteral.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Huo, C.; Han, F.; Xiao, Y.; Kim, H.J.; Lee, I.-S. Microbial Transformation of Yakuchinone A and Cytotoxicity Evaluation of Its Metabolites. Int. J. Mol. Sci. 2022, 23, 3992. https://doi.org/10.3390/ijms23073992

AMA Style

Huo C, Han F, Xiao Y, Kim HJ, Lee I-S. Microbial Transformation of Yakuchinone A and Cytotoxicity Evaluation of Its Metabolites. International Journal of Molecular Sciences. 2022; 23(7):3992. https://doi.org/10.3390/ijms23073992

Chicago/Turabian Style

Huo, Chen, Fubo Han, Yina Xiao, Hyun Jung Kim, and Ik-Soo Lee. 2022. "Microbial Transformation of Yakuchinone A and Cytotoxicity Evaluation of Its Metabolites" International Journal of Molecular Sciences 23, no. 7: 3992. https://doi.org/10.3390/ijms23073992

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
