Effect of Thiouronium-Based Ionic Liquids on the Formation and Growth of CO₂ (sI) and THF (sII) Hydrates

Abstract

In this manuscript, two thiouronium-based ionic liquids (ILs), namely 2-ethylthiouronium bromide [C₂th][Br] and 2-(hydroxyethyl)thiouronium bromide [C₂OHth][Br], were tested at different concentrations (1 and 10 wt%) for their ability to affect CO₂ (sI) and tetrahydrofuran (THF) (sII) hydrate formation and growth. Two different methods were selected to perform a thermodynamic and kinetic screening of the CO₂ hydrates using a rocking cell apparatus: (i) an isochoric pressure search method to map the hydrate phase behavior and (ii) a constant ramping method to obtain the hydrate formation and dissociation onset temperatures. A THF hydrate crystal growth method was also used to determine the effectiveness of the ILs in altering the growth of type sII hydrates at atmospheric pressure. Hydrate–liquid–vapor equilibrium measurements revealed that both ILs act as thermodynamic inhibitors at 10 wt% and suppress the CO₂ hydrate equilibria ~1.2 °C. The constant ramping methodology provides interesting results and reveals that [C₂OHth][Br] suppresses the nucleation onset temperature and delays the decomposition onset temperatures of CO₂ hydrates at 1 wt%, whereas suppression by [C₂th][Br] was not statistically significant. Normalized pressure plots indicate that the presence of the ILs slowed down the growth as well as the decomposition rates of CO₂ hydrates due to the lower quantity of hydrate formed in the presence of 1 wt% ILs. The ILs were also found to be effective in inhibiting the growth of type sII THF hydrates without affecting their morphology. Therefore, the studied thiouronium ILs can be used as potential dual-function hydrate inhibitors. This work also emphasizes the importance of the methods and conditions used to screen an additive for altering hydrate formation and growth.

1. Introduction

Gas hydrates are non-stoichiometric ice-like crystalline solids made up of gas molecules encapsulated within the polyhedral cavities formed by the hydrogen-bonded network of water [1]. The most common hydrate-forming molecules are gases—methane (CH₄), propane (C₃H₈), butane (C₄H₁₀), carbon dioxide (CO₂), nitrogen (N₂), and hydrogen (H₂)—of appropriate size to fit and stabilize the cages through van der Waals forces under conditions of low temperature and high pressures [2]. There are three main structures of hydrates depending on the size of the guest molecule, namely (i) cubic structure I (sI) formed by CH₄, C₂H₆, and CO₂; (ii) cubic structure II (sII) formed by C₃H₈ and iC₄H₁₀; (iii) hexagonal structure H (sH) generally formed by a binary mixture such as CH₄+cyclopentane and CH₄+neohexene [3].

Since there are no chemical bonds between the host and guest molecules involved in the formation of hydrates, the rates of formation and dissociation are relatively quick [4], which makes hydrate technology attractive for several applications such as gas capture and storage [5], transportation [6], gas separation [7], cold flow technology [8] or water desalination [9]. However, the limited solubility of some gases in water, the stochastic nature of the nucleation phenomena and the required conditions for hydrate formation are some of the challenges to overcome before taking any technology development to large-scale application [10].

The exploration of oil and gas is moving towards the deep sea, where conditions are more favorable for hydrates to form within the pipelines and flow assurance is a big concern for the oil and gas industries [11]. The hydrates formed not only hamper production by blocking the pipeline but the pressure build up due to a hydrate plug can be fatal [12]. A huge amount of money is generally spent to mitigate and manage the issue during production [13]. The scenario becomes challenging in the case of reservoirs, where the CO₂ content is higher as it forms relatively stable hydrates in milder conditions compared to CH₄. Moreover, CO₂ is often injected in the wells for enhanced oil recovery, and therefore it is generally present there [14]. Some of the known natural gas wells where a high content of CO₂ is present are located in the Central European Pannonian Basin, Sicily, North Sea South Viking Garben, South China Sea, Gulf of Thailand, Sarawak-Malaysia, Australian Cooper-Eromanga Basin and New Zealand [15].

Several methods exist in industry to address the hydrate formation issue during production, namely gas dehydration, pipeline insulation, depressurization and addition of chemical additives known as inhibitors, which is generally considered the most viable option [16]. Normally, methanol and ethylene glycol are used as thermodynamic hydrate inhibitors (THIs) because they shift the conditions of hydrate formation towards much lower temperature and high pressure. However, the amount required to shift the equilibrium could be as large as 25 wt%, which can affect the aquatic environment [17]. Therefore, in the last two decades, the development of new low-dosage hydrate inhibitors (LDHIs) that can be used in low quantities (<2 wt%) is on the rise [18]. LDHIs consist of two categories of inhibitors known as kinetic inhibitor (KHIs), which do not shift the conditions of hydrate formation but slow down the process, and anti-agglomerates (AAs), which allow hydrates to form as fine particles that remain dispersed in the liquid phase [19].

Ionic liquids (ILs), which are known for their unusual behavior, are low-melting salts consisting solely of cations and anions that can be tuned to obtain compounds with the desired set of properties and functionalities viz. physico-chemical properties, hydrophobicity, surface activity, biocompatibility, toxicity, and solubility [20,21,22,23]. ILs are used in numerous applications such as protein stabilization, amyloid inhibition, enhanced oil recovery, corrosion inhibition and desulfurization of fuels [24,25,26,27,28]. Pure ILs and, sometimes, blended versions with materials such as MOFs are used for CO₂ capture and energy storage applications [29]. Recently, the potential of common and commercially available ILs to act as dual-function hydrate inhibitors and promoters was revealed [30].

The search for greener and low-dosage hydrate inhibitors is on the rise [18]. ILs, due to their designer nature, have the ability to fill this gap. The effect of ILs on CO₂ hydrate formation and growth is relatively less explored compared to CH₄ hydrates [31,32,33]. For instance, Makino et al. studied the effect of imidazolium-based ILs on CO₂ hydrate phase behavior [34]. Cha et al. tested the effectiveness of morpholinium- and piperidinium-based ILs in inhibiting the CO₂ hydrates [35]. Reports on the effect of ammonium-based ILs on the phase behavior of CO₂ and mixed CO₂ + CH₄ hydrates are also available [36,37,38]. Apart from this, the effect of imidazolium- and ammonium-based ILs on the kinetics of CO₂ and CO₂ + CH₄ mixed hydrate formation has also been reported [39,40,41]. Since only a handful of IL families are tested for their effectiveness on CO₂ hydrate phase behavior, formation and growth, there is a need to explore other IL families given the vast possibility of IL structural variation and functionalities.

Recently, it was shown that dimethylsulfoxide could be a replacement for methanol which has been used in the oil/gas industry for decades [42]. It was also emphasized recently that ILs with shorter alkyl chain lengths and containing hydroxyl groups are likely to provide better inhibition results [31]. Therefore, in this work, we have decided to synthesize two thiouronium-based ILs viz., 2-ethylthiouronium bromide [C₂th][Br] and 2-(hydroxymethyl) thiouronium bromide [C₂OHth][Br] to test their effect on CO₂ and THF hydrate formation and dissociation. These ILs have never been used for this purpose. Unlike the cyclic aromatic and non-aromatic ILs tested so far for hydrate inhibition/promotion [31,32,33], thiouronium cation-based ILs have a planar, charge-delocalized acyclic core (Figure 1). These ILs are relatively inexpensive, easy to synthesize and are generally used for metal extraction, peptide coupling, electroplating bath additives, stabilizers for vulcanized rubber, etc. [43,44].

In the present work, we have performed extensive thermodynamic and kinetic testing of the two ILs at different concentrations for CO₂ and THF hydrate formation and growth using a rocking cell apparatus. It has been reported that this apparatus consumes less energy compared to stirred cell apparatuses while screening the performance of newly developed low-dosage hydrate additives [45]. The reason to choose CO₂ was because CH₄ and CO₂ both form sI type hydrates and CO₂ poses a relatively low greenhouse effect. An isochoric pressure search method was used to map the phase behavior of CO₂ hydrates in the presence of ILs. A constant ramping method revealed the hydrate nucleation and dissociation onset temperatures, as well as the growth profiles after nucleation. The growth and morphology of THF hydrates in the presence of ILs at atmospheric pressure provide information about the effectiveness and mode of action of the ILs in altering the growth of sII hydrates—the type of structure formed by natural gas hydrates. The method is very popular to screen the additives due to its rapidness and lower energy consumption [46,47].

2. Results and Discussion

2.1. Hydrate Phase Behavior

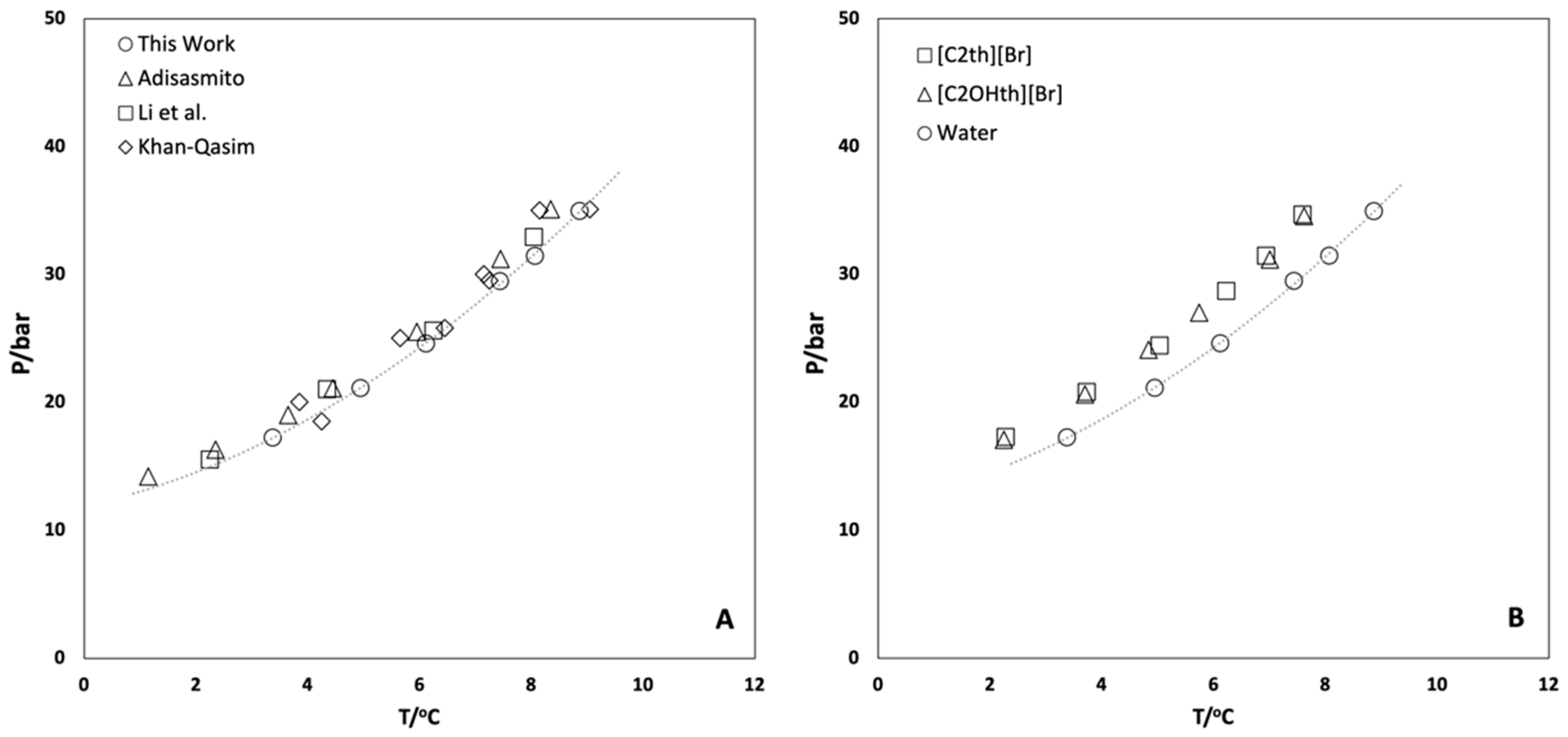

The rocking cell apparatus was validated by obtaining the hydrate dissociation conditions of CO₂ in Milli-Q water alone before starting the experiments in aqueous solutions of ionic liquids. The hydrate equilibrium experiments were carried out in the pressure range 20–40 bar, following the procedure described in the experimental section and different P–T loops were obtained. From these loops, the dissociation points were calculated by the intersection of the cooling (liquid–vapor) and heating (hydrate–liquid–vapor) equilibrium lines [48,49] (Figure 2). The hydrate dissociation points (P, T) obtained in this work for the well-studied hydrate-forming (CO₂ + H₂O) system were used to draw the HLVE curve, which was compared with the data reported in the literature [50,51,52,53] and found to be in good agreement, as shown in Figure 3A.

The hydrate dissociation phenomena in the presence of 10 wt% ionic liquids viz. [C₂th]Br and [C₂OHth]Br were studied and the results obtained are plotted in Figure 3B and presented in

Table 1. CO₂ hydrate dissociation conditions and enthalpies (ΔH_d) in water and in 10 wt% aqueous solutions of ionic liquids.

Milli-Q Water			[C2th][Br]			[C2OHth][Br]
T/°C	P/bar	ΔHd/kJ·mol−1	T/°C	P/bar	ΔHd/kJ·mol−1	T/°C	P/bar	ΔHd/kJ·mol−1
3.38	17.23	73.5	2.28	17.26	73.4	2.25	17.05	73.0
4.95	21.10	71.1	3.73	20.78	71.2	3.70	20.60	70.9
6.12	24.58	68.9	5.04	24.42	68.9	4.84	24.08	68.7
7.44	29.46	65.7	6.23	28.67	66.1	5.74	27.01	66.8
8.07	31.44	64.4	6.94	31.43	64.2	7.01	31.15	64.0
8.87	34.94	61.9	7.59	34.66	61.6	7.62	34.54	61.5

. This concentration was chosen to compare the efficiency of the ILs in shifting the equilibrium of hydrate dissociation with classical inhibitors (methanol, glycols) for which data are generally available at 10 wt%. Thermodynamic inhibitors act by preferential hydrogen bonding and altering the water activity that results in the shift of the equilibrium towards lower temperatures and higher pressures. However, it is clear from the results presented in Figure 3B that both ILs are weak inhibitors and show almost similar behavior by shifting the equilibrium towards lower temperatures (~1.2 °C). The addition of a hydroxyl group did not enhance the thermodynamic performance of the studied ILs. However, these results are not surprising since ILs are known for their mild thermodynamic hydrate inhibitory effects and provide shifts typically in the range of 1–3 °C for the equilibrium temperatures [31,32,33] (Figure S1).

2.2. Hydrate Dissociation Enthalpies

The dissociation enthalpies of hydrates depend on the host–guest interactions and the water cages around the host that can be altered by the presence of an additive. A significant change in dissociation enthalpies also indicates the participation of the additive in cage formation [54]. The enthalpy of hydrate dissociation in the presence of ILs can be obtained by using the HLVE data points (Table 1) and the Clausius–Clapeyron equation as:

$$\frac{d\left(lnP\right)}{d\left(1/T\right)}=\frac{-\Delta H_d}{zR}$$

where P, T, ΔH_d, z, and R are pressure, temperature, dissociation enthalpy, compressibility factor, and gas constant, respectively. The compressibility factor was calculated using the Peng–Robinson equation of state at each set of dissociation conditions presented in Table 1 [32].

The results of the ΔH_d of CO₂ in H₂O and in the presence of 10 wt% aqueous IL solutions are presented in Table 1 against each set of dissociation conditions. The values of ΔH_d for CO₂ are in good agreement with those reported in the literature [55]. It is evident that the ΔH_d values are almost similar in the absence or presence of ILs, thereby indicating that the ILs do not participate in hydrate cage formation.

2.3. Hydrate Nucleation Onset Temperatures (T_on)

The constant ramping method is a well-perceived method in the literature [56,57] which has been used to obtain the nucleation onset temperatures to screen the efficiency of given kinetic hydrate inhibitors at low concentrations. The results of the nucleation (T_on) onset temperatures of CO₂ hydrates in solutions of 1 wt% ILs and Milli-Q water at two different pressures are given in

Table 2. Average nucleation (T_on) and dissociation (T_od) onset temperatures for Milli-Q water and 1 wt% aqueous ionic liquids solutions obtained from 12 experiments for each data point along with standard deviations using the constant ramping method.

	P = 30 bar		P = 36 bar
System	Ton/°C	Tod/°C	Ton/°C	Tod/°C
Milli-Q Water	3.8 ± 0.5	6.5 ± 0.1	4.6 ± 0.5	8.6 ± 0.2
[C2th][Br]	3.6 ± 0.4	6.4 ± 0.1	3.9 ± 1.0	8.4 ± 0.2
[C2OHth][Br]	2.9 ± 0.8	6.1 ± 0.2	5.1 ± 0.5	8.4 ± 0.3

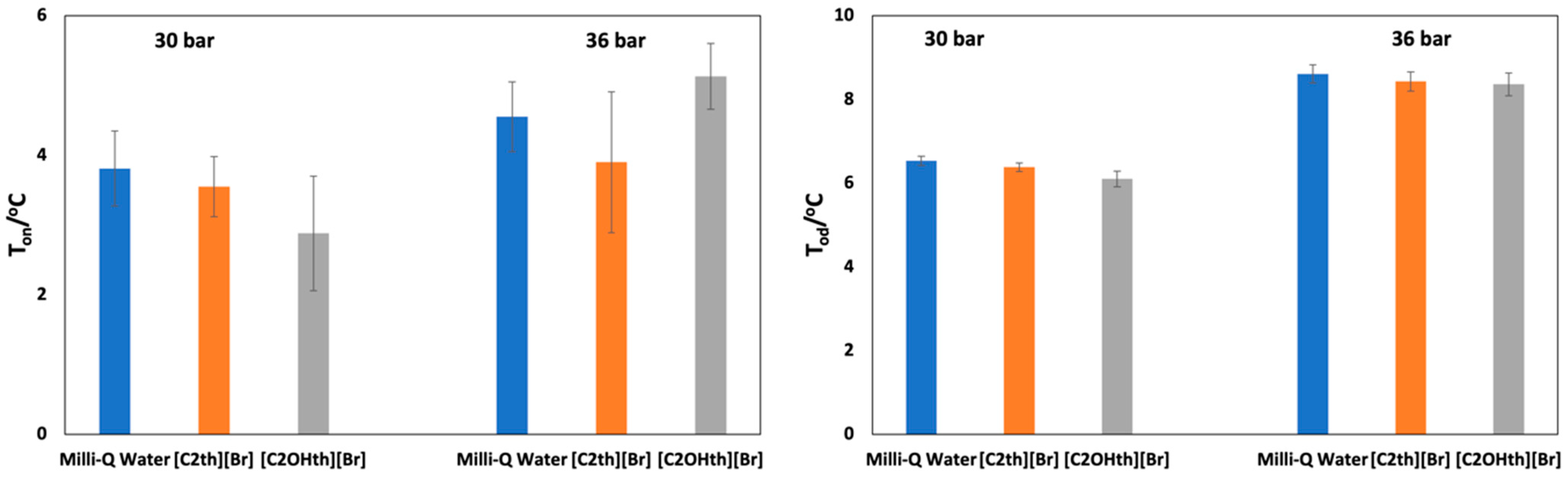

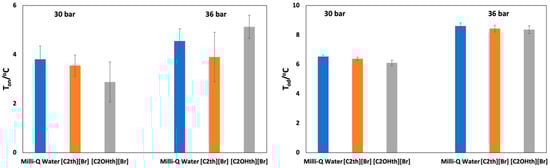

along with the standard deviations and plotted in Figure 4 (left). The presented values are an average of 12 measurements for each sample. The confidence intervals (CIs) have also been calculated for the T_on at a 95% confidence level using the standard procedure. The CIs at 30 bar can be expressed as T_on(Milli-Q): 4.1–3.5 °C, T_on([C₂th]Br): 3.8–3.3 °C and T_on([C₂OHth]Br): 3.3–2.4 °C and at 36 bar it can be expressed as T_on(Milli-Q): 4.8–4.3 °C, T_on([C₂th]Br): 4.5–3.3 °C and T_on([C₂OHth]Br): 5.4–4.9 °C.

Repeated runs on the same solutions were carried out to understand if a “memory effect” exist in the absence or presence of ILs [56]. The T_on for all the 12 runs is presented in the Supporting Information (Figure S2), which indicate the absence of any memory effect.

A statistical analysis was also conducted on the obtained T_on using a t-test and the results of t-values and p-values are presented in Table S1. It is clear from the analysis that the values for [C₂th][Br] at both pressures are not statistically significant, whereas the values are significant for [C₂OHth][Br].

In the case of 30 bar, the T_on in Milli-Q water, [C₂th][Br] and [C₂OHth][Br] is 3.8, 3.6 and 2.9 °C, respectively. These results indicate that in the presence of ILs, more subcooling is required for nucleation to occur, more so in the case of [C₂OHth][Br]. It seems that the presence of an -OH group in the IL increased its kinetic hydrate inhibition performance due to the enhanced possibility of hydrogen bonding with available water. The T_on in Milli-Q water, [C₂th][Br] and [C₂OHth][Br] is 4.6, 3.9 and 5.1 °C, respectively. These results show the pressure-dependent behavior of these ILs—at low pressure, both the ILs act as inhibitors, whereas at relatively higher pressure (36 bar), [C₂OHth][Br] promotes hydrate nucleation. However, these results are not surprising as it has been reported elsewhere that the performance of kinetic hydrate inhibitors may deteriorate at high pressures [58], which might be the reason in the present case. Many other substances are reported to work as inhibitors or promoters depending on the working pressure–temperature conditions [59,60]. Therefore, the trends observed for the average T_on for fresh and memory solutions at 30 and 36 bar are: [C₂OHth][Br] < [C₂th][Br] ≈ Milli-Q water and [C₂th][Br] ≈ Milli-Q water < [C₂OHth][Br], respectively. Similar behavior of hydrate nucleation in the presence of additives has been reported elsewhere [57,61].

2.4. Hydrate Dissociation Onset Temperatures (T_od)

The presence of a low-dosage hydrate inhibitor reduces the rate of hydrate formation but does not guarantee that the hydrates will stop forming in the pipelines. The kinetics of hydrate decomposition in the presence of 1 wt% ILs at two aforementioned pressures was also studied using the constant ramping method. The T_od at two different pressures is presented in Table 2 along with standard deviations and plotted in Figure 4 (right). The given values are an average of 12 runs. The CIs have also been calculated for the T_od at a 95% confidence level using the standard procedure. The CIs at 30 bar can be expressed as T_od(Milli-Q): 6.6–6.5 °C, T_od([C₂th]Br): 6.4–6.3 °C and T_od([C₂OHth]Br): 6.1–6.0 °C; and the CIs at 36 bar can be expressed as T_od(Milli-Q): 8.7–8.6 °C, T_od([C₂th]Br): 8.5–8.4 °C and T_od([C₂OHth]Br): 8.4–8.3 °C.

Statistical analysis was also conducted on the obtained T_od similar to the T_on using a t-test and the results are presented in Table S1. It is clear that the T_od is statistically significant in all cases. As expected, the dissociation point is comparatively more repeatable than the nucleation point [48,62]. At 30 bar, the T_od in Milli-Q water, [C₂th][Br] and [C₂OHth][Br] is 6.5, 6.4 and 6.1 °C, respectively, whereas, at 36 bar, the values are 8.6, 8.4 and 8.4 °C, respectively (Table 2). Thus, it can be envisaged that, unlike the T_on, the T_od follows similar trends at both pressures, i.e., [C₂OHth][Br] < [C₂th][Br] < Milli-Q water. Both the ILs slightly decrease the T_od and the trend is in accordance with the results obtained from phase behavior experiments. The higher magnitude of the T_od at 36 bar compared to 30 bar is indicative of a large driving force that results in a higher amount of hydrate formation, which requires a relatively higher temperature for decomposition. However, the presence of 1 wt% ILs slightly brought down this temperature.

2.5. Hydrate Growth

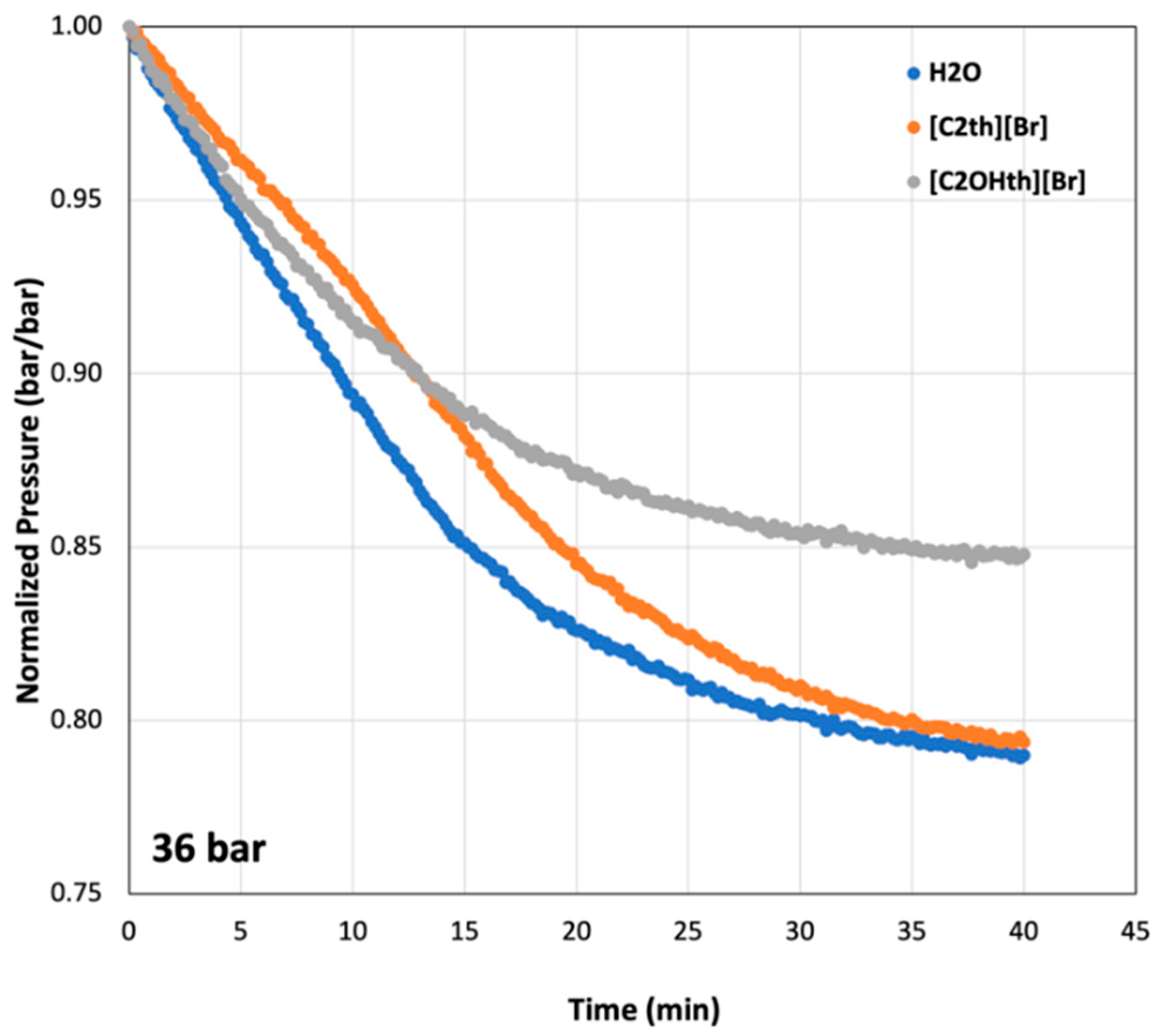

To understand hydrate growth in the presence of the studied ILs, the pressure changes after the T_on were normalized (p/p_i) and plotted in Figure 5 for the initial pressure of 36 bar. The drop in pressure indicates hydrate formation and their trends inform about relative growth. For instance, after nucleation, in all cases, the hydrates grow to a maximum amount within 40 min (as they were approaching a plateau). The lowest drop was observed in the uninhibited system (Milli-Q water) until reaching a plateau, after which the [C₂th][Br]-containing system shows more growth. Some additives are known to suppress nucleation but enhance growth compared to a system where the additive is absent [61,63,64]. The system containing [C₂OHth][Br] showed the lowest levels of hydrate formation throughout the growth step, indicating its potential as an LDHI which suppresses hydrate growth as well.

2.6. Hydrate Decomposition

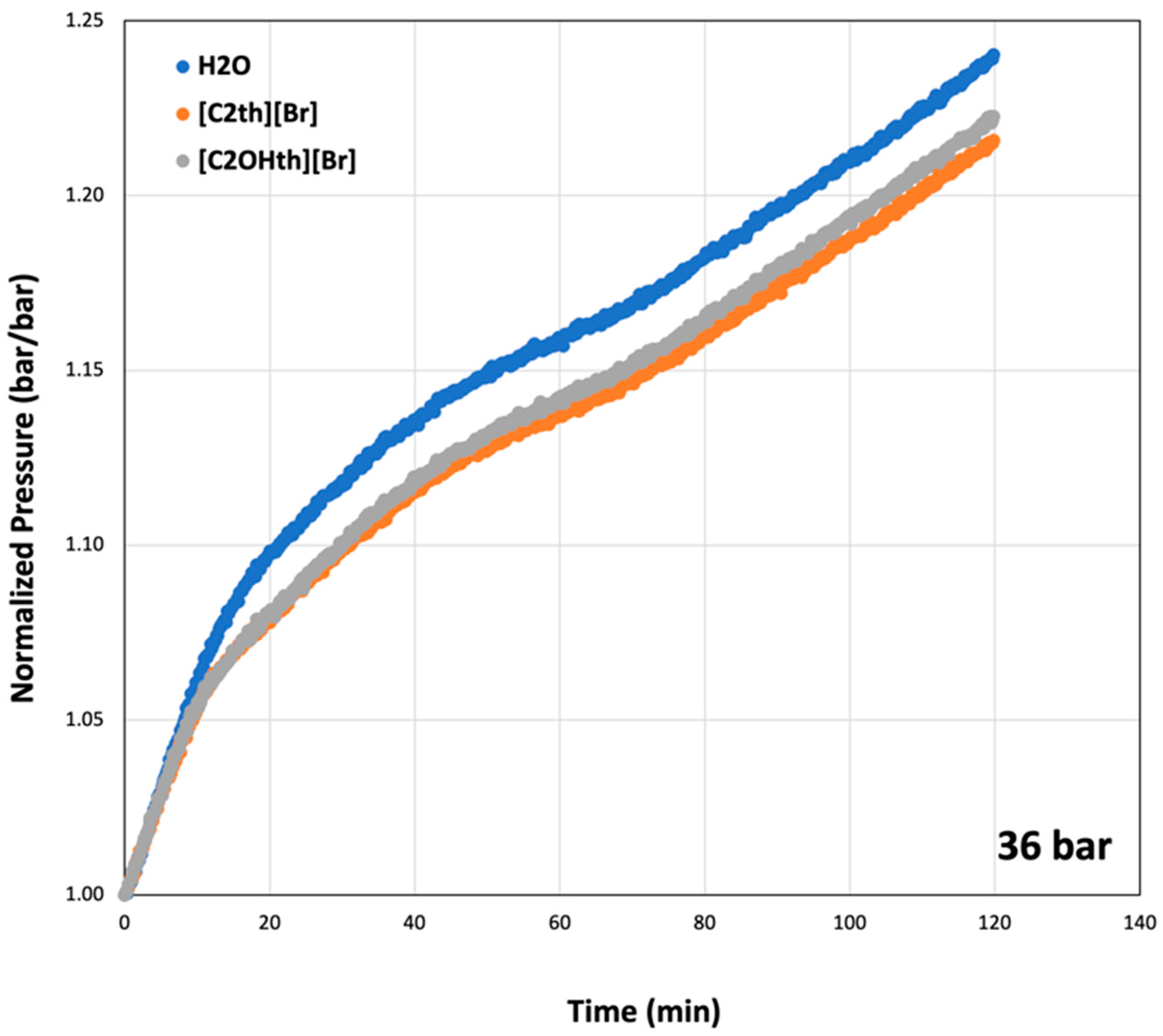

To compare hydrate decomposition in the presence of ILs, pressure changes after the T_od were normalized (p/p_i) and plotted in Figure 6 for the initial pressure of 36 bar. From the plots, one can observe that all the systems follow similar trends and the hydrates were decomposed completely within 2 h. Initially (up to 10 min), all the systems show similar decomposition rates but afterwards, the systems containing ILs shows slightly smaller rates. A closer look at the increase in pressure in each case indicates that the system with Milli-Q water shows the highest increase in pressure. This indicates that more CO₂ hydrates were produced in the uninhibited systems compared to the systems with ILs. Among ILs, the trends were identical until 40 min. Afterwards, the system containing 1 wt% [C₂OHth][Br] shows a slightly higher rise in pressure compared to the system containing [C₂th][Br], indicating more gas released. These are encouraging results as both ILs show not only suppression of nucleation onset and growth, but the hydrates formed in their presence are relatively easy to decompose. Sharifi et al. [65] showed that the synthetic KHIs stabilize the hydrates once they form, which resulted in more gas released and higher decomposition temperatures compared to the uninhibited system. On the contrary, the studied ILs shift decomposition temperatures towards lower values and do not show any sign of hydrate stabilization.

2.7. THF Hydrate Growth

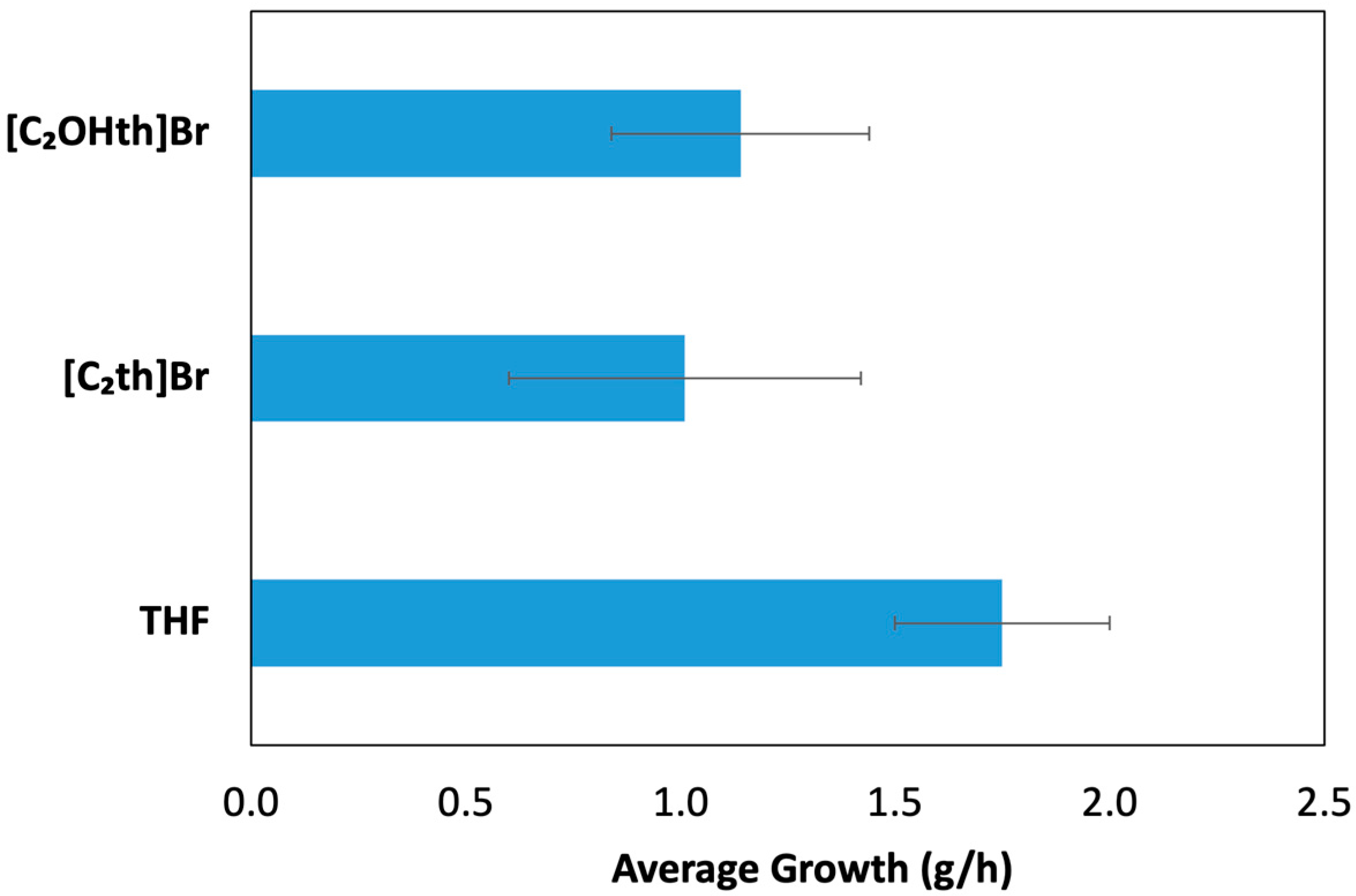

The results of the THF hydrate growth experiment in the absence and presence of ILs are presented in Figure 7 indicating that both ILs suppress the growth of sII hydrates. The trend obtained needs to be further confirmed by testing these ILs for other sII hydrate-forming systems, such as, natural gas mixtures at realistic conditions of high pressure.

The morphology of the hydrate crystals was also noted in the absence and presence of ILs, and the results are presented in Figure 8. No significant changes in the morphology of THF hydrates were observed [66,67]. In the absence of any additive, the morphology of THF hydrate crystal is regular pyramidal (RP); in the presence of [C₂OHth]Br, it is RP or occasionally thin plates (TP); in the presence of [C₂th]Br, it again remains unchanged from RP. This indicates that the ILs are not inhibiting hydrate growth by adsorption at the crystal surface [68]. Rather, it seems that their mode of inhibition is altering the structure of water [69]. Nevertheless, the results are encouraging and show the potential of the ILs as inhibitors for both type sI and sII hydrates.

3. Materials and Methods

3.1. Materials

Bromoethane (98%), 2-bromoethanol (95%), thiourea (≥99%), acetonitrile (≥99.9%) and ethyl acetate (99%) were purchased from Aldrich (St. Louis, MI, USA) and used as received. CO₂ with a stated purity of 99.995% was acquired from Alphagaz^TM (Air Liquide, Lisboa, Portugal). Milli-Q quality water was used to prepare solutions. A Sartorious balance with a precision of ±1 × 10⁻⁵ g was used to prepare the test solutions, which were kept in air-tight vials.

3.2. Synthesis

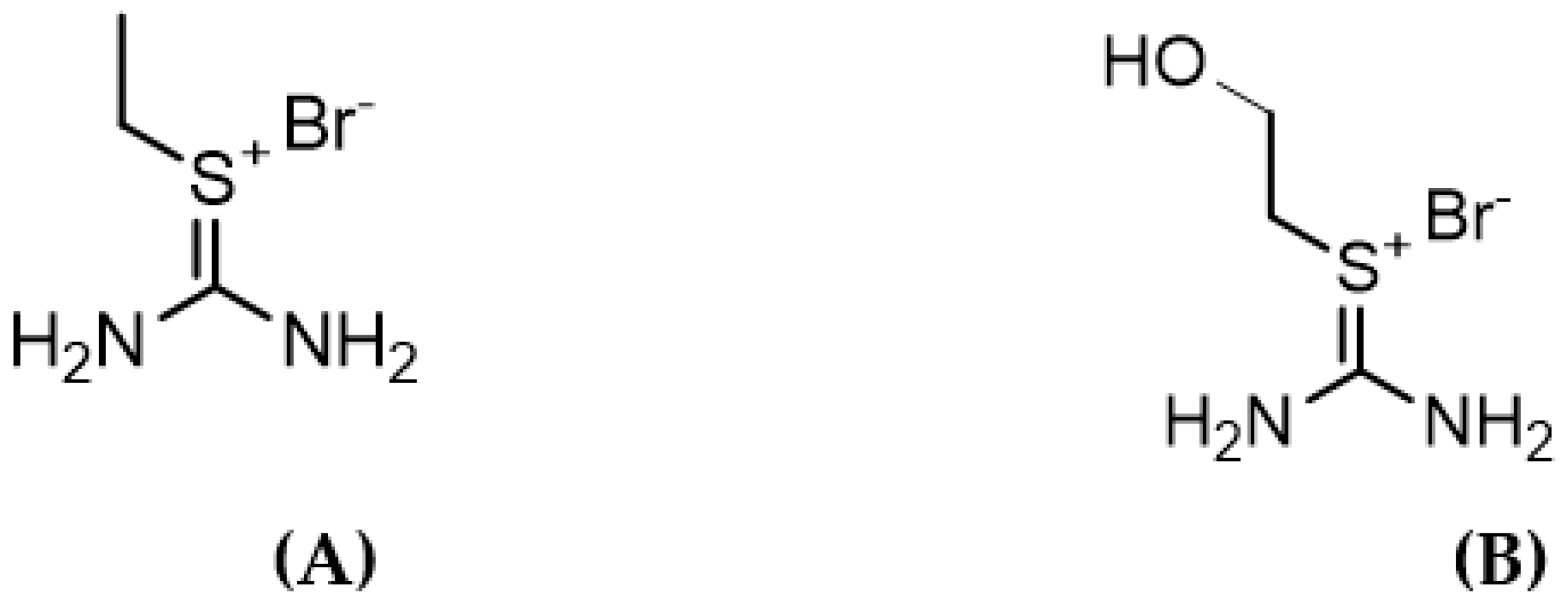

The ionic liquids (ILs) used in this work were synthesized and characterized as per the procedure given below.

3.2.1. 2-Ethylthiouronium Bromide (A)

Bromoethane (4.0 equiv.) was added to a stirred solution of thiourea (1.00 equiv.) in 100 mL of acetonitrile in a pressure tube at room temperature. The reaction mixture was then warmed-up to reflux for 3 days. The excess bromoethane and solvent were removed under reduced pressure and the product was dried under vacuum, to give the product without further purification as a white crystalline powder (99% yield) with a purity of ≥99%. ¹H NMR (400 MHz, DMSO-d6): 1.24 (t, 3H, J = 6.96 Hz, thio-CH₂CH₃), 3.18 (q, 2H, J = 6.72 Hz, thio-CH₂CH₃), 9.04 (m, 4H, 2 × NH₂); ¹³C NMR (100 MHz, D₂O): 14.55, 25.27, 170.36.

3.2.2. 2-(Hydroxyethyl)thiouronium Bromide (B)

2-bromoethanol (1.2 equiv.) was added, in a pressure tube at room temperature, to a stirred solution of thiourea (1.00 equiv.) in 100 mL of acetonitrile. The reaction mixture was then warmed up to reflux for 3 days. The solvent was removed under reduced pressure. The crude product was washed several times with ethyl acetate to remove the 2-bromoethanol excess. The washed product was dried under vacuum to give a white crystalline powder (99% yield) with a purity of ≥99%. ¹H NMR (400 MHz, DMSO-d6): 3.24 (t, 2H, J = 6.82 Hz, thio-CH₂CH₂OH), 3.60–3.68 (m, 2H, thio-CH₂CH₂OH), 5.49 (s, 1H, thio-CH₂CH₂OH), 9.02 (m, 4H, 2xNH₂); ¹³C NMR (100 MHz, D₂O): 34.31, 60.12, 171.13.

3.3. Apparatus

A rocking cell apparatus (PSL Systemtechnik, Osterode am Harz, Germany) was used to conduct CO₂ hydrate formation and dissociation experiments in Milli-Q water and aqueous solutions of the synthesized ionic liquids. Up to 5 stainless steel cells, each with a volume of 40 cm³, can be loaded with the desired liquid phase and mounted on top of the rocking axis to perform 5 simultaneous experiments in similar P–T–t conditions. A 17 mm-diameter steel ball was inserted in each cell that rolls back and forth and facilitates mixing. The rocking platform is situated in a bath whose temperature is controlled by a precise thermostat (Huber, Ministat 230, Edison, NJ, USA) while each cell is attached with a separate pressure sensor. The cells can be charged with the gas at a desired pressure using an individual inlet valve for each cell. The software (WinRCS V1.8) provided with the apparatus can be used to define the protocol with desired variables such as temperature ramping, rocking rate, rocking angle and to record the P–T–t data. The cells were filled with 15 mL of Milli-Q water or the aqueous ionic liquid solutions of specific concentration, sealed carefully and mounted on the rocking rig. The air present in the cells was replaced by flushing the test gas (CO₂) 2–3 times. Afterwards, the cells were charged with the CO₂ at a given pressure as required for the experiment. The detailed description of the rocking cell apparatus can be found elsewhere [45,56,70]. Different methods were used to study the phase behavior, induction time and formation and dissociation kinetics of hydrates in Milli-Q water and in aqueous solutions of ionic liquids as described below.

3.4. Hydrate Phase Equilibria

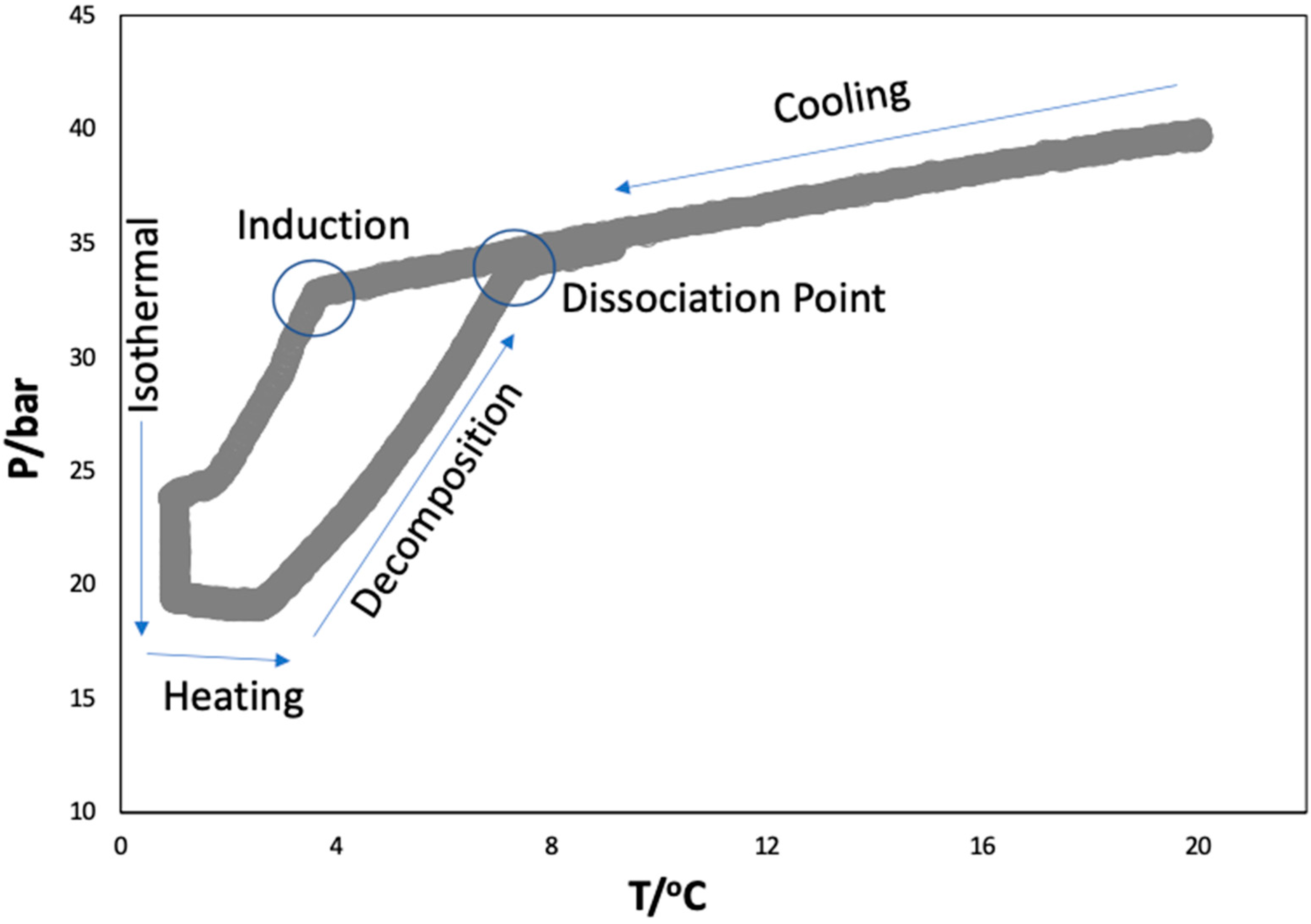

An isochoric pressure search method was used to obtain the hydrate phase equilibrium data. After loading the samples, the temperature of the bath was set to 20 °C and the CO₂ was injected to obtain the desired initial pressure in each cell. The system was left with rocking for a period of 1 h to ensure gas dissolution and stabilization at the desired temperature and pressure. Afterwards, the system was cooled from 20 to 1 °C along 6 h at a cooling rate of 3.17 °C/h, which resulted in the nucleation of the gas hydrates. The system was left isothermal at 1 °C for a period of 12 h for the hydrates to grow. Later, the system was heated from 1 to 20 °C with a very slow rate of 0.3 °C/h to dissociate the formed hydrates. This heating rate is adequate to obtain good quality hydrate dissociation points [62,71]. The cells were rocked at an angle of 45° and a rate of 10 rocks/min throughout the experiments. Typical P–T loops as described in Figure 2 were obtained from which the hydrate dissociation points were calculated as described elsewhere [48] and presented in Table 1.

3.5. Hydrate Nucleation and Dissociation Onset Temperatures

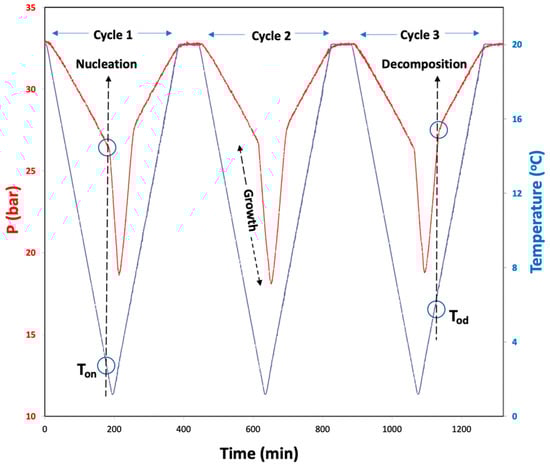

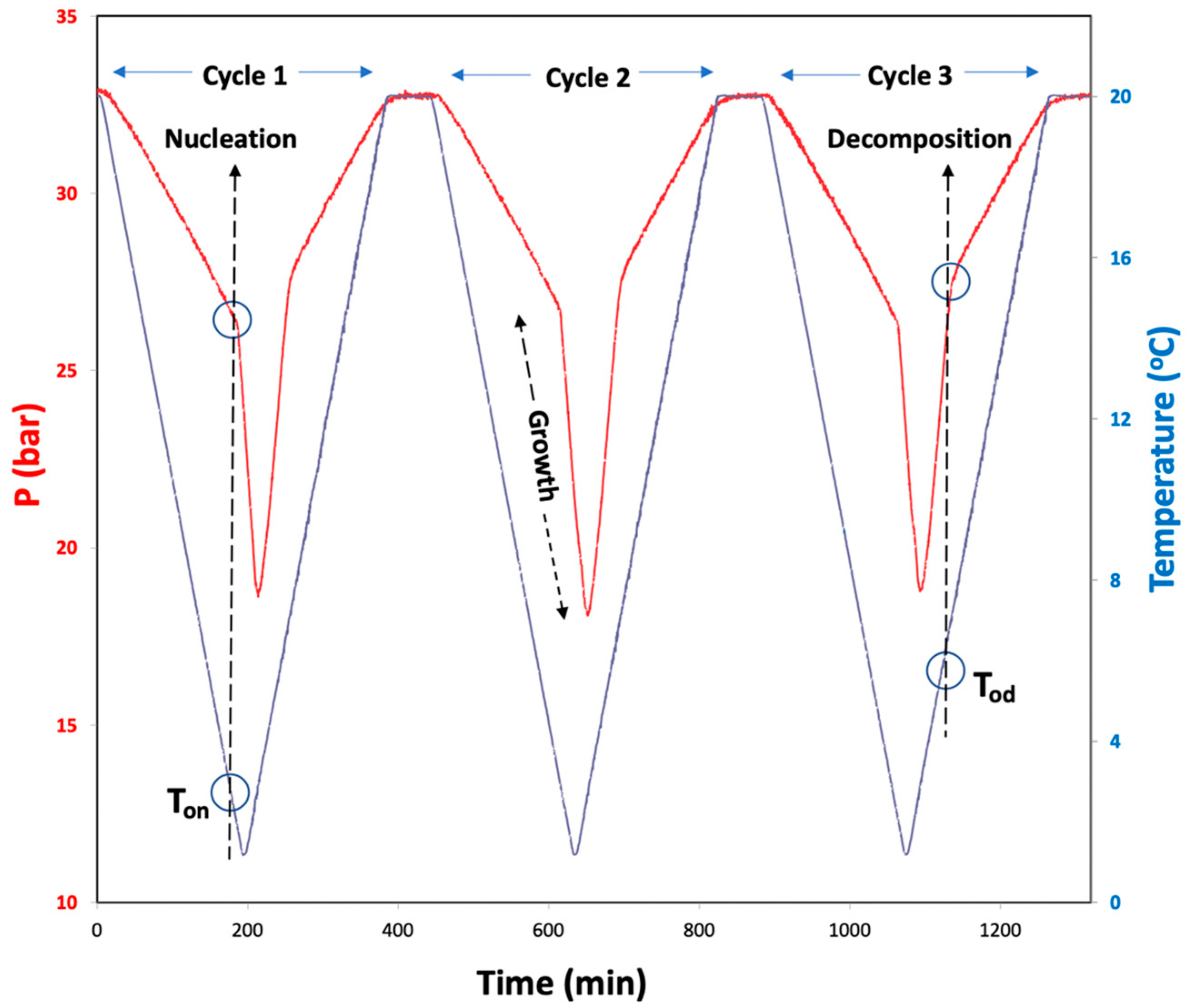

A constant ramping method with continuous cooling and heating segments throughout the experiment was employed to determine hydrate formation (T_on) and dissociation onset temperatures (T_od) for the systems with Milli-Q water and 1 wt% aqueous solutions of ionic liquids, as depicted in Figure 9. A comparison of these values provides information about the performance of the ILs. This method mimics the field conditions more closely compared to isothermal-isochoric ones [49]. The cells were loaded with 15 mL test solution and mounted on the rocking axis as described before. The cells were then purged a couple of times with 5–10 bars of CO₂ to replace the air present in the cell. Later, the CO₂ was introduced into each cell individually at a desired initial pressure. The system was equilibrated at 20 °C for an hour while rocking. Further, the bath was cooled from 20 to 1 °C with a rate of 0.1 °C/min and heated from 1 to 20 °C with a similar rate. Throughout the experiments, the cells were rocked at an angle of 45° with a rate of 10 rocks/min. The P–T–t data were collected using the commercial software. The pressure–temperature changes over time for a typical constant ramping experiment are depicted in Figure 9. From these P–t and corresponding T–t curves, nucleation (T_on) and dissociation (T_od) onset temperatures can be identified with an abrupt change in pressure, as represented in Figure 9. After completion of a cooling–heating cycle, the system was allowed to reach initial P–T conditions; and after 60 min, another cooling–heating cycle began and the obtained values for the second cycle are presented. A third cycle, after 60 min equilibration was also performed in a similar manner. Each sample was tested in similar conditions for at least 4 times and average values of the 12 experiments are reported in Table 2. More information about this method can be found elsewhere [49,56].

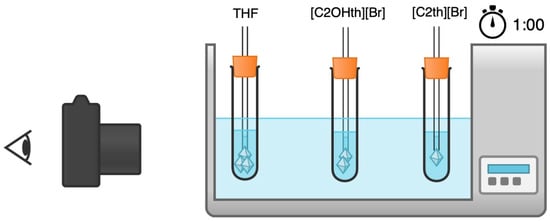

3.6. THF Hydrate Growth

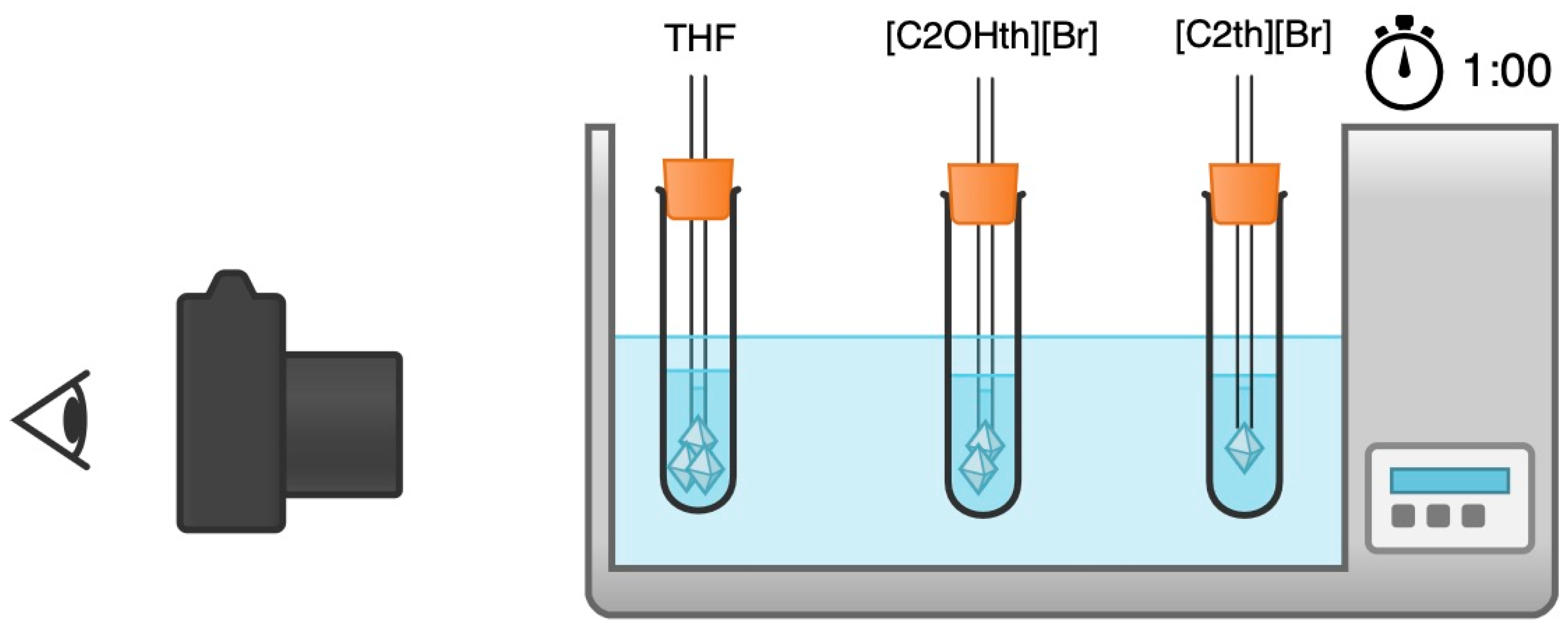

It is well known that a 19.1 wt% aqueous solution of THF forms structure II types of hydrates at atmospheric pressure, which are structurally similar to natural gas hydrates [46,47]. Therefore, this method is used frequently for initial screening of the additives used for controlled gas hydrate formation. THF hydrate growth at atmospheric pressure and at a temperature of −0.5 °C was assessed in the absence and presence of the ILs. A test solution of 1:17 ratio of THF:H₂O was prepared with 3.6 wt% NaCl added to it. It was used as the stock/reference solution and was used to prepare 1 wt% IL solutions for screening. Specially designed glass cells were filled with test solutions and were cooled to −0.5 °C in a highly accurate (±0.05 °C) cooling bath. As soon as the solutions reached thermal equilibrium, hollow glass tubes with a small ice crystal attached to it were inserted in each cell to initiate nucleation. The growth of the THF hydrate crystal per hour was measured by weighing the crystals formed as depicted in Figure 10. At least 4–6 experiments were performed, and an average value along with the standard deviations has been reported. The morphology of the crystals in the absence and presence of ILs was also recorded using a camera and reported. More details about the method can be found elsewhere [66,67,72].

4. Conclusions

Two thiouronium ILs were synthesized and tested for their thermodynamics and kinetic inhibition/promotion behavior towards CO₂ and THF hydrates. Hydrate equilibrium measurements indicated that both the ILs act as thermodynamic hydrate inhibitors at 10 wt% by suppressing the hydrate equilibrium ~1.2 °C. The constant ramping method that mimics the field conditions carried out at 1 wt% concentration of ILs revealed that the effect is pressure dependent. At 30 bar, both ILs act as inhibitors by decreasing the hydrate nucleation onset temperature compared to the uninhibited system. Statistical analysis revealed that the effect of [C₂th][Br] on nucleation was not significant, whereas, at 36 bar, [C₂OHth] [Br] exhibits a hydrate promotion effect. [C₂OHth] [Br] suppressed the hydrate nucleation onset temperature at the studied pressures, indicating that more subcooling is required to form the hydrates. Normalized pressure curves after the nucleation and inhibition onset temperatures indicate that the ILs also suppress growth after nucleation, which resulted in less gas released during decomposition. Therefore, thermodynamic and kinetic studies show that both thiouronium ILs act as dual-function hydrate inhibitors that not only shift the equilibrium towards lower temperatures but also suppress hydrate formation and growth. The THF hydrate growth experiments performed at atmospheric pressure indicate that the ILs can also inhibit the growth of natural gas hydrates (sII) and their mode of action is not adsorption at the crystal surface but altering the structure of water. To conclude, experimental methodology, concentration and pressure-temperature range are significant when screening for a low-dosage hydrate additive.
