Article

Docking and Molecular Dynamics-Based Identification of Interaction between Various Beta-Amyloid Isoforms and RAGE Receptor

by
Anna P. Tolstova
*,
Alexei A. Adzhubei
,
Vladimir A. Mitkevich
,
Irina Yu. Petrushanko
and
Alexander A. Makarov
*
Engelhardt Institute of Molecular Biology, Russian Academy of Sciences, 119991 Moscow, Russia
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(19), 11816; https://doi.org/10.3390/ijms231911816
Submission received: 13 July 2022 / Revised: 15 September 2022 / Accepted: 24 September 2022 / Published: 5 October 2022
(This article belongs to the Special Issue New Avenues in Molecular Docking for Drug Design 2022)
Browse Figures
Versions Notes

Abstract

:
Beta-amyloid peptide (Aβ) is a ligand associated with RAGE (Advanced glycosylation end product-specific receptor). Aβ is translocated in complexes with RAGE from the blood to brain across the blood–brain barrier (BBB) by transcytosis. Aβ and its isoforms are important factors in the Alzheimer’s disease (AD) pathogenesis. However, interaction with RAGE was previously studied for Aβ but not for its isoforms. The present study has been directed at identifying the key interaction interfaces between RAGE and Aβ isoforms (Aβ40, Aβ42, phosphorylated and isomerized isoforms pS8-Aβ42, isoD7-Aβ42). Two interfaces have been identified by docking: they are represented by an extended area at the junction of RAGE domains V and C1 and a smaller area linking C1 and C2 domains. Molecular dynamics (MD) simulations have shown that all Aβ isoforms form stable and tightly bound complexes. This indicates that all Aβ isoforms potentially can be transported through the cell as part of a complex with RAGE. Modeling of RAGE interaction interfaces with Aβ indicates which chemical compounds can potentially be capable of blocking this interaction, and impair the associated pathogenic cascades. The ability of three RAGE inhibitors (RAP, FPS-ZM1 and RP-1) to disrupt the RAGE:Aβ interaction has been probed by docking and subsequently the complexes’ stability verified by MD. The RP-1 and Aβ interaction areas coincide and therefore this inhibitor is very promising for the RAGE:Aβ interaction inhibition.

1. Introduction

Alzheimer’s disease (AD) is characterized by an abnormal accumulation of beta-amyloid (Aβ) in the brain. It is hypothesized that initial vascular disorders, and in particular impairment of the blood–brain barrier (BBB), play an important role in Aβ accumulation and neurodegeneration [1,2,3]. The BBB controls the uptake of Aβ from plasma to the brain via the multi-ligand Advanced glycosylation end product-specific receptor (RAGE) [4,5], and the removal of the brain-derived Aβ via the LRP1 receptor [6,7]. RAGE-bound Aβ is transported to the other side of the endothelial cell membrane by transcytosis. RAGE is a transmembrane protein from the immunoglobulin family, which is present in various tissues at a low level, increasing at the sites of stress and cell damage [8,9,10]. In AD, RAGE expression markedly increases in the areas of Aβ accumulation [11]. At the same time, the level of circulating soluble form of RAGE, sRAGE (23–342), is reduced in Alzheimer’s patients [12]. The binding of RAGE ligands by sRAGE prevents their interaction with the receptor form of RAGE [13]. Binding of the protein glycation end products (AGEs) or Aβ to the membrane-bound receptor form of RAGE leads to the activation of pathogenic cascades [13]. Signaling mediated by the Aβ binding to RAGE is an important contributing factor to the development of AD [14]. The interaction of Aβ with RAGE is critical for the pathology of AD and is a promising target for the development of therapy, since disruption of this complex can be achieved with the help of therapeutic substances circulating in the bloodstream [15]. Thus, the structure of the Aβ complex with RAGE is necessary for creating compounds that can prevent this interaction.
RAGE is formed by the extracellular, transmembrane and cytosolic domains. The extracellular ligand-binding RAGE domain is subdivided into three regions: a variable V domain (23–116) and two conserved domains: C1 (124–221) and C2 (227–317) [13]. The variable V domain consists of two β-sheets connected by an SS bridge. Hydrogen and hydrophobic bonds between the V and C1 domains link these domains to form a single structural unit. The molecular surface of VC1 domains contains hydrophobic cavities and positively charged regions [16,17,18,19]. Using specific antibodies, it was shown that Aβ oligomers interact with the V domain, and that Aβ aggregates interact with the C1 domain [4,20,21]. Unlike oligomers and aggregates, the effect of fibrils on cells does not change when the antibodies blocking RAGE domains are used [20]. Analysis of the crystal structure of ectodomains [22] and NMR spectroscopy of the ligand-binding domain [23] showed the existence of a hydrophobic cavity in the V domain of RAGE, which has a flexible region 55–71. This flexible region provides plasticity within the hydrophobic cavity, thereby allowing RAGE to effectively interact with ligands [22,23]. The use of peptides RAGE 60–76 [24], as well as shorter peptides 60–70 and 60–65 [25,26], reduces the negative effect of RAGE-mediated Aβ on neuronal cells due to the competitive binding of Aβ. This means that region 55–71 may well be a part of the RAGE:Aβ interaction interface.
There are Aβ isoforms in the body, which differ in the number of amino acid residues and in their modifications. One of the methods for diagnosing AD is based on the assessment of the ratio of Aβ40 and Aβ42 concentrations [8,9,27] in blood plasma. According to experimental data, the binding constant values of Aβ40 and Aβ42 are close. For example, RAGE expressed in Chinese hamster ovary cells binds Aβ40 with a constant of 75 ± 5 nM [1], and the binding constant of Aβ42 to RAGE on human neuroblastoma SH-SY-5Y cells is 92 ± 40 nM [28]. RAGE binds soluble Aβ in the V-domain region with a constant of about (Kd = 52.2 ± 14.6 nM) [29]. However, it is possible that the binding of Aβ40 and Aβ42 may differ, since the constants were not evaluated under the same conditions. Moreover, uptake of Aβ40 and Aβ42 by endothelial cells differs on the BBB luminal side (from the blood to the brain), and does not differ on the abluminal side [30]. The intrinsic fluorescence of RAGE tryptophans was found to be sensitive to Aβ binding (residues 54, 61, 72). A study of the binding of truncated Aβ variants to RAGE showed that the main region of Aβ that binds the V domain is 17–23. This region contains strongly hydrophobic residues 17-LVFFA-21, flanked by the negatively charged 22-DE-23 residues at the C-terminus [15]. The Aβ40 binding constant with V-RAGE is 1.6 × 106 M−1 (Kd = 0.6 μM), which is lower than for full-length RAGE. Accordingly, the Aβ16–23 peptide effectively blocks the RAGE-dependent uptake of Aβ40 by mouse BBB endothelial cells [15]. These data do not correlate well with the current model of the dimeric RAGE complex binding the Aβ dimer, which predicts that the three negatively charged Aβ residues (E3, D7, E11) are the most important for binding [31].
To summarize, Aβ forms stable complexes with RAGE with a high binding constant. Aβ predominantly interacts with the V and C1 domains, however the exact interface is as yet unknown.
Currently, the development of therapy aimed at blocking the binding of Aβ to RAGE offers a promising avenue [29]. In particular, the RP-1 peptide, which binds to RAGE with high affinity and has a high homology with region 16–23 (KLVFFAED) of the Aβ peptide, is undergoing preclinical trials [32]. It was shown on the SH-SYSY cell culture that RP-1, by binding to RAGE, prevents Aβ-induced cellular stress [33]. The RAGE antagonistic peptide (RAP) that blocks the RAGE signaling pathway was designed based on the RAGE-binding domain of the HMGB1 protein and was shown to be effective in acute lung inflammation [34]. It can inhibit Aβ peptide binding to RAGE [35]. The other promising therapeutic agent to treat AD patients is FPS-ZM1, a high-affinity RAGE-specific blocker, that can inhibit Aβ binding to RAGE [36]. It was shown that FPS-ZM1 can reduce neurological damage and inflammation in the APP(sw/0) transgenic mouse model of AD [36] and prevent neuronal death induced by astrocytes over-expressing the ALS-linked mutant hSOD1G93A [35].
It has now become clear that the seeds of pathological aggregation, representing the chemically and/or structurally altered Aβ molecules [37], that induce the transition of endogenous Aβ molecules from the normal monomeric state to neurotoxic oligomers and amyloid plaques [38]. The Aβ isoform with an isomerized Asp7 residue (isoD7-Aβ42) acts as a seed of cerebral amyloidogenesis [39]. In addition, isomerization leads to an increase in Aβ42 cytotoxicity [40]. However, if the Ser8 residue is phosphorylated, then the amyloidogenic effects of isoD7-Aβ42 are neutralized [41]. Phosphorylated Aβ reduces zinc-dependent oligomerization and the amount of amyloid plaques in the brain of animals with AD [42]. Changes in the pattern of transport of modified Aβ42 isoforms through the BBB from blood to brain, which is mediated by RAGE, may affect the severity of Alzheimer’s disease. Thus, it is important not only to study the Aβ42 interaction with the RAGE interface, but also to determine how exactly these modifications of Aβ affect the nature of their interaction with RAGE.
In view of such differing effects of Aβ42 isoforms, the question of the interaction interface between various isoforms of Aβ and RAGE is very important. In this study, a strong but non-specific binding of Aβ40 and Aβ42 to RAGE has been shown by molecular docking and MD modeling. Post-translational modification of Aβ42 to isomerized iso-D7-Aβ42 and phosphorylated pS8-Aβ42 did not change dramatically the interaction interfaces of RAGE with Aβ42 isoforms, however iso-D7-Aβ42 and pS8-Aβ42 have shown more specific interactions compared to native Aβ42 isoform. Thus, we can anticipate that all isoforms can freely penetrate the BBB via complex formation with RAGE. The three RAGE inhibitors that display an ability to hinder the RAGE:Aβ interaction have been studied. RAGE:RAP and RAGE:FPS-ZM1 interaction interfaces represent compact localized areas within the VC1 domain of the RAGE protein. Therefore, one can conclude that these inhibitors cannot block the whole region of potential Aβ interaction on the RAGE surface. The RP-1 and Aβ interaction areas coincide and therefore this inhibitor is very promising for the RAGE:Aβ interaction inhibition.

2. Results

To the best of our knowledge, the RAGE structure was not fully resolved experimentally, since only the structure of the first two domains was available. However, the entire protein structure is currently available from the AlphaFold database [43], modeled by a powerful program for predicting the structure of proteins using neural networks. This structure was obtained, placed into a membrane according to the UNIPROT data, and subjected to a 50 ns MD production run to acquire an equilibrium RAGE conformation in an aqueous saline solution (pH 7.0). The domain’s structure remained stable after MD with the membrane located at a substantial distance from the domains (Figure S1). Therefore, we used a part of the RAGE structure containing residues 23–330 (structure lacking the signal peptide, C-terminal disordered tail and the membrane segment of the protein) in order to save computational resources.

2.1. Docking and MD Modeling of Aβ Isoforms to RAGE

Utilizing this structure, a global docking of the Aβ42 peptide using numerous protein–protein docking servers was performed. The particular interaction interface between RAGE and Aβ depended on the docking algorithm and varied significantly for the average complexes from different servers. The choice of a large set of docking software was justified by the increased reliability of overall docking results obtained by combining diverse software.
The docking results showed a certain selectivity in the interaction of RAGE with Aβ42 (Figure S2), however, the Aβ42 molecule could be docked almost everywhere on the RAGE surface. We selected as binding sites all of the RAGE regions where the number of contacts with Aβ42 for each RAGE residue was greater than 600. These regions are shown in Figure S2B.
Figure S2B shows that the interaction area can be structurally divided into two regions. Interface 1 includes residues 25–35, 57, 73, 77, 116–118, 123, 150, 186, 216–221 and is located between the V domain and C1 domain, Interface 2 includes the residues 198, 230, 233, 237, 314 and is located between domains C1 and C2.
There is evidence that Aβ40 and Aβ42 each interact with RAGE in a different manner, resulting in a different rate and effectiveness of penetration through the BBB [1,28]. We performed global docking of the Aβ40 peptide to RAGE using the same set of docking servers as for Aβ42. The results are shown in Figure S3.
Comparison of global docking results for Aβ40 and Aβ42 showed that Aβ40 formed slightly more contacts spread over a greater RAGE surface compared to Aβ42 (Figure 1, Figures S2 and S3). However, overall, the interaction surfaces were almost the same (Figure 1).
To study the effect of Aβ42 post-translational modifications on the Aβ42 BBB penetration process and interaction with RAGE we performed targeted flexible docking of the three Aβ42 isoforms (Aβ42, isoD7-Aβ42, pS8-Aβ42) using PatchDock to the two interaction interfaces in RAGE revealed by global docking.
Figure 2 shows that the interaction interfaces for the three Aβ42 isoforms are almost identical. Only the sizes of the peaks differ. The total number of contacts in the graph areas was about 15,000 for each isoform (15,666 for Aβ42, 15,217 for pS8-Aβ42 and 14,766 for isoD7-Aβ42). The relative peak maxima changed significantly for different isoforms with an almost equal number of contacts.
The best Aβ42:RAGE complex models with Interface 1 for each Aβ42 isoform were submitted to MD simulation for 100 ns (Figure 3). They represent different parts of the full Interface 1 area in the interaction. According to the results of the MD modeling, all six selected complexes remained stable. Thus, docking shows that the interactions between RAGE and Aβ42 isoforms are distributed over large areas of interfaces 1 and 2 and MD modeling confirms the stable binding of all three Aβ42 isoforms.
We also performed global blind-docking of an additional Aβ42 peptide to the RAGE:Aβ42 complex to see if the presence of an already bound peptide changed the binding specificity. The result was negative. As before, the new peptides were bound around the protein approximately evenly without any pronounced preferences (Figure S4).

2.2. MD Modeling of RAGE:Aβ Interactions under Various pH

Beta-amyloid bound with RAGE is transported through the BBB by transcytosis [5]. After binding to the receptor, this complex is internalized and enters the common endosomal sorting network [44]. It is known that in mature endosomes, the pH ranges from 5 to 5.5 and the ion concentration is low [45]. Accordingly, it was decided to conduct MD of the best RAGE:Aβ42 docking complex at conditions close to endosomal to study the complex behavior in early and late endosomes. As an outcome of a 250 ns MD of RAGE:Aβ42 complex at pH 5.5 indicates, Aβ42 was interacting with RAGE throughout the simulation. The N-terminus at the middle of the simulation time started to expose into the solution (breaking contacts with RAGE), while the C-terminus continuously remained in contact with RAGE bound by a large number of hydrogen bonds (Figure 4). Therefore, in endosomal conditions, Aβ42 does not detach from RAGE, indicating that after transferring through the BBB, Aβ42 remains in complex with RAGE at least for some time.
The same results were obtained with pH 6.0. The RAGE:Aβ42 complex was stable during 100 ns MD simulation (Figure S5A). The RAGE:isoD7-Aβ42 and RAGE:pS8-Aβ42 complexes also were stable at pH 5.5 after 100 ns (Figure S5B,C).

2.3. Free Energy of Binding Calculations for RAGE:Aβ Isoforms

To study the strength of intermolecular interactions in the complexes and obtain the free energy of binding for the RAGE:Aβ42, RAGE:isoD7-Aβ42 and RAGE:pS8-Aβ42 complexes, umbrella sampling was performed. The simulation time of 10 ns is sufficient for the free energy of binding calculation, as in this interval the maximum of the free energy value was reached, and the potential of mean force (PMF) stopped rising (See Materials and Methods). The PMF curves and energy distribution over each window are shown in Figures S6–S8. The free energy of binding calculated from these curves for the RAGE:Aβ42 complex corresponds to ∆G = −17.5 ± 0.8 kcal/mol, for the RAGE:pS8-Aβ42 complex it corresponds to ∆G = −14.9 ± 0.7 kcal/mol and for the RAGE:isoD7-Aβ42 complex it corresponds to ∆G = −14.5 ± 0.6 kcal/ mol. This may indicate a higher binding constant of Aβ42 to RAGE compared to the modified isoforms pS8-Aβ42 and isoD7-Aβ42.

2.4. Docking and MD Modeling of RAP, FPS-ZM1 and RP-1 Inhibitors Interaction with RAGE

In the last few years, development of the therapy aimed at blocking the binding of Aβ to RAGE was pursued in several studies [34,36,46]. The known RAGE inhibitors were viewed as promising candidates for the RAGE:Aβ interaction inhibition. We have used three RAGE inhibitors that are also potentially able to inhibit its interaction with Aβ42. These are a RAP peptide [34], the compound FPS-ZM1 [36] and RP-1 peptide [46].
Global docking was performed to identify the interaction sites for RAP and RP-1 inhibitors. Subsequently, targeted docking to these sites was also been conducted. Following this, the best-rated complex for each inhibitor was submitted to MD simulation for 100 ns. Docking showed a clear and specific interaction interface between RAGE and RAP. RAP docked primarily to residues 116–125 and 179–183, in one of the RAGE interaction areas with Aβ42 (Figure S9). In contrast, the RP-1 docking sites were spread over the RAGE surface, resembling the contact frequency histogram for interaction with Aβ42 (Figure S10). This signifies that PR-1 can potentially block all of the RAGE interaction areas with Aβ42. In the majority of docking complexes, the RAGE protein was identified as interacting with FPS-ZM1 via residues 54, 96–98 and 114–120 intersecting with the Aβ42 interaction areas (Figure S11). However, there was no full overlap.
The MD modeling results for the best RAGE:RAP, RAGE:RP-1 and RAGE: FPS-ZM1 complexes showed that RAP, RP-1 and FPS-ZM1 have been tightly bound to RAGE during all MD simulations (Figures S9–S11).

3. Discussion

Currently there is no full-size experimentally solved RAGE protein structure in the public domain, therefore only part of the structure was available for analysis [28]. We constructed for the first time a model of the complete equilibrium structure of RAGE with a membrane, in water and saline solution. As a result of the docking of Aβ42 and its isoforms (Aβ40, isoD7-Aβ42, pS8-Aβ42) to this RAGE structure, we showed that the C2 domain not studied previously can be involved in the interaction with Aβ peptides (Int-2 in Figure 1 and Figure 2). We also found a large interaction area (Int-1 in Figure 1 and Figure 2) at the region between the V and C1 domains of RAGE, partially including both domains (Figure 1 and Figure 2), which is confirmed experimentally as a primary interaction area of the V and C1 domains in RAGE binding with Aβ [4,15,20,21,24,25,26,31,47]. At the present time there is no consensus concerning the domains that play a leading role in the interaction with Aβ. For example, the work [47] showed that the Aβ peptide interacts with the 49–52 and 108–118 β-sheets located in the V domain. In contrast, other studies [4,20,21] showed that Aβ aggregates interact only with the C1 domain. According to our data, the 49–52 site does not interact with either Aβ40 or Aβ42, while the 108–118 site, on the contrary, appears in both of the interaction interfaces. It was shown [24,25,26] that the site 55–71 in the RAGE V domain can constitute the main site in the interface between Aβ peptides and RAGE. This site is also present in the interface identified by us, although in our model the interaction with these residues is more pronounced for Aβ40 than for Aβ42 (Figure 1, Figures S2 and S3). This is in line with the data from the paper [30], which indicate that the rate of transfer of Aβ40 and Aβ42 by endothelial cells from the blood to the brain differs.
According to our data, Aβ42 and its isoforms interact rather with the region between the V and C1 domains, partially including each of the domains (Int-1 in Figure 1 and Figure 2), and not with two separate sites in the C1 and V domains. It is noteworthy, however, that experimentally based conclusions about the involvement of individual domains were made on the basis of experiments with only the V-domain [15,31], or using other truncated variants of the protein [24,25,26]. This means that the interaction Interface 1 identified by us and localized between the domains is outside the scope of the above studies. In addition, Aβ42 at various oligomeric states (from monomers to large non-fibrillar aggregates) interacts with RAGE in a dissimilar way [4,15,20,21].
Our data indicate that, in the experimental search for an interaction interface, the region between the V and C domains should represent a primary target.
A number of studies showed that different Aβ42 isoforms have different pathogenicity. Thus, isomerized Aβ42 due to a greater tendency to aggregation has greater neurotoxicity than Aβ42 [40], accelerating plaque formation in a mouse model of Alzheimer’s disease [39]. At the same time, phosphorylation can reduce the pathogenic effect of the isomerized isoform [41,42]. The Aβ40 isoform is considered to be more physiological than Aβ42, and the Aβ40/Aβ42 ratio is used as one of the AD markers [27]. Hence, an increase in the level of modified Aβ42 isoforms in the brain can affect the severity of AD. Since Aβ penetrates through the BBB from the blood to the brain by binding to RAGE, differences in binding with modified forms of Aβ42 can lead to a preferential transfer of one or another isoform to the brain, which is one of the AD risk factors.
According to the global docking data, in the case of Aβ42 the main interaction occurs in a small region between the V and C1 domains and adjacent residues (Figure 1 and Figure S2). For Aβ40 this region is much more extended and includes the residues not involved in the interface for Aβ42, such as 54, 61, 114 and 177–179 (Figure 1 and Figure S3), while the 25–35 region is involved in the RAGE:Aβ40 interaction to a lesser extent than for RAGE:Aβ42.
Targeted docking of the three Aβ42 isoforms to RAGE has been performed on the RAGE residues from the Interface 1 and Interface 2 identified by global docking (Figure 2). Importantly the contact histograms obtained after these docking runs overlap for each isoform. Thus, the Aβ42 peptides commonly interact with both Interfaces 1 and 2 concurrently. Joint histogram built using contact histograms for both interfaces showed that the maximum of contacts falls to residues 218–221 RAGE (Figure 5). From the data obtained for Aβ42, it is hard to differentiate a preferred region among all potential binding sites because the number of contacts for different regions is approximately the same (Figure 5). At the same time, isoD7-Aβ42 has a more specific RAGE binding interface than Aβ42, in which the 218–221 region has more than twice Aβ contacts as compared to other RAGE regions (Figure 5). For pS8-Aβ42, there is the same number of contacts with the 218–221 RAGE region as for isoD7-Aβ42. A region with a higher number of contacts appears at residues 25–30, while the peaks in the histogram of contacts at residues 55–58 and 181–183 are less pronounced compared to other isoforms.
All of the studied Aβ isoforms (Aβ42, Aβ40, pS8-Aβ42, isoD7-Aβ42) interact with RAGE over their entire surfaces. After targeted flexible docking, they wrap around RAGE, while global docking shows that the Aβ region 19–22 is characterized by a larger number of contacts compared with the other residues (Figure 6). These data are consistent with experimental data indicating that the hydrophobic region 17–23 plays an important role in the RAGE:Aβ interaction [15].
Based on the analysis of the number of contacts, it can be estimated that isoD7-Aβ42 displays the strongest binding to RAGE, with weaker binding for Aβ42, and pS8-Aβ42 occupying an intermediate position. Although isoD7-Aβ42 by our MD approximation can form more stable complexes with RAGE and, therefore, may better pass through the BBB, this isoform is also potentially more sensitive to inhibitors due to a higher selectivity of interaction compared to the native Aβ42.
We have verified our conclusions on the high binding constant of RAGE to Aβ42 and its isoforms by conducting the MD Umbrella sampling. None of the complexes have been broken during simulation either at normal pH (7.0) or at acidic pH (5.5 and 6.0) (Figure 4 and Figure S5). Correct quantitative estimates of the interaction coefficient (free energy of binding) of RAGE with Aβ42 are beyond modern computer capabilities, since they require a large number of resource-intensive calculations for all variants of complexes obtained from targeted docking. However, molecular dynamics allows one to estimate the approximate value of the interaction coefficient. Consequently, we completed umbrella sampling for the best-ranked docking complex of RAGE with each Aβ42 isoform. We hypothesize that the modeled complex formation energies will be significantly higher than those measured experimentally. Our modeling data do not take into account the entire variety of possible complex structures that can be constructed and realized within the framework of our interaction interfaces model. Until now, for the monomeric form of Aβ with post-translational modifications, the experimental binding constant to RAGE was not determined. According to the MD data, the native form of Aβ42 shows a strong interaction with RAGE with the binding constant of 6.95 × 1012 M−1 (free energy of binding ∆G = −17.5 ± 0.8 kcal/mol, dissociation constant Kd = 0.14 pM). The pS8-Aβ42 and isoD7-Aβ42 isoforms have similar constants 0.085 × 1012 M−1 and 0.043 × 1012 M−1 (free energies of binding ∆G = −14.9 ± 0.7 kcal/mol, Kd = 11.8 pM- and ∆G = −14.5 ± 0.6 kcal/mol, respectively, Kd = 23.3 pM), which are lower than the constant for native Aβ42. An alternative way of accessing these interactions is docking which reflects the average number of contacts in contrast to MD-based calculations. Consequently, docking-based assessment can differ and indeed it shows that isoD7-Aβ42 displays the strongest binding to RAGE, i.e., docking showed a higher number of contacts of RAGE protein at Interface 1 with isoD7-Aβ42 compared to the native form of Aβ42. MD showed that the binding constant is higher for the native form of Aβ (for the best complex), which can also occur with a smaller number of contacts.
In order to evaluate the effectiveness of the existing RAGE inhibitors in blocking interaction with the Aβ isoforms, we have modeled and compared the interaction interfaces of some of these inhibitors, with the identified RAGE interaction interfaces of Aβ isoforms. According to our data, the RP-1 inhibitor should be the most effective as its interaction interface largely matches that for Aβ (Figure S10), and it could completely inhibit the interaction through competitive binding. The RAP inhibitor, according to the published data, can block binding of Aβ [1]. However, their interaction interface as it is described [1,34] and confirmed by us (Figure S8) does not include RAGE residues 55–71, important for the Aβ binding according to other studies [24,25,26]. The low molecular weight inhibitor FPS-ZM1 partially blocked interface 1 and did not block interface 2 at all (Figure S11). It can be estimated that its effectiveness in preventing the Aβ binding to RAGE would be low.
Since RAGE-associated ligands are translocated across the BBB by transcytosis [5], we evaluated the effect of various pH values that can prevail in vesicles, on the stability of RAGE complexes with Aβ isoforms. Endosomal sorting determines either degradation of macromolecules or transcytosis by fusion with abluminal plasma membrane [44]. Our MD results show that even at pH 5.5, the complexes remained stable, indicating that all Aβ isoforms can be transported through the cell in complex with RAGE.

4. Materials and Methods

4.1. Structure Preparation

The initial structure of the human RAGE (Advanced glycosylation end product-specific receptor) was obtained from the AlphaFold protein structure database [43]. The DDPC membrane and water with NaCl at 0.115 mM concentration were added and subsequent relaxation for 50 ns by molecular dynamics (MD) using GROMACS [48] software was performed to obtain an equilibrium RAGE conformation. The structure of the Aβ42 peptide was previously modeled by us [49]. The Aβ42 modifications with phosphorylated Ser8 (pS8-Aβ42) and isomerized Asp7 (isoD7-Aβ42) were constructed by expert modeling. Aβ40 structure was obtained from the PDB Bank of protein structures, entry PDB:2LFM [50]. The structure of the RAP inhibitor was constructed by expert modeling according to the PubChem entry https://pubchem.ncbi.nlm.nih.gov/compound/127021052 (accessed on 18 February 2022). The structure and topology of the FPS-ZM1 inhibitor was obtained by the ATB server [51], according to the PubChem entry https://pubchem.ncbi.nlm.nih.gov/compound/24752728 (accessed on 18 February 2022). The structure of the RP-1 peptide was constructed by expert modeling using the APDTKTQ sequence [33,46].
All structures were equilibrated and relaxed during 100 ns of MD production run in water with NaCl concentration of 115 mM to obtain equilibrium conformations.

4.2. Docking Procedure

Equilibrium structures of Aβ40 peptide, Aβ42 peptide, the isoD7-Aβ42 and pS8-Aβ42 modifications, RP-1 and RAP peptides were submitted to global full-blind docking with RAGE protein as a receptor with servers LzerD [52], ATTRACT [53], PatchDock [54], ClusPro [55], HDOCK [56] and ZDOCK [57] and to the targeted docking with the PatchDock [54] server. Isomerized and phosphorylated residues are not supported by the docking software, so equilibrium structures of isoD7-Aβ42 and pS8-Aβ42 with standard residues were used in docking, and subsequently were mutated into iso-Asp7 and phospho-Ser8 after docking. For the FPS-ZM1 docking, Quick-Vina-W software was used [58]. All docking results were analyzed with the in-house software QASDOM (http://qasdom.eimb.ru/qasdom.html (accessed on 27 January 2022)) [59]. QASDOM was used to identify RAGE:Aβ42 interactions in the obtained complexes. The first 30 complexes from each server were used. A sum of all atomic contacts for each residue over all of the complexes was calculated by QASDOM; later, this parameter was used as “number of contacts”. Global docking was used for primary identification of the interaction sites with Aβ40, Aβ42, RP-1 and RAP peptides in the RAGE protein. The targeted flexible docking to the identified sites was used to obtain the best rated RAGE:Aβ42 isoforms, RAGE:Aβ40, RAGE:RAP and RAGE:RP-1 complexes with high affinity for subsequent MD simulations.

4.3. MD Simulations

The 100 ns MD simulations of each best-rated RAGE:Aβ42 isoform docking complex and RAGE:Aβ40 complex were performed. To ascertain stability of RAGE:Aβ42 isoform complexes in early and mature endosomes, they were modeled at pH 6.0 for 100 ns and at pH 5.5 for 100–250 ns. The following parameters were applied: for late endosomes, pH 5.5, concentration of chlorine 60 mM, sodium 20 mM, potassium 40 mM; and for early endosomes, pH 6.0, Cl and Na concentrations of 25 mM. In all other MD systems, the pH was 7.0 and Cl and Na concentrations were 0.115 mM. The protonation states were calculated and the systems were prepared using the Poisson–Boltzmann PDB2PQR server [60] (https://server.poissonboltzmann.org/ (accessed on 11 February 2022). The total charge of the complex at pH 5.5 was +6 e and at pH 6.0 was +5 e, while at neutral pH it was −1 e. The 100 ns MD simulations of the best rated RAGE:RAP, RAGE:RP-1 and RAGE:FPS-ZM1 docking complexes were performed.
All molecular complexes were subject to energy minimization with the consecutively applied steepest descent and conjugated gradients algorithms before MD modeling. Then, they were equilibrated in water and saline solution under position restraints for 1 ns in the NVT and NPT ensembles, respectively. In all models, the CHARMM36 forcefield [61] was used except for the systems with RAP and RP-1 peptides. For RAP and RP-1 modeling, the AMBER forcefield [62] was used to accommodate protected ends not supported by the CHARMM36 forcefield. MD calculations were performed with the particle mesh Ewald technique with the repeating boundary conditions and 1 nm cut-offs. The LINCS constraint algorithm with a 2-fs time step was applied. A constant temperature of 300 K was maintained throughout computations with two coupling groups.
The umbrella sampling [63] was performed for the RAGE:Aβ42, RAGE:isoD7-Aβ42 and RAGE:pS8-Aβ42 complexes after 50 ns of MD to obtain a potential of the mean force curve and to calculate the ∆G value for the binding/unbinding process. For the umbrella sampling of the RAGE:Aβ42 complex, 36 windows were chosen. These windows spanned the RAGE:Aβ42 center of mass (COM) separations from 1.2 nm to 6.2 nm. For the umbrella sampling of the RAGE:isoD7-Aβ42 complex, 33 windows were chosen. These windows spanned the RAGE:Aβ42 COM separations from 0.8 nm to 7.1 nm. For the umbrella sampling of the RAGE:pS8-Aβ42 complex, 38 windows were chosen. These windows spanned the RAGE:Aβ42 COM separations from 1.9 nm to 7.5 nm. The spacings between each window were 0.1 nm for the first 2 nm, 0.2 nm for next 2 nm and subsequently 0.3 nm, which enabled sufficient sampling. When required, additional windows were launched. The pulling was accomplished by applying a harmonic force with a force constant of 1000 kJ mol−1 nm−2. For each window, a 10 ns MD simulation was performed. Free energy was calculated for each final configuration using the weighted histogram analysis method (WHAM) [64].

5. Conclusions

Computer modeling showed that all Aβ isoforms can be transported through the cell as part of a complex with RAGE since all of the studied Aβ isoforms (Aβ42, Aβ40, pS8-Aβ42, isoD7-Aβ42) form stable complexes with RAGE both at a normal and acidic pH. Docking data showed novel interfaces for RAGE interaction with Aβ that were not previously studied. The main interaction in RAGE occurs for Aβ42 at the region between the V and C1 domains and the neighboring residues, while in the case of Aβ40 this region is much more extended and incorporates residues not involved in the interface for Aβ42. For the best-rated docking complexes of RAGE with Aβ42, pS8-Aβ42 and isoD7-Aβ42 peptides, the free energy of binding corresponds to the picomolar binding constant and the Aβ42 peptide has a higher binding constant compared with pS8-Aβ42 and isoD7-Aβ42 peptides. According to our data, the most promising inhibitor of Aβ interaction with RAGE is RP-1 as it closely overlaps the interaction interface with Aβ.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms231911816/s1.

Author Contributions

Conceptualization, I.Y.P. and V.A.M.; methodology, A.P.T. and A.A.A.; validation, I.Y.P., V.A.M. and A.A.M.; investigation, A.P.T.; resources, A.A.M.; data curation, V.A.M.; writing—original draft preparation, A.P.T., A.A.A. and I.Y.P.; writing—review and editing, I.Y.P., V.A.M. and A.A.M.; visualization, A.P.T.; supervision, V.A.M. and A.A.M.; project administration, I.Y.P.; funding acquisition, A.A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Higher Education of the Russian Federation (grant agreement № 075-15-2020-795, state contract № 13.1902.21.0027 of 29 September 2020 unique project ID: RF-190220X0027).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

This study did not report any data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Deane, R.; Singh, I.; Sagare, A.P.; Bell, R.D.; Ross, N.T.; LaRue, B.; Love, R.; Perry, S.; Paquette, N.; Deane, R.J.; et al. A Multimodal RAGE-Specific Inhibitor Reduces Amyloid β-Mediated Brain Disorder in a Mouse Model of Alzheimer Disease. J. Clin. Investig. 2012, 122, 1377–1392. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Dietrich, M.; Antequera, D.; Pascual, C.; Castro, N.; Bolos, M.; Carro, E. Alzheimer’s Disease-Like Impaired Cognition in Endothelial-Specific Megalin-Null Mice. J. Alzheimers Dis. 2014, 39, 711–717. [Google Scholar] [CrossRef] [PubMed]
  3. Luissint, A.-C.; Artus, C.; Glacial, F.; Ganeshamoorthy, K.; Couraud, P.-O. Tight Junctions at the Blood Brain Barrier: Physiological Architecture and Disease-Associated Dysregulation. Fluids Barriers CNS 2012, 9, 23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Yan, S.D.; Chen, X.; Fu, J.; Chen, M.; Zhu, H.; Roher, A.; Slattery, T.; Zhao, L.; Nagashima, M.; Morser, J.; et al. RAGE and Amyloid-Beta Peptide Neurotoxicity in Alzheimer’s Disease. Nature 1996, 382, 685–691. [Google Scholar] [CrossRef]
  5. Deane, R.; Du Yan, S.; Submamaryan, R.K.; LaRue, B.; Jovanovic, S.; Hogg, E.; Welch, D.; Manness, L.; Lin, C.; Yu, J.; et al. RAGE Mediates Amyloid-Beta Peptide Transport across the Blood-Brain Barrier and Accumulation in Brain. Nat. Med. 2003, 9, 907–913. [Google Scholar] [CrossRef] [PubMed]
  6. Shibata, M.; Yamada, S.; Kumar, S.R.; Calero, M.; Bading, J.; Frangione, B.; Holtzman, D.M.; Miller, C.A.; Strickland, D.K.; Ghiso, J.; et al. Clearance of Alzheimer’s Amyloid-Ss(1-40) Peptide from Brain by LDL Receptor-Related Protein-1 at the Blood-Brain Barrier. J. Clin. Investig. 2000, 106, 1489–1499. [Google Scholar] [CrossRef] [Green Version]
  7. Bell, R.D.; Sagare, A.P.; Friedman, A.E.; Bedi, G.S.; Holtzman, D.M.; Deane, R.; Zlokovic, B.V. Transport Pathways for Clearance of Human Alzheimer’s Amyloid Beta-Peptide and Apolipoproteins E and J in the Mouse Central Nervous System. J. Cereb. Blood Flow Metab. 2007, 27, 909–918. [Google Scholar] [CrossRef] [Green Version]
  8. Ramasamy, R.; Yan, S.F.; Schmidt, A.M. Advanced Glycation Endproducts: From Precursors to RAGE: Round and Round We Go. Amino Acids 2012, 42, 1151–1161. [Google Scholar] [CrossRef] [Green Version]
  9. Neeper, M.; Schmidt, A.M.; Brett, J.; Yan, S.D.; Wang, F.; Pan, Y.C.; Elliston, K.; Stern, D.; Shaw, A. Cloning and Expression of a Cell Surface Receptor for Advanced Glycosylation End Products of Proteins. J. Biol. Chem. 1992, 267, 14998–15004. [Google Scholar] [CrossRef]
  10. Cheng, C.; Tsuneyama, K.; Kominami, R.; Shinohara, H.; Sakurai, S.; Yonekura, H.; Watanabe, T.; Takano, Y.; Yamamoto, H.; Yamamoto, Y. Expression Profiling of Endogenous Secretory Receptor for Advanced Glycation End Products in Human Organs. Mod. Pathol. 2005, 18, 1385–1396. [Google Scholar] [CrossRef]
  11. Wang, Z.; Wang, B.; Yang, L.; Guo, Q.; Aithmitti, N.; Songyang, Z.; Zheng, H. Presynaptic and Postsynaptic Interaction of the Amyloid Precursor Protein Promotes Peripheral and Central Synaptogenesis. J. Neurosci. 2009, 29, 10788–10801. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Emanuele, E.; D’Angelo, A.; Tomaino, C.; Binetti, G.; Ghidoni, R.; Politi, P.; Bernardi, L.; Maletta, R.; Bruni, A.C.; Geroldi, D. Circulating Levels of Soluble Receptor for Advanced Glycation End Products in Alzheimer Disease and Vascular Dementia. Arch. Neurol. 2005, 62, 1734. [Google Scholar] [CrossRef]
  13. Bongarzone, S.; Savickas, V.; Luzi, F.; Gee, A.D. Targeting the Receptor for Advanced Glycation Endproducts (RAGE): A Medicinal Chemistry Perspective. J. Med. Chem. 2017, 60, 7213–7232. [Google Scholar] [CrossRef] [Green Version]
  14. Paudel, Y.N.; Angelopoulou, E.; Piperi, C.; Othman, I.; Shaikh, M.F. Revisiting the Impact of Neurodegenerative Proteins in Epilepsy: Focus on Alpha-Synuclein, Beta-Amyloid, and Tau. Biology 2020, 9, E122. [Google Scholar] [CrossRef]
  15. Gospodarska, E.; Kupniewska-Kozak, A.; Goch, G.; Dadlez, M. Binding Studies of Truncated Variants of the Aβ Peptide to the V-Domain of the RAGE Receptor Reveal Aβ Residues Responsible for Binding. Biochim. Biophys Acta 2011, 1814, 592–609. [Google Scholar] [CrossRef] [PubMed]
  16. Yatime, L.; Andersen, G.R. Structural Insights into the Oligomerization Mode of the Human Receptor for Advanced Glycation End-Products. FEBS J. 2013, 280, 6556–6568. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Xue, J.; Rai, V.; Singer, D.; Chabierski, S.; Xie, J.; Reverdatto, S.; Burz, D.S.; Schmidt, A.M.; Hoffmann, R.; Shekhtman, A. Advanced Glycation End Product Recognition by the Receptor for AGEs. Structure 2011, 19, 722–732. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Koch, M.; Chitayat, S.; Dattilo, B.M.; Schiefner, A.; Diez, J.; Chazin, W.J.; Fritz, G. Structural Basis for Ligand Recognition and Activation of RAGE. Structure 2010, 18, 1342–1352. [Google Scholar] [CrossRef] [Green Version]
  19. Dattilo, B.M.; Fritz, G.; Leclerc, E.; Kooi, C.W.V.; Heizmann, C.W.; Chazin, W.J. The Extracellular Region of the Receptor for Advanced Glycation End Products Is Composed of Two Independent Structural Units. Biochemistry 2007, 46, 6957–6970. [Google Scholar] [CrossRef] [Green Version]
  20. Sturchler, E.; Galichet, A.; Weibel, M.; Leclerc, E.; Heizmann, C.W. Site-Specific Blockade of RAGE-Vd Prevents Amyloid-Beta Oligomer Neurotoxicity. J. Neurosci. 2008, 28, 5149–5158. [Google Scholar] [CrossRef]
  21. Ma, Q.-L.; Harris-White, M.E.; Ubeda, O.J.; Simmons, M.; Beech, W.; Lim, G.P.; Teter, B.; Frautschy, S.A.; Cole, G.M. Evidence of Aβ- and Transgene-Dependent Defects in ERK-CREB Signaling in Alzheimer’s Models. J. Neurochem. 2007, 103, 1594–1607. [Google Scholar] [CrossRef] [PubMed]
  22. Park, H.; Adsit, F.G.; Boyington, J.C. The 1.5 Å Crystal Structure of Human Receptor for Advanced Glycation Endproducts (RAGE) Ectodomains Reveals Unique Features Determining Ligand Binding. J. Biol. Chem. 2010, 285, 40762–40770. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Matsumoto, S.; Yoshida, T.; Murata, H.; Harada, S.; Fujita, N.; Nakamura, S.; Yamamoto, Y.; Watanabe, T.; Yonekura, H.; Yamamoto, H.; et al. Solution Structure of the Variable-Type Domain of the Receptor for Advanced Glycation End Products: New Insight into AGE-RAGE Interaction. Biochemistry 2008, 47, 12299–12311. [Google Scholar] [CrossRef] [PubMed]
  24. Volpina, O.M.; Koroev, D.O.; Volkova, T.D.; Kamynina, A.V.; Filatova, M.P.; Zaporozhskaya, Y.V.; Samokhin, A.N.; Aleksandrova, I.Y.; Bobkova, N.V. A Fragment of the Receptor for Advanced Glycation End Products Restores the Spatial Memory of Animals in a Model of Alzheimer’s Disease. Russ. J. Bioorg. Chem. 2015, 41, 638–644. [Google Scholar] [CrossRef] [PubMed]
  25. Kamynina, A.V.; Esteras, N.; Koroev, D.O.; Bobkova, N.V.; Balasanyants, S.M.; Simonyan, R.A.; Avetisyan, A.V.; Abramov, A.Y.; Volpina, O.M. Synthetic Fragments of Receptor for Advanced Glycation End Products Bind Beta-Amyloid 1-40 and Protect Primary Brain Cells From Beta-Amyloid Toxicity. Front. Neurosci. 2018, 12, 681. [Google Scholar] [CrossRef]
  26. Volpina, O.M.; Samokhin, A.N.; Koroev, D.O.; Nesterova, I.V.; Volkova, T.D.; Medvinskaya, N.I.; Nekrasov, P.V.; Tatarnikova, O.G.; Kamynina, A.V.; Balasanyants, S.M.; et al. Synthetic Fragment of Receptor for Advanced Glycation End Products Prevents Memory Loss and Protects Brain Neurons in Olfactory Bulbectomized Mice. J. Alzheimers Dis 2018, 61, 1061–1076. [Google Scholar] [CrossRef]
  27. Ojakäär, T.; Koychev, I. Secondary Prevention of Dementia: Combining Risk Factors and Scalable Screening Technology. Front. Neurol. 2021, 12, 772836. [Google Scholar] [CrossRef]
  28. Chellappa, R.C.; Lukose, B.; Rani, P. Correction: G82S RAGE Polymorphism Influences Amyloid-RAGE Interactions Relevant in Alzheimer’s Disease Pathology. PLoS ONE 2021, 16, e0248252. [Google Scholar] [CrossRef]
  29. Lao, K.; Zhang, R.; Luan, J.; Zhang, Y.; Gou, X. Therapeutic Strategies Targeting Amyloid-β Receptors and Transporters in Alzheimer’s Disease. J. Alzheimers Dis. 2021, 79, 1429–1442. [Google Scholar] [CrossRef]
  30. Sharda, N.; Ahlschwede, K.M.; Curran, G.L.; Lowe, V.J.; Kandimalla, K.K. Distinct Uptake Kinetics of Alzheimer Disease Amyloid- β 40 and 42 at the Blood-Brain Barrier Endothelium. J. Pharmacol. Exp. Ther. 2021, 376, 482–490. [Google Scholar] [CrossRef]
  31. Chaney, M.O.; Stine, W.B.; Kokjohn, T.A.; Kuo, Y.-M.; Esh, C.; Rahman, A.; Luehrs, D.C.; Schmidt, A.M.; Stern, D.; Yan, S.D.; et al. RAGE and Amyloid Beta Interactions: Atomic Force Microscopy and Molecular Modeling. Biochim. Biophys Acta 2005, 1741, 199–205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Cai, C.; Dai, X.; Zhu, Y.; Lian, M.; Xiao, F.; Dong, F.; Zhang, Q.; Huang, Y.; Zheng, Q. A Specific RAGE-Binding Peptide Biopanning from Phage Display Random Peptide Library That Ameliorates Symptoms in Amyloid β Peptide-Mediated Neuronal Disorder. Appl. Microbiol. Biotechnol. 2016, 100, 825–835. [Google Scholar] [CrossRef] [PubMed]
  33. Cai, Z.; Liu, N.; Wang, C.; Qin, B.; Zhou, Y.; Xiao, M.; Chang, L.; Yan, L.-J.; Zhao, B. Role of RAGE in Alzheimer’s Disease. Cell Mol. Neurobiol. 2016, 36, 483–495. [Google Scholar] [CrossRef] [PubMed]
  34. Lee, S.; Piao, C.; Kim, G.; Kim, J.Y.; Choi, E.; Lee, M. Production and Application of HMGB1 Derived Recombinant RAGE-Antagonist Peptide for Anti-Inflammatory Therapy in Acute Lung Injury. Eur. J. Pharm. Sci. 2018, 114, 275–284. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, L.; Killoy, K.M.; Vargas, M.R.; Yamamoto, Y.; Pehar, M. Effects of RAGE Inhibition on the Progression of the Disease in HSOD1G93A ALS Mice. Pharmacol. Res. Perspect. 2020, 8, e00636. [Google Scholar] [CrossRef]
  36. Hong, Y.; Shen, C.; Yin, Q.; Sun, M.; Ma, Y.; Liu, X. Effects of RAGE-Specific Inhibitor FPS-ZM1 on Amyloid-β Metabolism and AGEs-Induced Inflammation and Oxidative Stress in Rat Hippocampus. Neurochem. Res. 2016, 41, 1192–1199. [Google Scholar] [CrossRef]
  37. Meyer-Luehmann, M.; Coomaraswamy, J.; Bolmont, T.; Kaeser, S.; Schaefer, C.; Kilger, E.; Neuenschwander, A.; Abramowski, D.; Frey, P.; Jaton, A.L.; et al. Exogenous Induction of Cerebral Beta-Amyloidogenesis Is Governed by Agent and Host. Science 2006, 313, 1781–1784. [Google Scholar] [CrossRef]
  38. Jucker, M.; Walker, L.C. Propagation and Spread of Pathogenic Protein Assemblies in Neurodegenerative Diseases. Nat. Neurosci. 2018, 21, 1341–1349. [Google Scholar] [CrossRef]
  39. Kozin, S.A.; Mitkevich, V.A.; Makarov, A.A. Amyloid-β Containing Isoaspartate 7 as Potential Biomarker and Drug Target in Alzheimer’s Disease. Mendeleev Commun. 2016, 26, 269–275. [Google Scholar] [CrossRef]
  40. Mitkevich, V.A.; Petrushanko, I.Y.; Yegorov, Y.E.; Simonenko, O.V.; Vishnyakova, K.S.; Kulikova, A.A.; Tsvetkov, P.O.; Makarov, A.A.; Kozin, S.A. Isomerization of Asp7 Leads to Increased Toxic Effect of Amyloid-Β42 on Human Neuronal Cells. Cell Death Dis. 2013, 4, e939. [Google Scholar] [CrossRef]
  41. Kozin, S.A.; Barykin, E.P.; Telegin, G.B.; Chernov, A.S.; Adzhubei, A.A.; Radko, S.P.; Mitkevich, V.A.; Makarov, A.A. Intravenously Injected Amyloid-β Peptide With Isomerized Asp7 and Phosphorylated Ser8 Residues Inhibits Cerebral β-Amyloidosis in AβPP/PS1 Transgenic Mice Model of Alzheimer’s Disease. Front. Neurosci. 2018, 12, 518. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Barykin, E.P.; Petrushanko, I.Y.; Kozin, S.A.; Telegin, G.B.; Chernov, A.S.; Lopina, O.D.; Radko, S.P.; Mitkevich, V.A.; Makarov, A.A. Phosphorylation of the Amyloid-Beta Peptide Inhibits Zinc-Dependent Aggregation, Prevents Na,K-ATPase Inhibition, and Reduces Cerebral Plaque Deposition. Front. Mol. Neurosci. 2018, 11, 302. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Jumper, J.; Evans, R.; Pritzel, A.; Green, T.; Figurnov, M.; Ronneberger, O.; Tunyasuvunakool, K.; Bates, R.; Žídek, A.; Potapenko, A.; et al. Highly Accurate Protein Structure Prediction with AlphaFold. Nature 2021, 596, 583–589. [Google Scholar] [CrossRef] [PubMed]
  44. Ayloo, S.; Gu, C. Transcytosis at the Blood–Brain Barrier. Curr. Opin. Neurobiol. 2019, 57, 32–38. [Google Scholar] [CrossRef]
  45. Scott, C.C.; Gruenberg, J. Ion Flux and the Function of Endosomes and Lysosomes: PH Is Just the Start: The Flux of Ions across Endosomal Membranes Influences Endosome Function Not Only through Regulation of the Luminal PH. Bioessays 2011, 33, 103–110. [Google Scholar] [CrossRef] [PubMed]
  46. Huang, Y.; Fang, N.; Luo, H.; Gao, F.; Zou, Y.; Zhou, L.; Zeng, Q.; Fang, S.; Xiao, F.; Zheng, Q. RP1, a RAGE Antagonist Peptide, Can Improve Memory Impairment and Reduce Aβ Plaque Load in the APP/PS1 Mouse Model of Alzheimer’s Disease. Neuropharmacology 2020, 180, 108304. [Google Scholar] [CrossRef] [PubMed]
  47. Kim, S.-J.; Ahn, J.-W.; Kim, H.; Ha, H.-J.; Lee, S.-W.; Kim, H.-K.; Lee, S.; Hong, H.-S.; Kim, Y.H.; Choi, C.Y. Two β-Strands of RAGE Participate in the Recognition and Transport of Amyloid-β Peptide across the Blood Brain Barrier. Biochem. Biophys. Res. Commun. 2013, 439, 252–257. [Google Scholar] [CrossRef]
  48. Abraham, M.J.; Murtola, T.; Schulz, R.; Páll, S.; Smith, J.C.; Hess, B.; Lindahl, E. GROMACS: High Performance Molecular Simulations through Multi-Level Parallelism from Laptops to Supercomputers. SoftwareX 2015, 1–2, 19–25. [Google Scholar] [CrossRef] [Green Version]
  49. Barykin, E.P.; Garifulina, A.I.; Kruykova, E.V.; Spirova, E.N.; Anashkina, A.A.; Adzhubei, A.A.; Shelukhina, I.V.; Kasheverov, I.E.; Mitkevich, V.A.; Kozin, S.A.; et al. Isomerization of Asp7 in Beta-Amyloid Enhances Inhibition of the A7 Nicotinic Receptor and Promotes Neurotoxicity. Cells 2019, 8, 771. [Google Scholar] [CrossRef] [Green Version]
  50. Vivekanandan, S.; Brender, J.R.; Lee, S.Y.; Ramamoorthy, A. A Partially Folded Structure of Amyloid-Beta(1–40) in an Aqueous Environment. Biochem. Biophys. Res. Commun. 2011, 411, 312–316. [Google Scholar] [CrossRef]
  51. Koziara, K.B.; Stroet, M.; Malde, A.K.; Mark, A.E. Testing and Validation of the Automated Topology Builder (ATB) Version 2.0: Prediction of Hydration Free Enthalpies. J. Comput. Aided. Mol. Des. 2014, 28, 221–233. [Google Scholar] [CrossRef] [PubMed]
  52. Christoffer, C.; Bharadwaj, V.; Luu, R.; Kihara, D. LZerD Protein-Protein Docking Webserver Enhanced with de Novo Structure Prediction. Front. Mol. Biosci. 2021, 8, 724947. [Google Scholar] [CrossRef] [PubMed]
  53. De Vries, S.J.; Schindler, C.E.M.; Chauvot de Beauchêne, I.; Zacharias, M. A Web Interface for Easy Flexible Protein-Protein Docking with ATTRACT. Biophys. J. 2015, 108, 462–465. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Schneidman-Duhovny, D.; Inbar, Y.; Nussinov, R.; Wolfson, H.J. PatchDock and SymmDock: Servers for Rigid and Symmetric Docking. Nucleic Acids Res. 2005, 33, W363–W367. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Porter, K.A.; Xia, B.; Beglov, D.; Bohnuud, T.; Alam, N.; Schueler-Furman, O.; Kozakov, D. ClusPro PeptiDock: Efficient Global Docking of Peptide Recognition Motifs Using FFT. Bioinformatics 2017, 33, 3299–3301. [Google Scholar] [CrossRef] [Green Version]
  56. Yan, Y.; Zhang, D.; Zhou, P.; Li, B.; Huang, S.-Y. HDOCK: A Web Server for Protein–Protein and Protein–DNA/RNA Docking Based on a Hybrid Strategy. Nucleic Acids Res. 2017, 45, W365–W373. [Google Scholar] [CrossRef]
  57. Pierce, B.G.; Wiehe, K.; Hwang, H.; Kim, B.-H.; Vreven, T.; Weng, Z. ZDOCK Server: Interactive Docking Prediction of Protein–Protein Complexes and Symmetric Multimers. Bioinformatics 2014, 30, 1771–1773. [Google Scholar] [CrossRef] [Green Version]
  58. Hassan, N.M.; Alhossary, A.A.; Mu, Y.; Kwoh, C.-K. Protein-Ligand Blind Docking Using QuickVina-W with Inter-Process Spatio-Temporal Integration. Sci. Rep. 2017, 7, 15451. [Google Scholar] [CrossRef] [Green Version]
  59. Anashkina, A.A.; Kravatsky, Y.; Kuznetsov, E.; Makarov, A.A.; Adzhubei, A.A. Meta-Server for Automatic Analysis, Scoring and Ranking of Docking Models. Bioinformatics 2018, 34, 297–299. [Google Scholar] [CrossRef] [Green Version]
  60. Unni, S.; Huang, Y.; Hanson, R.; Tobias, M.; Krishnan, S.; Li, W.W.; Nielsen, J.E.; Baker, N.A. Web Servers and Services for Electrostatics Calculations with APBS and PDB2PQR. J. Comput. Chem. 2011, 32, 1488–1491. [Google Scholar] [CrossRef]
  61. Huang, J.; MacKerell, A.D. CHARMM36 All-Atom Additive Protein Force Field: Validation Based on Comparison to NMR Data. J. Comput. Chem. 2013, 34, 2135–2145. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Lindorff-Larsen, K.; Piana, S.; Palmo, K.; Maragakis, P.; Klepeis, J.L.; Dror, R.O.; Shaw, D.E. Improved Side-Chain Torsion Potentials for the Amber Ff99SB Protein Force Field. Proteins 2010, 78, 1950–1958. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. You, W.; Tang, Z.; Chang, C.A. Potential Mean Force from Umbrella Sampling Simulations: What Can We Learn and What Is Missed? J. Chem. Theory Comput. 2019, 15, 2433–2443. [Google Scholar] [CrossRef] [PubMed]
  64. Kumar, S.; Rosenberg, J.M.; Bouzida, D.; Swendsen, R.H.; Kollman, P.A. THE Weighted Histogram Analysis Method for Free-Energy Calculations on Biomolecules. I. The Method. J. Comput. Chem. 1992, 13, 1011–1021. [Google Scholar] [CrossRef]
Ijms 23 11816 g001 550

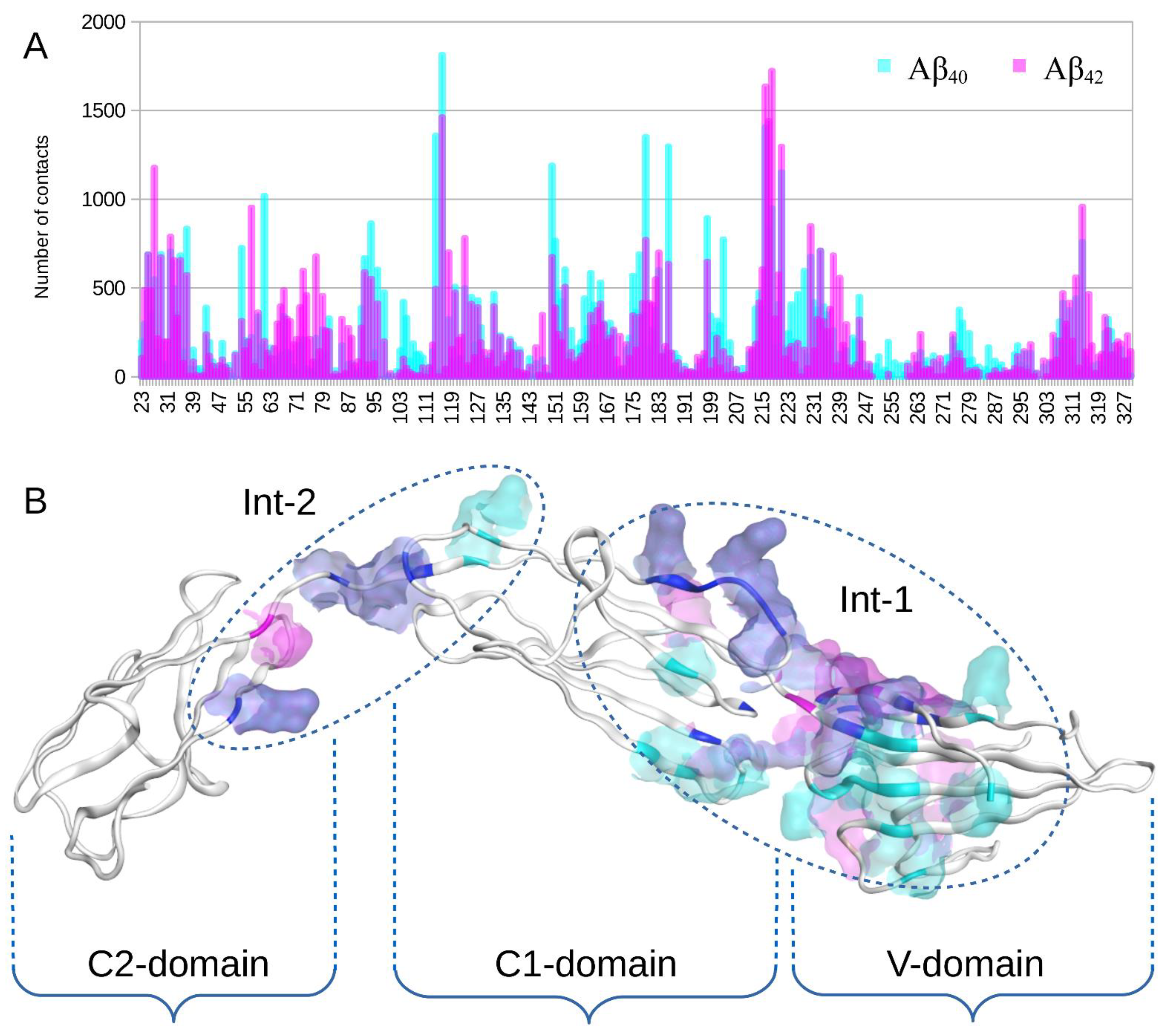

Figure 1. Global docking results of Aβ42 and Aβ40 peptides to RAGE protein performed with servers LzerD, ATTRACT, PatchDock, ClusPro, Hdock and Zdock and analyzed with QASDOM server. The 30 best complexes from each server have been used for analysis, and 10 complexes from Zdock. (A) Superposition of the docking contact frequency histogram for RAGE residues over all 160 complexes with Aβ42 (cyan) and Aβ40 (magenta). (B) Interacting residues highlighted in the RAGE structure according to the global docking results. Residues interacting only with Aβ42 are highlighted with magenta. Residues interacting only with Aβ40 are highlighted with cyan. Residues interacting with both isoforms are highlighted with blue. RAGE domains are indicated with curly braces. In (B), two independent extended interaction regions localized far from each other can be distinguished. They are marked with dotted ovals and represent Interface 1 (Int-1) and Interface 2 (Int-2).
Figure 1. Global docking results of Aβ42 and Aβ40 peptides to RAGE protein performed with servers LzerD, ATTRACT, PatchDock, ClusPro, Hdock and Zdock and analyzed with QASDOM server. The 30 best complexes from each server have been used for analysis, and 10 complexes from Zdock. (A) Superposition of the docking contact frequency histogram for RAGE residues over all 160 complexes with Aβ42 (cyan) and Aβ40 (magenta). (B) Interacting residues highlighted in the RAGE structure according to the global docking results. Residues interacting only with Aβ42 are highlighted with magenta. Residues interacting only with Aβ40 are highlighted with cyan. Residues interacting with both isoforms are highlighted with blue. RAGE domains are indicated with curly braces. In (B), two independent extended interaction regions localized far from each other can be distinguished. They are marked with dotted ovals and represent Interface 1 (Int-1) and Interface 2 (Int-2).
Ijms 23 11816 g001
Ijms 23 11816 g002 550

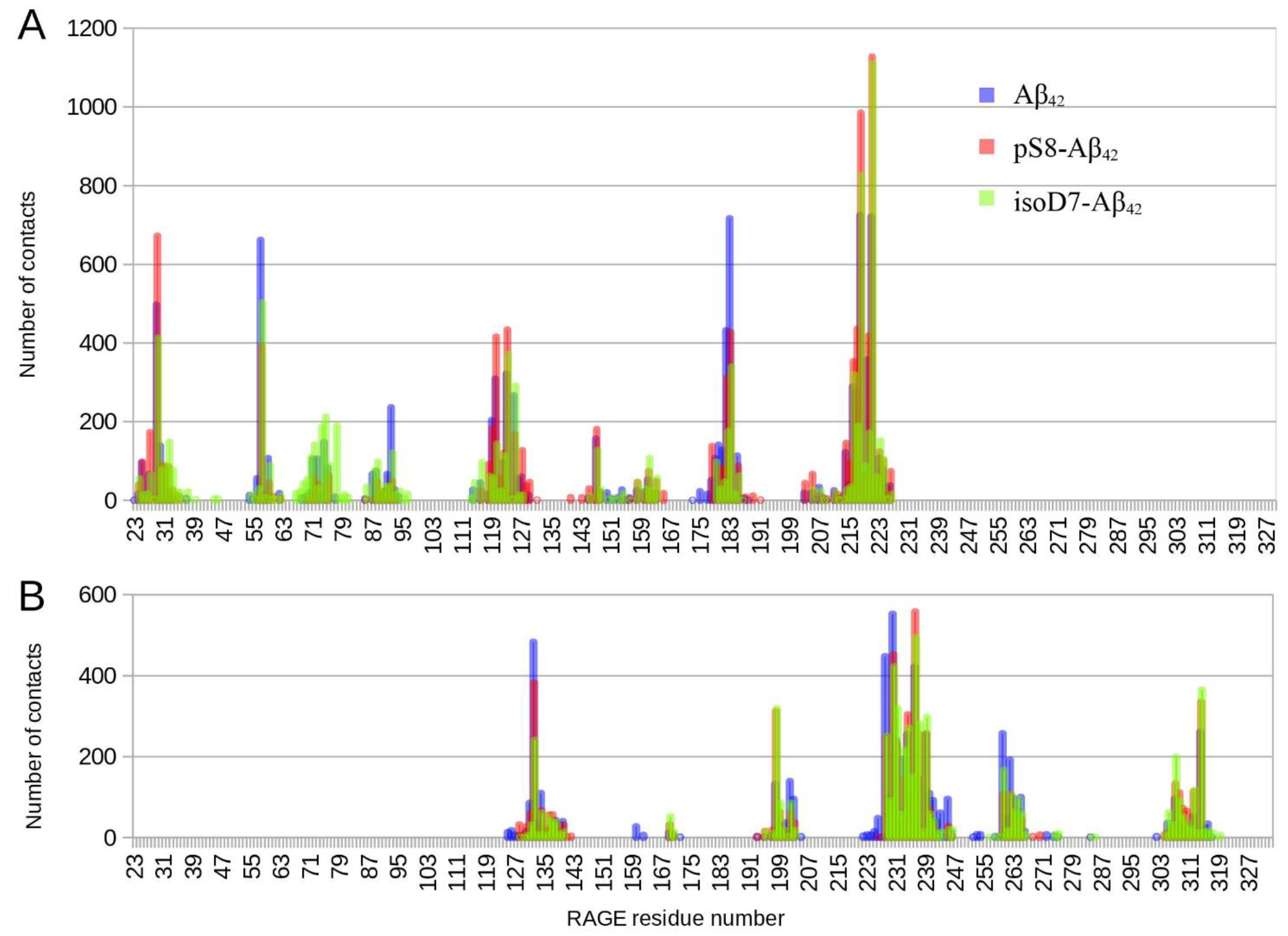

Figure 2. Contact frequency histogram for targeted docking of the Aβ42 isoforms to the previously obtained interaction area of the RAGE protein performed with PatchDock server and analyzed by QASDOM software. The 30 best complexes with each isoform have been used for the analysis. (A) results for targeted docking to Interface 1, (B) results for targeted docking to Interface 2. Contacts with Aβ42 are colored blue, contacts with pS8-Aβ42 are colored red and contacts with isoD7-Aβ42 are colored green.
Figure 2. Contact frequency histogram for targeted docking of the Aβ42 isoforms to the previously obtained interaction area of the RAGE protein performed with PatchDock server and analyzed by QASDOM software. The 30 best complexes with each isoform have been used for the analysis. (A) results for targeted docking to Interface 1, (B) results for targeted docking to Interface 2. Contacts with Aβ42 are colored blue, contacts with pS8-Aβ42 are colored red and contacts with isoD7-Aβ42 are colored green.
Ijms 23 11816 g002
Ijms 23 11816 g003 550

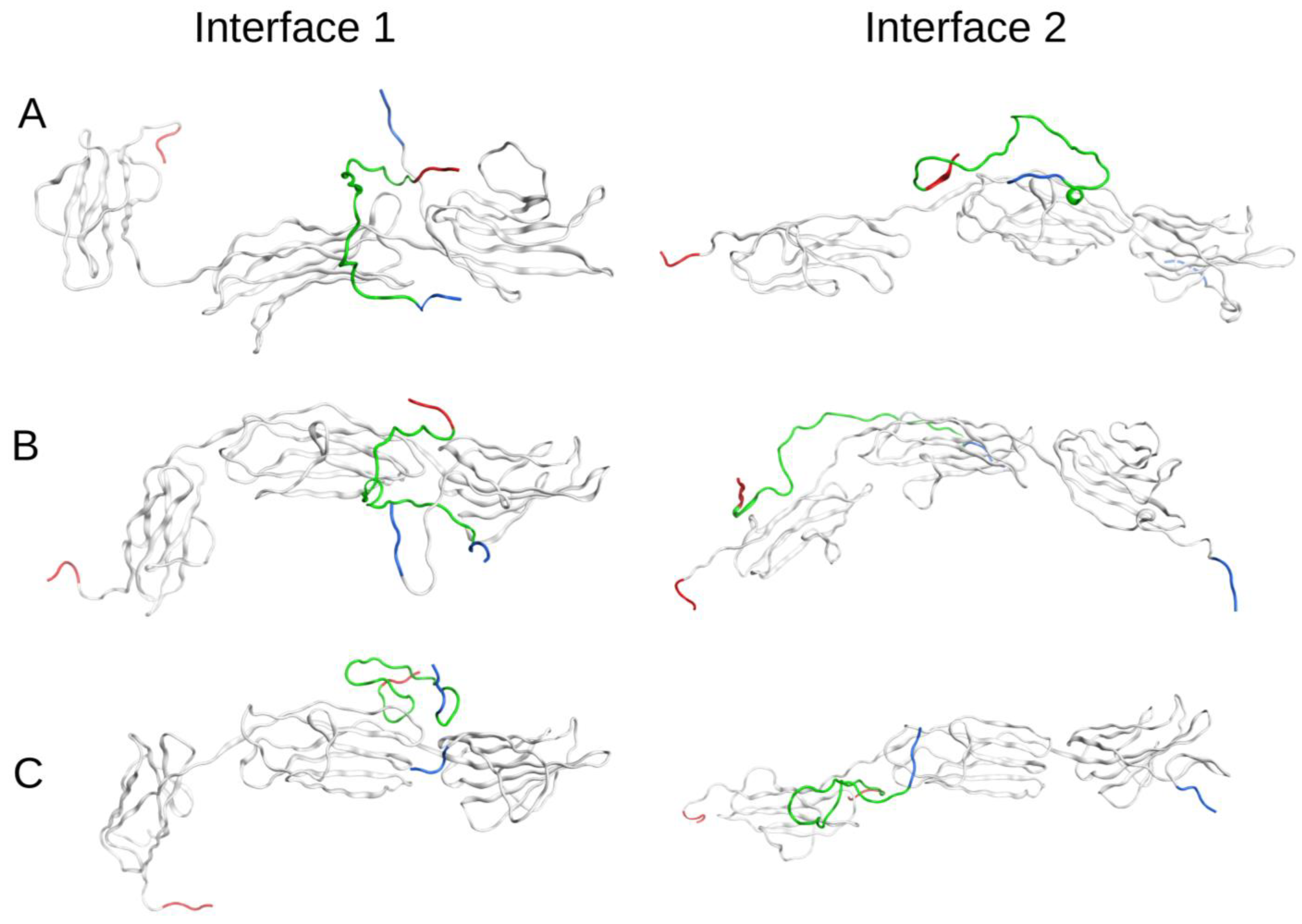

Figure 3. The best docking RAGE:Aβ complexes for the three Aβ42 isoforms after 100 ns of MD. (A) RAGE with Aβ42, (B) RAGE with isoD7-Aβ42, (C) RAGE with pS8-Aβ42. The Aβ42 peptides are colored green, N-termini are highlighted with blue and C-termini are highlighted with red.
Figure 3. The best docking RAGE:Aβ complexes for the three Aβ42 isoforms after 100 ns of MD. (A) RAGE with Aβ42, (B) RAGE with isoD7-Aβ42, (C) RAGE with pS8-Aβ42. The Aβ42 peptides are colored green, N-termini are highlighted with blue and C-termini are highlighted with red.
Ijms 23 11816 g003
Ijms 23 11816 g004 550

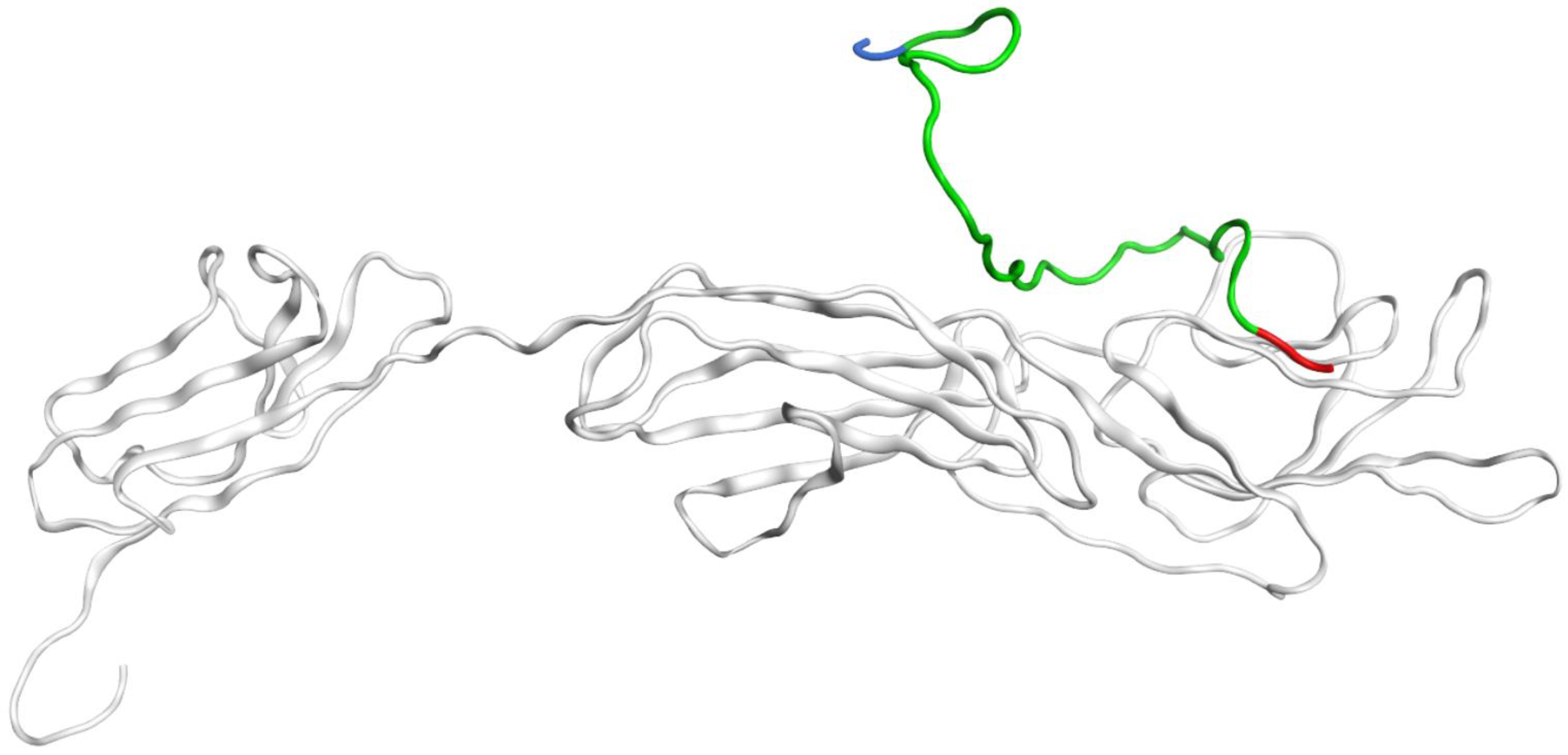

Figure 4. The resulting RAGE:Aβ42 complex after 250 ns of MD at 5.5 pH. Aβ42 is colored green, N-terminus is colored blue and C-terminus, red. The initial structure is shown in Figure 3A.
Figure 4. The resulting RAGE:Aβ42 complex after 250 ns of MD at 5.5 pH. Aβ42 is colored green, N-terminus is colored blue and C-terminus, red. The initial structure is shown in Figure 3A.
Ijms 23 11816 g004
Ijms 23 11816 g005 550

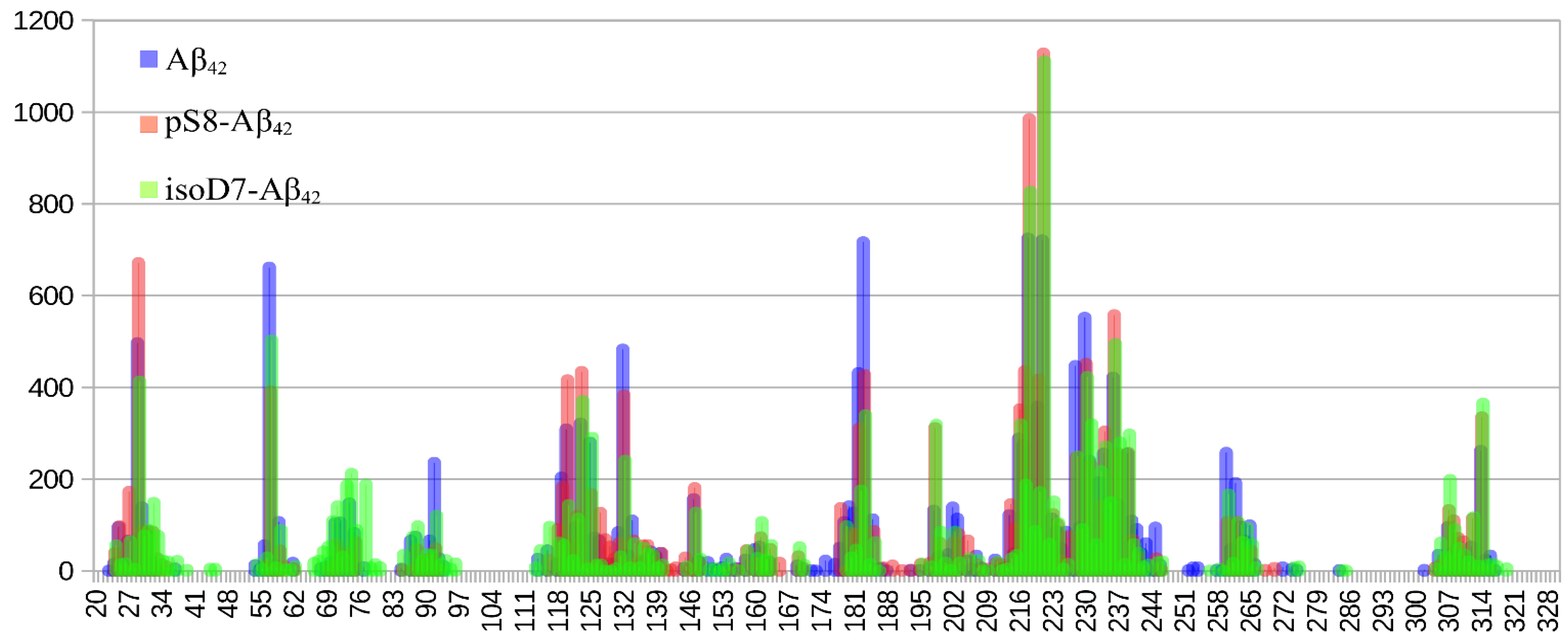

Figure 5. Joint contact frequency histograms for targeted docking of Aβ42 isoforms to Interface 1 and Interface 2 of the RAGE protein performed with PatchDock server and analyzed by QASDOM software. A total of 30 best complexes with each isoform were used for the analysis.
Figure 5. Joint contact frequency histograms for targeted docking of Aβ42 isoforms to Interface 1 and Interface 2 of the RAGE protein performed with PatchDock server and analyzed by QASDOM software. A total of 30 best complexes with each isoform were used for the analysis.
Ijms 23 11816 g005
Ijms 23 11816 g006 550

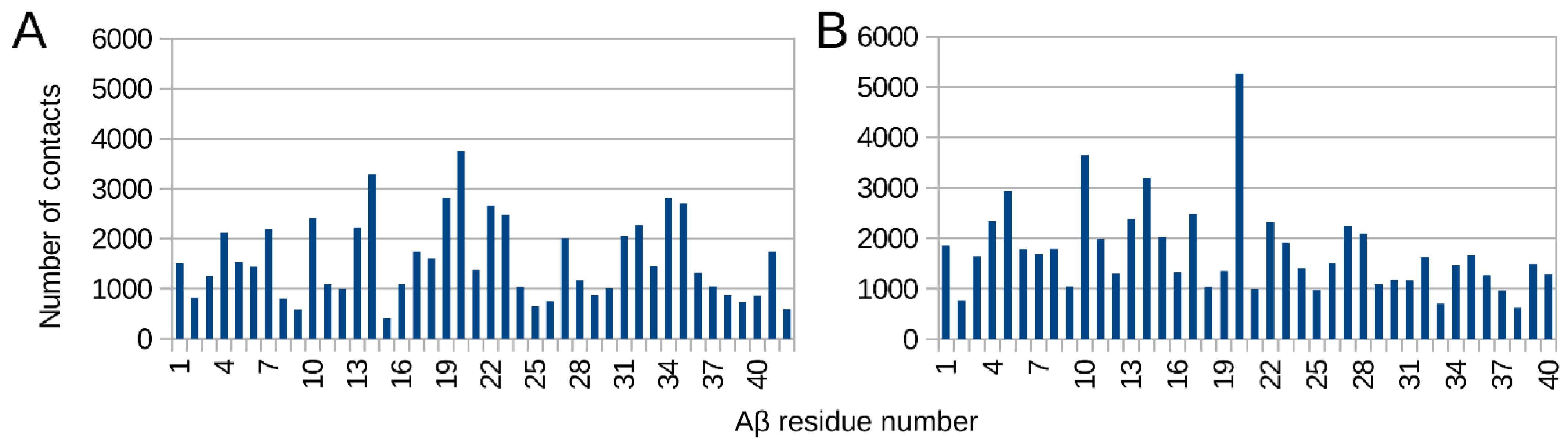

Figure 6. Contact frequency histogram for Aβ42 (A) and Aβ40 (B) residues over 160 complexes with RAGE. Global docking results for the Aβ42 and the Aβ40 to RAGE protein performed with servers LzerD, ATTRACT, PatchDock ClusPro, Hdock and Zdock and analyzed with QASDOM software. A total of 30 best complexes from each have been used for the analysis, and 10 complexes from Zdock.
Figure 6. Contact frequency histogram for Aβ42 (A) and Aβ40 (B) residues over 160 complexes with RAGE. Global docking results for the Aβ42 and the Aβ40 to RAGE protein performed with servers LzerD, ATTRACT, PatchDock ClusPro, Hdock and Zdock and analyzed with QASDOM software. A total of 30 best complexes from each have been used for the analysis, and 10 complexes from Zdock.
Ijms 23 11816 g006
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tolstova, A.P.; Adzhubei, A.A.; Mitkevich, V.A.; Petrushanko, I.Y.; Makarov, A.A. Docking and Molecular Dynamics-Based Identification of Interaction between Various Beta-Amyloid Isoforms and RAGE Receptor. Int. J. Mol. Sci. 2022, 23, 11816. https://doi.org/10.3390/ijms231911816

AMA Style

Tolstova AP, Adzhubei AA, Mitkevich VA, Petrushanko IY, Makarov AA. Docking and Molecular Dynamics-Based Identification of Interaction between Various Beta-Amyloid Isoforms and RAGE Receptor. International Journal of Molecular Sciences. 2022; 23(19):11816. https://doi.org/10.3390/ijms231911816

Chicago/Turabian Style

Tolstova, Anna P., Alexei A. Adzhubei, Vladimir A. Mitkevich, Irina Yu. Petrushanko, and Alexander A. Makarov. 2022. "Docking and Molecular Dynamics-Based Identification of Interaction between Various Beta-Amyloid Isoforms and RAGE Receptor" International Journal of Molecular Sciences 23, no. 19: 11816. https://doi.org/10.3390/ijms231911816

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
