Recent Research Progress of Ionic Liquid Dissolving Silks for Biomedicine and Tissue Engineering Applications

by
Hang Heng
1,†,
Qianqian Deng
1,2,†,
Yipeng Yang
2 and
Fang Wang
1,*
1
Center of Analysis and Testing, Nanjing Normal University, Nanjing 210023, China
2
School of Chemistry and Materials Science, Nanjing Normal University, Nanjing 210023, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(15), 8706; https://doi.org/10.3390/ijms23158706
Submission received: 3 July 2022 / Revised: 27 July 2022 / Accepted: 1 August 2022 / Published: 5 August 2022
(This article belongs to the Special Issue Protein-Based Composite Materials)
Browse Figures
Versions Notes

Abstract

:
Ionic liquids (ILs) show a bright application prospect in the field of biomedicine and energy materials due to their unique recyclable, modifiability, structure of cation and anion adjustability, as well as excellent physical and chemical properties. Dissolving silk fibroin (SF), from different species silkworm cocoons, with ILs is considered an effective new way to obtain biomaterials with highly enhanced/tailored properties, which can significantly overcome the shortcomings of traditional preparation methods, such as the cumbersome, time-consuming and the organic toxicity caused by manufacture. In this paper, the basic structure and properties of SF and the preparation methods of traditional regenerated SF solution are first introduced. Then, the dissolving mechanism and main influencing factors of ILs for SF are expounded, and the fabrication methods, material structure and properties of SF blending with natural biological protein, inorganic matter, synthetic polymer, carbon nanotube and graphene oxide in the ILs solution system are introduced. Additionally, our work summarizes the biomedicine and tissue engineering applications of silk-based materials dissolved through various ILs. Finally, according to the deficiency of ILs for dissolving SF at a high melting point and expensive cost, their further study and future development trend are prospected.

1. Introduction

The excessive use of non-renewable resources such as oil, coal and natural gas makes us foresee that the scarcity and cost of these resources will bring a huge energy crisis to future society [1]. Biopolymers extracted from natural materials, such as polysaccharides and structural proteins, are the most abundant biomaterials on earth and basic components of life. Among them, cellulose, lignin and xyloglucan are components of vascular plant cell walls [2,3,4], and they are also a kind of dietary fiber beneficial to human health [5]. Chitin is used to provide structural stability and body protection for many insects and can be fabricated to produce scaffolds for the field of tissue engineering [6,7]. Chitosan is a kind of material with high affinity and adsorption capacity for various metal ions, which can be modified into different forms of materials applied in the biomedical field [8,9]. Additionally, keratin is a fibrous desprotein with connective and protective functions, which is widely found in animal hair and toenail [10]. Collagen in the human skin, tendons and ligaments is a major component of the extracellular matrix, which is responsible for maintaining tissue structure [10]. Silk sericin can ensure the cohesion of the cocoon by sticking the twin filaments together [10]. Like keratin from wool or hair, elastin from elastic tissues and resilin proteins from insect tendons [10], fibrin and gelatin have also received much attention in the biomedical and tissue engineering application fields due to their biocompatibility and unique properties as well as high abundance in nature [6,10]. Silk fibroin (SF) exists in arthropods and forms fiber through animal spitting, and the best-known ones are from silkworms [11,12,13,14,15]. SF is a fibrous protein [16,17] containing 18 kinds of amino acids, of which glycine (Gly), alanine (Ala) and serine (Ser) account for more than 80% of its total composition [18]. These highly repetitive amino acid sequences can give protein unique mechanical and architectural properties and promote the protein monomers to self-assemble into structurally interesting hierarchical materials [14]. Hence, SF can provide broad application prospects for the design of new biomaterials due to its biocompatibility, excellent mechanical properties, air and moisture permeability and good processability [11]. After degumming, SF can be prepared into different forms of materials, such as film [19], gel [20], microcapsule [21], 3D printed scaffold [22], fiber [23,24] and micro/nano particle [25] among others. These materials can be applied for drug delivery [21,26], wound healing [20,27], tissue engineering [28,29] and environment-related applications as well as in the energy sector [30]. However, the intrinsic properties of silk proteins depend on their source and processing methods applied [10,11]. Therefore, the dissolution and regeneration of SF have been emerging in several fields.
SF is estimated to have about two-thirds crystalline area with one-third disordered amorphous region. The crystalline region mainly consists of repeated GAGAGS amino acid sequence, connected via hydrogen bond and hydrophobic interaction between molecular chains [31]. Therefore, silk is generally insoluble in most solvents, including water, dilute acid and dilute alkali [32]. Using neutral salt solutions, such as calcium chloride ethanol aqueous solution (CaCl2-C2H5OH-H2O) and calcium nitrate methanol aqueous solution (Ca(NO3)2-CH3OH-H2O), can bring up a number of problems. For example, the long dissolving time generates an unstable solution that can easily degrade [20,24,33,34]. In addition, these solvents are highly toxic, volatile and difficult to recover, causing serious pollution to the environment. Therefore, it is of great significance to find a new environment-friendly solvent for the regeneration preparation of SF.
Ionic liquids (ILs) are a new type of green solvents developed in recent years, which are molten salts that exist in the form of liquid at or near room temperature. ILs are generally composed of large volumes of organic cations supplying positive charge and organic or inorganic anions providing negative charge [35]. Compared with traditional organic solvents, ILs possess many attractive and unique properties, such as no significant vapor pressure, wide liquid temperature, good conductivity, thermal and chemical stability, and good solubility, as well as designability of structure and characteristics for various materials [36,37,38,39]. The scientific community is increasingly focusing on the advantages, for instance, the high solubility and stability of ILs for silk regeneration, and its composite preparation with other materials is an effective new strategy to obtain various adjustable properties of biomaterials (Figure 1) [40].
Our work mainly reviews several traditional methods of regenerated preparation for SF, systematically expounds on the solubility, dissolution mechanism and characteristics of SF in different ILs, and analyzes the effects of melting point, dissolution temperature and time as well as coagulation bath. At the same time, the preparation methods, material structure, physical and chemical properties and interaction mechanism between SF with natural biopolymers, synthetic polymers and inorganic materials in IL dissolution system in recent years are introduced. The applications of the prepared materials in tissue engineering, drug delivery and electronic engineering materials in recent years are shown. Finally, the shortcomings of ILs in the fabrication of biomaterials are summarized and prospected.

2. Preparation Progress of SF Materials

2.1. Composition, Structure and Properties of SF

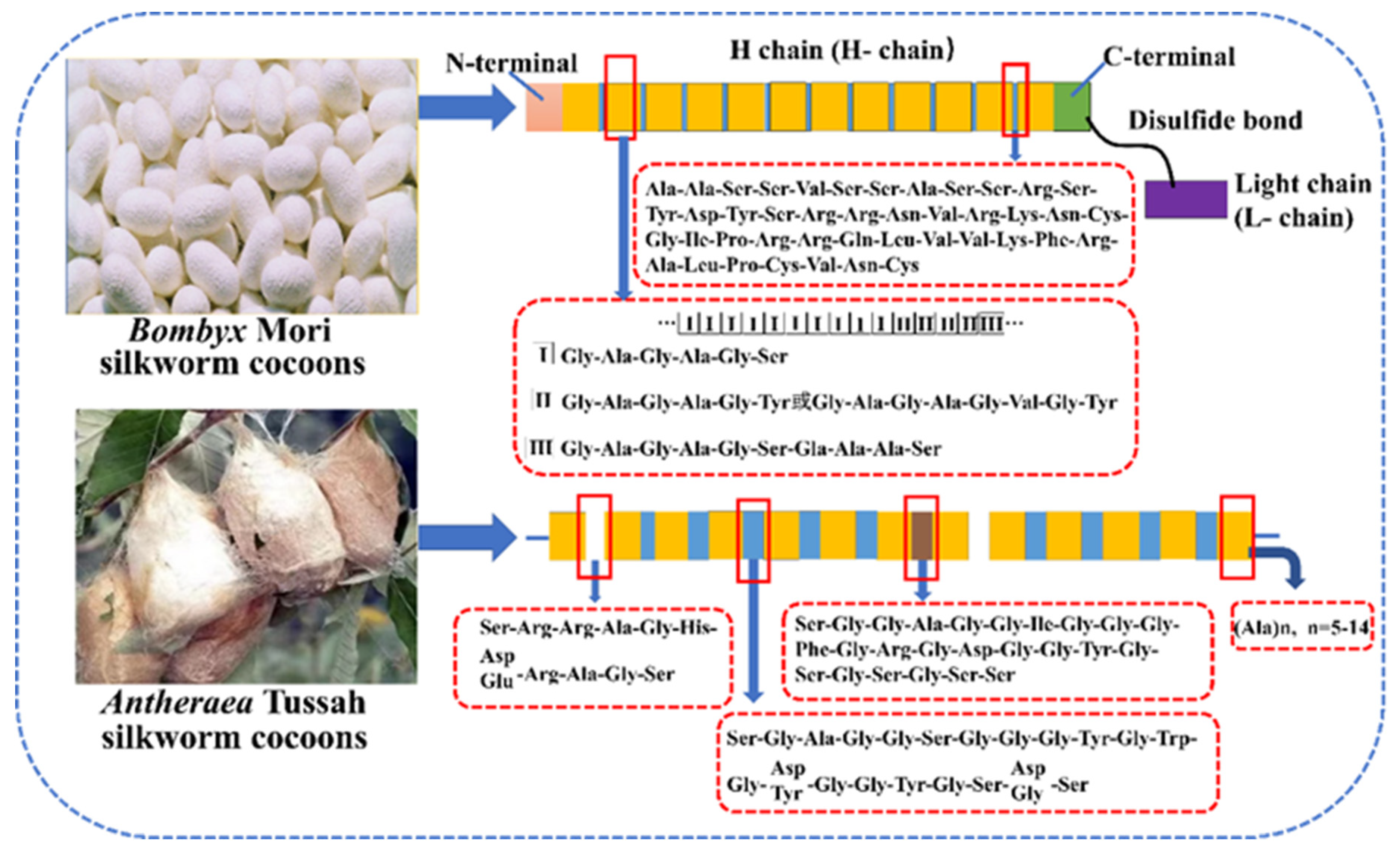

Silk fiber is mainly composed of two core silk protein fibers along with an outer adhesive sericin coat (a set of serine-rich glycoproteins) [28]. Sericin constitutes 20–25% of the weight of the fiber and can be removed by heat or alkaline treatments [28,41]. An SF molecular chain is composed of three components: a heavy chain (H-chain, 350 KDa), a light chain (L-chain, 26 kDa) and a small glycoprotein (P25 protein, 30 KDa) [42]. The light chain polypeptide is linked to the heavy chain polypeptide through a disulfide bond at their C-terminus to form an H–L complex, and is often combined with glycoprotein P25 at a ratio of 6:1 via non-covalent hydrophobic interactions to form a basic micelle unit (Figure 2) [43,44]. In addition, the secondary structure of SF mainly includes β-sheet, α-helix and random coil structures, among other conformations, in which β-sheet is mainly the repeated extension of (GAGAGS)n and (GAGAGY)n in the protein sequence. In the polymerization state, SF is composed of crystalline and amorphous state, and the crystalline state can be divided into silk I and silk II structures [45]. The antiparallel β-sheet structure belongs to silk II, which is an orthorhombic crystal system. Silk I is a metastable structure between α-helix and β-sheet, which is crank-shaped [46]. Silk I may be transformed into silk II structure through the effects of shear force, temperature variations or using solvent [46].
Generally, silk can be found in domesticated silkworms (e.g., Bombyx mori silkworm raised in China and in Thailand) and wild silkworms (e.g., Tussah silk produced by the Antheraea mylitta silkworm, Muga silk comes from the Antheraea assamensis species of silkworm and Eri silk from the Philosamia ricini silkworm) [47]. In nature, domesticated silk is produced by artificially bred silkworms and has been used as luxury textiles for centuries. In terms of amino acid composition, domesticated silk is mainly composed of Gly (43–46%), Ala (25–30%), Ser (12%) and tyrosine (Yyr) (5%), as well as valine (Val) (2%). Followed by aspartic acid (Asp), phenylalanine (Phe), glutamic acid (Glu), threonine (Thr), isoleucine (Ile), leucine (Leu), proline (Pro), arginine (Arg), lysine (Lys) and histidine (His), which contents are less than 2% individually [48,49]. The β-sheet crystalline and highly ordered crystalline region in SF can be formed through molecular interactions, including hydrogen bond, van der Waals force and hydrophobic interaction between fibroin molecular chains [50,51]. The amorphous region is mainly composed of charged/acidic amino acids, such as Glu, Asp, Arg and Lys [50,51]. Wild silkworm is the general name of Lepidoptera silk secreting insects in wild and semi-wild ecology. This kind of cocoon silk has special properties such as moisture absorption, tenacity and strong elasticity. It has also been gradually explored and utilized, and it has become an important biological resource for research on natural silk fiber diversification.
Compared with domesticated SF, the wild one lacks an L-chain and P25 protein on the subunit [52]. For example, Tussah is one of the most common wild silkworms, which silk primary amino acid composition is significantly different from that of Mori. It is mainly composed of Ala (43.07%), Gly (27.27%), Ser (11.26%), Tyr (5.26%) and aspartic acid (ASP) (4.47%) [53]. Its Ala and Asp are richer, and Gly is lower than those of domesticated Mori. [54]. The hydrophobic motif of is mainly (GAGAGS)x for Bombyx mori H-chain while polyanaline for Antheraea pernyi one [54]. In addition, tussah SF is rich in basic amino acids (Arg and His) and tripeptide sequence Arg-Gly-Asp (RGD), which is a receptor for cellular integrin and is suitable for biomedical applications [54]. The various arrangement order of amino acids determines the difference in SF molecular structure, which can be associated with their mechanical properties and physicochemical properties. Some investigations [54,55] have proved that tussah SF has stronger cell adhesion and excellent mechanical properties than mulberry one, which can be woven into the shape of tendon in tissue reengineering. Figure 3 shows an example of the H-chain amino acid sequence of SF from Bombyx mori silkworm and Antheraea mylitta Tussah, respectively [56].

2.2. Traditional Preparation Methods of SF Regeneration Solution

The option preparation method of SF is to degum the silk, then dissolve and dialysis to obtain the regenerated SF solution, which usually forms an aqueous-soluble protein solution. The selection of solvent is an extremely important parameter in the fabrication of SF-based materials, which will affect its molecular weight [57], the secondary structure, the mechanical properties [50,58] and the physicochemical properties of SF [58,59]. The traditional SF regeneration processing methods include the use of inorganic solution, alcohol mixture solution and inorganic salt system [60]. Several common methods are listed below.

2.2.1. Lithium Bromide (LiBr) Dissolution Method

The LiBr dissolution methods for regenerated SF solution are usually divided into three approaches: (1) 9.0–9.5 m LiBr aqueous solution [59,60,61]; (2) LiBr and ethanol (LiBr-C2H5OH) mixture [59]; and (3) LiBr-ethanol aqueous solution (LiBr-C2H5OH-H2O) [59,62]. These methods are usually conducted at 40~50 °C and are followed by dialysis in deionized water for approximately 3 days before being concentrated with polyethylene glycol [60,61,62,63]. The concentration of SF solution prepared by these methods is generally in the range of 7~20 wt% [33,64].

2.2.2. Lithium Thiocyanate (LiSCN) Dissolution Method

The degummed SF fiber can be dissolved in LiSCN aqueous solution at a temperate of 40~50 °C. Then, the obtained fibroin solution is dialyzed with deionized water for about 4 days, which normally is aqueous solution [65,66]. The 3~14 wt% SF solution can be generally obtained via this method [65,66,67].

2.2.3. Calcium Chloride Ethanol Aqueous Solution (CaCl2-C2H5OH-H2O) Dissolution Method

The degummed SF is dissolved in a CaCl2-C2H5OH-H2O solution system for a certain time under heating (40~50 °C) and stirring. As the method mentioned above, the obtained SF solution is dialyzed with deionized water at room temperature for 4 days to remove the salt. After that, the dialyzed solution is stored at 0~4 °C for standby [68]. The SF content can generally get in the range of 3~16 wt% by this way [69,70,71,72].

2.2.4. Calcium Nitrate Methanol Aqueous Solution (Ca(NO3)2-CH3OH-H2O) Dissolution Method

The degummed SF is dissolved in a Ca(NO3)2-CH3OH-H2O system and heated, then dialyzed with deionized water [59,73]. The method can make the concentration of SF solution reach 2~10 wt% [59].

2.2.5. Calcium Chloride Formic Acid Dissolution Method

The salt acid dissolution system is a gradually developed method for SF fiber in recent years. SF nanofibrils can be obtained by put degummed silk into a calcium chloride formic acid (CaCl2-FA) solvent [24]. This solvent can break the hydrogen bond in the crystalline region of silk while retaining its nanofiber structure [24]. The 6~15 wt% concentration for SF solution can be normally obtained in this way [24,74,75,76].
In conclusion, in the process of preparing regenerated SF solution by present traditional methods, it is inevitable to use organic solvents with strong toxicity and volatility, or complex steps such as dialysis and concentration for a long time, and the regenerated SF solution unstable, which SF degradation can easily happen. In order to solve this problem, some researchers [77,78] freeze-dried the SF dialyzed aqueous solution and then re-dissolved it with hexafluoroisopropanol (HFIP) as needed. However, HFIP is also highly toxic and expensive. These facts hinder the large-scale applications of regenerated SF.

2.3. IL Preparation Methods for SF Regeneration Solution

People constantly explore and find out that ILs can directly dissolve silk without degradation in SF [79,80,81,82], and the mechanical properties of the prepared SF film can reach more than twice that of the traditional method [83,84]. The electrolytes are typically removed via dialysis against pure water to obtain an aqueous solution of fibroin. The fact that the cocoon can be dissolved directly into ILs is the main reason the processing steps are reduced. In addition, the regenerated SF solution can be quickly separated from the ILs in this solution system with the help of coagulants such as methanol or ethanol, obtain SF materials with various structures and properties, and realize the recovery and reuse of IL, which is a significant advantage of IL [79,80,81,82]. Phillips et al. [79] first found that silk can be dissolved in ILs in 2004. They tested the ability of 1-ethyl-3-methylimidazole chloride ([EMIM]Cl), 1-butyl-3-methylimidazole chloride ([BMIM]Cl) and 1-butyl-2,3-dimethylimidazole chloride ([DMBIM]Cl) to dissolve silk under 100 °C oil bath condition individually and found that the maximum solubility for silk in [EMIM]Cl can up to 23.3%, which is better than that of the traditional methods [79,82,83,84,85]. The second is [BMIM]Cl, which reaches 13.2%, and the last is 8.3% in [DMBIM]Cl. This work shows that ILs have good solubility and dissolution effect on silk. In 2005, they dissolved domesticated silk with [EMIM]Cl and then formed regenerated SF fiber through wet spinning, which can be used as a surgical suture [86]. Subsequently, in 2006, they prepared SF film with [BMIM]Cl, which is conducive to normal cell proliferation and differentiation and can be used as a cell growth scaffold. In recent years, many scholars constantly have been investigating the fabrication methods for dissolving silk with ILs [60,82,87] and trying to apply them to manufacture the SF composites in order to get the required physical and chemical or mechanical properties [49,88,89], which can develop a new way for ILs as a green solvent for natural silk regeneration and blend fabrication.

2.4. Mechanism of Dissolving SF via IL and the Influencing Factors

ILs usually contain organic cations and organic/inorganic anions [35]. Typical organic cations include quaternary ammonium salt ions, quaternary phosphonium salt ions, imidazole salt ions and pyrrole salt ions, while the anions include halogen ions, tetrafluoroborate ions and hexafluorophosphate ions, etc. [90] (Figure 4). The properties of anions and cations determine the degree to which ILs can dissolve silk [79,80,81], especially anions [79,80,81]. In these ILs solution systems, anions such as halogen, carboxylic acid and acetic acid in ILs, can interact with N-H in SF, making the initial hydrogen bond between biological macromolecules of SF be broken and silk dissolved. The more anions and cations participate in the action, the greater the degree of destruction of hydrogen bonds between molecules in fibroin and the higher the solubility for SF [79,80,81]. As shown in Figure 5, 1-(2-chloroethyl)-3-methylimidazole ([CeMIM]Cl) contains imidazole cations ([CeMIM]+) and chloride ions (Cl−). The Cl− in IL can interact with -NH on the SF peptide chains to form a hydrogen bond so as to weaken the original molecular hydrogen bond in SF and finally lead to silk dissolution. Similarly, IL [BMIM]Cl can dissolve SF easily, which is mainly attributed to a strong interaction ability of Cl- from [BMIM]Cl with the hydrogen in the hydroxyl group of SF [79].
Additionally, the binding ability of anions with the SF can affect the solubility of IL to the silk when cations are the same. It has been found [91] that during the process of dissolving SF, the solubility of [BMIM]Cl is higher than that of 1-butyl-3-methyl-imidazole hydrogen sulfate ([BMIM]HSO4), which is due to the Cl- possessing a stronger interaction with silk than that of HSO4−. Xie et al. [83] also found the same phenomenon. They put SF into four kinds of ILs: 1-butyl-3-methylimidazole acetate ([BMIM]AC), 1-butyl-3-methylimidazole chloride ([BMIM]Cl), 1-allyl-3-methylimidazole chloride ([AMIM]Cl) and 1-ethyl-3-methylimidazole chloride ([EMIM]Cl), which solubility was about 10~18% (w/w). The order of solubility from large to small was: 18.2% for [BMIM]AC > 13.3% for [EMIM]Cl > 12.5% for [AMIM]Cl > 10.4% for [BMIM]Cl. The anion CH3COO− in [BMIM]AC is considered to be a coordination base with a low molecular weight, which interacts easily with the hydroxyl group in SF [79]. In addition, the physical properties of ILs, such as melting point (mp.), also affect the solubility of SF [81]. According to the scientific reports [81,92], both [EMIM]Cl (mp. 89 °C) and [BMIM]Cl (mp. 65 °C) dissolving SF need at a high temperature, at about 100 °C, while [AMIM]Cl can dissolve SF fast at ambient temperature, owe to its low melting point, only 17 °C, which can prevent SF molecular chains from degradation at a high temperature and decrease the mechanical properties of regenerated fibers. Therefore, IL with a low melting point is undoubtedly an excellent solvent for SF.
Therefore, the solubility of SF in ILs depends not only on the action of anions and cations, as well as their physical properties, but also on the temperature and time. Ren et al. [93] dissolved SF with [BMIM]AC at the temperature from 70 °C to 110 °C, respectively. They found that the dissolution rate increased from 5 mg/min to 30 mg/min, and the time required for complete dissolution decreased from 60 min to 10 min with the temperature increasing. Excessive temperature will cause SF degradation. Therefore, 75 °C was selected as the best dissolution temperature for SF. At this temperature, the solubility increased from 1% to 15%, with the increase in dissolution time from 30 min to 840 min. Zhang et al. [94] also demonstrated that the temperature has an important effect on the dissolution of SF in [BMIM]Cl. They showed that the SF was difficult to dissolve in [BMIM]Cl even if the dissolution time was prolonged when the temperature was less than 90 °C. While above 90 °C, silk was dissolved easily, and its dissolution rate can increase significantly with the increase in temperature. However, the fibroin degradation can be raised with the dissolution temperature increasing and the time expansion. Hence, it is of great significance for the selection of optimal conditions of dissolution to maintain the integrity of the heavy and light chains in SF [95].
Since SF is a highly crystalline hydrophobic protein with extensive hydrogen bonds [93,94,95], some researchers would also use helper vortex stirring or ultrasound in order to accelerate the solubility of SF in ILs, which was obtained the stability and excellent mechanical properties of the silk protein [82,96]. As shown in Figure 6a, degummed silk is mixed with IL and then put into a water bath or oil bath for vortex stirring or ultrasonic treatment to achieve rapid and efficient dissolution for SF [82,96]. High power ultrasound has two important synergistic effects on the mixed ILs system: the ultrasound can rapidly increase the temperature of ILs and helps to introduce the ILs into the cohesive SF network and disrupt its hydrogen bond until SF completely dissolution [97]. The research [80] also shows that the effect of ILs on hydrogen bonds in β-sheet conformations can be enhanced under high-power ultrasound and significantly shorten the dissolution time. In the study by Carissimi et al. [87], in order to realize the dissolution for SF through IL 1-ethyl-3-methylimidazole acetate ([EMIM]AC) at relatively low temperature (below 75 °C), avoiding protein degradation, ultrasound help treatment was carried out during the dissolving process. The SF solubility reached 10% (w/w). Fuster et al. [85] also used a similar method to rapidly dissolve SF in [EMIM]AC. After rapid desolvation with methanol and being adsorbed with naringin (5,7-dihydroxy-2-(4-hydroxyphenyl), which possessed a wide pharmacological effect, SF nanoparticles loaded with naringin drugs were successfully obtained. This material has higher in vitro antitumor ability than free naringin for HeLa cancer cells [34]. Additionally, as shown in Figure 6b, SF and IL mixed solution prepared by ultrasound was quickly injected into excessive polar organic solvents such as acetone, ethanol or methanol to form SF suspension, to be easily separated from IL, and then SF nanoparticles could be obtained via centrifugation or filtration [97]. In this process, the protein chains would reconstruct the hydrogen bond network and change from random coils structure to a highly ordered β-sheet conformation structure. Compared with the traditional methods above, this preparation method significantly reduces the time and steps required to form SF nanoparticles [87].
Just as the above said, the SF solution dissolved in ILs can also easily form films through coagulants such as methanol, acetonitrile and ethanol [98], which can induce the secondary structure of SF transform and achieve the strengthening of mechanical properties of materials [88]. Phillips et al. [79] dissolved SF to form a 9.51% (w/w) solution by using [BMIM]Cl and followed by casting to a film, the acetonitrile, methanol and water as coagulation bath were used. It was found that the more β-sheet structure conformation of SF was induced by methanol than that by acetonitrile. Compared with domesticated silk, tussah silk has higher biological activity, but there are few reports on it. Goujon et al. [99] dissolved the semi-wild Antheraea assamensis silk by using IL [BMIM]AC to form SF films. Their research illustrated the different coagulant effects on the β-sheets content in the SF film, the order was: isopropanol ethanol (50:50) > isopropanol > water > isopropanol methanol (50:50) > ethanol > methanol. They pointed out furtherly that the β-sheet content in SF was affected by the morphology, thermal and mechanical properties, as well as the conductivity of materials [88].
At present, biological functional materials [86], energy materials [100] and environmental protection materials [96] with various properties were attempted to be fabricated constantly through ILs usage. For example, green SF-based films with good mechanical properties, high conductivity and electrochemical stability have been produced by the use of IL 1-butyl-3-methylimidazole hexafluorophosphate ([BMIM]PF6) as solvent [100]. The SF/1-ethyl-3-methylimidazolium acetate ([EMIM]AC/H2O/KCl) hydrogel could be prepared by taking advantage of the notable feature of IL, such as non-volatile, low freezing point and good conductivity [86]. This produced system processes excellent mechanical properties, water retention, frost resistance and conductivity and can be used in artificial skin, drug release materials and bone tissue engineering, as well as the development of new applications in harsh environments [96,101]. Moreover, ILs can also be used to disperse the SF components well and stabilize the nanoparticles in an aqueous solution, which can be applied in the surface modification of anti-ultraviolet skin care products and other industrial materials, as well as drug or enzyme carrier fields [87,97]. Simultaneously, people are also exploring to manufacture the various silk-based composite materials with various desirable physical and chemical properties using the ILs dissolution system. In the following, we will discuss a variety of topics related to the use of ILs as the main solvent to dissolve silk-based composites and their applications for biomedicine and tissue Engineering, including silk-based blends and composite materials with natural biopolymers, synthetic polymers and inorganic materials, as well as the material structure, the properties and interaction mechanism. Table 1 lists a summary of different applications in biomedicine and tissue engineers of SF-based composites through using various ILs in recent years.

3. SF-Based Composites Prepared Using ILs for Biomedicine and Tissue Engineering Applications

SF-based materials can be fabricated into various forms with specific properties applied for biomedicine and tissue engineering by using ILs solution, such as the thin film with hydrophilic properties for artificial skin coating [97], the gels with conductive and rheological properties for biomedical sensors [49], the scaffolds with high mechanical and cytocompatible properties for bone tissue [82] and the nanoparticles with stability properties for drug carriers [85].

3.1. SF/Natural Biopolymer Blends and Composite Materials

Cellulose is one of the most abundant natural polysaccharides in nature, which is considered an almost inexhaustible raw material and widely exists in trees, plants and fruits [118]. The molecular structure of cellulose consists of repeated β-d-glucopyranose via covalent action through acetal function, which contains a large number of hydroxyl groups. This type of molecular structure gives cellulose unique properties, such as hydrophilicity, chirality, degradability and easy chemical modification [119]. Some researchers [103] explored cellulose and SF composites using used ILs to obtain the unique physical and chemical properties and biocompatibility. Shang et al. [105] fabricated SF/cellulose composite film with hydrophilic [BMIM]Cl and found that the interaction between SF and cellulose in the blending process would induce its conformation change from silk I structure to silk II. When the mixture ratio of SF to cellulose was 25:75, the tensile strength of this film reached 11.5 ± 1.1 MPa, which was the highest in all film samples. Meanwhile, its aqueous stability is also high, and it can be insoluble in water for 240 min. Tian et al. [106] studied the conformation and intermolecular interaction between cellulose and SF blend membrane prepared with [BMIM]Cl by using high-resolution solid-state NMR. They believed that the strength and toughness of the blend membrane are better than those of the regenerated cellulose membrane, which was attributed to the hydrogen bond action between the -NH group in SF and –OH in cellulose during the blending process. Compared with the pure SF membrane, the content of β-sheet structure in the blending contained more, which could be used in biochemistry and biomedicine applications.
The basic steps of preparing SF/cellulose composite film with IL as solvent are shown in Figure 7. Firstly, silk and cellulose with different mixing ratios were dissolved in [AMIM]Cl, then solidified and washed to form a blending film. The surface morphology of the films treated in the methanol bath (Figure 7a(I)) and water bath (Figure 7a(II)) individually exhibited different surface morphology. Furthermore, the cation and anion in IL combine with oxygen and hydrogen in cellulose hydroxyl, respectively, interrupting the hydrogen bond and leading to cellulose dissolution (Figure 7b). Then, the cellulose structure becomes disordered, the fibers swell and interacts with SF molecules. After washing and solidification, cellulose will return I crystal structure and insert into SF molecules. At the same time, the SF component will self-assemble to form a large number of β-sheet structures [88,104,120,121]. Compared with a water bath, the films prepared in methanol bath have higher strength and hardness, mainly due to more β-sheet crystals in SF by methanol inducing. In addition, various physical properties of the material can be regulated by changing the blending ratio between silk and cellulose. For example, the mixed film with cellulose content > 50% has better hardness, flexibility, better thermal stability and water insolubility, while the mixed film with SF content ≥ 70% has better elasticity and water solubility. Moreover, through theoretical modeling, molecular dynamics simulation and experimental technology using, Hadadi et al. [90] studied the regeneration mechanism of cellulose/SF, chitin/SF and chitosan/SF biological composites dissolved in ILs. They demonstrated that the strong interaction between the anions in the ILs and the hydrogen bond receiving functional groups on the biopolymer molecular chains could weaken the networks of intermolecular and intramolecular hydrogen bonds in SF or polysaccharide. When water was used as the coagulant, the anions migrated from the biopolymer, blending into the water, and the aggregation of the polymer chains could be started. Simultaneously, this competition between water molecules and different biopolymers to form hydrogen bonds could result in phase separation and the formation of hydrogels (biopolymers + water) and liquid phases (water + ILs). This “gel” process was not caused by chemical crosslinking but by competition between different interactions. Finally, the intercalation structure could be formed.
As mentioned above, it is the key to controlling the physical and chemical properties of protein and polysaccharide biological composites to select appropriate ILs and coagulation baths, such as the solubility, glass transition temperature, conductivity, thermal stability and mechanical property [88,89,90]. Stanton et al. [89] fabricated SF and cellulose blends using a class of ILs with similar structures and different alkyl chains, such as 1-allyl-3-methylimidazole chloride ([AMIM]Cl), 1-ethyl-3-methylimidazole chloride ([EMIM]Cl) and 1-butyl-3-methylimidazole chloride ([BMIM]Cl), as well as another type of ILs containing larger anion groups, such as 1-ethyl-3-methylimidazole acetate ([EMIM]AC), 1-butyl-3-methyl-imidazolium bromide ([BMIM]Br and 1-butyl-3-methyl imidazolium mesulfonate ([BMIM]MeSO3). The mixed films prepared with [AMIM]Cl, [EMIM]Cl and [BMIM]Cl as well as [EMIM]AC were firm and transparent, while the films prepared with [BMIM]Br and [BMIM]MeSO3 are translucent and fragile. The film topology prepared by IL with chloride ion group looked more uniform, while the one prepared by IL with bromine ion or mesylate group looked like a fiber structure. The film materials prepared with larger anions have more β-sheet, while the crystallinity of the film containing chloride ions is the lowest. The order of β-sheets content was [BMIM]MeSO3 (58.9%) > [BMIM]Br (58.6%) > [EMIM]AC (39.2%) > [BMIM]Cl (37.5%) > [EMIM]Cl (37.1%) > [AMIM]Cl (31.0%). These changes are related to the number of hydrogen bond disruptions in the anti-parallel β-sheet structures, to which extent was affected by the interaction between ILs and natural polymers. Additionally, the initial decomposition temperature of [EMIM]Cl film is about 40 °C higher than that of [EMIM]AC film, and the stability of films prepared by [BMIM]Br and [BMIM]MeSO3 with larger anions was higher than that of chloride ion films because larger anions have more interaction sites to make the thermal stability of the film better. Therefore, the thermal stability of materials depends more on the type of anions.
Some researchers [88] selected [EMIM]AC and [EMIM]Cl to dissolve SF/cellulose (50/50 w/w) blend individually, and 25% ethanol and 25% hydrogen peroxide (H2O2) as coagulation bath, respectively. They found that different morphology for all samples appeared. For example, the [EMIM]AC film regenerated with ethanol ([EMIM]AC-Et) has a ridge running through the whole film surface, while the [EMIM]Cl film regenerated with ethanol ([EMIM]Cl-Et) is relatively smooth. The [EMIM]AC film regenerated with H2O2 ([EMIM]AC-H2O2) has a shallow sphere with a long ridge, while the [EMIM]Cl with H2O2 ([EMIM]Cl-H2O2) was much smoother. For the β-sheet content of four film samples, the trend was found in the order of [EMIM]Cl-H2O2 film (48.5%) > [EMIM]Cl-Et film (46.2%) > [EMIM]AC-Et film (41.0%) > [EMIM]AC-H2O2 film (14.3%). In terms of thermal properties, the [EMIM]Cl-Et sample has the highest initial decomposition temperature, the lowest mass loss rate and the highest glass transition temperature in all samples, while the elastic modulus and hardness of [EMIM]AC-H2O2 film were significantly increased. They believed that the crystallinity of film depended on the used coagulant, while it has nothing to do with which IL was used. Another study by them [107] has found that 10% ethanol could induce more β-sheet content than that of 1% ethanol used, which could also affect the conductivity of the biological composite film. Dielectric relaxation spectra results showed that the higher the β-sheet content was, the higher the conductivity of the sample was [107,122]. The research from Love et al. [108] indicated that the change of H2O2 coagulant concentration, such as from 1 to 25% (v/v), has no effect on the β-sheet structure for SF in SF/cellulose. However, with the increase of H2O2 concentration, the cellulose in the blend could gradually change from amorphous to semi-crystalline structure, and its grain size also became large, and the film solidified with hydrogen peroxide has better thermal stability than the one solidified with water.
Most of these researches mainly focus on film and gel, as well as the blending of SF with cellulose in ILs, and preliminary exploration of the solubility and various properties of material in IL solution. However, recent research [110] reported that the scaffolds from sucrose acetate isobutyrate and SF, through dissolving in [BMIM][Ac], might be offered as an alternative for sick tissue. A bioactive sponge fabricated with silk and bio-IL (gallate and cholinium hydroxide (Ch[Gallate])) could be used in accurately targeting pathologies treatment [111]. Shamsuri et al. [109] expounded that cellulose and silk could be blended into fiber membrane by dry-jet wet-spinning technology using [BMIM]Cl as a cosolvent. The chitosan/silk blend membranes and hydrogels could be fabricated through [AMIM]Cl and [BMIM]Ac, respectively. These biomaterials can be used as biomedicine and tissue materials.
In addition, the research [99] reported that conventional solvents for Bombyx mori silk could not dissolve Antheraea assamensis SF, while [BMIM]Cl could dissolve natural fibers for 12.2 wt%, [BMIM]Ac for 10.14 wt%. Zhang et al. [49] found that using [EMIM]Ac solution, the gelation of Antheraea pernyi silk was easier than that of Bombyx mori one because of the very high hydrophobicity of Antheraea pernyi contributed by the polyalanine sequence. This kind of material can be used as biomedical hydrogels. DeFrates et al. [103] used [AMIM]Cl to blend Thailand gold Bombyx mori silk and cellulose blend films, which can be applied as a biomaterial with good biocompatibility and degradability in the field of biomedicine. Silva et al. [102] developed [BMIM]Ac IL to fabricate Eri silk (non-mulberry silkworm. ricini, white variety) silk gel and sponge as a candidate for cartilage-related biomedical application. The solubility is up to 10%, similar to the Bombyx mori one.

3.2. SF/Synthetic Polymer Composite Materials

How to manufacture polymer biomaterials with excellent mechanical properties has always been a challenging topic [123]. Relevant studies showed that the mechanical properties of SF were significantly improved after compounding with synthetic polymers such as polylactic acid, polyvinyl alcohol and polyurethane [112,113,114,124]. It has been reported that [113] by dissolving degummed silk and polyurethane (PU) in 1-butyl-3-methylimidazole chloride ([BMIM]Cl) and N-N dimethylformamide (DMF) system, a water-insoluble biological composite membrane with good hydrophilicity and biocompatibility could be obtained. Both SF and polyvinyl alcohol (PVA) can also be dissolved in 1-allyl-3-methylimidazole chloride ([AMIM]Cl) to form a biological blend film, avoiding the use of toxic agents such as formaldehyde and glutaraldehyde [114]. Our research group also conducted a similar study [112], using 1-butyl-3-methylimidazole chloride [BMIM]Cl and N-N dimethylformamide (DMF) to dissolve degummed silk and poly(d,l-lactic acid) (PDLLA). The addition of SF significantly improved the hydrophilicity and biocompatibility of PDLLA, increased β-sheet content and promoted the self-assembly of micelle structure. This study demonstrated that the morphology, structure, and physical and biological properties of the composite can be regulated by changing the blending mass ratio of SF and polylactic acid in the IL system.

3.3. SF/Inorganic Composite Materials

Highly ordered mesoporous materials are excellent candidates for tissue engineering, with the ability to provide controlled and local drug delivery and with the function of improving biological activity at the implant site [125]. New mesoporous hybrid materials can be obtained by dissolving inorganic materials and SF with IL, which has a broad application prospect in bone tissue engineering. Meanwhile, it can also be used as solid-state electrochemical devices, especially the electrolyte of fuel cells [115]. Figure 8 displays the preparation scheme of SF/silica biomaterial with a high surface area synthesized by using [BMIM]Cl [115]. The degummed silk (Figure 8a) was first dissolved in IL and mixed with tetramethoxysilane (TMOS) to obtain a blend solution (Figure 8b). Then, acid (HCl, 1.0 or 0.01 M) and base (NaOH, 0.01 M) as catalysts were individually added to the SF/TMOS solution. Following cured in an oil bath at 90 °C for 2 days (H1, H2, H3 and H4) and 7 days (H3′ and H4′), respectively (Figure 8c), novel mesoporous hybrid biomaterials have been obtained. Among them, IL is both a solvent of SF and a mesoporous inducer. The prepared material is slightly transparent-opaque, with amorphous monoliths with a rough surface, which was easily transformed into powder, and its stability reached about 300 °C (Figure 8c). Its energy dispersive X-ray (EDX) maps (Figure 8d,e) showed well compatibility of two-phase materials with mesopores on the micron scale. Wang et al. [116] used a natural silk cocoon as raw material to prepare porous silk carbon (Silk C) through carbonization and KOH activation in the ILs system. Their prepared silk C has a high specific surface area (SBET: 2854.53 m2 g−1), a large number of holes (1.54 cm3 g−1) and uniform micropores (2.5 nm). Additionally, through non-covalent π–π interaction, porous metal-free silk carbon–IL (Silk C-IL) composite could be obtained by modifying silk C in 1-butyl-3-methylimidazole hexafluorophosphate ([BMIM]PF6) system. This material demonstrated a good performance in constructing an electrochemical sensor for the determination of dopamine. Rath et al. [117] made a composite film used as the electrode of a flexible supercapacitor by dissolving silk fiber into 1-ethyl-3-methylimidazolium tetrafluoroborate ([EMIM]BF4) and being coated on the reduced graphene oxide film of cobalt (Co) doped.

4. Conclusions and Prospect

Compared with traditional methods, ILs as solvents show great advantages in improving the properties of SF and its composites. These materials show good applications prospect in several fields such as tissue engineering, electrochemistry and biomedicine. Understanding the method, mechanism and main influencing factors of ILs dissolving SF will help us to innovate many new preparation methods of biomaterials with regulation properties and structures and expand more high-performance natural materials for different purposes. In this review, we introduced the SF structure and its traditional dissolving methods and expounded upon various ILs for dissolving SF and its composites with natural biological protein, inorganic matter, synthetic polymer, carbon nanotube and graphene oxide in the IL solution system as well as their applications. The main factors influencing the features of these materials were also discussed.
However, the price of ILs is much higher compared to that of traditional solvents. Additionally, for most ILs, the SF complete dissolution usually requires being stirred continuously for several hours and heated to 90–100 °C, which may lead to damage to the protein integrity and decrease the mechanical properties of biomaterials. Moreover, the high viscosity of most ILs at room temperature also limits their applications recently. Although more and more scholars have investigated the ILs dissolving SF for biomedicine and tissue engineering applications, there are many problems to be solved [117]. Among these, it is necessary to further optimize the preparation process for ILs to reduce its cost. Moreover, according to the structure of SF and the role of cation and anion in ILs, more ILs with relatively lower melting point, low viscosity and stronger hydrogen bond acceptance ability need to be designed, and the appropriate dissolution temperature and time need to be studied, which are associated with the degradation of SF, so as to create favorable conditions for the preparation of regenerated SF materials with excellent properties [126,127]. Thirdly, the morphology, the properties and the mechanism of SF and SF-based composites dissolution in various ILs need further study. In addition, it is essential to explore how the evolution of biocompatible ionic liquids would affect the polymer/protein processability. Furthermore, the use of mixtures of ionic liquids and other solvents should be on the dissolution of silk fibroin. We envisage that with many new ILs being developed, optimizing and upgrading more novel, various shapes and polyfunctional SF-based composites could happen in the near future, which will be not only used in medical biomedical sciences but also broadly useful in environmental and energy engineering, as well as various sustainable fields.

Author Contributions

All authors contributed to the writing of this review paper; Writing—H.H., Q.D., Y.Y. and F.W.; Review and editing—F.W. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Natural Science Foundation of China (21973045).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Luderer, G.; Madeddu, S.; Merfort, L.; Ueckerdt, F.; Pehl, M.; Pietzcker, R.; Rottoli, M.; Schreyer, F.; Bauer, N.; Baumstark, L.; et al. Impact of declining renewable energy costs on electrification in low-emission scenarios. Nat. Energy 2021, 7, 32–42. [Google Scholar] [CrossRef]
  2. Li, T.; Chen, C.J.; Brozena, A.H.; Hu, L.U.; Xu, L.X.; Driemeier, C.; Dai, J.Q.; Rojas, O.J.; Isogai, A.; Wagberg, L. Developing fibrillated cellulose as a sustainable technological material. Nature 2021, 590, 47–56. [Google Scholar] [CrossRef] [PubMed]
  3. Sarute, U.; Hathaik, M. A critical review on cellulose: From fundamental to an approach on sensor technology. Renew. Sustain. Energy Rev. 2021, 57, 247–280. [Google Scholar]
  4. Berglund, J.; Mikkelsen, D.; Flanagan, B.M.; Dhital, S.; Gaunitz, S.; Henriksson, G.; Lindstrom, M.E.; Gidley, M.J.; Vilaplana, F. Wood hemicelluloses exert distinct biomechanical contributions to cellulose fibrillar networks. Nat. Commun. 2020, 11, 4692. [Google Scholar] [CrossRef] [PubMed]
  5. Rodriguez, J.; Neyrinck, A.M.; Zhang, Z.X.; Seethaler, B.; Nazare, J.A.; Sánchez, C.R.; Roumain, M.; Muccioli, G.G.; Bindels, L.B.; Cani, P.D.; et al. Metabolite profiling reveals the interaction of chitin-glucan with the gut microbiota. Gut Microbes 2020, 12, 1810530. [Google Scholar] [CrossRef] [PubMed]
  6. Merzendorfer, H.; Zimoch, L. Chitin metabolism in insects: Structure, function and regulation of chitin synthases and chitinases. J. Exp. Biol. 2003, 206, 4393–4412. [Google Scholar] [CrossRef] [Green Version]
  7. Szlachta, M.; Neitola, R.; Peräniemi, S.; Vepsäläinen, J. Effective separation of uranium from mine process effluents using chitosan as a recyclable natural adsorbent. Sep. Purif. Technol. 2020, 253, 117493. [Google Scholar] [CrossRef]
  8. Silva, S.S.; Rodrigues, L.C.; Fernandes, E.M.; Gomes, J.M.; Vilas-Boas, Â.; Pirraco, R.P.; Reis, R.L. Approach on chitosan/virgin coconut oil-based emulsion matrices as a platform to design superabsorbent materials. Carbohydr. Polym. 2020, 249, 116839. [Google Scholar] [CrossRef]
  9. Knidri, H.E.; Belaabed, R.; Addaou, A.; Laajeb, A.; Lahsini, A. Extraction, chemical modification and characterization of chitin and chitosan. Int. J. Biol. Macromol. 2018, 120, 1181–1189. [Google Scholar] [CrossRef]
  10. Costa, F.; Silva, R.; Boccaccini, A.R. 7-Fibrous protein-based biomaterials (silk, keratin, elastin, and resilin proteins) for tissue regeneration and repair. In Peptides and Proteins as Biomaterials for Tissue Regeneration and Repair; Woodhead Publishing: Sawston, UK, 2018; pp. 175–204. [Google Scholar]
  11. Perrone, G.S.; Leisk, G.G.; Lo, T.J.; Moreau, J.E.; Haas, D.S.; Papenburg, B.J.; Golden, E.B.; Partlow, B.P.; Fox, S.E.; Ibrahim, A.M.S.; et al. The use of silk-based devices for fracture fixation. Nat. Commun. 2014, 5, 3385. [Google Scholar] [CrossRef] [Green Version]
  12. Shao, Z.Z.; Vollrath, F. Surprising strength of silkworm silk. Nature 2002, 418, 741. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, W.; Ling, C.; Zhang, A.L.; Liu, H.Y.; Jiang, Y.; Li, X.L.; Sheng, R.W.; Yao, Q.Q.; Chen, J.L. An all-silk-derived functional nanosphere matrix for sequential biomolecule delivery and in situ osteochondral regeneration. Bioact. Mater. 2020, 5, 832–843. [Google Scholar] [CrossRef] [PubMed]
  14. Altman, G.H.; Diaz, F.; Jakuba, C.; Calabro, T.; Horan, R.L.; Chen, J.; Lu, H.; Richmond, J.; Kaplan, D.L. Silk-based biomaterials. Biomaterials 2003, 24, 401–416. [Google Scholar] [CrossRef] [Green Version]
  15. Kim, M.S.; Lee, G.J.; Leem, J.W.; Choi, S.; Kim, Y.L.; Song, Y.M. Revisiting silk: A lens-free optical physical unclonable function. Nat. Commun. 2022, 13, 247. [Google Scholar] [CrossRef] [PubMed]
  16. Aliramaji, S.; Zamanian, A.; Mozafari, M. Super-paramagnetic responsive silk fibroin/chitosan/magnetite scaffolds with tunable pore structures for bone tissue engineering applications. Mater. Sci. Eng. C Mater. Biol. Appl. 2017, 70, 736–744. [Google Scholar] [CrossRef] [PubMed]
  17. Inoue, S.; Tanaka, K.; Arisaka, F.; Kimura, S.; Ohtomo, K.; Mizuno, S. Silk fibroin of Bombyx mori is secreted, assembling a high molecular mass elementary unit consisting of H-chain, L-chain, and P25, with a 6:6:1 molar ratio. J. Exp. Biol. 2000, 275, 40517–40528. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Hayashi, C.Y.; Lewis, R.V. Evidence from flagelliform silk cDNA for the structural basis of elasticity and modular nature of spider silks. J. Mol. Biol. 1998, 275, 773–784. [Google Scholar] [CrossRef]
  19. Sun, M.G.; Luo, Y.C.; Teng, T.; Guaiquil, V.; Zhou, Q.; McGinn, L.; Nazzal, O.; Walsh, M.; Lee, J.; Rosenblatt, M.I. Silk Film Stiffness Modulates Corneal Epithelial Cell Mechanosignaling. Macromol. Chem. Phys. 2021, 222, 2100013. [Google Scholar] [CrossRef]
  20. Neubauer, V.J.; Trossmann, V.T.; Jacobi, S.; Dobl, A.; Scheibel, T. Recombinant Spider Silk Gels Derived from Aqueous–Organic Solvents as Depots for Drugs. Angew. Chem. Int. Ed. 2021, 60, 11847–11851. [Google Scholar] [CrossRef]
  21. Drachuk, I.; Harbaugh, S.; Chavez, J.L.; Kelley-Loughnane, N. Improving the Activity of DNA-Encoded Sensing Elements through Confinement in Silk Microcapsules. ACS Appl. Mater. Interfaces 2020, 12, 48329–48339. [Google Scholar] [CrossRef]
  22. Zhang, J.; Allardyce, B.J.; Rajkhowa, R.; Kalita, S.; Dilley, R.J.; Wang, X.; Xin, L. Silk particles, microfibres and nanofibres: A comparative study of their functions in 3D printing hydrogel scaffolds. Mater. Sci. Eng. C 2019, 103, 109784. [Google Scholar] [CrossRef]
  23. Yang, F.T.; Cai, B.W.; Heng, H.; Gu, H.L.; Wang, F. Preparation, structure and properties of soy protein and silk fibroin composite nanofiber membrane by jet spinning. Sci. Sin. Chim. 2022, 52, 709–720. [Google Scholar] [CrossRef]
  24. Liu, Q.C.; Wang, F.; Gu, Z.G.; Ma, Q.Y.; Hu, X. Exploring the Structural Transformation Mechanism of Chinese and Thailand Silk Fibroin Fibers and Formic-Acid Fabricated Silk Films. Int. J. Mol. Sci. 2018, 19, 3309. [Google Scholar] [CrossRef] [Green Version]
  25. Shi, P.; Goh, J. Self-assembled silk fibroin particles: Tunable size and appearance. Powder Technol. 2012, 215, 85–90. [Google Scholar] [CrossRef]
  26. Li, M.; Ai, M.Y.; Yang, Y.X.; Yao, X.Y.; Zhou, Z.M.; Wang, H.; Wang, H.Y.; Li, C.; Xu, K. Silk-coated dexamethasone non-spherical microcrystals for local drug delivery to inner ear. Eur. J. Pharm. Sci. 2020, 150, 105336. [Google Scholar] [CrossRef]
  27. He, X.; Liu, X.Z.; Yang, J.; Du, H.B.; Chai, N.W.; Sha, Z.; Geng, M.R.; Zhou, X.J.; He, C.L. Tannic acid-reinforced methacrylated chitosan/methacrylated silk fibroin hydrogels with multifunctionality for accelerating wound healing. Carbohydr. Polym. 2020, 247, 116689. [Google Scholar] [CrossRef]
  28. Biswal, B.; Dan, A.K.; Sengupta, A.; Das, M.; Bindhani, B.K.; Das, D.; Parhi, P.K. Extraction of Silk Fibroin with Several Sericin Removal Processes and its Importance in Tissue Engineering: A Review. J. Polym. Environ. 2022, 30, 2222–2253. [Google Scholar] [CrossRef]
  29. Liu, J.Y.; Fang, Q.; Lin, H.; Yu, X.F.; Zheng, H.; Wan, Y. Alginate-poloxamer/silk fibroin hydrogels with covalently and physically cross-linked networks for cartilage tissue engineering. Carbohydr. Polym. 2020, 247, 116593. [Google Scholar] [CrossRef] [PubMed]
  30. Strassburg, S.; Zainuddin, S.; Scheibel, T. The Power of Silk Technology for Energy Applications. Adv. Energy Mater. 2021, 11, 2100519. [Google Scholar] [CrossRef]
  31. Mita, K.; Ichimura, S.; James, T.C. Highly repetitive structure and its organization of the silk fibroin gene. J. Mol. Evol. 1994, 38, 583–592. [Google Scholar] [CrossRef]
  32. Kaplan, D.L.; Adams, W.W.; Farmer, B.; Viney, C. Silk: Biology, structure, properties and genetics. In Silk Polymers: Materials Science and Biotechnology; Kaplan, D.L., Adams, W.W., Farmer, B., Viney, C., Eds.; ACS Symposium Series; Birkhäuser: Boston, MA, USA, 1994; Volume 544, pp. 2–16. [Google Scholar]
  33. Reizabal, A.; Costa, C.M.; Saiz, P.G.; Gonzalez, B.; Pérez-Álvarez, L.; Luis, R.F.D.; Garcia, A.; Vilela, J.L.V.; Méndez, S.L. Processing Strategies to Obtain Highly Porous Silk Fibroin Structures with Tailored Microstructure and Molecular Characteristics and Their Applicability in Water Remediation. J. Hazard. Mater. 2020, 403, 123675. [Google Scholar] [CrossRef] [PubMed]
  34. Moreira, I.P.; Esteves, C.; Palma, S.I.C.J.; Ramou, E.; Carvalho, A.L.M.; Roque, A.C.A. Synergy between silk fibroin and ionic liquids for active gas-sensing materials. Mater. Today Biol. 2022, 15, 100290. [Google Scholar] [CrossRef] [PubMed]
  35. El Seoud, O.A.; Keppeler, N.; Malek, N.I.; Galgano, P.D. Ionic Liquid-Based Surfactants: Recent Advances in Their Syntheses, Solution Properties, and Applications. Polymers 2021, 13, 1100. [Google Scholar] [CrossRef] [PubMed]
  36. Sayko, R.; Jacobs, M.; Dobrynin, A.V. Universality in Solution Properties of Polymers in Ionic Liquids. ACS Appl. Polym. Mater. 2022, 4, 1966–1973. [Google Scholar] [CrossRef]
  37. Koutsoukos, S.; Philippi, F.; Rauber, D.; Pugh, D.; Kay, C.W.M.; Welton, T. Effect of the cation structure on the properties of homobaric imidazolium ionic liquids. Phys. Chem. Chem. Phys. 2022, 24, 6453. [Google Scholar] [CrossRef] [PubMed]
  38. Rogers, R.D.; Seddon, K.R. Ionic liquids—Solvents of the future. Science 2003, 302, 792–793. [Google Scholar] [CrossRef] [PubMed]
  39. Zhang, S.J.; Wang, J.J.; Lu, X.M.; Zhou, Q. Structures and Interactions of Ionic Liquids. Struct. Bond. 2014, 151, 1–197. [Google Scholar]
  40. Fox, D.; Fylstra, P.; Hanley, M.; Henderson, W.A.; Trulove, P.C.; Bellayer, S.; Gilman, J.; Long, D.H.C. The Preparation and Characterization of Bombyx Mori Silk Nanocomposites Using Ionic Liquids. ECS Trans. 2007, 3, 11–20. [Google Scholar] [CrossRef]
  41. Lujerdean, C.; Baci, G.M.; Cucu, A.A.; Dezmirean, D.S. The Contribution of Silk Fibroin in Biomedical Engineering. Insects 2022, 13, 286. [Google Scholar] [CrossRef] [PubMed]
  42. Kostag, M.; Jedvert, K.; Seoud, O.A.E. Engineering of sustainable biomaterial composites from cellulose and silk fibroin: Fundamentals and applications. Int. J. Biol. Macromol. 2020, 167, 687–718. [Google Scholar] [CrossRef] [PubMed]
  43. Zhou, C.Z.; Confalonieri, F.; Medina, N.; Zivanovic, Y.; Esnault, C.; Yang, T.; Jacquet, M.; Janin, J.; Duguet, M.; Perasso, R.; et al. Fine organization of Bombyx mori fibroin heavy chain gene. Nucleic Acids Res. 2000, 28, 2413–2419. [Google Scholar] [CrossRef] [Green Version]
  44. Vepari, C.; Kaplan, D.L. Silk as a biomaterial. Prog. Polym. Sci. 2007, 32, 991–1007. [Google Scholar] [CrossRef]
  45. Vollrath, F.; Porter, D. Silks as ancient models for modern polymers. Polymer 2009, 50, 5623–5632. [Google Scholar] [CrossRef] [Green Version]
  46. Ming, J.F.; Zuo, B.Q. Silk I Structure Formation Through Silk Fibroin Self-Assembly. J. Appl. Polym. Sci. 2012, 125, 2148–2154. [Google Scholar] [CrossRef]
  47. Wang, F.; Wolf, N.; Rocks, E.M.; Vuong, T.; Hu, X. Comparative studies of regenerated water-based Mori, Thai, Eri, Muga and Tussah silk fibroin films. J. Therm. Anal. Calorim. 2015, 122, 1069–1076. [Google Scholar] [CrossRef]
  48. Takahashi, Y.; Gehoh, M.; Yuzuriha, K. Structure refinement and diffuse streak scattering of silk (Bombyx mori). Int. J. Biol. Macromol. 1999, 24, 127–138. [Google Scholar] [CrossRef]
  49. Zhang, C.; Chen, X.; Shao, Z.Z. Sol-Gel Transition of Regenerated Silk Fibroins in Ionic Liquid/Water Mixtures. ACS Biomater. Sci. Eng. 2016, 2, 12–18. [Google Scholar] [CrossRef]
  50. Marsh, R.E.; Corey, R.B.; Pauling, L. An investigation of the structure of silk fibroin. Biochim. Biophys. Acta. 1955, 16, 1–34. [Google Scholar] [CrossRef]
  51. Jin, H.J.; Kaplan, D.L. Mechanism of silk processing in insects and spiders. Nature 2003, 424, 1057–1061. [Google Scholar] [CrossRef] [PubMed]
  52. Kundu, S.C.; Kundu, B.; Talukdar, S.; Bano, S.; Nayak, S.; Kundu, J.; Mandal, B.B.; Bhardwaj, N.; Botlagunta, M.; Dash, B.C.; et al. Nonmulberry silk biopolymers. Biopolymers 2012, 97, 455–467. [Google Scholar] [CrossRef]
  53. Silva, S.S.; Kundu, B.; Lu, S.; Reis, R.L.; Kundu, S.C. Chinese Oak Tasar Silkworm Antheraea pernyi Silk Proteins: Current Strategies and Future Perspectives for Biomedical Applications. Macromol. Biosci. 2019, 19, 1800252. [Google Scholar] [CrossRef]
  54. Fang, Q.; Chen, D.L.; Yang, Z.; Li, M. In vitro and in vivo research on using Antheraea pernyi silk fibroin as tissue engineering tendon scaffolds. Mater. Sci. Eng. 2009, 29, 1527–1534. [Google Scholar] [CrossRef]
  55. Minoura, N.; Aiba, S.I.; Higuchi, M.; Gotoh, Y.; Tsukada, M.; Imai, Y. Attachment and growth of fibroblast cells on silk fibroin. Biochem. Biophys. Res. Commun. 1995, 208, 511. [Google Scholar] [CrossRef] [PubMed]
  56. Zhou, C.Z.; Confalonieri, F.; Jacquet, M.; Perasso, R.; Li, Z.G.; Janin, J. Silk fibroin: Structural implications of a remarkable amino acid sequence. Proteins 2001, 44, 119–122. [Google Scholar] [CrossRef]
  57. Cho, H.J.; Ki, C.S.; Oh, H.; Lee, K.H.; Um, I.C. Molecular weight distribution and solution properties of silk fibroins with different dissolution conditions. Int. J. Biol. Macromol. 2012, 51, 336–341. [Google Scholar] [CrossRef]
  58. Wu, Z.W.; Feng, X.X.; Zhu, H.L.; Liu, N.; Sun, B.; Wu, B.W.; Chen, J.Y. Effects of different solvent systems on molecular mass of silk fibroin and properties of the regenerated silk fibroin membranes. Canye Kexue 2010, 36, 707–712. [Google Scholar]
  59. Chen, X.; Knight, D.P.; Shao, Z.Z.; Vollrath, F. Regenerated Bombyx silk solutions studied with rheometry and FTIR. Polymer 2001, 42, 9969–9974. [Google Scholar] [CrossRef]
  60. Wang, H.Y.; Zhang, Y.Q.; Wei, Z.G. Dissolution and processing of silk fibroin for materials science. Crit. Rev. Biotechnol. 2021, 41, 406–424. [Google Scholar] [CrossRef] [PubMed]
  61. Wang, H.Y.; Zhang, Y.Q.; Wei, Z.G. Excess acetone extraction in silk protein solution greatly accelerates the regeneration progress of silk fibroin for desalting and purification. Int. J. Biol. Macromol. 2020, 146, 588–595. [Google Scholar] [CrossRef] [PubMed]
  62. Lawrence, B.D.; Golomb, M.C.; Georgakoudi, I.; Kaplan, D.L.; Omenetto, F.G. Bioactive Silk Protein Biomaterial Systems for Optical Devices. Biomacromolecules 2008, 9, 1214–1220. [Google Scholar] [CrossRef] [PubMed]
  63. Li, L.; Xiong, Y.; Yu, S.; Liu, S.W.; Liu, F.S.; Xie, C.X. Facile preparation for robust and freestanding silk fibroin films in a 1-butyl-3-methyl imidazolium acetate ionic liquid system. J. Appl. Polym. Sci. 2015, 132, 42822. [Google Scholar] [CrossRef]
  64. Zhang, F.; Lu, Q.; Ming, J.; Dou, H.; Liu, Z.; Zuo, B.Q.; Qin, M.D.; Li, F.; Kaplan, D.L.; Zhang, X.G. Silk dissolution and regeneration at the nanofibril scale. J. Mater. Chem. B 2014, 2, 3879–3885. [Google Scholar] [CrossRef]
  65. Li, M.Z.; Tao, W.; Lu, S.Z.; Kuga, S. Compliant film of regenerated Antheraea pernyi silk fibroin by chemical crosslinking. Int. J. Biol. Macromol. 2003, 32, 159–163. [Google Scholar] [PubMed]
  66. Tao, W.; Li, M.Z.; Zhao, C.X. Structure and properties of regenerated Antheraea pemyi silk fibroin in aqueous solution. Int. J. Biol. Macromol. 2007, 40, 472–478. [Google Scholar] [CrossRef] [PubMed]
  67. Noishiki, Y.; Nishiyama, Y.; Wada, M.; Kuga, S.; Magoshi, J. Mechanical Properties of Silk Fibroin–Microcrystalline Cellulose Composite Films. J. Appl. Polym. Sci. 2002, 86, 3425–3429. [Google Scholar]
  68. Um, I.C.; Kweon, H.; Park, Y.H.; Hudson, S. Structural characteristics and properties of the regenerated silk fibroin prepared from formic acid. Int. J. Biol. Macromol. 2001, 29, 91–97. [Google Scholar] [CrossRef]
  69. Kawahara, Y.; Furukawa, K.; Yamamoto, T. Self-Expansion Behavior of Silk Fibroin Film. Macromol. Mater. Eng. 2010, 291, 458–462. [Google Scholar] [CrossRef]
  70. Li, M.; Wu, Z.Y.; Zhang, C.S.; Lu, S.Z.; Yan, H.J.; Huang, D.; Ye, H.L. Study on porous silk fibroin materials. II. Preparation and characteristics of spongy porous silk fibroin materials. J. Appl. Polym. Sci. 2001, 79, 2192–2199. [Google Scholar] [CrossRef]
  71. Selmin, F.; Gennari, C.G.; Minghetti, P.; Marotta, L.A.; Viviani, B.; Vagdama, P.; Montanari, L.; Cilurzo, F. Enhanced hydration stability of Bombyx mori silk fibroin/PEG 600 composite scaffolds for tissue engineering. Polym. Adv. Technol. 2014, 25, 532–538. [Google Scholar] [CrossRef]
  72. Rama, M.; Vijayalakshmi, U. Influence of Silk fibroin on the preparation of nanofibrous scaffolds for the effective use in Osteoregenerative Applications. J. Drug Deliv. Sci. Technol. 2021, 61, 102182. [Google Scholar] [CrossRef]
  73. Mathur, A.B.; Tonelli, A.; Rathke, T.; Hudson, S. The dissolution and characterization of Bombyx mori silk fibroin in calcium nitrate-methanol solution and the regeneration of films. Biopolymers 1997, 42, 61–74. [Google Scholar] [CrossRef]
  74. Huang, J.W.; Jin, Z.G.; Zuo, B.; Zhang, F.; Qin, J.Z.; Shen, Y.C.; Yao, M. Preparation and characterization of a novel Cassava silk film containing nanopore structure. Mater. Lett. 2020, 260, 126942. [Google Scholar] [CrossRef]
  75. Xue, Y.; Wang, F.; Torculas, M.; Lofland, S.; Hu, X. Formic Acid Regenerated Mori, Tussah, Eri, Thai, and Muga Silk Materials: Mechanism of Self-Assembly. ACS Biomater. Sci. Eng. 2019, 5, 6361–6373. [Google Scholar] [CrossRef] [PubMed]
  76. Zhang, F.; Yang, R.C.; Zhang, P.; Qin, J.Z.; Fan, Z.H.; Zuo, B.Q. Water-Rinsed Nonmulberry Silk Film for Potential Tissue Engineering Applications. ACS Omega 2019, 4, 3114–3121. [Google Scholar] [CrossRef]
  77. Thimm, B.W.; Wüst, S.; Hofmann, S.; Hagenmüller, H.; Müller, R. Initial cell pre-cultivation can maximize ECM mineralization by human mesenchymal stem cells on silk fibroin scaffolds. Acta Biomater. 2011, 7, 2218–2228. [Google Scholar] [CrossRef]
  78. Wang, Y.; Rudym, D.D.; Walsh, A.; Abrahamsen, L.; Kim, H.J.; Kim, H.S.; Head, C.K.; Kaplan, D.L. In vivo degradation of three-dimensional silk fibroin scaffolds. Biomaterials 2008, 29, 3415–3428. [Google Scholar] [CrossRef] [Green Version]
  79. Phillips, D.M.; Drummy, L.F.; Conrady, D.G.; Fox, D.M.; Naik, R.R.; Stone, M.O.; Trulove, P.C.; Long, H.C.D.; Mantz, R.A. Dissolution and regeneration of Bombyx mori silk fibroin using ionic liquids. J. Am. Chem. Soc. 2004, 126, 14350–14351. [Google Scholar] [CrossRef]
  80. Dymek, C.J., Jr.; Grossie, D.A.; Fratini, A.V.; Adams, W.W. Evidence for the presence of hydrogen-bonded ion-ion interactions in the molten salt precursor, 1-methyl-3-ethylimidazolium chloride. J. Mol. Struct. 1989, 213, 25–34. [Google Scholar] [CrossRef]
  81. Wang, Q.; Yang, Y.H.; Chen, X.; Shao, Z.Z. Investigation of rheological properties and conformation of silk fibroin in the solution of AmimCl. Biomacromolecules 2012, 13, 1875–1881. [Google Scholar] [CrossRef]
  82. Wang, H.Y.; Wei, Z.G.; Zhang, Y.Q. Dissolution and regeneration of silk from silkworm Bombyx mori in ionic liquids and its application to medical biomaterials - ScienceDirect. Int. J. Biol. Macromol. 2020, 143, 594–601. [Google Scholar] [CrossRef]
  83. Xie, C.X.; Li, W.J.; Liang, Q.Q.; Yu, S.T.; Li, L. Fabrication of robust silk fibroin film by controlling the content of β-sheet via the synergism of Uv-light and ionic liquids. Appl. Surf. Sci. 2019, 492, 55–65. [Google Scholar] [CrossRef]
  84. Walker, A.A.; Holland, C.; Sutherland, T.D. More than one way to spin a crystallite: Multiple trajectories through liquid crystallinity to solid silk. Proc. R. Soc. B. 2015, 282, 0259. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Fuster, M.G.; Carissimi, G.; Montalbán, M.G.; Víllora, G. Improving Anticancer Therapy with Naringenin-Loaded Silk Fibroin Nanoparticles. Nanomaterials 2020, 10, 718. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Phillips, D.M.; Drummy, L.F.; Naik, R.R.; Long, H.C.D.; Fox, D.M.; Trulove, P.C.; Mantz, R.A. Regenerated silk fiber wet spinning from an ionic liquid solution. J. Mater. Chem. 2005, 15, 4206–4208. [Google Scholar] [CrossRef]
  87. Carissimi, G.; Baronio, C.M.; Montalbán, M.G.; Víllora, G.; Barth, A. On the Secondary Structure of Silk Fibroin Nanoparticles Obtained Using Ionic Liquids: An Infrared Spectroscopy Study. Polymers 2020, 12, 1294. [Google Scholar] [CrossRef]
  88. Blessing, B.; Trout, C.; Morales, A.; Rybacki, K.; Love, S.A.; Lamoureux, G.; Malley, S.M.O.; Hu, X.; Cruz, D.S.D.L. Morphology and ionic conductivity relationship in silk/cellulose biocomposites. Polym Int. 2019, 68, 1580–1590. [Google Scholar] [CrossRef]
  89. Hadadi, A.; Whittaker, J.W.; Verrill, D.E.; Hu, X.; Larini, L.; Cruz, D.S.D.L. A Hierarchical Model to Understand the Processing of Polysaccharides/Protein-Based Films in Ionic Liquids. Biomacromolecules 2018, 19, 3970–3982. [Google Scholar] [CrossRef]
  90. Stanton, J.; Xue, Y.; Pandher, P.; Malek, L.; Brown, T.; Hu, X.; Salas-de la Cruz, D. Impact of Ionic Liquid Type on the Structure, Morphology and Properties of Silk-Cellulose Biocomposite Materials. Int. J. Biol. Macromol. 2018, 108, 333–341. [Google Scholar] [CrossRef] [PubMed]
  91. Hardacre, C.; Holbrey, J.D.; Nieuwenhuyzen, M.; Youngs, T.G. Structure and solvation in ionic liquids. Acc. Chem. Res. 2007, 40, 1146–1155. [Google Scholar] [CrossRef]
  92. Vyas, S.K.; Shukla, S.R. Degumming of Tasar silk using imidazolium-based ionic liquids. J. Text. Inst. 2020, 111, 1364–1370. [Google Scholar] [CrossRef]
  93. Ren, H.P.; Sun, S.Q.; Li, L. Dissolution performance of ionic liquid for silk fibroin. Appl. Chem. Ind. 2014, 43, 1256–1262. [Google Scholar]
  94. Zhang, H.H.; Hu, C.G.; Shao, H.L. Dissolution of Silk Fibroin in lonic Liquids and the Structure of the Regenerated Silk Fiber. Polym. Mater. Sci. Eng. 2011, 27, 66–68. [Google Scholar]
  95. Susanin, A.I.; Sashina, E.S.; Novoselov, N.P.; Zakharov, V.V. Change of Silk Fibroin Molecular Mass During Dissolution in Ionic Liquids. Fibre Chem. 2020, 52, 208–213. [Google Scholar] [CrossRef]
  96. Wang, W.Q.; Liu, Y.Z.; Wang, S.Q.; Fu, X.M.; Zhao, T.C.; Chen, X.; Shao, Z.Z. Physically Cross-Linked Silk Fibroin-Based Tough Hydrogel Electrolyte with Exceptional Water Retention and Freezing Tolerance. ACS Appl. Mater. Interfaces 2020, 12, 25353–25362. [Google Scholar] [CrossRef]
  97. Pérez, A.A.L.; Montalbán, M.G.; Cervantes, S.D.A.; Cragnolini, F.; Cenis, J.L.; Víllora, G. Production of silk fibroin nanoparticles using ionic liquids and high-power ultrasounds. J. Appl. Polym. Sci. 2015, 132, 41702. [Google Scholar]
  98. Jiang, C.; Wang, X.; Gunawidjaja, R.; Lin, Y.H.; Gupta, M.K.; Kaplan, D.L.; Naik, R.R.; Tsukruk, V.V. Mechanical properties of robust ultrathin silk fibroin films. Adv. Funct. Mater. 2007, 17, 2229–2237. [Google Scholar] [CrossRef]
  99. Goujon, N.; Rajkhowa, R.; Wang, X.; Byrne, N. Effect of solvent on ionic liquid dissolved regenerated antheraea assamensis silk fibroin. J. Appl. Polym. Sci. 2013, 128, 4411–4416. [Google Scholar] [CrossRef]
  100. Fernandes, T.C.D.; Rodrigues, H.M.R.; Paz, F.A.A.; Sousa, J.F.M.; Valente, A.J.M.; Silva, M.M.; Bermudez, V.D.Z.; Pereira, R.F.P. Highly Conducting Bombyx mori Silk Fibroin-Based Electrolytes Incorporating Glycerol, Dimethyl Sulfoxide and [Bmim]PF6. J. Electrochem. Soc. 2020, 167, 070551. [Google Scholar] [CrossRef]
  101. Yao, M.; Su, D.H.; Wang, W.Q.; Chen, X.; Shao, Z.Z. Fabrication of air-stable and conductive silk fibroin gels. ACS Appl. Mater. Interfaces 2018, 10, 38466–38475. [Google Scholar] [CrossRef]
  102. Silva, S.S.; Oliveira, N.M.; Oliveira, M.B.; Soares da Costa, D.P.; Naskar, D.; Mano, J.F.; Kundu, S.C.; Reis, R.L. Fabrication and characterization of Eri silk fibers-based sponges for biomedical application. Acta Biomater. 2016, 32, 178–189. [Google Scholar] [CrossRef] [Green Version]
  103. DeFrates, K.; Markiewicz, T.; Callaway, K.; Xue, Y.; Stanton, J.; de la Cruz, D.S.; Hu, X. Structure-property relationships of Thai silk-microcrystalline cellulose biocomposite materials fabricated from ionic liquid. Int. J. Biol. Macromol. 2017, 104, 919–928. [Google Scholar] [CrossRef] [PubMed]
  104. Stanton, J.; Xue, Y.; Waters, J.C.; Lewis, A.; Cowan, D.; Hu, X.; Cruz, D.S.D.L. Structure-property relationships of blended polysaccharide and protein biomaterials in ionic liquid. Cellulose 2017, 24, 1775–1789. [Google Scholar] [CrossRef]
  105. Shang, S.M.; Zhu, L.; Fan, J.T. Physical properties of silk fibroin/cellulose blend films regenerated from the hydrophilic ionic liquid. Carbohyd. Polym. 2011, 86, 462–468. [Google Scholar] [CrossRef]
  106. Tian, D.; Li, T.; Zhang, R.C.; Wu, Q.; Chen, T.H.; Sun, P.C.; Ramamoorthy, A. Conformations and Intermolecular Interactions in Cellulose/Silk Fibroin Blend Films: A Solid-State NMR Perspective. J. Phys. Chem. B. 2017, 121, 6108–6116. [Google Scholar] [CrossRef]
  107. Blessing, B.; Trout, C.; Morales, A.; Rybacki, K.; Love, S.A.; Lamoureux, G.; Mally, S.M.; Hu, X.; Cruz, D.S.D.L. The Impact of Composition and Morphology on Ionic Conductivity of Silk/Cellulose Bio-Composites Fabricated from Ionic Liquid and Varying Percentages of Coagulation Agents. Int. J. Mol. Sci. 2020, 21, 4695. [Google Scholar] [CrossRef]
  108. Love, S.A.; Popov, E.; Rybacki, K.; Hu, X.; Cruz, D.S.D.L. Facile treatment to fine-tune cellulose crystals in cellulose-silk biocomposites through hydrogen peroxide. Int. J. Biol. Macromol. 2020, 147, 569–575. [Google Scholar] [CrossRef]
  109. Shamsuri, A.A.; Abdan, K.; Kaneko, T. A concise review on the physicochemical properties of biopolymer blends prepared in ionic liquids. Molecules 2021, 26, 216. [Google Scholar] [CrossRef]
  110. Gonçalves, C.; Gomes, J.M.; Maia, F.R.; Radhouani, H.; Silva, S.S.; Reis, R.L.; Oliveira, J.M. Fabrication of biocompatible porous SAIB/silk fibroin scaffolds using ionic liquids. Mater. Chem. Front. 2021, 5, 6582–6591. [Google Scholar] [CrossRef]
  111. Gomes, J.M.; Silva, S.S.; Fernandes, E.M.; Lobo, F.C.M.; Martín-Pastor, M.; Taboada, P.; Reis, R.L. Silk fibroin/cholinium gallate-based architectures as therapeutic tools. Acta Biomater. 2022, 147, 168–184. [Google Scholar] [CrossRef]
  112. Deng, Q.Q.; Wang, F.; Gough, C.R.; Hu, X. Tunable microphase-regulated silk fibroin/poly (lactic acid) biocomposite materials generated from ionic liquids. Int. J. Biol. Macromol. 2022, 197, 55–67. [Google Scholar] [CrossRef]
  113. Liu, X.Y.; Zhang, C.C.; Xu, W.L.; Liu, H.T.; Ouyang, C.X. Blend films of silk fibroin and water-insoluble polyurethane prepared from an ionic liquid. Mater. Lett. 2011, 65, 2489–2491. [Google Scholar] [CrossRef]
  114. Wang, Z.Q.; Yang, H.W.; Tang, L.Y.; Li, C.L. Preparation and characterization of silk fibroin /polyvinyl alcohol composite membrane. J. Text. Res. 2018, 39, 12061294. [Google Scholar]
  115. Pereira, R.F.P.; Zehbe, K.; Günter, C.; Santos, T.D.; Nunes, S.C.; Paz, F.A.A.; Silva, M.M.; Granja, P.L.; Taubert, A.; Bermudez, V.D.Z. Ionic Liquid-Assisted Synthesis of Mesoporous Silk Fibroin/Silica Hybrids for Biomedical Applications. ACS Omega 2018, 3, 10811–10822. [Google Scholar] [CrossRef] [PubMed]
  116. Wang, M.; Bai, L.; Zhang, L.L.; Sun, G.P.; Zhang, X.W.; Dong, S.J. A microporous silk carbon–ionic liquid composite for the electrochemical sensing of dopamine. Analyst 2016, 141, 2447–2453. [Google Scholar] [CrossRef] [PubMed]
  117. Rath, T.; Pramanik, N.; Kumar, S. High electrochemical performance flexible solid-state supercapacitor based on Co-doped reduced graphene oxide and silk fibroin composites. Energy 2017, 141, 1982–1988. [Google Scholar] [CrossRef]
  118. Zhou, Y.; Zhang, X.C.; Cheng, Y.H.; Zhang, J.M.; Mi, Q.Y.; Yin, C.C.; Wu, J.; Zhang, J. Super-rapid and highly-efficient esterification of cellulose to achieve an accurate chromatographic analysis of its molecular weight. Carbohydr. Polym. 2022, 286, 119301. [Google Scholar] [CrossRef]
  119. Klemm, D.; Heublein, B.; Fink, H.P.; Bohn, A. Cellulose: Fascinating Biopolymer and Sustainable Raw Material. Angew. Chem. Int. Ed. 2005, 44, 3358–3393. [Google Scholar] [CrossRef]
  120. Pinkert, A.; Marsh, K.N.; Pang, S.S.; Staiger, M.P. Ionic liquids and their interaction with cellulose. Chem. Rev. 2009, 109, 6712–6728. [Google Scholar] [CrossRef]
  121. Yuan, X.M.; Cheng, G. From cellulose fibrils to single chains: Understanding cellulose dissolution in ionic liquids. Phys. Chem. Chem. Phys. 2015, 17, 31592–31607. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  122. Pereira, R.F.P.; Pereira, R.B.; Gonçalves, R.; Silva, M.P.; Costa, C.M.; Silva, M.M.; Bermudez, V.D.Z.; Méndez, S.L. Silk Fibroin Separators: A Step Toward Lithium-Ion Batteries with Enhanced Sustainability. ACS Appl. Mater. Interfaces 2018, 10, 5385–5394. [Google Scholar] [CrossRef]
  123. Rockwood, D.N.; Preda, R.C.; Yücel, T.; Wang, X.Q.; Lovett, M.L.; Kaplan, D.L. Materials fabrication from Bombyx mori silk fibroin. Nat. Protoc. 2011, 6, 1612–1631. [Google Scholar] [CrossRef]
  124. Wang, S.; Liu, Z.L.; Chen, L.M.; Jiang, Y.C.; Jia, Y.R.; Huang, Y.X.; Zhang, Y.S. Study on the Properties of the PVA/SF Blend Membranes. Adv. Mater. Res. 2013, 781–784, 546–549. [Google Scholar] [CrossRef]
  125. Arcos, D.; Regí, M.V. Sol-gel silica-based biomaterials and bone tissue regeneration. Acta Biomater. 2010, 6, 2874–2888. [Google Scholar] [CrossRef] [PubMed]
  126. Zhang, X.; Ries, M.E.; Hine, P.J. Time-temperature superposition of the dissolution of silk fibers in the Ionic liquid 1-ethyl-3-methylimidazolium acetate. Biomacromolecules 2021, 22, 1091–1101. [Google Scholar] [CrossRef] [PubMed]
  127. El Seoud, O.A.; Kostag, M.; Possidonio, S.; Dignani, M.T.; Pires, P.A.R.; Lourenço, M.C. Dissolution of silk fibroin in mixtures of ionic liquids and dimethyl sulfoxide: On the relative importance of temperature and binary solvent composition. Polymers 2021, 14, 13. [Google Scholar] [CrossRef] [PubMed]
Ijms 23 08706 g001 550

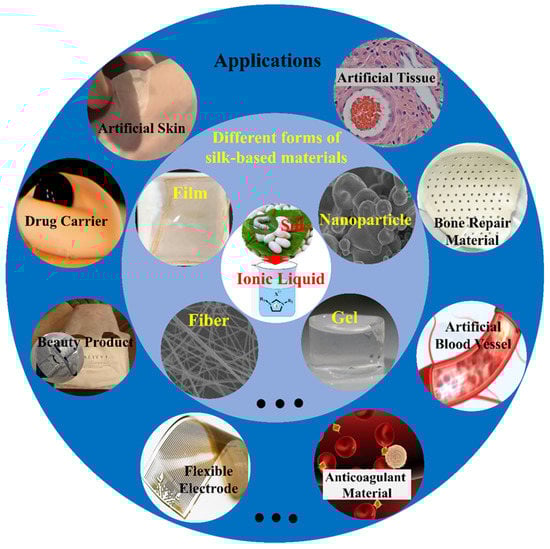

Figure 1. Schematic representation of silk materials and applications after processing with ILs. Silk can be processed into various forms and structures through ILs, such as film, fiber, gel and nanoparticle, which are used as artificial skin, drug carrier, beauty products, flexible electrodes, artificial blood vessels and tissue, as well as anticoagulation and bone repair materials.
Figure 1. Schematic representation of silk materials and applications after processing with ILs. Silk can be processed into various forms and structures through ILs, such as film, fiber, gel and nanoparticle, which are used as artificial skin, drug carrier, beauty products, flexible electrodes, artificial blood vessels and tissue, as well as anticoagulation and bone repair materials.
Ijms 23 08706 g001
Ijms 23 08706 g002 550

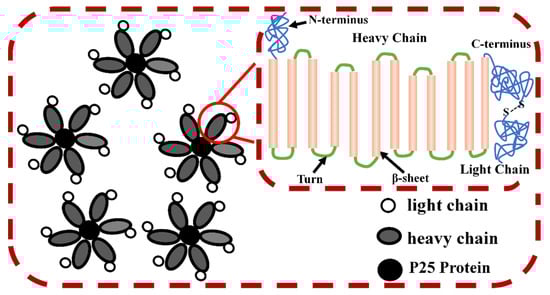

Figure 2. Schematic diagram of the secondary structure of complexation of P25 protein with H chain and L chain in SF. Reproduced with permission from [42], Copyright (2022) Elsevier.
Figure 2. Schematic diagram of the secondary structure of complexation of P25 protein with H chain and L chain in SF. Reproduced with permission from [42], Copyright (2022) Elsevier.
Ijms 23 08706 g002
Ijms 23 08706 g003 550
Figure 3. Representative amino acid sequences in SF (H chain) of Bombyx mori silkworm and Antheraea tussah silkworm (reproduced with permission from [49], Copyright (2016) American Chemical Society and reproduced with permission from [54], Copyright (2022) Elsevier).
Figure 3. Representative amino acid sequences in SF (H chain) of Bombyx mori silkworm and Antheraea tussah silkworm (reproduced with permission from [49], Copyright (2016) American Chemical Society and reproduced with permission from [54], Copyright (2022) Elsevier).
Ijms 23 08706 g003
Ijms 23 08706 g004 550

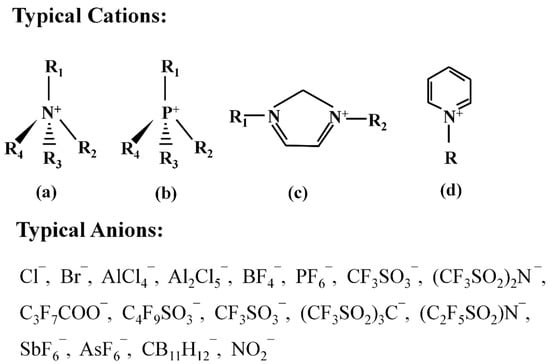

Figure 4. Typical anion and cation structures of common ILs: (a) quaternary ammonium salt ions; (b) quaternary phosphonium salt ions; (c) imidazole salt ions; (d) pyrrole salt ions, where R is a common anion.
Figure 4. Typical anion and cation structures of common ILs: (a) quaternary ammonium salt ions; (b) quaternary phosphonium salt ions; (c) imidazole salt ions; (d) pyrrole salt ions, where R is a common anion.
Ijms 23 08706 g004
Ijms 23 08706 g005 550

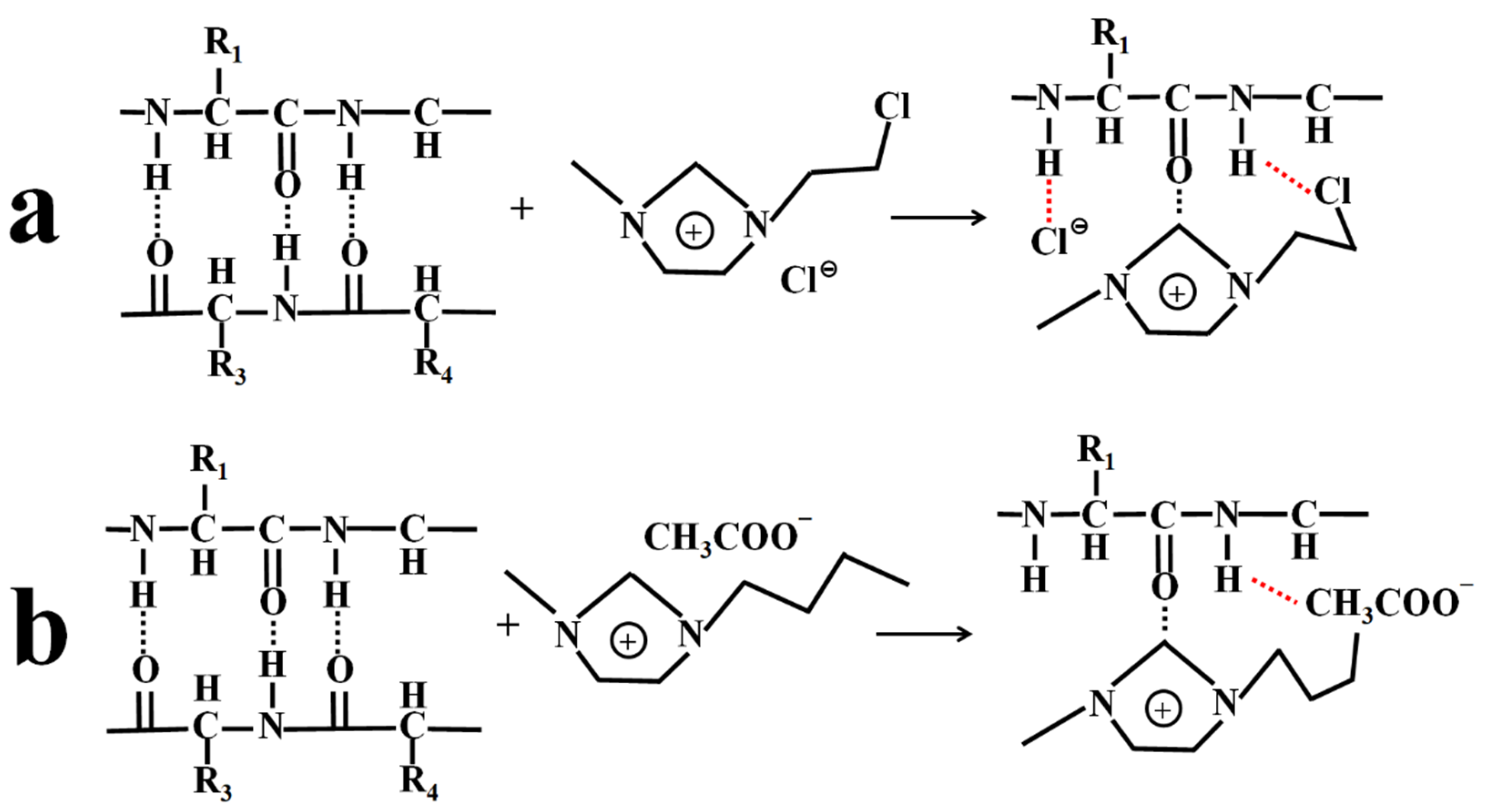

Figure 5. The mechanism of ILs dissolving SF. The −NH of protein chains interact with (a) Cl− of [CeMIM]Cl and (b) CH3COO− of [BMIM]AC to form new hydrogen bonds, which promote the dissolution of SF.
Figure 5. The mechanism of ILs dissolving SF. The −NH of protein chains interact with (a) Cl− of [CeMIM]Cl and (b) CH3COO− of [BMIM]AC to form new hydrogen bonds, which promote the dissolution of SF.
Ijms 23 08706 g005
Ijms 23 08706 g006 550

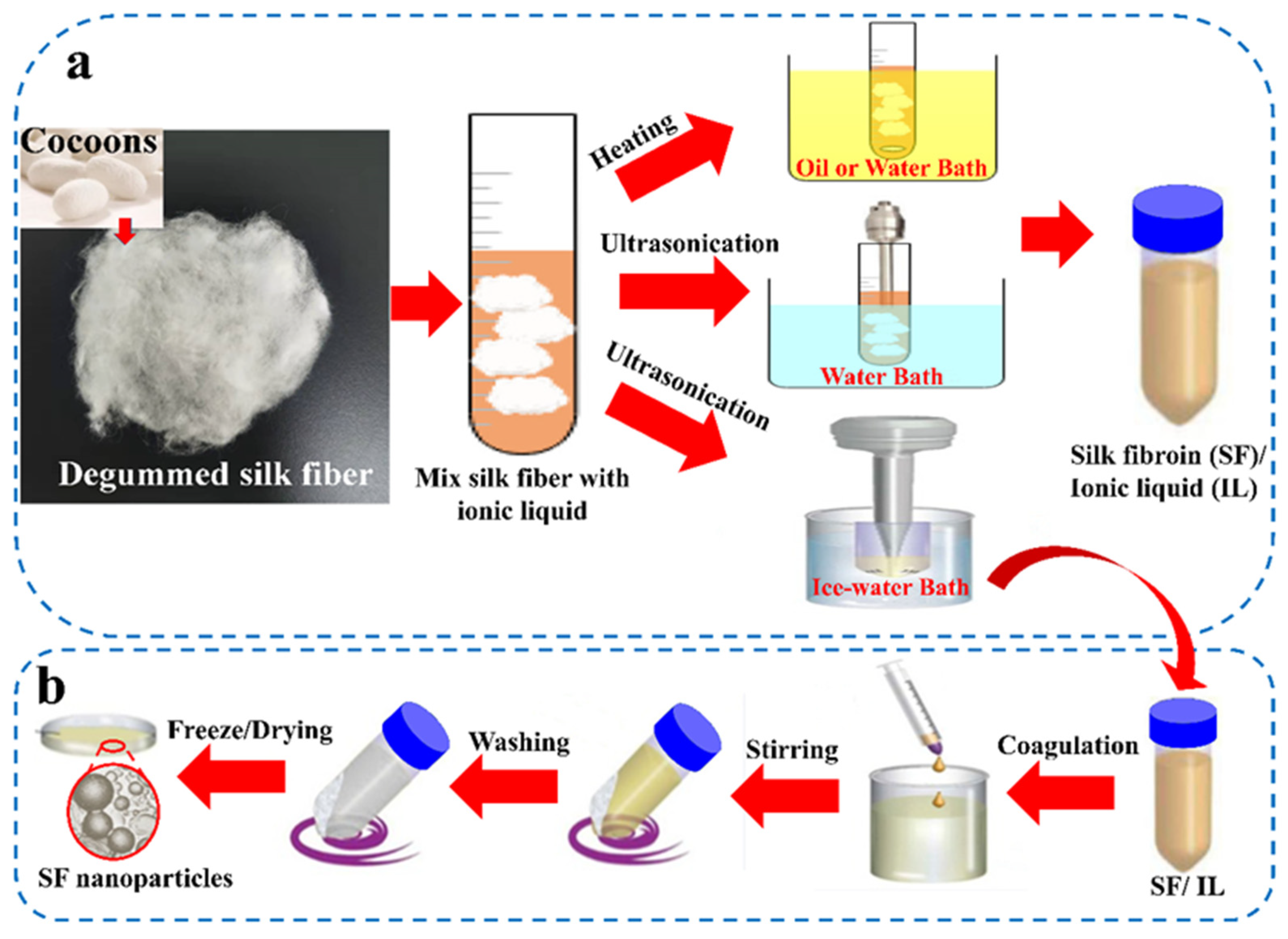

Figure 6. (a) Several different heating methods for dissolving SF with ILs: water or oil bath under vortex stirring, dissolving in water bath and in ice water bath by ultrasonic treatment, respectively. (b) The whole process of preparing SF nanoparticles by dissolving SF after ultrasound in ice water bath. (Reproduced with permission from [82], Copyright (2022) Elsevier, and reproduced with permission from [95], Copyright (2020) American Chemical Society).
Figure 6. (a) Several different heating methods for dissolving SF with ILs: water or oil bath under vortex stirring, dissolving in water bath and in ice water bath by ultrasonic treatment, respectively. (b) The whole process of preparing SF nanoparticles by dissolving SF after ultrasound in ice water bath. (Reproduced with permission from [82], Copyright (2022) Elsevier, and reproduced with permission from [95], Copyright (2020) American Chemical Society).
Ijms 23 08706 g006
Ijms 23 08706 g007 550

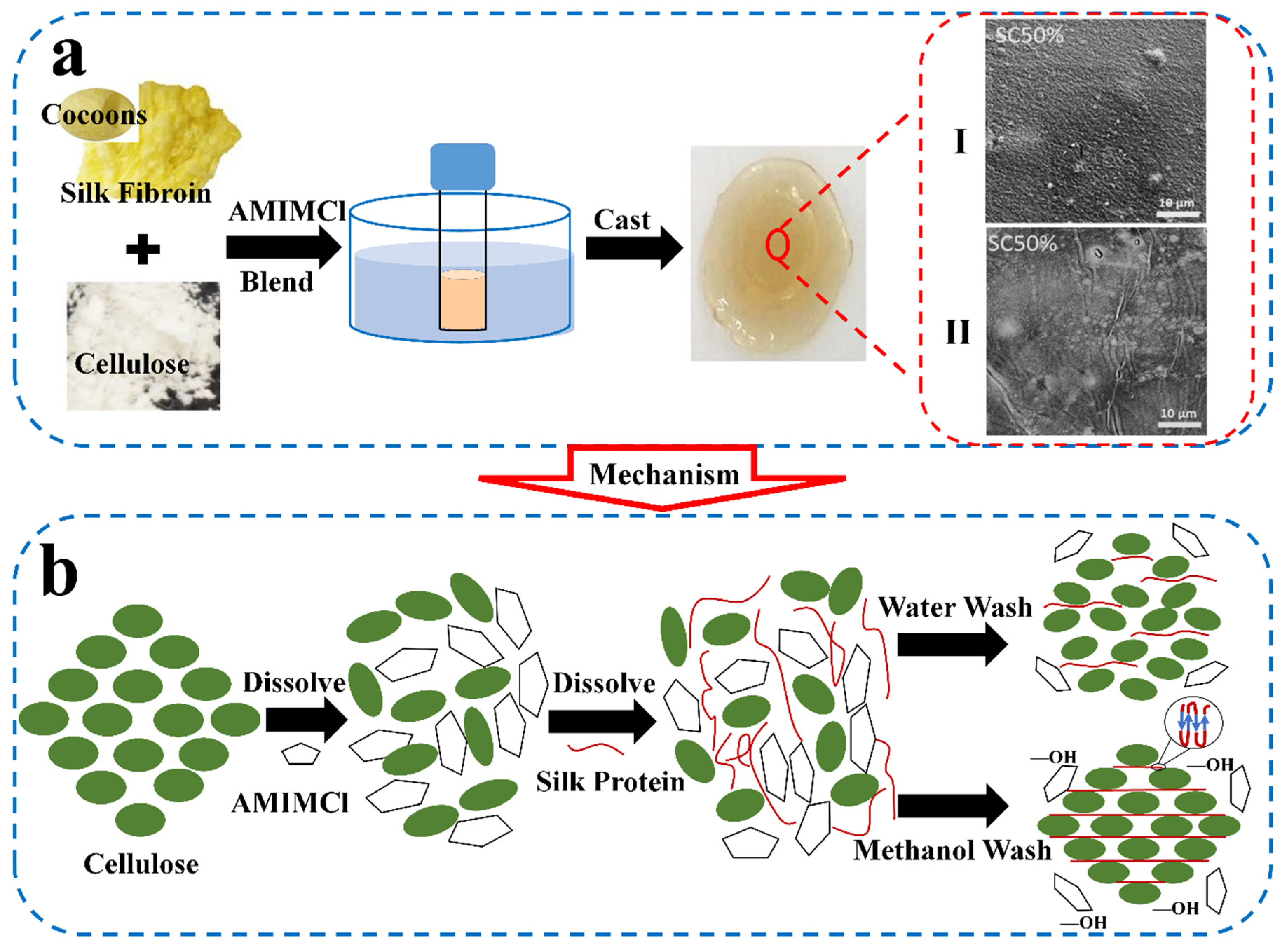

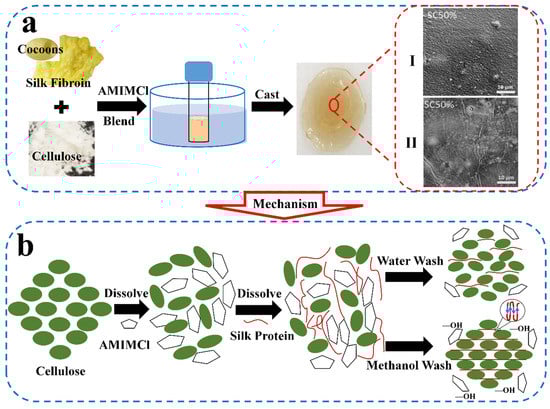

Figure 7. (a) Schematic diagram of preparing process of SF/cellulose film using IL [AMIM]Cl as solvent. The SEM images of blends with different mass ratios under methanol treatment (I) and water treatment (II) are shown. (b) The blending mechanism in IL [AMIM]Cl system (reproduced with permission from [103], Copyright (2017) Elsevier).
Figure 7. (a) Schematic diagram of preparing process of SF/cellulose film using IL [AMIM]Cl as solvent. The SEM images of blends with different mass ratios under methanol treatment (I) and water treatment (II) are shown. (b) The blending mechanism in IL [AMIM]Cl system (reproduced with permission from [103], Copyright (2017) Elsevier).
Ijms 23 08706 g007
Ijms 23 08706 g008 550

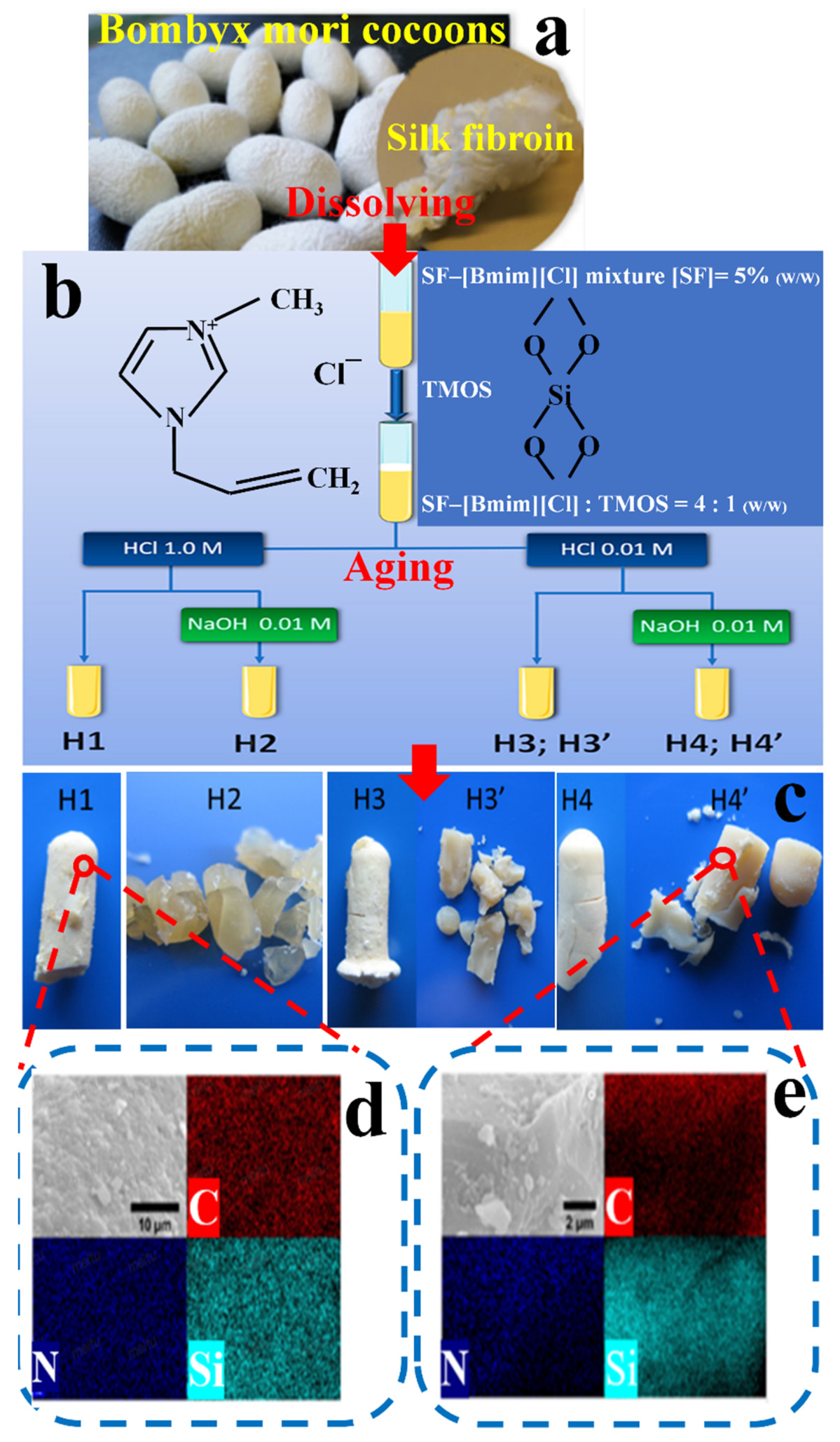

Figure 8. The scheme of preparation process of (a) SF (b) dissolved in [BMIM]Cl, blended with tetramethoxysilane (TMOS), and aged under different acidbase ratios. (c) Their appearance photos and (d,e) SEM images of H1 (10 μm) and H4′ (2 μm) at different scales, as well as corresponding EDX maps (red, navy blue and light blue in EDX map correspond to C, N and Si atoms respectively) (reproduced with permission from [115], https://pubs.acs.org/doi/10.1021/acsomega.8b02051, 7 September 2018, open access copyright (2018) American Chemical Society).
Figure 8. The scheme of preparation process of (a) SF (b) dissolved in [BMIM]Cl, blended with tetramethoxysilane (TMOS), and aged under different acidbase ratios. (c) Their appearance photos and (d,e) SEM images of H1 (10 μm) and H4′ (2 μm) at different scales, as well as corresponding EDX maps (red, navy blue and light blue in EDX map correspond to C, N and Si atoms respectively) (reproduced with permission from [115], https://pubs.acs.org/doi/10.1021/acsomega.8b02051, 7 September 2018, open access copyright (2018) American Chemical Society).
Ijms 23 08706 g008
Table
Table 1. Applications of SF-based composites fabricated using various ILs *.
Table 1. Applications of SF-based composites fabricated using various ILs *.
ComponentsSolventShapeApplicationsReferences
SF [EMIM]Ac AnpHydrogelsBiomedical materials[49]
[EMIM]AC BomGelsConductive gel,
biomedical materials		[49,101]
[BMIM]AC BomFilmsTissue engineering materials[63,82,83]
[AMIM]Cl BomRegenerated silk FiberTissue engineering materials[81]
[BMIM]Br BomFilmsTissue engineering materials[83]
[BMIM]Cl Bom FilmsArtificial skin coating[82,97,98]
[BMIM]Cl Ana
[BMIM]Ac Ana		FilmsTissue engineering materials[99]
[BMIM]Ac Eri SpongeCartilage-related biomedical
materials		[102]
SF-cellulose[EMIM]ClFilmsElectrode materials[80]
[BMIM]Br
[BMIM]MeSO3		FilmsBiomedical materials[90]
[AMIM]ClFilmsTissue engineering materials[90,103,104]
[AMIM]ClFilmsBiomedical materials[103]
[BMIM]ClFilmsBiomedical materials[105,106]
[EMIM]ACNanoparticles, FilmsCoagulation materials,
Electrode materials,
Tissue engineering materials		[80]
[87]
[107,108]
[BMIM]ClFiberbiomedicine and tissue materials[109]
SF-carbon nanotubes[EMIM]ClFilmsTissue engineering materials[40]
SF-naringin[EMIM]ACNanoparticlesDrug delivery materials[85]
SF-chitin[AMIM]ClFilmsBiomedical materials[90]
SF-KCl[EMIM]ACGelsFlexible ionic conductive hydrogel[96]
SF-Glycerol & Dimethyl sulfoxide[BMIM]PF6FilmsElectrolyte film,
Energy materials		[100]
SF-sucrose acetate isobutyrate [BMIM][Ac]ScaffoldsTissue engineering materials[110]
SF-cholinium gallateBio-ILsSpongeBiomedical materials[111]
SF-chitosan[AMIM]Cl
[BMIM]Ac		Films
Hydrogels 		Tissue engineering materials
Biomedical materials		[90,109]
SF-polylactic acid[BMIM]ClFilmsDrug delivery materials[112]
SF-polyurethane[BMIM]ClFilmsCoagulation material[113]
SF- polyvinyl alcohol[AMIM]ClFilmsTissue engineering materials[114]
SF-silica[BMIM]Cl3D scaffoldsBone tissue materials[82,115]
SF-carbon[BMIM]PF63D scaffoldsElectrochemical sensor[116]
SF-graphene oxide[EMIM]BF4FilmsElectrode material[117]
* Abbreviations: 1-allyl-3-methylimidazole chloride, [AMIM]Cl; 1-butyl-3-methylimidazole chloride, [BMIM]Cl; 1-ethyl-3-methylimidazole chloride, [EMIM]Cl; 1-ethyl-3-methylimidazole acetate, [EMIM]AC; 1-butyl-3-methylimidazole bromide, [BMIM]Br; 1-ethyl-3-methylimidazole tetrafluoroborate, [EMIM]BF4; 1-allyl-3-methylimidazole chloride, [AMIM]Cl; 1-butyl-3-methylimidazole hexafluorophosphate, [BMIM]PF6; 1-butyl-3-methylimidazole acetate, [BMIM]AC; 1-butyl-3-methylimidazole bromide, [BMIM]Br; 1-butyl-3-methylimidazole methanesulfonate, [BMIM] MeSO3; choline-gallate, Bio-ILs. The superscript ‘Bom’, ‘Ana’, ‘Anp’ and ‘Eri’ represents that SF from Bombyx mor, Antheraea assamensis, Antheraea pernyi and Eri silkworm cocoons can be dissolved in this IL, respectively.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Heng, H.; Deng, Q.; Yang, Y.; Wang, F. Recent Research Progress of Ionic Liquid Dissolving Silks for Biomedicine and Tissue Engineering Applications. Int. J. Mol. Sci. 2022, 23, 8706. https://doi.org/10.3390/ijms23158706

AMA Style

Heng H, Deng Q, Yang Y, Wang F. Recent Research Progress of Ionic Liquid Dissolving Silks for Biomedicine and Tissue Engineering Applications. International Journal of Molecular Sciences. 2022; 23(15):8706. https://doi.org/10.3390/ijms23158706

Chicago/Turabian Style

Heng, Hang, Qianqian Deng, Yipeng Yang, and Fang Wang. 2022. "Recent Research Progress of Ionic Liquid Dissolving Silks for Biomedicine and Tissue Engineering Applications" International Journal of Molecular Sciences 23, no. 15: 8706. https://doi.org/10.3390/ijms23158706

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
