Mechanistic Insight into Permeation of Plasma-Generated Species from Vacuum into Water Bulk

Jamoliddin Razzokov
Sunnatullo Fazliev
Akbar Kodirov
Pankaj AttrI
Zhitong Chen
9,10 and
Masaharu Shiratani
Institute of Material Sciences, Academy of Sciences, Chingiz Aytmatov 2b, Tashkent 100084, Uzbekistan
Institute of Fundamental and Applied Research, National Research University TIIAME, Kori Niyoziy 39, Tashkent 100000, Uzbekistan
Department of Physics, National University of Uzbekistan, Universitet 4, Tashkent 100174, Uzbekistan
College of Engineering, Akfa University, Milliy Bog Street 264, Tashkent 111221, Uzbekistan
Max Planck School Matter to Life, Jahnstrasse 29, 69120 Heidelberg, Germany
Faculty of Chemistry and Earth Sciences, Heidelberg University, Im Neuenheimer Feld 234, 69120 Heidelberg, Germany
Center of Plasma Nano-Interface Engineering, Kyushu University, Fukuoka 819-0395, Japan
Faculty of Information Science and Electrical Engineering, Kyushu University, Fukuoka 819-0395, Japan
Center for Advanced Therapy, National Innovation Center for Advanced Medical Devices, Shenzhen 518000, China
Institute of Biomedical and Health Engineering, Shenzhen Institute of Advanced Technology, Chinese Academy of Sciences, Shenzhen 518055, China
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(11), 6330;
Submission received: 29 April 2022 / Revised: 20 May 2022 / Accepted: 25 May 2022 / Published: 6 June 2022
(This article belongs to the Special Issue Plasma Bioscience and Medicine Molecular Research)


Due to their potential benefits, cold atmospheric plasmas (CAPs), as biotechnological tools, have been used for various purposes, especially in medical and agricultural applications. The main effect of CAP is associated with reactive oxygen and nitrogen species (RONS). In order to deliver these RONS to the target, direct or indirect treatment approaches have been employed. The indirect method is put into practice via plasma-activated water (PAW). Despite many studies being available in the field, the permeation mechanisms of RONS into water at the molecular level still remain elusive. Here, we performed molecular dynamics simulations to study the permeation of RONS from vacuum into the water interface and bulk. The calculated free energy profiles unravel the most favourable accumulation positions of RONS. Our results, therefore, provide fundamental insights into PAW and RONS chemistry to increase the efficiency of PAW in biological applications.

1. Introduction

Plasma, the fourth fundamental state of matter, consists of a complex mixture of high-energy particles (electrons, radicals, charged particles, excited atoms, molecules and photons). Cold atmospheric plasma (CAP) is a type of non-thermal plasma that comprises high-temperature electrons mixed with gaseous, high-energy chemicals of low temperature [1,2,3]. Although CAP is convenient for material processing, treating liquids, for example, water, with CAP produces a mixture of new reactive species. The resulting mixture is commonly called plasma-activated water (PAW) [4]. The interaction of CAP with water is a very complex physicochemical process resulting in UV radiation and numerous species with high chemical reactivity. Among the formed high-energy particles, reactive oxygen and nitrogen species (RONS) are particularly important, due to their wide variety of application areas, ranging from agriculture [5,6,7,8,9,10], to cancer [2,8,11,12,13,14,15], to the food industry [5,10,16]. Particularly in agriculture, it has been shown that PAW can be used to boost the stress tolerance [17], germination [18,19] and growth rate [20] of plants. In addition, there are a number of studies that demonstrate the positive synergy of PAW on the growth [10,19,21] and defence system of plants [5,6,9]. While the fertility and composition of soil deteriorate rapidly, PAW can offer a greener solution to the problems of agriculture and the food industry in a world with an ever-growing population.
Although CAP itself has already shown promising results with cancer treatment, the application of PAW can really transform the cancer research field, since PAW is much more convenient to use, especially in the form of injections, but can still be as efficient as CAP treatment [22]. Many studies showed that PAW can kill various tumour types, such as ovarian [23], colon [24] and gastric cancer cells [25,26]. Recently, Kumar et al. showed that chemo-resistant pancreatic stellate cells can be killed by PAW [27]. These and many other successful cancer studies involving PAW might offer new therapeutic opportunities for cancer treatment, especially for tumours that cannot be beaten by conventional therapies.
Other biological applications of PAW also rely on plasma-generated reactive species. In the food industry, for instance, PAW has been used for surface processing [16,28], meat treatment [29] and microbial inactivation [30,31,32]. Moreover, it has been shown that in many cases, the synergistic plasma effects (the reactions between the highly active species in PAW) are responsible for more pronounced antibiotic results compared to conventional disinfectants, such as H2O2, O3, etc. [33,34]
Over the past decades, plasma research has remarkably progressed and several techniques have been developed to create a highly reactive state of matter in mild conditions. Atmospheric pressure plasma jets [35], gliding arc [4] and dielectric barrier discharges [36] are amongst the most commonly used methods. Generally, the nature and composition of plasma depend on many parameters, such as feed gas, electrodes, exposure time, applied voltage, and so on. Hence, by changing these parameters, one can fine-tune the resulting mixture of reactive species and selectively make reactive oxygen species (ROS), reactive nitrogen species (RNS) or their mixtures. This is important to delineate how different plasma-generated species work in various applications, such as cancer treatment, microbial disinfection, and plant growth. For instance, Machala et al. showed a correlation with gaseous and aqueous RONS, plasma sources, and air flow conditions by testing the antibacterial effects of the generated PAW [37].
With regard to PAW, it has been shown that different CAP sources with similar gaseous RONS composition usually lead to PAWs with similar properties [22]. Hence, the way that plasma interacts with water is of the greatest significance for the properties of the resulting PAW. Therefore, during recent years, the plasma research community has become more focused on topics of interactions between the plasma and liquid interface, transport of plasma-generated gaseous species into water, and chemical reactions in the liquid phase. Studying these hot topics requires characterising the chemical composition of species in the plasma and liquid phases and having an understanding of chemical reactions that lead to the formation of RONS in the liquid phase. Usually, acid–base titrations, pH and electrical conductivity measurements are used to investigate the chemical nature of RONS in PAW. However, new instrumental techniques have been developed to characterise PAW. For example, Verlackt and co-workers developed a 2D axisymmetric fluid dynamics model to study the accumulation and chemical reactions of argon plasma jet-generated reactive species in a buffered aqueous solution, as well as transport from the gas phase [38]. Oh and collaborators developed the UV-Vis spectroscopy method to quantify the concentrations of the following major long-lived RONS in PAW generated by treatment with a helium plasma jet: H2O2, NO2, NO3, and O2 [39]. More recently, Oldham et al. presented an electrochemical technique to characterise electrochemical maps of an aqueous solution in contact with an atmospheric pressure plasma jet [40]. This method allows the spatial distribution of redox reactions taking place in such plasma–liquid interfaces to be identified.
Delineating the transportation mechanisms of plasma-generated species into bulk water is equally important. Knowledge about the permeation of plasma-generated species is essential to understand the storage of PAW, which has many implications, particularly in medicine, where, for instance, PAW is used as injections. The permeation processes take place at the vacuum–water interface and are difficult to characterise with common analytical techniques. Molecular dynamics (MD) is a powerful tool to understand, simulate and model such nanoscale processes. MD simulations can pave the way for experiments and provide insights into underlying permeation mechanisms that are responsible for the formation of RONS in PAW.
In this study, we aim to investigate the permeation of plasma-generated RONS from vacuum into the water bulk through the calculation of free energy profiles by performing MD simulations.

2. Simulation Setup

We carried out MD simulations, in order to study the transport capability of the following RONS from vacuum into the water bulk: H2O2, HO2, OH, O3, NO, NO2, trans-HNO2, cis-HNO2, HNO3, trans-perp-ONOOH, cis-perp-ONOOH (throughout the main text, tp for trans-perp and cp for cis-perp notations are used) and N2O4. GROMACS program package (GPU version) [41] was employed to perform MD simulations by introducing GROMOS united atom force field parameters for RONS developed in the literature [42,43,44,45]. Initially, the cubic box was filled with an SPC water model [46] by making use of Packmol software [47]. Further, we performed energy minimization and a short 100 ps equilibration run by applying NVT and NPT ensembles. Next, the 50 ns production run proceeded, employing the velocity rescaling thermostat [48] at 300 K and the Parrinello–Rahman barostat [49] at 1 atm pressure, respectively. The equilibrated model system was transferred into the centre of the tetragonal box with the dimensions x = 3.2, y = 3.2, and z = 8.0 nm, to create the vacuum and the water interface (see Figure 1). The current model system was equilibrated again for 50 ns to ensure the adequate distribution of water molecules between the vacuum and water bulk. It is a standard approach to study the behaviour of molecules between the vacuum, water interface and bulk [50,51]. Moreover, it is quite complex to mimic a real condition in computer simulations due to the large number of particles in model systems. However, the parameters of the current model system are sufficient to study the permeation process of molecules into the liquid content [43].
The tetragonal simulation box is used to perform umbrella sampling (US) simulations [52]. The current simulation technique allows us to calculate the free energy profile (FEP) along the reaction coordinate. The centre of mass of water molecules and the centre of mass of RONS were used as reaction coordinates in our US simulations. The position restrained potential with a force constant of 2000 kJ mol−1 nm−2 was applied to the reaction coordinates along the z-axis. Thus, RONS move on the x-y plane while the motion of the latter is limited to the z-axis. In order to use the computational resources efficiently and collect more data in simulations, we inserted one of the seven RONS separated by a 1 nm distance along the z-axis to the model system (see Figure 1a). Before using the model system for US simulations, the subsequent energy minimization and short NVT simulation were carried out. Next, the system was run for 6 ns and the last 4 ns trajectory was used for data analysis. The US simulations were repeated 12 to 20 times by randomizing positions of RONS on the x-y plane (cf Figure 1a,b). The location of RONS varies between −3.5 and 3.5 nm along the z-axis, which spans from the vacuum into the water phase, ending up in the vacuum again by shifting the position of RONS by 0.05 nm. Thus, the individual FEP was obtained using 7 × 12 = 84 US windows. The final FEP was built by averaging 12 (i.e., H2O2, HO2˙, OH˙, trans-HNO2, cis-HNO2, HNO3, tp-ONOOH, cp-ONOOH and N2O4) to 20 (i.e., O3, NO and NO2) individual FEPs by employing the weighted histogram analysis method (WHAM). Overall, we performed 0.864 and 1.44 μs of 1800 US simulations for the abovementioned RONS. A visual molecular dynamics tool was used to prepare images of the model system [53].

3. Results and Discussion

It must be mentioned that in experimental conditions, the chemical reactions of RONS might occur in the gaseous and the liquid phases, as well as at the gas–liquid interface. However, these reactions cannot take place in classical MD simulations, which do not consider quantum-level chemical potentials. Despite these limitations, US simulations could assist in obtaining the RONS permeation rate from the vacuum into the water bulk, through the calculations of FEPs. According to the FEP data, one can predict the potential accumulation positions of RONS in the model system.
As is clear from Figure 2, the FEPs of all the investigated RONS decrease at the vacuum–water interface, showing the minimum values of ΔG, which facilitates the accumulation of RONS. This enhancement of the solute molecule concentration at the vacuum–water interface is a general trend and is applicable to all the RONS studied. The concentration of O3, NO and NO2 at the vacuum–water interface is higher than that of the gaseous phase, but with corresponding ∆Ggs values of (free energy change for transition from the gaseous phase to the water surface, i.e., vacuum–water interface) −3.94, −1.21 and −4.66 kJ/ mol, respectively. In contrast, the concentrations of the other species at the vacuum–water interface are ~103–106 times higher compared to the concentration in the gaseous phase, with ∆Ggs values being on the order of 10 kJ/mol (Table 1). It is, therefore, obvious that the vacuum–water interface is the most favourable accumulation site for all the RONS studied here.
Based on the permeabilities of the water bulk, we divided the studied RONS into two groups: (i) hydrophilic species with ∆Ghydr < 0 (hydration free energy, which corresponds to the transport of a compound from the gaseous phase into the solvent, i.e., water in this case) and (ii) hydrophobic species with ∆Ghydr > 0. We try to discuss our results by following this grouping.
The FEPs of the hydrophilic RONS, i.e., OH˙, HO2˙, H2O2, trans-HNO2, cis-HNO2, HNO3, tp-ONOOH, cp-ONOOH and N2O4, follow the general trend by decreasing at the water interface where FEPs have minimum values. Moreover, according to the FEPs, a shift in the free energy minimum from the water surface towards the water bulk phase (cf. Figure 2, Figure 3 and Figure 4 below) can be observed. They show different hydration free energies depending on their chemical composition and polarity.
The FEP profiles of three closely related hydrophilic species—OH˙, HO2˙ and H2O2—become more negative in the given order (Figure 2). We speculated that the presence of an extra oxygen atom in HO2˙ and H2O2 causes stronger dispersion interactions and hydrogen bonding ability [42] than OH radicals in water. Further deeper penetration of these ROS into the water bulk is hindered due to the varying free energy barriers from the vacuum–water interface into the liquid phase (∆Gsl) (see Figure 2a). This barrier is in the order of 5.53 and 5.76 kJ/ mol for OH and HO2 radicals, respectively, while H2O2 has ∆Gsl of only 0.45 kJ/ mol. The hydration of H2O2 is the strongest among all the RONS studied here: ∆Ghydr = −36.24 kJ/ mol (which very well reproduces −36.5 kJ/ mol that is calculated from the experimentally determined Henry’s law constant reported by Sander [54]). This might be an underlying mechanism where there is only a little energy barrier for H2O2 to enter the water bulk from the vacuum–water interface. Such a large ∆Ghydr and small ∆Gsl of H2O2 resulted in a concentration enhancement of 2 × 106 and 1.7 × 106 at the vacuum–water interface and in the water bulk, respectively, compared to the gaseous phase (Table 1).
Amongst hydrophilic RNS, hydration free energies show dependence on the polarity of the species (Figure 3). For instance, N2O4—the least polar RNS here—also has a larger ∆Ghydr compared to the other RNS. The trend is still in place in the case of nitrogen acids. It is interesting to note that peroxinitrous and nitric acids demonstrate different ∆Ghydr as well as ∆Gsl, despite having the same empiric formula—HNO3. ∆Gsl of peroxinitrous acid is large, ~8 kJ/ mol, which is very close to that of hydrophobic species (see Table 1), but its ∆Ghydr is still favourable enough, ~−18 kJ/ mol; whereas, nitric acid has the second most favourable ∆Ghydr of −26.87 kJ/ mol and the second smallest ∆Gsl of 5.29 kJ/ mol. We invoked basic concepts of chemical structure and electronics to account for the observed differences in these compounds. In water, if deprotonated, peroxinitrous acid with a peroxide bond results in a not very stable anion. Thus, it spends most of the time as peroxinitrous acid, whose hydration is favourable, but not as high as nitric acid. This occurs because the latter, being a strong acid, deprotonates easily in water and forms an anion that is significantly stabilised by resonance. The structure of peroxinitrous acid is similar to that of nitrous acid, thus their FEP profiles are similar and close to each other.
It is remarkable how basic concepts of chemical bonding can be applied to explain subtle differences in the behaviours of cis-trans isomer forms of nitrous acid. In trans-HNO2, individual bond dipoles are aligned for a favourable interaction with each other. Such favourably aligned bond dipoles result in a pronounced molecular dipole, which ultimately leads to favourable hydration. However, the cis form produces an unfavourable alignment of bond dipoles, thereby making it less polar than the trans form. Our simple qualitative explanation correlates well with experimentally determined dipole moments: 1.85 D [56] and 1.42 D [57] for trans and cis isomers, respectively. Moreover, the differences in chemical structures of these isomers also contribute to the different topological polar surfaces of isomers, with the trans form having a larger polar surface than the cis form. These electronic and structural differences are displayed in the ∆Ghydr and ∆Gsl of these isomers: trans isomer has more favourable hydration (∆Ghydr = −16 kJ/ mol) and smaller ∆Gsl of 7.09 kJ/ mol, while cis isomer has less favourable hydration (∆Ghydr = −11.7 kJ/ mol) and experiences a larger ∆Gsl barrier of 7.24 kJ/ mol.
It is interesting to note that the simulations of cis-trans nitrous acid forms show marked differences in FEPs, while those of cp and tp forms of peroxinitrous acid resemble each other. The structures of cp and tp conformers of peroxinitrous acid are very similar, where appropriate bond orientations allow the molecule to possess appreciable dipole moment. Furthermore, one can expect them to yield dipole moments of similar value. Using higher levels of wave-function-based electronic structure theory and density functional theory, the calculated dipole moments of cp-ONOOH and tp-ONOOH were found to be 1.64 D and 1.71 D, respectively, which are very close to each other [58]. Similarities in the structure and electronics of these two conformers are reflected in their similar FEP profiles. Although tp-ONOOH demonstrates slightly better concentration enhancement at the water surface and bulk, this might be within the error of calculation, since the values for the two conformers are very close (Table 1).
Figure 4 shows the different natures of hydration of the hydrophobic species: O3, NO and NO2. These species can only enter the vacuum–water interface, exhibiting minimum free energy in FEPs. However, the ∆Gsl values are much larger: 7.92, 8.68 and 7.27 kJ/ mol for O3, NO and NO2, respectively. This results in overall positive ∆Ghydr values, which directly correlate with small solubilities of O3, NO and NO2 in water, and thereby impede their transport from the vacuum into the water bulk (Figure 4 and Table 1). These hydrophobic RONS can only accumulate at the interface between the vacuum and water. Overall, our findings correlate very well with the experimental data, but with small deviations. The only substantial difference is the ∆Ghydr of HNO3, which differs from the experimental data by ~10 kJ/mol. Currently, we do not have a convincing explanation for this discrepancy.
The chemical behaviour of the RONS in water bulk also influences their hydration. It is apparent that the chemical reactions take place in PAW. As a result, other types of RNS, such as NO2, NO3, N2O3 and ONOO, might form in PAW [10]. Some RONS, due to their low permeation profile, cannot permeate into water bulk themselves, but they might act as precursors for the other RONS that are dominant in water bulk. We refrain from discussing the very complex chemistry of PAW, which is nicely reviewed elsewhere [2,8,10,12,59,60].
Our results correlate with the experimental findings of Oinuma et al. [61], where quantitative analysis of the plasma–water interaction shows that the H2O2 is predominantly produced through the recombination of OH radicals either in the gaseous or in the liquid phase, and is one of the major ROS in PAW. Taking FEP of H2O2 (which gives thermodynamic information) and relative reactivities of RONS into account, we can speculate that at larger spatial plasma–water interactions, i.e., at longer plasma jet distances, H2O2 can become the most dominant species in PAW. Although we do not have kinetic data, at moderate exposure times (in the order of minutes), equilibrium should be quickly established and we expect the RONS composition in PAW to correlate with their FEPs. This prediction is nicely demonstrated in a recent preprint by Lamichhane et al., where they show that the ratio of NO2 dominates at shorter plasma jets, while the H2O2 concentration becomes much higher at longer plasma jets [62]. Trey Oldham and Elijah Thimsen also reported similar results and suggested that H2O2 forms not close to the atmospheric pressure plasma jet centre line, but rather in the region surrounding the plasma–liquid interface [40]. Regarding exposure time, Oh et al. also experimentally showed that exposure time affects the total RONS concentration in PAW, but not the composition of RONS in PAW [39], which implies the formation of a rapid equilibrium.
CAP devices operate in open air environments, producing a cocktail of RONS, UV and electric fields. Thus, it is complicated to define the composition of the RONS generated in PAW. The selective production of RONS would increase the effects of RONS in practice and provide tailor-made applications. For instance, NO, NO2, NO3˙, NO3 and ONOO showed immunogenic cell death in cancer cells and were also beneficial in increasing crops on the field [63,64]. On the other hand, OH˙, O3 and H2O2 species play an essential role in bacterial decontamination and wound healing purposes [65,66,67]. Hence, our investigation results assist in developing an efficient approach to the selective production of ROS and RNS.
It is obvious that some of the considered RONS form after penetration into the water phase. Our main purpose is to study the most favourable place of RONS accumulation in PAW. This knowledge can assist in designing PAW production experiments that generate desired RONS more efficiently. For example, O3, NO and NO2 mostly accumulate at the vacuum–water interface and do not penetrate into the water bulk. Therefore, when producing these molecules, it might be more efficient to use water droplets as a PAW medium. This would facilitate O3, NO and NO2 formation since the water interaction surface is increased and the molecules will concentrate on the thin layer of water. Meanwhile, to make PAW with hydrophilic RONS (OH˙, HO2˙, H2O2, HNO3, etc.), one can already use plasma jets with water bulk. These findings coupled with different plasma–water interaction parameters, such as exposure time and gas-type jet–water distance, can offer controlled PAW production and allow us to fine-tune RONS composition.
Further development of experiments to obtain PAW can benefit from computational studies on plasma–sample interactions and how various parameters affect the outcome. For instance, Vichiansan et al., using finite element analysis and statistics, showed that plasma feed gas velocity and plasma gap affect RONS production [68]. In particular, NO production increases linearly as the distance from the nozzle tip to the ground increases, while that of OH radical and H2O2 reaches a maximum production density at around 15 mm plasma gap [68]. Qian et al. also numerically studied OH radical production, but considered the H2O content in pulsed direct current atmospheric pressure plasma jets (APPJ), and showed that the density of OH radicals gradually increases as the H2O content increases [69]. Recently, molecular beam mass spectrometry was applied to characterise ion compositions in the APPJ with a varying feed gas content: Ar+O2, Ar+H2O and Ar+air [70]. This study showed that ROS ions such as O, O3 and O2+ could be observed in the close-to-substrate region, which is consistent with the other numerical and experimental studies [40,71]. There are also other simulation studies that report the gas flow rate insignificantly influencing discharge ignition and propagation, at least for short plasma gaps [72]. Therefore, we suggest that by modulating various parameters, selective ROS and RNS production can be achieved; in particular, shorter plasma jets, shorter exposure time, more N2 content in the plasma feed gas, and shorter distances between the plasma and the sample result in higher density of RNS, while more ROS production requires more H2O and O2 content in the plasma feed gas, longer exposure time, and larger distances between the plasma and the sample.

4. Conclusions

We performed MD US simulations in order to reveal the permeation of CAP-generated individual RONS from the vacuum into the water bulk. According to the obtained FEPs data, we can conclude that hydrophilic RONS, i.e., OH, HO2, H2O2, trans-HNO2, cis-HNO2, HNO3, ONOOH and N2O4, are able to enter to the vacuum–water interface and the water bulk phase. The considerably low free energy values at the vacuum–water interface show that this is the most favourable site for the accumulation of these RONS. The translocation probabilities of the other RONS, i.e., O3, NO and NO2 into the water bulk are comparatively less favourable due to the free energy barrier.
Using concepts of chemical bonding and electronics, we put forward plausible explanations for different hydration and surface-to-liquid transport properties of the RONS. Based on our results, we also provided suggestions to design experiments for PAW production with the controlled composition of RONS.
Our findings correlate well with the existing experimentally determined free energy values of some RONS and can, therefore, serve as starting points for the other RONS that still lack experimental data. The current study plays an important role in the development of specific types of RONS-enriched PAW that can be applied in plasma medicine and plasma agriculture fields.

Author Contributions

Conceptualization, J.R. and M.S.; methodology, J.R. and S.F.; software, J.R. and A.K.; validation, J.R., S.F. and P.A.; formal analysis, J.R. and S.F.; investigation, J.R.; resources, J.R.; writing—original draft preparation, J.R. and S.F.; writing—review and editing, J.R., S.F., Z.C., P.A. and M.S.; visualization, J.R.; supervision, Z.C., M.S. and P.A.; project administration, J.R.; funding acquisition, J.R. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Ministry of Innovative Development of the Republic of Uzbekistan, grant number FZ-2020092817.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Uchida, G.; Takenaka, K.; Takeda, K.; Ishikawa, K.; Hori, M.; Setsuhara, Y. Selective production of reactive oxygen and nitrogen species in the plasma-treated water by using a nonthermal high-frequency plasma jet. Jpn. J. Appl. Phys. 2018, 57, 0102B4. [Google Scholar] [CrossRef] [Green Version]
  2. Zhou, R.; Zhou, R.; Wang, P.; Xian, Y.; Mai-Prochnow, A.; Lu, X.; Cullen, P.J.; Ostrikov, K.; Bazaka, K. Plasma-activated water: Generation, origin of reactive species and biological applications. J. Phys. D Appl. Phys. 2020, 53, 303001. [Google Scholar] [CrossRef]
  3. Chen, Z.; Wirz, R.E. Cold Atmospheric Plasma (CAP) Technology and Applications. Synth. Lect. Mech. Eng. 2021, 6, 191. [Google Scholar] [CrossRef]
  4. Brisset, J.-L.; Moussa, D.; Doubla, A.; Hnatiuc, E.; Hnatiuc, B.; Kamgang Youbi, G.; Herry, J.-M.; Naïtali, M.; Bellon-Fontaine, M.-N. Chemical Reactivity of Discharges and Temporal Post-Discharges in Plasma Treatment of Aqueous Media: Examples of Gliding Discharge Treated Solutions. Ind. Eng. Chem. Res. 2008, 47, 5761–5781. [Google Scholar] [CrossRef]
  5. Guo, D.; Liu, H.; Zhou, L.; Xie, J.; He, C. Plasma-activated water production and its application in agriculture. J. Sci. Food Agric. 2021, 101, 4891–4899. [Google Scholar] [CrossRef]
  6. Zambon, Y.; Contaldo, N.; Laurita, R.; Varallyay, E.; Canel, A.; Gherardi, M.; Colombo, V.; Bertaccini, A. Plasma activated water triggers plant defence responses. Sci. Rep. 2020, 10, 19211. [Google Scholar] [CrossRef]
  7. Zhao, Y.M.; Patange, A.; Sun, D.W.; Tiwari, B. Plasma-activated water: Physicochemical properties, microbial inactivation mechanisms, factors influencing antimicrobial effectiveness, and applications in the food industry. Compr. Rev. Food Sci. Food Saf. 2020, 19, 3951–3979. [Google Scholar] [CrossRef]
  8. Rezaei, F.; Vanraes, P.; Nikiforov, A.; Morent, R.; De Geyter, N. Applications of Plasma-Liquid Systems: A Review. Materials 2019, 12, 2751. [Google Scholar] [CrossRef] [Green Version]
  9. Adhikari, B.; Adhikari, M.; Ghimire, B.; Park, G.; Choi, E.H. Cold Atmospheric Plasma-Activated Water Irrigation Induces Defense Hormone and Gene expression in Tomato seedlings. Sci. Rep. 2019, 9, 16080. [Google Scholar] [CrossRef] [Green Version]
  10. Thirumdas, R.; Kothakota, A.; Annapure, U.; Siliveru, K.; Blundell, R.; Gatt, R.; Valdramidis, V.P. Plasma activated water (PAW): Chemistry, physico-chemical properties, applications in food and agriculture. Trends Food Sci. Technol. 2018, 77, 21–31. [Google Scholar] [CrossRef]
  11. Tanaka, H.; Bekeschus, S.; Yan, D.; Hori, M.; Keidar, M.; Laroussi, M. Plasma-Treated Solutions (PTS) in Cancer Therapy. Cancers 2021, 13, 1737. [Google Scholar] [CrossRef] [PubMed]
  12. Cao, Y.; Qu, G.; Li, T.; Jiang, N.; Wang, T. Review on reactive species in water treatment using electrical discharge plasma: Formation, measurement, mechanisms and mass transfer. Plasma Sci. Technol. 2018, 20, 103001. [Google Scholar] [CrossRef] [Green Version]
  13. Razzokov, J.; Fazliev, S.; Yusupov, M.; Sharipov, A.; Ruziev, Z.; Mamatkulov, S. Effect of Mutation and Disulfide Bond Formation on the Catalytic Site of Monomeric Cytoglobin: A Molecular Level Insight. Plasma Med. 2021, 11, 41–51. [Google Scholar] [CrossRef]
  14. Chen, G.; Chen, Z.; Wang, Z.; Obenchain, R.; Wen, D.; Li, H.; Wirz, R.E.; Gu, Z. Portable air-fed cold atmospheric plasma device for postsurgical cancer treatment. Sci. Adv. 2021, 7, eabg5686. [Google Scholar] [CrossRef]
  15. Chen, G.; Chen, Z.; Wen, D.; Wang, Z.; Li, H.; Zeng, Y.; Dotti, G.; Wirz, R.E.; Gu, Z. Transdermal cold atmospheric plasma-mediated immune checkpoint blockade therapy. Proc. Natl. Acad. Sci. USA 2020, 117, 3687–3692. [Google Scholar] [CrossRef]
  16. Schnabel, U.; Handorf, O.; Yarova, K.; Zessin, B.; Zechlin, S.; Sydow, D.; Zellmer, E.; Stachowiak, J.; Andrasch, M.; Below, H.; et al. Plasma-Treated Air and Water-Assessment of Synergistic Antimicrobial Effects for Sanitation of Food Processing Surfaces and Environment. Foods 2019, 8, 55. [Google Scholar] [CrossRef] [Green Version]
  17. Gierczik, K.; Vukušić, T.; Kovács, L.; Székely, A.; Szalai, G.; Milošević, S.; Kocsy, G.; Kutasi, K.; Galiba, G. Plasma-activated water to improve the stress tolerance of barley. Plasma Process. Polym. 2020, 17, 1900123. [Google Scholar] [CrossRef]
  18. Zhang, S.; Rousseau, A.; Dufour, T. Promoting lentil germination and stem growth by plasma activated tap water, demineralized water and liquid fertilizer. RSC Adv. 2017, 7, 31244–31251. [Google Scholar] [CrossRef] [Green Version]
  19. Molina, R.; Lalueza, A.; López-Santos, C.; Ghobeira, R.; Cools, P.; Morent, R.; Geyter, N.; González-Elipe, A.R. Physicochemical surface analysis and germination at different irrigation conditions of DBD plasma-treated wheat seeds. Plasma Process. Polym. 2020, 18, 2000086. [Google Scholar] [CrossRef]
  20. Sivachandiran, L.; Khacef, A. Enhanced seed germination and plant growth by atmospheric pressure cold air plasma: Combined effect of seed and water treatment. RSC Adv. 2017, 7, 1822–1832. [Google Scholar] [CrossRef] [Green Version]
  21. Judée, F.; Simon, S.; Bailly, C.; Dufour, T. Plasma-activation of tap water using DBD for agronomy applications: Identification and quantification of long lifetime chemical species and production/consumption mechanisms. Water Res. 2018, 133, 47–59. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Brisset, J.-L.; Pawlat, J. Chemical Effects of Air Plasma Species on Aqueous Solutes in Direct and Delayed Exposure Modes: Discharge, Post-discharge and Plasma Activated Water. Plasma Chem. Plasma Process. 2015, 36, 355–381. [Google Scholar] [CrossRef]
  23. Utsumi, F.; Kajiyama, H.; Nakamura, K.; Tanaka, H.; Mizuno, M.; Ishikawa, K.; Kondo, H.; Kano, H.; Hori, M.; Kikkawa, F. Effect of Indirect Nonequilibrium Atmospheric Pressure Plasma on Anti-Proliferative Activity against Chronic Chemo-Resistant Ovarian Cancer Cells In Vitro and In Vivo. PLoS ONE 2013, 8, e81576. [Google Scholar] [CrossRef] [Green Version]
  24. Freund, E.; Liedtke, K.R.; van der Linde, J.; Metelmann, H.-R.; Heidecke, C.-D.; Partecke, L.-I.; Bekeschus, S. Physical plasma-treated saline promotes an immunogenic phenotype in CT26 colon cancer cells in vitro and in vivo. Sci. Rep. 2019, 9, 634. [Google Scholar] [CrossRef] [PubMed]
  25. Liedtke, K.-R.; Freund, E.; Hermes, M.; Oswald, S.; Heidecke, C.-D.; Partecke, L.-I.; Bekeschus, S. Gas Plasma-Conditioned Ringer’s Lactate Enhances the Cytotoxic Activity of Cisplatin and Gemcitabine in Pancreatic Cancer In Vitro and In Ovo. Cancers 2020, 12, 123. [Google Scholar] [CrossRef] [Green Version]
  26. Torii, K.; Yamada, S.; Nakamura, K.; Tanaka, H.; Kajiyama, H.; Tanahashi, K.; Iwata, N.; Kanda, M.; Kobayashi, D.; Tanaka, C.; et al. Effectiveness of plasma treatment on gastric cancer cells. Gastric Cancer 2015, 18, 635–643. [Google Scholar] [CrossRef]
  27. Kumar, N.; Attri, P.; Dewilde, S.; Bogaerts, A. Inactivation of human pancreatic ductal adenocarcinoma with atmospheric plasma treated media and water: A comparative study. J. Phys. D Appl. Phys. 2018, 51, 255401. [Google Scholar] [CrossRef]
  28. Liu, C.; Chen, C.; Jiang, A.; Sun, X.; Guan, Q.; Hu, W. Effects of plasma-activated water on microbial growth and storage quality of fresh-cut apple. Innov. Food Sci. Emerg. Technol. 2020, 59, 102256. [Google Scholar] [CrossRef]
  29. Inguglia, E.S.; Oliveira, M.; Burgess, C.M.; Kerry, J.P.; Tiwari, B.K. Plasma-activated water as an alternative nitrite source for the curing of beef jerky: Influence on quality and inactivation of Listeria innocua. Innov. Food Sci. Emerg. Technol. 2020, 59, 102276. [Google Scholar] [CrossRef]
  30. Shaw, P.; Kumar, N.; Kwak, H.S.; Park, J.H.; Uhm, H.S.; Bogaerts, A.; Choi, E.H.; Attri, P. Bacterial inactivation by plasma treated water enhanced by reactive nitrogen species. Sci. Rep. 2018, 8, 11268. [Google Scholar] [CrossRef] [Green Version]
  31. Ikawa, S.; Tani, A.; Nakashima, Y.; Kitano, K. Physicochemical properties of bactericidal plasma-treated water. J. Phys. D Appl. Phys. 2016, 49, 425401. [Google Scholar] [CrossRef]
  32. Sarangapani, C.; Ziuzina, D.; Behan, P.; Boehm, D.; Gilmore, B.F.; Cullen, P.J.; Bourke, P. Degradation kinetics of cold plasma-treated antibiotics and their antimicrobial activity. Sci. Rep. 2019, 9, 3955. [Google Scholar] [CrossRef] [Green Version]
  33. Zhou, R.; Zhou, R.; Prasad, K.; Fang, Z.; Speight, R.; Bazaka, K.; Ostrikov, K. Cold atmospheric plasma activated water as a prospective disinfectant: The crucial role of peroxynitrite. Green Chem. 2018, 20, 5276–5284. [Google Scholar] [CrossRef]
  34. Ma, M.; Zhang, Y.; Lv, Y.; Sun, F. The key reactive species in the bactericidal process of plasma activated water. J. Phys. D Appl. Phys. 2020, 53, 185207. [Google Scholar] [CrossRef]
  35. Naidis, G.V. Production of active species in cold helium–air plasma jets. Plasma Sources Sci. Technol. 2014, 23, 065014. [Google Scholar] [CrossRef]
  36. Park, J.Y.; Park, S.; Choe, W.; Yong, H.I.; Jo, C.; Kim, K. Plasma-Functionalized Solution: A Potent Antimicrobial Agent for Biomedical Applications from Antibacterial Therapeutics to Biomaterial Surface Engineering. ACS Appl. Mater. Interfaces 2017, 9, 43470–43477. [Google Scholar] [CrossRef]
  37. Machala, Z.; Tarabová, B.; Sersenová, D.; Janda, M.; Hensel, K. Chemical and antibacterial effects of plasma activated water: Correlation with gaseous and aqueous reactive oxygen and nitrogen species, plasma sources and air flow conditions. J. Phys. D Appl. Phys. 2019, 52, 034002. [Google Scholar] [CrossRef]
  38. Verlackt, C.C.W.; Van Boxem, W.; Bogaerts, A. Transport and accumulation of plasma generated species in aqueous solution. Phys. Chem. Chem. Phys. 2018, 20, 6845–6859. [Google Scholar] [CrossRef]
  39. Oh, J.-S.; Szili, E.J.; Ogawa, K.; Short, R.D.; Ito, M.; Furuta, H.; Hatta, A. UV–vis spectroscopy study of plasma-activated water: Dependence of the chemical composition on plasma exposure time and treatment distance. Jpn. J. Appl. Phys. 2018, 57, 0102B9. [Google Scholar] [CrossRef]
  40. Oldham, T.; Thimsen, E. Electrochemical Structure of the Plasma–Liquid Interface. J. Phys. Chem. C 2022, 126, 1222–1229. [Google Scholar] [CrossRef]
  41. Kutzner, C.; Páll, S.; Fechner, M.; Esztermann, A.; de Groot, B.L.; Grubmüller, H. More bang for your buck: Improved use of GPU nodes for GROMACS 2018. J. Comput. Chem. 2019, 40, 2418–2431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Cordeiro, R.M. Reactive oxygen species at phospholipid bilayers: Distribution, mobility and permeation. Biochim. Biophys. Acta (BBA)-Biomembr. 2014, 1838, 438–444. [Google Scholar] [CrossRef] [Green Version]
  43. Cordeiro, R.M.; Yusupov, M.; Razzokov, J.; Bogaerts, A. Parametrization and molecular dynamics simulations of nitrogen oxyanions and oxyacids for applications in atmospheric and biomolecular sciences. J. Phys. Chem. B 2020, 124, 1082–1089. [Google Scholar] [CrossRef] [PubMed]
  44. Cordeiro, M.R. Reactive oxygen and nitrogen species at phospholipid bilayers: Peroxynitrous acid and its homolysis products. J. Phys. Chem. B 2018, 122, 8211–8219. [Google Scholar] [CrossRef] [PubMed]
  45. Razzokov, J.; Yusupov, M.; Cordeiro, R.M.; Bogaerts, A. Atomic scale understanding of the permeation of plasma species across native and oxidized membranes. J. Phys. D Appl. Phys. 2018, 51, 365203. [Google Scholar] [CrossRef] [Green Version]
  46. Berendsen, H.J.; Postma, J.P.; van Gunsteren, W.F.; Hermans, J. Interaction models for water in relation to protein hydration. In Intermolecular Forces; Springer: Berlin/Heidelberg, Germany, 1981; pp. 331–342. [Google Scholar]
  47. Martínez, L.; Andrade, R.; Birgin, E.G.; Martínez, J.M. PACKMOL: A package for building initial configurations for molecular dynamics simulations. J. Comput. Chem. 2009, 30, 2157–2164. [Google Scholar] [CrossRef]
  48. Bussi, G.; Donadio, D.; Parrinello, M. Canonical sampling through velocity rescaling. J. Chem. Phys. 2007, 126, 014101. [Google Scholar] [CrossRef] [Green Version]
  49. Parrinello, M.; Rahman, A. Polymorphic transitions in single crystals: A new molecular dynamics method. J. Appl. Phys. 1981, 52, 7182–7190. [Google Scholar] [CrossRef]
  50. Mamatkulov, S.I.; Allolio, C.; Netz, R.R.; Bonthuis, D.J. Orientation-induced adsorption of hydrated protons at the air–water interface. Angew. Chem. Int. Ed. 2017, 56, 15846–15851. [Google Scholar] [CrossRef] [Green Version]
  51. Vácha, R.; Slavíček, P.; Mucha, M.; Finlayson-Pitts, B.J.; Jungwirth, P. Adsorption of atmospherically relevant gases at the air/water interface: Free energy profiles of aqueous solvation of N2, O2, O3, OH, H2O, HO2, and H2O2. J. Phys. Chem. A 2004, 108, 11573–11579. [Google Scholar] [CrossRef]
  52. Kästner, J. Umbrella sampling. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2011, 1, 932–942. [Google Scholar] [CrossRef]
  53. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  54. Sander, R. Compilation of Henry’s law constants (version 4.0) for water as solvent. Atmos. Chem. Phys. 2015, 15, 4399–4981. [Google Scholar] [CrossRef] [Green Version]
  55. Schwartz, S.E.; White, W.H. Solubility Equilibria of the Nitrogen Oxides and Oxyacids in Dilute Aqueous Solution; Gordon and Breach Science Publishers: New York, NY, USA, 1981. [Google Scholar]
  56. Cox, A.P.; Brittain, A.H.; Finnigan, D.J. Microwave spectrum, structure, dipole moment and quadrupole coupling constants of cis and trans nitrous acids. Trans. Faraday Soc. 1971, 67, 2179–2194. [Google Scholar] [CrossRef]
  57. Cox, A.P.; Kuczkowski, R.L. The Microwave Spectrum, Structure, Dipole Moment, and Quadrupole Coupling Constants of trans-Nitrous Acid. J. Am. Chem. Soc. 1966, 88, 5071–5074. [Google Scholar] [CrossRef]
  58. McGrath, M.P.; Rowland, F.S. Internal rotation in peroxynitrous acid (ONOOH). J. Chem. Phys. 2005, 122, 134312. [Google Scholar] [CrossRef]
  59. Zeghioud, H.; Nguyen-Tri, P.; Khezami, L.; Amrane, A.; Assadi, A.A. Review on discharge Plasma for water treatment: Mechanism, reactor geometries, active species and combined processes. J. Water Process Eng. 2020, 38, 101664. [Google Scholar] [CrossRef]
  60. Bruggeman, P.J.; Kushner, M.J.; Locke, B.R.; Gardeniers, J.G.E.; Graham, W.G.; Graves, D.B.; Hofman-Caris, R.C.H.M.; Maric, D.; Reid, J.P.; Ceriani, E.; et al. Plasma–liquid interactions: A review and roadmap. Plasma Sources Sci. Technol. 2016, 25, 053002. [Google Scholar] [CrossRef]
  61. Oinuma, G.; Nayak, G.; Du, Y.; Bruggeman, P.J. Controlled plasma–droplet interactions: A quantitative study of OH transfer in plasma–liquid interaction. Plasma Sources Sci. Technol. 2020, 29, 095002. [Google Scholar] [CrossRef]
  62. Lamichhane, P.; Acharya, T.R.; Kaushik, N.; Nguyen, L.N.; Lim, J.S.; Hessel, V.; Kaushik, N.K.; Choi, E.H. Non-Thermal Argon Plasma Jets of Various Lengths for Selective Reactive Oxygen and Nitrogen Species Production. J. Environ. Chem. Eng. 2022, 10, 107782. [Google Scholar] [CrossRef]
  63. Lin, A.; Gorbanev, Y.; De Backer, J.; Van Loenhout, J.; Van Boxem, W.; Lemière, F.; Cos, P.; Dewilde, S.; Smits, E.; Bogaerts, A. Non-thermal plasma as a unique delivery system of short-lived reactive oxygen and nitrogen species for immunogenic cell death in melanoma cells. Adv. Sci. 2019, 6, 1802062. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Ranieri, P.; Sponsel, N.; Kizer, J.; Rojas-Pierce, M.; Hernández, R.; Gatiboni, L.; Grunden, A.; Stapelmann, K. Plasma agriculture: Review from the perspective of the plant and its ecosystem. Plasma Process. Polym. 2021, 18, 2000162. [Google Scholar] [CrossRef]
  65. Nguyen, P.T.T.; Nguyen, H.T.; Tran, U.N.P.; Manh Bui, H. Removal of antibiotics from real hospital wastewater by cold plasma technique. J. Chem. 2021, 2021, 9981738. [Google Scholar] [CrossRef]
  66. Song, Y.; Fan, X. Cold plasma enhances the efficacy of aerosolized hydrogen peroxide in reducing populations of Salmonella Typhimurium and Listeria innocua on grape tomatoes, apples, cantaloupe and romaine lettuce. Food Microbiol. 2020, 87, 103391. [Google Scholar] [CrossRef]
  67. Bekeschus, S.; Schmidt, A.; Weltmann, K.-D.; von Woedtke, T. The plasma jet kINPen–A powerful tool for wound healing. Clin. Plasma Med. 2016, 4, 19–28. [Google Scholar] [CrossRef]
  68. Vichiansan, N.; Leksakul, K.; Chaopaisarn, P.; Boonyawan, D. Simulation of simple 2D plasma jet model for NO, OH, and H2O2 production via Multiphysics in laminar flow and transport of diluted species through design of experiment method. AIP Adv. 2021, 11, 035040. [Google Scholar] [CrossRef]
  69. Qian, M.-Y.; Yang, C.-Y.; Wang, Z.-D.; Chen, X.-C.; Liu, S.-Q.; Wang, D.-Z. Numerical study of the effect of water content on OH production in a pulsed-dc atmospheric pressure helium–air plasma jet. Chin. Phys. B 2016, 25, 015202. [Google Scholar] [CrossRef]
  70. Jiang, J.; Aranda Gonzalvo, Y.; Bruggeman, P.J. Analysis of the Ion Conversion Mechanisms in the Effluent of Atmospheric Pressure Plasma Jets in Ar with Admixtures of O2, H2O and Air. Plasma Chem. Plasma Process. 2021, 41, 1569–1594. [Google Scholar] [CrossRef]
  71. Kelly, S.; Turner, M.M. Generation of reactive species by an atmospheric pressure plasma jet. Plasma Sources Sci. Technol. 2014, 23, 065013. [Google Scholar] [CrossRef]
  72. Yan, W.; Economou, D.J. Gas flow rate dependence of the discharge characteristics of a helium atmospheric pressure plasma jet interacting with a substrate. J. Phys. D Appl. Phys. 2017, 50, 415205. [Google Scholar] [CrossRef]
Figure 1. (a) The positions of seven N2O4 inserted into the model system and separated by a 1 nm distance along the z-axis. (b) The same positions were used to insert seven N2O4 along the z-axis, but randomized on the x-y plane. (c,d) Top views of the model system. N2O4 is represented in VDW view and water molecules are illustrated in licorice view.
Figure 1. (a) The positions of seven N2O4 inserted into the model system and separated by a 1 nm distance along the z-axis. (b) The same positions were used to insert seven N2O4 along the z-axis, but randomized on the x-y plane. (c,d) Top views of the model system. N2O4 is represented in VDW view and water molecules are illustrated in licorice view.
Ijms 23 06330 g001

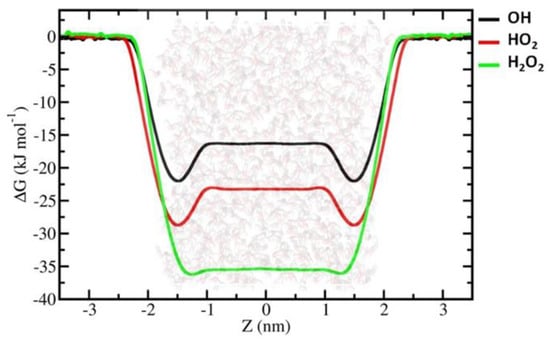

Figure 2. FEPs of the hydrophilic ROS obtained by US simulations by calculation of the WHAM method.
Figure 2. FEPs of the hydrophilic ROS obtained by US simulations by calculation of the WHAM method.
Ijms 23 06330 g002
Figure 3. FEPs of the hydrophilic RNS obtained by US simulations by calculation of the WHAM method.
Figure 3. FEPs of the hydrophilic RNS obtained by US simulations by calculation of the WHAM method.
Ijms 23 06330 g003

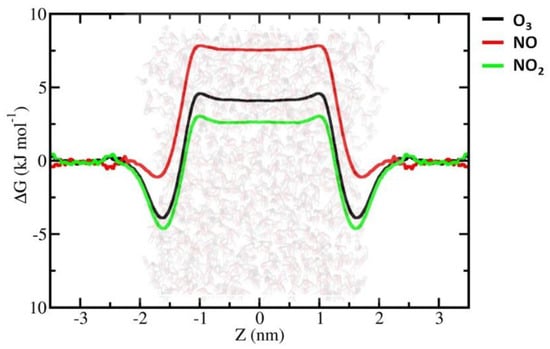

Figure 4. FEPs of the hydrophobic RONS were obtained by US simulations by calculation of the WHAM method.
Figure 4. FEPs of the hydrophobic RONS were obtained by US simulations by calculation of the WHAM method.
Ijms 23 06330 g004
Table 1. Free energy p values with ∆Ghydr were calculated from experimental Henry’s law constants and concentration enhancement of species at the vacuum–water interface and in the water bulk.
Table 1. Free energy p values with ∆Ghydr were calculated from experimental Henry’s law constants and concentration enhancement of species at the vacuum–water interface and in the water bulk.
kJ/ mol
kJ/ mol
kJ/ mol
∆Ghydr(expt) *,
kJ/ mol
Concentration Enhancement **
OH ˙−22.045.53−16.51−17.096880.9749.5
trans-HNO2−23.067.09−15.97−18.0 ***10,357.3603.6
cis-HNO2−18.937.24−11.69−11.2 ***1977.5108.5
tp-ONOOH−26.558.05−18.50Not found41,969.41664.4
cp-ONOOH−25.477.45−18.02Not found27,219.61373
* These ∆Ghydr values are calculated from experimental Henry’s law constants from the Compilation of Henry’s law constants (version 4.0) by Sander [54] if not stated otherwise. ** Concentration enhancement represents the ratio of the concentration of species at the water surface and water bulk to that of the gaseous phase. *** Data from [43,55].
