Changes in the Flower and Leaf Proteome of Common Buckwheat (Fagopyrum esculentum Moench) under High Temperature

Polish Academy of Sciences, Institute of Plant Physiology, Niezapominajek 21, 30-239 Kraków, Poland
Department of Plant Breeding, Physiology and Seed Science, University of Agriculture, Podłużna 3, 30-239 Kraków, Poland
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(5), 2678;
Submission received: 8 February 2021 / Revised: 3 March 2021 / Accepted: 4 March 2021 / Published: 6 March 2021
(This article belongs to the Special Issue Mechanisms of Drought, Temperature and Salinity Tolerance in Plants)


Common buckwheat (Fagopyrum esculentum Moench), a pseudocereal crop, produces a large number of flowers, but this does not guarantee high seed yields. This species demonstrates strong abortion of flowers and embryos. High temperatures during the generative growth phase result in an increase in the degeneration of embryo sacs. The aim of this study was to investigate proteomic changes in flowers and leaves of two common buckwheat accessions with different degrees of heat tolerance, Panda and PA15. Two-dimensional gel electrophoresis and mass spectrometry techniques were used to analyze the proteome profiles. Analyses were conducted for flower buds, open flowers capable of fertilization, and wilted flowers, as well as donor leaves, i.e., those growing closest to the inflorescences. High temperature up-regulated the expression of 182 proteins. The proteomic response to heat stress differed between the accessions and among their organs. In the Panda accession, we observed a change in abundance of 17, 13, 28, and 11 proteins, in buds, open and wilted flowers, and leaves, respectively. However, in the PA15 accession there were 34, 21, 63, and 21 such proteins, respectively. Fifteen heat-affected proteins were common to both accessions. The indole-3-glycerol phosphate synthase chloroplastic-like isoform X2 accumulated in the open flowers of the heat-sensitive cultivar Panda in response to high temperature, and may be a candidate protein as a marker of heat sensitivity in buckwheat plants.

1. Introduction

Common buckwheat (Fagopyrum esculentum Moench), which belongs to the Polygonaceae family, is a valuable source of rutin, iron, dietary fiber, and many other microelements. Buckwheat seeds do not contain gluten and have a well-balanced amino acid composition rich in lysine [1,2]. This species does not require good soil; however, it is sensitive to a number of environmental factors, such as frost and cold, high temperature, dry wind, and drought [3]. Its flowering biology is complex, as it is a heterostylic species that produces pin and thrum flowers. The flowers need to be cross-pollinated by insects, mainly bees. This plant is characterized by strong self-incompatibility. A single flower is able to be fertilized for one day only [4]. Buckwheat blooms throughout the growth season, but its abundant flower production (up to 2000 flowers per plant) does not guarantee high seed yields [2,5,6]. Our previous research showed that buckwheat plants have a limited ability to fill seeds, and hence this species shows a strong abortion of flowers and embryos [7].
In earlier investigations, we found that buckwheat plants at the vegetative phase develop much better at a higher temperature (30 °C) than at 20 °C [8]. However, 30 °C is too warm for optimal embryo development [9]. In our previous work [9], we detected a significantly higher degree of embryo sac degeneration in plants grown at 30 °C than in plants grown at 20 °C.
High temperature negatively affects metabolic processes, protein structure, electron transport in cytoplasmic membranes, and the energy status of photosystems, while inducing the formation of reactive oxygen species (ROS) [10]. In addition, heat stress is associated with an enhanced risk of improper protein folding and denaturation of several intracellular and membrane proteins [11]. Heat leads to the increased expression of several proteins, especially those in the large heat-shock protein (HSP) family, which includes high molecular mass HSPs (from 6 to 110 kDa) and small HSPs (from 15 to 45 kDa) [11,12]. Proteomic analyses have shown that many other proteins are also synthesized in plants during adaptation to high temperature; examples include proteins involved in the antioxidant system [13,14,15], enzymes involved in biosynthesis of UDP-glucose, pyruvate dehydrogenase, transketolases, and enzymes in the Krebs cycle and pentose phosphate pathway that regenerate ribulose-1,5-bisphosphate (RuBP) and activate Rubisco [12].
Previous studies have focused on changes in proteomes during embryogenesis, fertilization, and seed formation [16]. Feng et al. [17] analyzed the proteome of Arabidopsis thaliana flowers, and proteins involved in protein synthesis, folding, modification and degradation, as well as a belonging to the regulatory system. Kerim et al. [18] analyzed the proteome of rice at several male gametophyte stages: the pollen mother cell tetrad, early young microspores, the early and late binucleate stages, and the heading stage. The proteins they observed, which played an important role in the development of the male gametophyte, were related to the metabolism of sugars, cell elongation and cell expansion. Although it is more difficult to analyze proteins in the female gametophyte because of technical difficulties, Uchiumi et al. [19] detected some proteins in rice eggs: the cytoplasmic glycolytic enzyme glyceraldehyde-3-phosphate dehydrogenase, histone H4, cytoplasmic ascorbate peroxidase, and a member of the HSP 90 subfamily. Feng et al. [17] detected differences in the abundance of pistil-proteins between compatible and self-incompatible Prunus armeniaca cultivars. Liu et al. [20] identified more than 40 proteins in aborted seeds, including three cysteine proteases that were possibly involved in programmed cell death. Das et al. [21] detected the differential expression of 44 abiotic stress-responsive proteins in soybean leaves under several abiotic stresses. The results and observations of those studies suggest that many differentially expressed photosynthesis-related proteins disrupt the regulation of Rubisco, electron transport, and the Calvin cycle during exposure to abiotic stresses.
The aim of this study was to investigate proteomic changes in flowers and leaves of two common buckwheat accessions, the Panda cultivar and the PA15 breeding line, which have different degrees of heat tolerance. In our previous study [9], we showed that Panda is more sensitive to heat stress than PA15. Our results showed that there were more degenerated embryo sacs at the flower bud formation stage at 30 °C than at 20 °C in Panda. By contrast, in PA15, the number of degenerated embryo sacs only increased after a longer duration of heat stress, i.e., at the open flower phase. In this study, we explored the proteomic changes during flower development, and the differences in proteomes between high temperature (30 °C) and control (20 °C) conditions. In our study, we mainly wanted to compare the stress-induced changes in the proteome in two accessions with different degrees of tolerance. On this occasion, we wanted to further identify heat-related proteins. To study the proteome we used two-dimensional electrophoresis in combination with liquid chromatography-mass spectrometry (nanoLC-MS/MS) and peptide mass fingerprinting (PMF). Although there have been advances in the methodology of proteome research in recent years, the methods used in our study are still adequate and widely used in studies similar to ours [22,23,24,25]. We identified proteins showing differences in abundance in response to heat in the two buckwheat accessions. Our results shed light on the mechanisms responsible for tolerance to heat stress, as manifested by a lower degree of degraded embryo sacs under high temperature. These analyses were performed for flower buds, open flowers capable of fertilization, and wilted flowers, as well as donor leaves, i.e., those growing closest to the inflorescences.

2. Results

2.1. Protein Profiles in Flowers and Leaves

In the 2-D electrophoresis analyses, different numbers of proteins were identified depending on the plant organ and the accession. Representative 2-D protein patterns are shown in Figure 1a. In the 2-D maps of flower bud proteins, we detected 1189 protein spots in Panda and 1159 in PA15. There were fewer protein spots in the 2-D maps produced from open flowers, namely 900 for Panda and 977 for PA15. In the 2-D maps produced from unpollinated wilted flowers, there were 1117 protein spots for Panda and 1097 for PA15. The smallest numbers of protein spots were detected in donor leaf samples, namely only 701 for Panda and 826 for PA15.
High temperature did not affect the number of protein spots within the accessions, but it affected the abundance of some proteins. In flower buds, high temperature up-regulated the expression of 17 proteins in Panda and 34 in PA15. Fewer proteins were up-regulated by heat in the open flowers: 13 in Panda and 21 in PA15. High temperature strongly affected the proteome of wilted flowers, up-regulating the expression of 28 proteins in Panda and 63 in PA15. In the donor leaves, heat stress affected the expression of 11 proteins in Panda and 20 in PA15. On the other hand, no downregulation of the expression of specific proteins as a result of high temperature was observed in any case.
The proteomic response to heat stress differed among plant organs and between the two accessions, as illustrated by heat maps and the results of hierarchical clustering analysis using Euclidean and Ward’s linkage methods (Figure 1b). In Panda, only three proteins were commonly up-regulated by heat stress in different plant organs (in two out of four organs only). In PA15, eight proteins were commonly up-regulated by heat stress in two organs. A few proteins were commonly up-regulated in Panda and PA15 by heat stress, but most of the proteins up-regulated by heat stress differed between the two accessions. Venn diagrams illustrating these results are shown in Figure 1c. We detected four proteins up-regulated in buds of both accessions, one in open flowers, nine in wilted flowers, and one in donor leaves. In each accession, no proteins showed heat-inducible expression at all stages of flower development. In Panda, the abundance of spot 34 changed in the flower buds and wilted flowers in response to heat stress, and spots 57 and 60 were up-regulated by heat stress in open flowers and wilted flowers. In PA15, five protein spots (no. 14, 16, 18, 20, and 21) showed changes in abundance under heat stress in flower buds and open flowers, and three spots (no. 11, 31, and 33) showed changes in abundance under heat stress in flower buds and wilted flowers.

2.2. Identification of Differentially Accumulated Proteins

To qualitatively analyze the protein spots on the two-dimensional gel electrophoresis (2-DE) gels, 182 spots were excised from the gels and analyzed using nanoLC-MS/MS. Only 31 proteins were successfully identified and annotated with the functions of homologous proteins. Next, PMF analysis of protein spots that were not identified by nanoLC-MS/MS identified another 42 proteins. The results are listed in Table 1. For the remaining unidentified spots, searches were performed against the Swiss-Prot database, searching for proteins among all taxa. Based on the identified proteins, we searched for homologous proteins among green plants using the BLASTP program. This procedure allowed us to identify seven additional plant proteins (Table 2).
Using the information from the UniProt database, we assigned the biological function (Figure 2a) and subcellular location (Figure 2b) to the identified proteins. Some proteins were assigned to more than one subcellular location, which was reflected in the plots.
In flower buds, heat stress mainly caused an increase in the abundance of cytosol-localized proteins related to protein synthesis. In Panda, these were mainly ribosomal proteins, whereas in PA15, two out of four proteins were transcription factors. Other heat-affected proteins in PA15 were related to organization of the cytoskeleton. Three proteins were up-regulated by heat stress in both Panda and PA15: two proteins involved in protein synthesis (60S ribosomal protein L5-1 and trihelix transcription factor GTL2) and one involved in lipid metabolism (acyl-[acyl-carrier-protein] desaturase 6).
For open flowers, the majority of the proteins showing changes in abundance under heat stress were related to carbohydrate metabolism in Panda, and protein modification in PA15 (Figure 2a). In Panda, most of the heat-affected proteins were localized to the cytosol, but some were localized to the chloroplast, plasma membrane, and nucleus (Figure 2b). In PA15, more of the heat-affected proteins were localized to the plasma membrane than to the cytosol, cytoskeleton, chloroplasts, mitochondria, and nucleus. Only one protein in open flowers, 6-phosphogluconate dehydrogenase, was up-regulated by heat stress in both buckwheat accessions. This enzyme is involved in the pentose phosphate pathway. Among all of the heat-affected proteins, indole-3-glycerol phosphate synthase showed the largest increase in abundance under heat stress. In Panda, its abundance in open flowers of plants grown at 30 °C was 213-fold that in plants grown at 20 °C. This enzyme is involved in the biosynthesis of the precursor of indole ring-containing compounds. It was identified using the BLASTP program on the basis of its homology to indole-3-glycerol phosphate synthase in Acidithiobacillus ferrooxidans.
Only a few of the heat-affected proteins in wilted flowers were identified. The identified proteins were mainly involved in the stress response (Figure 2a). Two 70 kDa heat-shock proteins and the glutamate receptor 3.4 were up-regulated by heat stress in wilted flowers of both buckwheat accessions. The other common proteins were chaperone protein ClpC, V-type proton ATPase catalytic subunit A, calpain-type cysteine protease DEK1, phosphoglycerate kinase, and fructose-bisphosphate aldolase 2. In PA15, several proteins related to carbohydrate metabolism were up-regulated under heat stress. The identified heat-affected proteins in wilted flowers of Panda were mainly localized in chloroplasts, while those in PA15 were mainly localized in the cytosol (Figure 2b).
In the donor leaves, high temperature up-regulated proteins related to photosynthesis in Panda (Figure 2a). Most of the identified heat-affected proteins in the donor leaves of Panda and PA15 were localized in the chloroplast (Figure 2b). Many of the heat-affected proteins in the donor leaves of PA15 were not identified, but most of the identified proteins were involved in amino acid biosynthesis. The cytosol-localized enzyme S-adenosylmethionine synthase showed changes in abundance in donor leaves in both accessions under heat stress.
All results obtained in this experiment are summarized in detail in Table S1.

3. Discussion

A central role in plant thermotolerance is played by reactive oxygen scavenging enzymes, heat-shock proteins (HSPs), and heat stress-responsive transcription factors (HSFs), which induce expression of HSPs, signal and regulatory proteins, proteins involved in metabolism, and redox homeostasis. The plant’s response to heat stress involves the heat-shock transcription factor A1 (HsfA1) that is indispensable in the activation of transcriptional networks. It is responsible for regulating the level of transcription factors expression, including the dehydration-responsive element binding protein 2A (DREB2A). However, the activity of HsfA1 is regulated by interaction with HSPs [26,27].
In this study, we explored the effect of heat stress on protein expression in two accessions of buckwheat, Panda and PA15. The total protein content increased under heat stress in both buckwheat accessions, but none of the proteins were newly expressed in response to heat stress. Up-regulation of protein expression may indicate a positive effect of high temperature on vegetative and reproductive development. However, the two studied accessions responded differently to heat stress, as illustrated by their different proteomes. In all organs, heat stress up-regulated more proteins in PA15 than in Panda. In our previous studies, the different responses of these accessions’ to heat stress were also reflected in the content of hormones [9] and HSP-70 and HSP-90 proteins [28] in their flowers and leaves.
Characteristic protein spots for the large Rubisco subunit were observed in the 2-D gels of proteins extracted from buds, open flowers, and wilted flowers. We also detected some chloroplast-localized proteins related to photosynthesis, because the floral tissues that the proteins were extracted from included the green pedicel. To identify proteins from gel spots we used nanoLC-MS/MS. It is the most adequate method used for this purpose, but may not be of use for low-abundant proteins [29]. In many cases, the analyzed sample had insufficient protein concentration; therefore, in the second attempt, the proteins were identified using the PMF technique. The PMF method requires less protein and is also much cheaper, but has many limitations that influenced the number of proteins identified in the experiment. The method fails to identify mixture proteins, low molecular mass proteins, and protein fragments. Additionally, PMF raises problems with the identification of large proteins. The success of the analysis is also determined by the presence of the protein sequences of interested search in the database [30]. In our experiment, among the proteins identified, none were specific to common buckwheat. All of them were homologous to proteins in different species. Similar results were presented by other authors when studying poorly known species [31]. In future studies on the buckwheat proteome in protein identification, a buckwheat genome database should be included [32]. This approach will allow to identify even proteins that we have not been able to identify so far. However, a potential change in the identification methods used would not change the overall picture obtained in our study and thus the conclusions drawn from our research on buckwheat response to heat stress. On the other hand, a change in methodology could be useful if the aim of our work was to identify candidate genes for high temperature stress tolerance.
Four proteins were up-regulated by heat stress in the flower buds of both accessions. These proteins included acyl-[acyl-carrier-protein] (ACP) desaturase 6, 60S ribosomal protein L5-1, and the trihelix transcription factor GTL2. ACP desaturase 6 is localized in the chloroplasts. It is responsible for unsaturated fatty acid biosynthesis, and its role is to introduce a double bond during esterification of the acyl group to the acyl carrier protein. Derivatives of unsaturated fatty acids (UFA) are known to function as signaling molecules in responses to various stresses. High temperature has been shown to increase the UFA content in olive plants [33]. Changes to the UFA content have been shown to affect the stress response, and result in changes in salicylic acid (SA)- and jasmonic acid (JA)-mediated defense responses, especially to biotic stresses [34]. In our previous study, we found that high temperature led to increased SA contents in buds of Panda and PA15, but decreased the contents of JA and its methyl ester (JA-Met) in both accessions [9]. The other two identified proteins induced by heat stress in the two accessions were related to protein synthesis pathways. The 60S ribosomal protein L5-1 is a component of the ribosome, whereas the trihelix transcription factor GTL2 binds to a specific DNA sequence to regulate gene transcription. Magwanga et al. [35] also found that the trihelix transcription factor GTL2 was highly up-regulated in cotton under drought and salt stress conditions.
In open flowers, only 6-phosphogluconate dehydrogenase (6PGDH) was up-regulated by heat stress in both buckwheat accessions. This enzyme plays a key role in the oxidative pentose phosphate pathway (OPPP), which is critical for maintaining redox balance under stress situations. 6PGDH probably controls the efficiency of this pathway. In rice, expression of the gene encoding 6PGDH was found to be up-regulated by abscisic acid (ABA) treatment [36]. In our previous study, we found that the free ABA content in open flowers increased in Panda and decreased in PA15 under heat stress. However, the concentration of the conjugate ABA-glc increased in PA15 but remained stable in Panda under heat stress [9].
Heat stress resulted in a dramatic increase in the abundance of one protein spot in the open flowers of Panda (to 213 times that in control plants grown at 20 °C). We identified this protein as the indole-3-glycerol phosphate synthase (IGPS) chloroplastic-like isoform X2. This enzyme produces indole-3-glycerol phosphate (IGP) as the precursor of indole ring-containing compounds and participates in the biosynthesis of tryptophan, indole 3-acetic acid, phytoalexin alkaloids, and glucosinolates. Indole plays roles in abiotic and biotic stress responses, but also in flowers, where it is emitted as a scent to attract pollinators [37]. IGP may be a branchpoint compound in the tryptophan-independent and tryptophan-dependent auxin biosynthetic pathways [38]. Auxins are responsible for plant fertility and high temperatures reduce plant fertility through repression of expression of the YUCCA auxin biosynthesis genes [39]. YUCCA (YUC)-type flavin-containing monooxygenases catalyze a reaction whose product is indole 3-acetic acid [40]. Thus, in this context, it can be speculated that the increase in IGPS accumulation in the flowers of the heat-sensitive Panda may be an attempt to counteract the reduction in auxin content in heat-treated flowers observed in this accession in contrast to the tolerant PA15, where this decrease was lower [9]. It is possible that one of the possible heat-tolerance mechanism in PA15 is the lower heat-sensitivity of some elements of auxin biosynthesis pathway.
Few of the proteins showing heat-induced changes in abundance in wilted flowers were identified, especially those in PA15. Many of the protein spots on the 2-D gels of proteins from wilted flowers were probably protein fragments resulting from an increase in proteolytic enzyme activity and limited repair mechanisms. Wilted flowers were aborted due to a lack of pollination. Proteins can be fragmented by reactive oxygen species (ROS) and proteolytic enzymes. Heat stress accelerates the generation and reactions of ROS, and senescing tissues do not have an efficient antioxidant system [41]. In wilted flowers, nine protein spots accumulated under heat stress in both accessions. One of them could not be identified. Two spots were identified as HSP-70s. Members of the HSP-70 family function as chaperones to facilitate protein folding, degradation, complex assembly, and translocation. They play a key role in stabilizing proteins under optimal and stress conditions [42]. Previously, we detected the accumulation of HSP-70 and HSP-90 in buckwheat flowers at various stages of development [28]. Moreover, we identified the chaperone protein ClpC in the HSP-100 family that plays a vital role in chloroplast function [43]. The presence of HSP-70 and HSP-100 proteins suggests that certain defense mechanisms function in wilted flowers, but they may be involved in the proper degeneration of the organ. Another protein expressed under heat stress in both Panda and PA15 was the V-type proton ATPase (V-ATPase) catalytic subunit A, which is a component of the membrane-bound V-ATPase located at the tonoplast and other sites in the endomembrane system of plant cells. The abundance of V-ATPase subunits is known to be modulated by environmental stresses [44]. Another heat-affected protein in wilted flowers was the calpain-type cysteine protease DEK1, the only calpain protein in plants. This protein is essential for embryo development [45]. The glutamate receptor 3.4 was also commonly up-regulated by heat stress in both accessions. This protein is a component of the glutamate receptor-like channel (GLR). GLRs play a role in calcium signaling during the response to environmental stresses [46]. Two proteins up-regulated by heat stress in wilted flowers were involved in carbohydrate metabolism: cytosolic phosphoglycerate kinase (PGK) and chloroplastic fructose-bisphosphate aldolase (FBA). Cytosolic PGK is involved in glycolysis and gluconeogenesis. Plants also have plastidial isoforms of PGK that may simultaneously participate in the Calvin–Benson cycle and glycolytic/gluconeogenic reactions [47]. Chloroplastic FBA is a bifunctional enzyme involved in the formation of fructose-1,6-bisphosphate (FBP) and sedoheptulose-1,7-bisphosphate (SuBP) in the Calvin cycle. It also functions as a sedoheptulose/fructose-bisphosphate aldolase (SFBA). FBA aldolase activity, but not SuBP activity, is important for glycolytic and gluconeogenetic reactions in the cytoplasm [48].
In donor leaves, only S-adenosylmethionine synthetase (SAMS) was up-regulated by heat stress in both buckwheat accessions. This enzyme synthesizes S-adenosylmethionine (SAM) from ATP and L-methionine. It is involved in the biosynthesis of ethylene, nicotiamine, and polyamines. It represents the major hub of the methionine metabolism and participates in plant responses to environmental stresses [49].

4. Materials and Methods

4.1. Plant Material and Growth Conditions

Seeds of common buckwheat (Fagopyrum esculentum Moench), the Polish cultivar Panda and the PA15 strain, were supplied by Małopolska Plant Breeding (Polanowice, Poland), and were produced at the plant production facility in Palikije. Panda is more sensitive to heat stress than PA15 is, as manifested by the degeneration of a large number of embryo sacs [9]. The plant growth conditions in the phytotron have been described in our previous papers [8,9]. Plants were cultivated in plastic pots of 10 dm3 capacity (six plants per pot) filled with a mixture of commercial soil substrate (pH = 5.8) and perlite (1:1, v:v) under a 16 h photoperiod and 300 µmol m−2 s−1 (High-Pressure Sodium, HPS lamps, SON-T+ AGRO, Philips, Brussels, Belgium) at a humidity of 50–60%. For the first 3 weeks, all plants were grown at 20 °C, and then half of them were transferred to a chamber at 30 °C (heat stress) with the same humidity and light conditions. When the plants were 2 months old, we collected flowers at three developmental phases (buds, open flowers, and wilted flowers) and donor leaves (fully developed young leaves closest to the flower cluster) from plants in the control and heat stress treatments. The experiment was repeated twice. The samples were immediately frozen in liquid nitrogen and then stored at −80 °C until subsequent analysis. Protein extraction and electrophoretic separation were performed from three aggregate replicates for each development phase of flowers and donor leaves, for both accessions in both temperature treatments.

4.2. Protein Extraction

Total proteins were extracted using a phenol-based procedure [50] (modified by Hajduch et al. [51]). Buckwheat tissues were pulverized into a fine powder in liquid nitrogen with a mortar and pestle. The powder was suspended in 10 cm3 of a phenol-based extraction buffer (50% [v/v] phenol, 0.45 M sucrose, 5 mM EDTA, 0.4% [v/v] 2-mercaptoethanol, 50 mM Tris-HCl pH 8.8). The homogenate was allowed to reach room temperature, transferred to a Falcon tube, and shaken for 30 min. The phenol and aqueous phases were separated by centrifugation (5000 g, 15 min, 4 °C). Proteins were precipitated with five volumes of ice-cold 0.1 M ammonium acetate in 100% methanol at −20 °C for 16 h. After centrifugation (5000× g, 10 min, 4 °C), the protein pellet was washed twice with the precipitation solution, then with 80% acetone, and then with 70% ethanol. The total protein extracts were dissolved in 200 µL isolectricfocusing (IEF) sample solution (8 M urea, 2 M thiourea, 4% (w/v) 3-[(3-Cholamidopropyl)dimethylammonio]-1-propanesulfonate (CHAPS), 50 mM dithiothreitol (DTT)) by shaking for 1 h. The protein concentration was determined using a 2D Quant Kit (GE Healthcare, Piscataway, NJ, USA). Protein extracts in the IEF sample solution were stored at −80 °C until analysis.

4.3. Two-Dimensional Gel Electrophoresis

Two-dimensional gel electrophoresis (2-DE) was based on the procedure recommended by GE Healthcare. The desired amount of protein (700 mg) was mixed with 4.6 µL IPG buffer (pH range 4–7) (GE Healthcare), adjusted to 450 µL with IEF sample solution, and loaded onto a 24 cm immobilized pH gradient strip (Immobiline DryStrip gel; GE Healthcare) with a linear pH range of 4–7. The strips were passively rehydrated in a DryStrip IPGbox (GE Healthcare) for 16 h. The first dimension of isoelectrofocusing (IEF) was carried out using an Amersham Ettan IPGphor II unit (GE Healthcare). The six-step focusing protocol with a current limit of 75 µA per strip was as follows: (a) 45 Vh at 150 V, (b) 375 Vh at 150 V, (c) 500 Vh at 500 V; (d) 800 Vh at 1000 V; (e) 16,500 Vh at 10,000 V; (f) 27,200 Vh at 10,000 V. After IEF, the strips were incubated in an equilibration buffer (1.5 M Tris-HCl pH 8.8, 6 M urea, 30% (v/v) glycerol, 5% (w/v) sodium dodecyl sulfate (SDS)) for 15 min with 2% (w/v) dithiothreitol (DTT) and then for another 15 min with 2.5% (w/v) iodoacetamide. After equilibration, each strip was placed onto a 12% SDS-polyacrylamide gel and then overlaid with 0.5% (w/v) agarose in an SDS running buffer with Coomassie Brilliant Blue G-250 as the tracking dye. Separation on the second dimension was performed using an SE900 Large Format Vertical Gel Protein Electrophoresis Unit (Hoefer Scientific Instruments, San Francisco, CA, USA) at 48 W per gel until the dye migrated off the gel. After electrophoresis, each gel was washed three times for 15 min each time in deionized water and then stained overnight in colloidal Coomassie staining solution (20% (v/v) ethanol, 1.6% (v/v) phosphoric acid, 8% (w/v) ammonium sulfate, 0.08% (w/v) Coomassie Brilliant Blue G-250) using the modified method of Neuhoff et al. [52].

4.4. Gel Image Analysis

Stained 2-DE gels were digitalized using an Epson Perfection V850 Pro scanner at a resolution of 300 dpi and 16-bit gray scale pixel depth. Gel images were analyzed using Delta2D software (Decodon, Greifswald, Germany). The volume of the spots was normalized against the total volume of all spots in the analysis. The t test value for each spot was calculated using Delta2D software. Only spots with a p-value lower than or equal to 0.05 were considered to be differentially expressed. Spots with at least 2.0-fold differences in protein abundance between two treatments were chosen for further analysis.

4.5. Protein Identification

The protein spots were manually selected and excised from the gels for identification. First, proteins were analyzed by liquid chromatography-mass spectrometry (nanoLC-MS/MS). If proteins could not be identified by nanoLC-MS/MS, peptide mass fingerprinting (PMF) analysis was performed. Mass spectrometry analysis was performed at the Laboratory of Proteomics and Mass Spectrometry, Maj Institute of Pharmacology, Polish Academy of Sciences, Kraków (Poland).
The excised protein spots were prepared for mass spectrometry analysis according to the protocol described by Hartman et al. [53]. The gel pieces in tubes were incubated at 40 °C in 100 mM ammonium bicarbonate for 10 min. Then, acetonitrile was added to a final concentration of 50% (v/v) and the mixture was incubated at 40 °C for 10 min. After incubation, the solution was removed. The washing step was repeated three times to remove all Coomassie dye, until the gels were completely colorless. Finally, the gels were dehydrated in anhydrous acetonitrile. The acetonitrile was removed, and then the dry gel pieces were reswollen in 25 µL 50 mM DTT dissolved in 100 mM ammonium bicarbonate, followed by incubation at 60 °C for 45 min. Then, the DTT solution was replaced with 25 µL 100 mM iodoacetamide in 100 mM ammonium bicarbonate. The gel pieces were incubated at room temperature in darkness for 20 min, then 25 µL 10 ng µL−1 trypsin Gold (Promega, Madison, WI, USA) solution in 100 mM ammonium bicarbonate was added and the gel pieces were incubated at 4 °C for 1 h. Then, 25 µL 50 mM ammonium bicarbonate solution was added and the gel pieces were incubated overnight at 37 °C. The next day, the supernatant containing the digested peptides was collected in a new tube and combined with subsequent fractions. The gel pieces were immersed in 50 mM ammonium bicarbonate and incubated at 40 °C for 10 min before adding acetonitrile to a final concentration of 50% (v/v). The resulting supernatants were collected. Further extraction of peptides was performed in acidic conditions by incubation with 5% (v/v) formic acid in 50% (v/v) acetonitrile, twice. The gel pieces were dehydrated in anhydrous acetonitrile. Combined solutions from one sample were dried and dissolved in 20 µL 0.1% formic acid and then analyzed by nanoLC-MS/MS and PMF.
The nanoLC-MS/MS analyses were performed using an Easy-nLC II nano capillary chromatography system (Bruker Daltonics, Bremen, Germany) as described in Drabik et al. [54]. Peptides were separated on a 3 µm Biosphere C18 column (10 cm long, 75 µm internal diameter; Nanoseparations, Nieuwkoop, The Netherlands). The gradient was formed using two mobile phases: Phase A: 0.1% formic acid in water; phase B: 0.1% formic acid in acetonitrile. The total flow rate was 300 nl min−1. The system was controlled using Hystar software (Bruker Daltonics). The gradient program was as follows: from 2% to 45% Phase B in 30 min, then 90% Phase B for 10 min, decreasing to 2% Phase B until 60 min for column equilibration. Fractions eluted from the column were directly deposited with a w matrix on the MALDI target plate by a Proteineerfc II sample collector (Bruker Daltonics). Fractions were collected at 15 s intervals. Samples made up of 96 fractions were spotted on a 384 MALDI target plate. α-Cyano-4-hydroxycinnamic acid was used as the MALDI matrix. The mass spectrometry analyses were performed on an Ultraflextreme instrument (Bruker Daltonics) in the positive ion mode.
Samples for PMF analysis were bound to C18 resin in ZipTip columns (Supel-Tips C18 PipetteTips, Supelco/Sigma-Aldrich, Bellefonte PA, USA) according to the manufacturer’s instructions. The peptides were eluted from the column with saturated α-cyano-4-hydroxycinnamic acid solution in 60% (v/v) acetonitrile with 0.1% (v/v) trifluoroacetic acid directly on the MALDI target plate.
The acquired mass spectra and fragment mass spectra (for both LC-MS and PMF) were analyzed using FlexAnalysis software (Version: 3.4, Bruker Daltonics) and ProteinScape (Version: 3.0.0 446, Bruker Daltonics) and were processed using the Mascot algorithm (Engine version: 2.3, Matrix Science) against the SwissProt_2015_04 database. The searches were performed with the following parameters: Cerbamidomethylation of cysteine as a fixed modification; oxidation of methionine as an allowable variable modification; up to 1 missed cleavage allowed; 25 ppm for precursor mass tolerance; 0.6 Da for MS/MS mass tolerance; peptide charge: 1+ for PMF (MALDI-TOF instrument-UltrafleXtreme from Bruker Daltonics) and 0.3 Da for precursor mass tolerance; 0.6 Da for MS/MS mass tolerance; peptide charge: 2+, 3+, 4+ for LC-MS (ESI-IT instrument on an Amazon SL from Bruker Daltonics) analyses. The database search was run against the protein database Viridiplantae (563,552 sequences; 203,007,781 residues; May 2020). If no protein was identified, the database was searched for all taxa. Proteins with a mascot score higher than 30 and with a level of false positives of p ≤ 0.05 were considered as identified. In cases where the identified protein belonged to an organism other than plants, a search was performed based on the amino acid sequence of the homologous protein among green plants using BLASTP (

5. Conclusions

Two common buckwheat accessions, Panda and PA15, differ in their tolerance to high temperature, as illustrated by the frequency of embryo sac degradation under heat stress. The different responses of the two accessions to heat stress were reflected in their protein profiles. All heat-affected proteins showed up-regulated expression in the organs of the two accessions. Many proteins could not be identified. It is possible that some protein spots were protein fragments resulting from proteolysis and inadequate repair mechanisms. There were more heat-affected proteins in PA15, the heat-tolerant accession, than in Panda, the heat-sensitive accession. Surprisingly, only a few proteins were commonly up-regulated by heat in both accessions. Plants’ tolerance to heat stress, as to other environmental stresses, is the sum of minor and major changes in the proteome, and cannot be explained by single changes. Proteins common to both accessions characterize the heat-affected protein profile of common buckwheat. The abundance of indole-3-IGPS chloroplastic-like isoform X2 increased markedly in open flowers of Panda under heat stress. This may be a candidate protein to serve as a marker of sensitivity of buckwheat plants to heat stress.

Supplementary Materials

The following are available online at, Table S1: List of heat-affected proteins in buds, open flowers, wilted flowers, and donor leaves of common buckwheat accessions Panda and PA15; comparison of protein abundance between heat-treated plants and those growing in optimal conditions.

Author Contributions

Conceptualization, A.P., P.K., M.H.; methodology, P.K.; performing the experiment, P.K., M.H., J.P., A.S., J.W.; data analysis, P.K.; writing—original draft preparation, P.K., A.P., M.H., M.R.; writing—review and editing, M.R.; project leader, A.P. All authors have read and agreed to the published version of the manuscript.


This study was supported by funding from the National Centre of Knowledge of Poland (No. 2017/25/B/NZ9/00148).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data supporting the findings of this study are available from the corresponding author upon reasonable request.


We thank the staff at the Laboratory of Proteomics and Mass Spectrometry, Maj Institute of Pharmacology, Polish Academy of Sciences, Krakow, for assistance with protein identification. We thank Przemysław Mielczarek from Maj Institute of Pharmacology PAS for technical support and Jennifer Smith from Edanz Group for editing the English text of draft of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


2-DETwo-dimensional gel electrophoresis
6PGDH6-phosphogluconate dehydrogenase
ABAAbscisic acid
CHAPS3-[(3-cholamidopropyl)dimethyl-ammonio]-1-propane sulfonate
DREB2ADehydration-responsive element binding protein 2A
FBAFructose-bisphosphate aldolase
GLRGlutamate receptor-like channel
HSFHeat-shock transcription factor
HsfA1Heat-shock transcription factor A1
HSPHeat-shock proteins
IGPIndole-3-glycerol phosphate
IGPSIndole-3-glycerol phosphate synthase
JAJasmonic acid
JA-Met Methyl ester of jasmonic acid
OPPPOxidative pentose phosphate pathway
PGKPhosphoglycerate kinase
PMFPeptide mass fingerprinting
ROSReactive oxygen species
SASalicylic acid
SAMSS-adenosylmethionine synthetase
SDSSodium dodecyl sulfate
SFBASedoheptulose/fructose-bisphosphate aldolase
TFTranscription factor
UFAUnsaturated fatty acids
V-ATPaseV-type proton ATPase


  1. Christa, K.; Soral-Śmietana, M. Buckwheat grains and buckwheat products—Nutritional and prophylactic value of their components—A review. Czech J. Food Sci. 2008, 26, 153–162. [Google Scholar] [CrossRef] [Green Version]
  2. Halbrecq, B.; Romedenne, P.; Ledent, J.F. Evolution of flowering, ripening and seed set in buckwheat (Fagopyrum esculentum Moench): Quantitative analysis. Eur. J. Agron. 2005, 23, 209–224. [Google Scholar] [CrossRef]
  3. Farooq, S.; Rehman, R.U.; Pirzadah, T.B.; Malik, B.; Dar, F.A.; Tahir, I. Cultivation, agronomic practices, and growth performance of buckwheat. In Molecular Breeding and Nutritional Aspects of Buckwheat; Zhou, M., Kreft, I., Woo, S.H., Chrungoo, N., Wieslander, G., Eds.; Academic Press: Oxford, UK, 2016; pp. 299–320. [Google Scholar] [CrossRef]
  4. Cawoy, V.; Ledent, J.-F.; Kinet, J.-M.; Jacquemart, A.-L. Floral biology of common buckwheat (Fagopyrum esculentum Moench). Eur. J. Plant Sci. Biotechnol. 2009, 3, 1–9. [Google Scholar]
  5. Adachi, T. How to combine the reproductive system with biotechnology in order to overcome the breeding barrier in buckwheat. Fagopyrum 1990, 10, 1. [Google Scholar]
  6. Slawinska, J.; Obendorf, R.L. Buckwheat seed set in planta and during in vitro inflorescence culture: Evaluation of temperature and water deficit stress. Seed Sci. Res. 2001, 11, 223–233. [Google Scholar] [CrossRef]
  7. Słomka, A.; Michno, K.; Dubert, F.; Dziurka, M.; Kopeć, P.; Plażek, A. Embryological background of low seed set in distylous common buckwheat (Fagopyrum esculentum Moench) with biased morph ratios, and biostimulant-induced improvement of it. Crop Pasture Sci. 2017, 68, 680–690. [Google Scholar] [CrossRef]
  8. Hornyák, M.; Płazek, A.; Kopeć, P.; Dziurka, M.; Pastuszak, J.; Szczerba, A.; Hura, T. Photosynthetic activity of common buckwheat (Fagopyrum esculentum Moench) exposed to thermal stress. Photosynthetica 2020, 58, 45–53. [Google Scholar] [CrossRef] [Green Version]
  9. Płażek, A.; Słomka, A.; Kopeć, P.; Dziurka, M.; Hornyák, M.; Sychta, K.; Pastuszak, J.; Dubert, F. Effects of high temperature on embryological development and hormone profile in flowers and leaves of common buckwheat (Fagopyrum esculentum Moench). Int. J. Mol. Sci. 2019, 20, 5. [Google Scholar] [CrossRef] [Green Version]
  10. Timperio, A.M.; Egidi, M.G.; Zolla, L. Proteomics applied on plant abiotic stresses: Role of heat shock proteins (HSP). J. Proteom. 2008, 71, 391–411. [Google Scholar] [CrossRef]
  11. Kosová, K.; Vítámvás, P.; Prášil, I.T.; Renaut, J. Plant proteome changes under abiotic stress: Contribution of proteomics studies to understanding plant stress response. J. Proteom. 2011, 74, 1301–1322. [Google Scholar] [CrossRef]
  12. Lee, D.-G.; Ahsan, N.; Lee, S.-H.; Kang, K.Y.; Bahk, J.D.; Lee, I.-J.; Lee, B.-H. A proteomic approach in analyzing heat-responsive proteins in rice leaves. Proteomics 2007, 7, 3369–3383. [Google Scholar] [CrossRef]
  13. Mittler, R.; Zilinskas, B.A. Molecular cloning and characterization of a gene encoding pea cytosolic ascorbate peroxidase. J. Biol. Chem. 1992, 267, 21802–21807. [Google Scholar] [CrossRef]
  14. Miernyk, J.A. The 70 kDa stress-related proteins as molecular chaperones. Trends Plant Sci. 1997, 2, 180–187. [Google Scholar] [CrossRef]
  15. Renaut, J.; Hausman, J.F.; Wisniewski, M.E. Proteomics and low-temperature studies: Bridging the gap between gene expression and metabolism. Physiol. Plant 2006, 126, 97–109. [Google Scholar] [CrossRef]
  16. Miernyk, J.A.; Pret’ová, A.; Olmedilla, A.; Klubicová, K.; Obert, B.; Hajduch, M. Using proteomics to study sexual reproduction in angiosperms. Sex. Plant Reprod. 2011, 24, 9–22. [Google Scholar] [CrossRef] [PubMed]
  17. Feng, B.; Li, L.; Zhou, X.; Stanley, B.; Ma, H. Analysis of the Arabidopsis floral proteome: Detection of over 2000 proteins and evidence for postrranslational modifications. J. Integr. Plant Biol. 2009, 51, 207–223. [Google Scholar] [CrossRef] [PubMed]
  18. Kerim, T.; Imin, N.; Weinman, J.J.; Rolfe, B.G. Proteome analysis of male gametophyte development in rice anthers. Proteomics 2003, 3, 738–751. [Google Scholar] [CrossRef]
  19. Uchiumi, T.; Shinkawa, T.; Isobe, T.; Okamoto, T. Identification of the major protein components of rice egg cells. Int. J. Plant Res. 2007, 120, 575–579. [Google Scholar] [CrossRef]
  20. Liu, H.; Liu, Y.-Z.; Zheng, S.-Q.; Jiang, J.-m.; Wang, P.; Chen, W. Comparative proteomic analysis of longan (Dimocarpus longan Lour.) seed abortion. Planta 2010, 231, 847–860. [Google Scholar] [CrossRef]
  21. Das, A.; Eldakak, M.; Paudel, B.; Kim, D.-W.; Hemmati, H.; Basu, C.; Rohila, J.S. Leaf proteome analysis reveals prospective drought and heat stress response mechanisms in soybean. Biomed. Res. Int. 2016, 2016. [Google Scholar] [CrossRef] [Green Version]
  22. Rodziewicz, P.; Chmielewska, K.; Sawikowska, A.; Marczak, Ł.; Łuczak, M.; Bednarek, P.; Mikołajczak, K.; Ogrodowicz, P.; Kuczyńska, A.; Krajewski, P.; et al. Identification of drought responsive proteins and related proteomic QTLs in barley. J. Exp. Bot. 2019, 70, 2823–2837. [Google Scholar] [CrossRef]
  23. Singh, P.; Song, Q.-Q.; Singh, R.K.; Li, H.-B.; Solanki, M.K.; Malviya, M.K.; Verma, K.K.; Yang, L.-T.; Li, Y.-R. Proteomic analysis of the resistance mechanism in sugercane during Sporisorium scitamineum infection. Int. J. Mol. Sci. 2019, 20, 569. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Awana, M.; Jain, N.; Samota, M.K.; Rani, K.; Kumar, A.; Ray, M.; Gaikwad, K.; Praveen, S.; Singh, N.K.; Singh, A. Protein and gene integration analysis through proteome and transcriptome brings new insight into salt stress tolerance in pigeonpea (Cajanus cajan L.). Int. J. Biol. Macromol. 2020, 164, 3589–3602. [Google Scholar] [CrossRef]
  25. Li, H.; Li, Y.; Ke, Q.; Kwak, S.-S.; Zhang, S.; Deng, X. Physiological and differential proteomic analysis of imitation drought stress response in Sorghum bicolor root at the seedling stage. Int. J. Mol. Sci. 2020, 21, 9174. [Google Scholar] [CrossRef] [PubMed]
  26. Ohama, N.; Sato, H.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Transcriptional regulatory network of plant heat stress response. Trends Plant Sci. 2017, 22, 53–65. [Google Scholar] [CrossRef]
  27. Janni, M.; Gulli, M.; Maestri, E.; Marmiroli, M.; Valliyodan, B.; Nguyen, H.T.; Marmiroli, N. Molecular and genetic bases of heat stress responses in crop plants and breeding for increased resilience and productivity. J. Exp. Bot. 2020, 71, 3780–3802. [Google Scholar] [CrossRef]
  28. Płażek, A.; Hura, K.; Hura, T.; Słomka, A.; Hornyák, M.; Sychta, K. Synthesis of heat-shock proteins HSP-70 and HSP-90 in flowers of common buckwheat (Fagopyrum esculentum) under thermal stress. Crop Pasture Sci. 2020, 70, 760–767. [Google Scholar] [CrossRef]
  29. Vadivel, A.-K.-A. Gel-based proteomics in plants: Time to move on from the tradition. Front. Plant Sci. 2015, 6, 369. [Google Scholar] [CrossRef] [Green Version]
  30. Thiede, B.; Höhenwarter, W.; Krah, A.; Mattow, J.; Schmid, M.; Schmidt, F.; Jungblut, P.R. Peptide mass fingerprinting. Methods 2005, 35, 237–247. [Google Scholar] [CrossRef] [PubMed]
  31. Bocian, A.; Kosmala, A.; Rapacz, M.; Jurczyk, B.; Marczak, L.; Zwierzykowski, Z. Differences in leaf proteome response to cold acclimation between Lolium perenne plants with distinct levels of frost tolerance. J. Plant Physiol. 2011, 168, 1271–1279. [Google Scholar] [CrossRef]
  32. Yasui, Y.; Hirakawa, H.; Ueno, M.; Matsui, K.; Katsube-Tanaka, T.; Yang, S.J.; Aii, J.; Sato, S.; Mori, M. Assembly pf the draft genome of buckwheat and its applications in identifying agronomically useful genes. DNA Res. 2016, 23, 215–224. [Google Scholar] [CrossRef]
  33. Hernandez, M.L.; Sicardo, M.D.; Alfonso, M.; Martinez-Rivas, J.M. Transcriptional regulation of stearoyl-acyl carrier protein desaturase genes in response abiotic stresses leads to changes in the unsaturated fatty acids composition of olive mesocarp. Front. Plant Sci. 2019, 10. [Google Scholar] [CrossRef] [Green Version]
  34. Kachroo, A.; Shanklin, J.; Whittle, E.; Lapchyk, L.; Hildebrand, D.; Kachroo, P. The Arabidopsis stearoyl-acyl carrier protein-desaturase family and the contribution of leaf isoforms to oleic acid synthesis. Plant Mol. Biol. 2007, 63, 257–271. [Google Scholar] [CrossRef]
  35. Magwanga, R.O.; Kirungu, J.N.; Lu, P.; Yang, X.; Dong, Q.; Cai, X.; Xu, Y.; Wang, X.; Zhou, Z.; Hou, Y.; et al. Genome wide identification of the trihelix transcription factors and overexpression of Gh_A05G2067 (GT-2), a novel gene contributing to increased drought and salt stresses tolerance in cotton. Physiol. Plant 2019, 167, 447–464. [Google Scholar] [CrossRef] [Green Version]
  36. Hou, F.-Y.; Huang, J.; Yu, S.-L.; Zhang, H.-S. The 6-phosphogluconate dehydrogenase genes are responsive to abiotic stresses in rice. J. Integr. Plant Biol. 2007, 49, 655–663. [Google Scholar] [CrossRef]
  37. Can’ani, A.; Seifan, M.; Tzin, V. Indole is an essential molecule for plant interactions with herbivores and pollinators. J. Plant Biol. Crop Res. 2018, 1, 1003. [Google Scholar] [CrossRef]
  38. Ouyang, J.; Shao, X.; Li, J. Indole-3-glycerol phosphate, a branchpoint of indole-3-acetic acid biosynthesis from tryptohan biosynthetic pathway in Arabidopsis thaliana. Plant J. 2000, 24, 327–333. [Google Scholar] [CrossRef] [PubMed]
  39. Sakata, T.; Oshino, T.; Miura, S.; Tomabechi, M.; Tsunaga, Y.; Higashitani, N.; Miyazawa, Y.; Takahashi, H.; Watanabe, M.; Higashitani, A. Auxins reverse plant male sterility caused by high temperatures. Proc. Natl. Acad. Sci. USA 2010, 107, 8569–8574. [Google Scholar] [CrossRef] [Green Version]
  40. Cao, X.; Yang, H.; Shang, C.; Ma, S.; Liu, L.; Cheng, J. The roles of auxin biosynthesis YUCCA gene family in plants. Int. J. Mol. Sci. 2019, 20, 6343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Nahar, K.; Hasanuzzaman, M.; Ahamed, K.U.; Hakeem, K.R.; Ozturk, M.; Fujita, M. Plant responses and tolerance to high temperature stress: Role of exogenous phytoprotectants. In Crop Production and Global Environmental Issues; Hakeem, K., Ed.; Springer: Cham, Switzerland, 2015; pp. 385–435. [Google Scholar] [CrossRef]
  42. Landi, S.; Capasso, G.; Ben Azaiez, F.E.; Jallouli, S.; Ayadi, S.; Trifa, Y.; Esposito, S. Different roles of heat shock proteins (70 kDa) during abiotic stresses in barley (Hordeum vulgare) genotypes. Plants 2019, 8, 248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Sjögren, L.L.; MacDonald, T.M.; Sutinen, S.; Clarke, A.K. Inactivation of the clpC1 gene encoding a chloroplast Hsp100 molecular chaperone causes growth retardation, leaf chlorosis, lower photosynthetic activity, and a specific reduction in photosystem content. Plant Physiol. 2004, 136, 4114–4126. [Google Scholar] [CrossRef] [Green Version]
  44. Ratajczak, R. Structure, function and regulation of the plant vacuolar H+-translocating ATPase. Biochim. Biophys. Acta Biomembr. 2000, 1465, 17–36. [Google Scholar] [CrossRef] [Green Version]
  45. Zhao, S.; Liang, Z.; Demko, V.; Wilson, R.; Johansen, W.; Olsen, O.-A.; Shalchian-Tabrizi, K. Massive expansion of the calpain gene family in unicellular eukaryotes. BMC Evol. Biol. 2012, 12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Wang, P.-H.; Lee, C.-E.; Lin, Y.-S.; Lee, M.-H.; Chen, P.-Y.; Chang, H.-C.; Chang, I.-F. The glutamate receptor-like protein GLR3. 7 interacts with 14-3-3ω and participates in salt stress response in Arabidopsis thaliana. Front. Plant Sci. 2019, 10, 1169. [Google Scholar] [CrossRef] [PubMed]
  47. Rosa-Tellez, S.; Djoro Anoman, A.; Flores-Tornero, M.; Toujani, W.; Alseek, S.; Fernie, A.R.; Nebauer, S.G.; Munoz-Bertomeu, J.; Segura, J.; Ros, R. Phosphoglycerate kinases are co-regulated to adjust metabolism and to optimize growth. Plant Physiol. 2018, 176, 1182–1198. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Lv, G.-Y.; Guo, X.-G.; Xie, L.-P.; Xie, C.-G.; Zhang, X.-H.; Yang, Y.; Xiao, L.; Tang, Y.-Y.; Pan, X.-L.; Guo, A.-G.; et al. Molecular characterization, gene evolution, and expression analysis of the fructose-1, 6-bisphosphate aldolase (FBA) gene family in wheat (Triticum aestivum L.). Front. Plant Sci. 2017, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Heidari, P.; Mazloomi, F.; Nussbaumer, T.; Barcaccia, G. Insights into the SAM synthetase gene family and its roles in tomato seedlings under abiotic stresses and hormone treatments. Plants 2020, 9, 586. [Google Scholar] [CrossRef]
  50. Hurkman, W.J.; Tanaka, C.K. Solubilization of plant membrane proteins for analysis by two-dimensional gel electrophoresis. Plant Physiol. 1986, 81, 802–806. [Google Scholar] [CrossRef] [Green Version]
  51. Hajduch, M.; Ganapathy, A.; Stein, J.W.; Thelen, J.J. A systematic proteomic study of seed filling in soybean. Establishment of high-resolution two-dimensional reference maps, expression profiles, and an interactive proteome database. Plant Physiol. 2005, 137, 1397–1419. [Google Scholar] [CrossRef] [Green Version]
  52. Neuhoff, V.; Arold, N.; Taube, D.; Ehrhardt, W. Improved staining of proteins in polyacrylamide gels including isoelectric focusing gels with clear background at nanogram sensitivity using Coomassie Brilliant Blue G-250 and R-250. Electrophoresis 1988, 9, 255–262. [Google Scholar] [CrossRef]
  53. Hartman, K.; Mielczarek, P.; Silberring, J. Synthesis of the novel covalent cysteine proteases inhibitor with iodoacetic functional group. Molecules 2020, 25, 813. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Drabik, A.; Ner-Kluza, J.; Mielczarek, P.; Civit, L.; Mayer, G.; Silberring, J. Advances in the study of aptamer-protein target identification using the chromatographic approach. J. Proteome Res. 2018, 17, 2174–2181. [Google Scholar] [CrossRef] [PubMed]

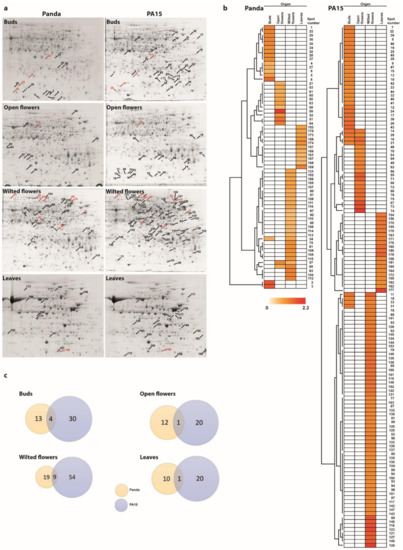

Figure 1. Changes induced by high temperature in proteomes of flower buds, open flowers, wilted flowers, and donor leaves of two common buckwheat accessions, Panda and PA15: (a) Representative two-dimensional gel electrophoresis (2-DE) gels of total proteins; proteins were separated by isoelectric focusing on an immobilized pH gradient IPG strip (pH 4–7) followed by sodium dodecyl sulfate (SDS)-PAGE on a 12% acrylamide gel; marked spots are those showing changes in abundance in heat-stressed plants compared with control plants, red color indicate additionally proteins common for both Panda and PA15; (b) heatmaps illustrating the results of hierarchical clustering analysis using Euclidean and Ward’s linkage methods; cluster analysis was conducted using PermutMatrix software v.1.9.3. (; colors correspond to log-transformed values of protein spot fold-change; (c) Venn diagrams comparing proteome profiles (up-regulated proteins only) between two buckwheat accessions.
Figure 1. Changes induced by high temperature in proteomes of flower buds, open flowers, wilted flowers, and donor leaves of two common buckwheat accessions, Panda and PA15: (a) Representative two-dimensional gel electrophoresis (2-DE) gels of total proteins; proteins were separated by isoelectric focusing on an immobilized pH gradient IPG strip (pH 4–7) followed by sodium dodecyl sulfate (SDS)-PAGE on a 12% acrylamide gel; marked spots are those showing changes in abundance in heat-stressed plants compared with control plants, red color indicate additionally proteins common for both Panda and PA15; (b) heatmaps illustrating the results of hierarchical clustering analysis using Euclidean and Ward’s linkage methods; cluster analysis was conducted using PermutMatrix software v.1.9.3. (; colors correspond to log-transformed values of protein spot fold-change; (c) Venn diagrams comparing proteome profiles (up-regulated proteins only) between two buckwheat accessions.
Ijms 22 02678 g001

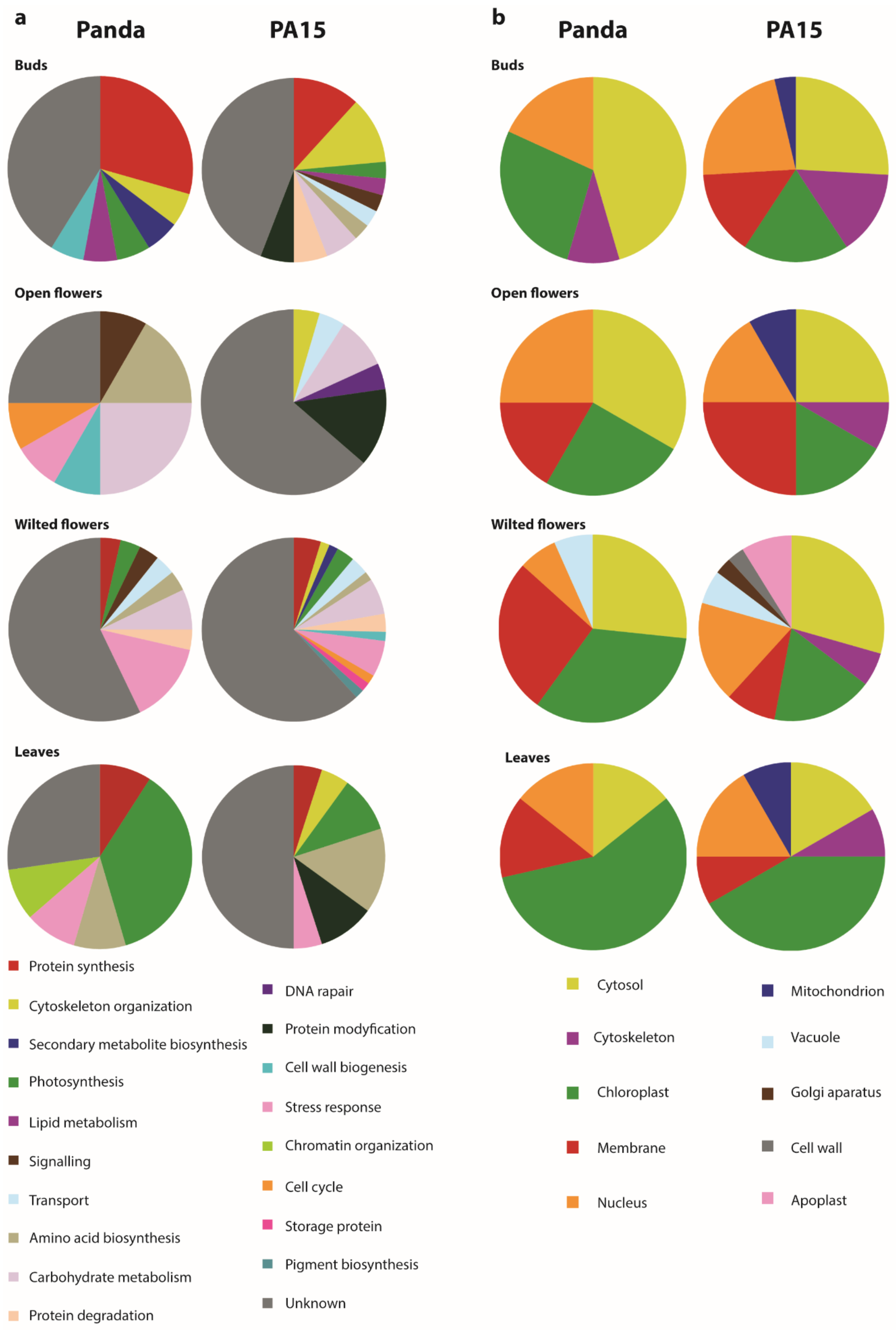

Figure 2. Composite graph showing heat-affected proteins in different organs of Panda and PA15 buckwheat accessions: (a) Biological functional categorization of heat-affected proteins; (b) distribution of identified proteins according to subcellular location; proteins with two and more localizations in the cell were assigned to all places. Biological function and subcellular localization were assigned based on information in the UniProt database.
Figure 2. Composite graph showing heat-affected proteins in different organs of Panda and PA15 buckwheat accessions: (a) Biological functional categorization of heat-affected proteins; (b) distribution of identified proteins according to subcellular location; proteins with two and more localizations in the cell were assigned to all places. Biological function and subcellular localization were assigned based on information in the UniProt database.
Ijms 22 02678 g002
Table 1. Results of protein identification performed on spots showing at least 2 times higher (p ≤ 0.005) abundance in plants grown at high temperature than in plants grown at control temperature. LC-MS/MS, liquid chromatography-mass spectrometry; PMF, mass fingerprinting.
Table 1. Results of protein identification performed on spots showing at least 2 times higher (p ≤ 0.005) abundance in plants grown at high temperature than in plants grown at control temperature. LC-MS/MS, liquid chromatography-mass spectrometry; PMF, mass fingerprinting.
Spot No. aOrgan bTechnique cUniProt No. dProtein Name eReference Organism fMt [kDa] gpIt hProtein Score iPeptide Count jCoverage (%) k
2BLC-MS/MSRS122_ARATH40S ribosomal protein S12-2Arabidopsis thaliana15.35.55169.24212.5
4BPMFRL26_BRACM60S ribosomal protein L26Brassica campestris16.911.60135.9048.9
5BPMFEIF3A_MAIZEEukaryotic translation initiation factor 3 subunit AZea mays111.59.80134.8045.8
6BPMFCLDS_TOBACCopal-8-ol diphosphatehydratase, chloroplasticNicotiana tabacum93.25.50128.0023.6
7BLC-MS/MSPDRP2_ARATHPyruvate, phosphatedikinase regulatory protein 2Arabidopsis thaliana41.49.6497.9212.1
8BPMFSTAD6_ORYSIAcyl-[acyl-carrier-protein] desaturase 6, chloroplasticOryza sativa subsp. indica46.57.2136.8029.0
9BLC-MS/MSPS4_PINSTPutative LRR diseaseresistance protein/transmembrane receptor kinase PS4 (fragment)Pinus strobus0.9011.1095.061100.0
10BLC-MS/MSAB5F_ARATHABC transporter F family member 5Arabidopsis thaliana786.4994.5611.7
13BPMFRHM2_ARATHTrifunctional UDP-glucose 4,6-dehydratase/UDP-4-keto-6-deoxy-D-glucose 3,5-epimerase/UDP-4-keto-L-rhamnose reductase RHM2Arabidopsis thaliana75.26.00116.7012.4
15BLC-MS/MSPSA5_ORYSJProteasome subunit alpha type-5Oryza sativa subsp. japonica264.60557.201137.1
16B; OFPMFUPL1_ARATHE3 ubiquitin-protein ligase UPL1Arabidopsis thaliana404.74.80126.2031.3
17BLC-MS/MSPSMD4_ARATH26S proteasome non-ATPase regulatory subunit 4 homologArabidopsis thaliana40.74.30183.0024.4
18B; WFPMFY1765_ARATHProbable LRR receptor-likeserine/threonine-protein kinase At1g07650Arabidopsis thaliana112.89.50118.9034.0
20B; OFPMFKN12D_ARATHKinesin-like protein KIN-12DArabidopsis thaliana314.95.10118.0031.3
21B; OFLC-MS/MS6PGD1_SPIOL6-phosphogluconate dehydrogenase, decarboxylating 1Spinacia oleracea53.26.00786.001320.1
22BPMFRL51_ARATH60S ribosomal protein L5-1Arabidopsis thaliana34.39.70130.40311.6
23BPMFQWRF4_ARATHQWRF motif-containing protein 4Arabidopsis thaliana66.910.20123.0034.2
24BPMFGTL2_ARATHTrihelix transcription factor GTL2Arabidopsis thaliana71.26.70113.5022.7
25BPMFKN12F_ORYSJKinesin-like protein KIN-12FOryza sativa subsp. japonica317.15.00137.7052.0
26BPMFMYB98_ARATHTranscription factor MYB98Arabidopsis thaliana50.16.10129.7046.8
27BLC-MS/MSTPIC_ARATHTriosephosphate isomerase, chloroplasticArabidopsis thaliana33.38.90355.70516.5
28BLC-MS/MSIPYR2_ARATHSoluble inorganic pyrophosphatase 2Arabidopsis thaliana24.75.70125.8015.5
33B; WFLC-MS/MSADF2_ORYSJActin-depolymerizing factor 2Oryza sativa subsp. japonica16.85.60102.5018.3
48OFLC-MS/MSAB2C_ARATHABC transporter C family member 2Arabidopsis thaliana1826.00103.8800.0
49OFPMFHXK4_ORYSJHexokinase-4, chloroplasticOryza sativa subsp. japonica54.76.50122.8036.5
51OFPMFSWTIE_ARATHProtein SWEETIEArabidopsis thaliana244.25.10123.0031.8
52OFPMFCALS2_ARATHCallosesynthase 2Arabidopsis thaliana225.99.20132.5041.9
53OFLC-MS/MSPS4_PINSTPutative LRR diseaseresistance protein/transmembrane receptor kinase PS4 (fragment)Pinus strobus0.9011.1090.531100.0
54OFLC-MS/MSZDHC8_ARATHProbable protein S-acyltransferase 20Arabidopsis thaliana76.89.60123.0522.4
57OF; WFPMFMDHC2_ARATHMalate dehydrogenase 2, cytoplasmicArabidopsis thaliana35.76.30466.10826.8
58OFPMFUGDH2_ARATHUDP-glucose 6-dehydrogenase 2Arabidopsis thaliana53.15.60162.8037.7
60OF; WFLC-MS/MSHSP70_MAIZEHeatshock 70 kDa proteinZea mays70.55.10470.40814.7
61OFPMFAUG8_ARATHAUGMIN subunit 8Arabidopsis thaliana69.810.70117.5045.7
77WFPMFRLT2_ARATHHomeobox-DDT domain protein RLT2Arabidopsis thaliana190.35.30116.3042.2
78WFPMFRCA_MALDORibulose bisphosphate carboxylase/oxygenase activase, chloroplasticMalus domestica488.20277.70513.5
79WFPMFHSP7N_ARATHHeatshock 70 kDa protein 18Arabidopsis thaliana68.35.20539.30716.4
80WFPMFCLPC_PEAChaperone protein ClpC, chloroplasticPisum sativum102.66.50853.701616.3
81WFPMFVATA_BRANAV-type proton ATPase catalytic subunit ABrassica napus68.75.10356.6069.0
82WFPMFDEK1_ARATHCalpain-typecysteineprotease DEK1Arabidopsis thaliana238.16.10131.2042.4
83WFPMFGLR34_ARATHGlutamate receptor 3.4Arabidopsis thaliana107.19.10120.0045.0
84WFPMFC76AD_BETVUCytochrome P450 76AD1Beta vulgaris56.28.10133.3034.6
85WFPMFILV5_ARATHKetol-acid reductoisomerase, chloroplasticArabidopsis thaliana63.86.40181.0024.9
86WFPMFY5537_ARATHG-typelectin S-receptor-likeserine/threonine-protein kinase At5g35370Arabidopsis thaliana966.60127.2034.5
87WFLC-MS/MSPGKY_TOBACPhosphoglycerate kinase, cytosolicNicotiana tabacum42.35.60557.901028.9
88WFPMFALFP2_ARATHFructose-bisphosphatealdolase 2, chloroplasticArabidopsis thaliana436.80451.50815.8
89WFPMFSMC3_ARATHStructural maintenance of chromosomes protein 3Arabidopsis thaliana139.36.10124.5042.9
91WFLC-MS/MS1433_HELAN14-3-3-like proteinHelianthus annuus28.94.50356.30619.7
92WFLC-MS/MSHSP7C_PETHYHeatshock cognate 70 kDa proteinPetunia hybrida71.25.001145.102030.7
93WFLC-MS/MSSPD1_DATSTSpermidine synthase 1Datura stramonium345.10246.7038.8
95WFLC-MS/MSGDI_ARATHGuanosine nucleotide diphosphate dissociation inhibitorArabidopsis thaliana49.55.00266.90510.1
96WFLC-MS/MSPMG2_ARATHProbable 2,3-bisphosphoglycerate-independent phosphoglyceratemutase 2Arabidopsis thaliana60.75.50267.0036.8
97WFLC-MS/MSPMGI_MESCR2,3-bisphosphoglycerate-independent phosphoglycerate mutaseMesembryanthemum crystallinum61.15.30340.60612.7
98WFLC-MS/MSRH15_ARATHDEAD-box ATP-dependent RNA helicase 15Arabidopsis thaliana48.35.30369.40612.6
99WFLC-MS/MSALF_ORYSJFructose-bisphosphate aldolase cytoplasmic isozymeOryza sativa subsp. japonica38.87.70254.8047.8
100WFLC-MS/MSGLYG1_SOYBNGlycinin G1Glycine max55.75.80394.60821.0
101WFLC-MS/MSUPTG_MAIZEAlpha-1,4-glucan-protein synthase [UDP-forming]Zea mays41.25.70423.00927.7
102WFLC-MS/MSPSA1_ORYSJProteasome subunit alpha type-1Oryza sativa subsp. japonica29.65.60151.70210.0
153LLC-MS/MSCAHC_TOBACCarbonic anhydrase, chloroplasticNicotiana tabacum34.56.46139.3313.1
154LLC-MS/MSCAHC_TOBACCarbonic anhydrase, chloroplasticNicotiana tabacum34.56.46110.5515.6
158LPMFMETK_CAMSIS-adenosylmethionine synthaseCamellia sinensis42.85.20150.7036.9
160LPMFPP207_ARATHPentatricopeptide repeat-containing protein At3g02330, mitochondrialArabidopsis thaliana101.66.00128.6034.9
161LPMFCHR4_ARATHProtein CHROMATIN REMODELING 4Arabidopsis thaliana247.85.90128.7043.2
162LLC-MS/MSCAHC_PEACarbonic anhydrase, chloroplasticPisum sativum35.47.74263.6315.5
163LLC-MS/MSCDSP_ARATHThioredoxin-like protein CDSP32, chloroplasticArabidopsis thaliana33.79.40214.5037.9
164LLC-MS/MSCYSKP_SPIOLCysteine synthase, chloroplastic/chromoplasticSpinacia oleracea40.67.60211.70412.5
165LPMFCRK20_ARATHPutativecysteine-rich receptor-like protein kinase 20Arabidopsis thaliana746.60118.5037.1
166LPMFRUB2_BRANARuBisCO large subunit-binding protein subunit alpha, chloroplasticBrassica napus61.65.00569.20915.8
167LPMFTKTC_SPIOLTransketolase, chloroplasticSpinacia oleracea80.26.20262.9056.5
168LPMFHUAL1_ARATHProtein HUA2-LIKE 1Arabidopsis thaliana156.58.90113.2032.4
169LPMFGRDP1_ARATHGlycine-richdomain-containing protein 1Arabidopsis thaliana89.46.60129.6056.7
170LPMFFENR1_ORYSIFerredoxin--NADP reductase, leaf isozyme 1, chloroplasticOryza sativa subsp. indica408.70192.9037.7
171LPMFKN12F_ORYSJKinesin-like protein KIN-12FOryza sativa subsp. japonica317.15.00123.7041.9
172LPMFGLTB2_ARATHFerredoxin-dependent glutamatesynthase 2, chloroplasticArabidopsis thaliana177.66.60128.0042.8
a Spot number in 2-D gels; b buckwheat organs containing identified proteins; B—buds, OF—open flowers, WF—wilted flowers, L—leaves; c technique used to identify protein; d Uniprot reference number of protein; e homologous protein name from the UniProt/NCBI database; f organism from which protein is derived; g Mt—theoretical mass weight obtained from protein database; h pIt—theoretical isoelectric point obtained from protein database; i statistical probability of true positive identification of predicted protein; j amino acid sequence coverage of identified protein; k percentage of sequence covered by matched peptides.
Table 2. Corresponding plant homologs of non-plant proteins identified in nanoLC-MS/MS analysis. Homologous proteins were found using the protein–protein program (BLASTP) at NCBInr.
Table 2. Corresponding plant homologs of non-plant proteins identified in nanoLC-MS/MS analysis. Homologous proteins were found using the protein–protein program (BLASTP) at NCBInr.
Spot No. aOrgan bUniProt No.Protein Name cReference Organism dMt e [kDa]pIt fProtein Score gPeptide Count hCoverage [%] iHomologous Protein Name jNCBI No.Reference Organism fI kP l
3BCAPZA_KLULAF-actin-capping protein subunit alphaKluyveromyces lactis29.94.5499.3114.2F-actin-capping protein subunit alpha-likeXP_023907009.1Quercus suber33%53%
11B; WFMTNC_GLUDAEnolase-phosphatase E1Gluconacetobacter diazotrophicus24.94.9797.5713.0Probable bifunctional methylthioribulose-1-phosphate dehydratase/enolase-phosphatase E1 1XP_028794642.1Prosopis alba39%53%
19BIF2_THEFYTranslation initiation factor IF-2Thermobifida fusca100.59.82101.7411.2Translation initiation factor IF-2, chloroplasticGEZ89434.1Tanacetum cinerariifolium52%71%
50OFMURA_PSEU5UDP-N-acetylglucosamine 1-carboxy-vinyltransferasePseudomonas stutzer44.65.6294.3212.1Glutamate synthase 1 [NADH], chloroplastic isoform X1GEU28314.1Tanacetum cinerariifolium59%74%
56OFLEXA_MYXXDLexA repressorMyxococcus xanthus24.79.2999.2715.4DNA-3-methyladenine glycosylase 1GEX09398.1Tanacetum cinerariifolium37%58%
59OFTRPC_ACIF2Indole-3-glycerol phosphate synthaseAcidithiobacillus ferrooxidans28.75.02101.3613.4Indole-3-glycerol phosphate synthase, chloroplastic-like isoform X2XP_026448585.1Physcomitrella patens48%63%
159LSCP_CHIOPSarcoplasmic calcium-binding protein (fragment)Chionoecetes opilio0.811.1114.441100.0F-box protein At3g58530 isoform X1XP_021283280.1Herrania umbratica87%100%
a Spot number in 2-D gels; b buckwheat organs containing identified proteins; B—buds, OF—open flowers, WF—wilted flowers, L—leaves; c protein name from the UniProt database; d organism from which protein is derived; e Mt—theoretical mass weight obtained from protein database; f pIt—theoretical isoelectric point obtained from protein database; g statistical probability of true positive identification of the predicted protein; h amino acid sequence coverage of identified protein; i percentage of sequence covered by matched peptides; j homologous protein name from the NCBI database; k identity—extent to which two amino acid sequences match; l positives—similarities based on scoring matrix.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kopeć, P.; Hornyák, M.; Pastuszak, J.; Szczerba, A.; Rapacz, M.; Waga, J.; Płażek, A. Changes in the Flower and Leaf Proteome of Common Buckwheat (Fagopyrum esculentum Moench) under High Temperature. Int. J. Mol. Sci. 2021, 22, 2678.

AMA Style

Kopeć P, Hornyák M, Pastuszak J, Szczerba A, Rapacz M, Waga J, Płażek A. Changes in the Flower and Leaf Proteome of Common Buckwheat (Fagopyrum esculentum Moench) under High Temperature. International Journal of Molecular Sciences. 2021; 22(5):2678.

Chicago/Turabian Style

Kopeć, Przemysław, Marta Hornyák, Jakub Pastuszak, Anna Szczerba, Marcin Rapacz, Jacek Waga, and Agnieszka Płażek. 2021. "Changes in the Flower and Leaf Proteome of Common Buckwheat (Fagopyrum esculentum Moench) under High Temperature" International Journal of Molecular Sciences 22, no. 5: 2678.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
