Molecular Mechanisms of Phosphate Sensing, Transport and Signalling in Streptomyces and Related Actinobacteria

Juan Francisco Martín
* and
Paloma Liras
Department of Molecular Biology, Microbiology Section, University of León, 24071 León, Spain
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(3), 1129;
Submission received: 1 January 2021 / Revised: 18 January 2021 / Accepted: 20 January 2021 / Published: 23 January 2021
(This article belongs to the Special Issue Mechanisms of Phosphate Transport)


Phosphorous, in the form of phosphate, is a key element in the nutrition of all living beings. In nature, it is present in the form of phosphate salts, organophosphates, and phosphonates. Bacteria transport inorganic phosphate by the high affinity phosphate transport system PstSCAB, and the low affinity PitH transporters. The PstSCAB system consists of four components. PstS is the phosphate binding protein and discriminates between arsenate and phosphate. In the Streptomyces species, the PstS protein, attached to the outer side of the cell membrane, is glycosylated and released as a soluble protein that lacks its phosphate binding ability. Transport of phosphate by the PstSCAB system is drastically regulated by the inorganic phosphate concentration and mediated by binding of phosphorylated PhoP to the promoter of the PstSCAB operon. In Mycobacterium smegmatis, an additional high affinity transport system, PhnCDE, is also under PhoP regulation. Additionally, Streptomyces have a duplicated low affinity phosphate transport system encoded by the pitH1–pitH2 genes. In this system phosphate is transported as a metal-phosphate complex in simport with protons. Expression of pitH2, but not that of pitH1 in Streptomyces coelicolor, is regulated by PhoP. Interestingly, in many Streptomyces species, three gene clusters pitH1–pstSCAB–ppk (for a polyphosphate kinase), are linked in a supercluster formed by nine genes related to phosphate metabolism. Glycerol-3-phosphate may be transported by the actinobacteria Corynebacterium glutamicum that contains a ugp gene cluster for glycerol-3-P uptake, but the ugp cluster is not present in Streptomyces genomes. Sugar phosphates and nucleotides are used as phosphate source by the Streptomyces species, but there is no evidence of the uhp gene involved in the transport of sugar phosphates. Sugar phosphates and nucleotides are dephosphorylated by extracellular phosphatases and nucleotidases. An isolated uhpT gene for a hexose phosphate antiporter is present in several pathogenic corynebacteria, such as Corynebacterium diphtheriae, but not in non-pathogenic ones. Phosphonates are molecules that contains phosphate linked covalently to a carbon atom through a very stable C–P bond. Their utilization requires the phnCDE genes for phosphonates/phosphate transport and genes for degradation, including those for the subunits of the C–P lyase. Strains of the Arthrobacter and Streptomyces genera were reported to degrade simple phosphonates, but bioinformatic analysis reveals that whole sets of genes for putative phosphonate degradation are present only in three Arthrobacter species and a few Streptomyces species. Genes encoding the C–P lyase subunits occur in several Streptomyces species associated with plant roots or with mangroves, but not in the laboratory model Streptomyces species; however, the phnCDE genes that encode phosphonates/phosphate transport systems are frequent in Streptomyces species, suggesting that these genes, in the absence of C–P lyase genes, might be used as surrogate phosphate transporters. In summary, Streptomyces and related actinobacteria seem to be less versatile in phosphate transport systems than Enterobacteria.

1. Introduction

Inorganic phosphate (Pi) is a key nutrient in cell metabolism, since it is constitutive of nucleic acids, phospholipids, teichoic acids, membranes, highly phosphorylated nucleotides, and phosphorylated proteins. It participates in the respiratory chain, and plays an important role in the signalling cascades [1,2]. Phosphate salts are present in a variety of soil and aquatic environment, but its concentration in different habitats is very diverse. Sometimes phosphate is present in insoluble form (so called rocks phosphate) that is difficult to metabolize and requires its solubilization by microorganisms [3,4]. In addition, organophosphates are abundant in some particular habitats as products of decay of plant and animal tissues.
Streptomyces are largely soil dwelling organisms, although they are also present in many aquatic environments, including sea waters. Streptomyces species and related actinobacteria are prolific producers of a plethora of secondary metabolites with useful biological activities [5,6]. The biosynthesis of these metabolites in Streptomyces, filamentous fungi, and plants is controlled by the phosphate concentration in the cells, reflecting the availability of phosphate in the different environments [7]. Phosphate regulates the biosynthesis of secondary metabolites belonging to diverse biosynthetic classes, including polyketides, non-ribosomal peptides, amino acid-derived metabolites, isoprenoids, and complex antibiotics, suggesting that the regulation by phosphate is a widely conserved mechanism that controls: (1) primary metabolism and, therefore, the availability of precursors for the biosynthesis of secondary metabolites, and (2) the expression of the genes encoding these biosynthetic pathways [8].
Phosphate limitation causes a well-known nutritional stress that triggers expression of genes encoding secondary metabolite biosynthetic enzymes [9,10]. In response to phosphate limitation, Streptomyces species produce extracellular enzymes, including alkaline phosphatases PhoA, PhoC, the Ca2+-dependent phospholipase PhoD [11,12], and a eukaryotic-type phosphatase, PhoX [13,14]. A response of Streptomyces and other microorganisms to the phosphate availability in the environment is to maintain a reservoir of phosphate in the form of polyphosphate [15,16]. This compound is accumulated in large amounts in Streptomyces when grown in phosphate rich media and this allows maintenance of Streptomyces metabolism for a prolonged time in phosphate starvation conditions.
Expression of hundreds of genes is controlled by the availability of phosphate; these genes constitute the Pho regulon [1,17,18,19]. Expression of the Pho regulon in Streptomyces is controlled by the two-component system PhoR–PhoP [20,21]. The mechanism controlling the Pho regulon has been reviewed elsewhere [2,22] and is not detailed here.
Since organic and inorganic phosphate are frequently limiting in some habitats, research on the phosphate transport mechanisms is really important. We focus this article on the mechanisms of phosphate transport into the cells in Streptomyces and closely related actinobacteria. Most of the available information has been reported in the model actinomycetes Streptomyces coelicolor or Streptomyces lividans, and in Corynebacterium glutamicum. Detailed information on phosphate transport in Mycobacterium tuberculosis is not included because it has been extensively discussed [23,24,25,26,27].
In this article we address first the high affinity pstSCAB and the low affinity Pit phosphate transport systems, and we will discuss later the presence of alternative phosphate transporters.

2. High Affinity Phosphate Transport Systems

Most bacteria, including Streptomyces and related actinobacteria, contain high affinity and low affinity phosphate transport systems, which are induced by phosphate limitation, although they may respond to different phosphate thresholds for induction. The wide distribution of both the low affinity and high affinity systems in Gram positive and Gram- negative bacteria indicates that there are physiological advantages in having two different transport systems. The low affinity Pit system requires less energy for phosphate transport since it is energized by a proton-symporter system and is used in high phosphate concentration habitats. The high affinity PstSCAB requires more energy for phosphate transport as it is energized by ATP hydrolysis. This high affinity system is used in habitats or environmental conditions in which phosphate is limiting.
Early evidence of the existence of two phosphate transport systems in Streptomyces was provided by the description of two distinct phosphate uptake kinetics in Streptomyces granaticolor [28], although the genes encoding these systems were not identified.

2.1. The High Affinity PstSCAB System

The high affinity pstSCAB was first studied in Escherichia coli [29], S. lividans [20] and Bacillus subtilis [30]. In these bacteria, the system consists of four proteins PstS, PstC, PstA, and PstB, but in B. subtilis there are two copies of PstB (PstB1 and PstB2). The system in Streptomyces and most other bacteria is organized as an ATP-binding cassette (ABC) that comprises four proteins. Of these, PstS is a phosphate specific binding protein that is anchored in the outer site of the membrane in Gram-positive bacteria, e.g., in Mycobacterium bovis or S. lividans [25,31,32], whereas in Gram-negative bacteria, it is located in the periplasmic space. PstC and PstA are membrane integral proteins that form a membrane channel and PstB is an ATP hydrolysing protein that energizes the phosphate transport (Figure 1). The complete genome sequence of S. coelicolor [33] allowed to identify the pstSCAB operon that is conserved in most Streptomyces species. Expression of the pstSCAB cluster responds drastically to the phosphate concentration in the culture medium and is strictly dependent of the activation by the phosphate regulator PhoP [20,21,34]. Deletion of the pstS gene of S. lividans or S. coelicolor impaired phosphate transport and delayed sporulation in solid medium [34]. In addition to regulation by the PhoP master regulator, formation of the PstS protein was highly increased in a mutant deficient in polyphosphate kinase [34,35,36] which catalyses, in vitro, the reversible polymerization of the phosphate from ATP into polyphosphate. This is most likely due to the up-regulation of phoR/phoP observed in the ppk mutant strain [15]. The formation of PstS increases significantly in media containing fructose, galactose, or mannose, suggesting that control of the pstSCAB operon is regulated by both inorganic phosphate and some carbon sources.
DNA protein binding studies using the purified PhoP protein of S. coelicolor showed a PHO box consisting of two 11 nucleotides direct repeat units (DRu) upstream of the pstS gene of S. coelicolor that adjust to the consensus PhoP-binding sequence [21,37]. The pstSCAB operon of S. lividans is expressed as a single transcription unit, although levels of the pstS gene transcript were higher than those of other genes of the operon [32]. Most likely this is due to the presence of transcription termination sites between the pstS and pstC genes. In S. lividans, deletion of the region encoding the PHO boxes decreased the expression of the pstSCAB operon, but allows a remaining basal level of expression (about 10%) that was controlled by the carbon source [32]. The molecular mechanism of regulation by fructose or other carbon sources has not been fully elucidated. CRP (cAMP receptor protein)-binding sequences have been recently identified in the genome of Streptomyces roseosporus [38], and a twelve nucleotide repeated sequence upstream of the pstS gene [32] might correspond to a CRP binding sequence.

2.2. Sensing the Phosphate Limitation: The Seven Proteins Model of Wanner and the Intracellular Teichoic Acid Intermediate Signal Model

Following the discovery of the two-component system PhoR–PhoB and the pstSCAB phosphate transport system in E. coli, models were proposed to try to understand which is the sensing mechanism and, particularly, the transduction cascade that responds to different phosphate concentrations in the periplasmic space. Hsieh and Wanner [39] elaborated a refined model in which they proposed that seven proteins interact at the membrane level, serving to detect the phosphate concentration in the broth and then transmit the signal to control expression of the Pho regulon genes. This model proposes that the four proteins, PstSCAB, of the ABC transporter system interact with PhoR–PhoB and also with the phosphate modulator PhoU (Figure 1). According to these authors, depending on the concentration of phosphate in the culture broth, the Pst transporter is either in: (1) an active signalling and transporter state (so called closed state) or, (2) in a state in which it acts as a transporter, but does not transmit signals (open state). The phosphate concentration dependent change between both states produces a rearrangement of the seven proteins complex at the cell membrane, that under phosphate limitation conditions results in autophosphorylation of PhoR, which in turn transfers the phosphate group to PhoB. Finally, the phosphorylated PhoB binds the specific sequences in the promoters of genes of the Pho regulon (Figure 1).
In the Streptomyces species, the gene phoU, encoding a modulator of the phoRphoP expression, is not linked to the pstSCAB cluster, as occurs in E. coli, but instead is attached to the phoRphoP cluster [15,40]. Signalling of the phosphate concentration and its transport by the PstSCAB cassette in Streptomyces has received some attention, but is still unknown if the signal interacting with PhoR is internal or extracellular. A second model proposes that, as occurs with B. subtilis, the signal is an intermediate in the teichoic acid biosynthesis that inhibits the PhoR autokinase activity and, therefore, decreases the phosphorylation of PhoP and the subsequent activation of the Pho regulon [2,41]. This correlate well with the presence in S. coelicolor of a gene cluster for teichoic acid biosynthesis regulated by phosphate similar to that of B. subtilis [42]. Under phosphate limiting conditions the phosphorylated teichoic acid intermediate is not accumulated, releasing the inhibition of the PhoR autokinase and the PhoR–PhoP signal transduction cascade proceeds to activate the Pho regulon (Figure 1B).

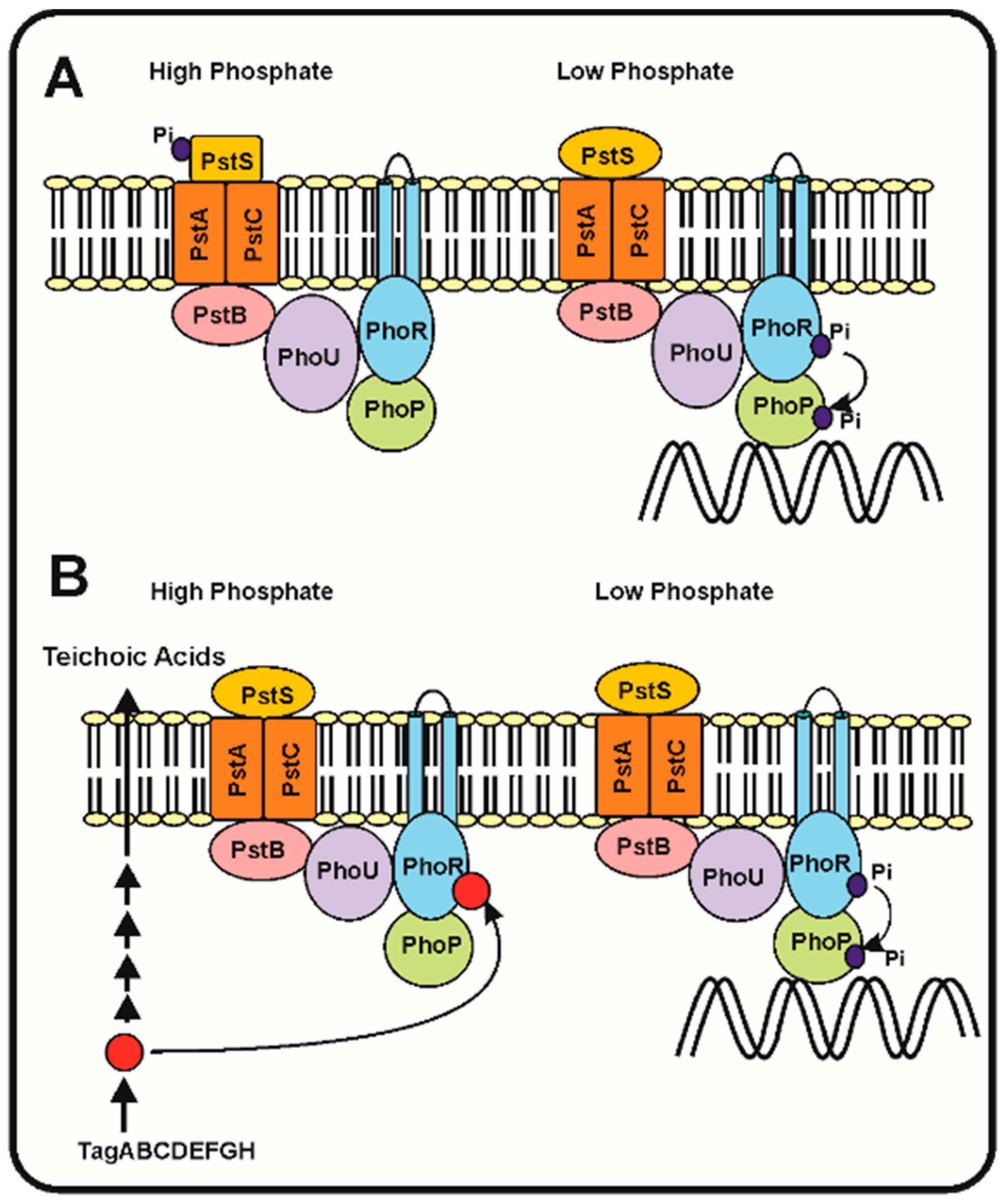

Figure 1. Phosphate transport and signalling according to the seven proteins and the teichoic acid intermediate models. (A) The seven proteins model of Hsieh and Wanner [39]. (Left) In phosphate replete conditions, the PstS protein binds phosphate and this interaction blocks the autophosphorylation of PhoR and the subsequent phosphorylation of PhoP avoiding the activation of the genes of the Pho regulon. (Right). When phosphate is limiting the PstS conformation changes, and triggers the phosphorylation cascade, resulting in PhoP phosphorylation and activation of the Pho regulon. (B) Proposed model of regulation of the phosphorylation cascade by an intermediate of the teichoic acid biosynthesis (red circle). Under phosphate replete conditions (left side) the teichoic acid intermediate accumulates and inhibits the autokinase activity of PhoR, blocking the phosphorylation cascade. Under phosphate limitation conditions (right side), the teichoic acid intermediate is not accumulated [41] and, therefore, the phosphorylation cascade proceeds activating expression of the Pho regulon genes (see text for details).
Figure 1. Phosphate transport and signalling according to the seven proteins and the teichoic acid intermediate models. (A) The seven proteins model of Hsieh and Wanner [39]. (Left) In phosphate replete conditions, the PstS protein binds phosphate and this interaction blocks the autophosphorylation of PhoR and the subsequent phosphorylation of PhoP avoiding the activation of the genes of the Pho regulon. (Right). When phosphate is limiting the PstS conformation changes, and triggers the phosphorylation cascade, resulting in PhoP phosphorylation and activation of the Pho regulon. (B) Proposed model of regulation of the phosphorylation cascade by an intermediate of the teichoic acid biosynthesis (red circle). Under phosphate replete conditions (left side) the teichoic acid intermediate accumulates and inhibits the autokinase activity of PhoR, blocking the phosphorylation cascade. Under phosphate limitation conditions (right side), the teichoic acid intermediate is not accumulated [41] and, therefore, the phosphorylation cascade proceeds activating expression of the Pho regulon genes (see text for details).
Ijms 22 01129 g001

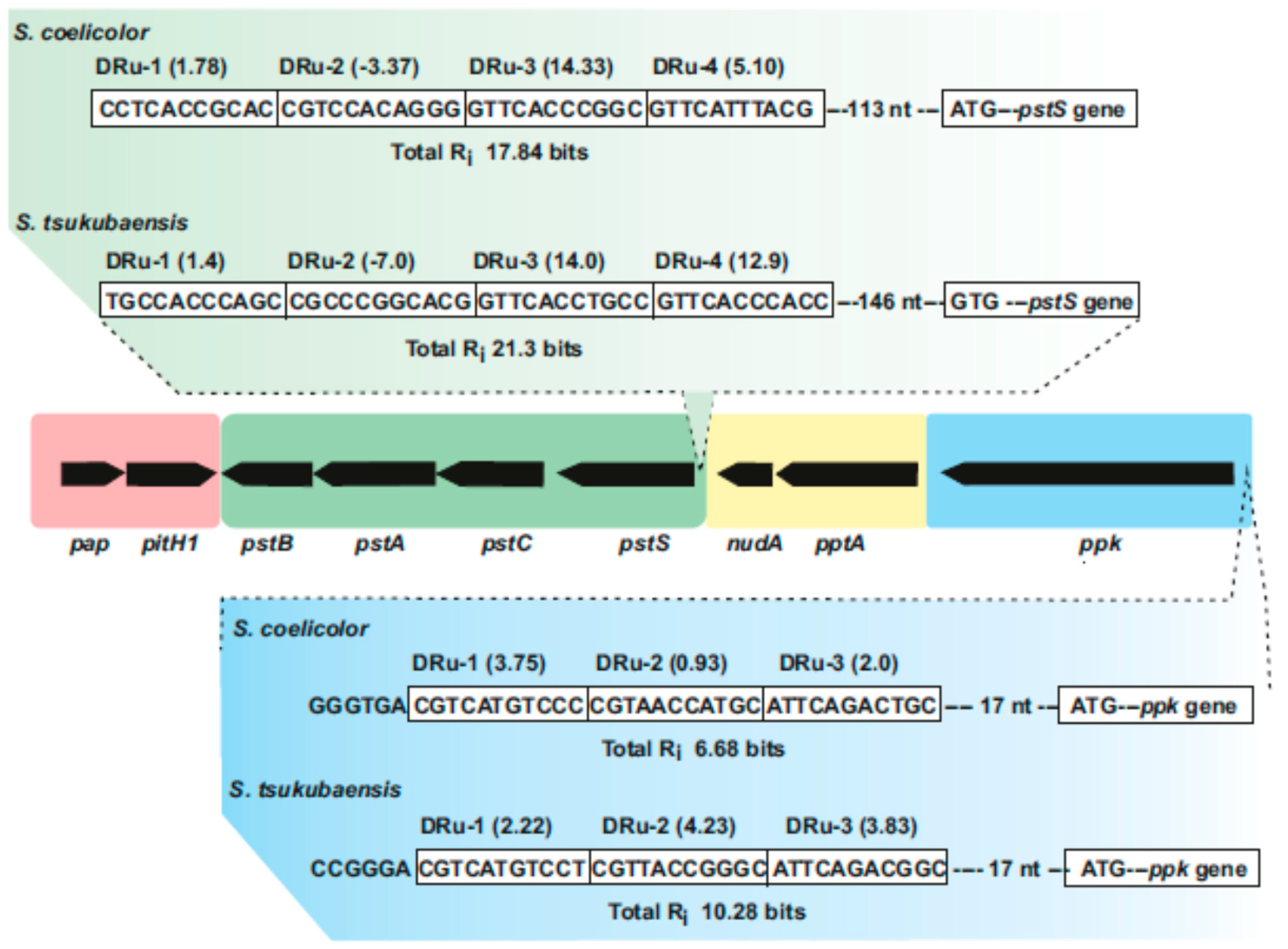

Figure 2. Supercluster of genes involved in phosphate uptake and metabolism in Streptomyces species. The central region includes the pap–pitH1 operon (shadowed in pink), the pstSCAB cluster (green), the pptA–nudA genes (yellow) and the ppk gene (blue). In the upper part, the PHO boxes upstream of pstS in S. coelicolor and Streptomyces tsukubaensis are shown indicating the direct repeat units (Dru’s) (boxed) and their individual information values (Ri). In the lower part updated PHO boxes upstream of the ppk gene in S. coelicolor and S. tsukubaensis are shown. Note that the pap–pitH1 operon is not regulated by phosphate and does not contain PHO boxes.
Figure 2. Supercluster of genes involved in phosphate uptake and metabolism in Streptomyces species. The central region includes the pap–pitH1 operon (shadowed in pink), the pstSCAB cluster (green), the pptA–nudA genes (yellow) and the ppk gene (blue). In the upper part, the PHO boxes upstream of pstS in S. coelicolor and Streptomyces tsukubaensis are shown indicating the direct repeat units (Dru’s) (boxed) and their individual information values (Ri). In the lower part updated PHO boxes upstream of the ppk gene in S. coelicolor and S. tsukubaensis are shown. Note that the pap–pitH1 operon is not regulated by phosphate and does not contain PHO boxes.
Ijms 22 01129 g002
A third hypothesis is also possible: PhoU and the metalloprotein encoded by mtpA, a gene adjacent to phoU, might be involved in the sensing or resistance to oxidative stress [43,44]. Since PhoU it is known to modulate expression of the phoR–phoP operon [15,40], it is possible that oxidative stress might lead to a modified PhoU conformation conferring to PhoU the ability to stimulate the PhoR autophosphorylation activity. Studies on the conformational changes of PhoU are required to support this hypothesis.

2.3. Discrimination between the Phosphate and Arsenate Anions by the Phosphate-Binding Protein PstS

Phosphate (PO43−) and arsenate (AsO43−) are equivalent anions with similar pK(a) values and charges in their atoms. Arsenate, a toxic anion, is present in some terrestrial and aquatic habitats and, therefore, Streptomyces and other bacteria face the problem of discriminating between phosphate and arsenate. In previous studies, we observed in the polyene macrolide antibiotic candicidin producer Streptomyces griseus, that arsenate is toxic at concentrations above 10 mM. Expression of the genes for candicidin biosynthesis and candicidin formation are strictly regulated by the phosphate concentration in the cultures [45,46]. Some mutants resistant to arsenate (up to 100 mM) are impaired in the phosphate transport, as determined by radioactive phosphate uptake experiments, whereas others showed normal phosphate uptake [47]. This suggests that somehow there is a competition between phosphate and arsenate, either in the phosphate transport system or perhaps downstream in the signal transducing mechanisms. Several mutants resistant to arsenate overproduced candicidin at phosphate levels (10 mM) that were repressive for candicidin biosynthesis in the parental strain. The molecular mechanism responsible of the candicidin overproduction have not been studied so far.
The PstS proteins have a great affinity for phosphate with Kd values in the submicromolar range. The affinity of the PstS protein for phosphate is 500 to 700 higher than that for arsenate [48]; even more, the PstS protein of a Halomonas strain isolated from a arsenate rich environment has 4500-fold higher affinity for phosphate than for arsenate. Crystal structure of several bacterial PstS proteins [27,49] indicates that they are composed by two globular domains linked together by a flexible hinge. At the interface between the domains, there is a phosphate binding pocket containing a key aspartate residue. Twelve to fourteen hydrogen bonds are formed between the phosphate and the binding pocket, and the aspartate residue establishes an additional low barrier hydrogen bond. The presence of both, high and low hydrogen barrier bonds, confers high selectivity for phosphate. A PstS protein with higher affinity for arsenate has been crystalized from Clostridium perfringens; this protein still forms 14 hydrogen bonds, but lacks the low barrier bond between the phosphate and the aspartate residue [49]. The arsenate anion is 4% larger than the phosphate anion; its accommodation in PstS requires the distortion of this low barrier hydrogen bond allowing its discrimination by distorting this low barrier hydrogen bond. No PstS proteins of Streptomyces have been yet crystalized to confirm whether similar mechanism occurs in these bacteria.

2.4. Glycosylation and Release of PstS in Streptomyces Species: Which Is the Role of the Released PstS Protein?

The PstS proteins are usually cell membrane-anchored proteins in different bacteria. However, surprisingly it was reported that in some Streptomyces species this protein was released to the culture medium.
The PstS protein of S. coelicolor is glycosylated [31]. Glycosylation in actinobacteria has been well studied in M. tuberculosis and proceeds through O-mannosylation of threonine or serine residues located in a proline rich region of the target protein. Several extracellular antigens are glycosylated in M. tuberculosis, including the 45/47 kDa, the 19 kDa and the main 38 kDa antigen protein, identified as PstS1 [23,24]. The carbohydrate moieties include mannose, mannobiose and mannotriose [24]. The glycosylation proceeds first through activation of mannose with polyprenol phosphate by a polyprenol phosphate mannose synthase (Pmm). A second gene involved in the glycosylation process is pmt1 that encodes a polyprenol mannose transferase.
S. lividans contains homologous genes encoding the same enzymes than M. tuberculosis. The first evidence of the involvement of these two enzymes in glycosylation in Streptomyces came from studies of the glycosylation of two phage receptor proteins in S. coelicolor [50,51]. The enzymes encoded by the pmm and pmt1 genes of S. lividans were able to glycosylate antigens and extracellular enzymes of M. tuberculosis [52,53] confirming the similarity of the glycosylation systems in both actinobacteria. In addition to its role in the synthesis of glycoproteins that serve as receptor of phages in S. coelicolor, Wehmeier et al. [31] found that these two enzymes were also involved in the glycosylation of the PstS phosphate binding protein. In S. coelicolor glycosylation involves the introduction of three hexose molecules and does not occur in pmt1 or pmm impaired mutants [31]. The two enzymes were functional to glycosylate PstS peptides bound to membranes of S. coelicolor. The physiological role of the PstS modification by glycosylation is unclear. Glycosylation of proteins in prokaryotic and eukaryotic cells is connected with protein sorting, protein–protein interactions and membrane localization.
The PstS protein of S. lividans is released from the mycelium to the culture broth, and interestingly the free form is unable to bind phosphate at difference of the cell-anchored PstS protein. In summary, expression of the pstS gene in S. coelicolor drastically increases in response to phosphate starvation and, therefore, the protein is accumulated in the cell membrane and under adequate conditions is released. In some bacteria, it has been reported that the PstS protein has additional roles different from serving as the phosphate receptor protein. For example, in multi-drug resistant Pseudomonas aeruginosa the extracellular PstS forms appendage-like structures that interact with human epithelial intestinal cells disturbing their permeability [54]. It is then intriguing to know if the release of the PstS protein of S. coelicolor may have functions resulting in interaction and communication of the producer Streptomyces species with other soil microorganisms or with animal tissues in the case of pathogenic Streptomyces species, although there is no evidence so far supporting this hypothesis.

2.5. A Second High Affinity Phosphate Transport System Exists in Mycobacterium smegmatis

The slow growing actinobacteria M. tuberculosis contain several high affinity transport systems similar to pstSCAB (two to four copies) whereas fast growing mycobacteria contain usually a single copy of the pstSCAB cluster. The PstS1, Pst2, and PstS3 phosphate sensor proteins of M. tuberculosis have been studied in detail [26] and some of them have been crystalized [27]. The fast growing Mycobacterium smegmatis contains two high affinity phosphate transport systems of different types; in addition to the classical pstSCAB phosphate transport system, a second transport system named phnFDCE (so named because it was initially proposed to be a phosphonate transporter) was characterized [55,56]. The PhnDCE transport system, an ABC-type transporter, consists in three structural proteins: phnC encodes an ATPase, phnD a phosphate-binding protein and phnE encodes a permease. The phnF gene, transcribed in opposite orientation encodes a regulator of the GntR family that controls the phnCDE cluster [57]. The PhnF protein represses expression of the phnDCE cluster by binding to two nucleotide sequences in the bidirectional promoter regions [57]. This system transports Pi with relatively high affinity (Km values of 40 to 90 micromolar), and does not transport phosphonate or phosphite, a salt of phosphorous acid [58]. Expression of the phnDCE cluster increased under phosphate limitation conditions. Mutants defective in the phosphate-binding protein PhnD, failed to grow in minimal medium containing at high phosphate concentrations (10 mM) while the parental strain requires only micromolar phosphate concentrations. Complementation of the null phnD mutant with the wild type gene resulted in recovery of the growth of this strain at submicromolar phosphate concentrations [55]. In summary, the available evidence indicates that the M. smegmatis phnFDCE transport system is a second high affinity transporter for inorganic phosphate at difference of the Phn system in Gram negative bacteria that has been reported to transport both phosphonate and inorganic phosphate [59,60,61,62]. Gene clusters similar to phnCDE exist in many Streptomyces species, but only occasionally they are linked to the phosphonate transport and utilization clusters (see below).

3. Low Affinity Phosphate Transporters

The low affinity inorganic phosphate transport (Pit) systems have been studied only recently in Streptomyces species; background knowledge relies in detailed studies performed in E. coli or other Gram-negative bacteria.

3.1. Transport by the Inorganic Phosphate (Pit) System: Background Information in Gram-Negative Bacteria

Pit transport systems were initially reported in E. coli [63,64,65] and Sinorhizobium meliloti [66]. Divalent cations, such as Mg2+, Ca2+, Co2+, or Mn2+, are essential for the activity of this transport system in both E. coli [67] and Acinetobacter johnsonii [68]. The low affinity transporter appears to prefer Zn2+ or Mg2+, forming a neutral metal-phosphate complex (Me-PO4) [69,70,71]. Using membrane vesicles of E. coli Van Veen et al. [68] characterized the kinetics and metal requirements of the Pit system that transports simultaneously equimolecular amounts of phosphate and a divalent metal. This complex is driven by a proton symport mechanism with a stoichiometry of 1:1 (Me-PO4 to proton). In some microorganisms the Pit system also secretes phosphate by combination with heavy metals forming the Me-PO4 complex [72]. This mechanism serves to detoxify heavy metals and uses phosphate from internal polyphosphate.
E. coli contains two Pit transport systems PitA and PitH [63]. Both systems are 90% identical in amino acid sequence and have similar kinetics. However, they differ in the regulation of their expression; the expression of pitA is constitutive under different inorganic phosphate concentrations while that of pitH is induced in condition of low phosphate availability [63,73].

3.2. The pitH1 and pitH2 Systems in Streptomyces and Corynebacterium glutamicum

Two Pit transport systems have also been identified in the genome of S. coelicolor [74] and are present in the genomes of other streptomyces species, e.g., S. avermitilis [19,75,76] and S. tsukubaensis [14]. These systems were named PitH1 and PitH2 and they contain two transmembrane spanning domains [74]. The PitH1 (332 amino acids) and PitH2 (423 amino acids) of S. coelicolor share 44% identity. Upstream of pitH1 there is a gene named pap (encoding a 206 amino acids putative Pit ancillary protein) that is also present in the PitH1 orthologous gene in different Streptomyces species and even in the unrelated bacterium Sin. meliloti [66,77]. The pap–pitH1 genes are co-transcribed as a bicistron from a single promoter located upstream of pap both in Sin. meliloti and S. coelicolor (see below, Figure 2). The pitH2 gene in S. coelicolor is located 2.2–2.3 Mb, far from pitH1, and is surrounded by genes that are not related to phosphate uptake or metabolism.
PitH1 is the major phosphate transporter in high phosphate concentration conditions (above 3.2 mM) and its expression does not respond to phosphate concentrations during fermentation, whereas pitH2 expression increases when phosphate is limiting (about 0.01 mM). In a phoP-null mutant the pitH2 promoter is not active and RT-PCR studies showed only a basal level transcription.
In S. coelicolor, PhoP binds to the upstream region of pitH2, as shown by electrophoresis mobility assays, but not to the pap–pitH1 promoter. PhoP protection assays revealed a 64 nt protected region upstream of pitH2. This region includes four 11 nt each core Dru’s, and two additional Dru’s with lower nucleotides conservation. Four core Dru’s were protected by very low phoP concentration and, as the PhoP concentration increases, the surrounding ancillary Dru’s were also protected [74]. Four DNA complexes were separated in gel electrophoresis depending on the PhoP protein concentration used in the electrophoretic mobility shift assay (EMSA). The formation of several DNA–PhoP complexes is characteristic of type III promoter regions, with Dru’s having distinct affinity for the PhoP regulator [37,78]. In a phoP-null mutant, the pitH2 promoter is not active, and RT-PCR studies showed only a basal transcription level.
A similar organization has been found in the promoter regions of the pitH2 in S. avermitilis; this strain also contains four DRu’s, two of them that adjust to the consensus PHO boxes and adjacent to them two DRu’s with lower sequence conservation.
C. glutamicum contains a pitA and pitB that are slightly larger than those of S. coelicolor. Noteworthy, the C. glutamicum pitA gene is not regulated by the PhoS-PhoR two-component system [74], and is expressed constitutively in the parental strain; pitB is a cryptic homologous and does not appear to be transcribed under the experimental conditions used [79,80].

3.3. PitH Genes in Other Streptomyces Species

In addition to S. coelicolor and S. avermitilis, we investigated the presence of pitH genes in several Streptomyces species (S. clavuligerus, S. venezuelae, S. tsukubaensis, and S. griseus). In all of them, there are two different pitH genes, with exception of Streptomyces clavuligerus, which contains three pitH genes; the protein encoded by the third gene, pitH3, is more similar to PitH2 (55% identical amino acids) than to PitH1 (44%); the pitH3 gene is located in the megaplasmid pSCL4 (1.8 Mb) suggesting that pitH genes might have been mobilized among Streptomyces through plasmids transfer. The pitH1 genes of different Streptomyces are 86–90% identical at amino acid levels, and in all Streptomyces are preceded by the pap gene, encoding a very well conserved 206 amino acids protein.
The pitH2 genes are located far from the pitH1 and the proteins encoded in different Streptomyces species are very similar among themselves (72–76% identical amino acids).

4. The pap-pitH1-pstSCAB-pptA-nudA-ppk Supercluster

The location of the phosphate transport genes, and particularly their possible organization in clusters, is of high interest, since it will contribute to understand their expression. We observed that in all Streptomyces species, the pap–pitH1 operon is linked, and in opposite orientation, to the pstSCAB cluster and the ppk gene encoding the polyphosphate kinase (Figure 2), a fact that has not been reported previously. In addition, the gene SCO4144, downstream of ppk, encodes a protein with 67% identity to the phosin PptA that binds metals and polyphosphate [81]. The protein encoded by SCO4144 contains all of the histidine residues characteristics of metal-binding proteins and the arginine residues for sulphate binding found in PptA. The bioinformatic analysis of the SCO4143 protein reveals high similarity to Streptomyces nudix hydrolase family proteins involved in dinucleotides hydrolysis and we designated it nudA. This finding is interesting since it indicates that Streptomyces species have integrated these genes in a short region of the genome. Such organization may improve the assimilation of phosphate, its storage as polyphosphate, and/or the degradation of the latter [82,83,84,85,86]. In contrast to Streptomyces sp., in C. glutamicum the pitH1 and pstSCAB genes are not linked in a supercluster.

5. Transport and Utilization of Glycerol-3-Phosphate and Glycerophosphodiesters

Phospholipids (e.g., phosphatidylcholine, phosphatidylserine, phosphatidylethanolamine, phosphatidylglycerol) are components of all living beings and therefore they are abundant in some habitats as part of decaying plants and animals. Glycerol phosphodiesters are formed by deacylation of phospholipids and retain a phosphate in carbon-3 of the glycerol. The phosphodiesters are hydrolysed by glycerophosphodiester phosphodiesterases (GDPDs) that cleave the ester bond releasing glycerol-3-phosphate.
Initially it was considered that all glycerophosphodiesters could be hydrolysed extracellularly and the phosphate transported by the well-known phosphate transport systems, but in E. coli it was found that mutants defective in the extracellular alkaline phosphatase were still able to utilize glycerol-3-P and glycerol phosphodiesters as sole phosphate sources, indicating that these compounds were transported in their phosphorylated form through the membrane. A gene cluster ugpBACQ (for uptake of glycerol-3-P), encoding a typical ABC transporter, was found in E. coli [87,88]. Glycerol-3-P is transported without been hydrolysed, whereas phosphodiesters are hydrolysed during transport by the UgpQ membrane associated protein [87]. In addition, E. coli contains a separate glycerol-3-phosphate permease, named GlpT, which is part of the glpQT operon that encodes also the GlpQ phosphodiesterase [89,90] (Figure 3).
In the actinobacteria C. glutamicum, phylogenetically related to Streptomyces species, there is a gene glpQ for a phosphodiester phosphodiesterase linked to the ugpCBEA operon that encodes an ABC transporter of glycerophosphodiesters [80] (Figure 3). This ugp cluster in C. glutamicum responds positively to the phosphate limitation in the culture medium.
Streptomyces and several other soil dwelling actinobacteria are able to utilize the phosphate of glycerophosphodiesters. However, there are important differences in the utilization of glycerol-3-phosphate and glycerol-phosphodiesters between E. coli and the actinobacteria. In S. coelicolor, there are seven putative GDPD genes [33,91]. Three of these genes (named glpQ1 to glpQ3) encode secreted GDPDs, whereas the other four genes encode intracellular uncharacterized phosphodiesterases. Gene orthologous to the glpQ genes of S. coelicolor, encoding proteins with 67 to 80% amino acid identity are disperse in the genomes of several other Streptomyces species, including S. avermitilis, S. clavuligerus and S. venezuelae.
However, we have not found in S. coelicolor genome genes for cluster similar to ugpCBEA linked to glycerophosphodiester phosphodiesterases genes, in contrast to the organization in C. glutamicum. Furthermore, neither C. glutamicum nor S. coelicolor genomes contain a gene similar to the E. coli glpT, which encodes a glycerol-3-P permease (Figure 3). These results suggest that in contrast to E. coli, glycerophosphodiesters are not transported as such in Streptomyces, but are hydrolysed by extracellular phosphodiester phosphodiesterases that scavenge the phosphate group.

Glycerophosphodiester Phosphodiesterases: Molecular Mechanisms of Binding of PhoP to the glpQ Promoters and Regulation by Phosphate and Carbon Sources

In phosphate shift down experiments expression of glpQ1 and glpQ2 increased in response to phosphate starvation while expression of glpQ3 was not altered [17,91]. In a S. coelicolor phoP mutant, expression of glpQ1 and glpQ2 did not respond to phosphate starvation indicating that the transcriptional response is PhoP-dependent. Both the promoters of glpQ1 and glpQ2 show complex structures in relation to phosphate control. There are four direct repeated DRu’s in the promoter of glpQ1 as revealed by binding of pure PhoP and footprint analysis. In the promoter of glpQ2 there are five DRu’s, but some of them have low conservation, according to the consensus sequence of Sola-Landa et al. [37], based on their information content [92]. Cooperative binding of two or more PhoP monomers resulted in formation of up to four migration bands in EMSA that correspond to the increasing amounts of the PhoP protein bound to these promoters [91]. The glpQ1 and glpQ2 promoters share an organization in which PhoP binds to Dru’s overlapping the -35 promoter region as concluded from identification of the transcription start site. Noteworthy, both inorganic phosphate and glycerol-3-phosphate regulate expression of glpQ1 and glpQ2 promoters in S. coelicolor [91]. An open question is whether the glycerol-3-phosphate molecule is internalized into the cells as occurs in E. coli [87,88]; the absence in Streptomyces species of a ugp cluster encoding an ABC transporter for glycerol-3-phosphate suggests that this compound is hydrolysed before been transported.
Expression of the glpQ1 and glpQ2 is also regulated by carbon sources; this is not surprising since cleavage of the phosphodiester bond by the phosphodiesterases releases serine, ethanolamine, inositol, and other amines or alcohols. Interestingly, Santos-Beneit et al. [91] observed that expression of glpQ1 was repressed by both serine and inositol whereas expression of glpQ2 was not affected by these carbon sources, although it was induced by the preferred carbon sources glucose, fructose, and glycerol. The induction of glpQ2 by these compounds is independent of the phosphate regulation that still is fully active when the cells are grown in these carbon sources, suggesting an accumulative regulation by different effectors [2].

6. Utilization of Sugar Phosphates and Nucleotides: Dephosphorylation or Transport of Phosphorylated Compounds?

So far, we reviewed the utilization of glycerol-3-P in E. coli and other bacteria. In addition, in different habitats there are numerous sugar phosphates and nucleotides that provide phosphate and carbon sources for growth; sometimes these compounds are released by lysed cells of confluent cultures and can be utilized as nutrient by the surviving cells [93,94]. An important question is if intact nucleotides or sugar phosphates are transported in their phosphorylated form or whether they are dephosphorylated before being taken up.
In E. coli and Salmonella, some sugar phosphates are transported by the uhpABCT system for uptake of hexose phosphates [95] that includes the permease uhpT [96,97]. As indicated above, C. glutamicum contains a glycerol-3-phosphate transporter [80], but does not contain a glucose-6-phosphate transporter; importantly, bioinformatic analysis reveals that non-clustered uhpT genes encoding homologous transporters, occur in Corynebacterium lactis and in several pathogenic corynebacteria including Corynebacterium diphtheriae and Corynebacterium pseudotuberculosis (about 49% amino acids identity with the E. coli UhpT protein), but are not present in non-pathogenic Corynebacterium sp. or in Arthrobacter sp. It is likely that pathogenic corynebacteria have adapted to transport hexose phosphates obtained from animal tissues of the infected host.
In Streptomyces, glucose 6-phosphate is used both as a carbon and phosphate source. Tenconi et al. [98] tested the effect of sugar phosphates, including glucose-6-P, glucosamine-6-P, fructose-6-P and fructose 1,6 bisphosphate on differentiation of S. coelicolor and S. lividans, and their effect on the production of antibiotics by these species. All of these sugar phosphates, but not their dephosphorylated forms, delayed the differentiation and the production of secondary metabolites. Noteworthy, the same effect exerted by the sugar phosphate was observed when the corresponding amounts of inorganic phosphate was added. The utilization of these sugar phosphates was PhoP-dependent and was not observed in PhoP defective mutants [98]. These authors did not find evidence of transport of phosphorylated glucose and proposed that glucose-6-P is dephosphorylated by extracellular or cell membrane anchored alkaline phosphatases [12] prior to its transport into the cells. Genes orthologous to the E. coli o C. diphtheriae uhp have not been found by bioinformatic analysis in Streptomyces sp. genomes. Independently of whether sugar phosphate transport exist, it is possible that these sugar phosphates trigger a signalling cascade in Streptomyces sp. by interacting with membrane receptors.
Regarding the utilization of nucleotides in early studies, Martín and Demain [99] analysed the effect of a variety of nucleotides, nucleosides, purine, and pyrimidine bases on the biosynthesis of candicidin in S. griseus by measuring the incorporation in candicidin of labelled precursors. All of the nucleotides have an inhibitory effect on candicidin biosynthesis, including cAMP, but the nucleosides or the free bases had no effect. These results suggest that the effect of the nucleotides on candicidin biosynthesis in S. griseus is probably due to the phosphate released by hydrolysis of the nucleotides. Indeed, the pure alkaline phosphatase of that strain was found to have a broad substrate specificity including the hydrolysis of nucleotides [11]. In addition, a PhoP-regulated extracellular 5′nucleotidase (SCO4152) has been described in S. coelicolor [18].
In S. coelicolor addition of extracellular ATP has a dose-dependent effect up to 10 mM ATP, increasing the production of actinorhodin by stimulating expression of actII-orf4 regulatory gene, but ATP was repressive at concentrations above 10 mM [100]. These authors did not study the transport of ATP and suggested that ATP might have a regulatory role by interacting with a specific receptor in the cell membrane. The differential effect of ATP on antibiotics formation in S. coelicolor may be also related to the high intracellular ATP concentration in this Streptomyces strain [101].

7. Transport and Utilization of Phosphonates

Another phosphate source that might be utilized by microorganisms are phosphonates. Phosphonates are organic compounds that contain a phosphorous linked covalently to a carbon atom (C–P) in the skeleton of the molecule. The phosphonates characteristic C–P bond is energetically very stable and difficult to hydrolyse. There are hundreds of phosphonates among the metabolites of all living beings, such as the phosphonolipids and other natural compounds produced by microorganisms (e.g., antibiotics as fosfomycin or herbicides as bialaphos). In addition, since the arrival of the industrial era, thousands of man-made compounds containing the C–P bond have been synthesized. Many of these compounds are xenobiotics and present serious degradation problems. Therefore, the metabolism of phosphonates has great interest in ecology and bioremediation [102]. However, only bacteria and lower eukaryotes have the ability to hydrolyse the C–P bond in these compounds to utilize phosphate as nutrients [62,103]. Simple phosphonates, such as methylphosphonic acid or ethylphosphonic acid, have been used routinely to test the degradative ability of microorganisms. Glyphosate is also a convenient substrate because it is degraded to sarcosine (N-methylglycine) that is easily detected in chemical analysis. Early tests on phosphonate degradation were performed with E. coli, Klebsiella aerogenes and Pseudomonas sp. [104,105], but also several later studies include the ability to degrade phosphonates by gram positive bacteria and fungi [106,107,108].
Prior to investigating phosphonate transport and utilization genes in Streptomyces, it is necessary to understand the arrangement of these genes and their biochemical function in E.coli. The phosphonate gene cluster in E. coli is formed by a set of 14 genes for phosphonate transport and utilization, namely phnCDEFGHIJKLMNOP [109] (Figure 4). Mutants disrupted in phn genes were unable to degrade simple phosphonates [62,104]. The fourteen genes cluster is expressed as a single operon from a promoter located upstream of phnC.
Additional analysis of the cluster concluded that the first three genes phnCDE constitute an ABC system for phosphonate transport closely similar to the phnDCE cluster of M. smegmatis that in this bacterium behaves as a high affinity phosphate transporter [56] (see above) (Figure 4). The hydrophilic PhnD protein, is a phosphonate-binding protein, and is located in the periplasmic space as occurs with the homologous protein of Sin. meliloti [61]. The PhnC protein has an ATP binding sequence and is similar to nucleotide-dependent permeases such as the PstB protein (a member of the PstSCAB system) for phosphate transport. The hydrophobic PhnE protein is a membrane integral permease with homology to the phosphate permease PstA. The set of genes phnG to phnM encode essential components of the C–P lyase complex and enzymes for phosphonate degradation; while PhnN, that has phosphokinase activity, and PhnP appear to be accessory proteins. Finally, PhnO is an amino alkyl phosphonate N-acetyltransferase not essential for phosphonate cleavage and PhnF is a regulatory protein. Gene clusters similar to those of E. coli have been found in several enterobacteriaceae and rhizobiaceae, particularly in Sin. meliloti but there is no report of these clusters in Gram positive bacteria, with exception of the high affinity phnDCE cluster in M. smegmatis (see above). Importantly, expression of the phnCDEFGHIJKLMNOP cluster in E. coli is regulated by the inorganic phosphate concentration in the medium and the promoter upstream of phnC gene contains an 18 nucleotide PHO box similar to that recognized by the PhoB regulators in other Gram-negative bacteria.

7.1. Phosphonate Transport and Utilization in Arthrobacter and Corynebacterium Species

Early studies on utilization of phosphonates by actinobacteria were made in Arthrobacter strains. Arthrobacter species are bacteria that proliferate in a variety of habitats and have a wide ability to degrade different carbon substrates, including phosphonates [110,111]. One strain characterized as Arthrobacter sp. GLP-1 was selected since it was able to degrade glyphosate and utilize alkyl phosphonic acids as the only phosphate source [106,110]. Utilization of simple or complex phosphonates in both Gram negative and Arthrobacter sp. require a growth adaptation time indicating that the cells do not have a constitutive transport and enzymatic system for the degradation but respond to the presence of the phosphonates as inducers. This degradation system has not been studied at the biochemical or molecular genetic level.
Using E. coli phosphonate transport genes phnCDE as probe many homologous genes are detected in Arthrobacter species genomes, either forming clusters or in separated locations. With respect to the genes for phosphonate degradation, three genes for subunits of the C–P lyase, phnL and phnK and the gene phnM for the α-D-ribose 1-methylphosphonate 5-triphosphate diphosphatase, enzyme essential in phosphonate degradation, are present in many Arthrobacter strains; however, other genes for other subunits of the C–P lyase complex, namely phnIHG, or the gene phnN encoding a phosphokinase required for phosphonate degradation are not present in most Arthrobacter species. Only the sequenced genomes of three strains, Arthrobacter glacialis, Arthrobacter alpinus and Arthrobacter subterraneus (Figure 4), contain all these genes (40–70% amino acids identity to those of E. coli). For example, A. glacialis contains a cluster phnDCE and a separated cluster phnFGHIJKLMN and similar results were observed in the other two strains, but the type strain, Arthrobacter globiformis, does not contain genes for any of the C–P lyase subunits.
Corynebacterium species are phylogenetically close to Arthrobacter sp. and Streptomyces sp. In saprophytic corynebacteria there are many species that have homologous to the transport genes phnC, phnD and phnE, including the model organism Corynebacterium glutamicum, an industrial glutamic acid producer, which has a phnEC cluster and a separate phnD gene. Some genes for phosphonate degradation, as those for the subunits PhnL and PhnK, are present in many Corynebacterium strains, but genes for the other C–P lyase subunits (phnG, phnH, phnI, phnJ), or for enzymes required for phosphonate degradation (phnM, phnN), are rare, and only Corynebacterium doosanense appears to have a whole set of genes for phosphonate transport and degradation, although separately located (Figure 4).

7.2. The Ability to Utilize Phosphonates Is Restricted to Some Streptomyces sp.

Numerous organic compounds and phosphate sources have been tested for decades in the search of optimal media to produce new bioactive compounds by Streptomyces strains. However, detailed studies on phosphonate utilization are limited to the Streptomyces sp. described by Obojska et al. [112]. Using strains isolated from a sewage treatment plant in Wroclaw (Poland) these authors isolated a number of colonies that were able to grow on different phosphonates. Two strains identified as Streptomyces, based on their morphological characteristics, the presence of diaminopimelic acid in the cell wall and the type of phospholipids in the membrane, were named Streptomyces StA and Streptomyces StC. These strains were studied by their ability to grow on three phosphonates, namely 2-aminoethanephosphonic acid, glyphosate, and phosphonoacetic acid as sole phosphate or carbon source. Streptomyces StC, a strain resistant to 100 mM glyphosate, was particularly able to degrade glyphosate releasing to the culture medium inorganic phosphate, sarcosine and glycine as degradation products. This strain utilizes glyphosate even in the presence of moderate concentrations of phosphate suggesting that the C–P lyase system of this strain is not strictly repressed by the inorganic phosphate in the medium. Cell-extracts of the second isolate, Streptomyces StA, degrade in vitro 2-aminoethanephosphonic acid suggesting the involvement of a C–P lyase in the extract. A minimal growth time of 10 h on 2-aminoethanephosphonic acid was required to observe this degrading activity in cell extracts. No further biochemical or molecular genetic analysis of the phosphonate utilization by these two strains are available so far.
Genes homologous to the phn genes of E. coli are rare in Streptomyces species. One strain, Streptomyces cavourensis, has three clusters: phnDCEE, phnCE, and an incomplete cluster phnFGHIKLM. Using these phn genes as probe to search in other Streptomyces genomes we observed that although genes homologous to the transporter genes phnC and phnE occur usually close together in many species, the gene phnD encoding the phosphonate-binding protein is less frequent. However, the PhnD protein is essential for phosphonate transport. Genes for phosphonate degradation (C–P lyase components) are very rare in Streptomyces sp. Bioinformatic analysis reveals that only a few Streptomyces species have the genetic information to degrade phosphonates, namely Streptomyces purpurogeneiscleroticus that has a phnDCE cluster and a separate phnMLKIHFEEDCNKG cluster (Figure 4), where F is a GntR-type regulator, or Streptomyces rhizosphaericus that has two putative clusters, phnMLJIHFCED and phnCEG. Other Streptomyces species contain incomplete clusters for phosphonate degradation, most times lacking some of the essential genes for the C–P lyase subunits (phnGHIJKL) and all of them lack the genes phnO and phnP, which in E. coli encode proteins non-essential for phosphonate degradation. In summary, although phn genes are present in some Streptomyces sp. the characterization of genes for the subunits of the C–P lyase is required in order to understand whether the phosphonates are really hydrolysed. This lack of information is really surprising since several herbicides extensively used in agriculture are phosphonates, including bialaphos and glyphosate. Noteworthy, many of the strains containing genes for phosphonate degradation are plant endophytes or isolates from soil roots or from mangroves, suggesting that phosphonate utilization gene clusters have evolved to utilize phosphonates in some plant rhizosphere. Some Streptomyces sp. are able to synthesize phosphonates as natural products. This is the case of Streptomyces hygroscopicus and Streptomyces viridochromogenes that produces bialaphos and Streptomyces fradiae that produces fosfomycin [113,114]. These strains secrete these phosphonate compounds, but they are unable to degrade them since they are not transported back; this is not surprising since many Streptomyces secrete toxic secondary metabolites, but they do not transport them back to the cell to avoid suicide [115]. Secretion of fosfomycin and other antibiotics takes place mainly through the major facilitator superfamily transport systems [116], which are different from the phosphonate transport systems.
In summary, in contrast of the linkage of all phosphonate utilization genes in E. coli, the organization in Streptomyces is different. Frequently the phnCDE genes occur, but they are not linked to the phnFGHIJKLMN genes. This finding points to the possibility that, as occurs in M. smegmatis the phnCDE genes that encode the phosphonate/phosphate transporter ABC transporter might have evolved separately and they serve as inorganic phosphate (rather than phosphonate) transporters.

8. Conclusions

Taking into account all available evidence, it is concluded that actinobacteria in general lack some of the phosphate transport systems that exist in E. coli and other Enterobacteria. Only the high affinity PstSCAB and the low affinity duplicate Pit (PitH1–PitH2) systems are universally conserved in all studied actinobacteria including Arthrobacter, Mycobacterium, Corynebacterium, and Streptomyces species. An important observation is that three genes clusters involved in phosphate metabolism are associated in a short region of Streptomyces genomes, forming a phosphate metabolism supercluster. There are important differences in the ability of bacteria to transport and grow on distinct phosphate substrates; this is a normal behaviour since phosphate in nature is present in quite different forms in distinct habitats and the bacteria face the challenge to utilize the phosphate form that is available. In contrast to pathogenic bacteria, most Streptomyces species are soil habitants and, therefore, have powerful systems to scavenge phosphate from soil. Genes for uhp hexose transport exist in some pathogenic corynebacteria, as it is the case of Corynebacterium lactis, but is absent in the C. glutamicum type strain. It is likely that this pathogenic corynebacteria have developed a hexose phosphate transporter required for utilization of sugar phosphate from the host tissues in which they live. Streptomyces species do not contain an uhp gene cluster and there is no evidence (despite several research articles) that sugar phosphates are transported in their phosphorylated form into the cells. There is evidence that sugar phosphates and nucleotides are hydrolysed by extracellular cell-membrane associated alkaline phosphatases and nucleotidases and the phosphate is then transported into the cell. A few Arthrobacter and Streptomyces are able to utilize phosphonates, which contain the very stable C–P bond, but this appears to be restricted to Streptomyces saprophytic species that live associated with plant roots and mangroves. Other Streptomyces species lack phosphonate degradation genes, although they have the phnCDE transporter system that may be used as an alternative phosphate, rather than phosphonate, transporter. Streptomyces species have a very diverse degradative and biosynthetic metabolism and we cannot exclude that phosphonates may be degraded by enzyme systems different from the well-known system in Enterobacteria. Additional biochemical research is required to clarify this obscures points. In summary, Streptomyces species are less versatile than Enterobacteria, although some plant-rhizosphere Streptomyces species have the genetic capability to degrade phosphonates.

Author Contributions

Both authors contributed equally to the writing and and editing of this manuscript. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.


J.F.M. and P.L. acknowledge the support of the University of León for the use of its bioinformatic facilities (Spain). We appreciate the technical cooperation and helpful discussions on the article from Antonio Rodríguez García and María Ordóñez Robles.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Santos-Beneit, F. The Pho regulon: A huge regulatory network in bacteria. Front. Microbiol. 2015, 6, 402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Martín, J.F.; Liras, P. The Balance Metabolism Safety Net: Integration of Stress Signals by Interacting Transcriptional Factors in Streptomyces and Related Actinobacteria. Front. Microbiol. 2020, 10, 3120. [Google Scholar] [CrossRef] [PubMed]
  3. Jha, V.; Dafale, N.A.; Purohit, H.J. Regulatory rewiring through global gene regulations by PhoB and alarmone (p)ppGpp under various stress conditions. Microbiol. Res. 2019, 227, 126309. [Google Scholar] [CrossRef] [PubMed]
  4. Alori, E.T.; Glick, B.R.; Babalola, O.O. Microbial Phosphorus Solubilization and Its Potential for Use in Sustainable Agriculture. Front. Microbiol. 2017, 8, 971. [Google Scholar] [CrossRef] [Green Version]
  5. Demain, A.L. Antibiotics: Natural Products Essential to Human Health. Med. Res. Rev. 2009, 29, 821–842. [Google Scholar] [CrossRef]
  6. Robertsen, H.L.; Musiol-Kroll, E.M. Actinomycete-Derived Polyketides as a Source of Antibiotics and Lead Structures for the Development of New Antimicrobial Drugs. Antibiotics 2019, 8, 157. [Google Scholar] [CrossRef] [Green Version]
  7. Martín, J.F. Molecular mechanisms for the control by phosphate of the biosynthesis of antibiotics and other secondary metabolites. In Regulation of Secondary Metabolism in Actinomycetes; Shapiro, S., Ed.; CRC Press: Boca Ratón, FL, USA, 1989; pp. 213–237. [Google Scholar]
  8. Martín, J.F.; Liras, P. Organization and expression of genes involved in the biosynthesis of antibiotics and other secondary metabolites. Ann. Rev. Microbiol. 1989, 43, 173–206. [Google Scholar] [CrossRef]
  9. van Wezel, G.P.; McDowall, K.J. The regulation of the secondary metabolism of Streptomyces: New links and experimental advances. Nat. Prod. Rep. 2011, 28, 1311–1333. [Google Scholar] [CrossRef]
  10. Martín, J.F.; Liras, P. Novel Antimicrobial and other Bioactive Metabolites obtained from Silent Gene Clusters. In Antibiotics: Current Innovations and Future Trends; Demain, A.L., Sánchez, S., Eds.; Horizon Scientific Press and Caister Academic Press: Norfolk, UK, 2015; pp. 275–292. [Google Scholar]
  11. Moura, R.S.; Martín, J.F.; Martín, A.; Liras, P. Substrate analysis and molecular cloning of the extracellular alkaline phosphatase of Streptomyces griseus. Microbiology 2001, 147, 1525–1533. [Google Scholar] [CrossRef] [Green Version]
  12. Apel, A.K.; Sola-Landa, A.; Rodríguez-García, A.; Martín, J.F. Phosphate control of phoA, phoC and phoD gene expression in Streptomyces coelicolor reveals significant differences in binding of PhoP to their promoter regions. Microbiology 2007, 153, 3527–3537. [Google Scholar] [CrossRef] [Green Version]
  13. Ordóñez-Robles, M.; Santos-Beneit, F.; Rodríguez-García, A.; Martín, J.F. Analysis of the Pho Regulon in Streptomyces tsukubaensis. Microbiol. Res. 2017, 205, 80–87. [Google Scholar] [CrossRef] [PubMed]
  14. Martínez-Castro, M.; Barreiro, C.; Martín, J.F. Analysis and validation of the pho regulon in the tacrolimus-producer strain Streptomyces tsukubaensis: Differences with the model organism Streptomyces coelicolor. Appl. Microbiol. Biotechnol. 2018, 102, 7029–7045. [Google Scholar] [CrossRef] [PubMed]
  15. Ghorbel, S.; Smirnov, A.; Chouayekh, H.; Sperandio, B.; Esnault, C.; Kormanec, J.; Virolle, M.J. Regulation of ppk expression and in vivo function of Ppk in Streptomyces lividans TK24. J. Bacteriol. 2006, 188, 6269–6276. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Smirnov, A.; Esnault, C.; Prigent, M.; Holland, I.B.; Virolle, M.-J. Phosphate Homeostasis in Conditions of Phosphate Proficiency and Limitation in the Wild Type and the phoP Mutant of Streptomyces lividans. PLoS ONE 2015, 10, e0126221. [Google Scholar] [CrossRef] [Green Version]
  17. Rodríguez-García, A.; Barreiro, C.; Santos-Beneit, F.; Sola-Landa, A.; Martín, J.F. Genome-wide transcriptomic and proteomic analysis of the primary response to phosphate limitation in Streptomyces coelicolor M145 and in a ∆phoP mutant. Proteomics 2007, 7, 2410–2429. [Google Scholar] [CrossRef]
  18. Martín, J.F.; Santos-Beneit, F.; Rodríguez-García, A.; Sola-Landa, A.; Smith, M.C.; Ellingsen, T.E.; Wellington, E.M. Transcriptomic studies of phosphate control of primary and secondary metabolism in Streptomyces coelicolor. Appl. Microbiol. Biotechnol. 2012, 95, 61–75. [Google Scholar] [CrossRef]
  19. Martín, J.F.; Rodríguez-García, A.; Liras, P. The master regulator PhoP coordinates phosphate and nitrogen metabolism, respiration, cell differentiation and antibiotic biosynthesis: Comparison in Streptomyces coelicolor and Streptomyces avermitilis. J. Antibiot. 2017, 70, 534–541. [Google Scholar] [CrossRef] [Green Version]
  20. Sola-Landa, A.; Moura, R.S.; Martín, J.F. The two component PhoR-PhoP system controls both primary metabolism and secondary metabolite biosynthesis in Streptomyces lividans. Proc. Natl. Acad. Sci. USA 2003, 100, 6133–6138. [Google Scholar] [CrossRef] [Green Version]
  21. Sola-Landa, A.; Rodríguez-García, A.; Franco-Domínguez, E.; Martín, J.F. Binding of PhoP to promoters of phosphate regulated genes in Streptomyces coelicolor: Identification of PHO boxes. Mol. Microbiol. 2005, 56, 1373–1385. [Google Scholar] [CrossRef]
  22. Allenby, N.E.E.; Laing, E.; Bucca, G.; Kierzek, A.M.; Collin, C.P. Diverse control of metabolism and other cellular processes in Streptomyces coelicolor by the PhoP transcription factor: Genome-wide identification of in vivo targets. Nucleic Acid. Res. 2012, 40, 9543–9556. [Google Scholar] [CrossRef]
  23. Espitia, C.; Elinos, M.; Hernandez-Pando, R.; Mancilla, R. Phosphate starvation enhances expression of the immunodominant 38-kilodalton protein antigen of Mycobacterium tuberculosis: Demonstration by immunogold electron microscopy. Infect. Immun. 1992, 60, 2998–3001. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Herrmann, J.L.; O’Gaora, P.; Gallagher, A.; Thole, J.E.; Young, D.B. Bacterial glycoproteins: A link between glycosylation and proteolytic cleavage of a 19 kDa antigen from Mycobacterium. EMBO J. 1996, 15, 3547–3554. [Google Scholar] [CrossRef] [PubMed]
  25. Lefevre, P.; Braibant, M.; de Wit, L.; Kalai, M.; Roeper, D.; Grotzinger, J.; Content, J. Three different putative phosphate transport receptors are encoded by the Mycobacterium tuberculosis genome and are present at the surface of Mycobacterium bovis BCG. J. Bacteriol. 1997, 179, 2900–2906. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Peirs, P.; Lefèvre, P.; Boarbi, S.; Wang, X.-M.; Denis, O.; Braibant, M.; Content, J. Mycobacterium tuberculosis with Disruption in Genes Encoding the Phosphate Binding Proteins PstS1 and PstS2 Is Deficient in Phosphate Uptake and Demonstrates Reduced In Vivo Virulence. Infect. Immun. 2005, 73, 1898–1902. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Ferraris, D.M.; Spallek, R.; Oehlmann, W.; Singh, M.; Rizzi, M. Crystal structure of the Mycobacterium tuberculosis phosphate binding protein PstS3. Proteins 2014, 82, 2268–2274. [Google Scholar] [CrossRef] [Green Version]
  28. Lichá, I.; Benes, I.; Janda, S.; Hostálek, Z.; Janácek, K. Characterization of phosphate transport in Streptomyces granaticolor. Biochem. Mol. Biol. Int. 1997, 41, 431–437. [Google Scholar]
  29. Wanner, B.L. Phosphorus assimilation and control of the phosphate regulon. In Escherichia coli and Salmonella: Cellular and Molecular Biology; Neidhart, F.C., Ed.; AASM Press: Washington, DC, USA, 1996; pp. 1357–1381. [Google Scholar]
  30. Allenby, N.E.; O’Connor, N.; Pragai, Z.; Carter, N.M.; Miethke, M.; Engelmann, S. Posttranscriptional regulation of the Bacillus subtilis pst operon encoding a phosphate specific ABC transporter. Microbiology 2004, 150, 2619–2628. [Google Scholar] [CrossRef]
  31. Wehmeier, S.; Varghese, A.S.; Gurcha, S.S.; Tissot, B.; Panico, M.; Hitchen, P.; Smith, M.C.M. Glycosylation of the phosphate binding protein, PstS, in Streptomyces coelicolor by a pathway that resembles protein O-mannosylation in eukaryotes. Mol. Microbiol. 2009, 71, 421–433. [Google Scholar] [CrossRef]
  32. Esteban, A.; Díaz, M.; Yepes, A.; Santamaría, R.I. Expression of the pstS gene of Streptomyces lividans is regulated by the carbon source and is partially independent of the PhoP regulator. BMC Microbiol. 2008, 8, 201. [Google Scholar] [CrossRef] [Green Version]
  33. Bentley, S.D.; Chater, K.F.; Cerdeño-Tárraga, A.M.; Challis, G.L.; Thomson, N.R.; James, K.D.; Hopwood, D.A. Complete genome sequence of the model actinomycete Streptomyces coelicolor A3(2). Nature 2002, 417, 141–147. [Google Scholar] [CrossRef]
  34. Díaz, M.; Esteban, A.; Fernández-Ábalos, J.M.; Santamaría, R.I. The high-affinity phosphate-binding protein PstS is accumulated under high fructose concentrations and mutation of the corresponding gene affects differentiation in Streptomyces lividans. Microbiology 2005, 151, 2583–2592. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Chouayekh, H.; Virolle, M.J. The polyphosphate kinase plays a negative role in the control of antibiotic production in Streptomyces lividans. Mol. Microbiol. 2002, 43, 919–930. [Google Scholar] [CrossRef] [PubMed]
  36. Esnault, C.; Dulermo, T.; Smirnov, A.; Askora, A.; David, M.; Deniset-Besseau, A.; Virolle, M.J. Strong antibiotic production is correlated with highly active oxidative metabolism in Streptomyces coelicolor M145. Sci Rep. 2017, 7, 200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Sola-Landa, A.; Rodríguez-García, A.; Apel, A.K.; Martín, J.F. Target genes and structure of the direct repeats in the DNA-binding sequences of the response regulator PhoP in Streptomyces coelicolor. Nucleic Acids Res. 2008, 36, 1358–1368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Liao, C.-H.; Yao, L.; Xu, Y.; Liu, W.-B.; Zhou, Y.; Ye, B.-C. Nitrogen regulator GlnR controls uptake and utilization of non-phosphotransferase-system carbon sources in actinomycetes. Proc. Natl. Acad. Sci. USA 2015, 112, 15630–15635. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Hsieh, Y.-J.; Wanner, B.L. Global regulation by the seven-component Pi signaling system. Curr. Op. Microbiol. 2010, 13, 198–203. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Martín-Martín, S.; Rodríguez-García, A.; Santos-Beneit, F.; Franco-Domínguez, E.; Sola-Landa, A.; Martín, J.F. Self-control of the PHO regulon: The PhoP-dependent protein PhoU controls negatively expression of genes of PHO regulon in Streptomyces coelicolor. J. Antibiotics 2018, 71, 113–122. [Google Scholar] [CrossRef]
  41. Botella, E.; Devine, S.K.; Hubner, S.; Salzberg, L.I.; Gale, R.T.; Brown, E.D.; Devine, K.M. PhoR autokinase activity is controlled by an intermediate in wall teichoic acid metabolism that is sensed by the intracellular PAS domain during the PhoPR-mediated phosphate limitation response of Bacillus subtilis. Mol. Microbiol. 2014, 94, 1242–1259. [Google Scholar] [CrossRef] [Green Version]
  42. 42 Kleinschnitz, E.M.; Latus, A.; Sigle, S.; Maldener, I.; Wohlleben, W.; Muth, G. Genetic analysis of SCO2997, encoding a TagF homologue, indicates a role for was teichoic acids in sporulation of Streptomyces coelicolor A3(2). J. Bacteriol. 2011, 193, 6080–6085. [Google Scholar] [CrossRef] [Green Version]
  43. Coyle, P.; Philcox, J.C.; Carey, L.C.; Rofe, A.M. Metallothionein: The multipurpose protein. Cell. Mol. Life Sci. 2002, 59, 627–647. [Google Scholar] [CrossRef]
  44. Moreau, P.L.; Gérard, F.; Lutz, N.W.; Cozzone, P. Non-growing Escherichia coli cells starved for glucose or phosphate use different mechanisms to survive oxidative stress. Mol. Microbiol. 2001, 39, 1048–1060. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Liras, P.; Martín, J.F.; Villanueva, J.R. Sequential expression of macromolecule biosynthesis and candicidin formation in Streptomyces griseus. J. Gen. Microbiol. 1977, 102, 269–277. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Martín, J.F.; Aparicio, J.F. Enzymology of the Polyenes Pimaricin and Candicidin Biosynthesis. Methods Enzymol. 2009, 459, 215–242. [Google Scholar] [PubMed]
  47. Martín, J.F.; Naharro, G.; Liras, P.; Villanueva, J.R. Isolation of mutants deregulated in phosphate control of candicidin biosynthesis. J. Antibiot 1979, 32, 600–606. [Google Scholar] [CrossRef] [Green Version]
  48. Elias, M.; Wellner, A.; Goldin-Azulay, K.; Chabriere, E.; Vorholt, J.A.; Erb, T.J.; Tawfik, D.S. The molecular basis of phosphate discrimination in arsenate-rich environments. Nature 2012, 491, 134–137. [Google Scholar] [CrossRef] [PubMed]
  49. González, D.; Richez, M.; Bergonzi, C.; Chabriere, E.; Elias, M. Crystal structure of the phosphate-binding protein (PBP-1) of an ABC-type phosphate transporter from Clostridium perfringens. Sci. Rep. 2014, 4, 6636. [Google Scholar] [CrossRef]
  50. Cowlishaw, D.A.; Smith, M.C. A gene encoding a homologue of dolichol phosphate-β-D mannose synthase is required for infection of Streptomyces coelicolor A3(2) by phage φC31. J. Bacteriol. 2002, 184, 6081–6083. [Google Scholar] [CrossRef] [Green Version]
  51. Cowlishaw, D.A.; Smith, M.C. Glycosylation of a Streptomyces coelicolor A3(2) cell envelope protein is required for infection by bacteriophage φC31. Mol. Microbiol. 2001, 41, 601–610. [Google Scholar] [CrossRef]
  52. Ong, E.; Kilburn, D.G.; Miller, R.C.; Warren, R.A. Streptomyces lividans glycosylates the linker region of a beta-1,4-glycanase from Cellulomonas fimi. J. Bacteriol. 1994, 176, 999–1008. [Google Scholar] [CrossRef] [Green Version]
  53. Lara, M.; Servin-González, L.; Singh, M.; Moreno, C.; Cohen, I.; Nimtz, M.; Espitia, C. Expression, secretion, and glycosylation of the 45- and 47-kDa glycoprotein of Mycobacterium tuberculosis in Streptomyces lividans. Appl. Environ. Microbiol. 2004, 70, 679–685. [Google Scholar] [CrossRef] [Green Version]
  54. Zaborina, O.; Holbrook, C.; Chen, Y.; Long, J.; Zaborin, A.; Morozova, I.; Alverdy, J.C. Structure-Function Aspects of PstS in Multi-Drug-Resistant Pseudomonas aeruginosa. PLoS Pathog. 2008, 4, e43. [Google Scholar] [CrossRef] [PubMed]
  55. Tran, S.L.; Rao, M.; Simmers, C.; Gebhard, S.; Olsson, K.; Cook, G.M. Mutants of Mycobacterium smegmatis unable to grow at acidic pH in the presence of the protonophore carbonyl cyanide m-chlorophenylhydrazone. Microbiology 2005, 151, 665–672. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Gebhard, S.; Tran, S.L.; Cook, G.M. The Phn system of Mycobacterium smegmatis: A second high-affinity ABC-transporter for phosphate. Microbiology 2006, 152, 3453–3465. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Gebhard, S.; Busby, J.N.; Fritz, G.; Moreland, N.J.; Cook, G.M.; Lott, J.S.; Money, V.A. Crystal structure of PhnF, a GntR-family transcriptional regulator of phosphate transport in Mycobacterium smegmatis. J. Bacteriol. 2014, 196, 3472–3481. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Gebhard, S.; Cook, G.M. Differential regulation of high-affinity phosphate transport systems of Mycobacterium smegmatis: Identification of PhnF, a repressor of the phnDCE operon. J. Bacteriol. 2008, 190, 1335–1343. [Google Scholar] [CrossRef] [Green Version]
  59. Kononova, S.V.; Nesmeyanova, M.A. Phosphonates and Their Degradation by Microorganisms. Biochemistry 2002, 67, 184–195. [Google Scholar] [PubMed]
  60. White, A.K.; Metcalf, W.W. Two C-P lyase operons in Pseudomonas stutzeri and their roles in the oxidation of phosphonates, phosphite, and hypophosphite. J. Bacteriol. 2004, 186, 4730–4739. [Google Scholar] [CrossRef] [Green Version]
  61. Bardin, S.; Dan, S.; Osteras, M.; Finan, T.M. A phosphate transport system is required for symbiotic nitrogen fixation by Rhizobium meliloti. J. Bacteriol. 1996, 178, 4540–4547. [Google Scholar] [CrossRef] [Green Version]
  62. Wanner, B.L.; Metcalf, W.W. Molecular genetic studies of a 10.9-kb operon in Escherichia coli for phosphonate uptake and biodegradation. FEMS Microbiol. Lett. 1992, 79, 133–139. [Google Scholar] [CrossRef]
  63. Hoffer, S.M.; van Uden, N.; Tommassen, J. Expression of the pho regulon interferes with induction of the uhpT gene in Escherichia coli K-12. Arch. Microbiol. 2001, 176, 370–376. [Google Scholar] [CrossRef]
  64. van Veen, H.W.; Abee, T.; Kortstee, G.J.; Konings, W.N.; Zehnder, A.J. Translocation of metal phosphate via the phosphate inorganic transport system of Escherichia coli. Biochemistry 1994, 33, 1766–1770. [Google Scholar] [CrossRef] [PubMed]
  65. van Veen, H.W. Phosphate transport in prokaryotes: Molecules, mediators and mechanisms. Ant. Van Leeuwen. 1997, 72, 299–315. [Google Scholar] [CrossRef] [PubMed]
  66. Voegele, R.T.; Bardin, S.; Finan, T.M. Characterization of the Rhizobium (Sinorhizobium) meliloti high- and low-affinity phosphate uptake systems. J. Bacteriol. 1997, 179, 7226–7232. [Google Scholar] [CrossRef] [Green Version]
  67. Russell, L.M.; Rosenberg, H. The Nature of the Link between Potassium Transport and Phosphate Transport in Escherichia coli. Biochem. J. 1980, 188, 715–723. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. van Veen, H.W.; Abee, T.; Kortstee, G.J.; Konings, W.N.; Zehnder, A.J. Substrate specificity of the two phosphate transport systems of Acinetobacter johnsonii 210A in relation to phosphate speciation in its aquatic environment. J. Biol. Chem. 1994, 269, 16212–16216. [Google Scholar] [CrossRef]
  69. Beard, S.J.; Hashim, R.; Wu, G.; Binet, M.R.; Hughes, M.N.; Poole, R.K. Evidence for the transport of zinc(II) ions via the pit inorganic phosphate transport system in Escherichia coli. FEMS Microbiol. Lett. 2000, 184, 231–235. [Google Scholar] [CrossRef]
  70. Jackson, R.J.; Binet, M.R.B.; Lee, L.J.; Ma, R.; Graham, A.I.; McLeod, C.W.; Poole, R.K. Expression of the pitA phosphate/metal transporter of Escherichia coli is responsive to zinc and inorganic phosphate levels. FEMS Microbiol. Lett. 2008, 289, 219–224. [Google Scholar] [CrossRef] [Green Version]
  71. Graham, A.I.; Hunt, S.; Stokes, S.L.; Bramall, N.; Bunch, J.; Cox, A.G.; Poole, R.K. Severe zinc depletion of Escherichia coli: Roles for high affinity zinc binding by ZinT, zinc transport and zinc-independent proteins. J. Biol. Chem. 2009, 284, 18377–18389. [Google Scholar] [CrossRef] [Green Version]
  72. Keasling, J.D. Regulation of intracellular toxic metals and other cations by hydrolysis of polyphosphate. Ann. N. Y. Acad. Sci. 1997, 829, 242–249. [Google Scholar] [CrossRef]
  73. Harris, R.M.; Webb, D.C.; Howitt, M.; Cox, G.B. Characterization of PitA and PitB from Escherichia coli. J. Bacteriol. 2001, 183, 5008–5014. [Google Scholar] [CrossRef] [Green Version]
  74. Santos-Beneit, F.; Rodríguez-García, A.; Franco-Domínguez, E.; Martín, J.F. Phosphate-dependent regulation of the low- and high-affinity transport systems in the model actinomycete Streptomyces coelicolor. Microbiology 2008, 154, 56–2370. [Google Scholar] [CrossRef] [Green Version]
  75. Omura, S.; Ikeda, H.; Ishikawa, J.; Hanamoto, A.; Takahashi, C.; Shinose, M.; Hattori, M. Genome sequence of an industrial microorganism Streptomyces avermitilis deducing the ability of producing secondary metabolites. Proc. Natl. Acad. Sci. USA 2001, 98, 12215–12220. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Ikeda, H.; Ishikawa, J.; Hanamoto, A.; Shinose, M.; Kikuchi, H.; Shiba, T.; Ōmura, S. Complete genome sequence and comparative analysis of the industrial microorganism Streptomyces avermitilis. Nat. Biotechnol. 2003, 21, 526–531. [Google Scholar] [CrossRef] [PubMed]
  77. Bardin, S.D.; Voegele, R.T.; Finan, T.M. Phosphate assimilation in Rhizobium (Sinorhizobium) meliloti: Identification of a pit-like gene. J. Bacteriol. 1998, 180, 4219–4226. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  78. Santos-Beneit, F.; Rodríguez-García, A.; Martín, J.F. Complex transcriptional control of the antibiotic regulator afsS in Streptomyces: PhoP and AfsR are overlapping, competitive activators. J. Bacteriol. 2011, 193, 2242–2251. [Google Scholar] [CrossRef] [Green Version]
  79. Schaaf, S.; Bott, M. Target Genes and DNA-Binding Sites of the Response Regulator PhoR from Corynebacterium glutamicum. J. Bacteriol. 2007, 189, 5002–5011. [Google Scholar] [CrossRef] [Green Version]
  80. Ishige, T.; Krause, M.; Bott, M.; Wendisch, V.F.; Sahm, H. The phosphate starvation stimulon of Corynebacterium glutamicum determined by DNA microarray analyses. J. Bacteriol. 2003, 185, 4519–4529. [Google Scholar] [CrossRef] [Green Version]
  81. Werten, S.; Rustmeier, N.H.; Gemmer, M.; Virolle, M.J.; Hinrichs, W. Structural and biochemical analysis of a phosin from Streptomyces chartreusis reveals a combined polyphosphate- and metal-binding fold. FEBS Lett. 2019, 593, 2019–2029. [Google Scholar] [CrossRef]
  82. Osbourn, A.E.; Field, B. Operons. Cell. Mol. Life Sci. 2009, 66, 3755–3775. [Google Scholar] [CrossRef] [Green Version]
  83. Morohoshi, T.; Maruo, T.; Shirai, Y.; Kato, J.; Ikeda, T.; Takiguchi, N.; Kuroda, A. Accumulation of inorganic polyphosphate in phoU mutants of Escherichia coli and Synechocystis sp. strain PCC6803. Appl. Environ. Microbiol. 2002, 68, 4107–4110. [Google Scholar] [CrossRef] [Green Version]
  84. Charaniya, S.; Mehra, S.; Lian, W.; Jayapal, K.P.; Karypis, G.; Hu, W.-S. Transcriptome dynamics-based operon prediction and verification in Streptomyces coelicolor. Nucleic Acids Res. 2007, 35, 7222–7236. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Jeong, Y.; Kim, J.N.; Kim, M.W.; Bucca, G.; Cho, S.; Yoon, Y.J.; Cho, B.K. The dynamic transcriptional and translational landscape of the model antibiotic producer Streptomyces coelicolor A3(2). Nat. Commun. 2016, 7, 11605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Di Cenzo, G.C.; Sharthiya, H.; Nanda, A.; Zamani, M.; Finan, T.M. PhoU Allows Rapid Adaptation to High Phosphate Concentrations by Modulating PstSCAB Transport Rate in Sinorhizobium meliloti. J. Bacteriol. 2017, 199, e00143-17. [Google Scholar]
  87. Brzoska, P.; Boos, W. Characteristics of an ugp-encoded and phoB-dependent glycerophosphoryl diester phosphodiesterase which is physically dependent on the Ugp transport system of Escherichia coli. J. Bacteriol. 1988, 170, 4125–4135. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. Brzoska, P.; Rimmele, M.; Brzostek, K.; Boos, W. The pho Regulon-Dependent Ugp Uptake System for Glycerol-3-Phosphate in Escherichia coli Is trans Inhibited by Pi. J. Bacteriol. 1994, 176, 15–20. [Google Scholar] [CrossRef] [Green Version]
  89. Larson, T.J.; Schumacher, G.; Boos, W. Identification of the glpT-encoded sn-glycerol-3-phosphate permease of Escherichia coli, an oligomeric integral membrane protein. J. Bacteriol. 1982, 152, 1008–1021. [Google Scholar]
  90. Larson, T.J.; Schumacher, G.; Boos, W. Periplasmic glycerophosphodiesterase of Escherichia coli, a new enzyme of the glp regulon. J. Biol. Chem. 1983, 258, 5428–5432. [Google Scholar] [CrossRef]
  91. Santos-Beneit, F.; Rodríguez-García, A.; Apel, A.K.; Martín, J.F. Phosphate and carbon source regulation of two PhoP-dependent glycerophosphodiester phosphodiesterase genes of Streptomyces coelicolor. Microbiology 2009, 155, 1800–1811. [Google Scholar] [CrossRef] [Green Version]
  92. Schneider, T.D. Information content of individual genetic sequences. J. Theor. Biol. 1997, 189, 427–441. [Google Scholar] [CrossRef]
  93. Claverys, J.P.; Havarstein, L.S. Cannibalism and fratricide: Mechanisms and raisons d´etre. Nat. Rev. Microbiol. 2007, 5, 219–229. [Google Scholar] [CrossRef]
  94. González-Pastor, J.E. Cannibalism: A social behavior in sporulating Bacillus subtilis. FEMS Microbiol. Rev. 2011, 35, 415–424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Götz, A.; Goebel, W. Glucose and glucose 6-phosphate as carbon sources in extra- and intracellular growth of enteroinvasive Escherichia coli and Salmonella enterica. Microbiology 2010, 156, 1176–1187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Merkel, T.J.; Nelson, D.M.; Brauer, C.L.; Kadner, R.J. Promoter elements required for positive control of transcription of the Escherichia coli uhpT gene. J. Bacteriol. 1992, 174, 2763–2770. [Google Scholar] [CrossRef] [Green Version]
  97. Verhamme, D.T.; Postma, P.W.; Crielaard, W.; Hellingwerf, K.J. Cooperativity in signal transfer through the Uhp system of Escherichia coli. J. Bacteriol. 2002, 184, 4205–4210. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  98. Tenconi, E.; Jourdan, S.; Motte, P.; Virolle, M.J.; Rigali, S. Extracellular sugar phosphates are assimilated by Streptomyces in a PhoP-dependent manner. Antonie Van Leeuwenhoek 2012, 102, 425–433. [Google Scholar] [CrossRef]
  99. Martín, J.F.; Demain, A.L. Cleavage of adenosine 5′-monophosphate during uptake by Streptomyces griseus. J. Bacteriol. 1977, 132, 590–595. [Google Scholar] [CrossRef] [Green Version]
  100. Li, M.; Kim, T.-J.; Kwon, H.-J.; Shu, J.-W. Effects of extracellular ATP on the physiology of Streptomyces coelicolor A3(2). FEMS Microbiol. Lett. 2008, 286, 24–31. [Google Scholar] [CrossRef] [Green Version]
  101. Millan-Oropeza, A.; Henry, C.; Lejeune, C.; David, M.; Virolle, M.J. Expression of genes of the Pho regulon is altered in Streptomyces coelicolor. Sci Rep. 2020, 10, 8492. [Google Scholar] [CrossRef]
  102. Schowanek, D.; Verstraete, W. Phosphonate utilization by bacterial cultures and enrichments from environmental samples. Appl. Environ. Microbiol. 1990, 56, 895–903. [Google Scholar] [CrossRef] [Green Version]
  103. Chen, C.M.; Ye, Q.Z.; Zhu, Z.M.; Wanner, B.L.; Walsh, C.T. Molecular biology of carbon-phosphorus bond cleavage. Cloning and sequencing of the phn (psiD) genes involved in alkylphosphonate uptake and C-P lyase activity in Escherichia coli B. J. Biol Chem. 1990, 265, 4461–4471. [Google Scholar] [CrossRef]
  104. Metcalf, W.W.; Wanner, B.L. Evidence for a fourteen-gene, phnC to phnP locus for phosphonate metabolism in Escherichia coli. Gene 1993, 129, 27–32. [Google Scholar] [CrossRef]
  105. Imazu, K.; Tanaka, S.; Kuroda, A.; Anbe, Y.; Kato, J.; Ohtake, H. Enhanced utilization of phosphonate and phosphite by Klebsiella aerogenes. Appl. Environ. Microbiol. 1998, 64, 3754–3758. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  106. Kertesz, M.; Elgorriaga, A.; Amrhein, N. Evidence for two distinct phosphonate-degrading enzymes (C-P lyases) in Arthrobacter sp. GLP-1. Biodegradation 1991, 2, 53–59. [Google Scholar] [CrossRef] [PubMed]
  107. Krzyśko-Lupicka, T.; Strof, W.; Kubś, K.; Skorupa, M.; Wieczorek, P.; Lejczak, B.; Kafarski, P. The ability of soil-borne fungi to degrade organophosphonate carbon-to-phosphorus bonds. Appl. Micobiol. Biotechnol. 1997, 48, 549–552. [Google Scholar] [CrossRef] [PubMed]
  108. Bujacz, B.; Wieczorek, P.; Krzysko-Lupicka, T.; Golab, Z.; Lejczak, B.; Kavfarski, P. Organophosphonate Utilization by the Wild-Type Strain of Penicillium notatum. Appl. Microbiol. Biotechnol. 1995, 48, 549–552. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  109. Surin, B.P.; Rosenberg, H.; Cox, G.B. Phosphate-specific transport system of Escherichia coli: Nucleotide sequence and gene-polypeptide relationships. J. Bacteriol. 1985, 161, 189–198. [Google Scholar] [CrossRef] [Green Version]
  110. Pipke, R.; Amrhein, N.; Jacob, G.S.; Schaefer, J.; Kishore, G.M. Metabolism of glyphosate in an Arthrobacter sp. GLP-1. Eur. J. Biochem. 1987, 165, 267–273. [Google Scholar] [CrossRef] [PubMed]
  111. Pipke, R.; Schulz, A.; Amrhein, N. Uptake of Glyphosate by an Arthrobacter sp. Appl. Environ. Microbiol. 1987, 53, 974–978. [Google Scholar] [CrossRef] [Green Version]
  112. Obojska, A.; Lejczak, B.; Kubrak, M. Degradation of phosphonates by streptomycete isolates. Appl. Microbiol. Biotechnol. 1999, 51, 872–876. [Google Scholar] [CrossRef]
  113. Thompson, C.J.; Seto, H. Bialaphos. Biotechnology 1995, 28, 197–222. [Google Scholar]
  114. Hendlin, D.; Stapley, E.O.; Jackson, M.; Wallick, H.; Miller, A.K.; Wolf, F.J.; Mochales, S. Phosphonomycin, a new antibiotic produced by strains of Streptomyces. Science 1969, 166, 122–123. [Google Scholar] [CrossRef] [PubMed]
  115. Cundliffe, E.; Demain, A.L. Avoidance of suicide in antibiotic-producing microbes. J. Ind. Microbiol. Biotechnol. 2010, 37, 643–672. [Google Scholar] [CrossRef] [PubMed]
  116. Martín, J.F.; Casqueiro, J.; Liras, P. Secretion systems for secondary metabolites: How producer cells send out messages of intercellular communication. Curr. Opin. Microbiol. 2005, 8, 282–293. [Google Scholar] [CrossRef] [PubMed]

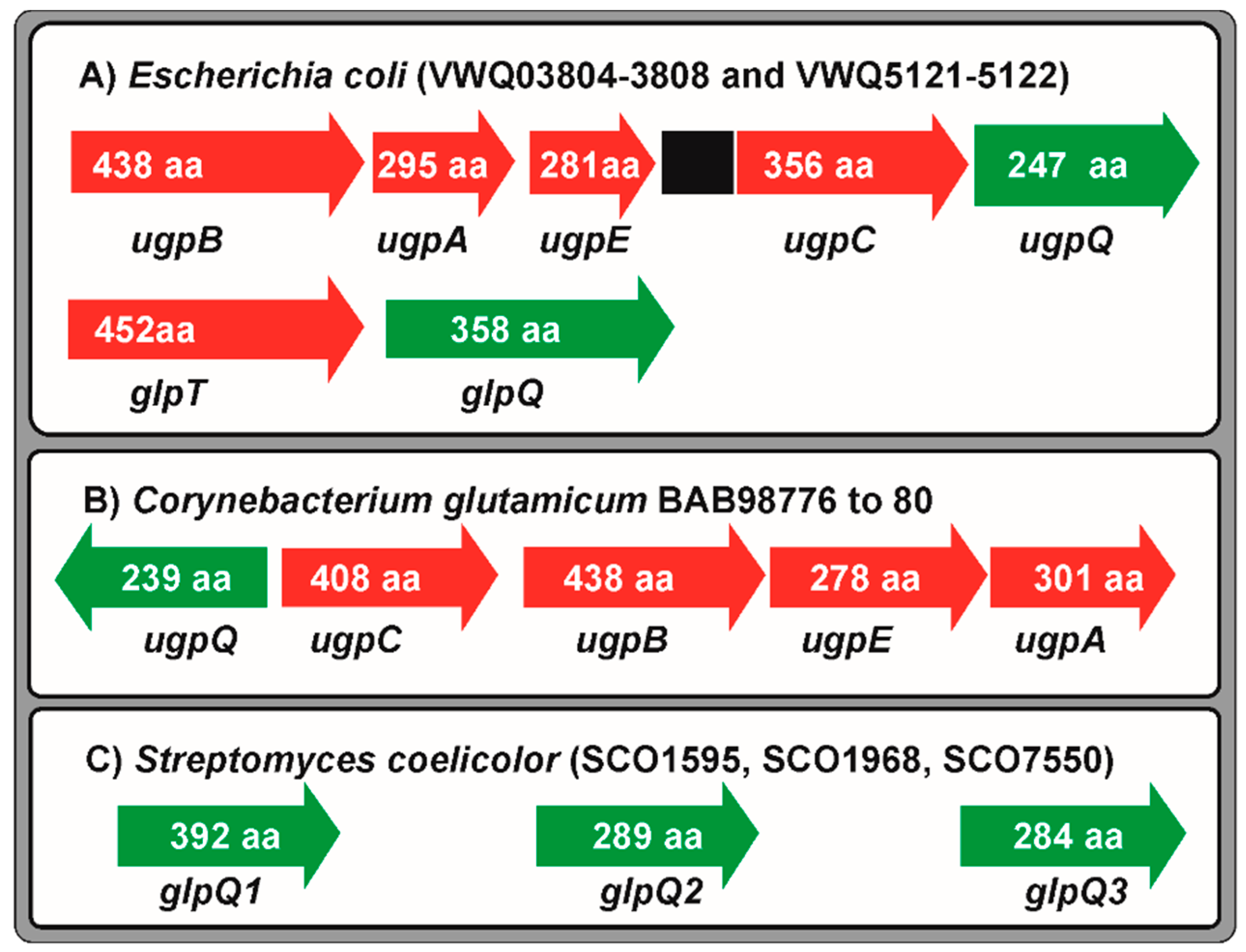

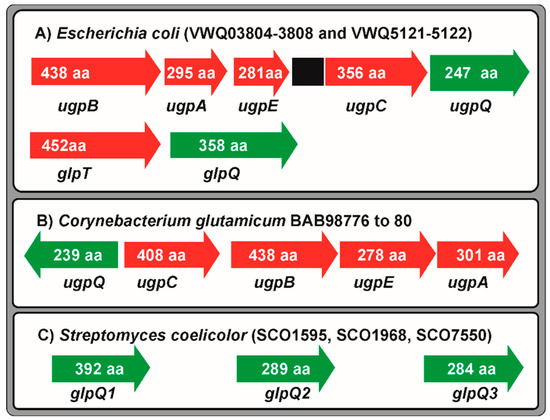

Figure 3. Gene clusters for glycerol-3-phosphate and phosphodiesters uptake in E. coli and Actinobacteria. (A) Cluster ugpBAECQ and glpQT in E. coli. (B) Cluster upgQABE in C. glutamicum. (C) The non-clustered extracellular glycerophosphodiester phosphodiesterases of S. coelicolor. Note that Streptomyces species lack the ugp cluster. The accession number of the genes and the number of amino acids is indicated. Transporter genes are shown in red. Glycerophosphodiester phosphodiesterases genes are shown in green. Genes not related with glycerol-3-P or phosphodiesters uptake are indicated in black.
Figure 3. Gene clusters for glycerol-3-phosphate and phosphodiesters uptake in E. coli and Actinobacteria. (A) Cluster ugpBAECQ and glpQT in E. coli. (B) Cluster upgQABE in C. glutamicum. (C) The non-clustered extracellular glycerophosphodiester phosphodiesterases of S. coelicolor. Note that Streptomyces species lack the ugp cluster. The accession number of the genes and the number of amino acids is indicated. Transporter genes are shown in red. Glycerophosphodiester phosphodiesterases genes are shown in green. Genes not related with glycerol-3-P or phosphodiesters uptake are indicated in black.
Ijms 22 01129 g003

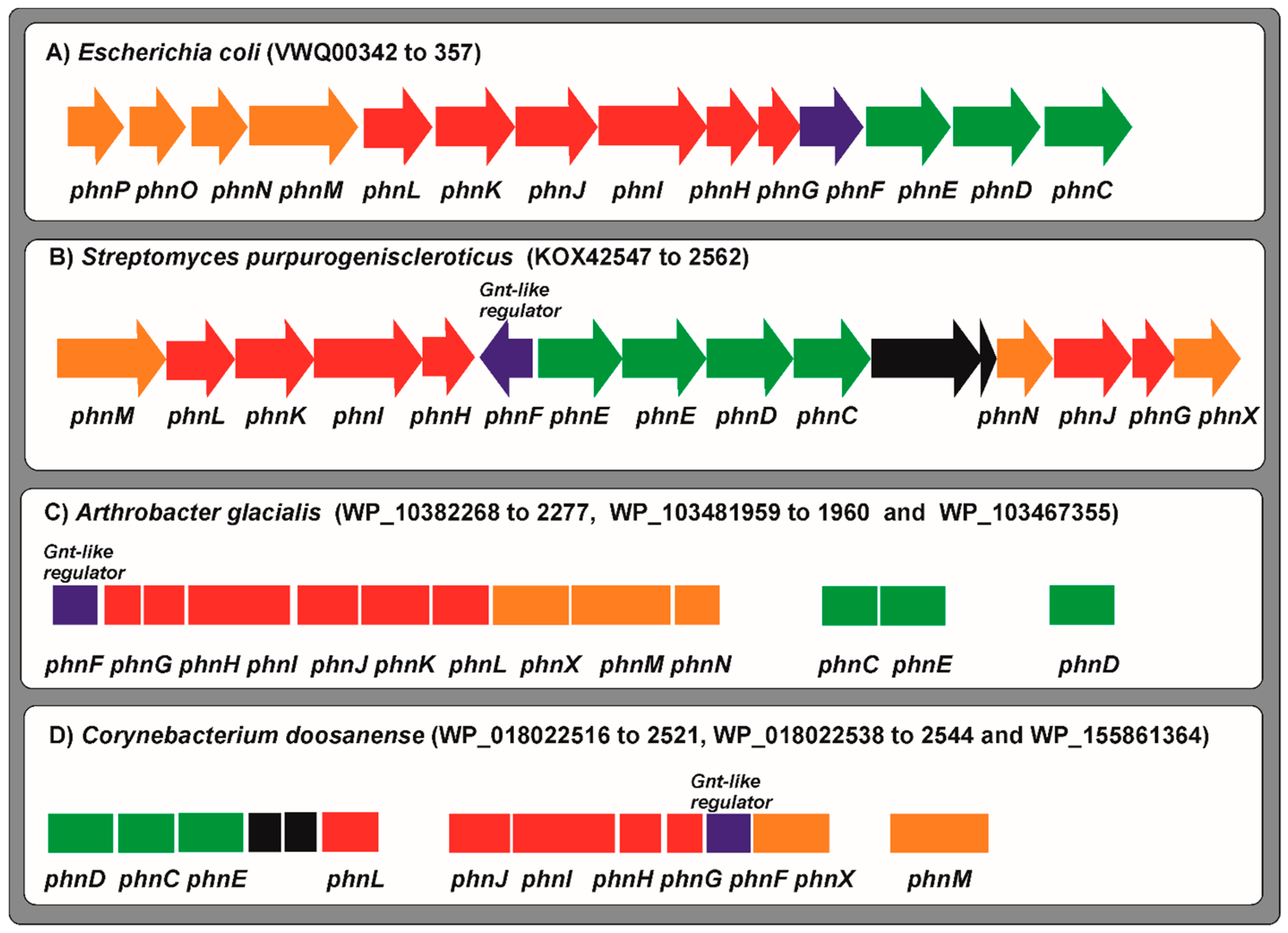

Figure 4. Clusters of genes for phosphonates transport and degradation in E. coli and Actinobacteria. The genes for uptake of phosphonates are shown in green; genes for the structural subunits of the C–P lyase are indicated in red. Genes involved in further metabolism of phosphonates are shown in orange, the phnX gene is annotated as a not specified phosphonates metabolism gene. The regulatory genes are highlighted in dark blue. Genes not related to phosphonates uptake or metabolism are shown in black. The cluster of genes of E. coli (A), Streptomyces purpurogeniscleroticus (B), Arthrobacter glacialis (C) and Corynebacterium doosanense (D) are indicated with their accession number in the Databases. The name of the genes is indicated below.
Figure 4. Clusters of genes for phosphonates transport and degradation in E. coli and Actinobacteria. The genes for uptake of phosphonates are shown in green; genes for the structural subunits of the C–P lyase are indicated in red. Genes involved in further metabolism of phosphonates are shown in orange, the phnX gene is annotated as a not specified phosphonates metabolism gene. The regulatory genes are highlighted in dark blue. Genes not related to phosphonates uptake or metabolism are shown in black. The cluster of genes of E. coli (A), Streptomyces purpurogeniscleroticus (B), Arthrobacter glacialis (C) and Corynebacterium doosanense (D) are indicated with their accession number in the Databases. The name of the genes is indicated below.
Ijms 22 01129 g004
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Martín, J.F.; Liras, P. Molecular Mechanisms of Phosphate Sensing, Transport and Signalling in Streptomyces and Related Actinobacteria. Int. J. Mol. Sci. 2021, 22, 1129.

AMA Style

Martín JF, Liras P. Molecular Mechanisms of Phosphate Sensing, Transport and Signalling in Streptomyces and Related Actinobacteria. International Journal of Molecular Sciences. 2021; 22(3):1129.

Chicago/Turabian Style

Martín, Juan Francisco, and Paloma Liras. 2021. "Molecular Mechanisms of Phosphate Sensing, Transport and Signalling in Streptomyces and Related Actinobacteria" International Journal of Molecular Sciences 22, no. 3: 1129.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
