Article

Knockdown NRPC2, 3, 8, NRPABC1 and NRPABC2 Affects RNAPIII Activity and Disrupts Seed Development in Arabidopsis

by
Hailiang Zhao
,
Yao Qin
,
Ziyi Xiao
,
Kun Liang
,
Dianming Gong
,
Qin Sun
and
Fazhan Qiu
*
National Key Laboratory of Crop Genetic Improvement, Hubei Hongshan Laboratory, College of Plant Science and Technology, Huazhong Agricultural University, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(21), 11314; https://doi.org/10.3390/ijms222111314
Submission received: 15 September 2021 / Revised: 14 October 2021 / Accepted: 15 October 2021 / Published: 20 October 2021
(This article belongs to the Special Issue Fruit and Seed Development)
Browse Figures
Review Reports Versions Notes

Abstract

RNA polymerase III (RNAPIII) contains 17 subunits forming 4 functional domains that control the different stages of RNAPIII transcription and are dedicated to the synthesis of small RNAs such as 5S rRNA and tRNAs. Here, we identified 23 genes encoding these subunits in Arabidopsis (Arabidopsis thaliana) and further analyzed 5 subunits (NRPC2, NRPC3, NRPC8, NRPABC1, and NRPABC2) encoded by 6 genes with different expression patterns and belonging to different sub-complexes. The knockdown of these genes repressed the expression of 5S rRNA and tRNAs, causing seed developmental arrest at different stages. Among these knockdown mutants, RNA-seq analysis revealed 821 common differentially expressed genes (DEGs), significantly enriched in response to stress, abscisic acid, cytokinins, and the jasmonic acid signaling pathway. Weighted gene co-expression network analysis (WGCNA) revealed several hub genes involved in embryo development, carbohydrate metabolic and lipid metabolic processes. We identified numerous unique DEGs between the mutants belonging to pathways, including cell proliferation, ribosome biogenesis, cell death, and tRNA metabolic processes. Thus, NRPC2, NRPC3, NRPC8, NRPABC1, and NRPABC2 control seed development in Arabidopsis by influencing RNAPIII activity and, thus, hormone signaling. Reduced expression of these subunit genes causes an insufficient accumulation of the total RNAPIII, leading to the phenotypes observed following the genetic knockdown of these subunits.

1. Introduction

In Arabidopsis (Arabidopsis thaliana), seed development starts with a double fertilization event that is followed by rapid proliferation and the expansion of the endosperm. It ends when embryo growth takes place at the expense of the endosperm. This process is controlled by several signaling pathways, including the G-protein signaling, the IKU pathway, the mitogen-activated protein kinase signaling pathway, the ubiquitin–proteasome pathway, and the pathways involving phytohormones and transcriptional regulatory factors [1,2,3]. Identifying these regulatory pathways, and conducting functional analyses of their regulators, has greatly expanded our knowledge of seed development. However, there remains a need for more information regarding the control of seed development in Arabidopsis.
RNAPIII is the largest of the three eukaryotic RNA polymerases. Its holoenzyme comprises 17 subunits, organized into 4 functional domains: the enzymatic core, the heterotrimeric subcomplex, the heterodimeric subcomplex, and a two-subunit peripheral stalk [4,5]. The enzymatic core is structurally conserved across eukaryotic RNA polymerases and contains ten subunits: NRPC1, NRPC2, NRPABC1, NRPABC2, NRPABC3, NRPABC4, NRPABC5, NRPAC1, NRPAC2, and NRPC10 [6]; RNAPIII subunits 1 (NRPC1) and 2 (NRPC2) both interact with the other subunits to form the active domain of RNAPIII [4]. The heterotrimeric subcomplex comprises the subunits NRPC3, NRPC6, and NRPC7 [7], which are involved in the recruitment of other RNAPIII subunits to TFIIIB [8], and the initiation of transcription [9,10,11]. The NRPC4–NRPC5 heterodimer participates in transcriptional initiation and termination [12,13,14]. The peripheral stalk comprises NRPC8 and NRPC9 and is involved in the initiation of transcription [6], and binding to single-stranded RNA [15]. Although the molecular structures and transcription mechanisms of RNAPIII have been identified in the yeast accharomyces cerevisiae, many of the components in these complexes have not yet been functionally characterized in plants.
Several mutant RNAPIII subunits have been reported in previous studies. RNAPIII-related leukodystrophy, caused by variation in NRPC1, NRPC2, NRPC10, and NRPAC1, often impairs the normal assembly, or biogenesis, of RNAPIII and causes a retention of the unassembled subunits in the cytoplasm [16,17]. A rare homozygous mutation (D40H) in NRPC5 impairs the assembly of RNAPIII initiation complexes and causes an innate immune deficiency state in humans [18]. In yeast, the mutation of NRPC4 preferentially arrests cell division in the G1 phase and results in large, round, unbudded, and temperature-sensitive cells [19]. Furthermore, a splice-site substitution of NRPC2 suppresses RNAPIII transcriptional activity, disrupting the proliferation and growth of tissue progenitor cells in the zebrafish digestive system [20]. The mutation of NRPC2 in mice reduces intestinal epithelial cell proliferation and impaired crypt development [21]; meanwhile, loss of NRPC2 function represses cell proliferation and endoreduplication in maize endosperm [22]. Despite these findings, we noticed that these mutants only occupy small parts of all subunits of RNAPIII, indicating the difficulty of isolating mutations in other RNAPIII subunits. Therefore, creating new mutants in RNAPIII subunits using different biotechnologies is still warranted to provide further understanding of the components and transcription machinery of RNAPIII.
In this study, we identified 17 subunits of RNAPIII in Arabidopsis. We functionally characterized five of these (NRPC2, NRPC3, NRPC8, NRPABC1, and NRPABC2), which had different expression patterns and belonged to different sub-complexes. Knocking down the genes encoding these subunits caused reduced expression of in 5S rRNA and 16 tRNAs, arresting seed development at the globular stage, early cotyledon stage, pre-globular stage, early cotyledon stage and early cotyledon stage in nrpc2, nrpc3, nrpc8, nrpabc1, and nrpabc2 mutants, respectively. Further analysis indicated that the process of response to stress, and hormones such as abscisic acid (ABA) and jasmonic acid (JA), is altered when the genes encoding these subunits are knocked down. Meanwhile, we identified several unique differentially expressed genes (DEGs) in seeds with different mutant subunits belonging to distinct pathways. Thus, our work has identified the subunits of RNAPIII in Arabidopsis, functionally characterized five representative subunits of RNAPIII, and demonstrated that these subunits control seed development by regulating RNAPIII-mediated transcription.

2. Results

2.1. Subunits of RNAPIII Are Encoded by 23 Genes in Arabidopsis

To characterize the subunits of RNAPIII in Arabidopsis, we searched the non-redundant protein sequence database for Arabidopsis by querying the amino acid sequences of RNAPIII subunits in S. cerevisiae and humans (Homo sapiens). Then, we redressed our results according to the mass spectrometry of RNAPIII subunits determined by Ream et al. [23]. From this database, we identified 23 genes encoding the 17 subunits of RNAPIII in Arabidopsis (Table 1). Six of the 17 subunits (NRPC4, NRPC7, NRPC9, NRPC10, NRPABC1, and NRPABC2) were encoded by 2 paralogs, and 11 subunits were encoded by unique genes (Table 1).

2.2. RNAPIII Subunits Have Different Expression Patterns during Seed Development

The expression patterns of different RNAPIII subunits in Arabidopsis were investigated by analyzing the transcripts using publicly available transcriptome sequencing (RNA-seq) data [24]. The subunits genes, NRPABC1, NRPABC2, NRPABC3, NRPABC4, and NRPABC5, exhibited high-level expression in different seed tissues, including embryos, endosperm and ovules at the pre-globular, globular, early torpedo, and late torpedo stages, whereas NRPABC1 and NRPABC2 had a higher expression level in the mature green seed (Figure 1). Subunits genes NRPAC1 and NRPAC2 were expressed in seeds, and their expression levels steadily decreased advancing seed growth. NRPC1, NRPC2, and NRPC3 were highly expressed in the male meiocyte, flower, leaf and shoot, and those subunits were highly expressed at the early development stage of seed development (Figure 1). NRPC4 was encoded by two gene paralogs with different expression patterns in different tissues and at different stages of seed development. NRPC4-1 was highly expressed in the shoot, stamen, and ovule, but NRPC4-2 was abundantly expressed in male meiocytes and embryos (Figure 1). The expression of NRPC4-1 decreased steadily with advancing seed growth, whereas NRPC4-2 was expressed at a high level in the early heart, bent cotyledon (0.1 ng), and mature green seed stages. NRPC5 was expressed at a high level in male meiocytes and ovules and was detected during the early stages of seed development. NRPC6 was detected in stem, root tip, and seed tissues, including embryos, endosperm, and ovules, with high expression levels at the pre-globular, globular, and torpedo stages of seed development (Figure 1). NRPC7-1 and NRPC7-2 had different expression patterns. NRPC7-1 was strongly expressed in male meiocytes, root tips, and ovules, while NRPC7-2 was detected in inflorescence, siliques, and anthers. NRPC7-1 was expressed at the pre-globular, globular stages; however, the expression level of NRPC7-2 first increased, and then decreased, during seed development (Figure 1). NRPC8 was specifically expressed in seed organs, including the embryo and ovule, and the expression level decreased during seed development (Figure 1). NRPC9-1 was expressed in the apical hook, embryo, endosperm, and ovule, but NRPC9-2 was expressed more ubiquitously, including in stem, root, siliques, stamen, and embryo tissues. NRPC9-1 and NRPC9-2 were expressed at the early stages of seed development (Figure 1). NRPC10-1 exhibited high expression in leaves, growth points, embryos, and ovules, but NRPC10-2 was detected in the apical hook, root tip, internode, and endosperm; NRPC10-1 and NRPC10-2 were expressed early in seed development (Figure 1).
RNAPIII comprises 17 subunits encoded by 23 genes in Arabidopsis. According to their expression patterns during seed development, these genes can be clustered into two categories. The first category comprises nine genes encoding seven subunits (NRPAC1, NRPAC2, NRPABC1, NRPABC2, NRPABC3, NRPABC4, and NRPABC5), with high expression levels in the globular and torpedo stages of seed development. This suggests that these subunits are important in cell proliferation and cell differentiation during seed development (Figure 1). The second category included genes encoding the other 10 subunits; these were ubiquitously expressed, but most were detected in embryos or ovules. These genes were expressed in the early stage, and their expression gradually declined during seed development, coinciding with the initiation of seed development (Figure 1).

2.3. Knockdown of Five RNAPIII Subunits Leads to Seed Development Arrest at Different Stage in Arabidopsis

We selected five subunits belonging to different RNAPIII sub-complexes, showing different expression patterns during Arabidopsis seed development. We induced the antisense RNA of these genes to analyze the function of RNAPIII during seed development and characterized the phenotypes of 10 mutant Arabidopsis lines in which seed development had arrested. Specifically, we found that the relative expression level of NRPC2 was reduced by 75% and 90% in nrpc2-2 and nrpc2-1, compared with control lines (Figure 2E); the mutant embryos developed more slowly than the wild-type and arrested at the globular stage (Figure 2B and Figure S1); mature grains were unfilled (Figure 2A). Compared with the empty vector controls, the average length of silique was reduced by approximately 33% for nrpc2-1 and 26% for nrpc2-2 (Figure 2C). The seed number per silique was reduced by approximately 39% and 35% for nrpc2-1 and nrpc2-2, respectively (Figure 2D).
In nrpc3-1 and nrpc3-2, the relative expression level of NRPC3 was reduced by 73% and 86% compared with control lines, respectively (Figure 2E). The development of mutant embryos arrested at the early cotyledon stage (Figure 2B and Figure S1) and mature grains consisted only of a seed coat (Figure 2A). Compared with those of the empty vector controls, the silique average length of nrpc3-1 and nrpc3-2 was reduced by approximately 10% and 31% (Figure 2C), and the seed number per silique was reduced by approximately 20% and 42%, respectively (Figure 2D).
The relative expression level of NRPC8 was notably reduced in nrpc8-1 and nrpc8-2 (Figure 2E). The mutant embryos arrested at the preglobular stage (Figure 2B and Figure S1) and mature grain had only the seed coat (Figure 2A). The silique average length of nrpc8-1 and nrpc8-2 was reduced by approximately 34% and 15% compared to wild-type (Figure 2C), and the seed number per silique was reduced by approximately 38% and 30%, respectively (Figure 2D).
In nrpabc1-1 and nrpabc1-2, the relative expression level of NRPABC1 was down-regulated by 88% and 39%, respectively, compared with the wild-type (Figure 2E). The development of mutant embryos was slower than that of the wild-type, and they arrested at the early cotyledon stage (Figure 2B and Figure S1). Mature grains were smaller than in the wild-type (Figure 2A). The average silique length of nrpabc1-1 and nrpabc1-2 was reduced by approximately 21% and 17%, respectively, compared with the empty vector controls (Figure 2C); meanwhile, the seed number per silique was reduced by approximately 31% and 30%, respectively (Figure 2D).
In nrpabc2-1, the relative expression levels of NRPABC2-1 and NRPABC2-2 were reduced by 74% and 99%, respectively, and in nrpabc2-2, the relative expression levels of NRPABC2-1 and NRPABC2-2 were reduced by 32% and 82%, respectively (Figure 2E). The mutant embryos arrested at the early cotyledon stage (Figure 2B and Figure S1), and the mature grains were smaller than that of the wild-type (Figure 2A). In nrpabc2-1 and nrpabc2-2, the average length of silique was reduced by approximately 17% and 27%, respectively, when compared with the empty vector controls (Figure 2C), while the seed number per silique was reduced by approximately 29% and 37%, respectively (Figure 2D).
Knockdown of NRPC2 and NRPC8 led to the arrest of embryo development at the globular stage, while knockdown of NRPC3, NRPABC1, and NRPABC2 arrested the embryo at the early cotyledon stage. Meanwhile, the silique length and seed number were reduced in all of these RNAPIII subunit knockdown lines. These results demonstrate that NRPC2, NRPC3, NRPC8, NRPABC1, and NRPABC2 control seed development in Arabidopsis.

2.4. NRPC2, NRPC3, NRPC8, and NRPABC2 Interact with Other Subunits of the RNAPIII Complex

With 17 subunits, RNAPIII is the largest of the three RNA polymerases. It comprises the conserved 10-subunit core, a 2-subunit peripheral stalk (NRPC8-NRPC9), an NRPC4-NRPC5 heterodimer, and the NRPC3–NRPC6–NRPC7 heterotrimer [4,25]. To further investigate the nature of these subcomplexes, we applied a yeast-two-hybrid (Y2H) analysis to screen for the relationships between different subunits. We found that NRPC2 physically interacts with other subunits of the RNAPIII complex, including NRPC8, NRPC10, and NRPABC3. Meanwhile, NRPC7, NRPC10, NRPC4, NRPABC3, and NRPABC5 were confirmed to participate in a protein–protein interaction with NRPC3, and NRPC8 physically interacted with NRPC6, NRPC9, NRPAC1, NRPAC2, and NRPABC2 (Figure 3A). Together these results show that NRPC2, NRPC3, NRPC8, and NRPABC2 all interact with other subunits of the RNAPIII complex.

2.5. Expression of tRNAs and 5S rRNA Is Disrupted in nrpc2, nrpc3, nrpc8, nrpabc1, and nrpabc2 Mutant Seeds

To elucidate the effects of NRPC2, NRPC3, NRPC8, NRPABC1, and NRPABC2 on RNAPIII transcription, we analyzed the biogenesis of tRNAs and 5S rRNA in nrpc2-1, nrpc3-2, nrpc8-1, nrpabc1-1 and nrpabc2-2 seeds, respectively. The transcript levels of 5S rRNA and 16 tRNAs decreased fivefold in nrpc2-1 seeds at 10DAF. In particular, the expression of 14 tRNAs (except tRNA-Glu and tRNA-Ile) reduced by more than tenfold, relative to wild-type seeds (Figure 3B). In nrpc3-2 10 DAF seeds, the transcript levels of 5S rRNA were down-regulated by approximately twofold, while those of the 16 tRNAs decreased more than twofold. In nrpc8-1 10 DAF seeds, the relative expression level of 5S rRNA was reduced by 85%, and the expression of 15 tRNAs were down-regulated by more than tenfold, relative to wild-type seeds. The transcript level of 5S rRNA was reduced by 80% in nrpabc1-1 10 DAF seeds, and 15 of the 16 tested tRNAs were down-regulated by more than twofold relative to wild-type seeds. In 10 DAF nrpc3-2 seeds, the transcript levels of 5S rRNA and 16 tRNAs were reduced by more than fivefold relative to wild-type seeds. These results indicate that NRPC2, NRPC3, NRPC8, NRPABC1, and NRPABC2 regulate the transcription of 5S rRNA and tRNAs in Arabidopsis seeds (Figure 3B).

2.6. nrpc2, nrpc3, nrpc8, nrpabc1, and nrpabc2 Mutant Seeds Show Transcriptomic Alterations

To explore the molecular basis of how these different RNAPIII subunits regulate seed development in Arabidopsis as described above, we performed RNA-seq to generate transcriptome profiles. We sampled Arabidopsis seeds at 10 DAF from nrpc2-1, nrpc3-2, nrpc8-1, nrpabc1-1, nrpabc2-2, and wild-type lines (three biological replicates from each genotype). Principal component analysis (PCA) revealed that the six samples could be clearly assigned to four groups (wild-type; nrpabc1; nrpc2; nrpabc2; nrpc3; and nrpc8), and transcriptome characteristics were highly correlated between different biological replicates of each genotype sample (Figure 4A). We identified 1649 DEGs (p-value < 0.01 and abs(log2(Fold-Change) > 1) between nrpc2 and the wild-type; the number of DEGs between nrpc3 and the wild-type was 3228, almost twice as much as nrpc2 between nrpc2 and the wild-type. Compared to the wild-type, 2941, 2982, and 1633 genes were significantly differentially expressed in nrpc8, nrpabc1, and nrpabc2. We found 821 common DEGs in all five genotypes of mutant seeds and 56, 355, 233, 449, and 329 unique DEGs in nrpc2, nrpc3, nrpc8, nrpabc1, and nrpabc2 seeds, respectively (Figure 4B).
Based on the identified DEGs, we performed GO classification to examine the molecular changes involved in these different mutants. GO terms that were preferentially enriched in common DEGs were associated with pathways such as a response to stress, response to jasmonic acid and abscisic acid, oxidoreductase activity, heme binding and lipid particle. Dominant enriched GO terms in nrpc2 unique DEGs were the cellular carbohydrate metabolic process and polysaccharide biosynthetic process. Significantly enriched GO terms in DEGs unique to nrpc3 were: the tRNA metabolic process; carboxylic acid metabolic process; ATP-dependent peptidase activity; and chloroplast stroma. GO terms associated with cell death: defense response to fungus; modification of morphology or physiology of the other organism. Glucosyltransferase activity was enriched in DEGs unique nrpc8. GO terms related to the cell cycle: cell division; cell proliferation; DNA replication; cyclin binding; cyclin-dependent protein kinase holoenzyme complex. DNA packaging complexes were enriched in DEGs unique to nrpabc1. GO terms associated with rRNA processing: ribosome biogenesis; gene expression; ribonucleoprotein complex; structural constituent of ribosome. DNA-directed RNA polymerase activity was enriched in DEGs unique to nrpabc2 (Figure 4C). These results suggest that storage reserve filling and hormone balance were destroyed in these subunit knockdown seeds; however, knocking down different subunits appeared to influence distinct pathways.
Further analysis of these DEGs revealed notable effects on genes with functions in the seed development regulation. Specifically, there were 23 seed development-related proteins with altered expressions in at least one mutant (Figure 5). Eighteen seed size regulators, which have been confirmed to influence seed growth and belong to different signaling pathways, were differentially expressed in at least one mutant (Figure 5). Thirty genes associated with the biosynthesis and signaling of phytohormones such as ABA, indole-3-acetic acid (IAA), auxin and JA were identified as DEGs in all mutant lines, and most of these genes were up-regulated in mutant seeds (Figure 5). Genes encoding cell-cycle-dependent proteins also featured prominently among the identified DEGs, including five A-type cyclins, five B-type cyclins, four D-type cyclins, and four cyclin-dependent kinases. Most of these cell-cycle-dependent proteins were down-regulated in nrpabc1 seeds. Twenty-five genes encoding putative defensin-like proteins were up-regulated in nrpc8 seeds, including 20 low-molecular-weight cysteine-rich proteins and 5 S-locus cysteine-rich proteins. Fifty-seven ribosome biogenesis factors featured among the identified DEGs; 29 of them were significantly up-regulated in nrpabc2 seeds, and the others were significantly down-regulated in nrpc3, nrpc8, and nrpabc1 seeds. We identified 23 instances of DNA-directed RNA polymerase activity associated with DEGs, most with different expression patterns in different mutant seeds (Figure 5). These results demonstrate that several regulatory pathways of seed size control, such as phytohormones, ubiquitin-proteasome pathway, and G-protein signaling factor and transcriptional regulatory pathways, were altered in RNAPIII subunit knockdown lines. Meanwhile, the insufficient accumulation of the total RNAPIII at different stages of seed development resulted in the identification of several unique DEGs belonging to distinct pathways in seeds of different subunits mutants.

2.7. Co-Expression Network Analysis Identified Genes Related to Seed Development

To identify candidate hub genes correlating to the developmental arrest of Arabidopsis seeds from these RNAPIII subunit knockdown lines, we used weighted gene co-expression network analysis (WGCNA). This is a powerful tool for identifying which sets of genes are associated with phenotypes using RNA-seq data. A total of 7582 DEGs were retained for the constructed co-expression network, and 15 distinct modules were identified based on the pairwise correlations of gene expression levels across all samples when the soft thresholding power was set as 14 (Figure 6A and Figure S2). These modules were labeled in different colors, and the MElightgreen module shows the significant and positive correlations with the seed phenotype (r = 0.87, p-value = 3 × 10−6) (Figure 6A and Figure S3). The MElightgreen module is the largest module, containing 43.45% of all DEG genes used in this analysis. The gene significance (GS) and module membership (MM) had a high correlation and very small p-values for all genes in this module (cor = 0.61, p < 1 × 10−200) (Figure 6B).
Based on the cut-off criteria (abs(MM) + abs(GS) > 1.86), 100 genes with high connectivity in the MElightgreen module were identified as hub genes. GO enrichment analysis of these hub genes revealed enriched GO related to the transmembrane receptor protein tyrosine kinase signaling pathway, embryo development, carbohydrate metabolic process, protein serine/threonine kinase activity, fatty acid biosynthetic process, ATP binding, lipid metabolic process, and cell wall (Figure 6C). Eighty-two of the hub genes were annotated as seed development or embryo development-related proteins, including 11 embryo-defective proteins, 3 maternal effect embryo arrest proteins, 4 ribosomal proteins, etc. (Figure 6D). We found that the degree of these proteins varied from 997 to 3130 in the MElightgreen module network; EMB3003, encoded by a 2-oxoacid dehydrogenase acyltransferase family protein, has the largest degree in this network. KAS2, also known as fatty acid biosynthesis1 (fab1), has a degree of 3082 in this network. The fab1 mutant has increased levels of the saturated fatty acid 16:0, resulting in embryo arrest at the early embryo development stage [26]. Plastidic pyruvate kinase (PKPs) catalyze the synthesis of pyruvate and ATP; PKP1 and PKP2 have degrees of 3042 and 3038 in this network, respectively. In the pkp2 mutant, embryo elongation appeared to be drastically retarded compared to the wild-type, and this developmental defect was even more pronounced in the pkp1pkp2 double mutant [27] (Figure 6D). This suggests that the hub genes identified here likely play critical roles in Arabidopsis seed development.

3. Discussion

Previous reports have shown that ZmNRPC2 controls seed development by regulating cell proliferation and endoreduplication in maize endosperm [22]. GL6 interacts with RNAPIII subunit C53 (NRPC4) and transcription factor class C1 (TFC1), regulating the expression of genes involved in rice grain development to promote cell proliferation in young panicles and grains [28]. Another PLATZ protein, FL3, has a similar function to GL6, interacting with the RNAPIII subunit 53 (NRPC4) and transcription factor class C1 (TFC1) to regulate endosperm development and storage reserve filling in maize [29]. In this study, we demonstrated that the knockdown of NRPC2, NRPC3, NRPC8, NRPABC1, or NRPABC2 caused RNAPIII defects, leading to reduced expression of RNAPIII-transcribed 5S rRNA and 16 tRNAs. The knockdown of the genes encoding these subunits in RNAPIII had a pronounced effect on seed development in Arabidopsis; specifically, embryo development was slower than in the wild-type, and embryos arrested at the globular or cotyledon stages in these mutant lines. Meanwhile, the average silique length and the seed number per silique was reduced (Figure 2). These findings indicate that RNAPIII controls seed development in Arabidopsis.
Previous reports have shown that seed development is controlled by several signaling pathways, including the ubiquitin–proteasome, G-protein signaling, phytohormones, transcriptional regulatory factors pathways [1,2]. The ubiquitin receptor, DA1, functions synergistically with E3 ubiquitin ligases, DA2 and BIG BROTHER (BB)/ENHANCER OF DA1 (EOD1), to regulate seed size by restricting cell proliferation in developing seeds [30,31,32]. DA1 was up-regulated in nrpc2, nrpc3, and nrpc8 seeds, and DA2 was up-regulated in nrpc2, nrpc3, nrpc8, nrpabc1, and nrpabc2 seeds. Meanwhile, BB was down-regulated in nrpc3 and nrpabc1 seeds. G-protein signaling transmits a signal to downstream effectors via the heterotrimeric G-protein complex, playing an integral role in mediating multiple signaling pathways in plants. Mutations in atypical Gγ (AGG3), encoding a subunit of the G-protein complex, causes small seeds and organs by decreasing cell proliferation [33,34], while overexpression of AGG3 promotes seed and organ growth [35]. AGG3 was down-regulated in nrpc2, nrpc3, nrpc8, and nrpabc1 seeds. Several phytohormones have been suggested to have important roles in seed growth. For example, brassinosteroids (BR) positively regulate seed development [36]; auxin controls seed size by regulating cell proliferation [37]; cytokinins influence seed growth and development [38]. Over-expression of DWARF 4 (DWF4) results in increased BR levels, leading to an increase in seed yield [39]. Loss of the AUXIN RESPONSE FACTOR2 (ARF2) function activates cell division and leads to enlarged seed coats [37]. AINTEGUMENTA (ANT) acts downstream of ARF2, and over-expression of ANT enlarges seed size by increasing the cell number [40]. ARABIDOPSIS HISTIDINE KINASES (AHKs) act as cytokinin receptors to control steady-state cytokinin levels, regulating embryo size. ARABIDOPSIS HISTIDINE PHOSPHOTRANSFER PROTEINS (AHPs) encode positive regulators of cytokinin signaling, which affects seed development in Arabidopsis [38,41]. It is noteworthy that the expression levels of phytohormone biosynthesis, or signaling-related genes DWF4, DET2, ARF2, ANT, AHP1, AHP2, AHK4, AHK2, and others, were changed in one or more RNAPIII subunit mutants (Figure 5). Meanwhile, 30 phytohormone biosynthesis and signaling-related genes, 5 MEEs, 5 LEAs, and 13 EMBs related genes, were identified as DEGs in these mutants (Figure 5). Therefore, RNAPIII is involved in the transcriptional regulation of seed development signaling pathways; knockdown of these genes, encoding the NRPC2, NRPC3, NRPC8, NRPABC1, and NRPABC2 subunits, disrupts these signaling pathways, thereby affecting seed development.
It is remarkable that seven hub genes in our MElightgreen module co-expression network are related to embryo development (GSO1, ZAR1, KASI, ATL49, ACR4, CVP2, and MIK1) (Figure 6C); GSO1 encodes a receptor-like kinase (RLK), which acts as both a signal receptor and signal transducer in ligand mediated communication between cells to regulate seed development in Arabidopsis [42]; ZAR1 encodes a member of the RLK/Pelle kinase family, and the asymmetric division of zygotes is impaired in zar1 mutants [43]; KASI encodes β-ketoacyl-[acyl carrier protein] synthase and catalyzes the elongation of fatty acid (FA) synthesis, and embryo development is disrupted before the globular stage in kasi mutants [44]. Meanwhile, 82 seed development or embryo development-related genes are enriched in our MElightgreen module. Previous studies have shown that some of these genes regulate seed development in Arabidopsis, including Fatty Acid Biosynthesis1 (KAS2/FAB1) [26], plastidic pyruvate kinase PKP1 and PKP2 [27], NF-YA family member6 (NFYA6) [45], carboxypeptidase ALTERED MERISTEM PROGRAM 1 (AMP1) [46], β-Ketoacyl-[acyl carrier protein] synthase I (KASI) [44], and the homeobox genes MERISTEM LAYER1 (ATML1) and PROTODERMAL FACTOR2 (PDF2) [47]. These genes have many degrees in the MElightgreen module co-expression network (Figure 6D). The hub genes identified from the gene co-expression network of RNAPIII subunit knockdown seeds provides a more detailed understanding of the seed development regulatory network.
Different subunits of RNAPIII control different stages of RNAPIII transcription. NRPC6 tWH mutants can influence protein and nucleic acid interactions and undermine RNAPIII transcription initiation and elongation [11]; NRPC3, NRPC2, and NRPC1 are important for the assembly of the RNAPIII holoenzyme [48,49]; and NRPC7 and NRPC3 are important in the initiation of RNAPIII transcription [9,10]. Differentiation in the functions of different RNAPIII subunits have been reported by previous studies. A partial loss of function of RNAPIII subunit NRPC7 leads to pleiotropic defects such as shorter siliques and roots, delay in flowering time, bumpy sepal texture, and irregular sepal shape [50]. NRPC2 regulates cell proliferation and endoreduplication to control endosperm development in maize [22]. The PLANTZ protein FL3 participates in the regulation of RNAPIII transcription machinery and regulates storage reserve filling in maize [29]. Intriguingly, the expression pattern of several RNAPIII subunits were distinct from each other in Arabidopsis (Figure 1), and seeds arrested at different development stages. in different RNAPIII subunit knockdown lines (Figure 2). Meanwhile, we identified numerous unique DEGs in different RNAPIII subunit knockdown seeds, and these unique DEGs belong to different pathways. Specifically, DEGs unique to nrpabc1 were significantly enriched in ribosome biogenesis; cell cycle-related genes were significantly enriched in DEGs unique to nrpabc2; DEGs unique to nrpc3 were enriched in chloroplast organization; cell death and defense response to fungus-related genes were enriched in DEGs unique to nrpc8; and DEGs unique to nrpc2 were enriched in carbohydrate metabolic processes (Figure 4C and Figure 5). These findings indicate that differential expression levels of different sub-complexes in subunits of RNAPIII across seed developmental stages result in insufficient accumulation of total RNAPIII, which corresponds to the different phenotypes observed in different subunit knockdown seeds.
In conclusion, the results of this study indicate that knocking down expression of RNAPIII subunits NRPC2, NRPC3, NRPC8, NRPABC1, and NRPABC2 represses RNAPIII transcription machinery activity and down-regulates the expression of 5S rRNA and tRNAs. This resulted in seed developmental arrest at an early stage in Arabidopsis. By analyzing the transcriptome of these mutants, we identified several DEGs, some of which have been confirmed to control Arabidopsis seed development in previous studies, while some act as hub genes in the seed development co-expression network. Moreover, we found that mutant seeds arrest at different stages in different RNAPIII subunit knockdown lines, and DEGs unique to different subunit mutant seeds belong to distinct pathways, showing function differentiation of different subunits in RNAPIII. Although the detailed mechanism by which RNAPIII regulates the expression of these seed development regulators remains unclear, our data contributes toward the understanding of the RNAPIII transcription machinery regulating seed development in plants.

4. Materials and Methods

4.1. Plant Material

In the Arabidopsis thaliana Columbia-0 background, coding sequences (CDS) of gene encoding RNAPIII subunits were amplified and inserted into the pCAMBIA1300 vector under the control of the cauliflower mosaic virus (CaMV) 35S promoter using SmaI restriction sites. The recombinant plasmid was then transformed into Agrobacterium tumefaciens strain GV3101 using the floral dip method. T0 seeds were sterilized in 75% ethanol for 2 min. Transgene selection was performed on solid Murashige and Skoog medium supplemented with 50 µg/mL kanamycin. Resistant seedlings were transferred to soil and grown at a constant temperature of 22 °C under long-day conditions (16-h light/8-h dark). Independent T2 transgenic lines were obtained using PCR selection. The primers used for the plasmid construct are listed in Supplemental Table S1.

4.2. Cytological Observations

Seeds at 15 days after flowering (DAF) were collected and fixed overnight in 4% paraformaldehyde (Sigma, Santa Clara, CA, USA), then dehydrated in an ethanol gradient series (30, 50, 70, 85, 95, and 100% ethanol), and embedded in Paraplast Plus (Sigma, Santa Clara, CA, USA). The sample blocks were sectioned into 8-μm slices using a Leica RM2265 microtome (Leica Microsystems, Wetzlar, Hesse-Darmstadt, Germany) and stained with 0.5% toluidine blue. Images were captured using a Leica MZFLIII microscope (Leica Microsystems, Wetzlar, Hesse-Darmstadt, Germany).

4.3. Yeast Two-Hybrid Assay

For the yeast two-hybrid (Y2H) assays, the CDS of the RNAPIII subunits were cloned into the pGBKT7 plasmid and transformed into the yeast strain Y2HGold. Meanwhile, these CDS were also inserted into the pGADT7 plasmid and transformed into the yeast strain Y187. All yeast experiments were performed as referenced in Clontech’s Yeast Protocols Handbook. The primers used for Y2H are listed in Supplemental Table S1.

4.4. RNA Extraction and qRT-PCR

Seeds from the wild-type and RNAPIII subunit knockdown lines were harvested 10 days after flowering (DAF), quickly frozen in liquid nitrogen, and ground to a fine powder with a mortar and pestle. Total RNA was extracted with 1 mL TRIzol reagent (Thermo Fisher Scientific, Waltham, MA, USA), according to the manufacturer’s instructions. After isopropanol precipitation, the RNA was resuspended in 50 µL RNase-free water and treated with RNase-free DNase I. For reverse transcription, 1 µg total RNA was used in each 20-µL reaction, and the first cDNA strand was synthesized using SuperScript II (Invitrogen) and hexamer primers according to the manufacturer’s instructions. SYBR Green (Bio-Rad, Hercules, CA, USA) was added to the PCR reaction according to the guidelines. Quantitative RT-PCR analysis was carried out on three independent RNA samples and ZmActin1 as an internal control using a Bio-Rad CFX96 Touch Real-time PCR detection system. The relative expression of mRNA was calculated using the 2−∆∆Ct method [51]. The expression of 5S rRNA and tRNAs was analyzed by qRT-PCR. The primers used for qRT-PCR are listed in Supplemental Table S1.

4.5. RNA-Seq Analysis

Total RNA was extracted from wild-type and mutant seeds using TRIzol reagent and then subjected to cleanup and DNase I treatment using a Qiagen RNeasy Mini Kit, according to the manufacturer’s protocol. Three independent biological replicates from three different plants were performed. cDNA libraries were constructed following the standard Illumina protocol and sequenced on the Illumina NovaSeq platform by Novogene. The sequence reads were trimmed using Trimmomatic (version 0.33) and mapped to the TAIR10 reference genome using HISAT2 (version 2.1.0). StringTie (version 1.3.3b) was employed to reconstruct the transcripts and estimate gene expression levels [52]. HTSeq (version 0.6.1) was used to count the number of reads per gene. DEGs were identified using DESeq2, with significant DEGs being those with a p-value of differential expression above the threshold (p < 0.01, absolute value of log2(fold change) > 1). Conjoint Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment results were generated using the website software “AgriGO” (http://systemsbiology.cau.edu.cn/agriGOv2/ assessed on 14 October 2021) [53]. Analysis of RNA-seq data quality is provided in Supplemental Tables S2 and S3.

4.6. Weighted Gene Co-Expression Network Analysis (WGCNA)

A gene co-expression network was constructed using the R package WGCNA [54]. DEGs in seeds from mutant lines were used for analysis, with an adjacency matrix constructed based on normalized fragments per kilobase of transcript, per million mapped read (FPKM) values. Modules were obtained using the automatic network construction function blockwiseModules with the parameters: softpower was 12, TOM-Type was adjacency, minModuleSize was 30, and mergeCutHeight was 0.225. Co-expression networks were visualized using Cytoscape software [55].

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms222111314/s1.

Author Contributions

Conceptualization, F.Q., H.Z. and Y.Q.; writing—original draft and revision, F.Q. and H.Z.; research—analysis of data, H.Z., Y.Q., Z.X., K.L., D.G. and Q.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (31971951 and 31771796).

Data Availability Statement

The data that support the findings of this study are openly available in the NCBI Sequence Read Archive at identification SRA accession number PRJNA753225.

Acknowledgments

The computations in this paper were run on the bioinformatics computing platform of the National Key Laboratory of Crop Genetic Improvement, Huazhong Agricultural University.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Li, N.; Li, Y. Signaling pathways of seed size control in plants. Curr. Opin. Plant Biol. 2016, 33, 23–32. [Google Scholar] [CrossRef] [PubMed]
  2. Li, N.; Xu, R.; Li, Y. Molecular Networks of Seed Size Control in Plants. Annu. Rev. Plant Biol. 2019, 70, 435–463. [Google Scholar] [CrossRef] [PubMed]
  3. Sun, X.; Shantharaj, D.; Kang, X.; Ni, M. Transcriptional and hormonal signaling control of Arabidopsis seed development. Curr. Opin. Plant Biol. 2010, 13, 611–620. [Google Scholar] [CrossRef] [PubMed]
  4. Abascal-Palacios, G.; Ramsay, E.P.; Beuron, F.; Morris, E.; Vannini, A. Structural basis of RNA polymerase III transcription initiation. Nature 2018, 553, 301–306. [Google Scholar] [CrossRef]
  5. Hoffmann, N.A.; Jakobi, A.J.; Moreno-Morcillo, M.; Glatt, S.; Kosinski, J.; Hagen, W.J.; Sachse, C.; Muller, C.W. Molecular structures of unbound and transcribing RNA polymerase III. Nature 2015, 528, 231–236. [Google Scholar] [CrossRef]
  6. Vannini, A.; Cramer, P. Conservation between the RNA polymerase I, II, and III transcription initiation machineries. Mol. Cell 2012, 45, 439–446. [Google Scholar] [CrossRef]
  7. Wu, C.C.; Herzog, F.; Jennebach, S.; Lin, Y.C.; Pai, C.Y.; Aebersold, R.; Cramer, P.; Chen, H.T. RNA polymerase III subunit architecture and implications for open promoter complex formation. Proc. Natl. Acad. Sci. USA 2012, 109, 19232–19237. [Google Scholar] [CrossRef] [PubMed]
  8. Khoo, S.K.; Wu, C.C.; Lin, Y.C.; Lee, J.C.; Chen, H.T. Mapping the protein interaction network for TFIIB-related factor Brf1 in the RNA polymerase III preinitiation complex. Mol. Cell. Biol. 2014, 34, 551–559. [Google Scholar] [CrossRef][Green Version]
  9. Thuillier, V.; Stettler, S.; Sentenac, A.; Thuriaux, P.; Werner, M. A mutation in the C31 subunit of Saccharomyces cerevisiae RNA polymerase III affects transcription initiation. EMBO J. 1995, 14, 351–359. [Google Scholar] [CrossRef]
  10. Khoo, S.K.; Wu, C.C.; Lin, Y.C.; Chen, H.T. The TFIIE-related Rpc82 subunit of RNA polymerase III interacts with the TFIIB-related transcription factor Brf1 and the polymerase cleft for transcription initiation. Nucleic Acids Res. 2018, 46, 1157–1166. [Google Scholar] [CrossRef] [PubMed]
  11. Wei, Y.Y.; Chen, H.T. Functions of the TFIIE-Related Tandem Winged-Helix Domain of Rpc34 in RNA Polymerase III Initiation and Elongation. Mol. Cell. Biol. 2018, 38. [Google Scholar] [CrossRef] [PubMed]
  12. Fernandez-Tornero, C.; Bottcher, B.; Riva, M.; Carles, C.; Steuerwald, U.; Ruigrok, R.W.; Sentenac, A.; Muller, C.W.; Schoehn, G. Insights into transcription initiation and termination from the electron microscopy structure of yeast RNA polymerase III. Mol. Cell 2007, 25, 813–823. [Google Scholar] [CrossRef] [PubMed]
  13. Kassavetis, G.A.; Prakash, P.; Shim, E. The C53/C37 subcomplex of RNA polymerase III lies near the active site and participates in promoter opening. J. Biol. Chem. 2010, 285, 2695–2706. [Google Scholar] [CrossRef]
  14. Landrieux, E.; Alic, N.; Ducrot, C.; Acker, J.; Riva, M.; Carles, C. A subcomplex of RNA polymerase III subunits involved in transcription termination and reinitiation. EMBO J. 2006, 25, 118–128. [Google Scholar] [CrossRef] [PubMed]
  15. Jasiak, A.J.; Armache, K.J.; Martens, B.; Jansen, R.P.; Cramer, P. Structural biology of RNA polymerase III: Subcomplex C17/25 X-ray structure and 11 subunit enzyme model. Mol. Cell 2006, 23, 71–81. [Google Scholar] [CrossRef]
  16. Coulombe, B.; Derksen, A.; La Piana, R.; Brais, B.; Gauthier, M.S.; Bernard, G. POLR3-related leukodystrophy: How do mutations affecting RNA polymerase III subunits cause hypomyelination? Fac. Rev. 2021, 10, 12. [Google Scholar] [CrossRef]
  17. Furukawa, S.; Kunii, M.; Doi, H.; Kondo, N.; Ogura, A.; Hirabuki, K.; Itoh, T.; Matsumoto, N.; Tanaka, F.; Katsuno, M.; et al. Case Report: Severe Osteoporosis and Preventive Therapy in RNA Polymerase III-Related Leukodystrophy. Front. Neurol. 2021, 12, 622355. [Google Scholar] [CrossRef]
  18. Ramanathan, A.; Weintraub, M.; Orlovetskie, N.; Serruya, R.; Mani, D.; Marcu, O.; Stepensky, P.; Weisblum, Y.; Djian, E.; Shaag, A.; et al. A mutation in POLR3E impairs antiviral immune response and RNA polymerase III. Proc. Natl. Acad. Sci. USA 2020, 117, 22113–22121. [Google Scholar] [CrossRef]
  19. Mann, C.; Micouin, J.Y.; Chiannilkulchai, N.; Treich, I.; Buhler, J.M.; Sentenac, A. RPC53 encodes a subunit of Saccharomyces cerevisiae RNA polymerase C (III) whose inactivation leads to a predominantly G1 arrest. Mol. Cell. Biol. 1992, 12, 4314–4326. [Google Scholar] [CrossRef][Green Version]
  20. Yee, N.S.; Gong, W.; Huang, Y.; Lorent, K.; Dolan, A.C.; Maraia, R.J.; Pack, M. Mutation of RNA Pol III subunit rpc2/polr3b Leads to Deficiency of Subunit Rpc11 and disrupts zebrafish digestive development. PLoS Biol. 2007, 5, e312. [Google Scholar] [CrossRef]
  21. Kieckhaefer, J.; Lukovac, S.; Ye, D.Z.; Lee, D.; Beetler, D.J.; Pack, M.; Kaestner, K.H. The RNA polymerase III subunit Polr3b is required for the maintenance of small intestinal crypts in mice. Cell Mol. Gastroenterol. Hepatol. 2016, 2, 783–795. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Zhao, H.; Qin, Y.; Xiao, Z.; Li, Q.; Yang, N.; Pan, Z.; Gong, D.; Sun, Q.; Yang, F.; Zhang, Z.; et al. Loss of Function of an RNA Polymerase III Subunit Leads to Impaired Maize Kernel Development. Plant Physiol. 2020, 184, 359–373. [Google Scholar] [CrossRef] [PubMed]
  23. Ream, T.S.; Haag, J.R.; Pontvianne, F.; Nicora, C.D.; Norbeck, A.D.; Pasa-Tolic, L.; Pikaard, C.S. Subunit compositions of Arabidopsis RNA polymerases I and III reveal Pol I- and Pol III-specific forms of the AC40 subunit and alternative forms of the C53 subunit. Nucleic Acids Res. 2015, 43, 4163–4178. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, H.; Zhang, F.; Yu, Y.; Feng, L.; Jia, J.; Liu, B.; Li, B.; Guo, H.; Zhai, J. A Comprehensive Online Database for Exploring approximately 20,000 Public Arabidopsis RNA-Seq Libraries. Mol. Plant 2020, 13, 1231–1233. [Google Scholar] [CrossRef]
  25. Arimbasseri, A.G.; Maraia, R.J. Mechanism of Transcription Termination by RNA Polymerase III Utilizes a Non-template Strand Sequence-Specific Signal Element. Mol. Cell 2015, 58, 1124–1132. [Google Scholar] [CrossRef]
  26. Gao, J.; Lunn, D.; Wallis, J.G.; Browse, J. Phosphatidylglycerol Composition Is Central to Chilling Damage in the Arabidopsis fab1 Mutant. Plant Physiol. 2020, 184, 1717–1730. [Google Scholar] [CrossRef]
  27. Baud, S.; Wuilleme, S.; Dubreucq, B.; de Almeida, A.; Vuagnat, C.; Lepiniec, L.; Miquel, M.; Rochat, C. Function of plastidial pyruvate kinases in seeds of Arabidopsis thaliana. Plant J. 2007, 52, 405–419. [Google Scholar] [CrossRef]
  28. Wang, A.; Hou, Q.; Si, L.; Huang, X.; Luo, J.; Lu, D.; Zhu, J.; Shangguan, Y.; Miao, J.; Xie, Y.; et al. The PLATZ Transcription Factor GL6 Affects Grain Length and Number in Rice. Plant Physiol. 2019, 180, 2077–2090. [Google Scholar] [CrossRef]
  29. Li, Q.; Wang, J.; Ye, J.; Zheng, X.; Xiang, X.; Li, C.; Fu, M.; Wang, Q.; Zhang, Z.; Wu, Y. The Maize Imprinted Gene Floury3 Encodes a PLATZ Protein Required for tRNA and 5S rRNA Transcription through Interaction with RNA Polymerase III. Plant Cell 2017, 29, 2661–2675. [Google Scholar] [CrossRef]
  30. Disch, S.; Anastasiou, E.; Sharma, V.K.; Laux, T.; Fletcher, J.C.; Lenhard, M. The E3 ubiquitin ligase BIG BROTHER controls arabidopsis organ size in a dosage-dependent manner. Curr. Biol. 2006, 16, 272–279. [Google Scholar] [CrossRef]
  31. Li, Y.; Zheng, L.; Corke, F.; Smith, C.; Bevan, M.W. Control of final seed and organ size by the DA1 gene family in Arabidopsis thaliana. Genes Dev. 2008, 22, 1331–1336. [Google Scholar] [CrossRef]
  32. Xia, T.; Li, N.; Dumenil, J.; Li, J.; Kamenski, A.; Bevan, M.W.; Gao, F.; Li, Y. The ubiquitin receptor DA1 interacts with the E3 ubiquitin ligase DA2 to regulate seed and organ size in Arabidopsis. Plant Cell 2013, 25, 3347–3359. [Google Scholar] [CrossRef]
  33. Chakravorty, D.; Trusov, Y.; Zhang, W.; Acharya, B.R.; Sheahan, M.B.; McCurdy, D.W.; Assmann, S.M.; Botella, J.R. An atypical heterotrimeric G-protein gamma-subunit is involved in guard cell K(+)-channel regulation and morphological development in Arabidopsis thaliana. Plant J. 2011, 67, 840–851. [Google Scholar] [CrossRef]
  34. Li, S.; Liu, Y.; Zheng, L.; Chen, L.; Li, N.; Corke, F.; Lu, Y.; Fu, X.; Zhu, Z.; Bevan, M.W.; et al. The plant-specific G protein gamma subunit AGG3 influences organ size and shape in Arabidopsis thaliana. New Phytol. 2012, 194, 690–703. [Google Scholar] [CrossRef]
  35. Roy Choudhury, S.; Riesselman, A.J.; Pandey, S. Constitutive or seed-specific overexpression of Arabidopsis G-protein gamma subunit 3 (AGG3) results in increased seed and oil production and improved stress tolerance in Camelina sativa. Plant Biotechnol. J. 2014, 12, 49–59. [Google Scholar] [CrossRef]
  36. Li, N.; Li, Y. Maternal control of seed size in plants. J. Exp. Bot. 2015, 66, 1087–1097. [Google Scholar] [CrossRef]
  37. Schruff, M.C.; Spielman, M.; Tiwari, S.; Adams, S.; Fenby, N.; Scott, R.J. The AUXIN RESPONSE FACTOR 2 gene of Arabidopsis links auxin signalling, cell division, and the size of seeds and other organs. Development 2006, 133, 251–261. [Google Scholar] [CrossRef] [PubMed]
  38. Riefler, M.; Novak, O.; Strnad, M.; Schmulling, T. Arabidopsis cytokinin receptor mutants reveal functions in shoot growth, leaf senescence, seed size, germination, root development, and cytokinin metabolism. Plant Cell 2006, 18, 40–54. [Google Scholar] [CrossRef] [PubMed]
  39. Choe, S.; Fujioka, S.; Noguchi, T.; Takatsuto, S.; Yoshida, S.; Feldmann, K.A. Overexpression of DWARF4 in the brassinosteroid biosynthetic pathway results in increased vegetative growth and seed yield in Arabidopsis. Plant J. 2001, 26, 573–582. [Google Scholar] [CrossRef] [PubMed]
  40. Mizukami, Y.; Fischer, R.L. Plant organ size control: AINTEGUMENTA regulates growth and cell numbers during organogenesis. Proc. Natl. Acad. Sci. USA 2000, 97, 942–947. [Google Scholar] [CrossRef]
  41. Hutchison, C.E.; Li, J.; Argueso, C.; Gonzalez, M.; Lee, E.; Lewis, M.W.; Maxwell, B.B.; Perdue, T.D.; Schaller, G.E.; Alonso, J.M.; et al. The Arabidopsis histidine phosphotransfer proteins are redundant positive regulators of cytokinin signaling. Plant Cell 2006, 18, 3073–3087. [Google Scholar] [CrossRef] [PubMed]
  42. Tsuwamoto, R.; Fukuoka, H.; Takahata, Y. GASSHO1 and GASSHO2 encoding a putative leucine-rich repeat transmembrane-type receptor kinase are essential for the normal development of the epidermal surface in Arabidopsis embryos. Plant J. 2008, 54, 30–42. [Google Scholar] [CrossRef] [PubMed]
  43. Yu, T.Y.; Shi, D.Q.; Jia, P.F.; Tang, J.; Li, H.J.; Liu, J.; Yang, W.C. The Arabidopsis Receptor Kinase ZAR1 Is Required for Zygote Asymmetric Division and Its Daughter Cell Fate. PLoS Genet. 2016, 12, e1005933. [Google Scholar] [CrossRef] [PubMed]
  44. Wu, G.Z.; Xue, H.W. Arabidopsis beta-ketoacyl-[acyl carrier protein] synthase i is crucial for fatty acid synthesis and plays a role in chloroplast division and embryo development. Plant Cell 2010, 22, 3726–3744. [Google Scholar] [CrossRef]
  45. Mu, J.; Tan, H.; Hong, S.; Liang, Y.; Zuo, J. Arabidopsis transcription factor genes NF-YA1, 5, 6, and 9 play redundant roles in male gametogenesis, embryogenesis, and seed development. Mol. Plant 2013, 6, 188–201. [Google Scholar] [CrossRef]
  46. Vidaurre, D.P.; Ploense, S.; Krogan, N.T.; Berleth, T. AMP1 and MP antagonistically regulate embryo and meristem development in Arabidopsis. Development 2007, 134, 2561–2567. [Google Scholar] [CrossRef]
  47. Ogawa, E.; Yamada, Y.; Sezaki, N.; Kosaka, S.; Kondo, H.; Kamata, N.; Abe, M.; Komeda, Y.; Takahashi, T. ATML1 and PDF2 Play a Redundant and Essential Role in Arabidopsis Embryo Development. Plant Cell Physiol. 2015, 56, 1183–1192. [Google Scholar] [CrossRef]
  48. Chymkowitch, P.; Nguea, P.A.; Aanes, H.; Robertson, J.; Klungland, A.; Enserink, J.M. TORC1-dependent sumoylation of Rpc82 promotes RNA polymerase III assembly and activity. Proc. Natl. Acad. Sci. USA 2017, 114, 1039–1044. [Google Scholar] [CrossRef]
  49. Vernekar, D.V.; Bhargava, P. Yeast Bud27 modulates the biogenesis of Rpc128 and Rpc160 subunits and the assembly of RNA polymerase III. Biochim. Biophys. Acta 2015, 1849, 1340–1353. [Google Scholar] [CrossRef]
  50. Johnson, K.C.; Yu, Y.; Gao, L.; Eng, R.C.; Wasteneys, G.O.; Chen, X.; Li, X. A partial loss-of-function mutation in an Arabidopsis RNA polymerase III subunit leads to pleiotropic defects. J. Exp. Bot. 2016, 67, 2219–2230. [Google Scholar] [CrossRef] [PubMed]
  51. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  52. Pertea, M.; Kim, D.; Pertea, G.M.; Leek, J.T.; Salzberg, S.L. Transcript-level expression analysis of RNA-seq experiments with HISAT, StringTie and Ballgown. Nat. Protoc. 2016, 11, 1650–1667. [Google Scholar] [CrossRef]
  53. Tian, T.; Liu, Y.; Yan, H.; You, Q.; Yi, X.; Du, Z.; Xu, W.; Su, Z. agriGO v2.0: A GO analysis toolkit for the agricultural community, 2017 update. Nucleic Acids Res. 2017, 45, W122–W129. [Google Scholar] [CrossRef]
  54. Langfelder, P.; Horvath, S. WGCNA: An R package for weighted correlation network analysis. BMC Bioinform. 2008, 9, 559. [Google Scholar] [CrossRef] [PubMed]
  55. Stuart, J.M.; Segal, E.; Koller, D.; Kim, S.K. A gene-coexpression network for global discovery of conserved genetic modules. Science 2003, 302, 249–255. [Google Scholar] [CrossRef] [PubMed]
Ijms 22 11314 g001

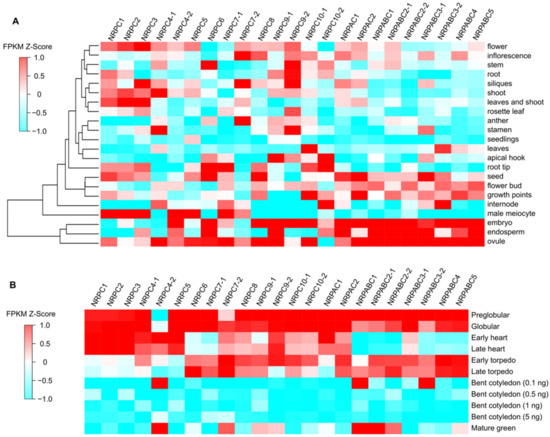

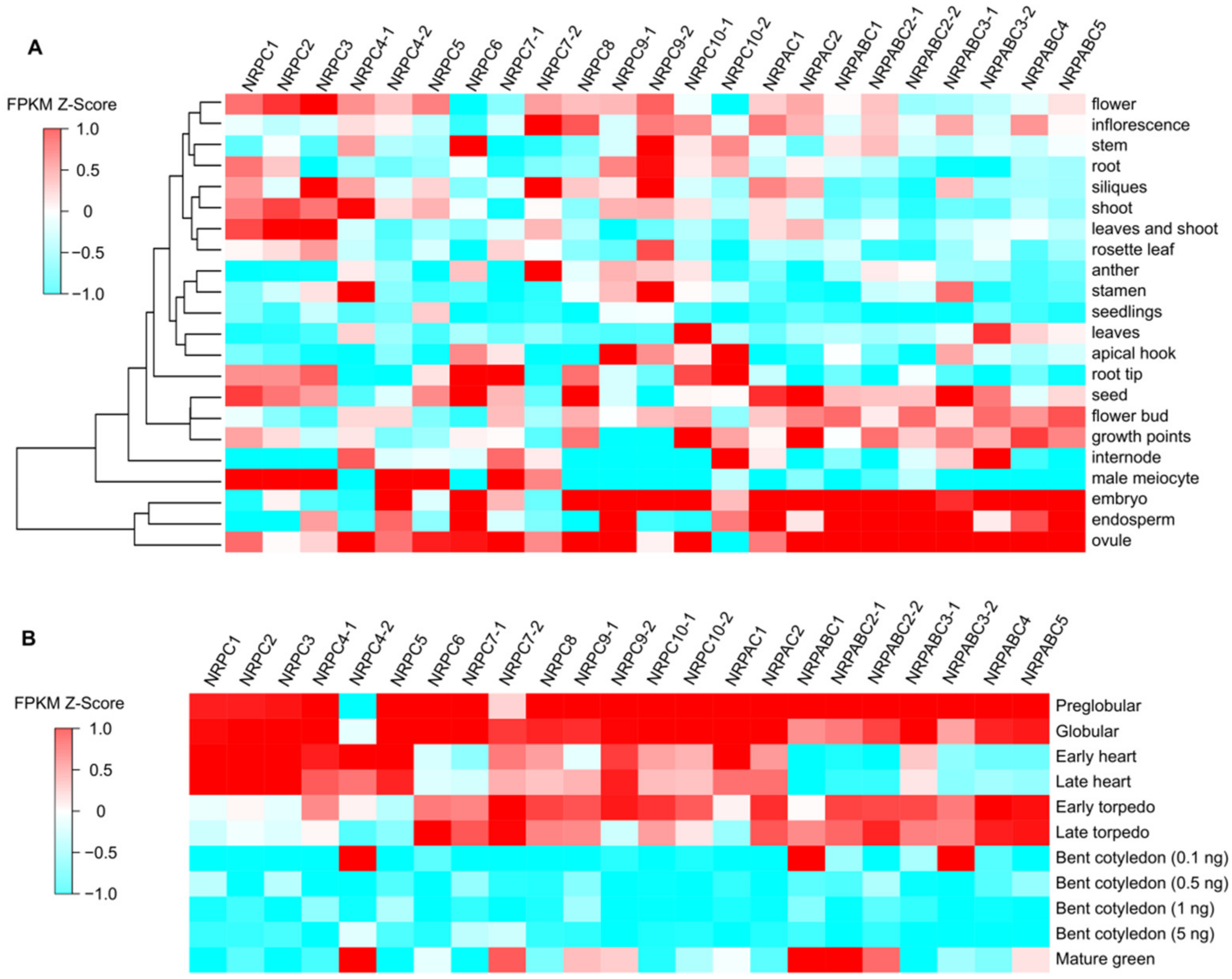

Figure 1. Expression patterns of RNAPIII subunits in Arabidopsis. (A) Expression patterns in different tissues and organs. (B) Expression patterns in seeds at different stages of development.
Figure 1. Expression patterns of RNAPIII subunits in Arabidopsis. (A) Expression patterns in different tissues and organs. (B) Expression patterns in seeds at different stages of development.
Ijms 22 11314 g001
Ijms 22 11314 g002

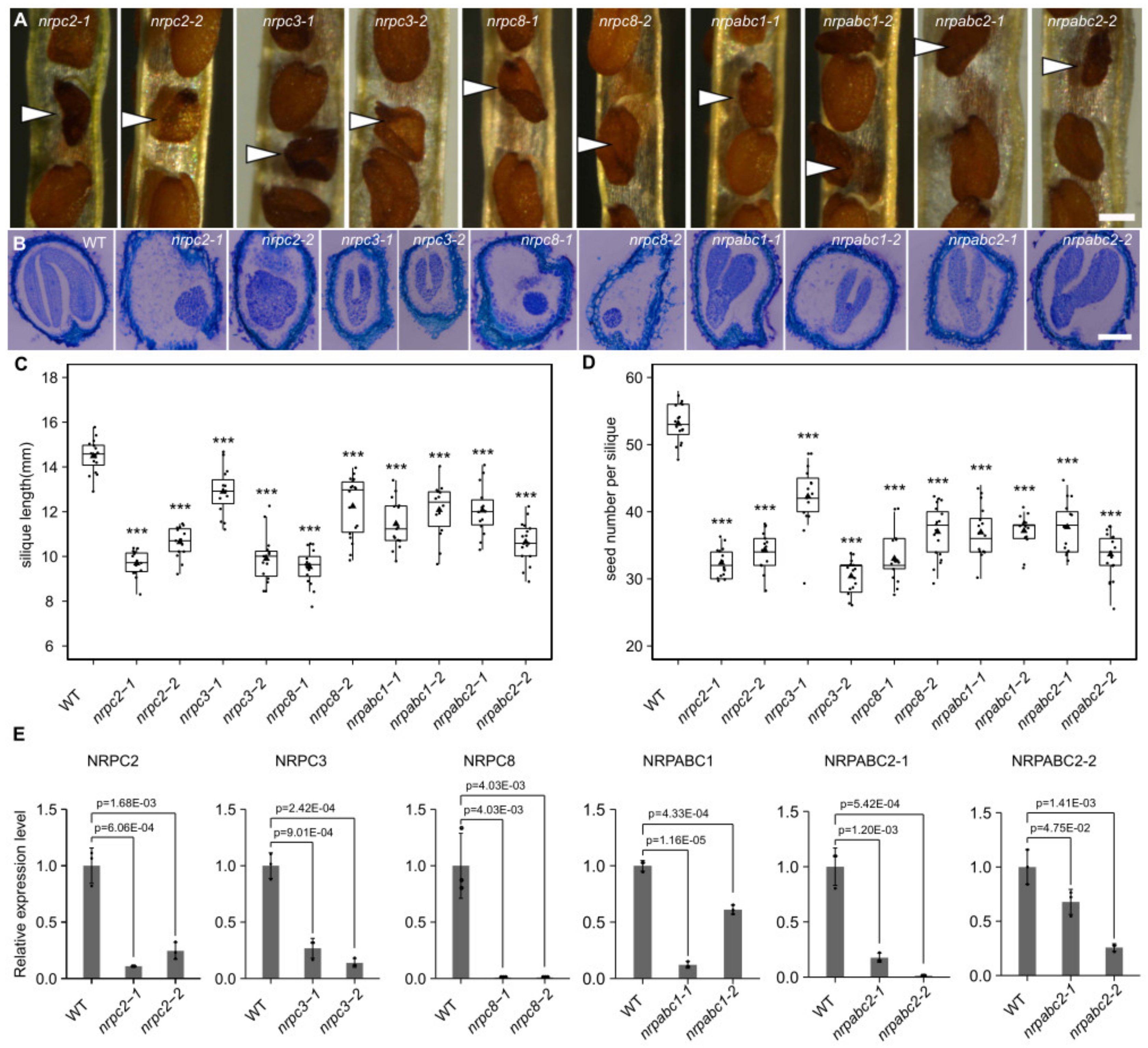

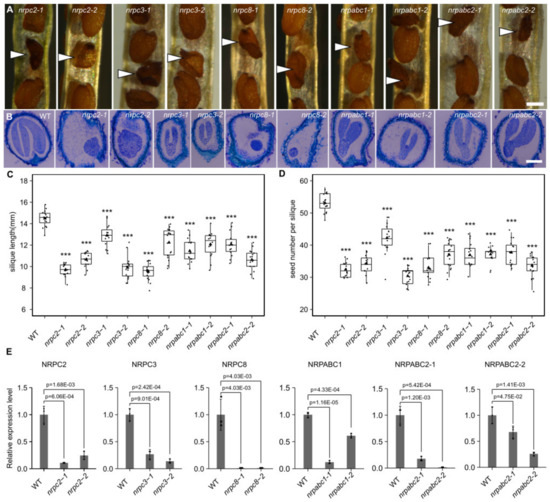

Figure 2. Phenotypic features of seeds with knockdown of different subunits genes, and analysis of the expression of different subunits in seeds of wild-type and different subunit knockdown lines. (A) Phenotypic features of mature seeds (white arrows indicate mutant seeds). Scale bar = 300 µm. (B) Longitudinal paraffin sections of developing seeds at 15DAF. Scale bar = 100 µm. (C) Average silique length at 10 DAF. Asterisks indicate significant difference by Student’s t-test (“***” p < 0.001). (D) Seed number per silique. Asterisks indicate significant difference by Student’s t-test (“***” p < 0.001). (E) RT-qPCR analysis of different subunits-encoding genes in seeds at 10 DAF of wild-type and different RNAPIII subunit knockdown lines. All expression levels are normalized to that of ACTIN. Three replicates for each sample were performed, and data are means ± SD. p-values determined by Student’s t-test.
Figure 2. Phenotypic features of seeds with knockdown of different subunits genes, and analysis of the expression of different subunits in seeds of wild-type and different subunit knockdown lines. (A) Phenotypic features of mature seeds (white arrows indicate mutant seeds). Scale bar = 300 µm. (B) Longitudinal paraffin sections of developing seeds at 15DAF. Scale bar = 100 µm. (C) Average silique length at 10 DAF. Asterisks indicate significant difference by Student’s t-test (“***” p < 0.001). (D) Seed number per silique. Asterisks indicate significant difference by Student’s t-test (“***” p < 0.001). (E) RT-qPCR analysis of different subunits-encoding genes in seeds at 10 DAF of wild-type and different RNAPIII subunit knockdown lines. All expression levels are normalized to that of ACTIN. Three replicates for each sample were performed, and data are means ± SD. p-values determined by Student’s t-test.
Ijms 22 11314 g002
Ijms 22 11314 g003

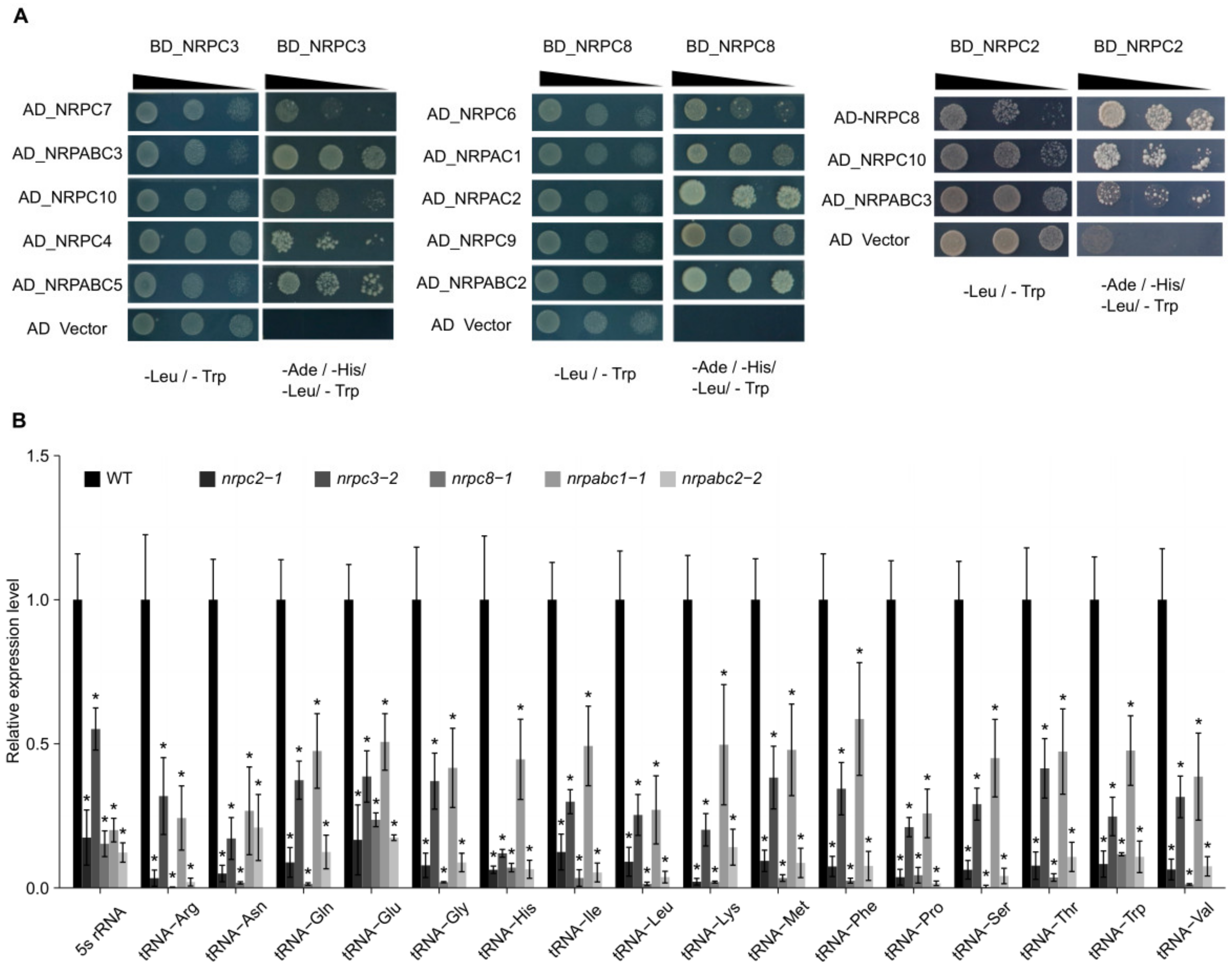

Figure 3. Interactions between RNAPIII subunits and expression of 16 tRNAs and 5S rRNA in wild-type (WT) and different subunit knockdown lines seeds at 10 DAF. (A) Results of yeast two-hybrid analysis of the interactions between Arabidopsis RNAPIII subunits. Yeast cultures at three different dilutions (10, 10 21, and 10 22) were grown on synthetic defined (SD) medium lacking Trp, Leu, His, and Ade (right) and lacking Trp and Leu (left, as control), respectively. AD, activating domain; BD, binding domain. (B) qRT-PCR analysis of 17 tRNA and 5S rRNA genes in 10 DAF seeds of wild-type and different subunit knockdown lines. All expression levels are normalized to that of ACTIN. Three replicates for each sample were performed, and data are means ± SD. Asterisks indicate a significant difference in the Student’s t-test (“*” p < 0.05).
Figure 3. Interactions between RNAPIII subunits and expression of 16 tRNAs and 5S rRNA in wild-type (WT) and different subunit knockdown lines seeds at 10 DAF. (A) Results of yeast two-hybrid analysis of the interactions between Arabidopsis RNAPIII subunits. Yeast cultures at three different dilutions (10, 10 21, and 10 22) were grown on synthetic defined (SD) medium lacking Trp, Leu, His, and Ade (right) and lacking Trp and Leu (left, as control), respectively. AD, activating domain; BD, binding domain. (B) qRT-PCR analysis of 17 tRNA and 5S rRNA genes in 10 DAF seeds of wild-type and different subunit knockdown lines. All expression levels are normalized to that of ACTIN. Three replicates for each sample were performed, and data are means ± SD. Asterisks indicate a significant difference in the Student’s t-test (“*” p < 0.05).
Ijms 22 11314 g003
Ijms 22 11314 g004

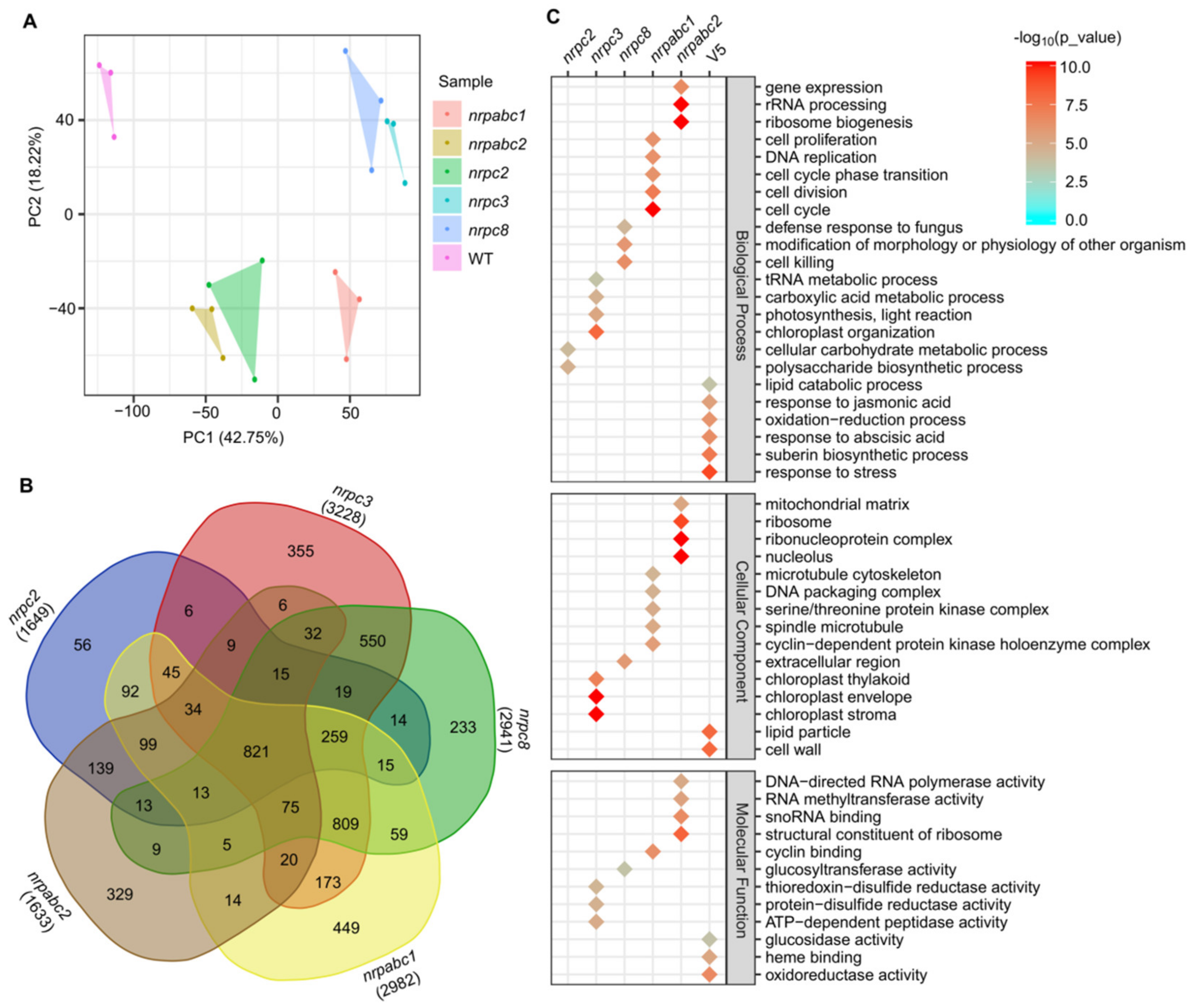

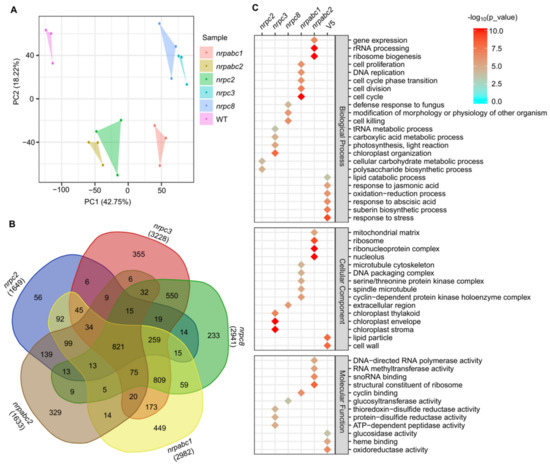

Figure 4. Global transcriptome analysis based on RNA-seq data in 10 DAF seeds of wild-type and different subunit knockdown lines. (A) PCA comparing the expressed genes of different samples. (B) Numbers of DEGs in the seeds of different subunit knockdown lines compared with the wild-type. (C) GO classification for genes with differential expression in the seeds of different subunit knockdown lines compared with the wild-type.
Figure 4. Global transcriptome analysis based on RNA-seq data in 10 DAF seeds of wild-type and different subunit knockdown lines. (A) PCA comparing the expressed genes of different samples. (B) Numbers of DEGs in the seeds of different subunit knockdown lines compared with the wild-type. (C) GO classification for genes with differential expression in the seeds of different subunit knockdown lines compared with the wild-type.
Ijms 22 11314 g004
Ijms 22 11314 g005

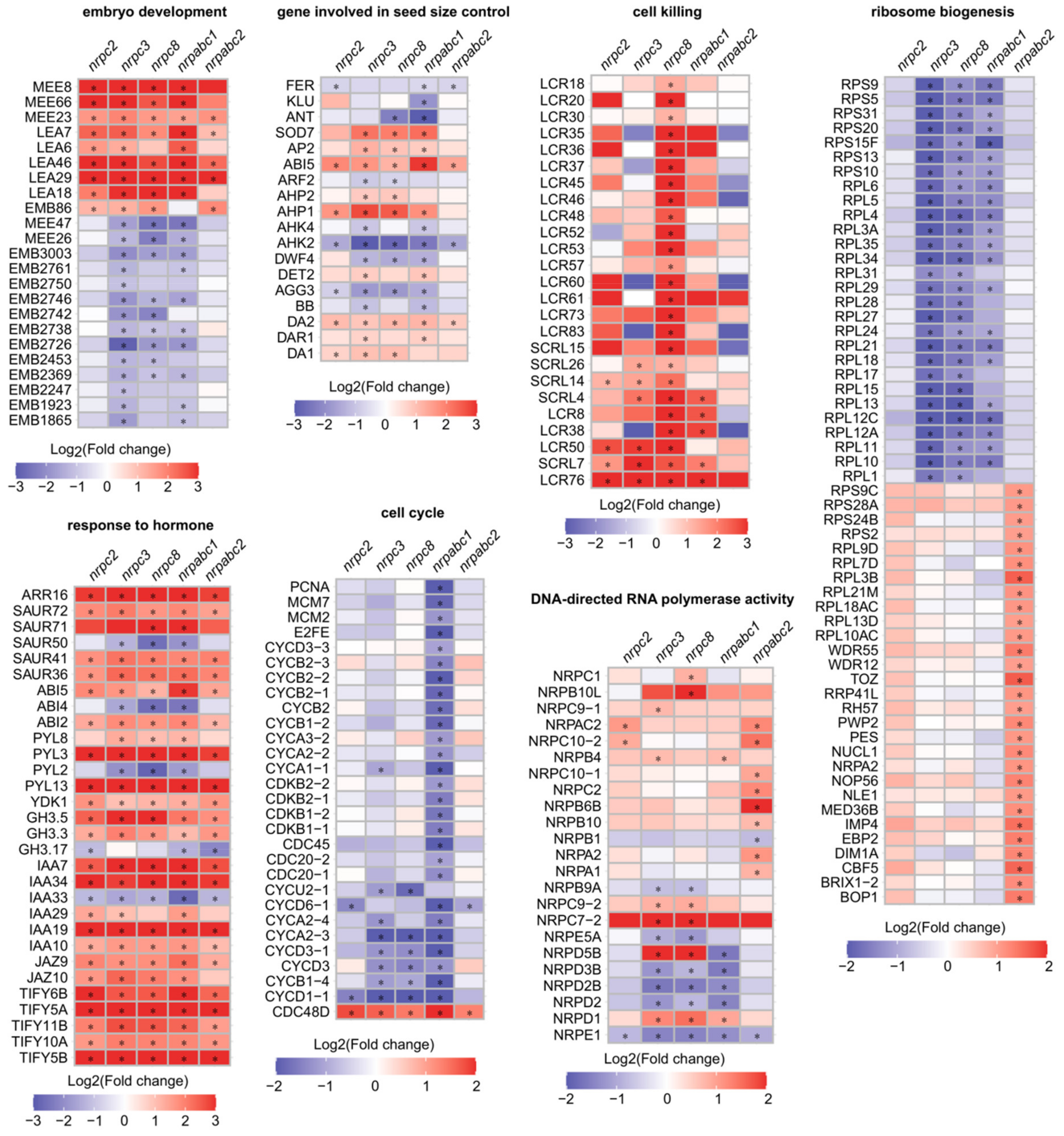

Figure 5. Heat maps of DEGs functioning in selected disrupted pathways (“*” p < 0.01, absolute value of log2(fold change) > 1).
Figure 5. Heat maps of DEGs functioning in selected disrupted pathways (“*” p < 0.01, absolute value of log2(fold change) > 1).
Ijms 22 11314 g005
Ijms 22 11314 g006

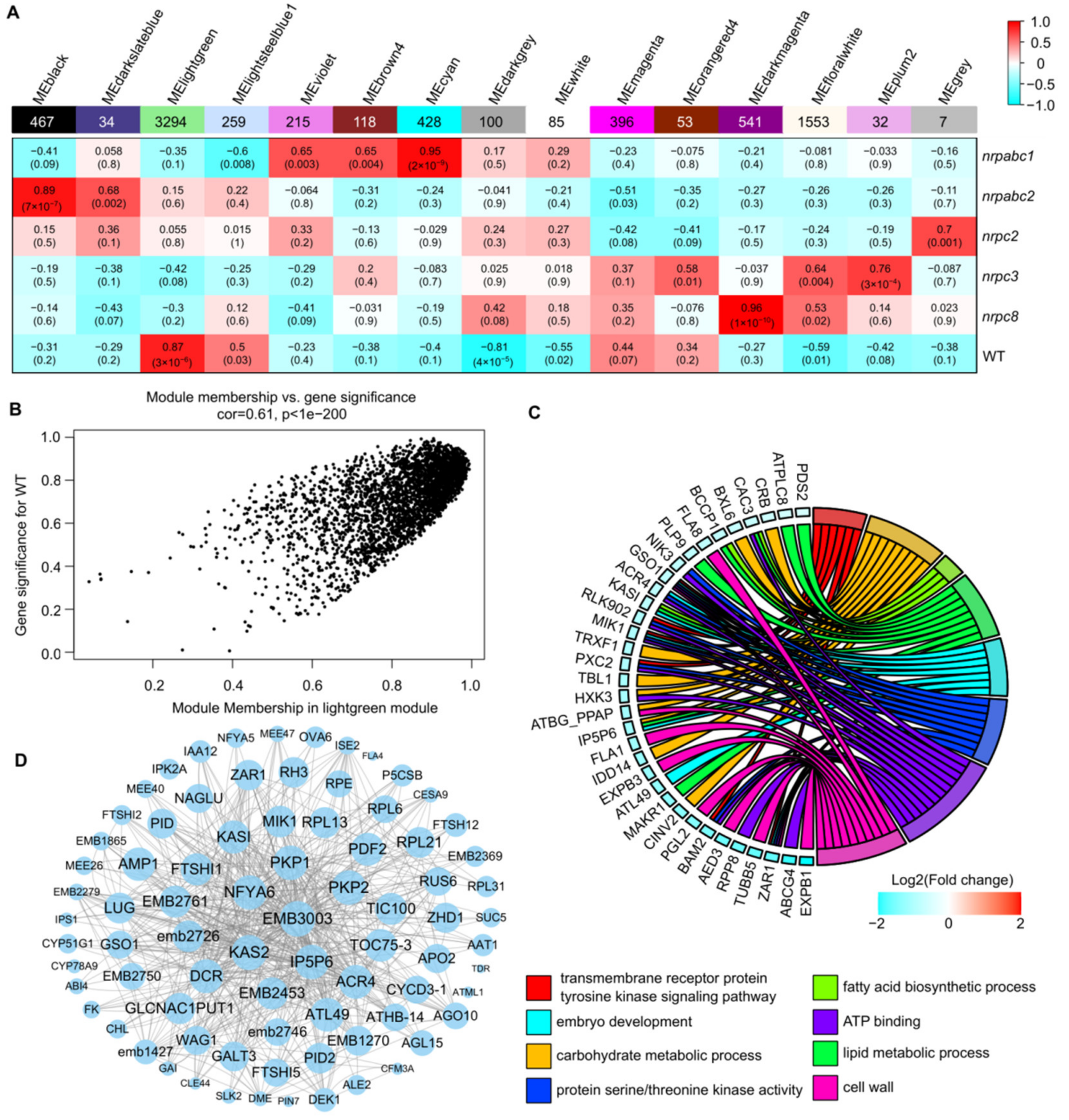

Figure 6. WGCNA of the transcripts in wild-type and different subunit knockdown lines. (A) Association between modules and traits. The legend indicates the correlation. Each cell shows the number of corresponding correlations and the p-values. (B) Module membership versus gene significance in the MElightgreen module. (C) GO classification of hub genes in the MElightgreen module. (D) Network analysis of the proteins related to seed development or embryo development in the MElightgreen module.
Figure 6. WGCNA of the transcripts in wild-type and different subunit knockdown lines. (A) Association between modules and traits. The legend indicates the correlation. Each cell shows the number of corresponding correlations and the p-values. (B) Module membership versus gene significance in the MElightgreen module. (C) GO classification of hub genes in the MElightgreen module. (D) Network analysis of the proteins related to seed development or embryo development in the MElightgreen module.
Ijms 22 11314 g006
Table 1. The list of Arabidopsis RNAPIII subunits and their homologs.
Table 1. The list of Arabidopsis RNAPIII subunits and their homologs.
S. cerevisiaeAccession NumberH. sapiensAccession NumberArabidopsis thalianaGene ID
RNA Pol III SubunitsRNA Pol III SubunitsRNA Pol III Subunits
C160 (β-like)P04051HsNRPC1AAB86536AtNRPC1AT5G60040
C128 (β-like)AAB59324HsNRPC2AY092084AtNRPC2AT5G45140
C82CAA45072HsNRPC3NP_006459/AtNRPC3AT3G49000
XP_034604
C53P25441HsNRPC4AY092086AtNRPC4-1AT5G09380
AtNRPC4-2AT4G25180
C37NP_012950HsNRPC5AY092085AtNRPC5AT5G49530
C34P32910HsNRPC6NP_006457/AtNRPC6AT5G23710
XP_009639
C31P17890HsNRPC7AAB63676/AtNRPC7-1AT4G01590
XP_036456AtNRPC7-2AT4G35685
C25P35718HsNRPC8AY092087AtNRPC8AT1G06790
C17P47076HsNRPC9AAC25992AtNRPC9-1AT5G62950
AtNRPC9-2AT3G28956
C11AAD12060HsNRPC10NP_057394AtNRPC10-1AT1G01210
AtNRPC10-2AT4G07950
AC40 (α-like)P07703HsNRPAC1NP_004866AtNRPAC1AT1G60620
AC19 (α-like)P28000HsNRPAC2NP_057056AtNRPAC2AT2G29540
ABC27P20434HsNRPABC1P19388AtNRPABC1AT3G22320
ABC23 (ω-like)AAA34989HsNRPABC2P41584AtNRPABC2-1AT5G51940
AtNRPABC2-2AT2G04630
ABC14.5CAA37383HsNRPABC3P52434AtNRPABC3-1AT1G54250
AtNRPABC3-2AT3G59600
ABC10αAAA64417HsNRPABC4P53803AtNRPABC4AT5G41010
ABC10βP22139HsNRPABC5P52436AtNRPABC5AT1G11475
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhao, H.; Qin, Y.; Xiao, Z.; Liang, K.; Gong, D.; Sun, Q.; Qiu, F. Knockdown NRPC2, 3, 8, NRPABC1 and NRPABC2 Affects RNAPIII Activity and Disrupts Seed Development in Arabidopsis. Int. J. Mol. Sci. 2021, 22, 11314. https://doi.org/10.3390/ijms222111314

AMA Style

Zhao H, Qin Y, Xiao Z, Liang K, Gong D, Sun Q, Qiu F. Knockdown NRPC2, 3, 8, NRPABC1 and NRPABC2 Affects RNAPIII Activity and Disrupts Seed Development in Arabidopsis. International Journal of Molecular Sciences. 2021; 22(21):11314. https://doi.org/10.3390/ijms222111314

Chicago/Turabian Style

Zhao, Hailiang, Yao Qin, Ziyi Xiao, Kun Liang, Dianming Gong, Qin Sun, and Fazhan Qiu. 2021. "Knockdown NRPC2, 3, 8, NRPABC1 and NRPABC2 Affects RNAPIII Activity and Disrupts Seed Development in Arabidopsis" International Journal of Molecular Sciences 22, no. 21: 11314. https://doi.org/10.3390/ijms222111314

APA Style

Zhao, H., Qin, Y., Xiao, Z., Liang, K., Gong, D., Sun, Q., & Qiu, F. (2021). Knockdown NRPC2, 3, 8, NRPABC1 and NRPABC2 Affects RNAPIII Activity and Disrupts Seed Development in Arabidopsis. International Journal of Molecular Sciences, 22(21), 11314. https://doi.org/10.3390/ijms222111314

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
