Article

Transcriptional Analysis of C-Repeat Binding Factors in Fruit of Citrus Species with Differential Sensitivity to Chilling Injury during Postharvest Storage

1
Programa de Investigación en Citricultura, Estación Experimental INIA Salto Grande, Instituto Nacional de Investigación Agropecuaria (INIA), Camino a la Represa s/n, 50000 Salto, Uruguay
2
Food Biotechnology Department, Instituto de Agroquímica y Tecnología de Alimentos, Consejo Superior de Investigaciones Científicas (IATA-CSIC), Paterna, 46980 Valencia, Spain
3
Departamento de Producción Vegetal, Facultad de Agronomía, Universidad de la República, Garzón 780, 11900 Montevideo, Uruguay
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(2), 804; https://doi.org/10.3390/ijms22020804
Received: 9 December 2020 / Revised: 5 January 2021 / Accepted: 12 January 2021 / Published: 15 January 2021
(This article belongs to the Special Issue Gene Transcriptional Regulation in Crops during Postharvest)

Abstract

:
Citrus fruit are sensitive to chilling injury (CI) during cold storage, a peel disorder that causes economic losses. C-repeat binding factors (CBFs) are related to cold acclimation and tolerance in different plants. To explore the role of Citrus CBFs in fruit response to cold, an in silico study was performed, revealing three genes (CBF1, CBF2, and CBF3) whose expression in CI sensitive and tolerant cultivars was followed. Major changes occurred at the early stages of cold exposure (1–5 d). Interestingly, CBF1 was the most stimulated gene in the peel of CI-tolerant cultivars (Lisbon lemon, Star Ruby grapefruit, and Navelina orange), remaining unaltered in sensitive cultivars (Meyer lemon, Marsh grapefruit, and Salustiana orange). Results suggest a positive association of CBF1 expression with cold tolerance in Citrus cultivars (except for mandarins), whereas the expression of CBF2 or CBF3 genes did not reveal a clear relationship with the susceptibility to CI. Light avoidance during fruit growth reduced postharvest CI in most sensitive cultivars, associated with a rapid and transient enhance in the expression of the three CBFs. Results suggest that CBFs-dependent pathways mediate at least part of the cold tolerance responses in sensitive Citrus, indicating that CBF1 participates in the natural tolerance to CI.

Graphical Abstract

1. Introduction

Citrus is one of the most important fruit crops worldwide, commercialized as fresh fruit or concentrated juice. Export of fresh citrus fruit to certain international markets requires quarantine cold treatments to avoid fruit fly [1]. However, cold storage (0–1 °C) during long transport could exert negative effects on the fruit of citrus cultivars sensitive to cold. Damage induced by low temperature, known as chilling injury (CI), is usually manifested in the peel, affecting the fruit’s external appearance and commercial quality [2]. Most characteristic symptoms of postharvest CI in the flavedo (external colored layer of the peel) are manifested as small, depressed areas that progressively become darker and sunken, producing large spots of brown or black color along the fruit surface [2,3].
The incidence of CI in citrus fruit depends on the species, the cultivar, growing conditions, pre-harvest temperatures, as well as fruit maturity at harvest [2,3]. Among the commercial Citrus species, limes, lemons, and grapefruit are considered highly sensitive to CI, more than the fruit of oranges and mandarins. It has been reported that white ‘Marsh’ grapefruit is more sensitive to cold than red-colored ‘Ruby Red’ and ‘Rio Red’ [4], while ‘Navel’ and ‘Blanca’ oranges are considered more tolerant than the `Shamouti’ cultivar [2,5]. In grapefruit, earlier and later harvested fruit are described to be more sensitive to CI than mid-season fruit [4,6,7]. By contrast, the opposite pattern of seasonal sensitivity to CI was observed in the cold-sensitive ‘Fortune’ mandarin under Mediterranean conditions [8], revealing that different pre-harvest factors may modulate fruit tolerance to cold storage. Moreover, we have previously observed that light deprivation in the red `Star Ruby` grapefruit induced resistance to CI, together with an increased lycopene content and singlet-oxygen antioxidant capacity, indicating the light exposure may directly or indirectly play a role in the tolerance of citrus fruit to CI [9,10,11].
Because of their subtropical origin, cold stress produces remarkable structural, biochemical, and molecular transformations in the peel of citrus fruit [2]. Changes in the expression of diverse genes related to a broad array of metabolic functions, such as stress stimuli, transcription factors, hormone biosynthesis, and carbohydrate metabolism, are stimulated or repressed by low temperatures [12,13,14]. Among transcription factors, C-Repeat Binding Factors (CBFs) have been described as relevant promoters of cold-tolerance associated responses in different cold-sensitive plant species [15], including citrus plants [16,17,18].
CBFs are transcription factors highly conserved among plants that bind to promoters of genes that respond to low temperatures (COR-cold regulated genes), stimulating their expression and participating in plant acclimation to and survival in low-temperature stress [19,20,21,22]. Products of the COR genes were suggested to be relevant in the acquisition of cold tolerance and include transcription factors, protein kinases, late embryogenesis abundant proteins, osmoprotectants, proteins associated with hormone responses, cell wall structure, and lipid metabolisms as well as chloroplastic proteins [23]. Expression of CBFs genes is stimulated a few hours or even minutes after tissue exposure to low temperatures in different plant organs [15,24]. Moreover, a high transcription of these genes induces cold tolerance in different species [15,25,26,27,28,29,30], including citrus plants [16,31].
In the model plant Arabidopsis thaliana, different CBFs genes have been reported, and their possible functions explored in relation to cold response and acclimation [21,32]. CBF1 and CBF3 are differentially regulated with respect to CBF2, while CBF4 is not involved in response to low temperatures [15]. Indeed, the cbf1,2,3 triple mutant showed an impaired freezing tolerance after cold exposition, establishing unequivocally that CBF1, 2, and 3 genes are important regulators of cold acclimation in Arabidopsis [21]. Moreover, different ecotypes with contrasting sensitivity to cold exhibited clear differences in the expression of CBF1 and CBF2 genes [26]. Recent studies indicate that COR genes may also be regulated through CBF-independent pathways [23]. Evidence suggests that the three CBF proteins are partially redundant regulating COR genes, although some specialization has been inferred by differential expression patterns of these genes [33].
Plants integrate light and temperature signals to respond to changes in the environment. The expression of CBFs genes is also modulated by light in plants. The photoreceptor phytochrome B (phyB) was reported as responsible for the activation of cold-stress signaling in response to light. Light induces CBF1, 2, and 3, suggesting that there is a connection between cold and light signaling mediated by phytochromes in Arabidopsis [34]. Cold-induced CBFs proteins interact with phytochrome-interacting transcription 3 (PIF3) and phyB under cold stress in Arabidopsis, revealing that CBFs stabilize the phyB thermosensor to enhance plant freezing tolerance [35]. Studies in tomatoes revealed that SlPIF4 directly binds to the promoters of SlCBF genes, and their expression is induced under low temperature via phytochrome A [36].
In Citrus, a possible role of CBFs in the differential cold tolerance of Poncirus trifoliata plants and pummelo (Citrus grandis) has been described since a lower gene expression was found in cold-sensitive pummelo than in Poncirus [31]. PtCBF expression was induced not only by low temperature but also by abscisic acid [17], a stress-response phytohormone. Similarly, differences in the cold-induced expression of CBF1 between both species were observed since an earlier, and higher accumulation occurred in leaves of the cold-tolerant Poncirus compared to that of C. paradisi [16]. Moreover, PtCBF1 putatively regulates CORc115 expression (a cold-induced group II LEA gene) [16], which is part of the conserved plant responses to cold [23]. Therefore, CBFs appear to exert a role in the regulation of cold response in vegetative tissues of Citrus plants; however, information about the potential role of these transcription factors in the responses of fruit to cold during postharvest storage has not been yet addressed.
Transcriptional changes in CBF genes during fruit responses to low temperature have been explored in tomatoes, where the expression of SlCBF1 is induced early by low temperatures and is associated with a higher tolerance to low temperatures [37]. Similarly, CmCBF1 is induced after 6 and 12 h of cold storage, respectively, in the peel and pulp of melon fruit, with higher levels in the cold-tolerant cultivar [38]. In oil palm fruit (Elaeis guineensis), EgCBF3 expression is induced after 2 h of cold treatment with a peak at 24 h [24]. In peach fruit, the transcription of PpCBF1/5/6 is induced after 12 h of storage at 0 °C and is accompanied by a decrease in CI symptoms, whereas the expression of other CBF genes (PpCBF2/3/4) remains relatively constant [28]. Ectopic expression of a peach PpCBF1 in apples increased freezing tolerance when compared to the non-transformed control [29]. Contrastingly, in table grapes, no induction in the expression of VvCBF1 [39] and VvCBF4/VviDREBA1–1 was observed during storage at 0 °C in the skin nor pulp of the fruit [40,41]. Current studies in Citrus suggest a role for CBFs in plant tolerance to cold under field conditions [16,31], but the involvement of CBFs in the cold tolerance of fruit during postharvest storage has not been explored. Therefore, the objective of this study was to investigate the potential role of CBF genes in the responses of citrus fruit to postharvest storage at low temperature. To unravel that goal, we used fruit of the main Citrus species (lemons, grapefruit, oranges, and mandarins) with contrasting susceptibility to develop CI during cold storage. Since the sensitivity of citrus fruit to CI can be influenced by pre-harvest conditions, such as light incidence during fruit growth [2], the effect of light deprivation in the expression of CBF genes in the peel of CI-susceptible fruit was also evaluated.

2. Results

2.1. In Silico Study of Citrus CBFs

To identify all members of the CBFs family in Citrus, we first carried out a BLASTP search of the Citrus sinensis (sweet orange) genome database at Phytozome 12 (JGI, Sweet Orange Genome Project Citrus sinensis v1.1 https://phytozome.jgi.doe.gov/) with the Arabidopsis CBFs (AtCBF1; AT4G25490.1; AtCBF2, AT4G25470.1; AtCBF3, AT4G25480.1). AtCBF4 was excluded from this analysis since it is involved in drought stress responses rather than cold [42]. The analysis revealed the presence of three genes encoding CBFs in Citrus: CBF1 (orange1.1g028094m), CBF2 (orange1.1g026103m), and CBF3 (orange1.1g029015m). The length of predicted proteins was 214, 243, and 201 amino acids for CBF1, 2, and 3, respectively, and the C-terminal of all three proteins showed an acid isoelectric point as reported for dicot CBFs [40]. The search for functional and structural domains in the Citrus CBFs displayed most of the characteristic CBF features, although not all of them were fully conserved in all members (Figure 1). CBF1 and CBF2 showed the N-terminal PEST [peptide sequence rich in proline (P), glutamic acid (E), serine (S), and threonine (T)] domain (https://emboss.bioinformatics.nl/cgi-bin/emboss/epestfind), which is present in other members of the DREB (dehydration-responsive element binding) subfamily and has been associated with rapid protein turnover by targeting proteolytic degradation [40,43]. The CBF-conserved domains PKKRAGR (DREBA1 signature sequence PKKP/RAGRxKFxETRHP) and DSAWR (DREBA1 signature sequence DS(A/V/S)WRL) flanking the AP2 (Apetala2) domain were present in the three Citrus CBFs, but the full consensus sequences of both domains PKKRAGR and DSAWR were only conserved in Citrus CBF1 and 3, respectively (Figure 1 and Figure S1). The AP2 typical domain [44] showed a high degree of sequence identity with other plant CBFs (Figure 1 and Figure S1). The AP2 characteristic WLG and RAHD motifs, and valine (position14) and glutamic acid (position 19) were conserved in all citrus CBFs, but the YRG motif was only fully conserved in citrus CBF1 (Figure S1). The AP2 downstream A(A/V)xxA(A/V)xxF sequence conserved in all DREBA1 homologs [45] was also identified in the three Citrus CBF, and the C-terminal LWSY motif [46] was only conserved in the Citrus CBF1 (Figure 1 and Figure S1). The hydrophobic cluster analysis (HCA) of the C-terminus was performed (http://bioserv.rpbs.univ-paris-diderot.fr/services/HCA/) and showed that all Citrus CBFs contained five hydrophobic clusters, which has been described as important for trans-activation of target genes [47].
The comparison of the full protein sequences of Citrus CBFs revealed that CBF2 and 3 were the most closely related sequences (72.8% identity), and both were least similar to CBF1 (about 60% identity) (Table S1). The relationship between the Citrus CBFs with other plant CBFs proteins, including three members from Arabidopsis, tomatoes, and table grapes, was analyzed by sequence comparison and by the generation of a phylogenetic tree (Figure 2). The Citrus CBF1 grouped in a cluster with table grape VvDREBA1–1, and this cluster was grouped with tomatoes and Arabidopsis CBFs (Figure 2). Interestingly, Citrus CBF2 and 3 were located together in a separate branch and more distantly related to other CBFs (Figure 2). The comparison of full sequences of Citrus CBFs with other plant homologs showed that Citrus CBF1 displayed a slightly higher percentage of identity with Arabidopsis, tomatoes, and table grape members, ranging from 49% to 67%, in comparison to CBF2 and CBF3 (43% to 62% of identity) (Table S2).

2.2. CI Symptoms and Expression of CBFs Genes in Cold-Tolerant and Cold-Sensitive Citrus Fruits during Cold Storage

CI incidence was evaluated in the fruit of two cultivars of the most important Citrus species: lemons, grapefruit, oranges, and mandarins. Both cultivars showed contrasting sensitivity to CI during storage at 1 °C for two months (Figure 3, Figure 4, Figure 5 and Figure 6). In lemons, the fruit of Lisbon were more resistant to CI than those of Meyer, since after 58 d of storage CI, the index in Lisbon was about 0.28, whereas in Meyer, it was 2.5 (Figure 3A). Initial CI symptoms appeared in the peel of Meyer after 14 d of cold exposure, showing brown depressed areas that progressively increased in extension and developed large clustered brown areas. By contrast, the fruit of the Lisbon cultivar only developed small scattered pits on the fruit surface (Figure 3A). Grapefruit cultivars also showed differences in CI incidence, with lower levels in Star Ruby than in Marsh fruit: 1.57 and 2.81 after 58 d of storage, respectively. Marsh symptoms appeared as early as 14 d after storage (Figure 4A). Sweet orange fruits also showed contrasting sensitivity to CI, Navelina being more tolerant than Salustiana (CI index of 0.17 and 1.96, respectively, at the end of the storage period). CI symptoms in orange fruit developed as discrete sunken areas that progressively became bronze, covering a wide surface of the fruit (Figure 5A). A comparison of CI between the fruit of Fortune and Nadorcott mandarins also revealed marked differences in susceptibility to CI. Fortune fruit were very susceptible to CI (2.90 after 58 d), while Nadorcott fruit were highly tolerant during the whole storage period (0.26 after 58 d). The onset of chilling symptoms in Fortune was detected after 21 d of storage and manifested as the typical pitting symptoms speared over the fruit surface, whereas Nadorcott mandarins were almost devoid of damage (Figure 6A).
The expression of the three CBF genes (CBF1, CBF2, and CBF3) in the flavedo of the fruit of the eight Citrus cultivars was evaluated during 58 d of cold storage. Lisbon lemon showed an early induction of CBF1 after cold exposure (1 and 5 d), decreasing afterward (except for 35 d), whereas, in the Meyer cultivar, its expression decreased. The expression of CBF2 and CBF3 decreased in Lisbon, especially at 1 d, 28 d, and 58 d, while Meyer showed a transient increase in CBF3 after 5 d of cold storage (Figure 3B). In Star Ruby grapefruit, expression of the three CBF genes increased after 1 and 5 d, CBF1 being much higher than that of CBF2 and CBF3 (10, 1.5, and 2-times higher than the initial, respectively). In contrast, the expression in Marsh grapefruit remained almost unchanged during cold storage for CBF1 but decreased in CBF2 and CBF3 (Figure 4B). In Navelina orange, transcript accumulation of CBF1 showed a transient increase (×5.5) after 1 d of cold storage, decreasing afterward, whereas, in the cold-sensitive Salustiana, it experienced minor alterations (Figure 5B). CBF2 mRNA abundance increased in Salustiana orange after 1 d of cold storage, and CBF3 displayed a similar accumulation in both cultivars (Figure 5B). In the fruit of the CI-sensitive Fortune mandarin, an early (1 d) and a sharp increase in the expression of the three CBFs was observed that decreased afterward to peak again after 35 d. Interestingly, in the CI-tolerant Nadorcott mandarin, the expression of the three CBFs did not experience important changes during the whole storage period (with the exception of CBF3 at 1 d) and the corresponding mRNAs accumulated to lower levels than in the sensitive mandarin (Figure 6B).

2.3. Effect of Light Deprivation on CI and Expression of CBF Genes in Fruit of Cold-Sensitive Citrus Fruits during Cold Storage

Previous studies have shown that light deprivation induced tolerance to CI during postharvest storage of citrus fruit of sensitive cultivars [9]. To further investigate the involvement of CBF genes in the tolerance of citrus fruit to CI, the fruit of the cold-sensitive cultivars Meyer, Marsh, Salustiana, and Fortune, were covered on the tree, and their responses to cold storage and the expression of CFB genes were evaluated.
Fruit covering produced variable effects on peel color of the cultivars analyzed at harvest, with Meyer covered fruit being pale yellow in color compared to non-covered, while no differences were detected in Marsh and Salustiana. During cold storage, the color remained almost unaltered (Table S3). In general, fruit covering delayed the development and reduced the incidence of CI after 2 months of storage in Meyer lemon and Marsh grapefruit. The most remarkable effect of fruit coverage was the virtual absence of CI symptoms in the fruit of Salustiana oranges (Figure 7 and Figure 8A). In the fruit of the CI-sensitive Fortune mandarin, light deprivation only delayed the rate of CI, but at the end of storage, the CI index was similar between covered and non-covered fruit (data not shown). Therefore, Fortune mandarin was discarded for further analysis of CBF gene expression.
Analysis of the expression profile of the three CBF genes revealed differences in covered and non-covered fruit of the three species in response to low-temperature storage. In lemon Meyer, fruit coverage induced an early (1 or 5 d) and transient stimulation of the expression of CBF1 and CBF3, which was not observed in non-covered fruit. In Salustiana oranges, fruit coverage also induced an early (1 d) and transient increase in the expression of CBF2 and CBF3 genes. In Marsh grapefruit, however, the accumulation pattern of the three mRNAs was in general similar in covered and in non-covered fruit throughout the whole storage period (Figure 8).

3. Discussion

The family members of the CBF transcription factors were shown to play an important regulatory role in the complex molecular responses of plant tissues to cold acclimation [15,22,44,51,52]. In different plant species, it has been demonstrated that genetic manipulation of CBF genes increases plant tolerance and survival to low temperatures. However, in the responses of plant tissues to cold stress, both CBF-dependent and CBF-independent signaling pathways operate [53,54]. In Citrus, CBF genes from cold-sensitive and cold-tolerant genotypes have been characterized, and their potential function in the acclimation of vegetative tissue to the low temperature suggested (15). Nonetheless, the involvement of CBF-dependent pathways in the natural or induced-tolerance of citrus fruit to low-temperature stress during postharvest storage is still unknown.
With the aim of exploring the role of Citrus CBFs in the fruit response to cold, we performed an in silico search to identify all potential members of this family in Citrus. Based on sequence homologies with Arabidopsis CBFs, in Citrus, this family is composed of three genes: CBF1, 2, and 3. The sequences analysis showed that the Citrus CBFs contained most of the characteristic motifs described for this subgroup of transcriptions factors, which distinguishes them from the other AP2/ERF family members [40,45,47]. However, the motifs were not fully conserved in all Citrus CBFs (Figure 1), which may affect their binding to target genes or determine their specificity as has been suggested for different CBF members in other plant species.
Different studies reported increased expression of CBFs in fruit, such as peach [28,55], mango [56], Hami melon [38], oil palm fruit [24], grape [40,41], and tomato [37,57,58] subjected to low temperature but also other stresses or ABA (abscisic acid) treatment, indicating a regulation by osmotic-related stress. Interestingly, in several instances, increases in their expression have been associated with a higher tolerance to chilling-related disorders [28]. In contrast, in Cardinal table grapes, VvCBF1 and VvCBF4/VviDREBA1–1, were induced by CO2 treatment but not by cold storage [41], revealing possible CBF-independent mechanisms in the response of the berries to low temperature.
In the current work, we took advantage of the natural diversity in the susceptibility of the fruit from different Citrus species and cultivars to develop CI during postharvest cold storage, to explore whether CBF transcription factors are involved in this natural cold tolerance. Cold stress during postharvest storage is manifested in citrus fruit by a series of morphological and structural alterations in the peel (pitting, browning, and staining), referred to as chilling injury that diminishes the external and commercial quality of the fruit, causing consumer rejection and economic losses. The genetic variability in the tolerance to postharvest CI has been recognized for a long time, and among the main Citrus species cultivated worldwide, lemons and grapefruit are more susceptible than oranges and mandarins [59]. Interestingly, within each main Citrus species, there are also wide varietal differences in the tolerance to develop CI, indicating the influence of genetic factors in the fruit tolerance to postharvest CI [2,59]. Our results show marked differences in the CI incidence between the two cultivars of lemons, grapefruit, oranges, and mandarins used in this study (Figure 3, Figure 4, Figure 5 and Figure 6) that are consistent with previous works. The difference in the rate of CI development between Lisbon and Meyer lemon is remarkable (Figure 3). Genetic evidence has revealed a different phylogenetic origin of both lemons (C. limon and C. meyeri), and it is likely that the divergent response to cold stress is related to the different genetic background of both genotypes [60]. Meyer is highly susceptible to cold, developing CI symptoms as early as two weeks of cold storage.
Among grapefruit (C. paradisi), it is already documented that the red Star Ruby is less sensitive to CI than Marsh, and its tolerance is related to the accumulation of the antioxidant lycopene in the peel [10,11]. Similarly, Salustiana oranges (C. sinensis) were more prone than Navelina oranges to develop CI upon cold storage (Figure 5). Fortune mandarin is a hybrid of Dancy mandarin x Clementine mandarin recognized by the high susceptibility to develop CI, whereas Nadorcott is a mandarin derived from Murcott mandarin, which is resistant to CI (Figure 6) [2]. Together, these results reinforce the notion that the genetic background of the cultivar and species is a major factor prevailing in the susceptibility of citrus fruit to CI [2].
A comparison of the changes in the expression of the three CBFs genes (CBF1, CBF2, and CBF3) in the fruit of sensitive and tolerant cultivars of Citrus revealed potential participation of each member in the tolerance/sensitivity to CI during storage. Table 1 summarizes the comparative changes in these processes in lemon, grapefruit, and orange cultivars in covered and non-covered fruit. The expression of the genes showed major changes at the early stages of cold exposure (1–5 d), as may be explained by the role of these transcription factors in the regulation of other cold-induced responses [53]. Interestingly, CBF1 was the most induced gene in the peel of CI-tolerant cultivars (Lisbon lemon, Star Ruby grapefruit, and Navelina orange). This activation occurred between 1 and 5 d after initiation of the cold exposure, whereas in Star Ruby grapefruit, it declined after 1 month of storage (Figure 4). In Navelina orange, it remained at high levels (Figure 5), and an intermediate response was found in Lisbon (Figure 3). With the exception of the chilling-sensitive Fortune mandarin, in which CBF1 was stimulated after 1 d of cold storage (Figure 6), the expression of this transcription factor remained virtually unaltered in the fruit of the lemons, grapefruit, and oranges sensitive to CI (Table 1). These results suggest a positive association of CBF1 expression with cold tolerance in Citrus cultivars, with the exception of mandarins. Although from these results, the function of this transcription factor on fruit responses to cold cannot be delineated, it appears that CBF-mediated responses may exist in the tolerance of citrus fruit to cold stress. Results suggest a long-term modulation of CBFs expression after cold exposure in citrus fruit, showing a sustained response several days after initiation of the stress stimuli.
Regarding the potential role of Citrus CBF1 in fruit cold-stress tolerance, it is worth mentioning that phylogenetic analysis and conservation of motifs among the Citrus CBFs suggest that CBF1 is more similar to other plant CBFs involved in cold stress responses than CBF2 and 3 (Figure 2). The DREBA1 signature sequence PKKPAGR upstream the AP2 domain and the C-terminal LSWY motif are only fully conserved in CBF1 (Figure 1 and Figure S1). Deletions or mutations in the PKKPAGR sequence of Arabidopsis CBF1 significantly affect its ability to induce expression of target cold-regulated genes [61], and the LWSY motif, only identified in CBF1, is conserved at the end of the C-terminal of most of the DREB1-type proteins [40,46], suggesting an important role in the function of these DREB1-type proteins. Thus, alterations in key amino acids or the absence of CBF characteristic motifs in Citrus CBF2 and 3 may impair their functionality to the cold response.
In other plants, CBF1 was also described as a key cold response regulator, as in Arabidopsis, where its expression was drastically reduced in mutants with impaired ability to cold acclimation. These mutants also showed a modest reduction in CBF3 and CBF2 expression during cold exposure, suggesting the involvement of the three genes in Arabidopsis cold acclimation [51]. Similar to our results, CBF1 expression has been associated with chilling-resistant table grape cultivars induced by CO2-treatments that alleviated cold stress [40,41], revealing a diverse function of these genes depending on the fruit species, developmental stage, and severity of the cold stress [58]. In Hami melon fruit, an increase in CBF1 and CBF3 gene expression during cold storage was correlated with a lower CI index in the tolerant cultivar [38]. During tomato fruit storage at 2.5 °C, CBF1 expression peaked after 1–24 h of cold exposure and declined afterward [58]. In peach fruit, PpCBF genes induction was accompanied by a decrease in CI symptoms during postharvest cold storage [28]. In tomato fruit, an increase in SlCBF1 expression was observed after 1 to 24 h of cold storage (2 °C) [58] and to be responsive to cold and exogenous ethylene [37]. Moreover, a lower CI incidence during postharvest storage was registered after nitric oxide inductor treatment in tomato fruit, showing a fast (30 min) increase in the expression of SlCBF1 [57].
Based on our results, the expression of Citrus CBF2 or CBF3 genes in CI-tolerant and CI-sensitive fruit did not reveal a clear relationship with the susceptibility to CI. Transcriptional changes on both genes were not as remarkable as those of CBF1, and the changes observed were not consistent with their involvement in cold tolerance or cold sensitivity (Table 1). CBF2 and CBF3 appear not to play a key function in the response of citrus fruit to cold tolerance of sensitivity.
Light deprivation, by shading the fruit on the tree during the last 3 months of development, had a protective role, reducing CI during postharvest cold storage in the sensitive cultivars of lemons, grapefruit, and oranges (Figure 6 and Figure 7). The induction of CI-tolerance by fruit shading has been previously described in the fruit of the red Star Ruby grapefruit and associated with an increase in carotenoid and lycopene content in the peel and enhanced antioxidant capacity [10,11]. Light deprivation in yellow-colored fruit of Meyer lemon and Marsh grapefruit and Salustiana oranges only produced slight modifications in the color of the peel, compared to light-exposed fruit (Table S3). The tolerance to CI induced by fruit covering, however, was not uniform when comparing the three cultivars studied. Salustiana orange cultivar had a major reduction in CI (Figure 7). Fruit covering has been shown to affect other metabolic pathways and metabolites in citrus fruit, such as ascorbic acid or carbohydrates [62,63]. These results suggest that the response of yellow-colored citrus fruit to light deprivation in carotenoid content and composition, and CI may be different to that of orange-colored fruit, as Salustiana oranges, and that other biochemical and molecular factors may be implicated in the induction of tolerance to CI.
Interestingly, the tolerance to CI induced by shading in Meyer lemon and Salustiana oranges was associated with a rapid and transient enhancement of the expression of at least two of the three CBF genes, which did not occur in non-covered fruit (Figure 8). These results reinforce the previous notion that CBF1 appears to be associated with the induction of cold tolerance in sensitive cultivars (except for mandarins). Whether the increased expression of CBF2 and CBF3 reflect their involvement in the acquisition of cold tolerance or may be a response to light deprivation during the last phases of development remains to be determined. Together, these results suggest that CBFs-dependent pathways mediate at least part of the induction of cold tolerance in sensitive Citrus cultivars. Although these responses may be cultivar-specific, our data suggest that CBF1 participates in the natural tolerance of sensitive cultivars to CI and that it is favored by fruit shading in Meyer lemon and Salustiana oranges.

4. Materials and Methods

4.1. Plant Material, Preharvest Treatments, and Storage Conditions

Fruit of the following cultivars of the main Citrus species: grapefruit (Citrus paradisi cv. Star Ruby and cv. Marsh), lemon (Citrus limon cv. Lisbon and Citrus meyeri cv. Meyer), orange (Citrus sinensis cvs. Salustiana, Washington Navel and Navelina), and mandarin (Citrus reticulata cv. Fortune and cv. Nadorcott), with contrasting sensitivity to cold damage were used in this study. Fruits were harvested at full maturity from commercial orchards located in Salto, Uruguay (grapefruit, lemon, and orange cultivars) and Valencia, Spain (mandarin cultivars). Trees were grown under standard agronomical conditions.
To evaluate the effect of light exposure on CI and gene expression, the fruit of the different cultivars were covered with black plastic bags (leaving the bottom-end open to allow gas exchange) at immature green stages around three months before harvest as previously described [9,62]. Control (non-covered) fruit were located outside of the tree canopy and exposed to normal photoperiod conditions. Fruit of both treatments were harvested at commercial maturity, selected for uniformity and free of any defect or damage, and stored at 1 ± 0.5 °C for up to 58 d. During cold storage, the CI incidence was periodically evaluated. Flavedo tissue was excised, frozen in liquid nitrogen, ground to a fine powder, and stored at −80 °C until RNA extraction. Comparison of CI susceptibility between varieties was conducted in two consecutive seasons (2017 and 2018), and a comparison of the postharvest performance in covered and non-covered fruits was conducted in independent experiments in different seasons (2018 and 2019), representing the average of both seasons.

4.2. Fruit Color and Chilling Injury Evaluation

At harvest and during storage, peel color of whole fruit was measured using a Minolta CR-400 colorimeter (Minolta, USA) on three areas of the equatorial plane of the fruit and expressed as the ICC (citrus color index), calculated with Formula (1). A lower ICC value (more negative) represents green fruit, near-zero values correspond to yellow fruit at the color break, and orange- to red-colored fruit reflects positive values.
ICC = (1000 × a)/(L × b),
Fruit were inspected for CI symptoms (intensity and extension of the damage) after 1, 5, 14, 28, 35, and 58 d in cold storage. The severity of the symptoms was assessed visually using the following scale: 0 = no pitting; 1 = pitting covering <25% of the fruit surface; 2 = pitting covering between 25 and 50% of the surface; 3 = 50–100%. CI index was calculated using the Formula (2) described in [10]:
CI   index = [ ( CI   level ) × ( Number   of   fruits   at   the   CI   level ) ] Total   number   of   fruits   evaluated
The experimental design was completely randomized, and results correspond to the mean ± S.E. of four replicates of 20 fruit each.

4.3. RNA Extraction and Quantitative Real-Time PCR Analysis

Total RNA was isolated from plant material following the protocol described in [64] with modifications. Two tubes of 2 mL each with 0.2 g of flavedo tissue were processed by sample. 770 µL of extraction buffer (200 mM Tris-HCl, pH 8.0, 400 mM NaCl, 50 mM Na2EDTA, 2% (w/v) Sarkosyl, 1% (w/v) poly(vinylpyrrolidone), and 1% (v/v) β-mercaptoethanol), and 380 µL of phenol was added to each tube. Tubes were vortexed and incubated at 65 °C for 15 min. Three hundred and eighty microliters of chloroform:isoamilic alcohol (24:1) were added to each tube and centrifuged at 4000× g, 10 min at room temperature. The aqueous phase was transferred to a new 2 mL tube and reextracted with 380 µL of phenol and 380 μL of chloroform:isoamilic alcohol (24:1). Tubes were centrifuged at 4000× g for 10 min, the aqueous phase was transferred to a new 1.5 mL tube, and RNA was precipitated with 1.5 vol of ethanol. After precipitation, tubes were centrifuged at 20,000× g for 30 min at 4 °C. The pellet was washed with 500 µL of 70% ethanol and resuspended with 300 µL of ultrapure RNAse-free water. Replicate tubes from the same sample were mixed, 1/3 vol of LiCl 12 M was added, and tubes were incubated on ice at 4 °C overnight. Tubes were centrifuged at 20,000× g for 30 min at 4 °C, and the pellet was washed with 800 µL of 70% ethanol. The pellet was dried at room temperature and resuspended in 50 µL of ultrapure RNAse-free water. RNA was quantified, with a recording absorbance at 260 nm, and quality was verified by sample absorbance at 260/280 nm and 260/230 nm. The integrity of RNA was evaluated by 1% agarose gel electrophoresis.
For each sample, 10 µg of RNA was treated with a DNAse Turbo DNA-freeTM kit (ThermoFisher Scientific, Lithuania) according to the manufacturer’s instructions. After DNAse treatment, cDNA synthesis was performed with 1 µg of treated RNA and using a RevertAid Reverse transcriptase kit (Thermo Scientific, Lithuania) according to the manufacturer’s specifications.
Quantitative RT-PCR reactions were performed using an Applied Biosystems StepOneTM Plus Real-Time PCR System (Applied Biosystems, San Francisco, CA, USA). Each reaction consisted of 2 µL of a dilution 1:4 of cDNA, 1 µL of primer mix (10 µM each), and 10 µL of SensiFAST™ SYBR®—HiRox kit (Bioline, UK). Primers used for amplification of Actin, CBF1, CBF2, and CBF3 are listed in Table S1. The cycling condition for all genes analyzed consisted of 10 min at 95 °C for pre-incubation, 40 cycles of 15 s at 95 °C, 15 s at 59 °C, and 15 s at 72 °C. Fluorescence intensity data were acquired during the extension step.
The specificity of the PCR reaction was confirmed by the presence of a single peak in the dissociation curve performed after the amplification steps. Relative expression was determined using the Pfaffl method [65], where gene expression was normalized using the expression levels of Actin, a constitutive gene, in the assay conditions [66]. For all genes and cultivars analyzed, the reference sample was harvest condition. All gene expression data were represented as the mean of three replicates ± SE. Gene expression was analyzed using the Student’s t-test, being the difference between harvest time (0 d, which were set at 1) and each sampling time (1, 5, 28, 35, or 58 d) considered significant when p < 0.05 in a two-tailed analysis.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/22/2/804/s1, Table S1. qRT-PCR primer sequences; Table S2. Percent identity matrix of deduced amino acid sequences of CBFs from sweet orange, Arabidopsis, table grapes, and tomatoes; Table S3. Fruit color (ICC values) at harvest time and during cold storage of Meyer, Marsh, Salustiana, and Fortune non-covered and covered fruit. Figure S1. Alignment of Citrus sinensis CBF proteins and other plant CBFs.

Author Contributions

Conceptualization, M.J.R., L.Z., J.L.; methodology and experimental, M.S., F.R., A.A., G.G.; formal analysis, M.S., F.R., L.Z., M.J.R., J.L.; writing—original draft preparation, M.S., J.L.; writing— review and editing, G.G., A.A., F.R., M.J.R., L.Z., J.L.; supervision, A.A., J.L., M.J.R., L.Z.; funding acquisition, J.L., M.J.R., L.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a research grant from the National Agency of Research and Innovation (ANII-Uruguay) by the code FCE_3_2016_1_126714 and by a research grant RTI2018–095131-B-I00 of the Ministry of Science and Innovation (Spanish Government). F. Rey is the recipient of a predoctoral scholarship (POS_EXT_2016_1_133720) from ANII (Uruguay).

Data Availability Statement

The data presented in this study are available in the article or supplementary material.

Acknowledgments

We gratefully acknowledge the support from the INIA team Pedro Pintos, Eleana Luque, and Ana Inés Moltini. F.R., M.J.R., and L.Z. are members of the CaRed Excellence Network (BIO2017–90877-REDT).

Conflicts of Interest

The authors declare that they have no conflict of interest.

Abbreviations

ABAAbscisic acid
AP2Apetala2
CIChilling injury
CBFsC-repeat binding factors
COR genesCold regulated genes
ICCCitrus color index
phyBPhytochrome B
PIF3Phytochrome-interacting transcription 3
DREBDehydration-responsive element binding
HCAHydrophobic cluster analysis

References

  1. Biolatto, A.; Vazquez, D.E.; Sancho, A.M.; Carduza, F.J.; Pensel, N.A. Effect of commercial conditioning and cold quarantine storage treatments on fruit quality of “Rouge La Toma” grapefruit (Citrus paradisi Macf.). Postharvest Biol. Technol. 2005, 35, 167–176. [Google Scholar] [CrossRef]
  2. Lado, J.; Cronje, P.J.; Rodrigo, M.J.; Zacarías, L. Citrus. In Postharvest Physiological Disorders in Fruits and Vegetables; de Freitas, S.T., Sunil, P., Eds.; CRC Press: Boca Raton, FL, USA; Taylor & Francis: Abingdon, UK, 2019; pp. 377–398. ISBN 9781315267470. [Google Scholar]
  3. Lafuente, M.T.; Zacarías, L. Postharvest physiological disorders in citrus fruit. Stewart Postharvest Rev. 2006, 2, 1–9. [Google Scholar] [CrossRef]
  4. Dou, H. The influence of harvesting time and geographical location on susceptibility to physiological peel disorders associated with four Florida grapefruit cultivars. J. Hortic. Sci. Biotechnol. 2005, 80, 399–402. [Google Scholar] [CrossRef]
  5. Chalutz, E.; Waks, J.; Schiffmann-Nadel, M. A comparison of the response of different citrus fruit cultivars to storage temperature. Sci. Hortic. (Amsterdam) 1985, 25, 271–277. [Google Scholar] [CrossRef]
  6. Purvis, A.C. Relationship between mid-season resistance to chilling injury and reducing sugar level in grapefruit peel. HortScience 1979, 14, 227–229. [Google Scholar]
  7. Schirra, M.; Agabbio, M.; D’Hallewin, G. Chilling responses of grapefruit as affected by cultivar and harvest date. Adv. Hortic. Sci. 1998, 12, 118–122. [Google Scholar]
  8. Lafuente, M.T.; Martínez-Téllez, M.A.; Zacarías, L. Abscisic Acid in the Response of ‘Fortune’ Mandarins to Chilling. Effect of Maturity and High-Temperature Conditioning. J. Sci. Food Agric. 1997, 73, 494–502. [Google Scholar] [CrossRef]
  9. Lado, J.; Cronje, P.; Alquézar, B.; Page, A.; Manzi, M.; Gómez-Cadenas, A.; Stead, A.D.; Zacarías, L.; Rodrigo, M.J. Fruit shading enhances peel color, carotenes accumulation and chromoplast differentiation in red grapefruit. Physiol. Plant. 2015, 154, 469–484. [Google Scholar] [CrossRef][Green Version]
  10. Lado, J.; Rodrigo, M.J.; Cronje, P.; Zacarías, L. Involvement of lycopene in the induction of tolerance to chilling injury in grapefruit. Postharvest Biol. Technol. 2015, 100, 176–186. [Google Scholar] [CrossRef]
  11. Lado, J.; Rodrigo, M.J.; López-Climent, M.; Gómez-Cadenas, A.; Zacarías, L. Implication of the antioxidant system in chilling injury tolerance in the red peel of grapefruit. Postharvest Biol. Technol. 2016, 111, 214–223. [Google Scholar] [CrossRef]
  12. Sapitnitskaya, M.; Maul, P.; McCollum, G.T.; Guy, C.L.; Weiss, B.; Samach, A.; Porat, R. Postharvest heat and conditioning treatments activate different molecular responses and reduce chilling injuries in grapefruit. J. Exp. Bot. 2006, 57, 2943–2953. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Zhu, A.; Li, W.; Ye, J.; Sun, X.; Ding, Y.; Cheng, Y.; Deng, X. Microarray Expression Profiling of Postharvest Ponkan Mandarin (Citrus reticulata) Fruit under Cold Storage Reveals Regulatory Gene Candidates and Implications on Soluble Sugars Metabolism. J. Integr. Plant. Biol. 2011, 53, 358–374. [Google Scholar] [CrossRef] [PubMed]
  14. Maul, P.; McCollum, G.T.; Popp, M.; Guy, C.L.; Porat, R. Transcriptome profiling of grapefruit flavedo following exposure to low temperature and conditioning treatments uncovers principal molecular components involved in chilling tolerance and susceptibility. Plant Cell Environ. 2008, 31, 752–768. [Google Scholar] [CrossRef] [PubMed]
  15. Zhou, M.Q.; Shen, C.; Wu, L.H.; Tang, K.X.; Lin, J. CBF-dependent signaling pathway: A key responder to low temperature stress in plants. Crit. Rev. Biotechnol. 2011, 31, 186–192. [Google Scholar] [CrossRef] [PubMed]
  16. Champ, K.I.; Febres, V.J.; Moore, G.A. The role of CBF transcriptional activators in two Citrus species (Poncirus and Citrus) with contrasting levels of freezing tolerance. Physiol. Plant 2007, 129, 529–541. [Google Scholar] [CrossRef]
  17. He, L.G.; Wang, H.L.; Liu, D.C.; Zhao, Y.J.; Xu, M.; Zhu, M.; Wei, G.Q.; Sun, Z.H. Isolation and expression of a cold-responsive gene PtCBF in Poncirus trifoliata and isolation of citrus CBF promoters. Biol. Plant. 2012, 56, 484–492. [Google Scholar] [CrossRef]
  18. He, L.; Jiang, Y.; Wang, H.; Xu, M.; Sun, Z. Expression and regulation of a cold-responsive gene, CsCBF in Citrus sinensis (L.) Osbeck under low temperature, high salinity and abscisic acid. Acta Hortic. 2016, 1135, 33–46. [Google Scholar] [CrossRef]
  19. Chinnusamy, V.; Zhu, J.K.; Sunkar, R. Gene regulation during cold stress acclimation in plants. In Pllant Stress Tolerance. Methods in Molecular Biology; Sunkar, R., Ed.; Humana Press: Totowa, NJ, USA, 2010; Volume 639, pp. 39–55. ISBN 978-1-60761-701-3. [Google Scholar]
  20. Miura, K.; Furumoto, T. Cold signaling and cold response in plants. Int. J. Mol. Sci. 2013, 14, 5312–5337. [Google Scholar] [CrossRef][Green Version]
  21. Jia, Y.; Ding, Y.; Shi, Y.; Zhang, X.; Gong, Z.; Yang, S. The cbfs triple mutants reveal the essential functions of CBFs in cold acclimation and allow the definition of CBF regulons in Arabidopsis. New Phytol. 2016, 212, 345–353. [Google Scholar] [CrossRef][Green Version]
  22. Zhang, X.; Fowler, S.G.; Cheng, H.; Lou, Y.; Rhee, S.Y.; Stockinger, E.J.; Thomashow, M.F. Freezing-sensitive tomato has a functional CBF cold response pathway, but a CBF regulon that differs from that of freezing-tolerant Arabidopsis. Plant. J. 2004, 39, 905–919. [Google Scholar] [CrossRef]
  23. Liu, Y.; Dang, P.; Liu, L.; He, C. Cold acclimation by the CBF-COR pathway in a changing climate: Lessons from Arabidopsis thaliana. Plant. Cell Rep. 2019, 38, 511–519. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Ebrahimi, M.; Abdullah, S.N.A.; Aziz, M.A.; Namasivayam, P. A novel CBF that regulates abiotic stress response and the ripening process in oil palm (Elaeis guineensis) fruits. Tree Genet. Genomes 2015, 11. [Google Scholar] [CrossRef]
  25. Qin, F.; Sakuma, Y.; Li, J.; Liu, Q.; Li, Y.-Q.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Cloning and functional analysis of a novel DREB1/CBF transcription factor involved in cold-responsive gene expression in Zea mays L. Plant. Cell Physiol. 2004, 45, 1042–1052. [Google Scholar] [CrossRef] [PubMed][Green Version]
  26. Mizoi, J.; Shinozaki, K.; Yamaguchi-Shinozaki, K. AP2/ERF family transcription factors in plant abiotic stress responses. Biochim. Biophys. Acta 2012, 1819, 86–96. [Google Scholar] [CrossRef] [PubMed]
  27. Hu, Y.; Jiang, L.; Wang, F.; Yu, D. Jasmonate Regulates the INDUCER OF CBF EXPRESSION-C-REPEAT BINDING FACTOR/DRE BINDING FACTOR1 Cascade and Freezing Tolerance in Arabidopsis. Plant. Cell 2013, 25, 2907–2924. [Google Scholar] [CrossRef][Green Version]
  28. Liang, L.; Zhang, B.; Yin, X.-R.; Xu, C.-J.; Sun, C.-D.; Chen, K.-S. Differential Expression of the CBF Gene Family During Postharvest Cold Storage and Subsequent Shelf-Life of Peach Fruit. Plant Mol. Biol. Rep. 2013, 31, 1358–1367. [Google Scholar] [CrossRef]
  29. Wisniewski, M.; Norelli, J.; Artlip, T. Overexpression of a peach CBF gene in apple: A model for understanding the integration of growth, dormancy, and cold hardiness in woody plants. Front. Plant Sci. 2015, 6, 1–13. [Google Scholar] [CrossRef][Green Version]
  30. Ahmad, M.; Li, J.; Yang, Q.; Jamil, W.; Teng, Y.; Bai, S. Phylogenetic, Molecular, and Functional Characterization of PpyCBF Proteins in Asian Pears (Pyrus pyrifolia). Int. J. Mol. Sci. 2019, 20, 2074. [Google Scholar] [CrossRef][Green Version]
  31. Şahin-Çevik, M.; Moore, G.A. Two AP2 domain containing genes isolated from the cold-hardy Citrus relative Poncirus trifoliata are induced in response to cold. Funct. Plant Biol. 2006, 33, 863. [Google Scholar] [CrossRef]
  32. Liu, J.; Shi, Y.; Yang, S. Insights into the regulation of C-repeat binding factors in plant cold signaling. J. Integr. Plant Biol. 2018, 60, 780–795. [Google Scholar] [CrossRef]
  33. Shi, Y.; Huang, J.; Sun, T.; Wang, X.; Zhu, C.; Ai, Y.; Gu, H. The precise regulation of different COR genes by individual CBF transcription factors in Arabidopsis thaliana. J. Integr. Plant Biol. 2017, 59, 118–133. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Kim, H.-J.; Kim, Y.-K.; Park, J.-Y.; Kim, J. Light signalling mediated by phytochrome plays an important role in cold-induced gene expression through the C-repeat/dehydration responsive element (C/DRE) in Arabidopsis thaliana. Plant J. 2002, 29, 693–704. [Google Scholar] [CrossRef] [PubMed]
  35. Jiang, B.; Shi, Y.; Peng, Y.; Jia, Y.; Yan, Y.; Dong, X.; Li, H.; Dong, J.; Li, J.; Gong, Z.; et al. Cold-induced CBF–PIF3 interaction enhances freezing tolerance by stabilizing the phyB thermosensor in Arabidopsis. Mol. Plant 2020, 13, 894–906. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, F.; Chen, X.; Dong, S.; Jiang, X.; Wang, L.; Yu, J.; Zhou, Y. Crosstalk of PIF4 and DELLA modulates CBF transcript and hormone homeostasis in cold response in tomato. Plant Biotechnol. J. 2019, 2, 1–15. [Google Scholar] [CrossRef] [PubMed]
  37. Zhao, D.; Shen, L.; Fan, B.; Yu, M.; Zheng, Y.; Lv, S.; Sheng, J. Ethylene and cold participate in the regulation of LeCBF1 gene expression in postharvest tomato fruits. FEBS Lett. 2009, 583, 3329–3334. [Google Scholar] [CrossRef] [PubMed][Green Version]
  38. Zhang, T.; Zhang, Q.; Pan, Y.; Che, F.; Wang, Q.; Meng, X.; Rao, J. Changes of polyamines and CBFs expressions of two Hami melon (Cucumis melo L.) cultivars during low temperature storage. Sci. Hortic. (Amsterdam) 2017, 224, 8–16. [Google Scholar] [CrossRef]
  39. Xiao, H.; Siddiqua, M.; Braybrook, S.; Nassuth, A. Three grape CBF/DREB1 genes respond to low temperature, drought and abscisic acid. Plant Cell Environ. 2006, 29, 1410–1421. [Google Scholar] [CrossRef][Green Version]
  40. Vazquez-Hernandez, M.; Romero, I.; Escribano, M.I.; Merodio, C.; Sanchez-Ballesta, M.T. Deciphering the Role of CBF/DREB Transcription Factors and Dehydrins in Maintaining the Quality of Table Grapes cv. Autumn Royal Treated with High CO2 Levels and Stored at 0 °C. Front. Plant Sci. 2017, 8, 1591. [Google Scholar] [CrossRef]
  41. Fernandez-Caballero, C.; Rosales, R.; Romero, I.; Escribano, M.I.; Merodio, C.; Sanchez-Ballesta, M.T. Unraveling the roles of CBF1, CBF4 and dehydrin 1 genes in the response of table grapes to high CO2 levels and low temperature. J. Plant Physiol. 2012, 169, 744–748. [Google Scholar] [CrossRef][Green Version]
  42. Haake, V.; Cook, D.; Riechmann, L.; Pineda, O.; Thomashow, M.F.; Zhang, J.Z. Transcription Factor CBF4 Is a Regulator of Drought Adaptation in Arabidopsis. Plant Physiol. 2002, 130, 639–648. [Google Scholar] [CrossRef][Green Version]
  43. Gregorio, J.; Hernández-bernal, A.F.; Cordoba, E.; León, P. Characterization of evolutionarily conserved motifs involved in activity and regulation of the ABA-INSENSITIVE (ABI) 4 transcription factor. Mol. Plant 2014, 7, 422–436. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Akhtar, M.; Jaiswal, A.; Taj, G.; Jaiswal, J.P.; Qureshi, M.I.; Singh, N.K. DREB1/CBF transcription factors: Their structure, function and role in abiotic stress tolerance in plants. J. Genet. 2012, 91, 385–395. [Google Scholar] [CrossRef] [PubMed]
  45. Xiong, Y.; Fei, S. Functional and phylogenetic analysis of a DREB/CBF-like gene in perennial ryegrass (Lolium perenne L.). Planta 2006, 224, 878–888. [Google Scholar] [CrossRef] [PubMed]
  46. Dubouzet, J.; Sakuma, Y.; Ito, Y.; Kasuga, M.; Dubouzet, E.; Miura, S.; Seki, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. OsDREB genes in rice Oryza sativa L., encode transcription activators that function in drought-, high-salt- and cold-responsive gene expression. Plant J. 2003, 33, 751–763. [Google Scholar] [CrossRef] [PubMed]
  47. Wang, Z.; Triezenberg, S.J.; Thomashow, M.F.; Stockinger, E.J. Multiple hydrophobic motifs in Arabidopsis CBF1 COOH-terminus provide functional redundancy in trans-activation. Plant Mol. Biol. 2005, 543–559. [Google Scholar] [CrossRef]
  48. Saitou, N.; Nei, M. The Neighbor-joining method: A new method for reconstructing phylogenetic trees. Mol. Biol. Evol. 1987, 4, 406–425. [Google Scholar]
  49. Felsenstein, J. Confidence Limits on Phylogenies: An Approach Using the Bootstrap. Evolution (N. Y). 1985, 39, 783. [Google Scholar] [CrossRef]
  50. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef][Green Version]
  51. Costa-Broseta, Á.; Perea-Resa, C.; Castillo, M.; Salinas, J.; León, J. Nitric oxide deficiency decreases C-repeat binding factor-dependent and -independent induction of cold acclimation. J. Exp. Bot. 2019, 3285–3296. [Google Scholar] [CrossRef][Green Version]
  52. Lata, C.; Prasad, M. Role of DREBs in regulation of abiotic stress responses in plants. J. Exp. Bot. 2011, 62, 4731–4748. [Google Scholar] [CrossRef][Green Version]
  53. Shi, Y.; Ding, Y.; Yang, S. Molecular Regulation of CBF Signaling in Cold Acclimation. Trends Plant Sci. 2018, 23, 623–637. [Google Scholar] [CrossRef] [PubMed]
  54. Yahia, N.; Wani, S.H.; Kumar, V. CBF-Dependent and CBF-Independent transcriptional regulation of cold stress responses in plants. In Cold Tolerance in Plants; Wani, S.H., Herath, V., Eds.; Springer: Cham, Switzerland, 2018; pp. 89–102. ISBN 9783030014155. [Google Scholar]
  55. Pons, C.; Martí, C.; Forment, J.; Crisosto, C.H.; Dandekar, A.M.; Granell, A. A bulk segregant gene expression analysis of a peach population reveals components of the underlying mechanism of the fruit cold response. PLoS ONE 2014, 9, e90706. [Google Scholar] [CrossRef]
  56. Zhang, Z.; Zhu, Q.; Hu, M.; Gao, Z.; An, F.; Li, M.; Jiang, Y. Low-temperature conditioning induces chilling tolerance in stored mango fruit. Food Chem. 2017, 219, 76–84. [Google Scholar] [CrossRef] [PubMed]
  57. Zhao, R.; Sheng, J.; Lv, S.; Zheng, Y.; Zhang, J.; Yu, M.; Shen, L. Nitric oxide participates in the regulation of LeCBF1 gene expression and improves cold tolerance in harvested tomato fruit. Postharvest Biol. Technol. 2011, 62, 121–126. [Google Scholar] [CrossRef]
  58. Albornoz, K.; Cantwell, M.I.; Zhang, L.; Beckles, D.M. Integrative analysis of postharvest chilling injury in cherry tomato fruit reveals contrapuntal spatio- temporal responses to ripening and cold stress. Sci. Rep. 2019, 9–2795, 1–14. [Google Scholar] [CrossRef] [PubMed][Green Version]
  59. Zacarias, L.; Cronje, P.J.R.; Palou, L. Postharvest technology of citrus fruits. In The Genus Citrus; Talon, M., Caruso, M., Gmitter, F.G., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 421–446. ISBN 978-0-12-812163-4. [Google Scholar]
  60. Curk, F.; Navarro, L. Phylogenetic origin of limes and lemons revealed by cytoplasmic and nuclear markers. Ann. Bot. 2016, 117, 565–583. [Google Scholar] [CrossRef] [PubMed][Green Version]
  61. Canella, D.; Gilmour, S.J.; Kuhn, L.A.; Thomashow, M.F. Biochimica et Biophysica Acta DNA binding by the Arabidopsis CBF1 transcription factor requires the PKKP/RAGRxKFxETRHP signature sequence. Biochim. Biophys. Acta 2010, 1799, 454–462. [Google Scholar] [CrossRef]
  62. Lado, J.; Alós, E.; Rodrigo, M.J.; Zacarías, L. Light avoidance reduces ascorbic acid accumulation in the peel of Citrus fruit. Plant Sci. 2015, 231, 138–147. [Google Scholar] [CrossRef]
  63. Magwaza, L.S.; Opara, U.L.; Cronje, P.J.R.; Landahl, S.; Terry, L.A. Canopy position affects rind biochemical profile of “Nules Clementine” mandarin fruit during postharvest storage. Postharvest Biol. Technol. 2013, 86, 300–308. [Google Scholar] [CrossRef]
  64. Lado, J.; Alós, E.; Manzi, M.; Cronje, P.J.R.; Gómez-Cadenas, A.; Rodrigo, M.J.; Zacarías, L. Light Regulation of Carotenoid Biosynthesis in the Peel of Mandarin and Sweet Orange Fruits. Front. Plant Sci. 2019, 10, 1–16. [Google Scholar] [CrossRef][Green Version]
  65. Pfaffl, M.W.; Horgan, G.W.; Dempfle, L. Relative expression software tool (REST) for group-wise comparison and statistical analysis of relative expression results in real-time PCR. Nucleic Acids Res. 2002, 30, e36. [Google Scholar] [CrossRef] [PubMed]
  66. Alós, E.; Rodrigo, M.J.; Zacarías, L. Differential transcriptional regulation of l-ascorbic acid content in peel and pulp of citrus fruits during development and maturation. Planta 2014, 239, 1113–1128. [Google Scholar] [CrossRef] [PubMed]

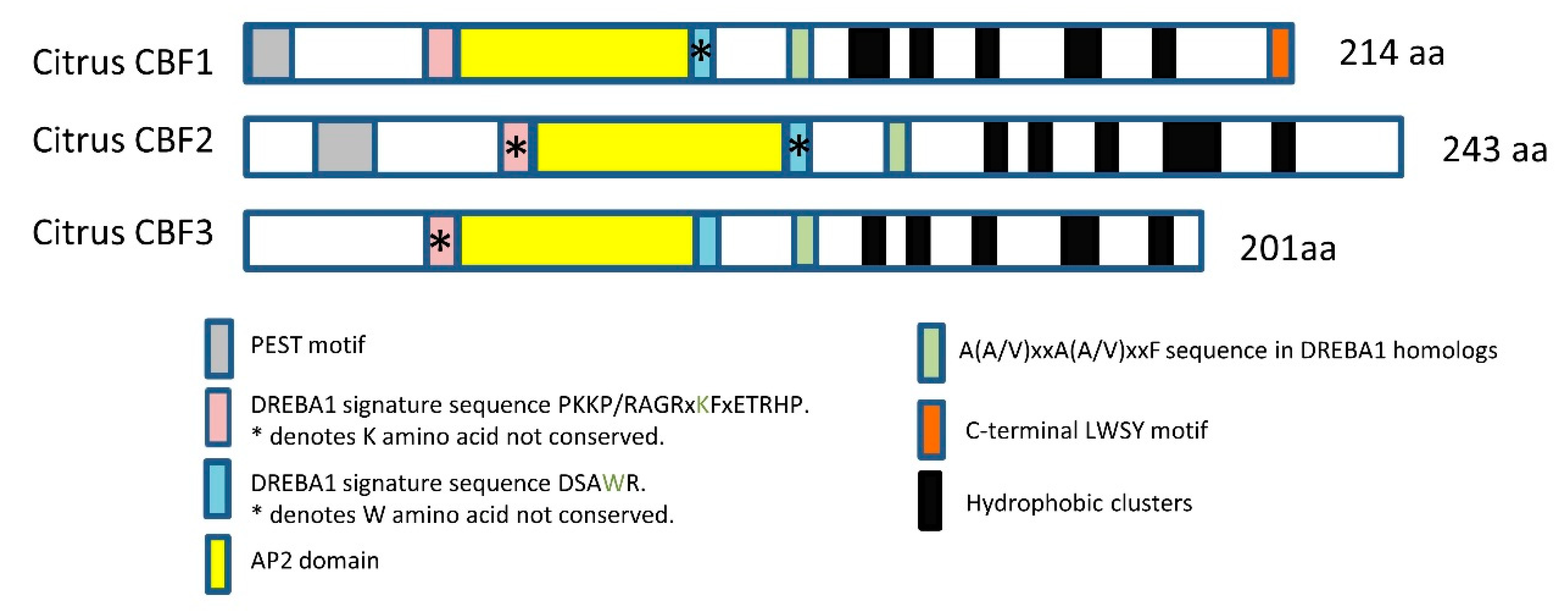

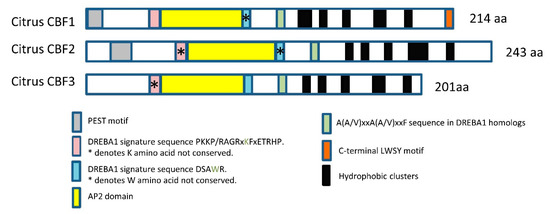

Figure 1. Schematic representation of C-repeat binding factors (CBFs) from Citrus sinensis (CBF1, orange1.1g028094m; CBF2 orange1.1g026103m; CBF3, orange1.1g029015m) showing the main characteristics domains. The PEST motif (grey), the PKKPAGR (dehydration-responsive element binding (DREB) A 1 signature sequence PKKP/RAGRxKFxETRHP) motif (pink), the AP2 domain (yellow), the DSAWRL (DREBA1 signature sequence DS(A/V/S)WRL) motif (blue), and the A(A/V)xxA(A/V)xxF motif (green) are present in the citrus CBFs. The C-terminus hydrophobic clusters (HC2-HC6) (gray) are indicated. The C-terminal LWSY motif was only identified in citrus CBF1.
Figure 1. Schematic representation of C-repeat binding factors (CBFs) from Citrus sinensis (CBF1, orange1.1g028094m; CBF2 orange1.1g026103m; CBF3, orange1.1g029015m) showing the main characteristics domains. The PEST motif (grey), the PKKPAGR (dehydration-responsive element binding (DREB) A 1 signature sequence PKKP/RAGRxKFxETRHP) motif (pink), the AP2 domain (yellow), the DSAWRL (DREBA1 signature sequence DS(A/V/S)WRL) motif (blue), and the A(A/V)xxA(A/V)xxF motif (green) are present in the citrus CBFs. The C-terminus hydrophobic clusters (HC2-HC6) (gray) are indicated. The C-terminal LWSY motif was only identified in citrus CBF1.
Ijms 22 00804 g001

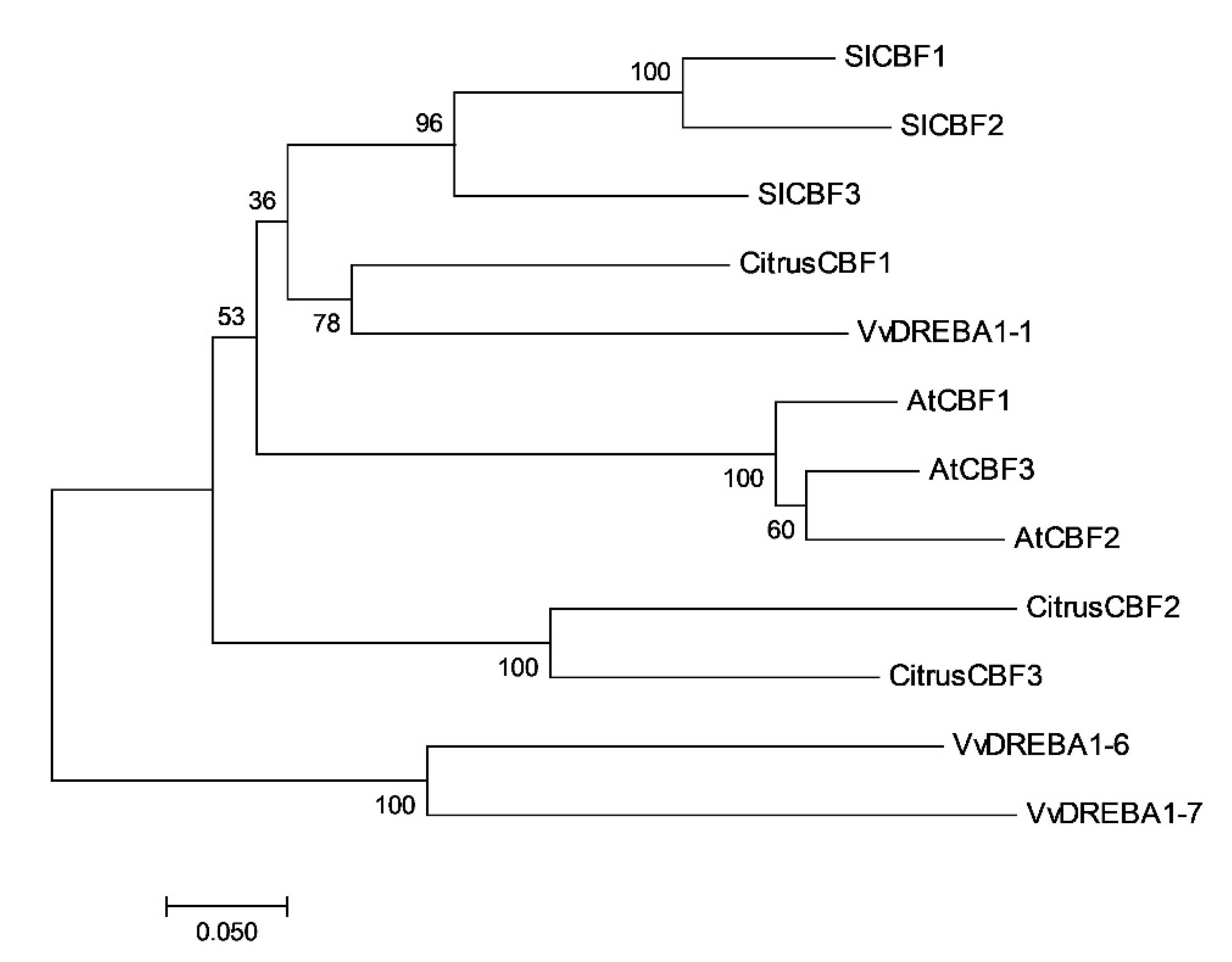

Figure 2. Phylogenetic tree of Citrus CBFs and other plant CBFs. The phylogenetic tree was generated based on the alignment of deduced amino acid sequences of Citrus sinensis CBF1, 2, and 3 proteins and Arabidopsis, tomatoes, and table grapes CBFs. The tree was constructed based on the Neighbor-Joining method [48]. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (1000 replicates) are shown next to the branches [49]. The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. The sequences used to generate the phylogenetic tree and their accession numbers are as follows: Citrus sinensis CBF1 (orange1.1g028094m), CBF2 (orange1.1g026103m), and CBF3 (orange1.1g029015m); Arabidopsis thaliana AtCBF1 (AT4G25490.1), AtCBF2 (AT4G25470.1) and AtCBF3 (AT4G25480.1); Solanum lycopersicum SlCBF1 (Q8S9N5), SlCBF2 (XP_004234350.1) and SlCBF3 (AAS77819.1); Vitis vinifera VviDREBA1–6 (MF445008), VviDREBA1–7 (MF445009) and VviDREBA1–1 (MF445007). Evolutionary analysis was conducted in MEGA7 [50].
Figure 2. Phylogenetic tree of Citrus CBFs and other plant CBFs. The phylogenetic tree was generated based on the alignment of deduced amino acid sequences of Citrus sinensis CBF1, 2, and 3 proteins and Arabidopsis, tomatoes, and table grapes CBFs. The tree was constructed based on the Neighbor-Joining method [48]. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (1000 replicates) are shown next to the branches [49]. The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. The sequences used to generate the phylogenetic tree and their accession numbers are as follows: Citrus sinensis CBF1 (orange1.1g028094m), CBF2 (orange1.1g026103m), and CBF3 (orange1.1g029015m); Arabidopsis thaliana AtCBF1 (AT4G25490.1), AtCBF2 (AT4G25470.1) and AtCBF3 (AT4G25480.1); Solanum lycopersicum SlCBF1 (Q8S9N5), SlCBF2 (XP_004234350.1) and SlCBF3 (AAS77819.1); Vitis vinifera VviDREBA1–6 (MF445008), VviDREBA1–7 (MF445009) and VviDREBA1–1 (MF445007). Evolutionary analysis was conducted in MEGA7 [50].
Ijms 22 00804 g002

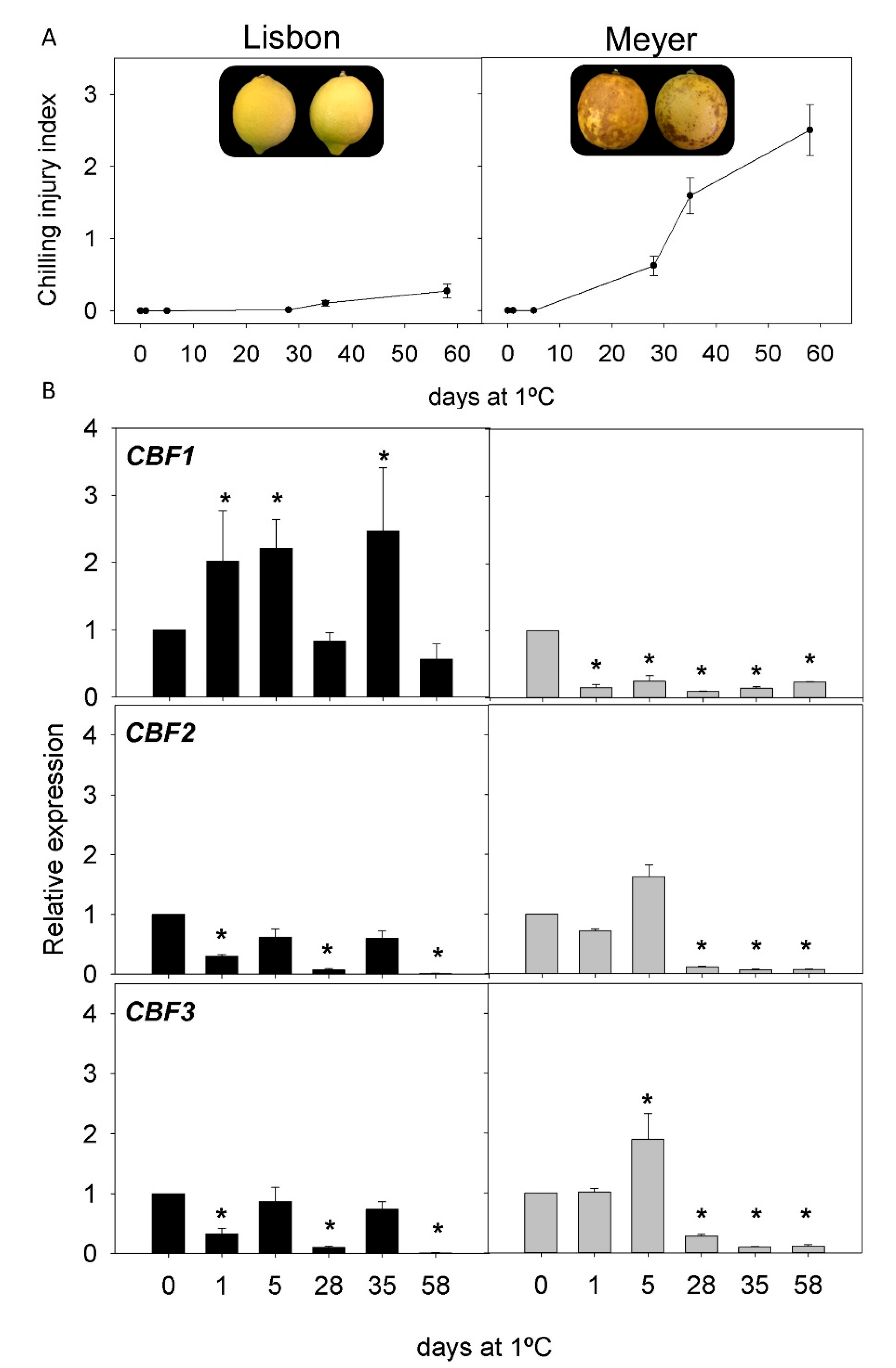

Figure 3. (A) Chilling injury (CI) index in Lisbon and Meyer lemons at harvest and during cold storage at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in Lisbon (black bars) and Meyer (grey bars) during cold storage (means ± S.E.). Pictures show the external appearance of fruit at 58 d of cold storage. For each cultivar, asterisks indicate significant differences in the expression of a CBF gene between each time-point and the harvest time (which were set to 1), by a Student’s t-test (p < 0.05).
Figure 3. (A) Chilling injury (CI) index in Lisbon and Meyer lemons at harvest and during cold storage at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in Lisbon (black bars) and Meyer (grey bars) during cold storage (means ± S.E.). Pictures show the external appearance of fruit at 58 d of cold storage. For each cultivar, asterisks indicate significant differences in the expression of a CBF gene between each time-point and the harvest time (which were set to 1), by a Student’s t-test (p < 0.05).
Ijms 22 00804 g003

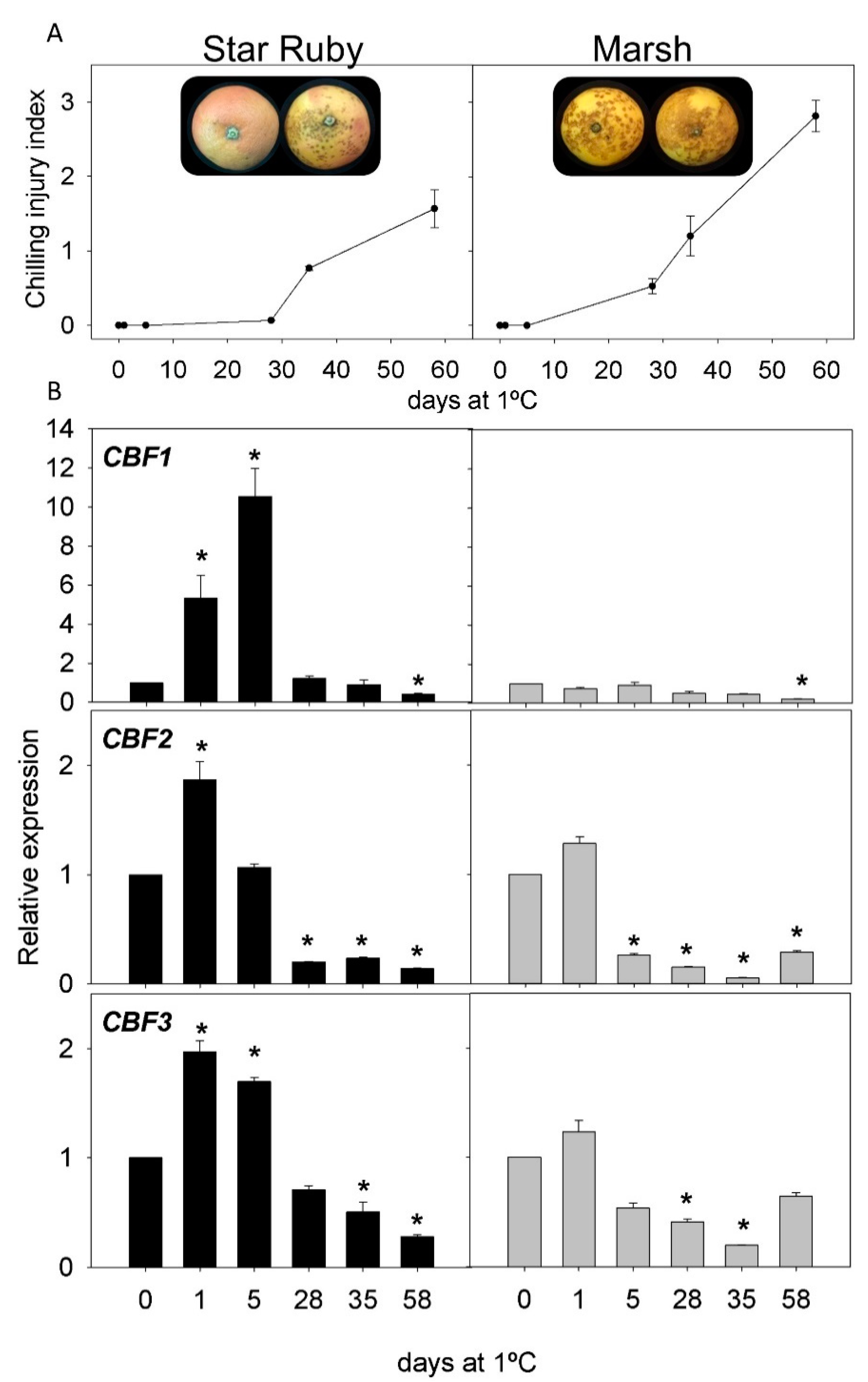

Figure 4. (A) CI index in Star Ruby and Marsh grapefruit at harvest and during cold storage at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in Star Ruby (black bars) and Marsh (grey bars) during cold storage (means ± S.E.). Pictures show the external appearance of fruit at 58 d of cold storage. For each cultivar, asterisks indicate significant differences in the expression of a CBF gene between each time-point and the harvest time (which were set to 1), by a Student’s t-test (p < 0.05).
Figure 4. (A) CI index in Star Ruby and Marsh grapefruit at harvest and during cold storage at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in Star Ruby (black bars) and Marsh (grey bars) during cold storage (means ± S.E.). Pictures show the external appearance of fruit at 58 d of cold storage. For each cultivar, asterisks indicate significant differences in the expression of a CBF gene between each time-point and the harvest time (which were set to 1), by a Student’s t-test (p < 0.05).
Ijms 22 00804 g004

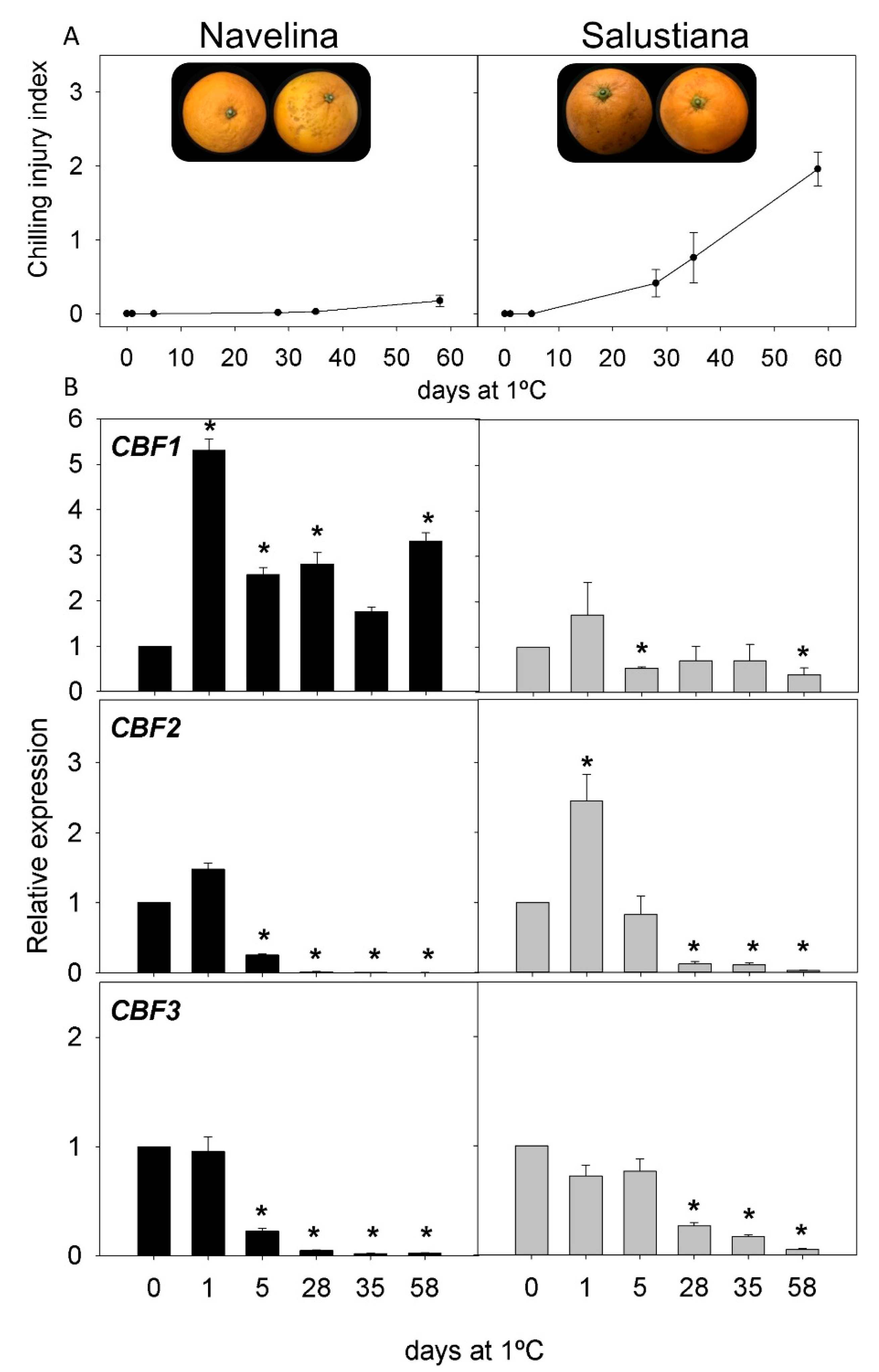

Figure 5. (A) CI index in Navelina and Salustiana oranges at harvest and during cold storage at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in Navelina (black bars) and Salustiana (grey bars) during cold storage (means ± S.E.). Pictures show the external appearance of fruit at 58 d of cold storage. For each cultivar, asterisks indicate significant differences in the expression of a CBF gene between each time-point and the harvest time (which were set to 1), by a Student’s t-test (p < 0.05).
Figure 5. (A) CI index in Navelina and Salustiana oranges at harvest and during cold storage at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in Navelina (black bars) and Salustiana (grey bars) during cold storage (means ± S.E.). Pictures show the external appearance of fruit at 58 d of cold storage. For each cultivar, asterisks indicate significant differences in the expression of a CBF gene between each time-point and the harvest time (which were set to 1), by a Student’s t-test (p < 0.05).
Ijms 22 00804 g005

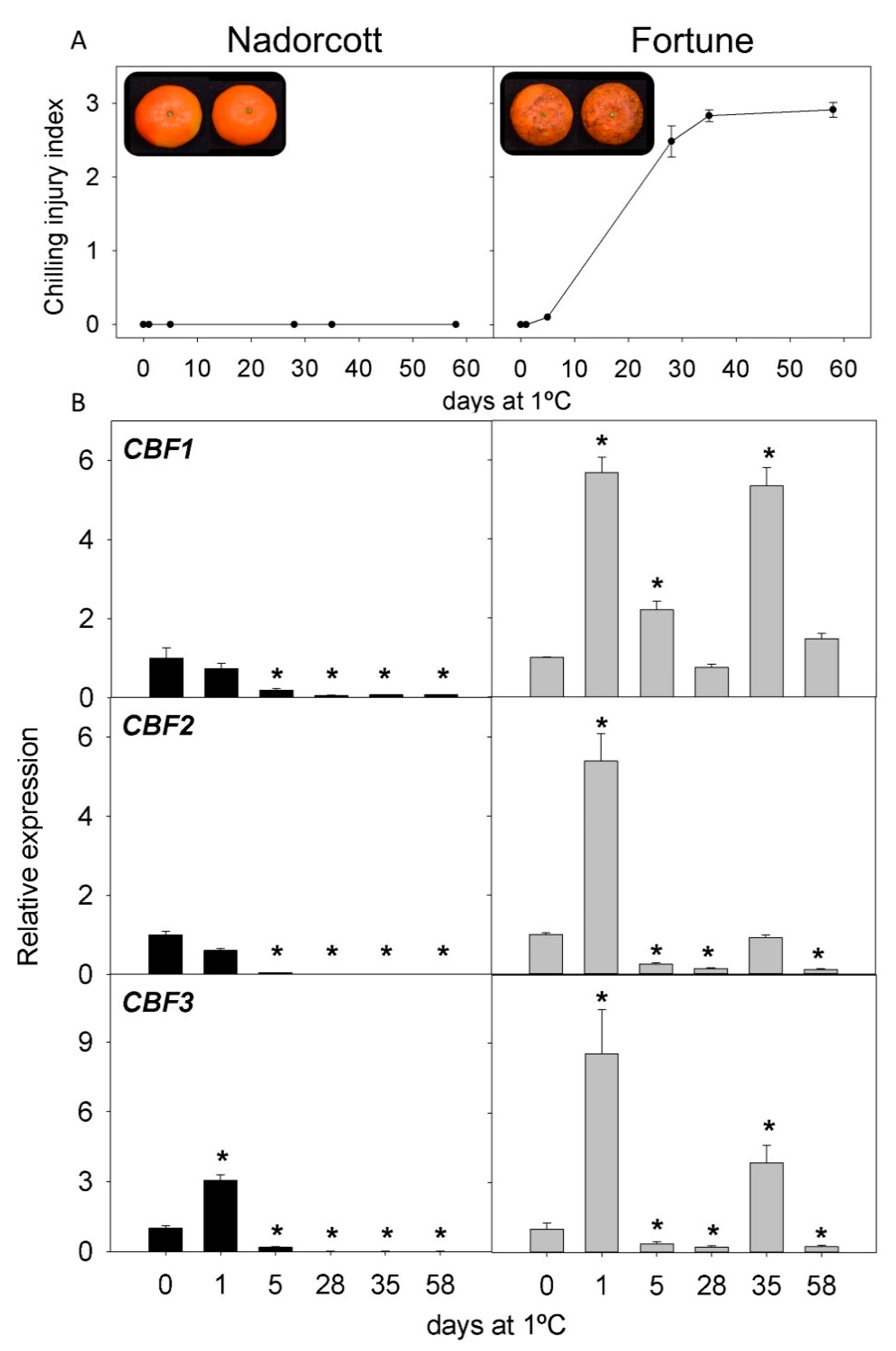

Figure 6. (A) CI index in Nadorcott and Fortune mandarins at harvest and during cold at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in Nadorcott (black bars) and Fortune (grey bars) during cold storage (means ± S.E.). Pictures show the external appearance of fruit at 58 d of cold storage. For each cultivar, asterisks indicate significant differences in the expression of a CBF gene between each time-point and the harvest time (which were set to 1), by a Student’s t-test (p < 0.05).
Figure 6. (A) CI index in Nadorcott and Fortune mandarins at harvest and during cold at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in Nadorcott (black bars) and Fortune (grey bars) during cold storage (means ± S.E.). Pictures show the external appearance of fruit at 58 d of cold storage. For each cultivar, asterisks indicate significant differences in the expression of a CBF gene between each time-point and the harvest time (which were set to 1), by a Student’s t-test (p < 0.05).
Ijms 22 00804 g006
Figure 7. CI symptoms in non-covered and covered fruit of Meyer lemon, Marsh grapefruit, and Salustiana orange at harvest and after 28 and 58 d of cold storage at 1 ± 0.5 °C.
Figure 7. CI symptoms in non-covered and covered fruit of Meyer lemon, Marsh grapefruit, and Salustiana orange at harvest and after 28 and 58 d of cold storage at 1 ± 0.5 °C.
Ijms 22 00804 g007

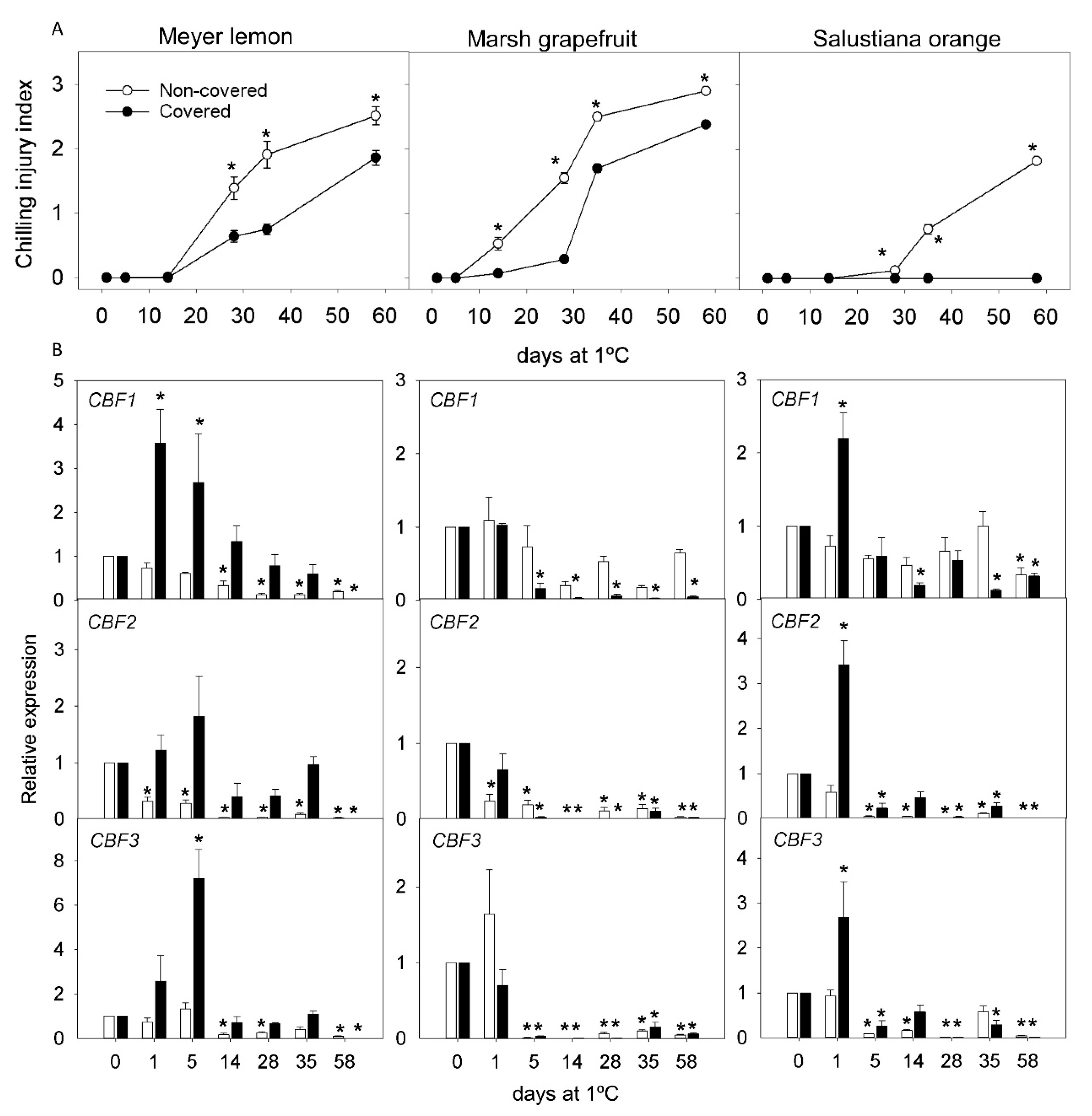

Figure 8. (A) CI index in non-covered and covered Meyer lemon, Marsh grapefruit, and Salustiana orange during cold storage at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in non-covered (white bars) and covered (black bars) fruit of Meyer lemon, Marsh grapefruit, and Salustiana orange during cold storage (means ± S.E.). For each cultivar, reference samples at harvest (0) were set to 1, and asterisks indicate significant differences in CI index between non-covered and covered fruit, and for CBF gene expression between each time-point and harvest by a Student’s t-test (p < 0.05).
Figure 8. (A) CI index in non-covered and covered Meyer lemon, Marsh grapefruit, and Salustiana orange during cold storage at 1 °C and (B) relative expression of CBF1, CBF2, and CBF3 in non-covered (white bars) and covered (black bars) fruit of Meyer lemon, Marsh grapefruit, and Salustiana orange during cold storage (means ± S.E.). For each cultivar, reference samples at harvest (0) were set to 1, and asterisks indicate significant differences in CI index between non-covered and covered fruit, and for CBF gene expression between each time-point and harvest by a Student’s t-test (p < 0.05).
Ijms 22 00804 g008
Table 1. Summary of the changes in chilling injury (CI) and the relative expression levels of CBF1, CBF2, and CBF3 in the flavedo of covered and non-covered fruit of different Citrus varieties.
Table 1. Summary of the changes in chilling injury (CI) and the relative expression levels of CBF1, CBF2, and CBF3 in the flavedo of covered and non-covered fruit of different Citrus varieties.
Non covered Covered
SpecieVarietyCICBF1CBF2CBF3CICBF1CBF2CBF3
LemonLisbon-++--n.d.
Meyer+++--+++++-+++
GrapefruitStar Ruby++++++n.d.
Marsh+++----++---
OrangeNavelina -+++--n.d.
Salustiana++-----+++++
Symbols indicate: -, no changes or reduction; +, increases over initial; n.d., not determined.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Salvo, M.; Rey, F.; Arruabarrena, A.; Gambetta, G.; Rodrigo, M.J.; Zacarías, L.; Lado, J. Transcriptional Analysis of C-Repeat Binding Factors in Fruit of Citrus Species with Differential Sensitivity to Chilling Injury during Postharvest Storage. Int. J. Mol. Sci. 2021, 22, 804. https://doi.org/10.3390/ijms22020804

AMA Style

Salvo M, Rey F, Arruabarrena A, Gambetta G, Rodrigo MJ, Zacarías L, Lado J. Transcriptional Analysis of C-Repeat Binding Factors in Fruit of Citrus Species with Differential Sensitivity to Chilling Injury during Postharvest Storage. International Journal of Molecular Sciences. 2021; 22(2):804. https://doi.org/10.3390/ijms22020804

Chicago/Turabian Style

Salvo, Matías, Florencia Rey, Ana Arruabarrena, Giuliana Gambetta, María J. Rodrigo, Lorenzo Zacarías, and Joanna Lado. 2021. "Transcriptional Analysis of C-Repeat Binding Factors in Fruit of Citrus Species with Differential Sensitivity to Chilling Injury during Postharvest Storage" International Journal of Molecular Sciences 22, no. 2: 804. https://doi.org/10.3390/ijms22020804

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
