Article

A New Smoothened Antagonist Bearing the Purine Scaffold Shows Antitumour Activity In Vitro and In Vivo

1
Departamento de Química Orgánica, Facultad de Química y de Farmacia, Pontificia Universidad Católica de Chile, Vicuña Mackenna 4860, Macul, Santiago 702843, Chile
2
Departamento de Farmacia, Facultad de Química y de Farmacia, Pontificia Universidad Católica de Chile, Vicuña Mackenna 4860, Macul, Santiago 702843, Chile
3
Advanced Center for Chronic Diseases (ACCDiS), Universidad de Chile, Sergio Livingstone 1007, Independencia, Santiago 8380492, Chile
4
Instituto de Investigación Interdisciplinar en Ciencias Biomédicas, Facultad de Ciencias de la Salud, Universidad SEK (I3CBSEK), Fernando Manterola 0789, Providencia, Santiago 7520317, Chile
5
Departamento de Ciencias y Tecnología Farmacéuticas, Facultad de Ciencias Químicas y Farmacéuticas, Universidad de Chile, Santos Dumont 964, Independencia, Santiago 8380494, Chile
6
Laboratorio de Comunicaciones Celulares, Centro de Estudios en Ejercicio, Metabolismo y Cáncer (CEMC), Program of Cellular and Molecular Biology, Instituto de Ciencias Biomédicas (ICBM), Facultad de Medicina, Universidad de Chile, Independencia 1027, Santiago 8380453, Chile
7
Laboratory Affiliated to Insituto Pasteur Italia, Fondazione Cenci Bognetti, Department of Molecular Medicine, Sapienza University of Rome, Viale Regina Elena 291, 00161 Rome, Italy
8
Center For Life Nano [email protected], Istituto Italiano di Tecnologia, Viale Regina Elena 291, 00161 Rome, Italy
9
Department of Molecular Medicine, Sapienza University of Rome, Viale Regina Elena 291, 00161 Rome, Italy
10
Department of Chemistry and Technology of Drugs, Sapienza University of Rome, Piazzale Aldo Moro 5, 00185 Rome, Italy
11
Program of Cellular and Molecular Biology, Institute of Biomedical Sciences, Universidad de Chile, Independencia 1027, Santiago 8380453, Chile
12
Laboratorio de Medicina Traslacional, Fundación Arturo López Pérez, Rancagua 878, Lower Fifth Floor, Providencia, Santiago 8320000, Chile
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(16), 8372; https://doi.org/10.3390/ijms22168372
Received: 7 July 2021 / Revised: 29 July 2021 / Accepted: 30 July 2021 / Published: 4 August 2021
(This article belongs to the Special Issue Molecular Target and Action Mechanism of Anti-Cancer Agents)

Abstract

:
The Smoothened (SMO) receptor is the most druggable target in the Hedgehog (HH) pathway for anticancer compounds. However, SMO antagonists such as vismodegib rapidly develop drug resistance. In this study, new SMO antagonists having the versatile purine ring as a scaffold were designed, synthesised, and biologically tested to provide an insight to their mechanism of action. Compound 4s was the most active and the best inhibitor of cell growth and selectively cytotoxic to cancer cells. 4s induced cell cycle arrest, apoptosis, a reduction in colony formation and downregulation of PTCH and GLI1 expression. BODIPY-cyclopamine displacement assays confirmed 4s is a SMO antagonist. In vivo, 4s strongly inhibited tumour relapse and metastasis of melanoma cells in mice. In vitro, 4s was more efficient than vismodegib to induce apoptosis in human cancer cells and that might be attributed to its dual ability to function as a SMO antagonist and apoptosis inducer.

1. Introduction

The Hedgehog (HH) signalling pathway plays a crucial role in early stages of embryo development. The transduction signal, induced by HH ligands (SHH, IHH and DHH), regulates proliferation and cell differentiation in the physiological maturation of new tissues [1,2,3]. At the same time, aberrant activation of this pathway is linked to the occurrence of malignant transformation in different cancers that affect humans [4,5,6]. When HH ligands binds to Patched (PTCH), a 12-pass transmembrane protein which represses the pathway, the inhibition exerted by PTCH on the co-receptor Smoothened (SMO) is relieved. As a result, the active SMO triggers a downstream signalling cascade, which leads to the activation of GLI transcription factors (Gli1, Gli2 and Gli3) that translocate into the nucleus and induce the expression of their target genes including GLI1 and PTCH1, among others which are pro-tumorigenic [7,8]. Nevertheless, in several cancers including basal cell carcinoma (BCC) and medulloblastoma (MB), HH pathway is constitutively activated and related to ligand-independent mechanism, due to somatic mutations in PTCH1, SMO or SUFU genes [9]. Conversely, ligand-dependent activation has been shown in other malignancies, such as melanoma, pancreatic, lung, breast, renal, and colorectal cancers [2,6]. In all cases, the resulting increase in HH signalling activity is responsible for an increase in cell proliferation along with neoplastic transformation.
Anticancer therapy based on the ability to inhibit HH signalling at the upstream level on SMO receptor has passed clinical scrutiny. Two Smo antagonists: vismodegib [10,11] and sonidegib [12] (Figure 1), have been approved by the FDA in 2012 and 2015 [13,14], respectively, for the treatment of metastatic and locally advanced BCC or MB. Although both FDA-approved SMO antagonists were initially successful in the treatment of BCC or MB, they rapidly caused drug resistance due to acquired mutations within the SMO-transmembrane domain, which prevent the binding of the drugs [15,16]. Despite their limitations, SMO antagonists are in new clinical trials for various cancers, either as mono- or combined therapy [15,16]. In addition, a Pfizer oral inhibitor of the HH signalling pathway, glasdegib (DAURISMO™, Figure 1), was approved in November 2018 in the USA for the treatment of recently diagnosed acute myeloid leukaemia (AML) in combination with low-dose of cytarabine [17,18,19].

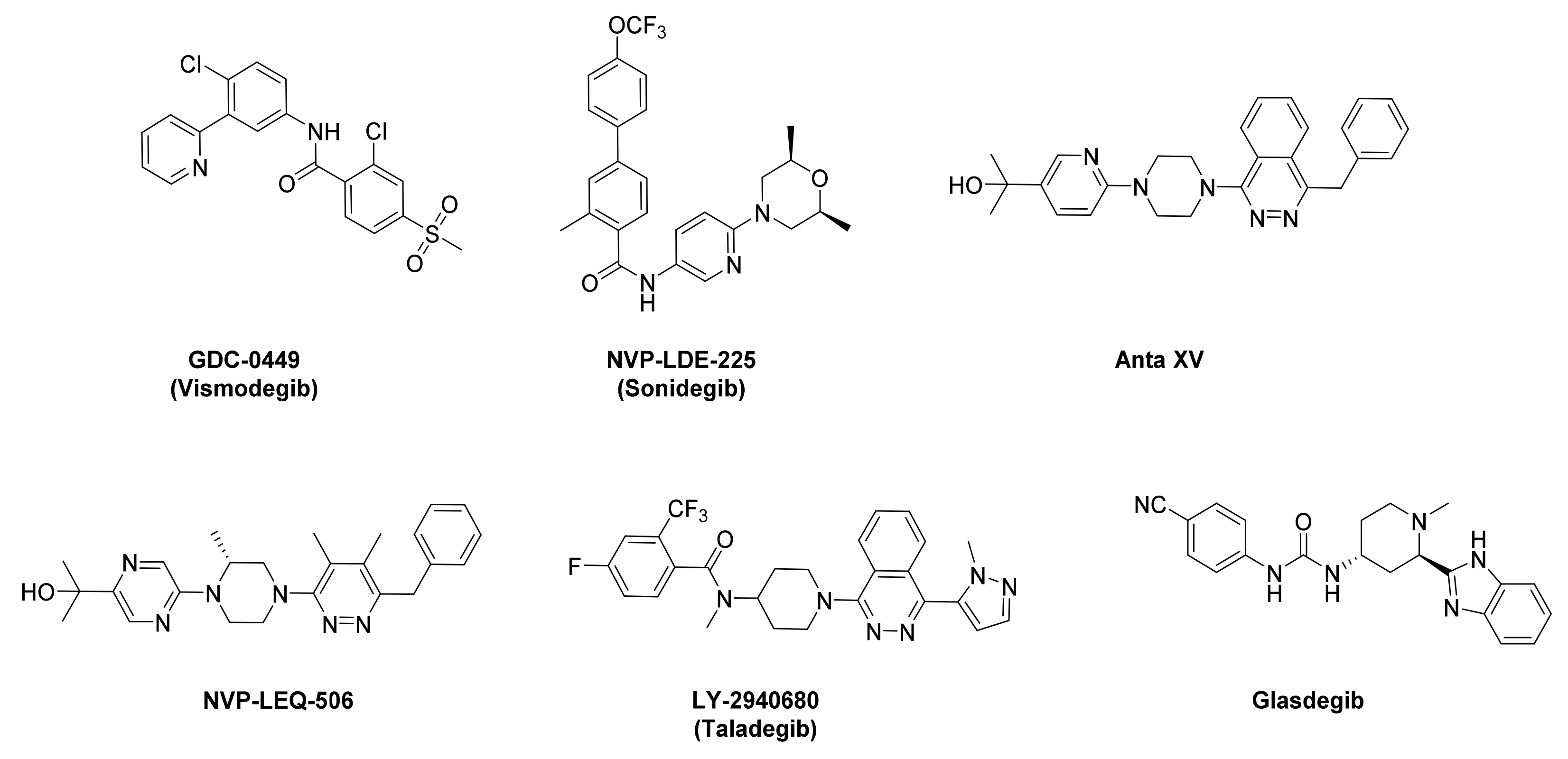

Efforts to identify new SMO antagonists have yielded several potential candidates [20], such as the following phthalazine derivatives such as Anta XV, NVP-LEQ506 and taladegib (Figure 1) [21,22]. Taladegib is currently undergoing phase II clinical studies at Eli Lilly for new oesophageal cancer therapies [23,24]. Finally, in exploring new SMO antagonists with novel structural patterns, the purine ring has emerged as an interesting scaffold because all living organisms have biological molecules that have this heterocyclic structure and play major roles in signalling pathways [25,26,27,28]. In fact, compounds I and II are examples of synthetic purine derivatives with antitumour activities (Figure 2) [29,30]. Along with the purine scaffold, compound I has a piperazinyl group (also present in Anta XV and NVP-LEQ506), and a diminutive and inflexible heterocyclic backbone, which was applied in the design of various anticancer drugs [31]. Compounds IIIIV (Figure 2) exemplify 2,6,9-trisubstituted purine derivatives which stood out as SMO antagonists in research conducted by Zhang et al. [32]. Both purine derivatives showed IC50 values in the nanomolar range in GLI-luciferase reporter assays. From the chemical perspective, III and IV have a trifluoromethylphenyl group at C-6 of the purine ring (in sonidegib), a methyl substitution on N-9 and a variable aniline moiety on C-2.

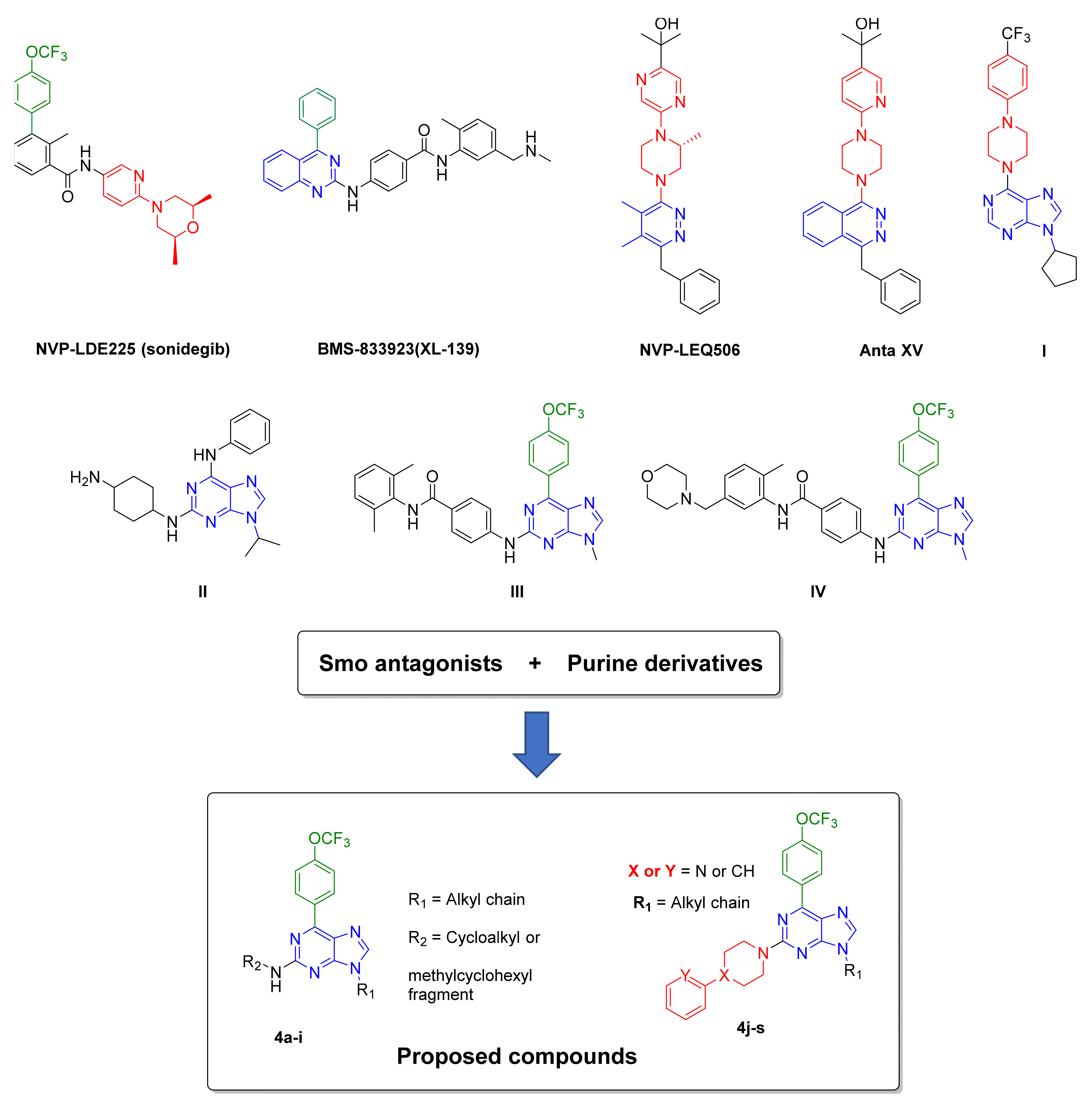

In this study, we took the purine scaffold and some fragments from other SMO antagonists, including those mentioned above and BMS-833923 [33,34], as the starting point to design a new series of purine derivatives that would inhibit the HH pathway upon binding to SMO receptor (Compounds 4a4s, Figure 2). Subsequently, to evaluate the activity of the new compounds on HH signalling, we tested them on HH-dependent cancer cell lines and ranked the most promising compounds in order of selectivity and cytotoxicity. Selected compounds were further studied to determine the type of cell death by flow cytometry. Quantitative Real Time PCR analyses were carried out to evaluate the effect on the downregulation of HH-target genes expression. Gli1-transcription functional assays and BODIPY-cyclopamine displacement assays were also performed for the eventual hit compound. Our work also included in silico studies using docking analysis that allowed us to analyse the binding mode of some purine derivatives in the SMO binding pocket. Finally, using a syngeneic mouse model, we demonstrated that the most promising compound elicits a strong inhibitory effect on tumour relapse and metastasis in vivo. Our results provide a platform for designing new SMO antagonists that may prove to be stronger and more selective anticancer agents.

2. Results

2.1. Synthesis

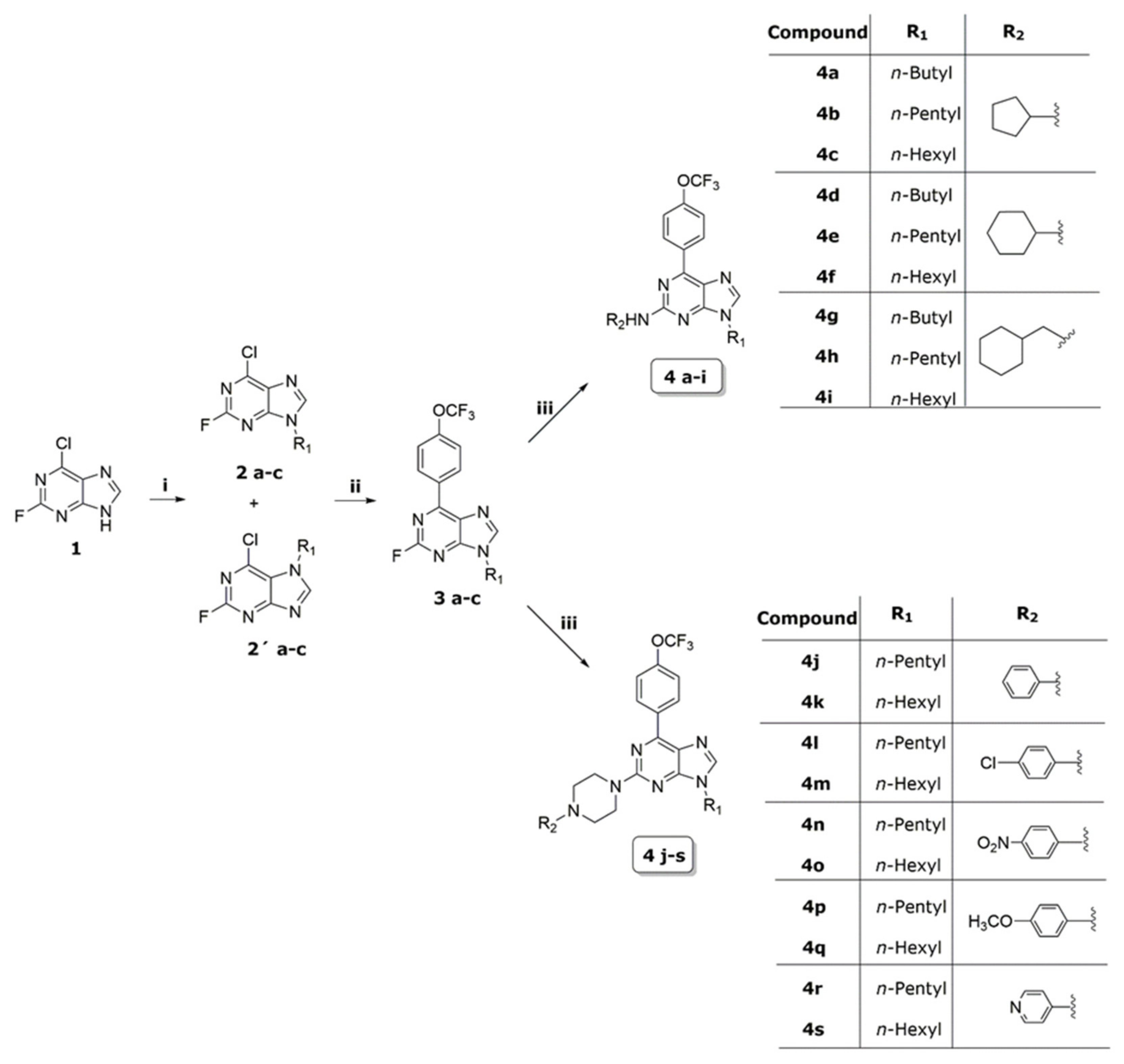

The structures and synthesis of the new 2,6,9-trisubstituted purines 4a4s appear in Scheme 1. Nineteen compounds based on the chemical structures of well-known SMO ligands were synthesised using a three-step synthesis starting from 2-chloro-6-fluoro-purine (1). The initial step involved alkylating 1 with some alkyl halides under basic conditions to yield the N-9 and N-7-alkylated purine regioisomers 2a2c:2a′2c′, in most cases in a 4:1 ratio, as we reported previously [35,36]. Later, the regioisomers 2a2c were substituted in position C-6 with trifluoromethoxyphenylboronic acid to obtain compounds like-3 by a regiospecific Suzuki cross coupling reaction [35,36,37]. Finally, a nucleophilic substitution (SNAr) on C-2 was carried out using several amines or piperazine derivatives to obtain 4a4s in high yields (77–97%). The synthetic strategy employed was an effective method to synthesise compounds used for research. The chemical structures of the synthesised compounds were confirmed according to their spectral properties. 1H NMR and 13C NMR spectra and HRMS are reported in the Supplementary Materials section.

2.2. Cytotoxic Studies

In order to test the activity of 2,6,9-trisubstituted purines in vitro as SMO antagonists, we carried out cytotoxicity studies using 19 compounds (4a4s) in both HH-dependent (Daoy [38,39,40]), (HT-29 and HCT-116 cells [41,42]) and HH-independent (H1975, AsPC-1, BxPC-3) cell lines reported to show a moderate to high expression of SMO receptor and HH signalling components [43,44,45,46] and in HEK293 cells as control. Etoposide and 5-fluorouracil (5-FU) were used as anticancer agents to compare cytotoxicity. Results from our studies revealed that 7 of the 19 compounds showed a cytotoxic activity greater than 50% after 72 h of treatment in an MTT assay (Supplementary Materials, Table S1). Of note, compounds 4r and 4s showed the highest degree of cytotoxicity (more than 80%) at 50 µM in most of the tumour cell lines tested, but less than 50% in HEK293 control cells, highlighting the specificity of these small molecules.
In order to estimate the IC50 and selectivity index values of these seven selected compounds, including 4r and 4s, four serial dilutions (from 0.05 to 50 µM) of each sample were evaluated after 72 h using etoposide, 5-FU and cisplatin as positive controls. Vismodegib, a well-known SMO antagonist, was included for comparison. Gemcitabine was also used as a positive control for the two pancreatic tumour cell lines (AsPC-1 and BxPC-3) included in the screening panel.
Table 1 shows the IC50 cytotoxicity values of seven compounds, including 4r and 4s, on six tumour cell lines and HEK293 control cells. Results revealed the lowest IC50 values for 4s, ranging between 1.3 and 15 µM depending on the tumour cell line. These values represent approximately a 40-fold increase in cytotoxicity compared to vismodegib and a 7-fold increased activity compared to anticancer agents used clinically, such as etoposide, cisplatin, 5-FU or gemcitabine, as appropriate for each type of tumour cell line. In addition, 4s was 40 times more selective for cancer cells compared to HEK293 control cells. Effects of 4s on HEK293 cells were observed at concentrations above 50 µM. In fact, the selectivity index of 4s was 12 and 29 for the pancreatic cell lines BxPC-3 and AsPC-1, respectively, 38 for HCT116, 3.3 for HT29 and 33 for H1975 cells. It is remarkable that compound 4s was more effective than vismodegib in all tumour cell lines assayed. Although 4r showed considerable cytotoxicity, its effect was lower than 4s, with higher IC50 and lower SI values. In Daoy cells, compounds 4r and 4s had IC50 values of 1.5 and 6.5 µM, respectively, and a selectivity index greater than 6, which indicates that, although SMO is constitutively active in this cell type, 4s is still effective at inducing significant cytotoxicity. Thus, one compound (4s) that is structurally simpler than other available SMO antagonists on the market showed the highest cytotoxic effect (IC50 of 1.3–15 µM) in all tumour cell lines and was equally effective in both HH-dependent and independent cell lines assayed. From here on we focused on 4s to explore the molecular mechanism of these effects in cancer in HH-dependent cell lines with a high expression of SMO [44].

2.3. Effect of 4s in Proliferation, Cell Cycle, Apoptosis and Colony Formation of Cancer Cells

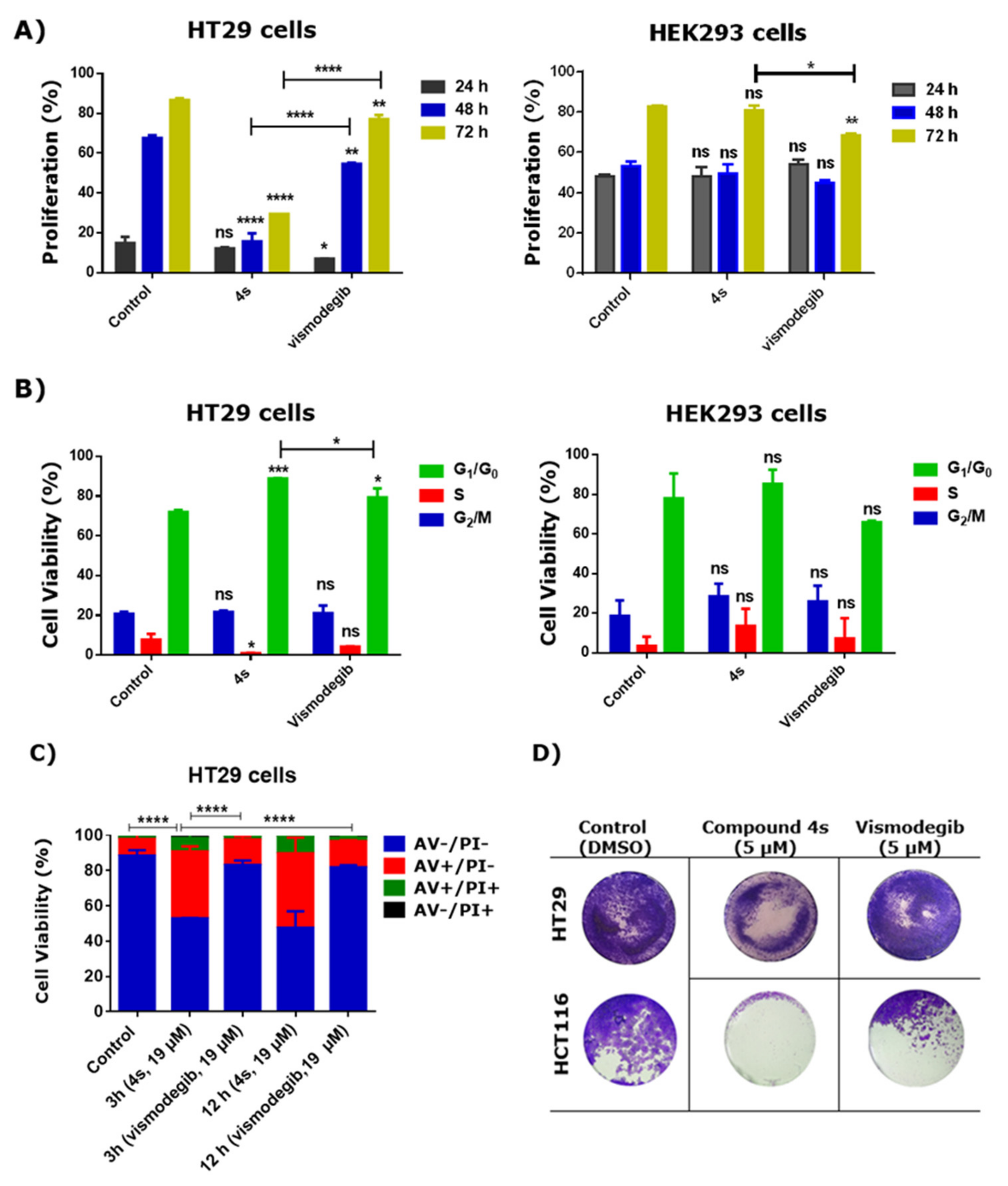

To shed light on different effects shown by 4s in cancer cells, proliferation rate and cell cycle arrest were compared in HT29 and HEK293 control cells (Figure 3A,B). For proliferation assays, cells were plated and treated at sub-confluency with a fixed concentration of 4s (19 µM) or using vismodegib at same concentration. Cell death was close to 50% after 24, 48 and 72 h as assessed using the carboxyfluorescein diacetate succinimidyl ester (CFSE) fluorescent probe. Incubation with 4s (19 µM) significantly reduced HT29 cell proliferation after 48 h of treatment, while no effect was shown by the control HEK293 cells. The same effects were observed in Daoy cells (data not shown). On the other hand, vismodegib had less effect on reducing proliferation than 4s in either HT29 or HEK293 cells. Thus, 4s inhibits cell growth more effectively than vismodegib after 48 h in both cell lines (Figure 3A). Taking into account that apoptotic mechanisms are related to the arrest of the G1/S boundary cell cycle, and furthermore, cycle progression is a crucial mechanism to control the growth of cancerous cells, we looked to further dissect the mechanism of 4s action. Cell suspensions underwent treatment with the same concentrations (19 µM) of either 4s or vismodegib for 24 h and effects on the cell division cycle were assessed in HT29 and HEK293 cell lines. We analysed the cell cycle distribution of PI-stained cells by flow cytometry. HT29 cells treated with 4s showed a significant decrease of 12% in S phase and the consequent increase of the G1/G0 phase by 24% compared to the control (Figure 3B). We did not observe any changes in HEK293 cells after treatment with 4s. A concomitant tendency towards increases in 10% of the G1/G0 population was also detected in HT29 cells treated with vismodegib (Figure 3B).
Apoptosis plays a major role in maintaining the homeostasis of cells. Cellular shrinkage and DNA fragmentation at the molecular level are characteristics acquired during apoptosis. Therefore, we performed flow cytometric analysis to determine if 4s could induce apoptosis in tumour cell lines. To this end, 4s-treated cells were stained with Annexin V-FITC and/or PI and analysed by flow cytometry. Dose–response effects were assessed using 4s at concentrations under 50 µM (1.5, 3.0, 6.25, 19, 25 and 50 µM) for 72 h. Indeed, the results showed that 4s treatment induced apoptosis in a dose-dependent manner in all cancer cell lines (HH-dependent and HH-independent) assayed in this study (Supplementary Materials, Figure S1A).
To understand the ability of compound 4s (high SI and minimum IC50 values) to promote cell death, we performed an Annexin V-FITC/PI assay at times earlier than 24 h. HT29 cells were treated with 4s at 19 µM for 3 or 12 h and compared to cells treated with vismodegib. As shown in Figure 3C and Supplementary Materials Figure S1B, 4s diminished cell viability (from around 95.7–33.8%) and increased early apoptosis (II) compared to untreated control cells (2.7 and 64.6%, respectively). Vismodegib showed no statistically significant differences in early apoptosis compared to control cells. In addition, Figure 3C reveals an increase in early and late apoptosis (II and III) after 3 h at 19 µM, indicating that 4s can induce apoptosis in a time-dependent manner.
Finally, additional support for the anticancer effects of the 4s was obtained using colony formation assays. HT29 and HT116 cells were seeded on plastic at low-density and were treated with either vehicle (DMSO), 4s (5 μM) or vismodegib (5 μM). For cells treated with DMSO, colony formation was detected after 14 d (Figure 3D). Remarkably, 4s totally inhibited the formation of colonies at 5 µM in HCT116 and to a lesser extent in HT-29 cells because of a reduction in cell proliferation. In contrast, vismodegib was less effective than 4s at the same concentration in both cancer cell lines. Thus, 4s inhibits more effectively HCT116 and HT29 colony formation than vismodegib. Taken together, our data indicate that 4s shows an anti-proliferative activity, induces cell cycle arrest and apoptosis, and inhibits colony formation of multiple cancer cell types.

2.4. Effect of 4s on the Expression of HH Signalling Pathway Target Genes

To verify that 4s acts on the HH pathway, the expression of its target genes was evaluated by qRT-PCR in HT29 cells treated with 4s or vismodegib, as a control. Our results showed that over a wide range of concentrations (2.5–50 µM), 4s treatment reduced GLI1, PTCH1 and HHIP mRNA levels (Figure 4A) more effectively than vismodegib. To provide additional support to the ability of compound 4s to target the HH pathway, increasing concentrations of compound 4s significantly reduced mRNA levels of GLI1, the final effector of HH signalling in genetically defined Ptch1−/− mouse embryonic fibroblasts (Ptch1−/− MEFs) (Figure 4B), in which constitutive activation of the Hh pathway is the consequence of the loss of repressive receptor Ptch1 gene. Conversely, in MEFs lacking the Smo receptor (Smo−/− MEFs), both compound 4s and vismodegib did not affect the mRNA levels of GLI1 (Figure 4C). It is worth noting that although in Smo−/− MEFs the levels of the Gli1 mRNA are lower than wildtype cells, the RNA levels are detectable and can be pharmacologically modulated [47]. SAG is a known SMO agonist and directly binds to SMO and can block SMO inhibition by cyclopamine. We wanted to explore whether the antagonistic effect of 4s on the SMO receptor at increasing concentrations can displace the SAG agonist effect in WT MEF cells. The results showed that 4s at a concentration of 10 µM inhibited Gli-1 expression in these cells when compared to WT MEF cells stimulated with SAG only. The inhibition of Gli-1 expression depends upon 4s concentration in the presence of a constant concentration of SAG. These results reinforce the evidence that 4s acts as an SMO antagonist in WT MEF cells (Figure 4D). Overall, these data suggest that 4s inhibits the HH signalling pathway by acting on the SMO receptor and regulates cancer cells characteristics by inhibiting various components of the HH pathway.
To further evaluate the effect of 4s on HH signalling, we carried out a transcriptional functional assay in HCT116 cells, stably expressing a GLI1-responsive luciferase reporter and the pRL-TK renilla reporter for normalisation, treated for 24 h with 4s, vismodegib and purmorphamine [48] as a positive control. Compound 4s, as well as vismodegib, did not affect basal GLI1 transcription activity. On the other hand, both 4s and vismodegib effectively reduced the activation induced by the agonist purmorphamine (Supplementary Materials, Figure S2). These results indicate that 4s inhibits GLI1 transcriptional activity in HCT116 cells though it remains to be shown whether 4s inhibits the GLI1-DNA binding activity as vismodegib does [49].

2.5. Study of 4s as Antagonist of the SMO Receptor

To confirm that 4s acts directly on the SMO receptor, we performed a BODIPY-cyclopamine (BC) displacement assay using a fluorescent derivative of cyclopamine that interacts with SMO. To this end, HEK293T cells were transfected with a vector encoding WT SMO and incubated with BC at increasing concentrations of 4s. As shown in Figure 5, 4s reduced BC binding in a dose-dependent manner.
Vismodegib resistance is associated with SMO mutations (mainly in amino acid residue D473) [20,50]. For this reason, major efforts have been made to identify specific molecules able to overcome drug resistance. Therefore, we evaluated the ability of compound 4s to bind the SMO D473H mutant. To accomplish this, we carried out the BC displacement assay with a vector encoding the SMO D473H mutant, which confers resistance following vismodegib treatment (Supplementary Materials, Figure S3). Vismodegib displayed a binding affinity of 0.00762 µM in HEK293T cells carrying the SMO WT vector; however, in cells carrying the SMO-D473H vector, its affinity was reduced around 1000-fold with an IC50 of 10.450 µM [51]. These results support previous data from patients affected with BCC in whom vismodegib therapies resulted in a poor prognosis. On the other hand, incubation of cells expressing SMO-D473H with 4s resulted in a dose-dependent inhibition of binding to the SMO-D473H mutant receptor. Nevertheless, in these cells 4s exhibited toxicity above 5 µM, so we were unable to determine an IC50 value. It was only possible to suggest that 4s decreased about 25% of its binding affinity with SMO-D473H mutant compared to WT SMO (Supplementary Materials, Figure S3). In this way, 4s behaved as a SMO antagonist where the use of binding assays with BODIPY-cyclopamine clearly demonstrated that the binding site of 4s is SMO.

2.6. Docking Studies of 4s into SMO Receptor

In order to identify a potential binding pocket and the most stable conformation of the 4s antagonist interacting with SMO, docking studies were performed. Figure 6A,B shows 3D and 2D descriptions of the proposed molecular interactions of 4s.
According to molecular modelling studies, compound 4s fitted in the same cavity of SMO where other agonist/antagonists have been described to lodge, supporting our structural results [52]. 4s fits within the SMO receptor heptahelical bundle and established molecular interactions with key residues such as M301, I215, Y394, L221, L303, K395 and W480 (Figure 6). Specifically, the binding cavity provides a highly electron-rich environment (red colour in Supplementary Materials, Figure S4A) which allows π-stacking interactions with the central core of the 4s purine scaffold.
An H-bond with D473 was also observed when pyridine nitrogen of 4s was accommodated inside of SMO cavity. Interestingly, based on our experimental data, 4s was active against the clinically relevant Smo-D473H mutant, indicating that the H-bond generated with D473 contributes at the stabilisation of the ligands into the cavity but is not decisive. In addition, F484 established an extra π–π interaction with the pyridine ring and with the aromatic centre of the trifluoromethylphenyl group. Notably, the amino acid residues described above have been identified in X-ray diffraction studies of the crystal structure of SMO complexed with different ligands (4QIN, 4O9R, 4JKV and 4N4W). Thus, to seek additional support for proposing the site where 4s binds, we compared this with the location of vismodegib when complexed with SMO. Our findings showed that 4s and vismodegib attached inside the SMO receptor establishing similar contacts in the heptahelical bundle (Supplementary Materials, Figure S4B). Overall, Figure 6C summarises the main interactions supporting the formation of a complex between 4s and SMO.

2.7. Effect of 4s on Tumour Growth and Metastasis In Vivo

The incidence of aggressive cancers such as melanoma is increasing. These tumours derived from the melanocyte lineage remain incurable after metastasis. Melanomas require HH-GLI signalling [53] regulated by interactions between GLI1 and the Ras-MEK/AKT pathways [54]. Due to this, other novel and potent SMO inhibitors have been recently described [55].
With this evidence and because the induction of apoptosis in tumour cells is an important oncological strategy, we explored the effects of 4s in vivo. In vitro studies showed that 4s promotes cell growth arrest and apoptosis. Thus, we evaluated the ability of 4s to inhibit tumour growth of melanoma B16F10 cells in vivo in a syngeneic mouse model. Given that the solubility of compound 4s in water is poor, we devised a solubilisation strategy using components approved by the FDA (the oil Miglyol and the natural surfactant Epikuron), to overcome this limitation and increase the cellular absorption benefiting in doing so from our previously acquired know-how [56,57]. We have developed an oil-in-water (O/W) nanoemulsion that has shown safety and effectiveness in both in vitro and in vivo studies when loaded with lipophilic anticancer active molecules [58,59,60,61]. We measured the capacity of this nanoemulsion loaded with 4s (4s-NEM) to inhibit tumour relapse and metastasis following surgery. The selected dose of 4s encapsulated in the bulk nanoemulsion was 1.5 mg (Supplementary Materials, Figures S5 and S6). The size and zeta potential of the nanoemulsion obtained were ~190 nm and ~−43 mV, respectively, which is in agreement with other work using this formulation and encapsulating lipophilic drugs [56,58,62].

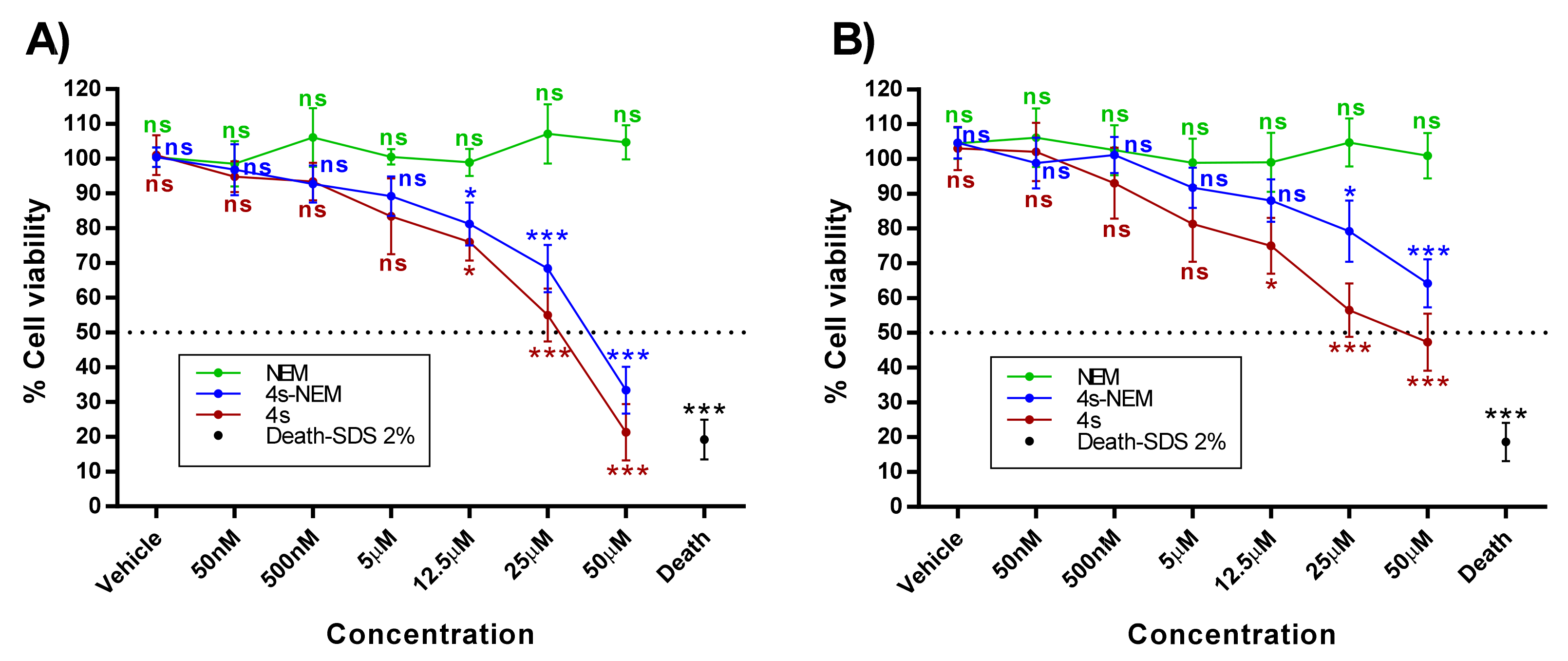

First, to evaluate the cytotoxicity of 4s encapsulated in the nanoemulsion, we performed an MTS assay in B16F10 cells (a murine melanoma cell line) and HEK293 cells as control. B16F10 cells were chosen because they express HH pathway genes, such as Gli1, and because they are highly resistant, proliferative and metastatic cells [63]. In addition, this cell line is suitable for in vivo studies of tumour formation after subcutaneous injection in syngeneic C57BL/6 mice with a functional immune system, as we have previously described [64,65] and melanomas require HH-GLI signalling [54]. As shown in Figure 7, the B16F10 cell line was sensitive to the effect of 4s-NEM. It was observed that the IC50 of 4s-NEM at 1.5 µM was comparable to 4s dissolved in DMSO (29.2 µM for 4s-NEM vs. 27.5 µM for 4s in DMSO). However, DMSO is toxic and unable to provide a formulation to be tested with therapeutic purposes [66,67]. Importantly, the formulation 4s-NEM did not induce a significant decrease in cell viability in HEK293 cells, indicating that the effect of 4s is specific for tumour cells. These data are in line with our previous in vitro studies. As shown in Figure 7, the NEM vehicle did not affect cell viability suggesting that the nanoemulsion is safe [56]. Studies with C57BL/6 mice showed that a single dose of 4s-NEM, applied topically on the wounded area following surgical excision of the primary tumour as previously described [56,64], was enough to prevent tumour regrowth (Figure 8A) and spontaneous pulmonary metastasis (Figure 8B,C).

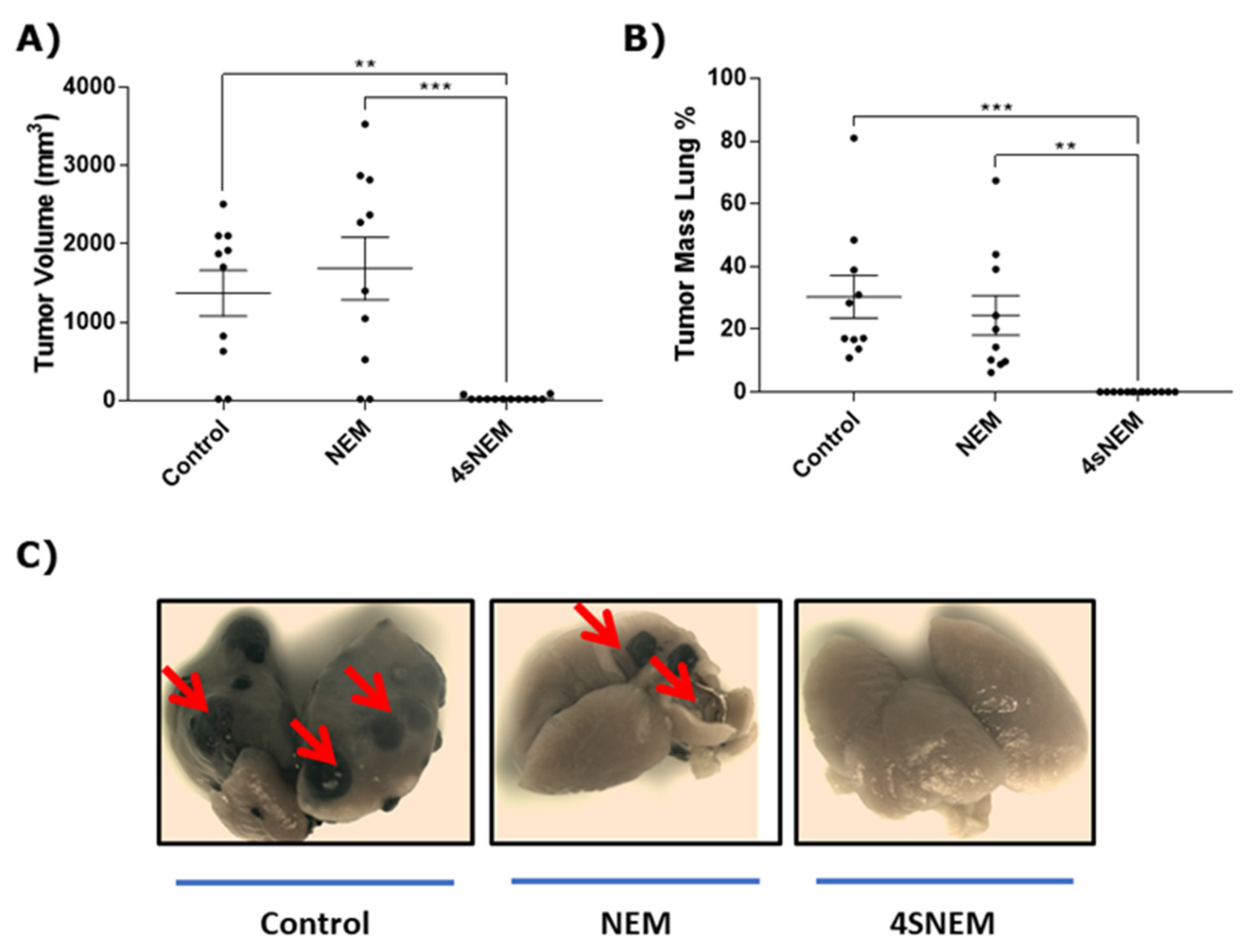

Thus, in a syngeneic mouse melanoma model, 4s blocked tumour xenograft growth. These results demonstrate that 4s exerts is a potent suppressor of cancer cell growth, both in vitro and in vivo.

3. Discussion

By incorporating substitutions to the purine scaffold, we designed a number of purine derivatives able to interact preferentially with the SMO receptor in the perspective of targeting the HH signalling pathway. From the chemical point of view, although it was not possible to establish a structure–activity relationship because the most compounds were not very active. However, the cytotoxic efficacy shown by compounds 4r and 4s might suggest that C-2 substitutions on the purine ring with a cyclic amine and an aromatic ring containing a nitrogen, such as the 1-methyl-4-(pyridin-4-yl)piperazine group, may be essential to obtain more potent compounds than alicyclic derivatives.
Using in vitro and in vivo assays, we identified one compound (4s) that showed cytotoxic effects in various cancer cell lines, with IC50 values ranging from 1.3 to 15 µM. 4s shows an anti-proliferative activity, induces cell cycle arrest and apoptosis, and inhibits colony formation of multiple cancer cell types Additionally, we found that 4s promoted the inhibition of genes targeted by the HH signalling pathway, and acts as a SMO antagonist in vitro.
The anti-proliferative effect exhibited by 4s could be explained my mechanisms of targeting and SMO destabilisation. The significant increment in G0/G1 in 4s-treated HT29 cells confirmed that the anticancer effect of this compound is through the arrest of cell cycle in G0/G1-phase and subsequent activation of apoptosis. It is known that the cell cycle transition through different phases is coordinated by CDKs and their activating partners, the cyclins [68,69]. Although it was not determined in this study, it is probable that 4s-induced cell cycle arrest is likely mediated via an induction of p21WAF1 and p27kip1, with a concomitant inhibition of CDK2 and CDK4, along with cyclins D1 and E1. Previous studies suggested additional effects of HH signalling on metastasis and cancer stem cells besides its function in promoting cancer cell proliferation [70,71,72]. Upregulated HH signalling was found to facilitate metastasis and to be associated with poor prognosis in various types of cancer, possibly due to its role in regulating stemness of CSCs. In our study, 4s affects colony formation more than vismodegib, confirming its cytotoxic effect on colon cancer cells. Cell proliferation was inhibited, while apoptosis was increased by 4s probably affecting the expression of B cell lymphoma 2 (Bcl 2), an anti-apoptotic downstream target of HH signalling. There are many examples throughout the literature about mRNA and protein levels of Bcl-2 being downregulated while cell apoptosis is augmented. Simultaneously, the expression of Bax pro-apoptotic protein should increase in response to apoptotic stimuli. Vismodegib is known to inhibit the replication of colon cancer cells and trigger apoptosis through downregulating Bcl-2 although its effect depends on the cell type [73,74,75]. Vismodegib induces apoptosis at concentrations greater than 100 µM in pancreatic cancer cells [76] with less efficiency than 4s. In pancreatic cancer cell lines and pancreatic cancer stem cells (CSCs), vismodegib inhibits cell viability and induces apoptosis increasing Fas expression and decreasing expression of PDGFRα. Vismodegib also suppresses cell viability, GLI-DNA binding and transcriptional activities, and induces apoptosis through caspase-3 activation and PARP cleavage [49]. The possible involvement of caspases in the effects exhibited by 4s in vitro remains to be elucidated. Fas expression is low in human and murine basal cell carcinomas but is upregulated in the presence of the SMO antagonist, cyclopamine, both in vitro as in vivo. This parallels an elevated rate of apoptosis. Conversely, expression of activated SMO inhibits Fas expression. Fas/Fas ligand interactions are necessary for cyclopamine-mediated apoptosis in these cells, a process involving caspase-8 activation [77]. How 4s is related to Fas/Fas ligand expression is an association that is currently under study. Similar results are observed when a small molecule inhibitor of GLI1 and GLI2, GANT61, was used to block HH signalling in human colon carcinoma cell lines that express HH signalling components [44].
In vivo studies results demonstrated that 4s exerted a potent suppressor of cancer cell growth, both in vitro and in vivo. The administration of a single dose of 4s, presented as a nanoemulsion, was sufficient to completely prevent tumour regrowth and spontaneous lung metastasis. The ability of 4s to induce apoptosis likely potentiates its ability to reduce tumour growth. Thus, 4s seems to function both as a potent HH pathway inhibitor and an effective inducer of apoptosis, with significant potential for the development of new cancer therapies.
It remains to be demonstrated whether the effects observed by 4s in vivo are comparable to those exhibited by nanoemulsified vismodegib under the same experimental conditions. These findings support the use of SMO inhibitors for melanoma therapy, as well as for other types of cancers with an active HH signalling pathway. It would be interesting to compare the preclinical antitumour efficacy and the pharmacokinetic/pharmacodynamic profile of 4s to those of vismodegib. Recently, other new inhibitors have been assayed in melanoma models [78]. Inhibitors which use the acylthiourea or acylguanidine scaffolds elicit an important reduction in growth and regeneration of melanoma cells [78]. Lastly, inhibition of HH-GLI pathway by the SMO inhibitor NVP-LDE225 is associated to the inhibition of cell growth and induction of apoptosis in human melanoma cell lines. Further observations demonstrated that NVP-LDE225 also reduced cell proliferation and induced tumour growth arrest in vitro and in vivo, when compared to cyclopamine [79].

4. Conclusions

We identified compound 4s as a SMO antagonist that induced apoptosis and reduced the expression of several HH signalling pathway target genes involved in tumour growth. Furthermore, 4s was more efficient than vismodegib in vitro in inducing apoptosis in human cancer cells. Taken together, these results establish compound 4s as a novel SMO antagonist that curtails HH-dependent tumour growth, both in vitro and in vivo.

5. Materials and Methods

5.1. Chemistry

5.1.1. Materials

Melting points were determined on a Kofler Thermogerate apparatus and were uncorrected. Infrared spectra were recorded on a JASCO FT/IR-400 spectrophotometer. Nuclear magnetic resonance spectra were recorded, unless otherwise specified, on a Bruker AM-400 instrument using deuterated chloroform or dimethylsulfoxide solutions containing tetramethylsilane as an internal standard. ESI/MS experiment was carried out on an UHPLC Eksigent1 coupled with MS detector ABSciex1, Triple Quad 4500 model equipment. HRMS-ESI-MS experiments were performed using a Thermo Scientific Exactive Plus Orbitrap spectrometer with a constant nebuliser temperature of 250 °C. The experiments were carried out in positive or negative ion mode, with a scan range of m/z 300.00–1510.40 and a resolution of 140,000. The samples were infused directly into the ESI source via a syringe pump at flow rates of 5 µL·min−1 through the instrument’s injection valve. Thin layer chromatography (TLC) was performed using Merck GF-254 type 60 silica gel. Column chromatography was carried out using Merck type 9385 silica gel. The purity of the compounds was determined by TLC and high-resolution mass spectrometry (HRMS) and for 4s by HLPC (Figure S8).

5.1.2. General Procedure of the Synthesis for Compounds 2a2c and 2a′2c′

A mixture of 6-chloro-2-fluoropurine 1 (1.0 mmol), the respective alkyl halide (1.5 mmol), and potassium carbonate (3.0 mmol) in DMF (5 mL) was stirred for 12 h, then the mixture was filtered, washed with EtOAc and evaporated under vacuum. The regioisomeric products were separated by flash chromatography on silica gel eluting with EtOAc/CH2Cl2 (2:3).
9-Butyl-6-chloro-2-fluoro-9H-purine (2a) White solid, yield 36%, m.p. 76–78 °C. 1H NMR (200 MHz, CDCl3) δ 8.09 (s, 1H), 4.25 (t, J = 7.2 Hz, 2H), 1.99–1.83 (m, 2H), 1.49–1.24 (m, 2H), 0.98 (t, J = 7.3 Hz, 3H). 13C NMR (50 MHz, CDCl3) δ 159.44–155.08 (d, JCF = 219.6 Hz), 153.87–153.50 (d, JCF = 18.3 Hz), 152.82–152.47 (d, JCF = 17.6 Hz), 145.76–145.69 (d, JCF = 3.1 Hz), 130.32–130.22 (d, JCF = 5.0 Hz), 44.38, 31.65, 19.78, 13.38. 19F NMR (188 MHz, CDCl3) δ −49.69. IR (KBr, cm−1): 2959, 1605, 1579, 1511, 1408, 1332, 920. ESI/MS calcd. for (C9H10ClFN4 [M + H]+): 229.1. Found: 229.1.
7-Butyl-6-chloro-2-fluoro-7H-purine (2a′) Yellow solid, yield 13%, m.p. 61–64 °C. 1H NMR (400 MHz, CDCl3) δ 8.21 (d, J = 4.9 Hz, 1H), 4.42 (t, J = 7.3 Hz, 2H), 1.87 (dt, J = 15.1, 7.5 Hz, 2H), 1.41–1.32 (m, 2H), 0.94 (t, J = 7.4 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 164.35–164.17 (d, JCF = 17.3 Hz), 158.55–156.38 (d, JCF = 217.5 Hz), 150.74, 144.62–144.44 (d, JCF = 18.3 Hz), 121.14–121.09 (d, JCF = 5.4 Hz) 47.45, 33.46, 19.59, 13.44. 19F NMR (376 MHz, CDCl3) δ −50.30. IR (KBr, cm−1): 2961, 1608, 1485, 1396, 1036. ESI/MS calcd. for (C9H10ClFN4 [M + H]+): 229.1. Found: 229.0.
6-Chloro-2-fluoro-9-pentyl-9H-purine (2b) Yellow solid, yield 47%, m.p. 92–93 °C. 1H NMR (400 MHz, CDCl3) δ 8.05 (s, 1H), 4.19 (t, J = 7.3 Hz, 2H), 1.93–1.83 (m, 2H), 1.39–1.22 (m, 4H), 0.85 (t, J = 6.9 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.35–156.17 (d, JCF = 219.6 Hz), 153.76–153.59 (d, JCF = 17.0 Hz), 152.71–152.54 (d, JCF = 17.6 Hz), 145.79–145.76 (d, JCF = 3.2 Hz), 130.31–130.26 (d, JCF = 5.0 Hz), 44.66, 29.37, 28.63, 22.04, 13.79. 19F NMR (376 MHz, CDCl3) δ −49.71. IR (KBr, cm−1): 2958, 1599, 1578, 1510, 1406, 1338, 920. ESI/MS calcd. for (C10H12ClFN4 [M + H]+): 243.1. Found: 243.1.
6-Chloro-2-fluoro-7-pentyl-7H-purine (2b′) White solid, yield 12%, m.p. 42–43 °C. 1H NMR (400 MHz, CDCl3) δ 8.21 (s, 1H), 4.41 (t, J = 7.4 Hz, 2H), 1.95–1.84 (m, 2H), 1.39–1.24 (m, 4H), 0.87 (t, J = 6.8 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 164.37–164.20 (d, JCF = 17.2 Hz), 158.57–156.41 (d, JCF = 217.5 Hz), 150.70, 144.61–144.43 (d, JCF = 18.2 Hz), 121.13–121.07 (d, JCF = 6.0 Hz), 47.71, 31.22, 28.45, 22.08, 13.81. 19F NMR (376 MHz, CDCl3) δ −50.23. IR (KBr, cm−1): 2953, 1610, 1553, 1490, 1363, 1084, 939. ESI/MS calcd. for (C10H12ClFN4 [M + H]+): 243.1. Found: 243.0.
6-Chloro-2-fluoro-9-hexyl-9H-purine (2c) Yellow solid, yield 60%, m.p. 96–99 °C. 1H NMR (400 MHz, CDCl3) δ 8.03 (s, 1H), 4.10 (t, J = 7.2 Hz, 2H), 1.81–1.71 (m, 2H), 1.13 (m, 6H), 0.64 (t, J = 6.7 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ158.04–155.86 (d, JCF = 219.7 Hz), 153.69–153.52 (d, JCF = 16.9 Hz), 152.14–151.96 (d, JCF = 17.6 Hz), 146.08–146.05 (d, JCF = 3.1 Hz), 130.12–130.07 (d, JCF = 4.8 Hz), 44.57, 30.92, 29.47, 26.06, 22.22, 13.70. 19F NMR (376 MHz, CDCl3) δ −49.73. IR (KBr, cm−1): 2859, 1577, 1510, 1338, 1212, 921. ESI/MS calcd. for (C11H14ClFN4 [M + H]+): 257.1. Found: 257.1.
6-Chloro-2-fluoro-7-hexyl-7H-purine (2c′) Yellow solid, yield 16%, m.p. 83–85 °C. 1H NMR (400 MHz, CDCl3) δ 8.20 (s, 1H), 4.41 (t, J = 7.4 Hz, 2H), 1.99–1.62 (m, 2H), 1.39–1.16 (m, 6H), 0.84 (t, J = 5.7 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 164.38–164.21 (d, JCF = 17.1 Hz), 158.59–156.43 (d, JCF = 217.6 Hz), 150.66, 145.83–145.80 (d, JCF = 3.1 Hz), 144.61–144.43 (d, JCF = 18.3 Hz), 47.72, 31.48, 31.09, 26.03, 22.40, 13.87. 19F NMR (376 MHz, CDCl3) δ −50.18. IR (KBr, cm−1): 2931, 1607, 1578, 1549, 1485, 1333, 1037. ESI/MS calcd. for (C11H14ClFN4 [M + H]+): 257.1. Found: 257.1.

5.1.3. General Procedure for the Synthesis of Compounds 3a3c

A stirred solution of 2a2c derivatives (1.0 mmol), (4-(trifluoromethoxy)phenyl)boronic acid (1.0 mmol), 2 M aqueous solution of potassium carbonate (1 mL per mmol of 3a3c), and palladium(II)bis(triphenylphosphine) dichloride (0.1 mmol) in dioxane (5 mL) was heated to reflux during 3 h. Then, the solution was cooled to room temperature and extracted with ethyl acetate. The organic layer was dried with anhydrous sodium sulphate, filtered and concentrated under vacuum. The crude product was purified on a silica gel column using dichloromethane as eluent.
9-Butyl-2-fluoro-6-(4-(trifluoromethoxy)phenyl)-9H-purine (3a) White solid, yield 41%, m.p. 67–69 °C. 1H NMR (400 MHz, CDCl3) δ 8.73 (d, J = 8.8 Hz, 2H), 7.92 (s, 1H), 7.22 (d, J = 8.5 Hz, 2H), 4.10 (t, J = 7.3 Hz, 2H), 1.81–1.71 (m, 2H), 1.24 (m, 2H), 0.82 (t, J = 7.4 Hz, 3H).13C NMR (101 MHz, CDCl3) δ 159.80–157.68 (d, JCF = 212.9 Hz), 155.63–155.48 (d, JCF = 15.3 Hz), 155.16–155.01 (d, JCF = 16.7 Hz), 151.71, 145.12–145.09 (d, JCF = 3.0 Hz), 133.03, 131.79 (2C), 129.68–129.63 (d, JCF = 4.3 Hz), 121.70–119.14 (d, JCF = 4.3 Hz), 120.66 (2C), 43.94, 31.76, 19.88, 13.47. 19F NMR (376 MHz, CDCl3) δ −50.65, −57.56 (3F). IR (KBr, cm−1): 2964, 1597, 1578, 1517, 1359, 1250, 1219, 1117. ESI/MS calcd. for (C16H14F4N4O [M + H]+): 355.1. Found: 355.2.
2-Fluoro-9-pentyl-6-(4-(trifluoromethoxy)phenyl)-9H-purine (3b) White solid, yield 57%, m.p. 72–73 °C. 1H NMR (400 MHz, CDCl3) δ 8.73 (d, J = 8.8 Hz, 2H), 7.93 (s, 1H), 7.22 (d, J = 8.5 Hz, 2H), 4.09 (t, J = 7.3 Hz, 2H), 1.82–1.74 (m, 2H), 1.26–1.15 (m, 4H), 0.74 (t, J = 6.9 Hz, 3H).13C NMR (101 MHz, CDCl3) δ 159.79–157.67 (d, JCF = 213.0 Hz), 155.61–155.45 (d, JCF = 14.7 Hz), 155.15–154.98 (d, JCF = 15.0 Hz), 151.72, 145.11, 133.02, 131.79 (2C), 129.67, 121.70–119.13 (d, JCF = 4.3 Hz), 120.65 (2C), 44.19, 29.45, 28.72, 22.10, 13.82. 19F NMR (376 MHz, CDCl3) δ −50.67, −57.57 (3F). IR (KBr, cm−1): 2964, 1596, 1576, 1514, 1360, 1293, 1095. ESI/MS calcd. for (C17H16F4N4O [M + H]+): 369.1. Found: 369.2.
2-Fluoro-9-hexyl-6-(4-(trifluoromethoxy)phenyl)-9H-purine (3c) White solid, yield 51%, m.p. 80–82 °C. 1H NMR (400 MHz, CDCl3) δ 8.73 (d, J = 8.8 Hz, 2H), 7.92 (s, 1H), 7.22 (d, J = 8.5 Hz, 2H), 4.09 (t, J = 7.3 Hz, 2H), 1.81–1.72 (m, 2H), 1.26–1.07 (m, 6H), 0.72 (t, J = 6.8 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 159.79–157.68 (d, JCF = 213.0 Hz), 155.62–155.47 (d, JCF = 15.4 Hz), 155.15–154.99 (d, JCF = 16.8 Hz), 151.71, 145.13–145.10 (d, JCF = 3.0 Hz), 133.04 (2C), 129.64, 129.67–129.63 (d, JCF = 4,2 Hz), 121.70–119.13 (d, JCF = 259.6 Hz), 120.66 (2C), 44.21, 31.14, 29.73, 26.30, 22.43, 13.91. 19F NMR (376 MHz, CDCl3) δ −50.66, −57.56 (3F). IR (KBr, cm−1): 2921, 1596, 1573, 1515, 1371, 1305, 1278, 1155. ESI/MS calcd. for (C18H18F4N4O [M + H]+): 383.1. Found: 383.2.

5.1.4. General Procedure for the Synthesis of Compounds 4a4s

Compounds 3a3c (1.0 mmol), the respective amine (3.0 mmol) and DIPEA (3.0 mmol) were dissolved in n-BuOH (5 mL) and the mixture was heated to 110 °C for 12 h. Then the reaction mixture was cooled and concentrated under vacuum. The crude products were purified on silica gel columns using chloroform as mobile phase.
9-Butyl-N-cyclopentyl-6-(4-(trifluoromethoxy)phenyl)-9H-purin-2-amine (4a) Yellow solid, yield 89%, m.p. 93–95 °C. 1H NMR (400 MHz, CDCl3) δ 8.76 (d, J = 8.8 Hz, 2H), 7.73 (s, 1H), 7.35 (d, J = 8.3 Hz, 2H), 5.19 (d, J = 6.7 Hz, 1H), 4.45–4.33 (m, 1H), 4.11 (t, J = 7.1 Hz, 2H), 2.11 (m, 2H), 1.92–1.82 (m, 2H), 1.82–1.60 (m, 4H), 1.55 (m, 2H), 1.36 (m, 2H), 0.96 (t, J = 7.4 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 159.17, 154.70, 153.59, 150.71–150.70 (d, JCF = 1.7 Hz), 141.22, 135.00, 131.12 (2C), 124.84, 121.77–119.21 (d, JCF = 258.6 Hz), 120.52 (2C), 53.51, 42.95, 33.36 (2C), 31.74, 23.85 (2C), 19.83, 13.49. 19F NMR (188 MHz, CDCl3) δ −57.61 (3F). IR (KBr, cm−1): 3387, 2965, 1603, 1503, 1270, 1221, 1165. HRMS calcd. for (C21H24F3N5O [M + H]+): 420.2013. Found: 420.1996.
N-cyclopentyl-9-pentyl-6-(4-(trifluoromethoxy)phenyl)-9H-purin-2-amine (4b) Yellow solid, yield 87%, m.p. 62–63 °C. 1H NMR (400 MHz, CDCl3) δ 8.77 (d, J = 8.8 Hz, 2H), 7.73 (s, 1H), 7.35 (d, J = 8.4 Hz, 2H), 5.19 (d, J = 6.7 Hz, 1H), 4.44–4.32 (m, 1H), 4.10 (t, J = 7.1 Hz, 2H), 2.12 (td, J = 12.1, 6.5 Hz, 2H), 1.93–1.84 (m, 2H), 1.82–1.60 (m, 4H), 1.60–1.48 (m, 2H), 1.42–1.27 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 159.17, 154.69, 153.58, 150.72–150.70 (d, JCF = 1.7 Hz), 141.23, 135.00, 131.11 (2C), 124.86, 121.77–119.21 (d, JCF = 258.6 Hz), 120.52 (2C), 53.51, 43.26, 33.36 (2C), 29.36, 28.77, 23.85 (2C), 22.12, 13.84. 19F NMR (188 MHz, CDCl3) δ −57.61 (3F). IR (KBr, cm−1): 3275, 2967, 1604, 1505, 1275, 1219, 1163. HRMS calcd. for (C22H26F3N5O [M + H]+): 434.2169. Found: 434.2154.
N-cyclopentyl-9-hexyl-6-(4-(trifluoromethoxy)phenyl)-9H-purin-2-amine (4c) Yellow solid, yield 97%, m.p. 58–60 °C. 1H NMR (400 MHz, CDCl3) δ 8.64 (d, J = 8.7 Hz, 2H), 7.61 (s, 1H), 7.22 (d, J = 8.5 Hz, 2H), 5.07 (d, J = 6.6 Hz, 1H), 4.32–4.21 (m, 1H), 3.97 (t, J = 7.1 Hz, 2H), 2.03–1.96 (m, 2H), 1.80–1.71 (m, 2H), 1.70–1.50 (m, 4H), 1.45–1.39 (m, 2H), 1.28–1.12 (m, 6H), 0.75 (t, J = 6.8 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 159.16, 154.69, 153.56, 150.72–150.70 (d, JCF = 1.6 Hz), 141.23, 135.00, 131.12 (2C), 124.85, 121.77–119.21 (d, JCF = 257.6 Hz), 120.51 (2C), 53.51, 43.26, 33.36 (2C), 31.19, 29.63, 26.30, 23.85 (2C), 22.44, 13.92. 19F NMR (188 MHz, CDCl3) δ −57.61 (3F). IR (KBr, cm−1): 3277, 2958, 1606, 1506, 1257, 1221, 1205, 1163. HRMS calcd. for (C23H28F3N5O [M + H]+): 448.2326. Found: 448.2313.
9-Butyl-N-cyclohexyl-6-(4-(trifluoromethoxy)phenyl)-9H-purin-2-amine (4d) White solid, yield 90%, m.p. 92–94 °C. 1H NMR (400 MHz, CDCl3) δ 8.71 (d, J = 8.9 Hz, 2H), 7.70 (s, 1H), 7.31 (d, J = 8.2 Hz, 2H), 5.02 (d, J = 7.4 Hz, 1H), 4.09 (s, 2H), 3.99–3.85 (m, 1H), 2.10 (m, 2H), 1.89–1.81 (m, 2H), 1.80–1.73 (m, 2H), 1.68–1.60 (m, 1H), 1.43 (dd, J = 16.4, 3.3 Hz, 2H), 1.36 (dd, J = 15.0, 7.4 Hz, 2H), 1.32–1.20 (m, 3H), 0.95 (t, J = 7.4 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.78, 154.77, 153.71, 150.73 (d, JCF = 1.7 Hz), 141.20, 134.98, 131.09 (2C) 124.85, 121.77–119.21 (d, JCF = 258.6 Hz), 120.56 (2C), 50.29, 42.94, 33.23 (2C), 31.77, 25.91, 25.00 (2C), 19.85, 13.52. 19F NMR (188 MHz, CDCl3) δ −57.60 (3F). IR (KBr, cm−1): 3445, 2932, 1611, 1529, 1271, 1209, 1158. HRMS calcd. for (C22H26F3N5O [M + H]+): 434.2169. Found: 448.2313.
N-cyclohexyl-9-pentyl-6-(4-(trifluoromethoxy)phenyl)-9H-purin-2-amine (4e) White solid, yield 77%, m.p. 108–110 °C. 1H NMR (400 MHz, CDCl3) δ 8.76 (d, J = 8.8 Hz, 2H), 7.73 (s, 1H), 7.35 (d, J = 8.4 Hz, 2H), 5.10 (d, J = 7.7 Hz, 1H), 4.09 (t, J = 7.2 Hz, 2H), 4.01–3.87 (m, 1H), 2.19–2.08 (m, 2H), 1.95–1.84 (m, 2H), 1.84–1.74 (m, 2H), 1.53–1.19 (m, 10H), 0.90 (t, J = 7.0 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.78, 154.75, 153.66, 150.72–150.70 (d, JCF = 1.7 Hz), 141.21, 135.00, 131.10 (2C), 124.83, 121.77–119.21 (d, JCF = 258.6 Hz), 120.53 (2C), 50.28, 43.23, 33.20 (2C), 29.38, 28.76, 25.89, 24.99 (2C), 22.10, 13.84. 19F NMR (188 MHz, CDCl3) δ −57.61 (3F). IR (KBr, cm−1): 3440, 2932, 1611, 1529, 1270, 1209, 1160. HRMS calcd. for (C23H28F3N5O [M + H]+): 448.2326. Found: 448.2308.
N-cyclohexyl-9-hexyl-6-(4-(trifluoromethoxy)phenyl)-9H-purin-2-amine (4f) Yellow solid, yield 96%, m.p. 84–86 °C. 1H NMR (400 MHz, CDCl3) δ 8.63 (d, J = 8.7 Hz, 2H), 7.61 (s, 1H), 7.22 (d, J = 8.4 Hz, 2H), 5.03 (s, 1H), 3.97 (t, J = 7.1 Hz, 2H), 3.87–3.78 (m, 1H), 2.00 (d, J = 9.4 Hz, 2H), 1.81–1.61 (m, 2H), 1.40–1.07 (m, 12H), 0.81–0.68 (m, 5H). 13C NMR (101 MHz, CDCl3) δ 158.68, 154.79, 153.56, 150.76–150.74 (d, JCF = 1.6 Hz), 141.30, 134.85, 131.13 (2C), 124.80, 121.77–119.21 (d, JCF = 257.6 Hz), 120.54 (2C), 50.28, 43.27, 33.18 (2C), 31.19, 29.64, 26.31, 25.89, 24.98 (2C), 22.44, 13.94. 19F NMR (188 MHz, CDCl3) δ −57.61 (3F). IR (KBr, cm−1): 3442, 2921, 1610, 1509, 1278, 1188, 1158. HRMS calcd. for (C24H30F3N5O [M + H]+): 462.2482. Found: 462.2467.
9-Butyl-N-(cyclohexylmethyl)-6-(4-(trifluoromethoxy)phenyl)-9H-purin-2-amine (4g) White solid, yield 94%, m.p. 88–89 °C. 1H NMR (400 MHz, CDCl3) δ 8.67 (d, J = 8.8 Hz, 2H), 7.64 (s, 1H), 7.26 (d, J = 8.4 Hz, 2H), 5.19 (s, 1H), 4.01 (t, J = 7.1 Hz, 2H), 3.29 (t, J = 6.3 Hz, 2H), 1.81–173 (m, 4H), 1.70–1.61 (m, 2H), 1.61–1.48 (m, 2H), 1.35–1.23 (m, 2H), 1.23–1.06 (m, 3H), 0.95 (m, 2H), 0.88 (t, J = 7.4 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 159.70, 154.71, 153.58, 150.70 (d, JCF = 1.7 Hz), 141.19, 135.00, 131.12 (2C), 124.83, 121.77–119.21 (d, JCF = 258.6 Hz), 120.52 (2C), 53.40, 48.35, 42.94, 38.22, 31.74, 31.12 (2C), 26.55, 26.01, 19.84, 13.49. 19F NMR (188 MHz, CDCl3) δ −57.60 (3F). IR (KBr, cm−1): 3326, 2926, 1604, 1508, 1294, 1259, 1208. HRMS calcd. for (C23H28F3N5O [M + H]+): 448.2326. Found: 448.2303.
N-(cyclohexylmethyl)-9-pentyl-6-(4-(trifluoromethoxy)phenyl)-9H-purin-2-amine (4h) White solid, yield 82%, m.p. 78–79 °C. 1H NMR (400 MHz, CDCl3) δ 8.62 (d, J = 8.5 Hz, 2H), 7.61 (s, 1H), 7.22 (d, J = 8.3 Hz, 2H), 5.10 (s, 1H), 3.98 (t, J = 7.1 Hz, 2H), 3.26 (t, J = 6.1 Hz, 2H), 1.82–1.69 (m, 4H), 1.68–1.50 (m, 4H), 1.32–1.04 (m, 7H), 0.95–0.87 (m, 2H), 0.78 (t, J = 6.8 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 159.71, 154.71, 153.64, 150.74–150.72 (d, JCF = 1.7 Hz), 141.21, 134.98, 131.12 (2C), 124.87, 121.77–119.21 (d, JCF = 258.6 Hz), 120.55 (2C), 48.37, 43.27, 38.26, 31.14 (2C), 29.39, 28.78, 26.57, 26.02 (2C), 22.15, 13.89. 19F NMR (188 MHz, CDCl3) δ −57.61 (3F). IR (KBr, cm−1): 3332, 2926, 1606, 1506, 1258, 1218, 1172. HRMS calcd. for (C24H30F3N5O [M + H]+): 462.2482. Found: 462.2465.
N-(cyclohexylmethyl)-9-hexyl-6-(4-(trifluoromethoxy)phenyl)-9H-purin-2-amine (4i) White solid, yield 93%, m.p. 85–86 °C. 1H NMR (400 MHz, CDCl3) δ 8.65 (d, J = 8.8 Hz, 2H), 7.63 (s, 1H), 7.24 (d, J = 8.4 Hz, 2H), 5.12 (s, 1H), 4.00 (t, J = 7.2 Hz, 2H), 3.28 (t, J = 6.3 Hz, 2H), 1.83–1.53 (m, 7H), 1.31–1.04 (m, 10H), 1.01–0.85 (m, 2H), 0.78 (t, J = 6.9 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 159.70, 154.70, 153.62, 150.73–150.71 (d, JCF = 1.6 Hz), 141.20, 134.99, 131.11 (2C), 124.87, 121.77–119.21 (d, JCF = 257.6 Hz), 120.54 (2C), 48.36, 43.29, 38.26, 31.22, 31.13 (2C), 29.65, 26.56 (2C), 26.32, 26.02, 22.46, 13.96. 19F NMR (188 MHz, CDCl3) δ −57.61 (3F). IR (KBr, cm−1): 3320, 2928, 1609, 1507, 1255, 1221, 1165. HRMS calcd. for (C25H32F3N5O [M + H]+): 476.2639. Found: 476.2622.
9-Pentyl-2-(4-phenylpiperazin-1-yl)-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4J) Brown solid, yield 90%, m.p. 119–120 °C. 1H NMR (400 MHz, CDCl3) δ 9.04 (d, J = 8.8 Hz, 2H), 7.99 (s, 1H), 7.66–7.41 (m, 4H), 7.22 (d, J = 8.2 Hz, 2H), 7.11 (t, J = 7.2 Hz, 1H), 4.47–4.24 (m, 6H), 3.63–3.44 (m, 4H), 2.23–2.00 (m, 2H), 1.70–1.40 (m, 4H), 1.12 (t, J = 7.0 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.70, 154.66, 152.97, 151.46, 150.74–150.73 (d, JCF = 1.6 Hz), 141.72, 135.11, 131.15 (2C), 129.15 (2C), 124.65, 121.73–119.17 (d, JCF = 257.7 Hz), 120.50 (2C), 120.04, 116.47 (2C), 49.41 (2C), 44.52 (2C), 43.18, 29.32, 28.73, 22.06, 13.85. 19F NMR (188 MHz, CDCl3) δ −57.62 (3F). IR (KBr, cm−1): 2932, 2856, 1531, 1269, 1229, 1160. HRMS calcd. for (C27H29F3N6O [M + H]+): 511.2435. Found: 511.2415.
9-Hexyl-2-(4-phenylpiperazin-1-yl)-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4k) Yellow solid, yield 81%, m.p. 99–101°C. 1H NMR (400 MHz, CDCl3) δ 8.69–8.66 (m, 2H), 7.64 (s, 1H), 7.22 (d, J = 8.2 Hz, 2H), 7.17 (t, J = 8.3 Hz, 2H), 6.90 (d, J = 7.8 Hz, 2H), 6.78 (t, J = 7.2 Hz, 1H), 4.00 (t, J = 7.0 Hz, 6H), 3.23–3.17 (m, 4H), 1.82–1.71 (m, 2H), 1.30–1.14 (m, 6H), 0.75 (t, J = 7.0 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.73, 154.72, 153.07, 150.82 (d, JCF = 1.6 Hz), 141.80 (2C), 135.13, 131.21 (2C), 129.27 (2C), 124.74, 124.35, 121.78–119.22 (d, JCF = 258.6 Hz), 120.57 (2C), 116.71 (2C), 49.69 (2C), 44.49 (2C), 43.27, 31.19, 29.65, 26.33, 22.49, 13.99. 19F NMR (188 MHz, CDCl3) δ −57.60 (3F). IR (KBr, cm−1): 2954, 1530, 1266, 1228, 1158. HRMS calcd. for (C28H31F3N6O [M + H]+): Calcd: 525.2591. Found: 525.2581.
9-Pentyl-2-(4-(4-clorophenyl)piperazin-1-yl)-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4l) Yellow solid, yield 82%, m.p. 147–149 °C. 1H NMR (400 MHz, CDCl3) δ 8.73 (d, J = 8.9 Hz, 2H), 7.71 (s, 1H), 7.28 (d, J = 8.3 Hz, 2H), 7.15 (d, J = 8.7 Hz, 2H), 6.83 (d, J = 12.1 Hz, 2H), 4.21–3.83 (m, 6H), 3.32–3.07 (m, 4H), 1.91–1.68 (m, 2H), 1.42–1.05 (m, 4H), 0.83 (t, J = 6.7 Hz, 3H). 13C NMR (50 MHz, CDCl3) δ 158.63, 154.69, 153.03, 150.82–150.78 (d, JCF = 1.8 Hz), 149.98, 141.82 (2C), 135.08, 131.19 (2C), 129.05 (2C), 125.03, 124.74, 123.04–117.90 (d, JCF = 257.7 Hz), 120.54, 117.72 (2C), 49.49 (2C), 44.38 (2C), 43.25, 29.36, 28.77, 22.10, 13.88. 19F NMR (188 MHz, CDCl3) δ −57.61 (3F). IR (KBr, cm−1): 2931, 1521, 1256, 1224, 1166. HRMS calcd. for (C27H28ClF3N6O [M + H]+): 545.2045. Found: 545.2031.
2-(4-(4-Chlorophenyl)piperazin-1-yl)-9-hexyl-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4m) White solid, yield 81%, m.p. 126–128 °C. 1H NMR (400 MHz, CDCl3) δ 8.82 (d, J = 8.8 Hz, 2H), 7.79 (s, 1H), 7.36 (d, J = 8.4 Hz, 2H), 7.24 (d, J = 8.9 Hz, 2H), 6.93 (d, J = 8.8 Hz, 2H), 4.15–4.11 (m, 6H), 3.34–3.22 (m, 4H), 1.96–1.83 (m, 2H), 1.45–1.19 (m, 6H), 0.89 (t, J = 6.9 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.64, 154.70, 153.06, 150.82 (d, JCF = 1.7 Hz), 149.94, 141.84, 135.09, 131.21 (2C), 129.08 (2C), 125.13, 124.75, 121.78–119.22 (d, JCF = 258.6 Hz), 120.56 (2C), 117.78 (2C), 49.55 (2C), 44.39 (2C), 43.27, 31.18, 29.64, 26.32, 22.48, 13.99. 19F NMR (188 MHz, CDCl3) δ −57.60 (3F). IR (KBr, cm−1): 2931, 1529, 1270, 1224, 1159. HRMS calcd. for (C28H30ClF3N6O [M + H]+): 559.2200. Found: 559.2171.
9-Pentyl-2-(4-(4-nitrophenyl)piperazin-1-yl)-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4n) Yellow solid, yield 86%, m.p. 180–181 °C. 1H NMR (400 MHz, CDCl3) δ 8.82 (d, J = 8.8 Hz, 2H), 8.15 (d, J = 9.4 Hz, 2H), 7.82 (s, 1H), 7.36 (d, J = 8.3 Hz, 2H), 6.87 (d, J = 9.4 Hz, 2H), 4.24–4.03 (m, 6H), 3.69–3.55 (m, 4H), 2.00–1.85 (m, 2H), 1.45–1.28 (m, 4H), 0.91 (t, J = 7.0 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.34, 154.78, 154.64, 153.07, 150.85–150.83 (d, JCF = 2.0 Hz), 141.96, 138.49, 134.90, 131.17 (2C), 125.98 (2C), 124.85, 121.72–119.26 (d, JCF = 256.5 Hz), 120.53 (2C), 112.58 (2C), 46.83 (2C), 43.87 (2C), 43.28, 29.33, 28.74, 22.08, 13.87. 19F NMR (188 MHz, CDCl3) δ −57.60 (3F). IR (KBr, cm−1): 2925, 2859, 1598, 1316, 1230. HRMS calcd. for (C27H28F3N7O3 [M + H]+): 556.2286. Found: 556.2280.
9-Hexyl-2-(4-(4-nitrophenyl)piperazin-1-yl)-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4o) Yellow solid, yield 90%, m.p. 142–144 °C. 1H NMR (400 MHz, CDCl3) δ 8.66 (d, J = 8.8 Hz, 2H), 7.99 (d, J = 9.3 Hz, 2H), 7.72 (s, 1H), 7.22 (d, J = 8.3 Hz, 2H), 6.72 (d, J = 9.3 Hz, 2H), 4.07–3.95 (m, 6H), 3.50–3.42 (m, 4H), 1.84–1.72 (m, 2H), 1.30–1.08 (m, 6H), 0.80–0.46 (m, 3H). 13C NMR (101 MHz, CDCl3) δ 158.41, 154.81, 154.59, 153.14, 150.93 (2C), 141.94, 138.57, 134.82, 131.22 (2C), 126.02, 124.48, 120.60 (2C), 112.64 (2C), 46.88 (2C), 43.91 (2C), 43.41, 31.18, 29.63, 26.32, 22.61, 22.48, 13.98. 19F NMR (188 MHz, CDCl3) δ −57.60 (3F). IR (KBr, cm−1): 2931, 2855, 1597, 1531, 1329, 1266, 1231. HRMS calcd. for (C28H30F3N7O3 [M + H]+): 570.2442. Found: 570.2424.
9-Pentyl-2-(4-(4-methoxyphenyl)piperazin-1-yl)-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4p) Brown solid, yield 84%, m.p. 118–120 °C. 1H NMR (400 MHz, CDCl3) δ 8.83 (d, J = 8.9 Hz, 2H), 7.78 (s, 1H), 7.37 (d, J = 8.3 Hz, 2H), 6.99 (d, J = 9.0 Hz, 2H), 6.88 (d, J = 9.0 Hz, 2H), 4.27–4.05 (m, 6H), 3.78 (s, 3H), 3.35–3.06 (m, 4H), 2.08–1.77 (m, 2H), 1.46–1.21 (m, 4H), 0.91 (t, J = 7.1 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.70, 154.66, 154.09, 152.93, 150.72–150.70 (d, JCF = 1.7 Hz), 145.81, 141.68, 135.13, 131.14 (2C), 124.61, 121.72–119.16 (d, JCF = 257.7 Hz), 120.47 (2C), 118.68 (2C), 114.45 (2C), 55.48, 50.95 (2C), 44.64 (2C), 43.16, 29.30, 28.72, 22.05, 13.83. 19F NMR (188 MHz, CDCl3) δ −57.59 (3F). IR (KBr, cm−1): 2927, 2865, 1600, 1265. HRMS calcd. for (C28H31F3N6O2 [M + H]+): 541.2541. Found: 541.2514.
9-Hexyl-2-(4-(4-methoxyphenyl)piperazin-1-yl)-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4q) Yellow solid, yield 80%, m.p. 144–145 °C. 1H NMR (400 MHz, CDCl3) δ 8.68 (d, J = 8.8 Hz, 2H), 7.65 (s, 1H), 7.22 (d, J = 8.3 Hz, 2H), 6.88 (d, J = 8.3 Hz, 2H), 6.74 (d, J = 9.0 Hz, 2H), 4.00 (t, J = 6.9 Hz, 6H), 3.64 (s, 3H), 3.13–3.04 (m, 4H), 1.82–1.72 (m, 2H), 1.29–1.07 (m, 6H), 0.75 (t, J = 6.9 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.15, 154.14, 152.48, 150.22 (d, JCF = 1.4 Hz), 141.20 (2C), 134.57, 130.62 (2C), 124.13, 121.73, 121.20–118.64 (d, JCF = 258.6 Hz), 119.98 (2C), 118.34 (2C), 113.99 (2C), 55.00, 50.62 (2C), 44.02 (2C), 42.68, 30.61, 29.07, 25.75, 21.90, 13.40. 19F NMR (188 MHz, CDCl3) δ −57.61 (3F). IR (KBr, cm−1): 2929, 1510, 1265, 1216, 1124. HRMS calcd. for (C29H33F3N6O2 [M + H]+): 555.2697. Found: 555.2668.
9-Pentyl-2-(4-(pyridin-4-yl)piperazin-1-yl)-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4r) Yellow solid, yield 70%, m.p. 109–110°C. 1H NMR (400 MHz, CDCl3) δ 8.66 (d, J = 8.8 Hz, 2H), 7.99 (d, J = 9.3 Hz, 2H), 7.66 (s, 1H), 7.21 (d, J = 8.4 Hz, 2H), 6.71 (d, J = 9.4 Hz, 2H), 4.07–3.85 (m, 6H), 3.51–3.36 (m, 4H), 1.90–1.69 (m, 2H), 1.32–1.16 (m, 4H), 0.76 (t, J = 7.0 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 159.51, 158.71, 154.64, 152.93, 150.72–150.70 (d, JCF = 1.6 Hz), 147.94, 137.48 (2C), 135.08, 124.62, 121.71–119.15 (d, JCF = 258.7 Hz), 120.47 (2C), 113.40 (2C), 107.16 (2C), 45.11 (2C), 44.25 (2C), 43.16, 29.28, 28.69, 22.03, 13.81. 19F NMR (188 MHz, CDCl3) δ −57.60 (3F). IR (KBr, cm−1): 2926, 1531, 1265, 1228, 1158. HRMS calcd. for (C26H28F3N7O [M + H]+): 512.2387. Found: 512.2369.
9-Hexyl-2-(4-(pyridin-4-yl)piperazin-1-yl)-6-(4-(trifluoromethoxy)phenyl)-9H-purine (4s) Yellow solid, yield 67%, m.p. 153–155 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.91 (d, J = 8.8 Hz, 2H), 8.30 (s, 1H), 8.20 (d, J = 5.2 Hz, 2H), 7.56 (d, J = 8.3 Hz, 2H), 6.88 (d, J = 6.0 Hz, 2H), 4.15 (t, J = 6.9 Hz, 2H), 3.99 (s, 4H), 3.50 (s, 4H), 1.90–1.80 (m, 2H), 1.28 (m, 6H), 0.85 (t, J = 6.8 Hz, 3H). 13C NMR (101 MHz, DMSO-d6) δ 158.36, 155.07, 154.93, 151.61, 150.38 (d, JCF = 1.2 Hz), 150.27 (2C), 150.21, 144.38, 135.57, 131.65 (2C), 124.64, 121.25 (2C), 108.87 (2C), 45.59 (2C), 44.00 (2C), 43.02, 31.02, 29.29, 26.08, 22.39, 14.29. 19F NMR (188 MHz, DMSO-d6) δ −57.60 (3F). IR (KBr, cm−1): 2933, 2852, 1482, 1207. HRMS calcd. for (C27H30F3N7O [M + H]+): 526.2544. Found: 526.2529.

5.2. Biology: In Vitro Assays

5.2.1. Materials

Cell culture media, foetal bovine serum, and penicillin-streptomycin (P/S) were purchased from Biological Industries. Vismodegib, cisplatin, etoposide, 5-FU, gemcitabine, 3-(4,5-dymethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT), propidium iodide (PI) and dimethyl sulfoxide (DMSO) were obtained from Sigma-Aldrich and AK Scientific. Human colon cancer HCT116 (ATCC® CCL-247EMT™), pancreatic cancer BxPC-3 (ATCC® CRL-1687™) and AsPC-1 (ATCC® CRL-1682™), lung cancer NCI-H1975 (ATCC® CRL-5908™), HEK293 (ATCC® CRL-1573™) and B16F10 (ATCC® CRL-6475™) cells were obtained from ATCC. Medulloblastoma Daoy cells were kindly provided by Dr. Verónica Palma, Universidad de Chile. HT29 cells were obtained from Dr. Juan Villena, Universidad de Valparaíso, Chile. Purine derivatives and control drugs were prepared as fresh DMSO solutions immediately prior to any experiment or stored at -20 °C in amber vials for additional experiments.

5.2.2. Cell Culture and Treatment

Cells were cultured in DMEM-F12 or RPMI 1640 culture medium as appropriate and supplemented with 10% (v/v) foetal bovine serum (FBS) and 100 UI/mL penicillin-streptomycin and cultured at 37 °C under 5% CO2 in a humidified atmosphere. DMSO alone (<1%) was used as a control vehicle. Compounds dissolved in DMSO were brought to room temperature before use. Cell viability was determined by exclusion of trypan blue dye. Cell numbers were counted in a Neubauer chamber by light microscopy.

5.2.3. Cytotoxicity Study

Cytotoxicity assays were performed by using the MTT reduction method as described previously [35]. Briefly, cancer cell lines were plated in flat-bottom 96-well plates at a cell concentration of 5 × 103 cells/well for the fastest growing lines, such as HEK293 and HT29 cells and 1 × 104 cells/well for more slowly growing lines, such as HCT116, H1975, BxPC-3, AsPC-1, B16-F10 and DAOY. Then, cells were incubated with the synthesised compounds at different concentrations (from 0.05 to 50 µM) in 200 µL with 10% FBS in RPMI 1640 or DMEM F12 culture medium at 37 °C for 72 h. Later, 10 µL of MTT were added at a final concentration of 0.5 mg/mL, incubated at 37 °C for 4 h, and then solubilised with 10% sodium dodecyl sulphate (SDS) in 0.1 mM HCl and incubated overnight at 37 °C. Formazan formation was measured at 570 nm in a multiwell plate reader (Cytation 5, Biotek Instruments, Winooski, VT, USA). Three independent biological replicates were performed.
In the case of experiments using nanoemulsions, cell proliferation was evaluated after treatments. To do this the complete medium containing treatments was removed and replaced with fresh culture medium supplemented with 10% tetrazolium compound of the MTS® assay (CellTiter 96® Aqueous Non-Radioactive Cell Proliferation Assay), according to the manufacturer’s instructions (Promega, Madison, WI, USA). The soluble formazan produced by live cells was detected as absorbance at 490 nm on a Multiscan Reader (Synergy-H4, Biotek). Background values contributed by excess of cell debris and bubbles were measured at 650 nm and were subtracted.

5.2.4. Proliferation Assays

HT29 and HEK293 cells were resuspended at 1 × 106/mL in DMEM F12 without FBS. A 5 mM CFSE stock solution carboxyfluorescein diacetate succinimidyl ester (Cell Proliferation Kit, Life Technologies, Carlsbad, CA, USA) in DMSO was added to a final concentration of 5 µM and incubated at 37 °C for 15 min protected from light. At the end of the incubation period, the cells were immediately washed twice in cold PBS 1X/no-FBS. Cells were washed three times in PBS 1×/10%-FBS and resuspended in the same medium and plated in 12-well plates at a density of 1 × 105 cells/200 µL medium and grown overnight at 37 °C in a 5% CO2 humidified atmosphere. Then, the cells were treated with 4s, vismodegib (19 µM) or control condition (1% DMSO staining CFSE, or 1% DMSO non-staining CFSE) during 24, 48 and 72 h. The cells were collected and then analysed by flow cytometry (BD; FACScanto II, Mountain View, CA, USA) and data were processed using FCS Express v6 software. Two independent biological replicates were performed.

5.2.5. Cell Cycle Analysis

HT29 and HEK293 cells were plated in 6-well plates at a density of 2.0 × 105 cells/1.5 mL/well and grown overnight at 37 °C in a 5% CO2 humidified atmosphere. Cells were treated with 4s or vismodegib (19 µM) or 1% DMSO (vehicle) for 24 h. Aliquots of cells were collected, pelleted, washed, and fixed with ethanol (70% v/v) for at least 30 min at 4 °C. Cells were resuspended twice in PBS and, after centrifugation and elimination of the supernatant, they were finally resuspended in a PBS solution containing propidium iodide (PI; 50 mg/mL, Invitrogen), RNase A (20 mg/mL, Invitrogen). After a final incubation for 1 h in the dark at 37 °C, the PI signal was measured using a FACS Canto II Flow-cytometer (BD; Mountain View, CA) with a 488 nm excitation laser, captured and FACS DIVA was used as the acquisition software. The percentage of cells in each phase was analysed using the FCS Express v6 software. Two independent biological replicates were performed.

5.2.6. Cell Viability Assessed by Annexin /PI Assay

HT29 cells were seeded in a 12-well plate (5 × 105 cells per well) and incubated overnight in DMEM F12. Then they were treated with 4s or vismodegib (19 µM each) for 3–12 h at 37 °C. The cells were collected and then processed for apoptosis analysis using the Annexin-V/PI Alexa Fluor 488 Apoptosis Kit (Invitrogen, Waltham, MA, USA) according to the manufacturer’s instructions. Finally, cells were analysed by flow cytometry (BD; FACS Canto II, Mountain View, CA, USA) and data were processed using the FCS Express v6 software. Three independent replicates were performed.

5.2.7. Determination of Tumour Colony Formation

HT29, HCT116, H1975 and HEK293 cells were seeded in a 6-well plate (1 × 104 cells per well) and incubated overnight in DMEM F12 supplemented with 10% FBS. Then, the medium was replaced with fresh medium containing the test compound 4s or vismodegib at 5 µM. After 72 h, the medium was replaced by fresh medium without stimuli, and cells were incubated for an additional 14 d to permit colony formation. The cells were fixed during 30 min with PFA 4% (v/v), washed and stained for 30 min at RT with a 5% solution of violet crystal for final colony counting. Three independent replicates were performed.

5.2.8. BODIPY-Cyclopamine Binding Assay

HEK293T cells were transfected with genes encoding human WT SMO tagged with Myc-DDK or human SMO D473H mutant tagged with Myc. Cells were washed in PBS supplemented with 0.5% FBS, fixed in 4% paraformaldehyde in PBS for 10 min, and incubated for 6 h at 37 °C in the same medium supplemented with BODIPY-cyclopamine (5 nM), with and without 4s at different concentrations (1 nm at 5 µM). The cells were permeabilised with 0.2% Triton X-100 (Sigma, St. Louis, MO, USA). Dako Fluorescent Mounting solution (Dako, Carpinteria, CA, USA) was used as mounting medium and the Hoechst reagent for staining of cell nuclei. BODIPY (green) and Hoechst (blue) signals were analysed in three representative fields per coverslip (×20 magnification). Data were expressed as the percentage of BC incorporation observed with BC alone.

5.2.9. Cell Cultures, Transfection and Treatments

HEK293T and Smo−/−, Ptch−/− MEFs cells were cultured in DMEM plus 10% FBS, 1% L-glutamine and antibiotics. Transient transfections were performed using DreamFectTM Gold transfection reagent (Oz Biosciences SAS, Marseille, France) following the manufacturer’s instructions and for varying periods of time depending on the experiment (24–72 h). Cells were treated with BODIPY-cyclopamine (5 nM, BioVision Inc., San Francisco, CA, USA), and compound 4s or vismodegib (1 μM, Selleckchem, Munich, Germany). Vehicle (DMSO) was used as control.

5.2.10. HH-Dependent Luciferase Reporter Assay

The luciferase assay was performed in HCT116 cells, stably incorporating a GLI responsive luciferase reporter and the pRL-TK renilla construct for normalisation, were treated for 24 h with purmorphamine (20 µM), vismodegib (1 µM) or 4s (1.5 µM). Luciferase and renilla activity were assayed with a dual-luciferase assay system according to the manufacturer’s instructions (Cignal Reporter Gli-luciferase, ADN, Qiagen, Hilden, Germany). Results were expressed as luciferase/renilla ratios and represent the mean of triplicate values in one assay.

5.2.11. Analysis of Gene Expression: mRNA levels

Total RNA was isolated with Trizol (Invitrogen/Life Technologies, Carlsbad, CA, USA) from Smo−/− MEFs, Ptch−/− MEFs or HT29 cells treated for 24 h and/or 48 h with 4s at different concentrations and reverse transcribed with the SensiFAST cDNA Synthesis Kit (Bioline Reagents Limited, London, UK). Quantitative real-time PCR (Q-PCR) analysis of Gli1 and housekeeping (HPRT, TBP, HMBS) mRNA levels was performed on each cDNA sample using the VIIA7 Real Time PCR System employing Assay-on-Demand Reagents (Life Technologies) as previously described [51]. A reaction mixture containing cDNA template, SensiFAST Probe Lo-ROX Kit (Bioline Reagents Limited) and primer probe mixture was amplified using FAST Q-PCR thermal cycler parameters. Each amplification reaction was performed in triplicate, the average of the three threshold cycles was used to calculate the amount of transcript in the sample (using SDS version 2.3 Software). mRNA quantification was expressed in arbitrary units as the ratio of the sample quantity to the quantity of the calibrator (ΔCt method). All values were normalised with the endogenous controls HPRT, TBP and HMBS as appropriate and are described in each assay.
Primers used are:
  • Ptch1 F: 5′-CCA CAG AAG CGC TCC TAC A-3′
  • Ptch1 R: 5′-CTG TAA TTT CGC CCC TTC C-3′
  • GLi1 F: 5′-GGG ATG ATC CCA CAT CCT CAG TC-3′
  • GLi1 R: 5′-CTG GAG CAG CCC CCC CAG T-3′
  • HHIP F: 5′-CCC ACA CTT CAA CAG CAC CA-3′
  • HHIP R: 5′-GCT TTG TCA CAG GAC TTT GC-3′
  • TBP F: 5′-TGC ACA GGA GCC AAG AGT GAA-3′
  • TBP R: 5′-CAC ATC ACA GCT CCC CAC CA-3′
  • HMBS F: 5′-AAG TGC GAG CCA AGG ACC AG-3′
  • HMBS R: 5′-TTA CGA GCA TGA TGC CTA CCA AC-3′
  • HPRT F: 5′-GCT TCC TCC TCA GAC CGC TT-3′
  • HPRT R: 5′-GG TCA TAA CCT GGT TCA TCA TCG-3′

5.3. In Silico Studies: Molecular Docking

The crystallographic structure of the smoothened receptor complexed with a SMO antagonist agent (PDB ID: 4QIN) [52] was used as a receptor in molecular modelling studies. Small molecules 4s and vismodegib were sketched and built with the minimum energy at level B3LYP/6-31G** using Spartan 10 [80], while conformational analyses were performed with AutoDock 4.2 [81] using a grid size of 60 × 60 × 60 Å and the Lamarckian genetic algorithm, allowing storage of up to 50 conformers for each molecule. The lowest complex energy was selected to analyse the resulting structures. Pymol [82] and Maestro [83] were used to describe 3D and 2D contacts in protein/ligand complexes.

5.4. Preparation and Physicochemical Characterisation of Nanoemulsions Loaded with 4s (4s-NEM)

The nanoemulsions were obtained following the solvent displacement methods and incorporating the drugs into the lipid phase [58,59,60,61]. The preparation consists of adding an organic phase containing 125 μL of Miglyol 812 (density 0.945 g mL−1), 30 mg of phosphatidylcholine-enriched fraction of soybean lecithin (Epikuron 145 V), (phosphatidylcholine-enriched fraction of soybean lecithin), 1.5 mg of 4s, 4.5 mL of ethanol and 5 mL of acetone, to an aqueous phase containing only Milli-Q water (20 mL). The resulting solution was evaporated in a rotary evaporator until a volume of 5 mL remained in order to eliminate the organic solvents from the mixture (ethanol and acetone) as well as to concentrate the 4s compound. Formation of the nanoemulsion was instantaneous and spontaneous, as evidenced by the milky appearance of the mixture.
To define the maximum concentration of 4s contained in the nanoemulsions, firstly, a supernatant separation was carried out, and the free molecules were determined by fluorescence. Only 4.7 ± 3% of 4s in was detected in supernatants after 1 h when 2.5 mg of this compound into a final volume of 5 mL of NEM formulation (Supplementary Materials, Figure S5). This quantity of 4s employed was the equivalent to the maximum concentration that did not lead to colloidal phase alteration of NEM. Higher amounts of 4s flocculate NEM. Moreover, this formulation only maintains the colloidal condition for a few hours. For this reason, the stability over 21 d was studied using 2 mg or 1.5 mg of 4s, to yield stable 4s-NEM at the highest available concentration of 4s. To define the stability, size and charge were evaluated 1.5 mg formulation was more stable and no changes in size (Supplementary Materials, Figure S6A) and in values of surface charge (Supplementary Materials, Figure S6B) were observed. Conversely, 2 mg formulation did, increase size by around 40% after 21 d, and decrease magnitude of z-potential [56]. The size and zeta potential of the colloidal systems were determined by photon correlation spectroscopy and laser Doppler anemometry, with a Zetasizer Nano-ZS (Malvern Instruments, Malvern, UK).

5.5. In Vivo Studies

5.5.1. Animals

C57BL/6 mice were obtained from the Instituto de Salud Pública (Santiago, Chile) and housed in the animal facility of the Centro de Estudios en Ejercicio, Metabolismo y Cáncer (CEMC, Instituto de Ciencias Biomédicas, Universidad de Chile). A total of 42 C57BL/6 mice (18 males and 24 females) between 8 and 12 weeks of age and average weight of 25 g were employed and evenly distributed between experimental groups. All animal procedures were following the Guidelines for Care and Use of Laboratory Animals of the University of Chile and approved by the official Bioethics Committee (approved protocol register CBA#889). This bioethics Committee on Animal Research follows guidelines issued by the Institutional Program for the Care and Use of Animals (PICUA), and the Guide for the Use and Care of Laboratory Animals of the National Research Council of The National Academies (USA).

5.5.2. Recurrent Tumour Growth and Lung Metastasis in Animal Models

Studies of subcutaneous tumour growth of B16F10 cells and metastasis assays of B16F10 cells in C57BL/6 mice were developed as previously described [56]. A single dose of 4s-NEM (0.3 mg/mL) or controls (NEM and PBS) were administered after excising the tumour and before suturing the wound. Volumes to be employed were calculated by correlating tumour volumes with those used for in vitro cell viability studies. For example, in a typical in vitro study, 10 μL of 4s-NEM were administered to each well (0.3 cm2 per well considering plates of 96 wells). Thus, if the area of a tumour was on average 2.5 cm2, the volume of 4s-NEM added post-surgery was 83.3 μL (2.5 cm2/0.3 cm2 × 10 μL).

5.5.3. Statistical Analysis

Statistical analyses were performed using the StatView 4.1 software (Abacus Concepts, Berkeley, CA, USA) and GraphPad 6.0. Statistical tests were appropriately chosen for each experiment. For all other experiments, p-values were determined using a parametric t-test or 2-way ANOVA Tukey’s multiple comparisons tests for in vitro assays, or a non-parametric Mann–Whitney test in the case of in vivo assays; statistical significance was set at 95% confidence (p < 0.05). Results were expressed as mean ± standard deviation (SD) from an appropriate number of experiments.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22168372/s1.

Author Contributions

Conception and design: C.O.S. and J.M. Development of methodology: C.O.S., J.M., C.E.-B., A.F., F.O.-A., A.F.G.Q. and L.D.M. Acquisition of data: A.M.Z., S.G., E.L., M.C., A.C., M.G.-Q. and, A.A. Analysis and interpretation of data: A.M.Z., C.O.S., J.M., F.O.-A., S.G., A.F., E.L., M.C., A.C., M.G.-Q. and A.A. Writing, review, and/or revision of the manuscript: C.O.S., J.M., A.F.G.Q., L.D.M., A.M.Z. and F.O.-A. Administrative, technical, or material support: A.M.Z., C.E.-B., S.G. and F.O.-A. Study supervision: C.O.S., J.M., A.F.G.Q., F.O.-A. and L.D.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by FONDECYT, CONICYT, FONDAP and FONDEQUIP Programs from the Chilean Government and by Associazione Italiana Ricerca Cancro (AIRC) Grants #IG20801 to L.D.M, Progetti di Ricerca di Università Sapienza di Roma, Italian Ministry of Health Grant PRIN 2017BF3PXZ_003 to L.D.M., Dipartimenti di Eccellenza-L. 232/2016, Pasteur Institute/Cenci Bolognetti Foundation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors also wish to thank V.P. and J.V. for providing cell lines. This work was supported by FONDECYT Research Grants (COS: 1161816; AF: 1161375; AFGQ 1170925), FONDAP grant 15130011 (AFGQ) and FONDEQUIP (QM160042). AMZ is grateful to CONICYT for a PhD Fellowship (21140348). Finally, we would like to thank A.R.I.A and C.B. from Department of Genetic Medicine and Development, Faculty of Medicine, University of Geneva Medical School, Switzerland for providing training in qPCR and technical assistant to Ana María Zarate during her stay in his laboratory.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

SMOSmoothened receptor
HHHedgehog
GLI1Glioma1
SHHSonic Hedgehog
IHHIndian Hedgehog
DHHDesert Hedgehog
PTCH1patched1
BCL2B-cell lymphoma 2
c-MYCc-MYC oncogene
SNAILSnail transcriptional factor
BMI1B lymphoma Mo-MLV insertion region 1
BCCbasal cell carcinoma
MBmedulloblastoma
CDKscyclin-dependent kinases
SrcSrc oncogene
VEGFR2vascular endothelial growth factor receptor-2
5-FU5-fluorouracil
MTT3-(4,5-dymethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide
CFSEcarboxyfluorescein diacetate succinimidyl ester
PIpropidium iodide
HPRThypoxanthine guanine phosphoribosyltransferase
MEFsmurine embryonic fibroblasts
BCBODIPY-cyclopamine
4s-NEM4s-nanoemulsion
Ras-MEK/AKTRas-MEK/AKT signal transduction pathway

References

  1. Ingham, P.W. Hedgehog signaling: A tale of two lipids. Science 2001, 294, 1879–1881. [Google Scholar] [CrossRef] [PubMed]
  2. Chari, N.S.; McDonnell, T.J. The sonic hedgehog signaling network in development and neoplasia. Adv. Anat. Pathol. 2007, 14, 344–352. [Google Scholar] [CrossRef] [PubMed]
  3. Briscoe, J.; Therond, P.P. The mechanisms of Hedgehog signalling and its roles in development and disease. Nat. Rev. Mol. Cell Biol. 2013, 14, 416–429. [Google Scholar] [CrossRef] [PubMed]
  4. Ruiz i Altaba, A. Hedgehog signaling and the Gli code in stem cells, cancer, and metastases. Sci. Signal. 2011, 4, pt9. [Google Scholar] [CrossRef]
  5. Di Marcotullio, L.; Ferretti, E.; Greco, A.; De Smaele, E.; Screpanti, I.; Gulino, A. Multiple ubiquitin-dependent processing pathways regulate hedgehog/gli signaling: Implications for cell development and tumorigenesis. Cell Cycle 2007, 6, 390–393. [Google Scholar] [CrossRef][Green Version]
  6. Scales, S.J.; de Sauvage, F.J. Mechanisms of Hedgehog pathway activation in cancer and implications for therapy. Trends Pharmacol. Sci. 2009, 30, 303–312. [Google Scholar] [CrossRef]
  7. Ruiz i Altaba, A.; Mas, C.; Stecca, B. The Gli code: An information nexus regulating cell fate, stemness and cancer. Trends Cell Biol. 2007, 17, 438–447. [Google Scholar] [CrossRef][Green Version]
  8. Teglund, S.; Toftgard, R. Hedgehog beyond medulloblastoma and basal cell carcinoma. Biochim. Biophys. Acta 2010, 1805, 181–208. [Google Scholar] [CrossRef]
  9. Bilir, Y.; Gokce, E.; Ozturk, B.; Deresoy, F.A.; Yuksekkaya, R.; Yaman, E. Metastatic Basal cell carcinoma accompanying gorlin syndrome. Case Rep. Oncol. Med. 2014, 2014, 362932. [Google Scholar] [CrossRef][Green Version]
  10. Rudin, C.M.; Hann, C.L.; Laterra, J.; Yauch, R.L.; Callahan, C.A.; Fu, L.; Holcomb, T.; Stinson, J.; Gould, S.E.; Coleman, B.; et al. Treatment of medulloblastoma with hedgehog pathway inhibitor GDC-0449. N. Engl. J. Med. 2009, 361, 1173–1178. [Google Scholar] [CrossRef][Green Version]
  11. Available online: https://www.accessdata.fda.gov/drugsatfda_docs/label/2012/203388lbl.pdf (accessed on 30 July 2021).
  12. Available online: https://www.accessdata.fda.gov/drugsatfda_docs/label/2015/205266s000lbl.pdf (accessed on 30 July 2021).
  13. Guha, M. Hedgehog inhibitor gets landmark skin cancer approval, but questions remain for wider potential. Nat. Rev. Drug Discov. 2012, 11, 257–258. [Google Scholar] [CrossRef]
  14. Rimkus, T.K.; Carpenter, R.L.; Qasem, S.; Chan, M.; Lo, H.W. Targeting the Sonic Hedgehog Signaling Pathway: Review of Smoothened and GLI Inhibitors. Cancers 2016, 8, 22. [Google Scholar] [CrossRef][Green Version]
  15. Zhang, H.; Sun, Z.; Liu, Z.; Song, C. Overcoming the emerging drug resistance of smoothened: An overview of small-molecule SMO antagonists with antiresistance activity. Future Med. Chem. 2018, 10, 2855–2875. [Google Scholar] [CrossRef]
  16. Li, Q.R.; Zhao, H.; Zhang, X.S.; Lang, H.; Yu, K. Novel-smoothened inhibitors for therapeutic targeting of naive and drug-resistant hedgehog pathway-driven cancers. Acta Pharmacol. Sin. 2019, 40, 257–267. [Google Scholar] [CrossRef]
  17. Hoy, S.M. Glasdegib: First Global Approval. Drugs 2019, 79, 207–213. [Google Scholar] [CrossRef]
  18. Wolska-Washer, A.; Robak, T. Glasdegib in the treatment of acute myeloid leukemia. Future Oncol. 2019, 15, 3219–3232. [Google Scholar] [CrossRef]
  19. Thomas, X.; Heiblig, M. An evaluation of glasdegib for the treatment of acute myelogenous leukemia. Expert Opin. Pharmacother. 2020, 21, 523–530. [Google Scholar] [CrossRef]
  20. Espinosa-Bustos, C.; Mella, J.; Soto-Delgado, J.; Salas, C.O. State of the art of Smo antagonists for cancer therapy: Advances in the target receptor and new ligand structures. Future Med. Chem. 2019, 11, 617–638. [Google Scholar] [CrossRef]
  21. Miller-Moslin, K.; Peukert, S.; Jain, R.K.; McEwan, M.A.; Karki, R.; Llamas, L.; Yusuff, N.; He, F.; Li, Y.H.; Sun, Y.C.; et al. 1-Amino-4-benzylphthalazines as Orally Bioavailable Smoothened Antagonists with Antitumor Activity. J. Med. Chem. 2009, 52, 3954–3968. [Google Scholar] [CrossRef]
  22. Peukert, S.; He, F.; Dai, M.; Zhang, R.; Sun, Y.C.; Miller-Moslin, K.; McEwan, M.; Lagu, B.; Wang, K.; Yusuff, N.; et al. Discovery of NVP-LEQ506, a Second-Generation Inhibitor of Smoothened. ChemMedChem 2013, 8, 1261–1265. [Google Scholar] [CrossRef]
  23. Bender, M.H.; Hipskind, P.A.; Capen, A.R.; Cockman, M.; Credille, K.M.; Gao, H.; Bastian, J.A.; Clay, J.M.; Lobb, K.L.; Sall, D.J.; et al. Identification and characterization of a novel smoothened antagonist for the treatment of cancer with deregulated hedgehog signaling. Cancer Res. 2011, 71, 2819. [Google Scholar] [CrossRef]
  24. Jin, G.; Sivaraman, A.; Lee, K. Development of taladegib as a sonic hedgehog signaling pathway inhibitor. Arch. Pharm. Res. 2017, 40, 1390–1393. [Google Scholar] [CrossRef]
  25. Welsch, M.E.; Snyder, S.A.; Stockwell, B.R. Privileged scaffolds for library design and drug discovery. Curr. Opin. Chem. Biol. 2010, 14, 347–361. [Google Scholar] [CrossRef][Green Version]
  26. Legraverend, M.; Grierson, D.S. The purines: Potent and versatile small molecule inhibitors and modulators of key biological targets. Bioorg. Med. Chem. 2006, 14, 3987–4006. [Google Scholar] [CrossRef]
  27. Zhao, H.; Dietrich, J. Privileged scaffolds in lead generation. Expert Opin. Drug Discov. 2015, 10, 781–790. [Google Scholar] [CrossRef]
  28. Morales, F.; Ramirez, A.; Conejo-Garcia, A.; Morata, C.; Marchal, J.A.; Campos, J.M. Anti-proliferative activity of 2,6-dichloro-9- or 7-(ethoxycarbonylmethyl)-9H- or 7H-purines against several human solid tumour cell lines. Eur. J. Med. Chem. 2014, 76, 118–124. [Google Scholar] [CrossRef]
  29. Demir, Z.; Guven, E.B.; Ozbey, S.; Kazak, C.; Atalay, R.C.; Tuncbilek, M. Synthesis of novel substituted purine derivatives and identification of the cell death mechanism. Eur. J. Med. Chem. 2015, 89, 701–720. [Google Scholar] [CrossRef]
  30. Wang, Y.; Metcalf, C.A.; Shakespeare, W.C.; Sundaramoorthi, R.; Keenan, T.P.; Bohacek, R.S.; van Schravendijk, M.R.; Violette, S.M.; Narula, S.S.; Dalgarno, D.C.; et al. Bone-Targeted 2,6,9-Trisubstituted purines: Novel inhibitors of Src tyrosine kinase for the treatment of bone diseases. Bioorg. Med. Chem. Lett. 2003, 13, 3067–3070. [Google Scholar] [CrossRef]
  31. Patel, R.V.; Park, S.W. An evolving role of piperazine moieties in drug design and discovery. Mini Rev. Med. Chem. 2013, 13, 1579–1601. [Google Scholar] [CrossRef]
  32. Zhang, L.; Xin, M.; Shen, H.; Wen, J.; Tang, F.; Tu, C.; Zhao, X.; Wei, P. Five-membered heteroaromatic ring fused-pyrimidine derivatives: Design, synthesis, and hedgehog signaling pathway inhibition study. Bioorg. Med. Chem. Lett. 2014, 24, 3486–3492. [Google Scholar] [CrossRef]
  33. Zaidi, A.H.; Komatsu, Y.; Kelly, L.A.; Malhotra, U.; Rotoloni, C.; Kosovec, J.E.; Zahoor, H.; Makielski, R.; Bhatt, A.; Hoppo, T.; et al. Smoothened Inhibition Leads to Decreased Proliferation and Induces Apoptosis in Esophageal Adenocarcinoma Cells. Cancer Investig. 2013, 31, 480–489. [Google Scholar] [CrossRef] [PubMed]
  34. Du, J.; Chen, W.; Yang, L.; Dai, J.; Guo, J.; Wu, Y.; Gong, K.; Zhang, J.; Yu, N.; Xie, Z.; et al. Disruption of SHH signaling cascade by SBE attenuates lung cancer progression and sensitizes DDP treatment. Sci. Rep. 2017, 7, 1899. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Calderon-Arancibia, J.; Espinosa-Bustos, C.; Canete-Molina, A.; Tapia, R.A.; Faundez, M.; Torres, M.J.; Aguirre, A.; Paulino, M.; Salas, C.O. Synthesis and pharmacophore modelling of 2,6,9-trisubstituted purine derivatives and their potential role as apoptosis-inducing agents in cancer cell lines. Molecules 2015, 20, 6808–6826. [Google Scholar] [CrossRef] [PubMed][Green Version]
  36. Salas, C.O.; Zarate, A.M.; Kryštof, V.; Mella, J.; Faundez, M.; Brea, J.; Loza, M.I.; Brito, I.; Hendrychová, D.; Jorda, R.; et al. Promising 2,6,9-Trisubstituted Purine Derivatives for Anticancer Compounds: Synthesis, 3D-QSAR, and Preliminary Biological Assays. Int. J. Mol. Sci. 2020, 21, 161. [Google Scholar] [CrossRef][Green Version]
  37. Miyaura, N.; Suzuki, A. Palladium-catalyzed cross-coupling reactions of organoboron compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef][Green Version]
  38. Ivanov, D.P.; Coyle, B.; Walker, D.A.; Grabowska, A.M. In vitro models of medulloblastoma: Choosing the right tool for the job. J. Biotechnol. 2016, 236, 10–25. [Google Scholar] [CrossRef]
  39. Lin, Z.; Li, S.; Sheng, H.; Cai, M.; Ma, L.Y.; Hu, L.; Xu, S.; Yu, L.S.; Zhang, N. Suppression of GLI sensitizes medulloblastoma cells to mitochondria-mediated apoptosis. J. Cancer Res. Clin. Oncol. 2016, 142, 2469–2478. [Google Scholar] [CrossRef][Green Version]
  40. Triscott, J.; Lee, C.; Foster, C.; Manoranjan, B.; Pambid, M.R.; Berns, R.; Fotovati, A.; Venugopal, C.; O’Halloran, K.; Narendran, A.; et al. Personalizing the treatment of pediatric medulloblastoma: Polo-like kinase 1 as a molecular target in high-risk children. Cancer Res. 2013, 73, 6734–6744. [Google Scholar] [CrossRef][Green Version]
  41. Mazumdar, T.; DeVecchio, J.; Agyeman, A.; Shi, T.; Houghton, J.A. The GLI genes as the molecular switch in disrupting Hedgehog signaling in colon cancer. Oncotarget 2011, 2, 638–645. [Google Scholar] [CrossRef][Green Version]
  42. Shi, T.; Mazumdar, T.; Devecchio, J.; Duan, Z.H.; Agyeman, A.; Aziz, M.; Houghton, J.A. cDNA microarray gene expression profiling of hedgehog signaling pathway inhibition in human colon cancer cells. PLoS ONE 2010, 5, e13054. [Google Scholar] [CrossRef]
  43. Fan, J.; Zhang, X.; Wang, S.; Chen, W.; Li, Y.; Zeng, X.; Wang, Y.; Luan, J.; Li, L.; Wang, Z.; et al. Regulating autophagy facilitated therapeutic efficacy of the sonic Hedgehog pathway inhibition on lung adenocarcinoma through GLI2 suppression and ROS production. Cell Death Dis. 2019, 10, 626. [Google Scholar] [CrossRef][Green Version]
  44. Mazumdar, T.; DeVecchio, J.; Shi, T.; Jones, J.; Agyeman, A.; Houghton, J.A. Hedgehog signaling drives cellular survival in human colon carcinoma cells. Cancer Res. 2011, 71, 1092–1102. [Google Scholar] [CrossRef][Green Version]
  45. Xiao, X.; Tang, J.J.; Peng, C.; Wang, Y.; Fu, L.; Qiu, Z.P.; Xiong, Y.; Yang, L.F.; Cui, H.W.; He, X.L.; et al. Cholesterol Modification of Smoothened Is Required for Hedgehog Signaling. Mol. Cell 2017, 66, 154–162.e10. [Google Scholar] [CrossRef][Green Version]
  46. Gotschel, F.; Berg, D.; Gruber, W.; Bender, C.; Eberl, M.; Friedel, M.; Sonntag, J.; Rungeler, E.; Hache, H.; Wierling, C.; et al. Synergism between Hedgehog-GLI and EGFR signaling in Hedgehog-responsive human medulloblastoma cells induces downregulation of canonical Hedgehog-target genes and stabilized expression of GLI1. PLoS ONE 2013, 8, e65403. [Google Scholar] [CrossRef]
  47. Lospinoso Severini, L.; Quaglio, D.; Basili, I.; Ghirga, F.; Bufalieri, F.; Caimano, M.; Balducci, S.; Moretti, M.; Romeo, I.; Loricchio, E.; et al. A Smo/Gli Multitarget Hedgehog Pathway Inhibitor Impairs Tumor Growth. Cancers 2019, 11, 1518. [Google Scholar] [CrossRef][Green Version]
  48. Sinha, S.; Chen, J.K. Purmorphamine activates the Hedgehog pathway by targeting Smoothened. Nat. Chem. Biol. 2006, 2, 29–30. [Google Scholar] [CrossRef]
  49. Singh, B.N.; Fu, J.; Srivastava, R.K.; Shankar, S. Hedgehog signaling antagonist GDC-0449 (Vismodegib) inhibits pancreatic cancer stem cell characteristics: Molecular mechanisms. PLoS ONE 2011, 6, e27306. [Google Scholar] [CrossRef][Green Version]
  50. Pricl, S.; Cortelazzi, B.; Dal Col, V.; Marson, D.; Laurini, E.; Fermeglia, M.; Licitra, L.; Pilotti, S.; Bossi, P.; Perrone, F. Smoothened (SMO) receptor mutations dictate resistance to vismodegib in basal cell carcinoma. Mol. Oncol. 2015, 9, 389–397. [Google Scholar] [CrossRef]
  51. Infante, P.; Alfonsi, R.; Ingallina, C.; Quaglio, D.; Ghirga, F.; D’Acquarica, I.; Bernardi, F.; Di Magno, L.; Canettieri, G.; Screpanti, I. Inhibition of Hedgehog-dependent tumors and cancer stem cells by a newly identified naturally occurring chemotype. Cell Death Dis. 2016, 7, e2376. [Google Scholar] [CrossRef][Green Version]
  52. Wang, C.; Wu, H.; Evron, T.; Vardy, E.; Han, G.W.; Huang, X.-P.; Hufeisen, S.J.; Mangano, T.J.; Urban, D.J.; Katritch, V. Structural basis for Smoothened receptor modulation and chemoresistance to anticancer drugs. Nat. Commun. 2014, 5, 4355. [Google Scholar] [CrossRef][Green Version]
  53. O’Reilly, K.E.; de Miera, E.V.; Segura, M.F.; Friedman, E.; Poliseno, L.; Han, S.W.; Zhong, J.; Zavadil, J.; Pavlick, A.; Hernando, E.; et al. Hedgehog pathway blockade inhibits melanoma cell growth in vitro and in vivo. Pharmaceuticals 2013, 6, 1429–1450. [Google Scholar] [CrossRef]
  54. Stecca, B.; Mas, C.; Clement, V.; Zbinden, M.; Correa, R.; Piguet, V.; Beermann, F.; Ruiz i Altaba, A. Melanomas require HEDGEHOG-GLI signaling regulated by interactions between GLI1 and the RAS-MEK/AKT pathways. Proc. Natl. Acad. Sci. USA 2007, 104, 5895–5900. [Google Scholar] [CrossRef][Green Version]
  55. Pietrobono, S.; Santini, R.; Gagliardi, S.; Dapporto, F.; Colecchia, D.; Chiariello, M.; Leone, C.; Valoti, M.; Manetti, F.; Petricci, E.; et al. Targeted inhibition of Hedgehog-GLI signaling by novel acylguanidine derivatives inhibits melanoma cell growth by inducing replication stress and mitotic catastrophe. Cell Death Dis. 2018, 9, 142. [Google Scholar] [CrossRef]
  56. Guerrero, S.; Inostroza-Riquelme, M.; Contreras-Orellana, P.; Diaz-Garcia, V.; Lara, P.; Vivanco-Palma, A.; Cárdenas, A.; Miranda, V.; Robert, P.; Leyton, L.; et al. Curcumin-loaded nanoemulsion: A new safe and effective formulation to prevent tumor reincidence and metastasis. Nanoscale 2018, 10, 22612–22622. [Google Scholar] [CrossRef]
  57. Oyarzun-Ampuero, F.A.; Brea, J.; Loza, M.I.; Torres, D.; Alonso, M.J. Chitosan-hyaluronic acid nanoparticles loaded with heparin for the treatment of asthma. Int. J. Pharm. 2009, 381, 122–129. [Google Scholar] [CrossRef]
  58. Oyarzun-Ampuero, F.A.; Rivera-Rodriguez, G.R.; Alonso, M.J.; Torres, D. Hyaluronan nanocapsules as a new vehicle for intracellular drug delivery. Eur. J. Pharm. Sci. 2013, 49, 483–490. [Google Scholar] [CrossRef]
  59. Lollo, G.; Hervella, P.; Calvo, P.; Aviles, P.; Guillen, M.J.; Garcia-Fuentes, M.; Alonso, M.J.; Torres, D. Enhanced in vivo therapeutic efficacy of plitidepsin-loaded nanocapsules decorated with a new poly-aminoacid-PEG derivative. Int. J. Pharm. 2015, 483, 212–219. [Google Scholar] [CrossRef] [PubMed]
  60. Lollo, G.; Rivera-Rodriguez, G.R.; Bejaud, J.; Montier, T.; Passirani, C.; Benoit, J.P.; Garcia-Fuentes, M.; Alonso, M.J.; Torres, D. Polyglutamic acid-PEG nanocapsules as long circulating carriers for the delivery of docetaxel. Eur. J. Pharm. Biopharm. 2014, 87, 47–54. [Google Scholar] [CrossRef] [PubMed][Green Version]
  61. Rivera-Rodriguez, G.R.; Lollo, G.; Montier, T.; Benoit, J.P.; Passirani, C.; Alonso, M.J.; Torres, D. In vivo evaluation of poly-l-asparagine nanocapsules as carriers for anti-cancer drug delivery. Int. J. Pharm. 2013, 458, 83–89. [Google Scholar] [CrossRef] [PubMed][Green Version]
  62. Alarcón-Alarcón, C.; Inostroza-Riquelme, M.; Torres-Gallegos, C.; Araya, C.; Miranda, M.; Sánchez-Caamaño, J.C.; Moreno-Villoslada, I.; Oyarzun-Ampuero, F.A. Protection of astaxanthin from photodegradation by its inclusion in hierarchically assembled nano and microstructures with potential as food. Food Hydrocol. 2018, 83, 36–44. [Google Scholar] [CrossRef]
  63. Machado, D.; Shishido, S.M.; Queiroz, K.C.; Oliveira, D.N.; Faria, A.L.; Catharino, R.R.; Spek, C.A.; Ferreira, C.V. Irradiated riboflavin diminishes the aggressiveness of melanoma in vitro and in vivo. PLoS ONE 2013, 8, e54269. [Google Scholar] [CrossRef][Green Version]
  64. Lobos-Gonzalez, L.; Aguilar-Guzman, L.; Fernandez, J.G.; Munoz, N.; Hossain, M.; Bieneck, S.; Silva, V.; Burzio, V.; Sviderskaya, E.V.; Bennett, D.C.; et al. Caveolin-1 is a risk factor for postsurgery metastasis in preclinical melanoma models. Melanoma Res. 2014, 24, 108–119. [Google Scholar] [CrossRef][Green Version]
  65. Lobos-Gonzalez, L.; Aguilar, L.; Diaz, J.; Diaz, N.; Urra, H.; Torres, V.A.; Silva, V.; Fitzpatrick, C.; Lladser, A.; Hoek, K.S.; et al. E-cadherin determines Caveolin-1 tumor suppression or metastasis enhancing function in melanoma cells. Pigment Cell Melanoma Res. 2013, 26, 555–570. [Google Scholar] [CrossRef][Green Version]
  66. Pal, R.; Mamidi, M.K.; Das, A.K.; Bhonde, R. Diverse effects of dimethyl sulfoxide (DMSO) on the differentiation potential of human embryonic stem cells. Arch. Toxicol. 2012, 86, 651–661. [Google Scholar] [CrossRef]
  67. Hanslick, J.L.; Lau, K.; Noguchi, K.K.; Olney, J.W.; Zorumski, C.F.; Mennerick, S.; Farber, N.B. Dimethyl sulfoxide (DMSO) produces widespread apoptosis in the developing central nervous system. Neurobiol. Dis. 2009, 34, 1–10. [Google Scholar] [CrossRef][Green Version]
  68. Baillon, L.; Basler, K. Reflections on cell competition. Semin. Cell Dev. Biol. 2014, 32, 137–144. [Google Scholar] [CrossRef]
  69. Sanchez, I.; Dynlacht, B.D. New insights into cyclins, CDKs, and cell cycle control. Semin. Cell Dev. Biol. 2005, 16, 311–321. [Google Scholar] [CrossRef]
  70. Yoo, Y.A.; Kang, M.H.; Lee, H.J.; Kim, B.H.; Park, J.K.; Kim, H.K.; Kim, J.S.; Oh, S.C. Sonic hedgehog pathway promotes metastasis and lymphangiogenesis via activation of Akt, EMT, and MMP-9 pathway in gastric cancer. Cancer Res. 2011, 71, 7061–7070. [Google Scholar] [CrossRef][Green Version]
  71. Fan, H.X.; Wang, S.; Zhao, H.; Liu, N.; Chen, D.; Sun, M.; Zheng, J.H. Sonic hedgehog signaling may promote invasion and metastasis of oral squamous cell carcinoma by activating MMP-9 and E-cadherin expression. Med. Oncol. 2014, 31, 41. [Google Scholar] [CrossRef]
  72. Das, S.; Samant, R.S.; Shevde, L.A. The hedgehog pathway conditions the bone microenvironment for osteolytic metastasis of breast cancer. Int. J. Breast Cancer 2012, 2012, 298623. [Google Scholar] [CrossRef][Green Version]
  73. Wu, C.; Zhu, X.; Liu, W.; Ruan, T.; Tao, K. Hedgehog signaling pathway in colorectal cancer: Function, mechanism, and therapy. OncoTargets Ther. 2017, 10, 3249–3259. [Google Scholar] [CrossRef][Green Version]
  74. Varnat, F.; Duquet, A.; Malerba, M.; Zbinden, M.; Mas, C.; Gervaz, P.; Ruiz i Altaba, A. Human colon cancer epithelial cells harbour active HEDGEHOG-GLI signalling that is essential for tumour growth, recurrence, metastasis and stem cell survival and expansion. EMBO Mol. Med. 2009, 1, 338–351. [Google Scholar] [CrossRef]
  75. Varnat, F.; Siegl-Cachedenier, I.; Malerba, M.; Gervaz, P.; Ruiz i Altaba, A. Loss of WNT-TCF addiction and enhancement of HH-GLI1 signalling define the metastatic transition of human colon carcinomas. EMBO Mol. Med. 2010, 2, 440–457. [Google Scholar] [CrossRef]
  76. Kumar, V.; Chaudhary, A.K.; Dong, Y.; Zhong, H.A.; Mondal, G.; Lin, F.; Kumar, V.; Mahato, R.I. Design, Synthesis and Biological Evaluation of novel Hedgehog Inhibitors for treating Pancreatic Cancer. Sci. Rep. 2017, 7, 1665. [Google Scholar] [CrossRef][Green Version]
  77. Athar, M.; Li, C.; Tang, X.; Chi, S.; Zhang, X.; Kim, A.L.; Tyring, S.K.; Kopelovich, L.; Hebert, J.; Epstein, E.H., Jr.; et al. Inhibition of smoothened signaling prevents ultraviolet B-induced basal cell carcinomas through regulation of Fas expression and apoptosis. Cancer Res. 2004, 64, 7545–7552. [Google Scholar] [CrossRef][Green Version]
  78. Filocamo, G.; Brunetti, M.; Colaceci, F.; Sasso, R.; Tanori, M.; Pasquali, E.; Alfonsi, R.; Mancuso, M.; Saran, A.; Lahm, A.; et al. MK-4101, a Potent Inhibitor of the Hedgehog Pathway, Is Highly Active against Medulloblastoma and Basal Cell Carcinoma. Mol. Cancer Ther. 2016, 15, 1177–1189. [Google Scholar] [CrossRef][Green Version]
  79. Jalili, A.; Mertz, K.D.; Romanov, J.; Wagner, C.; Kalthoff, F.; Stuetz, A.; Pathria, G.; Gschaider, M.; Stingl, G.; Wagner, S.N. NVP-LDE225, a potent and selective SMOOTHENED antagonist reduces melanoma growth in vitro and in vivo. PLoS ONE 2013, 8, e69064. [Google Scholar] [CrossRef]
  80. Spartan’10, Version 1.1.0; Wavefunction, Inc.: Irvine, CA, USA, 2010.
  81. Morris, G.M.; Huey, R.; Lindstrom, W.; Sanner, M.F.; Belew, R.K.; Goodsell, D.S.; Olson, A.J. AutoDock4 and AutoDockTools4: Automated docking with selective receptor flexibility. J. Comput. Chem. 2009, 30, 2785–2791. [Google Scholar] [CrossRef][Green Version]
  82. Schrödinger LLC. The PyMOL Molecular Graphics System, Version 1.8; Schrödinger LLC: New York, NY, USA, 2015.
  83. Schrödinger LLC. Schrödinger Release 2018-1: Maestro, Schrödinger LLC: New York, NY, USA, 2018.
Figure 1. Chemical structure of SMO antagonists approved by the FDA or in clinical phase studies.
Figure 1. Chemical structure of SMO antagonists approved by the FDA or in clinical phase studies.
Ijms 22 08372 g001
Figure 2. Chemical structures of SMO antagonists, biologically active purine derivatives with potential as anticancer agents, and purine derivatives designed to serve as SMO antagonists. In colour are shown the fragments considered in the design of these purine derivatives: in blue a heterocyclic core, in red an aryl-piperazine portion and in green the trifluoromethoxy moiety.
Figure 2. Chemical structures of SMO antagonists, biologically active purine derivatives with potential as anticancer agents, and purine derivatives designed to serve as SMO antagonists. In colour are shown the fragments considered in the design of these purine derivatives: in blue a heterocyclic core, in red an aryl-piperazine portion and in green the trifluoromethoxy moiety.
Ijms 22 08372 g002
Scheme 1. Synthesis of purine derivatives 4a4s. Reagents and conditions: (i) Alkyl halides, K2CO3, DMF, r.t., 12 h (51–58%); (ii) 4-Trifluoromethoxyphenylboronic acid, Pd(PPh3)2Cl2, K2CO3 2 M, 1,4-dioxane (41–66%); (iii) amines or piperazine derivatives, DIPEA, n-BuOH, 110 °C, 12 h (77–97%).
Scheme 1. Synthesis of purine derivatives 4a4s. Reagents and conditions: (i) Alkyl halides, K2CO3, DMF, r.t., 12 h (51–58%); (ii) 4-Trifluoromethoxyphenylboronic acid, Pd(PPh3)2Cl2, K2CO3 2 M, 1,4-dioxane (41–66%); (iii) amines or piperazine derivatives, DIPEA, n-BuOH, 110 °C, 12 h (77–97%).
Ijms 22 08372 sch001
Figure 3. Effects of 4s on cell proliferation, cell cycle arrest, apoptosis, and colony formation of cancer cells. HT29 and HEK293 cell lines were treated with 4s or vismodegib for 3, 12, 24, 48 and/or 72 h (19 µM), depending on the analysis, for (A) anti-proliferative effects determined by flow cytometry upon staining cells with 5 µM CFSE (control); (B) DNA content determined by flow cytometry; (C) apoptosis determined by flow cytometry after staining with annexin V-FITC/PI; (D) effects on colony formation of cancer cells. Cells were treated with 4s or vismodegib (5 µM) for 14 d. Results of (AC) are presented as mean ± SD of two separate experiments. (*) p < 0.05, (**) p < 0.01, (***) p < 0.001, (****) p < 0.0001 vs. control, ns = non-significant. Data analysis was performed via a 2-way ANOVA Tukey’s multiple comparisons test.
Figure 3. Effects of 4s on cell proliferation, cell cycle arrest, apoptosis, and colony formation of cancer cells. HT29 and HEK293 cell lines were treated with 4s or vismodegib for 3, 12, 24, 48 and/or 72 h (19 µM), depending on the analysis, for (A) anti-proliferative effects determined by flow cytometry upon staining cells with 5 µM CFSE (control); (B) DNA content determined by flow cytometry; (C) apoptosis determined by flow cytometry after staining with annexin V-FITC/PI; (D) effects on colony formation of cancer cells. Cells were treated with 4s or vismodegib (5 µM) for 14 d. Results of (AC) are presented as mean ± SD of two separate experiments. (*) p < 0.05, (**) p < 0.01, (***) p < 0.001, (****) p < 0.0001 vs. control, ns = non-significant. Data analysis was performed via a 2-way ANOVA Tukey’s multiple comparisons test.
Ijms 22 08372 g003
Figure 4. Effect of 4s on the expression of HH target genes. (A) Heat map of mRNA levels in human colon cancer HT29 cells as determined by qRT-PCR for a 3-gene HH signature. All values are ratios of experimental over control (treated only with DMSO) data, having previously normalised individual gene expression Ct values to those of housekeeping genes. Samples treated with drugs were collected 24 h after treatment. Expression changes are highlighted as follows: Blue: repression ≤ 0.5. White: no gene repression with values near 1. Results were obtained from three independent experiments and expressed as the mean ± the standard deviation. (B) Gli1 mRNA levels in Ptch−/− KO cells treated with 4s for 24 h. Vismodegib was used as a control. mRNAs were extracted and Gli1 mRNA levels were determined by qRT–PCR and normalised to the endogenous Hprt control. Data are presented as the mean ± SD of three independent experiments. (*) p < 0.05, (**) p < 0.01, (***) p < 0.001 vs. DMSO (vehicle). Data were analysed with a parametric t-test. (C) Gli1 mRNA levels in Smo−/− MEF cells treated with 4s for 24 h and/or 48 h. Vismodegib was used as a control. mRNAs were extracted and Gli1 mRNA levels were determined by qRT–PCR and normalised to the endogenous Hprt control. Data are presented as the mean ± SD of three independent experiments. (D) Gli1 mRNA levels in WT MEFs treated for 24 h with DMSO or SAG 200 nM in presence or absence of compound 4s at the indicated concentrations. Vismodegib was used as a control. mRNAs were extracted and Gli1 mRNA levels were determined by qRT–PCR and normalised to the endogenous Hprt control. Data are presented as the mean ± SD of three independent experiments. (*) p < 0.05. Data were analysed with a parametric t-test.
Figure 4. Effect of 4s on the expression of HH target genes. (A) Heat map of mRNA levels in human colon cancer HT29 cells as determined by qRT-PCR for a 3-gene HH signature. All values are ratios of experimental over control (treated only with DMSO) data, having previously normalised individual gene expression Ct values to those of housekeeping genes. Samples treated with drugs were collected 24 h after treatment. Expression changes are highlighted as follows: Blue: repression ≤ 0.5. White: no gene repression with values near 1. Results were obtained from three independent experiments and expressed as the mean ± the standard deviation. (B) Gli1 mRNA levels in Ptch−/− KO cells treated with 4s for 24 h. Vismodegib was used as a control. mRNAs were extracted and Gli1 mRNA levels were determined by qRT–PCR and normalised to the endogenous Hprt control. Data are presented as the mean ± SD of three independent experiments. (*) p < 0.05, (**) p < 0.01, (***) p < 0.001 vs. DMSO (vehicle). Data were analysed with a parametric t-test. (C) Gli1 mRNA levels in Smo−/− MEF cells treated with 4s for 24 h and/or 48 h. Vismodegib was used as a control. mRNAs were extracted and Gli1 mRNA levels were determined by qRT–PCR and normalised to the endogenous Hprt control. Data are presented as the mean ± SD of three independent experiments. (D) Gli1 mRNA levels in WT MEFs treated for 24 h with DMSO or SAG 200 nM in presence or absence of compound 4s at the indicated concentrations. Vismodegib was used as a control. mRNAs were extracted and Gli1 mRNA levels were determined by qRT–PCR and normalised to the endogenous Hprt control. Data are presented as the mean ± SD of three independent experiments. (*) p < 0.05. Data were analysed with a parametric t-test.
Ijms 22 08372 g004
Figure 5. Binding of 4s to HEK293T cells incubated with the fluorescent compound BC in a competition assay. (A) Fluorescence photomicrographs of the competitive binding of BC (green) to HEK293T cells treated with increasing concentrations of 4s or BODIPY only (control). (B) The concentration–response curve shows the percentage of BC binding to WT SMO after treatment with compound 4s. IC50 for binding to WT SMO = 0.95 µM. Data indicate the average ± SD of three separate experiments. (*) p < 0.05 vs. control. Data are the average BC intensity of five fluorescence microscopy images.
Figure 5. Binding of 4s to HEK293T cells incubated with the fluorescent compound BC in a competition assay. (A) Fluorescence photomicrographs of the competitive binding of BC (green) to HEK293T cells treated with increasing concentrations of 4s or BODIPY only (control). (B) The concentration–response curve shows the percentage of BC binding to WT SMO after treatment with compound 4s. IC50 for binding to WT SMO = 0.95 µM. Data indicate the average ± SD of three separate experiments. (*) p < 0.05 vs. control. Data are the average BC intensity of five fluorescence microscopy images.
Ijms 22 08372 g005
Figure 6. Predicted binding mode of 4s (green) within the α-heptahelical bundle of the hSMO receptor (PDB ID: 4QIN). (A) 3D representation of hSMO in complex with 4s; residues (less than 5.0 Å) are shown in white stick representation. (B) 2D representation of 4s in a complex with hSMO. (C) Main interactions in the 4s-hSMO complex. Areas of the molecular structure of 4s which are important for its interaction with SMO are marked with dotted lines.
Figure 6. Predicted binding mode of 4s (green) within the α-heptahelical bundle of the hSMO receptor (PDB ID: 4QIN). (A) 3D representation of hSMO in complex with 4s; residues (less than 5.0 Å) are shown in white stick representation. (B) 2D representation of 4s in a complex with hSMO. (C) Main interactions in the 4s-hSMO complex. Areas of the molecular structure of 4s which are important for its interaction with SMO are marked with dotted lines.
Ijms 22 08372 g006
Figure 7. Effect of 4s-NEM on the viability of cancer (B16F10) and non-cancer (HEK293) cells in vitro. Cells were treated with 4s-NEM at different concentrations for 24 h and their viability was evaluated using the MTS assay; SDS, the vehicle for NEM, and 4s free in the culture medium were used as controls. The IC50 was determined in each case. (A) Effect of 4s-NEM on B16F10 cells. Six independent experiments were performed in triplicate. Results are shown as the mean ± SEM. (B) Effect of 4s-NEM on HEK293 cells. Results are shown as the mean ± SEM of three separate experiments. (***) p < 0.001, (*) p < 0.05 vs. control, ns = non-significant. Data analysis was performed via a 2-way ANOVA Tukey’s multiple comparisons test.
Figure 7. Effect of 4s-NEM on the viability of cancer (B16F10) and non-cancer (HEK293) cells in vitro. Cells were treated with 4s-NEM at different concentrations for 24 h and their viability was evaluated using the MTS assay; SDS, the vehicle for NEM, and 4s free in the culture medium were used as controls. The IC50 was determined in each case. (A) Effect of 4s-NEM on B16F10 cells. Six independent experiments were performed in triplicate. Results are shown as the mean ± SEM. (B) Effect of 4s-NEM on HEK293 cells. Results are shown as the mean ± SEM of three separate experiments. (***) p < 0.001, (*) p < 0.05 vs. control, ns = non-significant. Data analysis was performed via a 2-way ANOVA Tukey’s multiple comparisons test.
Ijms 22 08372 g007
Figure 8. Efficacy of the 4s compound delivered in an oil-in-water (O/W) nanoemulsion (4s-NEM) in a preclinical mouse model. Recurrent tumour growth at the initial site (A) and lung metastases (B) were evaluated 21 d post-surgery. Mice were injected with B16F10 cells subcutaneously in their flanks. The resulting tumours were surgically removed, and the wounded zone was either not treated (control) or treated with NEM or with 4s-NEM. Mice were sacrificed 21 d later to evaluate the efficacy of the treatments. Results are presented as the mean ± SD of n = 10–12 mice. (***) p < 0.001, (**) p < 0.01 vs. control. Data analysis was performed via a non-parametric Mann–Whitney test. (C) Representative images of lung metastases in control mice (control and NEM) and of animals treated with 4s-NEM. Note the complete absence of lung metastases in animals treated with 4s-NEM compared to controls (red arrows).
Figure 8. Efficacy of the 4s compound delivered in an oil-in-water (O/W) nanoemulsion (4s-NEM) in a preclinical mouse model. Recurrent tumour growth at the initial site (A) and lung metastases (B) were evaluated 21 d post-surgery. Mice were injected with B16F10 cells subcutaneously in their flanks. The resulting tumours were surgically removed, and the wounded zone was either not treated (control) or treated with NEM or with 4s-NEM. Mice were sacrificed 21 d later to evaluate the efficacy of the treatments. Results are presented as the mean ± SD of n = 10–12 mice. (***) p < 0.001, (**) p < 0.01 vs. control. Data analysis was performed via a non-parametric Mann–Whitney test. (C) Representative images of lung metastases in control mice (control and NEM) and of animals treated with 4s-NEM. Note the complete absence of lung metastases in animals treated with 4s-NEM compared to controls (red arrows).
Ijms 22 08372 g008
Table 1. In vitro cytotoxicity (IC50) and Selectivity Index (SI) values for maximally active derivatives of purine 4a4s on six cancer cell lines and one non-cancer cell line.
Table 1. In vitro cytotoxicity (IC50) and Selectivity Index (SI) values for maximally active derivatives of purine 4a4s on six cancer cell lines and one non-cancer cell line.
IC50 (µM)
CompoundHH-Dependent Cell LinesHH-Independent Cell Lines
HCT116 aSIHT29 bSIDaoy dSIH1975 cSIAsPC-1 eSIBxPC-3 fSIHEK293 g
4a32 ± 0.31.6>50-18 ± 0.22.734 ± 0.91.520.1 ± 0.32.5>50->50
4b47 ± 0.91.1>50->50-30 ± 1.01.723.2 ± 0.22.2>50->50
4c>50->50-31 ± 0.90.919 ± 0.82.6>501.0>50->50
4e>50->50->50-23 ± 0.32.2>501.0>50->50
4h>50->50-19 ± 1.12.639 ± 1.21.3>501.0>50->50
4r19 ± 0.82.6>50-6.5 ± 0.47.77.7 ± 0.46.5>501.0>50->50
4s1.3 ± 0.43815 ± 1.23.31.4 ± 0.2361.5 ± 0.3331.7 ± 0.05>294.1 ± 0.912>50
Vismodegib>50->50->50->50->50->50->50
Etoposide9.8 ± 0.50.9----40 ± 0.20.2----8.4 ± 0.7
Cisplatin----12 ± 0.71.0------12 ± 1.4
5-FU31 ± 0.30.030.51 ± 0.061.6------- 0.83 ± 0.07
Gemcitabine--------0.3 ± 0.09250.2 ± 0.07387.5 ± 0.6
a,b Human colon cancer cells. c Human lung cancer cells. d Human medulloblastoma cells. e,f Human pancreatic carcinoma cells. g Human embryonic kidney non-cancer cell line. IC50 = values were obtained from three separate experiments performed in triplicate in the concentration range of 0.05–50 μM of the test compounds. SI = IC50 of pure compound in the non-cancer cell line/IC50 of pure compound in the cancer cell line. In the case IC50 value on HEK was > 50, it was considered as 50 μM.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zárate, A.M.; Espinosa-Bustos, C.; Guerrero, S.; Fierro, A.; Oyarzún-Ampuero, F.; Quest, A.F.G.; Di Marcotullio, L.; Loricchio, E.; Caimano, M.; Calcaterra, A.; González-Quiroz, M.; Aguirre, A.; Meléndez, J.; Salas, C.O. A New Smoothened Antagonist Bearing the Purine Scaffold Shows Antitumour Activity In Vitro and In Vivo. Int. J. Mol. Sci. 2021, 22, 8372. https://doi.org/10.3390/ijms22168372

AMA Style

Zárate AM, Espinosa-Bustos C, Guerrero S, Fierro A, Oyarzún-Ampuero F, Quest AFG, Di Marcotullio L, Loricchio E, Caimano M, Calcaterra A, González-Quiroz M, Aguirre A, Meléndez J, Salas CO. A New Smoothened Antagonist Bearing the Purine Scaffold Shows Antitumour Activity In Vitro and In Vivo. International Journal of Molecular Sciences. 2021; 22(16):8372. https://doi.org/10.3390/ijms22168372

Chicago/Turabian Style

Zárate, Ana María, Christian Espinosa-Bustos, Simón Guerrero, Angélica Fierro, Felipe Oyarzún-Ampuero, Andrew F. G. Quest, Lucia Di Marcotullio, Elena Loricchio, Miriam Caimano, Andrea Calcaterra, Matías González-Quiroz, Adam Aguirre, Jaime Meléndez, and Cristian O. Salas. 2021. "A New Smoothened Antagonist Bearing the Purine Scaffold Shows Antitumour Activity In Vitro and In Vivo" International Journal of Molecular Sciences 22, no. 16: 8372. https://doi.org/10.3390/ijms22168372

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
