Article

Microbial Conjugation Studies of Licochalcones and Xanthohumol

College of Pharmacy, Chonnam National University, Gwangju 61186, Korea
*
Author to whom correspondence should be addressed.
Academic Editors: Kateřina Valentová and Vladimír Křen
Int. J. Mol. Sci. 2021, 22(13), 6893; https://doi.org/10.3390/ijms22136893
Received: 27 May 2021 / Revised: 22 June 2021 / Accepted: 24 June 2021 / Published: 26 June 2021

Abstract

Microbial conjugation studies of licochalcones (14) and xanthohumol (5) were performed by using the fungi Mucor hiemalis and Absidia coerulea. As a result, one new glucosylated metabolite was produced by M. hiemalis whereas four new and three known sulfated metabolites were obtained by transformation with A. coerulea. Chemical structures of all the metabolites were elucidated on the basis of 1D-, 2D-NMR and mass spectroscopic data analyses. These results could contribute to a better understanding of the metabolic fates of licochalcones and xanthohumol in mammalian systems. Although licochalcone A 4′-sulfate (7) showed less cytotoxic activity against human cancer cell lines compared to its substrate licochalcone A, its activity was fairly retained with the IC50 values in the range of 27.35–43.07 μM.
Keywords: licochalcones; xanthohumol; sulfation; microbial conjugation licochalcones; xanthohumol; sulfation; microbial conjugation

1. Introduction

The licorice root, known as “Radix Glycyrrhizae”, has been used in traditional Chinese medicines for centuries to treat respiratory infections, gastritis, tremors, and peptic ulcers [1,2]. At present, there are hundreds of compounds isolated from licorice, including flavonoids, triterpene saponins, and alkaloids which are responsible for antidiabetic, neuroprotective, anti-inflammatory, and other bioactive effects [2]. Licochalcones, the significant components of licorice flavonoids, including licochalcone A (LCA, 1), licochalcone B (LCB, 2), licochalcone C (LCC, 3), and so on, were reported to exhibit a variety of bioactivities, and can be used in food and cosmetic industries [2]. In recent years, licochalcones have attracted more attention from research communities due to their anticancer potential against different kinds of cancers, such as breast, lung, and gastric cancers [2,3]. Although the pharmacological activities of licochalcones have been extensively investigated, the metabolic pathway of licochalcones in mammals remains largely unknown. It has been reported that LCA can undergo both phase I and phase II metabolic processes in vitro, with the formation of oxygenated and glucuronidated metabolites [4,5], and the in vivo metabolism studies of LCA led to the determination of glucuronidated, N-acetyl-l-cysteine conjugated, and sulfated metabolites [5,6].
In comparison to licochalcones, metabolism of xanthohumol (XN, 5) (Figure 1), a prenylated chalcone from hops, was quite extensively examined and both in vitro and in vivo studies have been conducted. The studies using human and rat liver microsomes resulted in the identification of hydroxylated, cyclized, and glucuronidated metabolites [7,8,9]. In addition, sulfate conjugated metabolites of XN were observed after using sulfotransferases and detected in rats after administration of hop extract [10,11]. However, it seems impossible to identify the conjugation position of the sulfate group by using the LC/MS analysis method without a respective reference compound. It was reported that the phase II enzymes UDP-glucuronosyltransferases and sulfotransferases were not only found in liver but also in other tissues [12], suggesting that LCA and XN could be also metabolized by other organs and tissues.
LCA and XN undergo complex biotransformation processes in mammalian systems and they are mainly metabolized by phase II enzymes, although their interactions with cytochrome P450 enzymes cannot be excluded. Polyphenolic substances are easy targets for conjugation reactions and these are indeed the major biotransformation pathways of licochalcones [13]. Therefore, it is more relevant to investigate the effects of metabolically conjugated derivatives on human health rather than their parent compounds [14]. Generally, sulfate conjugation is considered as a detoxification pathway for endogenous and exogenous phenolic compounds, as the conjugated derivatives are polar and water-soluble, which facilitates their elimination from the body [15,16]. Nevertheless, it is clear today that detoxification is not the only function of sulfation, and the biological activities of compounds after sulfation can be retained, lowered, abolished, or even increased [14,17,18]. For instance, mangostin 3-sulfate exhibited stronger anti-mycobacterial activity against Mycobacterium tuberculosis than α-mangostin [19]. However, compared to the glucuronidated and methylated conjugates, the biological properties and cellular activities of sulfated conjugates were least studied [14]. It is important to expand the structural diversity of sulfated derivatives via chemical or biological methods for biological studies.
Microbial transformation studies are regarded as one of the useful in vitro models to mimic and predict the mammalian metabolism process of xenobiotic compounds [20]. In addition, it allows the selective conversion of compounds into derivatives, which are difficult to obtain in chemical synthesis under mild conditions [21]. Such processes can provide sufficient amounts of metabolites for structure elucidation and pharmacological activity evaluation [21]. Khan and colleagues have reported that Absidia glauca [22], Aspergillus alliaceus [23], Beauveria bassiana [24], Chaetomium cochlioides, Cunninghamella blakesleeana [23], Cunninghamella echinulata [25], Mortierella zonata [23], and Mucor ramannianus [26] could transform the flavones and flavanones to their corresponding sulfated metabolites. Thus, biotransformation conducted by microorganisms could be used as a simple and efficient method for obtaining not only phase I but also phase II metabolites of chalcones [20].
To the best of our knowledge, no metabolism studies of licochalcones B–D and H were performed so far, except the study previously carried out in this lab [27]. Thus, in order to identify the conjugated metabolites of licochalcones, further studies need to be performed. In the present study, microbial transformation of licochalcones A–C, H and xanthohumol (15) was carried out with Mucor hiemalis and Absidia coerulea, affording one new glucosylated and four new sulfated metabolites, respectively. The conjugated metabolites could be used as authentic reference standards in metabolic studies of licochalcones and xanthohumol.

2. Results and Discussion

2.1. Microbial Transformation of Licochalcone A and Xanthohumol by M. hiemalis

During our previous study, it was observed that licochalcones B, C, H could be O-glucosylated by using the fungus M. hiemalis [27]. Here, the same process was performed with LCA and XN, which led to the isolation of a new compound licochalcone A 4-O-β-d-glucopyranoside (6) together with a known compound xanthohumol 4′-O-β-d-glucopyranoside [28]. Yin and colleagues discovered a phenolic glycosyltransferase MhGT1 from M. hiemalis and applied the enzymatic approach to obtain a series of glycosylated phenolic compounds [29]. Likewise, the O-glucosylation process observed here was speculated to be catalyzed by the enzyme glycosyltransferase formed by M. hiemalis.
Compound 6 was isolated as an orange amorphous powder. HRESIMS of 6 exhibited a quasi-molecular ion at m/z 523.1943 [M+Na]+ (calcd. for C27H32O9Na, 523.1944), suggesting the molecular formula of 6 as C27H32O9, which was one glucose unit higher than that of 1. The presence of sugar moiety was further confirmed by comparison of its NMR spectra with those of 1, which showed an anomeric proton signal at δH 5.01 (1H, d, J = 7.0 Hz) in 1H-NMR spectrum and a hexose carbon signals at δC (100.5, 73.8, 77.8, 70.7, 78, and 61.4) in 13C-NMR. The significant downfield-shifted proton signal of H-3 in ring B indicated that the glucose moiety was attached to 4-OH. HMBC correlation from the anomeric proton signal at δH 5.01 (H-1′′′) to the carbon signal at δC 159.4 (C-4) confirmed the assignment of glycosylation at C-4 (Figure 2). The resonances of the glucose moiety were assigned by HSQC and HMBC experiments (See Supplementary Materials). TLC comparison with the authentic sample after acid hydrolysis of 6 led to the elucidation of the glucose moiety to be d-form [28,30]. The aglycone part of the 1H- and 13C-NMR spectra of 6 revealed two sets of signals in the integral ratio of around 1:1.3. Based on the two pairs of H-α and H-β proton signals at δH 7.67 (1H, d, J = 15.7 Hz) and 7.92 (1H, d, J = 15.7 Hz), together with δH 6.44 (1H, d, J = 12.8 Hz) and 7.03 (1H, d, J = 12.8 Hz), 6 was clearly assigned as a mixture of trans- and cis-isomers. Based on the above data and extensive 2D NMR experiments, structure of the compound 6 was assigned as licochalcone A 4-O-β-d-glucopyranoside.

2.2. Microbial Transformation of Licochalcones A, B, C, H, and Xanthohumol by A. coerulea

Screening of licochalcones and XN (15) with several microorganisms showed that only A. coerulea was able to produce the highly polar metabolites, more polar than the metabolites transformed by M. hiemalis. During the screening procedures, it was also observed that by using more sulfate-containing media, the yield of sulfate-conjugated metabolites could be increased. Thus, instead of using the original incubation medium suggested by KCTC, the scale-up fermentation process was performed by using a modified Czapek Dox media (dextrose 10 g/L, sodium nitrate 2 g/L, dipotassium phosphate 1 g/L, magnesium sulfate 0.5 g/L, potassium chloride 0.5 g/L, ferrous sulfate 0.02 g/L). Isolation of the metabolites from large-scale fermentations was processed successfully by using EtOAc as extraction solvent.
Metabolite 7 was isolated as a yellow amorphous powder. The UV spectrum showed maximum absorption bands at 266 and 387 nm, similar to those of substrate 1. The HRESIMS spectra of 7 displayed a molecular ion peak at m/z 417.1024 [M-H] and a fragment ion peak at m/z 337.1449 [M-H-80], suggesting the presence of a sulfate group. In addition, the isotopic mass peak at m/z 419.1087 [M-H+2] indicated the presence of a sulfur atom in the compound. The IR spectrum of 7 showed the presence of two strong bands corresponding to the S=O (1251 cm−1) and C-O-S (1050 cm1), supporting the presence of a sulfate group [31]. The presence of the sulfate group was further supported by the formation of white precipitate after treating the aqueous layer of acid-hydrolyzed 7 with BaCl2 [31]. Comparison of the 1H- and 13C-NMR spectroscopic data of 7 with 1 revealed the resonance signals being almost identical in both compounds, except for the downfield shift of H-3′/5′, C-1′, C-3′/5′ (0.44, 4.0, and 4.7 ppm, respectively) and the upfield shift of C-4′ (4.4 ppm), implying that the sulfate moiety was conjugated with 4′-OH. These shifts were consistent with naringenin 4′-sulfate, a transformed product of naringenin, because the carbon directly attached to the sulfate ester and the carbons in the meta-position are upfield-shifted, and the protons and carbons in ortho- and para-positions to the sulfate group are downfield-shifted [18,32]. The sulfate position at C-4′ was further confirmed by HMBC correlations of H-3′/5′ with C-1′ and C-4′ (Figure 3). Therefore, the structure of 7 was identified as licochalcone A 4′-sulfate.
Metabolite 8 was obtained as a mixture with 7. In the 1H-NMR spectrum of 8, the significant downfield-shifted signal at δH 7.51 (H-3) was observed, indicating that the sulfate group was attached to 4-OH. Two sets of proton resonance signals were observed for 8, which is similar to the glucosylated metabolite 6. Thus, the structure of 8 was identified as trans- and cis-isomers of licochalcone A 4-sulfate.
Metabolite 9 was obtained as a yellow solid. The HRESIMS spectra of 9 exhibited a molecular ion peak at m/z 365.0336 [M-H] and a fragment ion peak at m/z 285.0767 [M-H-80], suggesting the presence of a sulfate group. The 1H-NMR data of 9 were similar to 2, except for the H-6 signal, which was downfield-shifted by 0.33 ppm. Comparison of 13C-NMR data of 9 and substrate 2 showed that the C-3 signal was upfield-shifted by 5.7 ppm, and the signals of C-2, C-4, and C-6 were downfield-shifted by 4.1, 3.2, and 5.0 ppm, respectively [33]. All of these suggested that the sulfate group was attached to 3-OH, and this was further confirmed by the HMBC correlations between H-5 and C-1/3 (Figure 4). Thus, the structure of 9 was identified as licochalcone B 3-sulfate.
Metabolite 10 was obtained as a mixture with 9. In the 1H-NMR spectrum of 10, the significant downfield-shifted signal at δH 7.22 (H-5) was observed, indicating that the sulfate group was attached to 4-OH. This was supported by the deshielding of C-3 and C-5 carbons, which are ortho to the sulfate site, compared to those of substrate 2 in the 13C NMR of 10 by 3.0 and 5.2 ppm, respectively. Furthermore, the para carbon at C-1 in 10 was deshielded by 4.0 ppm, while the ipso carbon at C-4 position was shielded by 7.7 ppm [33]. Based on the above analysis, the structure of 10 was identified as licochalcone B 4-sulfate. The resonances of 10 were completely assigned by HSQC and HMBC spectra (See Supplementary Materials).
Metabolite 11 was obtained as a yellow solid. The HRESIMS spectra of 11 exhibited a molecular ion peak at m/z 417.1010 [M-H] and a fragment ion peak at m/z 337.1438 [M-H-80], suggesting the presence of a sulfate group. Two sets of signals in the integral ratio of around 1:1.1 were observed in the 1H- and 13C-NMR spectra of 11. It was assigned as a mixture of trans- and cis-isomers according to the two pairs of H-α and H-β proton signals at δH 7.73 (1H, d, J = 15.9 Hz) and 8.01 (1H, d, J = 15.9 Hz), together with δH 6.65 (1H, d, J = 12.9 Hz) and 7.10 (1H, d, J = 12.9 Hz). Comparison of the 1H-NMR spectrum of LCC sulfate 11 with the parent compound 3 clearly showed a strong difference in the chemical shift for H-5 in ring B, whereas the chemical shifts of protons in ring A were only slightly changed, suggesting that the sulfate moiety was attached to 4-OH. This was supported by the significant upfield-shifted signal of C-4 and downfield-shifted signals of C-1, C-3, and C-5 in the 13C-NMR spectra of 11 compared with those of 3 [33]. The HMBC correlations between H-6 and C-4, C-2 further confirmed the attachment at C4-OH (Figure 5). Thus, the structure of 11 was identified as licochalcone C 4-sulfate.
Metabolite 12 was obtained as a yellow solid. The HRESIMS spectra of 12 exhibited a molecular ion peak at m/z 417.0974 [M-H] and a fragment ion peak at m/z 96.9881, suggesting the presence of a sulfate group. Two sets of signals in the integral ratio of around 1:1.2 were observed in the 1H- and 13C-NMR spectra of 12. It was assigned as a mixture of trans- and cis-isomers, according to the two pairs of H-α and H-β proton signals at δH 7.68 (1H, d, J = 15.8 Hz) and 7.98 (1H, d, J = 15.8 Hz), together with δH 6.43 (1H, d, J = 12.8 Hz) and 7.12 (1H, d, J = 12.8 Hz). Comparison of the 1H-NMR spectrum of LCH sulfate 12 with the parent compound 4 clearly showed a strong difference in the chemical shift for H-3 in ring B, whereas the chemical shifts of protons in ring A were only slightly changed, suggesting that the sulfate moiety was attached to 4-OH. This was supported by the significant upfield-shifted signal of C-4 and downfield-shifted signals of C-1, C-3, and C-5 in the 13C-NMR spectra of 12 compared with those of 4 [34]. Thus, the structure of 12 was identified as licochalcone H 4-sulfate. The resonances of 12 were completely assigned by HSQC and HMBC spectra (See Supplementary Materials).
Metabolite 13 was isolated as a yellow amorphous powder. The HRESIMS spectra of 13 displayed a molecular ion peak at m/z 433.1092 [M-H] and a fragment ion peak at m/z 353.1355 [M-H-80], suggesting the presence of a sulfate group. Comparison of the 1H- and 13C-NMR spectroscopic data of 13 with 5 indicated almost identical resonances for both compounds, except for the downfield-shift of H-5′, C-1′, C-3′, C-5′ (0.88, 3.2, 6.0, and 4.7 ppm, respectively) and the upfield-shift of C-4′ (5.8 ppm), implying that the sulfate moiety was conjugated with 4′-OH [35]. Therefore, the structure of 13 was identified as xanthohumol 4′-sulfate.
It has been reported that chalcones can undergo trans to cis transformation in solution when light exposure is available. The presence of a free hydroxyl group at the C-4 position of chalcones inhibits photoisomerization between the trans- and cis-isomers, as the hydroxyl group at C-4 position enables keto-enol tautomerization and free rotation around the α,β-bond, which allows the rapid conversion of cis chalcones to the stable trans-isomers [4]. The electron-donating group at C-4 position is expected to weaken the α,β-double bond of chalcones through electron-delocalization effects (Figure 6), thus the electron-withdrawing effects carried out by the glucose and sulfate moieties of 6, 8, 11, and 12 may quench the electron-donating capacity of the O-atom at C-4 [36]. As a result, glucosylation and sulfation of C4-OH raise the barrier and make the cis-trans chalcone isomerization a slow kinetically distinct process [36]. As demonstrated with the isolated metabolites 6, 11, and 12, the ratio of cis- to trans-isomers was found to be >1 in the NMR solvent, suggesting that the cis isomer produced here is structurally stable under the observed conditions [37]. Such observations are quite remarkable in this case as it is commonly known that trans chalcones are more stable than their cis-isomers.
The conjugation reactions are widely known as major metabolic pathways for the detoxification of xenobiotic compounds [15]. The conjugated derivatives are more polar and water-soluble and therefore more easily excreted from the body through urine or feces [14,38]. However, an increasing amount of evidence suggests that detoxification is not the only role of sulfation in the organisms. Sulfation might change the biological activities of numerous compounds, and some of the sulfated compounds work therapeutically against cancer, diabetes, and various metabolic diseases [18,39]. A demonstration of parallelism between mammalian and microbial systems, conjugation reaction is of considerable importance for the drug metabolism investigations. However, sulfation in microbial systems is rare and reports on this topic are limited. So far, in addition to the list of microorganisms reported by Khan [22,23,24,25,26], several fungi including Absidia coerulea [40], Colletotrichum gloeosporioides [19], Cunninghamella elegans [32], Gliocladium deliquescens [41], Mucor hiemalis [42], Mucor sp. [43], Neosartorya spathulata [19], Streptomyces fulvissimus, Syncephalastrum racemosum [21], and Trichothecium roseum [44] were reported to perform sulfation of some phenolic compounds.
Unlike the complicated sulfation procedure of 8-prenylnaringein, which requires a two-step process with the use of a phosphate buffer [21], we obtained the sulfated metabolites of licochalcones and xanthohumol (713) by directly using the cultures of A. coerulea. The metabolite 7 was previously identified as a phase II sulfate conjugate of LCA during the metabolism studies using human hepatocytes [5]. Results obtained from this study showed that A. coerulea is capable of sulfation of chalcones and exhibits parallels between microbial and mammalian metabolism not only in phase I but also in phase II metabolism [21,31]. It is widely known that the phase II sulfation reactions are mediated by the enzyme sulfotransferases, which catalyze the transfer of sulfonate group from the active sulfate to the substrates containing hydroxyl groups [45]. Thus, the sulfate metabolites of licochalcones and xanthohumol were supposed to be produced by the enzyme sulfotransferase from A. coeralea.
To demonstrate the biological activity of compounds 7, 13 and their aglycones (1, 5), the cytotoxic activities against three different human cancer cell lines were evaluated by using MTT assay (Table 1). Although, as expected, the sulfated metabolites were less active than their aglycones, they still exhibited moderate cytotoxic activities. The glucosylated metabolites displayed weak cytotoxic activity with IC50 > 100 μM. From the results obtained (Table 1 and Table S1), it was observed that all of the test compounds, except LCC, exhibited higher cytotoxic activities against A375P cells than MCF-7 and A549 cells. LCC showed stronger activity against MCF-7 cells than A549 cells, which was supported by the result reported by Zheng and colleagues [46]. Zheng and colleagues observed that LCB (2) exhibited weak cytotoxic activity against MCF-7 cells with IC50 > 80 μM after 24 and 48 h treatment [47], which was similar to our result (Supporting Table S1). All the compounds tested displayed much stronger cytotoxic activities than LCB, indicating that the prenyl group plays a significant role in the cytotoxic activity of these compounds against the tested cancer cell lines. However, Shim and colleagues have reported that LCB exhibited moderate activities against A375 and A431 skin cancer cells (IC50 13.7 and 19.1 μM, respectively) [48], and showed stronger cytotoxic activity against HSC4 oral squamous cell carcinoma cells (IC50 13 μM) than LCA (IC50 20.42 μM), LCC (IC50 27.1 μM), and LCH (IC50 14.4 μM) after 48 h treatment [49,50,51,52]. Though LCA and XN exhibited good activity in most cases, they were found to show low cytotoxic and apoptotic activity against LNCaP prostate cancer cells [53]. Thus, the cytotoxic activity of compounds against different types of cancer cell lines should be evaluated on a case-by-case basis.

3. Materials and Methods

3.1. Materials and Microorganisms

Licochalcone A (1) and demethylzeylasteral (DZ) were purchased from Biopurify Phytochemicals Ltd. (Chengdu, China) and confirmed by 1H-NMR. Licochalcones B, C, H and xanthohumol (25) were prepared using previously reported methods [27,28]. All the microorganisms were obtained from the Korean Collection for Type Cultures (KCTC). All of the ingredients for microbial media including dextrose, peptone, malt extract, yeast extract, and potato dextrose broth were purchased from Becton, Dickinson and Company (Sparks, MD, USA). Dulbecco’s Modified Eagle Medium (DMEM) and Antibiotic-Antimycotic were purchased from Gibco (Invitrogen, Carlsbad, CA, USA); fetal bovine serum (FBS) was purchased from Welgene Inc. (Gyeongsan-si, Korea). Phosphate-buffered saline (PBS) tablets were purchased from Takara Korea Biomedical Inc. (Seoul, Korea) and thiazolyl blue tetrazolium bromide (MTT) was from Thermo Fisher Scientific (Waltham, MA, USA).

3.2. General Experimental Procedures

The 1H- and 13C-NMR spectra were obtained in DMSO-d6 or CD3OD on a Bruker Avance III HD 400 spectrometer at 400 and 100 MHz, respectively, using TMS as an internal standard. The chemical shift values (δ) are reported in ppm units, and the coupling constants (J) are in Hz. IR spectra were obtained on a JASCO FT/IR-300E spectrometer (Jasco, Tokyo, Japan). UV spectra were measured with a JASCO V-530 spectrophotometer (Jasco, Tokyo, Japan). HRESIMS was determined on a Synapt G2 mass spectrometer (Waters, Milford, MA, USA). TLC analyses were carried out on precoated silica gel 60 F254 plates (Merck, Darmstadt, Germany). The developing system used was chloroform:methanol (5:1, v/v) solution, and visualization of the TLC plates was performed using anisaldehyde-H2SO4 spray reagent. For column chromatography, the adsorbent used was Sephadex LH-20 from GE Healthcare (Chicago, IL, USA). HPLC was performed on a Waters 1525 Binary HPLC Pump (Waters Corp., Milford, MA, USA) connected to a Waters 996 Photodiode Array detector using Zorbax SB-CN (9.4 × 250 mm) with MeOH:H2O at a flow rate of 2.0 mL/min.

3.3. Screening Procedures

In the screening studies, the actively growing microbial cultures were inoculated in 250 mL Erlenmeyer flasks containing 50 mL of a suitable medium and incubated with gentle agitation (200 rpm) at 25 °C in a temperature-controlled shaking incubator. Then, 100 μL of DMSO solution (20 mg/mL) of substrates 15 was added to each flask 24 h after inoculation, and further incubated at the same condition for another 7 days. Sampling and TLC monitoring were performed at an interval of 24 h. Culture controls consisted of fermentation cultures in which the microorganisms were grown without the addition of substrates.

3.4. Biotransformation of 1 by M. hiemalis KCTC 26779

Scale-up fermentations were carried out under the same temperature-controlled shaking condition with ten 500 mL Erlenmeyer flasks, each containing 125 mL malt medium, and 60 mg licochalcone A dissolved in DMSO was distributed evenly between flasks. After incubation for 4 days, the microbial culture broth was extracted with EtOAc (1.5 L) three times, and the organic layers were combined and concentrated in vacuo. The EtOAc extract (265 mg) was chromatographed by semi-preparative reversed-phase HPLC with 60% MeOH as mobile phase at 2 mL/min to afford metabolites 6 (43 mg).
Licochalcone A 4-O-β-D-glucopyranoside (6)
Orange amorphous powder. IR (KBr) νmax cm−1: 3387, 2962, 1597, 1506, 1281, 1164, 1031. HRESIMS: m/z 523.1943 [M+Na]+ (calcd for C27H32O9Na, 523.1944), 501.2120 [M+H]+ (calcd for C27H33O9, 501.2125).
Trans form: UV (MeOH) λmax (log ε) nm: 242 (0.93), 315 (1.23), 372 (1.97). 1H-NMR (DMSO-d6, 400 MHz) δ 8.00 (2H, d, J = 8.0 Hz, H-2′/6′), 7.92 (1H, d, J = 15.7 Hz, H-β), 7.67 (1H, d, J = 15.7 Hz, H-α), 7.59 (1H, s, H-6), 6.90 (2H, d, J = 8.0 Hz, H-3′/5′), 6.89 (1H, s, H-3), 6.34 (1H, dd, J = 10.7, 17.3 Hz, H-2′′), 5.01 (1H, d, J = 7.0 Hz, H-1′′′), 5.01 (1H, dd, J = 1.2, 17.3 Hz, H-3′′a), 4.97 (1H, dd, J = 1.2, 10.7 Hz, H-3′′b), 3.90 (3H, s, -OCH3), 3.77 (1H, m, H-6′′′a), 3.44 (1H, m, H-6′′′b), 3.38 (1H, m, H-2′′′), 3.32 (2H, m, H-3′′′/5′′′), 3.13 (1H, m, H-4′′′), 1.50 (3H, s, H-4′′), 1.49 (3H, s, H-5′′). 13C-NMR (DMSO-d6, 100 MHz) δ 187.7 (C=O), 162.8 (C-4′), 159.4 (C-4), 158.7 (C-2), 148.1 (C-2′′), 138.6 (C-β), 131.4 (C-2′/6′), 129.7 (C-1′), 128.7 (C-5), 127.5 (C-6), 119.7 (C-α), 115.9 (C-1), 115.9 (C-3′/5′), 110.7 (C-3′′), 100.5 (C-1′′′), 100.0 (C-3), 78.0 (C-5′′′), 77.8 (C-3′′′), 73.8 (C-2′′′), 70.7 (C-4′′′), 61.4 (C-6′′′), 56.1 (-OCH3), 40.2 (C-1′′), 28.2 (C-4′′), 27.2 (C-5′′).
Cis form: UV (MeOH) λmax (log ε) nm: 260 (1.69), 294 (1.63). 1H-NMR (DMSO-d6, 400 MHz) δ 7.76 (2H, d, J = 7.9 Hz, H-2′/6′), 7.09 (1H, s, H-6), 7.03 (1H, d, J = 12.8 Hz, H-β), 6.78 (2H, d, J = 7.9 Hz, H-3′/5′), 6.76 (1H, s, H-3), 6.44 (1H, d, J = 12.8 Hz, H-α), 6.02 (1H, dd, J = 10.6, 17.5 Hz, H-2′′), 4.90 (1H, d, J = 7.2 Hz, H-1′′′), 4.79 (1H, dd, J = 1.2, 17.5 Hz, H-3′′a), 4.76 (1H, dd, J = 1.2, 10.6 Hz, H-3′′b), 3.77 (1H, m, H-6′′′a), 3.76 (3H, s, -OCH3), 3.44 (1H, m, H-6′′′b), 3.41 (1H, m, H-5′′′), 3.32 (2H, m, H-2′′′/3′′′), 3.13 (1H, m, H-4′′′), 1.24 (3H, s, H-4′′), 1.19 (3H, s, H-5′′). 13C-NMR (DMSO-d6, 100 MHz) δ 193.8 (C=O), 163.0 (C-4′), 157.6 (C-4), 156.7 (C-2), 148.0 (C-2′′), 132.0 (C-β), 131.7 (C-2′/6′), 129.1 (C-6), 128.7 (C-1′), 127.3 (C-5), 125.8 (C-α), 116.5 (C-1), 115.8 (C-3′/5′), 110.3 (C-3′′), 100.5 (C-1′′′), 99.5 (C-3), 77.9 (C-5′′′), 77.8 (C-3′′′), 73.8 (C-2′′′), 70.7 (C-4′′′), 61.4 (C-6′′′), 55.8 (-OCH3), 40.0 (C-1′′), 27.6 (C-4′′), 27.0 (C-5′′).

3.5. Biotransformation of 15 by A. coerulea KCTC 6936

Scale-up fermentations were carried out under the same temperature-controlled shaking condition with five 500 mL Erlenmeyer flasks, each containing 125 mL suitable media, and 30 mg licochalcone A dissolved in DMSO was distributed evenly between flasks. After incubation for 5 days, the microbial culture broth was extracted with EtOAc (0.75 L) four times, and the organic layers were combined and concentrated in vacuo. The EtOAc extract (396 mg) from A. coerulea culture broth was chromatographed by semi-preparative reversed-phase HPLC with 55% MeOH as mobile phase at 2 mL/min to give metabolite 7 (14.86 mg) and a mixture of 7 and 8 (2.55 mg, 1:1.5). A similar scale-up process was performed for licochalcones B (24 mg), C (12 mg), H (24 mg) and xanthohumol (30 mg). The EtOAc extract of LCB (50.84 mg) was chromatographed using Sephadex LH-20 eluted with methanol to give metabolite 9 (1.58 mg) and three fractions, fraction 2 was subjected to reversed-phase HPLC with 70% MeOH as mobile phase at 2 mL/min to afford a mixture of metabolites 9 and 10 (6.85 mg, 3:1). The EtOAc extract of LCC (31.92 mg) was chromatographed using Sephadex LH-20 eluted with methanol to give metabolite 11 (2.23 mg). The EtOAc extract of LCH (50.73 mg) was chromatographed using Sephadex LH-20 eluted with methanol to give metabolite 12 (2.25 mg) and four fractions, fractions 2 and 3 were subjected to reversed-phase HPLC with 70% MeOH as mobile phase at 2 mL/min to afford metabolite 12 (3.80 mg). The EtOAc extract of XN (265 mg) was subjected to reversed-phase HPLC with 70% MeOH as mobile phase at 2 mL/min to afford metabolite 13 (5.2 mg).

3.5.1. Licochalcone A 4′-Sulfate (7)

Yellow amorphous powder. IR (neat) νmax cm−1: 3503, 2924, 1646, 1599, 1557, 1251, 1212, 1050, 866, 842. UV (MeOH) λmax (log ε) nm: 265 (1.01), 384 (1.78). HRESIMS: m/z 417.1024 [M-H] (calcd for C21H21O7S, 417.1008). 1H-NMR (DMSO-d6, 400 MHz) δ 8.02 (2H, d, J = 8.4 Hz, H-2′/6′), 7.92 (1H, d, J = 15.6 Hz, H-β), 7.59 (1H, d, J = 15.6 Hz, H-α), 7.54 (1H, s, H-6), 7.32 (2H, d, J = 8.4 Hz, H-3′/5′), 6.54 (1H, s, H-3), 6.25 (1H, dd, J = 10, 17.6 Hz H-2′′), 4.94 (2H, br d, J = 14.4 Hz, H-3′′), 3.83 (3H, s, -OCH3), 1.45 (6H, s, H-4′′/5′′). 13C-NMR (DMSO-d6, 100 MHz) δ 188.5 (C=O), 160.5 (C-4), 158.9 (C-2), 157.8 (C-4′), 148.0 (C-2′′), 140.0 (C-β), 133.3 (C-1′), 130.1 (C-2′/6′), 128.5 (C-6), 127.1 (C-5), 120.0 (C-3′/5′), 118.3 (C-α), 113.9 (C-1), 110.5 (C-3′′), 100.4(C-3), 56.0 (-OCH3), 40.0 (C-1′′), 27.5 (C-4′′/5′′).

3.5.2. Licochalcone A 4-Sulfate (8)

Yellow amorphous powder. Trans form: UV (MeOH) λmax (log ε) nm: 318 (0.52), 361 (0.64). 1H-NMR (CD3OD, 400 MHz) δ 8.00 (1H, d, J = 15.6 Hz, H-β), 7.96 (2H, d, J = 8.4 Hz, H-2′/6′), 7.58 (1H, s, H-6), 7.57 (1H, d, J = 15.6 Hz, H-α), 7.51 (1H, s, H-3), 6.89 (2H, d, J = 8.4 Hz, H-3′/5′), 6.26 (1H, dd, J = 10.5, 17.4 Hz, H-2′′), 5.05 (1H, dd, J = 1.3, 17.4 Hz, H-3′′a), 5.04 (1H, dd, J = 1.3, 10.5 Hz, H-3′′b), 3.94 (3H, s, -OCH3), 1.53 (6H, s, H-4′′/5′′). Cis form: UV (MeOH) λmax (log ε) nm: 259 (0.32), 288 (0.27). 1H-NMR (CD3OD, 400 MHz) δ 7.78 (2H, d, J = 8.7 Hz, H-2′/6′), 7.33 (1H, s, H-6), 7.16 (1H, d, J = 12.8 Hz, H-β), 7.04 (1H, s, H-3), 6.72 (2H, d, J = 8.7 Hz, H-3′/5′), 6.36 (1H, d, J = 12.8 Hz, H-α), 5.92 (1H, dd, J = 10.7, 17.4 Hz, H-2′′), 4.79 (1H, dd, J = 1.4, 10.7 Hz, H-3′′b), 4.76 (1H, dd, J = 1.4, 17.4 Hz, H-3′′a), 3.79 (3H, s, -OCH3), 1.25 (6H, s, H-4′′/5′′).

3.5.3. Licochalcone B 3-Sulfate (9)

Yellow amorphous powder. IR (neat) νmax cm−1: 3451, 2929, 1646, 1592, 1258, 1049, 866. UV (MeOH) λmax (log ε) nm: 242 (0.62), 348 (1.46). HRESIMS: m/z 365.0366 [M-H] (calcd for C16H13O8S, 365.0331). 1H-NMR (CD3OD, 400 MHz) δ 7.99 (1H, d, J = 15.6 Hz, H-β), 7.99 (2H, d, J = 8.8 Hz, H-2′/6′), 7.66 (1H, d, J = 15.6 Hz, H-α), 7.57 (1H, d, J = 8.8 Hz, H-6), 6.89 (2H, d, J = 8.8 Hz, H-3′/5′), 6.74 (1H, d, J = 8.8 Hz, H-5), 4.01 (3H, s, -OCH3). 13C-NMR (CD3OD, 100 MHz) δ 189.8 (C=O), 162.4 (C-4′), 154.1 (C-2), 154.0 (C-4), 139.0 (C-β), 134.0 (C-3), 130.9 (C-2′/6′), 129.8 (C-1′), 125.1 (C-6), 120.7 (C-1), 119.7 (C-α), 115.0 (C-3′/5′), 113.1 (C-5), 61.1 (-OCH3).

3.5.4. Licochalcone B 4-Sulfate (10)

UV (MeOH) λmax (log ε) nm: 242 (0.82), 345 (1.99). HRESIMS: m/z 365.0336 [M-H] (calcd for C16H13O8S, 365.0331). 1H-NMR (CD3OD, 400 MHz) δ 8.02 (1H, d, J = 15.7 Hz, H-β), 8.01 (2H, d, J = 8.7 Hz, H-2′/6′), 7.73 (1H, d, J = 15.7 Hz, H-α), 7.33 (1H, d, J = 8.8 Hz, H-6), 7.21 (1H, d, J = 8.8 Hz, H-5), 6.90 (2H, d, J = 8.7 Hz, H-3′/5′), 3.90 (3H, s, -OCH3). 13C-NMR (CD3OD, 100 MHz) δ 189.6 (C=O), 162.5 (C-4′), 148.7 (C-2), 143.1 (C-4), 143.0 (C-3), 138.4 (C-β), 131.0 (C-2′/6′), 129.6 (C-1′), 125.5 (C-1), 121.7 (C-α), 117.9 (C-5), 117.4 (C-6), 115.1 (C-3′/5′), 61.3 (-OCH3).

3.5.5. Licochalcone C 4-Sulfate (11)

Yellow amorphous powder. IR (neat) νmax cm−1: 3503, 2925, 1646, 1599, 1557, 1250, 1212, 1050, 866. UV (MeOH) λmax (log ε) nm: 327 (1.82). HRESIMS: m/z 417.1010 [M-H] (calcd for C21H21O7S, 417.1008). Trans form: 1H-NMR (CD3OD, 400 MHz) δ 8.03 (2H, d, J = 8.7 Hz, H-2′/6′), 8.01 (1H, d, J = 15.9 Hz, H-β), 7.73 (1H, d, J = 15.9 Hz, H-α), 7.72 (1H, d, J = 8.8 Hz, H-6), 7.43 (1H, d, J = 8.7 Hz, H-5), 6.90 (2H, d, J = 8.7 Hz, H-3′/5′), 5.26 (1H, t, J = 7.1 Hz, H-2′′), 3.77 (3H, s, -OCH3), 3.49 (2H, d, J = 7.1 Hz, H-1′′), 1.81 (3H, s, H-4′′), 1.67 (3H, s, H-5′′). 13C-NMR (CD3OD, 100 MHz) δ 189.6 (C=O), 162.5 (C-4′), 159.0 (C-2), 150.5 (C-4), 138.6 (C-β), 131.0 (C-2′/6′), 130.8 (C-3′′), 129.6 (C-1′), 128.8 (C-3), 125.4 (C-6), 124.7 (C-1), 122.6 (C-2′′), 121.5 (C-α), 117.4 (C-5), 115.1 (C-3′/5′), 61.8 (-OCH3), 24.5 (C-4′′), 23.2 (C-1′′), 16.7 (C-5′′).
Cis form: 1H-NMR (CD3OD, 400 MHz) δ 7.84 (2H, d, J = 8.8 Hz, H-2′/6′), 7.13 (1H, d, J = 8.7 Hz, H-5), 7.10 (1H, d, J = 12.9 Hz, H-β), 7.07 (1H, d, J = 8.7 Hz, H-6), 6.76 (2H, d, J = 8.8 Hz, H-3′/5′), 6.65 (1H, d, J = 12.9 Hz, H-α), 5.14 (1H, t, J = 6.8 Hz, H-2′′), 3.71 (3H, s, -OCH3), 3.39 (2H, d, J = 6.8 Hz, H-1′′), 1.76 (3H, s, H-4′′), 1.65 (3H, s, H-5′′). 13C-NMR (CD3OD, 100 MHz) δ 194.4 (C=O), 162.6 (C-4′), 157.4 (C-2), 151.9 (C-4), 133.5 (C-β), 131.3 (C-2′/6′), 130.5 (C-3′′), 128.3 (C-1′), 127.8 (C-3), 127.4 (C-6), 126.9 (C-α), 125.7 (C-1), 122.8 (C-2′′), 116.5 (C-5), 114.9 (C-3′/5′), 60.8 (-OCH3), 24.5 (C-4′′), 23.1 (C-1′′), 16.7 (C-5′′).

3.5.6. Licochalcone H 4-Sulfate (12)

Yellow amorphous powder. IR (neat) νmax cm−1: 3436, 2959, 2925, 1646, 1599, 1557, 1249, 1212, 1050, 866. UV (MeOH) λmax (log ε) nm: 306 (1.87), 359 (1.54). HRESIMS: m/z 417.0974 [M-H] (calcd for C21H21O7S, 417.1008). Trans form 1H-NMR (CD3OD, 400 MHz) δ 7.98 (1H, d, J = 15.8 Hz, H-β), 7.97 (2H, d, J = 8.9 Hz, H-2′/6′), 7.68 (1H, d, J = 15.8 Hz, H-α), 7.49 (1H, s, H-6), 7.26 (1H, s, H-3), 6.89 (2H, d, J = 8.9 Hz, H-3′/5′), 5.35 (1H, t, J = 7.4 Hz, H-2′′), 3.93 (3H, s, -OCH3), 3.42 (2H, d, J = 7.4 Hz, H-1′′), 1.76 (3H, s, H-4′′), 1.75 (3H, s, H-5′′). 13C-NMR (CD3OD, 100 MHz) δ 191.8 (C=O), 163.7 (C-4′), 159.2 (C-2), 154.6 (C-4), 140.8 (C-β), 134.4 (C-3′′), 132.3 (C-2′/6′), 131.2 (C-6), 130.7 (C-1′), 126.9 (C-5), 123.8 (C-2′′), 122.2 (C-α), 121.3 (C-1), 116.4 (C-3′/5′), 106.1 (C-3), 56.4 (-OCH3), 28.8 (C-1′′), 25.9 (C-4′′), 18.0 (C-5′′).
Cis form 1H-NMR (CD3OD, 400 MHz) δ 7.81 (2H, d, J = 8.9 Hz, H-2′/6′), 7.12 (1H, d, J = 12.8 Hz, H-β), 7.06 (1H, s, H-3), 6.93 (1H, s, H-6), 6.76 (2H, d, J = 8.9 Hz, H-3′/5′), 6.43 (1H, d, J = 12.8 Hz, H-α), 5.01 (1H, t, J = 7.4 Hz, H-2′′), 3.76 (3H, s, -OCH3), 3.17 (2H, d, J = 7.4 Hz, H-1′′), 1.63 (3H, s, H-4′′), 1.55 (3H, s, H-5′′). 13C-NMR (CD3OD, 100 MHz) δ 197.1 (C=O), 164.0 (C-4′), 157.1 (C-2), 152.8 (C-4), 133.9 (C-β), 133.5 (C-3′′), 132.9 (C-2′/6′), 131.9 (C-6), 129.9 (C-1′), 127.4 (C-α), 126.6 (C-5), 123.4 (C-2′′), 122.2 (C-1), 116.2 (C-3′/5′), 105.6 (C-3), 56.0 (-OCH3), 28.1 (C-1′′), 25.9 (C-4′′), 17.7 (C-5′′).

3.5.7. Xanthohumol 4′-Sulfate (13)

Yellow amorphous powder. IR (neat) νmax cm−1: 3447, 2924, 1645, 1598, 1559, 1241, 1213, 1051, 867. UV (MeOH) λmax (log ε) nm: 297 (1.01, sh), 362 (2.18). HRESIMS: m/z 433.1092 [M-H] (calcd. for C21H21O8S, 433.0957). 1H-NMR (CD3OD, 400 MHz) δ 7.79 (1H, d, J = 15.8 Hz, H-β), 7.72 (1H, d, J = 15.8 Hz, H-α), 7.52 (2H, d, J = 8.5 Hz, H-2/6), 6.89 (1H, s, H-5′), 6.83 (2H, d, J = 8.5 Hz, H-3/5), 5.23 (1H, t, J = 7.3 Hz, H-2′′), 3.95 (3H, s, -OCH3), 3.36 (2H, d, J = 7.4 Hz, H-1′′), 1.79 (3H, s, H-4′′), 1.65 (3H, s, H-5′′). 13C-NMR (CD3OD, 100 MHz) δ 193.8 (C=O), 163.4 (C-2′), 159.9 (C-6′), 159.8 (C-4), 156.5 (C-4′), 143.0 (C-β), 130.4 (C-3′′), 130.1 (C-2/6), 126.8 (C-1′), 124.2 (C-α), 122.2 (C-2′′), 115.5 (C-3/5), 113.9 (C-3′), 108.3 (C-1′), 94.9 (C-5′), 55.1 (-OCH3), 24.6 (C-4′′), 21.7 (C-1′′), 16.7 (C-5′′).

3.6. Cytotoxic Activity Evaluation

The cytotoxic activities of the compounds LCA, XN, and their metabolites against A375P (human melanoma), MCF-7 (human breast adenocarcinoma), and A549 (human lung carcinoma) cancer cell lines were performed by using MTT assay, which is based on the reduction of MTT to formazan by mitochondrial dehydrogenase. Briefly, the cells (5~6 × 103/100 μL medium) were treated with each compound and incubated for 24 h (A375P, MCF-7) and 48 h (A549) at 37 °C. After the MTT reagent (0.5 mg/mL) was added to the well and incubated for another 4 h, the supernatant was then removed and the MTT-formazan was dissolved in 100 μL DMSO. The amount of formed formazan was quantified by measuring the absorbance at 490 nm using a microplate reader. Demethylzeylasteral (DZ) was used as a positive control and DMSO was used as a negative control in all experiments.

3.7. Hydrolysis of Compounds 613

A solution of compound 6 in 1 N HCl was heated for 2 h. After cooling, the reaction mixture was neutralized and partitioned between EtOAc and H2O. The EtOAc and H2O extracts were analyzed by TLC, respectively. By comparing the TLC with those of compound 1 and D-glucose, the agylcone of 6 was found to be that of 1 and the monosaccharide was confirmed to be D-glucose [29].
Compounds 713 were dissolved in MeOH and mixed with 3% HCl at room temperature, respectively. Then MeOH was evaporated, and the aglycone extracted with EtOAc. The residue was analyzed by TLC and HPLC by direct comparison with substrates 15. When BaCl2 was added to the aqueous layer, a white precipitate was formed which proved the presence of BaSO4 [31].

4. Conclusions

In the present study, nine conjugated metabolites of licochalcones and xanthohumol were obtained by using the fungi M. hiemalis and A. coerulea. Among them, the glucosylated metabolite of LCA (6), and the sulfated metabolites of LCB, LCC, LCH (912) have never been reported. The glucoside and sulfate moieties substituted at C4-OH were thought to be exhibited as the cis-trans isomerization barriers, which led to the metabolites (6, 11 and 12) existing as a mixture of trans- and cis-isomers with the cis form as major ones. By using the fungus A. coerulea, it was possible to obtain the sulfated compounds of licochalcones A-C, H and xanthohumol. The sulfation reaction is one of the major phase II metabolic pathways in mammalian metabolism of xenobiotics, thus these sulfated metabolites are of significant interest, for they can be used as the reference standards for the detection and identification of the metabolic products of 15 that occur in mammalian systems. Comparison studies of the cytotoxic activities of the parent compounds and their sulfated metabolites against human cancer cell lines showed that sulfation of LCA and XN reduced but did not inactivate the cytotoxic activity.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22136893/s1, Figures S1–S29: 1D, 2D NMR and HRESIMS spectra of 613.

Author Contributions

Conceptualization, I.-S.L.; methodology, F.H. and I.-S.L.; validation, F.H.; formal analysis, I.-S.L.; investigation, F.H., Y.X. and I.-S.L.; resources, F.H.; data curation, F.H. and Y.X.; writing—original draft preparation, F.H.; writing—review and editing, I.-S.L. and Y.X.; visualization, F.H.; supervision, I.-S.L.; project administration, I.-S.L.; funding acquisition, I.-S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Education (NRF-2019R1I1A3A01043084).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors are grateful for the NMR experimental supports of the Center for Research Facilities, Chonnam National University, and for the HRESIMS analyses of the Korea Basic Science Institute (KBSI).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Maria Pia, G.D.; Sara, F.; Mario, F.; Lorenza, S. Biological effects of licochalcones. Mini Rev. Med. Chem. 2019, 19, 647–656. [Google Scholar] [CrossRef]
  2. Wang, C.; Chen, L.; Xu, C.; Shi, J.; Chen, S.; Tan, M.; Chen, J.; Zou, L.; Chen, C.; Liu, Z.; et al. A comprehensive review for phytochemical, pharmacological, and biosynthesis studies on Glycyrrhiza spp. Am. J. Chin. Med. 2020, 48, 1–29. [Google Scholar] [CrossRef]
  3. Weng, Q.; Chen, L.; Ye, L.; Lu, X.; Yu, Z.; Wen, C.; Chen, Y.; Huang, G. Determination of licochalcone A in rat plasma by UPLC-MS/MS and its pharmacokinetics. Acta Chromatogr. 2019, 31, 262–265. [Google Scholar] [CrossRef]
  4. Nadelmann, L.; Tjørnelund, J.; Hansen, S.H.; Cornett, C.; Sidelmann, U.G.; Braumann, U.; Christensen, E.; Christensen, S.B. Synthesis, isolation and identification of glucuronides and mercapturic acids of a novel antiparasitic agent, licochalcone A. Xenobiotica 1997, 27, 667–680. [Google Scholar] [CrossRef]
  5. Huang, L.; Nikolic, D.; van Breemen, R.B. Hepatic metabolism of licochalcone A, a potential chemopreventive chalcone from licorice (Glycyrrhiza inflata), determined using liquid chromatography-tandem mass spectrometry. Anal. Bioanal. Chem. 2017, 409, 6937–6948. [Google Scholar] [CrossRef]
  6. Nadelmann, L.; Tjørnelund, J.; Christensen, E.; Hansen, S.H. High-performance liquid chromatographic determination of licochalcone A and its metabolites in biological fluids. J. Chromatogr. B Biomed. Sci. Appl. 1997, 695, 389–400. [Google Scholar] [CrossRef]
  7. Yilmazer, M.; Stevens, J.F.; Buhler, D.R. In vitro glucuronidation of xanthohumol, a flavonoid in hop and beer, by rat and human liver microsomes. FEBS Lett. 2001, 491, 252–256. [Google Scholar] [CrossRef]
  8. Yilmazer, M.; Stevens, J.F.; Deinzer, M.L.; Buhler, D.R. In vitro biotransformation of xanthohumol, a flavonoid from hops (Humulus lupulus), by rat liver microsomes. Drug Metab. Dispos. 2001, 29, 223–231. [Google Scholar] [PubMed]
  9. Nikolic, D.; Li, Y.; Chadwick, L.R.; Pauli, G.F.; van Breemen, R.B. Metabolism of xanthohumol and isoxanthohumol, prenylated flavonoids from hops (Humulus lupulus L.) by human liver microsomes. J. Mass Spectrom. 2005, 40, 289–299. [Google Scholar] [CrossRef]
  10. Ruefer, C.E.; Gerhäuser, C.; Frank, N.; Becker, H.; Kulling, S.E. In vitro phase II metabolism of xanthohumol by human UDP-glucuronosyltransferases and sulfotransferases. Mol. Nutr. Food Res. 2005, 49, 851–856. [Google Scholar] [CrossRef]
  11. Jirásko, R.; Holčapek, M.; Vrublová, E.; Ulrichová, J.; Šimánek, V. Identification of new phase II metabolites of xanthohumol in rat in vivo biotransformation of hop extracts using high-performance liquid chromatography electrospray ionization tandem mass spectrometry. J. Chromatogr. A 2010, 1217, 4100–4108. [Google Scholar] [CrossRef] [PubMed]
  12. Böhmdorfer, M.; Szakmary, A.; Schiestl, R.H.; Vaquero, J.; Riha, J.; Brenner, S.; Thalhammer, T.; Szekeres, T.; Jäger, W. Involvement of UDP-glucuronosyltransferases and sulfotransferases in the excretion and tissue distribution of resveratrol in mice. Nutrients 2017, 9, 1347. [Google Scholar] [CrossRef] [PubMed]
  13. Marhol, P.; Hartog, A.F.; van der Horst, M.A.; Wever, R.; Purchartová, K.; Fuksová, K.; Kuzma, M.; Cvačka, J.; Křen, V. Preparation of silybin and isosilybin sulfates by sulfotransferase from Desulfitobacterium hafniense. J. Mol. Catal. B. Enzym. 2013, 89, 24–27. [Google Scholar] [CrossRef]
  14. Sak, K. Chapter 6-Anticancer action of sulfated flavonoids as phase II metabolites. In Handbook of Food Bioengineering, Food Bioconversion; Grumezescu, A.M., Holban, A.M., Eds.; Academic Press: Cambridge, MA, USA; Elsevier Ltd.: Amsterdam, The Netherlands, 2017; Volume 2, pp. 207–236. [Google Scholar]
  15. Koizumi, M.; Shimizu, M.; Kobashi, K. Enzymatic sulfation of quercetin by arylsulfotransferase from a human intestinal bacterium. Chem. Pharm. Bull. 1990, 38, 794–796. [Google Scholar] [CrossRef] [PubMed]
  16. Correia-da-Silva, M.; Sousa, E.; Pinto, M.M.M. Emerging sulfated flavonoids and other polyphenols as drugs: Nature as an inspiration. Med. Res. Rev. 2014, 34, 223–279. [Google Scholar] [CrossRef] [PubMed]
  17. Roubalová, L.; Purchartová, K.; Papoušková, K.; Vacek, J.; Křen, V.; Ulrichová, J.; Vrba, J. Sulfation modulates the cell uptake, antiradical activity and biological effects of flavonoids in vitro: An examination of quercetin, isoquercitrin and taxifolin. Bioorg. Med. Chem. 2015, 23, 5402–5409. [Google Scholar] [CrossRef]
  18. Teles, Y.C.F.; Souza, M.S.R.; de Souza, M.F.V. Sulphated flavonoids: Biosynthesis, structures, and biological activities. Molecules 2018, 23, 480. [Google Scholar] [CrossRef]
  19. Arunrattiyakorn, P.; Suksamrarn, S.; Suwannasai, N.; Kanzaki, H. Microbial metabolism of α-mangostin isolated from Garcinia mangostana L. Phytochemistry 2011, 72, 730–734. [Google Scholar] [CrossRef]
  20. Kim, H.J.; Yim, S.-H.; Han, F.; Kang, B.Y.; Choi, H.J.; Jung, D.-W.; Williams, D.R.; Gustafson, K.R.; Kennelly, E.J.; Lee, I.-S. Biotransformed metabolites of the hop prenylflavanone isoxanthohumol. Molecules 2019, 24, 394. [Google Scholar] [CrossRef]
  21. Bartmańska, A.; Tronina, T.; Huszcza, E. Microbial sulfation of 8-prenylnaringenin. Z. Naturforsch 2013, 68c, 231–235. [Google Scholar] [CrossRef]
  22. Herath, W.; Mikell, J.R.; Hale, A.L.; Ferreira, D.; Khan, I.A. Microbial metabolism part 9. Structure and antioxidant significance of the metabolites of 5,7-dihydroxyflavone (chrysin), and 5- and 6-hydroxyflavones. Chem. Pharm. Bull. 2008, 56, 418–422. [Google Scholar] [CrossRef] [PubMed]
  23. Mikell, J.R.; Khan, I.A. Bioconversion of 7-hydroxyflavanone: Isolation, characterization and bioactivity evaluation of twenty-one phase I and phase II microbial metabolites. Chem. Pharm. Bull. 2012, 60, 1139–1145. [Google Scholar] [CrossRef]
  24. Ibrahim, A.K.; Radwan, M.M.; Ahmed, S.A.; Slade, D.; Ross, S.A.; ElSohly, M.A.; Khan, I.A. Microbial metabolism of cannflavin A and B isolated from Cannabis sativa. Phytochemistry 2010, 71, 1014–1019. [Google Scholar] [CrossRef]
  25. Mikell, J.R.; Herath, W.; Khan, I.A. Microbial metabolism. Part 12. Isolation, characterization and bioactivity evaluation of eighteen microbial metabolites of 4′-hydroxyflavanone. Chem. Pharm. Bull. 2011, 59, 692–697. [Google Scholar] [CrossRef]
  26. Herath, W.; Khan, I.A. Microbial metabolism. Part 13. Metabolites of hesperetin. Bioorg. Med. Chem. Lett. 2011, 21, 5784–5786. [Google Scholar] [CrossRef]
  27. Xiao, Y.; Han, F.; Lee, I.-S. Microbial transformation of licochalcones. Molecules 2020, 25, 60. [Google Scholar] [CrossRef]
  28. Kim, H.J.; Lee, I.-S. Microbial metabolism of the prenylated chalcone xanthohumol. J. Nat. Prod. 2006, 69, 1522–1524. [Google Scholar] [CrossRef] [PubMed]
  29. Feng, J.; Zhang, P.; Cui, Y.; Li, K.; Qiao, X.; Zhang, Y.T.; Li, S.M.; Cox, R.J.; Wu, B.; Ye, M.; et al. Regio- and stereospecific O-glycosyation of phenolic compounds catalyzed by a fungal glycosyltransferases from Mucor hiemalis. Adv. Synth. Catal. 2017, 359, 995–1006. [Google Scholar] [CrossRef]
  30. Han, F.; Lee, I.-S. A new flavonol glycoside from the aerial parts of Epimedium koreanum Nakai. Nat. Prod. Res. 2017, 33, 320–325. [Google Scholar] [CrossRef] [PubMed]
  31. Ibrahim, A.-R.S. Sulfation of naringenin by Cunninghamella elegans. Phytochemistry 2000, 53, 209–212. [Google Scholar] [CrossRef]
  32. Ibrahim, A.-R.S.; Galal, A.M.; Ahmed, M.S.; Mossa, G.S. O-Demethylation and sulfation of 7-methoxylated flavonones by Cunninghamella elegans. Chem. Pharm. Bull. 2003, 51, 203–206. [Google Scholar] [CrossRef] [PubMed]
  33. Kajiyama, K.; Demizu, S.; Hiraga, Y.; Kinoshita, K.; Koyama, K.; Takahashi, K.; Tamura, Y.; Okada, K.; Kinoshita, T. Two prenylated retrochalcones from Glycyrrhiza inflata. Phytochemistry 1992, 31, 3229–3232. [Google Scholar] [CrossRef]
  34. Wang, Z.; Cao, Y.; Paudel, S.; Yoon, G.; Cheon, S.H. Concise synthesis of licochalcone C and its regioisomer, licochalcone H. Arch. Pharm. Res. 2013, 36, 4132–4136. [Google Scholar] [CrossRef]
  35. Chen, Q.-H.; Fu, M.-L.; Chen, M.-M.; Liu, J.; Liu, X.-J.; He, G.-Q.; Pu, S.-C. Preparative isolation and purification of xanthohumol from hops (Humulus lupulus L.) by high-speed counter-current chromatography. Food Chem. 2012, 132, 619–623. [Google Scholar] [CrossRef]
  36. Basílio, N.; Bittar, S.A.; Mora, N.; Dangles, O.; Pina, F. Analogs of natural 3-deoxyanthocyanins: O-glucosides of the 4′,7-dihydroxyflavylium ion and the deep influence of glycosidation on color. Int. J. Mol. Sci. 2016, 17, 1751. [Google Scholar] [CrossRef] [PubMed]
  37. Simmler, C.; Lankin, D.C.; Nikolić, D.; van Breemen, R.B.; Pauli, G.F. Isolation and structural characterization of dihydrobenzofuran congers of licochalcone A. Fitoterapia 2017, 121, 6–15. [Google Scholar] [CrossRef] [PubMed]
  38. Correia, M.S.P.; Lin, W.; Aria, A.J.; Jain, A.; Globisch, D. Rapid preparation of a large sulfated metabolite library for structure validation in human samples. Metabolites 2020, 10, 415. [Google Scholar] [CrossRef]
  39. Van der Horst, M.A.; Hartog, A.F.; El Morabet, R.; Marais, A.; Kircz, M.; Wever, R. Enzymatic sulfation of phenolic hydroxy groups of various plant metabolites by an arylsulfotransferase. Eur. J. Org. Chem. 2015, 2015, 534–541. [Google Scholar] [CrossRef]
  40. Bartmańska, A.; Tronina, T.; Huszcza, E. Transformation of 8-prenylnaringenin by Absidia coerulea and Beauveria bassiana. Bioorg. Med. Chem. Lett. 2012, 22, 6451–6453. [Google Scholar] [CrossRef]
  41. Fan, N.; Du, C.H.; Xu, J.Q.; Xu, Y.X.; Yu, B.Y.; Zhang, J. Glycosylation and sulfation of 4-methylumbelliferone by Gliocladium deliquescens NRRL 1086. Appl. Biochem. Microbiol. 2017, 53, 85–93. [Google Scholar] [CrossRef]
  42. Feng, J.; Liang, W.; Ji, S.; Qiao, X.; Zhang, Y.; Yu, S.; Ye, M. Microbial transformation of isoangustone A by Mucor hiemalis CGMCC 3.14114. J. Chin. Pharm. Sci. 2015, 24, 285–291. [Google Scholar] [CrossRef]
  43. Ruan, F.; Chen, R.; Li, J.; Zhang, M.; Xie, K.; Wang, Y.; Feng, R.; Dai, J. Sulfation of naringenin by Mucor sp. Zhongguo Zhongyao Zazhi 2014, 39, 2039–2042. [Google Scholar]
  44. Yuan, W.; Zhang, L.-P.; Cheng, K.-D.; Zhu, P.; Wang, Q.; He, H.-X.; Zhu, H.-X. Microbial O-demethylation, hydroxylation, sulfation, and ribosylation of a xanthone derivative from Halenia elliptica. J. Nat. Prod. 2006, 69, 811–814. [Google Scholar] [CrossRef]
  45. Xie, L.; Xiao, D.; Wang, X.; Wang, C.; Bai, J.; Yue, Q.; Yue, H.; Li, Y.; Molnár, I.; Xu, Y.; et al. Combinatorial biosynthesis of sulfated benzenediol lactones with a phenolic sulfotransferase from Fusarium graminearum PH-1. mSphere 2020, 5, e00949-20. [Google Scholar] [CrossRef]
  46. Wang, P.; Yuan, X.; Wang, Y.; Zhao, H.; Sun, X.; Zheng, Q. Licochalcone C induces apoptosis via B-cell lymphoma 2 family proteins in T24 cells. Mol. Med. Rep. 2015, 12, 7623–7628. [Google Scholar] [CrossRef]
  47. Liu, Y.; Wang, Y.; Yan, X.; Si, L.; Cao, C.; Yu, L.; Zheng, Q. Anti-proliferation effects of licochalcone B on human breast cancer MCF-7 cells. Zhongguo Shiyan Fangjixue Zazhi 2016, 22, 106–111. [Google Scholar]
  48. Kang, T.H.; Yoon, G.; Kang, I.-A.; Oh, H.-N.; Chae, J.-I.; Shim, J.-H. Natural compound licochalcone B induced extrinsic and intrinsic apoptosis in human skin melanoma (A375) and Squamous cell carcinoma (A431) cells. Phytother. Res. 2017, 31, 1858–1867. [Google Scholar] [CrossRef]
  49. Cho, J.J.; Chae, J.-I.; Yoon, G.; Ki, M.K.H.; Cho, J.H.; Cho, S.-S.; Cho, Y.S.; Shim, J.-H. Licochalcone A, a natural chalconoid isolated from Glycyrrhiza inflata root, induces apoptosis via Sp1 and Sp1 regulatory proteins in oral squamous cell carcinoma. Int. J. Oncol. 2014, 45, 667–674. [Google Scholar] [CrossRef]
  50. Oh, H.-N.; Yoon, G.; Shin, J.-C.; Park, S.-M.; Cho, S.-S.; Cho, J.H.; Lee, M.-H.; Liu, K.D.; Cho, Y.S.; Chae, J.-I.; et al. Licochalcone B induces apoptosis of human oral squamous cell carcinoma through the extrinsic- and intrinsic-signaling pathways. Int. J. Oncol. 2016, 48, 1749–1757. [Google Scholar] [CrossRef]
  51. Oh, H.-N.; Seo, J.-H.; Lee, M.-H.; Kim, C.; Kim, E.; Yoon, G.; Cho, S.-S.; Cho, Y.S.; Choi, H.W.; Shim, J.-H.; et al. Licochalcone C induces apoptosis in human oral squamous cell carcinoma cells by regulation of the JAK2/STAT3 signaling pathway. J. Cell. Biochem. 2018, 119, 10118–10130. [Google Scholar] [CrossRef]
  52. Oh, H.-N.; Oh, K.B.; Lee, M.-H.; Seo, J.-H.; Kim, E.; Yoon, G.; Cho, S.-S.; Cho, Y.S.; Choi, H.W.; Chae, J.-I.; et al. JAK2 regulation by licochalcone H inhibits the cell growth and induces apoptosis in human oral squamous cell carcinoma. Phytomedicine 2019, 52, 60–69. [Google Scholar] [CrossRef] [PubMed]
  53. Szliszka, E.; Czuba, Z.P.; Mazur, B.; Sedek, L.; Paradysz, A.; Krol, W. Chalcones enhance TRAIL-induced apoptosis in prostate cancer cells. Int. J. Mol. Sci. 2010, 11, 1–13. [Google Scholar] [CrossRef]

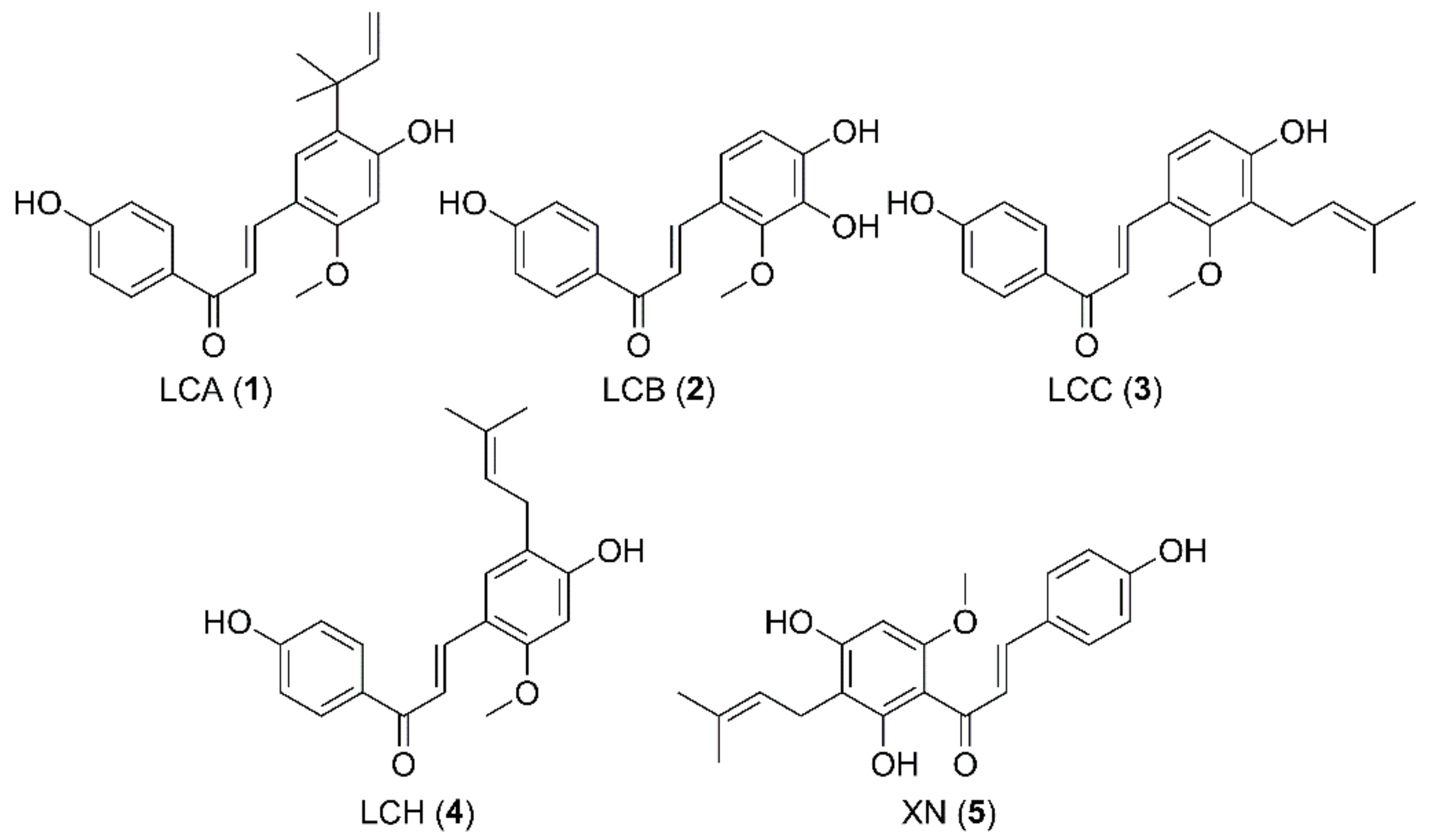

Figure 1. Chemical structures of licochalcones A–C (13), H (4) and xanthohumol (5).
Figure 1. Chemical structures of licochalcones A–C (13), H (4) and xanthohumol (5).
Ijms 22 06893 g001

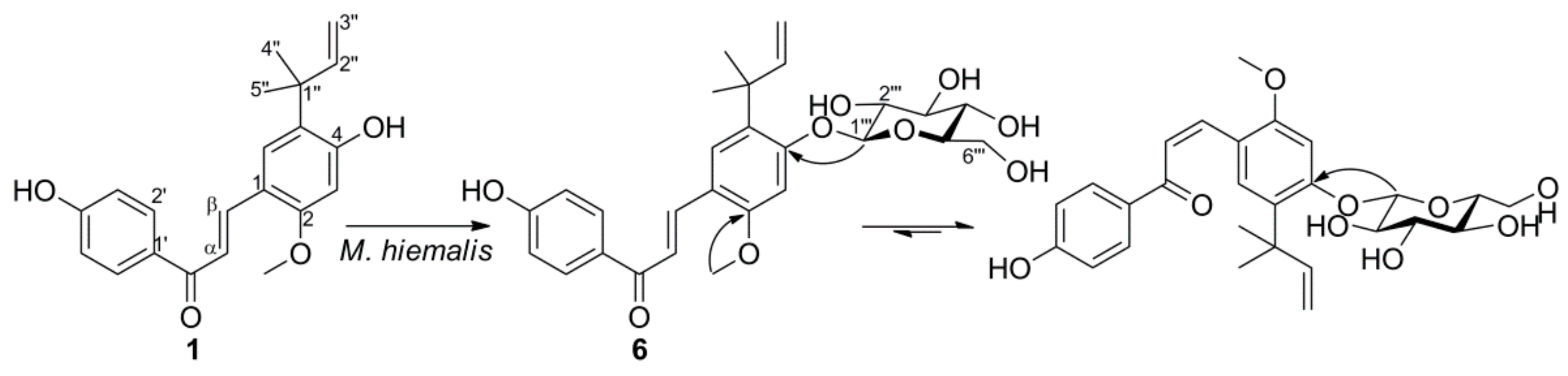

Figure 2. Microbial transformation of 1 by M. hiemalis. Selected HMBC correlations (1H→13C) of metabolite 6 are indicated by arrows.
Figure 2. Microbial transformation of 1 by M. hiemalis. Selected HMBC correlations (1H→13C) of metabolite 6 are indicated by arrows.
Ijms 22 06893 g002

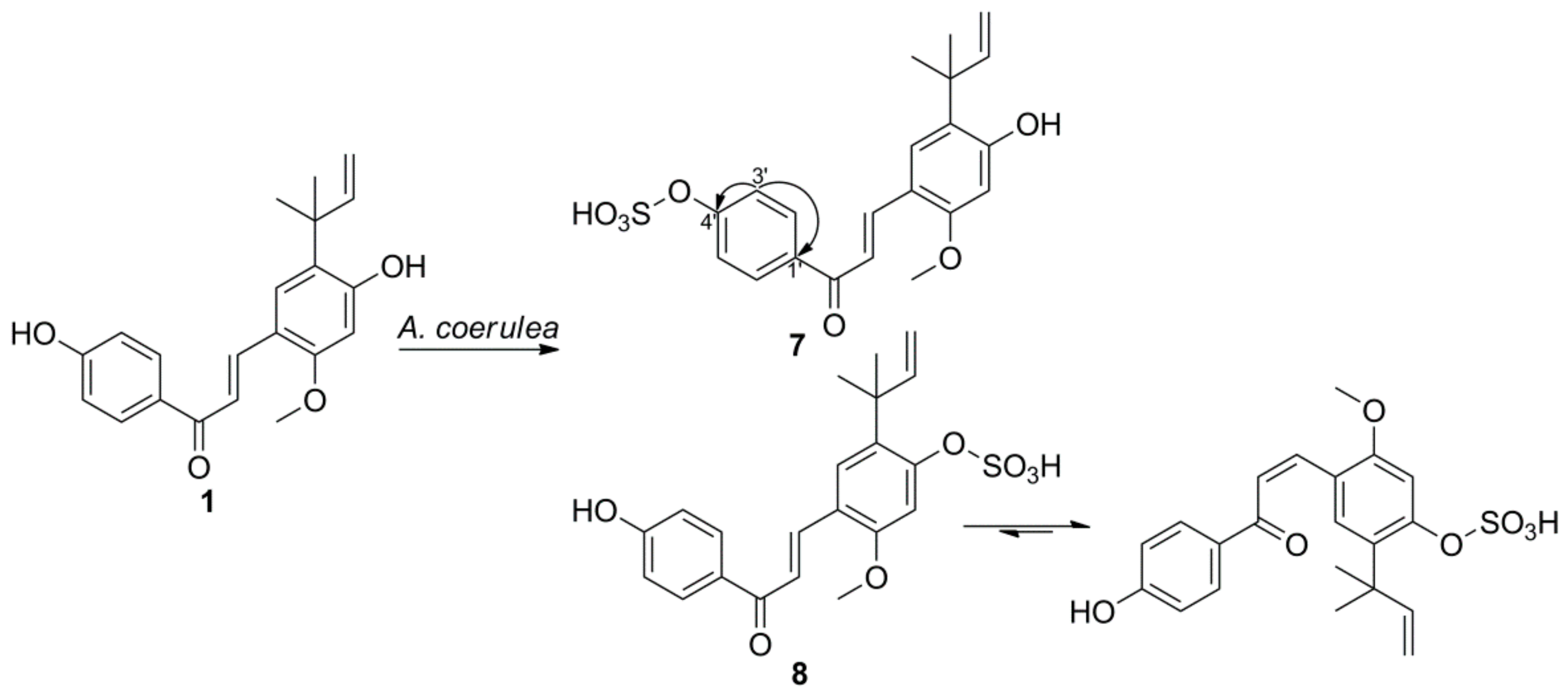

Figure 3. Microbial transformation of 1 by A. coerulea. Selected HMBC correlations (1H→13C) of metabolite 7 are indicated by arrows.
Figure 3. Microbial transformation of 1 by A. coerulea. Selected HMBC correlations (1H→13C) of metabolite 7 are indicated by arrows.
Ijms 22 06893 g003

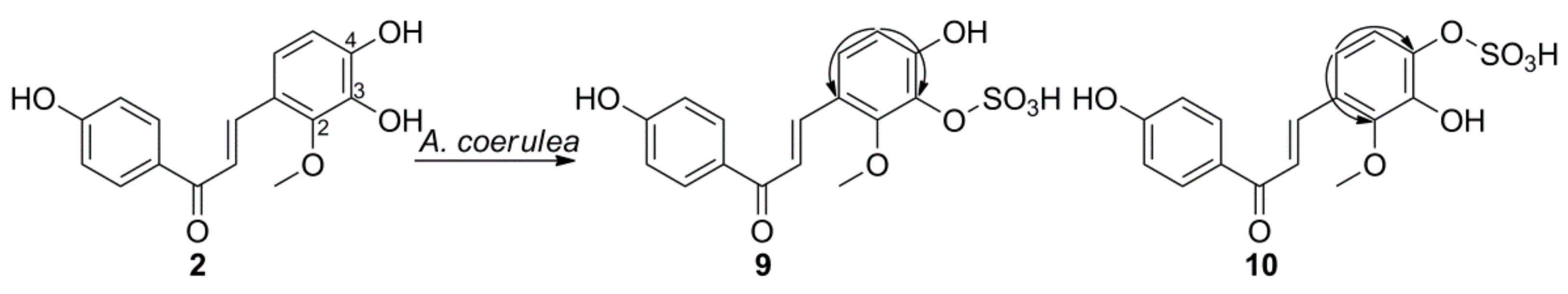

Figure 4. Microbial transformation of 2 by A. coerulea. Selected HMBC correlations (1H→13C) of metabolites 9 and 10 are indicated by arrows.
Figure 4. Microbial transformation of 2 by A. coerulea. Selected HMBC correlations (1H→13C) of metabolites 9 and 10 are indicated by arrows.
Ijms 22 06893 g004

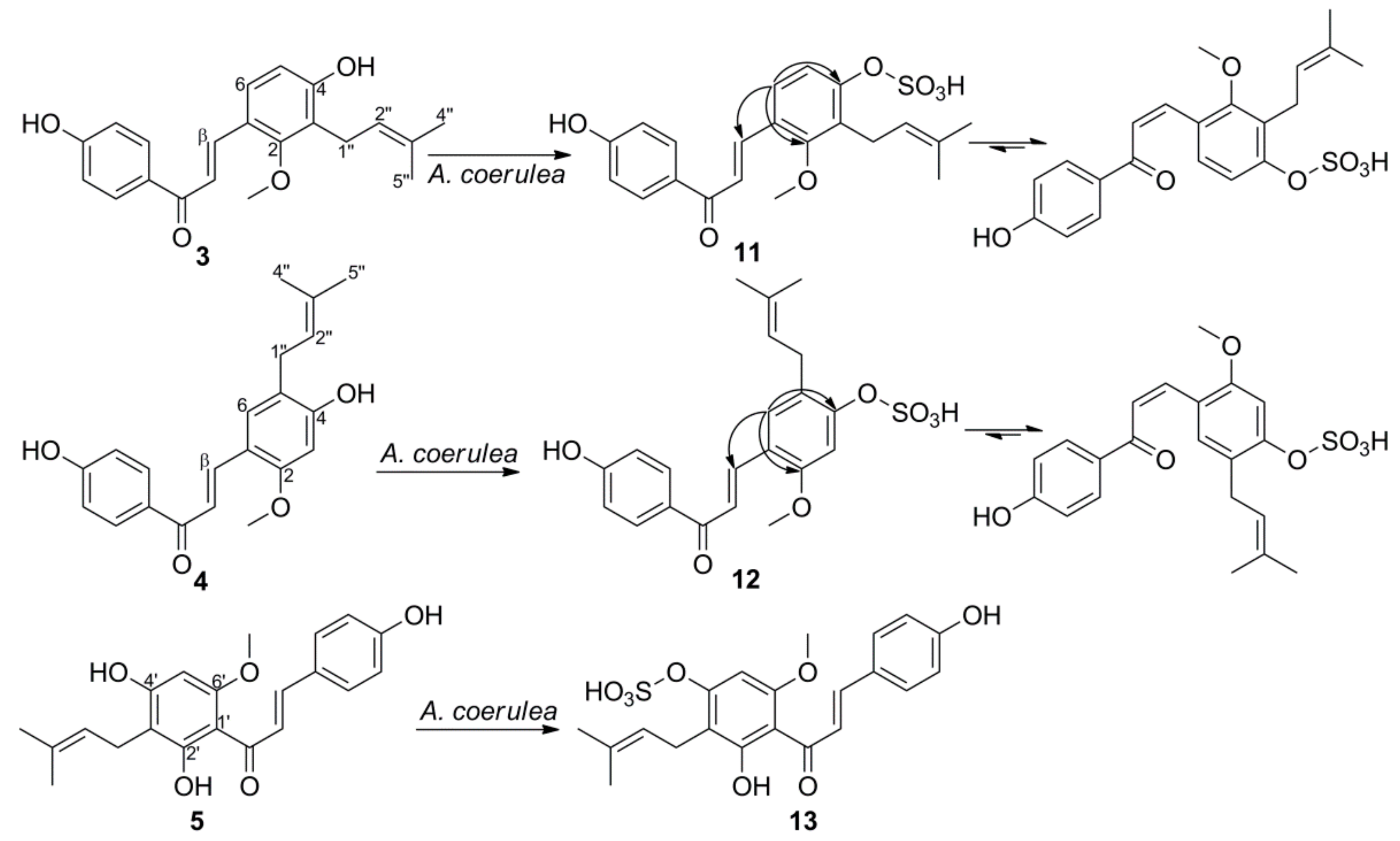

Figure 5. Microbial transformation of 35 by A. coerulea. Selected HMBC correlations (1H→13C) of metabolites 11 and 12 are indicated by arrows.
Figure 5. Microbial transformation of 35 by A. coerulea. Selected HMBC correlations (1H→13C) of metabolites 11 and 12 are indicated by arrows.
Ijms 22 06893 g005

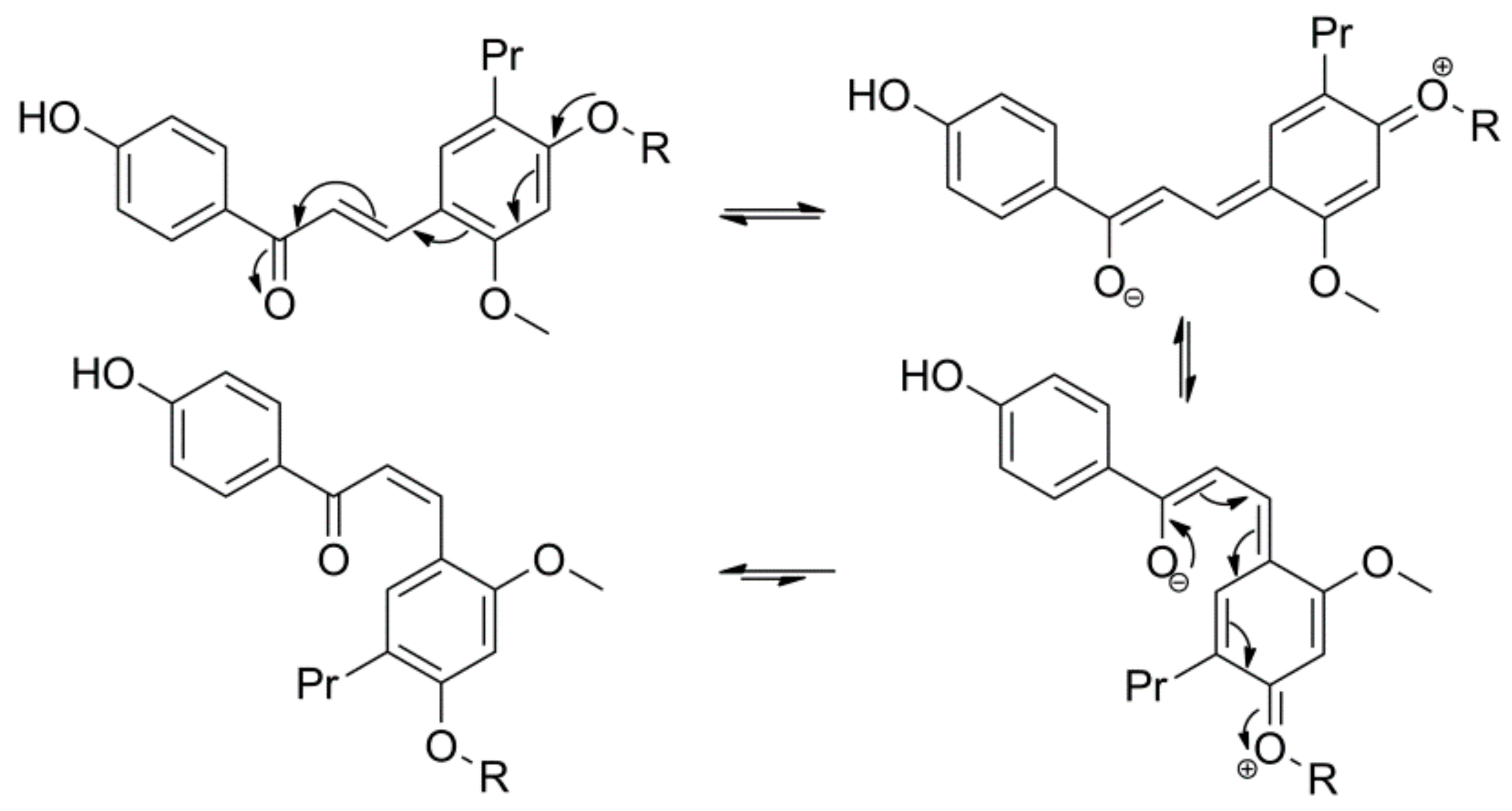

Figure 6. The proposed mechanism of trans-cis isomerization.
Figure 6. The proposed mechanism of trans-cis isomerization.
Ijms 22 06893 g006
Table 1. Cytotoxic activities of compounds against cancer cell lines.
Table 1. Cytotoxic activities of compounds against cancer cell lines.
CompoundCell Lines (IC50, μM)
A375PMCF-7A549
112.86 ± 3.4219.16 ± 0.6518.14 ± 1.26
511.02 ± 2.0923.11 ± 1.3626.93 ± 1.56
727.35 ± 1.4430.85 ± 4.5843.07 ± 1.63
1341.04 ± 1.6181.27 ± 3.0599.40 ± 1.99
DZ 19.86 ± 0.575.12 ± 0.444.01 ± 0.78
1 Used as positive control.
