Article

BRAF Inhibitors Induce Feedback Activation of RAS Pathway in Thyroid Cancer Cells

1
Molecular Mechanisms Unit, Department of Research, Fondazione IRCCS Istituto Nazionale dei Tumori, 20133 Milan, Italy
2
Platform of Integrated Biology, Department of Applied Research and Technology Development, Fondazione IRCCS Istituto Nazionale dei Tumori, 20133 Milan, Italy
*
Authors to whom correspondence should be addressed.
Co-last authors.
Int. J. Mol. Sci. 2021, 22(11), 5744; https://doi.org/10.3390/ijms22115744
Submission received: 29 April 2021 / Revised: 21 May 2021 / Accepted: 24 May 2021 / Published: 27 May 2021
(This article belongs to the Special Issue Thyroid Cell)

Abstract

:
BRAFV600E is the most frequent oncogenic mutation identified in papillary thyroid cancer (PTC). In PTC patients who do not respond to standard treatment, BRAF inhibitors are currently tested as alternative strategies. However, as observed for other targeted therapies, patients eventually develop drug resistance. The mechanisms of BRAF inhibitors response are still poorly understood in a thyroid cancer (TC) context. In this study, we investigated in BRAFV600E mutated TC cell lines the effects of Vemurafenib and Dabrafenib, two BRAF inhibitors currently used in a clinical setting. We assessed cell proliferation, and the expression and activity of the thyroid function related transporter NIS following the treatment with BRAF inhibitors. In addition, we investigated the global gene expression by microarray, the relevant modulated biological processes by gene set enrichment analysis (GSEA), and TC specific gene signatures related to MAPK pathway activation, thyroid differentiation, and transcriptional profile associated with BRAFV600E or RAS mutation. We found that both inhibitors induce antiproliferative and redifferentiative effects on TC cells, as well as a rewiring of the MAPK pathway related to RAS signaling. Our results suggest a possible mechanism of drug response to the BRAF inhibitors Vemurafenib or Dabrafenib, supporting very recent findings in TC patients treated with targeted therapies.

1. Introduction

Thyroid cancer (TC) is the most common neoplasia of the endocrine system and comprises various histological types including, among others, the well differentiated papillary and follicular thyroid carcinoma (PTC and FTC, respectively) and the undifferentiated anaplastic thyroid carcinoma (ATC), which collectively account for more than 90% of all thyroid tumors [1].
Molecular studies aimed at the dissection of the genetic players involved in thyroid carcinogenesis have led to the identification of several tumor-driving events, many of which consist in mutually exclusive alterations of genes encoding effectors of the mitogen activated protein kinase (MAPK) pathway. Among these, BRAFV600E is the most frequently detected mutation, followed by RAS mutations, and chromosomal rearrangements of tyrosine kinase receptors (such as RET, NTRK, and ALK) [2]. A significant association among different driver mutations and histological types of thyroid carcinomas has been identified; BRAFV600E, for instance, is detected at high frequency in PTC (60–74%, [3,4]) and ATC (41–45% [4,5]), in this latter often in combination with other alterations (such as TP53 and TERT promoter mutations), while it is rare in FTC, where RAS mutations are more frequent (66% [4,6]).
Along with the molecular studies, more recently, transcriptomic analyses have led to the identification of distinct gene expression profiles associated with specific TC histotypes, as well as with PTC histological variants, driving lesions and clinical features. In this context, a milestone was represented by the work from the Cancer Genome Atlas (TCGA) on a large cohort of PTCs [3], where the authors reported for the first time three gene signatures able to describe distinct but interconnected features of thyroid tissue, such as: (i) the activation status of the MAPK pathway (MAPK output); (ii) the degree of thyroid differentiation (TD); and (iii) the presence of a transcriptional profile related to BRAFV600E or RAS mutation (BRAF–RAS signaling). By this approach, the authors highlighted how BRAFV600E mutated PTCs display concurrent BRAF signaling, increased activation of MAPK pathway, and reduced expression of thyroid function related genes, which include genes involved in iodide transport, organification, and incorporation into thyroglobulin to produce thyroid hormones.
These TCGA derived gene signatures have been subsequently applied and validated by multiple independent studies on TCs [5,6,7,8,9,10], and more recently, also on TC derived cell lines [11] and on patient derived biopsies collected before and after BRAF inhibitor treatment [12].
The vast majority of thyroid tumors are PTCs (80–85%), which represent the prevalent histotype. Most PTCs are clinically indolent diseases, effectively treated with surgical removal alone or, for high risk cases, followed by radioactive iodine (RAI) treatment [13]. The specific use of RAI is based on the intrinsic ability of thyroid follicular cells to uptake iodine (necessary for the physiological synthesis of thyroid hormones) by the transporter sodium–iodine symporter (NIS) [14]. The ability of thyroid cells to uptake and accumulate iodine, and therefore RAI, is a critical factor for the clinical effectiveness of RAI therapy [15]. Indeed, in a fraction of patients defined as RAI-resistant, and characterized by low or absent RAI uptake and/or disease persistence or progression following RAI treatment, the prognosis is poor. In these high risk patients who do not respond to RAI [16], the alternative treatment with systemic therapies based on BRAF or MEK inhibitors, tested as a single agent [17,18,19] or in combination (reviewed in [20]), has been introduced. Along with the anti-tumoral effect, more recently these targeted therapies have also been tested for the possibility of restoring radioiodine sensitivity in RAI-resistant thyroid cancers, and thus, of being exploited as a redifferentiation strategy.
The investigations of redifferentiation strategies have resulted in particular interest especially for BRAF mutated PTCs that display more frequently RAI refractoriness and poor response [1,9,21]. In these tumors, the RAI refractoriness appears to be due to the high MAPK-pathway output driven by the BRAFV600E oncoprotein [2], which suppresses the expression of the thyroid function related genes involved in iodide-handling machinery.
Starting from the observation that different MAPK inhibitors are able to restore NIS expression and/or iodine uptake in various in vitro [20] and in vivo models [22] of thyroid cancer, several studies focused on redifferentiation strategies have been undertaken in a clinical setting (reviewed in [23]). However, limited and variable results were obtained, with RAI uptake restoration only in a fraction of patients and clinical response ranging from partial to null, possibly due to the activation of alternative signaling pathways leading to drug resistance.
In this study, to better understand the molecular processes involved in BRAF inhibitors drug response, we investigated in vitro the two BRAF inhibitors Vemurafenib and Dabrafenib on BRAFV600E mutated thyroid cancer cell lines. We tested their effects on cell growth and as redifferentiation strategies, as well as on transcriptomic profiles.

2. Results

2.1. BRAFV600E Mutation and Reduced NIS Expression Are Found in Thyroid Cancer Cell Lines

We profiled a panel of thyroid cancer cell lines for the presence of BRAFV600E mutation, including 13 TC cell lines derived from different thyroid tumor histotypes, and Nthy control cells derived from non-neoplastic thyroid (NT) (Table S1). BRAFV600E mutation was investigated by BRAF exon 15 PCR followed by automated Sanger sequencing and confirmed by mutant allele specific amplification (MASA)-PCR (Figure S1). In agreement with previous reports (Table S1), the presence of BRAFV600E was confirmed in a high fraction of the tested TC cells (67%), both in homo and in heterozygosis (Figure 1A), while as expected, it was absent (BRAF wt) in the control cells Nthy. Consistently with the BRAFV600E distribution in human TC tissues, BRAFV600E was found in TC cells derived from PTC and ATC tissues, while it was absent in the FTC derived cell lines (Figure 1A and Table S1).
In the same cell panel, we then assessed the expression of NIS and confirmed its reduced or undetectable level in TC cells compared to the NT control Nthy (Figure 1B), according with the NIS low expression reported in human TC tissues and in TC cell lines [11,24].

2.2. BRAF Inhibitors Affect Cell Proliferation, NIS Expression, and Activity in BRAFV600E Mutated Thyroid Cancer Cell Lines

We then tested the response to the BRAF selective inhibitors Vemurafenib or Dabrafenib in four BRAFV600E mutated TC cell lines (BCPAP, 8505C, K1, and NIM1). In all the tested cell lines, we observed proliferation reduction in a dose dependent manner following treatment (Figure 2A,C) and drug response was correlated with BRAF mutational status, displaying higher sensitivity in TC cells with heterozygous BRAFV600E than in those with homozygous BRAFV600E (Vemurafenib IC50 1.7 µM and 5.6 µM in K1 and NIM1, and >15 µM in both BCPAP and 8505c; Dabrafenib IC50 25 nM and 100 nM in K1 and NIM1, and >2.56 µM in both BCPAP and 8505C).
Based on drug response results, we selected two BRAF inhibitors’ doses and, in addition to proliferation, we also investigated NIS levels (Figure 2B,D); increased NIS expression was detected following both treatments.
In the cell lines showing consistent NIS increase, we also observed a concurrent increase of iodide uptake capacity in treated cells (Figure 3C,F), even though variable across the tested cell lines and of moderate entity. We then focused on BCPAP cell line, displaying a higher and consistent increase of iodide uptake across the two BRAF inhibitor treatments, and investigated its transcriptional profiles.

2.3. BRAF Inhibitors Induce Gene Expression Modulation and RAS Pathway Activation

Gene expression profiles were established by microarray in BCPAP cells treated with Vemurafenib (20 µM) or Dabrafenib (2 µM) compared to control cells treated with vehicle DMSO. Significant gene deregulation was found in BRAF inhibitors treated cells compared to control (Figure 4A,B). Gene downregulation was prevalently observed, identifying a broad set of genes with significantly reduced expression following the treatments (Figure 4A,B, FDR < 0.05 and Fold Change < −2; 1681 and 1946 significant downregulated genes in Dabrafenib and Vemurafenib, respectively). Consistent results were obtained across the two treatments, with most of differentially expressed genes commonly and concordantly modulated (Figure 4C).
To dissect the biological processes and pathways associated with the identified gene deregulation, we then performed gene set enrichment analysis (GSEA) using the Hallmark gene set collection. Several pathways were enriched in treated cells compared to DMSO (FDR < 0.05, Figure S2), and the most significant were associated with gene downregulation (negatively enriched pathways). The top enriched pathways were concordant across the two treatments (Figure 4D) and were mainly related to the proliferation and signaling category (Figure 4E), in accordance with the reduced proliferation phenotype observed upon BRAF pharmacological inhibition (Figure 2A,C and Figure 3A,D). The most impaired pathways (negative NES, Figure 4D) were related to cell cycle progression, including G2/M checkpoint, mitotic spindle assembly, cell cycle related targets of E2F transcription factor, and genes regulated by MYC; a reduction in DNA damage response was also observed. Among positively enriched pathways (mediated by genes upregulation), we identified processes activated in stress conditions such as, among others, hypoxia, genes involved in metabolism of drugs and xenobiotics, consistent with a drug treatment, and activation of the p53 pathway.
Of note, we also found the significant enrichment of two gene sets termed KRAS signaling (i.e., KRAS_SIGNALING_UP and KRAS_SIGNALING_DN), that include genes upregulated and downregulated, respectively, upon activation of oncogenic KRAS [25]. Collectively, they describe the gene modulation induced by the oncogenic activation of this effector belonging to the MAPK pathway. Transcriptional activation (upregulation of KRAS_SIGNALING_UP genes and downregulation of KRAS_SIGNALING_DN genes) was detected in control cells, consistently with the presence of an active oncogenic BRAFV600E (Figure S3A). Instead, in treated cells, where BRAFV600E oncogenic signaling was inhibited by Vemurafenib or Dabrafenib, we observed an opposite expression pattern (Figure S3A) with KRAS_SIGNALING_UP negatively enriched (negative NES) and KRAS_SIGNALING_DN positively enriched (positive NES) (Figure S3B and Figure 4D), suggesting transcriptional modulation of this set of genes related to the MAPK pathway following BRAF inhibitors’ treatment.
An analogous transcriptional modulation was detected by testing the three gene signatures previously reported by TCGA in the specific context of thyroid cancer [3] and related to MAPK output, thyroid differentiation (TD), and transcriptional profile associated with BRAFV600E or RAS mutation (BRAF-RAS signaling). For each of these signatures, we also calculated the corresponding score summarizing the multiple genes information in a single variable.
In agreement with GSEA Hallmarks results, in treated cells, we found reduced expression of MAPK pathway genes and a lower MAPK output score compared to control cells (Figure 5A). In addition, consistently with the NIS enhanced expression and activity observed upon BRAF pharmacological inhibition (Figure 3), in treated cells, we also detected upregulation of other thyroid function related genes and a higher degree of thyroid differentiation (Figure 5B).
When we assessed the BRAF-RAS signaling, in control cells we observed a BRAF-like profile, in accordance with the presence of an active BRAFV600E, while in treated cells, we observed an opposite expression pattern and a RAS-like profile (Figure 5C), indicative of an alternative activation of the MAPK pathway.
This was further confirmed by comparing the gene expression profiles between BCPAP cells and human thyroid cancer tissues (series GSE104005) previously established by our laboratory and classified for the BRAF- or RAS-like signaling subtype [8]. In unsupervised hierarchical clustering (Figure 6), BCPAP control samples (DMSO) grouped together with BRAF-like TCs, while Dabrafenib and Vemurafenib treated cells grouped in a separate cluster with some RAS-like TCs. Similar results were obtained by principal component analysis (PCA), where Dabrafenib and Vemurafenib treated cells grouped closer to RAS-like TC tissues than BCPAP control cells (Figure S4).
Interestingly, by assessing the expression of genes included in BRAF-RAS signature, in both control and treated BCPAP cells, we observed more deregulated expression patterns and reduced levels of BRAF-RAS score (BRS) values than those observed in GSE104005 TC tissues (Figure 6), most of which consist of well differentiated thyroid cancers, as previously described [8]. This is consistent with the notion that in thyroid cancer cell lines [11], as well as in advanced thyroid cancers [5], the BRAF-/RAS-like classification is preserved but the two subtypes exhibit less profound differences and reduced BRS values. This observation is in agreement with the already reported findings that thyroid cancer cell lines, due to in vitro culture selection, display some dedifferentiation features common to advanced thyroid tumors [11,24].
The alternative activation of the MAPK pathway identified by transcriptomic data was also verified at protein level. In BCPAP cells treated with Vemurafenib or Dabrafenib, we detected not only the impairment of BRAFV600E signaling on its downstream effector MEK, by the abrogation of its phosphorylation, but also a feedback activation by phosphorylation of ERK (Figure 7A). Similar effects were confirmed in other BRAFV600E mutated TC cell lines treated with the two BRAF inhibitors (Figure S5).

3. Discussion

In this study, we investigated the molecular processes associated with drug response to BRAF inhibitors in BRAFV600E mutated thyroid cancer cell lines. Along with the antiproliferative and redifferentiative effects, we found that the pharmacological inhibition of BRAFV600E induces an alternative feedback activation of the MAPK pathway related to RAS signaling, detected at transcriptomic and protein level (Figure 7B).
The identification of genetic effectors driving tumor pathogenesis has led to the development of selective compounds targeting these specific genetic alterations, opening the era of molecular targeted therapies. BRAF inhibitors are included in this category of new therapeutic compounds. Starting from their primary application in melanoma cancer patients with BRAFV600E mutation, in which high efficiency in tumor growth inhibition had been initially observed [26,27], the possibility of exploiting BRAF inhibitors has been extended also to thyroid cancer patients. In these latter, BRAF targeting compounds have been demonstrated to reduce tumor growth, showing efficacy in a fraction of BRAF-mutated PTC [17] and ATC [28]. This has led to the FDA approval of Vemurafenib and Dabrafenib for the treatment of BRAFV600E advanced RAI-refractory thyroid cancer and metastatic PTC, respectively [23], and of the combinatorial regimen Dabrafenib plus Trametinib in ATC patients.
In the present study, we confirmed the antiproliferative effect of both BRAF inhibitors Vemurafenib and Dabrafenib in agreement with previous reports.
In addition to the antitumoral effect, in the specific context of TC, the identification of reinduced expression of genes related to thyroid function and of RAI uptake capacity has raised the possibility of the use of BRAF inhibitors as a redifferentiation strategy. However, even though several attempts have been done for this purpose, limited efficiency has been observed. Variable or in some instances disappointing results have indeed been obtained, as for Selumetinib. Whereas the initial study of this compound represented the proof-of-concept for the redifferentiation therapy [19] and had raised a renewed interest about this topic, the subsequent phase 3 trial in combination with RAI did not improve outcome for patients with differentiated thyroid cancer [29]. Additionally, for BRAF inhibitors, the investigations of RAI uptake restoration have produced variable results as demonstrated in TC patients, where only a fraction of patients displayed restored or new RAI uptake after treatment [20,23]. Here, in agreement with clinical data, we observed also in our cell models reinduced expression of the iodide transport gene NIS and of other genes related to thyroid function, as well as an increase in the iodide uptake capacity, but this latter effect is variable across the tested cell lines and of modest intensity. Thus, the application of BRAF inhibitors as redifferentiation therapies remains to be confirmed and/or optimized by more in depth studies.
Despite these limitations as redifferentiation strategies, BRAF targeting therapies have showed antitumoral efficacy in a subset of TCs [23]. Their use, however, still represents a clinical challenge, as patients display nondurable response and frequently develop drug resistance. Several mechanisms of acquired resistance following BRAF/MEK inhibitor treatment have been identified in other types of BRAFV600E mutated tumors, such as melanoma and colorectal cancer involving, for instance, either the reactivation of the MAPK pathway, or activation of parallel signaling cascades such as the PI3K/AKT pathway, or acquired mutations of the RAS gene family [30,31,32].
By contrast, in thyroid cancer, this still represents a poorly understood and explored field. This is in part due to the limited availability of advanced thyroid cancer tissue specimens for deep molecular testing, and in particular, those from patients with drug resistant, progressive and/or recurrent disease. The major factors at the base of these specimens’ inaccessibility are the relatively low frequency of aggressive or non-responding TC cases, and the progressively reduced number of surgical interventions. These latter, according to the most recent guidelines [33], are indeed recommended only in the fraction of patients with rapidly progressive and symptomatic disease or with high risk of local complications, or result not applicable in widespread or unresectable tumors (frequently observed in ATC cases).
To overcome this problem, the investigations of the BRAF inhibitor drug response have been performed mainly by preclinical studies in TC cell line models. By this approach, some possible mechanisms responsible for drug resistance have been proposed, involving, for instance, either the over expression of the HER3 receptor [34,35] or activation of other players [36,37], often associated with rebound activation of phospho-ERK [34,35,38,39], as observed in the present study and in melanoma cells [40].
However, most of these in vitro studies of TC models investigated a limited number of genes and/or effectors and only a few of the proposed drug response mechanisms have been confirmed in resistant TC patients.
In this study, we assess by a high throughput analysis the global gene expression profiles of thyroid cancer cells treated in parallel with two BRAF inhibitors. By this approach, we identified in the BRAF inhibitor treated cell a rewiring of the MAPK pathway associated with RAS signaling.
Consistently with our data, two recent studies reported the acquisition of secondary RAS gene mutations in thyroid cancer patients treated with BRAF inhibitors. The first is a case report in which has been shown for the first time the acquisition of a RAS mutation (KRASG12V) in a patient with BRAF mutated PTC during BRAF/MEK inhibitors therapy [41]. The second study describes four BRAFV600E-mutated thyroid cancer patients with disease progression during BRAF or BRAF/MEK inhibitor treatment and acquisition of secondary mutations in RAS genes (KRASG12V in two patients, and NRASQ61K and NRASG13D in the others) [42]. Interestingly, in this second study, the authors overcome the inaccessibility of tumor material for molecular testing for some patients by assessing the mutational load in circulating DNA on patient liquid biopsies, highlighting how additional more advanced techniques are required for this type of analyses in thyroid cancer context.
In agreement with these reports in TC patients, the development of drug resistance mediated by the emergence of an additional RAS mutation (KRASG12V) has been previously demonstrated in a BRAF mutated PTC cell line treated with Vemurafenib [39]. Of note, in our study, we identified a novel RAS-mediated mechanism of drug resistance associated with the transcriptional modulation of a signaling pathway related to RAS gene activation, defined RAS-like profile, that is commonly shared by different types of RAS mutations, as confirmed by TCGA [3] and other studies [5,8] showing that various driving mutations affecting RAS genes (NRASQ61R, HRASQ61R, HRASQ61K, KRASQ61R, KRASQ61K, KRASG12V) all consistently display a RAS-like profile.
A similar transcriptional activation was confirmed in serial biopsies from three TC patients treated with Vemurafenib [12]. In these patients has been reported not only the decrease of tumor lesion size and the reinduction of RAI uptake upon Vemurafenib treatment, but also by transcriptomic analyses a lower MAPK output, a RAS-like signaling, and higher thyroid differentiation compared to each patient’s paired basal condition before Vemurafenib administration.
Collectively, these findings from TC patients support the results here reported obtained in experimental models and their applicability in future studies aimed at a better dissection of the molecular processes associated with targeted therapy response. Indeed, the development of resistance to BRAF inhibitors tested as single agents has already led to the exploration of alternative therapeutic strategies, including combination of BRAF and MEK inhibitors and immune-modulating agents. However, only few data are currently available on drug efficacy and/or response, and further preclinical and clinical studies are required.
The results here described not only indicate an additional possible mechanism of BRAF inhibitor drug resistance, but also support the validity and utility of preclinical models, especially in the TC context where difficulties due to the inaccessibility of specimens from non-responding patients are progressively becoming more frequent.

4. Materials and Methods

4.1. Thyroid Cell Cultures

Thirteen human TC cell lines derived from different histotypes were investigated (Table S1); the Nthy-ori 3–1 cell line (Nthy; SV-40 immortalized normal human thyroid follicular cells) was included as non-neoplastic thyroid control. Cell lines were purchased from the commercial repositories European Collection of Cell Cultures (ECACC) or Riken Cell Bank; FB1 cells were obtained from its original establisher [43]. All cell lines were cultured in the recommended media supplemented with 10% (v/v) heat-inactivated fetal bovine serum (FBS, EuroClone, Pero, Italy) as monolayers at 37 °C in a 5% CO2 humidified atmosphere. Nthy were cultured in RPMI 1640 medium (Gibco, Thermo Fisher Scientific, Waltham, MA, USA); TPC1, NIM, BCPAP, WRO82-1, 8505C, KAT18, HTC/C3, FB1, and FRO81-2 were cultured in DMEM medium (Gibco); K1 were cultured in DMEM: Ham’s F12: MCDB (ratio 2:1:1); HOTHC were cultured in Ham’s F12; and FTC133 and FTC238 were cultured DMEM: Ham’s F12 (ratio 1:1).
Cell lines were authenticated by short tandem repeat (STR) profiles according to ATCC guidelines using GenePrint 10 System (Promega) including ten loci (TH01, TPOX, vWA, Amelogenin, CSF1PO, D16S539, D7S820, D13S317, D5S818, and D21S11); the obtained STR profiles matched with reference profiles (Table S1) confirming lineage identity. Cell lines were routinely tested for absence of mycoplasma contamination by PCR Mycoplasma Detection Set (TAKARA Bio Inc, Shiga, Japan).
All cell lines were subjected to total RNA extraction by NucleoSpin RNA isolation kit (Macherey-Nagel, Duren, Germany) and cDNA synthesis by SuperScript III First-Strand Synthesis System for RT-PCR (Invitrogen, Thermo Fisher Scientific).

4.2. BRAFV600E Mutation Assessment

BRAF mutational analysis was performed on cDNA by standard PCR with BRAF exon 15 specific primers as previously described [44] followed by automated Sanger sequencing (Eurofins Genomics Services); sequences were evaluated by Chromas Lite software. Additional assessment was performed as previously described [45] by the highly sensitive mutant-allele-specific-amplification (MASA) PCR method for the specific detection of BRAFV600E, using a forward primer designed with two mismatches at the 3′ to amplify mutant BRAFV600E and a reverse primer derived from wild-type BRAF to amplify both wild-type and mutant sequences. PCR products were resolved by agarose gel electrophoresis.

4.3. Quantitative Real-Time Reverse Transcription PCR (qRT-PCR)

The expression of NIS (SLC5A5 gene) was determined by a two-step quantitative real-time PCR on cDNA synthesized from total RNA. TaqMan Universal PCR Master Mix and Gene Expression Assay Hs00950356_m1 (SLC5A5 gene) were used (Applied Biosystems, Thermo Fisher Scientific); HPRT gene (assay hs02800695_m1) was used as endogenous control for data normalization. All qRT-PCRs were performed in triplicate on the ABI PRISM 7900HT Real-Time PCR System. Data were analyzed with SDS 2.4 and RQ Manager 1.2.1 software (Applied Biosystems) using the 2-∆∆Ct method.

4.4. Pharmacological Treatments and Cell Proliferation Assay

Vemurafenib (PLX4032) and Dabrafenib (GSK2118436) were purchased from Selleck Chemicals (Houston, TX, USA) and were used as BRAFV600E selective inhibitors. Testing doses were initially selected from previous literature reports. Drugs were dissolved into DMSO and stored at −20 °C; working solutions were freshly prepared with cell culture medium at the moment of treatment. Cells were seeded in well culture plates 24 h before treatment; cell lines were treated with drugs increasing doses for 48 h. The effect of BRAF inhibitors on cell proliferation was assessed by crystal violet assay as previously described [46] and absorbance measured at 570 nm by a microplate reader (TecanUltra, Tecan Trading AG, Männedorf, Switzerland).

4.5. Iodide Uptake Assay

The NIS transporter activity was evaluated by a spectrophotometric iodine uptake assay optimized from the protocol by Waltz et al. [47] based on the catalytic effect of iodide on Sandell–Kolthoff reaction (reduction of yellow cerium(IV) to colorless cerium(III) in the presence of arsenious acid). BCPAP, 8505C, and K1 cells were treated with DMSO or Vemurafenib (20 or 1 µM) or Dabrafenib (2 µM or 15 nM) in two parallel culture plates and 48 h after treatment, the iodine uptake capacity was assessed. Briefly, the culture medium was removed and cells were washed with Hank’s balanced salt solution (HBSS, Euroclone) supplemented with 10 mM Hepes; cells were then incubated for 1 h at 37 °C (5% CO2 atmosphere) with uptake buffer consisting of HBSS/Hepes supplemented with 10 µM sodium iodide (Sigma-Aldrich, St. Louis, MO, USA) solution. Uptake buffer was removed and cells were washed with ice-cold HBSS/Hepes; one plate was subjected to iodide determination by Sandell–Kolthoff reaction and the other to cell proliferation index determination by crystal violet assay. For iodide determination, 10.5 mM ammonium cerium (IV) sulphate solution (Sigma-Aldrich) and 24 mM sodium arsenite (III) solution (Sigma-Aldrich) were added in each well and incubated at room temperature in the dark for 30 min; absorbance at 420 nm was recorded by a microplate reader (TecanUltra). The iodide concentration was determined by interpolation with a calibration curve prepared with iodide standards. Iodide concentration values were normalized on the corresponding cell proliferation index obtained in the parallel plate.

4.6. Gene Profiling

Gene expression profiles were established by microarray analysis in BCPAP cells treated with BRAF inhibitors (Vemurafenib 20 µM or Dabrafenib 2 µM) or with vehicle DMSO; three technical replicates per condition were assessed. Total RNA was extracted 48 h after treatment by miRNeasy mini kit (Qiagen) and quantified by Qubit 4 Fluorometer (Thermo Fisher Scientific); RNA quality was evaluated by the RNA Integrity Number (RIN) assessed by TapeStation 4200 (Agilent Technologies, Palo Alto, CA, USA). Gene profiles were established by Affymetrix Clariom™ S assay (Thermo Fisher Scientific). RNA labeling, processing, and hybridization were performed according to manufacturer’s standard protocols; microarrays were scanned with GeneChip Scanner 3000 7G Array (Thermo Fisher Scientific) and data were obtained using Affymetrix GeneChip Command Console Software (AGCC).
Raw Affymetrix CEL files were pre-processed using the frozen robust multi-array average (RMA) algorithm [48] from Bioconductor. Data pre-processing was performed using the RMA [49] function implemented in the oligo package. Platform annotation was obtained from Bioconductor annotation package clariomshumantranscriptcluster.db. Multiple probes mapping to the same gene symbol were collapsed using the collapseRows function of the WGCNA package with the “MaxMean” method.
Differential expression analysis was carried out using the standard linear modeling approach implemented in the limma package [50] comparing treated cell lines (Vemurafenib 20 µM or Dabrafenib 2 µM) versus DMSO. Nominal p-values were corrected for multiple testing using the Benjamini–Hochberg false discovery rate (FDR) [51]. Differentially expressed genes were selected according to absolute fold-change |(FC)| ≥ 2 and false discovery rate (FDR) < 0.05.

4.7. Functional Enrichment Analysis

Gene set enrichment analysis (GSEA) was performed in pre-ranked mode using the fgsea Bioconductor package [52] comparing treated cell lines versus DMSO control samples. Genes were ranked using the t-statistic derived from the differential expression analysis with limma. The number of permutations was set to 10,000 and gene sets with fewer than 15 or more than 500 genes were filtered out. Significant gene sets were selected according to FDR < 0.05 and graphed using ggplot2 R package. Functional category was then manually assigned to biological super category according to the Hallmarks gene sets Process Categories [25] and reported as a pie chart.

4.8. Gene Expression Scores Related to TCGA Derived Gene Signatures

Three gene signatures derived from TCGA study on PTCs [3] were tested: a MAPK output gene set comprising 52 genes; a thyroid differentiation (TD) gene set comprising 16 genes; and a BRAF-RAS signaling gene set comprising 71 genes. The corresponding gene lists are available in Table S2.
TD scores were calculated as mean of log2-transformed and median-centered expression across samples as previously described [3]; the same approach was applied for MAPK output score as previously reported [12]. The BRAF-RAS score was calculated as reported by Rusinek et al. [10]. An additional score based on the 71-gene signature related to BRAF-RAS signaling was computed by singscore [53] which implements a simple single-sample gene-set scoring method that scores individual samples for quantifying concordance between sample transcriptomes and selected molecular signatures.

4.9. Unsupervised Analysis of BCPAP Cell Lines and TC Tumors

A gene profile series of 29 human thyroid cancer tissues previously established by our laboratory [8] and available on Gene Expression Omnibus repository with accession number GSE104005 was tested.
To compute similarity between BCPAP cell lines and TC tissues expression data, we first reduced batch effects by selecting common genes between the two datasets (n = 16,346), then these genes were standardized across the samples of each dataset by z-score calculation. We merged the two datasets and applied unsupervised analyses. Euclidean distance and Ward linkage metrics were used for the hierarchical clustering and then graphed with ComplexHeatmap R package. Principal component analysis was also computed with the prcomp R function to cluster the samples according to the BRAF/RAS-signaling signature.

4.10. Western Blot Analysis

Total protein extraction, SDS PAGE, and Western blot analysis were performed as previously described [54]. The following primary antibodies were used: pMEK1/2 (phosphor-MEK1/2 Ser217/221) #9121, MEK1/2 (L38C12) #4696, pERK1/2 (phospho-ERK1/2 Thr202/Tyr204) #9101, ERK1/2 (L34F12) #4696 from Cell Signaling Technology Inc (Danvers, MA, USA); Vinculin #V9131 from Sigma-Aldrich was included as protein loading control.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22115744/s1. Figure S1: BRAFV600E mutation testing in thyroid cancer cell lines; Figure S2: Gene set enrichment analysis with Hallmarks gene set collection in BCPAP cells treated with BRAF inhibitors; Figure S3: GSEA on Hallmark KRAS signaling gene sets in BCPAP cells treated with BRAF inhibitors; Figure S4: Unsupervised analysis using the BRAF-RAS signaling gene signature in BCPAP cells and in thyroid cancer tissues; Figure S5: Alternative MAPK pathway activation upon BRAF inhibitors treatment in 8505C and K1 cell lines; Table S1: Characterization of the thyroid cancer derived cell lines used in the present study; Table S2: Lists of genes included in the TCGA-derived gene signature related to thyroid cancer.

Author Contributions

Conceptualization, M.G.B.; cell lines methodology and formal analysis, E.B. and M.G.R.; gene profiles establishment, L.D.C. and A.M.; gene profiles data processing and investigation, C.G. and E.M.; writing—original draft preparation, E.M.; writing—review and editing, E.M., M.G.B., C.G. and A.G.; supervision, E.M. and M.G.B.; funding acquisition, M.G.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministero della Salute, grant RF-2013-02354985 to M.G. Borrello.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Raw and pre-processed gene expression data presented in this study are available in the NCBI Gene Expression Omnibus (GEO) repository with the accession number GSE171483.

Acknowledgments

The authors thank Edoardo Marchesi for technical support in microarray wet analysis and Marialuisa Sensi for her valuable advice.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xing, M. Molecular pathogenesis and mechanisms of thyroid cancer. Nat. Rev. Cancer 2013, 13, 184–199. [Google Scholar] [CrossRef]
  2. Fagin, J.A.; Wells, S.A. Biologic and Clinical Perspectives on Thyroid Cancer. N. Engl. J. Med. 2016, 375, 1054–1067. [Google Scholar] [CrossRef]
  3. Agrawal, N.; Akbani, R.; Aksoy, B.A.; Ally, A.; Arachchi, H.; Asa, S.L.; Auman, J.T.; Balasundaram, M.; Balu, S.; Baylin, S.B.; et al. Integrated genomic characterization of papillary thyroid carcinoma. Cell 2014, 159, 676–690. [Google Scholar] [CrossRef] [PubMed]
  4. Pozdeyev, N.; Gay, L.M.; Sokol, E.S.; Hartmaier, R.; Deaver, K.E.; Davis, S.; French, J.D.; Borre, P.V.; LaBarbera, D.V.; Tan, A.-C.; et al. Genetic Analysis of 779 Advanced Differentiated and Anaplastic Thyroid Cancers. Clin. Cancer Res. 2018, 24, 3059–3068. [Google Scholar] [CrossRef] [PubMed]
  5. Landa, I.; Ibrahimpasic, T.; Boucai, L.; Sinha, R.; Knauf, J.A.; Shah, R.H.; Dogan, S.; Ricarte-Filho, J.C.; Krishnamoorthy, G.P.; Xu, B.; et al. Genomic and transcriptomic hallmarks of poorly differentiated and anaplastic thyroid cancers. J. Clin. Investig. 2016, 126, 1052–1066. [Google Scholar] [CrossRef]
  6. Yoo, S.-K.; Lee, S.; Kim, S.-J.; Jee, H.-G.; Kim, B.-A.; Cho, H.; Song, Y.S.; Cho, S.W.; Won, J.-K.; Shin, J.-Y.; et al. Comprehensive Analysis of the Transcriptional and Mutational Landscape of Follicular and Papillary Thyroid Cancers. PLoS Genet. 2016, 12, e1006239. [Google Scholar] [CrossRef] [PubMed]
  7. Kim, K.; Jeon, S.; Kim, T.-M.; Jung, C.K. Immune Gene Signature Delineates a Subclass of Papillary Thyroid Cancer with Unfavorable Clinical Outcomes. Cancers 2018, 10, 494. [Google Scholar] [CrossRef]
  8. Minna, E.; Brich, S.; Todoerti, K.; Pilotti, S.; Collini, P.; Bonaldi, E.; Romeo, P.; De Cecco, L.; Dugo, M.; Perrone, F.; et al. Cancer Associated Fibroblasts and Senescent Thyroid Cells in the Invasive Front of Thyroid Carcinoma. Cancers 2020, 12, 112. [Google Scholar] [CrossRef] [PubMed]
  9. Colombo, C.; Minna, E.; Gargiuli, C.; Muzza, M.; Dugo, M.; De Cecco, L.; Pogliaghi, G.; Tosi, D.; Bulfamante, G.; Greco, A.; et al. The molecular and gene/miRNA expression profiles of radioiodine resistant papillary thyroid cancer. J. Exp. Clin. Cancer Res. 2020, 39, 1–14. [Google Scholar] [CrossRef]
  10. Rusinek, D.; Pfeifer, A.; Cieslicka, M.; Kowalska, M.; Pawlaczek, A.; Krajewska, J.; Szpak-Ulczok, S.; Tyszkiewicz, T.; Halczok, M.; Czarniecka, A.; et al. TERT Promoter Mutations and Their Impact on Gene Expression Profile in Papillary Thyroid Carcinoma. Cancers 2020, 12, 1597. [Google Scholar] [CrossRef] [PubMed]
  11. Landa, I.; Pozdeyev, N.; Korch, C.; Marlow, L.A.; Smallridge, R.C.; Copland, J.A.; Henderson, Y.C.; Lai, S.Y.; Clayman, G.L.; Onoda, N.; et al. Comprehensive Genetic Characterization of Human Thyroid Cancer Cell Lines: A Validated Panel for Preclinical Studies. Clin. Cancer Res. 2019, 25, 3141–3151. [Google Scholar] [CrossRef]
  12. Dunn, L.A.; Sherman, E.J.; Baxi, S.S.; Tchekmedyian, V.; Grewal, R.K.; Larson, S.M.; Pentlow, K.S.; Haque, S.; Tuttle, R.M.; Sabra, M.M.; et al. Vemurafenib Redifferentiation of BRAF Mutant, RAI—Refractory Thyroid Cancers. J. Clin. Endocrinol. Metab. 2019, 104, 1417–1428. [Google Scholar] [CrossRef] [PubMed]
  13. Fröhlich, E.; Wahl, R. The current role of targeted therapies to induce radioiodine uptake in thyroid cancer. Cancer Treat. Rev. 2014, 40, 665–674. [Google Scholar] [CrossRef] [PubMed]
  14. Bible, K.C.; Ryder, M. Evolving molecularly targeted therapies for advanced-stage thyroid cancers. Nat. Rev. Clin. Oncol. 2016, 13, 403. [Google Scholar] [CrossRef]
  15. Narayanan, S.; Colevas, A.D. Current Standards in Treatment of Radioiodine Refractory Thyroid Cancer. Curr. Treat. Options Oncol. 2016, 17, 30. [Google Scholar] [CrossRef]
  16. Cabanillas, M.E.; McFadden, D.G.; Durante, C. Thyroid cancer. Lancet 2016, 388, 2783–2795. [Google Scholar] [CrossRef]
  17. Brose, M.S.; Cabanillas, M.E.; Cohen, E.E.; Wirth, L.J.; Riehl, T.; Yue, H.; Sherman, S.I.; Sherman, E.J. Vemurafenib in patients with BRAFV600E-positive metastatic or unresectable papillary thyroid cancer refractory to radioactive iodine: A non-randomised, multicentre, open-label, phase 2 trial. Lancet Oncol. 2016, 17, 1272–1282. [Google Scholar] [CrossRef]
  18. Rothenberg, S.M.; McFadden, D.G.; Palmer, E.L.; Daniels, G.H.; Wirth, L.J. Redifferentiation of iodine-refractory BRAF V600E-mutant metastatic papillary thyroid cancer with dabrafenib. Clin. Cancer Res. 2015, 21, 1028–1035. [Google Scholar] [CrossRef]
  19. Ho, A.L.; Grewal, R.K.; Leboeuf, R.; Sherman, E.J.; Pfister, D.G.; Deandreis, D.; Pentlow, K.S.; Zanzonico, P.B.; Haque, S.; Gavane, S.; et al. Selumetinib-Enhanced Radioiodine Uptake in Advanced Thyroid Cancer. N. Engl. J. Med. 2013, 368, 623–632. [Google Scholar] [CrossRef]
  20. Buffet, C.; Wassermann, J.; Hecht, F.; Leenhardt, L.; Dupuy, C.; Groussin, L.; Lussey-Lepoutre, C. Redifferentiation of radioiodine-refractory thyroid cancers. Endocr. Relat. Cancer 2020, 27, R113–R132. [Google Scholar] [CrossRef] [PubMed]
  21. Sabra, M.M.; Domínguez, J.M.; Grewal, R.K.; Larson, S.M.; Ghossein, R.A.; Tuttle, R.M.; Fagin, J.A. Clinical outcomes and molecular profile of differentiated thyroid cancers with radioiodine-avid distant metastases. J. Clin. Endocrinol. Metab. 2013, 98, E829–E836. [Google Scholar] [CrossRef]
  22. Chakravarty, D.; Santos, E.; Ryder, M.; Knauf, J.A.; Liao, X.-H.; West, B.L.; Bollag, G.; Kolesnick, R.; Thin, T.H.; Rosen, N.; et al. Small-molecule MAPK inhibitors restore radioiodine incorporation in mouse thyroid cancers with conditional BRAF activation. J. Clin. Investig. 2011, 121, 4700–4711. [Google Scholar] [CrossRef]
  23. Crispo, F.; Notarangelo, T.; Pietrafesa, M.; Lettini, G.; Storto, G.; Sgambato, A.; Maddalena, F.; Landriscina, M. BRAF Inhibitors in Thyroid Cancer: Clinical Impact, Mechanisms of Resistance and Future Perspectives. Cancers 2019, 11, 1388. [Google Scholar] [CrossRef] [PubMed]
  24. Saiselet, M.; Floor, S.; Tarabichi, M.; Dom, G.; Hébrant, A.; van Staveren, W.; Maenhaut, C. Thyroid cancer cell lines: An overview. Front. Endocrinol. 2012, 3, 133. [Google Scholar] [CrossRef]
  25. Liberzon, A.; Birger, C.; Thorvaldsdóttir, H.; Ghandi, M.; Mesirov, J.P.; Tamayo, P. The Molecular Signatures Database (MSigDB) hallmark gene set collection. Cell Syst. 2015, 1, 417–425. [Google Scholar] [CrossRef]
  26. Chapman, P.; Hauschild, A.; Robert, C.; Haanen, J.B.; Ascierto, P.; Larkin, J.; Dummer, R.; Garbe, C.; Testori, A.; Maio, M.; et al. Improved Survival with Vemurafenib in Melanoma with BRAF V600E Mutation. N. Engl. J. Med. 2011, 364, 2507–2516. [Google Scholar] [CrossRef]
  27. Hauschild, A.; Grob, J.-J.; Demidov, L.V.; Jouary, T.; Gutzmer, R.; Millward, M.; Rutkowski, P.; Blank, C.U.; Miller, W.H.; Kaempgen, E.; et al. Dabrafenib in BRAF-mutated metastatic melanoma: A multicentre, open-label, phase 3 randomised controlled trial. Lancet 2012, 380, 358–365. [Google Scholar] [CrossRef]
  28. Subbiah, V.; Kreitman, R.J.; Wainberg, Z.A.; Cho, J.Y.; Schellens, J.H.; Soria, J.C.; Wen, P.Y.; Zielinski, C.; Cabanillas, M.E.; Urbanowitz, G.; et al. Dabrafenib and Trametinib Treatment in Patients with Locally Advanced or Metastatic BRAF V600—Mutant Anaplastic Thyroid Cancer. J. Clin. Oncol. 2018, 36, 7–13. [Google Scholar] [CrossRef]
  29. Ho, A.; Dedecius, M.; Wirth, L.J.; Tuttle, R.; Tennyall, J.; So, K.; Carroll, D.; Hovey, T.; Thakre, B.; Fagin, J. ASTRA: A phase III, randomizes, placebo controlled study evaluating complete remission rate (CRR) with short-course Selumetinib plus adjuvant radioactive iodine (RAI) in patients (PTS) with differentiated thyroid cancer (DTC). In Proceedings of the 88th Annual Meeting of the American Thyroid Association, Washington, DC, USA, 3–7 October 2018. [Google Scholar]
  30. Johnson, D.B.; Menzies, A.M.; Zimmer, L.; Eroglu, Z.; Ye, F.; Zhao, S.; Rizos, H.; Sucker, A.; Scolyer, R.A.; Gutzmer, R.; et al. Acquired BRAF inhibitor resistance: A multicenter meta-analysis of the spectrum and frequencies, clinical behaviour, and phenotypic associations of resistance mechanisms. Eur. J. Cancer 2015, 51, 2792–2799. [Google Scholar] [CrossRef] [PubMed]
  31. Rizos, H.; Menzies, A.M.; Pupo, G.M.; Carlino, M.S.; Fung, C.; Hyman, J.; Haydu, L.E.; Mijatov, B.; Becker, T.M.; Boyd, S.C.; et al. BRAF Inhibitor Resistance Mechanisms in Metastatic Melanoma: Spectrum and Clinical Impact. Clin. Cancer Res. 2014, 20, 1965–1977. [Google Scholar] [CrossRef] [PubMed]
  32. Ahronian, L.G.; Corcoran, R.B. Effective MAPK Inhibition is critical for therapeutic responses in colorectal cancer with BRAF mutations. Mol. Cell. Oncol. 2015, 3, e1048405. [Google Scholar] [CrossRef] [PubMed]
  33. Haugen, B.R.; Alexander, E.K.; Bible, K.C.; Doherty, G.M.; Mandel, S.J.; Nikiforov, Y.E.; Pacini, F.; Randolph, G.W.; Sawka, A.M.; Schlumberger, M.; et al. 2015 American Thyroid Association Management Guidelines for Adult Patients with Thyroid Nodules and Differentiated Thyroid Cancer: The American Thyroid Association Guidelines Task Force on Thyroid Nodules and Differentiated Thyroid Cancer. Thyroid 2016, 26, 1–133. [Google Scholar] [CrossRef] [PubMed]
  34. Montero-Conde, C.; Ruiz-Llorente, S.; Dominguez, J.M.; Knauf, J.A.; Viale, A.; Sherman, E.J.; Ryder, M.; Ghossein, R.A.; Rosen, N.; Fagin, J.A. Relief of Feedback Inhibition of HER3 Transcription by RAF and MEK Inhibitors Attenuates Their Antitumor Effects in BRAF-Mutant Thyroid Carcinomas. Cancer Discov. 2013, 3, 520–533. [Google Scholar] [CrossRef]
  35. Cheng, L.; Jin, Y.; Liu, M.; Ruan, M.; Chen, L. HER inhibitor promotes BRAF/MEK inhibitor-induced redifferentiation in papillary thyroid cancer harboring BRAFV600E. Oncotarget 2017, 8, 19843–19854. [Google Scholar] [CrossRef]
  36. Byeon, H.K.; Na, H.J.; Yang, Y.J.; Kwon, H.J.; Chang, J.W.; Ban, M.J.; Kim, W.S.; Shin, D.Y.; Lee, E.J.; Koh, Y.W.; et al. c-Met-mediated reactivation of PI3K/AKT signaling contributes to insensitivity of BRAF(V600E) mutant thyroid cancer to BRAF inhibition. Mol. Carcinog. 2016, 55, 1678–1687. [Google Scholar] [CrossRef]
  37. Duquette, M.; Sadow, P.M.; Husain, A.; Sims, J.N.; Antonello, Z.A.; Fischer, A.H.; Song, C.; Castellanos-Rizaldos, E.; Makrigiorgos, G.M.; Kurebayashi, J.; et al. Metastasis-associated MCL1 and P16 copy number alterations dictate resistance to vemurafenib in a BRAFV600E patient-derived papillary thyroid carcinoma preclinical model. Oncotarget 2015, 6, 42445–42467. [Google Scholar] [CrossRef]
  38. Notarangelo, T.; Sisinni, L.; Condelli, V.; Landriscina, M. Dual EGFR and BRAF blockade overcomes resistance to vemurafenib in BRAF mutated thyroid carcinoma cells. Cancer Cell Int. 2017, 17, 86. [Google Scholar] [CrossRef]
  39. Danysh, B.P.; Rieger, E.Y.; Sinha, D.K.; Evers, C.V.; Cote, G.J.; Cabanillas, M.E.; Hofmann, M.-C. Long-term vemurafenib treatment drives inhibitor resistance through a spontaneous KRAS G12D mutation in a BRAF V600E papillary thyroid carcinoma model. Oncotarget 2016, 7, 30907–30923. [Google Scholar] [CrossRef]
  40. Paraiso, K.H.T.; Fedorenko, I.V.; Cantini, L.P.; Munko, A.C.; Hall, M.; Sondak, V.K.; Messina, J.L.; Flaherty, K.T.; Smalley, K.S.M. Recovery of phospho-ERK activity allows melanoma cells to escape from BRAF inhibitor therapy. Br. J. Cancer 2010, 102, 1724–1730. [Google Scholar] [CrossRef] [PubMed]
  41. Owen, D.H.; Konda, B.; Sipos, J.; Liu, T.; Webb, A.; Ringel, M.D.; Timmers, C.D.; Shah, M.H. KRAS G12V Mutation in Acquired Resistance to Combined BRAF and MEK Inhibition in Papillary Thyroid Cancer. J. Natl. Compr. Cancer Netw. 2019, 17, 409–413. [Google Scholar] [CrossRef]
  42. Cabanillas, M.E.; Dadu, R.; Iyer, P.; Wanland, K.B.; Busaidy, N.L.; Ying, A.; Gule-Monroe, M.; Wang, J.R.; Zafereo, M.; Hofmann, M.C. Acquired Secondary RAS Mutation in BRAF(V600E)-Mutated Thyroid Cancer Patients Treated with BRAF Inhibitors. Thyroid 2020, 30, 1288–1296. [Google Scholar] [CrossRef] [PubMed]
  43. Fiore, L.; Pollina, L.E.; Fontanini, G.; Casalone, R.; Berlingieri, M.T.; Giannini, R.; Pacini, F.; Miccoli, P.; Toniolo, A.; Fusco, A.; et al. Cytokine Production by a New Undifferentiated Human Thyroid Carcinoma Cell Line, FB-11. J. Clin. Endocrinol. Metab. 1997, 82, 4094–4100. [Google Scholar] [CrossRef]
  44. Frattini, M.; Ferrario, C.; Bressan, P.; Balestra, D.; De Cecco, L.; Mondellini, P.; Bongarzone, I.; Collini, P.; Gariboldi, M.; Pilotti, S.; et al. Alternative mutations of BRAF, RET and NTRK1 are associated with similar but distinct gene expression patterns in papillary thyroid cancer. Oncogene 2004, 23, 7436–7440. [Google Scholar] [CrossRef]
  45. Sensi, M.L.; Nicolini, G.; Petti, C.; Bersani, I.; Lozupone, F.; Molla, A.; Vegetti, C.; Nonaka, D.; Mortarini, R.; Parmiani, G.; et al. Mutually exclusive NRASQ61R and BRAFV600E mutations at the single-cell level in the same human melanoma. Oncogene 2006, 25, 3357–3364. [Google Scholar] [CrossRef] [PubMed]
  46. Minna, E.; Romeo, P.; Dugo, M.; De Cecco, L.; Todoerti, K.; Pilotti, S.; Perrone, F.; Seregni, E.; Agnelli, L.; Neri, A.; et al. miR-451a is underexpressed and targets AKT/mTOR pathway in papillary thyroid carcinoma. Oncotarget 2016, 7, 12731–12747. [Google Scholar] [CrossRef] [PubMed]
  47. Waltz, F.; Pillette, L.; Ambroise, Y. A nonradioactive iodide uptake assay for sodium iodide symporter function. Anal. Biochem. 2010, 396, 91–95. [Google Scholar] [CrossRef] [PubMed]
  48. McCall, M.N.; Bolstad, B.M.; Irizarry, R.A. Frozen robust multiarray analysis (fRMA). Biostatistics 2010, 11, 242–253. [Google Scholar] [CrossRef]
  49. Irizarry, R.A.; Hobbs, B.; Collin, F.; Beazer-Barclay, Y.D.; Antonellis, K.J.; Scherf, U.; Speed, T.P. Exploration, normalization, and summaries of high density oligonucleotide array probe level data. Biostatistics 2003, 4, 249–264. [Google Scholar] [CrossRef]
  50. Ritchie, M.E.; Phipson, B.; Wu, D.; Hu, Y.; Law, C.W.; Shi, W.; Smyth, G.K. limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Res. 2015, 43, e47. [Google Scholar] [CrossRef]
  51. Benjamini, Y.; Hochberg, Y. Controlling the False Discovery Rate: A Practical and Powerful Approach to Multiple Testing. J. R. Stat. Soc. Ser. B 1995, 57, 289–300. [Google Scholar] [CrossRef]
  52. Korotkevich, G.; Sukhov, V.; Budin, N.; Shpak, B.; Artyomov, M.N.; Sergushichev, A. Fast gene set enrichment analysis. bioRxiv 2021, 060012. [Google Scholar] [CrossRef]
  53. Foroutan, M.; Bhuva, D.D.; Lyu, R.; Horan, K.; Cursons, J.; Davis, M.J. Single sample scoring of molecular phenotypes. BMC Bioinform. 2018, 19, 1–10. [Google Scholar] [CrossRef] [PubMed]
  54. Colombo, C.; Minna, E.; Rizzetti, M.G.; Romeo, P.; Lecis, D.; Persani, L.; Mondellini, P.; Pierotti, M.A.; Greco, A.; Fugazzola, L.; et al. The modifier role of RET-G691S polymorphism in hereditary medullary thyroid carcinoma: Functional characterization and expression/penetrance studies. Orphanet J. Rare Dis. 2015, 10, 1–9. [Google Scholar] [CrossRef] [PubMed]

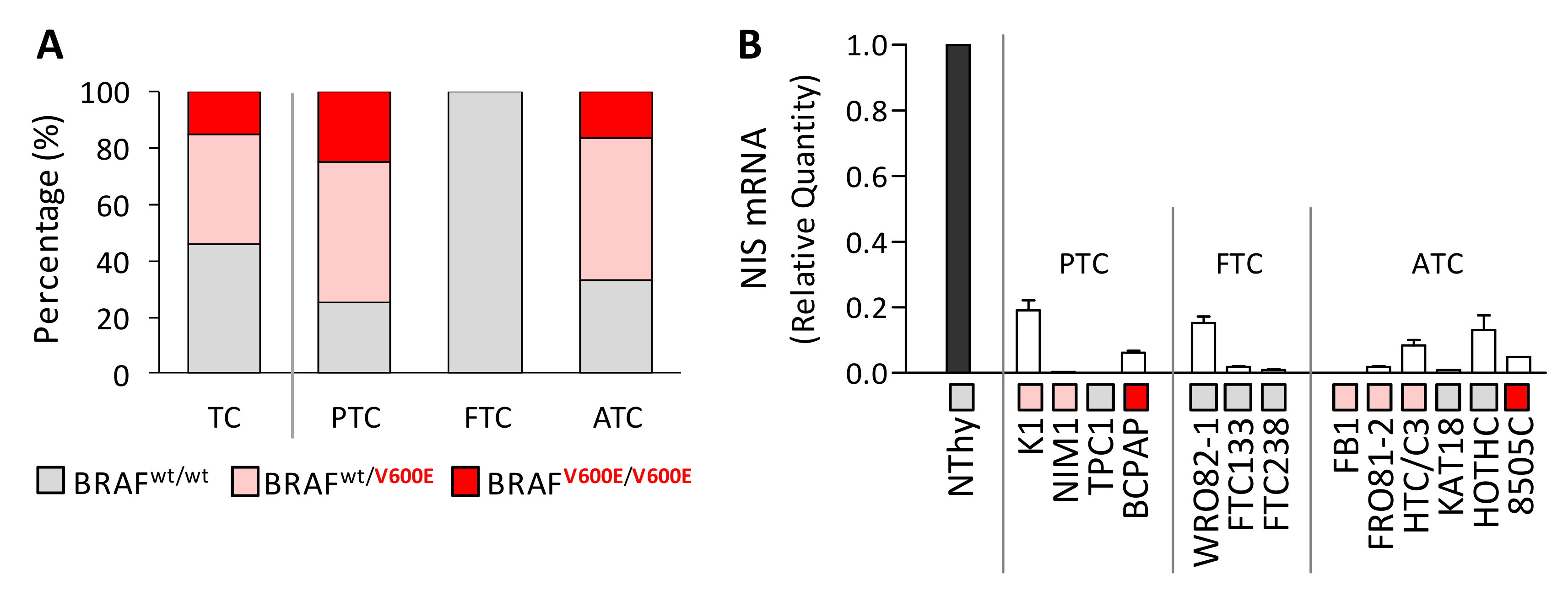

Figure 1. BRAFV600E mutation and NIS expression in thyroid cancer cell lines. (A) BRAFV600E distribution in TC cell lines and in the same cell panel stratified according to tumor histotype. Complete BRAF mutation data available in Suppl. Table S1. (B) NIS expression by quantitative RT-PCR; data are reported as relative quantity normalized to HPRT gene used as endogenous control for RNA input normalization and are shown relative to the control cell line Nthy; mean ± SEM of three technical replicates. For each cell line, the BRAF mutational status is indicated with a color code legend as in (A). Abbreviations: TC, Thyroid Cancer; PTC, Papillary Thyroid Cancer; FTC, Follicular Thyroid Cancer; ATC, Anaplastic Thyroid Cancer; wt, wild-type.
Figure 1. BRAFV600E mutation and NIS expression in thyroid cancer cell lines. (A) BRAFV600E distribution in TC cell lines and in the same cell panel stratified according to tumor histotype. Complete BRAF mutation data available in Suppl. Table S1. (B) NIS expression by quantitative RT-PCR; data are reported as relative quantity normalized to HPRT gene used as endogenous control for RNA input normalization and are shown relative to the control cell line Nthy; mean ± SEM of three technical replicates. For each cell line, the BRAF mutational status is indicated with a color code legend as in (A). Abbreviations: TC, Thyroid Cancer; PTC, Papillary Thyroid Cancer; FTC, Follicular Thyroid Cancer; ATC, Anaplastic Thyroid Cancer; wt, wild-type.
Ijms 22 05744 g001

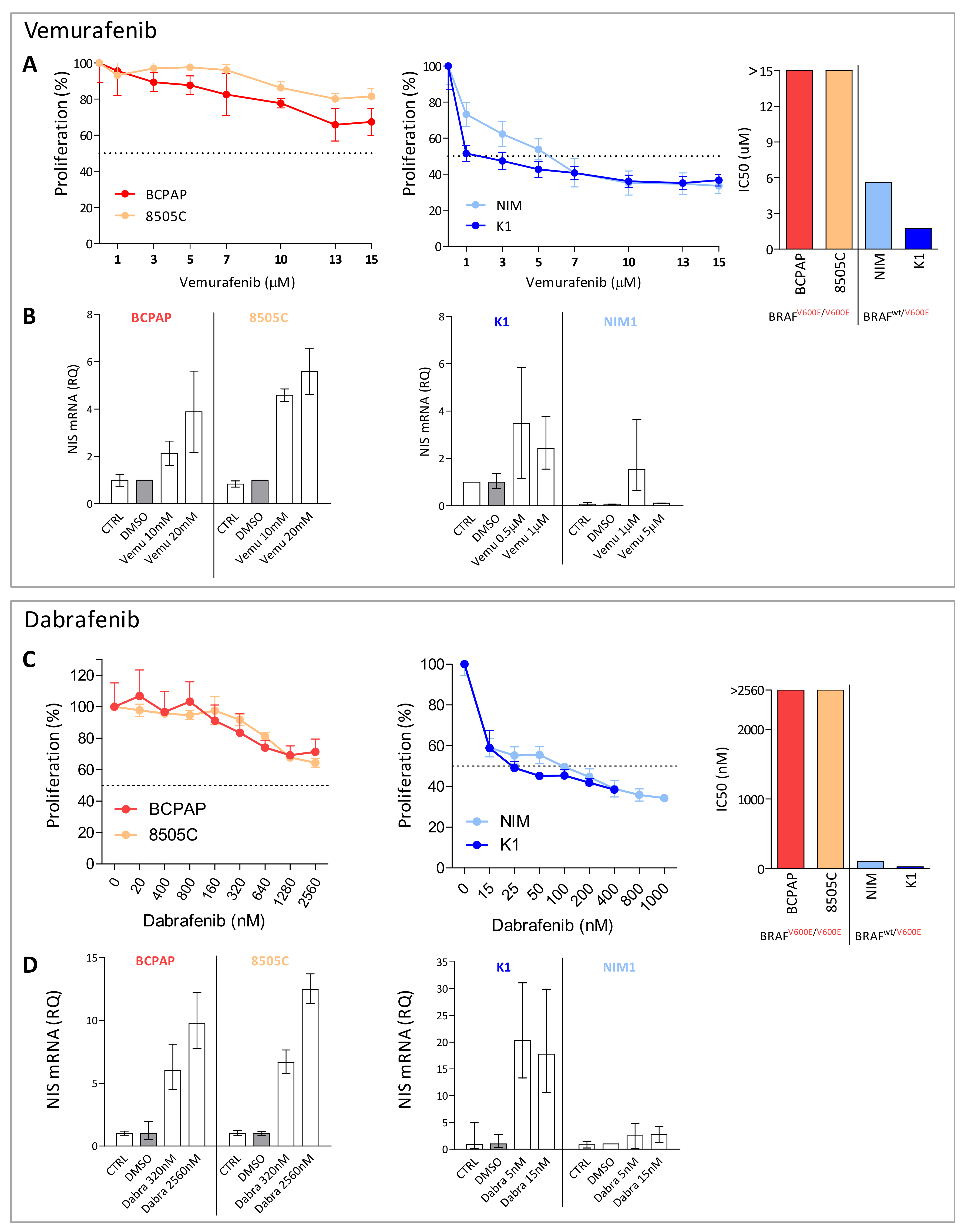

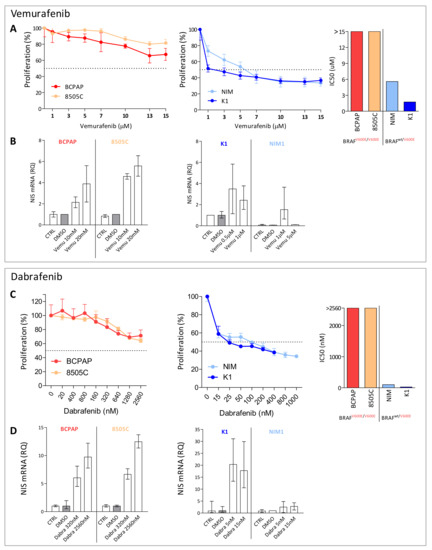

Figure 2. BRAF inhibitors treatment in BRAFV600E mutated thyroid cancer cell lines. (A,C) Dose-response curves in thyroid cancer cell lines (BCPAP, 8505C, K1, NIM1) treated for 48 h with increasing doses of Vemurafenib or Dabrafenib. Cell proliferation was tested by crystal violet assay; data are reported as percentage normalized to control cells treated with vehicle DMSO, mean ± SD of six technical replicates. On the right, the corresponding IC50 values in the same cell lines stratified for BRAFV600E mutation status. (B,D) NIS expression by quantitative RT-PCR 48 h after Vemurafenib or Dabrafenib treatment; data are reported as relative quantity normalized to HPRT gene used as endogenous control and are shown relative to the control cells treated with DMSO. Mean ± SEM of three technical replicates. Abbreviations: CTRL, untreated control cells; DMSO, DMSO treated control cells; Vemu, Vemurafenib; Dabra, Dabrafenib.
Figure 2. BRAF inhibitors treatment in BRAFV600E mutated thyroid cancer cell lines. (A,C) Dose-response curves in thyroid cancer cell lines (BCPAP, 8505C, K1, NIM1) treated for 48 h with increasing doses of Vemurafenib or Dabrafenib. Cell proliferation was tested by crystal violet assay; data are reported as percentage normalized to control cells treated with vehicle DMSO, mean ± SD of six technical replicates. On the right, the corresponding IC50 values in the same cell lines stratified for BRAFV600E mutation status. (B,D) NIS expression by quantitative RT-PCR 48 h after Vemurafenib or Dabrafenib treatment; data are reported as relative quantity normalized to HPRT gene used as endogenous control and are shown relative to the control cells treated with DMSO. Mean ± SEM of three technical replicates. Abbreviations: CTRL, untreated control cells; DMSO, DMSO treated control cells; Vemu, Vemurafenib; Dabra, Dabrafenib.
Ijms 22 05744 g002

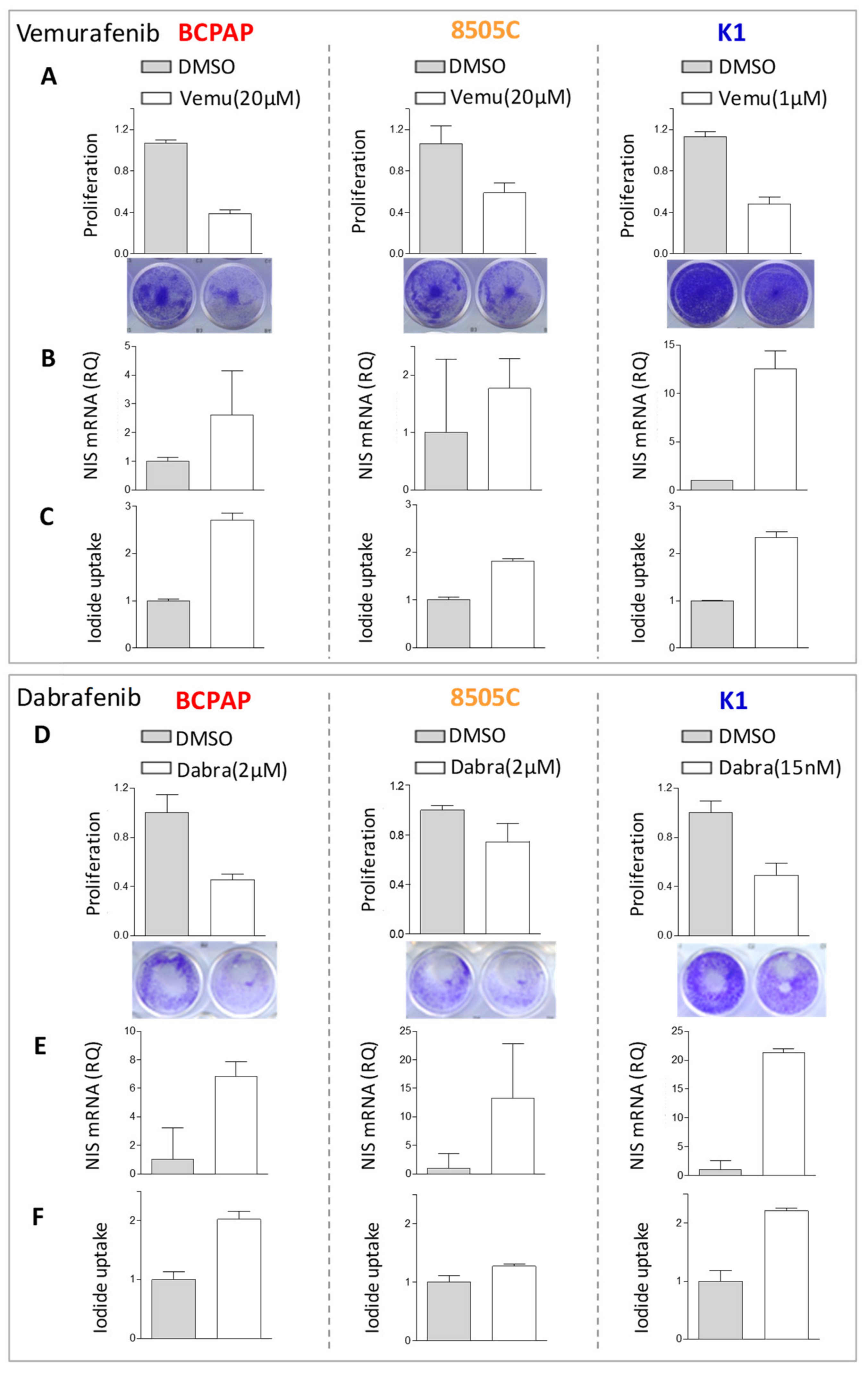

Figure 3. Iodide uptake capacity in thyroid cancer cells following BRAF inhibitors treatment. (A,D) Cell proliferation by crystal violet assay in DMSO and BRAF inhibitors treated cells; data are recorded as absorbance at 570 nm and are normalized to control cells treated with vehicle DMSO; mean ± SD of technical replicates. Below representative images of crystal violet stained cell culture plates. (B,E) NIS expression by quantitative RT-PCR in DMSO and BRAF inhibitors treated cells; data are reported as relative quantity normalized to HPRT gene used as endogenous control and are shown relative to DMSO treated control cells; mean ± SEM of three technical replicates. (C,F) Iodide uptake assay by Sandell–Kolthoff reaction, absorbance detected at 420 nm. Uptake value was normalized to the corresponding cell proliferation index reported above; data are reported relative to the DMSO treated control cells as mean ± SD of technical replicates. All assessments were performed at 48 h after BRAF inhibitors treatment. Abbreviations: DMSO, DMSO treated control cells; Vemu, Vemurafenib; Dabra, Dabrafenib.
Figure 3. Iodide uptake capacity in thyroid cancer cells following BRAF inhibitors treatment. (A,D) Cell proliferation by crystal violet assay in DMSO and BRAF inhibitors treated cells; data are recorded as absorbance at 570 nm and are normalized to control cells treated with vehicle DMSO; mean ± SD of technical replicates. Below representative images of crystal violet stained cell culture plates. (B,E) NIS expression by quantitative RT-PCR in DMSO and BRAF inhibitors treated cells; data are reported as relative quantity normalized to HPRT gene used as endogenous control and are shown relative to DMSO treated control cells; mean ± SEM of three technical replicates. (C,F) Iodide uptake assay by Sandell–Kolthoff reaction, absorbance detected at 420 nm. Uptake value was normalized to the corresponding cell proliferation index reported above; data are reported relative to the DMSO treated control cells as mean ± SD of technical replicates. All assessments were performed at 48 h after BRAF inhibitors treatment. Abbreviations: DMSO, DMSO treated control cells; Vemu, Vemurafenib; Dabra, Dabrafenib.
Ijms 22 05744 g003

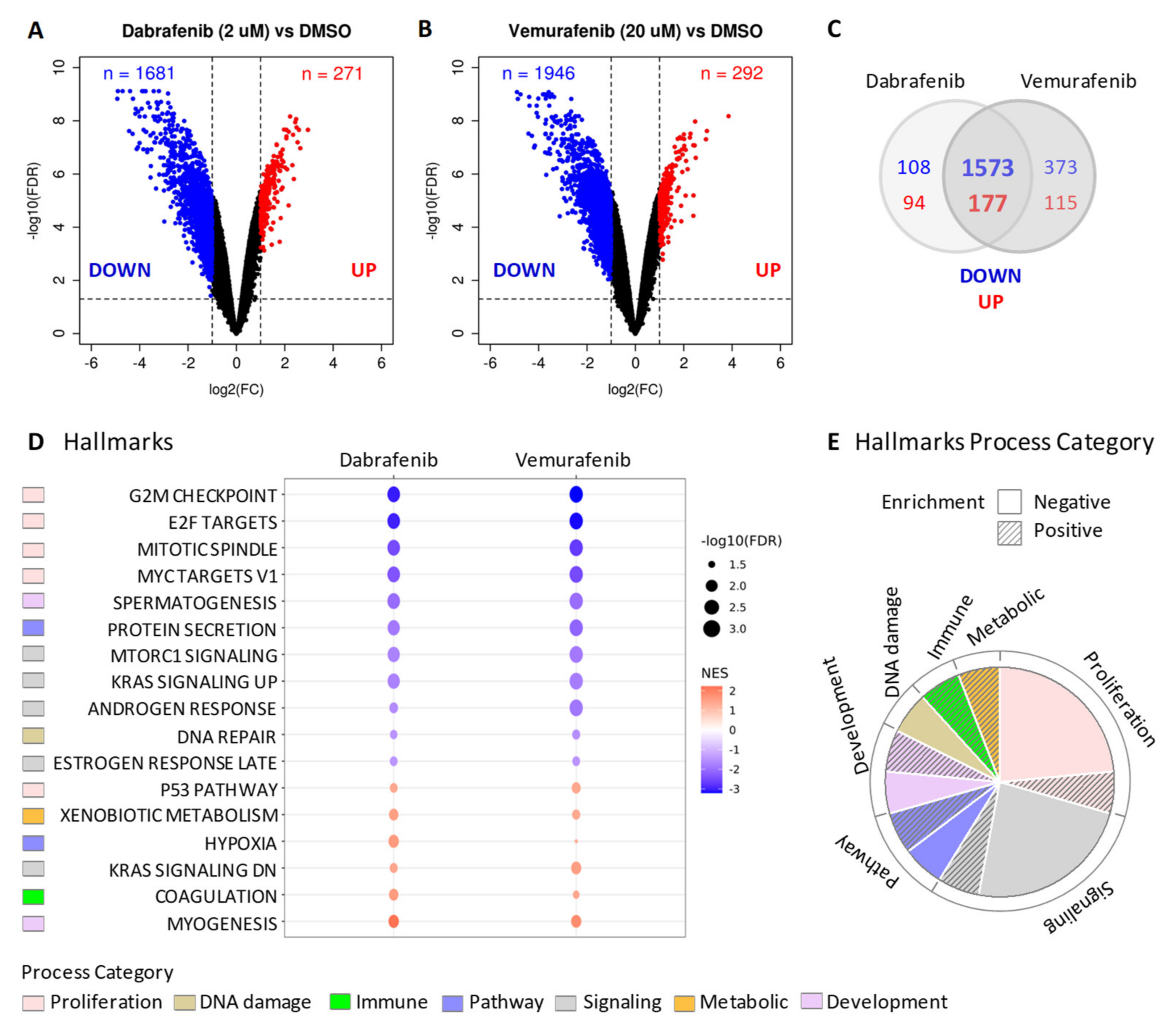

Figure 4. Gene expression profiles in BCPAP cells treated with BRAF inhibitors. (A,B) Volcano plot of differentially expressed genes between either Dabrafenib or Vemurafenib treated BCPAP cells compared to control cells treated with DMSO. The x-axis shows the log2 fold change (FC) and the y-axis shows the −log10 false discovery rate (FDR). The vertical and horizontal dashed lines represent the FC and FDR thresholds (absolute FC > 2 and FDR < 0.05, respectively) used to select differentially expressed genes. Up- and down-regulated genes in each comparison are highlighted in red and blue, respectively. (C) Venn diagram showing the intersection of statistically significant deregulated genes selected with cutoffs on absolute FC > 2 and FDR < 0.05. (D) Dot plots showing commonly significantly enriched gene sets (FDR < 0.05) from GSEA Hallmarks collection. The red-to-blue colored-scale bar represents the normalized enrichment score (NES). The point size indicates the magnitude of the statistical significance expressed as –log10 of the FDR. (E). Distribution of Hallmarks process categories relative to gene sets showed in (D).
Figure 4. Gene expression profiles in BCPAP cells treated with BRAF inhibitors. (A,B) Volcano plot of differentially expressed genes between either Dabrafenib or Vemurafenib treated BCPAP cells compared to control cells treated with DMSO. The x-axis shows the log2 fold change (FC) and the y-axis shows the −log10 false discovery rate (FDR). The vertical and horizontal dashed lines represent the FC and FDR thresholds (absolute FC > 2 and FDR < 0.05, respectively) used to select differentially expressed genes. Up- and down-regulated genes in each comparison are highlighted in red and blue, respectively. (C) Venn diagram showing the intersection of statistically significant deregulated genes selected with cutoffs on absolute FC > 2 and FDR < 0.05. (D) Dot plots showing commonly significantly enriched gene sets (FDR < 0.05) from GSEA Hallmarks collection. The red-to-blue colored-scale bar represents the normalized enrichment score (NES). The point size indicates the magnitude of the statistical significance expressed as –log10 of the FDR. (E). Distribution of Hallmarks process categories relative to gene sets showed in (D).
Ijms 22 05744 g004

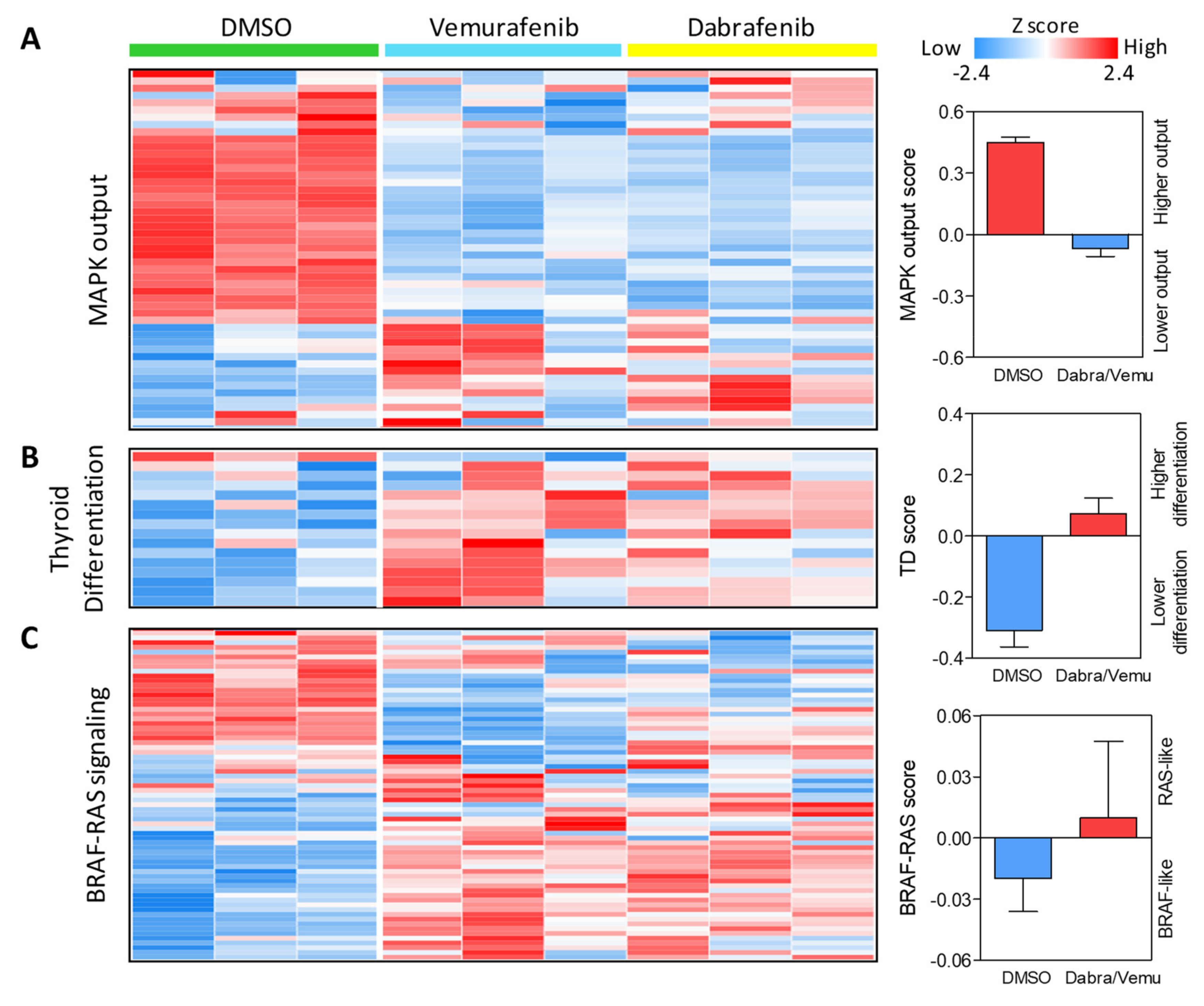

Figure 5. Expression of thyroid cancer related gene signatures in BRAF inhibitor treated BCPAP cells. (A) Gene signature related to the activation status of MAPK pathway (MAPK output). (B) Gene signature related to thyroid differentiation. (C) Gene signature related to BRAF-RAS signaling. The 3 gene signatures are derived from TCGA, lists available in Supplementary Table S2. Heatmaps show the expression of the genes included in each signature across control (DMSO) and BRAF inhibitor (Vemurafenib or Dabrafenib) treated cells in 3 technical replicates per condition. On the right, the corresponding expression score (see Materials and methods for score computation).
Figure 5. Expression of thyroid cancer related gene signatures in BRAF inhibitor treated BCPAP cells. (A) Gene signature related to the activation status of MAPK pathway (MAPK output). (B) Gene signature related to thyroid differentiation. (C) Gene signature related to BRAF-RAS signaling. The 3 gene signatures are derived from TCGA, lists available in Supplementary Table S2. Heatmaps show the expression of the genes included in each signature across control (DMSO) and BRAF inhibitor (Vemurafenib or Dabrafenib) treated cells in 3 technical replicates per condition. On the right, the corresponding expression score (see Materials and methods for score computation).
Ijms 22 05744 g005

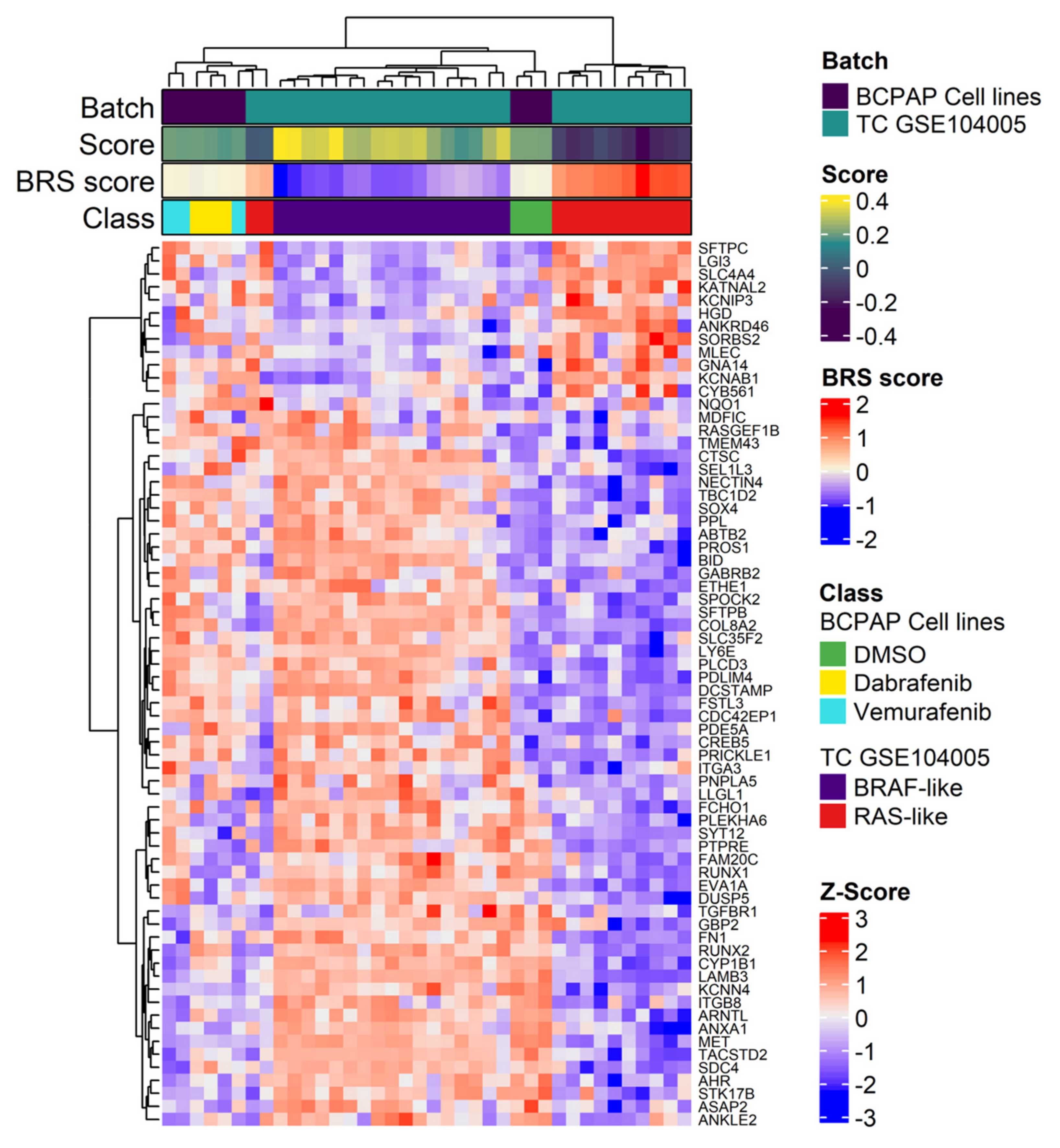

Figure 6. Unsupervised hierarchical clustering using the BRAF-RAS signaling gene signature in BCPAP cells and in thyroid cancer tissues. Heatmap showing the expression pattern of the genes, reported as Z-scores, included in the BRAF-RAS like signature evaluated in the merged datasets, including the BCPAP cells and the human thyroid cancer (TC) tissues derived from the gene dataset GSE104005. Specific sample features are showed separately in the colored bar above the heatmap: Batch, either BCPAP cell lines or GSE104005 samples; Score, BRAF−/RAS-like subtype gene scores calculated with singscore; BRS, BRAF-RAS score; Class, BCPAP cell lines stratified for treatment; TC tissues from GSE104005 dataset stratified for BRAF/RAS subtype; Z-Score, colored bar z-scores values.
Figure 6. Unsupervised hierarchical clustering using the BRAF-RAS signaling gene signature in BCPAP cells and in thyroid cancer tissues. Heatmap showing the expression pattern of the genes, reported as Z-scores, included in the BRAF-RAS like signature evaluated in the merged datasets, including the BCPAP cells and the human thyroid cancer (TC) tissues derived from the gene dataset GSE104005. Specific sample features are showed separately in the colored bar above the heatmap: Batch, either BCPAP cell lines or GSE104005 samples; Score, BRAF−/RAS-like subtype gene scores calculated with singscore; BRS, BRAF-RAS score; Class, BCPAP cell lines stratified for treatment; TC tissues from GSE104005 dataset stratified for BRAF/RAS subtype; Z-Score, colored bar z-scores values.
Ijms 22 05744 g006

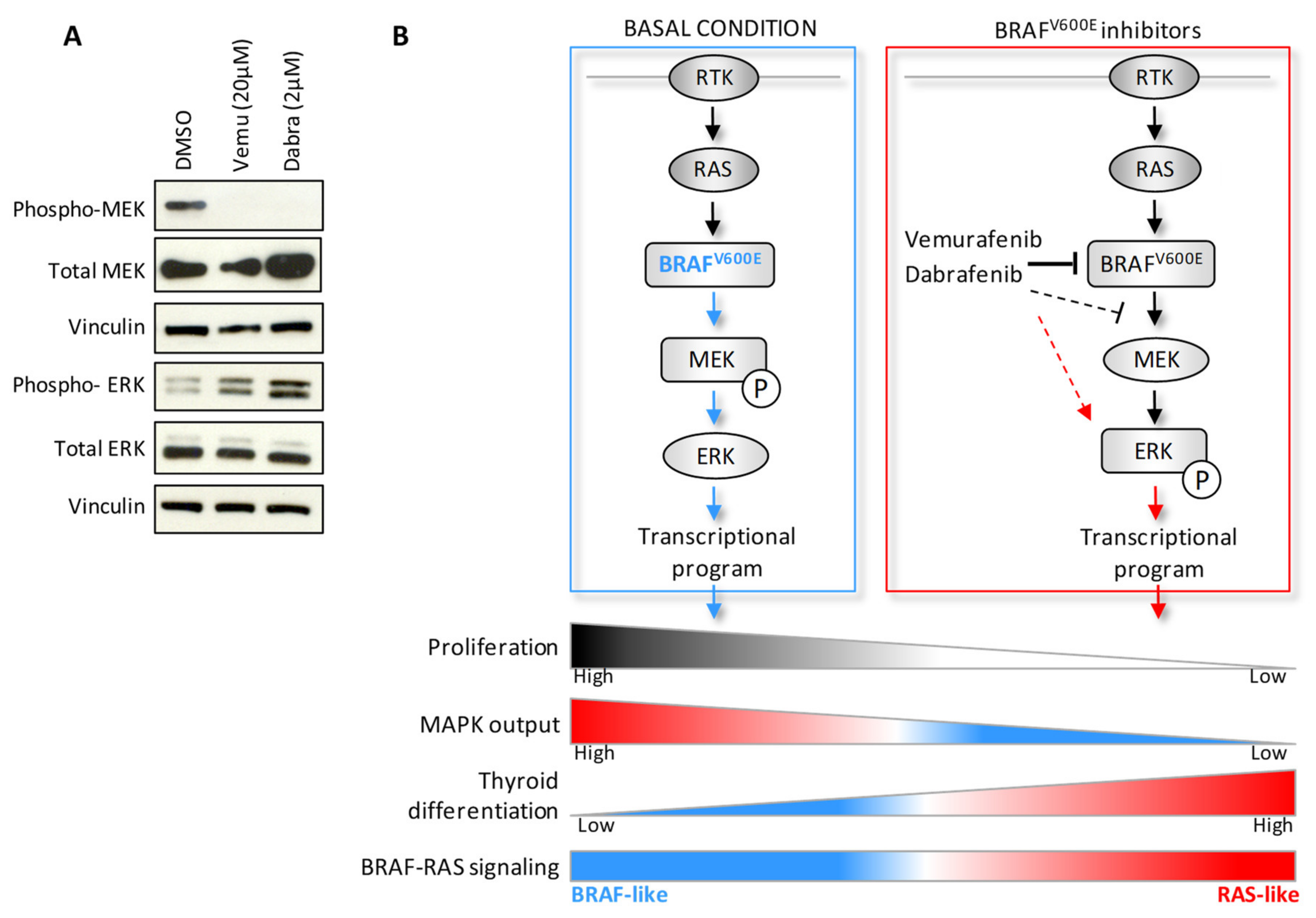

Figure 7. Alternative MAPK pathway activation upon treatment with BRAF inhibitors in BCPAP cells. (A) Western blot analysis in BCPAP cells treated with Vemurafenib or Dabrafenib for 48 h compared to control cells treated with vehicle DMSO. Vinculin included as protein loading control. (B) Schematic representation of the expression pattern identified by transcriptomic and biochemical analyses in BCPAP cells treated with BRAF inhibitors.
Figure 7. Alternative MAPK pathway activation upon treatment with BRAF inhibitors in BCPAP cells. (A) Western blot analysis in BCPAP cells treated with Vemurafenib or Dabrafenib for 48 h compared to control cells treated with vehicle DMSO. Vinculin included as protein loading control. (B) Schematic representation of the expression pattern identified by transcriptomic and biochemical analyses in BCPAP cells treated with BRAF inhibitors.
Ijms 22 05744 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bonaldi, E.; Gargiuli, C.; De Cecco, L.; Micali, A.; Rizzetti, M.G.; Greco, A.; Borrello, M.G.; Minna, E. BRAF Inhibitors Induce Feedback Activation of RAS Pathway in Thyroid Cancer Cells. Int. J. Mol. Sci. 2021, 22, 5744. https://doi.org/10.3390/ijms22115744

AMA Style

Bonaldi E, Gargiuli C, De Cecco L, Micali A, Rizzetti MG, Greco A, Borrello MG, Minna E. BRAF Inhibitors Induce Feedback Activation of RAS Pathway in Thyroid Cancer Cells. International Journal of Molecular Sciences. 2021; 22(11):5744. https://doi.org/10.3390/ijms22115744

Chicago/Turabian Style

Bonaldi, Elisa, Chiara Gargiuli, Loris De Cecco, Arianna Micali, Maria Grazia Rizzetti, Angela Greco, Maria Grazia Borrello, and Emanuela Minna. 2021. "BRAF Inhibitors Induce Feedback Activation of RAS Pathway in Thyroid Cancer Cells" International Journal of Molecular Sciences 22, no. 11: 5744. https://doi.org/10.3390/ijms22115744

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
