Next Article in Journal
Potential Effects of Leukotriene Receptor Antagonist Montelukast in Treatment of Neuroinflammation in Parkinson’s Disease
Next Article in Special Issue
Thermally-Induced Shape-Memory Behavior of Degradable Gelatin-Based Networks
Previous Article in Journal
Candidate Genes for Eyelid Myoclonia with Absences, Review of the Literature
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

Plastic Degradation by Extremophilic Bacteria

Nikolina Atanasova
Stoyanka Stoitsova
Tsvetelina Paunova-Krasteva
Margarita Kambourova
Stephan Angeloff Institute of Microbiology, Bulgarian Academy of Sciences, Acad. G. Bonchev str. Bl. 26, 1113 Sofia, Bulgaria
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(11), 5610;
Submission received: 14 April 2021 / Revised: 23 May 2021 / Accepted: 24 May 2021 / Published: 25 May 2021
(This article belongs to the Collection Frontiers in Polymeric Materials)


Intensive exploitation, poor recycling, low repeatable use, and unusual resistance of plastics to environmental and microbiological action result in accumulation of huge waste amounts in terrestrial and marine environments, causing enormous hazard for human and animal life. In the last decades, much scientific interest has been focused on plastic biodegradation. Due to the comparatively short evolutionary period of their appearance in nature, sufficiently effective enzymes for their biodegradation are not available. Plastics are designed for use in conditions typical for human activity, and their physicochemical properties roughly change at extreme environmental parameters like low temperatures, salt, or low or high pH that are typical for the life of extremophilic microorganisms and the activity of their enzymes. This review represents a first attempt to summarize the extraordinarily limited information on biodegradation of conventional synthetic plastics by thermophilic, alkaliphilic, halophilic, and psychrophilic bacteria in natural environments and laboratory conditions. Most of the available data was reported in the last several years and concerns moderate extremophiles. Two main questions are highlighted in it: which extremophilic bacteria and their enzymes are reported to be involved in the degradation of different synthetic plastics, and what could be the impact of extremophiles in future technologies for resolving of pollution problems.

1. General Features of Plastic Degradation

1.1. Plastics—Unavoidable Part of Our Daily Life. Negative Consequences from Plastic Accumulation and Slow Degradation

Plastics are man-made, high molecular weight organic polymers obtained from nonrenewable petrochemicals like fossil oil, natural gas, and coal. They are composed of hundreds to thousands of organic subunits (“monomers”) linked with strong covalent bonds. Plastics’ invasive entrance into human life during the last century has resulted in replacement of their natural counterparts in almost all industrial and domestic areas of human life. The versatility, durability, and remarkable adaptability of this group of materials improved society’s living standards, making life easier, safer, and more colorful. Their properties, such as light weight, low production cost, ease of manufacturing, bio-inertia, and resistance to environmental influence and microbial action, contribute to plastics’ extensive commercialization. According to the last report of Plastics Europe [1], everyday plastic use has shown an exponentially increasing trend for production and consumption, reaching about 350 million tons in 2019. However, a sharp growth rate drop of 8.5% was registered in 2020 due to COVID-19. The production level before the COVID-19 pandemic in the EU27 will not be reached again until 2022. Employed in the European plastics industry are more than 1.56 million people in 55,000 companies with over 350 billion euros of turnover. As can be seen from Figure 1, plastic producers are spread worldwide, the biggest contributors being Asia, Europe, and North America.
The first synthetic polymer, Bakelite, was produced in the beginning of 20th century; the true mass production of plastics thrived from the 1950s onwards. Over that period, their properties have been continuously improved. The most widely used polymer materials are polyethylene (PE), polypropylene (PP), polystyrene (PS), polyvinyl chloride (PVC), polyurethane (PUR), poly(ethylene terephthalate) (PET), poly(butylene terephthalate) (PBT), and nylons [2]. Currently, more than 5300 grades are produced for plastic commerce with a range of chemical additives including plasticizers, pigments, stabilizers, surfactants, and inorganic fillers [3]. Plastics have a wide range of applications in the industries for food and packaging, pharmaceuticals, agriculture, cosmetics, detergents and chemicals, etc. (Figure 2). Synthetic plastics have taken an impressive position in the packaging sector as a replacer of cellulose-based wrapping materials and now account for around 40% of the plastics produced in Europe [4].
Millions of tons of plastic accumulate annually as increased solid waste in terrestrial or marine environments, amounting to 20–30% (by volume) of municipal solid waste; they thus pose serious hazards for nature [5]. Today, less than 10% of all plastics are recycled [6], 24% are incinerated for energy production, and the remaining ~60% are not recovered [7]. About half of them have been estimated to accumulate in landfill sites worldwide, and others completely escape the collection system. This continual plastic pollution is a result of illegal dumping of industrial or household waste and the poor storage or transportation of such waste. Additional factors that contribute to plastics’ accumulation in the environment are their poor recycling, low repeatable use, and unusual resistance to environmental and microbiological action. It is well known that plastic pollution causes adverse effects on various ecosystems, soil fertility, the aesthetic look of cities and the environment, and on human and animal health [8]. A negative impact of plastic disposal on wildlife was ascertained for a large number of biological species including marine birds, sharks, fur seals, sea turtles, cetaceans, etc. Filling the world with discarded plastic has led to the development of social sensitivity to the impact of land pollution. As a result, the quantity of packaging waste sent to recycling has increased by 92% since 2006; however, this is still not enough, especially bearing in mind annually increasing plastic production [1].
Environmental degradation called “aging” delays plastic accumulation. It includes various mechanical and chemical mechanisms of treatment and depends on several factors. Mechanical aging depends on temperature, solar light, and moisture and causes changes in plastic bulk structure, such as cracking, discoloration, changes in shape or optical characteristics, and flaking. Chemical effects refer to changes at the molecular level by chemically oxidizing or disrupting the long polymer chain into new molecules, usually with significantly shorter chain lengths. As environmental aging is a slow process, mechanical or chemical man-made recycling is a main approach for waste treatment [9]. However, mechanical recycling releases organic and inorganic impurities in the waste, and chemical recycling is accompanied by the use of toxic and expensive chemicals [10]. Biodegradation seems to be the most effective process for waste disposal, offering specificity in attacking plastics as well as being a cheap and efficient process that does not produce secondary pollutants [11].

1.2. Microbial Degradation of Plastics

Biodegradation is the process of degradation of large polymer molecules by groups of living organisms, some of which break down the polymer chain into oligomers and monomers. Others are able to use these products, converting them to simpler waste compounds, and still others are able to use the excreted wastes. Microbial degraders and their metabolic enzymes are among the environmental agents that participate in the degradation process, which results in a conversion of the carbon in the polymer chains into smaller biomolecules or into carbon dioxide and water [12]. In this way, they contribute to soil fertility, decrease plastic accumulation in the environment, and reduce the cost of waste management. Furthermore, biodegradable plastics could be useful for the production of valuable metabolites (monomers and oligomers) [13]. The biodegradation rate is strongly influenced by several polymer properties, such as the presence of branching and additional functional groups that promote higher hydrophilicity; the relative share of crystalline and amorphous regions; the presence of polar covalent bonds, such as ester or amide bonds, instead of carbon–carbon bonds; the molecular weight and length of the carbon chain; the size and form of the substrate (powder, fibers, pellets, films); environmental agents like UV, pH, temperature, and moisture; and the enzyme characteristics [14]. Additionally, the rigidity could be increased by antioxidants and stabilizers added during plastic production. According to the rate of biodegradation, plastics are divided in two main groups: biodegradable, characterized by a higher rate process, and non-biodegradable, the biodegradation of which is slow or mediated by a still-unknown process. Most currently used fossil-based plastics are non-biodegradable, e.g., PE, PP, PS, and PVC. As large molecules of polymers cannot enter directly into the microbial cell, microorganisms responsible for primary degradation carry out extracellular degradation, and the received intermediates are further degraded by secondary degraders. According to Dussud and Ghiglione [15], biodegradation occurs in four main steps (Figure 3).
Bio-deterioration—microbial metabolic activity provokes plastic cracks and aggravates physical properties or changes the microstructure of the matrix by pH change as a result of the released acid or biofilm formation.
Bio-fragmentation of the long polymer chain—the activity of enzymes produced by microorganisms leads to oligomer release.
Degradation of oligomers to monomers—oligomers enter inside the cells, and secondary degraders assimilate them as a carbon source, thus increasing the microbial biomass.
Assimilation of oligomers and excretion of completely oxidized metabolites to H2O, CO2, N2, and CH4.
In spite of the hope placed on biodegradation as an innovative approach for resolving the plastic disposal problem, biodegradation is still a slow process [16]. That is why since the 1980s scientists have searched to design materials that do not affect the environment significantly and are susceptible to microbial attack. Plastic biodegradation could be enhanced by the addition of natural polymers or protein hydrolysates, optimization of the medium content and conditions for cultivation of degrading microorganisms, or gene expression for hyperproduction of the degrading enzymes [17]. Biodegradation by various microbes, such as heterotrophic bacteria and fungi, is reported for both biodegradable and non-biodegradable polymers [18].

1.3. Standard Testing Methods

Commonly used testing methods for detection of microbial activity include (Figure 4):
  • Evaluation of visible changes in plastics such as appearance of holes or cracks, changes in surface view or color, or formation of biofilms. Scanning electron microscopy (SEM) and atomic force microscopy (AFM) represent good approaches for more sophisticated observations.
  • Registering of changes in physical polymer properties, such as mass loss and tensile strength, and chemical properties, such as molecular weight.
  • Measurement of utilized carbon dioxide and oxygen consumption rate.
  • Evaluation of growth by:
    measurement of the accumulated biomass, usually in minimal media with a polymer as the sole carbon source;
    formation of a clear halo around the colonies that depolymerize the polymer.
  • Enzyme assay for detection and characterization of the depolymerization products.

1.3.1. Biofilm Formation on the Plastic Surface

Current ideas of plastic biodegradation were supported by two directions of studies: firstly, analyses of the processes that take place in natural ecosystems, and secondly, laboratory experiments designed with the aim to search for microorganisms that can be used in practice in the fight against plastic pollution. In natural environments, one decisive precondition for biodegradation is bringing the plastic and the microorganisms in close contact so that the released plastic-active exoenzymes can successfully find their way to the substrate. Biofilms are biologically relevant structures appropriate for such a purpose [19]. Biofilms are consortia of microorganisms attached to and/or embedded in an extracellular polymeric matrix. In natural systems, bacteria serve as primary colonizers that may further entrap other organisms such as fungi, diatoms, etc. [20]. The result is that the biofilm community differs significantly from the microorganisms in the free-living state in the surrounding environment [21]. When the biofilm includes organisms with plastic-degrading potential, the spatial proximity of the sessile microbial cells and the low diffusion rate of macromolecules, including extracellular enzymes, through the biofilm matrix, are factors that favor biodegradation. However, surface colonization by itself is not sufficient for plastic degradation to proceed. The type of plastic and the physicochemical conditions are both significant abiotic factors [22], while the nature of the colonizing organisms is clearly decisive.
Among the best biodegraders for natural and synthetic polymers are several mesophilic pure bacterial species such as Pseudomonas, Arthrobacter, Corynebacterium, Bacillus, Rhodococcus, Micrococcus, and Streptomyces [21]. Under laboratory conditions, bacterial isolates cultivated to produce single species biofilms showed variable success in plastic degradation. For example, single species biofilms of Klebsiella pneumoniae CH001 [23] and Rhodococcus sp. [24] promoted the degradation of PE, and the corresponding biofilms of Pseudomonas citronellolis and Bacillus flexus showed degradation activity towards PVC [25]; similarly, B. subtilis ET18 and B. cereus ET30 each formed single species biofilm on nylon and PET, causing damage to the plastic surface [26]. Combinations of two species of bacteria have been shown to enhance plastic-biodegradation potential. Lately, attention has been drawn to the application of more complicated bacterial consortia isolated from plastic-contaminated natural habitats [20]. In spite of the apparent correlation between biofilm formation and biodegradation, the molecular mechanisms of the processes remain too vague, and there is no clear-cut link between plastic depolymerization and enzymatic activities specifically originating from biofilm microbes [27].

1.3.2. Enzymes Participating in Plastic Degradation

One of the most used approaches for monitoring of plastic degradation efficiency is the assay of enzymes involved in the process. The resistance of plastics to microbial attack results from the short time of their presence in nature not being enough for the evolution of new enzyme structures capable of effective polymer degradation [28]. The described enzymes belong to two main classes of enzymes, namely hydrolases and oxidases, and could be esterases, proteases, cutinases, dehydrogenases, or laccases (Table 1). Esterases and lipases (EC 3.1.1.X) hydrolyze plastics by ester bond cleavage in the carbon chain and are active mainly on aliphatic polyesters. High efficiency in PET degradation was demonstrated by the aromatic polyesterase synthesized by Ideonella sakaiensis 201-F6 [2]. Examples of bacterial esterases able to degrade polyurethanes have been reported [29,30,31]. Cutinase (EC is a hydrolase for a variety of polymers, although initially characterized as able to hydrolyze ester bonds in the plant polymer cutin. Great potential for hydrolysis of PET has been suggested for cutinases and their homologues [10]. Proteases (EC 3.4.X) are active on peptide bonds in polyamides, such as different type of nylons [32].
Gram positive (Rhodococcus strains) as well as Gram negative (Sphingomonas and Pseudomonas strains) bacteria that produce oxydases were reported to degrade PVA or PE (Table 1).
Currently, information for enzymes acting on high-molecular-weight plastics such as PS, PVC, PP, polyamide, and PUR is very scarce, and a single degrader is not known [27]. Reports of their degradation mainly concern polymer derivatives and/or degradation by microbial communities without enough information to identify enzymes or pathways that are responsible. Although some degradation of PVC and PP by mixed-species microbial communities was suggested based on weight loss, the observed effect could be attributed not to the polymer degradation of the main chain but to the metabolism of the relevant chemical adjunct molecules [40]. Similarly, polystyrene sulfonate, a derivative of PS, was depolymerized in the presence of certain redox mediators through the action of brown-rot fungi [41].
It is known that extremophilic microorganisms are competent producers of a range of potentially relevant hydrolytic enzymes [42]. The search for new plastic-active enzymes and microorganisms has resulted in interest in relevant extremophilic enzymes due to the changes that occur in polymer properties at extreme values of temperature, pH, salinity, pressure, reduced water content and nutrients, and high radiation.

2. Extreme Environments and Extremophiles

Most currently known extremophiles are either Eubacteria or Archaea. Extremophilic eukaryotes are also known; however, the boundaries of their extremophilicity are usually significantly lower, and consequently, they have less potential than extremophilic prokaryotes to influence the properties of plastics. Although members of Archaea live at the harshest conditions and a presence of archaeal representatives was identified in plastic-degrading consortia from marine samples by molecular techniques [21] a laboratory cultivation of effective archaeal degraders has not yet been reported. For these reasons, extremophilic eukaryotes and Archaea will not be objects of discussion in this review.
“Extreme” is a relative term referring to the ability of some organisms not only to endure but to actively grow in conditions that would be lethal to or too harsh for human existence. It is generally accepted that culturable microorganisms represent a very tiny part (no more than 1%) of the species present in natural ecosystems; this fraction is especially low in samples taken from extreme niches due to difficulties in reproducing such environmental conditions in the laboratory. Consequently, microbes from extreme environments represent an untapped reservoir of microorganisms, enzymes, and biomolecules for different industrial applications. Of special interest for biotechnology, biomedicine, and industrial processes are the enzymes produced by extremophiles (extremozymes) due to their activity in the extreme conditions at which their producers can grow. The unusual properties of extremozymes and metabolic features of their producers may hold the potential for resolving one of society’s biggest problems, namely plastic pollution, and suggest a new approach for bioremediation of polluted extreme environments or the development of novel processes for composting.
Thermophiles, literally heat lovers, are microorganisms that need high temperatures (between 45 and 122 °C) for their growth [43]; as such, they are organisms that grow at temperatures above those that sustain most life forms. According to their growth temperature range, thermophiles are classified in several groups. The optimal temperature for growth of hyperthermophiles is above 80 °C [44]. Typical bacterial hyperthermophiles are representatives of the genera Aquifex and Hydrogenobacter (phylum Aquificae) and Thermotoga (phylum Thermotogae). Extreme thermophiles grow optimally at temperatures between 65 and 80 °C and are often representatives of the genera Thermus (phylum Deinococcus–Thermus) and Rhodothermus (phylum Bacteroidetes), which were isolated from such environments. Obligate thermophiles grow between 50 and 70 °C, with an optimum of 55–65 °C, and the most abundant obligate thermophiles are representatives of the family Bacillaceae, such as the genera Anoxybacillus, Brevibacillus, and Geobacillus [45]. Facultative thermophiles thrive at temperatures 41–50 °C, while thermotolerant microorganisms are mesophilic microorganisms that can tolerate temperatures higher than 41 °C but grow optimally at lower temperatures. The most abundant representatives of these two groups are also members of Bacillaceae. Thermophiles and hyperthermophiles habituate various thermophilic ecosystems such as deep-sea black and white smokers, terrestrial hot springs and geysers, volcanoes, fumaroles, and man-made environments such as compost facilities, steam power plants, and greenhouses. Thermophiles have developed unique mechanisms for active growth in these environment niches, such as amino acid changes in the primary structure of their proteins, shorter protein length, and the participation of heat shock proteins in protein folding; additionally, they have evolved more stable membranes by incorporating branched chain fatty acids and polyamides as well as active systems for repairing DNA damage [45].
Alkaliphiles can grow in alkaline habitats (pH > 9). They are divided into two groups: facultative alkaliphiles (optimal growth at pH 7.0–9.5) and obligate alkaliphiles (optimal growth between pH 10.0 and 12.0) [45]. Mainly alkaliphiles belong to the genera Bacillus, Micrococcus, Pseudomonas, and Streptomyces [45,46]. They have developed systems to regulate the influx of protons and solutes inside the cell by changing ion distribution (e.g., Na+). Alkaline environments include alkaline hyper-saline lakes and some man-made environments that result from agricultural activity.
Psychrophilic microorganisms can grow in the temperature range from −20 to 20 °C, with an optimal growth temperature below 15 °C [47]. They have adapted to low-temperature growth by a number of different strategies, including an increased amount of unsaturated fatty acids and short chain fatty acids in membranes, which prevents a loss of membrane fluidity; high synthesis of cold-shock proteins; synthesis of anti-freeze proteins that bind to ice crystals; accumulation of compatible solutes as cryo-protectants to prevent cell damage; and adaptation of psychrophilic enzymes to activity at low temperature by modifications of their primary structure. Cold environments comprise fresh and marine waters, including deep sea water, polar and high alpine soils, and glaciers, which represent more than 70% of the surface of our planet. The diversity of psychrophilic bacteria comprises genera as Pseudomonas, Psychrobacter, Pseudoalteromonas, Colwellia, Arthrobacter, etc. [48].
Halophilic microorganisms require salt for growth, and according to NaCl concentration in the medium for optimal growth, they are categorized as slight halophiles (1–3%), moderate halophiles (3–15%), or extreme halophiles (above 15%) [49]. The most abundant moderate and extreme halophiles are members of two genera, Halomonas and Chromohalobacter (family Halomonadaceae) [49]. Their natural niches are salterns, saline lakes, oceans, and coastal areas. The intracellular systems of halophiles have been adapted to avoid water losses by two unique strategies: either maintaining more water in the cytoplasm than outside of the cell by osmotic pressure balance achieved by organic compatible solutes, or maintaining high intracellular salt concentration by active salt transportation with participation of bacteriorhodopsin and ATP synthase [45].
As a general principle, evolving in harsh conditions has made extremozymes more rigid and resistant to proteolysis and denaturing agents such as organic solvents and detergents. An attractive feature of thermophilic and halophilic enzymes is the slowing down of the process for enzyme “aging” that allows their storage at room temperature with a longer half-life of commercial preparations. Their long life is beneficial because it potentially prevents a significant loss of enzymatic activity in slow processes such as plastic degradation. Furthermore, many plastic-contaminated niches are characterized by extreme environmental conditions such as low or elevated temperatures, high salt concentrations, acidic or alkaline pH, or high pressure. The available information for plastic degradation by extremophiles predominantly concerns moderate extremophiles. Possible reasons for this could be the short time for evolving metabolic mechanisms of extremophilic adaptation toward these difficult substrates, allied to enhanced sensitivity to substrate or product inhibition in the case of thermophiles, and the low growth rate of psychrophiles that becomes even slower in the presence of such difficult for assimilation substrates.

3. Plastic-Degrading Thermophilic Bacteria

The use of thermophiles for plastic degradation in the biological treatment of polluted thermal habitats is potentially advantageous because of improved substrate bioavailability and solubility as a result of the changes in physical and optical polymer properties at elevated temperatures [14]. Additional advantages of thermophilic biodegradation processes are the higher rates of enzyme activity as a result of the decreased polymer strength, the enhanced diffusion rates of organic compounds, the decreased viscosity of culture liquids, and the reduced risk of microbial contamination. Several thermophiles have shown high potential for polymer degradation due to their ability to grow and produce numerous enzymes in unusual conditions. Examples of thermophilic plastic degraders are shown in Table 2.
Polycaprolactone (PCL), a biodegradable synthetic aliphatic polyester of ε-caprolactone, is characterized by a low melting point (60 °C). Its hydrophobicity and crystallinity resemble those of conventional plastics and determine its large application instead of non-degradable plastics [13]. An effective synergy between two thermophilic bacteria isolated from compost with predominated PCL wastes at 50 °C was reported [54]. PCL degradation by a pure culture of one of the microorganisms, the thermophilic actinomycete Streptomyces thermonitrificans, when analyzed by PDS–GPC (gel permeation chromatography) revealed that a peak corresponding to the molecular weight of the initial PLC polymer began to decrease gradually 72 h after cultivation accompanied by the appearance of oligomeric peaks. Further degradation of the resultant oligomers was demonstrated by the lowering of the relevant peaks, suggesting that this strain could achieve extensive mineralization of PCL, resulting in a 35% decomposition of the plastic after 6 days of composting. However, when Bacillus licheniformis HA1, the synergistic partner isolated from the same compost was added, a significant increase in PCL degradation was observed, reaching a value of 70% after 48 h. It was suggested that while B. llcheniformis HA 1 alone was not able to utilize plastic, it was able to grow by degradation of the intermediates released by S. thermodenitrificans and the consequent altered pH. The synergistic effect resulting from the simultaneous cultivation of both thermophilic strains accelerated PCL degradation and significantly increased the portion of the decomposed polymer. It was suggested that the constant concentration of the primary degrading microorganism was a result of the low rate of plastic degradation. Complete degradation of PCL within 6 h at 45 °C by a thermophilic Streptomyces thermoviolaceus subsp. thermoviolaceus 76T-2 was reported [55]. Two PCL-degrading extracellular enzymes with molecular weights of 25 kDa and 55 kDa were secreted by this microorganism. Thermophilic actinomycetes active on polyhydroxybutyrate (PHB), PCL, or polyethersulfone (PES) were isolated from composting [56]. In a similar report, a reduction of the gravimetric and molecular weights of branched low-density (ld) PE (11 and 30% correspondingly) by a thermophilic bacterium, Brevibaccillus borstelensis strain 707, was registered after 30 days at 50 °C in spite of the fact that it was a poor biofilm former [50]. Although less well characterized, a thermophilic isolate, Bacillus sp. BCBT21, changed the properties and appearance of both high- and low-density polyethylene plastic bags at 55 °C within one month [51].
Polyethylene terephthalate (PET) is largely used for the production of synthetic fibers for the textile industry, and its accumulation leads to environmental pollution [7]. It becomes available for enzymatic hydrolysis at temperature about 65–75 °C due to the enhanced mobility of the amorphous sectors of the polymer chains [57]. Consequently, effective enzymatic degradation of PET could be achieved by thermostable PET hydrolases [58]. Most bacterial isolates able to degrade PET belong to the Gram-positive phylum Actinobacteria, mainly the genera Thermobifida and Thermomonospora, and specifically the species Thermobifida alba [59], Thermobifida halotolerans [60], and Thermomonospora curvata [61]. Approximately 50% degradation of low-crystalline (lc) PET was achieved at 55 °C after 3 weeks of action by the extracellular polyester hydrolase TfH secreted by the thermophilic bacterium Thermobifida fusca [28]. When the recombinant T. fusca cutinase TfCut2 was over-expressed in B. subtilis, it was the dominant protein in the supernatant, which after 42 h of cultivation at 37 °C was able to degrade lcPET film [62]. The amorphous regions were almost completely degraded (97.0%) within 120 h at 70 °C at a linear rate of 20–22% per day. Both endo- and exo-type scissions of the PET polymer chains were confirmed by NMR analysis. Two types of cutinases that share 93% identity in amino acid sequence were isolated from T. fusca [63]. They metabolized the synthetic polyesters and possessed high thermostability. Despite the high similarity between the two enzymes, only Tfu0883 was able to degrade PET at 60 °C, suggesting that the amino acid sequence differences are located at the substrate binding site. This enzyme demonstrated a good tolerance to surfactants, a superior stability in organic solvents, and a superior thermostability. A cutinase able to degrade PET and PCL was cloned from a fosmid library of a leaf–branch compost metagenome and expressed in E. coli [64]. It hydrolyzed various fatty acid monoesters optimally at pH 8.5 and 50 °C. Its half-life was 40 min at 70 °C and 7 min at 80 °C. The anaerobic thermophile Clostridium thermocellum was applied as a whole-cell biocatalyzer combining the enzyme production and hydrolysis of PET in a single step [52]. The weight loss of an amorphous PET film was over 60% after a 14-day incubation at 60 °C. The observed degradation rate of >2.2 mg/day was higher than that for the described whole-cell mesophile Ideonella sakaiensis (>1.4 mg/day) [2].
Nylon is the generic name for a related group of synthetic polyamides characterized by a high resistance to degradation due to crystalline morphology received as a result of strong intermolecular hydrogen bonds between the polymeric chains [65]. Its numerical nomenclature depends on the number of carbon atoms in the monomers used for their manufacture. The thermophilic bacteria Anoxybacillus rupiensis Ir3 used nylon 6 in a minimal medium as a sole carbon and nitrogen source at 65 °C [53]. Geobacillus pallidus strain 26 degraded nylon 12 and 6 at 60 °C, but was not able to degrade the more crystalline nylon 66 [32].
All of the above reported thermophilic plastic degraders belong to the group of facultative and obligate thermophiles, with thermophilic Bacillaceae being a good source of enzymes for plastic transformation bioprocesses, and to the best of our knowledge equivalently competent extreme and hyperthermophiles are currently not known. Similarly to mesophiles, thermophilic Bacillaceae members are a good source of enzymes for plastic transformation bioprocesses.

4. Alkaliphilic Degraders

pH is another environmental factor that can affect both the solubility and softening of plastics. However, the ability to degrade synthetic polymers by acidophilic bacteria has been scarcely investigated. At the same time, acidic pH shortens the life of some plastic products used in bleaching processes at low pH. Information concerning the degrading capability of alkaliphiles is scarce. Low-density (ldPE) polyethylene (PE) was degraded by bacterial strains isolated from hyperalkaline water samples (pH 11) from a spring in the Philippines [66]. Nine strains were isolated after enrichment in a synthetic medium supplemented with ldPE as a sole source of carbon and pH-adjusted to 11. They were phylogenetically affiliated with Bacillus krulwichiae, B. pseudofirmus, Prolinoborus fasciculus, and an unclassified Bacillus sp. Pure cultures of the isolates reduced the polymer weight by up to 9.9%, 8.3%, 5.1%, and 6.3% respectively after 90 days of growth without any pre-treatment of ldPE. In each case, a slow and constantly proliferating biofilm was observed. Furthermore, a significant increase in the effectiveness of PE degradation by a bacterial community isolated from the same spring was observed in the presence of iron oxide nanoparticles (IONPs) [67]. The effect of IONPs was attributed to the properties of the nanoparticles, such as magnetism and electrostatic charge, altering bacterial motion through signal transduction. As a result, higher hydrophobicity of the consortium with IONPs and higher adhesion to the plastic surface were demonstrated. The addition of the IONPs facilitated biofilm formation by the participating strains at pH 11. The weight of the residual polymer was reduced by 18.3% and 13.7% in the presence and absence of IONPs, respectively, after 60 days of incubation. Two strains identified as Bacillus pseudofirmus and B. agaradhaerens were isolated from the biofilm, both of which were classified as obligate. The effectiveness of PE degradation by the pure strains was investigated. Corresponding polymer weight losses of 6.46% and 8.36% were observed for pure cultures of the isolates in the absence of IONPs, which increased to 9.62% and 11.32% in the presence of IONPs. The same albeit enhanced trend was observed with both the unsupplemented and IONP-supplemented biofilm communities, the former of which even in the absence of the iron oxide nanoparticles was more effective than either of the strains isolated from the community.
Currently available information suggests that most identified alkaliphilic plastic degraders are obligate alkaliphilic species of the family Bacilliaceae, a trend shared with the known thermophilic plastic-degrading eubacteria.

5. Halophilic Degraders

There is growing evidence for the bioremediation of plastics in marine and other natural saline environments, such as salt marshes, as well as in salt-rich industrial wastewaters. Most of the characterized halophilic microorganisms have been found to be moderate or only slight extremophiles, with species of the genus Erythrobacter being predominant. Some examples of halophilic marine microorganisms able to degrade plastics are shown in Table 3. Significantly, the role of multi-species microbial biofilms in promoting plastic degradation in such environments has become increasingly recognized in recent years. A survey of different niches of seawater in the Western Mediterranean Sea [68] consistently found that in each sampled area, not only the highest number but also the highest density of bacteria was detected attached to plastic debris when compared with both sessile bacteria attached to other organic particles and free-living bacteria. The plastic debris typically consisted of polyethylene (PE) (72.2%), followed by polypropylene (PP) (18.0%) and polystyrene (PS) (2.8%), as revealed by FTIR analysis. By characterizing the operational taxonomic units (OTUs) in the total DNA extracted from each of the samples, it was found that the dominant microorganisms freely living in water belonged to Alphaproteobacteria (45.0%, mainly Pelagibacter sp.), followed by Cyanobacteria (24.3%, mainly Synechococcus sp.), Flavobacteria, and Gammaproteobacteria (11.3% and 11.1%, respectively). In contrast, equivalent analyses confirmed that the dominant microorganisms sourced from plastic debris were Cyanobacteria (40.8%, mainly Pleurocapsa sp.) and Alphaproteobacteria (32.2%, mainly Roseobacter sp. and Erythrobacter sp.), while the dominant microorganisms sourced from other organic particles were Alphaproteobacteria (25.9%, mainly Erythrobacter sp.), Gammaproteobacteria (25.0%, mainly Alteromonas sp.), and Cyanobacteria (17.9%, mainly Synechococcus sp.). It was suggested that the relatively large recorded presence of Cyanobacteria species on plastic debris was not only determined by their established important role in biofilm formation [69], but also possibly by some activity towards plastic debris. Specifically identified strains belonged predominantly to two genera, Calothrix sp. and Pleurocapsa, which are known halophiles often isolated from marine environments. Analysis of the OTUs sourced from plastic debris also confirmed that Erythrobacter species were predominant (43%) amongst the detected hydrocarbonoclastic bacteria, and that two other moderate halophilic genera, Hyphomonas and Phorimidium, were present in significantly higher levels than in samples sourced from water and organic particles.
Comparison of the biological diversity in biofilms formed on PS samples incubated in Black Sea water at 10 °C and industrial water from a petrochemical plant revealed different community composition [70]. It was suggested that the significant difference in salinity may be reflected in the active growth of slight halophiles in sea water samples (1.86% salinity) and non-extremophiles in industrial water samples (~0.1% salinity). High-throughput sequencing of the V3–V4 region of the 16S rRNA genes were used to characterize the microbial composition of the biofilms. Erythrobacter (Alphaproteobacteria) increased during the incubation and became a dominant genus in the biofilm growing on seawater-incubated PS samples after 60 days of incubation, while the portion of other genera like Pelagicoccus (Verrucomicrobiota), Pseudohongiella (Gammaproteobacteria), and Planctomicrobium (Planctomycetota) decreased. The cyclic formation and removal of biofilms throughout the 60-day incubation period resulted in a more intensive biodegradation of the polymer. The participation of a putative enzyme phenylacetaldehyde dehydrogenase (EC was suggested in PS degradation on the basis of iVikodak metagenomic analysis [71]. Based on the metabolic pathways of different taxa, this enzyme was most likely to be affiliated with the detected species of the genera Pseudomonas, Arenimonas, and Acidovorax in the industrial water samples and with detected species of the genera Erythrobacter, Maribacter, and Mycobacterium in the seawater samples. The same enzyme is known to be involved in phenylalanine metabolism [72], but its relationship to the mechanism of PS degradation is poorly understood and requires further clarification.
Polyethylene terephthalate biodegradation was investigated in Black Sea, fresh, and industrial waters with respective salinities of 18.6, 0.09–0.3, and 1.3 g/L [73]. Investigation of microbial diversity in consortia isolated from these environments revealed a universal presence of representatives of the phyla Bacteroidetes, Gammaproteobacteria, and Alphaproteobacteria, albeit in different proportions. PET degradation in samples from the industrial water was attributed to the specific presence of the genera Pseudomonas and Acidovorax due to the detected presence of genes responsible for terephthalic acid degradation in their genomes. This hypothesis was confirmed by photomicrography that revealed a local change in PET surface after exposure in industrial water, while similar changes were not observed for marine PET samples.
The involvement of sessile microbial communities in the biodegradation of other types of plastic has been recognized. Biofilm formation on PCL and PVA was observed by SEM (Figure 5) for a microbial community from Pomorie salterns (28% salinity), Southeast Bulgaria [74].
Table 3. Various literature reports on plastic biodegradation by psychrophilic and halophilic microorganisms.
Table 3. Various literature reports on plastic biodegradation by psychrophilic and halophilic microorganisms.
Plastic Degradation Type PolymerMicroorganism Isolation SourcePhysico-Chemical Parameters of Environment Effectiveness of DegradationReference
Non-biodegradablePolyethylene (72.2%) + PP (18.0%) and PS (2.8%)Cyanobacteria (Calothrix, Pleurocapsa, Phormidium), ErythrobacterWestern Mediterranean Sea 3.87% salinitynot reported[68]
PolystyreneCommunity, ErythrobacterBlack Sea water1.86% salinitynot reported[70]
Polyurethane CommunityBaltic Sea10 °C, pH 8.0, 1.86% salinity19% weight loss for PU-A, 4% weight loss for PU-B after 12 months [75]
BiodegradablePolycaprolactoneShewanella, Moritella, Psychrobacter, and PseudomonasKurile and Japan Trenchesdepth of 5000–7000 m, 4 °Cnot reported[76]

6. Psychrophilic Degraders

Approximately 70% of the Earth is covered by marine water, 90% of which maintains a constant temperature of ~5 °C regardless of latitude [77]. As a result, a predominant part of the Earth’s surface provides a suitable environment for the development of psychrophiles. Often marine microorganisms are multiple extremophiles, such as psychro-halophiles, psychro-piezophiles, or psychro-alkaliphiles [77]. Most of the plastic-degrading bacteria identified in cold environments belong to the genera Shewanella, Moritella, and Psychrobacter, class Gammaproteobacteria.
Some examples of psychrophilic marine degraders are shown in Table 3. While it has been proposed that such microorganisms play a role in degrading the plastics in marine ecosystems, there is currently insufficient knowledge to understand the influence of plastics on microbial life, function, and community structure in these environments [21]. However, it is recognized that attachment to surfaces and growth within the resultant biofilms constitute an important survival adaptation of bacteria under the conditions of cold marine environments. Biofilms formed on plastic debris provide a more secure environment protected from environmental hazards, and the biofilm structure promotes the switch-on of metabolic reactions in the microbial assemblages that may result in fragmentation and even breakdown of the debris [78]. The existing tendency of additive supplementation to the most explored synthetic plastics for better biodegradability determined the interest in the biodegradation of such substituents. The Baltic Sea is a cold niche, reaching the freezing point in winter and still very cool in summer, and is thus favorable for a growth of psychrophilic bacteria. Consequently, it was chosen as the environment to compare the biodegradability of uncross linked poly(ethylene-butylene-adipate) (PU-A) and slightly crosslinked poly-(ε-caprolactone) (PU-B), two poly(ester-urethane) plastics with different structural characteristics [75]. Samples of both plastics were exposed to the seawater in Gdansk harbor (about 10 °C and pH ~8). After 12 months, a loss of tensile strength, discoloration, and cracking were recorded with both materials, but were more significant for un-crosslinked PU-A. The efficiency of degradation for PU-A was 19% weight loss, while for PU-B it was 4% weight loss. An active enzymatic hydrolysis of ester bonds was suggested as a primary step in the degradation of un-crosslinked molecules of PU-A, followed by crystallinity and network structure attack.
According to the United Nations Environment Program (UNEP) [79], natural plastic degradation in surface waters is usually performed at a higher rate than in bottom waters due to reduced sunlight (UV) penetration and colder temperatures in depth waters. At the same time, a decrease in plastic strength due to increased pressure at depth water should be considered. Thirteen strains that degrade PCL were isolated from deep seawaters at depth of 300–600 m [76]. The isolates were incubated at 4 °C and 50 MPa. Among the isolates, eight belonged to Moritella, three to Shewanella, one to Psychrobacter, and one to Pseudomonas. Investigation of the effects of temperature and hydrostatic pressure on the growth of the isolates revealed that all of the Shewanella and Moritella isolates are polyextremophilic psychrophilic and high-pressure adapted bacteria. Their degradation activity was confirmed by the halo-formation method and transmission electron microscopy.
Some examples of marine microorganisms (halophiles and/or psychrophiles) able to degrade plastics are shown in Table 3.
Thirteen PCL degrading bacteria belonging to the genera Shewanella, Moritella, Psychrobacter, and Pseudomonas were isolated from the Kurile and Japan Trenches at a depth of 5000–7000 m [76]. Three of the isolates demonstrated typical piezophilic growth and four were piezo-tolerant. Based on their activity on PCL and growth profiles under different hydrostatic pressures, an active microbial role in the degradation of aliphatic polyesters under deep-sea bottom conditions was suggested. Deep-sea sediment bacterial isolates identified as Pseudomonas sp. and Lysinibacillus sp. showed biofilm-related potential for high density PE biodegradation even within a short, 24 h test interval [80]. These microorganisms produced increased extracellular matrixes that improve cell adhesion to plastic surface. A good correlation between biofilm biomass and changes to PE structure was observed.

7. Conclusions

Recently, scientific and technological interests have been focused on developing highly effective enzyme processes for managing the negative impact of plastic pollution on human and wild life. The use of extremophilic microorganisms and their enzymes is a promising way to address this very serious social concern. Extreme conditions contribute to plastic degradation by extremophiles by a higher enzyme rate as a result of plastics’ softening and disruption of plastics’ mechanical integrity. Biodegradation by extremophiles under unique environmental conditions or in waste treatment facilities opens the way for reducing disposed plastic waste. Despite the relatively short evolution time, a significant number of extremophilic microorganisms have adapted to grow in these environments by plastic degradation and in such a way play an important role in the biological remediation of contaminated extreme environments. An intensive search for the identification of new microorganisms from extreme niches is quite promising because of their ability to develop different adaptation mechanisms. However, their industrial application is still limited because of the technical difficulties in their cultivation, their lower biomass and productivity yield, the reduced specific activity of their enzymes (the rigidity of the thermophilic enzyme molecule limits the enzyme–substrate complex rate formation), and the sensitivity of enzyme synthesis and activity to substrate or product inhibition. The available information reveals that extremophilic degraders belong mainly to slight and modest extremophiles. Two reasons could be suggested for this: firstly, very extreme conditions significantly decrease biological diversity and correspondingly the chance for evolving of microorganisms able to degrade plastic; and secondly, the growth rate at these very extreme conditions is usually low, and bacterial growth cannot be totally supported by such hard-to-degrade polymers. It is possible that after a longer evolutional adaptation to plastics’ availability in nature, extreme degraders will also appear. Another objective could be the development of relevant metagenome technologies that permit searching for and expression of genes for novel enzymes or variants of known enzymes with improved relevant properties directly from environmental metagenomes, as well as modifying the enzymes by a genetic engineering approach. The prospect for developing effective processes on the basis of extremophilic bacteria and their properties was the objective of the current review, which to the best of our knowledge is a first attempt at summarizing the restricted information on plastic degradation by extremophiles.

Author Contributions

N.A. worked on thermophilic and psychrophilic degraders; S.S. worked on biofilms and biofilm-forming degraders, aided in interpreting the results, and worked on the manuscript; T.P.-K. worked on enzymes involved and biofilm microscopy; M.K. worked on general features of the problem with plastic pollution, plastics’ microbial degradation, and types of extremophiles. All authors have read and agreed to the published version of the manuscript.


This study was supported by the National Fund for Scientific Research, Bilateral Projects 2019—BULGARIA—RUSSIA (Grant KP-06-Russia-17).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Plastics Europe. Plastics-The Facts 2020: An Analysis of European Plastics Production, Demand and Waste Data. Available online: (accessed on 23 March 2021).
  2. Yoshida, S.; Hiraga, K.; Takehana, T.; Taniguchi, I.; Yamaji, H.; Maeda, Y.; Toyohara, K.; Miyamoto, K.; Kimura, Y.; Oda, K. A bacterium that degrades and assimilates poly(ethylene terephthalate). Science 2016, 351, 1196–1199. [Google Scholar] [CrossRef] [PubMed]
  3. Lambert, S.; Wagner, M. Microplastics Are Contaminants of Emerging Concern in Freshwater Environments: An Overview; Springer Science and Business Media LLC: Berlin/Heidelberg, Germany, 2018; pp. 1–23. [Google Scholar]
  4. Lebreton, L.; Andrady, A. Future scenarios of global plastic waste generation and disposal. Palgrave Commun. 2019, 5, 6. [Google Scholar] [CrossRef] [Green Version]
  5. Sumathi, T.; Viswanath, B.; Lakshmi, A.S.; SaiGopal, D.V.R. Production of Laccase byCochliobolussp. Isolated from Plastic Dumped Soils and Their Ability to Degrade Low Molecular Weight PVC. Biochem. Res. Int. 2016, 2016, 9519527. [Google Scholar] [CrossRef] [PubMed]
  6. World Economic Forum. The Future of the Plastics Industry Is Green. 2021. Available online: (accessed on 23 March 2021).
  7. Geyer, R.; Jambeck, J.; Law, K.L. Production, use, and fate of all plastics ever made. Sci. Adv. 2017, 3, e1700782. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Jambeck, J.R.; Geyer, R.; Wilcox, C.; Siegler, T.R.; Perryman, M.; Andrady, A.; Narayan, R.; Law, K.L. Plastic waste inputs from land into the ocean. Science 2015, 347, 768–771. [Google Scholar] [CrossRef] [PubMed]
  9. Ragaert, K.; Delva, L.; Van Geem, K. Mechanical and chemical recycling of solid plastic waste. Waste Manag. 2017, 69, 24–58. [Google Scholar] [CrossRef] [PubMed]
  10. Wei, R.; Zimmermann, W. Biocatalysis as a green route for recycling the recalcitrant plastic polyethylene terephthalate. Microb. Biotechnol. 2017, 10, 1302–1307. [Google Scholar] [CrossRef] [PubMed]
  11. Webb, H.K.; Arnott, J.; Crawford, R.J.; Ivanova, E.P. Plastic Degradation and Its Environmental Implications with Special Reference to Poly(ethylene terephthalate). Polymers 2012, 5, 1–18. [Google Scholar] [CrossRef] [Green Version]
  12. Mir, S.; Asghar, B.; Khan, A.K.; Rashid, R.; Shaikh, A.; Khan, R.A.; Murtaza, G. The effects of nanoclay on thermal, mechanical and rheological properties of LLDPE/chitosan blend. J. Polym. Eng. 2017, 37, 143–149. [Google Scholar] [CrossRef]
  13. Tokiwa, Y.; Calabia, B.P.; Ugwu, C.U.; Aiba, S. Biodegradability of Plastics. Int. J. Mol. Sci. 2009, 10, 3722–3742. [Google Scholar] [CrossRef]
  14. Ahmed, T.; Shahid, M.; Azeem, F.; Rasul, I.; Shah, A.A.; Noman, M.; Hameed, A.; Manzoor, N.; Manzoor, I.; Muhammad, S. Biodegradation of plastics: Current scenario and future prospects for environmental safety. Environ. Sci. Pollut. Res. 2018, 25, 7287–7298. [Google Scholar] [CrossRef] [PubMed]
  15. Dussud, C.; Ghiglione, J.F. Bacterial degradation of synthetic plastics. CIESM Workshop Monogr. 2014, 46, 49–54. Available online: (accessed on 25 March 2021).
  16. Debroas, D.; Mone, A.; Ter Halle, A. Plastics in the North Atlantic garbage patch: A boat-microbe for hitchhikers and plastic degraders. Sci. Total. Environ. 2017, 599–600, 1222–1232. [Google Scholar] [CrossRef]
  17. Vijaya, C.; Reddy, R.M. Impact of soil composting using municipal solid waste on biodegradation of plastics. Indian J. Biotechnol. 2008, 7, 235–239. [Google Scholar]
  18. Muhamad, W.N.A.W.; Othman, R.; Shaharuddin, R.I.; Irani, M.S. Microorganism as plastic biodegradation agent towards sustainable environment. Adv. Environ. Biol. 2015, 9, 8–13. [Google Scholar]
  19. Ganesh, K.A.; Anjana, K.; Hinduja, M.; Sujitha, K.; Dharani, G. Review on plastic wastes in marine environment–Biodegradation and biotechnological solutions. Mar. Pollut. Bull. 2020, 150, 110733. [Google Scholar]
  20. Ghosh, S.; Qureshi, A.; Purohit, H. Microbial degradation of plastics: Biofilms and degradation pathways. In Contaminants in Agriculture and Environment: Health Risks and Remediation; Agro Environ Media: Haridwar, India, 2019; Volume 1, pp. 184–199. [Google Scholar]
  21. Jacquin, J.; Cheng, J.; Odobel, C.; Pandin, C.; Conan, P.; Pujo-Pay, M.; Barbe, V.; Meistertzheim, A.-L.; Ghiglione, J.-F. Microbial Ecotoxicology of Marine Plastic Debris: A Review on Colonization and Biodegradation by the “Plastisphere”. Front. Microbiol. 2019, 10, 865. [Google Scholar] [CrossRef] [Green Version]
  22. Pinto, M.; Langer, T.M.; Hüffer, T.; Hofmann, T.; Herndl, G.J. The composition of bacterial communities associated with plastic biofilms differs between different polymers and stages of biofilm succession. PLoS ONE 2019, 14, e0217165. [Google Scholar] [CrossRef] [Green Version]
  23. Awasthi, S.; Srivastava, P.; Singh, P.; Tiwary, D.; Mishra, P.K. Biodegradation of thermally treated high-density polyethylene (HDPE) by Klebsiella pneumoniae CH001. Biotech 2017, 7, 332. [Google Scholar] [CrossRef]
  24. Gilan, I.; Hadar, Y.; Sivan, A. Colonization, biofilm formation and biodegradation of polyethylene by a strain of Rhodococcus ruber. Appl. Microbiol. Biotechnol. 2004, 65, 97–104. [Google Scholar] [CrossRef]
  25. Giacomucci, L.; Raddadi, N.; Soccio, M.; Lotti, N.; Fava, F. Polyvinyl chloride biodegradation by Pseudomonas citronellolis and Bacillus flexus. New Biotechnol. 2019, 52, 35–41. [Google Scholar] [CrossRef] [PubMed]
  26. Demirkan, E.; Guller, B.E.; Sevgi, T. Analysis by scanning electron microscopy of polyethylene terephthalate and nylon biodegradation abilities of Bacillus sp. strains isolated from soil. J. Biol. Environ. Sci. 2020, 14, 107–114. [Google Scholar]
  27. Danso, D.; Chow, J.; Streit, W.R. Plastics: Environmental and Biotechnological Perspectives on Microbial Degradation. Appl. Environ. Microbiol. 2019, 85, e01095-19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Müller, R.-J.; Schrader, H.; Profe, J.; Dresler, K.; Deckwer, W.-D. Enzymatic Degradation of Poly(ethylene terephthalate): Rapid Hydrolyse using a Hydrolase from T. fusca. Macromol. Rapid Commun. 2005, 26, 1400–1405. [Google Scholar] [CrossRef]
  29. Rowe, L.; Howard, G.T. Growth of Bacillus subtilis on polyurethane and the purification and characterization of a polyurethanase-lipase enzyme. Int. Biodeterior. Biodegrad. 2002, 50, 33–40. [Google Scholar] [CrossRef]
  30. Oceguera-Cervantes, A.; Carrillo-García, A.; López, N.; Bolaños-Nuñez, S.; Cruz-Gómez, M.J.; Wacher, C.; Loza-Tavera, H. Characterization of the Polyurethanolytic Activity of Two Alicycliphilus sp. Strains Able to Degrade Polyurethane and N-Methylpyrrolidone. Appl. Environ. Microbiol. 2007, 73, 6214–6223. [Google Scholar] [CrossRef] [Green Version]
  31. Magnin, A.; Pollet, E.; Perrin, R.; Ullmann, C.; Persillon, C.; Phalip, V.; Avérous, L. Enzymatic recycling of thermoplastic polyurethanes: Synergistic effect of an esterase and an amidase and recovery of building blocks. Waste Manag. 2019, 85, 141–150. [Google Scholar] [CrossRef]
  32. Tomita, K.; Hayashi, N.; Ikeda, N.; Kikuchi, Y. Isolation of a thermophilic bacterium degrading some nylons. Polym. Degrad. Stab. 2003, 81, 511–514. [Google Scholar] [CrossRef]
  33. Almeida, E.L.; Rincón, A.F.C.; Jackson, S.A.; Dobson, A.D.W. In silico Screening and Heterologous Expression of a Polyethylene Terephthalate Hydrolase (PETase)-Like Enzyme (SM14est) With Polycaprolactone (PCL)-Degrading Activity, From the Marine Sponge-Derived Strain Streptomyces sp. SM14. Front. Microbiol. 2019, 10, 2187. [Google Scholar] [CrossRef] [Green Version]
  34. Oda, Y.; Oida, N.; Urakami, T.; Tonomura, K. Polycaprolactone depolymerase produced by the bacterium Alcaligenes faecalis. FEMS Microbiol. Lett. 2006, 152, 339–343. [Google Scholar] [CrossRef]
  35. Negoro, S. Biodegradation of nylon oligomers. Appl. Microbiol. Biotechnol. 2000, 54, 461–466. [Google Scholar] [CrossRef]
  36. Hirota-Mamoto, R.; Nagai, R.; Tachibana, S.; Yasuda, M.; Tani, A.; Kimbara, K.; Kawai, F. Cloning and expression of the gene for periplasmic poly(vinyl alcohol) dehydrogenase from Sphingomonas sp. strain 113P3, a novel-type quinohaemoprotein alcohol dehydrogenase. Microbiology 2006, 152, 1941–1949. [Google Scholar] [CrossRef] [Green Version]
  37. Yoon, M.G.; Jeon, H.J. Biodegradation of Polyethylene by a Soil Bacterium and AlkB Cloned Recombinant Cell. J. Bioremediation Biodegrad. 2012, 3, 145. [Google Scholar] [CrossRef] [Green Version]
  38. Santo, M.; Weitsman, R.; Sivan, A. The role of the copper-binding enzyme–laccase–in the biodegradation of polyethylene by the actinomycete Rhodococcus ruber. Int. Biodeterior. Biodegradation 2013, 84, 204–210. [Google Scholar] [CrossRef]
  39. Takei, D.; Washio, K.; Morikawa, M. Identification of alkane hydroxylase genes in Rhodococcus sp. strain TMP2 that degrades a branched alkane. Biotechnol. Lett. 2008, 30, 1447–1452. [Google Scholar] [CrossRef] [Green Version]
  40. Iakovlev, V.V.; Guelcher, S.A.; Bendavid, R. Degradation of polypropylenein vivo: A microscopic analysis of meshes explanted from patients. J. Biomed. Mater. Res. Part B Appl. Biomater. 2015, 105, 237–248. [Google Scholar] [CrossRef]
  41. Krueger, M.C.; Hofmann, U.; Moeder, M.; Schlosser, D. Potential of Wood-Rotting Fungi to Attack Polystyrene Sulfonate and Its Depolymerisation by Gloeophyllum trabeum via Hydroquinone-Driven Fenton Chemistry. PLoS ONE 2015, 10, e0131773. [Google Scholar] [CrossRef]
  42. Kour, D.; Rana, K.L.; Kaur, T.; Singh, B.; Chauhan, V.S.; Kumar, A.; Rastegari, A.A.; Yadav, N.; Yadav, A.N.; Gupta, V.K. Extremophiles for Hydrolytic Enzymes Productions: Biodiversity and Potential Biotechnological Applications. In Bioprocessing for Biomolecules Production; Wiley &Sons: Hoboken, NJ, USA, 2019; pp. 321–372. [Google Scholar]
  43. Takai, K.; Nakamura, K.; Toki, T.; Tsunogai, U.; Miyazaki, M.; Miyazaki, J.; Hirayama, H.; Nakagawa, S.; Nunoura, T.; Horikoshi, K. Cell proliferation at 122 C and isotopically heavy CH4 production by a hyperthermophilic methanogen under high-pressure cultivation. Proc. Natl. Acad. Sci. USA 2008, 105, 10949–10954. [Google Scholar] [CrossRef] [Green Version]
  44. Berenguer, J. Thermophile. In Encyclopedia of Astrobiology; Springer Science and Business Media LLC: Berlin/Heidelberg, Germany, 2011; pp. 1666–1667. [Google Scholar]
  45. Orellana, R.; Macaya, C.; Bravo, G.; Dorochesi, F.; Cumsille, A.; Valencia, R.; Rojas, C.; Seeger, M. Living at the Frontiers of Life: Extremophiles in Chile and Their Potential for Bioremediation. Front. Microbiol. 2018, 9, 2309. [Google Scholar] [CrossRef]
  46. Preiss, L.; Hicks, D.B.; Suzuki, S.; Meier, T.; Krulwich, T.A. Alkaliphilic Bacteria with Impact on Industrial Applications, Concepts of Early Life Forms, and Bioenergetics of ATP Synthesis. Front. Bioeng. Biotechnol. 2015, 3, 75. [Google Scholar] [CrossRef] [Green Version]
  47. Clarke, A.; Morris, G.J.; Fonseca, F.; Murray, B.J.; Acton, E.; Price, H.C. A Low Temperature Limit for Life on Earth. PLoS ONE 2013, 8, e66207. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Nogi, Y. Taxonomy of Psychrophiles. In Extremophiles Handbook; Springer Science and Business Media LLC: Berlin/Heidelberg, Germany, 2011; pp. 777–792. [Google Scholar]
  49. Ventosa, A.; de la Haba, R.R.; Sánchez-Porro, C.; Papke, R.T. Microbial diversity of hypersaline environments: A metagenomic approach. Curr. Opin. Microbiol. 2015, 25, 80–87. [Google Scholar] [CrossRef] [PubMed]
  50. Hadad, D.; Geresh, S.; Sivan, A. Biodegradation of polyethylene by the thermophilic bacterium Brevibacillus borstelensis. J. Appl. Microbiol. 2005, 98, 1093–1100. [Google Scholar] [CrossRef] [PubMed]
  51. Dang, T.C.H.; Nguyen, D.T.; Thai, H.; Nguyen, T.C.; Tran, T.T.H.; Le, V.H.; Nguyen, V.H.; Tran, X.B.; Pham, T.P.T.; Nguyen, T.G.; et al. Plastic degradation by thermophilic Bacillus sp. BCBT21 isolated from composting agricultural residual in Vietnam. Adv. Nat. Sci. Nanosci. Nanotechnol. 2018, 9, 015014. [Google Scholar] [CrossRef]
  52. Yan, F.; Wei, R.; Cui, Q.; Bornscheuer, U.T.; Liu, Y. Thermophilic whole-cell degradation of polyethylene terephthalate using engineered Clostridium thermocellum. Microb. Biotechnol. 2021, 14, 374–385. [Google Scholar] [CrossRef]
  53. Mahdi, M.S.; Ameen, R.S.; Ibrahim, H.K. Study on degradation of nylon 6 by thermophilic bacteria Anoxybacillus rupiensis Ir3 (JQ912241). International Journal of Advanced Research in Biological Sciences (IJARBS). Int. J. Adv. Res. Biol. Sci. 2016, 3, 200–209. [Google Scholar] [CrossRef]
  54. Nakasaki, K.; Matsuura, H.; Tanaka, H.; Sakai, T. Synergy of two thermophiles enables decomposition of poly-É›-caprolactone under composting conditions. FEMS Microbiol. Ecol. 2006, 58, 373–383. [Google Scholar] [CrossRef]
  55. Chua, T.-K.; Tseng, M.; Yang, M.-K. Degradation of Poly(ε-caprolactone) by thermophilic Streptomyces thermoviolaceus subsp. thermoviolaceus 76T-2. AMB Express 2013, 3, 8. [Google Scholar] [CrossRef] [Green Version]
  56. Tseng, M.; Hoang, K.-C.; Yang, M.-K.; Yang, S.-F.; Chu, W.S. Polyester-degrading thermophilic actinomycetes isolated from different environment in Taiwan. Biodegradation 2007, 18, 579–583. [Google Scholar] [CrossRef]
  57. Ru, J.; Huo, Y.; Yang, Y. Microbial Degradation and Valorization of Plastic Wastes. Front. Microbiol. 2020, 11, 442. [Google Scholar] [CrossRef] [Green Version]
  58. Kawai, F.; Kawabata, T.; Oda, M. Current knowledge on enzymatic PET degradation and its possible application to waste stream management and other fields. Appl. Microbiol. Biotechnol. 2019, 103, 4253–4268. [Google Scholar] [CrossRef] [Green Version]
  59. Hu, X.; Thumarat, U.; Zhang, X.; Tang, M.; Kawai, F. Diversity of polyester-degrading bacteria in compost and molecular analysis of a thermoactive esterase from Thermobifida alba AHK119. Appl. Microbiol. Biotechnol. 2010, 87, 771–779. [Google Scholar] [CrossRef]
  60. Ribitsch, D.; Acero, E.H.; Greimel, K.; Dellacher, A.; Zitzenbacher, S.; Marold, A.; Rodriguez, R.D.; Steinkellner, G.; Gruber, K.; Schwab, H.; et al. A New Esterase from Thermobifida halotolerans Hydrolyses Polyethylene Terephthalate (PET) and Polylactic Acid (PLA). Polymers 2012, 4, 617–629. [Google Scholar] [CrossRef]
  61. Wei, R.; Oeser, T.; Then, J.; Kühn, N.; Barth, M.; Schmidt, J.; Zimmermann, W. Functional characterization and structural modeling of synthetic polyester-degrading hydrolases from Thermomonospora curvata. AMB Express 2014, 4, 44. [Google Scholar] [CrossRef] [Green Version]
  62. Wei, R.; Breite, D.; Song, C.; Gräsing, D.; Ploss, T.; Hille, P.; Schwerdtfeger, R.; Matysik, J.; Schulze, A.; Zimmermann, W. Biocatalytic Degradation Efficiency of Postconsumer Polyethylene Terephthalate Packaging Determined by Their Polymer Microstructures. Adv. Sci. 2019, 6, 1900491. [Google Scholar] [CrossRef] [Green Version]
  63. Chen, S.; Su, L.; Billig, S.; Zimmermann, W.; Chen, J.; Wu, J. Biochemical characterization of the cutinases from Thermobifida fusca. J. Mol. Catal. B Enzym. 2010, 63, 121–127. [Google Scholar] [CrossRef]
  64. Sulaiman, S.; Yamato, S.; Kanaya, E.; Kim, J.-J.; Koga, Y.; Takano, K.; Kanaya, S. Isolation of a Novel Cutinase Homolog with Polyethylene Terephthalate-Degrading Activity from Leaf-Branch Compost by Using a Metagenomic Approach. Appl. Environ. Microbiol. 2011, 78, 1556–1562. [Google Scholar] [CrossRef] [Green Version]
  65. Morales-Gámez, L.; Soto, D.; Franco, L.; Puiggalí, J. Brill transition and melt crystallization of nylon 56: An odd–even polyamide with two hydrogen-bonding directions. Polymers 2010, 51, 5788–5798. [Google Scholar] [CrossRef]
  66. Torre, D.Y.Z.D.; Santos, L.A.D.; Reyes, M.L.C.; Baculi, R.Q. Biodegradation of low-density polyethylene by bacteria isolated from serpentinization-driven alkaline spring. Philipp. Sci. Lett. 2018, 11, 1–12. [Google Scholar]
  67. Cada, E.J.G.; Muyot, M.L.C.; Sison, J.M.C.; Baculi, R.Q. Enhanced in vitro biodegradation of low-density polyethylene using alkaliphilic bacterial consortium supplemented with iron oxide nanoparticles. Philipp. Sci. Lett. 2019, 12, 55–69. [Google Scholar]
  68. Dussud, C.; Meistertzheim, A.; Conan, P.; Pujo-Pay, M.; George, M.; Fabre, P.; Coudane, J.; Higgs, P.; Elineau, A.; Pedrotti, M.; et al. Evidence of niche partitioning among bacteria living on plastics, organic particles and surrounding seawaters. Environ. Pollut. 2018, 236, 807–816. [Google Scholar] [CrossRef] [PubMed]
  69. Rossi, F.; De Philippis, R. Role of Cyanobacterial Exopolysaccharides in Phototrophic Biofilms and in Complex Microbial Mats. Life 2015, 5, 1218–1238. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Tourova, T.; Sokolova, D.; Nazina, T.; Grouzdev, D.; Kurshev, E.; Laptev, A. Biodiversity of Microorganisms Colonizing the Surface of Polystyrene Samples Exposed to Different Aqueous Environments. Sustainability 2020, 12, 3624. [Google Scholar] [CrossRef]
  71. Nagpal, S.; Haque, M.M.; Singh, R.; Mande, S.S. iVikodak—A Platform and Standard Workflow for Inferring, Analyzing, Comparing, and Visualizing the Functional Potential of Microbial Communities. Front. Microbiol. 2019, 9, 3336. [Google Scholar] [CrossRef] [Green Version]
  72. Schmitt, G.; Arndt, F.; Kahnt, J.; Heider, J. Adaptations to a Loss-of-Function Mutation in the Betaproteobacterium Aromatoleum aromaticum: Recruitment of Alternative Enzymes for Anaerobic Phenylalanine Degradation. J. Bacteriol. 2017, 199, e00383-17. [Google Scholar] [CrossRef] [Green Version]
  73. Tourova, T.P.; Sokolova, D.S.; Nazina, T.N.; Gruzdev, D.S.; Laptev, A.B. Phylogenetic Diversity of Microbial Communities from the Surface of Polyethylene Terephthalate Materials Exposed to Different Water Environments. Microbiology 2020, 89, 96–106. [Google Scholar] [CrossRef]
  74. Paunova-Krasteva, T.; Atanasova, N.; Radchenkova, N.; Boyadzhieva, I.; Stoitsova, S.; Kambourova, M.; Taktarova, Y.; Malakhova, D.; Tsavkelova, E.; Egorova, M.; et al. Plastic Degradation by Extremophilic Microbial Communities. In Proceedings of the International Seminar of Ecology, Sofia, Bulgaria, 23–24 April 2020; Available online: (accessed on 28 March 2021).
  75. Heimowska, A.; Rutkowska, M. Environmental Degradability of Polyurethanes. In Thermoplastic Elastomers-Synthesis and Applications; IntechOpen: London, UK, 2015; pp. 75–94. [Google Scholar]
  76. Sekiguchi, T.; Sato, T.; Enoki, M.; Kanehiro, H.; Uematsu, K.; Kato, C. Isolation and characterization of biodegradable plastic degrading bacteria from deep-sea environments. JAMSTEC Rep. Res. Dev. 2011, 11, 33–41. [Google Scholar] [CrossRef] [Green Version]
  77. Moyer, C.L.; Morita, R.Y. Psychrophiles and Psychrotrophs. In eLS; Wiley &Sons: Hoboken, NJ, USA, 2007; pp. 1–5. [Google Scholar]
  78. Urbanek, A.K.; Rymowicz, W.; Mirończuk, A.M. Degradation of plastics and plastic-degrading bacteria in cold marine habitats. Appl. Microbiol. Biotechnol. 2018, 102, 7669–7678. [Google Scholar] [CrossRef] [Green Version]
  79. UNEP. Plastic Debris in the Ocean. UNEP Year Book 2014 Emerging Issues Update. Available online: (accessed on 30 March 2021).
  80. Oliveira, M.M.; Proenca, A.M.; Moreira-Silva, E.; de Castro, A.M.; dos Santos, F.M.; Marconatto, L.; Medina-Silva, R. Biofilms of Pseudomonas and Lysinibacillus Marine Strains on High-Density Polyethylene. Microb. Ecol. 2021, 81, 833–846. [Google Scholar] [CrossRef]
Figure 1. Worldwide distribution of plastic producers. Data according to [1].
Figure 1. Worldwide distribution of plastic producers. Data according to [1].
Ijms 22 05610 g001

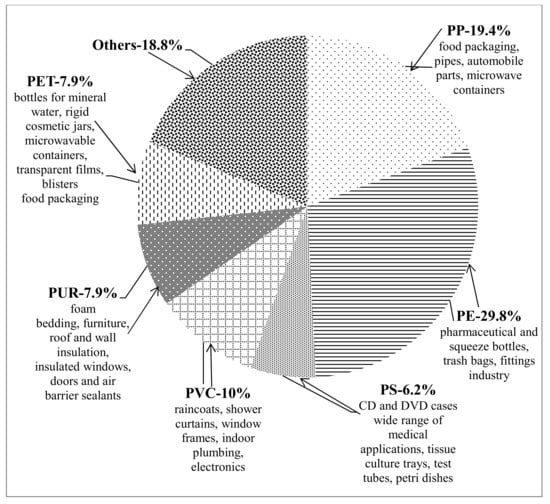

Figure 2. Demand distribution and use of different plastics (data according to [1]).
Figure 2. Demand distribution and use of different plastics (data according to [1]).
Ijms 22 05610 g002

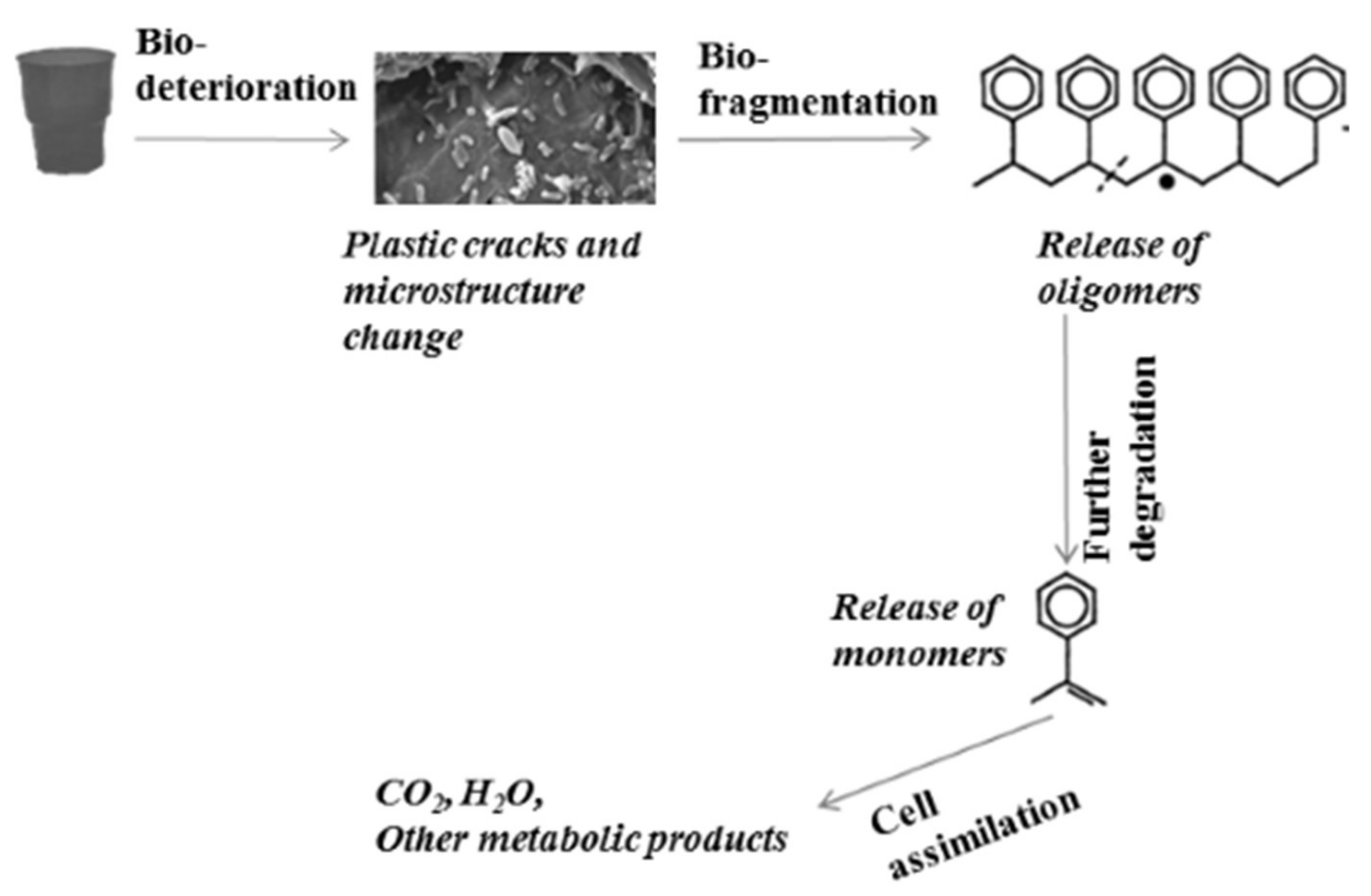

Figure 3. Overview of plastic degradation.
Figure 3. Overview of plastic degradation.
Ijms 22 05610 g003

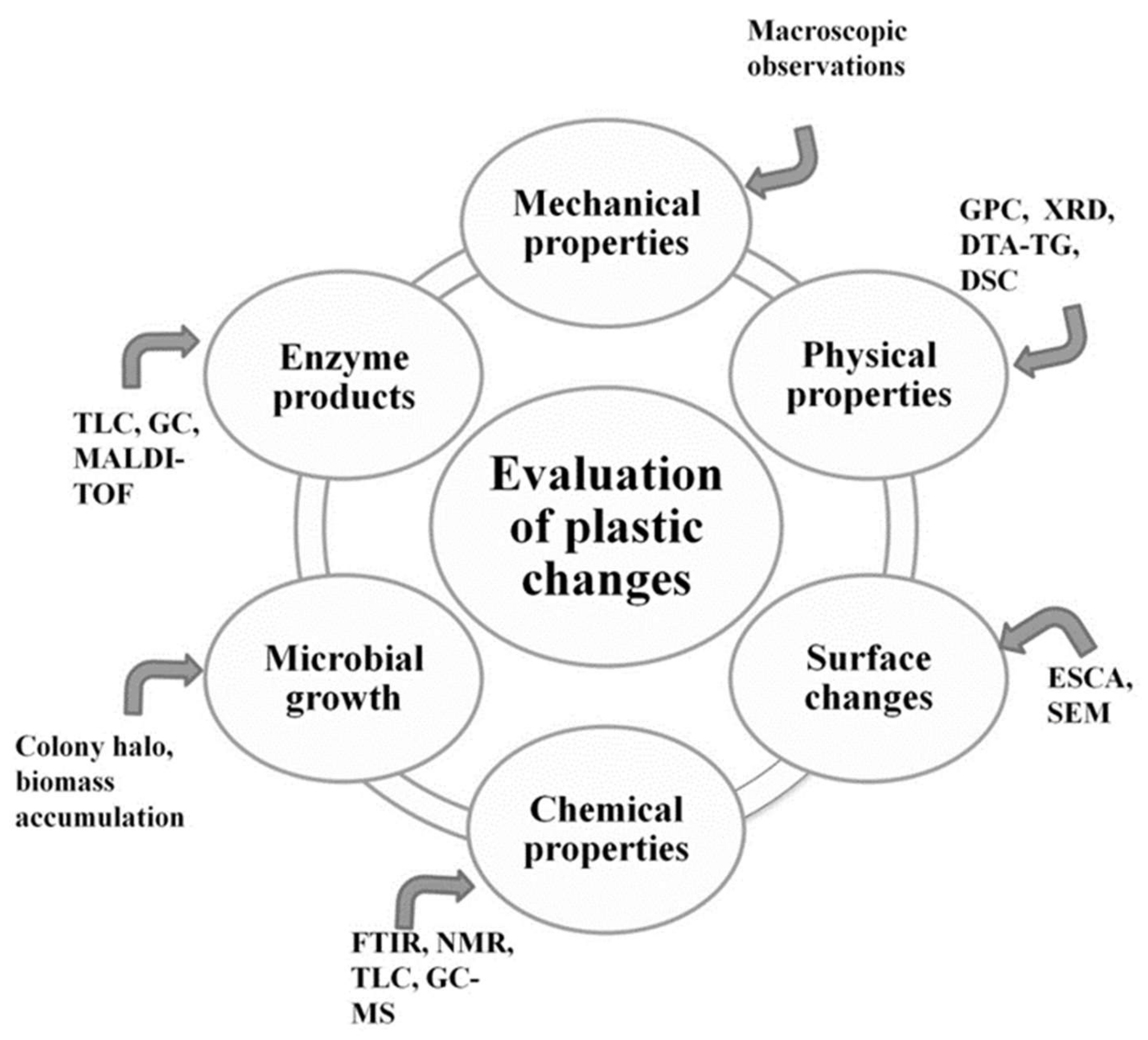

Figure 4. Analytical techniques for monitoring the extent and nature of plastic degradation. Abbreviations: SEM-scanning electron microscopy; GPC-gel permeation chromatography; XRD-X-ray diffraction; DTA TG-differential thermal analysis and thermogravimetric analysis; DSC-differential scanning calorimetry; ESCA-electron spectroscopy for chemical analysis; FTIR-Fourier transform infrared spectroscopy; NMR TLC combined application of nuclear magnetic resonance and thin-layer chromatography; GC-MS-gas chromatography/mass spectrometry; MALDI-TOF-matrix-assisted laser desorption/ionization time of flight.
Figure 4. Analytical techniques for monitoring the extent and nature of plastic degradation. Abbreviations: SEM-scanning electron microscopy; GPC-gel permeation chromatography; XRD-X-ray diffraction; DTA TG-differential thermal analysis and thermogravimetric analysis; DSC-differential scanning calorimetry; ESCA-electron spectroscopy for chemical analysis; FTIR-Fourier transform infrared spectroscopy; NMR TLC combined application of nuclear magnetic resonance and thin-layer chromatography; GC-MS-gas chromatography/mass spectrometry; MALDI-TOF-matrix-assisted laser desorption/ionization time of flight.
Ijms 22 05610 g004

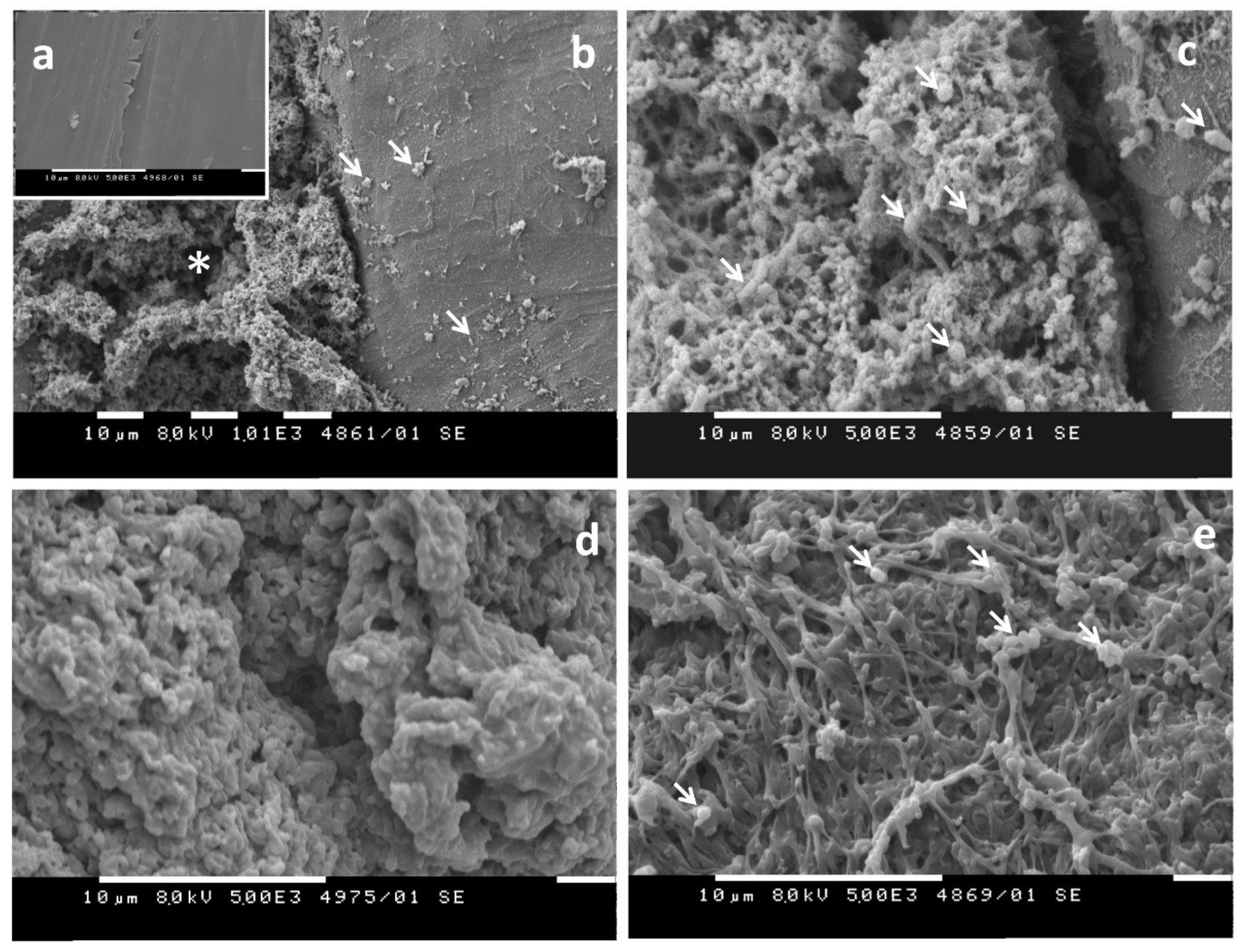

Figure 5. SEM images showing the interaction between bacteria from a Pomorie Salterns (PS) community and plastics after two weeks of co-incubation [74]. (a) Surface relief of a PCL sample incubated in the absence of bacteria; (b,c) Polycaprolactone (PCL) co-incubated with PS community. At lower magnification (b), a deep groove in the plastic (asterisk) is visible filled with filamentous material formed as a result of partial degradation of the plastic. Adherent bacteria are present on the comparatively unaltered part of the surface (arrows). (c) higher magnification shows biofilm bacteria inside the groove on the plastic (arrows). (d) Surface relief of a polyvinyl alcohol (PVA) sample incubated in the absence of bacteria; (e) PVA co-incubated with PS community. The structure of the polymer is loosened, and bacteria adherent to polymer filaments are observed (arrows).
Figure 5. SEM images showing the interaction between bacteria from a Pomorie Salterns (PS) community and plastics after two weeks of co-incubation [74]. (a) Surface relief of a PCL sample incubated in the absence of bacteria; (b,c) Polycaprolactone (PCL) co-incubated with PS community. At lower magnification (b), a deep groove in the plastic (asterisk) is visible filled with filamentous material formed as a result of partial degradation of the plastic. Adherent bacteria are present on the comparatively unaltered part of the surface (arrows). (c) higher magnification shows biofilm bacteria inside the groove on the plastic (arrows). (d) Surface relief of a polyvinyl alcohol (PVA) sample incubated in the absence of bacteria; (e) PVA co-incubated with PS community. The structure of the polymer is loosened, and bacteria adherent to polymer filaments are observed (arrows).
Ijms 22 05610 g005
Table 1. Some examples of plastic-degrading bacterial enzymes.
Table 1. Some examples of plastic-degrading bacterial enzymes.
Enzyme ClassEnzyme Group Enzyme SourceType of Biodegraded Plastic Reference
Hydrolases that split ester bondsEsteraseStreptomyces sp. SM14 PET[33]
EsteraseBacillus subtilisPU[29]
EsteraseAlicycliphilus sp. PU[30]
Aromatic polyesteraseIdeonella sakaiensis 201-F6PET[2]
Esterase E3576Commercially available by ProteusPU[31]
LipaseAlcaligenes faecalisPCL[34]
Hydrolases that act on carbon–nitrogen bondsamidase E4143 Commercially available by ProteusPU[31]
6-aminohexanoate-cyclic-dimer hydrolase, 6-aminohexanoate -dimer hydrolase and endo-type6-aminohexanoate-oligomer hydrolaseFlavobacterium sp. KI726-aminohexano-ate, an intermediate product of nylon[35]
OxydasePVA dehydrogenaseSphingomonas sp. strain 113P3PVA [36]
Alkane hydroxylasePseudomonas sp. E4PE[37]
LaccasesRhodococcus ruberPE[38]
MonoxygenasesRhodococcus sp. TMP2PE[39]
Table 2. Various literature reports on plastic biodegradation by thermophiles.
Table 2. Various literature reports on plastic biodegradation by thermophiles.
Plastic Degradation Type PolymerMicroorganism Isolation SourceTemperature
for Polymer Degradation
Effectiveness of DegradationReference
Non-biodegradablePolyethyleneBrevibaccillus borstelensis strain 707Soil50 °C11% after 30 days[50]
Bacillus sp. BCBT21Composting agricultural
55 °C44% decrease of average MW of the polymer for 30 d[51]
Polyethylene terephthalateThermobifida fusca 55 °C≈50% decrease of the average MW of polymer for 3 weeks[28]
Clostridium thermocellum 60 °C60% after 14 days[52]
NylonAnoxybacillus rupiensisHydrocarbon contaminated soil65 °COptical density ≈1.8 after 7 days growth on nylon 6[53]
Geobacillus thermocatenulatusSoil60 °CDecrease in nylon 12 and nylon 66 MW from ≈ 40,000 to ≈15,000 over 20 d[32]
BiodegradablePolycaprolactoneConsortium—Streptomyces thermonitrificans PDS-1 + Bacillus licheniformis HA1Compost50 °C70% (compost as a substrate) for 48 h[54]
Streptomyces thermoviolaceus subsp. thermoviolaceusSoil45 °C100% (0.1% substrate) for 6 h[55]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Atanasova, N.; Stoitsova, S.; Paunova-Krasteva, T.; Kambourova, M. Plastic Degradation by Extremophilic Bacteria. Int. J. Mol. Sci. 2021, 22, 5610.

AMA Style

Atanasova N, Stoitsova S, Paunova-Krasteva T, Kambourova M. Plastic Degradation by Extremophilic Bacteria. International Journal of Molecular Sciences. 2021; 22(11):5610.

Chicago/Turabian Style

Atanasova, Nikolina, Stoyanka Stoitsova, Tsvetelina Paunova-Krasteva, and Margarita Kambourova. 2021. "Plastic Degradation by Extremophilic Bacteria" International Journal of Molecular Sciences 22, no. 11: 5610.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
