Article

Characterization of AMBN I and II Isoforms and Study of Their Ca2+-Binding Properties

1
Institute of Organic Chemistry and Biochemistry of the Czech Academy of Sciences, Flemingovo nam. 2, 160 00 Prague, Czech Republic
2
Department of Biochemistry and Microbiology, University of Chemistry and Technology Prague, Technicka 5, 166 28 Prague, Czech Republic
3
Second Faculty of Medicine, Charles University, V Uvalu 84, 150 06 Prague 5, Czech Republic
4
Department of Biochemistry, Faculty of Science, Charles University, Hlavova 2030/8, 128 40 Prague, Czech Republic
5
Department of Biotechnology, University of Chemistry and Technology Prague, Technicka 5, 166 28 Prague, Czech Republic
6
Institute of Biotechnology of the Czech Academy of Sciences, Prumyslova 595, 252 50 Vestec, Czech Republic
7
Department of Biomaterials, Institute of Clinical Dentistry, University of Oslo, 0317 Oslo, Norway
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(23), 9293; https://doi.org/10.3390/ijms21239293
Received: 5 November 2020 / Revised: 2 December 2020 / Accepted: 3 December 2020 / Published: 5 December 2020
(This article belongs to the Section Molecular Biophysics)

Abstract

:
Ameloblastin (Ambn) as an intrinsically disordered protein (IDP) stands for an important role in the formation of enamel—the hardest biomineralized tissue commonly formed in vertebrates. The human ameloblastin (AMBN) is expressed in two isoforms: full-length isoform I (AMBN ISO I) and isoform II (AMBN ISO II), which is about 15 amino acid residues shorter than AMBN ISO I. The significant feature of AMBN—its oligomerization ability—is enabled due to a specific sequence encoded by exon 5 present at the N-terminal part in both known isoforms. In this study, we characterized AMBN ISO I and AMBN ISO II by biochemical and biophysical methods to determine their common features and differences. We confirmed that both AMBN ISO I and AMBN ISO II form oligomers in in vitro conditions. Due to an important role of AMBN in biomineralization, we further addressed the calcium (Ca2+)-binding properties of AMBN ISO I and ISO II. The binding properties of AMBN to Ca2+ may explain the role of AMBN in biomineralization and more generally in Ca2+ homeostasis processes.

Graphical Abstract

1. Introduction

Ameloblastin (Ambn; also known as amelin or sheatlin) is an enamel matrix phosphoprotein classified by computational and biophysical methods as an intrinsically disordered protein (IDP) [1,2,3]. Ambn with other ameloblasts-specific IDPs is important in biomineralization processes during enamel formation [4,5,6]. Interestingly, tooth enamel in vertebrates is the hardest known mineralized tissue [7]. The biomineralization is a complex process controlled by ameloblasts, which are the specific secretory cells responsible for the synthesis of enamel matrix proteins that control the process leading to the formation of enamel matrix [8]. In addition to Ambn, there are other Extracellular Matrix Proteins (EMPs) classified as IDPs involved in the mineralization process—amelogenin [9], tuftelin [10], and enamelin [11]. There are complementary proteases acting during mineralization; the most important are kallikrein-4 (KLK4) and enamelysin (MMP20) [12]. It is known that IDPs do not form a stable three-dimensional structure, neither elements of secondary structures (with some exception upon a dramatic change of environment [13]) nor their biological function is primarily dependent on interactions with other biomolecules [4]. However, some of the IDPs can adopt different structures upon a binding to their native partner. In such case, we describe these complexes as “fuzzy”, as they can provide more options of binding between the interacting partners [4,14].
The sequence-based analysis of human ameloblastin (AMBN) according its chemical–physical properties implies an existence of two different parts of the protein. The N-terminal part (AMBN-Nterm)—about 220 amino acids residues long (spanning regions from exon 1 to exon 10) is neutral, enriched by proline-rich regions and a few short regions of hydrophobic amino acids. This suggests that these hydrophobic regions can act in AMBN-facilitated protein–protein interactions. The AMBN C-terminus (AMBN-Cterm) is highly charged, 225 amino acids residues long (spanning the regions from exon 10 to exon 13), and its total calculated charge is −19.6 [1,15,16,17,18]. This finding clearly sets a distinction between both parts of the AMBN. Additionally, the AMBN-Cterm highly enriched by negatively charged amino acid residues may also act as a cation-binding proxy [6,16]. Mineralized tooth enamel is an inorganic structure composed of hydroxyapatite (HAP) crystals, which are formed by a saturated solution of HAP (Ca10(PO4)6(OH)2) [4,19,20]. This raises the question of whether the negatively charged part of AMBN—the acidic AMBN-Cterm (unphosphorylated or phosphorylated)—may play a role in calcium (Ca2+) binding and to what extent it may contribute to the oligomerization of AMBN and the biomineralization process.
The first supramolecular assemblies of enamel have been shown to be formed by specific protein–protein interactions of proteins secreted by ameloblasts during the enamel formation process [4,21,22] with a pivotal role of Ambn and Amel. It was proposed that this arrangement could be important for scaffolding suitable for the deposition of hydroxyapatite [22]. It was also shown experimentally that Ambn and Amel can co-assemble in a specific order facilitated by a tyrosyl-binding motif [22,23,24], promoting the formation of hetero-oligomers [2,4,21,22]. Interestingly, the AMBN itself exists only in oligomeric states, and their population is heterogeneous [2]. It was proved that the AMBN-specific oligomerization property is maintained by exon 5, which is a 37 amino acid long region at the AMBN-Nterm [1,2,25]. Some residues of exon 5 that are evolutionarily conserved facilitate interaction with AMEL and also binding to a lipid membrane [24,25,26]. AMBN with deleted exon 5 (AMBN del E5) completely loses its ability to form oligomers and exists only in a monomeric form [2]. The exon 5 knock-out has a significant biological effect. The produced monomeric AMBN in the mice model causes structural abnormalities that result in an irregular formation of dental enamel [25]. Defects in the process of enamel development result in amelogenesis imperfecta [27].
Extracellular matrix proteins (EMPs) originated from a common ancestor and form an evolutionarily conserved family of Secretory Calcium-Binding Phosphoproteins (SCPPs). Most scientists today believe that they have enamel-only functions and are produced exclusively by secretory ameloblast cells [28]. However, the evolutionary divergence of EMPs [28,29] indicates a discrepancy between the evolutionary appearance of the enamel and the divergence of the EMP. A possible explanation for this contrast is, as suggested by [30], that EMPs may initially be co-evolved for parallel functions, e.g., roles in general Ca2+ metabolism and/or its deposition in bone tissues explosion when Ca2+ storage has become an important evolutionary innovation [31].
Both Ambn ISO I and Ambn ISO II isoforms are evolutionary conserved and have been identified at the mRNA or cDNA level in human and three other mammalian species (Rattus rattus, Mus musculus, Sus scrofa domestica) [15,32,33,34]. The human AMBN is known to be expressed in most mammalian cells in two isoforms: AMBN ISO I and AMBN ISO II. The AMBN ISO II is 15 amino acids shorter than AMBN ISO I, and interestingly, these residues are the first amino acids of exon 6 at its very N-terminus [1,15,32]. So, there is a question if due to the important role of exon 5, the missing piece of the sequence of exon 6 could influence the oligomerization properties of the AMBN. Moreover, predicted phosphorylation sites at tyrosine or serine residues in this segment (YEYSLPVHPPPLPSQ) suggest important implications for both isoforms and their functions [3,15,33]. There is no information about the importance or different functions of both AMBN isoforms nor their different physical–chemical properties. In this study, we addressed properties of human AMBN ISO I and AMBN ISO II using a spectrum of biophysical methods, and the assessed ability of both isoforms to bind Ca2+ as one of the consequences of protein oligomerization.

2. Results

2.1. AMBN ISO I and AMBN ISO II Belong to IDPs

The circular dichroism (CD) spectra of AMBN ISO I (Figure 1A and Figure S1) were consistent with our previous AMBN characterizations [2]. The CD spectrum of AMBN ISO I was characterized by a negative maximum at ≈202 nm (Figure S1) accompanied by negative shoulder at ≈220 nm. With the temperature increase, the 202 nm spectral band is red shifted, and its intensity decreases. This spectral change is accompanied by an intensity increase of the negative spectral band at ≈220 nm. The observed spectral changes with an isosbestic point at ≈208 nm are typical for IDPs [35]. The overall low spectral intensity of CD spectra was in good agreement with our previous analysis [2], which was interpreted as a raising presence of β-structure elements.
The CD spectrum of AMBN ISO II has similar spectral shape as observed for AMBN ISO I, with a negative maximum at 203 nm and negative shoulder at ≈220 nm (Figure 1A and Figure S1). This spectral band is red shifted upon the increasing temperature accompanied by an increase of negative spectral band intensity at ≈220 nm similarly as AMBN ISO I. The corresponding isosbestic point was determined at ≈209 nm.
The CD spectrum of AMBN del E5 is characterized by a negative maximum at ≈199 nm with a higher intensity than AMBN ISO I and AMBN ISO II (Figure 1A and Figure S1). The overall spectral changes together with the isosbestic point at ≈208 nm support our conclusion that AMBN del 5 is an IDP [35].
The CD spectra of AMBN ISO I and AMBN ISO II in 10mM Ca2+ solution are in fact almost unchanged compared with the Ca2+-free solution. The spectral changes for AMBN ISO I and ISO II upon increasing temperature in the 10 mM Ca2+ solution do not provide clear localization of the isosbestic point. Interestingly, both proteins are dominantly populated by β-structure elements at 90 °C, suggesting a high aggregation state. With return to the temperature at 20 °C, the CD spectra confirmed highly efficient reversible process. There are only small spectral differences observed, which could be assigned to the elevated presence of β-structure elements upon restoring initial conditions [2]. No spectral changes were observed for AMBN del E5 in the presence of Ca2+. The CD spectra temperature dependency of AMBN del E5 in 10 mM Ca2+ solution is almost the same as for AMBN del E5 in Ca2+-free solution, but the isosbestic point is red shifted to 210 nm (Figure S1). It can be concluded that AMBN del E5 behaves constantly as an IDP and this behavior is Ca2+ independent. [35].
To confirm the IDP character of all protein constructs (AMBN ISO I, AMBN ISO II, AMBN del E5) computational disorder prediction analysis by D2P2 (Database of Disordered Protein Predictions) was performed [36]. The results confirmed the IDP character of all studied proteins and did not reveal any significant differences between the AMBN ISO I and AMBN ISO II or AMBN del E5 (Figure S2, [36]).

2.2. AMBN ISO I and AMBN ISO II form Organized Oligomers

The measured autocorrelation functions G(2) in Figure 1B for all studied molecules were obtained from a dynamic light scattering (DLS) experiment. The results show that the hydrodynamic radius of AMBN ISO I and AMBN ISO II in the Ca2+ buffer-free conditions is much larger than for AMBN del E5 construct and BSA used as a standard. This finding is fully consistent with observations by Wald et al. [2] who proved the importance of exon 5 for the oligomerization of AMBN ISO I. The analysis of autocorrelation functions (ACF) (Figure 1B) confirms the comparable behavior of both isoforms where AMBN ISO I is larger than AMBN ISO II. Unlike AMBN ISO I and AMBN ISO II, AMBN del E5 provided ACF corresponding to ACF of BSA standard used as a positive control to verify an AMBN del E5 monomeric character. The addition of Ca2+ into the solution caused only a small change of Rh of the both AMBN isoforms, keeping the size differences between AMBN ISO I and AMBN ISO II. All presented ACFs from DLS experiments were analyzed by second order cumulant fit and quantified by the corresponding z-averaged hydrodynamic radius [37] and polydispersity index (PDI) presented in Table 1.

2.3. AMBN Oligomers Partially Disintegrate by Increasing Temperature

AMBN ISO I and AMBN ISO II are able to form stable oligomers at room temperature. The interaction interface between AMBN monomers in the oligomer is maintained by exon 5 via non-covalent interactions of composing amino acids. Therefore, the question of the stability of these oligomers at temperature or aggregation properties can be answered by CD spectroscopy and DSF.
As follows from the CD spectra (Figure S1), there is a qualitative difference between the CD spectrum measured at 20 °C and 50 °C for both AMBN isoforms. Apparently, the higher content of β-elements indicating the tendency of aggregation appears at 50 °C and continuously rises up to 90 °C. Interestingly, all AMBN variants, including AMBN del E5, are to some extent fully reversible with temperature changes in the absence and presence of Ca2+.
Differential scanning fluorimetry (DSF) was used to illustrate changes in AMBN at the temperature range of about 20 °C and 50 °C. DSF data measured for AMBN ISO I, ISO II, and del E5 in the presence (10 mM CaCl2) and absence of Ca2+ were presented as the first derivative of the fluorescence emission ratio at 350 nm and 330 nm (F350/F330) (Figure 1C). It can be interpreted as disintegration peaks of the oligomeric forms of AMBN ISO I and AMBN ISO II with maxima around 35 °C. The disintegration occurs in both isoforms—AMBN ISO I and AMBN ISO II, and the presence of Ca2+ at 10 mM concentration does not significantly influences this behavior. In contrast, the spectrum of AMBN del E5 does not show a sign of any transition; its first derivative represents a noisy line, and Tm is not defined. This is in good agreement with the measured CD spectra of the AMBN del E5 showing an elevation of β-elements accompanying the aggregation. The data suggest that the AMBN ISO I and AMBN ISO II presented in oligomeric form first lose their oligomeric character with increasing temperature, and then, these non-oligomeric molecules begin to aggregate again, which most likely indicate a thermal non-specific aggregation.
The transmission electron microscopy (TEM) micrographs in Figure 2 confirmed that both AMBN ISO I and AMBN ISO II form oligomers, which are heterogeneous in size. The observation is supported by results from analytical ultracentrifugation (AUC) studies (see Results in Section 2.4, Figure 3A) and corresponds to the results published by Wald et al. [2].
Sedimentation velocity analysis performed by the analytical ultracentrifugation (AUC) technique confirmed that the presence of exon 5 in AMBN ISO I and AMBN ISO II is a necessary element for the substantial oligomerization of both isoforms. While a broad range of oligomeric states can be observed for full-length AMBN isoforms (Figure 3A), a monodisperse distribution of the sedimentation coefficient (S) was observed for AMBN del E5. The molecular weight of AMBN del E5 predicted from this measurement was 42 kDa, corresponding well to the expected 41 kDa calculated from the protein amino acid sequence (Figure 3B). The fitted value of the frictional coefficients ratio f/f0, describing asymmetry of the sedimenting particle [38], was for AMBN del E5 determined as 2.2, clearly suggesting its intrinsically disordered character. Similar values were fitted for the monomeric species present in the samples of both AMBN isoforms (Table 2). Their oligomeric forms span a range of values from 10 to 40 S for AMBN ISO I (on average 26.1 or 28.5 S in absence or presence of Ca2+, respectively) and from 10 to 30 S for AMBN ISO II (on average 19.2 or 20.9 S in absence or presence of Ca2+, respectively). Thus, the average values correspond to an approximate molecular weight of 1.30 MDa or 1.54 MDa for AMBN ISO I (with an average oligomer size of 28 or 33 monomers) in the absence or presence of Ca2+, respectively, and 855 kDa or 900 kDa for AMBN ISO II (with an average oligomer size of 19 and 20 monomers) in the absence or presence of Ca2+, respectively. The f/f0 ratio of 1.6 to 1.7 fitted for the oligomeric species suggests that the oligomeric states might be slightly more compact due to the mutual interaction of the AMBN protein in both isoforms.
The AUC profile for AMBN ISO I and AMBN ISO II changes in the presence of Ca2+ as demonstrated by values for hydrodynamic properties of both monomeric (AMBN del E5) and oligomeric forms of AMBN. While for the AMBN del E5, only a small conformational change upon the addition of the Ca2+ was observed with its sedimentation coefficient shifting from 1.98 to 2.03 S, and the fitted f/f0 ratio decreasing from 2.2 to 2.1, a considerably bigger change was observed for both AMBN ISO I and AMBN ISO II oligomers. The oligomeric species in the presence of Ca2+ exhibited a higher level of compactness as evidenced by a small but consistent decrease of the fitted f/f0 ratios (for AMBN ISO I decrease from 1.70 to 1.64 and for AMBN ISO II decrease from 1.72 to 1.63) as well as their Stokes hydrodynamic radii (Table 2), thereby sedimenting faster with higher values of the observed sedimentation coefficient (Figure 3A).

2.4. AMBN Binds Ca2+ Only in Its Oligomeric Form

The records of capillary electrophoresis (CE) analyses of AMBN ISO I and AMBN ISO II proteins are presented in Figure S3. CE analyses in the buffered background electrolyte (BGE) containing Ca2+ showed that the migration times of proteins were increasing more significantly than the migration times of the electroosmotic flow marker dimethylsulphoxide (DMSO) with the increasing concentration of Ca2+ (Figure S3). This indicates an interaction between the proteins and Ca2+. The dependences of the effective electrophoretic mobilities of AMBN proteins on the concentration of Ca2+ in the BGE are shown in Figure 3C. The apparent binding constants Kb and their reciprocal values (apparent dissociation constants, KD) and ionic mobilities of the protein–Ca2+ complexes obtained by regression analysis of CE data are presented in Table 3. The CE records and data in Table 3 show that AMBN ISO I and AMBN ISO II proteins interact with Ca2+ with the apparent dissociation constant (KD) of the protein-Ca2+ (1:1) complexes similarly for both AMBN isoforms: AMBN ISO I (KD = 17 mM) and AMBN ISO II (KD = 18 mM). These relatively high values of KD (low values of Kb, 54.4–56.8 L/mol, see Table 3) show that the interactions of AMBN ISO I and AMBN ISO II protein with Ca2+ cations are relatively weak. They are much weaker than the Ca2+ complexes with e.g., C-reactive protein, KD = 59 µM [39]; on the other hand, there is a spectrum of secretory calcium-binding phosphoproteins (SCPPs) in wide range of affinities from nM to mM [40].
To confirm the above obtained values by CE, we used the microscale thermophoresis (MST) method to determine binding properties of at least one of the isoforms, AMBN ISO I, which represents the oligomeric form of AMBN. For comparison, we took the AMBN del E5 construct, representing the monomeric form of AMBN as the control. To complete the characterization of Ca2+-binding properties of AMBN, we analyzed AMBN-Cterm (exon10-exon13), which is highly negatively charged and does not form oligomers. An interaction between AMBN ISO I and Ca2+ was clearly confirmed, whereas for AMBN del E5–Ca2+ and AMBN-Cterm-Ca2+, no interaction was detected (Figure 3D). Therefore, we conclude that the oligomeric form of AMBN proteins is the major condition for Ca2+ binding. Although the dissociation constant (KD) for AMBN ISO I was determined in the low mM range (7.7 mM), it should be noted that the value is apparently the average of KDs due to the oligomerization heterogeneity of the AMBN ISO I. It is known that affinities for cellular proteins binding Ca2+ span the range from nM to mM [40,41,42,43], which is in agreement with our determined KD.

3. Discussion

The main determinant of the properties of AMBN ISO I and AMBN ISO II is their IDP character [1]. However, many AMBN-associated functions can be deduced from its behavior under physiological conditions in which the presence of Ca2+ [44] is frequent. The fact that AMBN is present in two isoforms—AMBN ISO I and AMBN ISO II—suggests that they could have different roles not only during the enamel formation but also during specific cellular functions. Different AMBN mRNA splicing resulting in the presence of AMBN ISO I and ISO II may lead to their various proteolytic profiles and interaction properties, which may lead to products with different functions [45,46]. We compared a large spectrum of AMBN ISO I and ISO II properties, which both have been shown to exist under physiological conditions in oligomeric states. This is in contrast to AMBN del E5 present only as a monomer. Still, AMBN ISO I and II as well as AMBN del E5 are preserving their IDP character in all performed CD experiments (without and in the presence of Ca2+ cations), as was confirmed by CD spectroscopy (Figure 1A). It is also in a good agreement with an analysis of computational disorder prediction by D2P2 (Figure S2).
The oligomeric and heterogeneous characters of AMBN ISO I and ISO II were further confirmed by DLS in the Ca2+ buffer-free conditions as well as in the presence of Ca2+. In addition, there appear to be small differences in the size and distribution of AMBN oligomers of both isoforms (AMBN ISO I creates larger oligomers than AMBN ISO II), as confirmed by TEM. It should be mentioned that we have to take into account the detection limit of the TEM resolution (Figure 2). This is in contrast to the behavior of AMBN del E5 confirmed by DLS and AUC methods, which exhibit monomeric protein properties (Figure 1B). AUC was employed to characterize the oligomeric state of AMBN and its variants. As clearly demonstrated by the presented results, the AMBN del E5 retained its monomeric character even in the presence of Ca2+, which is in sharp contrast to the observable effect of Ca2+ on AMBN ISO I and AMBN ISO II. We again assigned this difference to the oligomeric nature of both isoforms and confirmed that exon 5 is the most important prerequisite for oligomerization. AUC also provided results indicating the effect of Ca2+ demonstrated by the increased compactness of AMBN ISO I and ISO II. However, it is difficult to discern whether this behavior was due to a conformational change of the same oligomeric species or due to a shift in distribution toward higher AMBN oligomers caused by the Ca2+.
The temperature response of AMBN proteins was studied by CD spectrometry and DSF. DSF is commonly used to determine the melting temperature of denaturated protein [47]. In our case, we addressed a question of disintegration of the oligomeric state of AMBN. As follows from the temperature-dependent CD spectra, an interesting temperature interval was identified between 20 and 50 °C. The DSF results show similar behavior of both AMBN isoforms under two different conditions (Ca2+ free and 10 mM Ca2+ solutions) and suggest that there is a transition state attributable to the disintegration of AMBN oligomeric states into smaller oligomers and/or monomers. Both the CD as well as DSF spectra show the formation of higher AMBN aggregates upon increasing temperature, which was presumably formed non-specifically.
The final step of the study was to investigate the binding affinity of Ca2+ to AMBN isoforms. We performed CE and MST to determine the dissociation constants of Ca2+ complexes. From the CE results, we can conclude that both AMBN isoforms act as low affinity Ca2+-binding proteins with the similar KD. The MST experiment confirmed the binding of Ca2+ to AMBN ISO I, whereas no binding of Ca2+ was observed for AMBN del E5 and AMBN-Cterm, representing the monomeric states. It seems to be clear to conclude that the oligomeric state of AMBN is crucial for Ca2+ binding. Interestingly, the MST experiment determined a similar binding constant as determined by CE (for AMBN ISO I). To establish a schema of the potential mechanism of Ca2+ binding to AMBN oligomers, we propose a model of the oligomeric arrangement of AMBN in the absence and presence of Ca2+ (Figure 4). AMBN in solution without Ca2+ creates stable oligomers with flexible and dynamic AMBN-Cterm parts due to their disordered character. In the presence of Ca2+, the oligomeric form of AMBN becomes less dynamic at AMBN-Cterm due to stabilization introduced by interchain interactions of AMBN C-termini facilitated by Ca2+. This is in qualitative agreement with the AUC results, which show that both AMBN isoforms are slightly more compact in the presence of Ca2+ (Figure 2A).
The reason why we studied both isoforms and their spatial organization is that these extra 15 amino acids presented in Ambn ISO I lie just next to the exon 5 sequence, which is known to be the only element responsible for oligomerization. To use an analogy, the deletion of exon 5 (37 amino acids) completely removes the ability of the Ambn to create oligomers. The sequence of these 15 amino acids just next to the exon 5 terminus seems to be a good candidate for modulation of the oligomerization but to a lesser extent than exon 5 itself. Additionally, the sequence composition of these 15 amino acids is rich for tyrosines known for their role in protein–protein interactions. Whether the extension of exon 5 completely missing in ISO II could influence the oligomerization, size, or their tendency to aggregate was not clear, and we had to explore the possible consequences of the missing part of the sequence experimentally. We conclude that this is an extra element of modulation of oligomerization level.

4. Materials and Methods

4.1. Design of AMBN Plasmid Constructs

The expression vectors encoding AMBN ISO I, AMBN del E5, and AMBN-Cterm were kindly provided by the Institute of Microbiology of the CAS (Prague, Czech Republic) [2]; the vector encoding AMBN ISO II was obtained from the University of Chemistry and Technology (Prague, Czech Republic). The cDNA of AMBN were subcloned into the pET28b vector in fusion with 6xHis and the thioredoxin tags (Trx) removable with Tobacco Etch Virus (TEV) protease (for details, see [2]).

4.2. Protein Expression and Purification

AMBN ISO I (UniProtKB-Q9NP70-1), AMBN ISO II (UniProtKB-Q9NP70-2), AMBN del E5, and AMBN-Cterm were produced as recombinant proteins in Escherichia coli BL21(DE3) cells. Cultures were grown in Luria-Bertani (LB) broth with kanamycin (30 µg/mL) at 37 °C. The expression was induced by 0.5 mM isopropyl-β-D-thiogalactopyranoside and cultivation continued for 20 h at lower temperatures (14 °C for AMBN ISO I, 16 °C for AMBN ISO II, 30 °C for AMBN del E5, 15 °C for AMBN-Cterm). Cells were harvested by centrifugation, resuspended in a phosphate buffer: 50 mM Na2HPO4 (pH = 8.0), 50 mM NaCl, 0.1% 2-mercaptoethanol, and stored at −80 °C. Following thawing, the cells were sonicated at 4 °C, centrifuged for 1 h at 21,000× g; then, 8 M urea was added into the lysate. The lysate was purified by metal affinity chromatography using Chelating Sepharose Fast Flow resin (GE Healthcare Bio-Sciences AB, Uppsala, Sweden) charged with Ni2+ ions in an equilibration buffer (8 M urea, 50 mM Tris-HCl (pH = 7.4), 600 mM NaCl, and 20 mM imidazole). The bound proteins were eluted from the column by elution buffer containing 600 mM imidazole, and following renaturation, His-tagged TEV protease was added to the sample to remove His and Trx tags from AMBN proteins. Then, the whole reaction mixture was loaded again on the top of the HisTrap HP column (GE Healthcare Bio-Sciences AB, Uppsala, Sweden), and eluted AMBN ISO I and AMBN ISO II proteins were dialyzed overnight at 4 °C against a loading buffer containing 10 mM Tris-HCl (pH = 7.4), 100 mM NaCl. Then, 10 mM ethyleneglycol-bis(beta-aminoethylether)-N,N’-tetraacetic acid (EGTA) was added to the mixture, and following 4 h incubation, the sample was dialyzed overnight at 4 °C against a loading buffer. AMBN del E5 and AMBN-Cterm were incubated with 10 mM EGTA for 4 h and then loaded on a Superdex 200 Increase 10/300 GL column (GE Healthcare Bio-Sciences AB, Uppsala, Sweden) equilibrated with 10 mM Tris-HCl (pH = 7.4), 100 mM NaCl. The mass of all recombinant proteins was determined as follows: AMBN ISO I = 46.71 kDa; AMBN ISO II = 45.00 kDa; AMBN del E5 = 41.09 kDa; AMBN-Cterm = 25.36 kDa. The purity of the final samples was analyzed by SDS-PAGE (Figure S4), and AMBN protein sequences were verified by MS.

4.3. Circular Dichroism Spectroscopy

CD spectra were collected on a Jasco-1500 spectropolarimeter equipped with a Peltier thermostated holder PTC-517 (JASCO Inc., Easton, MD, USA) at room temperature (RT) and/or additionally at the temperature range 5–95 °C with an increment of 5 °C using the following experimental setup: (i) for RT from 190 to 300 nm, 0.1 mm cylindrical quartz cell, standard instrument sensitivity, 1 nm bandwidth, a scanning speed of 5 nm/min, a response time of 16 s, and two spectra accumulations; (ii) temperature dependence from 195 to 280 nm, a 0.2 mm rectangular quartz cell, standard instrument sensitivity, a 1 nm bandwidth, a scanning speed of 10 nm/min, a response time of 8 s, and one accumulation. The temperature reversibility was checked by measurement of the chilled solution back to 5 °C. After baseline subtraction, the final data were expressed as molar ellipticities ϴ (deg·cm2·dmol−1) per residue.
The AMBN samples have been prepared in the absence of Ca2+, and the same batch have been used for analyses in the presence of 10 mM CaCl2. Samples were measured in buffer (10 mM Tris-HCl (pH = 7.4) with 100 mM NaCl) and in concentration 23 µM.

4.4. Dynamic Light Scattering

DLS experiments were performed using an RiNA Laser Spectroscater 201 (RiNa, Berlin, Germany). All samples were measured at 18 °C, using an angle of 90°. Each sample was measured 60 times, and the acquisition time was 2 seconds. AMBN ISO I, AMBN ISO II, and AMBN del E5 purified in the absence of Ca2+ at a concentration 14 µM were used for measurements, as well as BSA as a standard. All samples were analyzed in 10 mM Tris-HCl (pH = 7.4) with a 100 mM NaCl buffer. Measurements of these samples were also performed in the presence of 10 mM CaCl2, which was added directly to these samples 30 minutes before the experiment. Protein solutions have been centrifuged before each measurement at 4 °C. The measured raw G(2) autocorrelation functions (ACF) were recorded and thoroughly examined for artefacts. Measurements with a residual baseline or anomalous photocurrent count rate were discarded. Individual autocorrelograms were fitted by second-order cumulant analysis providing z-averaged size and polydispersity index (PDI). Hydrodynamic radii (Rh) [37] were estimated using the Stokes–Einstein relation. The reported values of Rh and PDI were calculated as the arithmetic average over 40–60 analyzed autocorrelation curves. Their uncertainty was estimated as the standard errors of the mean (SEM).

4.5. Analytical Ultracentrifugation

Sedimentation velocity measurements were performed on an analytical ultracentrifuge ProteomeLab XL-I (Beckman Coulter, Indianapolis, IN, USA) [48]. AMBN ISO I, AMBN ISO II, and AMBN del E5 samples at 23 µM concentration purified in the absence of Ca2+ were analyzed in a 10 mM Tris-HCl (pH = 7.4), 100 mM NaCl buffer. Alternatively, CaCl2 was added to 10 mM final concentration prior to the analysis to these samples using the same batch of protein. Sedimentation velocity experiments were conducted at 20 °C at 25,000 (AMBN ISO I and AMBN ISO II) or 48,000 (AMBN del E5) rpm using double sector cells and an An50-Ti rotor. In total, 250 absorbance scans were recorded at 280 nm in 4 min intervals. Buffer density, protein partial specific volumes, values of sedimentation coefficients corrected to standard conditions, and particle dimensions were estimated in Sednterp v1.10 [49]. Data were analyzed in Sedfit v16.36 [50] using a continuous sedimentation coefficient distribution c(s) with bimodal f/f0 model yielding a separate f/f0 values for monomeric and oligomeric AMBN species. Figures were prepared in GUSSI v1.4.6 [51].

4.6. Differential Scanning Fluorimetry

A Prometheus nanoDSF instrument (NanoTemper Technologies, Munich, Germany) was used to determine the temperature dependence of the intrinsic dual-UV fluorescence change in tryptophan and tyrosine residues. Capillaries were loaded with 10 μL of protein sample at 14 µM concentration and emission wavelengths λ = 330 and 350 nm were measured. The experiment was performed at a heating rate of 1.5 °C/minute, resulting in a data point density of 15 points/°C. To determine the melting point temperature Tm, the ratio of the fluorescence intensities at both emission wavelengths (F350/F330) was used. Its first derivative displaying a peak at the point of maximal slope, which corresponds for globular proteins to the Tm, was plotted. AMBN proteins (AMBN ISO I, AMBN ISO II and AMBN del E5) were analyzed in a 10 mM Tris-HCl (pH = 7.4), 100 mM NaCl buffer. CaCl2 was added to 10 mM final concentration prior to the analysis of AMBN proteins.

4.7. Transmission Electron Microscopy

AMBN ISO I and AMBN ISO II proteins at a concentration of 1.3 µM were visualized in 10 mM Tris-HCl (pH = 7.4), 100 mM NaCl buffer by negative stain transmission electron microscopy. Parlodion-carbon-coated grids were floated on the top of a 5 uL drop of the sample for 5 min. Then, the grids were transferred on the top of drop 2% uranyl acetate, stained for 2 × 15 s, and dried. Photomicrographs were taken with a JEOL JEM-1011 electron microscope (Peabody, MA, USA) operated at 80 kV.

4.8. Capillary Electrophoresis

CE analyses were performed in P/ACE MDQ System (Beckman Coulter, Fullerton, CA, USA) using the software P/ACE System MDQ, the Karat version (Beckman), and the Clarity data station (DataApex, Prague, Czech Republic) for data acquisition and evaluation [52]. The CE analyzer was equipped with a UV-vis photodiode array spectrophotometric detector (190–600 nm) set at 200 nm wavelength. CE analyses were carried out in the internally untreated fused silica capillary, total/effective (to the UV-detector) length 405/302 mm, inside/outside diameter 50/375 µm, with outer polyimide coating (Polymicro Technologies, Phoenix, AR, USA). The buffered background electrolyte (BGE) was composed of 30 mM Tris and 25 mM acetic acid (pH = 7.4). DMSO has been used as an electroneutral marker of electroosmotic flow. The new capillary was consecutively washed with 1 M NaOH, water, and the BGE with a pressure of 1 bar for 10 min each, and conditioned in the BGE at a separation voltage of 20 kV for 20 min. Between analytical runs, the capillary was rinsed with the BGE with a pressure of 1 bar for 2 min. The analyses were performed at a constant temperature of 25 °C inside the capillary using the constant input power of 0.4 W and cooling the outer capillary wall by liquid coolant to the temperature 21.8 °C. Separation voltage was in the range of 10.6–24.0 kV, and electric current varied between 17.1 and 37.9 µA. AMBN ISO I and AMBN ISO II were analyzed in a 10 mM Tris-HCl (pH = 7.4), 100 mM NaCl buffer. The concentration of AMBN proteins was 13 µM.

4.9. Microscale Thermophoresis

MST measurement and analysis of Ca2+-binding properties of AMBN ISO I, AMBN del E5, and AMBN-Cterm was performed as follows: a series of CaCl2 dilutions (500–0.015 mM) were incubated with AMBN ISO I (1.3 µM), AMBN del E5 (3.4 µM), and AMBN-Cterm (3.2 µM) in 10 mM Tris-HCl (pH = 7.4), 100 mM NaCl, and 0.05% Tween 20 for 30 min at 26 °C. The reactions were measured in Label-Free Premium capillaries on a Monolith NT. Label-Free instrument (NanoTemper Technologies, Munich, Germany) using 25% or 30% LED power and 40% MST IR laser power. All experiments were performed in triplicate. The plot was created using Matplotlib 3.2.1 [53]. The binding constants measured by MST were calculated using NTAnalysis software, v1.5.41 (Nanotemper Technology GmbH, Munich, Germany).

5. Conclusions

Human AMBN belongs to IDPs, which in fact significantly expands the portfolio of its functions with respect to the primary role of the protein involved in enamel formation. The presence of the two AMBN isoforms AMBN ISO I and AMBN ISO II has raised experimental questions as to whether biophysical properties are the main determinants of their different roles or whether there is another event to which the two isoforms respond differently. The results of this study only partially answered this question. Both isoforms exist only in the oligomeric form for which the exon 5 sequence is responsible. The isoforms bind Ca2+ with millimolar affinity, and it is only the oligomeric state that allows this binding. The deletion of exon 5 completely erases this ability, as demonstrated by MST experiments. The most important finding was that Ca2+ is able to bind to both isoforms, potentially suggesting that AMBN could act as a special Ca2+ buffer, especially in a Ca2+-abundant environment. We can conclude that AMBN binds Ca2+ only in its oligomeric form. This fact is demonstrated by the difference between AMBN ISO I, AMBN ISO II, and the apparently monomeric form of AMBN form lacking the exon 5 (AMBN del E5) and C-terminal part of AMBN (AMBN-Cterm). Both monomeric forms of AMBN (AMBN del E5 and AMBN-Cterm) do not bind to Ca2+.
Contrary to our expectations, Ca2+ does not appear to affect the formation of secondary or tertiary structures or their stabilization. The protein remains disordered, and Ca2+ binding is probably a transient process in which Ca2+ serve as proxies for intermolecular interactions between AMBN C-termini. This is supported by the fact that these Ca2+-mediated interactions lead to a more compact conformation of oligomeric AMBN species, as evidenced by their higher observed sedimentation coefficient values in the presence of Ca2+. With all the known properties of AMBN, it can be assumed that the only events that can be expected due to differences between both isoforms may be either their different proteolytic profiles presented by proteases (MMP20 and KLK4) or a different pattern of posttranslational modifications, particularly the phosphorylation [3]. Therefore, a detailed characterization of both processes is the aim of our further study.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/21/23/9293/s1.

Author Contributions

J.V. (Jiri Vondrasek) and K.B. designed the research. V.V., M.Z., L.B., O.V., P.S. and K.P. performed the experiments. V.V., M.Z., L.B., O.V., V.K., J.V. (Jiri Vymetal), J.S., M.R., T.C., J.E.R., K.B. and J.V. (Jiri Vondrasek) analysed the data. V.V., K.B. and J.V. (Jiri Vondrasek) wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This project was supported by the Institute of Organic Chemistry and Biochemistry of the Czech Academy of Sciences (RVO: 61388963) and by the European Regional Development Fund; OP RDE; Project: “ChemBioDrug” (No. CZ.02.1.01/0.0/0.0/16_019/0000729).

Acknowledgments

We would like to thank Radek Soucek for Amino Acid Analyses and Romana Hadravova for Transmission electron microscopy from the Institute of Organic Chemistry and Biochemistry of the Czech Academy of Sciences. We acknowledge CMS-BIOCEV (“Biophysical techniques, Crystallization, Diffraction, Structural mass spectrometry”) supported by MEYS CR (LM2018127).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AmbnAmeloblastin protein
AMBNHuman ameloblastin protein
AMBN del E5AMBN form lacking the exon 5
AMBN ISO IIsoform I of AMBN
AMBN ISO IIIsoform II of AMBN
AMBN-CtermC-terminal part of AMBN
AMBN-NtermN-terminal part of AMBN
AmelAmelogenin
AUCAnalytical ultracentrifugation
BSABovine serum albumin
BGEBuffered background electrolyte
Ca2+Calcium ions
CDCircular dichroism spectroscopy
CECapillary electrophoresis
D2P2 Database of Disordered Protein Predictions
DLSDynamic light scattering
DMSODimethylsulphoxide
DSFDifferential scanning fluorimetry
EGTAEthyleneglycol-bis(beta-aminoethylether)-N,N’-tetraacetic acid
EMPs Extracellular matrix proteins
Exon 5Sequence encoded by exon 5 of AMBN
IDPsIntrinsically disordered proteins
LBLuria-Bertani broth
MMP20Enamelysin
PDIPolydispersity index
RhHydrodynamic radii
RSStokes hydrodynamic radii
SCPPs Secretory Calcium-Binding Phosphoproteins
SEMStandard errors of the mean
TEMTransmission electron microscopy
TEVTobacco Etch Virus
TrxThioredoxin tag

References

  1. Wald, T.; Bednarova, L.; Osicka, R.; Pachl, P.; Sulc, M.; Lyngstadaas, S.P.; Slaby, I.; Vondrasek, J. Biophysical characterization of recombinant human ameloblastin. Eur. J. Oral Sci. 2011, 119, 261–269. [Google Scholar] [CrossRef] [PubMed]
  2. Wald, T.; Osickova, A.; Sulc, M.; Benada, O.; Semeradtova, A.; Rezabkova, L.; Veverka, V.; Bednarova, L.; Maly, J.; Macek, P.; et al. Intrinsically Disordered Enamel Matrix Protein Ameloblastin Forms Ribbon-like Supramolecular Structures via an N-terminal Segment Encoded by Exon 5. J. Biol. Chem. 2013, 288, 22333–22345. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Stakkestad, O.; Lyngstadaas, S.P.; Thiede, B.; Vondrasek, J.; Skalhegg, B.S.; Reseland, J.E. Phosphorylation Modulates Ameloblastin Self-assembly and Ca2+ Binding. Front. Physiol. 2017, 8, 10. [Google Scholar] [CrossRef]
  4. Boskey, A.L.; Villarreal-Ramirez, E. Intrinsically disordered proteins and biomineralization. Matrix Biol. 2016, 52–54, 43–59. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Kalmar, L.; Homola, D.; Varga, G.; Tompa, P. Structural disorder in proteins brings order to crystal growth in biomineralization. Bone 2012, 51, 528–534. [Google Scholar] [CrossRef]
  6. Grzybowska, E.A. Calcium-Binding Proteins with Disordered Structure and Their Role in Secretion, Storage, and Cellular Signaling. Biomolecules 2018, 8, 42. [Google Scholar] [CrossRef][Green Version]
  7. Paine, M.L.; Snead, M.L. Protein Interactions During Assembly of the Enamel Organic Extracellular Matrix. J. Bone Min. Res. 1997, 12, 221–227. [Google Scholar] [CrossRef]
  8. Ravindranath, H.H.; Chen, L.-S.; Zeichner-David, M.; Ishima, R.; Ravindranath, R.M.H. Interaction between the enamel matrix proteins amelogenin and ameloblastin. Biochem. Biophys. Res. Commun. 2004, 323, 1075–1083. [Google Scholar] [CrossRef]
  9. Deutsch, D.; Haze-Filderman, A.; Blumenfeld, A.; Dafni, L.; Leiser, Y.; Shay, B.; Gruenbaum-Cohen, Y.; Rosenfeld, E.; Fermon, E.; Zimmermann, B. Amelogenin, a major structural protein in mineralizing enamel, is also expressed in soft tissues: Brain and cells of the hematopoietic system. Eur. J. Oral Sci. 2006, 114, 183–189. [Google Scholar] [CrossRef]
  10. Deutsch, D.; Leiser, Y.; Shay, B.; Fermon, E.; Taylor, A.; Rosenfeld, E.; Dafni, L.; Charuvi, K.; Cohen, Y.; Haze, A. The human tuftelin gene and the expression of tuftelin in mineralizing and nonmineralizing tissues. Connect. Tissue Res. 2002, 43, 425–434. [Google Scholar] [CrossRef] [PubMed]
  11. Hu, J.C.-C.; Hu, Y.; Lu, Y.; Smith, C.E.; Lertlam, R.; Wright, J.T.; Suggs, C.; McKee, M.D.; Beniash, E.; Kabir, M.E. Enamelin is critical for ameloblast integrity and enamel ultrastructure formation. PloS ONE 2014, 9, e89303. [Google Scholar] [CrossRef] [PubMed][Green Version]
  12. Lu, Y.; Papagerakis, P.; Yamakoshi, Y.; Hu, J.; Bartlett, J.; Simmer, J. Functions of KLK4 and MMP-20 in dental enamel formation. Biol. Chem. 2008, 389, 695–700. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Ruff, K.M.; Roberts, S.; Chilkoti, A.; Pappu, R.V. Advances in understanding stimulus-responsive phase behavior of intrinsically disordered protein polymers. J. Mol. Biol. 2018, 430, 4619–4635. [Google Scholar] [CrossRef] [PubMed]
  14. Sharma, R.; Raduly, Z.; Miskei, M.; Fuxreiter, M. Fuzzy complexes: Specific binding without complete folding. FEBS Lett. 2015, 589, 2533–2542. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. MacDougall, M.; Simmons, D.; Gu, T.T.; Forsman-Semb, K.; Kärrman Mårdh, C.; Mesbah, M.; Forest, N.; Krebsbach, P.H.; Yamada, Y.; Berdal, A. Cloning, characterization and immunolocalization of human ameloblastin. Eur. J. Oral Sci. 2000, 108, 303–310. [Google Scholar] [CrossRef][Green Version]
  16. Vymětal, J.; Slabý, I.; Spahr, A.; Vondrášek, J.; Lyngstadaas, S.P. Bioinformatic analysis and molecular modelling of human ameloblastin suggest a two-domain intrinsically unstructured calcium-binding protein. Eur. J. Oral Sci. 2008, 116, 124–134. [Google Scholar] [CrossRef]
  17. Kärrman Mårdh, C.; Bäckman, B.; Simmons, D.; Golovleva, I.; Gu, T.T.; Holmgren, G.; MacDougall, M.; Forsman-Semb, K. Human ameloblastin gene: Genomic organization and mutation analysis in amelogenesis imperfecta patients. Eur. J. Oral Sci. 2001, 109, 8–13. [Google Scholar] [CrossRef]
  18. Putnam, C. PROTEIN CALCULATOR v3.4; The Scripps Research Institute: La Jolla, CA, USA, 2013. [Google Scholar]
  19. Simmer, J.P.; Fincham, A.G. Molecular Mechanisms of Dental Enamel Formation. Crit. Rev. Oral Biol. Med. 1995, 6, 84–108. [Google Scholar] [CrossRef][Green Version]
  20. Margolis, H.C.; Beniash, E.; Fowler, C.E. Role of Macromolecular Assembly of Enamel Matrix Proteins in Enamel Formation. J. Dent. Res. 2006, 85, 775–793. [Google Scholar] [CrossRef]
  21. Paine, M.L.; White, S.N.; Luo, W.; Fong, H.; Sarikaya, M.; Snead, M.L. Regulated gene expression dictates enamel structure and tooth function. Matrix Biol. 2001, 20, 273–292. [Google Scholar] [CrossRef]
  22. Mazumder, P.; Prajapati, S.; Lokappa, S.B.; Gallon, V.; Moradian-Oldak, J. Analysis of co-assembly and co-localization of ameloblastin and amelogenin. Front. Physiol. 2014, 5, 274. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Hatakeyama, J.; Fukumoto, S.; Nakamura, T.; Haruyama, N.; Suzuki, S.; Hatakeyama, Y.; Shum, L.; Gibson, C.W.; Yamada, Y.; Kulkarni, A.B. Synergistic Roles of Amelogenin and Ameloblastin. J. Dent. Res. 2009, 88, 318–322. [Google Scholar] [CrossRef] [PubMed]
  24. Su, J.; Kegulian, N.C.; Bapat, R.A.; Moradian-Oldak, J. Ameloblastin Binds to Phospholipid Bilayers via a Helix-Forming Motif within the Sequence Encoded by Exon 5. ACS Omega 2019, 4, 4405–4416. [Google Scholar] [CrossRef] [PubMed]
  25. Wald, T.; Spoutil, F.; Osickova, A.; Prochazkova, M.; Benada, O.; Kasparek, P.; Bumba, L.; Klein, O.D.; Sedlacek, R.; Sebo, P.; et al. Intrinsically disordered proteins drive enamel formation via an evolutionarily conserved self-assembly motif. Proc. Natl. Acad. Sci. USA 2017, 114, E1641–E1650. [Google Scholar] [CrossRef] [PubMed][Green Version]
  26. Su, J.; Chandrababu, K.B.; Moradian-Oldak, J. Ameloblastin peptide encoded by exon 5 interacts with amelogenin N-terminus. Biochem. Biophys. Rep. 2016, 7, 26–32. [Google Scholar] [CrossRef][Green Version]
  27. Lu, T.; Li, M.; Xu, X.; Xiong, J.; Huang, C.; Zhang, X.; Hu, A.; Peng, L.; Cai, D.; Zhang, L.; et al. Whole exome sequencing identifies an AMBN missense mutation causing severe autosomal-dominant amelogenesis imperfecta and dentin disorders. Int. J. Oral Sci. 2018, 10, 26. [Google Scholar] [CrossRef]
  28. Delgado, S.; Davit-Béal, T.; Allizard, F.; Sire, J.-Y. Tooth development in a scincid lizard, Chalcides viridanus (Squamata), with particular attention to enamel formation. Cell Tissue Res. 2005, 319, 71–89. [Google Scholar] [CrossRef]
  29. Delgado, S.; Casane, D.; Bonnaud, L.; Laurin, M.; Sire, J.-Y.; Girondot, M. Molecular Evidence for Precambrian Origin of Amelogenin, the Major Protein of Vertebrate Enamel. Mol. Biol. Evol. 2001, 18, 2146–2153. [Google Scholar] [CrossRef][Green Version]
  30. Girondot, M.; Sire, J.-Y. Evolution of the amelogenin gene in toothed and toothless vertebrates. Eur. J. Oral Sci. 1998, 106, 501–508. [Google Scholar] [CrossRef]
  31. Fernàndez-Busquets, X.; Körnig, A.; Bucior, I.; Burger, M.M.; Anselmetti, D. Self-Recognition and Ca2+-Dependent Carbohydrate–Carbohydrate Cell Adhesion Provide Clues to the Cambrian Explosion. Mol. Biol. Evol. 2009, 26, 2551–2561. [Google Scholar] [CrossRef][Green Version]
  32. Evans, J.S. “Liquid-like” biomineralization protein assemblies: A key to the regulation of non-classical nucleation. CrystEngComm 2013, 15, 8388–8394. [Google Scholar] [CrossRef]
  33. Kobayashi, K.; Yamakoshi, Y.; Hu, J.C.-C.; Gomi, K.; Arai, T.; Fukae, M.; Krebsbach, P.H.; Simmer, J.P. Splicing Determines the Glycosylation State of Ameloblastin. J. Dent. Res. 2007, 86, 962–967. [Google Scholar] [CrossRef] [PubMed]
  34. Yamakoshi, Y.; Richardson, A.S.; Nunez, S.M.; Yamakoshi, F.; Milkovich, R.N.; Hu, J.C.C.; Bartlett, J.D.; Simmer, J.P. Enamel proteins and proteases in Mmp20 and Klk4 null and double-null mice. Eur. J. Oral Sci. 2011, 119, 206–216. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Uversky, V.N. Intrinsically disordered proteins and their environment: Effects of strong denaturants, temperature, pH, counter ions, membranes, binding partners, osmolytes, and macromolecular crowding. Protein J. 2009, 28, 305–325. [Google Scholar] [CrossRef] [PubMed]
  36. Oates, M.E.; Romero, P.; Ishida, T.; Ghalwash, M.; Mizianty, M.J.; Xue, B.; Dosztányi, Z.; Uversky, V.N.; Obradovic, Z.; Kurgan, L.; et al. D2P2: Database of disordered protein predictions. Nucleic Acids Res. 2012, 41, D508–D516. [Google Scholar] [CrossRef][Green Version]
  37. Kjaergaard, M.; Nørholm, A.-B.; Hendus-Altenburger, R.; Pedersen, S.F.; Poulsen, F.M.; Kragelund, B.B. Temperature-dependent structural changes in intrinsically disordered proteins: Formation of alpha-helices or loss of polyproline II? Protein Sci. 2010, 19, 1555–1564. [Google Scholar] [CrossRef]
  38. Erickson, H.P. Size and Shape of Protein Molecules at the Nanometer Level Determined by Sedimentation, Gel Filtration, and Electron Microscopy. Biol. Proced. Online 2009, 11, 32. [Google Scholar] [CrossRef][Green Version]
  39. Heegaard, N.H.H.; Robey, F.A. A capillary electrophoresis-based assay for the binding of Ca2+ and phosphorylcholine to human C-reactive protein. J. Immunol. Methods 1993, 166, 103–110. [Google Scholar] [CrossRef]
  40. Clapham, D.E. Calcium Signaling. Cell 2007, 131, 1047–1058. [Google Scholar] [CrossRef][Green Version]
  41. Ikura, M. Calcium binding and conformational response in EF-hand proteins. Trends Biochem. Sci. 1996, 21, 14–17. [Google Scholar] [CrossRef]
  42. Sheng, Z.-H.; Rettig, J.; Cook, T.; Catterall, W.A. Calcium-dependent interaction of N-type calcium channels with the synaptic core complex. Nature 1996, 379, 451–454. [Google Scholar] [CrossRef] [PubMed]
  43. Christopeit, T.; Gossas, T.; Danielson, U.H. Characterization of Ca2+ and phosphocholine interactions with C-reactive protein using a surface plasmon resonance biosensor. Anal. Biochem. 2009, 391, 39–44. [Google Scholar] [CrossRef] [PubMed]
  44. Beyeler, M.; Schild, C.; Lutz, R.; Chiquet, M.; Trueb, B. Identification of a fibronectin interaction site in the extracellular matrix protein ameloblastin. Exp. Cell Res. 2010, 316, 1202–1212. [Google Scholar] [CrossRef] [PubMed]
  45. Ravindranath, R.M.; Devarajan, A.; Uchida, T. Spatiotemporal expression of ameloblastin isoforms during murine tooth development. J. Biol. Chem. 2007, 282, 36370–36376. [Google Scholar] [CrossRef][Green Version]
  46. Stakkestad, Ø.; Lyngstadaas, S.P.; Vondrasek, J.; Gordeladze, J.O.; Reseland, J.E. Ameloblastin peptides modulates the osteogenic capacity of human mesenchymal stem cells. Front. Physiol. 2017, 8, 58. [Google Scholar] [CrossRef][Green Version]
  47. Chattopadhyay, G.; Varadarajan, R. Facile measurement of protein stability and folding kinetics using a nano differential scanning fluorimeter. Protein Sci. 2019, 28, 1127–1134. [Google Scholar] [CrossRef]
  48. Rozbeský, D.; Kavan, D.; Chmelík, J.; Novák, P.; Vaněk, O.; Bezouška, K. High-level expression of soluble form of mouse natural killer cell receptor NKR-P1C (B6) in Escherichia coli. Protein Expr. Purif. 2011, 77, 178–184. [Google Scholar] [CrossRef]
  49. Hayes, D.; Laue, T.; Philo, J. Program Sednterp: Sedimentation Interpretation Program; Alliance Protein Laboratories: Thousand Oaks, CA, USA, 1995. [Google Scholar]
  50. Schuck, P. Size-distribution analysis of macromolecules by sedimentation velocity ultracentrifugation and lamm equation modeling. Biophys. J. 2000, 78, 1606–1619. [Google Scholar] [CrossRef][Green Version]
  51. Brautigam, C.A. Calculations and publication-quality illustrations for analytical ultracentrifugation data. In Methods in Enzymology; Elsevier: Amsterdam, The Netherlands, 2015; Volume 562, pp. 109–133. [Google Scholar]
  52. Štěpánová, S.; Václav, K. Capillary Electrophoretic Methods Applied to the Investigation of Peptide Complexes. J. Sep. Sci. 2015, 38, 2708–2721. [Google Scholar] [CrossRef]
  53. Hunter, J.D. Matplotlib: A 2D Graphics Environment. Comput. Sci. Eng. 2007, 9, 90–95. [Google Scholar] [CrossRef]

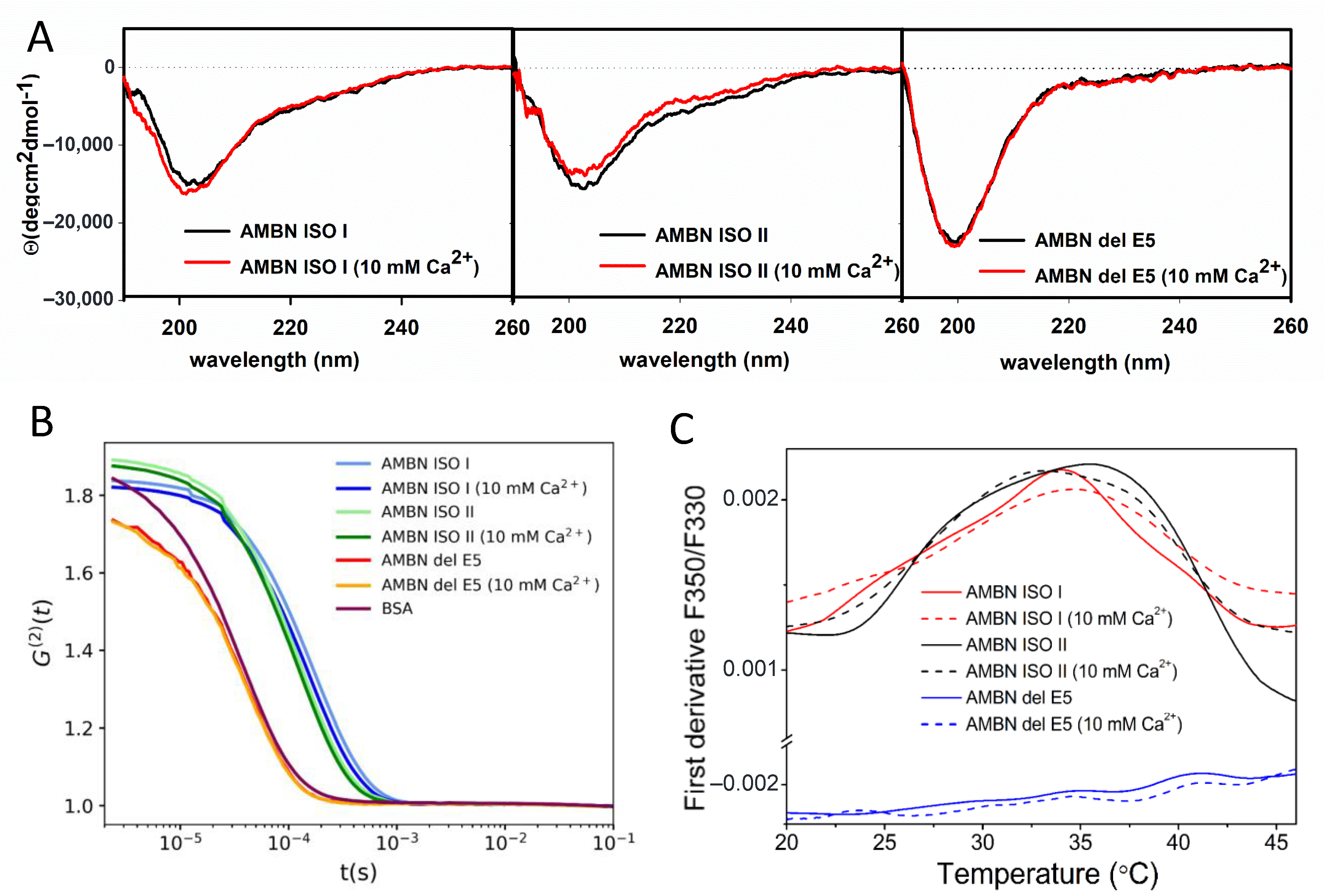

Figure 1. (A) Circular dichroism (CD) spectra of ameloblastin full-length isoform I (AMBN ISO I), ameloblastin full-length isoform II (AMBN ISO II) and AMBN with deleted exon 5 (AMBN del E5). Sample before (black) and after (red) addition of 10 mM CaCl2. (B) Analysis of autocorrelation functions (ACF) from dynamic light scattering (DLS) spectra of AMBN ISO I, AMBN ISO II, AMBN del E5, and bovine serum albumin (BSA) as a standard for globular protein. ACF of proteins in the absence or presence of 10mM CaCl2. (C) First derivative of thermal unfolding curves of AMBN ISO I, AMBN ISO II, and AMBN del E5 in the presence or absence of 10 mM CaCl2.
Figure 1. (A) Circular dichroism (CD) spectra of ameloblastin full-length isoform I (AMBN ISO I), ameloblastin full-length isoform II (AMBN ISO II) and AMBN with deleted exon 5 (AMBN del E5). Sample before (black) and after (red) addition of 10 mM CaCl2. (B) Analysis of autocorrelation functions (ACF) from dynamic light scattering (DLS) spectra of AMBN ISO I, AMBN ISO II, AMBN del E5, and bovine serum albumin (BSA) as a standard for globular protein. ACF of proteins in the absence or presence of 10mM CaCl2. (C) First derivative of thermal unfolding curves of AMBN ISO I, AMBN ISO II, and AMBN del E5 in the presence or absence of 10 mM CaCl2.
Ijms 21 09293 g001
Figure 2. (A) Transmission electron micrographs of AMBN ISO I. Samples were examined at a magnification of 200,000×; scale bar = 100 nm. (B) Magnified detail of the AMBN ISO I presented in panel A. (C) Transmission electron micrographs of AMBN ISO II. Samples were examined at a magnification of 200,000×; scale bar = 100 nm. (D) Magnified detail of the AMBN ISO II presented in panel C.
Figure 2. (A) Transmission electron micrographs of AMBN ISO I. Samples were examined at a magnification of 200,000×; scale bar = 100 nm. (B) Magnified detail of the AMBN ISO I presented in panel A. (C) Transmission electron micrographs of AMBN ISO II. Samples were examined at a magnification of 200,000×; scale bar = 100 nm. (D) Magnified detail of the AMBN ISO II presented in panel C.
Ijms 21 09293 g002

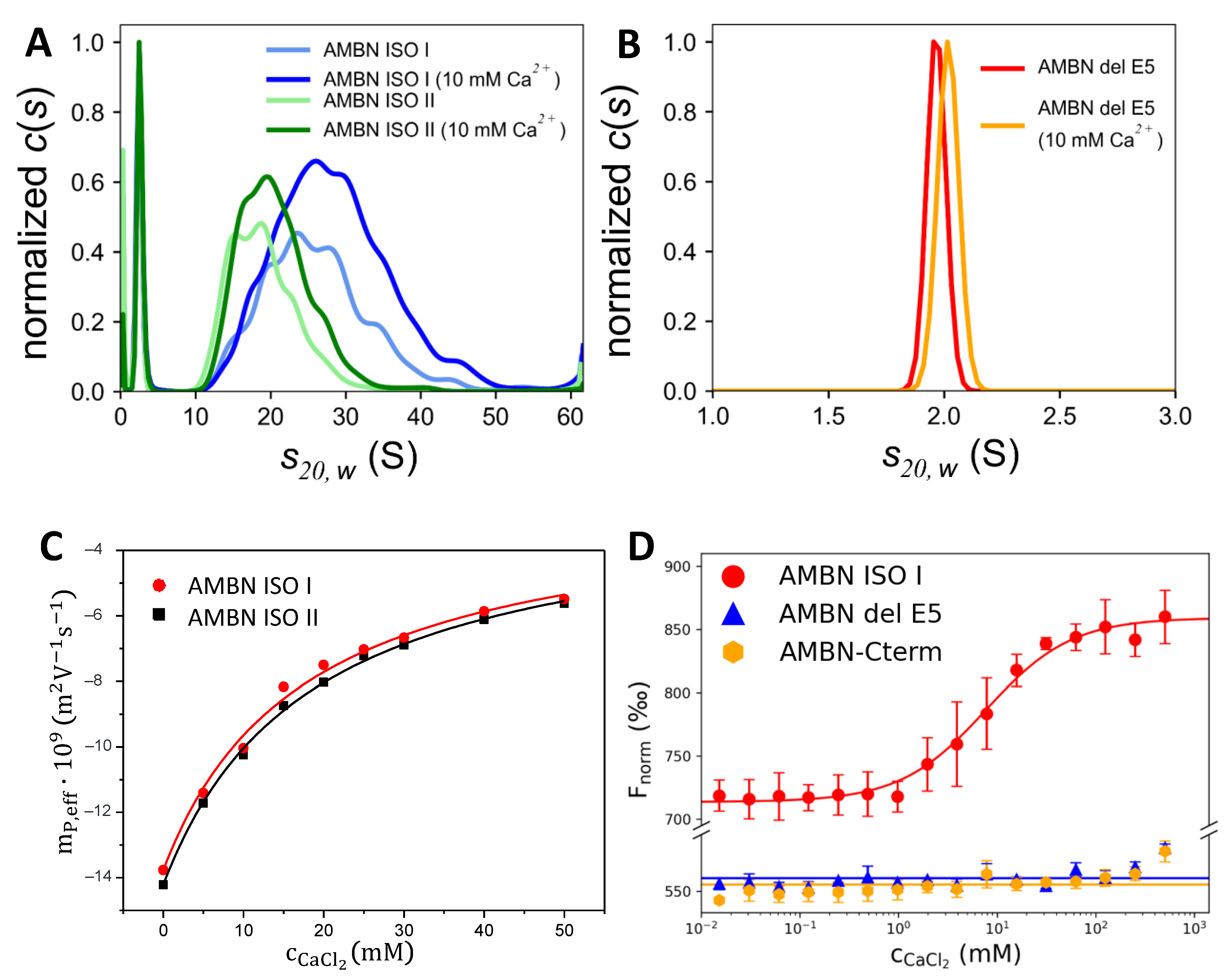

Figure 3. Sedimentation velocity analysis of (A) AMBN ISO I and AMBN ISO II; (B) AMBN del E5; in the absence or presence of 10 mM CaCl2. (C) Dependence of the effective electrophoretic mobility, mP,eff, of AMBN ISO I and AMBN ISO II proteins on the concentration of CaCl2 (cCaCl2), in the background electrolyte (BGE) composed of 30 mM Tris, 25 mM acetic acid, pH = 7.4. (D) Microscale thermophoresis analysis of the interaction of the AMBN ISO I, AMBN del E5, and AMBN-Cterm with CaCl2. Titration of CaCl2 against a constant concentration of AMBN ISO I revealed a standard binding curve, while the titration of AMBN del E5 and AMBN C-term shows no binding.2.4. AMBN Oligomers of Both Isoforms Have a Heterogenous Character.
Figure 3. Sedimentation velocity analysis of (A) AMBN ISO I and AMBN ISO II; (B) AMBN del E5; in the absence or presence of 10 mM CaCl2. (C) Dependence of the effective electrophoretic mobility, mP,eff, of AMBN ISO I and AMBN ISO II proteins on the concentration of CaCl2 (cCaCl2), in the background electrolyte (BGE) composed of 30 mM Tris, 25 mM acetic acid, pH = 7.4. (D) Microscale thermophoresis analysis of the interaction of the AMBN ISO I, AMBN del E5, and AMBN-Cterm with CaCl2. Titration of CaCl2 against a constant concentration of AMBN ISO I revealed a standard binding curve, while the titration of AMBN del E5 and AMBN C-term shows no binding.2.4. AMBN Oligomers of Both Isoforms Have a Heterogenous Character.
Ijms 21 09293 g003
Figure 4. The schematic view of possible AMBN oligomerization state. AMBN monomers forming oligomers (e.g., hexamer). The blue rectangle illustrates AMBN-Nterm, while the green rectangle shows oligomerization inducing exon 5. Red lines show the possible arrangements of AMBN-Cterm in the absence of Ca2+ (A) and in the presence of Ca2+ (B) with yellow circles representing Ca2+. Black lines represent possible Ca2+ binding to AMBN-Cterm. (C) Schematic detail of possible Ca2+-binding sites of two C-termini of AMBN. Black rectangles represent sequences with a high abundance of negatively charged amino acids. (D) Detail view of potential Ca2+-binding sites at AMBN C-termini is shown in panel C. Amino acid sequences of AMBN-Cterm are in black rectangles. Negatively charged amino acids as a high preferable binding sites are bold white.
Figure 4. The schematic view of possible AMBN oligomerization state. AMBN monomers forming oligomers (e.g., hexamer). The blue rectangle illustrates AMBN-Nterm, while the green rectangle shows oligomerization inducing exon 5. Red lines show the possible arrangements of AMBN-Cterm in the absence of Ca2+ (A) and in the presence of Ca2+ (B) with yellow circles representing Ca2+. Black lines represent possible Ca2+ binding to AMBN-Cterm. (C) Schematic detail of possible Ca2+-binding sites of two C-termini of AMBN. Black rectangles represent sequences with a high abundance of negatively charged amino acids. (D) Detail view of potential Ca2+-binding sites at AMBN C-termini is shown in panel C. Amino acid sequences of AMBN-Cterm are in black rectangles. Negatively charged amino acids as a high preferable binding sites are bold white.
Ijms 21 09293 g004
Table 1. Calculated hydrodynamic radii (Rh) [37] and polydispersity index (PDI) for AMBN ISO I, AMBN ISO II, AMBN del E5 variant of AMBN, and BSA in the absence or presence of Ca2+ ions. Numbers in parentheses represent the standard errors of the mean.
Table 1. Calculated hydrodynamic radii (Rh) [37] and polydispersity index (PDI) for AMBN ISO I, AMBN ISO II, AMBN del E5 variant of AMBN, and BSA in the absence or presence of Ca2+ ions. Numbers in parentheses represent the standard errors of the mean.
Protein0 mM CaCl210 mM CaCl2
Rh (nm)PDIRh (nm)PDI
AMBN ISO I24.00.1321.60.09
(0.2)(0.02)(0.2)(0.08)
AMBN ISO II17.7)0.1216.90.09
(0.1)(0.01)(0.1)(0.01)
AMBN del E55.70.065.70.06
(0.05)(0.01)(0.05)(0.01)
BSA5.030.30NANA
(0.03)(0.01)
Table 2. Stokes hydrodynamic radii (RS) estimated from analytical ultracentrifugation (AUC) sedimentation velocity data for AMBN ISO I, ISO II, and del E5 variants and BSA in the absence or presence of Ca2+ ions.
Table 2. Stokes hydrodynamic radii (RS) estimated from analytical ultracentrifugation (AUC) sedimentation velocity data for AMBN ISO I, ISO II, and del E5 variants and BSA in the absence or presence of Ca2+ ions.
Protein0 mM CaCl210 mM CaCl2
RS (nm)s20,w (S)f/f0RS (nm)s20,w (S)f/f0
AMBN ISO I monomer4.442.532.094.302.612.02
AMBN ISO I oligomers15.526.11.7015.428.51.64
AMBN ISO II monomer4.282.532.054.102.652.18
AMBN ISO II oligomers13.519.21.7213.020.91.63
AMBN del E54.981.982.204.852.032.10
BSA3.384.601.27NANANA
Table 3. The calculated apparent binding constants, Kb, dissociation constant, KD, and the ionic mobilities, mPM, of the complexes of AMBN ISO I and AMBN ISO II proteins with Ca2+, and electrophoretic mobilities of these proteins in the background electrolyte free of Ca2+, mp,eff,0; R2, coefficient of determination.
Table 3. The calculated apparent binding constants, Kb, dissociation constant, KD, and the ionic mobilities, mPM, of the complexes of AMBN ISO I and AMBN ISO II proteins with Ca2+, and electrophoretic mobilities of these proteins in the background electrolyte free of Ca2+, mp,eff,0; R2, coefficient of determination.
ProteinKb ± SD a
(L/mol)
mp,eff,0 ± SD a
(10−9 m2 V−1 s−1)
mPM ± SD a
(10−9 m2 V−1 s−1)
R2KD ± SD a
(mol/L)
AMBN ISO I56.8 ± 6.3−13.8 ± 0.2−2.39 ± 0.510.9930.017 ± 0.002
AMBN ISO II54.4 ± 3.0−14.2 ± 0.2−2.36 ± 0.270.9980.018 ± 0.001
a SD, standard deviation; n = 3.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Vetyskova, V.; Zouharova, M.; Bednarova, L.; Vaněk, O.; Sázelová, P.; Kašička, V.; Vymetal, J.; Srp, J.; Rumlová, M.; Charnavets, T.; Postulkova, K.; Reseland, J.E.; Bousova, K.; Vondrasek, J. Characterization of AMBN I and II Isoforms and Study of Their Ca2+-Binding Properties. Int. J. Mol. Sci. 2020, 21, 9293. https://doi.org/10.3390/ijms21239293

AMA Style

Vetyskova V, Zouharova M, Bednarova L, Vaněk O, Sázelová P, Kašička V, Vymetal J, Srp J, Rumlová M, Charnavets T, Postulkova K, Reseland JE, Bousova K, Vondrasek J. Characterization of AMBN I and II Isoforms and Study of Their Ca2+-Binding Properties. International Journal of Molecular Sciences. 2020; 21(23):9293. https://doi.org/10.3390/ijms21239293

Chicago/Turabian Style

Vetyskova, Veronika, Monika Zouharova, Lucie Bednarova, Ondřej Vaněk, Petra Sázelová, Václav Kašička, Jiri Vymetal, Jaroslav Srp, Michaela Rumlová, Tatsiana Charnavets, Klara Postulkova, Janne E. Reseland, Kristyna Bousova, and Jiri Vondrasek. 2020. "Characterization of AMBN I and II Isoforms and Study of Their Ca2+-Binding Properties" International Journal of Molecular Sciences 21, no. 23: 9293. https://doi.org/10.3390/ijms21239293

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
