Nitrogen Starvation and Stationary Phase Lipophagy Have Distinct Molecular Mechanisms

by
Ravinder Kumar
1,†,
Muhammad Arifur Rahman
2 and
Taras Y. Nazarko
1,2,*
1
Section of Molecular Biology, Division of Biological Sciences, University of California, San Diego, La Jolla, CA 92093, USA
2
Department of Biology, Georgia State University, Atlanta, GA 30303, USA
*
Author to whom correspondence should be addressed.
†
Current affiliation: Department of Obstetrics, Gynecology and Reproductive Science, University of California, San Francisco, CA 94143, USA.
Int. J. Mol. Sci. 2020, 21(23), 9094; https://doi.org/10.3390/ijms21239094
Submission received: 10 November 2020 / Revised: 24 November 2020 / Accepted: 26 November 2020 / Published: 29 November 2020
(This article belongs to the Special Issue Raft Microdomains and Cell Signaling)
Browse Figures
Versions Notes

Abstract

:
In yeast, the selective autophagy of intracellular lipid droplets (LDs) or lipophagy can be induced by either nitrogen (N) starvation or carbon limitation (e.g., in the stationary (S) phase). We developed the yeast, Komagataella phaffii (formerly Pichia pastoris), as a new lipophagy model and compared the N-starvation and S-phase lipophagy in over 30 autophagy-related mutants using the Erg6-GFP processing assay. Surprisingly, two lipophagy pathways had hardly overlapping stringent molecular requirements. While the N-starvation lipophagy strictly depended on the core autophagic machinery (Atg1-Atg9, Atg18, and Vps15), vacuole fusion machinery (Vam7 and Ypt7), and vacuolar proteolysis (proteinases A and B), only Atg6 and proteinases A and B were essential for the S-phase lipophagy. The rest of the proteins were only partially required in the S-phase. Moreover, we isolated the prl1 (for the positive regulator of lipophagy 1) mutant affected in the S-phase lipophagy, but not N-starvation lipophagy. The prl1 defect was at a stage of delivery of the LDs from the cytoplasm to the vacuole, further supporting the mechanistically different nature of the two lipophagy pathways. Taken together, our results suggest that N-starvation and S-phase lipophagy have distinct molecular mechanisms.

1. Introduction

Autophagy is a highly conserved degradation process in which proteins, protein aggregates, and even entire organelles can be sequestered from the cytoplasm by the vacuoles/lysosomes either directly at the vacuolar/lysosomal membrane (microautophagy) or via the double-membrane vesicular intermediates, autophagosomes (macroautophagy) [1,2]. Autophagy is strongly induced by starvation for nutrients, such as the sources of nitrogen (N), carbon (C), and other elements. The lack of several amino acids can also induce autophagy [3,4]. Therefore, this process acts as an internal supply of building blocks for cells when the external nutrients become unavailable and it allows cells to survive the prolonged periods of starvation.
Lipophagy is an important autophagic process, which delivers the intracellular lipid droplets (LDs) to the vacuoles/lysosomes for degradation and recycling [5]. Lipophagy was initially described in hepatocytes, which become a major site of excessive lipid accumulation in obesity and metabolic syndrome [6]. However, the intracellular lipid metabolism in most eukaryotic cells is also regulated by lipophagy [7], and impaired lipophagy may contribute to the development of many liver and non-liver diseases [8,9]. Thus, understanding the mechanisms of lipophagy is very important for the prevention and treatment of various lipid accumulation diseases.
The budding yeast Saccharomyces cerevisiae was used as a simple lipophagy model by several groups to study the mechanisms of lipophagy. Precisely, lipophagy was induced by either acute N-starvation [10,11] or C-limitation (either acute [12] or gradual due to the prolonged incubation of cells in the same medium and entering them into stationary (S) phase [11,13]). These studies described the morphological features of lipophagy and tested the requirements of lipophagy for known autophagy-related (Atg) factors. They suggested that both N-starvation and C-limitation induce microlipophagy [10,11,12,13], the selective microautophagy of LDs, and that this microlipophagy depends on the same core autophagic factors, which are necessary for the formation of autophagic double-membrane in other autophagic pathways [10,12,13]. However, such autophagic membrane was never reported to be associated with LDs in the yeast lipophagy studies questioning the role of the autophagic machinery in yeast lipophagy.
Here, we developed the yeast, Komagataella phaffii (formerly Pichia pastoris), as a new simple model to study lipophagy. The K. phaffii has proven to be an excellent model organism for the studies of autophagy-related (Atg) pathways and contributed a lot of mechanistic insights to the field of autophagy [14]. Then, we run the entire collection of K. phaffii atg-mutants through the lipophagy assay under both N-starvation and S-phase conditions. As a result, we found that the core autophagic machinery is essential only for the N-starvation lipophagy. The only overlapping stringent molecular requirements for two lipophagy pathways were Atg6 and vacuolar proteinases A and B. In addition, we isolated a new positive regulator of lipophagy 1 (prl1) mutant that was deficient only in the S-phase lipophagy. Therefore, we suggest that the N-starvation and S-phase lipophagy pathways have distinct molecular mechanisms.

2. Results

2.1. K. phaffii Is a Good Model for Both N-Starvation and S-Phase Lipophagy

To develop K. phaffii as a new lipophagy model, we used the established LD marker protein, Erg6 [10,11,12], tagged with the green fluorescent protein (GFP) on the integrative plasmid, pRK2. To confirm the localization of Erg6-GFP to LDs, wild-type (WT) PPY12h cells with pRK2 integrated into the HIS4 locus were grown in YPD medium for 1 d to an early S-phase and stained with a blue LD dye, monodansylpentane (MDH) [15]. The Erg6-GFP displayed a complete co-localization with MDH (Figure 1a), suggesting that it is a good LD protein marker for K. phaffii under our experimental conditions. The lack of a key Atg protein, Atg8, did not affect the localization of Erg6-GFP to LDs in atg8 cells (Figure 1a), making it possible to use the Erg6-GFP as a lipophagy reporter.
Then, we developed two Erg6-GFP processing assays to monitor lipophagy: One after the transfer of cells from early S-phase in YPD medium to N-starvation in SD-N medium and another one after the prolonged S-phase in YPD medium. When the LDs with Erg6-GFP are delivered from the cytoplasm to the vacuole, Erg6, but not GFP moiety, is degraded by vacuolar proteases resulting in free GFP, which can be detected by Western blot [16]. The processing of Erg6-GFP to GFP in WT (PPY12h) cells culminated after 24 h of N-starvation (Figure 1b) and after 2-3 days in YPD medium (Figure 1c). Therefore, we picked 0 and 24 h, and 1 and 3 d time-points for the N-starvation and S-phase lipophagy assays, respectively.
Interestingly, while atg8 cells were completely deficient in the Erg6-GFP processing under N-starvation conditions (Figure 1b), they were only partially compromised in it in S-phase (Figure 1c), suggesting that N-starvation and S-phase lipophagy pathways might have differences in their molecular requirements. In summary, both N-starvation and S-phase lipophagy pathways were readily induced in K. phaffii yeast, making it a good model for comparison of their machinery.

2.2. Molecular Requirements of N-Starvation and S-Phase Lipophagy in K. phaffii

Encouraged by atg8 results under two lipophagy conditions, we introduced Erg6-GFP into the collection of K. phaffii strains deficient in genes that were previously implicated in various Atg-pathways in either K. phaffii or other species (Table 1). The collected mutants belong to 4 different WT backgrounds: GS115, GS200, PPY12h, and PPY12m. Therefore, we grouped mutants by genetic background and studied them together with the corresponding WT strain, as a control, in both N-starvation and S-phase lipophagy conditions (Figure 2 and Figure 3, respectively).
We found that most of the mutants were either fully deficient (atg1-atg9, atg18, pep4 prb1, vam7, vps15, and ypt7) or fully proficient (ape1, atg11, atg20, atg24-atg26, atg30, atg32, atg35, atg37, atg40, pex3, pex19, prl1, vac8, vps17, and uvrag) in the Erg6-GFP processing under N-starvation conditions. Only three strains (atg17, atg11 atg17, and atg28) had an intermediate phenotype (Figure 2 and Table 2). These results suggested that N-starvation lipophagy strictly depends on the core autophagic machinery (Atg1-Atg9, Atg18, and Vps15), vacuole fusion machinery (Vam7 and Ypt7), and vacuolar proteolysis (proteinases A and B).
In contrast, the Erg6-GFP processing in S-phase was fully deficient in only three strains (atg6, pep4 prb1, and prl1). It was fully proficient in nearly as many strains (ape1, atg11, atg20, atg24, atg25, atg30, atg32, atg35, atg37, vac8, vps17, and uvrag), as under N-starvation conditions. However, most of the mutants (atg1-atg5, atg7-atg9, atg17, atg11 atg17, atg18, atg26, atg28, atg40, pex3, pex19, vam7, vps15, and ypt7) had an intermediate phenotype (Figure 3 and Appendix A Figure A1; Table 2). Therefore, we concluded that S-phase lipophagy strictly depends only on Atg6, Prl1, and vacuolar proteolysis (proteinases A and B). Summarizing, the N-starvation and S-phase lipophagy pathways have different molecular requirements.

2.3. Prl1 Is Essential for the Delivery of LDs to the Vacuole in S-Phase

To probe further into the differences between N-starvation and S-phase lipophagy machinery, we took advantage of the prl1 mutant. This mutant was obtained by integrating ZeocinR cassette from the pRK6 plasmid into the genome of PPY12h WT strain (Table 1). The prl1 mutant displayed a unique phenotype in the screening above: It was fully proficient in the N-starvation lipophagy, but fully deficient in the S-phase lipophagy (Table 2).
To compare the phenotypes of prl1 cells in the same experiment, we split the cultures of WT, prl1, and pep4 prb1 cells after 1 d in YPD medium: Small aliquots were transferred to SD-N medium (for 0 and 24 h time-points), while the rest remained in YPD medium (for 1 and 3 d time-points) (Figure 4a and Appendix A Figure A2). While N-starvation and S-phase lipophagy pathways were equally well induced in WT cells, they were fully blocked in the proteinases A and B-deficient mutant. Although prl1 cells were indistinguishable from WT cells under N-starvation conditions, they were indeed incapable of degrading LDs in S-phase (Figure 4a). Therefore, we concluded that the prl1 mutant is specifically deficient in the S-phase lipophagy.
To get insight into the step of S-phase lipophagy affected in prl1 cells, we studied S-phase lipophagy by fluorescence microscopy. The WT, prl1, and pep4 prb1 cells with Erg6-GFP reporter were incubated in the YPD medium with FM 4-64, the lipophilic dye that stains specifically the vacuolar membrane. After 1 d, the cells of all strains had LDs outside the vacuole and no GFP fluorescence inside the vacuolar lumen. However, after 3 d, WT and pep4 prb1 cells developed a diffuse or grainy GFP fluorescence in the vacuolar lumen, respectively (Figure 4b). Those patterns of luminal GFP fluorescence were consistent with the disintegration of the LD-containing autophagic bodies in WT vacuoles and Brownian movement of intact LD-containing autophagic bodies in the proteinases A and B-deficient vacuoles. The prl1 cells did not gain any GFP fluorescence in the vacuolar lumen after 3 d in YPD, suggesting that Prl1 is required to deliver LDs to the vacuole in S-phase.

3. Discussion

In this study, we introduced K. phaffii yeast as a new lipophagy model and compared the lipophagy requirements of K. phaffii cells under two conditions: N-starvation and S-phase, the two most popular ways to induce Atg-pathways in yeast. Previous screenings in S. cerevisiae done for each of these conditions separately indicated that both of them induced microlipophagy that strongly depended on the core autophagic machinery [10,13]. However, by comparing the N-starvation and S-phase conditions in the same study with K. phaffii, we observed a clear difference in lipophagy requirements (Table 2).
Both the N-starvation and S-phase lipophagy pathways strictly depended on the proteinases A and B, consistent with the vacuolar degradation of LDs under the two conditions. While the N-starvation lipophagy strongly relied on the core autophagic machinery represented by Atg1-Atg9, Atg18, and Vps15, the S-phase lipophagy was fully deficient only without the Atg6 protein. Interestingly, only Atg6 and not the other components of the phosphatidylinositol 3-kinase complex I (i.e., Atg14, Atg38, Vps15, and Vps34) stably localized to the vacuolar membrane under both acute and gradual (S-phase) C-limitation conditions in S. cerevisiae [12]. Atg6 was necessary for the formation of raft-like domains in the vacuolar membrane [12] that are essential for microlipophagy [13]. Combined, this and previous studies suggest that Atg6 plays a unique role in the S-phase lipophagy, which is different from its established function in the biogenesis of autophagic double-membrane under N-starvation conditions [39].
While a reason for the essential role of the core autophagic machinery in the N-starvation lipophagy is unclear, there is a plausible explanation for the partial requirement of the core autophagic machinery in the S-phase lipophagy. In S-phase, the core autophagic machinery is essential for the correct vacuolar localization of Niemann-Pick type C proteins, Ncr1 and Npc2, which transport sterol from the vacuolar lumen to the vacuolar membrane for the raft-like domain formation [11]. However, the requirements of Ncr1 and Npc2 for (1) raft-like domains formation, (2) their internalization as microautophagic bodies, and (3) S-phase lipophagy are partial [11]. Therefore, the core autophagic machinery has, in the end, a partial role in the S-phase lipophagy. Interestingly, it is not required for the correct vacuolar localization of Ncr1 and Npc2 under the N-starvation conditions. Thus, the mechanistic role of the core autophagic machinery in the N-starvation lipophagy is still unknown.
Recently, it was reported that the vacuolar membrane protein, Vph1, which is normally excluded from the raft-like domains in S-phase [40], is also degraded, like LDs, by microautophagy [41]. Interestingly, the S-phase microautophagy of Vph1 was independent of the core autophagic machinery, but relied on the machinery of ESCRT, the endosomal sorting complex required for transport. The same study also reported that the S-phase microautophagy of LDs was partially independent of the core autophagic factor, Atg1, but strongly relied on the ESCRT component, Vps27 [41]. Our results are consistent with these lipophagy observations and extend them to the entire core autophagic machinery being only partially required specifically in the S-phase. However, it is still unclear how LDs and Vph1 can utilize the same microautophagy pathway in S-phase, since they are associated with different vacuolar membrane domains, the raft-like liquid-ordered domain and the liquid-disordered domain, respectively. Since the S-phase microautophagy of Vph1 does not require Atg6 [41], and the S-phase lipophagy strongly depends on it (Figure 3), we propose that these pathways have both common (Vps27) and unique (Atg6) requirements.
Our study also suggests a unique molecular requirement of the S-phase lipophagy versus N-starvation lipophagy, the positive regulator of lipophagy 1 (Prl1). The prl1 mutant isolated in this study was deficient in lipophagy only in the S-phase. Moreover, we showed that the prl1′s lipophagy block is at a trafficking step, since LDs were not delivered from the cytoplasm to the vacuole for degradation in the S-phase. It will be interesting to determine the gene responsible for prl1 phenotype, since it can help us to further distinguish the molecular mechanisms of these two clearly distinct lipophagy pathways, the N-starvation and S-phase lipophagy.

4. Materials and Methods

4.1. Strains and Plasmids

The K. phaffii strains that were used in this study are shown in Table 1. These strains were transformed by electroporation [42] with the EcoNI-linearized (R0521S; New England Biolabs, Ipswich, MA, USA) pRK2 plasmid. This plasmid contained the Erg6-GFP expression cassette (for lipophagy studies) and HIS4 marker gene (for integration into his4 mutant allele of the recipient strains and selection of His+-transformants). The resulting transformants had the following genotype: his4::pRK2 (PERG6-ERG6-GFP, HIS4). They were selected on SD+CSM-His plates (1.7 g/L YNB without amino acids and ammonium sulfate, 20 g/L dextrose, 5 g/L ammonium sulfate, 0.78 g/L CSM-His, and 20 g/L agar) and screened for expression of Erg6-GFP by Western blot with anti-GFP bodies (11814460001; Roche Diagnostics, Mannheim, Germany) and for localization of Erg6-GFP to LDs by fluorescence microscopy.

4.2. Fluorescence Microscopy

Cells were grown for 1 and/or 3 d in culture tubes with 1 mL of YPD medium (10 g/L yeast extract, 20 g/L peptone and 20 g/L dextrose; the autoclaved solution of yeast extract and peptone was mixed with the filter-sterilized 20× solution of dextrose). LDs were stained with 1 µL of 0.1 M MDH solution (SM1000a; Abcepta, San Diego, CA, USA) during the last 1 h of incubation of cells in YPD medium. Vacuolar membranes were stained with 1 µL of 1 mg/mL solution of FM 4-64 (T3166; Molecular Probes, Eugene, OR, USA) in DMSO added at the beginning of incubation of cells in YPD medium. Then, cells were immobilized on slides using 1% low-melt agarose. For this, the 2 µL drop of cell culture on the slide was mixed with the 5 µL drop of 1% low-melt agarose (37 °C) on the coverslip. Microscopy was done at the Axioskop 2 MOT microscope equipped with the Plan-Apochromat 100×/1.40 NA oil DIC objective and operated by the AxioVision software (Carl Zeiss Microscopy, White Plains, NY, USA). All the experiments were done at least in duplicate.

4.3. Biochemical Studies

Cells were grown in culture tubes with 1 mL of YPD medium and 1 OD600 of cells was taken at 1 and 3 d time-points for studies of S-phase lipophagy. For studies of N-starvation lipophagy, 3 OD600 of cells were taken at 1 d time-point in YPD medium, washed twice with 1 mL of 1× YNB solution (1.7 g/L YNB without amino acids and ammonium sulfate), and resuspended in 3 mL of SD-N medium (1.7 g/L YNB without amino acids and ammonium sulfate, and 20 g/L dextrose). Then, 1 mL of cell culture was taken at 0 and 24 h time-points in SD-N medium. Both YPD (1 and 3 d) and SD-N (0 and 24 h) samples were TCA precipitated [43] and analyzed by Western blot with the same anti-GFP bodies, as above. All the experiments were done at least in duplicate.

Author Contributions

Conceptualization, R.K. and T.Y.N.; methodology, R.K. and T.Y.N.; validation, T.Y.N.; formal analysis, T.Y.N.; investigation, R.K. and T.Y.N.; resources, T.Y.N.; data curation, R.K. and T.Y.N.; writing—Original draft preparation, M.A.R. and T.Y.N.; writing—Review and editing, R.K., M.A.R. and T.Y.N.; visualization, T.Y.N.; supervision, T.Y.N.; project administration, T.Y.N.; funding acquisition, T.Y.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the NIH grants, DK106344 and GM119571, to T.Y.N. The APC was funded by GM119571.

Acknowledgments

We thank Jean-Claude Farré and Suresh Subramani for strains and helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

Atgautophagy-related
Ccarbon
DICdifferential interference contrast
ESCRTendosomal sorting complex required for transport
GFPgreen fluorescent protein
LDlipid droplet
MDHmonodansylpentane
Nnitrogen
Prl1positive regulator of lipophagy 1
prA,Bproteinases A and B
Sstationary
WTwild-type

Appendix A

Ijms 21 09094 g0a1 550

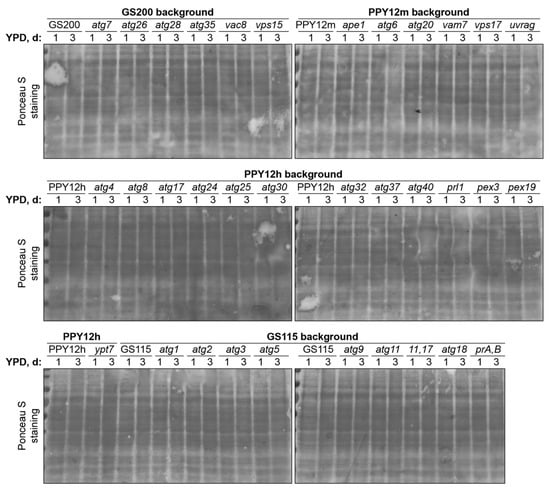

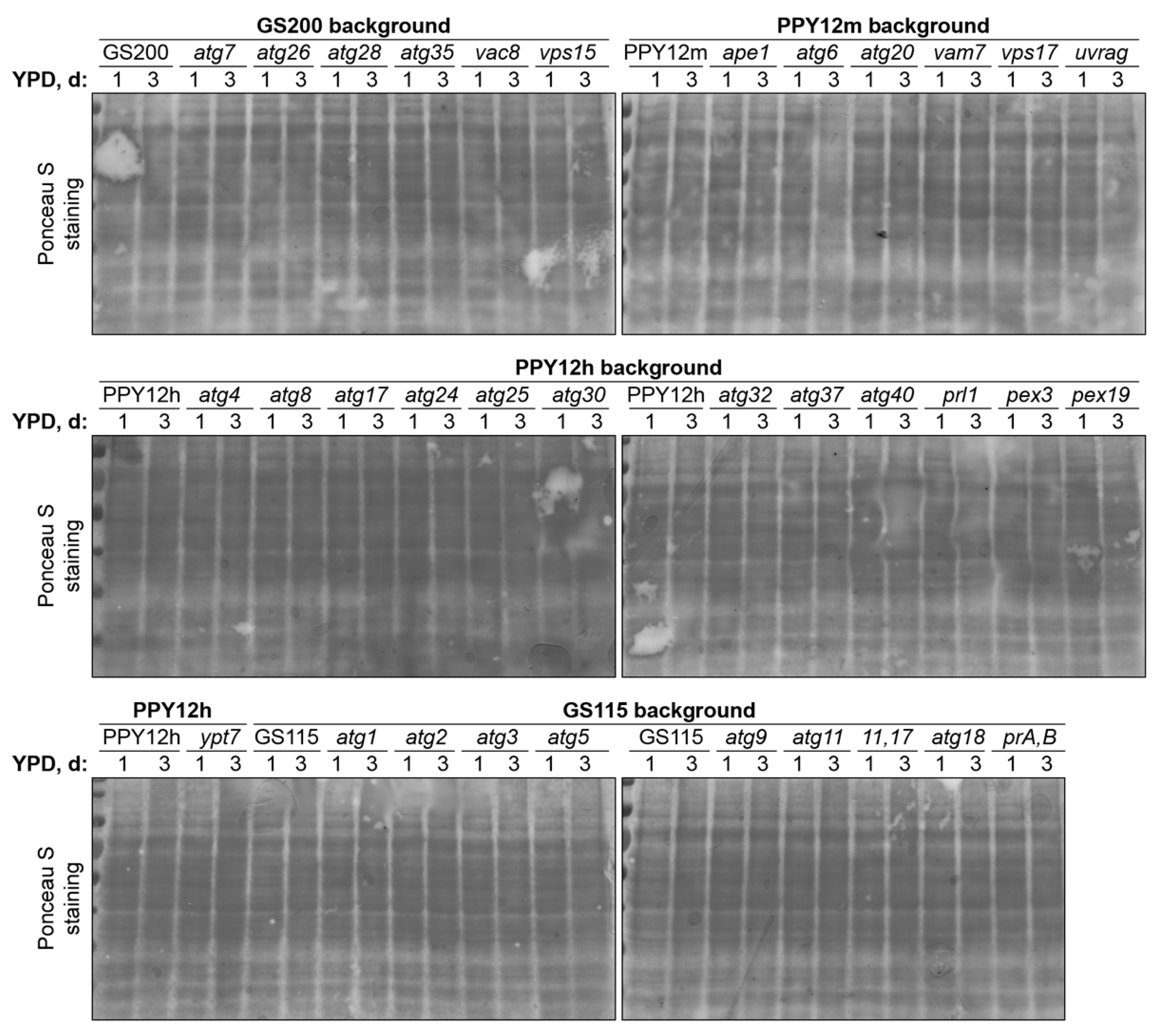

Figure A1. Supplemental figure for Figure 3. Loading control (see Figure 3 for details).
Figure A1. Supplemental figure for Figure 3. Loading control (see Figure 3 for details).
Ijms 21 09094 g0a1
Ijms 21 09094 g0a2 550
Figure A2. Supplemental figure for Figure 4a. Loading control (see Figure 4a for details).
Figure A2. Supplemental figure for Figure 4a. Loading control (see Figure 4a for details).
Ijms 21 09094 g0a2

References

  1. Klionsky, D.J. Autophagy: From phenomenology to molecular understanding in less than a decade. Nat. Rev. Mol. Cell Biol. 2007, 8, 931–937. [Google Scholar] [CrossRef]
  2. Ohsumi, Y. Historical landmarks of autophagy research. Cell Res. 2014, 24, 9–23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Takeshige, K.; Baba, M.; Tsuboi, S.; Noda, T.; Ohsumi, Y. Autophagy in yeast demonstrated with proteinase-deficient mutants and conditions for its induction. J. Cell Biol. 1992, 119, 301–311. [Google Scholar] [CrossRef] [Green Version]
  4. Sutter, B.M.; Wu, X.; Laxman, S.; Tu, B.P. Methionine inhibits autophagy and promotes growth by inducing the SAM-responsive methylation of PP2A. Cell 2013, 154, 403–415. [Google Scholar] [CrossRef] [Green Version]
  5. Singh, R.; Kaushik, S.; Wang, Y.; Xiang, Y.; Novak, I.; Komatsu, M.; Tanaka, K.; Cuervo, A.M.; Czaja, M.J. Autophagy regulates lipid metabolism. Nature 2009, 458, 1131–1135. [Google Scholar] [CrossRef] [Green Version]
  6. Marchesini, G.; Brizi, M.; Bianchi, G.; Tomassetti, S.; Bugianesi, E.; Lenzi, M.; McCullough, A.J.; Natale, S.; Forlani, G.; Melchionda, N. Nonalcoholic fatty liver disease: A feature of the metabolic syndrome. Diabetes 2001, 50, 1844–1850. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Singh, R.; Cuervo, A.M. Autophagy in the cellular energetic balance. Cell Metab. 2011, 13, 495–504. [Google Scholar] [CrossRef] [Green Version]
  8. Zhang, Z.; Yao, Z.; Chen, Y.; Qian, L.; Jiang, S.; Zhou, J.; Shao, J.; Chen, A.; Zhang, F.; Zheng, S. Lipophagy and liver disease: New perspectives to better understanding and therapy. Biomed. Pharmacother. 2018, 97, 339–348. [Google Scholar] [CrossRef]
  9. Zhou, K.; Yao, P.; He, J.; Zhao, H. Lipophagy in nonliver tissues and some related diseases: Pathogenic and therapeutic implications. J. Cell. Physiol. 2019, 234, 7938–7947. [Google Scholar] [CrossRef]
  10. Van Zutphen, T.; Todde, V.; de Boer, R.; Kreim, M.; Hofbauer, H.F.; Wolinski, H.; Veenhuis, M.; van der Klei, I.J.; Kohlwein, S.D. Lipid droplet autophagy in the yeast Saccharomyces cerevisiae. Mol. Biol. Cell 2014, 25, 290–301. [Google Scholar] [CrossRef] [Green Version]
  11. Tsuji, T.; Fujimoto, M.; Tatematsu, T.; Cheng, J.; Orii, M.; Takatori, S.; Fujimoto, T. Niemann-Pick type C proteins promote microautophagy by expanding raft-like membrane domains in the yeast vacuole. Elife 2017, 6. [Google Scholar] [CrossRef]
  12. Seo, A.Y.; Lau, P.W.; Feliciano, D.; Sengupta, P.; Gros, M.A.L.; Cinquin, B.; Larabell, C.A.; Lippincott-Schwartz, J. AMPK and vacuole-associated Atg14p orchestrate µ-lipophagy for energy production and long-term survival under glucose starvation. Elife 2017, 6. [Google Scholar] [CrossRef]
  13. Wang, C.W.; Miao, Y.H.; Chang, Y.S. A sterol-enriched vacuolar microdomain mediates stationary phase lipophagy in budding yeast. J. Cell Biol. 2014, 206, 357–366. [Google Scholar] [CrossRef] [Green Version]
  14. Farre, J.C.; Subramani, S. Mechanistic insights into selective autophagy pathways: Lessons from yeast. Nat. Rev. Mol. Cell Biol. 2016, 17, 537–552. [Google Scholar] [CrossRef]
  15. Yang, H.J.; Hsu, C.L.; Yang, J.Y.; Yang, W.Y. Monodansylpentane as a blue-fluorescent lipid-droplet marker for multi-color live-cell imaging. PLoS ONE 2012, 7, e32693. [Google Scholar] [CrossRef] [Green Version]
  16. Shintani, T.; Klionsky, D.J. Cargo proteins facilitate the formation of transport vesicles in the cytoplasm to vacuole targeting pathway. J. Biol. Chem. 2004, 279, 29889–29894. [Google Scholar] [CrossRef] [Green Version]
  17. Cregg, J.M.; Barringer, K.J.; Hessler, A.Y.; Madden, K.R. Pichia pastoris as a host system for transformations. Mol. Cell. Biol. 1985, 5, 3376–3385. [Google Scholar] [CrossRef]
  18. Waterham, H.R.; de Vries, Y.; Russel, K.A.; Xie, W.; Veenhuis, M.; Cregg, J.M. The Pichia pastoris PER6 gene product is a peroxisomal integral membrane protein essential for peroxisome biogenesis and has sequence similarity to the Zellweger syndrome protein PAF-1. Mol. Cell. Biol. 1996, 16, 2527–2536. [Google Scholar] [CrossRef] [Green Version]
  19. Gould, S.J.; McCollum, D.; Spong, A.P.; Heyman, J.A.; Subramani, S. Development of the yeast Pichia pastoris as a model organism for a genetic and molecular analysis of peroxisome assembly. Yeast 1992, 8, 613–628. [Google Scholar] [CrossRef]
  20. Farre, J.C.; Vidal, J.; Subramani, S. A cytoplasm to vacuole targeting pathway in P. pastoris. Autophagy 2007, 3, 230–234. [Google Scholar] [CrossRef] [Green Version]
  21. Stromhaug, P.E.; Bevan, A.; Dunn, W.A., Jr. GSA11 encodes a unique 208-kDa protein required for pexophagy and autophagy in Pichia pastoris. J. Biol. Chem. 2001, 276, 42422–42435. [Google Scholar] [CrossRef] [Green Version]
  22. Mukaiyama, H.; Oku, M.; Baba, M.; Samizo, T.; Hammond, A.T.; Glick, B.S.; Kato, N.; Sakai, Y. Paz2 and 13 other PAZ gene products regulate vacuolar engulfment of peroxisomes during micropexophagy. Genes Cells 2002, 7, 75–90. [Google Scholar] [CrossRef]
  23. Farre, J.C.; Mathewson, R.D.; Manjithaya, R.; Subramani, S. Roles of Pichia pastoris Uvrag in vacuolar protein sorting and the phosphatidylinositol 3-kinase complex in phagophore elongation in autophagy pathways. Autophagy 2010, 6, 86–99. [Google Scholar] [CrossRef] [Green Version]
  24. Yuan, W.; Stromhaug, P.E.; Dunn, W.A., Jr. Glucose-induced autophagy of peroxisomes in Pichia pastoris requires a unique E1-like protein. Mol. Biol. Cell 1999, 10, 1353–1366. [Google Scholar] [CrossRef] [Green Version]
  25. Nazarko, T.Y.; Farre, J.C.; Subramani, S. Peroxisome size provides insights into the function of autophagy-related proteins. Mol. Biol. Cell 2009, 20, 3828–3839. [Google Scholar] [CrossRef] [Green Version]
  26. Kim, J.; Kamada, Y.; Stromhaug, P.E.; Guan, J.; Hefner-Gravink, A.; Baba, M.; Scott, S.V.; Ohsumi, Y.; Dunn, W.A., Jr.; Klionsky, D.J. Cvt9/Gsa9 functions in sequestering selective cytosolic cargo destined for the vacuole. J. Cell. Biol. 2001, 153, 381–396. [Google Scholar] [CrossRef] [Green Version]
  27. Ano, Y.; Hattori, T.; Oku, M.; Mukaiyama, H.; Baba, M.; Ohsumi, Y.; Kato, N.; Sakai, Y. A sorting nexin PpAtg24 regulates vacuolar membrane dynamics during pexophagy via binding to phosphatidylinositol-3-phosphate. Mol. Biol. Cell 2005, 16, 446–457. [Google Scholar] [CrossRef]
  28. Stasyk, O.V.; Nazarko, T.Y.; Stasyk, O.G.; Krasovska, O.S.; Warnecke, D.; Nicaud, J.M.; Cregg, J.M.; Sibirny, A.A. Sterol glucosyltransferases have different functional roles in Pichia pastoris and Yarrowia lipolytica. Cell Biol. Int. 2003, 27, 947–952. [Google Scholar] [CrossRef]
  29. Stasyk, O.V.; Stasyk, O.G.; Mathewson, R.D.; Farre, J.C.; Nazarko, V.Y.; Krasovska, O.S.; Subramani, S.; Cregg, J.M.; Sibirny, A.A. Atg28, a novel coiled-coil protein involved in autophagic degradation of peroxisomes in the methylotrophic yeast Pichia pastoris. Autophagy 2006, 2, 30–38. [Google Scholar] [CrossRef] [Green Version]
  30. Farre, J.C.; Burkenroad, A.; Burnett, S.F.; Subramani, S. Phosphorylation of mitophagy and pexophagy receptors coordinates their interaction with Atg8 and Atg11. EMBO Rep. 2013, 14, 441–449. [Google Scholar] [CrossRef] [Green Version]
  31. Nazarko, V.Y.; Nazarko, T.Y.; Farre, J.C.; Stasyk, O.V.; Warnecke, D.; Ulaszewski, S.; Cregg, J.M.; Sibirny, A.A.; Subramani, S. Atg35, a micropexophagy-specific protein that regulates micropexophagic apparatus formation in Pichia pastoris. Autophagy 2011, 7, 375–385. [Google Scholar] [CrossRef] [Green Version]
  32. Nazarko, T.Y.; Ozeki, K.; Till, A.; Ramakrishnan, G.; Lotfi, P.; Yan, M.; Subramani, S. Peroxisomal Atg37 binds Atg30 or palmitoyl-CoA to regulate phagophore formation during pexophagy. J. Cell. Biol. 2014, 204, 541–557. [Google Scholar] [CrossRef] [Green Version]
  33. Tuttle, D.L.; Dunn, W.A., Jr. Divergent modes of autophagy in the methylotrophic yeast Pichia pastoris. J. Cell Sci. 1995, 108 (Pt 1), 25–35. [Google Scholar]
  34. Wiemer, E.A.; Luers, G.H.; Faber, K.N.; Wenzel, T.; Veenhuis, M.; Subramani, S. Isolation and characterization of Pas2p, a peroxisomal membrane protein essential for peroxisome biogenesis in the methylotrophic yeast Pichia pastoris. J. Biol. Chem. 1996, 271, 18973–18980. [Google Scholar] [CrossRef] [Green Version]
  35. Snyder, W.B.; Faber, K.N.; Wenzel, T.J.; Koller, A.; Luers, G.H.; Rangell, L.; Keller, G.A.; Subramani, S. Pex19p interacts with Pex3p and Pex10p and is essential for peroxisome biogenesis in Pichia pastoris. Mol. Biol. Cell 1999, 10, 1745–1761. [Google Scholar] [CrossRef] [Green Version]
  36. Chang, T.; Schroder, L.A.; Thomson, J.M.; Klocman, A.S.; Tomasini, A.J.; Stromhaug, P.E.; Dunn, W.A., Jr. PpATG9 encodes a novel membrane protein that traffics to vacuolar membranes, which sequester peroxisomes during pexophagy in Pichia pastoris. Mol. Biol. Cell 2005, 16, 4941–4953. [Google Scholar] [CrossRef] [Green Version]
  37. Manjithaya, R.; Anjard, C.; Loomis, W.F.; Subramani, S. Unconventional secretion of Pichia pastoris Acb1 is dependent on GRASP protein, peroxisomal functions, and autophagosome formation. J. Cell. Biol. 2010, 188, 537–546. [Google Scholar] [CrossRef] [Green Version]
  38. Stasyk, O.V.; van der Klei, I.J.; Bellu, A.R.; Shen, S.; Kiel, J.A.; Cregg, J.M.; Veenhuis, M. A Pichia pastoris VPS15 homologue is required in selective peroxisome autophagy. Curr. Genet. 1999, 36, 262–269. [Google Scholar] [CrossRef] [Green Version]
  39. Obara, K.; Ohsumi, Y. PtdIns 3-kinase orchestrates autophagosome formation in yeast. J. Lipids 2011, 2011, 498768. [Google Scholar] [CrossRef] [Green Version]
  40. Toulmay, A.; Prinz, W.A. Direct imaging reveals stable, micrometer-scale lipid domains that segregate proteins in live cells. J. Cell. Biol. 2013, 202, 35–44. [Google Scholar] [CrossRef]
  41. Oku, M.; Maeda, Y.; Kagohashi, Y.; Kondo, T.; Yamada, M.; Fujimoto, T.; Sakai, Y. Evidence for ESCRT-and clathrin-dependent microautophagy. J. Cell. Biol. 2017, 216, 3263–3274. [Google Scholar] [CrossRef] [Green Version]
  42. Cregg, J.M.; Russell, K.A. Transformation. Methods Mol. Biol. 1998, 103, 27–39. [Google Scholar] [CrossRef]
  43. Baerends, R.J.; Faber, K.N.; Kram, A.M.; Kiel, J.A.; van der Klei, I.J.; Veenhuis, M. A stretch of positively charged amino acids at the N terminus of Hansenula polymorpha Pex3p is involved in incorporation of the protein into the peroxisomal membrane. J. Biol. Chem. 2000, 275, 9986–9995. [Google Scholar] [CrossRef] [Green Version]
Ijms 21 09094 g001 550

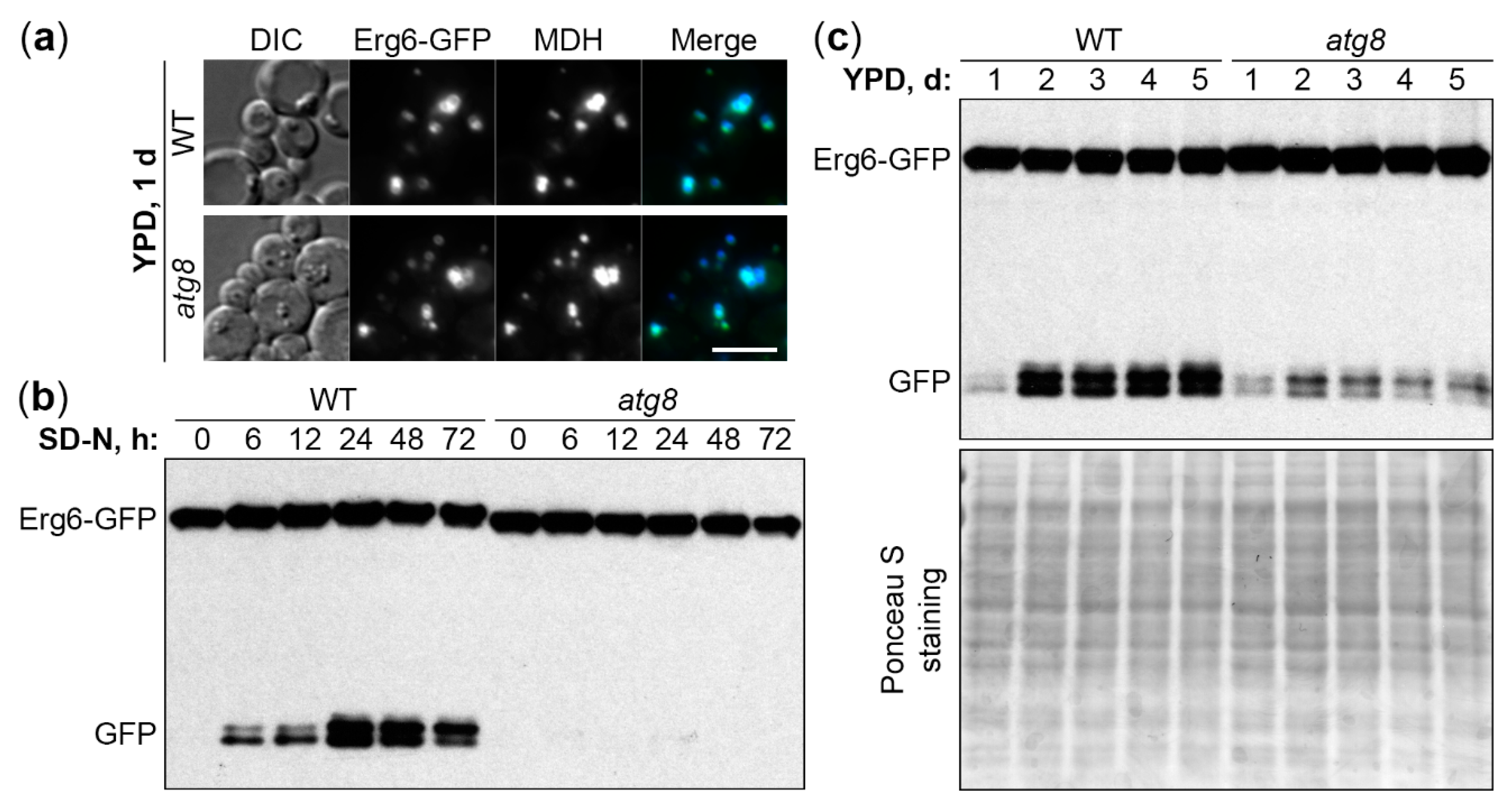

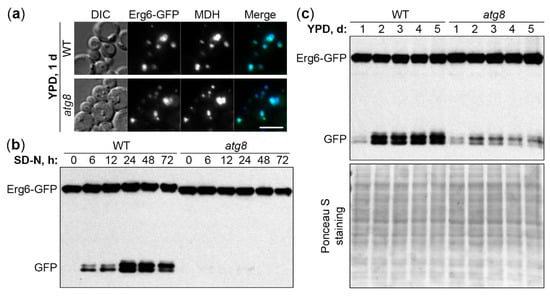

Figure 1. Komagataella phaffii is a good model for both N-starvation and S-phase lipophagy. (a) K. phaffii Erg6-GFP co-localizes with MDH-stained LDs in both WT and atg8 cells. DIC: Differential interference contrast. Scale bar, 5 µm. (b) Atg8 is essential for N-starvation lipophagy. Cells were normalized in SD-N at OD600 1, and an equal volume of culture (1 mL) was processed at all time-points for both strains to nullify the differential growth (Erg6-GFP dilution) effects in SD-N medium (loading control is not applicable). (c) Atg8 is only partially required for S-phase lipophagy. Since biomass slightly decreased during the time-course in S-phase, equal biomass (1 OD600) was taken at all time-points for both strains. Ponceau S staining was used as a loading control for S-phase samples.
Figure 1. Komagataella phaffii is a good model for both N-starvation and S-phase lipophagy. (a) K. phaffii Erg6-GFP co-localizes with MDH-stained LDs in both WT and atg8 cells. DIC: Differential interference contrast. Scale bar, 5 µm. (b) Atg8 is essential for N-starvation lipophagy. Cells were normalized in SD-N at OD600 1, and an equal volume of culture (1 mL) was processed at all time-points for both strains to nullify the differential growth (Erg6-GFP dilution) effects in SD-N medium (loading control is not applicable). (c) Atg8 is only partially required for S-phase lipophagy. Since biomass slightly decreased during the time-course in S-phase, equal biomass (1 OD600) was taken at all time-points for both strains. Ponceau S staining was used as a loading control for S-phase samples.
Ijms 21 09094 g001
Ijms 21 09094 g002 550

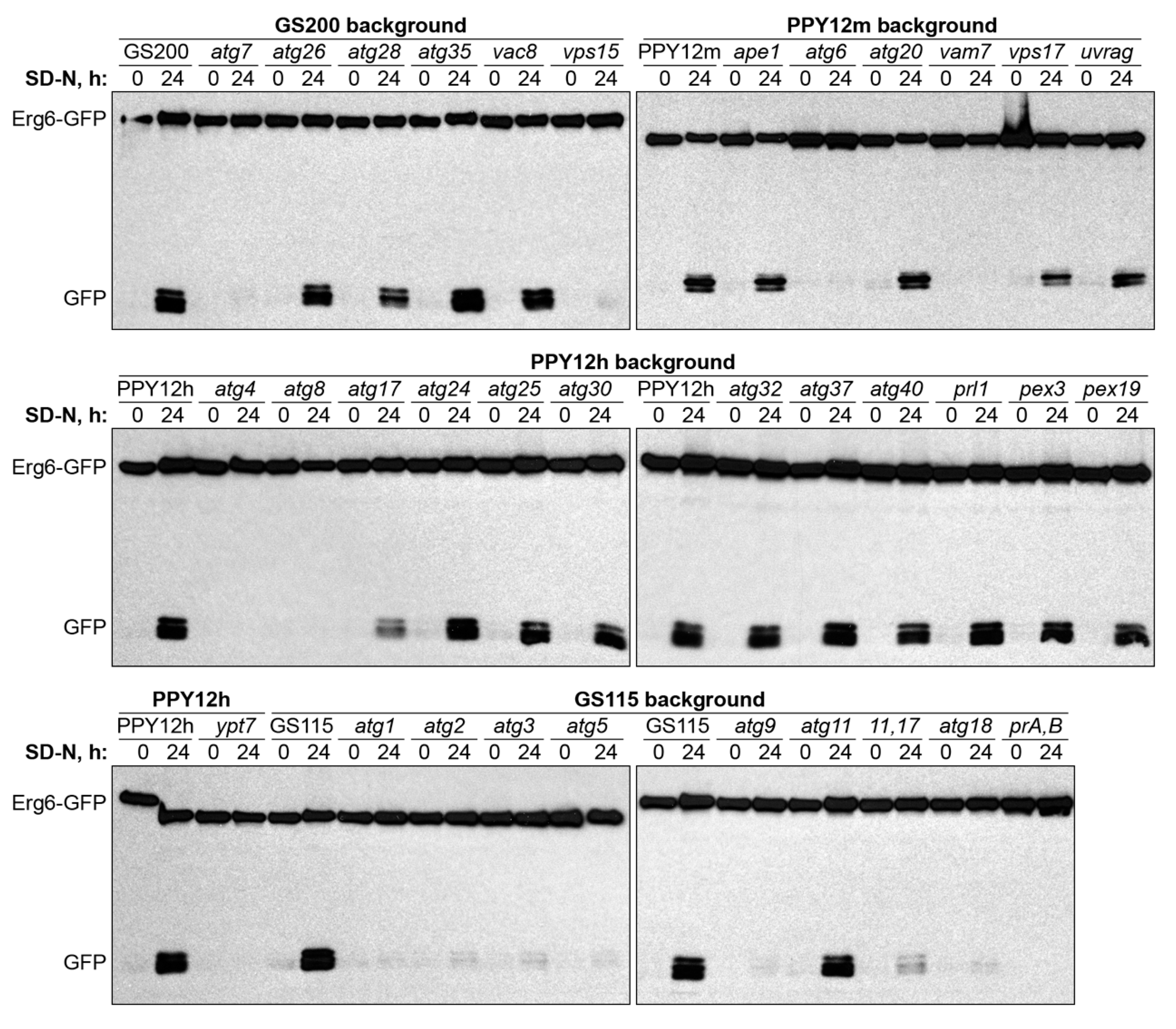

Figure 2. N-starvation lipophagy strictly depends on the core autophagic machinery (Atg1-Atg9, Atg18, and Vps15), vacuole fusion machinery (Vam7 and Ypt7), and vacuolar proteolysis (proteinases A and B). Cells were normalized in SD-N at OD600 1, and an equal volume of culture (1 mL) was processed at both time-points for all strains to nullify the differential growth (Erg6-GFP dilution) effects in SD-N medium (loading control is not applicable). prA,B: Proteinases A and B-deficient mutant pep4 prb1.
Figure 2. N-starvation lipophagy strictly depends on the core autophagic machinery (Atg1-Atg9, Atg18, and Vps15), vacuole fusion machinery (Vam7 and Ypt7), and vacuolar proteolysis (proteinases A and B). Cells were normalized in SD-N at OD600 1, and an equal volume of culture (1 mL) was processed at both time-points for all strains to nullify the differential growth (Erg6-GFP dilution) effects in SD-N medium (loading control is not applicable). prA,B: Proteinases A and B-deficient mutant pep4 prb1.
Ijms 21 09094 g002
Ijms 21 09094 g003 550

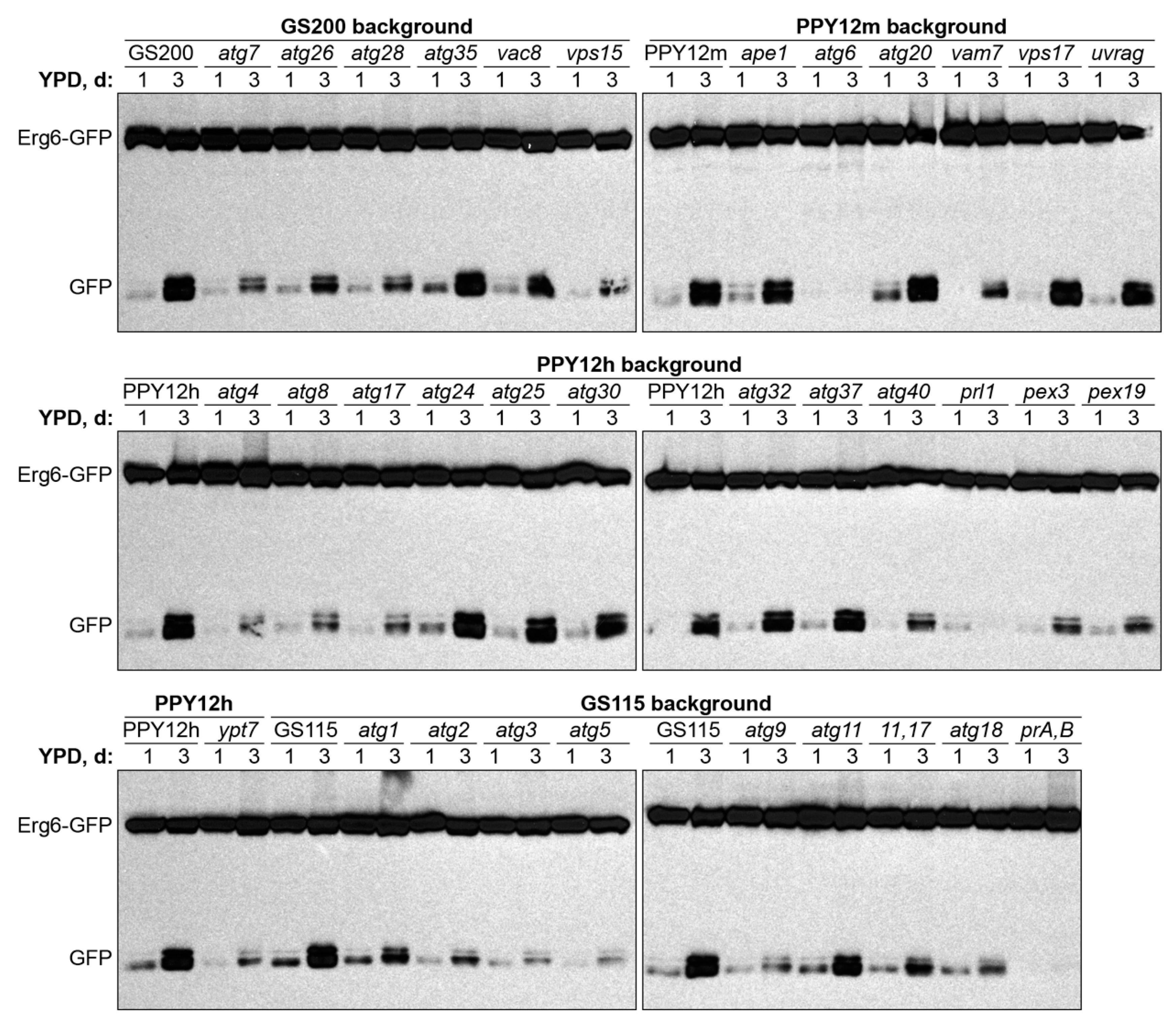

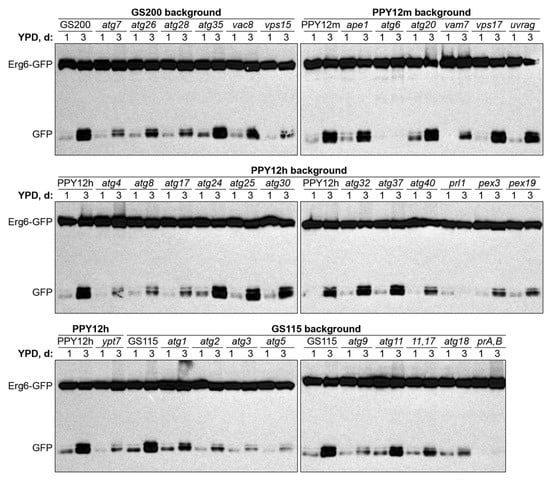

Figure 3. S-phase lipophagy strictly depends only on Atg6, Prl1 (positive regulator of lipophagy 1), and vacuolar proteolysis (proteinases A and B). Since biomass slightly decreased after three days in S-phase, equal biomass (1 OD600) was taken at both time-points for all strains. Ponceau S staining was used as a loading control and displayed in Appendix A Figure A1. prA,B: Proteinases A and B-deficient mutant pep4 prb1.
Figure 3. S-phase lipophagy strictly depends only on Atg6, Prl1 (positive regulator of lipophagy 1), and vacuolar proteolysis (proteinases A and B). Since biomass slightly decreased after three days in S-phase, equal biomass (1 OD600) was taken at both time-points for all strains. Ponceau S staining was used as a loading control and displayed in Appendix A Figure A1. prA,B: Proteinases A and B-deficient mutant pep4 prb1.
Ijms 21 09094 g003
Ijms 21 09094 g004 550

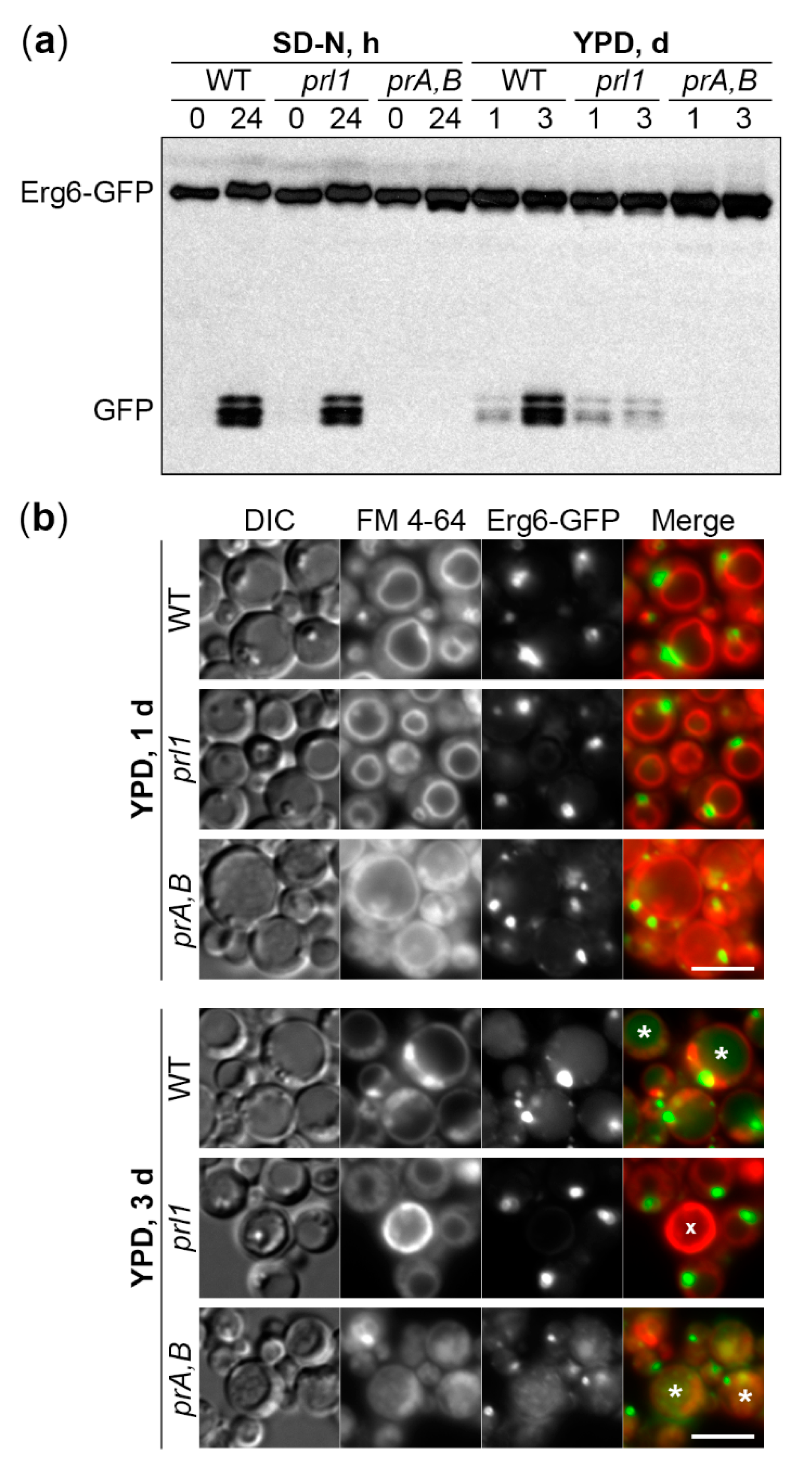

Figure 4. Prl1 is essential to deliver LDs to the vacuole in S-phase. (a) S-phase, but not N-starvation lipophagy depends on Prl1. N-starvation and S-phase cells were processed as described in Figure 2 and Figure 3, respectively. Ponceau S staining (Appendix A Figure A2) was used as a loading control for S-phase samples. (b) Prl1 is required to deliver LDs to the vacuole in S-phase. Vacuole membranes were stained red with FM 4-64. DIC: Differential interference contrast; prA,B: Proteinases A and B-deficient mutant pep4 prb1; *: GFP-containing vacuole; x: Dead cell. Scale bar, 5 µm.
Figure 4. Prl1 is essential to deliver LDs to the vacuole in S-phase. (a) S-phase, but not N-starvation lipophagy depends on Prl1. N-starvation and S-phase cells were processed as described in Figure 2 and Figure 3, respectively. Ponceau S staining (Appendix A Figure A2) was used as a loading control for S-phase samples. (b) Prl1 is required to deliver LDs to the vacuole in S-phase. Vacuole membranes were stained red with FM 4-64. DIC: Differential interference contrast; prA,B: Proteinases A and B-deficient mutant pep4 prb1; *: GFP-containing vacuole; x: Dead cell. Scale bar, 5 µm.
Ijms 21 09094 g004
Table
Table 1. K. phaffii strains used in this study.
Table 1. K. phaffii strains used in this study.
Mutant NameStrain NameBackgroundGenotype and PlasmidSource
WTGS115GS115his4[17]
WTGS200GS200arg4 his4[18]
WTPPY12hPPY12harg4 his4[19]
WTPPY12mPPY12marg4 his4[19]
ape1SJCF434PPY12m∆ape1::GeneticinR arg4 his4[20]
atg1R12GS115atg1-1::ZeocinR his4[21]
atg2WDK011GS115∆atg2::ZeocinR his4[21]
atg3gsa20GS115atg3::ZeocinR his4[21]
atg4PPM408PPY12hatg4::ZeocinR arg4 his4[22]
atg5SJCF2320GS115∆atg5::ZeocinR his4SL 1
atg6SRDM006PPY12m∆atg6::GeneticinR arg4 his4[23]
atg7WDK07GS200∆atg7::ScARG4 arg4 his4[24]
atg8SJCF925PPY12h∆atg8::GeneticinR arg4 his4 [25]
atg9R19GS115atg9-1::ZeocinR his4[21]
atg11R8GS115atg11-2::ZeocinR his4[26]
atg17SJCF929PPY12h∆atg17::GeneticinR arg4 his4[25]
atg11 atg17SJCF948GS115atg11-2::ZeocinR ∆atg17::GeneticinR his4[25]
atg18R2GS115atg18-1::ZeocinR his4[21]
atg20SRDM020PPY12m∆atg20::GeneticinR arg4 his4SL
atg24paz16PPY12hatg24::ZeocinR arg4 his4[27]
atg25SJCF1231PPY12h∆atg25::GeneticinR arg4 his4[23]
atg26∆pdg3GS200∆atg26::ScARG4 arg4 his4[28]
atg28∆pdg2GS200∆atg28::ScARG4 arg4 his4[29]
atg30SJCF936PPY12h∆atg30::ZeocinR arg4 his4[25]
atg32SJCF1715PPY12h∆atg32::GeneticinR arg4 his4[30]
atg35SVN1GS200∆atg35::ScARG4 arg4 his4[31]
atg37STN96PPY12h∆atg37::GeneticinR arg4 his4[32]
atg40SRK2PPY12h∆atg40::ZeocinR (pRK4) arg4 his4This study
pep4 prb1SMD1163GS115pep4 prb1 his4[33]
pex3SEW1PPY12h∆pex3::PpARG4 arg4 his4[34]
pex19SKF13PPY12h∆pex19::ZeocinR arg4 his4[35]
prl1SRK3PPY12hprl1::ZeocinR (pRK6) arg4 his4This study
vac8WDY53GS200∆vac8::ZeocinR arg4 his4[36]
vam7SRDM050PPY12m∆vam7::ZeocinR arg4 his4[37]
vps15OP5GS200∆vps15::ScARG4 arg4 his4[38]
vps17SRDM122PPY12m∆vps17::GeneticinR arg4 his4[23]
uvragSRDM083PPY12m∆uvrag::ZeocinR arg4 his4[23]
ypt7SRRM197PPY12h∆ypt7::GeneticinR arg4 his4[37]
1 SL: Subramani laboratory.
Table
Table 2. Lipophagy phenotype of K. phaffii (this study) and S. cerevisiae mutants.
Table 2. Lipophagy phenotype of K. phaffii (this study) and S. cerevisiae mutants.
Strain
(Kp/Sc)		Kp (This Study)Sc [10]Sc [13]Sc [12]
SD-NS-PhaseSD-NSD-NS-PhaseSD-D (0.4%)
Erg6-GFPErg6-GFPErg6-GFPFaa4-GFPBODIPYErg6-DsRed
WT++++++
ape1++ND 1NDNDND
atg1−+/−−−−−
atg2−+/−NDND−−
atg3−+/−−−−−
atg4−+/−−−−ND
atg5−+/−−−−−
atg6−−−−−−
atg7−+/−−−−−
atg8−+/−−−−−
atg9−+/−−−−−
atg11++ND+/−++
atg17+/−+/−ND−−+/−
atg11 atg17+/−+/−NDNDNDND
atg18−+/−−−−−
atg20++ND+++
atg24++NDND++
atg25++NA 2NANANA
atg26++/−NDND++
atg28/atg29,31+/−+/−NDND−, −+/−, +/−
atg30/atg36++NDND++
atg32++NDND−+/−
atg35++NANANANA
atg37++NANANANA
atg40++/−NDNDNDND
pep4 prb1−−NDND−ND
pex3++/−NDNDNDND
pex19++/−NDNDNDND
prl1+−NANANANA
vac8++ND−NDND
vam7−+/−−−NDND
vps15−+/−NDNDNDND
vps17++NDNDNDND
uvrag/vps38+++/−+/−NDND
ypt7−+/−−−NDND
1 ND: Phenotype not determined in Sc; 2 NA: Mutant not available in Sc. “ + “: Fully proficient in lipophagy; “ – “: Fully deficient in lipophagy; “ +/− “: Intermediate phenotype.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kumar, R.; Rahman, M.A.; Nazarko, T.Y. Nitrogen Starvation and Stationary Phase Lipophagy Have Distinct Molecular Mechanisms. Int. J. Mol. Sci. 2020, 21, 9094. https://doi.org/10.3390/ijms21239094

AMA Style

Kumar R, Rahman MA, Nazarko TY. Nitrogen Starvation and Stationary Phase Lipophagy Have Distinct Molecular Mechanisms. International Journal of Molecular Sciences. 2020; 21(23):9094. https://doi.org/10.3390/ijms21239094

Chicago/Turabian Style

Kumar, Ravinder, Muhammad Arifur Rahman, and Taras Y. Nazarko. 2020. "Nitrogen Starvation and Stationary Phase Lipophagy Have Distinct Molecular Mechanisms" International Journal of Molecular Sciences 21, no. 23: 9094. https://doi.org/10.3390/ijms21239094

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
