A Salt-Signaling Network Involving Ethylene, Extracellular ATP, Hydrogen Peroxide, and Calcium Mediates K⁺/Na⁺ Homeostasis in Arabidopsis

Abstract

This work aimed at investigating the interactive effects of salt-signaling molecules, i.e., ethylene, extracellular ATP (eATP), H₂O₂, and cytosolic Ca²⁺ ([Ca²⁺]_cyt), on the regulation of K⁺/Na⁺ homeostasis in Arabidopsis thaliana. The presence of eATP shortened Col-0 hypocotyl length under no-salt conditions. Moreover, eATP decreased relative electrolyte leakage and lengthened root length significantly in salt-treated Col-0 plants but had no obvious effects on the ethylene-insensitive mutants etr1-1 and ein3-1eil1-1. Steady-state ionic flux kinetics showed that exogenous 1-aminocyclopropane-1-carboxylic acid (ACC, an ethylene precursor) and eATP-Na₂ (an eATP donor) significantly increased Na⁺ extrusion and suppressed K⁺ loss during short-term NaCl treatment. Moreover, ACC remarkably raised the fluorescence intensity of salt-elicited H₂O₂ and cytosolic Ca²⁺. Our qPCR data revealed that during 12 h of NaCl stress, application of ACC increased the expression of AtSOS1 and AtAHA1, which encode the plasma membrane (PM) Na⁺/H⁺ antiporters (SOS1) and H⁺-ATPase (H⁺ pumps), respectively. In addition, eATP markedly increased the transcription of AtEIN3, AtEIL1, and AtETR1, and ACC treatment of Col-0 roots under NaCl stress conditions caused upregulation of AtRbohF and AtSOS2/3, which directly contribute to the H₂O₂ and Ca²⁺ signaling pathways, respectively. Briefly, ethylene was triggered by eATP, a novel upstream signaling component, which then activated and strengthened the H₂O₂ and Ca²⁺ signaling pathways to maintain K⁺/Na⁺ homeostasis under salinity.

1. Introduction

Salinity, a typical abiotic stress, poses a major threat to the growth and development of herbaceous and woody species worldwide [1,2]. Salt injury causes direct disturbances in plant ionic balance. Moreover, in NaCl-treated plants, excessive sodium and chloride ions easily cause secondary stresses, such as oxidative stress and cytomembrane system damage [3,4]. To counter the disruption in ionic homeostasis resulting from cytosolic Na⁺ accumulation, Na⁺ extrusion and K⁺ retention in the overall plant and at the intracellular level play a pivotal role in adapting to salt injury [4,5]. Na⁺/H⁺ antiporter and H⁺-ATPase, two functional proteins located in the plasma membrane (PM) of higher plants, are indispensable for maintaining K⁺/Na⁺ homeostasis [6,7,8,9,10]. Specifically, PM SOS1 helps to retain superfluous Na⁺ in cytoplasts [3,11]. The PM H⁺ pump drives Na⁺ and H⁺ antiport via maintenance of an H⁺ electrochemical gradient under salt conditions [12]. Besides controlling Na⁺ homeostasis, the upregulation of PM H⁺ pumps effectively protects the less-depolarized membrane potential and, thus, restricts salt-elicited K⁺ loss (efflux) through outward rectifying depolarization-activated non-selective cation channels (DA-NSCCs) and K⁺-permeable channels (DA-KORCs) [9,13].

Industrial production of ethylene (ET) is said to be one of the highest of all chemical products produced worldwide [14]. Naturally produced ethylene also serves as a diffusible phytohormone that regulates various aspects of plant development and stress responses [15]. In Arabidopsis, ethylene-related signaling transduction is a complicated process that regulates downstream physiological, biochemical, and even molecular responses [16,17,18]. In concrete terms, ethylene binding appears to inactivate the constitutive triple response 1 (CTR1, a negative regulator) kinase; however, CTR1 can be activated by an unoccupied ethylene receptor, such as ethylene response 1 (ETR1, an ethylene receptor), leading to a physiological interaction. Subsequently, CTR1 activates transcriptional factors ethylene insensitive 2/3 (EIN2/3) and ethylene insensitive-like 1 (EIL1) to mediate downstream signaling pathways [19,20]. EIN3 and EIL1 play important roles in regulating the ethylene signaling pathways that are activated via EIN2, and are necessary for the transcriptional induction of target ethylene response genes, such as ethylene response factor 1 (ERF1, also called ESE1), thereby modulating multiple responses in plants [21,22,23]. The process of ethylene signaling transduction markedly affects plant salt tolerance [18]. Some evidence shows that salt first induces a quick marked rise in ethylene [24], and the subsequent application of exogenous 1-aminocyclopropane-1-carboxylic acid (ACC, an ethylene precursor) can dramatically improve salt tolerance in Arabidopsis [21,25]. The germination rate of ethylene-insensitive etr1-1 seedlings is significantly lower than that of Col-0 under high salinity [26]. Excessive accumulation of EIN3 is induced via NaCl treatment, and the ein3eil1 mutant is oversensitive to salt stress [25]. In summary, signal transduction is vital to the salt response in plants. However, the mechanism of how ethylene contributes to the regulation of K⁺/Na⁺ homeostasis under saline conditions has not been precisely elucidated in higher plants.

Besides ethylene, diverse past studies have demonstrated that other crucial salt-sensitive signaling molecules in plants, such as eATP, H₂O₂, and Ca²⁺, and their interactions, are involved in the regulation of PM SOS1 and H⁺ pumps for the maintenance of ionic homeostasis under NaCl stress [7,8,10,13,27,28,29,30]. Cytosolic Ca²⁺ ([Ca²⁺]_cyt) alleviates Na⁺ toxicity by activating the PM Na⁺/H⁺ antiport system in various plant species [4,7,10,30,31]. H₂O₂, an important reactive oxygen species (ROS) in plants, acts as a critical signal to trigger the salt overly sensitive (SOS) signaling pathway [28,29]; the subsequently entry of Ca²⁺ through PM Ca²⁺-permeable channels prompts Na⁺ exclusion and limits K⁺ leakage under high-salinity conditions [32,33]. In addition, [Ca²⁺]_cyt maintains ionic homeostasis via increased H₂O₂ in both secretor and non-secretor mangroves under high-salt stress [8]. Recently, Lang et al. (2017) showed that H₂O₂ interacts with [Ca²⁺]_cyt-induced salt-responsive genes, e.g., GuSOS3/GuCIPK, in the perennial herb Glycyrrhiza uralensis during NaCl stress, and these genes are involved in the Ca²⁺‒SOS signaling pathway [10]. eATP, which is sensed by a purinergic receptor named P2 in the PM (likely P2K1 in higher plants [34]), functions in resisting salt injury [2,8,10,30,35]. Indeed, it has been proposed that salt-inducible eATP signaling triggers downstream signaling components of the salt response, such as [Ca²⁺]_cyt and ROS [36,37]. In the eATP-induced mechanism of salt resistance, eATP positively regulates the transcription of salt-related genes, e.g., SOS1/3, RbohD (respiratory burst oxidase homolog protein D, one of the NADPH oxidases that catalyze production of ROS), and MAPK3/6 (mitogen-activated protein kinases 3 and 6), which trigger the Ca²⁺‒SOS, H₂O₂‒Rboh, and ATP‒MAPK signaling pathways, respectively [10]. Interestingly, ethylene also interacts with [Ca²⁺]_cyt and H₂O₂ during NaCl exposure. For example, the expression of ERF1, an ethylene-responsive target gene, is activated by SOS2, and contributes to the Ca²⁺‒SOS signaling pathway in Arabidopsis [38]. Similarly, recent studies have found that ethylene is involved in Ca²⁺-regulated Na⁺ homeostasis in adventitious roots of cucumber subjected to salt stress [39,40]. Moreover, ethylene efficiently sustains K⁺ homeostasis under high salinity via assistance from another NADPH oxidase, RbohC [41]. However, there is no evidence clearly indicating whether ethylene interacts with eATP to sustain ionic homeostasis upon NaCl stress. Hence, in this study, we sought to address two questions that have yet to be answered in higher plants: (1) whether ethylene interacts with eATP in salt-treated plants; and (2) how a novel salt-resistant signaling pathway related to ethylene, eATP, Ca²⁺, and H₂O₂ positively sustains ionic homeostasis under saline conditions.

In the present study, to determine whether eATP interacts with ethylene to contribute to salt tolerance, we examined the phenotypes of eATP-treated Arabidopsis Columbia (Col-0) and the ethylene-sensitive mutants of etr1-1 and ein3-1eil1-1, such as root length, hypocotyl length, and relative electrolytic leakage, under short-term salinity treatment. Using non-invasive micro-test technology (NMT), we investigated the changes in steady Na⁺, K⁺, H⁺, and Ca²⁺ fluxes in Arabidopsis roots in the presence or absence of certain factors relevant to this study and with NaCl treatment. Furthermore, we screened the crosstalk among the various salt-sensitive signaling pathways by laser scanning confocal microscopy (LSCM) and examined the expression of genes related to K⁺/Na⁺ homeostasis by real-time quantitative PCR (qPCR). Our aim was to establish a multiple signaling network of ethylene, eATP, Ca²⁺, and H₂O₂ in the maintenance of ionic homeostasis in higher plants under salt stress.

2. Results

2.1. Influences of eATP on Ethylene-Responsive Seedling Phenotype and Electrolyte Leakage with or without Salinity

To determine whether ethylene and eATP could respond to NaCl and whether ethylene interacted with eATP in terms of the resulting phenotype and physiological changes, parameters, such as root length, relative electrolyte leakage, and hypocotyl length, were examined in Col-0, etr1-1, and ein3-1eil1-1 with or without salt stress treatment. In the absence of NaCl stress, 10-day-old seedlings of Col-0, etr1-1, and ein3-1eil1-1 showed no obvious difference in phenotype (Figure 1A). However, under 50 mM NaCl, the root length was visibly shortened by 22% in Col-0, 55% in etr1-1, and 57% in ein3-1eil1-1, and more dramatically by 43%, 74%, and 80% under 100 mM salt exposure (Figure 1A,B). Interestingly, under 100 mM salt treatment, the addition of 300 μM eATP resulted in an 18% increase in the root length of Col-0 (Figure 1A,B) but no marked changes in etr1-1 and ein3-1eil1-1. We then compared the salt-induced relative electrical conductivity of wild-type and mutant seedlings with and without eATP. Salt stress induced a dramatic increase in relative electrolyte leakage in the ethylene-insensitive mutants compared with Col-0 plants; a similar result was found for eATP, which played a positive role in decreasing the relative electrolyte leakage elicited by 100 mM NaCl in Col-0 plants (down by around 25%, Figure S1) compared to no obvious change in the ethylene-insensitive mutants. In addition, eATP obviously shortened the hypocotyl length in the Col-0 background (by around 18%) but not ethylene-insensitive mutant seedlings (Figure 1C,D). Figure 1 and Figure S1 suggest that ethylene and eATP play a beneficial role in NaCl-treated plants, such as through promoting growth and blocking ion leakage. Furthermore, ethylene was involved in the eATP signaling pathway both in the presence or absence of salt conditions.

2.2. Salt-Elicited Alterations of Na⁺, K⁺, H⁺, and Ca²⁺ Fluxes in Roots

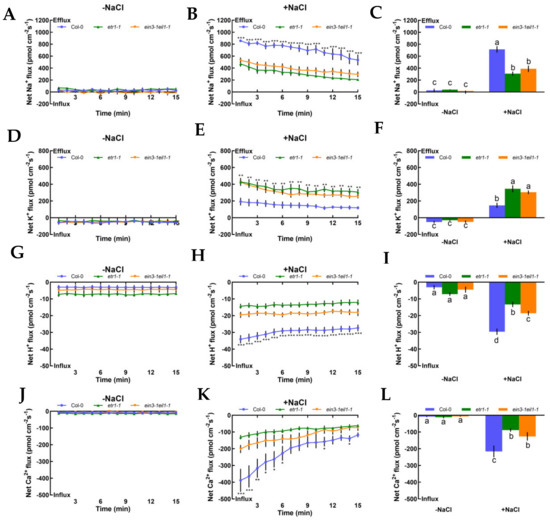

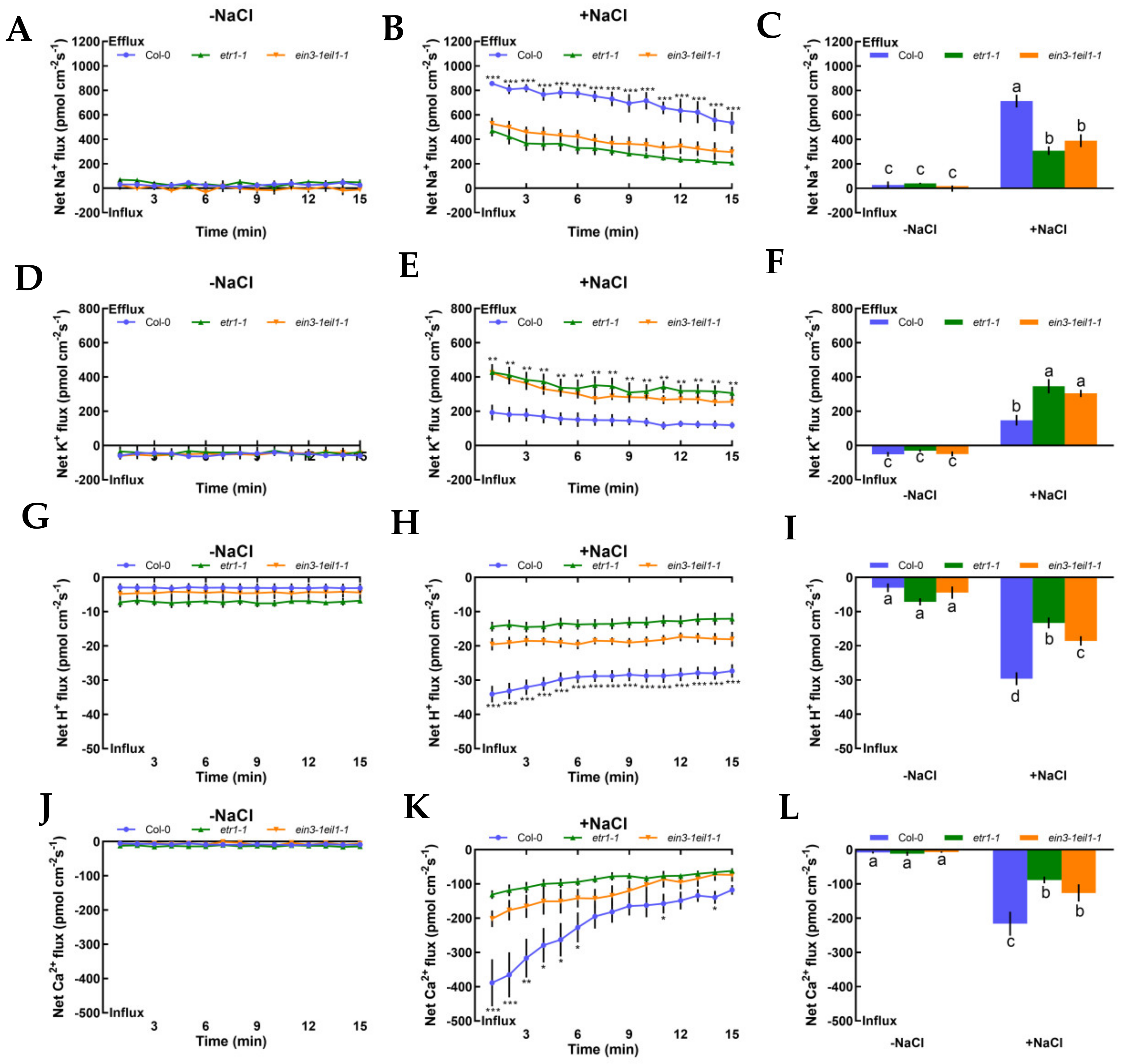

We also investigated steady-state Na⁺, K⁺, H⁺, and Ca²⁺ flux kinetics in the presence or absence of NaCl stress in Col-0, etr1-1, and ein3-1eil1-1 roots to determine whether ethylene could produce responses to salt in terms of ionic alterations. Under no-salt treatment, Col-0, etr1-1, and ein3-1eil1-1 exerted stable constant Na⁺ efflux in the root meristematic zones (500 μm from the root apex), with a mean rate of 28.14, 40.15, and 14.06 pmol cm⁻² s⁻¹, respectively (Figure 2A‒C; positive values denote ion efflux, while negative values denote influx, and the same applies below). After 12 h of 100 mM NaCl stress, the highest Na⁺ efflux was observed in Col-0 and the mean rate increased significantly to 713.75 pmol cm⁻² s⁻¹ (2.3- or 1.8-fold higher than that of salt-treated etr1-1 or ein3-1eil1-1). The efflux rate gradually declined over time, with the exception of a few test points. However, the opposite results were found in salt-induced K⁺ leakage in meristematic zones of control and mutants in response to NaCl stress, wherein the salt-triggered K⁺ efflux in Col-0 decreased by 57.3% or 51.4% compared to that of etr1-1 or ein3-1eil1-1 (Figure 2D‒F). Salt-elicited H⁺ exhibited a remarkable shift in influx kinetics during 15 min of continuous testing, which indicates the activation of PM Na⁺/H⁺ antiport system activity (Figure 2G‒I). Compared with no-salt treatment, both Col-0 and mutant roots exerted vigorous Ca²⁺ influx kinetics with the highest rate of 215.89 pmol cm⁻² s⁻¹ (Figure 2J‒L). In Figure 2, salt caused cellular ionic disorders, such as Na⁺ efflux, K⁺ efflux, H⁺ influx, and Ca²⁺ influx; meanwhile, etr1-1 and ein3-1eil1-1 had a lower capacity to sustain ion homeostasis compared with Col-0 plants.

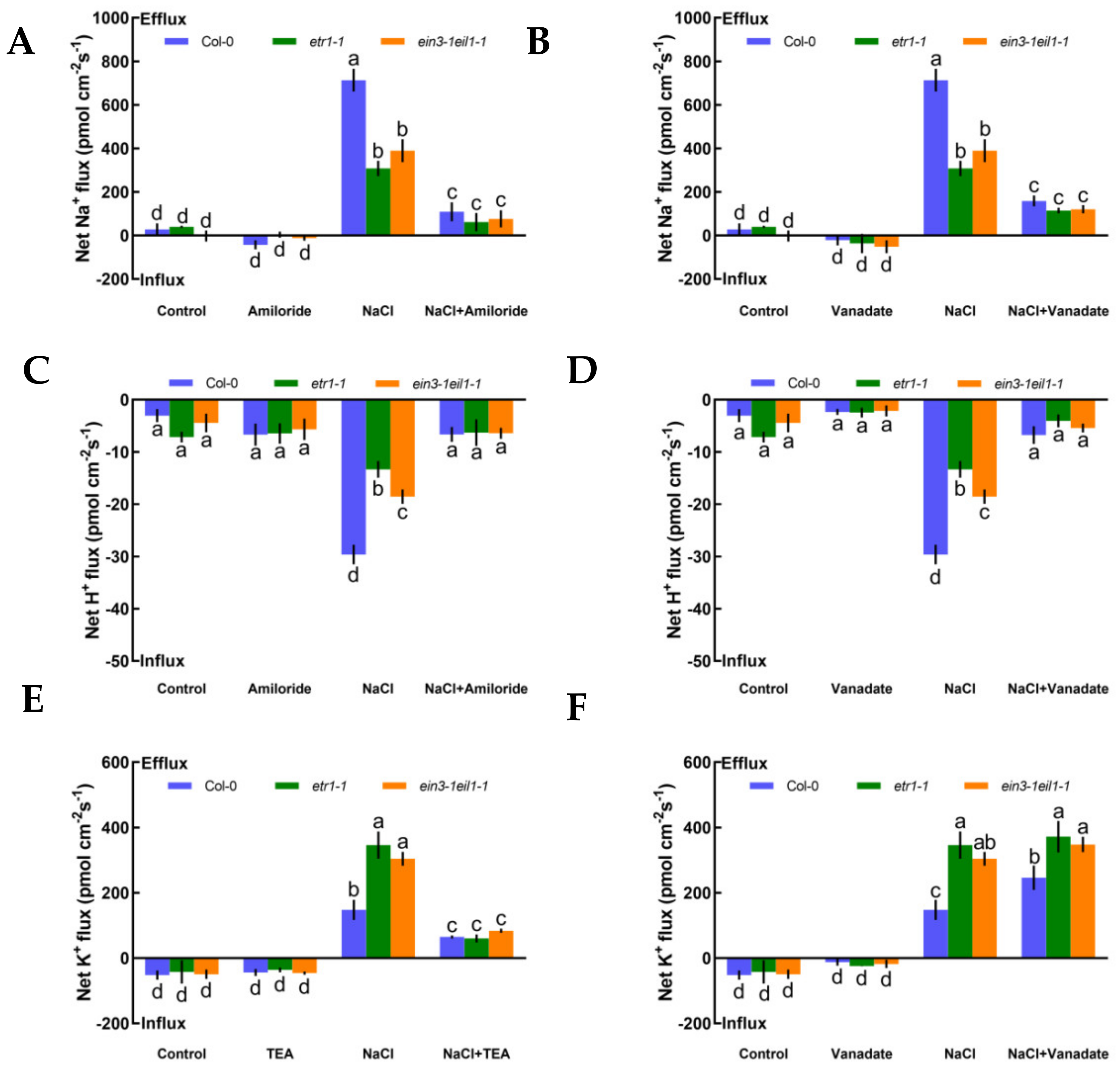

To evaluate whether K⁺, Na⁺, and H⁺ fluxes were connected with H⁺-ATPase and specific ion channels, such as Na⁺/H⁺ antiporter and DA-KORCs, we measured the effects of specific ion transporter/channel inhibitors in the PM to measure the sensitivity of K⁺, Na⁺, and H⁺ channels to salt stress. In the absence of NaCl treatment, K⁺, Na⁺, and H⁺ fluxes showed no clear changes after the application of amiloride, sodium orthovanadate, and tetraethylammonium (TEA), specific blockers of the PM Na⁺/H⁺ antiporter, H⁺-ATPase, and the series of known K⁺ channels DA-KORCs, respectively (Figure 3). However, salt-triggered Na⁺ and H⁺ flux kinetics in roots were simultaneously suppressed by amiloride and sodium orthovanadate (Figure 3A‒D). Similarly, application of a known K⁺ channel blocker, TEA, resulted in dramatic reductions in NaCl-induced K⁺ efflux by 2.3-fold in Col-0, 5.7-fold in etr1-1, and 3.6-fold in ein3-1eil1-1 (Figure 3E). In terms of the effect of the PM H⁺-ATPase inhibitor on the K⁺-permeable channel, the NaCl-induced K⁺ loss in Col-0 roots was significantly strengthened by sodium orthovanadate, but there were no obvious effects in etr1-1 and ein3-1eil1-1 (Figure 3F). As shown in Figure 3, these results indicate that salt-elicited Na⁺ efflux and H⁺ influx were mediated by the PM Na⁺/H⁺ antiporter, and K⁺ efflux was mediated by DA-KORCs; meanwhile, NaCl activated the activity of H⁺-ATPase, which offers energy for ion transportation.

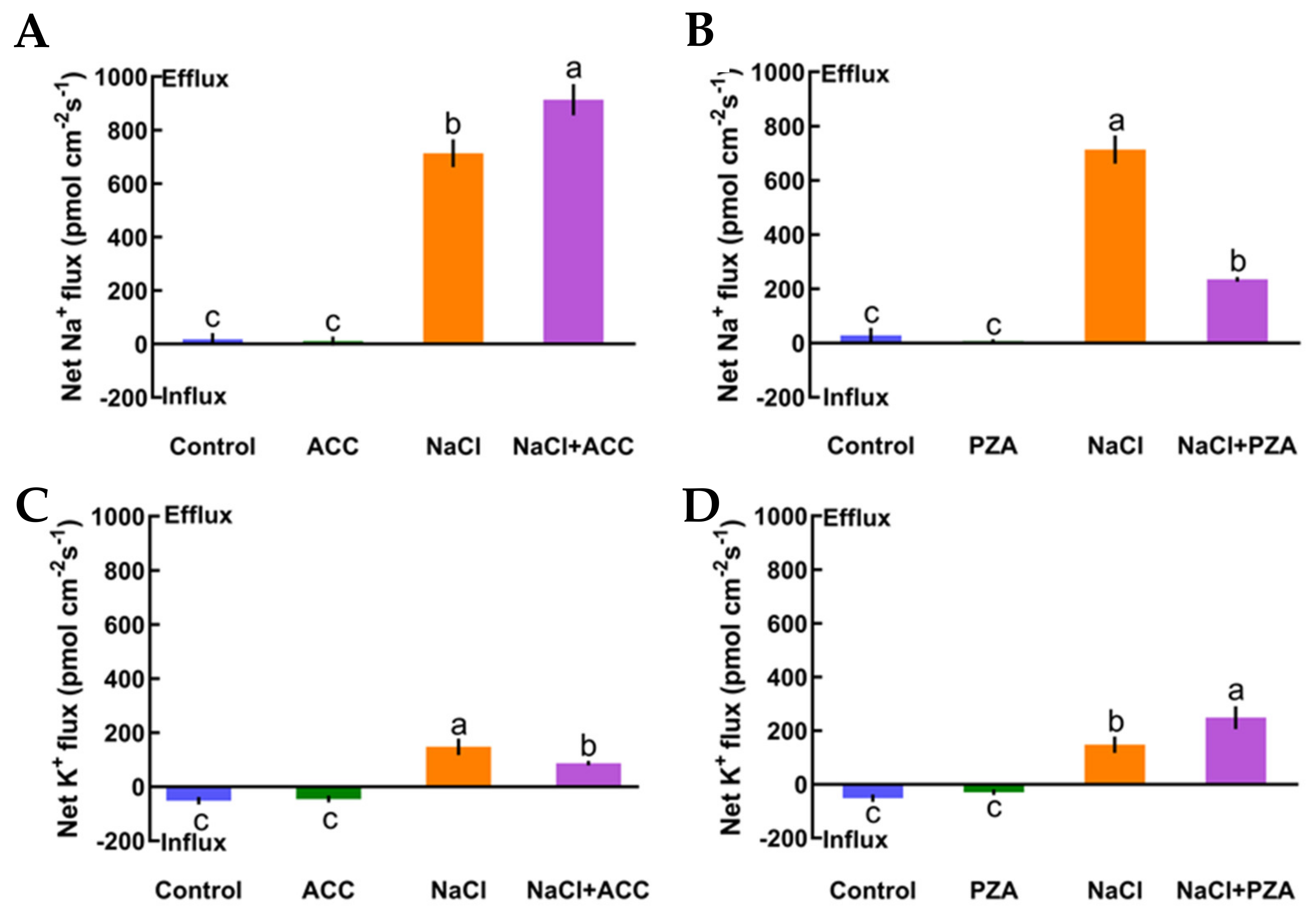

In this section, we offer direct evidence that ethylene maintains K⁺/Na⁺ homeostasis in high-salt conditions. First, under no-salt conditions, the application of exogenous ACC (an ethylene precursor, 10 μM) and pyrazinamide (PZA, a specific blocker of ethylene receptor, 100 μM) exhibited obvious effects on the steady state of K⁺ and Na⁺ fluxes in Col-0 plants (Figure 4A‒D). However, in the presence of short-term salt treatment, the application of exogenous ACC increased Na⁺ exclusion by 28% in the Col-0 root meristematic zones (Figure 4A). Conversely, the addition of exogenous PZA significantly decreased salt-elicited Na⁺ flux kinetics in Col-0 roots (Figure 4B). Moreover, the addition of ACC reduced K⁺ leakage by 69% in salinized Col-0 roots, whereas the opposite effect was seen with the application of a specific antagonist, PZA, in salt-treated Col-0 roots (Figure 4CD). The results in Figure 4 indicate that the ethylene functions in sustaining K⁺/Na⁺ homeostasis in Col-0 plants under saline stress.

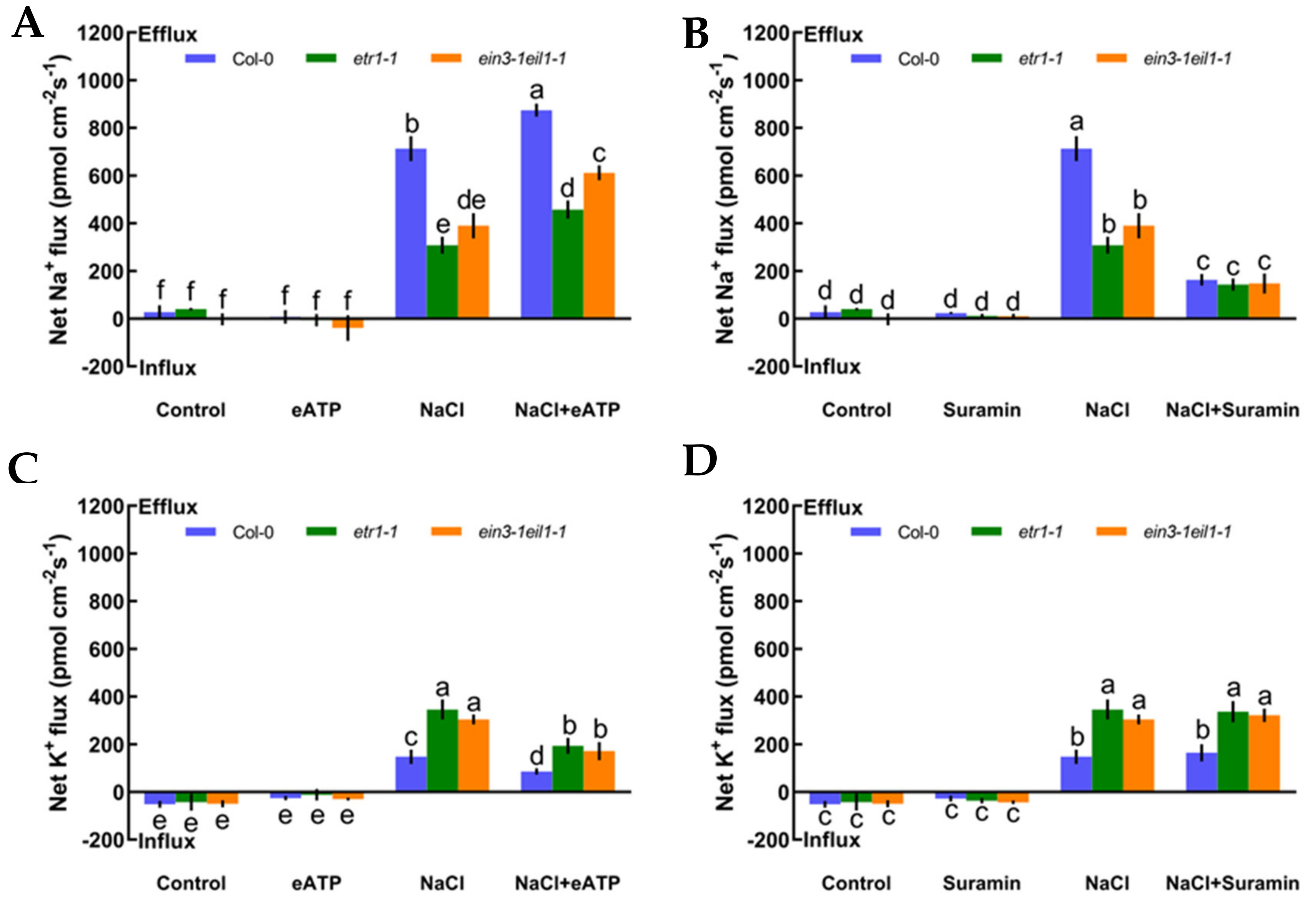

As described in Figure 4, we also measured whether eATP could maintain K⁺/Na⁺ homeostasis and interact with ethylene in salt-treated Col-0, etr1-1, and ein3-1eil1-1. First, we confirmed that eATP (300 μM) and suramin (an inhibitor of eATP, 300 μM) had no clear influences on ionic homeostasis in no-NaCl-treated Arabidopsis (Figure 5A–D). However, eATP enhanced the steady-state Na⁺ flux profiles in salinized Col-0, etr1-1, and ein3-1eil1-1. Furthermore, the enhancement of Na⁺ flux in Col-0 was 1.9-fold higher than that of etr1-1 and 1.4-fold higher than that of ein3-1eil1-1 under salt exposure (Figure 5A). However, with the addition of suramin, an ATP antagonist, the salt-triggered Na⁺ flux kinetics were dramatically reduced, with mean values of 163.37 pmol cm⁻² s⁻¹ in Col-0, 143.24 pmol cm⁻² s⁻¹ in etr1-1, and 147.86 pmol cm⁻² s⁻¹ in ein3-1eil1-1, respectively (Figure 5B). Under 100 mM salt treatment conditions, the capacity for restraining K⁺ leakage in eATP-treated Col-0 roots was much higher than that of the ethylene-insensitive mutants (Figure 5C). The addition of suramin slightly affected the salt-induced K⁺ flux kinetics under salt stress (Figure 5D). These results indicated that under salt stress, eATP played a vital role in terms of restricting K⁺ leakage and promoting Na⁺ exclusion in Col-0 and ethylene-insensitive mutants. However, the ability to maintain K⁺/Na⁺ homeostasis in ethylene-insensitive mutants was obviously lower than that of Col-0 both with and without salt, as there might be other signaling pathways independent of ethylene that can ease salt injury.

2.3. Ethylene-Induced Accumulation of ROS and [Ca²⁺]_cyt under NaCl Stress

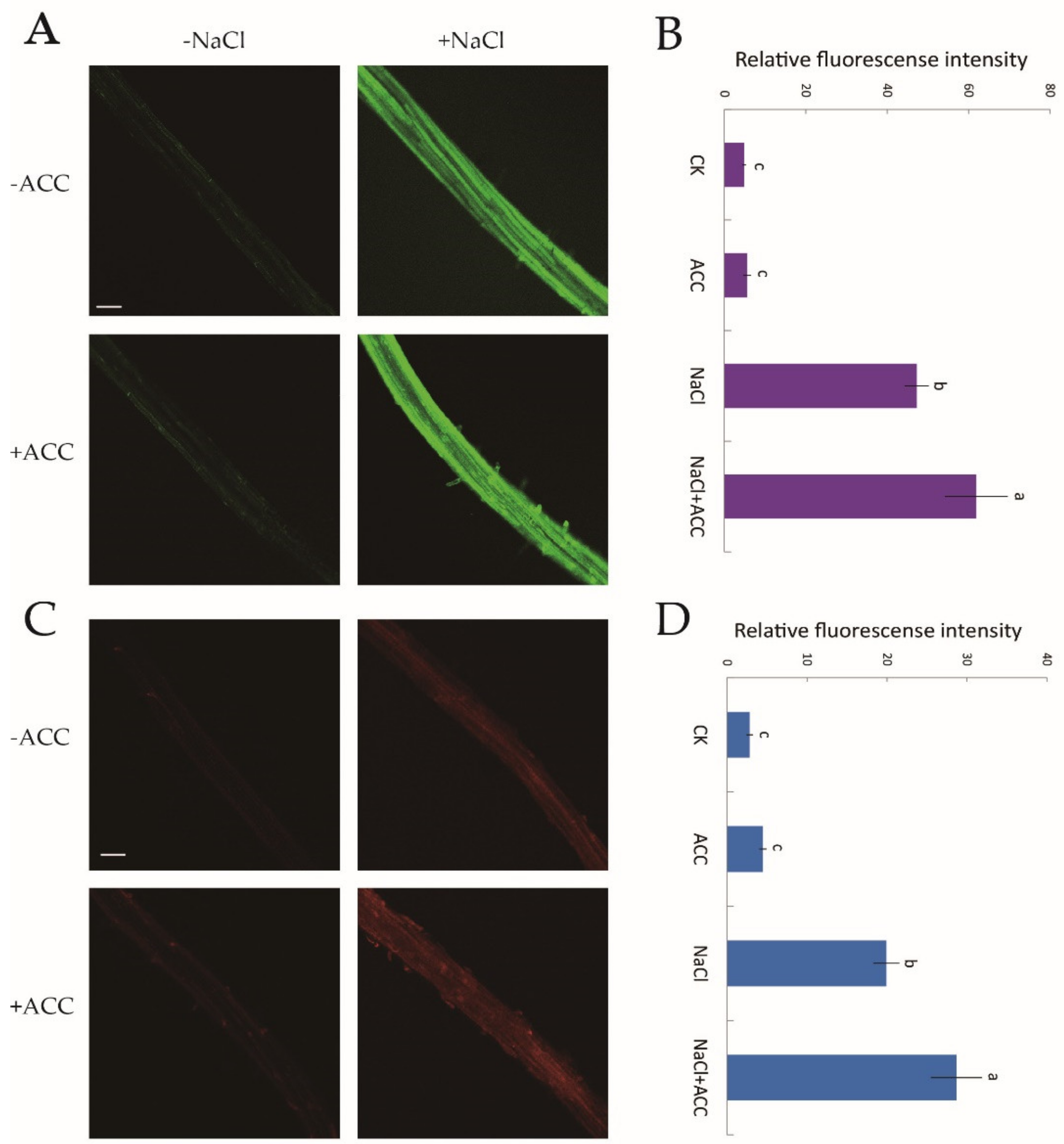

There is a cytosolic H₂O₂ and Ca²⁺ burst when plants are subjected to NaCl treatment [10]. However, whether ethylene upregulates H₂O₂ and [Ca²⁺]_cyt levels under salt stress requires confirmation. Hence, we used two specific fluorescent probes, H₂DCF-DA and Rhod-2 AM, for the detection of cytosolic H₂O₂ and Ca²⁺, respectively. Confocal assays showed that under no-salt conditions, ethylene had little influence on H₂O₂ and [Ca²⁺]_cyt fluorescence (Figure 6A–D). However, the fluorescence intensity of NaCl-induced H₂O₂ and [Ca²⁺]_cyt was significantly boosted (by 31–44%) compared to control samples after exogenous ACC (10 μM, 30 min) shock (Figure 6B,D). The above results suggested that, under salinity stress, ethylene helped to mediate ROS and cytosolic Ca²⁺ signaling cascades.

2.4. Extracellular ATP- and Ethylene-Elicited Alterations in the Expression of Some Salt-Related Genes

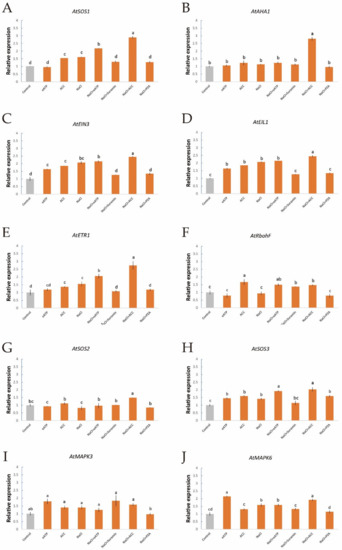

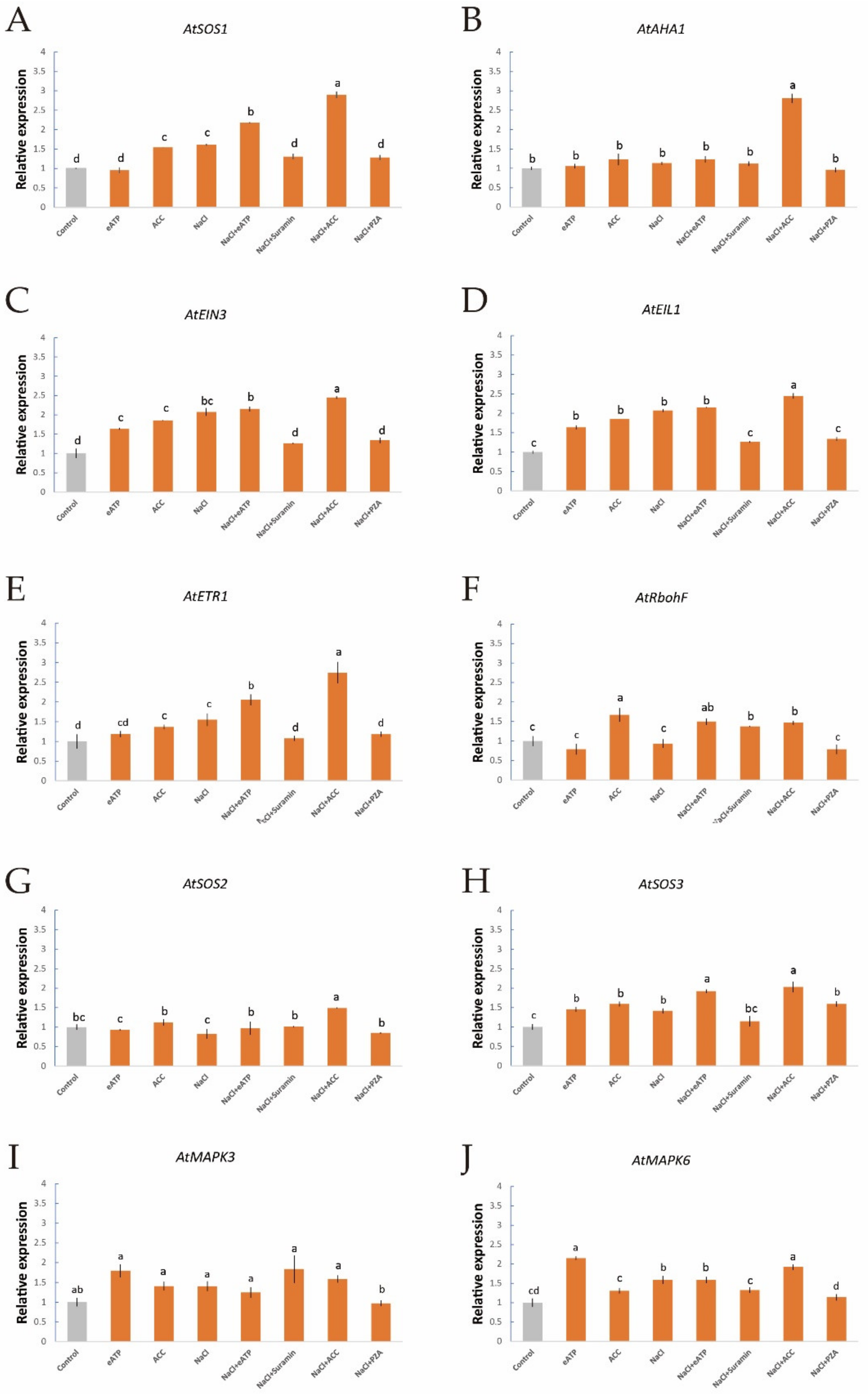

To further investigate the interactions of salt-induced ethylene, eATP, H₂O₂, and [Ca²⁺]_cyt, we used qPCR to evaluate the expression of some salt-responsive genes in Col-0 and etr1-1 roots after treatment with ethylene, eATP, and their inhibitors with or without NaCl stress; namely, the expression of AtSOS1 (encoding the PM Na⁺/H⁺ antiporter, Figure 7A), AtAHA1 (responsive for the PM H⁺-pumps, Figure 7B), AtRbohF (function for the H₂O₂ signaling pathway), AtEIN3, AtEIL1, AtETR1 (involved in the ethylene signaling pathway, Figure 7C–E), AtSOS2/3 (responsive for the Ca²⁺ signaling pathway, Figure 7G,H), and AtMAPK3/6 (regulation of the eATP signaling pathway, Figure 7I,J). qPCR revealed that in the absence of short-term salt treatment, the application of exogenous ACC to Col-0 plants remarkably upregulated the expression of AtSOS1/3, AtRbohF, AtEIN3, AtEIL1, and AtETR1, whereas the expression of AtMAPK3/6 was not significantly different (Figure 7A,C–F,H). These findings suggest that the ethylene signaling cascade could upregulate the PM Na⁺/H⁺ antiporter and its downstream signaling pathways, such as those involving H₂O₂ and Ca²⁺, but there were no clear influences on the eATP signaling cascade in Col-0 roots. In addition, NaCl boosted the expression of a sequence of NaCl-related genes, such as AtSOS1/3, AtEIN3, AtEIL1, AtETR1, and AtMAPK6 (Figure 7A,C–E,H,J). These results indicate that the PM Na⁺/H⁺ antiporter, [Ca²⁺]_cyt, ethylene signaling, and eATP signaling responded remarkably to NaCl stress. NaCl and ACC upregulated the expression of all tested genes with the exception of AtMAPK3 (Figure 7A–I), which further corroborated that ethylene signaling does not mediate the eATP signaling pathway. Moreover, eATP, a novel player in the salt response of Arabidopsis, enhanced the transcription of AtSOS1/2/3, AtAHA1, AtMAPK3/6, AtEIN3, AtEIL1, AtETR1, and AtRbohF, which implies that the eATP signaling cascade exhibits the most rapid response to salt injury (Figure 7). In terms of etr1-1, eATP increased AtEIL1 and AtETR1 expression in the absence of NaCl stress. These results suggest that eATP acts as a regulator of ethylene signaling to some extent (Figure S2).

3. Discussion

3.1. Ethylene and eATP Contribute to the Activation of the PM Na⁺/H⁺ Antiport System in Salt-Stressed Plants

3.1.1. Na⁺ Homeostasis

Salinity poses a fatal threat to higher plants by effects on growth and metabolism [42], e.g., by shortening root length and ion leakage (Figure 1AB and Figure S1). To counteract this stress, the maintenance of K⁺/Na⁺ homeostasis is critical in determining the salt-endurance capacity of salinized plant species [1,7,43,44]. Under short-term saline conditions, the annual model plant species, Arabidopsis, e.g., Col-0, etr1-1, and ein3-1eil1-1, exhibited remarkable Na⁺ restriction and subsequent H⁺ absorption compared to the salt-untreated group (Figure 2A–F). The opposing scenario was observed when salt-elicited Na⁺ efflux and H⁺ influx were simultaneously restrained upon involvement of amiloride (a specific inhibitor of the PM Na⁺/H⁺ antiporter system) or sodium orthovanadate (a known inhibitor of the PM H⁺-ATPase) (Figure 2A‒D). These results indicate that Na⁺ extrusion and H⁺ uptake in salinized Col-0, etr1-1, and ein3-1eil1-1 roots results from the activation of PM Na⁺/H⁺ antiporters and H⁺-ATPase. These results are in accordance with previous studies of multifarious woody and herbaceous plant species, i.e., Populus euphratica [6], Bruguiera gymnorhiza [7], Aegiceras corniculatum [8], and G. uralensis [10]. In addition, Na⁺ extrusion in salt-treated Arabidopsis was probably due to the activation of Ca²⁺‒SOS signaling pathways, in which elevation of cytosolic Ca²⁺ would promote the activity of the PM Na⁺/H⁺ antiport system, i.e., the Na⁺/H⁺ antiporters and H⁺-ATPase, to resist Na⁺ toxicity in the cytosol (Figure 2J‒L) [9,45,46]. It is worth noting that upon exposure to salt stress, Col-0 exhibited greater Na⁺ efflux, H⁺ influx, and Ca²⁺ influx than ethylene-insensitive mutants (Figure 2A–C,G–L). These findings suggest that the loss of ethylene signaling pathway function could weaken the salt tolerance in plants under high-NaCl conditions. In salinized Arabidopsis, ethylene and eATP enhanced Na⁺ efflux, whereas specific pharmacological agents for the involved molecules, i.e., PZA and suramin, could suppress the salt-elicited Na⁺ efflux (Figure 4A,B and Figure 5A,B). The above results suggest that both ethylene and eATP play crucial roles in upregulating the PM Na⁺/H⁺ antiport system under saline conditions. In the past, ethylene has been demonstrated to be involved in the maintenance of Na⁺ homeostasis, probably via promotion of the activity of PM H⁺ pumps in salt-stressed Arabidopsis roots [47]. Moreover, P2-like receptor antagonists, i.e., suramin or PPADS, could reduce Na⁺ exclusion, as AHA1 expression was blocked in poplar cells [30,44].

qPCR assays showed that NaCl resulted in increased levels of AtSOS1 transcripts and activation of the PM Na⁺/H⁺ antiport system in Arabidopsis roots (Figure 7A). Furthermore, we found that the expression of AtSOS1 and AtAHA1 was enhanced by exogenous ATP-Na₂ or ACC treatment during short-term NaCl stress (Figure 7A,B), which is in line with our NMT data. These results presumably indicate that eATP or ethylene respond positively in terms of regulating the expression of genes for PM Na⁺/H⁺ antiporters and PM H⁺ pumps in salinized roots (Figure 7A,B). In our previous study, eATP, as a novel player in salt signaling, was demonstrated to significantly upregulate the expression of GuSOS1 and GuAHA1 in salt-treated licorice roots [10]. In addition, similar results were found for the poplar species P. euphratica [9,30]. Ethylene was required for the activation of PM H⁺-ATPase, resulting from upregulation of AtAHA1 transcription in NaCl-stressed roots (Figure 7B), which is in accordance with the results of a previous study by Li et al. [47].

3.1.2. K⁺ Homeostasis

The maintenance of K⁺ homeostasis in salinized shoots and roots is crucial for plant salt tolerance [48]. Under short-term NaCl treatment, Col-0, etr1-1, and ein3-1eil1-1 collectively exerted obvious K⁺ leakage; furthermore, these phenomena were inhibited by TEA but promoted by sodium vanadate (Figure 3E,F). These effects are consistent with previous studies that show massive K⁺ loss under the regulation of depolarization-activated channels, e.g., KORCs and NSCCs, in the presence of NaCl stress [7,44,49]. We also found that exogenous ethylene and eATP were dramatically beneficial in promoting intracellular K⁺ retention (Figure 4C and Figure 5C). However, the application of PZA or suramin caused significant promotion of K⁺ leakage (Figure 4D and Figure 5D). Presumably, these results are attributed to the activation of PM H⁺ pumps, which play an important role in blocking K⁺-permeable channels. In our previous study, salt-elicited K⁺ release decreased in the presence of eATP in K. obovata, A. corniculatum [8], and G. uralensis [10]. Our qPCR assays showed that ethylene was required for the activation of PM H⁺ pumps through upregulation of AtAHA1 transcription in NaCl-stressed roots. However, it is interesting that eATP application did not increase the salt-responsive induction of AtAHA1 (Figure 7B). This probably implies that eATP might have an effect on a homolog of AtAHA1, which plays a similar role to AtAHA1 in mediating proton efflux in the presence of salinity. Indeed, eATP promoted root skewing of Arabidopsis, which required energy from the predominant plasma membrane H⁺-ATPase, AHA2 [50].

3.2. Ethylene Is Involved in eATP, H₂O₂, and [Ca²⁺]_cyt Modulation of K⁺/Na⁺ Homeostasis in Response to Salinity Stress

Extracellular ATP, an emerging “pioneer signal”, is considered to contribute to salt-stress acclimation by provoking stress signaling pathways. Choi et al. (2014) reported that eATP binds PM P2K1 receptors, resulting in the execution of downstream functions, i.e., triggering of ROS and [Ca²⁺]_cyt [30,34,36]. In this study, eATP significantly shortened Col-0 hypocotyls under the no-salt conditions (Figure 1C,D). However, this effect of eATP on hypocotyl elongation was abolished in etr1-1 and ein3-1eil1-1 loss-of-function mutants, implying that eATP acts via ethylene response pathways. In previous studies, it has been suggested that eATP could promote activity of the ethylene signaling pathway, such as through upregulating the transcripts of biosynthetic and downstream responsive genes [51,52]. Accordingly, exogenous ATP increased the expression levels of EIN3 and EIL1 in Col-0, whereas the induction of EIN3 by eATP was virtually indiscernible to that of the etr1-1 mutant (Figure S2). In the presence of NaCl, eATP alleviated NaCl-induced growth retardation and reduced ion leakage but had no effects on etr1-1 and ein3-1eil1-1 mutants (Figure 1A,B and Figure S1). Under salt stress, eATP elevated Na⁺ extrusion and suppression of K⁺ leakage was impaired in etr1-1 and ein3-1eil1-1 (Figure 5A,C). Moreover, the NaCl-induced expression of AtEIN3 and AtEIL1 was restrained by the P2 receptor antagonist suramin (Figure 7C‒E). These findings indicate that the salt-induced ethylene component was probably elicited via the eATP signaling pathway and, thus, contributed to downstream events collectively in response to saline conditions. It is notable that MAPK3 and MAPK6, which are of particular importance in the eATP signaling pathway [34], alleviate salt sensitivity through maintenance of ethylene homeostasis in tobacco [53] and rice [54].Thus, it can be inferred that in salt conditions, extracellular ATP promotes the ethylene signaling pathway through MAPK modules.

It is well known that ethylene is an indispensable component in the response to salt stress of various plant species. We found that crosstalk between salt-induced messenger molecules, i.e., ethylene, eATP, H₂O₂, and cytosolic Ca²⁺, occurs in the mediation of ionic homeostasis under saline conditions. To be specific, ethylene was not only triggered by eATP (Figure 1C,D, Figure 5, and Figure 7C–E) but could also give rise to intracellular H₂O₂- and Ca²⁺-specific fluorescent accumulation in salt-exposed plants (Figure 2). In our previous study, eATP was found to interact with H₂O₂ and cytosolic Ca²⁺ to modulate ionic homeostasis in P. euphratica [30] and mangrove species [8] under salt stress. Moreover, in salinized G. uralensis, eATP stimulated the transcription of GuRbohD, GuSOS3, and GuCIPK, which were necessary to generate cytosolic ROS and Ca²⁺‒SOS signaling pathways, and then functioned together with these signaling molecules in the activation of PM Na⁺/H⁺ antiporters and H⁺-ATPase [10]. In the present study, exogenous ACC treatment dramatically upregulated the expression of AtRbohF and AtSOS2/3 under salt-stress conditions, which directly contributed to H₂O₂ and Ca²⁺ signaling pathways, respectively (Figure 7F–H). In line with our results, ethylene signaling cascades positively enhanced salt tolerance via upregulation of AtRbohF expression, which is responsible for vasculature tissue-specific ROS biosynthesis [55]. On the other hand, it is suggested that there is crosstalk between ethylene and salt-induced H₂O₂, wherein ethylene acts as a downstream event of ROS to synergistically regulate physiological and transcriptional changes in plant K⁺ homeostasis [41]. Moreover, Quan et al. demonstrated that NaCl-triggered SOS2 could not only phosphorylate EIN3 but might also boost EIN3 transcriptional activity or protein stability [38], which indicates regulation of the ethylene pathway by cytosolic Ca²⁺ signaling. On the contrary, ethylene was shown to evoke cytosolic Ca²⁺ by regulating PM Ca²⁺-permeable channels [56], so combined with the results of our qPCR assay of AtSOS1/2/3 (Figure 7A,G,H), it might be inferred that ethylene upregulated Ca²⁺ under salinity stress.

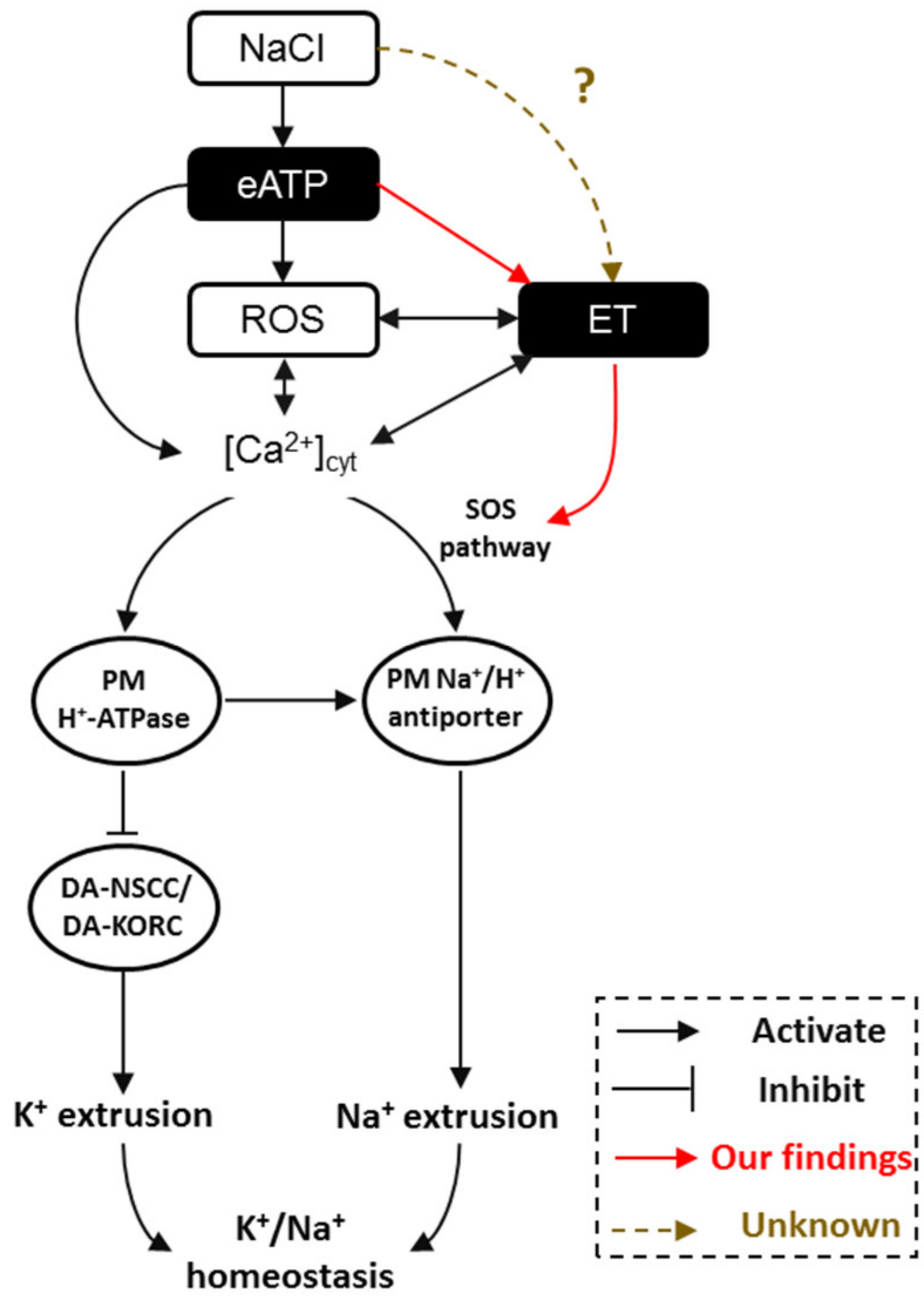

In considering all the evidence together, we now know that interactions exist between eATP, ethylene, H₂O₂ (ROS), and Ca²⁺‒SOS signaling pathways in modulating plant salt tolerance. Briefly, under salt stress, cells suffer injury from invading Na⁺ and K⁺ efflux. ATP is then released to the extracellular matrix and binds purinergic P2K1 receptors. Activated eATP signaling stimulates the production of cytosolic H₂O₂ and Ca²⁺, and elicits the ethylene signal pathway. These signaling components engage in crosstalk to promote the H⁺-pump and SOS transport system to maintain intracellular K⁺/Na⁺ homeostasis (Figure 8).

4. Materials and Methods

4.1. Plant Materials and Culture Conditions

Arabidopsis thaliana Col-0, etr1-1, and an ein3 and eil1 double mutant (ein3-1eil1-1) were used in the study. Homozygous lines of etr1-1 and ein3-1eil1-1 were obtained from Hongwei Guo and all mutant seeds were in a Col-0 background [57]. Surface-sterilized seedlings were transferred onto round agar plates containing 1/2 MS (Sigma-Aldrich, St. Louis, MO, USA) basal salt medium, 1% sucrose, and 0.8% agar (pH 5.7‒5.8). To enhance uniform plant germination, the culture plates were incubated at 4 °C for 2‒3 days in the dark and then placed vertically at 23 °C under a light intensity of 200 μmol m⁻² s⁻¹. The photoperiod cycle was 16 h of light and 8 h of dark.

4.2. Phenotypic Identification and Physiological Experiments

The phenotypic identification in this study can be divided into three parts. Part 1: To confirm the effect of eATP on hypocotyl change belonging to ethylene triple response, Col-0 seeds were sown on 1/2 MS medium with dark treatment; after germination, the seedlings were screened by a stereoscope (Stemi 2000-C, Zeiss, Oberkochen, Germany) and the hypocotyl length was calculated. Part 2: Col-0, etr1-1, and ein3-1eil1-1 were sown on a 1/2 MS agar plates without or with 100 mM NaCl for phenotypic analysis. Briefly, no fewer than 50 seeds of Col-0 and ethylene-insensitive mutants were sown onto each plate containing 1/2 MS medium subjected to 50 or 100 mM NaCl or not. Part 3: To determine the effect of eATP on the phenotype of ethylene-insensitive mutants, we added ATP-Na₂ (a donor of extracellular ATP, 300 μM, Sigma-Aldrich, St. Louis, MO, USA) on the salt plates (50 or 100 mM) based on a 1/2 MS medium. Each physiological experiment on a phenotype needed to be replicated at least three times. Root length and relative electrolyte leakage were computed after a week since the transfer to the light. The relative electrolyte leakage of the seedlings was evaluated with the method reported in Peever and Higgins [58].

4.3. Salt, Antagonist, and Antagonist Treatments for NMT and qPCR Assays

Based on the culture conditions above, hydroponic-equilibrated seedlings, e.g., Col-0, etr1-1, and ein3-1eil1-1, were exposed to 0 or 100 mM NaCl solution for 12 h. To determine the interactions of ethylene, eATP, Ca²⁺, and H₂O₂ in regulating ionic homeostasis, two series of experiments were designed and carried out, as depicted below.

4.3.1. Series 1: Agonist Treatments

Exogenous chemicals ATP-Na₂ (300 μM) and 1-aminocyclopropanecarboxylic acid (ACC, a donor of ethylene, 10 μM, Sigma-Aldrich, St. Louis, MO, USA) were added to illuminate the relationship between eATP and ethylene in terms of regulating K⁺/Na⁺ homeostasis in young plants. This involved different amounts of agonists, in the presence or absence of NaCl (100 mM), as applied in a 1/2 MS nutrient solution, which was used for control and treatment plants.

We also measured the changes in the transcript levels of NaCl-resistant genes in Arabidopsis roots after the application of agonists with or without 12 h of salt treatment, e.g., ATP and ethylene. Specifically, the genes involved in K⁺/Na⁺ homeostasis and salt-induced signaling were AtAHA1, the PM H⁺-ATPase; AtSOS1, the PM Na⁺/H⁺ antiporter gene; AtETR1, the ethylene response 1 gene; AtEIN3, the ethylene-insensitive 3 gene; AtEIL1, the EIN3-like 1 gene; AtSOS2/3, the salt overly sensitive 2/3 genes; AtRbohF, the respiratory burst oxidase homolog protein F gene; and AtMAPK3/6, the mitogen-activated protein kinase 3 and 6 genes.

4.3.2. Series 2: Antagonist Treatments

The pharmacological effects of several PM channel inhibitors were tested in salt-treated Arabidopsis seedlings, i.e., amiloride (a PM Na⁺/H⁺ antiporter blocker, 50 μM, Sigma-Aldrich, St. Louis, MO, USA) and sodium orthovanadate (a specific inhibitor of the PM H⁺-ATPase, 500 μM, Sigma-Aldrich, St. Louis, MO, USA) were used to inhibit the PM Na⁺/H⁺ antiport system, while tetraethylammonium chloride (TEA, a typical K⁺ channel inhibitor, 50 μM, Sigma-Aldrich, St. Louis, MO, USA) was used to block the salt-induced K⁺ efflux [6,7,10].

The effects of specific antagonists (100 μM PZA, Sigma-Aldrich, St. Louis, MO, USA and 300 μM suramin, Sigma-Aldrich, St. Louis, MO, USA, two inhibitors of the PM ethylene receptor and PM P2-like, respectively) on control and short-term salt-treated Arabidopsis were also evaluated in this study [30,59]. After the treatment of salt and antagonists, steady-state ion fluxes of the meristematic zone were promptly recorded. Next, the salt-elicited abundances of AtAHA1, AtSOS1, and some salt-related genes were examined in young roots with or without antagonist treatments.

4.4. Recording Net Ion Fluxes

A professional ion flux measurement system, a non-invasive micro-test technique (NMT; NMT-YG-100, Younger, Amherst, MA, USA), was used to determine the net K⁺, Na⁺, H⁺, and Ca²⁺ fluxes in Arabidopsis roots after 12 h of agonist and NaCl treatments. The preparation and calibration of ion-selective electrodes were described in previous studies [6,7,8,45]. The electrode calculations with Nernstian slopes >52 mV/decade were then used for K⁺, Na⁺, and H⁺ fluxes and Nernstian slopes >26 mV/decade for Ca²⁺ flux. All the net ionic fluxes were evaluated by Fick’s law of diffusion (see Equation (1)):

$$J = -D \left(\frac{\mathrm{dc}}{\mathrm{dx}}\right),$$

(1)

where J stands for the ion flux in the x direction, D is the ion diffusion constant, and dc/dx represents the ion concentration gradient in the tested medium.

The 12-h NaCl-stressed seedlings were simultaneously exposed to agonists (ATP-Na₂ and ACC) or antagonists (suramin and PZA). After that, the treated young root segments with apices of 2‒3 cm were collected and rinsed with redistilled water two to three times. Then, the roots were immediately equilibrated in fresh measuring solution (background: 0.1 mM NaCl, 0.5 mM KCl, 0.1 mM MgCl₂, and 0.1 mM CaCl₂ with a pH of 5.7 adjusted via choline and HCl) for 30 min to decrease the effect of salt release on flux recording.

After equilibration, the premeasured roots were transferred to the bottom of a glass lab dish containing 10‒15 mL of a specific measuring solution. To acquire the most accurate data, we chose test points in the meristem zone (500 μm from the root apex) as our net ion flux measurement field [7,8,10]. Each root needed to be continuously recorded for 15‒20 min along the root axis.

4.5. Quantitative Real-Time PCR Assays of Gene Expression

We used qPCR assays (Bio-Rad CFX96 Touch^TM real-time PCR detection system, Berkeley, CA, USA) to detect changes in the expression of some salt-related genes. TRIzol solution (Invitrogen, Carlsbad, CA, USA) was used to isolate the total RNA from Col-0 roots with or without short-term (12 h) salt treatment. After removal of DNA by DNase I (Promega, Madison, WI, USA) treatment for 30 min, aliquots of purified RNA (1 μg) as templates, M-MLV reverse transcriptase (Promega, Madison, WI, USA), and oligo(dT) primers (Takara, Dalian, China) were used for first-strand cDNA synthesis. The Arabidopsis β-actin 2 gene (AtActin2) was used as the internal control for normalization. Details of specific forward and reverse primers for AtSOS1/2/3, AtAHA1, AtMAPK3/6, AtETR1, AtEIN3, AtEIL1, and AtRbohF used in the qPCR are listed in Table S1.

The amplification method was conducted according to Deng et al. and the calculation of gene expression was performed via the relative 2^−△△CT approach [60,61].

4.6. Density of Cytosolic H₂O₂ and Ca²⁺ in Root Cells

Endogenous H₂O₂ and [Ca²⁺]_cyt in Arabidopsis roots were specifically detected using a green fluorescent probe, H₂DCF-DA (50 μM, Eugene, Shanghai, China) and an orange fluorescent probe, Rhod-2 AM (2 μM, Biotium, San Francisco, USA), respectively [6,10,30]. Briefly, 10 μM ACC was added to 1/2 MS liquid medium supplemented with 0 or 100 mM NaCl for 30 min. Next, the roots were transferred to a fresh MES-KCl loading buffer (5 mM, pH 5.7) containing H₂DCF-DA or Rhod-2 AM, respectively, in the dark to observe the intracellular H₂O₂ or [Ca²⁺]_cyt fluorescence after 1 h of incubation, when vigorous fluorescence could typically be seen [10]. After washing with 1/2 MS liquid medium 3‒4 times, the levels of endogenous H₂O₂ and [Ca²⁺]_cyt in roots were visualized by confocal microscopy prior to fluorescence intensity calculation. The confocal parameters for determination of cellular signal contents were as follows: excitation at 488 nm for H₂DCF-DA and 543 nm for Rhod-2 AM, emission at 510‒530 nm for H₂DCF-DA and 570‒590 nm for Rhod-2 AM, and frame 512 × 512 [6,10,30].

4.7. Data Analysis

Net ion fluxes were calculated using the data processing software JCal v. 3.0. Fluorescence intensity was counted using the image processing software Image-Pro Plus v. 6.0. All mean data were subjected to ANOVA for statistical treatments and denoted as the means ± SE in SPSS v. 19.0. Differences were considered statistically significant when p < 0.05, unless otherwise stated.

5. Conclusions

Our findings suggested that in salt-treated Arabidopsis, ethylene significantly assists in maintaining K⁺/Na⁺ homeostasis via activation of the PM Na⁺/H⁺ antiport system (Na⁺/H⁺ antiporters and H⁺-ATPase), including by enhancing Na⁺ extrusion, restricting K⁺ leakage, and upregulating the expression of AtSOS1 and AtAHA1. Moreover, NaCl-induced ethylene is triggered by eATP, which then mediates downstream signaling cascades, e.g., H₂O₂ and cytosolic Ca²⁺, and finally interacts with these signaling molecules to ultimately activate the PM Na⁺/H⁺ antiport system (Na⁺/H⁺ antiporters and H⁺-ATPase) in response to salt adversity.
