Identification of Lymphatic and Hematogenous Routes of Rapidly Labeled Radioactive and Fluorescent Exosomes through Highly Sensitive Multimodal Imaging

Abstract

There has been considerable interest in the clinical use of exosomes as delivery vehicles for treatments as well as for promising diagnostic biomarkers, but the physiological distribution of exosomes must be further elucidated to validate their efficacy and safety. Here, we aimed to develop novel methods to monitor exosome biodistribution in vivo using positron emission tomography (PET) and optical imaging. Exosomes were isolated from cultured mouse breast cancer cells and labeled for PET and optical imaging. In mice, radiolabeled and fluorescently labeled exosomes were injected both via lymphatic and hematogenous metastatic routes. PET and fluorescence images were obtained and quantified. Radioactivity and fluorescence intensity of ex vivo organs were measured. PET signals from exosomes in the lymphatic metastatic route were observed in the draining sentinel lymph nodes. Immunohistochemistry revealed greater exosome uptake in brachial and axillary versus inguinal lymph nodes. Following administration through the hematogenous metastasis pathway, accumulation of exosomes was clearly observed in the lungs, liver, and spleen. Exosomes from tumor cells were successfully labeled with ⁶⁴Cu (or ⁶⁸Ga) and fluorescence and were visualized via PET and optical imaging, suggesting that this simultaneous and rapid labeling method could provide valuable information for further exosome translational research and clinical applications.

1. Introduction

Exosomes are cell-derived extracellular vesicles containing many functional proteins, mRNAs, and miRNAs [1,2,3], and are considered to be novel messengers in cell-to-cell communication [4,5]. Recently, there has been growing interest in clinical application of exosomes within diagnosis, prognosis, and therapy [6,7,8]. The molecular components of exosomes have received increasing attention as promising biomarkers for clinical tumor profiling, and exosomes are currently being investigated as therapeutic carriers for drug delivery [9,10,11,12]. Utilizing exosomes as drug carriers could overcome the limitations imposed by liposomes and nanoparticles, as exosomes are non-immunogenic and exhibit other desirable features, such as high stability under physiological conditions and a lack of toxicity. Therefore, the biodistribution of exosomes should be further elucidated for additional evaluation of related therapies.

Most previous studies investigated methods to image exosomes in vivo via fluorescence, bioluminescence, radioisotope, MRI, and magnetic particle imaging systems [13,14,15,16]. Lipophilic fluorescent tracers, such as DiR (1,1′-dioctadecyl-3,3,3′,3′-tetramethylindotricarbocyanine iodide), have been used for optical imaging [9,10], and reporter vectors encoding green fluorescent protein-conjugated exosome-specific proteins have been used for exosome imaging [17,18]. With these imaging methods it has been shown that exosomes localize to the lungs, liver, spleen, and lymph nodes [19]. Although these optical exosome labeling methods are useful for visualization of exosome localization within in vitro and ex vivo studies [20,21,22], it remains problematic to quantify the biodistribution of exosomes in vivo due to low tissue penetration and sensitivity.

Conversely, radionuclide imaging has been suggested as a technique to quantify imaging signals in vivo and overcome penetration depth limitations with increased sensitivity [23]. Recently, radioisotopes such as ¹²⁵I and ^99mTc-HMPAO were used to monitor the biodistribution of exosomes [24,25,26]. However, ¹²⁵I-labeled exosome imaging could only provide insight into ex vivo biodistribution using a gamma counter. Moreover, deiodination of the radioiodine-labeled ligand in the case of ¹²⁵I labeling has been reported as a drawback to its in vivo application [27]. Although ^99mTc-HMPAO-based exosome imaging was used to visualize in vivo exosome biodistribution, it is limited by the glutathione (GSH)-dependent accumulation of ^99mTc-HMPAO in exosomes. The level of GSH contained within exosomes varies between cell types and can be easily altered by various cellular enzymes [28]. Furthermore, ^99mTc-HMPAO imaging can only be applied to single-photon emission computed tomography (SPECT), which is neither as sensitive nor as quantitative as positron emission tomography (PET). In addition, the standards for PET image acquisition and the methods for quantitative data analysis of PET images have already been established by the nuclear imaging society [29].

In this study, we developed a simple exosome radiolabeling method that is less dependent on cell type and utilizes more quantitative PET imaging to better visualize exosome biodistribution in mice. Since 1,4,7-triazacyclononane-triacetic acid (NOTA) is a useful chelator for various radioisotopes, we conjugated NOTA with the amine group of the membrane proteins on exosomes (Figure 1). Cancer cells can metastasize through well-known processes, including lymphatic or hematogenous spread. Exosomes derived from cancer cells could be transferred through the same routes, where they become involved in tumor growth, immune suppression, and metastasis [30,31]. Therefore, we investigated the biodistribution of exosomes through these routes using quantitative PET imaging, thereby providing valuable information for their clinical application(s) [32,33].

2. Results

2.1. Exosome Characterization and Labeling with ⁶⁸Ga, ⁶⁴Cu, and Cy7

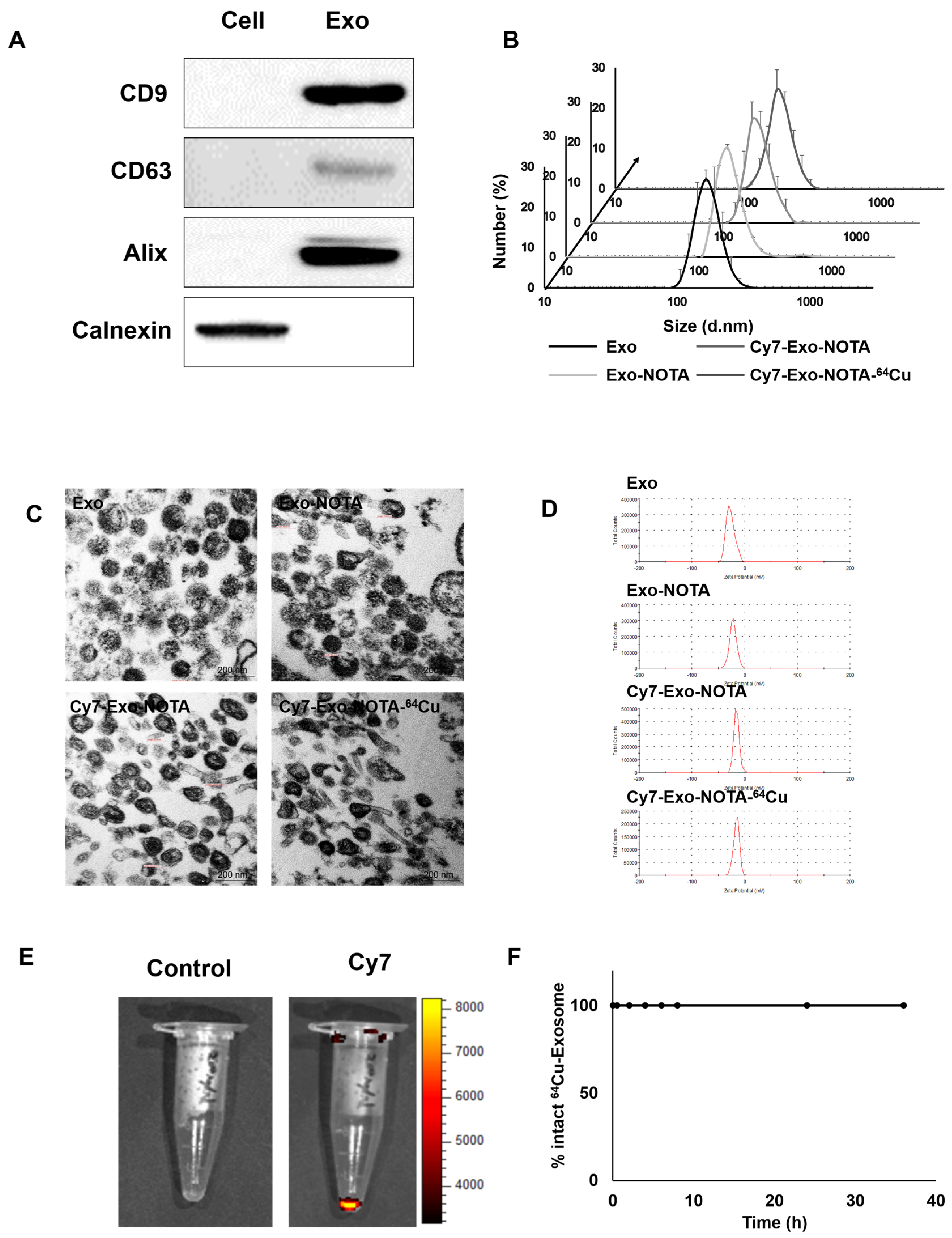

Marker proteins of exosomes such as CD9, CD63, and Alix were more highly expressed in purified exosomes than in cells, while cellular protein markers such as calnexin were more highly expressed in cells, as expected (Figure 2A). We confirmed the presence of extracellular vesicles of the appropriate size (about 100 nm) using dynamic light scattering and exosome morphology through transmission electron microscopy (TEM) (Figure 2B,C).

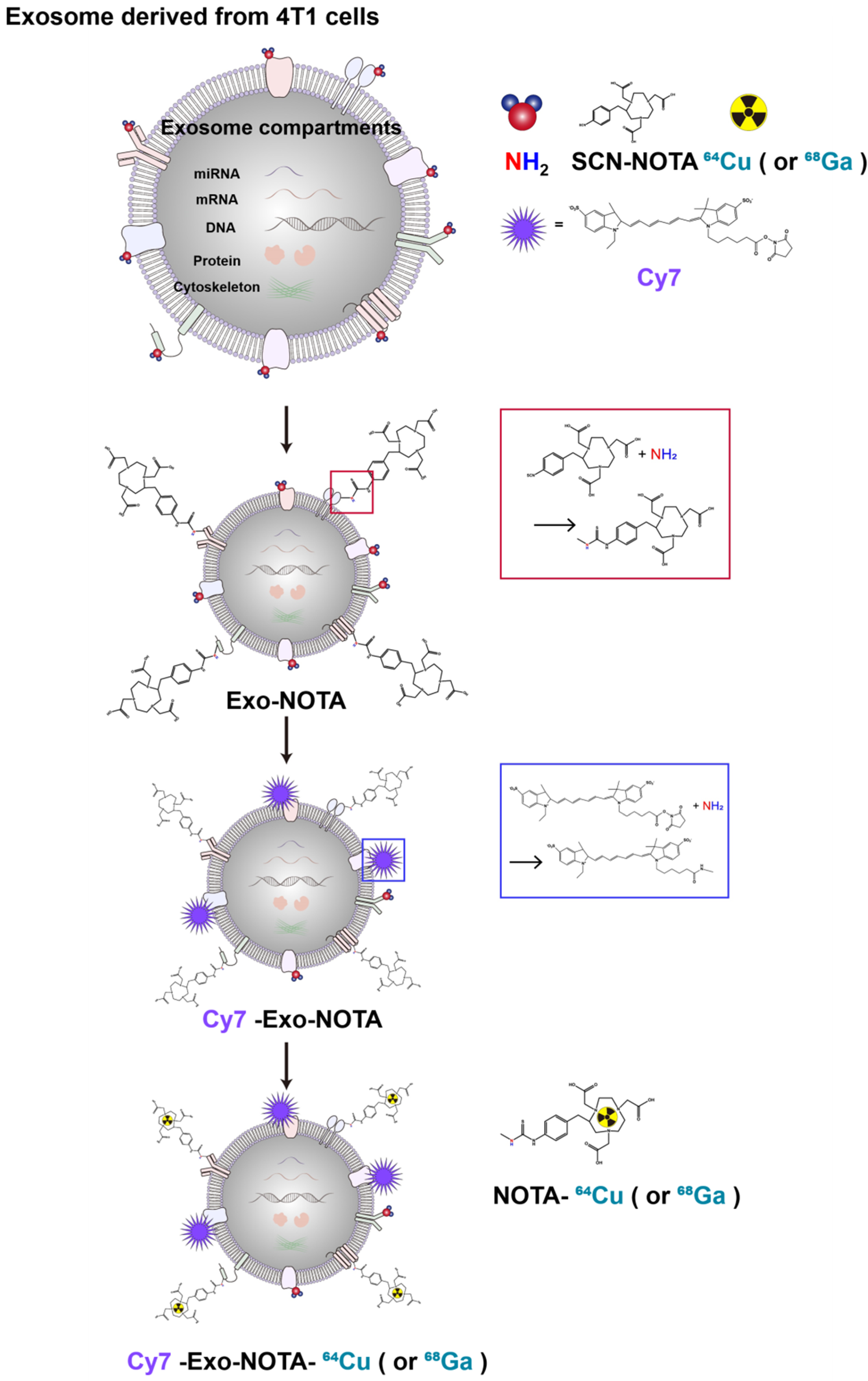

As shown in Figure 1, our labeling strategy is based on the use of SCN-NOTA as a bifunctional chelator of radioisotopes such as ⁶⁴Cu and ⁶⁸Ga. For optical imaging, we also labeled with Cy7, a near-infrared fluorescence dye. Cy7-labeled exosomes exhibited clear fluorescence signals (Figure 2E). Thin layer chromatography, commonly used to confirm the serum stability of a radiolabeled tracer, demonstrated that after radioisotope labeling the ⁶⁴Cu/⁶⁸Ga-labeled exosomes (Exo-NOTA-⁶⁴Cu/⁶⁸Ga) demonstrated a labeling purity of approximately 98% after the removal of free radioisotopes by ExoQuick^TM (Figure S1). The size, polydispersion index (PDI), and zeta potential according to sequential synthesis steps are summarized in Table S1. The stability of radiolabeled exosomes was tested within serum; ⁶⁴Cu-labeled exosomes (Exo-NOTA-⁶⁴Cu) in serum were stable until 36 h after labeling (Figure 2F).

2.2. In Vivo Imaging of Radiolabeled/Fluorescently Labeled Exosomes in the Lymphatic Route

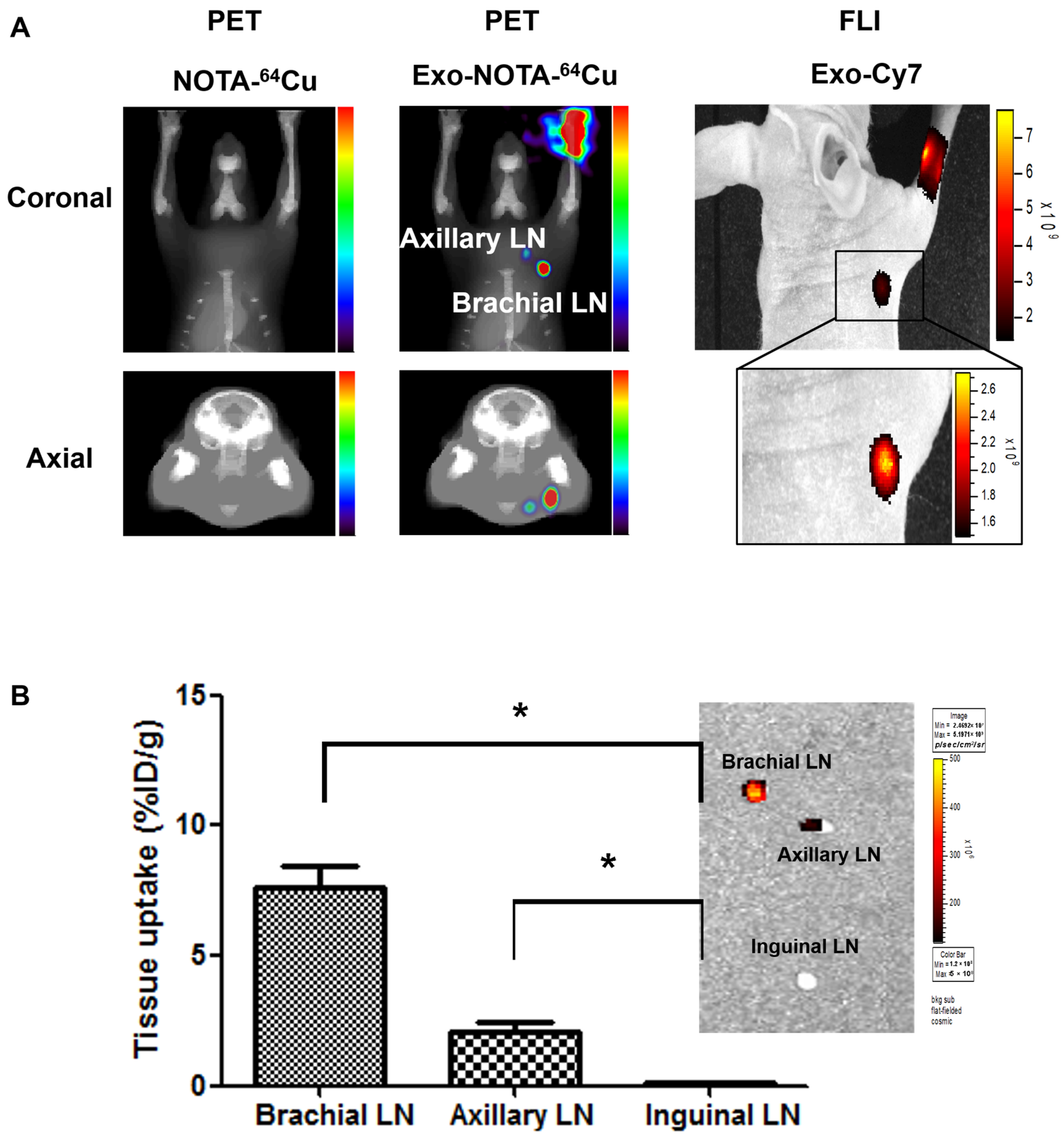

PET images at 24 h after lymphatic injection of exosomes showed that radiolabeled exosomes (Exo-NOTA-⁶⁴Cu) showed greater uptake in lymph nodes than those of NOTA-⁶⁴Cu (Figure 3A) or Free-⁶⁴Cu (Figure S2A). In whole-body PET images, no significant uptake in other organs was observed (Figure S2D,E). Optical images showed that Cy7 signals from exosomes were detected only in the brachial lymph node and at the injection site (Figure 3A), whereas PET images could clearly visualize the localization of exosomes in the axillary as well as the brachial lymph nodes with higher sensitivity. For ⁶⁸Ga-labeled exosomes, the results were similar to those of exosome-⁶⁴Cu; ⁶⁸Ga-labeled exosomes (Exo-NOTA-⁶⁸Ga) showed greater accumulation in the lymph nodes than NOTA-⁶⁸Ga at 1 h after injection (Figure S3).

2.3. Ex Vivo Imaging of Radiolabeled/Fluorescently Labeled Exosomes in the Lymphatic Route

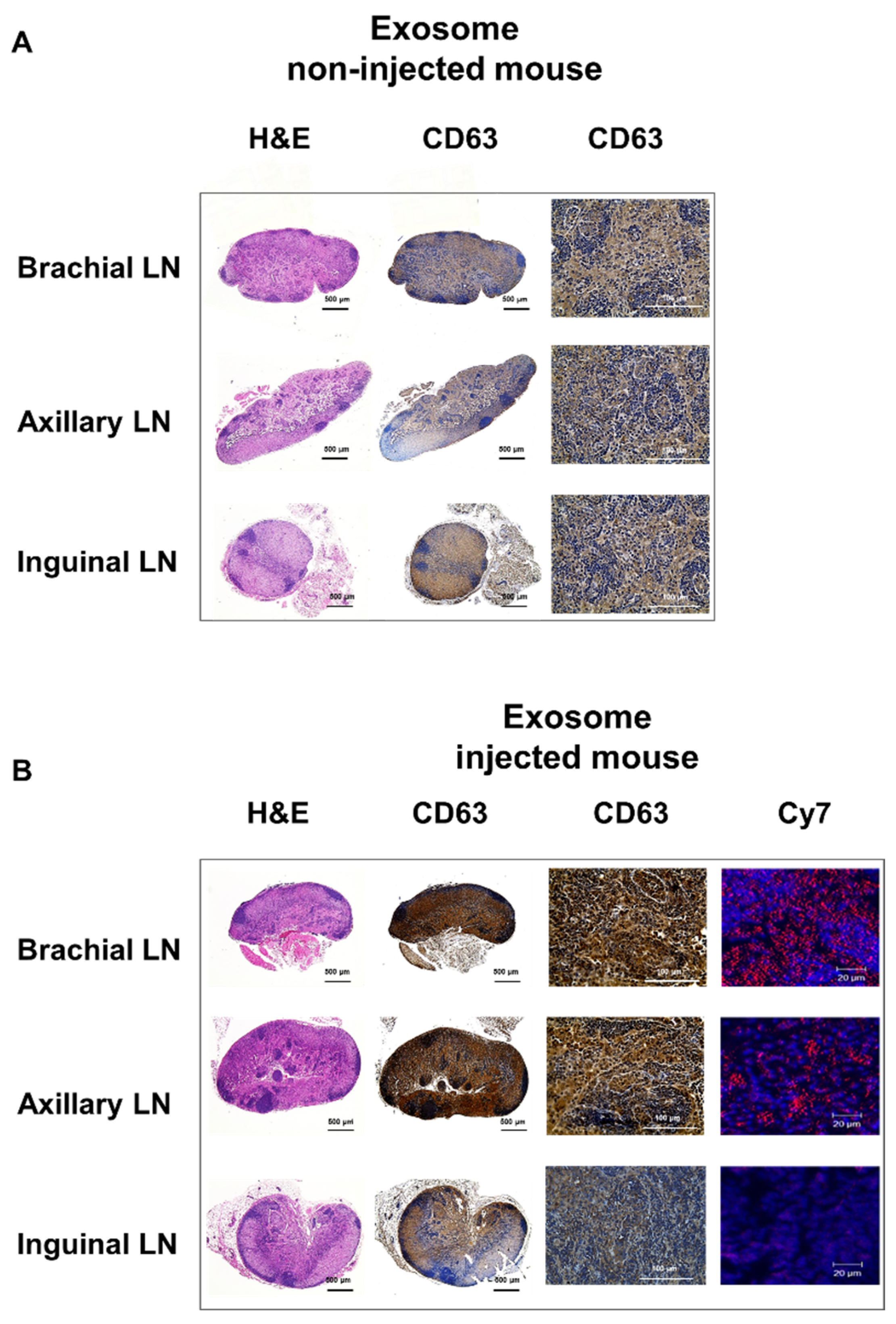

Within surgically removed lymph nodes, Cy7 signals were high in the brachial and axillary nodes, similar to that observed in the PET images (Figure 3B). Radioactivity in the gamma counter was stronger in the brachial and axillary versus inguinal lymph nodes. Expression of the exosome marker CD63 was higher within exosome-injected mice as compared with untreated mice (Figure 4). In addition, CD63 expression was higher in the brachial and axillary lymph nodes as compared with the inguinal nodes. Confocal microscopy images confirmed that stronger Cy7 signals were present in the brachial and axillary lymph nodes as compared with the inguinal nodes.

2.4. In Vivo and Ex Vivo Imaging of Radiolabeled/Fluorescently Labeled Exosomes in the Hematogenous Route

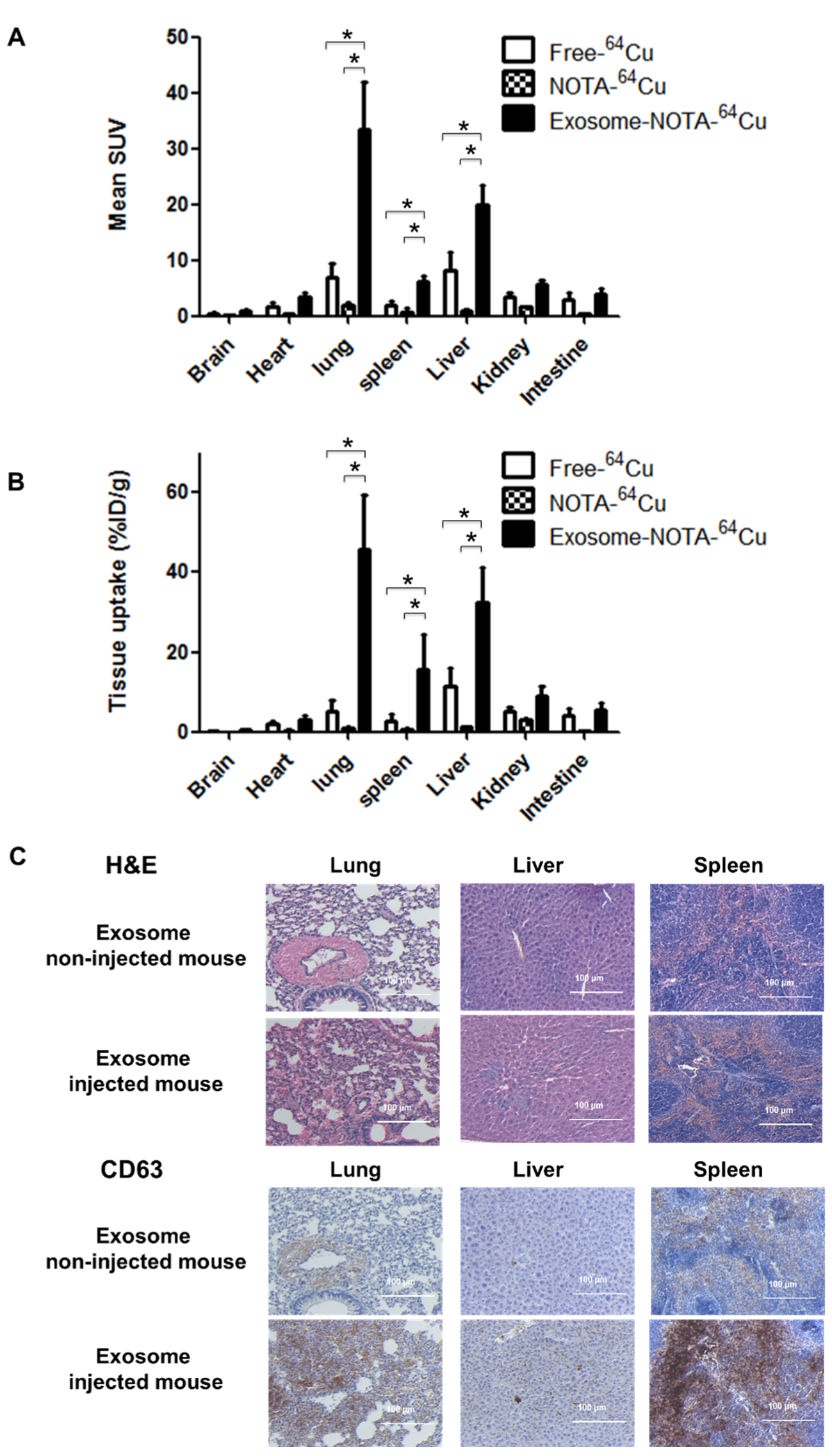

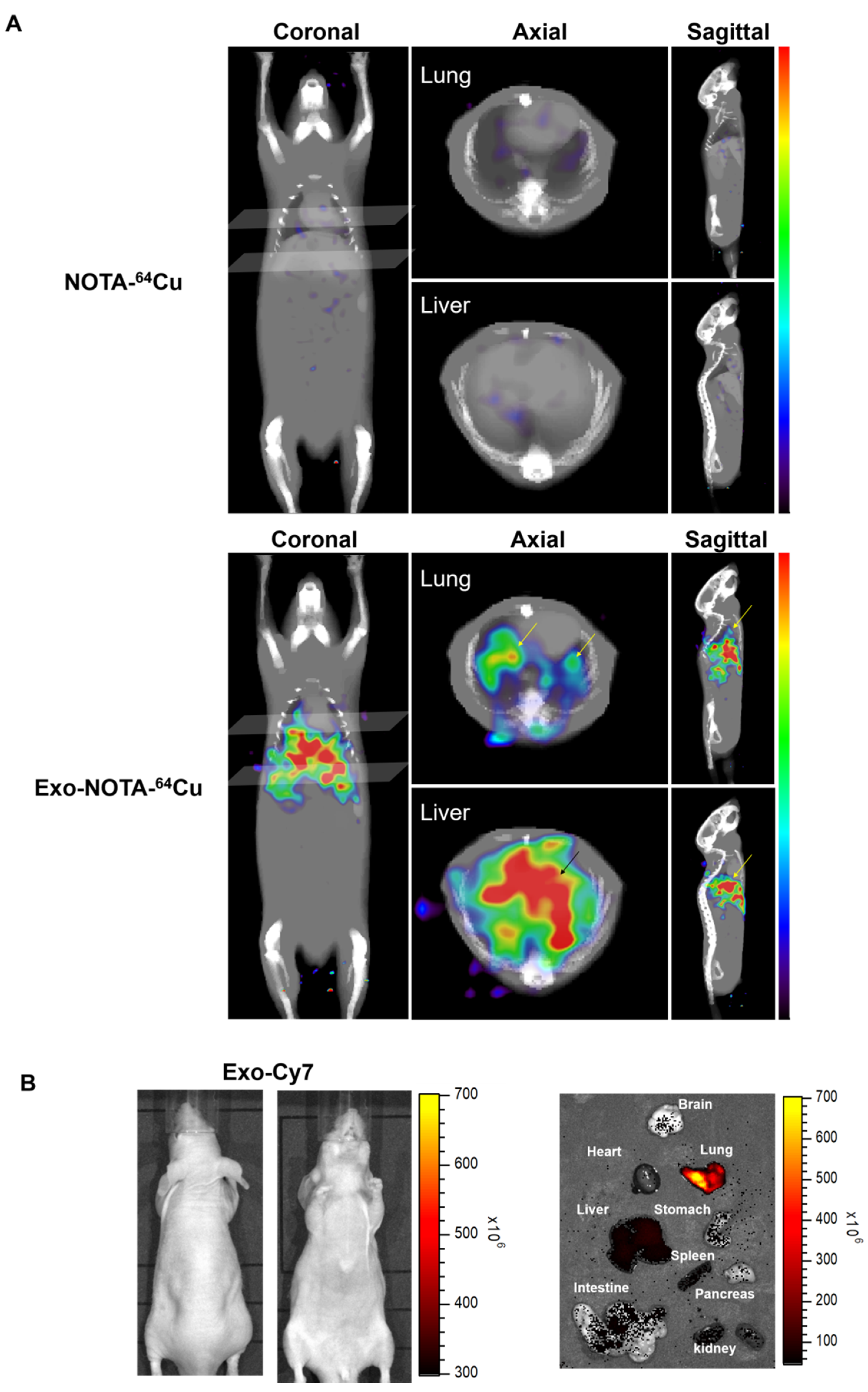

PET images revealed that ⁶⁴Cu-labeled exosomes (Exo-NOTA-⁶⁴Cu) accumulated in the lungs and liver at a greater rate than NOTA-⁶⁴Cu (Figure 5A) and Free-⁶⁴Cu (Figure S4). Intravenously injected exosomes primarily accumulated in the lungs and liver at the initial time point, after which they circulated and were cleared from the blood. However, Cy7 fluorescence signals were not visible in mice (Figure 5B, left), whereas the Cy7 labeling from ex vivo organs resulted in strong signals within the lung and liver, similar to that of PET images (Figure 5B, right), highlighting the greater sensitivity of PET imaging. For evaluating the in vivo biodistribution of systemically injected exosomes in PET images, a region of interest (ROI) was automatically drawn over the target organ margin based upon the CT image. In addition, the gamma counter also quantified the radioactivity of exosomes from ex vivo organs. The biodistribution of exosomes as determined by quantifying PET imaging data (Figure 6A) was similar to that determined by measuring ex vivo radioactivity (Figure 6B), indicating that PET imaging of ⁶⁴Cu-labeled exosomes provides quantitative information. For ⁶⁸Ga-labeled exosomes, the results showed the same pattern as that of ⁶⁴Cu-labeled exosomes, with strong signals in the lung and liver (Figure S5). The expression of CD63 in the lung, liver, and spleen was higher within exosome-injected versus untreated mice, with differing patterns in the PET imaging data (Figure 6C).

3. Discussion

In contrast to previously employed exosome imaging systems [24,25,26], ⁶⁴Cu- or ⁶⁸Ga-labeling of NOTA-conjugated exosomes is relatively simple and provides more quantitative in vivo information via PET imaging. This NOTA-conjugated labeling method for exosome amine groups confers an advantage for cell-type-independent radiolabeling, as most cancer-cell-derived exosomes contain sufficient amine groups on their surfaces [1,2].

Furthermore, in vivo quantification of PET images from specific organs provided accurate information concerning exosome biodistribution as compared to the radioactivity of ex vivo organs. This result indicates that PET images can indeed provide quantitative information about in vivo biodistribution, and the exosome labeling method used here with ⁶⁴Cu or ⁶⁸Ga is an excellent candidate for clinical application(s). The ⁶⁸Ga-labeled exosomes showed a similar distribution as those with ⁶⁴Cu, even though ⁶⁸Ga exhibits a shorter half-life (68 min) and low labeling efficiency as compared with ⁶⁴Cu (12.7 h). Even in our study, the labeling yield of ⁶⁴Cu was 13.3% of the radioactivity of the exosomes (100 μg), whereas the labeling yield of ⁶⁸Ga was only 2.22%; however, ⁶⁸Ga is easy-to-use and available at a low cost for users without cyclotrons (data included within supplementary information). In addition, various radioisotopes are applicable with NOTA in this system. As therapeutic radioisotopes such as ¹⁷⁷Lu (6.7 day half-life) were labeled with NOTA [34,35], monitoring exosomes with long-term images and employing them as therapeutic agents may be possible. Other chelators—such as DOTA and DTPA—can be used to label exosomes for use in MRI as well as other radionuclide imaging systems [23,36]. Therefore, the method described here can be used for various clinical applications in order to monitor the physical location of exosomes throughout the body, especially for their use as therapeutic vehicles [12,37,38].

In this study, we visualized the biodistribution of exosomes within lymphatic or hematogenous metastasis routes. Previous publications on the biodistribution of melanoma-derived exosomes showed that exosomes injected through the lymphatic system were localized to the sentinel lymph node, which was confirmed with ex vivo fluorescence images [17,19]. While these fluorescent images were done ex vivo, such imaging has been shown to exhibit great potential in research [39]. However, since acquiring real-time fluorescence images is difficult, the radiolabeled exosome imaging described herein could prove to be a superior method for monitoring exosomes in vivo by overcoming the drawbacks of fluorescence imaging, such as limited depth penetration. The homing of exosomes to the sentinel lymph nodes can promote formation of a pro-tumorigenic niche for metastasis, changing the extracellular matrix and vascular proliferation [40,41]. Subsequently, cancer cells could be recruited to generate secondary metastatic tumors in these lymph nodes [42,43]. Other studies showed that exosomes from tumor cells could circulate through the blood and accumulate in specific organs [17,44]; however, as uptake of exosomes was not confirmed in real time within mice, we aimed to confirm the uptake of exosomes in vivo. Our results showed that Cy7 exosome signals were detected only in the brachial lymph node and at the injection site, whereas ⁶⁴Cu signals were detected in the brachial and axillary nodes in addition to the injection site (Figure 3A). Both fluorescence and PET images revealed exosomes in the lymph nodes, but PET imaging was more sensitive and resulted in better resolution than fluorescence imaging.

PET images also showed that intravenously injected exosomes accumulated in the lungs and liver, which was not detected with optical images, highlighting the greater sensitivity of PET over optical imaging (Figure 4A). Due to the limited penetration depth of fluorescence light, fluorescence images demonstrated limited use for in vivo applications [23]. Additionally, PET images for ⁶⁴Cu-labeled exosomes showed that the exosomes initially accumulated in the lungs and liver. In the case of ⁶⁸Ga-labeled exosomes (Figure S5), exosome accumulation was similar to that of exosome-⁶⁴Cu, with uptake in the lungs and liver. These results indicate that exosomes can accumulate in the lymph nodes, lungs, and liver via lymphatic or hematogenous routes, which is consistent with the known common metastatic sites of breast cancer in previous distribution studies [18,24,45]. Since breast cancer primarily metastasizes to the lungs, regional lymph nodes, liver, and bone [46], the results shown here could indirectly indicate preferential exosome accumulation at metastatic sites, forming a pre-metastatic niche.

For future studies, our novel imaging systems could be useful for predicting the in vivo biodistribution of exosomes released from different cell types such as cancer, immune, or stem cells [11,47]. For therapeutic applications, quantitative PET imaging of exosomes provides valuable information for drug delivery, and bioengineering exosomes for tumor targeting could be used to enhance therapeutic effects [48,49]. Furthermore, these imaging systems could be helpful in investigating the role of exosomes as potential cancer vaccines within cancer immunotherapy [50,51].

As exosomes play an important role in intercellular communication by mediating the transfer of biological information, monitoring their in vivo distribution is essential for clinical use of therapeutic exosomes. In this study, we established a NOTA-based ⁶⁴Cu- or ⁶⁸Ga-labeling method for PET imaging to monitor exosome biodistribution. Our data successfully demonstrate that footpad-injected exosomes accumulate in the draining lymph nodes, and intravenously injected exosomes accumulate in the lung, liver, and spleen. To our knowledge, this is the first PET imaging performed upon radiolabeled exosomes in vivo. The exosome labeling technique described here, utilizing ⁶⁴Cu (or ⁶⁸Ga), is relatively simple and less dependent upon cell type, thus providing more quantitative information in living animals. Moreover, our strategy could be applicable to human trials because PET technology is already available in the clinic. In sum, this novel imaging system can be useful for predicting the biodistribution of exosomes in vivo as well as for tracking therapeutic exosomes within clinical applications.

4. Materials and Methods

4.1. Cell Lines

Cells of the murine mammary carcinoma 4T1 cell line were cultured in a RPMI 1640 medium (Invitrogen, Grand Island, NY, USA) supplemented with 10% fetal bovine serum and 1% penicillin and streptomycin (Invitrogen).

4.2. Exosome Purification

4T1 cells (10⁶ cells) were seeded and cultured with conditioned medium containing a 10% exosome-depleted FBS Media Supplement (System Bioscience, Mountain View, CA, USA) and 1% penicillin–streptomycin. After 48 h, exosomes were isolated from the culture medium using an exosome purification kit (ExoQuick-TC™, System Bioscience, Mountain View, CA, USA). Culture media was centrifuged at 3000× g for 15 min. After eliminating cells and cellular debris, ExoQuick-TC™ was added to supernatant (10 mL media, 2 mL ExoQuick-TC™). Mixture (supernatant, ExoQuick-TC™) was refrigerated overnight (at least 12 h, 4 ℃) and centrifuged at 1500× g for 30 min. Exosome pellets (100 μg) were washed and resuspended with PBS. The pellets of exosomes were frozen.

4.3. Western Blotting

Extracted exosome and cell proteins (20 μg) were loaded and separated using Bis-Tris HCl buffered 4–12% gradient polyacrylamide gels. Each protein was incubated with antibodies against CD9, CD63 (System Bioscience, Mountain View, CA, USA), AIP1/Alix (BD Biosciences, San Jose, CA, USA), and calnexin (Santa Crux Biotechnology, Santa Cruz, CA, USA). The following anti-goat secondary antibodies were incubated. Immunoreactive bands were imaged with an LAS-3000 imaging system (Fuji Film, Tokyo, Japan).

4.4. Transmission Electron Microscopy

Exosomes were fixed with 2% glutaraldehyde at 4 °C and deposited on a copper grid (300 mesh, coated with carbon); exosome morphology and size were imaged with a JEM 1400 transmission electron microscope (JEOL, CA, USA).

4.5. Synthesis of Exosome-NOTA

One hundred microliters of sodium carbonate buffer (1 M, pH = 9.5) was added to 100 μg of exosomes and mixed with 1 μL p-SCN-Bn-NOTA (200 μg/μL, Macrocyclics, Inc., Dallas, TX, USA). The reaction mixture was incubated for 1 h at 4 °C. Twenty microliters of ExoQuick^TM was added to purify these exosome-NOTA.

4.6. Fluorescent Exosome Labeling

Exosomes (100 μg) were incubated with the near-infrared fluorescence dye Cy7 mono-NHS ester (5 μM, Sigma-Aldrich, MO, USA) for 10 min at 37 °C. Cy7-labeled exosomes were purified using ExoQuick^TM.

4.7. ⁶⁴Cu Exosome Labeling

Five hundred microliters of sodium acetate buffer (2 M, pH = 5.2) was added to a 1.5 mL tube containing 100 μg exosome. Subsequently, exosomes were labeled with ⁶⁴Cu (7.4 MBq) by adding 100 μL of a CuCl₂ solution in 0.1 N HCl (KIRAMS, Seoul, Korea). The reaction mixture was incubated under gentle shaking conditions at 37 °C for 5 min. The radioactivity was analyzed by using instant thin layer chromatography silica gel with chromatography paper as a stationary phase and citrate acid buffer (0.1 M, pH = 5.0) as a mobile conjugate. To remove unconjugated free-⁶⁴Cu, ExoQuick^TM was added to ⁶⁴Cu-labeled exosomes for purification.

4.8. In Vitro Serum Stability Test

The stability of exosome-NOTA-⁶⁴Cu in the serum was tested via incubation with 10% exosome-depleted FBS at 37 °C for 36 h. Radiolabeling efficiency was measured by ITLC-SG analysis.

4.9. ⁶⁸Ga Exosome Labeling

One hundred microliters of sodium acetate (2 M, pH = 5.2) was added to a 1.5 mL tube containing 100 μg of exosome. Subsequently, exosomes were labeled with ⁶⁸Ga (33.3 MBq) by adding 400 μL of a GaCl₃ solution extracted with 0.1 M HCl solvent. The reaction mixture was incubated under gentle shaking conditions at 25 °C for 30 min. Radioactivity was determined using ITLC-SG. ExoQuick^TM was added to purify the exosomes.

4.10. In Vivo Mouse Study

All procedures for the in vivo studies were approved by the Institutional Animal Care and Use Committee in Seoul National University Hospital (SNUH-IACUC) and adhered to the Guide for the Care and Use of Laboratory Animals. The 8-week-old female BALB/c nu/nu mice used herein weighed about 20 g on average.

4.11. In Vivo Exosome Injection in Mice

⁶⁴Cu- or ⁶⁸Ga- and Cy7-labeled exosomes (20 μg) were intravenously injected into the tail vein or subcutaneously injected through the footpad. PET and fluorescence images were subsequently acquired.

4.12. In Vivo and Ex Vivo Fluorescence Imaging

The Cy7 signals from exosomes were imaged using the IVIS100 imaging system (Xenogen Corp., Alameda, CA, USA). For tissue imaging, the Zeiss LSM510 META confocal imaging system (Carl Zeiss, Thornwood, CA, USA) was used.

4.13. In Vivo PET Imaging

The ⁶⁴Cu exosome signals were imaged using the Genesys4 (Sofie Bioscience, Inc., Dulles, VA, USA). Exosome radioactivity was around 0.74 MBq at the time of the injection. The PET images were acquired for 5 min with the X-ray setting set at 100 μA, 40 kVp, with a 3-s exposure. Image data were automatically reconstructed by using a 3D MLEM algorithm, which was evaluated via ROI analysis with the AMIDE software package. ROIs were drawn over the target organ margin with results expressed as standardized uptake value.

4.14. Radioactivity for Ex Vivo Tissue Samples

Radioactivity associated with each organ was measured with a gamma counter (Packard, Meriden, CT, USA) and was expressed as percentage of injected dose per gram of tissue (%ID/g) for a group of five animals each.

4.15. Immunohistochemistry

The ex-vivo tissues were fixed with 3.7% paraformaldehyde and then embedded with paraffin. The tissues were mounted as 4-μm sections on slides. Hematoxylin and Eosin staining (H&E) was performed to confirm morphologic changes. In addition, tissues were stained with anti-CD63 antibody (System Bioscience, Mountain View, CA, USA) and were then incubated with biotinylated anti-rabbit secondary antibody (Dako, Glostrup, Denmark). To confirm the uptake of exosomes in immune cells, anti-CD63 fluorescent antibody was co-stained with CD11b (Abcam, Cambridge, MA, UK), F4/80 (Abcam, Cambridge, MA, UK) and CD90.2 antibodies (BD Biosciences, San Jose, CA, USA).

4.16. Statistical Analysis

At least three independent samples were tested in each group, and data are expressed as mean ± SD and statistical significance determined using nonparametric one-way ANOVA. ANOVA was used for multiple comparisons (GraphPad Software Inc., La Jolla, CA, USA). p < 0.05 was considered as statistically significant.
