Communication

Identification of Prognostic Organic Cation and Anion Transporters in Different Cancer Entities by In Silico Analysis

by
Bayram Edemir
Department of Medicine, Hematology and Oncology, Martin Luther University Halle-Wittenberg, 06108 Halle (Saale), Germany
Int. J. Mol. Sci. 2020, 21(12), 4491; https://doi.org/10.3390/ijms21124491
Submission received: 5 June 2020 / Revised: 19 June 2020 / Accepted: 21 June 2020 / Published: 24 June 2020
(This article belongs to the Special Issue Physiology, Biochemistry, and Pharmacology of Transporters for Organic Cations)
Browse Figures
Review Reports Versions Notes

Abstract

The information derived from next generation sequencing technology allows the identification of deregulated genes, gene mutations, epigenetic modifications, and other genomic events that are associated with a given tumor entity. Its combination with clinical data allows the prediction of patients’ survival with a specific gene expression pattern. Organic anion transporters and organic cation transporters are important proteins that transport a variety of substances across membranes. They are also able to transport drugs that are used for the treatment of cancer and could be used to improve treatment. In this study, we have made use of publicly available data to analyze if the expression of organic anion transporters or organic cation transporters have a prognostic value for a given tumor entity. The expression of most organic cation transporters is prognostic favorable. Within the organic anion transporters, the ratio between favorable and unfavorable organic anion transporters is nearly equal for most tumor entities and only in liver cancer is the number of unfavorable genes two times higher compared to favorable genes. Within the favorable genes, UNC13B, and SFXN2 cover nine cancer types and in the same way, SLC2A1, PLS3, SLC16A1, and SLC16A3 within the unfavorable set of genes and could serve as novel target structures.

1. Introduction

The organic cation and organic anion transporters belong to the superfamily of solute carrier (SLC) transporters and members are expressed in nearly all epithelia throughout the body [1]. The abbreviation of OAT, for organic anion transporter, is normally used for members of the SLC22 protein family. OAT1 for example is also known as SLC22A6 and OAT2 as SLC22A7. An overview about the nomenclature is given by Prof. Gerhard Burckhardt [2]. Members of the SLCO protein family are also called organic anion transporting polypeptides (OATP) [1]. In the same way, the abbreviation OCT, for organic cation transporter, is classically used for SLC22A1–SLC22A3 (OCT1–OCT3) [3]. Beside the SLC22A family, several other proteins are capable of the transport of organic anions and/or organic cations or are related with transport processes. Members of these protein families are expressed in nearly all epithelial cells. Physiologically, they are involved in the uptake and excretion of a broad range of substrates. For example, in liver and kidneys members of the organic anion transporter protein family are involved in the uptake of bile acid and the renal excretion of endogenous and xenobiotic compounds [2,4]. Further substrates include prostaglandins, steroid hormones, p-aminohippurate, monocarboxylates or acidic neurotransmitter metabolites, reviewed for example in [1,5,6].
Although involved in the transport of endogenous substrates, it has been shown for many members that they also transport xenobiotic-like drugs [6] and are thought to be involved in the intracellular accumulation of xenobiotic drugs [7]. Since they transport a wide range of substrates several studies have shown that members of the organic cation transporters and organic anion transporters are also capable to transport chemotherapeutics used for treatment of cancer, like platinum based chemotherapeutics, nucleoside analogs or kinase inhibitors [8]. Several studies focused on the identification of drugs that can be transported by a transport protein and its correlation to expression, treatment, and clinical outcome. It is important to know the expression pattern of members of the organic anion transporters and organic cation transporters in different tumor entities. The Cancer Genome Atlas (TCGA) provides next generation RNA-sequencing data for the most common tumor entities [9]. The data can be used to query the expression pattern of a gene of interest in different tumor samples. For many samples information also available includes clinical outcome, and the Human Pathology Atlas combined the gene expression level and generated a list of genes that are either favorable or unfavorable for clinical outcome of the patients [10]. So far, a systematic analysis of the prognostic value of organic anion transporters and organic cation transporters for the different tumor entities are missing. Here we made use of publicly available TCGA data to identify transporters that have either favorable or unfavorable prognostic value for the different tumor entities. We have also tried to identify common transporters that have a prognostic value in several tumor entities. The identified genes could serve as targets for the development of novel therapeutic drugs.

2. Results

The Human Pathology Atlas contains mRNA expression data from 17 different forms of human cancer. The expression data is derived from TCGA and correlation analyses based on mRNA expression levels in cancer tissue and the clinical outcome for patients have been performed to identify genes that are either favorable or unfavorable for overall survival of the patients. High expression of an unfavorable prognostic gene correlated with a poor patient survival outcome, and high expression of a favorable prognostic gene correlated with a longer patient survival. A prognostic gene for a given cancer was defined as a gene for which the expression level above or below the experimentally determined cutoff in an individual patient yields a significant (p < 0.001) difference in overall survival [10]. Figure S1 shows the number of identified genes for different tumor entities derived from the Human Pathology Atlas.
The range in total number of prognostic genes goes from 57 (testis cancer) up to 5964 in renal cancer. Interestingly, the number of unfavorable genes in liver cancer is nearly ten times higher as the number of favorable genes. Unfortunately, the lists derived from the Human Pathology Atlas do not discriminate between the different cancer subtypes, for example in renal cancer, between clear cell renal carcinoma, papillary renal cell carcinoma, and chromophobe renal cell carcinoma. We have used the list to identify genes related with organic anion transport and organic cation transport that are prognostic for patients’ clinical outcome. To identify organic anion transport and organic cation transport related genes we used the Gene Ontology (GO) classification [11]. For the identification of organic cation transport, we used all genes that belong to the GO accession number GO:0015695 and for organic anion transport, all genes classified with the accession number GO:0015711. The list of genes were queried using the PANTHER classification system [12]. In total, 29 genes are classified as organic cation transport in the GO:0015695 and 453 as organic anion transport in the GO:0015711.
To get a more precise analysis we used the gene enrichment analysis to calculate if there is a positive (more than expected) or negative (less than expected) enrichment of a given GO for a given list of prognostic genes (Table 1) [12]. For the unfavorable list of genes, there is no significant enrichment of genes. However, there is a significant enrichment for favorable genes in the kidney (organic anion transport and organic cation transport), in lung and endometrial cancer (organic cation transport) and in liver cancer (organic anion transport).
The prognostic organic cation transport related genes for each tumor entity classified in the GO terms described above are shown in Table 2.
Interestingly, all the favorable prognostic organic cation transporters in renal cancer are favorable for overall survival for patients with clear cell renal carcinoma. PDZK1, SLC22A2, and SLC44A4 have also a prognostic value for patients with renal papillary cell carcinoma. A similar pattern is also evident for the different lung and liver cancer subtypes. The organic cations only have a prognostic value for patients with lung adenocarcinoma but not for patients with lung squamous cell carcinoma. In the liver, the organic transporters only have a prognostic value for patients with liver hepatocellular carcinoma.
Since there are more genes classified as organic anion transporters, we used a column diagram to present the data. Figure S2 shows the number of organic anion transporters that have a prognostic value for the different tumor entities. The list with gene names is provided in the Table S1.
The number of genes more or less correlates with the total number of prognostic genes. In liver cancer the difference between favorable and unfavorable organic anion transporter organic anion transporter is smaller compared to total number.
Similar to the organic cation transporter, we have analyzed the prognostic value for the different renal, lung, and liver subtypes. Figure 2 shows the hazard ratio for organic anion transporters in the different renal cancer subtypes.
Out of the 96 favorable prognostic genes in renal cancer, 80 genes have a prognostic value for patients with clear cell renal carcinoma. Interestingly, SLC4A2 have an unfavorable value for patients with clear cell renal carcinoma when analyzed separately. Out of the 96 genes, none has a prognostic value for patients with chromophobe renal carcinoma. In papillary renal cell carcinoma, 17 of the genes have a favorable and one gene an unfavorable prognostic value. The pattern for the unfavorable set of genes (69 in total) looks different. Only 25 have a prognostic value in clear cell renal carcinoma, while 7 of them have favorable prognostic value. In the chromophobe renal cancer cohort 10 genes and in the papillary renal cell carcinoma cohort 15 genes have a prognostic value.
A similar pattern is also evident for the liver and lung cancer subtypes. Most of the genes have prognostic value only for one cancer type (Figure 3).
From the 21 favorable genes, 17 have a prognostic value in the liver hepatocellular carcinoma cohort. Interestingly, the expression of GOT2 has an unfavorable prognostic value in cholangiocarcinoma. Out of the 47 genes with an unfavorable prognostic value, 39 have a prognostic impact in the liver hepatocellular carcinoma (LIHC). None has a prognostic value in the cholangiocarcinoma cohort.
For lung cancer, 5 out of 7 genes have a favorable prognostic value in the lung adenocarcinoma cohort. None are prognostic for lung squamous cell carcinoma. Within the unfavorable set of genes, 6 out of 9 have a prognostic value in the LUAD cohort and none of them in the LUSC cohort (Figure 4).
In the same way as shown in Table 1, the lists of organic anion transporters were analyzed to identify a common set of genes separately for the unfavorable and favorable list of genes. Figure S3 shows the number of genes that are common between the different tumor entities.
The number of prognostic genes is the highest in renal cancer (96 genes) and at least two (breast and lung cancer) and a maximum of ten (pancreatic cancer) genes are common in renal cancer. We have also identified genes that are common in more than two tumor entities. UNC13B is prognostic in five and SFXN2 in four different tumor entities as shown in Table 3. The whole common gene list is provided as Table S1.
While UNC13B and SFXN2 are present in five and four tumor entities, respectively, only for renal cancer are both UNC13B and SFXN2 favorable.
In the same way we have analyzed the lists of unfavorable organic anion transporters (Figure S4).
In renal cancer the number of prognostic genes (69) is the highest. Similar to organic cation transporters, the intersection between renal cancer and other tumor entities starts with 1 (breast) and goes up to 19 (liver) genes. One gene, SLC2A1, is present in five tumor entities (renal, urothelial, lung, liver and pancreatic cancer) and PLS3, SLC16a1, and SLC16A3 are present in four tumor entities (Table 4).
With our approach we have identified organic anion transporters and organic cation transporters that are prognostic for a given tumor entity. We were also able to identify genes that are prognostic in several tumor entities. The highest numbers of genes were identified for the organic anion transporter. UNC13B is favorable in five and SFXN2 in four tumor entities, implicating that these genes might have a general prognostic value. We have used the UCSC Xena platform to analyze if these genes have an prognostic value in the TCGA-PANCAN cohort with more than 12,800 samples derived from 17 different tumor entities [14]. We generated Kaplan–Meier plots and calculated overall survival probability for SFXN2 and UNC13B (Figure 5).
The Kaplan–Meier analysis shows that high expression of SFX2 and UNC13B are associated with a significantly longer overall survival probability. In the same way we have analyzed the unfavorable genes listed in Table 4 and calculated the overall survival probability in the TCGA-PANCAN cohort (Figure 6).
Similar to the favorable organic anion transporter, high expression of unfavorable organic anion transporter correlates with a poor overall probability in the TCGA PANCAN cohort. Unfortunately, the TCGA data does not provide information regarding the treatment strategy (medication used, etc.) for the individual patients. We have used the available information from the PANCAN cohort and analyzed if patients in the “treatment_outcome_first_course” indicated with “complete remission/response,” have a different expression of the above mentioned genes in comparison to patients qualified as “progressive disease” in the TCGA PANCAN cohort [15]. And indeed, the expression of SFXN2 and UNC13B was significantly higher in patients with “complete remission/response” compared to patients with “progressive disease” (Figure S5). This was vice versa for PLS3, SLC2A1 and SLC16A1, lower expression in patients with “complete remission/response” but higher in patients with “progressive disease”. There were no significant differences for SLC16A3 (Figure S6). This data also shows that the expression level has influence on treatment outcome.

3. Discussion

Due to next generation sequencing (NGS) data from different tumor entities deposited in TCGA together with clinical data of patients, it is possible to identify genes that correlate with patients’ clinical outcome. The Human Pathology Atlas provides lists of genes where high expression is either favorable or unfavorable [10]. Highest number of prognostic genes is detected in renal cancer. One explanation could be that due to the different cell types involved in the physiological function of the kidney, a complex expression of genes is associated with each cell type [16]. Within this study we analyzed the prognostic value of organic anion and organic cation transport related genes. Regarding Gene Ontology classification, 29 genes are classified as organic cation transporters. While 7 of them have an unfavorable prognostic value, 17 have a favorable prognostic value, indicating that organic cation transporter gene expression is beneficial. Further support is given by the significant enrichment of organic cation transporter within the favorable set of genes in renal and lung cancer. No significant enrichment was observed within the unfavorable set of genes. For example, OCT1 (SLC22A2) and Mate-1 (SLC47A1) play important physiological roles in the proximal tubule of the kidneys [17]. Both genes are prognostic favorable in renal cancer and the high expression level might present less differentiation of the proximal tubule cells toward a tumor cell. This could be also an explanation for the prognostic value of OCT1 (SLC22A1) expression in liver cancer. It is the main OCT in the liver and high expression could represent less differentiation toward a tumor cell.
The analysis of the different renal, liver, or lung cancer subtypes showed that the majority of the genes have a prognostic value only for one cancer subtype. In renal cancer most of the genes are prognostic in the clear cell renal carcinoma, in lung cancer in lung adenocarcinoma, and in liver cancer in liver hepatocellular carcinoma cohort.
In contrast to OCT1 and OCT2, OCT3 (SLC22A3) has a broad expression pattern [18] and is able to transport a variety of substances including drugs and chemotherapeutics and high expression has an unfavorable prognostic value in cervical and urothelial cancer. In contrast, for colon cancer patients’ receiving 5-fluorouracil, folinic acid, and oxaliplatin as therapy, the survival probability was higher when organic cation transporter-3 expression is high [19]. This was also evident for patients with head and neck tumors receiving cisplatin [20]. In both cases, high organic cation transporter-3 expression increased transport of the chemotherapeutic drugs. In pancreatic cancer, high OCT3 protein expression correlated with better clinical outcome of the patients [21]. SLC25A19 is the mitochondrial thiamine pyrophosphate transporter and mice deficient for this protein are embryonic lethal [22]. Studies showing an involvement in tumor diseases are missing.
In lung and renal cancer, we observe an enrichment of organic cation transporter in the favorable set of genes. For both cancer types, high expression of MATE1 is favorable. MATE1 is involved in the luminal excretion of organic compounds from cells that have been, for example, imported by basolateral expressed organic cation transporters. It has been shown that MATE1 can transport a wide variety of endogenous and exogenous substrates (reviewed in [23]). MATE1 is also able to transport cisplatin and to a higher content, oxaliplatin [24]. This would prevent accumulation of these drugs, for example in the cells of proximal tubulus, and thereby reduce the nephrotoxic effect of these compounds. On the other hand, reduced MATE1 would have the opposite effect [23]. It has also been shown that MATE1 expression is associated with better uptake of the tyrosine kinase inhibitor imatinib in chronic myeloid leukemia cells [25]. In this case MATE1 has a beneficial role by providing sufficient uptake into the cells. There are studies missing that show a specific function of MATE1 in treatment or progression of renal and lung cancer. We can only speculate if there is only a correlation of MATE1 expression with patients’ survival or if there is a link with MATE1 function.
Based on Gene Ontology classification more genes are classified as organic anion transporter related genes compared to organic cation transporter. But we have only an enrichment of organic anion transporter in the favorable set of genes in renal and liver cancer. Out of the classical OATs only OAT2 (SLC22A7) has a favorable prognostic value in renal and liver cancer. These are also the main organs for OAT2 expression [26] and similar to OCT1 and OCT2, high expression of OAT2 might represent less differentiation toward a cancer cell.
In contrast to organic cation transporter in renal cancer, some of the organic anion transport related genes are also prognostic for papillary and chromophobe renal cell cancer but the majority is prognostic for clear cell renal carcinoma. Interestingly, some of the unfavorable genes in renal cancer have a favorable prognostic value for patients with clear cell renal carcinoma. For example, high SLC35A1 expression is favorable for clear cell renal carcinoma but unfavorable for papillary and chromophobe renal cell carcinoma. SLC35A1 encodes for the CMP-Sia transporter and so far studies related to renal function are missing [27]. For the different lung and liver cancer subtypes, the majority of the genes are prognostic for one subtype, lung adenocarcinoma and liver hepatocellular carcinoma.
We have identified sets of genes that are prognostic in different cancer entities. For example, high expression of UNC13B is favorable in five and SFXN2 in four different cancer types. Both genes together are cover nine different tumor entities. UNC13B also known as mammalian homologs of Caenorhabditis elegans uncoordinated gene 13 (MUNC13) and it has been shown that it is involved in regulated exocytosis of vesicles [28]. UNC13B is not a classical organic anion transporter since it does not directly transport any substances. So far, no function has been described for UNC13B in cancer. SFXN2, or sideroflexin 2, is an evolutionary conserved protein that is expressed in outer mitochondrial membrane and is involved in iron homeostasis [29]. Similar to UNC13B, studies showing any functional correlation of SFXN2 with cancer progression, developments, etc. are missing. Since the expression of both genes is associated with a significant better overall survival in the TCGA PANCAN cohort, further studies analyzing the cellular function of both proteins could be promising.
Within the unfavorable organic anion transporters, SLC2A1 is present in five tumor entities. SLC2A1, also known as GLUT1, belongs to the members of glucose transporters which are involved in the transport of glucose across the cell membrane [30]. Since tumor cells have an increased metabolic rate, the expression of SLC2A1 is often deregulated in different cancer types [31] and since they are involved in the support of tumor cells with energy, they present therapeutic targets [31].
PLS3, also known as T-plastin, is an actin binding protein and not a classical organic anion transporter [32]. High PLS3 expression has been shown to have poor prognosis in pancreatic cancer, acute myeloid leukemia, gastric cancer, and colorectal cancer [33,34,35,36]. A direct function of PLS3 as transport protein is not known in the analyzed cancer entities.
SLC16A1, also known as MCT1 (monocarboxylate transporter 1) and SLC16A3, also known as MCT4, are involved in the proton coupled transport of lactate, pyruvate or ketone bodies and their predominant role is the transport of these substances in and out of the cell [37]. They can also act as drug transporters. MCT1 is able to transport valproic acid, nicotinic acid, nateglinide, and gamma-hydroxybutyrate across the plasma membranes [38]. They served also as targets for drugs. For example the inhibition of MCT1 activity in T cells inhibited effective immune response by reducing the rapid T cell division during activation process [39].
The unique pH characteristics in tumor cells provides development of treatments that target pH-related mechanisms to selectively kill cancer cells [40]. Cancer cells have a more alkaline pH compared to normal cells and this is even more evident in aggressive tumor cells [41,42]. This is mediated by transporters, like MCTs, that mediate proton transport out of the cells and might explain why high expression of MCT1 and MCT4 is associated with an unfavorable clinical outcome [42]. Targeting CD147, a MCT chaperone, by siRNA induced a decrease in MCT1 and MCT4 expression which was associated with reduced glycolysis, pH, and ATP production in melanoma [43]. MCT4 plays also an important role in cell migration [44] and targeting MCT1 and MCT4 expression has been shown to reduce the malignant potential of pancreatic cancer [45].
Similar to UNC13B and SFXN2, high expression of SLC2A1, PLS3, SLC16A1, and SLC16A3 is associated with a significant reduced overall survival of the patients in the PANCAN cohort. While for SLC2A1 this could be explained by the functional support of the tumor cells with glucose, there is no explanation if PLS3 is functionally associated with tumor progression.
Within this in silico analysis, we have tried to identify organic anion transporters and organic cation transporters that have a prognostic value for patients with different tumor types. This study however also has limitations. The Human Pathology Atlas provides data that show if the expression of a given gene is prognostic for a patient’s overall survival. The expression data is obtained at the time of diagnosis/biopsy/surgery and information about the individual treatment strategy is missing. It is important to analyze why, for example, SLC22A3 expression is unfavorable. It has been shown that SLC22A3 is involved in the uptake of cisplatin, and in head and neck or colorectal cancer upregulated SLC22A3 expression improved cisplatin uptake and survival of the patients [20,46]. This one example shows that beside gene expression, also the treatment regime, including the used drugs, has to be included for a better understanding why a given organic anion transporter or organic cation transporter expression is prognostic and if there might be a functional interaction of the used drugs with the transporters.
It is also important to know if the observed expression of a gene derived from TCGA is derived from the tumor cell, the surrounding stroma cells or from infiltrating tumor cells. The cytotoxic T cells are the main tumor targeting cells and checkpoint inhibitors are widely used to keep activity of T cells at a high level [47]. The expression of MCT1 is unfavorable in different tumor entities. Specific inhibitors could be used to down regulate the function of MCT1. As described above, MCT1 function is also important for the immune response of T cells. In this case, the functional inhibition of MCT1 could also counteract the T cell against tumor cell response. Therefore, it is important to know if a given deregulated expression pattern of a gene is mediated by the tumor cell itself or is derived from infiltrating immune cells.

4. Materials and Methods

For this study we have used free publicly available databases and online analysis tools. The lists of favorable and unfavorable genes for a given tumor entity were downloaded from the Human Pathology Atlas [10]. To identify organic anion transporters and organic cation transporters within the list of genes, the Gene Ontology classification was used [11]. For organic anion transporters, all genes classified in the GO:0015711 were used and for organic cation transporters, genes classified in the GO:0015695 were used. For classification, the list of genes were analyzed with the PANTHER classification system [12]. This helped to identify genes classified as organic anion transporters and organic cation transporters. In the next step, an enrichment analysis was performed to identify if organic anion transporters or organic cation transporters are either enriched or reduced in a given tumor entity [12]. The multiple list comparator was used to identify genes that are present in multiple tumor entities (http://www.molbiotools.com/listcompare.html). Survival heat maps and hazard ratio calculation were performed using the GEPIA2 web tool [13]. Single gene survival query using the TCGA PANCAN cohort and Kaplan–Meier analysis were performed with the Xena-Browser [14].

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/21/12/4491/s1. Figure S1. Number of prognostic genes identified in the different tumor entities. Figure S2. Number of prognostic organic anion transporter organic anion transporter identified in the different tumor entities. Figure S3. Intersection of prognostic organic anion transporter organic anion transporter identified in the different tumor entities. Figure S4. Intersection of prognostic unfavorable organic anion transporter organic anion transporter identified in the different tumor entities. Figure S5. Expression level of SFXN2 and UNC13b in relation to treatment outcome in the TCGA PANCAN cohort. Figure S6. Expression level of PLS3, SLC2A1, SLC16A1 and SLC16A3 in relation to treatment outcome in the TCGA PANCAN cohort. Table S1. OAT Gene Names.

Author Contributions

The work was completely performed by B.E. The author has read and agreed to the published version of the manuscript

Funding

Funding was received from the DFG ED 181/9-1. We acknowledge the financial support within the funding programme Open Access Publishing by the German Research Foundation (DFG).

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Roth, M.; Obaidat, A.; Hagenbuch, B. OATPs, OATs and OCTs: The organic anion and cation transporters of the SLCO and SLC22A gene superfamilies. Br. J. Pharmacol. 2012, 165, 1260–1287. [Google Scholar] [CrossRef] [PubMed]
  2. Burckhardt, G. Drug transport by Organic Anion Transporters (OATs). Pharmacol. Ther. 2012, 136, 106–130. [Google Scholar] [CrossRef] [PubMed]
  3. Ciarimboli, G. Organic cation transporters. Xenobiotica 2008, 38, 936–971. [Google Scholar] [CrossRef] [PubMed]
  4. Li, T.-T.; An, J.-X.; Xu, J.-Y.; Tuo, B.-G. Overview of organic anion transporters and organic anion transporter polypeptides and their roles in the liver. World J. Clin. Cases 2019, 7, 3915–3933. [Google Scholar] [CrossRef]
  5. Koepsell, H. The SLC22 family with transporters of organic cations, anions and zwitterions. Mol. Asp. Med. 2013, 34, 413–435. [Google Scholar] [CrossRef]
  6. Pelis, R.M.; Wright, S.H. Chapter Six—SLC22, SLC44, and SLC47 Transporters—Organic Anion and Cation Transporters: Molecular and Cellular Properties. In Current Topics in Membranes; Bevensee, M.O., Ed.; Elsevier Inc. Academic Press: Cambridge, MA, USA, 2014; Volume 73, pp. 233–261. [Google Scholar]
  7. Dobson, P.D.; Kell, D.B. Carrier-mediated cellular uptake of pharmaceutical drugs: An exception or the rule? Nat. Rev. Drug Discov. 2008, 7, 205–220. [Google Scholar] [CrossRef]
  8. Sprowl, J.A.; Sparreboom, A. Uptake carriers and oncology drug safety. Drug Metab. Dispos. 2014, 42, 611–622. [Google Scholar] [CrossRef]
  9. Chin, L.; Hahn, W.C.; Getz, G.; Meyerson, M. Making sense of cancer genomic data. Genes Dev. 2011, 25, 534–555. [Google Scholar] [CrossRef]
  10. Uhlen, M.; Zhang, C.; Lee, S.; Sjostedt, E.; Fagerberg, L.; Bidkhori, G.; Benfeitas, R.; Arif, M.; Liu, Z.; Edfors, F.; et al. A pathology atlas of the human cancer transcriptome. Science 2017, 357. [Google Scholar] [CrossRef]
  11. Ashburner, M.; Ball, C.A.; Blake, J.A.; Botstein, D.; Butler, H.; Cherry, J.M.; Davis, A.P.; Dolinski, K.; Dwight, S.S.; Eppig, J.T.; et al. Gene Ontology: Tool for the unification of biology. Nat. Genet. 2000, 25, 25–29. [Google Scholar] [CrossRef]
  12. Mi, H.; Muruganujan, A.; Ebert, D.; Huang, X.; Thomas, P.D. PANTHER version 14: More genomes, a new PANTHER GO-slim and improvements in enrichment analysis tools. Nucleic Acids Res. 2018, 47, D419–D426. [Google Scholar] [CrossRef] [PubMed]
  13. Tang, Z.; Kang, B.; Li, C.; Chen, T.; Zhang, Z. GEPIA2: An enhanced web server for large-scale expression profiling and interactive analysis. Nucleic Acids Res. 2019, 47, W556–W560. [Google Scholar] [CrossRef]
  14. Goldman, M.; Craft, B.; Hastie, M.; Repečka, K.; McDade, F.; Kamath, A.; Banerjee, A.; Luo, Y.; Rogers, D.; Brooks, A.N.; et al. The UCSC Xena platform for public and private cancer genomics data visualization and interpretation. bioRxiv 2019, 326470. [Google Scholar]
  15. Liu, J.; Lichtenberg, T.; Hoadley, K.A.; Poisson, L.M.; Lazar, A.J.; Cherniack, A.D.; Kovatich, A.J.; Benz, C.C.; Levine, D.A.; Lee, A.V.; et al. An Integrated TCGA Pan-Cancer Clinical Data Resource to Drive High-Quality Survival Outcome Analytics. Cell 2018, 173, 400–416.e11. [Google Scholar] [CrossRef] [PubMed]
  16. Park, J.; Shrestha, R.; Qiu, C.; Kondo, A.; Huang, S.; Werth, M.; Li, M.; Barasch, J.; Susztak, K. Single-cell transcriptomics of the mouse kidney reveals potential cellular targets of kidney disease. Science 2018, 360, 758–763. [Google Scholar] [CrossRef] [PubMed]
  17. Koepsell, H. Organic Cation Transporters in Health and Disease. Pharm. Rev. 2020, 72, 253–319. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, L.; Hong, C.; Chen, E.C.; Yee, S.W.; Xu, L.; Almof, E.U.; Wen, C.; Fujii, K.; Johns, S.J.; Stryke, D.; et al. Genetic and epigenetic regulation of the organic cation transporter 3, SLC22A3. Pharm. J. 2013, 13, 110–120. [Google Scholar] [CrossRef]
  19. Lee, W.K.; Thevenod, F. Oncogenic PITX2 facilitates tumor cell drug resistance by inverse regulation of hOCT3/SLC22A3 and ABC drug transporters in colon and kidney cancers. Cancer Lett. 2019, 449, 237–251. [Google Scholar] [CrossRef]
  20. Hsu, C.M.; Lin, P.M.; Chang, J.G.; Lin, H.C.; Li, S.H.; Lin, S.F.; Yang, M.Y. Upregulated SLC22A3 has a potential for improving survival of patients with head and neck squamous cell carcinoma receiving cisplatin treatment. Oncotarget 2017, 8, 74348–74358. [Google Scholar] [CrossRef]
  21. Cervenkova, L.; Vycital, O.; Bruha, J.; Rosendorf, J.; Palek, R.; Liska, V.; Daum, O.; Mohelnikova-Duchonova, B.; Soucek, P. Protein expression of ABCC2 and SLC22A3 associates with prognosis of pancreatic adenocarcinoma. Sci. Rep. 2019, 9, 19782. [Google Scholar] [CrossRef]
  22. Lindhurst, M.J.; Fiermonte, G.; Song, S.; Struys, E.; De Leonardis, F.; Schwartzberg, P.L.; Chen, A.; Castegna, A.; Verhoeven, N.; Mathews, C.K.; et al. Knockout of Slc25a19 causes mitochondrial thiamine pyrophosphate depletion, embryonic lethality, CNS malformations, and anemia. Proc. Natl. Acad. Sci. USA 2006, 103, 15927–15932. [Google Scholar] [CrossRef] [PubMed]
  23. Nies, A.T.; Damme, K.; Kruck, S.; Schaeffeler, E.; Schwab, M. Structure and function of multidrug and toxin extrusion proteins (MATEs) and their relevance to drug therapy and personalized medicine. Arch. Toxicol. 2016, 90, 1555–1584. [Google Scholar] [CrossRef] [PubMed]
  24. Yonezawa, A.; Masuda, S.; Yokoo, S.; Katsura, T.; Inui, K. Cisplatin and oxaliplatin, but not carboplatin and nedaplatin, are substrates for human organic cation transporters (SLC22A1-3 and multidrug and toxin extrusion family). J. Pharmacol. Exp. Ther. 2006, 319, 879–886. [Google Scholar] [CrossRef] [PubMed]
  25. Harrach, S.; Schmidt-Lauber, C.; Pap, T.; Pavenstadt, H.; Schlatter, E.; Schmidt, E.; Berdel, W.E.; Schulze, U.; Edemir, B.; Jeromin, S.; et al. MATE1 regulates cellular uptake and sensitivity to imatinib in CML patients. Blood Cancer J. 2016, 6, e470. [Google Scholar] [CrossRef]
  26. Shen, H.; Lai, Y.; Rodrigues, A.D. Organic Anion Transporter 2: An Enigmatic Human Solute Carrier. Drug Metab. Dispos. 2017, 45, 228–236. [Google Scholar] [CrossRef]
  27. Hadley, B.; Litfin, T.; Day, C.J.; Haselhorst, T.; Zhou, Y.; Tiralongo, J. Nucleotide Sugar Transporter SLC35 Family Structure and Function. Comput. Struct. Biotechnol. J. 2019, 17, 1123–1134. [Google Scholar] [CrossRef]
  28. Li, Y.; Wang, S.; Li, T.; Zhu, L.; Ma, C. Tomosyn guides SNARE complex formation in coordination with Munc18 and Munc13. FEBS Lett. 2018, 592, 1161–1172. [Google Scholar] [CrossRef]
  29. Mon, E.E.; Wei, F.Y.; Ahmad, R.N.R.; Yamamoto, T.; Moroishi, T.; Tomizawa, K. Regulation of mitochondrial iron homeostasis by sideroflexin 2. J. Physiol. Sci. 2019, 69, 359–373. [Google Scholar] [CrossRef] [PubMed]
  30. Lizak, B.; Szarka, A.; Kim, Y.; Choi, K.S.; Nemeth, C.E.; Marcolongo, P.; Benedetti, A.; Banhegyi, G.; Margittai, E. Glucose Transport and Transporters in the Endomembranes. Int. J. Mol. Sci. 2019, 20, 5898. [Google Scholar] [CrossRef]
  31. Ancey, P.B.; Contat, C.; Meylan, E. Glucose transporters in cancer - from tumor cells to the tumor microenvironment. FEBS J. 2018, 285, 2926–2943. [Google Scholar] [CrossRef]
  32. Delanote, V.; Vandekerckhove, J.; Gettemans, J. Plastins: Versatile modulators of actin organization in (patho)physiological cellular processes. Acta Pharmacol. Sin. 2005, 26, 769–779. [Google Scholar] [CrossRef]
  33. Xin, Z.; Li, D.; Mao, F.; Du, Y.; Wang, X.; Xu, P.; Li, Z.; Qian, J.; Yao, J. PLS3 predicts poor prognosis in pancreatic cancer and promotes cancer cell proliferation via PI3K/AKT signaling. J. Cell. Physiol. 2020. [Google Scholar] [CrossRef] [PubMed]
  34. Velthaus, A.; Cornils, K.; Hennigs, J.K.; Grub, S.; Stamm, H.; Wicklein, D.; Bokemeyer, C.; Heuser, M.; Windhorst, S.; Fiedler, W.; et al. The Actin Binding Protein Plastin-3 Is Involved in the Pathogenesis of Acute Myeloid Leukemia. Cancers 2019, 11, 1663. [Google Scholar] [CrossRef] [PubMed]
  35. Kurashige, J.; Yokobori, T.; Mima, K.; Sawada, G.; Takahashi, Y.; Ueo, H.; Takano, Y.; Matsumura, T.; Uchi, R.; Eguchi, H.; et al. Plastin3 is associated with epithelial-mesenchymal transition and poor prognosis in gastric cancer. Oncol. Lett. 2019, 17, 2393–2399. [Google Scholar] [CrossRef]
  36. Yokobori, T.; Iinuma, H.; Shimamura, T.; Imoto, S.; Sugimachi, K.; Ishii, H.; Iwatsuki, M.; Ota, D.; Ohkuma, M.; Iwaya, T.; et al. Plastin3 is a novel marker for circulating tumor cells undergoing the epithelial-mesenchymal transition and is associated with colorectal cancer prognosis. Cancer Res. 2013, 73, 2059–2069. [Google Scholar] [CrossRef] [PubMed]
  37. Halestrap, A.P. The SLC16 gene family—Structure, role and regulation in health and disease. Mol. Asp. Med. 2013, 34, 337–349. [Google Scholar] [CrossRef] [PubMed]
  38. Halestrap, A.P.; Wilson, M.C. The monocarboxylate transporter family—Role and regulation. IUBMB Life 2012, 64, 109–119. [Google Scholar] [CrossRef]
  39. Murray, C.M.; Hutchinson, R.; Bantick, J.R.; Belfield, G.P.; Benjamin, A.D.; Brazma, D.; Bundick, R.V.; Cook, I.D.; Craggs, R.I.; Edwards, S.; et al. Monocarboxylate transporter MCT1 is a target for immunosuppression. Nat. Chem. Biol. 2005, 1, 371–376. [Google Scholar] [CrossRef]
  40. Parks, S.K.; Chiche, J.; Pouyssegur, J. pH control mechanisms of tumor survival and growth. J. Cell. Physiol. 2011, 226, 299–308. [Google Scholar] [CrossRef]
  41. Gillies, R.J.; Raghunand, N.; Karczmar, G.S.; Bhujwalla, Z.M. MRI of the tumor microenvironment. J. Magn. Reson. Imaging 2002, 16, 430–450. [Google Scholar] [CrossRef]
  42. Cardone, R.A.; Casavola, V.; Reshkin, S.J. The role of disturbed pH dynamics and the Na+/H+ exchanger in metastasis. Nat. Rev. Cancer 2005, 5, 786–795. [Google Scholar] [CrossRef] [PubMed]
  43. Su, J.; Chen, X.; Kanekura, T. A CD147-targeting siRNA inhibits the proliferation, invasiveness, and VEGF production of human malignant melanoma cells by down-regulating glycolysis. Cancer Lett. 2009, 273, 140–147. [Google Scholar] [CrossRef]
  44. Gallagher, S.M.; Castorino, J.J.; Philp, N.J. Interaction of monocarboxylate transporter 4 with beta1-integrin and its role in cell migration. Am. J. Physiol. Cell Physiol. 2009, 296, C414–C421. [Google Scholar] [CrossRef] [PubMed]
  45. Schneiderhan, W.; Scheler, M.; Holzmann, K.H.; Marx, M.; Gschwend, J.E.; Bucholz, M.; Gress, T.M.; Seufferlein, T.; Adler, G.; Oswald, F. CD147 silencing inhibits lactate transport and reduces malignant potential of pancreatic cancer cells in in vivo and in vitro models. Gut 2009, 58, 1391–1398. [Google Scholar] [CrossRef] [PubMed]
  46. Gu, J.; Dong, D.; Long, E.; Tang, S.; Feng, S.; Li, T.; Wang, L.; Jiang, X. Upregulated OCT3 has the potential to improve the survival of colorectal cancer patients treated with (m)FOLFOX6 adjuvant chemotherapy. Int. J. Colorectal. Dis. 2019, 34, 2151–2159. [Google Scholar] [CrossRef]
  47. Farhood, B.; Najafi, M.; Mortezaee, K. CD8(+) cytotoxic T lymphocytes in cancer immunotherapy: A review. J. Cell. Physiol. 2019, 234, 8509–8521. [Google Scholar] [CrossRef]
Ijms 21 04491 g001

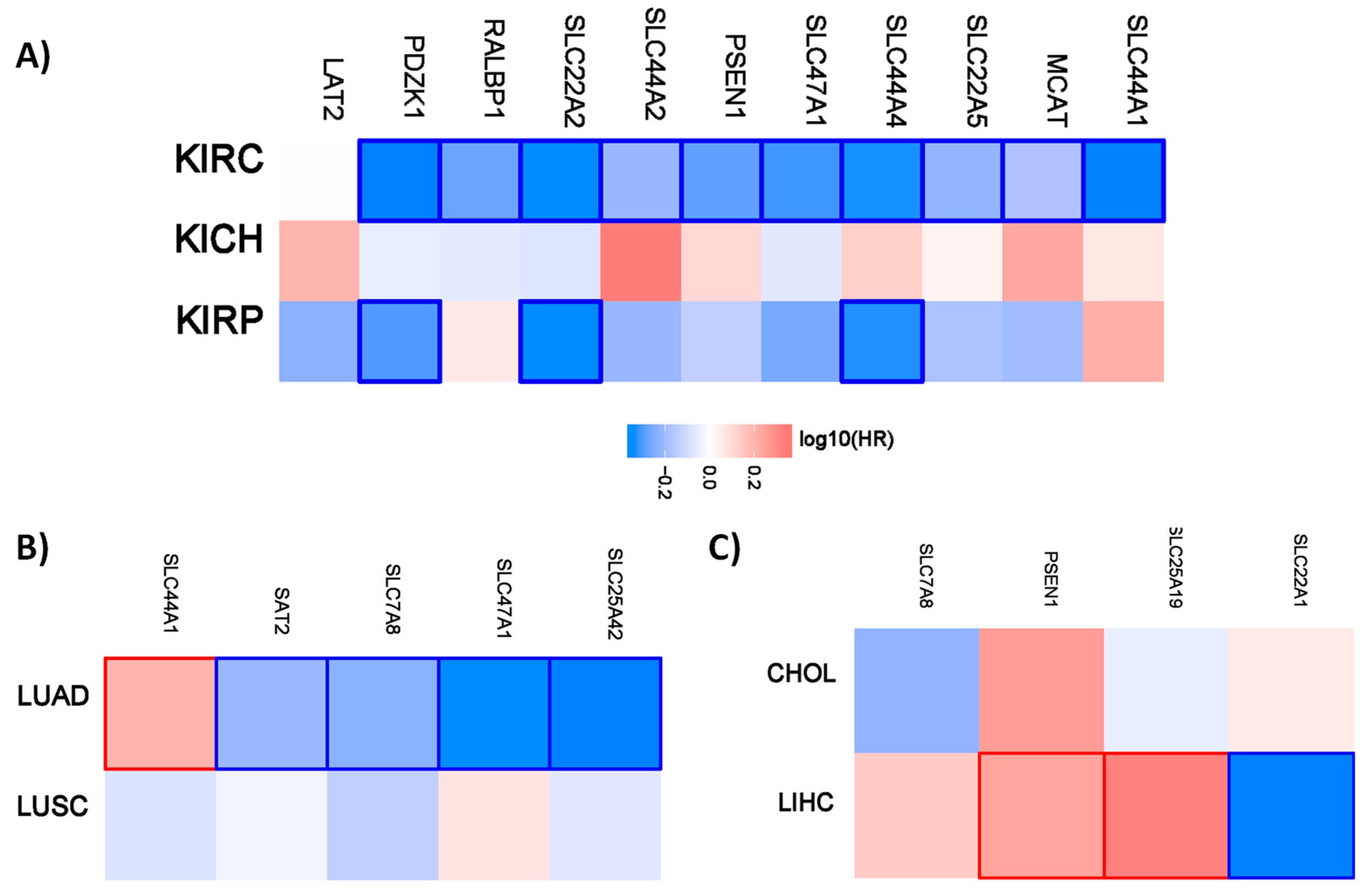

Figure 1. Hazard ratio of the organic cation transporter expression in different renal and lung cancer subtypes. The hazard ratio (HR) was calculated for (A) the different renal cancer (renal clear cell carcinoma (KIRC), renal papillary cell carcinoma (KIRP), and chromophobe renal cell carcinoma (KICH). (B) The hazard ratio for lung adenocarcinoma (LUAD) and lung squamous cell carcinoma (LUSC). (C) The hazard ratio for cholangiocarcinoma (CHOL) and liver hepatocellular carcinoma (LIHC). The red and blue color denote higher and lower risk, respectively. The rectangles with frames represent the statistically significant HR (p < 0.05).
Figure 1. Hazard ratio of the organic cation transporter expression in different renal and lung cancer subtypes. The hazard ratio (HR) was calculated for (A) the different renal cancer (renal clear cell carcinoma (KIRC), renal papillary cell carcinoma (KIRP), and chromophobe renal cell carcinoma (KICH). (B) The hazard ratio for lung adenocarcinoma (LUAD) and lung squamous cell carcinoma (LUSC). (C) The hazard ratio for cholangiocarcinoma (CHOL) and liver hepatocellular carcinoma (LIHC). The red and blue color denote higher and lower risk, respectively. The rectangles with frames represent the statistically significant HR (p < 0.05).
Ijms 21 04491 g001
Ijms 21 04491 g002

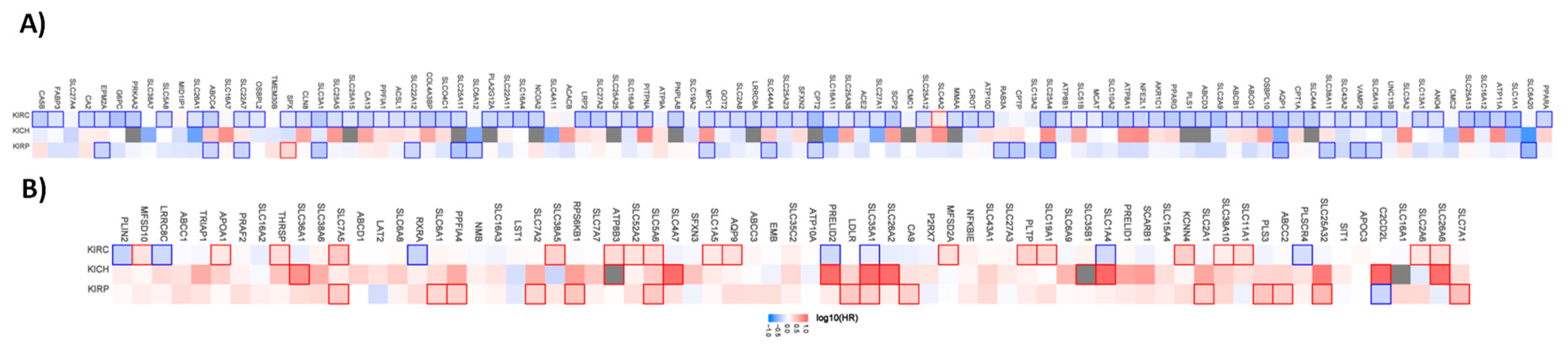

Figure 2. Hazard ratio of the organic anion transporter expression in different renal cancer subtypes. The hazard ratio (HR) was calculated for (A) the favorable and (B) unfavorable list of genes separately for renal clear cell carcinoma (KIRC), renal papillary cell carcinoma (KIRP), and chromophobe renal cell carcinoma (KICH). The red and blue colors denote higher and lower risk, respectively. The rectangle with frames represents the statistically significant HR (p < 0.05).
Figure 2. Hazard ratio of the organic anion transporter expression in different renal cancer subtypes. The hazard ratio (HR) was calculated for (A) the favorable and (B) unfavorable list of genes separately for renal clear cell carcinoma (KIRC), renal papillary cell carcinoma (KIRP), and chromophobe renal cell carcinoma (KICH). The red and blue colors denote higher and lower risk, respectively. The rectangle with frames represents the statistically significant HR (p < 0.05).
Ijms 21 04491 g002
Ijms 21 04491 g003

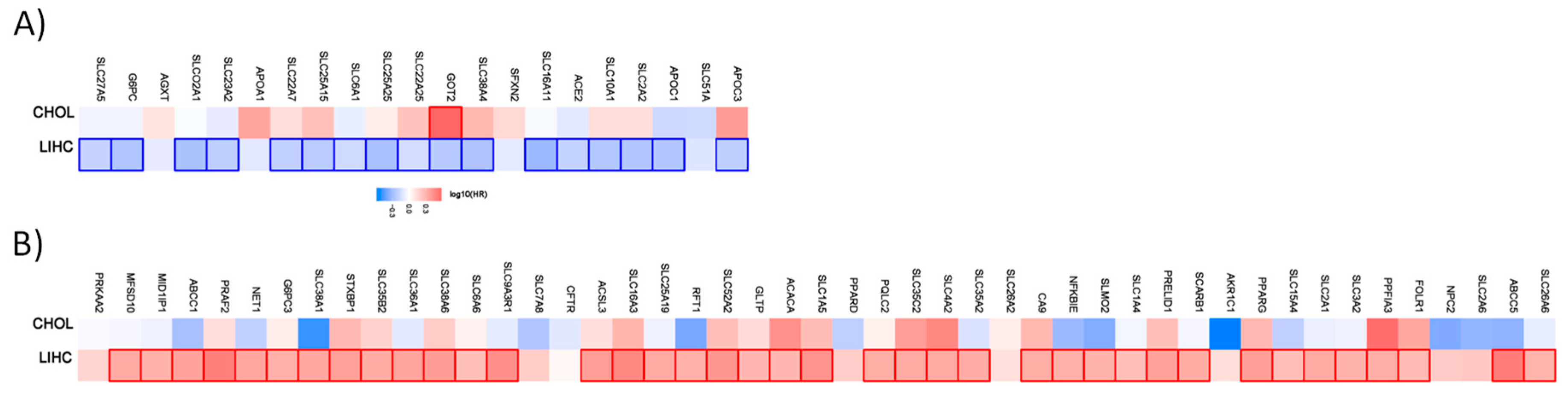

Figure 3. Hazard ratio of the organic anion transporter expression in different liver cancer subtypes. The hazard ratio (HR) was calculated for (A) the favorable and (B) unfavorable list of genes in liver cancer for cholangiocarcinoma (CHOL) and liver hepatocellular carcinoma (LIHC). The red and blue color denote higher and lower risk, respectively. The rectangles with frames represent the statistically significant HR (p < 0.05).
Figure 3. Hazard ratio of the organic anion transporter expression in different liver cancer subtypes. The hazard ratio (HR) was calculated for (A) the favorable and (B) unfavorable list of genes in liver cancer for cholangiocarcinoma (CHOL) and liver hepatocellular carcinoma (LIHC). The red and blue color denote higher and lower risk, respectively. The rectangles with frames represent the statistically significant HR (p < 0.05).
Ijms 21 04491 g003
Ijms 21 04491 g004

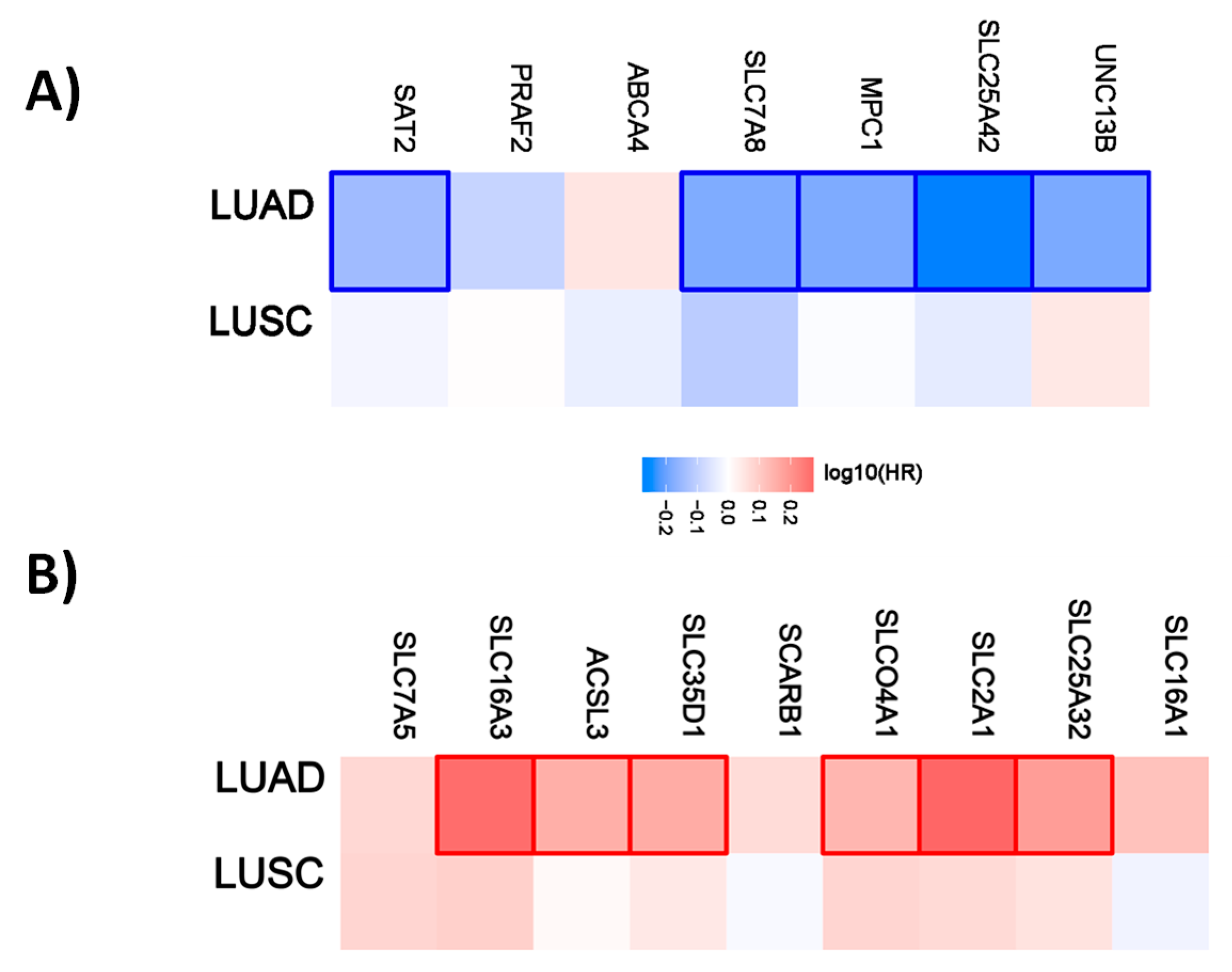

Figure 4. Hazard ratio of organic anion transporter expression in different lung cancer subtypes. The hazard ratio (HR) was calculated for (A) the favorable and (B) unfavorable list of genes in liver cancer for lung adenocarcinoma (LUAD) and lung squamous cell carcinoma (LUSC). The red and blue colors denote higher and lower risk, respectively. The rectangles with frames represent the statistically significant HR (p < 0.05).
Figure 4. Hazard ratio of organic anion transporter expression in different lung cancer subtypes. The hazard ratio (HR) was calculated for (A) the favorable and (B) unfavorable list of genes in liver cancer for lung adenocarcinoma (LUAD) and lung squamous cell carcinoma (LUSC). The red and blue colors denote higher and lower risk, respectively. The rectangles with frames represent the statistically significant HR (p < 0.05).
Ijms 21 04491 g004
Ijms 21 04491 g005

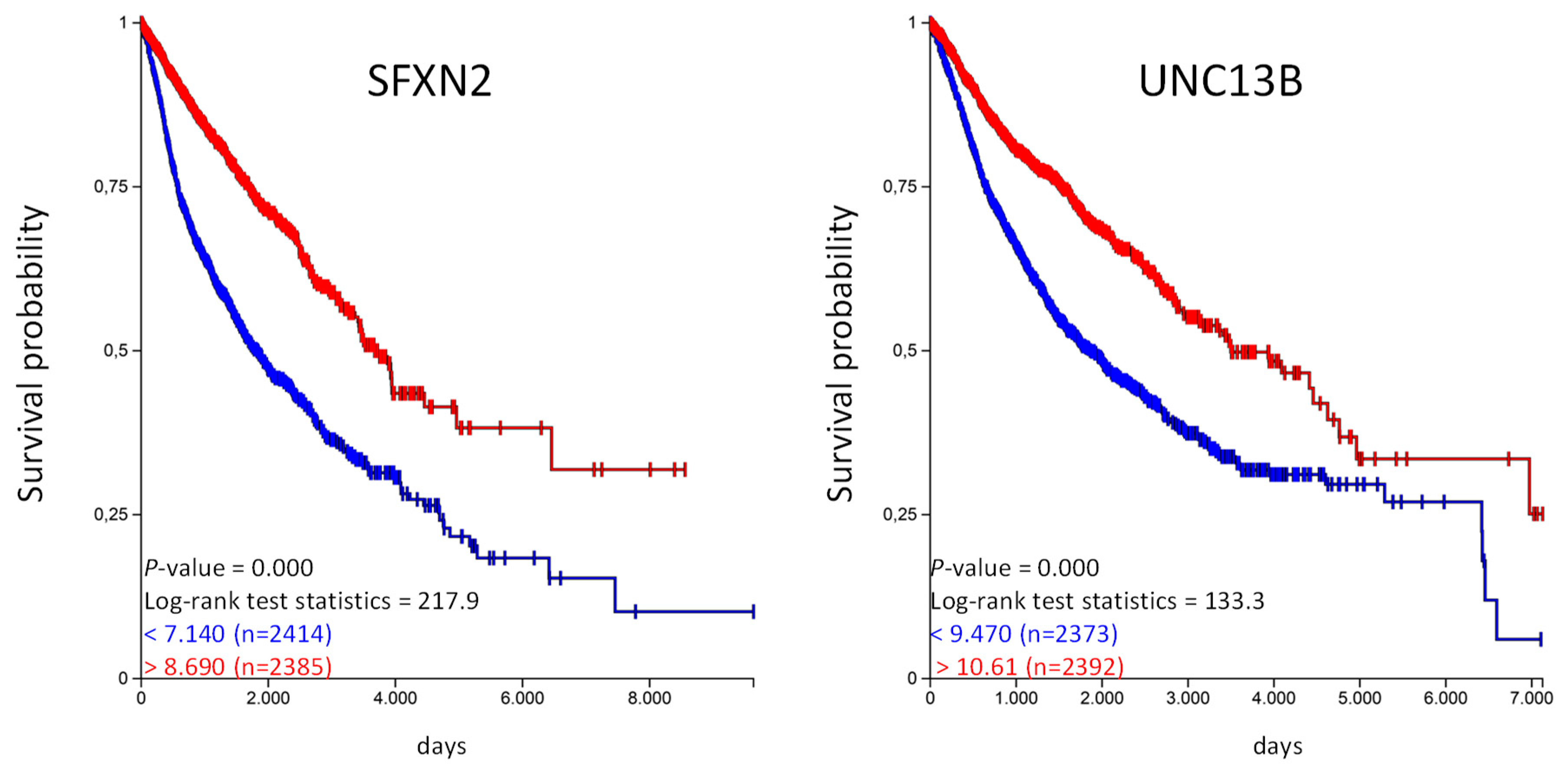

Figure 5. High SFXN2 and UNC13B expression is associated with longer overall survival in the PANCAN cohort. The TCGA-PANCAN cohort was queried for SFXN2 and UNC13B if they have an impact on survival probability. We filtered the data for primary tumor samples and generated Kaplan–Meier plots using the quartiles of gene expression level to separate high (red) and low (blue) expression level.
Figure 5. High SFXN2 and UNC13B expression is associated with longer overall survival in the PANCAN cohort. The TCGA-PANCAN cohort was queried for SFXN2 and UNC13B if they have an impact on survival probability. We filtered the data for primary tumor samples and generated Kaplan–Meier plots using the quartiles of gene expression level to separate high (red) and low (blue) expression level.
Ijms 21 04491 g005
Ijms 21 04491 g006

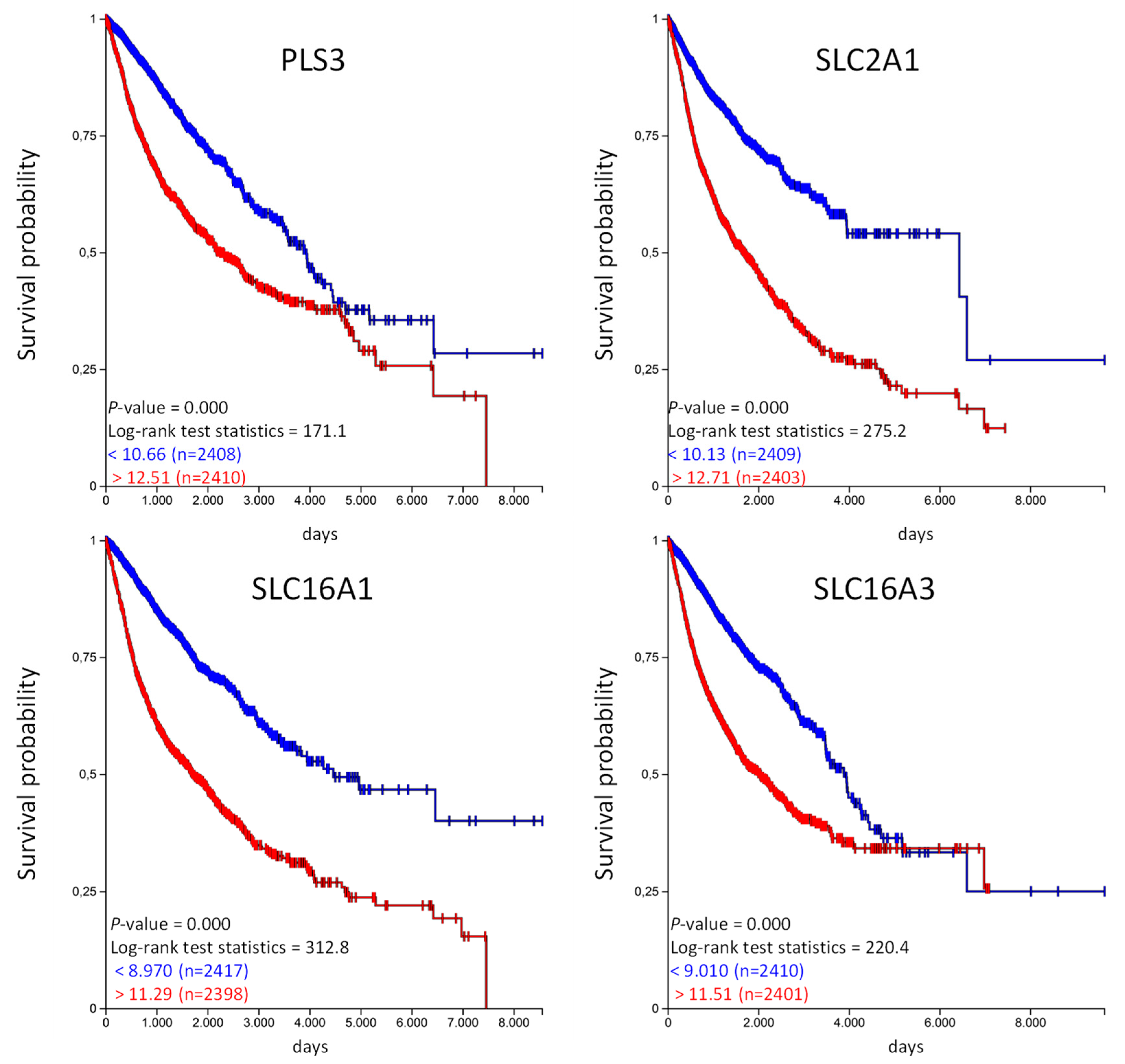

Figure 6. High PLS3, SLC2A1, SLC16A1, and SLC16A3 expression is associated with shorter overall survival in the TCGA-PANCAN cohort. The TCGA-PANCAN cohort was queried for PLS3, SLC2A1, SLC16A1, and SLC16A3 if they have an impact on survival probability. We filtered the data for primary tumor samples and calculated survival probability by Kaplan–Meier plots using the quartiles of gene expression level to separate high (red) and low (blue) expression.
Figure 6. High PLS3, SLC2A1, SLC16A1, and SLC16A3 expression is associated with shorter overall survival in the TCGA-PANCAN cohort. The TCGA-PANCAN cohort was queried for PLS3, SLC2A1, SLC16A1, and SLC16A3 if they have an impact on survival probability. We filtered the data for primary tumor samples and calculated survival probability by Kaplan–Meier plots using the quartiles of gene expression level to separate high (red) and low (blue) expression.
Ijms 21 04491 g006
Table 1. Enriched GO terms within the list of favorable genes. A significant raw p value (< 0.05) are highlighted in bold.
Table 1. Enriched GO terms within the list of favorable genes. A significant raw p value (< 0.05) are highlighted in bold.
Tumor EntityGO Biological ProcessFold EnrichmentRaw p-Value
Kidneyorganic cation transport2.570.02
organic anion transport1.580.00007
Lungorganic cation transport9.430.001
organic anion transport1.060.8
Endometrialorganic cation transport3.390.03
organic anion transport1.360.1
Liverorganic cation transport2.650.3
organic anion transport3.570.0000009
Table 2. Prognostic organic cation transport related genes identified in different tumor entities. Genes present in two different tumor entities are highlighted in bold and genes present in three tumor entities are double underlined. Genes that are favorable for a given tumor entity but unfavorable for another tumor entity are underlined.
Table 2. Prognostic organic cation transport related genes identified in different tumor entities. Genes present in two different tumor entities are highlighted in bold and genes present in three tumor entities are double underlined. Genes that are favorable for a given tumor entity but unfavorable for another tumor entity are underlined.
Tumor EntityUnfavorableFavorable
Breast Cancer00
Cervical CancerSLC22A3SLC25A42
Colorectal Cancer00
Endometrial CancerSLC25A19SAT2, SLC47A1, SLC22A5,MCAT
Glioma00
Head and Neck Cancer0SLC44A4
Liver CancerSLC7A8, PSEN1, SLC25A19SLC22A1
Lung CancerSLC44A1SAT2,SLC7A8,SLC47A1, SLC25A42
Melanoma00
Pancreatic CancerSLC44A2SAT2, SLC22A5, SLC25A45, SLC25A29
Prostate cancer00
Renal CancerLAT2PDZK1, RALBP1, SLC22A2, SLC44A2, PSEN1, SLC47A1, SLC44A4, SLC22A5,MCAT,SLC44A1
Stomach cancer0MCAT
Testis cancerLAT20
Thyroid cancer00
Urothelial CancerSLC7A8, SLC22A3SLC44A4, SLC25A29
Ovarian Cancer0RALBP1
The number of organic cation transport related genes with a favorable prognostic value is higher compared to unfavorable group. The expression of SAT2, SLC47A1, SLC22A5, and SLC44A4 are favorable in three different tumor entities. On the other hand, PSEN1, SLC7A8, SLC44A1, and SLC44A2 are unfavorable in some tumor entities (liver, lung, or pancreatic cancer) and in others (renal and lung cancer) they are favorable. The expression of ten organic cation transporters is favorable in renal cancer and only the expression of LAT2 is unfavorable. The Human Pathology Atlas does not discriminate between the different cancer subtypes. For example, renal cancer includes renal clear cell carcinoma (KIRC), renal papillary cell carcinoma (KIRP), and chromophobe renal cell carcinoma (KICH). We have used the GEPIA2 online tool to analyze the prognostic value of the organic cation transporters for the different tumor subtypes [13]. Figure 1 shows the results for the renal cancer and lung cancer subtypes.
Table 3. Top ten favorable organic anion transporters common between different tumor entities.
Table 3. Top ten favorable organic anion transporters common between different tumor entities.
Gene IDPresent in
UNC13BRenal, Lung, Head and Neck, Pancreatic, Colon
SFXN2Renal, Urothelial, Cervical, Liver
SIT1Head and Neck, Cervical, Endometrial, Melanoma
MMAARenal, Urothelial, Colon
MPC1Renal, Lung, Cervical
PITPNARenal, Endometrial, Pancreatic
PLA2G2DCervical, Breast, Endometrial
PRAF2Lung, Cervical, Pancreatic
SAT2Lung, Endometrial, Pancreatic
SLC16A11Renal, Liver, Pancreatic
Table 4. Top ten unfavorable organic anion transporters common between different tumor entities.
Table 4. Top ten unfavorable organic anion transporters common between different tumor entities.
Gene IDPresent in
SLC2A1Renal, Urothelial, Lung, Liver, Pancreatic
PLS3Renal, Urothelial, Head and Neck, Pancreatic
SLC16A1Renal, Lung, Endometrial, Pancreatic
SLC16A3Renal, Lung, Cervical, Liver
LDLRKidney, Urothelial, Pancreatic
SCARB1Kidney, Lung, Liver
SLC15A4Kidney, Head and Neck, Liver
SLC16A2Kidney, Urothelial, Breast
SLC25A32Kidney, Lung, Endometrial
SLC52A2Kidney, Cervical, Liver

Share and Cite

MDPI and ACS Style

Edemir, B. Identification of Prognostic Organic Cation and Anion Transporters in Different Cancer Entities by In Silico Analysis. Int. J. Mol. Sci. 2020, 21, 4491. https://doi.org/10.3390/ijms21124491

AMA Style

Edemir B. Identification of Prognostic Organic Cation and Anion Transporters in Different Cancer Entities by In Silico Analysis. International Journal of Molecular Sciences. 2020; 21(12):4491. https://doi.org/10.3390/ijms21124491

Chicago/Turabian Style

Edemir, Bayram. 2020. "Identification of Prognostic Organic Cation and Anion Transporters in Different Cancer Entities by In Silico Analysis" International Journal of Molecular Sciences 21, no. 12: 4491. https://doi.org/10.3390/ijms21124491

APA Style

Edemir, B. (2020). Identification of Prognostic Organic Cation and Anion Transporters in Different Cancer Entities by In Silico Analysis. International Journal of Molecular Sciences, 21(12), 4491. https://doi.org/10.3390/ijms21124491

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
