# The Roles of Electrostatic Interactions in Capsid Assembly Mechanisms of Giant Viruses

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Results and Discussion

#### 2.1. Electrostatic Potential for the Capsomers

#### 2.1.1. Single Capsomer

#### 2.1.2. Interaction between Capsomers

#### 2.1.3. Salt Bridges Contribute to the Electrostatic Interaction between Capsomers

#### 2.2. Electrostatic Binding Force between Capsomers

#### 2.3. Binding Energy Calculation Results from Molecular Mechanics with Poisson–Boltzmann and Surface Area Solvation (MM/PBSA) Analyses

#### 2.4. T-Number and Total Contribution of Each Mode in the Virion of Giant Viruses

^{2}+ h∙k + k

^{2}. For example, the T-number of PBCV-1 is 169 (h = 7, k = 8; T = 7

^{2}+ 7 × 8 + 8

^{2}) (Figure 1c). It is noteworthy that all giant viruses have their h number equal to 7 and have the same size pentasymmetrons with 31 capsomers: one pentameric capsomer located at the 5-fold axis and 30 (5 × 6) pseudohexameric capsomers [8]. Each asymmetric unit (triangular area encircled by white dotted lines in Figure 1c) inside the pentasymmetron has six capsomers in three layers radiating from the 5-fold axis, one in the first layer (closest to the 5-fold axis), two in the second layer, and three in the third layer. Therefore, the h number includes three steps in the pentasymmetron, three steps in the trisymmetron, and one more step to align with the pentameric capsomers (Figure 1c). The size difference among giant viruses only appears on their various sizes of trisymmetron [8]. The size of trisymmetron is linked to the k in the T-number. If the equilateral trisymmetron has n capsomers on its edge, because of the same three layers in a pentasymmetron asymmetric unit, n will be k plus 3 (Figure 1c and Figure 3).

## 3. Methods

#### 3.1. Capsid Structure Preparation

#### 3.2. DelPhi Calculations of Electrostatic Potential

#### 3.3. Capsomer Manipulations to Simulate Capsid Assembly

#### 3.4. Electrostatic Binding Forces between Capsomers

#### 3.5. Molecular Dynamic (MD) Simulations for Capsomer Pairs

#### 3.6. Binding Energy Calculations Using MM/PBSA

## 4. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Acknowledgement

## Conflicts of Interest

## References

- Xiao, C.; Rossmann, M.G. Structures of giant icosahedral eukaryotic dsDNA viruses. Curr. Opin. Virol.
**2011**, 1, 101–109. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhang, X.; Xiang, Y.; Dunigan, D.D.; Klose, T.; Chipman, P.R.; van Etten, J.L.; Rossmann, M.G. Three-dimensional structure and function of the Paramecium bursaria chlorella virus capsid. Proc. Natl. Acad. Sci. USA
**2011**, 108, 14837–14842. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Cherrier, M.V.; Kostyuchenko, V.A.; Xiao, C.; Bowman, V.D.; Battisti, A.J.; Yan, X.; Chipman, P.R.; Baker, T.S.; van Etten, J.L.; Rossmann, M.G. An icosahedral algal virus has a complex unique vertex decorated by a spike. Proc. Natl. Acad. Sci. USA
**2009**, 106, 11085–11089. [Google Scholar] [CrossRef] [Green Version] - Yan, X.; Yu, Z.; Zhang, P.; Battisti, A.J.; Holdaway, H.A.; Chipman, P.R.; Bajaj, C.; Bergoin, M.; Rossmann, M.G.; Baker, T.S. The capsid proteins of a large, icosahedral dsDNA virus. J. Mol. Biol.
**2009**, 385, 1287–1299. [Google Scholar] [CrossRef] - Yan, X.; Chipman, P.R.; Castberg, T.; Bratbak, G.; Baker, T.S. The marine algal virus PpV01 has an icosahedral capsid with T = 219 quasisymmetry. J. Virol.
**2005**, 79, 9236–9243. [Google Scholar] [CrossRef] - Xiao, C.; Kuznetsov, Y.G.; Sun, S.; Hafenstein, S.L.; Kostyuchenko, V.A.; Chipman, P.R.; Suzan-Monti, M.; Raoult, D.; McPherson, A.; Rossmann, M.G. Structural studies of the giant mimivirus. PLoS Biol.
**2009**, 7, e1000092. [Google Scholar] [CrossRef] - Arslan, D.; Legendre, M.; Seltzer, V.; Abergel, C.; Claverie, J.M. Distant Mimivirus relative with a larger genome highlights the fundamental features of Megaviridae. Proc. Natl. Acad. Sci. USA
**2011**, 108, 17486–17491. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Xiao, C.; Fischer, M.G.; Bolotaulo, D.M.; Ulloa-Rondeau, N.; Avila, G.A.; Suttle, C.A. Cryo-EM reconstruction of the Cafeteria roenbergensis virus capsid suggests novel assembly pathway for giant viruses. Sci. Rep.
**2017**, 7, 5484. [Google Scholar] [CrossRef] [Green Version] - Klose, T.; Reteno, D.G.; Benamar, S.; Hollerbach, A.; Colson, P.; la Scola, B.; Rossmann, M.G. Structure of faustovirus, a large dsDNA virus. Proc. Natl. Acad. Sci. USA
**2016**, 113, 6206–6211. [Google Scholar] [CrossRef] - Schrad, J.R.; Young, E.J.; Abrahao, J.S.; Cortines, J.R.; Parent, K.N. Microscopic Characterization of the Brazilian Giant Samba Virus. Viruses
**2017**, 9, 30. [Google Scholar] [CrossRef] - Legendre, M.; Bartoli, J.; Shmakova, L.; Jeudy, S.; Labadie, K.; Adrait, A.; Lescot, M.; Poirot, O.; Bertaux, L.; Bruley, C.; et al. Thirty-thousand-year-old distant relative of giant icosahedral DNA viruses with a pandoravirus morphology. Proc. Natl. Acad. Sci. USA
**2014**, 111, 4274–4279. [Google Scholar] [CrossRef] - Claverie, J.M.; Ogata, H. Ten good reasons not to exclude giruses from the evolutionary picture. Nat. Rev. Microbiol.
**2009**, 7, 615. [Google Scholar] [CrossRef] - Moreira, D.; Lopez-Garcia, P. Ten reasons to exclude viruses from the tree of life. Nat. Rev. Microbiol.
**2009**, 7, 306–311. [Google Scholar] [CrossRef] - Raoult, D.; Forterre, P. Redefining viruses: Lessons from Mimivirus. Nat. Rev. Microbiol.
**2008**, 6, 315–319. [Google Scholar] [CrossRef] - Rossmann, M.G.; Johnson, J.E. Icosahedral RNA virus structure. Annu. Rev. Biochem.
**1989**, 58, 533–573. [Google Scholar] [CrossRef] - Benson, S.D.; Bamford, J.K.; Bamford, D.H.; Burnett, R.M. Does common architecture reveal a viral lineage spanning all three domains of life? Mol. Cell
**2004**, 16, 673–685. [Google Scholar] [CrossRef] - Wrigley, N.G. An electron microscope study of the structure of Sericesthis iridescent virus. J. Gen. Virol.
**1969**, 5, 123–134. [Google Scholar] [CrossRef] - Yan, X.; Olson, N.H.; Van Etten, J.L.; Bergoin, M.; Rossmann, M.G.; Baker, T.S. Structure and assembly of large lipid-containing dsDNA viruses. Nat. Struct. Biol.
**2000**, 7, 101–103. [Google Scholar] [Green Version] - Suarez, C.; Welsch, S.; Chlanda, P.; Hagen, W.; Hoppe, S.; Kolovou, A.; Pagnier, I.; Raoult, D.; Krijnse Locker, J. Open membranes are the precursors for assembly of large DNA viruses. Cell Microbiol.
**2013**, 15, 1883–1895. [Google Scholar] [CrossRef] [Green Version] - Fang, Q.; Zhu, D.; Agarkova, I.; Adhikari, J.; Klose, T.; Liu, Y.; Chen, Z.; Sun, Y.; Gross, M.L.; van Etten, J.L; et al. Near-atomic structure of a giant virus. Nat. Commun.
**2019**, 10, 388. [Google Scholar] [CrossRef] - Zhao, G.; Perilla, J.R.; Yufenyuy, E.L.; Meng, X.; Chen, B.; Ning, J.; Ahn, J.; Gronenborn, A.M.; Schulten, K.; Aiken, C.; et al. Mature HIV-1 capsid structure by cryo-electron microscopy and all-atom molecular dynamics. Nature
**2013**, 497, 643–646. [Google Scholar] [CrossRef] [Green Version] - Hagan, M.F.; Zandi, R. Recent advances in coarse-grained modeling of virus assembly. Curr. Opin. Virol.
**2016**, 18, 36–43. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Roos, W.H.; Gibbons, M.M.; Arkhipov, A.; Uetrecht, C.; Watts, N.R.; Wingfield, P.T.; Steven, A.C.; Heck, A.J.; Schulten, K.; Klug, W.S.; et al. Squeezing protein shells: How continuum elastic models, molecular dynamics simulations, and experiments coalesce at the nanoscale. Biophys. J.
**2010**, 99, 1175–1181. [Google Scholar] [CrossRef] - Arkhipov, A.; Freddolino, P.L.; Schulten, K. Stability and dynamics of virus capsids described by coarse-grained modeling. Structure
**2006**, 14, 1767–1777. [Google Scholar] [CrossRef] - Hagan, M.F. Modeling Viral Capsid Assembly. Adv. Chem. Phys.
**2014**, 155, 1–68. [Google Scholar] [Green Version] - Koehl, P. Large Eigenvalue Problems in Coarse-Grained Dynamic Analyses of Supramolecular Systems. J. Chem. Theory Comput.
**2018**, 14, 3903–3919. [Google Scholar] [CrossRef] - Freddolino, P.L.; Arkhipov, A.S.; Larson, S.B.; McPherson, A.; Schulten, K. Molecular dynamics simulations of the complete satellite tobacco mosaic virus. Structure
**2006**, 14, 437–449. [Google Scholar] [CrossRef] - Jiang, J.; Yang, J.; Sereda, Y.V.; Ortoleva, P.J. Early stage P22 viral capsid self-assembly mediated by scaffolding protein: Atom-resolved model and molecular dynamics simulation. J. Phys. Chem. B
**2015**, 119, 5156–5162. [Google Scholar] [CrossRef] - Li, L.; Jia, Z.; Peng, Y.; Godar, S.; Getov, I.; Teng, S.; Alper, J.; Alexov, E. Forces and Disease: Electrostatic force differences caused by mutations in kinesin motor domains can distinguish between disease-causing and non-disease-causing mutations. Sci. Rep.
**2017**, 7, 8237. [Google Scholar] [CrossRef] - Siber, A.; Podgornik, R. Role of electrostatic interactions in the assembly of empty spherical viral capsids. Phys. Rev. E Stat. Nonlinear Soft Matter Phys.
**2007**, 76, 061906. [Google Scholar] [CrossRef] [Green Version] - van der Schoot, P.; Bruinsma, R. Electrostatics and the assembly of an RNA virus. Phys. Rev. E Stat. Nonlinear Soft Matter Phys.
**2005**, 71, 061928. [Google Scholar] [CrossRef] [PubMed] - Li, L.; Wang, L.; Alexov, E. On the energy components governing molecular recognition in the framework of continuum approaches. Front. Mol. Biosci.
**2015**, 2, 5. [Google Scholar] [CrossRef] [PubMed] - Li, C.; Li, L.; Zhang, J.; Alexov, E. Highly efficient and exact method for parallelization of grid-based algorithms and its implementation in DelPhi. J. Comput. Chem.
**2012**, 33, 1960–1966. [Google Scholar] [CrossRef] [Green Version] - De Castro, C.; Klose, T.; Speciale, I.; Lanzetta, R.; Molinaro, A.; Van Etten, J.L.; Rossmann, M.G. Structure of the chlorovirus PBCV-1 major capsid glycoprotein determined by combining crystallographic and carbohydrate molecular modeling approaches. Proc. Natl. Acad. Sci. USA
**2018**, 115, E44–E52. [Google Scholar] [CrossRef] [PubMed] - Caspar, D.L.; Klug, A. Physical principles in the construction of regular viruses. Cold Spring Harb. Symp. Quant. Biol.
**1962**, 27, 1–24. [Google Scholar] [CrossRef] - Goddard, T.D.; Huang, C.C.; Ferrin, T.E. Visualizing density maps with UCSF Chimera. J. Struct. Biol.
**2007**, 157, 281–287. [Google Scholar] [CrossRef] [PubMed] - Li, L.; Li, C.; Sarkar, S.; Zhang, J.; Witham, S.; Zhang, Z.; Wang, L.; Smith, N.; Petukh, M.; Alexov, E. DelPhi: A comprehensive suite for DelPhi software and associated resources. BMC Biophys.
**2012**, 5, 9. [Google Scholar] [CrossRef] - Li, L.; Li, C.; Zhang, Z.; Alexov, E. On the dielectric “constant” of proteins: Smooth dielectric function for macromolecular modeling and its implementation in Delphi. J. Chem. Theory Comput.
**2013**, 9, 2126–2136. [Google Scholar] [CrossRef] [PubMed] - Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph.
**1996**, 14, 33–38. [Google Scholar] [CrossRef] - Li, L.; Chakravorty, A.; Alexov, E. DelPhiForce, a tool for electrostatic force calculations: Applications to macromolecular binding. J. Comput. Chem.
**2017**, 38, 584–593. [Google Scholar] [CrossRef] [Green Version] - Li, L.; Jia, Z.; Peng, Y.; Chakravorty, A.; Sun, L.; Alexov, E. DelPhiForce web server: Electrostatic forces and energy calculations and visualization. Bioinformatics
**2017**, 33, 3661–3663. [Google Scholar] [CrossRef] - Vanommeslaeghe, K.; Hatcher, E.; Acharya, C.; Kundu, S.; Zhong, S.; Shim, J.; Darian, E.; Guvench, O.; Lopes, P.; Vorobyov, I. CHARMM general force field: A force field for drug-like molecules compatible with the CHARMM all-atom additive biological force fields. J. Comput. Chem.
**2010**, 31, 671–690. [Google Scholar] [CrossRef]

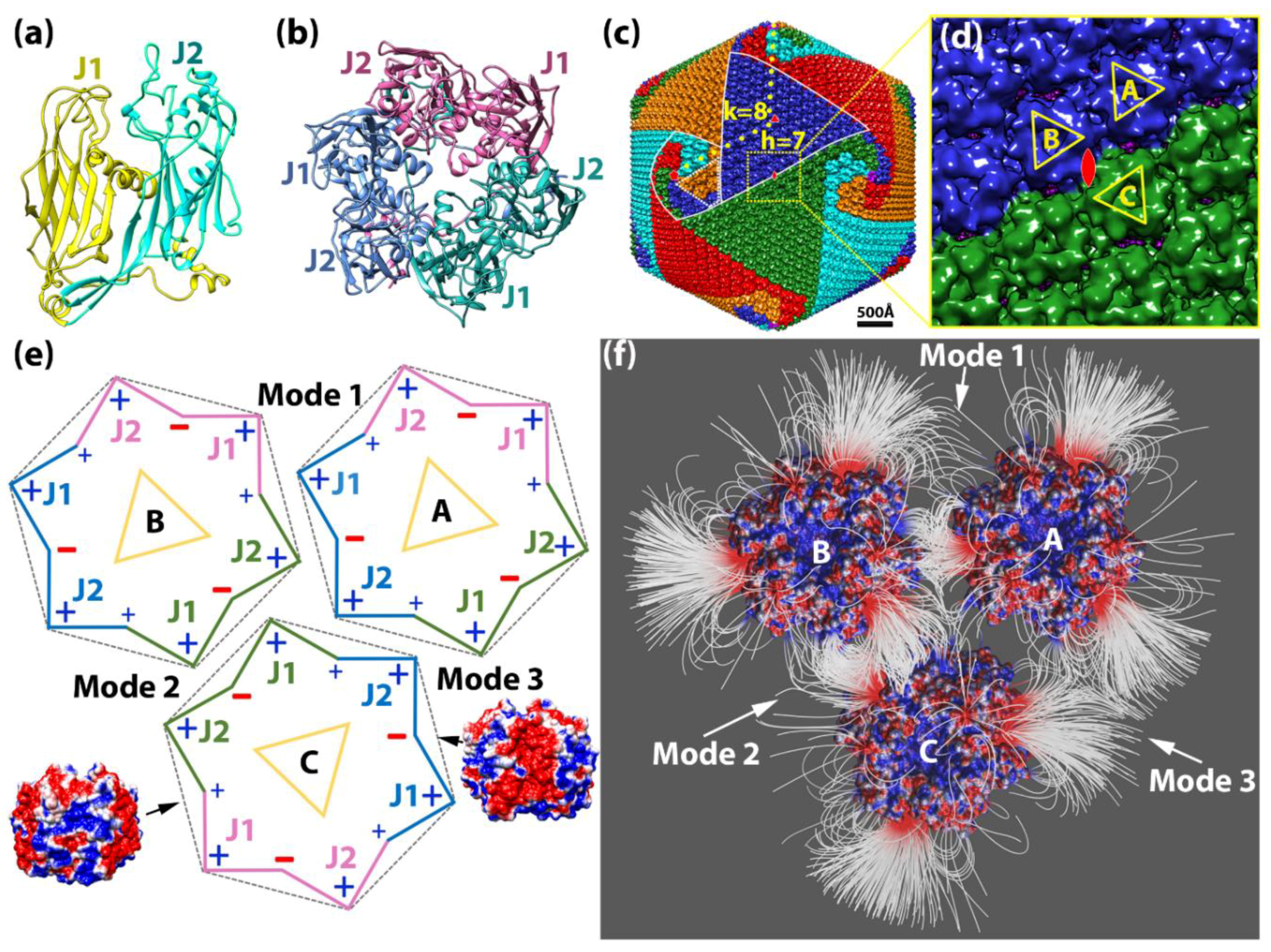

**Figure 1.**Paramecium bursaria Chlorella virus-1 (PBCV-1) capsomer structures and arrangements. (

**a**) A ribbon diagram of the PBCV-1 major capsid protein (MCP) Vp54 (PDB ID 5TIP). The two jelly-rolls are colored in yellow (J1) and cyan (J2), respectively; (

**b**) a ribbon diagram of the PBCV-1 capsomer displaying a pseudo-hexagonal shape. Individual double jelly-roll MCPs are color-coded with pink, jade green, and azure; (

**c**) Isosurface rendering of PBCV-1 cryo-EM map (EMD 5378). Capsomers are colored based on their orientation in red, blue, green, cyan, and orange. The boundaries of one trisymmetron and one pentasymmetron are outlined in white. One asymmetric unit within one pentasymmetron is outlined in dashed white lines. The yellow dots present the steps for calculating the triangulation number (T number) with the h and k numbers labeled in yellow. One set of icosahedral symmetry symbols are labeled in red; (

**d**) The magnified icosahedral 2-fold surface areas (outlined in yellow dashed line in (

**c**)) and three selected capsomers (A, B, and C). To show their orientations, these three capsomers are labeled by yellow triangles where the vertices of the triangle point to the three higher jelly-roll surface loops; (

**e**) A schematic diagram of showing the three selected capsomers in (

**d**) for highlighting their orientations, charge distributions, and binding modes. The outlines of the capsomer are colored as the same color in (

**b**) with J1 and J2 labeled. Three binding modes are labeled by 1, 2, and 3, close to the corresponding interfaces. Two side views of PBCV-1 capsomer electrostatic surfaces are presented on the sides of capsomer C pointing to their corresponding surface. The electrostatic surfaces are rendered by Chimera with a color scale from −1.0 to 1.0 kT/Å. Negatively and positively charged areas are colored in red and blue, respectively. (

**f**) The electrostatic potential field lines between three selected PBCV-1 capsomers rendered by Visual Molecular Dynamics (VMD). Negatively and positively charged capsomer surface areas are colored with a scale from −1.0 to 1.0 kT/Å.

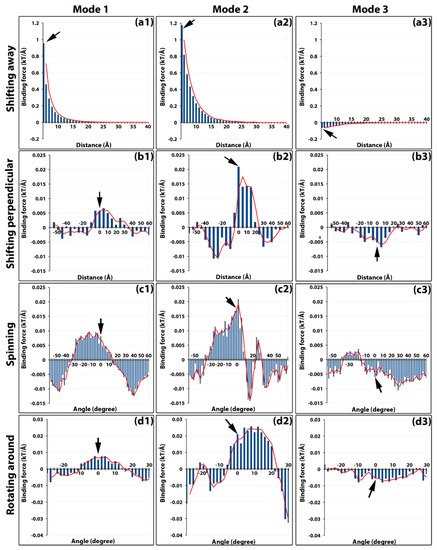

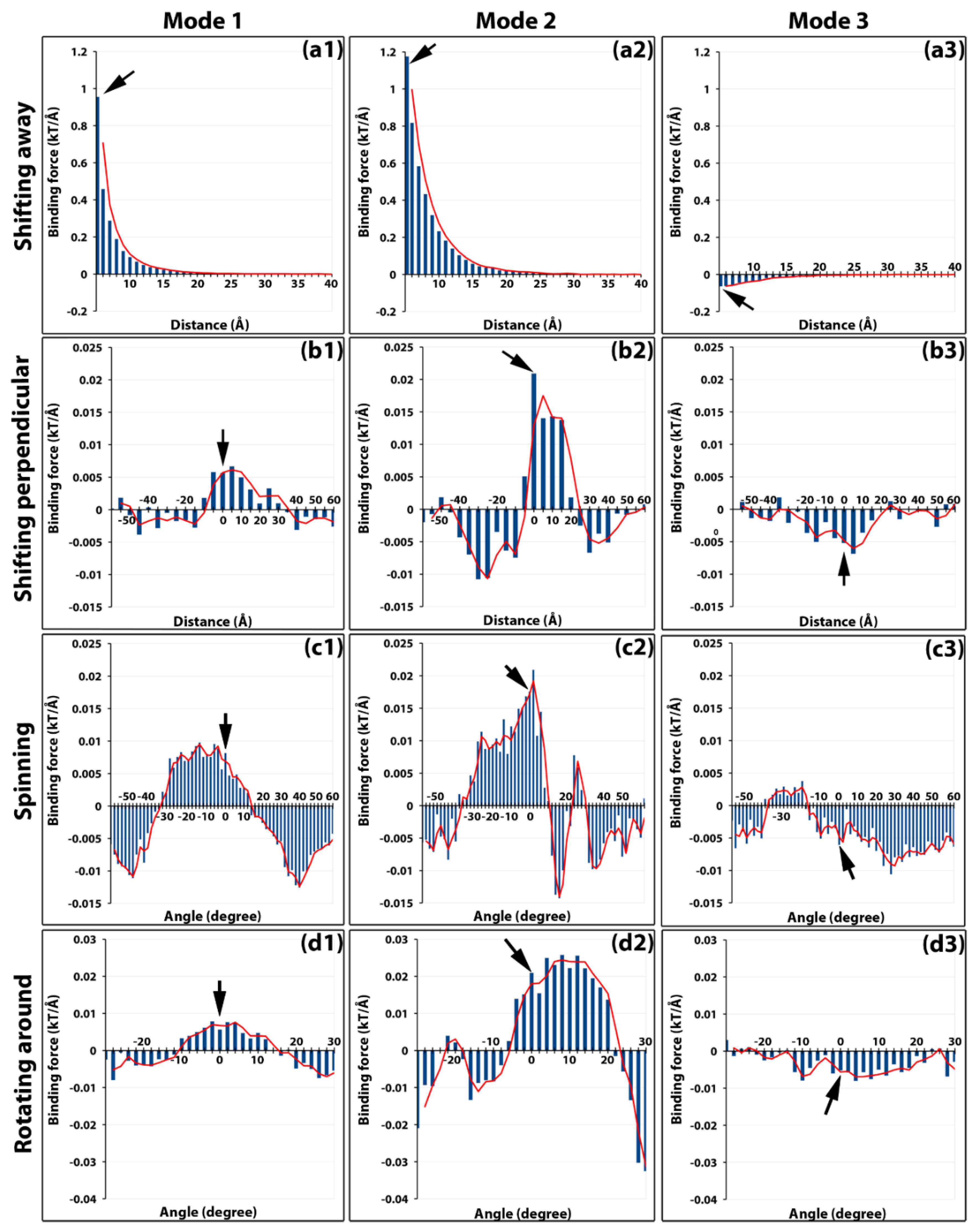

**Figure 2.**Binding forces of modes 1, 2, and 3 scanned by all four operations. The magnitudes of binding forces are presented as vertical histogram bars for each binding mode (panels in each column). Binding forces of each mode are scanned by four different operations (panels in each row). For example, the panels in the first column are binding forces of mode 1 scanned by (

**a1**) shifting away 5 to 40 Å, (

**b1**) shifting perpendicular 5 to 60 Å up and down, (

**c1**) spinning −60° to 60°, and (

**d1**) rotating around −30° to 30°. Similarly, the panels in the second column (

**a2**,

**b2**,

**c2**,

**d2**) and that in the third column (

**a3**,

**b3**,

**c3**,

**d3**) are binding forces of mode2 and mode3, respectively. Positive forces indicate the attractive force while the negative forces are the repulsive forces. Black arrows on each panel point to the native position.

**Figure 3.**Schematic demonstration of the trisymmetron for calculating the population of all 3 binding modes. Each black dot represents one capsomer. Different types of lines represent different binding mode between two capsomers (dots). Within the trisymmetron, n (for PBCV-1, n = 11) rows of capsomers were connected by binding mode 1 (solid line). At the bottom edge, extra row of dots (capsomers) from neighboring trisymmetrons are shown connected by a dashed line and dotted lines, representing binding modes 2 and 3, respectively. The capsomer numbers along one edge are labeled by their number of n.

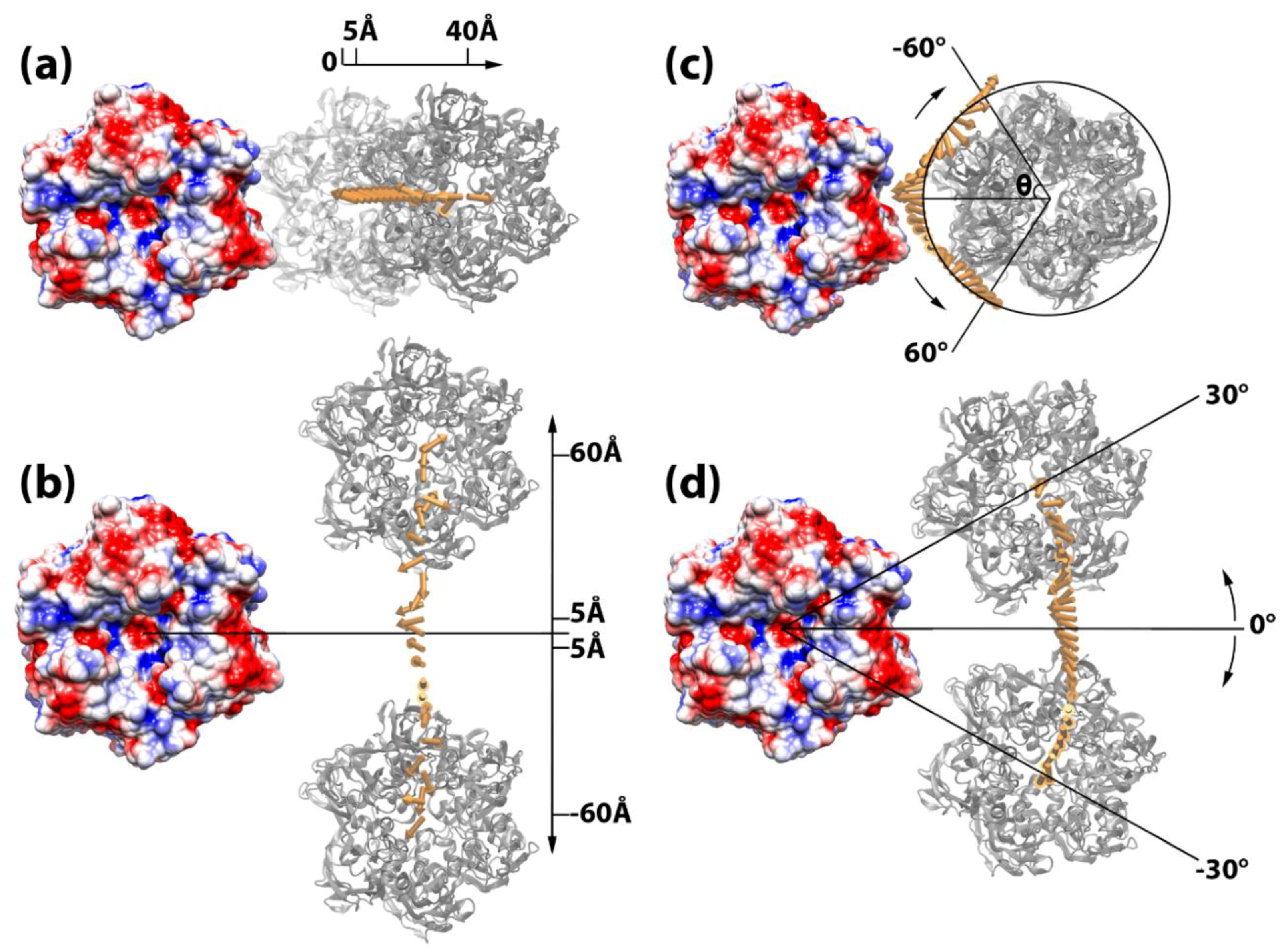

**Figure 4.**Simulating capsomer assembly operations. In each of the four operations, the capsomer on the left (shown in electrostatic colored surface) is fixed, whereas the capsomer on the right (in grey) is manipulated by (

**a**) shifting away 5 to 40 Å, (

**b**) shifting perpendicular 5 to 60 Å up and down, (

**c**) spinning −60° to 60°, and (

**d**) rotating around −30° to 30°. The binding forces are presented by yellow arrows. The tail of each arrow is located at the mass center of the manipulated capsomer when it was displaced in the corresponding locations. In order to differentiate the binding force from different spinning degree in (

**c**), the force arrows are translated by 40 Å onto a circle where the spinning degrees are represented by the angle theta (θ). Additional diagrams for the direction of binding force are shown in Figure S3.

Binding Mode | Polar Solvation Energy (kcal/mol) | Non-Polar Solvation Energy (kcal/mol) | Van der Waals Energy (kcal/mol) | Coulombic Energy (kcal/mol) | Total Binding Energy (kcal/mol) | |||||
---|---|---|---|---|---|---|---|---|---|---|

Mean | SD ^{[a]} | Mean | SD | Mean | SD | Mean | SD | Mean | SD | |

1 | 99.41 | 19.46 | −14.58 | 0.73 | −80.80 | 6.50 | −64.89 | 25.22 | −60.85 | 8.05 |

2 | 208.20 | 28.27 | −19.17 | 1.05 | −119.74 | 10.25 | −167.72 | 32.72 | −98.43 | 9.83 |

3 | 8.42 | 16.23 | −9.67 | 0.71 | −46.25 | 5.59 | 23.69 | 16.67 | −23.81 | 5.65 |

^{[a]}Standard deviation.
