Int. J. Mol. Sci. 2019, 20(6), 1446; https://doi.org/10.3390/ijms20061446

Article
Complementary Role of P2 and Adenosine Receptors in ATP Induced-Anti-Apoptotic Effects Against Hypoxic Injury of HUVECs
1
Department of Pharmacology, E.A.3801, SFR CAP-santé, Reims University Hospital, 51, rue Cognacq-Jay, 51095 Reims CEDEX, France
2
Laboratory of Hematology, E.A.3801, SFR CAP-santé, Reims University Hospital, 51, rue Cognacq-Jay, 51095 Reims CEDEX, France
*
Correspondence: zoubir.djerada@univ-reims.fr; Tel.: +333-26-83-27-82; Fax: +333-26-78-84-56
These authors contributed to this work equally.
Received: 22 February 2019 / Accepted: 20 March 2019 / Published: 22 March 2019

Abstract

:
Background: Vascular endothelial injury during ischemia generates apoptotic cell death and precedes apoptosis of underlying tissues. We aimed at studying the role of extracellular adenosine triphosphate (ATP) on endothelial cells protection against hypoxia injury. Methods: In a hypoxic model on endothelial cells, we quantified the extracellular concentration of ATP and adenosine. The expression of mRNA (ectonucleotidases, adenosine, and P2 receptors) was measured. Apoptosis was evaluated by the expression of cleaved caspase 3. The involvement of P2 and adenosine receptors and signaling pathways was investigated using selective inhibitors. Results: Hypoxic stress induced a significant increase in extracellular ATP and adenosine. After a 2-h hypoxic injury, an increase of cleaved caspase 3 was observed. ATP anti-apoptotic effect was prevented by suramin, pyridoxalphosphate-6-azophenyl-2′,4′-disulfonic acid (PPADS), and CGS15943, as well as by selective A2A, A2B, and A3 receptor antagonists. P2 receptor-mediated anti-apoptotic effect of ATP involved phosphoinositide 3-kinase (PI3K), extracellular signal-regulated kinases (ERK1/2), mitoKATP, and nitric oxide synthase (NOS) pathways whereas adenosine receptor-mediated anti-apoptotic effect involved ERK1/2, protein kinase A (PKA), and NOS. Conclusions: These results suggest a complementary role of P2 and adenosine receptors in ATP-induced protective effects against hypoxia injury of endothelial. This could be considered therapeutic targets to limit the development of ischemic injury of organs such as heart, brain, and kidney.
Keywords:
endothelial cells; hypoxic stress; purinergic signaling; ATP; adenosine

1. Introduction

Vascular endothelium is a cell monolayer at the interface of blood flow and underlying tissues and organs [1,2]. Vascular endothelial injury, related to ischemia, generates oxidative stress and apoptotic cell death, which induce a dysfunction and favor the development of atherosclerosis [1,2,3,4]. A study describing the time course of apoptosis in different cell types in the heart during ischemia/reperfusion demonstrated that endothelial cells were the first to be affected [5]. Endothelial apoptosis plays a major role in the progression of ischemic injury and radial spread of apoptosis to surrounding cardiomyocytes [4,5]. In another context, endothelial protection has been shown to be essential in maintaining normal cardiac function after transplantation, mainly by controlling coronary circulation [6]. Parolari et al. [6] have shown that both myocardial and endothelial protections are necessary to progress from myocardial to cardiac protection. Endothelial injury is presented as the initiator of deleterious cascades of organ damage [7]. Pharmacological protection against vascular endothelial apoptosis could limit the development of ischemic injury of various organs including heart, brain, and kidney.
Many endogenous signaling molecules have been described to induce protection against cardiac stress (hypoxic or ischemic stress). Among them, extracellular nucleotides such as adenosine tri-phosphate (ATP) and nucleosides, such as adenosines, are secreted by endothelial cells and cardiomyocytes during ischemia [8]. Purinergic signaling plays an important role in the cardiovascular system [8,9]. It regulates vascular tone as well as growth of vascular smooth muscle cells and endothelial cells. Purinergic system is involved in vascular remodeling, coagulation, and inflammation [8,10]. It is also implicated in cardiac inotropy and cardioprotection [8,11]. Recent studies have established the involvement of P1/P2 receptors in cardioprotection during ischemia [8,12,13,14].
The nucleotides/nucleosides secreted at high concentration in the interstitium during cardiac ischemia have been reported to be adenosine 5′-triphosphate (ATP) and adenosine [12,13,15]. Thus, the purpose of this study was to evaluate the role of ATP and adenosine receptors in endothelial cells during hypoxia-reoxygenation. For this, we confirmed nucleotides/nucleosides release during hypoxia-reoxygenation by an appropriate method able to simultaneously quantify the different targeted compounds in extracellular media. Then, we have studied the induction of cellular protection induced by extracellular signaling of ATP and adenosine as natural agonists. The use of natural agonists is necessary to approach in vivo physio-pathological conditions such as the metabolism and cellular turn-over of nucleotides.

2. Results

2.1. Hypoxic Stress Induces both ATP and Adenosine Release from Endothelial Cells

The release of adenosine, adenosine 5′-monophosphate (AMP), uridine 5′-monophosphate (UMP), Adenosine 5′-diphosphate (ADP), Uridine 5′-diphosphate (UDP), Adenosine 5′-triphosphate (ATP), and Uridine 5′-triphosphate (UTP) from human umbilical vein endothelial cells (HUVECs) into the extracellular medium (in 500 µL of supernatant) during hypoxia. Re-oxygenation has been studied at different times (T0, T15, T30, T60, T120, T135, T180, and T240 min) using liquid chromatography coupled with high resolution mass spectrometer (LC-HRMS). There was a significant and concomitant increase in ATP, ADP, AMP, and adenosine concentrations during hypoxia. Contrary to the nucleotides, adenosine concentrations remained steady during re-oxygenation (Figure 1, Supplementary file 1). Concentrations of ATP and adenosine were the most important during the experiment (Figure 1A,B). Extracellular concentration of ATP increased significantly for 15 min (108.4 ± 37.4 nM, p < 0.05) after the onset of hypoxia compared to the control group (T0: 2.0 ± 1.0 nM). Concentration of ATP decreased rapidly after 30 min (55.2 ± 17.7 nM, p < 0.05 vs. control group T0, and T60: 15.8 ± 5.9 nM, p < 0.05) and was undetectable after 60 min of hypoxia. Extracellular concentration of adenosine increased significantly (p < 0.05) during hypoxia and re-oxygenation (T15: 127.2 ± 33.6 nM, T30: 142.2 ± 37.4 nM, T60: 134.7 ±26.1 nM vs control group T0: 18.7 ± 3.7 nM). After 60 min, extracellular concentration of adenosine decreased but remained significantly (p < 0.05) higher than the concentration of the control group (T120: 71.1 ±7.5 nM). During the subsequent re-oxygenation period, adenosine concentration remained stable (T135: 82.3 ±3.7 nM, T180: 108.5 ±3.7 nM, T240: 112.3 ±3.7 nM), while ATP was undetectable.

2.2. Hypoxic Stress Induces Overexpression of P2Y6, P2Y11, A2A, A2B, CD 39, and CD 73 mRNAs

In our model, the expression of P2Y receptors, adenosine receptors, and ectonucleotidases mRNA was studied during two hours of hypoxia. P2Y1, P2Y2, P2Y4, P2Y6, P2Y11, P2X7, P2X4, A2A, A2B, and A3 receptors were expressed in HUVECs (data not shown). The relative expression to the control group (T0) was estimated as normalized mRNA levels using the following formula: 2−ΔΔCT of different conditions. Increased expression of mRNA was significant (p < 0.05) for P2Y6 (T120: 1.69 ± 0.20), P2Y11 (T30: 1.48 ± 0.34, T60: 1.630 ± 0.24 and T120: 3.05 ± 0.49), A2A (T30: 1.63 ± 0.19 and T120: 6.44 ± 1.99), and A2B (T120: 1.943 ±0.54). Increased expression of mRNA was also significant (p < 0.05) for ectonucleotidases CD39 T120: 1.849 ± 0.247 and CD73 T120: 1.761 ± 0.297, involved in the conversion of ATP into adenosine (Figure 1C–H).

2.3. Hypoxia Promotes Apoptosis in Endothelial Cells

HUVECs were exposed to simulated hypoxia for two hours. Cells were harvested to analyze the expression of cleaved caspase 3 at different times. Stress related to hypoxia resulted in a significant increase in apoptosis of HUVECs. Relative expression to the control group (T0) of cleaved caspase 3 was increased after 2 h of hypoxia: T120: 1029 ± 181.3% vs control group T0 100 %, n = 6, p < 0.05, Figure 1I). The lactate dehydrogenase activity (LDH) measured after 2 h of hypoxia experiment did not change significantly (Supplementary file 2). Hypoxia induced apoptosis without inducing LDH release.

2.4. Extracellular ATP and Adenosine Induced an Anti-Apoptotic Effect

An anti-apoptotic effect of extracellular ATP was assessed in HUVECs treated with ATP (1 µM, 5 µM, 10 µM and 50 µM) for two hours of hypoxia. A significant decrease (n = 6, p < 0.05) in the relative expression of cleaved caspase 3 was observed in cells treated with 5 µM ATP (59 ± 7.9%), 10 µM (38 ± 8.2%) and 50 µM (4 ± 1.1%) versus control group 100% (Figure 2A). The anti-apoptotic effect of extracellular adenosine was also assessed in HUVECs treated with adenosine (1 µM, 5 µM and 10 µM) before 2 h of hypoxia. A significant decrease (n = 6, p < 0.05) of relative expression of cleaved caspase 3 was observed in cells treated with 1 µM adenosine (55.33 ± 9.82%), 5 µM (37.67 ± 4.91%), and 10 µM (26 ± 7%) vs. a control group of 100% (Figure 2B).

2.5. Protective Effects of Extracellular ATP Are Mediated by P2 and Adenosine Receptors

The role of P2 and P1 receptors involved in the anti-apoptotic effect of extracellular ATP was investigated using a panel of selective antagonists (Table 1). Treatment was performed with 10 µM ATP and P2 antagonists, 10 µM suramin or pyridoxalphosphate-6-azophenyl-2’,4’-disulfonic acid (PPADS) or adenosine antagonist (1 µM CGS15943) (Figure 3A). The anti-apoptotic effect of 10 µM ATP was partially abolished by 10 µM suramin (76.75 ± 20.70%), by 10 µM PPADS (52.8 ± 20.6%), or by CGS15943 (48.61 ± 6.87%) compared to cells treated with 10 µM ATP alone (7.5 ± 2.1%; n = 9, p < 0.05). These results suggest that P2 and adenosine receptors are involved in the anti-apoptotic effect triggered by ATP (Figure 3A). Compared to control, only suramin increased cleaved caspase 3 (p < 0.01).

2.6. P2 Receptor-Mediated Anti-Apoptotic Effect of ATP Involves PI3K, MEK/ERK1/2, mitoKATP, and NOS Pathways

To assess the signaling pathways involved in the P2 receptor-mediated effect, HUVECs were treated with 1 µM CGS15943 and different inhibitors (Table 1): 10 µM U0126 (MEK/ERK1/2), 10 µM LY294002 (PI3K), 100 µM 5-hydroxydecanoate (5-HD, mitoKATP channel), and 10 µM N(ω)-nitro-L-arginine methyl ester (L-NAME, NOS), 20 µM H89 (PKA), and 5 µM indomethacin (Cyclooxygenase COX). The anti-apoptotic effect of 10 µM ATP and 10 µM ATP + 1 µM CGS15943 was unaffected by blocking PKA and COX pathway (data not shown). Compared to the control, we observed no difference with U0126, H89, L-NAME, or 5-HD, while no significant increase was observed with LY294002 (Supplementary file 3).
The anti-apoptotic effect (relative to control) of 10 µM ATP (18 ± 6.6%) during hypoxia was abolished by blocking MEK/ERK1/2 pathway (89 ± 32.5%, p < 0.05). This result was also observed in cells co-treated with ATP and CGS15943 vs. ATP + CGS15943 + U0126. The anti-apoptotic effect of 10 µM ATP and 1 µM CGS15943 (39.23 ± 6.52%) was significantly and partially abolished by blocking MEK/ERK1/2 (91.57 ± 21.30%), PI3K (112.8 ± 27.42%), mitoKATP (66.17 ± 8.88%), and NOS (75.80 ± 5.7%) pathway (n = 6, p < 0.05), with 10 µM U0126 (MEK/ERK1/2), 10 µM LY294002 (PI3K), 100 µM 5-HD (mitoKATP), and 10 µM L-NAME (NOS), respectively (Figure 4). This suggests the involvement of MEK/ERK1/2, PI3K, mitoKATP channel, and NOS in P2 signaling.

2.7. A2A, A2B, and A3 Receptors are Involved in Endothelial Protection Induced by Extracellular ATP

To highlight the role adenosine receptors in the endothelial protection by extracellular ATP during hypoxia, pharmacological approach using selective antagonists was performed (Table 1). HUVECs were treated with 10 µM SCH442416 (a selective A2A receptor antagonist), 0.1 µM MRS1754 (selective A2B receptor antagonist), or 10 µM MRS1191 (selective A3 receptor antagonist). Then, 10 µM ATP were added prior to two hours of hypoxia. The expression of cleaved caspase 3 was compared to the control (10 µM ATP). The anti-apoptotic effect of 10 µM ATP (cleaved caspase 3 related to control: 20.82 ± 2.43%) was significantly limited in cells after blockade of the A2A receptor (42.80 ± 3.27%), the A2B receptor (39.00 ± 4.25%), and the A3 receptor (32.60 ± 3.32%) (n = 6, p < 0.05) (Figure 3B).

2.8. Adenosine Receptor-Mediated Anti-Apoptotic Effect Involves MEK/ERK1/2, PKA, and NOS

To highlight the mechanism of adenosine-mediated protection against caspase-3 cleavage, HUVECs were treated with different antagonists (Table 1): 10 µM U0126 (MEK/ERK1/2), 10 µM LY294002 (PI3K), 100 µM 5-HD (mitoKATP channel), and 10 µM L-NAME (NOS), H89 20 µM (PKA), and 5 µM indomethacin (COX) and then with 10 µM adenosine prior to two hours of hypoxia. The anti-apoptotic effect of adenosine 10 µM was unaffected by blocking COX, PI3K, and mitoKATP channel pathway (data not shown). The expression of cleaved caspase 3 was performed and compared to the control (adenosine 10 µM). The anti-apoptotic effect of 10 µM adenosine (19 ± 1.82%) was significantly limited in cells by blocking MEK/ERK1/2 (49.75 ± 13.46%), PKA (54.25 ± 9.65%), and the NOS (57.75 ± 14.01%) pathway (n = 6, p < 0.05) (Figure 5).

3. Discussion

In this study, we evaluated the anti-apoptotic effect of extracellular ATP against hypoxic injury in a model of human umbilical vein endothelial cells. The main findings of this study are as follows: (1) Hypoxic stress was associated with a significant release of ATP from endothelial cells. (2) This was associated with an increase in the extracellular concentration of adenosine. (3) The anti-apoptotic effect of extracellular ATP was mediated by both P2 and adenosine receptors. The MEK/ERK1/2, PI3K, mitoKATP channel, and NOS signaling pathways were involved in the anti-apoptotic effect of extracellular ATP. (4) A2A, A2B, and A3 receptors were involved in the anti-apoptotic effect of ATP. Adenosine-mediated protection involved the MEK/ERK1/2, PKA, and NOS pathways. ATP and adenosine share common signaling pathways such as MEK/ERK1/2 and NOS.
In our model, endothelial cells were subjected to hypoxic stress (pO2 < 2%) [22] for two hours [23]. Compared to normoxic conditions in human umbilical vein blood, hypoxia was considered in HUVEC when an O2 content was less than 2% [22]. An important release of ATP rapidly occurred, within the first 15 min after the onset of hypoxia. The concentration of ATP then rapidly decreased after 30 min and was undetectable after 60 min of hypoxia. In response to a large variety of stimuli, ATP can be released from cells [19,24,25,26]. Gerasimovskaya et al. [24] reported that hypoxia induced the release of ATP into the extracellular medium from both adventitial fibroblasts and endothelial cells. They observed an ATP concentration, which peaked at 5 nM after 30 min of hypoxic stress. Urban et al. [19] reported a 2.5-fold increase of extracellular ATP after 10 min of simulated hypoxia. As in our model, they reported a rapid decrease in extracellular ATP after 30 min, which was undetectable after 60 min of hypoxia. Extracellular peak concentration of ATP reached around 108 nM in our model. In plasma sampling, different studies reported concentrations of ATP ranging from 28 to 11,000 nM [27].
With a half-life of approximately 20 s [28], ATP generates ADP, AMP, and adenosine under the action of ectonucleotidases [9,29]. Our result also showed a seven-fold increase in extracellular adenosine in the first stages of hypoxia and a sustained increase at re-oxygenation. Initial studies indicated that the half-life of extracellular adenosine increased fivefold after exposure of the endothelial cells to hypoxic conditions [30]. Conde et al. [31] studied adenosine release during hypoxia from the rat carotid body. Using a nucleotidase inhibitor, they suggested in their model that approximately 40% of extracellular adenosine came from the extracellular catabolism of ATP [31]. Casanello et al. reported adenosine concentrations of 1800 nM after 24 h of hypoxia of endothelial cells [22]. Harrison et al. and Djerada et al. also reported an increase in adenosine concentration (ranging 0.3–18 µM) in interstitial fluid during ischemia/reperfusion in a Langendorff heart model [15,32]. In addition, during hypoxia, an increase in extracellular adenosine production has been reported as a result of increased enzymatic activity of both CD39 and CD73 [30]. Uptake of extracellular adenosine is impaired during hypoxia due to reduced expression of equilibrative nucleoside transporters (ENTs) [22,33,34,35,36]. Lastly, during acute hypoxia, a reduction of adenosine deaminase catabolism was reported [37]. Together, these studies can explain the sustained extracellular adenosine concentrations (Figure 1B, Supplementary file 1).
This current study confirmed the expression of ectonucleotidases, P2, and adenosine receptors in endothelial cells. According to the literature, P2Y1, P2Y2, P2Y4, P2Y6, P2Y11, P2X7, P2X4, A2A, A2B, and A3 receptors are expressed in endothelial cells. Wang et al. reported that, among the P2 receptors, the expression of P2X4, P2Y11, P2Y1, and P2Y2 was preponderant in endothelial cells [38] whereas, regarding adenosine receptors, A2A and A2B receptors are mostly expressed [9,39]. We also demonstrated the expression of ectonucleotidases CD39 and CD73 in endothelial cells, according to the literature [40].
To demonstrate that ATP and adenosine exert a complementary role in protection against hypoxic stress, we used a non-selective adenosine antagonist (CGS15943) and two P2 receptor antagonists (suramin and PPADS). The ATP concentration used was 10 µM since, at this concentration, expression of cleaved caspase 3 was significantly reduced (Figure 4). First, suramin or PPADS, two P2 antagonists, reduced the protective effect of ATP against hypoxic stress. In agreement with the literature, our results suggest the involvement of P2 in protection against hypoxia [8,12,13,19,20]. The fact that CGS15943 counteracted the anti-apoptotic effect of ATP in response to hypoxia further suggests that both adenosine and P2 receptors play a complementary role in the protective effect against hypoxia [13].
Compared to the control, CGS15943 did not significantly increase cleaved caspase 3, while a significant effect was observed with suramin. These results can be explained by the suppression of the protective effect of the endogenous nucleotides released during hypoxia.
The involvement of multiple signaling pathways has been described in the P2Y-mediated cardioprotection against ischemia [8]. The set-up of our protocol using 1 µM CGS15943 and then 10 µM ATP 5 min before hypoxia was aimed at focusing on the protective P2-mediated effect of ATP. In agreement with the literature, the inhibition of MEK/ERK1/2 (U0126), PI3K (LY94002), mitoKATP channel (5-HD), and NOS (L-NAME) reduced the anti-apoptotic effect of ATP. This emphasizes the major role of these signaling pathways in the protection against hypoxic or ischemic damage [19,41,42,43,44].
Our results also confirm the involvement of the Reperfusion Injury Salvage Kinase (RISK) pathway (both MEK/ERK1/2 and PI3K pathways) in P2-mediated protection. These data are consistent with the well-established role of the RISK pathway in the cardioprotective effects of ischemic preconditioning and post-conditioning [8,40,42,45,46].
The inhibition of the mitoKATP channel by 5-HD reduced the P2-mediated protection of ATP. We suggest that the mitoKATP channel was involved in the protective effect of the ATP, as previously reported [20].
Using L-NAME, which is a NOS inhibitor, we observed a decrease in the protective effect of extracellular ATP. As suggested by Park et al., ATP can activate the P2Y receptors on the endothelium and the downstream Nitric oxid/guanosine monophosphate pathway [44].
On the one hand, among the receptors expressed in our model, only P2Y receptors could be blocked by 10 µM of suramin [47]. The suppression of the ATP-induced protective effect by PPADS, known as a P2Y and P2X receptor antagonist (P2X1,2,3,4,4, and 7 with higher concentrations, i.e., 100 µM) [48], may suggest that P2X receptors are involved especially those expressed in our model such as P2X4 and P2X7 receptors. On the other hand, it has been reported that alpha-methyl ATP, used at concentrations between 0.1 and 300 µM, activates all P2X receptors [49]. Using ascending concentrations of alpha-methyl ATP (10, 100, 1000 µM), Urban did not observe any anti-apoptotic effects in HUVEC cells. In addition, the fact that the anti-apoptotic effect of ATP involved the PI3K, MEK/ERK1/2, mitoKATP, and NOS pathways suggests an engagement of G protein-coupled receptors such as P2Y receptors [19]. Lastly, the P2Y receptors seem to be more likely involved than P2X receptors in the anti-apoptotic effect induced by extracellular ATP.
Selective antagonist of A2A, A2B, and A3 receptors limited the anti-apoptotic of ATP against hypoxia. A2A receptor has been identified as having cardioprotective and renal protective effect [50,51,52]. A2B receptor has been documented to contribute to cardioprotection [18,50,53]. Other authors also reported A3 adenosine receptor-mediated protection of the ischemic heart [18,50,54,55].
Adenosine uptake inhibition by ticagrelor and cangrelor is associated with a protective effect in an in-vivo model of heart ischemia [56]. Moreover, it has been reported that cardioprotection by cangrelor involved PI3K/Akt and MEK/ERK1/2 pathways [57]. They also reported an involvement of mitoKATP channel and A2B receptor.
We observed a limited protective effect of adenosine with L-NAME, which is a NOS inhibitor. Our results suggest that the activation of adenosine receptors involved NO production, which is in agreement with Nanhwan et al. [56]. The release of mediators such as nitric oxide might represent a paracrine communication between cardiac endothelial cells and cardiomyocytes, which provides remote protection for cardiac cells. In addition, NO has been found to mediate cardioprotective effects [7,46].
Our results did not highlight the involvement of the COX pathway. This is in contrast with a previous study reporting a cardioprotective effect of ticagrelor dependent on adenosine and the cox pathway [56].
Our results demonstrated an involvement of the MEK/ERK1/2, NOS, and PKA pathways in adenosine-mediated protection. It has been reported that adenosine-mediated cardioprotective effects involve different signaling pathways, such as MEK/ERK1/2, PI3K/Akt, NOS, PKA, and COX [50,58]. These discrepancies can be explained by differences between in-vivo and/or in-vitro models of isolated heart and in-vitro cultured HUVECs and differences in the receptor expression.

4. Materials and Methods

4.1. Cell Culture

HUVECs were purchased from PromoCell (Sickingenstraße, Heidelberg, Germany) and cultured in endothelial cell growth medium (PromoCell) containing 2% (v/v) Fetal Coat Serum (FCS), 0.4% (v/v) endothelial growth supplement: 0.1 ng/mL human Epidermal Growth Factor (EGF), 1.0 μg/mL hydrocortisone, 1 ng/mL human basic fibroblast growth factor (bFGF), 90 µg/mL heparin, and 1 % (v/v) penicillin/streptomycin (DUTSCHER SAS, Brumath, France) in a fully humidified atmosphere at 37 °C and 5% CO2. Confluent cells were detached with the PromoCell detach kit (Sickingenstraße, Heidelberg, Germany) containing 30 mM Hepes, Trypsin/EDTA Solution (0.04%/0.03%), and Trypsin Neutralizing Solution. FCS was reduced to 1% 24 h before the experiment. All experiments were performed on subconfluent endothelial monolayer cells (80%) after the third passage.

4.2. Experimental Protocols

Cells were placed into a custom-made hypoxic chamber (Bactron, Sheldon Manufacturing Inc, Cornelius, NC, USA) and exposed to 95% (v/v) N2 and 5% (v/v) CO2 for 2 h at 37 °C. PO2 in the hypoxic chamber was reduced to less than 1.5% during the experiments. Control cells were cultured in parallel under normoxic conditions. During the experiments, cells and medium were harvested at different times for cytotoxic analysis (Lactate dehydrogenase LDH activity), Real-time polymerase chain reaction (RT-PCR) analysis, and quantification of nucleotides in the medium. After 2 h of hypoxia, the cleavage of caspase 3 was evaluated by immunoblotting.
Adenosine, AMP, ADP, and ATP were purchased from Sigma-Aldrich (St. Louis, MO, USA). Ligands were added just before hypoxia. P2-receptor antagonists suramin (Sigma-Aldrich, Saint-Louis, MO, USA) and PPADS (Tocris, Bristol, United Kingdom), Adenosine receptor antagonists CGS15943 (Sigma-Aldrich, Saint-Louis, MO, USA), SCH442416 (Sigma-Aldrich, Saint-Louis, MO, USA), MRS1754 (Sigma-Aldrich, Saint-Louis, MO, USA), and MRS1191 (Sigma-Aldrich, Saint-Louis, MO, USA) were added 15 min before hypoxia. The MEK/ERK1/2-inhibitor U0126 (Sigma-Aldrich, Saint-Louis, MO, USA), the PI3K-inhibitor LY294002 (Sigma-Aldrich, Saint-Louis, MO, USA), the PKA-inhibitor H-89 (Sigma-Aldrich, Saint-Louis, MO, USA), the mitoKATP channel inhibitor (5-HD, Sigma-Aldrich, Saint-Louis, MO, USA), the COX-inhibitor indomethacin (Sigma-Aldrich, Saint-Louis, MO, USA), the nitric oxide synthase (NOS), and the inhibitor L-(NAME Sigma-Aldrich, Saint-Louis, MO, USA) were added 15 min before hypoxia. All these compounds were dissolved in phosphate buffered saline (PBS) or dimethylsulfoxyde (DMSO, Bio Basic Inc, Markham, ON, Canada), according to their solubility. Final DMSO concentration was less than 0.1% in cell culture medium. Working concentrations of inhibitors and antagonists were the same as previously described (Table 1) [12,16,17,19,20].

4.3. Quantification of Nucleotides in Extracellular Medium

Culture medium (50 µL) was collected at different times during the course of each experiment. As described, to inhibit ectonucleotidase activity, 75 µL (60% V/V) of methanol were added and the extracts were frozen at −80° [59,60,61]. Internal standard solution (nicotinamide D4 10 µg L−1) was added. Mixtures were evaporated under nitrogen at 40 °C and then reconstituted with 100 μL of ice-cold water (Liquid Chromatography Mass Spectrometry (LC-MS) hypergrade). Liquid chromatography (Hypercarb column 5 µM, 2.1 × 150 mm, ThermoFisher Scientific, San José, CA, USA) coupled with high-resolution mass spectrometer (LC-HRMS) was used for the quantification (ThermoFisher Scientific, San José, CA, USA). High-resolution mass for ATP (C10H16N5O13P3, negative mode ionization, m/z 505.98847), for adenosine (C10H13N5O4, positive mode ionization, m/z 268.10403), and for nicotinamide D4 (C6H2D4N2O, positive mode ionisation, m/z 127.0804) were used for quantification. TraceFinder Forensic 3.3 was used for LC-MS, library management, acquisition, and processing. These assays were performed as previously described [15,62,63].

4.4. RT-PCR

During the course of each experiment, cells were collected at T0 (control), T30, T60, T120, and T240 min. Total RNA was extracted using RNeasy Mini-KitTM (Qiagen, Courtaboeuf, France). cDNA synthesis was obtained from 1 µg RNA using the iScript cDNA synthesis kit (Biorad, Marnes-la-Coquette, France). Real time PCR was performed with Sybr Green PCR reagents and analyzed on an ABI Prism 7500 Fast Real- Time PCR System (Applied Biosystems, ThermoFisher Scientific, San José, CA, USA). PCR was carried out in duplicate for each sample. EEF2 was used as the Housekeeping gene. Results are presented as normalized mRNA levels using the following formula: 2−ΔΔCT according to Livak et al. [64]. mRNA expression of ectonucleotidases, adenosine, and P2 receptors was assayed: forward and reverse oligonucleotide primers are described in Supplementary file 4.

4.5. Immunoblotting

Samples for Western Blot were collected as follows. After treatment, the cell culture medium was collected and cells were washed in fresh PBS 1X. Protein extraction was performed by adding 100 µL of RIPA Buffer (Sigma-Aldrich) supplemented with protease and phosphatase inhibitor cocktails. Samples were sonicated three times for 10 s and then centrifuged 30 min at 16,000 g at 4 °C. The Bradford assay was performed to quantify proteins in samples. Equal lysed cellular protein (30 µg) were boiled in the sample loading buffer for 5 min before loading on 12.5% sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS–PAGE) for electrophoretic separation and subsequently transferred into polyvinylidene difluoride membranes (Immun-Blot PVDF Membrane Bio-Rad, Hercules, CA, USA). After blocking with skimmed milk 5% (m/v) in TBS-T (Tris-Buffered Saline and TWEEN 20 0.05% (v/v)) membranes were incubated with the primary antibody overnight at 4 °C. After washing with TBS-T, membranes were incubated with appropriate horseradish peroxidase-labelled secondary antibodies (1 h, 30 min at room temperature) (Supplementary file 5). Immunoreactivity was detected with the Chemiluminescent HRP detection reagent (Millipore, Burlington, VT, USA). Quantification was performed by densitometric analysis using the Quantity One software of ChemiDoc XRS and ImageLab for reprocessing image and quantification (BioRad, Marnes-la-Coquette, France) [15].

4.6. LDH Activity

The activity of LDH was analyzed using the Pierce LDH Cytotoxicity Assay Kit, according to the manufacturer’s instructions (ThermoFisher, Waltham, MA, USA). Medium was transferred into a new plate and mixed with the Reaction Mixture. After incubation at room temperature for 30 min, the reaction was stopped by adding the Stop Solution. To determine LDH activity, the absorbance were measured at 490 nm and 680 nm by the plate-reading spectrophotometer Victor X3 (Perkin Elmer, Waltham, MA, USA).

4.7. Statistical Analysis

Statistical analyses were performed using the Prism 4.00 GraphPad Software, San Diego, CA, USA and R 3.1.4 (The R Foundation for Statistical Computing, http://www.r-project.org). All data are expressed as mean ± sem. Before applying the parametric unpaired t test, the Gaussian distribution of data was assessed by the Shapiro-Wilk normality test and the Kolmogorov-Smirnov test. For non-parametric distribution, a Mann-Whitney test was used. For all significant differences concerning primary endpoints, a posteriori powers higher than 80% were checked. Boneferroni correction was applied in the case of multiple comparisons.
All p values were two-tailed with statistical significance indicated by a value of p < 0.05 [65,66].

5. Conclusions

The present study shows the complementary role of adenosine and P2 receptors in the endothelial protection induced by extracellular ATP against hypoxic stress. ATP can act directly after its binding to the P2 receptors, which leads to the activation of MEK/ERK1/2, PI3K/Akt, NOS, and the mitoKATP channel. Adenosine, which is a metabolite of ATP, by binding to A2A, A2B, and A3 receptors, leads to the activation of MEK/ERK1/2, PKA, and NOS. We have identified a complementary role of ATP and adenosine in the anti-apoptotic effect against endothelial cell hypoxia. P2 and adenosine receptors may be novel therapeutic targets to prevent the development of ischemic injury in various organs including the heart, brain, and kidney.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/6/1446/s1. Supplementary file 1: Extracellular kinetics of nucleotides and adenosine during hypoxia and re-oxygenation. Data are expressed relative to baseline as log10 (means ± sem) (n = 6/group). Supplementary file 2: LDH activity of endothelial cells after 2 h of hypoxia. Data are means ± sem (n = 6/group). * p < 0.05, compared to the negative control group. Supplementary file 3: Inhibitors of signaling pathways. HUVECs were treated with different antagonists: 10 µM U0126 (MEK/ERK1/2), 10 µM LY294002 (PI3K), 20 µM H89 (PKA), 10 µM L-NAME (NOS), and 100 µM 5-HD (mitoKATP). Results are expressed as means ± sem (n = 6/group) of relative caspase 3 expression (%) in HUVECs after 2 h of hypoxia. Supplementary file 4: Forward and reverse oligonucleotide primers for RT-PCR analysis. Supplementary file 5: Primary and secondary antibodies for immunoblotting analysis.

Author Contributions

Conceptualization, C.F., H.P., G.P., P.N., H.M. and Z.D.; Data curation, C.F., H.P., G.P., Y.C., F.O., and Z.D. Formal analysis, C.F., H.P., Y.C., F.O., H.M., and Z.D. Funding acquisition, P.N., H.M., and Z.D. Investigation, C.F., H.P., G.P., and Z.D. Methodology, C.F., H.M., and Z.D. Project administration, Z.D. Resources, C.F., H.P., G.P., F.O., P.N., and Z.D. Software, C.F., H.P., Y.C., F.O., H.M., and Z.D. Supervision, H.M. and Z.D. Validation, H.P., Y.C., P.N., H.M., and Z.D. Visualization, H.P. and Z.D. Writing—original draft, C.F. Writing—review & editing, H.M. and Z.D.

Funding

This study was supported by the University of Reims Champagne-Ardenne.

Acknowledgements

We thank the laboratory staff of pharmacology for nucleotides/nucleosides quantification. The authors thank M. Colbourne of ProofreadMyEssay (United Kingdom) for his revision of a part of the English text.

Conflicts of Interest

C.F., H.P., G.P., F.O., Y.C., P.N., H.M., and Z.D. declare no financial relationships with any organizations that might have an interest in the submitted work. No other relationships or activities that could appear to have influenced the submitted work.

References

  1. Mason, J.C. Cytoprotective pathways in the vascular endothelium. Do they represent a viable therapeutic target? Vascul. Pharmacol. 2016, 86, 41–52. [Google Scholar] [CrossRef] [PubMed]
  2. Li, H.; Horke, S.; Förstermann, U. Vascular oxidative stress, nitric oxide and atherosclerosis. Atherosclerosis 2014, 237, 208–219. [Google Scholar] [CrossRef]
  3. Fisher, M. Injuries to the vascular endothelium: Vascular wall and endothelial dysfunction. Rev. Neurol. Dis. 2008, 5 (Suppl. 1), S4–S11. [Google Scholar]
  4. Singhal, A.K.; Symons, J.D.; Boudina, S.; Jaishy, B.; Shiu, Y.-T. Role of Endothelial Cells in Myocardial Ischemia-Reperfusion Injury. Vasc. Dis. Prev. 2010, 7, 1. [Google Scholar] [CrossRef] [PubMed]
  5. Scarabelli, T.; Stephanou, A.; Rayment, N.; Pasini, E.; Comini, L.; Curello, S.; Ferrari, R.; Knight, R.; Latchman, D. Apoptosis of endothelial cells precedes myocyte cell apoptosis in ischemia/reperfusion injury. Circulation 2001, 104, 253–256. [Google Scholar] [CrossRef] [PubMed]
  6. Parolari, A.; Rubini, P.; Cannata, A.; Bonati, L.; Alamanni, F.; Tremoli, E.; Biglioli, P. Endothelial damage during myocardial preservation and storage. Ann. Thorac. Surg. 2002, 73, 682–690. [Google Scholar] [CrossRef]
  7. Yang, Q.; He, G.-W.; Underwood, M.J.; Yu, C.-M. Cellular and molecular mechanisms of endothelial ischemia/reperfusion injury: Perspectives and implications for postischemic myocardial protection. Am. J. Transl. Res. 2016, 8, 765–777. [Google Scholar]
  8. Djerada, Z.; Feliu, C.; Richard, V.; Millart, H. Current knowledge on the role of P2Y receptors in cardioprotection against ischemia-reperfusion. Pharmacol. Res. 2016, 118, 5–18. [Google Scholar] [CrossRef]
  9. Burnstock, G. Purinergic Signaling in the Cardiovascular System. Circ. Res. 2017, 120, 207–228. [Google Scholar] [CrossRef][Green Version]
  10. Erlinge, D.; Burnstock, G. P2 receptors in cardiovascular regulation and disease. Purinergic Signal. 2008, 4, 1–20. [Google Scholar] [CrossRef]
  11. Djerada, Z.; Millart, H. Intracellular NAADP increase induced by extracellular NAADP via the P2Y11-like receptor. Biochem. Biophys. Res. Commun. 2013, 436, 199–203. [Google Scholar] [CrossRef]
  12. Wee, S.; Peart, J.N.; Headrick, J.P. P2 purinoceptor-mediated cardioprotection in ischemic-reperfused mouse heart. J. Pharmacol. Exp. Ther. 2007, 323, 861–867. [Google Scholar] [CrossRef] [PubMed]
  13. Ninomiya, H.; Otani, H.; Lu, K.; Uchiyama, T.; Kido, M.; Imamura, H. Complementary role of extracellular ATP and adenosine in ischemic preconditioning in the rat heart. Am. J. Physiol. Heart Circ. Physiol. 2002, 282, H1810–H1820. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Cohen, M.V.; Downey, J.M. Adenosine: Trigger and mediator of cardioprotection. Basic Res. Cardiol. 2008, 103, 203–215. [Google Scholar] [CrossRef]
  15. Djerada, Z.; Peyret, H.; Dukic, S.; Millart, H. Extracellular NAADP affords cardioprotection against ischemia and reperfusion injury and involves the P2Y11-like receptor. Biochem. Biophys. Res. Commun. 2013, 434, 428–433. [Google Scholar] [CrossRef] [PubMed]
  16. Avanzato, D.; Genova, T.; Fiorio Pla, A.; Bernardini, M.; Bianco, S.; Bussolati, B.; Mancardi, D.; Giraudo, E.; Maione, F.; Cassoni, P.; et al. Activation of P2X7 and P2Y11 purinergic receptors inhibits migration and normalizes tumor-derived endothelial cells via cAMP signaling. Sci. Rep. 2016, 6, 32602. [Google Scholar] [CrossRef][Green Version]
  17. YU, J.; HUANG, X.; WU, Q.; WANG, J.; YU, X.; ZHAO, P. Effect of A2A receptor antagonist (SCH 442416) on the mRNA expression of glutamate aspartate transporter and glutamine synthetase in rat retinal Müller cells under hypoxic conditions in vitro. Exp. Ther. Med. 2012, 3, 803–806. [Google Scholar] [CrossRef][Green Version]
  18. Salie, R.; Moolman, J.A.; Lochner, A. The mechanism of beta-adrenergic preconditioning: Roles for adenosine and ROS during triggering and mediation. Basic Res. Cardiol. 2012, 107, 281. [Google Scholar] [CrossRef]
  19. Urban, D.; Härtel, F.V.; Gadiraju, K.; Gündüz, D.; Aslam, M.; Piper, H.M.; Noll, T. Extracellular ATP attenuates ischemia-induced caspase-3 cleavage in human endothelial cells. Biochem. Biophys. Res. Commun. 2012, 425, 230–236. [Google Scholar] [CrossRef]
  20. Millart, H.; Alouane, L.; Oszust, F.; Chevallier, S.; Robinet, A. Involvement of P2Y receptors in pyridoxal-5′-phosphate-induced cardiac preconditioning. Fundam. Clin. Pharmacol. 2009, 23, 279–292. [Google Scholar] [CrossRef][Green Version]
  21. Alm, R.; Edvinsson, L.; Malmsjö, M. Organ culture: A new model for vascular endothelium dysfunction. BMC Cardiovasc. Disord. 2002, 2, 8. [Google Scholar] [CrossRef]
  22. Casanello, P.; Torres, A.; Sanhueza, F.; González, M.; Farías, M.; Gallardo, V.; Pastor-Anglada, M.; San Martín, R.; Sobrevia, L. Equilibrative nucleoside transporter 1 expression is downregulated by hypoxia in human umbilical vein endothelium. Circ. Res. 2005, 97, 16–24. [Google Scholar] [CrossRef]
  23. Kumar, S.; Reusch, H.P.; Ladilov, Y. Acidic pre-conditioning suppresses apoptosis and increases expression of Bcl-xL in coronary endothelial cells under simulated ischaemia. J. Cell. Mol. Med. 2008, 12, 1584–1592. [Google Scholar] [CrossRef]
  24. Gerasimovskaya, E.V.; Ahmad, S.; White, C.W.; Jones, P.L.; Carpenter, T.C.; Stenmark, K.R. Extracellular ATP is an autocrine/paracrine regulator of hypoxia-induced adventitial fibroblast growth. Signaling through extracellular signal-regulated kinase-1/2 and the Egr-1 transcription factor. J. Biol. Chem. 2002, 277, 44638–44650. [Google Scholar] [CrossRef]
  25. Bodin, P.; Burnstock, G. Synergistic effect of acute hypoxia on flow-induced release of ATP from cultured endothelial cells. Experientia 1995, 51, 256–259. [Google Scholar] [CrossRef]
  26. Bodin, P.; Burnstock, G. Purinergic signalling: ATP release. Neurochem. Res. 2001, 26, 959–969. [Google Scholar] [CrossRef]
  27. Gorman, M.W.; Feigl, E.O.; Buffington, C.W. Human Plasma ATP Concentration. Clin. Chem. 2007, 53, 318–325. [Google Scholar] [CrossRef]
  28. Picher, M.; Burch, L.H.; Boucher, R.C. Metabolism of P2 receptor agonists in human airways: Implications for mucociliary clearance and cystic fibrosis. J. Biol. Chem. 2004, 279, 20234–20241. [Google Scholar] [CrossRef]
  29. Yegutkin, G.G. Nucleotide- and nucleoside-converting ectoenzymes: Important modulators of purinergic signalling cascade. Biochim. Biophys. Acta 2008, 1783, 673–694. [Google Scholar] [CrossRef][Green Version]
  30. Koeppen, M.; Eckle, T.; Eltzschig, H.K. Chapter 6—Interplay of Hypoxia and A2B Adenosine Receptors in Tissue Protection. In Advances in Pharmacology; Pharmacology of Purine and Pyrimidine Receptors; Jacobson, K.A., Linden, J., Eds.; Academic Press: New York, NY, USA, 2011; Volume 61, pp. 145–186. [Google Scholar]
  31. Conde, S.V.; Monteiro, E.C. Hypoxia induces adenosine release from the rat carotid body. J. Neurochem. 2004, 89, 1148–1156. [Google Scholar] [CrossRef][Green Version]
  32. Harrison, G.J.; Willis, R.J.; Headrick, J.P. Extracellular adenosine levels and cellular energy metabolism in ischemically preconditioned rat heart. Cardiovasc. Res. 1998, 40, 74–87. [Google Scholar] [CrossRef][Green Version]
  33. Chaudary, N.; Naydenova, Z.; Shuralyova, I.; Coe, I.R. Hypoxia regulates the adenosine transporter, mENT1, in the murine cardiomyocyte cell line, HL-1. Cardiovasc. Res. 2004, 61, 780–788. [Google Scholar] [CrossRef][Green Version]
  34. Löffler, M.; Morote-Garcia, J.C.; Eltzschig, S.A.; Coe, I.R.; Eltzschig, H.K. Physiological roles of vascular nucleoside transporters. Arterioscler. Thromb. Vasc. Biol. 2007, 27, 1004–1013. [Google Scholar] [CrossRef]
  35. Morote-Garcia, J.C.; Rosenberger, P.; Nivillac, N.M.I.; Coe, I.R.; Eltzschig, H.K. Hypoxia-inducible factor-dependent repression of equilibrative nucleoside transporter 2 attenuates mucosal inflammation during intestinal hypoxia. Gastroenterology 2009, 136, 607–618. [Google Scholar] [CrossRef]
  36. Rose, J.B.; Naydenova, Z.; Bang, A.; Eguchi, M.; Sweeney, G.; Choi, D.-S.; Hammond, J.R.; Coe, I.R. Equilibrative nucleoside transporter 1 plays an essential role in cardioprotection. Am. J. Physiol. Heart Circ. Physiol. 2010, 298, H771–H777. [Google Scholar] [CrossRef]
  37. Eltzschig, H.K.; Faigle, M.; Knapp, S.; Karhausen, J.; Ibla, J.; Rosenberger, P.; Odegard, K.C.; Laussen, P.C.; Thompson, L.F.; Colgan, S.P. Endothelial catabolism of extracellular adenosine during hypoxia: The role of surface adenosine deaminase and CD26. Blood 2006, 108, 1602–1610. [Google Scholar] [CrossRef]
  38. Wang, L.; Karlsson, L.; Moses, S.; Hultgårdh-Nilsson, A.; Andersson, M.; Borna, C.; Gudbjartsson, T.; Jern, S.; Erlinge, D. P2 receptor expression profiles in human vascular smooth muscle and endothelial cells. J. Cardiovasc. Pharmacol. 2002, 40, 841–853. [Google Scholar] [CrossRef]
  39. Burnstock, G.; Ralevic, V. Purinergic signaling and blood vessels in health and disease. Pharmacol. Rev. 2014, 66, 102–192. [Google Scholar] [CrossRef]
  40. Burnstock, G. Purine and pyrimidine receptors. Cell. Mol. Life Sci. 2007, 64, 1471–1483. [Google Scholar] [CrossRef]
  41. Beitner-Johnson, D.; Rust, R.T.; Hsieh, T.C.; Millhorn, D.E. Hypoxia activates Akt and induces phosphorylation of GSK-3 in PC12 cells. Cell. Signal. 2001, 13, 23–27. [Google Scholar] [CrossRef]
  42. Miura, T.; Tanno, M.; Sato, T. Mitochondrial kinase signalling pathways in myocardial protection from ischaemia/reperfusion-induced necrosis. Cardiovasc. Res. 2010, 88, 7–15. [Google Scholar] [CrossRef][Green Version]
  43. Wang, C.; Hu, S.M.; Xie, H.; Qiao, S.G.; Liu, H.; Liu, C.F. Role of mitochondrial ATP-sensitive potassium channel-mediated PKC-ε in delayed protection against myocardial ischemia/reperfusion injury in isolated hearts of sevoflurane-preconditioned rats. Braz. J. Med. Biol. Res. Rev. Bras. Pesqui. Medicas E Biol. 2015, 48, 528–536. [Google Scholar] [CrossRef][Green Version]
  44. Park, J.I.; Shin, C.Y.; Lee, Y.W.; Huh, I.H.; Sohn, U.D. Endothelium-dependent Sensory Non-adrenergic Non-cholinergic Vasodilatation in Rat Thoracic Aorta: Involvement of ATP and a Role for NO. J. Pharm. Pharmacol. 2000, 52, 409–416. [Google Scholar] [CrossRef]
  45. Hausenloy, D.J.; Yellon, D.M. Ischaemic conditioning and reperfusion injury. Nat. Rev. Cardiol. 2016, 13, 193–209. [Google Scholar] [CrossRef]
  46. Daiber, A.; Xia, N.; Steven, S.; Oelze, M.; Hanf, A.; Kröller-Schön, S.; Münzel, T.; Li, H. New Therapeutic Implications of Endothelial Nitric Oxide Synthase (eNOS) Function/Dysfunction in Cardiovascular Disease. Int. J. Mol. Sci. 2019, 20, 187. [Google Scholar] [CrossRef]
  47. Jacobson, K.A.; Jarvis, M.F.; Williams, M. Purine and Pyrimidine (P2) Receptors as Drug Targets. J. Med. Chem. 2002, 45, 4057–4093. [Google Scholar] [CrossRef]
  48. Ralevic, V.; Burnstock, G. Receptors for Purines and Pyrimidines. Pharmacol. Rev. 1998, 50, 413–492. [Google Scholar]
  49. Coddou, C.; Yan, Z.; Obsil, T.; Huidobro-Toro, J.P.; Stojilkovic, S.S. Activation and Regulation of Purinergic P2X Receptor Channels. Pharmacol. Rev. 2011, 63, 641–683. [Google Scholar] [CrossRef][Green Version]
  50. Peart, J.N.; Headrick, J.P. Adenosinergic cardioprotection: Multiple receptors, multiple pathways. Pharmacol. Ther. 2007, 114, 208–221. [Google Scholar] [CrossRef]
  51. Maddock, H.L.; Broadley, K.J.; Bril, A.; Khandoudi, N. Role of endothelium in ischaemia-induced myocardial dysfunction of isolated working hearts: Cardioprotection by activation of adenosine A(2A) receptors. J. Auton. Pharmacol. 2001, 21, 263–271. [Google Scholar] [CrossRef]
  52. Day, Y.-J.; Huang, L.; McDuffie, M.J.; Rosin, D.L.; Ye, H.; Chen, J.-F.; Schwarzschild, M.A.; Fink, J.S.; Linden, J.; Okusa, M.D. Renal protection from ischemia mediated by A2A adenosine receptors on bone marrow-derived cells. J. Clin. Investig. 2003, 112, 883–891. [Google Scholar] [CrossRef]
  53. Eckle, T.; Krahn, T.; Grenz, A.; Köhler, D.; Mittelbronn, M.; Ledent, C.; Jacobson, M.A.; Osswald, H.; Thompson, L.F.; Unertl, K.; et al. Cardioprotection by ecto-5′-nucleotidase (CD73) and A2B adenosine receptors. Circulation 2007, 115, 1581–1590. [Google Scholar] [CrossRef]
  54. Peart, J.; Flood, A.; Linden, J.; Matherne, G.P.; Headrick, J.P. Adenosine-mediated cardioprotection in ischemic-reperfused mouse heart. J. Cardiovasc. Pharmacol. 2002, 39, 117–129. [Google Scholar] [CrossRef]
  55. Maddock, H.L.; Mocanu, M.M.; Yellon, D.M. Adenosine A(3) receptor activation protects the myocardium from reperfusion/reoxygenation injury. Am. J. Physiol. Heart Circ. Physiol. 2002, 283, H1307–H1313. [Google Scholar] [CrossRef]
  56. Nanhwan, M.K.; Ling, S.; Kodakandla, M.; Nylander, S.; Ye, Y.; Birnbaum, Y. Chronic treatment with ticagrelor limits myocardial infarct size: An adenosine and cyclooxygenase-2-dependent effect. Arterioscler. Thromb. Vasc. Biol. 2014, 34, 2078–2085. [Google Scholar] [CrossRef]
  57. Yang, X.-M.; Liu, Y.; Cui, L.; Yang, X.; Liu, Y.; Tandon, N.; Kambayashi, J.; Downey, J.M.; Cohen, M.V. Platelet P2Y12 blockers confer direct postconditioning-like protection in reperfused rabbit hearts. J. Cardiovasc. Pharmacol. Ther. 2013, 18, 251–262. [Google Scholar] [CrossRef]
  58. Lochner, A.; Marais, E.; Genade, S.; Huisamen, B.; du Toit, E.F.; Moolman, J.A. Protection of the ischaemic heart: Investigations into the phenomenon of ischaemic preconditioning. Cardiovasc. J. Afr. 2009, 20, 43–51. [Google Scholar]
  59. Cohen, S.; Megherbi, M.; Jordheim, L.P.; Lefebvre, I.; Perigaud, C.; Dumontet, C.; Guitton, J. Simultaneous analysis of eight nucleoside triphosphates in cell lines by liquid chromatography coupled with tandem mass spectrometry. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2009, 877, 3831–3840. [Google Scholar] [CrossRef]
  60. Canelas, A.B.; ten Pierick, A.; Ras, C.; Seifar, R.M.; van Dam, J.C.; van Gulik, W.M.; Heijnen, J.J. Quantitative evaluation of intracellular metabolite extraction techniques for yeast metabolomics. Anal. Chem. 2009, 81, 7379–7389. [Google Scholar] [CrossRef]
  61. Zhang, G.; Walker, A.D.; Lin, Z.; Han, X.; Blatnik, M.; Steenwyk, R.C.; Groeber, E.A. Strategies for quantitation of endogenous adenine nucleotides in human plasma using novel ion-pair hydrophilic interaction chromatography coupled with tandem mass spectrometry. J. Chromatogr. A 2014, 1325, 129–136. [Google Scholar] [CrossRef]
  62. Feliu, C.; Millart, H.; Guillemin, H.; Vautier, D.; Binet, L.; Fouley, A.; Djerada, Z. Validation of a fast UPLC-MS/MS method for quantitative analysis of opioids, cocaine, amphetamines (and their derivatives) in human whole blood. Bioanalysis 2015, 7, 2685–2700. [Google Scholar] [CrossRef]
  63. Djerada, Z.; Feliu, C.; Tournois, C.; Vautier, D.; Binet, L.; Robinet, A.; Marty, H.; Gozalo, C.; Lamiable, D.; Millart, H. Validation of a fast method for quantitative analysis of elvitegravir, raltegravir, maraviroc, etravirine, tenofovir, boceprevir and 10 other antiretroviral agents in human plasma samples with a new UPLC-MS/MS technology. J. Pharm. Biomed. Anal. 2013, 86, 100–111. [Google Scholar] [CrossRef]
  64. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  65. Djerada, Z.; Feliu, C.; Cazaubon, Y.; Smati, F.; Gomis, P.; Guerrot, D.; Charbit, B.; Fernandes, O.; Malinovsky, J.-M. Population Pharmacokinetic-Pharmacodynamic Modeling of Ropivacaine in Spinal Anesthesia. Clin. Pharmacokinet. 2018, 57, 1135–1147. [Google Scholar] [CrossRef]
  66. Djerada, Z.; Fournet-Fayard, A.; Gozalo, C.; Lelarge, C.; Lamiable, D.; Millart, H.; Malinovsky, J.-M. Population pharmacokinetics of nefopam in elderly, with or without renal impairment, and its link to treatment response. Br. J. Clin. Pharmacol. 2014, 77, 1027–1038. [Google Scholar] [CrossRef]

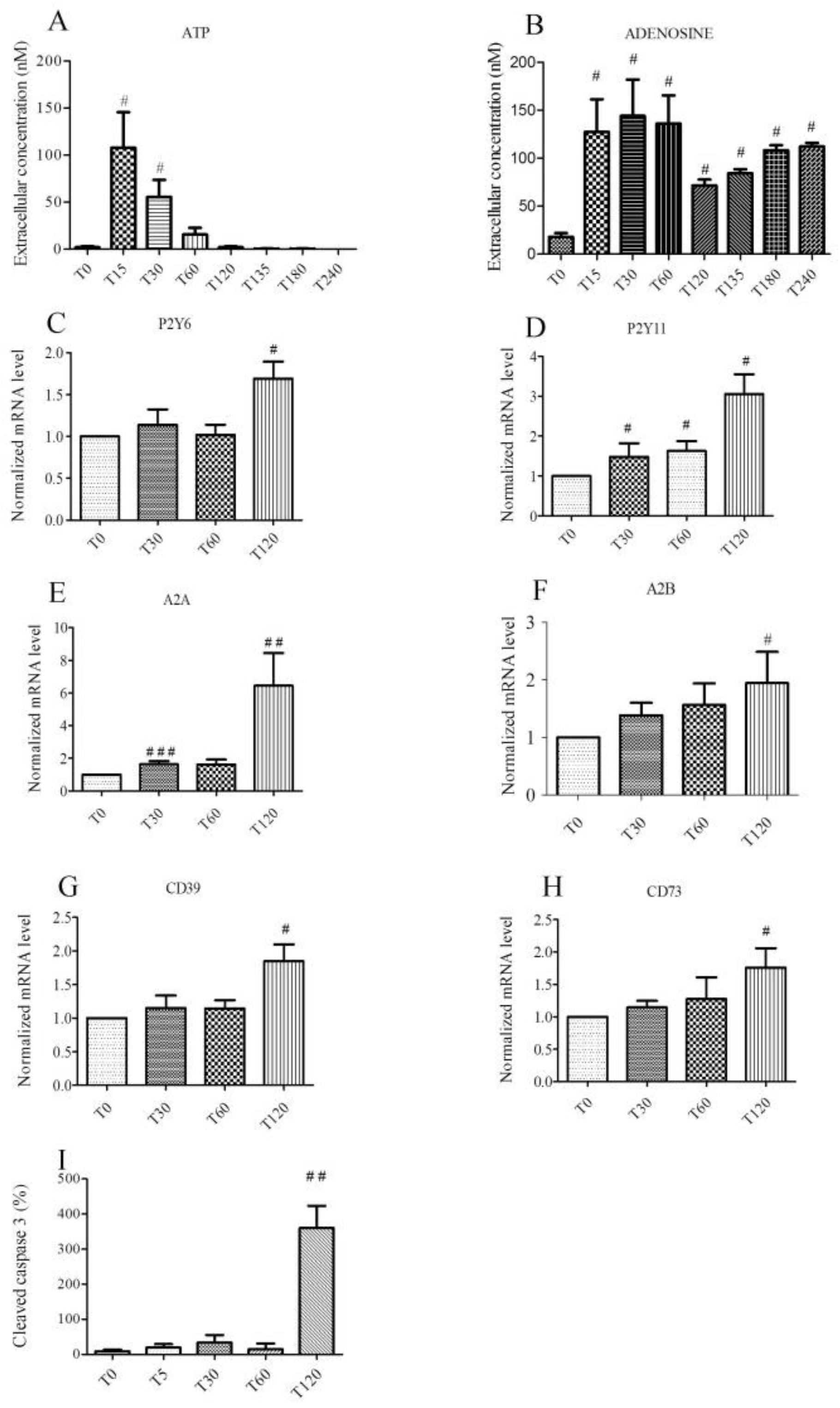

Figure 1. Effect of a 2-h hypoxia on endothelial cells. Extracellular ATP (A) and adenosine (B) concentrations are expressed in nM, during hypoxia (T0–T120) and at re-oxygenation (T135–T240). Overexpression of mRNA for P2Y6 (C) and P2Y11 (D) receptors, adenosine receptors A2A (E), A2B (F), and ectonucleotidases CD39 (G) and CD73 (H) expressed with normalized mRNA levels using the following formula: 2−ΔΔCT as a function of time. Relative expression of cleaved caspase 3 by immunoblotting during hypoxia (I). Results are expressed as means ± sem (n = 6/group). #: p < 0.05, ##: p < 0.01, ###: p < 0.001 compared to T0 group.
Figure 1. Effect of a 2-h hypoxia on endothelial cells. Extracellular ATP (A) and adenosine (B) concentrations are expressed in nM, during hypoxia (T0–T120) and at re-oxygenation (T135–T240). Overexpression of mRNA for P2Y6 (C) and P2Y11 (D) receptors, adenosine receptors A2A (E), A2B (F), and ectonucleotidases CD39 (G) and CD73 (H) expressed with normalized mRNA levels using the following formula: 2−ΔΔCT as a function of time. Relative expression of cleaved caspase 3 by immunoblotting during hypoxia (I). Results are expressed as means ± sem (n = 6/group). #: p < 0.05, ##: p < 0.01, ###: p < 0.001 compared to T0 group.
Ijms 20 01446 g001

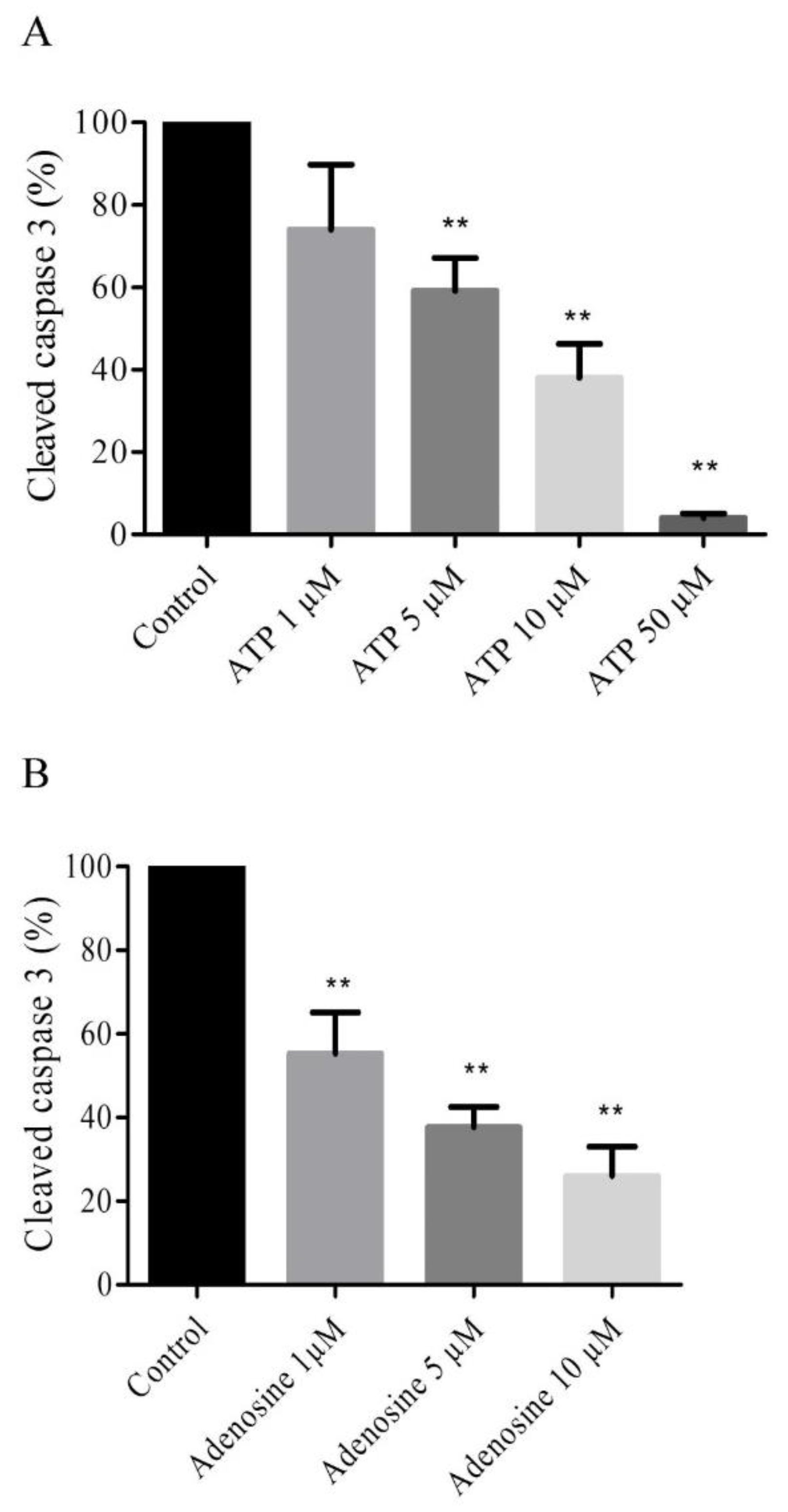

Figure 2. ATP and adenosine induced an anti-apoptotic effect. Cells were treated with ATP 1 µM, 5 µM, 10 µM, and 50 µM (A) and adenosine 1 µM, 5 µM, and 10 µM (B). Results are expressed as means ± sem (n = 6/group) of relative caspase 3 expression (%) in the HUVECs after 2 h of hypoxia. ** p < 0.01 compared to control without any treatment.
Figure 2. ATP and adenosine induced an anti-apoptotic effect. Cells were treated with ATP 1 µM, 5 µM, 10 µM, and 50 µM (A) and adenosine 1 µM, 5 µM, and 10 µM (B). Results are expressed as means ± sem (n = 6/group) of relative caspase 3 expression (%) in the HUVECs after 2 h of hypoxia. ** p < 0.01 compared to control without any treatment.
Ijms 20 01446 g002

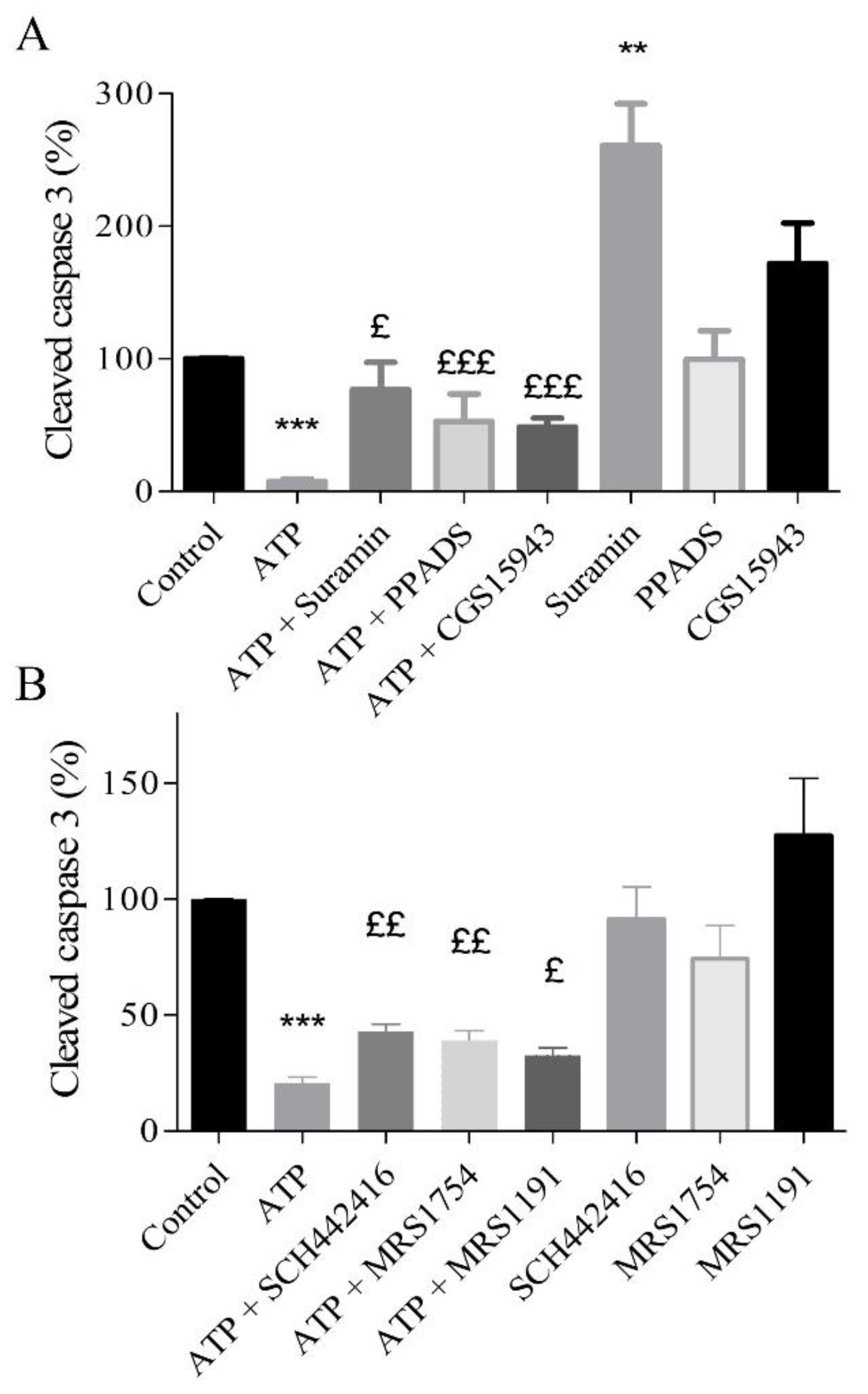

Figure 3. Anti-apoptotic effect of extracellular ATP mediated by both P2 and adenosine receptors (A). HUVECs, exposed to a simulated hypoxia during 2 h, were treated with ATP 10 µM, P2 antagonist (10 µM suramin and PPADS), and adenosine antagonist (1 µM CGS15943). Subtypes of adenosine receptors were studied using selective receptors antagonists (B) of A2A (10 µM SCH442416), A2B (0.1 µM MRS1754), and A3 (10 µM MRS1191) receptors. Data are means ± sem (n = 6/group) of relative caspase 3 expression (%) in HUVECs after 2 h of hypoxia. £ p < 0.05, ££ p < 0.01, £££ p < 0.001 compared to 10 µM ATP group. ** p < 0.01, *** p < 0.001 compared to control without treatment.
Figure 3. Anti-apoptotic effect of extracellular ATP mediated by both P2 and adenosine receptors (A). HUVECs, exposed to a simulated hypoxia during 2 h, were treated with ATP 10 µM, P2 antagonist (10 µM suramin and PPADS), and adenosine antagonist (1 µM CGS15943). Subtypes of adenosine receptors were studied using selective receptors antagonists (B) of A2A (10 µM SCH442416), A2B (0.1 µM MRS1754), and A3 (10 µM MRS1191) receptors. Data are means ± sem (n = 6/group) of relative caspase 3 expression (%) in HUVECs after 2 h of hypoxia. £ p < 0.05, ££ p < 0.01, £££ p < 0.001 compared to 10 µM ATP group. ** p < 0.01, *** p < 0.001 compared to control without treatment.
Ijms 20 01446 g003

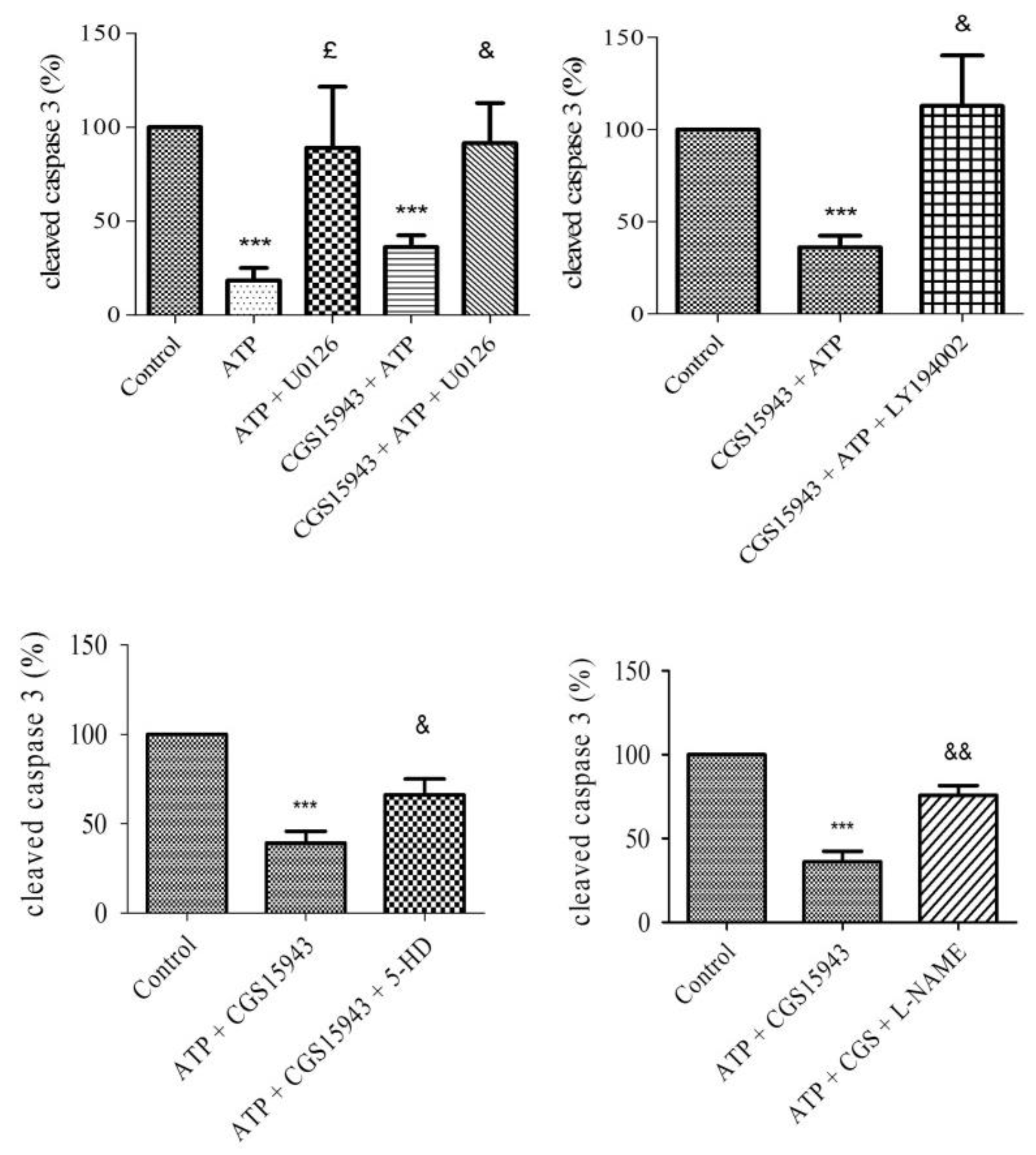

Figure 4. Signaling pathways involved in the P2-mediated anti-apoptotic effect of ATP. HUVECs were treated with different antagonists: 10 µM U0126 (MEK/ERK1/2), 10 µM LY294002 (PI3K), 100 µM 5-HD (mitoKATP), and 10 µM L-NAME (NOS). Then, cells were treated with 10 µM ATP and 1µM CGS15943 and submit to 2 h of hypoxia. Data are means ± sem (n = 6/group) of relative caspase 3 expression (%) in HUVECs after 2 h of hypoxia. £ p < 0.05, compared to 10 µM ATP group. & p < 0.05, && p < 0.01 compared to 10 µM ATP + 1 µM CGS15943 group. *** p < 0.001 compared to the control.
Figure 4. Signaling pathways involved in the P2-mediated anti-apoptotic effect of ATP. HUVECs were treated with different antagonists: 10 µM U0126 (MEK/ERK1/2), 10 µM LY294002 (PI3K), 100 µM 5-HD (mitoKATP), and 10 µM L-NAME (NOS). Then, cells were treated with 10 µM ATP and 1µM CGS15943 and submit to 2 h of hypoxia. Data are means ± sem (n = 6/group) of relative caspase 3 expression (%) in HUVECs after 2 h of hypoxia. £ p < 0.05, compared to 10 µM ATP group. & p < 0.05, && p < 0.01 compared to 10 µM ATP + 1 µM CGS15943 group. *** p < 0.001 compared to the control.
Ijms 20 01446 g004

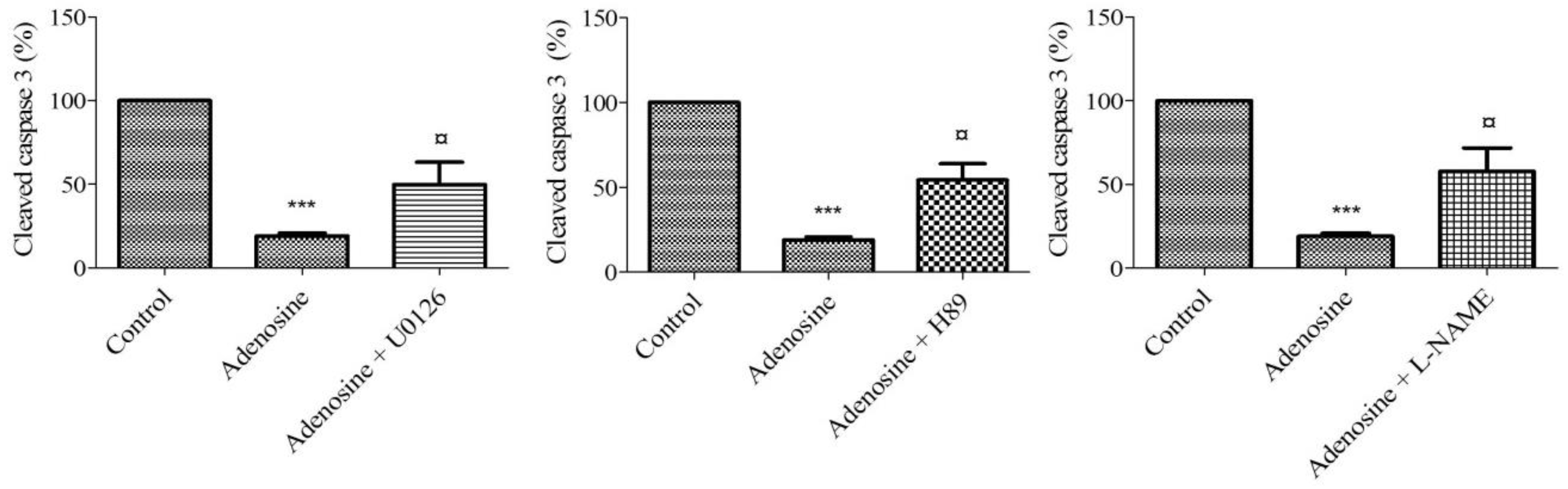

Figure 5. Signaling pathways involved in the anti-apoptotic effect of adenosine. HUVECs were treated with different antagonists: 10 µM U0126 (MEK/ERK1/2), 20 µM H89 (PKA), and 10 µM L-NAME (NOS). Results are expressed as means ± sem (n = 6/group) of relative caspase 3 expression (%) in HUVECs after 2 h of hypoxia. ¤ p < 0.05, compared to 10 µM adenosine group. *** p < 0.001 compared to the control.
Figure 5. Signaling pathways involved in the anti-apoptotic effect of adenosine. HUVECs were treated with different antagonists: 10 µM U0126 (MEK/ERK1/2), 20 µM H89 (PKA), and 10 µM L-NAME (NOS). Results are expressed as means ± sem (n = 6/group) of relative caspase 3 expression (%) in HUVECs after 2 h of hypoxia. ¤ p < 0.05, compared to 10 µM adenosine group. *** p < 0.001 compared to the control.
Ijms 20 01446 g005
Table 1. Panel of inhibitors and antagonists.
Table 1. Panel of inhibitors and antagonists.
Compounds NameTargetConcentrationReference
Suramin P2 receptors antagonist10 µMWee et al. [12]
PPADSP2 receptors antagonist10 µMWee et al. [12]
CGS 15943Adenosine receptors antagonist1 µMAvanzato et al. [16]
SCH442416selective receptor antagonist A2A10 µMYu et al. [17]
MRS1754selective receptor antagonist A2B0.1 µMSalie et al. [18]
MRS1191selective receptor antagonist A310 µMSalie et al. [18]
U0126ERK1/2 inhibitor10 µMUrban et al. [19]
LY294002 PI3K inhibitor10 µMUrban et al. [19]
5-HD mitoK+ATP inhibitor100 µM Millart et al. [20]
L-NAME NOS inhibitor10 µM Millart et al. [20]
H89 PKA inhibitor20 µMMillart et al. [20]
indomethacin COX inhibitor5 µMAlm et al. [21]
This table shows the different inhibitors and antagonists used for experiments. Concentrations and references are quoted.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
