Communication

Antiproliferative and Cytotoxic Activity of Xanthohumol and Its Non-Estrogenic Derivatives in Colon and Hepatocellular Carcinoma Cell Lines

by
Isabelle E. Logan
1,
Cristobal L. Miranda
2,
Malcolm B. Lowry
3,
Claudia S. Maier
4,
Jan F. Stevens
2 and
Adrian F. Gombart
5,*
1
Department of Biochemistry and Biophysics, Linus Pauling Institute, Oregon State University, Corvallis, OR 97331, USA
2
Department of Pharmaceutical Sciences, Linus Pauling Institute, Oregon State University, Corvallis, OR 97331, USA
3
Department of Microbiology, Linus Pauling Institute, Oregon State University, Corvallis, OR 97331, USA
4
Department of Chemistry, Oregon State University, Corvallis, OR 97331, USA
5
Linus Pauling Institute, Department of Biochemistry and Biophysics, Oregon State University, Corvallis, OR 97331, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(5), 1203; https://doi.org/10.3390/ijms20051203
Original submission received: 5 February 2019 / Revised: 28 February 2019 / Accepted: 5 March 2019 / Published: 9 March 2019
(This article belongs to the Special Issue Bioactive Phytochemicals for Cancer Prevention and Treatment)
Browse Figures
Versions Notes

Abstract

:
Xanthohumol (XN), a prenylated flavonoid found in hops, inhibits growth in a variety of cancer cell lines; however, its use raises concerns as gut microbiota and the host’s hepatic cytochrome P450 enzymes metabolize it into the most potent phytoestrogen known, 8-prenylnaringenin (8-PN). The XN derivatives dihydroxanthohumol (DXN) and tetrahydroxanthohumol (TXN) are not metabolized into 8-PN and they show higher tissue concentrations in vivo compared with XN when orally administered to mice at the same dose. Here we show that DXN and TXN possess improved anti-proliferative activity compared with XN in two colon (HCT116, HT29) and two hepatocellular (HepG2, Huh7) carcinoma cell lines, as indicated by their respective IC50 values. Furthermore, XN, DXN, and TXN induce extensive apoptosis in all these carcinoma cell lines. Finally, TXN induces G0/G1 cell cycle arrest in the colon carcinoma cell line HT29. Our findings suggest that DXN and TXN could show promise as therapeutic agents against colorectal and liver cancer in preclinical studies without the drawback of metabolism into a phytoestrogen.

Graphical Abstract

1. Introduction

First discovered at the turn of the twentieth century by Power et al., XN is a simple prenylated flavonoid found in the female inflorescences, or hop cones, of the hop plant Humulus lupulus [1]. Hops are used to add flavor, color, and bitterness to beer. Since hops are rarely used in a culinary setting, beer represents the main dietary source of XN. Extensive studies show XN inhibits cancer cell growth in vitro, and reduces weight gain and improves cognitive function in vivo [2,3,4,5,6,7,8,9]. Nevertheless, despite these positive effects, the use of XN raises concerns, as it was shown both in vitro and in vivo that XN is metabolized into 8-prenylnaringenin (8-PN), the most potent phytoestrogen currently known [10].
Synthesis of XN from phloracetophenone is inefficient [11]; therefore, XN is currently isolated from CO2-extracted hops, a byproduct of the hops industry, which provides a less expensive alternative to synthesis [2]. Because of the inexpensive production of XN and its purported health benefits, it is marketed as a dietary supplement. Preclinical animal studies show that XN is safe in high doses. Female BALB/c mice fed XN at 1000 mg/kg body weight for three weeks exhibited no adverse effects on major organ function and homoeostasis [12]. Furthermore, Sprague Dawley rats treated with 1000 mg/kg body weight per day by oral gavage showed only weak hepatotoxicity and poor development of mammary glands, neither of which are fatal [13]. In humans, an escalating dose study was performed in menopausal women using an extract from hops rich in XN. The results showed that the extract does not affect the sex hormones estradiol, follicle stimulating hormone, or luteinizing hormone, does not affect blood clotting, and caused no acute toxicity [14].
Previous studies show that XN readily isomerizes to isoxanthohumol (IX), which is the first step in the metabolism of XN (Figure 1, pathway 1). This isomerization is enhanced by the high temperatures used during wort boiling [15]. It also occurs in the stomach, due to the acidic conditions encountered there [16]. After isomerization, the gut microbiome and the host’s hepatic cytochrome P450 enzymes metabolize IX into 8-PN [10]. A previous study showed Eubacterium limosum metabolizes IX via O-demethylation (Figure 1, pathway 2) [17]. Up to 34% of XN entering the gut can be converted to 8-PN; therefore, the microbiome plays a significant role in the formation of 8-PN from XN and IX. [18]. Our own research group recently discovered that E. ramulus metabolizes XN into DXN, and 8-PN into O-desmethylxanthohumol and O-desmethyl-α,β-dihydroxanthohumol [19]. On the other hand, both DXN and TXN differ from XN in that they lack the α,β-unsaturated ketone found in XN; therefore, interconversion to XN or IX is not metabolically possible [3]. This property prevents the formation of 8-PN, one of the most potent phytoestrogens known (Figure 1) [3,20,21]. Interestingly, 8-PN possesses anti-proliferative effects in vitro against the colon carcinoma cell line Caco-2, breast carcinoma line MCF-7, the melanoma line SK-MEL-28, and a Burkitt lymphoma cell line [21,22,23,24,25]. The estrogenic effects of 8-PN also show promising clinical results in treating postmenopausal symptoms, but these studies are usually short term and were not designed to assess the effect of potential cancer promoting properties [26]. In the host, 8-PN acts as a strong agonist for estrogen receptors located in cells throughout the body, which could increase one’s risk of developing hormone-dependent cancers [27,28]. Thus, its estrogenic activity is of concern and additional studies to assess the safety of 8-PN in long-term supplementation are needed [26].
In vitro, XN inhibits proliferation of breast, colon, hepatocellular, ovarian, pancreatic, prostate, and medullary thyroid cancer cell lines [5,9,29,30,31,32,33,34,35,36,37,38]. Treatment of four hepatocellular carcinoma cell lines—Huh-7, HepG2, Hep3B, and SK-Hep-1—with XN decreased both viability and colony forming ability [39]. XN also caused dose-dependent cytotoxic effects in colon carcinoma cell lines HT29, HCT15, and 40-16 [5,36,40]. Several apoptotic mechanisms were identified in the various cell types. In 40-16 cells, XN activates the death receptor and mitochondrial apoptosis pathway [36]; however, in HCT116 cells, XN induces apoptosis through PKA inhibition via upregulation of adenylate cyclase, while HT29 cells appeared insensitive to XN toxicity [41]. In the metastatic colon carcinoma line SW620, XN was proposed to act as a mitocan, because it induces apoptosis by impairing mitochondrial function [42]. On the other hand, in the hepatocellular carcinoma line HepG2, XN induces apoptosis through the NF-κB/p53-apoptosis signaling pathway [43].
Here we demonstrate the anti-proliferative and cytotoxic effects of XN in two human colon adenocarcinoma cell lines (HT29 and HCT116) and two human hepatocellular carcinoma cell lines (HepG2 and Huh7). Furthermore, we show for the first time that DXN and TXN possess similar effects, and in most cases, a lower half-maximal growth inhibitory concentration (IC50) than XN in these cell types. While XN and DXN do not appear to induce cell cycle arrest, HT29 cells treated with TXN arrest in the G0/G1 phase of the cell cycle. These findings demonstrate that the two non-estrogenic XN derivatives are attractive alternatives to test along with XN in future preclinical studies using mouse models of colorectal and hepatocellular carcinoma.

2. Results

2.1. XN, DXN, and TXN Inhibit Proliferation of Human Colon Adenocarcinoma and Liver Carcinoma Cell Lines

The half maximal inhibitory concentration (IC50) of DXN and TXN for two colon carcinoma and two hepatocellular carcinoma cell lines was determined using the SRB colorimetric assay for cytotoxicity screening, as previously described [44]. Table 1 lists the IC50 values experimentally determined for XN, DXN, and TXN in the colon carcinoma cell lines HCT116 and HT29, and the hepatocellular carcinoma cell lines HepG2 and Huh7. DXN and TXN (except HepG2) exhibited lower IC50 values than XN. For the cells most sensitive to DXN and TXN, the decrease in IC50 values was approximately 30% compared to XN (Table 1). In HepG2 cells, TXN was slightly less potent at inhibiting cell proliferation compared to XN, as indicated by a higher IC50 value (Table 1). Compared to DXN, TXN was more potent at inhibiting proliferation in Huh7 cells, as indicated by a lower IC50 value, whereas DXN was more potent in the other three cell lines (Table 1). HT29 was less sensitive (highest IC50 value) to XN treatment than HCT116, but showed a similar sensitivity to the derivatives DXN and TXN as HCT116 (Table 1).

2.2. XN and Derivatives Induce Apoptosis

The Annexin V assay distinguishes the early apoptotic stage from the late necrotic state. Externalization of phosphatidyl serine, an early marker of apoptosis, was detected by flow cytometry after staining with Annexin V-PE and 7AAD. HT29 cells were treated for 18 h with either vehicle control, XN, DXN, or TXN. All compounds significantly induced apoptosis dose-dependently in these cells, compared to vehicle control (Figure 2). At 18 h post treatment, more DXN- and TXN-treated cells were in early apoptosis, whereas more XN-treated cells were in late apoptosis.
Induction of apoptosis was confirmed by measuring activation of caspase enzymes. In HT29 cells (Figure 3), treatment with XN and its derivatives for 18 h resulted in a dose-dependent increase in cells undergoing the early stages of apoptosis (SR-VAD-FMK(+) 7-AAD(−)), indicating caspase activation without membrane alterations (early- to mid-stage apoptosis). In addition, there was a statistically significant increase in doubly stained SR-VAD-FMK(+) 7-AAD(+) cells, indicating cells in late apoptosis (Figure 3).
At 18 h post treatment, more DXN- and TXN-treated cells were in early- to mid-apoptosis, whereas more XN-treated cells were in late apoptosis. Taken together, the data from both assays suggest that XN may promote a slightly more rapid apoptosis than DXN or TXN in HT29 cells.
Quantifying the total number of dead and apoptotic cells from the caspase assay showed that DXN induced slightly less apoptosis (−7.2%), while TXN induced slightly greater apoptosis (+7.1%) than XN (Figure 4).

2.3. TXN Induces a G1 Cell Cycle Arrest in HT29 Cells

We treated HT29 cells for 24 h following cell cycle synchronization by serum starvation, and performed cycle analysis with propidium iodide staining. Results showed that only TXN induced a statistically significant cell cycle arrest in these cells, as indicated by an increased accumulation of cells in the G1 phase (Figure 5). All prenylated flavonoids induced cell apoptosis, as indicated by a sub G0/G1 population of 82%, 60%, and 45% in the cells treated with XN, DXN, and TXN, respectively.

3. Discussion

In the United States, colorectal cancer is the third most common cause of cancer-related death [45] and it is the second leading cause of cancer-related deaths in the developed world [46,47]. The incidence of liver cancer has tripled since 1980, mortality has doubled during that time, and it is the fifth most common cause of cancer death in the United States. [45]. For both cancers, it is imperative to discover new compounds for prevention and treatment. The prenylated flavonoid XN was previously shown to inhibit the growth of the colon cancer cell lines HT-29 and 40-16 in a dose-dependent manner [5,36]. XN also induced apoptosis in the liver carcinoma cell lines HepG2 and Huh7 in a dose-dependent manner [39]. In the current study, we determined IC50 values of 40.8 ± 1.4, 50.2 ± 1.4, 25.4 ± 1.1, and 37.2 ± 1.5 µM for XN, in HCT116, HT29, HepG2, and Huh7 cell lines, respectively. These results indicate that both hepatocellular and colon carcinoma cells are sensitive to growth inhibition by XN. The IC50 values determined for HepG2 and Huh7 cells in this study were, on average, three-fold lower than those calculated for the hepatocellular carcinoma cells HA22T/VGH and Hep3B, but still in the micromolar range [48]. In this study, the IC50 values determined for HT29 and HCT116 were higher than those determined for the HCT15 and 40-16 colon carcinoma cell lines [36,40]. The differences in in vitro sensitivity with the different cell lines could have implications for preventative treatments, but this would require experiments with in vivo xenograft models in mice to determine. It is interesting to note that Shikata et al. (2017) showed the sensitivity of the HCT116 and SW480 colon cancer cell lines to XN, with IC50 values in the micromolar range in vitro, reflected by their in vivo sensitivity in a xenograft model [41]. While we found that HT29 and HCT116 cells were both sensitive to treatment with XN and its derivatives, HT29 was less sensitive than HCT116. This is consistent with a previous study by Shikata et al. (2017) that determined HT29 cells were insensitive compared to HCT116 cells by measuring the sub-G1 population after treatment [41]. Although considered insensitive, HT29 was still affected by XN treatment, but required a higher dose before showing cytotoxicity. In their cell cycle assay, the highest dose was 30 μM, whereas we used 50 μM. It is possible that Shikata et al. (2017) would have observed an increased sub-G1 population if they had used this dose. In addition, our study concurs with those performed previously by others, who observed that HT29 cells are sensitive to XN treatment, but were the least sensitive of several cancer cell lines tested as reflected by a higher IC50 [5,49,50]. It is possible to attribute the differences between studies to experimental design, cell density, or different culture conditions. Taken together, the findings indicate that XN is cytotoxic to various colon and liver cancer cell lines.
XN is metabolized into the potent phytoestrogen 8-PN via conversion into IX (Figure 1). We recently demonstrated that DXN and TXN are non-estrogenic, as these derivatives lack the α,β-unsaturated ketone found in XN; therefore, interconversion to XN or IX is not metabolically possible [3]. This property prevents the formation of 8-PN [3,20,21]. Like XN, DXN possesses anti-proliferative activity in HT29 colon cancer and MCF7 breast cancer cell lines [51,52]. The IC50 value of DXN in HT29 cells was previously determined to range from 12 to 74 µM [51,52]. In the current study, we calculated a comparable IC50 value of 31.4 ± 1.1 µM. We observed that in all the cell lines tested, both DXN and TXN inhibited cellular growth, as well as XN. For most cell types, DXN and TXN were slightly more potent than XN. Out of the three compounds tested, TXN was the only compound that induced cell cycle arrest in the G1 phase.
While all prenylated flavonoids tested induced apoptosis in HT29 cells, XN appeared to increase the rate of apoptosis. After 18 h, cells treated with DXN or TXN showed a slightly greater percentage undergoing early- to mid-apoptosis, and a slightly lower percentage of cells undergoing late apoptosis, compared to XN treatment. Nevertheless, when HT29 cells were treated with a 50 µM concentration of the prenylated flavonoids, the total number of dead or apoptotic cells was slightly greater in HT29 cells treated with TXN. Taken together, our data suggest that XN and its derivatives inhibit cancer cell proliferation through a molecular mechanism that includes caspase-mediated apoptosis.
Oral consumption of XN and its derivatives is expected to expose the intestinal cell layer to the highest concentrations. After initial uptake in the intestine, XN is transported to the liver through the portal vein. In the liver, XN is glucuronidated [53,54]. This conjugation significantly lowers the amount of XN found in other tissues [53,55,56]. In a study of metabolic syndrome and obesity, our research group observed that when added to the diet (30 mg/kg body weight), the concentrations of XN, DXN, and TXN were highest in the liver, with DXN and TXN 5- to 7-fold higher than total XN, which included conjugated forms and IX [3]. The tissue levels of XN and its derivatives ranged from 0.3–3.0 μM. We would expect much higher concentrations in the colon. In this same study, we noted that levels of DXN and TXN did not induce markers of hepatotoxicity, i.e., plasma aspartate aminotransferase (AST) or alanine aminotransferase (ALT), in control or treated mice [3]. In colon cancer xenograft models with mice, Shikata et al. (2017) injected XN IP daily for 17 days and observed a dramatic and significant reduction in tumor growth in SW480 and about a 2–3-fold reduction in tumor volume for HCT116 at doses of 1, 15, and 30 mg/kg body weight. They observed no changes in mouse body weight. Furthermore, administration of XN in xenograft models of breast, leukemia, prostate, pancreatic, gastric, and cholangiocarcinoma cells inhibits tumor growth [29,41,57,58,59,60,61,62,63]. Taken together, these data suggest that XN and its derivatives show promise in future studies. Because of its well-established anti-proliferative effects in cell culture and safety in preclinical studies, XN and its non-estrogenic derivatives are reasonable candidates for preclinical studies of colorectal and liver cancer, which is relatively untested even for XN, since the discovery of its anti-proliferative effects 20 years ago [5].
In future work, we will test XN, DXN, and TXN as potential treatments of colorectal and hepatocellular carcinoma using mouse models and further elucidate the molecular mechanisms by which these derivatives mediate their effects. Our findings suggest that these plant-derived molecules show promise as potential anticancer compounds.

4. Materials and Methods

4.1. Cell Culture

The human colon adenocarcinoma cell lines HT 29 and HCT116 were provided by Dr. H. Phillip Koeffler (Cedars-Sinai Medical Center, Los Angeles, CA, USA). The human liver carcinoma cell line HepG2 was provided by Dr. Tori Hagen (Oregon State University, Corvallis, OR, USA). We purchased Huh7 from the American Type Tissue Collection (ATCC, Manassas, VA, USA). The other cancer cell lines were originally purchased from ATCC. All cancer cell lines were grown and maintained in Dulbecco’s Modified Eagle’s Medium (DMEM) without sodium pyruvate (Corning, Manassas, VA, USA) supplemented with 10% fetal bovine serum (Hyclone, Logan, UT, USA) and 1% penicillin–streptomycin (Gibco, Grand Island, NY, USA). All cell types were maintained in 5% CO2 at 37 °C with humidity.

4.2. Treatments

XN and TXN were provided by Hopsteiner Inc., while DXN was synthesized as described previously [3]. The purity and identity of the prenylated flavonoids XN, DXN, and TXN, were determined by mass and NMR spectrometry [3]. All prenylated flavonoids were dissolved in 100% ethanol and added to the culture medium at a final concentration of 1–100 µmol/L, depending on desired treatment. Confluency of cells was approximately 50–70% at time of treatment. As a vehicle control, ethanol was added to culture medium equivalent to prenylated flavonoid treatment. Final concentration of ethanol did not exceed 0.1%.

4.3. Cellular Proliferation

Cells were seeded into 96-well plates (15,000 cells per well). After 24 h, cells were treated with either XN, DXN, or TXN, as described above. Cell viability was evaluated using a sulforhodamine B (SRB) assay (Sigma-Aldrich, St. Louis, MO, USA), as described previously [44]. Absorbance of dye was measured at a wavelength of 565 nm, using a Molecular Devices SpectraMax (Molecular Devices, Sunnyvale, CA, USA) plate reader.

4.4. Flow Cytometry

4.4.1. Apoptosis

At various times after treatment with XN, DXN, or TXN, adherent and floating cells were collected for analysis. Apoptosis was assessed using flow cytometry-based annexin V (Invitrogen™. eBioscience™ Annexin V Apoptosis Detection Kit PE, Thermo Fisher, Waltham, MA, USA) and a multicaspase assay kit (MilliporeSigma, Burlington, MA, USA). The annexin V assay is based on measurement of externalization of phosphatidyl serine, a common characteristic of cells undergoing apoptosis. The multicaspase assay is based on measurement of caspase enzymes activated during apoptosis. Cells were trypsinized, washed in Dulbecco’s Phosphate Buffered Saline (D-PBS), and stained with Annexin V, sulforhodamine-valyl-alanyl-aspartyl-fluoromethyl-ketone (SR-VAD-FMK), and 7-amino-actinomycin D (7AAD) according to the manufacturer’s instructions. Cell populations were quantified using a Guava personal cytometer (Guava Technologies, Burlingame, CA, USA).

4.4.2. Cell Cycle Analysis

At various time points after treatment with XN, DXN, or TXN, adherent and floating cells were collected and fixed in 70% ethanol at one million cells per aliquot. Samples were centrifuged at 500× g, washed with PBS, and re-suspended in cellular DNA staining solution containing 40 mg/mL propidium iodide (Sigma-Aldrich, St. Louis, MO, USA) and 100 mg/mL RNase A (Sigma-Aldrich) in PBS. After a 15-min incubation at room temperature, cell populations were quantified using a Guava personal cytometer (Guava Technologies).

4.5. Statistical Analysis

Statistical analyses were performed with the GraphPad Prism 7 software (GraphPad Software, Sand Diego, CA, USA). Group differences were assessed with a one-way ANOVA, followed by a Sidak’s post hoc test. The Sidak’s post hoc test was used to compare every mean with either the control mean, or XN mean. Statistical significance was set at p ≤ 0.05.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/5/1203/s1.

Author Contributions

I.E.L. performed all experiments. I.E.L. and A.F.G. designed the experiments, analyzed data, and wrote the manuscript. C.L.M. and M.B.L. contributed to experimental design and provided technical assistance. J.F.S provided scientific and material support. C.S.M. and J.F.S. assisted with manuscript development. All coauthors reviewed and revised the manuscript.

Funding

This research was funded by the National Institutes of Health, grant NIH/NCCIH 5R01AT009168 to A.F.G., J.F.S., and C.S.M., Hopsteiner, Inc., New York, and the Oregon State University Foundation Buhler-Wang Research Fund. I.E.L. was supported by the 2017-18 Christopher and Catherine Mathews Graduate Fellowship in the Department of Biochemistry and Biophysics, the Franz Stenzel M.D. and Kathryn Stenzel II Scholarship by the Oregon Office of Student Access and Completion, and the 2019 Audrey and George Varsevelt Linus Pauling Institute Graduate Fellowship.

Acknowledgments

We thank Hopsteiner Inc. for providing XN and TXN. We thank the Department of Biochemistry and Biophysics, and the Linus Pauling Institute at Oregon State University for their support. We thank John Molitor in the College of Public Health and Human Sciences at Oregon State University for valuable advice regarding statistical analysis, and Kelly C. Schoun.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

XNXanthohumol
DXNDihydroxanthohumol
TXNTetrahydroxanthohumol
8-PN8-Prenylnaringenin
IXIsoxanthohumol
7AAD7-amino-actinomycin D
SR-VAD-FMKSulforhodamine-valyl-alanyl-aspartyl-fluoromethyl-ketone
DMEMDulbecco’s Modified Eagle Media
D-PBSDulbecco’s Phosphate-Buffered Saline

References

  1. Power, F.B.; Tutin, F.; Rogerson, H. CXXXV—The constituents of hops. J. Chem. Soc. Trans. 1913, 103, 1267–1292. [Google Scholar] [CrossRef]
  2. Stevens, J.F.; Page, J.E. Xanthohumol and related prenylflavonoids from hops and beer: To your good health! Phytochemistry 2004, 65, 1317–1330. [Google Scholar] [CrossRef] [PubMed]
  3. Miranda, C.L.; Johnson, L.A.; de Montgolfier, O.; Elias, V.D.; Ullrich, L.S.; Hay, J.J.; Paraiso, I.L.; Choi, J.; Reed, R.L.; Revel, J.S.; et al. Non-estrogenic Xanthohumol Derivatives Mitigate Insulin Resistance and Cognitive Impairment in High-Fat Diet-induced Obese Mice. Sci. Rep. 2018, 8, 613. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Zamzow, D.R.; Elias, V.; Legette, L.L.; Choi, J.; Stevens, J.F.; Magnusson, K.R. Xanthohumol improved cognitive flexibility in young mice. Behav. Brain Res. 2014, 275, 1–10. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Miranda, C.L.; Stevens, J.F.; Helmrich, A.; Henderson, M.C.; Rodriguez, R.J.; Yang, Y.H.; Deinzer, M.L.; Barnes, D.W.; Buhler, D.R. Antiproliferative and cytotoxic effects of prenylated flavonoids from hops (Humulus lupulus) in human cancer cell lines. Food Chem. Toxicol. 1999, 37, 271–285. [Google Scholar] [CrossRef]
  6. Miranda, C.L.; Aponso, G.L.; Stevens, J.F.; Deinzer, M.L.; Buhler, D.R. Prenylated chalcones and flavanones as inducers of quinone reductase in mouse Hepa 1c1c7 cells. Cancer Lett. 2000, 149, 21–29. [Google Scholar] [CrossRef]
  7. Henderson, M.C.; Miranda, C.L.; Stevens, J.F.; Deinzer, M.L.; Buhler, D.R. In vitro inhibition of human P450 enzymes by prenylated flavonoids from hops, Humulus lupulus. Xenobiotica 2000, 30, 235–251. [Google Scholar] [CrossRef] [PubMed]
  8. Miranda, C.L.; Yang, Y.H.; Henderson, M.C.; Stevens, J.F.; Santana-Rios, G.; Deinzer, M.L.; Buhler, D.R. Prenylflavonoids from hops inhibit the metabolic activation of the carcinogenic heterocyclic amine 2-amino-3-methylimidazo[4,5-f]quinoline, mediated by cDNA-expressed human CYP1A2. Drug Metab. Dispos. 2000, 28, 1297–1302. [Google Scholar]
  9. Colgate, E.C.; Miranda, C.L.; Stevens, J.F.; Bray, T.M.; Ho, E. Xanthohumol, a prenylflavonoid derived from hops induces apoptosis and inhibits NF-kappaB activation in prostate epithelial cells. Cancer Lett. 2007, 246, 201–209. [Google Scholar] [CrossRef]
  10. Guo, J.; Nikolic, D.; Chadwick, L.R.; Pauli, G.F.; van Breemen, R.B. Identification of human hepatic cytochrome P450 enzymes involved in the metabolism of 8-prenylnaringenin and isoxanthohumol from hops (Humulus lupulus L.). Drug Metab. Dispos. 2006, 34, 1152–1159. [Google Scholar] [CrossRef]
  11. Khupse, R.S.; Erhardt, P.W. Total synthesis of xanthohumol. J. Nat. Prod. 2007, 70, 1507–1509. [Google Scholar] [CrossRef] [PubMed]
  12. Dorn, C.; Bataille, F.; Gaebele, E.; Heilmann, J.; Hellerbrand, C. Xanthohumol feeding does not impair organ function and homoeostasis in mice. Food Chem. Toxicol. 2010, 48, 1890–1897. [Google Scholar] [CrossRef] [PubMed]
  13. Hussong, R.; Frank, N.; Knauft, J.; Ittrich, C.; Owen, R.; Becker, H.; Gerhauser, C. A safety study of oral xanthohumol administration and its influence on fertility in Sprague Dawley rats. Mol. Nutr. Food Res. 2005, 49, 861–867. [Google Scholar] [CrossRef] [PubMed]
  14. van Breemen, R.B.; Yuan, Y.; Banuvar, S.; Shulman, L.P.; Qiu, X.; Alvarenga, R.F.; Chen, S.N.; Dietz, B.M.; Bolton, J.L.; Pauli, G.F.; et al. Pharmacokinetics of prenylated hop phenols in women following oral administration of a standardized extract of hops. Mol. Nutr. Food Res. 2014, 58, 1962–1969. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Stevens, J.F.; Taylor, A.W.; Clawson, J.E.; Deinzer, M.L. Fate of xanthohumol and related prenylflavonoids from hops to beer. J. Agric. Food Chem. 1999, 47, 2421–2428. [Google Scholar] [CrossRef] [PubMed]
  16. Nikolic, D.; Li, Y.; Chadwick, L.R.; Pauli, G.F.; van Breemen, R.B. Metabolism of xanthohumol and isoxanthohumol, prenylated flavonoids from hops (Humulus lupulus L.), by human liver microsomes. J. Mass Spectrom. 2005, 40, 289–299. [Google Scholar] [CrossRef] [PubMed]
  17. Possemiers, S.; Rabot, S.; Espin, J.C.; Bruneau, A.; Philippe, C.; Gonzalez-Sarrias, A.; Heyerick, A.; Tomas-Barberan, F.A.; De Keukeleire, D.; Verstraete, W. Eubacterium limosum activates isoxanthohumol from hops (Humulus lupulus L.) into the potent phytoestrogen 8-prenylnaringenin in vitro and in rat intestine. J. Nutr. 2008, 138, 1310–1316. [Google Scholar] [CrossRef]
  18. Possemiers, S.; Heyerick, A.; Robbens, V.; De Keukeleire, D.; Verstraete, W. Activation of proestrogens from hops (Humulus lupulus L.) by intestinal microbiota; conversion of isoxanthohumol into 8-prenylnaringenin. J. Agric. Food Chem. 2005, 53, 6281–6288. [Google Scholar] [CrossRef]
  19. Paraiso, I.L.; Plagmann, L.S.; Yang, L.; Zielke, R.; Gombart, A.F.; Maier, C.S.; Sikora, A.E.; Blakemore, P.R.; Stevens, J.F. Reductive Metabolism of Xanthohumol and 8-Prenylnaringenin by the Intestinal Bacterium Eubacterium ramulus. Mol. Nutr. Food Res. 2019, 63, e1800923. [Google Scholar] [CrossRef]
  20. Diel, P.; Thomae, R.B.; Caldarelli, A.; Zierau, O.; Kolba, S.; Schmidt, S.; Schwab, P.; Metz, P.; Vollmer, G. Regulation of gene expression by 8-prenylnaringenin in uterus and liver of Wistar rats. Planta Med. 2004, 70, 39–44. [Google Scholar] [CrossRef]
  21. Milligan, S.; Kalita, J.; Pocock, V.; Heyerick, A.; De Cooman, L.; Rong, H.; De Keukeleire, D. Oestrogenic activity of the hop phyto-oestrogen, 8-prenylnaringenin. Reproduction 2002, 123, 235–242. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Venturelli, S.; Niessner, H.; Sinnberg, T.; Berger, A.; Burkard, M.; Urmann, C.; Donaubauer, K.; Bocker, A.; Leischner, C.; Riepl, H.; et al. 6- and 8-Prenylnaringenin, Novel Natural Histone Deacetylase Inhibitors Found in Hops, Exert Antitumor Activity on Melanoma Cells. Cell Physiol. Biochem. 2018, 51, 543–556. [Google Scholar] [CrossRef] [PubMed]
  23. Allsopp, P.; Possemiers, S.; Campbell, D.; Gill, C.; Rowland, I. A comparison of the anticancer properties of isoxanthohumol and 8-prenylnaringenin using in vitro models of colon cancer. Biofactors 2013, 39, 441–447. [Google Scholar] [CrossRef] [PubMed]
  24. Brunelli, E.; Minassi, A.; Appendino, G.; Moro, L. 8-Prenylnaringenin, inhibits estrogen receptor-alpha mediated cell growth and induces apoptosis in MCF-7 breast cancer cells. J. Steroid Biochem. Mol. Biol. 2007, 107, 140–148. [Google Scholar] [CrossRef] [PubMed]
  25. Diller, R.A.; Riepl, H.M.; Rose, O.; Frias, C.; Henze, G.; Prokop, A. Ability of prenylflavanones present in hops to induce apoptosis in a human Burkitt lymphoma cell line. Planta Med. 2007, 73, 755–761. [Google Scholar] [CrossRef] [PubMed]
  26. Stulikova, K.; Karabin, M.; Nespor, J.; Dostalek, P. Therapeutic Perspectives of 8-Prenylnaringenin, a Potent Phytoestrogen from Hops. Molecules 2018, 23, 660. [Google Scholar] [CrossRef]
  27. Milligan, S.R.; Kalita, J.C.; Pocock, V.; Van De Kauter, V.; Stevens, J.F.; Deinzer, M.L.; Rong, H.; De Keukeleire, D. The endocrine activities of 8-prenylnaringenin and related hop (Humulus lupulus L.) flavonoids. J. Clin. Endocrinol. Metab. 2000, 85, 4912–4915. [Google Scholar] [CrossRef]
  28. Piersen, C.E. Phytoestrogens in botanical dietary supplements: Implications for cancer. Integr. Cancer 2003, 2, 120–138. [Google Scholar] [CrossRef]
  29. Monteiro, R.; Calhau, C.; Silva, A.O.; Pinheiro-Silva, S.; Guerreiro, S.; Gartner, F.; Azevedo, I.; Soares, R. Xanthohumol inhibits inflammatory factor production and angiogenesis in breast cancer xenografts. J. Cell. Biochem. 2008, 104, 1699–1707. [Google Scholar] [CrossRef]
  30. Deeb, D.; Gao, X.; Jiang, H.; Arbab, A.S.; Dulchavsky, S.A.; Gautam, S.C. Growth inhibitory and apoptosis-inducing effects of xanthohumol, a prenylated chalone present in hops, in human prostate cancer cells. Anticancer Res. 2010, 30, 3333–3339. [Google Scholar]
  31. Vene, R.; Benelli, R.; Minghelli, S.; Astigiano, S.; Tosetti, F.; Ferrari, N. Xanthohumol impairs human prostate cancer cell growth and invasion and diminishes the incidence and progression of advanced tumors in TRAMP mice. Mol. Med. 2012, 18, 1292–1302. [Google Scholar] [CrossRef] [PubMed]
  32. Gerhauser, C.; Alt, A.; Heiss, E.; Gamal-Eldeen, A.; Klimo, K.; Knauft, J.; Neumann, I.; Scherf, H.R.; Frank, N.; Bartsch, H.; et al. Cancer chemopreventive activity of Xanthohumol, a natural product derived from hop. Mol. Cancer 2002, 1, 959–969. [Google Scholar]
  33. Drenzek, J.G.; Seiler, N.L.; Jaskula-Sztul, R.; Rausch, M.M.; Rose, S.L. Xanthohumol decreases Notch1 expression and cell growth by cell cycle arrest and induction of apoptosis in epithelial ovarian cancer cell lines. Gynecol. Oncol. 2011, 122, 396–401. [Google Scholar] [CrossRef] [PubMed]
  34. Cook, M.R.; Luo, J.; Ndiaye, M.; Chen, H.; Kunnimalaiyaan, M. Xanthohumol inhibits the neuroendocrine transcription factor achaete-scute complex-like 1, suppresses proliferation, and induces phosphorylated ERK1/2 in medullary thyroid cancer. Am. J. Surg. 2010, 199, 315–318, discussion 318. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Dorn, C.; Weiss, T.S.; Heilmann, J.; Hellerbrand, C. Xanthohumol, a prenylated chalcone derived from hops, inhibits proliferation, migration and interleukin-8 expression of hepatocellular carcinoma cells. Int. J. Oncol. 2010, 36, 435–441. [Google Scholar] [CrossRef] [PubMed]
  36. Pan, L.; Becker, H.; Gerhauser, C. Xanthohumol induces apoptosis in cultured 40-16 human colon cancer cells by activation of the death receptor- and mitochondrial pathway. Mol. Nutr. Food Res. 2005, 49, 837–843. [Google Scholar] [CrossRef]
  37. Kang, Y.; Park, M.A.; Heo, S.W.; Park, S.Y.; Kang, K.W.; Park, P.H.; Kim, J.A. The radio-sensitizing effect of xanthohumol is mediated by STAT3 and EGFR suppression in doxorubicin-resistant MCF-7 human breast cancer cells. Biochim. Biophys. Acta 2013, 1830, 2638–2648. [Google Scholar] [CrossRef]
  38. Kim, S.Y.; Lee, I.S.; Moon, A. 2-Hydroxychalcone and xanthohumol inhibit invasion of triple negative breast cancer cells. Chem. Biol. Interact. 2013, 203, 565–572. [Google Scholar] [CrossRef]
  39. Kunnimalaiyaan, S.; Sokolowski, K.M.; Balamurugan, M.; Gamblin, T.C.; Kunnimalaiyaan, M. Xanthohumol inhibits Notch signaling and induces apoptosis in hepatocellular carcinoma. PLoS ONE 2015, 10, e0127464. [Google Scholar] [CrossRef]
  40. Lee, S.H.; Kim, H.J.; Lee, J.S.; Lee, I.S.; Kang, B.Y. Inhibition of topoisomerase I activity and efflux drug transporters’ expression by xanthohumol from hops. Arch. Pharm. Res. 2007, 30, 1435–1439. [Google Scholar] [CrossRef]
  41. Shikata, Y.; Yoshimaru, T.; Komatsu, M.; Katoh, H.; Sato, R.; Kanagaki, S.; Okazaki, Y.; Toyokuni, S.; Tashiro, E.; Ishikawa, S.; et al. Protein kinase A inhibition facilitates the antitumor activity of xanthohumol, a valosin-containing protein inhibitor. Cancer Sci. 2017, 108, 785–794. [Google Scholar] [CrossRef] [PubMed]
  42. Sastre-Serra, J.; Ahmiane, Y.; Roca, P.; Oliver, J.; Pons, D.G. Xanthohumol, a hop-derived prenylflavonoid present in beer, impairs mitochondrial functionality of SW620 colon cancer cells. Int. J. Food Sci. Nutr. 2018, 1–9. [Google Scholar] [CrossRef] [PubMed]
  43. Zhao, X.; Jiang, K.; Liang, B.; Huang, X. Anticancer effect of xanthohumol induces growth inhibition and apoptosis of human liver cancer through NF-κB/p53-apoptosis signaling pathway. Oncol. Rep. 2016, 35, 669–675. [Google Scholar] [CrossRef] [PubMed]
  44. Skehan, P.; Storeng, R.; Scudiero, D.; Monks, A.; McMahon, J.; Vistica, D.; Warren, J.T.; Bokesch, H.; Kenney, S.; Boyd, M.R. New colorimetric cytotoxicity assay for anticancer-drug screening. J. Natl. Cancer Inst. 1990, 82, 1107–1112. [Google Scholar] [CrossRef] [PubMed]
  45. Siegel, R.L.; Miller, K.D.; Jemal, A. Cancer statistics, 2018. CA Cancer J. Clin. 2018, 68, 7–30. [Google Scholar] [CrossRef] [PubMed]
  46. Chen, C.C.; Neugut, A.I.; Rotterdam, H. Risk factors for adenocarcinomas and malignant carcinoids of the small intestine: Preliminary findings. Cancer Epidemiol. Biomark. Prev. 1994, 3, 205–207. [Google Scholar]
  47. Rothwell, P.M.; Wilson, M.; Elwin, C.E.; Norrving, B.; Algra, A.; Warlow, C.P.; Meade, T.W. Long-term effect of aspirin on colorectal cancer incidence and mortality: 20-year follow-up of five randomised trials. Lancet 2010, 376, 1741–1750. [Google Scholar] [CrossRef]
  48. Ho, Y.C.; Liu, C.H.; Chen, C.N.; Duan, K.J.; Lin, M.T. Inhibitory effects of xanthohumol from hops (Humulus lupulus L.) on human hepatocellular carcinoma cell lines. Phytother. Res. 2008, 22, 1465–1468. [Google Scholar] [CrossRef]
  49. Hadjiolov, N.; Frank, N. Xanthohumol and sulforaphane induce apoptosis and inhibit proliferation of HT29 and HCT 116 colon cancer cells. Comptes Rendus De L Acad. Bulg. Des. Sci. 2009, 62, 1175–1182. [Google Scholar]
  50. Tronina, T.; Bartmanska, A.; Milczarek, M.; Wietrzyk, J.; Poplonski, J.; Roj, E.; Huszcza, E. Antioxidant and antiproliferative activity of glycosides obtained by biotransformation of xanthohumol. Bioorg. Med. Chem. Lett. 2013, 23, 1957–1960. [Google Scholar] [CrossRef]
  51. Bartmanska, A.; Tronina, T.; Poplonski, J.; Milczarek, M.; Filip-Psurska, B.; Wietrzyk, J. Highly Cancer Selective Antiproliferative Activity of Natural Prenylated Flavonoids. Molecules 2018, 23, 2922. [Google Scholar] [CrossRef] [PubMed]
  52. Tronina, T.; Bartmanska, A.; Filip-Psurska, B.; Wietrzyk, J.; Poplonski, J.; Huszcza, E. Fungal metabolites of xanthohumol with potent antiproliferative activity on human cancer cell lines in vitro. Bioorg. Med. Chem. 2013, 21, 2001–2006. [Google Scholar] [CrossRef] [PubMed]
  53. Wu, B.; Kulkarni, K.; Basu, S.; Zhang, S.; Hu, M. First-pass metabolism via UDP-glucuronosyltransferase: A barrier to oral bioavailability of phenolics. J. Pharm. Sci. 2011, 100, 3655–3681. [Google Scholar] [CrossRef] [PubMed]
  54. Ruefer, C.E.; Gerhauser, C.; Frank, N.; Becker, H.; Kulling, S.E. In vitro phase II metabolism of xanthohumol by human UDP-glucuronosyltransferases and sulfotransferases. Mol. Nutr. Food Res. 2005, 49, 851–856. [Google Scholar] [CrossRef] [PubMed]
  55. Legette, L.; Ma, L.; Reed, R.L.; Miranda, C.L.; Christensen, J.M.; Rodriguez-Proteau, R.; Stevens, J.F. Pharmacokinetics of xanthohumol and metabolites in rats after oral and intravenous administration. Mol. Nutr. Food Res. 2012, 56, 466–474. [Google Scholar] [CrossRef] [PubMed]
  56. Legette, L.; Karnpracha, C.; Reed, R.L.; Choi, J.; Bobe, G.; Christensen, J.M.; Rodriguez-Proteau, R.; Purnell, J.Q.; Stevens, J.F. Human pharmacokinetics of xanthohumol, an antihyperglycemic flavonoid from hops. Mol. Nutr. Food Res. 2014, 58, 248–255. [Google Scholar] [CrossRef] [PubMed]
  57. Zhang, W.; Pan, Y.; Gou, P.; Zhou, C.; Ma, L.; Liu, Q.; Du, Y.; Yang, J.; Wang, Q. Effect of xanthohumol on Th1/Th2 balance in a breast cancer mouse model. Oncol. Rep. 2018, 39, 280–288. [Google Scholar] [CrossRef]
  58. Guo, D.; Zhang, B.; Liu, S.; Jin, M. Xanthohumol induces apoptosis via caspase activation, regulation of Bcl-2, and inhibition of PI3K/Akt/mTOR-kinase in human gastric cancer cells. Biomed. Pharm. 2018, 106, 1300–1306. [Google Scholar] [CrossRef]
  59. Saito, K.; Matsuo, Y.; Imafuji, H.; Okubo, T.; Maeda, Y.; Sato, T.; Shamoto, T.; Tsuboi, K.; Morimoto, M.; Takahashi, H.; et al. Xanthohumol inhibits angiogenesis by suppressing nuclear factor-kappaB activation in pancreatic cancer. Cancer Sci. 2018, 109, 132–140. [Google Scholar] [CrossRef]
  60. Dokduang, H.; Yongvanit, P.; Namwat, N.; Pairojkul, C.; Sangkhamanon, S.; Yageta, M.S.; Murakami, Y.; Loilome, W. Xanthohumol inhibits STAT3 activation pathway leading to growth suppression and apoptosis induction in human cholangiocarcinoma cells. Oncol. Rep. 2016, 35, 2065–2072. [Google Scholar] [CrossRef]
  61. Jiang, W.; Zhao, S.; Xu, L.; Lu, Y.; Lu, Z.; Chen, C.; Ni, J.; Wan, R.; Yang, L. The inhibitory effects of xanthohumol, a prenylated chalcone derived from hops, on cell growth and tumorigenesis in human pancreatic cancer. Biomed. Pharm. 2015, 73, 40–47. [Google Scholar] [CrossRef] [PubMed]
  62. Yoshimaru, T.; Komatsu, M.; Tashiro, E.; Imoto, M.; Osada, H.; Miyoshi, Y.; Honda, J.; Sasa, M.; Katagiri, T. Xanthohumol suppresses oestrogen-signalling in breast cancer through the inhibition of BIG3-PHB2 interactions. Sci. Rep. 2014, 4, 7355. [Google Scholar] [CrossRef] [PubMed][Green Version]
  63. Benelli, R.; Vene, R.; Ciarlo, M.; Carlone, S.; Barbieri, O.; Ferrari, N. The AKT/NF-kappaB inhibitor xanthohumol is a potent anti-lymphocytic leukemia drug overcoming chemoresistance and cell infiltration. Biochem. Pharm. 2012, 83, 1634–1642. [Google Scholar] [CrossRef] [PubMed]
Ijms 20 01203 g001 550

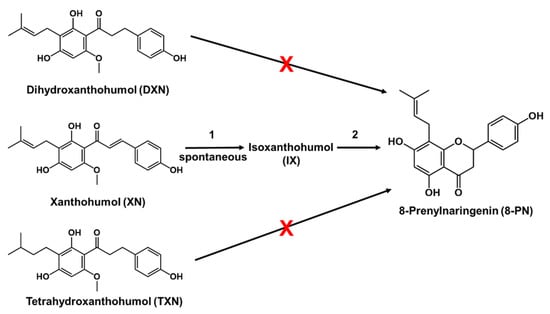

Figure 1. Structural comparison of dihydroxanthohumol (DXN), tetrahydroxanthohumol (TXN), xanthohumol (XN), and 8-prenylnaringenin (8-PN). Xanthohumol is converted to 8-prenylnaringenin in a two-step process. In step 1, xanthohumol spontaneously isomerizes to isoxanthohumol (IX). In step 2, isoxanthohumol is converted to 8-prenylnaringenin by the gut microbiome, or cytochrome P450 enzymes of the host [10,18]. XN can be converted into DXN by gut microbiota [19]. 8-PN formation is not possible with DXN or TXN. Figure adapted from [3].
Figure 1. Structural comparison of dihydroxanthohumol (DXN), tetrahydroxanthohumol (TXN), xanthohumol (XN), and 8-prenylnaringenin (8-PN). Xanthohumol is converted to 8-prenylnaringenin in a two-step process. In step 1, xanthohumol spontaneously isomerizes to isoxanthohumol (IX). In step 2, isoxanthohumol is converted to 8-prenylnaringenin by the gut microbiome, or cytochrome P450 enzymes of the host [10,18]. XN can be converted into DXN by gut microbiota [19]. 8-PN formation is not possible with DXN or TXN. Figure adapted from [3].
Ijms 20 01203 g001
Ijms 20 01203 g002 550

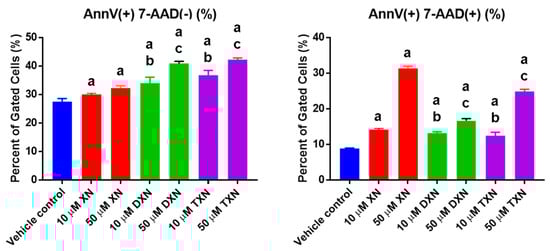

Figure 2. XN, DXN, and TXN induce apoptosis in HT29 cells. Cells were treated with each prenylated flavonoid at the concentration indicated (10 or 50 µM), and apoptosis was detected using an Annexin V assay. Externalization of phosphatidyl serine, an early marker of apoptosis, was detected by flow cytometry after staining with Annexin V-PE and 7-AAD. Annexin V(+) 7-AAD(−) cells are undergoing early apoptosis (left panel), and Annexin V(+) 7-AAD(+) are undergoing late apoptosis (right panel). Values are mean ± SD, n = 9 for each treatment. The letter “a” indicates a statistically significant difference from vehicle control, the letter “b” indicates a statistically significant difference from 10 µM XN, and the letter “c” indicates a statistically significant difference from 50 µM XN (p < 0.05). Statistical analysis was performed using one-way ANOVA with a Sidak’s post hoc test.
Figure 2. XN, DXN, and TXN induce apoptosis in HT29 cells. Cells were treated with each prenylated flavonoid at the concentration indicated (10 or 50 µM), and apoptosis was detected using an Annexin V assay. Externalization of phosphatidyl serine, an early marker of apoptosis, was detected by flow cytometry after staining with Annexin V-PE and 7-AAD. Annexin V(+) 7-AAD(−) cells are undergoing early apoptosis (left panel), and Annexin V(+) 7-AAD(+) are undergoing late apoptosis (right panel). Values are mean ± SD, n = 9 for each treatment. The letter “a” indicates a statistically significant difference from vehicle control, the letter “b” indicates a statistically significant difference from 10 µM XN, and the letter “c” indicates a statistically significant difference from 50 µM XN (p < 0.05). Statistical analysis was performed using one-way ANOVA with a Sidak’s post hoc test.
Ijms 20 01203 g002
Ijms 20 01203 g003 550

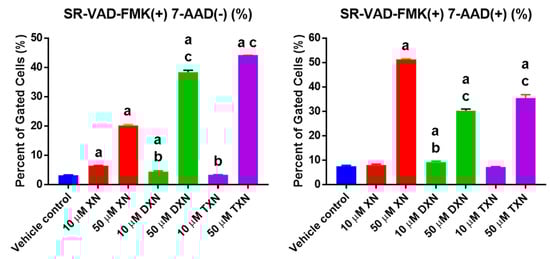

Figure 3. XN, DXN, and TXN induce caspase activation, cellular plasma membrane permeabilization, and cell death in HT29 cells. Cells were treated with each prenylated flavonoid at the concentration indicated (10 or 50 µM) for 18 h and apoptosis was detected using the multicaspase assay. Apoptosis was detected by flow cytometry after staining with SR-VAD-FMK and 7-AAD. SR-VAD-FMK (+) 7-AAD(−) cells are undergoing early- to mid-apoptosis (left panel), and SR-VAD-FMK (+) 7-AAD(+) are undergoing late apoptosis (right panel). Values are mean ± SD, n = 9 for each treatment. The letter “a” indicates a statistically significant difference from vehicle control, the letter “b” indicates a statistically significant difference from 10 µM XN, and the letter “c” indicates a statistically significant difference from 50 µM XN (p < 0.05). Statistical analysis was performed using one-way ANOVA with a Sidak’s post hoc test.
Figure 3. XN, DXN, and TXN induce caspase activation, cellular plasma membrane permeabilization, and cell death in HT29 cells. Cells were treated with each prenylated flavonoid at the concentration indicated (10 or 50 µM) for 18 h and apoptosis was detected using the multicaspase assay. Apoptosis was detected by flow cytometry after staining with SR-VAD-FMK and 7-AAD. SR-VAD-FMK (+) 7-AAD(−) cells are undergoing early- to mid-apoptosis (left panel), and SR-VAD-FMK (+) 7-AAD(+) are undergoing late apoptosis (right panel). Values are mean ± SD, n = 9 for each treatment. The letter “a” indicates a statistically significant difference from vehicle control, the letter “b” indicates a statistically significant difference from 10 µM XN, and the letter “c” indicates a statistically significant difference from 50 µM XN (p < 0.05). Statistical analysis was performed using one-way ANOVA with a Sidak’s post hoc test.
Ijms 20 01203 g003
Ijms 20 01203 g004 550

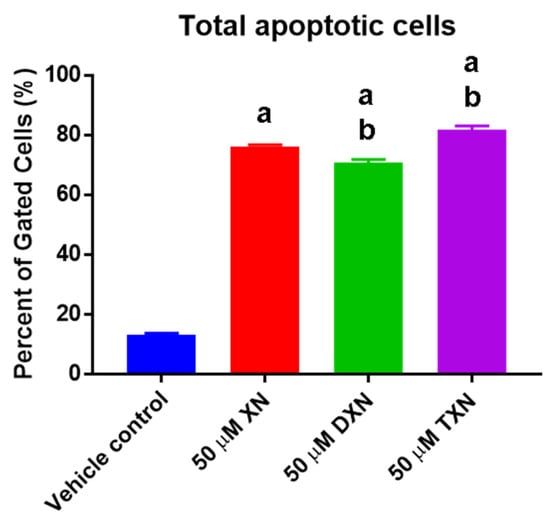

Figure 4. Total percentage of apoptotic and dead cells. Values are mean ± SD, n = 9 for each condition. The letter “a” indicates a statistically significant difference from vehicle control, the letter “b” indicates a statistically significant difference from 50 µM XN (p < 0.05). Statistical analysis was performed using one-way ANOVA with a Sidak’s post hoc test.
Figure 4. Total percentage of apoptotic and dead cells. Values are mean ± SD, n = 9 for each condition. The letter “a” indicates a statistically significant difference from vehicle control, the letter “b” indicates a statistically significant difference from 50 µM XN (p < 0.05). Statistical analysis was performed using one-way ANOVA with a Sidak’s post hoc test.
Ijms 20 01203 g004
Ijms 20 01203 g005 550

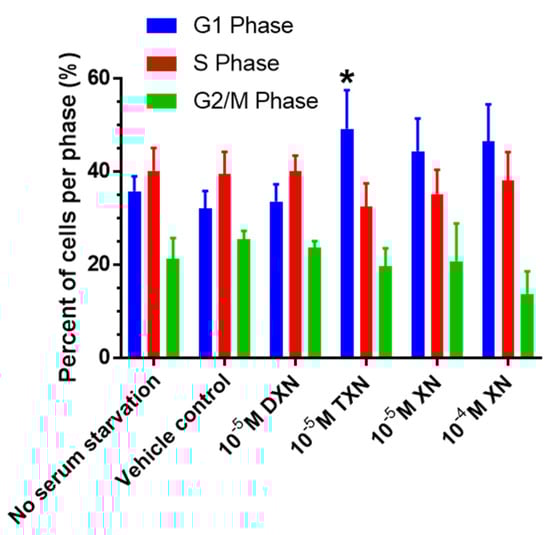

Figure 5. Cell cycle analysis using HT29 cells and propidium iodide, values are mean ± SD, n = 9 for each treatment. An asterisk indicates a statistically significant difference from vehicle control (p < 0.05). Statistical analysis was performed using one-way ANOVA with a Sidak’s post hoc test.
Figure 5. Cell cycle analysis using HT29 cells and propidium iodide, values are mean ± SD, n = 9 for each treatment. An asterisk indicates a statistically significant difference from vehicle control (p < 0.05). Statistical analysis was performed using one-way ANOVA with a Sidak’s post hoc test.
Ijms 20 01203 g005
Table
Table 1. XN, DXN, and TXN inhibit proliferation of human colon adenocarcinoma (HCT116 and HT29) and liver carcinoma (HepG2 and Huh7) cell lines. Mean IC50 values (±SD) were calculated from cell growth curves (n = 5, Figure S1).
Table 1. XN, DXN, and TXN inhibit proliferation of human colon adenocarcinoma (HCT116 and HT29) and liver carcinoma (HepG2 and Huh7) cell lines. Mean IC50 values (±SD) were calculated from cell growth curves (n = 5, Figure S1).
Cell TypeIC50 (µM)
XNSDDXNSDTXNSD
HCT11640.81.428.7 a1.034.0 b1.3
HT2950.21.431.4 a1.134.9 b1.1
HepG225.41.121.7 a1.127.1 b1.1
Huh737.21.532.5 a1.326.5 b1.1
a Statistically significantly different from XN treatment p < 0.05); b Statistically significantly different from XN and DXN (p < 0.05). Statistical analysis was performed using one-way ANOVA with a Sidak’s post hoc test.
