Int. J. Mol. Sci. 2019, 20(4), 970; doi:10.3390/ijms20040970

Review
Jumping on the Bandwagon: A Review on the Versatile Applications of Gold Nanostructures in Prostate Cancer
Department of Sciences, Faculty of Natural and Applied Sciences, Notre Dame University-Louaize, ZoukMosbeh P.O.Box:72, Lebanon
*
Author to whom correspondence should be addressed.
Received: 4 February 2019 / Accepted: 21 February 2019 / Published: 23 February 2019

Abstract

:
Prostate cancer (PCa) has remarkably emerged as a prominent disease in the face of the male population. Conventional treatments like prostatectomy or radiation can be curative only if PCa is diagnosed at an early stage. In the field of targeted therapy, a bevy of novel therapeutic approaches have left a landmark in PCa treatment and have proven to extend survival via distinct modes of actions. Nanotherapy has started to take root and has become the hype of the century by virtue of its abundant advantages. Scientists have invested a great deal of interest in the development of nanostructures such as gold nanoparticles (AuNPs), which hold particularly great hope for PCa theranostics. In this article, we present an overview of the studies published after 1998 that involve the use of different functionalized AuNPs to treat and diagnose PCa. Special reference is given to various in vitro and in vivo methods employed to shuttle AuNPs to PCa cells. Major studies show an enhancement of either detection or treatment of PCa when compared to their non-targeted counterparts, especially when AuNPs are tagged with specific ligands, such as antibodies, tea natural extracts, folate, anisamide, receptor inhibitors, and chitosan. Future approaches of treatment are dependent on those worthy multifunctional molecules, and are dictated by their ability to achieve a more versatile cancer therapeutic approach.
Keywords:
gold nanoparticles; prostate cancer; theranostics; in vitro and in vivo studies; nanotherapy

1. Introduction

Prostate cancer (PCa) occurs in the prostate gland that adheres firmly to the base of the bladder and has a fundamental role in producing and secreting the prostate fluid that mainly functions to cushion and nourish the sperm with the seminal fluid, along with other constituents such as enzymes and lipids [1]. PCa affects the prostate gland upon the over-expression of certain receptor molecules, such as prostate specific membrane antigen (PSMA) and laminin. Several predisposed factors such as age, family history, and obesity might serve as stimulants. It has become by far the most common malignancy in the face of the male population, for it is the second most frequently diagnosed cancer in men worldwide [2]. Despite the fact that PCa is a slow-growing cancer, it can become aggressive when metastasis occurs and spreads throughout the body. PCa metastasis mainly occurs to the bone, lymph nodes, and lungs [3], as depicted in Figure 1. The treatment of PCa has been a subject of controversy for years. Typically, surgery and radiation therapy are two established protocols that are done when the cancer is local and confined to the prostate gland [4]. Radical prostatectomy, hormone therapy, chemotherapy, radiotherapy, and combination therapy are ordinarily options referred to when the disease is advanced (aggressive) and has spread to nearby tissues. Some of which include either the removal of the prostate gland, treating with one or two different chemotherapy drugs to enhance the outcome, or applying radiation such as x-rays to defeat the tumor. Treatments at this time frame are only embarked to palliate the symptoms of the disease [5] while masking the health side effects left post-treatment. For instance, the major demeriting side effect of chemotherapy lies in the non-selective uptake of drugs by healthy cells [6]. Moreover, having a complete successful toxicity on PCa through targeted radioimmunotherapy (RIT) remains out of reach [7,8]. There is a need for the development of existing therapies while prioritizing and placing targeted therapy as a top-notch asset in improving the efficacy of treatments and increasing the survival rate of patients [9]. In the next sections, we briefly visit the world of nanotechnology as a transit to the arena of gold nanoparticles (AuNPs) and their crucial role in PCa theranostics [10].

2. Nanotechnology and Its Importance in Theranostics

The term “nanotechnology” is often used to define studies that deal with substances that have very small dimensions, which are usually in the nanometer range, and such particles are coined with the term “nanoparticles”. Particles at a nanometer scale are well known to exploit different properties from bulk materials, which arise from the interplay of classical physics and quantum mechanics [11]. Nanomaterials have underlying principal parameters that give them unique physiochemical properties which are determined by their size, shape, and composition. Such parameters are projected to have a wide range of applications, from targeted drug delivery to biomedical imaging, and more recently to personalized medicine [12].
The use of nanoparticles that are generally less than 100 nm in size has increased exponentially in recent years [9,13]. The key benefits of nanotherapy can be disentangled into two major objectives, namely, maximized drug loading capacity due to their high surface-area-to-volume ratio, and increased tumor uptake through prolonged drug circulation and lessened risk of undesirable toxic effects to nearby healthy tissues [14,15]. Moreover, to overcome the mutability of cancer, it is critical to achieve an idealistic drug delivery vehicle that is characterized by long blood circulation time, and specific targeted therapy consists of clinically approved components to effectively combat the tumor within a short time frame [16]. This notion can be exemplified and put into perspective by the ample studies done on using nanomaterials in theranostics for different types of cancers [17,18]. Thus, nanotechnology has rapidly emerged in the field of medical imaging and targeted drug delivery [19]. The uses of nanoparticles, for example as both imaging and targeting agents, may be coalesced to form a single entity capable of performing dual functions, and therefore with the use of nanotechnology, the pitfalls in the current approaches for treatment would be eliminated and rectified. This groundbreaking discovery and multifaceted world of nanosystems will be set on a pedestal and will prove to be very promising for various medical applications, for it has already started to influence the way diseases, specifically cancer, are addressed. Overall, the benefit to patients undergoing chemotherapy is sufficiently low and is outweighed by the risks and harm stemming from treatment, tipping the balance in favor of targeted alternative treatments and accentuating their importance [20]. The major advantage displayed by targeted therapy is the delivery of drugs specifically to cancer tissues. This feature allows it to be at the forefront relative to conventional chemotherapy regimens [21,22]. In targeted therapy, having a uniquely over-expressed antigen on the tumor of interest is of paramount importance, since it reinforces the targeted delivery of the drugs and spares normal tissue.
Throughout the years, different types of nanosystems have been addressed in order to study their various biological applications and have a better understanding on which particles serve the human kind best in terms of serious diseases such as cancer [15]. Regarding the enhancement of PCa diagnosis and treatment, among the different types of nanoparticles studied so far are iron oxide, silver, gold, platinum, quantum dots, and liposomes [23,24,25]. The main challenges in the methods using the above-mentioned nanoparticles are to overcome their limited biodistribution, toxicity, and clearance from the excretory pathway [13] that is depicted in Table 1. A summary of the distribution of nanoparticles (NPs) in vivo is represented in Figure 2.
Narrowing down on the vast and innumerable therapeutic drug delivery vehicles that have been employed, AuNPs have been greatly explored due to their enhanced biodistribution and their capacity to accommodate large payloads [26]. The use of AuNPs holds a crucial impact in the field of nanotechnology and in shaping the future of targeted cancer therapy, as discussed below.

3. Attractive Properties of Gold Nanoparticles

Researchers have made quite an improvement in finding solutions to overcome the obstacles facing current treatment approaches. However, we are still far from “hitting the nail on the head” in terms of truly finding an efficient method for drug delivery and without serious side effects. One essential factor that one ought to bear in mind is that the complexity of the synthesis of any nanoparticle plays a crucial role in determining its efficient use and practicality. Many nanoparticles are difficult to produce in aqueous media, such as quantum dots, metallic nanoparticles, ceramic nanoparticles, oxide nanoparticles, and many more (by having multiple processes that should be undergone and difficulty controlling the reactions, hence consistency in the product is not always achieved). On the contrary, AuNP synthesis in water is “praised” for its ease of production, with a high control of the size and shape-dependent optical properties, which in turn allows for a wide biofunctionalization of the AuNPs due to the high affinity for thiols and amino groups present in biomolecules. Their ability to be manipulated—also provides a versatile platform for nano-biological assemblies with oligonucleotides, antibodies, and proteins, with their high surface area allowing for a dense presentation of multifunctional moieties serving as practical platforms for applications in biology and medicine [27,28]. Furthermore, AuNPs are also known for having no or very low cytotoxicity when compared to other types of nanostructures (i.e., quantum dots) [29]. AuNPs have proved to be a multifunctional platform because they can be used for bioimaging and therapeutic functions [27,30]. This is mainly due to their inherent capability to exert optimal therapeutic effects with minimum leakage of payload away from target sites, and also because their nano-dimensions can be easily controlled and designed to match the sizes of tumor vasculature [31,32].
AuNPs can have a large surface bioconjugation property with molecular probes, especially those containing amino, phosphate, and thiol groups [33,34]. Moreover, they also offer particular size and shape-dependent optical properties which are mainly concerned with localized plasmon resonance [35]. In fact, the surface plasmon resonance is a phenomenon that arises when the wavelength of light is much larger than the nanoparticle size and eventually causes the free electrons in the metal to oscillate. As a front wave of light passes, polarization of the electrons on the surface of AuNPs occurs, causing their oscillation in resonance with the light’s frequency [36]. This feature is usually determined by absorption and scattering spectroscopy and is known to depend greatly on the size, shape, and dielectric constants of both the metal and the surrounding material [37]. The highly sensitive surface plasmon resonance (SPR) response is extremely desirable for the reliable measurement of any SPR shift, which signifies changes in the nature of the AuNPs such as efficient molecule binding or an increase in size. Basically, this property allows AuNPs to be used for sensing and bioimaging because SPR shifts are mostly due to changes in the dielectric constants or agglomeration of the particles [38,39]. Therefore, AuNPs can act as strong contrast agents due to their emission spectra which can be 4–5 folds greater than those of efficient fluorophores [40]. Some imaging technique examples enhanced by AuNPs include X-ray, computed tomography, photoacoustic imaging, ultrasound, and many more [41]. Moreover, they can be used as excellent tracking devices for optical imaging and detection of cancerous cells. Lastly, what truly makes AuNPs shine is their ability to be used for photothermal therapy (PTT) of cancers and other disorders such as bacterial infections. Primarily, electron relaxations on the surface of AuNPs are transformed into heat on a time scale of picoseconds [42]. When a light frequency stronger than the SPR absorption of AuNPs is employed (usually infrared light), a hyperthermic environment is generated, and in recent years, the ablation of tumors with hyperthermia from PTT has gained increased interest [43]. All these unique features of AuNPs have been attention grabbers for scientists to grow increasing interest in the research of gold AuNPs in recent years, and this has resulted in having many studies on the applications of AuNPs on different types of cancers, particularly on PCa, breast, lung, brain, and colon cancer, as depicted in Figure 3. Furthermore, a summary of various shapes of AuNPs (such as spheres, rods, cages, etc.) and their applications on PCa is presented in the Table 2.

4. Arena of Gold Nanoparticles in PCa

In this review, we describe major studies published regarding different types of AuNPs and their applications in the treatment and diagnosis of prostate cancer. About seven thousand articles have been peer-reviewed and added to the literature database since 1998. A focus on AuNPs that were applied for PCa diagnosis and treatment in the past two decades, from 1998 till 2018, was done. However, we note here that most articles we found were published after the year 2000. The search was restricted to the English language and the type of publication was set to “Journal”, and the output was about 7000 articles. Despite the use of specific keywords, sixty percent of the studies on gold applications involved other types of prostate cancer, such as breast, colorectal, and lung cancers. Another twenty percent contained an adverse gamut of the broad applications of different types of nanoparticles in cancer therapy that were not restricted to gold. The remaining twenty percent were collected as EndNote databases and screened for duplicates. Thus, our aim was to provide an updated review incorporating the latest 20% of articles that match our search criteria and screen them to examine whether all the studies were addressed in the two most recent reviews by Elgvist et al., 2017, “Theranostic Nanoparticle Applications: A Focus on Prostate and Breast Cancer” [9], and by Thambiraj et al., 2018, “An Overview on Applications of Gold Nanoparticle for Early Diagnosis and Targeted Drug Delivery to Prostate Cancer”. Almost 20 articles were not covered by Elgvist’s report and consequently added in this review, and only three articles were overlapping with that of Thambiraj (Table 3). Furthermore, about 75% of all studies were done in vitro, while being split equally between diagnostic and therapeutic approaches (Figure 4). On the other hand, most of the in vivo studies were designed for therapeutic purposes.

4.1. Gold Nanoparticles for Diagnosis of PCa

Despite the progress in PCa diagnosis, it is crucial to further develop existing diagnostic mechanisms in order to detect the tumor at its early stages. Many biological markers exist. The prostate specific antigen (PSA), a serum biomarker, is one of the most credible diagnostic and prognostic markers used for PCa detection [44]. The detection limit of PSA is the lowest concentration of PSA that can be detected, and researchers are determinedly pursuing optimal methods that can detect PSA at their lowest levels in order to give a very accurate readout. Doctors often consider PSA levels of 4 ng/mL and lower as normal. Usually, routine PSA blood tests report a minimum of a 4 ng/mL detection limit. This underlines the need of enhanced detection sensitivity through the advantages served by AuNPs. In the following section, we describe various biochemical methods of AuNP modifications used in vitro and in vivo for diagnostic applications that serve a higher sensitivity to detect PSA.

4.1.1. In Vitro Applications

The emergence of nanotechnology, particularly AuNPs, has made improvements soundly achievable due to their unique physiochemical properties and their ability to be used as tags to allow a heightened sensitivity [18].
In a recent study, Rodriguez et al. (2018) outlined a porous silicon electrode platform tethered to 100 nm gold nanoparticles and coated with anti-PSA antibodies, as depicted in Figure 5. The gold nanoparticles relayed the added value of enhanced conductivity with a remarkable limit of detection, 1 ng/mL PSA [45]. Barbosa et al. (2017) unraveled a new method towards achieving an optimum one-step quantitation of PSA using silver-enhanced gold nanoparticles conjugated to anti-PSA antibodies together with carbon nanoparticles [46]. They aimed at promoting a novel optical detection method using a microcapillary film (MCF) as an immunoassay platform. PSA was successfully quantified in a cost-effective method, presenting a dynamic range of 10 to 100 ng/mL of PSA.
One similar approach that was anticipated for sensitive PSA detection was done by Pal et al. (2017), in which gold nanoparticles supported with graphene oxide (Au–GrO) and attached to anti-PSA antibodies were used as novel biosensors that were applied to human prostate epithelial cells, RWPE-1. The immunosensor resulted in a highly selective and stable model, having a low PSA detection limit of 0.24 fg/mL [47]. Suresh et al. (2018) applied an identical method, however, gold nanoparticles that were coated with a chitosan polymer were used to establish binding to the anti-PSA antibodies [48]. On the other hand, Vural et al. (2018) proposed a method for PSA detection in blood serum samples that involved self-assembled AuNPs with peptide nanotube (PNT) and polyaniline (PANI) composites (PANI/AuNP–PNT) that were used to modify a pencil graphite electrode (PGE). Anti-PSA (Ab1) was immobilized on the modified electrode (PANI/AuNP–PNT/PGE) to capture PSA, and horseradish peroxidase (HRP) labeled anti-PSA (HRP–Ab2) was used as a tracer antibody. The practicality of the novel method was compared to enzyme-linked immunosorbent assay (ELISA) and compatible results were obtained with a minimum limit of detection of 0.68 ng/mL [49]. In a very recent study by Srivastava et al. (2018), the authors also shed light on newly instrumented biosensors composed of graphene quantum dots and goldnanorods (GQDs–AuNRs). Their research involved a comparative study between immunosensors (anti-PSA) and aptasensors (aptamer) bound to the nanoparticles, to efficiently quantitate and detect PSA levels. The performances of both sensors showed comparable results, with an almost same limit of detection (LOD) of 0.14 ng/mL. The aptasensors possessed some advantages over the immunosensors in terms of stability, simplicity, and cost effectiveness [50]. Another model by Huang et al. (2005) showed that using a single domain antigen-binding fragment, such as an anti-PSA VHH camel antibody (cAbPSA–N7) derived from a dromedary heavy-chain antibody, and applying it to a colloidal streptavidin-coated AuNP for PSA detection proved to be a very promising method as well and enabled the detection of PSA levels as low as 1 ng/mL [51].

4.1.2. In Vivo Applications

The inert trait of AuNPs was also exploited as a powerful means for enhanced imaging of PCa in rodents. Harmsen et al. (2017) used 60 nm gold nanoparticles encapsulated with a silica shell and injected intratumorally in mice to achieve a highly sensitive detection with contrast enhanced raman imaging that proves to be promising for future in vivo cancer imaging. The authors also managed to introduce several applications of these nanoprobes for biomedical research, such as intraoperative cancer imaging and a straightforward delineation of cancer without the need for specific biomarker targeting [52]. On the other hand, Sattarahmady et al. (2017) gave insight on a novel method for PSA detection using a round hairbrush-like gold nanostructure conjugated to an aptamer and tested on human blood samples. The fabricated aptamer biosensor was capable of detecting PSA with a minimum limit value of 50 pg/mL [53]. Despite the sensitive range of detection limits achieved, optimizations and refinements in terms of size, coating, and morphology of AuNPs are still needed to achieve an optimum quantification of PSA, since their behavior in vivo mainly depends on these parameters.

4.2. Gold Nanoparticles for the Treatment of PCa

Scientists are constantly trying to find effective targeted drug delivery strategies. The real concern they face is to know which method will best act as the “magic bullet” that could relay the desired outcome in terms of gene silencing, cytotoxicity, etc. In many cases, for example, targeting systems such as AuNPs have been designed (through natural extracts that act as active elements in raw substances, antibodies, and ligands such as polypeptides able to recognize a specific receptor that could allow the localization of certain drugs to the diseased environment such as tumors. In the following section, recent models of AuNP modifications applied both in vitro and in vivo are chronologically reported.

4.2.1. In Vitro Applications

Among the AuNPs targeted prostate treatments was a study done by Kastenel et al. (2013), which highlighted the feasibility of efficiently targeting prostate cancer cells with PSMA inhibitor (CTT54)-guided gold nanoparticles. The PSMA-targeted AuNPs exhibited significantly higher and selective binding to LNCaP cells compared to control non-targeted AuNPs in a time-dependent manner [54]. Interestingly, a bigger achievement is met when physics is introduced to biology, giving rise to “photothermal therapy” (PTT). PTT is a minimally invasive technique which uses hyperthermia generated by photothermal agents from laser energy to kill cancer cells [55]. Oh et al. (2015) showed that efficient PCa killing was feasible when photothermal therapy was applied on AuNP clusters by low light irradiation that caused local heating and selective killing of the PC-3 targeted cells [56]. Conversely, Mayle et al. (2016) worked on engineering an A11 minibody conjugated to a gold nanoshell for prostate stem cell antigen (PSCA) in order to facilitate targeted PTT on PSCA-transfected 22Rv1 PCa cells. Results showed significant laser-induced, localized killing of PCa cells in vitro by exhibiting greater efficacy as a PTT agent compared to non-targeted gold nanoshells [57]. Tsai et al. (2016) used AuNPs coated with a tumor-specific green tea natural extract epigallocatechin gallate (EGCg) on metastasized human prostate cancer cells (PC-3), and successfully delivered the chemotherapeutic drug doxorubicin (DOX). Cell proliferation of the PC-3 cells was inhibited concomitantly with enhanced cellular uptake of DOX, as revealed by the calorimetric 3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT assay) and based on the selective ability of living cells to reduce MTT into formazan. In addition laser scanning microscopy was used to confirm the MTT results [58]. Butterworth et al. (2016) performed a preclinical evaluation of dithiolated diethylenetriaminepentaacetic acid (DTDTPA)-conjugated AuNPs ([email protected]) for both CT-contrast enhancement and radiotherapy in PCa [56]. Gold-DTDTPA nanoparticles showed the capability of acting as efficient theranostic agents in prostate cancer by inducing cytotoxicity in the PC-3, DU 145, and PNT2-C2 cells after 24 hrs exposure to the NPs. Moreover, the [email protected] gave rise to a 10 % CT imaging enhancement. On the other hand, Guo et al. (2016) took advantage of small-interference RNA (siRNA) conjugated to AuNPs to knock down gene expression in prostate cancer cells (PC-3 and LNCaP). Results offered potential applications in transferrin and folate receptor ligands conjugated to AuNPs for prostate cancer treatment [59]. Also, in an article by Fitzgerald et al. (2016), siRNA was successfully conjugated to anisamide-conjugated poly(ethylenimine) (PEI)–AuNPs. Anisamide tends to bind overexpressed sigma receptors in PCa. Results showed that the AuNP complexes resulted in highly efficient knockdown of the RelA gene (~70%). The authors also intend to perform folic acid-targeted AuNPs to PCa and other targeting ligands [60]. In fact, the RelA gene is a proto-oncogene that encodes the RelA subunit (also known as p65) of the NF-kappa-B (NF-κB) transcription factor, which is involved in many cellular processes and in the progression of many diseases, such as Ependymoma and Reticuloendotheliosis, and most importantly PCa [61]. The activation of NF-κB/RelA has often been correlated with the development of many cancers and have revealed to serve as biomarkers of PCa progression and metastases [62].
A real breakthrough arose when Kim et al. (2017) managed to demonstrate the selective uptake of epidermal growth factor-conjugated gold nanoparticles (EGF–GNP) and how it facilitates non-thermal plasma (NTP)-mediated cell death in prostate DU 145 cells along with other cell lines over-expressing the epidermal growth factor receptor (EGFR). Treatment with the EGF-conjugated GNP complex, followed by NTP irradiation, showed selective apoptosis of cells that have undergone receptor-mediated endocytosis. These results suggest that EGF-conjugated GNP functions as an important adjuvant which gives target specificity in applications of conventional plasma therapy [63].

4.2.2. In Vivo Applications

Similarly, Shukla et al. (2012) injected intratumorally a tumor-specific green tea natural extract, epigallocatechin gallate (EGCg) a most abundant catechin in tea that has a great potential in treating human diseases. EGC functionalized radioactive AuNPs target overexpressed laminin receptors and induce cytototoxic effects, hence circumventing transport barriers, resulting in targeted delivery of therapeutic payloads [31] and resulting in 80% reduction of tumor volumes after 28 days, demonstrating significant inhibition of tumor growth compared to controls. Another promising in vivo study showed up to 80 percent tumor reduction when magniferin radioactive AuNPs, having laminin receptor specificity, were applied in the prostate tumor in severe combined immune deficiency (SCID) mice [64]. Lu et al. (2017) revealed that chrysophanol gold nanoparticles in mice model carry high bioavailability, with sustained releasing properties (30 µg/mL) when introduced intraperitoneally and compared to the free chrysophanol plasma concentration (3 µg/mL) after 2 hrs. Chrysophanol extracts from Rheum genus plants have been suggested to alter major signaling pathways leading to cell death in different types of cancer cells [65].
In an interesting study managed by Lechtman et al. (2017), the authors came out with a conclusive finding that there is an interplay between the gold nanoparticle sub-cellular localization (size 1.9 and 100 nm), and the photon energy for radiosensitization in PC-3 prostate cancer cells [66] when incubated with 2 mg/mL of 30 nm AuNPs and irradiated with 100 and 300 kVp beams. Khoo et al. (2017) studied the effect of radiosensitization of prostate cancers in vitro and in vivo to X-rays using actively targeted goserelin-conjugated gold nanorods (gGNRs) [67]. The study showed that treatment of prostate cancer cells with gGNRs promotes gonadotropin-releasing hormone receptor-mediated internalization and enhances radiosensitivity. The in vivo results showed that gGNR treatment, along with x-ray irradiation, is considerably more effective than radiation treatment alone (p < 0.0005). This resulted in a striking reduction in tumor volume that was found to be 50% smaller after only 2 months of treatment. Their results provided strong evidence for the feasibility of tumor-specific prostate brachytherapy with gGNRs.
All of these studies highlight the great potential that AuNPs withhold for PCa treatment. However, in order to achieve a bench-to-bedside translation of these great entities, more efforts are still needed to understand their modes of action in biological systems of clinically relevant models, such as monkeys. They will then be truly able to bring us a step closer to demonstrate how these targeted systems function in the human species and whether they invoke other complications that have not been observed in simpler in vivo models.

5. Conclusions

Recognizing the growing global prostate cancer crisis, a smart vision is needed to implement nanoparticles as drug carriers. In brief, the significance of AuNPs boils down to the versatile platform they offer through their modifications, which allow them to be conceived as potential contenders in the areas of active tumor targeting and imaging. New avenues will arise through enhanced manipulations of AuNPs. Through modulating the AuNPs’ shape, size, and most importantly, surface characteristics, it becomes possible to fine-tune their properties in order to maximize their applicability as a tool for cancer diagnosis, photothermal therapy, radiotherapy, and targeted gene therapy [68]. It remains quite intriguing to address the effect of different coats on AuNPs on their pharmacokinetics, tissue distribution, and excretion of conjugated AuNPs.

Author Contributions

All authors contributed to the review of the literature and the preparation of the manuscript.

Acknowledgments

This work was supported by National Council for Scientific Research Lebanon (CNRS-L GRP 2015 and 2017).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kumar, V.L.; Majumder, P.K. Prostate Gland: Structure, Functions and Regulation. Int. Urol. Nephrol. 1995, 27, 231–243. [Google Scholar] [CrossRef] [PubMed]
  2. Chen, S.L.; Wang, S.C.; Ho, C.J.; Kao, Y.L.; Hsieh, T.Y.; Chen, W.J.; Chen, C.J.; Wu, P.R.; Ko, J.L.; Lee, H.; et al. Prostate Cancer Mortality-To-Incidence Ratios Are Associated with Cancer Care Disparities in 35 Countries. Sci. Rep. 2017, 7, 40003. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Bubendorf, L.; Schöpfer, A.; Wagner, U.; Sauter, G.; Moch, H.; Willi, N.; Gasser, T.C.; Mihatsch, M.J. Metastatic patterns of prostate cancer: An autopsy study of 1,589 patients. Hum. Pathol. 2000, 31, 578–583. [Google Scholar] [CrossRef] [PubMed]
  4. Mottet, N.; Bellmunt, J.; Briers, E.; Bergh, R.; Bolla, M.; Casteren, N.; Cornford, P.; Culine, S.; Joniau, S.; Lam, T. Guidelines on Prostate Cancer; European Association of Urology: Arnhemthe, The Netherlands, 2015; pp. 1–137. [Google Scholar]
  5. Eton, D.T.; Lepore, S.J. Prostate cancer and health-related quality of life: A review of the literature. Psychooncology 2002, 11, 307–326. [Google Scholar] [CrossRef] [PubMed]
  6. Sun, H.; Zhu, X.; Lu, P.Y.; Rosato, R.R.; Tan, W.; Zu, Y. Oligonucleotide aptamers: New tools for targeted cancer therapy. Mol. Ther. Nucleic Acids 2014, 3, e182. [Google Scholar] [CrossRef] [PubMed]
  7. Pan, M.H.; Gao, D.W.; Feng, J.; He, J.; Seo, Y.; Tedesco, J.; Wolodzko, J.G.; Hasegawa, B.H.; Franc, B.L. Biodistributions of 177Lu- and 111In-labeled 7E11 antibodies to prostate-specific membrane antigen in xenograft model of prostate cancer and potential use of 111In-7E11 as a pre-therapeutic agent for 177Lu-7E11 radioimmunotherapy. Mol. Imaging Biol. 2009, 11, 159–166. [Google Scholar] [CrossRef] [PubMed]
  8. Van Rij, C.M.; Frielink, C.; Goldenberg, D.M.; Sharkey, R.M.; Lutje, S.; McBride, W.J.; Oyen, W.J.; Boerman, O.C. Pretargeted Radioimmunotherapy of Prostate Cancer with an Anti-TROP-2xAnti-HSG Bispecific Antibody and a (177)Lu-Labeled Peptide. Cancer Biother. Radiopharm. 2014, 29, 323–329. [Google Scholar] [CrossRef] [PubMed]
  9. Elgqvist, J. Nanoparticles as Theranostic Vehicles in Experimental and Clinical Applications-Focus on Prostate and Breast Cancer. Int. J. Mol. Sci. 2017, 18, 1102. [Google Scholar] [CrossRef] [PubMed]
  10. Sanna, V.; Sechi, M. Nanoparticle therapeutics for prostate cancer treatment. Nanomedicine 2012, 8 (Suppl. 1), S31–S36. [Google Scholar] [CrossRef] [PubMed]
  11. European Commission; Health & Consumer Protection Directorate-General; Scientific Committee on Health and Environmental Risks. The Appropriateness of Existing Methodologies to Assess the Potential Risks Associated with Engineered and Adventitious Products of Nanotechnologies; Scientific Committee on Emerging and Newly Identified Health Risks, Directorate-General for Health & Consumers: Brussels, Belgium, 2006; Volume 2, p. 13. [Google Scholar]
  12. Thambiraj, S.; Hema, S.; Shankaran, D.R. An Overview on Applications of Gold Nanoparticle for Early Diagnosis and Targeted Drug Delivery to Prostate Cancer. Recent Pat. Nanotechnol. 2018, 12, 110–131. [Google Scholar] [CrossRef] [PubMed]
  13. Buzea, C.; Pacheco, I.I.; Robbie, K. Nanomaterials and nanoparticles: Sources and toxicity. Biointerphases 2007, 2, MR17–MR71. [Google Scholar] [CrossRef]
  14. Ahmed, N.; Fessi, H.; Elaissari, A. Theranostic applications of nanoparticles in cancer. Drug Discov. Today 2012, 17, 928–934. [Google Scholar] [CrossRef] [PubMed]
  15. Rizzo, L.Y.; Theek, B.; Storm, G.; Kiessling, F.; Lammers, T. Recent progress in nanomedicine: Therapeutic, diagnostic and theranostic applications. Curr. Opin. Biotechnol. 2013, 24, 1159–1166. [Google Scholar] [CrossRef] [PubMed]
  16. Langut, Y.; Talhami, A.; Mamidi, S.; Shir, A.; Zigler, M.; Joubran, S.; Sagalov, A.; Flashner-Abramson, E.; Edinger, N.; Klein, S.; et al. PSMA-targeted polyinosine/polycytosine vector induces prostate tumor regression and invokes an antitumor immune response in mice. Proc. Natl. Acad. Sci. USA 2017, 114, 13655–13660. [Google Scholar] [CrossRef] [PubMed]
  17. Zou, L.; Wang, H.; He, B.; Zeng, L.; Tan, T.; Cao, H.; He, X.; Zhang, Z.; Guo, S.; Li, Y. Current Approaches of Photothermal Therapy in Treating Cancer Metastasis with Nanotherapeutics. Theranostics 2016, 6, 762–772. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Chen, H.; Zhen, Z.; Todd, T.; Chu, P.K.; Xie, J. Nanoparticles for Improving Cancer Diagnosis. Mater. Sci. Eng. R. Rep. 2013, 74, 35–69. [Google Scholar] [CrossRef] [PubMed]
  19. Saini, R.; Saini, S.; Sharma, S. Nanotechnology: The future medicine. J. Cutan. Aesthet. Surg. 2010, 3, 32–33. [Google Scholar] [CrossRef] [PubMed]
  20. Chakraborty, S.; Rahman, T. The difficulties in cancer treatment. ecancermedicalscience 2012, 6, ed16. [Google Scholar] [PubMed]
  21. Patri, A.K.; Myc, A.; Beals, J.; Thomas, T.P.; Bander, N.H.; Baker, J.R., Jr. Synthesis and in Vitro Testing of J591 Antibody-Dendrimer Conjugates for Targeted Prostate Cancer Therapy. Bioconj. Chem. 2004, 15, 1174–1181. [Google Scholar] [CrossRef] [PubMed]
  22. Kaittanis, C.; Bolaender, A.; Yoo, B.; Shah, N.; Ouerfelli, O.; Grimm, J. Targetable Clinical Nanoparticles for Precision Cancer Therapy Based on Disease-Specific Molecular Inflection Points. Nano Lett. 2017, 17, 7160–7168. [Google Scholar] [CrossRef] [PubMed]
  23. Singh, B.R.; Singh, B.N.; Khan, W.; Singh, H.B.; Naqvi, A.H. ROS-mediated apoptotic cell death in prostate cancer LNCaP cells induced by biosurfactant stabilized CdS quantum dots. Biomaterials 2012, 33, 5753–5767. [Google Scholar] [CrossRef] [PubMed]
  24. Chowdhury, P.; Roberts, A.M.; Khan, S.; Hafeez, B.B.; Chauhan, S.C.; Jaggi, M.; Yallapu, M.M. Magnetic nanoformulations for prostate cancer. Drug Discov. Today 2017, 22, 1233–1241. [Google Scholar] [CrossRef] [PubMed]
  25. Mijnendonckx, K.; Leys, N.; Mahillon, J.; Silver, S.; Van Houdt, R. Antimicrobial silver: Uses, toxicity and potential for resistance. Biometals 2013, 26, 609–621. [Google Scholar] [CrossRef] [PubMed]
  26. Carabineiro, S.A.C. Applications of Gold Nanoparticles in Nanomedicine: Recent Advances in Vaccines. Molecules 2017, 22, 857. [Google Scholar] [CrossRef] [PubMed]
  27. Dykman, L.A.; Khlebtsov, L.G. Gold Nanoparticles in Biology and Medicine: Recent Advances and Prospects. Acta Nat. 2011, 3, 34–55. [Google Scholar]
  28. Yeh, Y.C.; Creran, B.; Rotello, V.M. Gold nanoparticles: Preparation, properties, and applications in bionanotechnology. Nanoscale 2012, 4, 1871–1880. [Google Scholar] [CrossRef] [PubMed]
  29. Male, K.B.; Lachance, B.; Hrapovic, S.; Sunahara, G.; Luong, J.H. Assessment of cytotoxicity of quantum dots and gold nanoparticles using cell-based impedance spectroscopy. Anal. Chem. 2008, 80, 5487–5493. [Google Scholar] [CrossRef] [PubMed]
  30. Ashraf, S.; Pelaz, B.; del Pino, P.; Carril, M.; Escudero, A.; Parak, W.J.; Soliman, M.G.; Zhang, Q.; Carrillo-Carrion, C. Gold-Based Nanomaterials for Applications in Nanomedicine. Top. Curr. Chem. 2016, 370, 169–202. [Google Scholar] [PubMed]
  31. Shuklaa, R.; Chandaa, N.; Kumar, S.N.; Kani, P.; Caldwellk, C.; Zambrea, A.; Casteele, S.W.; Engelbrechtg, H.; Upendranb, A.; Smitha, C.J.; et al. Laminin receptor specific therapeutic gold nanoparticles (198AuNP-EGCg) show efficacy in treating prostate cancer. Proc. Natl. Acad. Sci. USA 2012, 109, 12426–12431. [Google Scholar] [CrossRef] [PubMed]
  32. Malam, Y.; Loizidou, M.; Seifalian, A.M. Liposomes and nanoparticles: Nanosized vehicles for drug delivery in cancer. Trends Pharmacol. Sci. 2009, 30, 592–599. [Google Scholar] [CrossRef] [PubMed]
  33. Cao-Milan, R.; Liz-Marzan, L.M. Gold nanoparticle conjugates: Recent advances toward clinical applications. Expert Opin. Drug Deliv. 2014, 11, 741–752. [Google Scholar] [CrossRef] [PubMed]
  34. Delong, R.K.; Reynolds, C.M.; Malcolm, Y.; Schaeffer, A.; Severs, T.; Wanekaya, A. Functionalized gold nanoparticles for the binding, stabilization, and delivery of therapeutic DNA, RNA, and other biological macromolecules. Nanotechnol. Sci. Appl. 2010, 3, 53–63. [Google Scholar] [CrossRef] [PubMed]
  35. Khan, A.K.; Rashid, R.; Murtaza, G.; Zahra, A. Gold Nanoparticles: Synthesis and Applications in Drug Delivery. Trop. J. Pharm. Res. 2014, 13, 1169. [Google Scholar] [CrossRef][Green Version]
  36. Mie, G. Beitrage zur Optik triiber Medien. Ann. Phys. 1908, 330, 377–445. [Google Scholar] [CrossRef]
  37. Eustis, S.; El-Sayed, M.A. Why gold nanoparticles are more precious than pretty gold: Noble metal surface plasmon resonance and its enhancement of the radiative and nonradiative properties of nanocrystals of different shapes. Chem. Soc. Rev. 2006, 35, 209–217. [Google Scholar] [CrossRef] [PubMed]
  38. Jain, P.K.; Huang, X.; El-Sayed, I.H.; El-Sayed, M.A. Review of Some Interesting Surface Plasmon Resonance-enhanced Properties of Noble Metal Nanoparticles and Their Applications to Biosystems. Plasmonics 2007, 2, 107–118. [Google Scholar] [CrossRef]
  39. Paul, B.; Tiwari, A. A Brief Review on the Application of Gold Nanoparticles as Sensors in Multi Dimensional Aspects. IOSR J. Environ. Sci. Toxicol. Food Technol. (IOSR-JESTFT) 2015, 1, 1–7. [Google Scholar]
  40. Jain, P.K.; Lee, K.S.; El-Sayed, I.H.; El-Sayed, M.A. Calculated Absorption and Scattering Properties of Gold Nanoparticles of Different Size, Shape, and Composition: Applications in Biological Imaging and Biomedicine. J. Phys. Chem. B 2006, 110, 7238–7248. [Google Scholar] [CrossRef] [PubMed][Green Version]
  41. Mahan, M.M.; Doiron, A.L. Gold Nanoparticles as X-Ray, CT, and Multimodal Imaging Contrast Agents: Formulation, Targeting, and Methodology. J. Nanomater. 2018, 2018, 1–15. [Google Scholar] [CrossRef][Green Version]
  42. El-Sayed, M.A. Some Interesting Properties of Metals Confined in Time and Nanometer Space of Different Shapes. Acc. Chem. Res. 2001, 34, 257–264. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Nolsøe, C.P.; Torp-Pedersen, S.; Burcharth, F.; Horn, T.; Pedersen, S.; Christensen, N.E.; Lorentzen, T. Interstitial hyperthermia of colorectal liver metastases with a US-guided Nd-YAG laser with a diffuser tip: A pilot clinical study. Radiol. Radiol. 1993, 187, 333–337. [Google Scholar] [CrossRef] [PubMed]
  44. Lilja, H.; Ulmert, D.; Vickers, A.J. Prostate-specific antigen and prostate cancer: Prediction, detection and monitoring. Nat. Rev. Cancer 2008, 8, 268–278. [Google Scholar] [CrossRef] [PubMed]
  45. Rodriguez, C.; Torres, C.V.; Ahumada, O.; Cebrián, V.; Gómez-Abad, C.; Díaz, A.; Manso, S.M. Gold nanoparticle triggered dual optoplasmonic-impedimetric sensing of prostate-specific antigen on interdigitated porous silicon platforms. Sens. Actuators B Chem. 2018, 267, 559–564. [Google Scholar] [CrossRef]
  46. Barbosa, A.I.; Wichers, J.H.; van Amerongen, A.; Reis, N.M. Towards One-Step Quantitation of Prostate-Specific Antigen (PSA) in Microfluidic Devices: Feasibility of Optical Detection with Nanoparticle Labels. BioNanoSci 2017, 7, 718–726. [Google Scholar] [CrossRef] [PubMed][Green Version]
  47. Pal, M.; Khan, K. Detection of prostate cancer risk factor immunosensor based deposition of graphene layer decorated gold nanoparticles. Anal. Biochem. 2017. [Google Scholar] [CrossRef] [PubMed]
  48. Suresh, L.; Brahman, P.K.; Reddy, K.R.; Bondili, J.S. Development of an electrochemical immunosensor based on gold nanoparticles incorporated chitosan biopolymer nanocomposite film for the detection of prostate cancer using PSA as biomarker. Enzym. Microb Technol. 2018, 112, 43–51. [Google Scholar] [CrossRef] [PubMed]
  49. Vural, T.; Yaman, Y.T.; Ozturk, S.; Abaci, S.; Denkbas, E.B. Electrochemical immunoassay for detection of prostate specific antigen based on peptide nanotube-gold nanoparticle-polyaniline immobilized pencil graphite electrode. J. Colloid Interface Sci. 2018, 510, 318–326. [Google Scholar] [CrossRef] [PubMed]
  50. Srivastava, M.; Nirala, N.R.; Srivastava, S.K.; Prakash, R. A comparative Study of Aptasensor Vs Immunosensor for Label-Free PSA Cancer Detection on GQDs-AuNRs Modified Screen-Printed Electrodes. Sci. Rep. 2018, 8, 1923. [Google Scholar] [CrossRef] [PubMed]
  51. Huang, L.; Reekmans, G.; Saerens, D.; Friedt, J.M.; Frederix, F.; Francis, L.; Muyldermans, S.; Campitelli, A.; Van Hoof, C. Prostate-specific antigen immunosensing based on mixed self-assembled monolayers, camel antibodies and colloidal gold enhanced sandwich assays. Biosens. Bioelectron. 2005, 21, 483–490. [Google Scholar] [CrossRef] [PubMed]
  52. Harmsen, S.; Wall, M.A.; Huang, R.; Kircher, M.F. Cancer imaging using surface-enhanced resonance Raman scattering nanoparticles. Nat. Protocol. 2017, 12, 1400–1414. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Sattarahmady, N.; Rahi, A.; Heli, H. A signal-on built in-marker electrochemical aptasensor for human prostate-specific antigen based on a hairbrush-like gold nanostructure. Sci. Rep. 2017, 7, 11238. [Google Scholar] [CrossRef] [PubMed]
  54. Kasten, B.B.; Liu, T.; Nedrow-Byers, J.R.; Benny, P.D.; Berkman, C.E. Targeting prostate cancer cells with PSMA inhibitor-guided gold nanoparticles. Bioorg. Med. Chem. Lett. 2013, 23, 565–568. [Google Scholar] [CrossRef] [PubMed][Green Version]
  55. Norouzi, M.; Nazari, B.; Miller, D.W. Electrospun-Based Systems in Cancer Therapy; Woodhead Publishing: Sawston, UK, 2017; pp. 337–356. [Google Scholar]
  56. Oh, M.H.; Yu, J.H.; Kim, I.; Nam, Y.S. Genetically Programmed Clusters of Gold Nanoparticles for Cancer Cell-Targeted Photothermal Therapy. ACS Appl. Mater. Interfaces 2015, 7, 22578–22586. [Google Scholar] [CrossRef] [PubMed]
  57. Mayle, K.M.; Dern, K.R.; Wong, V.K.; Chen, K.Y.; Sung, S.; Ding, K.; Rodriguez, A.R.; Knowles, S.; Taylor, Z.; Zhou, Z.H. Engineering A11 Minibody-Conjugated,Polypeptide-Based Gold Nanoshells for Prostate Stem Cell Antigen (PSCA)–Targeted Photothermal Therapy. J. Lab. Autom. 2016, 22, 26–35. [Google Scholar] [CrossRef] [PubMed]
  58. Tsai, L.-C.; et al. EGCG/gelatin-doxorubicin gold nanoparticles enhance therapeutic efficacy of doxorubicin for prostate cancer treatment. Nanomedicine (Lond.) 2016, 11, 9–30. [Google Scholar] [CrossRef] [PubMed]
  59. Guo, J.; O’Driscoll, C.M.; Holmes, J.D.; Rahme, K. Bioconjugated gold nanoparticles enhance cellular uptake: A proof of concept study for siRNA delivery in prostate cancer cells. Int. J. Pharm. 2016, 509, 16–27. [Google Scholar] [CrossRef] [PubMed][Green Version]
  60. Fitzgerald, K.A.; Rahme, K.; Guo, J.; Holmes, J.D.; O’Driscoll, C.M. Anisamide-targeted gold nanoparticles for siRNA delivery in prostate cancer—Synthesis, physicochemical characterisation and in vitro evaluation. J. Mater. Chem. B 2016, 4, 2242–2252. [Google Scholar] [CrossRef]
  61. hukla, S.; MacLennan, G.T.; Fu, P.; Patel, J.; Marengo, S.R.; Resnick, M.I.; Gupta, S. Nuclear factor-kappaB/p65 (Rel A) is constitutively activated in human prostate adenocarcinoma and correlates with disease progression. Neoplasia 2004, 6, 390–400. [Google Scholar]
  62. Gannon, P.O.; Lessard, L.; Stevens, L.M.; Forest, V.; Begin, L.R.; Minner, S.; Tennstedt, P.; Schlomm, T.; Mes-Masson, A.M.; Saad, F. Large-scale independent validation of the nuclear factor-kappa B p65 prognostic biomarker in prostate cancer. Eur. J. Cancer 2013, 49, 2441–2448. [Google Scholar] [CrossRef] [PubMed]
  63. Kim, W.; Na, K.Y.; Lee, K.H.; Lee, H.W.; Lee, J.K.; Kim, K.T. Selective uptake of epidermal growth factor-conjugated gold nanoparticle (EGF-GNP) facilitates non-thermal plasma (NTP)-mediated cell death. Sci. Rep. 2017, 7, 10971. [Google Scholar] [CrossRef] [PubMed]
  64. Al-Yasiri, A.Y.; Khoobchandani, M.; Cutler, C.S.; Watkinson, L.; Carmack, T.; Smith, C.J.; Kuchuk, M.; Loyalka, S.K.; Lugao, A.B.; Katti, K.V. Mangiferin functionalized radioactive gold nanoparticles (MGF-(198)AuNPs) in prostate tumor therapy: Green nanotechnology for production, in vivo tumor retention and evaluation of therapeutic efficacy. Dalton Trans. 2017, 46, 14561–14571. [Google Scholar] [CrossRef] [PubMed]
  65. Lu, L.; Li, K.; Mao, Y.-H.; Qu, H.; Yao, B.; Zhong, W.-W.; Ma, B.; Wang, Z.-Y. Gold-chrysophanol nanoparticles suppress human prostate cancer progression through inactivating AKT expression and inducing apoptosis and ROS generation in vitro and in vivo. Int. J. Oncol. 2017, 51, 1089–1103. [Google Scholar] [CrossRef] [PubMed]
  66. Lechtman, E.; Pignol, J.P. Interplay between the gold nanoparticle sub-cellular localization, size, and the photon energy for radiosensitization. Sci. Rep. 2017, 7, 13268. [Google Scholar] [CrossRef] [PubMed][Green Version]
  67. Khoo, A.M.; Cho, S.H.; Reynoso, F.J.; Aliru, M.; Aziz, K.; Bodd, M.; Yang, X.; Ahmed, M.F.; Yasar, S.; Manohar, N.; et al. Radiosensitization of Prostate Cancers In Vitro and In Vivo to Erbium-filtered Orthovoltage X-rays Using Actively Targeted Gold Nanoparticles. Sci. Rep. 2017, 7, 1–13. [Google Scholar] [CrossRef] [PubMed]
  68. Giljohann, D.A.; Seferos, D.S.; Daniel, W.L.; Massich, M.D.; Patel, P.C.; Mirkin, C.A. Gold nanoparticles for biology and medicine. Angew. Chem. Int. Ed. Engl. 2010, 49, 3280–3294. [Google Scholar] [CrossRef] [PubMed]
  69. Yang, L.; Kuang, H.; Zhang, W.; Aguilar, Z.P.; Wei, H.; Xu, H. Comparisons of the biodistribution and toxicological examinations after repeated intravenous administration of silver and gold nanoparticles in mice. Sci. Rep. 2017, 7, 3303. [Google Scholar] [CrossRef] [PubMed]
  70. Gaillet, S.; Rouanet, J.M. Silver nanoparticles: Their potential toxic effects after oral exposure and underlying mechanisms—A review. Food Chem. Toxicol. 2015, 77, 58–63. [Google Scholar] [CrossRef] [PubMed]
  71. Johnston, H.J.; Hutchison, G.; Christensen, F.M.; Peters, S.; Hankin, S.; Stone, V. A review of the in vivo and in vitro toxicity of silver and gold particulates: Particle attributes and biological mechanisms responsible for the observed toxicity. Crit. Rev. Toxicol. 2010, 40, 328–346. [Google Scholar] [CrossRef] [PubMed]
  72. Bednarski, M.; Dudek, M.; Knutelska, J.; Nowinski, L.; Sapa, J.; Zygmunt, M.; Nowak, G.; Luty-Blocho, M.; Wojnicki, M.; Fitzner, K.; et al. The influence of the route of administration of gold nanoparticles on their tissue distribution and basic biochemical parameters: In vivo studies. Pharmacol. Rep. 2015, 67, 405–409. [Google Scholar] [CrossRef] [PubMed]
  73. Almeida, J.P.M.; Chen, A.L.; Foster, A.; Drezek, R. In vivo biodistribution of nanoparticles. Nanomedicine 2011, 6, 815–835. [Google Scholar] [CrossRef] [PubMed]
  74. Bhatia, S. Nanoparticles Types, Classification, Characterization, Fabrication Methods and Drug Delivery Applications; Springer: Berlin, Germnay, 2016; pp. 33–93. [Google Scholar]
  75. Yu, Q.; Xiong, X.Q.; Zhao, L.; Xu, T.T.; Bi, H.; Fu, R.; Wang, Q.H. Biodistribution and Toxicity Assessment of Superparamagnetic Iron Oxide Nanoparticles In Vitro and In Vivo. Curr. Med. Sci. 2018, 38, 1096–1102. [Google Scholar] [CrossRef] [PubMed]
  76. Brown, A.L.; Kai, M.P.; DuRoss, A.N.; Sahay, G.; Sun, C. Biodistribution and Toxicity of Micellar Platinum Nanoparticles in Mice via Intravenous Administration. Nanomaterials (Basel) 2018, 8, 410. [Google Scholar] [CrossRef] [PubMed]
  77. E Elder, A.; Yang, H.; Gwiazda, R.; Teng, X.; Thurston, S.; He, H.; Oberdörster, G. Testing Nanomaterials of Unknown Toxicity: An Example Based on Platinum Nanoparticles of Different Shapes. Adv. Mater. 2007, 19, 3124–3129. [Google Scholar] [CrossRef]
  78. Gelli, K.; Porika, M.; Anreddy, R.N. Assessment of pulmonary toxicity of MgO nanoparticles in rats. Environ. Toxicol. 2015, 30, 308–314. [Google Scholar] [CrossRef] [PubMed]
  79. Kovriznych, J.A.; Sotnikova, R.; Zeljenkova, D.; Rollerova, E.; Szabova, E.; Wimmerova, S. Acute toxicity of 31 different nanoparticles to zebrafish (Danio rerio) tested in adulthood and in early life stages—Comparative study. Interdiscip. Toxicol. 2013, 6, 67–73. [Google Scholar] [CrossRef] [PubMed]
  80. Mangalampalli, B.; Dumala, N.; Perumalla Venkata, R.; Grover, P. Genotoxicity, biochemical, and biodistribution studies of magnesium oxide nano and microparticles in albino wistar rats after 28-day repeated oral exposure. Environ. Toxicol. 2018, 33, 396–410. [Google Scholar] [CrossRef] [PubMed]
  81. Wissing, S.A.; Kayser, O.; Müller, R.H. Solid lipid nanoparticles for parenteral drug delivery. Adv. Drug Deliv. Rev. 2004, 56, 1257–1272. [Google Scholar] [CrossRef] [PubMed]
  82. Fundaro, A.; Cavalli, R.; Bargoni, A.; Vighetto, D.; Zara, G.P.; Gasco, M.R. Non-stealth and stealth solid lipid nanoparticles (SLN) carrying doxorubicin: Pharmacokinetics and tissue distribution after i.v. administration to rats. Pharmacol. Res. 2000, 42, 337–343. [Google Scholar] [CrossRef] [PubMed]
  83. Firme, C.P., 3rd; Bandaru, P.R. Toxicity issues in the application of carbon nanotubes to biological systems. Nanomedicine 2010, 6, 245–256. [Google Scholar] [CrossRef] [PubMed]
  84. Johnston, H.J.; Hutchison, G.R.; Christensen, F.M.; Peters, S.; Hankin, S.; Aschberger, K.; Stone, V. A critical review of the biological mechanisms underlying the in vivo and in vitro toxicity of carbon nanotubes: The contribution of physico-chemical characteristics. Nanotoxicology 2010, 4, 207–246. [Google Scholar] [CrossRef] [PubMed]
  85. Krishnan, S.; Diagaradjane, P.; Cho, S.H. Nanoparticle-mediated thermal therapy: Evolving strategies for prostate cancer therapy. Int. J. Hyperth. 2010, 26, 775–789. [Google Scholar] [CrossRef] [PubMed][Green Version]
  86. He, Q.; Zhang, Z.; Gao, F.; Li, Y.; Shi, J. In vivo biodistribution and urinary excretion of mesoporous silica nanoparticles: Effects of particle size and PEGylation. Small 2011, 7, 271–280. [Google Scholar] [CrossRef] [PubMed]
  87. Lu, J.; Liong, M.; Sherman, S.; Xia, T.; Kovochich, M.; Nel, A.E.; Zink, J.I.; Tamanoi, F. Mesoporous Silica Nanoparticles for Cancer Therapy: Energy-Dependent ellular Uptake and Delivery of Paclitaxel to Cancer Cells. Nanobiotechnology 2007, 3, 89–95. [Google Scholar] [CrossRef] [PubMed]
  88. Fu, C.; Liu, T.; Li, L.; Liu, H.; Chen, D.; Tang, F. The absorption, distribution, excretion and toxicity of mesoporous silica nanoparticles in mice following different exposure routes. Biomaterials 2013, 34, 2565–2575. [Google Scholar] [CrossRef] [PubMed]
  89. Alexis, F.; et al. Factors Affecting the Clearance and Biodistribution of Polymeric Nanoparticles. Mol. Pharm. 2019, 5, 505–515. [Google Scholar] [CrossRef] [PubMed]
  90. Alexis, F.; Pridgen, E.M.; Langer, R.; Farokhzad, O.C. Nanoparticle Technologies for Cancer Therapy. In Handbook of Experimental Pharmacology; Springer: Berlin, Germany, 2010; pp. 55–86. [Google Scholar]
  91. Zheng, T.; Pierre-Pierre, N.; Yan, X.; Huo, Q.; Almodovar, A.J.; Valerio, F.; Rivera-Ramirez, I.; Griffith, E.; Decker, D.D.; Chen, S.; et al. Gold nanoparticle-enabled blood test for early stage cancer detection and risk assessment. ACS Appl. Mater. Interfaces 2015, 7, 6819–6827. [Google Scholar] [CrossRef] [PubMed]
  92. Butterworth, K.T.; Nicol, J.R.; Ghita, M.; Rosa, S.; Chaudhary, P.; McGarry, C.K.; McCarthy, H.O.; Jimenez-Sanchez, G.; Bazzi, R.; Roux, S. Preclinical evaluation of gold-DTDTPA nanoparticles as theranostic agents in prostate cancer radiotherapy. Nanomedicine 2016, 11, 2035–2047. [Google Scholar] [CrossRef] [PubMed][Green Version]
  93. Mangadlao, J.D.; Wang, X.; McCleese, C.; Escamilla, M.; Ramamurthy, G.; Wang, Z.; Govande, M.; Basilion, J.P.; Burda, C. Prostate-Specific Membrane Antigen Targeted Gold Nanoparticles for Theranostics of Prostate Cancer. ACS Nano 2018, 12, 3714–3725. [Google Scholar] [CrossRef] [PubMed]
  94. Robinson, R.; Gerlach, W.; Ghandehari, H. Comparative effect of gold nanorods and nanocages for prostate tumor hyperthermia. J. Control. Release 2015, 220 Pt A, 245–252. [Google Scholar] [CrossRef]
  95. Agarwal, A.; Huang, S.W.; O’Donnell, M.; Day, K.C.; Day, M.; Kotov, N.; Ashkenazi, S. Targeted gold nanorod contrast agent for prostate cancer detection by photoacoustic imaging. J. Appl. Phys. 2007, 102, 064701. [Google Scholar] [CrossRef]
  96. Min, K.H.; Kim, Y.H.; Wang, Z.; Kim, J.; Kim, J.S.; Kim, S.H.; Kim, K.; Kwon, I.C.; Kiesewetter, D.O.; Chen, X. Engineered Zn(II)-Dipicolylamine-Gold Nanorod Provides Effective Prostate Cancer Treatment by Combining siRNA Delivery and Photothermal Therapy. Theranostics 2017, 7, 4240–4254. [Google Scholar] [CrossRef] [PubMed][Green Version]
  97. Avvakumova, S.; Galbiati, E.; Sironi, L.; Locarno, S.A.; Gambini, L.; Macchi, C.; Pandolfi, L.; Ruscica, M.; Magni, P.; Collini, M.; et al. Theranostic Nanocages for Imaging and Photothermal Therapy of Prostate Cancer Cells by Active Targeting of Neuropeptide-Y Receptor. Bioconj. Chem. 2016, 27, 2911–2922. [Google Scholar] [CrossRef] [PubMed][Green Version]
  98. Khan, S.A.; Kanchanapally, R.; Fan, Z.; Beqa, L.; Singh, A.K.; Senapati, D.; Ray, P.C. A gold nanocage-CNT hybrid for targeted imaging and photothermal destruction of cancer cells. Chem. Commun. (Camb.) 2012, 48, 6711–6713. [Google Scholar] [CrossRef] [PubMed]
  99. Stern, J.M.; Stanfield, J.; Kabbani, W.; Hsieh, J.T.; Cadeddu, J.A. Selective prostate cancer thermal ablation with laser activated gold nanoshells. J. Urol. 2008, 179, 748–753. [Google Scholar] [CrossRef] [PubMed]
  100. Gobin, A.M.; Moon, J.J.; West, J.L. EphrinA1-targeted nanoshells for photothermal ablation of prostate cancer cells. Int. J. Nanomed. 2008, 3, 351–358. [Google Scholar]
  101. Stern, J.M.; Kibanov Solomonov, V.V.; Sazykina, E.; Schwartz, J.A.; Gad, S.C.; Goodrich, G.P. Initial Evaluation of the Safety of Nanoshell-Directed Photothermal Therapy in the Treatment of Prostate Disease. Int. J. Toxicol. 2016, 35, 38–46. [Google Scholar] [CrossRef] [PubMed]
  102. Jo, H.; Youn, H.; Lee, S.; Ban, C. Ultra-effective photothermal therapy for prostate cancer cells using dual aptamer-modified gold nanostars. J. Mater. Chem. B 2014, 2, 4862–4867. [Google Scholar] [CrossRef][Green Version]
  103. Espinosa, A.; Silva, A.K.; Sanchez-Iglesias, A.; Grzelczak, M.; Pechoux, C.; Desboeufs, K.; Liz-Marzan, L.M.; Wilhelm, C. Cancer Cell Internalization of Gold Nanostars Impacts Their Photothermal Efficiency In Vitro and In Vivo: Toward a Plasmonic Thermal Fingerprint in Tumoral Environment. Adv. Healthc. Mater. 2016, 5, 1040–1048. [Google Scholar] [CrossRef] [PubMed][Green Version]
  104. Raghavan, V.; O’Flatharta, C.; Dwyer, R.; Breathnach, A.; Zafar, H.; Dockery, P.; Wheatley, A.; Keogh, I.; Leahy, M.; Olivo, M. Dual plasmonic gold nanostars for photoacoustic imaging and photothermal therapy. Nanomedicine (Lond.) 2017, 12, 457–471. [Google Scholar] [CrossRef] [PubMed]
  105. Lu, W.; Singh, A.K.; Khan, S.A.; Senapati, D.; Yu, H.; Ray, P.C. Gold nano-popcorn-based targeted diagnosis, nanotherapy treatment, and in situ monitoring of photothermal therapy response of prostate cancer cells using surface-enhanced Raman spectroscopy. J. Am. Chem. Soc. 2010, 132, 18103–18114. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Representative image of the primary locations of prostate cancer (PCa) metastasis.
Figure 1. Representative image of the primary locations of prostate cancer (PCa) metastasis.
Ijms 20 00970 g001
Figure 2. Summary of the distribution of nanoparticles (NPs) in vivo.
Figure 2. Summary of the distribution of nanoparticles (NPs) in vivo.
Ijms 20 00970 g002
Figure 3. Proportion of gold nanoparticle (AuNP) applications in various types of cancer.
Figure 3. Proportion of gold nanoparticle (AuNP) applications in various types of cancer.
Ijms 20 00970 g003

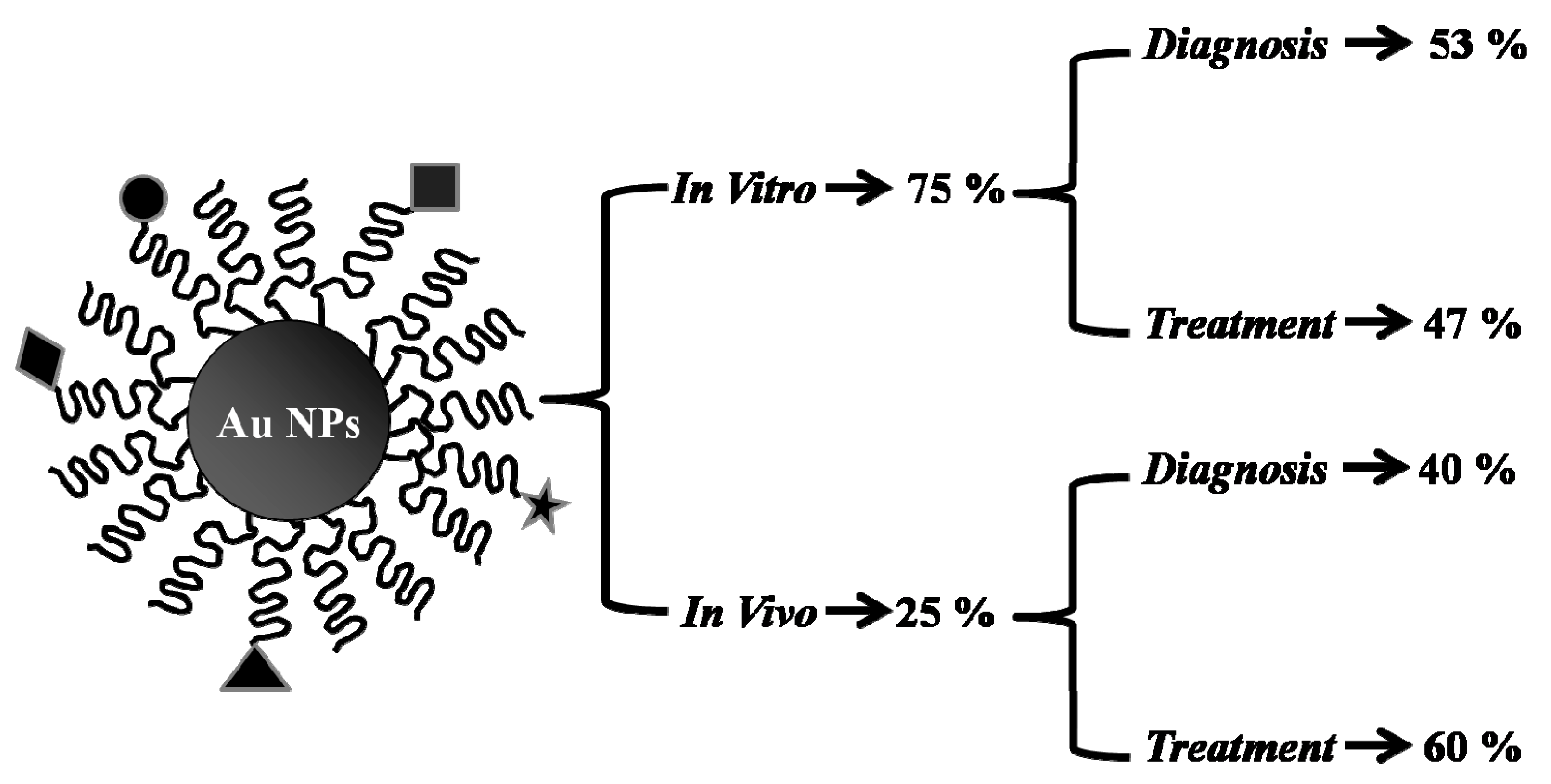

Figure 4. Distribution profile of the studies done using AuNPs on PCa. The majority of the studies done on PCa using AuNPs involved in vitro applications (~75%). Almost half of the studies were dedicated to diagnostic or to treatment purposes, and the majority of the in vivo studies (~60%) involved therapeutic applications. The curved line outside the AuNP represents the stabilizing agent layer that is used to form and stabilize the nanoparticles, and allow for the conjugation of different types of ligands, some of which, for example, could be bifunctional polyethyleneglycol (PEG), polysaccharides, polyethylenimine, or a crosslinker. The circle, lozenge, square, star, and triangle refer to the various types of conjugating ligands (Epigallocatechin gallate, siRNA, antibodies, and folic and anisic acid).
Figure 4. Distribution profile of the studies done using AuNPs on PCa. The majority of the studies done on PCa using AuNPs involved in vitro applications (~75%). Almost half of the studies were dedicated to diagnostic or to treatment purposes, and the majority of the in vivo studies (~60%) involved therapeutic applications. The curved line outside the AuNP represents the stabilizing agent layer that is used to form and stabilize the nanoparticles, and allow for the conjugation of different types of ligands, some of which, for example, could be bifunctional polyethyleneglycol (PEG), polysaccharides, polyethylenimine, or a crosslinker. The circle, lozenge, square, star, and triangle refer to the various types of conjugating ligands (Epigallocatechin gallate, siRNA, antibodies, and folic and anisic acid).
Ijms 20 00970 g004
Figure 5. Representative image of 100 nm AuNPs (tethered to an electrode) coated with anti-prostate specific antigen (PSA) antibodies.
Figure 5. Representative image of 100 nm AuNPs (tethered to an electrode) coated with anti-prostate specific antigen (PSA) antibodies.
Ijms 20 00970 g005
Table 1. A comparative table of the various Gold nanoparticle-based treatments for prostate cancer.
Table 1. A comparative table of the various Gold nanoparticle-based treatments for prostate cancer.
Type of NPBiodistribution and AccumulationToxicityEfficacy of Treatment on PCaReferences
SilverHeart, Lung, Kidney, Liver and SpleenSize Dependent: dose <10 mg kg−1 is safe, while it is toxic when a dose over 20 mg kg−1 is adminsteredModerately to Highly effective (depends on the coating and targeting ligand)[69,70,71]
GoldKidney, Heart, Brain (Size dependant <20nm), Spleen, and Liver (Highest accumulation)Size, Shape, and Surface coating Dependent for ex: < 50nm and Neutral charged colloidal AuNPs are non-toxicHighly Effective (Many Modalities exist to induce targeted killing with little or no side effects)[69,72,73]
Quantum DotsKidney, Liver, and SpleenLow Toxicity (due to incorporation of heavy metals)Not Applicable (mostly used as biosensors)[73,74]
Iron OxideLiver and SpleenLow to non-toxic (based on surface charge and coating)Moderately Effective[73,75]
PlatinumLiver, Spleen, Kidney, and LungsNon- toxicNot Applicable (only for PSA quantification)[76,77]
Magnesium OxideLiver, Spleen, Stomach, Kidney BrainDose-dependent toxicityNot Applicable[78,79,80]
Solid lipidLiver, Heart, Kidney, and SpleenNon-toxic (must be stabilized by surfactants to form administrable emulsions)Moderately Effective[32,81,82]
CarbonLiver, Spleen, bladder, IntestineDose and Route of Administration dependent toxicityModerately to Highly Effective (depends on method of treatment)[83,84,85]
Mesoporous SilicaLiver and SpleenNon-toxicModerately Effective[86,87,88]
Polymer-basedLiver, Spleen, and KidneyLow toxicity (based on surface charge)Highly Effective[74,89,90]
Table 2. Different shapes of gold nanoparticles in prostate cancer.
Table 2. Different shapes of gold nanoparticles in prostate cancer.
Ijms 20 00970 i001
Various shapes of gold nanostructures used in prostate cancer, some examples are listed below
Gold Nanostructures/FormulationSizeApplication in Prostate CancerReference
AuNPs-Citrate nanospheres100 nmEarly stage detection in blood[91]
AuNPs-Epigallocatechin gallate and gelatin doxorubicin10–85 nmDOX release and fluorescence imaging[58]
AuNPs-Dithiolated diethylenetriamine pentaacetic acid5.37 nmRadiotherapy[92]
AuNPs-PEI-siRNA-Anisamide8–50 nmTargeting and gene knockdown[60]
AuNP-5kPEG-PSMA-1-Pc45–25 nmTargeting and fluorescent photodynamic therapy (PDT)[93]
AuNRs-Polyethyleneglycol 5KD60 × 14.8 nmPlasmonic photothermal therapy (PPTT)[94]
AuNRs-antibody (Ab-17)45 × 15 nmdetection by photoacoustic imaging[95]
AuNRs-Zn(II)-Dipicolylamine-siRNA84.1 ± 8.6 nmsiRNA Delivery and PPTT[96]
AuNcgs-Polyethyleneglycol 5KD50 nmPlasmonic PPTT[94]
AuNcgs-Peptides40-50 nmImaging and PPTT[97]
AuNcgs-CNT hybrid-para-aminothiophenoltargeted imaging and PPTT[98]
AuNShs-Polyethyleneglycol110 nm silica–10 nm Au shellThermal ablation with laser[99]
AuNShs-PEG-EphrinA198–112 nm silica 2–4 nm Au shelltargeted PPTT[100]
AuNShsClinical safety profile in human patients[101]
AuNS-PEG-A10-DUP-1 aptamers61.9 nmUltra-Effective Photothermal Therapy[102]
AuNS- citrate- polyvinylpyrrolidone25, 85, 150 nmPhotothermal Therapy[103]
AuNS-PEG and [email protected]2100 nmphotoacoustic imaging and PPTT[104]
Nano-popcorn -shaped AuNPs.4.3–28 nmdiagnosis in LNCaP by surface-enhanced Raman scattering (SERS) an PPTT[105]
Table 3. Summary of the gold nanoparticles employed for the targeted therapy or diagnosis of prostate cancer. The table summarizes the novel strategies employed for prostate cancer theranostics using gold nanoparticles in a chronological order (2005–2018).
Table 3. Summary of the gold nanoparticles employed for the targeted therapy or diagnosis of prostate cancer. The table summarizes the novel strategies employed for prostate cancer theranostics using gold nanoparticles in a chronological order (2005–2018).
Type of AuNPsApplicationStudy TypeDiagnosis/TreatmentTargetResultReference
anti-PSA camel antibody coated to streptavidin coated AuNPsA PSA sandwich modified biosensor was used and quantification was done using a surface plasmon resonance instrument.In vitroDiagnosisNot applicableMajor enhancement in sensitivity of PSA detection was observed with a limit of detection as low as 1 ng/mL.[51]
(EGCg) tagged 198AuNPsPC3-xenograft SCID mice /IntratumorallyIn vivoTreatmentLaminin receptors80% reduction of tumor volumes after 28 days[31]
AuNP- biotin-PEG12-CTT54 inhibitorProstate cancer cells were targeted with PSMA inhibitor (CTT54)-guided gold NPs.In vitroTreatmentPSMA receptorHigher and selective binding to LNCaP cells compared to control non-targeted AuNPs in a time-dependent manner.[39]
Phage-AuNPPC3-cellsIn vitroTreatmentPSMA receptorsTarget specific photothermal therapy[56]
AuNPs-PEG-Tf/AuNPs-PEI-FA.siRNALNCap cells /PC3-cellsIn vitroTreatmentTransferrin and Folate receptorsCellular uptake and non-cytotoxicity of the AuNPs-PEG-Tf was observed.
RelA gene silencing after 24 h was observed for AuNPs-PEI-FA.siRNA.
[59]
EGCG-AuNPs.DOXPC3-cellsIn vitroTreatmentLaminin ReceptorsEnhanced receptor mediated endocytosis and induction of apoptosis after 24 h[58]
[email protected]CT-contrast imaging and radiotherapy in PC3, DU 145, PNT2-C2 cells, and Human PC3 xenograft tumor models.In vitroTreatment and DiagnosisNot applicable10 % CT imaging enhancement, increased cytotoxicity after 24 h exposure to the NPs, and tumor growth delay of 17 days.[92]
A11 minibody-conjugated to a gold nanoshellPhotothermal therapy on PSCA-transfected 22Rv1 prostate cancer cellsIn vitroTreatmentPSCA receptorEnhanced localized killing of prostate cancer cells compared to nontargeted gold nanoshells.[57]
GF- 198AuNPCF-1 mice/intratumoralIn vivoTreatmentLaminin receptors80% retention of the injected dose (ID) in prostate tumors after 24 h.
By three weeks post treatment, over 5 fold reduction of tumor
[64]
Chrysophanol-AuNPsLNCap/PC3/DU 145In vitroTreatmentNot ApplicableInactivating AKT expression and inducing apoptosis and ROS generation.[65]
Silver enhanced AuNPsmicrofluidic immunoassay precoated with CapAband layered with immobilized gold NPs.In vitroDiagnosisNot applicablePSA limit of detection range from 10 to 100 ng/mL.[46]
Au-GrOAu-GrO on platinum electrode, immobilized with anti PSAIn vitroDiagnosisNot applicableImmunosensor had a PSA limit of detection of 0.24 fg/mL.[47]
AuNPs encapsulated with a silica shellInjected intratumorally in Hi-Myc mouseIn vivoDiagnosisNot applicableHighly sensitive tumor detection with contrast-enhanced raman imaging[52]
Hairbrush-like gold nanostructureNPs as transducers to fabricate a signal-on built in-marker electrochemical aptasensor for the detection of PSAIn vitroDiagnosisNot applicableThe aptasensor detected PSA with a limit of detection of 50 pg mL−1.[53]
EGF-GNPDU 145 cellsIn vitroTreatmentEGFR receptorNTP irradiation showed selective apoptosis of cells that have undergone receptor mediated endocytosis.[63]
gGNRsRadiotherapy to X-rays using actively targeted gGNRs; applied to mice bearing PC3-xenograft tumors and to PC3 cellsIn vitroTreatmentNot applicable50% reduction in tumor volume after 2 months of treatment.[67]
Chitosan-AuNPA sandwich-type electrochemical immunosensor using anti-PSA was designed for detecting PSA.In vitroDiagnosisNot applicableThe fabricated immunosensor demonstrated excellent sensitivity, stability, and a detection limit of 0.001 ng/mL.[48]
PANI/AuNP-PNTAnti-PSA Ab immobilized on modified PANI/AuNP-PNT pencil graphite electrode with HRP-anti PSA antibody to form sandwich immunoassayIn vitroDiagnosisNot applicableLimit of detection was found out to be 0.68 ng/mL[49]
PSi-GNPPSA was immobilized at different concentrations on the surface of the sandwich bioassay (NiCr electrode).In vitroDiagnosisNot applicableEnhanced PSA sensitivity with a limit of detection at 1 ng/mL[45]
GQDs-AuNRsStandard PSA solutions were used. NPs immobilized on electrodes tested for efficiency (Anti-PSA.GQDs-AuNRs vs. aptamer-GQDs-AuNRs).In vitroDiagnosisNot applicableBoth had same limit of detection (LOD) of 0.14 ng/mL. The aptasensor advantages over the immunosensor were the stability, simplicity, cost effectiveness.[50]

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
