It is widely accepted that cancer is a highly heterogeneous disease and that subpopulations of cells, within a single tumor, can exhibit distinct genomic profiles. Indeed, the ensemble behaviors of a cellular population may not represent the behavior of any individual cell [1
]. Recent technological advances made it possible to analyze nucleic acids and proteins from different areas of a single tumor, as well as within a heterogeneous tumor sample, reaching single-cell resolution. In this way, it is possible to avoid the averaging of bulk analysis and to capture the heterogeneity of cells [2
In the case of Neuroblastoma (NB), where high cellular heterogeneity is a hallmark, the wide range of clinical presentations and the uneven response to treatment seem to be due to cellular heterogeneity [3
]. NB heterogeneity is related to tumor differentiation and histology: it derives from multipotent Neural Crest Cells (NCCs), forms during embryonic development, and mainly involves the sympathetic nervous system (abdomen, especially the adrenal gland) [4
The occurrence of NB is at early infancy and childhood, almost all NB cases being diagnosed at the age of 10 (98%). NB survival rate depends on the success of the treatment and the rate of diagnosis [6
]. Nearly 50% of patients have a localized tumor (primary site) with an average survival rate of about five years, while in the other 50% of patients, it occurs in an advanced, final stage [7
]. Generally, patients aged more than 1.5 years at diagnosis have much worse outcomes than infants, and the presence of the metastatic stage denotes a poor prognosis [8
]. Genetics plays a crucial role in the NB tumorigenesis; in fact, two key factors to identify the progression and prognosis of the tumor are the detection of structural Copy Number Variations (CNVs) and the amplification of the MYCN
gene, able to identify those tumors with poor prognosis and rapid progression, independently of age and clinical stage [7
]. However, MYCN
amplification can only be seen in about 25% of NB patients; thus, other contributing factors that are still unknown or not tested have to be implicated in the other cases [10
Sometimes, genetic variations, which affect only a small number of cells, can be undetectable, especially if the molecular analysis is performed on a larger mixed pool of normal and variant tumor cells [11
]. As a consequence, the signal of the tumor cells that are driving the progression of the tumor could be hidden. The characterization of single cells would allow highlighting the presence of possible subpopulations or providing further information on the genetic identity of the cells.
Therefore, the purpose of this study was to develop a laboratory protocol that allows the evaluation of the cellular heterogeneity, avoiding incurring over- or under-estimation errors. We used a combination between the advanced DEPArray™ technology and Next-Generation Sequencing (NGS) to identify, manipulate, and sort single cells individually and then to carry out their CNV analysis. The presence of chromosomal alterations, some common to all cells and others specific to a few cells, first allowed identifying the cellular subpopulations and, subsequently, checking for genes that were located in those regions.
The combined use of the DEPArrayTM technology platform with NGS allowed analyzing 33 single cells isolated from two neuroblastoma cell lines, namely SK-N-BE (2)-C and IMR-32.
Of the 24 cells isolated from the IMR-32 plate, 19 were considered suitable for the analysis of the chromosomal pattern, which allowed highlighting in all 19 IMR-32 single cells the presence of a total gain of chromosome 6, 2 partial gains, 1 in the chromosomal region between 1p32.3 and 1q44 (194 Mb) and the other in the chromosomal region between 17q21.31 and 17q25.3 (39 Mb), and a partial loss of the chromosomal region between 16q22.2 and 16q24.3 (18 Mb). Moreover, all cells showed a gain in chromosome 15, although it was total only in 15/19 cells (Figure 1

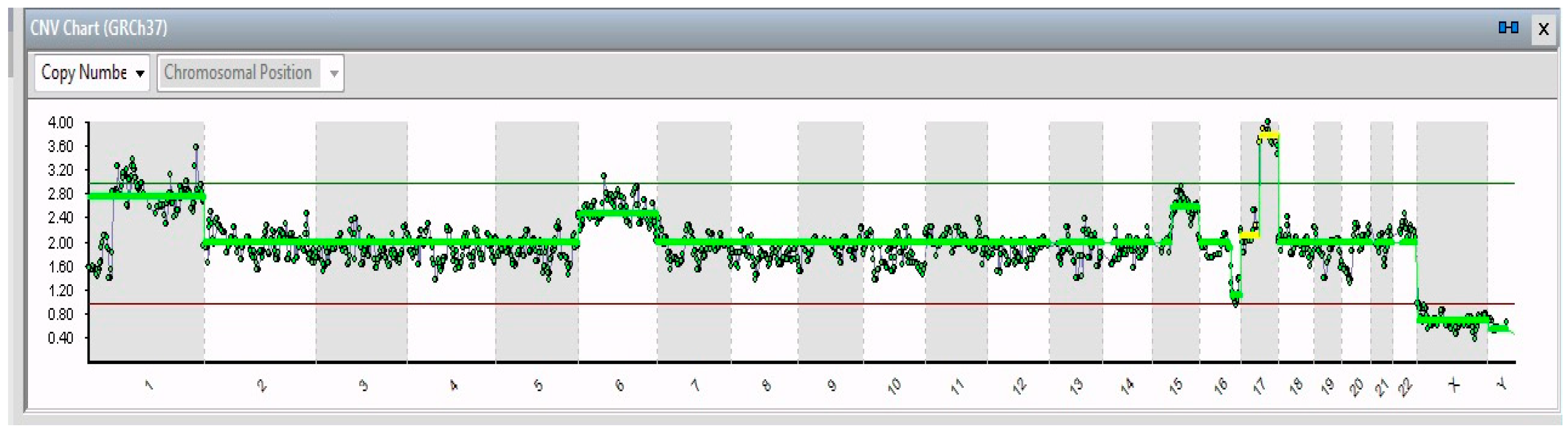

) and partial (15q15.3–15q26.3) in the other 4 (Figure 2
). Notable identifications were the total loss of chromosomes X (2/19) and 13 (1/19) and a partial loss of chromosome 11, i.e., 11p15.2–11p21 (42 Mb), 11q14.1–11q23.2 (32 Mb), ad 11q23.2–11q26.3 (21 Mb) in 1 cell.
All 14 isolated single cells from SK-N-BE (2)-C presented a partial gain of chromosomes 7 (7q32.1–q36.3 of 27 Mb) and 11 (11q13.3–11q25 of 65 Mb), a total loss of X chromosome, and a partial loss of chromosomes 3 (3p26.3–3p14.2 of 61 Mb), 13 (13q12.11–13q31 of 66 Mb), 17 (17p13.3–17q11.2 of 30 Mb), 19 (19q12–19q13.43 of 28 Mb) and 21 (21q22.2–q22.3 of 6 Mb).

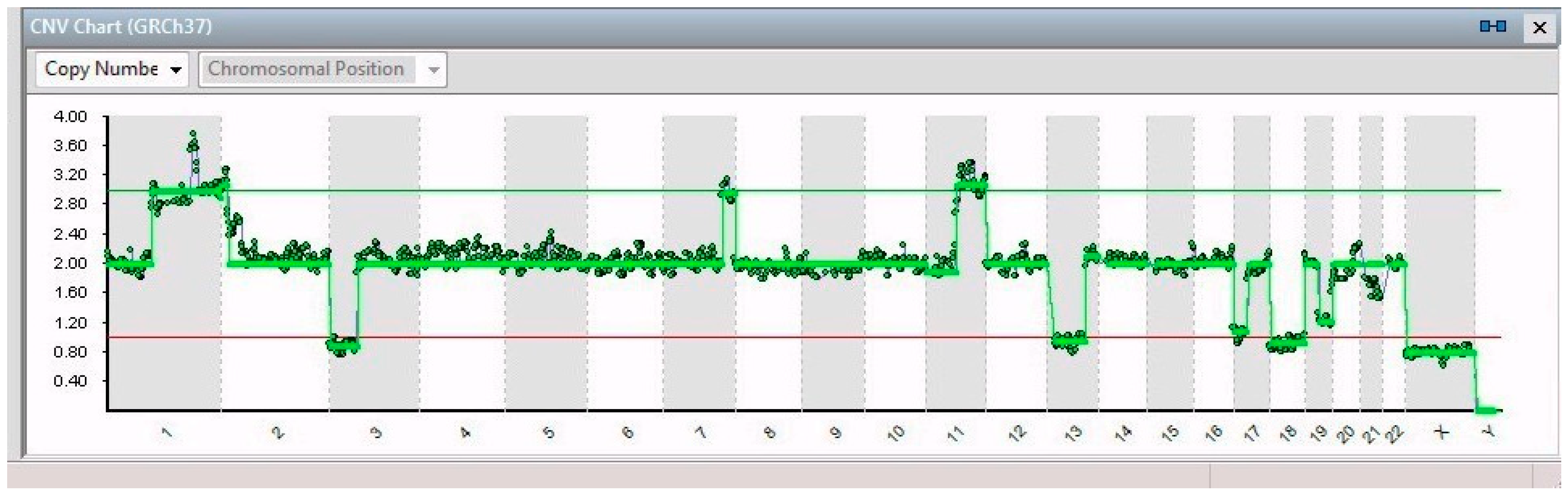

In 8/14 cells, a partial gain of chromosome 1 was found (1p32.3–1q44 of 151 Mb) (Figure 3

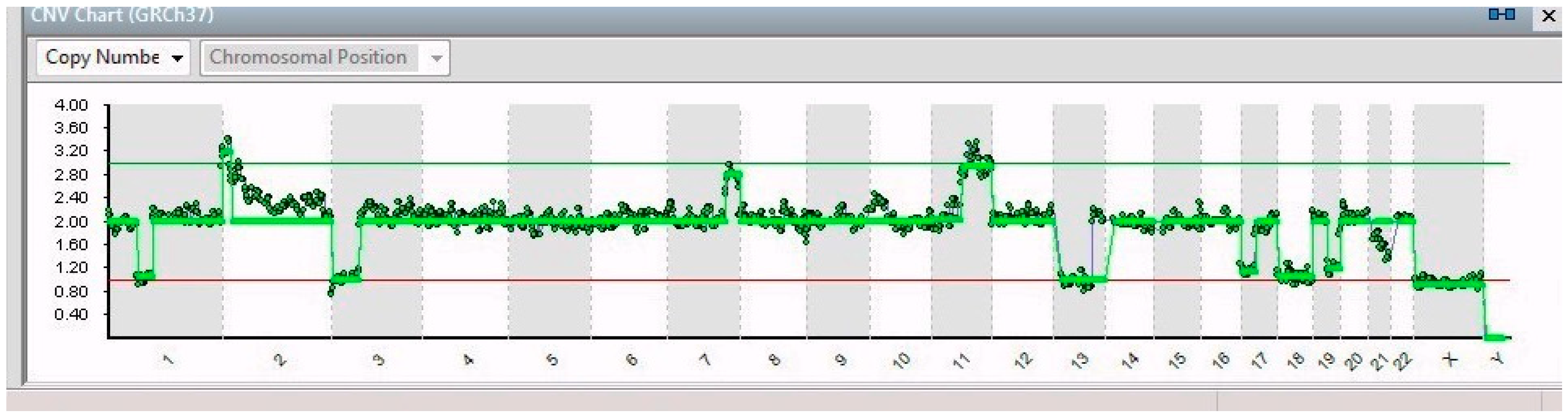

); moreover, 5/14 cells showed a partial loss in that chromosome (1p32.2–1p21.3 of 44 Mb) (Figure 4
); 6/14 cells had partial gain of chromosomal region between 2p25.3 and 2p21 (44 Mb); and just 1 cell showed a peculiar gain of chromosome 9, i.e., 9p24.3–9p23 (13 Mb).
Definitely, these results show that, among the 19 single cells isolated from the same IMR-32 cell line, 5 different chromosomal patterns were identified (Figure 5
), and among the 14 single cells isolated from the SK-N-BE (2)-C cell line, 4 different chromosomal patterns were identified (Figure 6
), highlighting the importance of the analysis at the single-cell level.
Cancers often exhibit intra-tumor heterogeneity due to genotypic differences between individual cells present in the tumor itself. Molecular characterization of single cells is pivotal for a reliable genomic analysis, since it allows avoiding the loss of sensitivity derived from the analysis of samples in which different cells coexist or that derive from more cell clones.
The evaluation of NB cell heterogeneity had been previously approached; however, the chromosomal pattern at the single-cell level had never been tested before [3
The protocol we have developed herein, thanks to both the analysis of the CNVs and the definition of chromosomal patterns, underlines the importance of the analysis at the single-cell level; indeed, for both SK-N-BE (2)-C and IMR-32, it was able to detect the presence of different chromosomal patterns within the same cell line. In addition, starting from the evaluation of chromosomal patterns, we first checked the presence of possible cell subpopulations (Figure 5

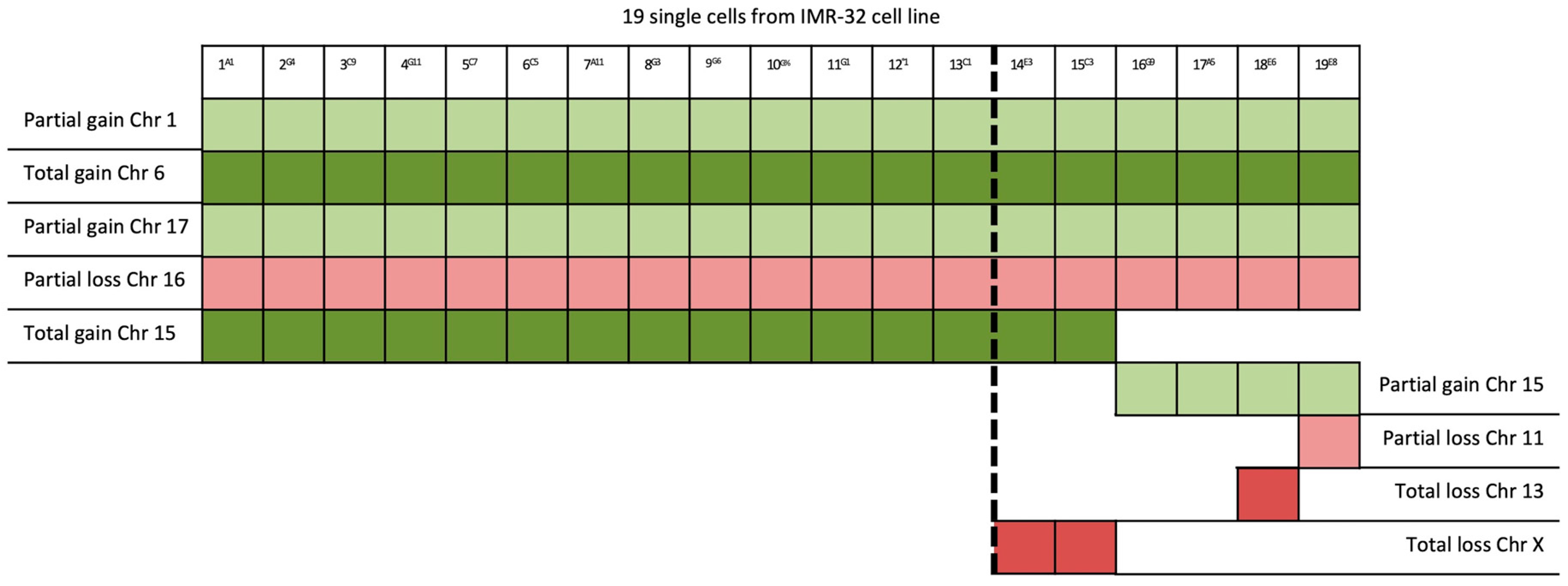

and Figure 6
) and then looked for the genes present in the affected genomic areas by consultation of the gene bank software (Table 1
and Table 2
Although the relationship between the presence of gain or loss of chromosomal regions and cancer has not been permanently established, it is certainly evident that the loss of tumor suppressor genes (chromosomal deletion) and the overexpression of oncogenes (chromosomal duplication) are consistent with the nature of cancer. For example, the amplified copies of oncogene MYCN
located in the 2p25–p22 region confer resistance to some treatments used for NB therapy. Patients with amplified MYCN
have markedly poorer prognosis than those in which MYCN
copy number is not elevated [9
Although the aim of this work is not to draw conclusions about the impact that the combination of more or less expressed genes may have on tumor progression, in Table 1
and Table 2
, we report the main genes present in the affected genomic regions and the corresponding literature highlighting their implications for cancer.
In particular, concerning the IMR-32 cell line, the main subpopulation is characterized by the duplication of chromosomes 6 and 15, partial gain of chromosomes 1 and 17, and partial loss of chromosome 16 (Table 1
). The presence of a supernumerary 6 chromosome in all the IMR-32 single cells analyzed can be related to the Single-Nucleotide Polymorphisms (SNPs), FLJ22536 and FLJ44180, in position 6p22, previously described to be associated with the sporadic form of NB [12
]. In this same position, three SNPs, namely CASC15, CASC15-S, and CASC14, were identified by Genome-Wide Association Study (GWAS) and associated with metastatic disease, amplification of MYCN
oncogene, and more advanced disease [13
The analysis of the other gain regions in the IMR-32 single cells revealed the presence of many genes related to the development and progression of the cancer. For example, in the 1p32.3–1q44 region, notable genes are: JUN
, which play a major role in cell proliferation and transformation; RAPIA
, implicated in the RAS
pathway; and N-RAS
, involved in the signal transduction pathway [16
]. As reported in Table 1
, in the regions 17q21.31–17q25.3 and 15q15.1–15q26.3, there are some genes that have been previously implicated in human cancer, even if until now not in NB.
It is noteworthy that every single cell had a common deletion in the long arm of chromosome 16 (16q22.2–16q24.3), where some notable genes are located, i.e., ZFHX3
(involved in neuronal differentiation), WWOX
(involved in apoptosis and downregulated or highly undetected in breast cancer cell lines), and FXOP1
(both seem to play a role in prostate cancer) [21
In just 1 single IMR-32 cell, we found a deletion on chromosome 11 (11p15.2–11p12; 11q14.1–11q23.2; 11q23.2–11q25), which appears to be present in nearly 20–45% of NB patients. This alteration has been related to the development of a more aggressive neuroblastoma with a decreased survival rate [25
]. By analyzing the genes present in the deleted region, a correlation can be found between the deletion and disease progression. Indeed, in this region, there are 4 genes that deserve to be reported: 2 of these are known to be tumor suppressors, HTATIP2
(involved in metastasis suppression in several tumors) and WT1
(whose deletion is associated with nephroblastoma in children); the other 2, MRE11
, have been reported to be involved in DNA repair mechanisms; thus, their loss of function may lead to defective DNA repair, which in turn, leads to cancer [27
Finally, 2 single cells showed a loss of chromosome X, which is peculiar in this study. Among the genes located in the X chromosome that appear to be implicated in cancer (i.e., VEGFD
), the 1 that mainly could be correlated with NB is L1CAM
, since it plays a role in axon outgrowth and fasciculation, neuronal migration, and survival, synaptic plasticity, and regeneration after trauma [30
The single cells isolated from the SK-N-BE (2)-C cell line share most of the genetic aberrations identified (Figure 6
). The analysis of the chromosomal patterns allowed identifying a main subpopulation (8/14) characterized by the presence of the partial gain of chromosomes 7 and 11, the partial loss in chromosomes 3, 13, 17, 19, and 21, a total loss of the X chromosome, and from the characterizing element, the partial gain of chromosome 1. Moreover, 5/14 cells showed a partial loss in that chromosome (1p32.2–1p21.3) and the partial gain of the chromosomal region 2p25.3–2p21; only 1 of these 5 cells also presented a peculiar gain of chromosome 9.
In the chromosomal region 7q32.1–7q36.3, in addition to NRF-1
, involved in several cancers [31
], there are another 2 interesting genes, namely EPHB6
(whose levels have been proposed as prognostic indicators in NB [32
]), and EZH2
(which plays an essential role in the control of the central nervous system by regulating the dopamine D4 receptor [33
, localized in the chromosomal region 11q13.3–11q25, play a role in invasion, metastasis, migration, and adhesion; of considerable interest, there is also Fli-1
, which plays an important role in erythropoiesis; in particular, the expression of the EWS/Fli-1
fusion gene has been shown to be critical for cancer induction in the majority of Ewing’s sarcomas [34
The analysis of the altered chromosomal regions found in the SK-N-BE (2)-C cells revealed the presence of many genes related to the development and progression of the cancer, as shown in Table 2
However, here, we discuss those of greatest interest for NB. For example, FOXPI
is localized in the chromosomal region 3p26.3–3p14.2.1, a locus often found to be deleted in NB tumors. This locus codes for a set of transcription factors that largely control normal cellular processes, like proliferation and differentiation. The deletion of this locus largely explains the tumor development in NB patients [36
]. It has been reported that the FOXP1
expression level is consistently lower in Stage 4 patients, which corresponds to a poor NB prognostic index. On the contrary, the normal expression of FOXP1
significantly marks the overall survival rate. PPARG
, and KLF5
(13q12.11–13q31.1) are linked to many pathological conditions, including cancer; MLH1
, whose loss of expression is correlated with microsatellite instability in colorectal cancer and breast cancer, respectively; and finally, NF1
(17p13.3–17q11.2) related to type 1 neurofibromatosis [37
The analysis of 5/14 cells showed a gain region in chromosome 2: we must remember that SK-N-BE(2)-C is a clonal subline of the SK-N-BE(2) NB cell line. Like the parental cell line, these cells display MYCN
amplification, which correlates with the gain of the chromosomal region 2p25.3–2p21 (where MYCN
is located), which is the same alteration we found. The rare forms of familial NB are also featured by MYCN
Moreover, in the 2p35 region, within BARD1
, several SNPs have been identified and associated with a more aggressive tumor behavior [39
]. This region is also characterized by the presence of 2 genes, SOX11
, which may have a role in nervous system development and maintenance; in particular, ALK
is highly expressed in familial and sporadic NB patients. ALK
plays an important role in brain development and exerts its effects on specific neurons. It belongs to the tyrosine kinase receptors family with typical transmembrane and extracellular domains. Knocking out ALK
gene mRNA effectively inhibits cells growth. Constitutive activation of ALK
is due to translocation [41
]. Moreover, the ID2
gene, a key regulator in the phenotypic transition of neuroblastoma tumor cells, is also present [42
Only in 1 cell was there found a gain of the chromosomal region 9p24.3–9p23, where PTPRD
is located, which has been reported to act like a tumor suppressor gene in NB, in addition to other genes, indicated to be related to cancer (i.e., JAK2
Taken together, our results show a high heterogeneity of the CNV status of single cells, although belonging to an immortalized cell line. In fact, despite having analyzed single cells from immortalized cell lines, we found a high inter-cellular heterogeneity, confirming that each cell may potentially accumulate different alterations, which can modulate its behavior, underlining the importance of a precise diagnostic and therapeutic approach for each single patient.
It is commonly observed that, despite the presence of a given biomarker resulting in being positive after tumor biopsy, patients can be resistant to a given therapy. Our data, obtained from the single-cell analysis, could explain this lack of response to targeted agents, according to the well-known intra-patient heterogeneity. Indeed, rare genomic variations in a single cell could be missed by a bulk analysis of the sample; instead, the single-cell analysis allows identifying alterations present in the less represented clones of the primary tumor. Preclinical studies have already shown the importance of single-cell expression analysis for targeted therapy in breast cancer models [44
Therefore, the proposed protocol, which aims to evaluate the CNVs on a single cell and then reconstruct its chromosomal patterns, is in line with some data that suggest that gene expression profiles could be more informative in terms of functional status with respect to genetic mutations [45
]. Based on our findings, we can speculate that cells with chromosomal alterations, involving the principal genes related to cell proliferation and migration, could mostly contribute to cancer progression. Further studies will be needed to find cell surface antigens able to classify, isolate, and culture different cell types in order to evaluate their contribution to cancer development and/or progression.
Monitoring the evolution of the cellular heterogeneity of a disease from the early stages could help to identify more aggressive Circulating Tumor Cell (CTC) clones and thus establish a more specific therapeutic approach [46
In addition to CTCs, the combination of DEPArray and NGS could be applied also for Formalin-Fixed Paraffin-Embedded (FFPE) tissues as an additional tool for cancer genetic diagnostic purposes [49
In summary, these data highlight the substantial intra-tumor heterogeneity that occurs at the single-cell level and support the proposed protocol for the analysis of CNVs and the determination of chromosomal patterns at the single-cell level, as a diagnostic and therapeutic strategy for precision medicine.
4. Materials and Methods
The protocol, developed on 2 NB cell lines, SK-N-BE (2)-C and IMR-32, includes: (a) the identification and separation of each single cell in a single tube; (b) the preliminary Whole Genome Amplification (WGA) step; (c) the NGS for the detection of the CNVs; and (d) the software for the analysis of the chromosomal patterns.
4.1. Cell Lines
The 2 NB cell lines, SK-N-BE (2)-C and IMR-32, used in this study were kindly provided by the cell culture facility of CEINGE-Biotecnologie Avanzate s.c.a.r.l.; the cell lines were cultured at 37 °C with 5% CO2 in a humidified atmosphere. NB cell lines were grown in Minimal Essential Eagle Medium (MEM; Sigma, St. Louis, MO, USA) with 10% heat-inactivated FBS (Sigma, St. Louis, MO, USA), 1 mmol/L l-glutamine, penicillin (100 U/mL), and streptomycin (100 mg/mL; Thermo Fisher Scientific, Carlsbad, CA, USA). The cell lines used for all the experimental procedures described herein were tested as mycoplasma free. Experiments were performed on early passage cells.
4.2. Isolation of Intact Single Cells by DEPArrayTM
The DEPArray™ System is an automated instrument able to identify, sort, and recover individual rare cells, after a preliminary cell immunofluorescence staining. Once collected from the cell culture plate, 500,000 cells for each cell line were suspended in the Running Buffer (RB: PBS with BSA 0.5% and EDTA 2 mM), fixed in 2% PFA at Room Temperature (RT) for 20′, suspended in blocking solution with 3% BSA at RT for 10′, and processed for the immunofluorescence staining. The cells were firstly filtered (by a 30-micrometer filter) in the RB and then incubated with 100 μL of primary antibody (mouse anti-human GD2; BD Biosciences, San Jose, CA, USA) at 4 °C for 60′. GD2 has been used extensively as a target in mAb therapy and has been the primary target of antibody recognition in NB [50
]. The cells were then incubated at 4 °C for 60′ with secondary antibody (goat anti-mouse APC; Abcam, Cambridge, UK), suspended in a permeabilizing solution with 100 μL of triton 0.2% for 5′, and stained with 100 μL of Hoechst solution for 5′ at RT. After incubation, cells were washed twice by adding 1 ml of RB and centrifuged at 2000 rpm for 5′. An aliquot of each sample (~1 mL) was transferred into a clean 1.5-mL tube, filled, washed twice with 1 mL of SB115 buffer (Silicon Biosystems, Bologna, Italy) at RT, and centrifuged at 1000× g
for 5′. Between different steps, when not detailed above, cells were washed thrice with 1 mL of PBS and centrifuged at 2000 rpm for 5′.
For the sorting process, 5000 cells in 13 mL were loaded with 380 mL of the manipulation buffer (SB115, Silicon Biosystem, Bologna, Italy) into an A300K cartridge (Silicon Biosystem, Bologna, Italy). This single-use, microfluidic cartridge contains an array of individually-controllable electrodes, each with embedded sensors. This circuitry enables the creation of Dielectrophoretic (DEP) cages around the cells. Individual cells of interest are gently moved to specific locations on the cartridge or into the holding chamber for their isolation and recovery. The cartridge was then scanned by an automated fluorescence microscope; this optic system provides a 10× magnification (0.64 micron/pixel) and a 20× magnification (0.32 micron/pixel) resolution. The CellBrowser software (Silicon Biosystem, Bologna, Italy) allows cell selection based on multiple parameters from fluorescence and bright field images. The protocol chosen was fixed low-density cells, and the chip-scan setting included DAPI, Brithfield, and APC. Firstly, cells able to move were grouped, and then, based on APC, fluorescent cells were isolated as GD2 positive. High-quality, image-based selection allows the identification and isolation of the cells of interest. Taking into account the SB115 starting volume, the DEPArray allows isolating a maximum of 35 single cells. Each cell was individually collected, washed twice in PBS, and stored at −20 °C until the WGA.
2.3. Whole Genome Amplification
Cell lysis and genome amplification were performed using the SurePlexTM DNA Amplification System (Illumina, San Diego, CA, USA), following the manufacturer’s instructions. A negative no template control (2.5 μL of PBS) and a SurePlex-positive control (15 pg of genomic DNA) were used for each reaction. In brief, each single cell underwent lyses and DNA extraction, SurePlex pre-amplification, and finally, the SurePlex amplification step. To determine the success of the amplification, 5 μL of each amplified sample plus 5 μL gel loading buffer (2×) were loaded on a 1.5% agarose 1× TBE gel. WGA products were quantified using the Qubit dsDNA High Sensitivity Assay kit (Thermo Fisher Scientific, Carlsbad, CA, USA).
4.4. Next Generation Sequencing
WGA samples were analyzed by NGS using the VeriSeq PGS Kit (Illumina, San Diego, CA, USA), a system specifically designed for single-cell analysis and able to provide a comprehensive and accurate screening of all 24 human chromosomes in approximately 12 h. Tagmentation, sample barcoding, and libraries’ preparation were all performed using the manufacturer’s protocol. Then, the products were purified by using a size selection and normalized to equalize the quantity of each sample. The final products were pooled, denatured, and sequenced using the MiSeq Reagent Kit v3, PGS (Illumina, San Diego, CA, USA) on a MiSeq System.
4.5. Data Analysis
NGS results were analyzed using the BlueFuse Multi Software V4.4 (Illumina, San Diego, CA, USA), a complete solution for analyzing and reporting the VeriSeq results by enabling a full understanding of the status of each chromosome and the results’ confirmation. Sophisticated algorithms calculate and call the status for each chromosome, as either normal or abnormal, and include an estimate of the confidence in the call based on the assay noise or on any underlying ambiguity. In particular, for sequencing data, the number of sequences is proportional to the copy number, so a greater or lower number of reads will correspond to the gain or loss of chromosomal regions.
Once CNVs were detected in each analyzed single cell, we verified for each altered chromosomal region which genes were comprised in them. The genes were referenced from the Atlas Genetics Oncology.org (http://atlasgeneticsoncology.org
, accessed on September 2018), an open access website that contains all the information about the genes that have been related to cancer. Genes were selected based on their position in chromosomes that correlated with our NGS findings, as well as on their direct correlation with tumor progression and tumor development in various cancers, apart from NB.
