Open AccessArticle

CircRNA Expression Pattern and ceRNA and miRNA–mRNA Networks Involved in Anther Development in the CMS Line of Brassica campestris

by Yuwei Liang 1,2, Yuzhi Zhang 1,2, Liai Xu 1,2, Dong Zhou 1,2, Zongmin Jin 1,2, Huiyan Zhou 1,2, Sue Lin 3, Jiashu Cao 1,2 and Li Huang 1,2,*
1
Laboratory of Cell & Molecular Biology, Institute of Vegetable Science, Zhejiang University, Hangzhou 310058, China
2
Key Laboratory of Horticultural Plant Growth, Development and Quality Improvement, Ministry of Agriculture/Zhejiang Provincial Key Laboratory of Horticultural Plant Integrative Biology, Hangzhou 310058, China
3
Institute of Life Sciences, Wenzhou University, Wenzhou 325000, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(19), 4808; https://doi.org/10.3390/ijms20194808
Received: 3 September 2019 / Revised: 20 September 2019 / Accepted: 24 September 2019 / Published: 27 September 2019
(This article belongs to the Collection Genetics and Molecular Breeding in Plants)

Abstract

Male-sterile plants provide an important breeding tool for the heterosis of hybrid crops, such as Brassicaceae. In the last decade, circular RNAs (circRNAs), as a novel class of covalently closed and single-stranded endogenous non-coding RNAs (ncRNAs), have received much attention because of their functions as “microRNA (miRNA) sponges” and “competing endogenous RNAs” (ceRNAs). However, the information about circRNAs in the regulation of male-sterility and anther development is limited. In this study, we established the Polima cytoplasm male sterility (CMS) line “Bcpol97-05A”, and the fertile line, “Bcajh97-01B”, in Brassica campestris L. ssp. chinensis Makino, syn. B. rapa ssp. chinensis, and performed RNA expression profiling comparisons between the flower buds of the sterile line and fertile line by whole-transcriptome sequencing. A total of 31 differentially expressed (DE) circRNAs, 47 DE miRNAs, and 4779 DE mRNAs were identified. By using Cytoscape, the miRNA-mediated regulatory network and ceRNA network were constructed, and the circRNA A02:23507399|23531438 was hypothesized to be an important circRNA regulating anther development at the post-transcriptional level. The gene ontology (GO) analysis demonstrated that miRNAs and circRNAs could regulate the orderly secretion and deposition of cellulose, sporopollenin, pectin, and tryphine; the timely degradation of lipids; and the programmed cell death (PCD) of tapetum cells, which play key roles in anther development. Our study revealed a new circRNA–miRNA–mRNA network, which is involved in the anther development of B. campestris, which enriched the understanding of CMS in flowering plants, and laid a foundation for further study on the functions of circRNAs and miRNAs during anther development.
Keywords: cytoplasmic male sterility; CMS; Polima; Brassica campestris; whole-transcriptome sequencing; ceRNA; circRNA; miRNA; anther cytoplasmic male sterility; CMS; Polima; Brassica campestris; whole-transcriptome sequencing; ceRNA; circRNA; miRNA; anther

1. Introduction

The male sterility of plants, including genic male sterility (GMS) and cytoplasmic male sterility (CMS), refers to their incapacity to generate normal functional pollen grains. CMS is an essential plant reproductive characteristic that can be used as a useful tool to exploit crop heterosis [1]. The utilization of heterosis has produced tremendous economic benefits in crop production worldwide, which means that the contribution of hybrid breeding to the world’s food supply is enormous [2]. CMS plants not only provide crucial breeding tools for the utilization of heterosis in hybrid crops, but also important materials to study the mechanisms underlying anther development. The genes that cause CMS are located in the mitochondrial genome and their expressions are controlled by nuclear genes. Polima (pol) CMS reported in radish is the first CMS system widely used for hybrid seed production. Studies on the molecular mechanisms of Brassica napus revealed that the chimeric mitochondrial gene orf224 located upstream of and co-transcribed with atp6, is the causal gene of pol CMS [3,4], however, the molecular mechanisms of anther and pollen abortion caused by these mitochondrial genes are still unclear. In recent years, genome-wide differential RNA expression analysis has made it possible to study the transcriptome differences between the sterile and fertile lines in pol CMS [5,6], facilitating researchers to reveal the changes in the whole-transcriptome level during the biogenesis of CMS, and to promote the study of the molecular mechanisms and male reproductive development of flowering plants. For example, a study in B. napus has shown that the genes regulating pollen development by nuclear-mitochondrial interaction might be inhibited by energy deficits caused by orf224/atp6 [5]. Meanwhile, increasing evidence has demonstrated that microRNAs (miRNAs) could act as important regulators of CMS systems in plants [7,8,9,10]. For example, some miRNAs and their targets, which may regulate flower bud development such as gma-miR156b/GmSPL9a and gma-miR4413b/GmPPR, were found in soybean lines, and a miRNA-mediated regulatory network was established [7]. In B. juncea, miR167a was found to regulate anther dehiscence by targeting the auxin response factor (ARF6/ARF8), and miR156a was found to regulate floral transition as well as tapetum development by targeting the SQUAMOSA promoter binding protein-like (SPL) transcription factors (TFs) [11]. In Ogura-CMS Chinese cabbage (B. rapa ssp. pekinensis), two novel miRNAs (novel-miR-448 and novel-miR-335), specifically significantly expressed in flower buds, were identified [12]. In addition, it was indicated that the suppressed expression of sucrose transporter SUC1 and H+-ATPase 6, targeted by these two novel miRNAs, might cause energy deficiency and pollen abortion [12].
CircRNAs are a novel class of covalently closed and single-stranded endogenous non-coding RNAs (ncRNAs) that are widely expressed in eukaryotes and prokaryotic archaea. Two recent studies demonstrated that circRNAs could act as competing endogenous RNAs (ceRNAs), which are transcripts that communicate with and regulate each other through competing shared miRNA response elements at a post-transcription level [13,14]. An increasing number of ceRNAs have been reported as biomarkers for the diagnosis or therapeutic targets, and circRNA–miRNA–mRNA networks and circRNA-related ceRNA networks have been constructed in normal physiology and diseases [15,16,17]. However, the studies of circRNAs in plants have just begun. Recently, several differentially expressed (DE) circRNAs that are involved in programmed cell death (PCD) and might play an important role in CMS have been found among the soybean CMS line NJCMS1A, and its maintainer NJCMS1B. It indicates that circRNAs may play a role in regulating flower and pollen development, and provide novel insights into the mechanisms of CMS [18]. However, the circRNA–miRNA–mRNA network was not established in the abovementioned study, and the clear interactions of circRNAs, miRNAs, and mRNAs among male reproductive development need further study.
To address these issues and to further understand the mechanisms of CMS, we performed an integrated analysis of circRNAs, miRNAs, and mRNAs expression profiles in pol CMS line “Bcpol97-05A” and the fertile line “Bcajh97-01B” in B. campestris L. ssp. chinensis Makino, syn. B. rapa ssp. chinensis by whole transcriptome sequencing in this study. We generated the miRNA–mRNA and ceRNA networks by combining the identified and annotated DE RNAs. Our results show that the circRNAs might act as ceRNAs to regulate anther development in pol CMS for the first time, which provide novel clues for revealing the molecular mechanisms of male reproductive development and pollen fertility.

2. Results

2.1. Establishment of the CMS Line in Brassica Campestris

To obtain the plant materials with the closest genetic background, we used the fertile plant Bcajh97-01B in the ‘Aijiaohuang’ GMS AB line “Bcajh97-01A/B” as the recurrent parent, and backcrossed Bcajh97-01B to pol CMS for eight generations. The height, width, leaf number, leaf color, and other morphology characteristics during the seedling and rosette stage, as well as the sepal, petal, stamen, pistil, and nectary development during the flowering stage of the backcross progenies were observed over successive years. We finally established the male sterile type, pol CMS Bcpol97-05A, of which the maintainer line was Bcajh97-01B in B. campestris. There was no significant difference in the morphology characteristics, except for in the stamen and male fertility observed between the backcross progenies and the recurrent parent [19]. Compared to the fertile line, the stamens of Bcpol97-05A seemed to have been sapped of their pigment, and took on an albino look. They were also shriveled with no mature pollen grains. In addition, the stamens of Bcpol97-05A seemed shorter and exhibited connected anthers (Figure 1E,J). As there were no obvious mature pollen grains on the surface of the stamens of the sterile line, we crushed the stamens and dyed them with Alexander’s stain in order to observe pollen viability. Compared with the high viability of the pollen in the fertile line, the viability of the pollen from the sterile line was much lower, and about 85% pollen grains were abortive (Figure 2A,B). The morphological characteristics and nuclear development of the pollen grains of the two lines were observed by the 4’, 6-diamidino-2-phenylindole (DAPI) staining using a light microscope and fluorescence microscope, respectively. We found that the pollen of the sterile line displayed an abnormal morphology and had abnormal nuclear development (Figure 2C–F). We also observed the phenotypic characterization of the pollen development in the two lines. As shown in Figure 3, the anther sacs in the sterile line were smaller than those in the fertile line. There was no apparent difference between the pollen development of the two lines until the uninucleate stage. In this stage, the tapetum showed earlier degradation and the microspores displayed vacuolization in the sterile line. Ultimately, much less mature pollen grains were found in the sterile line than in the fertile line in the mature pollen stage (Figure 3).

2.2. Identification of circRNAs in the Sterile and Fertile Lines

By performing whole genome sequencing, we identified and annotated 1443 circRNAs from the flower buds of the male sterile line and fertile line. In total, 879 circRNAs in the fertile line and 685 circRNAs in the sterile line were discovered to be expressed, and 121 circRNAs were detected in both lines (Figure 4A). The transcripts of the circRNAs were broadly distributed in all of the 10 chromosomes (Figure 4B). Approximately 12.68% of the circRNAs were from chr3, 10.46% from chr6, and 14.00% from chr9, whereas the percentages of circRNAs from other chromosomes were all less than 10% (Figure 4C). The circRNAs were classified into three types, including 911 exonic circRNAs (63.13%), 182 intronic circRNAs (12.61%), and 350 exon-intron circRNAs (24.26%; Figure 5A), and most of them were 200–400 bp in length (Figure 5B).

2.3. Identification of DE RNAs in the Sterile Line Compared to the Fertile Line

We analyzed the expression profile data of circRNAs, miRNAs, and mRNAs in order to investigate the possible biological functions of the DE circRNAs and miRNAs between the sterile line and fertile line. The selection criteria for significantly DE circRNAs and mRNAs were a fold change ≥2 and a false discovery rate (FDR) of <0.05. The criteria of the miRNAs were log2(FC) ≥1 and FDR ≤0.05. We identified 31 DE circRNAs (9 up-regulated and 22 down-regulated circRNAs) and 47 DE miRNAs (6 up-regulated and 41 down-regulated miRNAs) in the sterile line. We summarized the top 10 DE circRNAs and miRNAs based on log2FC in Table 1 and Table 2, respectively. In addition, we detected 4779 DE mRNAs (1021 up-regulated and 3758 down-regulated mRNAs) in the sterile line compared to the fertile line.
The KEGG pathway enrichment analysis of the DE mRNAs (including the up-regulated and down-regulated mRNAs in the sterile line compared to the fertile line) showed that “starch and sucrose metabolism”, “phenylpropanoid biosynthesis”, and “pentose and glucuronate interconversions” were the most enriched metabolic pathways. The study also showed that most of the DE mRNAs were annotated to be involved in plant hormone signal transduction (Figure 6). We also performed the gene ontology (GO) analysis of the DE mRNAs, and analyzed the enrichment of the secondary functions in the context of DE genes and all genes, reflecting the status of each secondary function in both contexts (Figure 7). In addition, we analyzed the enrichment of each GO term and summarized the most significantly enriched GO terms in categories of the “biological process” (BP) category, “cell component” (CC) category, and “molecular function” (MF). In the BP category, the most significant three nodes were the plant-type cell wall modification, pollen tube growth, and actin filament-based movement. Most of the DE genes were involved in pollen wall development, including pollen exine and inxine formation (Table 3, Table 4 and Table 5; Figures S1–S3).
We confirmed the results of RNA-seq by quantitative real-time PCR (qRT-PCR) using the same samples of the sterile and fertile lines. Five circRNAs, eight miRNAs, and eight mRNAs were selected randomly. The qRT-PCR results were consistent with the sequencing results, which demonstrated a high reliability of the RNA profiles (Figure 8).

2.4. Construction of the DEmiRNA–DEmRNA Network

To better understand the gene regulatory network during the anther development of pol CMS plants, we identified putative DEmiRNA–DEmRNA interactions using TargetFinder software. In total, we obtained 170 DEmiRNA–DEmRNA interactions. We selected the DEmiRNA–DEmRNA pairs of 18 miRNAs and 37 mRNAs, in which the miRNAs and the corresponding mRNAs had the opposite expression and constructed the miRNA-mediated regulatory network using Cytoscape (Figure 9). To investigate the potential functions of the miRNAs, we performed a GO analysis of the putative target mRNAs in this network (Figure 10). The genes were enriched for a total of 30 terms. The top three enriched GO-BP terms were “cellular process”, “single-organism process”, and “metabolic process”. In the cellular component category, the top three terms were “cell part”, “cell”, and “organelle”. Additionally, “catalytic activity” and “binding” were the most highly presentative terms in the molecular function category.
In our constructed network, miRNAs primarily function as regulators of the genes involved in pathways like sugar metabolism (bra-miR9563a-3p, unconservative_A02_5254, bra-miR9556-3p, bra-miR156a-5p, bra-miR9556-5p, unconservative_A08_32883, and bra-miR5717), PCD (unconservative_A02_5254, unconservative_A05_20239, bra-miR9556-3p, and bra-miR9556-5p), lipid metabolism (bra-miR9563a-3p, unconservative_A08_32883, bra-miR5717, unconservative_A05_20239, unconservative_A08_32883, and bra-miR9556-3p), and pollen tube growth (bra-miR9563a-3p and bra-miR5717; Table 6). And almost all of the transcripts were phytohormone-related and could be involved in plant hormone metabolism and/or signaling pathways, suggesting that most of miRNAs that we identified were phytohormone-related (Table 7). For example, bra-miR9556-5p might be involved in the salicylic acid mediated signaling pathway and brassinosteroid biosynthetic process by targeting Bra008715 (Table 7).

2.5. Construction of the DEcircRNA–DEmiRNA–DEmRNA Network

We obtained two DEcircRNA–DEmiRNA interactions that consisted of one up-regulated circRNA (A02:23507399|23531438) and two down-regulated putative miRNA (unconservative_A02_5092 and unconservative_A07_27586) targets in the sterile line compared to the fertile line by TargetFinder software. Increasing evidence has shown that some specific circRNAs can act as miRNAs sponges, which act to isolate and prevent miRNAs from binding to the target genes. To investigate the regulation of ceRNA regulation in anther development and to identify anther development related circRNAs, we constructed the DEcircRNA–DEmiRNA–DEmRNA network based on the miRNAs with both circRNAs and mRNAs.
The ceRNA network consisted of one circRNA, two miRNAs, five mRNAs (Bra006799, Bra013352, Bra022668, Bra029377, and Bra038700), and 10 interaction pairs (Figure 11). In the constructed ceRNA network, two novel miRNAs, unconservative_A02_5092 and unconservative_A07_27586, were correlated negatively (Spearman correlation ≤−0.5) with the corresponding targets, including circRNAs and mRNAs. In the sterile line, each of the five mRNAs was down-regulated, possibly via targeted decay or cleavage by miRNAs. The inhibition of the two miRNAs might be caused by the up-regulation of A02:23507399|23531438, an exon-intron circRNA of 24,039 bp long, that was generated from the intergenic region of the host gene. A02:23507399|23531438 might bind to unconservative_A02_5092 and unconservative_A07_27586 via sequence complementation, and could affect the binding of miRNA to the five target mRNAs. We summarized the targeted gene ID, Arabidopsis homologue ID, and the roles of homologues in the ceRNA network in Table 8 [20,21,22,23,24,25,26].

3. Discussion

3.1. Whole-Transcriptome Sequencing Enriches Understanding of Mechanisms of Anther Development and Male Sterility

Male sterility, like CMS, has become a crucial breeding tool for producing new crop hybrids. It provides important materials to study the mechanisms of anther development, and supports an abundant food supply in the world.
With the development of high-throughput sequencing methods, abundant DE genes related to anther development have been identified in the sterile and fertile lines by deep sequencing in pol CMS plants, which deepen our understanding of anther development and male sterility [5,6]. In pol CMS in B. napus, some dramatically down-regulated unigenes controlling anther development were identified in the sterile buds, and seven down-regulated callose synthase genes were detected [5]. In our study, about 79% of DE genes were down-regulated in the sterile line. We found a callose related gene, Bra005387, which could be involved in the biological process of defense response by callose deposition. Abnormal callose deposition during meiosis could lead to the degeneration of pollen mother cells at the early meiosis stage, and could result in the complete collapse of pollen grains [27]. Furthermore, transcriptomic data demonstrated that many DE genes in pol CMS in B. napus were related to hormonal signal transduction pathways, and the genes related to pentose–glucuronate interconversions and starch–sucrose metabolism were significantly enriched [6]. In our study, we also found that “starch and sucrose metabolism” and “pentose and glucuronate interconversions” were the most enriched metabolic pathways. However, the two studies mentioned above only explored the mechanisms of pol CMS system at the mRNA level, but the mechanisms underlying pol CMS on the whole-transcriptome have yet to be reported. Increasing new evidence shows the importance of ncRNAs, including miRNAs, long non-coding RNAs, small interfering RNAs, and circRNAs, functioning in the male reproductive development in flowering plants [18,28,29,30]. Among these ncRNAs, only the function of miRNAs regulating gene expression at a post-transcriptional level in CMS biogenesis has been investigated in detail [31].
Here, we studied the alterations under pol CMS biogenesis in B. campestris at a whole-transcriptome level, and we identified several anther development related RNAs, including mRNAs, circRNAs, and miRNAs. We also re-constructed the putative regulatory network involving these RNA molecules, which will deepen and enrich our understanding of anther development and male fertility control.

3.2. miRNAs Contribute to Pollen Wall Development

In plants, miRNAs could play an important role in regulating male reproductive development. An increasing number of miRNAs related to male reproductive development have been found by comparing the microtranscriptome data of CMS and fertile lines in multiple plant species. The identified miRNAs mainly acted as regulators of TF encoding genes [11,12,32]; PCD [18]; phytohormone-related pathways [8,9]; and a series of metabolism processes, like lipid metabolism [8], amino acid metabolism [18], sulphur metabolism [11,32], and energy metabolism [12]. Among the identified miRNAs, miR156/7a existed frequently by targeting SQUAMOSA promoter binding protein-like (SPL). In our study, the identified miRNAs were also mainly involved in processes like phytohormone-related pathways, PCD, and lipid metabolism. However, no miRNAs that regulate the expression of TF genes like SPL and auxin response factor, besides miR156a-5p, were found. We also did not find miRNAs to be involved in regulating amino acid metabolism, sulphur metabolism, and energy metabolism. Most of the miRNAs identified in our study were involved in sugar metabolism, lipid metabolism, PCD, and so on, influencing the formation of the functional pollen wall.
The pollen grain is surrounded by a sculpted multiple-layer wall, namely the pollen wall, which consists of two independent parts, the outer wall (exine) and the inner wall (intine). The appropriate genetic regulation of PCD in tapetum is essential to the production of functional pollen with a normal exine pattern [33,34]. In our study, we noticed that the tapetum developed aberrantly by cytologically observing the anthers in different stages of the two lines. In addition, we found six miRNAs that could function as regulators of PCD of tapetum, including bra-miR9556-5p, unconservative_A02_5254, bra-miR9556-3p, unconservative_A02_5092, unconservative_A07_27586, and unconservative_A05_20239. They affect the development of tapetum cells during anther development. The abnormal expression of the targeted genes, like Bra032058, Bra008715, and Bra031737, in the sterile line might prevent tapetum from the normal PCD process, providing precursors for tryphine and sporopollenin, leading to abortive pollen formation.
In this study, we also identified large amounts of miRNAs functioning in sugar metabolism, for example, galactose metabolism, L-arabinose metabolism, xyloglucan metabolism, and pectin metabolism, which could regulate the development of intine composed of a variety of hydrolases, hydrophobic proteins, cellulose, hemicellulose, and pectic polymers.
MiRNA156, first reported in Arabidopsis, is one of the most highly conserved miRNA families in plants, and it plays a key role in floral development and male fertility [35,36,37]. The SPL genes targeted by miR156/7 as well as the non-targeted SPL8 are necessary in order to maintain the male fertility and are required for the sporogenous cell formation of anthers in Arabidopsis. The target genes of miR156 identified in our study were Bra016131 and Brassica_rapa_newGene_13349 involved in cell wall biosynthesis, indicating that miR156 has other targets in B. campestris. The homologue to Arabidopsis of Bra016131 is AT1G71690, a glucuronoxylan 4-O-methyltransferase-like protein involved in the xylan biosynthetic process and plant-type secondary cell wall biogenesis. The up-regulation of Bra016131 and Brassica_rapa_newGene_13349 caused by miR156a-5p might influence the xylan biosynthetic process and glucuronoxylan metabolic process, producing pollen grains with an abnormal pollen wall and function. These results demonstrated the important roles of miR156 in anther development.
In addition, miR9563, which has been found only in Brassica including B. campestris and B. napus [38,39], has also been detected as being differentially expressed between the fertile and sterile line in our study. MiR9563 has been identified as the regulator of fatty acid metabolism, including fatty acid synthesis and fatty acid β-oxidation. In B. napus, bra-9563a-p3 and bra-MIR9563b-p5_1ss3GA were found to regulate ADSL1 (stearoyl-CoA desaturase/delta-9 desaturase) and ACO (acyl-CoA oxidase) expression, respectively [39]. We found that bra-miR9563a-3p could regulate pollen wall development and pollen tube development by targeting the Bra005387 involved in sugar metabolism, including monosaccharide (galactose and L-arabinose) and polysaccharide (xyloglucan, rhamnogalacturonan I, and rhamnogalacturonan II) metabolisms. Besides being involved in sugar metabolism and the biological process of the defense response by callose deposition, Bra005387 might also be capable of regulating pollen tube development. These results demonstrate that miRNAs could play key roles in pollen wall development and affect the functional pollen formation by regulating sugar metabolism. Our miRNA–mRNA network unravels some novel functions of miRNAs, expands the list of fertility related miRNA, and provides new clues for exploring the mechanisms of anther development.

3.3. CeRNA Networks Could Provide New Sights into the Regulatory Roles of ncRNAs during Anther Development

Increasing evidence has demonstrated that circRNAs could function as efficient miRNA sponges to offset the repression of mRNA mediated by miRNA [40]. Recently, the regulatory axes of circRNAs, miRNAs, and mRNAs were demonstrated in various diseases [15,41]. However, the circRNA–miRNA–miRNA triple regulatory network has not been widely constructed in plants. To explore the ceRNA network and the functions of circRNAs in anther development in B. campestris, we constructed the triple circRNA–miRNA–mRNA network. From the network, we could see that A02:23507399|23531438 might be a special male-sterility circRNA and act as a miRNA sponge by targeting miRNA unconservative_A06_21945 and unconservative_Scaffold000096_42992 in order to regulate the expression of Bra002750, which could be involved in the cuticular wax biosynthetic process and pollen sperm cell differentiation. Additionally, Bra002750 could also be involved in the metabolic process of very long-chain fatty acids, which are precursors of sporopollenin and pollen coat (also named tryphine in Brassicaceae). The homologue of Bra002750 to Arabidopsis is AT5G57800 (FLP1/WAX2/CER3), which is a transmembrane protein with similarities to the sterol desaturase family at the N-terminus, and to the short-chain dehydrogenase/reductase family at the C-terminus.
The surface of the pollen grains of the loss-of-function mutant of FLP1 was smoother than that of the wild-type Arabidopsis, because the excess tryphine filled in the cavities of exine and covered the pollen grains [22]. The flp1 mutant was observed to be defective in sporopollenin, and to have aberrant bacula and tactum [22]. Additionally, the transgenic cucumbers of CsWAX2, the AtWAX2 homologue, showed a significantly decreased fertility [42]. The transmission electron microscopy (TEM) observation indicated that lipid droplets in the tryphine of CsWAX2ox-6 (over-expression lines) pollen were more numerous compared with the wild-type pollen, while those of CsWAX2i-2 (RNAi lines) pollen were rarely existent.
In our study, the up-regulated A02:23507399|23531438 suppressed the expression of unconservative_A06_21945 and unconservative_Scaffold000096_42992, leading to the up-regulation of Bra002750. The up-regulated Bra002750 might affect the synthesis of tryphine and sporopollenin in the exine of the sterile line, producing abortive pollen.
Our study demonstrated that ceRNA networks existed in pol CMS in B. campestris, and A02:23507399|23531438 could function in anther development by acting as the “miRNA sponge” of unconservative_A06_21945 and unconservative_Scaffold000096_42992, thereby regulating the expression of Bra002750 and the biosynthesis of tryphine and sporopollenin.

4. Materials and Methods

4.1. Plant Materials and Sample Collection

The sterile line, Bcpol97-05A, and its maintainer line, Bajh97-01B, in B. campestris ssp. chinensis cv. Aijiaohuang, were used in this study. They were both cultivated in the same experimental plot in Zhejiang University (Hangzhou, Zhejiang, China). After flowering, the fertile and sterile plants were identified, and the inflorescences (with all of the different developmental stages) were sampled (three biological replicates) from the individual plants for each material, snap-frozen in liquid nitrogen, and kept at −75 °C for further use.

4.2. Morphological and Cytological Observation

The flower organs were observed by a stereomicroscope. Alexander dying and DAPI staining were performed as previously described [43]. The sample processing procedures of the semi-thin section observation, which were the same as those in the TEM observation, were performed as described in Lin‘s study [44]. The pollen grains were dyed with Alexander’s stain and DAPI, and the semi-thin sections were observed by a light microscope.

4.3. Total RNA Extraction and Detection

The total RNA of the inflorescences was isolated from individual plants according to the instructions of the Trizol kit (Life Technologies, Gaithersburg, MD, USA), and for each material, the RNAs used for the whole-transcriptome analysis were mixed from 30 individual plants. Each line had three biological repetitions. The integrity and purity of the total RNA were analyzed. The detection methods included the following: (1) Nanodrop detection—detection of the purity of RNA samples (OD260/280 ≥1.8; OD260/230 ≥0.5). (2) Qubit 2.0 detection—accurate quantification of the concentration of the RNA samples (total RNA concentration ≥65 ng/µL). (3) Agilent 2100 bioanalyzer test—the integrity of the RNA sample is checked to ensure that the qualified sample is used for sequencing (the RIN value of total RNA is ≥7.0, 28S/18S ≥1.0; the baseline of the spectrum is not uplifted; the 5S peak is normal).

4.4. RNA Library Construction and Sequencing

After verifying the RNA sample’s quality, according to the following steps, the libraries of circRNAs, miRNAs, and mRNAs were constructed, respectively, as follows: the rRNA was removed using the epicentre Ribo-Zero™ kit. The liner RNAs were digested using RNase R (this step was skipped in the construction of mRNA library and miRNA library). The treated RNAs were interrupted randomly by adding a fragmentation buffer (a fragment reagent). Using the fragmented RNA as a template, the first strand was synthesized using random hexamers, followed by buffer, dNTPs, RNase H, and DNA polymerase I, to synthesize the second strand of cDNA, which was purified by AMPure XP beads. The sticky ends of the DNA were repaired to the blunt ends by T4 DNA polymerase and Klenow DNA polymerase. The A tail was added to the 3’ end, and the sequencing linker was ligated. Afterwards, the fragments were selected according to size with AMPure XP beads, followed by the degradation of the cDNA second strand containing U using USER. Finally, the cDNA library was obtained by a polymerase chain reaction. After the construction of the library, the concentration and insert size of the library were detected using Qubit2.0 and Agilent 2100, respectively. The effective concentration of the library was accurately quantified by the Q-PCR method so as to ensure the library quality (determined to be >2 nM). After detection, the different libraries were pooled based on the target machine data volume, and were sequenced on the Illumina Hi-Seq platform of BioMarker Technologies (Beijing, China).

4.5. Sequencing Quality Control and Biological Analysis

To ensure the accuracy of the information analysis, the quality control of the original data was performed in order to obtain a high-quality sequence (i.e., clean reads). The standard of the original sequence quality control is as follows: (1) removing the joint-containing reads, (2) filtering to remove low-quality data, and (3) removing the reads containing an N (undetermined base information) ratio that is greater than 5%. The clean data were aligned to the Brassica rapa genome in order to obtain the mapped data. We tested the quality of the library based on the mapped data, including the insert lengths and randomness. We performed the prediction of the RNAs, circRNA-binding sites, miRNA-binding sites, expression analysis of different RNA samples, DE gene expression analysis, KEGG analysis, and GO analysis.

4.6. Identifcation of RNAs

We predicted the circRNAs using the find_circ software. First, the find_circ software took 20 bp as the anchor point at both ends of the reads on the genomic alignment, then it compared the anchor points as independent reads to the Brassica rapa genome, and found the only matching site where the alignment positions of the two anchors were reversed in the linear direction. Afterwards, the reads of the anchor would be extended until the junction position of the circular RNA was found [45]. If the sequences on both sides were GT/AG splicing signals, respectively, they would be determined as circular RNA. We identified the known miRNAs by aligning the sequences of the mapped reads with the sequences of the mature miRNAs in miRBase (v21). If their sequences were totally identical, then the reads were identified as known miRNAs. We predicted the novel miRNAs using miRDeep2 software [46]. Based on the Brassica rapa genome sequence, we identified the new transcripts and genes by splicing the mapped reads with Cufflinks software, and comparing this with the original genomic annotation information.

4.7. Identification of DE RNAs

We used DESeq software to detect the DE RNAs. The screening criteria of DE circRNAs and mRNA were a fold change of ≥2 and FDR ≤0.05. The criteria of miRNAs were log2(FC) ≥1 and FDR ≤0.05. To avoid the false positive problem, we used the well-known Benjamini–Hochberg correction method to correct the p-value of the original hypothesis test, and finally the FDR was used as the key indicator for the differential expression of RNA screening.

4.8. Target Gene Prediction, GO Analysis, and KEGG Analysis of the Target Genes

We identified the targets of miRNAs using TargetFinder, based on the known miRNAs, the newly predicted miRNAs, and the gene sequence information in Brassica rapa. As circRNAs contain multiple miRNA binding sites, the miRNA target gene prediction methods can be used to identify the circRNAs that bind to miRNAs, and the functions of the circRNAs can be elucidated based on the functional annotation of the miRNA target genes. The predicted target gene sequence was aligned with the GO database and KEGG database using BLAST software, so as to obtain the annotation information of the target genes, respectively [47,48].

4.9. qRT-PCR Analysis of RNAs

The levels of DE circRNAs, miRNAs, and mRNAs in the fertile and sterile lines were detected by qRT-PCR in a CFX96 Real-Time System (Bio-Rad, Hercules, CA, USA). The total RNA was extracted from the inflorescences of the fertile line and sterile line using RNAiso Plus (TaKaRa, Dalian, China). The cDNA used for the qRT-PCR analysis of mRNA, and circRNA was synthesized using a PrimeScriptTM RT reagent Kit with a gDNA Eraser (TaKaRa, Dalian, China). The cDNA used for the qRT-PCR analysis of miRNA was synthesised by a Mir-XTM miRNA First-Strand Synthesis Kit (TaKaRa, Dalian, China). The primer sequences of the selected circRNAs, miRNAs, and mRNAs are listed in Supplementary Tables S1–S3, and the reverse primer of the selected miRNAs was the primer provided in Mir-XTM miRNA First-Strand Synthesis Kit (TaKaRa, Dalian, China). We conducted qRT-PCR using TaKaRa TB Green™ Premix Ex Taq™ II (TaKaRa, Dalian, China). The expression levels of circRNAs, miRNAs, and circRNAs were defined based on the threshold cycle, and the relative expression levels were calculated using the 2−ΔΔCt method.

4.10. Construction of miRNA–mRNA and circRNA–miRNA–mRNA Networks

The miRNA–mRNA and circRNA–miRNA­–mRNA networks were constructed according to the predicted miRNA–mRNA and circRNA–miRNA pairs using Cytoscape software. CircRNA, miRNA, and mRNA are indicated as a deformed V, diamonds, and ellipses, respectively. The red color represents the up-regulated expression, and the blue color represents the down-regulated expression.

Supplementary Materials

Supplementary Materials can be found at https://au-mynotebook.labarchives.com/share/My%2520Notebook/MjcuM3w2ODQwOS8yMS9UcmVlTm9kZS80MTMzMzE4NzI2fDY5LjM=. Figure S1. Enriched directed acyclic gragh of top GO terms in BP category of differentially expressed genes in ‘Bcpol97-05A’ (sterile line) compared to ‘Bcajh97-01B’ (fertile line) of Brassica campestris. Figure S2. Enriched directed acyclic gragh of top GO terms in CC category of differentially expressed genes in ‘Bcpol97-05A’ (sterile line) compared to ‘Bcajh97-01B’ (fertile line) of Brassica campestris. Figure S3. Enriched directed acyclic gragh of top GO terms in MF category of differentially expressed genes in ‘Bcpol97-05A’ (sterile line) compared to ‘Bcajh97-01B’ (fertile line) of Brassica campestris.

Author Contributions

Conceptualization, J.C. and L.H.; methodology, L.H. and Y.L.; software, L.X.; validation, L.H.; formal analysis, Y.L. and Z.J.; investigation, Y.Z. and H.Z.; resources, J.C.; data curation, D.Z. and S.L.; writing (original draft preparation), Y.L.; writing (review and editing), L.H.; visualization, Y.L.; supervision, L.H.; project administration, J.C.; funding acquisition, L.H. All of the authors read and approved the final manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (no. 31572126 and no. 31872109), and the Grand Science and Technology Special Project of Zhejiang Province (no. 2016C02051-6-1).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

circRNAscircular RNAs
ncRNAsnon-coding RNAs
miRNAmicroRNA
ceRNAscompeting endogenous RNAs
CMScytoplasmic male sterility
DEdifferentially expressed
GOgene ontology
PCDprogrammed cell death
GMSgenic male sterility
polPolima
TFstranscription factors
DAPI4’,6-diamidino-2-phenylindole
FDRfalse discovery rate
BPbiological process
CCcell component
MFmolecular function
qRT-PCRquantitative Real-Time PCR
TEMtransmission electron microscopy

References

  1. Zhang, W.; Xie, Y.; Xu, L.; Wang, Y.; Zhu, X.; Wang, R.; Zhang, Y.; Muleke, E.M.; Liu, L. Identification of microRNAs and their target genes explores miRNA-mediated regulatory network of cytoplasmic male sterility occurrence during anther development in radish (Raphanus sativus L.). Front Plant Sci. 2016, 7, 1054. [Google Scholar] [CrossRef] [PubMed]
  2. Li, Q.; Dan, Y.; Zhu, Y. Characterization and use of male sterility in hybrid rice breeding. J. Integr. Plant Biol. 2007, 49, 791–804. [Google Scholar] [CrossRef]
  3. L’Homme, Y.; Brown, G.G. Organizational differences between cytoplasmic male sterile and male fertile Brassica mitochondrial genomes are confined to a single transposed locus. Nucleic Acids Res. 1993, 21, 1903–1909. [Google Scholar] [CrossRef] [PubMed]
  4. Singh, M.; Brown, G.G. Characterization of expression of a mitochondrial gene region associated with the Brassica “Polima” CMS: developmental influences. Curr. Genet. 1993, 24, 316. [Google Scholar] [CrossRef] [PubMed]
  5. An, H.; Yang, Z.; Yi, B.; Wen, J.; Shen, J.; Tu, J.; Ma, C.; Fu, T. Comparative transcript profiling of the fertile and sterile flower buds of pol CMS in B. napus. BMC Genom. 2014, 15, 258. [Google Scholar] [CrossRef] [PubMed]
  6. Ding, B.; Hao, M.; Mei, D.; Zaman, Q.U.; Sang, S.; Wang, H.; Wang, W.; Fu, L.; Cheng, H.; Hu, Q. Transcriptome and hormone comparison of three cytoplasmic male sterile systems in Brassica napus. Int. J. Mol. Sci. 2018, 19, 4022. [Google Scholar] [CrossRef] [PubMed]
  7. Ding, X.; Zhang, H.; Ruan, H.; Li, Y.; Chen, L.; Wang, T.; Jin, L.; Li, X.; Yang, S.; Gai, J. Exploration of miRNA-mediated fertility regulation network of cytoplasmic male sterility during flower bud development in soybean. 3 Biotech 2019, 9, 22. [Google Scholar] [CrossRef] [PubMed]
  8. Shen, Y.; Zhang, Z.; Lin, H.; Liu, H.; Chen, J.; Peng, H.; Cao, M.; Rong, T.; Pan, G. Cytoplasmic male sterility-regulated novel microRNAs from maize. Funct. Integr. Genom. 2011, 11, 179–191. [Google Scholar] [CrossRef] [PubMed]
  9. Song, J.H.; Yang, J.; Pan, F.; Jin, B. Differential expression of microRNAs may regulate pollen development in Brassica oleracea. Genet. Mol. Res. 2015, 14, 15024–15034. [Google Scholar] [CrossRef] [PubMed]
  10. Yan, J.; Zhang, H.; Zheng, Y.; Ding, Y. Comparative expression profiling of miRNAs between the cytoplasmic male sterile line MeixiangA and its maintainer line MeixiangB during rice anther development. Planta 2015, 241, 109–123. [Google Scholar] [CrossRef] [PubMed]
  11. Yang, J.; Liu, X.; Xu, B.; Zhao, N.; Yang, X.; Zhang, M. Identification of miRNAs and their targets using high-throughput sequencing and degradome analysis in cytoplasmic male-sterile and its maintainer fertile lines of Brassica juncea. BMC Genom. 2013, 14, 9. [Google Scholar] [CrossRef] [PubMed]
  12. Wei, X.C.; Zhang, X.H.; Yao, Q.J.; Yuan, Y.X.; Li, X.X.; Wei, F.; Zhao, Y.Y.; Zhang, Q.; Wang, Z.Y.; Jiang, W.S. The miRNAs and their regulatory networks responsible for pollen abortion in Ogura-CMS Chinese cabbage revealed by high-throughput sequencing of miRNAs, degradomes, and transcriptomes. Front. Plant Sci. 2015, 6, 894. [Google Scholar] [CrossRef] [PubMed]
  13. Karreth, F.A.; Pandolfi, P.P. CeRNA cross-talk in cancer: when ce-bling rivalries go awry. Cancer Discov. 2013, 3, 1113–1121. [Google Scholar] [CrossRef] [PubMed]
  14. Qi, X.L.; Zhang, D.H.; Wu, N.; Xiao, J.H.; Wang, X.; Ma, W. CeRNA in cancer: possible functions and clinical implications. J. Med Genet. 2015, 52, 710–718. [Google Scholar] [CrossRef]
  15. Lin, X.; Chen, Y. Identification of potentially functional circRNA-miRNA-mRNA regulatory network in hepatocellular carcinoma by integrated microarray analysis. Med Sci Monit Basic Res. 2018, 24, 70–78. [Google Scholar] [CrossRef] [PubMed]
  16. Zhou, J.; Zhang, W.W.; Peng, F.; Sun, J.Y.; He, Z.Y.; Wu, S.G. Downregulation of hsa_circ_0011946 suppresses the migration and invasion of the breast cancer cell line MCF-7 by targeting RFC3. Cancer Manag. Res. 2018, 10, 535–544. [Google Scholar] [CrossRef] [PubMed]
  17. Jin, X.; Feng, C.Y.; Xiang, Z.; Chen, Y.P.; Li, Y.M. CircRNA expression pattern and circRNA-miRNA-mRNA network in the pathogenesis of nonalcoholic steatohepatitis. Oncotarget 2016, 7, 66455–66467. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, L.; Ding, X.; Zhang, H.; He, T.; Li, Y.; Wang, T.; Li, X.; Jin, L.; Song, Q.; Yang, S. Comparative analysis of circular RNAs between soybean cytoplasmic male-sterile line NJCMS1A and its maintainer NJCMS1B by high-throughput sequencing. BMC Genom. 2018, 19, 663. [Google Scholar] [CrossRef] [PubMed]
  19. Cui, H.; Cao, J.; Zhang, M.; Yao, X.; Xun, X. Production of the Ogura cytoplasmic male sterile (CMS) lines of Chinese Cabbage-pak-choi (Brassica campestris L. ssp. chinensis var. communis) and turnip (B. campestris L. ssp. rapifera) and cytological observation of their sterile organs. Acta Hortic. Sin. 2004, 31, 467–471. [Google Scholar]
  20. Bernard, A.; Domergue, F.; Pascal, S.; Jetter, R.; Renne, C.; Faure, J.D.; Haslam, R.P.; Napier, J.A.; Lessire, R.; Joubes, J. Reconstitution of plant alkane biosynthesis in yeast demonstrates that Arabidopsis ECERIFERUM1 and ECERIFERUM3 are core components of a very-long-chain alkane synthesis complex. Plant Cell 2012, 24, 3106–3118. [Google Scholar] [CrossRef]
  21. Rowland, O.; Lee, R.; Franke, R.; Schreiber, L.; Kunst, L. The CER3 wax biosynthetic gene from Arabidopsis thaliana is allelic to WAX2/YRE/FLP1. Febs Lett. 2007, 581, 3538–3544. [Google Scholar] [CrossRef] [PubMed]
  22. Ariizumi, T.; Hatakeyama, K.; Hinata, K.; Sato, S.; Kato, T.; Tabata, S.; Toriyama, K. A novel male-sterile mutant of Arabidopsis thaliana, faceless pollen-1, produces pollen with a smooth surface and an acetolysis-sensitive exine. Plant Mol. Biol. 2003, 53, 107–116. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, H.; Zhang, Y.; Deng, C.; Deng, S.; Chen, S. The Arabidopsis Ca2+-Dependent protein kinase CPK12 is involved in plant response to salt stress. Int. J. Mol. Sci. 2018, 19, 4062. [Google Scholar] [CrossRef] [PubMed]
  24. Zhao, R.; Sun, H.L.; Mei, C.; Wang, X.J.; Yan, L.; Liu, R.; Zhang, X.F.; Wang, X.F.; Zhang, D.P. The Arabidopsis Ca (2+)—dependent protein kinase CPK12 negatively regulates abscisic acid signaling in seed germination and post-germination growth. New Phytol. 2011, 192, 61–73. [Google Scholar] [CrossRef] [PubMed]
  25. Hong, Y.; Takano, M.; Liu, C.M.; Gasch, A.; Chye, M.L.; Chua, N.H. Expression of three members of the calcium-dependent protein kinase gene family in Arabidopsis thaliana. Plant Mol. Biol. 1996, 30, 1259–1275. [Google Scholar] [CrossRef] [PubMed]
  26. Gamboa, A.; Paéz-Valencia, J.; Acevedo, G.F.; Vázquez-Moreno, L.; Alvarez-Buylla, R.E. Floral transcription factor AGAMOUS interacts in vitro with a leucine-rich repeat and an acid phosphatase protein complex. Biochem. Biophys. Res. Commun. 2001, 288, 1018–1026. [Google Scholar] [CrossRef] [PubMed]
  27. Wan, L.L.; Zha, W.J.; Cheng, X.Y.; Liu, C.; Lv, L.; Liu, C.X.; Wang, Z.Q.; Du, B.; Chen, R.Z.; Zhu, L.L. A rice β-1,3-glucanase gene Osg1 is required for callose degradation in pollen development. Planta 2011, 233, 309–323. [Google Scholar] [CrossRef] [PubMed]
  28. Yoshikawa, M.; Peragine, A.; Park, M.Y.; Poethig, R.S. A pathway for the biogenesis of trans-acting siRNAs in Arabidopsis. Genes Dev. 2005, 19, 2164–2175. [Google Scholar] [CrossRef]
  29. Li, Q.W.; Long, F.Y.; Tai, W. Deep sequencing on genome-wide scale reveals the unique composition and expression patterns of microRNAs in developing pollen of Oryza sativa. Genome Biol. 2011, 12, R53. [Google Scholar]
  30. Huang, L.; Dong, H.; Zhou, D.; Li, M.; Cao, J. Systematic identification of long non-coding RNAs during pollen development and fertilization in Brassica rapa. Plant J. 2018, 96, 203–222. [Google Scholar] [CrossRef]
  31. Helena, S. The role of non-coding RNAs in cytoplasmic male sterility in flowering plants. Int. J. Mol. Sci. 2017, 18, 2429. [Google Scholar]
  32. Ding, X.; Li, J.; Zhang, H.; He, T.; Han, S.; Li, Y.; Yang, S.; Gai, J. Identification of miRNAs and their targets by high-throughput sequencing and degradome analysis in cytoplasmic male-sterile line NJCMS1A and its maintainer NJCMS1B of soybean. BMC Genom. 2016, 17, 1–16. [Google Scholar] [CrossRef] [PubMed]
  33. Koichiro, A.; Miyako, U.T.; Maki, K.; Kazuki, H.; Kentaro, Y.; Mikio, N.; Makoto, M. Gibberellin modulates anther development in rice via the transcriptional regulation of GAMYB. Plant Cell 2009, 21, 1453–1472. [Google Scholar]
  34. Takahiro, K.; Tohru, A.; Maki, K.Y.; Hirofumi, U.; Kinya, T. Abolition of the tapetum suicide program ruins microsporogenesis. Plant Cell Physiol. 2006, 47, 784–787. [Google Scholar]
  35. Rhoades, M.W.; Reinhart, B.J.; Lim, L.P.; Burge, C.B.; Bartel, B.; Bartel, D.P. Prediction of plant microRNA targets. Cell 2002, 110, 513–520. [Google Scholar] [CrossRef]
  36. Wang, J.W. Regulation of flowering time by the miR156-mediated age pathway. J. Exp. Bot. 2014, 65, 4723–4730. [Google Scholar] [CrossRef]
  37. Yu, J.H.; Zhao, Y.X.; Qin, Y.T.; Yue, B.; Zheng, Y.L.; Xiao, H.L. Discovery of microRNAs associated with the S Type cytoplasmic male sterility in maize. J. Integr. Agric. 2013, 12, 229–238. [Google Scholar] [CrossRef]
  38. Jiang, J.J.; Lyu, M.L.; Liang, Y.; Ma, Z.M.; Cao, J.S. Identification of novel and conserved miRNAs involved in pollen development in Brassica campestris ssp. chinensis by high-throughput sequencing and degradome analysis. BMC Genom. 2014, 15, 146. [Google Scholar]
  39. Wang, Z.; Qiao, Y.; Zhang, J.; Shi, W.; Zhang, J. Genome wide identification of microRNAs involved in fatty acid and lipid metabolism of Brassica napus by small RNA and degradome sequencing. Gene 2017, 619, 61. [Google Scholar] [CrossRef]
  40. Hansen, T.B.; Jensen, T.I.; Clausen, B.H.; Bramsen, J.B.; Finsen, B.; Damgaard, C.K.; Kjems, J. Natural RNA circles function as efficient microRNA sponges. Nature 2013, 495, 384–388. [Google Scholar] [CrossRef]
  41. Zheng, Q.; Bao, C.; Guo, W.; Li, S.; Chen, J.; Chen, B.; Luo, Y.; Lyu, D.; Li, Y.; Shi, G. Circular RNA profiling reveals an abundant circHIPK3 that regulates cell growth by sponging multiple miRNAs. Nat. Commun. 2016, 7, 11215. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, W.; Liu, X.; Gai, X.; Ren, J.; Liu, X.; Cai, Y.; Wang, Q.; Ren, H. Cucumis sativus L. WAX2 plays a pivotal role in wax biosynthesis, influencing pollen fertility and plant biotic and abiotic stress responses. Plant Cell Physiol. 2015, 56, 1339–1354. [Google Scholar] [PubMed]
  43. Lyu, M.L.; Yu, Y.J.; Jiang, J.J.; Song, L.; Liang, Y.; Ma, Z.; Xiong, X.; Cao, J. BcMF26a and BcMF26b are duplicated polygalacturonase genes with divergent expression patterns and functions in pollen development and pollen tube formation in Brassica campestris. PloS one. 2015, 10, e0131173. [Google Scholar] [CrossRef] [PubMed]
  44. Lin, S.; Dong, H.; Zhang, F.; Qiu, L.; Wang, F.; Cao, J.; Huang, L. BcMF8, a putative arabinogalactan protein-encoding gene, contributes to pollen wall development, aperture formation and pollen tube growth in Brassica campestris. Ann. Bot. 2014, 113, 777. [Google Scholar] [CrossRef] [PubMed]
  45. Jens, M. Circular RNAs are a large class of animal RNAs with regulatory potency. Nature 2013, 495, 333–338. [Google Scholar]
  46. Friedlander, M.R.; Mackowiak, S.D.; Li, N.; Chen, W.; Rajewsky, N. Mirdeep2 accurately identifies known and hundreds of novel microRNA genes in seven animal clades. Nucleic Acids Res. 2012, 40, 37–52. [Google Scholar] [CrossRef] [PubMed]
  47. Ashburmer, M.; Ball, C.A.; Blake, J.A.; Botstein, D.; Butler, H.; Cherry, J.M.; Davis, A.P.; Dolinski, K.; Dwight, S.S.; Eppig, J.T.; et al. Gene ontology: tool for the unification of biology. The Gene Ontology Consortium. Nat Genet. 2000, 25, 25–29. [Google Scholar] [CrossRef]
  48. Kanehisa, M. The KEGG resource for deciphering the genome. Nucleic Acids Res. 2004, 32, 277–280. [Google Scholar] [CrossRef]
Figure 1. The morphology of flowers of “Bcajh97-01B” (fertile line) and “Bcpol97-05A” (sterile line) of Brassica campestris. Scale bars of 2 mm.
Figure 1. The morphology of flowers of “Bcajh97-01B” (fertile line) and “Bcpol97-05A” (sterile line) of Brassica campestris. Scale bars of 2 mm.
Ijms 20 04808 g001
Figure 2. Pollen characteristics of Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. (A,B) Pollen was dyed with Alexander’s stain. (CF) Pollen was dyed with 4’, 6-diamidino-2-phenylindole.
Figure 2. Pollen characteristics of Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. (A,B) Pollen was dyed with Alexander’s stain. (CF) Pollen was dyed with 4’, 6-diamidino-2-phenylindole.
Ijms 20 04808 g002
Figure 3. Anther transverse sections of Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. Stage 1, pollen mother cell stage; Stage 2, meiosis stage; Stage 3, uninucleate stage; Stage 4, binucleate stage; Stage 5, mature pollen stage. Scale bars of 20 μm.
Figure 3. Anther transverse sections of Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. Stage 1, pollen mother cell stage; Stage 2, meiosis stage; Stage 3, uninucleate stage; Stage 4, binucleate stage; Stage 5, mature pollen stage. Scale bars of 20 μm.
Ijms 20 04808 g003

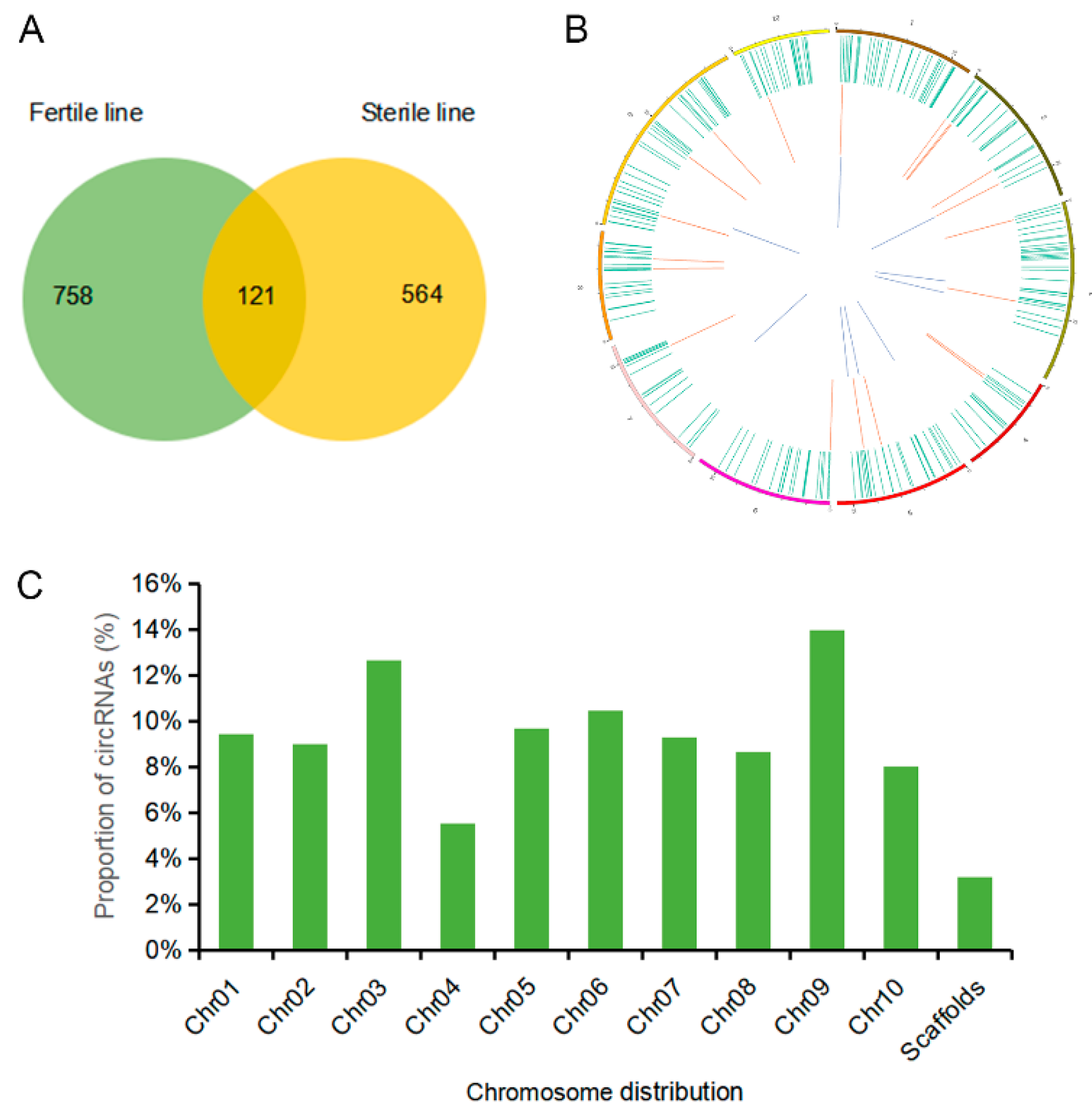

Figure 4. The circRNAs identified in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. (A) The number of circRNAs detected in the sterile line and fertile line. (B) Circos plot showing circRNAs on the chromosomes of B. campestris. The outmost layer of the ring is the chromosome map of B. campestris. The larger inner green ring represents all of the circRNAs detected by RNA-seq. The smaller red ring indicates the differentially expressed circRNAs with up regulation, and the innermost blue layer stands for the down-regulated circRNAs with fold change ≥2 and false discovery rate (FDR) <0.05. (C) Histogram of the distribution of circRNAs on the chromosome.
Figure 4. The circRNAs identified in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. (A) The number of circRNAs detected in the sterile line and fertile line. (B) Circos plot showing circRNAs on the chromosomes of B. campestris. The outmost layer of the ring is the chromosome map of B. campestris. The larger inner green ring represents all of the circRNAs detected by RNA-seq. The smaller red ring indicates the differentially expressed circRNAs with up regulation, and the innermost blue layer stands for the down-regulated circRNAs with fold change ≥2 and false discovery rate (FDR) <0.05. (C) Histogram of the distribution of circRNAs on the chromosome.
Ijms 20 04808 g004
Figure 5. Features of circRNAs identified in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. (A) Types of circRNAs. (B) Distribution of the length of circRNAs.
Figure 5. Features of circRNAs identified in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. (A) Types of circRNAs. (B) Distribution of the length of circRNAs.
Ijms 20 04808 g005

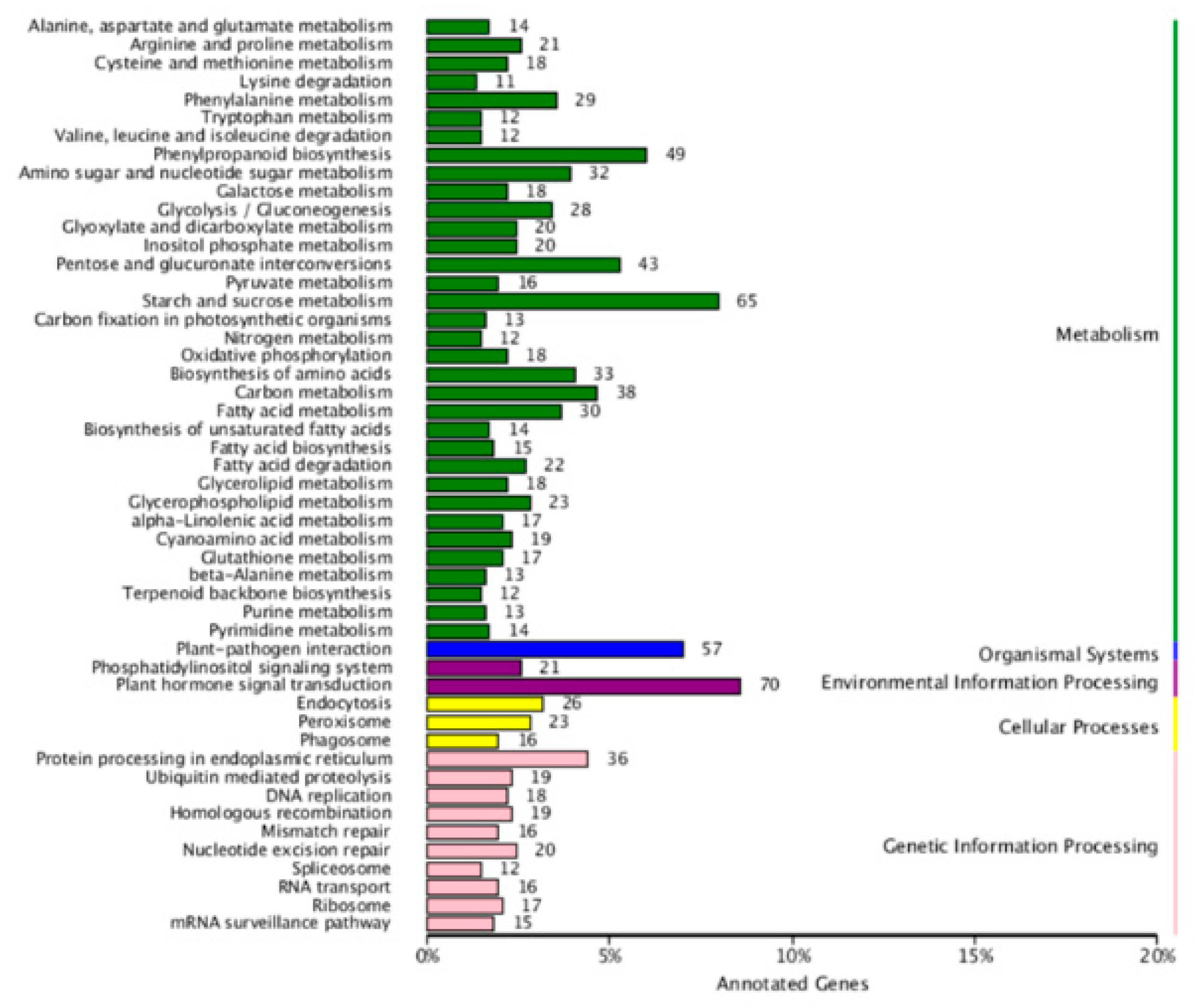

Figure 6. KEGG pathway enrichment analysis of the differentially expressed mRNAs identified in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
Figure 6. KEGG pathway enrichment analysis of the differentially expressed mRNAs identified in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
Ijms 20 04808 g006
Figure 7. Gene ontology (GO) classification of the differentially expressed mRNAs in the context of DE genes and all of the genes identified in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
Figure 7. Gene ontology (GO) classification of the differentially expressed mRNAs in the context of DE genes and all of the genes identified in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
Ijms 20 04808 g007

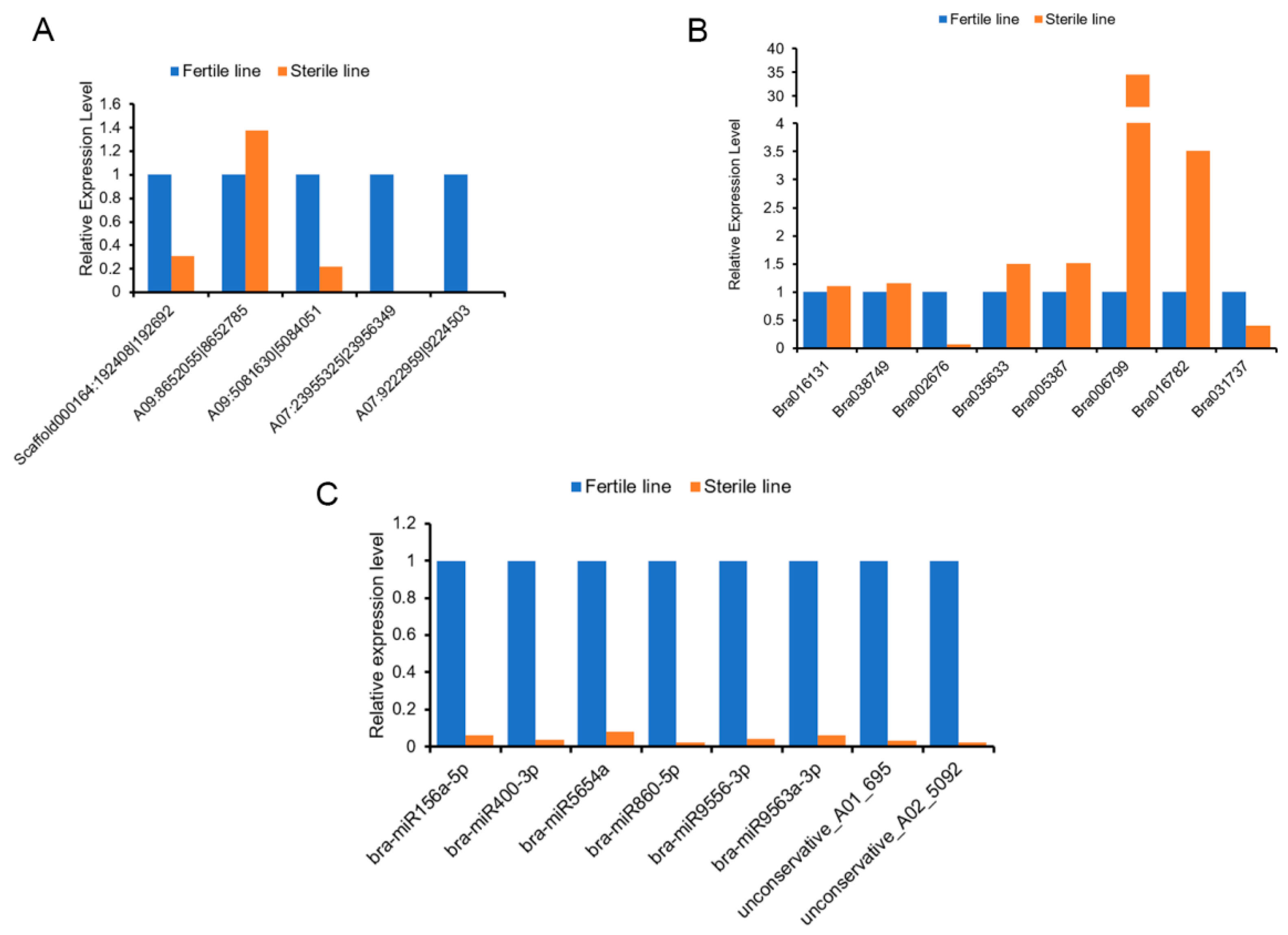

Figure 8. Quantitative real-time PCR validation for the RNA-seq data. (A) qRT-PCR validation of circRNAs. (B) qRT-PCR validation of mRNAs. (C) qRT-PCR validation of miRNAs.
Figure 8. Quantitative real-time PCR validation for the RNA-seq data. (A) qRT-PCR validation of circRNAs. (B) qRT-PCR validation of mRNAs. (C) qRT-PCR validation of miRNAs.
Ijms 20 04808 g008
Figure 9. The view of DEmiRNA–DEmRNA network involved in anther development in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. The network includes 18 miRNAs and 37 mRNAs. miRNA and mRNA are indicated as diamonds and ellipses, respectively. The red color represents the up-regulated expression and the blue color represents the down-regulated expression.
Figure 9. The view of DEmiRNA–DEmRNA network involved in anther development in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. The network includes 18 miRNAs and 37 mRNAs. miRNA and mRNA are indicated as diamonds and ellipses, respectively. The red color represents the up-regulated expression and the blue color represents the down-regulated expression.
Ijms 20 04808 g009

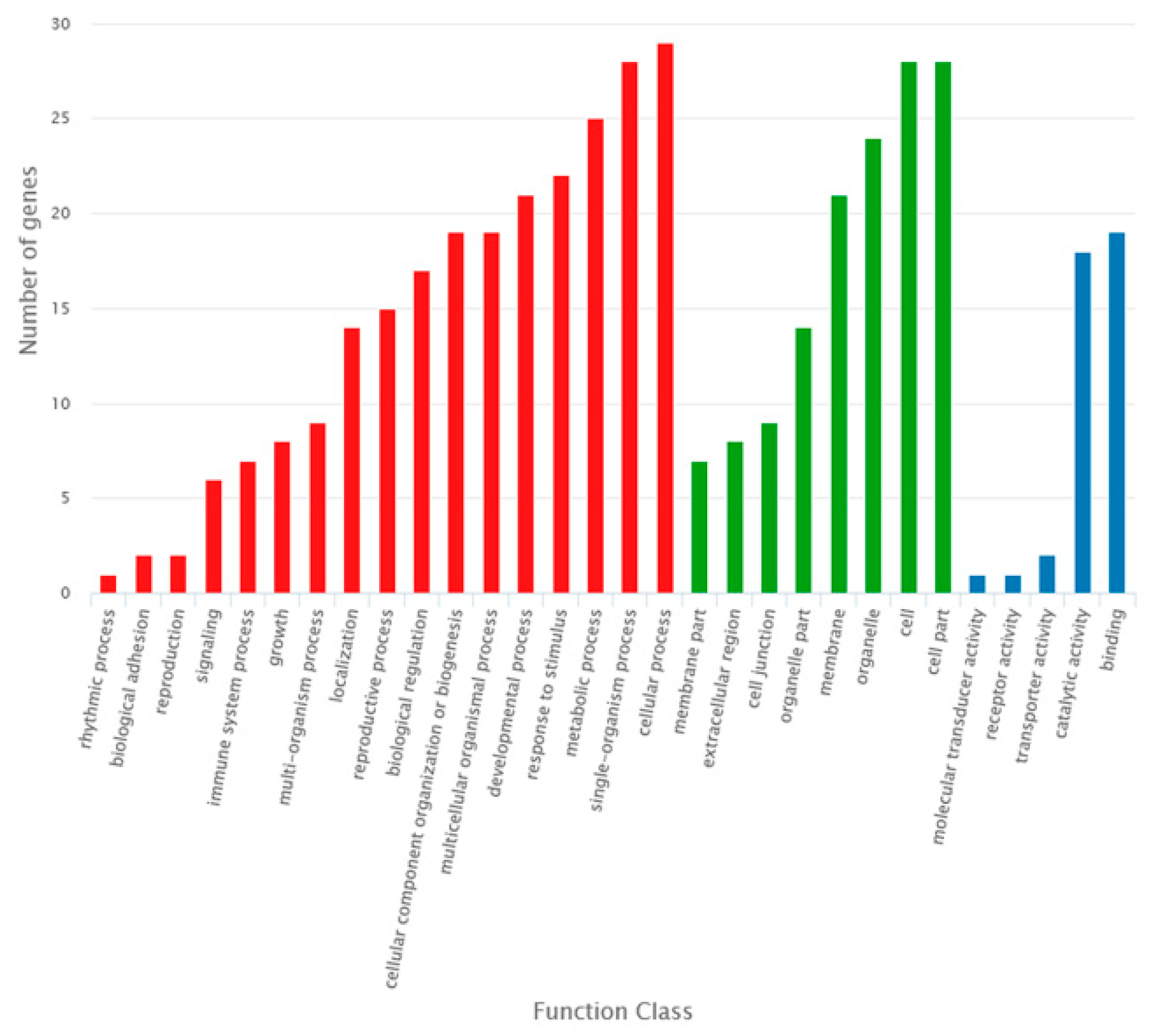

Figure 10. Gene ontology classification of potential targets of miRNAs in the DEmiRNA–DEmRNA network in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris.
Figure 10. Gene ontology classification of potential targets of miRNAs in the DEmiRNA–DEmRNA network in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris.
Ijms 20 04808 g010

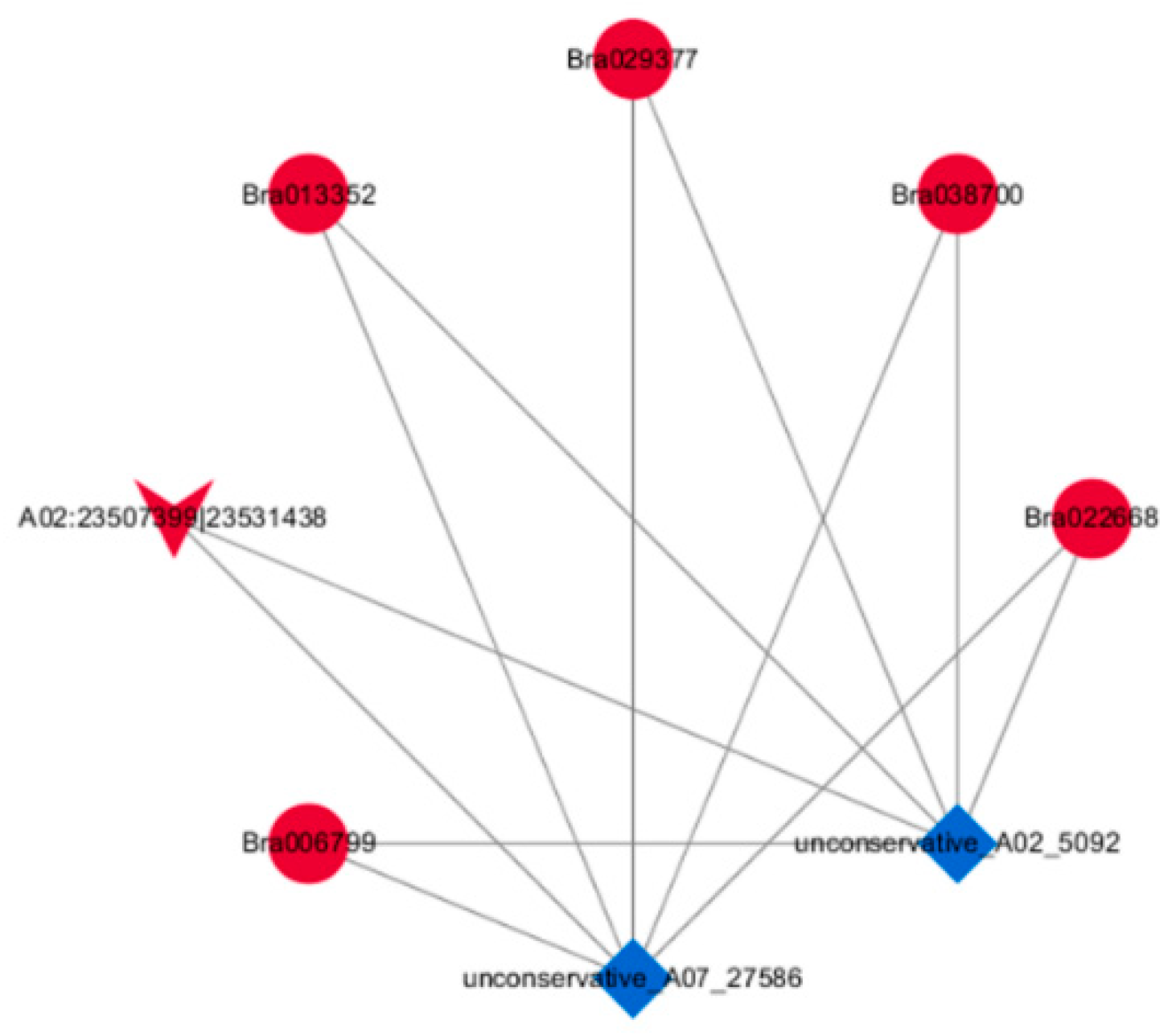

Figure 11. View of the DEcircRNA–DEmiRNA–DEmRNA triple network involved in anther development in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. The network includes one circRNA, two miRNAs, five mRNAs, and 11 edges. circRNA, miRNA, and mRNA are indicated as a deformed V, diamonds, and ellipses, respectively. The red color represents the up-regulated expression, and the blue color represents the down-regulated expression.
Figure 11. View of the DEcircRNA–DEmiRNA–DEmRNA triple network involved in anther development in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris. The network includes one circRNA, two miRNAs, five mRNAs, and 11 edges. circRNA, miRNA, and mRNA are indicated as a deformed V, diamonds, and ellipses, respectively. The red color represents the up-regulated expression, and the blue color represents the down-regulated expression.
Ijms 20 04808 g011
Table 1. Top 10 differentially expressed circRNAs in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
Table 1. Top 10 differentially expressed circRNAs in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
circRNA IDHost Gene IDTypeFDRLog2FCStatus
A02:2218194|2218504Intergenic region0.003556881−5.326588229Down
Scaffold000212:46573|47221Intergenic region0.017264214−3.898467742Down
A01:1717686|1718114Bra011550Intron0.024218267−3.569160763Down
A08:17623961|17626439Intergenic region0.027029147−3.459397447Down
A02:2598446|2599366Intergenic region0.03231053−3.277304232Down
A03:23207122|23207987Bra012618Exon0.034434505−3.211114134Down
A05:21205001|21205592Bra027353Exon0.036783873−3.141740631Down
A08:14993249|14994216Bra010648Exon0.039392172−3.068861972Down
A03:25432732|25433123Bra019257Intron0.0367838733.141740631Up
A03:20154550|20158652Intergenic region0.0071403664.712416081Up
Table 2. Top 10 differentially expressed miRNAs in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
Table 2. Top 10 differentially expressed miRNAs in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
miRNA IDFDRLog2FCStatus
unconservative_A07_275828.05 × 10−9−5.710103115Down
unconservative_A06_219456.89 × 10−11−5.240482741Down
unconservative_Scaffold000096_429926.89 × 10−11−5.240482741Down
unconservative_Scaffold000777_480086.89 × 10−11−5.240482741Down
unconservative_A02_56247.51 × 10−11−4.410730302Down
unconservative_A10_426991.57 × 10−7−4.101491939Down
unconservative_A06_217643.57 × 10−21−4.07323988Down
unconservative_A06_237063.61 × 10−8−4.053517585Down
unconservative_A08_328833.23 × 10−18−3.88622319Down
unconservative_A03_127484.87 × 10−16−3.37012631Down
Table 3. Top 10 GO terms in BP category of differentially expressed genes in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
Table 3. Top 10 GO terms in BP category of differentially expressed genes in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
GO Term IDGO Term DescriptionUnigene NumeberDE Gene NumberExpected NumberKS
GO:0009827plant-type cell wall modification1070360121.45<1 × 10−30
GO:0009860pollen tube growth1366407155.05<1 × 10−30
GO:0030048actin filament-based movement2718530.762.60 × 10−10
GO:0010584pollen exine formation326103379.30 × 10−10
GO:0045490pectin catabolic process1935421.916.80 × 10−7
GO:0048235pollen sperm cell differentiation1164013.172.40 × 10−6
GO:0015770sucrose transport66257.491.70 × 10−5
GO:0009821alkaloid biosynthetic process42134.771.80 × 10−5
GO:1901700response to oxygen-containing compound1173014361331.441.90 × 10−5
GO:0009737response to abscisic acid4007511454.823.60 × 10−5
The “Unigene number” line, “DE Gene Number” line, “Expected Number” line, and “KS” line display the number of unigenes, number of differentially expressed genes, expected number annotated to the related corresponding GO term, and the p-value of the KS test, respectively.
Table 4. Top 10 GO terms in molecular function (MF) category of differentially expressed genes in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
Table 4. Top 10 GO terms in molecular function (MF) category of differentially expressed genes in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
GO Term IDGO Term DescriptionUnigene NumeberDE Gene NumberExpected NumberKS
GO:0003785actin monomer binding22132.521.20 × 10−5
GO:0030599pectinesterase activity1825120.871.20 × 10−5
GO:0045330aspartyl esterase activity1023311.71.60 × 10−5
GO:0090353polygalacturonase inhibitor activity1451.613.20 × 10−5
GO:0008705methionine synthase activity1251.385.40 × 10−5
GO:0019863IgE binding65177.456.90 × 10−5
GO:0009044xylan 1,4-beta-xylosidase activity31153.550.0001
GO:0004350glutamate-5-semialdehyde dehydrogenase activity1171.260.00014
GO:0004601peroxidase activity2255225.80.00023
GO:0004349glutamate 5-kinase activity1371.490.00023
The “Unigene number” line, “DE Gene Number” line, “Expected Number” line, and “KS” line display the number of unigenes, number of differentially expressed genes, expected number annotated to the related corresponding GO term, and the p-value of the KS test, respectively.
Table 5. Top 10 GO terms in the CC category of differentially expressed genes in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
Table 5. Top 10 GO terms in the CC category of differentially expressed genes in Bcpol97-05A (sterile line) compared to Bcajh97-01B (fertile line) of Brassica campestris.
GO Term IDGO Term DescriptionUnigene NumeberDE Gene NumberExpected NumberKS
GO:0003785actin monomer binding22132.521.20 × 10−5
GO:0030599pectinesterase activity1825120.871.20 × 10−5
GO:0045330aspartyl esterase activity1023311.71.60 × 10−5
GO:0090353polygalacturonase inhibitor activity1451.613.20 × 10−5
GO:0008705methionine synthase activity1251.385.40 × 10−5
GO:0019863IgE binding65177.456.90 × 10−5
GO:0009044xylan 1,4-beta-xylosidase activity31153.550.0001
GO:0004350glutamate-5-semialdehyde dehydrogenase activity1171.260.00014
GO:0004601peroxidase activity2255225.80.00023
GO:0004349glutamate 5-kinase activity1371.490.00023
The “Unigene number” line, “DE Gene Number” line, “Expected Number” line, and “KS” line display the number of unigenes, number of differentially expressed genes, expected number annotated to the related corresponding GO term, and the p-value of the KS test, respectively.
Table 6. Differentially expressed miRNAs and their target genes in the DEmiRNA–DEmRNA network involved in anther development in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris.
Table 6. Differentially expressed miRNAs and their target genes in the DEmiRNA–DEmRNA network involved in anther development in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris.
miRNA IDStatusGene IDProteinBiological Process
bra-miR9563a-3pDownBra005387UDP-glucose 4-epimerase, UDP-arabinose 4-epimeraseSugar metabolism; pollen tube development; defense response by callose deposition
unconservative_A02_5254UpBra012559Xyloglucan:xyloglucosyl transferaseCallose metabolic process
Bra013367
Bra020239UnknownCellulose biosynthetic process; cell redox homeostasis regulation; tapetum programmed cell death
bra-miR9556-3pDownBrassica_rapa_newGene_11926UnknownFlavonoid biosynthesis process
Bra031737UnknownTapetum programmed cell death
unconservative_A05_20239UpBra020299UnknownGlucuronoxylan metabolic process; xylan biosynthetic process
Bra032058UnknownTapetum programmed cell death
bra-miR156a-5pDownBrassica_rapa_newGene_13349UnknownVegetative to reproductive phase transition of meristem; glucuronoxylan metabolism; xylan biosynthetic process
Bra016131UnknownUnknown
bra-miR9556-5pDownBra008715UnknownLignin metabolic process;
glucuronoxylan biosynthetic process;
cell wall organization process; tapetum programmed cell death
unconservative_A08_32883DownBra020025UnknownLipid metabolic process; xylan metabolic process; cell wall biogenesis
Bra020123UnknownFlavonoid biosynthetic process
bra-miR5717UpBra002676Glycerophosphodiester phosphodiesterasePollen tube growth process; pollen wall development; starch metabolism; lipid metabolism
Bra009027UnknownPollen tube growth process; pollen wall development
Bra035078UnknownPollen tube growth process; pollen wall development
Bra034939N-acylphosphatidylet-hanolamine-specific phospholipase DPollen wall development
Bra037916S-adenosylmethionine-dependent methyltransferasePollen wall development; pectin metabolic process
Table 7. miRNAs involved in the phytohormone-related biological process in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris.
Table 7. miRNAs involved in the phytohormone-related biological process in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris.
miRNA IDTarget Gene IDPhytohormone-Related Biological Process
unconservative_A05_20239Bra032058Be involved in salicylic acid biosynthetic process and response to salicylic acid
bra-miR9563a-3pBra005387Be involved in abscisic acid-activated signaling pathway and response to ethylene
unconservative_A02_5254Bra013367Response to auxin
bra-miR5717Bra034939Response to abscisic acid
Bra037916Response to abscisic acid
bra-miR9556-5pBra008715Be involved in salicylic acid mediated signaling pathway and brassinosteroid biosynthetic process
Table 8. Differentially expressed mRNA putative targets of ‘A02:23507399|23531438′ in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris.
Table 8. Differentially expressed mRNA putative targets of ‘A02:23507399|23531438′ in Bcajh97-01B (fertile line) and Bcpol97-05A (sterile line) of Brassica campestris.
Gene IDHomologue to ArabidopsisDescription of the Homologue to ArabidopsisRole of the Homologue to ArabidopsisReference
Bra006799AT5G57800Encodes a transmembrane protein with similarity to the sterol desaturase family at the N-terminus and to the short-chain
dehydrogenase/reductase family at the C-terminus.
Be involved in cuticle membrane and wax biosynthesis, influencing pollen fertility as well as plant biotic and abiotic stress responses, etc.[20,21,22]
Bra013352AT4G18810NAD(P)-binding Rossmann-fold superfamily proteinUnknown
Bra022668AT5G53730Late embryogenesis abundant (LEA) hydroxyproline-rich glycoprotein familyUnknown
Bra029377AT5G23580A Member of a unique family of enzymes containing a single polypeptide chain with a kinase domain at the amino terminus and a putative calcium-binding EF hands structure at the carboxyl terminusBe involved in plant response to salt stress, a Ca (2+) -dependent protein kinase balancer in abscisic acid signaling[23,24,25]
Bra038700AT3G12145A novel leucine-rich repeat proteinInteracts directly with MADS domain transcription factor during Arabidopsis thaliana flower development[26]
Back to TopTop
