Discovery of 3-Arylquinoxaline Derivatives as Potential Anti-Dengue Virus Agents

by
Chih-Hua Tseng
1,2,3,4,5,*,
Cheng-Ruei Han
1 and
Kai-Wei Tang
1
1
School of Pharmacy, College of Pharmacy, Kaohsiung Medical University, Kaohsiung 807, Taiwan
2
Department of Fragrance and Cosmetic Science, College of Pharmacy, Kaohsiung Medical University, Kaohsiung 807, Taiwan
3
Drug Development and Value Creation Research Center, Kaohsiung Medical University, Kaohsiung 807, Taiwan
4
Department of Medical Research, Kaohsiung Medical University Hospital, Kaohsiung 807, Taiwan
5
Department of Pharmacy, Kaohsiung Municipal Ta-Tung Hospital, Kaohsiung 801, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(19), 4786; https://doi.org/10.3390/ijms20194786
Submission received: 2 September 2019 / Revised: 24 September 2019 / Accepted: 25 September 2019 / Published: 26 September 2019
(This article belongs to the Section Molecular Microbiology)
Browse Figures
Versions Notes

Abstract

:
We designed and synthesized a series of novel 3-arylquinoxaline derivatives and evaluated their biological activities as potential dengue virus (DENV) replication inhibitors. Among them, [3-(4-methoxyphenyl)quinoxalin-2-yl](phenyl)methanol (19a), [6,7-dichloro-3-(4-methoxyphenyl)quinoxalin-2-yl](phenyl)methanol (20a), and (4-methoxyphenyl)(3-phenylquinoxalin-2-yl)methanone (21b) were found to significantly inhibit the DENV RNA expression in Huh-7-DV-Fluc cells with a potency better than that of ribavirin. Compound 19a reduced DENV replication in both viral protein and messenger RNA (mRNA) levels in a dose-dependent manner and exhibited no significant cell cytotoxicity. Notably, compound 19a exhibited a half maximal effective concentration (EC50) value at 1.29 ± 0.74 μM. We further observed that the inhibitory effect of 19a on DENV replication was due to suppression of DENV-induced cyclooxygenase-2 (COX-2) expression. Docking studies also showed that 19a caused hydrophobic interactions at the active sites with Arg29, Glu31, Tyr116, Leu138, Pro139, Lys454, Arg455, and Gln529. The calculated lowest binding energy between the 19a and COX-2 was −9.10 kcal/mol. In conclusion, compound 19a might be a potential lead compound for developing an anti-DENV agent.

1. Introduction

Dengue virus (DENV) infections significantly increased in the past decades and, with more than half the world’s population living in areas at risk of infection, the World Health Organization estimated the true number of cases to exceed 50 million annually [1]. There are four serotypes of dengue, DENV-1, DENV-2, DENV-3, and DENV-4, and the infection severity ranges from the self-limiting dengue fever (DF) to the more serious dengue hemorrhagic fever (DHF) and dengue shock syndrome (DSS), with reported ranges of 1–5% to 10–30% of cases resulting in death, respectively [2,3,4]. There is no antiviral drug currently available for the treatment of dengue, although potential anti-DENV drugs being tested in human clinical trials are at different stages of development. Some drugs entered into such trials include chloroquine, celgosivir, balapiravir, prednisolone, lovastatin, ivermectin, and ribavirin; however, none of these are yet approved for treatment against the virus [5]. Therefore, the development of supplemental agents or more effective and safer agents is required for DV therapy.
Cyclooxygenase-2 (COX-2) is one of the important mediators of inflammation in response to viral infection, and it contributes to viral replication, for example, cytomegalovirus or hepatitis C virus replication [6,7,8,9,10]. More recently, Lin et al. revealed that COX-2 is an important factor for DENV replication and can serve as a potential target for developing therapeutic agents against DENV infection [11].
Certain heterocyclic compounds were discovered to possess anti-DENV activities. For example, Saudi et al. identified an imidazole 4,5-dicarboxamide derivative as a novel anti-DENV agent through high-throughput screening (HTS) and proceeded to synthesize a series of 29 compounds, from which pyrazine-based compound 1, with a significant potency against DENV2 in VERO-B cells (EC50 = 0.93 μM), was identified [12]. Venkatesham et al. structurally modified the molecule and discovered quinazoline derivative 2 with an EC50 value of 2.6 μM against DENV [13]. We also prepared certain quinoline derivatives for anti-DENV evaluation. Among them, 2-(hydroxyphenylmethyl)-3-(4-methoxyphenyl)quinoline (3) and 2-(4-hydroxybenzoyl)-3-(4-hydroxyphenyl)quinoline (4) were found to inhibit the DENV2 RNA expression in Huh-7-DV-Fluc cells with a higher potency than that of ribavirin [14]. More recently, we further identified 4-[5-(6-fluoroquinolin-2-yl)-3-(4-methoxy phenyl)-1H-pyrazol-1-yl]benzenesulfonamide (5), which exhibited approximately 10-fold more active anti-DENV-2 activity (EC50 = 0.81 μM) than that of ribavirin (EC50 = 12.61 μM) [15]. Quinoxaline is a versatile heterocyclic compound and belongs to the isosteric isomer of quinoline. Several quinoxaline-containing compounds possess a wide variety of biological activities including antitubercular, antibacterial, anti-trypanosomal, anticancer, anti-inflammatory, antimalarial, anti-human immunodeficiency virus (HIV), antidepressant, and anti-hyperglycemic effects [16,17,18,19,20,21,22]. The present report describes the synthesis of 3-arylquinoxaline derivatives (target compounds, Figure 1), whose structures are considered as the 4-aza isosteric isomers of compounds 3 and 4. Quinoxaline is more hydrophilic than quinoline due to an additional nitrogen atom which bears a pair of non-pair electrons to form hydrogen bonding with water. A reasonable high water solubility is important for in vivo and pre-clinical evaluations. Our aim was to discover potential anti-DENV drug candidates with higher potency and less cytotoxicity than our initial lead compounds 3 and 4.

2. Results and Discussion

2.1. Chemistry

The known 2-methyl-3-phenylquinoxaline (9a) was prepared via the condensation of 1-phenylpropane-1,2-dione (6) and benzene-1,2-diamine according to a previous study [23]. Accordingly, compounds 9b–11b were obtained from the starting materials 6–8, respectively, under the same reaction conditions in a yield of 73–96%. Oxidation of 9a–11b with selenium oxide afforded 3-phenylquinoxaline-2-carbaldehyde (12a) or its analogs 12b–14b, respectively, in a yield of 58–88% [24]. Treatment of 12a with phenyl magnesium bromide (Grignard reagent) afforded phenyl(3-phenylquinoxalin-2-yl)methanol (15a), which was then oxidized with MnO2 to give phenyl(3-phenylquinoxalin-2-yl)methanone (21a) as described in Scheme 1. Accordingly, Grignard reaction of compounds 12b–14b afforded compounds 15b–20b, respectively, which were then oxidized with MnO2 to give their respective carbonyl products 21b–26b under the same reaction conditions. Demethylation of 15b with 48% HBr gave (4-hydroxyphenyl)(3-phenylquinoxalin-2-yl)methanone (27) as described in Scheme 2. However, reaction of 19b with 48% HBr did not give (4-hydroxyphenyl)(3-phenylquinoxalin-2-yl)methanone (29) nor the expected 4-[3-(4-hydroxy benzyl)quinoxalin-2-yl]phenol (28). Oxidation of intermediate (28) with SeO2 gave (4-hydroxyphenyl) [3-(4-hydroxyphenyl)quinoxalin-2-yl)methanone (29), as described in Scheme 3. The structure of 15a–29 was determined by NMR (1H and 13C) (spectra data can be found in Supplementary Materials) and further confirmed by elemental analysis.

2.2. Biological Evaluation

2.2.1. Anti-DENV Activities and Cytotoxicities

The anti-DENV activities and cytotoxicities of 3-arylquinoxaline derivatives are summarized in Table 1. Huh-7-DV-Fluc cells were treated with compounds 3, 4, and 15–28 for three days. Anti-DENV activities were determined by firefly luciferase activity. Compounds which exhibited >32% inhibition of DENV-2 at a concentration of 10 μM were considered as active [15]. For the 2-hydroxymethyl derivatives, 2-(hydroxyphenyl methyl)-3-phenylquinoline (15a) was inactive, while its methoxy derivative (15b, R3 = OMe) was moderately active and exhibited 48% inhibition of DENV-2 at a concentration of 10 μM. Introduction of MeO group at R3 position (15a vs. 15b) strongly enhanced antiviral activity, indicating the electron-donating group at R3 position was crucial. The same trend was observed in which 16b was more active than 16a, and 17b was more active than 17a. Although compound 15b was less active than the initial lead of 3, its cytotoxicity was also lower than compound 3. Substitution of Cl group at R2 position decreased anti-DENV activity, in which 16b was inactive (9% inhibition) at a concentration of 10 μM, while the unsubstituted 15b exhibited 48% inhibition of DENV-2 at the same concentration. Substitution of F group at R1 position decreased anti-DENV activity in which 17b (22% inhibition) was much less active than the unsubstituted 15b, indicating the electron-withdrawing group at R1 position was unfavorable. Contrarily, introduction of the electron-donating MeO group at R1 position (15a vs. 19a) strongly enhanced antiviral activity. [3-(4-Methoxyphenyl)quinoxalin-2-yl](phenyl)methanol (19a), whose structure belongs to the 4-aza analog of 3, was the most active (82% inhibition) among these newly synthesized 3-arylquinoxaline derivatives. It is worth mentioning that compound 19a was non-cytotoxic to Huh-7 cells, exhibiting 85% cell viability at a concentration of 200 μM. Further substitution of the MeO group at R3 position (19b vs. 19a) or Cl group at R2 position (20a vs. 19a) decreased antiviral activity. Compound 20b was inactive, which bears MeO groups at both R1 and R3 positions and also a Cl group at R2 position. These results indicated that the optimal electron environment is important, in which the electron-donating MeO group may be substituted at either R1 or R3 but not both positions. For the 2-carbonyl derivatives, phenyl(3-phenylquinoxalin-2-yl)methanone (21a) was inactive. Introduction of the electron-donating MeO group at R3 position (21b vs. 21a) strongly enhanced anti-DENV activity. Compound 21a (R3 = H) was inactive, while 21b (R3 = OMe) was highly active, exhibited 51% inhibition of DENV-2 at a concentration of 10 μM, and was non-cytotoxic against Huh-7 cells at 200 μM. Introduction of Cl group at R2 position (21b vs. 22b) or F group at R1 position (21b vs. 23b) decreased antiviral activity. Introduction of the MeO group at R1 position (21a vs. 25a) strongly enhanced antiviral activity, indicating the electron-donating group at R1 position was favorable. Compound 26b was inactive, which bears MeO groups at both R1 and R3 positions and also a Cl group at R2 position.
In general, the 2-hydroxymethyl derivatives were less active than their respective 2-carbonyl counterparts (15b < 21b; 16a < 22a; 16b < 22b; 17a < 23a; 17b < 23b; 19b < 25b) with an exception of 19a, which was more active than 25a. Compounds 19a, 20a, and 21b were three of the most active antiviral agents, exhibiting >50% inhibition of DENV-2 at a concentration of 10 μM, and were selected for further evaluation. The effective concentration that inhibited 50% DENV replication (EC50), the concentration that inhibited 50% cell growth (CC50), and the selective index (SI: CC50/EC50) of these compounds were determined with our initial leads 3 and 4, using ribavirin as a positive control. Results indicated that compounds 19a, 20a, and 21b were superior to compounds 3 and 4 and more active than ribavirin (Table 2). Among them, compound 19a was the most active (EC50 of 1.29 μM), exhibiting approximately 10-fold more anti-DENV activity than that of ribavirin (EC50 = 13.16 μM). In addition, compound 19a was less cytotoxic than ribavirin. The selective index (SI) of 19a was approximately 35-fold higher than that of ribavirin (155.04 vs. 4.47). Based on the above results, compound 19a was selected as a lead compound for further pharmacological studies.

2.2.2. Compound 19a Reduced DENV Replication in Huh-7 cells

To further confirm the anti-DENV effect of compound 19a, we treated compound 19a at indicated concentrations in Huh-7 cells for three days. Both Western blotting and RT-qPCR were performed to determine the activity of compound 19a against DENV replication, and the results showed that compound 19a dose-dependently reduced DENV protein synthesis and RNA replication in Huh-7 cells (Figure 2 and Figure 3).

2.2.3. Compound 19a Reduced DENV Replication through Inhibiting COX-2 Expression

In a previous study, Lin et al. reported that induction of COX-2 could suppress DENV replication [11]. To determine whether compound 19a had impact on COX-2 protein and mRNA expression in Huh-7 cells, we treated Huh-7 cells with 0.5 to 5 μM of 19a. The results showed that compound 19a could inhibit COX-2 protein and mRNA level in Huh-7 cells, compared with the DMSO-treated Huh-7 cells (Figure 4A,B). To characterize whether the 19a-mediated downregulation of COX-2 expression and its catalytic activity was involved in the suppression of DENV replication, we overexpressed exogenous COX-2 to evaluate the inhibitory activity of 19a on DENV replication. Huh-7 cells were transfected with vehicle or various concentrations of cytomegalovirus (pCMV)-COX-2-Myc vector encoding the cox-2 gene, and the plasmid-transfected cells were incubated with 1 μM 19a or 0.1% DMSO, as a negative control. As shown in Figure 4C, the 19a-reduced viral RNA level was gradually rescued following the increasing expression of exogenous COX-2-Myc compared with that in the vehicle-transfected Huh-7 cells incubated with DMSO. Consistently, the exogenous expression of COX-2 attenuated the inhibitory effect of 19a on the non-structural 2B (NS2B) protein levels, as analyzed by Western blotting.
These results clearly indicated that 19a inhibited DENV replication by downregulating the virus-induced COX-2 expression. We also used a COX-2 promoter-based reporter assay to evaluate the inhibitory effect of 19a on COX-2 at the transcriptional level. The pCOX-2-Luc, a plasmid encoding firefly luciferase under the control of the COX-2 promoter, was transfected into Huh-7 cells or DENV-infected Huh-7 cells and, then, these plasmid-transfected cells were incubated with 19a at increasing concentrations for three days. As shown in Figure 4D, 19a dose-dependently decreased the DENV-elevated COX-2 promoter activity in DENV-infected cells.

2.3. Molecular Docking

In order to explain the binding mode and interaction, molecule docking of 19a was performed against COX-2 (Protein Data Bank (PDB) code 3LN1) enzyme. Figure 5 shows the three-dimensional (3D) molecular interaction of 19a against COX-2. The binding between 19a and COX-2 was stabilized through hydrophobic interactions, hydrogen binding, and π–cation interactions. The amino acids involved including 19a caused hydrophobic interactions at the active sites with Arg29, Glu31, Tyr116, Leu138, Pro139, Lys454, Arg455, and Gln529. Arg29, located in the binding pocket, played a vital role in the conformation of 19a, causing three kinds of interaction. The calculated lowest binding energy between 19a and COX-2 was −9.10 kcal/mol.

3. Materials and Methods

3.1. Chemistry Section

Melting points were determined on an Electrothermal IA9100 melting point apparatus (Electrothermal, Staordshire, UK). Nuclear magnetic resonance (1H) spectra were recorded on a Varian-Unity-400 spectrometer (LabX, Canada). Chemical shifts were expressed in parts per million (δ) with tetramethylsilane (TMS) as an internal standard. Thin-layer chromatography (TLC) was performed on silica gel 60 F-254 plates purchased from E. Merck KG (Darmstadt, Germany). The elemental analyses were performed in the Instrument Center of National Science Council at National Cheng-Kung University and National Chung-Hsing University using Heraeus CHN-O Rapid EA (Labexchange, Burladingen, Germany), and all values were within ±0.4% of the theoretical compositions.

3.1.1. General Procedure for the Preparation of 2-Methyl-3-phenylquinoxalines 9a–11b

Compound 6 (2.0 mmol) and appropriate benzene-1,2-diamine (2.0 mmol) were refluxed under (H2O:EtOH = 1:1) for 3 h (TLC monitoring). After cooling, the solvent was removed in vacuo to provide the crude product, which was purified by flash column chromatography on silica gel (CH2Cl2/MeOH 100/1) and recrystallized with EtOH to give 2-methyl-3-phenylquinoxalines 9a and 9b. Compounds 10a–11b were prepared from 7 or 8 (2.0 mmol) and appropriate benzene-1,2-diamine (2.0 mmol) under the same reaction procedures [23].

3.1.2. General Procedure for the Preparation of 3-Phenylquinoxaline-2-carbaldehydes 12a–14b

A mixture of 9a (3.0 mmol) and selenium dioxide (0.66 g, 6.0 mmol) in 1,4-dioxane (50 mL) was refluxed for 3 h (TLC monitoring) and then cooled to room temperature. The reaction mixture was filtered through celite to remove the black residue. Evaporation of the solvent afforded a residue which was dissolved in ethyl acetate (200 mL), washed with brine (100 mL), H2O (100 mL), and saturated sodium bicarbonate solution (100 mL), and dried (MgSO4). The crude product was recrystallized with EtOH to give 3-phenylquinoxaline-2-carbaldehydes 12a and 12b. Compounds 13a–14b were prepared from 10a–11b (3.0 mmol) under the same reaction procedures [24].

3.1.3. General Procedure for the Preparation of Phenyl(3-phenylquinoxalin-2-yl)methanols 15a–20b

A mixture of 3-phenylquinoxaline-2-carbaldehyde 12a (1.0 mmol), appropriate phenyl magnesium bromide (3 mmol, 3 mL of a 1 M solution in tetrahydrofuran (THF)), and dry THF (30 mL) was stirred at 0 °C for 12 h (TLC monitoring). The reaction was quenched by addition of water (3 mL) and partitioned between H2O (50 mL) and CH2Cl2 (50 mL). The organic layer was washed with brine and dried over MgSO4, and removal of the volatiles in vacuo provided a residue, which was purified by flash chromatography on silica gel (n-hexane: ethyl acetate = 3/2) and recrystallized from EtOH to give compounds 15a or 15b. Accordingly, compounds 16a–20b were obtained in the same manner.

Phenyl(3-phenylquinoxalin-2-yl)methanol (15a)

Yield 40%, Melting point (Mp): 146.0–147.0 °C. 1H NMR (400 MHz, CDCl3) δ 5.58 (d, 1H, J = 7.2 Hz, OH), 6.13 (d, 1H, J = 7.2 Hz, CHOH), 6.80 (dd, 2H, J1 = 8.0 Hz, J2 = 1.6 Hz), 7.10 (m, 3H), 7.27 (m, 2H), 7.42 (m, 3H), 7.82 (m, 2H), 8.16 (m, 1H), 8.22 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 72.87, 127.56 (2C), 127.73, 128.23 (2C), 128.53, 128.55 (2C), 128.76 (2C), 129.13, 129.33, 130.21, 130.32, 137.57, 139.52, 141.19, 141.61, 154.16, 154.32. Analysis calculated for C21H16N2O: C 80.75, H 5.16, N 8.97; found C 80.55, H 5.10, N 8.90.

(4-Methoxyphenyl)(3-phenylquinoxalin-2-yl)methanol (15b)

Yield 59%, Mp: 166.0–168.6 °C. 1H NMR (400 MHz, CDCl3) δ 3.71 (s, 3H, OCH3), 5.51 (br s, 1H, OH), 6.07 (s, 1H, CHOH), 6.62 (d, 2H, J = 8.8 Hz), 6.72 (d, 2H, J = 8.8 Hz), 7.26 (d, 2H, J = 8.4 Hz), 7.44 (m, 3H), 7.82 (m, 2H), 8.16 (m, 1H), 8.22 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 55.18, 72.37, 113.69 (2C), 128.52 (3C), 128.74 (2C), 128.84 (2C), 129.09, 129.32, 130.13, 130.28, 133.51, 137.63, 139.52, 141.56, 154.19, 154.59, 159.12. Analysis calculated for C22H18N2O2∙0.1H2O: C 76.76, H 5.34, N 8.14; found C 76.39, H 5.46, N 8.27.

(6,7-Dichloro-3-phenylquinoxalin-2-yl)(phenyl)methanol (16a)

Yield 40%, Mp: 136.4–136.9 °C. 1H NMR (400 MHz, CDCl3) δ 5.24 (d, 1H, J = 7.2 Hz, OH), 6.13 (d, 1H, J = 6.8 Hz, CHOH), 6.78 (m, 2H), 7.11 (m, 3H), 7.27 (m, 2H), 7.42 (m, 3H), 8.27 (s, 1H), 8.35 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 72.95, 127.46 (2C), 127.98, 128.37 (2C), 128.65 (2C), 128.67 (2C), 129.18, 129.54, 129.96, 134.92, 135.03, 136.90, 138.33, 140.35, 140.64, 155.21, 155.79. Analysis calculated for C21H14Cl2N2O∙0.1H2O: C 65.82, H 3.74, N 7.31; found C 65.67, H 3.80, N 7.52.

(6,7-Dichloro-3-phenylquinoxalin-2-yl)(4-methoxyphenyl)methanol (16b)

Yield 37%, Mp: 157.2–157.6 °C. 1H NMR (400 MHz, CDCl3) δ 3.72 (s, 3H, OCH3), 5.16 (d, 1H, J = 7.2 Hz, OH), 6.07 (d, 1H, J = 7.2 Hz, CHOH), 6.63 (d, 2H, J = 8.8 Hz), 6.70 (d, 2H, J = 8.8 Hz), 7.26 (d, 2H, J = 8.4 Hz), 7.44 (m, 3H), 8.26 (s, 1H), 8.35 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 55.19, 72.45, 113.80 (2C), 128.62 (2C), 128.65 (2C), 128.77 (2C), 129.16, 129.50, 129.95, 132.89, 134.8, 134.97, 136.96, 138.34, 140.30, 155.25, 156.05, 159.26. Analysis calculated for C22H16Cl2N2O2: C 64.22, H 3.92, N 6.81; found C 63.84, H 3.88, N 6.76.

[3-(4-Fluorophenyl)quinoxalin-2-yl](phenyl)methanol (17a)

Yield 41%, Mp: 157.4–158.0 °C. 1H NMR (400 MHz, CDCl3) δ 5.79 (d, 1H, J = 6.8 Hz, OH), 6.07 (d, 1H, J = 6.4 Hz, CHOH), 6.82 (m, 2H), 7.11 (m, 5H), 7.25 (m, 2H), 7.84 (m, 2H), 8.15 (m, 1H), 8.23 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 72.98, 115.63 (d, JCF = 22 Hz, 2C), 127.58 (2C), 127.91, 128.37 (2C), 128.55, 129.27, 130.37, 130.50, 130.74 (d, JCF = 8.3 Hz, 2C), 133.68 (d, JCF = 3.8 Hz), 139.52, 141.07, 141.56, 153.16, 154.18, 163.30 (d, JCF = 267.1 Hz). Analysis calculated for C21H15FN2O∙0.1H2O: C 75.93, H 4.62, N 8.44; found C 75.64, H 4.54, N 8.45.

[3-(4-Fluorophenyl)quinoxalin-2-yl](4-methoxyphenyl)methanol (17b)

Yield 78%, Mp: 173.0–174.7 °C. 1H NMR (400 MHz, CDCl3) δ 3.72 (s, 3H, OCH3), 6.02 (s, 1H, CHOH), 6.65 (d, 2H, J = 8.8 Hz), 6.75 (d, 2H, J = 8.8 Hz), 7.10 (m, 2H), 7.25 (m, 2H), 7.85 (m, 2H), 8.14 (m, 1H), 8.23 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 55.20, 72.44, 113.77 (2C), 115.60 (d, JCF = 21.7 Hz, 2C), 128.52, 128.87 (2C), 129.24, 130.29, 130.47, 130.70 (d, JCF = 8.4 Hz), 133.30, 133.71 (d, JCF = 3.4 Hz, 2C), 139.49, 141.48, 153.17, 154.41, 159.20, 163.24 (d, JCF = 247.8 Hz). Analysis calculated for C22H17FN2O2∙0.2H2O: C 72.59, H 4.83, N 7.70; found C 72.43, H 4.73, N 7.73.

[6,7-Dichloro-3-(4-fluorophenyl)quinoxalin-2-yl](phenyl)methanol (18a)

Yield 52%, Mp: 150.0–150.2 °C. 1H NMR (400 MHz, CDCl3) δ 5.22 (br s, 1H, OH), 6.07 (s, 1H, CHOH), 6.81 (m, 2H), 7.13 (m, 5H), 7.25 (m, 2H), 8.12 (s, 1H), 8.36 (s, 1H). 13C NMR (100 MHz, CDCl3): 73.06, 115.79 (d, JCF = 21.8 Hz, 2C), 127.49 (2C), 128.15, 128.51 (2C), 129.18, 129.90, 130.73 (d, JCF = 8.4, 2C), 133.02 (d, JCF = 3.4), 135.11, 135.25, 138.33, 140.28, 140.54, 154.20, 155.65, 163.49 (d, JCF = 248.5 Hz). Analysis calculated for C21H13Cl2FN2O: C 63.18, H 3.28, N 7.02; found C 63.29, H 3.06, N 7.07.

[3-(4-Methoxyphenyl)quinoxalin-2-yl](phenyl)methanol (19a)

Yield 48%, Mp: 160.4–161.9 °C. 1H NMR (400 MHz, CDCl3) δ 3.87 (s, 3H, OCH3), 5.55 (d, 1H, J = 7.2 Hz, OH), 6.16 (d, 1H, J = 7.2 Hz, CHOH), 6.86 (m, 2H), 6.93 (m, 2H), 7.12 (m, 3H), 7.25 (m, 2H), 7.80 (m, 2H), 8.14 (m, 1H), 8.21 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 55.46, 72.91, 114.14 (2C), 127.42 (2C), 127.99, 128.40 (2C), 129.12, 129.30, 129.86, 130.28 (2C), 134.69, 134.79, 138.17, 140.43, 140.88, 154.90, 155.95, 160.75. Analysis calculated for C22H18N2O2: C 77.17, H 5.30, N 8.18; found C 77.02, H 5.23, N 8.10.

(4-Methoxyphenyl)[3-(4-methoxyphenyl)quinoxalin-2-yl]methanol (19b)

Yield 78%, Mp: 132.4–136.0 °C. 1H NMR (400 MHz, CDCl3) δ 3.72 (s, 3H, OCH3), 3.87 (s, 3H, OCH3), 5.45 (d, 1H, J = 7.6 Hz, OH), 6.10 (d, 1H, J = 7.2 Hz, CHOH), 6.65 (d, 2H, J = 8.8 Hz), 6.89 (d, 2H, J = 8.8 Hz), 6.93 (d, 2H, J = 8.8 Hz), 7.25 (d, 2H, J = 8.8 Hz), 7.80 (m, 2H), 8.14 (m, 1H), 8.19 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 55.19, 55.42, 72.34, 113.71 (2C), 114.01 (2C), 128.46, 128.80 (2C), 129.23, 130.03 (2C), 130.09, 130.26 (2C), 133.73, 139.39, 141.63, 153.89, 154.74, 159.12, 160.41. Analysis calculated for C23H20N2O3: C 74.18, H 5.41, N 7.52; found C 73.92, H 5.33, N 7.47.

[6,7-Dichloro-3-(4-methoxyphenyl)quinoxalin-2-yl](phenyl)methanol (20a)

Yield 55%, Mp: 156.8–157.1 °C. 1H NMR (400 MHz, CDCl3) δ 3.88 (s, 3H, OCH3), 5.22 (d, 1H, J = 7.2 Hz, OH), 6.16 (d, 1H, J = 6.0 Hz, CHOH), 6.85 (dd, 2H, J1 = 8.8 Hz, J2 = 2.0 Hz), 6.94 (d, 2H, J = 8.8 Hz), 7.15 (m, 3H), 7.28 (d, 2H, J = 8.8 Hz), 8.25 (s, 1H), 8.33 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 55.46, 72.91, 114.14 (2C), 127.42 (2C), 127.99, 128.40 (2C), 129.12, 129.30, 129.86, 130.28 (2C), 134.69, 134.79, 138.17, 140.43, 140.88, 154.90, 155.95, 160.75. Analysis calculated for C22H16Cl2N2O2∙0.1H2O: C 63.94, H 3.96, N 6.78; found C 63.75, H 3.88, N 6.77.

[6,7-Dichloro-3-(4-methoxyphenyl)quinoxalin-2-yl](4-methoxyphenyl)methanol (20b)

Yield 56%, Mp: 144.1–144.5 °C. 1H NMR (400 MHz, CDCl3) δ 3.72 (s, 3H, OCH3), 3.88 (s, 3H, OCH3), 5.13 (d, 1H, J = 7.6 Hz, OH), 6.11 (d, 1H, J = 6.8 Hz, CHOH), 6.66 (d, 2H, J = 8.8 Hz), 6.78 (d, 2H, J = 8.8 Hz), 6.94 (d, 2H, J = 8.8 Hz), 7.26 (d, 2H, J = 8.8 Hz), 8.24 (s, 1H), 8.32 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 55.20, 55.45, 72.42, 113.83 (2C), 114.10 (2C), 128.74 (2C), 129.11, 129.36, 129.85, 130.28 (2C), 133.14, 134.62, 134.67, 138.18, 140.38, 154.91, 156.19, 159.26, 160.71. Analysis calculated for C23H18Cl2N2O3: C 62.60, H 4.11, N 6.35; found C 62.40, H 4.00, N 6.42.

3.1.4. General procedure for the Preparation of Phenyl(3-phenylquinoxalin-2-yl)methanones (21a–26b)

A mixture of 15a (1.0 mmol) and MnO2 (10.0 mmol) in CH2Cl2 (20 mL) was stirred at room temperature for 12 h (TLC monitoring). The reaction mixture was partitioned between H2O (50 mL) and CH2Cl2 (50 mL). The organic layer was washed with brine and dried over MgSO4, and removal of the volatiles in vacuo provided a residue, which was crystallized from MeOH to give compound 21a. Accordingly, compounds 21b–26b were obtained in this manner.

Phenyl(3-phenylquinoxalin-2-yl)methanone (21a)

Yield 89%, Mp: 155.2–156.7 °C. 1H NMR (400 MHz, CDCl3) δ 7.38 (m, 3H), 7.47 (m, 2H), 7.461 (tt, 1H, J1 = 7.6 Hz, J2 = 1.6 Hz), 7.70 (m, 2H), 7.82 (m, 1H), 7.88(m, 1H), 7.94 (m, 2H), 8.16 (m, 1H), 8.24 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 128.70 (4C), 129.11 (2C), 129.46, 129.49, 129.59, 130.44, 130.52 (2C), 131.40, 134.05, 135.62, 137.27, 139.65, 142.14, 151.31, 152.81, 193.98. Analysis calculated for C21H14N2O 0.3H2O: C 79.87, H 4.67, N 8.87; found C 79.75, H 4.46, N 8.92.

(4-Methoxyphenyl)(3-phenylquinoxalin-2-yl)methanone (21b)

Yield 70%, Mp: 130.0–132.4 °C. 1H NMR (400 MHz, CDCl3) δ 3.88 (s, 3H, OCH3), 6.94 (m, 2H), 7.39 (m, 3H), 7.72 (dd, 2H, J1 = 6.0 Hz, J2 = 2.4 Hz), 7.81 (m, 1H), 7.87 (m, 1H), 7.92 (m, 2H), 8.16 (m, 1H), 8.23 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 55.56, 114.05 (2C), 128.67 (2C), 128.72, 129.06 (2C), 129.40, 129.46, 129.56, 130.35, 131.22, 132.95 (2C), 137.36, 139.66, 142.08, 151.64, 152.75, 164.36, 192.58 Analysis calculated for C22H16N2O2∙0.2H2O: C 76.81, H 4.82, N 8.15; found C 76.76, H 4.72, N 8.08.

(6,7-Dichloro-3-phenylquinoxalin-2-yl)(phenyl)methanone (22a)

Yield 66%, Mp: 154.3–156.8 °C. 1H NMR (400 MHz, CDCl3) δ 7.40 (m, 3H), 7.49 (m, 2H), 7.64 (tt, 1H, J1 = 7.6 Hz, J2 = 1.2 Hz), 7.68 (m, 2H), 7.93 (m, 2H), 8.28 (s, 1H), 8.36 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 128.81 (4C), 129.09 (2C), 129.96, 130.02, 130.09, 130.48 (2C), 134.33, 135.17, 135.25, 136.23, 136.52, 138.27, 140.84, 152.18, 153.84, 193.31. Analysis calculated for C21H12Cl2N2O: C 66.51, H 3.19, N 7.39; found C 66.61, H 3.00, N 7.38.

(6,7-Dichloro-3-phenylquinoxalin-2-yl)(4-methoxyphenyl)methanone (22b)

Yield 79%, Mp: 171.9–172.3 °C. 1H NMR (400 MHz, CDCl3) δ 3.89 (s, 3H, OCH3), 6.96 (m, 2H), 7.41 (m, 3H), 7.70 (dd, 2H, J1 = 8.0 Hz, J2 = 1.6 Hz), 7.91 (m, 2H), 8.28 (s, 1H), 8.35 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 55.62, 114.17 (2C), 128.31, 128.77 (2C), 129.04 (2C), 129.91, 129.99, 130.06, 132.94 (2C), 135.03, 136.01, 136.61, 138.30, 140.77, 152.52, 153.80, 164.57, 191.90 Analysis calculated for C22H14Cl2N2O2: C 64.56, H 3.45, N 6.84; found C 64.19, H 3.46, N 6.85.

[3-(4-Fluorophenyl)quinoxalin-2-yl](phenyl)methanone (23a)

Yield 85%, Mp: 94.1–96.6 °C. 1H NMR (400 MHz, CDCl3) δ 7.08 (tt, 2H, J = 8.4, 2.0 Hz), 7.49 (tt, 2H, J = 8, 1.6 Hz), 7.64 (tt, 1H, J = 7.6, 1.6 Hz), 7.66 (m, 2H), 7.90 (br s, 1H), 7.93 (m, 2H), 7.96 (br s, 1H). 13C NMR (100 MHz, CDCl3) δ 115.87 (d, JCF = 22 Hz, 2C), 128.79 (2C), 129.23 (d, JCF = 6.8 Hz, 2C), 130.53 (2C), 130.57, 131.07, 131.16, 131.56, 133.37 (d, JCF = 3.0 Hz), 134.23, 135.46, 139.62, 142.06, 151.02, 151.66, 163.67 (d, JCF = 248.7 Hz), 193.95. Analysis calculated for C21H13FN2O: C 76.82, H 3.99, N 8.53; found C 76.44, H 3.86, N 8.55.

[3-(4-Fluorophenyl)quinoxalin-2-yl](4-methoxyphenyl)methanone (23b)

Yield 83%, Mp: 147.6–147.9 °C. 1H NMR (400 MHz, CDCl3) δ 3.89 (s, 3H, OCH3), 6.95 (d, 2H, J = 9.2 Hz), 7.08 (m, 2H), 7.72 (m, 2H), 7.83 (m, 1H), 7.88 (m, 1H), 7.92 (m, 2H), 8.16 (m, 1H), 8.21 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 55.59, 114.13 (2C), 115.84 (d, JCF = 21.8 Hz, 2C), 128.51, 129.37, 129.40, 130.49, 131.06 (d, JCF = 8.7 Hz, 2C), 131.38, 132.98 (2C), 133.46 (d, JCF = 3.5 Hz), 139.63, 141.98, 151.37, 151.60, 163.65 (d, JCF = 248.2 Hz), 164.48, 192.55. Analysis calculated for C22H15FN2O2∙0.1H2O: C 73.35, H 4.26, N 7.78; found C 73.06, H 4.27, N 7.77.

(6,7-Dichloro-3-(4-fluorophenyl)quinoxalin-2-yl)(phenyl)methanone (24a)

Yield 75%, Mp: 184.3–186.4 °C. 1H NMR (400 MHz, CDCl3) δ 7.08 (t, 2H, J = 8.8 Hz), 7.50 (t, 2H, J = 8 Hz), 7.64-7.70 (m, 3H), 7.92 (dd, 2H, J1 = 8.0 Hz, J2 = 1.6 Hz), 8.27 (s, 1H), 8.33 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 116.03 (d, JCF = 22 Hz, 2C), 128.90 (2C), 129.93, 129.95, 130.48 (2C), 131.17 (d, JCF = 8.8 Hz, 2C), 132.63 (d, JCF = 3.0 Hz), 134.51, 135.09, 135.29, 136.40, 138.23, 140.74, 151.87, 152.65, 163.93 (d, JCF = 249.7 Hz), 193.28. Analysis calculated for C21H11Cl2FN2O: C 63.50, H 2.79, N 7.05; found C 63.37, H 2.68, N 6.96.

[3-(4-Methoxyphenyl)quinoxalin-2-yl](phenyl)methanone (25a)

Yield 91%, Mp: 93.9–98.2 °C. 1H NMR (400 MHz, CDCl3) δ 3.80 (s, 3H, OCH3), 6.90 (m, 2H), 7.47 (m, 2H), 7.61 (tt, 1H, J1 = 7.6 Hz, J2 = 1.6 Hz), 7.68 (m, 2H), 7.79 (m, 1H), 7.86 (m, 1H), 7.94 (m, 2H), 8.14 (m, 1H), 8.21 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 55.30, 114.29 (2C), 128.72 (2C), 129.33, 129.39, 129.64, 130.05, 130.52 (2C), 130.65 (2C), 131.28, 134.06, 135.61, 139.41, 142.20, 151.20, 152.19, 160.88, 194.26. Analysis calculated for C22H16N2O2∙0.5H2O: C 75.62, H 4.91, N 8.02; found C 75.23, H 4.87, N 7.97.

(4-Methoxyphenyl)[3-(4-methoxyphenyl)quinoxalin-2-yl]methanone (25b)

Yield 76%, Mp: 144.5–146.2 °C. 1H NMR (400 MHz, CDCl3) δ 3.80 (s, 3H, OCH3), 3.87 (s, 3H, OCH3), 6.90 (d, J = 9.2 Hz), 6.94 (d, J = 9.2 Hz), 7.70 (d, J = 8.8 Hz), 7.78 (td, J1 = 6.8 Hz, J2 = 1.2 Hz, 1H), 7.84 (td, J1 = 6.8 Hz, J2 = 1.2 Hz, 1H), 7.92 (d, J = 8.8 Hz), 8.13 (dd, J1 = 8.0 Hz, J2 = 1.2 Hz, 1H), 8.20 (dd, J1 = 8.0 Hz, J2 = 1.2 Hz, 1H). 13C NMR (100 MHz, CDCl3) δ 55.27, 55.55, 114.06 (2C), 114.21 (2C), 128.64, 129.26, 129.30, 129.68, 129.97, 130.57 (2C), 131.11, 132.93 (2C), 139.38, 142.09, 151.50, 152.10, 160.80, 164.34, 192.88. Analysis calculated for C23H18N2O3: C 74.58, H 4.90, N 7.56; found C 74.54, H 4.86, N 7.60.

[6,7-Dichloro-3-(4-methoxyphenyl)quinoxalin-2-yl](phenyl)methanone (26a)

Yield 41%, Mp: 173.9–174.3 °C. 1H NMR (400 MHz, CDCl3) δ 3.81 (s, 3H, OCH3), 6.91 (d, 2H, J = 8.8 Hz), 7.50 (t, 2H, J = 7.6 Hz), 7.66 (m, 3H), 7.93 (dd, 2H, J1 = 8.4 Hz, J2 = 1.2 Hz), 8.25 (s, 1H), 8.32 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 55.36, 114.39 (2C), 128.85 (2C), 129.85, 129.89, 130.49 (2C), 130.73 (2C), 134.35, 134.63, 135.22, 136.04, 138.01, 140.90, 152.05, 153.16, 161.28, 193.62. Analysis calculated for C22H14Cl2N2O2∙0.3H2O: C 63.70, H 3.56, N 6.76; found C 63.58, H 3.45, N 6.75.

[6,7-Dichloro-3-(4-methoxyphenyl)quinoxalin-2-yl](4-methoxyphenyl)methanone (26b)

Yield 78%, Mp: 178.8–179.0 °C. 1H NMR (400 MHz, CDCl3) δ 3.81 (s, 3H, OCH3), 3.89 (s, 3H, OCH3), 6.90 (m, 2H), 6.95 (m, 2H), 7.68 (m, 2H), 7.90 (m, 2H), 8.24 (s, 1H), 8.31 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 55.32, 55.61, 114.20 (2C), 114.33 (2C), 128.29, 128.91, 129.82, 129.84, 130.68 (2C), 132.93 (2C), 134.49, 135.80, 138.04, 140.84, 152.40, 153.11, 161.23, 164.57, 192.22. Analysis calculated for C23H16Cl2N2O3∙0.2H2O: C 62.64, H 3.30, N 6.35; found C 62.45, H 3.67, N 6.26.

3.1.5. (4-Hydroxyphenyl)(3-phenylquinoxalin-2-yl)methanone (27)

A solution of 15b (0.33 g, 1.0 mmol) in 48% HBr (5 mL) was heated at reflux for 48 h. The mixture was cooled and evaporated in vacuo to give a residue which was treated with H2O (50 mL). The crude product was collected and crystallized from MeOH to give 27 (0.29 g, 87%) as a white solid, Mp: 196.5–199.3 °C. 1H NMR (400 MHz, DMSO-d6) δ 6.88 (d, J = 8.8 Hz, 2H, 3”–H, 5”–H), 7.42–7.46 (m, 3H), 7.65–7.68 (m, 2H), 7.65 (d, J = 8.8 Hz, 2H, 2”–H, 6”–H), 7.92–8.01 (m, 2H), 8.15 (dd, J1 = 8.0 Hz, J2 = 1.6 Hz), 8.23 (dd, J1 = 8.0 Hz, J2 = 1.6 Hz), 10.78 (br s, 1H, Ph-OH). 13C NMR (100 MHz, DMSO-d6) δ 115.77 (2C), 126.87, 128.56 (2C), 128.84 (2C), 128.97, 129.12, 129.57, 130.94, 131.66, 133.16 (2C), 137.09, 138.99, 141.37, 151.77, 151.87, 163.35, 191.99. Analysis calculated for C21H14N2O2∙1.0H2O: C 73.05, H 4.31, N 8.12; found C 73.23, H 4.69, N 8.14.

3.1.6. 4-[3-(4-Hydroxybenzyl)quinoxalin-2-yl]phenol (28)

Compound 28 was obtained from 19b as described for 27 in 37% yield, Mp: 184.8–185.9 °C. 1H NMR (400 MHz, DMSO-d6) δ 4.30 (s, 2H, CH2), 6.58 (d, J = 10.8 Hz, 2H), 6.75 (d, J = 8.8 Hz, 2H), 7.87 (d, J = 8.4 Hz, 2H), 7.38 (dd, J1 = 1.6 Hz, J2 = 8.4 Hz, 2H), 7.75–7.79 (m, 2H), 8.01–8.06 (m, 2H), 9.12 (br s, 1H, Ph-OH), 9.74 (br s, 1H, Ph-OH). 13C NMR (100 MHz, DMSO-d6) δ 40.75, 114.91 (2C), 114.99 (2C), 128.23, 128.36, 128.53, 129.19, 129.26, 129.36 (2C), 130.36 (2C), 140.34, 154.77 (2C), 155.56 (2C), 158.07 (2C). Analysis calculated for C21H16N2O2: C 76.81, H 4.91, N 8.53; found C 76.48, H 4.69, N 8.23.

3.1.7. (4-Hydroxyphenyl)(3-(4-hydroxyphenyl)quinoxalin-2-yl)methanone (29)

A mixture of 28 (0.33 g, 1.0 mmol) and selenium dioxide (0.22 g, 3.0 mmol) in 1,4-dioxane (20 mL) was refluxed for 6 h (TLC monitoring) and then cooled to room temperature. The reaction mixture was filtered through celite to remove the black residue. Evaporation of the solvent afforded a residue that was dissolved in ethyl acetate (200 mL), washed with brine (100 mL), H2O (100 mL), and saturated sodium bicarbonate solution (100 mL), and dried (MgSO4). The crude product was recrystallized with EtOH to give 29 (0.31 g, 90%) as a white solid, Mp: 254.0–254.6 °C. 1H NMR (400 MHz, DMSO-d6) δ 6.80 (d, J = 8.8 Hz, 2H, 3”–H, 5”–H), 6.88 (d, J = 8.8 Hz 2H), 7.54 (d, J = 8.8 Hz 2H), 7.77 (d, J = 8.8 Hz, 2H, 2”–H, 6”–H), 7.86–7.96 (m, 2H), 8.11 (dd, J1 = 8.4 Hz, J2 = 1.2 Hz), 8.19 (dd, J1 = 8.4 Hz, J2 = 1.2 Hz), 9.85 (br s, 1H, Ph-OH), 10.78 (br s, 1H, Ph-OH). 13C NMR (100 MHz, DMSO-d6) δ 115.52 (2C), 115.81 (2C), 126.86, 127.65, 128.88, 128.91, 130.33, 130.51 (2C), 131.46, 133.05 (2C), 138.65, 141.44, 151.44, 151.66, 159.02, 163.32, 192.30. Analysis calculated for C21H14N2O2∙1.2H2O: C 69.29, H 4.55, N 7.69; found C 69.02, H 4.39, N 7.51.

3.2. Biological Activity

3.2.1. Compounds

Compounds were dissolved in DMSO at 10 mM and then diluted in culture medium.

3.2.2. Cell

Human hepatoma Huh-7 cells were purchased from Bioresources Collection and Research Center, Taiwan. Huh-7-DV-Fluc cells, C6/36 cells, and DENV-2 strain 16,681 were kindly provided by Dr. Huey Nan Wu, Institute of Molecular Biology, Academia Sinica, Taipei, Taiwan, ROC.

3.2.3. Cytotoxicity Assays

For cytotoxicity tests, run in parallel with antiviral assays, plates at an initial density of 5 × 103 cells/well were treated with or without serial dilutions of test compounds. Cell viability was determined after 72 h at 37 °C in a humidified CO2 (5%) atmosphere by the (2,3-bis[2-methyloxy-4-nitro-5-sulfophenyl]-2H-tetrazolium-5-carboxanilide) (XTT) method [25].

3.2.4. Transfection and Luciferase Activity Assay

Huh-7-DV-Fluc cells were seeded in 24-well plates at a density of 2 × 104 cells per well, and treated with the 3-arylquinoxaline compounds at two concentrations (1 and 10 μM) or 0.1% DMSO as control. After three days of incubation, the luciferase activity assay was performed using the Bright-Glo Luciferase assay system (Promega, Madison, WI, USA) according to the manufacturer’s instructions. To determine the regulation of COX-2 promoter activation during DENV-2 infection, Huh-7 cells were transfected with 1 μg of the reporter plasmid pCOX-2-Luc (BD Biosciences Clontech, Palo Alto, CA, USA) by using T-pro reagent (Ji-Feng Biotechnology CO., Ltd., Taipei, Taiwan) following the instruction of the manufacturer. After 6 h of transfection, the transfection reagents were changed with fresh medium containing 19a at different concentrations. After three days of incubation, cell extracts were subjected to luciferase activity assay by using the Bright-Glo Luciferase Assay System (Promega) in accordance with manufacturer’s instruction. To determine exogenous gene expression, Huh-7 cells were transfected with either a vehicle vector or COX-2 expression vector pCMV-COX-2-Myc with several concentrations (0.25 and 0.5 μg) for 6 h. The transfection reagents were replaced with fresh medium containing 19a at 1 μM. In the knockdown of COX-2 gene expression, Huh-7 cells were transfected with either a control vector β-galactosidase (LacZ) short hairpin RNA (shRNA) or COX-2 shRNA expression vector (National RNAi Core Facility, Academia Sinica, Taipei, Taiwan) for 6 h. After three days, protein and RNA levels were analyzed by Western blotting with a specific antibody as previously described respectively [11].

3.2.5. Immunoblot Analysis

Huh-7 cells were seeded in 24-well plates at a density of 5 × 104 cells per well overnight and treated with indicated reagent at proper concentrations for three days. Cells were washed with cold phosphate-buffered saline (PBS) and lysed by radioimmunoprecipitation assay (RIPA) lysis buffer (50 mM Tris-HCl, pH 7.5, 150 mM NaCl, 1% Nonidet P-40, 2 mM ethylenediaminetetraacetic acid (EDTA), 1 mM ethylene glycol bis(2-aminoethyl)tetraacetic acid (EGTA), 1 mM NaVO3, 10 mM NaF, 1 mM dithiothreitol (DTT), 1 mM phenylmethylsulfonyl fluoride (PMSF), 25 μg/mL aprotinin, and 25 μg/mL leupeptin) and stored at −20 °C. The protein concentration was determined by the Bradford method. Then, 10-μg protein samples were separated by 10% SDS-PAGE and transferred onto a polyvinylidene fluoride (PVDF) membrane. The membrane was blocked with 5% non-fat dried milk and incubated with specific antibodies against GAPDH (1:10000, Genetex, Irvine, CA, USA) and COX-2 (1:1000; Cayman Chemical, Ann Arbor, ML, USA). Antibodies were diluted in 5% milk containing Tris-buffered saline (TBS) and 0.5% Tween. The blotting signal was developed using an enhanced chemiluminescence (ECL) detection kit (PerkinElmer, Waltham, MA, USA) and was counted by the software Quantity One (Bio-Rad, Hercules, CA, USA).

3.2.6. Quantification of DENV RNA

Total cellular RNA samples were extracted after three days of compound treatment through a Total RNA Miniprep Purification Kit (GeneMark Biolab, Taiwan) following the manufacturer’s instructions, and then transcribed to complementary DNA (cDNA) with Moloney murine leukemia virus (M-MLV) reverse transcriptase (Promega, USA). The levels of DENV-2 replication and COX-2 were analyzed by RT-PCR as described previously with the following specific primers: a forward primer, 5′–AAG GTG AGA AGC AAT GC AGC–3′, and a reverse primer, 5′–CCA CTC AGG GAG TTC TCT CT–3′, targeting the DENV-2 NS5 gene 44. DENV-2 and COX-2 RNA levels were normalized to the cellular glyceraldehyde-3-phosphate dehydrogenase (GAPDH) RNA level of each sample.

3.2.7. Molecular Docking Study

The crystal structure of COX-2 (PDB ID: 3LN1) was acquired from the RCSB Protein Date Bank (https://www.rcsb.org/). The 3D conformation of target compound 19a was produced by ChemBio 3D Ultra 14.0 (PerkinElmer, Waltham, MA, USA). The molecular docking was performed by Achilles Blind Docking Server (http://bio-hpc.ucam.edu/achilles/). The “blind docking” approach was used for the docking of the small molecule to the targets, which was done without a priori knowledge of the location of the binding site by the system [26]. Visual representation of molecules was created with 3Dmol by Nicholas Rego and David Koes [27].

3.2.8. Statistical Analysis

The results were expressed as means ± SD. Differences in mean values between groups were analyzed by a one-way analysis of variance (ANOVA) and Student’s t-test.

4. Conclusions

In this study, we synthesized certain 3-arylquinoxaline derivatives in order to evaluate their inhibitory activities of anti-DENV replication. Among them, compound 19a exhibited the most potential activity against DENV replication, with an EC50 value of 1.29 ± 0.74 μM. By the determination of an antiviral mechanism, the results indicated that compound 19a reduced DENV replication through COX-2 inhibition. Molecular docking results also showed that the lowest binding energy between 19a and COX-2 enzyme was −9.10 kcal/mol. Further studies are still needed in order to improve our understanding of how these compounds elicit their anti-DENV activity.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/19/4786/s1.

Author Contributions

C.-H.T. suggested the research idea, participated in the interpretation of the results, and was responsible for manuscript writing; C.-R.H. participated in the synthesis, purification, and characterization of the chemical compounds; K.-W.T. participated in molecular docking.

Funding

Financial support of this work by the Minister of Science and Technology of the Republic of China (MOST 107-2320-B-037-015, MOST 108-2320-B-037-026-MY2) is gratefully acknowledged.

Acknowledgments

We thank the Scientific Integration Design Service Corporation for performing all biological assays, and the Center for Research Resources and Development at Kaohsiung Medical University for instrumentation and equipment support.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. World Health Organization and World Meteorological Organization. Atlas of health and climate; Section 1: infections.; World Health Organization and World Meteorological Organization: Geneva, Switzerland, 2012; p. 21. [Google Scholar]
  2. Halstead, S.B. Pathogenesis of dengue: Challenges to molecular biology. Science 1988, 239, 476–481. [Google Scholar] [CrossRef] [PubMed]
  3. Kurane, I. Dengue hemorrhagic fever with special emphasis on immunopathogenesis. Comp. Immunol. Microbiol. Infect. Dis. 2007, 30, 329–340. [Google Scholar] [CrossRef] [PubMed]
  4. Kalayanarooj, S. Clinical manifestations and management of dengue/DHF/DSS. Trop. Med. Health. 2011, 39, 83–87. [Google Scholar] [CrossRef] [PubMed]
  5. Low, J.G.; Ooi, E.E.; Vasudevan, S.G. Current status of dengue therapeutics research and development. J. Infect. Dis. 2017, 215, S96–S102. [Google Scholar] [CrossRef] [PubMed]
  6. Lin, Y.T.; Wu, Y.H.; Tseng, C.K.; Lin, C.K.; Chen, W.C.; Hsu, Y.C.; Lee, J.C. Green tea phenolic epicatechins inhibit hepatitis C virus replication via cycloxygenase-2 and attenuate virus-induced inflammation. PLoS ONE 2013, 8, e54466. [Google Scholar] [CrossRef] [PubMed]
  7. Zhu, H.; Cong, J.P.; Yu, D.; Bresnahan, W.A.; Shenk, T.E. Inhibition of cyclooxygenase 2 blocks human cytomegalovirus replication. Proc. Natl. Acad. Sci. USA 2002, 99, 3932–3937. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Schröer, J.; Shenk, T. Inhibition of cyclooxygenase activity blocks cell-to-cell spread of human cytomegalovirus. Proc. Natl. Acad. Sci. USA 2008, 105, 19468–19473. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Waris, G.; Siddiqui, A. Hepatitis C virus stimulates the expression of cyclooxygenase-2 via oxidative stress: Role of prostaglandin E2 in RNA replication. J. Virol. 2005, 79, 9725–9734. [Google Scholar] [CrossRef]
  10. Jhaveri, R.; Kundu, P.; Shapiro, A.M.; Venkatesan, A.; Dasgupta, A. Effect of hepatitis C virus core protein on cellular gene expression: Specific inhibition of cyclooxygenase 2. J. Infect. Dis. 2005, 191, 1498–1506. [Google Scholar] [CrossRef]
  11. Lin, C.K.; Tseng, C.K.; Wu, Y.H.; Liaw, C.C.; Lin, C.Y.; Huang, C.H.; Chen, Y.H.; Lee, J.C. Cyclooxygenase-2 facilitates dengue virus replication and serves as a potential target for developing antiviral agents. Sci. Rep. 2017, 7, 44701. [Google Scholar] [CrossRef]
  12. Saudi, M.; Zmurko, J.; Kaptein, S.; Rozenski, J.; Neyts, J.; Van Aerschot, A. Synthesis and evaluation of imidazole-4,5- and pyrazine-2,3-dicarboxamides targeting dengue and yellow fever virus. Eur. J. Med. Chem. 2014, 87, 529–539. [Google Scholar] [CrossRef] [Green Version]
  13. Venkatesham, A.; Saudi, M.; Kaptein, S.; Neyts, J.; Rozenski, J.; Froeyen, M.; Van Aerschot, A. Aminopurine and aminoquinazoline scaffolds for development of potential dengue virus inhibitors. Eur. J. Med. Chem. 2017, 126, 101–109. [Google Scholar] [CrossRef]
  14. Tseng, C.H.; Lin, C.K.; Chen, Y.L.; Hsu, C.Y.; Wu, H.N.; Tseng, C.K.; Lee, J.C. Synthesis, antiproliferative and anti-dengue virus evaluations of 2-aroyl-3-arylquinoline derivatives. Eur. J. Med. Chem. 2014, 79, 66–76. [Google Scholar] [CrossRef]
  15. Lee, J.C.; Tseng, C.K.; Lin, C.K.; Tseng, C.H. Discovery of novel diarylpyrazolylquinoline derivatives as potent anti-dengue virus agents. Eur. J. Med. Chem. 2017, 141, 282–292. [Google Scholar] [CrossRef]
  16. Radwan, A.A.; Abdel-Mageed, W.M. In silico studies of quinoxaline-2-carboxamide 1,4-di-n-oxide derivatives as antimycobacterial agents. Molecules 2014, 19, 2247–2260. [Google Scholar] [CrossRef]
  17. Tariq, S.; Somakala, K.; Amir, M. Quinoxaline: An insight into the recent pharmacological advances. Eur. J. Med. Chem. 2018, 143, 542–557. [Google Scholar] [CrossRef]
  18. Pereira, J.A.; Pessoa, A.M.; Cordeiro, M.N.; Fernandes, R.; Prudêncio, C.; Noronha, J.P.; Vieira, M. Quinoxaline, its derivatives and applications: A State of the Art review. Eur. J. Med. Chem. 2015, 97, 664–672. [Google Scholar] [CrossRef] [Green Version]
  19. González, M.; Cerecetto, H. Quinoxaline derivatives: A patent review (2006--present). Expert Opin. Ther. Pat. 2012, 22, 1289–1302. [Google Scholar] [CrossRef]
  20. Shi, L.; Hu, W.; Wu, J.; Zhou, H.; Zhou, H.; Li, X. Quinoxalinone as a privileged platform in drug development. Mini. Rev. Med. Chem. 2018, 18, 392–413. [Google Scholar] [CrossRef]
  21. Jampilek, J. Recent advances in design of potential quinoxaline anti-infectives. Curr. Med. Chem. 2014, 21, 4347–4373. [Google Scholar] [CrossRef]
  22. Tseng, C.H.; Chen, Y.R.; Tzeng, C.C.; Liu, W.; Chou, C.K.; Chiu, C.C.; Chen, Y.L. Discovery of indeno[1,2-b]quinoxaline derivatives as potential anticancer agents. Eur. J. Med. Chem. 2016, 108, 258–273. [Google Scholar] [CrossRef]
  23. Kano, S.; Shibuya, S.; Yuasa, Y. Synthesis of quinoxaline derivatives through condensation of 1,2-diaminobenzenes with β-keto sulfoxides. J. Heterocycl. Chem. 1980, 17, 1559–1561. [Google Scholar] [CrossRef]
  24. Lou, S.J.; Xu, D.Q.; Shen, D.F.; Wang, Y.F.; Liu, Y.K.; Xu, Z.Y. Highly efficient vinylaromatics generation via iron-catalyzed sp3 C-H bond functionalization CDC reaction: A novel approach to preparing substituted benzo[α]phenazines. Chem. Commun. 2012, 48, 11993–11995. [Google Scholar] [CrossRef]
  25. Roehm, N.W.; Rodgers, G.H.; Hatfield, S.M.; Glasebrook, A.L. An improved colorimetric assay for cell proliferation and viability utilizing the tetrazoliumsalt XTT. J. Immunol. Methods 1991, 142, 257–265. [Google Scholar] [CrossRef]
  26. Sánchez-Linares, I.; Pérez-Sánchez, H.; Cecilia, J.M.; García, J.M. High-throughput parallel blind virtual screening using BINDSURF. BMC Bioinform. 2012, 13, S13. [Google Scholar] [CrossRef]
  27. Rego, N.; Koes, D. 3Dmol.js: Molecular visualization with WebGL. Bioinformatics 2015, 31, 1322–1324. [Google Scholar] [CrossRef]
Ijms 20 04786 g001 550

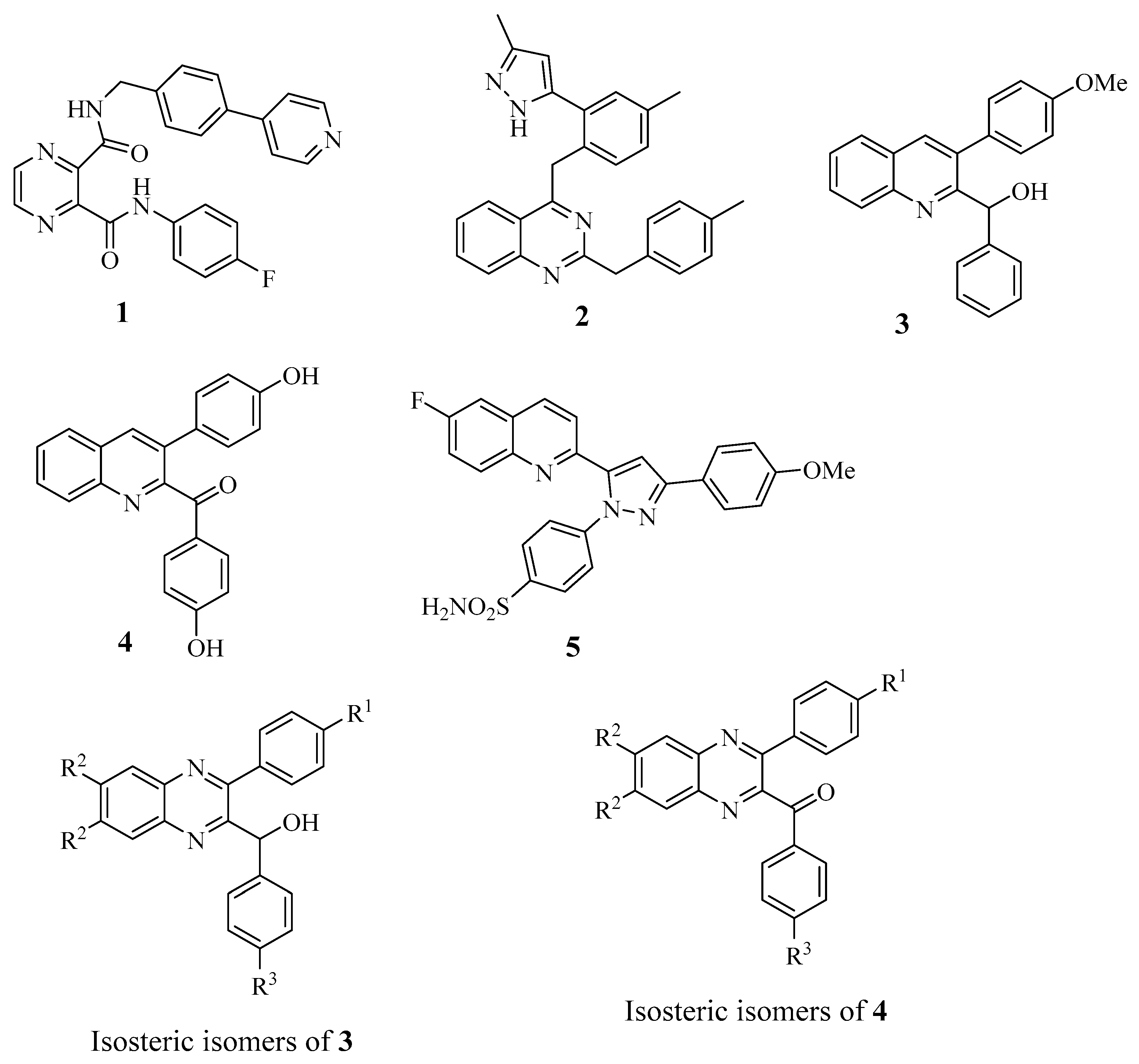

Figure 1. Structures of N2-(4-fluorophenyl)-N3-[4-(pyridin-4-yl)benzyl]pyrazine-2,3-dicarboxamide (1), 4-[4-methyl-2-(3-methyl-1H-pyrazol-5-yl)benzyl)-2-(4-methylbenzyl)quinazoline (2), 2-(hydroxyphenyl methyl)-3-(4-methoxyphenyl)quinoline (3), 2-(4-hydroxy benzoyl)-3-(4-hydroxyphenyl)quinoline (4), 4-[5-(6-fluoroquinolin-2-yl)-3-(4-methoxyphenyl)-1H-pyrazol-1-yl]benzenesulfonamide (5), and target compounds (15a–26b; isosteric isomers of compounds 3 and 4).
Figure 1. Structures of N2-(4-fluorophenyl)-N3-[4-(pyridin-4-yl)benzyl]pyrazine-2,3-dicarboxamide (1), 4-[4-methyl-2-(3-methyl-1H-pyrazol-5-yl)benzyl)-2-(4-methylbenzyl)quinazoline (2), 2-(hydroxyphenyl methyl)-3-(4-methoxyphenyl)quinoline (3), 2-(4-hydroxy benzoyl)-3-(4-hydroxyphenyl)quinoline (4), 4-[5-(6-fluoroquinolin-2-yl)-3-(4-methoxyphenyl)-1H-pyrazol-1-yl]benzenesulfonamide (5), and target compounds (15a–26b; isosteric isomers of compounds 3 and 4).
Ijms 20 04786 g001
Ijms 20 04786 sch001 550

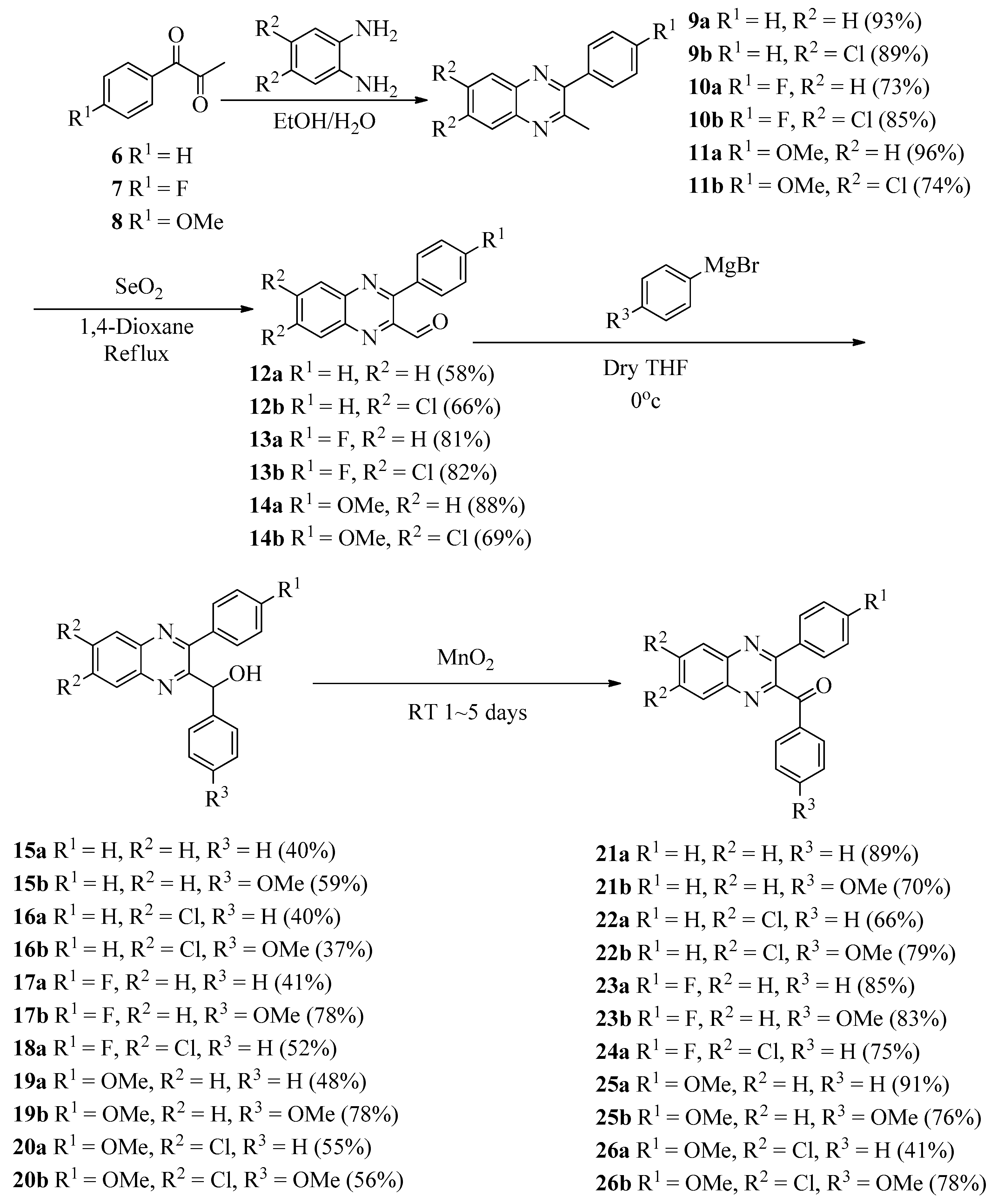

Scheme 1. Synthesis of 3-arylquinoxaline derivatives 21a–26b.
Scheme 1. Synthesis of 3-arylquinoxaline derivatives 21a–26b.
Ijms 20 04786 sch001
Ijms 20 04786 sch002 550

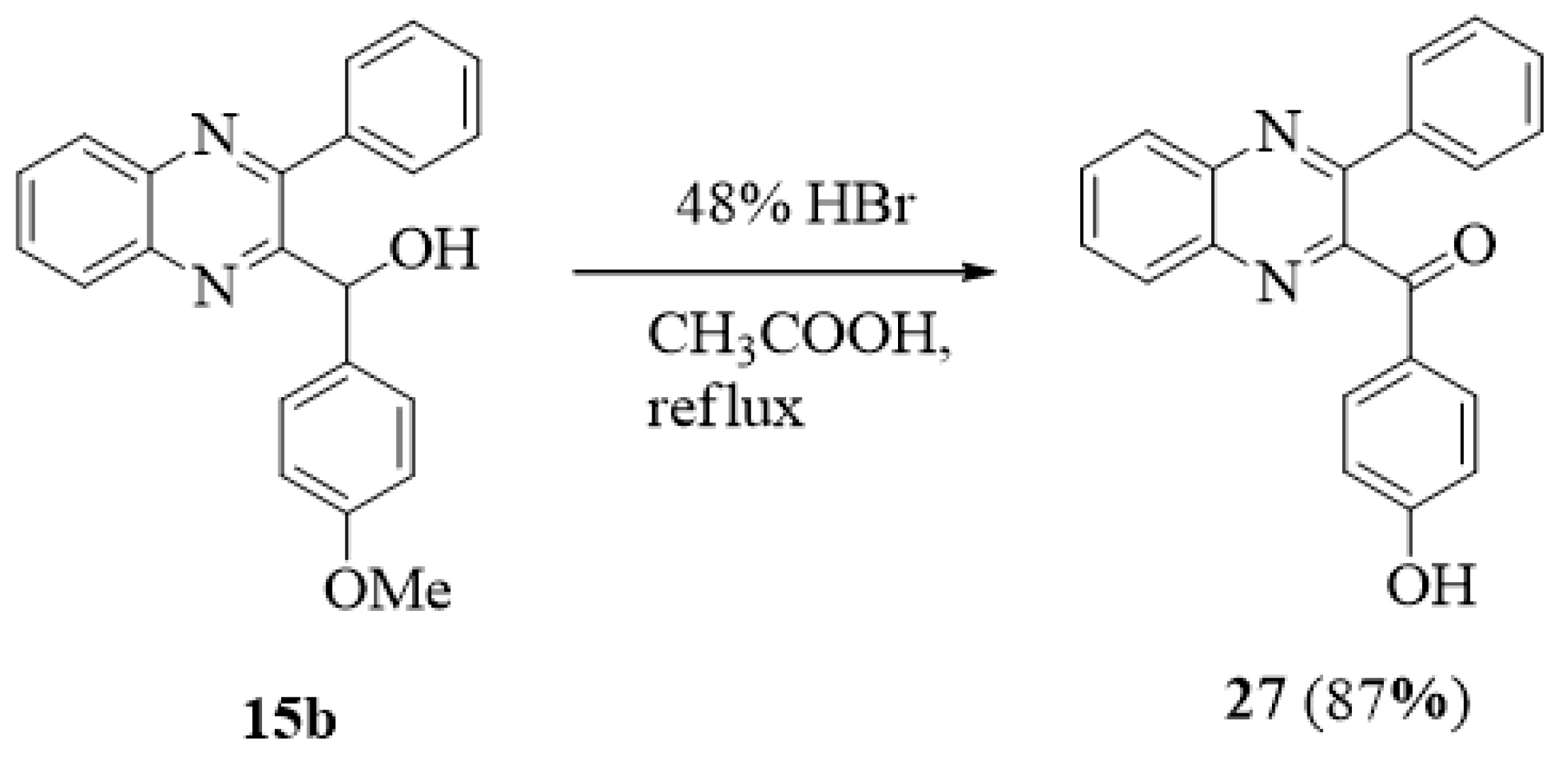

Scheme 2. Synthesis of (4-hydroxyphenyl)(3-phenylquinoxalin-2-yl)methanone (27).
Scheme 2. Synthesis of (4-hydroxyphenyl)(3-phenylquinoxalin-2-yl)methanone (27).
Ijms 20 04786 sch002
Ijms 20 04786 sch003 550

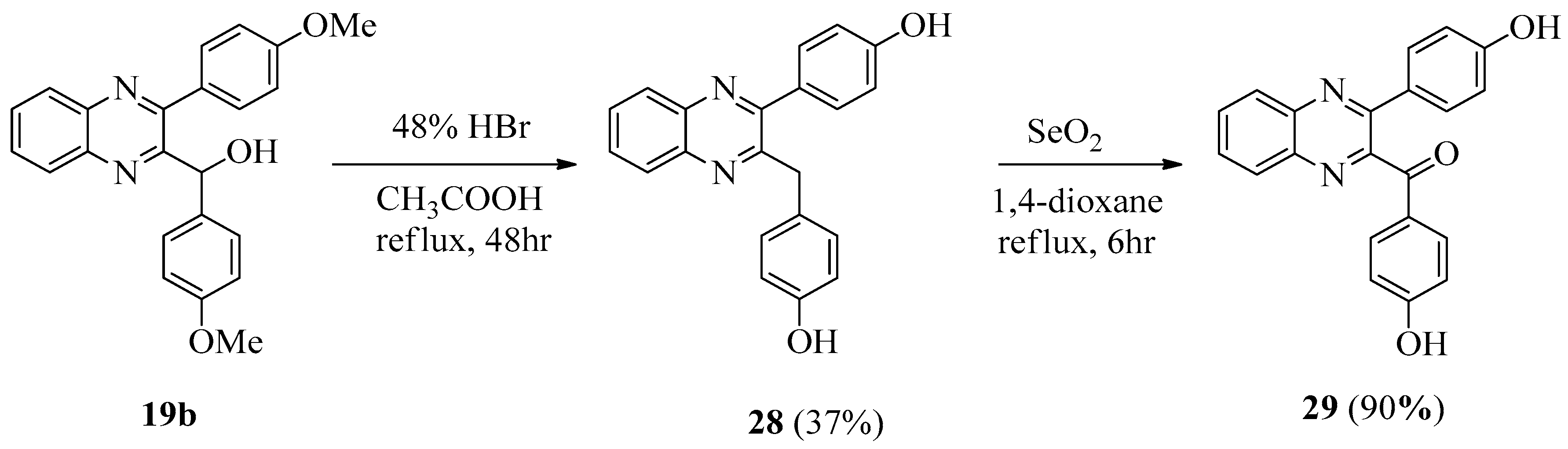

Scheme 3. Synthesis of (4-hydroxyphenyl)(3-(4-hydroxyphenyl)quinoxalin-2-yl)methanone (29).
Scheme 3. Synthesis of (4-hydroxyphenyl)(3-(4-hydroxyphenyl)quinoxalin-2-yl)methanone (29).
Ijms 20 04786 sch003
Ijms 20 04786 g002 550
Figure 2. Inhibition of dengue virus (DENV) RNA expression in DENV-infected Huh-7 cells by 19a. Huh-7 cells were treated with 0.5, 1, 5, and 10 μM 19a for three days. Total RNA was extracted and quantified DENV RNA levels by RT-qPCR. DENV RNA expression was normalized by cellular glyceraldehyde-3-phosphate dehydrogenase (GAPDH) mRNA. Treatment with 0.1% dimethyl sulfoxide (DMSO) served as a mock control. The results are expressed as the means ± standard deviations (SD) of triplicate experiments.
Figure 2. Inhibition of dengue virus (DENV) RNA expression in DENV-infected Huh-7 cells by 19a. Huh-7 cells were treated with 0.5, 1, 5, and 10 μM 19a for three days. Total RNA was extracted and quantified DENV RNA levels by RT-qPCR. DENV RNA expression was normalized by cellular glyceraldehyde-3-phosphate dehydrogenase (GAPDH) mRNA. Treatment with 0.1% dimethyl sulfoxide (DMSO) served as a mock control. The results are expressed as the means ± standard deviations (SD) of triplicate experiments.
Ijms 20 04786 g002
Ijms 20 04786 g003 550

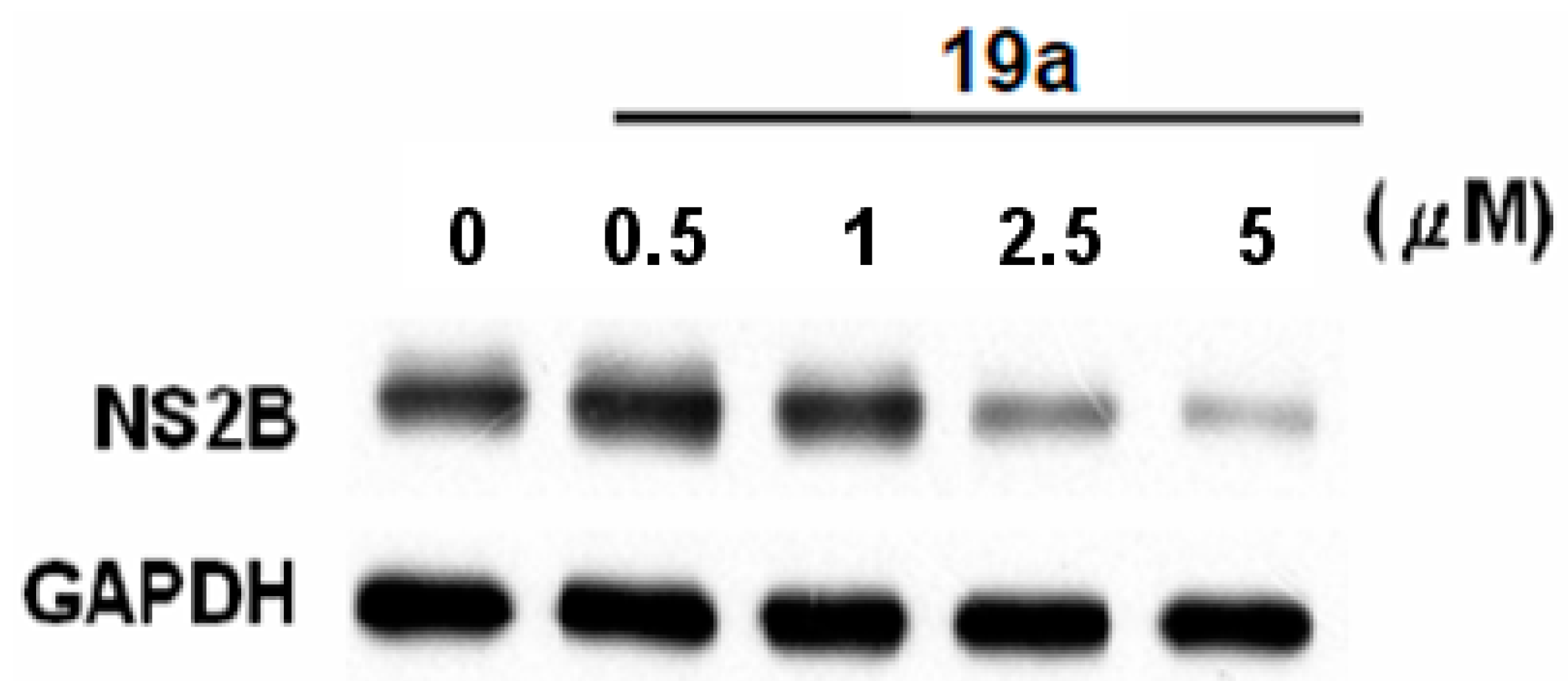

Figure 3. Inhibition of DENV protein synthesis in Huh-7 cells by 19a. Huh-7 cells were treated with 0.5, 1, 2.5, and 5 μM 19a for three days. Total cell lysate was collected for performing Western blotting to analyze DENV protein synthesis. Levels of GAPDH were used as equal loading control.
Figure 3. Inhibition of DENV protein synthesis in Huh-7 cells by 19a. Huh-7 cells were treated with 0.5, 1, 2.5, and 5 μM 19a for three days. Total cell lysate was collected for performing Western blotting to analyze DENV protein synthesis. Levels of GAPDH were used as equal loading control.
Ijms 20 04786 g003
Ijms 20 04786 g004 550

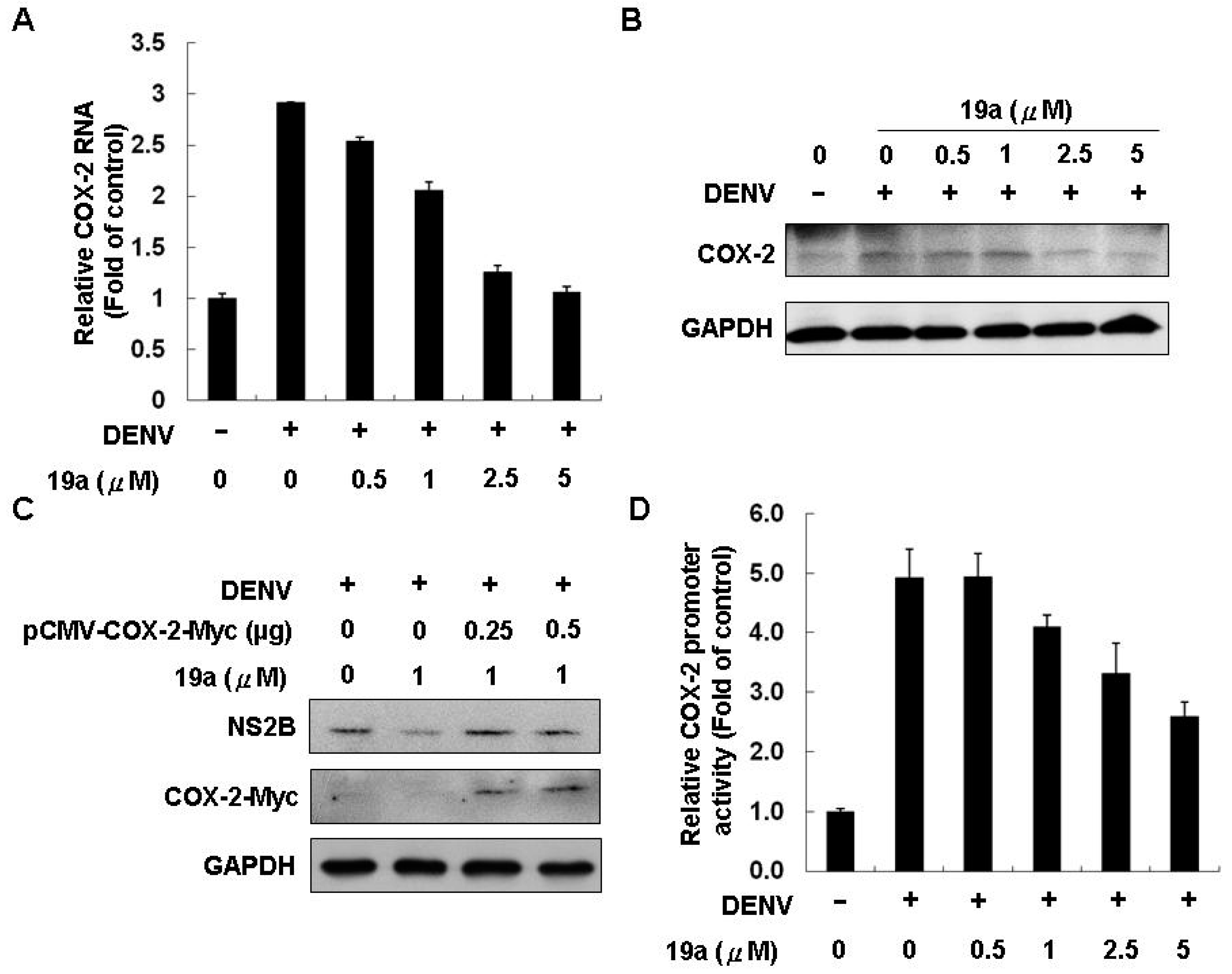

Figure 4. Inhibitory effect of 19a on DENV-induced cyclooxygenase-2 (COX-2) expression in Huh-7 cells. Concentration-dependent reduction of DENV-induced COX-2 RNA replication (A) and protein expression (B) by 19a. Huh-7 cells were treated with 19a at the indicated concentrations for three days. Cell lysates were subjected to Western blotting and RT-qPCR. (C) Concentration-dependent restoration of the DENV protein level. Cell lysates were subjected to Western blotting with an antibody against NS2B, Myc, or GAPDH. (D) Concentration-dependent reduction of DENV-induced COX-2 gene promoter activity by 19a in Huh-7 cells. Huh-7 cells were transfected with pCOX-2-Luc reporter plasmid encoding firefly luciferase under the control of the COX-2 promoter. After treatment with 19a at the indicated concentrations for three days, cell lysates were subjected to a luciferase activity assay. The results are expressed as the means ± standard deviations (SD) of triplicate experiments.
Figure 4. Inhibitory effect of 19a on DENV-induced cyclooxygenase-2 (COX-2) expression in Huh-7 cells. Concentration-dependent reduction of DENV-induced COX-2 RNA replication (A) and protein expression (B) by 19a. Huh-7 cells were treated with 19a at the indicated concentrations for three days. Cell lysates were subjected to Western blotting and RT-qPCR. (C) Concentration-dependent restoration of the DENV protein level. Cell lysates were subjected to Western blotting with an antibody against NS2B, Myc, or GAPDH. (D) Concentration-dependent reduction of DENV-induced COX-2 gene promoter activity by 19a in Huh-7 cells. Huh-7 cells were transfected with pCOX-2-Luc reporter plasmid encoding firefly luciferase under the control of the COX-2 promoter. After treatment with 19a at the indicated concentrations for three days, cell lysates were subjected to a luciferase activity assay. The results are expressed as the means ± standard deviations (SD) of triplicate experiments.
Ijms 20 04786 g004
Ijms 20 04786 g005 550

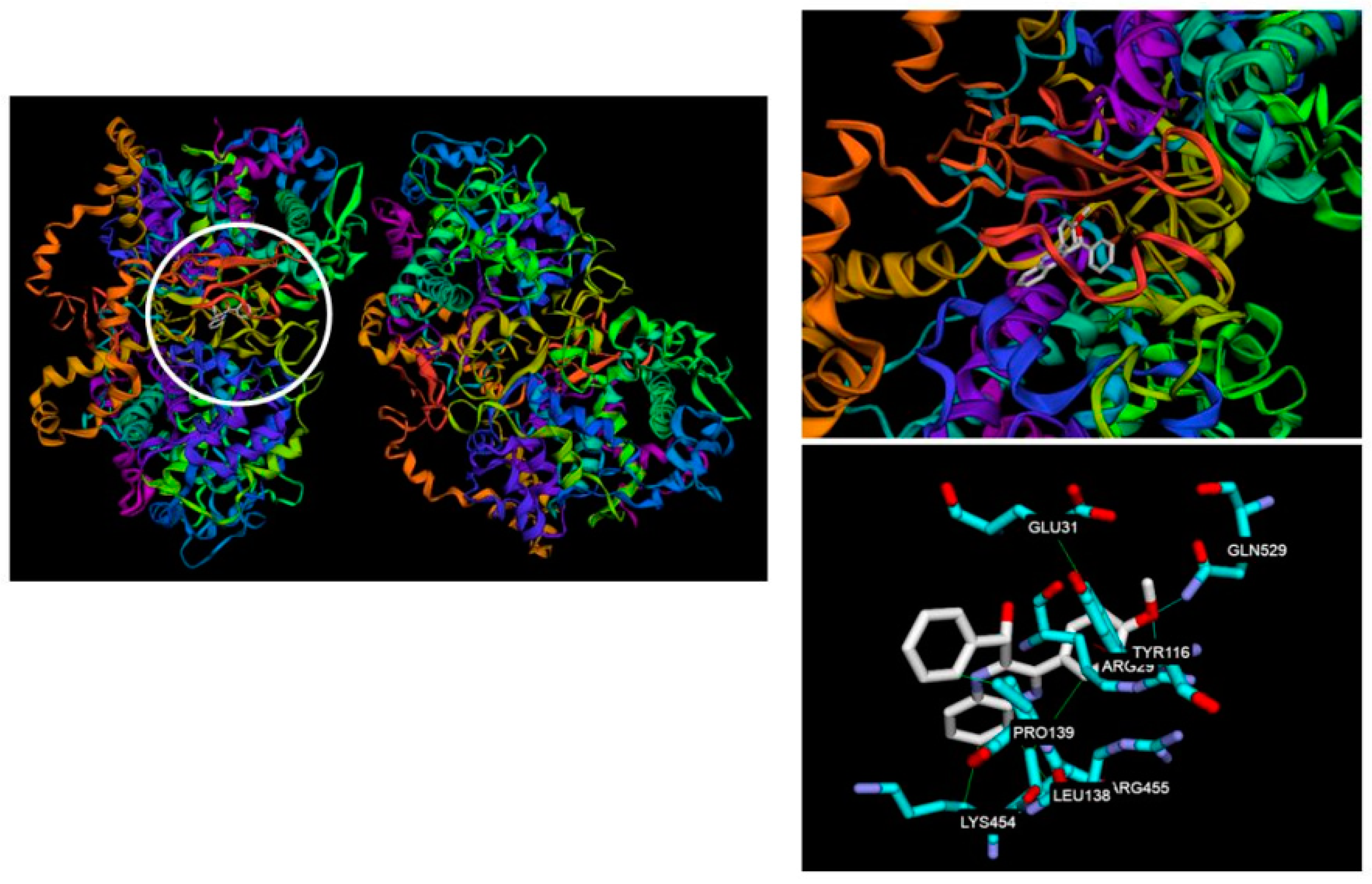

Figure 5. Docking poses of compound 19a at COX-2 (PDB code 3LN1) enzyme. The interactions illustrated by green lines represent hydrophobic interactions, blue lines represent hydrogen bonds, and red lines represent π–cation interactions.
Figure 5. Docking poses of compound 19a at COX-2 (PDB code 3LN1) enzyme. The interactions illustrated by green lines represent hydrophobic interactions, blue lines represent hydrogen bonds, and red lines represent π–cation interactions.
Ijms 20 04786 g005
Table
Table 1. Antiviral activities and cytotoxicities of 3-arylquinoxaline derivatives.
Table 1. Antiviral activities and cytotoxicities of 3-arylquinoxaline derivatives.
CompoundsDENV2Huh-7 Cell
a % Inhibition at 1 μM% Inhibition at 10 μM% viability at 20 μM% viability at 200 μM
312.37 ± 2.6750.14 ± 3.4790.28 ± 2.6221.87 ± 3.55
411.21 ± 2.3141.24 ± 2.8896.62 ± 8.7841.38 ± 5.71
15a2.13 ± 1.125.31 ± 1.73104.71 ± 5.6659.94 ± 8.33
15b24.34 ± 2.5148.67 ± 4.71103.29 ± 1.7961.42 ± 2.67
16a1.97 ± 0.726.42 ± 2.97108.06 ± 8.9120.62 ± 5.37
16b2.41 ± 1.489.46 ± 2.88104.05 ± 4.1872.96 ± 9.05
17a2.58 ± 0.854.78 ± 1.9396.35 ± 3.5273.26 ± 6.57
17b19.17 ± 3.522.89 ± 4.54102.33 ± 1.98100.73 ± 1.27
18a3.41 ± 1.116.74 ± 1.57102.04 ± 3.9621.50 ± 1.60
19a36.74 ± 3.7182.71 ± 2.8899.66 ± 1.6585.26 ± 5.63
19b35.47 ± 4.8247.69 ± 5.4196.43 ± 1.2421.34 ± 1.55
20a16.31 ± 3.4258.71 ± 2.8699.42 ± 3.3127.12 ± 1.24
20b2.75 ± 1.694.39 ± 1.5295.47 ± 3.9634.21 ± 4.97
21a2.76 ± 1.557.98 ± 2.14107.34 ± 2.3079.45 ± 7.07
21b42.78 ± 5.1351.85 ± 3.52106.46 ± 3.1295.13 ± 4.32
22a12.74 ± 3.9119.74 ± 4.17108.76 ± 1.36103.05 ± 2.67
22b5.19 ± 2.7824.68 ± 1.89103.09 ± 8.3092.02 ± 3.08
23a34.17 ± 5.1240.78 ± 2.5898.61 ± 5.6887.59 ± 5.75
23b16.44 ± 3.1133.58 ± 4.21104.26 ± 1.85103.32 ± 1.03
24a2.54 ± 1.2123.47 ± 3.71106.06 ± 2.1291.94 ± 2.83
25a40.44 ± 2.2247.53 ± 3.51101.13 ± 2.39100.30 ± 4.59
25b41.51 ± 3.2549.74 ± 4.38106.59 ± 3.0399.42 ± 2.14
26a1.95 ± 0.8214.47 ± 2.5599.39 ± 6.5035.29 ± 4.95
26b1.17 ± 0.4119.28 ± 3.85104.35 ± 4.2299.11 ± 2.40
2744.85 ± 3.6848.69 ± 3.48101.58 ± 2.8418.43 ± 2.33
292.36 ± 1.114.25 ± 1.39103.62 ± 2.9151.91 ± 1.62
Ribavirin b10.14 ± 1.9832.53 ± 2.3071.37 ± 1.3114.36 ± 2.14
DENV—dengue virus; a Values are means ± standard deviations (SD) of at three separate experiments. b Ribavirin: reference [15].
Table
Table 2. Antiviral activities ((EC50) (μM)) a of the compounds tested.
Table 2. Antiviral activities ((EC50) (μM)) a of the compounds tested.
CompoundsEC50 aCC50 bSI c
312.57 ± 2.16139.11 ± 2.3211.07
413.16 ± 1.23163.67 ± 2.3212.44
19a1.29 ± 0.74>200>155.04
20a5.68 ± 0.81>200>35.21
21b3.25 ± 0.89>200>61.54
Ribavirin12.61 ± 1.1756.31 ± 2.324.47
a EC50 is the concentration of the compound resulting in a 50% inhibition in virus production. b CC50 is the concentration of the compound causing a 50% growth inhibition of uninfected Huh-7 cells. c SI: selectivity index. SI = CC50/EC50. Values are means ± standard deviations (SD) of at three separate experiments.

Share and Cite

MDPI and ACS Style

Tseng, C.-H.; Han, C.-R.; Tang, K.-W. Discovery of 3-Arylquinoxaline Derivatives as Potential Anti-Dengue Virus Agents. Int. J. Mol. Sci. 2019, 20, 4786. https://doi.org/10.3390/ijms20194786

AMA Style

Tseng C-H, Han C-R, Tang K-W. Discovery of 3-Arylquinoxaline Derivatives as Potential Anti-Dengue Virus Agents. International Journal of Molecular Sciences. 2019; 20(19):4786. https://doi.org/10.3390/ijms20194786

Chicago/Turabian Style

Tseng, Chih-Hua, Cheng-Ruei Han, and Kai-Wei Tang. 2019. "Discovery of 3-Arylquinoxaline Derivatives as Potential Anti-Dengue Virus Agents" International Journal of Molecular Sciences 20, no. 19: 4786. https://doi.org/10.3390/ijms20194786

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
