The five-year-survival rate for Pancreatic Ductal Adenocarcinoma (PDAC) is as low as 8%, which is the lowest of all solid tumors, and has had little to no change in the past years despite advances in anti-cancer therapy [1
]. Due to a lack of early detection methods and few early symptoms, most patients suffering from PDAC are diagnosed at a later stage, when the disease is already advanced. While surgery would be the only curative treatment at this point, only a small number of patients are eligible for surgery, leaving the use of chemotherapeutic compounds as the only option of treatment. The chemotherapeutic compound gemcitabine is widely used to treat various solid cancers, e.g. PDAC. Gemcitabine inhibits DNA synthesis by acting as an analogue of cytidine, preventing chain elongation after its incorporation through blocking of DNA polymerases [2
]. Furthermore, gemcitabine is known to induce apoptosis in pancreatic cancer cells via caspase signaling [3
]. Despite its various cytotoxic effects on pancreatic cancer cells, the effect of gemcitabine on the survival of patients is modest [5
], while the side-effects are quite severe. In addition, gemcitabine remains ineffective in treating PDAC due to the characteristics of the disease. In contrast to most solid tumors, PDAC is characterized by a paucity of blood vessels resulting in a systemic therapy being rendered ineffective, due to a lack of delivery of the therapy [6
]. Furthermore, the presence of a high intratumoral pressure and a corresponding inordinate interstitial flow from the tumor center towards the tumor periphery, further limits therapeutic efficacy by hampering delivery and is hypothesized to induce a higher resistance to chemotherapy in pancreatic cancer cells. In addition, the patient initially responds well to the treatment, but there is a high occurrence of acquired chemoresistance [7
]. Chemoresistance in cancer is linked to the expression of multidrug resistance proteins (MRPs), which are a subfamily of the ATP-binding cassette (ABC) transporters. Indeed, overexpression of MRPs has been observed in gemcitabine-resistant PDAC cell lines, which might explain the acquired chemoresistance in PDAC [8
The alarming lack of progress in the treatment of PDAC, and concomitantly, the urgent need for a better understanding of the disease, calls for the development and characterization of novel disease model. Up until now, conventional two-dimensional cell culture techniques and animal models have been used to study PDAC. However, a two-dimensional cell culture is known to not fully recapitulate tumor biology due to a lack of physiological relevance [9
]. Animal models are expensive, labor-intensive, and suffer from ethical as well as biological limitations [10
In order to overcome the limitations of traditional disease model systems, organ-on-a-chip systems are gaining widespread interest. [11
] Organ-on-a-chip microfluidic systems aim to faithfully recapitulate the physiology and microenvironment of tissues through spatial control of the tissue architecture and the addition of fluid control. These systems typically feature micrometer-sized channels that allow a controlled patterning of extracellular matrices (ECMs) and cells [12
]. Organ-on-a-chip systems have been proven to be applicable to a wide variety of tissues, such as vasculature, [13
] brain, [15
] kidney [16
], and liver [17
Recently, we described the use of a high-throughput organ-on-a-chip platform, the OrganoPlate, for therapy response testing of breast cancer, showing the potential of the platform for three-dimensional tumor models and its application in assessing the resistance of cells to chemotherapeutic agents for personalized medicine [18
Here, we set out to develop and characterize a PDAC three-dimensional cell culture model using the previously mentioned microfluidic platform to assess differences in resistance to chemotherapeutic agents, under interstitial flow. First, we characterized the flow profiles in the platform with the aim to recapitulate the effects of high interstitial fluid pressure in PDAC. Second, we investigated how the different flows affected a non-metastatic pancreatic cancer cell line (S2-028) [19
] by assessing the morphology, proliferation, viability, and chemoresistance. Finally, we further characterized the model using gene expression analysis and a functional assay for the MRP family. In our discussion, we presented our view on how organ-on-a-chip tissue models could potentially be used to further our understanding of the PDAC progression and treatment.
A substantial amount of cancer research aimed at finding new targets and preclinical drug testing is performed in conventional 2D cell culture and animal models. Typically, 2D cell culture models offer a higher throughput and lower cost, but are less physiologically relevant and are known to be unpredictive [25
]. Animal models, on the other hand, offer tissue environments that are more representative of the human body, but have various biological and ethical limitations, are expensive and labor intensive and often lack predictivity [9
To alleviate the need for better models for cancer research, scientists increasingly embrace 3D tissue culture in ECMs. The culturing of cells in 3D is known to be biologically more relevant, as compared to conventional 2D cell culture [26
]. For example, it has previously been found that cultures of breast cancer cells respond differently to chemotherapeutic compounds when cultured in 3D compared to 2D, most likely better reflecting in vivo efficacies in patients [18
PDAC is characterized by a high intratumoral fluid pressure, a characteristic which is not captured by the existing in vitro PDAC models. In this report, we describe a novel microfluidic 3D cell culture approach to develop and characterize interstitial flow models for PDAC to mimic intratumoural fluid pressure, using the pancreatic cancer cell line S2-028 embedded in an ECM gel. We observed increased chemoresistance of S2-028 cells cultured in 3D compared to monolayer cultures. Interestingly, subjecting 3D cultures of S2-028 cells to a flow profile mimicking interstitial flow in PDAC had pronounced effects on cell morphology and proliferation, without affecting viability. Furthermore, we observed that the EC50 value for gemcitabine increases threefold when tested on cells cultured in 3D as compared to cells cultured as a monolayer, which is closer to the plasma concentration of gemcitabine found in PDAC patients [27
]. Thus, the development of novel 3D models that capture specific characteristics of PDAC are likely to spur the development of novel therapies against this disease.
Since gemcitabine acts as an analogue of cytidine and exerts its cytotoxic effect by being incorporated into the DNA of a replicating cell, it stands to reason that slower proliferating cells are affected less by this chemotherapeutic compound. However, it seems unlikely that slower proliferation singularly accounts for the significant increase in chemoresistance observed, as gemcitabine is known to have multiple cytotoxic effects on target cells, e.g., induction of apoptosis via caspase signaling [28
]. In addition, Hagmann et al. observed an increased expression of multidrug resistance protein 5 (MRP5) in gemcitabine resistant pancreatic cancer cell line [29
]. To investigate this potential, additional mechanism for the increased resistance to gemcitabine with the interstitial flow model, we focused on the expression and function of the family of MRP transporters. In these experiments, we observed a marked increase in the mRNA expression of 5 MRPs when PDAC cells were subjected to interstitial flow. These results strongly suggest that flow-induced MRP expression contributes to our observed increase in chemoresistance by elevating efflux transport of the drug [30
]. This notion is further substantiated by our observation that interstitial flow appears to neutralize an inherent deactivation of MRP activity by gemcitabine, which we observed under perfusion flow. We hypothesize that the apparent increase in MRP activity is caused by a further increase of MRP expression after exposure to gemcitabine under interstitial flow (Figure S1
). Although these preliminary results need further investigation, they hint towards an interesting additional role of interstitial flow in establishing gemcitabine resistance. Although the family of MRPs are known to be involved in the acquisition of chemoresistance by cancer cells, the mechanism underlying this process remains enigmatic. Promoter methylation of the ABCC genes is possibly involved, however, these studies have been performed using monolayers of pancreatic cancer cells and should be verified using more relevant three dimensional models [33
Interstitial pressure and associated interstitial flow, being hallmarks of PDAC, are bound to have other profound effects on the cancer cells that contribute to PDAC pathogenesis, in addition to their effects on MRP function and expression. For example, interstitial flow has been linked to the migratory behavior of cancer cells in biological, as well as mathematical models [34
]. These results suggest that there are competing tumor cell migration mechanisms that occur due to interstitial flow, a CCR7-dependent mechanism that induces downstream migration and a CCR7-independent mechanism that promotes cells to migrate upstream. Although flow in our model is bidirectional due to the utilization of a pump-free rocker system, it would be of interest to test whether expression of genes previously implicated to affect migration in cancer, like EPCAM and integrin-β4 [35
] is affected in our interstitial flow model.
In conclusion, we developed the basis for a 3D cell culture model for PDAC using a microfluidic platform. We have demonstrated the effects of interstitial flow on the drug response of perfused 3D cell cultures of S2-028 cells, a non-metastatic pancreatic cancer cell line. While our current model does not yet fully capture the in vivo complexity of PDAC, it likely exhibits higher predictive capabilities than conventional 2D cell culture and is less time-consuming, more scalable, and more accessible in comparison to animal models. Drug screening on monolayers is very likely to result in an overestimation of the effects of chemotherapeutics, as is evident from our study. Furthermore, we showed that our model is amenable to interrogation by imaging, functional assays, and gene expression analysis. Finally, containing as much as 40 chips on a microplate footprint, the OrganoPlate offers a high-throughput platform for predictive drug testing and could potentially even be used for personalized therapy selection. Thus, we strongly believe that the models presented here point the way towards valuable tools for the search for novel therapies against PDAC.
4. Materials and Methods
4.1. Cell Culture
The S2-028 Pancreatic Ductal AdenoCarcinoma cell line (kind gift from Dr. Buchholz, Marburg University) was cultured in T-75 flasks (Corning 431464U, Corning, NY, USA) in DMEM (Sigma D6546, St. Louis, MO, USA) culture medium supplemented with 10% heat inactivated Fetal Bovine Serum (FBS, Gibco 16140-071, Waltham, MA, USA) and 1% Penicillin-Streptomycin (Sigma P4333). S2-028 were used between passage number +7 till +11.
4.2. OrganoPlate Culture

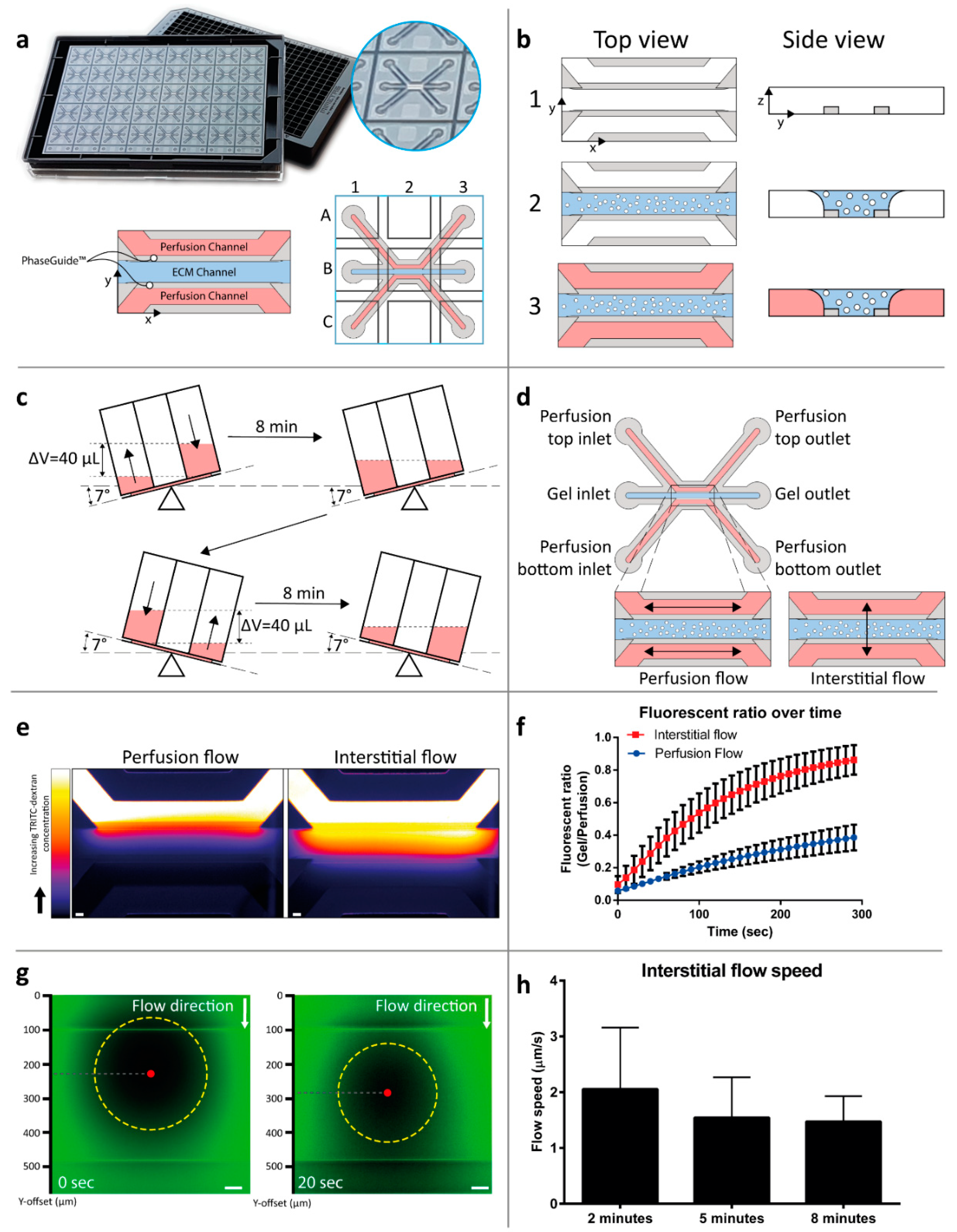

The three-lane OrganoPlate with 400 µm × 220 µm (w
) channels (MIMETAS 4003-400B, Leiden, The Netherlands) was used to set up the three-dimensional PDAC model. OrganoPlate ECM loading and cell seeding protocol and PhaseGuide functioning was previously described in [36
]; the gel and perfusion channel lengths were 9 mm and 12.2 mm, respectively. In short, the protocol is as follows—before seeding, 50 µL of Hank’s balanced salt solution (HBSS) was dispensed into the observation window to prevent evaporation and enhance optical clarity (Figure 1
a). S2-028 were trypsinized using 0.25% trypsin in phosphate-buffered saline/ethylenediaminetetraacetic acid (Gibco 15090-046, Waltham, MA, USA) and resuspended in the appropriate volume (2.5 × 106
cells/mL) of ECM gel composed of 9 mg/mL rat tail collagen I (Corning 354249, Corning, NY, USA), 100 mM HEPES (Gibco 15630-056), and 3.7 mg/mL Na2
(Sigma-Aldrich S5761, St. Louis, MO, USA). The final concentration of collagen I was 7.2 mg/mL. Two microliters of the ECM-cell suspension was dispensed in the gel inlet and incubated for 30 min at 37 °C, allowing gelation of the ECM (Figure 1
b). After gelation of the ECM, 50 µL of DMEM 10% FCS medium was dispensed in the perfusion inlets and outlets. Subsequently, the plate was placed in the incubator (37 °C, 5% CO2
) on a rocking platform (8 min interval at an angle of 7°, Figure 1
c). For the interstitial flow condition, the plate was placed perpendicular to the perfusion flow condition, to introduce a flow through the gel channel (Figure 1
d). The medium was changed three times per week.
4.3. Interstitial Flow Simulation
To study the flow profile of the interstitial flow condition, a 7.2 mg/mL collagen I gel (without cells) was loaded in the 3-lane OrganoPlate as described above. The perfusion inlet and outlets were filled with 50 µL of HBSS to prevent the channels from drying out. After 24 h incubation in the incubator (37 °C, 5% CO2
), ECM filled chips were subjected to interstitial flow by pipetting a 40 µL volume difference (60 µL in the top in- and outlet of 0.5 mg/mL TRITC-Dextran 4.4 kDa (Sigma-Aldrich T1037) in HBSS, 40 µL HBSS in the bottom in- and outlet). This recreated the fluid pressure in the microfluidic chip, comparable to placing an OrganoPlate®
on a 7° rocking platform in the interstitial flow orientation (Figure 1
c). Chips with equal volume (50 µL in the perfusion in- and outlets) were used to mimic the perfusion flow condition. Directly after applying the volume difference, a time lapse series of images were captured (interval 10 s for 3 min) on a Molecular Devices ImageXPress XLS fluorescent microscope (Molecular Devices, San Jose, CA, USA). Images acquired were analyzed using Fiji (version 2, build 1.52e (open source software) [37
]. For the visualization of images, a lookup table was applied to map the color scale. For quantification, regions of interest (ROIs) of the perfusion channel and the gel channel were manually drawn and the average fluorescent intensity was measured. By dividing the intensity of the gel channel by the intensity of the perfusion channel the fluorescent ratio was calculated.
Interstitial flow was further characterized using the fluorescent recovery after the photobleaching (FRAP) method. After 24 h of incubation in the incubator (37 °C, 5% CO2), the HBSS was aspirated from the 7.2 mg/mL collagen I gel and a volume difference was created (60 µL in the top inlet and outlet, 40 µL in the bottom inlet and outlet) using 2.5 ng/mL fluorescein (Sigma 46960) in HBSS to mimic the interstitial flow condition. After 2, 5, and 8 min, a spot in the middle of the gel channel was bleached with the Molecular Devices ImageXPress Micro Confocal High-Content Imaging System (Molecular Devices, San Jose, CA, USA) for 5 s with 60× magnification. Subsequently a time-series of images was captured (2 s interval for 20 s). Images were processed using Fiji (version 2, build 1.52e) by creating a threshold image of the bleached area. The center of mass was calculated with the ‘analyze particles’ option (size, 1000-infinity). For each image, the shift in the center of mass per second was calculated from the original bleached image.
4.4. Live/dead Assay

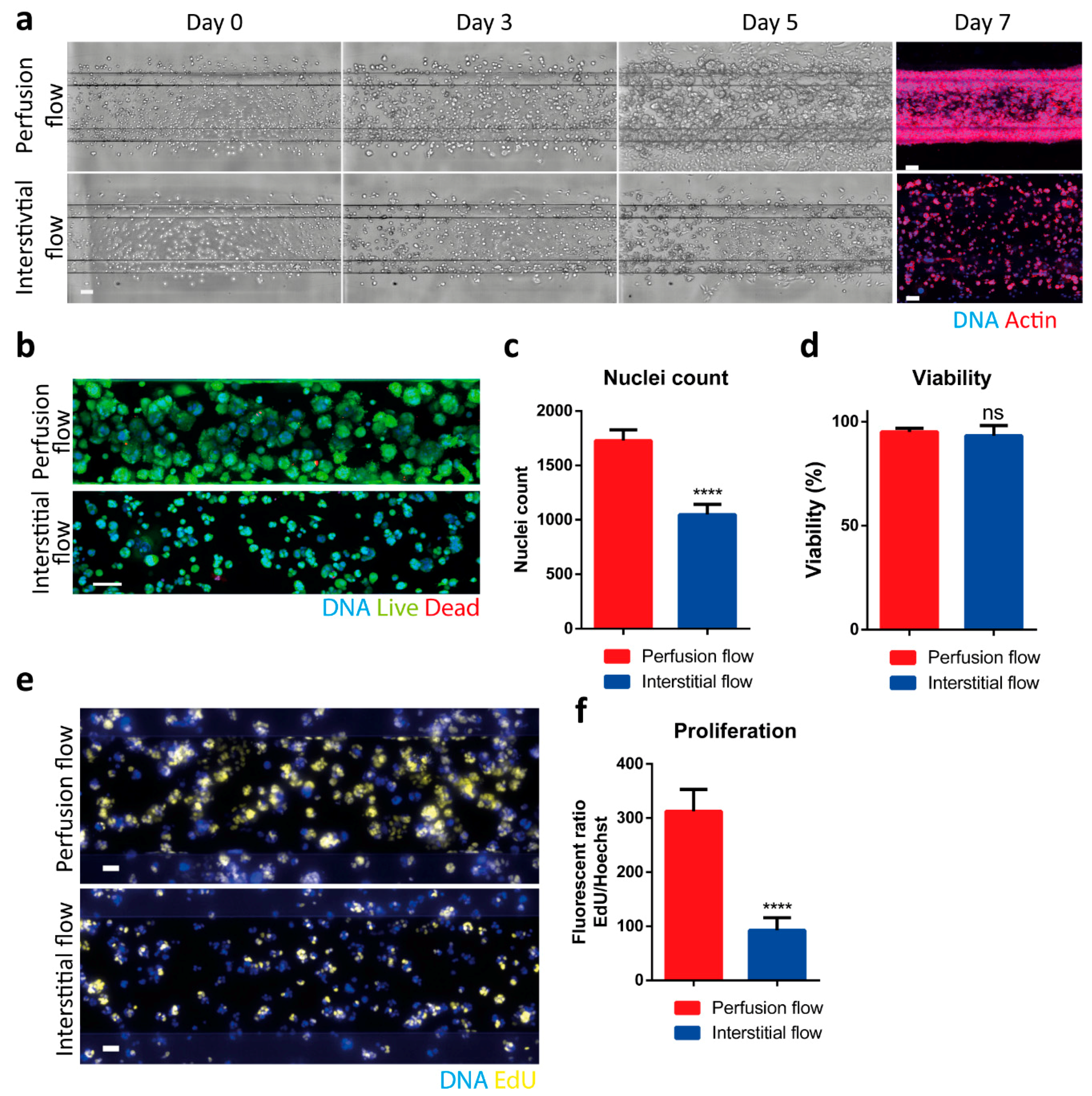

Viability of the cells was assessed at day 7 of culture in the OrganoPlate. The Medium was aspirated from the cultures and replaced with a mixture of NucBlue (2 drops/mL, Life Technologies R37610, Waltham, MA, USA), Propidium Iodide (PI, 2 drops/mL, Life Technologies R37610, Waltham, MA, USA) and 0.5 µg/mL Calcein-AM (25 µL in each perfusion inlet and outlet, Thermo Fisher Scientific C3099, Waltham, MA, USA). The cultures were incubated on a rocking platform (8-min interval at an angle of 7°) for 1 h in the incubator (37 °C, 5% CO2
). Subsequently, the culture was imaged on a Molecular Devices ImageXPress XLS fluorescent microscope. Images acquired were analyzed using Fiji (version 2, build 1.52e). The number of nuclei was extracted using an approach based on morphological shape filtering using built-in tools available in Fiji. Nuclei were extracted by removing the background signal via a Rolling Ball method [38
]. Afterwards, a threshold was applied to the remaining signal to highlight the nuclei, and a particle detection was subsequently performed to count the number of nuclei. A similar approach was used to quantify the number of PI positive cells, after which the viability was calculated by calculating the ratio of live cells (total nuclei minus PI positive cells) to the total cell count.
4.5. EdU Proliferation Assay
The proliferation rate of day 3 cultures was assessed with the EdU Click-iT Plus assay (Thermo Fischer C10640, Waltham, MA, USA) according to manufacturer’s protocol. Culture medium was replaced with a 50 µM dilution of EdU in a culture medium for 24 h, after which the cultures were fixed with 3.7% formaldehyde (Sigma-Aldrich 252549, St. Louis, MO, USA) in HBSS for 10 min, washed twice with HBSS for 5 min, and permeabilized with 0.3% Triton ×-100 (Sigma-Aldrich T8787) in HBSS for 10 min, after which the HBSS was aspirated. The proliferating cells were visualized by adding 20 µL of Click-iT Plus reaction cocktail for 30 min. Subsequently all DNA was visualized by adding 5 µg/mL Hoechst 33342 (Thermo Fisher H3570, Waltham, MA, USA) for 2 h. Z-series images were captured on the Molecular Devices ImageXPress Micro Confocal High-Content Imaging System and the summarized intensity-projections were saved for quantification. Images were analyzed using Fiji (version 2, build 1.52e) by measuring the average fluorescent intensity of the gel channel, after background correction.
Cultures were fixed using 3.7% formaldehyde (Sigma-Aldrich 252549) in HBSS (Sigma-Aldrich H6648) for 20 min, washed twice with HBSS for 5 min, and permeabilized with 0.3% Triton X-100 (Sigma-Aldrich T8787) in HBSS for 10 min. After washing with 4% FBS in HBSS for 5 min, the cultures were incubated for 60 min with a mixture of ActinRed 555 Readyprobes (2 drops/mL, Thermo Fisher R37112) and 5 µg/mL Hoechst 33342 (Invitrogen H3570, Waltham, MA, USA). Z-series images were captured on the Molecuar Devices ImageXpress Micro Confocal High-Content Imaging System(Molecular Devices, San Jose, CA, USA) and the maximum intensity-projections were used for further representation.
4.7. Drug Exposure and Viability Assessment

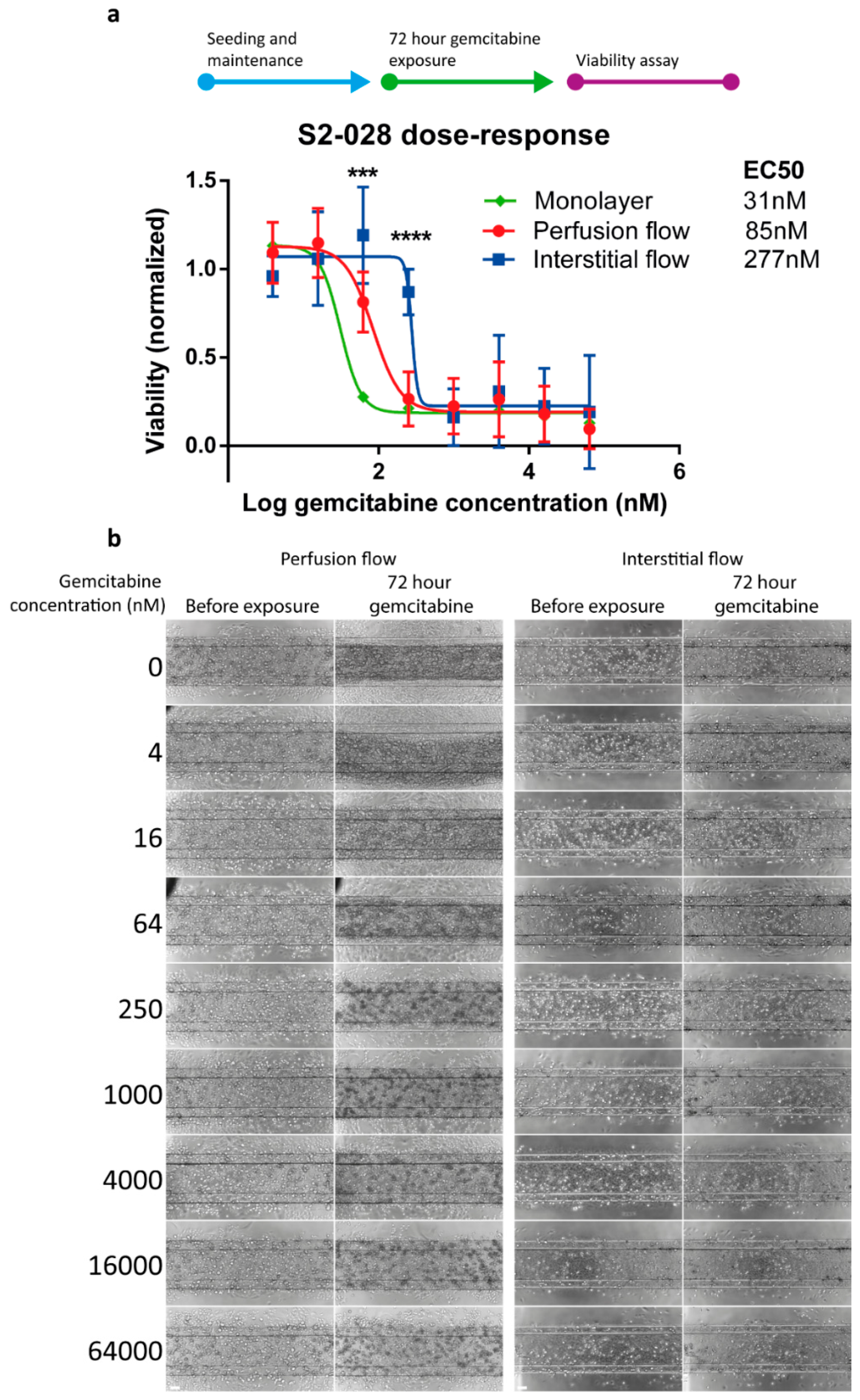

On the third day, three-dimensional cultures were exposed to the chemotherapeutic compound gemcitabine (Sigma G6423) in a concentration range (4–64.000 nM) for 72 h in the incubator (37 °C, 5% CO2
) on a rocking platform (8-min interval at an angle of 7°), in both perfusion settings (Figure 1
d). For the two-dimensional culture exposure, the cells were grown in a 96-well plate (Corning) for 1 day until 50% confluency and were exposed to the same concentration range of gemcitabine for 72 h in the incubator (37 °C, 5% CO2
4.8. Enzymatic Activity Assessment
The enzymatic activity of the cultures after treatment was determined using the WST-8 viability assay. The culture medium in the OrganoPlate was replaced with 25 µL of WST-8 reagent (Sigma-Aldrich 96992) diluted 1:11 in HBBS in each perfusion inlet and outlet. The cultures were incubated for 2 h in the incubator (37 °C, 5% CO2) on a rocking platform (8-min interval at an angle of 7°), and the absorbance was measured at 450 nm using the Fluoroskan Ascent plate reader (Thermo Scientific 5210470). The measurements of the gel inlet, perfusion inlet and outlet, and observation window were adjusted for volume differences and were combined. Data were normalized against the vehicle control and plotted in Prism (GraphPad Software version 6). The nonlinear regression analysis ’log(inhibitor) versus response minus Variable slope (four parameters)’ was performed to obtain the half maximal effective concentration (EC50) values.
To assess the mRNA levels, S2-028 OrganoPlate cultures were exposed to gemcitabine (Sigma-Aldrich G6423) at day 3 for 72 h. Cells were lysed and RNA was purified using the TRIzol reagent (Thermo Fisher 15596026) with 7 µg Rnase-free glycogen (Thermo Fisher R0551) per sample added as a carrier, according to manufacturer’s protocol. Four to twenty chips were pooled into 1 sample, depending on the condition to compensate for the difference in cell density between the conditions. RNA concentration was measured using a NanoDrop (Thermo Fisher) and the samples were diluted to 30 ng/µL with RNase-free water. cDNA synthesis was performed using M-MLV reverse transcriptase (Thermo Fisher 28025013), according to manufacturer’s protocol. qPCR was performed using the FastStart Essential DNA Green (Roche 06402682001, Rotkreuz, Switzerland) using specific primers for the different MRP genes and using TBP as the housekeeping gene, see Table S1
. The data were analyzed using the Roche LightCycler software version 1.1 and the 2−ΔΔCt
method, normalizing all values to the perfusion flow vehicle control per experiment.

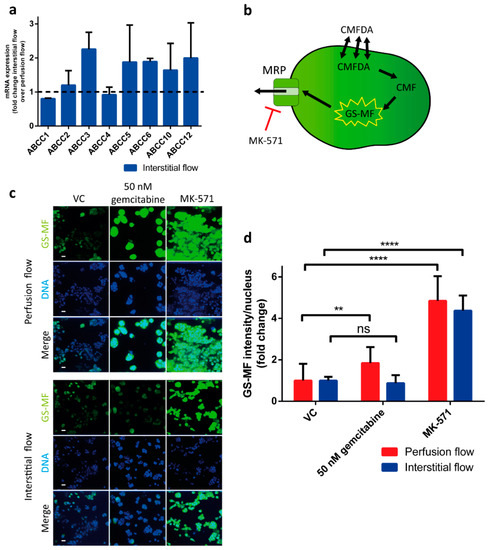

4.10. MRP Efflux Assay
MRP transport in the microfluidic platform was measured as previously described [39
]. Day 3 OrganoPlate cultures were exposed to 0 or 50 nM gemcitabine. After 72 h of drug exposure, the medium was replaced with 25 µL 1.25 µM Cell tracker reagent 5-choloromethylfluorescein diacetate (CMFDA, Invitrogen C7025, Waltham, MA, USA) in Opti-HBSS (1:2 Opti-MEM (Gibco 11058-021) and HBSS) in all perfusion inlets and outlets, with and without inhibitor (50 µM MK-571 (Sigma-Aldrich M7571)). The culture was incubated for 30 min in the incubator (37 °C, 5% CO2
) on a rocking platform (8-min interval at an angle of 7° in the perfusion flow orientation), after which the observation window reservoir was used to cool down the culture with 50 µl 4 °C HBSS. The in-chip assay solutions were replaced by 50 µl of 4 °C inhibition cocktail (10 µM MK-571, 10 µM Ko143 (Sigma-Aldrich K2144) and 5 µg/mL Hoechst 33342). The inhibition cocktail was incubated for 30 min at RT. Z-slices were imaged using the ImageXPress Micro Confocal High-Content Imaging System (Molecular Devices). The data were analyzed using Fiji to calculate the intensity of the sum-projection of the z-slices of the FITC channel for the amount of CMFDA. The number of nuclei was obtained in the same manner as described in the live/dead assay section. Relative intensity was calculated by first subtracting the background intensity from the measured intensity and subsequently dividing by the number of cells. Statistics were done with the ‘multiple 2-tailed t
-tests’ function in GraphPad Prism version 6.
