Polyisoprenoid alcohols are found in all living organisms from bacteria to mammals. They consist of up to more than 100 isoprene residues linked head-to-tail, with a hydroxyl group at one end (α-residue) and a hydrogen atom at the other (ω-end) [1
]. In animals and yeast the double bond in the α-residue is hydrogenated, giving dolichols.
In these organisms, dolichols, like all the other isoprenoids, are synthesized via the mevalonate pathway and the first dedicated enzyme of the polyprenol branch of this pathway is cis
-prenyltransferase (dehydrodolichyl diphosphate synthase) (CPT), a key enzyme in dolichol synthesis. CPT catalyzes the elongation of the polyprenol chain by sequential addition of isopentenyl diphosphate (IPP) to a precursor farnesyl diphosphate (FPP) [2
Eukaryotic cells synthesize polyisoprenoids with a specific number of isoprene residues forming a mixture of usually six to eight dolichol species of different chain lengths, while bacteria possess a single polyprenol, undecaprenol (Pren-11) [1
]. The pattern of the dolichols varies between kingdoms. Thus, S. cerevisiae
accumulates a two-family mixture of dolichols—from Dol-14 to Dol-18, with Dol-15 or Dol-16 dominating, and longer ones from Dol-19 to Dol-22, with Dol-21 dominating [5
The overall content of dolichols in yeast and T. reesei
is rather low (approx. 6 µg/g wet weight) [8
], but a significant increase has been reported for S. cerevisiae
at the late logarithmic and early stationary phases (32 and 48 µg/g, respectively) [6
]. In contrast, in the human pituitary gland the dolichol content is as high as 7170 µg/g fresh weigh [9
In addition to the common mono-saturated dolichols, polyisoprenoid alcohols of atypical structures with two or three hydrogenated isoprenoid residues located at the ω-end have been isolated from Aspergillus fumigatus
], and an exo-methylene group was found in tetrahydrodolichols isolated from A. niger
]. These studies showed that also Trichoderma
synthesizes atypical dolichols not found in other Eukaryotes. While their exact structure has not been reported, it could be expected to have some essential function considering the role played by dolichols.
Dolichols appear to increase the fluidity of phospholipid bilayers or even destabilize lipid membranes, elicit formation of inverted micelles within the membrane, and increase membrane permeability [9
]. Dolichyl phosphate (DolP) stimulates vesicle fusion, and in this way plays an important role in protein trafficking between the Golgi, plasma membrane and lysosomes [9
]. Dolichol and its phosphorylated form are located between the two layers of the phospholipid bilayer, perpendicular to the fatty acyl chains, with the hydrophilic OH- or phosphate group protruding at the outer surface [12
The effect exerted by dolichols on membranes increases with increasing chain length [9
]. The length of the polyisoprenoid chain is important for its physico-chemical properties, and this probably relates to the ability to fluidize locally the lipid bilayer [14
Additionally, the structure of polyisoprenoids has been found to be important for their properties, as exemplified by the different effects on the permeability and fluidity of phospholipid/polyisoprenoid model membranes shown by α-cis
]. It is therefore reasonable to assume that the activity of the membrane-bound dolichol-dependent enzymes would also be affected—both directly and indirectly—by dolichol composition and structure.
In addition to their effect on membranes, dolichols are important for the cell functioning since dolichyl phosphate is an obligatory carrier of carbohydrate residues during the O
- and N
-glycosylation of proteins. In fungi dolichyl phosphate mannose (DPM) delivers the first mannosyl residue to a serine/threonine residue to begin O
]. During N-
glycosylation, in turn, the whole core oligosaccharide comprised of 14 monosaccharide residues, i.e., tetradecasaccharide, is synthesized on dolichyl phosphate and is then transferred en bloc to a growing polypeptide chain [17
]. In addition, N
-glycosylation requires dolichyl-dependent enzymes also for the synthesis of DPM, the donor of five mannosyl residues, and of dolichyl phosphate glucose (DPG) delivering three glucosyl moieties [20
]. A comparison of amino acid sequences of several dolichyl-dependent enzymes has revealed conserved hydrophobic regions of 12–20 amino acids speculated to be the dolichol-binding site [21
]. However, site-directed mutagenesis of this region has shown that it is not required for catalytic activity or substrate binding [22
]. Whatever the site of its binding, dolichyl phosphate is indispensable for protein glycosylation and its structure could affect this process profoundly.
In this study we establish the structure and composition of dolichols synthesized by Trichoderma
and other filamentous fungi. Remarkably, they differ from those of the model Eukaryote and fungus S. cerevisiae
). We also show how the structure of dolichols affects the activity of dolichyl phosphate mannose (DPM) synthase (DPMS). 3D models of DPMS from S. cerevisiae
and T. reesei
in relation to the respective dolichol structure are used to predict modes of dolichol processing. In addition, the influence of the dolichols of different structure on the physico-chemical properties of model phospholipid membranes is established.
2.1. Structure of Dolichols from Trichoderma reesei
An initial HPLC/UV analysis of polyprenols isolated from T. reesei
revealed a complex mixture containing numerous additional compounds besides those found in mammalian or S. cerevisiae
cells and eluting with retention times corresponding to Dol-18–Dol-20. This was confirmed by the finer liquid chromatography electrospray ionization-quadrupole-time of flight-mass spectrometry (LC-ESI-QTOF-MS, liquide chromatography electrospray ionization-quadrupole-time of flight-mass spectrometry) analysis again showing a much more complex mixture of compounds (Table 1
, Figure S1
) than that reported for S. cerevisiae
(Dol-14 to Dol-18 with Dol-16 dominating) [5

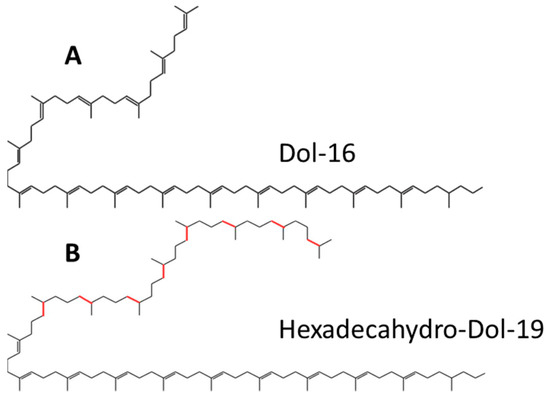

]. An LC-ESI-QTOF-MS analysis showed that the polyprenols from T. reesei
comprise a complex mixture of compounds with 18, 19 or 20 isoprene units and an apparently different degree of saturation (Table 1
, a full list is presented in Table S1
). In addition to the typical α-saturated dolichols, i.e., Dol-18, -19 and -20, poly-saturated molecules with between two and ten saturated bonds were observed. Altogether, 31 species could be identified. Basing on the reported structure of the atypical dolichols found in Aspergillus fumigatus
] and the hexa-hydro-polyprenols, glycinoprenols from leaves of several plant species [23
], in which the additional saturated bonds are located at the ω-end of the molecules, we postulate that also the T. reesei
polyprenols have such a structure, i.e., that they contain a single saturated α-residue and varying numbers (1 to 10) of saturated residues stretching from ω-terminal one (Figure 1
To determine whether such poly-saturated structure is typical for dolichols from filamentous fungi, we analyzed dolichols from two more species, A. niger
and N. crassa
. Indeed, additional saturated bonds were found in the Dols isolated from both species (Table 1
), albeit the degree of saturation only one or two extra bonds—was far less than that found for T. reesei
. Both species also contained standard mono-saturated dolichols. Interestingly, longer species than those in T. reesei
were detected (up to Dol-23 in A. niger
and up to Dol-20 in N. crassa
). One can thus conclude that polysaturated dolichols are in fact typical for filamentous fungi and that their length distribution and degree of saturation differ markedly between species.
2.2. Dolichol Content in S. cerevisiae and Filamentous Fungi
We reasoned that the markedly different composition and structure of dolichols from filamentous fungi and yeast could affect their overall content in the cell. To verify this assumption dolichols as a class were quantified in four fungal species.

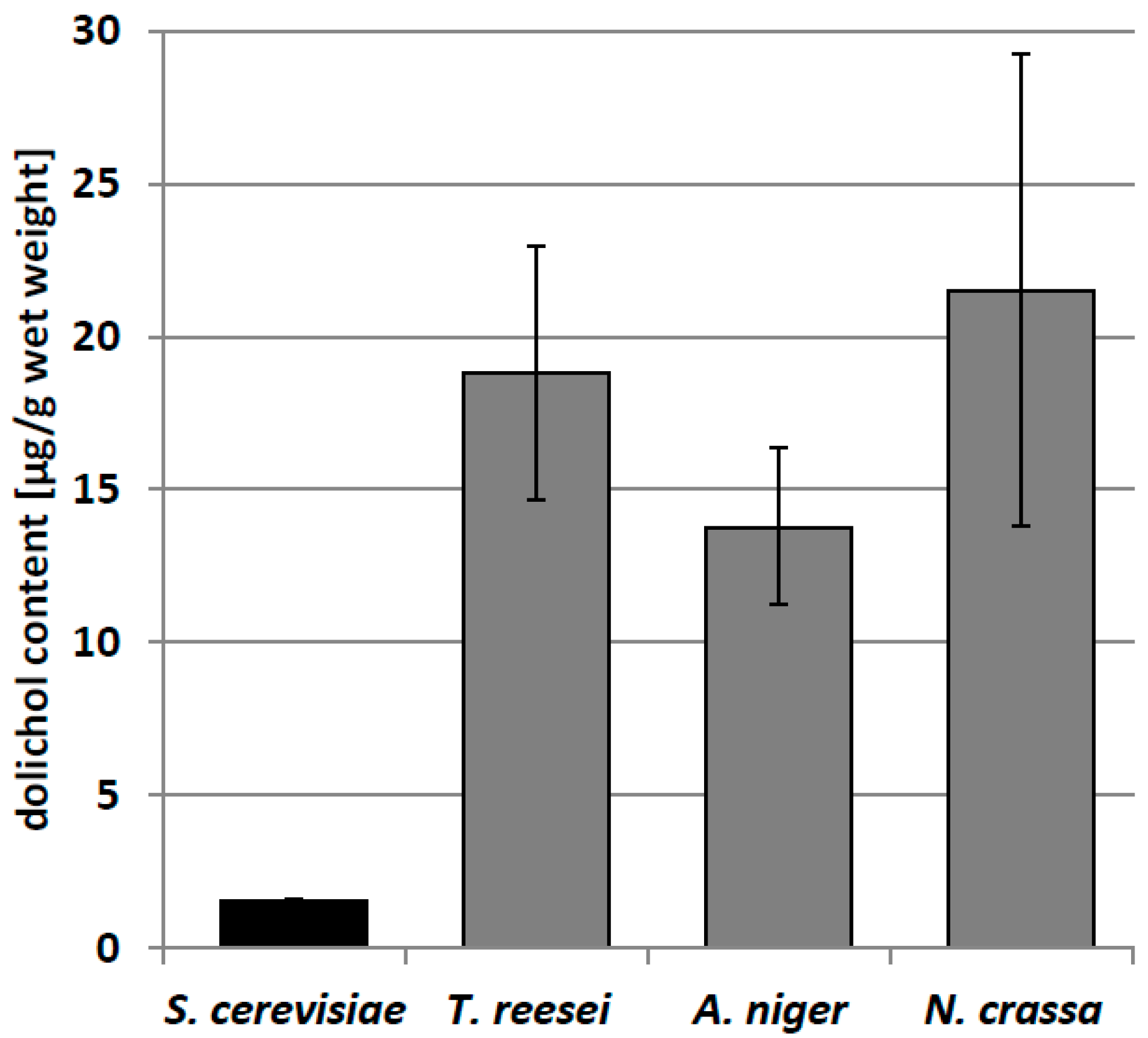

The content of dolichols was similar in the three filamentous fungi studied, but was markedly (8–10 times) higher than in yeast (Figure 2
2.3. Activity of Dolichyl Phosphate Mannose Synthase
To study how the unusual structure of the T. reesei dolichols affects the activity of dolichol-dependent enzyme DPMS, we used various dolichyl phosphates as an acceptor of mannosyl residue.
Native dolichols from Trichoderma and S. cerevisiae were chemically phosphorylated and then used as substrates in reactions catalyzed by dolichol-dependent ER membrane-bound glycosyltransferase, dolichyl phosphate mannose synthase (DPMS).
Membrane fractions isolated from T. reesei
and S. cerevisiae
were used as a source of this enzyme, and the phosphorylated dolichols from Trichoderma
and yeast were added as exogenous acceptors to the reaction mixture. In parallel, the same reaction was carried out with phosphorylated hepatic dolichols (Dol-18/19-P) and phosphorylated semisynthetic analogue of Dol-11, α-dihydro-Prenol-11 (dHPren11-P, Collection of Polyprenols, IBB PAS). The activity of DPMS was clearly affected by the type of Dol-P used in the assay. DPMS from S. cerevisiae
showed the highest activity with its cognate substrate ScDol-P, albeit a very high amount of ScDol-P (44 µg) was needed to obtain the maximal efficiency (Table 2
). The activity was lower with dHP11-P and with the phosphorylated hepatic dolichols, but the affinity for these dolichols was markedly higher (as reflected by the lower values of Km
, see Table 2
). Most importantly, the phosphorylated poly-saturated dolichols from Trichoderma
(TrDol-P) were by far the poorest acceptors of mannosyl residues for the yeast enzyme. Its maximum activity was 7-fold lower than with the yeast dolichols and reaching this activity required 73 µg of TrDol-P. Accordingly, the Km
value was nearly double that for the cognate acceptor (Table 2
The activity of DPMS from T. reesei
(TrDPMS) was, in general, much lower than that of the yeast enzyme for all analyzed dolichols (Table 2
). The highest activity was obtained using the mono-saturated dolichols from S. cerevisiae
, although their amount required for maximal activity was as high as 73 µg. TrDPMS had the highest affinity for the hepatic dolichols as did the yeast enzyme, and their Km
values were nearly identical (Table 2
). Perhaps unexpectedly, the poly-saturated dolichyl phosphates from T. reesei
turned out to be the poorest substrate also for the T. reesei
2.4. Modeling of DPMS Structure
To determine the structural features of the DPMS from yeast and T. reesei responsible for their different affinities for specific dolichol phosphates, we resorted to homology modelling. We were particularly interested in explaining the reason behind the poor use of the poly-saturated dolichols by both enzymes, since the additional saturated bonds lie far away from the phosphoester end of the molecule serving as the acceptor of the mannosyl moiety.
DPMSs are monomeric or form heterooligomers of up to three subunits Dpm1, Dpm2 and Dpm3. Dpm1 is the catalytic subunit belonging to Glycos_transf_2 family (PF00535) of glycosyltransferases, widely conserved across all kingdoms of life. Dpm2 (PF07297) is referred to as a regulatory subunit, while Dpm3 (PF08285) tethers the complex at the reticulum membrane [24

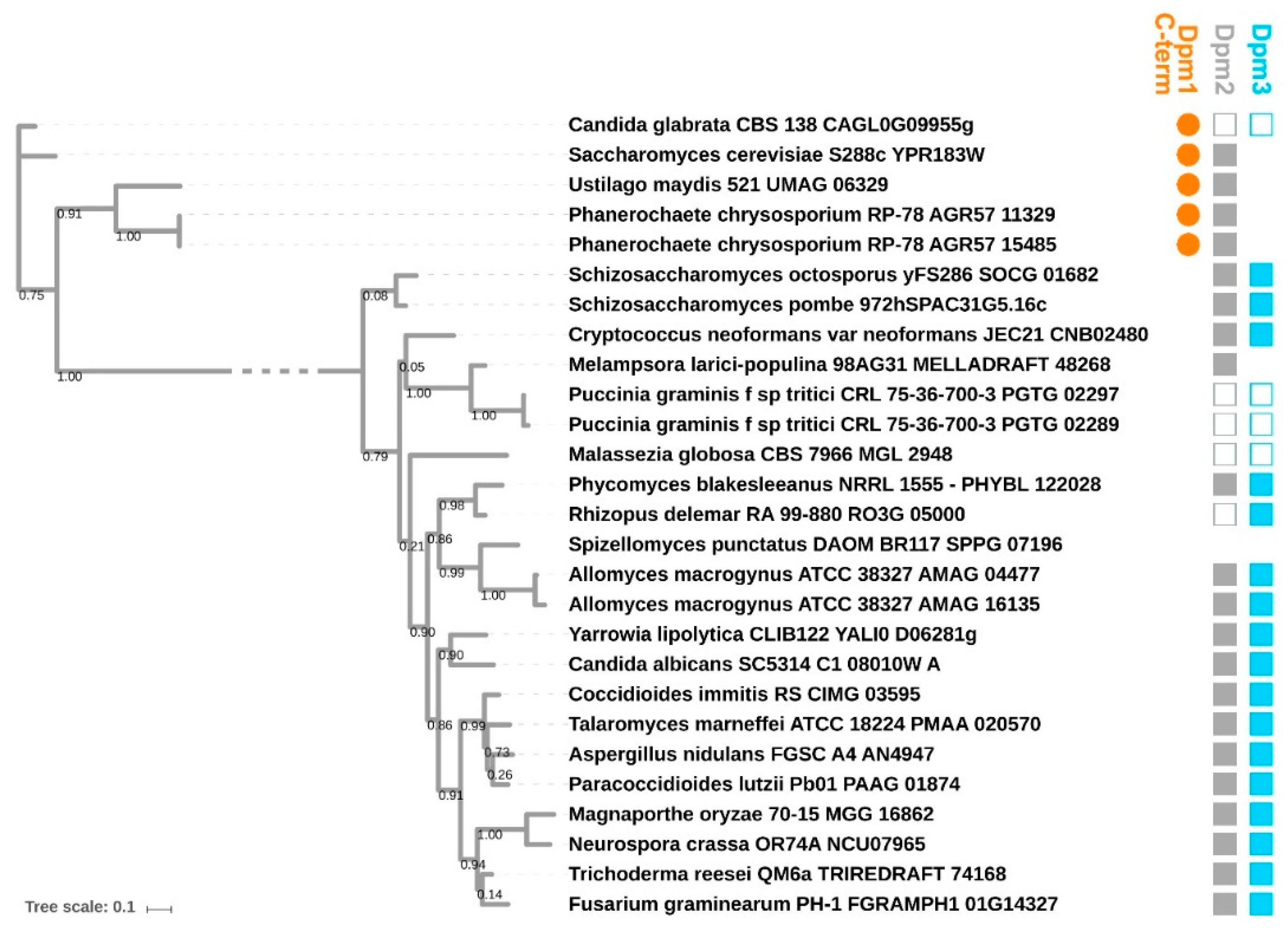

]. Fungal DPMSs can be divided into two major phylogenetic clades based on their Dpm1 subunit (Figure 3
): Type I (including DPMS from S. cerevisiae
) and II (including DPMS from Trichoderma
), as discussed in [24
]. Type I DPMSs consist exclusively of the Dpm1 subunit, which uses its additional C-terminal α-helix for tethering to the lipid bilayer. Type II DPMSs contain the additional Dpm3 subunit anchoring Dpm1 at the membrane.
The only DPMS with a known 3D structure is the one from Pyrococcus furiosus
, PfDPMS, whose structure in complex with dHPren-11-P has been solved recently [28

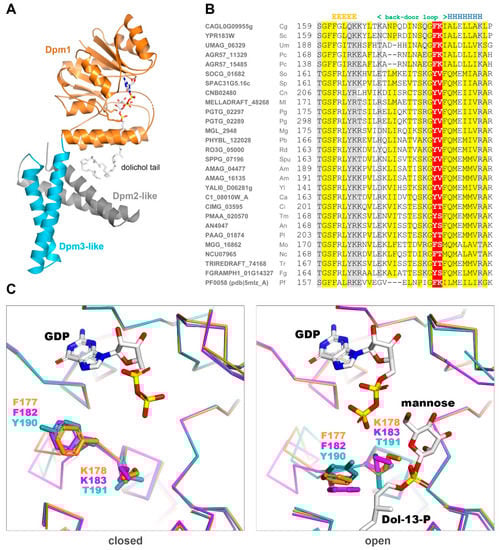

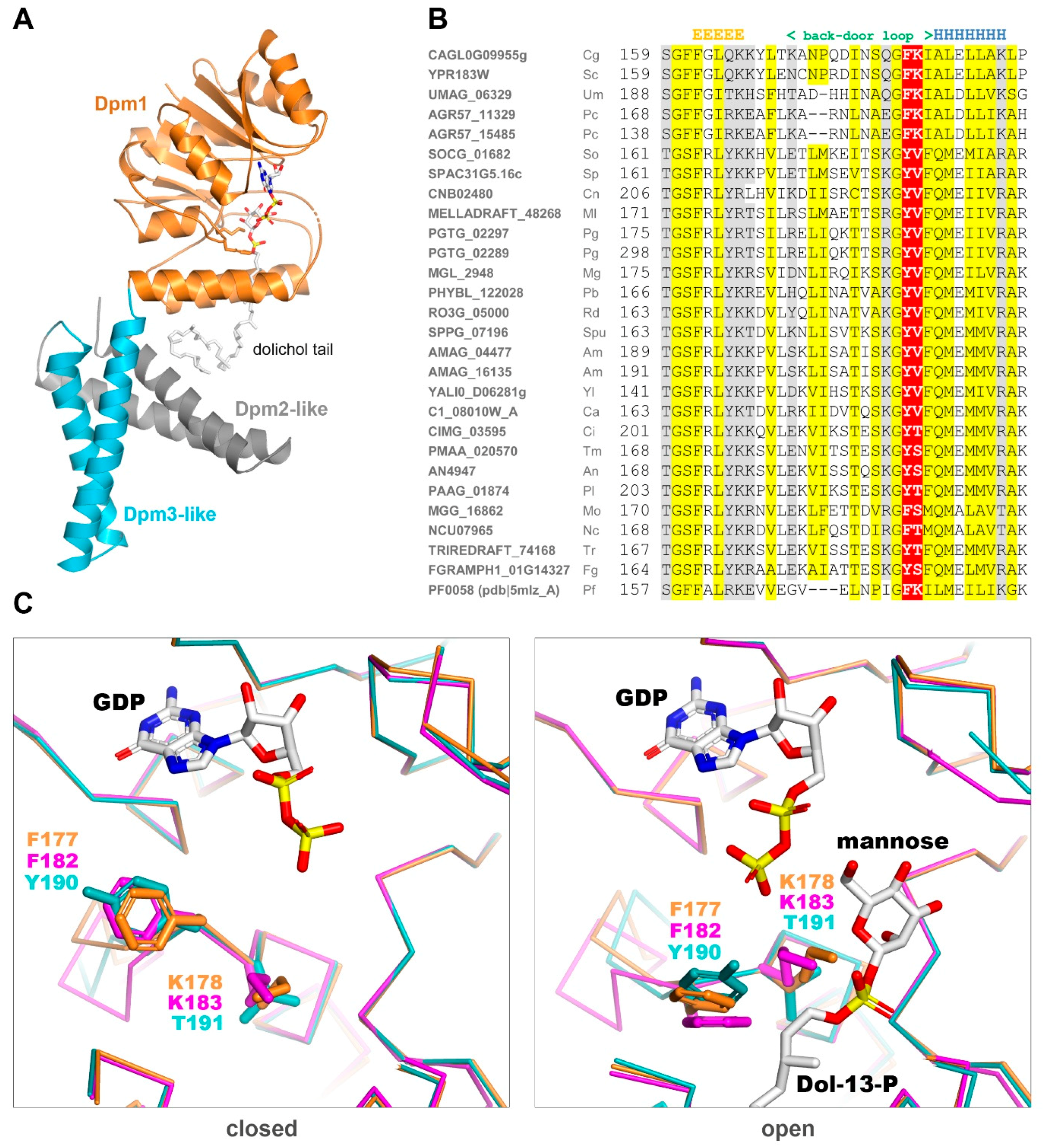

] (Figure 4
This enzyme has an architecture different from both Type I and II DPMSs since its single subunit carries two additional transmembrane subdomains at the C-terminus. These additional fragments lack detectable sequence similarity to Dpm2 or Dpm3 from fungi or any other Eukaryote. Yet, PfDPMS is still highly similar in sequence to the fungal Dpm1s (42% and 37% amino acid sequence identity to Dpm1 from S. cerevisiae
and T. reesei
, respectively). Structural study on PfDPMS has provided invaluable information about the dolichol binding mode. Based on the P. furiosus
PfDPMS structures solved in two consecutive states (closed: pdb|5mlz and open: pdb|5mm1), we built 3D models for the catalytic domains of Dpm1from S. cerevisiae
and T. reesei
in the open and closed “back door” states. Regarding the catalytic cavity outline, the two fungal Dpm1 clades differ substantially in the “back door” loop sequence. While yeast Dpm1 carries the 182
FK motif present in P. furiosus
, the majority of fungi have a YT (tyrosine, threonine) motif instead (Figure 4
B). The lysine residue following phenylalanine is important for dolichol stabilization in the active site and its lack suggests weaker substrate binding.
2.5. Phospholipid Profile of Membranes from Filamentous Fungi and S. cerevisiae
The structure of P. furiosus DPMS shows that the dolichol chain is buried in the lipid bilayer and interacts mainly with the transmembrane subdomains of DPMS. This result pointed at the importance of the membrane environment, determined chiefly by phospholipids, for the DPMS–dolichol interaction. Ergosterol could also be predicted to be a good test lipid to emphasize the difference between dolichols from different species having different amounts of saturated bonds. Its amount in dry mass of S. cerevisiae and Trichoderma was 5.43 ± 0.23 and 4.23 ± 0.29 mg/g dry mass respectively.

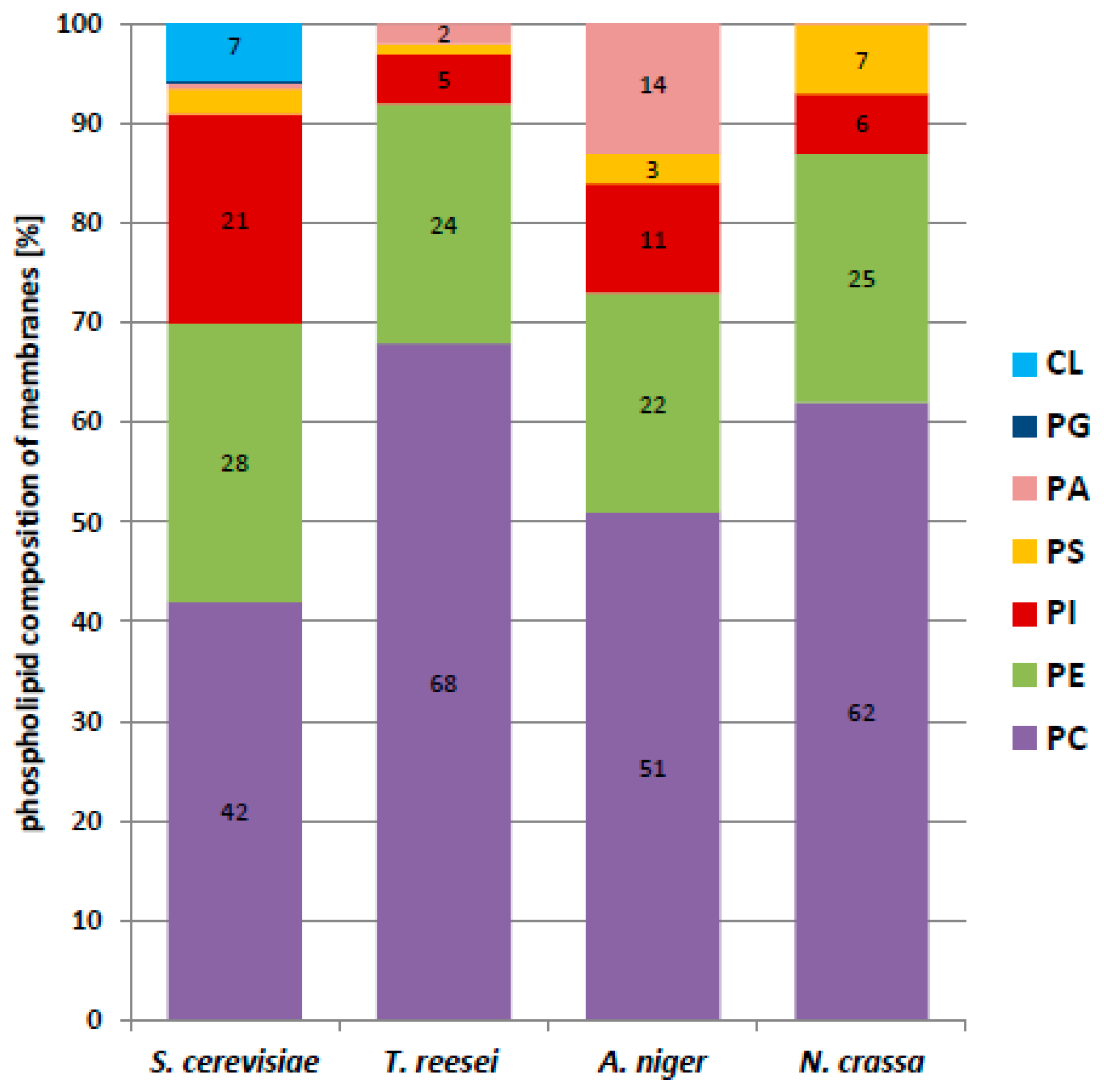

Next, we compared the phospholipid profiles of cellular membranes from filamentous fungi and S. cerevisiae. In addition to highlighting differences between these two groups of fungi possibly affecting the functioning of their DPMSs, the study also established which phospholipids are dominant in the membranes of T. reesei and S. cerevisiae. This data allowed us to choose proper model membranes for further biophysical studies on the influence of dolichol structure on the thermotropic properties of the model membranes.

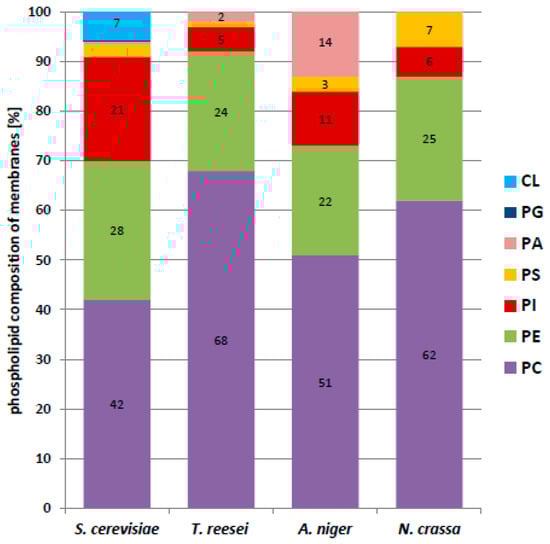

We found that phosphatidylcholine (PC) was the dominant phospholipid in all the cells examined (Figure 5
). In filamentous fungi its content in the membrane fraction varied from 68% in T. reesei
to 51% in A. niger
, and it was much less abundant, albeit still dominant in S. cerevisiae
. In contrast, phosphatidylethanolamine (PE) constituted a similar fraction of phospholipids in all the fungi, from 27.6% in S. cerevisiae
to 21.6%. in A. niger
. The PC/PE ratio plays a key role in membrane integrity and in the maintenance of its function. PC has stabilizing properties whereas PE forms non-bilayer hexagonal phases [29
]. In the present study, the PC/PE ratio was fairly high and quite similar for the filamentous fungi, 2.4 for A. niger
, 2.5 for N. crassa
, and 2.8 for T. reesei
, but only 1.5 for S. cerevisiae
The yeast membranes differed from the others also in the much higher content of phosphatidylinositol (PI) (20.6% vs. 4.9–11.5%). Notably, yeast membranes contained cardiolipin (CL) at a fairly high proportion (6.6%), which was not found in the filamentous fungi.

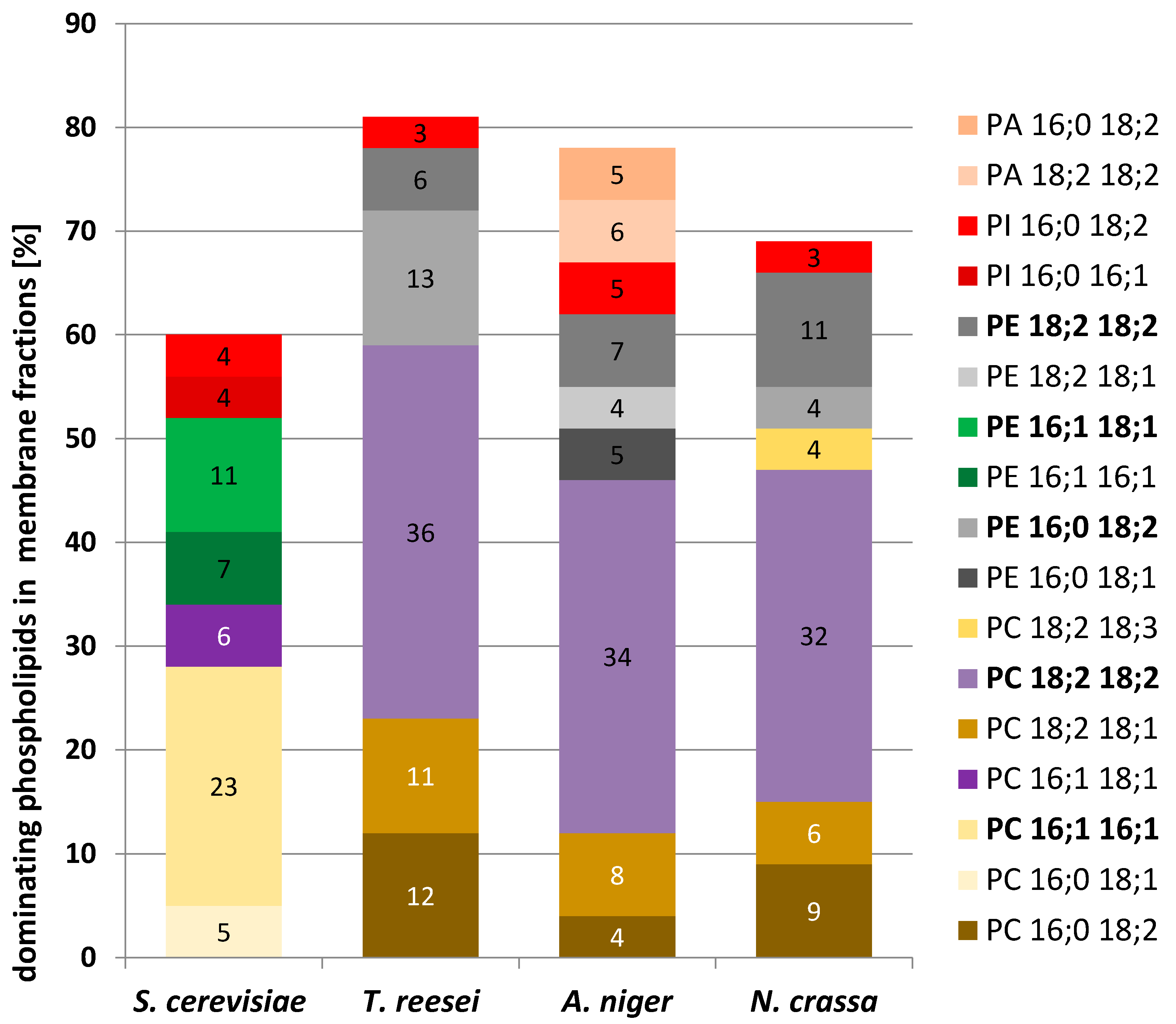

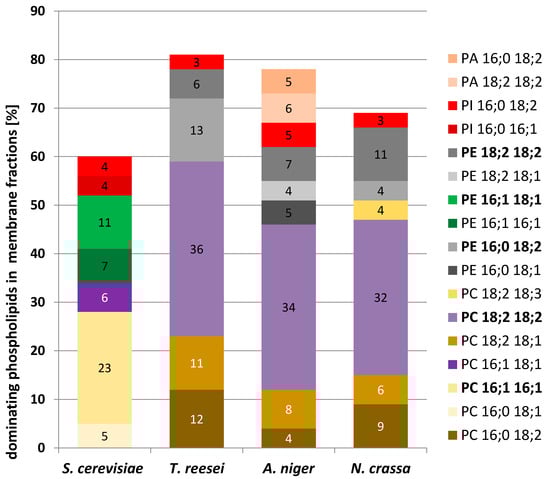

A more detailed mass spectrometry analysis of the membrane phospholipids showed further differences in the pattern of their fatty acids (Table 3
, Figure 6
). While in filamentous fungi the most abundant phospholipid species were those containing mostly linoleic acid (C18:2), palmitoleic acid (C16:1) dominated in S. cerevisiae
2.6. Influence of Dolichols of Different Structure on Physico-Chemical Properties of Model Phospholipid Membranes
The local environment of the membrane-bound dolichol-dependent enzymes is likely to affect their functioning. In turn, the presence of dolichol in the lipid bilayer will modulate the membrane properties and hence, indirectly, also the properties of the relevant enzymes. These effects could depend on both the composition of the membrane and the structure of the dolichols.
We therefore set out to check if mono- and poly- saturated dolichols (i.e., ScDol and TrDol, respectively) could differently alter the properties of model membranes of different composition.
Since phosphatidylcholine (PC) and phosphatidylethanolamine (PE) were found to dominate in membranes from filamentous fungi and S. cerevisiae
), we decided to use two types of model membranes composed exclusively of a single species of PC or PE, 1,2-dipalmitoyl-sn
-glycero-3-phosphatidylocholine (DPPC) or 1,2-dimyristoyl-sn
-glycero-3-phosphatidylethanolamine (DMPE), respectively. Using chemically pure phospholipids rather than a mixture of molecular species gave more defined data and simplified their interpretation. Those phospholipids supplemented with different proportion of Tr or Sc dolichols were used to obtain multilamellar vesicles (MV) and their thermal stability was determined. Although ergosterol is present in fungal membranes in a significant amount and is known to affect membrane fluidity we used DPPC and DMPE model membranes supplemented with dolichols not to introduce the third player and make the experiment simpler.

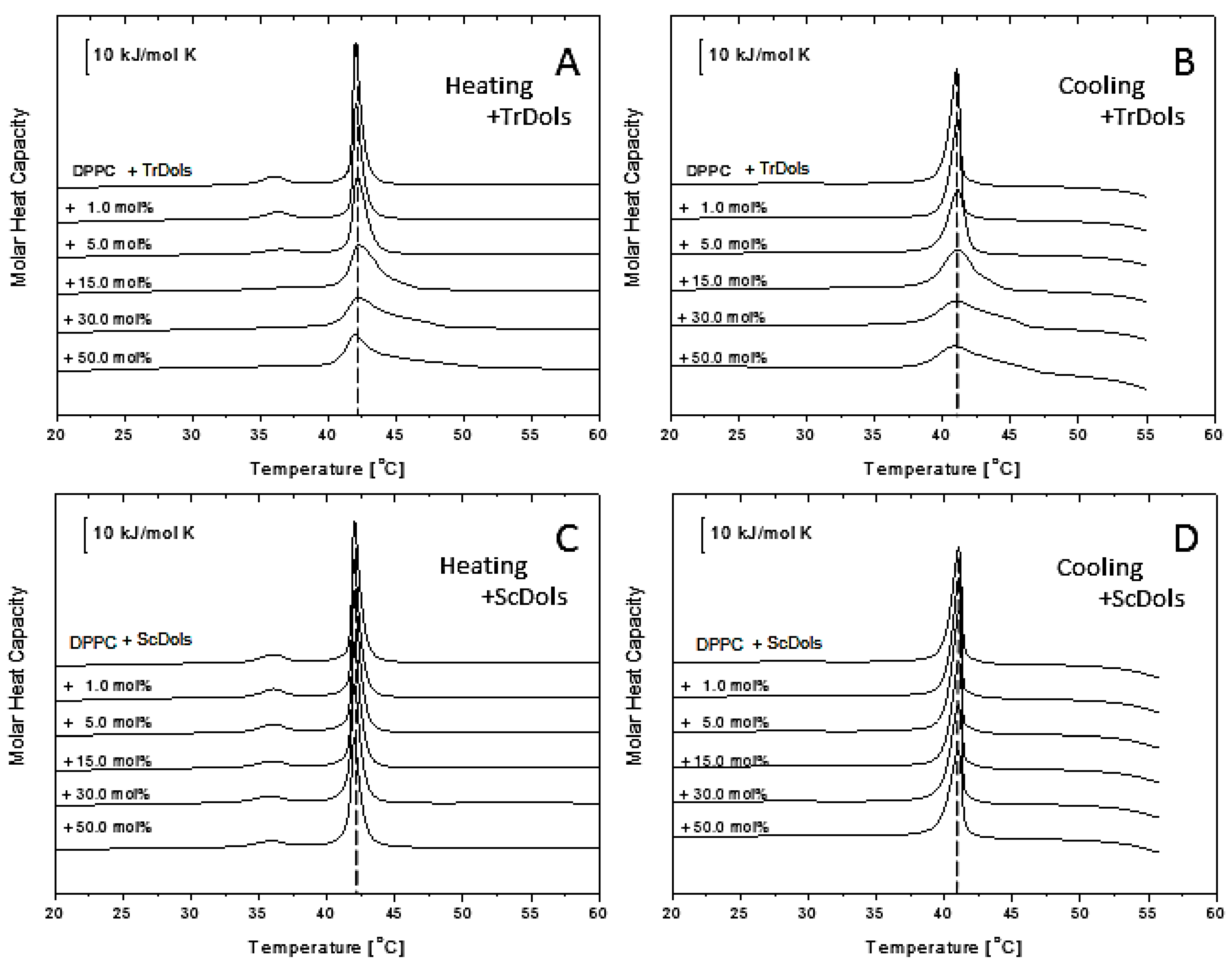

shows thermal curves for differential scanning calorimetry (DSC) experiments for DPPC multilamellar vesicles upon heating (A and C) and cooling (B and D). Upon heating, fully hydrated DPPC showed an endothermic peak with the main transition temperature of 42.02 ± 0.1 °C and an enthalpy change (ΔH) of 31.69 kJ.mol−1
), corresponding to the conversion of the gel phase (Lβ’
) to liquid-crystalline phase (Lα’
). A smaller transition from the lamellar gel phase (Lβ’
) to the rippled gel phase (Pβ’
), called a pretransition, centered at 14.91 °C with ΔH of 6.72 kJ.mol−1
) was recorded. These values for the pure DPPC system are in good agreement with those reported earlier [31

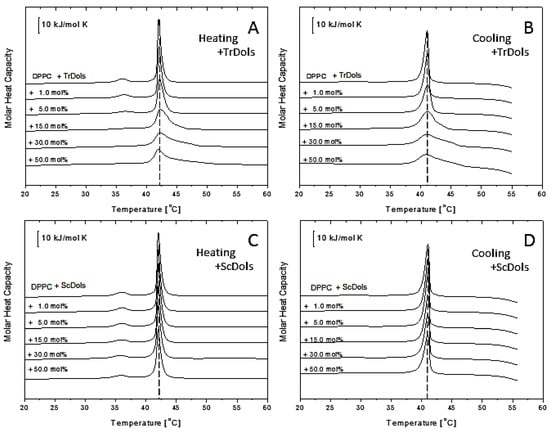

As shown in Figure 7
A,B, dolichols isolated from Trichoderma
, TrDol, significantly altered the thermotropic phase behavior of the MVs. The height of the main melting peak decreases progressively with an increasing dose of TrDol, which was accompanied by its progressive broadening. Such changes indicate that dolichols strongly decrease the cooperativity of the main phase transition, while the enthalpy changes by no more than 7% (Table 4
). Moreover, the peak becomes asymmetric, especially when the dolichol/DPPC molar ratio exceeds 15 mol%. In agreement with the small ∆H change, the Tm
is weakly affected: it increases slightly up to 15 mol% and then drops below the Tm

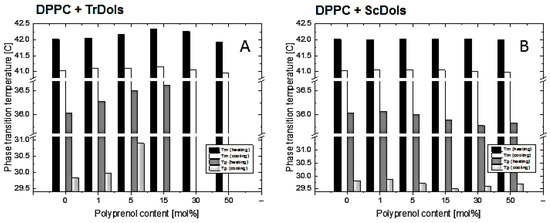

of pure DPPC for 50 mol% (Table 4
, Figure 8
Concurrently with the disturbance of the gel phase-to-liquid-crystalline phase transition, TrDols also modulate the pretransition, which becomes progressively smaller, shifted to higher temperatures and finally disappears at 30 mol% upon heating (Figure 7
A). This latter effect is even more apparent during cooling, as the pretransition peak is hardly visible already at 5 mol%.
In contrast to the dolichols from Trichoderma
, yeast dolichols, ScDol, had almost no effect on the DPPC thermotropic phase behavior as evidenced by the virtually unaffected heating and cooling traces shown in Figure 7
C,D. Furthermore, Tm
did not depend on the dolichol content, and only a slight decrease of Tp
, not higher than 0.32 °C, was found.

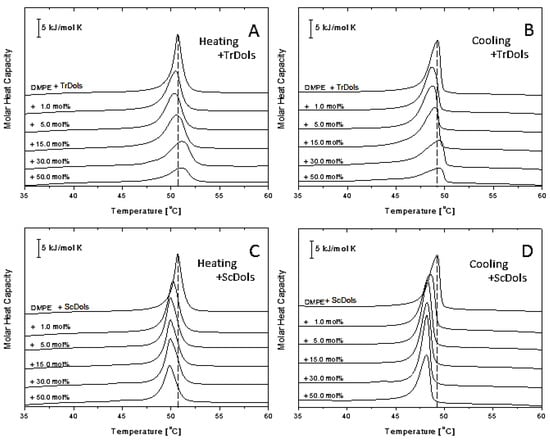

shows similar thermograms obtained for DMPE MVs. As reported previously [33
], DMPE in a well hydrated state presents a single and strong transition peak corresponding to the gel-to-liquid-crystalline phase transition. In our DSC experiments it was found at 50.67 °C upon heating, with a transition enthalpy of 22.84 kJ·mol−1
). Upon cooling (Figure 9
B,D), the peak becomes shifted by 1.41 °C and broadens markedly.
Incorporation of dolichols isolated from Trichoderma
or from yeast markedly altered the thermotropic behavior of DMPE, albeit in a strikingly different manner. In the case of Trichoderma
dolichols, lowering and broadening of the phospholipid transition peak is observed (Figure 9
A,B), which again reflects a reduced cooperativity between the PE acyl chain. Additionally, Tm

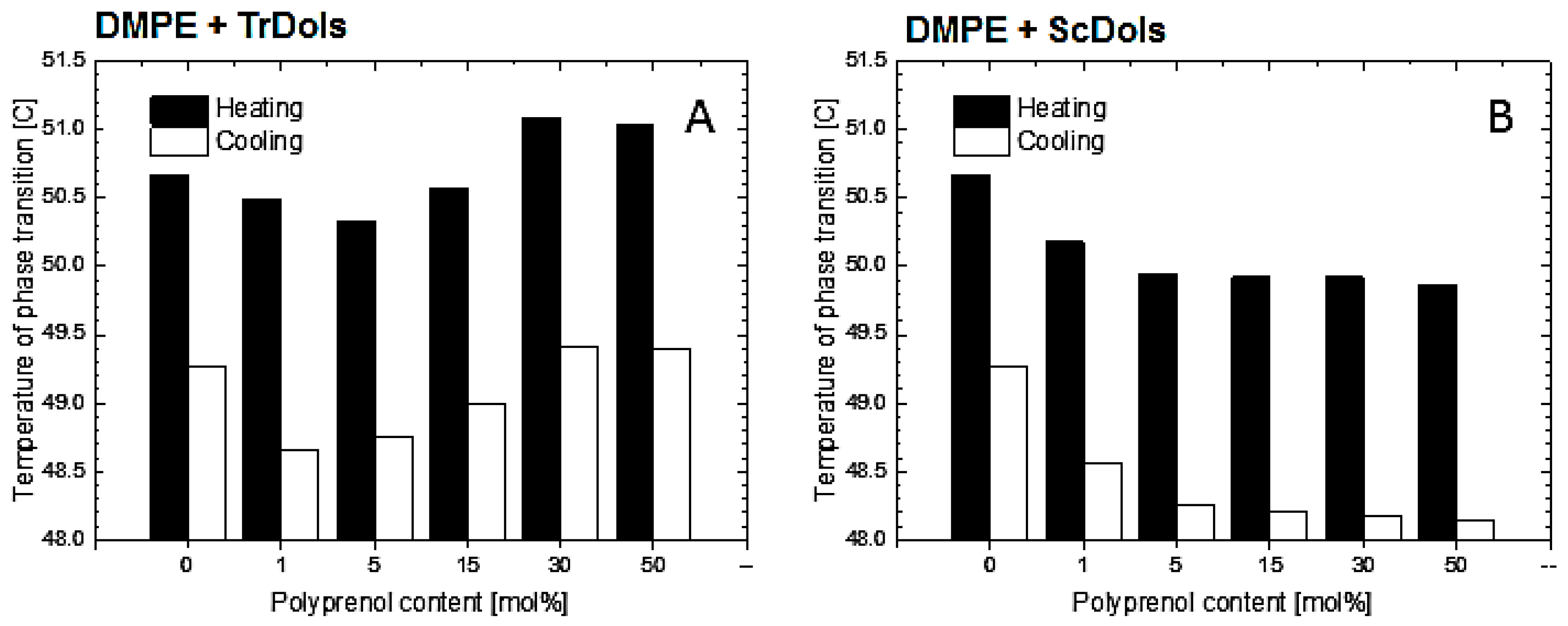

decreases by 0.34 °C for 5 mol% and then increases at higher dolichol/PE molar ratios with saturation at 50 mol% (Table 5
, Figure 10
A). The same feature was observed upon cooling.
Unlike the Trichoderma
dolichols, ScDols failed to modify the shape of the DMPE phase transition curve (Figure 9
C,D). However, as show in Figure 10
B, they did destabilize the DMPE, as the Tm
was lowered significantly at such a low dolichol content as 1 and 5 mol% and remained low at the higher dolichol/ DMPE molar ratios.

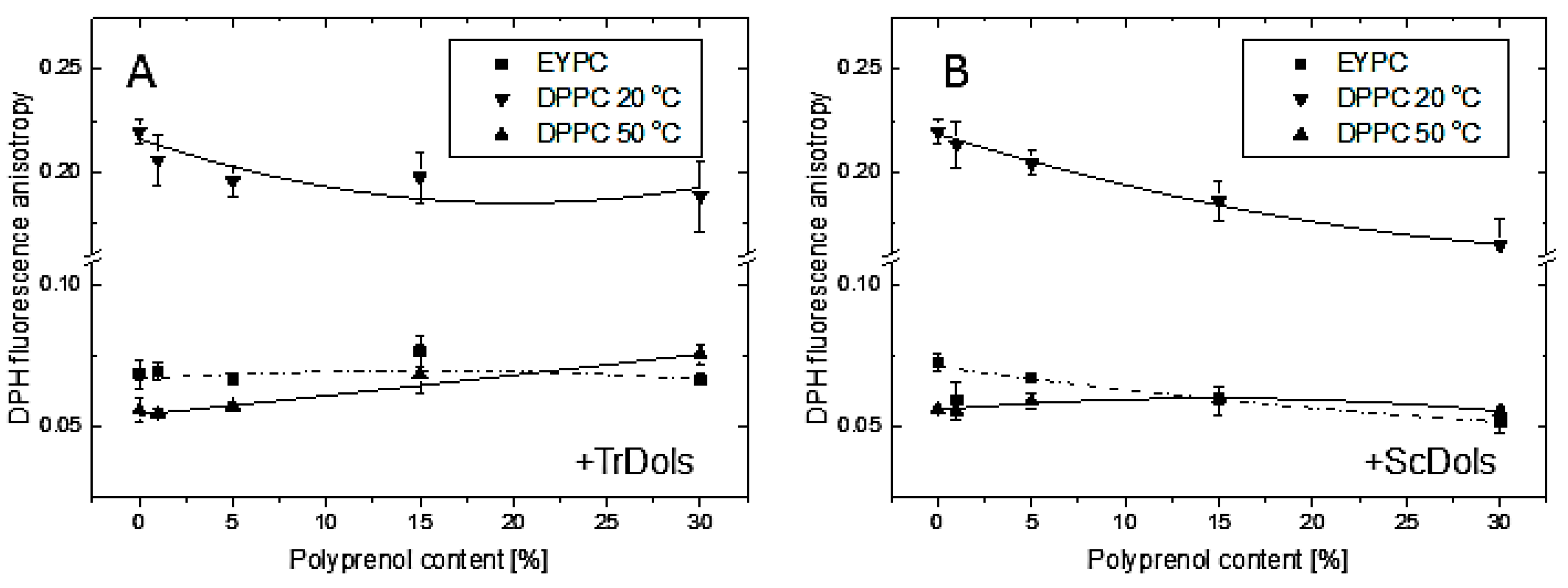

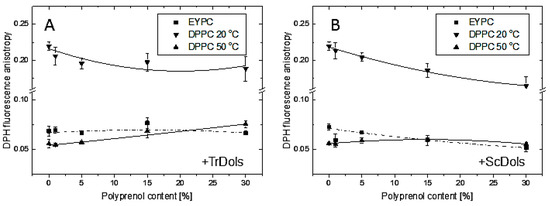

To elucidate the influence of the dolichols on the phospholipid bilayer order, we performed fluorescence anisotropy studies. The dependence of the anisotropy of fluorescence of l,6-diphenyl-1, 3,5-hexatriene (DPH) on the content of dolichols from Trichoderma
and yeast in DPPC liposomes at 20 °C and 50 °C (i.e., below and above the phase transition temperature, respectively) as well as in small unilamellar vesicles (SUVs) formed from egg yolk lecithin (EYPC) at 20 °C (liquid crystalline phase), is shown in Figure 11
Dolichols, especially those from yeast, fluidize the highly ordered DPPC bilayer at 20 °C, when it is in the gel state. Conversely, they exert a stabilizing effect at 50 °C, i.e., on the liquid-crystalline state, and in this case the Trichoderma
dolichols (Figure 11
A) are more effective. Both these effects are concentration-dependent. On the other hand, the egg yolk lecithin (EYPC) bilayer studied above its phase transition temperature was virtually unaffected by TrDols and slightly destabilized by ScDols.
Thus, our studies showed that the effect of dolichols on the physicochemical properties of model phospholipid membranes depends on the dolichol structure and concentration and also on the phospholipid class.
2.7. Activity of DPMS from Trichoderma Expressed in S. cerevisiae
Our studies show that Trichoderma and S. cerevisiae differ in structure of dolichols and concentration and class of phospholipids in their membranes.
The overlap of the two factors that may affect the activity of dolichol-dependent membrane-bound enzymes such as DPMS makes it difficult to draw conclusions about the role of dolichol in the regulation of activity of this enzyme. To avoid the problem, we analyzed the activity of DPMS from Trichoderma
expressed in S. cerevisiae
. For this study, we chose an S. cerevisiae
mutant carrying the Dpm1 and Dpm3 proteins from Trichoderma
. The Dpm2 regulatory protein was omitted since this way DPMS from Trichoderma
is regulated only by the factors present in yeast [25
The activity of DPMS from Trichoderma
(TrDPMS-1,3) located in the yeast membranes was in general, similar to the activity of the native yeast enzyme (ScDPMS) (Table 2
). Both enzymes, the Trichoderma
(TrDPMS-1,3) and the yeast one, were affected by the type of Dol-P the same way. The highest activity was observed with ScDol-P and the lowest with TrDol-P as substrates.
Affinity of TrDPMS-1,3 for phosphorylated poly-saturated dolichols from Trichoderma
(TrDol-P) was markedly lower (as reflected by the higher values of Km
, see Table 2
) compared to the hepatic dolichols or dHP11-P.
These results clearly confirm the crucial role of the structure of dolichols in the regulation of DPMS activity.
The only dolichols from filamentous fungi described so far were those isolated from A. niger
] and A. fumigatus
], and rather unexpectedly they were found to differ structurally from typical dolichols, as exemplified by those from animals or S. cerevisiae
. In addition to these structural differences, they were also longer than the yeast ones, which are up to 22 isoprene units long [5
]. A. niger
contained a family of exo-methylenehexahydroprenols of between 18 and 24 isoprene residues, and A. fumigatus
had dolichols with two or three hydrogenated isoprenoid residues located at the ω-end.
Our studies show that dolichols from all three species of filamentous fungi examined, representing three evolutionarily distant genera, contain additional saturated bonds. We believe that one can assume that this “unusual” structure is in fact typical for dolichols from filamentous fungi—until exceptions are found.
This observation raises the question of why these dolichols differ from those found in other Eukaryotes and what are the consequences of their presence in the cell.
To answer these questions, we compared the influence of the typical mono-saturated dolichols vs. the poly-saturated ones on the activity of dolichol-dependent enzyme and on the properties of model lipid membranes.
The enzymatic activity of DPMS was strongly dependent on the structure of the dolichols used as the carbohydrate acceptor. The Trichoderma
enzyme showed relatively low activity with the cognate TrDol-P, while the yeast enzyme, although highly active with the native yeast ScDol-P, required an extremely high concentration thereof for maximal activity. These results show that not only the dolichol structure but also its concentration critically affect the activity of the enzyme. We found that the concentration of dolichols in Trichoderma
and yeast is not as high as in human organs, where the liver contains 452 µg of dolichols per g of wet weight and the pituitary gland, the organ richest in dolichols, up to 7170 µg/g w.w. [9
]. It has been reported that only a small and variable fraction of dolichols is phosphorylated: as a consequence, the amount of Dol-P, which is the only form active as the acceptor of carbohydrates, is not proportional to the overall Dol content in a given organ [9
The DPMS from S. cerevisiae
was much more active than that from Trichoderma
. At a given concentration of native Dol-P the yeast DPMS exhibited from 8- to 55-fold higher activity. The dolichyl phosphate mannose formed by DPMS is mostly used for protein glycosylation, GPI-anchor formation and the synthesis of the cell wall [35
]. Thus, one could expect a positive correlation between the requirement for dolichyl phosphate mannose for these processes and the speed for its synthesis. Indeed, the content of mannose in the cell wall is substantially higher for S. cerevisiae
(279 µg of mannose /mg dry cell wall, Kruszewska, unpublished) than for Trichoderma
(127 µg of mannose /mg dry cell wall) [38
]. In addition to the intrinsic differences in the activity of DPMS from these two species it could be additionally modulated by the structure of their cognate Dol-P substrates. The mechanism of the latter effect is, however, difficult to fathom.
The additional saturation of the fungal dolichols most likely concerns their ω-end which is distant from the active centre. The substrate specificity of DPMS has been shown to be high towards the sugar moiety (GDP-Man strongly preferred) but rather weak towards the Dol-P acceptor. The latter is justified by the structure of the DPMS from P. furiosus
, which demonstrates that the dolichol chain is buried within the lipid bilayer and interacts mainly with the transmembrane subdomains of DPMS. Unfortunately, due to the lack of detectable homology between the P. furiosus
DPMS transmembrane domains and the fungal Dpm2 and Dpm3 subunits we were unable to model the quaternary structure of the fungal DPMS complex, and consequently its interaction with dolichols of different structure. The differences in the composition of the transmembrane domains between the two major DPMS types, as well as between DPMSs and other glycosyltransferases also belonging to the Glycos_transf_2 family (e.g., GtrB tetramerizes through its two transmembrane α-helices, pdb|5ekp [39
]) suggest the possibility of profound differences in their quaternary structures.
The observed differences in the kinetic parameters of the two DPMSs could also be a consequence of minor alterations in the catalytic subunit itself. As proposed by Gandini et al. [28
], the mannosylation reaction catalyzed by DPMS takes place in a shielded active site pocket, which cannot be vacated for the next reaction round by simple diffusion. Instead, conformational shifts are needed to open the reaction site to allow the replacement of GDP with a new molecule of GDP-mannose and then close it—all potentially dependent on the physicochemical properties of the closing loop. The differences in the amino acid sequences of this loop between Trichoderma
and S. cerevisiae
suggest that the yeast enzyme, similarly to that from Pyrococcus
, would better stabilize the bound Dol-P through an ionic interaction between lysine (K183) and its phosphate moiety, as well as keep the “back door” more securely closed with the large hydrophobic side group of phenylalanine (F182). In most fungi, including Trichoderma
, DPMS lacks the lysine from the “FK” motif, which suggests that the interaction with dolichol phosphate is rather weak.
Additionally, the ultimate significance of Dpm2 and Dpm3 subunits and the transmembrane helices of Dpm1 is unknown. The S. cerevisiae
Dpm1 can complement human and Schizosaccharomyces pombe
cells deficient in DPMS activity [26
] but not vice versa, which is consistent with the presence of a membrane-tethering element in the former. However, Pyrococcus
DPMS remains functional even when all its C-terminal transmembrane helices are trimmed off, which additionally complicates the picture of the interaction between dolichol and DPMS [28
Likewise, site-directed mutagenesis of the putative dolichol binding sequence at the C-terminus of S. cerevisiae
DPMS indicated that the amino acid sequence of the conserved domain was not critically important for Dol-P binding when the enzyme was embedded in a lipid matrix [22
On the other hand, studies by Zhou and Troy [13
] on peptides containing polyisoprenoid recognition sequence (PIRS) identified in Dpm1p and Alg7p from yeast confirmed the docking of Dol-P to PIRS and alteration of the conformation and motional properties of both partners in the complex altered by the phospholipid surrounding of Dol-P and DPMS in the membrane. Zhou and Troy [13
] have reported that incorporation of dolichol or Dol-P into membranes disturbs the phospholipid bilayer in the surrounding region. It is reasonable to expect that a reciprocal influence would also take place, i.e., that the properties of the lipid bilayer would affect the behavior of dolichol and hence also its interaction with a membrane-bound enzyme. Moreover, this effect should depend on the dolichol structure (chain length and the presence or not of extra saturated bonds). Thus, the different phospholipid composition of membranes in yeast and Trichoderma
combined with the different structure of their dolichols could affect the functioning of dolichol-dependent enzymes in a markedly different manner. However, when comparing the activity of DPMS from yeast (ScDPMS) and Trichoderma
(TrDPMS1,3) located in the same yeast membranes, it can be concluded that the structure of dolichols plays a key role in regulating their activity.
It has been reported that PC is the most abundant phospholipid in S. cerevisiae
and A. niger
]. Our analysis of membranes from S. cerevisiae
and filamentous fungi showed the dominance of PC and PE in all species albeit the PC/PE ratio was much higher in filamentous fungi than in yeast. Since PC stabilizes the phospholipid bilayer while PE is strongly destabilizing [30
], the high PC/PE ratio in filamentous fungi indicates that their membranes should be more ordered than the yeast ones. On the other hand, sterols have been considered as membrane reinforces because they induce a molecular order of membranes [42
] and yeast membranes contain slightly (22%) more ergosterol compared to Trichoderma
The stability and fluidity of the phospholipid bilayer is affected by other membranes components, including dolichols. DSC is a useful technique for studying perturbations induced in membranes by diverse compounds. Homogenous phospholipid bilayers exhibit a defined thermal behavior characterized by their calorimetric profile and phase transition temperature, which can be strongly modified when the composition of the bilayers is altered. The changes of these parameters reflect the changes in membrane structure and properties. Our DSC studies showed that the effect of dolichols on the phase behavior of model membranes depends not only on the dolichol structure but also on the phospholipid class. The latter is in line with the results published by [44
]. In particular, we found that yeast-type dolichols were unable to perturb PC bilayers but destabilized PE membranes, which has also been reported by [45
]. On the other hand, dolichols from Trichoderma
significantly altered the thermotropic behavior of both PC and PE membranes as gauged by their phase transition enthalpy and cooperativity. However, the temperature of the gel-to-liquid-crystalline phase transition was affected by TrDols only slightly in the case of PE and not at all for PC. These results aid in answering the question of whether the poly-saturated nature of the dolichols from T. reesei
is of any importance for membrane stability. It is commonly accepted that the rigidity of a molecule is important for its ability to modify the physical properties of membranes. Thus, comparative studies of β-carotene and its fully saturated derivative, perhydro-β-carotene, show that due to the absence of the conjugated double bond system, and therefore higher flexibility of the latter molecule, it has lost the potential to perturb the membrane structure [46
]. Flexible molecules apparently can adopt such conformations in the membrane which do not disturb the regular arrangement of the lipid bilayer molecules, thus their effect on the membrane properties is negligible. However, this is likely to be true only up to a certain dose of the “intruder” molecules. One should also note that the saturated bonds in TrDols are most likely located at the ω-end while in the remaining part of the Dol chain, except for the α-residue, the typical polyprenoid arrangement of double bonds remains intact. Such distribution produces different flexibility of the two segments of TrDol molecules.
To further study the effects of dolichols on lipid bilayer fluidity we determined the packing and ordering of the phospholipid bilayers. Most important was a considerable fluidization of both types of model membranes (PC and PE) below their respective transition temperatures, i.e., when they were in the gel phase, by both types of dolichols. This effect was slightly stronger for TrDols compared to ScDols at low doses and markedly stronger for ScDols at higher doses, indicating a rather complex dependence on dolichol structure.
It is worth repeating here that membrane fluidity profoundly affects the functioning of membrane-associated biomolecules, including enzymes. Thus, dolichols of different structure can have considerably different modulatory action on diverse membrane-dependent processes.
4. Materials and Methods
For the isolation and analysis of dolichols, HPLC or p.a. grade organic solvents from POCh were used (Gliwice, Poland), chromatographic columns and TLC plates were from Merck (Darmstadt, Germany), and other chemicals were of p.a. quality and were purchased from Sigma-Aldrich Chemie GmbH (Steinheim, Germany).
For determination of phospholipids, the following standards from Avanti Polar Lipids (Alabaster, AL, USA) were used: 1,2-dimyristoyl-sn-glycero-3-phospho-rac-(1-glycerol) sodium salt (14:0/14:0 phosphatidylglycerol (PG)); 1,2-dilauroyl-sn-glycero-3-phosphoethanolamine (12:0/12:0 phosphatidylethanolamine (PE)); 1,2-dimyristoyl-sn-glycero-3-phosphocholine (14:0/14:0 phosphatidylcholine (PC)); 1,2-dipalmitoyl-sn-glycero-3-phospho-(1′-myo-inositol) ammonium salt (16:0 phosphatidylinositol (PI)); 1,2-dimyristoyl-sn-glycero-3-phospho-l-serine sodium salt (14:0/14:0 phosphatidylserine (PS)), 1′,3′-bis[1–dimyristoyl-sn-glycero-3-phospho]-sn-glycerol ammonium salt (14:0 cardiolipin) and 1,2-dimyristoyl-sn-glycero-3-phosphate sodium salt (14:0/14:0 phosphatidic acid (PA)). Standards of polyisoprenoids were from the Collection of Polyprenols, Institute of Biochemistry and Biophysics, PAS, (IBB PAS) Warsaw. Butylated hydroxytoluene (BHT) was from Sigma-Aldrich. All other chemicals were from Avantor Performance Materials (Gliwice, Poland).
4.2. Strains and Growth Conditions
QM9414, Aspergillus niger
and Neurospora crassa
were cultivated in PDB medium (Potato Dextrose Broth), and Saccharomyces cerevisiae
wild-type strain and dpm1dr∆/dpm1,3Tr
mutant were cultivated in YPD (1% yeast extract, 1% Bacto-peptone, 2% glucose). The S. cerevisiae dpm1dr∆/dpm1,3Tr
, carries dpm1Tr
gene from Trichoderma
cloned into the p415 GPD LEU plasmid under the GPD
(glyceraldehyde-3-phosphate dehydrogenase) promoter and the CYC1
(cytochrome-c-oxidase) terminator [27
]. The dpm3Tr
gene was cloned into the pESC-URA vector (Stratagene) under the GAL10
(UDP glucose 4-epimerase) promoter in cloning sites 2.
All strains were cultivated at 30 °C on a rotary shaker (250 r.p.m.) in 2 L shake flasks containing 1 L of appropriate medium.
4.3. Extraction and Purification of Polyisoprenoids
The mycelium was harvested by filtration, suspended in 60% KOH with 0.25% pyrogallol and hydrolyzed at 100 °C for 1 h. Lipophylic products were extracted with diethyl ether and evaporated to dryness, then dissolved in hexane and applied onto a silica gel column equilibrated with hexane. The column was washed with 3% diethyl ether in hexane. The polyisoprenoid fraction was eluted with 10% and 20% hexane in diethyl ether, the two eluates were pooled, evaporated to dryness, dissolved in isopropanol and subjected to HPLC/UV analysis as described earlier [48
], with modifications. Briefly, a linear gradient of methanol: water (9:1, v
) to methanol: isopropanol: hexane (2:1:1, v
/v) was used for elution. Fractions containing polyisoprenoids were collected (based on comparison of their retention times with those of yeast dolichols used as external standards) and their structure was analyzed (see below). For quantitative analysis Dol13
was added to the mycelium as an internal standard before hydrolysis. Polyprenol and dolichol standards were from the Collection of Polyprenols (IBB PAS).
4.4. Structural Analysis of Dolichols Isolated from S. cerevisiae and Filamentous Fungi
Polyisoprenoids were isolated from fungal cells as described above and subjected to structural analysis with the aid of LC-ESI-QTOF-MS, as described earlier [49
Briefly, the analysis was performed on an ACQUITY UPLC I-Class Ultra-Performance Liquid Chromatograph (Waters) coupled with the MALDISynapt G2-S HDMS mass spectrometer (Waters) equipped with an electrospray ion source and quadrupole time of flight-type mass analyzer.
The polyisoprenoids were injected in a mixture of methanol: chloroform (1:1, v/v). The liquid chromatography-MS analysis was carried out at a flow rate of 0.4 mL min−1.
4.5. Phosphorylation of Dolichols Isolated from T. reesei and S. cerevisiae
Dolichols isolated from T. reesei
and S. cerevisiae
were phosphorylated using a standard method [50
]. Purified dolichyl phosphates were dissolved in a mixture of chloroform: methanol (2:1, v
) and stored at −20 °C until use.
4.6. Membrane Preparation
Mycelium was harvested by filtration, washed with water and suspended in 50 mM Tris-HCl, pH 7.4, containing 15 mM MgCl2 and 9 mM β-mercaptoethanol. S.cerevisiae was cultured in YPD medium to OD600 = 1, harvested by centrifugation and resuspended in the above buffer.
Cells were homogenized in a beadbeater with 0.5 mm glass beads and the homogenate was centrifuged at 5000× g
for 10 min to remove cell debris and unbroken cells. The supernatant was then centrifuged at 100,000× g
for 1 h. The membrane pellet was homogenized in 50 mM Tris-HCl, pH 7.4, containing 3.5 mM MgCl2
and 6 mM β-mercaptoethanol, and used as the source of enzymes. The whole procedure was performed at 4 °C [51
4.7. Protein Assay
Protein concentration was determined in alkaline cooper solution using Folin Phenol reagent according to Lowry et al. [52
4.8. Dolichyl Phosphate Mannose Synthase Activity
DPMS activity was assayed in the membrane fraction by incubation for 5 min at 30°C of 100 µg of membrane protein in a total volume of 50 µL containing 8 × 104
C]mannose (sp. act. 55 Ci/mol, American Radiolabeled Chemicals, Inc., Saint Louis, MO, USA) and different quantities of dolichyl phosphate (Dol-P) in 40 mM Tris/HCl buffer, pH 7.4 with, 10 mM MgCl2
and 0.1% Nonidet P-40 [25
]. The reaction was stopped by addition of 4 mL of chloroform: methanol (3:2, v
). Radioactive dolichyl phosphate mannose was measured in the organic phase in a scintillation counter.
4.9. Phylogenetic Tree and 3D Model of DPMS
For phylogeny reconstruction, Dpm1, Dpm2 and Dpm3 sequences from representative fungal genomes were collected from FungiDB [54
]. Sequences were aligned using Mafft [55
] and phylogenetic tree was built using PhyML [56
]. Distant homology searches were performed using Meta-BASIC [57
]. 3D models were built using Modeller [58
] with manually curated sequence-to-structure alignment taking into account the conservation of functionally essential residues and structural features. Structure visualization was carried out with Pymol (pymol.org
4.10. Determination of Phospholipids
Fungal phospholipids were extracted according to the method of Folch et al. [59
], with some modifications. Briefly, fungal biomass was separated from medium by centrifugation (5000× g
) and disintegrated with 5 mL of methanol: chloroform (1:2, v
), 0.05 % BHT and 0.1 mm glass beads on a Mixer Mill MM400 (Retsch, Haan, Germany). The homogenate was supplemented with 5 mL of the above solvent, vortexed for 4 min and centrifuged (6,000× g
, 2 min). The supernatant was transferred to another Falcon tube. To facilitate the separation of two layers, supernatant was mixed with 2 mL 0.9% NaCl and centrifuged. The lower layer was collected and evaporated under reduced pressure.
The obtained phospholipids were dissolved in 1 mL of methanol: chloroform (4:1, v/v). The polar lipids were separated and identified using an Agilent 1200 HPLC system (Santa Clara, CA, USA) and a 4500 Q-TRAP mass spectrometer (Sciex, Framingham, MA, USA) equipped with an ESI source. For this, 10 μL of phospholipid extract was injected onto a Kinetex C8 column (150 mm × 2.1 mm, particle size: 5 μm; Phenomenex, Torrance, CA, USA) heated at 40 °C, with the flow rate of 500 µL·min−1. Water (A) and methanol (B) were applied as a mobile phase, both containing 5 mM ammonium formate. The solvent profile was 70% B for 15 s, increased to 95% B over 1 min and maintained at 95% B for 17 min, then returned to 70% B over 3 min. The following MS settings were applied: spray voltage—4500 V, curtain gas 25, nebulizer gas 60, auxiliary gas 50, and ion source temperature 600 °C. The data analysis was conducted with Analyst™ v1.6.2 software (Sciex, Framingham, MA, USA).
The phospholipids were identified according to the methods described earlier [29
]. Then, using a phospholipid standard for each phospholipid class the quantity of a given phospholipid species from each class was calculated.
4.11. Determination of Ergosterol
Ergosterol was extracted according to Bernat et al [29
] with some modifications. Fungal biomass was lyophilized and homogenized in methanol: chloroform 2:1, v
) using a ball mill (FastPrep-24, MP-Biomedicals, Santa Ana, CA, USA). Organic phase was washed with water, evaporated and dissolved in methanol: chloroform (4:1, v
). Ergosterol was measured using an Agilent 1200 HPLC system as above for phospholipids determination.
4.12. Differential Scanning Calorimetry (DSC) Analysis
Appropriate amounts of phospholipid in chloroform (HPLC grade) and polyprenols dissolved in n-hexane were mixed in a glass test tube. The organic solvent was gently evaporated to dryness under a stream of nitrogen until a thin film was formed on the test tube wall. The film was hydrated with distilled water and multilamellar liposomes (MLV) were formed by vortexing the sample for 10 min at a temperature above the main phase transition temperature (Tm) of pure phospholipid, i.e., for 1,2-dipalmitoyl-sn-glycero-3-phosphatidylcholine (16:0/16:0 phosphatidylcholine (DPPC)) the temperature was 50 °C, and for 1,2-dimyristoyl-sn-glycero-3-phosphatidylethanolamine (14:0/14:0 phosphatidylethanolamine (DMPE)) 70 °C, and sonicated. The final DPPC and DMPE concentration in the MLV was 1 mM and the polyprenol content ranged from 1 to 50 mol%. Differential scanning colorimetry of the MLV was performed using a NANO DSC Series III System with a platinum capillary cell (TA Instruments, New Castle, DE, USA) with an active volume of 300 μL. To avoid bubble formation, the samples were degassed at 30.4–50.7 kPa for 15 min then placed in the sample cell; distilled water was used as a reference. The cells were sealed and thermally equilibrated for 10 min at the starting temperature. Sample pressure was 0.3 MPa. Heating/cooling rates were 1 °C·min−1 and the scans were recorded in the temperature range of 20–60 °C for DPPC and 30–70 °C for DMPE. The accuracy of temperature determination was ±0.1 °C. Heating scans were carried out first. The reference scan was subtracted from sample scans. Transition temperatures were calculated using the software package supplied by TA Instruments. The measurements were performed in triplicate.
4.13. Fluorescence Anisotropy of DPH
The hydrophobic fluorescent probe l,6-diphenyl-l,3,5-hexatriene (DPH) (Sigma-Aldrich) was incorporated into small unilamellar vesicles (SUVs) formed from DPPC or egg yolk lecithin (EYPC), type V-E, containing various proportions of dolichols. The SUVs were prepared according to the injection method [60
]. Briefly, solutions of phospholipid, polyprenol and DPH were mixed and the solvent was evaporated under nitrogen. The dry residue was dissolved in a small volume of ethanol and slowly injected into water with continuous stirring at a temperature above that of the main phase transition of the lipid. The final phospholipid concentration was 0.5 mM, the phospholipid/DPH ratio 1:1000, and the polyprenol content varied between 1 and 30 mol%. The experiments were carried out at 20 °C for EYPC and at 20 °C and 50 °C for DPPC. Fluorescence anisotropy measurements were performed using a FluoroMax-P spectrofluorometer (Horiba Scientific, Besheim, Germany) equipped with a thermostated cuvette holder and stirrer. Excitation and emission were at 360 nm and 450 nm, respectively. The anisotropy value (r) was calculated from the equation:
are the parallel and perpendicular components of DPH emission with respect to the direction of the polarized excitation, and G is the instrument correction factor which compensates for the slightly unequal horizontal and vertical excitation intensities. The measurements were performed in triplicate for independently prepared samples.
