A Novel Splice-Site Mutation in VEGFC Is Associated with Congenital Primary Lymphoedema of Gordon

by
Noeline Nadarajah
1,†,
Dörte Schulte
2,3,†,
Vivienne McConnell
4,
Silvia Martin-Almedina
1,
Christina Karapouliou
1,
Peter S. Mortimer
1,
Steve Jeffery
1,
Stefan Schulte-Merker
2,3,
Kristiana Gordon
1,
Sahar Mansour
1,5 and
Pia Ostergaard
1,*
1
Molecular and Clinical Sciences Institute, St George’s University of London, London SW17 0RE, UK
2
Institute of Cardiovascular Organogenesis and Regeneration, Faculty of Medicine, WWU Münster, 48149 Münster, Germany
3
CiM Cluster of Excellence (EXC1003 CiM), University of Münster, 48149 Münster, Germany
4
Northern Ireland Regional Genetics Service, Belfast City Hospital, Belfast Health and Social Care Trust, Belfast BT9 7AB, UK
5
South West Thames Regional Genetics Unit, St George’s University Hospitals, London SW17 0RE, UK
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2018, 19(8), 2259; https://doi.org/10.3390/ijms19082259
Submission received: 5 July 2018 / Revised: 26 July 2018 / Accepted: 27 July 2018 / Published: 1 August 2018
(This article belongs to the Special Issue Vascular Endothelial Cells)
Browse Figures
Versions Notes

Abstract

:
Lymphedema is characterized by chronic swelling of any body part caused by malfunctioning or obstruction in the lymphatic system. Primary lymphedema is often considered genetic in origin. VEGFC, which is a gene encoding the ligand for the vascular endothelial growth factor receptor 3 (VEGFR3/FLT4) and important for lymph vessel development during lymphangiogenesis, has been associated with a specific subtype of primary lymphedema. Through Sanger sequencing of a proband with bilateral congenital pedal edema resembling Milroy disease, we identified a novel mutation (NM_005429.2; c.361+5G>A) in VEGFC. The mutation induced skipping of exon 2 of VEGFC resulting in a frameshift and the introduction of a premature stop codon (p.Ala50ValfsTer18). The mutation leads to a loss of the entire VEGF-homology domain and the C-terminus. Expression of this Vegfc variant in the zebrafish floorplate showed that the splice-site variant significantly reduces the biological activity of the protein. Our findings confirm that the splice-site variant, c.361+5G>A, causes the primary lymphedema phenotype in the proband. We examine the mutations and clinical phenotypes of the previously reported cases to review the current knowledge in this area.

1. Introduction

Primary Lymphedema causes chronic swelling due to dysfunction within the lymphatic system. Clinical phenotyping and gene discovery has led to the development of a classification and diagnostic algorithm [1]. A congenital form of primary lymphedema represented in the algorithm is Milroy disease (also referred to as “Lymphedema, hereditary, IA”; [MIM 153100]). Milroy disease usually presents with bilateral lower limb swelling at birth. The edema is typically painless and confined to the dorsum of the foot but can extend further up the lower limb to the knees [2]. Milroy disease is an autosomal dominant condition and approximately 70% of cases are caused by mutations in VEGFR3 (FLT4) with variable penetrance [3].
VEGFR3 codes for the Vascular Endothelial Growth Factor Receptor 3, which is a tyrosine kinase-linked receptor. The Vascular Endothelial Growth Factor C (VEGFC) is the main ligand for VEGFR3 and the VEGFC/VEGFR3 signaling axis is crucial for lymphatic vascular development [4,5]. Recently, a study identified a VEGFC mutation in seven individuals from a three-generation family presenting with congenital lower limb lymphedema consistent with autosomal dominant inheritance [6]. This finding has been followed by two further reports of 13 individuals from three families with a similar phenotype [7,8]. These are the only reports of patients with mutations in VEGFC (Lymphedema, hereditary, ID, [MIM 615907] or congenital primary lymphedema of Gordon).
The pathogenic variants previously reported are a two-base pair insertion (c.571_572insTT) and a stop-gain mutation (c.C628T), which both reside in exon 4 of VEGFC as well as a splice-variant (c.148-3_148-2delCA) and a synonymous variant (c.552G>A) both causing exon skipping. All reported mutations are predicted to form a truncated protein, which is deemed to be dysfunctional. Functional studies in zebrafish showed that the VEGFC frameshift mutation (c.571_572insTT) observed in the first published family causes a loss-of-function phenotype, which suggests that the disease mechanism is haplo-insufficiency [6]).
VEGFC is synthesized as an inactive precursor molecule and activated by proteolytical processing, sequentially cleaving the N-terminal and C-terminal propeptides from the VEGF homology domain (VHD). The C-terminus of VEGFC is cleaved off by Furin [9] while the N-terminus can be removed by plasmin [10] or A disintegrin and metalloproteinase with thrombospondin motifs 3 (ADAMTS3) [11]. Proteolytic processing increases the affinity of VEGFC for VEGFR3 [12] and the extracellular matrix [13]. When fully processed, VEGFC is able to efficiently bind to VEGFR2 and VEGFR3 and activate both signaling pathways. It, therefore, has lymphangiogenic and angiogenic potential [12]. The processing of VEGFC by ADAMTS3 needs to be activated by Collagen and calcium-binding EGF domain-containing protein 1 (CCBE1) [11,14,15]. A depletion of ADAMTS3 or CCBE1 both in zebrafish and mice leads to a lack of lymphatic vessels [16,17,18].
In this paper, we report on a family with primary, congenital lymphedema where no variants were found in VEGFR3. As the proband presented with a congenital form of lymphedema resembling that reported by Gordon et al. [6], DNA from the proband was subjected to a VEGFC screen and a splice-site variant (c.361+5G>A) was identified. To investigate the likely pathogenicity of this donor splice-site mutation, further investigations were carried out. Using the same zebrafish assay described previously [6], we demonstrate that the splice-variant identified in the proband leads to reduced VEGFC activity. Our experiments demonstrate that mutant VEGFC does not interfere with wild type VEGFC in a dominant negative manner, which confirms haplo-insufficiency as the disease mechanism.

2. Results

2.1. Clinical Report

The proband was born by elective caesarean section at 39 weeks with a birth weight of 3880 g (75th–91st centile) after an uneventful pregnancy. Postnatally, the proband was noted to have significant bilateral pedal edema extending to the lower tibia and was more pronounced on the right (Figure 1A). She was also noted to have bilateral mild edema of the dorsi of both hands (Figure 1B). At six months, her height was on the 25th to the 50th percentile, weight of 50th to 75th percentile and OFC (occipital frontal circumference) >9th percentile. She had subtle dysmorphism with a round face, high forehead, short neck, hypertelorism, depressed nasal bridge, mild bilateral ear dysplasia, and a right pre-auricular sinus (Figure 1C,D). There was normal development, no learning difficulties, and general health was satisfactory. She was the younger of two children born to non-consanguineous parents with a history of two previous miscarriages at five and nine weeks. Her three-year-old brother had no swelling.
At two years and 10 months, her height was in the 91st percentile, weight in the 25th to 50th percentile and OFC > 9th. There was persistent bilateral pitting edema in both feet, which extended into the lower leg on the right (Figure 1E,F). The swelling of both hands had spontaneously resolved. Her facial features still showed subtle dysmorphism with slightly low, posterior rotated ears (Figure 1G,H).
At four years and 8 months, her height was in the 25th to 50th percentile, weight in the 25th to 50th percentile and OFC > 9th. There was bilateral pitting edema in both feet and the right lower leg (Figure 1I–K) with mildly dysplastic and upslanting toenails (due to edema of the nail bed). There was no obvious facial or body asymmetry, vascular malformations, or distichiasis. She still had subtle dysmorphism with a high forehead and slightly low, posterior rotated ears (Figure 1L).
Initially a soft cardiac murmur was identified on auscultation, but subsequently an echocardiogram was reported as normal. The pelvic and renal ultrasound showed no abnormalities. Karyotype was 46,XX with no evidence of mosaicism. The array CGH (comparative genomic hybridization) was normal.
Lymphoscintigraphy performed at four years and eight months showed no uptake of tracer by the lymphatic vessels of the right lower limb and consequently no uptake within the right-sided ilio-inguinal lymph nodes, which indicated a functional aplasia (Figure 1M). The vessels in the left leg appeared tortuous in nature and were different to those seen in healthy controls and Milroy disease cases (Figure 1N,O).
The mother was a 35-year-old female with no previous medical history. However, clinically, there was evidence of varicose eczema, superficial veins, and subtle lymphedema on the medial aspects of lower legs and ankles. The patient reported that the onset was in adolescence (Figure 1P). She underwent investigation with lower limb lymphoscintigraphy, which confirmed abnormal lymphatic drainage with tortuous main lymphatic tracts.
The maternal grandfather was a 65-year-old male with a history of triple coronary artery bypass (CABG) surgery at 61 years. He had type 2 diabetes mellitus, hypothyroidism, and Perthes disease of the right hip diagnosed at five years of age, which did not require surgery. The examination revealed evidence of bilateral lower limb varicose veins, which is more obvious on the right. Subtle lower limb lymphedema was present, which is more apparent in the left lower leg (Figure 1Q) and had evidence of a surgical scar related to vein harvesting for the CABG surgery. There were bilateral venous flares around the ankles. He underwent an investigation with lower limb lymphoscintigraphy, which demonstrated abnormal lymphatic drainage. Tortuous lymphatic tracts were seen in the below-knee regions as well as an area of superficial re-routing of the tracer in the right lower leg.
The deceased maternal great-grandfather had a reported history of coronary bypass in his 70s as well as prominent veins and swelling in the lower legs.
There was no reported family history of hydroceles (fluid within the testicular sac).

2.2. Molecular Genetics Identifies a Mutation in VEGFC

The proband had previously been screened for mutations in VEGFR3 (exons 17–26, covering the tyrosine kinase domain) and found to be negative. DNA from the proband was then sequenced for variants in VEGFC. A heterozygous c.361+5G>A (g.177650682C>T, [transcript NM_005429.2]) variant was identified in the intronic region downstream of exon 2 of the proband (IV:1). The same variant was identified in the mother (III:1) and the maternal grandfather of the proband (II:2) (Figure 2A). Mutation Taster suggested that this variant could be pathogenic with an effect on splicing. Human Splicing Finder reported that the variant could cause an alteration of the donor splice site in intron 2.
To analyze the consequence of the c.361+5G>A mutation, the cDNA of the proband and her mother was amplified using primers specific for VEGFC. Two bands were identified in the gel representing the product of wild type mRNA (489 bp) and the product of mutant mRNA (275 bp). The 214 bp loss in the mutant band suggested skipping exon 2 in the mutant form. Sequencing of the wild type and mutant bands extracted from the agarose gel confirmed that exon 2 is spliced out during the transcription of the mutant allele of the proband and her mother (Figure 2B,C). The verified mRNA change (r.148_361del) is likely to cause the production of a premature stop codon, which is suggested to result in a truncated protein described as p.Ala50ValfsTer18. Therefore, the resultant protein is predicted to consist of only part of the N-terminal propeptide, with a complete loss of the VEGF homology domain and the C-terminal propeptide (Figure 2D). The variant is available in the Leiden Open Variation Database (http://databases.lovd.nl/shared/genes/VEGFC) with the variant accession ID: 195638.

2.3. Vegfc Variant Fails to Promote Vessel Sprouting in Zebrafish

To analyze the effect of the c.361+5G>A mutation in vivo, we overexpressed Vegfc in the floorplate of zebrafish. In zebrafish, Vegfc/Vegfr3 signaling is crucial for lymphovenous sprouting and the development of the lymphatic system [19,20,21]. The donor splice site of intron 2–3 between zebrafish and human is conserved (Figure 3A). Zebrafish vegfc c.325+5G is equivalent to human VEGFC c.361+5G. In the in vivo assay, we overexpressed zebrafish vegfc cDNA including intron 2–3 (vegfc-intron2–3) together with tagRFP to monitor expression of the transgene (Figure 3B). In this assay, we would expect the wild type (wt) to stimulate excessive vessel sprouting while a mutation which has an effect on protein function, reduces or inhibits vessel sprouting [6]. In our experiment, the expression of vegfc-intron2–3 wt led to excessive vessel sprouting while expression of the mutant vegfc-intron2–3 c.325+5G>A had no effect on the vasculature (Figure 3C,D). Therefore, the mutation significantly reduces, or possibly removes, the biological activity of the protein.

2.4. Vegfc Splice Variant Leads to Production of a Truncated Protein

To analyze the effect of the mutation on the Vegfc protein, we analyzed the splicing of the cDNA of vegfc including intron 2–3 in comparison with the vegfc variant c.325+5G>A. To this end, we used primers binding in the 5′UTR of the ShhVegfc-intron2–3 IRES tagRFP transgene and in exon 3 of vegfc (Figure 4A). Zebrafish embryos expressing wt vegfc-intron 2–3 or vegfc-intron 2–3 c.325+G>A both express a band of 660 bp corresponding to non-spliced cDNA or integrated plasmid DNA (Figure 4B). The spliced cDNA of ShhVegfc-intron 2–3 is visible as a band of 440 bp in zebrafish embryos expressing ShhVegfc-intron 2–3 wt (Figure 4B). Zebrafish embryos expressing the vegfc-intron 2–3 c.325+5G>A variant show a band of slightly smaller size (387 bp) corresponding to a vegfc cDNA lacking 53 bp of exon 2 (Figure 4B), which is also evident from the sequencing of this cDNA (Figure 4C). This deletion leads to a frameshift mutation producing an additional amino acid (Y) followed by a stop codon in the Vegfc protein (Figure 4D). The resulting protein consists of only the first 91 amino acids of Vegfc with only part of the N-terminus of Vegfc but missing the VEGF homology domain and the C-terminus.

2.5. The Vegfc-intron 2–3 c.325+5G>A Variant Does Not Have Dominant Negative Activity

Next, we tested whether the mutant Vegfc variant has dominant negative activities. As such, we co-overexpressed vegfc-intron 2–3 c.325+5G>A and vegfc-intron 2–3 wt in the zebrafish floorplate. Expression of both transgenes in the same cell was assured using IRES tagRFP and IRES turquoise cassettes, respectively. An equal amount of hypersprouting could be observed between embryos expressing vegfc-intron 2–3 wt only and embryos co-expressing vegfc-intron 2–3 wt and the vegfc-intron 2–3 c.325+5G>A variant (Figure 4E,F). Therefore, we conclude that the vegfc-intron 2–3 c.325+5G>A variant does not result in a protein with dominant negative properties but most likely leads to a haplo-insufficient phenotype.

3. Discussion

Congenital primary lymphedema associated with VEGFC is a rare primary lymphedema with only three, previously reported studies [6,7,8]. In this study, we provide independent evidence that VEGFC mutations are causative of primary lymphedema of the type originally described by Gordon et al. [6]. In this non-consanguineous family with autosomal dominant inheritance (consistent with the inheritance pattern seen in similar cases), we have identified an unreported pathogenic VEGFC variant.
Congenital primary lymphedema of Gordon typically presents, like Milroy disease, with congenital, pedal lymphedema with prominent, wide caliber veins over the shins and on the dorsa of the feet. The patients have upslanting, dysplastic toenails and deep, interphalangeal creases of the toes. In this manuscript, we report on a proband who presented with a congenital form of lymphedema resembling that of Gordon et al. [6]. Albeit mild, the proband also had lymphedema of the dorsi of both hands post-natally, which is a little unusual. However, it did not require significant intervention and spontaneously resolved with time.
The extent of the lymphedema varies within the family with the mother of the proband being very mildly affected and the grandfather moderately affected. Of the 23 individuals (11 male and 12 female) from 5 families (including the family described here) reported to date, we see marked inter-familial and intra-familial variation (Table 1). For example, 17 of the 23 individuals (74%) have some forms of swelling in which most had bilateral below-knee lymphedema (n = 12) but some cases had isolated ankle and foot lymphedema (n = 5). There were also reports of reduced penetrance since six individuals carrying a VEGFC mutation had no clinical signs of primary lymphedema (n = 4) or reported occasional swelling (n = 2) of feet and ankles.
The lymphedema usually presents at birth but age of onset can vary. The majority of individuals (70%, nine of the 13 where the age of onset has been recorded) presented with congenital (<1 year) primary lymphedema. Of other clinical signs, 27% (3/11) of the males presented with hydrocele. The second most common finding after lymphedema in males with Milroy disease was hydrocele, which was reported in 37% of males [2]. They also reported prominent veins in 23% of individuals with Milroy disease. Not all the reports on VEGFC cases confirm the absence or presence of prominent veins but, in the nine individuals where a note has been made, five of those (55%) had such veins. There are too few reports on VEGFC cases yet to confirm whether prominent veins are a more common feature in congenital primary lymphedema of Gordon compared to Milroy disease.
The lymphoscintigraphy imaging of the proband and the grandfather showed unusual lymphatic tracts, which corresponded to the other lymphoscintigraphies reported for this condition (Table 1). Although the mother (III:1) and grandfather (II:2) presented with very mild clinical signs of lymphedema, reduced uptake of a tracer in the groin area was reported for both, which indicated that the clinical presentation does not always represent the physiological situation. This would suggest that mutation carriers who appear to have no clinical signs of lower limb swelling could still have a compromised lymphatic system. Of the 23 individuals reported in Table 1, nine have undergone lymphoscintigraphy imaging and, of those, one was reported as a VEGFC mutation carrier with no sign of lower limb lymphedema (Family 1, III:2) but had tortuous tracts on the lymph scan.
In summary, the cases with VEGFC mutations where lymphoscintigraphy has been performed all show some uptake in the groin at a reduced rate. The tracer is following tortuous tracts with rerouting around feet, ankles, and lower legs, which indicates that the tracer is not following the normal tracts to the groin area seen in healthy controls. This contrasts with the lymphoscintigrams seen in Milroy disease, which show no uptake within the main lymphatic tracts and groin area after 2 h. This suggests initial lymphatic vessel dysfunction. Therefore, lymphoscintigraphy could prove a useful tool to differentiate between the two primary lymphedema phenotypes.
We describe a novel splice-site mutation (c.361+5A>G) in VEGFC, which co-segregates with the disease phenotype in the family. We have shown that exon 2 was spliced out of the mRNA. This is predicted to cause a frameshift and premature truncation of the protein, which produces a polypeptide lacking the VEGF homology domain and the C-terminal domain. The results from our zebrafish study corroborate this finding since the effect of the mutation on zebrafish Vegfc is also predicted to encode a severely truncated protein.
The truncated VEGFC protein in this family has a proposed protein size of 69 amino acids, which is the smallest reported in patients with a similar phenotype. The previously reported variants are an indel, a stop-gain mutation and two variants causing defective splicing (Table 1). All four variants are predicted to result in a truncated protein (Figure 2D). According to ExAC, the number of loss of function variants compared to missense variants in VEGFC is very low and the tolerance to loss of function mutations is predicted to be very low (pLI = 0.12). This means that the resultant proteins in the five families are deemed non-functional.
Studies have shown that the loss of the C-terminal domain is detrimental to the cleavage of the peptide [13]. In addition, phosphorylation of the tyrosine kinase domain in VEGFR3 is dependent on the presence of the VEGFC VHD [12]. Therefore, the effect of the observed variant on splicing could be a direct cause of disease in the family presented in this study since the protein produced lacks the VHD and the C-terminal propeptide. The other four truncated proteins (Figure 2D) also lack a complete VHD, which is most likely going to affect the phosphorylation of VEGFR3. In addition, most of the mutant proteins also lack the C-terminal propeptide. Therefore, proper cleavage of VEGFC is also disrupted. This occurs if the protein is being secreted to the extracellular matrix where the cleavage takes place. The work of Gordon et al. showed that, although the truncated mutant protein c.571_572insTT is stable, it is not secreted efficiently [6]. Therefore, the VEGFR3 activity is affected and downstreamVEGFR3 signaling pathways are disrupted, which is expected to lead to a lymphatic phenotype if the effect is comparable to that of Milroy disease associated VEGFR3 mutations.
We showed previously that the reported mutation c.571_572insTT can disrupt the biological activity of the Vegfc protein [6]. Using a similar Vegfc induced sprouting assay in zebrafish, we have demonstrated that the c.361+5A>G splice-site variant reported in this manuscript also gives rise to a protein with very reduced or no biological activity. The lack of protein activity was represented by a lack of sprouting of lymphatic vessels in our assay. Inactivation of Vegfc in various animal models (mice, zebrafish, xenopus tadpoles) shows that lymphatic endothelial cells differentiate in the cardinal vein, but the Prospero homeobox protein 1 (PROX1) positive cells fail to bud off and migrate [5,21,22,23].
We wanted to determine whether the disease mechanism is dominant negative since it has been shown for VEGFR3 [4,24]. In this assay with the c.361+5A>G mutation, we could not detect dominant negative activity of the N-terminal propeptide of Vegfc. This corroborates the findings for the c.571_572insTT [6]. Mice null for Vegfc die [5,25], but heterozygous Vegfc mice and Chy3 mice (hemizygous for Vegfc) survive to adulthood but with edematous paws and dermal hypoplasia [5,26], which confirms haplo-insufficiency as the disease mechanism. Therefore, we conclude that the human patients are likely to present a haplo-insufficient phenotype.
As mentioned, haplo-insufficient Vegfc mice resemble Chy3 mice and both strains have edema of variable severity. Likewise, Chy mice, which have a heterozygous germline mutation (a p.Ile1053Phe substitution) in the Vegfr3 tyrosine kinase domain, show a similar phenotype [24]. Therefore, the three mouse models are very similar to the human phenotypes of the VEGFR3-associated Milroy disease and the VEGFC-associated congenital primary lymphedema of Gordon. Nevertheless, to date, only five different mutations in the VEGFC gene in patients with congenital primary lymphedema of Gordon have been identified while the number of identified mutations in the VEGFR3 gene in Milroy disease patients is much higher (58 different variants in 95 families as summarized by Gordon et al. [27]). Of these cases, patients with VEGFC mutations demonstrate impaired lymphatic drainage on lymphoscintigraphy imaging. However, lymphatic function is greater than that seen in patients with VEGFR3 mutations who demonstrate profound abnormalities with a functional aplasia of the lymphatic system. One possible explanation of a mild etiology of congenital primary lymphedema of Gordon is the possible compensation for the loss of VEGFC by other factors such as VEGFD since the mature form of human VEGFD binds both VEGFR2 and VEGFR3 [28,29]. This is entirely possible since it has been demonstrated that Vegfd can compensate for the loss of Vegfc in mouse [5,30] and zebrafish [31]. Overexpression of VEGFD in Vegfc heterozygous mice can rescue the lymphatic phenotype [30].
A combined deletion of both Vegfc and Vegfd in mice does not mirror the phenotype observed in mice deleted for Vegfr3, which suggests that other factors can activate VEGFR3 [30]. Ligand-independent VEGFR3 activation has been proposed in several studies [32,33,34]. Therefore, other unknown ligands or ligand-independent signaling via VEGFR3 or interaction of VEGFR3 with other factors may explain why mutations in VEGFC are responsible for a milder phenotype. Further studies are required to fully understand the biochemical interactions between the proteins in the VEGFR3/VEGFC signaling axis and their role in causing primary lymphedema.
In summary, most patients with Milroy disease have pathogenic variants in the VEGFR3 gene, but mutations in the ligand known as VEGFC can also give rise to a very similar disorder. Although rare, this should be investigated in any cases of Milroy disease screening negative for VEGFR3 mutations especially if the lymphoscintigraphy differs from that of Milroy disease. From a clinical perspective, the key message is that congenital primary lymphedema of Gordon presents in the same manner as Milroy disease. However, the degree of lymphatic impairment is milder. This is evidenced clinically with slightly less severe lower limb lymphedema and by the lymphoscintigraphies demonstrating significantly more uptake of tracers within lymphatic vessels compared to those in Milroy disease. With this report, it has also been shown that splice-site variants in VEGFC should be considered as a causative agent of disease, which corroborates the findings of Fastre et al. [8]. While only three previous studies have been published, it is clear that there is intra-familial variation in the age of onset and severity of lymphedema. When a child presents with congenital pedal lymphedema, very careful evaluation of the parents is recommended. Moreover, venous disease is a consistent feature in the affected individuals.
Future work should be conducted to further elucidate the interaction of VEGFC and VEGFR3 as well as to try and identify the reason for inter-familial and intra-familial variation in both Milroy disease and congenital primary lymphedema of Gordon.

4. Material and Methods

4.1. Patient Recruitment

A proband with congenital, bilateral pedal lymphedema with no identifiable mutations in VEGFR3 was selected for study. Ethical approval was given by the South West London Research Ethics Committee (REC Ref: 05/Q0803/257, 08/09/2006). Written informed consent was obtained from all participants. The proband and her family members underwent a detailed clinical examination.

4.2. Lymphoscintigraphy

Lymphoscintigraphy is the imaging of the lymphatic system by injecting radioactive isotope (technetium-99m) into the web spaces between the toes and/or fingers and imaging the uptake into the inguinal lymph nodes for foot injections after 30 min and 2–3 h.

4.3. PCR and Direct DNA Sequencing of the Human VEGFC Gene

DNA from the proband was analyzed for sequence variants in the VEGFC gene, which was previously described [3]. PCR products were sequenced using BigDye Terminator v3.1 chemistry (Life Technologies, Carlsbad, CA, USA) and an ABI3130xla Genetic Analyzer (Life Technologies). Sequencing traces were visually inspected in FinchTV v1.4 (Geospiza) and aligned with a reference sequence using CLC Sequence Viewer (CLC bio-Qiagen, Qiagen, Hilden, Germany). The identified variant was checked in dbSNP (www.ncbi.nlm.nih.gov/SNP/), 1000 Genomes Project (www.1000genomes.org), and gnomAD (www.gnomad.broadinstitute.org) for novelty. The variant was also analyzed in Mutation Taster [35] and Human Splicing Finder [36] for genetic effect. For co-segregation analysis, PCR and sequencing were carried out in the parents and maternal grandparents of the proband.

4.4. RNA/cDNA Analysis of the Splice Variant

Blood was collected from the proband and the mother of the proband using PAXgene blood RNA Tubes (PreAnalytix, Hombrechtikon, Switzerland). Total RNA was extracted using the PAXgene blood RNA Kit (PreAnalytix) and DNAse treatment performed to eliminate genomic DNA. cDNA was synthesized from the RNA with a SuperScript II Reverse Transcriptase using about 400 ng RNA and 50 ng random primers (Invitrogen, Carlsbad, CA, USA). Touchdown Hot Start PCR was carried out on the cDNA using primers which span exon 1 to exon 4 of VEGFC (NM_005429.2): 1aF 5′-GTCCTTCCACCATGCACTTG-3′ and 4aR 5′-GCTGGCAGGGAACGTCTAAT-3′. After the first PCR, a nested PCR was conducted using primers that span from exon 1 to exon 3: 13F 5′-CGTGTTCTCTGCTCGCCG-3′ and 13R 5′-CACTGCAGCCCCTCACTA-3′. The PCR products were run on a 1.5% Agarose gel (Geneflow A4-0700) and extracted from the gel with the Monarch DNA Gel Extraction Kit (New England BioLabs Inc., Ipswich, MA, USA). Sequencing was carried out as described above. The protein prediction tool Expasy (www.expasy.org) was used to confirm the effect of the splice-site variant on the protein sequence.

4.5. Cloning of the Zebrafish Vegc Expression Plasmids

Zebrafish vegfc-intron 2–3 was amplified from genomic DNA of TL zebrafish using primers zvegfc+int2–3for (5′GCAGTTGCGTTCAGCGGGTAGTGT3′) and zvegfc+int2–3rev (5′GCTGATGTATGAAGTGCTGATGTT3′) and cloned into the zebrafish vegfc cDNA sequence using StuI and SphI restriction enzymes. This leads to a construct comprising exons 1–2 followed by intron 2–3 and by exons 3–7 of vegfc (vegfc-intron 2–3 wt). The mutant vegfc-intron 2–3 c.325+5G>A variant was generated by amplifying the coding sequence of vegfc-intron 2–3 in a pCS2 vector, according to the QuikChange Site-Directed Mutagenesis protocol (Stratagene) using the primer pair 5′CTTTTGAAAAGTGAaTGACTATTAATTTAGAACCGCC3′ and 5′GGCGGTTCTAAATTAATAGTCAtTCACTTTTCAAAAG3′. An IRES site followed by tagRFP or mturquoise was introduced downstream of the vegfc-intron 2–3 and vegfc-intron 2–3 c.325+5G>A in pCS2. For expression of vegfc-intron 2–3 in the zebrafish floor plate, the vegfc-intron 2–3 cDNAs were each cloned into a plasmid containing the sonic hedgehog promoter and a floor plate specific enhancer (Ar-B) [37] flanked by MiniTol2 sites [38].

4.6. Zebrafish Sprouting Assay

All zebrafish strains were maintained at the University of Münster using standard husbandry conditions and following the guidelines of the animal ethics committee at the University of Münster, Germany. The transgenic reporter line Tg(flt4BAC:mCitrine)hu7135 marking blood and lymphatic endothelial cells and the transgenic reporter line Tg(flt1enh:tdTomato) were used in this study [39,40].
Ectopic overexpression of Vegfc in the zebrafish floorplate was driven by a sonic hedgehog promoter and a floorplate specific activator region [37]. Expression of Vegfc was monitored by simultaneous expression of tagRFP or mturquoise [6]. Plasmids encoding the vegfc-intron 2–3 cDNA or vegfc-intron 2–3 c.325+5G>A. The floorplate specific promoter and enhancer regions flanked by MiniTol2sites were co-injected at 25 ng/µL together with tol2 transposase mRNA (25 ng/µL) into zebrafish eggs at the 1–2 cell stage. Embryos were selected at 2 dpf for comparable expression of tagRFP or mturquoise and imaged at 48 or 56 hpf on a Leica SP8 confocal microscope. For quantification of vessel sprouting, black and white threshold images of an area of 150 × 250 microns around the tagRFP or mturquoise positive area were produced in order to quantify the sum of the YFP+ (Yellow Fluorescent Protein positive) area of all single z-planes using ImageJ (NIH, Bethesda, MD, USA). Data sets were tested for normality (Shapiro-Wilk) and equal variance. p-values were determined by a Student’s t-test. Values are presented as means ± standard error of mean values (SEM). *** p < 0.001.

4.7. Generation of cDNA from Zebrafish Embryos

RNA of zebrafish embryos was isolated at 56 hpf using the RNeasy Plus kit from Qiagen following the manufacturer’s instructions. Reverse transcription was performed using random hexamers and M-MULV (Promega, Madison, WI, USA). cDNA spanning the 5′ UTR of the Shh promoter plasmid to exon 3 of Vegfc was amplified using the primers 5′TTCCCCACATCTAAACAAACT3′ and 5′CCGCGCCTCGACAACGAGAAACCCTGCTA3′ and sequenced with the same primers using Sanger sequencing.

Author Contributions

Formal analysis, N.N., D.S., V.M., S.M.-A., C.K., S.S.-M., K.G., S.M., and P.O. Funding acquisition, P.S.M., S.J., S.S.-M., and P.O. Investigation, N.N., D.S., V.M., and S.M. Methodology, D.S. and S.S.-M. Project administration, P.O. Resources, V.M., P.S.M., S.J., S.S.-M., K.G., and S.M. Supervision, S.M.-A. and P.O. Validation, N.N., D.S., and K.G. Visualization, N.N., D.S., and C.K. Writing—original draft, N.N., D.S., V.M., S.M., and P.O. Writing—review & editing, S.M.-A., C.K., P.S.M., S.J., S.S.-M., and K.G.

Funding

This work was supported by the British Heart Foundation to S.M.-A. (SP/13/5/30288), K.G. (FS/11/40/28739), and C.K. (FS/15/39/31526).

Acknowledgment

We are thankful to the family members for participation in the study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Connell, F.C.; Gordon, K.; Brice, G.; Keeley, V.; Jeffery, S.; Mortimer, P.S.; Mansour, S.; Ostergaard, P. The classification and diagnostic algorithm for primary lymphatic dysplasia: An update from 2010 to include molecular findings. Clin. Genet. 2013, 84, 303–314. [Google Scholar] [CrossRef] [PubMed]
  2. Brice, G.; Child, A.H.; Evans, A.; Bell, R.; Mansour, S.; Burnand, K.; Sarfarazi, M.; Jeffery, S.; Mortimer, P. Milroy disease and the VEGFR-3 mutation phenotype. J. Med. Genet. 2005, 42, 98–102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Connell, F.C.; Ostergaard, P.; Carver, C.; Brice, G.; Williams, N.; Mansour, S.; Mortimer, P.S.; Jeffery, S.; Lymphoedema, C. Analysis of the coding regions of VEGFR3 and VEGFC in Milroy disease and other primary lymphoedemas. Hum. Genet. 2009, 124, 625–631. [Google Scholar] [CrossRef] [PubMed]
  4. Karkkainen, M.J.; Ferrell, R.E.; Lawrence, E.C.; Kimak, M.A.; Levinson, K.L.; McTigue, M.A.; Alitalo, K.; Finegold, D.N. Missense mutations interfere with VEGFR-3 signalling in primary lymphoedema. Nat. Genet. 2000, 25, 153–159. [Google Scholar] [CrossRef] [PubMed]
  5. Karkkainen, M.J.; Haiko, P.; Sainio, K.; Partanen, J.; Taipale, J.; Petrova, T.V.; Jeltsch, M.; Jackson, D.G.; Talikka, M.; Rauvala, H.; et al. Vascular endothelial growth factor C is required for sprouting of the first lymphatic vessels from embryonic veins. Nat. Immunol. 2004, 5, 74–80. [Google Scholar] [CrossRef] [PubMed]
  6. Gordon, K.; Schulte, D.; Brice, G.; Simpson, M.A.; Roukens, M.G.; van Impel, A.; Connell, F.; Kalidas, K.; Jeffery, S.; Mortimer, P.S.; et al. Mutation in Vascular Endothelial Growth Factor-C.; a Ligand for Vascular Endothelial Growth Factor Receptor-3, Is Associated With Autosomal Dominant Milroy-Like Primary Lymphedema. Circ. Res. 2013, 112, 956–960. [Google Scholar] [CrossRef] [PubMed]
  7. Balboa-Beltran, E.; Fernández-Seara, M.J.; Pérez-Muñuzuri, A.; Lago, R.; García-Magán, C.; Couce, M.L.; Sobrino, B.; Amigo, J.; Carracedo, A.; Barros, F. A novel stop mutation in the vascular endothelial growth factor-C gene (VEGFC) results in Milroy-like disease. J. Med. Genet. 2014, 51, 475–478. [Google Scholar] [CrossRef] [PubMed]
  8. Fastre, E.; Lanteigne, L.E.; Helaers, R.; Giacalone, G.; Revencu, N.; Dionyssiou, D.; Demiri, E.; Brouillard, P.; Vikkula, M. Splice-site mutations in VEGFC cause loss of function and Nonne-Milroy-like primary lymphedema. Clin. Genet. 2018, 94, 179–181. [Google Scholar] [CrossRef] [PubMed]
  9. Siegfried, G.; Basak, A.; Cromlish, J.A.; Benjannet, S.; Marcinkiewicz, J.; Chretien, M.; Seidah, N.G.; Khatib, A.M. The secretory proprotein convertases furin, PC5, and PC7 activate VEGF-C to induce tumorigenesis. J. Clin. Investig. 2003, 111, 1723–1732. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. McColl, B.K.; Baldwin, M.E.; Roufail, S.; Freeman, C.; Moritz, R.L.; Simpson, R.J.; Alitalo, K.; Stacker, S.A.; Achen, M.G. Plasmin activates the lymphangiogenic growth factors VEGF-C. and VEGF-D. J. Exp. Med. 2003, 198, 863–868. [Google Scholar] [CrossRef] [PubMed]
  11. Jeltsch, M.; Jha, S.K.; Tvorogov, D.; Anisimov, A.; Leppanen, V.-M.; Holopainen, T.; Kivela, R.; Ortega, S.; Karpanen, T.; Alitalo, K. CCBE1 Enhances Lymphangiogenesis via A Disintegrin and Metalloprotease with Thrombospondin Motifs-3-Mediated Vascular Endothelial Growth Factor-C Activation. Circulation 2014, 129, 1962–1971. [Google Scholar] [CrossRef] [PubMed]
  12. Joukov, V.; Sorsa, T.; Kumar, V.; Jeltsch, M.; Claesson-Welsh, L.; Cao, Y.; Saksela, O.; Kalkkinen, N.; Alitalo, K. Proteolytic processing regulates receptor specificity and activity of VEGF-C. EMBO J. 1997, 16, 3898–3911. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Jha, S.K.; Rauniyar, K.; Karpanen, T.; Leppanen, V.M.; Brouillard, P.; Vikkula, M.; Alitalo, K.; Jeltsch, M. Efficient activation of the lymphangiogenic growth factor VEGF-C requires the C-terminal domain of VEGF-C and the N-terminal domain of CCBE1. Sci. Rep. 2017, 7, 4916. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Le Guen, L.; Karpanen, T.; Schulte, D.; Harris, N.C.; Koltowska, K.; Roukens, G.; Bower, N.I.; van Impel, A.; Stacker, S.A.; Achen, M.G.; et al. Ccbe1 regulates Vegfc-mediated induction of Vegfr3 signaling during embryonic lymphangiogenesis. Development 2014, 141, 1239–1249. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Roukens, M.G.; Peterson, J.; Padberg, Y.; Jeltsch, M.; Leppanen, V.M.; Bos, F.L.; Alitalo, K.; Schulte-Merker, S.; Schulte, D. Functional Dissection of the CCBE1 Protein: A Crucial Requirement for the Collagen Repeat Domain. Circ. Res. 2015, 116, 1660–1669. [Google Scholar] [CrossRef] [PubMed]
  16. Bos, F.L.; Caunt, M.; Peterson-Maduro, J.; Planas-Paz, L.; Kowalski, J.; Karpanen, T.; van Impel, A.; Tong, R.; Ernst, J.A.; Korving, J.; et al. CCBE1 Is Essential for Mammalian Lymphatic Vascular Development and Enhances the Lymphangiogenic Effect of Vascular Endothelial Growth Factor-C In Vivo. Circ. Res. 2011. [Google Scholar] [CrossRef] [PubMed]
  17. Hogan, B.M.; Bos, F.L.; Bussmann, J.; Witte, M.; Chi, N.C.; Duckers, H.J.; Schulte-Merker, S. Ccbe1 is required for embryonic lymphangiogenesis and venous sprouting. Nat. Genet. 2009, 41, 396–398. [Google Scholar] [CrossRef] [PubMed]
  18. Janssen, L.; Dupont, L.; Bekhouche, M.; Noel, A.; Leduc, C.; Voz, M.; Peers, B.; Cataldo, D.; Apte, S.S.; Dubail, J.; et al. ADAMTS3 activity is mandatory for embryonic lymphangiogenesis and regulates placental angiogenesis. Angiogenesis 2016, 19, 53–65. [Google Scholar] [CrossRef] [PubMed]
  19. Hogan, B.M.; Herpers, R.; Witte, M.; Helotera, H.; Alitalo, K.; Duckers, H.J.; Schulte-Merker, S. Vegfc/Flt4 signalling is suppressed by Dll4 in developing zebrafish intersegmental arteries. Development 2009, 136, 4001–4009. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Hogan, B.M.; Schulte-Merker, S. How to Plumb a Pisces: Understanding Vascular Development and Disease Using Zebrafish Embryos. Dev. Cell 2017, 42, 567–583. [Google Scholar] [CrossRef] [PubMed]
  21. Kuchler, A.M.; Gjini, E.; Peterson-Maduro, J.; Cancilla, B.; Wolburg, H.; Schulte-Merker, S. Development of the zebrafish lymphatic system requires VEGFC signaling. Curr. Biol. 2006, 16, 1244–1248. [Google Scholar] [CrossRef] [PubMed]
  22. Ny, A.; Koch, M.; Schneider, M.; Neven, E.; Tong, R.T.; Maity, S.; Fischer, C.; Plaisance, S.; Lambrechts, D.; Heligon, C.; et al. A genetic Xenopus laevis tadpole model to study lymphangiogenesis. Nat. Med. 2005, 11, 998–1004. [Google Scholar] [CrossRef] [PubMed]
  23. Yaniv, K.; Isogai, S.; Castranova, D.; Dye, L.; Hitomi, J.; Weinstein, B.M. Live imaging of lymphatic development in the zebrafish. Nat. Med. 2006, 12, 711–716. [Google Scholar] [CrossRef] [PubMed]
  24. Karkkainen, M.J.; Saaristo, A.; Jussila, L.; Karila, K.A.; Lawrence, E.C.; Pajusola, K.; Bueler, H.; Eichmann, A.; Kauppinen, R.; Kettunen, M.I.; et al. A model for gene therapy of human hereditary lymphedema. Proc. Natl. Acad. Sci. USA 2001, 98, 12677–12682. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Hagerling, R.; Pollmann, C.; Andreas, M.; Schmidt, C.; Nurmi, H.; Adams, R.H.; Alitalo, K.; Andresen, V.; Schulte-Merker, S.; Kiefer, F. A novel multistep mechanism for initial lymphangiogenesis in mouse embryos based on ultramicroscopy. EMBO J. 2013, 32, 629–644. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Dellinger, M.T.; Hunter, R.J.; Bernas, M.J.; Witte, M.H.; Erickson, R.P. Chy-3 mice are Vegfc haploeinsufficient and exhibit defective dermal superficial to deep lymphatic transition and dermal lymphatic hypoplasia. Dev. Dyn. 2007, 236, 2346–2355. [Google Scholar] [CrossRef] [PubMed]
  27. Gordon, K.; Spiden, S.L.; Connell, F.C.; Brice, G.; Cottrell, S.; Short, J.; Taylor, R.; Jeffery, S.; Mortimer, P.S.; Mansour, S.; et al. FLT4/VEGFR3 and Milroy disease: Novel mutations, a review of published variants and database update. Hum. Mutat. 2012, 34, 23–31. [Google Scholar] [CrossRef] [PubMed]
  28. Achen, M.G.; Jeltsch, M.; Kukk, E.; Makinen, T.; Vitali, A.; Wilks, A.F.; Alitalo, K.; Stacker, S.A. Vascular endothelial growth factor D (VEGF-D) is a ligand for the tyrosine kinases VEGF receptor 2 (Flk1) and VEGF receptor 3 (Flt4). Proc. Natl. Acad. Sci. USA 1998, 95, 548–553. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Stacker, S.A.; Vitali, A.; Caesar, C.; Domagala, T.; Groenen, L.C.; Nice, E.; Achen, M.G.; Wilks, A.F. A mutant form of vascular endothelial growth factor (VEGF) that lacks VEGF receptor-2 activation retains the ability to induce vascular permeability. J. Biol. Chem. 1999, 274, 34884–34892. [Google Scholar] [CrossRef] [PubMed]
  30. Haiko, P.; Makinen, T.; Keskitalo, S.; Taipale, J.; Karkkainen, M.J.; Baldwin, M.E.; Stacker, S.A.; Achen, M.G.; Alitalo, K. Deletion of Vascular endothelial growth factor C (VEGF-C) and VEGF-D is not equivalent to VEGF receptor 3 deletion in mouse embryos. Mol. Cell. Biol. 2008, 28, 4843–4850. [Google Scholar] [CrossRef] [PubMed]
  31. Astin, J.W.; Haggerty, M.J.; Okuda, K.S.; Le Guen, L.; Misa, J.P.; Tromp, A.; Hogan, B.M.; Crosier, K.E.; Crosier, P.S. Vegfd can compensate for loss of Vegfc in zebrafish facial lymphatic sprouting. Development 2014, 141, 2680–2690. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Benedito, R.; Rocha, S.F.; Woeste, M.; Zamykal, M.; Radtke, F.; Casanovas, O.; Duarte, A.; Pytowski, B.; Adams, R.H. Notch-dependent VEGFR3 upregulation allows angiogenesis without VEGF-VEGFR2 signalling. Nature 2012, 484, 110–114. [Google Scholar] [CrossRef] [PubMed]
  33. Galvagni, F.; Pennacchini, S.; Salameh, A.; Rocchigiani, M.; Neri, F.; Orlandini, M.; Petraglia, F.; Gotta, S.; Sardone, G.L.; Matteucci, G.; et al. Endothelial cell adhesion to the extracellular matrix induces c-Src-dependent VEGFR-3 phosphorylation without the activation of the receptor intrinsic kinase activity. Circ. Res. 2010, 106, 1839–1848. [Google Scholar] [CrossRef] [PubMed]
  34. Tammela, T.; Zarkada, G.; Nurmi, H.; Jakobsson, L.; Heinolainen, K.; Tvorogov, D.; Zheng, W.; Franco, C.A.; Murtomaki, A.; Aranda, E.; et al. VEGFR-3 controls tip to stalk conversion at vessel fusion sites by reinforcing Notch signalling. Nat. Cell Biol. 2011, 13, 1202–1213. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Schwarz, J.M.; Roedelsperger, C.; Schuelke, M.; Seelow, D. MutationTaster evaluates disease-causing potential of sequence alterations. Nat. Methods 2010, 7, 575–576. [Google Scholar] [CrossRef] [PubMed]
  36. Desmet, F.-O.; Hamroun, D.; Lalande, M.; Collod-Beroud, G.; Claustres, M.; Beroud, C. Human Splicing Finder: An online bioinformatics tool to predict splicing signals. Nucleic Acids Res. 2009, 37. [Google Scholar] [CrossRef] [PubMed]
  37. Ertzer, R.; Muller, F.; Hadzhiev, Y.; Rathnam, S.; Fischer, N.; Rastegar, S.; Strahle, U. Cooperation of sonic hedgehog enhancers in midline expression. Dev. Biol. 2007, 301, 578–589. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Balciunas, D.; Wangensteen, K.J.; Wilber, A.; Bell, J.; Geurts, A.; Sivasubbu, S.; Wang, X.; Hackett, P.B.; Largaespada, D.A.; McIvor, R.S.; et al. Harnessing a high cargo-capacity transposon for genetic applications in vertebrates. PLoS Genet. 2006, 2, 1715–1724. [Google Scholar] [CrossRef] [PubMed]
  39. Bussmann, J.; Bos, F.L.; Urasaki, A.; Kawakami, K.; Duckers, H.J.; Schulte-Merker, S. Arteries provide essential guidance cues for lymphatic endothelial cells in the zebrafish trunk. Development 2010, 137, 2653–2657. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Van Impel, A.; Zhao, Z.; Hermkens, D.M.; Roukens, M.G.; Fischer, J.C.; Peterson-Maduro, J.; Duckers, H.; Ober, E.A.; Ingham, P.W.; Schulte-Merker, S. Divergence of zebrafish and mouse lymphatic cell fate specification pathways. Development 2014, 141, 1228–1238. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 19 02259 g001 550
Figure 1. Clinical phenotype of the proband, mother and maternal grandfather and anterior view of lower limb lymphoscintigraphy. (A–D) Proband at her first visit to the genetics clinic at six months. (A) The proband presented as a baby with bilateral lower limb lymphedema. Swelling of the dorsum of the feet was obvious. Deep inter-phalangeal creases and small dysplastic nails were seen. (B) There was mild swelling in the hands. (C) She also had subtle dysmorphism with a round face, high forehead, short neck, hypertelorism, and depressed nasal bridge. (D) There was mild bilateral ear dysplasia and right pre-auricular sinus. (E–H) Proband at two years and 10 months. (E,F) The proband had persistent bilateral lower limb lymphedema of the feet, which extended up the leg to the knees and was more pronounced on the right. (G) Subtle dysmorphic features with a round face, hypertelorism, downslanting palpebral fissures, and depressed nasal bridge. (H) Slightly low, posterior rotated ears with mild ear dysplasia. (I–L) Proband at four years and eight months. (I) Proband presented with persistent bilateral lower limb lymphedema to the knees. (J,K) The swelling was particularly noticeable in the dorsum of the foot, which was more marked in the right foot (J) than the left (K). (L) Slightly low, posterior rotated ears. (M) Lymph scan (anterior view) of proband showing no evidence of uptake of the tracer in the right lower limb lymphatic tracts or inguinal lymph nodes after 3 h (functional aplasia). Uptake in the left lower limb lymphatic vessels remains abnormal and reduced (functional hypoplasia). The left lower leg lymphatic vessels are tortuous in the calf region (arrow head). (N) Lymph scan of a patient with typical Milroy disease with no evidence of main-tract filling nor rerouting (functional aplasia). (O) Lymph scan of healthy control. (P) The mother of the proband (III.1) presented with mild varicose eczema and multiple superficial veins around the ankles. There was also subtle lymphedema on the medial aspects of the ankles. (Q) The maternal grandfather (II.2) had bilateral mild varicose veins. There is noticeable mild lymphedema of the left ankle and varicose veins of both lower limbs (arrow heads).
Figure 1. Clinical phenotype of the proband, mother and maternal grandfather and anterior view of lower limb lymphoscintigraphy. (A–D) Proband at her first visit to the genetics clinic at six months. (A) The proband presented as a baby with bilateral lower limb lymphedema. Swelling of the dorsum of the feet was obvious. Deep inter-phalangeal creases and small dysplastic nails were seen. (B) There was mild swelling in the hands. (C) She also had subtle dysmorphism with a round face, high forehead, short neck, hypertelorism, and depressed nasal bridge. (D) There was mild bilateral ear dysplasia and right pre-auricular sinus. (E–H) Proband at two years and 10 months. (E,F) The proband had persistent bilateral lower limb lymphedema of the feet, which extended up the leg to the knees and was more pronounced on the right. (G) Subtle dysmorphic features with a round face, hypertelorism, downslanting palpebral fissures, and depressed nasal bridge. (H) Slightly low, posterior rotated ears with mild ear dysplasia. (I–L) Proband at four years and eight months. (I) Proband presented with persistent bilateral lower limb lymphedema to the knees. (J,K) The swelling was particularly noticeable in the dorsum of the foot, which was more marked in the right foot (J) than the left (K). (L) Slightly low, posterior rotated ears. (M) Lymph scan (anterior view) of proband showing no evidence of uptake of the tracer in the right lower limb lymphatic tracts or inguinal lymph nodes after 3 h (functional aplasia). Uptake in the left lower limb lymphatic vessels remains abnormal and reduced (functional hypoplasia). The left lower leg lymphatic vessels are tortuous in the calf region (arrow head). (N) Lymph scan of a patient with typical Milroy disease with no evidence of main-tract filling nor rerouting (functional aplasia). (O) Lymph scan of healthy control. (P) The mother of the proband (III.1) presented with mild varicose eczema and multiple superficial veins around the ankles. There was also subtle lymphedema on the medial aspects of the ankles. (Q) The maternal grandfather (II.2) had bilateral mild varicose veins. There is noticeable mild lymphedema of the left ankle and varicose veins of both lower limbs (arrow heads).
Ijms 19 02259 g001
Ijms 19 02259 g002 550

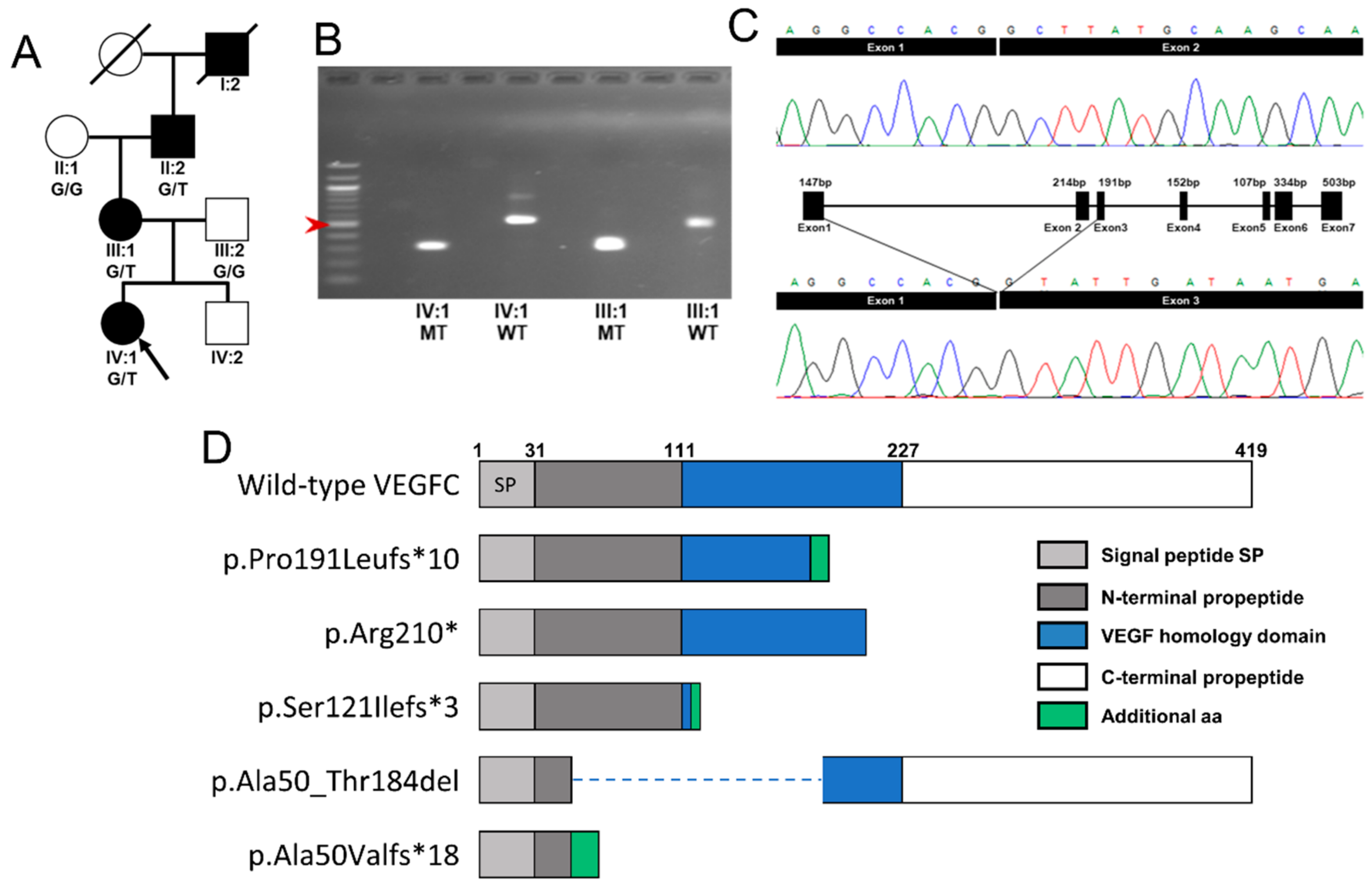

Figure 2. Genetic analysis of the family. (A) Pedigree of the family. Filled symbols denote affected individuals. Arrow indicates the proband. For individuals where DNA has been Sanger sequenced, the genotype is indicated. (B,C) After RT-PCR of RNA extracted from blood from the proband (IV:1) and her mother (III:1), cDNA amplification of a VEGFC fragment gave dual bands. The DNA from the bands was extracted from the gel and sequenced. (B) Agarose gel showing the successful separation of the wild type (WT; 489 bp) and mutant band (MT; 275 bp). Left lane: 100 bp ladder with 500 bp band is indicated with an arrow. (C) Electropherograms showing the VEGFC sequence of the products from (B) wild type allele (top panel) and mutant allele (bottom panel). The mutant allele highlights the skipping of exon 2 by displaying the sequence from the end of exon 1 and the beginning of exon 3. (D) Schematic representation of the wild type VEGFC protein domains (top) and the structures of the predicted mutant VEGFC proteins for the four previously published VEGFC mutations. The bottom panel shows the predicted mutant VEGFC protein described as the p.Ala50Valfs*18 identified in this family, lacking the C-terminal propeptide, the VHD, and most of the N-terminal propeptide. The additional 18 amino acids added to the sequence as a consequence of the frameshift are represented in green.
Figure 2. Genetic analysis of the family. (A) Pedigree of the family. Filled symbols denote affected individuals. Arrow indicates the proband. For individuals where DNA has been Sanger sequenced, the genotype is indicated. (B,C) After RT-PCR of RNA extracted from blood from the proband (IV:1) and her mother (III:1), cDNA amplification of a VEGFC fragment gave dual bands. The DNA from the bands was extracted from the gel and sequenced. (B) Agarose gel showing the successful separation of the wild type (WT; 489 bp) and mutant band (MT; 275 bp). Left lane: 100 bp ladder with 500 bp band is indicated with an arrow. (C) Electropherograms showing the VEGFC sequence of the products from (B) wild type allele (top panel) and mutant allele (bottom panel). The mutant allele highlights the skipping of exon 2 by displaying the sequence from the end of exon 1 and the beginning of exon 3. (D) Schematic representation of the wild type VEGFC protein domains (top) and the structures of the predicted mutant VEGFC proteins for the four previously published VEGFC mutations. The bottom panel shows the predicted mutant VEGFC protein described as the p.Ala50Valfs*18 identified in this family, lacking the C-terminal propeptide, the VHD, and most of the N-terminal propeptide. The additional 18 amino acids added to the sequence as a consequence of the frameshift are represented in green.
Ijms 19 02259 g002
Ijms 19 02259 g003 550

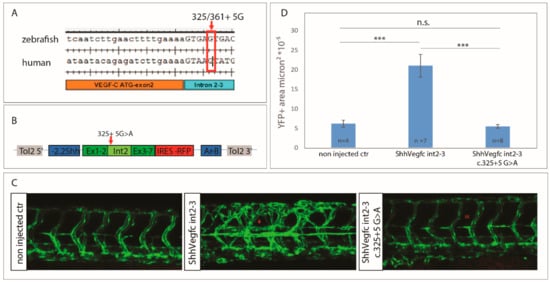

Figure 3. Splice site mutation c.325+5G>A in vegfc abolishes the effect of ectopic expression on excessive vessel sprouting. (A) Sequence of the human and zebrafish VEGFC/vegfc orthologs. Alignment of zebrafish and human exon 2 and intron 2–3 highlights the mutated site c.361+5G, which is equivalent to zebrafish c.325+5G. (B) Diagram of constructs used for forced expression of either vegfc-intron2–3 wt or vegfc-intron2–3 c.325+5G>A together with tagRFP in the floorplate, which consists of a 5′ and 3′ Tol2 element, the -2.2Shh promoter region, exon 1–2 of the cDNA of vegfc (Ex1–2), vegfc-intron 2–3 (Int 2) of vegfc (wt or c.325+5G>A), exon 3–7 of vegfc (Ex3–7), an IRES tagRFP cassette, and the activating region Ar-B driving expression in the floorplate. (C) Analysis of vegfc-intron2–3 wt and vegfc-intron2–3 c.325+5G>A overexpression in the floorplate using the transgenic line Tg(flt4BAC:mCitrine)hu7135 at 56 hpf. Overexpression of vegfc-intron 2–3 wt led to lymphovenous hypersprouting while forced expression of vegfc-intron2–3 c.325+5G>A had no effect on vessel growth. (D) Quantification of the YFP positive area of vessels surrounding the site of tagRFP expression showed an increased vessel density in zebrafish overexpressing vegfc-intron 2–3 wt but not in zebrafish overexpressing the vegfc-intron 2–3 c.325+5G>A variant. Values are presented as means ± standard error of mean values (SEM). *** p < 0.001, n.s. not significant.
Figure 3. Splice site mutation c.325+5G>A in vegfc abolishes the effect of ectopic expression on excessive vessel sprouting. (A) Sequence of the human and zebrafish VEGFC/vegfc orthologs. Alignment of zebrafish and human exon 2 and intron 2–3 highlights the mutated site c.361+5G, which is equivalent to zebrafish c.325+5G. (B) Diagram of constructs used for forced expression of either vegfc-intron2–3 wt or vegfc-intron2–3 c.325+5G>A together with tagRFP in the floorplate, which consists of a 5′ and 3′ Tol2 element, the -2.2Shh promoter region, exon 1–2 of the cDNA of vegfc (Ex1–2), vegfc-intron 2–3 (Int 2) of vegfc (wt or c.325+5G>A), exon 3–7 of vegfc (Ex3–7), an IRES tagRFP cassette, and the activating region Ar-B driving expression in the floorplate. (C) Analysis of vegfc-intron2–3 wt and vegfc-intron2–3 c.325+5G>A overexpression in the floorplate using the transgenic line Tg(flt4BAC:mCitrine)hu7135 at 56 hpf. Overexpression of vegfc-intron 2–3 wt led to lymphovenous hypersprouting while forced expression of vegfc-intron2–3 c.325+5G>A had no effect on vessel growth. (D) Quantification of the YFP positive area of vessels surrounding the site of tagRFP expression showed an increased vessel density in zebrafish overexpressing vegfc-intron 2–3 wt but not in zebrafish overexpressing the vegfc-intron 2–3 c.325+5G>A variant. Values are presented as means ± standard error of mean values (SEM). *** p < 0.001, n.s. not significant.
Ijms 19 02259 g003
Ijms 19 02259 g004 550

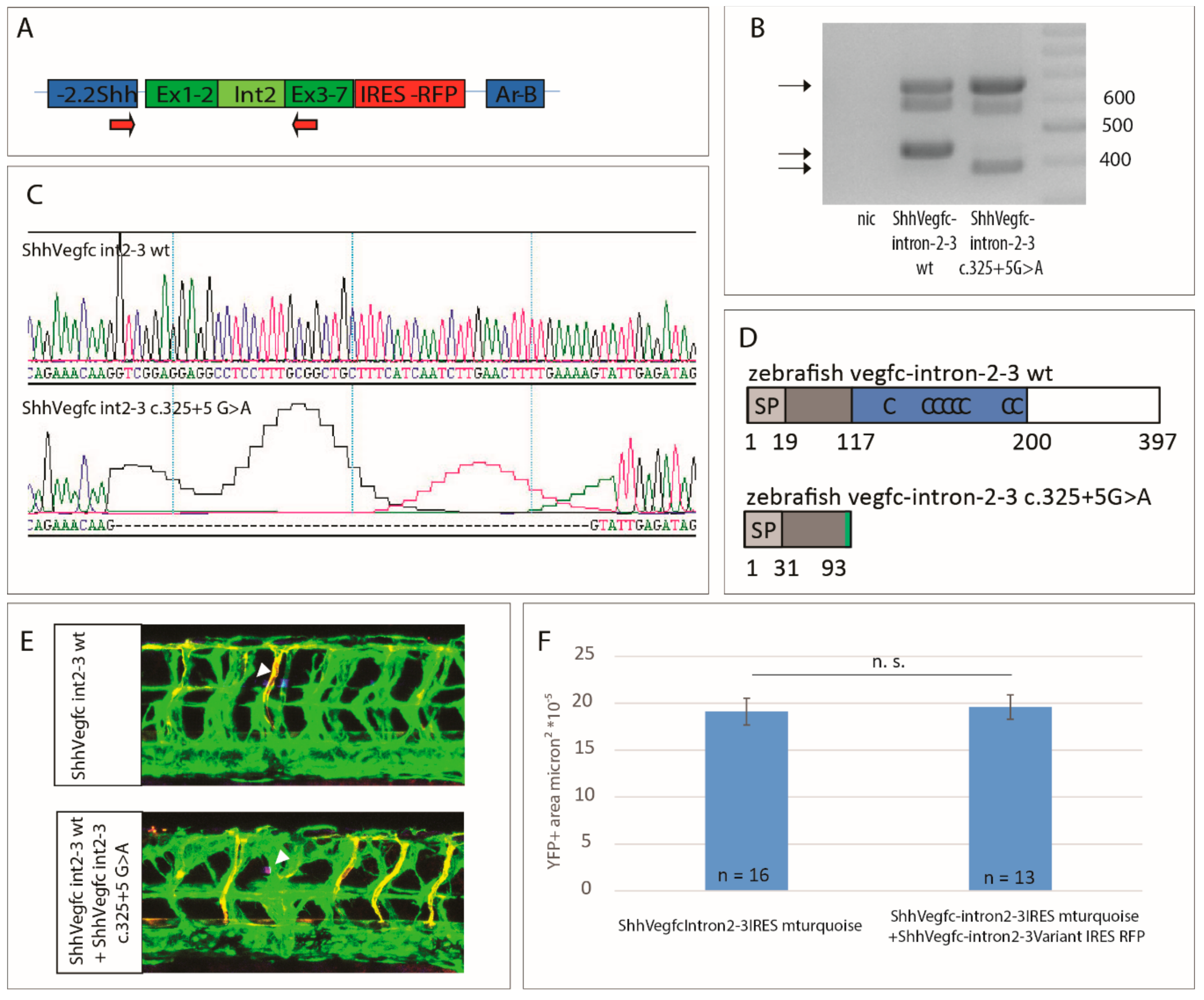

Figure 4. The vegfc c.325+5G>A splice-site variant results in a truncated protein, which does not have dominant negative activity. (A) Diagram of the construct used for overexpression of vegfc-intron 2–3 depicting primers used for RT-PCR (arrows). (B) RT-PCR of zebrafish embryos expressing ShhVegfc-intron 2–3 wt or ShhVegfc-intron 2–3 c.325+5G>A. Embryos expressing the wt form of ShhVegfc-intron 2–3 and the ShhVegfc-intron 2–3 c.325+5G>A variant express a band of 660 bp corresponding to non-spliced RNA or integrated plasmid DNA as well as a second smaller band corresponding to wt ShhVegfc (440 bp) or mutant ShhVegfc (387 bp). Right lane: 100 bp ladder. Non-injected control, nic. (C) Sequencing of cDNA of embryos expressing ShhVegfc-intron 2–3 and the ShhVegfc-intron 2–3 c.325+5G>A variant showing a 53 bp deletion in the ShhVegfc-intron 2–3 c.325+5G>A variant (lower panel). (D) Schematic representation of predicted wild type (top) and mutant (bottom) proteins. Mutant protein consists of the first 91 amino acids of Vegfc containing only a part of the N-terminus of Vegfc but not the VHD or the C-terminus (see Figure 2 for legend). (E) Analysis of co-overexpression of ShhVegfc-intron 2–3 wt and ShhVegfc-intron2–3 c.325+5G>A in the floorplate using the transgenic line Tg(flt4BAC:mCitrine)hu7135 and Tg(flt1enh:tdTomato), which marks venous and lymphatic cells in green and arterial vessels in red at 48 hpf. Expression of ShhVegfc-intron 2–3 wt and ShhVegfc-intron 2–3 c.325+5G>A within the same cell are monitored by the simultaneous expression of mturquoise and tagRFP, respectively. Forced expression of ShhVegfc-intron 2–3 wt in the floorplate led to excessive vessel sprouting comparable with co-overexpression of ShhVegfc-intron 2–3 wt and ShhVegfc-intron 2–3 c.325+5G>A in the floorplate. Arrow heads mark expression of tagRFP and mturquoise in the floorplate. (F) Quantification of lymphovenous sprouting by measuring the YFP positive area surrounding the site of mturquoise/tagRFP expression. Values are presented as means ± standard error of mean values (SEM). n.s. not significant.
Figure 4. The vegfc c.325+5G>A splice-site variant results in a truncated protein, which does not have dominant negative activity. (A) Diagram of the construct used for overexpression of vegfc-intron 2–3 depicting primers used for RT-PCR (arrows). (B) RT-PCR of zebrafish embryos expressing ShhVegfc-intron 2–3 wt or ShhVegfc-intron 2–3 c.325+5G>A. Embryos expressing the wt form of ShhVegfc-intron 2–3 and the ShhVegfc-intron 2–3 c.325+5G>A variant express a band of 660 bp corresponding to non-spliced RNA or integrated plasmid DNA as well as a second smaller band corresponding to wt ShhVegfc (440 bp) or mutant ShhVegfc (387 bp). Right lane: 100 bp ladder. Non-injected control, nic. (C) Sequencing of cDNA of embryos expressing ShhVegfc-intron 2–3 and the ShhVegfc-intron 2–3 c.325+5G>A variant showing a 53 bp deletion in the ShhVegfc-intron 2–3 c.325+5G>A variant (lower panel). (D) Schematic representation of predicted wild type (top) and mutant (bottom) proteins. Mutant protein consists of the first 91 amino acids of Vegfc containing only a part of the N-terminus of Vegfc but not the VHD or the C-terminus (see Figure 2 for legend). (E) Analysis of co-overexpression of ShhVegfc-intron 2–3 wt and ShhVegfc-intron2–3 c.325+5G>A in the floorplate using the transgenic line Tg(flt4BAC:mCitrine)hu7135 and Tg(flt1enh:tdTomato), which marks venous and lymphatic cells in green and arterial vessels in red at 48 hpf. Expression of ShhVegfc-intron 2–3 wt and ShhVegfc-intron 2–3 c.325+5G>A within the same cell are monitored by the simultaneous expression of mturquoise and tagRFP, respectively. Forced expression of ShhVegfc-intron 2–3 wt in the floorplate led to excessive vessel sprouting comparable with co-overexpression of ShhVegfc-intron 2–3 wt and ShhVegfc-intron 2–3 c.325+5G>A in the floorplate. Arrow heads mark expression of tagRFP and mturquoise in the floorplate. (F) Quantification of lymphovenous sprouting by measuring the YFP positive area surrounding the site of mturquoise/tagRFP expression. Values are presented as means ± standard error of mean values (SEM). n.s. not significant.
Ijms 19 02259 g004
Table
Table 1. Summary of findings of VEGFC mutation positive patients published to date. Family 5 is the current case. BLL, bilateral lower limb lymphedema extending to below knee. FA, lymphedema confined to feet and ankles. L, left. LL, lower limb lymphedema extending below the knee. N, not present. occ, occasional. R, right. VV, varicose veins. Y, yes. - not recorded or not applicable. Family 1 [6]. Family 2 [7]. Family 3 and Family 4 are published as LE-627 and LE-445, respectively, in Fastre et al. [8]. Family 5: this case report.
Table 1. Summary of findings of VEGFC mutation positive patients published to date. Family 5 is the current case. BLL, bilateral lower limb lymphedema extending to below knee. FA, lymphedema confined to feet and ankles. L, left. LL, lower limb lymphedema extending below the knee. N, not present. occ, occasional. R, right. VV, varicose veins. Y, yes. - not recorded or not applicable. Family 1 [6]. Family 2 [7]. Family 3 and Family 4 are published as LE-627 and LE-445, respectively, in Fastre et al. [8]. Family 5: this case report.
PatientGenderAge of OnsetAge at Last Clinical ExaminationLymphedema at Last Clinical ExaminationHydroceleProminent Veins around Ankles and FeetLymphoscintigraphy ResultVEGFC MutationComment
Reduced UptakeTortuous TractsRerouting
Family 1I:2F<5 years-BLL--RLRLNc.571_572insTT
p.Pro191Leufs*10		Venous flares and telangiectasia
II:1M12 years18 yearsNYYNRLN
II:3Fat birth28 yearsBLL-YLRLEdema improved spontaneously in childhood but deteriorated in adolescence
II:4Mat birth32 yearsBLL L>RNNL>RNRL
III:1F6 months6 monthsFA-N---
III:2Mat birth3 yearsFANY---Swelling improved at 3y
III:3F-5 yearsN-Y---
Family 2IV:4Fat birth20 monthsLL L-----c.628C>T
p.Arg210X		BLL L > R at birth
III:3Mat birth38 yearsLL RY-R-Y
II:2F>30 years-LL L-----Recurrent miscarriages
Family 3III:1M-22 yearsBLLY-RLNL>Rc.148–3_148–2delCA
r.148_552del
p.Ala50_Thr184del		Diagnosed at 7 years
II:3M--NN----
Family 4V:1Mat birth-BLLN----c.552G>A
r.362_552del
p.Ser121Ilefs*3
V:2Mat birth-BLLN----
V:3F--N-----
IV:2F--occ FA-----
IV:3F--FA-----
III:2F--occ FA-----
III:5M--FAN----
IV:8M--FAN----
Family 5IV:1Fat birth4 years
8 months		LL R, FA L-NRLLc.361+5G>A
r.148_361del
p.Ala50Valfs*18		Mild bilateral edema of hands at birth, which spontaneously resolved
III:1F>13 years35 yearsmild BLL-YRLRLN
II:2M-65 yearsmild BLL R>LNVV R>LRLRLR

Share and Cite

MDPI and ACS Style

Nadarajah, N.; Schulte, D.; McConnell, V.; Martin-Almedina, S.; Karapouliou, C.; Mortimer, P.S.; Jeffery, S.; Schulte-Merker, S.; Gordon, K.; Mansour, S.; et al. A Novel Splice-Site Mutation in VEGFC Is Associated with Congenital Primary Lymphoedema of Gordon. Int. J. Mol. Sci. 2018, 19, 2259. https://doi.org/10.3390/ijms19082259

AMA Style

Nadarajah N, Schulte D, McConnell V, Martin-Almedina S, Karapouliou C, Mortimer PS, Jeffery S, Schulte-Merker S, Gordon K, Mansour S, et al. A Novel Splice-Site Mutation in VEGFC Is Associated with Congenital Primary Lymphoedema of Gordon. International Journal of Molecular Sciences. 2018; 19(8):2259. https://doi.org/10.3390/ijms19082259

Chicago/Turabian Style

Nadarajah, Noeline, Dörte Schulte, Vivienne McConnell, Silvia Martin-Almedina, Christina Karapouliou, Peter S. Mortimer, Steve Jeffery, Stefan Schulte-Merker, Kristiana Gordon, Sahar Mansour, and et al. 2018. "A Novel Splice-Site Mutation in VEGFC Is Associated with Congenital Primary Lymphoedema of Gordon" International Journal of Molecular Sciences 19, no. 8: 2259. https://doi.org/10.3390/ijms19082259

APA Style

Nadarajah, N., Schulte, D., McConnell, V., Martin-Almedina, S., Karapouliou, C., Mortimer, P. S., Jeffery, S., Schulte-Merker, S., Gordon, K., Mansour, S., & Ostergaard, P. (2018). A Novel Splice-Site Mutation in VEGFC Is Associated with Congenital Primary Lymphoedema of Gordon. International Journal of Molecular Sciences, 19(8), 2259. https://doi.org/10.3390/ijms19082259

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
