Int. J. Mol. Sci. 2017, 18(5), 1045; https://doi.org/10.3390/ijms18051045

Article
Determination of Genes Related to Uveitis by Utilization of the Random Walk with Restart Algorithm on a Protein–Protein Interaction Network
1
Department of Ophthalmology, Ren Ji Hospital, School of Medicine, Shanghai Jiao Tong University, Shanghai 200127, China
2
College of Information Engineering, Shanghai Maritime University, Shanghai 201306, China
3
School of Life Sciences, Shanghai University, Shanghai 200444, China
4
Institute of Health Sciences, Shanghai Institutes for Biological Sciences, Chinese Academy of Sciences, Shanghai 200031, China
*
Author to whom correspondence should be addressed.
Academic Editor: Christo Z. Christov
Received: 9 April 2017 / Accepted: 9 May 2017 / Published: 13 May 2017

Abstract

:
Uveitis, defined as inflammation of the uveal tract, may cause blindness in both young and middle-aged people. Approximately 10–15% of blindness in the West is caused by uveitis. Therefore, a comprehensive investigation to determine the disease pathogenesis is urgent, as it will thus be possible to design effective treatments. Identification of the disease genes that cause uveitis is an important requirement to achieve this goal. To begin to answer this question, in this study, a computational method was proposed to identify novel uveitis-related genes. This method was executed on a large protein–protein interaction network and employed a popular ranking algorithm, the Random Walk with Restart (RWR) algorithm. To improve the utility of the method, a permutation test and a procedure for selecting core genes were added, which helped to exclude false discoveries and select the most important candidate genes. The five-fold cross-validation was adopted to evaluate the method, yielding the average F1-measure of 0.189. In addition, we compared our method with a classic GBA-based method to further indicate its utility. Based on our method, 56 putative genes were chosen for further assessment. We have determined that several of these genes (e.g., CCL4, Jun, and MMP9) are likely to be important for the pathogenesis of uveitis.
Keywords:
uveitis; protein–protein interaction; random walk with restart algorithm

1. Introduction

Uveitis is defined as an inflammation of the uveal tract, which is composed of the ciliary body, iris and choroid [1,2]. Uveitis is one of the leading causes of permanent and irreversible blindness in young and middle-aged people and accounts for 10–15% of blindness in the Western world [1,2,3]. Uveitis can be caused by infectious and non-infectious factors; the latter include Vogt–Koyanagi–Harada (VKH) syndrome, Behcet’s disease (BD), acute anterior uveitis (AAU), birdshot chorioretinopathy (BCR) and some types of cancers. VKH is an autoimmune disease characterized by systemic disorders including poliosis, vitiligo, alopecia, auditory signs and disorders of the central nervous system [4,5]. BD is a chronic multi-systemic inflammatory disease characterized by nongranulomatous uveitis, oral ulcers and skin lesions [2,6]. AAU is the most common non-infectious cause of uveitis and is characterized by self-limiting and recurrent inflammation involving the ciliary and iris body [7]. BCR is a chronic, bilateral, and posterior uveitis that has an almost 100% genetic association with HLA-A29 [8]. Uveitis or uveitis masquerade syndrome could also be induced by some intraocular tumors, such as retinoblastoma and intraocular lymphoma, or their therapeutic approaches [9,10,11,12,13,14,15].
It has been reported that complex genetic mechanisms coupled with an aberrant immune response may be involved in the development of uveitis. In some cases, the pathogenesis of uveitis seemly has a different cause than those described above, such as sarcoidosis [16]. Mutations in different genes and gene families have been discovered in patients. In this study, we focused on the most important causes of uveitis and research for the putative genes involved in these processes. Human leukocyte antigens (HLAs) are the major molecules that are important for the development of uveitis, including uveitis associated with VKH (HLA-DR4, DRB1/DQA1), BD (HLA-B51), AAU (HLA-B27) and BCR (HLA-A29). In addition, genome-wide association studies revealed that abnormities of many non-HLA genes such as the interleukin (IL) family and the Signal transducer and activator of transcription 4 (STAT4) also participate in the progression of uveitis [17,18,19]. IL23R is associated with both VKH and AAU [20]. Furthermore, copy number variations (CNVs) of Toll-like receptors (TLRs), a family of cellular receptors that function in innate immune response, are associated with BD, VKH and AAU. These genes include TLRs 1–3, TLRs 5–7, and TLRs 9–10 [21]. SNPs of TLR4 were also shown to be involved in the development of BD [22]. In addition, it has been demonstrated that there is increased expression of T-bet and IFN-γ, two genes involved in the Th1 cell pathway, in uveitis patients [23]. The activator of STAT4 affects IL-17 production and is a shared risk factor for BD in different cohorts [17,24]. Finally, interleukins (notably IL-2, IL12B, IL18 and IL23R) are important cytokines that play a pathogenic role in the process of uveitis [2,17,25]. In this study, we mainly focused on the genes that play an important role in the immune system, transcription, or cell adhesion.
Using traditional methods, it is quite difficult to collect these large-scale data and analyze genes synthetically. The microarray is a widely used tool for the identification of novel genes. Microarray analysis has been used to determine a number of genes that are associated with uveitis, including the IL10 family and several other transcripts [16,26,27,28,29]. In recent years, computational analysis has been applied to identify virulence genes, but many of these genes were identified based on guilt by association (GBA) [30,31,32]. This approach assumes that the candidate genes, which are neighbors of disease genes, are more likely to be new virulence genes. Thus, the GBA-based methods only consider the neighbors of known disease genes to discover novel candidates. Therefore, these methods only examine part of the gene network. Random Walk with Restart (RWR) is another algorithm that identifies disease-related genes [33,34,35]. This algorithm utilizes a set of seed nodes that represent disease genes and performs random walking on the gene network. When the probabilities of all nodes are stable, the probability of a node gene correlating with disease is updated. The genes that correspond to nodes that have high probabilities may be potential novel candidate virulence genes. This method is useful for mining disease genes and to better explore the mechanism of disease. In addition, other studies have adopted the shortest path (SP) algorithm to identify novel disease genes [36,37,38,39,40,41]. By searching the shortest paths that connect any two validated disease genes, genes that are present in these paths could be extracted and considered as novel disease genes. An obvious advantage of the RWR or SP algorithms is that these algorithms utilize the entire gene network and consider more factors, therefore performing a more extensive and reliable analysis.
As discussed above, many genetic factors contribute to the pathogenesis of uveitis. In this study, we utilized computational analyses to build a genetic network based on previously known factors. A computational method was built to identify novel genes related to uveitis. First, a large network was constructed using human protein–protein interactions (PPIs). Next, the RWR algorithm was performed on the network using the validated uveitis-related genes as seed nodes, yielding several possible candidate genes. These candidate genes were filtered based on a set of criteria that were built by p-values and their associations with validated uveitis-related genes. To indicate the utility of the method, it was evaluated by five-fold cross-validation, resulting in the average F1-measure of 0.189. Furthermore, the proposed method was compared with a classic GBA-based method [30,31,32] to further prove its effectiveness for identification of uveitis-related genes. Through our method, 56 novel candidate genes were identified and extensively analyzed.

2. Results and Discussion

2.1. Results of Testing Random Walk with Restart (RWR)-Based Method

Before the RWR-based method was used to identify novel uveitis-related genes, five-fold cross-validation was adopted to evaluate its utility. For each part, the results yielded by the method on the rest four parts were counted as recall, precision and F1-measure, which are listed in Table 1. It can be observed that the average of recall, precision and F1-measure was 0.287, 0.141 and 0.189, respectively. Although these measurements are not very high, the RWR-based method is still acceptable due to the difficulties for identification of novel genes with given functions. Besides, the utility of the RWR-based method would be further proved by comparing it with other methods, which is described in Section 2.5.

2.2. RWR Genes

Based on the uveitis-related genes, the RWR algorithm yielded a probability for each gene in the PPI network, which indicated the likelihood of the gene being important for uveitis. Then, genes were selected that had probabilities larger than 10−5. From our analysis, we obtained 3641 RWR genes, which are provided with their RWR probabilities in Supplementary Table S1.

2.3. Candidate Genes

According to the RWR-based method detailed in Section 3.3, RWR genes were filtered using a permutation test. For each RWR gene, a p-value was assigned to indicate whether the RWR gene is specific for uveitis. The p-value for each of the 3641 RWR genes is also provided in Supplementary Table S1. We found 1231 candidate genes that had a p-value < 0.05 (see the first 1231 genes in Supplementary Table S1).
The 1231 candidate genes were then further analyzed using the criteria outlined in Section 3.3. For each candidate gene, MIS (cf. Equation (3)) and MFS (cf. Equation (5)) were calculated, and the values for each gene are available in Supplementary Table S1. The threshold for MIS was set at 900, while 0.8 was used as the threshold for MFS. Finally, we obtained 56 Ensembl IDs (listed in Table 2) corresponding to core candidate genes. These genes were deemed to be highly related to uveitis and could be considered novel candidate genes. As intuitionistic evidence, a sub-network was plotted in Figure 1, which contains the putative and validated genes. Each putative gene had strong associations with validated genes, implying that they had functions similar to those of the validated genes and may be novel uveitis-related genes with high probabilities.

2.4. Analysis of Novel Genes

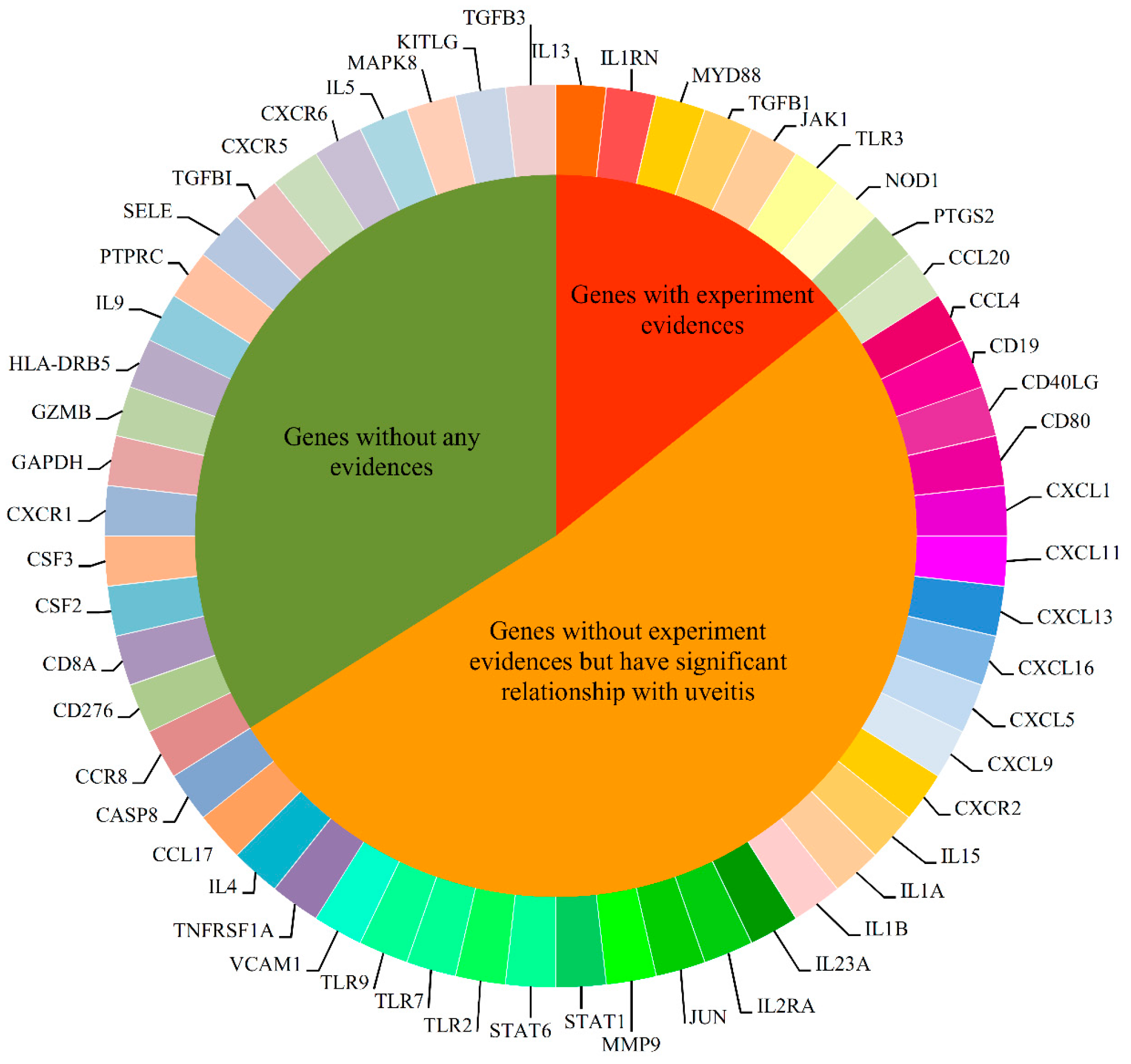

In this study, the RWR-based method yielded fifty-six genes that were deemed to have a significant correlation with uveitis. Detailed information for these genes is provided in Table 2.

2.4.1. Immune System Regulation Genes

CCL4 (C-C motif chemokine ligand 4) belongs to the cytokine family and is involved in immunoregulation and inflammation. It has been reported that CCL4 is associated with BD immunopathogenesis [42]. In the majority of VKH cases, the expression of another family member CCL17 was lower in cerebrospinal fluid than in serum, which indicated its potential function in VKH [43]. CCL17 also could be inhibited by overexpression of SOCS1 in the retina to regulate the recruitment of inflammatory cells [44]. The cytokine CCL20 was considered to be a specific biomarker of HLA-B27-associated uveitis [45]. Our study revealed that CCL4, CCL17 and CCL20 likely play essential roles in uveitis.
CD40 ligand (also known as CD154) is a type II transmembrane glycoprotein that has structural homology to the proteins of the TNF (tumor necrosis factor) family [46,47,48,49]. The interaction between the CD40 and CD40 ligand is important for both cellular and humoral immune responses [50]. The CD40 and CD40 ligand interaction provides signals in T-cell priming and effecter functions [46,48,49,51,52,53], whereas monocyte and B-cell apoptosis could be inhibited by their interaction [54]. It has been demonstrated that the CD40 ligand is associated with the immune-pathogenesis of several autoimmune diseases including AU (anterior uveitis) [54,55]. The CD40 ligand is significantly expressed on T-cells in the peripheral blood of patients with AU [56]. The results of the RWR-based method revealed a MIS of 999 had a p-value < 0.001. Expression of CD80 on dendritic cells (DCs) could be induced by activation of NOD1 and NOD2 and is involved in the pathogenesis of VKH syndrome [57]. In another report, it was found that BBR downregulated the expression of costimulatory molecules CD40, CD80 and CD86 on DCs [58]. The MIS and p-value of CD80 were 999 and <0.001, respectively. We speculate that these molecules play key roles in uveitis, but their mechanism in uveitis must still be clarified.
CSF2 (colony stimulating factor 2) is a cytokine that functions as a hematological cell growth factor by stimulating stem cells to produce granulocytes and monocytes [59]. Three signaling pathways can be activated by CSF2: the JAK2/STAT pathway, the MAP pathway and the PI3K pathway [60,61,62,63,64]. CSF2 is a valuable prognostic indicator and a therapeutic target in tumors [59]. CSF2 expression in uveitis is reported as rare. However, in this study, the MIS of CSF2 was 992 with a p-value < 0.001. We speculate that CSF2 might be a key factor in the pathogenesis of uveitis.
Interleukins and their receptors are inflammatory cytokines that play an important role in immune system response. Many interleukins and their receptors are involved in uveitis, as discussed above. Our data showed that IL13, IL15, IL1A, IL1B, IL1RN, IL4, IL5, IL9, IL23A and IL2RA had MISs larger than 900 with p-values <0.05. It has been observed that the expression of IL1A is decreased in patients with clinically active BD, while the expression of IL1B is increased in patients with active, inactive or ocular BD [65]. IL1B has been associated with ocular Behcet’s disease [66]. IL-13 is a strong immunomodulatory cytokine which is a promising mode of treatment for uveitis [67,68,69,70]. IL-15 and its receptor system is involved in the inflammatory process and pathogenesis of BD and the IL-15/Fc fusion protein has been shown to inhibit IRBP1-20 specific CD80+ T cell to decrease the severity of EAU [71,72]. An aberrantly high CNV of IL23A is a common risk factor for VKH and BD [73]. In mice, IL-1RN suppresses immune-mediated ocular inflammation and is considered a potential biomarker in the management of patients with uveitis [74]. Interleukin 2 receptor α (IL2RA) is a risk locus in various autoimmune diseases and a variant of this gene, rs2104286, was demonstrated to be strongly associated with intermediated uveitis [75]. An antibody against IL2RA, daclizumab is used to reduce intermediated uveitis [76]. However, rs2104286 was not related to endogenous non-anterior uveitis [77]. EAU (experimental autoimmune uveoretinitis) disease severity was reduced in mice in which IL-1B expression was reduced in the retina through deletion of S100B, a Ca2+ binding protein [78]. In a Lewis rat model of EAU, IL-2 and IL-4 were produced in destructive foci in the retina and uveal tract. IL-2 is thought to act as a cytotoxic effector, while IL-4 is associated with a helper cell function [79]. In patients with BD, IL-2 is more highly expressed, while IL-4 is more lowly expressed [80]. Genetic findings suggest that more work should be done to evaluate both the molecular target and the inhibitor for personalized therapy.
TLR2, TLR3, TLR7 and TLR9 belong to the Toll-like receptor (TLR) family, which are key factors in pathogen recognition and activation of innate immunity. TLRs are thought to be associated with infection and auto-inflammatory or autoimmune diseases, including uveitis [81,82]. Several autoimmune diseases, including BD, are associated with certain TLR gene polymorphisms [83,84]. A significant association has been found between polymorphism of TLR2 and ocular BD patients [85]. The expression of TLR4 was significantly up-regulated in monocyte-derived macrophages from VKH patients [86]. The chitosan-mediated TLR3-siRNA transfection had a potential therapeutic effect on remitting uveitis [87]. In a Chinese Han population, a high copy number of TLR7 conferred risk for BD patients [88]. In the Japanese population, the homozygous genotypes and homozygous deplotype configuration of TLR9 SNPs was associated with the susceptibility to BD [89]. It has been reported that glucocorticoid could improve uveitis by downregulating TLR7 and TLR9 in peripheral blood of patients with uveitis [90]. In our analysis, TLR2, TLR3, TLR7 and TLR9 have MIS scores of 968, 966, 926 and 958, respectively. We argue that TLR2, TLR3, TLR7 and TLR8 play essential roles in uveitis and thus require more attention.

2.4.2. Transcription Associated Genes

Jun (also known as jun proto-oncogene) is a critical subunit of the transcription factor AP1, which is an important modulator of diverse biological processes such as cell proliferation, apoptosis and malignant transformation [91]. Jun is activated through phosphorylation at Ser 63 and Ser 73 by JNK [92,93]. A high level of Jun has been observed in various types of cancer including non-small cell lung cancer, oral squamous cell carcinoma, breast cancer and colorectal cancer [94,95,96,97,98]. Overexpression of Jun has led to aberrant tumor growth and progression and inhibited cell apoptosis [94]. The underlying mechanism of Jun as it relates to uveitis is still unclear. In a gene screen assay, it was found that expression of Jun showed a significantly higher index in experimental lens-induced uveitis rabbits [99]. In our analysis, Jun showed a significant index p-value and an MIS of 999; therefore, we propose that Jun may be an essential factor in uveitis.
STAT1 and STAT6 encode transcription factors that belong to the STAT family, where phosphorylation is activated by receptor associated kinases. Atopic dermatitis associated uveitis may be driven by TH2-mediated inflammation [100]. IL-4 is a TH2 cytokine, and binding with its receptor can activate STAT6 via the (Jak) Janus kinase/STAT signaling pathway to promote many immunomodulatory genes [101]. Furthermore, the Stat6 VT (STAT6 V547A/T548A) mouse model of atopic dermatitis exhibited uveitis symptoms [100]. In the STAT family, TH17 cells can be induced by IL-2 and suppressed by IL-27/STAT1 to contribute to uveitis [102]. In this study, STAT1 and STAT6 both had significant p-values and MIS of 999, and therefore we hypothesize that STAT1/6 function has a putative role in uveitis.

2.4.3. Cell Adhesion and Signal Transduction Related Genes

Matrix metalloproteinase (MMP) are key factors for the degradation of extracellular matrix components and modification of cytokines, protease inhibitors, and cell surface signaling systems [103,104,105,106]. Polymorphisms on the MMP-9 promoter can affect the development of visceral involvement in Korean people with BD [107]. In our RWR analysis, MMP9 had an MIS of 971 and a p-value < 0.001, which suggests that MMP-9 may be a novel susceptibility gene for uveitis.
VCAM1 (vascular cell adhesion molecule 1) belongs to the Ig superfamily and is a cell surface sialoglycoprotein expressed by cytokine-activated endothelium. This protein is mediated by leukocyte-endothelial cell adhesion and signal transduction [108,109]. VCAM1 can be regulated by inflammatory cytokines such as IL1B [108]. Uveitis is closely associated with the immune system and immune-related proteins including the interleukin family. In our study, the MIS of VCAM1 was 968 and the p-value was less than 0.05, which makes VCAM1 a candidate gene for uveitis.
We detected 56 novel uveitis-related genes using the RWR-based method. These genes can be clustered into three categories, shown in Figure 2. Among these 56 potential genes, eight (8/56, 14.3%) genes, IL13, IL1RN, JAK1, MYD88, NOD1, PTGS2, TGFB1 and TLR3, were considered as uveitis genes by experimental evidence [110,111,112,113,114,115,116,117], and 29 (29/56, 51.8%) genes (CASP8, CCL17, CCL20, CCL4, CD19, CD40 LG, CD80, CXCL1, CXCL11, CXCL13, CXCL16, CXCL5, CXCL9, CXCR2, IL15, IL1A, IL1B, IL23A, IL2RA, IL4, JUN, MMP9, STAT1, STAT6, TLR2, TLR7, TLR9, TNFRSF1A and VCAM1) had a correlation with uveitis. However, the pathogenesis is not clear. In our results, we found that these genes have a significant relationship with uveitis genes and therefore need more validation. There are few reports of the rest of the genes (19/56, 33.9%) (CCR8, CD276, CD8A, CSF2, CSF3, CXCR1, CXCR5, CXCR6, GAPDH, GZMB, HLA-DB5, IL5, IL9, KITLG, MAPK8, PTPRC, SELE, TGFB3 and TGFBI) which participate in the process of uveitis. We considered that they might be novel uveitis genes and merit attention. We argue that some of these may be critical putative virulence genes for uveitis and could be interesting agents for the treatment of human uveitis.

2.5. Comparison of Other Methods

The results listed in Section 2.1, Section 2.2, Section 2.3 and Section 2.4 can partly prove the effectiveness of the RWR-based method. In this section, we compared our method with a classic GBA-based method [30,31,32], i.e., a method like the nearest neighbor algorithm (NNA). This method identified novel genes from neighbors of the uveitis-related genes in a network. For convenience, we directly used the PPI network that was adopted in the RWR-based method. In addition, we called a neighbor of a node is a nearer neighbor if the edge between them was assigned a higher weight due to the definition of the interaction score reported in STRING. The GBA-based method selected the k nearest neighbors of each uveitis-related genes and collected them together as the predicted genes of the method, where k is a predefined parameter.
The five-fold cross-validation method was also adopted to test the GBA-based method, which used the same partition in testing the RWR-based method. Because we do not know the best value of k, we tried the following values: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 40, 50, 60, 70, 80, 90, and 100. The testing results are provided in Supplementary Table S2. The best performance of the GBA-based method with different parameter k on each part is shown in Table 3. Compared with the testing results of RWR-based method, also listed in Table 3 for convenience, we can see that GBA-based method provides higher recalls sometimes, however, it always provides lower precisions, indicating the GBA-based method can yield more false positive genes. If only considering the F1-measure, we can conclude that F1-measures of the RWR-based method are always higher than those of the GBA-based method. It is indicated that the RWR-based method is superior to GBA-based method for identification of uveitis-related genes.

3. Materials and Methods

3.1. Materials

Uveitis-related genes were collected from literatures indexed by PubMed (http://www.ncbi.nlm.nih.gov/pubmed/). The keywords “uveitis” and “genes” were used to search the literature in PubMed, which resulted in the collection of 744 papers. Among them, 98 review papers that generally summarized uveitis-related genes were manually reviewed. From those 98 papers, 121 genes were chosen from 96 reviews reporting the functional genes that may be important for uveitis or for specific uveitis symptoms. These genes are provided in Supplementary Table S3. In total, 146 Ensembl IDs for these genes were also determined and are provided in Supplementary Table S3.

3.2. Protein-protein Interaction (PPI) Network

PPIs are useful for the investigation of genetic disorders because they play an essential role in intracellular and intercellular biochemical processes. Many computational methods have been developed using this information, such as the prediction engines for the identification of protein functions [118,119,120] and methods for identification of novel disease genes [36,37,38]. Several methods were built based on the hypothesis that two proteins in a PPI are more likely to share similar functions. Thus, we can infer novel genes related to uveitis using PPI information and the uveitis-related genes mentioned in Section 3.1.
In this study, we used the PPI information retrieved from STRING (Search Tool for the Retrieval of Interacting Genes/Proteins, Version 9.1, http://string-db.org/) [121] to construct the PPI network that the RWR algorithm can be applied. To access the PPI information in STRING, we downloaded the file “protein.links.v9.1 txt.gz”. Because “9606” is the organism code for the human interactome in STRING, lines in this file that started with “9606” were extracted, obtaining 2,425,314 human PPIs involving 20,770 proteins. According to STRING, these PPIs were derived from the following four sources: (1) genomic context; (2) high-throughput experiments; (3) (conserved) co-expression; and (4) previous knowledge. Thus, the information in STRING contained both the direct (physical) and the indirect (functional) association between proteins, therefore STRING could widely measure the associations between proteins. Each PPI contained two Ensembl IDs and one score that ranged between 150 and 999, which indicated the strength of the interaction. An interaction with a high score meant this interaction has a high probability of occurring. For each interaction containing proteins pa and pb, the score was denoted by S(pa,pb). The PPI network defined the 20,770 proteins as the nodes, and two nodes were adjacent if and only if their corresponding proteins can form a PPI. Additionally, each edge in the network represented a PPI; thus, we assigned a weight to each edge, which was defined as the score of its corresponding PPI. From our analysis, a PPI network containing 20,770 nodes and 2,425,314 edges was obtained.

3.3. RWR-Based Method

The RWR algorithm was executed on the PPI network using validated genes as seed nodes to search possible genes. Then, a permutation test was executed to exclude false discoveries found by RWR. The remaining candidate genes with strong associations to validated genes were selected for further analysis. The pseudo-codes of the RWR-based method are listed in Table 4.

3.3.1. Searching Possible Genes Using the RWR Algorithm

RWR is a type of ranking algorithm [33]. Based on a seed node or a set of seed nodes, it simulates a walker that starts from the nodes and randomly walks in a network. Here, 146 Ensembl IDs listed in Supplementary Table S3 were deemed as seed nodes. Starting from these nodes, we attempted to discover novel nodes (genes) related to uveitis. In the beginning of the RWR algorithm, a 20,770-D vector P0 was constructed, in which each composition represented the probability that a node in the network was a uveitis-related gene. Because the 146 Ensembl IDs represented validated uveitis-related genes, their compositions in P0 were set to 1/146, while others were set to zero. Then, the RWR algorithm repeatedly updated this probability vector until it became stable. We designated Pi to represent the probability vector after the i-th step was executed. The probability vector was updated according to the following equation:
P i + 1 = ( 1 r ) A T P i + r P 0
where A represented the column-wise normalized adjacency matrix of the PPI network and r was set to 0.8. When P t + 1 P t L 1 < 10 6 , the update procedure was stopped, and Pt+1 was the output of the RWR algorithm.
According to the probability vector yielded by the RWR algorithm, some nodes received high probabilities. It was apparent that their corresponding genes are more likely to be uveitis-related genes. To avoid missing possible uveitis-related genes, we set a probability threshold of 10−5. The corresponding genes of these nodes were designated as RWR genes.
In this study, we used the RWR program on the heterogeneous network that was implemented in Matlab and proposed by Li and Patra [122]. The code can be downloaded at http://www3.ntu.edu.sg/home/aspatra/research/Yongjin_BI2010.zip. By setting the special values of some parameters, this program could be used to execute the RWR algorithm on a single network.

3.3.2. Excluding False Discoveries Using the Permutation Test

Based on the validated uveitis-related genes and RWR algorithm, new RWR genes were accessed. However, this result was influenced by the structure of the constructed PPI network, i.e., some RWR genes were selected due to the structure of the network and they were not necessarily unique to uveitis. Furthermore, if we randomly selected some nodes in the network as seed nodes of the RWR algorithm, these genes were still selected for and were therefore deemed as likely to be false positive. To control for these genes, a permutation test was executed. We randomly constructed 1000 Ensembl ID sets, denoted by E 1 , E 2 , , E 1000 , consisting of 146 Ensembl IDs. For each set, the Ensembl IDs were deemed seed nodes of the RWR algorithm. Each RWR gene was given a probability. Thus, there were 1000 probabilities for 1000 sets and one probability for 146 Ensembl IDs of the uveitis-related genes for each RWR gene. Then, a measurement, called the p-value, was counted for each RWR gene g, which was defined as:
p - value ( g ) = Θ 1000
where Θ represented the number of randomly constructed sets where the probability assigned to g was larger than that for the 146 Ensembl IDs of uveitis-related genes. Clearly, an RWR gene with a high p-value indicated that the gene was not specific for uveitis and should be discarded. RWR genes with p-values less than 0.05 were selected for further analysis as potential candidate genes for uveitis.

3.3.3. Selection of Core Genes by Associations with Validated Genes

We hypothesized that, of the candidate genes, some may have a strong correlation with uveitis. To further select core candidate genes, two criteria were designed. Candidate genes satisfying both criteria were selected for additional analysis. Candidate genes that had the strongest associations with uveitis-related genes were more likely to be novel uveitis-related genes. Thus, for each candidate gene g, we calculated the maximum interaction score (MIS) as follows:
M I S ( g ) = max { S ( g , g ) : g is   a   uveitis - related   gene }
A high MIS suggested that the candidate gene was closely related to at least one uveitis-related gene, indicating that it was a novel uveitis-related gene with a high probability. According to STRING, a score of 900 was the cut-off for the highest confidence level. Therefore, candidate genes with MISs larger than 900 were selected.
Validated uveitis-related genes have strong associations with specific gene ontology (GO) terms and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways. Therefore, candidate genes that had similar associations with uveitis GO terms and KEGG pathways were more likely to be novel uveitis-related genes. We performed GO term (KEGG pathway) [123,124,125,126] enrichment analysis for candidate genes and uveitis-related genes. The representation of a gene g on all GO terms and KEGG pathways was encoded into a vector ES (g) using this theory. This vector can be obtained by an in-house program using the R function phyper. The R code used was “score <− −log10 (phyper (numWdrawn− 1, numW, numB, numDrawn, lower.tail = FALSE)),” where numW, numB, and numDrawn are the number of genes annotated to the GO term or KEGG pathway, the number of genes not annotated to the GO term or KEGG pathway, and the number of neighbors of gene g and numWdrawn is the number of neighbors of gene g that are also annotated to the GO term or KEGG pathway. The relativity of the two genes g and g on GO terms and KEGG pathways was measured by
Γ ( g , g ) = E S ( g ) E S ( g ) E S ( g ) E S ( g )
A high outcome of Equation (4) indicated that g and g have a similar relationship in terms of GO terms and KEGG pathways. For any candidate gene g, we calculated the maximum function score (MFS) using the following equation:
M F S ( g ) = max { Γ ( g , g ) : g is   a   uveitis - related   gene }
Candidate genes with high MFSs were selected. In this equation, we set 0.8 as the threshold of MFS to select essential candidate genes.

3.4. Methods for Testing RWR-Based Method

In this study, we designed the RWR-based method to identify novel uveitis-related genes. However, it is necessary to test its effectiveness in advance. Here, the five-fold cross-validation [127] was employed. In detail, 146 Ensembl IDs of uveitis-related genes were randomly and equally divided into five parts. Then, Ensembl IDs in each part were singled out in turn and other Ensembl IDs in the rest four parts were used as the seed nodes in the RWR-based method. For each part, the results yielded by a good identification method on the rest four parts should satisfy the following conditions: (I) the results can recover a high proportion of the Ensembl IDs in the part; and (II) the results cannot contain several Ensembl IDs that are not in the part. Thus, recall and precision were employed to evaluate the results yielded by the RWR-based method, which can be calculated by
{ recall = T P T P + F N precision = T P T P + F P
where TP represented the number of Ensembl IDs in the part that can be recovered by the method, FN represented the number of Ensembl IDs in the part that cannot be recovered by the method and FP represented the number of Ensembl IDs that were yielded by the method and not in the part. In addition, to evaluate the predicted results on the whole, the F1-measure was also adopted, which can be computed by
F 1 - measure = 2 × recall × precision recall + precision
It is clear that a high F1-measure means the good performance of the method.

4. Conclusions

This study presented a computational method to determine novel uveitis-related genes. Using the RWR algorithm and certain screening criteria, 56 putative genes were accessed. Extensive analysis of the obtained genes confirmed that several genes are associated with the pathogenesis of uveitis. We hope that the identified novel genes may be used as material to study uveitis and that the proposed method can be extended to other diseases.

Supplementary Materials

Supplementary materials can be found at www.mdpi.com/1422-0067/18/5/1045/s1.

Acknowledgments

This study was supported by the National Natural Science Foundation of China (31371335), Natural Science Foundation of Shanghai (17ZR1412500).

Author Contributions

Lin Liu conceived and designed the experiments; Shiheng Lu, Yan Yan performed the experiments; Shiheng Lu, Zhen Li, Lei Chen and Jing Yang analyzed the data; Shiheng Lu, Yuhang Zhang, Shaopeng Wang contributed reagents/materials/analysis tools; Shiheng Lu wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.
