Overall Quality of Fruits and Vegetables Products Affected by the Drying Processes with the Assistance of Vacuum-Microwaves

Institute of Agricultural Engineering, Wrocław University of Environmental and Life Science, Str. Chełmońskiego 37a, 51-630 Wrocław, Poland
Institute of Animal Reproduction and Food Research of the Polish Academy of Sciences, Division of Food Science, Str. Tuwima 10, 10-748 Olsztyn, Poland
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(1), 71;
Submission received: 27 November 2016 / Revised: 25 December 2016 / Accepted: 26 December 2016 / Published: 30 December 2016


The seasonality of fruits and vegetables makes it impossible to consume and use them throughout the year, thus numerous processing efforts have been made to offer an alternative to their fresh consumption and application. To prolong their availability on the market, drying has received special attention as currently this method is considered one of the most common ways for obtaining food and pharmaceutical products from natural sources. This paper demonstrates the weakness of common drying methods applied for fruits and vegetables and the possible ways to improve the quality using different drying techniques or their combination with an emphasis on the microwave energy. Particular attention has been drawn to the combined drying with the assistance of vacuum-microwaves. The quality of the dried products was ascribed by chemical properties including the content of polyphenols, antioxidant capacity and volatiles as well as physical parameters such as color, shrinkage, porosity and texture. Both these fields of quality classification were considered taking into account sensory attributes and energy aspects in the perspective of possible industrial applications. In conclusion, the most promising way for improving the quality of dried fruit and vegetable products is hybrid drying consisting of osmotic dehydration in concentrated fruit juices followed by heat pump drying and vacuum-microwave finish drying.

Graphical Abstract

1. Introduction

Numerous studies showed that there is a link between the total intake of fruits and vegetables and the reduction of the risk of mortality from major age-related diseases including cardiovascular diseases, diabetes and cancer. Those beneficial properties are connected with the presence of substances that, if identified, might help in selecting products that could increase their consumption, thus obtaining major health improvements without drastically changing the diet [1]. Moreover, those natural biologically active components when properly handled might also be used as natural pharmaceutical products [2,3]. The seasonality of fruits and vegetables makes it impossible to consume and use them throughout the year, so numerous processing attempts have been made to offer an alternative to their fresh consumption and application. Processing has been a crucial aspect of the fruits and vegetables production chain that associates agricultural production with the delivery of food in the required form [4]. Besides increasing the usefulness and availability of processed groceries, processing is also aimed at optimizing nutrient availability and to maintain product quality along with the reduction of losses and wastes [5]. It also has a critical role in achieving foods and nutrition security of the products obtained [6]. It should be taken into account that the quality of the final products is strictly connected with the processing operations and conditions and might noticeably differ from natural non-processed commodities [7]. Among numerous possible effects of processing on the overall quality of fruit and vegetable products, the most important are loss/improvement of naturally occurring components, formation of novel constituents with an increased antioxidative potential or pro-oxidant activity and interactions between different compounds [7]. Thus, availability of phytochemicals and nutrients in processed products is strictly dependent on the methods applied for their handling and those products should be carefully chosen in order to design new products for specific purposes or to complete a balanced diet [8].

2. Drying Processes and Their Combinations Used for Fruit and Vegetable Preservation

Among the processes applied for fruit and vegetable preservation, drying has received special attention as this method is currently regarded as the most common way for obtaining food and pharmaceutical products. It mainly aims at extending the product and/or its constituent’s shelf life by preventing the growth of microorganisms [9]. There are numerous drying techniques offered to dehydrate different kinds of raw materials in order to obtain products of a high quality dependent on processing parameters [10]. However, only some have found broad application in the food and pharmaceutical industries. Among the techniques used, freeze-drying (FD) is considered as the best method because low-temperatures applied in this process allow the highest retention of bioactive compounds comparable with the raw material [11]. Sanchez et al. [12] indicated that encapsulated freeze-dried cherry juice in powdered form resulted in a higher stability of total monomeric anthocyanins during storage at 38 °C in comparison to the juice and its concentrate. For this reason, this process is often used for obtaining natural pharmaceutical products [13,14]. In the case of freeze-dried fruits and vegetables, such products are characterized by minimal shrinkage and low alterations concerning both the chemical composition and color [15]. It should be highlighted that a commercial freeze-drying process is often neither robust nor efficient, thus other methods are required to diminish the production costs. Spray drying (SD) is an effective technique in which liquid products are directly turned into powders. SD is used broadly in industry, especially for pharmaceuticals production and in processing of diary and fruit products [16,17]. This technique was found to be 4–5 times cheaper when compared to freeze-drying [18]. Moreover, it was proven that application of SD process for dehydration of chokeberry juice into powders resulted in better retention of total phenolic compounds, total flavonoids, total monomeric anthocyanins when compared to FD [19]; however, in the literature there are limited data connected with comparison of both drying techniques in terms of the changes of the biologically active compounds.
In food processing, convective drying (CD) is still one of the most extensively used method for dehydration of food products [20]. During CD, a drying agent consist mainly of hot air that simultaneously provides the energy necessary for water evaporation and subsequently evacuates water vapor out of the dryer. Even though this method does not require large investment costs and is effective during the first stage of drying process, it has some disadvantages and limitations. The product quality is relatively low mainly due to shrinkage [21] that involves a hard texture [22]. Moreover, during convective drying, the oxidation processes caused by hot air results in significant chemical alterations in the profile and the content of the thermolabile biologically active compounds [23]. Overall, hot air drying leads to taste, color and nutritional deterioration of agricultural products [24]. It was shown that hot air drying might significantly decrease the quality of the products in terms of the content of total polyphenolic compounds and antioxidant capacity in comparison to sun- and shade-drying processes [25]. A prolonged duration of the process time and a great amount of energy crucial for obtaining products with low moisture content are the major disadvantages of CD [26]. From the practical point of view, those limitations might be minimized by introducing innovative technologies such as a flash drying [27] and impinging stream drying [28] which offer relatively huge transfer of heat and mass during dehydration process. Another possibility is an application of an ultrasound-assisted drying that might significantly reduce the drying time by structural changes that enhance water diffusion [29]. On the other side, it should be highlighted that those changes might have a negative effect on the texture of dried product. Another emerging technology used for food products dehydration is a pulsed fluidized bed drying [30]. More advanced method is a vacuum microwave drying (VMD) due to a significant reduction in the drying time and a relatively good quality of dehydrated product with a high energy efficiency [31]. The capital expenditures and high costs of electric power are not encouraging for application of only this method [32]. At the beginning of VMD, the intensive water evaporation from the raw material might exceed the capacity of the vacuum pump. Therefore, a reduction of the material weight subjected to drying or the application of a larger vacuum installation is required. This issue might be overcome by the pre-drying using the convective method. As a result of pre-drying, the mass loads of vacuum microwave equipment might be radically decreased [33]. The combination of pre-drying of raw materials by convective method before VM finishing drying (CPD-VMFD) may reduce the total cost of dehydration maintaining a high quality of the obtained product [34]. Additionally, properly applied VMFD may favor formation of biologically active constituents that were not present in the raw material [35], simultaneously providing the crispy texture of the final product [36]. The quality of a dried product can even be improved and the total cost of dehydration might be reduced by application of heat pomp pre-drying (HPPD) instead of CPD. Heat pomp pre-drying process enables high energy efficiency by latent heat recovery [37] and contributes in a higher retention of polyphenolic compounds content, antioxidant potential and acceptable appearance [38]. In terms of energy efficiency and product quality, better results may be obtained by using a superheated steam under vacuum as a drying agent instead of a hot air in the HPPD. Under these conditions, the contact with oxygen is reduced to the minimum and the heat exchange is significantly improved [39]. The chemical composition of the dried fruit and vegetables might be drastically changed in terms of bioactive compounds and antioxidant capacity by the osmotic dehydration in concentrated juices applied as a pre-treatment procedure before drying. During the osmotic pre-treatment that aims at a water loss, simultaneous solids gain plays a crucial role in mass exchange [40]. An optimal concentration of the osmotic solution assures a high effectiveness of dehydration and, apart from beneficial chemical fortification, improves the flavor of the dried product due to gained solids. It was proven that an ultrasound during osmotic pre-treatment might accelerate the process of mass transfer [41,42] and, therefore, might enhance positive chemical changes that appear in the material [43].
To summarize, a combination of traditional dehydration methods and novel ones might significantly improve the quality of the final products. However, dehydration is an energy consuming process regardless of the drying method applied. Therefore, different energy reduction methods and potential use of renewable energy should be considered when designing new drying techniques. On the other hand, the quality of the final products in terms of the presence of biologically active constituents is strictly connected with the techniques and parameters applied, thus both aspects should be taken into consideration during designing of final products.

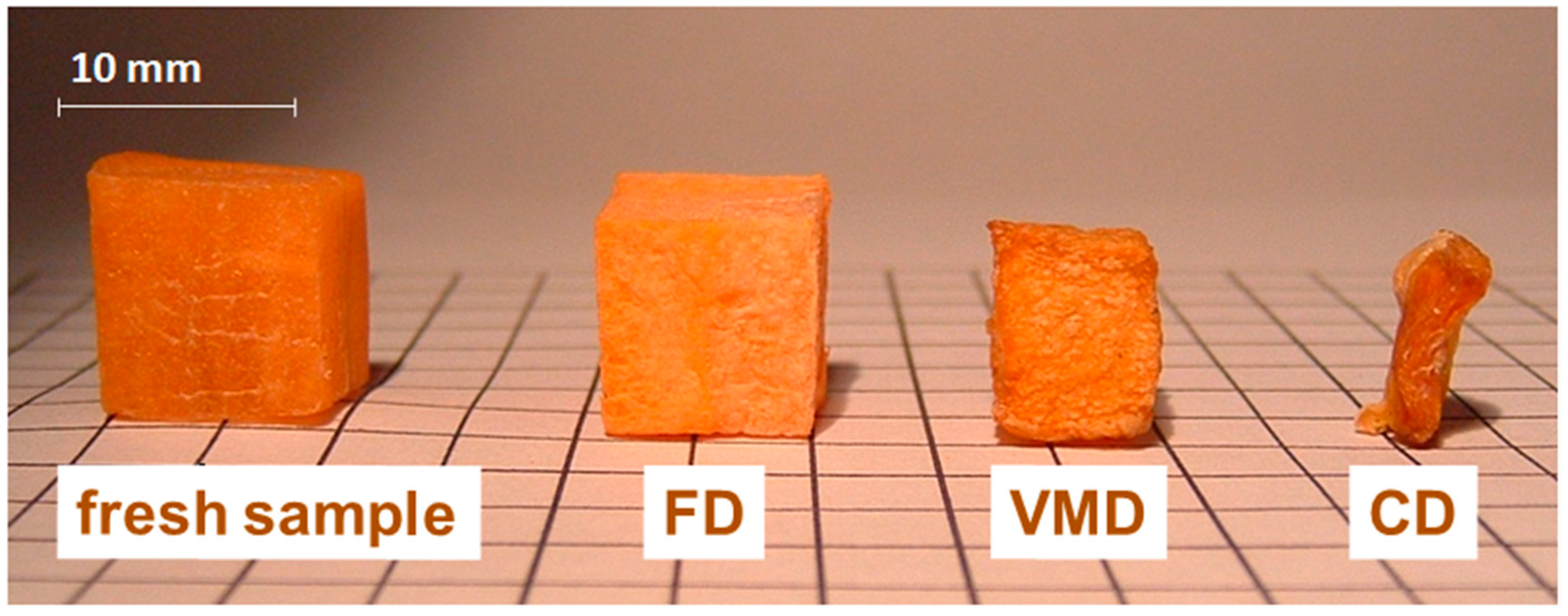

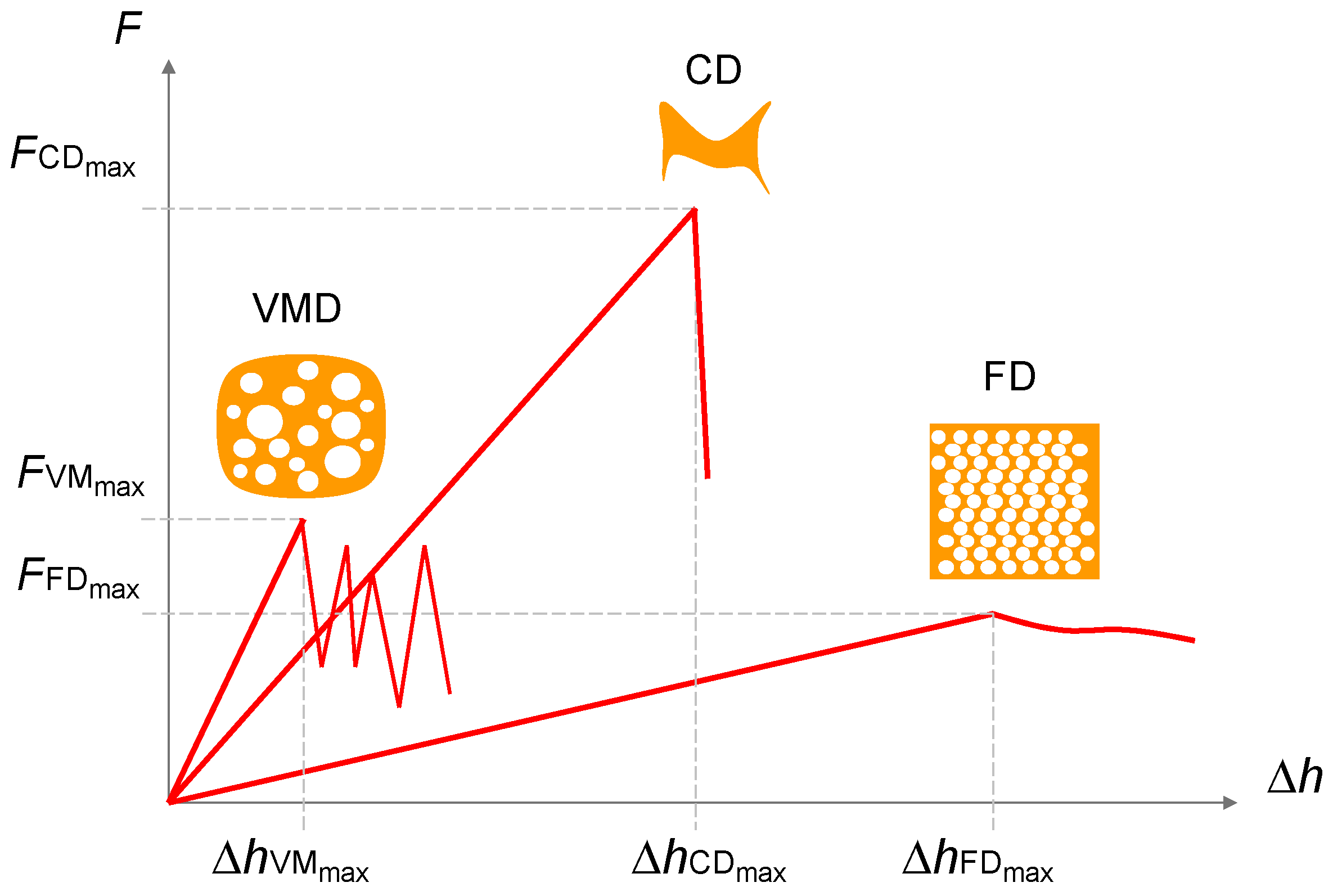

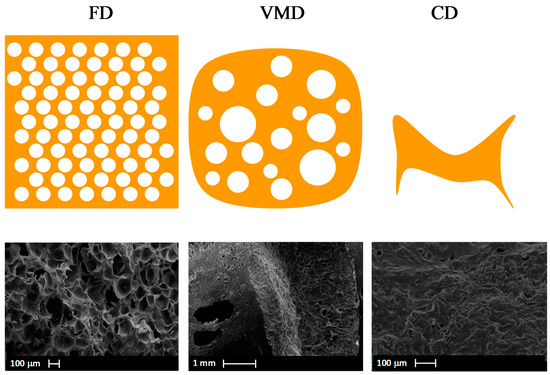

3. The Effect of Microwave Vacuum Drying on the Overall Properties of the Dried Products

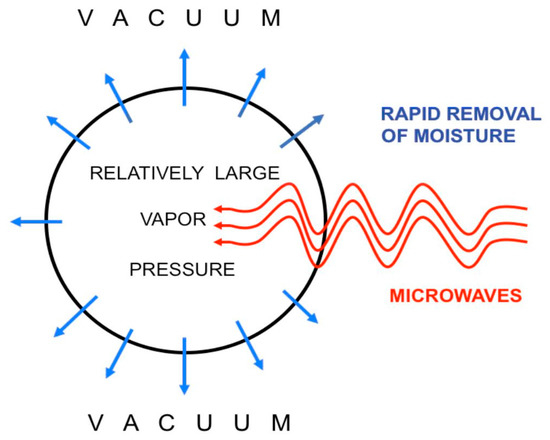

Among mentioned above drying techniques, a special attention has been drawn to the vacuum-microwave drying (VMD) due to its influence on the final quality of the products obtained. The VMD has already been successfully applied to reduce the moisture content of numerous plant materials, i.e., apples [36], blueberries [44], cranberries [45], strawberries [46], bananas [47], pumpkin [48], carrots [49], garlic [50], peanuts [51], ginger [52] and herbs [53]. During VMD, the energy of microwaves is absorbed by water dipoles located inside the processed material [54]. This creates a relatively high pressure in the center of the dried material and allows for a rapid transport of moisture to the vacuum preventing the material structure collapse (Figure 1). Due to this puffing phenomenon [55], the physical properties of dried material might be noticeably altered. The shrinkage of VMD products is significantly lower, the rate of drying is noticeably higher and the duration of the drying process is considerably shorter in comparison to convective drying (CD). Puffing phenomenon associated with a fast dehydration is responsible for a porous structure of VMD product; however, the number of pores is smaller and the size of pores is bigger when compared to freeze drying products (Figure 2). Consequently, the shrinkage of VMD product is a slightly higher than that of FD but significantly lower in comparison to CD product (Figure 3). The structural changes caused by the puffing influence the formation of a crispy texture of VMD products characterized by low values of force and deformation in the breaking point during compression test (Figure 4). For example, a compressive strength test indicated that the breaking force for VMD beetroot cubes dried at 480 W was 60% lower than for CD cubes dried at 60 °C [22] which confirmed positive changes owed to the puffing phenomenon that occurred in the structure of dried material. The structural changes in the dried product can be evaluated by rehydration test that lies on the determination of water absorption capacity (WAC), dry matter holding capacity (DHC) and rehydration ability (RA) [56]. Higher values of those indicators demonstrate better texture associated with the porous structure formed by puffing. The increase in microwave power from 240 to 720 W during MVD of apple slices increased WAC values from 0.67 to 0.77, DHC from 0.18 to 0.24 and RA from 0.13 to 0.19, whereas the values obtained for CD were, respectively, 0.58, 019 and 0.12 [57]. On the other hand, the increase in microwave power from 240 to 720 W enlarged the relative volume from 50% to 80% of VMD garlic parts due to lower shrinkage, which was confirmed by increased WAC values from 0.23 to 0.3 kg·kg−1 determined in humid air [58].

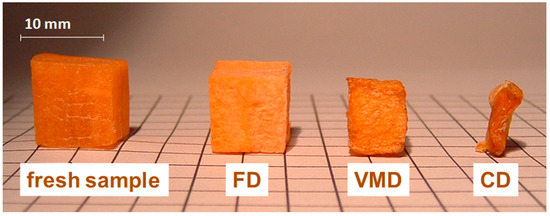

Application of VMD may significantly influence the chemical composition of the dried material. The study concerning dehydration of strawberries showed that VMD might produce the dried products with better retention of, e.g., anthocyanins, flavanols and ascorbic acid in comparison to CD [35]. The microwave vacuum drying process, when appropriately applied, may result in the quality of the final products comparable to freeze drying [55] being considered as one of the best drying method in terms of chemical composition of plant materials [52]. The proper application of VMD mainly concerns the control of microwave power, which is a crucial factor affecting the temperature of VMD material. On the one hand, the relatively high temperature usually degrades native bioactive compounds, but, on the other hand, contributes to the formation of new compounds with proven strong antioxidant capacity as products of the Maillard reaction/caramelization [59,60,61]. It was indicated that during VMD of plum halves, the increase in power from 120 W to 480 W almost doubled the content of hydroxymethylfurfural, a Maillard reaction/caramelization product, and a significant increase in antioxidant capacity measured by TEAC ABTS (Trolox Equivalent Antioxidant Capacity with application of ABTS•+ radical cations) and FRAP (Ferric Reducing Antioxidant Potential) methods was noted [62]. In order to achieve a favorable chemical composition that guarantees possibly the highest retention of natural biologically active components present in dried product, the temperature of VMD material should be kept at the safe level. An increasing temperature versus decreasing moisture content of dried material during VMD resulted from generation of heat energy by dipoles of water due to microwave radiation [54] reveals that at the very end of drying there is a critical point characterized by maximum temperature. Beyond this point, the temperature of dried material decreases because the generated energy is lower than the loss of energy that results from the water evaporation and heat flow arising from the gradient of temperature [22]. Understanding the temperature behavior of VMD material leads to proper application of reduced microwave power in an optimal way in terms of processing time and quality of the final product [63]. The effect of processing time and maximum temperature on different chemical parameters of selected plant materials is summarized in Table 1. In the case of strawberries [35], cherries [63], jujube [64] and plums [62], VMD resulted in comparable amount of polyphenolic compounds to freeze-drying process within the significantly shorter drying time, whereas similar level of volatile constituents after application of those drying methods was noted in marjoram [53]. This can be explained by the fact that the generation of heat during VMD might create a high vapor pressure inside the plant cells that, in turn, might cause a release of bioactive compounds bounded to the cell wall [65]. It should be highlighted that a significant increase of individual polyphenolic compound was indicated when VMD was used for plum dehydration. In this case, a noticeably higher content of 4-p-coumaroylquinic acid was noted after VMD when compared to FD [62]. Vvadenskaya et al. [66] reported that some of the individual flavonols are only present in cranberry products when processed what confirms that drying methods have a significant effect on the quality of the final products. Other studies proved that application of microwave vacuum drying resulted in the highest retention of anthocyanins being at the similar level as after FD when compared to hot air drying of raspberries [67] and cranberries [68].
It should be noted that, although vacuum microwave drying used for plant material dehydration is relatively fast and might ensure a quality of the dried products comparable to freeze-drying, it is not fully recommended for industrial applications as a single technique due to the investment expenditures and high costs of electric power necessary to supply magnetrons. Therefore, an option to use this fast dehydration technique is application of convective pre-drying (CPD) being more effective at the first stage of drying [33].

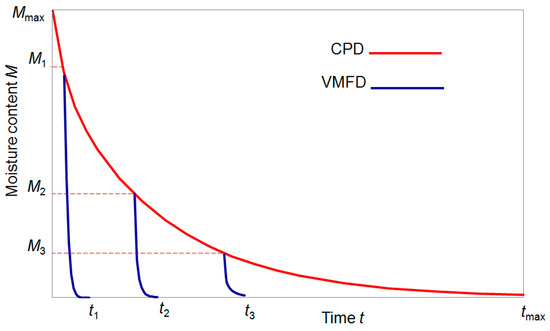

4. Convective Pre-Drying Followed by Vacuum-Microwave Finish Drying (CPD-VMFD)

High quality of the food product is an important aspect for industrial processing, but the final cost of production should be considered, as it might be a decisive factor for the success of the investment. For this reason, dehydration of plant materials by combined method consisting of convective pre-drying and vacuum-microwave finish drying (CPD-VMFD) is a compromise solution because it provides benefits of VMD at high productivity ensured by CD. It was proven that application of convective pre-drying of the material before VMFD reduced the total cost of dehydration and might improve the quality of dried tomatoes [69], nutritional value of strawberries evaluated in terms of ascorbic acids, anthocyanins content and antioxidant capacity [70] and might enhance the quality of beetroot cubes [22]. The main difficulty of CPD-VMFD concerns the time when CPD should be replaced by VMFD. As the main role of CPD lies on the maximal water removal from the row material with satisfactory drying rate, VMFD should start at a critical point of CPD when drying kinetics is losing its linear character for the exponential decreasing of moisture content in time characterized by decreasing drying rate [71]. The drying kinetics of combined drying consisting of CPD performed until different moisture levels were reached with finish drying completed by microwaves is presented in Figure 5. It was assumed that, despite the excellent energy efficiency during VMD [69], CPD should be continued until the texture of the dried material is soft enough to retain susceptibility of the puffing during VMFD to diminish the investment costs and the electric power consumption, even though the initial application of CPD method lowers the energy consumption, especially at a higher microwave power. It requires exclusive studies for particular plant materials with different texture characteristics that depend on the moisture content. The drying experiments on combined CPD-VMFD showed that, during VMFD, appropriate control of microwave power might enhance the drying rate of the process [57,72] and might result in a comparable level of bioactive compounds present in the dried material [62] or even higher [22] when compared to FD products. In the case of herbs, the composition of volatile compounds and the sensory attributes are the main quality aspects in a selection of the drying technique. Taking above factors into consideration, it was stated that the best method for preservation of rosemary was combination CPD-VMFD [73], while single VMD was found as the best method for dehydration of oregano herb [74]. These results proved that botanic morphology is a significant factor that should be taken into account while analyzing the suitability of plant material to the way in which vacuum-microwaves are applied during drying. Specifically, the loss of volatiles results from the temperature of the material and the time of drying. An increase in microwave power usually reduces duration of the process and at the same time enhances the increase in the temperature of the dried material [75]. During application of microwaves for plants with delicate structure, i.e., oregano, the water evaporate easily from the inside of the dried material under a relatively low inner pressure and thus low temperature. Therefore, VMD can be used from the very beginning until the very end of the drying process providing satisfactory retention of volatile compounds while drying e.g., basil [76] and thyme [77]. In the case of herbs with more dense morphology such as rosemary the particles of water are more bounded to the cellular system affecting the increase in the temperature under microwave radiation due to the higher inner pressure. Such increase can be reduced by introduction of CPD that might significantly diminish the initial amount of water and thus might shorten the time of microwaving during vacuum microwave finish drying. The time–temperature relationship that influence the retention of bioactive compounds during VMD or combined CPD-VMFD of plant materials was also discussed for cherries [63] and jujube [64] indicating that a raw material should be dried with a possibly high microwave power until a certain critical temperature level is obtained giving the reason for immediate reduction of the power to the value which guarantees the maintenance of a safe temperature of the dried material for providing the highest retention of bioactive compounds present in the final product i.e., total phenolics, anthocyanins, derivatives of quercetin and also the attractive color. The maintenance of microwave power at a sufficiently high level during VMFD might additionally provide energy benefits [34].

5. Heat Pumps for Better Quality and Energy Efficiency in Combined Drying with VMFD

Heat pump drying (HPD) may successfully replace the convective drying process before using VMFD for dehydration of plant materials. The major advantage of using the heat pumps is to provide a dehumidified air with a high ability for absorbing the water from the material despite the relatively low processing temperature [37]. Due to this low temperature, HPD is recommended for dehydration of sensitive materials as herbs [78,79], pharmaceuticals [80] and selected agricultural products [38,81,82]. Importantly, the HPD process noticeably save energy as heat pumps are classified as renewable sources of energy with a high efficiency due to recovery of latent heat of the water vaporization [37].

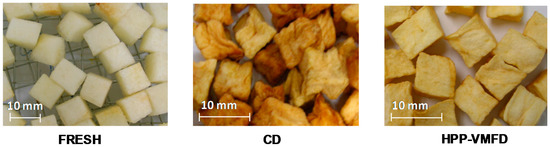

Combined HPPD-VMFD might provide dried products with a better appearance (Figure 6) and a higher content of total polyphenolic compounds (TPC) when compared to the other drying techniques. Chong et al. [83] showed that the TPC of HPPD-VMFD dried apple cubes reached 500 mg of Gallic acid equivalent (GAE) 100 g−1 dm, which was more than twice the TPC of HPD apple cubes. The higher content of TPC was mainly due to the significant reduction of the duration of the process caused by application of VMFD. Therefore, the entire process of heating treatment which reduce or halter the activity of enzymes that might degrade the phenolic compounds [84] was shortened and contributed to higher preservation of total phenolics that at the end affected the antioxidant capacity of the final products [85]. According to Donovan et al. [86] and Ferreira et al. [87], the phenolic compounds present in fresh fruits may be destroyed or converted to other constituents with stronger antioxidant properties. Such conversion might be an appropriate explanation for higher antioxidant capacity of convectively dried pears and papaya when compared to HPPD-VMFD samples [38]. The increased antioxidant capacity may also result from the formation of Maillard reaction/caramelization products, as was proven for plum products [88].
It was indicated that the content of total polyphenolic compounds present in fresh ciku (Manilkara zapota) [89] was decreased using the HPPD-VMFD to the level that was almost double when compared to samples obtained using CPD-VMFD and almost four times higher than after using single HPD [90].

6. Osmotic Dehydration as a Pre-Treatment before VMFD

The effect of drying time and temperature on the chemical composition of dried product is even more noticeable when osmotic dehydration (OD) is used as a pre-treatment. During osmotic dehydration of plant materials, three types of mass transfer occur simultaneously: (1) a water flux from the raw material to the osmotic solution; (2) a transfer of solids from the solution to the raw material; and (3) a migration of the natural solutes from the raw material to the solution [91]. Each type of mass transfer is likely to happen to some extent and it depends on the temperature, concentration, and the composition of the osmotic solution. OD of plant materials is performed in solutions prepared from sucrose or sodium chloride [92,93,94,95]. Previously, sucrose was applied for osmotic dehydration of strawberries [96], apples [97], pumpkin [98] and pepper [99], whereas NaCl solution was used for OD of tomato pomace [100], potato, carrot [101] and mushrooms [102]. Due to the high moisture content of agricultural products, OD is often applied as a pre-treatment procedure before finish drying aimed at obtaining final products with desirable taste and long shelf life [103].
Combined drying consisting of the osmotic dehydration and the vacuum microwave drying (OD-VMD) might additionally improve the physical properties, e.g., the texture of dried product. Application of OD using sucrose reduced the shrinkage and improved the rehydration capacity of vacuum microwave dried pineapple circular discs providing a softer texture and less hardened surface [104]. Moreover, a study on pumpkin slices showed that the optimal quality of dried product in terms of a cohesiveness, crispiness, appearance and taste can be achieved by application of the osmotic solution in concentration of 20%–40% of sucrose at the temperature 40 °C followed by a VMFD at microwave power 360 W [95]. The improved textural properties owned to a low cohesiveness and a high crispiness resulted from the lowest value of shrinkage (41%) obtained using a sucrose solution of concentration 40%. The same concentration of sucrose solution in osmotic pre-treatment guaranteed the lowest shrinkage of VMFD beetroot slices [105]. Torringa et al. [102] reported that the increase in concentration of the osmotic solution decreased the shrinkage of the mushroom finish dried by combined microwave-hot air drying method. This relationship can be explained by increased maximum temperature of VMFD material resulted from increasing of osmotic solution concentration [95,105]. The VM method ensures a lower shrinkage than traditional methods due to the puffing phenomenon [55] which is enhanced by a high inner pressure associated with the temperature of the dried material [22].
It can be presumed that application of NaCl might improve not only the taste of the dried products but also the dielectric properties of the material finish dried with microwaves [102]. It was indicated that pumpkin slices [106] and beetroot slices [105] did not required the pre-treatment in NaCl solution for improving the taste of the products but in terms of the texture of the dried material application of 15% NaCl solution was recommended. Moreover, an increase in NaCl concentration did not influence the rise of the temperature during VMFD, thus no improvement of drying rate was noted.
Recently, in order to enrich dried plant materials in natural biologically active components, the application of OD solution consisted of concentrated fruit juices from, e.g., raspberry [107] or chokeberry [43], before microwave finish drying process was made [108]. Osmotic dehydration of pumpkin slices for 6 h in concentrated chokeberry juice resulted in 10 times increase of polyphenolics content using VMD in comparison to VMD pumpkin not subjected to OD. Such increase was caused by the replacement of water present in the fresh material by the concentrated juice containing more bioactive constituents in the osmotic solution [109]. The effect of water replacement by concentrated juice after 2, 4 and 6 h of OD is presented in Figure 7, whereas Figure 8 demonstrates capillaries of beetroot cellular system covered with the checkerberry juice concentrate. In comparison, a raspberry concentrated juice used as the osmotic solution increased five times the content of polyphenols in VMD pumpkin slices which was by 50% lower when compared to chokeberry juice [107].
Concentrated chokeberry juice was used for combined OD-VMFD applied for the beetroot dehydration. Results indicated that such OD solution before VMFD at 240 W resulted in three times higher content of total polyphenolic compounds and six times higher ability of samples to scavenge ABTS radical cations in comparison to fresh beetroot samples. Simultaneously, higher sensory notes were gain for OD samples in terms of texture, taste and smell of dried products than for non OD dried beetroots [43]. Osmotic solution consisted of concentrated apple juice before CD followed by VMFD caused a slight decrease of TPC in cherries [103]. A similar behavior may occur when dehydrated material demonstrates higher content of bioactive constituents than fruits used for preparing the osmotic solution. However, sensory benefits may be more important than a deterioration of chemical composition of valuable product especially when the alternative for improving the sensory attributes is connected with natural juices than a sucrose solution.
When physical properties are taken into account, the osmotic solution might be prepared from the same material as samples subjected to osmotic dehydration. This combination was applied for chokeberry products dried by hybrid consisted of OD-CD-VMFD (Figure 9) where the final products had increased crispiness due to the increase of temperature favoring larger porosity and total pore volume at lower final moisture content [110].

7. New Perspectives for Combined Drying as a Method of Preservation and Fortification of Dried Products

The combination of OD in concentrated fruit juices followed by CD and completed by VMFD can be successfully applied in the food processing on industrial scale. There is also a possibility of further improvement of this drying protocol by an implementation of the appropriate forms of each treatment. The osmotic dehydration might be assisted by the centrifugal forces [111] or supported by ultrasounds under lowered pressure in order to facilitate the process of mass exchange comprising water loss and solids gain [41,42]. Replacing traditional CD by HPD [37] with superheated steam as a drying agent under vacuum [39] creates conditions for higher energy efficiency [112] and enhances the retention of native bioactive phytochemicals due to lower processing temperature and diminishing the risk of oxidation processes [113]. Using of flash drying [27] or impinging drying [28] is also worth consideration as these drying techniques may significantly increase the productivity along with the shorten duration of the process. The appropriate use of the final VMFD still requires intensive studies including simulation and fuzzy optimization [114] due to the complex physical and chemical processes that might occur under the vacuum microwave process [115]. Such optimization might be aided by a computer imaging applied for in-line monitoring of the overall quality of product during drying processes [116,117,118]. A non-destructive computer-vision technology provides fast and efficient information about the physical state of the processed material that might improve the control of the food products during industrial processing [119]. The computer-vision system (CVS) was successively used to find the relationship between physical parameters (volume and color) and quality attributes (texture and moisture content), which helped to point the end of drying of apple slices [120]. A computer added image analysis might be also used for monitoring the physical, chemical, and sensory changes during storage of the dried agricultural products as those parameters are proven to be strongly correlated with the color characteristics of such materials [121,122,123].

8. Conclusions

Dehydration of agricultural products seems to be an extremely important matter, as currently the form and quality of food and pharmaceutical products decides their commercial success. Final quality in terms of physical and, more importantly, chemical properties of those products results of preparation steps and methods applied for their preparation. Recent studies concerning dehydration of agricultural products using vacuum-microwave technique showed that the most promising method is combined drying which ensures high quality at the lowest possible energy consumption. Osmotic dehydration in concentrated juices supply the products with additional biologically active constituents delivering them to the cellular system of the dried material, while the following heat pump drying, besides energy benefits, enables effective removal of the excess water at relatively low temperatures conducive to the retention of native compounds. During the final step of drying, an appropriate application of vacuum-microwaves with temperature control might contribute to release of native compounds from cellular structure or formation of new bioactive compounds as well as crispy texture of dried product. However, the optimization of the combined method of drying still requires additional studies comprising other forms of treatments enhancing water diffusivity, retention of valuable compounds and the process of fortification aimed at providing food products with excellent health-promoting properties and attractive sensory attributes.


This work was supported by project RPDS-01-02-01-02-0056/15 (2016–2017).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Brandt, K. Chapter 50—Vegetables and fruits in the prevention of chronic age-related diseases. In Molecular Basis of Nutrition and Aging; Malavolta, M., Mocchegiani, E., Eds.; Academic Press: San Diego, CA, USA, 2016; pp. 707–722. [Google Scholar]
  2. David, B.; Wolfender, J.-L.; Dias, D.A. The pharmaceutical industry and natural products: Historical status and new trends. Phytochem. Rev. 2015, 14, 299–315. [Google Scholar] [CrossRef]
  3. Jain Manu, S.; Lohare Ganesh, B.; Chavan Randhir, B.; Barhate Shashikant, D.; Shah Chirag, B. Spray drying in pharmaceutical industry: A review. Res. J. Pharm. Dos. Forms Technol. 2012, 4, 74–79. [Google Scholar]
  4. Johnston, J.L.; Fanzo, J.C.; Cogill, B. Understanding sustainable diets: A descriptive analysis of the determinants and processes that influence diets and their impact on health, food security, and environmental sustainability. Adv. Nutr. Int. Rev. J. 2014, 5, 418–429. [Google Scholar] [CrossRef] [PubMed]
  5. Van der Goot, A.J.; Pelgrom, P.J.M.; Berghout, J.A.M.; Geerts, M.E.J.; Jankowiak, L.; Hardt, N.A.; Keijer, J.; Schutyser, M.A.I.; Nikiforidis, C.V.; Boom, R.M. Concepts for further sustainable production of foods. J. Food Eng. 2016, 168, 42–51. [Google Scholar] [CrossRef]
  6. Augustin, M.A.; Riley, M.; Stockmann, R.; Bennett, L.; Kahl, A.; Lockett, T.; Osmond, M.; Sanguansri, P.; Stonehouse, W.; Zajac, I.; et al. Role of food processing in food and nutrition security. Trends Food Sci. Technol. 2016, 56, 115–125. [Google Scholar] [CrossRef]
  7. Nicoli, M.C.; Anese, M.; Parpinel, M.T.; Franceschi, S.; Lerici, C.R. Loss and/or formation of antioxidants during food processing and storage. Cancer Lett. 1997, 114, 71–74. [Google Scholar] [CrossRef]
  8. Weaver, C.M.; Dwyer, J.; Fulgoni, V.L.; King, J.C.; Leveille, G.A.; MacDonald, R.S.; Ordovas, J.; Schnakenberg, D. Processed foods: Contributions to nutrition. Am. J. Clin. Nutr. 2014, 99, 1525–1542. [Google Scholar] [CrossRef] [PubMed]
  9. Grabowski, S.; Marcotte, M. Pre-treatment efficiency in osmotic dehydration of cranberries. In Transport Phenomena in Food Processing; Welti-Chanes, W., Velez-Ruiz, F., Barbosa-Canovas, G.V., Eds.; CRC Press: New York, NY, USA, 2003; pp. 83–94. [Google Scholar]
  10. Sagar, V.R.; Suresh Kumar, P. Recent advances in drying and dehydration of fruits and vegetables: A review. J. Food Sci. Technol. 2010, 47, 15–26. [Google Scholar] [CrossRef] [PubMed]
  11. Ratti, C. Hot air and freeze-drying of high-value foods: A review. J. Food Eng. 2001, 49, 311–319. [Google Scholar] [CrossRef]
  12. Sanchez, V.; Baeza, R.; Chirife, J. Comparison of monomeric anthocyanins and colour stability of fresh, concentrate and freeze-dried encapsulated cherry juice stored at 38 °C. J. Berry Res. 2015, 5, 243–251. [Google Scholar] [CrossRef]
  13. Tang, X.; Pikal, M.J. Design of freeze-drying processes for pharmaceuticals: Practical advice. Pharm. Res. 2004, 21, 191–200. [Google Scholar] [CrossRef] [PubMed]
  14. Nail, S.L.; Jiang, S.; Chongprasert, S.; Knopp, S.A. Fundamentals of freeze-drying. Pharm. Biotechnol. 2002, 14, 281–360. [Google Scholar] [PubMed]
  15. Huang, L.; Zhang, M.; Yan, W.; Mujumdar, A.S.; Sun, D. Effect of coating on post-drying of freeze-dried strawberry pieces. J. Food Eng. 2009, 92, 107–111. [Google Scholar] [CrossRef]
  16. Chiou, D.; Langrish, T.A.G. Development and characterisation of novel nutraceuticals with spray drying technology. J. Food Eng. 2007, 82, 84–91. [Google Scholar] [CrossRef]
  17. Alamilla-Beltrán, L.; Chanona-Pérez, J.J.; Jiménez-Aparicio, A.R.; Gutiérrez-López, G.F. Description of morphological changes of particles along spray drying. J. Food Eng. 2005, 67, 179–184. [Google Scholar] [CrossRef]
  18. Hammami, C.; René, F. Determination of freeze-drying process variables for strawberries. J. Food Eng. 1997, 32, 133–154. [Google Scholar] [CrossRef]
  19. Horszwald, A.; Andlauer, W.; Heritier, J. Characterisation of Aronia powders obtained by different drying processes. Food Chem. 2013, 5, 2858–2863. [Google Scholar] [CrossRef] [PubMed]
  20. Soysal, Y.; Ayhan, Z.; Eştürk, O.; Arıkan, M.F. Intermittent microwave–convective drying of red pepper: Drying kinetics, physical (colour and texture) and sensory quality. Biosyst. Eng. 2009, 103, 455–463. [Google Scholar] [CrossRef]
  21. Mayor, L.; Sereno, A.M. Modelling shrinkage during convective drying of food materials: A review. J. Food Eng. 2004, 61, 373–386. [Google Scholar] [CrossRef]
  22. Figiel, A. Drying kinetics and quality of beetroots dehydrated by combination of convective and vacuum-microwave methods. J. Food Eng. 2010, 98, 461–470. [Google Scholar] [CrossRef]
  23. Marfil, P.H.M.; Santos, E.M.; Telis, V.R.N. Ascorbic acid degradation kinetics in tomatoes at different drying conditions. LWT Food Sci. Technol. 2008, 41, 1642–1647. [Google Scholar] [CrossRef]
  24. Maskan, M. Kinetics of colour change of kiwifruits during hot air and microwave drying. J. Food Eng. 2001, 48, 169–175. [Google Scholar] [CrossRef]
  25. Melgar-Almanza, A.; Horacio Guzmán-Maldonado, S.; Núñez-Colín, C.; Herrera-Hernández, M.G.; Medina-Ramos, G. Effect of drying on antioxidant capacity, physicochemical and functional characteristics of Mexican serviceberry fruit. J. Berry Res. 2015, 5, 97–105. [Google Scholar] [CrossRef]
  26. Kudra, D.T. Energy aspects in drying. Dry. Technol. 2004, 22, 917–932. [Google Scholar] [CrossRef]
  27. Zotarelli, M.F.; Porciuncula, B.D.A.; Laurindo, J.B. A convective multi-flash drying process for producing dehydrated crispy fruits. J. Food Eng. 2012, 108, 523–531. [Google Scholar] [CrossRef]
  28. Nimmol, C.; Devahastin, S. Evaluation of performance and energy consumption of an impinging stream dryer for paddy. Appl. Therm. Eng. 2010, 30, 2204–2212. [Google Scholar] [CrossRef]
  29. Musielak, G.; Mierzwa, D.; Kroehnke, J. Food drying enhancement by ultrasound—A review. Trends Food Sci. Technol. 2016, 56, 126–141. [Google Scholar] [CrossRef]
  30. Reyes, A.; Campos, C.; Vega, R. Drying of turnip seeds with microwaves in fixed and pulsed fluidized beds. Dry. Technol. 2006, 24, 1469–1480. [Google Scholar] [CrossRef]
  31. Gunasekaran, S. Pulsed microwave-vacuum drying of food materials. Dry. Technol. 1999, 17, 395–412. [Google Scholar] [CrossRef]
  32. Vadivambal, R.; Jayas, D.S. Changes in quality of microwave-treated agricultural products—A review. Biosyst. Eng. 2007, 98, 1–16. [Google Scholar] [CrossRef]
  33. Hu, Q.; Zhang, M.; Mujumdar, A.S.; Xiao, G.; Jin-Cai, S. Drying of edamames by hot air and vacuum microwave combination. J. Food Eng. 2006, 77, 977–982. [Google Scholar] [CrossRef]
  34. Calín-Sánchez, Á.; Figiel, A.; Wojdyło, A.; Szarycz, M.; Carbonell-Barrachina, Á.A. Drying of garlic slices using convective pre-drying and vacuum-microwave finishing drying: Kinetics, energy consumption, and quality studies. Food Bioprocess Technol. 2013, 7, 398–408. [Google Scholar] [CrossRef]
  35. Wojdyło, A.; Figiel, A.; Oszmiański, J. Effect of drying methods with the application of vacuum microwaves on the bioactive compounds, color, and antioxidant activity of strawberry fruits. J. Agric. Food Chem. 2009, 57, 1337–1343. [Google Scholar] [CrossRef] [PubMed]
  36. Sham, P.W.Y.; Scaman, C.H.; Durance, T.D. Texture of vacuum microwave dehydrated apple chips as affected by calcium pretreatment, vacuum level, and apple variety. J. Food Sci. 2001, 66, 1341–1347. [Google Scholar] [CrossRef]
  37. Alves-Filho, O. Heat pump dryers: Theory, design and industrial applications. Available online: (accessed on 11 November 2016).
  38. Chong, C.H.; Law, C.L.; Figiel, A.; Wojdyło, A.; Oziembłowski, M. Colour, phenolic content and antioxidant capacity of some fruits dehydrated by a combination of different methods. Food Chem. 2013, 141, 3889–3896. [Google Scholar] [CrossRef] [PubMed]
  39. Devahastin, S.; Suvarnakuta, P.; Soponronnarit, S.; Mujumdar, A.S. A comparative study of low-pressure superheated steam and vacuum drying of a heat-sensitive material. Dry. Technol. 2004, 22, 1845–1867. [Google Scholar] [CrossRef]
  40. Lazarides, H.N.; Katsanidis, E.; Nickolaidis, A. Mass transfer kinetics during osmotic preconcentration aiming at minimal solid uptake. J. Food Eng. 1995, 25, 151–166. [Google Scholar] [CrossRef]
  41. Fito, P. Modelling of vacuum osmotic dehydration of food. J. Food Eng. 1994, 22, 313–328. [Google Scholar] [CrossRef]
  42. Garcia-Noguera, J.; Oliveira, F.I.P.; Gallão, M.I.; Weller, C.L.; Rodrigues, S.; Fernandes, F.A.N. Ultrasound-assisted osmotic dehydration of strawberries: effect of pretreatment time and ultrasonic frequency. Dry. Technol. 2010, 28, 294–303. [Google Scholar] [CrossRef]
  43. Lech, K.; Figiel, A.; Wojdyło, A.; Korzeniowska, M.; Serowik, M.; Szarycz, M. Drying kinetics and bioactivity of beetroot slices pretreated in concentrated chokeberry juice and dried with vacuum microwaves. Dry. Technol. 2015, 33, 1644–1653. [Google Scholar] [CrossRef]
  44. Zielinska, M.; Michalska, A. Microwave-assisted drying of blueberry (Vaccinium corymbosum L.) fruits: Drying kinetics, polyphenols, anthocyanins, antioxidant capacity, colour and texture. Food Chem. 2016, 212, 671–680. [Google Scholar] [CrossRef] [PubMed]
  45. Sunjka, P.S.; Rennie, T.J.; Beaudry, C.; Raghavan, G.S.V. Microwave-convective and microwave-vacuum drying of cranberries: A comparative study. Dry. Technol. 2004, 22, 1217–1231. [Google Scholar] [CrossRef]
  46. Krulis, M.; Kühnert, S.; Leiker, M.; Rohm, H. Influence of energy input and initial moisture on physical properties of microwave-vacuum dried strawberries. Eur. Food Res. Technol. 2005, 221, 803–808. [Google Scholar] [CrossRef]
  47. Mousa, N.; Farid, M. Microwave vacuum drying of banana slices. Dry. Technol. 2002, 20, 2055–2066. [Google Scholar] [CrossRef]
  48. Nawirska, A.; Figiel, A.; Kucharska, A.Z.; Sokół-Łętowska, A.; Biesiada, A. Drying kinetics and quality parameters of pumpkin slices dehydrated using different methods. J. Food Eng. 2009, 94, 14–20. [Google Scholar] [CrossRef]
  49. Cui, Z.-W.; Xu, S.-Y.; Sun, D.-W. Microwave–vacuum drying kinetics of carrot slices. J. Food Eng. 2004, 65, 157–164. [Google Scholar] [CrossRef]
  50. Cui, Z.-W.; Xu, S.-Y.; Sun, D.-W. Dehydration of garlic slices by combined microwave-vacuum and air drying. Dry. Technol. 2003, 21, 1173–1184. [Google Scholar] [CrossRef]
  51. Delwiche, S.R.; Shupe, W.L.; Pearson, J.L.; Sanders, T.H.; Wilson, D.M. Microwave vacuum drying effect on peanut quality. Peanut Sci. 1986, 13, 21–27. [Google Scholar] [CrossRef]
  52. Chan, E.W.C.; Lim, Y.Y.; Wong, S.K.; Lim, K.K.; Tan, S.P.; Lianto, F.S.; Yong, M.Y. Effects of different drying methods on the antioxidant properties of leaves and tea of ginger species. Food Chem. 2009, 113, 166–172. [Google Scholar] [CrossRef]
  53. Calín-Sánchez, Á.; Figiel, A.; Lech, K.; Szumny, A.; Martínez-Tomé, J.; Carbonell-Barrachina, Á.A. Dying methods affect the aroma of Origanum majorana L. analyzed by GC–MS and descriptive sensory analysis. Ind. Crops Prod. 2015, 74, 218–227. [Google Scholar] [CrossRef]
  54. Tang, J. Dielectric properties of foods. In The Microwave Processing of Foods; Schubert, H., Regier, M., Eds.; CRC Press LLC: Boca Raton, FL, USA; Boston, MA, USA; New York, NY, USA; Washington, DC, USA, 2005; pp. 22–40. [Google Scholar]
  55. Lin, T.M.; Durance, T.D.; Scaman, C.H. Characterization of vacuum microwave, air and freeze dried carrot slices. Food Res. Int. 1998, 31, 111–117. [Google Scholar] [CrossRef]
  56. Lewicki, P.P. Some remarks on rehydration of dried foods. J. Food Eng. 1998, 36, 81–87. [Google Scholar] [CrossRef]
  57. Figiel, A. Dehydration of apple by a combination of convective and vacuum-microwave drying. Pol. J. Food Nutr. Sci. 2007, 57, 131–135. [Google Scholar]
  58. Figiel, A. Drying kinetics and quality of vacuum-microwave dehydrated garlic cloves and slices. J. Food Eng. 2009, 94, 98–104. [Google Scholar] [CrossRef]
  59. Manzocco, L.; Calligaris, S.; Mastrocola, D.; Nicoli, M.C.; Lerici, C.R. Review of non-enzymatic browning and antioxidant capacity in processed foods. Trends Food Sci. Technol. 2000, 11, 340–346. [Google Scholar] [CrossRef]
  60. Morales, F.J.; Jiménez-Pérez, S. Free radical scavenging capacity of Maillard reaction products as related to colour and fluorescence. Food Chem. 2001, 72, 119–125. [Google Scholar] [CrossRef]
  61. Yilmaz, Y.; Toledo, R. Antioxidant activity of water-soluble Maillard reaction products. Food Chem. 2005, 93, 273–278. [Google Scholar] [CrossRef]
  62. Michalska, A.; Wojdyło, A.; Lech, K.; Łysiak, G.P.; Figiel, A. Physicochemical properties of whole fruit plum powders obtained using different drying technologies. Food Chem. 2016, 207, 223–232. [Google Scholar] [CrossRef] [PubMed]
  63. Wojdyło, A.; Figiel, A.; Lech, K.; Nowicka, P.; Oszmiański, J. Effect of convective and vacuum–microwave drying on the bioactive compounds, color, and antioxidant capacity of sour cherries. Food Bioprocess Technol. 2014, 7, 829–841. [Google Scholar] [CrossRef]
  64. Wojdyło, A.; Figiel, A.; Legua, P.; Lech, K.; Carbonell-Barrachina, Á.A.; Hernández, F. Chemical composition, antioxidant capacity, and sensory quality of dried jujube fruits as affected by cultivar and drying method. Food Chem. 2016, 207, 170–179. [Google Scholar] [CrossRef] [PubMed]
  65. Hamrouni-Sellami, I.; Rahali, F.Z.; Rebey, I.B.; Bourgou, S.; Limam, F.; Marzouk, B. Total phenolics, flavonoids, and antioxidant activity of sage (Salvia officinalis L.) plants as affected by different drying methods. Food Bioprocess Technol. 2013, 6, 806–817. [Google Scholar] [CrossRef]
  66. Vvedenskaya, I.O.; Rosen, R.T.; Guido, J.E.; Russell, D.J.; Mills, K.A.; Vorsa, N. Characterization of flavonols in cranberry (Vaccinium macrocarpon) powder. J. Agric. Food Chem. 2004, 52, 188–195. [Google Scholar] [CrossRef] [PubMed]
  67. Mejia-Meza, E.; Yanez, J.A.; Davies, N.M.; Rasco, B.; Younce, F.; Remsberg, C.; Clary, C. Improving nutritional value of dried blueberries (Vaccinium corymbosum L.) combining microwave-vacuum, hot-air drying and freeze drying technologies. Int. J. Food Eng. 2008, 4. [Google Scholar] [CrossRef]
  68. Leusink, G.J.; Kitts, D.D.; Yaghmaee, P.; Durance, T. Retention of antioxidant capacity of vacuum microwave dried cranberry. J. Food Sci. 2010, 75, C311–C316. [Google Scholar] [CrossRef] [PubMed]
  69. Durance, T.D.; Wang, J.H. Energy consumption, density, and rehydration rate of vacuum microwave- and hot-air convection-dehydrated tomatoes. J. Food Sci. 2002, 67, 2212–2216. [Google Scholar] [CrossRef]
  70. Böhm, V.; Kühnert, S.; Rohm, H.; Scholze, G. Improving the nutritional quality of microwave-vacuum dried strawberries: A preliminary study. Food Sci. Technol. Int. 2006, 12, 67–75. [Google Scholar] [CrossRef]
  71. Henderson, S.; Pabis, S. Grain drying theory I. Temperature effect on drying coefficient. J. Agric. Eng. Res. 1961, 6, 169–174. [Google Scholar]
  72. Andrés, A.; Bilbao, C.; Fito, P. Drying kinetics of apple cylinders under combined hot air–microwave dehydration. J. Food Eng. 2004, 63, 71–78. [Google Scholar] [CrossRef]
  73. Szumny, A.; Figiel, A.; Gutiérrez-Ortíz, A.; Carbonell-Barrachina, Á.A. Composition of rosemary essential oil (Rosmarinus officinalis) as affected by drying method. J. Food Eng. 2010, 97, 253–260. [Google Scholar] [CrossRef]
  74. Figiel, A.; Szumny, A.; Gutiérrez-Ortíz, A.; Carbonell-Barrachina, Á.A. Composition of oregano essential oil (Origanum vulgare) as affected by drying method. J. Food Eng. 2010, 98, 240–247. [Google Scholar] [CrossRef]
  75. Cui, Z.-W.; Xu, S.-Y.; Sun, D.-W.; Chen, W. Temperature changes during microwave-vacuum drying of sliced carrots. Dry. Technol. 2005, 23, 1057–1074. [Google Scholar] [CrossRef]
  76. Calín-Sánchez, Á.; Lech, K.; Szumny, A.; Figiel, A.; Carbonell-Barrachina, Á.A. Volatile composition of sweet basil essential oil (Ocimum basilicum L.) as affected by drying method. Food Res. Int. 2012, 48, 217–225. [Google Scholar] [CrossRef]
  77. Calín-Sánchez, Á.; Figiel, A.; Lech, K.; Szumny, A.; Carbonell-Barrachina, Á.A. Effects of drying methods on the composition of thyme (Thymus vulgaris L.) essential oil. Dry. Technol. 2013, 31, 224–235. [Google Scholar] [CrossRef]
  78. Calín-Sanchez, Á.; Figiel, A.; Szarycz, M.; Lech, K.; Nuncio-Jáuregui, N.; Carbonell-Barrachina, Á.A. Drying kinetics and energy consumption in the dehydration of pomegranate (Punica granatum L.) arils and rind. Food Bioprocess Technol. 2013, 7, 2071–2083. [Google Scholar] [CrossRef]
  79. Fatouh, M.; Metwally, M.N.; Helali, A.B.; Shedid, M.H. Herbs drying using a heat pump dryer. Energy Convers. Manag. 2006, 47, 2629–2643. [Google Scholar] [CrossRef]
  80. Alves-Filho, O.; Eikevik, T.M.; Goncharova-Alves, S.V. Single- and multistage heat pump drying of protein. Dry. Technol. 2008, 26, 470–475. [Google Scholar] [CrossRef]
  81. Horszwald, A.; Alves-Filho, O. Innovative blueberry heat pump drying technology: Evaluation of anthocyanins, antioxidant capacity and kinetics. In Proceedings of the 6th Nordic Drying Conference, Copenhagen, Denmark, 5–7 June 2013.
  82. Patel, K.K.; Kar, A. Heat pump assisted drying of agricultural produce—An overview. J. Food Sci. Technol. 2012, 49, 142–160. [Google Scholar] [CrossRef] [PubMed]
  83. Chong, C.H.; Figiel, A.; Law, C.L.; Wojdyło, A. Combined drying of apple cubes by using of heat pump, vacuum-microwave, and intermittent techniques. Food Bioprocess Technol. 2013, 7, 975–989. [Google Scholar] [CrossRef]
  84. Lim, Y.Y.; Murtijaya, J. Antioxidant properties of Phyllanthus amarus extracts as affected by different drying methods. LWT Food Sci. Technol. 2007, 40, 1664–1669. [Google Scholar] [CrossRef]
  85. Dueñas, M.; Hernández, T.; Estrella, I. Influence of the action of exogenous enzymes on the polyphenolic composition of pea: Effect on the antioxidant activity. Eur. Food Res. Technol. 2007, 225, 493–500. [Google Scholar] [CrossRef]
  86. Donovan, J.L.; Meyer, A.S.; Waterhouse, A.L. Phenolic composition and antioxidant activity of prunes and prune juice (Prunus domestica). J. Agric. Food Chem. 1998, 46, 1247–1252. [Google Scholar] [CrossRef]
  87. Ferreira, D.; Guyot, S.; Marnet, N.; Delgadillo, I.; Renard, C.M.G.C.; Coimbra, M.A. Composition of phenolic compounds in a Portuguese pear (Pyrus communis L. var. S. Bartolomeu) and changes after sun-drying. J. Agric. Food Chem. 2002, 50, 4537–4544. [Google Scholar] [PubMed]
  88. Piga, A.; del Caro, A.; Corda, G. From plums to prunes: Influence of drying parameters on polyphenols and antioxidant activity. J. Agric. Food Chem. 2003, 51, 3675–3681. [Google Scholar] [CrossRef] [PubMed]
  89. Chong, C.H.; Law, C.L.; Cloke, M.; Abdullah, L.C.; Daud, W.R.W. Drying models and quality analysis of sun-dried ciku. Dry. Technol. 2009, 27, 985–992. [Google Scholar] [CrossRef]
  90. Chong, C.; Figiel, A.; Wojdyło, A.; Law, C.L. Drying kinetics, biochemical, physical appearance and rheology properties of combined hybrid heat pump vacuum-microwave drying of ciku. In Proceeding of the 4th World Engineering Congress, Kuching, Malaysia, 2–5 August 2010.
  91. Raoult-Wack, A.L. Recent advances in the osmotic dehydration of foods. Trends Food Sci. Technol. 1994, 5, 255–260. [Google Scholar] [CrossRef]
  92. Pereira, L.M.; Ferrari, C.C.; Mastrantonio, S.D.S.; Rodrigues, A.C.C.; Hubinger, M.D. Kinetic aspects, texture, and color evaluation of some tropical fruits during osmotic dehydration. Dry. Technol. 2006, 24, 475–484. [Google Scholar] [CrossRef]
  93. Mayor, L.; Moreira, R.; Chenlo, F.; Sereno, A.M. Osmotic dehydration kinetics of pumpkin fruits using ternary solutions of sodium chloride and sucrose. Dry. Technol. 2007, 25, 1749–1758. [Google Scholar] [CrossRef]
  94. Emam-Djomeh, Z.; Dehghannya, J.; Gharabagh, R.S. Assessment of osmotic process in combination with coating on effective diffusivities during drying of apple slices. Dry. Technol. 2006, 24, 1159–1164. [Google Scholar] [CrossRef]
  95. Korzeniowska, M.; Figiel, A.; Lech, K.; Oziembłowski, M.; Szarycz, M. Sensory properties of pumpkin treated with sucrose osmotic solutions followed by vacuum-microwave drying. In Product Development and Quality Assurance; Jarmouk, A., Oziembłowski, M., Zimoch, A., Eds.; Wrocław University of Environmental and Life Sciences Publishing House: Wroclaw, Poland, 2011; pp. 157–170. [Google Scholar]
  96. Piotrowski, D.; Lenart, A.; Wardzyński, A. Influence of osmotic dehydration on microwave-convective drying of frozen strawberries. J. Food Eng. 2004, 65, 519–525. [Google Scholar] [CrossRef]
  97. Falade, K.O.; Akinwale, T.O.; Adedokun, O.O. Effect of drying methods on osmotically dehydrated cashew apples. Eur. Food Res. Technol. 2003, 216, 500–504. [Google Scholar] [CrossRef]
  98. Shafafi Zenoozian, M.; Devahastin, S. Application of wavelet transform coupled with artificial neural network for predicting physicochemical properties of osmotically dehydrated pumpkin. J. Food Eng. 2009, 90, 219–227. [Google Scholar] [CrossRef]
  99. Falade, K.O.; Oyedele, O.O. Effect of osmotic pretreatment on air drying characteristics and colour of pepper (Capsicum spp) cultivars. J. Food Sci. Technol. 2010, 47, 488–495. [Google Scholar] [CrossRef] [PubMed]
  100. Al-Harahsheh, M.; Al-Muhtaseb, A.H.; Magee, T.R.A. Microwave drying kinetics of tomato pomace: Effect of osmotic dehydration. Chem. Eng. Process. Process Intensif. 2009, 48, 524–531. [Google Scholar] [CrossRef]
  101. Chua, K.J.; Chou, S.K.; Mujumdar, A.S.; Ho, J.C.; Hon, C.K. Radiant-convective drying of osmotic treated agro-products: effect on drying kinetics and product quality. Food Control 2004, 15, 145–158. [Google Scholar] [CrossRef]
  102. Torringa, E.; Esveld, E.; Scheewe, I.; van den Berg, R.; Bartels, P. Osmotic dehydration as a pre-treatment before combined microwave-hot-air drying of mushrooms. J. Food Eng. 2001, 49, 185–191. [Google Scholar] [CrossRef]
  103. Nowicka, P.; Wojdyło, A.; Lech, K.; Figiel, A. Influence of osmodehydration pretreatment and combined drying method on the bioactive potential of sour cherry fruits. Food Bioprocess Technol. 2014, 8, 824–836. [Google Scholar] [CrossRef]
  104. Corrêa, J.L.G.; Dev, S.R.S.; Gariepy, Y.; Raghavan, G.S.V. Drying of pineapple by microwave-vacuum with osmotic pretreatment. Dry. Technol. 2011, 29, 1556–1561. [Google Scholar] [CrossRef]
  105. Lech, K.; Figiel, A.; Oziembłowski, M. Application of sodium chloride osmotic solutions and vacuum-microwaves as drying methods for beetroot slices. In Novel Operations and Materials in Food Processing; Kopeć, W., Korzeniowska, M., Eds.; Publishing House of Wroclaw University of Environmental and Life Sciences: Wroclaw, Poland, 2011; pp. 41–53. [Google Scholar]
  106. Figiel, A.; Oziembłowski, M.; Korzeniowska, M.; Szarycz, M. The effect of a vacuum-microwave drying after osmotic pre-treatment in sodium chloride solutions on the quality of pumpkin slices. In Novel Operations and Materials in Food Processing; Kopeć, W., Korzeniowska, M., Eds.; Publishing House of Wroclaw University of Environmental and Life Sciences: Wroclaw, Poland, 2011; pp. 27–40. [Google Scholar]
  107. Figiel, A.; Wojdyło, A.; Nowicka, P. Vacuum-microwave drying of pumpkin slices pre-treated in concentrated raspberry juice. In Proceedings of the XIII Polish Drying Symposium, Kołobrzeg, Poland, 5–6 September 2013.
  108. Figiel, A.; Lech, K.; Nawirska-Olszanska, A.; Wojdyło, A. Method for Obtaining Chips from Fruits or Vegetables. Patent 400135, 3 November 2014. [Google Scholar]
  109. Figiel, A.; Wojdyło, A.; Nowicka, P. Vacuum-microwave drying of pumpkin slices pre-treated in concentrated chokeberry juice. In Proceedings of the 6th Nordic Drying Conference, Kopenhagen, Denmark, 5–7 June 2013; p. 34.
  110. Calín-Sánchez, Á.; Kharaghani, A.; Lech, K.; Figiel, A.; Carbonell-Barrachina, Á.A.; Tsotsas, E. Drying kinetics and microstructural and sensory properties of black chokeberry (Aronia melanocarpa) as affected by drying method. Food Bioprocess Technol. 2015, 8, 63–74. [Google Scholar] [CrossRef]
  111. Azuara, E.; Garcia, H.S.; Beristain, C.I. Effect of the centrifugal force on osmotic dehydration of potatoes and apples. Food Res. Int. 1996, 29, 195–199. [Google Scholar] [CrossRef]
  112. Beker, C. Energy efficiency in drying. Stewart Post-Harvest Rev. 2005, 4, 8–12. [Google Scholar] [CrossRef]
  113. Nicoli, M.C.; Anese, M.; Parpinel, M. Influence of processing on the antioxidant properties of fruit and vegetables. Trends Food Sci. Technol. 1999, 10, 94–100. [Google Scholar] [CrossRef]
  114. Chan, J.W.R.; Chong, C.; Abdul Malek, N.F.; Khek, C.H.; Figiel, A.; Wojdyło, A. Trends in drying and extracting bioactive components from herbs. In Processing of Foods, Vegetables and Fruits: Recent Advances; Hii, C.L., Jangam, S.V., Ong, S.Z., Show, P.L., Mujumbar, A.S., Eds.; National University of Singapore: Singapore, 2015; pp. 85–104. [Google Scholar]
  115. Drouzas, A.E.; Schubert, H. Microwave application in vacuum drying of fruits. J. Food Eng. 1996, 28, 203–209. [Google Scholar] [CrossRef]
  116. Hosseinpour, S.; Rafiee, S.; Aghbashlo, M.; Mohtasebi, S.S. A novel image processing approach for in-line monitoring of visual texture during shrimp drying. J. Food Eng. 2014, 143, 154–166. [Google Scholar] [CrossRef]
  117. Benalia, S.; Cubero, S.; Prats-Montalban, J.M.; Bernardi, B.; Zimbalatti, G.; Blasco, J. Computer vision for automatic quality inspection of dried figs (Ficus carica L.) in real-time. Comput. Electron. Agric. 2016, 120, 17–25. [Google Scholar] [CrossRef]
  118. Udomkun, P.; Nagle, M.; Argyropoulos, D.; Mahayothee, B.; Muller, J. Multi-sensor approach to improve optical monitoring of papaya shrinkage during drying. J. Food Eng. 2016, 189, 82–89. [Google Scholar] [CrossRef]
  119. Brosnan, T.; Sun, D.-W. Improving quality inspection of food products by computer vision—A review. J. Food Eng. 2004, 61, 3–16. [Google Scholar] [CrossRef]
  120. Sampson, D.J.; Chang, Y.K.; Rupasinghe, H.P.V.; Zaman, Q.U.Z. A dual-view computer-vision system for volume and image texture analysis in a multiple apple slices drying. J. Food Eng. 2014, 127, 49–57. [Google Scholar] [CrossRef]
  121. Coskun, A.L.; Turkyilmaz, M.; Aksu, O.T.; Koc, B.E.; Yemis, O.; Ozkan, M. Effects of various sulphuring methods and storage temperatures on the physical and chemical quality of dried apricots. Food Chem. 2013, 141, 3670–3680. [Google Scholar] [CrossRef] [PubMed]
  122. Acevedo, N.C.; Briones, V.; Buera, P.; Aguilera, J.M. Microstructure affects the rate of chemical, physical and color changes during storage of dried apple discs. J. Food Eng. 2008, 85, 222–231. [Google Scholar] [CrossRef]
  123. Agudelo-Laverde, L.M.; Schebor, C.; del Pilar Buera, M. Water content effect on the chromatic attributes of dehydrated strawberries during storage, as evaluated by image analysis. LWT Food Sci. Technol. 2013, 52, 157–162. [Google Scholar] [CrossRef]
Figure 1. The vacuum-microwave drying process.
Figure 1. The vacuum-microwave drying process.
Ijms 18 00071 g001
Figure 2. Structure of beetroot samples dehydrated by freeze-drying (FD), vacuum-microwave drying (VMD) and convective drying (CD).
Figure 2. Structure of beetroot samples dehydrated by freeze-drying (FD), vacuum-microwave drying (VMD) and convective drying (CD).
Ijms 18 00071 g002
Figure 3. Shrinkage of carrot cubes dehydrated by freeze-drying (FD), vacuum-microwave drying (VMD) and convective drying (CD).
Figure 3. Shrinkage of carrot cubes dehydrated by freeze-drying (FD), vacuum-microwave drying (VMD) and convective drying (CD).
Ijms 18 00071 g003
Figure 4. Typical force–deformation relationship F = f(Δh) in compression test for products dehydrated by freeze drying (FD), vacuum-microwave drying (VMD) and convective drying (CD).
Figure 4. Typical force–deformation relationship F = f(Δh) in compression test for products dehydrated by freeze drying (FD), vacuum-microwave drying (VMD) and convective drying (CD).
Ijms 18 00071 g004
Figure 5. Drying kinetics for combined drying consisted in CPD until different levels of moisture contents followed by VMFD. M1, M2 and M3 represent a high, medium and low moisture contents obtained after CPD whereas t1, t2 and t3 denote total drying times of combined drying consisted of CPD until M1, M2 and M3 followed by VMFD.
Figure 5. Drying kinetics for combined drying consisted in CPD until different levels of moisture contents followed by VMFD. M1, M2 and M3 represent a high, medium and low moisture contents obtained after CPD whereas t1, t2 and t3 denote total drying times of combined drying consisted of CPD until M1, M2 and M3 followed by VMFD.
Ijms 18 00071 g005
Figure 6. Appearance of apple cubes dehydrated by convective drying (CD) and vacuum microwave finish drying (HPPD-VMFD).
Figure 6. Appearance of apple cubes dehydrated by convective drying (CD) and vacuum microwave finish drying (HPPD-VMFD).
Ijms 18 00071 g006

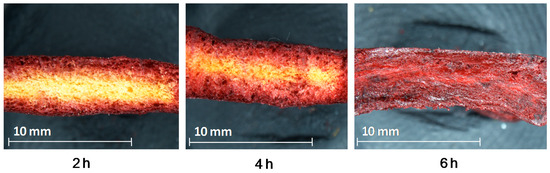

Figure 7. Cross-section of pumpkin slices pre-treated in concentrated chokeberry juice for 2, 4 and 6 h.
Figure 7. Cross-section of pumpkin slices pre-treated in concentrated chokeberry juice for 2, 4 and 6 h.
Ijms 18 00071 g007
Figure 8. SEM (Scanning Electron Microscope) picture of beetroot sample dehydrated in concentrated chokeberry juice and VMFD at 480 W (1000× magnification).
Figure 8. SEM (Scanning Electron Microscope) picture of beetroot sample dehydrated in concentrated chokeberry juice and VMFD at 480 W (1000× magnification).
Ijms 18 00071 g008
Figure 9. X-ray image of chokeberry fruit dehydrated by OD-CD-VMFD.
Figure 9. X-ray image of chokeberry fruit dehydrated by OD-CD-VMFD.
Ijms 18 00071 g009
Table 1. Processing parameters (drying time (t) and maximum temperature (T)), total polyphenols content (TPC), antioxidant capacity (FRAP) and total volatiles content (TV) in different plant materials dehydrated by freeze drying (FD), convective drying (CD) and vacuum-microwave drying (VMD) at different processing parameters.
Table 1. Processing parameters (drying time (t) and maximum temperature (T)), total polyphenols content (TPC), antioxidant capacity (FRAP) and total volatiles content (TV) in different plant materials dehydrated by freeze drying (FD), convective drying (CD) and vacuum-microwave drying (VMD) at different processing parameters.
Plant MaterialParametert (min)T (°C)TPC (mg 100 g−1)FRAP (mmol Trolox 100 g−1 dm)TV (mg 100 g−1 dm)References
Strawberries “Elsanta”Fresh 2405.918.1 [35]
FD 302411.516.8
CD70 °C550701541.513.6
VMD240 W33 2302.414.4
360 W21 2277.812.5
480 W16 2253.216.2
CherriesFresh 790.624.49 [63]
FD 26653.824.06
CD50 °C240050518.216.62
60 °C145060488.613.26
70 °C84070479.212.71
VMD240 W2887.5641.014.73
240/120 W4862.3751.016.45
360/240 W2477.1619.515.76
360/120 W4464.5732.018.24
480/240 W2381.2652.616.93
480/120 W4061.3758.718.96
MarjoramFresh 825[53]
CD40 °C210040 677
50 °C50050 637
60 °C25060 573
VMD240 W2853 965
360 W2151 896
480 W1448 820
Jujube “MSI”FD 2698148.2 [64]
CD50 °C6605043031.7
60 °C4206063717.7
70 °C3307036715.9
VMD120 W967481327.1
480 W2814256726.2
480/120 W647998247.8
Plum halvesFD 201352.38.72 [62]
CD70 °C3250701135.96.73
VMD120 W12075.81593.910.08
480 W32128.5872.811.58
480/120 W10061.91064.510.31

Share and Cite

MDPI and ACS Style

Figiel, A.; Michalska, A. Overall Quality of Fruits and Vegetables Products Affected by the Drying Processes with the Assistance of Vacuum-Microwaves. Int. J. Mol. Sci. 2017, 18, 71.

AMA Style

Figiel A, Michalska A. Overall Quality of Fruits and Vegetables Products Affected by the Drying Processes with the Assistance of Vacuum-Microwaves. International Journal of Molecular Sciences. 2017; 18(1):71.

Chicago/Turabian Style

Figiel, Adam, and Anna Michalska. 2017. "Overall Quality of Fruits and Vegetables Products Affected by the Drying Processes with the Assistance of Vacuum-Microwaves" International Journal of Molecular Sciences 18, no. 1: 71.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
