Using Proteomics to Understand How Leishmania Parasites Survive inside the Host and Establish Infection

Patrícia Sampaio Tavares Veras
1,2,* and
Juliana Perrone Bezerra de Menezes
Laboratório de Patologia e Biointervenção, Instituto Gonçalo Moniz, FIOCRUZ, Salvador 40296-710, Brazil
Instituto Nacional de Ciência e Tecnologia para Doenças Tropicais (INCT-DT), Salvador 40110-160, Brazil
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2016, 17(8), 1270;
Submission received: 1 May 2016 / Revised: 21 June 2016 / Accepted: 26 July 2016 / Published: 19 August 2016
(This article belongs to the Special Issue Advances in Proteomic Research)


Leishmania is a protozoan parasite that causes a wide range of different clinical manifestations in mammalian hosts. It is a major public health risk on different continents and represents one of the most important neglected diseases. Due to the high toxicity of the drugs currently used, and in the light of increasing drug resistance, there is a critical need to develop new drugs and vaccines to control Leishmania infection. Over the past few years, proteomics has become an important tool to understand the underlying biology of Leishmania parasites and host interaction. The large-scale study of proteins, both in parasites and within the host in response to infection, can accelerate the discovery of new therapeutic targets. By studying the proteomes of host cells and tissues infected with Leishmania, as well as changes in protein profiles among promastigotes and amastigotes, scientists hope to better understand the biology involved in the parasite survival and the host-parasite interaction. This review demonstrates the feasibility of proteomics as an approach to identify new proteins involved in Leishmania differentiation and intracellular survival.

Graphical Abstract

1. Introduction

Leishmania is a protozoan parasite that causes a broad range of different clinical symptoms in humans known as leishmaniasis. This disease represents a major public health problem and is endemic in 98 countries across five continents, Asia, Africa, Europe, North America and South America. Over 350 million people are at risk, with an estimated 12 million infected, and 0.9–1.6 million new cases emerging per year. More than 90% of global visceral leishmaniasis (VL) cases occur in six countries: Bangladesh, Brazil, Ethiopia, India, South Sudan and Sudan. In addition, ten countries with the highest estimated case counts for the cutaneous form of the disease are: Afghanistan, Algeria, Brazil, Colombia, Costa Rica, Ethiopia, Iran, Peru, Sudan, and Syria, together accounting for 70% to 75% of the global estimated cutaneous leishmaniasis (CL) incidence [1,2].
Leishmaniasis is caused by different species of protozoan parasites belonging to the genus Leishmania. Different species of Leishmania are responsible for varying clinical forms of leishmaniasis. Human leishmaniasis consists of a range of diseases which can manifest as a simple self-limiting or asymptomatic CL to a disfiguring and debilitating VL, the clinical form of the disease associated with higher mortality. Post-kala-azar dermal leishmaniasis (PKDL) is a dermal complication of VL and is considered a reservoir for Leishmania parasites [3]. Leishmania (L.) major or L. tropica causes localized cutaneous lesions that are usually self-healing [4]. South American species, such as L. braziliensis, manifest initially as cutaneous lesions that may metastasize resulting in mucocutaneous lesions or diffuse CL. On the other hand, infections caused by L. donovani or L. infantum may lead to chronic disseminating diseases, mainly in the liver and spleen, which are often fatal if left untreated [4].
The advances in large-scale technologies, such as proteomics, have allowed the identification and characterization of pathways, both in the parasite and the host, which have proven to be more effective than studying individual molecules. Proteomics is the large-scale characterization of the proteins in a cell line, tissue, or organism, with the goal to access a more global and integrated view of the biological processes by studying all the proteins in a cell rather than each one individually [5]. The use of proteomics tools has revolutionized several biomedical fields such as medicine and dentistry. Proteomics has contributed greatly to the dentistry field by helping in the identification of different biomarkers present in the oral fluids for early diagnosis of several diseases [6]. Also, proteomics has contributed to the understanding and identification of several medically important biomarkers for different diseases [7,8,9,10]. In the last decade, high-throughput techniques, which can process and analyze large amounts of diverse molecules using automated systems, has enabled us to identify molecules involved in the establishment of diseases caused by Leishmania parasites, development of parasite resistance [11,12,13], as well as the characterization of new chemotherapeutic targets [14,15]. The relatively weak correlation between mRNA and protein levels led to the conclusion that it is not possible to predict protein expression based on quantitative mRNA data [16,17]. The above reinforces the idea that proteomics should be considered as a large-scale critical tool to understand the host-Leishmania interactions better. Indeed, proteomic studies have been widely used to characterize molecules and pathways expressed in the parasite, as well as in the invertebrate [18,19,20,21], or mammalian [22] hosts.
In the Leishmania research field, proteomic studies have provided valuable insights into the identification of molecules and pathways involved in host-parasite interactions in the parasite [18,19,20,21], and in the host [22,23]. Also, proteomics has significantly contributed to the identification of targets for prophylactic or chemotherapeutic treatment [22,24], as well as biomarkers that can be used for the diagnosis of the different diseases [25] (Figure 1).

2. Leishmania Adaptation to the Intracellular Life-Cycle: Modulation in Parasite Protein Expression

2.1. Modulation of Proteins during Axenic Differentiation of Leishmania Parasites

During their life cycle, Leishmania spp. adapt to different environments in the insect and the mammalian host by undergoing a variety of morphological and biochemical changes [30,31,32]. These changes in environment correlate with the process of differentiation from promastigote, the motile form that proliferates inside the alimentary tract of Phlebotomine sandflies, to the amastigote form, the non-motile form that multiplies inside the acidified phagolysosomes of mammalian host macrophages [19,33,34,35,36] (Figure 2). The adaptation of the parasite to the host environment is crucial to the differentiation process. This adaptation includes changes in temperature and pH [32], as well as adjustments to the cytotoxic environment of the host. Furthermore, this adaptation is essential for the intracellular survival of the parasite, which requires a combination of survival factors expressed by parasites at distinct stages [37,38]. Until now, the cellular and molecular mechanisms involved in the differentiation of Leishmania parasites were poorly understood [19].
The proteomic studies published so far have been conducted using either L. donovani or L. infantum, probably due to the medical importance of the visceral forms arising from these parasites, which result in high mortality rate. The first study that compared the differentially expressed proteins of L. infantum parasites in differing life cycle stages employed comparative two-dimensional gel electrophoresis (2-DE) in addition to mass spectrometry. In this report, more than 62 differentially expressed proteins were detected in axenic amastigotes among ~2000 protein spots resolved by 2-DE. Two-dimensional gel electrophoresis has frequently been used as a protein separation method before mass spectrometry. Spots represent one or more proteins that have migrated to a particular location on the gel based on their biochemical properties. Spots of interest can then be subjected to in-gel digestion for further protein identification. Two of such proteins were identified as participating in energetic metabolism pathways, namely isocitrate dehydrogenase (IDH) and the glycolytic enzyme triosephosphate isomerase (TIM). Additionally, the authors demonstrated upregulated activity by these enzymes in amastigotes when compared to promastigote forms [18].
Isocitrate dehydrogenase is an enzyme that participates in the tricarboxylic acid cycle, a metabolic pathway by which acetate is oxidized to generate ATP. NADP-dependent IDH enzymes catalyze the decarboxylation of isocitrate to α-ketoglutarate, which is accompanied by the production of NADPH. This step is critical in the tricarboxylic acid cycle, and the α-ketoglutarate produced by this enzyme activity can contribute to the synthesis of glutamate, a precursor for amino acids. In this study, the authors showed that IDH-specific activity is approximately three times higher in amastigotes than in promastigotes. As IDH catalyzes the formation of α-ketoglutarate with the production of NADPH, its enhanced activity might be essential for meeting the increased demand for α-ketoglutarate at 37 °C. Triosephosphate isomerase, the other protein exhibiting higher expression in amastigotes, is a highly prevalent enzyme that plays a central role in glycolysis [39]. The authors showed that TIM activity in L. infantum amastigotes was two-fold higher compared to L. infantum promastigotes, probably because amastigotes require high levels of TIM activity to generate ATP via glycolysis within host cells [18].
In another study, a total of approximately 2000 protein spots were identified in the L. donovani proteome, 31 of which were exclusively present in promastigotes [19]. They found 65 proteins with increased expression resulting from heat-induced in vitro amastigote differentiation; however, four proteins exhibited decreased expression in amastigote differentiation. Further studies involving matrix-assisted laser desorption/ionization (MALDI)-time of flight (TOF) and peptide mass fingerprinting revealed 67 protein spots representing 41 different proteins previously identified by databases, in addition to eight hypothetical proteins. In this study, the authors showed that most of the stage-specific proteins identified in L. donovani promastigotes or axenic amastigotes can be divided into five groups of proteins with similar function: “(i) stress response (e.g., heat, oxidative stress); (ii) cytoskeleton and cell membrane; (iii) energy metabolism and phosphorylation; (iv) cell cycle and proliferation; and (v) amino acid metabolism” [19]. Although they found interesting data on protein modulation in amastigotes, the authors have yet to validate these data.
Another study with the goal to better evaluate the differentiation of Leishmania parasites applied a comprehensive approach consisting of protein prefractionation, followed by global proteomics and targeted DNA microarray analysis. Using 2-D gels, the authors showed that over 2200 protein isoforms were identified in each developmental stage, corresponding to 10% more than what was previously identified by proteomic studies evaluating the in vitro differentiation process of Leishmania parasites. Of these, 6.1% were strongly increased or appeared exclusively in the promastigote stage, while 12.4% appeared in amastigotes. Although modest correlations between amastigote-specific protein isoform and mRNA expression (53%) were observed, these authors found no correlation with respect to promastigote-specific spots. They suggested that post-transcriptional controls at translational and post-translational levels may be critically involved in the Leishmania parasite differentiation process [40].
As shown by different studies [19,40,41], the major class of proteins exclusively identified or overexpressed in amastigotes was of those involved in stress response or protein folding. Metabolic enzymes were also frequently identified with higher levels of expression in axenic amastigotes compared to promastigotes. In addition, proteins involved in the proteolysis process were also modulated in the amastigote forms [19].
In the first proteomic study performed to evaluate in vitro differentiation of L. panamensis, the authors detected 75 differentially regulated protein spots in amastigotes, comprising 24 spots “uniquely” expressed during this life-stage, and 51 that were approximately one to five times overexpressed in comparison to promastigotes [42]. The spots were analyzed by mass spectrometry, and among 11 amastigote-specific spots, six spots were identified as seven distinct proteins. These proteins participate in different cellular processes such as carbohydrate/energy metabolism, stress response, cell membrane and cytoskeleton, amino acid metabolism and cell-cycle. Four additional over-expressed spots were identified as heat shock proteins (HSPs) 60 and 70, and HSP 70-related proteins [42]. Comparative proteomic studies have already shown that proteins involved in stress response and metabolic pathways are differentially expressed among promastigotes and amastigotes from L. donovani [19] and L. infantum [18].
In a more recent report, a different proteomic approach was performed to study the differentiation process of L. infantum. The authors applied protein fractionation by isoelectric point (pI) using free-flow electrophoresis to evaluate the expression of stage-specific proteins in this parasite. They identified 2469 protein spots in both life stages. This fractionation process allowed the identification and characterization of several proteins for the first time by proteomic analysis. Glycolytic enzymes and proteins expressed in the parasite flagellum were identified as upregulated in L. infantum promastigotes. On the other hand, enzymes involved in gluconeogenesis and fatty acid β-oxidation were upregulated in amastigotes [43]. Additionally, the authors also demonstrated that several proteins were identified in multiple spots, or as proteolytic fragments in both life stages, suggesting the occurrence of post-translational modification and processing.
The first study using a modern quantitative proteomic approach to investigate the differentiation of Leishmania parasites, the isotope-coded affinity tag (ICAT) technology associated to mass spectrometry, aimed to identify differentially expressed proteins in L. infantum promastigotes and axenic amastigotes. In this report, the authors identified a relatively small number of total and stage-specific proteins. This limited number of proteins was also reported in other recent studies using L. infantum [18,44], L. donovani [19], and L. panamensis [42]. In this work, 8% of the 91 proteins identified were differentially expressed in amastigotes, 20% in promastigotes and 72% were considered constitutively expressed. Proteins with a higher level of expression in amastigotes included two novel proteins and enzymes involved in cell metabolism, as previously shown [45].
One of the branches of proteomics that have become increasingly popular in the last few years is phosphoproteomics. Leishmania parasite differentiation requires the activation of signaling cascades involving protein kinases and their downstream phosphoprotein substrates. These signaling pathways are highly adapted to the specific nutritional and physiological requirements of the cells. Therefore, the study of Leishmania phosphorylated proteins provided important insights into the parasite biology. Based on these findings, the authors sought to use a gel-based approach in a new study to investigate both qualitative and quantitative changes within the phosphoproteome during the L. donovani life cycle stages during in vitro differentiation process [20]. In this pioneering study, phosphoproteins were purified from parasites using immobilized metal affinity chromatography and then separated by 2-DE utilizing fluorescent multiplex staining. The identification of proteins was performed using matrix-assisted laser desorption/ionization-mass spectrometry (MALDI-MS) and mass spectrometry/mass spectrometry MS/MS [20], which identified proteins involved in stress and heat shock response, RNA/protein turnover, metabolism, and signaling. The identification of these proteins reinforces the idea already shown in previous studies that the modulation of proteins involved in stress response and metabolism is critical for Leishmania differentiation.

2.2. Modulation of Proteins during Intracellular Differentiation of Leishmania Parasites

Until now, the majority of the studies have used axenic parasites grown under in vitro conditions that mimic the sand fly gut (26 °C, pH 7) and phagolysosome (37 °C, pH 5.5) environments to evaluate protein expression in the amastigote stage of the parasite. Although axenic amastigotes are morphologically similar to intracellular amastigotes [46,47,48,49,50,51], a constant concern has been the degree to which axenic amastigotes resemble intracellular ones. Recently, a group performed a comparative proteomic study that evaluated global protein expression in different life stages of Leishmania, using amastigotes that underwent the differentiation process from promastigotes to amastigotes intracellularly [52]. The authors used transgenic fluorescent L. mexicana parasites that were purified from infected cells combining isopycnic density centrifugation and fluorescent parasite sorting. In this study, a total of 509 different proteins were identified by mass spectrometry, of which 301 were exclusively detected in promastigotes, 31 were only identified in intracellular amastigotes, and 157 were common in both stages. Intracellular amastigotes demonstrated a greater profusion of enzymes involved in the catabolism of fatty acids, which may be the result of this parasite dwelling in acidic compartments, as well as its metabolic adaptation to scarce nutrient availability. These results corroborate those reported for the proteomic analysis of L. donovani in axenic amastigotes [53]. In addition, another study that investigated genes, whose products were expressed with higher levels in amastigotes, showed characteristic sequence motifs in 3′-untranslated regions that have been linked to translational control elements, suggesting that proteome data sets may be used to identify regulatory elements in mRNAs. These data support the notion that post-transcriptional processes are important for gene regulation in Leishmania parasites [11,12,13,14,17,54].
In a more recent report, an isobaric tagging method was used to quantify the differences among the proteome of promastigotes and amastigotes, which underwent differentiation within human monocyte-derived macrophages (THP-1). The proteins identified as differentially expressed between amastigotes and promastigotes are known to be involved in nutrient acquisition and energy metabolism, cell motility and cytoskeleton, transport, cell signaling and stress response. Upon investigating the proteins involved in vesicular trafficking and endocytosis, such as the rab7 GTP binding protein, GTP-binding proteins of the Ras superfamily, and developmentally regulated GTP-binding protein 1, the authors found enhanced expression in addition to a putative dynein heavy chain protein that was upregulated in amastigotes, which likely plays a role in cargo transport within vesicles. Furthermore, a protein involved in glucose transport exhibited significantly increased expression (8× to 15× higher) in intracellular amastigotes, while several proteins associated with cell motility and cytoskeleton had reduced levels [21].
Taken together, the studies published so far indicate a modulation of the parasite metabolism and molecules involved in stress response after the differentiation of promastigotes to amastigotes, probably favoring the intracellular survival of Leishmania.

3. Protein Expression by Macrophages in Response to Leishmania Infection in Vitro

Only very few studies used proteomics to identify proteins expressed by the host cell in response to Leishmania. Tandem liquid chromatography-mass spectrometry (LC-MS/MS) was used to identify markers of resistance and susceptibility in macrophages during Leishmania infection in vitro. The CBA mouse macrophages have proven to be useful in identifying these markers because at early time points of infection, the cells present similar percentages of L. major- and L. amazonensis-infected macrophages. At later time points, a greater proportion of macrophages from the same strain became infected with L. amazonensis in comparison to L. major [22,55]. A total of 1352 proteins were found expressed in both infected and uninfected CBA macrophages, and only 62 proteins were predominantly expressed in infected macrophages. These proteins were previously described as involved in cell metabolism, or as carrier proteins, in addition to others that participate in cell signaling and cellular detoxification. Another group of proteins contributes to cell immune response, including immune receptors, scavenger receptor class B, and TNF receptor-associated protein. Interesting, only 10 out of the 62 proteins were exclusively identified in L. major infection: ribosomal protein S13; glutamate receptor ionotropic; guanine nucleotide binding protein (G protein, γ8 subunit); myosin; proteasome β3 subunit; ras homolog gene family, member B; cytochrome c-1; N-acetylglucosamine kinase; TNF receptor-associated protein 1 (TRAP1); and translin. By contrast, the unique protein found expressed in L. amazonensis infection was the succinate dehydrogenase, an enzyme involved in cell metabolism. The number of proteins identified in both L. major- and L. amazonensis-infected cells but that display differences in expression level was much higher, reaching a total of 162 proteins. A total number of 122 proteins were preferentially identified in L. major-infected macrophages while only forty of them showed higher expression in L. amazonensis infection. When the authors analyzed the greater differences in expression between these infected macrophages, they found a total of 15, 13 of which exhibited reduced expression in response to L. amazonensis infection, while two proteins showed increased expression in response to L. amazonensis infection.
Considering the 15 proteins with significant levels of differential expression, 13 of these were found downregulated in L. amazonensis-infected macrophages, but these were upregulated in L. major-infected cells, and they were considered to be involved in several cell processes: coronin 1B, cytochrome C oxidase 6B (cox6B), heterogeneous nuclear ribonucleoprotein F (HNRPF), hypoxia-inducible factor 1-alpha (HIF-1α), osteoclast-stimulating factor-1 (OSTF1), programmed cell death protein 5 (PDCD5), protein phosphatase 2 (PP2), PYD And CARD domain-containing protein (PYCARD), RAB1, ribosomal protein S2 (RPS2), Serpin, peripheral benzodiazepine receptor (PBR), known as translocator protein (TSPO), and myosin light chain. The authors organized the identified proteins in networks using a biological network modeling, the Ingenuity Pathway Analysis (IPA)-Ingenuity Systems. This tool allows the organization of proteins detected in proteomic studies, as well as other proteins that are not identified by the mass spectrometric analysis, but may be involved in host response to infection. Interestingly, 14 out of 15 proteins with significant levels of differential expression were organized into a single network of cell development.
Between the two highly expressed proteins in CBA macrophages infected with L. amazonensis, one of them, phospholipase D1 (PLD1), was proven to act on the membrane phospholipid, phosphatidylcholine. This protein causes the release of phosphatidic acid [56], as well as participates in the recruitment of additional membrane for the formation of nascent phagosomes. This protein can take part in the maintenance of early formed phagosome that will fuse with endocytic vesicles [57]. The authors suggested that the higher expression of PLD1 in L. amazonensis, but not in L. major infected macrophages, would contribute to the formation and maintenance of large parasitophorous vacuoles, characteristic of intracellular infection with L. amazonensis [58].
In this study [58], two out of the 15 proteins with a higher difference of expression were randomly selected for the validation of mass spectrometry results. Myosin light chain was validated as highly expressed in L. major-infected cells compared to L. amazonensis-infected macrophages using western blot and immunofluorescence staining for HIF-1α, which confirmed a higher expression of this protein in L. major-infected cells compared to those infected with L. amazonensis.
The finding that myosin light chain was upregulated in L. major-infected macrophages was related to the formation of small individualized parasitophorous vacuoles induced and maintained throughout the maturation process in L. major infection [58], different from the large parasitophorous vacuoles that L. amazonensis induces in host cells. Previously, this protein has been implicated in the formation and maintenance of tight vacuoles formed around particles during phagocytosis [59].
Modulation of immune response was evidenced by HIF-1α, TRAP1, Serpin and PYDCARD that were upregulated in Leishmania-infected macrophages. TRAP1 and HIF-1α were found highly expressed in macrophages infected with L. major, and Serpin and PYDCARD exhibited reduced expression levels under L. amazonensis infection. TRAP1 has been shown to participate in the maintenance of cellular viability in cells subjected to H2O2-induced oxidative stress [60], and Serpin, a protein induced by TNF-α known to participate in conjunction with IL-1α in the inflammatory cascade [61]. Additionally, the PYDCARD adapter protein activates apoptosis by a mechanism dependent on NF-κB and caspases [62] that is initially induced by engagement of receptors in the TNF-α family. These proteomic findings can also be correlated with a previous study that CBA macrophages, which control L. major infection, express twice as much TNF-α when infected with L. major compared to those infected with L. amazonensis in response to IFN-γ stimulation [63]. Finally, the finding that HIF-1α is highly expressed in L. major-infected macrophages suggests a relationship between this transcription factor expression and a higher production of NO and expression of TNF-α, which are mediators known to act as regulators of HIF-1α when expressed under normoxic conditions [64]. The roles that myosin light chain and HIF-1α play in Leishmania infection deserve further investigation.
Another study that evaluated the host cell response to Leishmania infection using proteomics was recently published. The study, which was a quantitative proteomic study, aimed to evaluate the effect of L. donovani parasites on the host cell response [23]. In this study, the authors infected the THP-1 with L. donovani promastigotes and following infection they determined relative and absolute quantification of protein expression using the isobaric tags (iTRAQ) method and LC-MS/MS. They compared the expression profiles of non-infected and L. donovani-infected THP-1 cells and found that proteins involved in major metabolic pathways, including glycolysis and fatty acid oxidation, are highly expressed after L. donovani infection, suggesting a parasite-induced global reprogramming of cell metabolism. The expression of proteins involved in gene transcription, RNA splicing (heterogeneous nuclear ribonucleoproteins (hnRNPs)), histones, and DNA repair and replication was also found to be increased in response to L. donovani infection in vitro. Proteins involved in cell survival and signal transduction were also shown to be more abundant in response to infection. Interestingly, several of the proteins that were identified as differentially expressed in this study had not been previously associated with the host response to the parasite, while some were related to proteins identified in previous studies. Quantitative polymerase chain reaction and immunoblot analysis of selected proteins identified in the study were used to validate proteins found differentially expressed in the mass spectrometry study. RNA interference (RNAi)-mediated gene knockdown of proteins was used to confirm the relevance of the observed host quantitative proteomic screening.
Interestingly, this study shows that the mitochondrial antiviral signaling protein (MAVS) was significantly abundant in host cells after Leishmania infection. MAVS, the first mitochondrial protein to activate NF-κB and interferon (IFN) regulatory factors (IRF3 and IRF7), is known to synthesize type I interferons (IFN-α and IFN-β), which are essential in antiviral signaling. The silencing of endogenous MAVS expression by RNAi inhibits the activation of NF-κB, IRF3, and IRF7, thereby blocking the production of interferon and promoting viral infection [65]. These authors claim that there may be cross-talk between MAVS and the components of the NF-κB and IRF signaling pathways, which leads to the production of proinflammatory cytokines and type I IFN [66].
A recent study published using phosphoproteomics showed that Leishmania parasites respond to arginine pool reduction in the host cell by up-regulating expression and activity of the Leishmania arginine transporter (LdAAP3), as well as several other transporters. To study phosphoproteins involved in the signaling pathway that results in increased LdAAP3 expression and activity, the authors used a di-methylation tagging technique to evaluate changes in the phosphorylation profile of Leishmania promastigotes after five and 15 min of arginine deprivation. Phosphorylation analysis showed an increased phosphorylation of mitogen-activated protein kinase 2 (MPK2), suggesting that the arginine-deprivation response during Leishmania infection is mediated through a MPK2-dependent signaling cascade [67].
Taken together, these three studies show that Leishmania parasites modulate the host cell proteome during early stages of infection, providing evidence for the complex relations between the host and the parasite at the molecular level. These studies also reveal potential novel cellular targets which could modulate cell response to help control Leishmania infection.

4. Protein Profiling in Human Cutaneous Lesions

A recent study generated interesting results in tegumentary leishmaniasis using 2-DE proteomics, as well as biological network analysis for protein profiling in cutaneous lesions comparing protein expression to normal skin samples [26].
In this study, the authors found that cutaneous lesions showed a composition similar to the inflammatory infiltrate with the presence of lymphocytes, macrophages, and plasma cells, as well as focal necrosis. Proteins that were extracted from lesions and normal skin samples were separated using 2-DE. Among a total of 150 differentially expressed spots of proteins from cutaneous lesions and normal skin samples, the authors identified 59 proteins. From these, 29 spots were identified only in CL samples, while 17 were found only in the normal skin. Besides, among the spots present in both cutaneous lesions and control samples, nine spots were upregulated, and four were downregulated in CL biopsies in comparison to normal skin.
The proteins identified in the mass spectrometry analysis were organized according to biological functions, and the analysis revealed that those upregulated in CL biopsies participate in several cell processes including apoptosis (caspase-9 (CASP-9)), immune response (T cell receptor beta (TRB)), and biosynthetic process (transcription factor IIIB 90 kDa subunit (BRF1)). Previously, it was observed that an increased expression of TRB [68,69] could be involved in the recruitment of T cells to the infection site. The authors claimed that the increase in the apoptotic process, consequent to CASP-9 expression could be the result of the development of an intense inflammatory response commonly observed in cutaneous lesions of leishmaniasis.
In this work, the authors performed biological network analysis to better understand how biological pathways were modulated in infected individuals. This approach was also used in the in vitro study using mouse macrophages [22]. To perform this analysis, the authors generated networks of interactions between the identified proteins, in addition to other proteins, which were included in the network by the Cytoscape software. A complex network was generated by Cytoscape, containing 505 nodes that contained many proteins involved in apoptosis, such as IL-23, transforming growth factor beta receptor 1 (TGFBR1), tumor necrosis factor receptor-I (TNFRI), caspase-3 (CASP-3), caspase-8 (CASP-8), and granzyme B (GZMB).
Reinforcing the role that the apoptotic process plays in CL development, IPA generated the cytotoxic T lymphocyte-mediated apoptosis of target cells as the primary canonical pathway. This pathway included 34 proteins, 18 of which were differentially expressed among the samples. Nine out of these 18 proteins were exclusively expressed in CL biopsies, and five were upregulated, while four were downregulated, in CL biopsies when compared to normal skin.
In the apoptosis cascade, granzyme B is a protein that has been shown to activate caspase-3, either directly or via the mitochondrial pathway, by way of induction of caspase-9 activation, which subsequently activates caspase-3 [70]. These authors validated the expression of three proteins, two of which were identified as differentially expressed in their proteomic study and another that was identified by IPA. Using immunohistochemistry, they demonstrated higher expression of caspase-9, caspase-3, and granzyme B in CL biopsies in comparison to normal skin. Also, they found that higher expression of these three proteins correlated positively with lesion size in CL patients. They conclude that apoptosis is probably involved in the mechanisms associated with the progression of tissue damage seen in CL lesions.

5. Protein Expression in Serum of Individuals with Visceral Leishmaniasis

Very few studies have used large-scale analysis to better understand the aspects surrounding host immune inflammatory response to Leishmania infection. Recently, three studies have used proteomics to identify biomarkers that potentially participate in host immune response in the serum of VL patients [28,29], in addition to those that may help in the diagnosis of visceral disease [27].
Two proteomic studies employing either a quantitative [28] or a qualitative comparative [29] analysis identified differentially expressed proteins in human serum from patients and control groups. The patient study groups were diagnosed with VL as confirmed by the presence of Leishmania parasites in bone marrow aspirate [28,29] or by the presence of serum anti-rK39 antibody [28,29].
The first study using a quantitative proteomic approach evaluated the proteome in the serum of six VL patients and six healthy volunteers. The authors identified 26 differentially expressed spots, from these 15 were analyzed by mass spectrometry and only nine spots were identified with high confidence, corresponding to five different proteins. In the comparative proteomic study, the authors purified only plasma glycoproteins using a multi-lectin affinity column, followed by mass spectrometry analysis that allowed for the identification of 39 differentially expressed spots [29].
In both quantitative [28] and qualitative comparative [29] studies, some acute-phase proteins were found to be differentially expressed in sera from humans with VL compared to controls, supporting the notion that VL is a systemic disease. The glycoproteins identified as upregulated in only the qualitative comparative proteomic study were α-1-acid glycoprotein and C1 inhibitor, while, in the quantitative study, α-1-antitrypsin, α-1-B glycoprotein, and amyloid-A1 precursor were detected. On the other hand, the only downregulated protein identified in the qualitative glycoproteomic study, was the retinol binding protein, while, in the quantitative study, the vitamin-D binding protein was detected. Interestingly, in both studies, apolipoprotein A-I and transthyretin were found to be downregulated in VL sera [28,29].
Previously, α-1-acidglycoprotein was found to be elevated in sera of individuals with systemic tissue injury, or during inflammation and infection. This protein was also proven to be involved in other processes, such as neutrophil inactivation, chemotaxis and oxidative metabolism [71]. The authors claimed that the increased levels of the acute phase α-1-acid glycoprotein observed in serum from VL patients can result in the inhibition of neutrophil function, facilitating pyogenic infections in the skin and other tissues [28]. C1-inhibitor was the other acute-phase protein found to be overexpressed in serum from VL patients [28]. Inhibition of both complement and quinin generating cascades [72] by this plasma protease inhibitor has been associated with the anti-inflammatory effect of C1-inhibitor [73].
One of the proteins found to be downregulated in sera from VL patients was transthyretin [28], which is known to function as a transporter of thyroid hormones, as well as a negative acute phase protein with anti-inflammatory properties that subsequently results in inhibition of interleukin-1 production by monocytes and endothelial cells [74]. In agreement with this proteomic study, a previous one found transthyretin levels reduced in sera of patients with VL [75]. The other protein found downmodulated in the sera from VL patients was the retinol binding protein [28], known to transport retinol from the liver to the peripheral tissues. In plasma, retinol binding protein interacts with transthyretin, preventing retinol binding protein loss through filtration in the kidney [76].
Another proteomic study was performed to identify proteins potentially expressed by parasites in dogs with VL, as well as differences in protein expression in serum from infected and non-infected dogs [27]. The study performed in naturally infected dogs demonstrated that the mass spectrometry was not sensitive enough to detect parasite protein in dog sera. Nonetheless, labeling each sample of infected and non-infected individuals with different iTRAQ tag followed by the LC-MS/MS analysis allowed the authors to identify differentially expressed host proteins in serum of infected animals when compared to the non-infected ones. More than 105 proteins were identified in the serum of dogs, of which 22 were found in sera from infected dogs compared to controls. Of these 22 proteins, 17 were upregulated, and five were downregulated [27].
The number of proteins identified in the serum of dogs in this proteomic study [27] was greater than the number found in the proteomic studies using human serum [28,29]. Despite differences in the number of proteins expressed in dogs and humans with VL, increased levels of acute-phase proteins were identified as modulated in the three studies [28,29]. The proteins found in dog serum with VL, such as serum amyloid A (SAA) and haptoglobin, were different from those detected in human serum. The modulation of acute-phase proteins is consistent with results from previous studies, both in canine [77] and in human VL [78]. Furthermore, in patients with VL, the increased levels of such acute phase proteins in serum progressively decreased with effective therapy, while the high expression levels were maintained in those patients with parasite clearance delay [78].
In these proteomic studies, the finding that the inhibition of negative acute-phase proteins along with the enhancement of positive acute-phase protein expression in sera from humans and dogs with VL reinforces the notion that infection leads to an uncontrolled systemic inflammatory response. This response can account for the pathogenesis and clinical manifestations of VL [79]. The different studies postulate that the identification of these molecules could be useful as diagnostic/prognostic biomarkers and in the understanding of parasite survival in the host environment [29]. Additionally, these molecules could function as potential targets for future development of new treatment for controlling the clinical manifestations of the disease [28]. Finally, the study that found a reduction in the expression of acute-phase proteins in response to antileishmanial therapy [77] reinforces the potential use of these molecules as targets for monitoring the initial response to treatment and follow-up of humans and dogs with VL.

6. Concluding Remarks

Comparative proteomics studies have demonstrated that the relation between Leishmania parasites and the host is extremely complex at the molecular level. Although very few proteins have been identified exclusively in Leishmania amastigotes, a consistent number of proteins modulated in this life stage were involved in metabolic pathways. In addition, during the host-parasite interaction, the expression of proteins in the host varies depending on the Leishmania spp., as well as the tissue or cell studied (Figure 3). However, most studies reported that the proteins involved in metabolic pathways and the immune and inflammatory response of the host are frequently modulated.
To this date, none of the molecular targets identified in proteomic studies were used to develop new treatment approaches or as prognostic markers in a follow-up of different types of Leishmania infection. This review will provide a reference to conduct new studies to better understand the role these proteins and pathways play in the intracellular survival of Leishmania parasites and the outcome of leishmaniasis.


We thank Instituto Gonçalo Moniz/Fundação Oswaldo Cruz (IGM/FIOCRUZ); Coordenação de Aperfeiçoamento do Pessoal de Nível Superior (CAPES), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq) and Fundação de Amparo à Pesquisa do Estado da Bahia (FAPESB) for the financial support.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Alvar, J.; Velez, I.D.; Bern, C.; Herrero, M.; Desjeux, P.; Cano, J.; Jannin, J.; den Boer, M.; WHO. Leishmaniasis Control Team. Leishmaniasis worldwide and global estimates of its incidence. PLoS ONE 2012, 7, e35671. [Google Scholar] [CrossRef] [PubMed]
  2. WHO. Leishmaniasis. Situation and Trends. Available online: (accessed on 1 August 2016).
  3. Zijlstra, E.E.; Musa, A.M.; Khalil, E.A.; El-Hassan, I.M.; El-Hassan, A.M. Post-kala-azar dermal leishmaniasis. Lancet Infect. Dis. 2003, 3, 87–98. [Google Scholar] [CrossRef]
  4. Desjeux, P. Human leishmaniases: Epidemiology and public health aspects. World Health Stat. Q. 1992, 45, 267–275. [Google Scholar] [PubMed]
  5. Graves, P.R.; Haystead, T.A. Molecular biologist’s guide to proteomics. Microbiol. Mol. Biol. Rev. 2002, 66, 39–63. [Google Scholar] [CrossRef] [PubMed]
  6. Khurshid, Z.; Zohaib, S.; Najeeb, S.; Zafar, M.S.; Rehman, R.; Rehman, I.U. Advances of proteomic sciences in dentistry. Int. J. Mol. Sci. 2016, 17, 728. [Google Scholar] [CrossRef] [PubMed]
  7. Renella, R. Clinically-oriented proteomic investigation of sickle cell disease: Opportunities and challenges. Proteom. Clin. Appl. 2016. [Google Scholar] [CrossRef] [PubMed]
  8. Gaudreau, P.O.; Stagg, J.; Soulieres, D.; Saad, F. The present and future of biomarkers in prostate cancer: Proteomics, genomics, and immunology advancements. Biomark. Cancer 2016, 8, 15–33. [Google Scholar] [CrossRef] [PubMed]
  9. Ahsan, N.; Rao, R.S.; Gruppuso, P.A.; Ramratnam, B.; Salomon, A.R. Targeted proteomics: Current status and future perspectives for quantification of food allergens. J. Proteom. 2016, 143, 15–23. [Google Scholar] [CrossRef] [PubMed]
  10. Ferreira, D.; Seca, A.M.; Diana, C.G.A.; Silva, A.M. Targeting human pathogenic bacteria by siderophores: A proteomics review. J. Proteom. 2016, 16. [Google Scholar] [CrossRef] [PubMed]
  11. Charest, H.; Zhang, W.W.; Matlashewski, G. The developmental expression of Leishmania donovani A2 amastigote-specific genes is post-transcriptionally mediated and involves elements located in the 3′-untranslated region. J. Biol. Chem. 1996, 271, 17081–17090. [Google Scholar] [CrossRef] [PubMed]
  12. Brooks, D.R.; Denise, H.; Westrop, G.D.; Coombs, G.H.; Mottram, J.C. The stage-regulated expression of Leishmania mexicana CPB cysteine proteases is mediated by an intercistronic sequence element. J. Biol. Chem. 2001, 276, 47061–47069. [Google Scholar] [CrossRef] [PubMed]
  13. Kelly, B.L.; Nelson, T.N.; McMaster, W.R. Stage-specific expression in leishmania conferred by 3′ untranslated regions of L. Major Leishmanolysin genes (GP63). Mol. Biochem. Parasitol. 2001, 116, 101–104. [Google Scholar] [PubMed]
  14. Clayton, C.; Shapira, M. Post-transcriptional regulation of gene expression in trypanosomes and Leishmanias. Mol. Biochem. Parasitol. 2007, 156, 93–101. [Google Scholar] [CrossRef] [PubMed]
  15. Sodre, C.L.; Chapeaurouge, A.D.; Kalume, D.E.; de Mendonca Lima, L.; Perales, J.; Fernandes, O. Proteomic map of Trypanosoma cruzi CL brener: The reference strain of the genome project. Arch. Microbiol. 2009, 191, 177–184. [Google Scholar] [CrossRef] [PubMed]
  16. Gygi, S.P.; Rochon, Y.; Franza, B.R.; Aebersold, R. Correlation between protein and mRNA abundance in yeast. Mol. Cell. Biol. 1999, 19, 1720–1730. [Google Scholar] [CrossRef] [PubMed]
  17. Larreta, R.; Soto, M.; Quijada, L.; Folgueira, C.; Abanades, D.R.; Alonso, C.; Requena, J.M. The expression of HSP83 genes in Leishmania infantum is affected by temperature and by stage-differentiation and is regulated at the levels of mrna stability and translation. BMC Mol. Biol. 2004, 5, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. El Fakhry, Y.; Ouellette, M.; Papadopoulou, B. A proteomic approach to identify developmentally regulated proteins in Leishmania infantum. Proteomics 2002, 2, 1007–1017. [Google Scholar] [CrossRef]
  19. Bente, M.; Harder, S.; Wiesgigl, M.; Heukeshoven, J.; Gelhaus, C.; Krause, E.; Clos, J.; Bruchhaus, I. Developmentally induced changes of the proteome in the protozoan parasite Leishmania donovani. Proteomics 2003, 3, 1811–1829. [Google Scholar] [CrossRef] [PubMed]
  20. Morales, M.A.; Watanabe, R.; Laurent, C.; Lenormand, P.; Rousselle, J.C.; Namane, A.; Spath, G.F. Phosphoproteomic analysis of Leishmania donovani pro- and amastigote stages. Proteomics 2008, 8, 350–363. [Google Scholar] [CrossRef] [PubMed]
  21. Biyani, N.; Madhubala, R. Quantitative proteomic profiling of the promastigotes and the intracellular amastigotes of Leishmania donovani isolates identifies novel proteins having a role in leishmania differentiation and intracellular survival. Biochim. Biophys. Acta 2012, 1824, 1342–1350. [Google Scholar] [CrossRef] [PubMed]
  22. Menezes, J.P.; Almeida, T.F.; Petersen, A.L.; Guedes, C.E.; Mota, M.S.; Lima, J.G.; Palma, L.C.; Buck, G.A.; Krieger, M.A.; Probst, C.M.; et al. Proteomic analysis reveals differentially expressed proteins in macrophages infected with Leishmania amazonensis or Leishmania major. Microbes Infect. 2013, 15, 579–591. [Google Scholar] [CrossRef] [PubMed]
  23. Singh, A.K.; Pandey, R.K.; Siqueira-Neto, J.L.; Kwon, Y.J.; Freitas-Junior, L.H.; Shaha, C.; Madhubala, R. Proteomic-based approach to gain insight into reprogramming of THP-1 cells exposed to Leishmania donovani over an early temporal window. Infect. Immun. 2015, 83, 1853–1868. [Google Scholar] [CrossRef] [PubMed]
  24. Costa, M.M.; Andrade, H.M.; Bartholomeu, D.C.; Freitas, L.M.; Pires, S.F.; Chapeaurouge, A.D.; Perales, J.; Ferreira, A.T.; Giusta, M.S.; Melo, M.N.; et al. Analysis of Leishmania chagasi by 2-D difference gel electrophoresis (2-D dige) and immunoproteomic: Identification of novel candidate antigens for diagnostic tests and vaccine. J. Proteome Res. 2011, 10, 2172–2184. [Google Scholar] [CrossRef] [PubMed]
  25. Paape, D.; Aebischer, T. Contribution of proteomics of Leishmania spp. To the understanding of differentiation, drug resistance mechanisms, vaccine and drug development. J. Proteom. 2011, 74, 1614–1624. [Google Scholar] [CrossRef] [PubMed]
  26. Da Silva Santos, C.; Attarha, S.; Saini, R.K.; Boaventura, V.; Costa, J.; Khouri, R.; Barral-Netto, M.; Brodskyn, C.I.; Souchelnytskyi, S. Proteome profiling of human cutaneous leishmaniasis lesion. J. Investig. Dermatol. 2015, 135, 400–410. [Google Scholar] [CrossRef] [PubMed]
  27. Britti, D.; Gaspari, M.; Massimini, G.; Casalinuovo, F.; Morittu, V.M.; Cuda, G. Proteomic analysis in canine leishmaniasis. Vet. Res. Commun. 2010, 34 (Suppl. 1), S91–S96. [Google Scholar] [CrossRef] [PubMed]
  28. Rukmangadachar, L.A.; Kataria, J.; Hariprasad, G.; Samantaray, J.C.; Srinivasan, A. Two-dimensional difference gel electrophoresis (DIGE) analysis of sera from visceral leishmaniasis patients. Clin. Proteom. 2011, 8, 4. [Google Scholar] [CrossRef] [PubMed]
  29. Bag, A.K.; Saha, S.; Sundar, S.; Saha, B.; Chakrabarti, A.; Mandal, C. Comparative proteomics and glycoproteomics of plasma proteins in Indian visceral leishmaniasis. Proteome Sci. 2014, 12, 48. [Google Scholar] [CrossRef] [PubMed]
  30. MacFarlane, J.; Blaxter, M.L.; Bishop, R.P.; Miles, M.A.; Kelly, J.M. Identification and characterisation of a Leishmania donovani antigen belonging to the 70-kDa heat-shock protein family. Eur. J. Biochem. 1990, 190, 377–384. [Google Scholar] [CrossRef] [PubMed]
  31. Glaser, T.A.; Moody, S.F.; Handman, E.; Bacic, A.; Spithill, T.W. An antigenically distinct lipophosphoglycan on amastigotes of Leishmania major. Mol. Biochem. Parasitol. 1991, 45, 337–344. [Google Scholar] [CrossRef]
  32. Zilberstein, D.; Shapira, M. The role of pH and temperature in the development of Leishmania parasites. Annu. Rev. Microbiol. 1994, 48, 449–470. [Google Scholar] [CrossRef] [PubMed]
  33. Alexander, J.; Russell, D.G. The interaction of leishmania species with macrophages. Adv. Parasitol. 1992, 31, 175–254. [Google Scholar] [PubMed]
  34. Chappuis, F.; Sundar, S.; Hailu, A.; Ghalib, H.; Rijal, S.; Peeling, R.W.; Alvar, J.; Boelaert, M. Visceral leishmaniasis: What are the needs for diagnosis, treatment and control? Nat. Rev. Microbiol. 2007, 5, 873–882. [Google Scholar] [CrossRef] [PubMed]
  35. Bates, P.A.; Rogers, M.E. New insights into the developmental biology and transmission mechanisms of Leishmania. Curr. Mol. Med. 2004, 4, 601–609. [Google Scholar] [CrossRef] [PubMed]
  36. Kaye, P.; Scott, P. Leishmaniasis: Complexity at the host-pathogen interface. Nat. Rev. Microbiol. 2011, 9, 604–615. [Google Scholar] [CrossRef] [PubMed]
  37. Matlashewski, G. Leishmania infection and virulence. Med. Microbiol. Immunol. 2001, 190, 37–42. [Google Scholar] [CrossRef] [PubMed]
  38. Turco, S.J.; Spath, G.F.; Beverley, S.M. Is lipophosphoglycan a virulence factor? A surprising diversity between Leishmania species. Trends Parasitol. 2001, 17, 223–226. [Google Scholar] [CrossRef]
  39. Liaud, M.F.; Lichtle, C.; Apt, K.; Martin, W.; Cerff, R. Compartment-specific isoforms of TPI and GAPDH are imported into diatom mitochondria as a fusion protein: Evidence in favor of a mitochondrial origin of the eukaryotic glycolytic pathway. Mol. Biol. Evol. 2000, 17, 213–223. [Google Scholar] [CrossRef] [PubMed]
  40. McNicoll, F.; Drummelsmith, J.; Muller, M.; Madore, E.; Boilard, N.; Ouellette, M.; Papadopoulou, B. A combined proteomic and transcriptomic approach to the study of stage differentiation in Leishmania infantum. Proteomics 2006, 6, 3567–3581. [Google Scholar] [CrossRef] [PubMed]
  41. Nugent, P.G.; Karsani, S.A.; Wait, R.; Tempero, J.; Smith, D.F. Proteomic analysis of Leishmania mexicana differentiation. Mol. Biochem. Parasitol. 2004, 136, 51–62. [Google Scholar] [CrossRef] [PubMed]
  42. Walker, J.; Vasquez, J.J.; Gomez, M.A.; Drummelsmith, J.; Burchmore, R.; Girard, I.; Ouellette, M. Identification of developmentally-regulated proteins in Leishmania panamensis by proteome profiling of promastigotes and axenic amastigotes. Mol. Biochem. Parasitol. 2006, 147, 64–73. [Google Scholar] [CrossRef] [PubMed]
  43. Brotherton, M.C.; Racine, G.; Foucher, A.L.; Drummelsmith, J.; Papadopoulou, B.; Ouellette, M. Analysis of stage-specific expression of basic proteins in Leishmania infantum. J. Proteome Res. 2010, 9, 3842–3853. [Google Scholar] [CrossRef] [PubMed]
  44. Acestor, N.; Masina, S.; Walker, J.; Saravia, N.G.; Fasel, N.; Quadroni, M. Establishing two-dimensional gels for the analysis of Leishmania proteomes. Proteomics 2002, 2, 877–879. [Google Scholar] [CrossRef]
  45. Leifso, K.; Cohen-Freue, G.; Dogra, N.; Murray, A.; McMaster, W.R. Genomic and proteomic expression analysis of Leishmania promastigote and amastigote life stages: The Leishmania genome is constitutively expressed. Mol. Biochem. Parasitol. 2007, 152, 35–46. [Google Scholar] [CrossRef] [PubMed]
  46. Pan, A.A.; Duboise, S.M.; Eperon, S.; Rivas, L.; Hodgkinson, V.; Traub-Cseko, Y.; McMahon-Pratt, D. Developmental life cycle of Leishmania—Cultivation and characterization of cultured extracellular amastigotes. J. Eukaryot. Microbiol. 1993, 40, 213–223. [Google Scholar] [CrossRef] [PubMed]
  47. Sereno, D.; Lemesre, J.L. Axenically cultured amastigote forms as an in vitro model for investigation of antileishmanial agents. Antimicrob. Agents Chemother. 1997, 41, 972–976. [Google Scholar] [PubMed]
  48. Puentes, F.; Diaz, D.; Hoya, R.D.; Gutierrez, J.A.; Lozano, J.M.; Patarroyo, M.E.; Moreno, A. Cultivation and characterization of stable Leishmania guyanensis complex axenic amastigotes derived from infected U937 cells. Am. J. Trop. Med. Hyg. 2000, 63, 102–110. [Google Scholar] [PubMed]
  49. Gupta, N.; Goyal, N.; Rastogi, A.K. In vitro cultivation and characterization of axenic amastigotes of Leishmania. Trends Parasitol. 2001, 17, 150–153. [Google Scholar] [CrossRef]
  50. Sereno, D.; Roy, G.; Lemesre, J.L.; Papadopoulou, B.; Ouellette, M. DNA transformation of Leishmania infantum axenic amastigotes and their use in drug screening. Antimicrob. Agents Chemother. 2001, 45, 1168–1173. [Google Scholar] [CrossRef] [PubMed]
  51. Debrabant, A.; Joshi, M.B.; Pimenta, P.F.; Dwyer, D.M. Generation of Leishmania donovani axenic amastigotes: Their growth and biological characteristics. Int. J. Parasitol. 2004, 34, 205–217. [Google Scholar] [CrossRef] [PubMed]
  52. Paape, D.; Lippuner, C.; Schmid, M.; Ackermann, R.; Barrios-Llerena, M.E.; Zimny-Arndt, U.; Brinkmann, V.; Arndt, B.; Pleissner, K.P.; Jungblut, P.R.; et al. Transgenic, fluorescent Leishmania mexicana allow direct analysis of the proteome of intracellular amastigotes. Mol. Cell. Proteom. 2008, 7, 1688–1701. [Google Scholar] [CrossRef] [PubMed]
  53. Rosenzweig, D.; Smith, D.; Myler, P.J.; Olafson, R.W.; Zilberstein, D. Post-translational modification of cellular proteins during Leishmania donovani differentiation. Proteomics 2008, 8, 1843–1850. [Google Scholar] [CrossRef] [PubMed]
  54. Purdy, J.E.; Donelson, J.E.; Wilson, M.E. Regulation of genes encoding the major surface protease of Leishmania chagasi via mRNA stability. Mol. Biochem. Parasitol. 2005, 142, 88–97. [Google Scholar] [CrossRef] [PubMed]
  55. Gomes, I.N.; Calabrich, A.F.; Tavares Rda, S.; Wietzerbin, J.; de Freitas, L.A.; Veras, P.S. Differential properties of CBA/J mononuclear phagocytes recovered from an inflammatory site and probed with two different species of Leishmania. Microbes Infect. 2003, 5, 251–260. [Google Scholar] [CrossRef]
  56. Wang, L.; Cummings, R.; Usatyuk, P.; Morris, A.; Irani, K.; Natarajan, V. Involvement of phospholipases D1 and D2 in sphingosine 1-phosphate-induced ERK (extracellular-signal-regulated kinase) activation and interleukin-8 secretion in human bronchial epithelial cells. Biochem. J. 2002, 367, 751–760. [Google Scholar] [CrossRef] [PubMed]
  57. Corrotte, M.; Chasserot-Golaz, S.; Huang, P.; Du, G.; Ktistakis, N.T.; Frohman, M.A.; Vitale, N.; Bader, M.F.; Grant, N.J. Dynamics and function of phospholipase D and phosphatidic acid during phagocytosis. Traffic 2006, 7, 365–377. [Google Scholar] [CrossRef] [PubMed]
  58. Antoine, J.C.; Prina, E.; Lang, T.; Courret, N. The biogenesis and properties of the parasitophorous vacuoles that harbour Leishmania in murine macrophages. Trends Microbiol. 1998, 6, 392–401. [Google Scholar] [CrossRef]
  59. Araki, N.; Hatae, T.; Furukawa, A.; Swanson, J.A. Phosphoinositide-3-kinase-independent contractile activities associated with Fcgamma-receptor-mediated phagocytosis and macropinocytosis in macrophages. J. Cell Sci. 2003, 116, 247–257. [Google Scholar] [CrossRef] [PubMed]
  60. Pridgeon, J.W.; Olzmann, J.A.; Chin, L.S.; Li, L. PINK1 protects against oxidative stress by phosphorylating mitochondrial chaperone TRAP1. PLoS Biol. 2007, 5, e172. [Google Scholar] [CrossRef] [PubMed]
  61. Mishra, S.; Fujita, T.; Lama, V.N.; Nam, D.; Liao, H.; Okada, M.; Minamoto, K.; Yoshikawa, Y.; Harada, H.; Pinsky, D.J. Carbon monoxide rescues ischemic lungs by interrupting MAPK-driven expression of early growth response 1 gene and its downstream target genes. Proc. Natl. Acad. Sci. USA 2006, 103, 5191–5196. [Google Scholar] [CrossRef] [PubMed]
  62. Reed, J.C.; Doctor, K.; Rojas, A.; Zapata, J.M.; Stehlik, C.; Fiorentino, L.; Damiano, J.; Roth, W.; Matsuzawa, S.; Newman, R.; et al. Comparative analysis of apoptosis and inflammation genes of mice and humans. Genome Res. 2003, 13, 1376–1388. [Google Scholar] [CrossRef] [PubMed]
  63. Diefenbach, A.; Schindler, H.; Donhauser, N.; Lorenz, E.; Laskay, T.; MacMicking, J.; Rollinghoff, M.; Gresser, I.; Bogdan, C. Type 1 interferon (IFNα/β) and type 2 nitric oxide synthase regulate the innate immune response to a protozoan parasite. Immunity 1998, 8, 77–87. [Google Scholar] [CrossRef]
  64. Zhou, J.; Fandrey, J.; Schumann, J.; Tiegs, G.; Brune, B. No and TNF-α released from activated macrophages stabilize HIF-1α in resting tubular LLC-PK1 cells. Am. J. Physiol. Cell Physiol. 2003, 284, C439–C446. [Google Scholar] [CrossRef] [PubMed]
  65. Yan, H.; Tsai, M.D. Nucleoside monophosphate kinases: Structure, mechanism, and substrate specificity. Adv. Enzymol. Relat. Areas Mol. Biol. 1999, 73, 103–134. [Google Scholar] [PubMed]
  66. Villa, H.; Perez-Pertejo, Y.; Garcia-Estrada, C.; Reguera, R.M.; Requena, J.M.; Tekwani, B.L.; Balana-Fouce, R.; Ordonez, D. Molecular and functional characterization of adenylate kinase 2 gene from Leishmania donovani. Eur. J. Biochem. 2003, 270, 4339–4347. [Google Scholar] [CrossRef] [PubMed]
  67. Goldman-Pinkovich, A.; Balno, C.; Strasser, R.; Zeituni-Molad, M.; Bendelak, K.; Rentsch, D.; Ephros, M.; Wiese, M.; Jardim, A.; Myler, P.J.; et al. An arginine deprivation response pathway is induced in Leishmania during macrophage invasion. PLoS Pathog. 2016, 12, e1005494. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Clarencio, J.; de Oliveira, C.I.; Bomfim, G.; Pompeu, M.M.; Teixeira, M.J.; Barbosa, T.C.; Souza-Neto, S.; Carvalho, E.M.; Brodskyn, C.; Barral, A.; et al. Characterization of the T-cell receptor Vβ repertoire in the human immune response against Leishmania parasites. Infect. Immun. 2006, 74, 4757–4765. [Google Scholar] [CrossRef] [PubMed]
  69. Keesen, T.S.; Antonelli, L.R.; Faria, D.R.; Guimaraes, L.H.; Bacellar, O.; Carvalho, E.M.; Dutra, W.O.; Gollob, K.J. CD4+ T cells defined by their Vβ T cell receptor expression are associated with immunoregulatory profiles and lesion size in human leishmaniasis. Clin. Exp. Immunol. 2011, 165, 338–351. [Google Scholar] [CrossRef] [PubMed]
  70. Lord, S.J.; Rajotte, R.V.; Korbutt, G.S.; Bleackley, R.C. Granzyme B: A natural born killer. Immunol. Rev. 2003, 193, 31–38. [Google Scholar] [CrossRef] [PubMed]
  71. Pucadyil, T.J.; Tewary, P.; Madhubala, R.; Chattopadhyay, A. Cholesterol is required for Leishmania donovani infection: Implications in leishmaniasis. Mol. Biochem. Parasitol. 2004, 133, 145–152. [Google Scholar] [CrossRef] [PubMed]
  72. Ben-Othman, R.; Flannery, A.R.; Miguel, D.C.; Ward, D.M.; Kaplan, J.; Andrews, N.W. Leishmania-mediated inhibition of iron export promotes parasite replication in macrophages. PLoS Pathog. 2014, 10, e1003901. [Google Scholar] [CrossRef] [PubMed]
  73. Chava, A.K.; Chatterjee, M.; Sharma, V.; Sundar, S.; Mandal, C. Variable degree of alternative complement pathway-mediated hemolysis in Indian visceral leishmaniasis induced by differential expression of 9-O-acetylated sialoglycans. J. Infect. Dis. 2004, 189, 1257–1264. [Google Scholar] [CrossRef] [PubMed]
  74. Candiano, G.; Bruschi, M.; Musante, L.; Santucci, L.; Ghiggeri, G.M.; Carnemolla, B.; Orecchia, P.; Zardi, L.; Righetti, P.G. Blue silver: A very sensitive colloidal coomassie G-250 staining for proteome analysis. Electrophoresis 2004, 25, 1327–1333. [Google Scholar] [CrossRef] [PubMed]
  75. Yan, J.X.; Wait, R.; Berkelman, T.; Harry, R.A.; Westbrook, J.A.; Wheeler, C.H.; Dunn, M.J. A modified silver staining protocol for visualization of proteins compatible with matrix-assisted laser desorption/ionization and electrospray ionization-mass spectrometry. Electrophoresis 2000, 21, 3666–3672. [Google Scholar] [CrossRef]
  76. Friedman, D.B.; Wang, S.E.; Whitwell, C.W.; Caprioli, R.M.; Arteaga, C.L. Multivariable difference gel electrophoresis and mass spectrometry: A case study on transforming growth factor-β and ERBB2 signaling. Mol. Cell. Proteom. 2007, 6, 150–169. [Google Scholar] [CrossRef] [PubMed]
  77. Martinez-Subiela, S.; Bernal, L.J.; Ceron, J.J. Serum concentrations of acute-phase proteins in dogs with leishmaniosis during short-term treatment. Am. J. Vet. Res. 2003, 64, 1021–1026. [Google Scholar] [CrossRef] [PubMed]
  78. Wasunna, K.M.; Raynes, J.G.; Were, J.B.; Muigai, R.; Sherwood, J.; Gachihi, G.; Carpenter, L.; McAdam, K.P. Acute phase protein concentrations predict parasite clearance rate during therapy for visceral leishmaniasis. Trans. R. Soc. Trop. Med. Hyg. 1995, 89, 678–681. [Google Scholar] [CrossRef]
  79. Cavalcanti, A.S.; Ribeiro-Alves, M.; Pereira Lde, O.; Mestre, G.L.; Ferreira, A.B.; Morgado, F.N.; Boite, M.C.; Cupolillo, E.; Moraes, M.O.; Porrozzi, R. Parasite load induces progressive spleen architecture breakage and impairs cytokine mRNA expression in Leishmania infantum-naturally infected dogs. PLoS ONE 2015, 10, e0123009. [Google Scholar] [CrossRef] [PubMed]

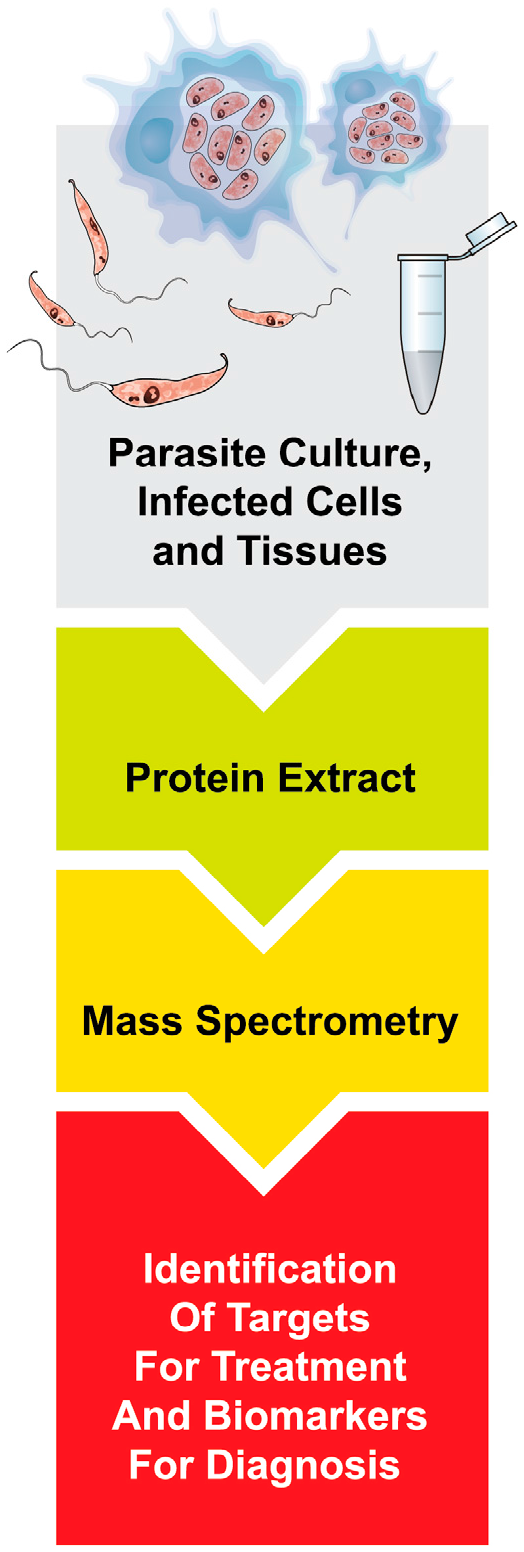

Figure 1. Proteomics approach process. The study of the proteome of Leishmania-infected cells and tissues, using mass spectrometry, can lead to the identification of targets for prophylactic and chemotherapeutic treatment and to the identification of biomarkers that can be used for the diagnosis of different diseases. The aim of the present report is to review the recent contributions of proteomics to the understanding of the various aspects of the Leishmania-mammalian host interaction. We will first describe the contributions made by large-scale proteomic studies on alterations of protein expression in parasites during their differentiation process from promastigotes to amastigotes, followed by studies identifying proteins differentially expressed by host cells and tissues in response to infection. These recent studies explored proteins expressed in macrophage-Leishmania interaction in vitro [22,23], in cutaneous lesions of infected humans [26], as well as in serum of individuals with VL [27,28,29].
Figure 1. Proteomics approach process. The study of the proteome of Leishmania-infected cells and tissues, using mass spectrometry, can lead to the identification of targets for prophylactic and chemotherapeutic treatment and to the identification of biomarkers that can be used for the diagnosis of different diseases. The aim of the present report is to review the recent contributions of proteomics to the understanding of the various aspects of the Leishmania-mammalian host interaction. We will first describe the contributions made by large-scale proteomic studies on alterations of protein expression in parasites during their differentiation process from promastigotes to amastigotes, followed by studies identifying proteins differentially expressed by host cells and tissues in response to infection. These recent studies explored proteins expressed in macrophage-Leishmania interaction in vitro [22,23], in cutaneous lesions of infected humans [26], as well as in serum of individuals with VL [27,28,29].
Ijms 17 01270 g001
Figure 2. The life cycle of Leishmania parasites. During blood feeding by female sandflies, metacyclic promastigotes are regurgitated. These promastigotes are then phagocytosed by cells at the site of the bite. Once inside the host cells, metacyclic promastigotes transform into amastigotes, which can survive and replicate inside phagolysosomes. Amastigote replication may lead to host cell rupture, allowing reinfection of other phagocytes. When infected phagocytes are taken up by another sandfly during the blood meal, amastigotes transform into procyclic promastigotes in the sandfly midgut. Leishmania procyclic promastigotes then differentiate into infective metacyclic promastigotes, completing the cycle.
Figure 2. The life cycle of Leishmania parasites. During blood feeding by female sandflies, metacyclic promastigotes are regurgitated. These promastigotes are then phagocytosed by cells at the site of the bite. Once inside the host cells, metacyclic promastigotes transform into amastigotes, which can survive and replicate inside phagolysosomes. Amastigote replication may lead to host cell rupture, allowing reinfection of other phagocytes. When infected phagocytes are taken up by another sandfly during the blood meal, amastigotes transform into procyclic promastigotes in the sandfly midgut. Leishmania procyclic promastigotes then differentiate into infective metacyclic promastigotes, completing the cycle.
Ijms 17 01270 g002
Figure 3. Proteins involved in the host response to Leishmania infection. Proteins identified as differently expressed in Leishmania infected host in proteomics studies.
Figure 3. Proteins involved in the host response to Leishmania infection. Proteins identified as differently expressed in Leishmania infected host in proteomics studies.
Ijms 17 01270 g003
