Int. J. Mol. Sci. 2015, 16(11), 26786-26796; https://doi.org/10.3390/ijms161125993

Letter
Global Profiling of Various Metabolites in Platycodon grandiflorum by UPLC-QTOF/MS
1
Department of Herbal Crop Research, National Institute of Horticultural and Herbal Science, RDA, Eumseong 369-873, Korea
2
College of Pharmacy and Research Institute of Pharmaceutical Sciences, Kyungpook National University, Daegu 702-701, Korea
3
Department of Industrial Plant Science and Technology, Chungbuk National University, Cheongju 361-763, Korea
4
Theragen Etex, Suwon 443-270, Korea
5
Genomics Division, National Academy of Agricultural Science (NAAS), Jeonju 560-500, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Ute Roessner
Received: 25 August 2015 / Accepted: 3 November 2015 / Published: 9 November 2015

Abstract

:
In this study, a method of metabolite profiling based on UPLC-QTOF/MS was developed to analyze Platycodon grandiflorum. In the optimal UPLC, various metabolites, including major platycosides, were separated well in 15 min. The metabolite extraction protocols were also optimized by selecting a solvent for use in the study, the ratio of solvent to sample and sonication time. This method was used to profile two different parts of P. grandiflorum, i.e., the roots of P. grandiflorum (PR) and the stems and leaves of P. grandiflorum (PS), in the positive and negative ion modes. As a result, PR and PS showed qualitatively and quantitatively different metabolite profiles. Furthermore, their metabolite compositions differed according to individual plant samples. These results indicate that the UPLC-QTOF/MS-based profiling method is a good tool to analyze various metabolites in P. grandiflorum. This metabolomics approach can also be applied to evaluate the overall quality of P. grandiflorum, as well as to discriminate the cultivars for the medicinal plant industry.
Keywords:
Platycodon grandiflorum; metabolomics; UPLC-QTOF/MS

1. Introduction

Platycodon grandiflorum, a perennial herb grown widely in Northeast Asia, contains triterpenoid saponins, carbohydrates, fibers, etc. [1,2]. P. grandiflorum has been used as a food material and a traditional medicine. Platycodin radix, the root of P. grandiflorum, has various benefits for health, and its biological usefulness has been reviewed [3]. Interest in platycodin saponins, the main components of P. grandiflorum, has increased recently due to their novel pharmacological activities, including anti-inflammatory, anti-oxidant, anti-lipidemic, anti-obesity, anti-cancer activities and their ability to improve insulin resistance [4,5,6,7,8,9,10,11]. Furthermore, in a previous study, various components were isolated from the flower of P. grandiflorum, and their biological activities were monitored [12]. Thus, it is critical to study not only Platycodin radix, but also different parts of P. grandiflorum in order to screen it for useful components.
Recently, metabolomics approaches have been used to assess the metabolite contents of individual plant species [13]. For plant metabolomics, well-constructed analytical platforms are necessary [14,15]. Nuclear magnetic resonance spectroscopy and gas chromatography or liquid chromatography (LC) coupled with mass spectrometry (MS) have been widely used to analyze plant metabolites [16,17,18,19,20]. In particular, metabolite profiling by LC/MS is applicable to phenotype and can discriminate individual plant species [21,22,23]. In this study, we constructed a profiling method based on LC/MS to analyze the metabolites of P. grandiflorum. Metabolite extraction protocols and LC/MS conditions were optimized to profile two different parts ((1) P. grandiflorum roots (PR) and (2) P. grandiflorum stems and leaves (PS)).

2. Results and Discussion

2.1. Construction of LC-MS Conditions to Profile Platycodon grandiflorum Metabolites

For the high-throughput and sensitive analysis of various metabolites in P. grandiflorum, it is necessary to construct a robust method of profiling. The UPLC system with its small particle size column enables the fast and effective separation of various molecules. Furthermore, QTOF/MS is a good tool for a full mass scan with high resolution. Thus, in this study, UPLC-QTOF/MS was applied to profile P. grandiflorum metabolites. First, we used seven standards (i.e., platycoside E, platycodin D3, platycodin D2, platycodin D, polygalacin D, platycogenic acid A and platycodigenin) to optimize the LC-MS conditions. In the negative mode of electrospray ionization (ESI), seven compounds were mainly detected as [M − H] and [M + COOH] ions (Table 1). These standards were separated well and eluted for 15 min (Figure 1) at a flow rate of 450 µL/min by using an ACQUITY BEH C18 column (2.1 mm × 100 mm, 1.7 µm particle size). Second, two extracts of PR and PS were analyzed in both positive and negative ion modes. As a result, chromatographic data from the positive mode showed poor efficiency of ionization (data not shown). Thus, we carried out the profiling of PR and PS in the negative mode only. Various metabolites of PR and PS were also separated well in 15 min (Figure 1). The gradient elution program consisted of a first linear gradient from steady (A/B: 90/10) to solvent (A/B: 80/20) for 3 min; followed by a second linear gradient to solvent (A/B: 77/23) for 8 min; a third linear gradient to solvent (A/B: 5/95) for 9 min; and a forth linear gradient to solvent (A/B: 90/10) for 1 min. The column was equilibrated at 10% Solvent B for 4 min before reuse. The total run time was 25 min for each analysis. Third, we validated the performance of the P. grandiflorum metabolites’ profiling method. For this, we drew the standard curves of seven standards and calculated their linearity range and correlation. The limits of detection (LODs) of each isolated compound are also listed (Table 2).
Table 1. List of seven standards analyzed by UPLC-QTOF/MS. RT, retention time.
Table 1. List of seven standards analyzed by UPLC-QTOF/MS. RT, retention time.
No.StandardsRT (min)Molecular FormulaExpected Neutral Mass (Da)Observed Neutral Mass (Da)QTOF/MS (ESI-) m/zMass Accuracy (ppm)Adducts
1Platycoside E4.01C69H112O381548.68321548.67831593.6765−3.08+HCOO
2Platycodin D35.43C63H102O331386.63031386.62681431.625−2.44+HCOO
3Platycodin D29.04C63H102O331386.63031386.62641385.6191−2.84-H
4Platycodin D9.18C57H92O281224.57751224.57651269.5747−0.82+HCOO
5Polygalacin D9.82C57H92O271208.58261208.57951253.5777−2.5+HCOO
6Platycogenic acid A10.36C57H90O291238.55681238.55621237.5489−0.5-H
7Platycodigenin13.85C30H48O7520.34520.3399519.3326−0.21-H
Table 2. The linearity range, correlation (R2) and LOD of seven standards by UPLC-QTOF/MS.
Table 2. The linearity range, correlation (R2) and LOD of seven standards by UPLC-QTOF/MS.
No.StandardsCorrelation (R2)Linear Range (ng)LOD (ng)
1Platycoside E0.99391–401
2Platycodin D30.99751–1001
3Platycodin D20.99761–1001
4Platycodin D0.98981–401
5Polygalacin D0.99260.2–1000.2
6Platycogenic acid A0.99571–1001
7Platycodigenin0.99520.2–200.2
Figure 1. UPLC-QTOF/MS, ESI- base peak intensity (BPI) chromatogram of (A) P. grandiflorum roots; (B) P. grandiflorum stems and leaves and (C) seven standards, including (1) platycoside E, (2) platycodin D3, (3) platycodin D2, (4) platycodin D, (5) polygalacin D, (6) platycogenic acid A and (7) platycodigenin.
Figure 1. UPLC-QTOF/MS, ESI- base peak intensity (BPI) chromatogram of (A) P. grandiflorum roots; (B) P. grandiflorum stems and leaves and (C) seven standards, including (1) platycoside E, (2) platycodin D3, (3) platycodin D2, (4) platycodin D, (5) polygalacin D, (6) platycogenic acid A and (7) platycodigenin.
Ijms 16 25993 g001

2.2. Optimization of Extraction Protocols for Platycodon grandiflorum Metabolites

Next, we optimized the protocols to extract metabolites, including various isolated compounds from two different parts (PR and PS). There are several factors involved in the optimization of extraction protocols. First, it is critical to select suitable solvents for the extraction of various metabolites with different polarities. A single solvent is insufficient to dissolve the wide range of compounds, and several solvents, such as water, ethanol (EtOH) and methanol (MeOH), have been widely used to extract plant metabolites. To find the most effective solvent for extraction, we tried to compare six different solvents (50% EtOH, 70% EtOH, 80% EtOH, 50% MeOH, 70% MeOH and 80% MeOH) while other factors, such as solvent amount (20 mL) and sonication time (30 min), were kept constant. As a result, 70% EtOH exhibited the largest number of peaks and the highest intensity of several compounds. Second, the ratio of solvent to sample is also a critical factor in the metabolites’ extraction due to the limited solubility of samples. Thus, we compared four different amounts (10, 20, 30 and 40 mL) of solvent, 70% EtOH, to extract metabolites from the 50 mg of samples while the sonication time (30 min) was kept constant. Among them, 40 mL provided the largest amount of extracts. Third, different sonication times (15, 30, 45, 60 and 75 min) were tested in the use of 40 mL of 70% EtOH, and as a result, it was found that at least 60 min of sonication were required to extract many metabolites. Finally, we optimized the solvent used (70% EtOH), the ratio of solvent to sample (40 mL:50 mg) and the sonication time (60 min) for the effective extraction of metabolites from P. grandiflorum.

2.3. Analysis of Various Metabolites in the Stem, Leaf and Roots of Platycodon grandiflorum

We applied the proposed method based on UPLC-QTOF/MS to profile various metabolites in PR and PS. Three species of P. grandiflorum were used to obtain three PRs and three PSs. We extracted the metabolites from the three PRs and three PSs, respectively, analyzed each extract three times (n = 3) and then processed each set of data using the UNIFITM software (Version 1.7.1; Waters Corp.). As a result, various metabolites, including several platycosides, were identified based on the library of UNIFI software containing information for the molecule’s name and formula [24]. From the processed data, compounds identified repeatedly (n = 3) having high mass accuracy (ppm < ±5) are listed in Table 3 and Table 4, respectively. In the peak assignment, it is critical to estimate retention time (RT) (RT tolerance: 0.2 min) and mass accuracy. In the samples of PR and PS, four compounds, such as platycoside E, platycodin D, platycodin D2 and platycodin D3, were analyzed with small RT shifts compared to the standard analysis. We also describe the Venn diagram of metabolites analyzed in three PRs and three PSs to show how the metabolic compositions of each plant species (PR-1, -2 and -3 or PS-1, -2 and -3) were different (Figure 2). Two parts of P. grandiflorum (PR and PS) showed qualitatively and quantitatively different metabolite profiles. Furthermore, the metabolite profiles differed according to individual samples. In particular, several platycosides were abundantly different in the three PRs and three PSs, respectively (Figure 3). For example, comparing to other PR species, PR-1 has 1.5-times more abundant platycodin D3, and PR-2 has two-times less abundant platycodin A. Compared to other PS species, PS-3 also has 2.5-times more abundant platycodin A.

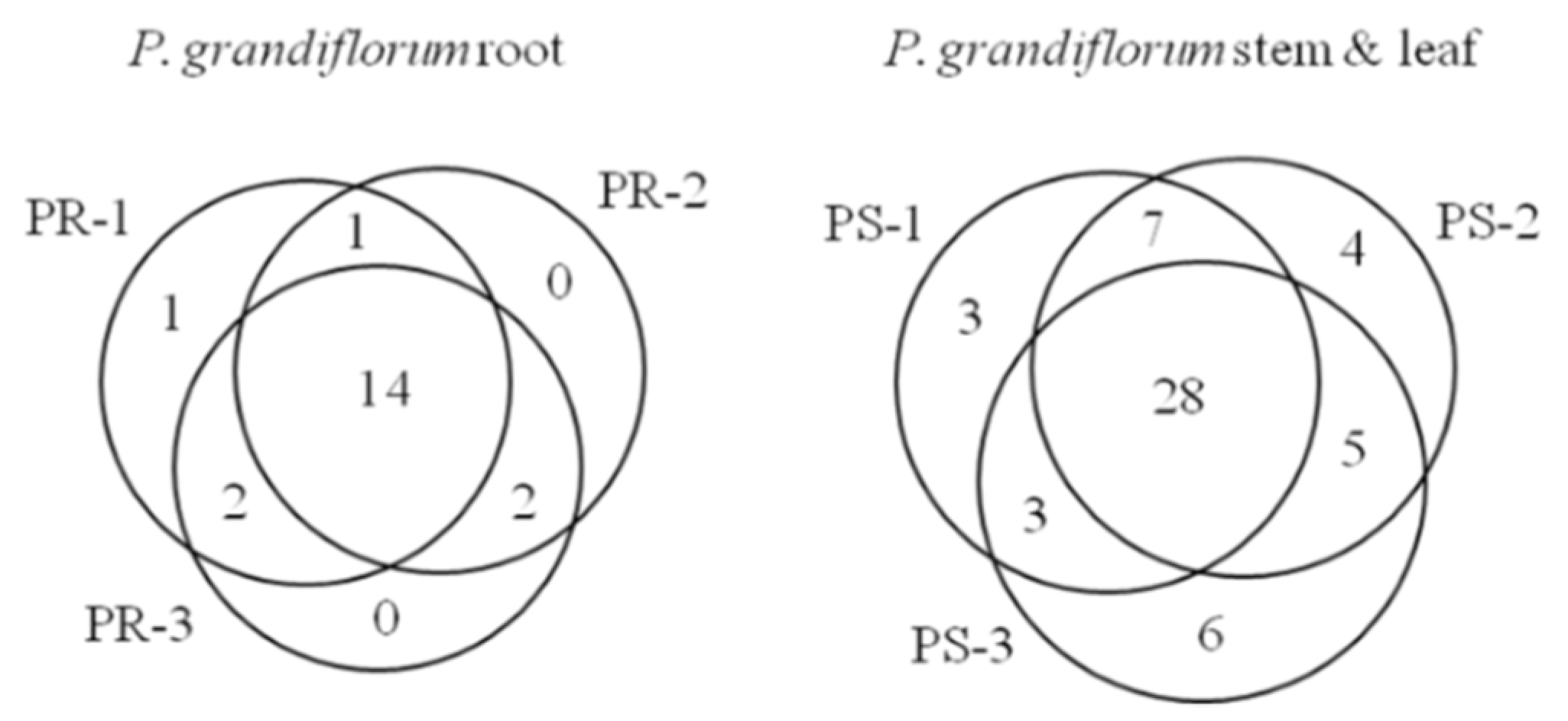

Figure 2. Venn diagram of metabolites analyzed in three P. grandiflorum roots (PRs) and three P. grandiflorum stems and leaves (PSs) (ESI-).
Figure 2. Venn diagram of metabolites analyzed in three P. grandiflorum roots (PRs) and three P. grandiflorum stems and leaves (PSs) (ESI-).
Ijms 16 25993 g002
Table 3. List of metabolites analyzed in P. grandiflorum root (ESI-).
Table 3. List of metabolites analyzed in P. grandiflorum root (ESI-).
No.RT (min)MetabolitesExpected Neutral Mass (Da)Observed Neutral Mass (Da)QTOF/MS (ESI-) m/zMass Accuracy (ppm)AdductsIntensity (n = 3)
PR-1PR-2PR-3
10.55Glutamine146.0691146.0688145.0615−2.5-Ha 1837 ± 187--
20.55Planteose504.169504.169549.16720+HCOO4903 ± 667-5636 ± 392
30.55α-Kojibiose342.1162342.1161387.1143−0.22-H1837 ± 95816,344 ± 1310-
40.6Maleic acid116.011116.0113115.0042.98-H-487 ± 66483 ± 31
50.622-Hydroxyfuran-3-formic acid128.011128.0104173.0086−3.5+HCOO2305 ± 1062025 ± 1131752 ± 44
60.632-Furoic acid112.016112.0163111.0091.99-H7646 ± 3556875 ± 2265943 ± 171
70.63Citric acid192.027192.0264191.0191−3.21-H41,368 ± 252737,122 ± 179532,419 ± 1422
82.11Arnebifuranone316.1311316.1310361.1292−0.19+HCOO661 ± 20889 ± 28656 ± 31
92.35Brusatol520.1945520.1934565.1917−1.8+HCOO4005 ± 3512836 ± 2665753 ± 492
103.8Platycoside G11416.64091416.63641461.6346−3.11+HCOO2456 ± 1952457 ± 1005734 ± 106
113.97Platycoside E1548.68321548.67881593.677−2.74+HCOO4451 ± 6558863 ± 6749183 ± 699
123.99Lobetyolin396.1784396.1785441.17670.19+HCOO13,407 ± 2655473 ± 2716794 ± 393
134.15Platycoside D1532.68821532.6791577.6772−5.83+HCOO-385 ± 47500 ± 30
144.98Platycoside A1254.58811254.58491299.5831−2.48+HCOO13,802 ± 8056425 ± 43510,745 ± 864
155.31Platycodin D31386.63031386.62611431.6243−2.96+HCOO40,086 ± 479725,927 ± 236824,630 ± 2328
165.67Platycoside G21284.59861284.59371283.5865−3.82-H1626 ± 140926 ± 1031503 ± 149
178.24Deapioplatycodin D1092.53531092.53331137.5315−1.74+HCOO658 ± 47-443 ± 45
188.8Platycodin D21386.63031386.62311385.6159−5.2-H3130 ± 171744 ± 441172 ± 103
198.93Platycodin D1224.57751224.57171269.5699−4.58+HCOOa 4868 ± 6061255 ± 671757 ± 161
209.35Platycodin A1266.58811266.58441311.5826−2.82+HCOO27,391 ± 278012,819 ± 88924,750 ± 2250
a The values are the mean of intensities ±SD (n = 3).
Table 4. List of metabolites analyzed in P. grandiflorum stems and leaves (ESI-).
Table 4. List of metabolites analyzed in P. grandiflorum stems and leaves (ESI-).
No.RT (min)MetabolitesExpected Neutral Mass (Da)Observed Neutral Mass (Da)QTOF/MS (ESI-) m/zMass Accuracy (ppm)AdductsIntensity (n = 3)
PS-1PS-2PS-3
10.51Arginine174.1117174.1114173.1041−1.65-Ha 477 ± 38594 ± 37-
20.55Aspartic acid133.0375133.0374132.0301−0.79-H405 ± 53--
30.55Glutamic acid147.0532147.0529146.0456−1.59-H464 ± 47506 ± 30-
40.55Glutamine146.0691146.0692145.06190.14-H1306 ± 2232516 ± 304-
50.55Planteose504.169504.1687549.1669−0.57+HCOO619 ± 59--
60.55Sodium ferulate216.0399216.0391215.0318−3.58-H996 ± 77-924 ± 36
70.55α-Kojibiose342.1162342.1162387.1144−0.03+HCOO--10,644 ± 1655
80.56Ribose150.0528150.0522195.0504−3.26+HCOO1321 ± 831488 ± 1031994 ± 138
90.6Maleic acid116.011116.0113115.0042.99-H2127 ± 1032421 ± 1251743 ± 58
100.615-Oxoproline129.0426129.0427128.03540.88-H-643 ± 49-
110.61Pyruvic acid88.01688.0161133.01430.3+HCOO10,969 ± 48211,961 ± 4238726 ± 469
120.622-Furoic acid112.016112.0164111.00913.1-H4606 ± 2395134 ± 2223194 ± 252
130.622-Hydroxyfuran-3-formic acid128.011128.0106173.0088−2.23+HCOOa 1611 ± 921806 ± 1111397 ± 60
140.62Citric acid192.027192.0263191.019−3.61-H26,784 ± 67730,360 ± 129418,681 ± 375
150.776,7-Dihydroxycoumarin178.0266178.0261223.0243−2.23+HCOO1090 ± 83677 ± 33513 ± 27
160.81-O-Caffeoyquinic acid354.0951354.0951353.08780.05-H--4272 ± 498
171Decaffeoylacteoside462.1737462.1741461.16690.91-H339 ± 46494 ± 50329 ± 33
181.01Tryptophan204.0899204.0899203.0826−0.01-H813 ± 83974 ± 106566 ± 34
191.06Quinic acid192.0634192.063191.0557−2.21-H26,641 ± 187527,777 ± 217331,286 ± 1747
201.074-O-Caffeoylquinic acid354.0951354.0951353.0878−0.08-H--83,405 ± 3981
211.1Shikimic acid174.0528174.0527173.0454−0.78-H591 ± 50624 ± 77811 ± 90
221.151,5-Dihydrxy-2,3,4,7-tetramethoxyxanthone348.0845348.0838393.082−1.77+HCOO354 ± 20-329 ± 25
231.154-O-β-d Glucopyranosyl-cis-cinnamic acid326.1002326.1002325.09290.08-H1445 ± 147-1392 ± 86
241.21Genistein-7,4'-di-O-β-d-glucoside594.1585594.1583593.151−0.32-H-1280 ± 176-
251.261-O-Caffeoyl-β-d-glucopyranoside342.0951342.095341.0878−0.14-H2243 ± 1432603 ± 2892525 ± 148
261.35o-Coumaric acid164.0473164.0472163.04−0.6-H670 ± 118859 ± 177962 ± 102
271.38Chlorogenic acid354.0951354.095353.0877−0.27-H12,530 ± 96714,301 ± 107614,725 ± 798
281.913-O-trans-Coumaroylquinic acid338.1002338.1001337.0928−0.24-H3879 ± 2826685 ± 4833502 ± 257
292.049-Hydroxylinalool-9-β-d-glucopyranoside332.1835332.1834377.1816−0.35+HCOO680 ± 116431 ± 77868 ± 111
302.11Arnebifuranone316.1311316.131361.1292−0.1+HCOO-373 ± 32-
312.24Kaempferol-3-O-neohesperidoside594.1585594.1581593.1508−0.69-H--a 1578 ± 158
322.37Brusatol520.1945520.1944565.1926−0.08+HCOO-6136 ± 4834755 ± 461
332.4Kaempferol-3-gentiobioside610.1534610.1523609.145−1.86-H-1030 ± 284-
342.49Kaempferol286.0477286.0467285.0394−3.62-H--4400 ± 366
352.5Quercetin-3-O-glucuronide 6″-methyl ester492.0904492.0907491.08340.58-H1028 ± 88900 ± 100-
362.53Taraxacolide 1-glucopyranoside430.2203430.2204475.21860.3+HCOO3078 ± 2424529 ± 5193659 ± 430
3731,5-O-Dicaffeoylquinic acid516.1268516.1269515.11960.25-H--510 ± 31
383.273'-Hydroxypuerarin448.1006448.1009447.09360.75-H1894 ± 2082107 ± 2312228 ± 243
393.27Eriodictyol-7-O-β-d-methyl-glucuronopyranoside478.1111478.111477.1038−0.19-H-750 ± 67975 ± 61
403.37Luteolin 7-O-(6''- O-acetyl)-β-d-glucopyranoside490.1111490.1112489.10390.13-H790 ± 5821,846 ± 17887148 ± 472
413.37Quercetin-3-O-(6"-O-acetyl)-β-d-glucopyranoside506.106506.107505.09971.91-H-369 ± 34763 ± 116
423.38Epicatechin-3-O-gallate442.09442.0907487.08891.49+HCOO-3838 ± 4001207 ± 95
433.585-O-Caffeoyl quinic acid butyl ester410.1577410.1579409.15060.5-H328 ± 28516 ± 96361 ± 21
443.62Kaempferol-3-O-(6′′-O-acetyl)-β-d-glucopyranoside490.1111490.1122489.10492.14-H74,782 ± 6202--
453.99Methyl-β-d-fructofuranoside180.0634180.0632179.0559−0.9-H1944 ± 2242168 ± 222-
464.98Platycoside A1254.5881254.5851299.583−2.28+HCOO417 ± 48815 ± 1471088 ± 108
475.115,7,3′,5′-Tetrahydroxyflavanone288.0634288.0629287.0556−1.81-H3719 ± 2392445 ± 142-
485.24Epigallocatechin594.1373594.137593.1298−0.49-H--581 ± 78
495.31Platycodin D31386.631386.6251431.623−3.83+HCOOa 1582 ± 2093569 ± 3753396 ± 291
505.355,7,2',5'-Tetrahydroxy-flavone286.0477286.0473285.04−1.48-H152,282 ± 7073146,318 ± 5227136,503 ± 4826
515.365,7,8,3′,4′-Pentamethoxy flavones302.0427302.0424301.0352−0.71-H542 ± 63558 ± 76515 ± 45
526.27Apigenin-7-O-β-d-glucuronide ethyl ester474.1162474.1166473.10930.79-H2009 ± 1091265 ± 145-
537.83Apigenol270.0528270.0522269.0449−2.32-H43,135 ± 231559,953 ± 304438,068 ± 1691
548.8Platycodin D21386.631386.6261385.618−3.45-H849 ± 156792 ± 1131307 ±205
558.94Platycodin D1224.5781224.5741269.572−2.86+HCOO613 ± 88763 ± 871416 ± 190
569.37Platycodin A1266.5881266.5841311.583−2.91+HCOO8564 ± 8328149 ± 76921,255 ± 1202
a The values are the mean of intensities ±SD (n = 3).

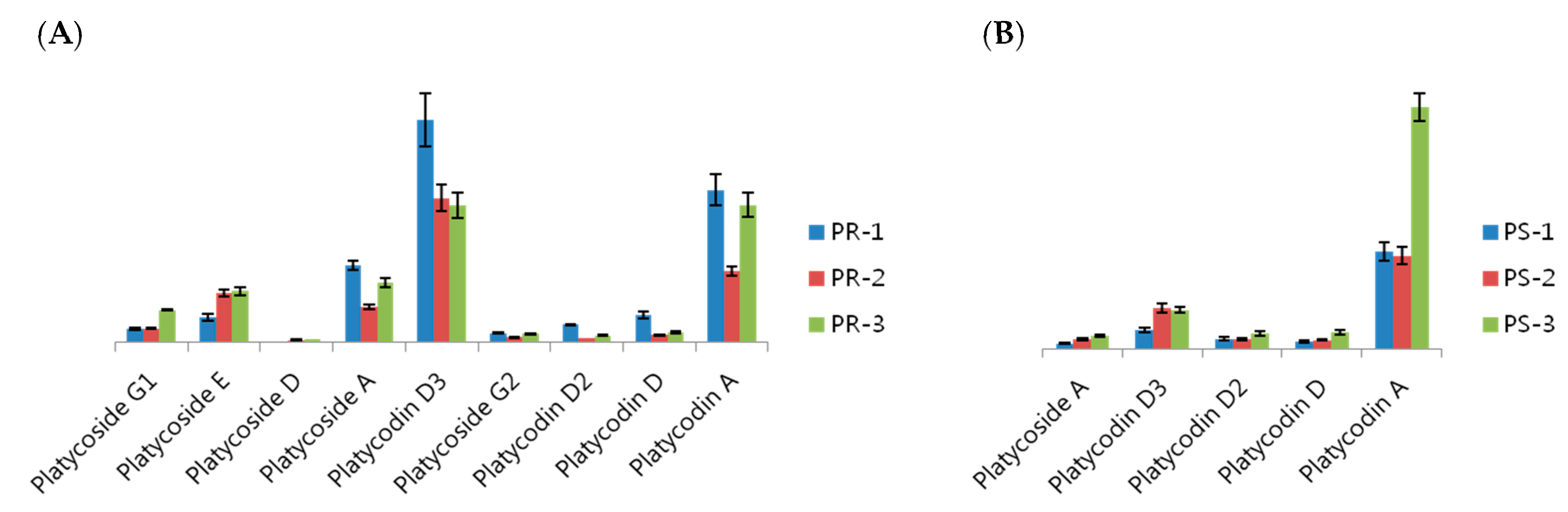

Figure 3. Bar graph of several platycosides in three PRs (A) and three PSs (B).
Figure 3. Bar graph of several platycosides in three PRs (A) and three PSs (B).
Ijms 16 25993 g003

3. Experimental Section

3.1. Platycodon grandiflorum Samples

The samples of Platycodon grandiflorum (roots, stems and leaves) were purchased from a Daegu Herbal Market in Daegu Gyeongbuk Province, Korea, in 2014. Voucher specimen (NIHHS150128) was deposited at the herbarium of the Department of Herbal Crop Research, National Institute of Horticultural and Herbal Science, Rural Development Administration, Eumseong, Korea.

3.2. Standard Constituents and Reagents

HPLC-grade acetonitrile, methanol and water were obtained from Merck (Darmstadt, Germany). Formic acid was purchased from Sigma-Aldrich (St. Louis, MO, USA). Standard compounds were isolated and purified from Platycodon grandiflorum roots by a series of chromatography procedures in our laboratory, and their structures were elucidated by a comparison of the spectroscopic data (MS, 1H-NMR and 13C-NMR) with the literature data: platycoside E [25], platycodin D3 [26], platycodin D [27], platycodin D2 [26], polygalacin D [26], platycogenic acid A [2] and platycodigenin [28]. The purity of the isolated compounds was determined to be more than 98% by normalization of the peak areas detected by HPLC analysis.

3.3. Sample Preparation

Each sample was dried at 40 °C in a forced-air convection-drying oven for 48 h after washing, and then weighed. The main and lateral roots were used in experiments after removing the rhizomes and fine roots. The roots were ground (<0.5 mm) using a mixer (Hanil, Seoul, Korea) and thoroughly mixed, after which the subsamples were homogenized further using a Retsch MM400 mixer mill (Retsch GmbH, Haan, Germany) for the analyses. Fine powder was weighed (50 mg), suspended in 40 mL of 70% (v/v) ethanol and ultrasonically extracted for 1 h at 50 °C. The extract was filtered and evaporated by using a solvent evaporator, Genevac Ez-2 (Genevac Ltd, Suffolk, UK), and the residue (5 mg) was dissolved in the 1 mL of 70% methanol. The solution was filtered through a syringe filter (0.22 µm) and injected directly into the UPLC system.

3.4. UPLC-QTOF-MS Analysis

UPLC was performed using a Waters ACQUITY H-Class UPLC (Waters Corp, Milford, MA, USA). Chromatographic separations were performed on an ACQUITY BEH C18 column (2.1 mm × 100 mm, 1.7 µm). The column oven was maintained at 40 °C, and the mobile phases consisted of Solvent A (5% acetonitrile + 0.1% formic acid (v/v)) and Solvent B (95% acetonitrile + 0.1% formic acid (v/v)). The flow rate was 450 μL/min, and the injection volume was 2 μL for each run. Next, MS analysis was performed using a Waters Xevo G2-S QTOF MS (Waters Corp.) operating in positive and negative ion mode. The mass spectrometers performed alternative high- and low-energy scans, known as the MSE acquisition mode. The operating parameters were set as follows: cone voltage, 40 V; capillary, 3.0 kV; source temperature, 120 °C; desolvation temperature, 300 °C; cone gas flow, 30 L/h; and desolvation gas flow, 600 L/h. Accurate mass measurements were obtained by means of an automated calibration delivery system, which contains the internal reference (Leucine, m/z 556.276 (ESI+), m/z 554.262(ESI-)). Data were collected between 100 and 2000 m/z. In the quantitative analysis of each metabolite, the height of peaks was used to measure the intensity.

4. Conclusions

A profiling method based on UPLC-QTOF/MS was developed to analyze various metabolites contained in P. grandiflorum. UPLC separation conditions were optimized by using seven isolated compounds. The protocols for extracting P. grandiflorum metabolites were optimized as follows: solvent used, 70% EtOH; the ratio of solvent to sample, 40 mL:50 mg; and sonication time, 60 min. We applied this method to profile two different parts of P. grandiflorum (PR and PS), in what was a first attempt to characterize various metabolites in PR and PS, respectively. In the negative ion modes, PR and PS showed qualitatively and quantitatively different metabolite profiles. The metabolite compositions also differed according to the each species. These results indicated that the UPLC-QTOF/MS-based profiling method has potential as a tool to analyze various metabolites in P. grandiflorum. Hence, this study is of great significance regarding evaluations of the overall quality of P. grandiflorum in pharmacological and clinical investigations of drug products. Furthermore, this metabolomics approach could be applied to discriminate cultivars for use in the agricultural and pharmacological industries.

Acknowledgments

This work was carried out with the support of the “Cooperative Research Program for Agriculture Science & Technology Development (Project No. PJ01035103)”, Rural Development Administration, Republic of Korea.

Author Contributions

Dae-Young Lee conceived and supervised the study. Jae Won Lee, Seung-Heon Ji, Yurry Um, Ok Tae Kim, Chang Pyo Hong, Dong-Ho Shin, Chang-Kug Kim, and Seung-Eun Lee performed the study. Kyung-Sik Song provided compounds. Geum-Soog Kim, Yi Lee, and Young-Sup Ahn analyzed the results. Jae Won Lee and Dae-Young Lee wrote the manuscript. All authors corrected the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tada, A.; Kaneiwa, Y.; Shoji, J.; Shibata, S. Studies on the saponins of the root of Platycodon grandiflorum A. DE CANDOLLE. I. Isolation and the structure of platycodin-D. Chem. Pharm. Bull. 1975, 23, 2965–2972. [Google Scholar] [CrossRef] [PubMed]
  2. Choi, Y.H.; Yoo, D.S.; Choi, C.W.; Cha, M.R.; Kim, Y.S.; Lee, H.S.; Lee, K.R.; Ryu, S.Y. Platyconic Acid A, a Genuine Triterpenoid Saponin from the Roots of Platycodon grandiflorum. Molecules 2008, 13, 2871–2879. [Google Scholar] [CrossRef] [PubMed]
  3. Nyakudya, E.; Jeong, J.H.; Lee, N.K.; Jeong, Y.S. Platycosides from the Roots of Platycodon grandiflorum and Their Health Benefits. Prev. Nutr. Food Sci. 2014, 19, 59–68. [Google Scholar] [CrossRef] [PubMed]
  4. Chung, J.W.; Noh, E.J.; Zhao, H.L.; Sim, J.S.; Ha, Y.W.; Shin, E.M.; Lee, E.B.; Cheong, C.S.; Kim, Y.S. Anti-inflammatory Activity of Prosapogenin Methyl Ester of Platycodin D via Nuclear Factor-kappaB Pathway Inhibition. Biol. Pharm. Bull. 2008, 31, 2114–2120. [Google Scholar] [CrossRef] [PubMed]
  5. Zhao, H.L.; Cho, K.H.; Ha, Y.W.; Jeong, T.S.; Lee, W.S.; Kim, Y.S. Cholesterol-lowering effect of platycodin D in hypercholesterolemic ICR mice. Eur. J. Pharmacol. 2006, 537, 166–173. [Google Scholar] [CrossRef] [PubMed]
  6. Lee, J.Y.; Hwang, W.I.; Lim, S.T. Antioxidant and anticancer activities of organic extracts from Platycodon grandiflorum A. De Candolle roots. J. Ethnopharmacol. 2004, 93, 409–415. [Google Scholar] [CrossRef] [PubMed]
  7. Jeong, C.H.; Choi, G.N.; Kim, J.H.; Kwak, J.H.; Kim, D.O.; Kim, Y.J.; Heo, H.J. Antioxidant activities from the aerial parts of Platycodon grandiflorum. Food Chem. 2010, 118, 278–282. [Google Scholar] [CrossRef]
  8. Noh, J.R.; Kim, Y.H.; Gang, G.T.; Yang, K.J.; Kim, S.K.; Ryu, S.Y.; Kim, Y.S.; Lee, C.H.; Lee, H.S. Preventative Effects of Platycodon grandiflorum Treatment on Hepatic Steatosis in High Fat Diet-Fed C57BL/6 Mice. Biol. Pharm. Bull. 2010, 33, 450–454. [Google Scholar] [CrossRef] [PubMed]
  9. Kim, K.S.; Ezaki, O.; Ikemoto, S.; Itakura, H. Effects of Platycodon Grandilorum Feeding on Serum and Liver Lipid Concentrations in Rats with Diet-Induced Hyperlipidemia. J. Nutr. Sci. Vitaminol. 1995, 41, 485–491. [Google Scholar] [CrossRef] [PubMed]
  10. Ravipati, A.S.; Zhang, L.; Koyyalamudi, S.R.; Jeong, S.C.; Reddy, N.; Bartlett, J.; Smith, P.T.; Shanmugam, K.; Münch, G.; Wu, M.J.; et al. Antioxidant and anti-inflammatory activities of selected Chinese medicinal plants and their relation with antioxidant content. BMC Complem. Altern. Med. 2012, 12, 173–188. [Google Scholar] [CrossRef] [PubMed]
  11. Kim, K.S.; Seo, E.K.; Lee, Y.C.; Lee, T.K.; Cho, Y.W.; Ezaki, O.; Kim, C.H. Effect of dietary Platycodon grandiflorum on the improvement of insulin resistance in obese Zucker rats. J. Nutr. Biochem. 2000, 11, 420–424. [Google Scholar] [CrossRef]
  12. Jang, D.S.; Lee, Y.M.; Jeong, I.H.; Kim, J.S. Constituents of the Flowers of Platycodon grandiflorum with Inhibitory Activity on Advanced Glycation End Products and Rat Lens Aldose Reductase In Vitro. Arch. Pharm. Res. 2010, 33, 875–880. [Google Scholar] [CrossRef] [PubMed]
  13. Schauer, N.; Fernie, A.R. Plant metabolomics: towards biological function and mechanism. Trends Plant. Sci. 2006, 11, 508–516. [Google Scholar] [CrossRef] [PubMed]
  14. Sumner, L.W.; Mendes, P.; Dixon, R.A. Plant metabolomics: Large-scale phytochemistry in the functional genomics era. Phytochemistry. 2003, 62, 817–836. [Google Scholar] [CrossRef]
  15. Fukusaki, E.; Kobayashi, A. Plant Metabolomics: Potential for Practical Operation. J. Biosci. Bioeng. 2005, 100, 347–354. [Google Scholar] [CrossRef] [PubMed]
  16. Ward, J.L.; Baker, J.M.; Beale, M.H. Recent applications of NMR spectroscopy in plant metabolomics. FEBS J. 2007, 274, 1126–1131. [Google Scholar] [CrossRef] [PubMed]
  17. Krishnan, P.; Kruger, N.J.; Ratcliffe, R.G. Metabolite fingerprinting and profiling in plants using NMR. J. Exp. Bot. 2005, 56, 255–265. [Google Scholar] [CrossRef] [PubMed]
  18. t’Kindt, R.; Morreel, K.; Deforce, D.; Boerjan, W.; Bocxlaer, J.V. Joint GC–MS and LC–MS platforms for comprehensive plant metabolomics: Repeatability and sample pre-treatment. J. Chromatogr. B 2009, 877, 3572–3580. [Google Scholar] [CrossRef] [PubMed]
  19. Grata, E.; Boccard, J.; Guillarme, D.; Glauser, G.; Carrupt, P.A.; Farmer, E.E.; Wolfender, J.L.; Rudaz, S. UPLC–TOF-MS for plant metabolomics: A sequential approach for wound marker analysis in Arabidopsis thaliana. J. Chromatogr. B 2008, 871, 261–270. [Google Scholar] [CrossRef] [PubMed]
  20. Steinmann, D.; Ganzera, M. Recent advances on HPLC/MS in medicinal plant analysis. J. Pharmaceut. Biomed. 2011, 55, 744–757. [Google Scholar] [CrossRef] [PubMed]
  21. Vos, R.C.D.; Moco, S.; Lommen, A.; Keurentjes, J.J.; Bino, R.J.; Hall, R.D. Untargeted large-scale plant metabolomics using liquid chromatography coupled to mass spectrometry. Nat. Protoc. 2007, 2, 778–791. [Google Scholar] [CrossRef] [PubMed]
  22. Kim, N.; Choi, B.Y.; Lee, D.; Shin, Y.S.; Bang, K.H.; Cha, S.W.; Lee, J.W.; Choi, H.K.; Jang, D.S.; Lee, D. Metabolomic Approach for Age Discrimination of Panax ginseng Using UPLC-Q-Tof MS. J. Agric. Food Chem. 2011, 59, 10435–10441. [Google Scholar] [CrossRef] [PubMed]
  23. Xie, G.X.; Ni, Y.; Su, M.M.; Zhang, Y.Y.; Zhao, A.H.; Gao, X.F.; Liu, Z.; Xiao, P.G.; Jia, W. Application of ultra-performance LC-TOF MS metabolite profiling techniques to the analysis of medicinal Panax herbs. Metabolomics 2008, 4, 248–260. [Google Scholar] [CrossRef]
  24. Natural Products Application Solution with UNIFI:Waters. Available online: http://www.waters.com/waters/en_US/Natural-Products-Application-Solution-with UNIFI/nav.htm?cid=134777097&lset=1&locale=en_US&changedCountry=Y (accessed on 10 December 2013).
  25. He, Z.; Qiao, C.; Han, Q.; Wang, Y.; Ye, W.; Xu, H. New triterpenoid saponins from the roots of Platycodon grandiflorum. Tetrahedron 2005, 61, 2211–2215. [Google Scholar] [CrossRef]
  26. Ishii, H.; Tori, K.; Tozyo, T.; Yoshimura, Y. Saponins from roots of Platycodon grandiflorum. Part 2. Isolation and structure of new triterpene glycosides. J. Chem. Soc. Perkin Trans. 1 1984, 661–668. [Google Scholar] [CrossRef]
  27. Li, W.; Xiang, L.; Zhang, J.; Zheng, Y.N.; Han, L.K.; Saito, M. A new triterpenoid saponin from the roots of Platycodon. grandiflorum. Chin. Chem. Lett. 2007, 18, 306–308. [Google Scholar] [CrossRef]
  28. Choi, Y.H.; Yoo, D.S.; Cha, M.R.; Choi, C.W.; Kim, Y.S.; Choi, S.U.; Lee, K.R.; Ryu, S.Y. Antiproliferative effects of saponins from the roots of Platycodon. grandiflorum on cultured human tumor cells. J. Nat. Prod. 2010, 73, 1863–1867. [Google Scholar] [CrossRef] [PubMed]
Back to TopTop
