Open AccessArticle

Morin, a Flavonoid from Moraceae, Induces Apoptosis by Induction of BAD Protein in Human Leukemic Cells

1
Department of Molecular Biology, College of Natural Sciences, Dongeui University, Busan 614-714, Korea
2
Department of Internal Medicine, Institute of Health Sciences, Gyeongsang National University School of Medicine, Jinju 660-702, Korea
3
Department of Biochemistry, Dongeui University College of Oriental Medicine, Busan 614-052, Korea
4
School of Veterinary Medicine, Research Institute of Life Science, Gyeongsang National University, Jinju 660-701, Korea
5
Laboratory of Immunobiology, Department of Marine Life Sciences, Jeju National University, Jeju 690-756, Korea
6
Department of Immunology, School of Medicine, Keimyung University, Daegu 704-701, Korea
7
Division of Applied Life Science (BK 21 Program), Research Institute of Life Science, Gyeongsang National University, Jinju 660-701, Korea
8
Department of Chemistry, Research Institute of Life Science, Gyeongsang National University, Jinju 660-701, Korea
9
Anti-Aging Research Center & Blue-Bio Industry RIC, Dongeui University, Busan 614-714, Korea
*
Authors to whom correspondence should be addressed.
Academic Editor: Sanjay K. Srivastava
Int. J. Mol. Sci. 2015, 16(1), 645-659; https://doi.org/10.3390/ijms16010645
Received: 12 November 2014 / Accepted: 11 December 2014 / Published: 30 December 2014
(This article belongs to the Special Issue Bioactive Phytochemicals in Functional Foods for Cancer Prevention)

Abstract

Evidence suggests that phytochemicals can safely modulate cancer cell biology and induce apoptosis. Here, we investigated the anti-cancer activity of morin, a flavone originally isolated from members of the Moraceae family in human leukemic cells, focusing on apoptosis. An anti-cancer effect of morin was screened with several human leukemic cell lines. U937 cells were most sensitive to morin, where it induced caspase-dependent apoptosis in a dose-dependent manner. It also induced loss of MMP (ΔΨm) along with cytochrome c release, down-regulated Bcl-2 protein, and up-regulated BAX proteins. The apoptotic activity of morin was significantly attenuated by Bcl-2 augmentation. In conclusion, morin induced caspase-dependent apoptosis through an intrinsic pathway by upregulating BAD proteins. In addition, Bcl-2 protein expression is also important in morin-induced apoptosis of U937 cells. This study provides evidence that morin might have anticancer properties in human leukemic cells.
Keywords: orin; apoptosis; BAD; Bcl-xL; leukemia orin; apoptosis; BAD; Bcl-xL; leukemia

1. Introduction

Considerable interest has been drawn to the possibility of preventing or controlling cancer using flavonoids from fruit because high intake of fruit and vegetables is associated with low incidence of cancer [1,2]. In addition, many studies suggest that phytochemicals can safely modulate cancer cell biology and induce cancer cell death [3,4]. Morin (3,5,7,2',4'-pentahydroxyflavone) is a flavone originally isolated from members of the Moraceae family. It has been reported to have some properties that regulate the inflammatory response, and halt carcinogenesis and cancer progression [5,6]. However, few studies have been conducted regarding the anti-cancer effects of morin, and the molecular mechanisms of the anti-cancer effects are poorly elucidated in human leukemic cells.
Apoptosis is an active-energy requiring process (a type I programmed cell death) which harbors a distinctive phenotype, such as blebbing, cell shrinkage, nuclear fragmentation, chromatin condensation, and chromosomal DNA fragmentation [7,8]. This has been suggested to be one of the major mechanisms of the anti-cancer effects of fruits and vegetables. Most of apoptosis triggered phytochemicals are caspase-dependent, which usually occurs through two major pathways (the intrinsic pathway and the extrinsic pathway); the former is mitochondria-mediated, and the latter death receptor-mediated. However, the mechanisms of morin-induced apoptosis in cancer cells especially of mitochondrial proteins are not fully elucidated. Therefore, we investigated the anti-cancer activity along with the mechanisms focusing on apoptosis in human leukemic cells.

2. Results

2.1. Morin Inhibited Proliferation and Induced Apoptosis of U937 Human Leukemic Cells

To investigate the anti-cancer activity of morin, HL-60, K562, THP-1, and U937 human leukemic cells were treated with indicated concentrations (up to 500 μM) of morin for 48 h. A trypan blue exclusion method (Figure 1A) and an 3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) test (Figure 1B) revealed that U937 cells were the most sensitive to morin and K562 cells the least sensitive. The growth of U937 cells was inhibited by morin treatment in a dose-dependent manner, and IC50 for 48 h treatment was less than 300 μg/mL (Figure 1A,B). To investigate the mechanism of the cell death of U937 cells, we performed DNA fragmentation tests which revealed a typical ladder pattern of DNA fragmentation, which indicates internucleosomal cleavage associated with apoptosis (Figure 1C). Next, we performed cell cycle analysis to assess the population of cell death and to determine whether morin induces cell cycle arrest. As shown in Figure 1D, morin induced significant accumulation of cells with sub-G1 DNA content (apoptotic cell population) and substantially decreased the G1 fractions; in contrast, the S phase and G2M population were mildly increased. Finally we measured the early apoptotic cells (Annexin V+/propidium iodide (PI)) by flow cytometry. The early apoptotic cells were increased in a dose-dependent manner (Figure 1E). These results suggest that the type of cell death induced by morin is apoptosis.

2.2. Morin Induces Caspase Activation and Subsequent Cleavage of Poly ADP Ribose Polymerase (PARP)

Next, we determined whether morin-induced apoptosis was caspase-dependent. Western blotting analyses revealed that morin activated procaspase-3, procaspase-8, and procaspase-9 in a dose-dependent manner (Figure 2A). Morin also induced the cleavage of PARP, β-catenin, and PLCγ1 which are the substrates of caspases (Figure 2A). We next performed capase activity assays. Morin activated caspase-3 and caspase-9 rather than capase-8 in a dose-dependent manner (Figure 2B). This finding indicates that morin induced capase-3 and caspase-9, which are associated with mitochondria-mediated apoptosis. We confirmed the finding with a caspase-3 inhibitor, z-DEVD-fluoromethylketone (fmk). MTT and DNA fragementation assay revealed that z-DEVD-fmk significantly reduced morin-induced cell death (Figure 3A,B). In addition, Annexin V staining also revealed that z-DEVD-fmk significantly reduced morin-induced cell death Figure 3C). These findings thus suggest that morin induces caspase-dependent apoptosis.

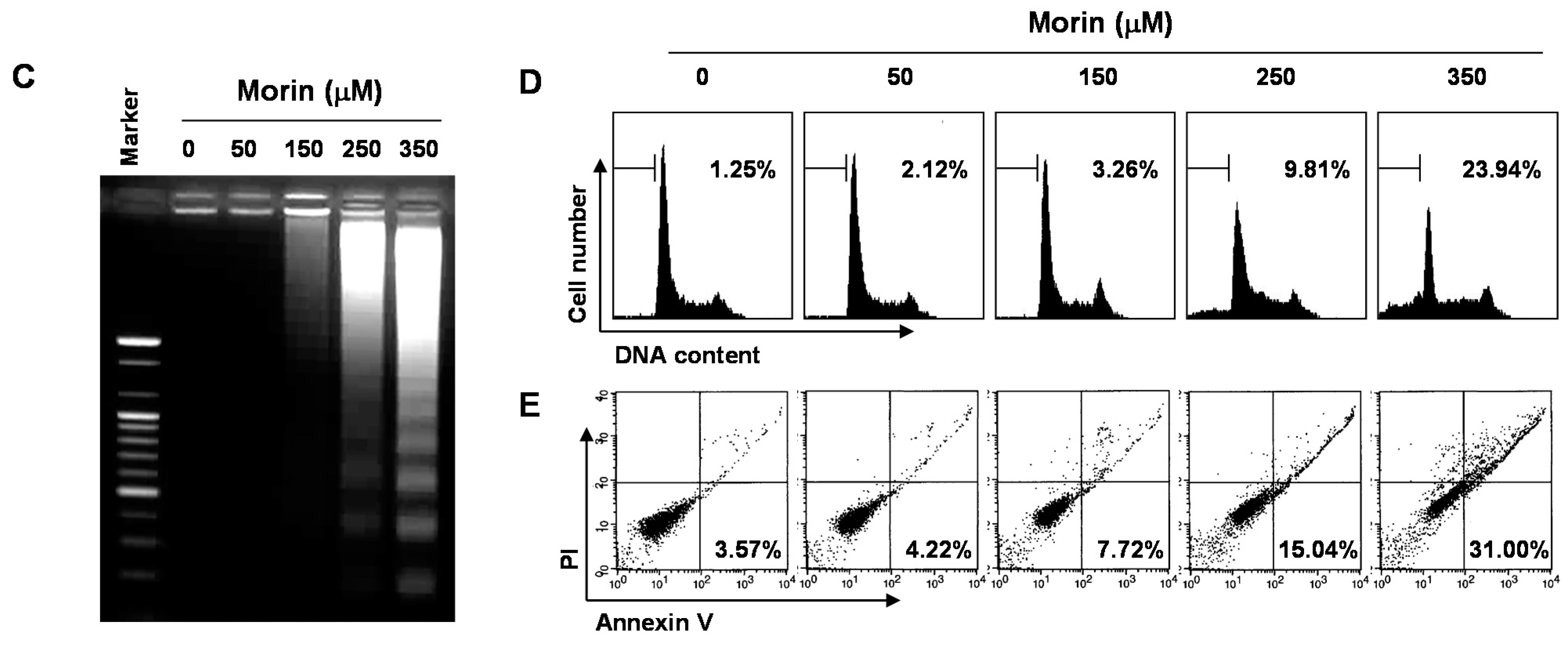

Figure 1. Growth inhibition and apoptosis induction by morin in U937 leukemic cells. The growth inhibition and cytotoxicity of morin are in a dose-dependent manner. U937 cells were seeded at the density of 5 × 104 cells/mL. The cells were treated with indicated concentrations of morin for 48 h. (A,B) Cell viability was analyzed by (A) trypan blue exclusion method and (B) MTT assay. The data are shown as means ± SD of three independent experiments. * p < 0.05 vs. control; (C) DNA fragmentation test. A ladder pattern of DNA fragmentation indicates internucleosomal cleavage associated with apoptosis; (D) Cell cycle analysis. The cells harboring sub-G1 DNA content represents the fractions undergoing apoptotic DNA degradation by morin treatment and (E) Flow cytometry for the dual staining of Annexin V and PI. Annexin V+/PI cells indicate the cells undergoing early apoptosis. The proportion was expressed by percentage. The results are from one representative of two independent experiments that showed similar patterns.
Figure 1. Growth inhibition and apoptosis induction by morin in U937 leukemic cells. The growth inhibition and cytotoxicity of morin are in a dose-dependent manner. U937 cells were seeded at the density of 5 × 104 cells/mL. The cells were treated with indicated concentrations of morin for 48 h. (A,B) Cell viability was analyzed by (A) trypan blue exclusion method and (B) MTT assay. The data are shown as means ± SD of three independent experiments. * p < 0.05 vs. control; (C) DNA fragmentation test. A ladder pattern of DNA fragmentation indicates internucleosomal cleavage associated with apoptosis; (D) Cell cycle analysis. The cells harboring sub-G1 DNA content represents the fractions undergoing apoptotic DNA degradation by morin treatment and (E) Flow cytometry for the dual staining of Annexin V and PI. Annexin V+/PI cells indicate the cells undergoing early apoptosis. The proportion was expressed by percentage. The results are from one representative of two independent experiments that showed similar patterns.
Ijms 16 00645 g001aIjms 16 00645 g001b

2.3. Morin Induced Loss of MMP (ΔΨm) Modulating Bcl-2 Family Members, BAD and Bcl-xL

Mitochondrial depolarization plays a critical role in apoptosis induction [9]. We measured the changes in MMP (ΔΨm) after morin treatment. As shown in Figure 4A, morin induced the loss of MMP (ΔΨm) in a dose-dependent manner. Next, to determine which apoptotic pathway is involved in the morin-induced apoptosis, we measured the expression of death receptors and their ligands (TRAIL receptors (DR4, DR5), TRAIL, Fas receptor (Fas), and Fas ligand (FasL)). Western blot analysis revealed that morin did not influence either death receptor expressions or their ligands (Figure 4B). We next assessed the levels of Bcl-2 and inhibitor of apoptosis (IAP) family members. Western blot analysis revealed that morin upregulated BAD protein and downregulated Bcl-xL protein (Figure 4C), suggesting that these regulatory roles are involved in morin-induced apoptosis.
Figure 2. Activation of caspases and subsequent cleavage of PARP during the morin-induced apoptosis in U937 cells. U937 cells were incubated at indicated concentrations of morin for 48 h. (A) Western blot analysis for the effects of morin on the caspase activation and PARP cleavage. The membranes were probed with the anti-caspase-3, anti-caspase-8, anti-caspase-9 and anti-PARP antibodies. The expression of the indicated proteins were measured by densitometry and expressed as average relative ratio compared to actin, from two or three different experiments and (B) In vitro assay for caspase-3, -8 and -9 activity, which uses DEVD-pNA, IETD-pNA and LEHD-pNA as substrates, respectively. The released fluorescent products were measured. Data are expressed as mean ± SD of three independent experiments. (* p < 0.05 vs. control).
Figure 2. Activation of caspases and subsequent cleavage of PARP during the morin-induced apoptosis in U937 cells. U937 cells were incubated at indicated concentrations of morin for 48 h. (A) Western blot analysis for the effects of morin on the caspase activation and PARP cleavage. The membranes were probed with the anti-caspase-3, anti-caspase-8, anti-caspase-9 and anti-PARP antibodies. The expression of the indicated proteins were measured by densitometry and expressed as average relative ratio compared to actin, from two or three different experiments and (B) In vitro assay for caspase-3, -8 and -9 activity, which uses DEVD-pNA, IETD-pNA and LEHD-pNA as substrates, respectively. The released fluorescent products were measured. Data are expressed as mean ± SD of three independent experiments. (* p < 0.05 vs. control).
Ijms 16 00645 g002

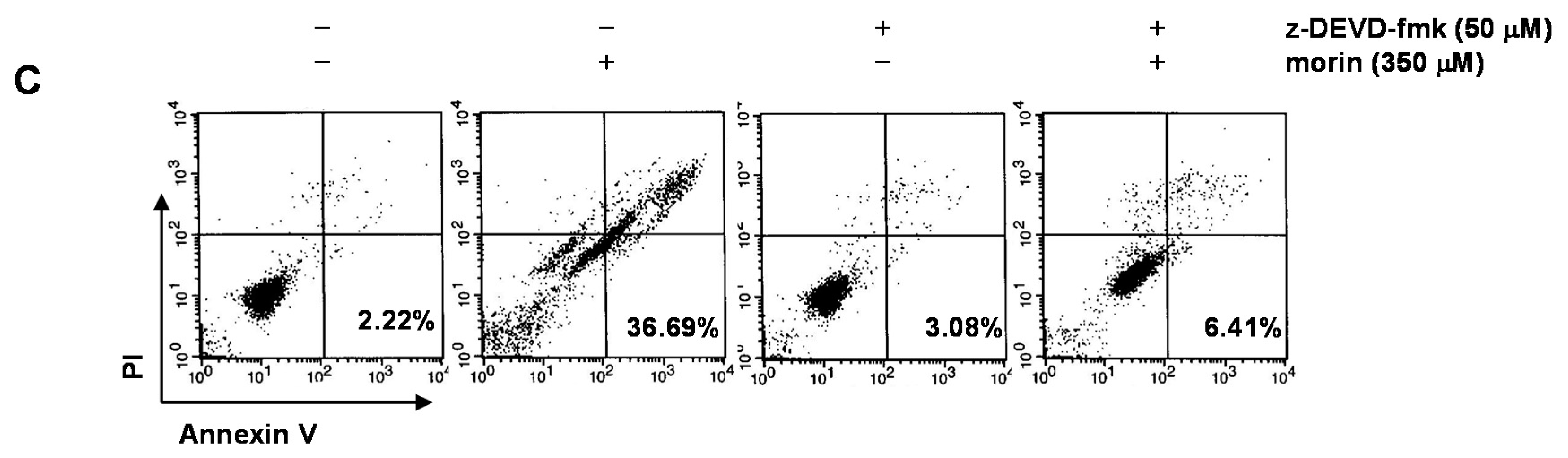

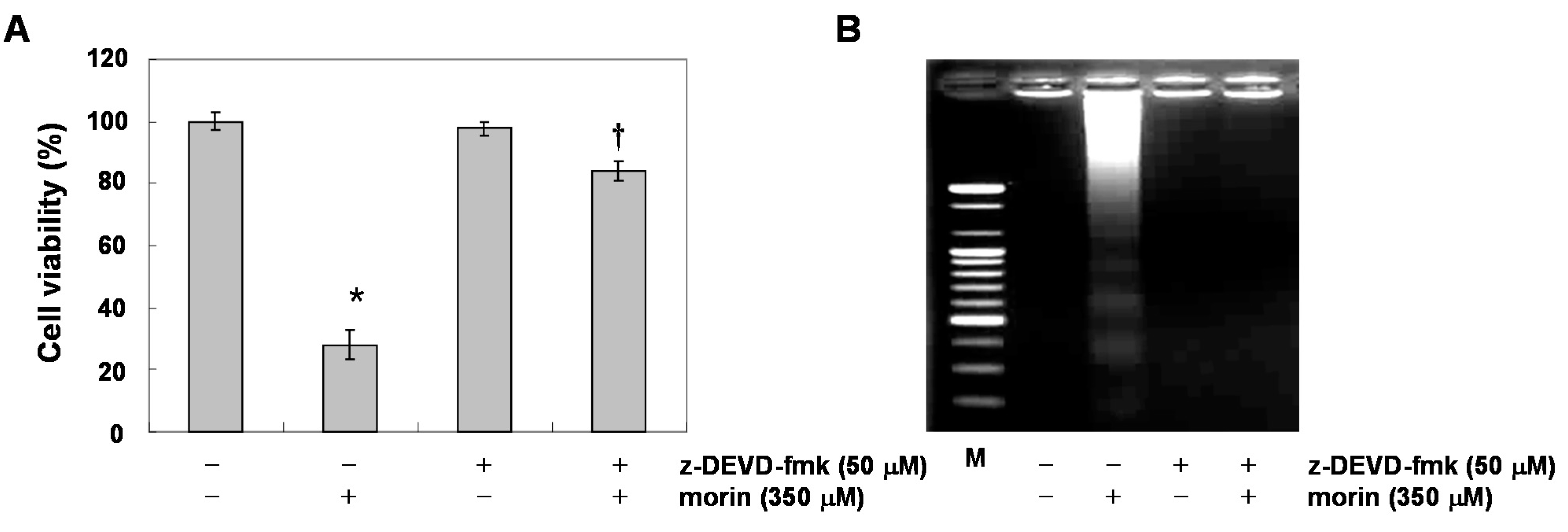

Figure 3. The role of caspase 3 in morin-induced apoptosis in U937 cells. The cells (5 × 104 cells) were incubated at the indicated concentrations of morin with or without a caspase 3 inhibitor (z-DEVD-fmk) for 48 h. (A) Cell viability was assessed by MTT assay. The data are shown as means ± SD of three independent experiments. * p < 0.05 vs. control; † p < 0.05 vs. morin-treated group; (B) DNA fragmentation test; (C) Flow cytometry for the dual staining of Annexin V and PI. The proportion was expressed by percentage. The results are from one representative of two independent experiments that showed similar patterns.
Figure 3. The role of caspase 3 in morin-induced apoptosis in U937 cells. The cells (5 × 104 cells) were incubated at the indicated concentrations of morin with or without a caspase 3 inhibitor (z-DEVD-fmk) for 48 h. (A) Cell viability was assessed by MTT assay. The data are shown as means ± SD of three independent experiments. * p < 0.05 vs. control; † p < 0.05 vs. morin-treated group; (B) DNA fragmentation test; (C) Flow cytometry for the dual staining of Annexin V and PI. The proportion was expressed by percentage. The results are from one representative of two independent experiments that showed similar patterns.
Ijms 16 00645 g003aIjms 16 00645 g003b

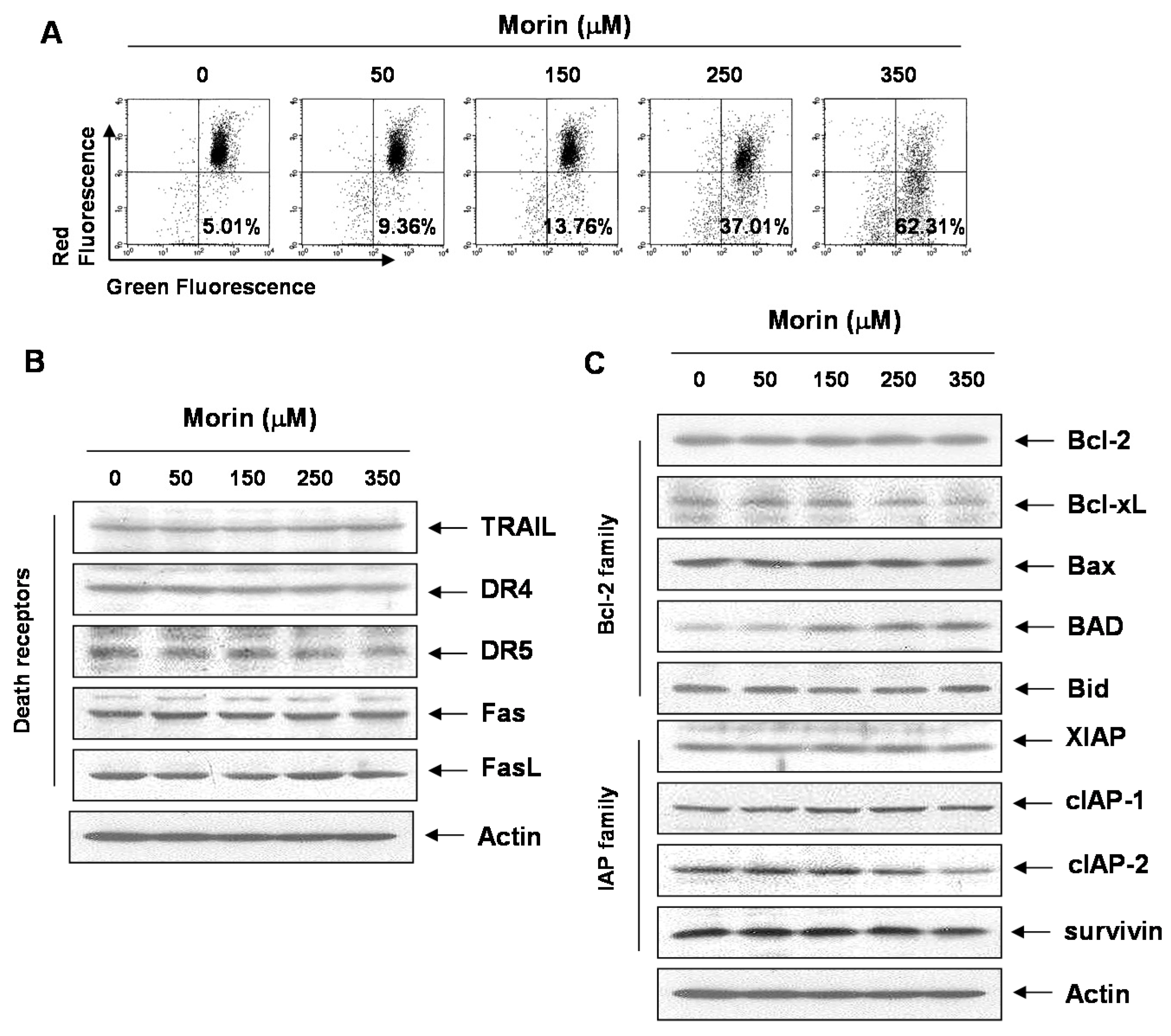

Figure 4. The effects of morin on mitochondrial membrane potential (ΔΨm), and Bcl-2 family members in U937 cells. (A) Morin induced Loss of MMP (ΔΨm) in a dose-dependent manner. The cells were stained with JC-1 and incubated at 37 °C for 30 min. The mean JC-1 fluorescence intensity was assessed by a flow cytometer; (B,C) The effects of morin on the expression of (B) death receptors (C) Bcl-2 and IAP family members in U937 cells. The results are from one representative of two independent experiments that showed similar patterns. The expression of the indicated proteins were measured by densitometry and expressed as average relative ratio compared to actin, from two or three different experiments.
Figure 4. The effects of morin on mitochondrial membrane potential (ΔΨm), and Bcl-2 family members in U937 cells. (A) Morin induced Loss of MMP (ΔΨm) in a dose-dependent manner. The cells were stained with JC-1 and incubated at 37 °C for 30 min. The mean JC-1 fluorescence intensity was assessed by a flow cytometer; (B,C) The effects of morin on the expression of (B) death receptors (C) Bcl-2 and IAP family members in U937 cells. The results are from one representative of two independent experiments that showed similar patterns. The expression of the indicated proteins were measured by densitometry and expressed as average relative ratio compared to actin, from two or three different experiments.
Ijms 16 00645 g004

2.4. Bcl-2 Overexpression Suppressed Morin-Induced Apoptosis and Loss of MMP (ΔΨm) in U937 Cells

BAD forms a heterodimer with Bcl-2 and Bcl-xL, inactivating them and thus inducing apoptosis [10]. Free forms of Bcl-2 inhibits BAD-triggered apoptosis [4]. In addition, Bcl-2 is the founding member of family proteins that regulate apoptosis. Previous data suggested that BAD protein can induce apoptosis in the cells with Bcl-2 overexpression without loss of MMP (ΔΨm) [11]. To answer the question whether morin-induced BAD can induce apoptosis without triggering the loss of MMP (ΔΨm), we evaluated the effects of high level of Bcl-2 on morin-induced apoptosis, by comparing U937/vector with U937/Bcl-2 cells that constitutively express high levels of Bcl-2. Unexpectedly, overexpressed Bcl-2 significantly inhibited morin-induced cell death (Figure 5A), DNA fragmentation (Figure 5B), and apoptotic cell death (Figure 5C). In addition, Bcl-2 overexpression reduced morin-induced loss of MMP (ΔΨm) (Figure 5D). Western blot analysis revealed that Bcl-2 expression level in U937/Bcl-2 cells was significantly higher (five-fold) than that in U937/vector cells, and that BAD expression was slightly lower than that in U937/vector cells (Figure 5E). The overexpressed Bcl-2 suppressed the activation of caspase 3 and subsequent PARP cleavages (Figure 5E). Interestingly, morin did not induce upregulation of BAD protein in U937/Bcl-2 cells. These finding suggests that Bcl-2 overexpression may suppress morin-induced apoptosis through inhibition of loss of MMP (ΔΨm) and/or suppression of BAD protein expression.

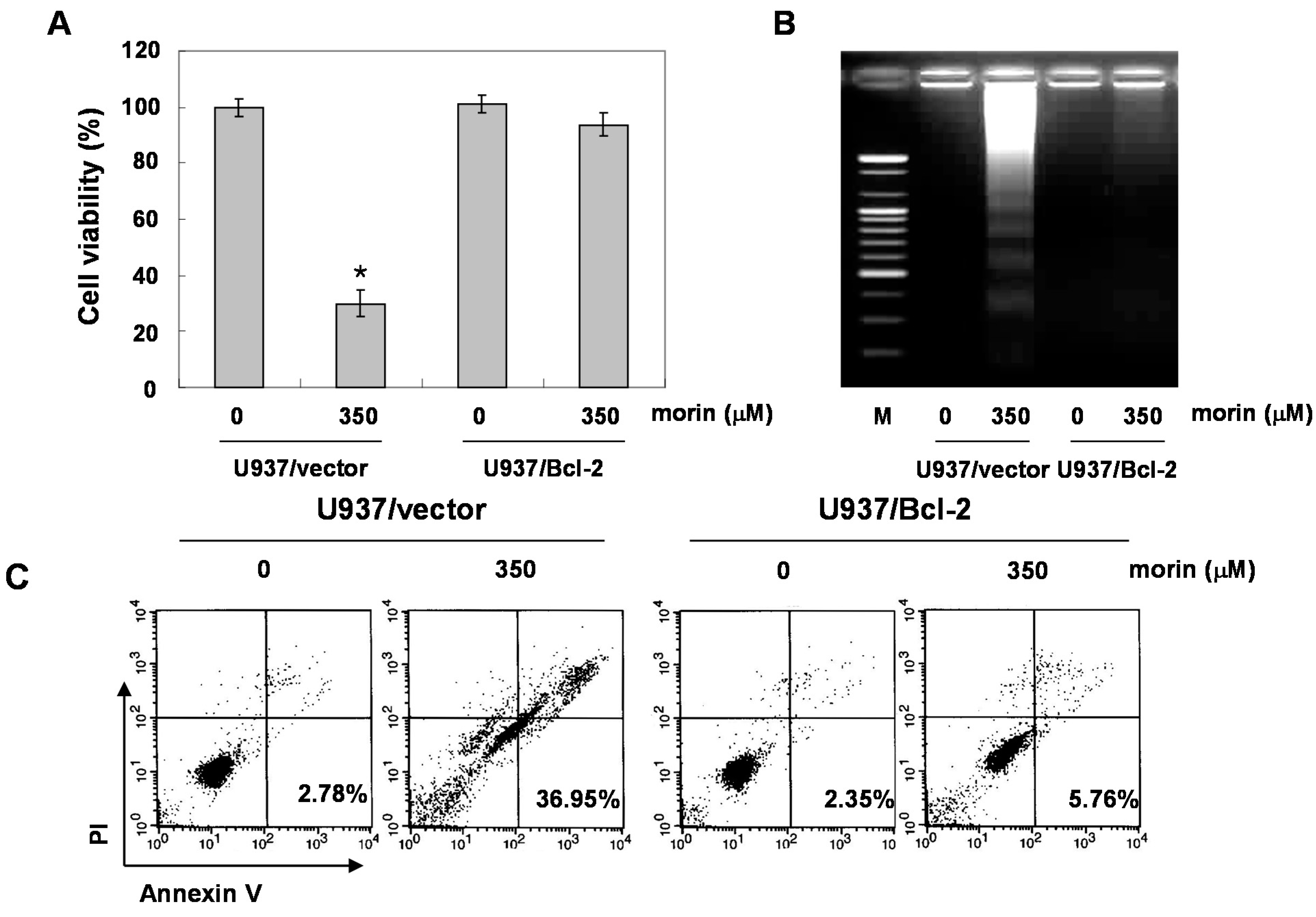

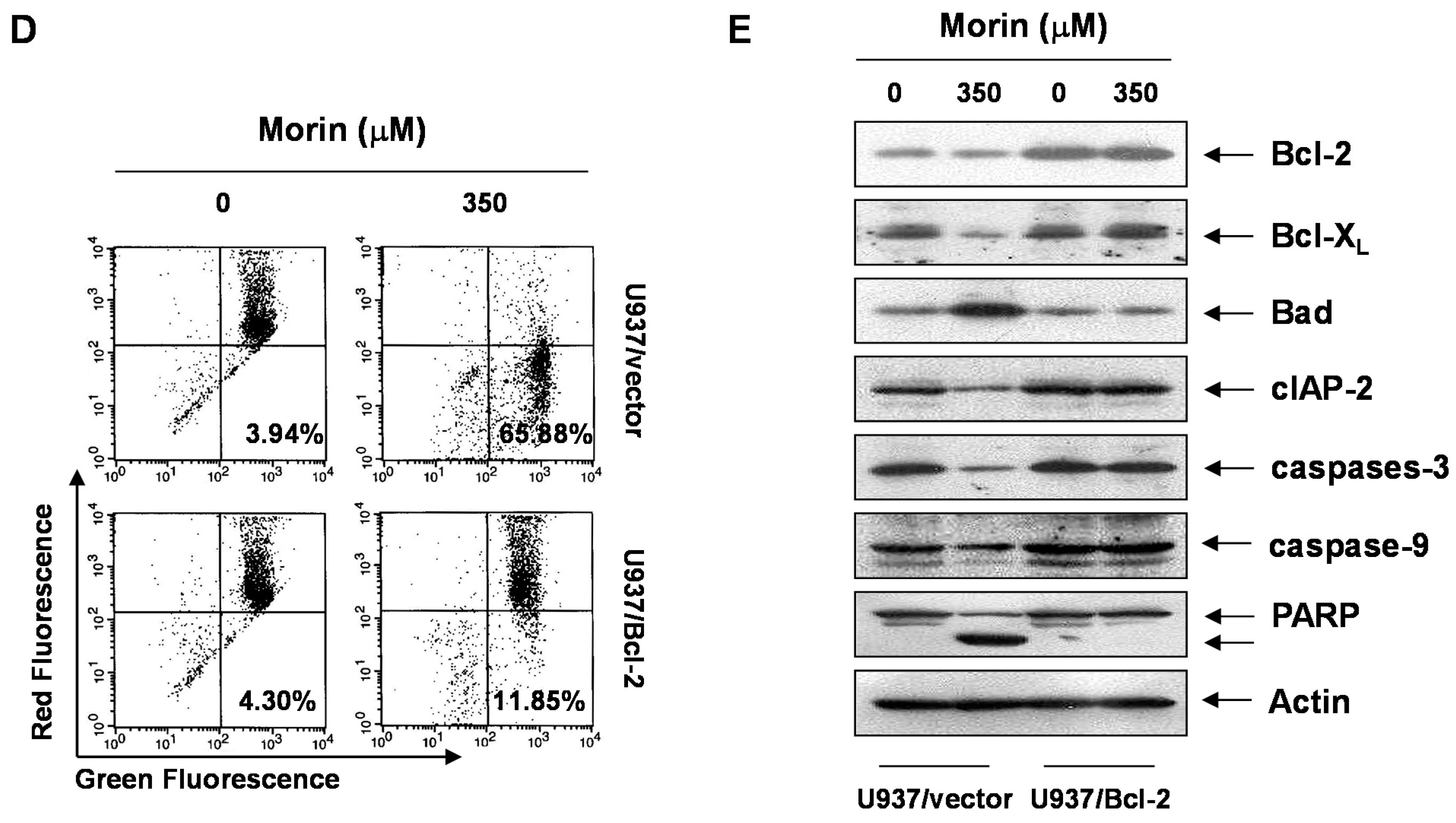

Figure 5. Effects of Bcl-2 overexpression on morin-induced apoptosis. U937/vector or U937/Bcl-2 cells were treated with morin for 48 h, and effects of Bcl-2 overexpression on morin-induced apoptosis. (A) MTT assay. The data are shown as means ± SD of three independent experiments. * p < 0.05 vs. control; (B) DNA fragmentation test; (C) Cell cycle analysis; The cells harboring sub-G1 DNA content represents the fractions undergoing apoptotic DNA degradation by morin treatment; (D) Flow cytometry for the dual staining of Annexin V and PI. The proportion was expressed by percentage and (E) The effects of Bcl-2 overexpression on the expression of Bcl-2 family members and caspases in the cells treated with morin. The expression of BAD protein was not induced in U937/Bcl-2 cells suggesting that the up-regulation of BAD expression by morin may be associated with inhibition of BAD protein degradation. The results are from one representative of two independent experiments that showed similar patterns. The expression of the indicated proteins were measured by densitometry and expressed as average relative ratio compared to actin, from two or three different experiments.
Figure 5. Effects of Bcl-2 overexpression on morin-induced apoptosis. U937/vector or U937/Bcl-2 cells were treated with morin for 48 h, and effects of Bcl-2 overexpression on morin-induced apoptosis. (A) MTT assay. The data are shown as means ± SD of three independent experiments. * p < 0.05 vs. control; (B) DNA fragmentation test; (C) Cell cycle analysis; The cells harboring sub-G1 DNA content represents the fractions undergoing apoptotic DNA degradation by morin treatment; (D) Flow cytometry for the dual staining of Annexin V and PI. The proportion was expressed by percentage and (E) The effects of Bcl-2 overexpression on the expression of Bcl-2 family members and caspases in the cells treated with morin. The expression of BAD protein was not induced in U937/Bcl-2 cells suggesting that the up-regulation of BAD expression by morin may be associated with inhibition of BAD protein degradation. The results are from one representative of two independent experiments that showed similar patterns. The expression of the indicated proteins were measured by densitometry and expressed as average relative ratio compared to actin, from two or three different experiments.
Ijms 16 00645 g005aIjms 16 00645 g005b

3. Discussion

Morin (3,5,7,2',4'-pentahydroxyflavone) is a flavone originally isolated from members of the Moraceae family, such as mulberry figs, and Chinese herbs. It is also isolated as yellow pigment from almond hulls and old fustic (Chlorophora tinctoria). Morin is an isomer of quercetin (3,5,7,3,4'-pentahydroxyflavone), the lead compound for targeting phophoinositide-3-kinase (pI3K) in different cancers both in vivo and in vitro [12]. The flavonols quercetin, myricetin, and fistin, which have ortho 3',4'-di-OH in the B ring (catechol), have a stronger 2,2-diphenyl-1-picrylhydrazyl (DPPH) scavenging activity and lower inhibitory effect on superoxide production than kaempherol (4'-OH) or morin (2',4'-di-OH) [13]. In addition, morin showed similar results with apigenin (5,7,4'-trihydroxyflavone) and luteolin (5,7,3',4'-tetrahydroxyflavone) in suppression of tumor necrosis factor (TNF)-induced protein Kinase B (AKT) activation; but kaempferol (3,5,7,4'-tetrahydroxyflavone) and quercetin (3,5,7,3,4'-pentahydroxyflavone) were less active in blocking NF-κB activation [14]. However, while there is ample evidence regarding morin anti-inflammatory and anti-cancer activity, very little is known about the mechanism.
Hence, our study was designed to determine whether morin induces apoptotic cancer cell death of human leukemic cells and to further investigate the underlying mechanisms of the morin-induced apoptosis of human leukemic cells. This study demonstrates that morin induced caspase-dependent apoptosis, which was associated with BAD activation followed by loss of MMP (ΔΨm). The maximum concentration used in the present study is two to five-fold higher than that used in many other studies showing antitumor effects of morin. It seems that the concentrations used in this study may be an obstacle for pursuing in vivo study. However, we previously found that the anti-cancer effects of morin are difficult to observe by MTT assay [15]. In that study, morin did not exhibit apoptotic effects up to 200 μM, but showed in vivo anti-cancer effects without toxicity at daily dosing with 50 mg/kg for seven days. This result supports that morin is a safe natural product with anticancer effects in vivo. Evidence suggested that apoptosis (type I programmed cell death) is the most popular underlying mechanism by which various anti-cancer and chemo-preventive agents including natural compounds exert anti-cancer effects [16,17,18]. Also, morin promoted ROS and Ca2+ productions, disruptions of mitochondria membrane potential and activated caspase-3 and caspase-9, leading to apoptosis in human leukemia HL-60 cells [19]. This study demonstrates that morin induced caspase-9, and caspase-3 activation, and the subsequent cleavages of PARP (89 kDa). Although these results suggest that morin may induce apoptosis through an intrinsic pathway, we assessed the expression of death receptors because morin has demonstrated TNF-induced apoptosis [20], and other flavonoids have already been reported to induce apoptosis by upregulating the Fas or TNF-related apoptosis-inducing ligand (TRAIL) receptors [21]. We found that morin induced apoptosis by upregulating BAD. This finding was matched with the results of caspase-9 and caspase-3 activation. For evaluation of their underlying mechanisms, we assessed Bcl-2 expression in the process of apoptosis, since Bcl-2 plays a critical role in apoptosis [9], as well as controlling BAD expression [22]. In this study, we found that overexpressed Bcl-2 suppressed morin-caspase dependent apoptosis and BAD upregulation. The anticancer activities of morin associated with Bcl-2 and X-IAP family members have been previously published [20]. These activities were mostly observed in solid cancer, not in leukemic cells. We demonstrated anti-cancer effects of morin in several leukemic cell lines and these results suggest that morin might be an effective natural compound with anti-leukemic effects. In this study we did not clearly demonstrate the mechanism of overexpressed Bcl-2-associated suppression of morin-induced BAD upregulation. In apoptosis, the ratio of Bcl-2 and BAD protein are important [23], and BAD protein is regulated by phosphorylation induced by many phosphatases and signaling pathways [22,24]. A previous study [6] suggested that morin showed anti-cancer effects by suppressing AKT activation, and we also previously demonstrated this activity [15]. MAPK and Akt activity provide well-known regulatory signals for BAD expression [18,24,25]. Another study [26] suggested that morin showed anti-cancer effects by STAT3 activity. Furthermore, we demonstrate here that Bcl-2 expression is important in morin-induced apoptosis since cells overexpressing Bcl-2 were resistant to morin therapy, suggesting that morin may not exhibit anti-cancer effects in Bcl-2-overexpressing cells. However, morin may have anti-Bcl-2 activity as shown in empty vectror transfected cells (Figure 5E). In addition, previous studies suggested that morin could inhibit PI3/Akt which regulates Bcl-2 expression [27]. Therefore, further study is warranted to elucidate the underlying mechanisms.
In conclusion, morin showed anti-cancer effects in several leukemic cell lines. The cytotoxicity may result from apoptosis through the mitochondrial pathway by Bcl-2 inhibition and activation of BAD protein (Figure 6). This study provides evidence that morin might be useful for the treatment of human hematopoietic cancer cells.

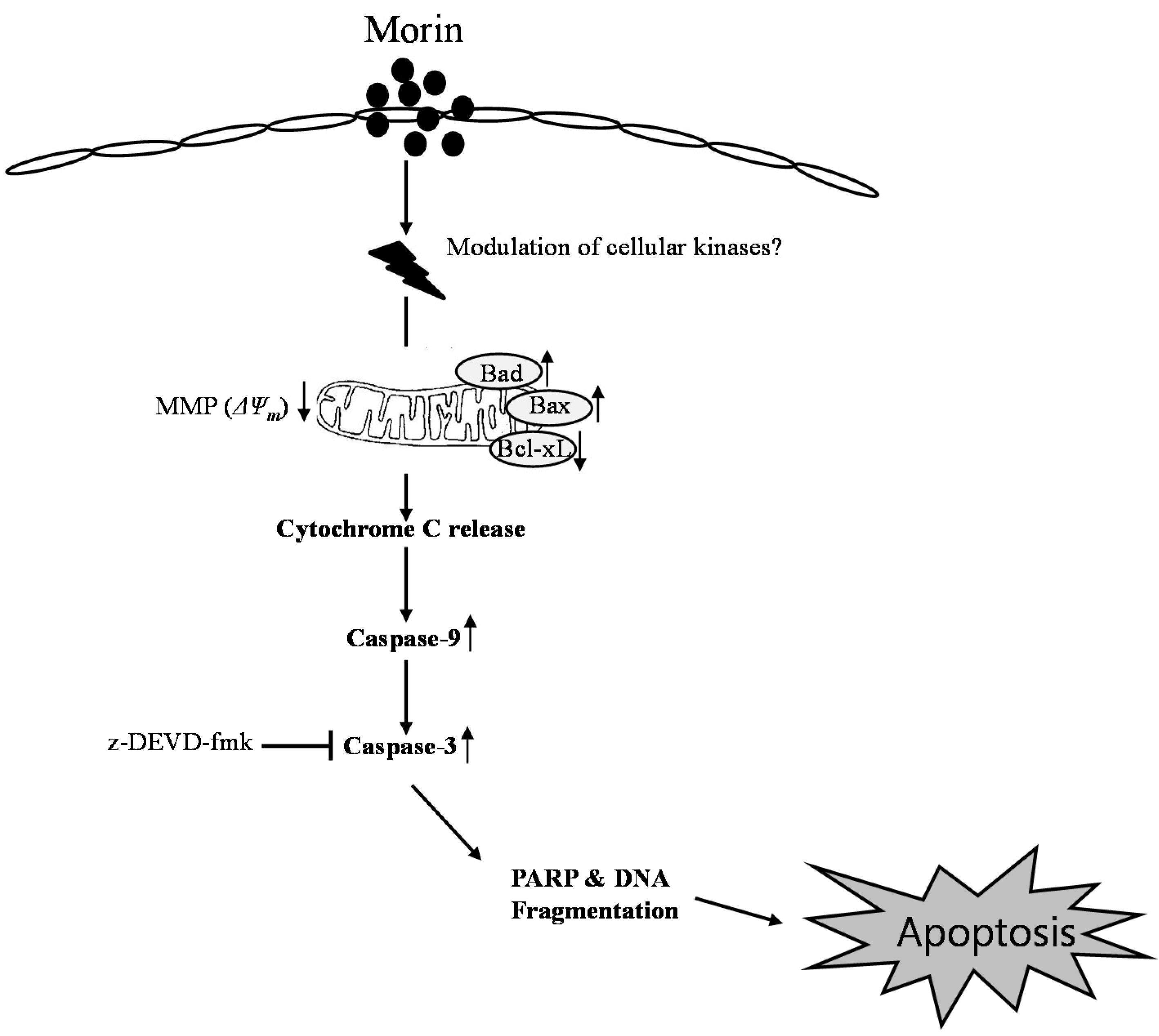

Figure 6. Proposed model of morin mechanism of action for apoptosis in U937 human leukemic cells. Morin induced caspase-dependent apoptosis; induced loss of MMP (ΔΨm) along with cytochrome c release, downregulated Bcl-2 protein, and upregulated BAX proteins. It activates caspase-3 and caspase-9, and subsequent cleavage of PARP. In addition, caspase-3, z-DEVD-fmk reduced morin-induced cell death. Taken together, this study suggests that morin induces caspase-dependent apoptosis through an intrinsic pathway by modulating Bcl-2 family members, BAD and Bcl-xL, which regulates the apoptotic effect of morin in human leukemic cells.
Figure 6. Proposed model of morin mechanism of action for apoptosis in U937 human leukemic cells. Morin induced caspase-dependent apoptosis; induced loss of MMP (ΔΨm) along with cytochrome c release, downregulated Bcl-2 protein, and upregulated BAX proteins. It activates caspase-3 and caspase-9, and subsequent cleavage of PARP. In addition, caspase-3, z-DEVD-fmk reduced morin-induced cell death. Taken together, this study suggests that morin induces caspase-dependent apoptosis through an intrinsic pathway by modulating Bcl-2 family members, BAD and Bcl-xL, which regulates the apoptotic effect of morin in human leukemic cells.
Ijms 16 00645 g006

4. Experimental Section

4.1. Cells and Reagents

HL-60, K562, THP-1, and U937 human leukemic cells from the American type culture collection (Manassas, VA, USA) were cultured in RPMI 1640 medium from Invitrogen (Carlsbad, CA, USA) supplemented with 10% (v/v) fetal bovine serum (FBS) from GIBCO BRL (Grand Island, NY, USA), 1 mM l-glutamine, 100 U/mL penicillin, and 100 μg/mL streptomycin at 37 °C in a humidified atmosphere of 95% air and 5% CO2. Morin was obtained from Aging Tissue Bank (Pusan, Korea). Antibodies against Bcl-2 (N-19), Bcl-xL, Bax, BAD, Bid, TNF-related apoptosis-inducing ligand (TRAIL), TRAIL receptors (DR4, DR5), Fas receptor, FasL, X-linked inhibitor of apoptosis protein (XIAP), cellular inhibitor of apoptosis protein-1 (cIAP-1), cIAP-2, survivin, procaspase 3, procaspase 8, procaspase 9, β-catenin, and PLCγ1 were purchased from Santa Cruz Biotechnology (Dallas, TX, USA). Antibody against poly (ADP-ribose) polymerase (PARP) was purchased from Bd Biosciences Pharmingen (San Diego, CA, USA). Peroxidase-labeled donkey anti-rabbit and sheep anti-mouse immunoglobulin, and an enhanced chemiluminescence (ECL) kit were purchased from Amersham (Waltham, MA, USA). All other chemicals not specifically cited here were purchased from Sigma-Aldrich (St. Louis, MO, USA). All these solutions were stored at −20 °C. Stock solutions of 4,6-diamidino-2-phenylindole (DAPI, 100 μg/mL) and propidium iodide (PI, 1 mg/mL) were prepared in phosphate-buffered saline (PBS).

4.2. Cell Viability Assay

The cell viability assay was performed using a trypan blue exclusion method and an MTT assay. For the MTT assay, cells were treated with morin for 48 h, and then incubated in 0.5 mg/mL 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (0.5 mg/mL) solution for 3 h at 37 °C in the dark. The absorbance of each well was measured at 540 nm with an enzyme-linked immunosorbent assay (ELISA) reader (Sunnyvale, CA, USA).

4.3. DNA Fragmentation Test

Cells were harvested and lysed in a buffer containing 10 mM Tris-HCl (pH 7.4), 150 mM NaCl, 5 mM EDTA, and 0.5% Triton X-100 for 1 h at room temperature. The lysates were vortexed and centrifuged at 14,000 rpm for 30 min at 4 °C. A 25:24:1 (v/v/v) equal volume of neutral phenol:chloroform:isoamyl alcohol was used for the extraction of the DNA from the supernatant. Electrophoretic analysis was performed on 1.5% agarose gels containing 0.1 μg/mL ethidium bromide (EtBr).

4.4. Flow Cytometry Analysis for Cell Cycle Analysis and Annexin V Apoptosis Assay

Cells were collected, washed with cold PBS, and then centrifuged. The pellet was fixed in 75% (v/v) ethanol for 1 h at 4 °C. The cells were washed once with PBS and resuspended in cold PI solution (50 μg/mL) containing RNase A (0.1 mg/mL) in PBS (pH 7.4) for 30 min in the dark. For annexin V double staining, the cells were collected, washed with ice cold PBS, and then centrifuged. And 5 μL of the annexin V conjugate was added to each 100 μL of cell suspension for 15 min, and 400 μL of annexin V-binding buffer was used. Flow cytometry analyses were performed with a Beckman Coulter Cytomics FC 500 (San Jose, CA, USA).

4.5. Measurement of Mitochondrial Membrane Potential (MMP, ΔΨm) and Reactive Oxygen Species (ROS) Generation

The MMP (ΔΨm) in living cells was measured by flow cytometry with the lipophilic cationic probe JC-1, a ratiometric, dual-emission fluorescent dye. There are two excitation wavelengths, 527 nm (green) for the monomer form and 590 nm (red) for the J-aggregate form. The cells were harvested and resuspended in 500 μL of PBS, incubated with 10 μM JC-1 for 20 min at 37 °C. Quantitation of green fluorescent signals reflects the amount of damaged mitochondria. For ROS measurement, the cells were incubated with 10 μM 2',7'-dichlorofluorescein diacetate (DCF-DA) at 37 °C for 30 min. The cells were then washed with ice-cold PBS and harvested. Fluorescence was determined by a FACS flow cytometer.

4.6. Western Blot Analysis

The cells were harvested and lysed. Their proteins were quantified using the BioRad protein assay (Hercules, CA, USA). For the mitochondrial fraction, we used Mitochondria Isolation Kit for Cultured Cells from Thermo Fisher Scientific (Waltham, MA USA), and followed the protocol. The final supernatant is a cytosol fraction, and the pellet contains the isolated mitochondria. The proteins of the extracts were resolved by electrophoresis, electrotransferred to a polyvinylidene difluoride membrane from Millipore (Bedford, MA, USA), and then the membrane was incubated with the primary antibodies followed by a conjugated secondary antibody to peroxidase. Blots were developed under an ECL detection system.

4.7. Assay of Caspase Activity

Caspase activity was measured by colorimetric assay kits, which utilized the following synthetic tetrapeptides, labeled with p-nitroaniline (pNA): Asp-Glu-Val-Asp (DEAD) for caspase-3, Ile-Glu-Thr-Asp (IETD) for caspase-8 and Leu-Glu-His-Asp (LEHD) for caspase-9. The cells were lysed in the supplied lysis buffer. The supernatants were collected and incubated with the supplied reaction buffer containing dithiothreitol and substrates at 37 °C. The caspase activities were determined by absorbance at 405 nm using the microplate reader.

4.8. Statistics

Each experiment was performed in triplicate. The results were expressed as means ± SD. Significant differences were determined using the one-way analysis of variance (ANOVA) with post-test Neuman-Keuls for the cases with at least three treatment groups, and Student’s t-test for two group comparison. Statistical significance was defined as p < 0.05.

5. Conclusions

In this study, we demonstrated that morin suppressed cell viability and induced caspase-dependent apoptosis in U937 cells. The induction of apoptosis was triggered through an intrinsic pathway by up-regulation of BAD proteins. In addition, Bcl-2 protein expression is also important in morin-induced apoptosis of U937 cells. This study provides evidence that morin might have anticancer properties in human leukemic cells.

Acknowledgments

This study was supported by grants from the National R&D Program for Cancer Control, Ministry of Health & Welfare, Republic of Korea (0820050). We thank the Aging Tissue Bank (ATB) for providing research materials and information.

Author Contributions

Cheol Park, and Won Sup Lee conducted the majority of the experiments and prepared the first draft of the manuscript. Cheol Park, Se-Il Go, Min Ho Han, and Arulkumar Nagappan participated in the design and analysis, and helped to draft the manuscript. Min Ho Han, and Su Hyun Hong conducted the statistical analysis and the interpretation of results, and helped to draft the manuscript. Gon Sup Kim, Gi Young Kim and Arulkumar Nagappan participated in data interpretation and helped to draft the manuscript. Taeg Kyu Kwon, Chung Ho Ryu and Sung Chul Shin helped to revise the manuscript. Cheol Park, Won Sup Lee and Yung Hyun Choi planned and designed this research, and revised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, J.E.; Mannisto, S.; Spiegelman, D.; Hunter, D.J.; Bernstein, L.; van den Brandt, P.A.; Buring, J.E.; Cho, E.; English, D.R.; Flood, A.; et al. Intakes of fruit, vegetables, and carotenoids and renal cell cancer risk: A pooled analysis of 13 prospective studies. Cancer Epidemiol. Biomark. Prev. 2009, 18, 1730–1739. [Google Scholar] [CrossRef]
  2. Gandini, S.; Merzenich, H.; Robertson, C.; Boyle, P. Meta-analysis of studies on breast cancer risk and diet: The role of fruit and vegetable consumption and the intake of associated micronutrients. Eur. J. Cancer 2000, 36, 636–646. [Google Scholar] [CrossRef] [PubMed]
  3. Hatcher, H.; Planalp, R.; Cho, J.; Torti, F.M.; Torti, S.V. Curcumin: From ancient medicine to current clinical trials. Cell. Mol. Life Sci. 2008, 65, 1631–1652. [Google Scholar] [CrossRef] [PubMed]
  4. Surh, Y.J. Transcription factors in the cellular signaling network as prime targets of chemopreventive phytochemicals. Cancer Res. Treat. 2004, 36, 275–286. [Google Scholar] [CrossRef] [PubMed]
  5. Kawabata, K.; Tanaka, T.; Honjo, S.; Kakumoto, M.; Hara, A.; Makita, H.; Tatematsu, N.; Ushida, J.; Tsuda, H.; Mori, H. Chemopreventive effect of dietary flavonoid morin on chemically induced rat tongue carcinogenesis. Int. J. Cancer 1999, 83, 381–386. [Google Scholar] [CrossRef] [PubMed]
  6. Brown, J.; O’Prey, J.; Harrison, P.R. Enhanced sensitivity of human oral tumours to the flavonol, morin, during cancer progression: Involvement of the akt and stress kinase pathways. Carcinogenesis 2003, 24, 171–177. [Google Scholar] [CrossRef] [PubMed]
  7. Buendia, B.; Santa-Maria, A.; Courvalin, J.C. Caspase-dependent proteolysis of integral and peripheral proteins of nuclear membranes and nuclear pore complex proteins during apoptosis. J. Cell Sci. 1999, 112 Pt 11, 1743–1753. [Google Scholar] [PubMed]
  8. Kerr, J.F.; Wyllie, A.H.; Currie, A.R. Apoptosis: A basic biological phenomenon with wide-ranging implications in tissue kinetics. Br. J. Cancer 1972, 26, 239–257. [Google Scholar] [CrossRef] [PubMed]
  9. Hengartner, M.O. The biochemistry of apoptosis. Nature 2000, 407, 770–776. [Google Scholar] [CrossRef] [PubMed]
  10. Yang, E.; Zha, J.; Jockel, J.; Boise, L.H.; Thompson, C.B.; Korsmeyer, S.J. Bad, a heterodimeric partner for bcl-xl and bcl-2, displaces bax and promotes cell death. Cell 1995, 80, 285–291. [Google Scholar] [CrossRef] [PubMed]
  11. Schimmer, A.D.; Hedley, D.W.; Pham, N.A.; Chow, S.; Minden, M.D. Bad induces apoptosis in cells over-expressing bcl-2 or bcl-xl without loss of mitochondrial membrane potential. Leuk. Lymphoma 2001, 42, 429–443. [Google Scholar] [CrossRef] [PubMed]
  12. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 2001, 46, 3–26. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, L.; Tu, Y.C.; Lian, T.W.; Hung, J.T.; Yen, J.H.; Wu, M.J. Distinctive antioxidant and antiinflammatory effects of flavonols. J. Agric. Food Chem. 2006, 54, 9798–9804. [Google Scholar] [CrossRef] [PubMed]
  14. Ruiz, P.A.; Haller, D. Functional diversity of flavonoids in the inhibition of the proinflammatory nf-kappab, irf, and akt signaling pathways in murine intestinal epithelial cells. J. Nutr. 2006, 136, 664–671. [Google Scholar] [PubMed]
  15. Jin, H.; Lee, W.S.; Eun, S.Y.; Jung, J.H.; Park, H.S.; Kim, G.; Choi, Y.H.; Ryu, C.H.; Jung, J.M.; Hong, S.C.; et al. Morin, a flavonoid from moraceae, suppresses growth and invasion of the highly metastatic breast cancer cell line mda-mb231 partly through suppression of the akt pathway. Int. J. Oncol. 2014, 45, 1629–1637. [Google Scholar] [PubMed]
  16. 16. De Sousa, R.R.; Queiroz, K.C.; Souza, A.C.; Gurgueira, S.A.; Augusto, A.C.; Miranda, M.A.; Peppelenbosch, M.P.; Ferreira, C.V.; Aoyama, H. Phosphoprotein levels, mapk activities and nfkappab expression are affected by fisetin. J. Enzym. Inhib. Med. Chem. 2007, 22, 439–444. [Google Scholar]
  17. Liu, B.L.; Zhang, X.; Zhang, W.; Zhen, H.N. New enlightenment of french paradox: Resveratrol’s potential for cancer chemoprevention and anti-cancer therapy. Cancer Biol. Ther. 2007, 6, 1833–1836. [Google Scholar] [CrossRef] [PubMed]
  18. Chun, K.H.; Kosmeder, J.W., 2nd; Sun, S.; Pezzuto, J.M.; Lotan, R.; Hong, W.K.; Lee, H.Y. Effects of deguelin on the phosphatidylinositol 3-kinase/akt pathway and apoptosis in premalignant human bronchial epithelial cells. J. Natl. Cancer Inst. 2003, 95, 291–302. [Google Scholar] [CrossRef] [PubMed]
  19. Kuo, H.M.; Chang, L.S.; Lin, Y.L.; Lu, H.F.; Yang, J.S.; Lee, J.H.; Chung, J.G. Morin inhibits the growth of human leukemia hl-60 cells via cell cycle arrest and induction of apoptosis through mitochondria dependent pathway. Anticancer Res. 2007, 27, 395–405. [Google Scholar] [PubMed]
  20. Manna, S.K.; Aggarwal, R.S.; Sethi, G.; Aggarwal, B.B.; Ramesh, G.T. Morin (3,5,7,2',4'-pentahydroxyflavone) abolishes nuclear factor-kappab activation induced by various carcinogens and inflammatory stimuli, leading to suppression of nuclear factor-kappab-regulated gene expression and up-regulation of apoptosis. Clin. Cancer Res. 2007, 13, 2290–2297. [Google Scholar] [CrossRef] [PubMed]
  21. Jin, C.Y.; Park, C.; Cheong, J.; Choi, B.T.; Lee, T.H.; Lee, J.D.; Lee, W.H.; Kim, G.Y.; Ryu, C.H.; Choi, Y.H. Genistein sensitizes trail-resistant human gastric adenocarcinoma ags cells through activation of caspase-3. Cancer Lett. 2007, 257, 56–64. [Google Scholar] [CrossRef] [PubMed]
  22. Ayllon, V.; Cayla, X.; Garcia, A.; Roncal, F.; Fernandez, R.; Albar, J.P.; Martinez, C.; Rebollo, A. Bcl-2 targets protein phosphatase 1 alpha to bad. J. Immunol. 2001, 166, 7345–7352. [Google Scholar] [CrossRef] [PubMed]
  23. Yu, B.; Sun, X.; Shen, H.Y.; Gao, F.; Fan, Y.M.; Sun, Z.J. Expression of the apoptosis-related genes bcl-2 and bad in human breast carcinoma and their associated relationship with chemosensitivity. J. Exp. Clin. Cancer Res. 2010, 29, 107. [Google Scholar] [CrossRef] [PubMed]
  24. Fang, X.; Yu, S.; Eder, A.; Mao, M.; Bast, R.C., Jr.; Boyd, D.; Mills, G.B. Regulation of bad phosphorylation at serine 112 by the ras-mitogen-activated protein kinase pathway. Oncogene 1999, 18, 6635–6640. [Google Scholar] [CrossRef] [PubMed]
  25. Peng, S.F.; Lee, C.Y.; Hour, M.J.; Tsai, S.C.; Kuo, D.H.; Chen, F.A.; Shieh, P.C.; Yang, J.S. Curcumin-loaded nanoparticles enhance apoptotic cell death of u2os human osteosarcoma cells through the akt-bad signaling pathway. Int. J. Oncol. 2014, 44, 238–246. [Google Scholar] [PubMed]
  26. Gupta, S.C.; Phromnoi, K.; Aggarwal, B.B. Morin inhibits stat3 tyrosine 705 phosphorylation in tumor cells through activation of protein tyrosine phosphatase shp1. Biochem. Pharmacol. 2013, 85, 898–912. [Google Scholar] [CrossRef] [PubMed]
  27. Sivaramakrishnan, V.; Devaraj, S.N. Morin fosters apoptosis in experimental hepatocellular carcinogenesis model. Chem. Biol. Interact. 2010, 183, 284–292. [Google Scholar] [CrossRef] [PubMed]
