Intramolecular H−Migration Kinetics of •OOQOOH Radicals for KHP Formation During Low-Temperature Oxidation of Alkylcyclohexanes
Abstract
1. Introduction
2. Discussion

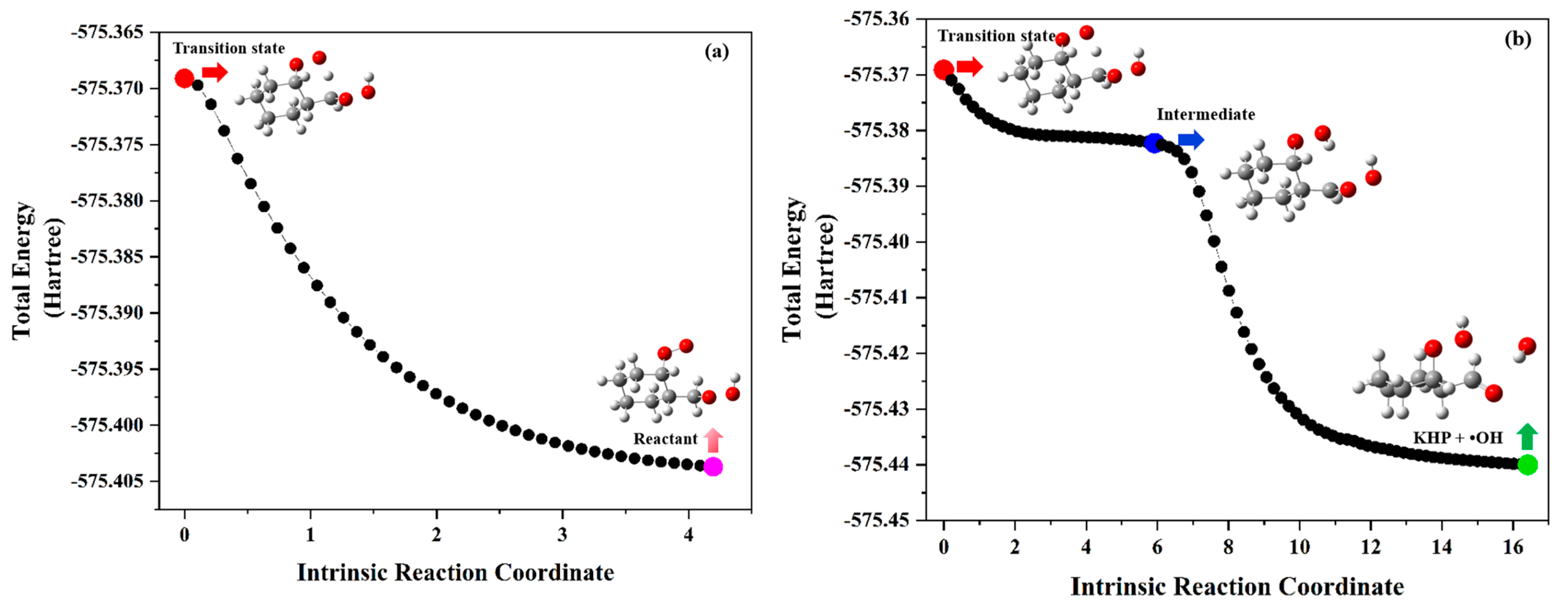

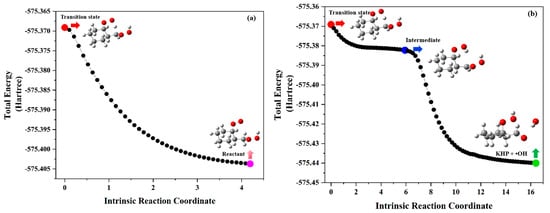

2.1. Potential Energy Surfaces
2.2. Energy Barriers for Subclasses

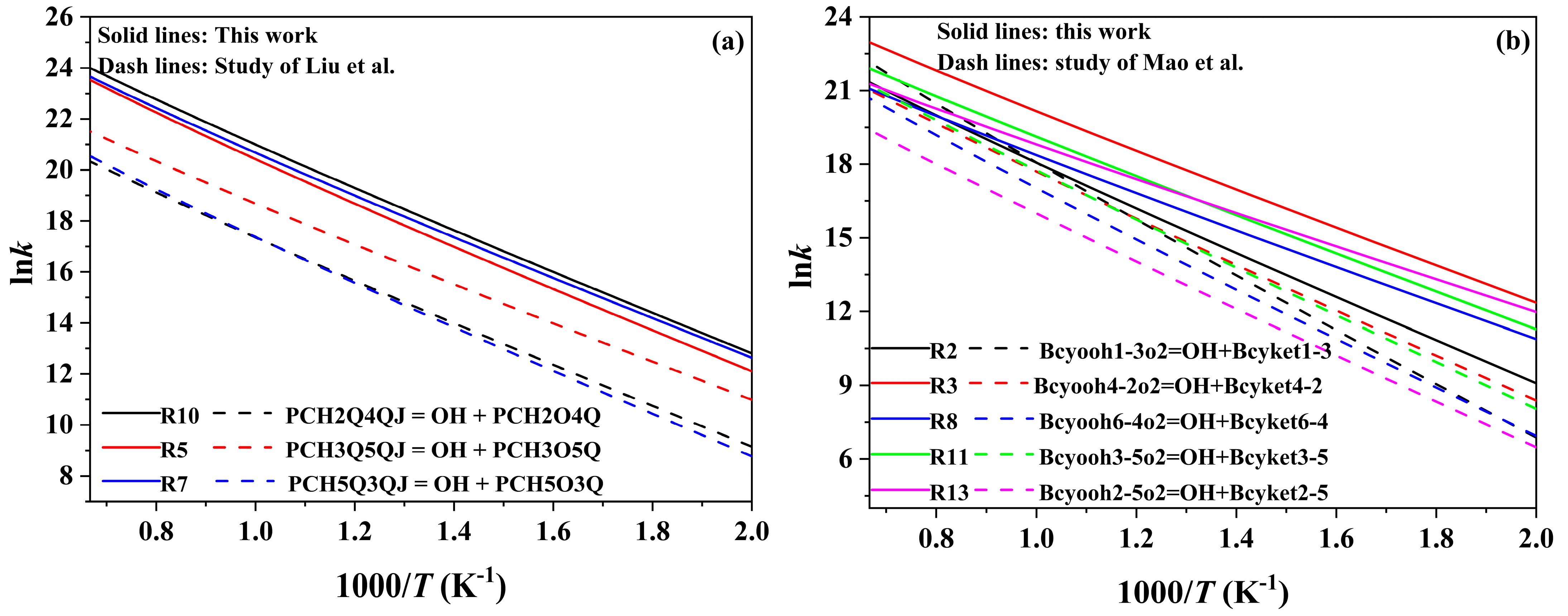

2.3. High−Pressure−Limit Rate Constants and Rate Rules
3. Methods
4. Conclusions
- (1)
- High−pressure−limit rate constants of 13 representative intramolecular H−migration pathways of •OOQOOH are obtained. These reactions are categorized into six subclasses according to the ring size of the cyclic transition state, the carbon type bearing the –OO moiety, and the carbon type donating the migrating hydrogen. Modified Arrhenius parameters for individual reactions and subclass-averaged rate rules are fitted. This structural classification strategy groups analogous H−migration reactions and provides a basis for developing rate rules in automated mechanism generation.
- (2)
- The cyclohexane ring exerts competing effects on the activation barriers compared with acyclic alkane analogs. The cyclic framework restricts alkyl chain rotation and promotes conformational preorganization, which lowers the barriers for most H−migration pathways. However, for 1,5-H−migration reactions involving ring-attached tertiary peroxyl radicals, steric and torsional strain introduced by geometric confinement destabilizes the transition states and leads to higher barriers than the corresponding acyclic reactions. Such barrier inversion is not observed for the investigated 1,6 H−migration pathways, likely due to the greater spatial flexibility of the seven-membered transition states.
- (3)

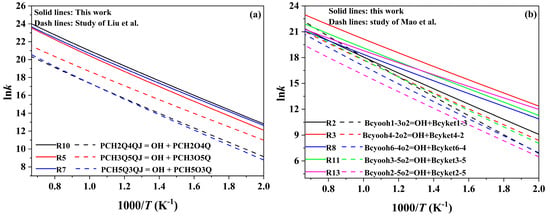

- Comparison with kinetic parameters adopted in existing alkylcyclohexane mechanisms shows that rate constants estimated from linear alkane analogs are consistently lower than the present calculated values over the investigated temperature range. The differences originate from the combined effects of conformational preorganization and steric constraints imposed by the cyclohexane ring. Therefore, direct transfer of kinetic parameters from acyclic systems may introduce significant uncertainties into low-temperature oxidation models of alkylcyclohexanes.
- (4)
- Unlike previous mechanisms that relied mainly on analogy-based estimation, this work addresses the lack of dedicated kinetic data for •OOQOOH H−migration reactions in alkylcyclohexanes by providing ring-structure-specific quantum chemical calculations. The resulting kinetic parameters offer a more reliable basis for refining low-temperature oxidation mechanisms of cyclohexane fuels and reducing uncertainties associated with analogy-based rate estimation. Future work will focus on expanding the reaction dataset within each subclass and performing ignition simulations to further evaluate the impact of the revised kinetic parameters.
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Shen, Y.H.; Tian, Z.M.; Li, W.; Ji, Y.X.; Yan, Y.W. Theoretical Study of the Effect of Conformational Structures on the Secondary Oxidation Reactions of cis-1,3-Dimethylcyclohexane. Chem. J. Chin. Univ. 2025, 46, 20240458. [Google Scholar]
- Westbrook, C.K.; Smith, P.J. Basic Research Needs for Clean and Efficient Combustion of 21st Century Transportation Fuels; Office of Science, U.S. Department of Energy: Livermore, CA, USA, 2006.
- Sarathy, S.M.; Farooq, A.; Kalghatgi, G.T. Recent progress in gasoline surrogate fuels. Prog. Energy Combust. Sci. 2018, 65, 67–108. [Google Scholar] [CrossRef] [Scilit]
- Edwards, T.; Maurice, L.Q. Surrogate Mixtures to Represent Complex Aviation and Rocket Fuels. J. Propul. Power 2001, 17, 461–466. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Pitz, W.J.; Mueller, C.J. Recent Progress in the Development of Diesel Surrogate Fuels. Prog. Energy Combust. Sci. 2011, 37, 330–350. [Google Scholar] [CrossRef] [Scilit]
- Liu, G.; Yan, B.; Chen, G. Technical review on jet fuel production. Renew. Sustain. Energy Rev. 2013, 25, 59–70. [Google Scholar] [CrossRef] [Scilit]
- Balster, L.M.; Corporan, E.; DeWitt, M.J.; Edwards, J.T.; Ervin, J.S.; Graham, J.L.; Lee, S.Y.; Pal, S.; Phelps, D.K.; Rudnick, L.R.; et al. Development of an advanced, thermally stable, coal-based jet fuel. Fuel Process. Technol. 2008, 89, 364–378. [Google Scholar] [CrossRef] [Scilit]
- Zhang, X.; Yan, H.; Zhu, L.J.; Li, T.; Wang, S.R. Hydrodeoxygenation of Lignin-Derived Monomers and Dimers over a Ru Supported Solid Super Acid Catalyst for Cycloalkane Production. Adv. Sustain. Syst. 2020, 4, 1900136. [Google Scholar] [CrossRef] [Scilit]
- Liu, M.X.; Fang, R.Z.; Sung, C.J.; Aljohani, K.; Farooq, A.; Almarzooq, Y.; Mathieu, O.; Petersen, E.L.; Dagaut, P.; Zhao, J.; et al. A comprehensive experimental and modeling study of n-propylcyclohexane oxidation. Combust. Flame 2022, 238, 111944. [Google Scholar] [CrossRef] [Scilit]
- Mao, Y.B.; Wang, S.X.; Wu, Z.Y.; Qiu, Y.; Yu, L.; Ruan, C.; Chen, F.; Zhu, L.; Lu, X.C. An experimental and kinetic modeling study of n-butylcyclohexane over low-to-high temperature ranges. Combust. Flame 2019, 206, 83–97. [Google Scholar] [CrossRef] [Scilit]
- Mao, Y.B.; Li, A.; Zhu, L.; Wu, Z.Y.; Yu, L.; Wang, S.X.; Raza, M.; Lu, X.X. A detailed chemical mechanism for low to high temperature oxidation of n-butylcyclohexane and its validation. Combust. Flame 2019, 210, 360–373. [Google Scholar] [CrossRef] [Scilit]
- Sirjean, B.; Buda, F.; Hakka, H.; Glaude, P.A.; Fournet, R.; Warth, V.; Battin-Leclerc, F.; Ruiz-Lopez, M. The autoignition of cyclopentane and cyclohexane in a shock tube. Proc. Combust. Inst. 2007, 31, 277–284. [Google Scholar] [CrossRef] [Scilit]
- Yao, X.X.; Wang, J.B.; Yao, Q.; Li, Y.Q.; Li, Z.R.; Li, X.Y. Pressure-dependent rate rules for intramolecular H−migration reactions of normal-alkyl cyclohexylperoxy radicals. Combust. Flame 2019, 204, 176–188. [Google Scholar] [CrossRef] [Scilit]
- Zador, J.; Taatjes, C.A.; Fernandes, R.X. Kinetics of elementary reactions in low-temperature autoignition chemistry. Prog. Energy Combust. Sci. 2011, 37, 371–421. [Google Scholar] [CrossRef] [Scilit]
- Liu, M.X.; Hui, X.; Xue, X.; Lin, Y.Z.; Zhou, C.W. From electronic structure to model application for alkyl cyclohexane combustion chemistry: H-atom abstraction reactions by HO2 radical. Phys. Chem. Chem. Phys. 2023, 25, 10795–10810. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Yang, M.; Wang, J. Multi-structural variational kinetics study on hydrogen abstraction reactions of cyclopentanol and cyclopentane by hydroperoxyl radical with anharmonicity, recrossing and tunneling effects. Phys. Chem. Chem. Phys. 2023, 25, 12943. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Sharma, S.; Raman, S.; Green, W.H. Intramolecular hydrogen migration in alkylperoxy and hydroperoxyalkylperoxy radicals: Accurate treatment of hindered rotors. J. Phys. Chem. A 2010, 114, 5689–5701. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Miyoshi, A. Systematic computational study on the unimolecular reactions of alkylperoxy (RO2), hydroperoxyalkyl (QOOH), and hydroperoxyalkylperoxy (O2QOOH) radicals. J. Phys. Chem. A 2011, 115, 3301–3325. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Zhang, F.; Dibble, T.S. Effects of olefin group and its position on the kinetics for intramolecular H-shift and HO2 elimination of alkenylperoxy radicals. J. Phys. Chem. A 2011, 115, 655–663. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Li, S.J.; Tan, N.X.; Yao, Q.; Li, Z.R.; Li, X.Y. Calculation of rate constants for intramolecular hydrogen migration reactions of alkylperoxy radicals. Acta Phys.-Chim. Sin. 2015, 31, 859–865. [Google Scholar] [CrossRef] [Scilit]
- Villano, S.M.; Huynh, L.K.; Carstensen, H.H. High-pressure rate rules for alkyl + O2 reactions. 1. The dissociation, concerted elimination, and isomerization channels of the alkyl peroxy radical. J. Phys. Chem. A 2011, 115, 13425–13442. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Yang, Y.; Boehman, A.L.; Simmie, J.M. Uniqueness in the low temperature oxidation of cycloalkanes. Combust. Flame 2010, 157, 2357–2368. [Google Scholar] [CrossRef] [Scilit]
- Yao, X.X.; Li, J.Q.; Li, Z.R. Computational Kinetic Study on the Intramolecular H−Migration of Hydroperoxyalkylperoxy Radicals (•OOQOOH) in Normal-Alkyl Cyclohexanes. Molecules 2025, 30, 2805. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Yao, Q.; Sun, X.H.; Li, Z.R.; Chen, F.F.; Li, X.Y. Pressure-dependent rate rules for intramolecular H−migration reactions of hydroperoxyalkylperoxy radicals in low temperature. J. Phys. Chem. A 2017, 121, 3001–3018. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Yang, Y.; Boehman, A.L.; Simmie, J.M. Effects of Molecular Structure on Oxidation Reactivity of Cyclic Hydrocarbons: Experimental Observations and Conformational Analysis. Combust. Flame 2010, 157, 2369–2379. [Google Scholar] [CrossRef] [Scilit]
- Freeman, F.; Tsegai, Z.M.; Kasner, M.L.; Hehre, W.J. A Comparison of the ab Initio Calculated and Experimental Conformational Energies of Alkylcyclohexanes. J. Chem. Educ. 2000, 77, 661–667. [Google Scholar] [CrossRef] [Scilit]
- Knepp, A.M.; Meloni, G.; Jusinski, L.E.; Taatjes, C.A.; Cavallotti, C.; Klippenstein, S.J. Measurements theory, and modeling of OH and HO2 formation in the reaction of cyclohexyl radicals with O2. Phys. Chem. Chem. Phys. 2007, 9, 4315–4331. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Xing, L.L.; Zhang, F.; Zhang, L.D. Theoretical studies for reaction kinetics of cyC6H11CH2 radical with O2. Proc. Combust. Inst. 2015, 36, 179–186. [Google Scholar] [CrossRef] [Scilit]
- Xing, L.L.; Zhang, L.D.; Zhang, F.; Jiang, J. Theoretical kinetic studies for low temperature oxidation of two typical methylcyclohexyl radicals. Combust. Flame 2017, 182, 216–224. [Google Scholar] [CrossRef] [Scilit]
- Serinyel, Z.; Herbinet, O.; Frottier, O.; Dirrenberger, P.; Warth, V.; Glaude, P.A.; Battin-Leclerc, F. An experimental and modeling study of the low- and high-temperature oxidation of cyclohexane. Combust. Flame 2013, 160, 2319–2332. [Google Scholar] [CrossRef] [Scilit] [PubMed]
- Weber, B.W.; Pitz, W.J.; Mehl, M.; Silke, E.J.; Davis, A.C.; Sung, C.J. Experiments and modeling of the autoignition of methylcyclohexane at high pressure. Combust. Flame 2014, 161, 1972–1983. [Google Scholar] [CrossRef] [Scilit]
- Bissoonauth, T.; Wang, Z.D.; Mohamed, S.Y.; Wang, J.Y.; Chen, B.J.; Rodriguez, A.; Frottier, O.; Zhang, X.Y.; Zhang, Y.; Cao, C.C. Methylcyclohexane pyrolysis and oxidation in a jet-stirred reactor. Proc. Combust. Inst. 2019, 37, 409–417. [Google Scholar] [CrossRef] [Scilit]
- Zou, J.B.; Li, Y.Y.; Ye, L.L.; Jin, H.F. A comprehensive study on low-temperature oxidation chemistry of cyclohexane. I. Conformational analysis and theoretical study of first and second oxygen addition. Combust. Flame 2022, 235, 111658. [Google Scholar] [CrossRef] [Scilit]
- Gonzalez, C.; Schlegel, H.B. An improved algorithm for reaction path following. J. Chem. Phys. 1989, 2154–2161. [Google Scholar] [CrossRef] [Scilit]
- Li, Y.Q.; Yao, X.X.; Sun, X.H.; Li, Z.R.; Li, X.Y. Automatic construction of transition states and on-the-fly accurate kinetic calculations for reaction classes in automated mechanism generators. Comput. Theor. Chem. 2020, 1184, 112852. [Google Scholar] [CrossRef] [Scilit]
- Montgomery, J.A.; Frisch, M.J.; Ochterski, J.W.; Petersson, G.A. A complete basis set model chemistry. VI. Use of density functional geometries and frequencies. J. Chem. Phys. 1999, 110, 2822–2827. [Google Scholar] [CrossRef] [Scilit]
- Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision C. 01; Gaussian, Inc.: Wallingford, CT, USA, 2016.
- Truhlar, D.G.; Garrett, B.C.; Klippenstein, S.J. Current Status of Transition-State Theory. J. Phys. Chem. A 1996, 100, 12771–12800. [Google Scholar] [CrossRef] [Scilit]
- Johnston, H.S.; Heicklen, J. Tunnelling corrections for unsymmetrical eckart potential energy barriers. J. Phys. Chem. 1962, 66, 532–533. [Google Scholar] [CrossRef] [Scilit]
- Mokrushin, V.; Tsang, W. Chemrate, v.1.5.8; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2009.
- Pitzer, K.S.; Gwinn, W.D. Energy levels and thermodynamic functions for molecules with internal rotation I. Rigid frame with attached tops. J. Chem. Phys. 1942, 10, 428–440. [Google Scholar] [CrossRef] [Scilit]







| Molecular System | Conformational No. | Spatial Orientation of Substituent | Electronic Energy |
|---|---|---|---|
| Methylcyclohexane | MCH a-e c | ![]() | −720,914.5 |
| Methylcyclohexane | MCH-a d | ![]() | −720,906.5 |
| Ethylcyclohexane | ECH b-e | ![]() | −823,899.9 |
| Ethylcyclohexane | ECH-a | ![]() | −823,891.9 |
| No. | Reactions | Activation Enthalpy, |
|---|---|---|
| R1 | ![]() | 70.4 |
| R2 | ![]() | 78.5 |
| 1,5 a-H-(s) b(p) c | (74.5 d, 8.1 e) | |
| R3 | ![]() | 68.2 |
| R4 | ![]() | 63.1 |
| R5 | ![]() | 66.1 |
| R6 | ![]() | 68.0 |
| R7 | ![]() | 70.0 |
| R8 | ![]() | 70.1 |
| 1,5-H-(s)(s) | (67.6, 7.0) | |
| R9 | ![]() | 82.4 |
| 1,5-H-(t)(p) | (82.4, 0) | |
| R10 | ![]() | 71.9 |
| R11 | ![]() | 71.7 |
| 1,5-H-(t)(s) | (71.8, 0.2) | |
| R12 | ![]() | 63.0 |
| 1,6-H-(t)(p) | (63.0, 0) | |
| R13 | ![]() | 61.9 |
| 1,6-H-(t)(s) | (61.9, 0) |
| Alkyl Cyclohexane Reactions | Alkane Reactions | |||
|---|---|---|---|---|
| 1,5-H-(s)(p) | ![]() | 70.4 | ![]() | 81.1 |
![]() | 78.5 | ![]() | 81.6 | |
| 1,5-H-(s)(s) | ![]() | 68.2 | ![]() | 73.7 |
![]() | 63.1 | ![]() | 74.3 | |
![]() | 66.1 | ![]() | 81.1 | |
![]() | 68.0 | ![]() | 75.2 | |
![]() | 70.0 | ![]() | 81.6 | |
![]() | 70.1 | ![]() | 74.5 | |
| 1,5-H-(t)(p) | ![]() | 82.4 | ![]() | 70.6 |
| 1,5-H-(t)(s) | ![]() | 71.9 | ![]() | 68.3 |
![]() | 71.7 | ![]() | 75.8 | |
| 1,6-H-(t)(p) | ![]() | 63.0 | ![]() | 73.0 |
| 1,6-H-(t)(s) | ![]() | 61.9 | ![]() | 62.2 |
| Modified Arrhenius Parameters | |||
|---|---|---|---|
| Reaction | A (s−1) | n | E (cal mol−1) |
| R1 | 2.66 × 106 | 1.8 | 13,380.1 |
| R2 | 2.43 × 106 | 1.6 | 15,596.4 |
| 1,5-H-(s)(p) | 2.32 × 107 | 1.6 | 15,630.1 |
| R3 | 1.29 × 108 | 1.2 | 13,810.3 |
| R4 | 6.33 × 106 | 1.6 | 12,001.2 |
| R5 | 1.10 × 106 | 2.0 | 13,839.7 |
| R6 | 1.96 × 108 | 1.2 | 13,815.8 |
| R7 | 5.27 × 106 | 1.7 | 13,579.3 |
| R8 | 1.91 × 107 | 1.2 | 13,232.4 |
| 1,5-H-(s)(s) | 1.44 × 106 | 1.8 | 12,751.4 |
| R9 | 4.56 × 106 | 1.8 | 16,275.9 |
| 1,5-H-(t)(p) | 4.56 × 106 | 1.8 | 16,275.9 |
| R10 | 3.48 × 107 | 1.6 | 14,134.9 |
| R11 | 4.03 × 108 | 0.9 | 14,296.3 |
| 1,5-H-(t)(s) | 3.18 × 107 | 1.5 | 14,126.4 |
| R12 | 1.65 × 107 | 1.2 | 12,214.7 |
| 1,6-H-(t)(p) | 1.65 × 107 | 1.2 | 12,214.7 |
| R13 | 3.19 × 107 | 1.1 | 12,055.9 |
| 1,6-H-(t)(s) | 3.19 × 107 | 1.1 | 12,055.9 |
