Article

Molecular Recognition of Steroids and Bile Salts by Substituted Cyclodextrins: The Influence of Gonane Isomerism and Rim Functionalization on Complexation Thermodynamics

by
Andrea Usenik
*,
Stella Katovčić
and
Josip Požar
*
Department of Chemistry, University of Zagreb Faculty of Science, Horvatovac 102A, HR-10000 Zagreb, Croatia
*
Authors to whom correspondence should be addressed.
Molecules 2026, 31(17), 2999; https://doi.org/10.3390/molecules31172999
Submission received: 10 August 2026 / Revised: 21 August 2026 / Accepted: 25 August 2026 / Published: 27 August 2026
(This article belongs to the Special Issue Molecular and Supramolecular Thermodynamics)
Browse Figures
Versions Notes

Abstract

Rim functionalization is what makes cyclodextrins pharmaceutically usable, yet how the type and degree of substitution influence steroid recognition has been established almost solely for conjugated bile salts. Using isothermal titration calorimetry and 1H NMR, we determined the complexation thermodynamics of neutral androsterone, its cis-isomer etiocholanolone, and the cholate, deoxycholate, and lithocholate anions with 2-hydroxypropyl-β- and -γ-, randomly methylated β-, and sulfobutylether-β-cyclodextrins, all compared with the parent hosts measured under identical conditions. Two findings stand out. First, unlike β-cyclodextrin, its derivatives bind the steroids exclusively as 1:1 complexes regardless of gonane isomerism. Second, in sulfobutylether hosts, the degree of substitution could be used as a selectivity filter: affinity for the most polar cholate falls steeply once degree of substitution (DS) exceeds about six, while binding of the least hydroxylated lithocholate is barely affected, opposite to the loss of selectivity usually reported upon substitution. For all hosts, functionalization lowers stability and shifts binding toward the classical hydrophobic effect. The obtained results, apart from the type of substituent, identify the host substitution degree as a potential lever for choosing cyclodextrin excipients that defy bile salt competition. Moreover, the substituted β-cyclodextrins do not form sparingly soluble complexes with trans-steroids, as does the parent receptor.

1. Introduction

Steroids are a class of biorelevant compounds present in all three biological kingdoms, where they act as structural and signaling constituents of membranes and hormones, and participate in the digestion of fats [1]. Their synthetic derivatives are widely used as anti-inflammatory [2] and antimicrobial [3] drugs, hormone substitutes and, not least, contraceptives [4]. The tetracyclic gonane core is markedly hydrophobic, to the extent that even the more polar members of the family (bile salts) exhibit at best millimolar aqueous solubility, which significantly reduces steroid bioavailability. Complex formation with cyclodextrins (CDs) provides an effective means of overcoming this limitation. Namely, these natural cyclic glucose oligomers possess hydrophobic cavities, while hydroxyl (OH) groups line the solvent-exposed surface and the receptor portals, making larger members of the family (β-cyclodextrin and γ-cyclodextrin) efficient steroid carriers in aqueous media [5,6,7,8]. Conversely, β-CD forms sparingly soluble 1:2 (guest:host) complexes with cholesterol [9,10], enabling its removal from dairy products and fats [11,12,13]. Of particular relevance, bile salt anions can compete with pharmaceutically active ingredients for the binding sites of β- and γ-cyclodextrins, thereby affecting drug absorption kinetics and in vivo performance [14,15,16].
Relying on relevant literature data, in our recent study, we examined in detail how gonane isomerism and receptor size govern the stoichiometry and thermodynamics of neutral steroid and bile salt anion inclusion by the parent cyclodextrins [17]. Two findings are crucial in the context of the research herein presented. First, steroid isomerism dictates the binding stoichiometry with β-CD: quasi-planar trans-steroids (androsterone (A) and testosterone) form both 1:1 and 1:2 (guest:host) complexes, whereas the V-shaped cis-isomer etiocholanolone (E) forms a 1:1 complex (Table 1) exclusively. Second, the inclusion thermodynamic fingerprint is defined by the cavity size: the incorporation into β-CD is enthalpy-driven and entropy-opposed (non-classical hydrophobic effect), while the larger γ-CD binds the same guests through a dominant favorable entropic term (classical hydrophobic effect). Despite the notable differences in the binding thermodynamics, the examined neutral guests form complexes of comparable stability with both cyclodextrins (4.5 < log K° < 5.2, Table 1). Apart from that, we established that the affinity of β-CD and γ-CD for bile salt anions decreases with hydroxylation of the gonane backbone.
Although the described results bear significance for application-oriented research, native cyclodextrins are known to be of limited pharmaceutical use. Due to extensive intra- and intermolecular hydrogen bonding, the seven-membered β-CD is quite sparingly soluble and can be nephrotoxic upon prolonged parenteral administration [18,19]. Compared with its smaller analogue, γ-CD displays an approximately tenfold higher aqueous solubility and does not induce renal damage upon administration; nevertheless, its solubility can be further improved by functionalization. The most widely used 2-hydroxypropylated (HP), sulfobutylether (SB), and randomly methylated (RM) derivatives of β-CD feature higher aqueous solubility than the parent compound by orders of magnitude [20,21], are among the most widely used parenteral solubilizers [22,23,24,25,26,27], and are approved as excipients in numerous marketed formulations [28,29,30]. Likewise, 2-hydroxypropyl-γ-cyclodextrin (HP-γ-CD) is often preferred as an excipient over the natural analogue and is the most commonly used γ-CD derivative in the pharmaceutical industry [31,32,33].
Apart from increasing aqueous solubility, the introduced substituents can influence the organization of surrounding water molecules and, to some extent, hydration of the cavity, thereby modifying the receptor properties of cyclodextrins. On the other hand, anionic and cationic functionalities can engage in electrostatic interactions with the charged guest, which can be either beneficial or detrimental to complexation. Schönbeck et al. [34,35] reported that enthalpy and entropy of bile salt anion complexation with hydroxypropylated β-CD exhibited a strong linear increase with the receptor substitution degree, leading to enthalpy–entropy compensation. In a subsequent study [36] involving methylated β-CD, a similar trend was observed up to a certain substitution degree, above which both ΔrH° and ΔrS° started to decrease, an effect linked to distortion of the cavity at high substitution [37]. Interestingly, the negatively charged sulfobutylether-β-CD, comprising approximately seven substituents, exhibited very similar affinity towards tauro- and glycoconjugated bile salt anions as the native cyclodextrin [38,39].
Concerning the complexation of steroids with modified γ-cyclodextrins, the binding of bile salts with methyl, sulfobutylether, and 2-hydroxypropyl derivatives and the native compound has been studied so far [40]. Overall, rim functionalization decreased complex stability, the effect being more pronounced for sulfobutylether and hydroxypropyl than for methyl substituents; however, fully methylated γ-CD did not bind the anions. As in the case of smaller analogues, pronounced dependence of the reaction enthalpy and entropy on the degree of substitution was observed, resulting in almost substituent-invariant ΔrG° [40,41].
Comparable calorimetric data for the neutral steroids are, to our knowledge, lacking and, importantly, all studied bile salt anions are cis-gonane isomers. Building on our companion study [17] and the mentioned literature data, we now examine the effect of rim functionalization on the inclusion of androsterone (A), its cis-isomer etiocholanolone (E), and three bile salt anions: cholate (Ch−), deoxycholate (DCh−) and lithocholate (LCh−) (Figure 1), by four commercial cyclodextrin derivatives: 2-hydroxypropyl-β-CD (HP-β-CD), 2-hydroxypropyl-γ-CD (HP-γ-CD), randomly methylated β-CD (RM-β-CD), and sulfobutylether-β-CD sodium salt (SB-β-CD) with varying degrees of substitution (DS ≈ 4, 6, 10). Complexation was studied by means of ITC, which enabled complete thermodynamic characterization of the binding event, while 1H NMR spectroscopy provided qualitative structural insight into the complexes formed. Obtained thermodynamic parameters were compared with those of the parent β-CD and γ-CD determined under identical conditions [17], which allowed us to delineate the effect of cyclodextrin substitution on binding stoichiometry, affinity, and complex solubility with both gonane isomers and charged cis-bile salt anions.
This work provides the first full thermodynamic characterization of neutral steroid stereoisomers’ inclusion reactions with substituted cyclodextrins, and a systematic study of non-conjugated bile salt anion complexation by SB-β-CD with varying degrees of substitution (DS ≈ 4, 6, 10). Two important findings stand out: the suppression of the trans-steroid: (β-CD)2 complex formation upon cyclodextrin substitution and the emergence of the degree of substitution among sulfobutylether derivatives as a potential bile-salt-anion-selectivity filter.
Table 1. Thermodynamic parameters for the complexation of the neutral steroids and bile salt anions (Figure 1) with the parent cyclodextrins determined in the companion study [17], compared with literature values for related host–guest systems. Parameters for the substituted cyclodextrins are given under Section 2.
Table 1. Thermodynamic parameters for the complexation of the neutral steroids and bile salt anions (Figure 1) with the parent cyclodextrins determined in the companion study [17], compared with literature values for related host–guest systems. Parameters for the substituted cyclodextrins are given under Section 2.
GuestHostlog K° aΔrG°/kJ mol−1ΔrH°/kJ mol−1−TΔrS°/kJ mol−1
Eβ-CD4.72−26.91−36.9710.05
γ-CD4.76−27.2−11.18−16.0
Aβ-CD5.19
4.74 (1:2)		−29.62
−27.04		−33.6
−46.47		4.0
19.43
2.37 (ref. [42], 1H NMR, D2O)
γ-CD4.86−27.76−8.33−19.4
A2β-CDn.d. b
γ-CD4.6−26.1−6.1−20
Tβ-CD4.56
3.85 (1:2)		−26.0
−21.95		−25.6
−29.6		−0.4
7.6
4.25 (ref. [43], phase solubility method)
γ-CD4.51−25.72−7.10−18.62
Ch−β-CD3.64−20.8−28.27.5
3.60 (ref. [44], ITC, H2O)−20.54−27.06.46
3.61 (ref. [45], ITC, phosphate buffer pH = 7.2)−20.60−22.982.38
3.50 (ref. [46], flow microcal., H2O)−20.0−26.06.0
3.90 (ref. [47], 13C NMR, D2O)
2.97 (ref. [48], CMC-induced shifts, H2O)
γ-CD3.77−21.50−10.98−10.53
3.51 (ref. [49], 13C NMR, D2O)
DCh−β-CD3.85−21.99−34.612.6
3.69 (ref. [45], ITC, phosphate buffer pH = 7.2)−21.03−25.794.76
4.79 (ref. [46], flow microcal., H2O) c−27.3−21.8−5.5
3.57 (ref. [48], CMC-induced shifts, H2O)
γ-CD4.44−25.3−7.3−18.0
3.30 (ref. [49], 13C NMR, D2O)
LCh−β-CD6.23−35.6−39.94.3
>6 (for HLCh, ref. [50], ITC, water/DMSO)
γ-CD6.29−35.92−15.76−20.2
a For each guest and host pair, the first row gives the parameters from the companion study (ref. [17], determined by ITC in H2O (or 5 mmol dm−3 NaOH(aq) for DCh− and LCh−) at 298 K); all further lines are literature values with references and the corresponding methods/conditions indicated. Values labeled (1:2) refer to the successive thermodynamic parameters for 1:2 (guest:host) complex; all other companion values correspond to 1:1 complexes. b GH and GH2 complexes are indicated, but the data could not be reliably fitted. c DCh− also forms a 1:2 complex with β-CD (literature log K° = 2.86, ref. [46]).

2. Results and Discussion

2.1. Complexation of Neutral Steroids with Substituted Cyclodextrins

The microcalorimetric titrations allowed for detailed thermodynamic characterization of the complexation reactions, while 1H NMR spectroscopy provided information concerning the realized steroid–host contacts. Standard complex stability constants and reaction enthalpies were determined by non-linear regression analysis of calorimetric data, hence also rendering the ΔrG° and ΔrS° (ΔrG° = −RT ln K°; ΔrG° = ΔrH° − TΔrS°). Before discussing the obtained results, it should be noted that the herein used commercial cyclodextrin derivatives contain isomers differing in substitution degree and position, so that several complexes coexist in solution. The determined thermodynamic parameters, collected in Table 2, therefore correspond to an average over the contributing species.

2.1.1. 2-Hydroxypropylated Cyclodextrins

The calorimetric data for E and A binding with HP-β-CD (Figure 2 and Figure S1) were adequately described by a 1:1 binding model, while introduction of higher-stoichiometry species did not improve the fit. This finding is in sharp contrast with the results of our previous study [17], where formation of 1:1 and 1:2 (guest:host) complexes of quasi-planar trans-gonane isomers with β-CD was clearly observable from the inflection point at approximately 2:1 host-to-guest molar ratio. On the other hand, due to steric restrictions [17], the V-shaped cis-isomer E formed exclusively 1:1 complexes with native cyclodextrin. One can hence conclude that the introduction of bulky hydroxypropyl groups prevents the coordination of a second β-CD molecule to trans-gonane isomers. Concerning the stability of A and E complexes with the substituted host, hydroxypropylation decreases receptor affinity for both stereoisomers (Δlog K° = −0.65 (E) and −0.74 (A), Table 1 and Table 2). The lower log K° values stem from notably less exothermic binding with HP-β-CD (Δ(ΔrH°) ≈ 10−14 kJ mol−1), which is partially compensated by a more favorable complexation entropy than for the parent cyclodextrin (enthalpy–entropy compensation) [51].
The considerable stability of the etiocholanolone complex with HP-γ-CD (Figure S2, Table 2) is almost entirely a consequence of favorable complexation entropy (−TΔrS° = −21.4 kJ mol−1; ΔrH° = −3.3 kJ mol–1), while the weakly endothermic binding of A with this γ-CD derivative (Figure S3) could not be characterized calorimetrically (ΔrH° ≳ 0). Importantly, lower concentrations of the steroid in ITC titrations of A (compared to E) were used, due to its significantly lower aqueous solubility. Increasing the host concentration would produce even larger heat effects from titrant dilution, still leaving the corrected data within the noise range. However, to test whether complexation occurs, 1H NMR spectra of A and its mixture with HP-γ-CD in D2O were recorded (Figure S5), and the expectedly smaller changes in chemical shifts of the guest methyl protons (compared to the HP-β-CD analog) were interpreted as weak or shallow binding. It should be mentioned that due to large negative ΔrCp°, characteristic of cyclodextrin inclusion reactions with steroids and bulky cyclic aliphatic guests [17,35,52,53,54], the binding thermodynamics is expected to shift from predominantly or even completely entropy-driven (classical hydrophobic effect) at lower temperatures towards enthalpy-dominated (non-classical hydrophobic effect) as temperature increases.
Three important conclusions can be drawn from the comparative studies of native and 2-hydroxypropylated receptors: First, the difference in the complexation parameters for reactions with seven- and eight-membered derivatives mirrors that between the parent β-CD and γ-CD; i.e., irrespective of substitution, the cavity water of the larger receptor is more extensively hydrogen-bonded, and its expulsion is therefore less exothermic [17,40]. Second, the calorimetric data for native and 2-hydroxypropylated hosts (Table 1 and Table 2) reveal that rim substitution reduces the affinity of the seven-membered receptor more strongly, plausibly because the narrower, more rigid rim of β-CD allows a closer contact between the appended chains and the guest. Third, the differences in ΔrH° and ΔrS° values for complexation with substituted and parent cyclodextrins indicate that the functionalization of receptors pushes the complexation thermodynamics towards the classical hydrophobic effect (entropically more favorable binding). This can be rationalized by the more extensive dehydration of the presumably classically hydrated steroid backbone and introduced hydroxypropyl groups, which is consistent with endothermic complexation of androsterone by HP-γ-CD and the literature data on the hydroxypropyl group hydration [34,35,55].
Turning attention to the complex structure, the 1H NMR spectra of the host–guest mixtures (Figure S4 and Figure S5) confirm the inclusion of both isomers. Specifically, the methyl-proton signals of A and E experience a downfield shift upon cyclodextrin addition, indicating their incorporation within the receptor cavities. For A, both methyl signals shift by a similar amount, indicating comparable inclusion depth and similar chemical environment, whereas for the cis-isomer E, the two shifts differ appreciably (particularly in the case of HP-β-CD), pointing to a different complex structure (i.e., peripheral inclusion of one of the methyl groups), which is to be expected considering the difference in A and E geometry. As for the parent receptors [17], the shifts induced by the γ-CD derivatives (Figure S5) are again markedly smaller than those induced by the β-CD derivatives.

2.1.2. Randomly Methylated β-Cyclodextrin

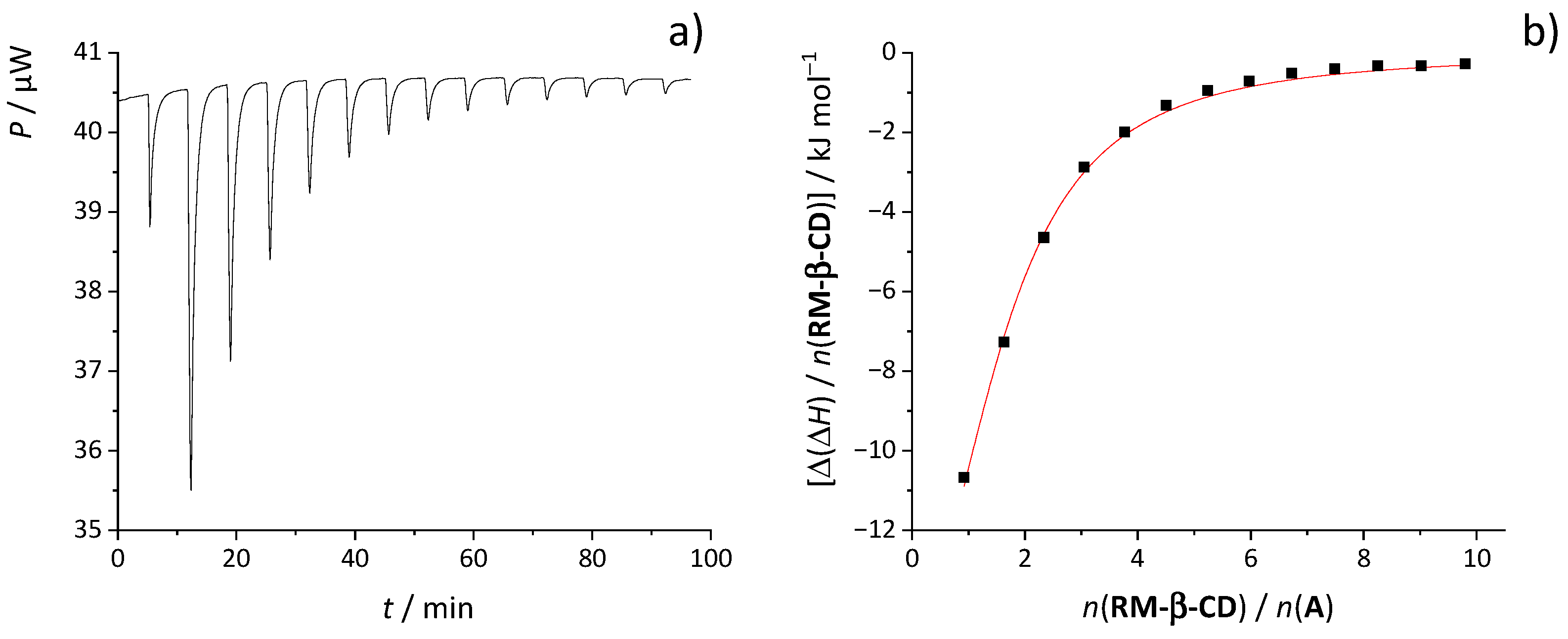

The methyl groups of RM-β-CD extend the rim less than the hydroxypropyl chains, resulting in a shorter hydrophobic cavity [34,36,56]. Nevertheless, this β-CD derivative, like the HP-β-CD, forms only a 1:1 inclusion complex with androsterone (Figure 3), suggesting that even the slightest extension of the cavity hinders the attachment of the second receptor molecule to the quasi-planar backbone of trans-steroids. This is most likely due to steric incompatibility of the modified β-CD and the trans-gonane backbone; however, the contacts realized between the OH groups of native receptors in a 1:2 complex could also lead to additional stabilization of the product [17,36].
That said, the substitution has only a minor effect on the receptor affinity for E (Figure S6) and A (comparison with the A:β-CD complex, Table 1 and Table 2). As for HP-β-CD, the inclusion of both isomers into RM-β-CD is characterized by less exothermic and more entropy-driven complexation than for the parent β-CD. However, the attachment of methyl groups affects the binding affinity less than hydroxypropylation despite the substantially higher degree of substitution of the randomly methylated derivative (DS ≈ 12 vs. 5.6).

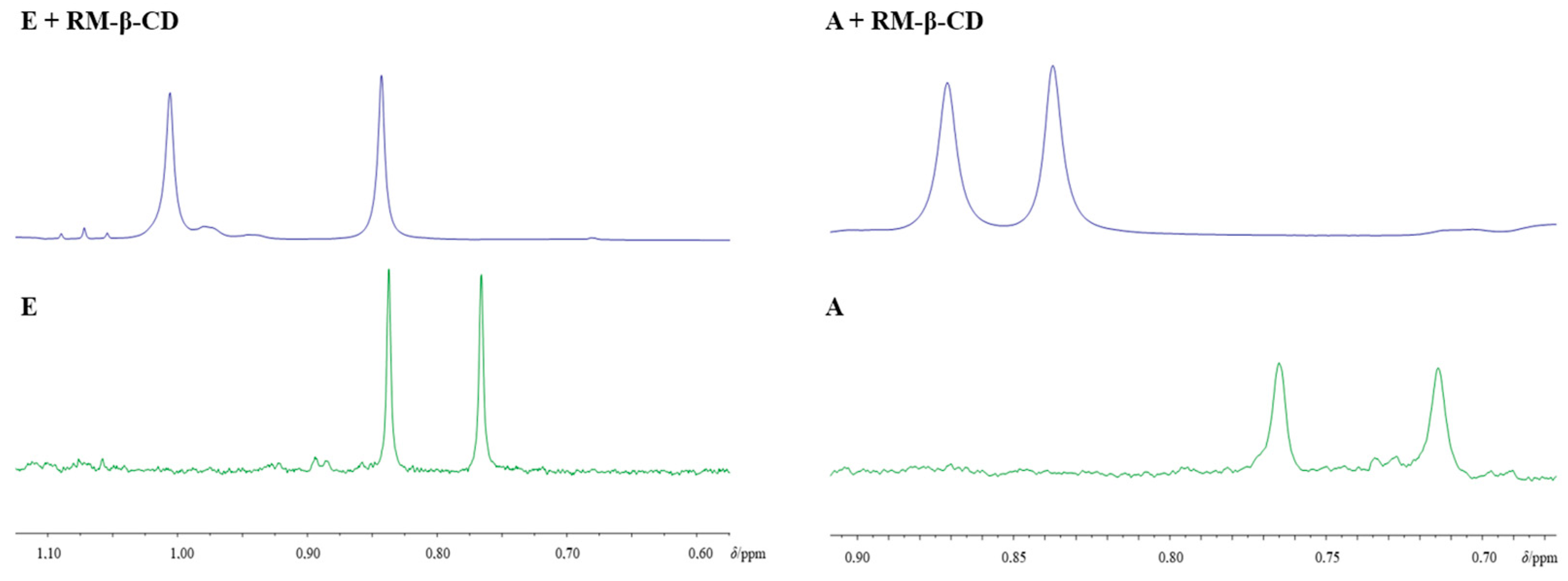

The 1H NMR spectra (Figure 4) reveal that both methyl signals of A shift by about 0.1 ppm, indicating complete inclusion of rings B and C. Conversely, the analogous signals of E experience different changes upon complexation with RM-β-CD (Δδ ≈ 0.15 and 0.07 ppm, Figure 4), which can, as in the case of HP-β-CD, be explained by more shallow incorporation of one of the guest’s methyl groups into the cyclodextrin cavity.

2.1.3. Sulfobutylether-β-Cyclodextrin

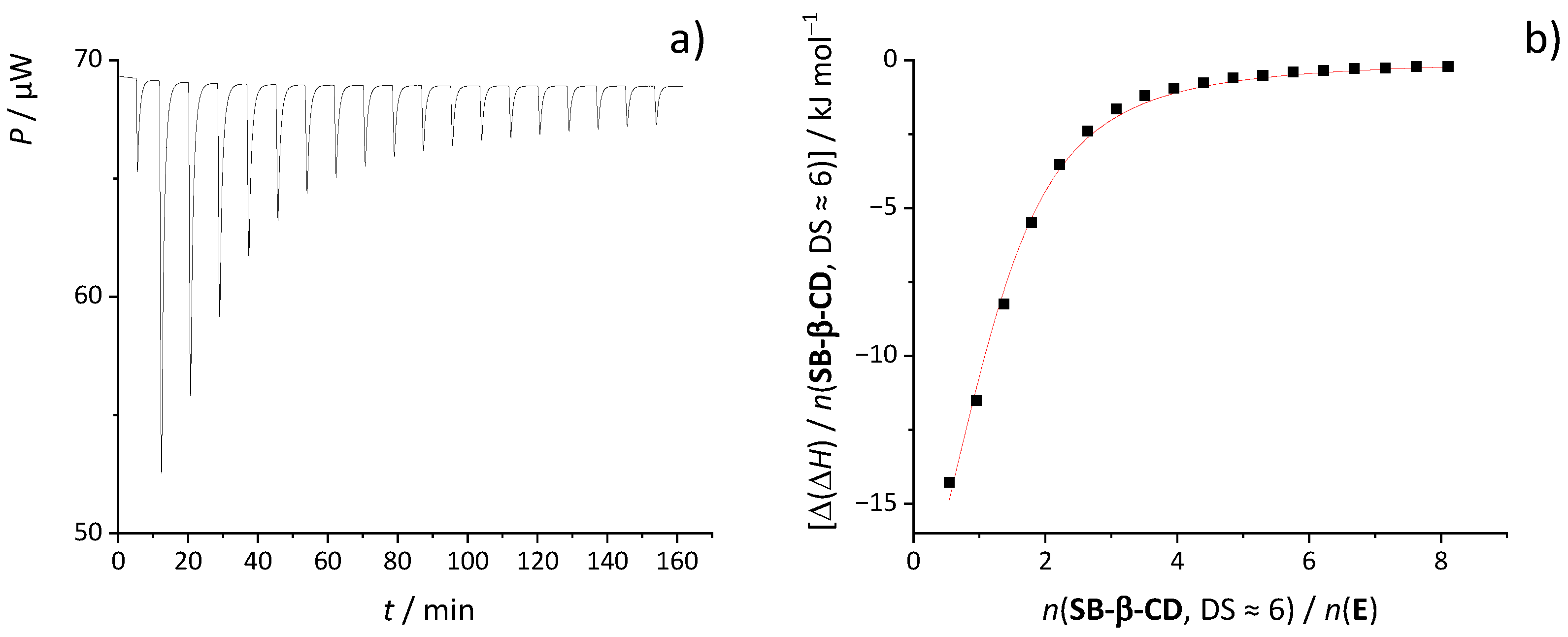

Although SB-β-CD (DS ≈ 6) bears longer, negatively charged sulfobutylether substituents, the modification affects binding thermodynamics less than in the case of HP-β-CD with a comparable degree of substitution (DS ≈ 5.6) (Table 2, Figure 5 and Figure S7). This likely reflects weaker interactions of the butyl chains and the herein studied steroids, resulting in less extensive dehydration of the extended cyclodextrin cavity and the gonane backbone compared to conjugated bile salt anions, where additional interactions with CD substituents result in more pronounced dehydration [38,40]. Accordingly, the shift toward entropically more (and enthalpically less) favorable binding relative to the parent β-CD is not as prominent as for HP-β-CD. As could be expected, sulfobutylether-β-CD formed exclusively 1:1 complexes with both gonane isomers.
As in the case of hydroxypropylated and methylated receptors, the change in chemical shift of both androsterone CH3 group signals in 1H NMR spectra upon complexation with SB-β-CD is similar (Δδ ≈ 0.17 ppm), whereas for E, these changes differ significantly and amount to Δδ ≈ 0.2 and 0.1 ppm (Figure S8).
Importantly, we note that, unlike native β-CD, all of the investigated derivatives form soluble complexes with A (Figure S9), indicating their potential use as solubilizers of trans-gonane isomers. It should be noted that phase-solubility measurements, which should be performed to determine the solubilization effect quantitatively, are underway.

2.2. Complexation of Bile Salts with Substituted Cyclodextrins

Considering that the affinity of β-CD and γ-CD for bile salt anions decreases with increasing hydroxylation of the gonane backbone [41,57], and in line with earlier work on synthetic cyclodextrin hosts [29,31,34,35,38,39], we examined the complexation of cholate (Ch−), deoxycholate (DCh−), and lithocholate (LCh−) with the hydroxypropylated (HP-β-CD and HP-γ-CD) and sulfobutylether cyclodextrin derivatives (Figure 6, Figure 7 and Figure S10–S20, Table 3). The influence of the substitution degree was analyzed in detail for the two boundary guests: lithocholate, bearing a single OH group at C3, and the most polar cholate, with two additional OH groups at C7 and C12 (Figure 1).

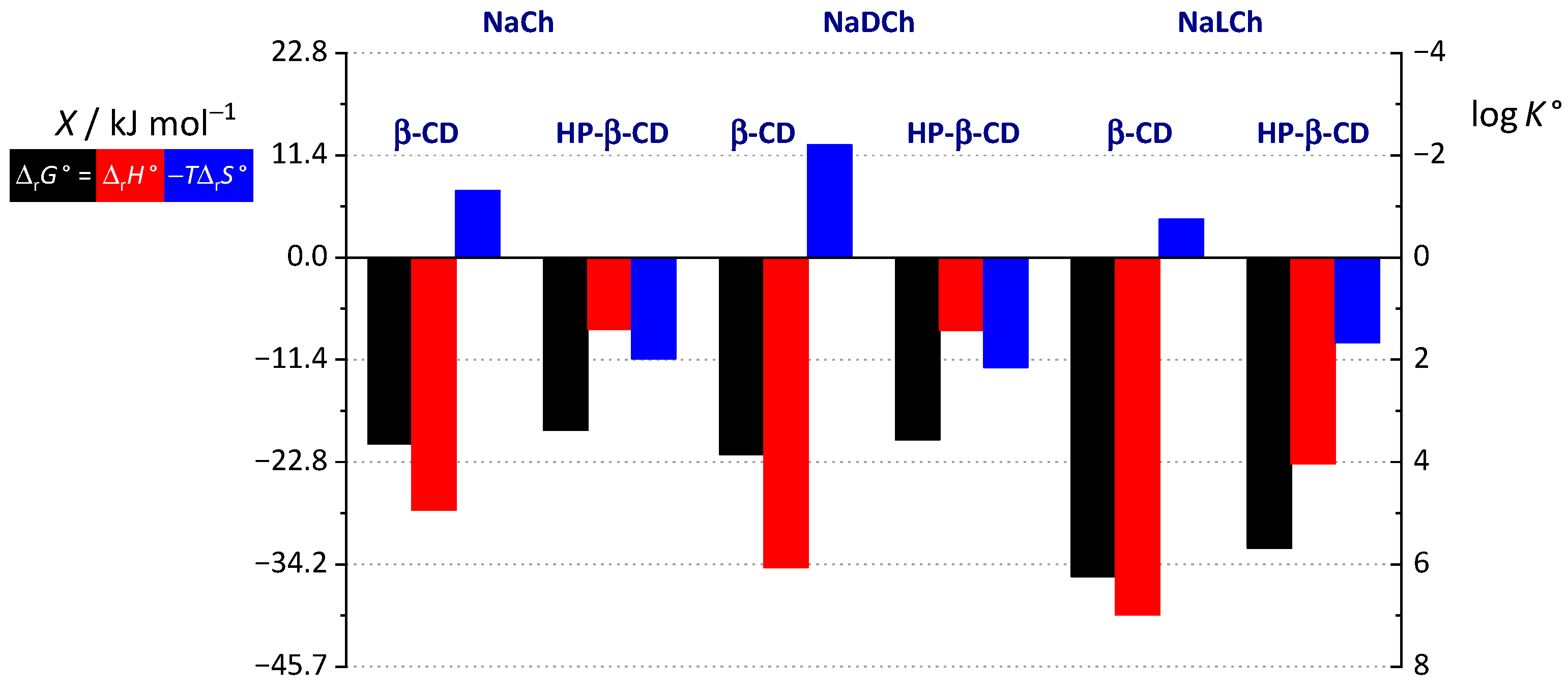

As already found for the neutral [17] and charged steroids [34,58], hydroxypropylation lowers the β-CD affinity only slightly for Ch− and DCh−, while the decrease is larger for the most hydrophobic LCh− (Figures S10–S14, Table 3). The data presented in Figure 6 suggest partial enthalpy–entropy compensation. In this respect, it should be noted that the reaction entropy is derived from the experimentally determined reaction Gibbs energy and enthalpy, and these values are therefore necessarily correlated, which may affect the observed compensation. However, the pronounced differences in ΔrH° and −TΔrS° observed for all three bile anions (particularly Ch− and DCh−) with β-CD and HP-β-CD indicate that hydroxypropylation indeed leads to partial enthalpy–entropy compensation. This substitution effect on complexation with seven-membered cyclodextrins can be rationalized by the more extensive dehydration of both the classically hydrated gonane backbone and the hydroxypropyl groups [35,40,59]. Notably, hydroxypropylation affects the complexation enthalpy and entropy more strongly for bile anions than for neutral steroids (Δ(ΔrH°) up to 13.97 (E) and 26.49 (DCh−) kJ mol−1; −TΔ(ΔrS°) up to −10.25 (E) and −24.85 (DCh−) kJ mol−1, Table 2 and Table 3), despite having a smaller effect on complex stability (Δlog K° up to −0.74 (A) vs. −0.55 (LCh−)). This suggests that the classically hydrated alkyl side chain at the D ring of bile salt anions also contributes to the complexation process.
For the larger HP-γ-CD, inclusion of Ch− (Figure S11) and DCh− (Figure S13) becomes almost isoenthalpic and can no longer be characterized by ITC. Together with earlier reports [34,35,40], these results show that hydroxypropylation of both seven- and eight-membered cyclodextrins pushes the thermodynamic fingerprint toward the classical hydrophobic effect, irrespective of the charge or the degree of hydroxylation of the steroid.

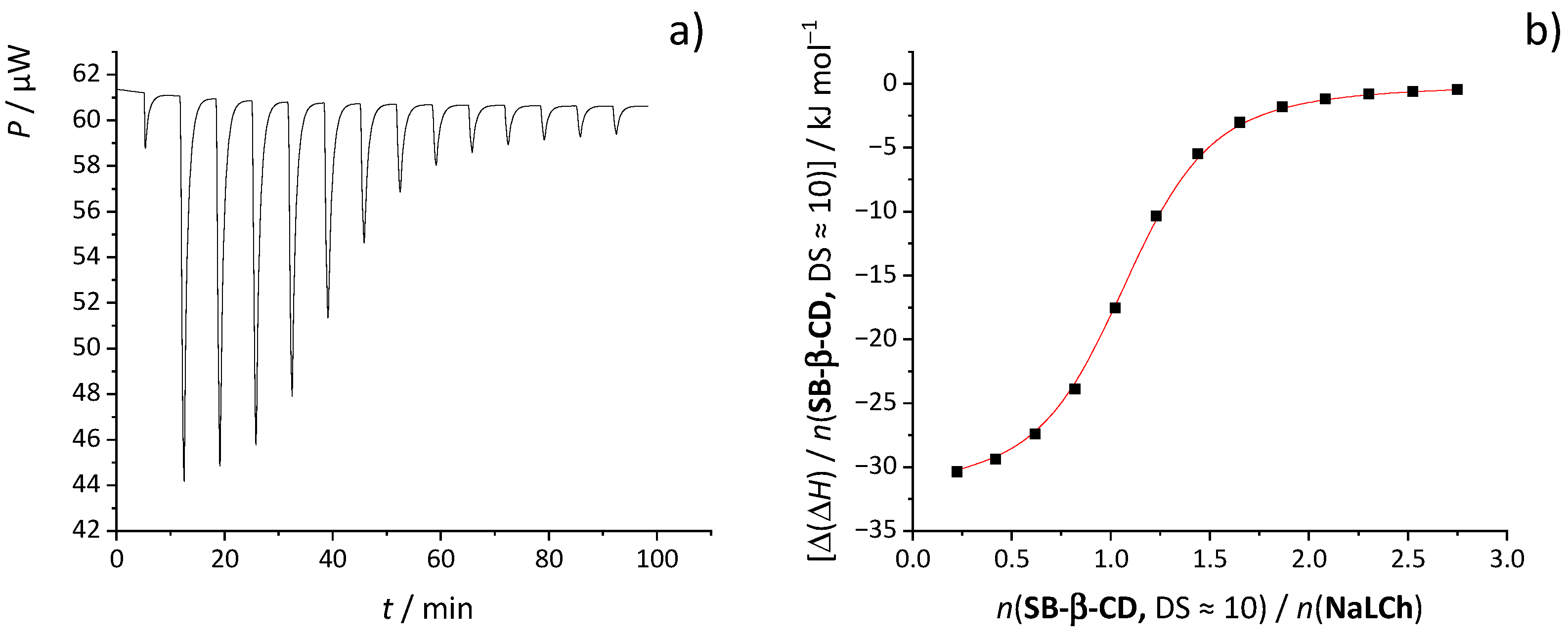

Because both the bile salt anions and the sulfobutylether groups carry a negative charge, the substitution degree might be expected to affect complex stability more strongly than for the hydroxypropylated hosts. As noted in the Introduction, however, Holm et al. found comparable affinities of SB-β-CD (DS ≈ 7) and native β-CD toward tauro- and glycoconjugated bile salts and their deoxy analogues [38]. To examine how substitution degree and the number of steroidal hydroxyl groups govern recognition, we studied SB-β-CDs of DS ≈ 4, 6, and 10 with cholate and lithocholate, the most polar and the most hydrophobic of the three anions.
The parameters in Table 3 show that all three SB-β-CDs bind the anions less strongly than the parent β-CD. For cholate, stability decreases with increasing DS. The decrease is moderate between DS ≈ 4 and 6 but becomes marked at DS ≈ 10, which is consistent with its lower hydrophobicity. The three hydroxyl groups most likely hinder its deep penetration into the cavity; however, this reasonable assumption requires further confirmation by means of ROESY NMR. For lithocholate, log K° falls smoothly with DS, and the three hosts give very similar ΔrH° and ΔrS°, indicating that the guest does not interact simultaneously with all sulfobutyl ether chains. Cholate is one of the two most abundant bile acids in the human bile acid pool [60]. The presented results hence indicate that its competition with an active pharmaceutical ingredient for the cavity of seven-membered cyclodextrins can be reduced by choosing highly substituted SB-β-CDs as hosts.
Interestingly, the introduction of sulfobutylether groups raises the host selectivity for anions with fewer OH groups on rings B and C, contrary to the loss of selectivity usually reported upon CD substitution [29,34,40].

2.3. Comparison with Literature Data

The stability constants obtained here and in the companion study lie within the scattered literature range for parent cyclodextrins (Table 1), where most values come from NMR titrations and, for bile salt anions, vary appreciably with method and conditions. Calorimetric data for substituted-cyclodextrin complexes of neutral stereoisomers and of non-conjugated bile salts are, to our knowledge, scarce: the only reported study of non-conjugated bile salts with substituted CDs [58] neither specifies the substitution degree nor uses unbuffered water (TRIS-NaCl instead), so the tauro- and glyco-conjugated bile salts remain the closest documented systems, studied with hydroxypropylated and methylated cyclodextrins [34,36,40]. As already mentioned, these exhibit the same qualitative dependence of ΔrH° and ΔrS° on the substitution degree found here; in fact, the increments estimated by Schönbeck et al. [34], about 2.2–3.6 kJ mol−1 added to ΔrH° and 1.7–3.6 kJ mol−1 removed from −TΔrS° per hydroxypropyl group, agree well with the differences between our native and 2-hydroxypropylated hosts (Table 1, Table 2 and Table 3). The agreement is better for bile salt anions than for neutral steroids, as expected from their stronger interaction with the rims. The present work thus reproduces and extends the framework of Schönbeck, Holm and colleagues [34,35,36,38,40,41], established for conjugated bile salts, to non-conjugated analogues and neutral steroid stereoisomers. The substitution-induced shift of ΔrH° and ΔrS° holds for both trans- and cis-steroid isomers and does not depend on the position of polar guest groups, which differ across the series: C3 in all guests, additionally C7 and C12 in cholate and deoxycholate, and C24 in the conjugated bile acids studied in the literature (Figure 1).

3. Materials and Methods

3.1. Materials

Etiocholanolone (E, Sigma-Aldrich, Steinheim, Germany, ≥98.0%), androsterone (A, Sigma-Aldrich, Steinheim, Germany, ≥98%) and sodium cholate (NaCh, Fluka, Buchs, Switzerland, ≈98%) were used as received. The macrocyclic receptors β-cyclodextrin (β-CD, Sigma-Aldrich, Steinheim, Germany, ≥98%), 2-hydroxypropyl-β-cyclodextrin (HP-β-CD, DS ≈ 5.6, Sigma-Aldrich, ≥98%; Batch no. 332607-1004), 2-hydroxypropyl-γ-cyclodextrin (HP-γ-CD, DS = 4.0–5.6, Ashland, Wilmington, DE, USA, >99.0%; Batch no. A1306A0113), randomly methylated β-cyclodextrin (RM-β-CD, DS ≈ 12, CycloLab, Budapest, Hungary, >95%; Batch no. CYL-2738), and sulfobutylether-β-cyclodextrin sodium salt (SB-β-CD, DS ≈ 4, 6 and 10, all CycloLab, Budapest, Hungary, >95%; Batch no. CYL-4220 (DS ≈ 4); CYL-3561 (DS ≈ 6); CYL-3321 (DS ≈ 10)) are commercial mixtures with the nominal average degree of substitution (DS) indicated per cyclodextrin molecule (Figure 1); all receptors were dried at 150 °C for 3 h prior to use. Sodium deoxycholate (NaDCh) and sodium lithocholate (NaLCh) were prepared from deoxycholic acid (HDCh, Sigma-Aldrich, Steinheim, Germany, ≥99.0%) and lithocholic acid (HLCh, Sigma-Aldrich, Steinheim, Germany, ≥95%), and sodium hydroxide (NaOH, Gram-Mol, Zagreb, Croatia, pro analysi) was used for the deprotonation of the bile acids. Milli-Q water was used as the solvent for all microcalorimetric experiments, except for the titrations involving NaDCh and NaLCh, which were carried out in 5 mmol dm−3 NaOH(aq) owing to anion hydrolysis and the poor aqueous solubility of HDCh and HLCh in H2O, and deuterium oxide (Sigma-Aldrich, Steinheim, Germany, >99.9% D) for the NMR experiments.
The influence of pH and ionic strength was ruled out in our previous studies with native cyclodextrins, where virtually the same values of all thermodynamic parameters were obtained in water and in 5 mmol dm−3 NaOH(aq) for NaDCh at lower concentration with β-CD (Table S1).

3.2. Isothermal Titration Calorimetry

ITC measurements were performed with a Malvern MicroCal VP-ITC calorimeter (Malvern Panalytical, Malvern, UK, Vcell = 1.45 cm3). Titrations were carried out by stepwise addition of the host (titrant) solution to a solution of the guest (titrand). The concentration and volume of the titrant were varied according to the concentration of the titrand. Constant stirring (300 rpm) was applied, and the time between additions was 350–500 s. Blank experiments were carried out for each titration, and the heats of titrant dilution were subtracted from those measured in the titration. Microcal OriginPro 7.0 (OriginLab Corporation, Northampton, MA, USA), supplied by the manufacturer, was used for data acquisition and processing. The complex stoichiometry was fixed at N = 1 (one set of sites model). Further, the sigmoidal shape of the titration curves in the case of tighter binding (log K° above 4), with the inflection point at a host-to-guest molar ratio of approximately 1, clearly indicated 1:1 stoichiometry of the formed complexes. Fitting the data with a sequential two-site model, which accounts for a higher-stoichiometry complex, did not improve agreement between fitted and experimental values; therefore, the simplest 1:1 model was retained. All titrations were conducted at least in triplicate, and the parameters are reported as means with the standard errors of the mean as a measure of uncertainty.
Due to low solubility of A (compared to E), microcalorimetric titrations could not be conducted at higher initial guest concentrations.

3.3. 1H NMR Spectroscopy

NMR experiments were performed in D2O at 298 K on a Bruker Avance III HD 400 MHz/54 mm spectrometer (Bruker BioSpin GmbH, Rheinstetten, Germany) equipped with an inverse broadband room-temperature probe (5 mm PA BBI 1H/D–BB). One-dimensional 1H spectra of the guests, hosts, and their mixtures were recorded with standard Bruker pulse sequences and processed with TopSpin software (v. 3.6.2) supplied by the manufacturer.

4. Conclusions

Microcalorimetric and 1H NMR measurements show that functionalization of the cyclodextrin rim modulates both the stability and the driving force of steroid and bile salt inclusion in a systematic way. Substitution lowers the complex stability and shifts the thermodynamic signature towards less exothermic, entropically more favorable binding, i.e., it induces a partial enthalpy–entropy compensation. The effect is largest for the hydroxypropylated hosts.
Unlike the parent β-CD, all its derivatives form exclusively 1:1 complexes with the studied steroids, irrespective of gonane isomerism. Rim substitution therefore suppresses the attachment of a second host molecule to the quasi-planar trans-isomer, removing the isomerism-controlled difference in stoichiometry found for the native host in the companion study [17].
For the anionic guests, the affinity of the sulfobutylether host for the most polar cholate anion decreases steeply once the degree of substitution exceeds about six, which we attribute to electrostatic repulsion between the peripheral sulfonate groups and the guest carboxylate. However, this effect is significantly less pronounced for lithocholate, which is expected to reside deeper inside the cavity, thereby being less affected by rim substitution. This finding suggests that not only the conjugation of the bile salts [38,39] but also the number of OH groups on the steroid backbone significantly influences the substituted CD affinity for these guests. Accordingly, both the host substitution degree and the number and type of polar groups attached to the gonane backbone could be used as a lever for fine-tuning the recognition of charged steroids. Taken together, the herein presented results provide a basis for choosing cyclodextrin excipients that resist cholate anion competition with active pharmaceutical ingredients, generally have fewer contraindications and do not form sparingly soluble complexes with trans-steroids like the native β-CD does (Figure S9). These results open new paths for investigating the influence of gonane isomerism on binding stoichiometry and thermodynamics with both parent and substituted cyclodextrins, e.g., by studying the complexation of trans-bile salt derivatives (allo-bile salts).
Regarding the full structural rationalization of the observed substitution effects, further studies are underway. As in our previous studies of hydrophobically driven inclusion, these will combine computational and spectroscopic (ROESY NMR) investigations of the reactants and product to elucidate the complex structural features, alongside DOSY NMR experiments to confirm the binding stoichiometry and equilibrium between the free and bound reactants.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules31172999/s1, Figure S1: Microcalorimetric titration of A with HP-β-CD; Figures S2 and S3: Microcalorimetric titrations of E and A with HP-γ-CD; Figures S4 and S5: 1H NMR spectra of solutions of E and A and of their mixtures with HP-β-CD and HP-γ-CD; Figure S6: Microcalorimetric titration of E with RM-β-CD; Figure S7: Microcalorimetric titration of A with SB-β-CD (DS ≈ 6); Figure S8: 1H NMR spectra of solutions of E and A and of their mixtures with SB-β-CD (DS ≈ 6); Figure S9: 1H NMR spectra of suspension of A and its mixtures with 10 equivalents of β-CD, HP-β-CD, RM-β-CD, and SB-β-CD (DS ≈ 6); Figures S10–S14: Microcalorimetric titrations of NaCh, NaDCh, and NaLCh with HP-β-CD and HP-γ-CD; Figure S15: 1H NMR spectra of solutions of NaCh and NaDCh and of their mixtures with HP-β-CD; Figures S16–S20: Microcalorimetric titrations of NaCh, NaDCh and NaLCh with SB-β-CD (DS ≈ 4 and 6); Table S1: Thermodynamic parameters of the complexation of NaDCh with β-CD in H2O and 5 mmol dm−3 NaOH(aq).

Author Contributions

Conceptualization, A.U. and J.P.; methodology, A.U. and J.P.; validation, A.U., S.K. and J.P.; formal analysis, A.U., S.K. and J.P.; investigation, A.U. and S.K.; resources, J.P.; data curation, A.U. and S.K.; writing—original draft preparation, A.U., S.K. and J.P.; writing—review and editing, A.U. and J.P.; visualization, A.U. and S.K.; supervision, A.U. and J.P.; project administration, J.P.; funding acquisition, J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Union – NextGenerationEU through the National Recovery and Resilience Plan 2021–2026. via the Institutional grants of the University of Zagreb Faculty of Science (NextGenChem and CryoLab) and the European Regional Development Fund (infrastructural project CIuK, grant number KK.01.1.1.02.0016).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
β-CDβ-Cyclodextrin
γ-CDγ-Cyclodextrin
HP-β-CD2-Hydroxypropyl-β-cyclodextrin
HP-γ-CD2-Hydroxypropyl-γ-cyclodextrin
RM-β-CDRandomly methylated β-cyclodextrin
SB-β-CDSulfobutylether-β-cyclodextrin sodium salt
AAndrosterone
A2Androstanedione
EEtiocholanolone
TTestosterone
NaChSodium cholate
Ch−Cholate anion
NaDChSodium deoxycholate
DCh−Deoxycholate anion
NaLChSodium lithocholate
LCh−Lithocholate anion
HDChDeoxycholic acid
HLChLithocholic acid
DSDegree of substitution (number of substituted OH groups per cyclodextrin molecule)
ITCIsothermal titration calorimetry
NMRNuclear magnetic resonance (spectroscopy)

References

  1. Myant, N.B. The Biology of Cholesterol and Related Steroids; Heinemann Medical Books: London, UK, 1981; ISBN 978-0-433-22880-6. [Google Scholar]
  2. Dembitsky, V.M.; Terent’ev, A.O. Steroidal Compounds at the Crossroads of Inflammation and Cancer: Implications for Drug Discovery and Therapy. Biomedicines 2026, 14, 214. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  3. Savage, P.B.; Li, C.; Taotafa, U.; Ding, B.; Guan, Q. Antibacterial Properties of Cationic Steroid Antibiotics. FEMS Microbiol. Lett. 2002, 217, 1–7. [Google Scholar] [CrossRef] [PubMed]
  4. Grimes, D.A.; Gallo, M.F.; Grigorieva, V.; Nanda, K.; Schulz, K.F. Steroid Hormones for Contraception in Men: Systematic Review of Randomized Controlled Trials. Contraception 2005, 71, 89–94. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  5. Connors, K.A. The Stability of Cyclodextrin Complexes in Solution. Chem. Rev. 1997, 97, 1325–1358. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  6. Wallimann, P.; Marti, T.; Fürer, A.; Diederich, F. Steroids in Molecular Recognition. Chem. Rev. 1997, 97, 1567–1608. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  7. Rekharsky, M.V.; Inoue, Y. Complexation Thermodynamics of Cyclodextrins. Chem. Rev. 1998, 98, 1875–1918. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  8. Sarabia-Vallejo, Á.; Caja, M.D.M.; Olives, A.I.; Martín, M.A.; Menéndez, J.C. Cyclodextrin Inclusion Complexes for Improved Drug Bioavailability and Activity: Synthetic and Analytical Aspects. Pharmaceutics 2023, 15, 2345. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  9. Christoforides, E.; Papaioannou, A.; Bethanis, K. Crystal Structure of the Inclusion Complex of Cholesterol in β-Cyclodextrin and Molecular Dynamics Studies. Beilstein J. Org. Chem. 2018, 14, 838–848. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  10. He, J.; Dai, Y.; Zhong, J.; Liu, X.; Qin, X. Difference in the Complexation of Cholesterol with β-Cyclodextrin Derivatives: A Combined Theoretical and Experimental Study. Food Chem. 2024, 435, 137459. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  11. Kolarič, L.; Šimko, P. Application of β-Cyclodextrin in the Production of Low-Cholesterol Milk and Dairy Products. Trends Food Sci. Technol. 2022, 119, 13–22. [Google Scholar] [CrossRef] [Scilit]
  12. Szente, L.; Fenyvesi, É. Cyclodextrin-Lipid Complexes: Cavity Size Matters. Struct. Chem. 2017, 28, 479–492. [Google Scholar] [CrossRef] [Scilit]
  13. Kolarič, L.; Kántorová, P.; Šimko, P. β-Cyclodextrin as the Key Issue in Production of Acceptable Low-Cholesterol Dairy Products. Molecules 2022, 27, 2919. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  14. Holm, R.; Müllertz, A.; Mu, H. Bile Salts and Their Importance for Drug Absorption. Int. J. Pharm. 2013, 453, 44–55. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  15. Olesen, N.E.; Westh, P.; Holm, R. Displacement of Drugs from Cyclodextrin Complexes by Bile Salts: A Suggestion of an Intestinal Drug-Solubilizing Capacity from an In Vitro Model. J. Pharm. Sci. 2016, 105, 2640–2647. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  16. Ono, N.; Hirayama, F.; Arima, H.; Uekama, K.; Rytting, J.H. Model Analysis for Oral Absorption of a Drug/Cyclodextrin Complex Involving Competitive Inclusion Complexes. J. Incl. Phenom. Macrocycl. Chem. 2002, 44, 93–96. [Google Scholar] [CrossRef] [Scilit]
  17. Usenik, A.; Pičuljan, K.; Kukina Gradečak, K.; Katovčić, S.; Talajić, G.; Šekutor, M.; Požar, J. Molecular Recognition of Steroid Isomers by Cyclodextrins and Cucurbiturils: Thermodynamic Contributions and Structural Determinants. New J. Chem. 2026, 50, 13451–13462. [Google Scholar] [CrossRef] [Scilit]
  18. Frank, D.W.; Gray, J.E.; Weaver, R.N. Cyclodextrin Nephrosis in the Rat. Am. J. Pathol. 1976, 83, 367–382. [Google Scholar] [PubMed]
  19. Frijlink, H.W.; Eissens, A.C.; Hefting, N.R.; Poelstra, K.; Lerk, C.F.; Meijer, D.K.F. The Effect of Parenterally Administered Cyclodextrins on Cholesterol Levels in the Rat. Pharm. Res. 1991, 8, 9–16. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  20. Loftsson, T.; Jarho, P.; Másson, M.; Järvinen, T. Cyclodextrins in Drug Delivery. Expert Opin. Drug Deliv. 2005, 2, 335–351. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  21. Uekama, K.; Hirayama, F.; Irie, T. Cyclodextrin Drug Carrier Systems. Chem. Rev. 1998, 98, 2045–2076. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  22. Brewster, M.E.; Loftsson, T. Cyclodextrins as Pharmaceutical Solubilizers. Adv. Drug Deliv. Rev. 2007, 59, 645–666. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  23. Saokham, P.; Muankaew, C.; Jansook, P.; Loftsson, T. Solubility of Cyclodextrins and Drug/Cyclodextrin Complexes. Molecules 2018, 23, 1161. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  24. Špehar, T.K.; Pocrnić, M.; Klarić, D.; Bertoša, B.; Čikoš, A.; Jug, M.; Padovan, J.; Dragojević, S.; Galić, N. Investigation of Praziquantel/Cyclodextrin Inclusion Complexation by NMR and LC-HRMS/MS: Mechanism, Solubility, Chemical Stability, and Degradation Products. Mol. Pharm. 2021, 18, 4210–4223. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  25. Pocrnić, M.; Hoelm, M.; Ignaczak, A.; Čikoš, A.; Budimir, A.; Tomišić, V.; Galić, N. Inclusion Complexes of Loratadine with β-Cyclodextrin and Its Derivatives in Solution. Integrated Spectroscopic, Thermodynamic and Computational Studies. J. Mol. Liq. 2024, 410, 125515. [Google Scholar] [CrossRef] [Scilit]
  26. Klarić, D.; Kelrajter, M.; Čikoš, A.; Budimir, A.; Galić, N. Inclusion Complexes of Nabumetone with β-Cyclodextrins: Spectroscopic, Spectrometric and Calorimetric Studies in Solution. J. Mol. Liq. 2024, 397, 124152. [Google Scholar] [CrossRef] [Scilit]
  27. Klarić, D.; Kutleša, L.; Jug, M.; Galić, N. From Mechanochemically Driven Complexation and Multimodal Characterization to Stability and Toxicological Insight: A Study of Cinnarizine–β-Cyclodextrins Complexes. Pharmaceutics 2025, 17, 1338. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  28. Uekama, K.; Hirayama, F.; Arima, H. Recent Aspect of Cyclodextrin-Based Drug Delivery System. J. Incl. Phenom. Macrocycl. Chem. 2006, 56, 3–8. [Google Scholar] [CrossRef] [Scilit]
  29. Zia, V.; Rajewski, R.A.; Stella, V.J. Thermodynamics of Binding of Neutral Molecules to Sulfobutyl Ether β-Cyclodextrins (SBE-β-CDs): The Effect of Total Degree of Substitution. Pharm. Res. 2000, 17, 936–941. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  30. Pyrak, B.; Gubica, T.; Rogacka-Pyrak, K. Cyclodextrin Nanosponges as Bioenhancers of Phytochemicals. Prospect Pharm. Sci. 2024, 22, 170–177. [Google Scholar] [CrossRef] [Scilit]
  31. Holm, R.; Hartvig, R.A.; Nicolajsen, H.V.; Westh, P.; Østergaard, J. Characterization of the Complexation of Tauro- and Glyco-Conjugated Bile Salts with γ-Cyclodextrin and 2-Hydroxypropyl-γ-Cyclodextrin Using Affinity Capillary Electrophoresis. J. Incl. Phenom. Macrocycl. Chem. 2008, 61, 161–169. [Google Scholar] [CrossRef] [Scilit]
  32. Jansook, P.; Loftsson, T. γCD/HPγCD: Synergistic Solubilization. Int. J. Pharm. 2008, 363, 217–219. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  33. Saokham, P.; Loftsson, T. γ-Cyclodextrin. Int. J. Pharm. 2017, 516, 278–292. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  34. Schönbeck, C.; Westh, P.; Madsen, J.C.; Larsen, K.L.; Städe, L.W.; Holm, R. Hydroxypropyl-Substituted β-Cyclodextrins: Influence of Degree of Substitution on the Thermodynamics of Complexation with Tauroconjugated and Glycoconjugated Bile Salts. Langmuir 2010, 26, 17949–17957. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  35. Schönbeck, C.; Holm, R.; Westh, P.; Peters, G.H. Extending the Hydrophobic Cavity of β-Cyclodextrin Results in More Negative Heat Capacity Changes but Reduced Binding Affinities. J. Incl. Phenom. Macrocycl. Chem. 2014, 78, 351–361. [Google Scholar] [CrossRef] [Scilit]
  36. Schönbeck, C.; Westh, P.; Madsen, J.C.; Larsen, K.L.; Städe, L.W.; Holm, R. Methylated β-Cyclodextrins: Influence of Degree and Pattern of Substitution on the Thermodynamics of Complexation with Tauro- and Glyco-Conjugated Bile Salts. Langmuir 2011, 27, 5832–5841. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  37. Schönbeck, C.; Westh, P.; Holm, R. Complexation Thermodynamics of Modified Cyclodextrins: Extended Cavities and Distorted Structures. J. Phys. Chem. B 2014, 118, 10120–10129. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  38. Holm, R.; Østergaard, J.; Schönbeck, C.; Jensen, H.; Shi, W.; Peters, G.H.; Westh, P. Determination of Stability Constants of Tauro- and Glyco-Conjugated Bile Salts with the Negatively Charged Sulfobutylether-β-Cyclodextrin: Comparison of Affinity Capillary Electrophoresis and Isothermal Titration Calorimetry and Thermodynamic Analysis of the Interaction. J. Incl. Phenom. Macrocycl. Chem. 2014, 78, 185–194. [Google Scholar] [CrossRef] [Scilit]
  39. Østergaard, J.; Jensen, H.; Holm, R. Affinity Capillary Electrophoresis Method for Investigation of Bile Salts Complexation with Sulfobutyl Ether-β-cyclodextrin. J. Sep. Sci. 2012, 35, 2764–2772. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  40. Køhler, J.; Schönbeck, C.; Westh, P.; Holm, R. Hydration Differences Explain the Large Variations in the Complexation Thermodynamics of Modified γ-Cyclodextrins with Bile Salts. J. Phys. Chem. B 2016, 120, 396–405. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  41. Holm, R.; Schönbeck, C.; Askjær, S.; Westh, P. Thermodynamics of the Interaction of γ-Cyclodextrin and Tauro- and Glyco-Conjugated Bile Salts. J. Incl. Phenom. Macrocycl. Chem. 2013, 75, 223–233. [Google Scholar] [CrossRef] [Scilit]
  42. Lopedota, A.; Cutrignelli, A.; Laquintana, V.; Franco, M.; Donelli, D.; Ragni, L.; Tongiani, S.; Denora, N. β-cyclodextrin in Personal Care Formulations: Role on the Complexation of Malodours Causing Molecules. Int. J. Cosmet. Sci. 2015, 37, 438–445. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  43. Stella, V.J.; Rajewski, R.A. Sulfobutylether-β-Cyclodextrin. Int. J. Pharm. 2020, 583, 119396. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  44. Schönbeck, C. Complexation Kinetics of Cyclodextrins with Bile Salt Anions: Energy Barriers for the Threading of Ionic Groups. J. Phys. Chem. B 2019, 123, 9831–9838. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  45. Liu, Y.; Yang, Y.-W.; Cao, R.; Song, S.-H.; Zhang, H.-Y.; Wang, L.-H. Thermodynamic Origin of Molecular Selective Binding of Bile Salts by Aminated β-Cyclodextrins. J. Phys. Chem. B 2003, 107, 14130–14139. [Google Scholar] [CrossRef] [Scilit]
  46. Tan, X.; Lindenbaum, S. Studies on Complexation between β-Cyclodextrin and Bile Salts. Int. J. Pharm. 1991, 74, 127–135. [Google Scholar] [CrossRef] [Scilit]
  47. Ramos Cabrer, P.; Alvarez-Parrilla, E.; Meijide, F.; Seijas, J.A.; Rodríguez Núñez, E.; Vázquez Tato, J. Complexation of Sodium Cholate and Sodium Deoxycholate by β-Cyclodextrin and Derivatives. Langmuir 1999, 15, 5489–5495. [Google Scholar] [CrossRef] [Scilit]
  48. Tepavčević, V.; Farkaš Agatić, Z.; Pilipović, A.; Puača, G.; Poša, M. Effect of β-Cyclodextrin on the Aggregation Behavior of Sodium Deoxycholate and Sodium Cholate in Aqueous Solution. Molecules 2025, 30, 2197. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  49. Cabrer, P.R.; Álvarez-Parrilla, E.; Al-Soufi, W.; Meijide, F.; Núñez, E.R.; Tato, J.V. Complexation of Bile Salts by Natural Cyclodextrins. Supramol. Chem. 2003, 15, 33–43. [Google Scholar] [CrossRef] [Scilit]
  50. Yang, Z.; Breslow, R. Very Strong Binding of Lithocholic Acid to β-Cyclodextrin. Tetrahedron Lett. 1997, 38, 6171–6172. [Google Scholar] [CrossRef] [Scilit]
  51. Schönbeck, C.; Holm, R. Exploring the Origins of Enthalpy–Entropy Compensation by Calorimetric Studies of Cyclodextrin Complexes. J. Phys. Chem. B 2019, 123, 6686–6693. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  52. Usenik, A.; Alešković, M.; Roca, S.; Markuš, I.; Šekutor, M.; Požar, J. Hosting of Diamantane Alcohols in Water and Hydrogen-Bonded Organic Solvents: The (Non-)Classical Hydrophobic Effect. New J. Chem. 2023, 47, 18745–18755. [Google Scholar] [CrossRef] [Scilit]
  53. Usenik, A.; Leko, K.; Petrović Peroković, V.; Car, Ž.; Ribić, R.; Pičuljan, K.; Hanževački, M.; Draženović, J.; Požar, J. Hydrophobically Driven Hosting—What about the Guest? J. Mol. Liq. 2023, 388, 122774. [Google Scholar] [CrossRef] [Scilit]
  54. Leko, K.; Hanževački, M.; Brkljača, Z.; Pičuljan, K.; Ribić, R.; Požar, J. Solvophobically Driven Complexation of Adamantyl Mannoside with β-Cyclodextrin in Water and Structured Organic Solvents. Chem. Eur. J. 2020, 26, 5208–5219. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  55. Cabani, S.; Gianni, P.; Mollica, V.; Lepori, L. Group Contributions to the Thermodynamic Properties of Non-Ionic Organic Solutes in Dilute Aqueous Solution. J. Solut. Chem. 1981, 10, 563–595. [Google Scholar] [CrossRef] [Scilit]
  56. Wenz, G. Influence of Intramolecular Hydrogen Bonds on the Binding Potential of Methylated β-Cyclodextrin Derivatives. Beilstein J. Org. Chem. 2012, 8, 1890–1895. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  57. Holm, R.; Shi, W.; Hartvig, R.A.; Askjær, S.; Christian Madsen, J.; Westh, P. Thermodynamics and Structure of Inclusion Compounds of Tauro- and Glyco-Conjugated Bile Salts and β-Cyclodextrin. Phys. Chem. Chem. Phys. 2009, 11, 5070–5078. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  58. Ollila, F.; Pentikäinen, O.T.; Forss, S.; Johnson, M.S.; Slotte, J.P. Characterization of Bile Salt/Cyclodextrin Interactions Using Isothermal Titration Calorimetry. Langmuir 2001, 17, 7107–7111. [Google Scholar] [CrossRef] [Scilit]
  59. Tidemand, K.D.; Schönbeck, C.; Holm, R.; Westh, P.; Peters, G.H. Computational Investigation of Enthalpy–Entropy Compensation in Complexation of Glycoconjugated Bile Salts with β-Cyclodextrin and Analogs. J. Phys. Chem. B 2014, 118, 10889–10897. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  60. de Aguiar Vallim, T.Q.; Tarling, E.J.; Edwards, P.A. Pleiotropic Roles of Bile Acids in Metabolism. Cell Metab. 2013, 17, 657–669. [Google Scholar] [CrossRef] [Scilit] [PubMed]
Molecules 31 02999 g001

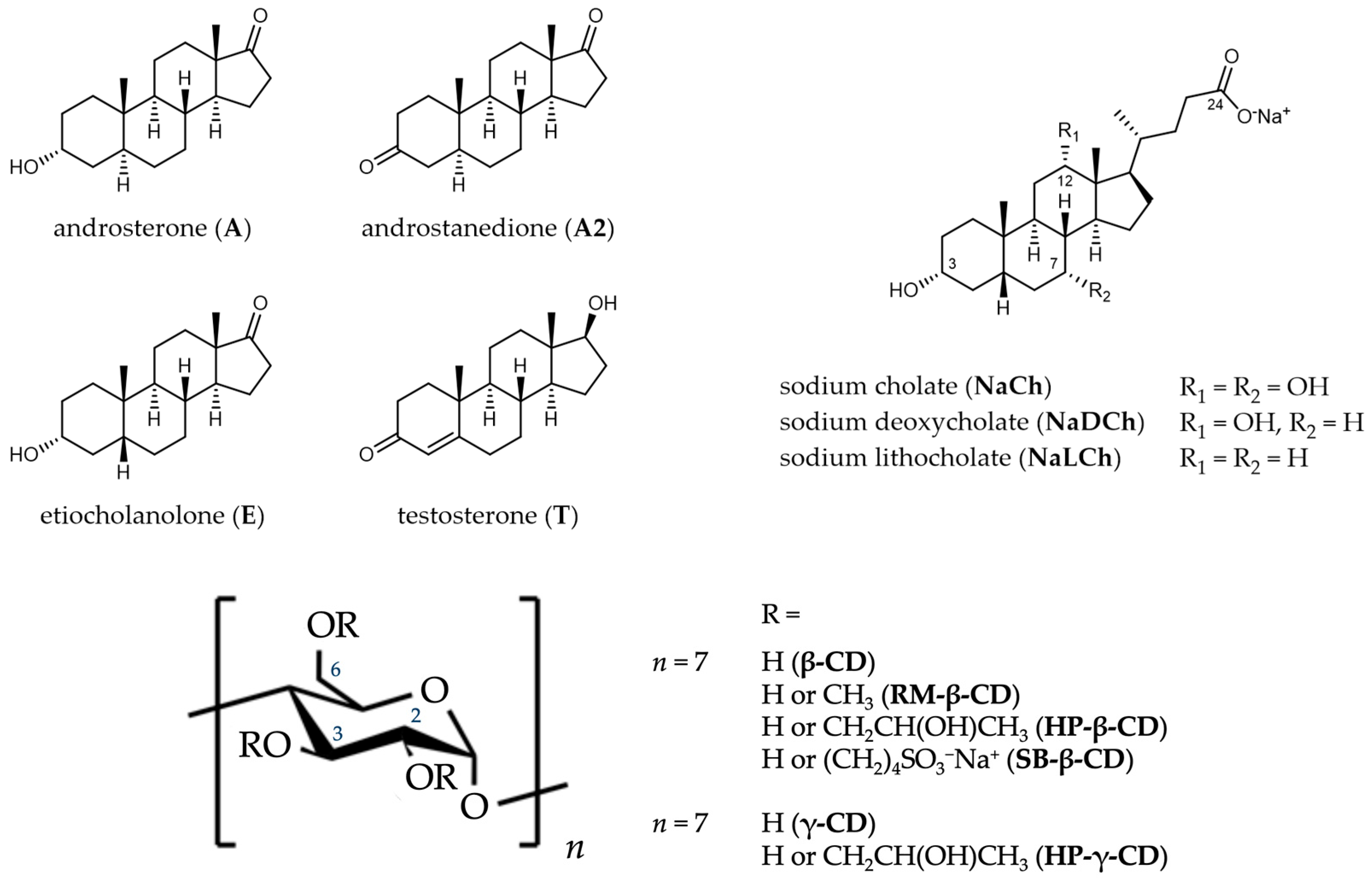

Figure 1. Structures of the steroids, bile salts, and cyclodextrin derivatives investigated herein and in our previous companion study (ref. [17]). The average degree of cyclodextrin substitution (DS) is given as the average number of substituents per cyclodextrin molecule.
Figure 1. Structures of the steroids, bile salts, and cyclodextrin derivatives investigated herein and in our previous companion study (ref. [17]). The average degree of cyclodextrin substitution (DS) is given as the average number of substituents per cyclodextrin molecule.
Molecules 31 02999 g001
Molecules 31 02999 g002

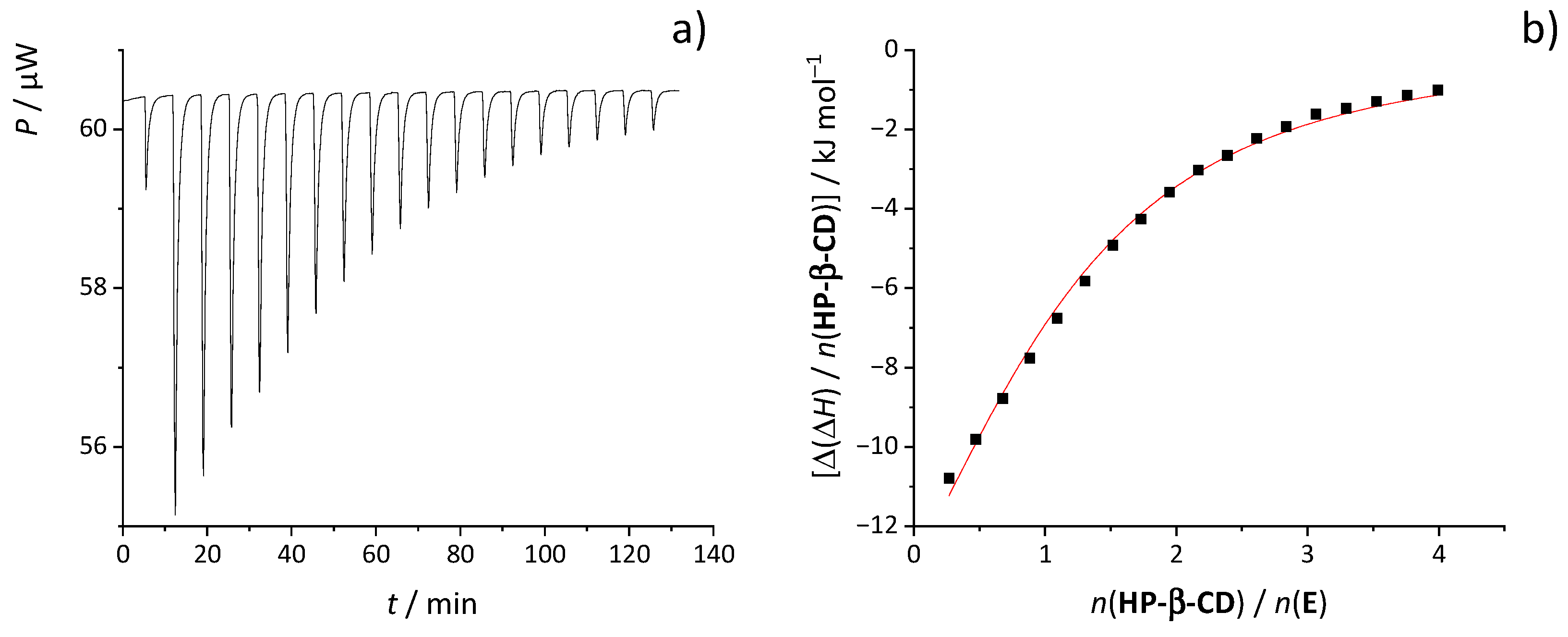

Figure 2. Microcalorimetric titration of E (c0 = 1.03 × 10−4 mol dm−3, V = 1.45 cm3) with HP-β-CD (c = 1.98 × 10−3 mol dm−3) in H2O at 298 K. (a) Thermogram. (b) Dependence of the normalized successive enthalpy change on the host-to-guest ratio. ■ experimental; − calculated.
Figure 2. Microcalorimetric titration of E (c0 = 1.03 × 10−4 mol dm−3, V = 1.45 cm3) with HP-β-CD (c = 1.98 × 10−3 mol dm−3) in H2O at 298 K. (a) Thermogram. (b) Dependence of the normalized successive enthalpy change on the host-to-guest ratio. ■ experimental; − calculated.
Molecules 31 02999 g002
Molecules 31 02999 g003
Figure 3. Microcalorimetric titration of A (c0 = 3.06 × 10−5 mol dm−3, V = 1.45 cm3) with RM-β-CD (c = 2.00 × 10−3 mol dm−3) in H2O at 298 K. (a) Thermogram. (b) Dependence of the normalized successive enthalpy change on the host-to-guest ratio. ■ experimental; − calculated.
Figure 3. Microcalorimetric titration of A (c0 = 3.06 × 10−5 mol dm−3, V = 1.45 cm3) with RM-β-CD (c = 2.00 × 10−3 mol dm−3) in H2O at 298 K. (a) Thermogram. (b) Dependence of the normalized successive enthalpy change on the host-to-guest ratio. ■ experimental; − calculated.
Molecules 31 02999 g003
Molecules 31 02999 g004
Figure 4. Selected regions of the 1H NMR spectra of solutions of E and A and of their mixtures with RM-β-CD in D2O at 298 K.
Figure 4. Selected regions of the 1H NMR spectra of solutions of E and A and of their mixtures with RM-β-CD in D2O at 298 K.
Molecules 31 02999 g004
Molecules 31 02999 g005
Figure 5. Microcalorimetric titration of E (c0 = 1.03 × 10−4 mol dm−3, V = 1.45 cm3) with SB-β-CD (DS ≈ 6, c = 9.98 × 10−3 mol dm−3) in H2O at 298 K. (a) Thermogram. (b) Dependence of the normalized successive enthalpy change on the host-to-guest ratio. ■ experimental; − calculated.
Figure 5. Microcalorimetric titration of E (c0 = 1.03 × 10−4 mol dm−3, V = 1.45 cm3) with SB-β-CD (DS ≈ 6, c = 9.98 × 10−3 mol dm−3) in H2O at 298 K. (a) Thermogram. (b) Dependence of the normalized successive enthalpy change on the host-to-guest ratio. ■ experimental; − calculated.
Molecules 31 02999 g005
Molecules 31 02999 g006
Figure 6. Thermodynamic reaction parameters for the complexation of NaCh, NaDCh, and NaLCh with β-CD (taken from ref. [17]) and with HP-β-CD in H2O for NaCh and 5 mmol dm−3 NaOH(aq) for NaDCh and NaLCh at 298 K.
Figure 6. Thermodynamic reaction parameters for the complexation of NaCh, NaDCh, and NaLCh with β-CD (taken from ref. [17]) and with HP-β-CD in H2O for NaCh and 5 mmol dm−3 NaOH(aq) for NaDCh and NaLCh at 298 K.
Molecules 31 02999 g006
Molecules 31 02999 g007
Figure 7. Microcalorimetric titration of NaLCh (c0 = 1.22 × 10−4 mol dm−3, V = 1.45 cm3) with SB-β-CD (DS ≈ 10, c = 1.95 × 10−3 mol dm−3) in 5 mmol dm−3 NaOH(aq) at 298 K. (a) Thermogram. (b) Dependence of the normalized successive enthalpy change on the host-to-guest ratio. ■ experimental; − calculated.
Figure 7. Microcalorimetric titration of NaLCh (c0 = 1.22 × 10−4 mol dm−3, V = 1.45 cm3) with SB-β-CD (DS ≈ 10, c = 1.95 × 10−3 mol dm−3) in 5 mmol dm−3 NaOH(aq) at 298 K. (a) Thermogram. (b) Dependence of the normalized successive enthalpy change on the host-to-guest ratio. ■ experimental; − calculated.
Molecules 31 02999 g007
Table 2. Thermodynamic parameters of the complexation of etiocholanolone (E) and androsterone (A) with substituted cyclodextrins in H2O at 298 K a.
Table 2. Thermodynamic parameters of the complexation of etiocholanolone (E) and androsterone (A) with substituted cyclodextrins in H2O at 298 K a.
GuestHostlog K°ΔrG°/kJ mol−1ΔrH°/kJ mol−1−TΔrS°/kJ mol−1
EHP-β-CD4.07(3)−23.2(2)−23.0(4)−0.2(5)
RM-β-CD4.42(1)−25.21(4)−29.0(3)3.8(4)
SB-β-CD (DS ≈ 6)4.3(4)−24(2)−26(1)2(1)
HP-γ-CD4.3(1)−24.7(6)−3.3(3)−21.4(9)
AHP-β-CD4.45(6)−25.4(3)−22.82(6)−2.59(7)
RM-β-CD4.54(1)−25.9(5)−29.7(3)3.8(4)
SB-β-CD (DS ≈ 6)4.63(2)−26.4(1)−28.2(2)1.7(2)
HP-γ-CD− b− b≳0 b− b
a Values refer to the process G + H ⇄ GH; the standard error of the mean (N = 3–5) is given in parentheses as the uncertainty of the last significant digit. b Binding observed by NMR but not quantifiable by ITC (ΔrH° ≳ 0).
Table 3. Thermodynamic parameters of the complexation of bile salt anions with substituted cyclodextrins in H2O for NaCh and 5 mmol dm−3 NaOH(aq) for NaDCh and NaLCh at 298 K compared with literature parameters for related host–guest systems a.
Table 3. Thermodynamic parameters of the complexation of bile salt anions with substituted cyclodextrins in H2O for NaCh and 5 mmol dm−3 NaOH(aq) for NaDCh and NaLCh at 298 K compared with literature parameters for related host–guest systems a.
GuestHostlog K°ΔrG°/kJ mol−1ΔrH°/kJ mol−1−TΔrS°/kJ mol−1
Ch−HP-β-CD3.38(1)−19.27(5)−8.0(1)−11.3(2)
HP-β-CD (DS not specified, ref. [58], ITC, TRIS/NaCl pH = 7.4)3.40−19.4−7.9−11.5
SB-β-CD (DS ≈ 4)3.27(4)−18.7(2)−19.6(3)1.1(4)
SB-β-CD (DS ≈ 6)2.63(3)−15.0(2)−22.6(6)7.6(8)
SB-β-CD (DS ≈ 10)<2 b− b− b− b
HP-γ-CD− c− c≈0 c− c
DCh−dHP-β-CD3.57(1)−20.36(5)−8.11(2)−12.25(3)
HP-β-CD (DS not specified, ref. [58], ITC, TRIS/NaCl pH = 7.4)3.65−20.8−10.65−10.2
SB-β-CD (DS ≈ 6)3.07(1)−17.52(5)−19.0(8)1.5(9)
HP-γ-CD− c− c≳0 c− c
LCh−dHP-β-CD5.68(1)−32.44(8)−23.0(1)−9.5(2)
SB-β-CD (DS ≈ 4)5.98(2)−34.1(1)−33.0(4)−1.1(4)
SB-β-CD (DS ≈ 6)5.60(1)−31.95(3)−32.26(8)0.3(1)
SB-β-CD (DS ≈ 10)5.31(1)−30.32(5)−31.77(6)1.4(1)
a Values refer to the process G + H ⇄ GH; the standard error of the mean (N = 3–5) is given in parentheses as the uncertainty of the last significant digit. b Could not be characterized microcalorimetrically under the conditions used due to very high dilution heats. c Binding observed by NMR but not quantifiable by ITC (approximately isoenthalpic process). d Experiments performed in 5 mmol dm−3 NaOH(aq) owing to hydrolysis and poor aqueous solubility of HDCh and HLCh. The influence of pH and ionic strength was ruled out in our previous studies with native cyclodextrins, where virtually the same values of all thermodynamic parameters were obtained in water and in 5 mmol dm−3 NaOH(aq) for NaDCh at lower concentration with β-CD (Table S1).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Usenik, A.; Katovčić, S.; Požar, J. Molecular Recognition of Steroids and Bile Salts by Substituted Cyclodextrins: The Influence of Gonane Isomerism and Rim Functionalization on Complexation Thermodynamics. Molecules 2026, 31, 2999. https://doi.org/10.3390/molecules31172999

AMA Style

Usenik A, Katovčić S, Požar J. Molecular Recognition of Steroids and Bile Salts by Substituted Cyclodextrins: The Influence of Gonane Isomerism and Rim Functionalization on Complexation Thermodynamics. Molecules. 2026; 31(17):2999. https://doi.org/10.3390/molecules31172999

Chicago/Turabian Style

Usenik, Andrea, Stella Katovčić, and Josip Požar. 2026. "Molecular Recognition of Steroids and Bile Salts by Substituted Cyclodextrins: The Influence of Gonane Isomerism and Rim Functionalization on Complexation Thermodynamics" Molecules 31, no. 17: 2999. https://doi.org/10.3390/molecules31172999

APA Style

Usenik, A., Katovčić, S., & Požar, J. (2026). Molecular Recognition of Steroids and Bile Salts by Substituted Cyclodextrins: The Influence of Gonane Isomerism and Rim Functionalization on Complexation Thermodynamics. Molecules, 31(17), 2999. https://doi.org/10.3390/molecules31172999

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
