Article

Design, Synthesis, and Biological Evaluation of Naphthoquinone Salts as Anticancer Agents

by
Yao Cheng
1,
Tsz Tin Yu
1,
Ellen M. Olzomer
2,
Kyle L. Hoehn
2,
Frances L. Byrne
2,*,
Naresh Kumar
1,* and
David StC Black
1,*
1
School of Chemistry, University of New South Wales, Sydney, NSW 2052, Australia
2
School of Biotechnology and Biomolecular Sciences, University of New South Wales, Sydney, NSW 2052, Australia
*
Authors to whom correspondence should be addressed.
Molecules 2025, 30(9), 1938; https://doi.org/10.3390/molecules30091938
Submission received: 27 March 2025 / Revised: 18 April 2025 / Accepted: 24 April 2025 / Published: 27 April 2025
(This article belongs to the Special Issue Advances in Synthesis and Biological Activity of Novel Derivatives Based on Five-Membered Heterocyclic Scaffolds and Their Intermediates—Second Edition)
Browse Figures
Versions Notes

Abstract

:
The Warburg effect, a unique glycolytic phenomenon in cancer cells, presents a promising target for developing selective anticancer agents. Previously, BH10, a hit compound disrupting glycolytic metabolism, was identified via phenotypic screening, with Kelch-like ECH-associated protein 1 (Keap1) proposed as a potential target. To enhance its potency and selectivity, a library of BH10-derived salt compounds was synthesized. Among these, 7b exhibited nanomolar anticancer activity (IC50 = 22.97 nM) and a high selectivity ratio (IC50 of non-cancerous cells/IC50 of cancer cells = 41.43). Molecular docking revealed that all naphthoimidazole salt analogues (7a–f) bind to Keap1 via carbonyl-mediated interactions, with variations in hydrogen-bonding residues (e.g., VAL606, ILE559).

1. Introduction

To sustain life, all organisms on Earth require a continuous energy supply, with glucose serving as the primary energy source for most species, including humans [1]. Energy metabolism differs between normal and cancer cells. In normal cells, glucose is transported into the cytoplasm and converted into pyruvate, generating two molecules of adenosine triphosphate (ATP) [2,3]. Under aerobic conditions, pyruvate is preferentially oxidized into CO2 in mitochondria, producing 36 ATP molecules. However, under hypoxic conditions, pyruvate is converted into lactate with the production of two ATP molecules [4,5]. In contrast, after glucose is converted into pyruvate in cancer cells, regardless of oxygen availability, pyruvate is primarily diverted into lactate, yielding only four ATP molecules. This phenomenon is known as the Warburg effect and is characterized by an increased rate of glycolysis followed by lactic acid fermentation, even in the presence of sufficient oxygen for oxidative phosphorylation. The Warburg effect plays a crucial role in the metabolic reprogramming of cancer cells, enabling rapid growth and proliferation [6,7]. By prioritizing glycolysis, cancer cells rapidly generate ATP and produce essential metabolic intermediates for the synthesis of macromolecules, including nucleotides, amino acids, and lipids, which support cancer cell growth and division [8]. Furthermore, the acidic microenvironment created by lactic acid production may facilitate cancer cell invasion and immune evasion [9]. Thus, the Warburg effect underscores the potential of targeting cancer-specific glycolysis as a promising therapeutic strategy.
To date, numerous glycolysis inhibitors have been developed, particularly quinone-based compounds such as lonidamine, phloretin, shikonin, and lapachol, which interfere with key metabolic pathways essential for cancer cell proliferation (Figure 1) [10,11,12,13,14,15]. These agents have demonstrated promising in vitro and in vivo biological activity, commonly measured by their half-maximal inhibitory concentration (IC50) values. Low IC50 values indicate strong potency, which is the amount needed to produce a certain biological effect (in this case, cytotoxicity and cell death). However, these values do not always guarantee effective treatment, especially in the absence of sufficient selectivity [16,17,18]. Selectivity refers to how well a compound can target cancer cells while sparing normal cells. This ability is important when it comes to evaluating how effective the treatment can be. In anticancer drug development, high potency must be complemented by high selectivity to minimize off-target effects and unwanted side effects [19,20]. Traditional chemotherapeutics often display potent cytotoxicity (low IC50 values) but poor selectivity, leading to various adverse effects such as immunosuppression, alopecia, and organ toxicity [21]. In contrast, selective agents can achieve comparable or improved anticancer effects at lower doses by sparing healthy cells, thereby reducing dose-limiting toxicities and improving patient outcomes [22,23,24]. In addition, compounds that have both high potency and selectivity are less likely to lead to resistance, as they create a more intense selective pressure on cancer-specific pathways [25,26]. Such agents are also more amenable to combination therapies with immunotherapies, targeted agents, or radiotherapy, without exacerbating body toxicity [27,28]. Therefore, the optimization of both potency (reflected by IC50) and selectivity remains a central goal in the rational design of glycolysis-targeting anticancer agents [29].
Recently, we identified a hit compound, BH10, from over 5000 compounds [30]. BH10 is a quinone molecule with a simple structure that has demonstrated promising potency (IC50 = 11.84 µM) against human endometrial cancer cells (HEC1A) (Figure 2). However, its selective toxicity towards cancer cells (2.38 = IC50 value in non-cancerous cells/IC50 value of cancer cells) is limited [30]. Mechanistic studies showed that BH10 targets the Kelch-like ECH-associated protein (Keap1), induces mitochondrial oxidative stress, and reduces the activity of the redox-sensitive enzyme mitochondrial aconitase (mACN), ultimately causing the accumulation of citrate and inhibiting glycolysis in cancer cells [30,31]. The unique characteristics of the BH10 anticancer pathway offer a promising opportunity to investigate highly selective anticancer agents.
Given that some salt compounds, such as YM155 and cRIPGBM (Figure 2), exhibit excellent anticancer potency, we aimed to synthesize a series of salt compounds based on BH10 to investigate their anticancer activity [32,33,34]. In the design of anticancer salt compounds, halide anions are frequently selected as counterions, particularly chloride, bromide, and iodide [35]. In this study, iodide and bromide anions were selected as the primary counterions for our salt-based anticancer compounds. This preference is due to their synthetic convenience and their ability to form stable salts under mild reaction conditions, which facilitates early-stage compound evaluation [35,36]. Overall, the main objective of this study is to determine whether these salt compounds exhibit increased potency and selectivity compared to BH10.

2. Results and Discussion

2.1. Chemistry

A library of quinone salt analogues was synthesized according to Scheme 1, Scheme 2, Scheme 3 and Scheme 4. BH10 salt derivatives 2a–h were synthesized to evaluate the impact of iodide salts (Scheme 1). Methyl iodide was selected to methylate the amine group, generating the corresponding iodide salt analogues. All derivatives were synthesized under identical reaction conditions: the corresponding starting materials were treated with excess methyl iodide in acetonitrile at room temperature for 12 h, affording the target products in similar yields. All starting materials 1a–h have been reported in our earlier work [37].
Based on our previous study, the naphthoimidazole scaffold demonstrated better potency; thus, we aimed to incorporate this scaffold into salt compounds [31,37]. The dichlorononaphthoquinones 3a–f underwent nucleophilic substitution with methylamine via Michael addition to yield 4a–f in a yield of about 85% across all reactions. Subsequently, 4a–f were reacted with acetic anhydride in the presence of concentrated sulfuric acid to form the amide intermediates 5a–f. These intermediates then underwent a second Michael addition with methylamine to produce intermediates 6a–f. Finally, compounds 7a–f were synthesized through imidazole cyclization under hydrobromic acid, achieving yield of about 50% (Scheme 2).
Additionally, 1H-benzo[d]imidazole derivatives (9, 11, and 13) were synthesized to evaluate the impact of the removal of quinone on anticancer activity (Scheme 3). Compound 15 was synthesized to assess the effect of different counterions (iodide and bromide) on biological activity.
Furthermore, in a previous study, we introduced the triazoles to the naphthoimidazole scaffold, which showed good glycolysis-inhibiting potency [31]. Methylation of these structures was performed to generate salt compounds and evaluate the impact of the salt formation on their bioactivity (Scheme 4).

2.2. Structure–Activity Relationship (SAR) Study

The cytotoxic effects of the synthesized salt compounds were assessed against human endometrial cancer cells (HEC1A) and normal endometrial stromal cells (MAD11) using the MTT cell viability assay. BH10 was used as the reference compound. The results are presented in Table 1.
Based on the biological characterization data of the synthesized analogues against the HEC1A and MAD11 cell lines, a structure–activity relationship (SAR) was established (Figure 3). Firstly, a series of naphthalene-1,4-dione scaffold analogues (2a–h in Scheme 1) were synthesized to investigate the effect of chain modification on bioactivity. All analogues exhibited weaker bioactivity than BH10, with some compounds completely losing potency. The starting materials 1a–h were derived from our previous study, in which some of them demonstrated good anticancer potency (for 1b–g, IC50: 1–20 μM, whereas for 1a and 1h, IC50 > 40 μM) [37]. The addition of a methyl group to the terminal amine, forming a salt compound, was generally detrimental to potency. However, in the case of 2a, this modification improved potency when converting 1a from a non-potent compound into a weakly active analogue (IC50 = 21.12 μM). In contrast, the same modification in 2b–h resulted in a significant decrease or complete loss of potency. Therefore, the strategy of introducing a salt amine group is not suitable for naphthalene-1,4-dione scaffold compounds.
Subsequently, relative to the lead compound BH10, dimethylnaphthoimidazole salt compounds (7a–f in Scheme 2) exhibited significantly enhanced potency against cancer cells. These compounds consistently demonstrated nanomolar-range IC50 values, with compound 7a displaying the highest activity at an IC50 of 9.53 nM. Upon introducing an electron-withdrawing group (–NO₂) at the 5-position of the benzene ring (7b), potency decreased to 22.97 nM; however, selectivity markedly increased to 41.43, representing the best performance observed in this study. Interestingly, although the introduction of –NO₂ at the 6-position (7c) resulted in a potency comparable to that of 7b, its selectivity declined sharply to 2.37, aligning with that of BH10. Additionally, the incorporation of electron-donating groups at the benzene ring, 6-OMe in 7d and 7-Me in 7e, had a minimal impact, yielding IC50 values of 25.62 and 14.92 nM, respectively, with both compounds exhibiting similar selectivity of approximately 7. Furthermore, the introduction of a nitrogen heteroatom at the 7-position of the benzene ring resulted in compound 7f, which displayed significantly lower potency (IC50 = 472.4 nM) and a selectivity of 10.16. Among the compounds investigated, 7b emerged as the most promising candidate, as it exhibited the highest selectivity despite not possessing the greatest potency. These findings indicate that among salt compounds, the naphthoimidazole scaffold is intrinsically more potent than the 1,4-naphthoquinone scaffold.
In addition, benzimidazole salt compounds (9, 11, and 13) were synthesized to assess the effect of removing the quinone moiety from the scaffold. Biological testing revealed that compounds 11 and 13 completely lost biological activity (IC50 > 100 µM), while the potency of compound 9 was also significantly reduced, with an IC50 of 24.88 µM. Given that compounds 7a–f are bromide salts, and the remaining compounds are iodide salts, compound 15 was synthesized to investigate the effect of counterion variation. Comparison of 7a (bromide) and 15 (iodide) revealed that compound 15 exhibited slightly reduced potency (IC50 = 13.47 nM) but marginally higher selectivity (11.43). These results indicate that counterions could influence the biological activity and selectivity of these compounds to a limited extent. Counterion optimization may be essential for clinical translation, and in future studies, chloride salts will be introduced to assess their effects on biocompatibility [35,38]. This direction will also allow us to further investigate the effects of counterion identity on pharmacokinetics, toxicity, and therapeutic efficacy [35,36].
In a previous study, naphthoimidazole analogues demonstrated promising activity. To further investigate the impact of becoming salt compounds, several naphthoimidazole analogues, 16a–c (16a with IC50 of 18.11 µM and selectivity of 1.73; 16b with IC50 of 6.84 µM and selectivity of 2.01; 16c with IC50 of 2.60 µM and selectivity of 2.77) and 18 (with IC50 of 6.40 µM and selectivity of 3.59), were chosen to be converted into salt derivatives [31]. Upon converting these analogues into their corresponding salt, none of these derivatives (17a–c, and 19) showed significant change in potency, but all of them showed a significant improvement in selectivity, especially for 17a–c, in which the selectivity increased by 5.74, 7.33, and 6.84 times, whilst the selectivity also improved by 1.79 times for 19. Overall, comparing these salt compounds with their previous corresponding parent compounds, salt compounds show higher potential for anticancer drug development.
Based on the biotesting results and subsequent analysis, several structure–activity relationships were identified (Figure 3). Firstly, the quinone moiety played a pivotal role in determining potency. Secondly, the naphthoimidazole scaffold exhibited a significant enhancement in both potency and selectivity. Additionally, the incorporation of a nitrogen atom into the naphthoimidazole core led to a reduction in biological activity. Lastly, the bromide counterion exhibited superior potency compared to the iodide counterion.
To further highlight the potential of compound 7b, a comparative analysis was performed against other reported glycolysis-targeting and ionic anticancer agents, including lonidamine, phloretin, shikonin, lapachol, cRIPGBM, and YM155, as listed in Table S1 [31,33,39,40,41,42,43,44,45,46,47,48,49]. These compounds represent diverse structural classes and mechanisms of action. Notably, compound 7b exhibited a nanomolar IC50 value (22.97 nM) and an exceptional selectivity index (41.43), surpassing most classical inhibitors in both potency and selectivity. YM155 and cRIPGBM also displayed nanomolar potency, although their selectivity indices are comparatively lower.

2.3. Molecular Docking Study

Given the potent anticancer activity of the naphthoimidazole salt analogues (7a–f), a molecular docking simulation was conducted to evaluate their interactions with the target protein (Figure 4). Docking was performed using Maestro 14.1, with Keap1 (PDB: 4XMB) treated as a rigid receptor and all ligands modelled as flexible, using the Standard Precision (SP) protocol. The docking was carried out at the native ligand-binding pocket of Keap1, as defined by the co-crystallized ligand. BH10, the reference compound, was included for comparison. All salt analogues interacted with the same hydrophobic pocket as BH10, primarily through their carbonyl groups. BH10 formed hydrogen bonds with residues VAL-465, VAL-512, and VAL-606, and exhibited a docking score of −5.805 kcal/mol. In contrast, the naphthoimidazole salts demonstrated significantly stronger predicted binding affinities, with docking scores ranging from −7.703 to −8.842 kcal/mol, consistent with their enhanced biological potency. Among these, 7b showed nanomolar anticancer activity (IC50 = 22.97 nM) and the highest selectivity (41.43). Docking analysis revealed that 7b formed key hydrogen bonds with ILE-559 and VAL-606, suggesting that these interactions may contribute to its enhanced selectivity. Although 7b did not exhibit the most favorable docking score (−7.703 kcal/mol), the positioning of its nitro group at the 5-position may influence its binding orientation and reduce non-specific interactions, potentially explaining its superior selectivity despite a slightly lower predicted affinity. Other analogues, such as 7c and 7e, exhibited higher docking scores (−8.828 and −8.842 kcal/mol, respectively) but displayed relatively lower selectivity compared to 7b. This suggests that although a general correlation exists between docking energy and biological potency, selectivity may also depend on specific molecular interactions or steric factors not captured by docking simulations.

3. Experimental

3.1. Chemistry

3.1.1. General Information

All starting materials, solvents, and reagents were reagent grade, commercially obtained, and used as received without further purification. Reaction progress was monitored using thin-layer chromatography (TLC) on Merck 60-F254 (20–25 μm, Merck, Darmstadt, Germany) silica gel plates, visualized under UV light. Flash chromatography was performed using 200–300 mesh silica gel, with detection under UV light at 254 and 284 nm. 1H NMR and 13C NMR spectra were recorded on Bruker ARX-400 spectrometers (Bruker, Singapore) using CDCl3 or DMSO-d6 as solvents, with tetramethylsilane (TMS) as the internal standard. Low-resolution mass spectra were acquired in ESI mode using an Elite mass spectrometer. High-resolution mass spectrometry (ESI-MS) was performed by the Bioanalytical Mass Spectrometry Unit at UNSW.
General procedure A: A flask was loaded with BH10 analogues (1a–h) (0.2 mmol, 1.0 equiv.), acetonitrile (5.0 mL), and MeI (0.4 mmol, 2.0 equiv.). The reaction was stirred at room temperature for 12 h under a nitrogen atmosphere. The solvent was then evaporated, the residue filtered, and the precipitate washed with EtOAc under vacuum to afford salt compounds 2a–h.
General procedure B: The corresponding dichloronaphthoquinone (3a–f) (2.0 mmol, 1.0 equiv.) was dissolved in 10.0 mL of ethanol under a nitrogen atmosphere, followed by the addition of 200 μL of a 25% methylamine solution and triethylamine (6.0 mmol, 3.0 equiv.). The reaction mixture was stirred at room temperature for 18 h. The solvent was evaporated, and the resulting red residue was filtered and washed with hexane under vacuum, yielding the corresponding intermediates (4a–f).
General procedure C: A solution of intermediates (4a–f) (1.0 mmol, 1.0 equiv.) in acetic anhydride (1.5 mL) was prepared under a nitrogen atmosphere, and one drop of concentrated H2SO4 was added as a catalyst. The reaction mixture was stirred at room temperature for 1.5 h. Subsequently, 5 mL of water was added dropwise to quench excess acetic anhydride, with continuous stirring for an additional 5 min. The reaction mixture was then extracted with ethyl acetate (3 × 10 mL). The combined organic layers were washed with saturated NaHCO3 and brine, dried over anhydrous Na2SO4, and concentrated under reduced pressure. The residue was purified by silica gel column chromatography using n-hexane/EtOAc (4:1) as the eluent, affording the corresponding intermediates (5a–f).
General procedure D: The appropriate intermediates (5a–f) (0.5 mmol, 1.0 equiv.) were dissolved in 4.0 mL of toluene under a nitrogen atmosphere, followed by the dropwise addition of methylamine (0.6 mmol, 1.2 equiv.) and triethylamine (0.6 mmol, 1.2 equiv.). The reaction mixture was stirred at room temperature for 1 h, after which the precipitate was collected by vacuum filtration, washed with water and ethanol, and dried to afford intermediates (6a–f).
General procedure E: To a solution of intermediates (6a–f) (0.3 mmol, 1.0 equiv.) in EtOH/EtOAc (1:1) (2.0 mL) under a nitrogen atmosphere, 48% HBr was added dropwise. The reaction mixture was stirred at 45 °C for 4 h, then allowed to continue stirring at room temperature overnight. The solvent was then evaporated, and the crude product was purified by flash column chromatography on silica (MeOH/DCM 1:10), affording the final compounds (7a–f).
General procedure F: A 25 mL sealed tube was charged with imidazole starting materials (8, 10, 12, 14, 16a–c, and 18) (0.4 mmol, 1.0 equiv.) and MeI (1.5 mL). The reaction mixture was sealed and stirred at 70 °C for 8 h. The MeI was evaporated by a stream of nitrogen, and the residue was filtered and washed with EtOAc under vacuum, yielding the salt compounds (9, 11, 13, 15, 17a–c, and 19).

3.1.2. Synthesis of Intermediates

2-Chloro-3-(methylamino)naphthalene-1,4-dione (4a) [47]. Following general procedure B (2 mmol scale), 4a (397.9 mg, 1.80 mmol, 90% yield) was obtained as a red solid. 1H NMR (400 MHz, CDCl3) δ 8.06 (dd, J = 7.6, 1.3 Hz, 1H), 7.95 (dd, J = 7.6, 1.3 Hz, 1H), 7.69–7.62 (m, 1H), 7.56 (td, J = 7.6, 1.3 Hz, 1H), 3.38 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 180.4, 145.0, 134.9, 132.7, 132.3, 129.7, 126.7, 126.7, 32.5. MS (+ESI) calcd for C11H8ClN2 [M + H]+, 222.03; found, 222.10.
3-Chloro-2-(methylamino)-5-nitronaphthalene-1,4-dione (4b) [50]. Following general procedure B (2 mmol scale), 4b (409.6 mg, 1.54 mmol, 77% yield) was obtained as a red solid. 1H NMR (400 MHz, DMSO-d6) δ 8.23–8.14 (m, 1H), 8.07–7.98 (m, 1H), 7.90 (t, J = 7.9 Hz, 1H), 7.75 (d, J = 5.8 Hz, 1H), 3.29 (d, J = 5.6 Hz, 3H). 13C NMR (101 MHz, DMSO-d6) δ 178.0, 148.2, 136.3, 134.2, 133.6, 129.1, 128.6, 128.5, 126.7, 32.8. MS (+ESI) calcd for C11H8ClN2O4 [M + H]+, 267.02; found, 267.10.
3-Chloro-2-(methylamino)-6-nitronaphthalene-1,4-dione (4c) [50]. Following general procedure B (2 mmol scale), 4c (430.9 mg, 1.62 mmol, 81% yield) was obtained as a red solid. 1H NMR (400 MHz, CDCl3) δ 8.86 (d, J = 2.3 Hz, 1H), 8.56 (dd, J = 8.5, 2.3 Hz, 1H), 8.37 (d, J = 8.5 Hz, 1H), 6.24 (s, 1H), 3.52 (dd, J = 5.8 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 178.8, 150.2, 129.0, 128.6, 126.7, 121.9, 29.7. HRMS (+ESI) calcd for C11H7ClN2NaO4 [M + Na]+, 288.9987; found, 288.9987.
3-Chloro-6-methoxy-2-(methylamino)naphthalene-1,4-dione (4d). Following general procedure B (2 mmol scale), 4d (411.6 mg, 1.64 mmol, 82% yield) was obtained as a red solid. MP: 226–227 °C. 1H NMR (400 MHz, CDCl3) δ 7.99 (d, J = 8.6 Hz, 1H), 7.63 (d, J = 2.7 Hz, 1H), 7.08 (dd, J = 8.6, 2.7 Hz, 1H), 6.24 (s, 1H), 3.97 (s, 3H), 3.47 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 179.1, 165.3, 145.1, 135.4, 129.5, 129.1, 122.9, 120.9, 118.8, 110.7, 77.4, 77.0, 76.7, 56.0, 32.5. IR (ATR): νmax 3332, 2943, 1665, 1590, 1572, 1516, 1442, 1350, 1300, 1270, 1245, 1081, 836, 745 cm−1. HRMS (+ESI) calcd for C12H10ClNO3 [M + H]+, 252.0422; found, 252.0423.
2-Chloro-6-methyl-3-(methylamino)naphthalene-1,4-dione (4e). Following general procedure B (2 mmol scale), 4e (376.0 mg, 1.60 mmol, 80% yield) was obtained as a red solid. MP: 191–192 °C. 1H NMR (400 MHz, CDCl3) δ 8.16–7.77 (m, 2H), 7.57–7.39 (m, 1H), 6.13 (s, 1H), 3.46 (d, J = 3.4 Hz, 3H), 2.49 (d, J = 9.4 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 180.8, 180.2, 146.5, 143.3, 135.6, 133.1, 127.4, 127.2, 127.1, 127.0, 77.4, 77.0, 76.7, 32.6, 22.0. IR (ATR): νmax 3315, 3298, 2938, 1677, 1589, 1563, 1512, 1415, 1306, 1259, 1132, 1071, 838, 738 cm−1. HRMS (+ESI) calcd for C12H10ClNNaO2 [M + Na]+, 258.0292; found, 258.0293.
7-Chloro-6-(methylamino)isoquinoline-5,8-dione (4f) [51]. Following general procedure B (2 mmol scale), 4f (351.4 mg, 1.44 mmol, 72% yield) was obtained as a red solid. 1H NMR (400 MHz, CDCl3) δ 9.41 (d, J = 0.9 Hz, 1H), 9.00 (d, J = 4.9 Hz, 1H), 7.83 (dd, J = 5.0, 0.8 Hz, 1H), 6.05 (s, 1H), 3.49 (d, J = 5.8 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 180.4, 179.9, 156.4, 154.4, 148.7, 148.3, 119.3, 118.2. MS (+ESI) calcd for C12H11ClN3O2 [M + MeCN + H]+, 264.05; found, 264.10.
N-(3-Chloro-1,4-dioxo-1,4-dihydronaphthalen-2-yl)-N-methylacetamide (5a) [47]. Following general procedure C (1 mmol scale), 5a (241.6 mg, 0.92 mmol, 92% yield) was obtained as a brown solid. 1H NMR (400 MHz, CDCl3) δ 8.26–8.10 (m, 2H), 7.91–7.75 (m, 2H), 3.18 (s, 3H), 2.13 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 179.7, 179.2, 177.8, 134.9, 134.7, 134.2, 133.7, 133.3, 131.5, 131.3, 127.6, 35.1, 21.9. MS (+ESI) calcd for C13H11ClNO3 [M + H]+, 264.04; found, 264.10.
N-(3-chloro-5-nitro-1,4-dioxo-1,4-dihydronaphthalen-2-yl)-N-methylacetamide (5b). Following general procedure C (1 mmol scale), 5b (200.1 mg, 0.65 mmol, 65% yield) was obtained as a yellow solid. MP: 95–96 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.38–8.32 (m, 1H), 8.29–8.09 (m, 2H), 3.01 (s, 3H), 1.90 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 176.5, 176.4, 148.3, 142.0, 136.4, 136.0, 132.7, 132.5, 128.4, 122.1, 23.3, 22.1. IR (ATR): νmax 3408, 1679, 1599, 1539, 1375, 1323, 1267, 1141, 1002, 689 cm−1. HRMS (+ESI) calcd for C13H9ClN2NaO5 [M + Na]+, 331.0092; found, 331.0093.
N-(3-Chloro-6-methoxy-1,4-dioxo-1,4-dihydronaphthalen-2-yl)-N-methylacetamide (5d). Following general procedure C (1 mmol scale), 5d (222.7 mg, 0.76 mmol, 76% yield) was obtained as a yellow solid. MP: 135–136 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.09–8.02 (m, 1H), 7.53 (d, J = 2.7 Hz, 1H), 7.46–7.42 (m, 1H), 3.97 (s, 3H), 3.03 (d, J = 13.6 Hz, 3H), 1.86 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 178.2, 164.5, 131.9, 130.0, 124.6, 123.2, 121.4, 120.8, 111.4, 110.1, 102.8, 56.7, 33.2, 22.1. IR (ATR): νmax 3259, 1672, 1586, 1295, 1140, 1074, 996, 745 cm−1. HRMS (+ESI) calcd for C14H12ClNNaO4 [M + Na]+, 316.0347; found, 316.0348.
N-(3-Chloro-7-methyl-1,4-dioxo-1,4-dihydronaphthalen-2-yl)-N-methylacetamide (5e). Following general procedure C (1 mmol scale), 5e (114.8 mg, 0.41 mmol, 41% yield) was obtained as a yellow solid. MP: 175–176 °C. 1H NMR (400 MHz, CDCl3) δ 8.13–8.07 (m, 1H), 8.02–7.96 (m, 1H), 7.64 (d, J = 7.9 Hz, 1H), 3.21 (s, 3H), 2.56 (d, J = 2.5 Hz, 3H), 1.96 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 178.1, 177.6, 135.6, 131.2, 129.1, 128.0, 127.8, 21.9, 21.9. IR (ATR): νmax 3258, 2919, 1659, 1592, 1501, 1372, 1288, 1240, 1135, 1038, 839, 740 cm−1. HRMS (+ESI) calcd for C14H12ClNNaO3 [M + Na]+, 300.0398; found, 300.0397.
N-Methyl-N-(3-(methylamino)-1,4-dioxo-1,4-dihydronaphthalen-2-yl)acetamide (6a) [47]. Following general procedure D (0.5 mmol scale), 6a (73.1 mg, 0.28 mmol, 57% yield) was obtained as a red solid. 1H NMR (400 MHz, CDCl3) δ 8.16 (d, J = 7.7, Hz, 1H), 8.09 (d, J = 7.7 Hz, 1H), 7.82–7.75 (m, 1H), 7.71–7.63 (m, 1H), 6.29 (s, 1H), 3.18–3.08 (m, 6H), 2.00 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 182.2, 179.3, 172.3, 144.1, 135.4, 132.7, 132.6, 130.1, 126.8, 126.7, 118.3, 77.4, 77.1, 76.7, 37.4, 30.6, 21.9. MS (+ESI) calcd for C14H15N2O3 [M + H]+, 259.11; found, 259.15.
N-Methyl-N-(3-(methylamino)-5-nitro-1,4-dioxo-1,4-dihydronaphthalen-2-yl)acetamide (6b). Following general procedure D (0.5 mmol scale), 6b (60.0 mg, 0.22 mmol, 45% yield) was obtained as a red solid. MP: 170–171 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.22 (dd, J = 6.5, 2.5 Hz, 1H), 8.10–8.00 (m, 2H), 7.92 (t, J = 7.9 Hz, 1H), 2.92 (s, 6H), 1.85 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 171.9, 171.8, 163.5, 148.5, 148.1, 136.5, 134.1, 133.9, 128.9, 128.6, 126.5, 37.1, 30.4, 22.0. IR (ATR): νmax 3315, 1672, 1605, 1532, 1379, 1337, 1289, 1107, 698 cm−1. HRMS (+ESI) calcd for C14H13N3NaO5 [M + Na]+, 326.0747; found, 326.0747.
N-(6-Methoxy-3-(methylamino)-1,4-dioxo-1,4-dihydronaphthalen-2-yl)-N-methylacetamide (6d). Following general procedure D (0.5 mmol scale), 6d (80.6 mg, 0.28 mmol, 56% yield) was obtained as a red solid. MP: 167–168 °C. 1H NMR (400 MHz, CDCl3) δ 8.07 (d, J = 8.6 Hz, 1H), 7.51 (d, J = 2.7 Hz, 1H), 7.24 (dd, J = 8.6, 2.7 Hz, 1H), 6.18 (d, J = 7.5 Hz, 1H), 3.93 (s, 3H), 3.09 (d, J = 5.7 Hz, 6H). 13C NMR (101 MHz, CDCl3) δ 182.4, 179.0, 172.3, 163.1, 143.9, 131.7, 128.9, 125.9, 121.4, 118.0, 110.3, 55.9, 37.5, 30.5, 21.9. IR (ATR): νmax 3305, 2931, 1659, 1597, 1568, 1515, 1423, 1349, 1311, 1246, 1067, 1022, 756 cm−1. HRMS (+ESI) calcd for C15H16N2NaO4 [M + Na]+, 311.1002; found, 311.1002.
N-Methyl-N-(7-methyl-3-(methylamino)-1,4-dioxo-1,4-dihydronaphthalen-2-yl)acetamide (6e). Following general procedure D (0.5 mmol scale), 6e (54.4 mg, 0.20 mmol, 40% yield) was obtained as an orange solid. MP: 142–143 °C. 1H NMR (400 MHz, CDCl3) δ 8.02–7.94 (m, 2H), 7.46 (dd, J = 8.0, 1.8 Hz, 1H), 3.14–3.09 (m, 6H), 2.51 (s, 3H), 1.99 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 181.8, 179.5, 172.3, 147.0, 144.09, 133.2, 132.6, 127.7, 127.3, 127.0, 37.4, 30.5, 22.1, 21.9. IR (ATR): νmax 3312, 1669, 1585, 1571, 1515, 1423, 1313, 1079, 751 cm−1. HRMS(+ESI) calcd for C15H16N2NaO3 [M + Na]+, 295.1053; found, 295.1053.

3.1.3. Synthesis of Final Compounds

4-(2-((1,4-Dioxo-1,4-dihydronaphthalen-2-yl)amino)ethyl)-4-methylmorpholin-4-ium iodide (2a). Following general procedure A (1.0 mmol scale), 2a (304.1 mg, 0.71 mmol, 71% yield) was obtained as an orange solid. MP: 253–254 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.05–7.93 (m, 2H), 7.86–7.77 (m, 2H), 7.43 (s, 1H), 4.19 (q, J = 6.5 Hz, 2H), 3.97 (t, J = 4.8 Hz, 4H), 3.76 (t, J = 6.4 Hz, 2H), 3.54 (t, J = 5.1 Hz, 4H), 3.27 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 180.3, 175.8, 148.0, 135.2, 133.4, 131.7, 130.9, 127.2, 126.5, 63.1, 60.2, 59.8, 47.4., 38.0. IR (ATR): νmax 3269, 2970, 1662, 1622, 1602, 1571, 1501, 1337, 1303, 1253, 1124, 881, 724 cm−1. HRMS(+ESI) calcd for C17H21IN2O3 [M–I]+, 301.1547; found, 301.1539.
1-(3-((1,4-Dioxo-1,4-dihydronaphthalen-2-yl)amino)propyl)-1-methylpiperidin-1-ium iodide (2b). Following general procedure A (1.0 mmol scale), 2b (327.0 mg, 0.74 mmol, 74% yield) was obtained as a red solid. MP: 225–226 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.01–7.99 (m, 2H), 7.88–7.74 (m, 2H), 7.61 (s, 1H), 3.80 (d, J = 6.8 Hz, 2H), 3.43–3.36 (m, 2H), 3.32–3.26 (m, 2H), 3.00 (s, 3H), 2.10–2.00 (m, 2H), 1.81–1.74 (m, 4H), 1.58–1.46 (m, 2H). 13C NMR (101 MHz, DMSO-d6) δ 180.6, 176.0, 135.5, 133.3, 132.4, 130.5, 127.0, 126.3, 60.6, 60.3, 47.5, 41.6, 23.8, 21.1, 19.7. IR (ATR): νmax 3352, 3002, 2943, 2887, 1671, 1593, 1568, 1510, 1468, 1357, 1275, 1251, 769, 727 cm−1. HRMS(+ESI) calcd for C19H25IN2O2 [M–I]+, 313.1911; found, 313.1906.
2-((3-Chloro-1,4-dioxo-1,4-dihydronaphthalen-2-yl)amino)-N,N,N-trimethylethan-1-aminium iodide (2c). Following general procedure A (1.0 mmol scale), 2c (289.8 mg, 0.69 mmol, 69% yield) was red as a yellow solid. MP: 225–226 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.00 (dd, J = 7.5, 1.4 Hz, 2H), 7.88–7.77 (m, 2H), 7.58 (t, J = 6.9 Hz, 1H), 4.15 (q, J = 6.4 Hz, 2H), 3.60 (t, J = 6.0 Hz, 2H), 3.34 (s, 9H). 13C NMR (101 MHz, DMSO-d6) δ 180.6, 176.0, 145.5, 135.4, 133.5, 132.1, 130.7, 127.1, 126.3, 65.5, 65.4, 55.4, 53.2, 38.6, 15.7. IR (ATR): νmax 3225, 3179, 3006, 1681, 1600, 1573, 1504, 1480, 1334, 1292, 1257, 1132, 924, 723 cm−1. HRMS(+ESI) calcd for C15H18ClIN2O2 [M–I]+, 293.1051; found, 293.1048.
1-(2-((3-Chloro-1,4-dioxo-1,4-dihydronaphthalen-2-yl)amino)ethyl)-1-methylpiperidin-1-ium iodide (2d). Following general procedure A (1.0 mmol scale), 2d (345.5 mg, 0.75 mmol, 75% yield) was obtained as a red solid. MP: 212–213 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.03–7.97 (m, 2H), 7.89–7.76 (m, 2H), 7.54 (t, J = 6.9 Hz, 1H), 4.16 (d, J = 6.7 Hz, 2H), 3.61 (t, J = 6.5 Hz, 2H), 3.50–3.38 (m, 4H), 3.14 (s, 3H), 1.82 (q, J = 5.9 Hz, 4H), 1.56 (t, J = 6.2 Hz, 2H). 13C NMR (101 MHz, DMSO-d6) δ 180.6, 176.0, 145.7, 135.4, 133.4, 132.1, 130.7, 127.1, 126.3, 62.2, 61.0, 48.1, 37.8, 21.0, 19.7. IR (ATR): νmax 3312, 2995, 2945, 1673, 1602, 1572, 1526, 1337, 1252, 1137, 724 cm−1. HRMS(+ESI) calcd for C18H22ClIN2O2 [M–I]+, 333.1364; found, 333.1367.
3-((3-Chloro-1,4-dioxo-1,4-dihydronaphthalen-2-yl)amino)-N,N,N-trimethylpropan-1-aminium iodide (2e). Following general procedure A (1.0 mmol scale), 2e (295.1 mg, 0.68 mmol, 68% yield) was obtained as a red solid. MP: 159–160 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.00 (s, 1H), 7.98 (s, 1H), 7.87–7.81 (m, 1H), 7.78–7.72 (m, 1H), 7.64 (t, J = 6.2 Hz, 1H), 3.93 (dd, J = 6.5, 3.4 Hz, 4H), 3.61–3.50 (m, 2H), 3.49–3.38 (m, 4H), 3.30 (s, 2H), 3.16 (s, 3H), 2.08–1.97 (m, 2H). 13C NMR (101 MHz, DMSO-d6) δ 182.0, 181.9, 149.0, 135.4, 133.5, 132.8, 130.9, 126.4, 125.8, 100.3, 62.1, 60.3, 59.6, 46.7, 20.4. IR (ATR): νmax 3325, 3008, 1678, 1596, 1566, 1513, 1454, 1336, 1299, 1249, 1135, 718 cm−1. HRMS(+ESI) calcd for C16H20ClIN2O2 [M–I]+, 307.1213; found,307.1211.
4-(3-((3-Chloro-1,4-dioxo-1,4-dihydronaphthalen-2-yl)amino)propyl)-4-methylmorpholin-4-ium iodide (2f). Following general procedure A (1.0 mmol scale), 2f (385.5 mg, 0.81 mmol, 81% yield) was obtained as a red solid. MP: 217–218 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.00 (d, J = 7.6 Hz, 2H), 7.84–7.78 (m, 2H), 7.61 (s, 1H), 4.03–3.87 (m, 4H), 3.82 (q, J = 6.5 Hz, 2H), 3.58–3.50 (m, 2H), 3.44 (t, J = 4.8 Hz, 4H), 3.15 (s, 3H), 2.14–2.02 (m, 2H). 13C NMR (101 MHz, DMSO-d6) δ 180.6, 176.0, 135.4, 133.3, 132.4, 130.5, 127.0, 126.3, 62.0, 60.3, 59.5, 46.4, 41.4, 23.5. IR (ATR): νmax 3321, 2951, 2874, 1678, 1631, 1592, 1565, 1399, 1332, 1268, 1121, 845, 722 cm−1. HRMS(+ESI) calcd for C18H22ClIN2O3 [M–I]+, 349.1313; found, 349.1314.
4-(2-((3-Bromo-1,4-dioxo-1,4-dihydronaphthalen-2-yl)amino)ethyl)-4-methylmorpholin-4-ium iodide (2g). Following general procedure A (1.0 mmol scale), 2g (283.9 mg, 0.56 mmol, 56% yield) was obtained as a red solid. MP: 192–193 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.02–7.95 (m, 2H), 7.85–7.78 (m, 2H), 7.42 (t, J = 6.9 Hz, 1H), 4.19 (q, J = 6.6 Hz, 2H), 3.97 (t, J = 4.7 Hz, 4H), 3.77 (t, J = 6.3 Hz, 2H), 3.55 (q, J = 4.4 Hz, 4H), 3.29 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 180.3, 175.8, 148.0, 135.2, 133.4, 131.7, 130.9, 127.2, 126.4, 63.2, 60.2, 59.9, 47.5, 38.0. IR (ATR): νmax 3269, 3020, 2871, 1667, 1634, 1565, 1328, 1300, 1243, 965, 882, 794 cm−1. HRMS(+ESI) calcd for C17H20BrIN2O3 [M–I]+, 379.0652; found, 379.0659.
4-Methyl-4-(2-((3-methyl-1,4-dioxo-1,4-dihydronaphthalen-2-yl)amino)ethyl)morpholin-4-ium iodide (2h) [47]. Following general procedure A (1.0 mmol scale), 2h (278.5 mg, 0.63 mmol, 63% yield) was obtained as a red solid. MP: 159–160 °C. 1H NMR (400 MHz, DMSO-d6) δ 7.95 (d, J = 7.8 Hz, 2H), 7.84–7.66 (m, 2H), 6.64 (t, J = 6.8 Hz, 1H), 4.07–3.89 (m, 6H), 3.71 (t, J = 6.6 Hz, 2H), 3.56–3.46 (m, 4H), 3.25 (s, 3H), 2.05 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 182.7, 182.1, 146.7, 134.7, 132.8, 132.7, 131.2, 126.2, 125.7, 114.3, 60.3, 59.9, 38.1, 10.9. IR (ATR): νmax 3310, 3267, 3012, 1667, 1593, 1567, 1352, 1224, 1126, 1024, 1003, 919, 718 cm−1. HRMS(+ESI) calcd for C18H23IN2O3 [M–I]+, 315.1703; found, 315.1707.
1,2,3-Trimethyl-4,9-dioxo-4,9-dihydro-1H-naphtho [2,3-d]imidazol-3-ium bromide (7a). Following general procedure E (0.3 mmol scale), 7a (63.6 mg, 0.20 mmol, 66% yield) was obtained as a yellow solid. MP: 230–231 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.20 (dd, J = 5.7, 3.3 Hz, 2H), 8.01 (dd, J = 5.7, 3.3 Hz, 2H), 4.17 (s, 6H), 2.86 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 175.5, 153.6, 135.8, 132.1, 130.5, 127.3, 34.6, 10.5. IR (ATR): νmax 3429, 3360, 3004, 1674, 1582, 1527, 1402, 1251, 963, 717 cm−1. HRMS (+ESI) calcd for C14H13BrN2O2 [M–Br]+, 241.0972; found, 241.0959.
1,2,3-Trimethyl-5-nitro-4,9-dioxo-4,9-dihydro-1H-naphtho [2,3-d]imidazol-3-ium bromide (7b). Following general procedure E (0.3 mmol scale), 7b (49.5 mg, 0.15 mmol, 45% yield) was obtained as a dark brown solid. MP: 250–251 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.42 (dd, J = 7.8, 1.3 Hz, 1H), 8.31 (dd, J = 8.0, 1.3 Hz, 1H), 8.21 (t, J = 7.9 Hz, 1H), 4.17 (s, 3H), 4.11 (s, 3H), 2.87 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 173.6, 172.5, 154.3, 148.7, 137.3, 133.3, 130.3, 130.2, 129.6, 129.1, 122.3, 34.8, 34.7, 10.6. IR (ATR): νmax 3336, 1685, 1532, 1380, 1251, 994 cm−1. HRMS(+ESI) calcd for C14H12BrN3O4 [M–Br]+, 286.0822; found, 286.0816.
1,2,3-Trimethyl-6-nitro-4,9-dioxo-4,9-dihydro-1H-naphtho [2,3-d]imidazol-3-ium bromide (7c). Following general procedure E (0.3 mmol scale), 7c (45.5 mg, 0.12 mmol, 41% yield) was obtained as an orange solid. MP: 220–221 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.78–8.70 (m, 2H), 8.48–8.41 (m, 1H), 4.20 (d, J = 3.8 Hz, 6H), 2.90 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 174.0, 173.7, 154.2, 151.6, 135.9, 133.3, 130.9, 130.8, 129.7, 129.3, 121.7, 34.8, 34.8, 10.7, 10.3. IR (ATR): νmax 3030, 1678, 1607, 1532, 1346, 1258, 988, 716 cm−1. HRMS(+ESI) calcd for C14H12BrN3O4 [M–Br]+, 286.0822; found, 286.0822.
6-Methoxy-1,2,3-trimethyl-4,9-dioxo-4,9-dihydro-1H-naphtho [2,3-d]imidazol-3-ium bromide (7d). Following general procedure E (0.3 mmol scale), 7d (58.9 mg, 0.17 mmol, 56% yield) was obtained as a green solid. MP: 224–225 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.15 (d, J = 8.7 Hz, 1H), 7.59 (d, J = 2.7 Hz, 1H), 7.50 (dd, J = 8.7, 2.7 Hz, 1H), 4.16 (d, J = 1.9 Hz, 6H), 3.99 (s, 3H), 2.84 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 175.2, 174.6, 165.0, 153.4, 134.3, 130.6, 130.4, 130.2, 125.0, 120.5, 112.3, 56.9, 34.6, 34.5, 10.4. IR (ATR): νmax 3030, 1671, 1580, 1527, 1264, 1228, 981 cm−1. HRMS(+ESI) calcd for C15H15BrN2O3 [M–Br]+, 271.1077; found, 271.1076.
1,2,3,7-Tetramethyl-4,9-dioxo-4,9-dihydro-1H-naphtho [2,3-d]imidazol-3-ium bromide (7e). Following general procedure E (0.3 mmol scale), 7e (40.1 mg, 0.12 mmol, 40% yield) was obtained as a yellow solid. MP: 224–225 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.09 (d, J = 7.8 Hz, 1H), 8.00 (d, J = 1.8 Hz, 1H), 7.81 (dd, J = 7.9, 1.7 Hz, 1H), 4.17 (s, 6H), 2.85 (s, 3H), 2.54 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 175.6, 175.3, 153.5, 146.9, 136.1, 132.0, 130.5, 130.4, 129.8, 127.7, 127.6, 34.6, 34.6, 21.8, 10.5. IR (ATR): νmax 3441, 3411, 2999, 1674, 1591, 1520, 1398, 1261, 983, 874, 731 cm−1. HRMS(+ESI) calcd for C15H15BrN2O2 [M–Br]+, 255.1128; found, 255.1127.
1,2,3-Trimethyl-4,9-dioxo-4,9-dihydro-3H-imidazo [4,5-g]isoquinolin-1-ium bromide (7f). Following general procedure E (0.3 mmol scale), 7f (64.5 mg, 0.20 mmol, 67% yield) was obtained as a brown solid. MP: 198–199 °C. 1H NMR (400 MHz, DMSO-d6) δ 9.37 (d, J = 0.8 Hz, 1H), 9.25 (d, J = 5.0 Hz, 1H), 8.08 (dd, J = 5.0, 0.8 Hz, 1H), 4.18 (d, J = 4.3 Hz, 6H), 2.88 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 175.2, 174.8, 157.3, 154.2, 148.3, 138.0, 130.6, 130.1, 125.1, 119.4, 34.7, 10.6. IR (ATR): νmax 3004, 1675, 1580, 1532, 1413, 1270, 969 cm−1. HRMS(+ESI) calcd for C13H12BrN3O2 [M–Br]+, 242.0924; found, 242.0921.
1,2,3-Trimethyl-1H-naphtho [2,3-d]imidazol-3-ium iodide (9). Following general procedure F (0.4 mmol scale), 9 (63.5 mg, 0.19 mmol, 47% yield) was obtained as a brown solid. MP: 212–213 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.53 (s, 2H), 8.20–8.14 (m, 2H), 7.71–7.62 (m, 2H), 4.06 (s, 6H), 2.95 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 157.1, 131.2, 131.1, 128.6, 126.8, 110.2, 32.3, 11.6. IR (ATR): νmax 3457, 2978, 2869, 1545, 1508, 1222, 1039, 956, 875, 749 cm−1. HRMS (+ESI) calcd for C10H13IN2 [M–I]+, 211.1230; found, 211.1229.
1,2,3-Trimethyl-1H-benzo[d]imidazol-3-ium iodide (11) [52]. Following general procedure F (0.4 mmol scale), 11 (74.9 mg, 0.26 mmol, 65% yield) was obtained as a pink solid. MP: 186–187 °C. 1H NMR (400 MHz, DMSO-d6) δ 7.99 (d, J = 9.4 Hz, 2H), 7.65 (d, J = 9.4 Hz, 2H), 4.00 (s, 6H), 2.87 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 152.8, 131.8, 126.3, 113.2, 32.1, 11.0. IR (ATR): νmax 3353, 3011, 2973, 1539, 1469, 1358, 1127, 1047, 762 cm−1. HRMS (+ESI) calcd for C10H13IN2 [M–I]+, 161.1073; found, 161.1064.
1,3-Dimethyl-1H-benzo[d]imidazol-3-ium iodide (13) [53]. Following general procedure F (0.4 mmol scale), 13 (43.8 mg, 0.16 mmol, 40% yield) was obtained as a beige solid. MP: 127–128 °C. 1H NMR (400 MHz, DMSO-d6) δ 9.65 (s, 1H), 8.03 (dd, J = 6.2, 3.1 Hz, 2H), 7.72 (dd, J = 6.3, 3.1 Hz, 2H), 4.09 (s, 6H). 13C NMR (101 MHz, DMSO-d6) δ 143.6, 132.2, 126.9, 113.9, 33.7. IR (ATR): νmax 3512, 3146, 3056, 1597, 1571, 1446, 755 cm−1. HRMS (+ESI) calcd for C9H11IN2 [M–I]+, 147.0917; found, 147.0907.
1,2,3-Trimethyl-4,9-dioxo-4,9-dihydro-1H-naphtho [2,3-d]imidazol-3-ium iodide (15). Following general procedure F (4.0 mmol scale), 15 (55.9 mg, 0.15 mmol, 38% yield) was obtained as a black solid. MP: 205–206 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.20 (dd, J = 5.7, 3.3 Hz, 2H), 8.01 (dd, J = 5.8, 3.3 Hz, 2H), 4.17 (s, 6H), 2.85 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 175.5, 153.6, 135.8, 134.4, 132.1, 130.5, 127.3, 126.8, 34.6, 10.4. IR (ATR): νmax 3051, 1676, 1584, 1525, 1251, 1209, 960, 708 cm−1. HRMS (+ESI) calcd for C14H13IN2O2 [M–I]+, 241.0972; found, 241.0973.
4-(2-(4-((4,9-Dioxo-2-(trifluoromethyl)-4,9-dihydro-1H-naphtho [2,3-d]imidazol-1-yl)methyl)-1H-1,2,3-triazol-1-yl)ethyl)-4-methylmorpholin-4-ium iodide (17a). Following general procedure A (0.2 mmol scale), 17a (46.9 mg, 0.08 mmol, 39% yield) was obtained as a yellow solid. MP: 196–197 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.33 (s, 1H), 8.20–8.09 (m, 2H), 8.00–7.89 (m, 2H), 5.93 (d, J = 2.9 Hz, 2H), 4.98 (t, J = 6.8 Hz, 2H), 4.04 (t, J = 6.9 Hz, 2H), 3.99–3.83 (m, 4H), 3.55–3.41 (m, 4H), 3.18 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 178.2, 176.6, 141.9, 141.7, 140.4, 135.4, 135.4, 134.9, 134.2, 133.1, 132.8, 127.3, 127.1, 125.0, 120.0, 63.8, 61.9, 60.1, 59.9, 52.2, 46.9, 43.0, 42.9, 26.7. IR (ATR): νmax 2961, 1684, 1592, 1479, 1258, 1213, 1124, 1054, 706 cm−1. HRMS(+ESI) calcd for C22H22F3IN6O3 [M–I]+, 475.1700; found, 475.1705.
1-(2-(4-((4,9-Dioxo-2-(trifluoromethyl)-4,9-dihydro-1H-naphtho [2,3-d]imidazol-1-yl)methyl)-1H-1,2,3-triazol-1-yl)ethyl)-1-methylpiperidin-1-ium iodide (17b). Following general procedure A (0.2 mmol scale), 17b (42.0 mg, 0.07 mmol, 35% yield) was obtained as a yellow solid. MP: 213–214 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.36 (s, 1H), 8.22–8.03 (m, 2H), 8.02–7.82 (m, 2H), 5.93 (s, 2H), 4.97 (t, J = 6.8 Hz, 2H), 3.92 (t, J = 6.8 Hz, 2H), 3.38–3.28 (m, 4H), 3.06 (s, 3H), 1.78–1.69 (m, 4H), 1.60–1.39 (m, 2H). 13C NMR (101 MHz, DMSO-d6) δ 178.1, 176.6, 141.9, 141.7, 140.4, 135.4, 134.9, 134.2, 133.1, 132.8, 127.3, 127.1, 125.0, 120.0, 61.1, 60.9, 47.8, 43.3, 43.0, 31.2, 20.9, 19.7. IR (ATR): νmax 3113, 2950, 1688, 1593, 1468, 1259, 1214, 1193, 1128, 1056, 705 cm−1. HRMS(+ESI) calcd for C23H24F3IN6O2 [M–I]+, 473.1907; found, 473.1909.
1-(3-(4-((4,9-Dioxo-2-(trifluoromethyl)-4,9-dihydro-1H-naphtho [2,3-d]imidazol-1-yl)methyl)-1H-1,2,3-triazol-1-yl)propyl)-1-methylpiperidin-1-ium iodide (17c). Following general procedure A (0.2 mmol scale), 17c (49.1 mg, 0.08 mmol, 42% yield) was obtained as a yellow solid. MP: 240–241 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.26 (s, 1H), 8.20–8.05 (m, 2H), 7.99–7.86 (m, 2H), 5.91 (s, 2H), 4.45 (t, J = 6.9 Hz, 2H), 3.36–3.25 (m, 6H), 2.96 (s, 3H), 2.34–2.21 (m, 2H), 1.84–1.60 (m, 4H), 1.59–1.40 (m, 2H). 13C NMR (101 MHz, DMSO-d6) δ 178.2, 176.6, 141.6, 141.6, 140.4, 135.3, 134.9, 134.2, 133.1, 132.8, 127.2, 127.1, 124.3, 120.0, 60.6, 48.0, 47.2, 43.0, 22.7, 21.0, 19.7. IR (ATR): νmax 3399, 3069, 2951, 1684, 1591, 1464, 1258, 1214, 1185, 1131, 1052, 1024, 707 cm−1. HRMS (+ESI) calcd for C24H26F3IN6O2 [M–I]+, 487.2064; found, 487.2063.
1-Methyl-1-(3-(2-methyl-4,9-dioxo-4,9-dihydro-1H-naphtho [2,3-d]imidazol-1-yl)propyl) piperidin-1-ium iodide (19). Following general procedure A (0.2 mmol scale), 19 (47.9 mg, 0.10 mmol, 50% yield) was obtained as an orange solid. MP: 264–265 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.10–8.03 (m, 2H), 7.86 (dd, J = 5.7, 3.3 Hz, 2H), 4.45 (t, J = 7.2 Hz, 2H), 3.52–3.44 (m, 2H), 3.40–3.30 (m, 4H), 3.01 (s, 3H), 2.58 (s, 3H), 2.24 (d, J = 3.9 Hz, 2H), 1.79 (d, J = 6.0 Hz, 4H), 1.60–1.46 (m, 2H). 13C NMR (101 MHz, DMSO-d6) δ 178.8, 176.1, 153.9, 142.9, 134.5, 134.3, 133.2, 132.8, 132.8, 126.8, 126.6, 60.6, 47.5, 42.8, 22.7, 21.1, 19.8, 13.6. IR (ATR): νmax 3490, 2867, 1667, 1585, 1540, 1512, 1468, 1428, 1203, 986, 721 cm−1. HRMS(+ESI) calcd for C21H26IN3O2 [M–I]+, 352.2020; found, 352.2017.

3.2. In Vitro Cell Viability Assay

Reagents and equipment: phosphate-buffered saline (PBS) (Sigma Aldrich, St. Louis, MO, USA), 10× Trypsin-EDTA solution (Sigma Aldrich, 59418C), Dulbecco’s Modified Eagle’s Medium (Sigma Aldrich), foetal bovine serum (FBS), and 100× penicillin-streptomycin solution (Sigma Aldrich P4333). The MTT reagent was prepared by dissolving 5 mg/mL MTT powder in sterile PBS, followed by filtration, whereas the MTT solvent contained 4 mM HCl and 0.1% Nonidet P-40 in isopropanol. Dimethyl sulfoxide (DMSO) was also sourced from Sigma Aldrich. Absorbance measurements were acquired using Kaleido 1.0 software coupled with an EnSight™ HH3400 Multimode Plate Reader (PerkinElmer, Waltham, MA, USA). HEC-1-A endometrial cancer cells were obtained from ATCC, while MAD11 endometrial stromal cells were provided by Dr. Hui Li (University of Virginia). MAD11 cells, derived from non-cancerous donors, were immortalized via human telomerase reverse transcriptase (hTERT).
Method: The methods were adapted from Byrne et al. (2014) [20]. Cells were cultured in DMEM supplemented with 10% FBS and 1% Pen-Strep solution (100 U/mL penicillin and 0.1 mg/mL streptomycin). Upon reaching ~70% confluence, the cells were washed with sterile PBS and detached using a 1× trypsin-EDTA solution. The cells were then resuspended in culture media, counted, and seeded into sterile 96-well tissue culture plates (2500 cells per well for MAD11; 5000 cells per well for HEC-1-A). The cells were incubated at 37 °C with 5% CO2 for 24 h prior to drug treatment. Drugs were serially diluted in culture medium to final concentrations of 100, 50, 25, 12.5, 6.3, 3.1, 1.6, and 0.8 µM per well and applied in triplicate. For compounds 7a–f and 15, as their IC₅₀ values were below 0.8 µM, an additional set of three biological replicates was conducted using a lower concentration range (500, 250, 125, 63, 31, 16, 8, and 4 nM). To minimize variations due to DMSO (vehicle), both drug dilutions and control wells received the same final concentration of DMSO. After 48 h of incubation at 37 °C with 5% CO2, cell viability was assessed by adding 20 µL/well of MTT reagent for 3 h. Supernatants were aspirated, and formazan crystals were dissolved in MTT solvent before absorbance was measured at 590/620 nm using an EnSight™ HH3400 Multimode Plate Reader. Cell viability was expressed as a percentage of the vehicle (DMSO-treated) control, with results reported as mean ± SEM from three independent experiments. IC50 values were determined using GraphPad Prism 9.

3.3. In Silico Molecular Docking Study

Molecular docking studies were performed using Maestro 14.1 (Schrödinger, Inc., New York, NY, USA) in extra-precision mode. The X-ray crystal structure of Keap1 (PDB: 4XMB) was imported into Maestro and prepared using the Protein Preparation Workflow. Ligand structures (BH10 and 7a–f) were optimized using LigPrep. Receptor grid generation and ligand docking were carried out using default parameters. The resulting protein–ligand complexes were analyzed with Discovery Studio Visualizer (Accelrys Inc., San Diego, CA, USA) and PyMOL (Schrödinger, Inc., New York, NY, USA).

4. Conclusions

In this study, a library of salt compounds was synthesized based on BH10, and their structure–activity relationship was carefully explored. The 1,4-naphthoquinone series of salt compounds did not exhibit significant improvement and even lost their potency. However, the naphthoimidazole series of salt compounds demonstrated promising potency and remarkable selectivity. In particular, compound 7b achieved the balance of potency and selectivity, with an IC50 of 22.97 nM and an outstanding selectivity of 41.43, and can be regarded as the most promising candidate for further research. In future work, we will expand the cell line panel and proceed with in vivo studies to assess both the anticancer activity and pharmacokinetic properties of the compounds.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules30091938/s1, Table S1: Comparison with Selected Reported Glycolysis Inhibitors and salt anticancer agents; 1H & 13C NMR spectra, MS and IR data for all synthesized final compounds [31,33,39,40,41,42,43,44,45,46,47,48,49].

Author Contributions

Conceptualization: N.K. and F.L.B.; methodology: Y.C.; software: Y.C.; validation: Y.C. and E.M.O.; formal analysis: Y.C. and T.T.Y.; investigation: Y.C. and T.T.Y.; resources: N.K. and F.L.B.; data curation: Y.C.; writing—original draft: Y.C.; writing—review and editing: T.T.Y., N.K. and F.L.B.; visualization: Y.C.; supervision: N.K., F.L.B., D.S.B. and K.L.H.; project administration: N.K., F.L.B. and T.T.Y.; funding acquisition: N.K., F.L.B. and K.L.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by Cancer Institute NSW Fellowships (Early Career 2018/ECF003 and Career Development 2021/CDF1120) to Frances Byrne.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article; further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Deng, D.; Yan, N. GLUT, SGLT, and SWEET: Structural and mechanistic investigations of the glucose transporters. Protein Sci. 2016, 25, 546–558. [Google Scholar] [CrossRef] [PubMed]
  2. Uzlova, E.V.; Zimatkin, S.M. Cellular ATP Synthase. Biol. Bull. Rev. 2021, 11, 134–142. [Google Scholar] [CrossRef]
  3. Parashar, A.; Jacob, V.D.; Gideon, D.A.; Manoj, K.M. Hemoglobin catalyzes ATP-synthesis in human erythrocytes: A murburn model. J. Biomol. Struct. Dyn. 2022, 40, 8783–8795. [Google Scholar] [CrossRef] [PubMed]
  4. Muhleip, A.; McComas, S.E.; Amunts, A. Structure of a mitochondrial ATP synthase with bound native cardiolipin. eLife 2019, 8, e51179. [Google Scholar] [CrossRef]
  5. Lizak, B.; Szarka, A.; Kim, Y.; Choi, K.S.; Nemeth, C.E.; Marcolongo, P.; Benedetti, A.; Banhegyi, G.; Margittai, E. Glucose Transport and Transporters in the Endomembranes. Int. J. Mol. Sci. 2019, 20, 5898. [Google Scholar] [CrossRef]
  6. Liberti, M.V.; Locasale, J.W. The Warburg Effect: How Does it Benefit Cancer Cells? Trends Biochem. Sci. 2016, 41, 211–218. [Google Scholar] [CrossRef]
  7. Gatenby, R.A.; Gillies, R.J. Why do cancers have high aerobic glycolysis? Nat. Rev. Cancer 2004, 4, 891–899. [Google Scholar] [CrossRef] [PubMed]
  8. Schiliro, C.; Firestein, B.L. Mechanisms of Metabolic Reprogramming in Cancer Cells Supporting Enhanced Growth and Proliferation. Cells 2021, 10, 1056. [Google Scholar] [CrossRef]
  9. Xia, L.; Oyang, L.; Lin, J.; Tan, S.; Han, Y.; Wu, N.; Yi, P.; Tang, L.; Pan, Q.; Rao, S.; et al. The cancer metabolic reprogramming and immune response. Mol. Cancer 2021, 20, 28. [Google Scholar] [CrossRef]
  10. Zhang, Y.; Li, Q.; Huang, Z.; Li, B.; Nice, E.C.; Huang, C.; Wei, L.; Zou, B. Targeting Glucose Metabolism Enzymes in Cancer Treatment: Current and Emerging Strategies. Cancers 2022, 14, 4568. [Google Scholar] [CrossRef]
  11. Pereyra, C.E.; Dantas, R.F.; Ferreira, S.B.; Gomes, L.P.; Silva, F.P., Jr. The diverse mechanisms and anticancer potential of naphthoquinones. Cancer Cell Int. 2019, 19, 207. [Google Scholar] [CrossRef] [PubMed]
  12. Giorgioni, G.; Ruggieri, S.; Di Stefano, A.; Sozio, P.; Cinque, B.; Di Marzio, L.; Santoni, G.; Claudi, F. Glycosyl and polyalcoholic prodrugs of lonidamine. Bioorganic Med. Chem. Lett. 2008, 18, 2445–2450. [Google Scholar] [CrossRef]
  13. Nakhate, K.T.; Badwaik, H.; Choudhary, R.; Sakure, K.; Agrawal, Y.O.; Sharma, C.; Ojha, S.; Goyal, S.N. Therapeutic Potential and Pharmaceutical Development of a Multitargeted Flavonoid Phloretin. Nutrients 2022, 14, 3638. [Google Scholar] [CrossRef]
  14. Zhao, X.; Zhu, Y.; Hu, J.; Jiang, L.; Li, L.; Jia, S.; Zen, K. Shikonin Inhibits Tumor Growth in Mice by Suppressing Pyruvate Kinase M2-mediated Aerobic Glycolysis. Sci. Rep. 2018, 8, 14517. [Google Scholar] [CrossRef] [PubMed]
  15. Hussain, H.; Krohn, K.; Ahmad, V.U.; Miana, G.A.; Green, I.R. Lapachol: An overview. Arkivoc 2007, 2, 145–171. [Google Scholar] [CrossRef]
  16. Ganapathy-Kanniappan, S.; Geschwind, J.-F.H. Tumor glycolysis as a target for cancer therapy: Progress and prospects. Mol. Cancer 2013, 12, 152. [Google Scholar] [CrossRef] [PubMed]
  17. Hughes, J.P.; Rees, S.; Kalindjian, S.B.; Philpott, K.L. Principles of early drug discovery. Br. J. Pharmacol. 2011, 162, 1239–1249. [Google Scholar] [CrossRef]
  18. Wong, C.C.; Cheng, K.W.; Rigas, B. Preclinical predictors of anticancer drug efficacy: Critical assessment with emphasis on whether nanomolar potency should be required of candidate agents. J. Pharmacol. Exp. Ther. 2012, 341, 572–578. [Google Scholar] [CrossRef]
  19. Dancey, J.E.; Chen, H.X. Strategies for optimizing combinations of molecularly targeted anticancer agents. Nat. Rev. Drug Discov. 2006, 5, 649–659. [Google Scholar] [CrossRef]
  20. Sawyers, C. Targeted cancer therapy. Nature 2004, 432, 294–297. [Google Scholar] [CrossRef]
  21. Vichaya, E.G.; Chiu, G.S.; Krukowski, K.; Lacourt, T.E.; Kavelaars, A.; Dantzer, R.; Heijnen, C.J.; Walker, A.K. Mechanisms of chemotherapy-induced behavioral toxicities. Front. Neurosci. 2015, 9, 131. [Google Scholar] [CrossRef]
  22. Patel, F.; Spassieva, S.D. Side Effects in Cancer Therapy: Are Sphingolipids to Blame? Adv. Cancer Res. 2018, 140, 367–388. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, X.; Zhang, H.; Chen, X. Drug resistance and combating drug resistance in cancer. Cancer Drug Resist. 2019, 2, 141–160. [Google Scholar] [CrossRef] [PubMed]
  24. Chehelgerdi, M.; Chehelgerdi, M.; Allela, O.Q.B.; Pecho, R.D.C.; Jayasankar, N.; Rao, D.P.; Thamaraikani, T.; Vasanthan, M.; Viktor, P.; Lakshmaiya, N.; et al. Progressing nanotechnology to improve targeted cancer treatment: Overcoming hurdles in its clinical implementation. Mol. Cancer 2023, 22, 169. [Google Scholar] [CrossRef] [PubMed]
  25. GERBER, D.E. Targeted Therapies: A New Generation of Cancer Treatments. Am. Fam. Phys. 2008, 77, 311–319. [Google Scholar]
  26. Luo, J.; Solimini, N.L.; Elledge, S.J. Principles of cancer therapy: Oncogene and non-oncogene addiction. Cell 2009, 136, 823–837. [Google Scholar] [CrossRef]
  27. Al-Lazikani, B.; Banerji, U.; Workman, P. Combinatorial drug therapy for cancer in the post-genomic era. Nat. Biotechnol. 2012, 30, 679–692. [Google Scholar] [CrossRef]
  28. Zitvogel, L.; Apetoh, L.; Ghiringhelli, F.; Kroemer, G. Immunological aspects of cancer chemotherapy. Nat. Rev. Immunol. 2008, 8, 59–73. [Google Scholar] [CrossRef]
  29. Sawyers, C.L. The cancer biomarker problem. Nature 2008, 452, 548–552. [Google Scholar] [CrossRef]
  30. Byrne, F.L.; Olzomer, E.M.; Marriott, G.R.; Quek, L.-E.; Katen, A.; Su, J.; Kumar, N.; Hoehn, K.L. Phenotypic screen for oxygen consumption rate identifies an anti-cancer naphthoquinone that induces mitochondrial oxidative stress. Redox Biol. 2020, 28, 101374. [Google Scholar] [CrossRef]
  31. Cheng, Y.; Jones, J.P.; Yu, T.T.; Olzomer, E.M.; Su, J.; Katen, A.; Black, D.S.; Hart-Smith, G.; Childress, E.S.; Wilkins, M.R.; et al. Design, synthesis and biological evaluation of glucose metabolism inhibitors as anticancer agents. Bioorganic Chem. 2024, 151, 107665. [Google Scholar] [CrossRef] [PubMed]
  32. Mondal, A.; Jia, D.; Bhatt, V.; Akel, M.; Roberge, J.; Guo, J.Y.; Langenfeld, J. Ym155 localizes to the mitochondria leading to mitochondria dysfunction and activation of AMPK that inhibits BMP signaling in lung cancer cells. Sci. Rep. 2022, 12, 13135. [Google Scholar] [CrossRef]
  33. Lucki, N.C.; Villa, G.R.; Vergani, N.; Bollong, M.J.; Beyer, B.A.; Lee, J.W.; Anglin, J.L.; Spangenberg, S.H.; Chin, E.N.; Sharma, A.; et al. A cell type-selective apoptosis-inducing small molecule for the treatment of brain cancer. Proc. Natl. Acad. Sci. USA 2019, 116, 6435–6440. [Google Scholar] [CrossRef] [PubMed]
  34. Yuan, J.; Liu, Z.; Dong, Y.; Gao, F.; Xia, X.; Wang, P.; Luo, Y.; Zhang, Z.; Yan, D.; Zhang, W. Pioneering 4,11-Dioxo-4,11-dihydro-1H-anthra[2,3-d]imidazol-3-ium Compounds as Promising Survivin Inhibitors by Targeting ILF3/NF110 for Cancer Therapy. J. Med. Chem. 2023, 66, 16843–16868. [Google Scholar] [CrossRef] [PubMed]
  35. Gupta, D.; Bhatia, D.; Dave, V.; Sutariya, V.; Varghese Gupta, S. Salts of Therapeutic Agents: Chemical, Physicochemical, and Biological Considerations. Molecules 2018, 23, 1719. [Google Scholar] [CrossRef]
  36. Acharya, P.C.; Marwein, S.; Mishra, B.; Ghosh, R.; Vora, A.; Tekade, R.K. Role of Salt Selection in Drug Discovery and Development. In Dosage Form Design Considerations; Academic Press: Cambridge, MA, USA, 2018; pp. 435–472. [Google Scholar] [CrossRef]
  37. Cheng, Y.; Yu, T.T.; Olzomer, E.; Beretta, M.; Katen, A.; Su, J.; Jones, J.P.; Black, D.S.; Hoehn, K.L.; Byrne, F.L.; et al. Design, synthesis and biological evaluation of naphthalene-1,4-diones analogues as anticancer agents. RSC Med. Chem. 2025. [Google Scholar] [CrossRef]
  38. Serajuddin, A.T. Salt formation to improve drug solubility. Adv. Drug Deliv. Rev. 2007, 59, 603–616. [Google Scholar] [CrossRef]
  39. Marques, L.B.; Ottoni, F.M.; Pinto, M.C.X.; Ribeiro, J.M.; de Sousa, F.S.; Weinlich, R.; de Victo, N.C.; Kisitu, J.; Holzer, A.K.; Leist, M.; et al. Lapachol acetylglycosylation enhances its cytotoxic and pro-apoptotic activities in HL60 cells. Toxicol. Vit. 2020, 65, 104772. [Google Scholar] [CrossRef]
  40. Zhang, Q.; Liu, Q.; Zheng, S.; Liu, T.; Yang, L.; Han, X.; Lu, X. Shikonin Inhibits Tumor Growth of ESCC by suppressing PKM2 mediated Aerobic Glycolysis and STAT3 Phosphorylation. J. Cancer 2021, 12, 4830–4840. [Google Scholar] [CrossRef]
  41. Rosbe, K.W.; Brann, T.W.; Holden, S.A.; Teicher, B.A.; Ill, E.F. Effect of lonidamine on the cytotoxicity of four alkylating agents in vitro. Cancer Chemother. Pharmacol. 1989, 25, 32–36. [Google Scholar] [CrossRef]
  42. Habtemariam, S. The Molecular Pharmacology of Phloretin: Anti-Inflammatory Mechanisms of Action. Biomedicines 2023, 11, 143. [Google Scholar] [CrossRef] [PubMed]
  43. West, T.J.; Bi, J.; Martinez-Pena, F.; Curtis, E.J.; Gazaniga, N.R.; Mischel, P.S.; Lairson, L.L. A Cell Type Selective YM155 Prodrug Targets Receptor-Interacting Protein Kinase 2 to Induce Brain Cancer Cell Death. J. Am. Chem. Soc. 2023, 145, 8355–8363. [Google Scholar] [CrossRef] [PubMed]
  44. Huang, Y.; Sun, G.; Sun, X.; Li, F.; Zhao, L.; Zhong, R.; Peng, Y. The Potential of Lonidamine in Combination with Chemotherapy and Physical Therapy in Cancer Treatment. Cancers 2020, 12, 3332. [Google Scholar] [CrossRef] [PubMed]
  45. Abdel-Wahab, A.F.; Mahmoud, W.; Al-Harizy, R.M. Targeting glucose metabolism to suppress cancer progression: Prospective of anti-glycolytic cancer therapy. Pharmacol. Res. 2019, 150, 104511. [Google Scholar] [CrossRef]
  46. Qiu, H.Y.; Zhu, X.; Luo, Y.L.; Lin, H.Y.; Tang, C.Y.; Qi, J.L.; Pang, Y.J.; Yang, R.W.; Lu, G.H.; Wang, X.M.; et al. Identification of New Shikonin Derivatives as Antitumor Agents Targeting STAT3 SH2 Domain. Sci. Rep. 2017, 7, 2863. [Google Scholar] [CrossRef]
  47. Ho, S.H.; Sim, M.Y.; Yee, W.L.; Yang, T.; Yuen, S.P.; Go, M.L. Antiproliferative, DNA intercalation and redox cycling activities of dioxonaphtho[2,3-d]imidazolium analogs of YM155: A structure-activity relationship study. Eur. J. Med. Chem. 2015, 104, 42–56. [Google Scholar] [CrossRef]
  48. Esteva-Font, C.; Phuan, P.W.; Anderson, M.O.; Verkman, A.S. A small molecule screen identifies selective inhibitors of urea transporter UT-A. Chem. Biol. 2013, 20, 1235–1244. [Google Scholar] [CrossRef]
  49. Salustiano, E.J.; Netto, C.D.; Fernandes, R.F.; da Silva, A.J.; Bacelar, T.S.; Castro, C.P.; Buarque, C.D.; Maia, R.C.; Rumjanek, V.M.; Costa, P.R. Comparison of the cytotoxic effect of lapachol, alpha-lapachone and pentacyclic 1,4-naphthoquinones on human leukemic cells. Investig. New Drugs 2010, 28, 139–144. [Google Scholar] [CrossRef]
  50. Blackburn, C. Solid-phase synthesis of 2-amino-3-chloro-5- and 8-nitro-1,4-naphthoquinones: A new and general colorimetric test for resin-bound amines. Tetrahedron Lett. 2005, 46, 1405–1409. [Google Scholar] [CrossRef]
  51. Naciuk, F.F.; Milan, J.C.; Andreao, A.; Miranda, P.C. Exploitation of a tuned oxidation with N-haloimides in the synthesis of caulibugulones A-D. J. Org. Chem. 2013, 78, 5026–5030. [Google Scholar] [CrossRef]
  52. Xie, W.; Xu, J.; Md Idros, U.; Katsuhira, J.; Fuki, M.; Hayashi, M.; Yamanaka, M.; Kobori, Y.; Matsubara, R. Metal-free reduction of CO2 to formate using a photochemical organohydride-catalyst recycling strategy. Nat. Chem. 2023, 15, 794–802. [Google Scholar] [CrossRef] [PubMed]
  53. Katritzky, A.R.; Jishkariani, D.; Sakhuja, R.; Hall, C.D.; Steel, P.J. Carbene-mediated transformations of 1-(benzylideneamino)benzimidazoles. J. Org. Chem. 2011, 76, 4082–4087. [Google Scholar] [CrossRef] [PubMed]
Molecules 30 01938 g001

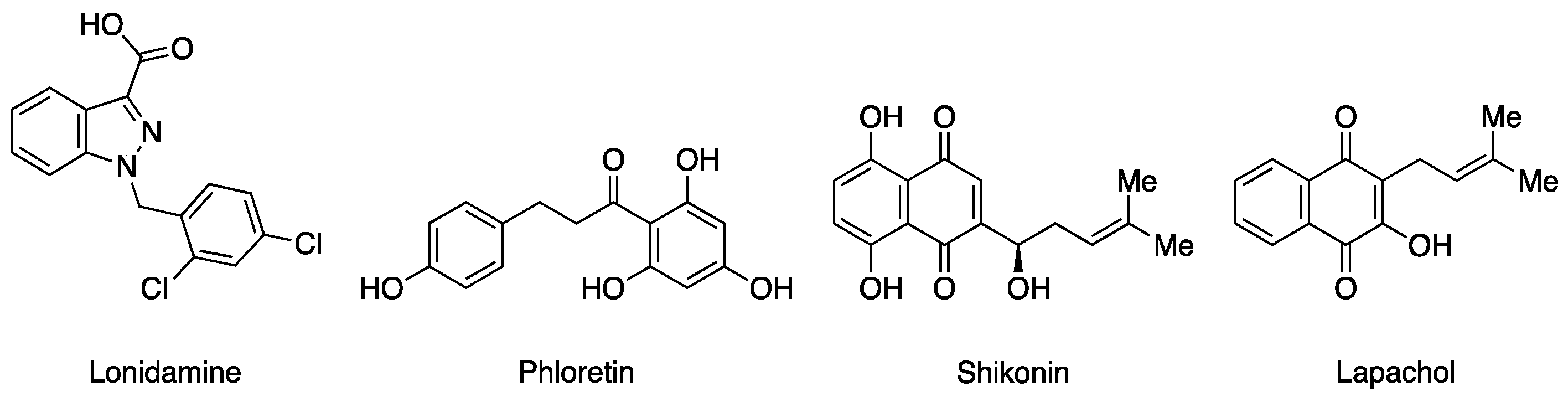

Figure 1. Representatives of reported quinone glycolysis inhibitors.
Figure 1. Representatives of reported quinone glycolysis inhibitors.
Molecules 30 01938 g001
Molecules 30 01938 g002

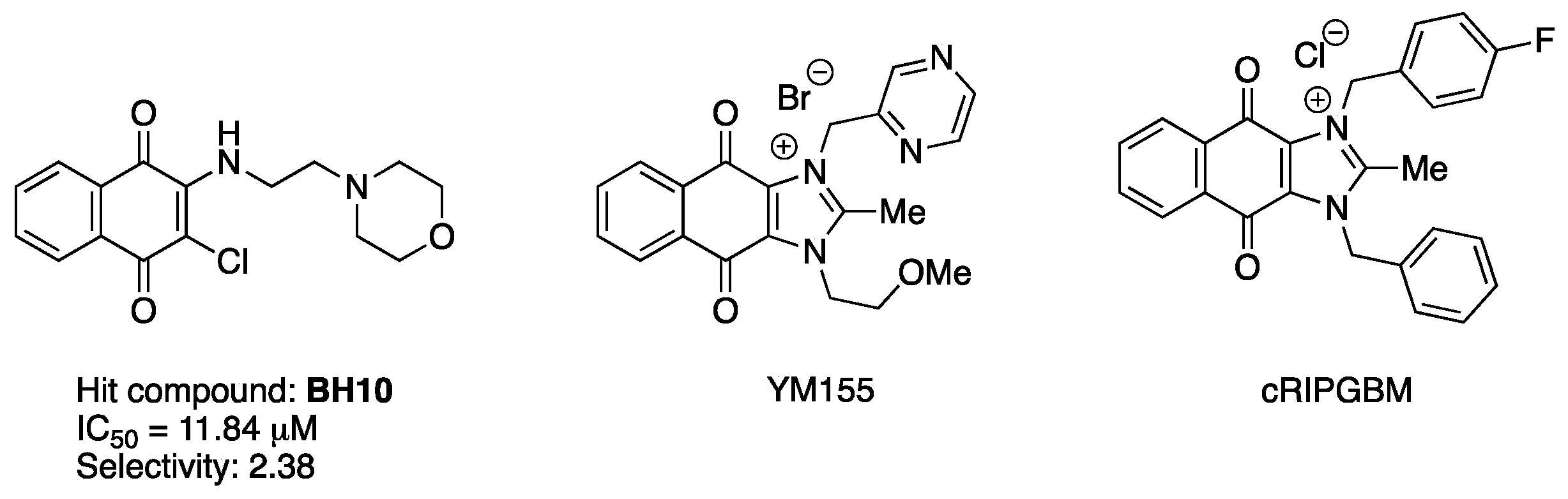

Figure 2. Chemical structure of hit compound and some highly potent anticancer agent.
Figure 2. Chemical structure of hit compound and some highly potent anticancer agent.
Molecules 30 01938 g002
Molecules 30 01938 sch001

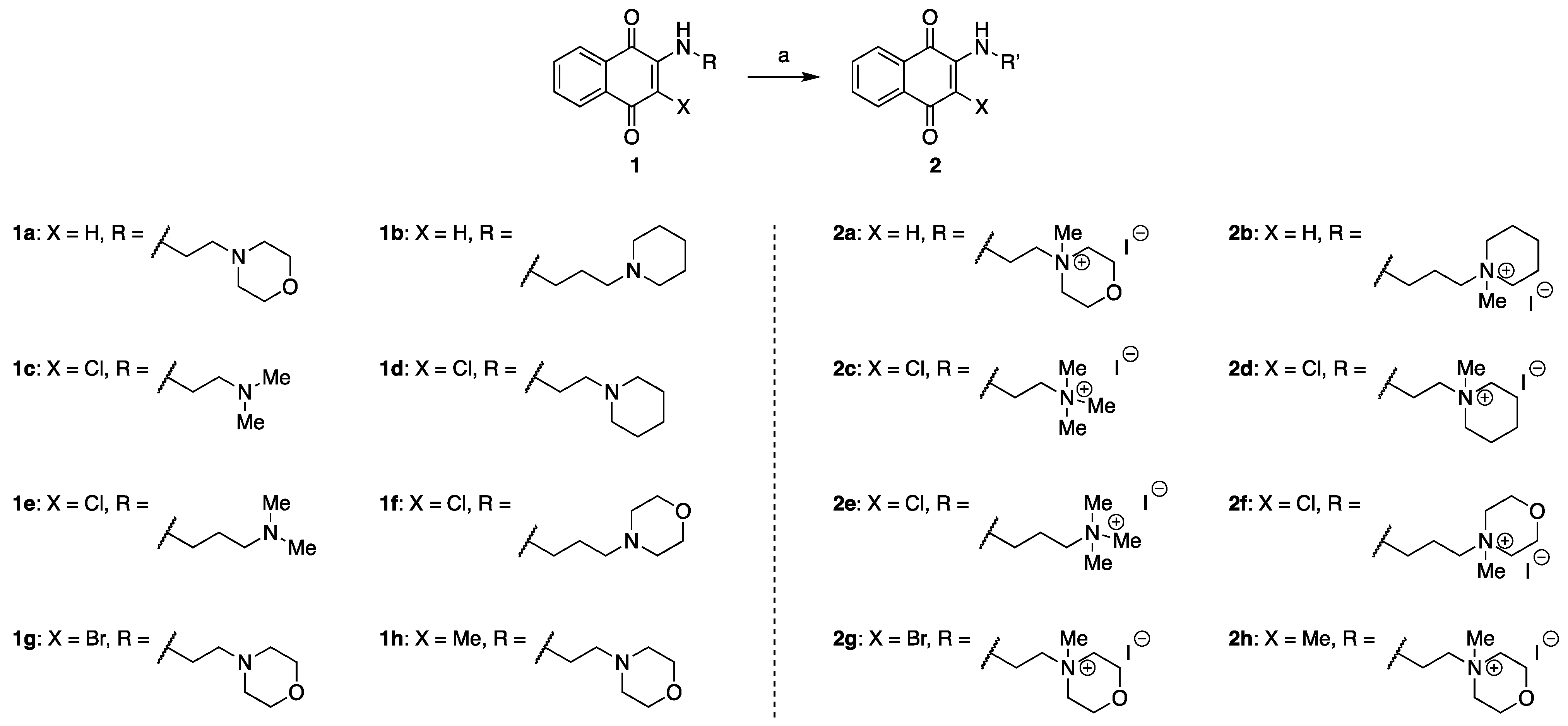

Scheme 1. Synthesis of quinone salt analogues 2a–h. Reagents and conditions: (a) MeI, MeCN, r.t., 12 h.
Scheme 1. Synthesis of quinone salt analogues 2a–h. Reagents and conditions: (a) MeI, MeCN, r.t., 12 h.
Molecules 30 01938 sch001
Molecules 30 01938 sch002

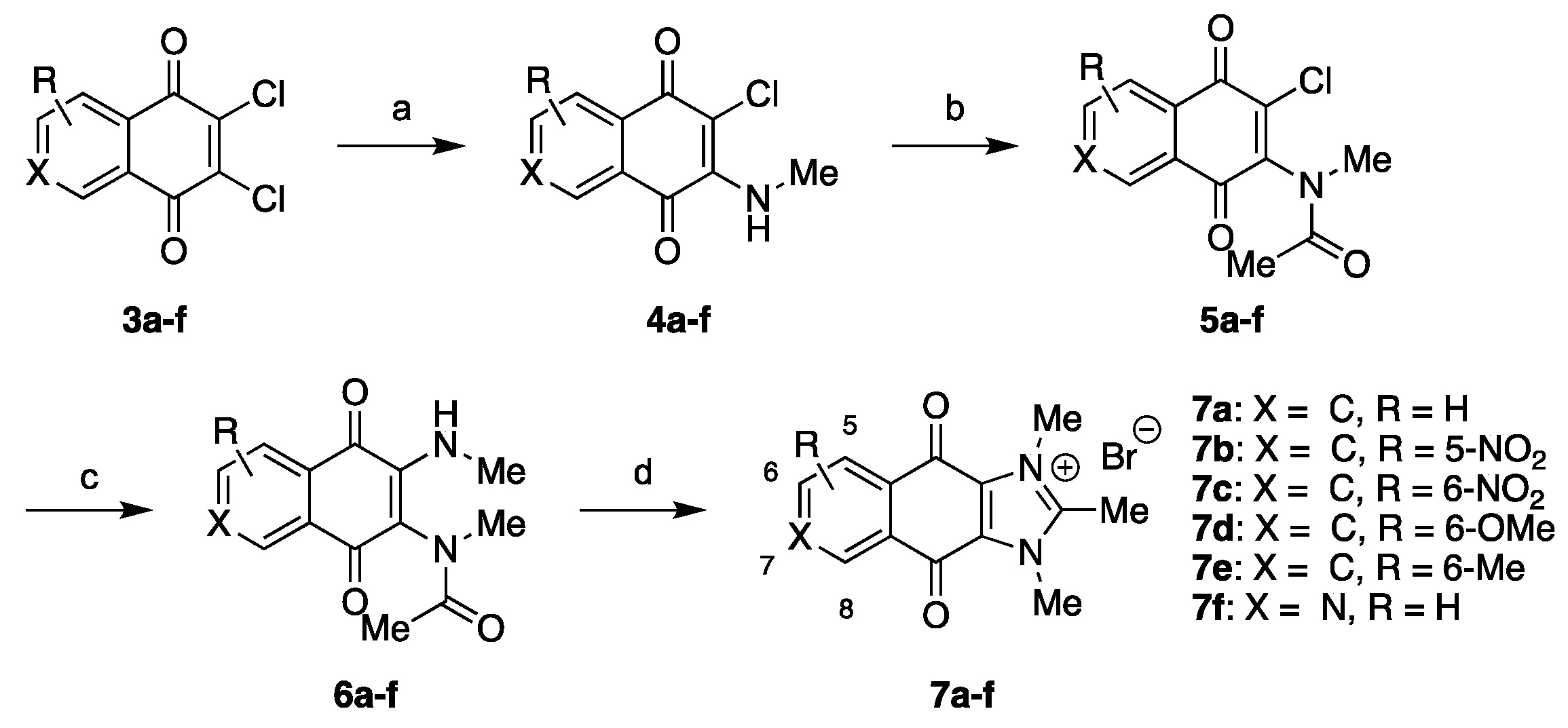

Scheme 2. Synthesis of quinone salt analogues 7a–f. Reagents and conditions: (a) NH2CH3, Et3N, EtOH, r.t., 18 h; (b) acetic anhydride, conc. H2SO4 (1 drop), r.t., 1.5 h; (c) NH2CH3, Et3N, toluene, 45 °C, 1 h; (d) 48% HBr (aq), EtOH, EtOAc, 45 °C, 4 h, r.t., overnight.
Scheme 2. Synthesis of quinone salt analogues 7a–f. Reagents and conditions: (a) NH2CH3, Et3N, EtOH, r.t., 18 h; (b) acetic anhydride, conc. H2SO4 (1 drop), r.t., 1.5 h; (c) NH2CH3, Et3N, toluene, 45 °C, 1 h; (d) 48% HBr (aq), EtOH, EtOAc, 45 °C, 4 h, r.t., overnight.
Molecules 30 01938 sch002
Molecules 30 01938 sch003

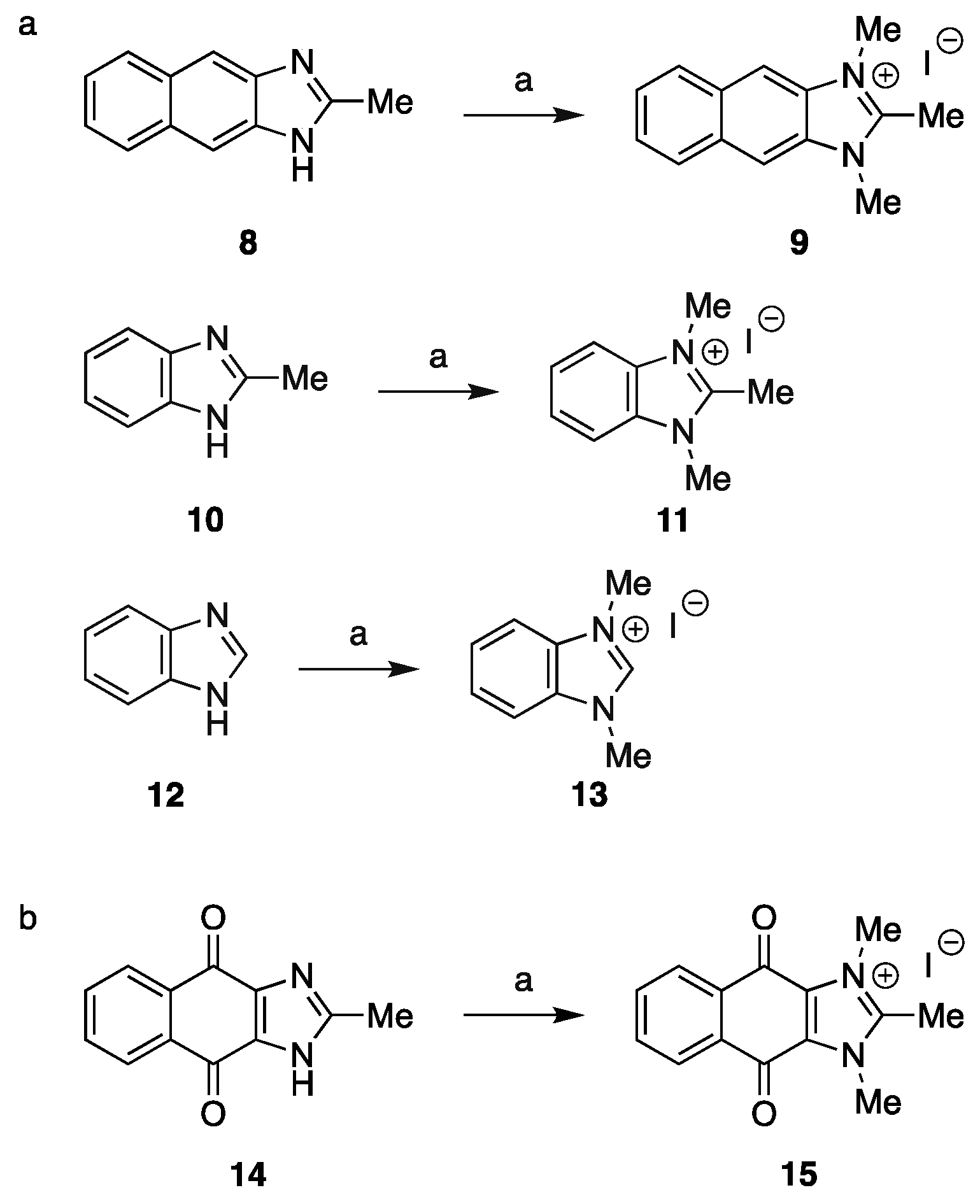

Scheme 3. Synthesis of quinone salt analogues 9, 11, 13, and 15 (a,b). Reagents and conditions: (a) MeI, 70 °C, 8 h, seal tube.
Scheme 3. Synthesis of quinone salt analogues 9, 11, 13, and 15 (a,b). Reagents and conditions: (a) MeI, 70 °C, 8 h, seal tube.
Molecules 30 01938 sch003
Molecules 30 01938 sch004

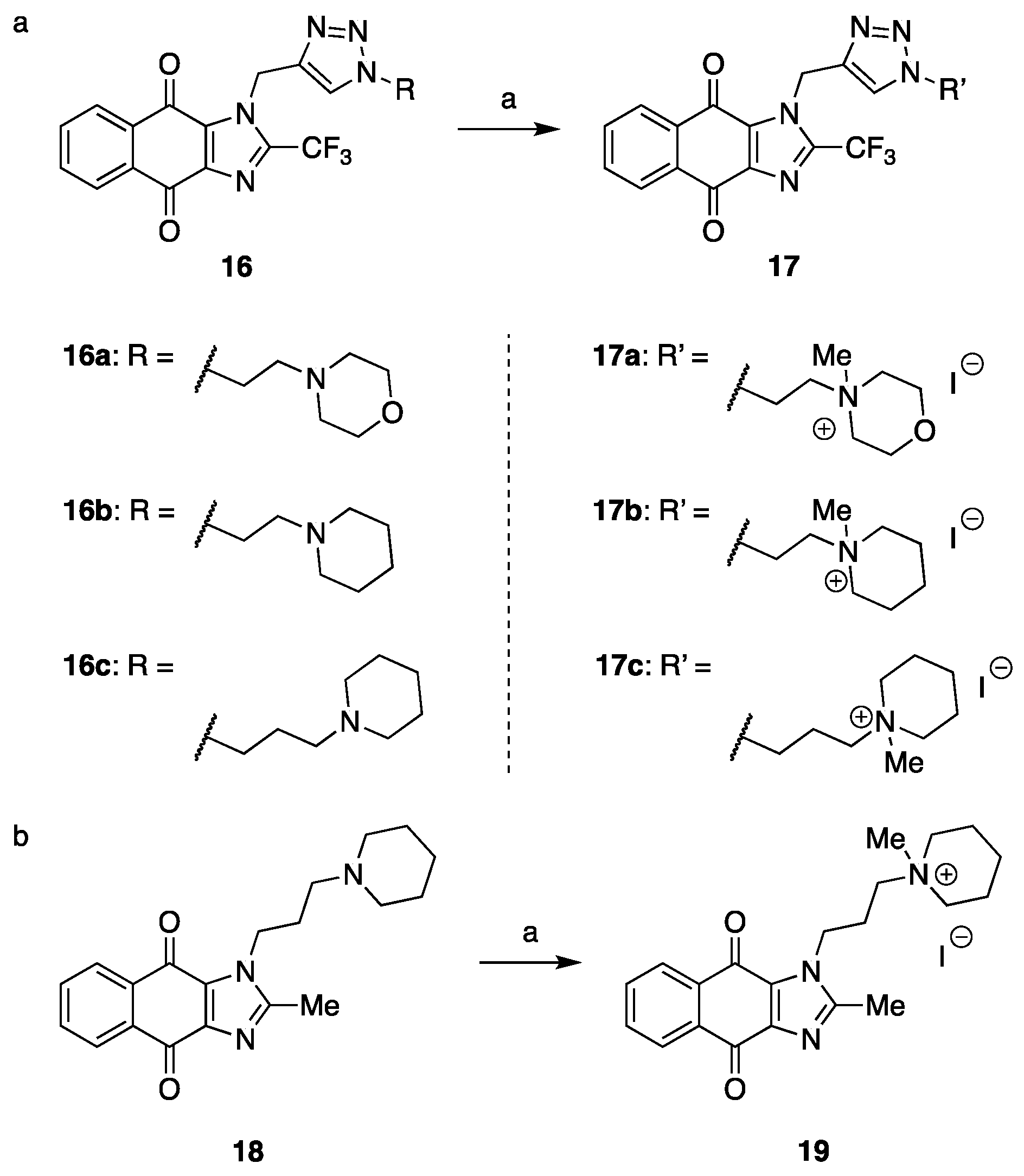

Scheme 4. Synthesis of quinone salt analogues 17a–c and 19 (a,b). Reagents and conditions: (a) MeI, MeCN, r.t., 12 h.
Scheme 4. Synthesis of quinone salt analogues 17a–c and 19 (a,b). Reagents and conditions: (a) MeI, MeCN, r.t., 12 h.
Molecules 30 01938 sch004
Molecules 30 01938 g003

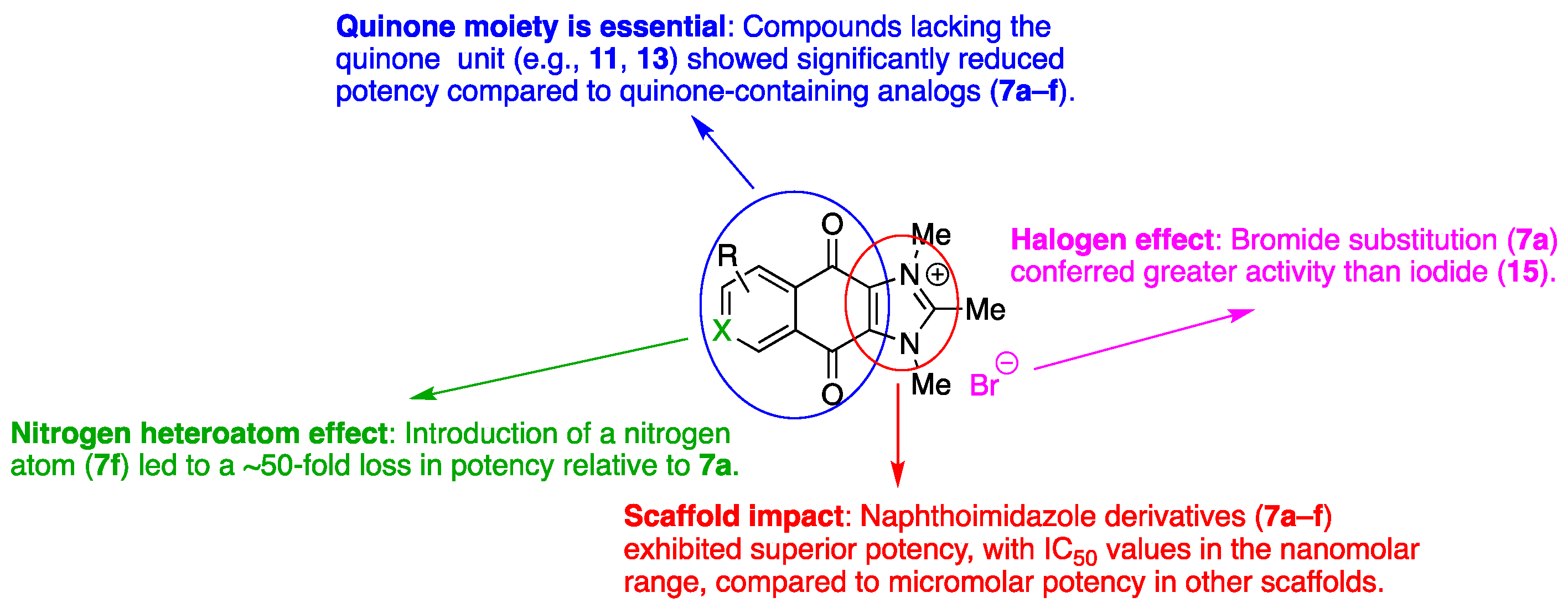

Figure 3. SAR of synthesized salt derivatives. The quinone moiety is essential for potency. The naphthoimidazole scaffold demonstrated remarkable potency and selectivity. However, the incorporation of a nitrogen atom into the naphthoimidazole core resulted in decreased activity. Additionally, the bromide counterion conferred greater potency than the iodide counterion.
Figure 3. SAR of synthesized salt derivatives. The quinone moiety is essential for potency. The naphthoimidazole scaffold demonstrated remarkable potency and selectivity. However, the incorporation of a nitrogen atom into the naphthoimidazole core resulted in decreased activity. Additionally, the bromide counterion conferred greater potency than the iodide counterion.
Molecules 30 01938 g003
Molecules 30 01938 g004

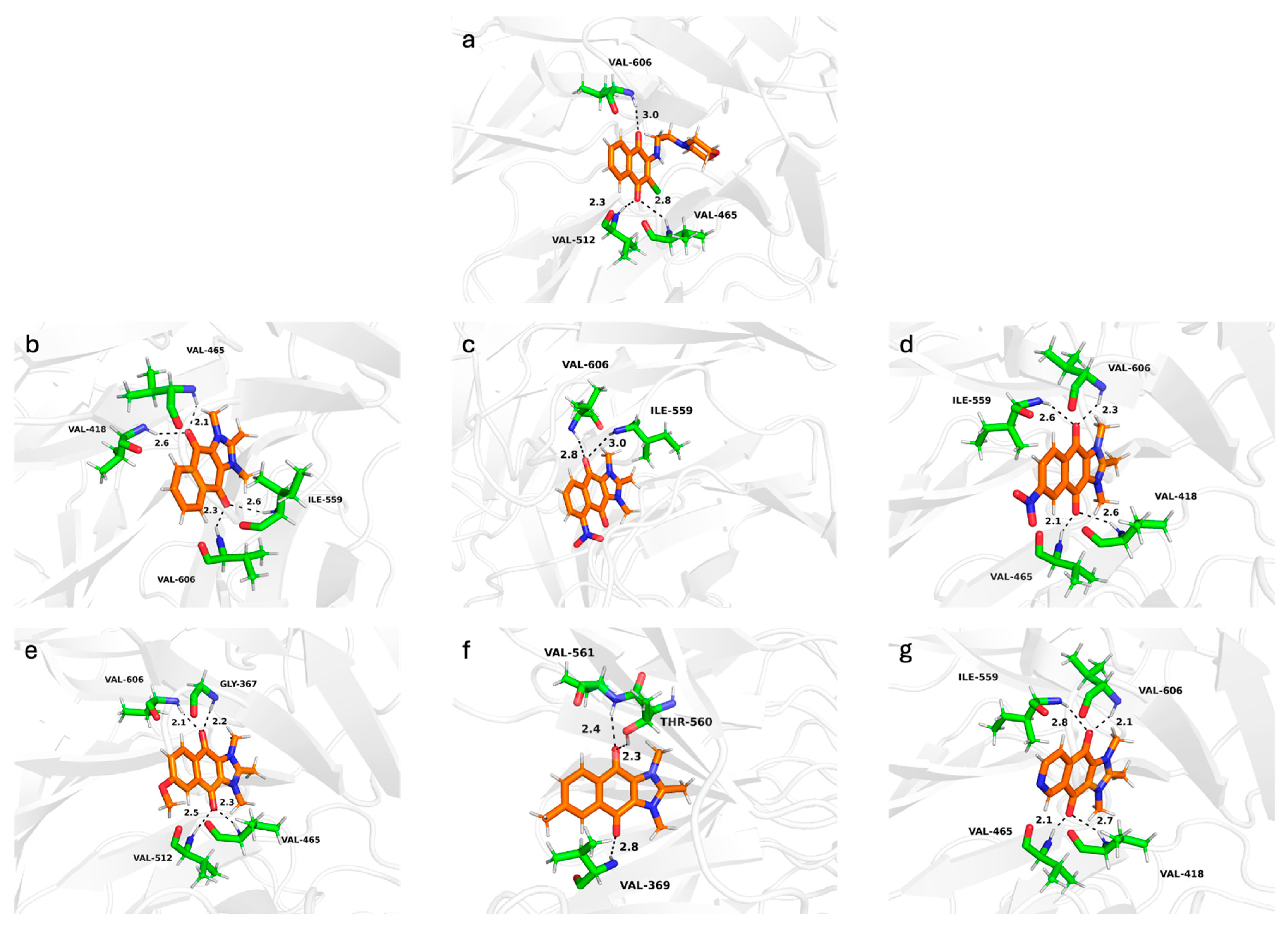

Figure 4. Predicted binding interactions of BH10 (a) and 7a–f (b–g) with Keap1 (PDB code: 4XMB). Black dashed lines indicate hydrogen bonding interactions between the ligands and the target protein. (a) The carbonyl group of BH10 forms hydrogen bonds with VAL-465, VAL-512, and VAL-606 (docking score: −5.805 kcal/mol). Similarly, the six potent naphthoimidazole salt analogues bind within the same hydrophobic pocket: (b) 7a interacts with VAL-418, VAL-465, ILE-559, and VAL-606 (docking score: −8.207 kcal/mol); (c) 7b, with ILE-559 and VAL-606 (docking score: −7.703 kcal/mol); (d) 7c, with VAL-418, VAL-465, ILE-559, and VAL-606 (docking score: −8.828 kcal/mol); (e) 7d, with GLY-367, VAL-465, VAL-512, and VAL-606 (docking score: −8.449 kcal/mol); (f) 7e with VAL-369, THR-560, and VAL-561 (docking score: −8.842 kcal/mol); (g) and 7f, with VAL-418, VAL-465, ILE-559, and VAL-606 (docking score: −8.488 kcal/mol).
Figure 4. Predicted binding interactions of BH10 (a) and 7a–f (b–g) with Keap1 (PDB code: 4XMB). Black dashed lines indicate hydrogen bonding interactions between the ligands and the target protein. (a) The carbonyl group of BH10 forms hydrogen bonds with VAL-465, VAL-512, and VAL-606 (docking score: −5.805 kcal/mol). Similarly, the six potent naphthoimidazole salt analogues bind within the same hydrophobic pocket: (b) 7a interacts with VAL-418, VAL-465, ILE-559, and VAL-606 (docking score: −8.207 kcal/mol); (c) 7b, with ILE-559 and VAL-606 (docking score: −7.703 kcal/mol); (d) 7c, with VAL-418, VAL-465, ILE-559, and VAL-606 (docking score: −8.828 kcal/mol); (e) 7d, with GLY-367, VAL-465, VAL-512, and VAL-606 (docking score: −8.449 kcal/mol); (f) 7e with VAL-369, THR-560, and VAL-561 (docking score: −8.842 kcal/mol); (g) and 7f, with VAL-418, VAL-465, ILE-559, and VAL-606 (docking score: −8.488 kcal/mol).
Molecules 30 01938 g004
Table 1. Cytotoxicity data of BH10 and the synthesized analogues against HEC1A and MAD11 cell lines a.
Table 1. Cytotoxicity data of BH10 and the synthesized analogues against HEC1A and MAD11 cell lines a.
CompoundMean IC50 (μM)Selectivity
Ratio
HEC1A ± SDMAD11 ± SD
BH1011.84 ± 5.1928.18 ± 12.202.38
2a21.12 ± 2.99>100>4.73
2b>100>100-
2c97.25 ± 8.20>100>1.23
2d58.77 ± 3.01>100>1.70
2e>100>100-
2f>100>100-
2g23.83 ± 4.17>100>4.20
2h95.53 ± 14.67>100-
7a0.00953 ± 0.00070.06569 ± 0.006416.89
7b0.02297 ± 0.00330.9516 ± 0.214841.43
7c0.02882 ± 0.00140.06846 ± 0.00612.37
7d0.02562 ± 0.00210.19390 ± 0.01917.57
7e0.01492 ± 0.00120.1009 ± 0.01246.76
7f0.4724 ± 0.03784.8 ± 0.327410.16
923.88 ± 2.9764.56 ± 13.982.70
11>100>100-
13>100>100-
150.01347 ± 0.00090.1539 ± 0.010911.43
17a11.17 ± 2.63110.9 ± 45.09.93
17b6.79 ± 1.0>100>14.73
17c5.62 ± 1.43>100>17.79
196.35 ± 1.4140.79 ± 14.126.42
a Values were obtained from MTT cell viability assays (n = 3 biological replicates in HEC1A and MAD11 cell lines). SD: standard deviation. Selectivity ratio refers to the IC50 value from MAD11 cells divided by the IC50 value from HEC1A cells.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cheng, Y.; Yu, T.T.; Olzomer, E.M.; Hoehn, K.L.; Byrne, F.L.; Kumar, N.; Black, D.S. Design, Synthesis, and Biological Evaluation of Naphthoquinone Salts as Anticancer Agents. Molecules 2025, 30, 1938. https://doi.org/10.3390/molecules30091938

AMA Style

Cheng Y, Yu TT, Olzomer EM, Hoehn KL, Byrne FL, Kumar N, Black DS. Design, Synthesis, and Biological Evaluation of Naphthoquinone Salts as Anticancer Agents. Molecules. 2025; 30(9):1938. https://doi.org/10.3390/molecules30091938

Chicago/Turabian Style

Cheng, Yao, Tsz Tin Yu, Ellen M. Olzomer, Kyle L. Hoehn, Frances L. Byrne, Naresh Kumar, and David StC Black. 2025. "Design, Synthesis, and Biological Evaluation of Naphthoquinone Salts as Anticancer Agents" Molecules 30, no. 9: 1938. https://doi.org/10.3390/molecules30091938

APA Style

Cheng, Y., Yu, T. T., Olzomer, E. M., Hoehn, K. L., Byrne, F. L., Kumar, N., & Black, D. S. (2025). Design, Synthesis, and Biological Evaluation of Naphthoquinone Salts as Anticancer Agents. Molecules, 30(9), 1938. https://doi.org/10.3390/molecules30091938

Article Metrics

Back to TopTop
