Article

Allelic Analysis of the Gli-B1 Locus in Hexaploid Wheat Using Reverse-Phase–Ultra-Performance Liquid Chromatography

by
Jong-Yeol Lee
1,†,
Yu-Jeong Yang
1,†,
Jinpyo So
2,
Sewon Kim
1,* and
Kyoungwon Cho
2,*
1
National Institute of Agricultural Sciences, Rural Development Administration, Jeonju 54874, Republic of Korea
2
Department of Integrative Food, Bioscience and Biotechnology, College of Agriculture and Life Sciences, Chonnam National University, Gwangju 61166, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2025, 30(3), 609; https://doi.org/10.3390/molecules30030609
Submission received: 17 December 2024 / Revised: 24 January 2025 / Accepted: 24 January 2025 / Published: 30 January 2025
Browse Figures
Versions Notes

Abstract

:
Wheat (Triticum aestivum L.) omega-5 gliadin, a major allergen responsible for wheat-dependent exercise-induced anaphylaxis in humans, is encoded by genes located at the Gli-B1 locus on chromosome 1B, which exhibits genetic polymorphism. Gli-B1 alleles have generally been identified based on the electrophoretic mobilities of the encoded gamma-, omega-1,2, and omega-5 gliadins in acid polyacrylamide gel electrophoresis. However, the similar mobilities of omega-5 gliadin variants make it difficult to distinguish them among different wheat varieties. In this study, we optimized reverse-phase–ultra-performance liquid chromatography (RP-UPLC) conditions to separate omega-5 gliadins in the reference wheat cultivar Chinese Spring and its nullisomic–tetrasomic lines for chromosome 1B. Five chromatographic peaks corresponded to omega-5 gliadin, and the average relative standard deviation to each peak retention time ranged from 0.31% to 0.93%, indicating that the method is accurate and reproducible for fractionating omega-5 gliadins in gliadin extracts from wheat flour. Using the optimized RP-UPLC method, we analyzed omega-5 gliadins in 24 wheat varieties with the Gli-B1f allele. The result showed that the wheat varieties were sorted into eight groups according to the composition of omega-5 gliadin, indicating that the classification of Gli-B1 alleles based on A-PAGE could not explain the composition of omega-5 gliadin in wheat. We reclassified 73 wheat varieties containing 16 unique Gli-B1 alleles into 31 groups based on the chromatographic patterns of their omega-5 gliadins. Our results provide information on the specific Gli-B1 alleles of wheat varieties belonging to each group and demonstrate the potential for RP-UPLC to facilitate genetic studies of wheat varieties.

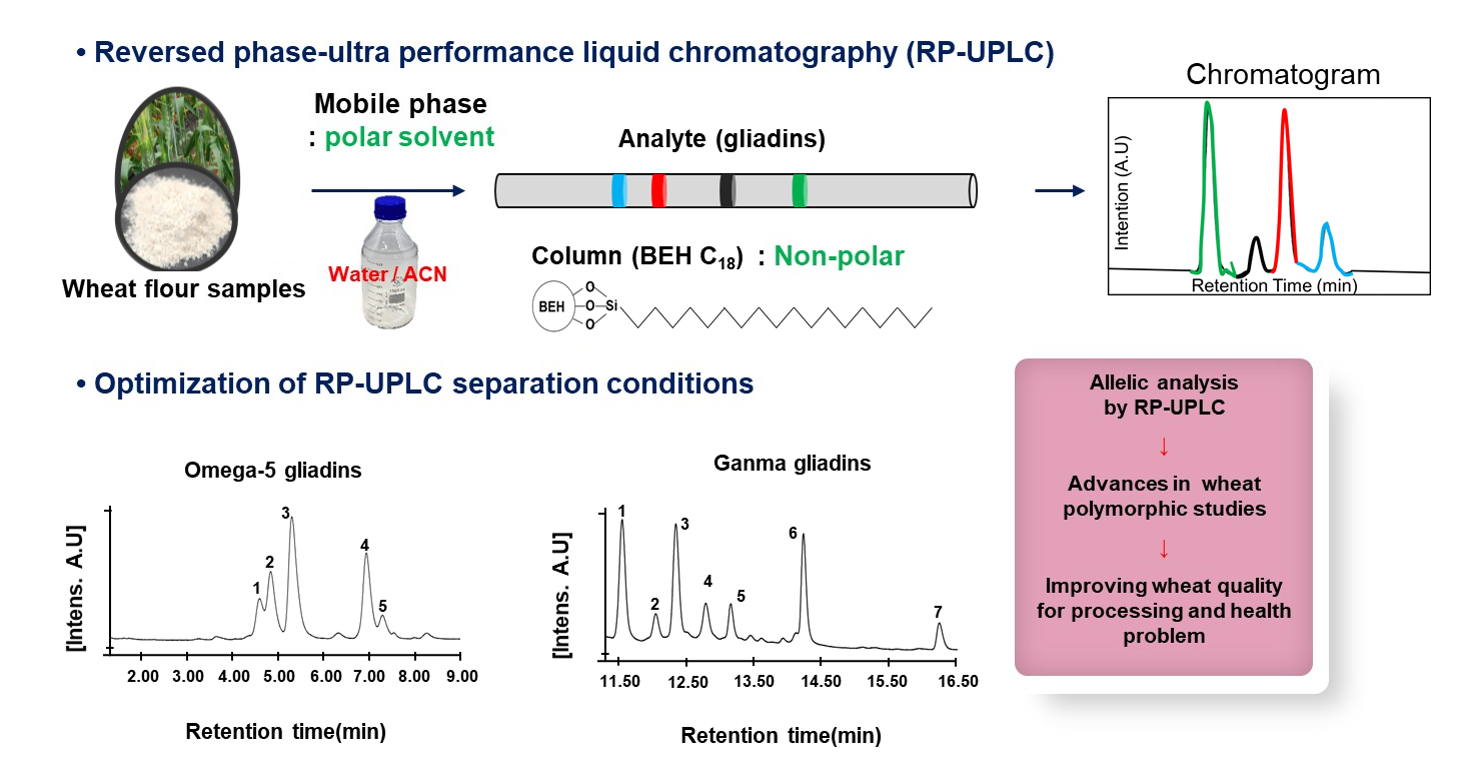

Graphical Abstract

1. Introduction

Wheat (Triticum aestivum L.) is an important staple grain crop consumed by humans worldwide and is a major source of protein in the daily diet. Wheat flour is used in bread, noodles, cakes, and snacks, and the end-use quality is mainly determined by gluten proteins, the storage proteins of the grain endosperm. Glutens include polymeric glutenins and monomeric gliadins and play a crucial role in providing viscoelasticity and extensibility to wheat dough [1]. Glutenins are composed of high-molecular-weight glutenin subunits (HMW-GSs) and low-molecular-weight glutenin subunits (LMW-GSs), which form macro polymers through disulfide bonds, contributing to the dough’s strength and elasticity and bread-making quality [2]. Gliadins, which contribute to the dough’s extensibility and viscosity [3], are classified into alpha-, gamma-, delta-, and omega gliadins based on their electrophoretic mobilities in acid polyacrylamide gel electrophoresis (A-PAGE) [4]. The omega gliadins are divided into omega-5 gliadins and omega-1,2 gliadins based on their N-terminal amino acid sequences and repetitive motifs in the central region [5]. Gamma, delta, and omega gliadins are encoded by Gli-1 loci on the short arms of group 1 homoeologous chromosomes of hexaploid wheat, which are tightly linked to Glu-3 loci, encoding LMW-GS. Alpha gliadins are encoded by Gli-2 loci on the short arms of group 6 homoeologous chromosomes [6].
Gliadins, which account for approximately 30% of the total protein in wheat, are important for the functional properties that contribute to the end-use quality of flour. Unfortunately, gliadins also have immunogenic potential that can induce serious human diseases, such as celiac disease caused by epitopes in alpha, gamma, and omega-1,2 gliadins [7,8] and wheat-dependent exercise-induced anaphylaxis (WDEIA) triggered by epitopes in omega-5 gliadins [9].
To understand the complexity and heterogeneity of gliadins among different wheat varieties, considerable efforts have focused on developing methods to separate and characterize gliadin variants. The most commonly used methods for gliadin analysis are A-PAGE and sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) [10,11], which are simple and easy. However, the similar mobilities of gliadins in one-dimensional PAGE make it difficult to distinguish them by banding patterns. Furthermore, contamination of samples with LMW-GS leads to difficulties such as ambiguous identification [12]. Two-dimensional gel electrophoresis provides more information than A-PAGE and SDS-PAGE, but the complicated and time-consuming procedure, high cost, and skill requirements make it difficult to use in many settings [13,14,15]. Reverse-phase–high-performance liquid chromatography (RP-HPLC) is also commonly used for gliadin analysis [16,17,18,19]. The method has sufficient resolution and is fast, highly efficient, automatable, and highly reproducible. Recently, new techniques, such as various mass spectrometry (MS) methods, have been developed to characterize gliadins [14,15,19,20,21,22,23]. Matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF-MS) analysis [19,23] provides molecular weight information for each protein, and the analysis time per sample is about 4–5 min, making it suitable for high-throughput analysis. However, this method requires expensive equipment and trained personnel. As an alternative, our previous study showed that RP-HPLC is a powerful tool for gliadin analysis, showing better separation and resolution than MALDI-TOF-MS on the reference hexaploid wheat Chinese Spring (CS) and its nullisomic–tetrasomic lines (aneuploid lacking one pair of chromosomes and gaining an additional pair of homologous chromosomes) for chromosomes 1 and 6, where gliadin genes are located [19].
Recently, reverse-phase–ultra-performance liquid chromatography (RP-UPLC), an improved version of the conventional RP-HPLC technique, has been widely used to separate chemical mixtures. In RP-UPLC, particle sizes less than 2 µm can be used, providing better separation than RP-HPLC, where particle size is limited to 5 µm. In addition to providing higher resolution, the smaller particles require higher pump pressures (up to 100 MPa), making this technique very efficient and fast [24]. More recently, we have established a rapid and reliable RP-UPLC method to determine wheat HMW-GS protein profiles and validated the method in a large collection of bread wheat germplasm [25].
Of the storage proteins in wheat endosperm, gliadins are generally considered to be the most polymorphic [26]. In addition, when considering the relevance of gliadins to wheat end-use quality and human health, genetic studies of gliadins are very important. Because of the complexity and heterogeneity of these proteins, resolving the genetic polymorphisms responsible for them remains challenging. In particular, the Metakovsky group in Spain has focused on elucidating the complex variations of alleles encoding gliadins for the past 30 years. According to their A-PAGE data, wheat germplasm from various regions of the world showed tremendous polymorphism of gliadins [26,27,28,29,30,31,32,33,34,35,36,37]. In standard A-PAGE, it is possible to separate about 20–25 bands corresponding to gliadin alleles encoded at six Gli-1 and Gli-2 loci from a single wheat kernel based on differing electrophoretic mobility. Currently, about 180 alleles have been identified at the six Gli loci based on electrophoretic mobility of bands in A-PAGE [26].
The aim of our study was to develop optimized RP-UPLC methods for allelic analysis of Gli-B1 loci, which encode omega-5 gliadins and gamma gliadins on chromosome 1B, and to validate 16 Gli-B1 alleles reported in other studies in standard wheat genotypes [26]. We demonstrated that RP-UPLC is an effective method for rapid and reliable evaluation of genetic polymorphisms of Gli-B1 loci related to end-use quality and human health problems in hexaploid wheat.

2. Results

2.1. Optimization of Instrument Conditions for Omega-5 Gliadin Analysis

Total gliadins extracted from flour of the reference wheat cultivar Chinese Spring (CS) were analyzed using our previously published RP-UPLC method [25], revealing that omega-5 gliadins, the most hydrophilic among the gliadin fractions and encoded by Gli-B1 loci on the B1 chromosome, were eluted between 2 and 5 min. To improve their separation efficiency and peak resolution, we attempted to optimize essential parameters of RP-UPLC, such as the gradient mobile phase, flow rate, column oven temperature, and running time (Figure 1).
Out of four different gradients of the mobile phase solution, Figure 1A shows that omega-5 gliadins were optimally separated under gradient 4 (an acetonitrile (ACN) linear gradient from 24.5 to 28% for 10 min). Two shoulder peaks (blue arrows) in Figure 1A were found to be separated at an increased flow rate such as 0.35 and 0.40 mL/min (Figure 1B). The two peaks were also observed in the RP-UPLC system adjusted to 63 and 65 °C column oven temperatures (Figure 1C). Furthermore, similar results were observed when the time taken for solvent B to linearly increase from 24.5 to 28% was 10 and 12 min (Figure 1D). Finally, to obtain the best results even under low column pressure while reducing the operation time to analyze a large number of samples, we adjusted the RP-UPLC conditions, such as a flow rate of 0.35 mL/min, a column oven temperature of 65 °C, and a running time of 10 min.
Under the optimized conditions, we analyzed the composition of omega-5 gliadins encoded by Gli-B1 loci on the B1 chromosome from total gliadins extracted from CS and its nullisomic–tetrasomic lines (N1AT1B, N1AT1D, N1BT1A, N1BT1D, N1DT1A, and N1DT1B), which are aneuploid strains of CS. Unlike in CS and its four nullisomic–tetrasomic lines lacking the A1 (N1AT1B and N1AT1D) or D1 chromosomes (N1DT1A and N1DT1B), the five peaks of omega-5 glutelins were not observed in two lines (N1BT1A and N1BT1D) lacking the B1 chromosome, indicating that the five omega-5 gliadins detected at 5.08, 5.33, 5.79, 7.43, and 7.78 min are encoded by Gli-B1a loci on the B1 chromosome (Figure 2 and Table 1).
We validated the accuracy and reproducibility of the optimized method using three biological replicates and seven technical replicates to separate omega-5 gliadins from total gliadins fractionated from CS wheat flour. The average relative standard deviation (RSD) of the peak retention times for each omega-5 gliadin component in CS is listed in Table 1. The RSD percentage ranged from 0.37 to 0.55% in biological replicates and from 0.31 to 0.93% in technical replicates, indicating that our optimized RP-UPLC method can rapidly and consistently separate omega-5 gliadins.

2.2. Characterization of Omega-5 Gliadins in Standard Common Wheat Varieties with Different Alleles at the Gli-B1 Locus

To investigate whether the genetic variations in the Gli-B1 alleles could be distinguished by the different hydrophobicities of their encoded omega-5 gliadins, we extracted total gliadins from 16 standard common wheat varieties carrying different alleles at the Gli-B1 locus, such as Chinese Spring (Gli-B1a allele), Bezostaya (Gli-B1b), Prinqual (Gli-B01c), Neepawa (Gli-B1d) Fournil (Gli-B1e), Glenlea (Gli-B1f), Barbilla (Gli-B1g), Rudi (Gli-B1h), Insignia (Gli-B1i), Kremena (Gli-B1k), Clement (Gli-B1l), Norin 61 (Gli-B1m), Aragon 03 (Gli-B1o), Inia 66 (Gli-B1p), Chinook (Gli-B1r), and Resistente (Gli-B1s). Then, the separation of their omega gliadins via RP-UPLC (Figure 3) showed that the number and retention times of peaks corresponding to omega-5 gliadins differ in the different wheat varieties. However, the number and retention time of omega-5 gliadin peaks of Insignia (Gli-B1i) were five at 1.90 min, 2.91 min, 3.70 min, 5.05 min, and 6.28 min. These were very similar to those of Chinook (Gli-B1r) at 1.90 min, 2.85 min, 3.65 min, 5.00 min, and 6.22 min. Three omega-5 gliadin peaks in Fournil (Gli-B1e) at 2.95, 3.80, and 6.00 min were also detected in Glenlea (Gli-B1f), where four peaks were detected at 2.93, 3.80, 5.05, and 5.98 min. Four peaks in Inia 66 (Gli-B1p) at 4.03, 4.90, 6.25, and 7.03 min were the same as four of the five peaks in Neepawa (Gli-B1d) at 4.05, 4.90, 5.35, 6.28, and 7.03 min. The similarities in omega-5 gliadin composition might be related to the genetic distance between the varieties.

2.3. Comparative Analysis of Omega-5 Gliadin Composition in 24 Wheat Varieties with the Gli-B1f Allelxx

Differences in wheat varieties containing the Gli-B1e or Gli-B1f alleles were determined according to the migration patterns of gamma gliadin on A-PAGE and SDS-PAGE due to an inability to distinguish their omega-5 gliadins. To investigate whether the chromatographic patterns of omega-5 gliadins obtained using RP-UPLC can be used to distinguish the Gli-B1 alleles, we fractionized gliadins from flour in different wheat varieties grown under the same environmental conditions and then compared omega-5 gliadin peaks in 24 wheat varieties classified as having the Gli-B1f allele according to A-PAGE and SDS-PAGE (Figure 4). The wheat varieties were separated into eight subgroups according to the number and retention times of their omega-5 gliadin peaks (Table 2). We observed that four omega-5 gliadin peaks at 2.93, 3.80, 5.05, and 5.98 min from a standard common wheat variety, Glenlea, containing the Gli-Bf allele, were also present in Candeal Alcala and Maris Freeman (Group 7). Three omega-5 gliadin peaks at 2.95, 3.80, and 6.00 min were observed in nine varieties (Group 5), including Arcane, Arminda, Brimstone, Castan, Champlein, Futur, Genial, Orepi, and Thesee, whose chromatographic patterns were similar to that in Fournil, a standard common wheat variety containing the Gli-Be allele. Moreover, we observed five omega-5 gliadin peaks (2.90, 3.78, 5.96, 6.71, and 6.93 min) in six varieties (Group 6): Capitole, Cappelle-Desprez, Darius, Ducat, Friendland, and Hardi; five (2.95, 3.81, 6.00, 6.73, and 7.40 min) in Camp-Remy (Group 20); six (2.93, 3.79, 5.05, 6.00, 6.71, and 7.19 min) in Corin (Group 21); and seven (2.94, 3.80, 6.00, 6.72, 7.00, 7.23, and 7.91 min) in Recital (Group 23). These varieties were found to have three peaks in common that were detected in varieties of Group 7. However, two peaks in Avalon and Galad (Group 2) and five in Dankowska (Group 22) were unique and not observed in other standard common wheat varieties. The RP-UPLC analysis of omega-5 gliadin showed that wheat varieties harboring the Gli-B1f allele could be divided into eight subgroups and showed the presence of common omega-5 gliadins among varieties belonging to the six subgroups (Groups 5, 6, 7, 20, 21, and 23) but not two subgroups (Groups 2 and 22).
Table 2. Depending on the chromatographic patterns of omega-5 gliadins, 24 wheat varieties with the Gli-B1f allele were subdivided into eight groups.
Table 2. Depending on the chromatographic patterns of omega-5 gliadins, 24 wheat varieties with the Gli-B1f allele were subdivided into eight groups.
The Number of PeaksRetention Time (min)CultivarsGroup *
23.92, 6.48Avalon, Galad22
32.95, 3.80, 6.00Arcane, Arminda, Brimstone, Castan, Champlein, Futur, Genial, Orepi, Thesee5
42.93, 3.80, 5.05, 5.98Glenlea, Candeal Alcala, Maris Freeman7
52.90, 3.78, 5.96, 6.71, 6.93Capitole, Cappelle-Desprez, Darius, Ducat, Friendland, Hardi6
52.95, 3.81, 6.00, 6.73, 7.40Camp-Remy20
53.90, 5.02, 6.34, 7.14, 7.82Dankowska2
62.93, 3.79, 5.05, 6.00, 6.71, 7.19Corin21
72.94, 3.80, 6.00, 6.72, 7.00, 7.23, 7.91Recital23
*: Group is defined based on the LC peak patterns of omega-5 gliadin via RP-UPLC as described in Table 3.
Table 3. Classification of 73 wheat varieties through RP-UPLC analysis.
Table 3. Classification of 73 wheat varieties through RP-UPLC analysis.
GroupVarietyGli-B1 AlleleGroupVarietyGli-B1 AlleleGroupVarietyGli-B1 Allele
1Chinese Springa5Lutescens 62e12Clementl
2AvalonfOrepifKavkazl
BezostayabTheseefSeri 82l
Caratb6Capitolef13Aragon 03o
CreneaubCappelle-DesprezfSan Rafaelo
GabobDariusf14Norin 61m
GalafDucatfTitienm
MentanakFriedlandf15Marquisb
PartizankabHardif16Prinqualc
Renanb7Candeal Alcalaf17Chopind
RivolibGlenleaf18Sunecad
SoissonsbMaris Freemanf19Apexale
3Neepawad8Champtalg20Camp-Remyf
PetreldMarag21Corinf
4YecoradSadovog22Dankowskaf
Yecora Rojod9Canalejah23Recitalf
5ArcanefTincurrinh24Barbillag
Armindaf10Chinookr25Krasnodonkah
BrimstonefGhurkai26Rudih
CastanfHalberdi27Aradio
ChampleinfInsigniai28Levento
Fournile11Kremenak29Montjuicho
FuturfMagnif 27k30Inia66p
GenialfPane 247k31Resistentes
Rempartm

2.4. Classification of 73 Wheat Varieties Based on Omega-5 Gliadin Composition via RP-UPLC

Comparative analysis of the LC chromatograms of omega gliadins in 24 wheat varieties classified as having the Gli-B1f allele based on gliadin band patterns from A-PAGE and SDS-PAGE revealed that the varieties could be classified into eight groups (Figure 4 and Table 2). This indicates that assessing the omega gliadin composition of wheat varieties using traditional methods is limited but could be accomplished via RP-UPLC. Therefore, we tried to analyze the omega gliadin composition using RP-UPLC in 73 common wheat varieties from 18 countries with known allelic variations of the Gli-B1 loci (Table S1), including one variety with the Gli-B1a allele (Chinese Spring), nine with Gli-B1b (Bezostaya, Carat, Creneau, Gabo, Marquis, Partizanka, Renan, Rivoli, and Soissons), one with Gli-B1c (Prinqual), six with Gli-B1d (Chopin, Neepawa, Petrel, Suneca, Yecora, and Yecora Rojo), three with Gli-B1e (Apexal, Fournil, and Lutescens 62), 24 with Gli-B1f (Arcane, Arminda, Avalon, Brimstone, Camp-Remy, Candeal Alcala, Capitole, Cappelle-Desprez, Castan, Champlein, Corin, Dankowska, Darius, Ducat, Friedland, Futur, Gala, Genial, Glenlea, Hardi, Maris Freeman, Orepi, Recital, and Thesee), four with Gli-B1g (Barbilla, Champtal, Mara, and Sadovo), four with Gli-B1h (Canaleja, Krasnodonka, Rudi, and Tincurrin), three with Gli-B1i (Ghurka, Halberd, and Insignia), four with Gli-B1k (Kremena, Magnif 27, Mentana, and Pane 247), three with Gli-B1l (Clement, Kavkaz, and Seri 82), three with Gli-B1m (Norin 61, Rempart, and Titien), five with Gli-B1o (Aradi, Aragon 03, Levent, Montjuich, and San Rafael), one with Gli-B1p (Inia66), one with Gli-B1r (Chinook), and one with Gli-B1s (Resistente).
Among the nine varieties with the Gli-B1b allele, eight (Bezostaya, Carat, Creneau, Gabo, Partizanka, Renan, Rivoli, and Soissons; Figure 5A) had the same chromatographic peaks (4.09 and 6.65 min) for omega-5 gliadin, but one variety (Marquis) had a different pattern (3.78, 4.30, 6.12, and 6.80 min). Notably, two varieties with the Gli-B1f allele (Avalon and Gala; Figure 5B) and one variety (Mentana; Figure 5C) with the Gli-B1k allele had omega-5 gliadin chromatographic peaks similar to those of the eight varieties with the Gli-B1b allele. These results indicate that allelic variation at the Gli-B1 locus could not be distinguished by the omega-5 gliadin composition of wheat varieties. To determine whether RP-UPLC analysis of omega-5 gliadins could distinguish the allelic variations at this locus, we compared the chromatographic peak patterns in 73 wheat varieties and classified the varieties into 31 groups (Figure 6 and Table 3).
Of the 31 groups, Chinese Spring with the Gli-B1a allele was in Group 1. Wheat varieties with two omega-5 gliadin peaks at 4.08 and 6.65 min were classified into Group 2 (Figure 5 and Figure 6). In varieties with the Gli-B1d allele, Groups 3 and 4 had five (4.05, 4.90, 5.35, 6.28, and 7.03 min) and six peaks (3.70, 4.58, 5.90, 6.65, 6.92, and 7.20 min) for omega-5 gliadin, respectively. As shown in Figure 4, Table 2, and Table 3, varieties with the Gli-B1f allele were classified into Groups 2, 5, 6, 7, 20, 21, 22, and 23 based on the chromatographic peak patterns. Moreover, three varieties (Champtal, Mara, and Sadovo) with the Gli-B1g allele, which had three peaks for omega-5 gliadin at 2.90, 3.75, and 5.92 min, were classified to Group 8, and two varieties (Canaleja and Tincurrin) with the Gli-B1h allele, which had two peaks at 3.92 and 6.15 min, were classified to Group 9. Group 10 had five omega-5 gliadin peaks at 1.92, 2.88, 3.72, 5.05, and 6.27 min in three varieties (Ghurka, Halberd, and Insignia) with the Gli-B1i allele and one variety (Chinook) with the Gli-B1r allele, and Group 11 had two peaks at 3.58 and 5.83 min in three varieties (Kremena, Magnif 27, and Pane 247) with the Gli-B1k allele and one variety (Rempart) with the Gli-B1m allele. Three varieties (Clement, Kavkaz, and Seri 82) containing Gli-B1l, from which no omega-5 gliadin peak was observed, were classified as Group 12. Two varieties (Aragon 03 and San Rafael) with the Gli-B1o allele and two varieties (Norin 61 and Titien) with the Gli-B1m allele were classified into Groups 13 and 14, respectively. The other varieties each belonged to a unique group with a unique chromatographic peak pattern as shown in Figure 6 and Table 3.

3. Discussion

Omega-5 gliadin, a component of gluten essential for bread properties, is a major allergen for individuals with wheat-dependent exercise-induced anaphylaxis (WDEIA), a rare but severe allergy exclusively occurring when wheat ingestion is accompanied by intensive exercise. The identification of epitopes in omega-5 gliadin such as QQI(F)PQQQ and QQSPQ(E)QQ and the relieved immune reactivity in WDEIA patients to omega-5 gliadin-deficient wheat compared to wild-type wheat has led to interest in the omega-5 gliadin composition of diverse wheat varieties [38,39].
The complex and polymorphic characteristics of genes encoding gliadins in allohexaploid wheat have posed many challenges to research. However, the availability of nullisomic–tetrasomic lines has clarified the genetic and chromosomal organization of omega-5 gliadin genes in wheat, revealing the presence of gliadin-coding loci (Gli-B1) located distally on the short arms of chromosome 1B. The mobility of gliadins on A-PAGE and the identification of gliadin genes on different chromosomes using cDNA clones and hybridization techniques revealed that Gli-B1 loci contain several genes encoding gamma gliadins and omega-5 gliadins, which are inherited together as one trait. Metakovsky et al. [26] classified allelic types at the Gli-B1 locus in different common wheat varieties by prioritizing the electrophoretic mobility of gamma gliadin, which showed a more pronounced difference than omega-5 gliadin on A-PAGE. This indicates that the allelic classification may not adequately describe the composition of omega-5 gliadins in different wheat cultivars.
In our previous study, we also analyzed gliadins extracted from flour of CS and its nullisomic–tetrasomic lines (N1AT1B, N1AT1D, N1BT1A, N1BT1D, N1DT1A, and N1DT1B) by using SDS-PAGE, A-PAGE, and RP-HPLC. SDS-PAGE and A-PAGE analyses indicated that genes encoding two omega-5 gliadins with different molecular weights but identical charges at acidic pH could be located at the Gli-B1 locus. However, RP-HPLC analysis showed that at least three different omega-5 gliadins are present in CS [40], indicating that the separation of omega-5 gliadins based on hydrophobicity is more efficient than that based on molecular weight and charge. Indeed, recent studies on gliadin analysis methods have reported that the detection and quantification of gliadin proteins from wheat flour using RP-HPLC are more rapid, efficient, and accurate than with the previous methods, and RP-HPLC could fractionate gliadins with accuracy and repeatability in the following order, omega-5 gliadins, omega-1/2 gliadins, alpha/beta gliadins, and gamma gliadins, depending on hydrophobic features [41,42,43], suggesting that an RP-HPLC approach is highly useful to identify gliadin alleles in various wheat varieties. In this study, the optimized RP-UPLC analysis of gliadin extracts of CS and its nullisomic–tetrasomic lines revealed five peaks corresponding to omega-5 gliadins, which are encoded by genes located on chromosome 1B. The average RSD of each peak retention time ranged from 0.31 to 0.93% in biological and technical replicates (Table 1 and Figure 2), confirming the method’s reproducibility. These results indicate that our RP-UPLC approach is highly sensitive and efficient for omega-5 gliadin separation and useful in studying the genotypes in wheat varieties.
The analysis of omega-5 gliadins in 16 standard common wheat varieties with different alleles at the Gli-B1 locus (Figure 3) showed that the allelic types could be discriminated according to the number and retention times of peaks corresponding to omega-5 gliadins, although similar peak patterns were observed between Insignia (Gli-B1i) and Chinook (Gli-B1r), between Fournil (Gli-B1e) and Glenlea (Gli-B1f), and between Inia 66 (Gli-B1p) and Neepawa (Gli-B1d). However, according to the LC peak patterns of omega-5 gliadins, 24 wheat varieties with the Gli-B1f allele were classified into eight groups (Figure 4 and Table 2). The chromatograms of omega-5 gliadins in eight wheat varieties containing the Gli-B1b allele were similar to those of wheat varieties with the Gli-B1f (Avalon and Gala) and Gli-B1k (Mentana) alleles (Figure 5). These results indicate that A-PAGE- and SDS-PAGE-based classification of the alleles at Gli-B1 loci is limited by an inability to accurately distinguish the omega-5 gliadin composition. We analyzed LC chromatograms of omega-5 gliadins in 73 wheat varieties (Figure S1), which were classified into 31 groups as shown in Figure 6 and Table 3. Five wheat varieties with the Gli-B1d allele could be distinguished into three different groups according to LC chromatograms of omega-5 gliadins: Group 3 (Neepawa and Petrel), Group 4 (Yecora and Yecora Rojo) and Group 18 (Suneca). Twenty-four wheat varieties with the Gli-B1f allele were distinguished into eight groups: Group 2 (Avalon and Gala), Group 5 (Arcane, Arminda, Brimstone, Castan, Champlein, Futur, Genial, Orepi, and Thesee), Group 6 (Capitole, Cappelle-Desprez, Darius, Ducat, Friedland, and Hardi), Group 7 (Candeal Alcala, Glenlea, and Maris Freeman), Group 20 (Camp-Remy), Group 21 (Corin), Group 22 (Dankowska), and Group 23 (Recital). These results indicate that comparing retention times and peak numbers in LC chromatograms using RP-UPLC, which accurately separates omega-5 gliadins based on polarity, could allow for a more refined classification of wheat varieties than using A-PAGE to distinguish Gli-B1 alleles. In addition to wheat cultivars with the Gli-B1f allele, Group 2 contains eight wheat cultivars with the Gli-B1d allele and Mentana with the Gli-B1k allele, and Group 5 includes two cultivars (Fournil and Lutescens 62) with the Gli-B1e allele. The fact that LC peak patterns of omega-5 gliadins in several wheat varieties with different Gli-B1 alleles are identical, i.e., that those in varieties with the same Gli-B1 allele are different, suggests that gamma and omega-5 gliadin genes located at the Gli-B1 locus may not be consistently co-inherited. In other words, Glu-B1 alleles defined based on A-PAGE analysis could not accurately indicate the composition of omega-5 gliadin in wheat varieties, but the optimized RP-UPLC method has the potential to identify omega-5 gliadins and is ideally suited for genetic studies on wheat varieties.

4. Materials and Methods

4.1. Plant Materials

A total of 73 wheat (Triticum aestivum L.) varieties from 18 countries with known allelic variation of the Gli-B1 locus revealed through A-PAGE were analyzed. Among them, one variety contained Gli-B1a, nine contained Gli-B1b, one contained Gli-B1c, six contained Gli-B1d, three contained Gli-B1e, 24 contained Gli-B1f, four contained Gli-B1g, four contained Gli-B1h, three contained Gli-B1i, four contained Gli-B1k, three contained Gli-B1l, three contained Gli-B1m, five contained Gli-B1o, and one variety each contained Gli-B1p, Gli-B1r, or Gli-B1s (Table S1). The seeds of grain samples used in the study were obtained from the National Plant Germplasm System (NPGS, https://www.ars-grin.gov/npgs/ (accessed on 5 March 2021)) in the USA and the National Agrobiodiversity Center (http://genebank.rda.go.kr/ (accessed on 10 February 2023)) in Republic of Korea. Seeds of the reference wheat cultivar Chinese Spring and its six chromosome 1 aneuploid lines (N1AT1B, N1AT1D, N1BT1A, N1BT1D, N1DT1A, and N1DT1B) used as controls for RP-UPLC analysis of the Gli-B1 allele were provided by the National Bioresource Project-wheat (NBRP-Wheat, https://shigen.nig.ac.jp/wheat/komugi/ (accessed on 9 April 2021)) in Japan. For this study, seed samples were harvested from wheats grown at the National Institute of Agricultural Sciences, Jeonju, South Korea, in 2017 as previously reported [19]. All samples used in the experiment were crushed with a cyclone sample mill (Udy Corporation, Fort Collins, CO, USA) and were turned into flour.

4.2. Gliadin Extraction

Gliadin fractions were prepared according to the procedure described by Jang et al. [19] with modifications. First, 50 mg of wheat flour was dissolved in 500 μL of 0.4 M NaCl solution containing 0.067 M HKNaPO4, followed by centrifugation at 12,500 rpm for 10 min at room temperature (RT). After discarding the supernatant containing albumin and globulin, the pellet with gliadins was dissolved with 500 μL of 60% ethanol and shaken for 30 min at RT. After centrifugation at 12,500 rpm for 10 min at RT, the supernatant containing the gliadins was transferred to a new 1.5 mL tube. Extraction was repeated twice. Total gliadin-extracted solution (1 mL) was freeze-dried overnight and stored at –80 °C until use.

4.3. RP-UPLC Analysis

The fraction of omega-5 gliadins from total gliadin extracts was analyzed with RP-UPLC using an ACQUITY UPLC H-Class System (Waters Corp, Milford, MA, USA) equipped with an ACQUITY UPLC Peptide BEH C18 Column (Waters Corp, particle size 1.7 µm, 2.1 × 100 mm id, pore size 300 Å). The mobile phases consisted of solvent A (analytical grade water: 0.06% trifluoroacetic acid (TFA)) and solvent B (acetonitrile (ACN): 0.06% TFA). The UPLC gradient was applied at a flow rate of 0.35 mL/min as follows: Solvent B was linearly increased from 24.5% at 0 min to 28% at 10 min. The column oven temperature was set to 65 °C and the elution of omega-5 gliadins was monitored at 210 nm. To optimize the separation of omega-5 gliadins encoded by the Gli-B1 locus, RP-UPLC conditions were adjusted as follows: linear gradients of solvent B (gradient 1, from 25 to 31.2%; gradient 2, from 25 to 30%; gradient 3, from 24.7 to 30%; and gradient 4, from 24.5 to 28%), flow rate (0.25, 0.30, 0.35, and 0.40 mL/min), oven temperature (55, 60, 63, and 65 °C), and running time (6, 8, 10, and 12 min). The freeze-dried gliadin sample was mixed in 400 μL of 20% ACN solvent with 0.06% TFA and then filtered using a PVDF syringe filter (0.22 µm, Whatman, Buckinghamshire, UK). The injection volume was 5 μL. All analyses were conducted in triplicate.

4.4. Statistical Analysis

To test the reproducibility of the analysis conditions, Chinese Spring was analyzed five times, and according to these data, the mean, standard deviation (p < 0.05), and relative standard deviation% (RSD%) were determined using Excel 2019 (Microsoft, Redmond, DC, USA).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules30030609/s1. Figure S1: Analysis of ω5-gliadins and γ-gliadins in 73 wheat cultivars using RP-UPLC. Alleles of the Gli-B1 locus are grouped based on the ω5-gliadins peaks. Gliadins encoded by the Gli-B1 locus are indicated by numbers; Table S1: Classification of Gli-B1 alleles encoding ω5-gliadins in 73 wheat cultivars.

Author Contributions

Conceptualization, S.K. and K.C.; validation, J.-Y.L. and Y.-J.Y.; formal analysis, J.-Y.L., Y.-J.Y., S.K. and K.C.; investigation, J.-Y.L. and Y.-J.Y.; data curation, J.-Y.L. and Y.-J.Y.; writing—original draft preparation, J.-Y.L., J.S., S.K. and K.C.; writing—review and editing, J.S., S.K. and K.C.; visualization, J.-Y.L. and Y.-J.Y.; supervision, S.K. and K.C.; funding acquisition, J.-Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant from the National Institute of Agricultural Science (RDA PJ01720903), Rural Development Administration, Republic of Korea, and the Basic Science Research Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Education (RS-2023-00248217 to K.C.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.

Acknowledgments

We acknowledge the wheat seed support of the National Plant Germplasm System (NPGS, https://www.ars-grin.gov/npgs/ (accessed on 5 March 2021)) in the USA, the National Agrobiodiversity Center (http://genebank.rda.go.kr/ (accessed on 10 February 2023)) in South Korea, and the National Bioresource Project-wheat (NBRP-Wheat, https://shigen.nig.ac.jp/wheat/komugi/ (accessed on 9 April 2021)) in Japan.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Shewry, P.R.; Halford, N.G.; Lafiandra, D. Genetics of wheat gluten proteins. Adv. Genet. 2003, 49, 111–184. [Google Scholar]
  2. MacRitchie, F. Physicochemical properties of wheat proteins in relation to functionality. Adv. Food Nutr. Res. 1992, 36, 1–87. [Google Scholar]
  3. Rodrigues, M.M.F.; Martins, M.M.; Costa, M.L.B. Thermal properties of gluten proteins of two soft wheat varieties. Food Chem. 2005, 93, 459–465. [Google Scholar] [CrossRef]
  4. Anderson, O.D.; Dong, L.; Huo, N.; Gu, Y.Q. A new class of wheat gliadin genes and proteins. PLoS ONE 2012, 7, e52139. [Google Scholar] [CrossRef] [PubMed]
  5. Barak, S.; Mudgil, D.; Khatkar, B.S. Biochemical and functional properties of wheat gliadins: A review. Crit. Rev. Food Sci. Nutr. 2015, 55, 357–368. [Google Scholar] [CrossRef] [PubMed]
  6. Payne, P.I.; Holt, L.M.; Lawrence, G.J.; Law, C.N. The genetics of gliadin and glutenin, the major storage proteins in the wheat endosperm. Qual. Plant. Plant Foods Hum. Nutr. 1982, 31, 229–241. [Google Scholar] [CrossRef]
  7. Tye-Din, J.A.; Stewart, J.A.; Dromey, J.A.; Beissbarth, T.; van Heel, D.A.; Tatham, A.; Henderson, K.; Mannering, S.I.; Gianfrani, C.; Jewell, D.P.; et al. Comprehensive, quantitative mapping of T cell epitopes in gluten in celiac disease. Sci. Transl. Med. 2010, 2, 41–51. [Google Scholar] [CrossRef] [PubMed]
  8. Sollid, L.M.; Qiao, S.W.; Anderson, R.P.; Gianfrani, C.; Koning, F. Nomenclature and listing of celiac disease relevant gluten T-cell epitopes restricted by HLA-DQ molecules. Immunogenetics 2012, 64, 455–460. [Google Scholar] [CrossRef]
  9. Battais, F.; Mothes, T.; Moneret-Vautrin, D.A.; Pineau, F.; Kanny, G.; Popineau, Y.; Bodinier, M.; Denery-Papini, S. Identification of IgE-binding epitopes on gliadins of patients with food allergy to wheat. Allergy 2005, 60, 815–821. [Google Scholar] [CrossRef]
  10. Bushuk, W.; Zillman, R.R. Wheat cultivar identification by gliadin electrophoregrams. I. Apparatus, method and nomenclature. Can. J. Plant Sci. 1978, 58, 505–515. [Google Scholar] [CrossRef]
  11. Singh, N.K.; Shepherd, K.W.; Cornish, G.B. A simplified SDS-PAGE procedure for separating LMW subunits of glutenin. J. Cereal Sci. 1991, 14, 203–208. [Google Scholar] [CrossRef]
  12. Liu, L.; Ikeda, T.M.; Branlard, G.; Peña, R.J.; Rogers, W.J.; Lerner, S.E.; Kolman, M.A.; Xia, X.; Wang, L.; Ma, W.; et al. Comparison of low molecular weight glutenin subunits identified by SDS-PAGE, 2-DE, MALDI-TOF-MS and PCR in common wheat. BMC Plant Biol. 2010, 10, 124. [Google Scholar] [CrossRef]
  13. Anderson, N.G.; Tollaksen, S.L.; Pascoe, F.H.; Anderson, L. Two-dimensional electrophoretic analysis of wheat seed proteins. Crop Sci. 1985, 25, 667–674. [Google Scholar] [CrossRef]
  14. Dupont, F.M.; Vensel, W.H.; Tanaka, C.K.; Hurkman, W.J.; Altenbach, S.B. Deciphering the complexities of the wheat flour proteome using quantitative two-dimensional electrophoresis, three proteases and tandem mass spectrometry. Proteome Sci. 2011, 9, 10. [Google Scholar] [CrossRef]
  15. Altenbach, S.B.; Chang, H.C.; Simon-Buss, A.; Mohr, T.; Huo, N.; Gu, Y.Q. Exploiting the reference genome sequence of hexaploid wheat: A proteomic study of flour proteins from the cultivar Chinese Spring. Funct. Integr. Genom. 2020, 20, 1–16. [Google Scholar] [CrossRef] [PubMed]
  16. Bietz, J.A.; Burnouf, T.; Cobb, L.A.; Wall, J.S. Gliadin analysis by reversed-phase high-performance liquid chromatography: Optimization of extraction conditions. Cereal Chem. 1984, 61, 124–129. [Google Scholar]
  17. Bietz, J.A.; Burnouf, T. Chromosomal control of wheat gliadin: Analysis by reversed-phase high-performance liquid chromatography. Theor. Appl. Genet. 1985, 70, 599–609. [Google Scholar] [CrossRef]
  18. Wieser, H.; Seilmeier, W.; Belitz, H.D. Quantitative determination of gliadin subgroups from different wheat cultivars. J. Cereal Sci. 1994, 19, 149–155. [Google Scholar] [CrossRef]
  19. Jang, Y.R.; Cho, K.; Kim, S.; Sim, J.R.; Lee, S.B.; Kim, B.G.; Gu, Y.Q.; Altenbach, S.B.; Lim, S.H.; Goo, T.W.; et al. Comparison of MALDI-TOF-MS and RP-HPLC as Rapid Screening Methods for Wheat Lines With Altered Gliadin Compositions. Front. Plant Sci. 2020, 11, 600489. [Google Scholar] [CrossRef] [PubMed]
  20. Ferranti, P.; Mamone, G.; Picariello, G.; Addeo, F. Mass spectrometry analysis of gliadins in celiac disease. J. Mass Spectrom. 2007, 42, 1531–1548. [Google Scholar] [CrossRef]
  21. Mamone, G.; Addeo, F.; Chianese, L.; Di Luccia, A.; De Martino, A.; Nappo, A.; Formisano, A.; De Vivo, P.; Ferranti, P. Characterization of wheat gliadin proteins by combined two-dimensional gel electrophoresis and tandem mass spectrometry. Proteomics 2005, 5, 2859–2865. [Google Scholar] [CrossRef] [PubMed]
  22. Hurkman, W.J.; Tanaka, C.K.; Vensel, W.H.; Thilmony, R.; Altenbach, S.B. Comparative proteomic analysis of the effect of temperature and fertilizer on gliadin and glutenin accumulation in the developing endosperm and flour from Triticum aestivum L. cv. Butte 86. Proteome Sci. 2013, 11, 8. [Google Scholar] [CrossRef]
  23. Gao, L.; Ma, W.; Chen, J.; Wang, K.; Li, J.; Wang, S.; Bekes, F.; Appels, R.; Yan, Y. Characterization and comparative analysis of wheat high molecular weight glutenin subunits by SDS-PAGE, RP-HPLC, HPCE, and MALDI-TOF-MS. J. Agric. Food Chem. 2010, 58, 2777–2786. [Google Scholar] [CrossRef]
  24. Taleuzzaman, M.; Ali, S.; Gilani, S.J.; Imam, S.S.; Hafeez, A. Ultra performance liquid chromatography (UPLC)—A review. Austin J. Anal. Pharm. Chem. 2015, 2, 1056. [Google Scholar]
  25. Lee, S.B.; Yang, Y.J.; Lim, S.H.; Gu, Y.Q.; Lee, J.Y. A Rapid, Reliable RP-UPLC Method for Large-Scale Analysis of Wheat HMW-GS Alleles. Molecules 2021, 26, 6174. [Google Scholar] [CrossRef]
  26. Metakovsky, E.; Melnik, V.A.; Rodriguez-Quijano, M.; Upelniek, V.P.; Carrillo, J.M. A catalog of gliadin alleles: Polymorphism of 20th-century common wheat germplasm. Crop J. 2018, 6, 629–641. [Google Scholar] [CrossRef]
  27. Metakovsky, E.V. Gliadin allele identification in common wheat. II. Catalogue of gliadin alleles in common wheat. J. Genet. Breed. 1991, 45, 325–344. [Google Scholar]
  28. Metakovsky, E.V.; Ng, K.W.; Chernakov, V.M.; Pogna, N.E.; Bushuk, W. Gliadin alleles in Canada western red spring wheat cultivars: Use of two different procedures of APAGE for gliadin separation. Genome 1993, 36, 743–749. [Google Scholar] [CrossRef]
  29. Metakovsky, E.V.; Branlard, G. Genetic diversity of French common wheat germplasm studied using gliadin alleles. Theor. Appl. Genet. 1998, 96, 209–218. [Google Scholar] [CrossRef]
  30. Metakovsky, E.V.; Pogna, N.E.; Biancardi, A.M.; Redaelli, R. Gliadin allele composition of common wheat cultivars grown in Italy. J. Genet. Breed. 1994, 48, 55–66. [Google Scholar]
  31. Metakovsky, E.V.; Gòmez, M.; Vàzquez, J.F.; Carrillo, J.M. High genetic diversity of Spanish common wheats as judged from gliadin alleles. Plant Breed. 2000, 119, 37–42. [Google Scholar] [CrossRef]
  32. Ruiz, M.; Metakovsky, E.V.; Rodriguez-Quijano, M.; Vazquez, J.F.; Carrillo, J.M. Assessment of storage protein variation in relation to some morphological characters in a sample of Spanish landraces of common wheat (Triticum aestivum L. ssp. aestivum). Genet. Resour. Crop. Evol. 2002, 49, 371–382. [Google Scholar] [CrossRef]
  33. Kozub, N.A.; Sozinov, I.A.; Sobko, T.A.; Kolyuchii, V.T.; Kuptsov, S.V.; Sozinov, A.A. Variation at storage protein loci in winter common wheat cultivars of the central forest-steppe of Ukraine. Cytol. Genet. 2009, 43, 69–77. [Google Scholar] [CrossRef]
  34. Metakovsky, E.V.; Knezevic, D.; Javornik, B. Gliadin allele composition of Yugoslav winter wheat cultivars. Euphytica 1991, 54, 285–295. [Google Scholar] [CrossRef]
  35. Metakovsky, E.; Melnik, V.A.; Pascual, L.; Wrigley, C.W. Gliadin genotypes worldwide for spring wheats (Triticum aestivum L.) 1. Genetic diversity and grain-quality gliadin alleles during the 20th century. J. Cereal Sci. 2019, 87, 172–177. [Google Scholar] [CrossRef]
  36. Metakovsky, E.; Melnik, V.A.; Pascual, L.; Wrigley, C.W. Gliadin genotypes worldwide for spring wheats (Triticum aestivum L.) 2. Strong differentiation of polymorphism between countries and regions of origin. J. Cereal Sci. 2019, 87, 311–317. [Google Scholar] [CrossRef]
  37. Popovych, Y.; Chebotar, S.; Melnik, V.; Rodriguez-Quijano, M.; Pascual, L.; Rogers, W.J.; Metakovsky, E. Congruity of the Polymorphisms in the Expressed and Noncoding Parts of the Gli-B1 Locus in Common Wheat. Agronomy 2020, 10, 1510. [Google Scholar] [CrossRef]
  38. Matsuo, H.; Morita, E.; Tatham, A.S.; Morimoto, K.; Horikawa, T.; Osuna, H.; Ikezawa, Z.; Kaneko, S.; Kohno, K.; Dekio, S. Identification of the IgE-binding epitope in omega-5 gliadin, a major allergen in wheat-dependent exercise-induced anaphylaxis. J. Biol. Chem. 2004, 279, 12135–12140. [Google Scholar] [CrossRef] [PubMed]
  39. Lee, J.; Kim, S.-R.; Park, J.H.; Park, K.-H.; Jeong, K.Y.; Lee, J.-H.; Kang, C.-S.; Kim, K.-H.; Park, J.-W. Evaluation of Allergenicity on a ω-5 Gliadin-Deficient Cultivar in Wheat-Dependent Exercise-Induced Anaphylaxis. Allergy Asthma Immunol. Res. 2022, 14, 379–392. [Google Scholar] [CrossRef]
  40. Jang, Y.-R.; Kang, C.-S.; Lim, S.-H.; Lee, J.-Y. Screening and Identification of Omega-5 Gliadin Mutants in Wheat Doubled-Haploid Lines. Korean J. Breed. Sci. 2018, 50, 181–192. [Google Scholar] [CrossRef]
  41. Han, C.; Lu, X.; Yu, Z.; Li, X.; Ma, W.; Yan, Y. Rapid separation of seed gliadins by reversed-phase ultra performance liquid chromatography (RP-UPLC) and its application in wheat cultivar and germplasm identification. Biosci. Biotechnol. Biochem. 2015, 79, 808–815. [Google Scholar] [CrossRef] [PubMed]
  42. Cvjetkovic, V.S.G.; Grujic, R.D.; Marjanovic-Balaban, Z.R.; Stanojevic, L.P.; Stanojevic, J.S.; Cakic, M.D. Gliadin Analysis by Reversed-Phase High Performance Liquid Chromatography. Adv. Technol. 2019, 8, 30–36. [Google Scholar] [CrossRef]
  43. Zhou, J.; Liu, W.; Han, C.; Cao, H.; Xu, Y.; Zhang, W.; Yan, Y. Synthesis and Accumulation of Glutenin Subunits during Grain Development in Bread Wheat as Revealed by Reversed-phase Ultra-performance Liquid Chromatography (RP-UPLC). Cereal Res. Commun. 2016, 44, 461–471. [Google Scholar] [CrossRef]
Molecules 30 00609 g001

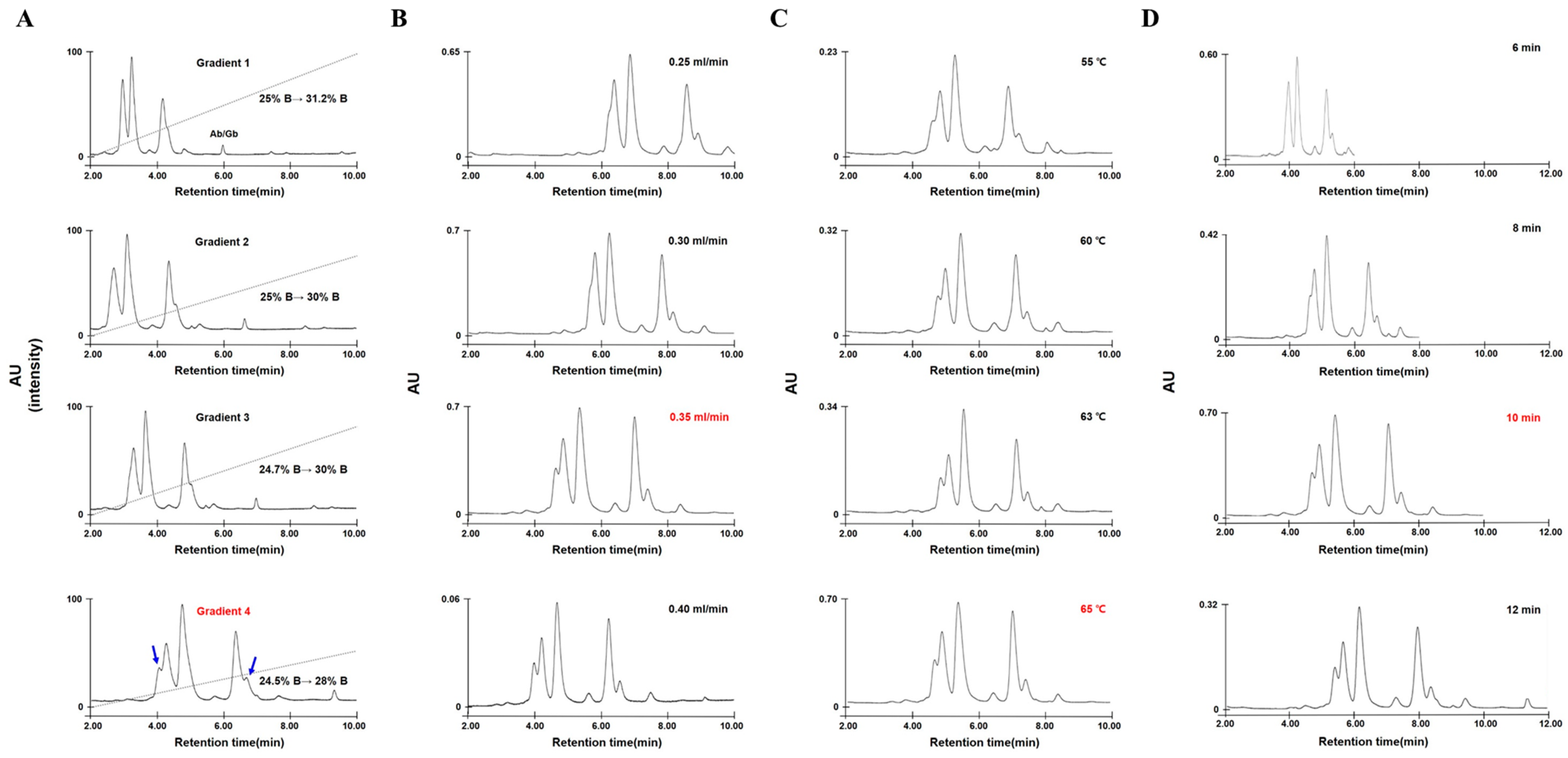

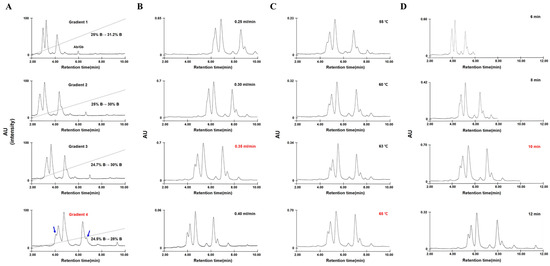

Figure 1. Optimization of RP-UPLC conditions for omega-5 gliadin separation. (A) Four solvent gradient conditions for omega-5 gliadin analysis (gradient 1: 25–31.2% solvent B (ACN), gradient 2: 25–30% solvent B, gradient 3: 24.7–30% solvent B, and gradient 4: 24.5–28% solvent B). (B) Separation flow rate (0.25, 0.30, 0.35, and 0.40 mL/min). (C) Column temperature (55 °C, 60 °C, 63 °C, and 65 °C). (D) Running time (6, 8, 10, and 12 min) for a linear increase in solvent B from 24.5 to 28%. Red: optimized conditions, blue arrows: reference peaks for determining optimal conditions, dashed line: linear gradient of solvent B.
Figure 1. Optimization of RP-UPLC conditions for omega-5 gliadin separation. (A) Four solvent gradient conditions for omega-5 gliadin analysis (gradient 1: 25–31.2% solvent B (ACN), gradient 2: 25–30% solvent B, gradient 3: 24.7–30% solvent B, and gradient 4: 24.5–28% solvent B). (B) Separation flow rate (0.25, 0.30, 0.35, and 0.40 mL/min). (C) Column temperature (55 °C, 60 °C, 63 °C, and 65 °C). (D) Running time (6, 8, 10, and 12 min) for a linear increase in solvent B from 24.5 to 28%. Red: optimized conditions, blue arrows: reference peaks for determining optimal conditions, dashed line: linear gradient of solvent B.
Molecules 30 00609 g001
Molecules 30 00609 g002

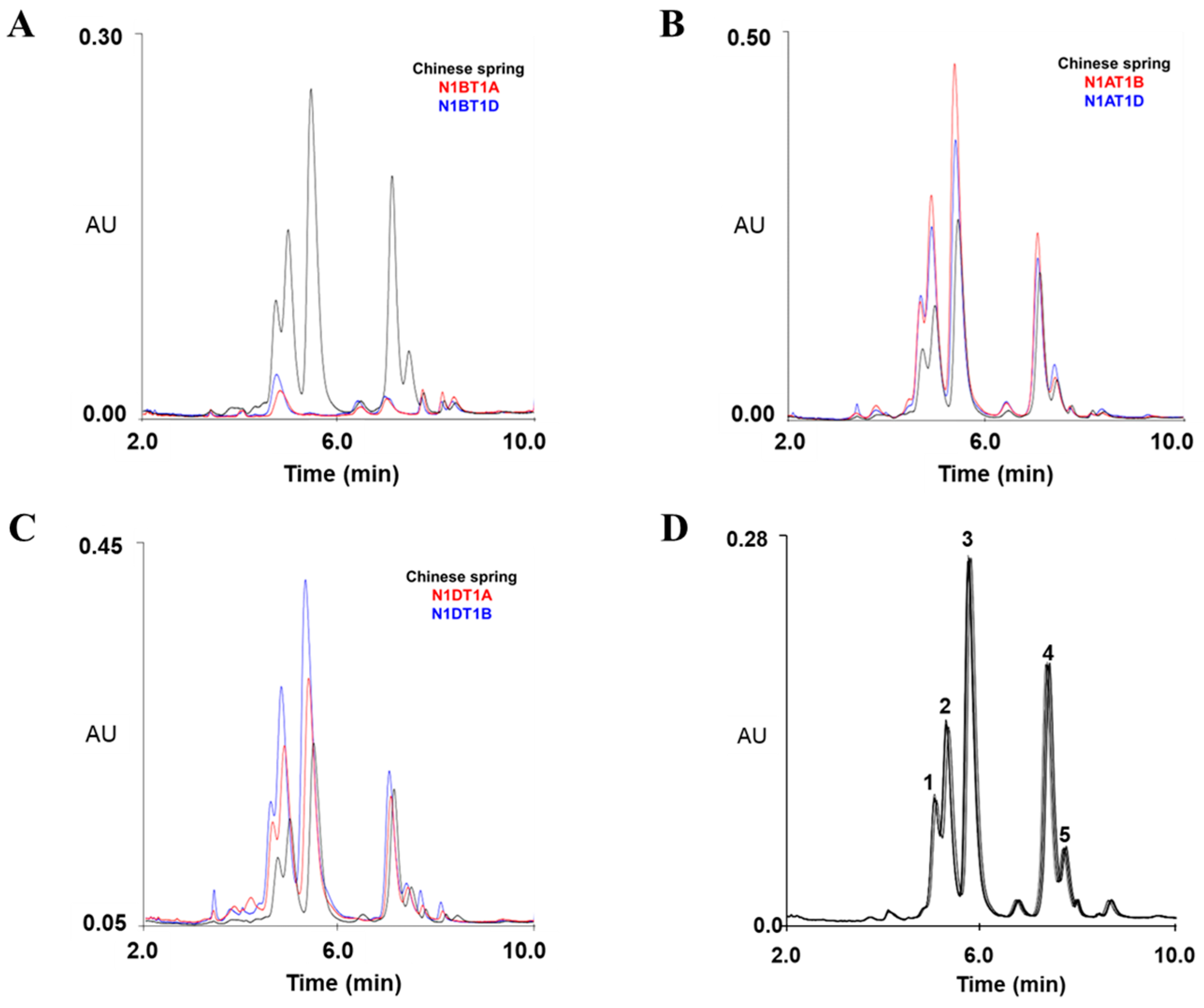

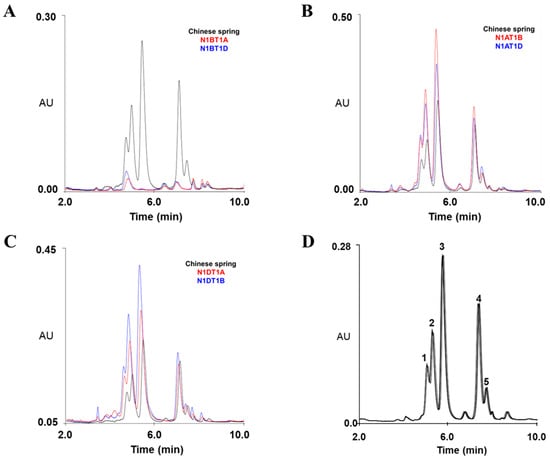

Figure 2. Chromatograms of omega-5 gliadins of Chinese Spring (CS) and nullisomic–tetrasomic lines of CS via RP-UPLC. (A–C) Separation of omega-5 gliadins of CS and its nullisomic–tetrasomic lines lacking A1 (N1AT1B and N1AT1D), B1 (N1BT1A and N1BT1D), and D1 (N1DT1A and N1DT1B) chromosomes using RP-UPLC. (D) Reproducibility of seven consecutive runs of RP-UPLC in separating five peaks of omega-5 gliadins in CS with optimized instrument conditions.
Figure 2. Chromatograms of omega-5 gliadins of Chinese Spring (CS) and nullisomic–tetrasomic lines of CS via RP-UPLC. (A–C) Separation of omega-5 gliadins of CS and its nullisomic–tetrasomic lines lacking A1 (N1AT1B and N1AT1D), B1 (N1BT1A and N1BT1D), and D1 (N1DT1A and N1DT1B) chromosomes using RP-UPLC. (D) Reproducibility of seven consecutive runs of RP-UPLC in separating five peaks of omega-5 gliadins in CS with optimized instrument conditions.
Molecules 30 00609 g002
Molecules 30 00609 g003

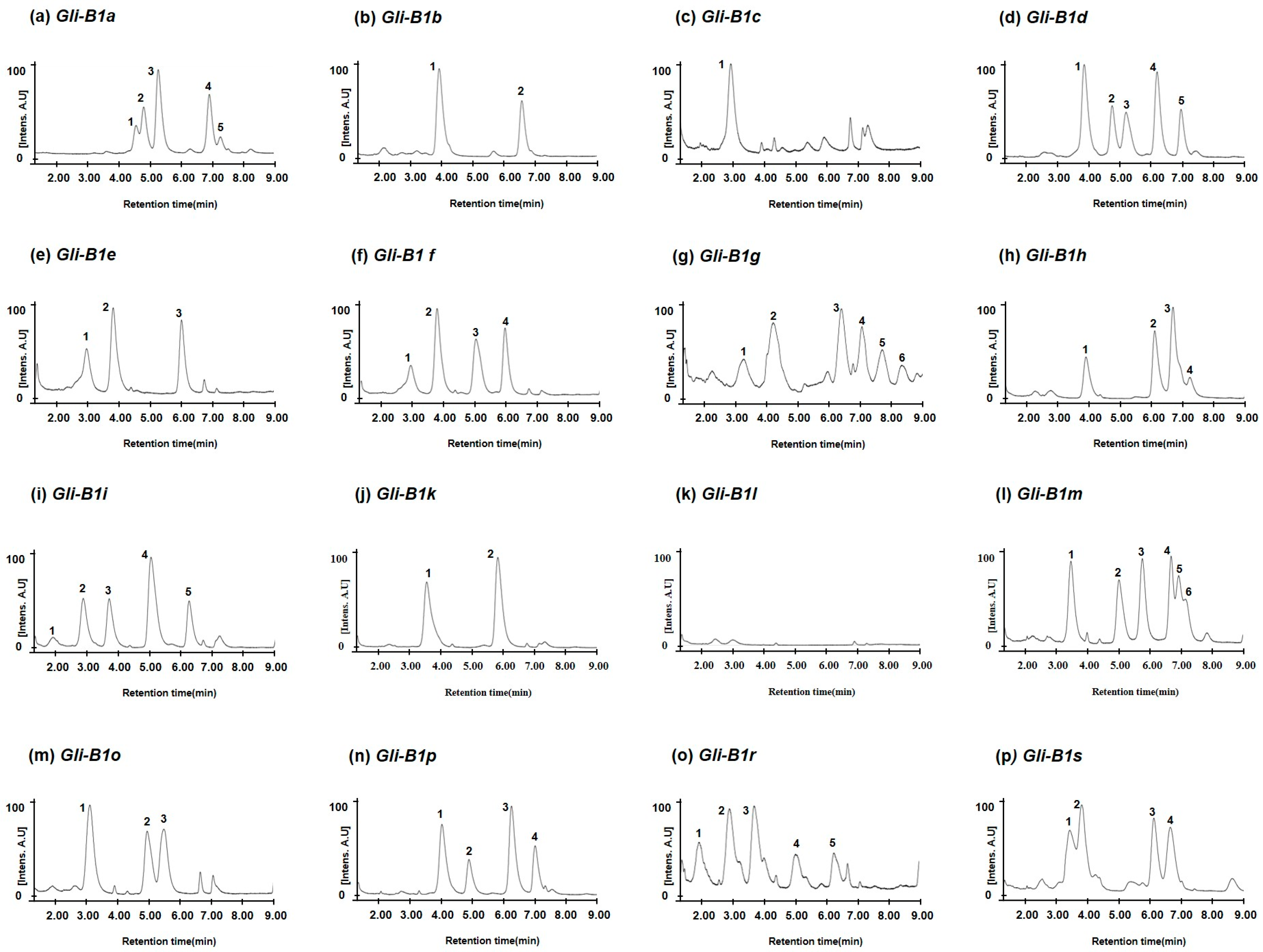

Figure 3. Chromatograms of omega-5 gliadins of standard wheat varieties representing each 16 Gli-B1 allele defined using A-PAGE and SDS-PAGE. (a) Chinese Spring with the Gli-B1a allele; (b) Bezostaya with Gli-B1b; (c) Prinqual with Gli-B01c; (d) Neepawa with Gli-B1d; (e) Fournil with Gli-B1e; (f) Glenlea with Gli-B1f; (g) Barbilla with Gli-B1g; (h) Rudi with Gli-B1h; (i) Insignia with Gli-B1i; (j) Kremena with Gli-B1k; (k) Clement with Gli-B1l; (l) Norin 61 with Gli-B1m; (m) Aragon 03 with Gli-B1o; (n) Inia 66 with Gli-B1p; (o) Chinook with Gli-B1r; (p) Resistente with Gli-B1s.
Figure 3. Chromatograms of omega-5 gliadins of standard wheat varieties representing each 16 Gli-B1 allele defined using A-PAGE and SDS-PAGE. (a) Chinese Spring with the Gli-B1a allele; (b) Bezostaya with Gli-B1b; (c) Prinqual with Gli-B01c; (d) Neepawa with Gli-B1d; (e) Fournil with Gli-B1e; (f) Glenlea with Gli-B1f; (g) Barbilla with Gli-B1g; (h) Rudi with Gli-B1h; (i) Insignia with Gli-B1i; (j) Kremena with Gli-B1k; (k) Clement with Gli-B1l; (l) Norin 61 with Gli-B1m; (m) Aragon 03 with Gli-B1o; (n) Inia 66 with Gli-B1p; (o) Chinook with Gli-B1r; (p) Resistente with Gli-B1s.
Molecules 30 00609 g003
Molecules 30 00609 g004

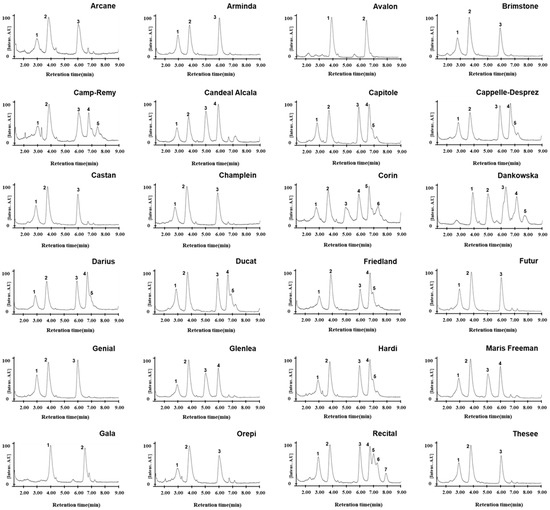

Figure 4. Chromatograms of omega-5 gliadins of 24 wheat varieties with the Gli-B1f allele. Separation of omega-5 gliadins in 24 wheat varieties via RP-UPLC. Number indicates peaks of omega-5 gliadin.
Figure 4. Chromatograms of omega-5 gliadins of 24 wheat varieties with the Gli-B1f allele. Separation of omega-5 gliadins in 24 wheat varieties via RP-UPLC. Number indicates peaks of omega-5 gliadin.
Molecules 30 00609 g004
Molecules 30 00609 g005

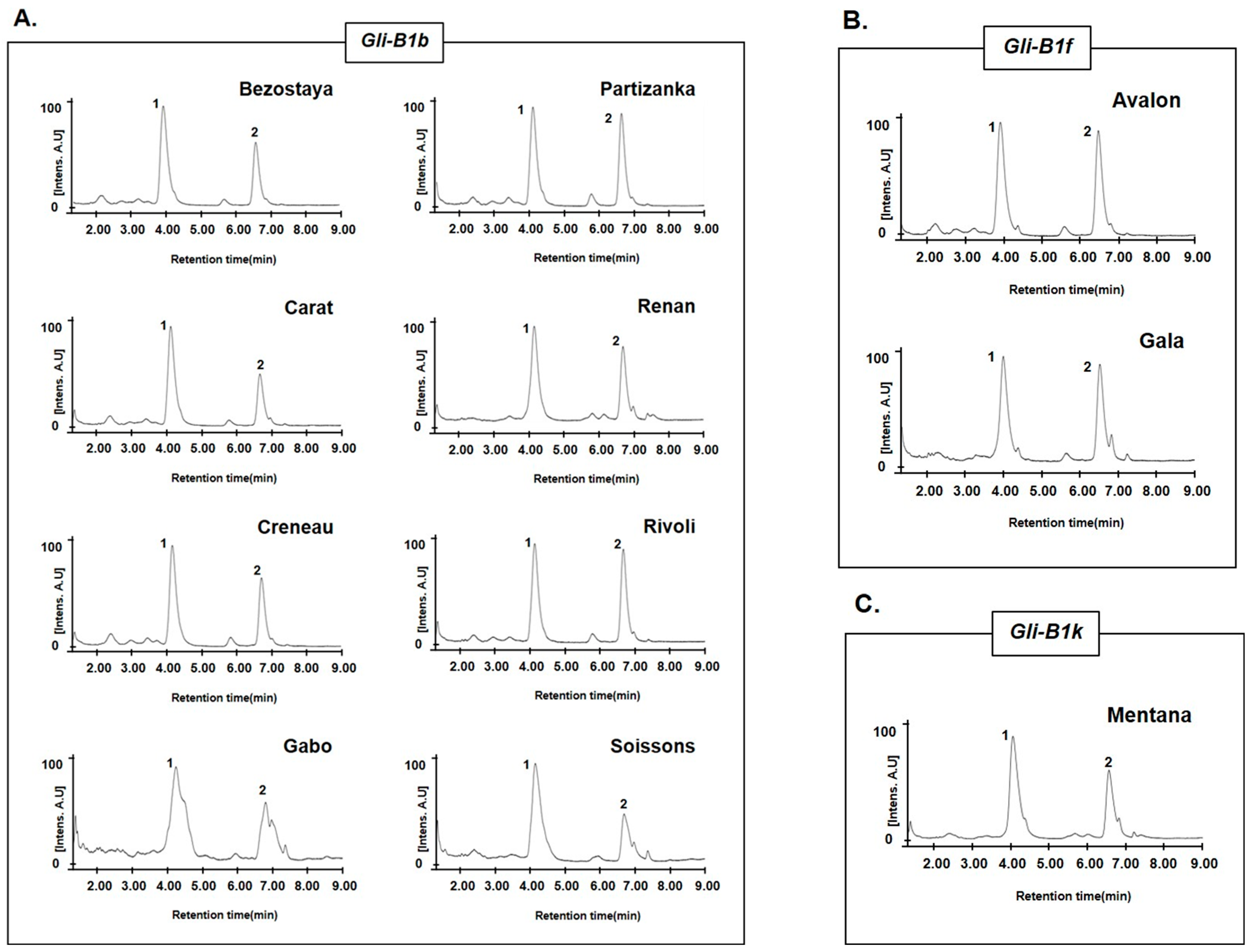

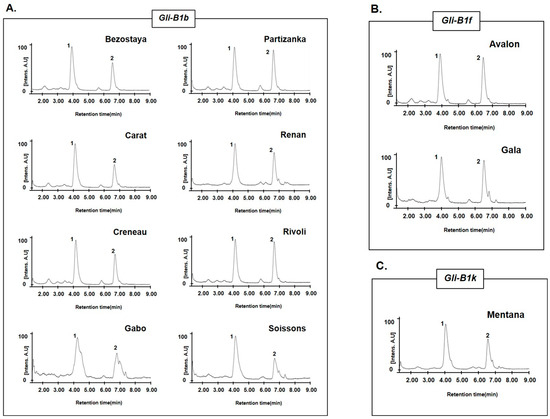

Figure 5. RP-UPLC analysis in wheat varieties with different Gli-B1 alleles but similar chromatographic patterns of mega-5 gliadin. (A–C) Chromatograms of omega-5 gliadins in (A) eight wheat varieties with the Gli-B1b allele (Bezostaya, Carat, Creneau, Gabo, Partizanka, Renan, Rivoli, and Soissons), (B) two with the Gli-B1f allele (Avalon and Gala), and (C) one with the Gli-B1k allele (Mentana). Number indicates peaks of omega-5 gliadin.
Figure 5. RP-UPLC analysis in wheat varieties with different Gli-B1 alleles but similar chromatographic patterns of mega-5 gliadin. (A–C) Chromatograms of omega-5 gliadins in (A) eight wheat varieties with the Gli-B1b allele (Bezostaya, Carat, Creneau, Gabo, Partizanka, Renan, Rivoli, and Soissons), (B) two with the Gli-B1f allele (Avalon and Gala), and (C) one with the Gli-B1k allele (Mentana). Number indicates peaks of omega-5 gliadin.
Molecules 30 00609 g005
Molecules 30 00609 g006

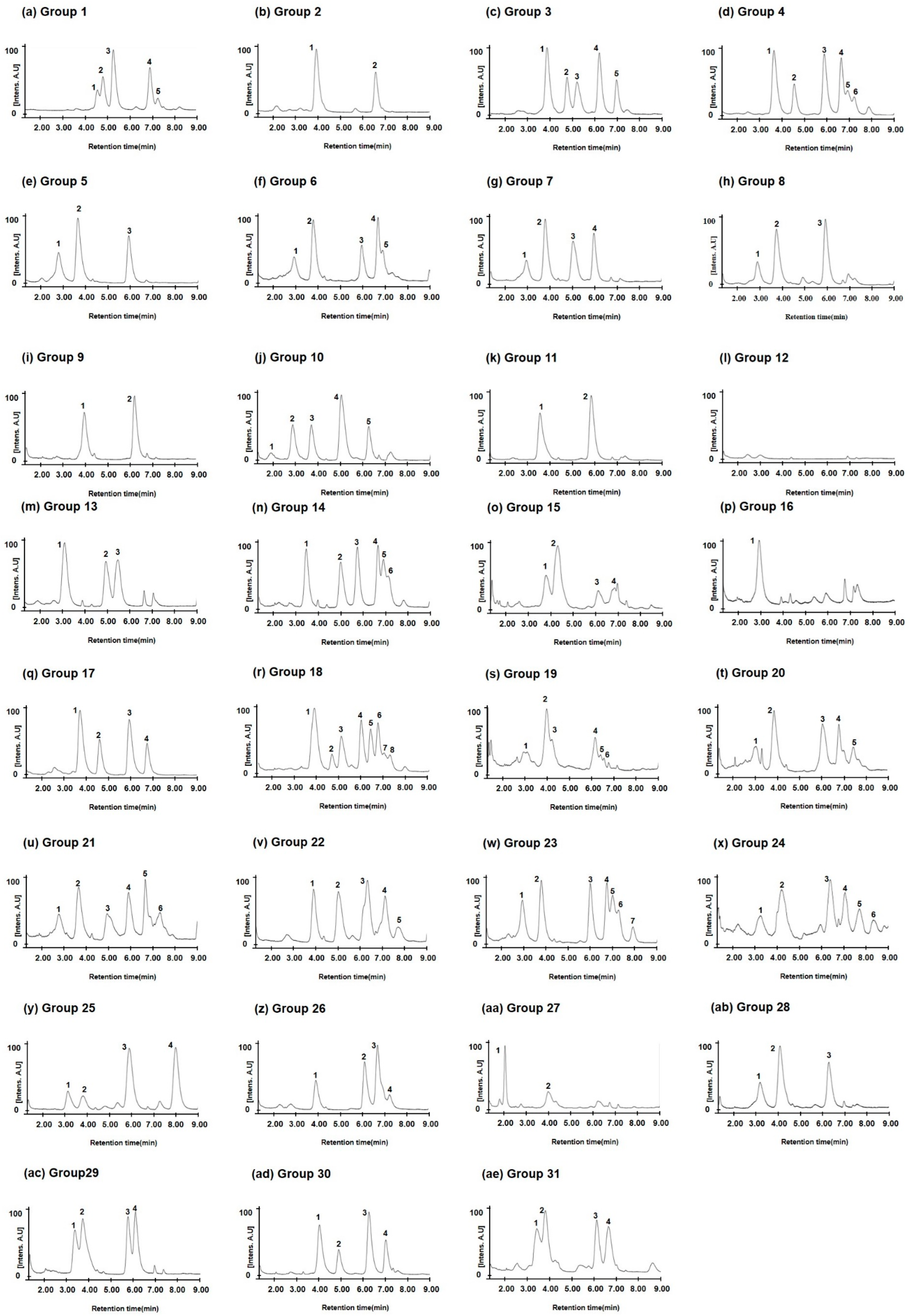

Figure 6. Chromatograms of omega-5 gliadin in representative wheat varieties of 31 groups classified via RP-UPLC analysis. (a) Chinese Spring; (b) Bezostaya; (c) Neepawa; (d) Yecora Rojo; (e) Brimstone; (f) Friedland; (g) Glenlea; (h) Sadovo; (i) Canaleja; (j) Insignia; (k) Kremena; (l) Clement; (m) Aragon 03; (n) Norin 61; (o) Marquis; (p) Prinqual; (q) Chopin; (r) Suneca; (s) Apexal; (t) Camp-Remy; (u) Corin; (v) Dankowska; (w) Recital; (x) Barbilla; (y) Krasnodonka; (z) Rudi; (aa) Aradi; (ab) Levent; (ac) Montjuich; (ad) Inia 66; (ae) Resistente. Number indicates peaks of omega-5 gliadin.
Figure 6. Chromatograms of omega-5 gliadin in representative wheat varieties of 31 groups classified via RP-UPLC analysis. (a) Chinese Spring; (b) Bezostaya; (c) Neepawa; (d) Yecora Rojo; (e) Brimstone; (f) Friedland; (g) Glenlea; (h) Sadovo; (i) Canaleja; (j) Insignia; (k) Kremena; (l) Clement; (m) Aragon 03; (n) Norin 61; (o) Marquis; (p) Prinqual; (q) Chopin; (r) Suneca; (s) Apexal; (t) Camp-Remy; (u) Corin; (v) Dankowska; (w) Recital; (x) Barbilla; (y) Krasnodonka; (z) Rudi; (aa) Aradi; (ab) Levent; (ac) Montjuich; (ad) Inia 66; (ae) Resistente. Number indicates peaks of omega-5 gliadin.
Molecules 30 00609 g006
Table 1. Reproducibility of seven replicates of RP-UPLC to separate omega-5 gliadins in CS.
Table 1. Reproducibility of seven replicates of RP-UPLC to separate omega-5 gliadins in CS.
GliadinsPeak No.Retention Time (min)RSD% 1RSD% 2
Omega-515.082 * ± 0.024 **0.4650.932
25.329 ± 0.0290.5510.831
35.790 ± 0.0270.4750.641
47.428 ± 0.0310.4180.365
57.777 ± 0.0290.3740.311
* and **: average elution time of the separate gliadin peaks and p < 0.05%, respectively. RSD% 1 and RSD% 2 were the percentage of average relative standard deviations calculated by analyzing three biological and seven instrumental replicates, respectively.
