2.1. Characterization of the Tested Sorbents (FTIR, SSA, Fiber Content, Elemental Analysis C, N, H)

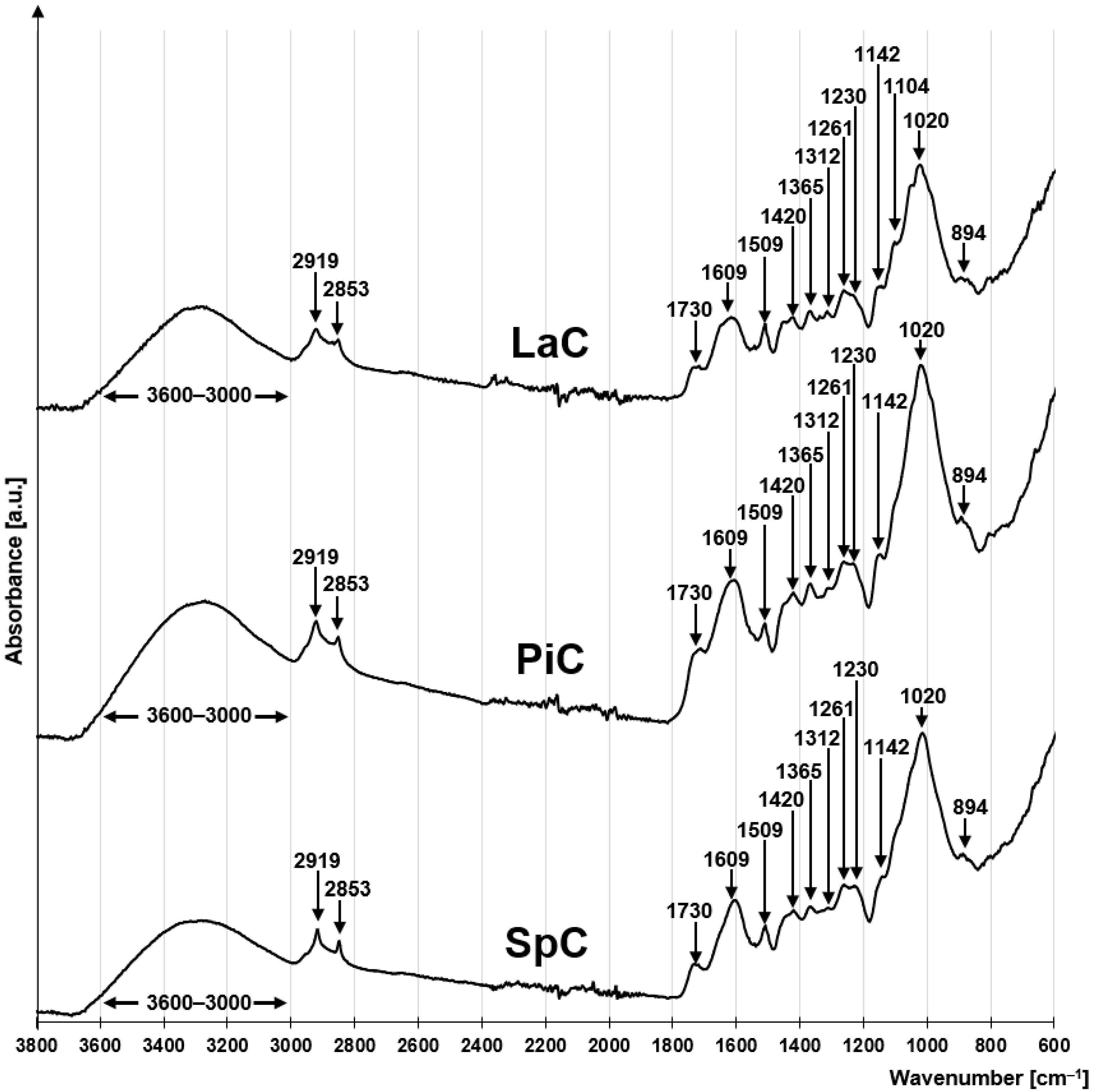

The FTIR spectra of LaC, PiC and SpC are very similar, suggesting that they have a similar chemical composition. All three spectra exhibit a series of peaks characteristic of lignocellulosic plant biomass (
Figure 1). The peaks at 1142 cm
−1, 1104 cm
−1, 1020 cm
−1 and 894 cm
−1 are due to C-O-C glycosidic bonds between the saccharide rings of cellulose and hemicellulose [
63,
64]. The peaks at 1365 cm
−1 and 1312 cm
−1 correspond to the rocking and bending vibrations of the C6 carbon of the pyranose ring of holocellulose [
65]. The presence of a peak at 1420 cm
−1 (shear vibrations -CH
2) indicates the presence of a crystalline portion of the cellulose [
66].
The presence of lignin in the studied materials is associated with a peak at 1230 cm
−1 indicating vibrations of the syringin ring [
67], as well as peaks at 1609 cm
−1 and 1509 cm
−1 indicating the presence of vibrations of aromatic lignin structures [
67,
68]. Another characteristic feature of lignin is the peak at 1730 cm
−1, which indicates the presence of C=O carbonyl bonds [
69,
70]. However, it cannot be ruled out that this peak is related to the presence of carboxyl groups, which occur naturally in hemicellulose and in very small amounts in cellulose and lignin. The broad absorption band at 3600–3000 cm
−1 is attributed to the stretching of the O-H bonds of the hydroxyl functional groups present in cellulose, hemicellulose and lignin [
71,
72]. The peaks at 2924 cm
−1 and 2853 cm
−1 correspond to the asymmetric and symmetric stretching vibrations of -CH
2 groups, which may belong to aliphatic fragments of holocellulose and lignin structures, but also to terminal protein groups [
73,
74]. The presence of proteins in the investigated material can be indicated by a small peak at 1261 cm
−1 corresponding to the stretching of the C-N bond [
75].
The specific BET surface areas of the sorbents were very small and amounted to 0.308 m2/g, 0.283 m2/g and 0.248 m2/g for LaC, PiC and SpC, respectively. The average pore size on the surface of LaC, PiC and SpC was 16.7 μm, 20.2 μm and 14.6 μm, respectively, which qualifies the tested materials as macroporous.
The composition of the most important components of the sorbents tested is summarized in
Table 1. The cellulose and lignin content increases in the range LaC < PiC < SpC, while in the case of hemicellulose, the situation is reversed and decreases in the series (LaC > PiC > SpC). The high content of hemicellulose, which has acidic functional carboxyl groups in its structure, can increase the acidic character of the sorbent and thus promote the electrostatic binding of basic dyes.
Lignin also has acidic properties and thus also supports the sorption of cationic dyes. However, due to the very small amount of functional carboxyl groups, the acidic property of lignin is much weaker than that of hemicellulose. The acidity of lignin results from the presence of phenolic groups, which can be deprotonated, and aliphatic hydroxyl groups (which exhibit weak acidity) in its structure.
At a sufficiently low pH value, the phenolic groups and the aliphatic hydroxyl groups of lignin are capable of protonation. Positively charged functional groups are responsible for the electrostatic binding of anionic compounds. It should also be mentioned that lignin, unlike polysaccharides, possesses numerous aromatic structures. This enables it to bind sorbates containing aromatic rings through the formation of strong π−π interactions. Consequently, a higher lignin content in biomass promotes the sorption of both cationic and anionic dyes [
76].
However, it should be borne in mind that the sorption of dyes on lignocellulosic bio-mass can occur not only through electrostatic interactions and π-π interactions but also through hydrogen bonds (e.g., with hydroxyl groups of the sorbent) or van der Waals forces [
77].
The content of elements (C, N, H) in the cone biomass is very similar (
Table 2). The presence of nitrogen is mainly related to the protein content in the biomass. Amino groups derived from amino acids can be important active centers in the sorption of anionic dyes.
The elemental composition of the cone biomass can help to decide on the disposal of the sorbents used. The high carbon content indicates a fairly high calorific value of the materials and suggests the possibility of recovering heat energy, e.g., by incineration in a heating plant. A C/N ratio of approximately 30:1 also indicates the possibility of biomass fermentation and thus energy recovery in the form of biogas [
78,
79]. Used cone-based sorbents could also be used as a raw material for the production of activated carbon [
80].
2.2. Effect of pH on the Efficiency of Dye Sorption on LaC, PiC and SpC

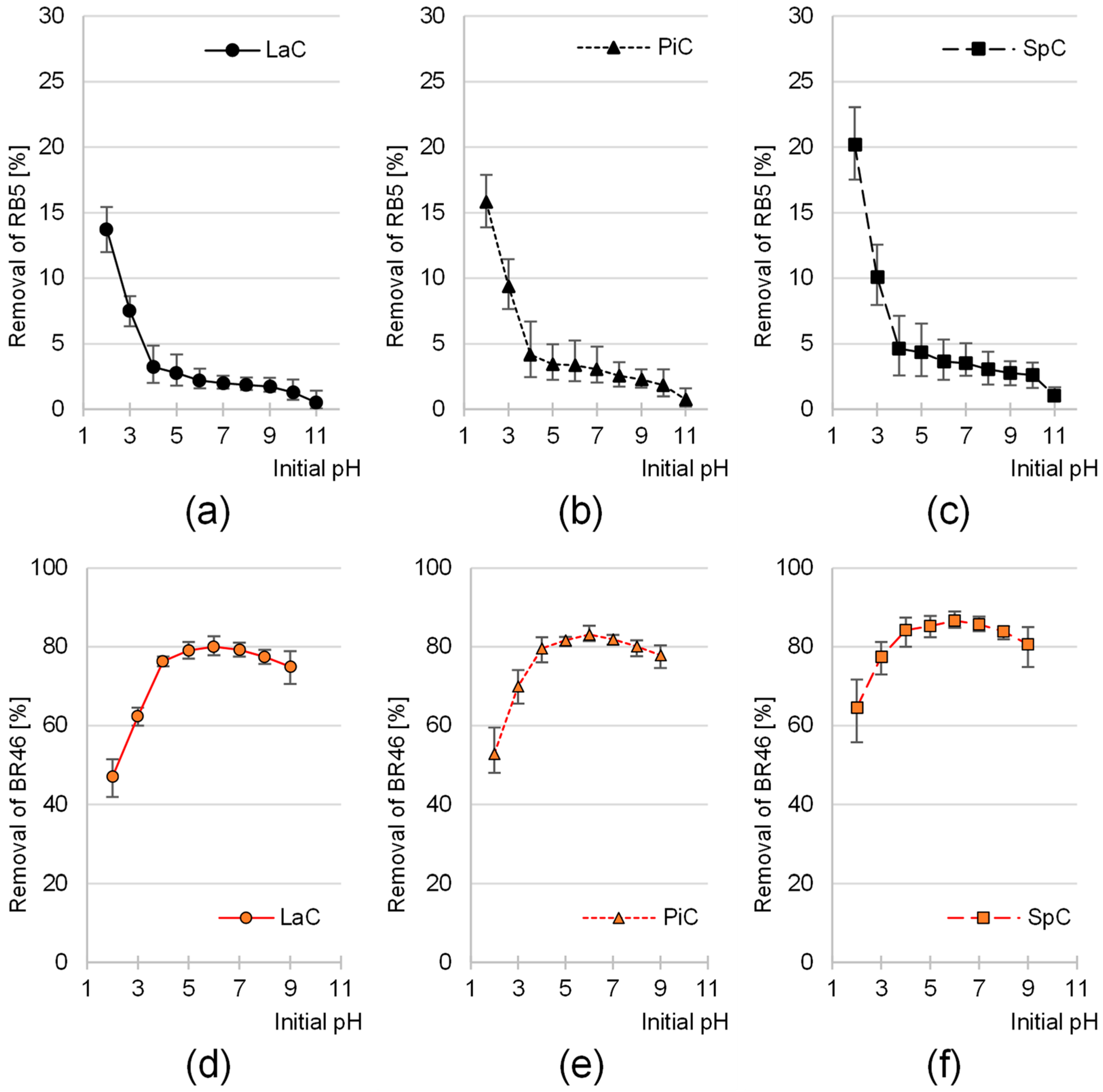

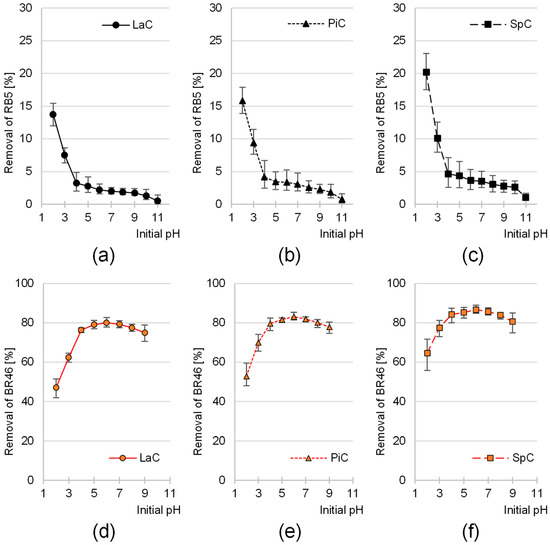

The sorption efficiency of the reactive anionic dye Reactive Black 5 (RB5) on the biomass of larch (LaC), pine (PiC) and spruce cones (SpC) was highest at pH 2 (
Figure 2a–c). The higher the initial sorption pH, the lower the effectiveness of RB5 binding to the cone biomass. The greatest decrease in sorption intensity was observed in the pH range of 2–4, while in the pH range of 4–10, the binding efficiency of the anionic dye RB5 to cones was at a similar, low level. For each sorbent tested, the lowest sorption efficiency was observed at pH 11.
Under low pH conditions with a significant concentration of hydronium ions (H
3O
+), the functional groups in the cone biomass were protonated. Presumably, in the polysaccharides (cellulose and hemicellulose), mainly primary aliphatic hydroxyl groups (C6-OH) were protonated, whereas in the lignin structure, phenolic hydroxyl groups could be protonated in addition to aliphatic -OH groups. Due to the presence of proteins in the cone biomass, some amino groups in the amino acids were also protonated.
The strong positive charge thus generated on the surface of the cone biomass electrostatically attracted the RB5 anions present in the solution, increasing the binding efficiency of this dye.
With increasing pH, i.e., with decreasing concentration of hydronium ions, the efficiency of protonation of the functional groups of the cone biomass decreased. As a result, the total positive charge on the surface of the sorbent decreased, which was reflected in a decreasing ability to sorb the anionic RB5. A characteristic feature of hydroxyl functional groups is that they are only protonated at very low pH values (pH 2–3). When the pH value in the system was increased to pH > 3, practically all hydroxyl groups were present in a non-ionized form. However, a significant proportion of the carboxyl groups were deprotonated at pH > 3. This resulted in numerous negative charges on the surface of the sorbent, which further limited the sorption of the anionic dye. This explains the significant decrease in RB5 binding efficiency on the tested sorbents observed in the pH range of 2–4 (
Figure 2a–c).
In the pH range of 4–9, the ionized functional groups on the surface of the cone biomass were probably few amino groups and carboxyl groups.
In a strongly alkaline environment (pH > 10), deprotonation of the aliphatic and phenolic hydroxyl groups of the sorbents can occur in addition to the carboxyl groups.
The strong overall negative charge on the surface of the tested sorbents prevented the diffusion of RB5 onto the surface of the sorbent, further limiting its sorption.
A similar effect of pH on the sorption efficiency of RB5 was also observed in studies on the sorption of this dye on chitin sorbents [
81], activated carbon [
82], sunflower husks [
83] or rapeseed stalks [
42].
In contrast to RB5, the sorption efficiency of the cationic dye Basic Red 46 (BR46) on the tested sorbents was lowest at pH 2 and increased with increasing pH (
Figure 2d–f). The most significant increase in the binding efficiency of BR46 on the cones was observed with an increase in pH from pH 2 to pH 4. For each of the sorbents tested (LaC, PiC and SpC), the highest sorption efficiency of Basic Red 46 was achieved at an initial pH of 6. A further increase in pH in the system led to a slight decrease in the sorption efficiency of this dye.
Solutions of the dye Basic Red 46 spontaneously decolorize at a pH of >9. This phenomenon is caused by the attack of hydroxyl ions on the electrophilic triazolium group of BR46, which is part of its chromophore system. As a result of this reaction, the system of double bonds in the aromatic ring and the azo group, which is responsible for light absorption, is disrupted. Consequently, the solution becomes bleached. In the series of experiments with BR46, color removal exceeded 90% after a 120-min process at pH 10–11. However, this was not due to sorption, but rather to the degradation of the BR46 chromophore. Therefore, the results of the sorption efficiency of BR46 in the pH range of 10–11 were not considered in
Figure 2d–f.
BR46 is alkaline and dissociates in aqueous solution to form colored cations. The mechanism of sorption of BR46 to LaC, PiC and SpC is probably based on ionic interactions between the dye cation and deprotonated functional groups of the sorbent (e.g., carboxyl and hydroxyl groups). Hydrogen bonds, which can form, for example, between the hydrogen atoms of the hydroxyl groups of the sorbent and the nitrogen atoms of the dye, could also be of great importance for the sorption of BR46 on the sorbents tested.
At low pH, the positively charged surface of the cone biomass repelled the BR46 cations electrostatically, resulting in low sorption performance. With increasing pH, the number of protonated functional groups decreased. At the same time, acidic functional groups on the surface of the sorbent (e.g., carboxyl groups) were deprotonated, making it negatively charged. Both processes led to an intensification of the binding of Basic Red 46.
The largest increase in sorption capacity of BR46 on cone biomass observed in the pH range of 2–4 correlated with the largest decrease in sorption capacity of RB5 (
Figure 2a–c) and in both cases was caused by the transition of hydroxyl functional groups from the protonated form to the non-ionized form as well as by the transition of carboxyl groups from the non-ionized form to the deprotonated form.

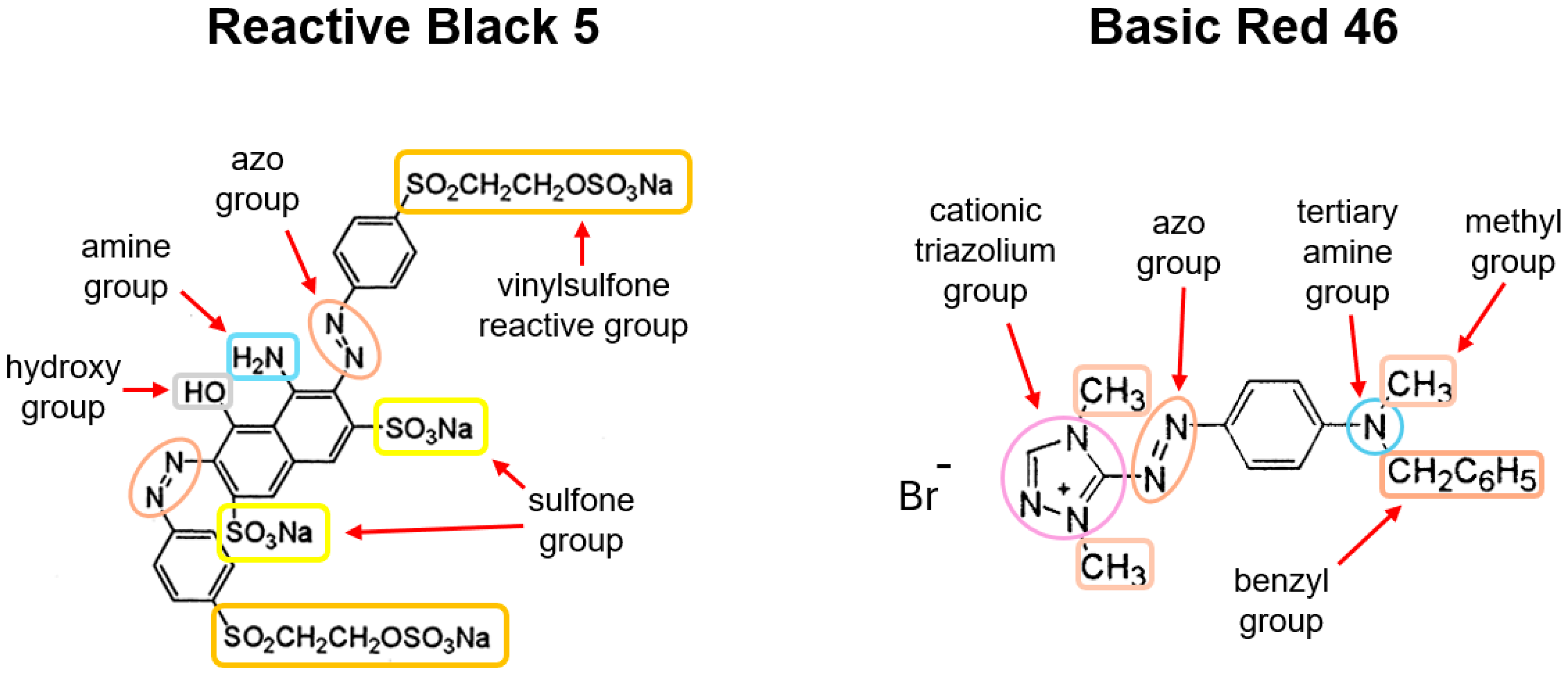

BR46 contains tertiary amino groups which give it a cationic character. At pH above 8, some of the amino groups of BR46 are converted to non-protonated forms and lose their positive charge. The loss of electrostatic charge can lead to a weaker interaction with the sorbent, which explains the decrease in sorption performance of BR46 on pine cones in the pH range of 7–9 (
Figure 2d–f).
Similar research results, manifested among other things in a low sorption performance at low pH and at the same time a relatively high dye binding capacity in the pH range of 5–7, were also obtained in studies by other authors. These include experiments on the sorption of Basic Red 46 on pine needles [
84], activated carbon [
85] and
Paulownia tomentosa leaves [
86].
For each dye, the effect of pH on sorption efficiency on LaC, PiC and SpC was very similar (
Figure 2). This suggests that all cone biomass-based sorbents tested have similar chemical properties and a similar dye sorption mechanism.

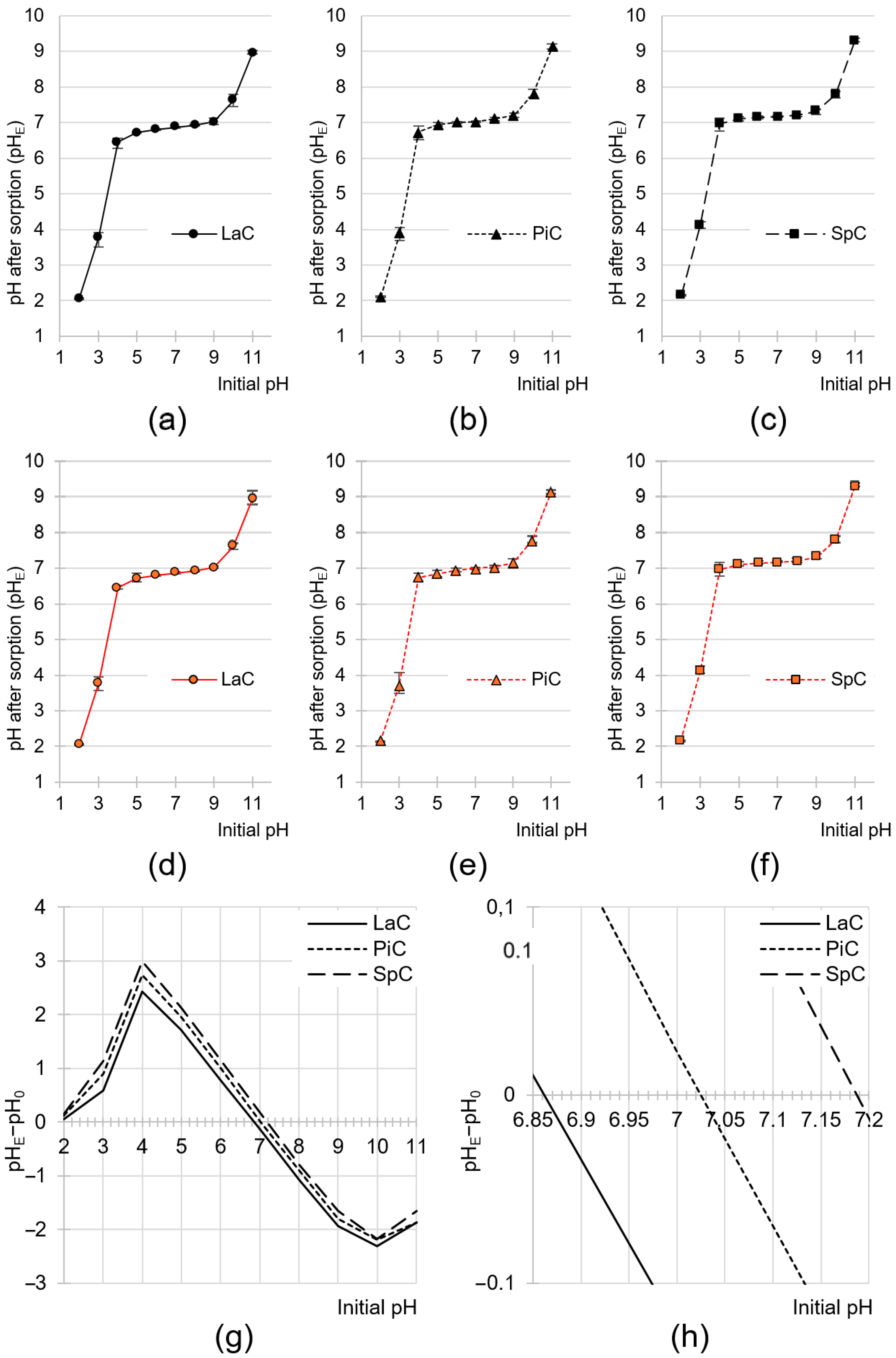

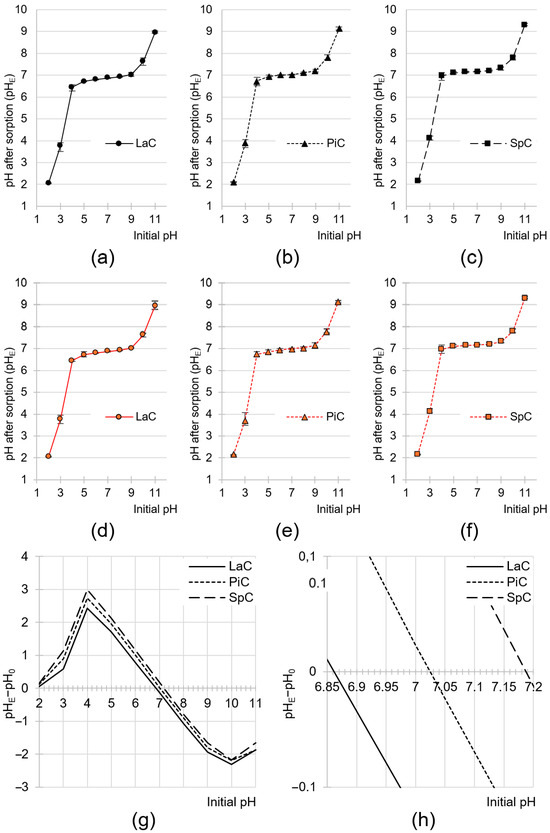

Cone-based sorbents at a dose of 10 g/L had a marked effect on the pH change in the solution in which sorption was carried out (
Figure 3a–f). In the initial pH range of 4–9, the pH of the solution after sorption ranged pH 6.66–7.04 (LaC), pH 6.79–7.12 (PiC) and pH 6.97–7.20 (SpC). The type of dye had no significant effect on the changes in the pH of the solution during sorption.
The pH changes in the solutions are due to the fact that the sorbents have functional groups that are capable of ionization. At low pH, the functional groups capable of protonation absorbed protons from the hydronium ions. As a result, the concentration of H
3O
+ ions decreased, leading to an increase in the pH of the solution. In contrast, at a high pH, the groups capable of deprotonation released a proton into the solution, neutralizing the hydroxide anions and lowering the pH of the mixture. The effect of the pH change in the system depends on the ratio of basic groups to acidic groups on the surface of the sorbent. In general, the system always tends to reach a pH value close to the pH
PZC value of the sorbent. The pH
PZC value (PZC—point of zero charge) is the pH value at which the sorbent reaches zero charge on its surface. In this state, the surface of the sorbent has an equal number of positive and negative charges [
87]. The pH
PZC value obtained by the drift method was pH
PZC = 6.86, pH
PZC = 7.02 and pH
PZC = 7.19 for LaC, PiC and SpC, respectively (
Figure 3g,h). The pH
PZC value > 7 obtained for SpC suggests that basic functional groups (e.g., amine) slightly predominate over acidic groups (e.g., carboxyl) on the surface of this sorbent. The opposite is the pH
PZC value < 7, which was determined for LaC.
The subsequent stages of the investigation of the sorption properties of LaC, PiC and SpC (described in
Section 2.3 and
Section 2.4) were carried out at the optimum pH for each dye (pH 2 for RB5 and pH 6 for BR46).
2.3. Kinetics of Dye Sorption on LaC, PiC and SpC

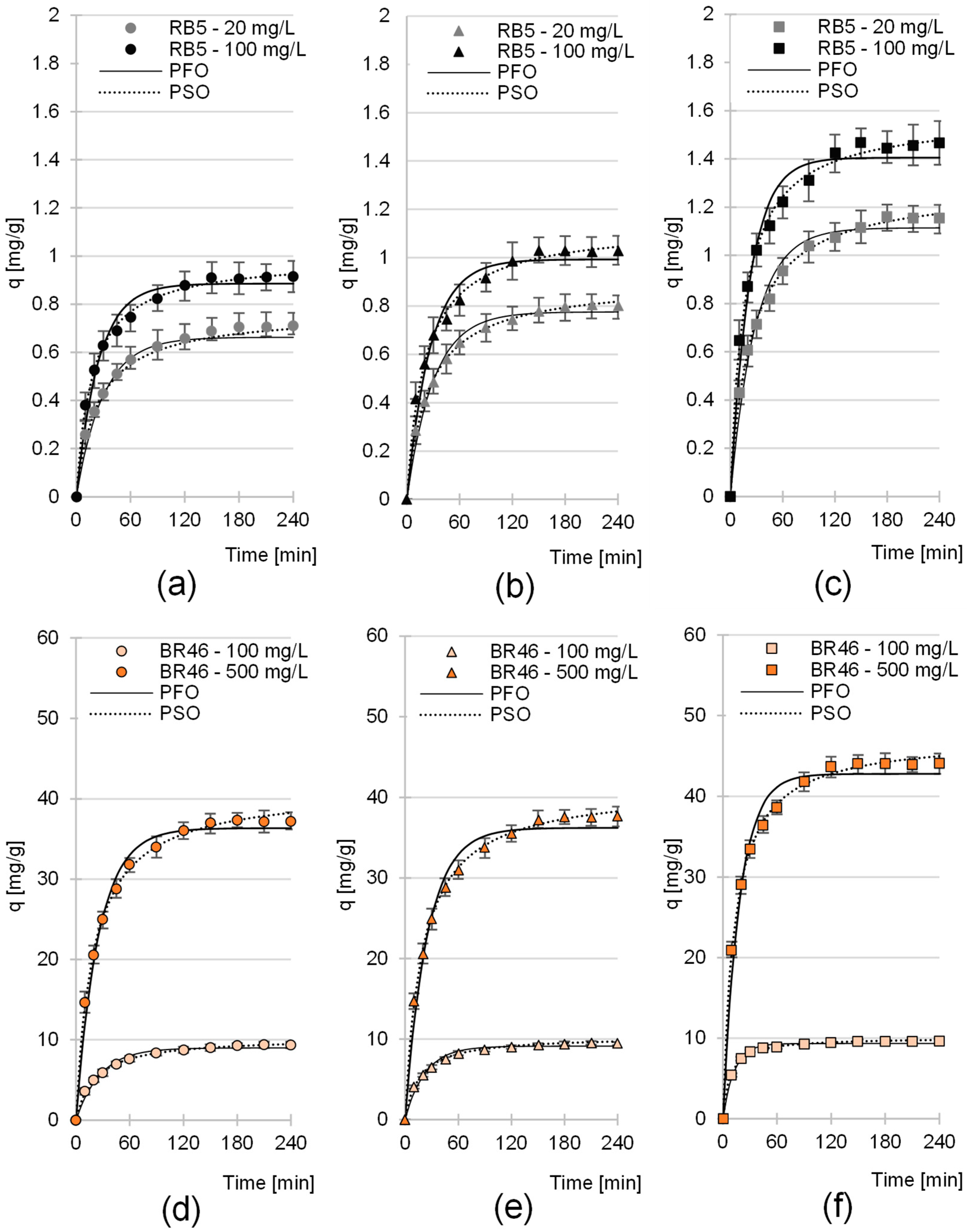

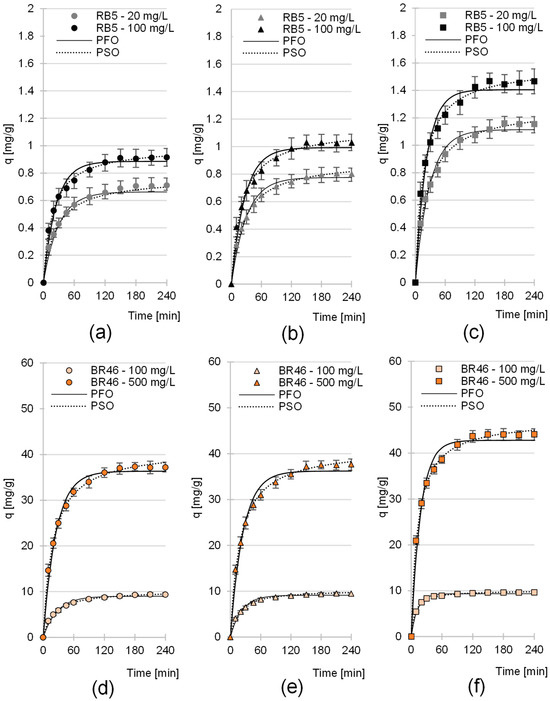

The sorption equilibrium time of RB5 on the sorbents tested depended mainly on the initial dye concentration and ranged from 150 min to 180 min (
Figure 4a–c,
Table 3). The highest dye sorption intensity was recorded at the beginning of the process. After the first 20 min, the amount of dye bound to the RB5 sorbent ranged from 49.8 to 58.3% of q
e for LaC, from 50.1 to 54.5% of q
e for PiC, and from 52.3 to 59.4% of q
e for SpC (q
e—amount of sorbed dye after reaching sorption equilibrium) (
Figure 4a–c).
Similar sorption equilibrium times were also observed in studies on the sorption of Reactive Black 5 onto sorbents such as Canadian goldenrod biomass (150 min) [
88],
Eriobotrya japonica seed hulls (150 min) [
89] and rapeseed hulls (180 min) [
90].
Apart from the initial dye concentration, the sorption equilibrium time of BR46 also depended on the type of cones. In the LaC and PiC test series, sorption of the tested cationic dye took 180 to 210 min, whereas in the case of SpC, sorption ended within 120–150 min (
Table 3). As in the RB5 test series, the highest intensity of binding of BR46 was observed in the first minutes of sorption. After only 20 min of sorption, LaC was able to bind 53.1 to 55.0% q
e and PiC 54.8 to 58.1% q
e. The best results were obtained with SpC, which was able to sorb 66.5–77.9% q
e within the first 20 min.
Similar to LaC and PiC, sorption equilibrium times (180–210 min) were also obtained for BR46 in studies on the sorption of this dye on the exoskeletons of flour beetles (180 min) [
91], chicken feathers (210 min) [
92] and corrugated cardboard (210 min) [
76]. Sorption equilibrium times in the range of 120–150 min (as in the case of SpD) were also obtained in studies on the removal of BR46 using sawdust (120 min) [
93], coconut shells (120 min) [
94], activated charcoal (120 min) [
95] and mealworm beetle chitin moltons (150 min) [
91].
The shorter sorption equilibrium times obtained in test series with higher initial dye concentrations are probably due to the higher probability of collisions between sorbate molecules and the active sites of the sorbent. Faster saturation of the sorption centers led to faster sorption equilibrium in the system.
The shorter sorption equilibrium times of BR46 on SpC compared to LaC and PiC may be due to the smallest specific surface area. A smaller surface area could have shortened the time to reach sorption equilibrium because it became saturated faster. It is worth noting that despite its smaller specific surface area, SpC has better sorption capacities than LaC and PiC, which will be discussed in the next chapter. The shorter sorption time of the cationic dye on SpC could also be due to the higher lignin content (
Table 2,
Section 2.1). Lignin has a more complex chemical structure than cellulose or hemicellulose. It contains both aliphatic and aromatic units. In addition to the functional hydroxyl groups, it also contains carbonyl, carboxyl, methoxyl and phenol groups. In lignin, the number of active sites capable of forming hydrogen bonds with nitrogen and hydrogen atoms BR46 is generally higher than in cellulose or hemicellulose [
76]. In summary, SpC was characterized by a higher capture rate of dye molecules from solution due to its ability to form a larger number of bonds with cationic dyes, which could ultimately shorten the time required to reach sorption equilibrium. A shorter dye sorption equilibrium time on SpC was not observed for RB5, likely due to a different range of initial RB5 dye concentrations, different initial pH and a distinct sorption mechanism.
The experimental data from studies on the sorption kinetics of RB5 and BR46 on LaC, PiC and SpC were described by pseudo-first-order and pseudo-second-order models (
Figure 4,
Table 3). In each test series, the pseudo-second-order model showed the best fit to the data obtained. This is a typical result for the sorption of organic dyes on biosorbents.

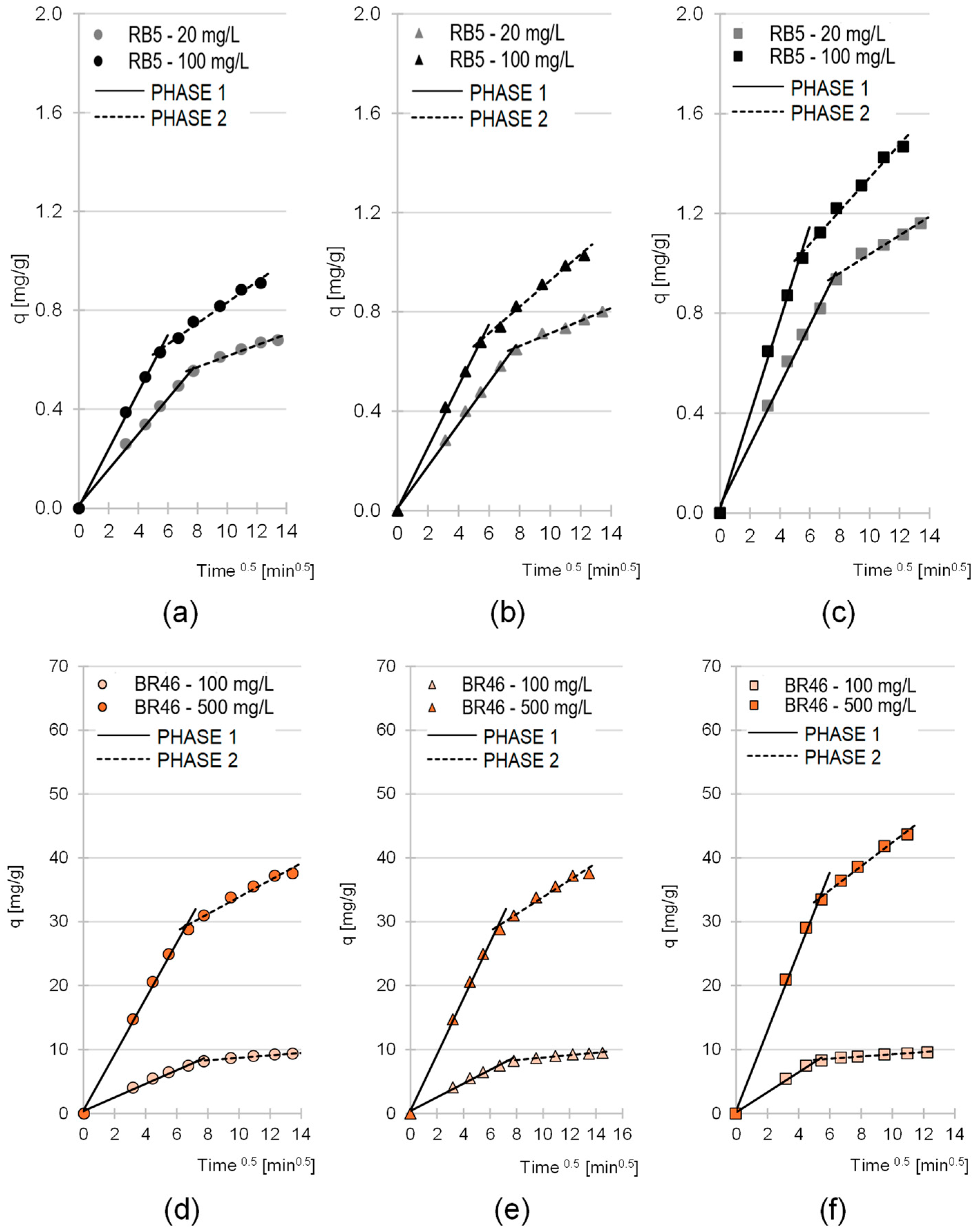

The experimental data obtained in the studies were also described by an intramolecular diffusion model (
Table 4,
Figure 5). Analysis of the data presented in the graphs in
Figure 5 shows that the sorption of RB5 and BR46 onto LaC, PiC and SpC occurred in two main phases in all test series.
The first phase of sorption was characterized by a high intensity but a short duration. During this phase, the dye particles diffused from the solution onto the surface of the sorbent and then attached themselves to the most accessible active sites. As soon as most of the sorption centers on the surface of the sorbent were saturated, the second phase began. In the second phase, the dye particles penetrated the structure of the material and bound to less accessible active sites in deeper layers of the sorbent. Due to the limited accessibility to the sorption centers and the considerable competition between the sorbate particles, this phase was characterized by a significantly lower intensity than the first phase and generally by a longer duration (k
d1 and k
d2 values, phase duration,
Table 4). After the last available active sites within the sorbent structure were saturated, the system reached equilibrium.
In all experimental series, the straight line in the first phase of sorption passes through the origin (
Figure 5). This means that the resistance to mass transfer of dye molecules from the solution to the outer surface of the sorbent (film diffusion) is practically zero, and the only rate-limiting step for adsorption is intraparticle diffusion.
The q
e,(cal.) values determined using the pseudo-second-order model and the k
d1 and k
d2 values determined using the intraparticle diffusion model indicate that the sorption efficiency of RB5 on the tested cone biomass-based sorbents is significantly lower than that of BR46 (
Table 4). This result is typical for lignocellulosic sorbents and stems from the relatively low number of basic functional groups (such as amino groups) in the tested materials, which are crucial sorption centers for anionic dyes. The kinetic model parameters q
e, k
d1 and k
d2 also indicate a significantly higher efficiency of SpC compared to LaC and PiC. As already mentioned, SpC has a higher lignin content. As explained in point 2.1., higher lignin content favors the sorption of both cationic and anionic dyes. In addition, the higher sorption efficiency of RB5 on SpC compared to LaC and PiC can be explained by a larger amount of typical basic functional groups, which is supported by the highest pH
PZC value among the tested sorbents for SpC (pH
PZC = 7.19).
2.4. Maximum Sorption Capacity of the LaC, PiC and SpC

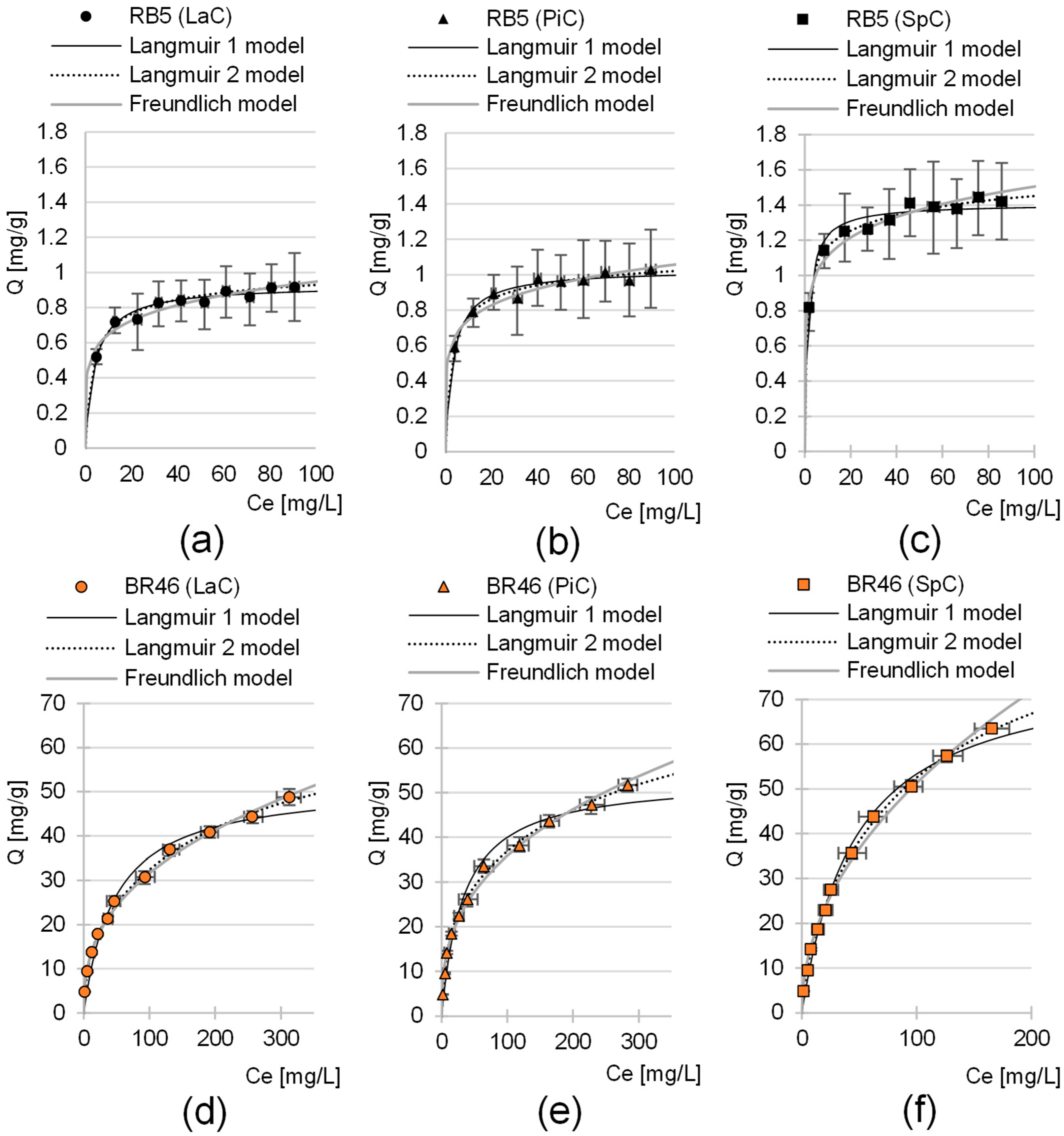

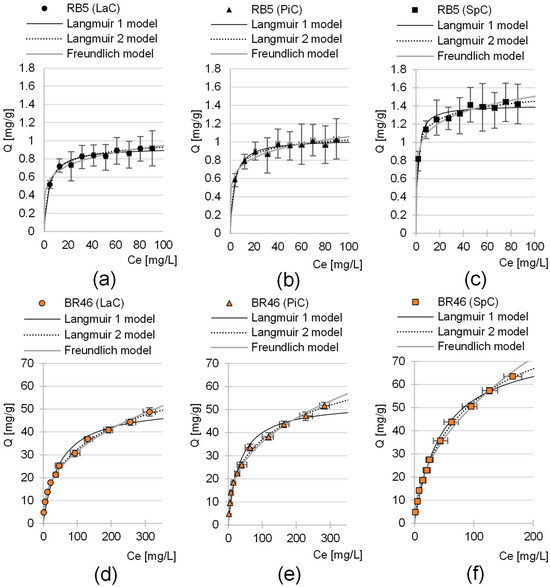

Three adsorption models were used to describe the experimental data from the maximum sorption capacity studies of LaC, PiC and SpC: Langmuir 1 isotherm, Langmuir 2 isotherm and Freundlich isotherm (
Table 5). The analysis of the values of the coefficient of determination R
2 shows that the Langmuir 2 model showed the best fit to the experimental data in each series of investigations (
Table 5,
Figure 6). This model assumes the existence of at least two types of active centers on the surface of the sorbent, which play an important role in sorption. Presumably, the protonated hydroxyl groups, the protonated amine groups and aromatic rings of lignin that interacted with the aromatic rings of dye (π-π interactions) played the main role in the sorption of RB5 on the biomass of cones. In the case of BR46, in addition to the aromatic rings of lignin, important sorption centers were also deprotonated carboxyl groups and non-ionized hydroxyl groups, which were capable of forming hydrogen bonds with the nitrogen and hydrogen atoms of the dye.
The maximum sorption capacity of LaC, PiC and SpC determined using the Langmuir-2 model was 1.05 mg/g, 1.12 mg/g and 1.61 mg/g for the anionic dye RB5. In the case of the cationic dye BR46, the sorption capacities of LaC, PiC and SpC were significantly higher and amounted to 70.53 mg/g, 76.60 mg/g and 96.44 mg/g, respectively (
Table 5). For both RB5 and BR46, the highest sorption capacity was shown for SpC and the lowest for LaC.
As mentioned in
Section 2.3, the low sorption performance of RB5 on cone biomass is typical for lignocellulosic sorbents and results from the low amount of typically basic functional groups, which are the most important sorption centers for anionic dyes. The significantly higher molar mass, which is several times higher than that of BR46, could also have had a negative effect on the binding efficiency of RB5 to LaC, PiC and SpC. The larger size of the RB5 molecules could have hindered penetration into the less accessible active sites of the sorbent, ultimately limiting the amount of sorbed dye.
The values of the K1 and K2 constants determined using the Langmuir-2 model, which are indicators of the affinity of the sorbent for sorbates, are generally much lower in the research series with BR46 than in the series with RB5. This confirms the theory that hydrogen bonding and π-π interactions, which are much weaker than ionic interactions between ionized functional groups of the sorbent and sorbate, play an important role in the sorption of BR46 onto cone biomass. This suggests that cone-based sorbents will show the greatest benefit at high BR46 concentrations in wastewater.
The sorption efficiency series (determined based on Q
max) as well as the affinity degree series of the tested sorbents for dyes (based on constants K
1, K
2,
Table 5) are as follows: LaC < PiC < SpC. The result obtained is quite interesting, especially considering that the specific surface area series of the sorbents tested is reversed (SpC < PiC < LaC). This could indicate that, in the case of cone-based materials, the specific surface area is not the best indicator of the efficiency of the biosorbents. The composition of the sorbent material seems to be more important, in particular the type and density of functional groups acting as active sites. The higher sorption capacity of SpC compared to LaC and PiC is probably due to the higher lignin content in the material, which favors the sorption of both cationic and anionic dyes, as mentioned in the previous chapters. In addition, the binding efficiency of RB5 on SpC is the highest, which is also due to the highest content of basic functional groups, as confirmed by the highest pH
PZC value among the sorbents tested (
Section 2.2,
Figure 3g,h).
Table 6 shows the sorption capacities of various unconventional sorbents and activated carbons in relation to RB5 and BR46.
The sorption capacity of SpC, PiC and LaC in relation to RB5 is relatively low and similar to that of biosorbents such as coconut shells, pumpkin seed shells or macadamia nut shells. Much better biosorbents for RB5 were materials such as newsprint, rapeseed hulls or wheat straw. The better sorption capacity of the mentioned biosorbents towards RB5 compared to cone-based materials could result from the higher concentration of basic functional groups on the surface of these biosorbents and their much larger specific surface area. However, the lignocellulosic sorbents did not achieve the efficiency of activated carbon-based materials (
Table 6).
The sorption performance of BR46 on SpC, PiC and LaC is higher than most of the biosorbents tested so far (sawdust, seed husks, fruit peels). The sorption capacities of the sorbents tested with respect to BR46 were even higher than those of some activated carbon-based materials (
Table 6). This suggests the possibility of using the biomass of cones for the treatment of wastewater containing cationic dyes.
When researching unconventional sorbents, it is advisable to consider the possibility of multiple uses of sorbent materials. According to the authors, the regeneration of sorbents based on cones is not economically justified due to the low price and wide availability of the raw material. When reusing biosorbents, the dyes would have to be desorbed, which would require expensive chemical reagents. A bigger problem, however, is the fact that the regeneration of this type of sorbent would produce colored wastewater that would have to be purified or disposed of. As mentioned in
Section 4.1, a better solution seems to be to dry the spent sorbents and then co-incinerate them, e.g., in a heating plant, which would result in energy recovery from the materials. An alternative solution is to ferment the used biosorbents and produce biogas. It has been proven that dyes such as BR46, even in large quantities, do not significantly limit methanogenesis [
118]. Used cone-based biosorbents could also be used to produce good quality activated carbon, which could also be used for wastewater treatment.
