Next Article in Journal
Evaluation of Chemical Composition, Acaricidal, and Repellent Activities of Artemisia vulgaris L. (Asteraceae) Essential Oil Against Gall Mite Aceria pongamiae Keifer (Acarina: Eriophyidae)
Previous Article in Journal
Leachate Pollution Index (LPI) in Sanitary Landfills in the High Andean Zones of Peru
Previous Article in Special Issue
Preparation and Characterization of Biocomposite Films with Enhanced Oxygen Barrier and Antioxidant Properties Based on Polylactide and Extracts from Coffee Silverskin


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Molecules
Volume 30
Issue 16
10.3390/molecules30163324
molecules-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Investigation of Flame and Thermal Degradation Behavior of Xanthan- and Gelatin-Based Composites Used as Topsoil Covers in Forestry

by
Alessandro Sorze
1,*,
Janine Bösing
2,
Sebastian Hirschmüller
2 and
Andrea Dorigato
1,*
1
Department of Industrial Engineering and INSTM Research Unit, University of Trento, 38123 Trento, Italy
2
Department of Research, Development and Transfer, Technical University of Applied Sciences Rosenheim, 83024 Rosenheim, Germany
*
Authors to whom correspondence should be addressed.
Molecules 2025, 30(16), 3324; https://doi.org/10.3390/molecules30163324
Submission received: 9 July 2025 / Revised: 29 July 2025 / Accepted: 7 August 2025 / Published: 8 August 2025
(This article belongs to the Special Issue 30th Anniversary of Molecules—Recent Developments in Biobased Polymers)
Browse Figures
Versions Notes

Abstract

This study focused on investigating the flammability and thermal degradation behavior of wood fiber-reinforced composites consisting of xanthan gum (XG) and gelatin (GEL). These materials could potentially be used as novel bio-based and biodegradable topsoil covers (TSCs) to support reforestation practices. To improve the thermal properties of these composites, xanthan gum was cross-linked with citric acid (CA) or tannic acid (TA) and eventually coated with casein, while gelatin was cross-linked with tannic acid. Thermogravimetric analysis (TGA) showed that thermal degradation of all the prepared samples started at temperatures of 200 °C for xanthan-based samples and 300 °C for gelatin-based samples, which is well above the typical operating conditions for TSCs in their intended application. Single-flame-source tests demonstrated that the CA cross-linked xanthan-based TSCs coated with casein and all the gelatin-based TSCs had excellent self-extinguishing properties. Additionally, Limiting Oxygen Index (LOI) tests showed that gelatin-based composites had LOI values between 30 and 40 vol% O2, increasing with a higher gelatin-to-wood fiber ratio. These results demonstrated the potential of cross-linked biopolymers (e.g., xanthan and gelatin) as green flame retardants for the production of wood fiber-filled TSCs for use in forestry.

1. Introduction

An interesting approach supporting reforestation and promoting plant growth, especially under drought conditions, is using topsoil covers (TSCs). These multifunctional mulching films are designed to provide a more favorable environment for plant growth by increasing soil temperature [1,2], reducing water evaporation [3], and inhibiting the growth of competing weeds [4]. Due to their proven benefits, TSCs are becoming increasingly widespread in both forestry and agriculture [5,6,7,8,9,10]. The most common mulching products are plastic films [11,12], estimated to cover over 128,000 km2 of land worldwide [13]. Despite the economic benefits of these materials, the risk of microplastics being released into the soil through mechanical damage, UV degradation, or erosion by wind and rain is driving research into more environmentally friendly solutions [11,12,14,15]. Furthermore, the application of plastic films in the summer generally hinders plant growth due to the excessive increase in soil temperature and the inhibition of root growth caused by high heat stress [16]. To overcome these limitations, biodegradable solutions, such as starch, alginates, chitosan, proteins, and their combinations [17,18,19,20,21,22], have been investigated as an alternative. However, the market penetration of these products is still limited due to their low mechanical and water barrier properties, as well as their high production costs.
Based on these considerations, our research groups have recently developed two different types of bio-based and biodegradable composites that could be used as novel topsoil covers. The first type was based on xanthan gum (XG), a bio-based polysaccharide produced by Xanthomonas campestris under aerobic conditions using sugar cane, maize, or their derivatives as a source of carbohydrates [23,24,25,26]. Specifically, the composites were developed using XG cross-linked with either citric acid (CA) or tannic acid (TA) and reinforced with wood fibers. The second type of TSC was based on gelatin (GEL), a protein derived from animal waste containing collagen [27,28,29], cross-linked with tannic acid and reinforced with wood fibers. Adding CA and TA as cross-linkers to XG and GEL is fundamental to improving the thermal and mechanical properties of biopolymers, as well as enabling the formation of hydrogel structures that are insoluble in water. The specific formulations discussed in the present work are derived from preliminary experimental evaluations and optimizations reported in our previous papers [30,31,32,33,34,35]. These works demonstrated that xanthan-based TSCs cross-linked with CA or TA exhibited exceptional water absorption capabilities, even after multiple absorption/drying cycles (with an increase of up to 1900% over the original mass). Furthermore, samples cross-linked with CA displayed water vapor permeance values similar to those of commercial woven polypropylene (PP) mulching films and twice the penetration resistance of the commercial films. The presence of wood fibers in these TSCs provided dimensional stability and minimal shrinkage upon drying. Additionally, a planting trial experiment conducted in a nursery demonstrated that both types of TSCs had a positive impact on the growth rates of the above- and belowground plant parts and on soil microbial activity, enhancing bacteria richness and diversity. Outdoor weathering conditioning tests demonstrated that more than 60% of the sample mass was biodegraded after 7 months of exposure.
Considering that the purpose of these TSCs is to support plant growth in forestry applications, and they are mainly constituted of biopolymers and wood fibers, a primary concern may be the risk of flammability of these products and the subsequent development of forest fires. According to the annual report of the EFFIS (European Forest Fire Information System), due to climate change, almost 900,000 hectares of land burnt in the EU in 2022, compared to an average of 349,000 hectares between 2006 and 2023 [36]. Furthermore, an average of 2.8 million hectares burnt each year in the US during the same period, according to the National Interagency Fire Center [37]. The damage caused by wildfires is problematic not only in the short term, but also in the long term. For example, wildfires are often associated with increased soil erosion, altering soil morphology and resulting in changes to porosity, increased bulk density, and reduced aggregate stability [38,39,40]. Fires are also associated with nutrient depletion, increased rainwater runoff, and water repellency [41,42,43]. Furthermore, they hinder tree regeneration and reduce forest resilience, potentially displacing resilient forests, such as coniferous ones, with shrub or grassland ecosystems [44,45,46].
Recent research into flame retardants has focused on the use of biopolymers and other sustainable alternatives. Specifically, natural polymers such as chitosan, gelatin, starch, alginate, and lignin are being investigated for their inherent carbon content and ability to form protective char layers upon thermal decomposition [47,48,49,50,51]. Therefore, a systematic investigation of the flammability conditions of the biopolymer-based TSCs previously developed by our research groups is fundamental in view of the possible application of these materials in forestry.
The main objective of this study was thus to investigate the flammability and thermal degradation of novel xanthan- and gelatin-based wood fiber composites. This ensured that, if applied as TSCs in forestry, these materials would not act as a fire accelerant for forest fires. To the best of our knowledge, this is the first study investigating the flame response and thermal behavior of xanthan- and gelatin-based TSCs.

2. Results and Discussion

2.1. Fourier-Transformed Infrared (FT-IR) Spectroscopy

Figure 1 shows the normalized FT-IR spectra of TSC samples, which were used to investigate the chemical structure of the materials.
Figure 1 shows a broad absorption peak for all samples at around 3300 cm−1, which corresponds to the O-H stretching vibration of the hydroxyl groups in biopolymers. The peaks at around 2920 cm−1 can be assigned to the CH groups in xanthan, gelatin, and wood fibers. The samples XG_CA60 and XG_CA60_cas exhibit a peak at 1718 cm−1 due to the presence of ester groups resulting from the esterification reaction between xanthan gum and wood fibers with the citric acid cross-linking agent [33,52]. For xanthan gum, this reaction occurs between the R-OOH group in the D-glucuronic unit of XG and the only R-OH group in CA, as schematized in Figure 2a. For wood fibers, the reaction occurs between the hydroxyl groups of cellulose and the carboxyl groups in CA [53,54,55]. Peaks at around 1642 and 1510 cm−1 are clearly visible in all gelatin-based TSCs and in XG_CA60_cas. These peaks are associated with the Amide-I (C=O stretching) and the Amide-II (N-H bending) functional groups present in both gelatin and casein [56,57,58,59]. Finally, for all the samples, the peaks between 1027 and 1032 cm−1 can be associated with the stretching vibration of C-O present in xanthan, gelatin, and wood fibers. For the TA cross-linked gelatin samples, the very broad peak at 1030 cm−1 could also be related to the superposition of another signal, namely the C–H vibration of the benzene ring near the phenol –OH groups of TA [60]. Indeed, the cross-linking reaction between gelatin and TA occurs through a one-step Michael addition reaction under oxidizing conditions in an alkaline environment (Figure 2b). Taking these considerations into account, and bearing in mind that the samples are insoluble in water (as observed in the author’s previous work [30,31,32,33,34,35]), it is possible to assess the correct sample preparation, and that the cross-linking reactions between the biopolymers and their respective cross-linking agents have correctly occurred.

2.2. Thermogravimetric Analysis (TGA)

TGA is an important technique for evaluating the thermal stability and decomposition of materials. Specifically, Figure 3a,b and Table 1 report the most important results of the TGA, i.e., the temperature at which degradation begins (Tonset), the degradation temperature (Td), considered as the maximum of the first derivative of the TGA thermogram (DTG), and the residual mass at 700 °C (mR,700).
Figure 3a shows an initial mass loss of around 7% for all the samples between 35 and 125 °C, which is associated with moisture evaporation. As reported in Table 1, the first significant mass loss (approximately 30%) for the xanthan-based TSCs occurs between 220 and 245 °C (Td,1), associated with glycerin degradation [61]. The degradation of XG and the wood fibers occurs between 330 and 340 °C (Td,2) with two superimposed peaks due to the chemical similarities of these constituents [62]. The casein coating does not significantly affect the TGA results of the CA-cross-linked samples. For the gelatin-based TSC samples, only one degradation peak is observed, between 347 and 360 °C (Td,2), which is associated with the combined degradation of gelatin, wood fibers, and tannic acid [63]. The residual mass of the gelatin samples at 700 °C is almost twice that of the xanthan samples, demonstrating the formation of a stable char layer due to the cross-linking between gelatin and TA, i.e., the formation of a thermally stable, three-dimensional network that is more resistant to thermal decomposition [63,64]. On a general level, it can be concluded that the decomposition temperature of all the prepared materials is well above their operating conditions and comparable to that of biopolymer-based composites found in the literature [65,66,67].

2.3. Single-Flame-Source Tests

Figure 4 shows three representative images of xanthan-based TSCs after the single-flame-source tests, while Table 2 summarizes the main results obtained from these samples.
The results of the single-flame-source test of the xanthan-based TSCs reveal different behaviors. The two samples cross-linked with citric acid did not burn, and the flame self-extinguished a few seconds after the burner had been removed from the samples. As shown in Figure 4 and Table 2, the presence of the casein coating on the TSC surface slightly reduces the burnt area. Additionally, the presence of casein significantly limits mass loss due to combustion, highlighting its promising behavior as a green flame retardant. As reported in the literature, casein is characterized by high phosphorus and nitrogen contents and has been proven to be a potential bio-based flame retardant additive [68,69]. No flaming droplets could be observed in either sample, though white smoke developed for a few seconds after the flame was extinguished. Conversely, specimens cross-linked with tannic acid (composition XG_TA5) failed the test because the flame propagated along the specimens for more than 150 mm, exceeding the standard specification. This different behavior compared to the CA cross-linker could be explained by the different cross-linking mechanisms involving XG and wood fibers. As the FT-IR analysis showed, xanthan gum and wood fibers react with citric acid through esterification reactions. These covalent ester bonds are thermally stable and reduce the flammability of the samples. Furthermore, research studies have shown that citric acid forms a stable char layer upon combustion of cellulose, which helps to limit flame propagation [70,71]. Conversely, tannic acid may release flammable volatiles when heated, which could have a negative impact on the flame retardant properties of the materials. However, there is currently no research on the cross-linking effects of tannic acid on xanthan gum.
None of the gelatin-based TSC compositions burned and the flame self-extinguished as soon as the burner had been removed from the sample. No flaming droplets could be observed for these samples; instead, white smoke developed for a few seconds after the flame was extinguished.
Figure 5a,b shows a representative image of a gelatin-based specimen (GEL8_WF6_TA1) before and after the single-flame-source test.
As can be seen in Figure 5b, the burnt area is very limited. Specifically, the burnt height reaches a maximum of 20 mm from the base of the sample for all the compositions. The high nitrogen content of amino acids in gelatin suggests that it is a low-flammability material [48,72,73]. In this case, the presence of tannic acid does not negatively impact the flammability properties because it forms strong bonds with proteins, such as gelatin, reducing the release of volatiles during combustion [63,74]. For all of these compositions, the burnt area of the samples expanded in volume. This behavior is specific to gelatin, which expands and releases gases (mainly CO2 and NH3) during combustion, thus promoting flame extinction [75]. These non-flammable gases displace the oxygen in the flame zone, reducing the local concentration below the combustion threshold. In addition, the volume expansion due to gas evolution leads to intumescent behavior. This results in the formation of a swollen, foamed char layer that prevents heat release and volatile formation during combustion, thereby inhibiting further burning [64].

2.4. Limiting Oxygen Index (LOI)

LOI tests were carried out in order to measure the minimum oxygen concentration, expressed as a percentage by volume, at which the material can sustain flame combustion in a mixture of oxygen and nitrogen gas. Figure 6a shows a representative picture of a TSC specimen (GEL8_WF12_TA1) during the LOI test, Figure 6b shows images of the tested specimens, and Table 3 reports the LOI values for the prepared TSC samples.
As shown in Table 3, the xanthan-based TSCs cross-linked with citric acid (XG_CA60 and XG_CA60_cas) have a LOI value higher than the standard oxygen condition in air (20.95%). The addition of a casein coating to the surface of the XG-based samples does not significantly affect this result. However, it should be considered that the casein coating is a surface treatment, and the LOI test requires applying a flame to the edge of the specimen, which was not coated with the casein layer. Conversely, the composition with tannic acid shows LOI values very close to the oxygen concentration in air, confirming limited flame retardant properties.
Gelatin-based TSCs have higher LOI values, confirming their ability to resist combustion in air. Indeed, the LOI values correlate to the sample composition. Specifically, increasing the ratio of gelatin to wood fibers results in a higher LOI, while compositions with a lower relative gelatin content (i.e., GEL8_WF12_TA1) have lower LOI values. These results further demonstrate the capability of gelatin as a flame retardant. The LOI values obtained for the gelatin-based samples are comparable to those reported in the literature for other fire retardant-coated wood samples. [76,77]. Moreover, these values are higher than critical oxygen thresholds for the combustion of commercial synthetic polymers and can be compared with the values of other self-extinguishing and non-flammable polymers like polytetrafluoroethylene (PTFE) and polyvinylidene fluoride (PVDF) [78,79].

3. Materials and Methods

3.1. Materials

Commercial-grade amorphous xanthan gum (XG) with a molecular weight (MW) of 1 × 106 g/mol and purity higher than 91% was supplied by Galeno Srl (Prato, Italy) in the form of a fine powder. GELITA IMAGEL® LB, a type-B semicrystalline gelatin powder with a bloom value of 113 (gel) and viscosity of 2.29 mPa∙s at 6.67% gelatin content and 60 °C solution temperature, was provided by GELITA AG (Eberbach, Germany). STEICO® Flex-036 wood fibers, with a bulk density of 60 kg/m3 and an aspect ratio (length to diameter ratio) ranging from 22.5 to 75 mm/mm, were purchased from STEICO SE (Feldkirchen, Germany). Vegetable glycerin, which was used as a plasticizing agent, with a MW of 92.1 g/mol and purity greater than 98%, was supplied by Farmalabor srl (Assago, Italy). Citric acid monohydrate (CA) with a MW of 210.1 g/mol and purity of 99.5%, used as a cross-linking agent, was purchased from Riedel-de Haën GmbH (Seelze, Germany). Tannic acid chestnut powder (TA), which was also used as a cross-linking agent, with a MW of 1701.2 g/mol, was provided by W. Ulrich GmbH (Eresing, Germany). Casein, used in solution as a protective coating, with a MW of 23,700 g/mol, was obtained by Thermo Fisher Scientific Inc (Waltham, MA, USA). Sodium hydroxide (NaOH) microbeads, used as a pH adjustment, were supplied by WHC GmbH (Schweitenkirchen, Germany). All materials were used as received.

3.2. Sample Preparation

The production process for xanthan-based TSCs is thoroughly described in [33,34] and schematized in Figure 7a. XG, wood fibers, and glycerin (with relative ratios reported in Table 4) were mixed in hot water (60 °C) until homogeneity was reached (5 min). Then, citric acid (60 wt% relative to the XG amount) or tannic acid (5 wt% relative to the XG content) was added as a cross-linking agent to produce two different compositions (XG_CA60 and XG_TA5). These specific formulations and material ratios were selected because they showed the most promising results in terms of water absorption, water vapor permeability, and resistance to perforation [33]. The samples were dried under controlled conditions (T = 24 °C, RH% = 40%) for 2 days, then thermally treated in an oven at 165 °C for 3.5 min to activate the cross-linking reactions between xanthan gum, wood fibers, and the cross-linking agents [54]. A third sample (XG_CA60_cas) was produced by applying a top-side protective layer of an alkaline solution of casein to sample XG_CA60. The casein coating was prepared according to the methodology described by Picchio et al. [80]. Specifically, casein was dissolved at 40 °C in an alkaline solution (1 M NaOH) under magnetic stirring, glycerin (50 wt% of casein) and tannic acid (10 wt% of casein) were then added. Before use, the solution was stirred for 1 h.
The gelatin-based composites were prepared according to the procedure already described in [34] and schematized in Figure 7b. Gelatin was mixed in water at 55 °C for 120 min until the gelatin powder was completely dissolved. During the mixing process, the pH of the solution was adjusted to nine by gradually adding NaOH. In parallel, tannic acid was dissolved in a small amount of water at room temperature, and the pH was adjusted in the same way as for the gelatin solution. Subsequently to the pH adjustment, both solutions were mixed under permanent stirring, and the wood fibers were added. The homogeneous solution was then poured into a mold and cured under controlled airflow conditions (T = 24 °C, RH% = 40%) for two weeks. Initially, by changing the ratios of gelatin, tannic acid, wood fibers, and water, nine different compositions were produced according to a face-centered central composite design (FCCD), with eight corner points and one center point (CP). Preliminary evaluations revealed that only five out of nine compositions should be studied in this work, as reported in Table 5.

3.3. Experimental Techniques

3.3.1. FT-IR Spectroscopy

The tests were conducted in attenuated total reflectance (ATR) mode using a PerkinElmer Spectrum One spectrometer (PerkinElmer, Waltham, MA, USA), in the wavelength number range of 650–4000 cm−1. Each spectrum was obtained from the superposition of four replicates.

3.3.2. Thermogravimetric Analysis (TGA)

TGA was performed using a thermobalance Mettler TG 50 (Mettler Toledo Inc., Columbus, OH, USA). Approximately 20 mg of a specimen was subjected to a thermal ramp between 30 °C and 700 °C at a heating rate of 10 °C/min under a constant nitrogen flow of 10 mL/min. The test was performed on 3 replicates for each sample.

3.3.3. Single-Flame-Source Tests

Single-flame-source tests were carried out based on the EN ISO 11925-2 standard. Vertically clamped specimens with dimensions of 250 mm (vertical length) by 90 mm (horizontal width) and 10 mm (thickness) were put in contact with a 20 mm high flame on the bottom edge for 30 s. Figure 8a,b shows two representative images of TSC samples during the single-flame-source test. After removing the burner, the time until ignition and the time until the flame tip reached 150 mm in height above the point of flame impingement were recorded. The test was performed on 5 replicates for each sample.

3.3.4. Limiting Oxygen Index (LOI)

Measurements were performed according to ASTM D2863 by using a CEAST oxygen index apparatus (CEAST SpA, Torino, Italy) on at least ten replicates of each composition with the dimensions 100 mm × 10 mm × 10 mm.

3.3.5. Statistical Analysis

All the results have been presented as the mean ± standard error of the mean. The data of single-flame-source tests and LOI analyses were analyzed by using one-way analysis of variance (ANOVA) with a significance level of 0.05. Pairwise differences between treatments were assessed using the post hoc Tukey’s test.

4. Conclusions

In this work, the flammability and thermal degradation behavior of novel bio-based and biodegradable topsoil covers, based on two different biopolymers (xanthan gum or gelatin) and reinforced with wood fibers, were investigated. To improve thermal stability, xanthan gum was cross-linked with citric acid or tannic acid and, then, eventually coated with casein, while gelatin was cross-linked with tannic acid. FT-IR analysis demonstrated the effective occurrence of the cross-linking reactions within the prepared TSCs. TGA results showed that the xanthan gum-based samples started to thermally degrade at around 200 °C and the gelatin-based TSCs at around 300 °C, well above the typical working conditions of TSCs for the intended application. Single-flame-source tests revealed the flame self-extinguishing capability of both CA cross-linked xanthan-based TSCs and all the gelatin-based TSCs. Furthermore, gelatin-based samples showed higher LOI values (up to 41 vol% O2), particularly when the gelatin-to-wood fiber ratio was increased. Thus, it could be concluded that TSC composites produced from CA-cross-linked xanthan gum or TA-cross-linked gelatin and reinforced with wood fibers could safely be used for reforestation practices without introducing a potential ignition source for wildfires. A possible limiting factor for the upscaling of these materials could be the high cost of biopolymers and the energy-intensive production processes required for these composites. However, the continuous increase in biopolymer production in recent years is expected to significantly improve the economic applicability of the proposed system. Future steps will focus on optimizing production processes to reduce energy consumption and costs, thereby making these products easily scalable.

Author Contributions

Conceptualization, A.S.; methodology, A.S., J.B. and S.H.; software, A.S.; validation, A.S.; formal analysis, A.S. and J.B.; investigation, A.S.; resources, S.H. and A.D.; data curation, A.S.; writing—original draft preparation, A.S.; writing—review and editing, A.S., J.B., S.H. and A.D.; visualization, A.S.; supervision, S.H. and A.D.; project administration, A.D.; funding acquisition, S.H. and A.D. All authors have read and agreed to the published version of the manuscript.

Funding

This project has received funding from the European Union’s Horizon 2020 research and Innovation Program within the project ONEForest: A Multi-Criteria Decision Support System for A Common Forest Management to Strengthen Forest Resilience, Harmonise Stakeholder Interests and Ensure Sustainable Wood Flows (Grant Agreement No 101000406).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
TSCTopsoil cover
XGXanthan gum
CACitric acid
TATannic acid
GELGelatin
WFWood fibers
FT-IRFourier-transformed infrared spectroscopy
TGAThermogravimetric analysis
LOILimiting oxygen Index

References

  1. Díaz-Pérez, J.C.; Batal, K.D. Colored plastic film mulches affect tomato growth and yield via changes in root-zone temperature. J. Am. Soc. Hortic. Sci. 2002, 127, 127–135. [Google Scholar] [CrossRef]
  2. Kasirajan, S.; Ngouajio, M. Polyethylene and biodegradable mulches for agricultural applications: A review. Agron. Sustain. Dev. 2012, 32, 501–529. [Google Scholar] [CrossRef]
  3. El-Beltagi, H.S.; Basit, A.; Mohamed, H.I.; Ali, I.; Ullah, S.; Kamel, E.A.; Shalaby, T.A.; Ramadan, K.M.; Alkhateeb, A.A.; Ghazzawy, H.S. Mulching as a sustainable water and soil saving practice in agriculture: A review. Agronomy 2022, 12, 1881. [Google Scholar] [CrossRef]
  4. Sintim, H.Y.; Flury, M. Is biodegradable plastic mulch the solution to agriculture’s plastic problem? Environ. Sci. Technol. 2017, 51, 1068–1069. [Google Scholar] [CrossRef]
  5. Yang, N.; Sun, Z.-X.; Feng, L.-S.; Zheng, M.-Z.; Chi, D.-C.; Meng, W.-Z.; Hou, Z.-Y.; Bai, W.; Li, K.-Y. Plastic film mulching for water-efficient agricultural applications and degradable films materials development research. Mater. Manuf. Process. 2015, 30, 143–154. [Google Scholar] [CrossRef]
  6. Ramakrishna, A.; Tam, H.M.; Wani, S.P.; Long, T.D. Effect of mulch on soil temperature, moisture, weed infestation and yield of groundnut in northern Vietnam. Field Crops Res. 2006, 95, 115–125. [Google Scholar] [CrossRef]
  7. Han, Q.; Harayama, H.; Uemura, A.; Ito, E.; Utsugi, H.; Kitao, M.; Maruyama, Y. High biomass productivity of short-rotation willow plantation in boreal Hokkaido achieved by mulching and cutback. Forests 2020, 11, 505. [Google Scholar] [CrossRef]
  8. Vitone, A.; Coello, J.; Piqué, M.; Rovira, P. Use of innovative groundcovers in Mediterranean afforestations: Aerial and belowground effects in hybrid walnut. Ann. Silv. Res. 2016, 40, 140–147. [Google Scholar]
  9. Mansoor, Z.; Tchuenbou-Magaia, F.; Kowalczuk, M.; Adamus, G.; Manning, G.; Parati, M.; Radecka, I.; Khan, H. Polymers use as mulch films in agriculture—A review of history, problems and current trends. Polymers 2022, 14, 5062. [Google Scholar] [CrossRef] [PubMed]
  10. Salama, K.; Geyer, M. Plastic mulch films in agriculture: Their use, environmental problems, recycling and alternatives. Environments 2023, 10, 179. [Google Scholar] [CrossRef]
  11. Liu, E.; He, W.; Yan, C. ‘White revolution’ to ‘white pollution’—Agricultural plastic film mulch in China. Environ. Res. Lett. 2014, 9, 091001. [Google Scholar] [CrossRef]
  12. Steinmetz, Z.; Wollmann, C.; Schaefer, M.; Buchmann, C.; David, J.; Tröger, J.; Muñoz, K.; Frör, O.; Schaumann, G.E. Plastic mulching in agriculture. Trading short-term agronomic benefits for long-term soil degradation? Sci. Total Environ. 2016, 550, 690–705. [Google Scholar] [CrossRef]
  13. Briassoulis, D.; Giannoulis, A. Evaluation of the functionality of bio-based food packaging films. Polym. Test. 2018, 69, 39–51. [Google Scholar] [CrossRef]
  14. Qi, Y.; Yang, X.; Pelaez, A.M.; Huerta Lwanga, E.; Beriot, N.; Gertsen, H.; Garbeva, P.; Geissen, V. Macro- and micro-plastics in soil-plant system: Effects of plastic mulch film residues on wheat (Triticum aestivum) growth. Sci. Total Environ. 2018, 645, 1048–1056. [Google Scholar] [CrossRef]
  15. Wang, J.; Lv, S.; Zhang, M.; Chen, G.; Zhu, T.; Zhang, S.; Teng, Y.; Christie, P.; Luo, Y. Effects of plastic film residues on occurrence of phthalates and microbial activity in soils. Chemosphere 2016, 151, 171–177. [Google Scholar] [CrossRef]
  16. Suzuki, N.; Rivero, R.M.; Shulaev, V.; Blumwald, E.; Mittler, R. Abiotic and biotic stress combinations. New Phytol. 2014, 203, 32–43. [Google Scholar] [CrossRef]
  17. Russo, R.; Malinconico, M.; Santagata, G. Effect of cross-linking with calcium ions on the physical properties of alginate films. Biomacromolecules 2007, 8, 3193–3197. [Google Scholar] [CrossRef] [PubMed]
  18. Menossi, M.; Cisneros, M.; Alvarez, V.A.; Casalongué, C. Current and emerging biodegradable mulch films based on polysaccharide bio-composites. A review. Agron. Sustain. Dev. 2021, 41, 53. [Google Scholar] [CrossRef]
  19. Kayserilioğlu, B.Ş.; Bakir, U.; Yilmaz, L.; Akkaş, N.J.B.t. Use of xylan, an agricultural by-product, in wheat gluten based biodegradable films: Mechanical, solubility and water vapor transfer rate properties. Bioresour. Technol. 2003, 87, 239–246. [Google Scholar] [CrossRef] [PubMed]
  20. Zhao, Y.; Qiu, J.; Xu, J.; Gao, X.; Fu, X. Effects of crosslinking modes on the film forming properties of kelp mulching films. Algal Res. 2017, 26, 74–83. [Google Scholar] [CrossRef]
  21. Merino, D.; Gutiérrez, T.J.; Mansilla, A.Y.; Casalongué, C.A.; Alvarez, V.A. Critical Evaluation of starch-based antibacterial nanocomposites as agricultural mulch films: Study on their interactions with water and light. ACS Sustain. Chem. Eng. 2018, 6, 15662–15672. [Google Scholar] [CrossRef]
  22. Akhir, M.A.M.; Mustapha, M. Formulation of biodegradable plastic mulch film for agriculture crop protection: A review. Polym. Rev. 2022, 62, 890–918. [Google Scholar] [CrossRef]
  23. Garcıa-Ochoa, F.; Santos, V.; Casas, J.; Gómez, E. Xanthan gum: Production, recovery, and properties. Biotechnol. Adv. 2000, 18, 549–579. [Google Scholar] [CrossRef]
  24. Patel, J.; Maji, B.; Moorthy, N.; Maiti, S. Xanthan gum derivatives: Review of synthesis, properties and diverse applications. RSC Adv. 2020, 10, 27103–27136. [Google Scholar] [CrossRef] [PubMed]
  25. Bhat, I.M.; Wani, S.M.; Mir, S.A.; Masoodi, F. Advances in xanthan gum production, modifications and its applications. Biocatal. Agric. Biotechnol. 2022, 42, 102328. [Google Scholar] [CrossRef]
  26. Kumar, P.; Kumar, B.; Gihar, S.; Kumar, D. Review on emerging trends and challenges in the modification of xanthan gum for various applications. Carbohydr. Res. 2024, 538, 109070. [Google Scholar] [CrossRef]
  27. Ramshaw, J.A.; Glattauer, V. Biophysical and Chemical Properties of Collagen: Biomedical Applications; IOP Publishing: Bristol, UK, 2019. [Google Scholar]
  28. Schrieber, R.; Gareis, H. Gelatine Handbook: Theory and Industrial Practice; John Wiley & Sons: New York, NY, USA, 2007. [Google Scholar]
  29. Alipal, J.; Pu’Ad, N.M.; Lee, T.; Nayan, N.; Sahari, N.; Basri, H.; Idris, M.; Abdullah, H. A review of gelatin: Properties, sources, process, applications, and commercialisation. Mater. Today Proc. 2021, 42, 240–250. [Google Scholar] [CrossRef]
  30. Sorze, A.; Valentini, F.; Dorigato, A.; Pegoretti, A. Development of a xanthan gum based superabsorbent and water retaining composites for agricultural and forestry applications. Molecules 2023, 28, 1952. [Google Scholar] [CrossRef] [PubMed]
  31. Sorze, A.; Valentini, F.; Smolar, J.; Logar, J.; Pegoretti, A.; Dorigato, A. Effect of different cellulose fillers on the properties of xanthan-based composites for soil conditioning applications. Materials 2023, 16, 7285. [Google Scholar] [CrossRef]
  32. Smolar, J.; Fortuna, B.; Logar, J.; Sorze, A.; Valentini, F.; Maček, M.; Pulko, B. Reducing drought vulnerability of forest soils using Xanthan gum-based soil conditioners. Heliyon 2024, 10, e39974. [Google Scholar] [CrossRef]
  33. Sorze, A.; Valentini, F.; Burin Mucignat, M.; Pegoretti, A.; Dorigato, A. Multifunctional xanthan gum/wood fibers based hydrogels as novel topsoil covers for forestry and agricultural applications. Carbohydr. Polym. Technol. Appl. 2024, 7, 100520. [Google Scholar] [CrossRef]
  34. Valentini, F.; Sorze, A.; Coello, J.; Ros, L.; Chowdhury, A.A.; Piergiacomo, F.; Casapiccola, G.; Brusetti, L.; Bösing, J.; Hirschmüller, S.; et al. Xanthan-and gelatine-based composites used as nursery groundcovers: Assessment of soil microbiology and seedling performance. Sustainability 2025, 17, 1265. [Google Scholar] [CrossRef]
  35. Auriemma, S.; Chowdhury, A.A.; Sorze, A.; Valentini, F.; Piergiacomo, F.; Dorigato, A.; Brusetti, L. Wood-derived topsoil cover positively influences the diversity and activity of tomato plant rhizobacteria. Resour. Environ. Sustain. 2025, 21, 100241. [Google Scholar] [CrossRef]
  36. San-Miguel-Ayanz, J.; Durrant, T.; Boca, R.; Maianti, P.; Libertà, G.; Oom, D.; Branco, A.; Suarez-Moreno, M.; Ferrari, D.; Roglia, E.; et al. Forest Fires in Europe, Middle East and North Africa 2022; Publications Office of the European Union: Luxembourg, 2023; Available online: https://data.europa.eu/doi/10.2760/348120 (accessed on 15 April 2024).
  37. National Interagency Fire Center. Available online: https://www.nifc.gov/fire-information/statistics/wildfires (accessed on 25 March 2025).
  38. Massman, W.J.; Frank, J.M.; Mooney, S.J. Advancing investigation and physical modeling of first-order fire effects on soils. Fire Ecol. 2010, 6, 36–54. [Google Scholar] [CrossRef]
  39. Arunrat, N.; Kongsurakan, P.; Solomon, L.W.; Sereenonchai, S. Fire impacts on soil properties and implications for sustainability in rotational shifting cultivation: A review. Agriculture 2024, 14, 1660. [Google Scholar] [CrossRef]
  40. Agbeshie, A.A.; Abugre, S.; Atta-Darkwa, T.; Awuah, R. A review of the effects of forest fire on soil properties. J. For. Res. 2022, 33, 1419–1441. [Google Scholar] [CrossRef]
  41. Shakesby, R.A. Post-wildfire soil erosion in the Mediterranean: Review and future research directions. Earth-Sci. Rev. 2011, 105, 71–100. [Google Scholar] [CrossRef]
  42. Inbar, A.; Lado, M.; Sternberg, M.; Tenau, H.; Ben-Hur, M. Forest fire effects on soil chemical and physicochemical properties, infiltration, runoff, and erosion in a semiarid Mediterranean region. Geoderma 2014, 221, 131–138. [Google Scholar] [CrossRef]
  43. Stefanidis, S.; Alexandridis, V.; Spalevic, V.; Mincato, R.L. Wildfire effects on soil erosion dynamics: The case of 2021 megafires in Greece. Agric. For. 2022, 68, 49–63. [Google Scholar]
  44. Stevens-Rumann, C.S.; Kemp, K.B.; Higuera, P.E.; Harvey, B.J.; Rother, M.T.; Donato, D.C.; Morgan, P.; Veblen, T.T. Evidence for declining forest resilience to wildfires under climate change. Ecol. Lett. 2018, 21, 243–252. [Google Scholar] [CrossRef]
  45. Noske, P.J.; Nyman, P.; Lane, P.N.; Rengers, F.K.; Sheridan, G.J. Changes in soil erosion caused by wildfire: A conceptual biogeographic model. Geomorphology 2024, 459, 109272. [Google Scholar] [CrossRef]
  46. Liu, B.; Liang, Y.; He, H.S.; Liu, Z.; Ma, T.; Wu, M.M. Wildfire affects boreal forest resilience through post-fire recruitment in Northeastern China. Ecol. Indic. 2022, 145, 109705. [Google Scholar] [CrossRef]
  47. Malucelli, G. Flame-retardant systems based on chitosan and its derivatives: State of the art and perspectives. Molecules 2020, 25, 4046. [Google Scholar] [CrossRef]
  48. Zhu, F.; Chen, L.; Feng, Q. Waste gelatin based layer by layer assembly for sustainable solution to cotton fabrics flame retardancy. Prog. Org. Coat. 2022, 163, 106688. [Google Scholar] [CrossRef]
  49. Cen, Q.; Chen, S.; Yang, D.; Zheng, D.; Qiu, X. Full bio-based aerogel incorporating lignin for excellent flame retardancy, mechanical resistance, and thermal insulation. ACS Sustain. Chem. Eng. 2023, 11, 4473–4484. [Google Scholar] [CrossRef]
  50. Chen, B.; Wu, D.; Wang, T.; Liu, Q.; Jia, D. Porous carbon generation by burning starch-based intumescent flame retardants for supercapacitors. Chem. Eng. J. 2024, 486, 150353. [Google Scholar] [CrossRef]
  51. Solihat, N.N.; Hidayat, A.F.; Taib, M.N.A.M.; Hussin, M.H.; Lee, S.H.; Ghani, M.A.A.; Edrus, S.S.O.A.; Vahabi, H.; Fatriasari, W. Recent developments in flame-retardant lignin-based biocomposite: Manufacturing, and characterization. J. Polym. Environ. 2022, 30, 4517–4537. [Google Scholar] [CrossRef]
  52. Li, Y.; Zhang, D.; Ash, J.; Jia, X.; Leone, A.; Templeton, A. Mechanism and impact of excipient incompatibility: Cross-linking of xanthan gum in pediatric powder-for-suspension formulations. J. Pharm. Sci. 2019, 108, 3609–3615. [Google Scholar] [CrossRef] [PubMed]
  53. Alavarse, A.C.; Frachini, E.C.G.; da Silva, R.L.C.G.; Lima, V.H.; Shavandi, A.; Petri, D.F.S. Crosslinkers for polysaccharides and proteins: Synthesis conditions, mechanisms, and crosslinking efficiency, a review. Int. J. Biol. Macromol. 2022, 202, 558–596. [Google Scholar] [CrossRef] [PubMed]
  54. Bueno, V.B.; Bentini, R.; Catalani, L.H.; Petri, D.F. Synthesis and swelling behavior of xanthan-based hydrogels. Carbohydr. Polym. 2013, 92, 1091–1099. [Google Scholar] [CrossRef]
  55. Dong, Y.; Xue, Q.; Fu, Z.; Yan, Y.; Lu, Y.; Liu, Y.; Li, J. Enhancing wood stability and fire retardancy through citric acid and phosphorylated sucrose stearate cross-linking modification. Constr. Build. Mater. 2023, 393, 131946. [Google Scholar] [CrossRef]
  56. Zaleska, H.; Ring, S.; Tomasik, P. Electrosynthesis of potato starch–casein complexes. Int. J. Food Sci. Technol. 2001, 36, 509–515. [Google Scholar] [CrossRef]
  57. Sun, N.-x.; Liang, Y.; Yu, B.; Tan, C.-p.; Cui, B. Interaction of starch and casein. Food Hydrocoll. 2016, 60, 572–579. [Google Scholar] [CrossRef]
  58. Rouchon, V.; Pellizzi, E.; Janssens, K. FTIR techniques applied to the detection of gelatine in paper artifacts: From macroscopic to microscopic approach. Appl. Phys. A 2010, 100, 663–669. [Google Scholar] [CrossRef][Green Version]
  59. Rohman, A.; Windarsih, A.; Erwanto, Y.; Zakaria, Z. Review on analytical methods for analysis of porcine gelatine in food and pharmaceutical products for halal authentication. Trends Food Sci. Technol. 2020, 101, 122–132. [Google Scholar] [CrossRef]
  60. Guo, J.; Sun, W.; Kim, J.P.; Lu, X.; Li, Q.; Lin, M.; Mrowczynski, O.; Rizk, E.B.; Cheng, J.; Qian, G. Development of tannin-inspired antimicrobial bioadhesives. Acta Biomater. 2018, 72, 35–44. [Google Scholar] [CrossRef]
  61. de Morais Lima, M.; Carneiro, L.C.; Bianchini, D.; Dias, A.R.G.; Zavareze, E.d.R.; Prentice, C.; Moreira, A.d.S. Structural, thermal, physical, mechanical, and barrier properties of chitosan films with the addition of xanthan gum. J. Food Sci. 2017, 82, 698–705. [Google Scholar] [CrossRef]
  62. Raschip, I.E.; Hitruc, G.E.; Vasile, C.; Popescu, M.-C. Effect of the lignin type on the morphology and thermal properties of the xanthan/lignin hydrogels. Int. J. Biol. Macromol. 2013, 54, 230–237. [Google Scholar] [CrossRef] [PubMed]
  63. De la Cruz, L.G.; Abt, T.; León, N.; Sánchez-Soto, M. Properties of freeze-dried gelatin/clay aerogel composites crosslinked with tannic acid. ACS Appl. Polym. Mater. 2023, 5, 7774–7785. [Google Scholar] [CrossRef]
  64. Ai, Y.; Zheng, N.; Liu, W.; Yang, P.; Wu, X.; Tian, Y.; Wang, C.; Liu, H.; Huang, C.; Liang, Z.; et al. Gelatin-based spray for forest fire prevention and fertilization. Commun. Mater. 2024, 5, 272. [Google Scholar] [CrossRef]
  65. Tang, M.; Han, M.; Gu, W.; Xu, W.; Lei, F.; Li, P.; Jiang, J.; Ji, L. Preparation and characterization of eco-friendly polysaccharide-based liquid mulch with soil amendment function. J. Clean. Prod. 2022, 363, 132586. [Google Scholar] [CrossRef]
  66. Stasi, E.; Giuri, A.; Ferrari, F.; Armenise, V.; Colella, S.; Listorti, A.; Rizzo, A.; Ferraris, E.; Esposito Corcione, C. Biodegradable carbon-based ashes/maize starch composite films for agricultural applications. Polymers 2020, 12, 524. [Google Scholar] [CrossRef]
  67. Ciaramitaro, V.; Piacenza, E.; Paliaga, S.; Cavallaro, G.; Badalucco, L.; Laudicina, V.A.; Chillura Martino, D.F. Exploring the feasibility of polysaccharide-based mulch films with controlled ammonium and phosphate ions release for sustainable agriculture. Polymers 2024, 16, 2298. [Google Scholar] [CrossRef]
  68. Zhang, S.; Jin, X.; Gu, X.; Chen, C.; Li, H.; Zhang, Z.; Sun, J. The preparation of fully bio-based flame retardant poly (lactic acid) composites containing casein. J. Appl. Polym. Sci. 2018, 135, 46599. [Google Scholar] [CrossRef]
  69. Carosio, F.; Di Blasio, A.; Cuttica, F.; Alongi, J.; Malucelli, G. Flame retardancy of polyester and polyester–cotton blends treated with caseins. Ind. Eng. Chem. Res. 2014, 53, 3917–3923. [Google Scholar] [CrossRef]
  70. Wu, X.; Yang, C.Q.; He, Q. Flame retardant finishing of cotton fleece: Part VII. Polycarboxylic acids with different numbers of functional group. Cellulose 2010, 17, 859–870. [Google Scholar] [CrossRef]
  71. Kaya, M. Super absorbent, light, and highly flame retardant cellulose-based aerogel crosslinked with citric acid. J. Appl. Polym. Sci. 2017, 134, 45315. [Google Scholar] [CrossRef]
  72. Wang, Y.-T.; Zhao, H.-B.; Degracia, K.; Han, L.-X.; Sun, H.; Sun, M.; Wang, Y.-Z.; Schiraldi, D.A. Green approach to improving the strength and flame retardancy of poly (vinyl alcohol)/clay aerogels: Incorporating biobased gelatin. ACS Appl. Mater. Interfaces 2017, 9, 42258–42265. [Google Scholar] [CrossRef] [PubMed]
  73. Zhang, L.; Huang, Y.; Sun, P.; Hai, Y.; Jiang, S. A self-healing, recyclable, and degradable fire-retardant gelatin-based biogel coating for green buildings. Soft Matter 2021, 17, 5231–5239. [Google Scholar] [CrossRef] [PubMed]
  74. Zhang, X.; Do, M.D.; Casey, P.; Sulistio, A.; Qiao, G.G.; Lundin, L.; Lillford, P.; Kosaraju, S. Chemical modification of gelatin by a natural phenolic cross-linker, tannic acid. J. Agric. Food. Chem. 2010, 58, 6809–6815. [Google Scholar] [CrossRef] [PubMed]
  75. Zak, A.K.; Esmaeilzadeh, J.; Hashim, A.M. Exploring the gelatin-based sol-gel approach: A convenient route for fabricating high-quality pure and doped ZnO nanostructures. Ceram. Int. 2024, 50, 12649–12663. [Google Scholar]
  76. Zhao, F.; Tang, T.; Hou, S.; Fu, Y. Preparation and synergistic effect of chitosan/sodium phytate/MgO nanoparticle fire-retardant coatings on wood substrate through layer-by-layer self-assembly. Coatings 2020, 10, 848. [Google Scholar] [CrossRef]
  77. Zhang, Z.X.; Zhang, J.; Lu, B.-X.; Xin, Z.X.; Kang, C.K.; Kim, J.K. Effect of flame retardants on mechanical properties, flammability and foamability of PP/wood–fiber composites. Compos. Part B Eng. 2012, 43, 150–158. [Google Scholar] [CrossRef]
  78. Benning, M.A. Measurement of oxygen index at elevated pressures. In Flammbility and Sensitivity of Materials in Oxygen-Enriched Atmospheres; ASTM International: Pennsylvania, PA, USA, 1983; pp. 68–83. [Google Scholar]
  79. Alaaeddin, M.; Sapuan, S.; Zuhri, M.; Zainudin, E.; AL-Oqla, F.M. Properties and common industrial applications of polyvinyl fluoride (PVF) and polyvinylidene fluoride (PVDF). In IOP Conference Series: Materials Science and Engineering; IOP Publishing: Bristol, UK, 2018; p. 012021. [Google Scholar]
  80. Picchio, M.L.; Linck, Y.G.; Monti, G.A.; Gugliotta, L.M.; Minari, R.J.; Alvarez Igarzabal, C.I. Casein films crosslinked by tannic acid for food packaging applications. Food Hydrocoll. 2018, 84, 424–434. [Google Scholar] [CrossRef]
Molecules 30 03324 g001

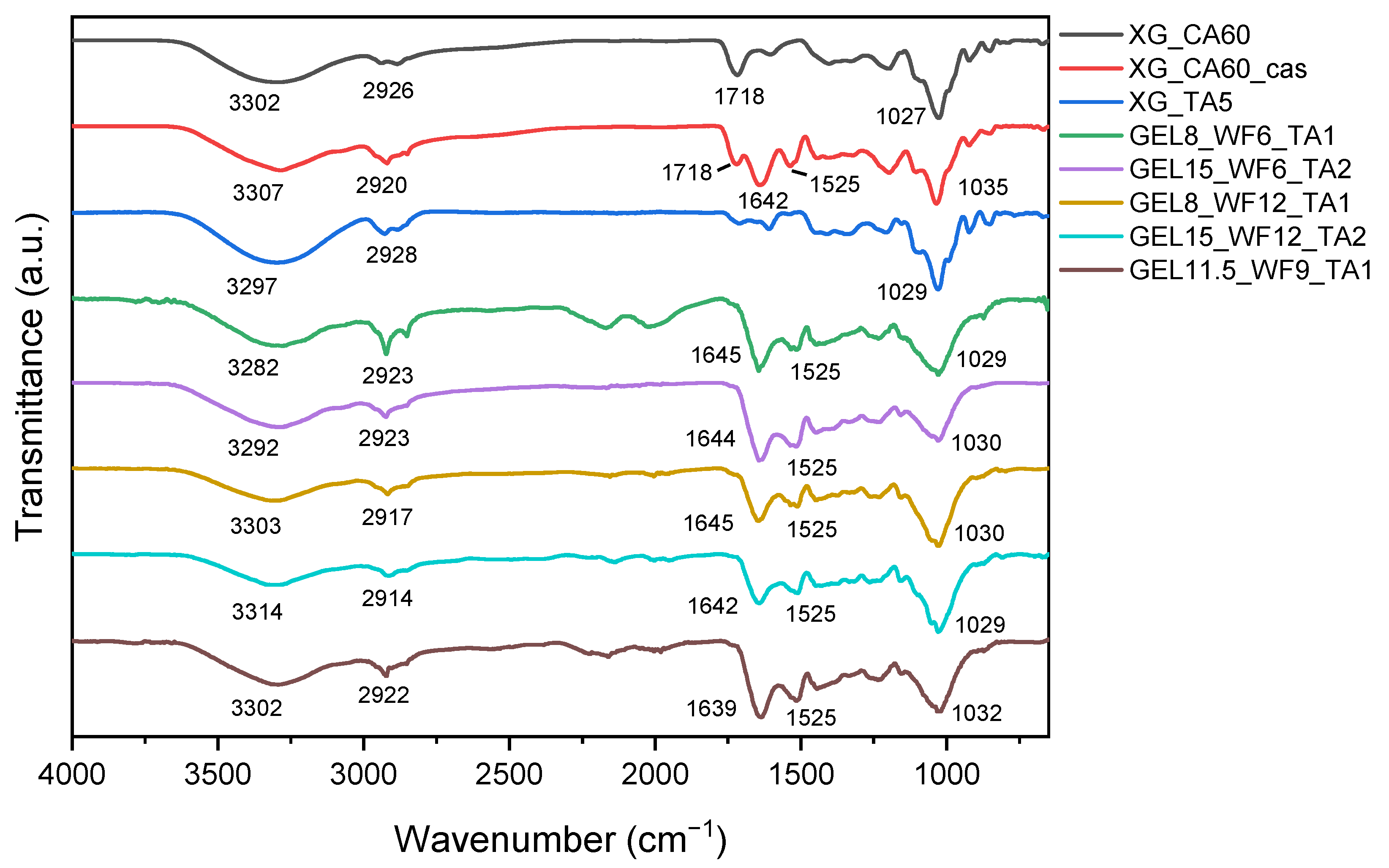

Figure 1. Normalized FT-IR spectra of the prepared xanthan- and gelatin-based wood fiber composite TSCs.
Figure 1. Normalized FT-IR spectra of the prepared xanthan- and gelatin-based wood fiber composite TSCs.
Molecules 30 03324 g001
Molecules 30 03324 g002

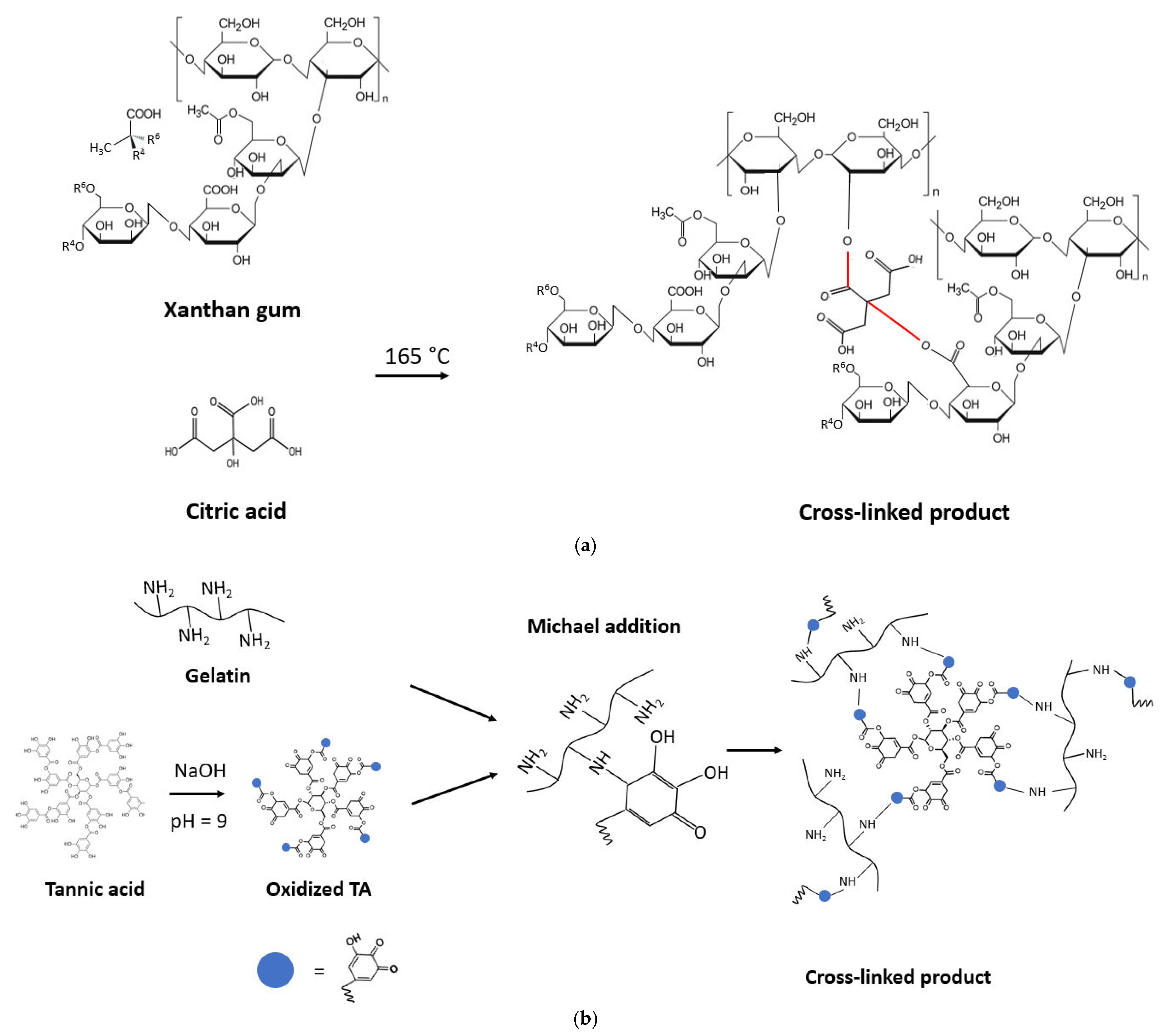

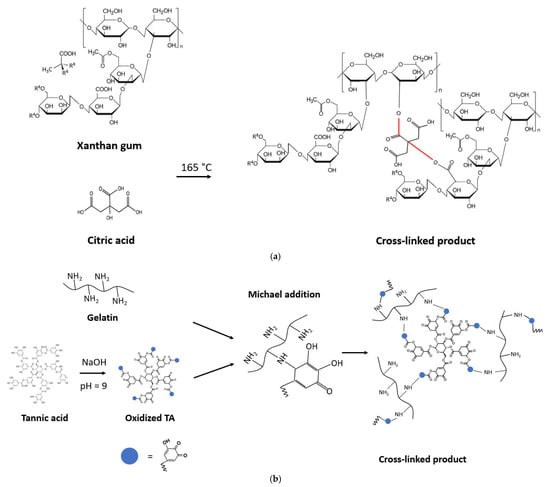

Figure 2. Cross-linking reaction scheme of (a) xanthan gum with citric acid and (b) gelatin with tannic acid.
Figure 2. Cross-linking reaction scheme of (a) xanthan gum with citric acid and (b) gelatin with tannic acid.
Molecules 30 03324 g002
Molecules 30 03324 g003

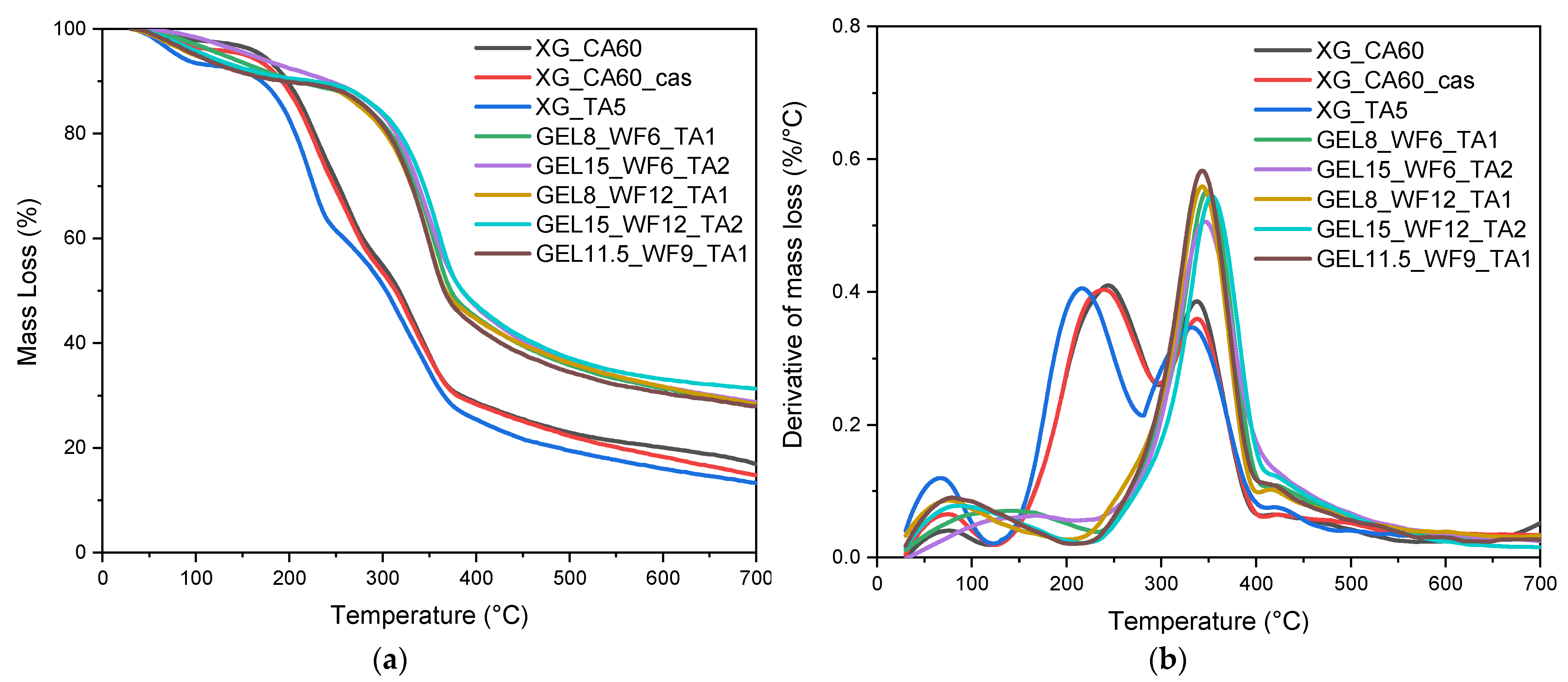

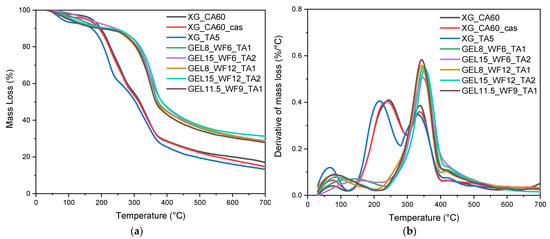

Figure 3. (a) TGA and (b) DTG curves of the prepared TSC samples.
Figure 3. (a) TGA and (b) DTG curves of the prepared TSC samples.
Molecules 30 03324 g003
Molecules 30 03324 g004

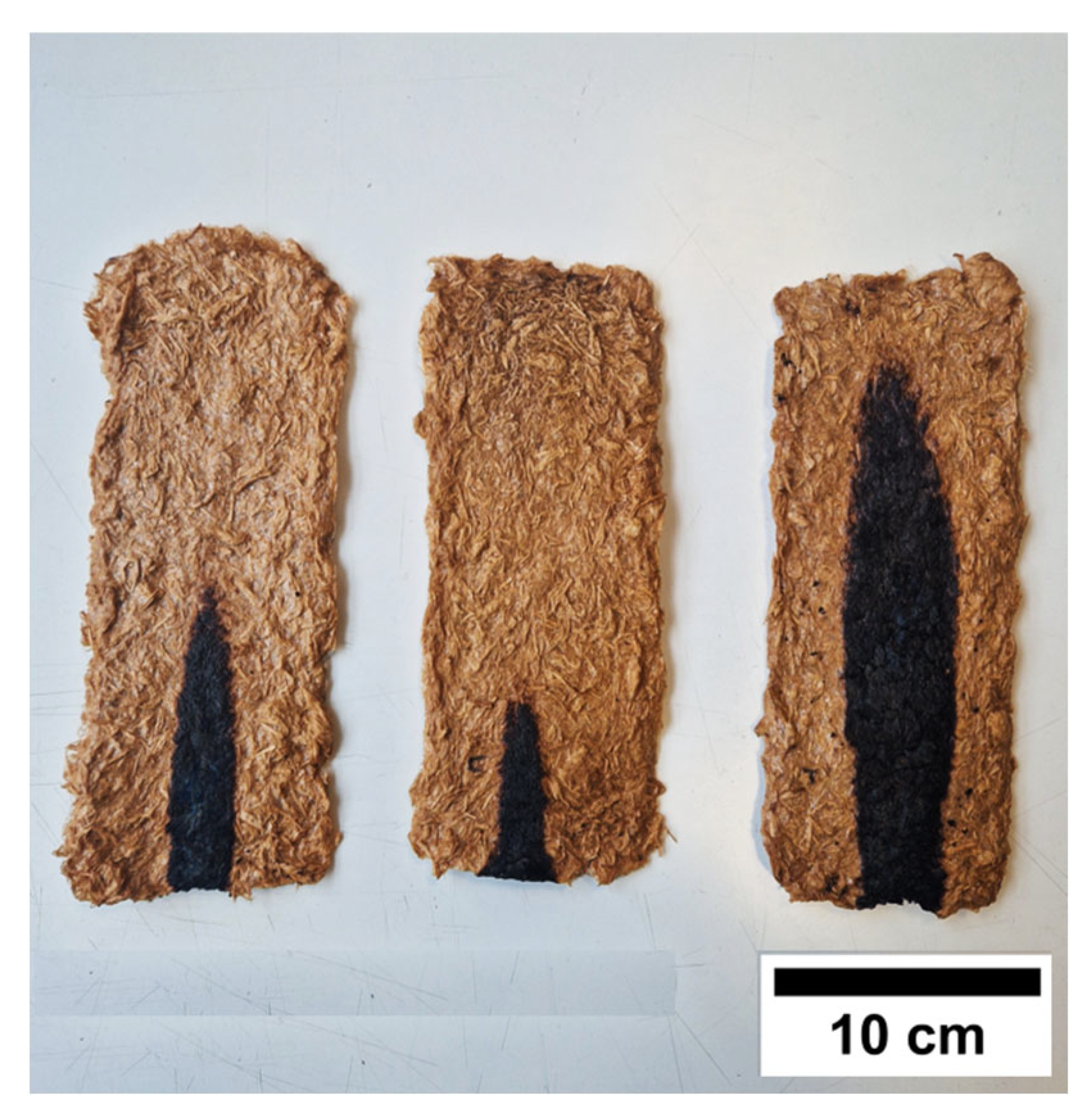

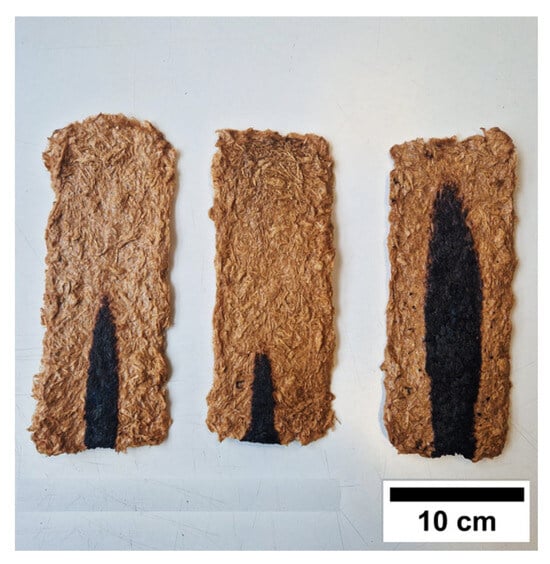

Figure 4. Representative xanthan-based TSC specimens (XG_CA60) after single-flame-source tests.
Figure 4. Representative xanthan-based TSC specimens (XG_CA60) after single-flame-source tests.
Molecules 30 03324 g004
Molecules 30 03324 g005

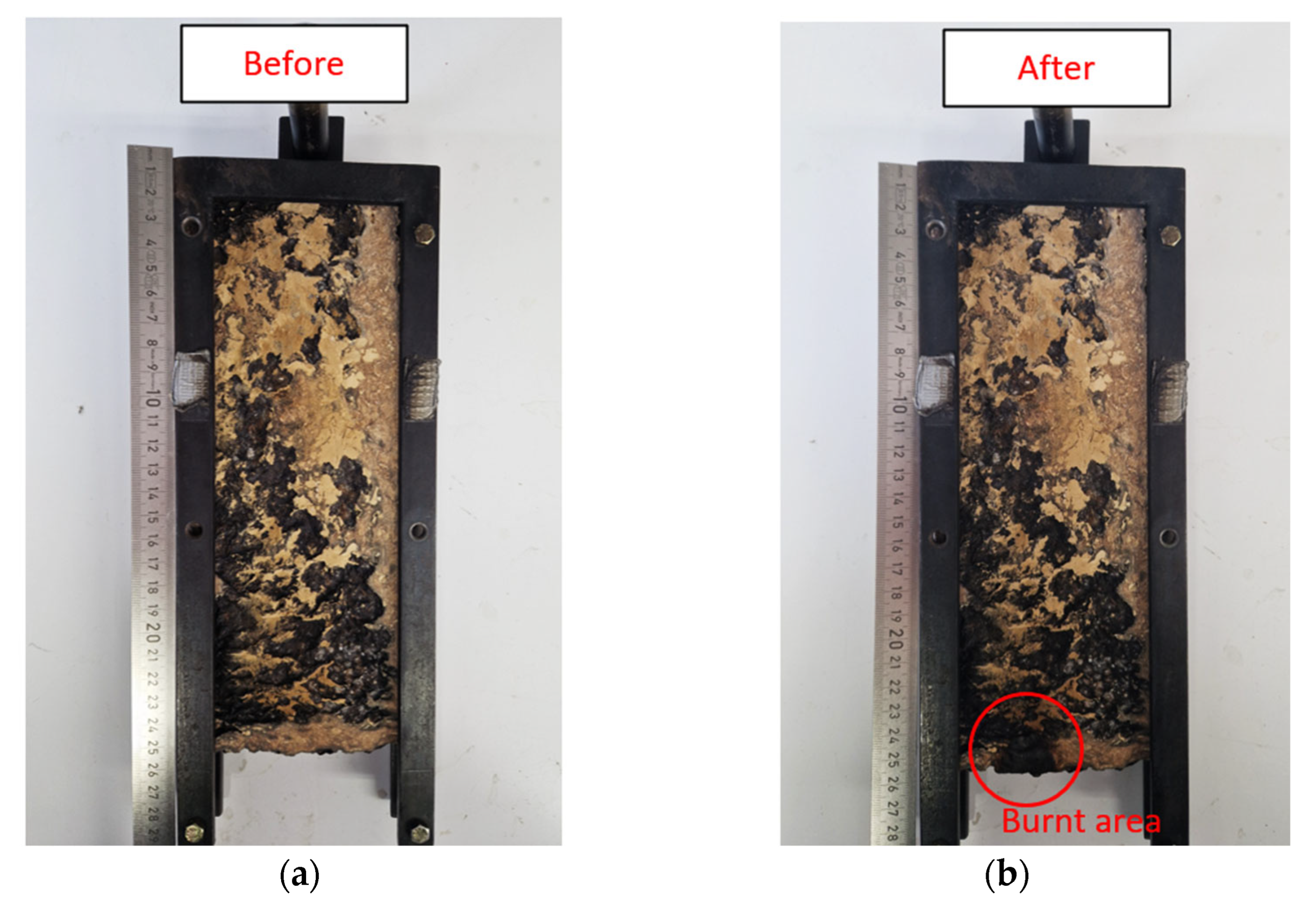

Figure 5. Representative image of a gelatin-based specimen (GEL8_WF6_TA1): (a) before and (b) after the single-flame-source test.
Figure 5. Representative image of a gelatin-based specimen (GEL8_WF6_TA1): (a) before and (b) after the single-flame-source test.
Molecules 30 03324 g005
Molecules 30 03324 g006

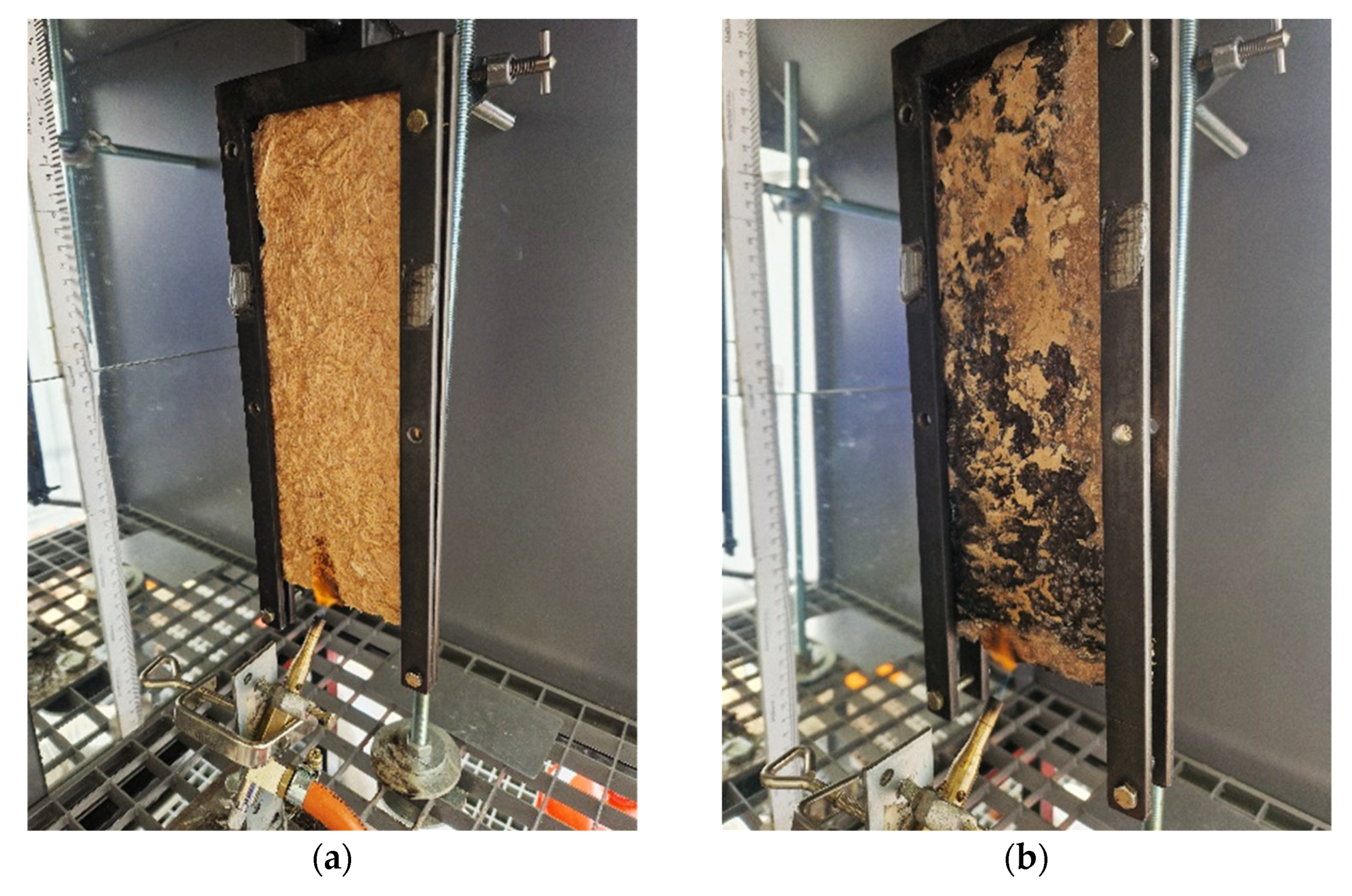

Figure 6. Representative images of (a) GEL8_WF12_TA1 TSC sample during the LOI test, and (b) of the tested specimens.

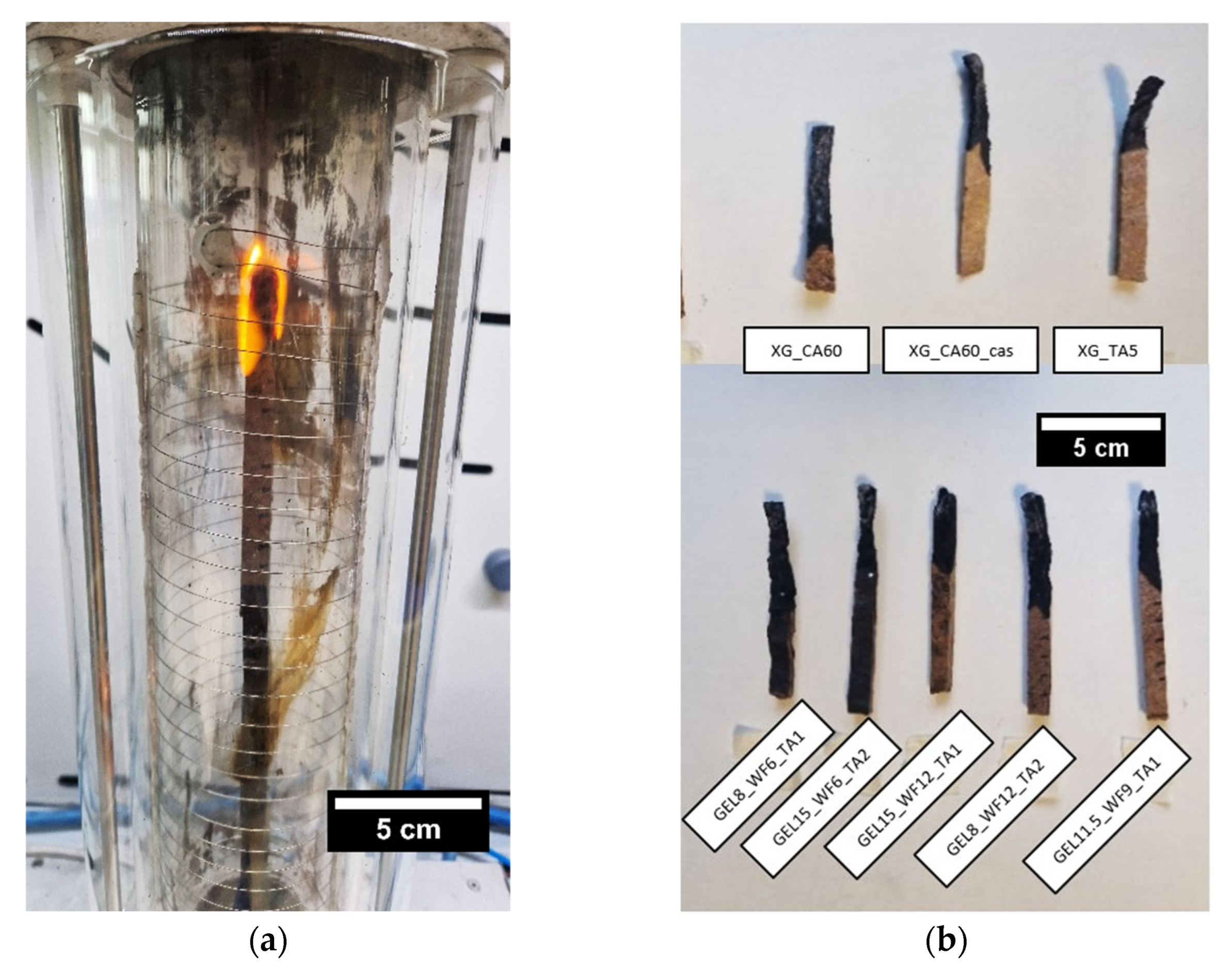

Figure 6. Representative images of (a) GEL8_WF12_TA1 TSC sample during the LOI test, and (b) of the tested specimens.
Molecules 30 03324 g006
Molecules 30 03324 g007

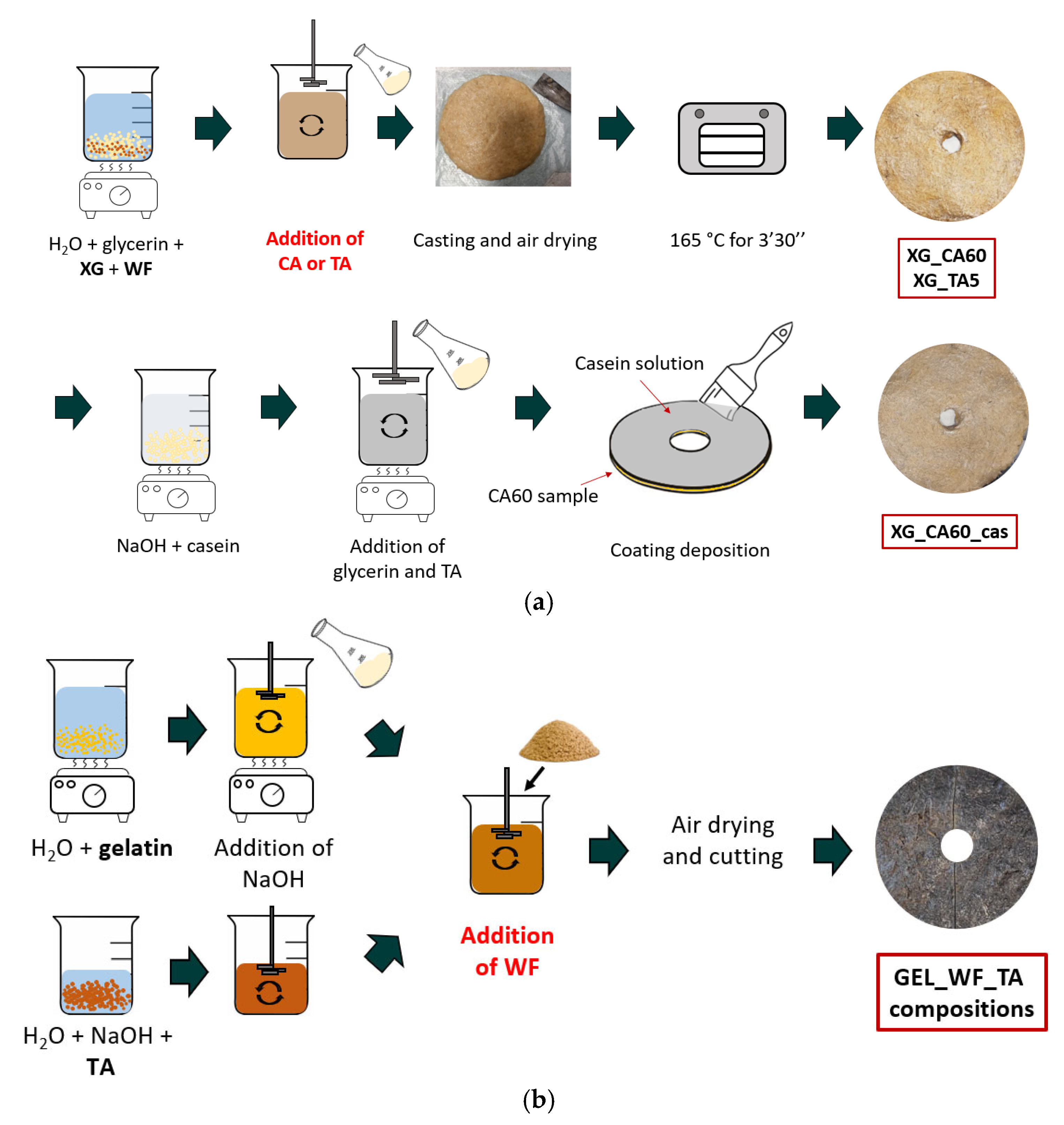

Figure 7. Sample preparation scheme of (a) xanthan-based TSCs and (b) gelatin-based TSCs. XG: xanthan gum; WF: wood fibers; CA: citric acid; TA: tannic acid.
Figure 7. Sample preparation scheme of (a) xanthan-based TSCs and (b) gelatin-based TSCs. XG: xanthan gum; WF: wood fibers; CA: citric acid; TA: tannic acid.
Molecules 30 03324 g007
Molecules 30 03324 g008
Figure 8. Representative images during the single-flame-source test on TSCs (a) XG_CA60 and (b) GEL8_WF6_TA1 samples.
Figure 8. Representative images during the single-flame-source test on TSCs (a) XG_CA60 and (b) GEL8_WF6_TA1 samples.
Molecules 30 03324 g008
Table 1. Results of the TGA on the prepared TSCs.
Table 1. Results of the TGA on the prepared TSCs.
SampleTonset (°C)Td,1 (°C)Td,2 (°C)mR,700 (%)
XG_CA60152.7243.0338.216.8 ± 1.5
XG_CA60_cas160.1239.5337.814.8 ± 2.1
XG_TA5153.8220.1332.213.2 ± 1.1
GEL8_WF6_TA1255.8-356.528.4 ± 3.2
GEL15_WF6_TA2248.3-347.528.7 ± 1.1
GEL8_WF12_TA1250.1-351.028.3 ± 0.8
GEL15_WF12_TA2256.3-360.231.3 ± 2.5
GEL11.5_WF9_TA1249.8-350.527.9 ± 1.8
Tonset: temperature at which degradation begins; Td,1: temperature of first degradation; Td,2: temperature of second degradation; mR,700: residual mass at 700 °C.
Table 2. Results of the single-flame-source tests on xanthan-based samples.
Table 2. Results of the single-flame-source tests on xanthan-based samples.
SampleMass Loss (%)Burnt Height
(cm)		Burnt Width
(cm)		Combustion *
XG_CA601.6 ± 0.1 a3.0 ± 0.6 ab9.7 ±2.2 ano
XG_CA60_cas0.3 ± 0.1 b2.4 ± 0.5 a7.0 ± 1.9 ayes
XG_TA59.5 ± 0.2 c3.8 ± 0.8 b13.3 ± 5.6 ayes
* The flame tip reached 150 mm above the point of application of the flame, according to EN ISO 11925-2. Different letters in a column indicate that results are statistically different (p < 0.05).
Table 3. LOI values of the prepared TSCs.
Table 3. LOI values of the prepared TSCs.
SampleLOI (vol% O2)
XG_CA6023.5 ± 0.1 a
XG_CA60_cas23.7 ± 0.1 a
XG_TA522.4 ± 0.2 a
GEL8_WF6_TA136.3 ± 0.1 bc
GEL15_WF6_TA241.5 ± 0.1 c
GEL8_WF12_TA131.2 ± 0.2 ab
GEL15_WF12_TA233.6 ± 0.1 abc
GEL11.5_WF9_TA133.3 ± 0.1 abc
Different letters in a column indicate that results are statistically different (p < 0.05).
Table 4. Composition of the prepared XG/wood fiber-based samples before drying (i.e., in the wet state).
Table 4. Composition of the prepared XG/wood fiber-based samples before drying (i.e., in the wet state).
SampleXanthan Gum
(wt%)		Wood
Fibers
(wt%)		Glycerin
(wt%)		CA
(wt%)		TA
(wt%)		Water
(wt%)		Casein
Coating
XG_CA603.53.54.22.0-86.8no
XG_CA60_cas3.53.54.22.0-86.8yes
XG_TA53.53.54.2-0.288.6no
CA: citric acid; TA: tannic acid.
Table 5. Composition of the prepared gelatin/wood fiber-based samples before drying (i.e., in the wet state).
Table 5. Composition of the prepared gelatin/wood fiber-based samples before drying (i.e., in the wet state).
SampleGelatin
(wt%)		Wood Fibers
(wt%)		TA
(wt%)		Water
(wt%)
GEL8_WF6_TA18.06.01.085.0
GEL15_WF6_TA215.06.02.077.0
GEL8_WF12_TA18.012.01.079.0
GEL15_WF12_TA215.012.02.071.0
GEL11.5_WF9_TA111.59.01.078.5
TA: tannic acid.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sorze, A.; Bösing, J.; Hirschmüller, S.; Dorigato, A. Investigation of Flame and Thermal Degradation Behavior of Xanthan- and Gelatin-Based Composites Used as Topsoil Covers in Forestry. Molecules 2025, 30, 3324. https://doi.org/10.3390/molecules30163324

AMA Style

Sorze A, Bösing J, Hirschmüller S, Dorigato A. Investigation of Flame and Thermal Degradation Behavior of Xanthan- and Gelatin-Based Composites Used as Topsoil Covers in Forestry. Molecules. 2025; 30(16):3324. https://doi.org/10.3390/molecules30163324

Chicago/Turabian Style

Sorze, Alessandro, Janine Bösing, Sebastian Hirschmüller, and Andrea Dorigato. 2025. "Investigation of Flame and Thermal Degradation Behavior of Xanthan- and Gelatin-Based Composites Used as Topsoil Covers in Forestry" Molecules 30, no. 16: 3324. https://doi.org/10.3390/molecules30163324

APA Style

Sorze, A., Bösing, J., Hirschmüller, S., & Dorigato, A. (2025). Investigation of Flame and Thermal Degradation Behavior of Xanthan- and Gelatin-Based Composites Used as Topsoil Covers in Forestry. Molecules, 30(16), 3324. https://doi.org/10.3390/molecules30163324

Article Metrics

Back to TopTop
