Article

Synthesis and Characterization of Covalent Triazine Frameworks Based on 4,4′-(Phenazine-5,10-diyl)dibenzonitrile and Its Application in CO2/CH4 Separation

by
Hanibal Othman
,
Robert Oestreich
,
Vivian Küll
,
Marcus N. A. Fetzer
and
Christoph Janiak
*
Institut für Anorganische Chemie und Strukturchemie, Heinrich-Heine-Universität Düsseldorf, 40204 Düsseldorf, Germany
*
Author to whom correspondence should be addressed.
Molecules 2025, 30(15), 3110; https://doi.org/10.3390/molecules30153110
Submission received: 1 July 2025 / Revised: 17 July 2025 / Accepted: 22 July 2025 / Published: 24 July 2025
(This article belongs to the Section Materials Chemistry)
Browse Figures
Versions Notes

Abstract

Covalent triazine frameworks (CTFs) have gained recognition as stable porous organic polymers, for example, for CO2 separation. From the monomer 4,4′-(phenazine-5,10-diyl)dibenzonitrile (pBN), new pBN-CTFs were synthesized using the ionothermal method with a variation in temperature (400 and 550 °C) and the ZnCl2-to-monomer ratio (10 and 20). N2 adsorption yielded BET surface areas up to 1460 m2g −1. The pBN-CTFs are promising CO2 adsorbents and are comparable to other benchmark CTFs such as CTF-1 with a CO2 uptake of pBN-CTF-10-550 at 293 K of up to 54 cm3 g−1 or 96 mg g−1, with a CO2/CH4 IAST selectivity of 22 for a 50% mixture of CO2/CH4. pBN-CTF-10-400 has a very high heat of adsorption of 79 kJ mol−1 for CO2 near zero coverage in comparison to other CTFs, and it also stays well above the liquefaction heat of CO2 due to its high microporosity of 50% of the total pore volume.

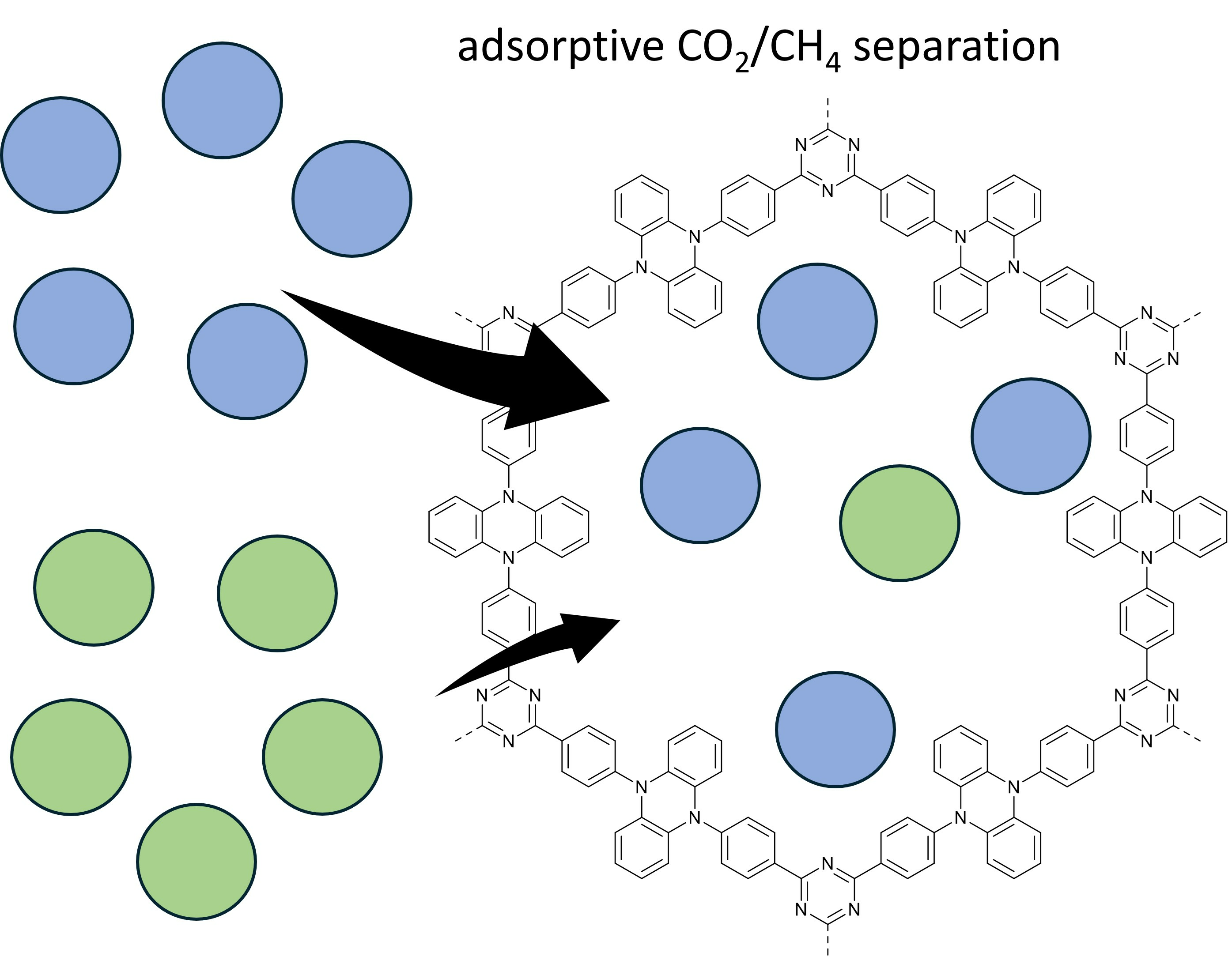

Graphical Abstract

1. Introduction

Porous materials contain interconnected pores which can have different length scales from micro- (<2 nm) and meso- (2–50) nm to macropores (>50 nm) [1,2]. Covalent triazine frameworks (CTFs) are micro-mesoporous organic polymers that are constructed from 1,3,5-triazine rings joined with linkers to ideally give two-dimensional networks with hexagonal openings (Figure 1) [3,4,5].
The nitrogen content and the porosity of the CTFs together with their thermal stability make them interesting materials for gas adsorption, storage and separation, pollutant removal, catalysis, and sensing [6,7,8,9,10,11,12,13], including CO2/N2 and CO2/CH4 separation, both in the neat form [14,15,16,17] and as a filler for organic polymers in mixed-matrix membranes [18,19,20]. Since the inception of covalent triazine frameworks in 2008 [21], these materials have been investigated for their CO2 adsorption [22,23,24,25,26,27,28,29,30,31].
One of the standard synthesis methods of CTFs is the ionothermal method, in which the nitrile monomer is heated with excess zinc chloride under vacuum or an inert atmosphere to a chosen temperature in the range between 400 and 900 °C [32]. In this reaction, the molten zinc chloride salt acts as a solvent, as a Lewis acid, and as a porogen [33].
The surface area is not necessarily the determining and main property of CTFs for CO2 adsorption. A study showed an inverse relationship between BET surface area and the uptake of CO2 [16]. This correlation can be understood by the increase in the surface area with synthesis temperature and the concomitant decrease in the nitrogen content. When the CTFs are synthesized under relatively low temperatures (e.g., at 350 °C), the nitrogen loss is minimized but so is the surface area. Under higher synthesis temperatures (over 500 °C), significant nitrogen loss occurs, resulting in materials that transition towards high-surface-area carbon structures with some residual nitrogen content. Often, 400 °C is chosen as a compromise between good surface area and not too high nitrogen loss. For a high CO2 uptake, a high nitrogen content is aimed for. The structural features and performance of CTFs are highly sensitive to the monomer structure and the salt-to-monomer ratio employed during synthesis. For instance, adjusting the ZnCl2 ratio can influence the degree of polymerization, porosity, and degree of graphitization, all of which affect gas sorption behavior [21].
Several studies have demonstrated the superior CO2 adsorption capacity and selectivity of functionalized CTFs. Gu et al. reported CTFs with notable CO2 uptake and selectivity, emphasizing the role that microporosity plays in enhancing gas affinity. Similarly, Buyukcakir et al. introduced charged CTFs, showing that ionic functionality can improve both CO2 capture and catalytic conversion, underlining the synergy between framework charge and adsorption behavior [22,23].
The introduction of electron-withdrawing or polar functional groups such as fluorine or amines has also proven effective. Perfluorinated CTFs exhibit high CO2 selectivity and water tolerance, while amine-modified frameworks display improved CO2/CH4 selectivity due to favorable acid–base interactions. These findings are consistent with those of Dawson et al., who emphasized the role played by targeted chemical functionalization in enhancing CO2 binding through dipole–quadrupole and hydrogen bonding interactions [24,26,27].
Together, these studies demonstrate that by carefully controlling synthesis parameters—including salt-to-monomer ratios—and integrating tailored functional groups, the adsorption performance of CTFs towards CO2 can be significantly improved.
In this work, we use the dinitrile monomer 4,4′-(phenazine-5,10-diyl) dibenzonitrile (pBN) (Figure 1) to increase the nitrogen content for CO2 adsorption and separation from CO2/CH4 mixtures. The CTFs from this monomer were synthesized with two ratios of ZnCl2 to observe the impact of the salt ratio on the surface area and two temperatures to compare the effect of the temperature on the CO2 and CH4 adsorption.

2. Results and Discussion

New covalent triazine frameworks with the monomer 4,4′-(phenazine-5,10-diyl)dibenzonitrile (pBN) were synthesized via the ionothermal route with molten zinc chloride at two molar ZnCl2/monomer ratios of 10:1 and 20:1 at three temperatures of 350 °C, 400 °C, and 550 °C, all at the reaction time of 48 h. The CTF samples are coded as pBN-CTF-xx-yyy by giving the molar ZnCl2/monomer ratio (xx = 10 or 20), followed by the reaction temperature (yyy = 350, 400, or 550 °C). The pBN-CTF products were obtained as black monoliths, as typically observed for CTFs [34]. We tried to remove ZnCl2 through washing with acidified water, as described in the literature for CTFs [34,35]. The product yields ranged from 68 to 92% (Table 1). The scanning electron microscopy images indicate the typical shard-like morphology of CTFs (Figure S1a–d, Supplementary Materials).
In the infrared spectra, the characteristic C-N stretching band of the triazine units was observed at 1384 and 1508 cm−1, which slightly shifted from the C-N breathing and stretching mode of a molecular triazine unit (1363 and 1511 cm−1, respectively), in agreement with the infrared spectra of other CTFs [3,36]. At the same time, the CN band of the monomer at 2227 cm−1 disappeared (Figure S2, Supplementary Materials), signaling that the monomer was consumed during polymerization.
The CHN elemental combustion analysis reveals the typical nitrogen loss which increases with a higher temperature (Table S1). Nitrogen loss is due to a partial aromatic nitrile decomposition into HCN, CN radicals, NH3, and other species from the synthesis at temperatures of several hundred °C [3,5,35,37,38,39,40,41,42]. It can be seen that the C/N ratio is increased while the C/H ratio does not change much and stays close to the theoretical ratio, thereby indicating the primary loss of nitrogen-rich species. These results correlate with the general observation that an increase in temperature in ionothermal CTF synthesis leads to enhanced carbonization of the samples [5,12,39]. To avoid nitrogen loss, we also performed pBN-CTF formation at 350 °C. It became evident, however, that the surface area, porosity, and gas sorption of the samples at 350 °C varied greatly from batch to batch and among different probes from the same batch (Section S4, Figures S5 and S6, Table S2). The surface area of the pBN-CTF-10-350, which is based on N2 gas adsorption, ranged from 660 to 1027 m2 g−1 across three batches (Figure S5a). CO2 adsorption also showed variation across the three different batches and in addition across three probes from the same batches, with the uptake varying from 38 to 66 cm3 g−1 (Figure S6).
Thus, the samples at 350 °C were inhomogeneous and could not be reproducibly synthesized. Therefore, the results from the reaction temperature at 350 °C were not included in the discussion here in the main text.
The remaining difference in the combined weight percentage of C, H, and N to 100% amounts to ~20% and is usually explained by residual ZnCl2 or by the adsorption of water upon sample handling. In the literature, it is well known and frequently stated that the ionothermal ZnCl2 route gives hard-to-remove ZnCl2 metal impurities from the needed 5–10 times molar excess [8,21]. Energy-dispersive X-ray spectroscopy (EDX) gave a consistent amount of both Zn (~4.5 wt%) and Cl (7–10 wt%, Table S1). ZnCl2, which is embedded in the pores of the CTFs, is difficult to remove even by extended washing, as some of the pores may no longer be accessible. The still remaining difference of ~5–15 wt% was shown to be due to the adsorption of moisture from air in the porous CTF. We have recently verified that CTFs are hygroscopic, with a water uptake of up to 0.12–0.20 g g−1 (equivalent to 11–17 wt%) at 50–60% air humidity (that is P/P0 ≈ 0.5–0.6) when handled or stored under ambient air [14,39,43].
Powder X-ray diffractograms (PXRDs) yield only broad reflexes without any clear signature of (001) reflections for parallel two-dimensional sheets in eclipsed stacking (Figure S3), which indicates a very amorphous structure because of defects in the idealized hexagonal sheets with possibly partial interpenetration or three-dimensional framework arrangements.
The nitrogen sorption isotherms of the CTFs in Figure 2 all show a pronounced adsorption step at P/P0 < 0.05 corresponding to gas sorption in the micropores (pores < 2 nm, Figure 3, see Figure S5b for the 350 °C samples). The adsorption isotherms at 400 °C are largely of type Ib, indicative of materials with micropore size distributions over a broader range and narrow mesopores (pores > 2 nm, Figure 3a,b, Table 2) [1]. There is an H4 hysteresis, where the hysteresis loop closes only at very low relative pressure P/P0. Such H4 loops are found among others with micro-mesoporous carbons [1,2]. For 550 °C, the adsorption isotherm of the 10–550 sample appears to be a Type I and IV combination. The adsorption branch has a “knee” at P/P0 ~ 0.4 and the saturation plateau, which is a typical feature of Type IV isotherms, is then reached at high P/P0. Type IV isotherms are given by largely mesoporous adsorbents (Figure 3c,d, Table 2). The isotherm at 550 °C has a hysteresis loop of Type H2b, which is associated with pore blocking in a wide range of pore neck widths. The N2 adsorption isotherm of the sample 20–550 can be assigned as a mixture of Type I and Type II isotherms. The nitrogen uptake does not saturate towards P/P0 = 1, which is due to a Type II branch. Type II indicates macropores (pores > 50 nm), which can also be caused by the voids between the particles. The isotherm has an H3 hysteresis loop that correlates with macropores that are not filled with pore condensate [1,2].
The specific surface areas were obtained from the Brunauer–Emmett–Teller (BET) model over the pressure range of P/P0 ≈ 0.01–0.07. Generally, the surface areas are higher for the 10:1 than for the 20:1 ZnCl2/monomer ratios, giving 809–1460 m2 g−1 for the former and only 348–950 m2 g−1 for the latter (Table 2).
In other CTF synthesis, e.g., with the tetra(4-cyanophenyl)ethylene monomer, ZnCl2/monomer ratios of 10:1 and 20:1 were compared, with the former giving a more than two-fold higher surface area (2235 vs. 784 m2 g−1) [37,44]. Thus, a ratio of 10:1 seems optimal for many ionothermal CTF syntheses. In the following, we will therefore only discuss the results for the 10:1 molar ratio; that is, the pBN-CTF-10 series. In agreement with other CTF works, the surface area of the sample synthesized at 400 °C is lower than that at 550 °C (Table 2, Figure 2) as generally the surface areas and total pore volumes for the resulting products increase with temperature [39]. The surface areas of the pBN-CTFs are comparable with other CTFs with longer linkers, e.g., terphenyl prepared by Kuhn et al. with a surface area of 975 m2 g−1 [21], or even 2,8-dicyano-6H,12H-5,11-methanodibenzo [1,5]diazocine that was synthesized by Wang et al. with 612 m2 g−1 [45].
Using NL-DFT calculations with a slit pore model on the N2 adsorption isotherms, the pore widths and distribution as well as the total and micropore volume can be estimated (Figure 3 and Figure S5, Table 2) [35]. We can note that for their amorphous nature, as evidenced by PXRD (Figure S3), the pBN-CTF-10-400, -20-400, and -10-550 materials feature a surprisingly narrow pore size distribution within 1–5 nm for 90% of the total pore volume (Figure 3a–c). The pore width distribution diagrams for the CTF-400s indicate pronounced maxima in the micropore region (<2 nm) and pore sizes larger than 2 nm up to 5 nm in a broad distribution. At 400 °C, the micropore volume encompasses more than 50% of the total pore volume; that is, the Vmicro/Vtot values are above 0.50 (Table 2). At 550 °C, the total pore volume more than doubles in comparison to 400 °C, and the pore width distributions exhibit a broader contribution of mesopores between 2 and ~5 nm (Figure 3c) and beyond (Figure 3d), such that Vmicro/Vtot drops below 35% (Table 1). Notably, the material with the highest surface area, namely pBN-CTF-10-550, has the lowest micropore volume fraction Vmicro/Vtot among all the pBN-CTF materials listed in Table 2.
The pore size distribution (PSD) from N2 sorption at 77 K is generally limited to pores between ~1 and ~40 nm. Macropores (>50 nm) are not accounted anymore by N2 sorption. For pores smaller than 1 nm (10 Å), the size and distribution need to be obtained from CO2 gas adsorption data, because for N2 sorption at 77 K, the diffusion of the molecules into micropores smaller than 1 nm is very slow; hence, it requires very long N2 adsorption measurements for equilibration of the adsorption isotherms, which cannot be assured. To avoid erroneous PSD results from the N2 adsorption analysis, CO2 adsorption analysis can be used (Figure 4a,b). The saturation pressure of CO2 at 10 °C is ~4480 kPa (~33,450 Torr), so that a low relative pressure, which is necessary for the micropore analysis, is achieved in the range of moderate absolute pressures [46]. The micropore analysis with CO2 at 283 K instead of N2 at 77 K allows for a faster equilibration and access of even smaller pores as the kinetic diameter of CO2 is only 3.30 Å versus 3.64 Å for N2. The NL-DFT analysis of the CO2 adsorption isotherms of the pBN-CTF-10s with the “CO2 on carbon-based slit pore” model yield similar corrugated pore size distribution curves for the CTFs below 1 nm with pronounced maxima between 0.5 and 0.9 nm and at ~0.85 nm (Figure 2). The surface area was also calculated using the CO2 adsorption at 195 K (values can be seen in Table 3 and isotherms in Figure S7a), which gave a smaller surface area than that of the N2 counterpart, corresponding to the literature [37,47,48,49,50].
Volumetric CO2 and CH4 adsorption studies resulted in the isotherms depicted in Figure 4. At 283 K and 293 K, the pBN-CTF-10 materials show similar CO2 sorption isotherm curvatures that did not level off much at 1 bar but still have a rather positive slope, which indicates that the uptake at 1 bar is far from saturated. At 195 K, the CO2 uptake at 1 bar differentiates considerably for the pBN-CTF-10-400 and 10-550 material (Table 3, Figure S7), increasing nearly two-fold, from pBN-CTF-10-400 with 175 cm3 g−1 to pBN-CTF-10-550 with 320 cm3 g−1. As shown in Figures S9 and S10, this increase correlates with the increase in surface area and pore volume from the 400 °C to the 550 °C material in Table 2.
By comparing the pBN-CTFs from this work to other CTFs with linkers equal or longer than a biphenyl unit, it can be seen that the pBN-CTFs can compete very well in terms of CO2 uptake (Figure 5, Table S4).
Covalent triazine frameworks are widely investigated for CO2/N2 and CO2/CH4 separation. The ideal adsorbed solution theory (IAST) can give an indication of the selectivity of different gas mixtures at a given pressure or for a given gas mixture at different pressures. The only criterion that IAST requires is that both gases should have an equal spreading pressure at the given temperature [54]. The IAST selectivity is derived from the single gas adsorption isotherms and was calculated here on the bases of fitting the adsorption isotherms with the Freundlich–Langmuir adsorption model, and the parameters that resulted from the isotherm fitting (Table S5) were used to calculate the selectivity (Table 3). For example, the sample pBN-CTF-10-400 at 293 K has a maximal loading of 7.8 mmol g−1 and 1.8 mmol g−1 for CO2 and CH4, respectively, and an affinity constant of 0.32 mmol g−1 bar−1 and 0.41 mmol g−1 bar−1 for CO2 and CH4, respectively, with an R2 value of 0.999 for both fits (Table S5).
IAST underscores the selectivity for CO2 over CH4 for the pBN-CTF-10-400 material, as seen already in the higher uptake of CO2 over CH4 at the same temperature (Table 3). At 283 K, the slight pressure and composition dependent CO2/CH4 selectivity for pBN-CTF-10-440 varies between 7 and 22. It decreases with pressure and increases with an increasing CH4 fraction (Figure S13). At 293 K, the CO2/CH4 selectivity for pBN-CTF-10-440 stays rather constant between 0.01 and 0.8 CH4 molar fraction. The preference for CO2 can be explained from the pore structure and the interaction strength between the gas molecules and the framework. pBN-CTF-10-400 has good microporosity and nitrogen content. Micropores favor CO2 adsorption due to its smaller kinetic diameter (3.3 Å) compared to CH4 (3.8 Å), while nitrogen functionalities enhance CO2 affinity through dipole-quadrupole interactions.
From the measurement of gas adsorption at two temperatures with ∆T = 10 to 20 °C, the enthalpy (∆H) or heat of gas adsorption (Qads = −∆H) can be obtained [15,55]. Near zero coverage, the heat of adsorption for CO2 is remarkably high in comparison to other CTFs, with 79 kJ mol−1 for pBN-CTF-10-400 (Table S6). In Figure 6, the isosteric heat of adsorption was plotted against the amount of CO2 and CH4 adsorbed by the frameworks. pBN-CTF-10-400 has a higher microporosity and higher nitrogen content than pBN-CTF-10-550. This relates to a higher affinity for CO2 than for CH4 because (as just noted) CO2, with its smaller kinetic diameter (3.3 Å) compared to CH4 (3.8 Å), can occupy smaller micropores, and the CO2 quadrupole can interact with the dipole of nitrogen functionalities. Micropores generally allow for multi-site or “wall–guest–wall” interactions between guest molecules and the inner pore surface [56]. The large decrease in the isosteric heat of adsorption from a near zero adsorbed amount to ~0.5 mmol g−1 adsorbed amount seen in Figure 6 for both gases is due to the initial filling of the very small or ultra-micropores with a diameter in the dimension of the adsorbate molecule with wall-to-wall interactions and the occupation of the nitrogen atom sites, which also have higher adsorption energies. Notably, the CO2 heat of adsorption values of pBN-CTF-10-550 drop below the liquefaction heat of CO2 of 17 kJ mol−1 when the adsorbed amount surpasses 1.1 mmol g−1, while the heat of adsorption of pBN-CTF-10-400 stays well above the liquefaction heat of CO2. A drop below the heat of liquefaction of CO2 indicates weaker adsorbate–surface interactions than adsorbate–adsorbate interactions in the liquid phase. This behavior is beneficial in pressure or temperature swing adsorption (PSA/TSA) applications as it facilitates easier desorption with a lower energy input.
Conversely, pBN-CTF-10-550 exhibits a higher Qads for CH4 over the whole uptake range compared to pBN-CTF-10-400 and also a higher heat of adsorption for CH4 than for CO2 once the adsorbed CO2 amount exceeded ~0.4 mmol g−1 (compare Figure 6a,b). This can be explained by the more carbon-like non-polar nature of the pBN-CTF-10-550 material with less nitrogen content than pBN-CTF-10-400, which gives the former a relatively higher affinity to non-polar CH4 [57,58]. As expected, the heat of adsorption near zero coverage is lower for CH4 than for CO2 for both CTFs (Table 3). A further comparison of the literature for CO2 uptake and Qads0 for CO2 in CTFs can be found in Table S4 and Table S7, respectively, in the Supplementary Materials [14,18,25,26,59,60,61,62,63,64,65,66,67,68,69].
The thermogravimetric analysis showed that under air, all samples started decomposing (with weight loss) at ~400 °C, including the pBN-CTF, which was synthesized at 550 °C (Figure S14). This mass loss of the pBN-CTF-10-400 sample is complete below 700 °C with a residual mass of ~2.5 wt%. The mass loss of pBN-CTF-10-550 continues to ~770 °C, leaving only ~0.2 wt%.

3. Materials and Methods

3.1. Instrumentation

Fourier transform infrared spectroscopic measurements were taken using a Bruker Tensor 37 (Bruker AXS, Karlsruhe, Germany) with KBr pellets in the range between 4000 and 500 cm−1. For the N2 sorption analysis, a Quantachrome Autosorb-IQ-MP (Quantachrome, Boynton Beach, FL, USA) was used. The samples were degassed for 24 h at 120 °C before connecting to the device. The measurement was taken at 77 K. The results were interpreted with the BET equation. The CO2 sorption analysis was performed with a Quantachrome Autosorb-IQ-MP (Quantachrome, Boynton Beach, FL, USA). The measurement temperatures were 293, 283, and 195 K after activating (degassing) the samples under vacuum at 120 °C for 24 h. The temperature was held by virtue of a thermostated water bath (293 and 283 K) or with a cryodyne refrigerator model 8200 (195 K) (Janis, Woburn, MA, USA).
Thermogravimetric analysis was performed with a TG Tarsus 209 F3 (Netzsch, Selb, Germany). The samples were analyzed under synthetic air with a heating rate of 10 K/min from 25 to 900 °C. Powder X-ray diffraction patterns were recorded using a Bruker D2 phaser from Bruker (Bruker AXS, Karlsruhe, Germany) with Cu-Kα radiation, λ = 1.54182 Ǻ at 300 W, 30 kV, 10 mA. Nuclear magnetic resonance (1H-NMR) spectra were collected with a Bruker Avance III-600-I (Bruker, Karlsruhe, Germany). The chemical shifts are given in ppm and are referenced to the residual proton signal of the deuterated solvent (7.26 ppm for CDCl3, 7.16 for C6D6).

3.2. Chemicals

Phenazine (99.86%) and 4-bromobenzonitrile (95%) were obtained from BLDpharm (Reinbek, Germany). Sodium dithionite (85%) was obtained from VWR chemicals (Darmstadt, Germany). Palladium acetate (99.9%) and tri-tert-butyl phosphine (99%) were purchased from Sigma-Aldrich (Darmstadt, Germany). All solvents were purchased from commercial suppliers with a minimum purity of 99.8%.

3.3. Synthesis of 5,10-Dihydrophenazine

Following the literature [70], a phenazine (2.5 g, 13.87 mmol) solution in ethanol (30 mL) and a sodium dithionite (24.1 g, 137 mmol) solution in water (125 mL) were placed into a round-bottom flask and heated to reflux at 95 °C for 3 h. Afterwards, the flask was cooled to room temperature and then the product was separated by filtration, washed three times with water (3 × 15 mL), dried under vacuum (10−3 mbar), and stored under nitrogen to avoid any oxidation. The yield was 2.10 g, 85%.
1H NMR (600 MHz, CDCl3) δ 8.27 (dd, J = 6.8, 3.5 Hz, 1H), 7.86 (dd, J = 6.8, 3.4 Hz, 1H), 6.12 (s, 2H), 1.57 (s, 3H).

3.4. Synthesis of 4,4′-(Phenazine-5,10-diyl)dibenzonitrile (pBN)

5,10-Dihydrophenazine (2 g, 11 mmoL), 4-bromobenzonitrile (4.38 g, 24 mmoL), and potassium carbonate (9.1 g, 65.8 mmoL) were combined in degassed toluene (80 mL) in a round-bottom flask under N2 atmosphere according to the literature [70]. To this mixture, palladium acetate (0.141 g, 0.62 mmoL) and tri-tert-butyl phosphine (0.464 g, 2.30 mmoL) dissolved in 10 mL of toluene were added; the flask was then refluxed at 111 °C for 20 h. During cooling, water (30 mL) was added to the reaction mixture in order to stop the reaction. The product was extracted from the water phase using chloroform (200 mL). The separated organic phase was washed with brine (saturated aqueous NaCl solution) three times (3 × 30 mL) and was dried over magnesium sulfate (MgSO4) for 15 min. The organic phase was then filtered and concentrated via a rotary evaporator to ~50 mL; after that, 100 mL of n-hexane was added and cooled in an ice bath for 10 min. The separated product was filtered and dried in a vacuum oven (10−3 mbar) at 60 °C.
1H NMR (600 MHz, C6D6) δ 6.96 (d, J = 8.2 Hz, 4H), 6.71 (d, J = 8.2 Hz, 4H), 6.41–6.37 (m, 4H), 5.69 (dt, J = 7.9, 3.9 Hz, 4H).

3.5. pBN-CTF Synthesis

Inside the glove box, a glass ampule with a Schlenk fitting was filled with (0.2 g, 0.5 mmol) pBN-2CN and 10 or 20 equivalents (0.680 g, 5 mmol or 1.3 g, 10 mmol) of anhydrous zinc chloride. Outside the glovebox, the ampule was evacuated and flame-sealed and heated for 48 h in a tube furnace at the chosen temperature of 350, 400, or 550 °C. The 350 and 400 °C reactions were carried out in a normal borosilicate glass (Pyrex); for 550 °C, a quartz glass ampule was used. After cooling the ampule to room temperature, the ampule was carefully opened with no sign of pressure built-up inside.
The reaction product was stirred in distilled water acidified with 0.5 mol/L of hydrochloric acid (HCl) to pH = 4 (50 mL) for three days. The stirring was vigorous to ensure the mechanical break-up of the black monolith to provide fine particles. After additional stirring for 72 h in distilled water, the product was filtered and washed with the organic solvents chloroform, acetone, and methanol (30 mL each) in this order. After the washing, the product was dried in a vacuum (10−3 mbar) oven at 60 °C for 24 h. The yields are listed in Table 1.

4. Conclusions

The molecule 4,4′-(phenazine-5,10-diyl)dibenzonitrile, with a long—about 12 Å—separation between the nitrile groups, can be successfully transformed by ionothermal synthesis into a porous covalent triazine framework (pBN-CTF). The surface area increases expectedly with the synthesis temperature and ranges from 809 to 1460 m2 g−1 for the samples synthesized at 400 and 550 °C, respectively, with pores ranging between 1 and 4 nm. The pBN-CTF exhibited a good CO2 uptake at 293 K, showing a similar performance to benchmark materials like CTF-1, due to the relatively high micropore fraction that ranged between 35% for the 550 °C and 50% for the 400° samples. The new material showed a significant difference and stark contrast to the adsorption of CO2 over CH4 for the potential separation, with a selectivity that reaches 22. For further work on pBN-CTFs and other CTFs in general, we plan to increase the nitrogen content of the formed framework through the addition of a nitrogen-rich compound such as melamine in order to introduce additional electron pair donors and thereby influence the adsorption properties. We will also check the elongation of the phenyl group in pBN with a biphenyl group, giving the monomer 4′,4‴-(phenazine-5,10-diyl)bis(([1,1′-biphenyl]-4-carbonitrile)) that can be assumed to form CTFs with an even larger pore width of over 2 nm channel cross-sections to allow for faster mass transport; that is, diffusion through the then hierarchical micro-mesopores.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules30153110/s1, Section S1. Scanning electron microscopy; Section S2. Fourier transform infrared spectroscopy and elemental analysis; Section S3. Powder X-ray diffraction; Section S4. Samples synthesized at 350 °C and their N2 and CO2 sorption studies; Section S5. CO2 adsorption isotherms; Section S6. Calculations and fitting for the isosteric heat of adsorption and IAST selectivity of CO2 and CH4; Section S7. Thermogravimetric analysis (TGA); Section S8. Nuclear magnetic resonance spectrometry (NMR); Section S9. References.

Author Contributions

Conceptualization, H.O.; methodology, H.O., V.K., R.O., and M.N.A.F.; software, H.O.; validation, C.J. and H.O.; formal analysis, H.O.; investigation, H.O.; resources, C.J.; data curation, H.O.; writing—original draft preparation, H.O.; writing—review and editing, H.O. and C.J.; visualization, H.O.; supervision, C.J.; project administration, C.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding author.

Acknowledgments

Special thanks goes to Dietrich Püschel for his advice and supervision and to Birgit Tommes for her IR measurements.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef]
  2. Cychosz, K.A.; Thommes, M. Progress in the Physisorption Characterization of Nanoporous Gas Storage Materials. Engineering 2018, 4, 559–566. [Google Scholar] [CrossRef]
  3. Bojdys, M.J.; Jeromenok, J.; Thomas, A.; Antonietti, M. Rational Extension of the Family of Layered, Covalent, Triazine-Based Frameworks with Regular Porosity. Adv. Mater. 2010, 22, 2202–2205. [Google Scholar] [CrossRef] [PubMed]
  4. Meier, C.B.; Clowes, R.; Berardo, B.E.; Jelfs, K.E.; Zwijnenburg, M.A.; Sprick, R.S.; Cooper, A.I. Structurally Diverse Covalent Triazine-Based Framework Materials for Photocatalytic Hydrogen Evolution from Water. Chem. Mater. 2019, 31, 8830–8838. [Google Scholar] [CrossRef] [PubMed]
  5. Kuhn, P.; Forget, A.; Su, D.; Thomas, A.; Antonietti, M. From Microporous Regular Frameworks to Mesoporous Materials with Ultrahigh Surface Area: Dynamic Reorganization of Porous Polymer Networks. J. Am. Chem. Soc. 2008, 130, 13333–13337. [Google Scholar] [CrossRef] [PubMed]
  6. Kuecken, S.; Acharjya, A.; Zhi, L.; Schwarze, M.; Schomäcker, R.; Thomas, A. Fast tuning of covalent triazine frameworks for photocatalytic hydrogen evolution. Chem. Commun. 2017, 53, 5854–5857. [Google Scholar] [CrossRef] [PubMed]
  7. Liao, L.; Li, M.; Yin, Y.; Chen, J.; Zhong, Q.; Du, R.; Liu, S.; He, Y.; Fu, W.; Zeng, F. Advances in the Synthesis of Covalent Triazine Frameworks. ACS Omega 2023, 8, 4527–4542. [Google Scholar] [CrossRef] [PubMed]
  8. Liu, M.; Guo, L.; Jin, S.; Tan, B. Covalent triazine frameworks: Synthesis and applications. J. Mater. Chem. A 2019, 7, 5153–5172. [Google Scholar] [CrossRef]
  9. Lee, J.-S.M.; Cooper, A.I. Advances in Conjugated Microporous Polymers. Chem. Rev. 2020, 120, 2171–2214. [Google Scholar] [CrossRef] [PubMed]
  10. Krishnaraj, C.; Jena, H.S.; Leus, K.; van der Voort, P. Covalent triazine frameworks—A sustainable perspective. Green Chem. 2020, 22, 1038–1071. [Google Scholar] [CrossRef]
  11. Aggarwal, S.; Awasthi, S.K. Emerging trends in the development and applications of triazine-based covalent organic polymers: A comprehensive review. Dalton Trans. 2024, 53, 11601–11643. [Google Scholar] [CrossRef] [PubMed]
  12. Bhunia, A.; Esquivel, D.; Dey, S.; Fernández-Terán, R.; Goto, Y.; Inagaki, S.; Van Der Voort, P.; Janiak, C. A photoluminescent covalent triazine framework: CO2 adsorption, light-driven hydrogen evolution and sensing of nitroaromatics. J. Mater. Chem. A 2016, 4, 13450–13457. [Google Scholar] [CrossRef]
  13. Gao, Q.; Li, X.; Ning, G.-H.; Leng, K.; Tian, B.; Liu, C.; Tang, W.; Xu, H.-S.; Loh, K.P. Highly photoluminescent two-dimensional imine-based covalent organic frameworks for chemical sensing. Chem. Commun. 2018, 54, 2349–2352. [Google Scholar] [CrossRef] [PubMed]
  14. Dey, S.; Bhunia, A.; Esquivel, D.; Janiak, C. Covalent triazine-based frameworks (CTFs) from triptycene and fluorene motifs for CO2 adsorption. J. Mater. Chem. A 2016, 4, 6259–6263. [Google Scholar] [CrossRef]
  15. Wessely, I.D.; Schade, A.M.; Dey, S.; Bhunia, A.; Nuhnen, A.; Janiak, C.; Bräse, S. Covalent Triazine Frameworks Based on the First Pseudo-Octahedral Hexanitrile Monomer via Nitrile Trimerization: Synthesis, Porosity, and CO2 Gas Sorption Properties. Materials 2021, 14, 3214. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, K.; Huang, H.; Liu, D.; Wang, C.; Li, J.; Zhong, C. Covalent Triazine-Based Frameworks with Ultramicropores and High Nitrogen Contents for Highly Selective CO2 Capture. Environ. Sci. Technol. 2016, 50, 4869–4876. [Google Scholar] [CrossRef] [PubMed]
  17. Bügel, S.; Hähnel, M.; Kunde, T.; de Sousa Amadeu, N.; Sun, Y.; Spieß, A.; Beglau, T.H.Y.; Schmidt, B.M.; Janiak, C. Synthesis and Characterization of a Crystalline Imine-Based Covalent Organic Framework with Triazine Node and Biphenyl Linker and Its Fluorinated Derivate for CO2/CH4 Separation. Materials 2022, 15, 2807. [Google Scholar] [CrossRef] [PubMed]
  18. Dey, S.; Bügel, S.; Sorribas, S.; Nuhnen, A.; Bhunia, A.; Coronas, J.; Janiak, C. Synthesis and Characterization of Covalent Triazine Framework CTF-1@Polysulfone Mixed Matrix Membranes and Their Gas Separation Studies. Front. Chem. 2019, 7, 693. [Google Scholar] [CrossRef] [PubMed]
  19. Bügel, S.; Spieß, A.; Janiak, C. Covalent triazine framework CTF-fluorene as porous filler material in mixed matrix membranes for CO2/CH4 separation. Microporous Mesoporous Mater. 2021, 316, 110941. [Google Scholar] [CrossRef]
  20. Bügel, S.; Hoang, Q.-D.; Spieß, A.; Sun, Y.; Xing, S.; Janiak, C. Biphenyl-Based Covalent Triazine Framework/Matrimid® Mixed-Matrix Membranes for CO2/CH4 Separation. Membranes 2021, 11, 795. [Google Scholar] [CrossRef] [PubMed]
  21. Kuhn, P.; Antonietti, M.; Thomas, A. Porous, Covalent Triazine-Based Frameworks Prepared by Ionothermal Synthesis. Angew. Chem. Int. Ed. 2008, 47, 3450–3453. [Google Scholar] [CrossRef] [PubMed]
  22. Buyukcakir, O.; Je, S.H.; Talapaneni, S.N.; Kim, D.; Coskun, A. Charged Covalent Triazine Frameworks for CO2 Capture and Conversion. ACS Appl. Mater. Interfaces 2017, 9, 7209–7216. [Google Scholar] [CrossRef] [PubMed]
  23. Gu, C.; Liu, D.; Huang, W.; Liu, J.; Yang, R. Synthesis of covalent triazine-based frameworks with high CO2 adsorption and selectivity. Polym. Chem. 2015, 6, 7410–7417. [Google Scholar] [CrossRef]
  24. Mukhtar, A.; Mellon, N.B.; Bustam, M.A.; Saqib, S.; Lee, S.-P.; Kareem, F.A.A.; Ullah, S. Impact of amine functionality on the selective CO2/CH4 adsorption behavior of porous covalent triazine adsorbent. J. Nat. Gas Eng. 2020, 83, 103582. [Google Scholar] [CrossRef]
  25. Wang, G.; Leus, K.; Jena, H.S.; Krishnaraj, C.; Zhao, S.; Depauw, H.; Tahir, N.; Liu, Y.-Y.; Van Der Voort, P. A fluorine-containing hydrophobic covalent triazine framework with excellent selective CO2 capture performance. J. Mater. Chem. A 2018, 6, 6370–6375. [Google Scholar] [CrossRef]
  26. Zhao, Y.; Yao, K.X.; Teng, B.; Zhang, T.; Han, Y. A perfluorinated covalent triazine-based framework for highly selective and water–tolerant CO2 capture. Energy Environ. Sci. 2013, 6, 3684–3692. [Google Scholar] [CrossRef]
  27. Dawson, R.; Cooper, A.I.; Adams, D.J. Chemical functionalization strategies for carbon dioxide capture in microporous organic polymers. Polym. Int. 2013, 62, 345–352. [Google Scholar] [CrossRef]
  28. Flaig, R.W.; Osborn Popp, T.M.; Fracaroli, A.M.; Kapustin, E.A.; Kalmutzki, M.J.; Altamimi, R.M.; Fathieh, F.; Reimer, J.A.; Yaghi, O.M. The Chemistry of CO2 Capture in an Amine-Functionalized Metal–Organic Framework under Dry and Humid Conditions. J. Am. Chem. Soc. 2017, 139, 12125–12128. [Google Scholar] [CrossRef] [PubMed]
  29. Gunasekar, G.H.; Park, K.; Ganesan, V.; Lee, K.; Kim, N.-K.; Jung, K.-D.; Yoon, S. A Covalent Triazine Framework, Functionalized with Ir/N-Heterocyclic Carbene Sites, for the Efficient Hydrogenation of CO2 to Formate. Chem. Mater. 2017, 29, 6740–6748. [Google Scholar] [CrossRef]
  30. Jia, J.; Chen, Z.; Belmabkhout, Y.; Adil, K.; Bhatt, P.M.; Solovyeva, V.A.; Shekhah, O.; Eddaoudi, M. Carbonization of covalent triazine-based frameworks via ionic liquid induction. J. Mater. Chem. A 2018, 6, 15564–15568. [Google Scholar] [CrossRef]
  31. Keskin, S.; van Heest, T.M.; Sholl, D.S. Can Metal–Organic Framework Materials Play a Useful Role in Large-Scale Carbon Dioxide Separations? ChemSusChem 2010, 3, 879–891. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, Y.; Jin, S. Recent Advancements in the Synthesis of Covalent Triazine Frameworks for Energy and Environmental Applications. Polymers 2019, 11, 31. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, L.; Li, X.; Antonietti, M. General, Metal-free Synthesis of Carbon Nanofiber Assemblies from Plant Oils. Angew. Chem. Int. Ed. 2021, 60, 24257–24265. [Google Scholar] [CrossRef] [PubMed]
  34. Katekomol, P.; Roeser, J.; Bojdys, M.; Weber, J.; Thomas, A. Covalent Triazine Frameworks Prepared from 1,3,5-Tricyanobenzene. Chem. Mater. 2013, 25, 1542–1548. [Google Scholar] [CrossRef]
  35. Kuecken, S.; Schmidt, J.; Zhi, L.; Thomas, A. Conversion of amorphous polymer networks to covalent organic frameworks under ionothermal conditions: A facile synthesis route for covalent triazine frameworks. J. Mater. Chem. A 2015, 3, 24422–24427. [Google Scholar] [CrossRef]
  36. Ren, S.; Bojdys, M.J.; Dawson, R.; Laybourn, A.; Khimyak, Y.Z.; Adams, D.J.; Cooper, A.I. Porous, Fluorescent, Covalent Triazine-Based Frameworks Via Room-Temperature and Microwave-Assisted Synthesis. Adv. Mater. 2012, 24, 2357–2361. [Google Scholar] [CrossRef] [PubMed]
  37. Bhunia, A.; Vasylyeva, V.; Janiak, C. From a Supramolecular Tetranitrile to a Porous Covalent Triazine-Based Framework with High Gas Uptake Capacities. Chem. Commun. 2013, 49, 3961–3963. [Google Scholar] [CrossRef] [PubMed]
  38. Öztürk, S.; Xiao, Y.-X.; Dietrich, D.; Giesen, B.; Barthel, J.; Ying, J.; Yang, X.-Y.; Janiak, C. Nickel nanoparticles supported on a covalent triazine framework as electrocatalyst for oxygen evolution reaction and oxygen reduction reactions. Beilstein J. Nanotechnol. 2020, 11, 770–781. [Google Scholar] [CrossRef] [PubMed]
  39. Dey, S.; Bhunia, A.; Breitzke, H.; Groszewicz, P.B.; Buntkowsky, G.; Janiak, C. Two linkers are better than one: Enhancing CO2 capture and separation with porous covalent triazine-based frameworks from mixed nitrile linkers. J. Mater. Chem. A 2017, 5, 3609–3620. [Google Scholar] [CrossRef]
  40. Oxley, J.C.; Smith, J.L.; Moran, J.S. Decomposition of Azo- and Hydrazo-Linked Bis Triazines. J. Energy Mater. 2009, 27, 63–93. [Google Scholar] [CrossRef]
  41. Kuhn, P.; Thomas, A.; Antonietti, M. Toward Tailorable Porous Organic Polymer Networks: A High-Temperature Dynamic Polymerization Scheme Based on Aromatic Nitriles. Macromolecules 2009, 42, 319–326. [Google Scholar] [CrossRef]
  42. Preis, E.; Dong, W.; Brunklaus, G.; Scherf, U. Microporous, tetraarylethylene-based polymer networks generated in a reductive polyolefination process. J. Mater. Chem. C 2015, 3, 1582–1587. [Google Scholar] [CrossRef]
  43. Dey, S.; Bhunia, A.; Boldog, I.; Janiak, C. A mixed-linker approach towards improving covalent triazine-based frameworks for CO2 capture and separation. Microporous Mesoporous Mater. 2017, 241, 303–315. [Google Scholar] [CrossRef]
  44. Bhunia, A.; Boldog, I.; Möller, A.; Janiak, C. Highly stable nanoporous covalent triazine-based frameworks with an adamantane core for carbon dioxide sorption and separation. J. Mater. Chem. A 2013, 1, 14990–14999. [Google Scholar] [CrossRef]
  45. Tao, L.; Niu, F.; Liu, J.; Wang, T.; Wang, Q. Troger’s base functionalized covalent triazine frameworks for CO2 capture. RSC Adv. 2016, 6, 94365–94372. [Google Scholar] [CrossRef]
  46. Quantachrome Instruments (1900 Corporate Drive, Boynton Beach, FL 33426 USA) Powder Tech Note 35. Available online: https://wiki.anton-paar.com/en/gas-adsorption-for-surface-area-and-pore-size-analysis/ (accessed on 25 June 2025).
  47. Lim, H.; Cha, M.C.; Chang, J.Y. Preparation of Microporous Polymers Based on 1,3,5-Triazine Units Showing High CO2 Adsorption Capacity. Macromol. Chem. Phys. 2012, 213, 1385–1390. [Google Scholar] [CrossRef]
  48. Lu, Y.-C.; Yang, J.-P.; Yang, B.-T.; Chen, C.-C.; Lai, L.-L. Introduction of a spiro-linker in triazine-based polymers to enlarge void space and increase IPA adsorbing capacity to 164.7 mg/g at 1000 ppm. J. Taiwan Inst. Chem. Eng. 2022, 140, 104531. [Google Scholar] [CrossRef]
  49. Wang, H.; Jiang, D.; Huang, D.; Zeng, G.; Xu, P.; Lai, C.; Chen, M.; Cheng, M.; Zhang, C.; Wang, Z. Covalent triazine frameworks for carbon dioxide capture. J. Mater. Chem. A 2019, 7, 22848–22870. [Google Scholar] [CrossRef]
  50. Özdemir, J.; Mosleh, I.; Abolhassani, M.; Greenlee, L.F.; Beitle, R.R.; Beyzavi, M.H. Covalent Organic Frameworks for the Capture, Fixation, or Reduction of CO2. Front. Energy Res. 2019, 7, 77. [Google Scholar] [CrossRef]
  51. Hug, S.; Mesch, M.B.; Oh, H.; Popp, N.; Hirscher, M.; Senker, J.; Lotsch, B.V. A fluorene based covalent triazine framework with high CO2 and H2 capture and storage capacities. J. Mater. Chem. A 2014, 2, 5928–5936. [Google Scholar] [CrossRef]
  52. Lee, Y.J.; Talapaneni, S.N.; Coskun, A. Chemically Activated Covalent Triazine Frameworks with Enhanced Textural Properties for High Capacity Gas Storage. ACS Appl. Mater. Interfaces 2017, 9, 30679–30685. [Google Scholar] [CrossRef] [PubMed]
  53. Wang, G.; Leus, K.; Zhao, S.; Van Der Voort, P. Newly Designed Covalent Triazine Framework Based on Novel N-Heteroaromatic Building Blocks for Efficient CO2 and H2 Capture and Storage. ACS Appl. Mater. Interfaces 2018, 10, 1244–1249. [Google Scholar] [CrossRef] [PubMed]
  54. Ismail, M.; Bustam, M.A.; Kari, N.E.; Yeong, Y.F. Ideal Adsorbed Solution Theory (IAST) of Carbon Dioxide and Methane Adsorption Using Magnesium Gallate Metal-Organic Framework (Mg-gallate). Molecules 2023, 28, 3016. [Google Scholar] [CrossRef] [PubMed]
  55. Nuhnen, A.; Janiak, C. A practical guide to calculate the isosteric heat/enthalpy of adsorption via adsorption isotherms in metal–organic frameworks, MOFs. Dalton Trans. 2020, 49, 10295–10307. [Google Scholar] [CrossRef] [PubMed]
  56. Zhao, H.; Jin, Z.; Su, H.; Zhang, J.; Yao, X.; Zhao, H.; Zhu, G. Target synthesis of a novel porous aromatic framework and its highly selective separation of CO2/CH4. Chem. Commun. 2013, 49, 2780–2782. [Google Scholar] [CrossRef] [PubMed]
  57. Liu, D.; Zou, Z.; Cai, Y.; Qiu, Y.; Zhou, Y.; He, S. An updated study on CH4 isothermal adsorption and isosteric adsorption heat behaviors of variable rank coals. J. Nat. Gas Sci. Eng. 2021, 89, 103899. [Google Scholar] [CrossRef]
  58. Woschko, D.; Yilmaz, S.; Jansen, C.; Spieß, A.; Oestreich, R.; Matemb Ma Ntep, T.; Janiak, C. Enhanced sorption in an indiumacetylenedicarboxylate metal–organic framework with unexpected chains of cis-μ-OH-connected {InO6} octahedra. Dalton Trans. 2023, 52, 977–989. [Google Scholar] [CrossRef] [PubMed]
  59. Tuci, G.; Iemhoff, A.; Ba, H.; Luconi, L.; Rossin, A.; Papaefthimiou, V.; Palkovits, R.; Artz, J.; Pham-Huu, C.; Giambastiani, G. Playing with covalent triazine framework tiles for improved CO2 adsorption properties and catalytic performance. Beilstein J. Nanotechnol. 2019, 10, 1217–1227. [Google Scholar] [CrossRef] [PubMed]
  60. Tuci, G.; Pilaski, M.; Ba, H.; Rossin, A.; Luconi, L.; Caporali, S.; Pham-Huu, C.; Palkovits, R.; Giambastiani, G. Unraveling Surface Basicity and Bulk Morphology Relationship on Covalent Triazine Frameworks with Unique Catalytic and Gas Adsorption Properties. Adv. Funct. Mater. 2017, 27, 1605672. [Google Scholar] [CrossRef]
  61. Hug, S.; Stegbauer, L.; Oh, H.; Hirscher, M.; Lotsch, B.V. Nitrogen-Rich Covalent Triazine Frameworks as High-Performance Platforms for Selective Carbon Capture and Storage. Chem. Mater. 2015, 27, 8001–8010. [Google Scholar] [CrossRef]
  62. Zhu, X.; Tian, C.; Veith, G.M.; Abney, C.W.; Dehaudt, J.; Dai, S. In Situ Doping Strategy for the Preparation of Conjugated Triazine Frameworks Displaying Efficient CO2 Capture Performance. J. Am. Chem. Soc. 2016, 138, 11497–11500. [Google Scholar] [CrossRef] [PubMed]
  63. Yuan, K.; Liu, C.; Zong, L.; Yu, G.; Cheng, S.; Wang, J.; Weng, Z.; Jian, X. Promoting and Tuning Porosity of Flexible Ether-Linked Phthalazinone-Based Covalent Triazine Frameworks Utilizing Substitution Effect for Effective CO2 Capture. ACS Appl. Mater. Interfaces 2017, 9, 13201–13212. [Google Scholar] [CrossRef] [PubMed]
  64. Park, K.; Lee, K.; Kim, H.; Ganesan, V.; Cho, K.; Jeong, S.K.; Yoon, S. Preparation of covalent triazine frameworks with imidazolium cations embedded in basic sites and their application for CO2 capture. J. Mater. Chem. A 2017, 5, 8576–8582. [Google Scholar] [CrossRef]
  65. Fu, Y.; Wang, Z.; Li, S.; He, X.; Pan, C.; Yan, J.; Yu, G. Functionalized Covalent Triazine Frameworks for Effective CO2 and SO2 Removal. ACS Appl. Mater. Interfaces 2018, 10, 36002–36009. [Google Scholar] [CrossRef] [PubMed]
  66. Yuan, K.; Liu, C.; Liu, C.; Zhang, S.; Yu, G.; Yang, L.; Yang, F.; Jian, X. Construction of triphenylamine functional phthalazinone-based covalent triazine frameworks for effective CO2 capture. Polym. J. 2018, 151, 65–74. [Google Scholar] [CrossRef]
  67. Du, J.; Liu, Y.; Krishna, R.; Yu, Y.; Cui, Y.; Wang, S.; Liu, Y.; Song, X.; Liang, Z. Enhancing Gas Sorption and Separation Performance via Bisbenzimidazole Functionalization of Highly Porous Covalent Triazine Frameworks. ACS Appl. Mater. Interfaces 2018, 10, 26678–26686. [Google Scholar] [CrossRef] [PubMed]
  68. Jena, H.S.; Krishnaraj, C.; Wang, G.; Leus, K.; Schmidt, J.; Chaoui, N.; Van Der Voort, P. Acetylacetone Covalent Triazine Framework: An Efficient Carbon Capture and Storage Material and a Highly Stable Heterogeneous Catalyst. Chem. Mater. 2018, 30, 4102–4111. [Google Scholar] [CrossRef]
  69. Mukherjee, S.; Das, M.; Manna, A.; Krishna, R.; Das, S. Newly designed 1,2,3-triazole functionalized covalent triazine frameworks with exceptionally high uptake capacity for both CO2 and H2. J. Mater. Chem. A 2019, 7, 1055–1068. [Google Scholar] [CrossRef]
  70. Sánchez, M.I.; Martínez-Costas, J.; Mascareñas, J.L.; Vázquez, M.E. MitoBlue: A Nontoxic and Photostable Blue-Emitting Dye That Selectively Labels Functional Mitochondria. ACS Chem. Biol. 2014, 9, 2742–2747. [Google Scholar] [CrossRef] [PubMed]
Molecules 30 03110 g001

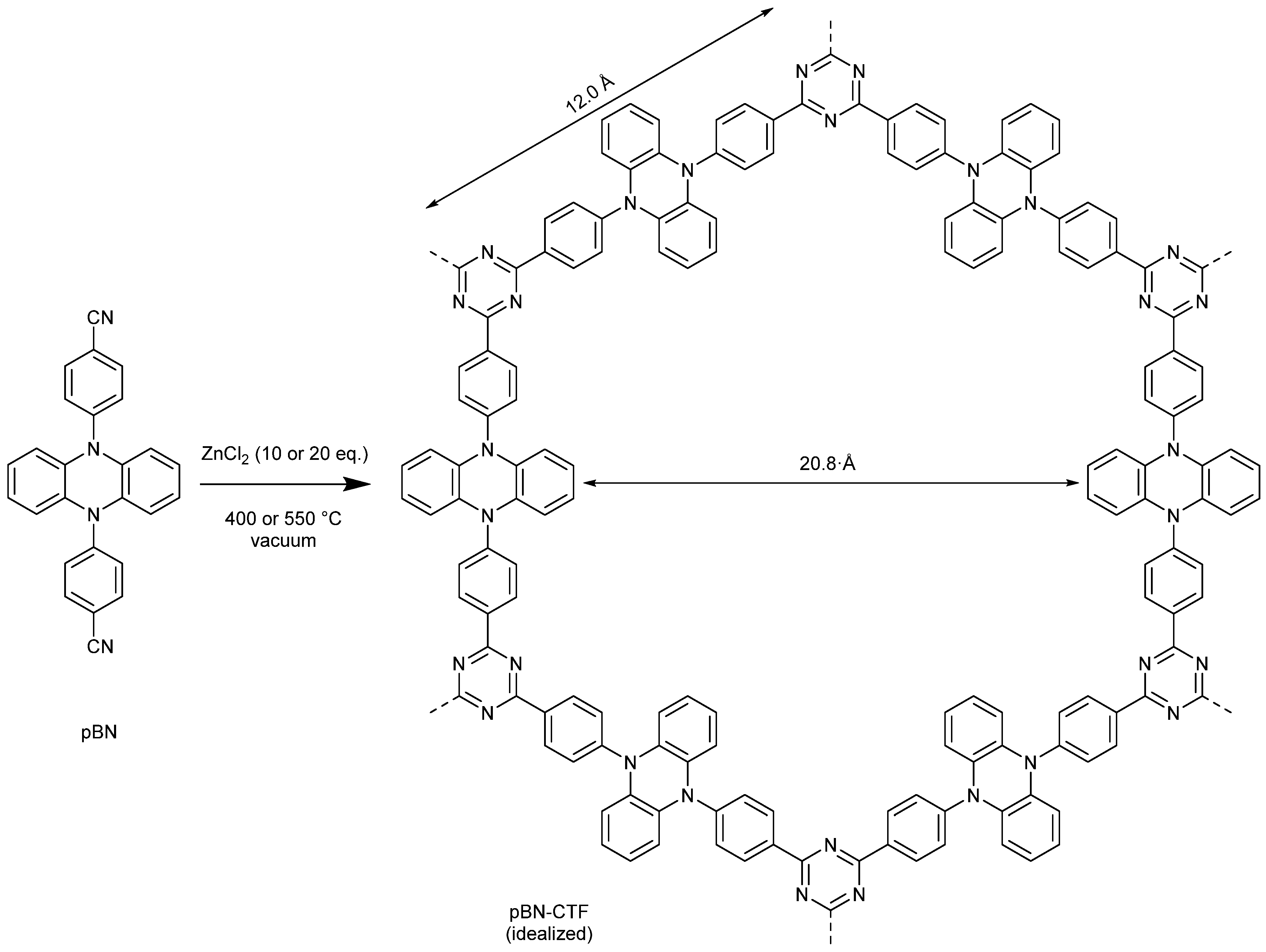

Figure 1. Synthesis of pBN-CTF from the monomer 4,4′-(phenazine-5,10-diyl)dibenzonitrile (pBN) with the CTF shown as an idealized hexagonal ring structure. The edge length and width of the ideal hexagon were determined graphically on the basis of the length of the C = C double with 1.34 Å.
Figure 1. Synthesis of pBN-CTF from the monomer 4,4′-(phenazine-5,10-diyl)dibenzonitrile (pBN) with the CTF shown as an idealized hexagonal ring structure. The edge length and width of the ideal hexagon were determined graphically on the basis of the length of the C = C double with 1.34 Å.
Molecules 30 03110 g001
Molecules 30 03110 g002

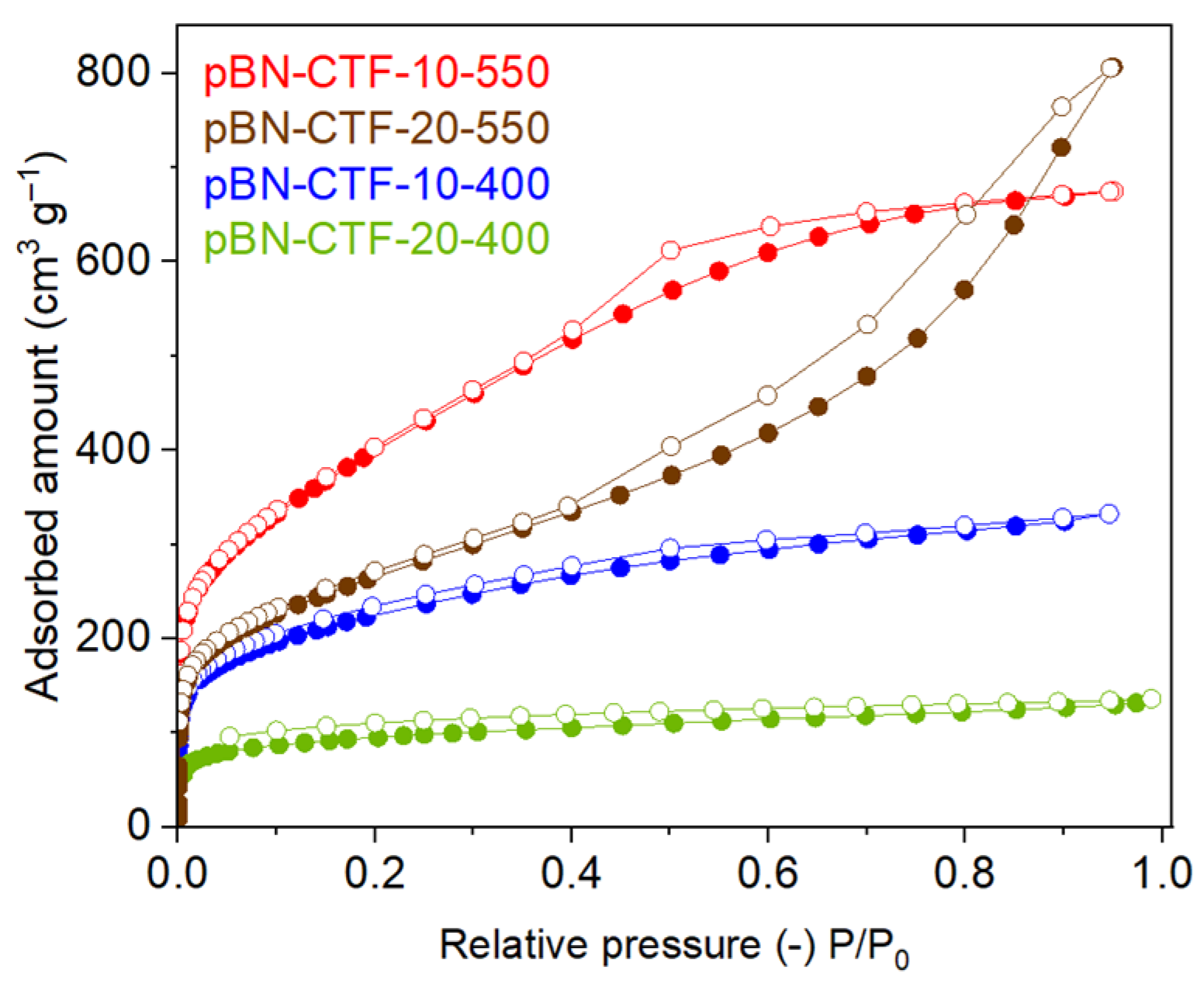

Figure 2. N2 isotherms (at 77 K) of pBN-CTFs (filled symbols adsorption, empty symbols desorption).
Figure 2. N2 isotherms (at 77 K) of pBN-CTFs (filled symbols adsorption, empty symbols desorption).
Molecules 30 03110 g002
Molecules 30 03110 g003

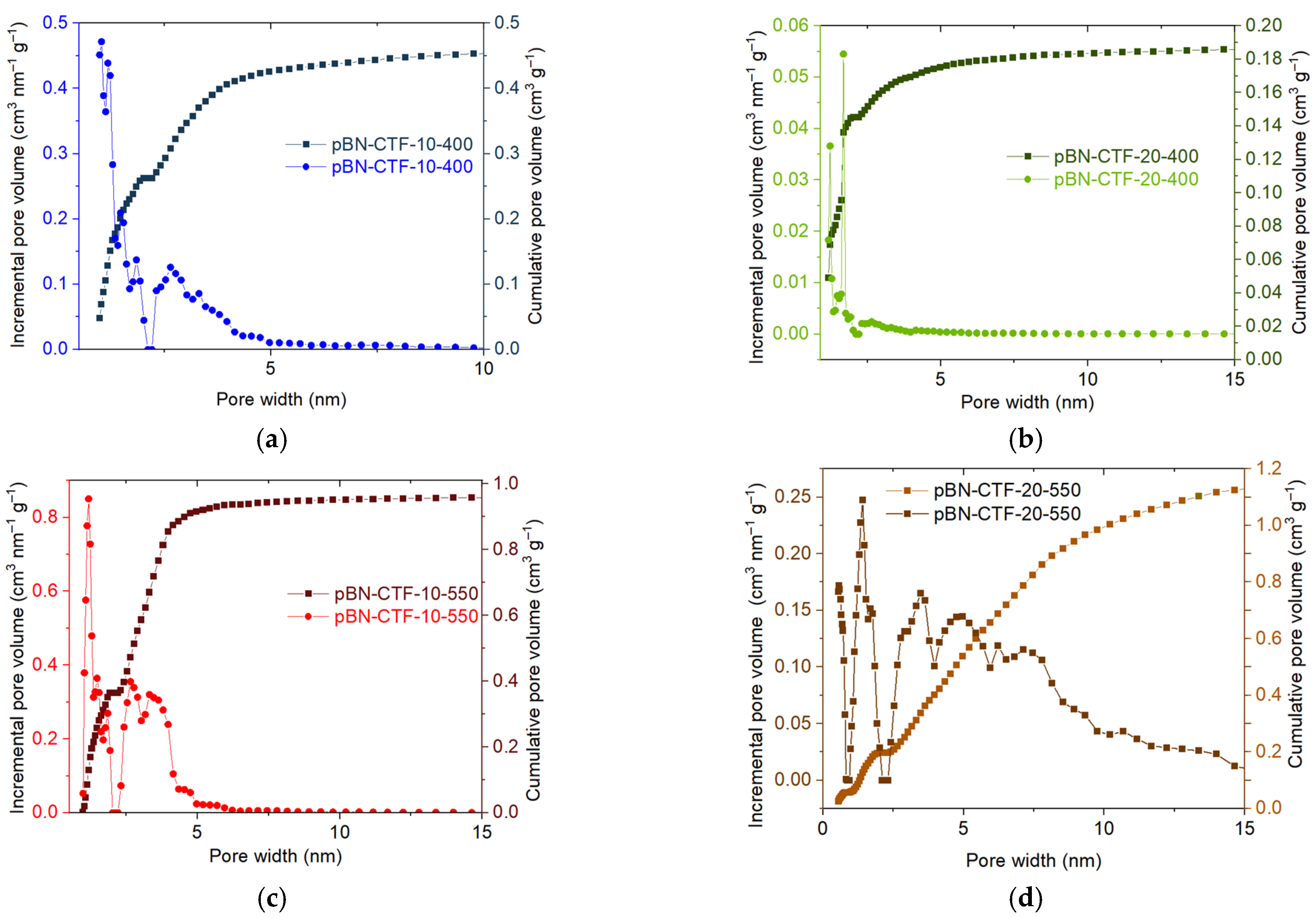

Figure 3. NLDFT pore size distribution (PSD) curves showing the cumulative pore volume (right y axes) and the incremental pore volume (left y axes) of pBN-CTF from N2 adsorption using the “N2 at 77 K on carbon slit pore, NLDFT equilibrium model” for (a) pBN-CTF-10-400, (b) pBN-CTF-20-400, (c) pBN-CTF-10-550, and (d) pBN-CTF-20-550.
Figure 3. NLDFT pore size distribution (PSD) curves showing the cumulative pore volume (right y axes) and the incremental pore volume (left y axes) of pBN-CTF from N2 adsorption using the “N2 at 77 K on carbon slit pore, NLDFT equilibrium model” for (a) pBN-CTF-10-400, (b) pBN-CTF-20-400, (c) pBN-CTF-10-550, and (d) pBN-CTF-20-550.
Molecules 30 03110 g003
Molecules 30 03110 g004

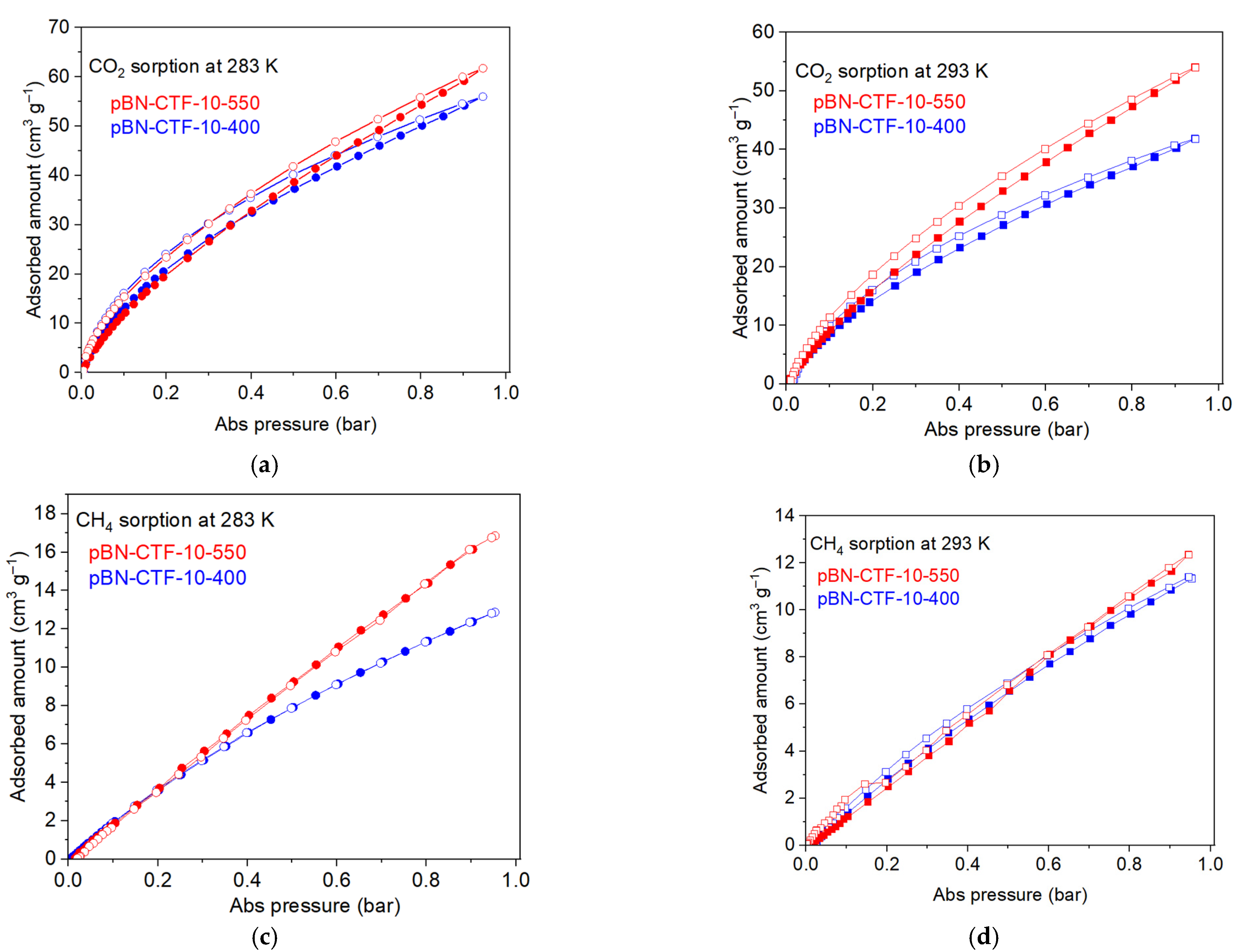

Figure 4. Adsorption and desorption isotherms of pBN-CTF-10-400 and pBN-CTF-10-550 for (a) CO2 at 283 K, (b) CO2 at 293 K, (c) CH4 at 283 K, and (d) CH4 at 293 K (filled symbols adsorption, empty symbols desorption). The CO2 adsorption isotherms at 195 K are given in Figure S7a, and those for pBN-CTF-20-400 and -550 at 293 K are given in Figure S8.
Figure 4. Adsorption and desorption isotherms of pBN-CTF-10-400 and pBN-CTF-10-550 for (a) CO2 at 283 K, (b) CO2 at 293 K, (c) CH4 at 283 K, and (d) CH4 at 293 K (filled symbols adsorption, empty symbols desorption). The CO2 adsorption isotherms at 195 K are given in Figure S7a, and those for pBN-CTF-20-400 and -550 at 293 K are given in Figure S8.
Molecules 30 03110 g004
Molecules 30 03110 g005

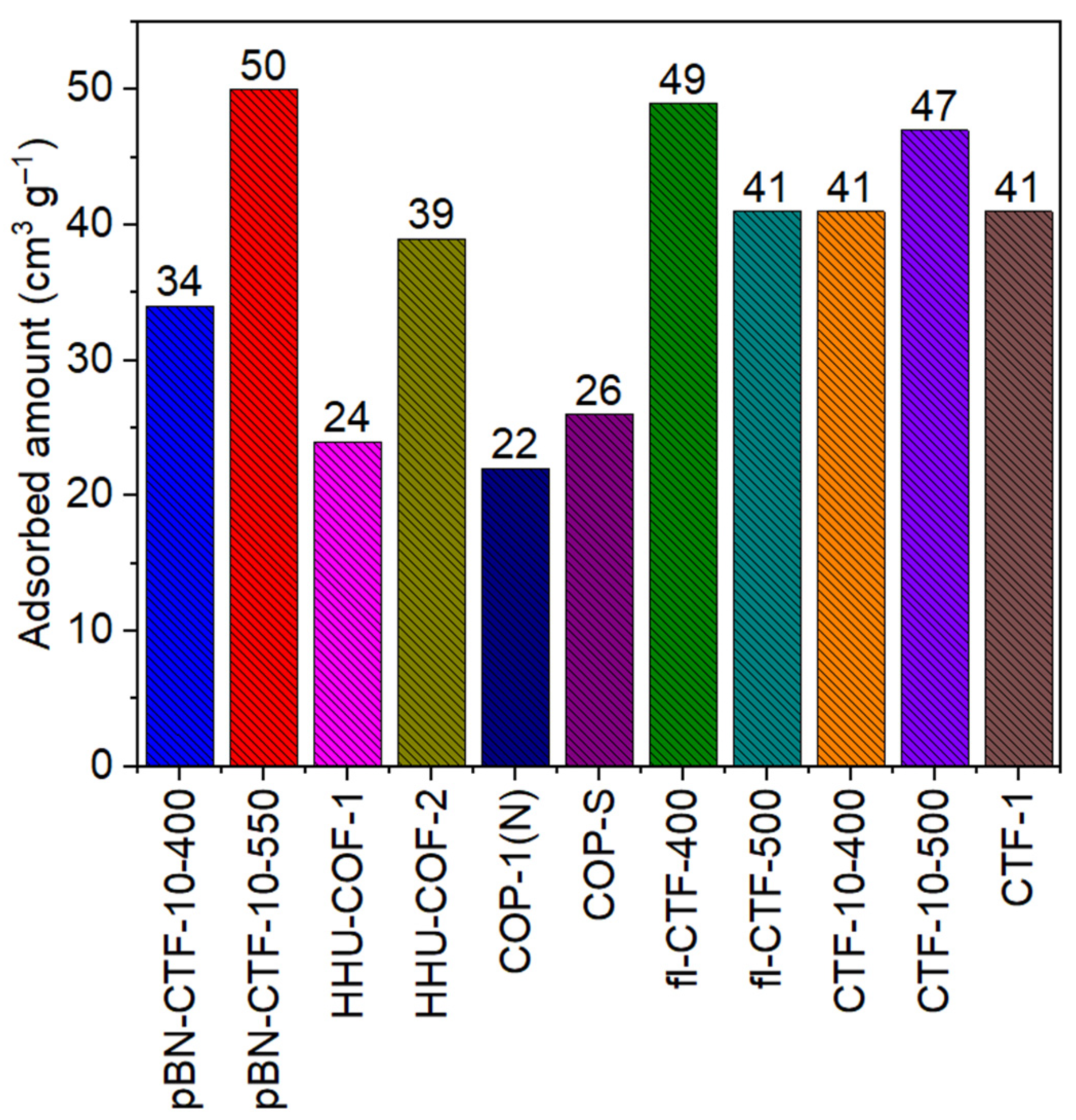

Figure 5. CO2 uptake comparison at 298 K and 1 bar between the pBN-CTFs and selected CTFs with data from Table S4 [17,49,51,52,53]. The CTFs all have a linker with a length of at least a biphenyl unit, except for the reference of prototypical CTF-1. HHU-COF-1 is based on the monomer [1,1′-biphenyl]-4,4′-dicarbaldehyde, HHU-COF-2 on 2,2′,3,3′,5,5′,6,6′-octafluoro-[1,1′-biphenyl]-4,4′-dicarbaldehyde, condensed both with 1,3,5-tris-(4-aminophenyl)triazine [17]. COP-1(N) and COP-S are mixed linker CTFs from 2,4,6-trichloro-1,3,5-triazine with piperazine and 2,7-diazaspiro-[4,4]-nonane and [48], fl-CTF-400 and -500 are based on the 9H-fluorene-2,7-dicarbonitrile monomer [51], CTF-10-400 and -500 on 4,4′,4″,4‴-(1,4-phenylenebis(pyridine-4,2,6-triyl))tetrabenzonitrile [52], and CTF-1 on terephthalonitrile [53] (see Scheme S1 for the monomer structures). Table S7 summarizes the BET surface area, CO2 uptake capacity, Qads, and CO2/CH4 IAST selectivity of the CTFs given here in Figure 5.
Figure 5. CO2 uptake comparison at 298 K and 1 bar between the pBN-CTFs and selected CTFs with data from Table S4 [17,49,51,52,53]. The CTFs all have a linker with a length of at least a biphenyl unit, except for the reference of prototypical CTF-1. HHU-COF-1 is based on the monomer [1,1′-biphenyl]-4,4′-dicarbaldehyde, HHU-COF-2 on 2,2′,3,3′,5,5′,6,6′-octafluoro-[1,1′-biphenyl]-4,4′-dicarbaldehyde, condensed both with 1,3,5-tris-(4-aminophenyl)triazine [17]. COP-1(N) and COP-S are mixed linker CTFs from 2,4,6-trichloro-1,3,5-triazine with piperazine and 2,7-diazaspiro-[4,4]-nonane and [48], fl-CTF-400 and -500 are based on the 9H-fluorene-2,7-dicarbonitrile monomer [51], CTF-10-400 and -500 on 4,4′,4″,4‴-(1,4-phenylenebis(pyridine-4,2,6-triyl))tetrabenzonitrile [52], and CTF-1 on terephthalonitrile [53] (see Scheme S1 for the monomer structures). Table S7 summarizes the BET surface area, CO2 uptake capacity, Qads, and CO2/CH4 IAST selectivity of the CTFs given here in Figure 5.
Molecules 30 03110 g005
Molecules 30 03110 g006

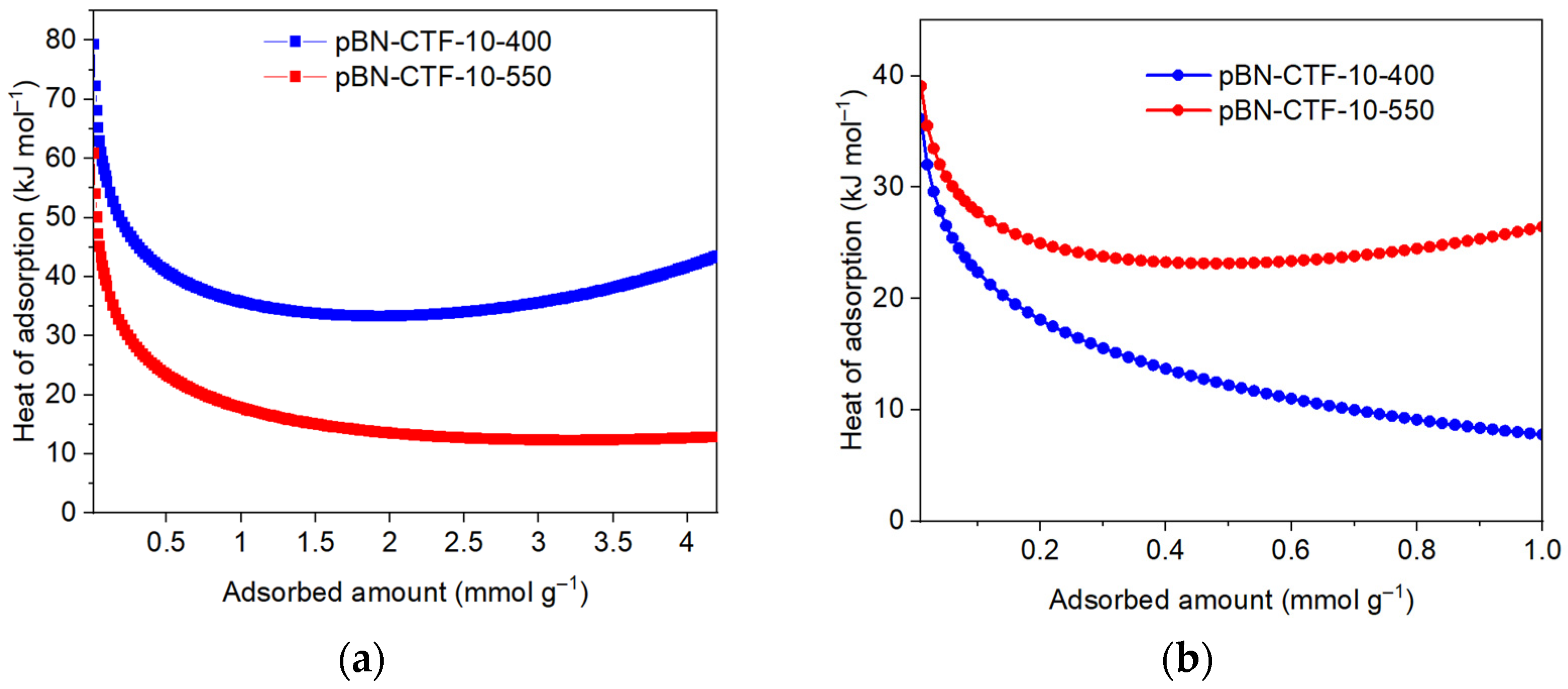

Figure 6. Isosteric heat of adsorption for (a) CO2 and (b) CH4 on pBN-CTF-10-400 and 550.
Figure 6. Isosteric heat of adsorption for (a) CO2 and (b) CH4 on pBN-CTF-10-400 and 550.
Molecules 30 03110 g006
Table 1. Summary of the reaction parameters and yields for pBN-CTFs.
Table 1. Summary of the reaction parameters and yields for pBN-CTFs.
CTF Product (a)Molar Ratio ZnCl2/MonomerTemperature (°C)Yield (%)
pBN-CTF-10-3501035079
pBN-CTF-20-3502035078
pBN-CTF-10-4001040068
pBN-CTF-20-4002040092
pBN-CTF-10-5501055084
pBN-CTF-20-5502055040
(a) The first number in the product name after CTF gives the molar ZnCl2/monomer ratio (10 or 20), followed by the reaction temperature (400 or 550 °C).
Table 2. Surface area and porosity data from N2 and CO2 sorption studies.
Table 2. Surface area and porosity data from N2 and CO2 sorption studies.
CTF ProductSBET (a)
(m2 g−1)		Vtot (b)
(cm3 g−1)		Vmicro (c)
(cm3 g−1)		Vmicro/Vtot (d)V1nm(CO2) (e)
(cm3 g−1)
pBN-CTF-10-4008090.510.250.500.015
pBN-CTF-20-4003480.190.150.790.009
pBN-CTF-10-55014601.040.360.350.013
pBN-CTF-20-5509501.250.190.310.010
(a) Calculated BET surface area from N2 adsorption at 77 K over a pressure range of P/P0 = 0.01–0.07. (b) Total pore volume from N2 adsorption isotherm at 77 K at P/P0 = 0.95 for pores smaller than 40 nm. (c) Micropore volume from the NL-DFT method using the N2 adsorption isotherm at 77 K at P/P0 = 0.1 for pores with d ≤ 2 nm (20 Å). (d) Micropore volume/total pore volume. (e) Pore volume for pores with diameters smaller than 1 nm from CO2 adsorption isotherms at 293 K and the CO2 NL-DFT model.
Table 3. CO2 and CH4 adsorption results at 1 bar and heat of adsorption for CO2 at zero coverage and CO2:CH4 selectivity.
Table 3. CO2 and CH4 adsorption results at 1 bar and heat of adsorption for CO2 at zero coverage and CO2:CH4 selectivity.
CTF ProductSBET (195 K) (a) (m2 g−1)CO2 (cm3 g−1)CH4 (cm3 g−1)CO2
Qads 0 (b)
(kJ mol−1)		CH4
Qads 0 (b)
(kJ mol−1)		IAST
Selectivity
for 50:50
CO2:CH4
293 K283 K195 K293 K283 K
pBN-CTF-10-40052442.855.917511.312.9793622
pBN-CTF-10-55074654.061.732012.316.96039- (c)
(a) BET surface area from CO2 adsorption measured at 195 K in the range between 0.08 and 0.2 P/P0. The difference in surface area between N2 (77 K) and CO2 (195 K) can be due to the kinetic energy difference at different temperatures and also the size of the molecules adsorbed. (b) Isosteric heat of adsorption of CO2 or CH4 towards zero loadings from the adsorption isotherms at 283 K and 293 K. (c) IAST selectivity for 50:50 mol:mol or equimolar fraction of CO2 and CH4 at 293 K and 1 bar. The linear CH4 uptake of CTF-10-550 did not allow for a meaningful fit.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Othman, H.; Oestreich, R.; Küll, V.; Fetzer, M.N.A.; Janiak, C. Synthesis and Characterization of Covalent Triazine Frameworks Based on 4,4′-(Phenazine-5,10-diyl)dibenzonitrile and Its Application in CO2/CH4 Separation. Molecules 2025, 30, 3110. https://doi.org/10.3390/molecules30153110

AMA Style

Othman H, Oestreich R, Küll V, Fetzer MNA, Janiak C. Synthesis and Characterization of Covalent Triazine Frameworks Based on 4,4′-(Phenazine-5,10-diyl)dibenzonitrile and Its Application in CO2/CH4 Separation. Molecules. 2025; 30(15):3110. https://doi.org/10.3390/molecules30153110

Chicago/Turabian Style

Othman, Hanibal, Robert Oestreich, Vivian Küll, Marcus N. A. Fetzer, and Christoph Janiak. 2025. "Synthesis and Characterization of Covalent Triazine Frameworks Based on 4,4′-(Phenazine-5,10-diyl)dibenzonitrile and Its Application in CO2/CH4 Separation" Molecules 30, no. 15: 3110. https://doi.org/10.3390/molecules30153110

APA Style

Othman, H., Oestreich, R., Küll, V., Fetzer, M. N. A., & Janiak, C. (2025). Synthesis and Characterization of Covalent Triazine Frameworks Based on 4,4′-(Phenazine-5,10-diyl)dibenzonitrile and Its Application in CO2/CH4 Separation. Molecules, 30(15), 3110. https://doi.org/10.3390/molecules30153110

Article Metrics

Back to TopTop
