Next Article in Journal
Metal Uptake by Birches and Scots Pines Grown on a Porcelain Landfill
Previous Article in Journal
Phytyl Phenolipids: Structurally Modified Antioxidants with Superior Lipid Membrane Interaction


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

Progress and Perspectives on Pyrite-Derived Materials Applied in Advanced Oxidation Processes for the Elimination of Emerging Contaminants from Wastewater

1
Hebei Key Laboratory of Heavy Metal Deep-Remediation in Water and Resource Reuse, Key Laboratory of Applied Chemistry, School of Environmental and Chemical Engineering, Yanshan University, Qinhuangdao 066004, China
2
School of International Education, Yanshan University, Qinhuangdao 066004, China
3
State Key Laboratory of Metastable Materials Science and Technology, Key Laboratory of Microstructural Material Physics of Hebei Province, School of Science, Yanshan University, Qinhuangdao 066004, China
4
Shenzhen Research Institute of Yanshan University, Shenzhen 518000, China
*
Authors to whom correspondence should be addressed.
Molecules 2025, 30(10), 2194; https://doi.org/10.3390/molecules30102194
Submission received: 7 April 2025 / Revised: 12 May 2025 / Accepted: 14 May 2025 / Published: 17 May 2025

Abstract

:
Emerging contaminants (ECs) in wastewater threaten environmental and human health, while conventional methods often prove inadequate. This has driven increased concern among decision makers, justifying the need for innovative and effective treatment approaches. Pyrite-derived materials have attracted great interest in advanced oxidation processes (AOPs) as catalysts because of their unique Fe-S structure, ability to undergo redox cycling, and environmental friendliness. This review explores recent advances in pyrite-derived materials for AOP applications, focusing on their synthesis, catalytic mechanisms, and pollutant degradation. It examines how pyrite activates oxidants such as hydrogen peroxide (H2O2), peracetic acid (PAA), and peroxymonosulfate (PMS) can be used to generate reactive oxygen species (ROS). The role of multi-dimensional pyrite architectures (0D–3D) in enhancing charge transfer, catalytic activity, and recyclability is also discussed. Key challenges, including catalyst stability, industrial scalability, and Fe/S leaching, are addressed alongside potential solutions. Future directions include the integration of pyrite-based catalysts with hybrid materials, as well as green synthesis to improve practical applications. This review provides researchers and engineers with valuable insights into developing sustainable wastewater treatment technologies.

1. Introduction

A clean and secure water environment is essential for human well-being and is equally important to economic development. However, rapid growths in population and industrialization have significantly increased global water pollution. Industries such as petroleum, chemical engineering, textiles, dyeing, food production, pharmaceuticals, and metallurgy discharge large volumes of organic wastewater containing refractory and highly toxic pollutants, including polycyclic aromatic hydrocarbons, halogenated hydrocarbons, phthalates, pharmaceuticals, and insecticides. Many of these pollutions are now defined as emerging contaminants (ECs), which are synthetic or naturally occurring chemicals or microbial components that are not routinely monitored in the environment, but which have the potential to enter the environment and cause known or suspected adverse ecological and/or human health risks [1,2]. The list of ECs is extensive and includes a wide variety of chemicals, as listed in Table 1.
Even at low concentrations, ECs pose significant ecological and human health risks, including chronic toxicity to aquatic organisms, endocrine disruption, reproductive impairment, and developmental abnormalities. Some ECs can bio-accumulate and bio-magnify via food webs, increasing the risk to higher trophic levels, including humans. Additionally, ECs can undergo complex transformations in the environment, generating more toxic or persistent byproducts [13]. Addressing these issues requires effective wastewater treatment strategies, particularly for EC removal. However, conventional biological treatment methods used in municipal sewage plants are often inadequate, especially for ECs with low bioavailability. Given worsening environmental pollution and increasing water scarcity, there is an urgent need to develop innovative technologies for treating and recycling EC-containing organic wastewater.
Currently, advanced oxidation processes (AOPs) are highly effective for treating ECs in wastewater due to their powerful oxidation capabilities that enable the degradation of refractory organics. AOPs perform efficiently even under challenging environments, such as high temperatures and fluctuating pH levels, making them adaptable to diverse wastewater treatment scenarios, including those with complex and unpredictable pollutant profiles [14]. These processes rely on reactive oxygen species (ROS), such as hydroxyl radicals (·OH), which have a high oxidation potential of 2.80 V, significantly greater than conventional oxidants (e.g., dichromate, permanganate, and peroxide) [15]. The generation of ROS in AOPs, known as “activation”, can be achieved using various methods, including electrical input, light irradiation, ultrasound, or the utilization of catalysts [16].
Compared to other activation methods, the catalytic activation process by transition metals is easier to scale up and offers the advantages of low energy consumption and high catalytic activity. Commonly used transition metal-based catalysts in oxidant activation include cobalt, copper, manganese, iron, and composite materials containing one or more of them [17,18]. Although some transition metals, such as cobalt-/copper-based materials, exhibit high catalytic efficiency in degrading ECs via AOPs, they also release heavy metal ions during the reaction, posing environmental risks and limiting their practical applications. Therefore, preventing the leaching of active transition metal during AOPs remains a critical challenge that must be addressed [19].
Among commonly used transition metals, ferrous iron (Fe2+) based catalysts stand out due to their natural abundance, low cost, non-toxicity, ease of synthesis, excellent physicochemical and magnetic properties, and environmental compatibility. These attributes make Fe2+ one of the most effective catalysts in activating chemical oxidants to degrade ECs in water [20]. Although Fe2+ is more environmentally friendly than many other transition metals, its leaching reduces catalytic efficiency in AOPs. This is because free Fe2+ requires an acidic environment for optimal performance and, at high concentrations, can act as a scavenger, consuming reactive radicals and thereby diminishing overall system performance. Moreover, traditional Fe2+ catalysts often lead to the formation of iron sludge during reactions, resulting in significant Fe2+ loss and secondary pollution [21].
To address these challenges, researchers have developed solid catalysts, such as iron (hydro) oxides, iron minerals, iron alloys, and supported iron-based materials, for heterogeneous AOPs instead of directly using soluble Fe2+. However, a major limitation is the low reduction rate of Fe3+ in conventional Fenton reactions, which severely restricts the continuous degradation of contaminants and compromises system sustainability [22]. Interestingly, substantial works have shown that co-catalysts such as zero-valent metals, natural organic acids, single-atom catalysts, and metal sulfides could significantly accelerate Fe3+/Fe2+ cycle, breaking through rate-limiting steps and facilitating reactive species generation. Nevertheless, these co-catalysts are often sacrificed in the process, leading to quenching effects on reactive species and potentially causing secondary environmental pollution. Thus, the use of co-catalysts in peroxide activation processes is virtually a trade-off: while they enhance the rapid Fe2+ regeneration, they also result in reductant consumption and potential environmental risks. Seeking a material that inherently combines catalytic activity with self-regeneration and minimized environmental impact would be a promising advancement in sustainable water treatment technologies [23].
Pyrite, an abundant sulfide mineral naturally found in the Earth’s crust, was historically the primary source of industrial sulfur and sulfuric acid production. Over the past decades, extensive research has explored pyrite’s geochemical characteristics, mineral processing, and its role in acid mine drainage [24]. More recently, pyrite has shown significant potential in environmental remediation, including stabilizing hexavalent chromium, adsorbing arsenic, and promoting the abiotic dichlorination of chlorinated organics, hydrolytically removing microcrystals, and denitrifying nitrate [25].
Pyrite’s composition of Fe2+ and S22− ions allows for it to serve as a catalyst in AOPs for producing reactive species. The Fe2+ ions act as catalytic sites for activating peroxides, while highly reducible S22− species donate electrons to accelerate Fe (III) reduction to Fe (II), enhancing redox cycling [26]. Structurally, pyrite adopts a NaCl-like arrangement, where Fe2+ ions are enclosed within cubic face-centered S22− cages, minimizing rapid Fe2+ leaching during reactions. Although the Fe and S may be gradually depleted over prolonged catalytic use, their byproducts are relatively environmentally benign; for instance, water with up to 250 mg/L SO42− remains safe for use. With its distinctive crystalline traits and excellent electron transport qualities, pyrite is a desirable substance for AOPs and relevant environmental catalytic applications, playing a vital role in the field of wastewater treatment and environmental cleanup. Its resilience, coupled with eco-friendly byproducts, makes pyrite a valuable resource for advancing sustainable environmental catalysis [27].
In recent years, numerous successful experimental studies on pyrite-based catalysts have been conducted, and the research interest in this area remains strong. However, a comprehensive review on pyrite-derived environmental catalysis is still lacking. In response, this article presents an in-depth overview of the current methods for synthesizing pyrite and pyrite derived materials, explores their unique characteristics, and explains the underlying principles of pyrite-based environmental catalysis processes, as well as the potential development trends in this field. This review focuses on providing a basic knowledge base and providing useful references for researchers exploring pyrite-based environmental catalytic systems.

2. Pyrite and Its Role in Catalyzing Fenton-like Reactions

2.1. Pyrite’s General Properties, Risks, and Potential

Pyrite (FeS2), also known as iron disulfide, is the sulfide mineral that is most prevalent, occurring in igneous, metamorphic, and sedimentary rocks, as shown in Figure 1a. In igneous rocks, it is commonly present as an accessory mineral and can form larger masses due to immiscible sulfide phases in the parent magma [28]. In metamorphic rocks, pyrite is often a product of contact metamorphism. While in hydrothermal systems, it is commonly associated with high-temperature conditions, although it can occasionally form under lower-temperature conditions [29].
Pyrite possesses a cubic crystal structure consisting of ferrous ions (Fe2+) and disulfide pairs (S22−), which exhibit a robust lattice arrangement that imparts its metallic luster and high density [30]. The S22− unites consist of covalent boned sulfur atoms, stabilizing the cubic system and giving rise to pyrite’s distinctive morphologies. As shown in Figure 1b, the face-centered cubic sublattice of iron atoms makes up the unit cell of pyrite crystal, with S22− ions surrounded within it. Each Fe atom is octahedrally coordinated to six sulfur atoms, forming a slightly one-sided octahedron. Meanwhile, each S atom forms a tetrahedral connection with three Fe centers and one extra S atom [31].
Although pyrite is abundant and non-toxic, it can result in significant geological and environmental impacts. It is unstable under oxidizing conditions at the Earth’s surface, where factors such as pH and temperature strongly influence its decomposition. Under acidic conditions, pyrite readily dissolves and undergoes oxidation, releasing Fe2+ and sulfate ions (SO42−) into the environment. This process contributes to environmental acidification, particularly in acid mine drainage scenarios [32]. Given this property, pyrite is usually commercially used to produce sulfur dioxide, which is subsequently used in sulfuric acid manufacturing. Additionally, pyrite oxidation is sufficiently exothermic, presenting hazards like spontaneous combustion in high-sulfur coal seams found in underground coal mines (commonly known as dust explosion). Techniques like buffer blasting and the application of different sealing or cladding agents are used to hermetically seal the mined-out portions to exclude oxygen in order to reduce these dangers [33]. Furthermore, pyrite in building materials, such as concrete, can undergo oxidation followed by reduction to form sulfides, leading to foul odors and the corrosion of metal wiring. Additionally, pyrite is essential to the geochemical cycling of sulfur and iron. Secondary minerals such as Jarosite (KFe3(SO4)2(OH)6) and goethite (FeOOH), may form as a result of its oxidation and dissolution under specific geochemical circumstances, which influence soil and water chemistry [34].
Despite the challenges associated with its redox characteristics, pyrite has encouraging promises in environmental restoration. Its surface properties enable the adsorption of heavy metals and other contaminants from aqueous solutions through interactions with various ions and molecules. Additionally, pyrite’s unique redox characteristics enhance its catalytic potential by allowing for it to function as both an electron donor and acceptor in diverse chemical reactions. This is capability is particularly valuable in AOPs, where catalytically activated peroxides to produce ROS to break down refractory pollutants in wastewater [35]. Recent advancements in pyrite-based composite materials, such pyrite–graphene hybrids, have further improved catalytic performance by stabilizing reactive intermediates and facilitating charge transfer [36]. These developments highlight pyrite’s versatility and its potential for environmental cleanup. To fully harness pyrite’s applications in AOPs, further research is needed to explore its material properties, catalytic mechanisms, recent innovations, and future prospects.

2.2. Pyrite-Catalyzed Fenton-like Reactions

The interaction between soluble Fe2+ and hydrogen peroxide (H2O2), leading to the generation of ·OH and other reactive oxidizing agents, is known as the Fenton reaction [37]. One successful method for getting around the drawbacks of the traditional Fenton reaction is adding a heterogeneous Fe2+ source, like pyrite, to the reaction solution, which requires a highly acidic condition to maintain the activity of Fe2+. Additionally, conventional Fenton processes are hindered by issues such as iron sludge formation, catalyst loss, and challenges in catalyst recovery, all of which severely restrict their practical application in real-world environmental scenarios [38].
A crucial step in utilizing FeS2 as a heterogeneous catalyst in AOPs is the emission of Fe2+ [39]. In aqueous environments, pyrite undergoes dissolution, liberating S22− and Fe2+, as represented by the following reaction (Equation (1)):
FeS2→Fe2+ + S22−
When oxygen (O2) or other oxidants are present, the S22− undergo oxidation, ultimately forming sulfate ions (SO42−). The transformation is described by Equation (2), shown as follows:
FeS2 + 7/2O2 + H2O→Fe2+ + 2SO42− + 2H+
While the formation of SO42− can affect the overall reaction kinetics and pollutant removal efficiency, the gradual release of Fe2+ from pyrite ensures sustained catalytic activity. This highlights pyrite’s dual role as both a source of Fe2+ and an electron donor, both necessary for advanced oxidation procedures to effectively degrade organic contaminants [40].
Pyrite has been confirmed as an effective activator for various peroxide oxidants, including hydrogen peroxide (H2O2), peracetic acid (PAA), and peroxymonosulfate (PMS) [41]. Through both Fe2+ and S species, pyrite-based Fenton-like catalysts enhance the activation of these oxidants, generating highly reactive radicals for pollutant degradation. Sulfur-mediated electron transfer not only improves reaction efficiency, but also prevents Fe hydroxide precipitation. Additionally, sulfur species facilitate Fe3+ reduction to Fe2+, stabilizing the redox cycle and producing secondary oxidants such as SO42− and polysulfides. This is because sulfur species such as S22− can be transformed into other sulfur-containing species during the peroxide activation process. Since the standard reduction potential of sulfur (S22−/S0, −0.48 V) is much lower than that of iron (Fe (III)/Fe (II), 0.77 V), the regeneration of Fe (II) by S22− is thermodynamically favorable in the pyrite surface. Moreover, the consumed sulfur species can be converted to secondary oxidants such as SO42− and polysulfide to further degrade potential ECs [42].
In PMS-based systems, pyrite activates PMS to generate both sulfate radicals (SO4·) and hydroxyl radicals (·OH). Compared to H2O2 systems, PMS reactions have a wider pH stability range (3–9), making them effective in near-neutral conditions. In PAA-based systems, pyrite catalyzes the PAA decomposition, forming acetyl radicals (CH3C(O)O·) and ·OH, enabling the selective degradation of specific pollutants [43]. Furthermore, sulfur species contribute to secondary oxidants such S0 and polysulfides, stabilizing the reaction and enhancing pollutant removal. Pyrite’s dual function of iron and sulfur chemistry allows for efficient degradation in both homogeneous and heterogeneous Fenton-like processes, making it a versatile catalyst various environmental applications (Table 2) [44].

2.2.1. Pyrite-Derived H2O2 Activation

By generating ROS, pyrite effectively activates H2O2 in AOPs, facilitating the breakdown of organic contaminants. When added into a H2O2-containing system, pyrite dissolves, releasing S22− and Fe2+ into the aqueous phase (Equation (1)). Through the traditional Fenton reaction, the liberated Fe2+ activates H2O2, generating ·OH with a high oxidation potential of 2.8 V (Equation (3)) [45].
Fe2+ + H2O2→Fe3+ + ·OH + OH
The ·OH generated from pyrite/H2O2 systems usually plays a vital role in the primary degradation of pollutants; for example, the reaction rate constant of pyrite/H2O2 derived ·OH was reported as 7.7 × 109 M−1 s−1 and 2.2 × 1010 M−1 s−1 for tetracycline and salicylic acid [46].
Simultaneously, the S22− in pyrite enable the reduction of Fe3+ back to Fe2+, providing a continuous redox cycle with a high rate constant varying from 103 to 106 M−1 s−1 (Equation (4)) and ensuring ongoing radical generation [47].
Fe3+ + S22−→Fe2+ + S2
In addition to ·OH, the pyrite/H2O2 is capable of generating various ROS, such as superoxide radicals (O2·), sulfate radicals (SO4·), and peroxyhydroxyl radicals (HOO·), effectively improving the degradation of ECs.
(a)
Superoxide radical (O2·):
The reduction of Fe3+ by H2O2 or sulfur radicals (Equations (5) and (6)) [48]:
Fe3+ + H2O2→Fe2+ + HOO· + H+
HOO·↔O2· + H+
Although ·O2 is highly reactive to organic pollutants such as ECs (rate constant varies from 105 to 109 M−1 s−1), its contribution in practical AOPs is usually lower than ·OH. This phenomenon is highly related to its stability in the conditions of AOPs, as it becomes more stable in alkaline conditions (t1/2 of 10–100 s) than neutral (t1/2 of 1–10 ms) and acidic conditions (t1/2 less than 1 μs).
(b)
Sulfate radicals (SO4·):
SO4· is formed from the oxidation of sulfur species in/dissolved from pyrite such as S22− by H2O2 or ·OH (Equation (7)) [49].
S22− + H2O2→2SO4∙− + 2H + S22− + H2O2→2SO4· + 2H+
Overall, as a durable and efficient catalyst for H2O2 activation, pyrite produces a wide variety of ROS that aid in the effective breakdown of organic contaminants. However, the reaction between pyrite and H2O2 generates Fe3+, SO42−, and H+, which causes the decline of the solution’s pH. Acidic conditions promote the dissolution of FeS2 and the generation of Fe2+. Conventional Fenton reactions utilize Fe2+ and H2O2 to produce ·OH, and the reaction between Fe3+ and H2O2 can transform Fe3+ back into Fe2+, but the low rate constant of this reaction limits the Fe2+/Fe3+ cycle, significantly influencing the sustainable activation of H2O2. The reduction of Fe3+ by pyrite is favorable for the Fe2+/Fe3+ redox cycle (Equations (4) and (8)). Its compatibility with various oxidants and capacity to sustain a continuous Fe2+/Fe3+ redox cycle make it a viable material for advanced oxidation processes in wastewater treatment [50].
F e S 2 + 14 F e 3 + + 8 H 2 O 15 F e 2 + + 2 S O 4 2 + 16 H +

2.2.2. PAA (C2H4O3) and Its Role in Pyrite-Derived AOPs

It has been shown that pyrite (FeS2) is a powerful catalyst for PAA activation, producing SO4·, ·OH, and peracetic/organic radicals (R-O·), shown as Equation (9).
FeS2 + C2H4O3→Fe2+ + R-O· + SO4·
Pyrite’s sulfur species aid in electron transport, which maintains the Fe2+/Fe3+ redox cycle and increases PAA activation efficiency [51]. Taking the degradation of tetracycline as an example, Figure 2 illustrates the involvement of both homogeneous and heterogeneous routes in the pyrite-induced activation of PAA. In the homogeneous phase, Fe2+ leached from pyrite activates PAA, generating reactive radicals like CH3C(O)OO·, which degrade. The Fe3+ produced in this process is subsequently reduced back to Fe2+ by sulfur species on the pyrite surface. In the heterogeneous phase, PAA is adsorbed on surface Fe(II) sites, where electron transfer generates CH3C(O)OO· and converts Fe(II) to Fe(III). The sulfur species then reduce Fe(III) back to Fe(II), ensuring a sustained catalytic cycle.
Pyrite derived PAA activation is capable of generating ·OH and CH3C(O)OO· (Equation (10)). Reactions for PAA with Fe2+ possesses much lower activation energy (20.45 kcal mol1 and 35.90 kcal mol1 for ·OH and CH3C(O)OO· generation, respectively) than that of H2O2 (76.48 kcal mol1) [42]. The generated CH3C(O)OO· can further react with O2 to form ·O2 (Equation (11)).
CH3COOOH + Fe2+→CH3COO· + ·OH + Fe3+
CH3COO· + O2→CH3COOO·→CH3CO2H + O2·
Additionally, PAA can facilitate the breakdown of persulfate into SO4·, which has a powerful oxidizing ability that can attack organic contaminants in wastewater (Equation (12)) [52].
CH3COOOH + S2O82−→CH3COO· + SO4· + SO42−

2.2.3. Activation of PMS by Pyrite

PMS (HSO5) is a powerful oxidant used in AOPs due to its ability to generate highly reactive radicals. Pyrite can effectively activate PAA, producing SO4·, ·OH, O2·, and peroxymonosulfate radicals (SO5·) [53].
Fe2+ in pyrite helps activate PMS by donating an electron, generating sulfate radicals (SO4·) and peroxymonosulfate radicals (SO5·) and sulfur species (S22−) in pyrite enhance electron transfer, making radical formation more efficient (Table 3) [54].
SO4· is the typical ROS generated from PMS activation that can oxidize organic contaminants efficiently, shown as Equation (13) [55]:
Fe2+ + HSO5−→Fe3+ + SO4· + OH
This reaction generates SO4·, which has an oxidation potential of 2.5–3.1 V. In addition, SO4· can react with water to form ·OH (Equation (14)):
SO4· + H2O→·OH + HSO4
Peroxymonosulfate radicals (SO5·) are less reactive than SO4·, but still contribute to the oxidation of water (Equation (15)):
SO5· + H2O→SO4· + H2O2
SO5· decomposes into SO4· and H2O2, which can further produce ·OH as a secondary ROS from SO4· and PMS breakdown, listed as Equation (16):
SO4· + H2O→OH + HSO4
O2· are generated through Fe3+ cycling, shown as Equation (17). Although O2· is a weak ROS when compared with others, it plays a vital role in secondary oxidation and electron transfer [56].
Fe3 + +O2→Fe2 + +O2·
When PMS is activated by pyrite, it follows these primary degradation pathways: (1) SO4· attacks organic contaminants (R-X), breaking them down into smaller intermediates [57]; (2) ·OH reacts with contaminants via hydrogen abstraction, leading to further degradation of organic matter into CO2, H2O, and mineralized end products; in addition (3) Fe2+ is regenerated through Fe3+ reacting with O2· (Equations (18)–(20)) (Table 4). This allows for the continuous PMS activation for sustained pollutant degradation [58].
SO4· + R−X→R· + SO42− + X
·OH + R−H→R· + H2O
Fe3+ + O2·→Fe2+ + O2
where R represents an oxidized pollutant fragment.

3. Pure Pyrite Derived Catalysts and Their Applications

When practically using pyrite as a catalyst in AOPs, its dimensional structure, including 0D (nanoparticles), 1D (nanorods/nanowires), 2D (nanosheets), and 3D (hierarchical structures), significantly affect its catalytic activity, conductivity, and surface properties [59]. Optimizing the dimensional structure of pyrite-based materials can significantly improve pollutant degradation efficiency and promote more sustainable catalytic applications in wastewater treatment.

3.1. Zero-Dimensional Pyrite Materials

Zero-dimensional (0D) pyrite refers to nanoscale structures confined in all three dimensions, typically appearing as nanoparticles or quantum dots. This confinement induces the quantum effects, increases the surface-to-volume ratio, and enhances the catalytic and electrochemical properties. Due to these advantages, 0D pyrite is a material that shows promise for use in catalysis and environmental remediation [60]. Figure 3 summarizes some typical pyrite nanoparticles prepared using the sol–gel method. Annealing Fe(acac)3 ink on glass substrates coated with molybdenum (Figure 3a) and sulfonating FeO3 films on FTO substrates (Figure 3b) produced the nanoparticles, which showed formation with different morphologies.
The effective application of 0D pyrite nanoparticles relies on efficient production methods. Various wet-chemical techniques, including precipitation, solvothermal, hydrothermal, and hot-injection methods, have been explored for their synthesis (Table 5) [62]. These techniques have successfully produced monodispersed FeS2 nanocrystals with high purity in the context of 0D pyrite nanoparticles [63]. In addition, surfactants like hexadecyltrimethylammonium bromide (CTAB) and gelatin have been shown to stabilize the nanoparticles, preventing aggregation and ensuring a uniform size distribution. Research indicates that 0D pyrites nanoparticles prepared from these above methods show a greater energy band gap of 0.73–1.6 eV than unstructured pyrite, highlighting the advantages in electron/photon response [64].
FeS2 materials can be synthesized using hydrothermal synthesis, the sol–gel technique, or the hot injection method. Hydrothermal synthesis is known for its ease of use and low cost, but requires precise temperature and pressure control, potentially causing scalability issues [66]. The sol–gel technique is ideal for producing pure and homogeneous FeS2 materials due to its superior homogeneity and compositional control, but has a long processing time and the need for post-synthesis heat treatment to eliminate solvents [67]. Furthermore, the hot injection method allows for fast synthesis of FeS2 nanocrystals with a limited size distribution. This approach is very efficient, but it involves high temperatures and precise reagent management, which might complicate the process and raise safety issues [68]. Each approach, while successful, has unique obstacles in terms of scalability, temperature control, and synthesis time that must be evaluated based on the desired application.
Due to 0D pyrite’s elemental composition and surface properties, it is widely employed to remove heavy metals, clean industrial effluents, and break down hazardous organic contaminants. Alam [69] reported that 0D pyrite nanoparticles effectively remove heavy metals from contaminated water, achieving adsorption rates of 92% for Pb2+ and 89% for As3+. This high efficiency is attributed to pyrite’s large surface area, which enhances its ability to capture heavy metal ions. Additionally, pyrite’s unique redox properties enable the transformation of hazardous high-valent metal ions into less toxic forms.
Zero-dimensional pyrite materials, particularly nanoparticles and quantum dots, have exhibited exceptional promise in AOPs. Sharma et al. [70] reported the utilization of 0D pyrite quantum dots to activate H2O2, generating O2· and ·OH, both of which are essential for the breakdown of persistent organic pollutants. As a result, up to 98% of organic dyes were removed in 60 min using this ROS-driven degrading process. In addition, the utilization of 0D pyrite in AOPs undergoes potential in microbial inactivation, antibiotic degradation, and waste-to-resource processes. A study investigated a mine waste derived 0D pyrite for persulfates activation in the degradation of tetracycline [71]. The results showed that 0D pyrite activated PMS more effectively than peroxydisulfate, achieving a high degradation rate of 98.3%, with up to 46% tetracycline (50 mg/L) being completely mineralized. Scavenging experiments indicated that both ·OH and SO4· were the main ROS, while SO4· was more dominant. Furthermore, an in vivo toxicity assessment indicated that the 0D pyrite/PMS system significantly decreased the nephrotoxicity (90%) and hepatotoxicity (85%) effects of tetracycline. Notably, no significant decline in catalytically performance was observed over five cycles. Overall, 0D pyrite is a non-toxic and clean catalyst in AOPs for ECs degradation and mineralization.
Despite the adaptability of 0D pyrite, challenges such as oxidation susceptibility and the formation of hazardous byproducts must be addressed to enable broader applications [72]. Otherwise, these issues could reduce ROS production and pose environmental risks. Key challenges include surface defects that lower catalytic performance, poor chemical stability due to oxidation, and the generation of hazardous sulfur species during degradation. Additionally, the synthesis of 0D pyrite is costly and challenging to scale, as it requires precise and controlled conditions. The aforementioned difficulties necessitate further in-depth investigations. Furthermore, commercial production remains limited, highlighting the need for studies focused on improving the stability and cost-effectiveness of 0D pyrite for practical applications [60]. To address these issues, researchers have shifted their focus to 1D and 2D pyrite structures, which offer enhanced stability, improved charge transfer, and prolonged ROS generation [73]. These advantages contribute to greater long-term efficiency in environmental remediation efforts.

3.2. One-Dimensional Pyrite Materials

Materials including nanowires, nanorods, and nanotubes that have one dimension noticeably larger than the other two are referred to as 1D materials (Figure 4). Numerous techniques, including hydrothermal synthesis, vapor-phase growth, electrochemical deposition, and template-assisted techniques, can be used to create these structures. Iron sources, reaction time, and precursor concentration are some of the variables that might affect the microstructure of 1D pyrite. For instance, SEM and TEM pictures of 1D FeS2 nanostructures made with anodic aluminum oxide (AAO) templates are displayed in Figure 4. Using this method, Fe nanowires were electrodeposited into AAO pores initially, and the resulting FeS2 nanowires maintained their comparable sizes and morphologies following sulfurization. Furthermore, FeS2 nanowires and nanotubes were produced using a sol–gel technique in conjunction with AAO templating, illustrating the adaptability of this approach in accurately regulating nanostructure shape and size [74].
Various methods exist for synthesizing one-dimensional (1D) pyrite nanostructures like nanorods and nanowires (Table 6). The solvothermal approach is particularly effective due to its controlled reaction environment and flexibility in adjusting factors like solvent type, temperature, and reaction time. It offers strong crystallinity and good morphological control, but its use of organic solvents raises environmental concerns and is often high pressure and time consuming, restricting scalability [76]. The direct thermal sulfidation process uses high temperatures to react iron-based precursors with sulfur sources, resulting in FeS2. When suitable templates or growth-directing chemicals are used, this approach can produce crystalline 1D pyrite structures. It is reasonably easy and scalable, but it demands high temperatures, which may result in particle aggregation, less control over the aspect ratio, and smaller surface areas. The hydrothermal template-assisted technique is extremely effective for producing well-defined 1D structures by directing crystal development in certain orientations with soft or hard templates [77]. This approach allows for exact control over shape and size, resulting in high-aspect-ratio nanorods or wires with increased surface areas. However, it frequently includes sophisticated multi-step procedures, such as template preparation and removal, which can increase synthesis time and expense.
Unlike 0D nanoparticles, which often suffer from excessive grain boundaries and charge recombination, 1D FeS2 nanostructures offer continuous electron pathways that enhance electrical conductivity. Well-structured 1D pyrite FeS2 can address key challenges such as poor charge transport and instability, and, in some cases, even improve light adsorption. FeS2 nanorods and nanotubes exhibit high stability and electrochemical activity, making them well-suited for environmental catalysis and energy storage applications. Moreover, their elongated morphology enhances light trapping, improving efficiency in photovoltaics and light-driven Fenton reactions [81]. The pH of the reaction environment significantly affects the purity, morphology, and yield of FeS2 during synthesis. Acidic conditions (pH < 4) promote the production of pure FeS2 by reducing iron oxide impurities and increasing nucleation rates [82]. This frequently leads in the creation of spherical or agglomerated nanoparticles with great phase purity and quick crystal formation, as evidenced in the literature. At neutral pH (~7), the nucleation and growth processes are balanced, providing more control over particle size and shape. This pH range often produces 1D structures like nanorods and nanowires with high crystallinity and controllable dimensions [83]. Alkaline conditions (pH > 9) can cause iron hydroxides (Fe(OH)3) and sulfur species to precipitate and disrupt FeS2 production. These processes often create irregular or amorphous particles with low yield and restricted phase control. Maintaining an acidic to neutral pH range is ideal for creating well-defined FeS2 nanostructures with desired characteristics [84].
Given the unique structure of 1D pyrite, they are widely used in AOPs to generate ROS to degrade pollutants in both wastewater and atmosphere. Their effectiveness in AOPs is largely due to their ability to produce ROS, such as ·OH, which plays a critical role in breaking down industrial dyes, pharmaceuticals, and other organic contaminants. Their high surface area and electrical properties also make them promising for energy-related applications like hydrogen production and solar energy conversion [85].
Zhang et al. [86] reported that 1D pyrite nanowires significantly outperformed their 0D counterparts, achieving a 90% degradation efficiency of pharmaceutical contaminants in 80 min. This superior performance was attributed to enhanced charge transfer and a larger reactive surface area. Zeng et al. [87] demonstrated that visible light irradiation could enhance the oxidative performance of pure 1D pyrite in the degradation of p-nitro phenol. Under visible light, the complete oxidation time was reduced from 10 min to just 4 min, due to the activation of the Fe3+/Fe2+ redox cycle, which boosted ROS generation. DFT calculations indicated that this improvement was driven by the generation of valence band holes (h+), which readily react with other species under visible light exposure. Similarly to that of 0D pyrite, 1D pyrite has also been applied for heavy metal removal. It acts as an electron donor, reducing toxic metal ions such as Cr(VI) and As(III) into less harmful forms, while simultaneously generating ROS to further degrade associated pollutants [88]. In addition, the practical applicability of 1D pyrite materials can be further enhanced by integrating them into scalable reactor designs. In AOPs, these materials serve as efficient electron highways, facilitating rapid charge transfer and improved catalytic performance.
One-dimensional pyrite materials face several challenges that hinder their broader adoption, despite their promising performance. These include complex manufacturing processes, susceptibility to oxidation, and the potential generation of hazardous byproducts such as sulfur dioxide (SO2). The synthesis of 1D pyrite requires precise control over reaction conditions, making it costly and difficult to scale. As a result, its commercial availability remains limited [89].
To enhance their effectiveness in treating contaminants within complex wastewater matrices, researchers can optimize the surface-to-volume ratio of these materials. However, issues such as nanoparticle aggregation and mechanical fragility must also be overcome. Addressing these limitations, through the use of innovative synthesis approaches, can improve structural integrity and dispersibility, paving the way for more robust, scalable, and practical applications.

3.3. Two-Dimensional Pyrite Materials

Ultra-thin layered structures with distinct electrical characteristics and high surface-to-volume ratios are known as 2D pyrite materials. Their anisotropic charge transport and abundance of active edge sites contribute to significantly enhance catalytic activity. These materials can be synthesized using methods such as liquid-phase exfoliation, chemical vapor deposition (CVD), and hydrothermal synthesis. In advanced oxidation processes (AOPs), 2D pyrite has proven highly effective in degrading organic pollutants, activating hydrogen peroxide, and removing heavy metals. Additionally, they show strong potential in air purification and photocatalytic hydrogen production, further broadening their environmental and energy-related applications [90].

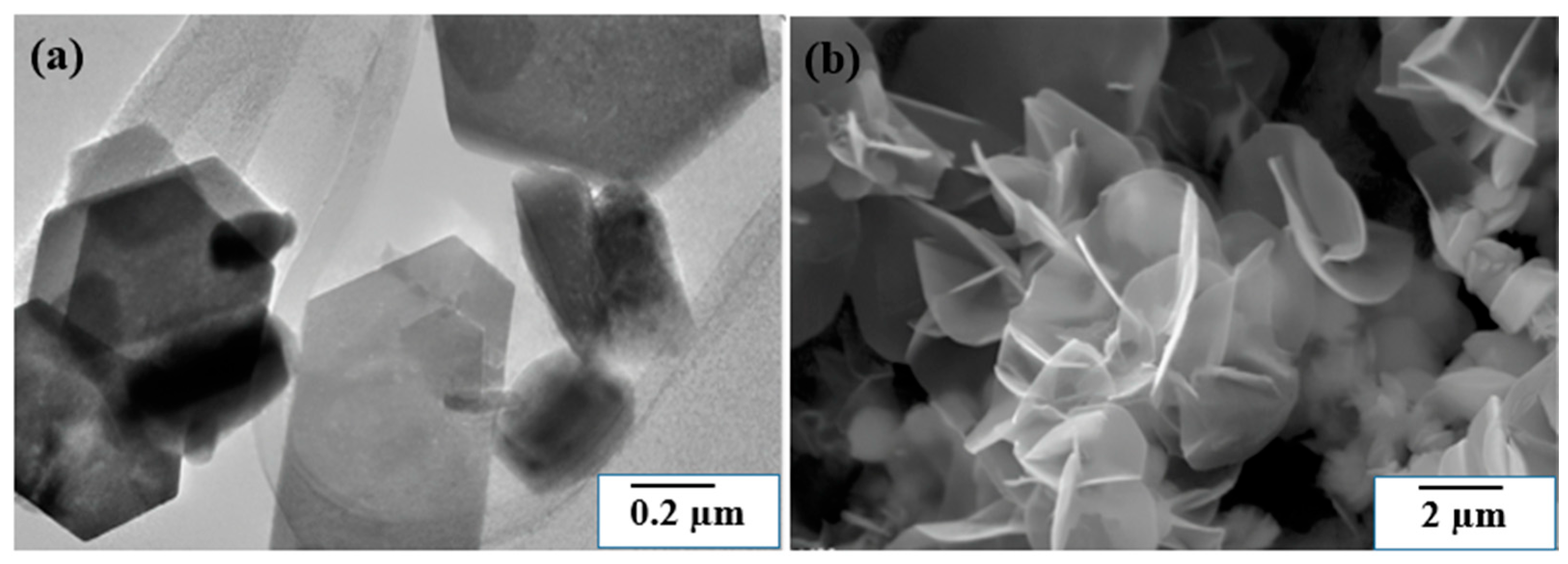

Figure 5 illustrates the morphologies of synthesized 2D FeS2 nanostructures, including nanoplates and nanosheets. FeS2 nanoplates were produced using a reaction between Fe(CO)5 and an oleyl amine-coordinated elemental sulfur solution at temperatures of 180 °C or higher, followed by an aging period of over 180 min [91]. It was observed that increasing the reaction temperature significantly influenced lateral (planar) growth while having a minimal effect on the thickness of the nanoplates. At 240 °C, truncated hexagonal and triangular nanoplates with sizes ranging from 200 to 500 nm were obtained. In another study, FeS2 nanosheets were selectively synthesized via a one-step hydrothermal method. Using high-purity Fe foil (99.99%) and sulfur powder dissolved in deionized water, FeS2 nanosheets with diameters of approximately 2 μm and thicknesses around 30 nm were successfully produced after reacting at 160 °C for 12 h [92].
Two-dimensional pyrite materials demonstrate exceptional in AOPs due to their high surface area, excellent conductivity, and abundance of reactive sites. These properties enable them to effectively degrade persistent organic pollutants, activate peroxide oxidants to generate ROS, and remove heavy metals through a combination of adsorption, catalysis, and redox reactions. Tan et al. [94] reported that pyrite oxidation produces ROS with a high facet dependence. Different facet compositions of pyrites showed different efficiency in generating O2·, H2O2, and ·OH. There was a considerable association between the ratio of the [2 1 0] facet and the 48 h OH· production rates, which varied by 3.1 times, from 11.7 ± 0.4 to 36.2 ± 0.6 nM/h. The main cause of this facet dependence in ROS productions is the variation in the kinetics (from 1.2 × 10–4 to 5.8 × 10–4/s) and surface electron-donating capabilities (2.2–8.6 mmol e-/g) of different faceted pyrites. These results demonstrate how important facet composition is in influencing the generation of ROS and the ensuing ROS-driven processes during the oxidation of iron minerals. Studies have demonstrated that 2D pyrite-based catalysts can degrade organic pollutants by more than 95% in 60 min, surpassing lower-dimensional pyrite, because of their high density of active sites and enhanced electron mobility [15]. Two-dimensional structures are more stable and recyclable than zero-dimensional and one-dimensional pyrite, which makes them ideal for long-term environmental cleanup applications [86]. Long-term environmental cleanup applications benefit greatly from the stability and recyclability that 2D structures provide over 0D and 1D pyrite.
Two-dimensional pyrite materials face several limitations, including structural instability, complex synthesis procedures, and high susceptibility to oxidation. Their ultrathin layered structure makes them prone to breaking and restacking, which can significantly reduce their catalytic efficiency. Despite these drawbacks, 2D pyrite nanostructures generally outperform 1D counterparts in photo-catalysis, solar energy conversion, and energy storage applications, owing to their larger surface area, superior light absorption, and enhanced ion transport pathways [95]. Additionally, their planar geometry allows for easy stacking and integration with other nanomaterials, offering opportunities for the development of advanced hybrid catalysts. However, the potential environmental risks posed by the leakage of hazardous byproducts must also be considered. Long-term stability and scalable production remain major obstacles. Future research should focus on improving exfoliation and stabilization strategies for use in photocatalytic and electrochemical AOPs, while also optimizing synthesis techniques to minimize restacking and preserve high reactivity.

3.4. Three-Dimensional Pyrite Materials

Three-dimensional pyrite materials are hierarchical architectures composed of interconnected nanoparticles, nanorods, or nanosheets. These structures provide a high surface area, improved charge transfer, and superior mass transport properties, making them highly suitable for catalytic and environmental applications. Common synthesis approaches include hydrothermal assembly, template-assisted synthesis, and electrodeposition [96]. Li et al. [97] reported the successful fabrication of FeS2 microspherolites using a microwave-assisted polyol method. Their study included reaction-time-dependent experiments to elucidate the aggregation mechanism. Additionally, FeS2 microspheres were synthesized via hydrothermal methods using polyvinylpyrrolidone (PVP) as a stabilizing agent. Figure 6 displays SEM images of FeS2 microspheroids synthesized using this method. The low-magnification images reveal the spherical morphology, while the high-magnification images reveal the surface texture and structure. These images demonstrate the successful formation of 3D FeS2 microspheroids with uniform sizes and shapes.
Three-dimensional pyrite materials are highly efficient in AOPs due to their high porosity, charge transfer properties, and interconnected structure [98]. Three-dimensional pyrite (FeS2) nanostructures, like microspheres or hierarchical architectures, outperform two-dimensional structures due to their enhanced stability, higher porosity, and improved mass transport [99].
In the degradation of organic pollutants, for example, 3D hierarchical pyrite structures have proven to have superior catalytic activity over lower-dimensional pyrite by promoting the generation of reactive oxygen species (ROS), which hasten the breakdown of dangerous pollutants [100]. Its improved adsorption and redox characteristics allowed for the removal of 99% of industrial emissions’ volatile organic compounds (VOCs), dramatically outperforming 2D and 1D pyrite structures in terms of long-term stability and reusability [101]. Zhang et al. [102] conducted a comparative study on the photo-Fenton degradation performance of sulfadiazine (SDZ) using 3D pyrite (FeS2) with three distinct morphologies: cube, octahedron, and sphere. The objective was to evaluate how morphological differences, particularly in terms of exposed crystal planes and sulfur (S) vacancy concentrations, influence catalytic efficiency. Among the tested structures, octahedral FeS2 exhibited the highest degradation (93.4%) and mineralization (82.3%) efficiencies. The enhanced performance was attributed to the synergistic effect of photo-catalysis in the Fenton reaction. Specifically, the (200) crystal planes exposed in the octahedral morphology possessed higher crystallographic energies, a larger specific surface area, and prominent sharp edges and corners, which collectively enhanced SDZ adsorption and facilitated Fe2+ release. Moreover, the narrowed band gap associated with these planes promoted the generation of photo-generated charge carriers. A higher density of S vacancies further contributed to increased active sites, extended carrier lifetimes, and improved photo-Fenton reactivity. Furthermore, it has been discovered that 3D foam-like pyrite structures effectively activate H2O2, resulting in a 120% increase in ROS formation when compared to 2D pyrite [103]. In addition to optimizing mass transfer and active site exposure, the linked framework of 3D pyrite materials also solves the aggregation and instability problems that are frequently seen in 0D, 1D, and 2D pyrite, making them extremely promising for environmentally friendly applications.
Three-dimensional pyrite materials, despite their advantages in catalysis and environmental remediation, face several challenges, including structural instability, complex synthesis processes, and susceptibility to oxidation [104]. These issues hinder their scalability and long-term practical application. To promote broader adoption, future research should focus on enhancing the structural stability of 3D pyrite and simplifying synthesis methods to allow for cost-effective large-scale production. Additionally, tailoring pore size and surface chemistry will be crucial for optimizing contaminant removal efficiency. Integrating 3D pyrite materials into intelligently designed reactors could pave the way for sustainable high-performance solutions in wastewater treatment and beyond.
A comprehensive overview of pyrite materials with various dimensional structures and their corresponding applications (including AOPs and non-AOPs) is presented in Table 7.
FeS2 nanostructures offer unique environmental benefits, such as removing nitrogen from wastewater and ammonia and nitrate in just four hours. Their high surface reactivity accelerates electron transfer, making them effective for redox-driven processes [111]. However, they tend to group together and are difficult to recover from. Future advancements could focus on surface modification or immobilization techniques. Nanorods and nanowires are examples of one-dimensional (1D) structures that provide improved electron transport and interaction with contaminants. They have shown that sophisticated oxidation techniques based on sulfate radicals can remove 90% of bisphenol A and that gas-phase detoxification of hydrogen sulfide can remove 95% of it [76]. Nevertheless, 1D structures may be mechanically weak and frequently have smaller surface areas. Their industrial feasibility may be enhanced by developments in flow-through reactor integration and structural reinforcing. Two-dimensional (2D) pyrite materials, such as nanosheets and thin films, are effective in surface-dependent processes [112]. Nanosheets can adsorb 90% of polystyrene microplastics within two hours due to their high surface areas and strong pollutant interactions. Thin films can achieve 92% degradation of pharmaceutical pollutants under solar illumination. However, 2D structures may face restacking issues and limited performance in low-light conditions. Three-dimensional (3D) morphologies like porous structures and hierarchical architectures are ideal for gas capture and heavy pollutant degradation [113]. Porous FeS2 frameworks have successfully converted up to 80% of CO2 into valuable chemicals, while hierarchical 3D pyrite successfully detoxified cyanide from mining effluents with a 97% success rate. However, these structures often require complex and expensive synthesis processes. Future approaches should prioritize scalable synthesis pathways and integration with continuous flow systems for industrial implementation.
The future of FeS2 morphology engineering is largely dependent on hybridization, stability optimization, and scalable fabrication methods that are adapted to the needs of individual applications. Each morphology has its own advantages and disadvantages, and the clever design of these morphologies will be essential to satisfying the expanding industrial and environmental demands.

4. Applications of Hybrid Pyrite

By integrating pyrite with sophisticated porous supports such as zeolites, biochar, and metal–organic frameworks (MOFs), hybrid pyrite-based materials have emerged as highly efficient catalysts for a range of catalysis and environmental applications (Table 8). These hybrid structures effectively overcome the inherent limitations of pure pyrite, such as oxidation susceptibility, leaching of Fe and S species, and structural instability, via enhancing material stability, catalytic performance, and recyclability. As a result, hybrid pyrite materials have found broad applications in photo-catalysis, energy storage, wastewater treatment, and the degradation of environmental pollutants [114].
Hybrid pyrite-based catalysts are promising in AOPs because they utilize the surface/elemental structure and/or electron transfer properties of the support materials to address the limitation caused by rapid oxidation and surface passivation in the pure form of pyrite, significantly increasing their performance and lifespan [118]. Zhou et al. [28] reported a study on the development of a pyrite-based catalyst by loading an S–Fe composite (primarily pyrite) onto waste-activated sludge-derived zeolitic materials, such as zeolite 4A and sodalite. This innovative design aimed to (1) disperse active Fe2+ within the pyrite structure, thereby broadening the applicable pH range and accelerating catalytic reaction rates; (2) stabilize Fe2+ using face-centered sulfur atoms, effectively reducing Fe leaching into the environment; and (3) exploit the redox properties of sulfur to regenerate active Fe2+, thereby extending the catalyst’s lifespan. The resulting pyrite–zeolite hybrid catalyst was employed to activate PAA for the treatment of various antibiotics and organic dyes in both real and simulated wastewater. The system achieved over 85% removal efficiency within 20 min at neutral pH (pH = 7). Compared to a control catalyst (Fe2+@zeolite without sulfur doping), the catalytic efficiency was enhanced by 26.7%. These findings underscore the advantages of integrating pyrite into zeolite supports, including improved catalytic activity across a broader pH range and enhanced durability [54].
Zhao et al. [119] reported a comparative study to evaluate the effectiveness of hybrid pyrite catalysts using activated carbon and biochar and carbon nanotubes as supporting materials, respectively, for the removal of ciprofloxacin. When the pseudo-first-order kinetic model of pyrite/activated carbon, pyrite/biochar, and pyrite/carbon nanotube with H2O2 was fitted to the synchronous experimental results, the reaction rates were 8.28, 3.40, and 3.37 times faster than those of pyrite alone under the experimental conditions. The synergistic effect of AOPs and the carbonaceous supports’ adsorption ability was credited with this notable performance improvement. Carbon materials facilitated the concentration of ciprofloxacin near the reactive sites while also promoting better dispersion of the pyrite particles, ultimately boosting the catalytic efficiency of the system. In addition, in pyrite-biochar material, S22−, Sn2−, and hydroxyl of biochar could act as electron donors involving in Fe(II)/Fe(III) cycle, promoting the oxidation of ECs and heavy metals [120]. The Fe-S active sites in pyrite facilitate the adsorption and reduction of toxic metal ions, such as arsenic (As3+), lead (Pb2+), mercury (Hg2+), and chromium (Cr6+) [86]. Hybrid structures, such as FeS2-loaded zeolites and FeS2-biochar composites, provide a high-surface-area scaffold, ensuring better metal capture and long-term stability. These materials can be used in both batch and continuous-flow water treatment systems, making them suitable for large-scale environmental applications [121,122].
Hybrid pyrite materials have also attracted considerable attention in the fields of photo-catalysis and solar energy conversion. Due to its strong light absorption and narrow bandgap (0.95–1.2 eV), pyrite is considered a promising candidate for solar-driven environmental remediation and hydrogen generation via photo-electrochemical (PEC) water splitting. However, the photocatalytic efficiency of pristine FeS2 is limited by issues such as photo-corrosion and rapid charge carrier recombination. These limitations can be effectively addressed through hybridization with materials such as TiO2, MOFs, or graphene oxide (GO), which significantly enhance charge separation, light absorption, and photocatalytic stability (Table 9). For example, FeS2–MOF composites have demonstrated excellent performance in visible light-driven wastewater treatment, while FeS2–TiO2 heterojunctions have shown improved solar-to-hydrogen conversion efficiency [60].
Moreover, the stability of catalysis is a vital factor in evaluating the practical application potential of pyrite-based materials. Metal leaching not only diminishes the catalytic activity of a material, but also poses significant risks of secondary environmental pollutions. Xing et al. [42] report the application of utilizing pyrite to activate PAA for tetracycline treatment. After three running cycles, although the observed reaction rate constant decreases from 0.123 to 0.792 min1, the removal performance of tetracycline still reaches more than 90%. No significant changes were observed from their XRD results of pristine and used pyrite, indicating the crystal stability of pyrite. FTIR further exhibited that the decrease in catalytically reaction rate is only caused by pyrite surface passivation. Compared to common iron-based AOP catalysts, such as Fe particles, Fe-based MOFs, Fe-carbon, and Fe-zeolite, the S-Fe interaction in pyrite demonstrated competitive Fe fixation performance (Table 10).
All things considered, hybrid pyrite-based materials represent a significant advancement in the realms of green catalysis, renewable energy, and sustainable catalysis. By integrating pyrite with functional support materials, pyrite’s intrinsic limitations, such as oxidation susceptibility and structural instability, have been successfully addressed. To further expand the practical applications of these hybrid materials, future research should focus on optimizing material design, improving scalable synthesis methods, and facilitating industrial-scale implementation.

5. Conclusions

Pyrite-derived materials have revealed promise in the degradation of newly discovered pollutants in wastewater, which represents a major advancement in environmental remediation methods. Their unique Fe–S structure, ability to catalyze peroxide activation, and involvement in redox cycling position them as viable alternatives to conventional iron-based catalysts. However, challenges remain, including precise structural control, Fe and S leaching, and limited long-term stability. Future research should prioritize the development of hybrid pyrite-based composites, such as FeS2–graphene, FeS2–MOFs, and FeS2–TiO2, designed to enhance catalytic activity, stability, and reusability. Additionally, exploring multi-dimensional pyrite architectures (0D, 1D, 2D, and 3D) is essential to optimizing surface area, charge separation, and pollutant degradation efficiency.
To translate laboratory advances into real-world applications, pyrite-based AOPs must be adapted for integration into large-scale wastewater treatment systems. This includes investigating eco-friendly and scalable synthesis methods to ensure the sustainability and environmental safety of these materials. Moreover, the incorporation of machine learning and computational modeling could accelerate the rational design and performance prediction of next-generation pyrite catalysts. With their tunable properties and broad applicability in pollutant degradation, heavy metal remediation, and energy conversion, pyrite-based materials stand out as versatile and effective catalysts for future green technologies.
The practical optimization of pyrite-based advanced oxidation processes (AOPs) can be significantly accelerated through the integration of AI-driven catalyst design, computational modeling, and environmentally friendly synthesis strategies. These advanced tools offer the potential to predict material behavior, fine-tune structural parameters, and develop scalable fabrication techniques with reduced environmental impacts. By addressing the current limitations—such as instability, leaching, and structural control—while leveraging cutting-edge technologies, pyrite-based materials are well-positioned to make a substantial contribution to sustainable environmental remediation and energy storage systems. Ultimately, such innovations could pave the way for the widespread implementation of pyrite-derived catalysts in real-world applications.

Author Contributions

J.J.: Investigation, Writing—original draft and editing; Y.Z.: Investigation, Formal analysis; S.U.: Writing—original draft and editing; T.G.: Visualization; C.Y.: Data curation; Y.H.: Funding acquisition; H.W.: Investigation, Conceptualization, Supervision, Writing—original draft and reviewing and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by National Natural Science Foundation of China (Grant No. 32400103); Natural Science Foundation of Hebei Province (No. B2024203014); Hebei Province Science and Technology Support Program (No. C20230326 and No. 236Z3604G).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

We appreciate Regina Zhang for her efforts in the publication of this article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kumar, R.; Qureshi, M.; Vishwakarma, D.K.; Al-Ansari, N.; Kuriqi, A.; Elbeltagi, A.; Saraswat, A. A review on emerging water contaminants and the application of sustainable removal technologies. Case Stud. Chem. Environ. Eng. 2022, 6, 100219. [Google Scholar] [CrossRef]
  2. Morin-Crini, N.; Lichtfouse, E.; Liu, G.; Balaram, V.; Ribeiro, A.R.L.; Lu, Z.; Stock, F.; Carmona, E.; Teixeira, M.R.; Picos-Corrales, L.A. Worldwide cases of water pollution by emerging contaminants: A review. Environ. Chem. Lett. 2022, 20, 2311–2338. [Google Scholar] [CrossRef]
  3. Diagboya, P.N.; Junck, J.; Akpotu, S.O.; Düring, R.-A. Isolation of aqueous pesticides on surface-functionalized SBA-15: Glyphosate kinetics and detailed empirical insights for atrazine. Environ. Sci. Process. Impacts 2024, 26, 323–333. [Google Scholar] [CrossRef]
  4. Nassri, I.; Sayerh, F.; Souabi, S. Occurrence, pollution sources, and mitigation prospects of Antibiotics, anti-inflammatories, and endocrine disruptors in the aquatic environment. Environ. Nanotechnol. Monit. Manag. 2023, 20, 100878. [Google Scholar] [CrossRef]
  5. Paz-Ramos, M.I.; Cruz, S.L.; Violante-Soria, V. Amphetamine-type stimulants: Novel insights into their actions and use patterns. Rev. Investig. Clín. 2023, 75, 143–157. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, D.; Xiao, J.; Xiao, Q.; Chen, Y.; Li, X.; Zheng, Q.; Ma, J.; Xu, J.; Fu, J.; Shen, J. Infant exposure to parabens, triclosan, and triclocarban via breastfeeding and formula supplementing in southern China. Sci. Total Environ. 2023, 858, 159820. [Google Scholar] [CrossRef] [PubMed]
  7. Couteau, C.; Philippe, A.; Galharret, J.-M.; Metay, E.; Coiffard, L. UV filters in everyday cosmetic products, a comparative study. Environ. Sci. Pollut. Res. 2024, 31, 2976–2986. [Google Scholar] [CrossRef]
  8. Nunes, R.F.; Teixeira, A.C.S.C. An overview on surfactants as pollutants of concern: Occurrence, impacts and persulfate-based remediation technologies. Chemosphere 2022, 300, 134507. [Google Scholar] [CrossRef]
  9. Tumu, K.; Vorst, K.; Curtzwiler, G. Endocrine modulating chemicals in food packaging: A review of phthalates and bisphenols. Compr. Rev. Food Sci. Food Saf. 2023, 22, 1337–1359. [Google Scholar] [CrossRef]
  10. Lin, B.; Yang, Y.; Yang, L.; Liu, G.; Li, C.; Xu, J.; Hou, S.; Zheng, M. Congener profiles and process distributions of polychlorinated biphenyls, polychlorinated naphthalenes and chlorinated polycyclic aromatic hydrocarbons from secondary copper smelting. J. Hazard. Mater. 2022, 423, 127125. [Google Scholar] [CrossRef]
  11. Rex, K.R.; Chandra, S.; Pavithra, K.; Tharmaraj, V.; Mukhopadhyay, M.; Chakraborty, P. Chemistry, production, and consumption of industrial endocrine disrupting chemicals. In Endocrine-Disrupting Chemicals; Elsevier: Amsterdam, The Netherlands, 2024; pp. 17–46. [Google Scholar]
  12. Nguyen, H.T.; Lee, Y.K.; Kwon, J.-H.; Hur, J. Microplastic biofilms in water treatment systems: Fate and risks of pathogenic bacteria, antibiotic-resistant bacteria, and antibiotic resistance genes. Sci. Total Environ. 2023, 892, 164523. [Google Scholar] [CrossRef]
  13. Mofijur, M.; Hasan, M.; Ahmed, S.F.; Djavanroodi, F.; Fattah, I.; Silitonga, A.; Kalam, M.; Zhou, J.L.; Khan, T.Y. Advances in identifying and managing emerging contaminants in aquatic ecosystems: Analytical approaches, toxicity assessment, transformation pathways, environmental fate, and remediation strategies. Environ. Pollut. 2024, 341, 122889. [Google Scholar] [CrossRef] [PubMed]
  14. Hajalifard, Z.; Mousazadeh, M.; Khademi, S.; Khademi, N.; Jamadi, M.H.; Sillanpää, M. The efficacious of AOP-based processes in concert with electrocoagulation in abatement of CECs from water/wastewater. NPJ Clean Water 2023, 6, 30. [Google Scholar] [CrossRef]
  15. Song, B.; Zeng, Z.; Almatrafi, E.; Shen, M.; Xiong, W.; Zhou, C.; Wang, W.; Zeng, G.; Gong, J. Pyrite-mediated advanced oxidation processes: Applications, mechanisms, and enhancing strategies. Water Res. 2022, 211, 118048. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, X.; Wei, J.; Wang, C.; Wang, L.; Guo, Z.; Song, Y. Recent advance of Fe-based bimetallic persulfate activation catalysts for antibiotics removal: Performance, mechanism, contribution of the key ROSs and degradation pathways. Chem. Eng. J. 2024, 487, 150514. [Google Scholar] [CrossRef]
  17. Luo, H.; Zeng, Y.; He, D.; Pan, X. Application of iron-based materials in heterogeneous advanced oxidation processes for wastewater treatment: A review. Chem. Eng. J. 2021, 407, 127191. [Google Scholar] [CrossRef]
  18. Ye, F.; Liu, Y.; Lv, Q.; Gao, B.; Xia, J.; Li, X.; Dou, M.; Zhao, K.; Ahmad, M.; Xiao, Z.; et al. Unveiling the mechanism of efficient detoxification by Pd species in chlorinated pollutant degradation. Chin. Chem. Lett. 2025, in press. [CrossRef]
  19. Li, Y.; Dong, H.; Li, L.; Tang, L.; Tian, R.; Li, R.; Chen, J.; Xie, Q.; Jin, Z.; Xiao, J. Recent advances in waste water treatment through transition metal sulfides-based advanced oxidation processes. Water Res. 2021, 192, 116850. [Google Scholar] [CrossRef]
  20. Yu, J.; Yan, W.; Zhu, B.; Xu, Z.; Hu, S.; Xi, W.; Lan, Y.; Han, W.; Cheng, C. Degradation of carbamazepine by high-voltage direct current gas–liquid plasma with the addition of H2O2 and Fe2+. Environ. Sci. Pollut. Res. 2022, 29, 77771–77787. [Google Scholar] [CrossRef]
  21. Lv, W.; Li, H.; Wang, J.; Wang, L.; Wu, Z.; Wang, Y.; Song, W.; Cheng, W.; Yao, Y. Mass Transfer-Promoted Fe2+/Fe3+ Circulation Steered by 3D Flow-Through Co-Catalyst System Toward Sustainable Advanced Oxidation Processes. Engineering 2024, 36, 264–275. [Google Scholar] [CrossRef]
  22. Zhou, H.; Zhang, H.; He, Y.; Huang, B.; Zhou, C.; Yao, G.; Lai, B. Critical review of reductant-enhanced peroxide activation processes: Trade-off between accelerated Fe3+/Fe2+ cycle and quenching reactions. Appl. Catal. B Environ. 2021, 286, 119900. [Google Scholar] [CrossRef]
  23. Wang, J.; Cai, J.; Zhou, X.; Wang, S.; Luo, F.; Yang, L.; Yu, J.; Chi, R.; Chen, Z. Accelerating of Fe2+ regeneration in Fenton reaction by biochar: Pivotal roles of carbon defects as electron donor and shuttle. Sep. Purif. Technol. 2025, 354, 128945. [Google Scholar] [CrossRef]
  24. Vaughan, D.J.; Lennie, A.R. The iron sulphide minerals: Their chemistry and role in nature. Sci. Prog. (1993-) 1991, 75, 371–388. [Google Scholar]
  25. Hall, A. Pyrite-pyrrhotine redox reactions in nature. Mineral. Mag. 1986, 50, 223–229. [Google Scholar] [CrossRef]
  26. Craig, J.R.; Vokes, F.M. The metamorphism of pyrite and pyritic ores: An overview. Mineral. Mag. 1993, 57, 3–18. [Google Scholar] [CrossRef]
  27. Tornos, F. Environment of formation and styles of volcanogenic massive sulfides: The Iberian Pyrite Belt. Ore Geol. Rev. 2006, 28, 259–307. [Google Scholar] [CrossRef]
  28. Zhou, Y.; Wu, H.; Javed, J.; Yang, C.; Quan, Y. Reductive sulfur mediated Fe2+ fixation and regeneration in valorizing waste activated sludge ash to Fe2+@ S-doped sodalite material for emerging contaminants degradation: Performance and mechanism. Chem. Eng. Sci. 2025, 308, 121438. [Google Scholar] [CrossRef]
  29. Graham, U.; Ohmoto, H. Experimental study of formation mechanisms of hydrothermal pyrite. Geochim. Cosmochim. Acta 1994, 58, 2187–2202. [Google Scholar] [CrossRef]
  30. Xi, J.; An, L.; Huang, Y.; Jiang, J.; Wang, Y.; Wei, G.; Xu, Z.; Fan, L.; Gao, L. Ultrasmall FeS2 nanoparticles-decorated carbon spheres with laser-mediated ferrous ion release for antibacterial therapy. Small 2021, 17, 2005473. [Google Scholar] [CrossRef]
  31. Kubas, G.T.; Spiro, T.G.; Terzis, A. Novel compound with a planar iron-sulfur-sulfur-iron bridge and its possible relation to ferredoxins. J. Am. Chem. Soc. 1973, 95, 273–274. [Google Scholar] [CrossRef]
  32. González-Paz, J.R.; del Carmen Monterrubio–Badillo, M.; Ordaz, A.; García-Peña, E.I.; Guerrero-Barajas, C. Influence of Fe2+ and Fe3+ on the Performance and Microbial Community Composition of a MFC Inoculated with Sulfate-Reducing Sludge and Acetate as Electron Donor. J. Chem. 2022, 2022, 5685178. [Google Scholar] [CrossRef]
  33. Czerewko, M.A.; Cripps, J.C. Implications of sulfur mineralogy and consequences of pyrite oxidation for ground engineering. J. Geol. Soc. 2023, 180, jgs2022-101. [Google Scholar] [CrossRef]
  34. de Souza Buriti, M. Étudecinétique Des Réactions de Précipitation et Dissolution de La K-Jarosite [KFe3(SO4)2(OH)6]. Ph.D. Thesis, Université de Pau et Des Pays de l’Adour, Pau, France, 2023. [Google Scholar]
  35. Dong, C.; Fang, W.; Yi, Q.; Zhang, J. A comprehensive review on reactive oxygen species (ROS) in advanced oxidation processes (AOPs). Chemosphere 2022, 308, 136205. [Google Scholar] [CrossRef]
  36. Zhang, Q.; Li, Y.; Ma, W.; Bai, X.; Ru, X.; Zhang, L.; Zhong, S.; Shu, X. Three-dimensional recyclable FeS2/reduced graphene oxide aerogel with high porosity reticulated structure for efficient removal of tylosin tartrate. Sep. Purif. Technol. 2023, 324, 124463. [Google Scholar] [CrossRef]
  37. Rehman, F.; Ahmad, W.; Parveen, N.; Zakir, S.K.; Khan, S.; Han, C. The catalytic degradation of the inflammatory drug diclofenac sodium in water by Fe2+/persulfate, Fe2+/peroxymonosulfate and Fe2+/H2O2 processes: A comparative analysis. Water 2023, 15, 885. [Google Scholar] [CrossRef]
  38. Chen, N.; Xia, J.; Li, L.; Lv, Q.; Zhao, K.; Ahmad, M.; Xiao, Z.; Wang, S.; Ye, F.; Zhang, Q. Comprehensive enhancement of photocatalytic H2O2 generation and antibacterial efficacy on carbon nitride through a straightforward polydopamine coating strategy. Surf. Interfaces 2025, 56, 105566. [Google Scholar] [CrossRef]
  39. Çinçin, Y.; Bayat, O. Fly Ash Characterisation for Rare Earth Elements (REEs) Beneficiation in Türkiye. Politek. Derg. 2024. [Google Scholar] [CrossRef]
  40. Feng, X.; Wang, J.; Zhu, G.; Guo, N.; Zhu, Z. Experimental Study on Simultaneous Nitrogen and Sulfur Removal in a Sulfur Autotrophic Denitrification Coupled Sulfate Reduction System. Available online: https://ssrn.com/abstract=5063680 (accessed on 13 May 2025).
  41. Wei, X.; Yuan, H.; Li, J.; Chen, T.; Yuan, Y.; Chen, W.; Guan, C.; Wang, Z.; Guo, Q.; Han, B. Reactive oxygen species generated in iron sulfide mediated advanced oxidation systems: A critical review of mechanisms and implications for geochemistry and environmental remediation. J. Environ. Chem. Eng. 2022, 10, 108841. [Google Scholar] [CrossRef]
  42. Xing, D.; Shao, S.; Yang, Y.; Zhou, Z.; Jing, G.; Zhao, X. Mechanistic insights into the efficient activation of peracetic acid by pyrite for the tetracycline abatement. Water Res. 2022, 222, 118930. [Google Scholar] [CrossRef]
  43. Liu, X.; Li, Z.; Jin, L.; Wang, H.; Huang, Y.; Huang, D.; Liu, X. Peracetic Acid Activation by Modified Hematite for Water Purification: Performance, Degradation Pathways, and Mechanism. Langmuir 2024, 40, 15301–15309. [Google Scholar] [CrossRef]
  44. Wang, X.; Shen, T.; Yang, W.; Kang, L.; Li, B.; Tian, Y.; Li, J.; Zhang, L. A critical review on the application of pyrite in constructed wetlands: Contaminants removal and mechanism. J. Water Process Eng. 2024, 63, 105353. [Google Scholar] [CrossRef]
  45. Nguyen, N.T.K.; Le, D.T.T.; Vo, K.D.; Huynh, L.T.; Nguyen, H.M.; Tran-Thuy, T.-M.; Nguyen, L.Q.; Van Nguyen, D. Valorization of tropical almond (Terminalia catappa) leaves into iron-containing activated carbon for rapid catalytic degradation of methylene blue with hydrogen peroxide. J. Ecol. Eng. 2024, 25, 54–61. [Google Scholar] [CrossRef] [PubMed]
  46. Diao, Z.-H.; Liu, J.-J.; Hu, Y.-X.; Kong, L.-J.; Jiang, D.; Xu, X.-R. Comparative study of Rhodamine B degradation by the systems pyrite/H2O2 and pyrite/persulfate: Reactivity, stability, products and mechanism. Sep. Purif. Technol. 2017, 184, 374–383. [Google Scholar] [CrossRef]
  47. Yue, X.; Qiao, B.; Wang, J.; Cao, B.; Li, L.; Cao, X.; Yang, Z.; Abudula, A.; Xie, Z.; Guan, G. Study on the Relationship between Sei Evolution and Electrochemical Performance of Fes2 for Sibs Under Different Voltage Ranges Based on Cryo-Em. Available online: https://ssrn.com/abstract=5111767 (accessed on 13 May 2025).
  48. Lin, Y.; Niu, Z.; Li, J.; Li, S.; Li, H.; Li, L. Organic iron at ultralow doses catalyzes hydrogen peroxide to eliminate cyanobacterial blooms: A study on algicidal effects and mechanisms under natural conditions. Front. Environ. Eng. 2025, 3, 1516999. [Google Scholar] [CrossRef]
  49. Liu, W.; Liu, J.; Zhou, P.; Dahlgren, R.A.; Wang, X. Mechanisms for hydroxyl radical production and arsenic removal in sulfur-vacancy greigite (Fe3S4). J. Colloid Interface Sci. 2022, 606, 688–695. [Google Scholar] [CrossRef]
  50. Wang, Y. Degradation of Synthetic Organic Compounds by Sulfate-and Hydroxyl Radical-Based Advanced Oxidation Processes. Ph.D. Thesis, Hong Kong Polytechnic University, Hong Kong, China, 2012. [Google Scholar]
  51. Li, H.; Wang, Y.; He, L.; Wang, Y.; Liu, M.; Gu, L.; Liu, S.; Li, J.; Yang, Y.; Wang, R. Enhance Fe (III) reduction in sludge fermentation for vivianite formation using exogenous H2 assisted by activated carbon. Water Res. 2025, 268, 122708. [Google Scholar] [CrossRef]
  52. Wang, Y.; Tong, Z.; Jiang, L.; Peng, F.; Liu, W.; Chen, J.; Rao, X.; Feng, G.; Kang, C.; Fang, L. Molecular–level insights into the synergistic activation of peracetic acid by ultraviolet and ferrous ions for the degradation of sedimentation sludge water in drinking water treatment plants based on Fourier transform-ion cyclotron resonance mass spectrometry. Sep. Purif. Technol. 2025, 355, 129708. [Google Scholar]
  53. Muñoz, E.; Toro, N.; Reyes, M.; Reyes-Domínguez, I.; Teja-Ruiz, A.; Flores, M.U.; Martínez, J.I.; Flores, G.; Juárez, J.C. Evaluation of Silver Recovery from High Sulphur Mining Waste Using the Thiourea-Oxalate System. 2024. Available online: https://www.preprints.org/manuscript/202412.0585/v1 (accessed on 13 May 2025).
  54. Cai, M.; Javed, J.; Wu, H.; Zhou, Y.; Liyang, H.; Yang, C.; Tsui, T.-H.; Song, B.; Zhang, Q. Valorizing waste activated sludge incineration ash to S-doped Fe2+@ Zeolite 4A catalyst for the treatment of emerging contaminants exemplified by sulfamethoxazole. J. Environ. Manag. 2024, 369, 122382. [Google Scholar] [CrossRef]
  55. Wang, W.; Chen, M.; Wang, D.; Yan, M.; Liu, Z. Different activation methods in sulfate radical-based oxidation for organic pollutants degradation: Catalytic mechanism and toxicity assessment of degradation intermediates. Sci. Total Environ. 2021, 772, 145522. [Google Scholar] [CrossRef]
  56. Rutherford, A.W.; Osyczka, A.; Rappaport, F. Back-reactions, short-circuits, leaks and other energy wasteful reactions in biological electron transfer: Redox tuning to survive life in O2. FEBS Lett. 2012, 586, 603–616. [Google Scholar] [CrossRef]
  57. Eddleman, K. Bioaccumulation of heavy metals from soils to plants in watersheds contaminated by acid mine drainage in SE Arizona. Master’s Thesis, The University of Arizona, Tucson, AZ, USA, 2012. [Google Scholar]
  58. Yang, M.; Lu, Y.; Zhang, W.; Xie, L.; Tian, J.; Baikeli, Y.; Wang, F.; Zhang, Y.-Z.; Zhang, D.-S.; Zhang, X. Accelerating peroxymonosulfate activation over fiber-shaped Fe@ Fe3C/CNF for ultrafast tetracyclines degradation: Active site synergy and mechanisms. J. Environ. Chem. Eng. 2024, 12, 114999. [Google Scholar] [CrossRef]
  59. Saif, T. Multi-scale multi-dimensional imaging and characterization of oil shale pyrolysis. Ph.D. Thesis, Imperial College London, London, UK, 2017. [Google Scholar]
  60. Zaka, A.; Alhassan, S.M.; Nayfeh, A. Iron pyrite in photovoltaics: A review on recent trends and challenges. ACS Appl. Electron. Mater. 2022, 4, 4173–4211. [Google Scholar] [CrossRef]
  61. Huang, L.; Wang, F.; Luan, Z.; Meng, L. Pyrite (FeS2) thin films deposited by sol–gel method. Mater. Lett. 2010, 64, 2612–2615. [Google Scholar] [CrossRef]
  62. Cai, Y.; Shi, Y.; Shi, W.; Bai, S.; Yang, S.; Guo, F. A one-photon excitation pathway in 0D/3D CoS2/ZnIn2S4 composite with nanoparticles on micro-flowers structure for boosted visible-light-driven photocatalytic hydrogen evolution. Compos. Part B Eng. 2022, 238, 109955. [Google Scholar] [CrossRef]
  63. Kulshrestha, A.; Sharma, S.; Singh, K.; Kumar, A. Magnetoresponsive biocomposite hydrogels comprising gelatin and valine based magnetic ionic liquid surfactant as controlled release nanocarrier for drug delivery. Mater. Adv. 2022, 3, 484–492. [Google Scholar] [CrossRef]
  64. Runge, E.; Mansor, M.; Chiu, T.H.; Shuster, J.; Fischer, S.; Kappler, A.; Duda, J.-P. Hydrothermal sulfidation of biogenic magnetite produces framboid-like pyrite. Commun. Earth Environ. 2024, 5, 252. [Google Scholar] [CrossRef]
  65. Becerra-Paniagua, D.K.; Díaz-Cruz, E.B.; Baray-Calderón, A.; Garcia-Angelmo, A.R.; Regalado-Pérez, E.; del Pilar Rodriguez-Torres, M.; Martínez-Alonso, C. Nanostructured metal sulphides synthesized by microwave-assisted heating: A review. J. Mater. Sci. Mater. Electron. 2022, 33, 22631–22667. [Google Scholar] [CrossRef]
  66. Liu, H.; Shao, Y.; Dou, S.; Pan, C. Enhanced Photo-Fenton Degradation of Antibiotics through Internal Electric Field Formation at the Interface of Mixed-Phase FeS2. Sci. Energy Environ. 2024, 1, 9. [Google Scholar] [CrossRef]
  67. Srivastava, R.P.; Ingole, S. Reduction in Urbach energy and density of states for pyrite (FeS2) thin films: Healing of sulfur vacancies during hematite to pyrite transformation. J. Phys. Chem. Solids 2022, 167, 110753. [Google Scholar] [CrossRef]
  68. Irham, M.A.; Fahmi, H.; Priambudi, H.H.; Iskandar, F. Effect of polyvinylpyrrolidone (PVP) on electrochemical performance of iron pyrite (FeS2) nanoparticle via hot-injection method. AIP Conf. Proc. 2023, 2623, 020015. [Google Scholar]
  69. Alam, E. Exploring recent progress in adsorbent technologies for As3+ and As5+ removal from water: A brief overview. Environ. Technol. Rev. 2024, 13, 814–848. [Google Scholar] [CrossRef]
  70. Sharma, P.; Nangare, S.N.; Bagade, S.B.; Sonawane, S.S.; Patil, D.D. Hydrogen Peroxide Quantification Using Zero Dimensional Carbon Nanostructured Materials: A Review. Crit. Rev. Anal. Chem. 2024, 1–21. [Google Scholar] [CrossRef]
  71. Rahimi, F.; van der Hoek, J.P.; Royer, S.; Javid, A.; Mashayekh-Salehi, A.; Sani, M.J. Pyrite nanoparticles derived from mine waste as efficient catalyst for the activation of persulfates for degradation of tetracycline. J. Water Process Eng. 2021, 40, 101808. [Google Scholar] [CrossRef]
  72. Mishra, S.R.; Gadore, V.; Ahmaruzzaman, M. Inorganic–organic hybrid quantum dots for AOP-mediated photodegradation of ofloxacin and para-nitrophenol in diverse water matrices. NPJ Clean Water 2023, 6, 78. [Google Scholar] [CrossRef]
  73. Georgin, J.; Ramos, C.G.; de Oliveira, J.S.; Dehmani, Y.; El Messaoudi, N.; Meili, L.; Franco, D.S. A Critical Review of the Advances and Current Status of the Application of Adsorption in the Remediation of Micropollutants and Dyes Through the Use of Emerging Bio-Based Nanocomposites. Sustainability 2025, 17, 2012. [Google Scholar] [CrossRef]
  74. Li, Y.; Han, Z.; Jiang, L.; Su, Z.; Liu, F.; Lai, Y.; Liu, Y. Template-directed synthesis of ordered iron pyrite (FeS2) nanowires and nanotubes arrays. J. Sol-Gel Sci. Technol. 2014, 72, 100–105. [Google Scholar] [CrossRef]
  75. Kar, S.; Chaudhuri, S. Solvothermal synthesis of nanocrystalline FeS2 with different morphologies. Chem. Phys. Lett. 2004, 398, 22–26. [Google Scholar] [CrossRef]
  76. Machín, A.; Fontánez, K.; Arango, J.C.; Ortiz, D.; De León, J.; Pinilla, S.; Nicolosi, V.; Petrescu, F.I.; Morant, C.; Márquez, F. One-dimensional (1D) nanostructured materials for energy applications. Materials 2021, 14, 2609. [Google Scholar] [CrossRef]
  77. Pavlenko, V.; Żółtowska, S.; Haruna, A.; Zahid, M.; Mansurov, Z.; Supiyeva, Z.; Galal, A.; Ozoemena, K.; Abbas, Q.; Jesionowski, T. A comprehensive review of template-assisted porous carbons: Modern preparation methods and advanced applications. Mater. Sci. Eng. R Rep. 2022, 149, 100682. [Google Scholar] [CrossRef]
  78. Zhang, T.; Huo, X.; Wang, L.; Ma, F.; Hou, Y. Effectively improved energy storage performances of poly (vinylidene fluoride)-based nanocomposites via loading low fractions of TiO2@ Fe3O4@ ethylenediamine hybrid nanowires. J. Phys. D Appl. Phys. 2023, 56, 435503. [Google Scholar] [CrossRef]
  79. Cabán-Acevedo, M.; Liang, D.; Chew, K.S.; DeGrave, J.P.; Kaiser, N.S.; Jin, S. Synthesis, characterization, and variable range hopping transport of pyrite (FeS2) nanorods, nanobelts, and nanoplates. ACS Nano 2013, 7, 1731–1739. [Google Scholar] [CrossRef]
  80. Wang, M.; Xing, C.; Cao, K.; Zhang, L.; Liu, J.; Meng, L. Template-directed synthesis of pyrite (FeS2) nanorod arrays with an enhanced photoresponse. J. Mater. Chem. A 2014, 2, 9496–9505. [Google Scholar] [CrossRef]
  81. Qin, H.; Jia, J.; Lin, L.; Ni, H.; Wang, M.; Meng, L. Pyrite FeS2 nanostructures: Synthesis, properties and applications. Mater. Sci. Eng. B 2018, 236, 104–124. [Google Scholar] [CrossRef]
  82. Wang, M.; Shi, X.; Wen, Z.; Gu, Y.; Feng, Q.; Ma, K.; Chen, Q.; Zhu, Y.; Zhang, R.; Zhang, L. A crystallinity control strategy for controllable Heterogeneous-Homogeneous reaction and catalytic performance in wet-mechanochemical synthesized FeS2 Fenton system. Sep. Purif. Technol. 2025, 355, 129683. [Google Scholar] [CrossRef]
  83. Wu, K.-J.; Edmund, C.; Shang, C.; Guo, Z. Nucleation and growth in solution synthesis of nanostructures–from fundamentals to advanced applications. Prog. Mater. Sci. 2022, 123, 100821. [Google Scholar] [CrossRef]
  84. Kiyama, M. Conditions for the formation of Fe3O4 by the air oxidation of Fe(OH)2 suspensions. Bull. Chem. Soc. Jpn. 1974, 47, 1646–1650. [Google Scholar] [CrossRef]
  85. Zhai, J.; Wang, X.; Yan, J.; Gong, C.; Zhu, W.; Luo, Y.; Yang, D.; Gao, X. Oxidized pyrite as an efficient Fenton reagent to generate active species for the degradation of carbamazepine in a wide pH range. Appl. Surf. Sci. 2023, 638, 158098. [Google Scholar] [CrossRef]
  86. Zhang, S.; Wang, S.; Pi, K.; Zhang, H.; Yang, X.; Gerson, A.R. Current understanding and challenges for the utilisation of pyrite for environmental remediation: A review. Environ. Technol. Rev. 2024, 13, 461–477. [Google Scholar] [CrossRef]
  87. Zeng, L.; Gong, J.; Dan, J.; Li, S.; Zhang, J.; Pu, W.; Yang, C. Novel visible light enhanced Pyrite-Fenton system toward ultrarapid oxidation of p-nitrophenol: Catalytic activity, characterization and mechanism. Chemosphere 2019, 228, 232–240. [Google Scholar] [CrossRef]
  88. Bhatt, P.; Pandey, S.C.; Joshi, S.; Chaudhary, P.; Pathak, V.M.; Huang, Y.; Wu, X.; Zhou, Z.; Chen, S. Nanobioremediation: A sustainable approach for the removal of toxic pollutants from the environment. J. Hazard. Mater. 2022, 427, 128033. [Google Scholar] [CrossRef]
  89. Kousar, N.; Kumar, S.; Hojamberdiev, M.; Sannegowda, L.K. Substrate-driven electrocatalysis of natural and earth-abundant pyrite towards oxygen evolution reaction. Electrochim. Acta 2024, 475, 143575. [Google Scholar]
  90. Ali, J.; Guo, S.; Chen, Y.; Shahzad, A.; Ullah, M.W.; Chen, F. Metal sulfides as emerging materials for advanced oxidation of wastewater: Recent developments, challenges, and prospects. Coord. Chem. Rev. 2024, 509, 215765. [Google Scholar] [CrossRef]
  91. Kirkeminde, A.; Ruzicka, B.A.; Wang, R.; Puna, S.; Zhao, H.; Ren, S. Synthesis and optoelectronic properties of two-dimensional FeS2 nanoplates. ACS Appl. Mater. Interfaces 2012, 4, 1174–1177. [Google Scholar] [CrossRef]
  92. Wu, L.; Dzade, N.Y.; Gao, L.; Scanlon, D.O.; Öztürk, Z.; Hollingsworth, N.; Weckhuysen, B.M.; Hensen, E.J.; de Leeuw, N.H.; Hofmann, J.P. Enhanced photoresponse of FeS2 films: The role of marcasite–pyrite phase junctions. Adv. Mater. 2016, 28, 9602–9607. [Google Scholar] [CrossRef]
  93. Hu, Y.; Zheng, Z.; Jia, H.; Tang, Y.; Zhang, L. Selective Synthesis of FeS and FeS2 Nanosheet Films on Iron Substrates as Novel Photocathodes for Tandem Dye-Sensitized Solar Cells. J. Phys. Chem. C 2008, 112, 13037–13042. [Google Scholar] [CrossRef]
  94. Tan, M.; Zheng, X.; Yu, W.; Chen, B.; Chu, C. Facet-Dependent Productions of Reactive Oxygen Species from Pyrite Oxidation. Environ. Sci. Technol. 2024, 58, 432–439. [Google Scholar] [CrossRef] [PubMed]
  95. Lee, J.; Yang, J. Advances in the synthesis and functionalization of two-dimensional iron sulfides for energy applications. MRS Energy Sustain. 2024, 12, 62–80. [Google Scholar] [CrossRef]
  96. Anuratha, K.S.; Su, Y.-Z.; Wang, P.-J.; Hasin, P.; Wu, J.; Hsieh, C.-K.; Chang, J.-K.; Lin, J.-Y. Free-standing 3D core-shell architecture of Ni3S2@ NiCoP as an efficient cathode material for hybrid supercapacitors. J. Colloid Interface Sci. 2022, 625, 565–575. [Google Scholar] [CrossRef] [PubMed]
  97. Li, M.-L.; Yao, Q.-Z.; Zhou, G.-T.; Qu, X.-F.; Mu, C.-F.; Fu, S.-Q. Microwave-assisted controlled synthesis of monodisperse pyrite microspherolites. CrystEngComm 2011, 13, 5936–5942. [Google Scholar] [CrossRef]
  98. Zhao, G.; Zou, J.; Chen, X.; Liu, L.; Wang, Y.; Zhou, S.; Long, X.; Yu, J.; Jiao, F. Iron-based catalysts for persulfate-based advanced oxidation process: Microstructure, property and tailoring. Chem. Eng. J. 2021, 421, 127845. [Google Scholar] [CrossRef]
  99. Rhodes, J.M. Phase Controlled Synthesis of Iron Sulfide Nanocrystals. Ph.D. Thesis, Vanderbilt University, Nashville, TN, USA, 2020. [Google Scholar]
  100. Zhao, Z.; Chen, Y.; Wu, D. Reactive oxidative species generation in pyrite abiotic-oxidation process: Origins, influencing factors, applications for environmental remediation. Crit. Rev. Environ. Sci. Technol. 2025, 55, 397–421. [Google Scholar] [CrossRef]
  101. Ding, R.; Zhou, Y.P.; Zhang, Y.C.; Chen, H.; Zeng, F.R.; Wang, Y.T.; Liu, B.W.; Wang, Y.Z.; Zhao, H.B. Air-Pyrolysis Precision Synthesis of Functional Porous Carbon Materials. Adv. Funct. Mater. 2025, 35, 2415006. [Google Scholar] [CrossRef]
  102. Zhang, Q.; Li, J.; Li, Y.; Zhang, L.; Zhong, S.; Ru, X.; Shu, X. Investigation into the synergistic roles of exposed crystal planes and S vacancies during the photo-Fenton degradation of sulfadiazine via pyrite with three different morphologies. Sep. Purif. Technol. 2025, 353, 128538. [Google Scholar] [CrossRef]
  103. Liu, D.; Yi, M.; Yang, S.; Liu, F.; Li, Y. Performance and mechanism of the pyrite-kerogen complexes oxidation with H2O2 at low temperature during shale stimulation: An experimental and modeling study. Appl. Geochem. 2022, 143, 105382. [Google Scholar] [CrossRef]
  104. Rezvani, A.; Raji, F.; Liu, Q.; Peng, Y. Identification and quantification of pyrrhotite superstructures in base metal sulfide ore samples: A critical review. Miner. Eng. 2024, 218, 108975. [Google Scholar] [CrossRef]
  105. Li, S.; Qi, M.; Yang, Q.; Shi, F.; Liu, C.; Du, J.; Sun, Y.; Li, C.; Dong, B. State-of-the-art on the sulfate radical-advanced oxidation coupled with nanomaterials: Biological and environmental applications. J. Funct. Biomater. 2022, 13, 227. [Google Scholar] [CrossRef]
  106. Kaese, A. Deciphering Gas Phase Synthesis of Sulfide Nanoparticles. Ph.D. Thesis, Universität Bremen, Bremen, Germany, 2024. [Google Scholar]
  107. Zhao, H.; Huang, X.; Wang, L.; Zhao, X.; Yan, F.; Yang, Y.; Li, G.; Gao, P.; Ji, P. Removal of polystyrene nanoplastics from aqueous solutions using a novel magnetic material: Adsorbability, mechanism, and reusability. Chem. Eng. J. 2022, 430, 133122. [Google Scholar] [CrossRef]
  108. Sharma, P.; Kumar, A.; Dhiman, P.; Sharma, G.; Stadler, F.J. Recent advances in wide spectral responsive and photothermal heterojunctions for photocatalytic pharmaceutical pollutant degradation and energy conversion. Mater. Today Commun. 2023, 35, 106333. [Google Scholar] [CrossRef]
  109. Li, H.; Yang, Y.; Liu, X.; Zhong, H.; Jin, F. Geochemistry-Inspired One-Pot CO2 Reduction and Pyrite Desulfurization Under Hydrothermal Conditions. ACS Sustain. Chem. Eng. 2024, 12, 5809–5818. [Google Scholar] [CrossRef]
  110. Van Yken, J.; Boxall, N.J.; Cheng, K.Y.; Nikoloski, A.N.; Moheimani, N.R.; Kaksonen, A.H. E-waste recycling and resource recovery: A review on technologies, barriers and enablers with a focus on oceania. Metals 2021, 11, 1313. [Google Scholar] [CrossRef]
  111. Su, C.; Soyol-Erdene, T.-O.; Bayanjargal, O.; Jiang, K.; Jiang, G.; Lv, X.; Tang, W. Facile synthesis of coral-like nitrogen and sulfur co-doped carbon-encapsulated FeS2 for efficient electroreduction of nitrate to ammonia. Sep. Purif. Technol. 2024, 348, 127813. [Google Scholar] [CrossRef]
  112. Mi, Z.; Tan, H.H.; Abidi, I.H. Non-Layered 2D Materials; Elsevier: Amsterdam, The Netherlands, 2023; Volume 113. [Google Scholar]
  113. Cuong, D.V.; Wu, J.-C.; Khan, E.; Du Laing, G.; Ok, Y.S.; Hou, C.-H. Integrated 3D pore architecture design of bio-based engineered catalysts and adsorbents: Preparation, chemical doping, and environmental applications. Environ. Sci. Adv. 2023, 2, 1167–1188. [Google Scholar] [CrossRef]
  114. Wen, Z.; Shi, X.; Gu, Y.; Ma, K.; Song, X.; He, A.; Wang, C.; Zhang, N.; Sui, H.; Xu, C. Enhanced Fenton performance of wet-mechanochemically synthesized FeS2/Biochar: The multiple synergistic effect derived from mutual element doping. Chem. Eng. J. 2024, 493, 152080. [Google Scholar] [CrossRef]
  115. de Magalhães, L.F.; da Silva, G.R.; Peres, A.E.C. Zeolite application in wastewater treatment. Adsorpt. Sci. Technol. 2022, 2022, 4544104. [Google Scholar] [CrossRef]
  116. Lu, Y.; Cai, Y.; Zhang, S.; Zhuang, L.; Hu, B.; Wang, S.; Chen, J.; Wang, X. Application of biochar-based photocatalysts for adsorption-(photo) degradation/reduction of environmental contaminants: Mechanism, challenges and perspective. Biochar 2022, 4, 45. [Google Scholar] [CrossRef]
  117. Chen, Z.; Li, Y.; Cai, Y.; Wang, S.; Hu, B.; Li, B.; Ding, X.; Zhuang, L.; Wang, X. Application of covalent organic frameworks and metal–organic frameworks nanomaterials in organic/inorganic pollutants removal from solutions through sorption-catalysis strategies. Carbon Res. 2023, 2, 8. [Google Scholar] [CrossRef]
  118. de Oliveira Marques Cavalcanti, V.; Napoleão, D.C.; Santana, I.L.d.S.; Santana, R.M.d.R.; Lucena, A.L.A.d.; da Motta Sobrinho, M.A. Production of pyrite-based catalysts supported on graphene oxide and zinc oxide to treat drug mixture via advanced oxidation processes. Environ. Sci. Pollut. Res. 2024, 31, 55958–55973. [Google Scholar] [CrossRef]
  119. Zhao, B.; Gong, J.; Song, B.; Sang, F.; Zhou, C.; Zhang, C.; Cao, W.; Niu, Q.; Chen, Z. Effects of activated carbon, biochar, and carbon nanotubes on the heterogeneous Fenton oxidation catalyzed by pyrite for ciprofloxacin degradation. Chemosphere 2022, 308, 136427. [Google Scholar] [CrossRef]
  120. Ye, S.; Tian, J.; Yang, H.; Deng, Y.; Yang, S.; Chen, J.; Gu, X.; Zhou, Z.; Hu, J.; Tan, X. Dual synergistic function of pyrite modified biochar synthesized with chelating agent for mediating arsenic removal process: Reactive site identification and pathway mechanism exploration. Chem. Eng. J. 2024, 499, 156198. [Google Scholar] [CrossRef]
  121. Mohsin, M.Z.; Huang, J.; Hussain, M.H.; Zaman, W.Q.; Liu, Z.; Zhuang, Y.; Guo, M.; Mohsin, A. Revolutionizing bioremediation: Advances in zeolite-based nanocomposites. Coord. Chem. Rev. 2023, 491, 215253. [Google Scholar] [CrossRef]
  122. Chen, Y.; Li, S.; Lin, S.; Chen, M.; Tang, C.; Liu, X. Promising energy-storage applications by flotation of graphite ores: A review. Chem. Eng. J. 2023, 454, 139994. [Google Scholar] [CrossRef]
  123. Pantrangi, M.; Ashalley, E.; Hafiz, W.; Kamal Hadi, M.; Xiao, H.; Younis, U.; Singh, N.; Zhang, Y.; Ran, F.; Liang, P. Core-Shell Transition Metal Disulfide Grafted Carbon Matrix Composite as an Anode Material for High-Performance Lithium-Ion Batteries. J. Energy Storage 2025, 114, 115878. [Google Scholar] [CrossRef]
  124. Zander, J.; Marschall, R. Novel earth-abundant Cu and Fe-based chalcogenide cocatalysts for photocatalytic hydrogen evolution. ChemRxiv 2025. [Google Scholar]
  125. Ge, M.; Jiang, F.; Lin, H. Nanocatalytic medicine enabled next-generation therapeutics for bacterial infections. Mater. Today Bio 2024, 29, 101255. [Google Scholar] [CrossRef]
  126. Song, H.; Wu, M.; Tang, X.; Liang, J.; Zhang, Y.; Xie, Y.; Tang, Q.; Qin, L.; Fan, X. Synthesis of Fe3O4/FeS2 composites via MOF-templated sulfurization for high-performance hybrid supercapacitors. J. Alloys Compd. 2025, 1010, 177658. [Google Scholar] [CrossRef]
  127. Ribeiro, J.P.; Sarinho, L.; Neves, M.C.; Nunes, M.I. Valorisation of residual iron dust as Fenton catalyst for pulp and paper wastewater treatment. Environ. Pollut. 2022, 310, 119850. [Google Scholar] [CrossRef]
  128. Liu, Q.; Wang, Y.; Sang, X.; Bi, J.; Liu, N.; Zhang, X.; Wang, Z.; Han, Y. In-situ encapsulation synthesis of Fe-SAPO-34 for efficient removal of tetracycline via peroxydisulfate activation: Highly dispersed active sites and ultra-low iron leaching. Sep. Purif. Technol. 2025, 354, 129369. [Google Scholar] [CrossRef]
  129. Hou, J.; Wan, J.; Yan, Z.; Wang, Y.; Ma, Y.; Xie, Y.; Chen, H.; Xue, Y. A novel polydopamine-modified metal organic frameworks catalyst with enhanced catalytic performance for efficient degradation of sulfamethoxazole in wastewater. Chemosphere 2022, 297, 134100. [Google Scholar] [CrossRef] [PubMed]
  130. Liang, Y.; Li, L.; Yang, C.; Ma, L.; Mao, W.; Yu, H. Bimetallic zeolitic imidazolate framework-derived nitrogen-doped porous carbon-coated CoFe2O4 core–shell composite with high catalytic performance for peroxymonosulfate activation in Rhodamine B degradation. J. Alloys Compd. 2022, 907, 164504. [Google Scholar] [CrossRef]
  131. Jonidi Jafari, A.; Kakavandi, B.; Jaafarzadeh, N.; Rezaei Kalantary, R.; Ahmadi, M.; Akbar Babaei, A. Fenton-like catalytic oxidation of tetracycline by AC@Fe3O4 as a heterogeneous persulfate activator: Adsorption and degradation studies. J. Ind. Eng. Chem. 2017, 45, 323–333. [Google Scholar] [CrossRef]

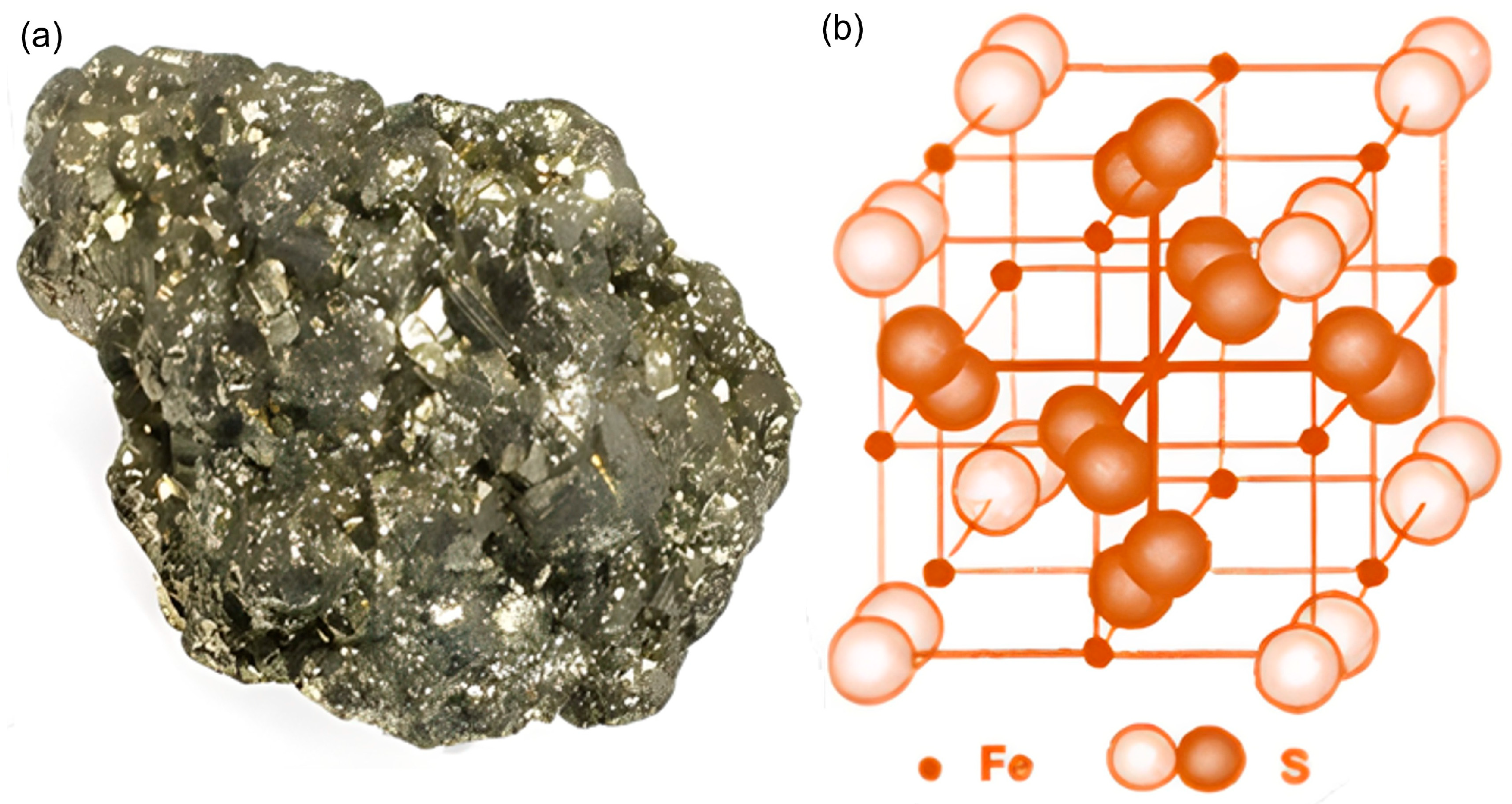

Figure 1. Pyrite mineral (a) and its crystal structure (b).
Figure 1. Pyrite mineral (a) and its crystal structure (b).
Molecules 30 02194 g001

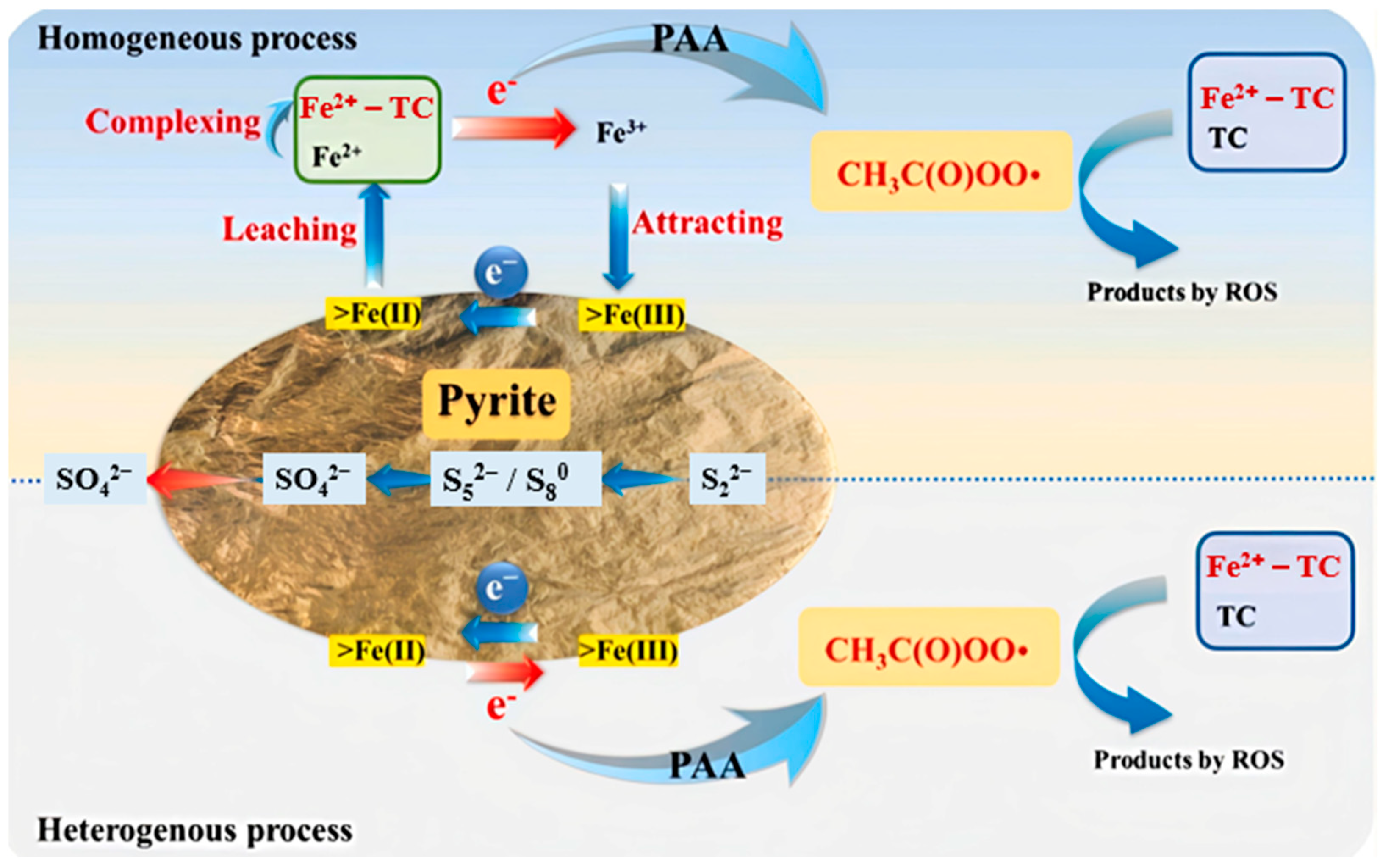

Figure 2. Methodology for TC removal from pyrite-induced PAA activation. Reprinted from Xing et al. [42]. Copyright 2022 Elsevier.
Figure 2. Methodology for TC removal from pyrite-induced PAA activation. Reprinted from Xing et al. [42]. Copyright 2022 Elsevier.
Molecules 30 02194 g002

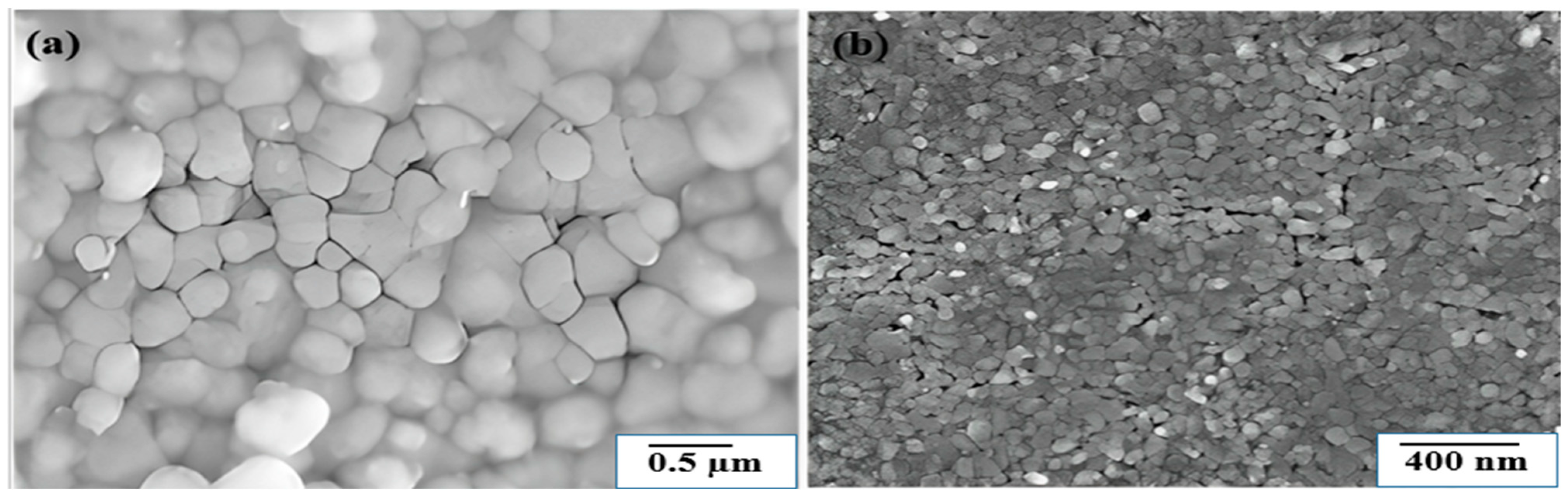

Figure 3. SEM pictures of sol–gel-produced FeS2 nanoparticles. (a) Sulfur annealing at 775 K for 4 h, (b) Films sulfurized from precursor films at 673 K for 10 h. Reprinted from Huang et al. [61]. Copyright 2010 Elsevier.
Figure 3. SEM pictures of sol–gel-produced FeS2 nanoparticles. (a) Sulfur annealing at 775 K for 4 h, (b) Films sulfurized from precursor films at 673 K for 10 h. Reprinted from Huang et al. [61]. Copyright 2010 Elsevier.
Molecules 30 02194 g003

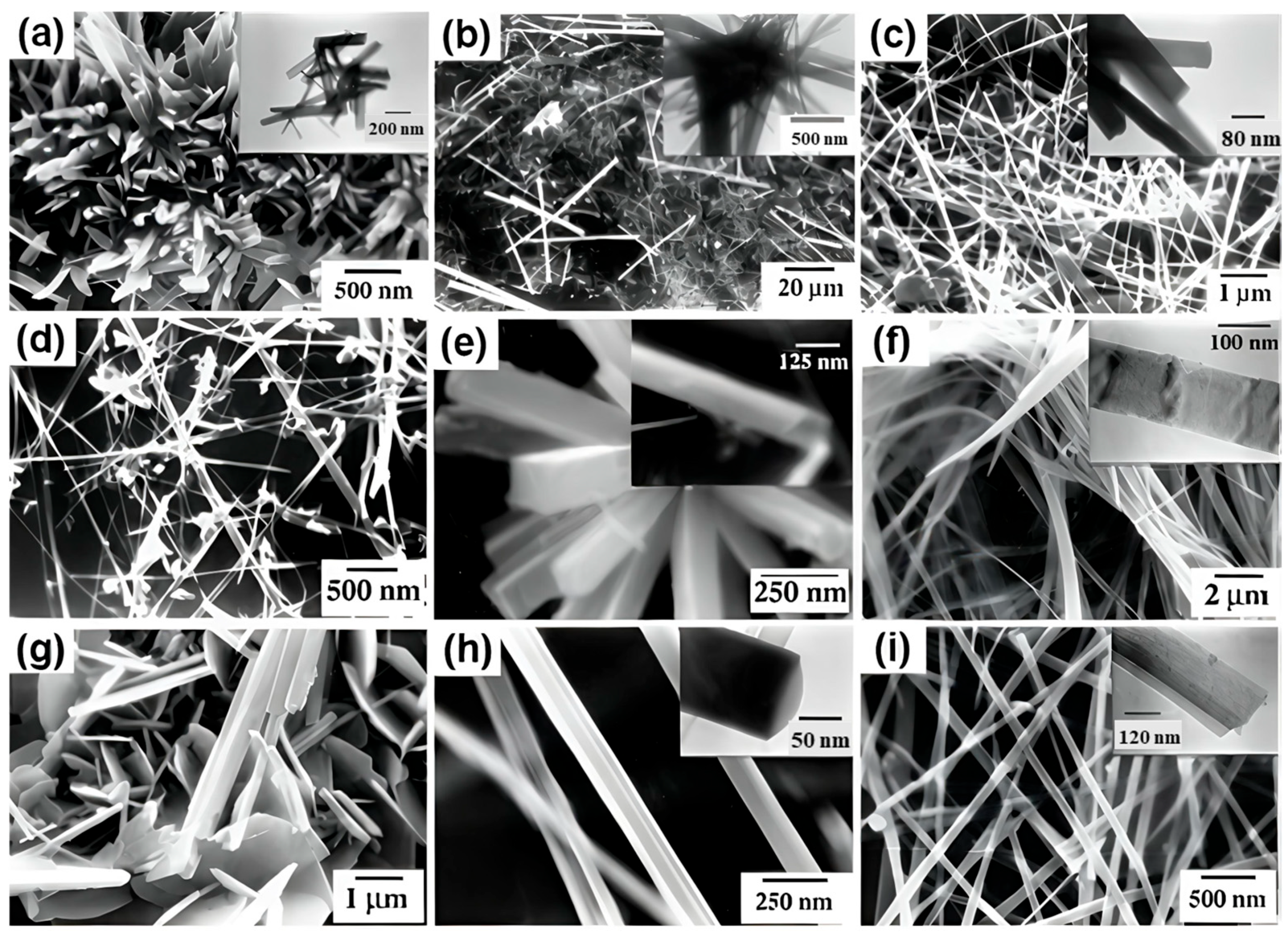

Figure 4. SEM and TEM images for various 1D FeS2 nanostructures synthesized from controlling iron sources, the molar concentration of precursors, and temperature. (ac) Different iron sources, FeSO4, FeCl3, and Fe(NO3)3, respectively; (dg) at 150 °C, 180 °C, 210 °C, and 230 °C; (h,i) half and double of the precursors, respectively. Reprinted from Kar and Chaudhuri [75]. Copyright 2004 Elsevier.
Figure 4. SEM and TEM images for various 1D FeS2 nanostructures synthesized from controlling iron sources, the molar concentration of precursors, and temperature. (ac) Different iron sources, FeSO4, FeCl3, and Fe(NO3)3, respectively; (dg) at 150 °C, 180 °C, 210 °C, and 230 °C; (h,i) half and double of the precursors, respectively. Reprinted from Kar and Chaudhuri [75]. Copyright 2004 Elsevier.
Molecules 30 02194 g004
Figure 5. SEM images for (a) FeS2 nanoplates and (b) FeS2 nanosheets. Reprinted from Kirkeminde et al. [91] and Hu et al. [93]. Copyright 2012 and 2008 American Chemical Society.
Figure 5. SEM images for (a) FeS2 nanoplates and (b) FeS2 nanosheets. Reprinted from Kirkeminde et al. [91] and Hu et al. [93]. Copyright 2012 and 2008 American Chemical Society.
Molecules 30 02194 g005

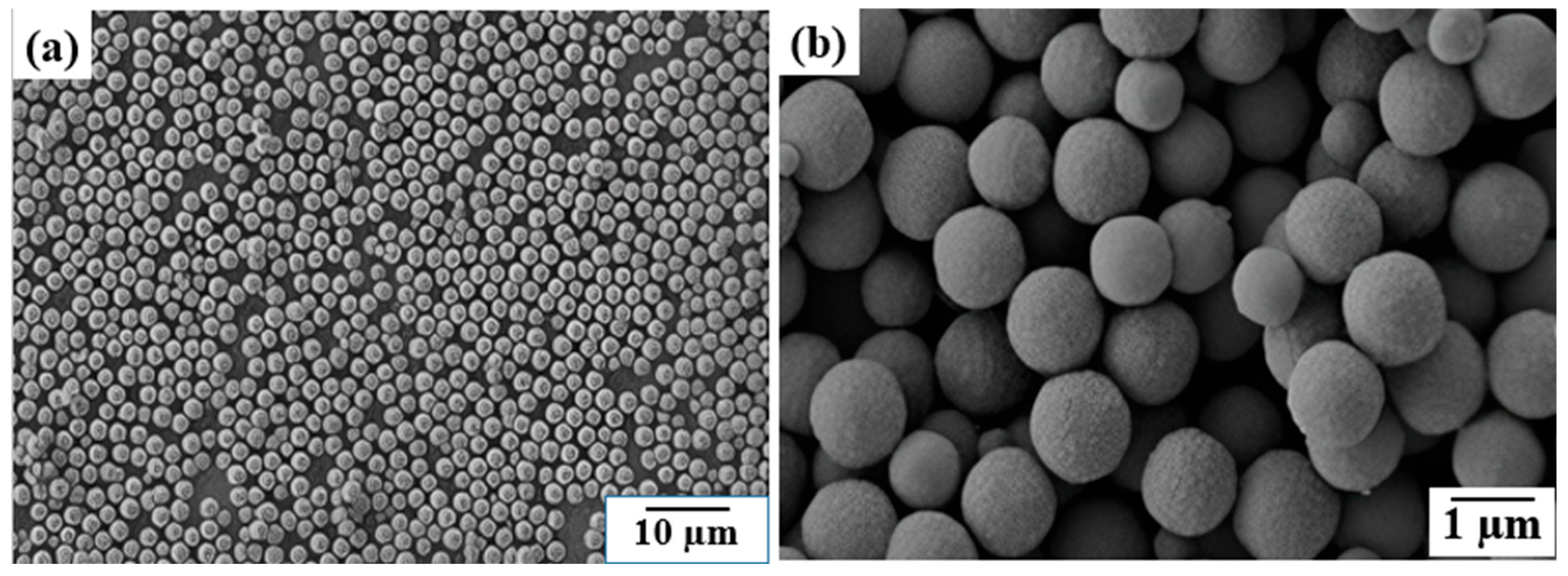

Figure 6. FeS2 microspherolites under microwave irradiation are shown in SEM pictures at low and high magnifications (a,b). Reprinted from Li et al. [97]. Copyright 2011 the Royal Society of Chemistry.
Figure 6. FeS2 microspherolites under microwave irradiation are shown in SEM pictures at low and high magnifications (a,b). Reprinted from Li et al. [97]. Copyright 2011 the Royal Society of Chemistry.
Molecules 30 02194 g006
Table 1. ECs, their classification, and exempli gratia.
Table 1. ECs, their classification, and exempli gratia.
ClassificationExempli GratiaRef.
PesticidesGlyphosate and atrazine[3]
PharmaceuticalsDiclofenac, ibuprofen, antibiotics, and hormones[4]
Licit and illicit drugsCaffeine, cocaine, and amphetamines[5]
PreservativesParabens and triclosan[6]
Personal care productsSunscreens and UV filters[7]
Surfactants, cleaning products, industrial formulations and chemicalsBisphenol A and chlorinated solvents[8]
Food additives and packagingPhthalates and plasticizers[9]
Polycyclic aromatic hydrocarbons, polychlorinated biphenyls, halogenated polycyclic aromatic hydrocarbons, polychlorinated naphthalene, dioxins, hexachloro-1,3-butadiene, polyhalogenated carbazoles, and environmentally persistent free radicalsNaphthalene, Fluoranthene
Aroclor 1254, PCB-77
Brominated fluoranthenes, Fluorinated pyrenes
Tetrachloronaphthalene, Hexachloronaphthalene
Tetrabromocarbazole, Hexachlorocarbazole
[10]
Bromine-containing flame retardants, perfluorinated compounds and perfluorinated alkyl substances, brominated dioxinsPolybrominated diphenyl ethers (PBDEs)
Perfluorooctanoic acid (PFOA)
Hexabromodibenzofuran (HBDF)
[11]
Antibiotic-resistant pathogenic bacteriaEscherichia coli producing extended-spectrum β-lactamase[12]
Other pollutantsAlkylphenols, metalloids, radionuclides, rare earth elements, nanomaterials, nanoparticles, microplastics, bioterrorism and sabotage agents, indoor pollutants, and pathogens[2]
Table 2. Overview and contrast of homogeneous and pyrite derived heterogeneous Fenton flow.
Table 2. Overview and contrast of homogeneous and pyrite derived heterogeneous Fenton flow.
DistinctionHomogenous Fenton ReactionPyrite Derived Heterogenous Fenton-like Reaction
MechanismFe2+ + H2O2→Fe3+ + ·OH + OHFe3+ + S22−→Fe2+ + S2·
Fe2+ + H2O2→Fe3+ + ·OH + OH
pH2.8–3.0Wide Range
Reaction pathway with hydrogen peroxide/peroxide oxidantsReaction of soluble Fe2+ with H2O2Reaction of in situ Fe2+ in pyrite or leached Fe2+ from the catalyst with peroxide oxidants
Iron regenerationImpossibleRedox derived Fe2+ regeneration and prolonged catalyst lifespan
Table 3. Activation of peroxymonosulfate (SO5·) by pyrite.
Table 3. Activation of peroxymonosulfate (SO5·) by pyrite.
ParameterDetails
CatalystPyrite
OxidantHSO5
Main Reactive Species GeneratedSulfate radicals (SO4·), hydroxyl radicals (·OH), peroxymonosulfate radicals (SO5·), and superoxide radicals (O2·).
Role of Iron SpeciesPyrite releases Fe2+, which activates PMS to generate radicals:
Fe2+ + HSO5−→Fe3+ + SO4· + OH
Fe3+ is reduced back to Fe2+, ensuring continuous redox cycling and sustained catalytic activity.
Degradation
Efficiency
Highly efficient degradation of organic pollutants, including antibiotics, dyes, and industrial chemicals. Achieves up to 85–90% removal under optimized conditions.
Stability of
Pyrite
Pyrite maintains structural integrity and catalytic efficiency over multiple reaction cycles. Sulfur species (S22−) aid electron transfer, further stabilizing radical formation.
ApplicationsWaste water treatment, particularly for the degradation of persistent organic pollutants.
pH InfluenceWorks in a wide pH range (3–8), but acidic conditions (pH 3–5) enhance Fe2+ regeneration, maximizing radical production.
Table 4. Representative ROS generated from pyrite-derived systems and their characteristics.
Table 4. Representative ROS generated from pyrite-derived systems and their characteristics.
ROSRedox Potential (E)SelectivityPreferred pH RangeMain Reaction MechanismTarget Pollutants/Transformation Pathway
·OH~2.8 VNon-selectiveAcidic (~3–5)H-abstraction, electron transfer, hydroxylationBroad range: pharmaceuticals, dyes, organic acids; often leads to mineralization
SO4·2.5–3.1 VModerately selective3–9Electron transfer, H-abstractionElectron-rich organics: phenols, antibiotics, EDCs
CH3COO·~1.2–1.4 VHighly selective (electrophilic)3–7Electrophilic attack, substitutionElectron-rich aromatics, halogenated compounds
SO5· (PMS radical)~1.1 VWeak oxidantVariableOxygen transfer, precursor to SO4·Secondary oxidant; promotes slow oxidation or initiates SO4· generation
Table 5. Typical synthesis methods for 0D FeS2 materials.
Table 5. Typical synthesis methods for 0D FeS2 materials.
TechniqueDescriptionKey FeaturesRef.
Hydrothermal
synthesis
Involves the reaction of iron and sulfur precursors in an aqueous solution under high temperature and pressure in a sealed autoclave.Produces highly crystalline nanoparticles.
Environmentally friendly (uses water as solvent).
Tunable size and morphology by adjusting temperature, pressure, and reaction time.
[64]
Sol–gel
Technique
A low-temperature (≤100 °C) wet-chemical process where nano structures form through polymerization and gelation.Low-temperature synthesis for FeS2 nanoparticles.
Controlled polymerization is required.
[65]
Hot injection
method
A high-temperature technique where a sulfur precursor is injected into an iron precursor under a protective atmosphere, forming FeS2 nanocrystals.Produces high-quality single-crystalline FeS2 nanoparticles which could be used in photovoltaics and catalysis.
Requires post-processing (washing, centrifugation, sintering at 540 °C for 4 h)
[60]
Table 6. Synthesis methods of 1D pyrite material.
Table 6. Synthesis methods of 1D pyrite material.
MethodIron SourceSulfur SourceReaction ConditionsMorphologyRef.
SolvothermalFeSO4·7H2O, FeCl3, Fe(NO3)3·9H2OThiourea (NH2CSNH2)Ethylene diamine (EDA), 12 h at varying temperaturesNanorods, nanowires[78]
Direct thermal sulfidationFeCl2, FeBr2Sulfur vapor425 °C, controlled sulfur super saturationNanorods, nanobelts, nanoplates[79]
Hydrothermal template approachZnO nanorods (precursor)Fe(NO3)3 and sulfur350 °C for 3 hNanorod arrays[80]
Table 7. Typical applications of pyrite-based catalysts for pollutant removal.
Table 7. Typical applications of pyrite-based catalysts for pollutant removal.
Type of PyriteApplicationPerformance AchievedMain FindingsRef.
0D Pyrite (nanoparticles)Nitrogen removal in wastewater treatment.Removed 85% of ammonia (NH3) and nitrate (NO3) in 4 h.Pyrite nanoparticles facilitated electron transfer, enabling rapid nitrogen conversion.[44]
1D Pyrite (nanorods)Sulfate radical-based AOP.Achieved 90% removal of bisphenol A (BPA) in wastewater.Nanorods exhibited enhanced sulfate radical activation, leading to superior degradation.[105]
1D Pyrite (nanowires)Gas-phase removal of hydrogen sulfide (H2S).Removed 95% of H2S from industrial gas streams.1D Pyrite acted as a sulfur scavenger, oxidizing toxic H2S into environmentally safe forms.[106]
2D Pyrite (nanosheets)Removal of microplastics from water.Adsorbed 90% of polystyrene microplastics within 2 h.2D Pyrite nanosheets provided high surface area for micro plastic entrapment and degradation.[107]
2D Pyrite (thin films)Photothermal degradation of organic pollutants.Achieved 92% degradation of pharmaceutical pollutants under sunlight.Pyrite thin films enhanced solar energy absorption, generating localized heat and ROS for effective pollutant breakdown.[108]
3D Pyrite (porous structures)CO2 capture and conversion.Converted 80% of CO2 into carbonates and formic acid.3D Pyrite structures improved CO2 adsorption, facilitating catalytic conversion.[109]
3D Pyrite (hierarchical structures)Detoxification of cyanide from mining waste.Decomposed 97% of cyanide (CN) in mining effluents.3D hierarchical pyrite provided active sites for rapid cyanide degradation.[110]
Table 8. Applications of hybrid pyrite-based materials.
Table 8. Applications of hybrid pyrite-based materials.
MaterialApplicationKey FunctionsRef.
ZeolitesWater purification and wastewater treatment.- Removes heavy metals (Pb, Cd, Cr, Ni) through ion exchange, adsorption and redox.
- Eliminates ammonium (NH4+), nitrates (NO3), and sulfates (SO42−) from water.
- Improves sedimentation and oxygen consumption in sewage treatment.
[115]
BiocharHeavy metal adsorption and organic pollutant degradation.- Adsorbs toxic metals like Pb, Cd, As, and Zn from contaminated water and soil.
- Enhances persulfate activation for the breakdown of persistent organic pollutants.
[116]
Metal–organic frameworks (MOFs)Pollutant removal, gas storage, and catalysis.- Adsorbs and degrades organic pollutants and pharmaceutical residues.
- Enhances heterogeneous catalysis for photocatalysis, hydrogen evolution, and AOPs.
[117]
Table 9. Advantages of hybrid materials.
Table 9. Advantages of hybrid materials.
Hybrid MaterialAdvantagesRef.
FeS2-GrapheneImproved electronic conductivity, pollutant adsorption, and catalytic activity.[123]
FeS2-TiO2Enhanced photocatalytic efficiency under visible light.[124]
FeS2-MoS2High hydrogen evolution reaction (HER) efficiency.[125]
FeS2-Metal–Organic Frameworks (MOFs)Increased surface area and selective adsorption properties.[126]
Table 10. Comparison of leaching quantities of current Fe-based catalysts.
Table 10. Comparison of leaching quantities of current Fe-based catalysts.
CatalystFe Stabilization StrategySystemLeached FeRef.
Residue Fe dustNonepH = 7
H2O2
274.4 mg L−1[127]
Fe oxide-SAPO-34Fe oxide encapsuled in a zeolite cagepH = 3
Peroxydisulfate
0.70 mg g−1[128]
MOF-FePDA-modified Fe-containing MOFpH = 7
Persulfate
1.50 mg g−1[129]
CoFe2O4@NPCN-doped porous carbon coated bimetallic zeolitic imidazolate frameworkpH = 6
Persulfate
11.33 mg g−1[130]
Fe3O4@Activated carbonIron-based oxide dispersed on carbon materialpH = 3
Persulfate
2.50 mg g−1[131]
Pyrite@zeoliteS-Fe interactionpH = 7
PAA
1.62 mg g−1[28]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Javed, J.; Zhou, Y.; Ullah, S.; Gao, T.; Yang, C.; Han, Y.; Wu, H. Progress and Perspectives on Pyrite-Derived Materials Applied in Advanced Oxidation Processes for the Elimination of Emerging Contaminants from Wastewater. Molecules 2025, 30, 2194. https://doi.org/10.3390/molecules30102194

AMA Style

Javed J, Zhou Y, Ullah S, Gao T, Yang C, Han Y, Wu H. Progress and Perspectives on Pyrite-Derived Materials Applied in Advanced Oxidation Processes for the Elimination of Emerging Contaminants from Wastewater. Molecules. 2025; 30(10):2194. https://doi.org/10.3390/molecules30102194

Chicago/Turabian Style

Javed, Jannat, Yuting Zhou, Saad Ullah, Tianjiu Gao, Caiyun Yang, Ying Han, and Hao Wu. 2025. "Progress and Perspectives on Pyrite-Derived Materials Applied in Advanced Oxidation Processes for the Elimination of Emerging Contaminants from Wastewater" Molecules 30, no. 10: 2194. https://doi.org/10.3390/molecules30102194

APA Style

Javed, J., Zhou, Y., Ullah, S., Gao, T., Yang, C., Han, Y., & Wu, H. (2025). Progress and Perspectives on Pyrite-Derived Materials Applied in Advanced Oxidation Processes for the Elimination of Emerging Contaminants from Wastewater. Molecules, 30(10), 2194. https://doi.org/10.3390/molecules30102194

Article Metrics

Back to TopTop
