Sandalwood Oils of Different Origins Are Active In Vitro against Madurella mycetomatis, the Major Fungal Pathogen Responsible for Eumycetoma
by
, , ,
Shereen O. Abd Algaffar
1
,
Stephan Seegers
2,
Prabodh Satyal
3
,
William N. Setzer
4
,
Thomas J. Schmidt
2,* and
Sami A. Khalid
1,* 1
Faculty of Pharmacy, University of Science and Technology, Omdurman 14411, Sudan
2
University of Münster, Institute of Pharmaceutical Biology and Phytochemistry (IPBP), PharmaCampus-Corrensstrasse 48, D-48149 Münster, Germany
3
Essential Oil Science, dōTERRA International, 1248 W 700 S, Pleasant Grove, UT 84062, USA
4
Department of Chemistry, University of Alabama in Huntsville, Huntsville, AL 35899, USA
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(8), 1846; https://doi.org/10.3390/molecules29081846
Submission received: 5 February 2024
/
Revised: 8 April 2024
/
Accepted: 15 April 2024
/
Published: 18 April 2024
(This article belongs to the Special Issue Essential Oils II)
Abstract
:In the search for new bioactive agents against the infectious pathogen responsible for the neglected tropical disease (NTD) mycetoma, we tested a collection of 27 essential oils (EOs) in vitro against Madurella mycetomatis, the primary pathogen responsible for the fungal form of mycetoma, termed eumycetoma. Among this series, the EO of Santalum album (Santalaceae), i.e., East Indian sandalwood oil, stood out prominently with the most potent inhibition in vitro. We, therefore, directed our research toward 15 EOs of Santalum species of different geographical origins, along with two samples of EOs from other plant species often commercialized as “sandalwood oils”. Most of these EOs displayed similar strong activity against M. mycetomatis in vitro. All tested oils were thoroughly analyzed by GC-QTOF MS and most of their constituents were identified. Separation of the sandalwood oil into the fractions of sesquiterpene hydrocarbons and alcohols showed that its activity is associated with the sesquiterpene alcohols. The major constituents, the sesquiterpene alcohols (Z)-α- and (Z)-β-santalol were isolated from the S. album oil by column chromatography on AgNO3-coated silica. They were tested as isolated compounds against the fungus, and (Z)-α-santalol was about two times more active than the β-isomer.
1. Introduction
Mycetoma is a serious chronic infectious disease caused by fungi and/or bacteria. It occurs mainly in tropical and subtropical regions [1,2]. The disease is usually classified by the responsible etiologic agent into actinomycetoma, caused by bacteria (e.g., Actinomadura sp., Streptomyces somaliensis, and Nocardia brasiliensis), and eumycetoma, caused by fungi [3]. Several fungi are considered causative agents for eumycetoma, including about 15 genera with more than 25 species. Among them, Madurella mycetomatis, Madurella grisea, Scedosporium boydii, and Leptosphaeria senegalensis are responsible for not less than 90% of the globally reported cases of mycotic mycetoma infection [3].
Mycetoma usually manifests as an initially painless subcutaneous mass with sinus formation and a purulent discharge that contains grains, characteristic of the disease. This mass may spread from the skin to involve deep tissues and even bones, resulting in deformity, a loss of function, and destruction. The sites most frequently affected are the foot and hand, but other body parts, such as the knee, arm, leg, head and neck, thigh, and perineum, may be affected. While no age exception exists for mycetoma, it occurs more frequently in young male adults around 20–40 years old. The infection usually occurs via skin lesions, e.g., thorn picks acquired while walking barefoot on contaminated soils or during manual labor, bringing the pathogens into the dermal and subdermal tissues [1,2].
The worldwide distribution of mycetoma ranges across many tropical and subtropical regions. It is most prevalent in the “Mycetoma Belt”, roughly stretching across latitudes of 15° S to 30° N. This region engulfs many countries in which high endemicity has been reported, including Sudan, Somalia, Senegal, India, Yemen, Mexico, Venezuela, Colombia, Brazil, and others [1,2,3].
Mycetoma is mainly a poverty-associated disease occurring in poorly developed, often rural, regions of the affected countries. For this reason, it has been largely overlooked for many decades, and little or no effort has been dedicated to developing new therapies. In 2016, mycetoma was finally included by the World Health Organization on the list of neglected tropical diseases [1] and henceforth received more attention in research.
Therapy is time-consuming, prone to unwanted side effects, and often too complicated, unavailable, or expensive in endemic areas. Most unfortunately, the treatment often fails. In many cases, infections recur, and amputations are often necessary [1,2].
Itraconazole has been recommended as the first-line drug option for the treatment of eumycetoma. However, its use generally requires a long treatment duration followed by surgical excision, which could result in bone involvement and possibly relapse. Current treatment options for M. mycetomatis infections that include several azoles, such as itraconazole, fluconazole, posaconazole, voriconazole, and ravuconazole, as well as other classes of antifungals, including echinocandins (e.g., caspofungin, anidulafungin, micafungin), allylamines (e.g., terbinafine), and polyenes (e.g., amphotericin B), show no promising clinical outcomes. A long-awaited double-blind, randomized clinical study assessing the superiority of fosravuconazole over itraconazole finally revealed that both drugs have similar efficacy rates, with no statistically significant difference [4]. Olorofim belongs to a new class of antifungal drugs known as orotomides, with a novel mechanism of action based on inhibiting the enzyme dihydroorotate dehydrogenase, subsequently leading to the obstruction of the pyrimidine biosynthesis pathway. Olorofim exhibited much better inhibition than itraconazole when assessed against M. mycetomatis [5].
However, new active compounds against eumycetoma and its causative agent, M. mycetomatis, would be highly valuable as starting points for developing the urgently needed new, affordable, and efficacious therapeutics [1].
Natural products, and essential oils (EOs) in particular, have in some instances presented significant activity against M. mycetomatis [6,7]. Interestingly, sandalwood oils have exhibited antifungal activity against various pathogenic fungi [8,9]. We, therefore, set out to test an array of commercially available essential oils for their in vitro activity against M. mycetomatis. In this publication, we report on the results of these tests, which led to the consideration of sandalwood oils as antimycetomal agents.
2. Results and Discussion
2.1. In Vitro Activity of Diverse Essential Oils against Madurella mycetomatis
A selection of 27 commercially available essential oils (EOs) were tested in vitro for their growth-inhibitory activity against various clinical isolates of M. mycetomatis. The results are shown in Table 1.
Of these tested EOs, the sandalwood oil obtained from East Indian sandalwood (Santalum album) was by far the most active, with an average MIC value as low as 0.0039% (v/v). Conspicuously, S. album oil and some of its constituents had previously been shown to exhibit antifungal activity against the dermatophytic fungus Trichophyton rubrum, accompanied by fish toxicity and an antimitotic effect induced by the main constituent α-santalol [8]. Various sandalwood oils have also shown in vitro activity against the pathogenic fungi Aspergillus niger, Candida albicans, and Cryptococcus neoformans [9].
2.2. In Vitro Activity of Different Sandalwood Oils against Madurella mycetomatis
Due to the prominent activity of the S. album EO, we decided to extend the study to the EOs of other species of sandalwood (SW), namely, S. spicatum (Australian SW), S. austrocaledonicum (Pacific SW), S. lanceolatum (North Australian SW) and S. paniculatum (Hawaiian SW), all available on the market. We also included two EOs not stemming from Santalum species but marketed under related denominations, namely, the oils of Amyris balsamifera (Rutaceae, “West Indian sandalwood Oil”) and of Barchylaena huillensis (Asteracae; “African sandalwood Oil” or “Muhuhu Oil”).
Since a considerable period had elapsed since the first series of tests, the previous activity fungal strains were no longer available, so these oils were tested against two different clinical isolates of M. mycetomatis. The sandalwood sample from Table 1 (EO-24) was re-tested against these strains for control, along with the newly obtained oils. The results are reported in Table 2.
All natural EOs tested in this series showed activity against the two fungal strains. Against strain SAK-E07, the highest level of activity was even slightly higher than that observed in the previous tests, i.e., an MIC value of 0.0019% (v/v) was displayed by two different samples of S. austrocaledonium oil (Ess-EO4 and doT-EO9) and by an S. paniculatum oil (Ess-EO5), alongside several S. album oils from different origins (doT-EO1, doT-EO6 and doT-EO8). Several oils (doT-EO-7, -9 and -11) from S. album, S. paniculatum and S. austrocaledonicum displayed MIC values as low as 0.001% (v/v). The SW oils doT-EO8 (S. album) and doT-EO9 (S. austrocaledonicum) were thus the most effective oils against both fungal isolates, with MIC values of 0.0019% and 0.001% (v/v).
It is to be noted that there appears to be no direct relationship between the Santalum species of origin and the oils’ activity against either fungal strain. The standard antifungal drug, itraconazole, was about 20–40 times more active than the most active oils.
In addition to the natural essential oils, the biotechnological product Isobionics® Santalol was also tested; its activity was determined later and is reported in Section 2.5 below. It was comparable to that of the most active natural oils.
2.3. Chemical Composition of the Investigated Sandalwood Oils
The chemical composition of all tested SW oils was analyzed by gas chromatography coupled to quadrupole time-of-flight mass spectrometry (GC/QTOF MS). The individual constituents were characterized by their high-resolution mass spectra (HR MS) and linear retention indices (LRIs), which were determined by analyses on two different GC-columns, a DB5 and a WAX column, and identified by library searches (NIST library [10]), as well as a comparison with the literature data [11,12,13,14]. All minor components included, almost 300 different analytes were detected in the 18 EOs analyzed. The full lists of all analytes detected by analysis on the two different columns are reported in Tables S1 and S2 (Supplementary Materials). The 26 most prominent constituents (based on their percentage in the S. album oils) are summarized in Table 3 and Table 4.
These 26 constituents account for ≥90% of the total peak areas in most of the Santalum oils analyzed (S. album, S. paniculatum, S. austrocaledonicum) and still constitute 85 and 77% in S. spicatum and S. lanceolatum, respectively. In contrast, the two “non-Santalum sandalwood oils” obtained from the Amyris and Brachylaena species contain less than 5% of these analytes. As previously known, the sesquiterpenes (Z)-α-santalol and (Z)-β-santalol represent the major constituents in most cases of Santalum oils, except S. spicatum and S. lanceolatum. While the other Santalum species’ EOs contain between 40 and 50% of (Z)-α-santalol and 15 to 22% (Z)-β-santalol, S. spicatum contains much less of these two characteristic sequiterpene alcohols, namely, 21 and 8%, respectively. Significantly higher amounts of (Z)-nuciferol and (2E,6E)-farnesol (11 and 10%, respectively) characterize this species’ oil. S. lanceolatum is even poorer in (Z)-santalols, with less than 1% of either. It is dominated by (Z)-lanceol (31%) and (Z)-nuciferol (20%) instead.
Earlier work on GC-MS analyses of SW oils [11,12,13,14,15] had reported a similar pattern of constituents. Overall, to our knowledge, the present report is the most comprehensive comparative analysis of the constituents in the oils of different Santalum species.
The two non-Santalum EOs (Amyris balsamifera, Brachylaena huillensis) did not contain any detectable amounts of the santalols. While A. balsamifera has a few commonalities in some of its minor constituents with the true SW oils, B. huillensis does not contain any of the 26 compounds listed in Table 3 and Table 4. The most abundant constituents in these two oils, according to our analyses (>10% as determined on the WAX column; see Table S1, Supplementary Materials), were valerianol, γ- and β-eudesmol, constituting 21, 11 and 12% of the Amyris balsamifera oil, and ylangenol and α-amorphene, with 12% and 11% in the oil of Brachylaena huillensis. Our analyses of these two oils match well with previous findings [16,17]. Regarding A. balsamifera, the main constituents identified (>10% [16]) were valerianol, 10-epi-γ-eudesmol, guaiol and elemol, which were all recovered in the present analyses, albeit in different quantities. The same applies to components that were detected in smaller quantities (<10% [16]), such as α-curcumene, γ- and β-eudesmol. In addition to the compounds identified previously [16], 14 further components were identified in our analyses, the most abundant being 7-epi-α-eudesmol, at around 7%. In previous work on the essential oil of Brachylaena huillensis, α-amorphene was found to be the main component, comprising around 17% of the oil. Furthermore, ylangenol and its corresponding aldehydes ylangenal, δ-cadinene and α-calacorene, as well as the two ketoaldehydes 8-ketoylangenal and 8-ketocopaenal, also known as brachylaenalone A and B, were reported to be major components [17]. All the mentioned analytes and 25 more (Tables S1 and S2, Supplementary Materials) were found in amounts comparable to those in the previous study. In addition, we found that the sesquiterpene alcohol spirojatamol had a content of 9%, which was not identified in the previous analysis of this oil [17].
The commercial biotechnological product Isobionics® Santalol is a mixture of terpenoids obtained by the fermentation of glucose, utilizing bacteria of the species Cereibacter sphaeroides (formerly counted as a Rhodobacter species) that has been genetically modified with a gene for santalene synthase [18]. It is specified by the manufacturer to consist of (Z)- and (E)-α and β-santalols [19]. Our GC-MS analysis showed that in addition to these four isomers, the mixture contains some further constituents in smaller amounts. However, it differs from the natural sandalwood oils mainly by the presence of higher amounts of (E)-santalols. Thus, (E)-α-santalol commonly constitutes < 1% of the natural oils, but reaches a concentration of almost 16% in the biotechnological product. The (E)-β-isomer also is less than 2% in the natural oils but amounts to >7% in the Isobionics® product.
Table 3.
Main constituents in the investigated sandalwood oils according to GC-QTOF MS analysis on a DB-5 and a DB-HeavyWax (WAX) column. The 26 most abundant components in S. album oils and their linear retention indices (LRI), measured on both columns and compared with the literature [11,14,20] and database values, are listed. Each compound was also identified by the match of its QTOF mass spectrum with the corresponding entry in the NIST library [10]; the matching coefficients are included in the table. Their values, expressed in %, represent the best match obtained for each compound in one of the analyses. In a few cases, the compounds were not included in the NIST library but could be identified on grounds of the spectra and LRI values reported in the literature. For a full list of detected constituents in all oils with their LRI values, see Tables S1 and S2, Supplementary Materials.
Table 3.
Main constituents in the investigated sandalwood oils according to GC-QTOF MS analysis on a DB-5 and a DB-HeavyWax (WAX) column. The 26 most abundant components in S. album oils and their linear retention indices (LRI), measured on both columns and compared with the literature [11,14,20] and database values, are listed. Each compound was also identified by the match of its QTOF mass spectrum with the corresponding entry in the NIST library [10]; the matching coefficients are included in the table. Their values, expressed in %, represent the best match obtained for each compound in one of the analyses. In a few cases, the compounds were not included in the NIST library but could be identified on grounds of the spectra and LRI values reported in the literature. For a full list of detected constituents in all oils with their LRI values, see Tables S1 and S2, Supplementary Materials.
| No. | Compound | LRI (WAX) | Lit. [11] (WAX) | NIST (WAX) | LRI (DB-5) | Lit. [14,20] (DB-5) | NIST (DB-5) | Spectra Match (%; DB-5) |
|---|---|---|---|---|---|---|---|---|
| 1 | α-santalene | 1583 | 1575 | 1576 | 1425 | 1416 | 1420 | 96.5 |
| 2 | epi-β-santalene | 1641 | 1637 | 1638 | 1451 | 1445 | 1448 | 92.9 |
| 3 | β-santalene | 1655 | 1651 | 1649 | 1463 | 1457 | 1462 | 96.9 |
| 4 | β-bisabolene | 1730 | 1724 | 1727 | 1511 | 1505 | 1509 | 96.4 |
| 5 | β-curcumene | 1743 | 1738 | 1738 | 1514 | 1514 | 1514 | 90.0 |
| 6 | α-curcumene | 1777 | 1770 | 1777 | 1485 | 1479 | 1483 | 92.9 |
| 7 | (E)-nerolidol | 2044 | 2023 | 2042 | 1564 | 1561 | 1564 | 91.0 |
| 8 | cyclosantalal | 2126 | 2156 | - | 1668 | - | - | - |
| 9 | epi-cyclosantalal | 2134 | 2187 | - | 1686 | - | - | - |
| 10 | β-bisabolol | 2148 | 2144 | 2151 | 1669 | 1674 | 1671 | 92.3 |
| 11 | (E)-α-santalal | 2156 | 2172 | 2196 | 1674 | - | 1679 | - |
| 12 | α-bisabolol | 2212 | 2207 | 2215 | 1685 | 1685 | 1684 | 84.7 |
| 13 | campherenol | 2273 | 2291 | 2245 | 1667 | - | 1654 | - |
| 14 | (Z)-α-santalol | 2339 | 2344 | 1873 | 1673 | 1674 | 1681 | 97.6 |
| 15 | (Z)-trans-α-bergamotol | 2350 | 2344 | 2328 | 1690 | 1690 | 1700 | 94.8 |
| 16 | (2E,6E)-farnesol | 2351 | 2342 | 2356 | 1720 | 1742 | 1722 | 78.0 |
| 17 | (E)-α-santalol | 2379 | 2381 | - | 1695 | - | - | - |
| 18 | (Z)-epi-β-santalol | 2406 | 2406 | - | 1703 | 1702 | 1709 | 96.3 |
| 19 | (Z)-β-santalol | 2420 | 2423 | 2413 | 1715 | 1715 | 1715 | 97.8 |
| 20 | (Z)-γ-curcumen-12-ol | 2435 | 2432 | - | 1711 | 1728 | 1711 | - |
| 21 | (E)-epi-β-santalol | 2448 | - | - | 1722 | - | - | - |
| 22 | (E)-β-santalol | 2460 | 2465 | 2465 | 1736 | 1738 | 1741 | 81.4 |
| 23 | (Z)-β-curcumen-12-ol | 2482 | 2478 | - | 1752 | 1754 | 1746 | 87.8 |
| 24 | (Z)-lanceol | 2487 | 2484 | 2518 | 1757 | 1760 | 1763 | 95.5 |
| 25 | (Z)-nuciferol | 2517 | 2513 | 2545 | 1723 | 1724 | 1735 | 92.1 |
| 26 | spirosantalol | 2532 | 2546 | - | 1736 | - | - | - |
Table 4.
Main constituents in the investigated sandalwood oils and their relative amounts in percent of total peak areas from the GC-QTOF MS total ion chromatograms. The 26 most abundant components in S. album oils and their percentage (% of total peak area in the WAX chromatograms) are listed. The color scale indicates the increasing percentage in the form of a heatmap from lowest (0.0, white) to highest (>45, red) values. For a full list of the detected constituents in all oils, see Tables S1 and S2, Supplementary Materials.
Table 4.
Main constituents in the investigated sandalwood oils and their relative amounts in percent of total peak areas from the GC-QTOF MS total ion chromatograms. The 26 most abundant components in S. album oils and their percentage (% of total peak area in the WAX chromatograms) are listed. The color scale indicates the increasing percentage in the form of a heatmap from lowest (0.0, white) to highest (>45, red) values. For a full list of the detected constituents in all oils, see Tables S1 and S2, Supplementary Materials.
| S. album | S. album | S. album 19 | S. album (ID) | S. album (ID) | S. album (IN) | S. album (AUS) | S. paniculatum | S. paniculatum 19 | S. paniculatum | S. austrocaledonicum | S. austrocaledonicum | S. austrocaledonicum | Biotechn. synthetic | S. spicatum | S. lanceolatum | A. balsamifera | B. huillensis | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. | Compound | EO-24 | Ess-EO1 | doT-EO1 | doT-EO5 | doT-EO6 | doT-EO8 | doT-EO11 | Ess-EO5 | doT-EO2 | doT-EO7 | doT-EO9 | doT-EO10 | Ess-EO4 | Isobionics | Ess-EO2 | Ess-EO3 | Ess-EO6 | Ess-EO7 |
| 1 | α-santalene | 0.9 | 1.1 | 0.5 | 0.5 | 0.8 | 0.5 | 0.9 | 1.0 | 1.1 | 0.7 | 1.1 | 1.0 | 0.7 | 3.3 | 0.6 | 0.0 | 0.0 | 0.0 |
| 2 | epi-β-santalene | 1.0 | 1.1 | 0.7 | 0.6 | 0.8 | 0.6 | 1.0 | 0.9 | 0.9 | 0.6 | 0.9 | 0.8 | 0.5 | 0.2 | 0.3 | 0.0 | 0.0 | 0.0 |
| 3 | β-santalene | 1.5 | 1.9 | 1.1 | 0.9 | 1.3 | 1.0 | 1.5 | 1.2 | 0.9 | 0.8 | 0.9 | 0.8 | 0.5 | 1.4 | 0.5 | 0.0 | 0.0 | 0.0 |
| 4 | β-bisabolene | 0.1 | 0.0 | 0.0 | 0.1 | 0.1 | 0.1 | 0.0 | 0.2 | 0.3 | 0.1 | 0.2 | 0.3 | 0.2 | 0.1 | 0.2 | 1.8 | 0.7 | 0.0 |
| 5 | β-curcumene | 0.1 | 0.1 | 0.1 | 0.1 | 0.0 | 0.1 | 0.0 | 0.2 | 0.1 | 0.1 | 0.2 | 0.1 | 0.1 | 0.0 | 0.4 | 0.8 | 0.0 | 0.0 |
| 6 | α-curcumene | 0.3 | 0.3 | 0.3 | 0.2 | 0.3 | 0.3 | 0.4 | 0.3 | 0.4 | 0.3 | 0.3 | 0.3 | 0.3 | 0.0 | 0.5 | 0.8 | 2.0 | 0.0 |
| 7 | (E)-nerolidol | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.0 | 2.7 | 1.0 | 0.7 | 0.0 |
| 8 | cyclosantalal | 0.2 | 0.2 | 0.6 | 0.4 | 0.3 | 1.1 | 0.3 | 1.4 | 1.6 | 1.3 | 1.6 | 1.1 | 0.5 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 9 | epi-cyclosantalal | 0.1 | 0.1 | 0.2 | 0.1 | 0.1 | 0.3 | 0.0 | 0.3 | 0.3 | 0.2 | 0.3 | 0.2 | 0.1 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 10 | β-bisabolol | 0.4 | 0.4 | 0.5 | 0.5 | 0.4 | 0.4 | 0.4 | 0.7 | 0.5 | 0.7 | 0.5 | 0.5 | 0.5 | 0.0 | 2.1 | 2.0 | 0.0 | 0.0 |
| 11 | (E)-α-santalal | 1.9 | 1.4 | 2.4 | 1.5 | 1.4 | 2.9 | 2.5 | 3.0 | 1.7 | 3.0 | 1.4 | 1.2 | 0.9 | 0.2 | 0.4 | 0.0 | 0.0 | 0.0 |
| 12 | α-bisabolol | 0.1 | 0.1 | 0.1 | 0.2 | 0.1 | 0.1 | 0.1 | 0.3 | 0.3 | 0.2 | 0.4 | 0.5 | 0.6 | 0.0 | 7.5 | 2.7 | 0.0 | 0.0 |
| 13 | campherenol | 0.5 | 0.5 | 0.7 | 0.4 | 0.6 | 0.5 | 0.4 | 0.5 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.0 | 0.4 | 0.0 | 0.0 | 0.0 |
| 14 | (Z)-α-santalol | 49.4 | 48.2 | 49.3 | 46.3 | 48.5 | 50.7 | 48.2 | 42.4 | 47.0 | 45.9 | 47.5 | 46.1 | 45.4 | 31.9 | 21.1 | 0.4 | 0.0 | 0.0 |
| 15 | (Z)-trans-α-b.a | 5.8 | 6.8 | 4.4 | 7.1 | 6.7 | 4.6 | 4.1 | 4.5 | 5.0 | 3.4 | 5.4 | 5.7 | 5.9 | 2.3 | 3.5 | 0.0 | 0.0 | 0.0 |
| 16 | (2E,6E)-farnesol | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | t | t | t | t | t | 0.4 | 0.0 | 10.2 | 3.3 | 0.3 | 0.0 |
| 17 | (E)-α-santalol | 0.4 | 0.4 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 15.7 | 0.2 | 0.0 | 0.0 | 0.0 |
| 18 | (Z)-epi-β-santalol | 3.2 | 3.4 | 4.5 | 3.0 | 3.2 | 4.0 | 3.8 | 3.5 | 3.5 | 3.9 | 3.5 | 3.3 | 3.4 | 5.3 | 1.7 | 0.0 | 0.0 | 0.0 |
| 19 | (Z)-β-santalol | 22.2 | 22.0 | 20.2 | 22.0 | 20.7 | 21.1 | 20.6 | 16.1 | 16.7 | 15.3 | 18.2 | 17.3 | 18.9 | 18.9 | 7.9 | 0.2 | 0.0 | 0.0 |
| 20 | (Z)-γ-c.-12-ol a | 0.0 | 0.0 | 0.0 | 0.1 | 0.0 | 0.0 | 0.0 | 1.0 | 0.3 | 0.3 | 0.2 | 0.2 | 0.2 | 0.0 | 2.8 | 7.2 | 0.0 | 0.0 |
| 21 | (E)-epi-β-santalol | 0.2 | 0.2 | 0.2 | 0.1 | 0.2 | 0.2 | 0.2 | 0.1 | 0.1 | 0.2 | 0.1 | 0.1 | 0.1 | 2.1 | 0.2 | 0.0 | 0.0 | 0.0 |
| 22 | (E)-β-santalol | 1.6 | 1.7 | 1.1 | 1.7 | 1.4 | 1.2 | 1.0 | 1.0 | t | 1.0 | t | t | t | 7.3 | t | 0.0 | 0.0 | 0.0 |
| 23 | (Z)-β-c.-12-ol a | 0.1 | 0.2 | 0.1 | 0.6 | 0.2 | 0.1 | 0.0 | 1.7 | 0.7 | 0.8 | 0.7 | 0.5 | 0.5 | 0.0 | 6.0 | 6.3 | 0.0 | 0.0 |
| 24 | (Z)-lanceol | 1.1 | 1.1 | 1.6 | 2.5 | 2.9 | 1.7 | 1.6 | 3.5 | 6.8 | 2.3 | 6.1 | 9.2 | 11.4 | 0.6 | 3.0 | 30.8 | 0.0 | 0.0 |
| 25 | (Z)-nuciferol | 0.7 | 1.1 | 1.5 | 3.5 | 2.3 | 0.9 | 1.5 | 5.5 | 2.7 | 7.9 | 2.4 | 2.1 | 1.9 | 0.7 | 11.3 | 19.9 | 0.0 | 0.0 |
| 26 | spirosantalol | 0.8 | 1.0 | 0.8 | 0.7 | 1.0 | 0.7 | 0.8 | 2.0 | 0.5 | 1.7 | 0.5 | 0.6 | 0.6 | 0.0 | 0.8 | 0.0 | 0.0 | 0.0 |
| total (%) | 92.6 | 93.2 | 91.4 | 93.3 | 93.5 | 93.4 | 90.0 | 91.5 | 92.8 | 91.6 | 93.0 | 93.0 | 94.3 | 90.0 | 84.5 | 77.2 | 3.7 | 0.0 | |
| (Z)-Santalols (%) | 71.6 | 70.2 | 69.5 | 68.3 | 69.2 | 71.8 | 68.9 | 58.5 | 64.1 | 61.1 | 65.6 | 63.5 | 64.2 | 50.8 | 29.1 | 0.6 | 0.0 | 0.0 |
a For full names, see Table 3. t: Assignments are tentative and percentages cannot be reported due to peak overlap.
A full list of all detected constituents of the oils analyzed in this study is included in Tables S1 and S2, Supplementary Materials.
2.4. Separation of Sandalwood Oils and Isolation of (Z)-α-Santalol and (Z)-β-Santalol
To investigate the contribution of the main fractions and constituents of Sandalwood oils to the antifungal activity, the sesquiterpene hydrocarbons and alcohols of Indian and Hawaiian SW oils (EO-24 and Ess-EO5, respectively) were separated by column chromatography (CC) on silica gel 60. In both cases, the column was first eluted with cyclohexane until all constituents moving with this solvent had been eluted, yielding the hydrocarbon fraction (HF1 and HF2, respectively). Subsequently, the column was washed with ethyl acetate to obtain a fraction of sesquiterpene alcohols (AF1 and AF2 from the two oils, respectively). AF1, obtained from EO-24, was further separated on silver-nitrate-impregnated silica gel according to [21] with dichloromethane (DCM) and DCM-methanol mixtures. The two main constituents, (Z)-α-santalol and (Z)-β-santalol (see Figure 1), were thereby obtained in almost pure form (96.8 and 82.4%, determined by GC-MS).
2.5. In Vitro Activity of HF, AF and Isolated (Z)-α-Santalol and (Z)-β-Santalol against M. mycetomatis
The in vitro activity of the separated sesquiterpene hydrocarbon and sesquiterpene alcohol fractions, as well as the purified (Z)-santalols, were tested against the M. mycetomatis strain SAK-E07 (see Table 5). It is noteworthy that the HF2 (obtained from Ess-EO5) was found to be essentially inactive (MIC > 4512 µg/mL), whereas the AF2 obtained from the same oil showed significant activity, with an MIC value of 64 µg/mL; however, it was somewhat less active than the oil from which it had been obtained (MIC = 16 µg/mL).
The purified santalols differed in activity, (Z)-α-santalol being the more active isomer with an MIC value of 125 µmol/L (27.5 µg/mL), while (Z)-β-santalol was less active with MIC = 250 µmol/L (55 µg/mL). By comparison at a molar scale, the standard antifungal drug itraconazole (MIC = 0.35 µmol/L) was about 360 times more active than (Z)-α-santalol. It should also be noted that even the more active sesquiterpene alcohol was less active than the total oil Ess-EO5. Hence, it cannot be excluded that other constituents, present in lower concentrations, contribute significantly to the activity of the total oil. Until this has been clarified in further studies, the total essential oil remains the best option for further pharmacological investigations.
3. Materials and Methods
3.1. Tested Materials
All essential oils tested in the initial screening (Table 1, EO-01–EO-27) were of commercial origin. They were obtained from Caesar & Loretz & GmbH, Hilden, Germany (Caelo), except EO-01, which originated from Carl Roth GmbH & Co. KG (Karlsruhe, Germany), EO-26 (purchased in a public Pharmacy in Germany) and EO-27 (Spinnrad GmbH, Gelsenkirchen, Germany). The sandalwood and related oils Ess-EO1–Ess-EO7 (Table 2) were purchased from Essence-pur GmbH (Lohmar, Germany). The sandalwood oils doT-EO1–doT-EO11 were from dōTERRA (Pleasant Grove, UT, USA). The manufacturer generously donated a sample of Isobionics® santalol (BASF SE, Ludwigshafen, Germany). The batch numbers are reported in Table 6.
3.2. Chemicals, Sorbents and Solvents
All solvents (n-hexane, cyclohexane, dichloromethane (DCM), ethyl acetate (EtOAc), and methanol (MeOH)), as well as silica gel 60 (70–230 mesh) for the column chromatographic (CC) separations, were purchased from Fisher Scientific GmbH (Schwerte, Germany). Solid silver nitrate was purchased from Degussa (Essen, Germany).
3.3. Gas Chromatography–Quadrupole Time-of-Flight Mass Spectrometry (GC-QTOF MS)
All analyses were carried out with an Agilent Technologies (Santa Clara, CA, USA) GC-QTOF MS System consisting of a 7890 B gas chromatograph coupled to a 7250 quadrupole time-of-flight (QTOF) mass spectrometer and equipped with a PAL3 RSI Autosampler.
GC parameters: Carrier gas: N2; Injector temperature: 220 °C; Injection mode: Split mode; Split ratio: 50:1.
System A: Agilent DB-5 column (diameter 0.25 mm; length 30 m; film thickness 0.25 μm;); Gas flow 1.2 mL/min, linear velocity 41.195 cm/s; Temperature program: initial 120 °C, 2 °C/min to 146 °C, 1 °C/min to 163 °C
System B: Agilent DB-HeavyWax column (diameter 0.25 mm; length 30 m; film thickness 0.25 μm); Gas flow 1.2 mL/min, linear velocity 40.853 cm/s; Temperature program: initial 100 °C, 4 °C/min to 180 °C, 2 °C/min to 220 °C, 4 °C/min to 260 °C
MS parameters: Transfer line temperature: 280 °C; Ion source temperature: 200 °C;
System A: Ionization energy: EI (70 eV); Ion transfer voltages: Lenses 1–5: 9.5 V, −11.9 V, −11.9 V, −11.9 V, 5.3 V respectively; Quadrupole collision cell settings: Temperature 150 °C; mass range 50–1000 m/z; entrance potential 9.0 V; collision energy 0.0 V; exit potential 10.0 V. Time-of-flight (TOF-) voltages: pusher: 1200.0 V; puller: –700.0 V; mirror front: −7000.0 V; mirror mid: –1724.8 V; mirror back: 1175.0 V; detector voltages: microchannel plate: 775 V; photomultiplier 518 V. Data acquisition rate: 3 Spectra/s. System B: Ionization energy: EI (70 eV); Ion transfer voltages: Lenses 1–5: 7.5 V, −13.9 V, –13.9 V, –13.9 V, 5.3 V respectively; Quadrupole collision cell settings: Temperature 150 °C; mass range 50–1000 m/z; entrance potential 9.0 V; collision energy 0.0 V; exit potential 12.0 V. Time-of-flight (TOF-) voltages: pusher: 1200.0 V; puller: –700.0 V; mirror front: –7000.0 V; mirror mid: –1724.8 V; mirror back: 1175.0 V; detector voltages: microchannel plate: 775 V; photomultiplier 531 V. Data acquisition rate: 3 spectra/s.
For the analysis, essential oils were diluted with n-hexane at a ratio of 1:2000. The injection volume was 1 µL.
Software used for evaluation: Agilent MassHunter Unknown Analysis (v. 10.0), MassHunter Qualitative Analysis Navigator (v. B.08.00).
The linear retention indices (LRI) were determined automatically by the Software Agilent MassHunter Unknown Analysis.
3.4. Separation of Sandalwood Oil to Obtain Sesquiterpene Hydrocarbon and Sesquiterpene Alcohol Fractions
Sandalwood oil, 1.05 g (Santalum album, EO-24), was subjected to CC on 200 g of silica gel 60 (column dimensions: inner diameter 60 mm, height 300 mm), eluted with 750 mL of cyclohexane until all of the hydrocarbons eluted. The column was eluted with 750 mL of EtOAc to obtain the sesquiterpene alcohol fraction (AF). After evaporation using the rotary evaporator (25 °C; 200 mbar) followed by further evaporation using the Speedvac (25 °C, 900 r/min), the cyclohexane eluates yielded 48 mg of the sesquiterpene hydrocarbon fraction (HF1) and the ethyl acetate eluates yielded 536 mg of the sesquiterpene alcohol fraction (AF1).
In a second separation, 3.42 g of Hawaiian sandalwood oil (Santalum paniculatum, Ess-EO5) was subjected to CC over 200 g of silica gel 60 (70–230 mesh), eluted with 1400 mL of cyclohexane until all of the hydrocarbons eluted. Thereafter, the column was eluted with 1100 mL of EtOAc. After rotary evaporation (25 °C; 200 mbar) followed by further evaporation using the Speedvac (25 °C, 900 r/min), 0.124 g of hydrocarbon fraction (HF2) and 3.39 g of sesquiterpene alcohol fraction (AF2) were obtained.

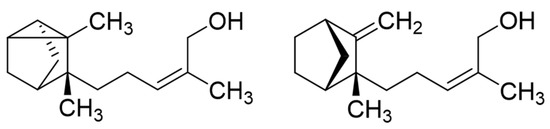

3.5. Isolation of (Z)-α-Santalol and (Z)-β-Santalol
Silica gel 60 (40 g) was suspended in 300 mL of a methanolic AgNO3 solution (4% w/v). After rotary evaporation (45 °C, 330 mbar), 53.47 g of silver-nitrate-impregnated silica gel was obtained. Silica gel 60 (10 g) followed by the silver-nitrate-impregnated silica gel (53.5 g) was packed onto a CC column (column dimensions: inner diameter 20 mm; height 500 mm).
The sesquiterpene alcohol fraction (AF1, 0.536 g), see Section 3.4, was loaded on the column and eluted with 120 mL of DCM, 750 mL of DCM/MeOH (98.5/1.5), and 200 mL of DCM/MeOH (97/3). The eluates were collected in portions of 15 mL. After TLC control on silica 60 F 254 plates, eluates containing similar constituents were combined in 11 fractions. After rotary evaporation (25 °C; 200 bar) and further evaporation using the Speedvac (25 °C, 900 r/min), fraction ZAg2 consisted of 96.80% α-santalol. Furthermore, fraction ZAg5 contained 82.35% β-santalol.
3.6. Biological Testing
3.6.1. Cultivation of Various Strains of M. mycetomatis
The strains designated SAK-E07 and SAK-E013 used in this study are kept and maintained at the Faculty of Pharmacy Depository, University of Science and Technology (UST), Omdurman, Sudan. The M. mycetomatis strains were sub-cultured on Sabouraud Dextrose (SDA) plates and were propagated at 37 °C for 2–3 weeks.
3.6.2. In Vitro Activity Tests with M. mycetomatis
The inocula of M. mycetomatis strains in RPMI (Roswell Park Memorial Institute) 1640 were sonicated for 10 s (Qsonica, Newtown CT, USA, Q55 sonicator), centrifuged at 2600× g for 5 min and incubated for 7 days at 37 °C. After one week, the mycelia were washed and re-suspended in fresh RPMI 1640 medium to give a fungal suspension of 68% to 72% transmission at 660 nm (JENWAY 6305 UV/Vis spectrophotometer).
The minimum inhibitory concentrations (MICs) were determined using the microdilution method [22]. A 1:2 serial dilution of test compounds dissolved in dimethyl sulfoxide (DMSO) was prepared in a 96-well microtiter plate. The M. mycetomatis strain(s) were subjected to EOs at concentrations ranging between 0.0019 and 0.25% v/v, 31.25 and 1000 µM of pure compounds, and 16 and 512 μg/mL of isolated fractions. The standard antifungal agent, itraconazole (Janssen Pharmaceutical Products, Beerse, Belgium), was used as the positive control from 1 to 0.03 μg/mL. To each well, 100 µL of adjusted fungal suspension and 1 µL of the test compound were added, followed by 1 µL of resazurin to give a final concentration of 0.15 mg/mL. The plates were sealed and incubated at 37 °C for 7 days. The assay plates were inspected on day 7 for visual and spectrometric endpoints. For spectrophotometric MICs, absorbance was measured at 600 nm (Thermo Scientific Multiskan Spectrum, Thermo Fischer Scientific, Joensuu, Finland). All assays were performed in three independent replicates [22].
4. Conclusions
The sandalwood oil of Santalum album, with an MIC value of 0.0039% (v/v), was found to show the most potent activity among a diverse array of essential oils tested against the most common fungal pathogen of mycetoma, Madurella mycetomatis. Various oils of different Santalum species and two “Sandalwood” oils obtained from other plants all displayed significant activity against the pathogen. No clear correlation was established between the activity and the species of origin, nor with the component profiles obtained with the GC-MS analyses, in which more than 270 different components were detected in the 18 oils analyzed. However, it could be demonstrated that the antifungal activity is caused by the fraction of sesquiterpene alcohols, while the sesquiterpene hydrocarbons were inactive. Of the two major constituents, (Z)-α-santalol and (Z)-β-santalol, the former was about twice as potent, but both were less active than the total oil they obtained. It will be interesting to investigate in further studies whether the observed effects are due to an antimitotic effect, as previously postulated [8].
This study thus provides evidence that sandalwood oil, as a natural mixture of volatile sesquiterpenes, has interesting potential as an antimycetomal agent. Further studies on the antifungal potency of the isolated constituents and their possible synergistic effects may reveal structure–activity relationships among these compounds. Furthermore, studies with an in vivo model of mycetoma with infected Galleria mellonella larvae have been initiated to assess the possible in vivo efficacy of sandalwood oils and their components. The results of these ongoing experiments will be published separately.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29081846/s1, Table S1. Complete list of constituents detected in the Sandalwood oils under study by GC-QTOF MS analysis using a DB-HeavyWax column. Table S2. Complete list of constituents detected in the Sandalwood oils under study by GC-QTOF MS analysis using a DB-5 column. Figures S1–S17. GC-MS chromatograms of the investigated EOs on DB-5 and DB-HeavyWAX-columns; Figure S18. GC-MS chromatograms of hydrocarbon fraction (HF2) and alcohol fraction (AF2) on DB-HeavyWAX-column; Figure S19. GC-MS chromatograms of (Z)-α-Santalol fraction (ZAg2) and (Z)-β-Santalol fraction (ZAg5) on DB-HeavyWAX-column; Figure S20. GC-QTOF Mass spectra of isolated (Z)-α-Santalol (fraction ZAg2, above) and (Z)-β-Santalol (fraction ZAg5, below). Measured spectra are plotted upward in direct comparison with NIST library spectra, pointing downward.
Author Contributions
Conceptualization, S.A.K., W.N.S. and T.J.S.; investigation, S.S. and S.O.A.A.; resources, S.A.K., T.J.S. and P.S.; data curation, S.S. and S.O.A.A.; writing—original draft preparation, T.J.S. and S.S.; writing—review and editing, S.A.K., W.N.S., S.O.A.A. and P.S.; supervision, T.J.S., S.A.K. and W.N.S. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The raw data of all analyses supporting the conclusions of this article are available from the corresponding author (T.J.S.) upon request.
Acknowledgments
The authors (in particular T.J.S., S.S. and the IPBP, University of Münster) are grateful to Deutsche Forschungsgemeinschaft (DFG) and the State of North Rhine Westphalia (Germany) for financially supporting (INST 211/858-1 FUGG) the purchase of the GC-QTOF MS system used in this study. The authors thank Jandirk Sendker (University of Münster) for the technical administration, maintenance, and training of S.S. on the GC-QTOF MS system. The authors S.A.K. and S.O.A. thank the University of Science and Technology (UST) for allocating an appropriate working space and laboratory supplies. Also, S.O.A. expresses her gratitude to Dr. Willmar Schwabe GmbH & Co. KG, Karlsruhe, Germany, in collaboration with the Society of Medicinal Plants and Natural Products Research (GA) for the Research Award entitled “Drug discovery of natural molecules against Madurella mycetomatis—one of the most neglected tropical diseases”. S.A.K. furthermore is grateful for the 1st Research Award of the Foundation Plants for Health awarded in 2016. The authors thank dōTERRA (Pleasant Grove, UT, USA) and BASF GmbH (Ludwigshafen, Germany) for donating essential oils. This work is an activity of the Research Network Natural Products against Neglected Diseases (ResNet NPND, see www.resnetnpnd.org (accessed on 5 February 2024).
Conflicts of Interest
The authors declare no conflicts of interest.
References
- World Health Organization–Mycetoma. Available online: https://www.who.int/news-room/fact-sheets/detail/mycetoma (accessed on 10 January 2024).
- Zijlstra, E.E.; van de Sande, W.W.J.; Welsh, O.; Mahgoub, E.S.; Goodfellow, M.; Fahal, A.H. Mycetoma: A unique neglected tropical disease. Lancet Infect. Dis. 2016, 16, 100–112. [Google Scholar] [CrossRef] [PubMed]
- Emery, D.; Denning, D.W. The global distribution of actinomycetoma and eumycetoma. PLOS Negl. Trop. Dis. 2020, 14, e0008397. [Google Scholar] [CrossRef] [PubMed]
- Drugs for Neglected Diseases Initiative (DNDi). Available online: https://dndi.org/press-releases/2023/worlds-first-clinical-trial-for-mycetoma-shows-efficacy-new-promising-treatment (accessed on 30 January 2024).
- Lim, W.; Eadie, K.; Konings, M.; Rijnders, B.; Fahal, A.H.; Oliver, J.D.; Birch, M.; Verbon, A.; van de Sande, W. Madurella mycetomatis, the main causative agent of eumycetoma, is highly susceptible to olorofim. J. Antimicrob. Chemother. 2020, 75, 936–941. [Google Scholar] [CrossRef] [PubMed]
- Van de Sande, W.W.J.; Fahal, A.H.; Riley, T.V.; Verbrugh, H.; van Belkum, A. In vitro susceptibility of Madurella mycetomatis, prime agent of Madura foot, to tea tree oil and artemisinin. J. Antimicrob. Chemother. 2007, 59, 553–555. [Google Scholar] [CrossRef] [PubMed]
- Konings, M.; Eadie, K.; Lim, W.; Fahal, A.H.; Mouton, J.; Tesse, N.; van de Sande, W.W.J. The synthetic synergistic cinnamon oil CIN-102 is active against Madurella mycetomatis, the most common causative agent of mycetoma. PLoS Negl. Trop. Dis. 2021, 15, e0009488. [Google Scholar] [CrossRef] [PubMed]
- Kim, T.H.; Hatano, T.; Okamoto, K.; Yoshida, T.; Kanzaki, H.; Arita, M.; Ito, H. Antifungal and Ichthyotoxic Sesquiterpenoids from Santalum album Heartwood. Molecules 2017, 22, 1139. [Google Scholar] [CrossRef] [PubMed]
- Powers, C.N.; Osier, J.L.; McFeeters, R.L.; Brazell, C.B.; Olsen, E.L.; Moriarity, D.M.; Satyal, P.; Setzer, W.N. Antifungal and Cytotoxic Activities of Sixty Commercially-Available Essential Oils. Molecules 2018, 23, 1549. [Google Scholar] [CrossRef] [PubMed]
- NIST 17 Library & Search Program; National Institute of Standards and Technology, U.S. Department of Commerce: Gaithersburg, MD, USA, 2017.
- Valder, C.; Neugebauer, M.; Meier, M.; Kohlenberg, B.; Hammerschmidt, F.-J.; Braun, N.A. Western Australian Sandalwood Oil—New Constituents of Santalum spicatum (R. Br.) A. DC. (Santalaceae). J. Essent. Oil Res. 2003, 3, 178–186. [Google Scholar] [CrossRef]
- Baldovini, N.; Delasalle, C.; Joulain, D. Phytochemistry of the heartwood from fragrant Santalum species: A review. Flavour Fragr. J. 2011, 1, 7–26. [Google Scholar] [CrossRef]
- Braun, N.A.; Sim, S.; Kohlenberg, B.; Lawrence, B.M. Hawaiian Sandalwood: Oil Composition of Santalum paniculatum and Comparison with Other Sandal Species. Nat. Prod. Commun. 2014, 9, 1365–1368. [Google Scholar] [CrossRef] [PubMed]
- Diaz-Chavez, M.L.; Moniodis, J.; Madilao, L.L.; Jancsik, S.; Keeling, C.I.; Barbour, E.L.; Ghisalberti, E.L.; Plummer, J.A.; Jones, C.G.; Bohlmann, J. Biosynthesis of Sandalwood Oil: Santalum album CYP76F cytochromes P450 produce santalols and bergamotol. PLoS ONE 2013, 9, e75053. [Google Scholar] [CrossRef] [PubMed]
- Howes, M.-J.R.; Simmonds, M.S.J.; Kite, G.C. Evaluation of the quality of sandalwood essential oils by gas chromatography–mass spectrometry. J. Chromatogr. A 2004, 1028, 307–312. [Google Scholar] [CrossRef] [PubMed]
- Kačániová, M.; Terentjeva, M.; Štefániková, J.; Žiarovská, J.; Savitskaya, T.; Grinshpan, D.; Kowalczewski, P.Ł.; Vukovic, N.; Tvrdá, E. Chemical Composition and Antimicrobial Activity of Selected Essential Oils against Staphylococcus spp. Isolated from Human Semen. Antibiotics 2020, 9, 765. [Google Scholar] [CrossRef] [PubMed]
- Klein, E.; Schmidt, W. Structure of Brachyl Oxide. J. Agric. Food Chem. 1971, 19, 1115–1117. [Google Scholar] [CrossRef]
- BASF/Isobionics®Santalol Safety Data Sheet. Available online: https://products.basf.com/global/en/downloads.html#%7B%220%22%3A%5B%5B%22productId%22%2C%5B%2230794235%22%5D%5D%5D%7D (accessed on 17 January 2024).
- Isobionics®Santalol Product Specification. Available online: https://www.isobionics.com/global/en/product-finder/santalol.html (accessed on 17 January 2024).
- Adams, R.P. Identification of Essential Oil Components by Gas Chromatography/Mass Spectrometry, 4th ed.; Allured Publishing Corporation: Carol Stream, IL, USA, 2007. [Google Scholar]
- Daramwar, P.P.; Srivastava, P.L.; Priyadarshini, B.; Thulasiram, H.V. Preparative separation of α- and β-santalenes and (Z)-α- and (Z)-β-santalols using silver nitrate-impregnated silica gel medium pressure liquid chromatography and analysis of sandalwood oil. Analyst 2012, 19, 4564–4570. [Google Scholar] [CrossRef] [PubMed]
- Abd Algaffar, S.O.; Verbon, A.; van de Sande, W.W.J.; Khalid, S.A. Development and validation of an in vitro resazurin-based susceptibility assay against Madurella mycetomatis. Antimicrob. Agents Chemother. 2021, 65, e01338-20. [Google Scholar] [CrossRef] [PubMed]
Figure 1.
Structures of (Z)-α-santalol (left) and (Z)-β-santalol (right).
Table 1.
Antifungal screening of various essential oils against Madurella mycetomatis. Data represent average minimum inhibitory concentrations (MIC) in % (v/v) from four different isolates ± standard deviation (SD).
Table 1.
Antifungal screening of various essential oils against Madurella mycetomatis. Data represent average minimum inhibitory concentrations (MIC) in % (v/v) from four different isolates ± standard deviation (SD).
| Code | Essential Oil | Plant of Origin | MIC | ±SD |
|---|---|---|---|---|
| EO-01 | Clary Sage | Salvia sclarea | 0.1068 | 0.1270 |
| EO-02 | Thyme | Thymus vulgaris/zygis | 0.0244 | 0.0137 |
| EO-03 | (Field) Mint | Mentha arvensis | 0.0801 | 0.0565 |
| EO-04 | Juniper | Juniperus communis | 0.0332 | 0.0224 |
| EO-05 | Star Anise | Illicium verum | 0.1302 | 0.1173 |
| EO-06 | Lemon Balm | Cymbopogon + Citrus spp. * | n.a. | |
| EO-07 | Rosemary | Salvia rosmarinus | n.a. | |
| EO-08 | Marjoram | Origanum majorana | n.a. | |
| EO-09 | Caraway | Carum carvi | 0.0645 | 0.0479 |
| EO-10 | Patchouli | Pogostemon cablin | 0.0254 | 0.0117 |
| EO-11 | Cinnamom | Cinnamomum verum | 0.0127 | 0.0059 |
| EO-12 | Wormwood | Artemisia absinthium | 0.0488 | 0.0274 |
| EO-13 | Pine Needle | Pinus sylvestris | 0.0205 | 0.0133 |
| EO-14 | Ginger | Zingiber officinale | 0.0508 | 0.0235 |
| EO-15 | Clove | Syzygium aromaticum | 0.0215 | 0.0117 |
| EO-16 | Fir Needle | Picea abies | 0.1563 | 0.1326 |
| EO-17 | Lavender | Lavandula sp. | n.a. | |
| EO-18 | Tea Tree | Melaleuca alternifolia | n.a. | |
| EO-19 | Citronella | Cymbopogon sp. | 0.1302 | 0.1173 |
| EO-20 | Cedar Wood | Cedrus sp. | 0.0332 | 0.0224 |
| EO-21 | Chamomile | Matricaria chamomilla | 0.0176 | 0.0098 |
| EO-22 | Basil | Ocimum basilicum | 0.0801 | 0.0565 |
| EO-23 | Sage (30%) | Salvia officinalis | 0.0791 | 0.0581 |
| EO-24 | Sandalwood | Santalum album | 0.0039 | 0.0000 |
| EO-25 | Sweet Flag | Acorus calamus | 0.0215 | 0.0117 |
| EO-26 | Eucalyptus | Eucalyptus sp. | 0.1133 | 0.1016 |
| EO-27 | Sweet Fennel | Foeniculum vulgare | n.a. | |
| Pos. contr. | itraconazole | - | 0.0001 | 0.0000 |
* Artificial lemon balm or melissa oil is a citronella and lemon oil mixture. n.a.: not active.
Table 2.
Activity of various sandalwood (SW) oils against two different strains of Madurella mycetomatis (clinical isolates). Data represent minimum inhibitory concentrations (MIC) in % (v/v). In the case of the positive control, the standard antifungal drug itraconazole, the MIC is expressed in % (m/v). The color scale indicates the increasing activity in the form of a heatmap from the highest (0.0625, white) to lowest (≤0.00005, red) MIC values.
Table 2.
Activity of various sandalwood (SW) oils against two different strains of Madurella mycetomatis (clinical isolates). Data represent minimum inhibitory concentrations (MIC) in % (v/v). In the case of the positive control, the standard antifungal drug itraconazole, the MIC is expressed in % (m/v). The color scale indicates the increasing activity in the form of a heatmap from the highest (0.0625, white) to lowest (≤0.00005, red) MIC values.
| Code | Essential Oil (Species of Origin) | M. mycetomatis Strain | |
|---|---|---|---|
| SAK-E07 | SAK-E013 | ||
| EO-24 | Indian SW (S. album) | 0.0039 | 0.0039 |
| Ess-EO1 | (East) Indian SW (S. album) | 0.0039 | 0.0078 |
| Ess-EO2 | Australian SW (S. spicatum) | 0.0039 | 0.0039 |
| Ess-EO3 | North Australian SW (S. lanceolatum) | 0.0078 | 0.0078 |
| Ess-EO4 | Pacific SW (S. austrocaledonicum) | 0.0019 | 0.0078 |
| Ess-EO5 | Hawaiian Royal SW (S. paniculatum) | 0.0019 | 0.0039 |
| Ess-EO6 | West Indian “SW” (Amyris balsamifera) | 0.0039 | 0.0078 |
| Ess-EO7 | Muhuhu or African “SW” (Brachylaena huillensis) | 0.0625 | 0.0078 |
| doT-EO1 | doTERRA SW-19 (S. album) | 0.0019 | n.d. |
| doT-EO2 | doTERRA Hawaiian SW-19 (S. paniculatum) | 0.0039 | n.d. |
| doT-EO5 | FPA200727A Indonesian SW (S. album) | 0.0078 | 0.0039 |
| doT-EO6 | FPA210106A Indonesian SW (S. album) | 0.0019 | 0.0039 |
| doT-EO7 | KMR210104A Hawaiian SW (S. paniculatum) | 0.0039 | 0.001 |
| doT-EO8 | KN200902A Indian SW (S. album) | 0.0019 | 0.0019 |
| doT-EO9 | RO200619A New Caledonian SW (S. austrocaledonium) | 0.0019 | 0.001 |
| doT-EO10 | RO210112A New Caledonian SW (S. austrocaledonium) | 0.0039 | 0.0039 |
| doT-EO11 | SAT210122A Australian SW (S. album) | 0.0078 | 0.001 |
| Pos. contr. | itraconazole | 0.00005 | 0.000025 |
n.d. not determined.
Table 5.
MIC values of Isobionics® Santalol (IsoSant), sandalwood oil Ess-EO5 (S. paniculatum) and its separated fractions of sesquiterpene hydrocarbons and alcohols, as well as of the purified (Z)-α- and β-santalols, against the M. mycetomatis strain SAK-E07.
Table 5.
MIC values of Isobionics® Santalol (IsoSant), sandalwood oil Ess-EO5 (S. paniculatum) and its separated fractions of sesquiterpene hydrocarbons and alcohols, as well as of the purified (Z)-α- and β-santalols, against the M. mycetomatis strain SAK-E07.
| Sample | MIC (% v/v) | MIC (µg/mL) | MIC (µmol/L) |
|---|---|---|---|
| IsoSant | ≈27.5 * | ≈125 * | |
| Ess-EO5 | 0.0019 | 16 | |
| HF2 | >512 | ||
| AF2 | 64 | ||
| (Z)-α-santalol | 27.5 | 125 | |
| (Z)-β-santalol | 55 | 250 | |
| Itraconazole | 0.25 | 0.35 |
* Approximate values: MIC was determined in µmol/L, assuming the mixture consists exclusively of santalol isomers.
Table 6.
Origin of all EOs tested in this study.
| Code | Essential Oil | Plant of Origin | Manuf. | Batch # |
|---|---|---|---|---|
| EO-01 | Clary Sage | Salvia sclarea | Roth | 069103645 |
| EO-02 | Thyme | Thymus vulgaris/zygis | Caelo | 72536487 |
| EO-03 | (Field) Mint | Mentha arvensis | Caelo | 77283108 |
| EO-04 | Juniper | Juniperus communis | Caelo | 70816137 |
| EO-05 | Star Anise | Illicium verum | Caelo | 10319008 |
| EO-06 | “Lemon Balm” * | Cymbopogon + Citrus spp. * | Caelo | 72946467 |
| EO-07 | Rosemary | Salvia rosmarinus | Caelo | 70828477 |
| EO-08 | Marjoram | Origanum majorana | Caelo | 10188603 |
| EO-09 | Caraway | Carum carvi | Caelo | 71717487 |
| EO-10 | Patchouli | Pogostemon cablin | Caelo | 10185505 |
| EO-11 | Cinnamon | Cinnamomum verum | Caelo | 10185204 |
| EO-12 | Wormwood | Artemisia absinthium | Caelo | 72317367 |
| EO-13 | Pine Needle | Pinus sylvestris | Caelo | 70295067 |
| EO-14 | Ginger | Zingiber officinale | Caelo | 63055487 |
| EO-15 | Clove | Syzygium aromaticum | Caelo | 10127104 |
| EO-16 | Fir Needle | Picea abies | Caelo | 72469417 |
| EO-17 | Lavender | Lavandula sp. | Caelo | 73411058 |
| EO-18 | Tea Tree | Melaleuca alternifolia | Caelo | 71984507 |
| EO-19 | Citronella | Cymbopogon sp. | Caelo | 71497257 |
| EO-20 | Cedar Wood | Cedrus sp. | Caelo | 10118703 |
| EO-21 | Chamomile | Matricaria chamomilla | Caelo | 10318402 |
| EO-22 | Basil | Ocimum basilicum | Caelo | 10229308 |
| EO-23 | Sage (30%) | Salvia officinalis | Caelo | 71650068 |
| EO-24 | Sandalwood (SW) | Santalum album | Caelo | 10057806 |
| EO-25 | Sweet Flag | Acorus calamus | Caelo | 96115283 |
| EO-26 | Eucalyptus | Eucalyptus sp. | Pub. ** | ** |
| EO-27 | Sweet Fennel | Foeniculum vulgare var. dulce | Spinnrad | 5552 |
| Ess-EO1 | Indian SW | Santalum (S.) album | Essence | 0020040 |
| Ess-EO2 | Australian SW | S. spicatum | Essence | 7300 |
| Ess-EO3 | Australian (North) SW | S. lanceolatum | Essence | HG CONS 42 |
| Ess-EO4 | Pacific SW | S. austrocaledonicum | Essence | 836094 |
| Ess-EO5 | Hawaiian Royal SW | S. paniculatum | Essence | HA.07272015 |
| Ess-EO6 | West Indian “SW” | Amyris balsamifera | Essence | 40017 |
| Ess-EO7 | African “SW” (Muhuhu) | Brachylaena huillensis | Essence | 131BB501 |
| doT-EO1 | SW-19 | S. album | dōTERRA | 171384A |
| doT-EO2 | Hawaiian SW-19 | S. paniculatum | dōTERRA | 162885 |
| doT-EO5 | Indonesian SW | S. album | dōTERRA | FPA200727A |
| doT-EO6 | Indonesian SW | S. album | dōTERRA | FPA210106A |
| doT-EO7 | Hawaiian SW | S. paniculatum | dōTERRA | KMR210104A |
| doT-EO8 | Indian SW | S. album | dōTERRA | KN200902A |
| doT-EO9 | New Caledonian SW | S. austrocaledonicum | dōTERRA | RO200619A |
| doT-EO10 | New Caledonian SW | S. austrocaledonicum | dōTERRA | RO210112A |
| doT-EO11 | Australian SW | S. album | dōTERRA | SAT210122A |
| IsoSant | Isobionics Santalol | Biotechnological product | BASF | 2207IB02SALiso |
* This is an artificial lemon balm or melissa oil consisting of a mixture of citronella and lemon oil. ** This oil was purchased from a public pharmacy in Germany; it was of Ph. Eur. Quality. The batch number is not known.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Abd Algaffar, S.O.; Seegers, S.; Satyal, P.; Setzer, W.N.; Schmidt, T.J.; Khalid, S.A. Sandalwood Oils of Different Origins Are Active In Vitro against Madurella mycetomatis, the Major Fungal Pathogen Responsible for Eumycetoma. Molecules 2024, 29, 1846. https://doi.org/10.3390/molecules29081846
AMA Style
Abd Algaffar SO, Seegers S, Satyal P, Setzer WN, Schmidt TJ, Khalid SA. Sandalwood Oils of Different Origins Are Active In Vitro against Madurella mycetomatis, the Major Fungal Pathogen Responsible for Eumycetoma. Molecules. 2024; 29(8):1846. https://doi.org/10.3390/molecules29081846
Chicago/Turabian StyleAbd Algaffar, Shereen O., Stephan Seegers, Prabodh Satyal, William N. Setzer, Thomas J. Schmidt, and Sami A. Khalid. 2024. "Sandalwood Oils of Different Origins Are Active In Vitro against Madurella mycetomatis, the Major Fungal Pathogen Responsible for Eumycetoma" Molecules 29, no. 8: 1846. https://doi.org/10.3390/molecules29081846
APA StyleAbd Algaffar, S. O., Seegers, S., Satyal, P., Setzer, W. N., Schmidt, T. J., & Khalid, S. A. (2024). Sandalwood Oils of Different Origins Are Active In Vitro against Madurella mycetomatis, the Major Fungal Pathogen Responsible for Eumycetoma. Molecules, 29(8), 1846. https://doi.org/10.3390/molecules29081846
