Review

Atom-Precise Ligated Copper and Copper-Rich Nanoclusters with Mixed-Valent Cu(I)/Cu(0) Character: Structure–Electron Count Relationships

by
Bachir Zouchoune
1,2 and
Jean-Yves Saillard
3,*,†
1
Unité de Recherche de Chimie de l’Environnement et Moléculaire Structurale, Université Constantine 1 (Mentouri), Constantine 25000, Algeria
2
Laboratoire de Chimie Appliquée et Technologie des Matériaux, Université Larbi Ben M’Hidi-Oum El Bouaghi, Oum El Bouaghi 04000, Algeria
3
Univ Rennes, CNRS, Institut des Sciences Chimiques de Rennes-UMR 6226, 35000 Rennes, France
*
Author to whom correspondence should be addressed.
†
Dedicated to our distinguished friend and Colleague Prof. David Carillo on the occasion of its 85th birthday.
Molecules 2024, 29(3), 605; https://doi.org/10.3390/molecules29030605
Submission received: 27 December 2023 / Revised: 12 January 2024 / Accepted: 18 January 2024 / Published: 26 January 2024
(This article belongs to the Section Inorganic Chemistry)
Browse Figures
Versions Notes

Abstract

:
Copper homometallic and copper-rich heterometallic nanoclusters with some Cu(0) character are reviewed. Their structure and stability are discussed in terms of their number of “free” electrons. In many aspects, this structural chemistry differs from that of their silver or copper homologs. Whereas the two-electron species are by far the most numerous, only one eight-electron species is known, but more electron-rich nanoclusters have also been reported. Owing to the relatively recent development of this chemistry, it is likely that more electron-rich species will be reported in the future.

1. Introduction

Mixed-valent group 11 nanoclusters, i.e., clusters with a partial M(0) character, are commonly constituted by a compact [Mn]x+ (n > x ≥ 0) core, protected (i.e., passivated) by an outer shell composed of ligands (of which at least some are anionic, e.g., S2−, SR−, C≡CR−, Cl−, or H−), and possibly supplementary metal atoms, which can be considered as being in their +I oxidation state (formally M+) [1,2,3,4]. The presence of these M+ metals at the nanoclusters’ periphery is required due to the need to coordinate some of the ligands’ lone pairs, which cannot all be coordinated by the [Mn]x+ core. For example, this situation occurs when thiolate ligands are present, for stability usually requires coordinating at least two among the three thiolate sulfur lone pairs. Being generally bonded to two, three, or four ligand lone pairs, the peripheral M+ atoms form locally stable linear 14-electron, trigonal planar 16-electron, or tetrahedral 18-electron metal centers. Their interaction with the [Mn]x+ core can be mostly viewed in first approximation as being of a metallophilic nature. In most cases, the charge of such stable and isolable species, i.e., the sum of the formal charges of the cluster’s constituents (core + ligands + peripheral metals), is 0 or close to 0.
The valence electron configuration of group 11 metals in their 0 and +I oxidation states is d10 s1 and d10 s0, respectively. Since in the mixed-valent [Mn]x+ core the M oxidation state is between +I and 0 (average d10 s(n−x)/n configuration), the valence d shell is always completely filled and, therefore, the metal–metal bonding within the [Mn]x+ core is only ensured by the (n − x) valence s electrons. Being atom-precise, the clusters are also electron-precise, and the value of (n − x) is imposed by stability laws, of which the closed-shell requirement is the primary one. When the compact [Mn]x+ core is of approximately spherical shape, its electronic structure can be described within the superatom qualitative model [1,2,3,4,5]. This model is based on the spherical jellium approximation [5,6,7], which consists in replacing, in the Hamiltonian part describing the [Mn]x+ core, the spheroidal field generated by the compact cloud of the individual nuclei’s point charges with a smoothened averaged radial (spherical) potential. The solutions of the resulting approximate Schrödinger equation are polyelectronic wave functions that can be written on the basis of one-electron functions that remind the atomic orbitals and are called superatomic orbitals. Although of spherical symmetry, as in a polyatomic atom, the jellium potential approximating the electron–nuclei interactions in a superatom is of a different nature, resulting in the absence of conditions between the n and l quantum numbers, allowing for 1P, 2P, 3P… 1D, 2D, 3D, etc., superatomic orbitals. As for atomic orbitals, there is a level ordering for superatomic orbitals, which is quite general, at least for the lowest shells (1S < 1P < 1D < 2S < 1F < 2P < 1G, etc.). The closed-shell requirement predicts stability for any superatomic configuration corresponding to the complete filling of superatomic levels, e.g., 1S2, 1S2 1P6 or 1S2 1P6 1D10. It turns out that a huge proportion of isolable atom-precise nanoclusters of Ag and Au obey this shell-filling requirement, with so-called superatomic “magic” numbers of electrons (2, 8, 18, 20, 34, 40, etc.). Some, which deviate from these electron counts, can be viewed as Jahn–Teller-distorted superatoms [8]. More importantly, it has been shown that, as atoms can assemble to form molecules, several superatoms can fuse together to generate superatomic molecules (i.e., supermolecules) [9,10,11,12]. The supermolecular electron counts resemble those of simple main-group molecules, with closed-shell configurations obeying the octet rule, with triple, double, single, or no “bonds”.
Whereas the number of known Au and Ag nanoclusters today is huge, with examples having several hundreds of metal atoms (e.g., Au333(SR)79 [13] or Ag374(SR)113Br2Cl2 [14]), their Cu homologs are comparatively much scarcer. The major reason for this likely originates from the fact that the Cu(I)/Cu(0) reduction potential of Cu is substantially lower than the corresponding Ag(I)/Ag(0) and Au(I)/Au(0) potentials [15], which makes Cu(I) more difficult to reduce [16,17,18]. Another reason might be that the chemistry of atom-precise mixed-valent copper clusters is much more recent than that of its gold and even Ag relatives. Although reviews dealing with copper nanoclusters exist [19,20,21,22,23,24,25], none of them have analyzed these species from the specific point of view of electron counting. This is why we review the structurally characterized mixed-valent Cu(I)/Cu(0) nanoclusters below and analyze their structures with respect to their electron counts. Copper-rich bi- or polymetallic species are also subsequently reviewed in a similar way. Finally, we stress the general trends within this chemistry, and we propose strategy elements to help experimentalists in their syntheses of copper species with as great a Cu(0) character as possible.

2. Homometallic Copper Species

Before entering into the description of clusters containing a Cun core, we would like to mention the huge family of chalcogen-bridged copper nanoclusters mainly developed during the past few decades by D. Fenske and coworkers in Karlsruhe [26,27]. In most of these compounds, copper is in its +I oxidation state and surrounded by chalcogenides or, in the case of the surface metals, by ligands such as phosphines or chalcogenolates. Very few of them, such as [Cu58Se16(SePh)24(Ph2P-C≡C-PPh2)6] [28] or [Cu26Te12(PEt2Ph)12] [29], exhibit a mixed-valent character, with two “excess” electrons that would formally correspond to two Cu(0) metals. Intriguingly, their X-ray structures do not exhibit any specific structural features (e.g., Cu...Cu shortening) as compared to their regular Cu(I) relatives. Calculations performed on such species did not find any peculiarities in the MO diagrams in the HOMO–LUMO region for these species, leading to the conclusion that the “excess” electron pair is better described by a delocalized orbital of a mixed copper–chalcogen nature, which is embedded in the cluster’s valence band [24,26]. Although of mixed-valent nature, these puzzling nanoclusters do not show any copper clustering and hence will not be considered further on in this review.
The mixed-valent homometallic copper nanoclusters structurally characterized by X-ray diffraction are listed in Table 1. Their “free” electron number, determined from their published chemical composition, varies from 1 to ~179, although the reliability of the largest values is questionable (see below). The copper oxidation state averaged over all the cluster metal atoms (including the peripheral Cu(I) atoms), which is a measure of the nanocluster global electron richness, decreases with the “free” electron count and, for a given electron count, obviously increases with nuclearity. As far as we know, the smallest non-zero electron count is that of the compound [Cu18H3(S-Adm)12(PPh3)4Cl2] (Adm = adamantly) reported by Mandal and coworkers [30]. This one-electron cluster exhibits a unique core–shell structure, the metallic framework of its Cu10H3Cl2 core being made of a vertex-sharing Cu6 octahedron and a Cu5 square pyramid. According to DFT calculations performed by the authors, the shared vertex can be regarded as a Cu(0) center, thus holding the unique cluster electron [30]. This unprecedented paramagnetic species is better viewed as a localized mixed-valent polynuclear complex rather than a superatom. This is why it is not reported in Table 1.

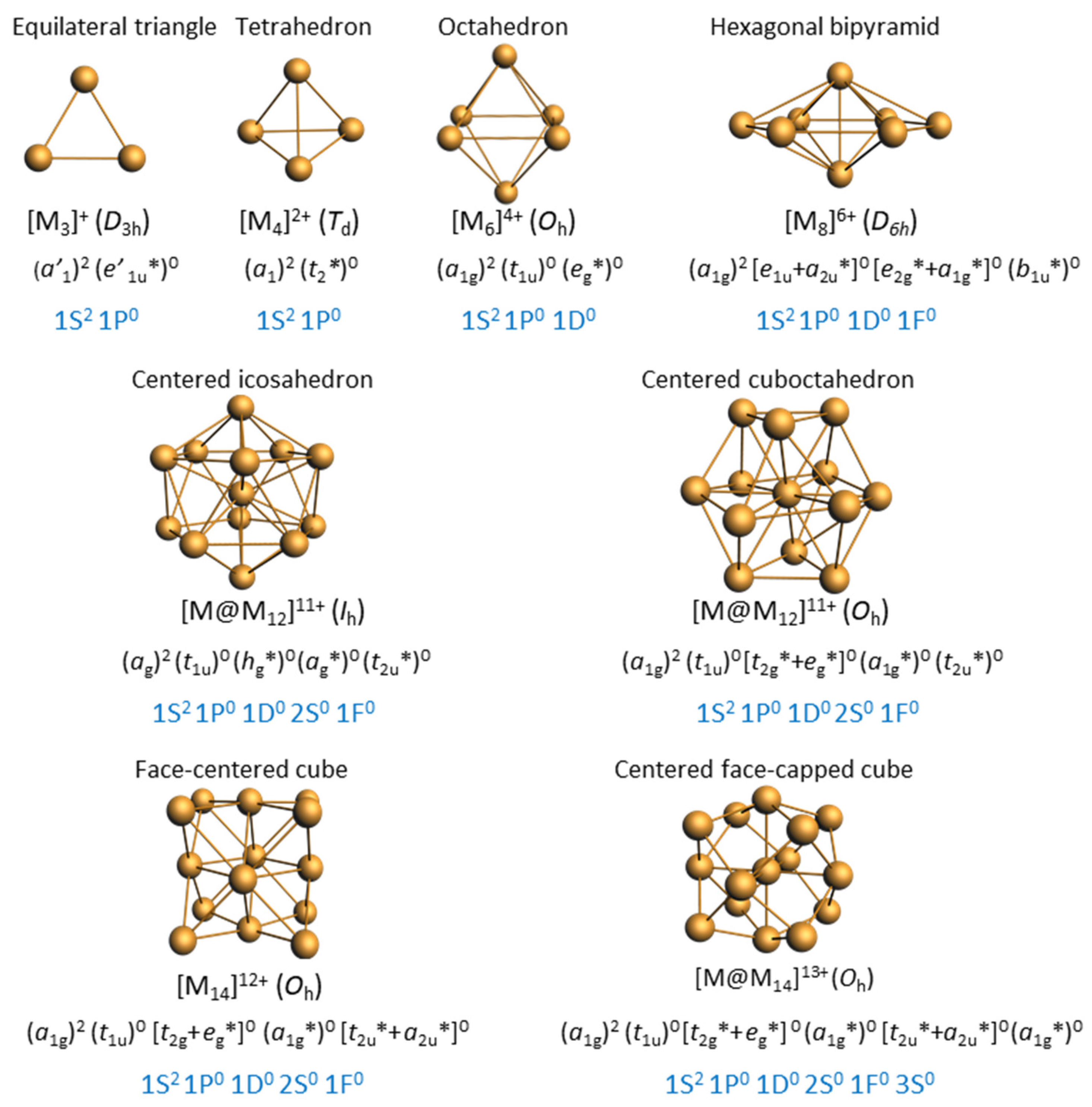

The most frequent cluster electron count is two (Table 1). As illustrated in Figure 1, the smaller three-dimensional compact core able to provide a stable superatomic 1S2 1P0 closed-shell configuration for group 11 metals is the tetrahedron. This is indeed the case of cluster 6 reported by Hayton and coworkers [31], which contains a tetrahedral [Cu4]2+ core embedded in a quite complex [Cu16(CCPh)12(OAc)6)]2− outer shell (Figure 2). The centered icosahedral closed-packed framework is well known for housing eight electrons (1S2 1P6 configuration) in the case of gold and silver [1,2,3,4]. However, such an architecture can also secure a large HOMO–LUMO gap for the 1S2 configuration ([Cu13]11+), with the two electrons housed in a strongly bonding MO of ag symmetry (Figure 1). This situation is exemplified by clusters 7 and 8, also made by the group of Hayton [16,32]. Figure 2 illustrates the case of 7, whose centered icosahedral [Cu13]11+ core is protected by a [Cu7(CCPh)12(OAc)6)]11− shell. The centered cuboctahedral framework [M13]11+ (Figure 1) is only slightly less compact than its icosahedral relative, and indeed, it is present in the clusters of type 3 (Figure 2), made by Liu and coworkers [33,34]. Interestingly, these clusters do not have any Cu(I) in their protecting outer shell, but only ligands, in contrast to 7 and 8. The presence of dithiocarbamate ligands, which bridge the cuboctahedral square faces, might be the reason for the preference of the cuboctahedron over the icosahedron, the latter having only triangular faces. Two related two-electron clusters, 4 [35] and 5 [36], reported by Mak and coworkers, exhibit a [Cu14]12+ fcc core (Figure 1), a rather compact structure, even for such a small piece of bulk. Clusters 4 and 5 differ only in the number of terminal acetonitrile ligands on their cube vertices. The outer shell is completed by six bulky 1,2-dithiolate-o-carborane ligands which coordinate both types of metals (see the structure of 4 in Figure 2). A 14-atom fcc structure can also be viewed as an octahedron inscribed in a cube, and it is noteworthy that in their reports, the authors assume that the two cluster electrons are delocalized on the octahedron only, i.e., [Cu6]2+ (Figure 1) [35,36]. In the absence of a detailed analysis of their electronic structure, it is difficult to figure out which one of the two alternatives, [Cu14]12+ or [Cu6]2+, is the best suited for describing the superatomic core of clusters 4 and 5.
The four other two-electron species reported in Table 1 deviate significantly from sphericity, but one should consider that the two-electron count allows structural flexibility owing to the fact that no crucial degeneracy splitting upon symmetry lowering is expected for the 1S2 configuration, and sufficient compacity/connectivity is maintained. This is the case of clusters 1 and 2 reported by Kleeberg and coworkers [37,38]. The pentanuclear cluster 1 [37] displays a distorted triangular bipyramid (Figure 1) which could be identified as a [Cu5]3+ superatomic core. However, the presence of hydride ligands (and therefore the possibility for a 0-electron core) in this compound is not to be fully excluded [37]. The octanuclear cluster 2 [38] features a [Cu8]6+ hexagonal bipyramid (Figure 1). This oblate structural arrangement is likely to be favored by the bridging nature of the diaminoboryl and alkoxide ligands (Figure 2). The large size of the hexagonal base allows through-cage bonding between the two axial atoms, reinforcing its compact nature. Such a flat hexagonal bipyramidal structure has been reported for other noble-metal two-electron species [39,40,41]. Clusters 9 and 10 have a much larger nuclearity and a more complex structure with a large number of Cu(I) centers in their protecting shell. Cluster 9, prepared by the group of Zheng [42], is the largest two-electron alkynyl-protected Cu nanocluster so far reported. It shows an unprecedented Cu3@Cu10@Cu20@Cu20 metallic core–shell1–shell2–shell3 framework (top of Figure 3). The Cu10 shell1 is completed with two chlorine atoms, making a Cu10Cl2 icosahedron, which is nested inside the Cu20 shell2 dodecahedron. The Cu…Cu core–shell2 contacts are shorter than the core–shell1 ones, making the identification of the central superatomic entity difficult. A [Cu3]+ superatomic kernel (isoelectronic to H3+) would be fine from the orbital point of view, but more complex units, such as [Cu3@Cu10]11+ or [Cu3@Cu12@Cu20]33+, are not to be excluded a priori. Obviously, this species deserves more attention from the point of view of its electronic structure. The two-electron copper cluster with the largest nuclearity is 10, made by the group of Bakr [43]. It has a unique core–shell structure, with a Cu19 core and a giant Cu42(St Bu)26S6ClH14 outer shell (bottom of Figure 3). The Cu19 core describes a centered elongated triangular gyrobicupola (Cu@Cu18) of ideal D3h symmetry, already reported, but for a non-mixed-valent Cu(I) species, in which the Cu18 gyrobicupola encapsulates a [Cu2H5]3− unit [44]. Unfortunately, the positions of the hydrides in 10 could not be determined. Assuming that there are no hydrides inside the Cu18 cage, one might be tempted to assign the superatomic entity to [Cu19]17+. Alternatively, considering that the central metal in 10 is in contact with 6 among its 18 cage congeners, a [Cu@Cu6]5+ core could be also proposed.
Molecules 29 00605 g002

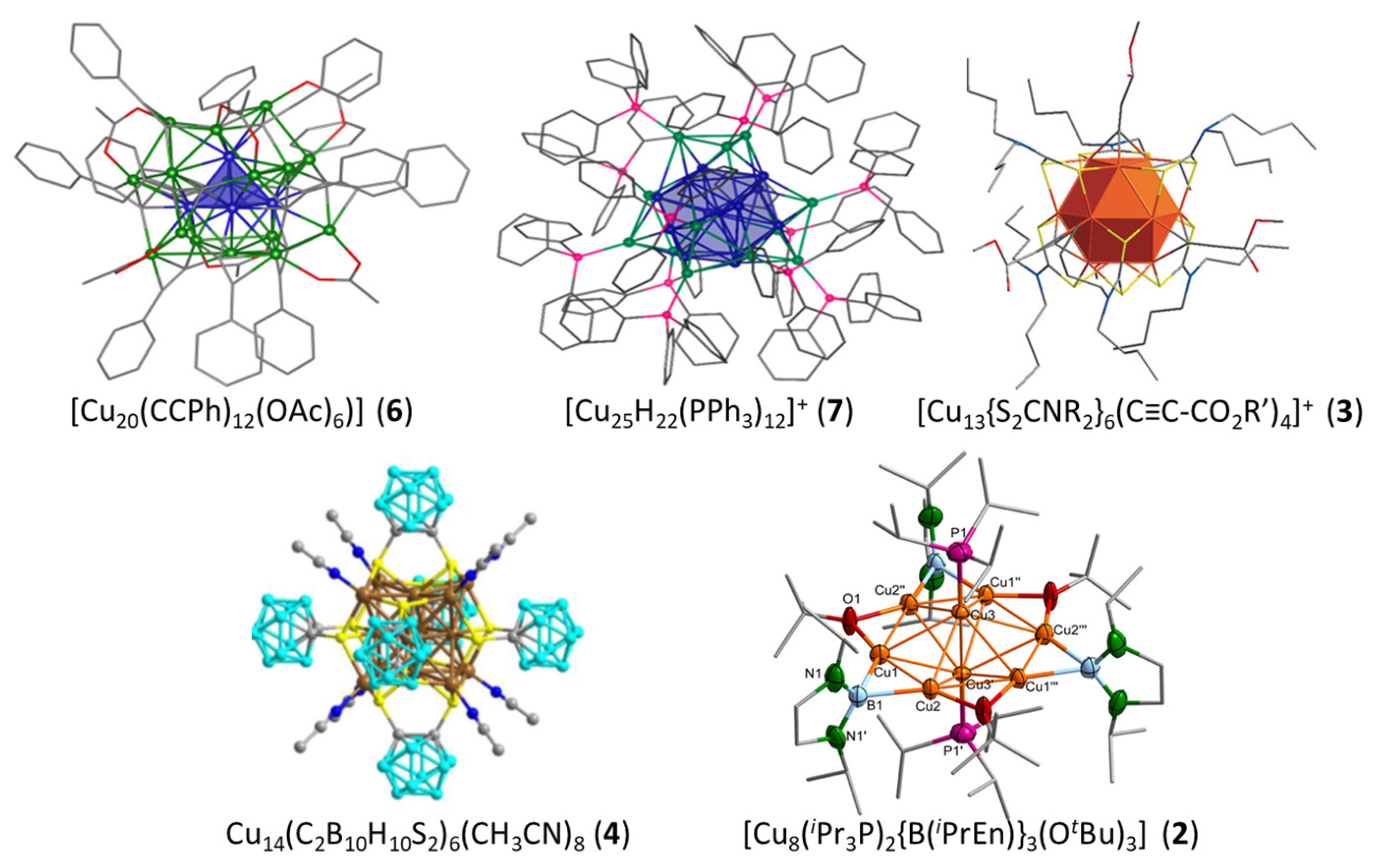

Figure 2. The structures of clusters 6 [31], 7 [16], 3 [33], 4 [35], and 2 [38] and their tetrahedral [Cu4]2+, centered icosahedral [Cu13]11+, centered cuboctahedral [Cu13]11+, fcc [Cu14]12+, and hexagonal bipyramidal [Cu8]6+ superatomic cores, respectively. Adapted with permission from Ref. [31] (copyright 2018 American Chemical Society), from Ref. [16] (copyright 2015 American Chemical Society), and from Ref. [33] (copyright 2016 John Wiley and Sons).
Figure 2. The structures of clusters 6 [31], 7 [16], 3 [33], 4 [35], and 2 [38] and their tetrahedral [Cu4]2+, centered icosahedral [Cu13]11+, centered cuboctahedral [Cu13]11+, fcc [Cu14]12+, and hexagonal bipyramidal [Cu8]6+ superatomic cores, respectively. Adapted with permission from Ref. [31] (copyright 2018 American Chemical Society), from Ref. [16] (copyright 2015 American Chemical Society), and from Ref. [33] (copyright 2016 John Wiley and Sons).
Molecules 29 00605 g002

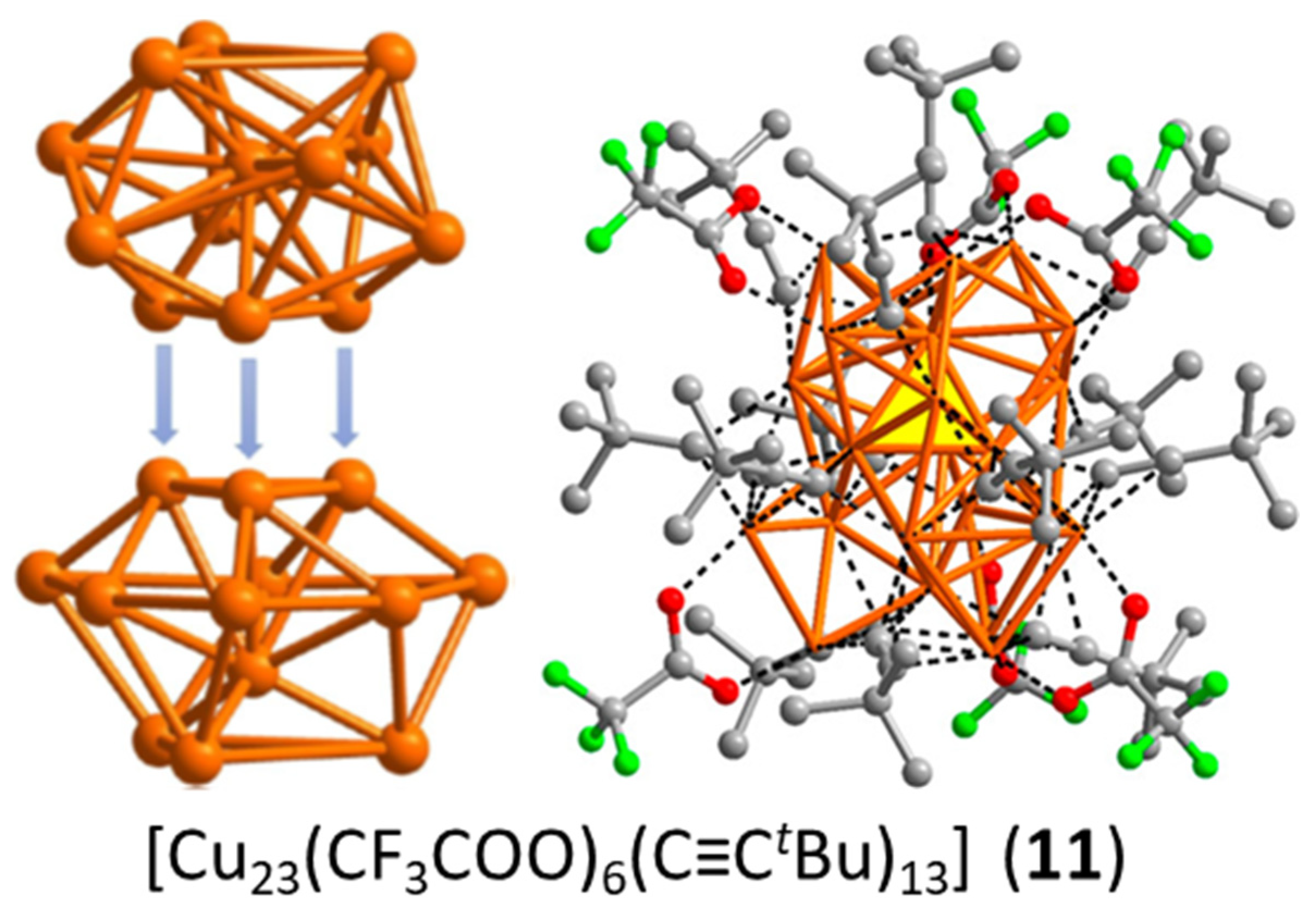

To our knowledge, cluster 11, made by Sun and coworkers [45], is the only four-electron copper nanocluster reported so far. Two polymorphs have been characterized in the solid state, both giving rise to the same X-ray molecular structure. The Cu23 framework can be described as made of a distorted centered icosahedron sharing a triangular face with a distorted centered cuboctahedron (Figure 4). Four is not a magic number for a superatom, so, at first sight, one could be tempted to see this cluster as made of the assembly of two weakly interacting two-electron spheroidal superatoms, namely a centered icosahedron and a centered cuboctahedron [9,10,11,12]. In such a case, 11 would be the supermolecular equivalent of the four-electron van der Waals He2 dimer. However, after a detailed analysis of the Cu…Cu distances and of their DFT-computed Cu atomic charges, the authors came to the conclusion that the four electrons are located on the Cu4 tetrahedron made of the center of the icosahedron and the triangular face which is shared by the two polyhedra. Yet, the existence of a tetrahedral [Cu4]0 core raises questions. Indeed, the favored electron count for such a four-orbital (4s) system is 2 ([Cu4]2+, as in compound 6; see also Figure 1), with the two electrons occupying a strongly bonding a’1 orbital (in ideal Td symmetry). Adding two supplementary electrons results in the partial occupation of a substantially antibonding degenerate t2* level, inducing strong Jahn–Teller distortion towards an open (butterfly) structure. Assuming additional participation of the 4p AOs of Cu does not cancel the above reasoning. So, in our opinion, a complete rationalization of the electron count of this species is still missing.
The same group reported the eight-electron cluster 12 with 1S2 1P6 configuration [17]. It features a centered icosahedral [Cu13]5+ core passivated by a chiral [Cu18(C≡CPh-OMe-4)21(dppe)3]3− outer shell. The centered icosahedral [M13]5+ motif is by far the eight-electron superatomic core the most encountered in Au and Ag nanocluster chemistry [1,2,3,4], but it is highly remarkable that this very recently reported compound is the so far unique example ever reported in the case of Cu.

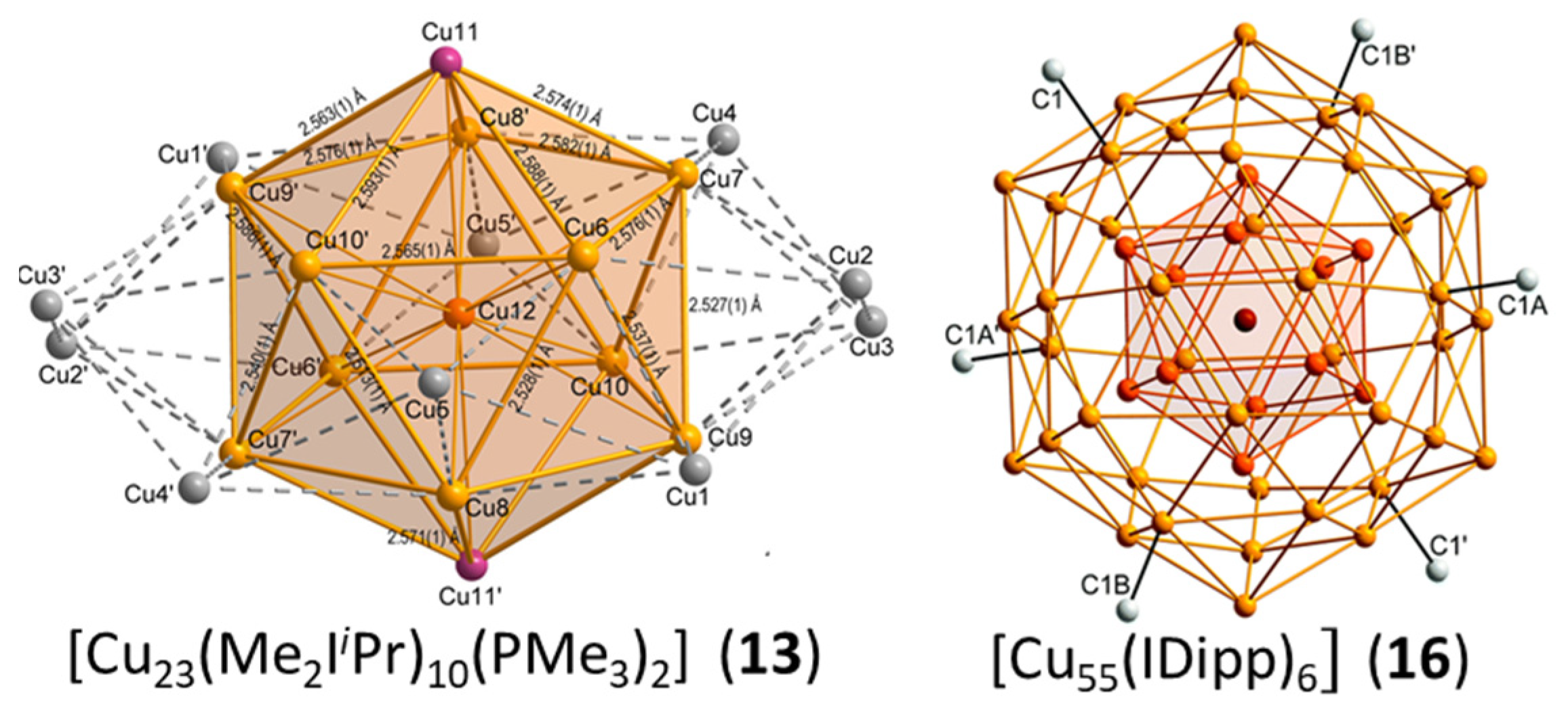

Cluster 13 reported by Kleeberg et al. [37] displays a Cu13@Cu10 metal framework in which the Cu13 unit is a centered icosahedron. The 10 remaining Cu atoms make a crown around the icosahedral unit in such a way that each of them caps one equatorial face of the icosahedron, making a Cu23 framework of D5d ideal symmetry (Figure 5, left). The two phosphines are bonded to the two icosahedral metals lying on the five-fold axis, and the ten NHC ligands are bonded to the ten crown atoms. This compound, which was obtained in low yield as a byproduct resulting from the decomposition of a copper boryl complex, is lacking characterization. In particular, the presence of hydrides on the cluster periphery is not to be excluded [37], and no indication of paramagnetism is provided, in spite of its supposed odd electron number. In a group 11 superatomic core Mn, an electron count larger than n is not expected, owing to the spheroidal and compact nature of Mn. Indeed, assuming that metal–metal bonding is ensured by the metal valence s AOs (and electrons), such a structural arrangement will generate a number of bonding MOs lower than (or equal to) n/2, all the other combinations being antibonding. The expected favored number of electrons for Mn should therefore be lower than (or equal to) n. Considering only the Cu13 centered icosahedron in 13 as being the superatomic core would result in a maximum of eight cluster electrons (i.e., [Cu13]5+, see Figure 1), an unrealistic value that would require the presence of 15 hydrides (or counter-anions) to balance the charges of the core and of the 10 Cu+ atoms. Since supplementary electrons on Cu13 would occupy antibonding orbitals (see Figure 1), one is therefore led to consider the Cu10 shell as part of the superatomic core. Assuming the Cu13@Cu10 framework is spheroidal enough, the 20-electron “magic” count (1S2 1P6 1D10 1S2) appears reasonable. However, this oblate cluster might sufficiently deviate from sphericity to allow non-“magic” closed-shell electron counts that would result from Jahn–Teller splitting of degenerate (e.g., 1F) orbitals. From this point of view, a closed-shell electron number of 22 (or even 24) is not to be excluded. All these possible electron counts would of course require the presence of a certain number of hydrides (or counterions) for balancing the metal core charge. The same group also reported the large NHC-protected cluster 16 [46]. Its Cu55 framework, of ideal Ih symmetry, features a Cu13@Cu42 metal framework (Figure 5, right). The central Cu13 unit is a centered icosahedron, and the atoms of the Cu42 shell are capping all the icosahedron vertices (12) and edges (30). Such an M55 arrangement of ideal Ih symmetry is highly compact and referred to as a MacKay solid [47]. This compound was also obtained with low yield and solely characterized through X-ray diffraction analysis [46], unfortunately leaving its precise composition questionable. The closest “magic” number to 55 is 58, but the large number (36) of uncoordinated (bare) Cu atoms on the Cu42 shell tends to suggest that other light atoms (hydrides?) might be present in the cluster outer shell, thus reducing the cluster electron count substantially. In the same paper, the authors reported the giant NHC-protected prolate multishell cluster 17 identified as [Cu179(IDipp)12] [46]. Unfortunately, this very unique species was characterized only through a disordered X-ray structure. which must be considered with the necessary care [46] and will not be commented on further here.

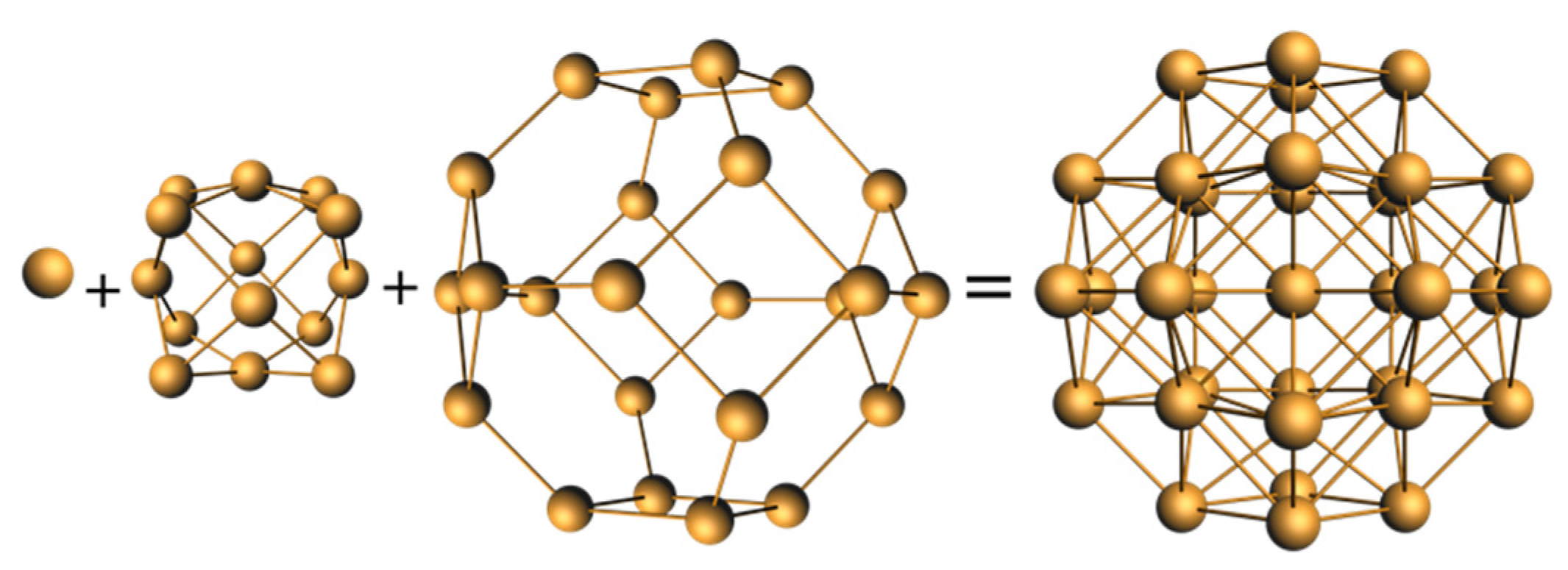

Another electron-rich cluster somehow lacking characterization is 15, recently reported by Huang and coworkers [18]. It was described as a Cu15 centered hexacapped cube encapsulated in a complex shell made of two identical Cu30(S-Adm)16 semi-spherical units. A recent DFT investigation by us [48] suggests viewing the superatomic core as a compact spheroidal [Cu15@Cu24]− framework, in which the Cu24 shell is a truncated octahedron (Figure 6). A 40-electron “magic” count would correspond to the 1S2 1P6 1D10 1S2 1F14 2P6 configuration. However, such an electron count needs a tricationic charge to the whole cluster, which contradicts the dicationic charge suggested by the authors on the basis of mass spectrometry data [18].
Table 1. Structurally characterized homometallic copper clusters with some Cu(0) character. ne = number of “free” cluster electrons (see text). aos = Cu average oxidation state (averaged over all the cluster metal atoms).
Table 1. Structurally characterized homometallic copper clusters with some Cu(0) character. ne = number of “free” cluster electrons (see text). aos = Cu average oxidation state (averaged over all the cluster metal atoms).
CompoundneaosProposed Superatomic/Supermolecular CoreRef.
1[Cu5(Me2IiPr)3(Bdmab)3]20.60Triangular bipyramid [Cu5]3+[37]
2[Cu8(iPr3P)2{B(iPrEn)}3(OtBu)3]20.94Hexagonal bipyramid [Cu8]6+[38]
3[Cu13{S2CNR2}6(C≡C-CO2R′)4]+
(R = nBu, iPr; R′ = Me, Et)		20.85Centered cuboctahedron [Cu@Cu12]11+[33,34]
4Cu14(C2B10H10S2)6(CH3CN)820.86Octahedron [Cu6]4+ or fcc [Cu14]12+[35]
5Cu14(C2B10H10S2)6(CH3CN)620.86Octahedron [Cu6]4+ or fcc [Cu14]12+[36]
6[Cu20(CCPh)12(OAc)6)]20.90Tetrahedron [Cu4]2+[31]
7[Cu25H22(PPh3)12]+20.92Centered icosahedron [Cu@Cu12]11+[16]
8[Cu29Cl4H22(Ph2phen)12]+20.93Centered icosahedron [Cu@Cu12]11+[32]
9[Cu53(CF3COO)10(C≡CtBu)20Cl2H18]+20.96Triangle [Cu3]+ or [Cu3 @Cu10]11+ or [Cu3@Cu12@Cu20]33+ ?[42]
10[Cu61(StBu)26S6Cl6H14]+20.97centered elongated triangular gyrobicupola [Cu@Cu18]17+[43]
11[Cu23(CF3COO)6(C≡CtBu)13]40.83tetrahedron [Cu4]0 or [Cu23]19+ (see text)[45]
12[Cu31(C≡CPh-OMe-4)21(dppe)3]2+80.74Centered icosahedron [Cu@Cu12]5+[17]
13[Cu23(Me2IiPr)10(PMe3)2]23?0?[Cu@Cu12@Cu10]x+ (see text)[37]
14[Cu53(C≡CR)9(dppp)6Cl3(X)9]
(R = Ph, C6H4Ph, X = NO3; R = C6H4F, X = OAc)		320.66[Cu41]9+ in ABABC closed-packed stacking (see text)[49]
15[Cu75(S-Adm)32]2+(or 3+)41 or 400.45 or 0.47[Cu@Cu14@Cu24]2− (or 3−) (see text)[18]
16[Cu55(IDipp)6]55??Icosahedral [Cu@Cu12@Cu42]x+[46]
17[Cu179(IDipp)12]179??See text[46]
Abbreviations: Me2IiPr = 3-bis(isopropyl)-imidazol-4,5-dimethyl-2-yliden; dmab = C6H4(NMe)2; iPrEn = (NiPr)2C2H4; Ph2phen = 4,7-diphenyl-1,10-phenanthroline; Me2IiPr = 3-bis(isopropyl)-imidazol-4,5-dimethyl-2-yliden; Adm = adamantyl; IDipp = C[N(C6H3-2,6-iPr2)CH]2.
Finally, the 32-electron clusters 14 made by Zhang and coworkers [49] exhibit a surprising and unprecedented [Cu41]9+ core, which can be viewed as resulting from the ABABC compact stacking of hexagonal layers of 6, 7, 12, 10, and 6 atoms, respectively. At first sight, this unique framework appears not to be relevant to the superatom model. However, as mentioned by the authors, it can also be described as containing a construct made of the fusion of four centered anticuboctahedra and one centered cuboctahedron, the five polyhedra centers being arranged in a triangular bipyramidal fashion [49]. Such a description might allow viewing these species as supermolecules, the nature of which remains to be identified.

3. Cu-Rich Hetero-Metallic Species

3.1. Copper-Rich Clusters Doped with Noble Metals

The synthesis of alloys of noble metal atom-precise clusters has been tremendously developing during the last decade, owing to the opportunity it offers to tune the properties of a given system at the level of atomic precision. A huge number of mixed-valent alloys of copper with other noble metals (mainly gold and silver) have been reported. In such alloys, copper tends as far as possible to preferentially occupy the most peripheral positions (i.e., as Cu(I)), owing to its lesser ability to maximize superatomic bonding, as compared to Ag, Au, Pd, or Pt, for example [50,51,52]. We only review below the structurally characterized copper-rich species, which are listed in Table 2. As in the case of the homometallic species, the majority of these compounds, reported in Table 2, are two-electron species.
Zhu and coworkers have reported a series of mixed heteroleptic Au/Cu clusters co-protected by phosphines [39,53,54,55]. The mono-phosphine-protected cluster 18 features a hexagonal bipyramid (Figure 1) similar to that in cluster 2 (Figure 3a) [38]. The two apices of the bipyramid are occupied by Au-PPh3 groups while the thiolate ligands bridge the Cu6 hexagon edges. The through-cage Au-Au distance is quite short (2.574 Å), and the metallic framework can be also viewed as the assembly of two perpendicular units, a linear Au-Au dimer and a Cu6 plane. Although it has the same nuclearity and electron count as 18, cluster 19 adopts a different structure [53], possibly because of the presence of diphosphine ligands. This fairly unsymmetrical and chiral architecture is made of a planar Cu4 semi-ring inlaid with a less planar Au4 kernel, both components being roughly perpendicular. In the absence of a detailed analysis of its electronic structure, it is difficult to obtain a clear understanding of where the cluster’s two electrons are nested. The diphosphine-protected clusters 20 (2 electrons) and 28 (4 electrons) exhibit related complex structural features.

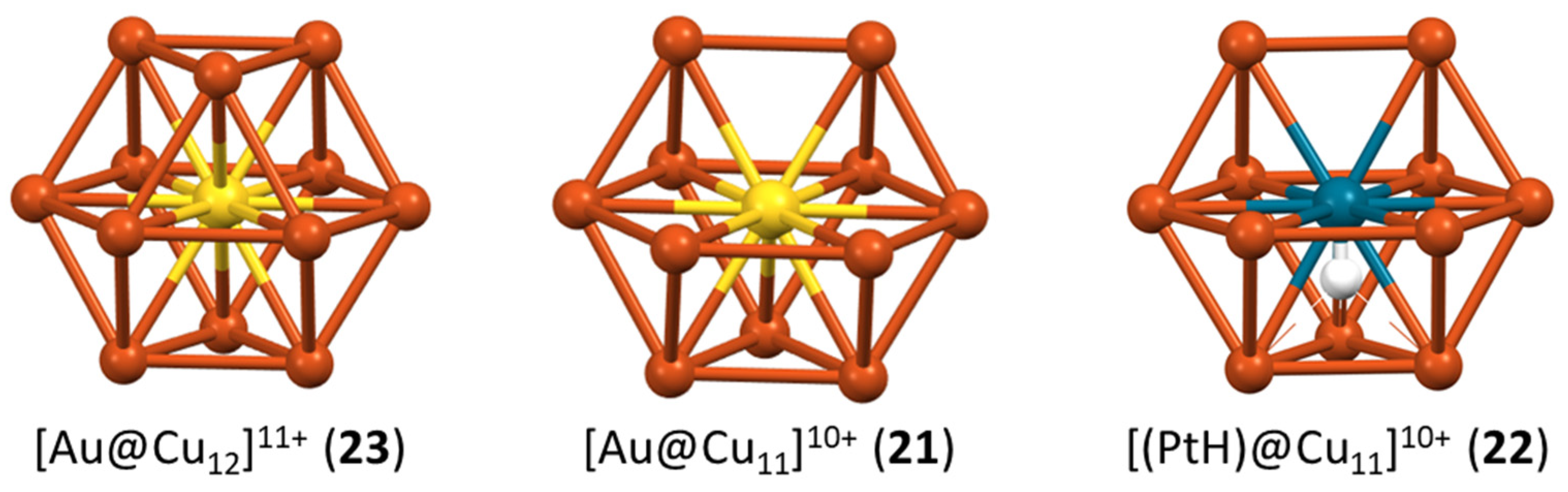

A series of dichalcogenolate-protected monocationic clusters of type 23 have been prepared by the group of Liu [56,57,58]. They are isoelectronic and isostructural (centered cuboctahedral) to the homometallic clusters of type 3, with the heterometal (Ag, Au) sitting at the cuboctahedron center, as expected. The neutral cluster 21, reported by the same group [59], exhibits the same centered cuboctahedral architecture, except that one cuboctahedron vertex is not occupied (Figure 7). Thus, going from 23 to 21 consists in formally removing a cuboctahedron vertex as a Ag+ cation, and additionally substituting a C≡CR− ligand with a chloride. The non-missing vs. missing vertex relationship between the clusters of type 23 and 21, all having the same cluster electron count, is reminiscent of the closo vs. nido relationship in organometallic clusters obeying the Wade–Mingos rules [60]. Cluster 22 has the same structure as 21, except that the central Au in 21 is replaced by an isoelectronic Pd-H unit in 22 (Figure 7) [61]. The encapsulated hydrogen lies close to the cuboctahedron center and should be considered as part of the superatomic core, i.e., not as an external H− ligand. Its electron contributes to the cluster electron count (2 = 0 (Pd) + 1 (H) + 11 (12 × Cu) − 10 (anionic ligands)), although its 1s orbital is barely involved in the making of the superatomic orbitals [61]. The presence of encapsulated hydrides in noble metal nanoclusters is nowadays becoming not uncommon [62,63].
The clusters of type 26 are isoelectronic and isostructural to their homometallic counterpart 7 [64], with gold at the center, as expected. Cluster 25 is also a nice example of the preference for copper to occupy peripheral sites. Its 4 silver atoms form a central [Ag4]2+ tetrahedron, whereas the 15 copper atoms surround this superatomic core as Cu(I) centers [65]. A similar situation has been shown to exist in 27, where the superatomic core has been identified as a [Ag6]4+ octahedron [66], thus leaving the four remaining Ag atoms and all the Cu atoms in the +I oxidation state. On the other hand, there seem to be two types of copper in the highly luminescent gold-centered cluster 24 [67]. Eight of them form a cube encapsulating the Au atom, with strong Au-Cu interactions, whereas the six other Cu atoms occupy more peripheral positions and are only bonded to sulfur atoms. One is thus tempted to identify the superatomic core as the centered cubic [Au@Cu8]7+ unit, although the authors, based on their XPS data, consider all the Cu atoms in the cluster to be Cu(I) [67]. Let us attempt to reconcile the two approaches in suggesting that the 1S orbital is localized on the [Au@Cu8]7+ unit, but with a large contribution of Au.

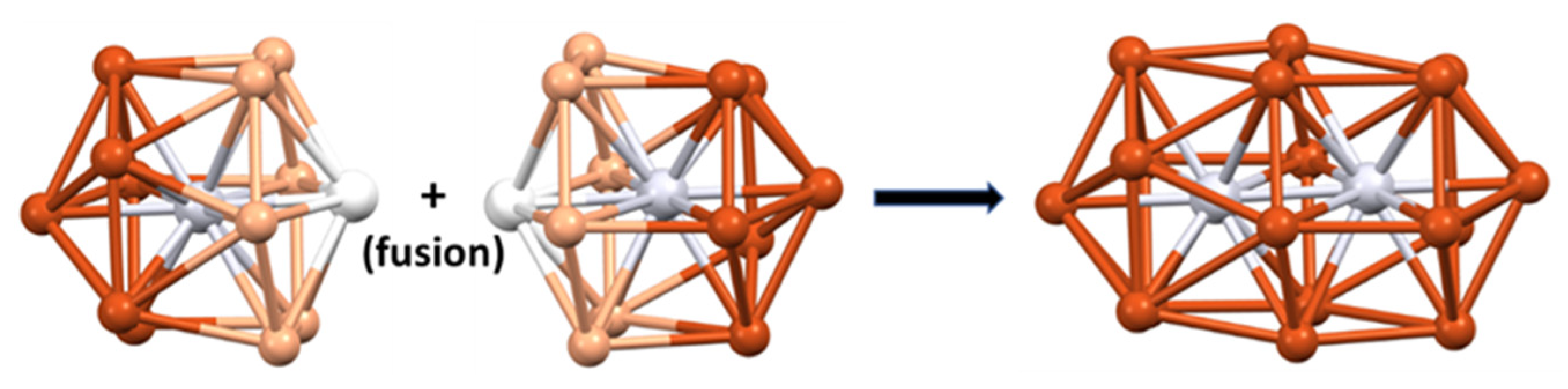

The 10-electron cluster 29 [68] is a nice example of a superatomic molecule or supermolecule. Its core is made of the assembly of two interpenetrating Pt-centered 13-vertex PtCu12 polyhedra (Figure 8). Each individual 13-vertex polyhedron can be viewed as an icosahedron having gained one extra vertex on one of its C5 rings and thus can be seen as a bicapped unperfect antiprism with one pentagonal (C5) and one hexagonal (C6) face. The two centered polyhedra share their Cu6 hexagonal faces and two Pt centers/vertices, resulting in a [Pt2Cu18]8+ core, which is stabilized by a [Pt2Cu16(PET)22Cl4]10− outer shell. This supermolecule is the counterpart of the 10-electron N2 molecule [10,12]. Its electronic structure is related to that of N2 in the way that the 1S and 1P orbitals of each individual superatom combine in the same way as the nitrogen 2s and 2p orbitals in N2. The strong interpenetration of the two polyhedra is the counterpart of the N≡N triple bond. Related 10-electron supermolecules are known [10,12]. Lower degrees of fusion between polyhedra would privilege lower closed-shell electron counts.
The 10-electron cluster 30 contains a Au14Cu6 kernel which features a tunnel-like structure composed of two Au7Cu3 units [69]. Each unit consists of a chain of three Au3Cu2 tetrahedra sharing a Au vertex. The authors described these units as six-electron systems, i.e., [Au7Cu3]6+ [69]. They correspond to the assembly of three non-interacting two-electron tetrahedra, the counterpart of a hypothetical He3 van der Waals trimer. They are protected by a passivating shell which, inter alia, contains ~1.6 Au (thus in +I oxidation state) that one have expectedto preferentially occupy core sites in the place of copper. At any rate, the majority of Cu atoms in 30 occupy Cu(I) peripheral positions.

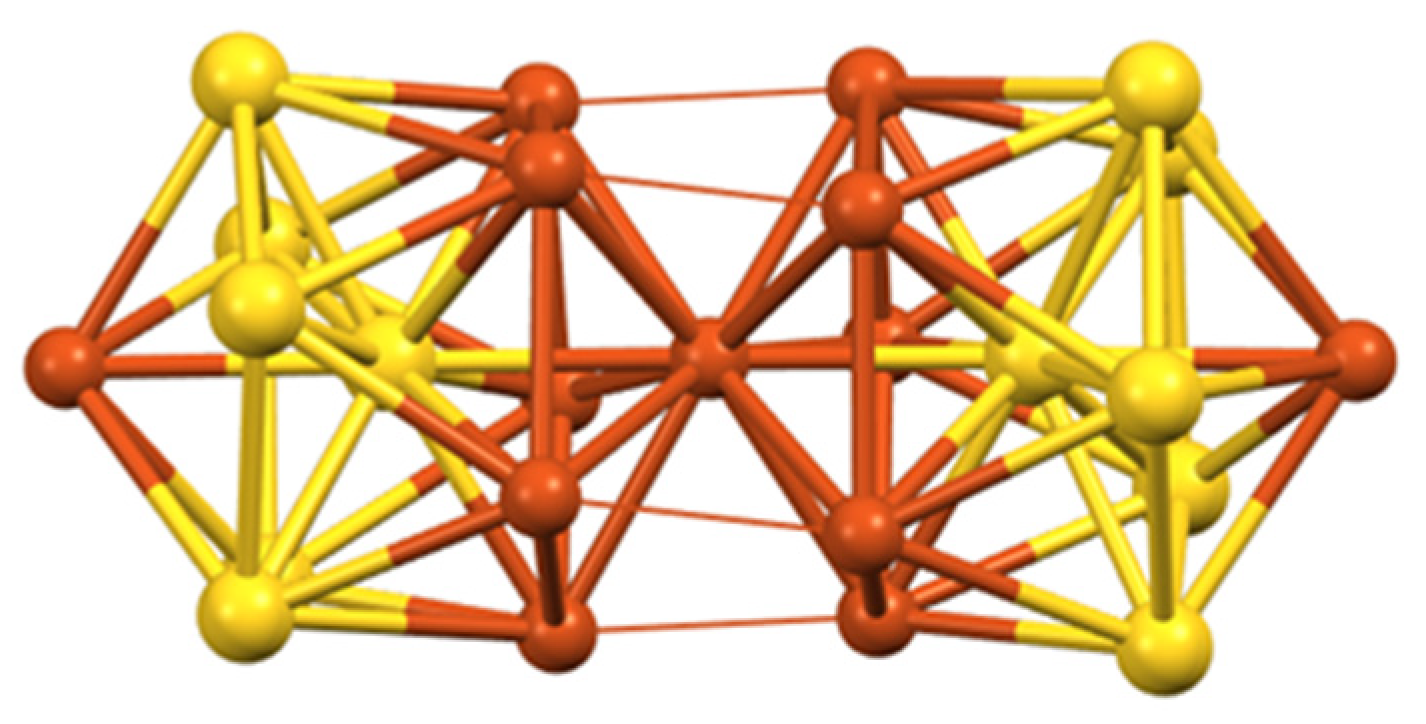

The structure of 31 can be viewed as made of the assembly of two Au@Au5Cu7 centered icosahedra sharing a Cu vertex [70] (Figure 9). Supplementary inter-icosahedra (presumably) metallophilic contacts induced by the five bridging iodides tend to somewhat blur this picture, which is quite common in gold and silver nanocluster chemistry [4] and corresponds to two weakly interacting or non-interacting 8-electron superatoms and thus to the 16-electron [Au12Cu13]9+ core [10,12]. A good molecular main-group counterpart of such a supermolecule would be the 16-electron van der Waals Ne2 dimer. It is likely that the position of the Au atoms (Figure 9) is the most electron-rich, thus maximizing superatomic bonding within each icosahedron.

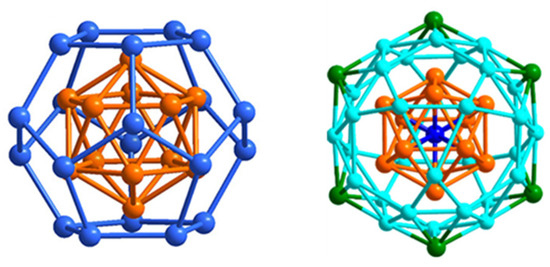

The structures and electronic structures of clusters of types 32, 33, and 34 are related. The nice series of clusters 34 was made by Zheng and coworkers [71]; independently from n, they exhibit the same [Au12@Cu20] core, a gold icosahedron encapsulated in a copper pentagonal dodecahedron, in such a way that each icosahedral face is capped by a Cu atom (Figure 10, left). This construct of ideal Ih symmetry was previously observed in the hetero- and homometallic clusters [Au12Ag32(SR)30]4− and [Au44(SR)30]4− (SR=SPhF, SPhF2 or SPhCF3), for which the “magic” 18-electron 1S2 1P6 1D10 closed-shell electron configuration was ascertained by DFT [72]. This situation corresponds in 34 to a [Au12@Cu20]14+ superatomic core protected by 12 Cu+ n Au+ and 30 + n (SR)−. Whereas copper does not occupy the most inner (icosahedral) positions, in the case of n > 0, gold occupies both the inner (icosahedron) and peripheral positions. Interestingly, clusters 32, recently isolated by Zhu and coworkers [73], have the same structure as 34 (n = 6) but have lower non-“magic” electron counts (16 and 17 for the di- and trianion, respectively). EPR experiments showed a strong signal for the 17-electron species and no signal for the 16-electron form. Even more recently, Wang and coworkers were able to crystallize the 16-electron [Au20.31Cu29.69(SR–O)36]2− alloy, with a Au12@(Cu17.7Au22.3) core, showing that the dodecahedral sites in these systems are also accessible (to some extent) to gold [74]. These authors also prepared the related [Au18Cu32(SR–F)36]2−/3−. The trianion (17 electrons, type 33), which was structurally characterized, is ESR-active, whereas the 16-electron dianion is ESR-silent. The diamagnetic behavior of the 16-electron species presented by Zhu and by Wang [73,74] indicates that their HOMO is non-degenerate. The fact that both 16 and 18 electron counts are observed for this structural composition is typical of an orbital that lies in the middle of an energy gap and can be occupied or not occupied by one or two electrons depending on the ligand nature and/or synthesis conditions. Such a hypothesis is, however, contradicted by the fact that the 1D orbitals are degenerate in Ih symmetry, not allowing one of them to be significantly destabilized above the four others unless substantial Jahn–Teller distortion occurs.
The two clusters 35, made by Wang and coworkers [75], show an unprecedented metal framework, Au@Au12@Cu30@Au6, which features a centered gold icosahedron encapsulated in a copper icosidodecahedron, the latter being surrounded by a hexameric gold ring in chair conformation (Figure 10, right). It is noteworthy that, in this case also, the most outer positions are not occupied by copper. There are 30 edges on an icosahedron, and each copper atom bridges one edge of the gold icosahedron. The external AuPh3 groups cap six pentagonal faces of the icosidodecahedron. This leads to the suggestion that the six external gold atoms participate in the superatomic core. The icosidodecahedron has ideal Ih symmetry, but the presence of the S6 chair-like gold ring lowers the ideal symmetry of the Au19Cu30 framework to C2h [75]. The cluster electron count is 22, a non-“magic” number, the closest “magic” one being 20 (configuration 1S2 1P6 1D10 2S2). Owing to the fact that the authors found the HOMO and LUMO to be of D and F character, respectively [75], one is tempted to suggest a Jahn–Teller distortion effect that would stabilize one of the 1F orbitals somehow below some of the occupied 1D orbitals, i.e., 1S2 1P6 1D10 2S2 1F2 with 1D HOMO.
Cluster 36, reported by Jin, Zhu, and coworkers, exhibits unprecedented D5h symmetry [76]. Its multishell metal framework (Au5Cu2)@Au47@Cu70 is of ideal D5h symmetry (Figure 11). Its inner Au5Cu2 shell is a rather compact pentagonal bipyramid, with through-cage bonding contact between the two Cu apices. This bipyramid is encapsulated within a gold shell giving rise to a two-shelled Au52Cu2 full decahedron. The presence of copper in the most inner shell is rationalized on the basis that its size is decisive in forming the perfect decahedron [76]. Cluster 36 has 68 electrons, which suggests the participation of the superatomic core of the third metal shell (Cu70). In addition, 68 is a “magic” number corresponding to the 1S2 1P6 1D10 2S2 1F14 2P6 1G18 1D10 configuration. However, the oblate shape of this system casts doubt on an interpretation based on the assumption of sufficient sphericity.
Table 2. Structurally characterized mixed-valent heterometallic copper clusters alloyed with noble metals. ne = number of “free” cluster electrons (see text).
Table 2. Structurally characterized mixed-valent heterometallic copper clusters alloyed with noble metals. ne = number of “free” cluster electrons (see text).
neProposed Superatomic/Supermolecular CoreRef.
18[Au2Cu6(S-Adm)6(PPh3)2)]2Hexagonal bipyramid [Au2Cu6]6+[39]
19[Au4Cu4(S-Adm)5(dppm)2)]+2See text[53]
20[Au4Cu6(S-Adm)4(dppm)2Cl3]+2See text[54]
21[AuCu11{S2P(OiPr)2}6(C≡CPh)3Cl]2Au-centered cuboctahedron [Au@(Cu11□)]10+ with a vacant vertex[59]
22[PdHCu11{S2P(OiPr)2}6(C≡CPh)4]2PdH-centered cuboctahedron [(PdH)@(Cu11□)]10+ with a vacant vertex[60]
23[MCu12(L)6(C≡CPh)4]+ (M = Ag, Au, L = dtp, dtc)2M-centered cuboctahedron [M@Cu12]11+[56,57,58]
24[AuCu14(SPhtBu)12(PPh(C2H4CN)2)6]+2Body-centered cube [Au@Cu8][67]
25[Ag4Cu15(R/SPEA)12]5+2Tetrahedron [Ag4]2+[65]
26[AuCu24H22(L)12)]+ (L = PPh3, p-PPh3)2Centered icosahedron [Au@Cu12][64]
27[Ag10Cu16(C8H9S)16(PPh3)4(CF3CO2)8]2Octahedron [Ag6]4+[66]
28[Au5Cu6(dppf)2(S-Adm)6]2+4See text[55]
29[Pt2Cu34(PET)22Cl4]2−10Two interpenetrated Pt-centered Cu13 polyhedra making a [Pt2Cu18]8+ dimer[68]
30Au15.37Cu16.63(S-Adm)2012Vertex-sharing Au3Cu tetrahedra making two [Au7Cu3]4+ “trimers”[69]
31[Au12Cu13(PPh3)10I7]2+16Two vertex-sharing Au-centered Au5Cu7 icosahedra making a [Au12Cu13]9+ dimer.[70]
32[Au18Cu32(SPhCl)36]n− (n = 2, 3)16–17Au12 icosahedron encapsulated in Cu20 dodecahedron: Au12@Cu20[73]
33[Au20.31Cu29.69(SR–O)36]2−
[Au18Cu32(SR–O)36]2−
[Au18Cu32(SR–F)36]3−		16
17		Au-centered icosahedron Au13 encapsulated in a dodecahedron Cu20. [Au@Au12@Cu20]16+/17+[74]
34[Au12+nCu32(SPhCF3)30+n]4−
(n = 0, 2, 4, 6)		18Au-centered icosahedron Au13 encapsulated in a dodecahedron Cu20: [Au@Au12@Cu20]15+[71]
35[Au19Cu30(-C≡CR)22(Ph3P)Cl2]3+
R = SC4H3, Ph		22Au-centered icosahedron Au13 icosidodecahedron Cu30: [Au@Au12@Cu30@Au6]27+[75]
36[Au52Cu72(SPhpMe)55]+68D5h-shaped (Au5Cu2)@Au47@Cu70]56+[76]
Abbreviations: dtp = dithiophosphate = S2P(OR)2; dtc = dithiocarbamate = S2CNR2; R/SPEA = (S)-(+)-1-phenylethylamine; dppf = (diphenylphosphino)ferrocene; PET = 2-phenyl- ethanethiolate; HSPhCl = 4-chlorophenylthiophenol; SR–O = S–PhOMe; SR–F = SC6H33,4F2); SPhpMe = para-methylbenzenethiolate.

3.2. Copper-Rich Clusters Doped with Non-Noble Metals

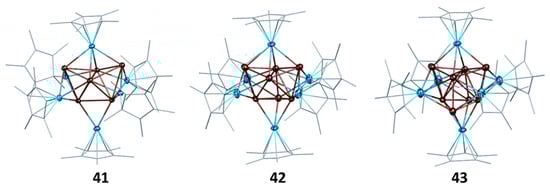

The group of Fischer has developed a unique chemistry of hydrocarbon-ligated intermetalloid clusters, in which two elements from groups 10–14 constitute the cluster core [77,78]. The copper-rich ones are alloys of aluminum or zinc. These compounds were prepared by reacting a (RCu)n or RCuL Cu(I) species with Al4Cp*4 or Zn2Cp*2. They are listed in Table 3. The two-electron triangular cluster 37 [79] is isoelectronic and isostructural to [Zn3Cp*3]+ and [Zn2CuCp*3] [80], as well as to the H3+ ion, the smallest of all clusters. Such a simple arrangement (Figure 1) can be rationalized within a “spherical” 2D (planar) jellium model. On the other hand, the six-electron cluster 38 exhibits a rather unsymmetrical central framework, which can be viewed as an Al-bridged Cu4Al trigonal bipyramid stabilized by two Cp*, one Mes and two AlCp* ligands. It is noteworthy that in this cluster, some Al atoms belong to the six-electron core, whereas others are constituents of the peripheral ligands. The bonding within the six-electron framework can be somewhat related to that in organometallic Wade–Mingos clusters [60]. The metal core structure of 39 [81] contains at its very center a Cu7 unit made of two vertex-sharing Cu4 tetrahedra. This unit of D3h symmetry is completed by three additional edge-bridging Cu atoms in its equatorial plane and two face-capping ZnCp* units on its C3 axis. This very peculiar structure was shown to adopt the 1S2 1Pz2 2S2 configuration of a very elongated superatom [81].
The eight-electron cluster 40 is made of a Cu4 tetrahedron, the faces of which are capped by four Zn atoms [82]. This Cu4@Zn4 framework of ideal Td symmetry is perfectly suited for the 1S2 1P6 superatomic configuration. Cluster 43 [79] features a Cu4@Cu4 tetracapped tetrahedron encapsulated within an Al6 octahedron (Figure 12). Its “magic” number of 20 electrons corresponds to the 1S2 1P6 1D10 2S2 configuration [79]. Cluster 42 [79] exhibits a structure similar to that of 43, except that one of the capping Cu atoms is missing (Figure 12). DFT calculations suggest that the hydride, whose presence was ascertained by mass spectrometry and 1H NMR, is approximately located at the position of the missing capping copper, thus belonging to the cluster core. As in the case of cluster 22, the hydrogen 1s electron should be considered in the cluster count, thus leading to the [(Cu7H)@Al6]6+ core, with the same 20-electron count as 42 [79]. Two clusters of type 41 [83] feature a Cu4@Cu2 bicapped tetrahedron encapsulated within an Al6 octahedron (Figure 12). Following the analysis of 41 above, one is tempted to consider that two or three hydrides are encapsulated within the cluster core, whereas the remaining H and X ligands are regular peripheral anionic ligands. Such a situation would correspond to the 18 or 20 “magic” number of electrons, respectively. Cluster 44 adopts the same M55 MacKay structure [83] of ideal Ih symmetry as cluster 16, with the Al atoms occupying 12 among the 42 positions of the metal second shell, i.e., [Cu@Cu12@(Cu30Al12)]12+ [83]. Calculations showed indeed that the Al atoms should be considered as part of the superatomic core and not as constituents of peripheral AlCp* ligands. Although the electron count of 67 is close to the 68 “magic” number, the electron configuration of 36 is fairly different from that expected for this closed-shell electron count. In fact, it approaches that of a metal particle, prefiguring the formation of a conduction band, in line with its magnetic behavior. The efficient steric protection ensured by twelve Cp* ligands annihilates any reactivity that could be anticipated for this open-shell superatomic core. This situation is unique among all the nanoclusters considered in this review.

4. Concluding Remarks

The structures of the copper or copper-rich nanoclusters reported above are most often different from and more complex than those encountered in the gold and silver nanocluster chemistry, making the copper nanocluster structural chemistry somewhat unique. Moreover, a large number of them are two-electron species. This is also at variance with their gold and silver counterparts, for which larger electron counts are much more frequent. The extreme scarcity of eight-electron copper superatoms [17] is particularly noteworthy, in comparison to the numerous gold and silver examples. Obviously, the lower M(I)/M(0) reduction potential of Cu (as compared to Au and Ag) renders the isolation of copper electron-rich superatoms or supermolecules more difficult [16,17,18]. When prepared by the reduction of copper salts by BH4−, the hydrides indeed behave as reducing agents (electron donors), but also quite often as coordinating ligands, including in some cases when they occupy interstitial positions [58]. This is why several of the clusters reported in Table 1 are polyhydrido species. The presence of hydrides in copper(I) clusters is also quite common [16,17,18]. Most often, the number of hydrides in a nanocluster is indirectly determined through mass spectrometry experiments, possibly completed using NMR data and, more rarely, DFT modeling. This is why, in the absence of a neutron diffraction analysis that would ascertain the hydride number and location in the cluster structure, some doubt could remain about their precise number, and consequently the number of cluster “free” electrons. For example, with two additional hydride ligands, any of the 2-electron clusters discussed above would become a Cu(I) 0-electron system. Looking for the existence of a compact metal core, the structure of which is compatible with the cluster electron count, should help remove this doubt.
In any case, electron counts much larger than two are possible, as exemplified by clusters 13–17. Whereas 13, 16, and 17 are likely byproducts issued from the reductive decomposition of boryl complexes, 14 and 15 were obtained under the BH4− reductive process. Even if the exact composition of some of these species is not ascertained (hydrides?), it is clear that clusters with an average oxidation state approaching or equal to 0 are possible. Such electron-rich species might display a spectrum of properties somewhat different from their electron-poor relatives [84]. It is likely that, owing to the strong current interest in researching the largest nanoclusters possible [85], new electron-rich mixed-valent copper nanoclusters will be reported in the future. The reduction by BH4− using the original speed-controlling method designed by J. Huang and coworkers to isolate the electron-rich cluster 15 [18] demonstrates that such a goal is reachable. Using other types of reducing agents and/or ligands that are different from simple thiolates (SR−) or alkynyls (CCR−) [86], such as neutral ligands (phosphines, NHCs) or dichalcogenolates (one negative charge for two chalcogen atoms) [87], might also be also a possible track.
In the case of noble-metal heterometallic species, it is worth noting that if copper tends in general to occupy the most peripheral sites, this is not always the case, as exemplified by clusters 30, 31, 35, and 37. Such complex situations can occur in supermolecules or multishell superatoms. We must finally mention the emerging chemistry of nanoclusters made of copper alloyed with non-noble metal elements such as zinc or aluminum [77,83]. This approach has already produced a diversity of original stable frameworks with, in addition to “regular” superatomic architectures, species that are somewhat related to organometallic clusters.
An unprecedented series of 18-electron Cu50 nanoclusters has just been published by Sun et al. [88].

Author Contributions

Conceptualization, B.Z. and J.-Y.S.; writing–review and editing, B.Z. and J.-Y.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

B.Z. acknowledges the Universities Mentouri (Constantine 1) and Larbi Ben M’Hidi (Oum El Bouaghi). J.Y.S. acknowledges the University of Rennes and the CNRS.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Walter, M.; Akola, J.; Lopez-Acevedo, O.; Jadzinsky, P.D.; Calero, G.; Ackerson, C.J.; Whetten, R.L.; Gronbeck, H.; Hakkinen, H. A unified view of ligand protected gold clusters as superatom complexes. Proc. Natl. Acad. Sci. USA 2008, 10, 9157–9162. [Google Scholar] [CrossRef] [PubMed]
  2. Häkkinen, H. Atomic and electronic structure of gold clusters: Understanding flakes, cages and superatoms from simple concepts. Chem. Soc. Rev. 2008, 37, 1847–1859. [Google Scholar] [CrossRef] [PubMed]
  3. Häkkinen, H. Electronic shell structures in bare and protected metal nanoclusters. Adv. Phys. X 2016, 1, 467–491. [Google Scholar] [CrossRef]
  4. Li, Y.; Zhou, M.; Jin, R. Programmable Metal Nanoclusters with Atomic Precision. Adv. Mater. 2021, 33, 2006591. [Google Scholar] [CrossRef] [PubMed]
  5. Khanna, S.N.; Jena, P. Atomic clusters: Building blocks for a class of solids. Phys. Rev. B 1995, 51, 13705–13716. [Google Scholar] [CrossRef] [PubMed]
  6. Knight, W.D.; Clemenger, K.; de Heer, W.A.; Saunders, W.A.; Chou, M.Y.; Cohen, M.L. Electronic Shell Structure and Abundances of Sodium Clusters. Phys. Rev. Lett. 1984, 52, 2141–2143. [Google Scholar] [CrossRef]
  7. Mingos, D.M.P.; Slee, T.; Lin, Z. Bonding Models for Ligated and Bare Clusters. Chem. Rev. 1990, 90, 383–402. [Google Scholar] [CrossRef]
  8. Tofanelli, M.A.; Salorinne, K.; Ni, T.W.; Malola, S.; Newell, B.; Phillips, B.; Häkkinen, H.; Ackerson, C.J. Jahn–Teller effects in Au25(SR)18. Chem. Sci. 2016, 7, 1882–1890. [Google Scholar] [CrossRef]
  9. Cheng, L.; Yang, J.J. New insight into electronic shells of metal clusters: Analogues of simple molecules. Chem. Phys. 2013, 138, 141101. [Google Scholar] [CrossRef]
  10. Mingos, D.M.P. Structural and bonding patterns in gold clusters. Dalton Trans. 2015, 44, 6680–6694. [Google Scholar] [CrossRef]
  11. Munõz-Castro, A. Single, double, and triple intercluster bonds: Analyses of M2Au36(SR)24 (M = Au, Pd, Pt) as 14-, 12- and 10-ve superatomic molecules. Chem. Commun. 2019, 55, 7307–7310. [Google Scholar] [CrossRef] [PubMed]
  12. Gam, F.; Liu, C.W.; Kahlal, S.; Saillard, J.-Y. Electron counting and bonding patterns in assemblies of three and more silver-rich superatoms. Nanoscale 2020, 12, 20308–20316. [Google Scholar] [CrossRef] [PubMed]
  13. Qian, H.; Zhu, Y.; Jin, R. Atomically precise gold nanocrystal molecules with surface plasmon resonance. Proc. Natl. Acad. Sci. USA 2012, 109, 696–700. [Google Scholar] [CrossRef]
  14. Yang, X.; Wang, Y.; Chen, X.; Zhao, X.; Gu, L.; Huang, H.; Yan, J.; Xu, C.; Li, G.; Wu, J.; et al. Plasmonic twinned silver nanoparticles with molecular precision. Nat. Commun. 2016, 7, 12809. [Google Scholar] [CrossRef] [PubMed]
  15. Bratch, S.G. Standard Electrode Potentials and Temperature Coefficients in Water at 298.15 K. J. Phys. Chem. Ref. Data 1989, 18, 1–21. [Google Scholar] [CrossRef]
  16. Nguyen, T.-A.D.; Jones, Z.R.; Goldsmith, B.R.; Buratto, W.R.; Wu, G.; Scott, S.L.; Hayton, T.W. A Cu25 Nanocluster with Partial Cu(0) Character. J. Am. Chem. Soc. 2015, 137, 13319–13324. [Google Scholar] [CrossRef] [PubMed]
  17. Jia, T.; Guan, Z.J.; Zhang, C.; Zhu, X.Z.; Chen, Y.X.; Zhang, Q.; Yang, Y.; Sun, D. Eight-Electron Superatomic Cu31 Nanocluster with Chiral Kernel and NIR-II Emission. J. Am. Chem. Soc. 2023, 145, 10355–10363. [Google Scholar] [CrossRef]
  18. Tang, J.; Liu, C.; Zhu, C.; Sun, K.; Wang, H.; Yin, W.; Xu, C.; Li, Y.; Wang, W.; Wang, L.; et al. High-nuclearity and thiol protected core–shell [Cu75(S-Adm)32]2+ distorted octahedra fixed to Cu15 core via strong cuprophilic interactions. Nanoscale 2023, 15, 2843–2848. [Google Scholar] [CrossRef]
  19. Liu, X.; Astruc, D. Atomically precise copper nanoclusters and their applications. Coord. Chem. Rev. 2018, 359, 112–126. [Google Scholar] [CrossRef]
  20. Dhayal, R.S.; van Zyl, W.E.; Liu, C.W. Copper hydride clusters in energy storage and Conversion. Dalton Trans. 2019, 48, 3531–3538. [Google Scholar] [CrossRef]
  21. Baghdasaryan, A.; Bürgi, T. Copper nanoclusters: Designed synthesis, structural diversity, and multiplatform applications. Nanoscale 2021, 13, 6283–6340. [Google Scholar] [CrossRef] [PubMed]
  22. Sun, C.; Teo, B.K.; Deng, C.; Lin, J.; Luo, G.G.; Tung, C.-H.; Sun, D. Hydrido-coinage-metal clusters: Rational design, synthetic protocols and structural characteristics. Coord. Chem. Rev. 2021, 427, 21373–213601. [Google Scholar] [CrossRef]
  23. Zhang, L.L.-M.; Wong, W.Y. Atomically precise copper nanoclusters as ultrasmall molecular aggregates: Appealing compositions, structures, properties, and applications. Aggregate 2023, 4, e266. [Google Scholar] [CrossRef]
  24. Biswas, S.; Das, S.; Negishi, Y. Advances in Cu nanocluster catalyst design: Recent progress and promising applications. Nonoscale Horiz. 2023, 8, 1509–1522. [Google Scholar] [CrossRef] [PubMed]
  25. Dong, C.; Nematulloev, S.; Yuan, P.; Bakr, O.M. Atomically Precise Copper Nanoclusters. Syntheses, Structures, and Properties. In Atomically Precise Nanochemistry; Jin, R., Jiang, D.-e., Eds.; John Wiley, & Sons: Oxford, UK, 2023; pp. 257–283. [Google Scholar] [CrossRef]
  26. Fuhr, O.; Dehnen, S.; Fenske, D. Chalcogenide clusters of copper and silver from silylated chalcogenide sources. Chem. Soc. Rev. 2013, 42, 1871–1906. [Google Scholar] [CrossRef] [PubMed]
  27. Dehnen, S.; Eichhöfer, A.; Fenske, D. Chalcogen-Bridged Copper Clusters. Eur. J. Inorg. Chem. 2002, 2, 279–317. [Google Scholar] [CrossRef]
  28. Bettenhausen, M.; Eichhöfer, A.; Fenske, D.; Semmelmann, M. Synthesis and crystal structures of new selenido- and selenolato-bridged copper clusters. [Cu38Se13(SePh)12(dppb)6], [Cu(dppp)2][Cu25Se4(SePh)18(dppp)2], [Cu36Se5(SePh)26(dppa)4], [Cu58Se16(SePh)24(dppa)6], and [Cu3SeMes)3(dppm)]. Z. Anorg. Allg. Chem. 1999, 625, 593–601. [Google Scholar] [CrossRef]
  29. Ahlrichs, R.; Besinger, J.; Eichhofer, A.; Fenske, D.; Gbureck, A. Synthesis, crystal structure, and binding properties of the mixed valence clusters [Cu32As30(dppm)8] and [Cu26Te12(PEt2Ph)12]. Angew. Chem. Int. Ed. 2000, 39, 3929–3933. [Google Scholar] [CrossRef]
  30. Das, A.K.; Biswas, S.; Wani, V.S.; Nair, A.S.; Pathak, B.; Mandal, S. [Cu18H3(S-Adm)12(PPh3)4Cl2]: Fusion of Platonic and Johnson solids through a Cu(0) center and its photophysical properties. Chem. Sci. 2022, 13, 7616–7625. [Google Scholar] [CrossRef]
  31. Cook, A.W.; Jones, Z.R.; Wu, G.; Scott, S.L.; Hayton, T.W. An Organometallic Cu20 Nanocluster: Synthesis, Characterization, Immobilization on Silica, and "Click" Chemistry. J. Am. Chem. Soc. 2018, 140, 394–400. [Google Scholar] [CrossRef]
  32. Nguyen, T.A.D.; Jones, Z.R.; Leto, D.F.; Wu, G.; Scott, S.L.; Hayton, T.W. Ligand-Exchange-Induced Growth of an Atomically Precise Cu29 Nanocluster from a Smaller Cluster. Chem. Mater. 2016, 28, 8385–8390. [Google Scholar] [CrossRef]
  33. Chakrahari, K.K.; Liao, J.-H.; Kahlal, S.; Liu, Y.-C.; Chiang, M.-H.; Saillard, J.-Y.; Liu, C.W. [Cu13{S2CNnBu2}6(acetylide)4]+: A Two-Electron Superatom. Angew. Chem. Int. Ed. 2016, 55, 14704–14708. [Google Scholar] [CrossRef] [PubMed]
  34. Chakrahari, K.K.; Silalahi, R.P.B.; Liao, J.-H.; Kahlal, S.; Liu, Y.-C.; Lee, J.-F.; Chiang, M.-H.; Saillard, J.-Y.; Liu, C.W. Synthesis and structural characterization of inverse-coordination clusters from a two-electron superatomic copper nanocluster. Chem. Sci. 2018, 9, 6785–6795. [Google Scholar] [CrossRef] [PubMed]
  35. Li, Y.-L.; Wang, J.; Luo, P.; Ma, X.-H.; Dong, X.-Y.; Wang, Z.-Y.; Du, C.-Y.; Zang, S.-Q.; Mak, T.C.W. Cu14 Cluster with Partial Cu(0) Character: Difference in Electronic Structure from Isostructural Silver Analog. Adv. Sci. 2019, 6, 1900833–1900839. [Google Scholar] [CrossRef] [PubMed]
  36. Huang, J.-H.; Liu, L.-Y.; Wang, Z.-Y.; Zang, S.-Q.; Mak, T.C.W. Modular Cocrystallization of Customized Carboranylthiolate-Protected Copper Nanoclusters via Host–Guest Interactions. ACS Nano 2022, 16, 18789–18794. [Google Scholar] [CrossRef] [PubMed]
  37. Kleeberg, C.; Borner, C. Syntheses, Structures, and Reactivity of NHC Copper(I) Boryl Complexes: A Systematic Study. Organometallics 2018, 37, 4136–4146. [Google Scholar] [CrossRef]
  38. Borner, C.; Anders, L.; Brandhorst, K.; Kleeberg, C. Elusive Phosphine Copper(I) Boryl Complexes: Synthesis, Structures, and Reactivity. Organometallics 2017, 36, 4687–4690. [Google Scholar] [CrossRef]
  39. Kang, X.; Wang, S.; Song, Y.; Jin, S.; Sun, G.; Yu, H.; Zhu, M. Bimetallic Au2Cu6 Nanoclusters: Strong Luminescence Induced by the Aggregation of Copper(I) Complexes with Gold(0) Species. Angew. Chem. Int. Ed. 2016, 55, 3611–3614. [Google Scholar] [CrossRef]
  40. Kang, X.; Li, X.; Yu, H.; Lv, Y.; Sun, G.; Li, Y.; Wang, S.; Zhu, M. Modulating photo-luminescence of Au2Cu6 nanoclusters via ligand-engineering. RSC Adv. 2017, 7, 28606–28609. [Google Scholar] [CrossRef]
  41. Wang, H.-H.; Wei, J.; Bigdeli, F.; Rouhani, F.; Su, H.-F.; Wang, L.-X.; Kahlal, S.; Halet, J.-F.; Saillard, J.-Y.; Morsali, A.; et al. Monocarboxylate-Protected Two-Electron Superatomic Silver Nanoclusters with High Photothermal Conversion Performance. Nanoscale 2023, 15, 8245–8254. [Google Scholar] [CrossRef]
  42. Yuan, P.; Chen, R.; Zhang, X.; Chen, F.; Yan, J.; Sun, C.; Ou, D.; Peng, J.; Lin, S.; Tang, Z.; et al. Ether-Soluble Cu53 Nanoclusters as an Effective Precursor of High-Quality CuI Films for Optoelectronic Applications. Angew. Chem. Int. Ed. 2019, 58, 835–839. [Google Scholar] [CrossRef] [PubMed]
  43. Ghosh, M.; Huang, R.-W.; Alamer, B.; Abou-Hamad, E.; Hedhili, M.N.; Mohammed, O.F.; Bakr, O.M. [Cu61(StBu)26S6Cl6H14]+: A Core–Shell Superatom Nanocluster with a Quasi-J36 Cu19 Core and an “18-Crown-6” Metal-Sulfide-like Stabilizing Belt. ACS Mater. Lett. 2019, 1, 297–302. [Google Scholar] [CrossRef]
  44. Liao, J.-H.; Dhayal, R.S.; Wang, X.; Kahlal, S.; Saillard, J.-Y.; Liu, C.W. Neutron Diffraction Studies of a Four-Coordinated Hydride in Near Square-Planar Geometry. Inorg. Chem. 2014, 53, 11140–11145. [Google Scholar] [CrossRef] [PubMed]
  45. Han, B.-L.; Liu, Z.; Feng, L.; Wang, Z.; Gupta, R.K.; Aikens, C.M.; Tung, C.-H.; Sun, D. Polymorphism in Atomically Precise Cu23 Nanocluster Incorporating Tetrahedral [Cu4]0 Kernel. J. Am. Chem. Soc. 2020, 142, 5834–5841. [Google Scholar] [CrossRef] [PubMed]
  46. Drescher, W.; Borner, C.; Kleeberg, C. Stability and decomposition of copper(I) boryl complexes: [(IDipp)Cu–Bneop], [(IDipp*)Cu–Bneop] and copper clusters. New J. Chem. 2021, 45, 14957–14964. [Google Scholar] [CrossRef]
  47. MacKay, A.L. A dense non-crystallographic packing of equal spheres. Acta Cryst. 1962, 15, 916–918. [Google Scholar] [CrossRef]
  48. Zouchoune, B.; Zerizer, M.A.; Saillard, J.-Y. A DFT investigation of the structure/electron count relationship in a 40-electron copper nanocluster with unprecedented Cu39 superatomic core. Inorg. Chim. Acta 2024, Submitted. [Google Scholar]
  49. Qu, M.; Zhang, F.-Q.; Wang, D.-H.; Li, H.; Hou, J.-J.; Zhang, X.-M. Observation of Non-FCC Copper in Alkynyl-Protected Cu53 Nanoclusters. Angew. Chem. Int. Ed. 2020, 59, 6507–6512. [Google Scholar] [CrossRef]
  50. Alkan, F.; Pandeya, P.; Aikens, C.M. Understanding the Effect of Doping on Energetics and Electronic Structure for Au25, Ag25, and Au38 Clusters. J. Phys. Chem. C 2019, 123, 9516–9527. [Google Scholar] [CrossRef]
  51. Kang, X.; Li, Y.; Zhu, M.; Jin, R. Atomically precise alloy nanoclusters: Syntheses, structures, and properties. Chem. Soc. Rev. 2020, 49, 6443–6514. [Google Scholar] [CrossRef]
  52. Ananya Baksi, A.; Schneider, E.K.; Weis, P.; Chakraborty, I.; Fuhr, O.; Lebedkin, S.; Parak, W.J.; Kappes, M.M. Linear Size Contraction of Ligand Protected Ag29 Clusters by Substituting Ag with Cu. ACS Nano 2020, 14, 15064–15070. [Google Scholar] [CrossRef] [PubMed]
  53. Yu, W.; Hu, D.; Xiong, L.; Li, Y.; Kang, X.; Chen, S.; Wang, S.; Pei, Y.; Zhu, M. Isomer Structural Transformation in Au–Cu Alloy Nanoclusters: Water Ripple-Like Transfer of Thiol Ligands. Part. Part. Syst. Charact. 2019, 36, 1800494. [Google Scholar] [CrossRef]
  54. Lin, Z.; Lv, Y.; Jin, S.; Yu, H.; Zhu, M. Size Growth of Au4Cu4: From Increased Nucleation to Surface Capping. ACS Nano 2023, 17, 8613–8621. [Google Scholar] [CrossRef]
  55. Deng, H.; Bai, Y.; Zhou, M.; Bao, Y.; Jin, S.; Xiaowu Li, X.; Yu, H.; Zhu, M. Structure and Properties of Au5Cu6(Dppf)3(SAdm)6)(BPh4). J. Phys. Chem. C. 2020, 124, 21867–21873. [Google Scholar] [CrossRef]
  56. Silalahi, R.P.B.; Chakrahari, K.K.; Liao, J.-H.; Kahlal, S.; Liu, Y.-C.; Chiang, M.-H.; Saillard, J.-Y.; Liu, C.W. Synthesis of Two-Electron Bimetallic Cu–Ag and Cu–Au Clusters by using [Cu13(S2CNnBu2)6(C≡CPh)4]+ as a Template. Chem. Asian J. 2018, 13, 500–504. [Google Scholar] [CrossRef]
  57. Silalahi, R.P.B.; Chiu, T.-H.; Kao, J.-H.; Wu, C.-Y.; Yin, C.-W.; Liu, Y.-C.; Chen, Y.; Saillard, J.-Y.; Chiang, M.-H.; Liu, C.W. Synthesis and Luminescence Properties of Two-Electron Bimetallic Cu-Ag and Cu-Au Nanoclusters Via Copper Hydride Precursors. Inorg. Chem. 2021, 60, 10799–10807. [Google Scholar] [CrossRef]
  58. van Zyl, W.E.; Liu, C.W. Interstitial Hydrides in Nanoclusters can Reduce M(I) (M=Cu, Ag, Au) to M(0) and Form Stable Superatoms. Chem. Eur. J. 2022, 28, e20210424. [Google Scholar] [CrossRef]
  59. Silalahi, R.P.B.; Wang, Q.; Liao, J.-H.; Chiu, T.-H.; Wu, Y.-Y.; Wang, X.; Kahlal, S.; Saillard, J.-Y.; Liu, C.W. Reactivities of Interstitial Hydrides in a Cu11 Template: En Route to Bimetallic Clusters. Angew. Chem. Int. Ed. 2022, 61, e202113266. [Google Scholar] [CrossRef]
  60. Mingos, D.M.P.; Wales, D.J. Introduction to Cluster Chemistry, 1st ed.; Prentice Hall: Englewood, NJ, USA, 1990; ISBN 978-0134743059. [Google Scholar]
  61. Silalahi, R.P.B.; Jo, Y.; Liao, J.-H.; Chiu, T.-H.; Park, E.; Choi, W.; Liang, H.; Kahlal, S.; Saillard, J.-Y.; Lee, D.; et al. Hydride-containing 2-Electron Pd/Cu Superatoms as Catalysts for Efficient Electrochemical Hydrogen Evolution. Angew. Chem. Int. Ed. 2023, 62, e202301272. [Google Scholar] [CrossRef]
  62. Chiu, T.-H.; Liao, J.-H.; Gam, F.; Wu, Y.-Y.; Wang, X.; Kahlal, S.; Saillard, J.-Y.; Liu, C.W. Hydride-Containing Eight-Electron Pt/Ag Superatoms: Structure, Bonding, and Multi-NMR Studies. J. Am. Chem. Soc. 2022, 146, 10599–10607. [Google Scholar] [CrossRef]
  63. Chiu, T.-H.; Liao, J.-H.; Wu, Y.-Y.; Chen, J.-Y.; Chen, Y.J.; Wang, X.; Kahlal, S.; Saillard, J.-Y.; Liu, C.W. Hydride Doping Effects on the Structure and Properties of Eight-Electron Rh/Ag Superatoms: The [RhHx@Ag21-x{S2P(OnPr)2}12] (x = 0–2) Series. J. Am. Chem. Soc. 2023, 145, 16739–16747. [Google Scholar] [CrossRef] [PubMed]
  64. Chen, A.; Kang, X.; Jin, S.; Du, W.; Wang, S.; Zhu, M. Gram-Scale Preparation of Stable Hydride M@Cu24 (M = Au/Cu) Nanoclusters. Phys. Chem. Lett. 2019, 10, 6124–6128. [Google Scholar] [CrossRef] [PubMed]
  65. Zhang, M.-M.; Gao, K.-K.; Dong, X.-Y.; Si, Y.; Jia, T.; Han, Z.; Zang, S.-Q.; Mak, T.C.W. Chiral Hydride Cu18 Clusters Transform to Superatomic Cu15Ag4 Clusters: Circularly Polarized Luminescence Lighting. J. Am. Chem. Soc. 2023, 145, 22310–22316. [Google Scholar] [CrossRef] [PubMed]
  66. Sun, X.; Li, S.; Tian, G.; Gao, Y.; Wei, J.; Shen, H. Ag10Cu16 nanoclusters with triple-ligand protection: Total structure and electronic structure analysis. Phys. Chem. Chem. Phys. 2023, 25, 17901–17906. [Google Scholar] [CrossRef] [PubMed]
  67. Song, Y.; Li, Y.; Zhou, M.; Liu, X.; Li, H.; Wang, H.; Shen, Y.; Zhu, M.; Jin, R. Ultrabright Au@Cu14 nanoclusters: 71.3% phosphorescence quantum yield in non-degassed solution at room temperature. Sci. Adv. 2021, 7, eabd2091. [Google Scholar] [CrossRef] [PubMed]
  68. Lee, S.; Bootharaju, M.S.; Deng, G.; Malola, S.; Häkkinen, H.; Zheng, N.; Hyeon, T. [Pt2Cu34(PET)22Cl4]2−: An Atomically Precise, 10-Electron PtCu Bimetal Nanocluster with a Direct Pt−Pt Bond. J. Am. Chem. Soc. 2021, 143, 12100–12107. [Google Scholar] [CrossRef] [PubMed]
  69. Tang, L.; Deng, S.; Wang, S.; Pei, Y.; Zhu, M. Total structural determination of alloyed Au15.37Cu16.63(S-Adm)20 nanoclusters with double superatomic chains. Chem. Commun. 2021, 57, 2017–2020. [Google Scholar] [CrossRef]
  70. Zhang, Y.; Zhang, J.; Li, Z.; Qin, Z.; Sharma, S.; Li, G. Atomically precise copper dopants in metal clusters boost up stability, fluorescence, and photocatalytic activity. Commun. Chem. 2023, 6, 24. [Google Scholar] [CrossRef]
  71. Yang, H.; Wang, Y.; Yan, J.; Chen, X.; Zhang, X.; Häkkinen, H.; Zheng, N. Structural Evolution of Atomically Precise Thiolated Bimetallic [Au12+nCu32(SR)30+n]4– (n = 0, 2, 4, 6) Nanoclusters. J. Am. Chem. Soc. 2014, 136, 7197–7200. [Google Scholar] [CrossRef]
  72. Yang, H.Y.; Wang, Y.; Huang, H.Q.; Gell, L.; Lehtovaara, L.; Malola, S.; Hakkinen, H.; Zheng, N. All-thiol-stabilized Ag44 and Au12Ag32 nanoparticles with single-crystal structures. Nat. Commun. 2013, 4, 2422. [Google Scholar] [CrossRef]
  73. Li, Q.; Chai, J.; Yang, S.; Song, Y.; Chen, T.; Chen, C.; Zhang, H.; Yu, H.; Zhu, M. Multiple Ways Realizing Charge-State Transform in Au-Cu Bimetallic Nanoclusters with Atomic Precision. Small 2021, 17, 1907114. [Google Scholar] [CrossRef] [PubMed]
  74. Tang, L.; Wang, B.; Wang, R.; Wang, S. Alloying and dealloying of Au18Cu32 nanoclusters at precise locations via controlling the electronegativity of substituent groups on thiol ligands. Nanoscale 2023, 15, 1602–1608. [Google Scholar] [CrossRef] [PubMed]
  75. Wan, X.-K.; Cheng, X.-L.; Tang, Q.; Han, Y.-Z.; Hu, G.; Jiang, D.-e.; Wang, Q.-M. Atomically Precise Bimetallic Au19Cu30 Nanocluster with an Icosidodecahedral Cu30 Shell and an Alkynyl−Cu Interface. J. Am. Chem. Soc. 2017, 139, 9451–9454. [Google Scholar] [CrossRef] [PubMed]
  76. Song, Y.; Li, Y.; Li, H.; Ke, F.; Xiang, J.; Zhou, C.; Li, P.; Zhu, M.; Jin, R. Atomically resolved Au52Cu72(SR)55 nanoalloy reveals Marks decahedron truncation and Penrose tiling surface. Nat. Com. 2020, 11, 478. [Google Scholar] [CrossRef] [PubMed]
  77. Mayer, K.; Weßing, J.; Fässler, T.F.; Fischer, R.A. Intermetalloid Clusters: Molecules and Solids in a Dialogue. Angew. Chem. Int. Ed. 2018, 57, 14372–14393. [Google Scholar] [CrossRef] [PubMed]
  78. Schütz, M.; Gemel, C.; Klein, W.; Fischer, R.A.; Fässler, T.F. Intermetallic phases meet intermetalloid clusters. Chem. Soc. Rev. 2021, 50, 8496–8510. [Google Scholar] [CrossRef] [PubMed]
  79. Schütz, M.; Gemel, C.; Muhr, M.; Jandl, C.; Kahlal, S.; Saillard, J.-Y.; Fischer, R.A. Exploring Cu/Al cluster growth and reactivity: From embryonic building blocks to intermetalloid, open-shell superatoms. Chem. Sci. 2021, 12, 6588–6599. [Google Scholar] [CrossRef] [PubMed]
  80. Freitag, K.; Gemel, C.; Jerabek, P.; Oppel, I.M.; Seidel, R.W.; Frenking, G.; Banh, H.; Dilchert, K.; Fischer, R.A. The σ-Aromatic Clusters [Zn3]+and [Zn2Cu]: Embryonic Brass. Angew. Chem. Int. Ed. 2015, 54, 4370–4374. [Google Scholar] [CrossRef]
  81. Freitag, K.; Banh, H.; Gemel, C.; Seidel, R.W.; Kahlal, S.; Saillard, J.-Y.; Fischer, R.A. Molecular brass: Cu4Zn4, a ligand protected superatom cluster. Chem. Commun. 2014, 50, 8681–8684. [Google Scholar] [CrossRef]
  82. Ganesamoorthy, C.; Weßing, J.; Kroll, C.; Seidel, R.W.; Gemel, C.; Fischer, R.A. The Intermetalloid Cluster [(Cp*AlCu)6H4], Embedding a Cu6 Core Inside an Octahedral Al6 Shell: Molecular Models of Hume–Rothery Nanophases. Angew. Chem. Int. Ed. 2014, 53, 7943–7947. [Google Scholar] [CrossRef]
  83. Weßing, J.; Ganesamoorthy, C.; Kahlal, S.; Marchal, R.; Gemel, C.; Cador, O.; Da Silva, A.C.H.; Da Silva, J.L.F.; Saillard, J.-Y.; Fischer, R.A. The Mackay-Type Cluster [Cu43Al12](Cp*)12: Open-Shell 67-Electron Superatom with Emerging Metal-Like Electronic Structure. Angew. Chem. Int. Ed. 2018, 57, 14630–14634. [Google Scholar] [CrossRef] [PubMed]
  84. Matus, M.F.; Häkkinen, H. Understanding ligand-protected noble metal nanoclusters at work. Nat. Rev. Mater. 2023, 8, 372–389. [Google Scholar] [CrossRef]
  85. Pillay, M.N.; van Zyl, W.E.; Liu, C.W. A construction guide for high-nuclearity (≥50 metal atoms) coinage metal clusters at the nanoscale: Bridging molecular precise constructs with the bulk material phase. Nanoscale 2020, 12, 24331–24348. [Google Scholar] [CrossRef] [PubMed]
  86. Liu, Y.; Yu, J.; Lun, Y.; Wang, Y.; Wang, Y.; Song, S. Ligand Design in Atomically Precise Copper Nanoclusters and Their Application in Electrocatalytic Reactions. Adv. Funct. Mater. 2023, 33, 2304184. [Google Scholar] [CrossRef]
  87. Artem’ev, A.V.; Liu, C.W. Recent progress in dichalcophosphate coinage metal clusters and superatoms. Chem. Commun. 2023, 59, 7182–7195. [Google Scholar] [CrossRef]
  88. Sun, J.; Tang, X.; Liu, Z.-H.; Xie, Z.; Yan, B.; Yin, R.; Chaolumen, C.; Zhang, J.; Fang, W.; Wei, J.; et al. Labile Ligands Protected Cu50 Nanoclusters with Tailorable Optical Limiting Effect. ACS Mater. Lett. 2024, 6, 281–289. [Google Scholar] [CrossRef]
Molecules 29 00605 g001
Figure 1. Simple [Mn]x+ nanocluster cores susceptible to be stable for two electrons, with their expected (n + 1)s and corresponding superatomic electron configurations. The top line corresponds to non-centered species. Note that, although spheroidal, the hollow M6 and M14 frameworks may not properly follow the spherical jellium model. Note that the largest cores can also house eight electrons.
Figure 1. Simple [Mn]x+ nanocluster cores susceptible to be stable for two electrons, with their expected (n + 1)s and corresponding superatomic electron configurations. The top line corresponds to non-centered species. Note that, although spheroidal, the hollow M6 and M14 frameworks may not properly follow the spherical jellium model. Note that the largest cores can also house eight electrons.
Molecules 29 00605 g001
Molecules 29 00605 g003

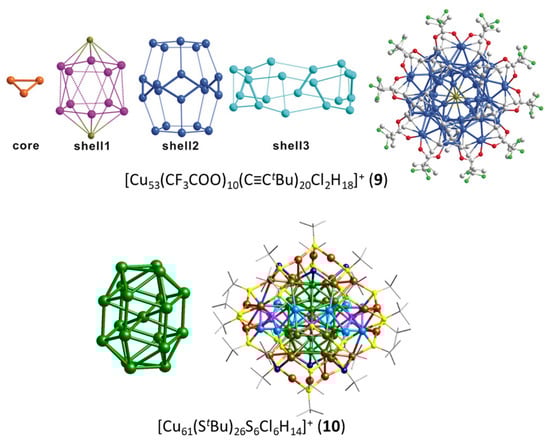

Figure 3. The complex anatomies of clusters 9 and 10. Adapted with permission from Ref. [42] (copyright 2019 John Wiley and Sons) and from Ref. [43] (copyright 2019 American Chemical Society).
Figure 3. The complex anatomies of clusters 9 and 10. Adapted with permission from Ref. [42] (copyright 2019 John Wiley and Sons) and from Ref. [43] (copyright 2019 American Chemical Society).
Molecules 29 00605 g003
Molecules 29 00605 g004
Figure 4. The anatomy of cluster 11, with its face-sharing centered icosahedral and cuboctahedral units (left) and its yellow “central” tetrahedron (right). Adapted with permission from Ref. [45]. Copyright 2020 American Chemical Society.
Figure 4. The anatomy of cluster 11, with its face-sharing centered icosahedral and cuboctahedral units (left) and its yellow “central” tetrahedron (right). Adapted with permission from Ref. [45]. Copyright 2020 American Chemical Society.
Molecules 29 00605 g004
Molecules 29 00605 g005
Figure 5. The Cu@Cu12@Cu10 and Cu@Cu12@Cu42 metal frameworks of clusters 13 and 16, respectively. Adapted with permission from Ref. [37] (Copyright 2018 American Chemical Society) and from Ref. [46] (Copyright 2011 Royal Society of Chemistry).
Figure 5. The Cu@Cu12@Cu10 and Cu@Cu12@Cu42 metal frameworks of clusters 13 and 16, respectively. Adapted with permission from Ref. [37] (Copyright 2018 American Chemical Society) and from Ref. [46] (Copyright 2011 Royal Society of Chemistry).
Molecules 29 00605 g005
Molecules 29 00605 g006
Figure 6. The idealized Cu@Cu14@Cu24 core of cluster 15.
Figure 6. The idealized Cu@Cu14@Cu24 core of cluster 15.
Molecules 29 00605 g006
Molecules 29 00605 g007
Figure 7. The complete and incomplete centered icosahedron in the 2-electron clusters 23, 21, and 22 (idealized structures).
Figure 7. The complete and incomplete centered icosahedron in the 2-electron clusters 23, 21, and 22 (idealized structures).
Molecules 29 00605 g007
Molecules 29 00605 g008
Figure 8. The interpenetration of two Pt-centered 13-vertex polyhedra giving rise to the [Pt2Cu18]8+ supermolecular core of cluster 29 through the sharing of 6 Cu and 2 Pt atoms.
Figure 8. The interpenetration of two Pt-centered 13-vertex polyhedra giving rise to the [Pt2Cu18]8+ supermolecular core of cluster 29 through the sharing of 6 Cu and 2 Pt atoms.
Molecules 29 00605 g008
Molecules 29 00605 g009
Figure 9. The two vertex-sharing icosahedra making the [Au12Cu13]9+ supermolecular core of cluster 31.
Figure 9. The two vertex-sharing icosahedra making the [Au12Cu13]9+ supermolecular core of cluster 31.
Molecules 29 00605 g009
Molecules 29 00605 g010
Figure 10. Left: The [Au@Au12@Cu20]x+ (x = 15–17) core of ideal Ih symmetry in clusters 32–34. Right: The [Au@Au12@Cu30@Au6]27+ core of ideal Ih symmetry of clusters 35. Adapted with permissions from Ref. [71] (copyright 2017 2014 American Chemical Society) and from Ref. [75] (copyright 2017 2019 American Chemical Society).
Figure 10. Left: The [Au@Au12@Cu20]x+ (x = 15–17) core of ideal Ih symmetry in clusters 32–34. Right: The [Au@Au12@Cu30@Au6]27+ core of ideal Ih symmetry of clusters 35. Adapted with permissions from Ref. [71] (copyright 2017 2014 American Chemical Society) and from Ref. [75] (copyright 2017 2019 American Chemical Society).
Molecules 29 00605 g010
Molecules 29 00605 g011
Figure 11. The [(Au5Cu2)@Au47@Cu70]56+ core of cluster 36. Adapted with permission from Ref. [76] under Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0, accessed on 23 December 2023).
Figure 11. The [(Au5Cu2)@Au47@Cu70]56+ core of cluster 36. Adapted with permission from Ref. [76] under Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0, accessed on 23 December 2023).
Molecules 29 00605 g011
Molecules 29 00605 g012
Figure 12. The (Cu4@Cux)@Al6Cp*6 (x = 2, 3, 4) arrangements in the X-ray structures of 41 (X = H), 42, and 43, respectively. The hydride ligands in 41 and 42 were not located. Adapted with permission from Ref. [79] (Copyright 2011 Royal Society of Chemistry).
Figure 12. The (Cu4@Cux)@Al6Cp*6 (x = 2, 3, 4) arrangements in the X-ray structures of 41 (X = H), 42, and 43, respectively. The hydride ligands in 41 and 42 were not located. Adapted with permission from Ref. [79] (Copyright 2011 Royal Society of Chemistry).
Molecules 29 00605 g012
Table 3. Structurally characterized mixed-valent heterometallic copper clusters alloyed with non-noble metals. ne = number of cluster “free” electrons (see text).
Table 3. Structurally characterized mixed-valent heterometallic copper clusters alloyed with non-noble metals. ne = number of cluster “free” electrons (see text).
neProposed Superatomic/Supermolecular CoreRef.
37[AlCu2Cp*3]2Triangle [AlCu2]3+[79]
38[Al4Cu4 (Mes)Cp*5]6[Cu4Al2]4+[79]
39[Zn2Cu10(Mes)6Cp*2]6D3h [ZnCu10]8+ (see text)[81]
40[Zn4Cu4 (CNtBu)4Cp*4]8Tetracapped tetrahedron [Cu4@Zn4]4+[82]
41[Al6Cu6H3XCp*6] (X = H, NH=CHPh)18 or 20?Bicapped tetrahedron@octahedron [(Cu4@ Cu2Hx)@Al6]n+ (see text)[83]
42[Al6Cu7HCp*6]20Tricapped tetrahedron@octahedron [(Cu4@ Cu3H)@Al6]6+[79]
43[Al6Cu8Cp*6]20Tetracapped tetrahedron@octahedron [(Cu4@Cu4)@Al6]6+[79]
44 [(Al12Cu43)Cp*12] 67Ih-shaped MacKey cluster [Cu@Cu12@(Cu30Al12)]12+[83]
Abbreviations: Mes = mesytyl. Cp* = pentamethyl cyclopentadienyl.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zouchoune, B.; Saillard, J.-Y. Atom-Precise Ligated Copper and Copper-Rich Nanoclusters with Mixed-Valent Cu(I)/Cu(0) Character: Structure–Electron Count Relationships. Molecules 2024, 29, 605. https://doi.org/10.3390/molecules29030605

AMA Style

Zouchoune B, Saillard J-Y. Atom-Precise Ligated Copper and Copper-Rich Nanoclusters with Mixed-Valent Cu(I)/Cu(0) Character: Structure–Electron Count Relationships. Molecules. 2024; 29(3):605. https://doi.org/10.3390/molecules29030605

Chicago/Turabian Style

Zouchoune, Bachir, and Jean-Yves Saillard. 2024. "Atom-Precise Ligated Copper and Copper-Rich Nanoclusters with Mixed-Valent Cu(I)/Cu(0) Character: Structure–Electron Count Relationships" Molecules 29, no. 3: 605. https://doi.org/10.3390/molecules29030605

APA Style

Zouchoune, B., & Saillard, J. -Y. (2024). Atom-Precise Ligated Copper and Copper-Rich Nanoclusters with Mixed-Valent Cu(I)/Cu(0) Character: Structure–Electron Count Relationships. Molecules, 29(3), 605. https://doi.org/10.3390/molecules29030605

Article Metrics

Back to TopTop
