Review

Recent Advances in Antifreeze Peptide Preparation: A Review

by
Bo Xia
*,†,
Juntao Wang
†,
Honghao Chen
,
Shuyan Lin
,
Buchun Pan
and
Nan Wang
*
Department of Bioenvironment, Jiyang College of Zhejiang A&F University, Zhuji 311800, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to the work.
Molecules 2024, 29(20), 4913; https://doi.org/10.3390/molecules29204913
Submission received: 14 September 2024 / Revised: 30 September 2024 / Accepted: 14 October 2024 / Published: 17 October 2024
(This article belongs to the Section Organic Chemistry)
Browse Figures
Versions Notes

Abstract

:
Antifreeze agents play a critical role in various fields including tissue engineering, gene therapy, therapeutic protein production, and transplantation. Commonly used antifreeze agents such as DMSO and other organic substances are known to have cytotoxic effects. Antifreeze proteins sourced from cold-adapted organisms offer a promising solution by inhibiting ice crystal formation; however, their effectiveness is hindered by a dynamic ice-shaping (DIS) effect and thermal hysteresis (TH) properties. In response to these limitations, antifreeze peptides (AFPs) have been developed as alternatives to antifreeze proteins, providing similar antifreeze properties without the associated drawbacks. This review explores the methods for acquiring AFPs, with a particular emphasis on chemical synthesis. It aims to offer valuable insights and practical implications to drive the realm of sub-zero storage.

1. Introduction

Water is a fundamental element within the cellular composition of all living organisms on Earth, playing a crucial role in sustaining essential life processes. While water’s significance is undeniable, cells face the risk of damage from ice crystal formation, especially at low temperatures, which can ultimately result in cell death [1]. To overcome this risk, antifreeze agents like DMSO and other organic substances are commonly used, albeit with the drawback of potentially causing cytotoxic effects [2]. Thankfully, nature has devised another solution in the form of antifreeze proteins found in the cells of organisms inhabiting cold regions. These proteins can interact with the surface of ice crystals, effectively inhibiting their formation and growth [3]. The revelation of antifreeze proteins has piqued the curiosity of researchers across a spectrum of fields, from organ transplantation to cell cryopreservation and frozen food preservation [4,5,6]. However, with time, antifreeze proteins have exhibited certain limitations. Primarily, their high cost presents significant challenges [7]. Furthermore, numerous studies in the realm of low-temperature storage have indicated that the mere addition of antifreeze proteins may not substantially enhance cell recovery rates. This limitation has been attributed to the dynamic ice-shaping (DIS) effect associated with antifreeze proteins, stemming from their thermal hysteresis (TH) properties [8,9]. Under the influence of DIS, antifreeze proteins tend to bind selectively to specific ice crystal surfaces, triggering varying growth rates among different crystal facets and resulting in diverse ice crystal morphologies. Critically, the growth of ice crystals on inhibited crystal planes may induce mechanical stress, leading to needle-like crystal structures that could harm cells [10].
To address these challenges, scientists have developed derivatives of antifreeze proteins known as antifreeze peptides (AFPs). AFPs offer similar antifreeze properties without the TH and DIS effects, binding strongly to all ice crystal faces and mitigating the negative impact of DIS [11,12,13]. AFPs have shown great promise as biological antifreeze materials, offering excellent antifreeze properties, biocompatibility, and physiological activities. To date, there are three main pathways for obtaining AFPs: proteolysis of antifreeze proteins from ocean fish in cold regions, chemical synthesis, and microbial synthesis (Scheme 1). Among these methods, proteolysis currently predominates. However, it is still encountering certain obstacles, such as random hydrolysis sites, an unmodifiable peptide sequence, and a high reliance on marine organisms. The presence of random hydrolysis sites and an unalterable peptide sequence often result in a mixture of peptides that are unsuitable for specific applications. Furthermore, the heavy dependence on marine organisms can exacerbate environmental pressures in the ocean. Therefore, chemical and microbial synthesis are deemed the most viable solution for future AFP production. This review explores the methods for acquiring AFPs, with a particular emphasis on chemical synthesis. It aims to offer valuable insights and practical implications to drive the realm of sub-zero storage.

2. Formation of Ice Crystals and Their Damage to Cells

Cryopreservation has become an essential technique in a variety of cell-based applications, including stem cell therapy, tissue engineering, human-assisted reproduction, and transfusion medicine [14,15,16,17]. By cooling living materials such as food, biological organs, and tissues to low temperatures, cryopreservation reduces spoilage caused by bacterial growth, plant respiration, and microbial activity. However, when aqueous solutions are cooled below the equilibrium freezing point, ice crystals inevitably form in the extracellular medium. This process reduces the water concentration within the sample, leading to potential cell damage. The formation of ice crystals, particularly in the extracellular space, can cause severe mechanical stress on cell membranes and result in cellular damage or necrosis [18]. This section will explore the underlying mechanisms of ice crystal formation and how it contributes to cell damage in subfreezing environments.

2.1. Formation of Ice Crystals

During cryopreservation, ice crystals form spontaneously in water-containing biological materials once temperatures drop below freezing due to supercooling. Ice formation consists of two key phases: crystallization and recrystallization, both of which are influenced by the freezing rate and storage temperature. The freezing rate determines the size and distribution of ice crystals, while storage temperature controls the total number of crystals [19]. The characteristics of ice crystals, such as size, morphology, and spatial distribution, are dictated by the interplay between nucleation and crystal growth [20]. Theories explaining intracellular ice formation include the pore theory, which suggests that extracellular ice seeds intracellular ice formation through pores in cell membranes. Other explanations involve surface-catalyzed nucleation, where the cell membrane promotes ice formation, or volume-catalyzed nucleation, where intracellular particles act as catalysts [21]. Another theory is the cell membrane damage theory, which posits that extracellular ice seeds intracellular ice via membrane damage caused by electrical transients or osmotic pressure.

2.1.1. Ice Crystallization

Supercooling occurs when the temperature is lowered below the freezing point without inducing solidification, and supersaturation refers to a state where solute concentration exceeds equilibrium solubility. Together, these conditions allow crystallization, which starts with the formation of ice crystals and is followed by their growth. D. Zaragotas et al. [22] developed a platform using infrared video recordings to monitor ice nucleation events in a 96-well microplate. Their temperature data analysis identified freezing curves that were classified as either fast or slow, with nucleation, freezing, and solid-phase points marking the crystallization process’s key phases.
(a)
Nucleation of ice crystals
At sub-zero temperatures, two competing phenomena—supercooling and ice nucleation—drive the cellular response. Supercooling refers to a metastable state where water remains liquid below its freezing point, with the help of antifreeze proteins that enhance supercooling and result in smaller ice crystals [20,22]. Once nucleation begins, it interrupts the supercooled state, initiating freezing [22]. Nucleation is influenced by factors like melting temperature, ice–liquid interfacial tension, and kinetic factors. In supercooled liquids, molecular vibrations lead to the spontaneous formation of ordered clusters of solid molecules, or ice nuclei [21]. Nucleation is crucial for freezing rate instability and crystallization. During this phase, a supercooled liquid transitions to a two-phase liquid–solid state, releasing latent heat of freezing (Lf) (Figure 1B). The temperature rise from the nucleation point (np) to the freezing point (fp) defines the degree of supercooling (∆Tsc), marking the dendritic phase [22]. Classical Nucleation Theory (CNT) is often used to explain this process [21,23].
  • (b) Growth of ice crystals
Once nucleation occurs, ice crystals grow as free energy decreases. This growth starts at the freezing point (fp) and continues until the solid phase line point (sp), marking the final stage of crystallization. Ice crystal growth can be described using a non-isothermal, diffusion-limited growth model [21,22]. The solid phase line represents the completion of crystallization as the sample transitions to a single-phase solid state. At this point, latent heat release stops, and the temperature decreases linearly until reaching equilibrium with the cooling medium [22].

2.1.2. Ice Recrystallization

Ice recrystallization, a form of Ostwald ripening, occurs when larger ice crystals grow at the expense of smaller ones to reduce surface energy. This process increases ice crystal size and contributes to cell death during thawing, adding osmotic stress [18,24]. In reality, ice crystals differ in size and curvature; larger crystals have concave boundaries with lower surface energy, while smaller crystals have convex boundaries (Figure 1). According to Fick’s first law of diffusion, atoms migrate from areas of high curvature to low curvature, causing smaller crystals to shrink and larger ones to grow [21]. As storage temperatures rise slightly, smaller crystals melt more rapidly, and their meltwater reforms around larger ice crystals, leading to mechanical cell damage and osmotic stress [18].

2.2. Ice Crystal-Induced Cell Damage

At ultra-low temperatures (below −130 °C), the kinetic energy and molecular motion within biological materials significantly decrease. This reduction slows chemical and biological reactions, including metabolism, active transport, enzymatic activity, and diffusion, keeping the materials in a suspended state until the temperature rises again [18]. Many studies support the idea that freezing damage in slowly frozen cell suspensions is not directly caused by ice crystals but rather results from high solute concentrations that form as water is removed to create ice. This suggests that freezing damage may be due to the temperature drop itself, changes in solution composition caused by freezing, or both [21]. During the cryopreservation of biological materials, various forms of cell damage can occur, such as osmotic stress, mechanical damage, and toxicity induced by cryoprotectants (CPA) [1,25] (Figure 2).

2.2.1. Osmotic Damage and CPA Toxicity-Induced Damage

The formation of extracellular ice increases osmotic pressure during freezing and thawing, leading to cellular dehydration-a process known as osmotic damage [26]. Slow cooling rates cause intracellular dehydration due to the chemical potential difference between extracellular ice and intracellular solution, a phenomenon called the solute effect [21,27]. Rapid cooling rates, however, lead to lethal intracellular ice formation due to insufficient time for water to escape, though partial dehydration may enhance cell survival. Higher cooling rates can lead to vitrification, improving the survival of frozen cells. Recrystallization during thawing can also lead to osmotic shock as solutes become concentrated between ice crystals [18]. Exposure to toxic cryoprotectants can further increase osmotic pressure, compounding damage [28].

2.2.2. Mechanical Injury

During the thawing process, especially when the warming rate is slow, ice crystals can recrystallize into larger and sharper structures, which can disrupt cell membranes and lead to mechanical damage [29,30]. Intracellular ice formation (IIF) exerts mechanical stress directly on organelles and cell membranes [31]. The extent of this mechanical damage is influenced by the type and size of the ice crystals. The size of these crystals is primarily determined by the nucleation temperature—the temperature at which the first ice crystal forms [20]. Cooling rates are closely linked to the size, shape, and distribution of ice crystals: higher cooling rates increase supercooling, which reduces the grain size of intracellular ice crystals [16,27]. Ice crystals can exist in different forms (I–VI), with ice I, which forms under atmospheric pressure, having a lower density than liquid water. This leads to an expansion in crystal volume, causing damage to tissues. Under high pressure, several types of ice crystals (II–VI) form, which have a higher density than water, resulting in less damage during freezing under high hydrostatic pressure [20].

3. Proteolysis from Antifreezing Protein

Hydrolysis stands as one of the earliest historical techniques utilized in extracting AFPs from proteins of biological origin. This process involves enzymatic or chemical cleavage to break amide bonds within the protein structure. Through hydrolysis, a wide range of AFPs have been obtained and can be categorized into three main groups: fish-derived, insect-derived, and livestock-derived. AFPs were first discovered in the proteins of polar fish [8], showcasing sequences with a high concentration of hydrophilic groups. These specialized derivatives, known as fish-derived antifreeze peptides, have since captured considerable attention in the field. For example, the skin of Takifugu obscurus, renowned for its abundance of glycine, proline, and alanine (Ala), can be hydrolyzed using papain to yield a mixture of antifreeze peptides (TsAFP) containing three sequences (EGPRAGGAPG, GDAGPSGPAGPTG, and GEAGPAGPAG). These peptides effectively halt the growth of ice crystals and provide robust protection to muscle tissue during the freezing and thawing processes of fish mince at a concentration of 4% [32]. Silver carp is also rich in Ala, and through the use of Protamex, a novel peptide with the sequence KAADSFNHKAFFAKVG has been isolated. This peptide displays unique properties, including an α-helical structure and amphipathic characteristics, enabling it to interact with 48 water molecules simultaneously. Remarkably, this peptide has demonstrated exceptional efficacy in cryopreservation applications, achieving an impressive 90% survival rate for yeast during freezing protection [33]. The scales of Ctenopharyngodon idella, abundant in proline, exhibit a remarkable adaptability to cold-water environments. Three main antifreeze peptides (VGPAGPSGPSGPQ, RGSPGERGESGPAGPSG, and VGPAGPSGPSGPQG) with a thermal hysteresis activity of 5.09 °C have been isolated from them. Importantly, these peptides have shown a significant 84.4% recovery rate in yeast cryopreservation at −20 °C [34].
Insects, renowned for their vast species diversity, serve as abundant sources of proteins and protein-based products. The silkworm stands as a quintessential example, producing silk rich in fibrous protein widely utilized in the textile industry. In recent years, researchers have discovered that silk peptides (SKAFPs) can be obtained through enzymolysis and alkali hydrolysis, containing a plethora of hydrophilic amino acids [35]. In freezing protection experiments, the recovery rate of 1.0 mg/mL SKAFPs for Lactobacillus delbrueckii Subsp. Bulgaricus was 84% [36], while the recovery rate of 10 mg/mL SKAFPs for human bone-derived mesenchymal stem cells was 81% [37]. The impressive cell recovery rates achieved with insect-derived AFPs underscore the value of further exploration into natural AFPs.
Proteins play a vital role in the bodies of livestock, boasting diverse sequence structures. The skin and bone marrow of animals act as primary defenses against cold climates; rich in collagen protein, they are excellent candidates for the study of AFPs. For example, utilizing ice as a tool to selectively identify these AFPs, researchers extract them from bovine bone collagen protein through alkaline protease hydrolysis. This process operates akin to a magnet attracting metal with precision. These AFPs have exhibited the ability to selectively bind to various ice surfaces, resulting in altered ice crystal growth and providing protection for yeast entities within frozen dough formulations (Figure 3) [38]. In addition to cattle, pigs serve as notable sources of AFPs, preserving the quality attributes of pork loin. Intriguingly, the incorporation of 4% AFPs has been found to reduce thawing loss in frozen meat by 5.32% and decrease the area of ice crystal formation by 15.54% [39].

4. Chemical Synthesis of Antifreezing Peptides

While proteolysis remains prevalent, it faces challenges such as random hydrolysis sites, unmodifiable peptide sequences, and a significant reliance on marine organisms. Random hydrolysis sites and fixed peptide sequences often yield peptide mixtures unsuitable for specific applications. Additionally, the heavy dependence on marine organisms can intensify environmental pressures in the ocean. Consequently, chemical synthesis is considered the most promising solution for future AFP production due to its ability to accurately control the sequence of obtained peptides. The antifreeze properties of AFPs primarily derive from the amino acids in the peptide sequence and the peptide’s secondary structure. Therefore, in the forthcoming discussion, we will delve into the prevalent amino acids in synthesized peptide sequences, such as Ala, Pro, Thr, and other hydrophilic amino acids (refer to Table 1).

4.1. Antifreezing Peptides Based Ala-Dominated Sequence

Ala, a prominent residue found in Type I AFPs of polar fish, plays a crucial role in imparting antifreeze properties to these peptides because of its unique structural characteristics. Previous research has demonstrated the antifreeze activity of individual Ala monomers, leading scientists to explore polyalanine (PAla) [43]. The self-assembly of homologous alanine oligopeptides (DP = 3, 5, 7) represents a novel approach to producing PAla, revealing a higher specific ice-binding surface area compared to Ala and achieving approximately 17% of the Maximum Growth Limiting Size (MGLS) observed in a control group treated with PBS [44]. Beyond its spherical structure, the α-helix conformation can further enhance Ala’s antifreeze activity. Using the N-carboxyanhydride (NCA) polymerization method, researchers meticulously designed two distinct peptide sequences: L-Ala-co-L-lys (PAK) with ratios ranging from 0/100 to 70/30, and a random coil of L-Ala-co-aspartic acid (PAD) with a 1:1.1 ratio (Figure 4). Astonishingly, with increased Ala content, the structure of PAK transitioned from a random coil to a classical α-helix. This transition was accompanied by a reduction in Ice Recrystallization Inhibition (IRI) activity from 74% of PBS to 11%, with the ice-crystal coagulation temperature recorded between −22 °C and −23 °C [45,46]. However, PAD displayed no IRI activity. The introduction of hydrophilic amino acids, which can stabilize the helical structure, has been shown to enhance the antifreeze performance of AFPs predominantly composed of Ala. For instance, AFPs-p2 (DTASDAKAAAEL) incorporated hydrophilic lysine and glutamic acid into the ice-binding sites 7 and 11 of AFPs-p1 (DTASDAAAAAAL), while AFPs-p3 (DTASDAFAAAAL) introduced hydrophobic phenylalanine at site 11. The results indicated that AFPs-p3 exhibited freezing at −10.8 °C, AFPs-p1 at −11.9 °C, and AFPs-p2 achieved an impressive freezing point of −16.3 °C [47].
Ala is not solely confined to its antifreeze activity through the formation of α-helical structures. The inclusion of alternating arrangements of L- and D-configured amino acids has been shown to induce spontaneous antiparallel beta-folding in peptide chains. By employing the solid-phase synthesis (SPSS) method, researchers developed self-assembled cyclic peptides (L-Lys-D-Ala-L-Thr-D-Ala-L-Thr-D-Ala-L-Lys-D-Ala), challenging the notion that the antifreeze activity of Ala peptides is exclusively linked to α-helix formation. However, during the evaluation of the cyclic peptide’s Ice Recrystallization Inhibition (IRI) activity, a substantial amount of precipitation was encountered under basic conditions (pH = 11), leading to significantly lower IRI activity compared to that observed under acidic conditions (pH = 3), which was 24.3% of the sucrose solution MGLS [40].

4.2. Antifreezing Peptides Based on Proline

Glycopeptides in polar animals play a vital role in adapting to cold environments. Proline and its derivatives, the smallest mimetics of antifreeze glycopeptides, also exhibit antifreeze properties (Figure 5) [48]. Therefore, studying proline and its derivatives is crucial for understanding low-temperature protection mechanisms. Polyproline (PPro), with its unique type II polyproline helix (PPII) [49] and amphipathic properties, can significantly slow down the growth of extracellular ice by forming a reversible bond with ice surfaces through its hydrophilic faces. This interaction prevents large ice crystals from directly damaging cells and mitigates the subsequent rise in osmotic pressure. For instance, in the protection of oocytes and human lung adenocarcinoma cells (A549), PPro can reduce the amount of DMSO needed and achieve excellent cell recovery rates (99% for oocytes, 53% for A549) [41,50]. However, it is important to note that the antifreeze activity of PPro is concentration-dependent, showing negligible antifreeze activity at lower concentrations [42]. The cryoprotective efficacy of PPro is not only dependent on concentration but also influenced by its molecular weight. Lower molecular weights (MW) correspond to lower IRI activity. This phenomenon was substantiated through a comparative examination of cryoprotective effects using PPro with different MWs (ranging from 1200 to 50,000 g/mol). PPro with a MW of 50,000 g/mol could inhibit the growth of almost all ice crystals at concentrations below 5 mg/mL, demonstrating stronger efficacy than 20 mg/mL PPro with a MW of 2000 g/mol [50,51]. In summary, as our understanding of PPro deepens, it emerges as a potential non-toxic alternative to DMSO in cryoprotection, especially with its superior performance linked to increased MW and concentration.

4.3. Antifreezing Peptides Based on Threonine

Threonine (Thr), a hydrophilic amino acid, can form hydrogen bonds with ice, thereby conferring antifreeze properties. Thr is a common component in antifreeze peptide sequences, although it does not play a crucial role in AFPs. Researchers have investigated polythreonine (PThr), formed through self-assembly (Table 1). It was demonstrated that while the Ice Recrystallization Inhibition (IRI) activity of PThr (DP = 5) with spherical self-assembled structures is lower than that of PAla, it still achieves 40% of the Maximum Growth Limiting Size (MGLS) compared to PBS [44]. To further enhance the frost resistance of PThr, researchers constructed an orderly and spaced PThr that can adjust its side chains to optimize cryoprotective properties [52]. This modified PThr demonstrated cell viabilities of 82% for human liver cancer cells and 88% for normal liver cells [53]. Additionally, self-assembly with DNA nanosheets significantly improved the frost resistance of PThr by combining the expansive surface area of nanosheets with the frost resistance of PThr (Figure 6). Consequently, the single-layer Thr-DNA origami nano-patch enhanced the survival rate of human oral squamous cell carcinoma (HSC-3) to 56% after one month of freezing, surpassing the 38% survival rate achieved with the conventional cryoprotective agent DMSO [54].

4.4. Antifreezing Peptides Based on Lysine

Lysine, an amino acid known for its hydrophilic properties due to its innate positive charge, shows notable cryoprotective abilities [55]. A derivative of lysine called ε-poly-L-lysine (PPL), which features a carbonyl group at the α-position and an amino group at the ε-position, is a cationic polymerized polypeptide. Initially used as an antibacterial agent, PPL has recently gained attention for its cryoprotective properties [56,57]. Recent research has highlighted the potential of carboxylating the side chains of PPL to enhance its cryoprotective efficacy, making it increasingly useful in sperm cryopreservation. For instance, the rate of DNA breakage in human sperm can be kept below 30%, and fish sperm activity is boosted by 10% after thawing [58,59]. Moreover, the versatility of lysine’s unique side chain structure allows for various modifications that further improve its cryoprotective characteristics. Modifications involving poly(vinyl alcohol), succinic anhydride, and dodecenylsuccinic anhydride have demonstrated significant cryoprotective properties [60,61,62]. For example, when combined with poly(vinyl alcohol), PPL can maintain 78% of its lactate dehydrogenase activity, even after 15 cycles of repeated thawing. Additionally, when modified with dodecenylsuccinic anhydride, lysozyme retains up to 95% of its activity. These advancements underscore the potential of PPL and its modifications as effective cryoprotective agents, paving the way for broader applications in biopreservation.

4.5. Other Chemical Synthesis Antifreezing Peptides

In addition to the four main amino acids discussed previously, other polypeptide substances dominated by serine (Ser) also exhibit antifreeze properties. D/L-Polyserine, synthesized through NCA polymerization to copolymerize D/L-serine in various L/D ratios (7:3, 5:5, and 3:7) (Figure 7), has been found to be non-cytotoxic. Although its Ice Recrystallization Inhibition (IRI) activity levels (63.6%, 61.4%, and 59.7%, respectively) were not particularly significant, the hydrophilic nature and non-cytotoxic properties of Ser make it more effective than hydroxyethyl starch by 20%, and more effective than polyethylene glycol and polyvinylpyrrolidone by 10% in the cryoprotection of sheep red blood cells. The respective cell recovery rates were 52.3%, 50.6%, and 49.8% [63].
With the development of computer science, the computer-aided design of AFPs has become a reality [64,65]. Researchers studied a novel approach combining Statistical Package for the Social Sciences (SPSS) and polypeptide sequences derived from in silico predictions. This antifreeze peptide precursor sequence was sourced from the autolysate of white-hair rough shrimp (Trachypenaeus curvirostris) byproducts. Among a series of peptides, DEYEESGPGIVH (AFP-1) and EQICINFCNEK (AFP-2) emerged as promising candidates. The thermal hysteresis (TH) values of AFP-1 and AFP-2 at a concentration of 10 mg/mL were 1.37 °C and 1.57 °C, respectively [66]. Apart from computational methods, researchers have also drawn inspiration from the sequences of AFPs in psychrophilic microorganisms [67]. A novel antifreeze polypeptide, AVD (AVDAGTGNDELIIGGDVSG), was developed based on the ice-binding protein sequence of Marinomonas primoryensis. Substituting amino acid residues at the sixth (T→S), eighth (N→S), and eighteenth (S→X) positions of AVD revealed that the Thr6 and Asn8 residues were essential for its ice-binding capability, while the Ser18 residue synergistically enhanced the interaction with ice. At a concentration of 10 mg/mL, AVD exhibited notable cell recovery rates of 70.9% for mouse embryonic fibroblasts (NIH-3T3), 34.9% for mouse mononuclear macrophage leukemia cells (RAW264.7), and 95.7% for human poorly differentiated lung adenocarcinoma cells (GLC-82) [68].

5. Microbial Synthesis of Antifreezing Peptides

The generation of diverse bioactive peptides with varying amino acid sequences and molecular weights through microbial metabolism and fermentation under different conditions has a rich historical background. As a result, significant research has been dedicated to leveraging microorganisms for the production of antifreeze peptides. For instance, the prolonged low-temperature fermentation of yogurt by lactic acid bacteria has been associated with the production of antifreeze peptides [69,70]. However, after separation, these peptides often exhibit low purity and uncontrollable sequences, prompting researchers to employ genetic engineering techniques to introduce specific sequences into microorganisms for tailored antifreeze peptide synthesis. For example, the introduction of the gene encoding the snow flea antifreeze peptide (rsfAFP) into Bacillus subtilis [71] and Escherichia coli BL21(DE3) [72] has demonstrated the production of antifreeze polypeptides with significant low-temperature protective properties, notably against Streptococcus thermophilus, where cell viability reached 83% after thawing. Besides the rsfAFP gene, valuable sources such as Tenebrio molitor [73], Pseudomonas borealis [74], and marine organisms [75] have also been identified for encoding antifreeze proteins. Particularly noteworthy is the remarkable protective efficacy exhibited by antifreeze polypeptides derived from the Tenebrio molitor gene. The addition of just 0.5% of these peptides resulted in a substantial increase in the survival rate of NIH3T3 cells, from 37.86% to 81.32%.

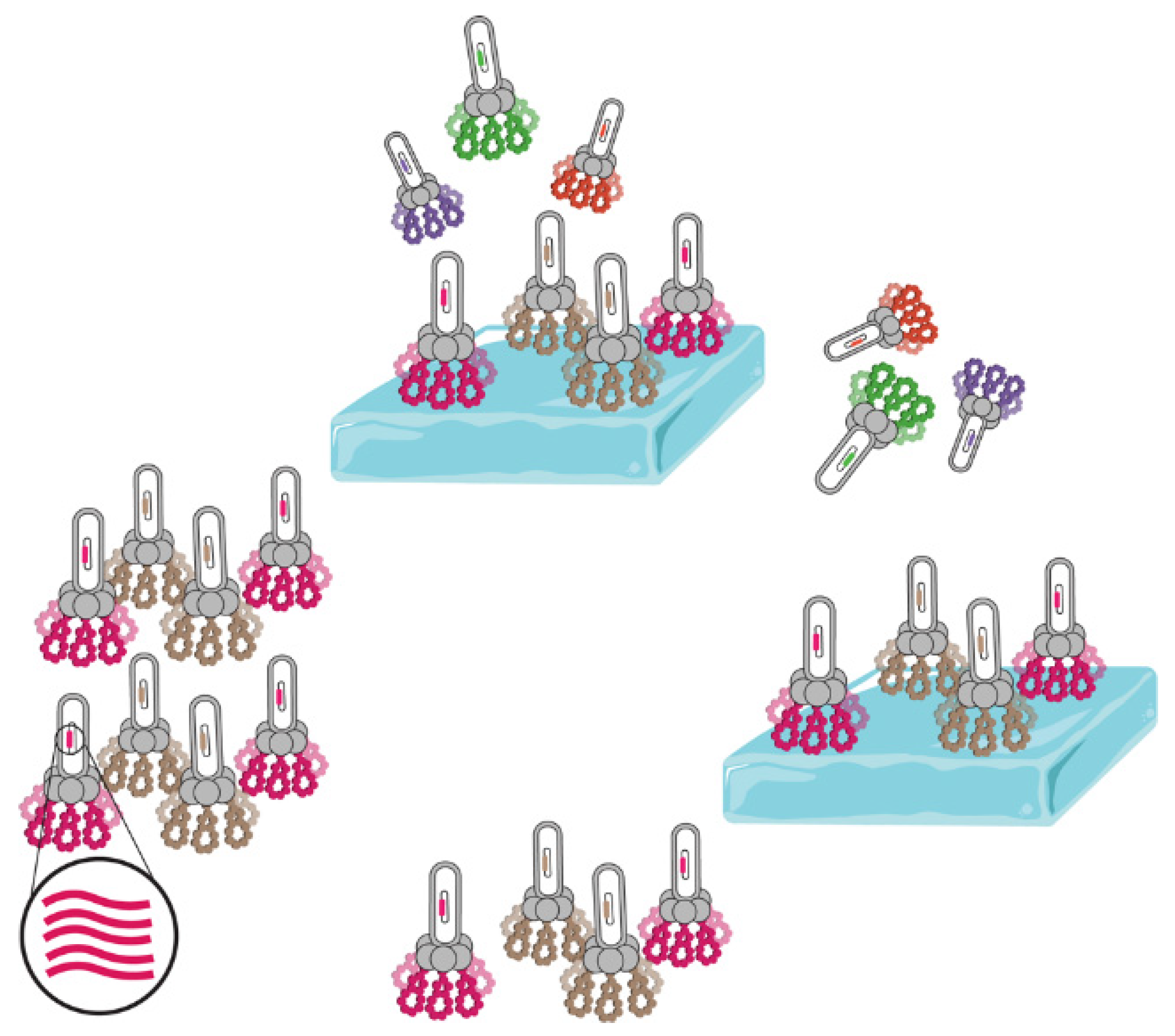

Moreover, beyond bacterial synthesis, phages (Figure 8) have demonstrated the capability to synthesize cyclic antifreeze peptides (AFPs) with the main sequence ACSDRFRNCPADEALCG, thereby enhancing the feasibility of producing these compounds [76]. Consequently, microbial production emerges as a novel and valuable avenue for obtaining antifreeze peptides, showcasing the potential of genetic engineering and microbial systems in revolutionizing the production of biologically active molecules.

6. Other Antifreezing Materials

Despite the acknowledged limitations regarding the cytotoxicity associated with conventional cryoprotectants, the imperative to continue exploring these traditional solutions cannot be overstated. Advancing the field of cryoprotection requires a holistic perspective and dedicated efforts to overcome the drawbacks inherent in conventional protective agents. Consequently, ongoing research endeavors persist in evaluating the antifreeze capabilities of various compounds. Notable examples include polyvinyl alcohol, which achieves an 80–90% recovery rate for NIH-3T3 cells [77], polypropylene-based glycidyl ether [78], glycopeptide-like polymers that restore 87% vitality in frozen red blood cells [79], and polyampholytes, which show a recovery rate of 89% for A549 cells [80,81]. Each of these demonstrates promising low-temperature protective attributes for cellular systems.

7. Conclusions

In summary, this focused review highlights the current state-of-the-art in the rapidly emerging field of antifreeze peptides, which have the potential to surpass traditional antifreeze agents. Although research on antifreeze peptides is still in its exploratory stage, significant insights have been gained into how amino acids and secondary structures in their sequences influence antifreeze properties. This paper outlines various methods for obtaining antifreeze peptides: proteolysis, where AFPs are primarily derived from antifreeze proteins; chemical synthesis, using techniques such as SPSS, NCA, and self-assembly; and microbial synthesis, primarily employing genetic engineering. While proteolysis remains a common method, it faces several challenges, including random hydrolysis sites, unmodifiable peptide sequences, and a significant reliance on marine organisms. These issues often result in peptide mixtures unsuitable for specific applications and can exacerbate environmental pressures on ocean ecosystems. Microbial synthesis also encounters challenges related to gene design and introduction. Consequently, chemical synthesis emerges as the most promising solution for future AFP production due to its ability to accurately control the sequence of obtained peptides. Moreover, this review provides a detailed introduction to the amino acids, structural patterns, and primary sequences that play key roles in antifreeze peptides. It is intended to serve as a valuable reference for the future design and synthesis of antifreeze peptides.

Author Contributions

B.X.: Conceptualization. Project administration. Supervision. Writing—original draft. Writing—review & editing. J.W.: Writing—original draft. Investigation. Funding acquisition. H.C.: Writing—original draft. Investigation. S.L. and B.P.: Visualization. N.W.: Writing—review & editing. Writing—original draft. Investigation. The manuscript was written through contributions of all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Innovation and Entrepreneurship training program of Jiyang College of Zhejiang A&F University (202313283004).

Conflicts of Interest

The authors declare no competing financial interest.

References

  1. Chang, T.; Zhao, G. Ice Inhibition for Cryopreservation: Materials, Strategies, and Challenges. Adv. Sci. 2021, 8, 2002425. [Google Scholar] [CrossRef]
  2. Jiang, W.; Yang, F.; Chen, X.; Cai, X.; Wu, J.; Du, M.; Huang, J.; Wang, S. Molecular simulation -based research on antifreeze peptides: Advances and perspectives. J. Futur. Foods 2022, 2, 203–212. [Google Scholar] [CrossRef]
  3. Biggs, C.I.; Bailey, T.L.; Graham, B.; Stubbs, C.; Fayter, A.; Gibson, M.I. Polymer mimics of biomacromolecular antifreezes. Nat. Commun. 2017, 8, 1546. [Google Scholar] [CrossRef]
  4. Bai, B.; Xue, C.; Wen, Y.; Lim, J.; Le, Z.; Shou, Y.; Shin, S.; Tay, A. Cryopreservation in the Era of Cell Therapy: Revisiting Fundamental Concepts to Enable Future Technologies. Adv. Funct. Mater. 2023, 33, 2303373. [Google Scholar] [CrossRef]
  5. Sun, L.; Zhu, Z.; Sun, D.-W. Regulating ice formation for enhancing frozen food quality: Materials, mechanisms and challenges. Trends Food Sci. Technol. 2023, 139, 104116. [Google Scholar] [CrossRef]
  6. Du, X.; Wang, B.; Li, H.; Liu, H.; Shi, S.; Feng, J.; Pan, N.; Xia, X. Research progress on quality deterioration mechanism and control technology of frozen muscle foods. Compr. Rev. Food Sci. Food Saf. 2022, 21, 4812–4846. [Google Scholar] [CrossRef]
  7. Ekpo, M.D.; Xie, J.; Hu, Y.; Liu, X.; Liu, F.; Xiang, J.; Zhao, R.; Wang, B.; Tan, S. Antifreeze Proteins: Novel Applications and Navigation towards Their Clinical Application in Cryobanking. Int. J. Mol. Sci. 2022, 23, 2639. [Google Scholar] [CrossRef]
  8. Xiang, H.; Yang, X.; Ke, L.; Hu, Y. The properties, biotechnologies, and applications of antifreeze proteins. Int. J. Biol. Macromol. 2020, 153, 661–675. [Google Scholar] [CrossRef]
  9. Baskaran, A.; Kaari, M.; Venugopal, G.; Manikkam, R.; Joseph, J.; Bhaskar, P.V. Anti freeze proteins (Afp): Properties, sources and applications—A review. Int. J. Biol. Macromol. 2021, 189, 292–305. [Google Scholar] [CrossRef]
  10. Chen, X.; Wu, J.; Cai, X.; Wang, S. Production, structure–function relationships, mechanisms, and applications of antifreeze peptides. Compr. Rev. Food Sci. Food Saf. 2021, 20, 542–562. [Google Scholar] [CrossRef]
  11. Liu, M.; Bai, S.; Jiang, Z.; Li, H.; Tu, Z.; Liao, T.; Yu, W.; Qiu, L. Identification and isolation of a novel antifreeze peptide from crayfish shells. LWT 2024, 198, 116030. [Google Scholar] [CrossRef]
  12. Jenkelunas, P.J.; Li-Chan, E.C. Production and assessment of Pacific hake (Merluccius productus) hydrolysates as cryoprotectants for frozen fish mince. Food Chem. 2018, 239, 535–543. [Google Scholar] [CrossRef]
  13. Gandini, E.; Sironi, M.; Pieraccini, S. Modelling of short synthetic antifreeze peptides: Insights into ice-pinning mechanism. J. Mol. Graph. Model. 2020, 100, 107680. [Google Scholar] [CrossRef]
  14. Dissanayake, R.; Combita, D.; Ahmed, M. Enhanced Cryopreservation Efficacies of Ice Recrystallization Inhibiting Nanogels. ACS Appl. Mater. Interfaces 2023, 15, 45689–45700. [Google Scholar] [CrossRef]
  15. Cui, Y.; Nash, A.M.; Castillo, B.; Solis, L.D.S.; Aghlara-Fotovat, S.; Levitan, M.; Kim, B.; Diehl, M.; Veiseh, O. Development of Serum-Free Media for Cryopreservation of Hydrogel Encapsulated Cell-Based Therapeutics. Cell. Mol. Bioeng. 2022, 15, 425–437. [Google Scholar] [CrossRef]
  16. Ng, J.Y.; Tan, K.Y.F.; Ee, P.L.R. Sugar-Assisted Cryopreservation of Stem Cell-Laden Gellan Gum–Collagen Interpenetrating Network Hydrogels. Biomacromolecules 2022, 23, 2803–2813. [Google Scholar] [CrossRef]
  17. Weng, L.; Beauchesne, P.R. Dimethyl sulfoxide-free cryopreservation for cell therapy: A review. Cryobiology 2020, 94, 9–17. [Google Scholar] [CrossRef]
  18. Murray, K.A.; Gibson, M.I. Chemical approaches to cryopreservation. Nat. Rev. Chem. 2022, 6, 579–593. [Google Scholar] [CrossRef]
  19. Liu, Z.; Yang, W.; Wei, H.; Deng, S.; Yu, X.; Huang, T. The mechanisms and applications of cryoprotectants in aquatic products: An overview. Food Chem. 2023, 408, 135202. [Google Scholar] [CrossRef]
  20. Parandi, E.; Pero, M.; Kiani, H. Phase change and crystallization behavior of water in biological systems and innovative freezing processes and methods for evaluating crystallization. Discov. Food 2022, 2, 6. [Google Scholar] [CrossRef]
  21. Lin, M.; Cao, H.; Li, J. Control strategies of ice nucleation, growth, and recrystallization for cryopreservation. Acta Biomater. 2023, 155, 35–56. [Google Scholar] [CrossRef]
  22. Zaragotas, D.; Liolios, N.T.; Anastassopoulos, E. Supercooling, ice nucleation and crystal growth: A systematic study in plant samples. Cryobiology 2016, 72, 239–243. [Google Scholar] [CrossRef]
  23. Zhang, Z.; Liu, X.-Y. Control of ice nucleation: Freezing and antifreeze strategies. Chem. Soc. Rev. 2018, 47, 7116–7139. [Google Scholar] [CrossRef]
  24. Sreter, J.A.; Foxall, T.L.; Varga, K. Intracellular and Extracellular Antifreeze Protein Significantly Improves Mammalian Cell Cryopreservation. Biomolecules 2022, 12, 669. [Google Scholar] [CrossRef]
  25. Pegg, D.E. The relevance of ice crystal formation for the cryopreservation of tissues and organs. Cryobiology 2020, 93, 3–11. [Google Scholar] [CrossRef]
  26. Liu, X.; Hu, Y.; Zhang, W.; Yang, D.; Pan, Y.; Ekpo, M.D.; Xie, J.; Zhao, R.; Tan, S. Tricine as a Novel Cryoprotectant with Osmotic Regulation, Ice Recrystallization Inhibition and Antioxidant Properties for Cryopreservation of Red Blood Cells. Int. J. Mol. Sci. 2022, 23, 8462. [Google Scholar] [CrossRef]
  27. Ninagawa, T.; Eguchi, A.; Kawamura, Y.; Konishi, T.; Narumi, A. A study on ice crystal formation behavior at intracellular freezing of plant cells using a high-speed camera. Cryobiology 2016, 73, 20–29. [Google Scholar] [CrossRef]
  28. Wragg, N.M.; Tampakis, D.; Stolzing, A. Cryopreservation of Mesenchymal Stem Cells Using Medical Grade Ice Nucleation Inducer. Int. J. Mol. Sci. 2020, 21, 8579. [Google Scholar] [CrossRef]
  29. Hu, Y.; Liu, X.; Ekpo, M.D.; Chen, J.; Chen, X.; Zhang, W.; Zhao, R.; Xie, J.; He, Y.; Tan, S. Dimethylglycine Can Enhance the Cryopreservation of Red Blood Cells by Reducing Ice Formation and Oxidative Damage. Int. J. Mol. Sci. 2023, 24, 6696. [Google Scholar] [CrossRef]
  30. Tas, R.P.; Sampaio-Pinto, V.; Wennekes, T.; van Laake, L.W.; Voets, I.K. From the freezer to the clinic. Embo Rep. 2021, 22, e52162. [Google Scholar] [CrossRef]
  31. Xie, Y.; Zhu, K.; Wang, Y.; Chen, T. Effect of cytoskeleton on ice crystal growth in cells during freezing. Int. J. Food Prop. 2018, 21, 2400–2410. [Google Scholar] [CrossRef]
  32. Yang, F.; Jiang, W.; Chen, X.; Wu, J.; Huang, J.; Cai, X.; Wang, S. Investigation on the quality regulating mechanism of antifreeze peptides on frozen surimi: From macro to micro. Food Res. Int. 2023, 163, 112299. [Google Scholar] [CrossRef]
  33. Cui, M.; Li, J.; Li, J.; Wang, F.; Li, X.; Yu, J.; Huang, Y.; Liu, Y. Screening and characterization of a novel antifreeze peptide from silver carp muscle hydrolysate. Food Chem. 2023, 403, 134480. [Google Scholar] [CrossRef]
  34. Dang, M.; Wang, R.; Jia, Y.; Du, J.; Wang, P.; Xu, Y.; Li, C. The Antifreeze and Cryoprotective Activities of a Novel Antifreeze Peptide from Ctenopharyngodon idella Scales. Foods 2022, 11, 1830. [Google Scholar] [CrossRef]
  35. Zhao, Y.; Lu, H.; Qi, D.; Motta, A.; Fröhlich-Nowoisky, J.; Chen, J.; Sun, Y.; Bonn, M. Ice Recrystallization Inhibition Activity of Silk Proteins. J. Phys. Chem. Lett. 2023, 14, 8145–8150. [Google Scholar] [CrossRef]
  36. Li, L.; Wu, J.-H.; Zhang, L.; Chen, X.; Wu, Y.; Liu, J.-H.; Geng, X.-Q.; Wang, Z.-W.; Wang, S.-Y. Investigation of the physiochemical properties, cryoprotective activity and possible action mechanisms of sericin peptides derived from membrane separation. LWT 2017, 77, 532–541. [Google Scholar] [CrossRef]
  37. Fan, Q.; Dou, M.; Mao, J.; Hou, Y.; Liu, S.; Zhao, L.; Lv, J.; Liu, Z.; Wang, Y.; Rao, W.; et al. Strong Hydration Ability of Silk Fibroin Suppresses Formation and Recrystallization of Ice Crystals During Cryopreservation. Biomacromolecules 2022, 23, 478–486. [Google Scholar] [CrossRef]
  38. Cao, H.; Zheng, X.; Liu, H.; Yuan, M.; Ye, T.; Wu, X.; Yin, F.; Li, Y.; Yu, J.; Xu, F. Cryo-protective effect of ice-binding peptides derived from collagen hydrolysates on the frozen dough and its ice-binding mechanisms. LWT 2020, 131, 109678. [Google Scholar] [CrossRef]
  39. Lu, J.; Wang, Y.; Chen, B.; Xie, Y.; Nie, W.; Zhou, H.; Xu, B. Effect of pigskin gelatin hydrolysate on the porcine meat quality during freezing. Meat Sci. 2022, 192, 108907. [Google Scholar] [CrossRef]
  40. Surís-Valls, R.; Hogervorst, T.P.; Schoenmakers, S.M.C.; Hendrix, M.M.R.M.; Milroy, L.; Voets, I.K. Inhibition of Ice Recrystallization by Nanotube-Forming Cyclic Peptides. Biomacromolecules 2022, 23, 520–529. [Google Scholar] [CrossRef]
  41. Qin, Q.; Zhao, L.; Liu, Z.; Liu, T.; Qu, J.; Zhang, X.; Li, R.; Yan, L.; Yan, J.; Jin, S.; et al. Bioinspired l-Proline Oligomers for the Cryopreservation of Oocytes via Controlling Ice Growth. ACS Appl. Mater. Interfaces 2020, 12, 18352–18362. [Google Scholar] [CrossRef]
  42. Han, L.; Wang, H.; Cai, W.; Shao, X. Mechanism of Binding of Polyproline to Ice via Interfacial Water: An Experimental and Theoretical Study. J. Phys. Chem. Lett. 2023, 14, 4127–4133. [Google Scholar] [CrossRef]
  43. Warren, M.T.; Galpin, I.; Bachtiger, F.; Gibson, M.I.; Sosso, G.C. Ice Recrystallization Inhibition by Amino Acids: The Curious Case of Alpha- and Beta-Alanine. J. Phys. Chem. Lett. 2022, 13, 2237–2244. [Google Scholar] [CrossRef]
  44. Kim, Y.D.; Jung, W.H.; Ahn, D.J.; Lim, D.-K. Self-Assembled Nanostructures of Homo-Oligopeptide as a Potent Ice Growth Inhibitor. Nano Lett. 2023, 23, 9500–9507. [Google Scholar] [CrossRef]
  45. Piao, Z.; Park, J.K.; Patel, M.; Lee, H.J.; Jeong, B. Poly(l-Ala-co-l-Lys) Exhibits Excellent Ice Recrystallization Inhibition Activity. ACS Macro Lett. 2021, 10, 1436–1442. [Google Scholar] [CrossRef]
  46. Park, S.; Piao, Z.; Park, J.K.; Lee, H.J.; Jeong, B. Ice Recrystallization Inhibition Using l-Alanine/l-Lysine Copolymers. ACS Appl. Polym. Mater. 2022, 4, 2896–2907. [Google Scholar] [CrossRef]
  47. Zhang, Y.; Liu, K.; Li, K.; Gutowski, V.; Yin, Y.; Wang, J. Fabrication of Anti-Icing Surfaces by Short α-Helical Peptides. ACS Appl. Mater. Interfaces 2018, 10, 1957–1962. [Google Scholar] [CrossRef]
  48. Murray, A.; Kilbride, P.; Gibson, M.I. Proline pre-conditioning of Jurkat cells improves recovery after cryopreservation. RSC Med. Chem. 2023, 14, 1704–1711. [Google Scholar] [CrossRef]
  49. Rojas, R.; Aróstica, M.; Carvajal-Rondanelli, P.; Albericio, F.; Guzmán, F.; Cárdenas, C. Relationship between type II polyproline helix secondary structure and thermal hysteresis activity of short homopeptides. Electron. J. Biotechnol. 2022, 59, 62–73. [Google Scholar] [CrossRef]
  50. Graham, B.; Bailey, T.L.; Healey, J.R.J.; Marcellini, M.; Deville, S.; Gibson, M.I. Polyproline as a Minimal Antifreeze Protein Mimic That Enhances the Cryopreservation of Cell Monolayers. Angew. Chem. Int. Ed. 2017, 56, 15941–15944. [Google Scholar] [CrossRef]
  51. Judge, N.; Georgiou, P.G.; Bissoyi, A.; Ahmad, A.; Heise, A.; Gibson, M.I. High Molecular Weight Polyproline as a Potential Biosourced Ice Growth Inhibitor: Synthesis, Ice Recrystallization Inhibition, and Specific Ice Face Binding. Biomacromolecules 2023, 24, 2459–2468. [Google Scholar] [CrossRef]
  52. Maddah, M.; Shahabi, M.; Peyvandi, K. How Does DcAFP, a Plant Antifreeze Protein, Control Ice Inhibition through the Kelvin Effect? Ind. Eng. Chem. Res. 2021, 60, 18230–18242. [Google Scholar] [CrossRef]
  53. Xue, B.; Zhao, L.; Qin, X.; Qin, M.; Lai, J.; Huang, W.; Lei, H.; Wang, J.; Wang, W.; Li, Y.; et al. Bioinspired Ice Growth Inhibitors Based on Self-Assembling Peptides. ACS Macro Lett. 2019, 8, 1383–1390. [Google Scholar] [CrossRef]
  54. Lee, C.; Lee, Y.; Jung, W.H.; Kim, T.-Y.; Kim, T.; Kim, D.-N.; Ahn, D.J. Peptide-DNA origami as a cryoprotectant for cell preservation. Sci. Adv. 2022, 8, eadd0185. [Google Scholar] [CrossRef]
  55. Andrews, N.L.P.; Fan, J.Z.; Forward, R.L.; Chen, M.C.; Loock, H.-P. Determination of the thermal, oxidative and photochemical degradation rates of scintillator liquid by fluorescence EEM spectroscopy. Phys. Chem. Chem. Phys. 2017, 19, 73–81. [Google Scholar] [CrossRef]
  56. Lu, L.; Xing, J.-J.; Guo, X.-N.; Sun, X.-H.; Zhu, K.-X. Enhancing the freezing–thawing tolerance of frozen dough using ε-poly-L-lysine treated yeast. Food Biosci. 2020, 37, 100699. [Google Scholar] [CrossRef]
  57. Lu, L.; Yang, Z.; Guo, X.-N.; Xing, J.-J.; Zhu, K.-X. Thermal-aggregation behavior of gluten in frozen dough induced by ε-poly-L-lysine treated yeast. Food Chem. 2021, 359, 129985. [Google Scholar] [CrossRef]
  58. Tachibana, R.; Takeuchi, H.; Yoshikawa-Terada, K.; Maezawa, T.; Nishioka, M.; Takayama, E.; Tanaka, H.; Tanaka, K.; Hyon, S.-H.; Gen, Y.; et al. Carboxylated Poly-L-lysine Potentially Reduces Human Sperm DNA Fragmentation after Freeze-Thawing, and Its Function Is Enhanced by Low-Dose Resveratrol. Cells 2023, 12, 2585. [Google Scholar] [CrossRef]
  59. Bibi, S.; Awan, M.A.; Rakha, B.A.; Ejaz, R.; Qadeer, S.; Arshad, J.; Anjum, M.Z.; Akhter, S. Evaluation of carboxylated poly-l-lysine for cryopreservation of Labeo rohita sperm. Reprod. Domest. Anim. 2023, 58, 990–996. [Google Scholar] [CrossRef]
  60. Rajan, R.; Kumar, N.; Matsumura, K. Design of an Ice Recrystallization-Inhibiting Polyampholyte-Containing Graft Polymer for Inhibition of Protein Aggregation. Biomacromolecules 2022, 23, 487–496. [Google Scholar] [CrossRef]
  61. Rajan, R.; Kumar, N.; Zhao, D.; Dai, X.; Kawamoto, K.; Matsumura, K. Polyampholyte-Based Polymer Hydrogels for the Long-Term Storage, Protection and Delivery of Therapeutic Proteins. Adv. Heal. Mater. 2023, 12, e2203253. [Google Scholar] [CrossRef]
  62. Dai, X.; Zhao, D.; Matsumura, K.; Rajan, R. Polyampholytes and Their Hydrophobic Derivatives as Excipients for Suppressing Protein Aggregation. ACS Appl. Bio Mater. 2023, 6, 2738–2746. [Google Scholar] [CrossRef]
  63. Sun, Y.; Liu, J.; Li, Z.; Wang, J.; Huang, Y. Nonionic and Water-Soluble Poly(d/l-serine) as a Promising Biomedical Polymer for Cryopreservation. ACS Appl. Mater. Interfaces 2021, 13, 18454–18461. [Google Scholar] [CrossRef]
  64. Kozuch, D.J.; Stillinger, F.H.; Debenedetti, P.G. Genetic Algorithm Approach for the Optimization of Protein Antifreeze Activity Using Molecular Simulations. J. Chem. Theory Comput. 2020, 16, 7866–7873. [Google Scholar] [CrossRef]
  65. Wang, Y.; Stebe, K.J.; de la Fuente-Nunez, C.; Radhakrishnan, R. Computational Design of Peptides for Biomaterials Applications. ACS Appl. Bio Mater. 2024, 7, 617–625. [Google Scholar] [CrossRef]
  66. Zhu, K.; Zheng, Z.; Dai, Z. Identification of antifreeze peptides in shrimp byproducts autolysate using peptidomics and bioinformatics. Food Chem. 2022, 383, 132568. [Google Scholar] [CrossRef]
  67. Khan, M.; Ibrahim, S.; Adamu, A.; Rahman, M.; Bakar, M.; Noordin, M.; Loqman, M. Pre-grafting histological studies of skin grafts cryopreserved in a helix antarctic yeast oriented antifreeze peptide (Afp1m). Cryobiology 2020, 92, 26–33. [Google Scholar] [CrossRef]
  68. Qi, H.; Gao, Y.; Zhang, L.; Cui, Z.; Sui, X.; Ma, J.; Yang, J.; Shu, Z.; Zhang, L. Rational Design of and Mechanism Insight into an Efficient Antifreeze Peptide for Cryopreservation. Engineering 2024, 34, 164–173. [Google Scholar] [CrossRef]
  69. Rutella, G.S.; Tagliazucchi, D.; Solieri, L. Survival and bioactivities of selected probiotic lactobacilli in yogurt fermentation and cold storage: New insights for developing a bi-functional dairy food. Food Microbiol. 2016, 60, 54–61. [Google Scholar] [CrossRef]
  70. Abdel-Hamid, M.; Romeih, E.; Gamba, R.R.; Nagai, E.; Suzuki, T.; Koyanagi, T.; Enomoto, T.; Abdel-Hamid, M.; Romeih, E.; Gamba, R.R.; et al. The biological activity of fermented milk produced by Lactobacillus casei ATCC 393 during cold storage. Int. Dairy J. 2019, 91, 1–8. [Google Scholar] [CrossRef]
  71. Chen, X.; Wu, J.; Li, X.; Yang, F.; Huang, D.; Huang, J.; Wang, S.; Guyonnet, V. Snow flea antifreeze peptide for cryopreservation of lactic acid bacteria. npj Sci. Food 2022, 6, 10. [Google Scholar] [CrossRef]
  72. Chen, X.; Wu, J.; Yang, F.; Zhou, M.; Wang, R.; Huang, J.; Rong, Y.; Liu, J.; Wang, S. New insight into the mechanism by which antifreeze peptides regulate the physiological function of Streptococcus thermophilus subjected to freezing stress. J. Adv. Res. 2023, 45, 127–140. [Google Scholar] [CrossRef]
  73. Zhang, X.; Qi, H.; Yang, J.; Chen, X.; Zhang, L. Development of Low Immunogenic Antifreeze Peptides for Cryopreservation. Ind. Eng. Chem. Res. 2023, 62, 12063–12072. [Google Scholar] [CrossRef]
  74. Forbes, J.; Bissoyi, A.; Eickhoff, L.; Reicher, N.; Hansen, T.; Bon, C.G.; Walker, V.K.; Koop, T.; Rudich, Y.; Braslavsky, I.; et al. Water-organizing motif continuity is critical for potent ice nucleation protein activity. Nat. Commun. 2022, 13, 5019. [Google Scholar] [CrossRef]
  75. Zhang, P.; Li, J.; Sun, J.; Li, Y.; Liu, K.; Wang, F.; Zhang, H.; Su, J. Bioengineered Protein Fibers with Anti-Freezing Mechanical Behaviors. Adv. Funct. Mater. 2022, 32, 2209006. [Google Scholar] [CrossRef]
  76. Stevens, C.A.; Bachtiger, F.; Kong, X.-D.; Abriata, L.A.; Sosso, G.C.; Gibson, M.I.; Klok, H.-A. A minimalistic cyclic ice-binding peptide from phage display. Nat. Commun. 2021, 12, 2675. [Google Scholar] [CrossRef]
  77. Naullage, P.M.; Molinero, V. Slow Propagation of Ice Binding Limits the Ice-Recrystallization Inhibition Efficiency of PVA and Other Flexible Polymers. J. Am. Chem. Soc. 2020, 142, 4356–4366. [Google Scholar] [CrossRef]
  78. Burkey, A.A.; Ghousifam, N.; Hillsley, A.V.; Brotherton, Z.W.; Rezaeeyazdi, M.; Hatridge, T.A.; Harris, D.T.; Sprague, W.W.; Sandoval, B.E.; Rosales, A.M.; et al. Synthesis of Poly(allyl glycidyl ether)-Derived Polyampholytes and Their Application to the Cryopreservation of Living Cells. Biomacromolecules 2023, 24, 1475–1482. [Google Scholar] [CrossRef]
  79. Gao, S.; Zhu, K.; Zhang, Q.; Niu, Q.; Chong, J.; Ren, L.; Yuan, X. Development of Icephilic ACTIVE Glycopeptides for Cryopreservation of Human Erythrocytes. Biomacromolecules 2022, 23, 530–542. [Google Scholar] [CrossRef]
  80. Pesenti, T.; Zhu, C.; Gonzalez-Martinez, N.; Tomás, R.M.F.; Gibson, M.I.; Nicolas, J. Degradable Polyampholytes from Radical Ring-Opening Copolymerization Enhance Cellular Cryopreservation. ACS Macro Lett. 2022, 11, 889–894. [Google Scholar] [CrossRef]
  81. Tomás, R.M.F.; Bissoyi, A.; Congdon, T.R.; Gibson, M.I. Assay-ready Cryopreserved Cell Monolayers Enabled by Macromolecular Cryoprotectants. Biomacromolecules 2022, 23, 3948–3959. [Google Scholar] [CrossRef]
Molecules 29 04913 sch001

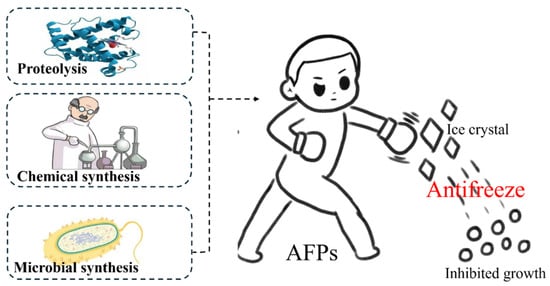

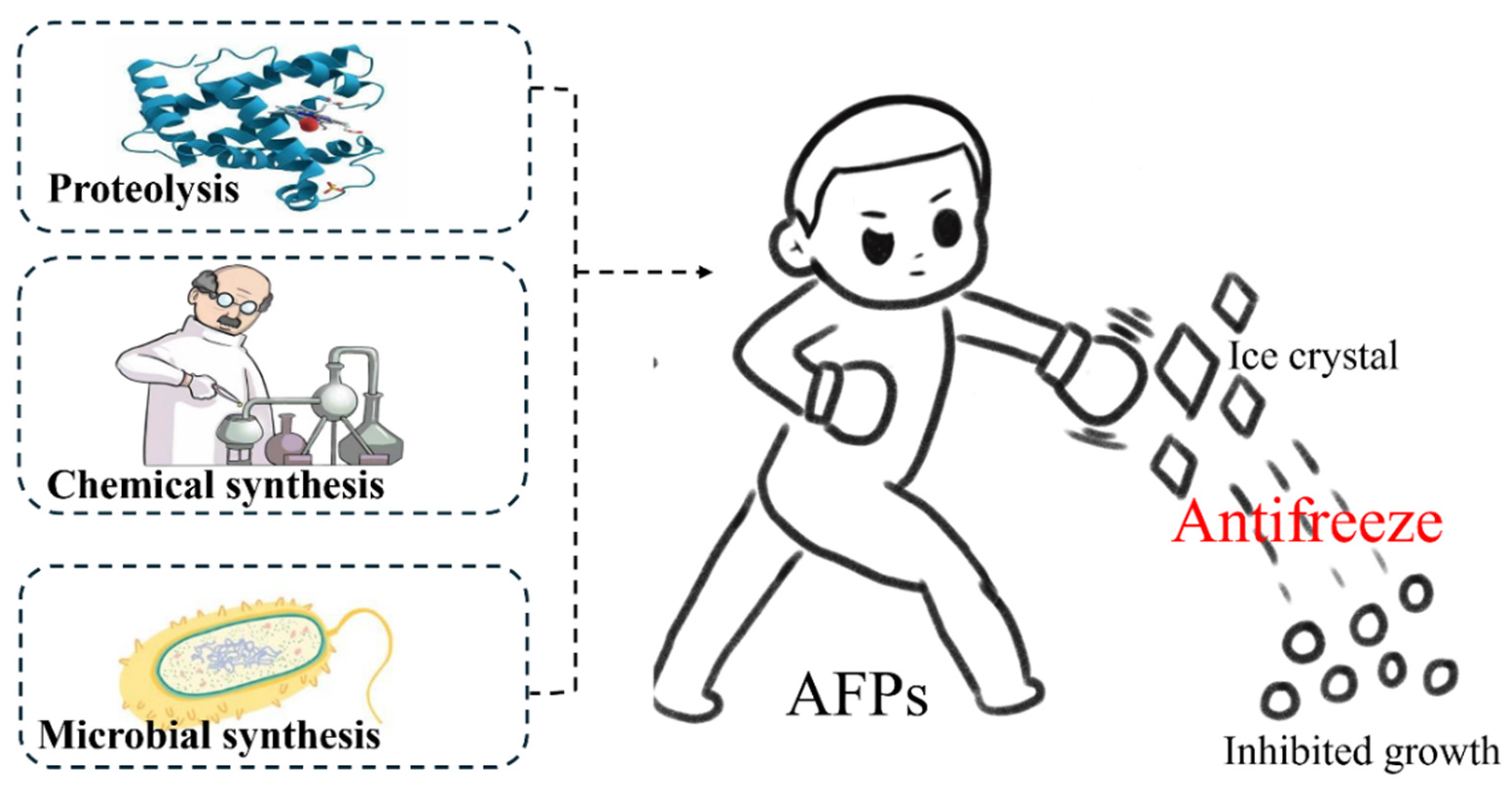

Scheme 1. Main route for preparing AFPs.
Scheme 1. Main route for preparing AFPs.
Molecules 29 04913 sch001
Molecules 29 04913 g001

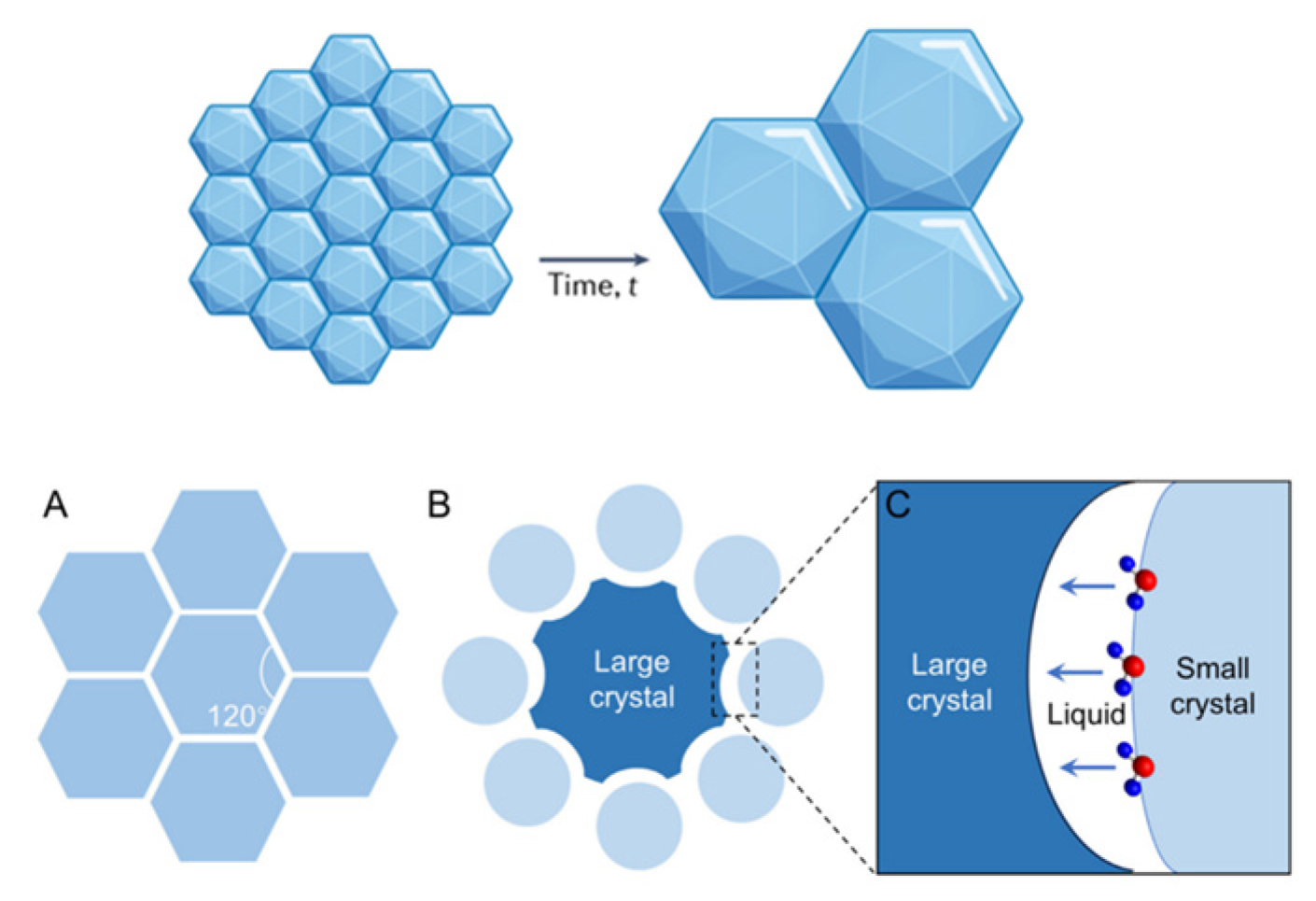

Figure 1. Ice crystallization process: (A) The intersection angles at the triple junctions are 120° if the ice crystals are the same size. (B) Large crystals tend to have concave boundaries and small crystals tend to be convex. (C) Schematic of boundary migration of adjacent ice crystals.
Figure 1. Ice crystallization process: (A) The intersection angles at the triple junctions are 120° if the ice crystals are the same size. (B) Large crystals tend to have concave boundaries and small crystals tend to be convex. (C) Schematic of boundary migration of adjacent ice crystals.
Molecules 29 04913 g001
Molecules 29 04913 g002

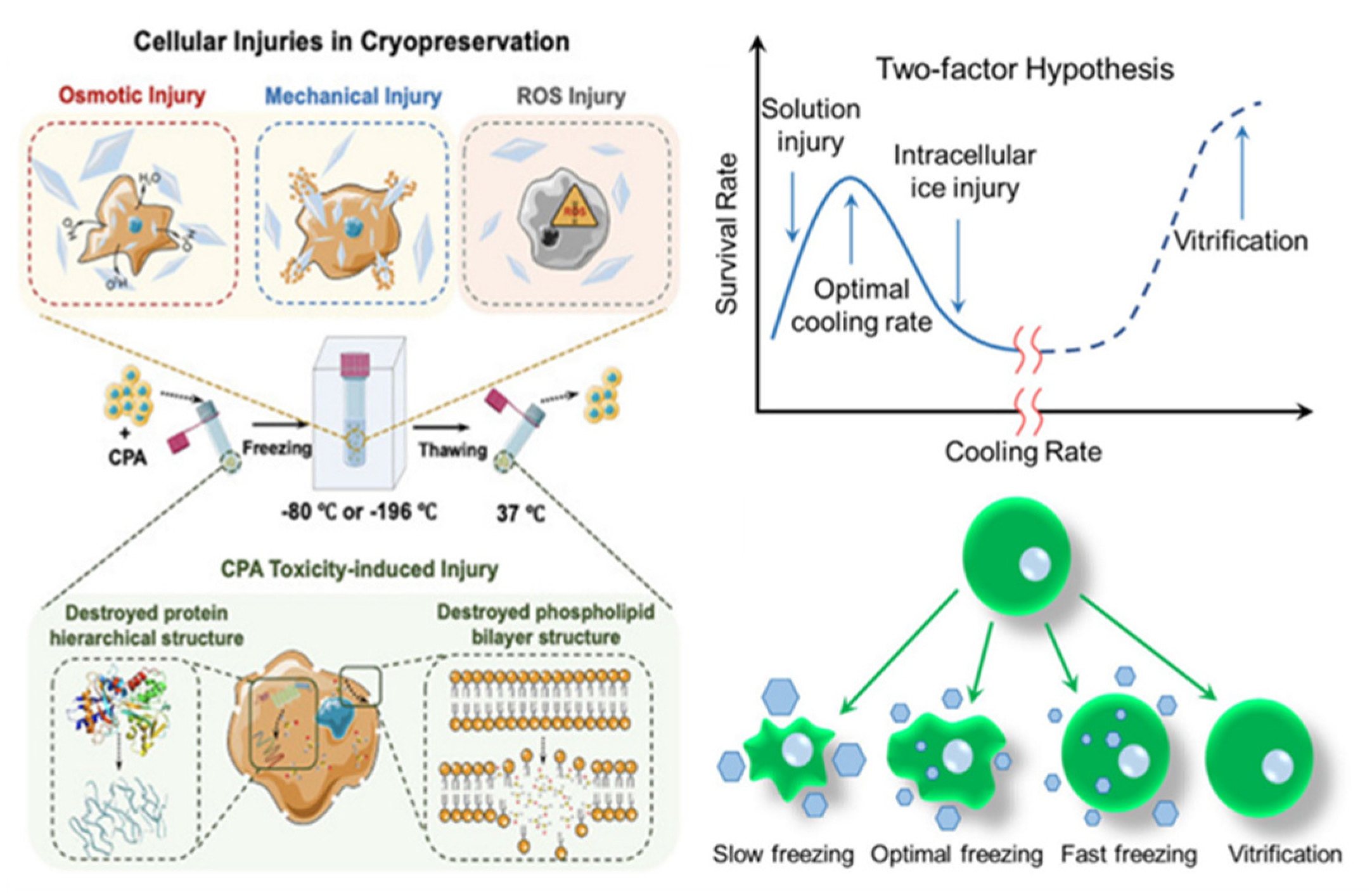

Figure 2. Cellular injuries in cryopreservation.
Figure 2. Cellular injuries in cryopreservation.
Molecules 29 04913 g002
Molecules 29 04913 g003

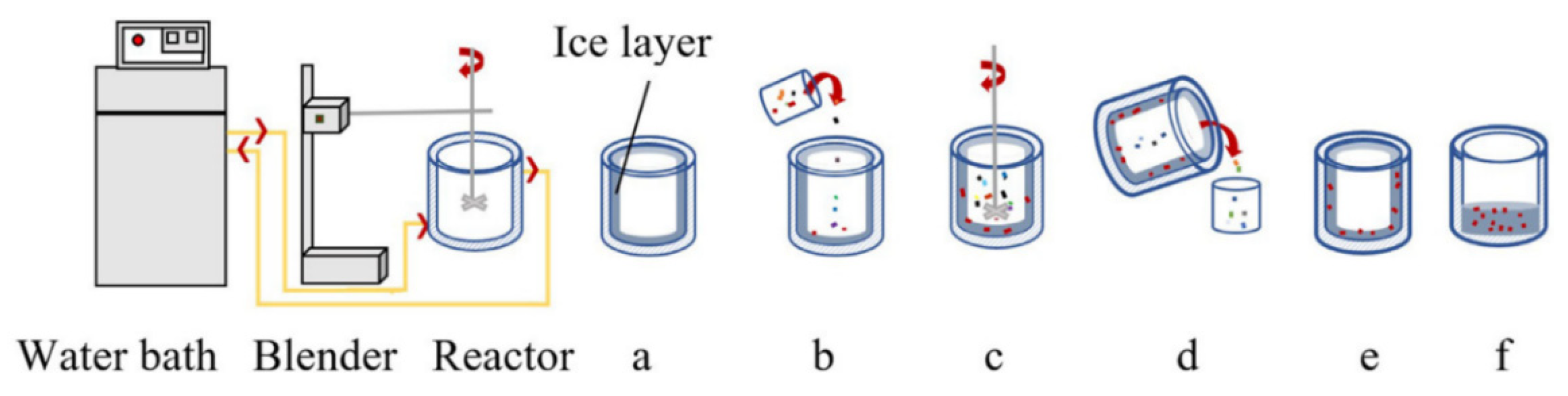

Figure 3. Ice affinity adsorption system.
Figure 3. Ice affinity adsorption system.
Molecules 29 04913 g003
Molecules 29 04913 g004

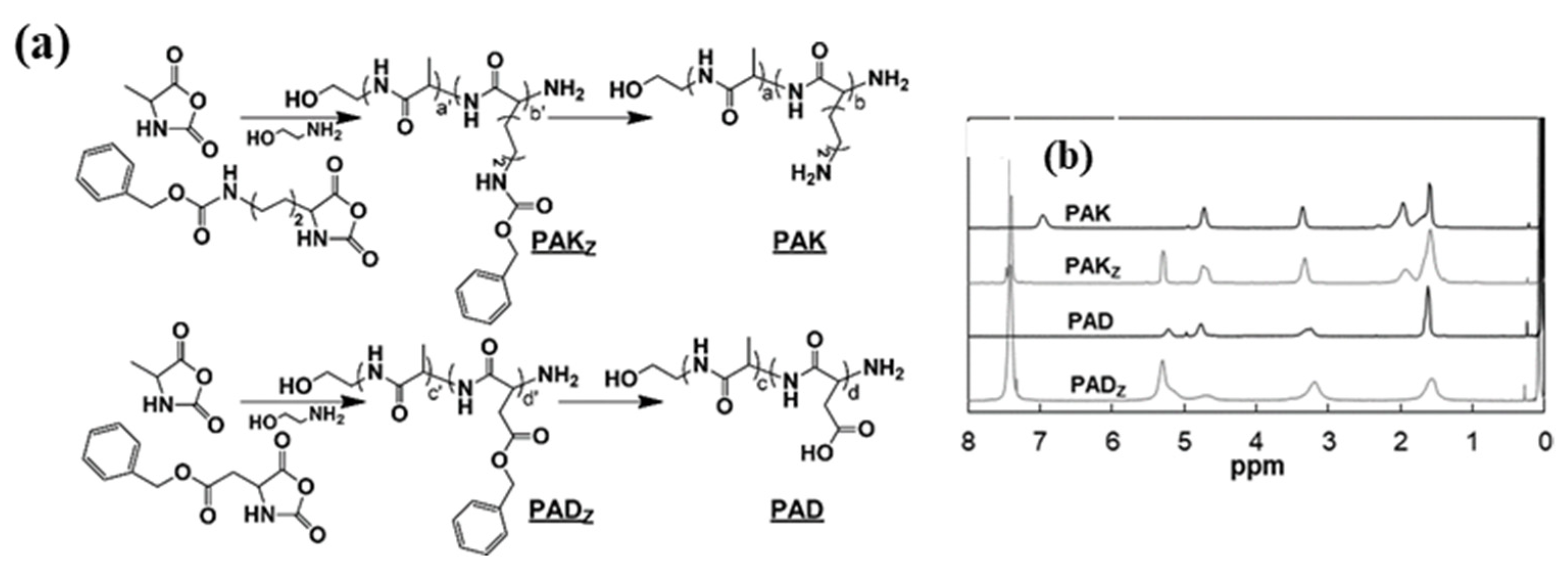

Figure 4. (a) Synthetic scheme and (b) 1H NMR spectra (CF3COOD) of the PAK and PAD (in CF3COOD).
Figure 4. (a) Synthetic scheme and (b) 1H NMR spectra (CF3COOD) of the PAK and PAD (in CF3COOD).
Molecules 29 04913 g004
Molecules 29 04913 g005

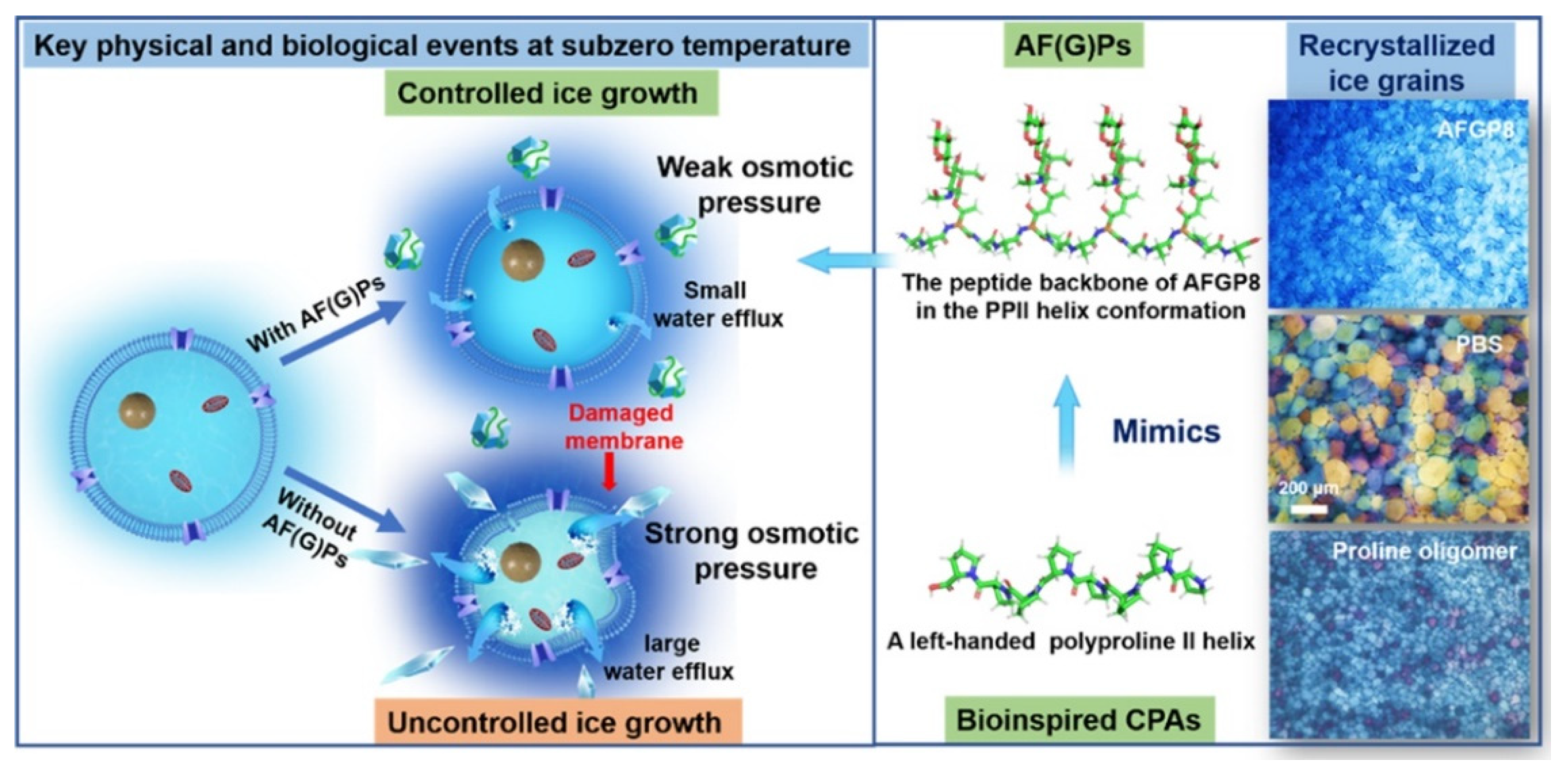

Figure 5. PPro is similar to the antifreeze mechanism of glycopeptide at below zero.
Figure 5. PPro is similar to the antifreeze mechanism of glycopeptide at below zero.
Molecules 29 04913 g005
Molecules 29 04913 g006

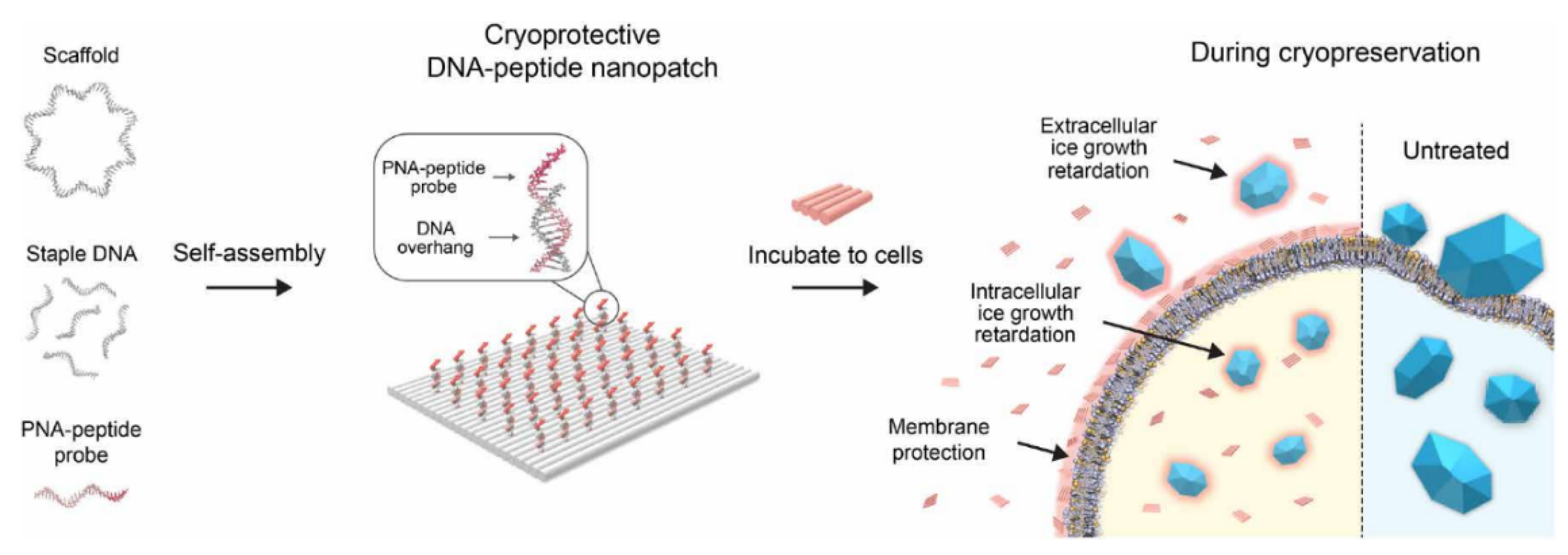

Figure 6. Schematic illustration of the assembly of cryoprotective DNA-peptide nano-patches and their preservation mechanisms.
Figure 6. Schematic illustration of the assembly of cryoprotective DNA-peptide nano-patches and their preservation mechanisms.
Molecules 29 04913 g006
Molecules 29 04913 g007

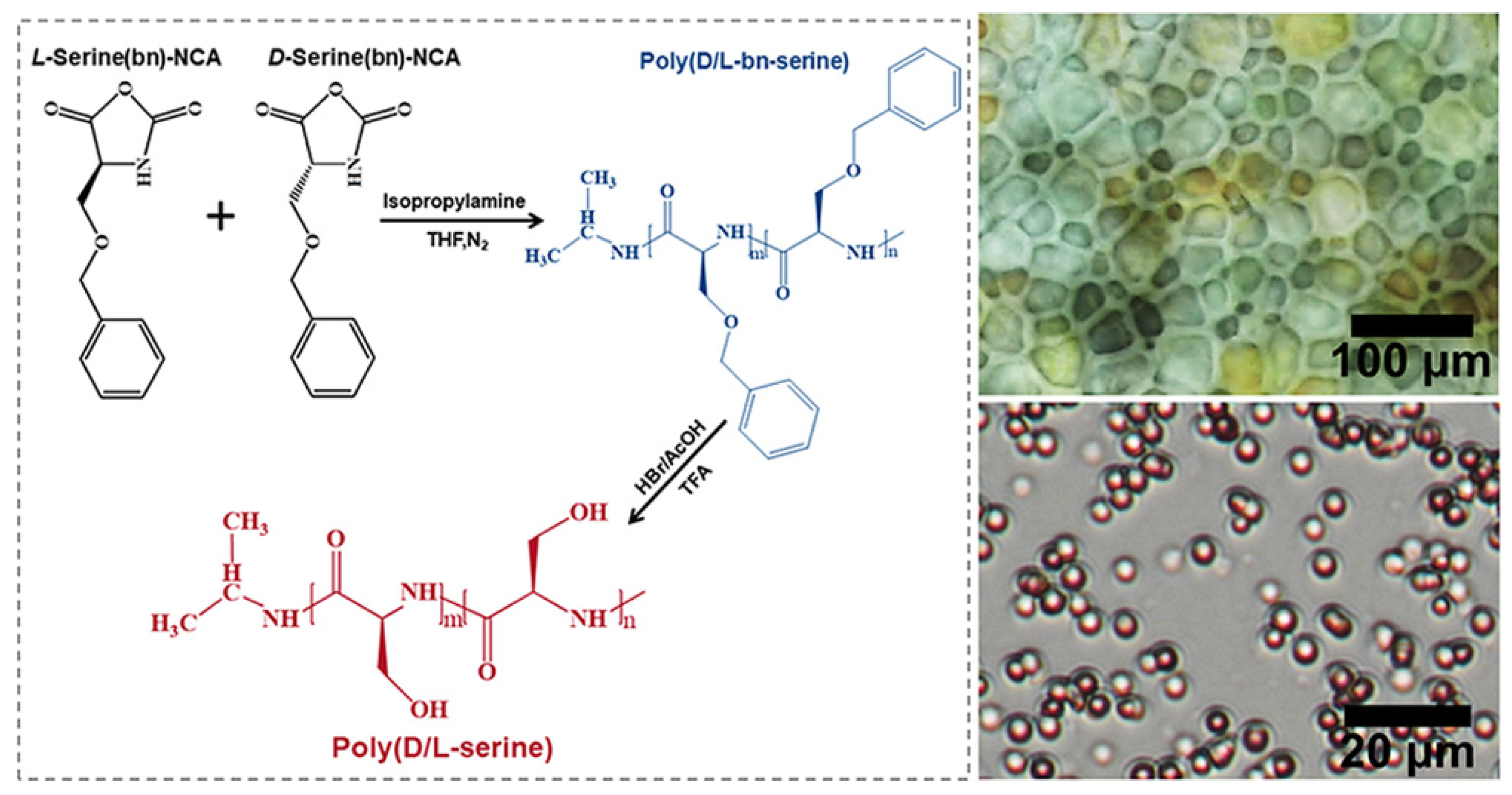

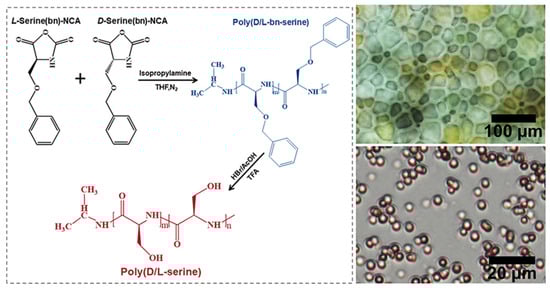

Figure 7. Schematic illustration and IRI of the Poly(D/L-serine) Synthesis.
Figure 7. Schematic illustration and IRI of the Poly(D/L-serine) Synthesis.
Molecules 29 04913 g007
Molecules 29 04913 g008
Figure 8. Schematic illustration of the phage display process used for the identification of ice-binding peptides.
Figure 8. Schematic illustration of the phage display process used for the identification of ice-binding peptides.
Molecules 29 04913 g008
Table 1. Sequences and effects of valuable chemical synthesis antifreezing peptides.
Table 1. Sequences and effects of valuable chemical synthesis antifreezing peptides.
Main Amino AcidSequenceIRI Activity (MGLS, Concentration)TH Activity (°C, Concentration)Cell Recovery RateReference
AlaAAAAA17%, 1.0 mg/mL1.05 °C, 1.0 mg/mLN/A[23]
L-Ala-co-L-lys11%, 10 mg/mL0.2 °C, 1.0 mg/mLN/A[24,25]
DTASDAAAAAALN/A0.46 °C, 10 mg/mLN/A[26]
KATATAKA24.3%, 7.5 mMN/AN/A[27]
ProPron (n = 8)30%, 36.84 mg/mLN/A99% of oocytes[30]
Pron (n = 15)50%, 20 mg/mLN/AN/A[31]
Pron (n = 515)9%, 5 mg/mLN/AN/A[33]
ThrTTTTT40%, 1.0 mg/mL1.09 °C, 1.0 mg/mLN/A[23]
2-naphthylacetyl-G-F-F-PThrN/AN/A82% of SMMC-7721, 88% of L-O2[35]
DNA-PThrN/AN/A56% of HSC-3[36]
SerD/L-Polyserine59.7%, 60 mg/mLN/A49.8% of sheep’s red blood cell[40]
GluDEYEESGPGIVHN/A1.37 °C, 10 mg/mLN/A[41]
GlyAVDAGTGNDELIIGGDVSGN/AN/A70.9% of NIH-3T3, 34.9% of RAW264.7, and 95.7% of GLC-82.[42]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xia, B.; Wang, J.; Chen, H.; Lin, S.; Pan, B.; Wang, N. Recent Advances in Antifreeze Peptide Preparation: A Review. Molecules 2024, 29, 4913. https://doi.org/10.3390/molecules29204913

AMA Style

Xia B, Wang J, Chen H, Lin S, Pan B, Wang N. Recent Advances in Antifreeze Peptide Preparation: A Review. Molecules. 2024; 29(20):4913. https://doi.org/10.3390/molecules29204913

Chicago/Turabian Style

Xia, Bo, Juntao Wang, Honghao Chen, Shuyan Lin, Buchun Pan, and Nan Wang. 2024. "Recent Advances in Antifreeze Peptide Preparation: A Review" Molecules 29, no. 20: 4913. https://doi.org/10.3390/molecules29204913

APA Style

Xia, B., Wang, J., Chen, H., Lin, S., Pan, B., & Wang, N. (2024). Recent Advances in Antifreeze Peptide Preparation: A Review. Molecules, 29(20), 4913. https://doi.org/10.3390/molecules29204913

Article Metrics

Back to TopTop
