Article

Oxidation of Small Phenolic Compounds by Mn(IV)

by
Madeline G. Gruenberg
1,
Jonathan J. Halvorson
2,
Ann E. Hagerman
3,
Ikponmwosa G. Enoma
1 and
Michael A. Schmidt
1,*
1
Department of Biochemistry and Molecular Biology, Wright State University, Dayton, OH 45435, USA
2
Northern Great Plains Research Laboratory, United States Department of Agriculture—Agricultural Research Service, Mandan, ND 58554, USA
3
Department of Chemistry & Biochemistry, Miami University, Oxford, OH 45056, USA
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(18), 4320; https://doi.org/10.3390/molecules29184320
Submission received: 8 August 2024 / Revised: 6 September 2024 / Accepted: 10 September 2024 / Published: 12 September 2024

Abstract

:
Plant secondary metabolites, including phenolics, represent a large quantity of organic material that enters soil and contributes to the formation of soil organic matter (SOM). The process of phenolics forming SOM remains poorly understood. One possible mechanism is oxidation of the phenolic compound catalyzed by redox active metals such as manganese (Mn) and iron (Fe) in soils. In this work, we report how three phenolic compounds react with a redox active environmentally relevant metal, Mn(IV). The reactions were monitored via nuclear magnetic resonance (NMR), high-performance liquid chromatography (HPLC), and direct CO2 measurements. Using these techniques, we demonstrate that gallic acid reacts with Mn(IV) less efficiently than pyrogallol. The products of the gallic acid:Mn(IV) reaction are more oxidized than the products of the pyrogallol reaction. Gallic acid produces small molecules and releases CO2, while pyrogallol produces a less oxidized product, likely a quinone, and releases less CO2. Benzoic acid did not react with Mn(IV). This work provides a framework for how different classes of plant secondary metabolites may be degraded abiotically by redox active metals in soil.

1. Introduction

Plant secondary metabolites are a diverse class of compounds that range from small organic molecules to large polymers [1,2]. The exact mixture of secondary metabolites produced by a plant is dependent on the genetics, stress, and the environment [3,4]. These compounds enter the soil through several mechanisms such as root exudates, rain runoff, or decomposition products [5,6]. Once in the soil, they play a major role in several processes, including formation of soil organic matter and reacting with soil metals [7,8,9,10].
Manganese (Mn) is an essential mineral for plant health and plays a critical role in photosynthesis [11]. Mn in soil exists in several states, including the soluble Mn2+ and insoluble Mn oxides. Due to the their oxidation potential and surface area, Mn oxides play a significant role in soil redox reactions contributing to soil organic matter and litter decomposition [12]. Both biotic degradation via Mn-dependent enzymes and abiotic oxidation of organic compounds by reactive Mn in soil can contribute to SOM [12]. Several reports have demonstrated that the rate of litter decomposition, as measured by mass loss, is dependent on the concentration of Mn, with more litter decomposition in samples with higher reactive Mn oxide concentrations [13,14]. The amount of litter carbon that is made into SOM rather than CO2 is likely dependent on several factors, such as microbial respiration, temperature, moisture, and plant secondary metabolite inputs [15].
One important group of plant secondary metabolites is phenolics, which include smaller compounds such as phenolic acids and polymeric polyphenolics such as tannins and lignins. Phenolic acids are produced by many different types of plants. They are classified into two major types, benzoic acid or cinnamic acid derivatives. The benzoic acid derivatives are aromatic carboxylic acids, while the cinnamic acid derivates have an unsaturated carboxylic acid side chain [16]. The release of phenolic acids from plants and the amount remaining in the soil has been examined [17]. The exact amount of phenolic acids released is dependent on the plant; however, a recent study found over 315 μg of phenolic acids per gram of plant litter, which decreased substantially during the initial 3 months of decomposition [17]. Although the loss of the phenolics is well documented, the process of degradation has not been widely investigated. Gallic acid, 3,4,5-trihydroxybenzoic acid, has been studied in both health and environmental processes due to its widespread distribution in plants and its antioxidant activity [18,19]. As a result of gallic acid being broadly investigated, we selected it to be the model compound for our studies of how phenolics are degraded by Mn(IV).
Recently, we observed that application of gallic acid to soil elicited an abiotic production of CO2 [20]. In this same report, we determined that gallic acid produced CO2 in the presence of metal oxides, with Mn(IV) producing the most CO2 from the gallic acid treatment when compared to the other metal oxides examined. Our subsequent hypothesis was that the CO2 released during this reaction was from a simple decarboxylation of the carboxylic acid group, leaving the ring structure intact and forming either pyrogallol or a quinone. Here, we test that hypothesis using two additional model compounds, pyrogallol and benzoic acid. Pyrogallol is a benzene ring with hydroxy groups at positions 1, 2, and 3 (Figure 1). This structure is similar to gallic acid, but is missing the carboxylic acid group. Benzoic acid has the carboxylic acid functionality, but does not have the hydroxyl groups of gallic acid (Figure 1). By using these three compounds, we can systematically assess the role of the carboxylic acid and hydroxyl functionalities in the reaction. We reacted these three compounds with Mn(IV), the strongest producer of CO2 in our previous study, and monitored the reactions using NMR spectroscopy, HPLC, and direct CO2 measurements.

2. Results

2.1. NMR

Figure 2 shows the NMR spectra of each compound before and after 2 h of reaction with Mn(IV). For gallic acid, the peaks representing the carboxylic acid (12.2 ppm), aromatic 1H (6.9 ppm), and hydroxyl groups (8.8 and 9.2 ppm) all diminished proportionally (Figure 2A). The NMR spectrum of the reacted sample had additional peaks not present in the unreacted sample, most notably at 10.2 ppm and multiple peaks in the 0–2.1 ppm range. Pyrogallol showed a change in the proportions of 1H after the reaction with Mn(IV) (Figure 2B). The proportion of the aromatic 1H (6–6.5 ppm) to hydroxyl 1H (8.0 and 8.7 ppm) changed from 1:1 to 1:1.4. Similar to the gallic acid reaction, the pyrogallol reaction sample also had an appearance of a new peak at 10.2 ppm; however, the pyrogallol reaction did not have any addition peaks in the 0–2.5 ppm range. Finally, benzoic acid did not show any significant difference between the reacted and unreacted samples.

2.2. Reverse-Phase HPLC

Following the 2 h reaction, an average of 84.9% of the starting gallic acid remained (Table 1, Figure 3A). In addition to the gallic acid peak (8.2 min), there was an additional peak (12.8 min) in the reaction sample that absorbed at 400 nm. The full spectrum of this peak was captured (Figure 3A insert). Compared to gallic acid, more pyrogallol (8.5 min) was consumed in the reaction. Only an average of 21.2% of the pyrogallol remained after the 2 h reaction (Figure 3B, Table 1). The reaction sample had a new peak at 14.5 min that absorbed at 220 and 400 nm. The full spectrum of this peak was captured (Figure 3B insert). Finally, the benzoic acid (14.2 min) reaction had 97.7% of the starting compound remaining after 2 h (Figure 3C, Table 1).

2.3. CO2 Released

Figure 4 shows the amount of CO2 that was produced after each compound was reacted with Mn(IV). Gallic acid produced 2.3 × 10−6 mol of CO2 in the quart jar used for the experiment, while pyrogallol produced 1.8 × 10−6 mol of CO2. Benzoic acid did not produce CO2 during the time course of the experiment.

3. Discussion

The content of phenolic acids in soils and plant litter and the rate at which they degrade has been investigated [17,21], and many investigators have studied how phenolic acids interact with microorganisms [22,23]. The exact degradation products of phenolic acids have not been widely reported, likely due to experimental limitations owing to the complex nature of soils. In addition, more attention has been given to the concentration of phenolics in plants [17,24] or the biotic degradation of phenolic acids in soil environments [22,25], while few studies have investigated the abiotic process. In this study, we investigated the abiotic reactions of phenolic acids with Mn(IV). In our previous studies, the reaction with gallic acid and Mn(IV) approached completion by 3 h [20]. To ensure that we observed any potential intermediates, the samples were allowed a total reaction time of 2 h for the study described here. For the NMR analysis, this included the 30 min of shaking and 90 min of drying time on the speed vac. We also found in our earlier studies that the amount of CO2 produced increased as we increased the ratio of Mn(IV) to the phenolic acid. In the current study we maintained a 1:1 molar ratio because Mn, a paramagnetic metal, interferes with the NMR signal. The NMR and HPLC data (Figure 2 and Figure 3) indicate that in the presence of Mn(IV), gallic acid does not form pyrogallol via a decarboxylation reaction. The NMR spectrum of the gallic acid reaction suggests that the ring structure is likely breaking and producing small, aliphatic hydrocarbons. This is supported by the ratio of hydroxyl 1H to aromatic 1H pre- and post-reaction and the appearance of 1H in the alkane region. In contrast, pyrogallol had a change in the ratio of hydroxyl 1H to aromatic 1H from 1:1 to 1:1.4, suggesting that a quinone was being formed during the reaction. This conclusion is further supported by an appearance of a new peak at 14.5 min on HPLC that absorbed strongly in the 400 nm range. In our experiments, CO2 was produced when Mn(IV) was reacted with gallic acid or pyrogallol. To produce detectable levels of CO2 from pyrogallol, the concentration of the phenolic had to be increased fivefold over the typical concentrations used in these experiments. While more of the gallic acid remained (84.9%) after the reaction than pyrogallol (21.8%), gallic acid produced more CO2. This suggests different reaction rates and products for pyrogallol and gallic acid reactions with Mn(IV). Based on the ratio of aromatic to hydroxyl 1H following the reaction (Figure 2, Table 1), the product of the pyrogallol reaction is likely a quinone that was stable during the timeframe of our experiments. In contrast, gallic acid reacts less efficiently, but is fully oxidized to CO2. Benzoic acid did not show significant signs of a reaction in our experiments. Together, these data suggest that phenolic acids are able to be degraded abiotically by redox active metals in soil. Benzoic acid derivatives with phenolic hydroxyl groups are likely to produce at least some CO2.
Using gallic acid and pyrogallol as model compounds allows these data to be potentially extrapolated to higher-order phenolic compounds found in plants and soils. Gallotannins are polyphenols that are gallic acid derivates esterified to a sugar. In these structures, the hydroxyl groups are free, while the carboxylic acid is esterified to a sugar [26]. These compounds could undergo a similar reaction to the one we demonstrated here with pyrogallol. This suggests that simple benzoic acid derivatives with free carboxylic acid and hydroxyl groups are more likely to be oxidized and contribute less to SOM than larger phenols that are lacking a free carboxylic acid group. These large tannin-like structures are more likely to play a role in SOM for a longer time period than the simple phenolic acids.

4. Materials and Methods

4.1. Chemicals

Gallic acid was purchased from Acros Organics (Geel, Antwerp, Belgium), pyrogallol and benzoic acid were purchased from Alfa Aesar (Haverhill, MA, USA), Mn(IV) oxide (10 um) was purchased from Sigma Aldrich Co. (St. Louis, MO, USA), and methyl sulfide (DMSO)-d6 was purchased from Thermo-Fisher Scientific (Pittsburgh, PA, USA). Solutions of the phenols and Mn(IV) oxide were prepared in Milli-Q water by vortexing until dissolved. Gallic acid and benzoic acid required brief gentle heating. The pH was measured at the start of the reaction and after 2 h. The pH of the gallic acid reaction changed from 4.3 to 5.3, the pyrogallol reaction changed from 7.0 to 6.0, and the benzoic acid reaction was consistent at 3.9.

4.2. NMR Experiments

NMR characterization was performed on a Bruker Avance NEO 400 MHz spectrometer. 1H spectra were obtained at 400 MHz at room temperature. Reaction samples were prepared by mixing the phenolic acid with Mn(IV) oxide at a 1:1 molar ratio, with a final concentration of 1 mM for both the phenol and Mn(IV), and incubating at room temperature while shaking at 300 rpm for 30 min. Following the incubation, 800 μL of the reaction samples was dried on a speed vac and redissolved with 800 μL of DMSO-d6. The drying time on the speed vac was approximately 90 min, giving the reaction samples a total incubation time of 2 h. Phenolic acid standards were prepared as 1 mM solutions in Milli-Q water, then 800 μL of the phenol standards were dried in a speed vac and redissolved with 800 μL of DMSO-d6. Peaks on the NMR spectra were integrated using TopSpin software version 4.3.0.

4.3. Reverse-Phase HPLC Experiments

Phenolic acids were mixed with Mn(IV) oxide at a 1:1 molar ratio and allowed to incubate at room temperature while shaking at 300 rpm. A 500 mL subsample was removed after 2 h and filtered using a 0.22 μm cellulose acetate spin filter. All reactions were performed in triplicate. Phenolic acid concentrations before and after the reaction were quantified via reverse-phase HPLC using a diode array detector and a 3 um Hypersil GOLD C8 column (4.6 × 150 mm) at a flow rate of 0.5 mL min−1, using a gradient of 0.1% trifluoracetic acid (TFA) in water (A) and 0.1% TFA in acetonitrile (B) in a 35 min program as follows: 0–20 min, 2–98% (B), 20–25 min 98% (B). 25–30 min 98–2% (B), 30–35 min 2% (B). Detection wavelengths were 220 and 400 nm, and full absorbance spectra were captured of peaks as identified by the software. Peak identification and integration were performed using Agilent Chemstation software Rev A.09.03(1417).

4.4. CO2 Measurements

CO2 measurements were performed as previously described [20]. Briefly, reactions were placed in a 150 mL beaker inside a quart jar with a K30 CO2 sensor attached to an airtight lid. Samples were quickly added to the beaker, the lid to the quart jar was tightened, and the concentration of CO2 in the quart jar was logged via GasLab software version 2.3.1.4. For gallic acid and benzoic acid, reactions were prepared by mixing a 1:1 molar ratio of the phenol and Mn(IV), final concentration of 1 mM for both the phenol and Mn(IV), final volume 50 mL, and reactions were incubated at room temperature with constant stirring. The final pyrogallol concentration was 5 mM for both the phenol and Mn(IV). All other experimental conditions were identical to the other two compounds. All reactions were performed in triplicate. CO2 data were collected for 4 h, with measurements taken every 5 min.

5. Conclusions

In this study, we have provided a potential mechanism for how phenolic acids are abiotically degraded in soil via a reaction with Mn(IV). Our initial hypothesis, that Mn(IV) decarboxylates gallic acid to form CO2 and pyrogallol, was not supported. Instead, we demonstrated that hydroxybenzoic acid derivates undergo more complete oxidation, leading to the release of CO2. In this study, we also demonstrated that plant secondary metabolites lacking the carboxylic acid moiety are likely to be less oxidized in the short term and more likely to contribute to the formation of SOM.

Author Contributions

Conceptualization, J.J.H., A.E.H. and M.A.S.; Methodology, M.G.G., J.J.H., A.E.H. and M.A.S.; Data curation, M.G.G., I.G.E. and M.A.S.; Writing—original draft, M.A.S.; Writing—review & editing, M.G.G., J.J.H. and A.E.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by USDA Specific Cooperative Agreement 58-3064-2-002 to Wright State University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The authors would like to thank Anne Carroll at Miami University for her assistance with the NMR experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tsao, R. Chemistry and Biochemistry of Dietary Polyphenols. Nutrients 2010, 2, 1231–1246. [Google Scholar] [CrossRef]
  2. Bravo, L. Polyphenols: Chemistry, dietary sources, metabolism, and nutritional significance. Nutr. Rev. 1998, 56, 317–333. [Google Scholar] [CrossRef]
  3. Schweitzer, J.A.; Madritch, M.D.; Bailey, J.K.; LeRoy, C.J.; Fischer, D.G.; Rehill, B.J.; Lindroth, R.L.; Hagerman, A.E.; Wooley, S.C.; Hart, S.C.; et al. From genes to ecosystems: The genetic basis of condensed tannins and their role in nutrient regulation in a Populus model system. Ecosystems 2008, 11, 1005–1020. [Google Scholar] [CrossRef]
  4. Linic, I.; Samec, D.; Grúz, J.; Bok, V.V.; Strnad, M.; Salopek-Sondi, B. Involvement of Phenolic Acids in Short-Term Adaptation to Salinity Stress is Species-Specific among Brassicaceae. Plants 2019, 8, 155. [Google Scholar] [CrossRef]
  5. Kraus, T.E.C.; Dahlgren, R.A.; Zasoski, R.J. Tannins in nutrient dynamics of forest ecosystems—A review. Plant Soil 2003, 256, 41–66. [Google Scholar] [CrossRef]
  6. Wang, Y.P.; Li, C.R.; Wang, Q.K.; Wang, H.T.; Duan, B.L.; Zhang, G.C. Environmental behaviors of phenolic acids dominated their rhizodeposition in boreal poplar plantation forest soils. J. Soils Sediments 2016, 16, 1858–1870. [Google Scholar] [CrossRef]
  7. Cesco, S.; Mimmo, T.; Tonon, G.; Tomasi, N.; Pinton, R.; Terzano, R.; Neumann, G.; Weisskopf, L.; Renella, G.; Landi, L.; et al. Plant-borne flavonoids released into the rhizosphere: Impact on soil bio-activities related to plant nutrition. A review. Biol. Fertil. Soils 2012, 48, 123–149. [Google Scholar] [CrossRef]
  8. Cesco, S.; Neumann, G.; Tomasi, N.; Pinton, R.; Weisskopf, L. Release of plant-borne flavonoids into the rhizosphere and their role in plant nutrition. Plant Soil 2010, 329, 1–25. [Google Scholar] [CrossRef]
  9. Kaal, J.; Nierop, K.G.J.; Verstraten, J.M. Interactions between tannins and goethite- or ferrihydrite-coated quartz sand: Influence of pH and evaporation. Geoderma 2007, 139, 379–387. [Google Scholar] [CrossRef]
  10. Schmidt, M.A.; Halvorson, J.J.; Hagerman, A.E.; Gonzalez, J.M. Macronutrients and metals released from soils by solutions of naturally occurring phenols. J. Plant Nutr. Soil Sci. 2017, 180, 544–553. [Google Scholar] [CrossRef]
  11. Alejandro, S.; Höller, S.; Meier, B.; Peiter, E. Manganese in Plants: From Acquisition to Subcellular Allocation. Front. Plant Sci. 2020, 11, 300. [Google Scholar] [CrossRef] [PubMed]
  12. Li, H.; Santos, F.; Butler, K.; Herndon, E. A Critical Review on the Multiple Roles of Manganese in Stabilizing and Destabilizing Soil Organic Matter. Environ. Sci. Technol. 2021, 55, 12136–12152. [Google Scholar] [CrossRef] [PubMed]
  13. Berg, B.; Steffen, K.T.; McClaugherty, C. Litter decomposition rate is dependent on litter Mn concentrations. Biogeochemistry 2007, 82, 29–39. [Google Scholar] [CrossRef]
  14. Keiluweit, M.; Nico, P.; Harmon, M.E.; Mao, J.D.; Pett-Ridge, J.; Kleber, M. Long-term litter decomposition controlled by manganese redox cycling. Proc. Natl. Acad. Sci. USA 2015, 112, E5253–E5260. [Google Scholar] [CrossRef] [PubMed]
  15. Prescott, C.E. Litter decomposition: What controls it and how can we alter it to sequester more carbon in forest soils? Biogeochemistry 2010, 101, 133–149. [Google Scholar] [CrossRef]
  16. Zhang, Y.Y.; Cai, P.; Cheng, G.H.; Zhang, Y.Q. A Brief Review of Phenolic Compounds Identified from Plants: Their Extraction, Analysis, and Biological Activity. Nat. Prod. Commun. 2022, 17, 1934578X211069721. [Google Scholar] [CrossRef]
  17. Zhao, Y.M.; Lin, J.; Quan, W.X.; Li, C.C. Distribution of six phenolic acids and soil nutrient relationships during litter decomposition in Rhododendron forests. Front. For. Glob. Chang. 2023, 6, 1142510. [Google Scholar] [CrossRef]
  18. Rahman, A.; Alam, M.U.; Hossain, M.S.; Mahmud, J.A.; Nahar, K.; Fujita, M.; Hasanuzzaman, M. Exogenous Gallic Acid Confers Salt Tolerance in Rice Seedlings: Modulation of Ion Homeostasis, Osmoregulation, Antioxidant Defense, and Methylglyoxal Detoxification Systems. Agronomy 2023, 13, 16. [Google Scholar] [CrossRef]
  19. Gao, J.Y.; Hu, J.X.; Hu, D.Y.; Yang, X. A Role of Gallic Acid in Oxidative Damage Diseases: A Comprehensive Review. Nat. Prod. Commun. 2019, 14, 1934578X19874174. [Google Scholar] [CrossRef]
  20. Halvorson, J.; Jin, V.; Liebig, M.; Luciano, R.; Hagerman, A.; Schmidt, M. Rapid Formation of Abiotic CO2 Results from Additions of a Simple Phenolic, Gallic Acid, to Soil. Authorea Preprints. 2022. Available online: https://d197for5662m48.cloudfront.net/documents/publicationstatus/111169/preprint_pdf/ec4cf64b712d19c8e17566eb950a9a86.pdf (accessed on 8 August 2024).
  21. An, S.; Wei, Y.; Li, H.; Zhao, Z.; Hu, J.; Philp, J.; Ryder, M.; Toh, R.; Li, J.; Zhou, Y.; et al. Long-Term Monocultures of American Ginseng Change the Rhizosphere Microbiome by Reducing Phenolic Acids in Soil. Agriculture 2022, 12, 640. [Google Scholar] [CrossRef]
  22. Bao, L.M.; Liu, Y.Y.; Ding, Y.F.; Shang, J.J.; Wei, Y.L.; Tan, Y.; Zi, F.T. Interactions Between Phenolic Acids and Microorganisms in Rhizospheric Soil from Continuous Cropping of Panax notoginseng. Front. Microbiol. 2022, 13, 791603. [Google Scholar] [CrossRef] [PubMed]
  23. Zhou, J.; Kang, L.; Wang, H.W.; Yang, T.; Dai, C.C. Liquid laccase production by Phomopsis liquidambari B3 accelerated phenolic acids degradation in long-term cropping soil of peanut. Acta Agric. Scand. Sect. B Soil Plant Sci. 2014, 64, 683–693. [Google Scholar]
  24. Mudau, H.S.; Mokoboki, H.K.; Ravhuhali, K.E.; Mkhize, Z. Effect of Soil Type: Qualitative and Quantitative Analysis of Phytochemicals in Some Browse Species Leaves Found in Savannah Biome of South Africa. Molecules 2022, 27, 1462. [Google Scholar] [CrossRef] [PubMed]
  25. Inderjit. Soil microorganisms: An important determinant of allelopathic activity. Plant Soil 2005, 274, 227–236. [Google Scholar] [CrossRef]
  26. Okuda, T.; Ito, H. Tannins of Constant Structure in Medicinal and Food Plants—Hydrolyzable Tannins and Polyphenols Related to Tannins. Molecules 2011, 16, 2191–2217. [Google Scholar] [CrossRef]

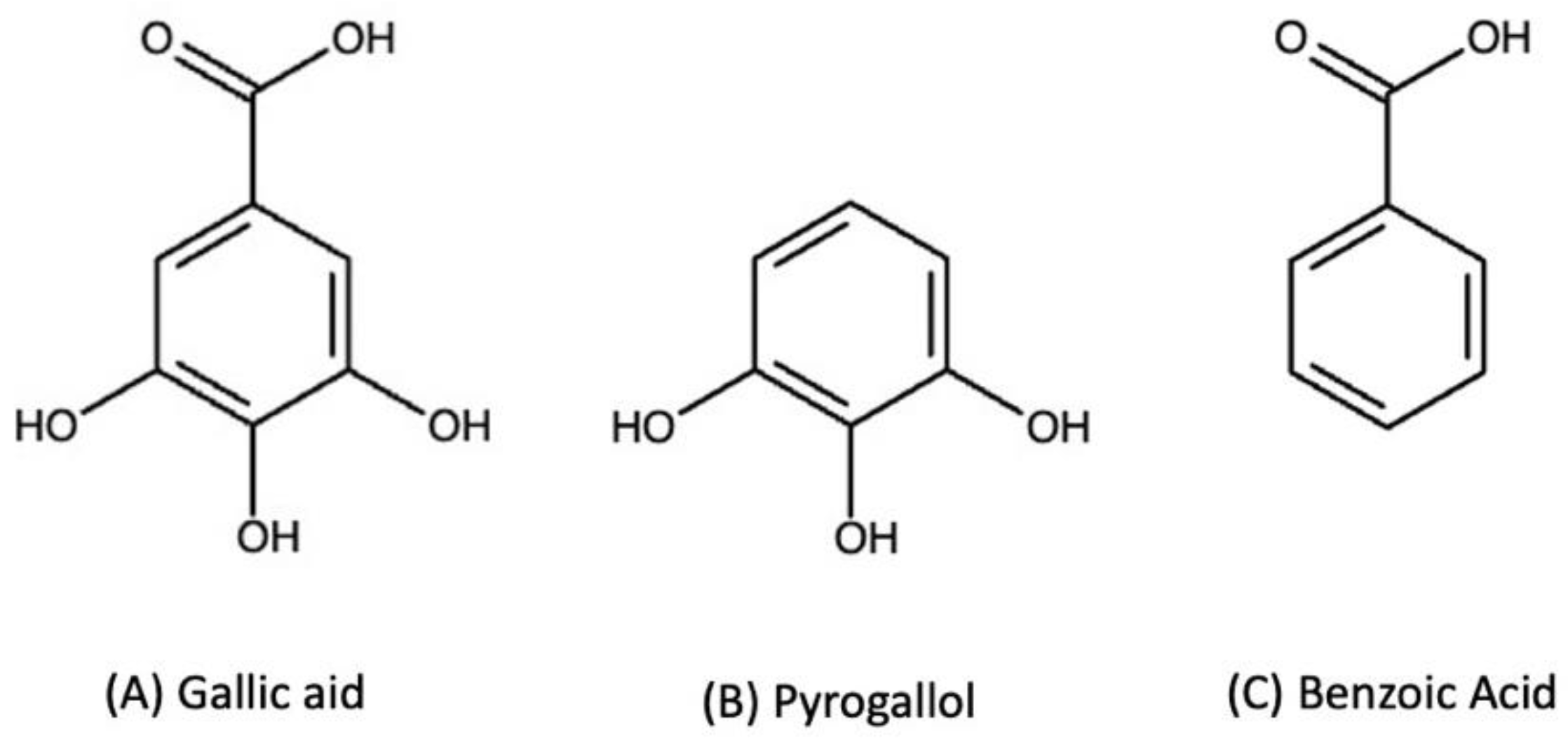

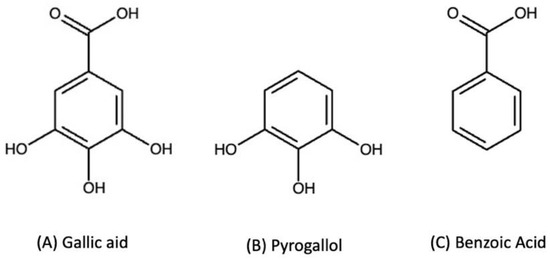

Figure 1. Chemical structures of the phenol compounds.
Figure 1. Chemical structures of the phenol compounds.
Molecules 29 04320 g001

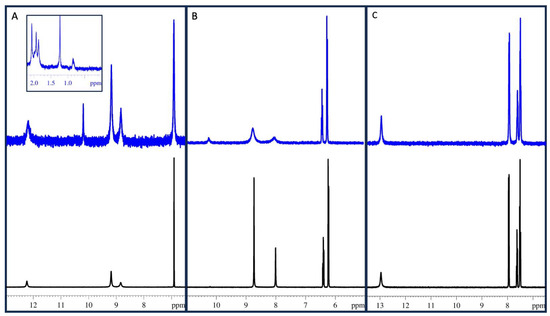

Figure 2. NMR spectra of unreacted (black) and reacted (blue) samples for gallic acid (A), pyrogallol (B), and benzoic acid (C). Unreacted samples were 1 mM. Reacted samples were a 1:1 molar ratio of phenol to Mn(IV) with a final concentration of 1 mM for each.
Figure 2. NMR spectra of unreacted (black) and reacted (blue) samples for gallic acid (A), pyrogallol (B), and benzoic acid (C). Unreacted samples were 1 mM. Reacted samples were a 1:1 molar ratio of phenol to Mn(IV) with a final concentration of 1 mM for each.
Molecules 29 04320 g002

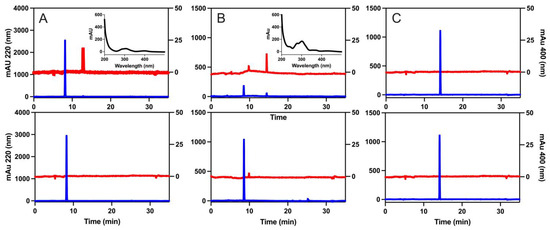

Figure 3. HPLC chromatograms for gallic acid (A), pyrogallol (B), and benzoic acid (C). Top panels represent the samples reacted with Mn(IV); bottom panels are unreacted samples. The detection wavelength 220 nm (left axis) is displayed in blue, and 400 nm (right axis) is displayed in red. Insert panels are full spectra of the peaks that appeared in the reacted samples. Unreacted samples were 1 mM. Reacted samples were in a 1:1 molar ratio with Mn(IV) with a final concentration of 1 mM for both.
Figure 3. HPLC chromatograms for gallic acid (A), pyrogallol (B), and benzoic acid (C). Top panels represent the samples reacted with Mn(IV); bottom panels are unreacted samples. The detection wavelength 220 nm (left axis) is displayed in blue, and 400 nm (right axis) is displayed in red. Insert panels are full spectra of the peaks that appeared in the reacted samples. Unreacted samples were 1 mM. Reacted samples were in a 1:1 molar ratio with Mn(IV) with a final concentration of 1 mM for both.
Molecules 29 04320 g003

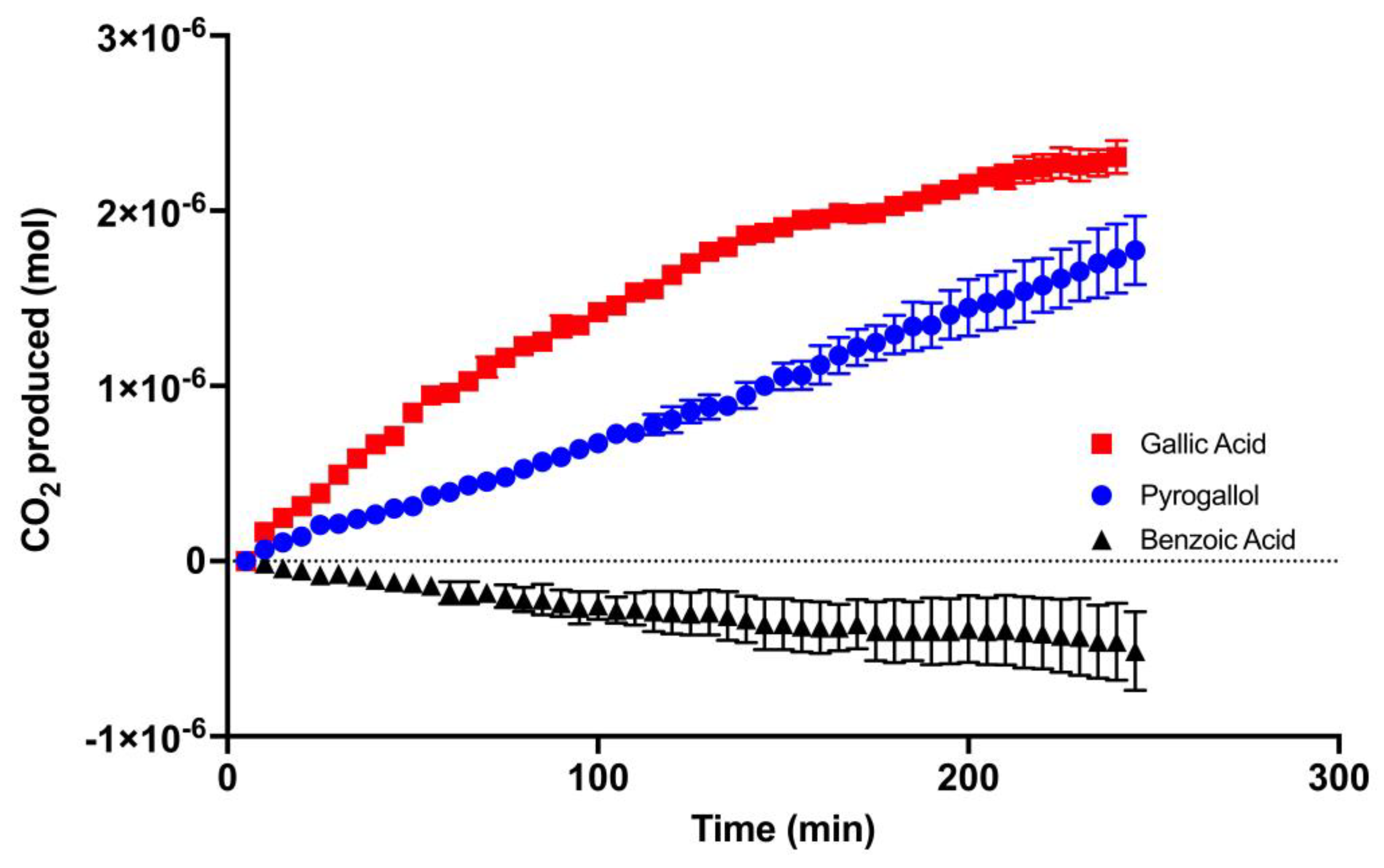

Figure 4. CO2 produced when Mn(IV) was reacted with gallic acid (red), pyrogallol (blue), and benzoic acid (black). Gallic acid and benzoic acid were reacted with Mn(IV) in a 1:1 molar ratio and a final concentration of 1 mM for both the phenol and Mn(IV). Pyrogallol was 1:1 with Mn(IV), and a final concentration of 5 mM for both. Final volume for all reactions was 50 mL. Values are means, error bars indicate the standard error of the mean, n = 3.
Figure 4. CO2 produced when Mn(IV) was reacted with gallic acid (red), pyrogallol (blue), and benzoic acid (black). Gallic acid and benzoic acid were reacted with Mn(IV) in a 1:1 molar ratio and a final concentration of 1 mM for both the phenol and Mn(IV). Pyrogallol was 1:1 with Mn(IV), and a final concentration of 5 mM for both. Final volume for all reactions was 50 mL. Values are means, error bars indicate the standard error of the mean, n = 3.
Molecules 29 04320 g004
Table 1. NMR and HPLC results pre- and post-reaction.
Table 1. NMR and HPLC results pre- and post-reaction.
NMR Integration aHPLC
Aromatic 1HHydroxyl 1HCarboxyl 1HAromatic: Hydroxyl 1H% Remaining after Reaction b
CompoundPrePostPrePostPrePostPrePost
Gallic acid0.110.0110.150.0150.0500.0051:1.51:1.584.9 (1.8)
Pyrogallol1.020.0551.000.040N/AN/A1:11:1.421.8 (1.2)
Benzoic acid0.230.11N/AN/A0.0360.018N/AN/A97.7 (0.6)
a Integration numbers represent the relative amount of each type of 1H. Values are summed for each type of 1H. b Amount of the starting compound that remained after the reaction with Mn(IV) expressed as a percentage. N/A = the compound does not contain that functionality. Values are means (standard error of the mean); n = 3.
