Thermodynamic Study of 1,4-Bis(3-methylimidazolium-1-yl)butane Bis(trifluoromethylsulfonyl)imide ([C4(MIm)2][NTf2]2) from 6 to 350 K

by
Alexey V. Markin
1,*,
Andrea Ciccioli
2,
Andrea Lapi
2,3,
Semen S. Sologubov
1,
Natalia N. Smirnova
1 and
Stefano Vecchio Ciprioti
4
1
Department of Chemistry, National Research Lobachevsky State University of Nizhny Novgorod, Gagarin Avenue 23, 603022 Nizhny Novgorod, Russia
2
Department of Chemistry, Sapienza University of Rome, Piazzale Aldo Moro 5, 00185 Rome, Italy
3
Institute for Biological Systems, Italian National Research Council (ISB-CNR), Secondary Office of Rome-Reaction Mechanisms c/o Department of Chemistry, Sapienza University, Piazzale Aldo Moro 5, 00185 Rome, Italy
4
Department of Basic and Applied Science for Engineering (S.B.A.I.), Sapienza University of Rome, Via del Castro Laurenziano 7, 00161 Rome, Italy
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(17), 4180; https://doi.org/10.3390/molecules29174180
Submission received: 31 July 2024 / Revised: 29 August 2024 / Accepted: 2 September 2024 / Published: 3 September 2024
(This article belongs to the Special Issue Thermodynamics of Organic Materials)
Browse Figures
Versions Notes

Abstract

:
The molar heat capacity of 1,4-bis(3-methylimidazolium-1-yl)butane bis(trifluoromethylsulfonyl)imide dicationic ionic compound ([C4(MIm)2][NTf2]2) has been studied over the temperature range from 6 to 350 K by adiabatic calorimetry. In the above temperature interval, this compound has been found to form crystal, liquid, and supercooled liquid. For [C4(MIm)2][NTf2]2, the temperature of fusion T°fus = (337.88 ± 0.01) K has been determined by the fractional melting experiments, the enthalpy of fusion ΔfusH° = (52.79 ± 0.28) kJ mol−1 has been measured using the calorimetric method of continuous energy input, and the entropy of fusion ΔfusS° = (156.2 ± 1.7) J K−1 mol−1 has also been evaluated. The standard thermodynamic functions of the studied dicationic ionic compound, namely, the heat capacity Cp°(T), the enthalpy [H°(T) − H°(0)], the entropy S°(T) and the Gibbs free energy [G°(T) − H°(0)] have been calculated on the basis of the experimental data for the temperature range up to 350 K. The results have been discussed and compared with those available in the literature and in the NIST Ionic Liquids Database (ILThermo) for monocationic ionic compounds.

Graphical Abstract

1. Introduction

The fields of interest in ionic liquids (ILs) include chemical synthesis and catalysis, pharmaceutics and medicine, electrochemistry, biomass conversion, fuel production and processing, liquid crystal development, material science, and many others [1,2,3]. Since the beginnings of the “modern age” of research on ILs, the family of organic salts containing a 1,3-dialkyl imidazolium cation and the bis(trifluoromehtyl)sulfonylimide (NTf2) anion has been one of most widely investigated among aprotic ILs [4,5,6,7], although more recently the research involving ILs has been mainly focused on greener compounds. This is in part due to the high thermal stability of these compounds, which is related to the scarce nucleophilicity of the anionic portion [8,9]. Indeed, if the well-known low volatility of ILs is not accompanied by sufficiently high thermal stability, a number of potential applications of this wide class of compounds cannot be exploited. In the search for improved variants of classic alkylimidazolium NTf2 ILs with lower volatility and good thermal stability at relatively high temperatures, ILs with a dipositive dication, such as that reported in Figure 1, were more recently considered (commonly known as dicationic ionic liquids, DILs) [10,11]. In these compounds, the doubly charged cation contains two alkylimidazolium rings linked by a (CH2)n chain, with n going typically from 1 to 10–12. It was recently shown that DILs have a number of peculiar physical and chemical properties compared to their monocationic counterparts [12]. For example, imidazolium-based DILs exhibit a significant increase in the melting temperature, which can arise from π–π stacking.
Despite this interest, the thermodynamic characterization of DILs is presently very scarce in the literature. To the best of our knowledge, the only studies reported so far were focused on the evaporation of the compound with the n = 3 linker and a methyl group on the imidazolium rings [13,14]. In particular, no study has been reported on the heat capacity of any member of this family, and no thermodynamic functions are presently available in both the condensed and vapor phases. Indeed, due to the lack of these data, the shifting of evaporation and sublimation enthalpies from the experimental temperatures to the reference temperature of 298.15 K had to be carried out on the basis of empirical estimates, with a likely loss of accuracy.
In order to begin filling this gap, we present here the first experimental determination of the heat capacity of 1,4-bis(3-methylimidazolium-1-yl)butane bis(trifluoromethylsulfonyl)imide ([C4(MIm)2][NTf2]2) in the temperature range from 6 to 350 K by classic adiabatic calorimetry and we derive the thermodynamic functions therefrom. For the sake of comparison, the prototypical monocationic IL, [C4MIm][NTf2], whose heat capacity values are available in the literature in the entire temperature range [15], was also subjected to the same measurements. Previously, the results of NMR analysis for [C4(MIm)2][NTf2]2 were reported in [16].

2. Results and Discussion

2.1. Heat Capacity Measurements

In order to check the internal consistency of the results of adiabatic measurements, similar to what was reported in a recently published study [17], a set of the heat capacity values was collected for the prototypic 1-butyl-3-methylimidazolium bis(trifluoromethyl)sulfonylimide monocationic ionic liquid [C4MIm][NTf2] (Table S1, Supplementary Material) under the identical operative conditions used for the tested compound [C4(MIm)2][NTf2]2. The Cp values of three experimental runs for [C4MIm][NTf2] are compared in Figure S1 (Supplementary Material) with those available in the literature [15]. A very good agreement was found between the experimental and the literature values (Figure S2, Supplementary Material), thus confirming that reliable heat capacity values may also be expected for [C4(MIm)2][NTf2]2. The experimental Cp values of [C4(MIm)2][NTf2]2 were determined in the range of 6–350 K, and the plot of the fitted values (Cp vs. T) are shown in Table 1 and Figure 2, respectively. The experimental Cp values were fitted in all the temperature regions where any transformations are absent according to the following polynomial Equations (1)–(3):
lnCp = ΣAi · ln(T/30)i,
Cp = ΣAi · ln(T/30)i,
Cp = ΣAi · (T/30)i
where Ai is the fitting polynomial coefficient, and n is the number of coefficients (starting from 0). The corresponding fitting coefficients are listed in Table S2 (Supplementary Material). The relative deviation of the experimental data from the fitting values related to the tested compound is plotted in Figure S3 (Supplementary Material).
The sample of ionic compound [C4(MIm)2][NTf2]2 was cooled down from the room temperature (T~298.15 K) to T~6 K by liquid helium. At the subsequent heating, the heat capacity of [C4(MIm)2][NTf2]2 gradually increases in the temperature range from T = (6 to 300) K. Then, the fusion of the studied compound was observed.

2.2. Thermodynamic Characteristics of Fusion and the Purity Determination

The enthalpy of fusion ΔfusH° = (52.79 ± 0.28) kJ mol−1 of the dicationic ionic liquid [C4(MIm)2][NTf2]2 was determined using the calorimetric method of continuous energy input. The obtained results are given in Table 2.
The mole fraction of impurities in the studied sample (x2) and the triple point temperature (Ttp) of DIL were determined by the fractional melting experiment (from the calorimetric study of the reciprocal fractions of the sample melted, F−1, as a function of the equilibrium fusion temperature, T°F) [18]. In other words, at each T°F temperature, the fraction F of the area under the calorimetric melting peak is evaluated. The obtained results are listed in Table 3 and are shown in Figure 3.
It can be seen that the corresponding dependence T°F vs. F−1 is a straight line. It is well described by the Rossini Equation (4):
T°F = T°0 − F−1 · (T°0 − T°1)
where T°0 is the triple point temperature of the absolutely pure compound, and T°1 is the triple point temperature of the completely melted substance (F = 1). The deviation of the experimental T°F points from the dependence T°F = f(F−1) does not exceed 0.001%. The obtained values (T°0 = (337.88 ± 0.01) K and T°1 = (337.70 ± 0.01) K) are equal to the T°fus of pure [C4(MIm)2][NTf2]2 and the studied ionic liquid [C4(MIm)2][NTf2]2, respectively.
The depression ∆T°fus = T°0 − T°1 in the melting temperature of ionic liquid [C4(MIm)2][NTf2]2 indicates that the compound contains impurities. The total mole fraction of impurities (x2) in the studied sample was calculated by Equation (5):
−ln(1 − x2) = A · ∆T°fus (1 + B·∆T°fus)
where A = ΔfusH°/R(T°fus)2 and B = (T°fus)−1 − ½ΔC°p(T°fus)/ΔfusH° are the first and the second cryoscopic constants, respectively; ΔC°p(T°fus) is the heat capacity increase at the fusion of [C4(MIm)2][NTf2]2. The mole fraction of impurities in the studied DIL is equal to 0.0097.
The entropy of fusion ΔfusS° = (156.2 ± 1.7) J K−1 mol−1 of [C4(MIm)2][NTf2]2 was calculated using Equation (6):
ΔfusS° = ΔfusH°/T°fus
Thus, the standard thermodynamic characteristics of fusion of [C4(MIm)2][NTf2]2 are T°fus = (337.88 ± 0.01) K, ΔfusH° = (52.79 ± 0.28) kJ mol−1, and ΔfusS° = (156.2 ± 1.7) J K−1 mol−1, where the corresponding uncertainties are standard deviations of the mean.
The results of the present work were compared with the literature data [19,20,21,22,23]. It was confirmed that the Tfus values of the dicationic ILs are substantially higher than those of the monocationic ILs with the same anion [NTf2]. Thus, the dicationic ILs seem more suitable for applications at high-temperature conditions than the corresponding monocationic ILs. Earlier, the temperature and the enthalpy of fusion of geminal dicationic ionic liquid [C4(MIm)2][NTf2]2 were determined by the authors of [22] using differential scanning calorimetry (DSC). The melting point measured by DSC is reported as 329.2 K [22]. This value belongs to the temperature interval of the revealed phase transition. In addition, the value of Tm for dicationic ionic liquid [C4(MIm)2][NTf2]2 is equal to (332.5 ± 0.7) K in accordance with the data from [19]. The authors of [19] also performed DSC measurements with a heating rate of 10 K min−1 to determine the melting temperature of the above IL. In our work, the value of T°fus = (337.88 ± 0.01) K was determined as the end temperature in the range of fusion by precise adiabatic calorimetry under equilibrium conditions. Therefore, in comparing the literature values [19,22] with those resulting from our study, a close agreement could not be expected. Moreover, we note that no details of DSC experiments and the evaluation of Tfus are provided in [19,22]. With regard to the enthalpy of fusion, admittedly, a rather large discrepancy is found between our value, (52.79 ± 0.28) kJ mol−1, and the value reported in [22] (23.6 kJ mol−1). The reason for this disagreement is difficult to understand. However, we note that the value of ΔfusH [22] seems anomalously low when compared with that of the monocationic counterpart (EMImNTf2), which was reported as (21.89 ± 0.03) kJ mol−1. For the sake of comparison, it can be noted that the ΔfusH values for the corresponding bromide compounds are 43.98 kJ mol−1 [22] and (18.26 ± 0.12) kJ mol−1 [23], for the dicationic and monocationic compounds, respectively.

2.3. Standard Thermodynamic Functions

The standard thermodynamic functions of [C4(MIm)2][NTf2]2 listed in Table 4 were calculated from the Cp values in the temperature range of 0–350 K. In order to determine the standard molar thermodynamic functions of [C4(MIm)2][NTf2]2, the Debye law [24] was used to extrapolate the low-temperature heat capacity from 6.5 K to 0:
Cp = nD(ΘD/T)
where n is the number of degrees of freedom, Dn = n z n ∫ 0 z x n exp x − 1 d x represents the Debye function, and ΘD is the Debye characteristic temperature. In Equation (7), the parameter n = 6, and ΘD = 38.8 K is an adjustable coefficient. The experimental heat capacity values of the investigated DIL in the range of 6.5–10 K were described by Equation (7) using the above parameters with an error of 1.87%. The values of [H°(T) − H°(0)] and those of S°(T) were calculated in the temperature range 0–350 K by numerical integrations of the Cp = f(T) and Cp = f(lnT) values, respectively, while those of [G°(T) − H°(0)] were determined according to Equation (8):
[G°(T) − H°(0)] = [H°(T) − H°(0)] − TS°(T)
The results previously reported that the heat capacity of DILs is scarce and limited to temperatures higher than room temperature. No previous investigation was reported from temperatures close to 0 K up. The most investigated series of DILs is that with the bromide ion, which was considered for thermal storage applications [22]. One determination [22] is also available for [C4(MIm)2][NTf2]2, which is, to the best of our knowledge, the only Cp value ever reported for a DIL with the NTf2 anion before the present work. A direct comparison with our result is uncertain because the only value in [22] (1288 J K−1 mol−1) is given with no specification of the temperature. Assuming this value referred to the melting temperature (329.3 K in [22]), it exceeds our result by more than 20%. The few data available to date allow for some insight into the dependence of the heat capacity on the nature of the anionic portion. According to our results, the heat capacity of [C4(MIm)2][NTf2]2 is much lower than that of other DILs with the [C4(MIm)2]++ cation and typical anions such as BF4–, Br– and PF6–, thus confirming the strong dependence of heat capacities from the anion. The observed Cp trend, Br− ≅ BF4− > PF6− > NTf2−, can be readily interpreted as due to the different capacity to form hydrogen bonds. For example, a large number of hydrogen bonds was found in the crystal structure of C4(MIm)2]Br2 [22], also accounting for high values of the melting temperature and fusion enthalpy of this compound. Interestingly, the above heat capacity order is reversed if the decomposition temperatures are considered. It is thus interesting to wonder how accurately the measured Cp values for the liquid phase of [C4(MIm)2][NTf2]2 could be predicted by a simple estimation procedure based on the Cp of the corresponding monocationic compounds. From the structure shown in Figure 1, it comes natural to tentatively estimate the Cp of [C4(MIm)2][NTf2]2 as twice that of [C2MIm][NTf2] [25] corrected by the different contributions of the CH3 and CH2 groups. By using this correction the group contribution values reported by Zábranský and Růžička [26], the estimated Cp value of liquid [C4(MIm)2][NTf2]2 at the melting point (Cp(est) = 992.0 J K−1 mol−1 at Tfus) agrees fairly well (2.0%) with the experimental values reported in Table 2 (Cp(exp) = 1012 J K−1 mol−1). If confirmed by further measurements, this simple procedure would allow obtaining a potentially useful, albeit rough, estimate of Cp for DILs for which no experimental value is available.

3. Materials and Methods

The structural formula of 1,4-bis(3-methylimidazolium-1-yl)butane bis(trifluoromethylsulfonyl)imide ([C4(MIm)2][NTf2]2) is presented in Figure 1 with n = 4. The synthesis and structural characterization of the studied dicationic ionic compound and of its bromide precursor has been carried out according to the procedure reported below (Section 3.1 and Section 3.2). The benchmark compound [C4MIm][NTf2] and lithium bis(trifluoromethylsulfonyl)imide Li[NTf2] were purchased by Sigma-Aldrich (purity > 99.0% is provided by the supplier) and used as such. The information for the studied dicationic ionic liquid [C4(MIm)2][NTf2]2 and the used reagents are listed in Table 5. The standard atomic masses recommended by the IUPAC Commission [27] were used to calculate the molar mass of the tested compound (M(C16H20F12N6O8S4) = 780.56 g mol−1).
The water content in the synthesized dicationic ionic liquid [C4(MIm)2][NTf2]2 and in the validation compound [C4MIm][NTf2] was checked by thermogravimetry (simultaneous Stanton Redcroft STA1500 at 10 °C/min under inert gas atmosphere), and it resulted in being below the detection limit of the instrument for both compounds (Figure S4, Supplementary Material). The mole fraction purity of the studied DIL was determined by the fractional melting technique in an adiabatic calorimeter to be 0.9903. Thus, it can be claimed that the purity of the synthesized DIL is high and meets the requirements of testing its thermodynamic properties.

3.1. Synthesis of the Bromide Precursor ([C4(MIm)2][Br]2)

1,4-Dibromobutane (10.15 g, 47 mmol) was slowly added into a round-bottom flask (100 mL) containing a stirred solution of 1-methylimidazole (7.725 g, 94 mmol) in ethyl acetate (50 mL). The reaction mixture was stirred at room temperature under an inert atmosphere (Ar) for 5 days. The white solid thus obtained was filtered on a Gooch (porosity IV) and then washed several times with ethyl acetate to remove the unreacted starting materials. The solid was dried first in a rotary evaporator (70 °C) for 3 h and then allowed under vacuum overnight at 70 °C to give the precursor 1,4-bis(3-methylimidazolium-1-yl)butane dibromide, [C4(MIm)2][Br]2, as a white solid (14.99 g, 39 mmol, 83%).
1H NMR (DMSO-d6, 300 MHz): δ = 9.29 (s, 2H), 7.83 (s, 2H), 7.75 (s, 2H), 4.25 (br, 4H), 3.84 (s, 6H), 1.79 (br, 4H). The provided results of NMR analysis (Figure S5, Supplementary Material) are in agreement with the literature data [16].

3.2. Synthesis of the Test Compound ([C4(MIm)2][NTf2]2)

A solution of 1,4-bis(3-methylimidazolium-1-yl)butane dibromide (4.0 g, 10.5 mmol) and lithium bis(trifluoromethylsulfonyl)imide (6.1 g, 21.2 mmol) in water (50 mL) was stirred at room temperature for 24 h. The lower liquid layer was separated and washed with seven 100 mL portions of water. After drying in a rotary evaporator, 5.65 g (7.24 mmol, 69%) of 1,4-bis(3-methylimidazolium-1-yl)butane bis(trifluoromethylsulfonyl)imide ([C4(MIm)2][NTf2]2) was obtained as a white solid.
1H NMR (DMSO-d6, 300 MHz): δ = 9.06 (br s, 2H), 7.71 (m, 2H), 7.69 (m, 2H), 4.20 (m, 4H), 3.86 (s, 6H), 1.80 (m, 4H).
13C NMR (DMSO-d6, 75 MHz): δ = 137.0, 124.0, 122.6, 119.9 (q, CF3, J = 320 Hz), 48.4, 36.1, 26.4.
The provided results of the NMR analysis (Figure S6, Supplementary Material) are in agreement with the literature data [16].

3.3. Heat Capacity Experiments

The heat capacity of dicationic ionic liquid [C4(MIm)2][NTf2]2 has been measured over the range from T = (6 to 350) K using a precise automatic BCT-3 adiabatic calorimeter. The calorimeter was manufactured by “Termis” joint-stock company (Moscow region, Russia). Its design and the operation procedure were described in detail elsewhere [28]. A miniature rhodium-iron resistance thermometer was calibrated on the basis of ITS-90 [29] and used for the temperature measurements during the calorimetric experiments. More detailed information about the thermometer calibration is published elsewhere [30,31]. The sensitivity of the thermometric circuit was 0.001 K. Liquid helium and nitrogen were used as cooling agents.
The measurements were performed at p298(He) = (4 ± 1) kPa in the calorimetric cell with the studied substance (dry helium used as the thermal exchange gas). A high vacuum inside the container was kept by means of cryosorption provided with an efficient charcoal getter. The mass of the sample loaded in a thin-walled cylindrical titanium ampoule of the BCT-3 device was (0.56495 ± 0.00001) g. After assembling, the measuring system was cooled in the Dewar vessel with liquid nitrogen. When the measurements were performed below 80 K, liquid helium was used. The studied sample was first measured in the liquid nitrogen region, followed by measurements in the liquid helium with overlapping experimental temperature intervals.
The calorimeter reliability was verified by measuring the heat capacities of the reference samples, namely high-purity copper (mass fraction 0.99999) [32], synthetic corundum α-Al2O3 (mass fraction 0.99993) [33], chromatographically pure n-heptane (mole fraction 0.99997) [34], and benzoic acid (mole fraction 0.99997) [35]. The test of the calorimeter revealed the combined expanded relative uncertainty of the experimentally determined heat capacity Uc,r(Cp) = 0.02 in the range T = (6–15) K, Uc,r(Cp) = 0.005 for T = (15–40) K, Uc,r(Cp) = 0.002 in the interval T = (40–350) K. The temperature and enthalpy of the phase transformations were determined with the standard uncertainty u(Ttr) = 0.01 K and the combined relative expanded uncertainty Uc,r(ΔtrH) = 0.008 and Uc,r(ΔtrS) = 0.011, respectively. The reported uncertainties correspond to the 0.95 confidence level (k ≈ 2).
Note that the time required for the calorimeter to reach the equilibrium temperature was determined experimentally. These values are 40 min in the phase transition region (the equilibrium period) and 15 min in all other temperature intervals. When the duration decreases, the equilibrium is failed in the system. The heat capacity of the sample varied from (20 to 40)% of the total heat capacity of the (calorimetric ampoule + substance) system over the range T = (6–350) K.

4. Conclusions

This study reports the original results of the calorimetric study on 1,4-bis(3-methylimidazolium-1-yl)butane bis(trifluoromethylsulfonyl)imide dicationic ionic compound ([C4(MIm)2][NTf2]2). In particular, the heat capacity of this substance was measured for the first time in the temperature range of 6–350 K by precise adiabatic calorimetry. The thermodynamic characteristics of fusion were determined by the fractional melting experiments and the calorimetric method of continuous energy input. The melting temperature of [C4(MIm)2][NTf2]2 was found to be (337.88 ± 0.01) K, a value almost 70 K higher than that of the corresponding monocationic IL with a methyl and a butyl substituent on the imidazolium ring ([C4MIm][NTf2]). The Cp value of [C4(MIm)2][NTf2]2, in the liquid phase and referred to as the melting temperature, is only slightly overestimated (~3%) by a simple empirical value based on doubling the Cp of the [C2MIm][NTf2] monocationic IL (considered as “one half” of [C4(MIm)2][NTf2]2). Finally, the molar heat capacity values were used to calculate the standard thermodynamic functions (enthalpy [H°(T) − H°(0)], entropy S°(T), the Gibbs energy [G°(T) − H°(0)]) of [C4(MIm)2][NTf2]2 over the interval of T = (0 to 350) K.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29174180/s1, Figure S1: The molar heat capacity of the prototypic 1-butyl-3-methylimidazolium bis(trifluoromethyl)sulfonylimide [C4MIm][NTf2] (monocationic ionic liquid); Figure S2: Percentages of deviation of Ref. [15] data of the heat capacity (Cp,lit) for [C4MIm][NTf2] from the values of the present work (Cp); Figure S3: Percentages of deviation of the experimental heat capacity of [C4(MIm)2][NTf2]2 from the fitting values; Figure S4: TG curves of ionic liquids [C4MIm][NTf2] and [C4(MIm)2][NTf2]2; Figure S5: 1H NMR spectrum of [C4(MIm)2][Br]2 (DMSO-d6, 300 MHz); Figure S6: (A) 1H NMR spectrum of [C4(MIm)2][NTf2]2 (DMSO-d6, 300 MHz), (B) 13C NMR spectrum of [C4(MIm)2][NTf2]2 (DMSO-d6, 75 MHz); Table S1: Experimental molar heat capacity (in J K−1 mol−1) of [C4MIm][NTf2]; Table S2: Polynomial-fitting coefficients of the temperature dependence of the molar heat capacity of [C4(MIm)2][NTf2]2.

Author Contributions

Conceptualization, A.C. and S.V.C.; methodology, A.V.M.; validation, A.V.M., A.L. and A.C.; formal analysis, N.N.S.; investigation, A.L., S.S.S. and N.N.S.; resources, A.C., S.V.C. and A.V.M.; data curation, A.C. and A.V.M.; writing—original draft preparation, A.C., S.V.C. and A.V.M.; writing—review and editing, A.C., S.V.C., S.S.S. and A.V.M.; funding acquisition, S.S.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Higher Education of the Russian Federation (FSWR-2023-0024) using the equipment of the Collective Usage Center “New Materials and Resource-saving Technologies” (Lobachevsky State University of Nizhny Novgorod) and the Scholarship of the President of the Russian Federation for young scientists and postgraduate students (SP-1369.2022.4).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within this article or Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. MacFarlane, D.R.; Kar, M.; Pringle, J.M. Fundamentals of Ionic Liquids: From Chemistry to Applications; Wiley-VCH: Weinheim, Germany, 2017. [Google Scholar] [CrossRef]
  2. Plechkova, N.V.; Seddon, K.R. Applications of ionic liquids in the chemical industry. Chem. Soc. Rev. 2008, 37, 123–150. [Google Scholar] [CrossRef]
  3. Egorova, K.S.; Gordeev, E.G.; Ananikov, V.P. Biological activity of ionic liquids and their application in pharmaceutics and medicine. Chem. Rev. 2017, 117, 7132–7189. [Google Scholar] [CrossRef] [PubMed]
  4. Zaitsau, D.H.; Kabo, G.J.; Strechan, A.A.; Paulechka, Y.U.; Tschersich, A.; Verevkin, S.P.; Heintz, A. Experimental vapor pressures of 1-alkyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imides and a correlation scheme for estimation of vaporization enthalpies of ionic liquids. J. Phys. Chem. A 2006, 110, 7303–7306. [Google Scholar] [CrossRef]
  5. Verevkin, S.P.; Zaitsau, D.H.; Emel’yanenko, V.N.; Yermalayeu, A.V.; Schick, C.; Liu, H.; Maginn, E.J.; Bulut, S.; Krossing, I.; Kalb, R. Making sense of enthalpy of vaporization trends for ionic liquids: New experimental and simulation data show a simple linear relationship and help reconcile previous data. J. Phys. Chem. B 2013, 117, 6473–6486. [Google Scholar] [CrossRef]
  6. Zaitsau, D.H.; Varfolomeev, M.A.; Verevkin, S.P.; Stanton, A.D.; Hindman, M.S.; Bara, J.E. Structure–property relationships in ionic liquids: Influence of branched and cyclic groups on vaporization enthalpies of imidazolium-based ILs. J. Chem. Thermodyn. 2016, 93, 151–156. [Google Scholar] [CrossRef]
  7. Barulli, L.; Mezzetta, A.; Brunetti, B.; Guazzelli, L.; Vecchio Ciprioti, S.; Ciccioli, A. Evaporation thermodynamics of the tetraoctylphosphonium bis(trifluoromethansulfonyl)imide ([P8888]NTf2) and tetraoctylphosphonium nonafluorobutane-1-sulfonate ([P8888]NFBS) ionic liquids. J. Mol. Liq. 2021, 333, 115892. [Google Scholar] [CrossRef]
  8. Chen, Y.; Han, X.; Liu, Z.; Li, Y.; Sun, H.; Wang, H.; Wang, J. Thermal decomposition and volatility of ionic liquids: Factors, evaluation and strategies. J. Mol. Liq. 2022, 366, 120336. [Google Scholar] [CrossRef]
  9. Brunetti, B.; Ciccioli, A.; Gigli, G.; Lapi, A.; Misceo, N.; Tanzi, L.; Vecchio Ciprioti, S. Vaporization of the prototypical ionic liquid BMImNTf2 under equilibrium conditions: A multi technique study. Phys. Chem. Chem. Phys. 2014, 16, 15653–15661. [Google Scholar] [CrossRef]
  10. Anderson, J.L.; Ding, R.; Ellern, A.; Armstrong, D.W. Structure and properties of high stability geminal dicationic ionic liquids. J. Am. Chem. Soc. 2005, 127, 593–604. [Google Scholar] [CrossRef]
  11. Gindri, I.M.; Siddiqui, D.A.; Bhardwaj, P.; Rodriguez, L.C.; Palmer, K.L.; Frizzo, C.P.; Martins, M.A.P.; Rodrigues, D.C. Dicationic imidazolium-based ionic liquids: A new strategy for non-toxic and antimicrobial materials. RSC Adv. 2014, 4, 62594–62602. [Google Scholar] [CrossRef]
  12. Pandolfi, F.; Bortolami, M.; Feroci, M.; Fornari, A.; Scarano, V.; Rocco, D. Recent advances in imidazolium-based dicationic ionic liquids as organocatalysts: A mini-review. Materials 2022, 15, 866. [Google Scholar] [CrossRef]
  13. Vitorino, J.; Leal, J.P.; Licence, P.; Lovelock, K.R.J.; Gooden, P.N.; Minas da Piedade, M.E.; Shimizu, K.; Rebelo, L.P.N.; Canongia Lopes, J.N. Vaporisation of a dicationic ionic liquid revisited. Chem. Phys. Chem. 2010, 11, 3673–3677. [Google Scholar] [CrossRef] [PubMed]
  14. Chilingarov, N.S.; Zhirov, M.S.; Shmykova, A.M.; Martynova, E.A.; Glukhov, L.M.; Chernikova, E.A.; Kustov, L.M.; Markov, V.Y.; Ioutsi, V.A.; Sidorov, L.N. Evaporation study of an ionic liquid with a double-charged cation. J. Phys. Chem. A 2018, 122, 4622–4627. [Google Scholar] [CrossRef]
  15. Blokhin, A.V.; Paulechka, Y.U.; Strechan, A.A.; Kabo, G.J. Physicochemical properties, structure, and conformations of 1-butyl-3-methylimidazolium bis(trifluoromethanesulfonyl)imide [C4mim]NTf2 ionic liquid. J. Phys. Chem. B 2008, 112, 4357–4364. [Google Scholar] [CrossRef]
  16. Liu, K.T.-C.; Haines, R.S.; Harper, J.B. The effect of bisimidazolium-based ionic liquids on a bimolecular substitution process. Are two head(group)s better than one? Org. Biomol. Chem. 2020, 18, 7388–7395. [Google Scholar] [CrossRef]
  17. Ciccioli, A.; Latini, A.; Luongo, A.; Smirnova, N.N.; Markin, A.V.; Vecchio Ciprioti, S. Thermodynamic study of formamidinium lead iodide (CH5N2PbI3) from 5 to 357 K. Entropy 2022, 24, 145. [Google Scholar] [CrossRef]
  18. Westrum, E.F. Determination of purity and phase behavior by adiabatic calorimetry. In Analytical Calorimetry; Porter, R.S., Johnson, J.F., Eds.; Springer: Boston, MA, USA, 1968. [Google Scholar] [CrossRef]
  19. Shirota, H.; Mandai, T.; Fukazawa, H.; Kato, T. Comparison between dicationic and monocationic ionic liquids: Liquid density, thermal properties, surface tension, and shear viscosity. J. Chem. Eng. Data 2011, 56, 2453–2459. [Google Scholar] [CrossRef]
  20. Endo, T.; Sakaguchi, K.; Higashihara, K.; Kimura, Y. Structure–property relationship for 1-Isopropyl-3-methylimidazolium- and 1-tert-butyl-3-methylimidazolium-based ionic liquids: Thermal properties, densities, viscosities, and quantum chemical calculations. J. Chem. Eng. Data 2019, 64, 5857–5868. [Google Scholar] [CrossRef]
  21. Kazakov, A.; Magee, J.W.; Chirico, R.D.; Paulechka, E.; Diky, V.; Muzny, C.D.; Kroenlein, K.; Frenkel, M. NIST Standard Reference Database 147: Ionic Liquids Database—ILThermo (Version 2.0); National Institute of Standards and Technology: Gaithersburg, MD, USA, 2006. Available online: http://ilthermo.boulder.nist.gov (accessed on 28 August 2024).
  22. Liu, J.; Yang, W.; Li, Z.; Ren, F.; Hao, H. Experimental investigation of thermo-physical properties of geminal dicationic ionic compounds for latent thermal energy storage. J. Mol. Liq. 2020, 307, 112994. [Google Scholar] [CrossRef]
  23. Paulechka, Y.U.; Kabo, G.J.; Blokhin, A.V.; Shaplov, A.S.; Lozinskaya, E.I.; Vygodskii, Y.S. Thermodynamic properties of 1-alkyl-3-methylimidazolium bromide ionic liquids. J. Chem. Thermodyn. 2007, 39, 158–166. [Google Scholar] [CrossRef]
  24. Debye, P. Zur Theorie der spezifischen Wärmen. Ann. Phys. 1912, 344, 789–839. [Google Scholar] [CrossRef]
  25. Paulechka, Y.U.; Blokhin, A.V.; Kabo, G.J.; Strechan, A.A. Thermodynamic properties and polymorphism of 1-alkyl-3-methylimidazolium bis(triflamides). J. Chem. Thermodyn. 2007, 39, 866–877. [Google Scholar] [CrossRef]
  26. Zábranský, M.; Růžička, V., Jr. Estimation of the heat capacity of organic liquids as a function of temperature using group additivity: An amendment. J. Phys. Chem. Ref. Data 2004, 33, 1071–1081. [Google Scholar] [CrossRef]
  27. Prohaska, T.; Irrgeher, J.; Benefield, J.; Böhlke, J.; Chesson, L.; Coplen, T.; Ding, T.; Dunn, P.; Gröning, M.; Holden, N.; et al. Standard atomic weights of the elements 2021 (IUPAC Technical Report). Pure Appl. Chem. 2022, 94, 573–600. [Google Scholar] [CrossRef]
  28. Varushchenko, R.M.; Druzhinina, A.I.; Sorkin, E.L. Low-temperature heat capacity of 1-bromoperfluorooctane. J. Chem. Thermodyn. 1997, 29, 623–637. [Google Scholar] [CrossRef]
  29. Preston-Thomas, H. The international temperature scale of 1990 (ITS-90). Metrologia 1990, 27, 3–10. [Google Scholar] [CrossRef]
  30. Strouse, G.F.; Tew, W.L. Assessment of Uncertainties of Calibration of Resistance Thermometers at the National Institute of Standards and Technology NISTIR 5319, 1994. Available online: https://www.nist.gov/sites/default/files/documents/calibrations/5319.pdf (accessed on 28 August 2024).
  31. Sparasci, F.; Pitre, L.; Rouillé, G.; Thermeau, J.-P.; Truong, D.; Galet, F.; Hermier, Y. An adiabatic calorimeter for the realization of the ITS-90 in the cryogenic range at the LNE-CNAM. Int. J. Thermophys. 2011, 32, 201–214. [Google Scholar] [CrossRef]
  32. Sabbah, R.; Xu-wu, A.; Chickos, J.S.; Planas Leitão, M.L.; Roux, M.V.; Torres, L.A. Reference materials for calorimetry and differential thermal analysis. Thermochim. Acta 1999, 331, 93–204. [Google Scholar] [CrossRef]
  33. Archer, D.G. Thermodynamic properties of synthetic sapphire (α-Al2O3), standard reference material 720 and the effect of temperature-scale differences on thermodynamic properties. J. Phys. Chem. Ref. Data 1993, 22, 1441–1453. [Google Scholar] [CrossRef]
  34. Douglas, T.B.; Furukawa, G.T.; McCoskey, R.E.; Ball, A.F. Calorimetric properties of normal heptane from 0 to 520 K. J. Res. Natl. Bur. Stand. 1954, 53, 139–153. [Google Scholar] [CrossRef]
  35. Furukawa, G.T.; McCoskey, R.E.; King, G.J. Calorimetric properties of benzoic acid from 0 to 410 K. J. Res. Natl. Bur. Stand. 1951, 47, 256–261. [Google Scholar] [CrossRef]
Molecules 29 04180 g001

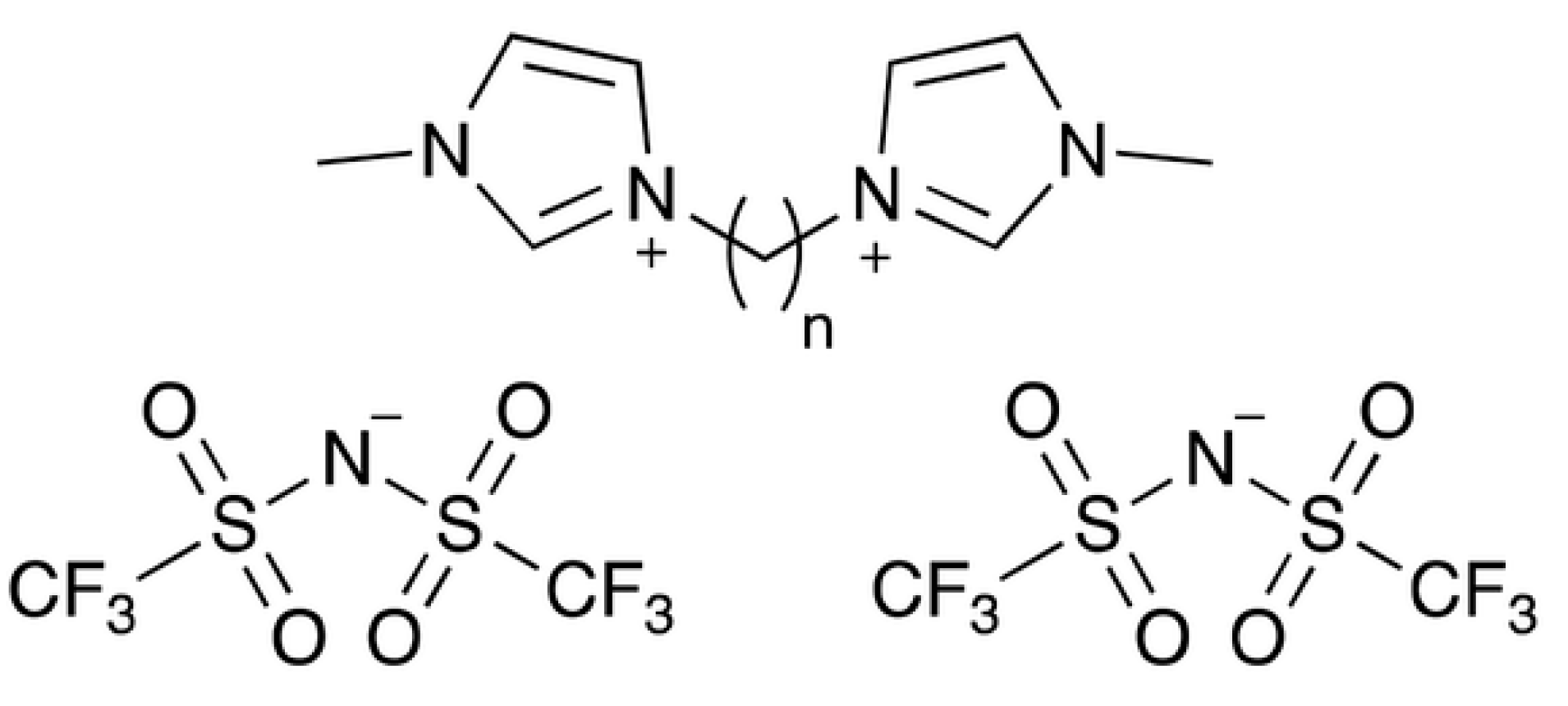

Figure 1. General formula of imidazolium-based DILs with NTf2 anions.
Figure 1. General formula of imidazolium-based DILs with NTf2 anions.
Molecules 29 04180 g001
Molecules 29 04180 g002

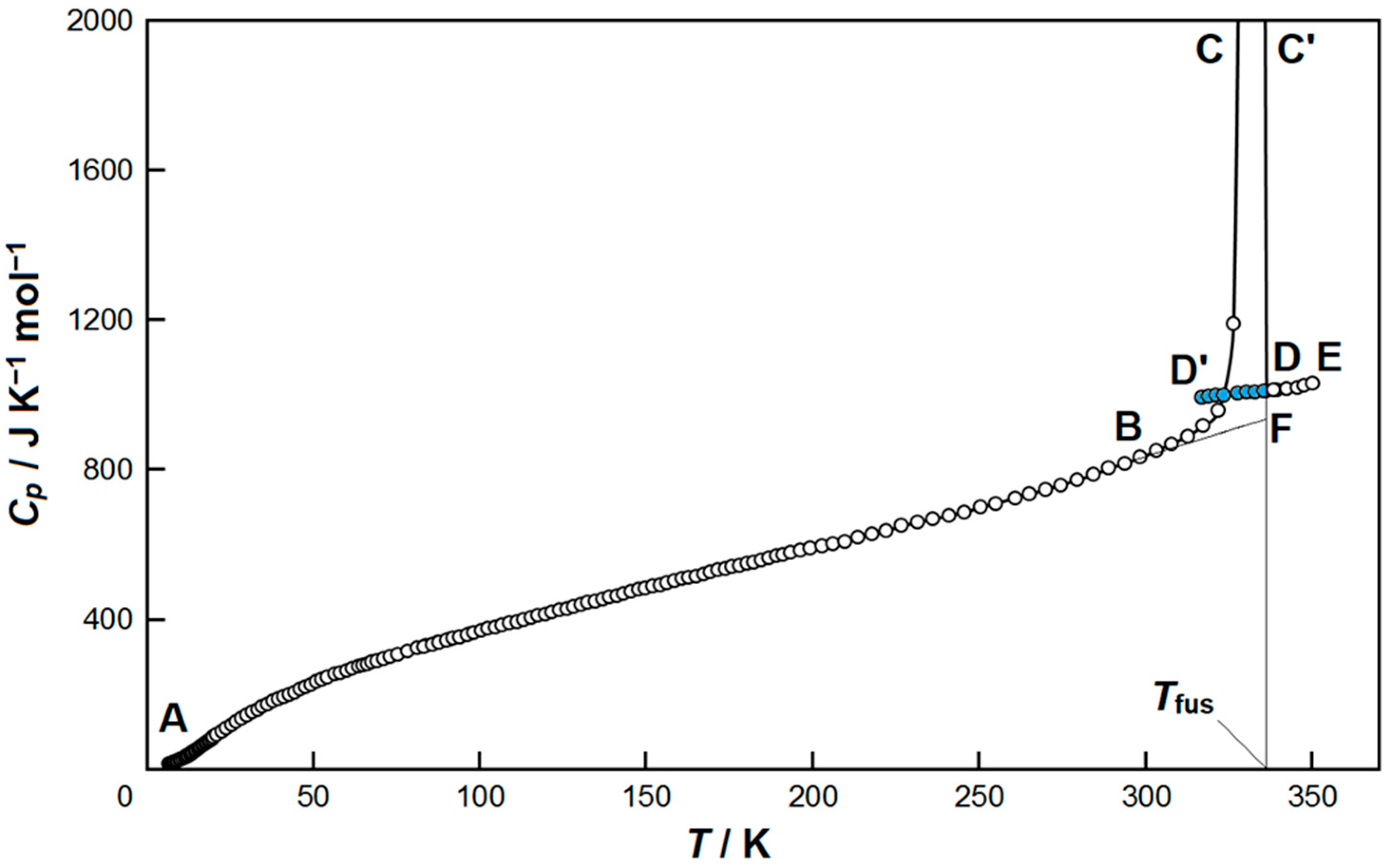

Figure 2. The heat capacity of [C4(MIm)2][NTf2]2 in the temperature range 6–350 K: Tfus is the temperature of fusion; ABF—crystalline state; DE—liquid state; DD’—supercooled liquid state (colored circles); BCC’D—an apparent heat capacity in the interval of fusion.
Figure 2. The heat capacity of [C4(MIm)2][NTf2]2 in the temperature range 6–350 K: Tfus is the temperature of fusion; ABF—crystalline state; DE—liquid state; DD’—supercooled liquid state (colored circles); BCC’D—an apparent heat capacity in the interval of fusion.
Molecules 29 04180 g002
Molecules 29 04180 g003

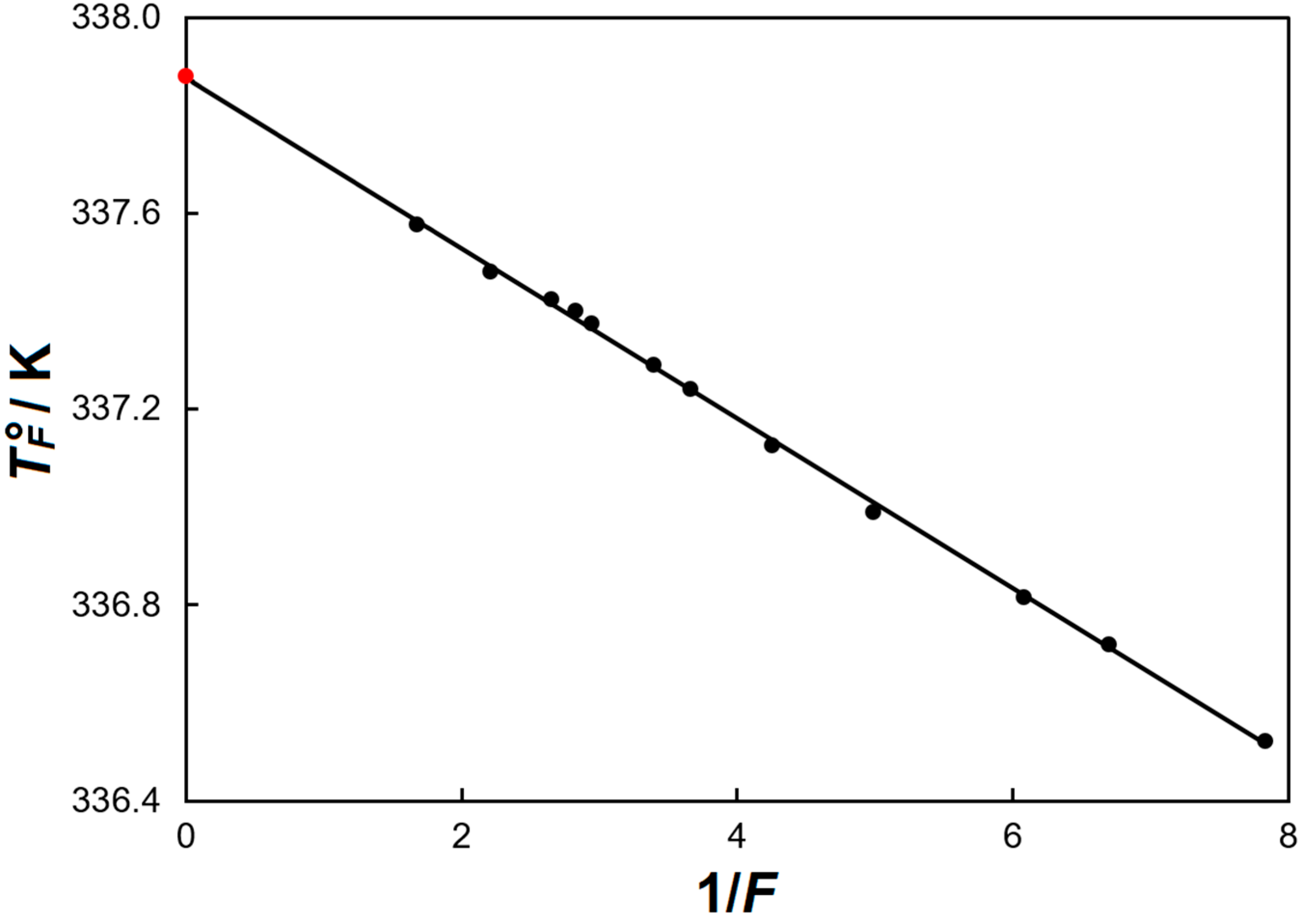

Figure 3. Results of the fractional melting experiment for dicationic ionic liquid [C4(MIm)2][NTf2]2.
Figure 3. Results of the fractional melting experiment for dicationic ionic liquid [C4(MIm)2][NTf2]2.
Molecules 29 04180 g003
Table 1. The experimental molar heat capacity (in J K−1 mol−1) of dicationic ionic liquid [C4(MIm)2][NTf2]2 (M(C16H20F12N6O8S4) = 780.56 g mol−1) 1.
Table 1. The experimental molar heat capacity (in J K−1 mol−1) of dicationic ionic liquid [C4(MIm)2][NTf2]2 (M(C16H20F12N6O8S4) = 780.56 g mol−1) 1.
T/KCpT/KCpT/KCp
Series 1
6.5214.117.1467.4947.73220.5
6.8514.717.6170.6849.37226.6
7.2216.118.0973.6051.01232.6
7.5217.118.5776.4952.66238.5
7.8118.319.0579.7954.31244.5
8.2119.619.5383.0956.40251.7
8.7421.420.0186.2958.11257.3
9.2123.720.9992.5660.12263.9
9.7825.822.45102.161.81269.1
10.3328.223.94110.963.62274.8
10.8930.325.45120.065.11279.4
11.3532.726.98128.766.31282.8
11.8435.028.51137.867.63286.7
12.1436.430.07145.069.30291.2
12.6138.831.64153.371.17296.8
13.0841.933.21161.173.23302.3
13.4443.534.80167.875.42307.6
13.9046.136.39175.078.25315.9
14.3549.037.99182.281.23323.8
14.8152.039.60188.583.84330.3
15.2755.4141.21195.087.31338.1
15.7357.9042.84201.190.88347.3
16.2060.9344.46207.893.85355.0
16.6764.2646.35215.296.81362.0
Series 2
83.12328.0149.78484.5236.12669.0
85.67334.8151.97489.5240.86678.9
87.77340.0154.14493.8245.59688.3
89.88344.9156.31498.1250.33700.1
91.99350.4158.47503.9255.07711.4
94.10355.4160.64509.6260.91725.5
96.21360.6162.82513.8265.13736.3
98.33365.9164.99517.5269.88747.5
100.45371.2167.17522.9274.63760.7
102.57376.5169.34527.7279.39773.3
104.69380.8171.52532.1284.15787.4
106.81386.3173.70537.0288.89804.2
108.94390.9175.88541.1293.65817.5
111.07395.9178.06545.3298.38834.1
113.20401.3180.24550.0303.10850.9
115.34405.8182.42554.7307.81870.5
117.49411.0184.61560.0312.50890.8
119.63415.6186.82566.0317.18(917.5)
121.77421.4189.01569.8321.84(958.9)
123.91425.8191.20574.4326.35(1190)
126.06430.4193.39579.2329.23(3998)
128.21435.7196.12586.2331.24(9457)
130.36441.0199.21592.6333.21(12,079)
132.51446.0202.88598.2334.03(15,155)
134.66450.6206.10603.3334.15(23,042)
136.82455.5209.67610.2334.37(9651)
138.98460.0213.71619.0336.211011
141.14465.4217.81628.1339.241013
143.29469.6222.02637.8342.211017
145.45475.1226.73651.0
147.62480.1231.41659.7
Series 3
316.69994330.211007345.411021
318.74997332.901008347.511025
321.121000335.421010350.121032
323.491000338.211013
327.521006342.421017
Series 4
266.13738.0327.281060337.4270,215
269.33749.0330.731280337.4872,541
271.92754.0331.801351337.5885,145
275.02763.0332.801460337.58120,451
278.42771.0334.651740337.59200,471
281.52780.0335.782011337.60243,321
284.34788.0336.524655337.61281,541
287.91800.2336.728858337.64180,451
290.31808.0336.829501337.6792,514
294.12820.0336.9914,214337.7410,012
297.01836.0337.1315,111337.781010
308.54880.0337.2422,154338.821014
311.90888.9337.2927,581340.521015
316.27915.9337.3730,145
320.16956.7337.4035,214
1 The standard uncertainty for temperature u(T) = 0.01 K in the interval of T = (6.52 to 350.12) K in Series 1–4. The combined expanded relative uncertainty for the heat capacity Uc,r(Cp) = 0.02, 0.005, and 0.002 in the intervals of T = (6.52 to 15.27) K, T = (15.73 to 41.21) K, T = (42.84 to 350.12) K in Series 1–4, respectively. The reported uncertainties correspond to the 0.95 confidence level (k ≈ 2). Series 1: the Cp values correspond to the crystalline state. Series 2: the Cp values correspond to the crystalline state (T = (83.12–307.81) K) and the liquid state (T = (336.21–342.21) K); the Cp values in brackets correspond to an apparent heat capacity in the interval of fusion. Series 3: the Cp values correspond to the supercooled state (T = (316.69–335.42) K) and the liquid state (T = (338.21–350.12) K. Series 4: fractional melting experiment.
Table 2. The experimental determination of the enthalpy of fusion of the dicationic ionic liquid [C4(MIm)2][NTf2]2 (M(C16H20F12N6O8S4) = 780.56 g mol−1; p° = 0.1 MPa) 1.
Table 2. The experimental determination of the enthalpy of fusion of the dicationic ionic liquid [C4(MIm)2][NTf2]2 (M(C16H20F12N6O8S4) = 780.56 g mol−1; p° = 0.1 MPa) 1.
T°i1/KT°f1/KΔH°1/JΔH°2/JΔH°3/J g−1ΔH°4/J g−1ΔfusH°/J mol−1
281.21342.58155.5278.3563.216.10852,520
280.34345.24162.9882.9164.089.46653,220
285.32347.15157.5179.1959.0812.0952,655
Mean value:
(52.79 ± 0.28) kJ mol−1
1 ΔH°1 is the energy introduced at the heating of the calorimeter with the sample from the onset temperature (T°i) to the end temperature (T°f); ΔH°2 = ∫ T ° i T ° f C cal d T is the energy supplied to heat the empty calorimeter (Ccal is the heat capacity of the calorimeter); ΔH°3 = ∫ T ° i T ° f u s C ° p cr d T and ΔH°4 = ∫ T ° f u s T ° f C ° p liq d T Are the energies supplied to heat the studied sample in crystalline and liquid states, respectively (C°p(cr) and C°p(liq)) the heat capacities of crystalline and liquid states of ionic liquid, respectively)? The sample mass was (0.56495 ± 0.00001) g. The enthalpy of fusion ΔfusH° was calculated by the following equation: ΔfusH° = [(ΔH°1 − ΔH°2)/m − ΔH°3 − ΔH°4] M.
Table 3. Thermodynamic data on the equilibrium fusion temperature (T°F) vs. the inverse fraction (F−1) of the melted [C4(MIm)2][NTf2]2.
Table 3. Thermodynamic data on the equilibrium fusion temperature (T°F) vs. the inverse fraction (F−1) of the melted [C4(MIm)2][NTf2]2.
T°F (exp.)/KFF−1T°F (calc.)/K
336.520.12767.835336.52
336.720.14946.696336.72
336.820.16456.078336.82
336.990.20044.989337.01
337.130.23504.255337.14
337.240.27283.666337.24
337.290.29433.398337.29
337.370.33932.947337.37
337.400.35382.826337.39
337.420.37682.654337.42
337.480.45282.209337.50
337.580.59661.676337.59
11.000337.70
∞0.000337.88
Table 4. The standard thermodynamic functions of the dicationic ionic liquid [C4(MIm)2][NTf2]2 (M(C16H20F12N6O8S4) = 780.56 g mol−1) 1.
Table 4. The standard thermodynamic functions of the dicationic ionic liquid [C4(MIm)2][NTf2]2 (M(C16H20F12N6O8S4) = 780.56 g mol−1) 1.
T/KC°p(T)/J K−1 mol−1[H°(T) − H°(0)]/kJ mol−1S°(T)/J K−1 mol−1−[G°(T) − H°(0)]/kJ mol−1
Solid
57.460.009952.680.00342
1553.20.29029.200.148
2086.120.638348.990.3415
25117.51.14971.640.6424
30145.11.80795.561.060
35168.92.593119.81.598
40190.13.491143.72.257
45210.04.492167.33.035
50228.95.590190.43.929
60263.68.056235.36.059
70293.210.84278.28.628
80320.213.91319.111.62
90345.417.24358.315.00
100370.020.82396.018.78
110393.624.64432.322.92
120416.728.69467.627.42
130439.932.97501.832.27
140462.837.49535.337.45
150485.142.23568.042.97
160507.047.19600.048.82
170528.752.37631.454.97
180550.357.76662.261.44
190572.063.37692.568.21
200593.369.20722.475.29
210611.675.22751.882.66
220633.781.45780.890.32
230655.987.89809.498.27
240677.694.56837.8106.5
250699.6101.4865.9115.0
260722.7108.6893.8123.8
270748.0115.9921.5132.9
280775.8123.6949.2142.3
290806.3131.5977.0151.9
298.15836.0138.1999.7159.9
300841.8139.71005161.8
310874.4148.31033172.0
320907.0157.21061182.5
330939.6166.41090193.2
337.88963.8173.91112201.9
Liquid
337.881012226.71269201.9
3401014228.91275204.6
3501032239.11304217.5
1 The expanded uncertainty for pressure U(p°) = 0.5 kPa. The standard uncertainty for temperature u(T) = 0.01 K between T = 6 K and T = 350 K. The combined expanded relative uncertainties Uc,r(C°p (T)) = 0.02, 0.005, and 0.002; Uc,r([H°(T) – H°(0)]) = 0.022, 0.007, and 0.005; Uc,r([S°(T) – S°(0)]) = 0.023, 0.008, and 0.006; Uc,r([G°(T) − H°(0)]) = 0.03, 0.01, and 0.009 in intervals of T = (6 to 15) K, T = (15 to 40) K, and T = (40 to 350) K, respectively. The reported uncertainties correspond to the 0.95 confidence level (k ≈ 2).
Table 5. Sample information.
Table 5. Sample information.
Chemical NameSourcePurification MethodPurity/%Analysis Method
1,4-bis(3-methylimidazolium-1-yl)butane bis(trifluoromethylsulfonyl)imide [C4(MIm)2][NTf2]2SynthesisRepeated washing with water; drying in vacuum>99.0
(mole fraction)		1H NMR
spectroscopy,
TG analysis,
adiabatic
calorimetry
1,4-bis(3-methylimidazolium-1-yl)butane dibromide [C4(MIm)2][Br]2Repeated washing with ethyl acetate; drying in vacuum1H NMR
spectroscopy
1-butyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide [C4MIm][NTf2]
CAS No.: 174899-83-3		Sigma-AldrichWithout any purification>99.0
(mass fraction)		—
lithium bis(trifluoromethylsulfonyl)imide Li[NTf2]
CAS No.: 90076-65-6
1,4-dibromobutane C4H8Br2
CAS No.: 110-52-1
1-methylimidazole C4H6N2
CAS No.: 616-47-7		Purified by distillation
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Markin, A.V.; Ciccioli, A.; Lapi, A.; Sologubov, S.S.; Smirnova, N.N.; Vecchio Ciprioti, S. Thermodynamic Study of 1,4-Bis(3-methylimidazolium-1-yl)butane Bis(trifluoromethylsulfonyl)imide ([C4(MIm)2][NTf2]2) from 6 to 350 K. Molecules 2024, 29, 4180. https://doi.org/10.3390/molecules29174180

AMA Style

Markin AV, Ciccioli A, Lapi A, Sologubov SS, Smirnova NN, Vecchio Ciprioti S. Thermodynamic Study of 1,4-Bis(3-methylimidazolium-1-yl)butane Bis(trifluoromethylsulfonyl)imide ([C4(MIm)2][NTf2]2) from 6 to 350 K. Molecules. 2024; 29(17):4180. https://doi.org/10.3390/molecules29174180

Chicago/Turabian Style

Markin, Alexey V., Andrea Ciccioli, Andrea Lapi, Semen S. Sologubov, Natalia N. Smirnova, and Stefano Vecchio Ciprioti. 2024. "Thermodynamic Study of 1,4-Bis(3-methylimidazolium-1-yl)butane Bis(trifluoromethylsulfonyl)imide ([C4(MIm)2][NTf2]2) from 6 to 350 K" Molecules 29, no. 17: 4180. https://doi.org/10.3390/molecules29174180

APA Style

Markin, A. V., Ciccioli, A., Lapi, A., Sologubov, S. S., Smirnova, N. N., & Vecchio Ciprioti, S. (2024). Thermodynamic Study of 1,4-Bis(3-methylimidazolium-1-yl)butane Bis(trifluoromethylsulfonyl)imide ([C4(MIm)2][NTf2]2) from 6 to 350 K. Molecules, 29(17), 4180. https://doi.org/10.3390/molecules29174180

Article Metrics

Back to TopTop
