Article

Quantum Chemical Stability Analysis of Phthalocyanine Metal One-Dimensional Polymers with Bidentate Ligands

by
Anna Szwajca
and
Radosław Pankiewicz
*
Faculty of Chemistry, Adam Mickiewicz University in Poznań, Uniwersytetu Poznańskiego 8, 61-614 Poznan, Poland
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(17), 4111; https://doi.org/10.3390/molecules29174111
Submission received: 1 August 2024 / Revised: 26 August 2024 / Accepted: 27 August 2024 / Published: 30 August 2024
(This article belongs to the Special Issue Synthesis, Structural Analysis, and Applications of N, O-Donor Ligands and Their Coordination Polymers)
Browse Figures
Versions Notes

Abstract

The combination of metal–phthalocyanine complexes and axially coordinated organic molecules into polymer chains presents a significant challenge in the synthesis of hybrid materials. A calculated structure for one-dimensional coordinate polymers with N-donor ligands using ab initio (PM6) and DFT (LanL2Dz) methods is presented. DFT methods have shown that there is a linear, one-dimensional structure without distorted geometry for the two bipyridine ligands. The components of the proposed polymers consist of square-planar Zn complexes of phthalocyanine (PcZn) connected via bridging ligands (L). Electronic properties of the monomer PcZnL of zinc phthalocyanine with bidentate ligands have been analyzed using calculations based on density functional theory (B3LYP6-31G(d,p)). Molecular orbital calculations show that this connection between the metallomacrocycle and the conjugated ligand results in a small energy gap, promising molecularly active materials as conductors. The crystallographic reports indicate that obtaining this kind of polymer with the participation of Pc Zn and bidentate ligands is possible.

1. Introduction

Phthalocyanine-shaped molecules are P-type semiconductors characterized by high thermal and chemical stability. They also exhibit interesting optical, electrical, and magnetic properties with good prospects in electronics, optoelectronics, and photovoltaics [1,2,3,4]. Phthalocyanine (Pc) molecules, with their ability to incorporate various metal ions at their center, can easily tune the electronic and optical properties of the compound without significantly altering its overall structure [5,6]. Metal complexes containing phthalocyanine allow for self-assembly on metal surfaces without aggregation. These macrocyclic compounds have also shown interesting molecular switching behaviors [7]. A significant disadvantage of these compounds is their low solubility. To improve the solubility of metallomacrocycle compounds, the macrocyclic ring can be modified by substituting hydrogen atoms with various organic substituents or additional metal center ligation. Modifying the solubility of phthalocyanines by coordinating additional axial ligands to the metal center is an effective, one-step strategy. This approach can significantly alter the physical and chemical properties of phthalocyanine, including its solubility and reactivity. Limiting the considerations to one central atom allowed for a significant focus in the planned research. The titular PcZn has unique properties that make it a valuable tool in photodynamic therapy and other areas of medicine and technology. Its ability to deeply penetrate tissues, high efficiency of ROS generation, and versatility in various applications make it unique compared to other phthalocyanines. Numerous publications in the literature describe the stability of PcZn complexes with N-donor ligands, the interpretation of UV-Vis-NIR spectra of modified PcZn, the characteristics of hydrogen bonds in dimeric zinc phthalocyanine complexes, and the effect of the solvent on the planarity and aromaticity of free and monohydrate zinc phthalocyanine [8,9,10,11]. Our attention was also drawn to publications documenting the crystallographic structures of the Zn complex and studies in the literature on methods of polymer synthesis involving phthalocyanines [3,10,11,12]. Both crystallographic results and synthetic reports influenced the concept of our research. When planning polymers with Pc Zn, the combination of Pc with a bidentate ligand in a 1:1 ratio should be considered as the main motif of the coordination polymer. Known structures of 1:1 PcZn complexes included bidentate N-donating ligands, such as pyrazine, imidazole, N-methylimidazole, and N-(2 pyrimidinyl) imidazole, which were obtained in crystalline forms [13,14,15,16,17,18,19]. Such complexes can be obtained in the reaction carried out in an autoclave at high temperatures and for several days [14]. Data indicate that most examples of Pc Zn coordination complexes with bidentate ligands are formed in an H shape(Pc/ligand/Pc) and T shape (Pc/ligand) [14,15]. This is a temperature-dependent reaction. The 2PcZn/1ligand complex is more stable than the 1PcZn/1ligand complex. The axial bond of the Zn and N atoms of ligand in the T-shaped complex is stronger by about 0.029 Å than in the H-shaped complex. These results demonstrate that the bridging effect of Pc rings with ligands is achievable and controllable. Axial complexes show better solubility than the initial Pc; thus, it is easier to carry out subsequent stages of polymer band growth. PcZn complex crystals are soluble in 1-chloronaphthalene, quinoline, pyridine, and other N-donating solvents and also slightly soluble in benzene, DMSO, and CH2Cl2. The strategy of polymer compounds seems to be effective in obtaining crystalline and highly soluble polymers [14].

2. Results and Discussion

In the center, the phthalocyanine PcZn molecule contains four pyrrole subunits connected by four azomethine bridges, representing the porphyrinoid class, and forms a complex macrocycle (Figure 1). In our structural considerations, we limited ourselves to examining the connections between the central Zn atom and the four nitrogen atoms.
The N-heterocycles selected for the study can be used as ligands in coordination and organometallic chemistry [20,21,22,23]. All of the compounds (Figure 2 I–VI): (E)-1,2-di(pyridin-4-yl)ethane (I), (E)-1,2-di(pyridin-3-yl)ethane (II), (Z)-1,2-di(pyridin-4-yl)ethane (III), (Z)-1,2-di(pyridin-3-yl)ethane (IV), 3,8-phenanthroline (V), and 2,8-phenanthroline (VI) are commercially available compounds or their laboratory synthesis results in a pure product. The basic structural element of these compounds is two pyridine rings connected in various ways by the -CH2=CH2- group. The degree of complexity of such compounds ranges from alkyl-separated pyridines to phenanthroline systems. All of them are bidentate, conjugated linkers between zinc atoms.
The crystal structures of axially coordinated PcZn complexes, known from the literature, such as PcZn(4-CH3Py), PcZn(4-NH2Py), PcZn(1,4-diPy) and 1,2-di(4-Py)ethane, 1,2-di(4-Py) dyl)ethylene, 1,2-di(4-Pypropane), where the central Zn atom is coordinated by four nitrogen atoms from isoindole units of the Pc ring system and one nitrogen atom from the pyridine ligand, provide detailed information on bond lengths. The bond distances from the Zn atom to the N1-N4 atoms of the Pc ring range from 2.0278 to 2.03 Å, while the distance to the nitrogen atom of the axial ligand is slightly longer, at 2.09 Å. The angle between the Pc plane (referred to as the N4 plane) and the plane of the PcZn(4-NH2Py) molecule is 87.60°, indicating that the pyridine-based ligand is almost perpendicular to the Pc plane [13,18,24,25]. All bond distances and angle relationships were included in the calculated structures. In addition to the angle between the axial ligand and the phthalocyanine ring plane, the dihedral angle was also analyzed, as shown below (Figure 3).
The assumption that the appropriate linker for phthalocyanine rings would be a bridging ligand consisting of two pyridine rings was confirmed by the obtained calculations. Among the selected structures of bidentate ligands, the distance between nitrogen atoms varied, from the shortest at 6.53 Å for ligand L VI to the longest at 9.49 Å for ligand LI, which corresponds to the intended distance between Pc rings in the target polymers.

2.1. Geometry Optimization of PcZn Complex with Ligands (I–VI)

The optimization of PcZn coordination complexes was performed using the DFT/B3LYP method with the 6-31G(d,p) basis set. The XYZ coordinates of the calculated structures are provided in the Supplementary Materials. For the PcZn polymers, the LanL2DZ basis set was employed. For theoretical calculations of macrocyclic electronic structures, modern density functional theory (DFT) approaches are currently most suitable for accuracy and computational cost. The DFT calculations performed in this work were utilized based on their sufficient accuracy with minimal computational cost. For the DFT calculations performed on the complex of Zn phthalocyanines, the medium-sized 6-31G(d,p) was used. Calculations on similar systems with larger basis sets provided similar accuracies to 6-31G(d,p) [9]. The calculated geometric parameters of the proposed axial complexes of zinc phthalocyanine with bipyridine derivatives as bidentate ligands are listed in Table 1. In LI-LVI ligand, both pyridine rings are conjugated, resulting in four planar structures and two non-planar structures. The geometric arrangement of the ligand relative to the Pc ring is consistent in each case, regardless of the complexity of the ligand (Figure 4a,b). The obtained bond lengths between the central zinc atom and the nearest four nitrogen atoms (2.04 Å) closely match the bonds measured in crystallographic structures, which are 2.03 Å.
As expected, the Zn–N ligand connection is slightly longer than the others, measuring 2.15 Å compared to 2.10 Å in crystallographic systems. The convergence of the N ligand Zn-N angle of the Pc ring (on average about 100°) and the dihedral angle (43–45°) confirms that the model systems accurately reflect the real structure for ligands containing a pyridine ring as a direct link with the phthalocyanine metal.
A significant diversity among the selected group of ligands was observed when comparing their calculated stability energy values (Table 2). The favorable systems were the PcZn complexes with the LI and LIII ligands, followed by LII, LIV, and LVI. The least stable system was PcZnLV. These values indicate the complexity of matching the axial ligand with the phthalocyanine ring. The Zn-NPy distance suggests that the bond is of a coordinate nature, and the negative charges are delocalized evenly on the Pc ring atoms, which provides additional stabilization.
The coordination complex PcZnII is the main motif of the coordination polymer Pc(PcZnII)3. The optimized ligand geometry is shown in Figure 5, along with the dipole moment orientation and partial atomic charge distribution (Mulliken). Comparing the data ligand vs. complex, one can see the change in the dipole moment orientation and its value, i.e., from 0 Debye (in the ligand) to 4.5939D Debye (in the complex).

2.2. HOMO LUMO of PcZn Complex with Ligands (I–VI)

Individual variability in the studied group of ligands is also reflected in the calculated energy gaps of the HOMO and LUMO molecular orbitals (Table 3). These values allowed us to characterize the selected group of complex compounds for their kinetic stability and chemical reactivity, which was similar to the values of the band gaps of Pc metal with bidentate ligands known from the literature [26]. The system with the smallest energy difference between the HOMO and LUMO orbitals was the PcZnLI compound (Eg = 1.8732 eV).
Figure 6a,b show a three-dimensional graph of the calculated molecular orbitals (B3LYP/6-31G(d,p)) for the PcZnLI complex. In the HOMO and LUMO diagrams, red and green colors indicate the different phases of the molecular orbitals. These phases are crucial for understanding constructive or destructive interference during chemical reactions. Below the drawing of the HOMO/LUMO orbital system for the compound with the greatest application potential, PcZnLI, the values and graphical representation of the orbitals for the PcZnLIV compound (Figure 6c,d), which has the lowest parameters in the given group, are displayed.
The theoretical planning of the range of Pc-type complexes with axial ligands reveals the complexity of matching the structure to the expected applications. Among the presented group, the phthalocyanine zinc (PcZn) with the axial ligand LI is the most energetically stable and exhibits good optical properties. The HOMO orbital is mainly distributed over the system of the Pc fragment. In turn, the unoccupied LUMO orbital is distributed over the ligand fragment (Figure 6a,b). A different distribution is observed for PcZnLIV, where the HOMO and LUMO orbitals are localized in the Pc fragment.

2.3. Geometry Optimization of Polymers Pc(PcZnL)3 (L = I and II)

Among the six planned coordination polymers, including zinc phthalocyanine and selected bridging ligands, three structures—Pc(PcZnLI)3, Pc(PcZnLII)3, and Pc(PcZnLV)3—were successfully optimized using the PM6 method. DFT/B3LYP calculations were performed for the Pc(PcZnLI)3 and Pc(PcZnLII)3 polymers with LANL2DZ as the basis set (Figure 7a,b). The calculated geometrical parameters are given in Table 4. These parameters (bond lengths, angles, and torsion angles) for the theoretical molecular structure of both coordination polymers did not differ significantly from the values obtained for their monomers. The only notable difference was the bond length between the central Zn atom and the N atom of the bridging ligand, which extended to 2.4 Å yet maintained the coordination bond of the polymers.
The optimized structures of both polymer strands are shown in Figure 7a,b. The use of both (E)-1,2-di(pyridin-4-yl)ethene and (E)-1,2-di(pyridin-3-yl)ethene as ligands for the phthalocyanine rings proved to be effective.
The difference in the formation of energies between polymers Pc(PcZnLI)3 and Pc(PcZnLII)3 is 0.0018 eV (Table 5), which, considering the limitations of DFT methods, can be regarded as negligible. This suggests that both polymers have similar stability.

2.4. HOMO LUMO of Polymers Pc(PcZnL)3 (L = I and II)

The analysis of physicochemical properties based on molecular orbital energy calculations of both polymers showed that the Pc(PcZnI)3 polymer may exhibit better conductivity properties compared to Pc(PcZnII)3, in which the pyridine rings of the linker are connected at position 3. The diagram of calculated HOMO and LUMO orbitals for the potentially most promising PcZn polymer is shown in Figure 8.
The electron density of DOS spectra for both polymers is given in Figure 9. The Eg. value between HOMO and LUMO is 2.0092 eV for Pc(PcZnI)3 and 2.1766 eV for Pc(PcZnII)3 (Table 6). Orbital energies calculated at the DFT level are error-prone and tend to be underestimated, but the trends seem to be similar. The underestimation of the HOMO-LUMO gap is because the B3LYP function does not fully account for long-range interactions. This leads to lower LUMO energy and a reduced HOMO-LUMO gap compared to the experimentally obtained values.
Analyzing the density of states (the number of states per energy interval) plays a pivotal role in understanding the electronic structure of new materials. The HOMO and LUMO regions provide crucial information about the abilities of material to conduct.

3. Methods

Quantum Chemical Calculations Methods

Theoretical calculations were performed with the Gaussian16, revision C.01 [27] with the B3LYP method and 6-31G(d,p) basis set [28,29,30] for Zn phthalocyanine, ligands, PcZnL and LanL2Dz [31] for (PcZnL)n. All the structures were obtained using their respective initial geometry estimates from the semiempirical PM6 method of calculation (MO-G Version 1.1, Fujitsu Limited, Tokyo, Japan, 2008) using the Scigress FJ2.6 (EU 3.1.9) software from Fujitsu, Tokyo, Japan, on a Windows workstation. The various orientations of ligands relative to a PcZn frame and their positions in polymer chains were tested using their respective crystallographic structures as starting points. The binding energy E was calculated according to Equation (1).
E = E(PcZnL) − E(PcZn) − E(L)
The vibrational frequencies of the studied systems were calculated to assess the stability of the proposed structures and confirm that they correspond to true energy minima. The calculations yielded no imaginary frequencies, indicating that the structures were indeed stable and represented true minima on the potential energy surface.
The GaussSum 3.3 program [32] was used to calculate the molecular frontier orbitals and determine the density of states (DOSs) for coordination polymers Pc(PcZnI)3 and Pc(PcZnII)3.

4. Conclusions

Density functional theory (DFT) is a reliable and widely accepted method for predicting molecular structures and physicochemical properties of compounds such as 1D coordination polymers. The possibility of using preliminary theoretical calculations of molecular structures of compounds with an extended structure, particularly using quantum chemical methods based on density functional theory (DFT), is one of the basic design tools in the chemical laboratory. The data obtained influence the potential synthetic route and facilitate the selection of reagents based on the benefits, such as the stability of the compound or its physicochemical properties. In this work, six selected, commercially available N-bidentate ligands were analyzed. All of the ligands consisted of two pyridine (Py) rings connected by a -CH=CH- bridge. Four of the ligands had their Py rings in either cis or trans positions relative to each other (C12H10N2), while the remaining two ligands were additionally connected by a single bond at the ortho position relative to the bridge (C12H8N2). The spatial arrangement of these ligands influences the distance between the nitrogen atoms and their overall dipole moments. Despite the small differences in the complex formation energies of these ligands with ZnPc in a 1:1 ratio, only two of them were identified as potential main motifs for the coordination polymer. However, the structures of both calculated polymers were equally stable due to the negligible difference between their formation energies, and they should not be considered as only isolated systems. Considering other stabilizing factors, the Pc(PcZnII)3 polymer is the more stable one. The key structural difference between these two polymers is the type of connection between the pyridine rings in the linker. In the Pc(PcZnII)3 polymer, the meta-connection results in a direct N-N distance of 9.490 Å, which influences the relative arrangement of the Pc rings. This arrangement could make structure II slightly more favorable due to an improved polymer geometry, stronger Zn-NPy coordination interactions, and more favorable intermolecular interactions, including a reduced steric strain.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29174111/s1. XYZ coordinates of structures.

Author Contributions

Conceptualization, A.S. and R.P.; methodology, A.S. and R.P.; data curation, A.S. and R.P.; writing—original draft preparation, A.S.; writing—review and editing, A.S. and R.P.; funding acquisition, R.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from the corresponding author upon request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Cui, L.Y.; Yang, J.; Fu, Q.; Zhao, B.Z.; Tian, L.; Yu, H.L. Synthesis, crystal structure and characterization of a new zinc phthalocyanine complex. J. Mol. Struct. 2007, 827, 149–154. [Google Scholar] [CrossRef]
  2. Ferraudi, G.; Lappin, A.G. Review: Properties and chemical reactivity of metallo phthalocyanine and tetramethylbenzoannulene complexes grafted into a polymer backbone. J. Coord. Chem. 2014, 67, 3822–3839. [Google Scholar] [CrossRef]
  3. Janczak, J. Water-Involved Hydrogen Bonds in Dimeric Supramolecular Structures of Magnesium and Zinc Phthalocyaninato Complexes. ACS Omega 2019, 4, 3673–3683. [Google Scholar] [CrossRef]
  4. De La Torre, G.; Claessens, C.G.; Torres, T. Phthalocyanines: Old dyes, new materials. Putting color in nanotechnology. Chem. Commun. 2007, 20, 2000–2015. [Google Scholar] [CrossRef] [PubMed]
  5. Zhou, W.; Leznoff, D.B. Phthalocyanine as a redox-active platform for organometallic chemistry. Chem. Commun. 2018, 54, 1829–1832. [Google Scholar] [CrossRef]
  6. Han, B.; Liang, B.; Zhang, E.; Li, J.; Li, Y.; Zhang, Q.; Xie, Z.; Wang, H.; Jiang, J. Phthalocyanine Covalent Organic Frameworks: Dimensionality Effect on Third-Order Nonlinear Optical Properties. Adv. Funct. Mater. 2024, 2404289, 1–7. [Google Scholar] [CrossRef]
  7. Kareem, R.O.; Hamad, O.A.; Omer, P.K. Recent Development in Synthesize, Properties, Characterization, and Application of Phthalocyanine and Metal Phthalocyanine. J. Chem. Rev. 2024, 6, 39–75. [Google Scholar]
  8. Martynov, A.G.; Mack, J.; May, A.K.; Nyokong, T.; Gorbunova, Y.G.; Tsivadze, A.Y. Methodological Survey of Simplified TD-DFT Methods for Fast and Accurate Interpretation of UV-Vis-NIR Spectra of Phthalocyanines. ACS Omega 2019, 4, 7265–7284. [Google Scholar] [CrossRef]
  9. Gajda, Ł.; Kupka, T.; Broda, M.A. Solvent impact on the planarity and aromaticity of free and monohydrated zinc phthalocyanine: A theoretical study. Struct. Chem. 2018, 29, 667–679. [Google Scholar] [CrossRef]
  10. Ueno, L.T.; Machado, A.E.H.; Machado, F.B.C. Theoretical studies of zinc phthalocyanine monomer, dimer and trimer forms. J. Mol. Struct. THEOCHEM 2009, 899, 71–78. [Google Scholar] [CrossRef]
  11. Lee, A.; Kim, D.; Choi, S.H.; Park, J.W.; Jaung, J.Y.; Jung, D.H. Theoretical study on phthalocyanine, pyrazinoporphyrazine and their complexation with Mg2+ and Zn2+. Mol. Simul. 2010, 36, 192–198. [Google Scholar] [CrossRef]
  12. Robin, A.Y.; Fromm, K.M. Coordination polymer networks with O- and N-donors: What they are, why and how they are made. Coord. Chem. Rev. 2006, 250, 2127–2157. [Google Scholar] [CrossRef]
  13. Zeng, Q.; Wu, D.; Wang, C.; Lu, J.; Ma, B.; Shu, C.; Ma, H.; Li, Y.; Bai, C. Bipyridine conformations control the solid-state supramolecular chemistry of zinc(II) phthalocyanine with bipyridines. CrystEngComm 2005, 7, 243–248. [Google Scholar] [CrossRef]
  14. Janczak, J.; Kubiak, R. Pyrazine control of the solid-state supramolecular chemistry of zinc phthalocyanine. Polyhedron 2009, 28, 2391–2396. [Google Scholar] [CrossRef]
  15. Janczak, J. Peripherally octamethyl zinc(II) phthalocyanines with various axial substituents. Polyhedron 2021, 197, 115024. [Google Scholar] [CrossRef]
  16. Li, X.; He, X.; Chen, Y.; Fan, X.; Zeng, Q. Solid-state supramolecular chemistry of zinc tetraphenylporphyrin and zinc phthalocyanine with bis(pyridyl) ligands. J. Mol. Struct. 2011, 1002, 145–150. [Google Scholar] [CrossRef]
  17. Zhao, Y.; Zou, K.Q.; Zheng, W.X.; Huang, C.C.; Zheng, B.Y.; Ke, M.R.; Huang, J.D. Solid-state supramolecular structures and excellent photothermal activities of dimeric zinc(II) phthalocyanines axially bridged with bipyridine derivatives. Dye. Pigment. 2022, 199, 110037. [Google Scholar] [CrossRef]
  18. Cordeiro, M.R.; Moreira, W.C. Thermal behavior of tetrapyrrole derivatives and their mixed complexes. Thermochim. Acta 2009, 486, 52–56. [Google Scholar] [CrossRef]
  19. Shukla, A.D.; Dave, P.C.; Suresh, E.; Das, A.; Dastidar, P. Multicomponent Zn-tetraphenylporphyrins: Syntheses, characterization and their self assembly in the solid state. J. Chem. Soc. Dalton Trans. 2000, 4459–4463. [Google Scholar] [CrossRef]
  20. Schneider, O.; Hanack, M. Phthalocyaninatoiron with Pyrazine as a Bidentate Bridging Ligand. Angew. Chem. Int. Ed. Engl. 1980, 19, 392–393. [Google Scholar] [CrossRef]
  21. Yuan, N. Coordination Polymers and Clusters Based on the Versatile Mercaptonicotinate Ligands. Eur. J. Inorg. Chem. 2019, 2019, 4607–4620. [Google Scholar] [CrossRef]
  22. De, S.; Devic, T.; Fateeva, A. Porphyrin and phthalocyanine-based metal organic frameworks beyond metal-carboxylates. Dalton Trans. 2021, 50, 1166–1188. [Google Scholar] [CrossRef] [PubMed]
  23. Al-Anber, M.; Vatsadze, S.; Holze, R.; Lang, H.; Thiel, W.R. π-Conjugated N-heterocyclic compounds: Correlation of computational and electrochemical data. Dalton Trans. 2005, 22, 3632–3637. [Google Scholar] [CrossRef] [PubMed]
  24. Yang, F.J.; Fang, X.; Yu, H.Y.; Wang, J.D. (4-amino-pyridine-κN 1)(phthalo-cyan-inato- κ4 N)zinc(II) tetra-hydro-furan disolvate. Acta Crystallogr. Sect. C Cryst. Struct. Commun. 2008, 64, 375–377. [Google Scholar] [CrossRef]
  25. Przybył, B.; Janczak, J. 1,8-Diazabicyclo[5.4.0]Undec-7-En-8-Ium Bromido(Phthalocyaninato)Zincate. Acta Crystallogr. Sect. E Struct. Rep. Online 2014, 70, m231–m232. [Google Scholar] [CrossRef]
  26. Mendizabal, F. Phthalocyanoruthenium complexes and polymers with bridged ligands. J. Mol. Struct. THEOCHEM 2002, 579, 169–179. [Google Scholar] [CrossRef]
  27. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. G16_C01 2016, Gaussian 16, Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  28. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  29. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef]
  30. Hariharan, P.C.; Pople, J.A. The influence of polarization functions on molecular orbital hydrogenation energies. Theor. Chim. Acta 1973, 28, 213–222. [Google Scholar] [CrossRef]
  31. Roy, L.E.; Hay, P.J.; Martin, R.L. Revised Basis Sets for the LANL Effective Core Potentials. J. Chem. Theory Comput. 2008, 4, 1029–1031. [Google Scholar] [CrossRef]
  32. O’Boyle, N.M.; Tenderholt, A.L.; Langner, K.M. A Library for Package-Independent Computational Chemistry Algorithms. J. Comp. Chem. 2008, 29, 839–845. [Google Scholar] [CrossRef] [PubMed]
Molecules 29 04111 g001

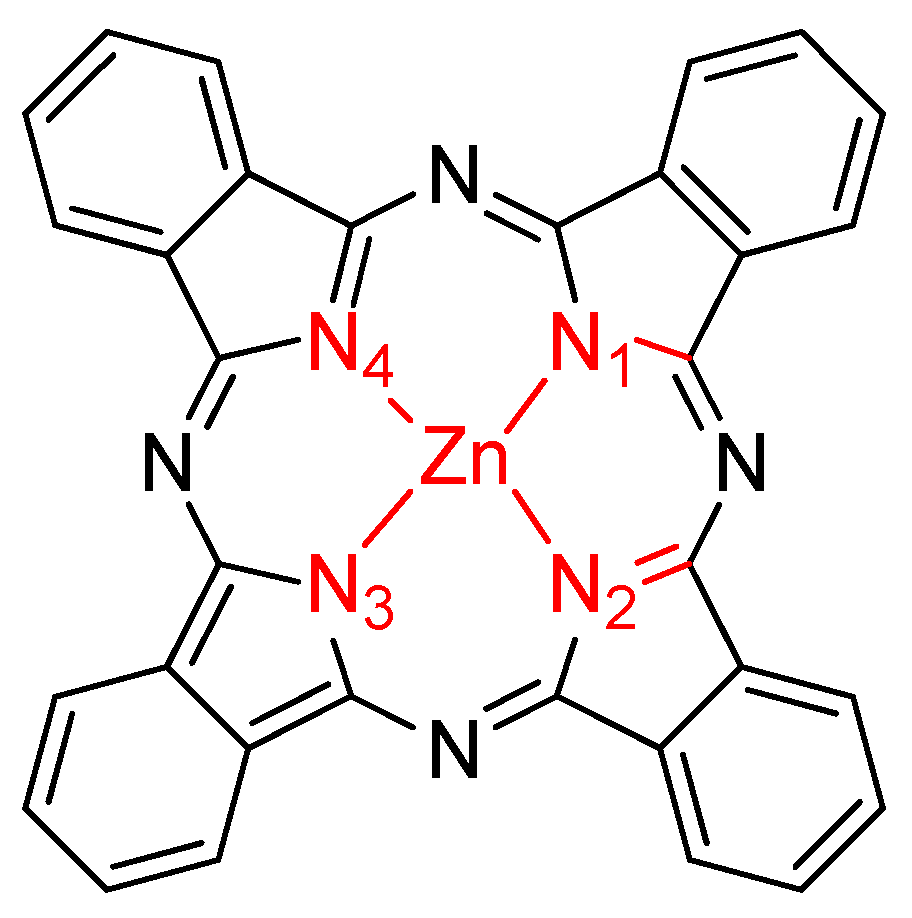

Figure 1. Structures and numbering of PcZn.
Figure 1. Structures and numbering of PcZn.
Molecules 29 04111 g001
Molecules 29 04111 g002

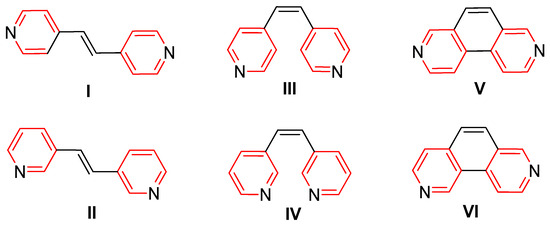

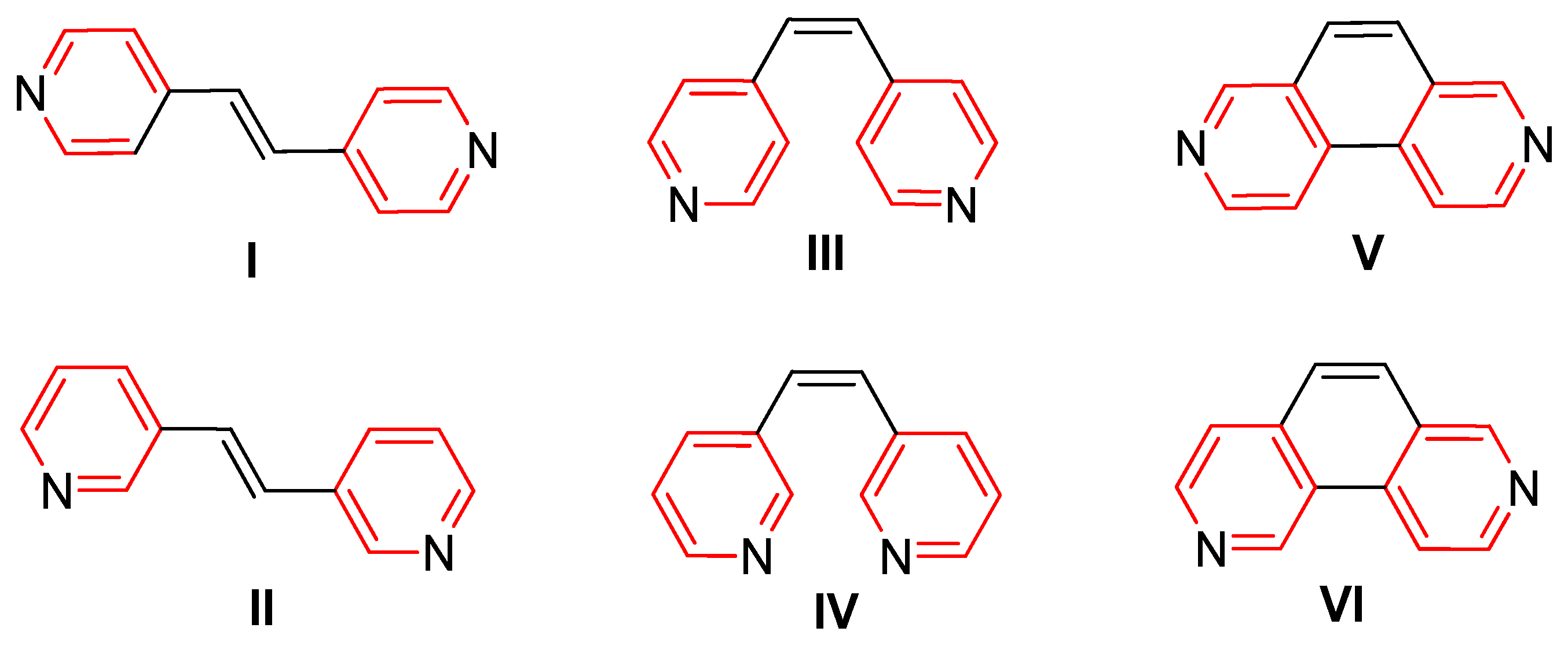

Figure 2. Pyridine-based bridged ligands (L1-LVIs), where π-conjugated bridges connect the pyridine rings.
Figure 2. Pyridine-based bridged ligands (L1-LVIs), where π-conjugated bridges connect the pyridine rings.
Molecules 29 04111 g002
Molecules 29 04111 g003

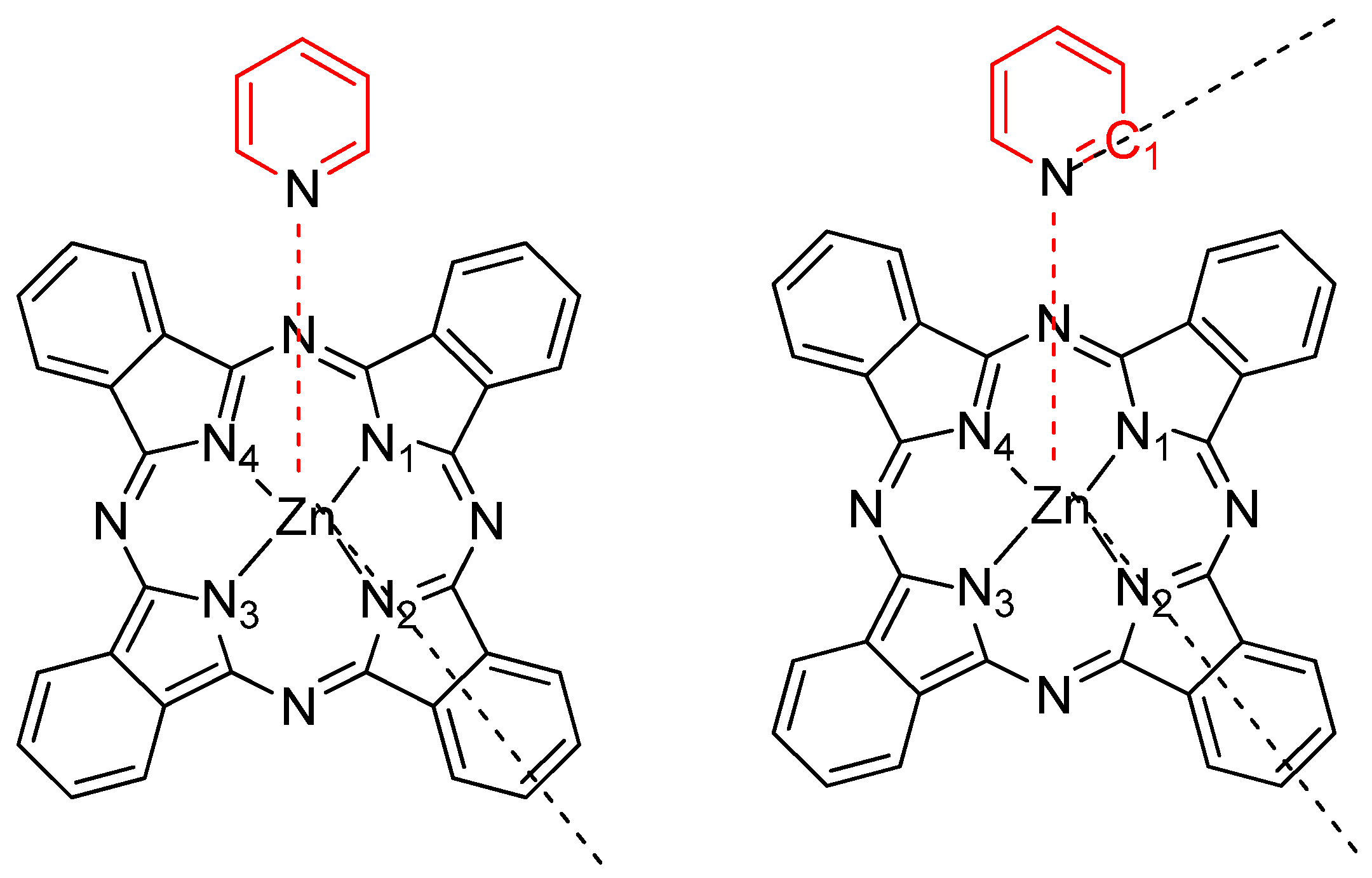

Figure 3. Pyridine-based ligands in coordination complex with PcZn.
Figure 3. Pyridine-based ligands in coordination complex with PcZn.
Molecules 29 04111 g003
Molecules 29 04111 g004
Figure 4. The optimized geometries for the model Zn phthalocyanines complex with ligands LI (a) and LII (b), optimized at the B3LYP/6-31G(d,p). Color code of atoms: C—dark grey, H—light grey, N—blue.
Figure 4. The optimized geometries for the model Zn phthalocyanines complex with ligands LI (a) and LII (b), optimized at the B3LYP/6-31G(d,p). Color code of atoms: C—dark grey, H—light grey, N—blue.
Molecules 29 04111 g004
Molecules 29 04111 g005
Figure 5. Molecular structure of PcZnII: optimized geometry calculated at the level of DFT/B3LYP/6-31G (d,p) theory with dipole moment orientation (4.5939Debye) and distribution of partial atomic charges (Mulliken) from −0.991 (red color) to 0.991 (green color).
Figure 5. Molecular structure of PcZnII: optimized geometry calculated at the level of DFT/B3LYP/6-31G (d,p) theory with dipole moment orientation (4.5939Debye) and distribution of partial atomic charges (Mulliken) from −0.991 (red color) to 0.991 (green color).
Molecules 29 04111 g005
Molecules 29 04111 g006
Figure 6. PcZnLI (a,b) and PcZnLIV (c,d) HOMO and LUMO orbitals obtained with B3LYP/6-31G(d,p). HOMO and LUMO orbitals obtained with B3LYP/6-31G(d,p). Red and green colors indicate the different phases of the molecular orbitals.
Figure 6. PcZnLI (a,b) and PcZnLIV (c,d) HOMO and LUMO orbitals obtained with B3LYP/6-31G(d,p). HOMO and LUMO orbitals obtained with B3LYP/6-31G(d,p). Red and green colors indicate the different phases of the molecular orbitals.
Molecules 29 04111 g006
Molecules 29 04111 g007aMolecules 29 04111 g007b
Figure 7. The optimized geometries for the model Zn phthalocyanine polymers with ligands LI (a) and LII (b), optimized at the B3LYP/LanL2Dz. Color code of atoms: C—dark grey, H—light grey, N—blue.
Figure 7. The optimized geometries for the model Zn phthalocyanine polymers with ligands LI (a) and LII (b), optimized at the B3LYP/LanL2Dz. Color code of atoms: C—dark grey, H—light grey, N—blue.
Molecules 29 04111 g007aMolecules 29 04111 g007b
Molecules 29 04111 g008aMolecules 29 04111 g008b
Figure 8. Pc(PcZnLI)3 HOMO (a) and LUMO (b) orbitals, obtained with B3LYP/LanL2Dz. Color code of atoms: C—dark grey, H—light grey, N—blue. Red and green colors indicate the different phases of the molecular orbitals.
Figure 8. Pc(PcZnLI)3 HOMO (a) and LUMO (b) orbitals, obtained with B3LYP/LanL2Dz. Color code of atoms: C—dark grey, H—light grey, N—blue. Red and green colors indicate the different phases of the molecular orbitals.
Molecules 29 04111 g008aMolecules 29 04111 g008b
Molecules 29 04111 g009

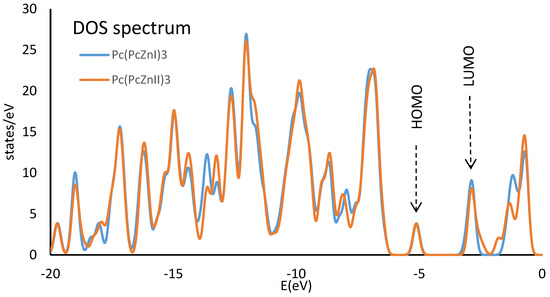

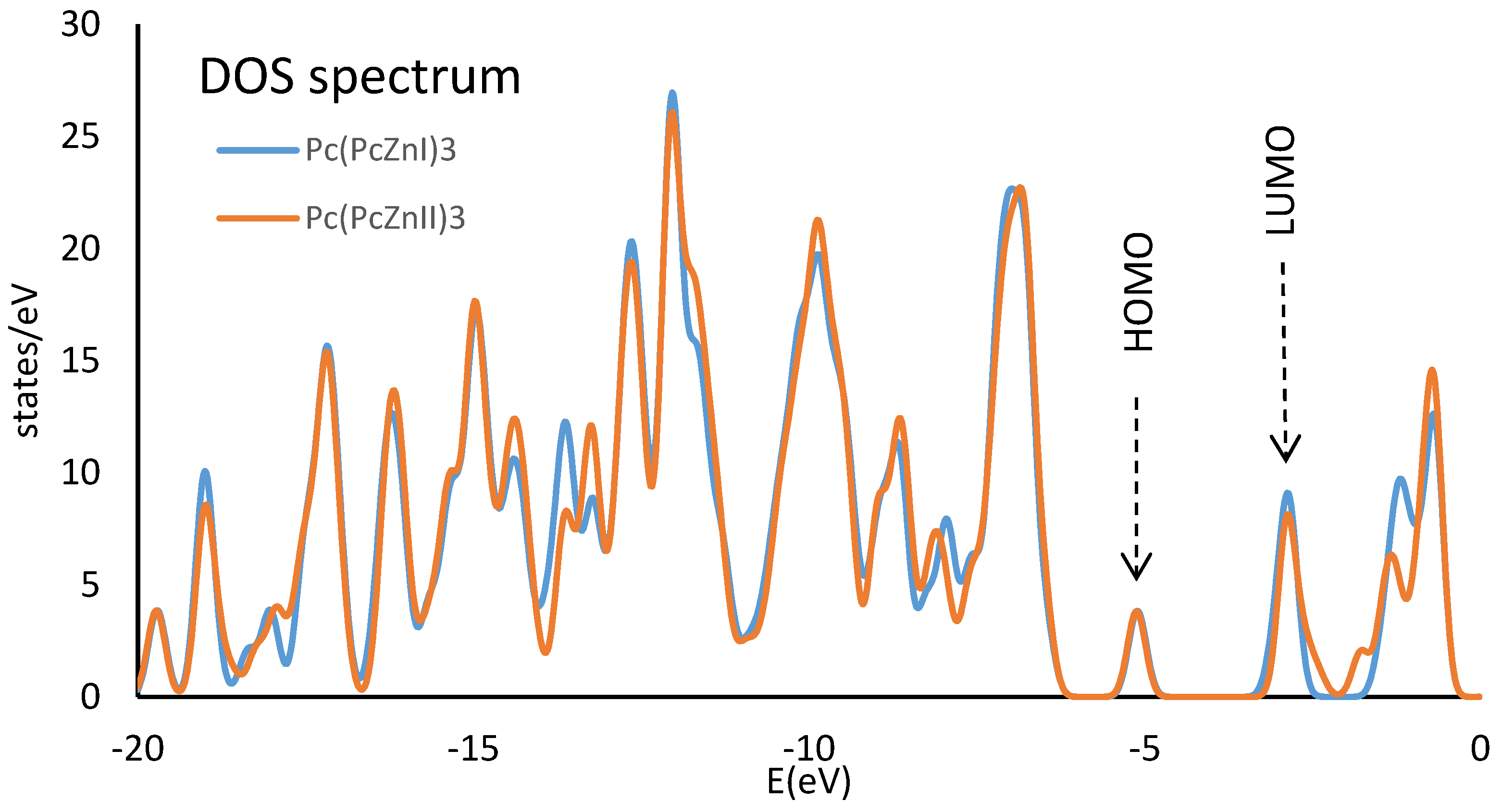

Figure 9. Density of state (DOS) spectrum of Pc(PcZnI)3 and Pc(PcZnII)3 at B3LYP/LanL2Dz.
Figure 9. Density of state (DOS) spectrum of Pc(PcZnI)3 and Pc(PcZnII)3 at B3LYP/LanL2Dz.
Molecules 29 04111 g009
Table 1. Parameters of the calculated structures of complex PcZnL(I-VI).
Table 1. Parameters of the calculated structures of complex PcZnL(I-VI).
PcZnIPcZnIIPcZnIIIPcZnIVPcZnVPcZnVI
Bond length [Å]
Zn-N1 2.04462.04312.04392.04342.04302.0429
Zn-N2 2.04452.04472.04442.04372.04402.0447
Zn-N32.04462.04472.04482.04362.04402.0447
Zn-N42.04462.04312.04442.04432.04312.0430
Zn-NPy2.15072.15612.15202.15662.16652.1545
Bond angle [°]
N1-Zn-NPy103.3821103.5133103.5577103.4910103.4002103.5540
N1-Zn-NPy-C1Py−44.9626−44.994543.755746.076444.4751−45.0138
Table 2. The binding energy E [eV] and μ (Debye) of complex PcZn with ligands I-VI.
Table 2. The binding energy E [eV] and μ (Debye) of complex PcZn with ligands I-VI.
PcZnIPcZnIIPcZnIIIPcZnIVPcZnVPcZnVI
E −0.7681−0.7584−0.7668−0.7568−0.7444−0.7518
μ5.16994.59397.17044.64234.82296.1184
Table 3. Energy levels (in eV) of occupied (HOMO) and unoccupied (LUMO) molecular orbitals of PcZn complex with ligands (L1-LVI). Eg means the energy difference between HOMO and LUMO.
Table 3. Energy levels (in eV) of occupied (HOMO) and unoccupied (LUMO) molecular orbitals of PcZn complex with ligands (L1-LVI). Eg means the energy difference between HOMO and LUMO.
PcZnIPcZnIIPcZnIIIPcZnIVPcZnVPcZnVI
LUMO−4.6615−4.6800−4.6498−4.6860−4.6849−4.6699
Eg 1.87322.19752.09582.20002.17961.9624
HOMO−2.7883−2.4824−2.5540−2.4860−2.5053−1.8095
Table 4. Structural parameters of the calculated structures of polymers Pc(PcZnI)3 and Pc(PcZnII)3 (B3LYP/LanL2Dz).
Table 4. Structural parameters of the calculated structures of polymers Pc(PcZnI)3 and Pc(PcZnII)3 (B3LYP/LanL2Dz).
Bond Length
[Å]		Zn-N1 Zn-N2 Zn-N3Zn-N4Zn-NPyBond Angle
[°]		N1-Zn-NPyN1-Zn-NPy-C1Py
Pc(PcZnI)3
2.06892.06702.06892.06702.2074 101.7536−0.0422
2.04542.04542.04562.04562.4225 90.8825−44.7312
2.04542.04542.04562.04562.4221 90.870544.7480
(X-ray) a2.00092.00442.01002.00802.1558 104.3568107.2625
Pc(PcZnII)3
2.06762.06862.06582.06862.2115 100.9246−1.1096
2.04522.04532.04572.04562.4315 90.7744−43.6966
2.04522.04542.04572.04562.4866 90.7829−43.7065
a Lit. [13].
Table 5. The binding energy E [eV] of polymers PcZn with ligands I and II.
Table 5. The binding energy E [eV] of polymers PcZn with ligands I and II.
Pc(PcZnI)3Pc(PcZnII)3
DFT −3.3263−3.3281
Table 6. Energy levels [eV] of occupied (HOMO) and unoccupied (LUMO) molecular orbitals of PcZn polymers with ligands (LI and LII) (B3LYP/LanL2Dz).
Table 6. Energy levels [eV] of occupied (HOMO) and unoccupied (LUMO) molecular orbitals of PcZn polymers with ligands (LI and LII) (B3LYP/LanL2Dz).
Pc(PcZnI)3Pc(PcZnII)3
LUMO−5.0582−5.0702
Eg 2.00922.1766
HOMO−3.0490−2.8936
Eg means the energy difference between HOMO and LUMO.
