A Benzothiadiazole-Based Zn(II) Metal–Organic Framework with Visual Turn-On Sensing for Anthrax Biomarker and Theoretical Calculation

by
Jing Ru
1,*,
Yi-Xuan Shi
1,
Qing-Yun Yang
1,
Teng Li
1,
Hai-Ying Wang
2,*,
Fan Cao
3,
Qiang Guo
4 and
Yan-Lan Wang
1
1
School of Chemistry and Chemical Engineering, Liaocheng University, Liaocheng 252059, China
2
School of Environmental Science, Nanjing Xiaozhuang University, Nanjing 211171, China
3
School of Materials Science and Engineering, Shandong Jianzhu University, Jinan 250101, China
4
Institute of Biomedical Engineering, College of Life Sciences, Qingdao University, Ningxia Road 308, Qingdao 266071, China
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(12), 2755; https://doi.org/10.3390/molecules29122755
Submission received: 30 April 2024 / Revised: 5 June 2024 / Accepted: 6 June 2024 / Published: 9 June 2024
(This article belongs to the Special Issue Metal Organic Frameworks (MOFs) for Sensing Applications)
Browse Figures
Versions Notes

Abstract

:
2,6-pyridine dicarboxylic acid (DPA) is an exceptional biomarker of notorious anthrax spores. Therefore, the rapid, sensitive, and selective quantitative detection of DPA is extremely significant and urgent. This paper reports a Zn(II) metal–organic framework with the formula of {[Zn6(NDA)6(DPBT)3] 2H2O·3DMF}n (MOF-1), which consists of 2,6-naphthalenedicarboxylic acid (2,6-NDA), 4,7-di(4-pyridyl)-2,1,3-benzothiadiazole (DPBT), and Zn(II) ions. Structural analysis indicated that MOF-1 is a three-dimensional (3D) network which crystallized in the monoclinic system with the C2/c space group, revealing high pH, solvent, and thermal stability. Luminescence sensing studies demonstrated that MOF-1 had the potential to be a highly selective, sensitive, and recyclable fluorescence sensor for the identification of DPA. Furthermore, fluorescent test paper was made to detect DPA promptly with color changes. The enhancement mechanism was established by the hydrogen-bonding interaction and photoinduced electron transfer transition between MOF-1 and DPA molecules.

1. Introduction

Biomarkers refer to biochemical indicators that can label structural or functional changes or potential changes in systems, organs, tissues, cells, and subcellular systems. The timely and reliable monitoring of biomarkers is crucial for preventing the outbreaks of related diseases [1,2]. As a unique component of anthrax spores, 2,6-Dipicolinic acid (DPA) is regarded as an appropriate biomarker for Bacillus spores [3]. Bacillus anthracis belongs to the aerobic Bacillus genus and can cause anthrax in animals such as sheep, cattle, horses, and humans. Bacillus anthracis spores have a tenacious vitality and can adapt to harsh environments such as vacuum, high temperature, and radiation [4]. According to reports, inhaling more than 104 spores of Bacillus anthracis can lead to death without treatment with timely medication within 24–48 h [5]. Bacillus anthracis not only causes food poisoning and health problems, but is also a potential biological reagent [6,7]. Consequently, accurately identifying the DPA level is essential for preventing disease outbreaks and safeguarding homeland security. DPA quantification has been evaluated by Raman spectroscopy [8], polymerase chain reaction (PCR) [9], electrochemical methods [10], liquid chromatography [11], etc. However, the majority of the above methods are typically constrained by the inefficiencies of time-consumption pretreatment and high equipment costs.
Benefitting from their stable and various structures, tunable pore size, facile modification of pore surface, and intrinsic features, metal–organic frameworks (MOFs) have displayed great potential applications in gas adsorption, catalysis, drug delivery, organic molecule identification, and pollutant recognition [12,13,14,15,16,17,18]. In particular, a fluorescence MOF can effectively monitor target analytes in real time, which has attracted widespread attention in the field of biological systems [19,20,21,22]. Among them, the accurate and rapid monitoring of altered biochemical indicators in the content of biomarkers is of great significance for the diagnosis and even therapy of disease [23,24]. For example, a three-dimensional zinc(II)-MOF assembly by conjugated (E)-4,4′-(ethene-1,2-diyl)bis[(N-pyridin-3-yl)benzamide] and 1,3,5-benzenetricarboxylic acid was reported by Wang’s group. The Zn-MOF can be used as an effective fluorescence sensor for sensing the biomarker 3-nitrotyrosinea (3-NT) with a KSV value of 6.596 × 104 M−1 [25]. Recently, Fan’s group proposed a Ni(II) metal–organic framework under a mixed-ligand method, and subsequently proved its excellent sensing properties in detecting 3-NT biomarker and HA biomarker in real samples [26]. As of now, “turn-off” responses (where fluorescence intensity decreases) are frequently used in documented examples to detect any analytes; on the contrary, “turn-on” responses (where fluorescence intensity increases) are uncommon [27]. Compared with “turn-off” responses, the signal change in fluorescence enhancement is easier to detect, and the fluorescence of the probe itself is weak, which can reduce the background signal and improve the sensitivity of the probe. At present, most fluorescence probes in applications belong to the type of enhanced fluorescence probes [28,29,30]. The above studies have not only verified the feasibility of planning MOF-based luminescence sensors as biomarkers, but also pointed out the direction for the next steps of research.
From the perspective of construction, multi-carboxylic organic ligands containing large π-conjugated aromatic structures and d10 metals are chosen to increase the diversity of MOF structures and the effectiveness of fluorescence recognition [31]. Firstly, π-conjugated organic linkers commonly provide the stability to form the metal–organic framework. Then, free π-electrons in the conjugated structure can freely move throughout the MOF network, reduce the HOMO-LUMO energy gap, and deliver attractive photophysical properties to the MOF. In addition, it is difficult for the d10 metal ions which contain a closed shell electronic configuration to realize the d–d electronic transition. The network formed from the d10 metal ions shows high luminescent intensity. This phenomenon could be attributed to the chelation of the metal ion by the ligand, which successfully enhances the rigidity of the ligand and diminishes the nonradiative decay. In short, to obtain MOFs with effective luminescent properties, Zn(II) and Cd(II) transition metal ions have been extensively adopted [32].
In light of the aforementioned factors, we employed 2,6-naphthalenedicarboxylic acid (2,6-NDA), 4,7-di(4-pyridyl)-2,1,3-benzothiadiazole (DPBT) as the conjugated organic ligand, and d10 metal ions (Zn2+ ion) (Scheme 1). 2,1,3-benzothiadiazole (BTD) has unique photophysical chemical properties: (1) a large Stokes displacement; (2) a large molar extinction coefficient; (3) high quantum yield; and (4) when stored in solution or in pure solid form, high stability, where even after a long-time, irradiation will not fade. A series of benzothiadiazole-MOFs have been explored in recent years [33,34,35]. This paper successfully synthesized a luminescent MOF, {[Zn6(NDA)6(DPBT)3]·2H2O·3DMF}n (MOF-1), using the solvothermal method. MOF-1 was fully characterized by means of X-ray single-crystal diffraction, thermogravimetric analysis (TGA), powder X-ray diffraction (PXRD), elemental analysis, and Fourier-transform infrared spectroscopy (FT-IR). According to the characterization analysis, MOF-1 showed good luminescence, water stability, and thermal stability. Luminescence tests illustrated that MOF-1 could be adopted as a turn-on response luminescent sensor for the detection of DPA in EtOH solution and fluorescence test papers. Furthermore, the mechanism of activating luminescence enhancement was discussed from a theoretical calculation perspective.

2. Results

2.1. X-ray Structure Determination

At room temperature, X-ray single-crystal data of MOF-1 were collected from a Siemens (Bruker) SMART CCD diffractometer with monochromated Mo Kα radiation (λ = 0.71073 Å). The structure was solved using the direct method and refined by the full-matrix least-squares method on F2 with the SHELXTL software package [36,37]. PLATON [38] and SQUEEZE [39] were employed to calculate the diffraction contribution of the solvent molecules. Further crystallographic data and structural details are listed in Table 1 and Table S1, respectively. The CCDC number is 2324216 (MOF-1) (see Appendix A).

2.2. Crystal Structure of MOF-1

Structural analysis indicated that MOF-1 was a three-dimensional (3D) network, which crystallized in the monoclinic system with the C2/c space group. The binuclear Zn(II) ion was surrounded by two DPBT ligands and four deprotonated 2,6-NDA ligands, adopting bidentate bridge (μ2-η1η1) coordination mode (Figure 1a). The central Zn(III) ion was five-coordinated with a slightly irregular quadrangular pyramid coordination geometry occupied by eight oxygen atoms (O1, O3, O6, O7, N3) (Figure 1b). The bond distances of Zn–O/Zn-N were between 2.024 (7) and 2.066 (6) Å. The O(N)–Zn–O bond angles were located in the range of 87.0 (3) to 159.5 (3)°. The above data were similar to the values of the reported Zn-MOFs [40]. Furthermore, in the framework of MOF-1, the binuclear {Zn2(COO)4} as secondary building units (SBUs) with a non-bonding distance of Zn⋯Zn of 2.979 Å were observed (Figure 1c). Along the ab plane, SBUs were linked by four deprotonated 2,6-NDA ligands to form a two-dimensional (2D) structure, which was further connected by DPBT ligands to extend to a 3D network along c axial (Figure 1d). Within the framework, weak hydrogen bonding was observed between benzothiadiazole groups and protonated carboxylate groups of the ligands, such as C–H⋯O and C–H⋯N interactions.

2.3. Photoluminescence Properties

At room temperature, the luminescence properties of the free ligand 2,6-NDA, DPBT, and MOF-1 were thoroughly tested. As shown in Figure 2a, the carboxylate ligand 2,6-NDA exhibited prominent emission peaks with maximum values at 403 nm upon excitation at 362 nm, and the DPBT displayed emission peaks at 474 nm with λex = 363 nm [41]. Compared with the emission peaks of free ligand 2,6-NDA and DPBT, the emissions peak of MOF-1 at 495 nm showed an obvious red-shift. This phenomenon should be attributed to the electron transition by coordination between O/N and Zn2+ in the framework [42]. Moreover, the CIE chromaticity diagrams of MOF-1, 2,6-NDA and DPBT are also drawn in Figure 2b. MOF-1, 2,6-NDA, and DPBT showed blue, purple, and green light with peaks of 495 nm, 403 nm, and 474 nm, respectively. In addition, the CIE coordinates of MOF-1, 2,6-NDA, and DPBT are (0.1470, 0.2142), (0.1548, 0.0641), and (0.1756, 0.3978), respectively. In addition, the emission peak of MOF-1 was 456 nm in ethanol solution, as shown in Figure S1.

2.4. FT-IR, PXRD analysis and Stability of MOF-1

The IR spectra of MOF-1 and the free ligands were examined in the range of 4000–400 cm−1 and shown in Figure S2. The characteristic peaks of 2,6-NDA at 1683 cm−1, 1425 cm−1 could be attributed to the asymmetric and symmetric vibrations of the C=O bonds. Compared with the IR absorption spectra of 2,6-NDA, the characteristic vibrational peaks in MOF-1 shifted to 1637 cm−1 and 1407 cm−1, suggesting that the -COOH group undergoes deprotonation to form the organometallic framework [43]. Furthermore, the observed peak at 1292 cm−1 vanished in MOF-1, verifying the coordination with Zn(II). This FT-IR spectra information was consistent with the behavior of the X-ray crystal structure.
Powder X-ray diffraction (PXRD) analysis was used to characterize the purity and stability of the framework structure of MOF-1. The experimental data matched well with the simulated data, indicating that the obtained bulk sample was pure (Figure 3a). In order to evaluate the solvent and acid-base stabilities of MOF-1, the ground powder of the MOF-1 sample was soaked in common solvents and an acidic/alkaline aqueous solution (pH = 3, 5, 9, and 13) for 3 days, and the obtained PXRD remained in its original state (Figure 3a,b).
The thermal stability of MOF-1 was carried out by thermogravimetric analyzer (TGA) from 30 to 800 °C under a N2 atmosphere (Figure S3). The first weight loss of 9.25% (cal. 9.11%) was attributed to the reduction in uncoordinated solvent molecules (three DMF and two H2O) at 200 °C. The abrupt weight loss at about 400 °C could be induced by decomposition of organic ligands and the collapse of the framework, indicating the comparatively exceptional thermal stability of MOF-1.

2.5. Fluorescence Detection of DPA

To precisely detect DPA and monitor the disease caused by Bacillus, luminescent experiments were carried out towards on MOF-1. Selectivity is an important characteristic of a luminescent sensor. Common ions or similar structure molecules Mg(NO3)2, NaNO3, Zn(NO3)2, KI, p-Cresol, 1,3-Dinitrobenzene (1,3-DNB), 2,5-thiophenedicarboxylic acid (2,5-TDCA), L-α-phenylglycine (L-Phg), glutamic acid (Glu), and L-Serine (L-Ser) were selected for the selectivity experiment. A 2 mg sample of MOF-1 was dispersed in ethanol with the 10−3 M analytes mentioned above. The luminescence intensities of MOF-1 were prominently dependent on the intrinsic features of the analytes (Figure 4a,b). Particularly, the DPA solution had a significant effect on the change in the fluorescence intensity of MOF-1, which greatly enhanced its fluorescence intensity. Compared with the blank emission of MOF-1 at 456 nm, a blue-shift of 13 nm from 456 nm to 443 nm was generated after being supplemented with DPA. On the contrary, no significant changes in the fluorescence spectra of MOF-1 were noticed in the presence of other analytes. According to this, MOF-1 could be a viable turn-on fluorescence sensor for accurately identifying DPA.
Subsequently, the relationship between fluorescence intensity and DPA dosage was evaluated by quantitative experiments. As illustrated in Figure 5a, accompanied by adding DPA (1 × 10−2 M) to the suspension solution of MOF-1, the emission intensity showed a gradual increase and a blue shift. To further evaluate the emitting color change in MOF-1 toward DPA concentration, the CIE coordinates of the emission spectra of MOF-1 accompanied by an increase in DPA concentration were calculated (Figure 5b). The computed chromaticity gradually changes from green to blue, and there is a good consistency between DPA concentration and CIE coordinates. This could confirm the practicability of quantitatively detecting DPA by gauging the transformation in luminescent color. This change in solution fluorescence was also achieved through color changes observed with the naked eye under ultraviolet light (inset of Figure 5b). The relationship between the emission intensities of MOF-1 and the DPA concentration is illustrated in Figure 5c. At low DPA concentrations, the fluorescence enhancement curve can be quantitatively calculated with the Stern–Volmer equation (S-V): I0/I = 1+Ksv [M] [44] (I0/I represents the ratio of emission intensity before and after DPA addition to MOF-1, [M] represents the concentration of DPA, and Ksv represents the fluorescence enhancement constant). As we expected, the detection of DPA had a satisfactory linear relationship (R2 > 0.98), and the enhancement constant (Ksv) of MOF-1 was 1.38 × 104 M−1. Meanwhile, the detection limit was determined by the equation (LOD): LOD = 3σ/K (σ: calculate the standard deviation of 10 standard blank samples), and the corresponding LOD was 0.025 μM.
It is worth noting that a few examples of MOF-based luminescent chemical sensors for sensing DPA have been reported. To compare with the reported MOFs, the classic sensors are listed in Table S2 [45,46,47]. Considering the significant complexity of the samples detected in practical applications, the anti-interference sensing ability of MOF-1 was determined through competitive experiments. The experiments have shown that in the presence of other interfering substances, the emission spectra and fluorescent test strip detection still have good recognition effects on DPA (Figure 5d and Figure S4).

2.6. Recyclability and Visualizable Sensing

The cyclic performance of sensing is an important prerequisite for a good fluorescence sensor in practical applications. As shown in Figure 6a, after numerous times washing with DMF and EtOH, the sensing experiment proved that the fluorescence intensity of the processed MOF-1 can be restored to its original intensity. The aforementioned tests provided evidence that MOF-1 may function as a promising material with exceptional economy for DPA sensing.
Fluorescent test papers can not only respond more quickly, but also allow for easier visualization. Hence, fluorescent test strips were prepared by immersing the filter paper in MOF-1 suspension and ultrasonic treatment for 30 min. Compared with blank fluorescent test strips, the presence of DPA can be revealed through color changes when irradiated with a 365 nm UV lamp. As depicted in Figure 6b, only the test paper titrated with DPA showed a significant color change, which clearly supported the high selectivity of MOF-1 for DPA. This change provided the possibility for rapid and simple testing with the naked-eye detection of DPA in ethanol solution.

3. Discussion

Mechanism of Luminescence Enhancing

To gain a deeper understanding of the DPA turn-on response mechanism, further experiments including PXRD, UV-vis, FT-IR, and DFT calculation were arranged. Firstly, the PXRD patterns and IR spectra remain unchanged after immersing in DPA for 24 h, excluding the reasons of crystal collapse and disintegration during the sensing process (Figures S5 and S6). Then, Figure S7 demonstrates a slight overlap between the emission bands/excitation bands of MOF-1 and the UV–vis absorption spectra of DPA, indicating that the reason for the fluorescence-enhanced response of MOF-1 to DPA is not mainly due to competitive absorption mechanisms or Förster resonance energy transfer mechanisms [48].
According to earlier reports, one reason for the chemo-sensor for fluorescence quenching is that the energy of the lowest unoccupied molecular orbital (LUMO) of the analyte falls within the valence band (VB) and conduction band (CB) of the chemical sensor. When the fluorescence intensity is enhanced due to the transfer of electrons from the chemical sensor CB to the LUMO of the analyte, a clear contrast phenomenon can be observed. Therefore, the Gaussian 16 program [49] was used to calculate the molecular orbitals of 2,6-NDA, DPBT, and DPA. Single-point calculation and optimization were carried on the level of B3LYP/def2-SVP and B3LYP/def2-TZVP [50,51], considering the DFT-D3 (BJ) dispersion correction [52] and the SMD solvation model. The molecular orbitals were analyzed and mapped by VMD 1.9.4 [53] combined with Multiwfn 3.8(dev) software [54]. As shown in Figure 7, the LUMO (−2.43 eV) of 2,6-NDA and (−2.89 eV) of DPBT are lower than the LUMO (−2.36 eV) of DPA. As a result, there will be an electron transfer from the LUMO of DPA to the LUMO of the linker, resulting in the observed “turn-on” of luminescence. The lifetime decay experiment can further promote researchers’ understanding of the recognition mechanism. The fluorescence lifetime of MOF-1 is 0.98 ns, and after adding DPA, the lifetime value of MOF-1 increases to 6.09 ns. In addition, the fluorescence amplification curve of MOF-1 (EtOH), MOF-1 (EtOH) @18 μM DPA can be observed (Figure S8), and this series of data show the same intensification trend, indicating that this is a dynamic turn-on mechanism.
The red shift observed in the fluorescence emission indicates substantial exciplex formation between MOF-1 and DPA. Compared to fresh MOF-1, there is neither the appearance of new bands nor the disappearance of existing bands in the IR spectrum, which were measured by MOF-1 after soaking in DPA solution. This indicates that there is no coordination between DPA and MOF-1. Considering the porosity of MOF-1, these phenomena are different from the common guest-induced sensing mechanism, which may be caused by some interactions between MOF-1 and DPA absorbed on the surface of MOF-1. The independent gradient model based on Hirshfeld partition (IGMH) [55] using the VMD program was used to evaluate the weak intermolecular interactions such as van der Waals distance, hydrogen bonding, and steric effects between DPA molecules and 2,6-NDA/DPBT ligands. By distinguishing different weak interactions through color, it can be observed that strong hydrogen bonds are represented by the blue part between the optimized structures of 2,6-NDA ligands with DPA (Figure 8a), while in the optimized structures of DPBT ligands and DPA, the van der Waals distance is represented by the green part (Figure 8b). The DFT result was further supported by the link between absorbance and DPA titration. The UV–vis absorption value of MOF-1 gradually increases with the addition of different amounts of DPA (Figure S9), which further illustrates the interaction between the DPA and the MOF-1 structure. That is to say, the hydrogen bonding between DPA and the 2,6-NDA ligands can increase affinity and easily accept electrons, which is beneficial for the charge flow in the ligand-to-ligand charge transfer process, leading to a turn-on response at 443 nm.
Overall, the noticeable enhancement in the emission intensity and the red shift of the emission wavelength suggested the possibility of electron transfer from the LUMO of DPA to MOF-1, together with the formation of hydrogen bonding interactions between DPA and MOF-1.

4. Materials and Methods

4.1. Reagents and Methods

2,6-NDA, DPBT, N, N-Dimethylformamide (DMF) and other organic reagents (analytical grade) were purchased from Bide Pharmatech Ltd. (Shanghai, China). Zn(NO3)2 was purchased from Aladdin Bio Chem Technology Co. Ltd. (Shanghai, China). The raw materials were commercially purchased and did not require purification. NICOLET 5700F-IR spectrometer (Shanghai, China) was used to measure the infrared spectrum in the range of 4000–400 cm−1. Elemental analyses were examined on a PE 2400 II analyzer. Under a N2 atmosphere, thermal gravimetric (TG) data were collected and recorded on a Netzsch STA-449F5 (Selbu, Germany) thermo analyzer with heating rate of 10 °C/min. Powder X-ray diffraction (PXRD) was carried out using a Bruker D8 Advance diffractometer with Cu-Kα radiation at room temperature. Fluorescence decay lifetime was recorded on an Edinburgh FLS 1000 fluorescence spectrometer (Livingston, UK). All the fluorescence spectrum tests were implemented with a Hitachi F-7000 spectrometer (Tokyo, Japan).

4.2. Synthesis of MOF-1

DPBT (2.9 mg, 0.010 mmol), 2,6-NDA (2.16 mg, 0.010 mmol), Zn(NO3)2·6H2O (11.90 mg, 0.04 mmol), and HNO3 (2 drops, 2 M) were successively added into a Teflon vessel with a mixture of VDMF/VH2O/VCH3CN (3:4:1). After ultrasound for 30 min, the above mixture was sealed and heated to 100 ℃ for one day. After cooling, yellow rodlike crystals were obtained. Yield: 62% based on 2,6-NDA ligand. IR Spectra (KBr, m/cm−1): 3430 s, 2923 s, 1670 s, 1637 s, 1552 w, 1407 s, 1361 s, 1223 w, 1089 s, 1032 w, 822 m, 792 s, 482 s.

5. Conclusions

In summary, one Zn(II)-MOF (MOF-1) based on 2,6-naphthalenedicarboxylic acid (2,6-NDA) and 4,7-di(4-pyridyl)-2,1,3-benzothiadiazole was effectively synthesized by a mixed-ligand approach. MOF-1 exhibited high purity, pH stability, and thermal stability. Luminescent experiments demonstrated that MOF-1 could be employed as a selective, sensitive, and convenient turn-on response sensor for DPA detection. In addition, based on the results of PXRD, UV–vis, FT-IR, XPS, and theoretical calculations, the enhancement mechanism between MOF-1 and DPA could be summarized by photoinduced electron transfer and hydrogen bonding interactions. The visualization of the fluorescent test paper makes it possible for the practical application of MOF-1. More biomarker sensors will be fabricated by our group in the future.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29122755/s1, Figure S1: the excitation and emission of MOF-1 in EtOH; Figure S2: IR of MOF-1 and organic ligand 2,6-NDA; Figure S3: the TGA curve of MOF-1 under N2 atmosphere from 30 to 800 °C; Figure S4. interference experiments of different analytes with and without DPA-test strips (a) and the emission spectrum curves (b). Figure S5: the PXRD pattern of MOF-1-and the sample after sensing DPA; Figure S6: IR of MOF-1 after sensing of DPA; Figure S7: absorption spectra of DPA and emission bands/excitation of MOF-1; Figure S8: fluorescence lifetime of MOF-1 before and after DPA; Figure S9: absorption spectra of MOF-1 dispersed in EtOH solution after adding different concentrations of DPA; Table S1: selected bond lengths (Å) and angles (°) for MOF-1; Table S2: comparison of the literature reports for MOFs as sensors of DPA.

Author Contributions

J.R.: Methodology, software, supervision, writing—review and editing; Y.-X.S.: software, data curation, writing—original draft; Q.-Y.Y.: data curation, writing—original draft; T.L.: data curation; H.-Y.W.: methodology, supervision, writing—review and editing; F.C.: software; Q.G.: software; Y.-L.W.: investigation, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge financial assistance from the National Natural Science Foundation of China (No. 21801127, 21901097); the Natural Science Foundation of Shandong Province (ZR2018LB003); and the Liaocheng University Students Innovation and Entrepreneurship Training Program (CXCY2023099, CXCY2023086) for financial support.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Details are available from the authors.

Conflicts of Interest

The authors declare no competing financial interests.

Appendix A

CCDC 2324216 contains the supplementary crystallographic data for this paper. The data can be obtained free of charge via http://www.ccdc.cam.ac.uk/ (accessed on 30 April 2024) or by emailing [email protected].

References

  1. Liu, H.; Song, J.J.; Zhao, Z.Y.; Zhao, S.Q.; Tian, Z.Y.; Yan, F. Organic Electrochemical Transistors for Biomarker Detections. Adv. Sci. 2023, 10, 2305347. [Google Scholar] [CrossRef]
  2. Strimbu, K.; Tavel, J.A. What are biomarkers? Curr. Opin. HIV AIDS 2010, 5, 463. [Google Scholar] [CrossRef]
  3. Wang, Q.X.; Xue, S.F.; Chen, Z.H.; Ma, S.H.; Zhang, S.; Shi, G.; Zhang, M. Dual lanthanide-doped complexes: The development of a time-resolved ratiometric fluorescent probe for anthrax biomarker and a paper-based visual sensor. Biosens. Bioelectron. 2017, 94, 388–393. [Google Scholar] [CrossRef]
  4. Niu, X.; Wang, M.; Zhang, M.; Cao, R.; Liu, Z.; Hao, F.; Sheng, L.; Xu, H. Smart intercalation and coordination strategy to construct stable ratiometric fluorescence nanoprobes for the detection of anthrax biomarker. Inorg. Chem. Front. 2022, 9, 4582. [Google Scholar] [CrossRef]
  5. Othong, J.; Boonmak, J.; Kielar, F.; Hadsadee, S.; Jungsuttiwong, S.; Youngme, S. Selfcalibrating sensor with logic gate operation for anthrax biomarker based on nanoscaled bimetallic lanthanoid MOF. Sens. Actuators B 2020, 316, 128156. [Google Scholar] [CrossRef]
  6. Wang, Z.X.; Hu, L.; Gao, Y.F.; Kong, F.Y.; Li, H.Y.; Zhu, J.; Fang, H.L.; Wang, W. Aggregation-Induced Emission Behavior of Dual-NIR-Emissive Zinc-Doped Carbon Nanosheets for Ratiometric Anthrax Biomarker Detection. ACS Appl. Bio Mater. 2020, 3, 9031–9042. [Google Scholar] [CrossRef]
  7. Han, H.M.; Dong, W.W.; Li, M.K.; Xu, D.D.; Hu, Z.; Zhao, J.; Li, D.S. Ratiometric fluorescence detection of an anthrax biomarker by modulating energy transfer in hetero Eu/Tb-MOFs. Inorg. Chem. Commun. 2023, 153, 110755. [Google Scholar] [CrossRef]
  8. He, L.; Deen, D.D.; Pagel, A.H.; Diez-Gonzalez, F.; Labuza, T.P. Concentration, detection and discrimination of Bacillus anthracis spores in orange juice using aptamer based surface enhanced Raman spectroscopy. Analyst 2013, 138, 1657. [Google Scholar] [CrossRef]
  9. Cong, Z.; Zhu, M.; Zhang, Y.; Yao, W.; Kosinova, M.; Fedin, V.P.; Wu, S.Y.; Gao, E. Three novel metal-organic frameworks with different coordination modes for trace detection of anthrax biomarkers. Dalton Trans. 2022, 51, 250–256. [Google Scholar] [CrossRef]
  10. Han, Y.; Zhou, S.; Wang, L.; Guan, X. Nanopore back titration analysis of dipicolinic acid. Electrophoresis 2015, 36, 467–470. [Google Scholar] [CrossRef]
  11. Mawatari, K.; Atsumi, M.; Nakamura, F.; Yasuda, M.; Fukuuchi, T.; Yamaoka, N.; Kaneko, K.; Nakagomi, K.; Oku, N. Determination of Dipicolinic Acid in “Natto” by High-Performance Liquid Chromatography Coupled with Postcolumn Photoirradiation with Zinc Acetate. Int. J. Tryptophan Res. 2019, 12. [Google Scholar] [CrossRef]
  12. Lei, M.Y.; Ge, F.Y.; Ren, S.S.; Gao, X.J.; Zheng, H.G. A water-stable Cd-MOF and corresponding MOF@melamine foam composite for detection and removal of antibiotics, explosives, and anions. Sep. Purif. Technol. 2022, 286, 120433. [Google Scholar] [CrossRef]
  13. Wang, H.; Lustig, W.P.; Li, J. Sensing and capture of toxic and hazardous gases and vapors by metal-organic frameworks. Chem. Soc. Rev. 2018, 47, 4729. [Google Scholar] [CrossRef]
  14. Hu, M.L.; Razavi, S.A.A.; Piroozzadeh, M.; Morsali, A. Sensing organic analytes by metal-organic frameworks: A new way of considering the topic. Inorg. Chem. Front. 2020, 7, 1598. [Google Scholar] [CrossRef]
  15. Cui, Y.; Chen, B.; Qian, G. Lanthanide metal-organic frameworks for luminescent sensing and light-emitting applications. Coord. Chem. Rev. 2014, 273–274, 76–86. [Google Scholar] [CrossRef]
  16. Razavi, S.A.A.; Morsali, A. Metal ion detection using luminescent-MOFs: Principles, strategies and roadmap. Coord. Chem. Rev. 2020, 415, 213299. [Google Scholar] [CrossRef]
  17. Pal, T.K. Metal-organic framework (MOF)-based fluorescence “turn-on” sensors. Mater. Chem. Front. 2023, 7, 405. [Google Scholar] [CrossRef]
  18. Jiang, B.; Liu, W.; Liu, S.Y.; Liu, W.S. Coumarin-encapsulated MOF luminescence sensor for detection of picric acid in water environment. Dyes Pigments 2021, 184, 108794. [Google Scholar] [CrossRef]
  19. Guo, X.R.; Zhou, L.Y.; Liu, X.Z.; Tan, G.J.; Yuan, F.; Alireza, N.E.; Qi, N.; Liu, J.Q.; Peng, Y.Q. Fluorescence detection platform of metal-organic frameworks for biomarkers. Colloids Surf. B Biointerfaces 2023, 229, 113455. [Google Scholar] [CrossRef]
  20. Dong, J.; Dao, X.Y.; Zhang, X.Y.; Zhang, X.D.; Sun, W.Y. Sensing Properties of NH2-MIL-101 Series for Specific Amino Acids via Turn-On Fluorescence. Molecules 2021, 26, 5336. [Google Scholar] [CrossRef]
  21. Shukla, V.; Ahmad, M.; Siddiqui, K.A. Colorimetric recognition of a biomarker of trichloroethylene in human urine and photocatalytic dye degradation employing unprecedented Co(II) MOF luminescent probe. J. Mol. Struct. 2024, 1308, 138068. [Google Scholar] [CrossRef]
  22. Lei, N.N.; Li, W.C.; Zhao, D.S.; Li, W.Q.; Liu, X.; Liu, L.Y.; Yin, J.R.; Muddassir, M.; Wen, R.M.; Fan, L.M. A bifunctional luminescence sensor for biomarkers detection in serum and urine based on chemorobust Nickel(II) metal-organic framework. Spectrochim. Acta Part A 2024, 306, 123585. [Google Scholar] [CrossRef]
  23. Meng, Z.X.; Yang, F.N.; Wang, X.J.; Shan, W.L.; Liu, D.D.; Zhang, L.Y.; Yuan, G.Z. Trefoil-Shaped Metal–Organic Cages as Fluorescent Chemosensors for Multiple Detection of Fe3+, Cr2O72–, and Antibiotics. Inorg. Chem. 2023, 62, 1297. [Google Scholar] [CrossRef]
  24. Chaudhary, M.Y.; Kanzariya, D.B.; Das, A.; Pal, T.K. A fluorescent MOF and its synthesized MOF@cotton composite: Ratiometric sensing of vitamin B2 and antibiotic drug molecule. Spectrochim. Acta Part A 2024, 314, 124194. [Google Scholar] [CrossRef]
  25. Geng, J.; Li, Y.Y.; Lin, H.Y.; Liu, Q.Q.; Lu, J.J.; Wang, X.L. A new three-dimensional zinc(II) metal–organic framework as a fluorescence sensor for sensing the biomarker 3-nitrotyrosine. Dalton Trans. 2022, 51, 11390. [Google Scholar] [CrossRef]
  26. Li, W.Q.; Li, W.C.; Liu, X.; Wu, H.N.; Yang, J.Y.; Lu, F.Y.; Fan, L.M. A dual-responsive luminescent sensor for efficient detection of 3-nitrotyrosine and dipicolinic acid biomarkers based on copper(II) organic framework. Appl. Organomet. Chem. 2024, 38, e7452. [Google Scholar] [CrossRef]
  27. Cai, D.G.; Zheng, T.F.; Liu, S.J.; Wen, H.R. Fluorescence sensing and device fabrication with luminescent metal-organic frameworks. Dalton Trans. 2024, 53, 394. [Google Scholar] [CrossRef]
  28. Xi, Y.; Hu, M.; Gao, L.; Sun, Q.N.; Ma, E.H.; Hu, W.J.; Li, M.T.; Liu, W.; Sun, J.Y.; Zhang, C.L. A pyrazole-functional 3D cobalt-organic framework for fluorescence detection of Cu2+ and Hg2+. J. Mol. Struct. 2023, 1284, 135456. [Google Scholar] [CrossRef]
  29. Zhang, W.Q.; Zhang, B.L.; Wang, T.; Chen, J.; Li, Z.Y.; Wang, R.H.; Li, S.Q.; Zhang, J.J. Two new Cd-based metal–organic frameworks for afterglow detection of Fe3+ and NH3. J. Mater. Chem. A 2024, 12, 7732–7741. [Google Scholar] [CrossRef]
  30. Wu, S.Y.; Lin, Y.N.; Liu, J.W.; Shi, W.; Yang, G.M.; Cheng, P. Rapid Detection of the Biomarkers for Carcinoid Tumors by a Water Stable Luminescent Lanthanide Metal-Organic Framework Sensor. Adv. Funct. Mater. 2018, 28, 1707169. [Google Scholar] [CrossRef]
  31. Wang, N.R.; Li, S.S.; Li, Z.H.; Gong, Y.Y.; Li, X. A Zn(II)-Metal-Organic Framework Based on 4-(4-Carboxy phenoxy) Phthalate Acid as Luminescent Sensor for Detection of Acetone and Tetracycline. Molecules 2023, 28, 999. [Google Scholar] [CrossRef]
  32. Pavlov, D.I.; Yu, X.L.; Ryadun, A.A.; Samsonenko, D.G.; Dorovatovskii, P.V.; Lazarenko, V.A.; Sun, N.; Sun, Y.; Fedin, V.P.; Potapov, A.S. Multiresponsive luminescent metal–organic framework for cooking oil adulteration detection and gallium(III) sensing. Food Chem. 2024, 445, 138747. [Google Scholar] [CrossRef]
  33. Tian, X.M.; Yao, S.L.; Qiu, C.Q.; Zheng, T.F.; Chen, Y.Q.; Huang, H.P.; Chen, J.L.; Liu, S.J.; Wen, H.R. Turn-on luminescent sensor toward Fe3+, Cr3+, and Al3+ based on a Co(II) metal-organic framework with open functional sites. Inorg. Chem. 2020, 59, 2803. [Google Scholar] [CrossRef]
  34. Ma, K.; Zhao, Y.N.; Han, X. Interesting pH-responsive behavior in benzothiadiazole-derived coordination polymer constructed via an in situ click synthesis. Cryst. Growth Des. 2018, 18, 7419–7425. [Google Scholar] [CrossRef]
  35. Mallick, A.; El-Zohry, A.M.; Shekhah, O.; Yin, J.; Jia, J.; Aggarwal, H.; Emwas, A.-H.; Mohammed, O.F.; Eddaoudi, M. Unprecedented ultralow detection limit of amines using a thiadiazole-functionalized Zr(IV)-based metal-organic framework. J. Am. Chem. Soc. 2019, 141, 7245–7249. [Google Scholar] [CrossRef]
  36. Sheldrick, G.M. SHELXTL, version 6.14; Bruker AXS, Inc.: Madison, WI, USA, 2000–2003. [Google Scholar]
  37. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  38. Sarkisov, L.; Harrison, A. Computational structure characterisation tools in application to ordered and disordered porous materials. Mol. Simul. 2011, 37, 1248–1257. [Google Scholar] [CrossRef]
  39. Spek, A.L.J. Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 2003, 36, 7–13. [Google Scholar] [CrossRef]
  40. Rani, P.; Husain, A.; Bhasin, K.K.; Kumar, G. Zinc(II)-MOF: A Versatile Luminescent Sensor for Selective Molecular Recognition of Flame Retardants and Antibiotics. Inorg. Chem. 2024, 63, 3486. [Google Scholar] [CrossRef]
  41. Ju, Z.M.; Yan, W.; Gao, X.J.; Shi, Z.Z.; Wang, T.; Zheng, H.G. Syntheses, Characterization, and Luminescence Properties of Four Metal−Organic Frameworks Based on a Linear-Shaped Rigid Pyridine Ligand. Cryst. Growth Des. 2016, 16, 2496–2503. [Google Scholar] [CrossRef]
  42. Wang, L.Y.; Liu, T.T.; Cheng, J.W.; Zou, H.Q.; Lu, J.; Liu, H.T.; Li, Y.W.; Dou, J.M.; Wang, S.N. Turn-off luminescence sensing activities of amide-functionalized Zn-MOF toward biomarker (2-methoxyethoxy)acetic acid and antibiotic tetracycline. J. Mol. Struct. 2024, 1296, 136815. [Google Scholar] [CrossRef]
  43. Ru, J.; Shi, Y.X.; Li, T.; Cao, F.; Guo, Q.; Wang, Y.L. A water-stable 2D Y-MOF decorated with tris(3′-F-4′-carboxybiphenyl) amine for multi-responsive fluorescence sensing of CrVI and nitrofuran antibiotics. J. Mol. Struct. 2024, 1297, 136978. [Google Scholar] [CrossRef]
  44. Zhang, R.J.; Wang, J.J.; Xu, H.; Zhu, Z.H.; Zheng, T.F.; Peng, Y.; Chen, J.L.; Liu, S.J.; Wen, H.R. Stable Cd(II)-Based Metal-Organic Framework as a Multiresponsive Luminescent Sensor for Acetylacetone, Salicylaldehyde, and Benzaldehyde with High Sensitivity and Selectivity. Cryst. Growth Des. 2023, 23, 5564. [Google Scholar] [CrossRef]
  45. Hong, C.; Li, L.; Zou, J.Y.; Zhang, L.; You, S.Y. A turn-on fluorescent Zn(II) metal-organic framework sensor for quantitative anthrax biomarker detection. Dalton Trans. 2023, 52, 6067–6076. [Google Scholar] [CrossRef]
  46. Yang, S.L.; Song, D.X.; Li, K.S.; Wang, L.; Zhang, Y.; Sun, Y.G.; Zhu, M.C.; Wu, S.Y. Synthesis of a lanthanide-based bimetallic-metal-organic framework for luminescence sensing anthrax biomarker. Dyes Pigments 2023, 220, 111673. [Google Scholar]
  47. Wang, R.N.; Zhang, H.; Sun, J.; Su, Z.M. Eu3+-MOF fluorescence sensor based on a dual-ligand strategy for visualised detection of an anthrax biomarker 2,6-pyridine dicarboxylic acid. Inorg. Chem. Front. 2024, 11, 269. [Google Scholar] [CrossRef]
  48. Wang, L.X.; Li, A.J.; Wang, Z.H.; Wang, W.Z.; Zhou, H.F.; Liu, B. A layered Y(III)-viologen framework for efficient detection of nitrofurazone. J. Solid State Chem. 2022, 316, 123617. [Google Scholar]
  49. Frisch, M.; Trucks, G.; Schlegel, H.; Scuseria, G.; Robb, M.; Cheeseman, J.; Scalmani, G.; Barone, V.; Petersson, G.; Nakatsuji, H. Gaussian 16; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  50. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  51. Weigenda, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef]
  52. Grimme, S.; Ehrlich, S.; Goerigk, L. Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem. 2011, 32, 1456. [Google Scholar] [CrossRef]
  53. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  54. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  55. Lu, T.; Chen, Q.X. Independent gradient model based on Hirshfeld partition: A new method for visual study of interactions in chemical systems. J. Comput. Chem. 2022, 43, 539. [Google Scholar] [CrossRef]
Molecules 29 02755 sch001

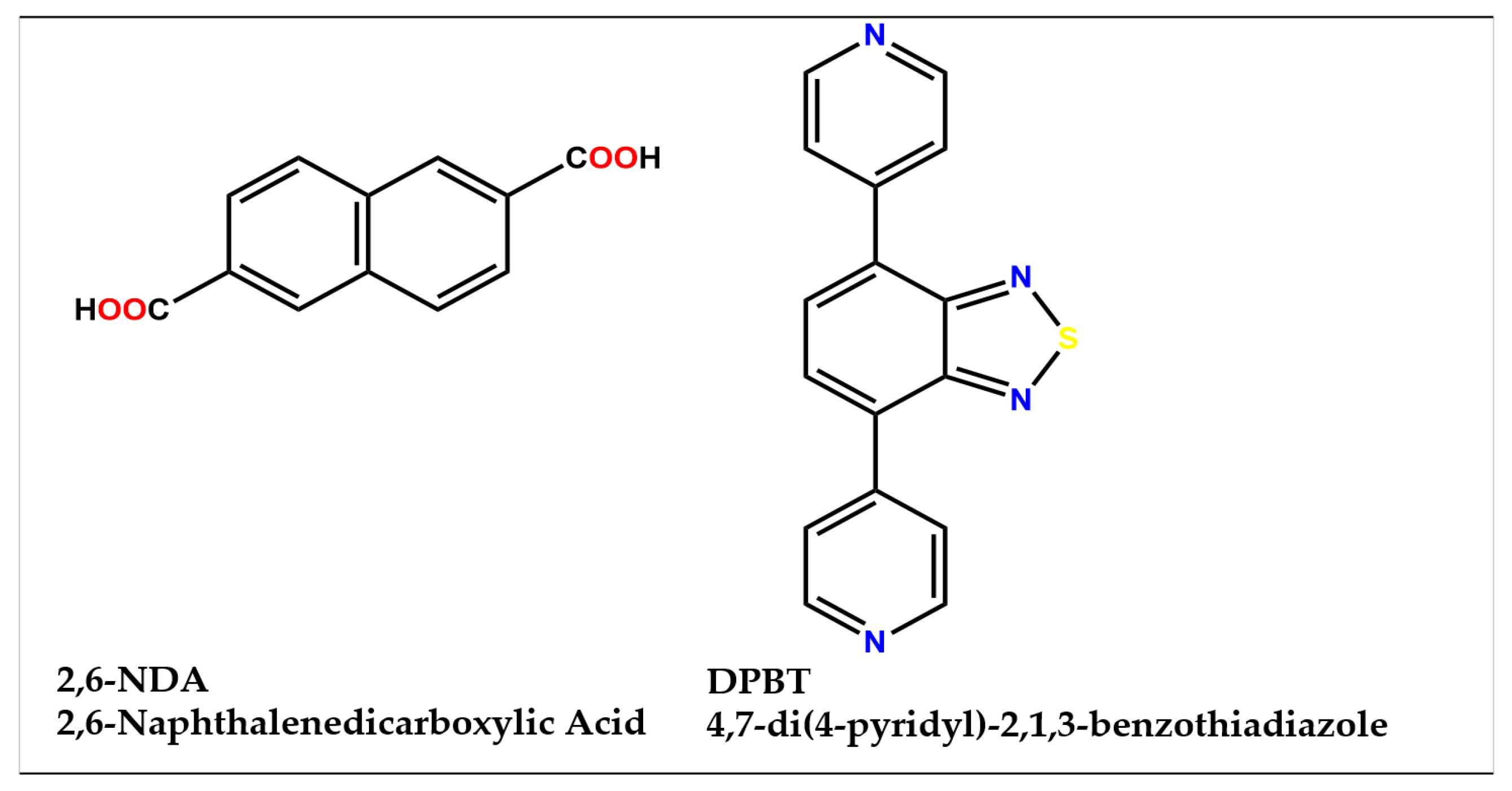

Scheme 1. Molecular structures of 2,6-NDA and DPBT used for the construction of MOF-1.
Scheme 1. Molecular structures of 2,6-NDA and DPBT used for the construction of MOF-1.
Molecules 29 02755 sch001
Molecules 29 02755 g001

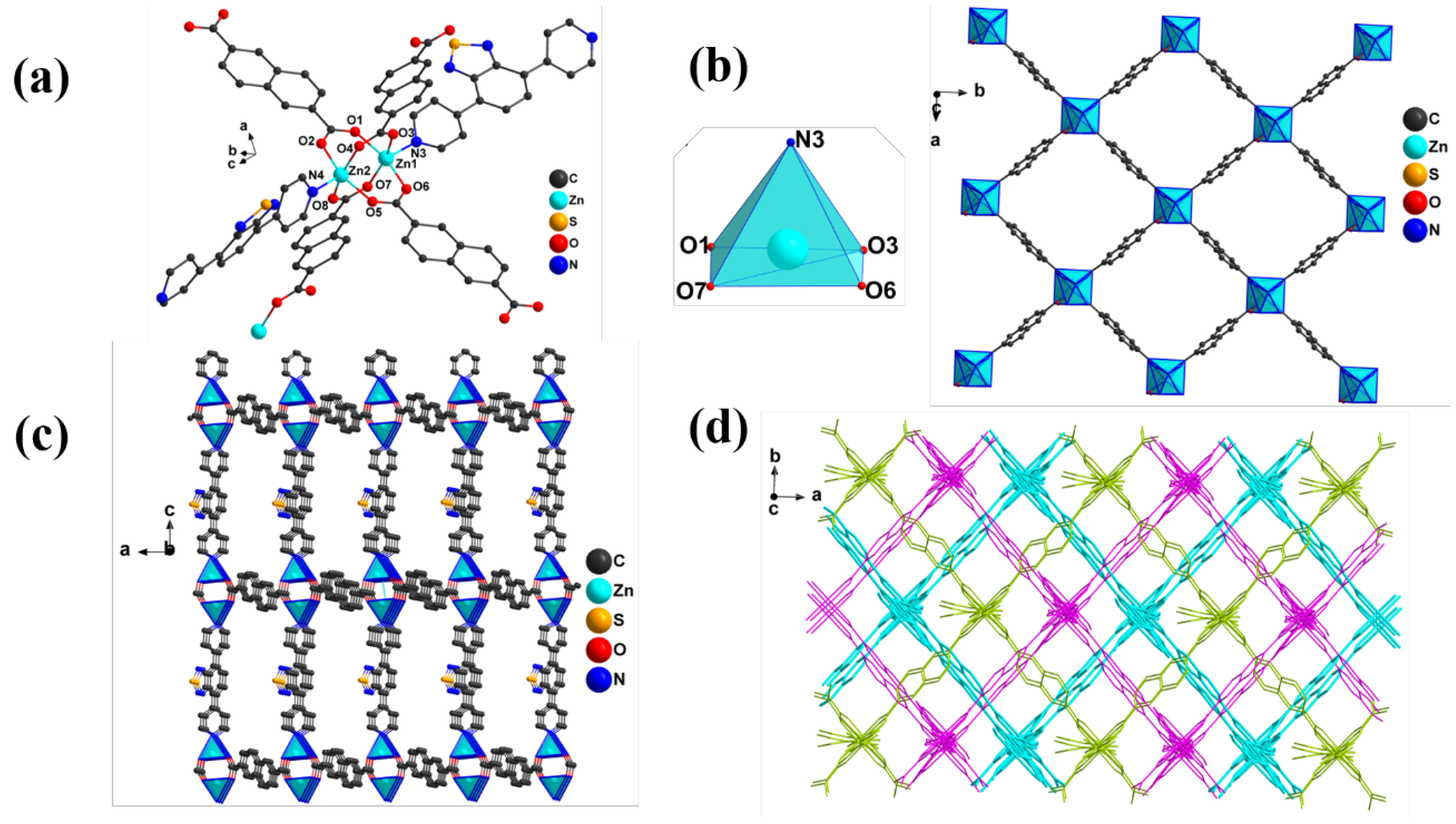

Figure 1. (a) The repeat unit MOF-1 (Zn2 center core); (b) coordination geometry of Zn(II) and 2D of MOF-1 through SBU and 2,6-NDA; (c) 3D of MOF-1 through DBPT along c axial; (d) interpenetrating 3D structure of MOF-1. (For clarity, the disordered and redundant atoms were omitted).
Figure 1. (a) The repeat unit MOF-1 (Zn2 center core); (b) coordination geometry of Zn(II) and 2D of MOF-1 through SBU and 2,6-NDA; (c) 3D of MOF-1 through DBPT along c axial; (d) interpenetrating 3D structure of MOF-1. (For clarity, the disordered and redundant atoms were omitted).
Molecules 29 02755 g001
Molecules 29 02755 g002

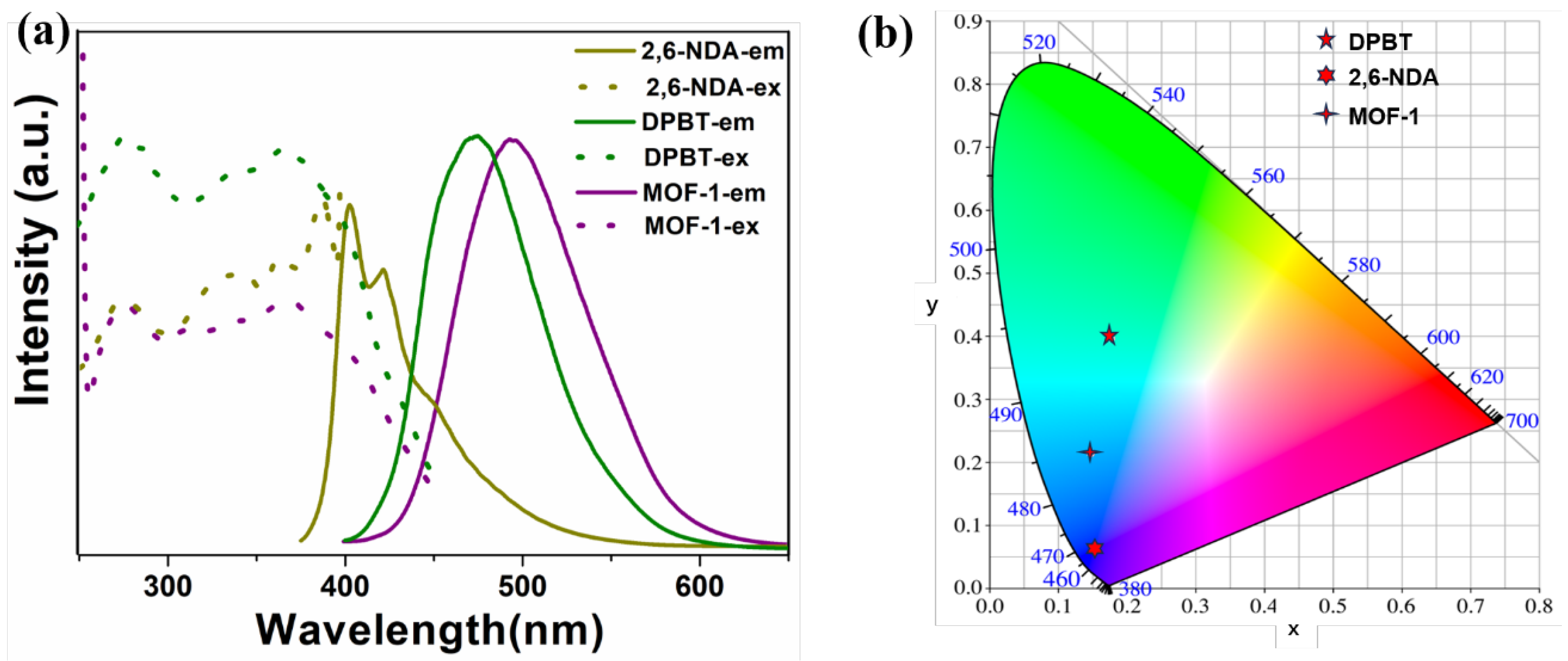

Figure 2. (a) The excitation and emission spectrum of solid-state 2,6-NDA, DPBT, and MOF-1 at room temperature; (b) CIE coordinates of the 2,6-NDA, DPBT, and MOF-1.
Figure 2. (a) The excitation and emission spectrum of solid-state 2,6-NDA, DPBT, and MOF-1 at room temperature; (b) CIE coordinates of the 2,6-NDA, DPBT, and MOF-1.
Molecules 29 02755 g002
Molecules 29 02755 g003

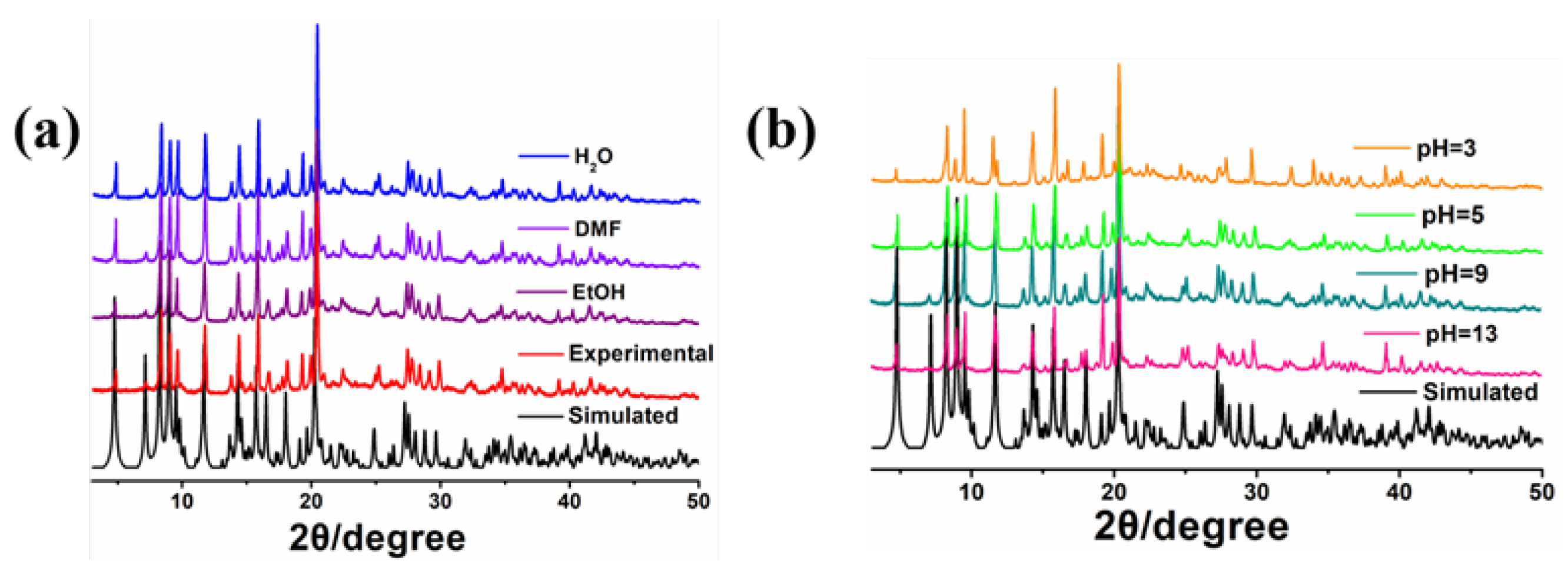

Figure 3. (a) PXRD patterns of MOF-1 after soaking in common solvent and (b) different pH aqueous solution for three days.
Figure 3. (a) PXRD patterns of MOF-1 after soaking in common solvent and (b) different pH aqueous solution for three days.
Molecules 29 02755 g003
Molecules 29 02755 g004

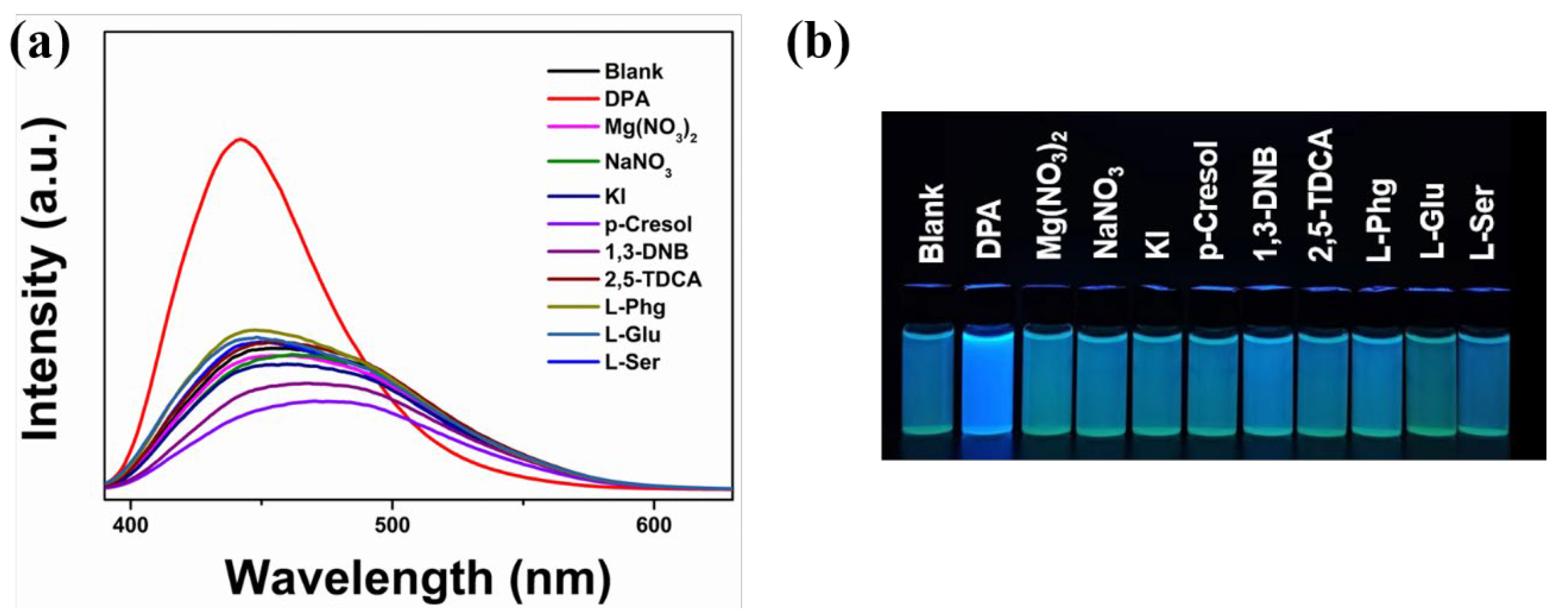

Figure 4. (a) The emission spectra of MOF-1 after dispersed in different analytes; (b) the corresponding color change in different analytes under UV light.
Figure 4. (a) The emission spectra of MOF-1 after dispersed in different analytes; (b) the corresponding color change in different analytes under UV light.
Molecules 29 02755 g004
Molecules 29 02755 g005

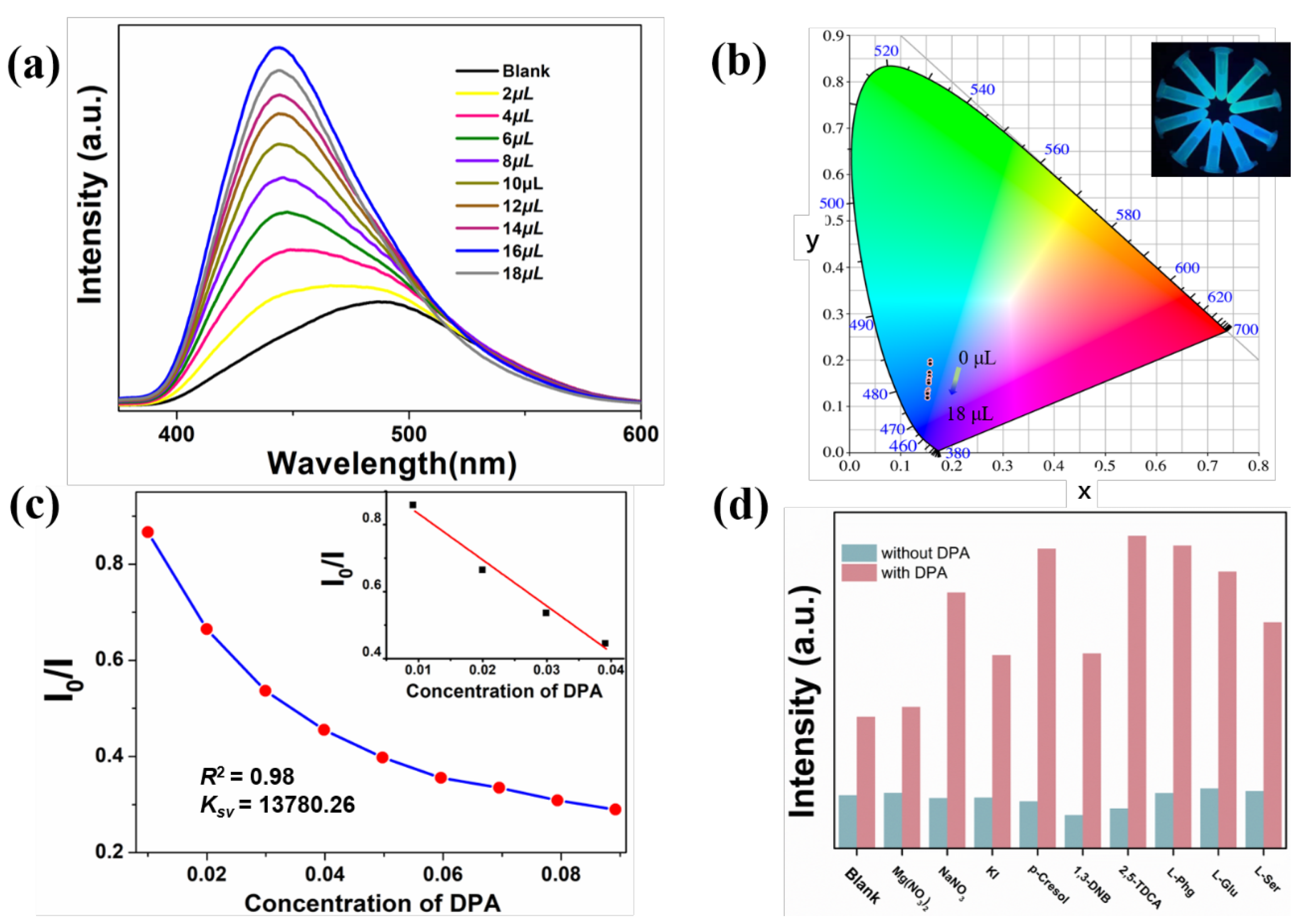

Figure 5. (a) Titration experiments of MOF-1 with different volume of DPA (0–18 μL, 10−2 M; (b) CIE chromaticity diagram showing the color coordinates of MOF-1 and MOF-1 containing DPA; (c) Stern–Volmer plots of MOF-1 for sensing of DPA and the linear relationship between I0/I and concentrations of DPA; (d) comparison of emission intensities of different analytes with and without DPA in MOF-1-EtOH solution.
Figure 5. (a) Titration experiments of MOF-1 with different volume of DPA (0–18 μL, 10−2 M; (b) CIE chromaticity diagram showing the color coordinates of MOF-1 and MOF-1 containing DPA; (c) Stern–Volmer plots of MOF-1 for sensing of DPA and the linear relationship between I0/I and concentrations of DPA; (d) comparison of emission intensities of different analytes with and without DPA in MOF-1-EtOH solution.
Molecules 29 02755 g005
Molecules 29 02755 g006

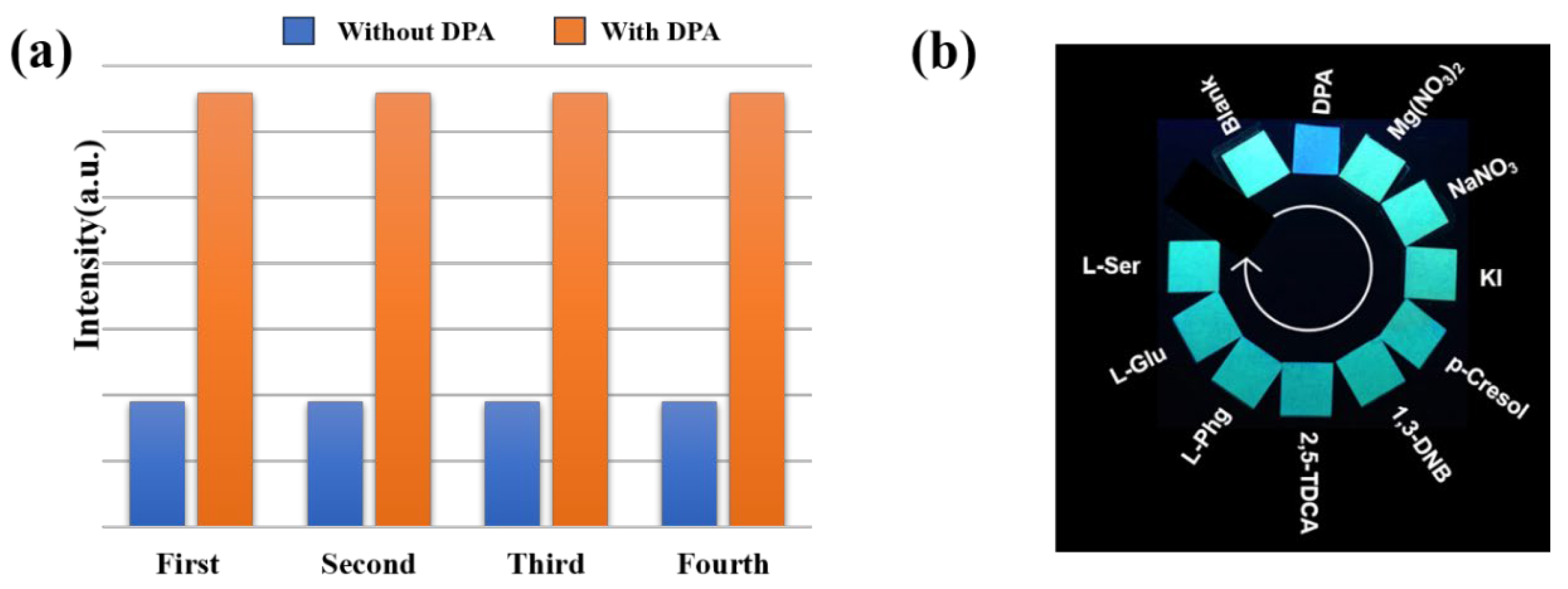

Figure 6. (a) The reversibility of MOF-1 for DPA sensing; (b) test paper of different analytes under UV light.
Figure 6. (a) The reversibility of MOF-1 for DPA sensing; (b) test paper of different analytes under UV light.
Molecules 29 02755 g006
Molecules 29 02755 g007

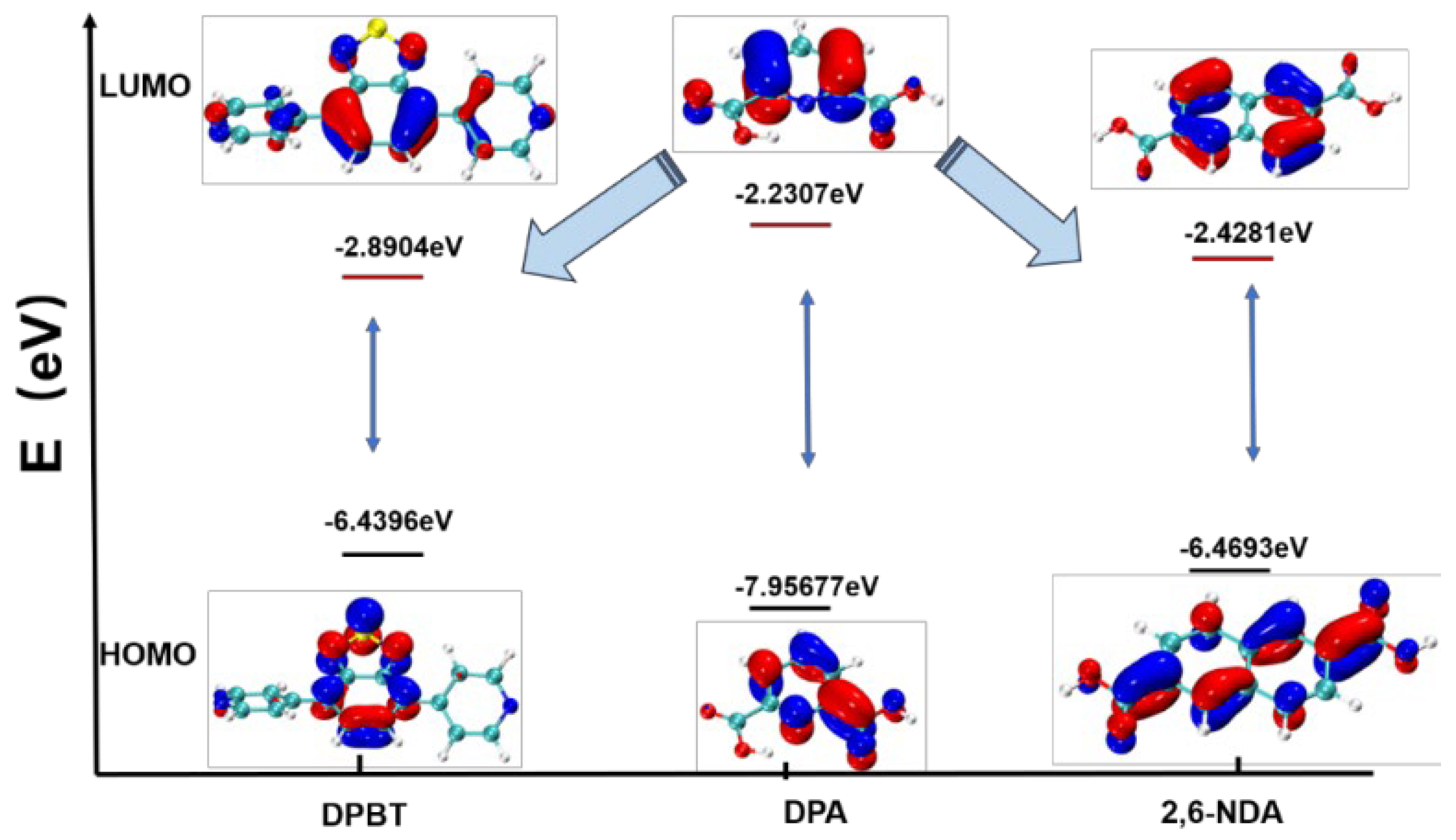

Figure 7. The HOMO, LUMO, and HOMO–LUMO energy band gaps for DPBT, DPA, and 2,6-NDA.
Figure 7. The HOMO, LUMO, and HOMO–LUMO energy band gaps for DPBT, DPA, and 2,6-NDA.
Molecules 29 02755 g007
Molecules 29 02755 g008

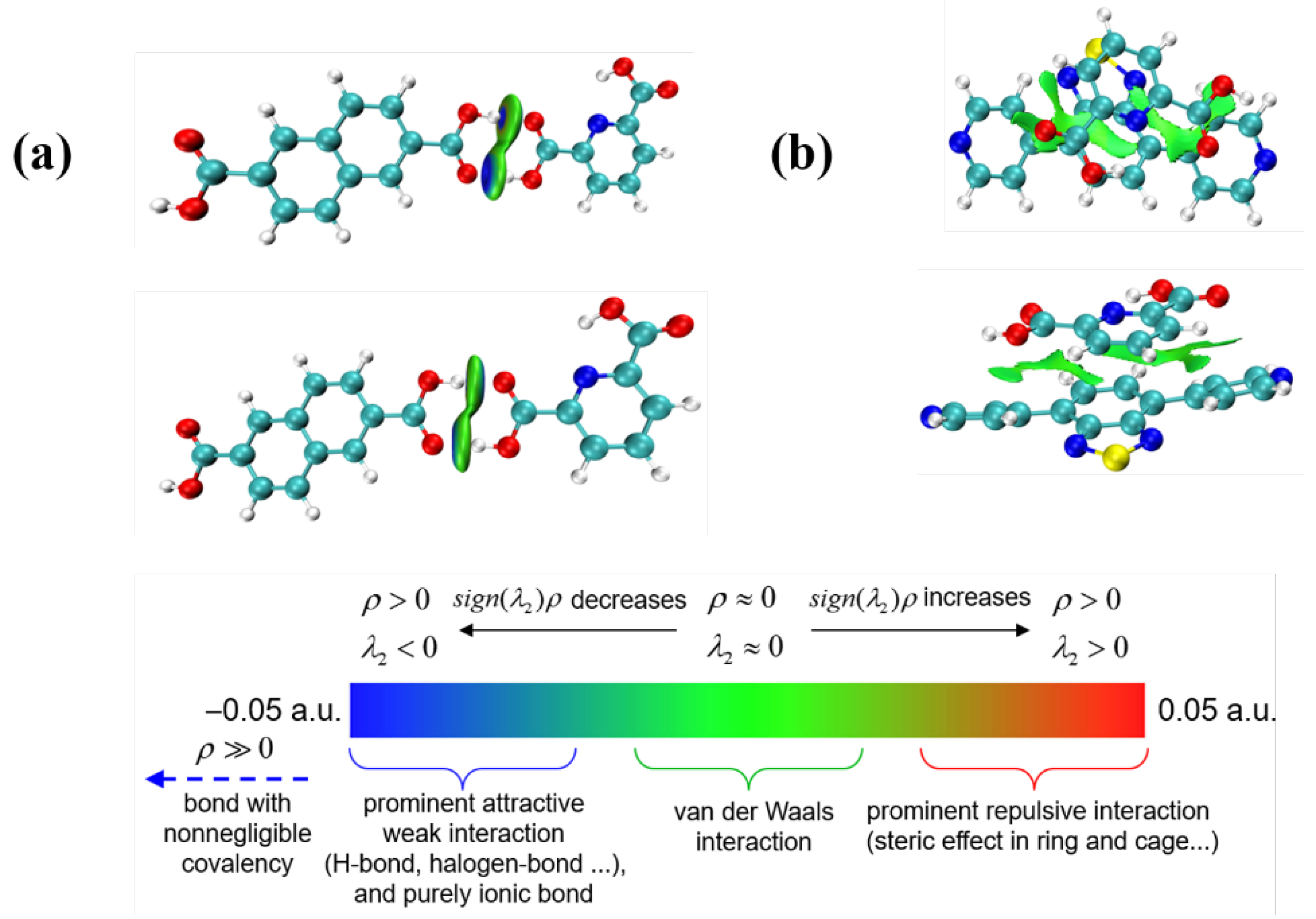

Figure 8. (a) Optimized geometry of the 2,6-NDA ligand with DPA and a gradient isosurface; (b) optimized geometry of the DPBT ligand with DPA and a gradient isosurface.
