Bicolor Tuning and Hyper-Reflective Color Switching Based on Two Stacked Cholesteric Liquid Crystal Cells with Asymmetric Electrothermal Optical Responses

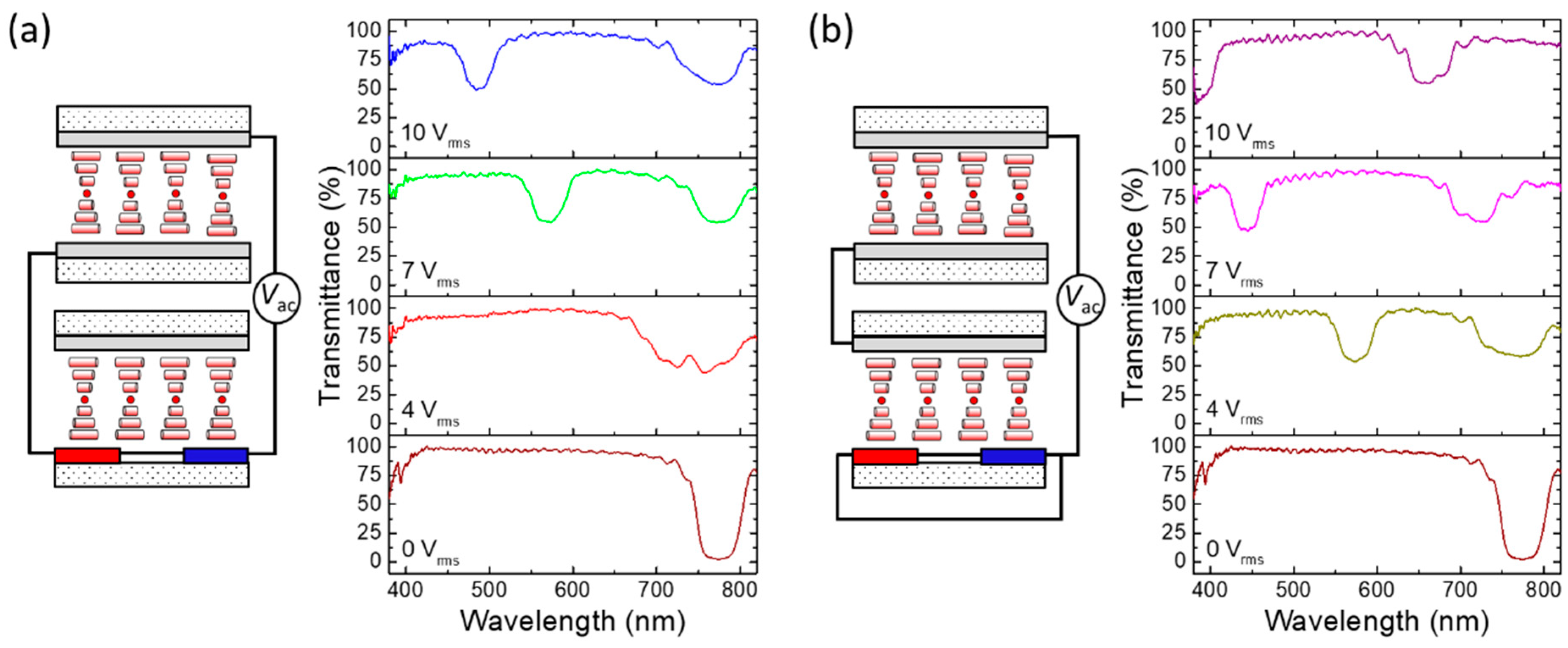

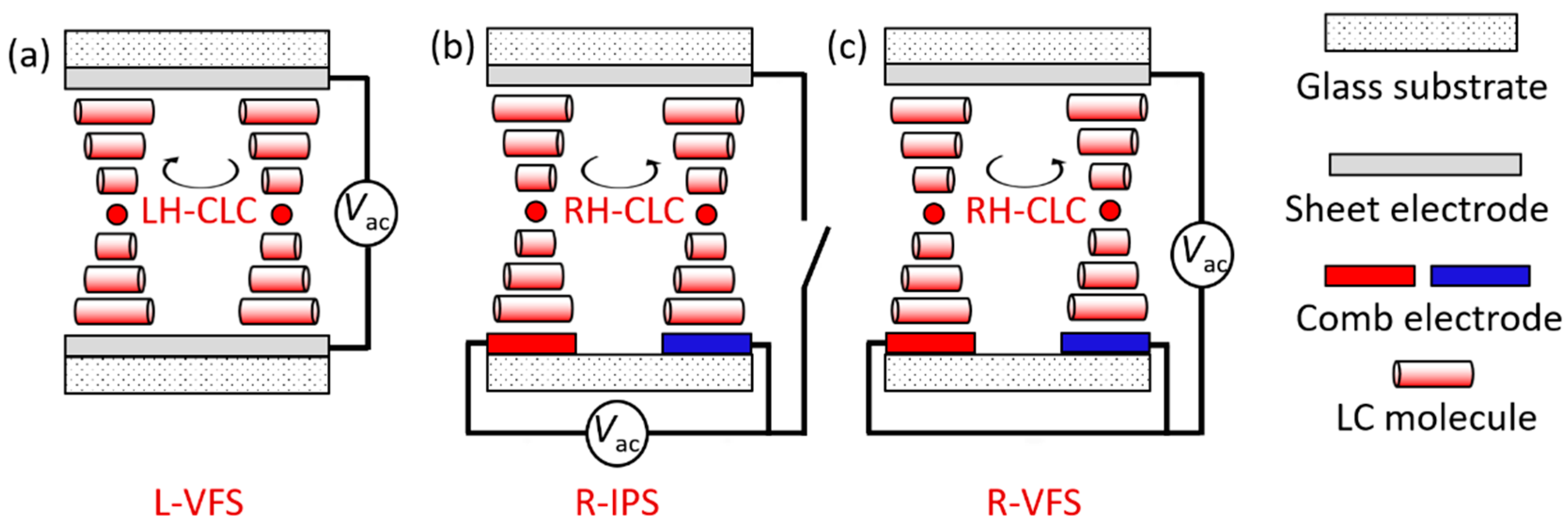

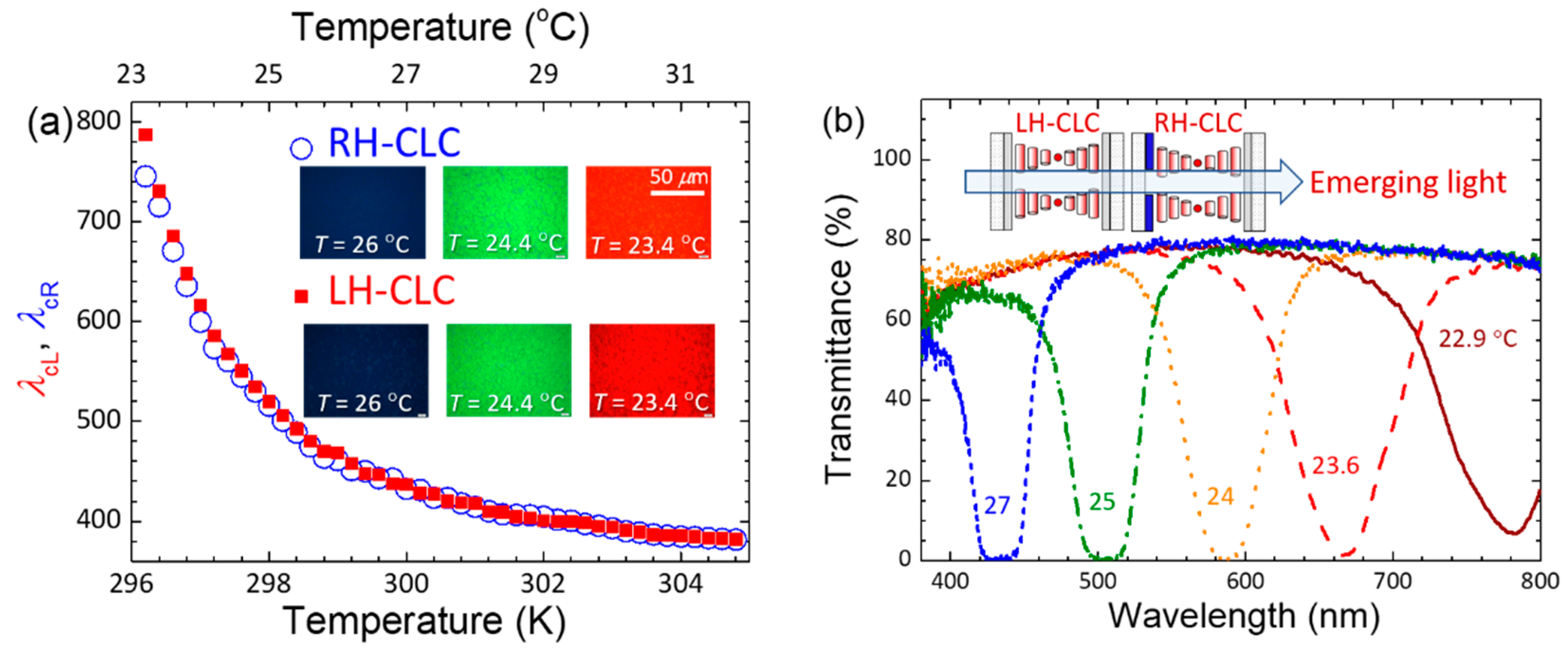

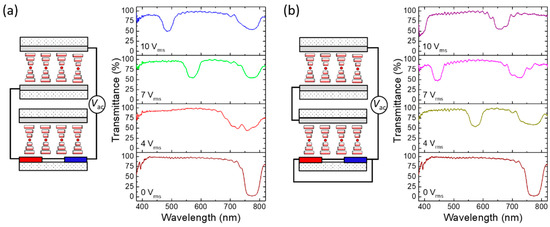

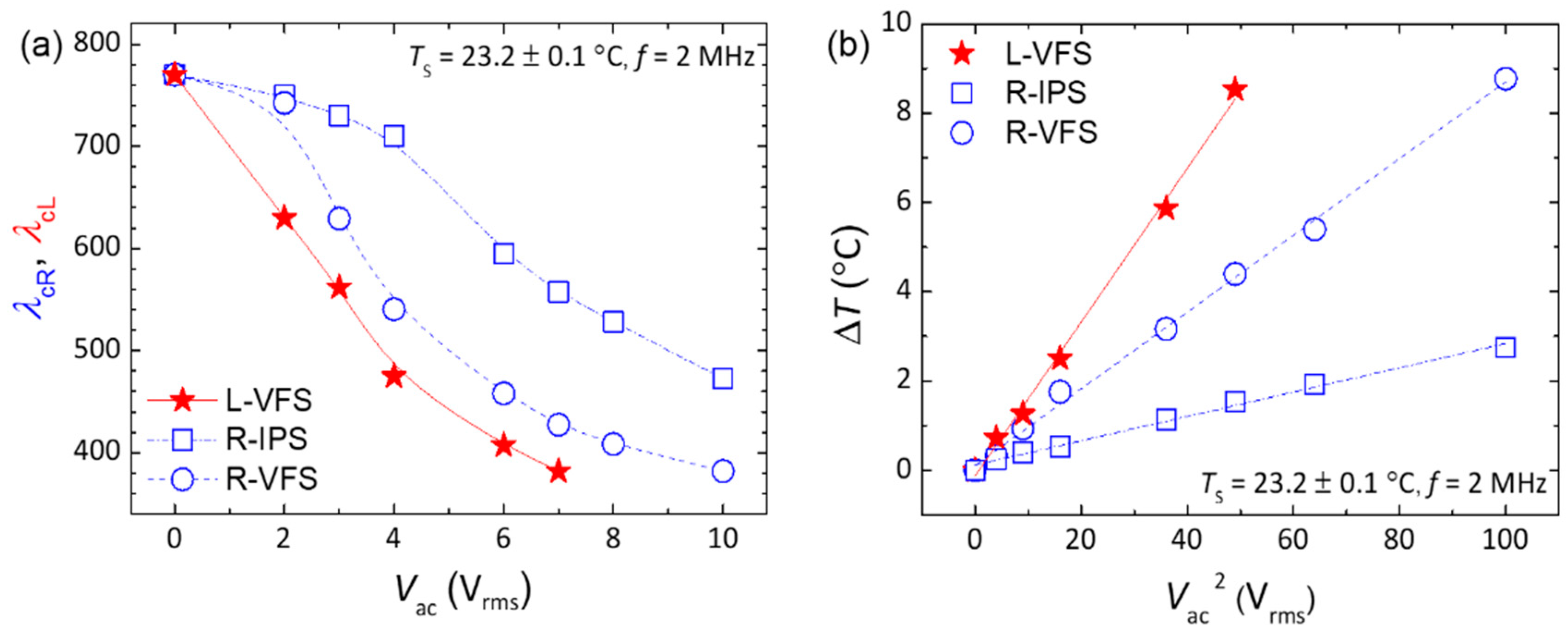

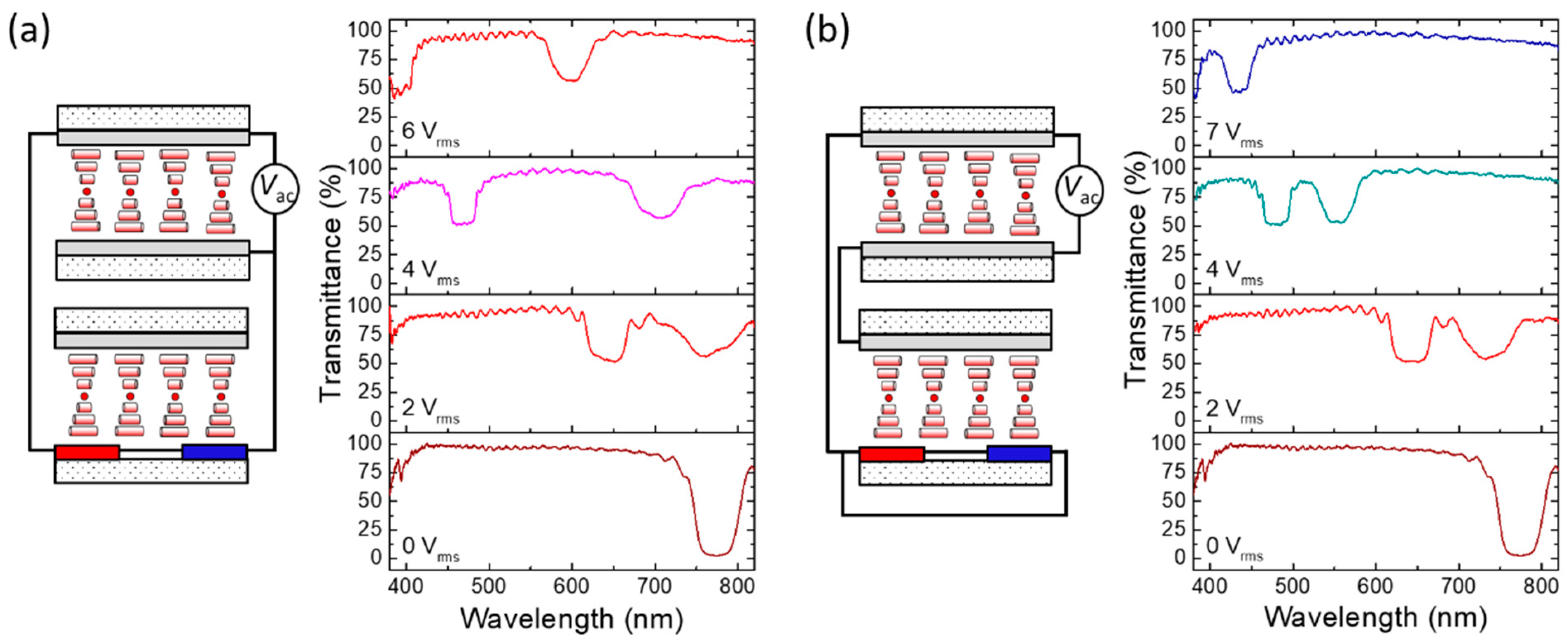

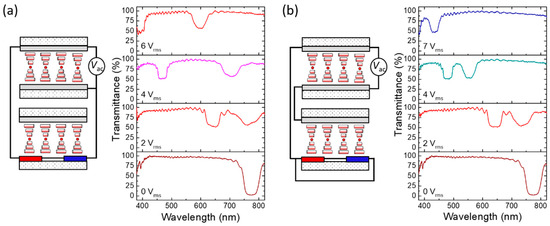

We propose a double-cell cholesteric liquid crystal (CLC) device composed of a left-handed (LH) CLC cell with a pair of sheet electrodes and a right-handed (RH) CLC cell with a tri-electrode configuration characterized by a sheet electrode on the top and an interdigitated electrode on the bottom substrates. Bi-reflected color tuning and hyper-reflective color switching are revealed from this cell stack via the electrothermal control of the central wavelengths of the LH- and RH-bandgaps by voltage-induced pseudo-dielectric heating. The two CLCs are thermally sensitive and exhibit overlapped bandgaps in the field-off state with nearly identical temperature dependence, resulting in a hyper-reflective color at 720 nm at 23.4 °C and 380 nm at 29.8 °C. Upon the application of 4 V_rms at 2 MHz across the stacked device to induce pseudo-dielectric heating, two reflective colors can be resolved due to asymmetrical temperature elevations. Accordingly, the difference in wavelength between the two colors increases with increasing voltage through a series cell connection, while maintaining approximately constant via a parallel connection. This study provides a feasible pathway to developing a multifunctional device with electrothermally tunable bi-reflected and hyper-reflective states based on two conventional cell geometries, which is promising for lasers and color-related display applications.
