Unveiling Non-Covalent Interactions in Novel Cooperative Photoredox Systems for Efficient Alkene Oxidation in Water

by
Isabel Guerrero
1,
Clara Viñas
1,
Francesc Teixidor
1,* and
Isabel Romero
2,*
1
Institut de Ciencia de Materials de Barcelona (ICMAB-CSIC), Campus UAB, E-08193 Bellaterra, Spain
2
Departament de Química and Serveis Tècnics de Recerca, Universitat de Girona, C/M. Aurèlia Campmany, 69, E-17003 Girona, Spain
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(10), 2378; https://doi.org/10.3390/molecules29102378
Submission received: 24 April 2024 / Revised: 13 May 2024 / Accepted: 15 May 2024 / Published: 18 May 2024
(This article belongs to the Special Issue Feature Papers in Photochemistry and Photocatalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
A new cooperative photoredox catalytic system, [RuII(trpy)(bpy)(H2O)][3,3′-Co(8,9,12-Cl3-1,2-C2B9H8)2]2, 5, has been synthesized and fully characterized for the first time. In this system, the photoredox catalyst [3,3′-Co(8,9,12-Cl3-1,2-C2B9H8)2]− [Cl6-1]−, a metallacarborane, and the oxidation catalyst [RuII(trpy)(bpy)(H2O)]2+, 2 are linked by non-covalent interactions. This compound, along with the one previously synthesized by us, [RuII(trpy)(bpy)(H2O)][(3,3′-Co(1,2-C2B9H11)2]2, 4, are the only examples of cooperative molecular photocatalysts in which the catalyst and photosensitizer are not linked by covalent bonds. Both cooperative systems have proven to be efficient photocatalysts for the oxidation of alkenes in water through Proton Coupled Electron Transfer processes (PCETs). Using 0.05 mol% of catalyst 4, total conversion values were achieved after 15 min with moderate selectivity for the corresponding epoxides, which decreases with reaction time, along with the TON values. However, with 0.005 mol% of catalyst, the conversion values are lower, but the selectivity and TON values are higher. This occurs simultaneously with an increase in the amount of the corresponding diol for most of the substrates studied. Photocatalyst 4 acts as a photocatalyst in both the epoxidation of alkenes and their hydroxylation in aqueous medium. The hybrid system 5 shows generally higher conversion values at low loads compared to those obtained with 4 for most of the substrates studied. However, the selectivity values for the corresponding epoxides are lower even after 15 min of reaction. This is likely due to the enhanced oxidizing capacity of CoIV in catalyst 5, resulting from the presence of more electron-withdrawing substituents on the metallacarborane platform.

1. Introduction

Epoxides are an important and versatile part of intermediate and basic components that are used to obtain more elaborate chemical products in both organic synthesis and in the industrial production of fine and bulk chemical products [1,2]. For example, epoxides can be transformed into a variety of functionalized products as diols, aminoalcohols, allylic alcohols, ketones, etc. [3,4,5,6]. The chemical oxidation of alkenes to obtain the corresponding epoxides has been carried out using different metal catalysts such as Mn-salen catalyst and NaClO or variations of these [7,8], Ti(iPrO)4 [9,10], and Ru-aqua complexes [11,12], among others. Most of these processes have been studied in organic media.
The development of photocatalytic methods and systems for organic transformations is challenging given the significant environmental and economic impact that this entails [13]. Cooperative photoredox catalysis represents a significant advancement in this field. It involves two catalysts: one that is photochemically active and another that is redox active, even in the absence of light [14]. The redox-active metal complex serves as a catalyst to activate either a water molecule or an organic substrate through a proton-coupled electron transfer (PCET) mechanism. Currently, photochemical systems studied for the oxidation of substrates involve a photocatalyst [15,16,17] or a photocatalyst combined with a transition metal catalyst based on polypyridyl compound [18,19,20,21]. However, a few examples of photochemical epoxidation of alkenes have been carried out with Earth-abundant metals [22,23,24]. Manganese and cobalt compounds all containing the carboranylcarboxylate ligand, [1-CH3-2-CO2-1,2-closo-C2B10H10]−, have been tested in the epoxidation of aliphatic and aromatic alkenes using peracetic acid as the oxidant [25]. The catalytic results highlight the role of the carboranylcarboxylate ligand in the selectivity of the processes, and it was found that coordination of the carboranylcarboxylate ligand to the metal ions is key to their catalytic performance.
On the other hand, it is well known that some boron clusters interact with light [26,27,28] and that they have been studied as catalysts in different processes. The most well-known metallacarborane is the anionic cobaltabis(dicarbollide) [29] that can be synthesized in high yield by a fast and environmentally friendly solid-state reaction [30]. The sandwich compound Na [3,3′-Co(1,2-C2B9H11)2], Na [1], found by Fuentes et al. [31], has many possibilities to form hydrogen bonds (e.g., Cc-H···O or Cc-H···X (X = halogen) as well as dihydrogen bonding Cc-H···H-B and B-H···H-N (Cc stands for the cluster carbon atoms)) [32,33,34]. Na [1] is highly stable in water, but even at low concentrations it forms aggregates (vesicles and micelles) [35,36,37] and can form ion-pair complexes through hydrogen and dihydrogen interactions. These supramolecular interactions appear to be significant in electron transfer processes and therefore in the performance and efficiency of photocatalytic systems.
Recently, we have shown that Na [1] and its dichloro (Na[Cl2-1]) and hexachloro (Na[Cl6-1]), acting both as catalyst and photosensitizer, have been highly efficient in the photooxidation of alcohol [38] and Na [1] in the oxidation of alkenes [24] in water, through single electron transfer processes (SET). We have also supported the metallabis(dicarbollide) catalyst on silica-coated magnetite nanoparticles [39]. This system has proven to be a green and sustainable heterogeneous catalytic system, highly efficient, and easily reusable for the photooxidation of alcohols in water. Finally, we have synthesized a cooperative system where the cobaltabis(dicarbollide) was linked by non-covalent interactions to a redox active oxidation catalyst that represented an efficient photocatalyst for the photooxidation of alcohols in water through PCET [40]. This specific cooperative photocatalytic system has not yet been explored for the photooxidation of alkenes in an aqueous environment.
With all this in mind, we describe here the synthesis of a new ruthenium-cobaltabis(dicarbollide) compound, [RuII(terpy)(bpy)(H2O)][3,3′-Co(8,9,12-Cl3-1,2-C2B9H8)2]2 5 (see Chart 1), where the [Ru-OH2] cation belongs to the family of redox oxidation catalysts [41] and the anion is the hexachloro cobaltabis(dicarbollide), [3,3′-Co(8,9,12-Cl3-1,2-C2B9H8)2]−, [Cl6-1]−. Also, their complete spectroscopic and electrochemical characterization has been conducted. The photocatalytic behavior of 5, together with that of the previously synthetized [RuII(terpy)(bpy)(H2O)][(3,3′-Co(1,2-C2B9H11)2]2, 4, as cooperative photoredox catalysts in the oxidation of aromatic and aliphatic alkenes in water has been tested and the results have been studied for the purpose of comparison.

2. Results and Discussion

2.1. Synthesis, Spectroscopic, and Redox Characterization

The synthetic strategy followed for the preparation of the ruthenium-cobaltabis(dicarbollide) complex [RuII(terpy)(bpy)(H2O)][(3,3′-Co(1,2-C2B9H11)2]2, 4 is described in [40,42] and the synthesis of [RuII(terpy)(bpy)(H2O)][3,3′-Co(8,9,12-Cl3-1,2-C2B9H8)2]2 5 involves the preparation of Ag[Cl6-1], following the formation of H[Cl6-1] from the water insoluble Cs [1]. Then, cooperative system 5 is synthesized by dissolving [RuII(terpy)(bpy)(Cl)]Cl, 2, in a 1:1 mixture of water and acetone in the presence of Ag[Cl6-1] under reflux conditions, following the method described in [43]. After filtering out AgCl, a molecular aqua ruthenium (II) complex containing two hexachloro cobaltabis(dicarbollide) anions as counterions is isolated. The synthetic strategy is depicted in Scheme 1.
Figure 1, Figures S1 and S2 display the IR spectra of complexes 4, 5, and Ag[Cl6-1]. The IR of 4 and 5 show vibrations around 2900 and 3030 cm−1 that can be assigned to υC-H stretching modes for the aromatic rings of the cationic moieties and to the υC-H stretching of the Cc-H bonds in the different rotamers of the dicarbollide anions, respectively. A band can be seen over 3500 cm−1 which corresponds to the υO-H stretching of the water ligands coordinated to ruthenium atoms in both compounds. We have also observed significant vibrations around 2530 cm−1 that correspond to υB-H stretching mode for the B-H bonds in the compounds. Unlike the spectrum of compound 4, the spectra of compound 5 and Ag[Cl6-1] presents bands at 900 cm−1 corresponding to υB-Cl stretching of the B-Cl bonds, present in the hexachloro cobaltabis(dicarbollide) anions.
The 1D 1H NMR spectra of the complex Ag[Cl6-1] and compound 5, along with the COSY spectrum of 5, were recorded in acetone-d6. These are displayed in Figure 2, Figures S3 and S4, respectively. The 1H NMR spectrum of 5 shows two set of signals, similar to complex 4 [40], (i) one in the aliphatic region that can be assigned to the Cc-H of the cobaltacarborane anions, which resonances appear around δ = 4.34 ppm, showing a shift of 0.36 ppm to low field with respect to complex 4; and (ii) the second one, in the aromatic region corresponding to the protons of the bypyridine and terpyridine ligands of the ruthenium cation.
The 1H{11B} NMR spectrum exhibits the H-B resonances over a wide range of chemical-shift in the region from δ = 1.70 to 3.5 ppm (Figure S4b). The 11B{1H} NMR spectra displays signals corresponding to the non-equivalent boron atoms avoiding the B-H signals coupling. On the other hand, the 11B NMR spectrum displays B-H signals as doublets and B-Cl signals as singlets. Both spectra show the typical pattern of the hexachloro cobaltabis(dicarbollide) cluster in the range from δ = 12.62 to −24.38 ppm, as shown in Figure S4 [34].
The UV-vis spectrum of Ag[Cl6-1] in CH2Cl2 shows one strong absorption band at 327 nm and three others with less intensity at 280, 390, and 469 nm, (Figure S5) in accordance with [43,44,45]. Figure 3 shows the UV-visible spectra of 5 and 2. The former exhibits ligand-based π-π* bands of the cationic part below 350 nm that are partially eclipsed by strong absorptions corresponding to the hexachloro cobaltabis(dicarbollide) anionic moiety. Above 350 nm, the spectra show less-intense bands that correspond to dπ(Ru)-π*(L) MLCT transitions [46]. It is worth mentioning the shift to higher energy absorptions observed for the MLCT bands of 5 regarding those of complex 2. This seems to indicate that the substitution of the chloride counterions by the metallacarboranes provokes the stabilization of the dπ (Ru) donor orbitals.
The electrochemical behavior of complexes Ag[Cl6-1] and 5 have been studied by means of cyclic voltammetry (CV). The CV curve of Ag[Cl6-1] in CH3CN + 0.1 M [n-Bu4N][PF]6 (TBAH) shows one reversible one-electron-redox process at E1/2 = −0.89 V versus Ag/AgCl as reference electrode, which can be assigned to CoIII/CoII (see Figure S6). Unlike the derivative Ag [1], the wave corresponding to CoIV/CoIII is not observed, probably because it is outside the working range of the solvent.
The CV of complex 5 in CH3CN + 0.1 M TBAH exhibits different redox processes due to the ruthenium and cobalt ions. Two quasi-reversible monoelectronic CoIII RuIII/CoIII RuII and CoIII RuIV/CoIII RuIII redox waves at Epa1 = 0.82 V; Epc1 = 0.74 V and Epa2 = 1.17 V; Epc2 = 0.93 V vs. Ag/AgCl (Epa1 = 0.38 V; Epc1 = 0.31 V and Epa2 = 0.73 V; Epc2 = 0.49 vs. Fc+/Fc) respectively and one quasireversible monoelectronic CoIII RuII/CoII RuII redox wave at Epa3 = −0.76 V; Epc3 = −0.97 V vs. Ag/AgCl, (Epa3 = −1.19 V; Epc3 = −1.40 V vs. Fc+/Fc) (Figure S6). The redox wave corresponding to the CoIV RuIV/CoIII RuIV is not observed. The two successive one-electron oxidation waves that correspond to CoIII RuIII/CoIII RuII and CoIII RuIV/CoIII RuIII redox couples can be assigned to two PCETs as it was observed in complex 4 [40]. These values have been assigned to the RuIII/RuII and RuIV/RuIII couples of the catalytic unit based in the values presented by the mononuclear [RuII(terpy)(bpy)(H2O)]2+ compound, [42,47] and in accordance with the values observed in complex 4. This last compound, unlike 5, shows one more oxidation wave attributed to CoIVRuIV/CoIIIRuIV redox couple a E1/2 = 1.38 vs. Ag/AgCl (0.95 V vs. Fc+/Fc). In 5, this potential would likely be outside the working range due to the greater oxidizing character of the anion [Cl6-1]− compared to [1]−.
As has been observed with 4 in water [42], it is expected that in both compounds 4 and 5 the photogenerated CoIV could oxidize [RuIII-OH]2+ to [RuIV=O]2+, since the potential for CoIV/CoIII is high enough compared to the RuIV/RuIII couple. Then, it is expected that for photocatalytic oxidation of alkenes, both [1]− and [Cl6-1]− could act as good photosensitizers.

2.2. Photocatalytic Alkene Oxidations

The photocatalysts 4 and 5 are [Ru][Co]2 ion pairs based on Co, an abundant transition metal, whereas the redox parts are Ru-OH2 complexes. The first photocatalytic alkene oxidation experiments were all performed using 4 as the photocatalyst by exposing the reaction quartz vials to UV irradiation (2.2 W, λ ~ 300 nm) at room temperature and atmospheric pressure using styrene as substrate and very relevantly using water as a solvent. The samples were made of 5 mL of water pH = 7 (K2CO3 solution is used to adjust the pH) with a mixture of 4 (0.01 mM), styrene (20 mM), and Na2S2O8 (26 mM) as oxidizing agent, (catalyst load of 0.05 mol%). Then, different reaction times were tested to assess the conversion as a function of time. The reaction products were extracted with dichloromethane six times, dried with Na2SO4 and quantified by means of GC-MS analysis. As can be observed in Figure S7, after 30 min of reaction, even after 15 min, all the styrene was converted. Blank experiments after 30 min of reaction, in the absence of catalyst, light, or oxidizing agent, showed that no significant conversion of styrene occurred. Figure 4 displays (a) the yields of different oxidation products obtained at different times and (b) the molar fractions (XM) obtained in function of the reaction time. As we can see, after 5 min the amount of epoxide obtained is high (67%) and after 15 min the amount of diol increases, although the amount of epoxide is still greater (35% diol vs. 57% epoxide). A slight decrease in epoxide is observed after 30 min, (34% diol vs. 51% epoxide), but in any case, it continues to be the majority product above diol and other byproducts such as benzaldehyde and benzoic acid. We observed a slight decrease in yield and selectivity for epoxide formation with longer reaction times. Therefore, we selected a 15-min reaction time for the photoredox oxidation of various alkenes. However, we also examined the catalyst’s performance after a 30-min reaction in some instances.
Table 1 displays the performance of the photocatalyst 4 after 5, 15, and 30 min of reaction using 0.05 mol% and 0.005 mol% of catalyst. In general, when 0.05 mol% of catalyst is used, it can be observed that total conversion values were achieved after 15 min of reaction with, in many cases, total conversion after 30 min. However, moderate selectivity in the corresponding epoxide is obtained, which decreases when the reaction time increase, along with the TON values. However, with 0.005 mol% of catalyst the conversion values after 15 and 30 min are lower but the selectivity and TON values are higher. This happens simultaneously with an increase in the amount of the corresponding diol for most of the substrates studied (see Table S1). At this point we can assert that the selectivity towards the epoxide increases with lower loads of catalyst 4.
The photoepoxidation of trans-β-methylstyrene (entry 2), trans-stilbene (entry 3) led to the formation of the corresponding trans-isomer without isomerization after 15 and 30 min; however, in the case of cis-β-methylstyrene, the stereoselectivity towards the formation of the cis-epoxide isomer decreases after 30 min of reaction. The oxidation of aliphatic alkenes as the cyclic cyclooctene (entry 5) together with linear 1-octene (entry 6) has also been tested. In both cases, a good performance is shown.
As we have commented previously, the selectivity towards the epoxide in water decreased with the reaction time whereas the amount of diol increases as well as, in some cases, other overoxidation products. In an aqueous medium, the epoxide ring undergoes ring opening. However, we aimed to determine whether this process is driven by water or by our catalyst. Different experiments were then performed by exposing the sealed reaction to UV irradiation for 15 and 30 min, operating with 0.05 mol% of catalyst, under the same conditions used before and using three different epoxides: 1,2-epoxyoctane, styrene oxide, and trans-stilbene oxide. The results shown in Table S2 indicate the formation of the corresponding diols in water after 15 and 30 min if the photocatalyst is present. When the catalyst is absent, lower or nonexistent yields of diols have been observed. In the case of styrene, only benzaldehyde of benzoic acid has been detected after 30 min. Thus, we can conclude that 4 acts as a photocatalyst in both processes, epoxidation, and hydroxylation in aqueous media. It is worth mentioning that ring opening of epoxides is a promising process to produce 1,2-diols, an important functional group to produce pharmaceuticals, surfactants, or their intermediates [48].
We have also studied the behavior of 5 as photocatalyst in the alkene oxidation in water using low catalyst load of 0.005 mol%. The results are presented in Table 2 and Table S3, including those previously obtained for compound 4, to facilitate a comparative analysis. In general, we can observe moderate-to-high conversion values after 30 min of reaction in most cases. It is worth noting that while the conversion values of catalyst 5 are generally higher than those obtained with 4, in most of the substrates studied, the selectivity values in the corresponding epoxides are lower even after 15 min of reaction. This is probably due to the enhanced oxidizing capacity of CoIV in catalyst 5, as a consequence of the presence of more electron-withdrawing substituents on the cosane platform. At this point, we can assert that in most cases and under the studied conditions, photocatalyst 4 shows higher selectivity values towards the epoxidation of alkenes that photocatalyst 5.
Based on the photocatalytic results exposed above, we have postulated a mechanism, displayed in Figure 5, for the photoepoxidation of alkenes carried out by complexes 4 and 5.
In the mechanism that is consistent with the products generated, the absorption of light by the photosensitizer CopIII produces the excitation to form CopIII*, which undergoes oxidative quenching by S2O82− (oxidizing agent) generating CopIV. This photogenerated strong oxidizing CoIV can oxidize RucII-OH2 to RucIII-OH. Then, the SO4− radical oxidizes a new CopIII to CopIV which oxidizes RucIII-OH to RucIV=O species. The RucIV=O species reacts with the corresponding alkene to afford the oxidized products, with the regeneration of the corresponding catalyst RucII-OH2. With the pathway proposed in Figure 5, the exchange of two electrons and two protons takes place in the oxidation of alkenes.

3. Experimental

3.1. Materials, Instrumentation, and Measurements

The commercial Cs[Co(1,2-C2B9H11)2], Cs [1], was obtained of Katchem Spol.sr.o. Compounds [RuIIICl3(terpy)], [49], [RuIICl(terpy)(bpy)]Cl, 2, [RuII(terpy)(bpy)(OH)2](ClO4)2, 3 [42,47] and [RuII(terpy)(bpy)(H2O)][(3,3′-Co(1,2-C2B9H11)2]2, 4 [40] were also prepared according to literature procedures. All synthetic manipulations were performed under nitrogen atmosphere using vacuum line techniques.
All reagents used in the present work were obtained from Aldrich Chemical Co. and were used without further purification. Reagent grade organic solvents were obtained from SDS, and high purity deionized water was obtained by passing distilled water through a nano-pure Mili-Q water purification system.
UV-vis spectroscopy was performed on a Cary 50 Scan Varian (Santa Clara, CA, USA) UV-vis spectrophotometer with 1 cm quartz cells or with an immersion probe of 5 mm path length. NMR spectra have been recorded with a Bruker ARX 300 instrument (Bruker Biospin, Rheinstetten, Germany) and 1H NMR spectra were recorded in acetone-d6. Chemical shift values were referenced to SiMe4. Elemental analyses were performed using a CHNS-O Elemental Analyser EA-1108 from Fisons (Waltham, USA). ESI-MS experiments were performed on a Navigator LC/MS chromatograph from Thermo Quest Finnigan (Toronto, Canada) using acetonitrile as mobile phase. Cyclic voltammetric (CV) or differential pulse voltammetry (DPV) was performed in an IJ-Cambria 660C potentiostat using a three-electrode cell. Glassy carbon electrode (3 mm diameter) from BAS was used as working electrode, platinum wire as auxiliary, and Ag as pseudo-reference electrode or SCE as the reference electrode. All cyclic voltammograms presented in this work were recorded under nitrogen atmosphere. The complexes were dissolved in deoxygenated solvents containing the necessary amount of TBAH as supporting electrolyte to yield a 0.1 M ionic strength solution. All E1/2 values reported in this work were estimated from cyclic voltammetry experiments as the average of the oxidative and reductive peak potentials (Epa + Epc)/2. Unless explicitly mentioned, the concentration of the complexes was approximately 1mM.
Gas chromatography was performed with a GC-2010 Gas Chromatograph from Shimadzu (Kyoto, Japan), equipped with an Astec CHIRALDEX G-TA column, 30 m × 0.25 mm (i.d); FID detector, 250 °C; injection: 250 °C; carrier gas: helium; rate: 1.57 mL min−1; area normalization. The product analyses in the catalytic experiments were performed by GC with biphenyl as internal standard.

3.2. Synthesis of Compounds

Synthesis of Ag [3,3′-Co(8,9,12-Cl3-1,2-C2B9H8)2], Ag[Cl6-1]. A sample of Cs [3,3′-Co(1,2-C2B9H11)2], Cs [1] (0.45 g, 0.985 mmol) was dissolved in 14 mL of acetonitrile under magnetic stirring. It was then slowly added dropwise 14 mL of SO2Cl2 and the reaction mixture was refluxed 2 h at 70 °C. Afterwards, volatiles were removed in the rotavapor and the resulting residue was extracted three times with diethyl ether (15 mL) and aqueous HCl (3M, 3 × 15 mL) to remove all impurities. Then, the organic layer was dried over MgSO4. After filtration, the liquid was evaporated and dissolved in water and precipitated using a saturated aqueous solution of CsCl. An orange solid was isolated. Then, the solvent was evaporated and the remaining solid was dissolved in 20 mL of diethylether. Further purification was performed by extraction procedure by hydrochloric acid 1M (3 × 15 mL). The organic phase containing H [3,3′-Co(8,9,12-Cl3-1,2-C2B9H8)2] (H[Cl6-1]), was carried out to dryness under reduced pressure and dissolved with water. It was then added to an excess of silver nitrate (0.251 g, 1.477 mmol) to form a precipitate that was collected on a frit and washed with water three times and dried under vacuum. Yield 371.0 mg (60%). MALDI-TOF-MS: m/z calc. for [Cl6-1]−: 530.40; m/z found (%): 495.95 [Cl5-1] (8%), 529.91 [Cl6-1] (85.02%), 563.86 [Cl7-1] (7%). IR (ν, cm−1): 3049 (wk, Cc-H), 2600 (shp, B-H), 1605 (O-H), 993 (B-Cl). 1H{11B} NMR (400 MHz, CD3OCD3): δ 4.35 (br s, 4H, Cc-H), 3.51, 3.34, 3.08, 2.91, 2.32, 1.69 (br s, 12H, B-H). 11B NMR (96.29 MHz, CD3OCD3): δ = 12.14 (m, 2B, B-H, B8, B8′), 4.60 (m, 6B, B-H, B9, B9′, B12, B12′, B7, B7′), −5.24 (m, 4B, B-H, B10, B10′, B4, B4′), −17.90 (d, 1J(B,H) = 156 Hz, 4B, B-H, B5, B5′, B11, B11′), −24.38 (d, 1J(B,H) = 162 Hz, 2B, B-H, B6, B6′). E1/2 CoIII/II(CH3CN + 0.1M TBAH): −0.89 V vs. Ag. UV-vis (CH3CN, 1 × 10−4 M): λmax nm (ε, M−1 cm−1) 240 (2978), 281 (7264), 328 (29,289), 391 (4014), 472 (484).
Synthesis of [RuII(terpy)(bpy)(H2O)][3,3′-Co(8,9,12-Cl3-1,2--C2B9H8)2]2, 5. A sample of 0.09 g (0.142 mmol) of 2 and (0.26 g, 0.401 mmol) sample of Ag[Cl6-1] were dissolved in 60 mL of acetone:water (1:1) and the resulting solution was refluxed for 3 h. Then, AgCl was filtered off through a frit containing celite. The volume of the solution was reduced and the mixture chilled in a refrigerator for 48 h. The orange precipitate was collected on a frit, washed with cold water and anhydrous ethylether, and then vacuum-dried. Yield: 0.261 g (42%). Anal. Found (Calc.) for C33H53B36Cl12Co2N5ORu·0.77H2O·2Et2O: C, 28.52 (28.52); H, 3.71 (4.35); N, 3.90 (4.03) %. 1H NMR (acetone-d6, 400 MHz): δ 9.87 (d, 1H, 3JH-H = 5.6 Hz, 1H, H1), 8.97 (d, 1H, 3JH-H = 8.0 Hz, 1H, H7), 8.91 (d, 3JH-H = 7.9 Hz, 2H, H17, H19), 8.77 (d, 3JH-H = 8.2 Hz, 2H, H14, H22), 8.65 (d, 3JH-H = 8.1 Hz, 1H, H4), 8.57 (td, 3JH-H = 8.1 Hz, 4JH-H = 1.2 Hz, 1H, H8), 8.48 (t, 3JH-H = 8.3 Hz, 1H, H18), 8.19 (ddd, 3JH-H = 7.1 Hz, 4JH-H = 1.0 Hz, 1H, H9), 8.13 (td, 3JH-H = 7.9 Hz, 4JH-H = 1.2 Hz, 2H, H13, H23), 8.05 (d, 3JH-H = 5.4 Hz, 2H, H11, H25), 7.89 (td, 3JH-H = 8.4 Hz, 4JH-H = 1.3 Hz 1H, H3), 7.65 (m, 3H, H10, H12, H24), 7.57 (td, 3JH-H = 8.0Hz, 4JH-H = 1.3 Hz, 1H, H2), 5.83 (s, 2H, Ru-OH2), 4,34 (s, 8H, Cc-H). 1H{11B} NMR (acetone-d6, 400 MHz): δ 4.34 (s, 8H, Cc-H), 3.07 (s, 8B-H, B4, B4′, B7, B7′), 2.89 (s, 4B-H, B10, B10′), 1,97 (s, 4B-H, B6, B6′), 1.91 (s, 4B-H, B5, B5′), 1.67 (s, 4B-H, B11, B11′). 11B NMR (acetone-d6, 128 MHz): δ 12.59 (d, 4B, JB-H = 116.6 Hz, B-Cl), 4.82 (m, 8B, B-Cl), 1.99 (m, 4B, B-H), −5.17 (d, 4B, JB-H = 164.9 Hz, B-H), −17.94 (d, 8B, JB-H = 162.5 Hz, B-H), −24.41 (d, 4B, JB-H = 177.9 Hz, B-H). 11B{1H} NMR (acetone-d6, 128 MHz): δ 12.62 (brs, 4B, B8, B8′), 4.82 (s, 8B, B9, B9′, B12, B12′), 2.82 (s, 4B, B7, B7′), −5.05 (s, 4B, B10, B10′), −17.88 (s, 8B, B5, B5′, B11, B11′). 13C{1H}-NMR (acetone-d6, 100 MHz): δ 159.30, 159.14, 158.65, 156.02, 153.12, 152.74, 150.53, 138.45, 137.53, 136.19, 136.05, 127.96, 127.59, 126.46, 124.18, 124.12, 123.59 and 123.28, (C terpy-Ru-bpy) and 47.42 (Cc). E1/2 (CH2Cl2+ 0.1 M TBAH) CoIII/II, −0.87 V; CoIV/III, 1.39; RuIII/II, 0.67 V; RuIV/III, 0.97 V vs. Ag. IR (νmax, cm−1): 3052, 2924, 2853, 2583, 1694, 1602, 1446, 1465, 1447, 1386, 1100, 1025, 938, 858, 875, 760. UV-vis (CH3CN, 1 × 10−5 M) [λmax nm (ε, cm−1 M−1)]:232 (24,156), 244 (21,064), 291 (40,756), 314 (57,401), 326 (60,042), 395 (8855), 464 (7124). MS (ESI+) in acetonitrile (m/z): 1591.3 [M + K]+, 1021.20 [M-[Cl6-1]−]+, 530.1 [Cl6-1]−.

3.3. Photocatalytic Studies

A quartz tube containing an aqueous solution (5 mL) at pH 7 (K2CO3 solution is used to adjust the pH) with 4 or 5, as catalysts, alkene as substrate, and Na2S2O8 as sacrificial acceptor was exposed to UV light (2.2 W, λ = 300 nm or 352 nm) for different times. The complex: substrate: sacrificial oxidant ratios used (1:2000:2600 and 1:20,000:26,000 corresponding to concentrations of 0.01:20:26 mM and 0.001:20:26 mM, respectively). The concentrations were varied according to the study. For each experiment, a light reactor supplied light illumination with 12 lamps that produce UVA light at room temperature. The resulting solutions were extracted with CH2Cl2 six times. The solution was dried with anhydrous sodium sulfate and the solvent was reduced to a minimum volume under reduced pressure, then 100 µL of biphenyl 100 mM as internal standard was added to the resulting solution, 2 mM in the resulting 5 mL solution. To check the reproducibility of the reactions, all the experiments were performed in triplicate and analyzed by Gas Chromatography.

3.4. Gas Chromatography Studies

Studies were performed with a GC-2010 Gas Chromatograph from Shimadzu, equipped with an Astec CHIRALDEX G-TA column, 30 m × 0.25 mm (i.d) (Fukuoka, Japan); FID detector, 250 °C; injection: 250 °C; carrier gas: helium; rate: 1.57 mL/min; area normalization. For alkenes, substrates and products of catalysis were detected under the following conditions: styrene and derivatives: column temperature, 80 °C for 5 min, raising to 170 °C in a rate of 10 °C/min, holding 170 °C for 6 min. Trans-β-methyl-styrene, cis-β-methyl-styrene, cis-cyclooctene and derivatives: column temperature, 40 °C for 5 min, raising to 170 °C in a rate of 5 °C/min, holding 170 °C for 2 min. 1-octene and derivatives: column temperature, 30 °C for 5 min, raising to 170 °C in a rate of 10 °C/min, holding 170 °C for 3 min. Trans-stilbene and derivatives: column temperature, 50 °C for 1 min, raising to 150 °C in a rate of 15 °C/min, holding 150 °C for 2 min, then raising to 170 °C in a rate of 4 °C/min, holding 170 °C for 12 min. The product analyses in the catalytic experiments were performed by GC with biphenyl as internal standard.

4. Conclusions

Two cooperative ion pair photoredox systems [RuII(terpy)(bpy)(H2O)][(3,3′-Co(1,2-C2B9H11)2]2, 4 and [RuII(terpy)(bpy)(H2O)][3,3′-Co(8,9,12-Cl3-1,2--C2B9H8)2]2 5 have been studied as photoredox catalysts in the oxidation of aromatic and aliphatic alkenes in water. Both systems are formed by the same aqua ruthenium complex, [RuII(terpy)(bpy)(OH2)]2+, as electron transfer agent and by cobaltabis(dicarbollides), as light collectors; in 4 by [3,3′-Co-(1,2-C2B9H11)2]− [1]− and in 5 by [3,3′-Co(8,9,12-Cl3-1,2--C2B9H8)2]− [Cl6-1]−. Both the cobaltabis(dicarbollide) and the ruthenium aqua complex are linked by non-covalent interactions, avoiding costly covalent bonding. Complex 4 was previously synthesized by us and 5 has been easily made by the reaction of the chlorido Ru(II) complex, with Ag[Cl6-1] in water/acetone (1:1) under reflux. The electrochemical studies evidence that the photogenerated CoIV can easily oxidize [RuIII-OH]2+ to [RuIV=O]2+ in water via PCETs as we have evidenced in the photocatalytic oxidation of alkenes in water.
We have highlighted the capacity of 4 to perform as excellent cooperative photoredox catalyst in the oxidation of alkenes in water using catalyst loads of 0.05 and 0.005 mol%, achieving high yields even when short reaction times of irradiation have been used. Using 0.05 mol% of catalyst, the epoxidation of styrene led to a slight decrease in epoxide after 30 min, but in any case, it continues to be the majority product above diol and other byproducts such as benzaldehyde and benzoic acid. For the rest of the substrates studied, the selectivity of epoxide decreases after 30 min. With 0.005 mol% of photocatalyst, the conversion values after 15 and 30 min are lower but the selectivity for the corresponding epoxide and TON values are higher. Compound 4 serves as a photocatalyst for both epoxidation and hydroxylation processes in aqueous media. When using catalyst 5 with a 0.005 mol% loading, the conversion values are typically higher than those achieved with compound 4. However, in most cases, the selectivity towards the corresponding epoxides is lower, even after a 15-min reaction period. This difference is likely attributed to the enhanced oxidizing capacity of CoIV in catalyst 5.
To our knowledge, these are the first examples of cooperative systems featuring robust non-bonding interactions, which omit covalent bonds and have not previously been explored as photoredox catalysts for the epoxidation of alkenes in water. We have proposed a potential mechanism.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29102378/s1, Figure S1: IR spectrum of Ag[Cl6-1]; Figure S2: IR spectrum of 5; Figure S3: (a) 1H{11B}-NMR and b) 11B{1H}-NMR spectra of Ag[Cl6-1] compound in acetone-d6; Figure S4: (a) 1H-NMR; (b) 1H{11B}-NMR; (c) 11B{1H}-NMR (d) 11B-NMR and (e) COSY NMR spectra of 5. compound in acetone-d6; Figure S5: UV-visible of Ag[Cl6-1] compound in CH2Cl2; Figure S6: CV of (a) Ag[Cl6-1] compound in CH3CN + 0.1 M TBAH vs. Ag/AgCl; (b) 5 in CH3CN + 0.1 M TBAH vs. Ag/AgCl; and (c) 5 in a phosphate buffer (pH = 7.12) vs. Ag/AgCl; scan rate V = 100 mV/s; Figure S7: Plot of conversion as a function of time for the photoredox catalysis of styrene. Conditions: 4 (0.01 mM), styrene (20 mM), Na2S2O8 (26 mM), 5 mL aqueous solution at pH = 7, light irradiation (2.2 W, λ ~ 300 nm); Figure S8: ESI-MS spectra of 5; Table S1: Photooxidation tests performed with complex 4. Conditions: 4 (0.01 mM), substrate (20 mM), Na2S2O8 (26 mM), 5 mL aqueous solution at pH = 7; Table S2: Photooxidation of epoxides performed with complex 4. Conditions: 4 (0.01 mM), epoxide (20 mM), Na2S2O8 (26 mM), 5 mL aqueous solution at pH = 7; Table S3: Photooxidation tests performed with 5 complex. Conditions: 5 (0.001 mM), substrate (20 mM), Na2S2O8 (26 mM), 5 mL aqueous solution at pH = 7.

Author Contributions

Conceptualization, F.T. and I.R.; methodology, I.G., F.T. and I.R.; writing—original draft preparation, I.G. and I.R.; writing—review and editing, I.G., C.V., F.T. and I.R.; supervision, F.T. and I.R.; project administration, F.T. and I.R.; funding acquisition, F.T., C.V. and I.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by AGAUR (Generalitat de Catalunya, project 2021-SGR-00442), MICINN (PID2019-106832RB-I00, PID2022-136892NB-I00), and the Severo Ochoa Program for Centers of Excellence for the FUNFUTURE CEX2019-000917-S project).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and supplementary materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Gagnon, S.D.H.F. Encyclopedia of Polymer Science and Engineering, 2nd ed.; Mark, H.F., Bikales, N.M., Overberger, C.G., Menges, G., Kroschwitz, J.I., Eds.; John Wiley & Sons: New York, NY, USA, 1985; Volume 6, pp. 273–307. [Google Scholar]
  2. de Faveri, G.; Ilyashenko, G.; Watkinson, M. Recent advances in catalytic asymmetric epoxidation using the environmentally benign oxidant hydrogen peroxide and its derivatives. Chem. Soc. Rev. 2011, 40, 1722–1760. [Google Scholar] [CrossRef]
  3. Smith, J.G. Synthetically useful reactions of epoxides. Synthesis 1984, 1984, 629–656. [Google Scholar] [CrossRef]
  4. Jacobsen, E.N. Asymmetric catalysis of epoxide ring-opening reactions. Accounts Chem. Res. 2000, 33, 421–431. [Google Scholar] [CrossRef] [PubMed]
  5. de Vries, E.J.; Janssen, D.B. Biocatalytic conversion of epoxides. Curr. Opin. Biotechnol. 2003, 14, 414–420. [Google Scholar] [CrossRef] [PubMed]
  6. Muzart, J. Pd-Mediated Reactions of Epoxides. Eur. J. Org. Chem. 2011, 25, 4717–4741. [Google Scholar] [CrossRef]
  7. Jacobsen, E.N.; Zhang, W.; Muci, A.R.; Ecker, J.R.; Deng, L. Highly enantioselective epoxidation catalysts derived from 1,2-diaminocyclohexane. J. Am. Chem. Soc. 1991, 113, 7063–7064. [Google Scholar] [CrossRef]
  8. Cussó, O.; Garcia-Bosch, I.; Ribas, X.; Lloret-Fillol, J.; Costas, M. Asymmetric epoxidation with H2O2 by manipulating the electronic properties of non-heme iron catalysts. J. Am. Chem. Soc. 2013, 135, 14871–14878. [Google Scholar] [CrossRef]
  9. Jeon, S.-J.; Li, H.; Walsh, P.J. A green chemistry approach to a more efficient asymmetric catalyst: Solvent-free and highly concentrated alkyl additions to ketones. J. Am. Chem. Soc. 2005, 127, 16416–16425. [Google Scholar] [CrossRef] [PubMed]
  10. Sartori, S.K.; Miranda, I.L.; Diaz, M.A.N.; Diaz-Munoz, G. Sharpless asymmetric epoxidation: Applications in the synthesis of bioactive natural products. Mini Rev. Org. Chem. 2021, 18, 606–620. [Google Scholar] [CrossRef]
  11. Serrano, I.; López, M.I.; Ferrer, I.; Poater, A.; Parella, T.; Fontrodona, X.; Solà, M.; Llobet, A.; Rodríguez, M.; Romero, I. New Ru (II) complexes containing oxazoline ligands as epoxidation catalysts. Influence of the substituents on the catalytic performance. Inorg. Chem. 2011, 50, 6044–6054. [Google Scholar] [CrossRef]
  12. Ferrer, I.; Fontrodona, X.; Roig, A.; Rodríguez, M.; Romero, I. A recoverable ruthenium aqua complex supported on silica particles: An efficient epoxidation catalyst. Chem. Eur. J. 2017, 23, 4096–4107. [Google Scholar] [CrossRef]
  13. Ye, D.; Liu, L.; Peng, Q.; Qiu, J.; Gong, H.; Liu, S. Effect of Controlling Thiophene Rings on D-A Polymer Photocatalysts Accessed via Direct Arylation for Hydrogen Production. Molecules 2023, 28, 4507. [Google Scholar] [CrossRef]
  14. Lang, X.; Zhao, J.; Chen, X. Cooperative photoredox catalysis. Chem. Soc. Rev. 2016, 45, 3026–3038. [Google Scholar] [CrossRef] [PubMed]
  15. Glasser, F.; Wenger, O.S. Recent progress in the development of transition-metal based photoredoxcatalysts. Coord. Chem. Rev. 2020, 405, 213129. [Google Scholar] [CrossRef]
  16. Clerich, E.; Affès, S.; Anticó, E.; Fontrodona, X.; Teixidor, F.; Romero, I. Molecular and supported ruthenium complexes as photoredox oxidation catalysts in water. Inorg. Chem. Front. 2022, 9, 5347–5359. [Google Scholar] [CrossRef]
  17. Affès, S.; Stamatelou, A.-M.; Fontrodona, X.; Kabadou, A.; Viñas, C.; Teixidor, F.; Romero, I. Enhancing Photoredox Catalysis in Aqueous Environments: Ruthenium Aqua Complex Derivatization of Graphene Oxide and Graphite Rods for Efficient Visible-Light-Driven Hybrid Catalysts. ACS Appl. Mater. Interfaces 2024, 16, 507–519. [Google Scholar] [CrossRef]
  18. Chen, W.; Rein, F.N.; Scott, B.L.; Rocha, R.C. Catalytic Photooxidation of Alcohols by an Unsymmetrical Tetra (pyridyl) pyrazine-Bridged Dinuclear Ru Complex. Chem. Eur. J. 2011, 17, 5595–5604. [Google Scholar] [CrossRef] [PubMed]
  19. Lennox, A.J.J.; Fischer, S.; Jurrat, M.; Luo, S.P.; Rockstroh, N.; Junge, H.; Ludwig, R.; Beller, M. Copper-Based Photosensitisers in Water Reduction: A More Efficient In Situ Formed System and Improved Mechanistic Understanding. Chem. Eur. J. 2016, 22, 1233–1238. [Google Scholar] [CrossRef] [PubMed]
  20. Farràs, P.; Maji, S.; Benet-Buchholz, J.; Llobet, A. Synthesis, Characterization, and Reactivity of Dyad Ruthenium-Based Molecules for Light-Driven Oxidation Catalysis. Chem. Eur. J. 2013, 19, 7162–7172. [Google Scholar] [CrossRef]
  21. Hockin, B.M.; Li, C.; Robertson, N.; Zysman-Colman, E. Photoredox catalysts based on earth-abundant metal complexes. Catal. Sci. Technol. 2019, 9, 889–915. [Google Scholar] [CrossRef]
  22. Fukuzumi, S.; Kishi, T.; Kotani, H.; Lee, Y.M.; Nam, W. Highly efficient photocatalytic oxygenation reactions using water as an oxygen source. Nat. Chem. 2011, 3, 38–41. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, G.; Chen, L.; Ma, L.; Kwonga, H.-K.; Lau, T.-C. Photocatalytic oxidation of alkenes and alcohols in water by a manganese (v) nitrido complex. Chem. Commun. 2016, 52, 9271–9274. [Google Scholar] [CrossRef] [PubMed]
  24. Guerrero, I.; Viñas, C.; Romero, I.; Teixidor, F. A stand-alone cobalt bis(dicarbollide) photoredox catalyst epoxidates alkenes in water at extremely low catalyst load. Green Chem. 2021, 23, 10123–10131. [Google Scholar] [CrossRef]
  25. Fontanet, M.; Rodriguez, M.; Vinas, C.; Teixidor, F.; Romero, I. Carboranycarboxylate complexes as efficient catalysts in epoxidation reactions. Eur. J. Inorg. Chem. 2017, 2017, 4425–4429. [Google Scholar] [CrossRef]
  26. Mukherjee, S.; Thilagar, P. Boron clusters in luminescent materials. Chem. Commun. 2016, 52, 1070–1093. [Google Scholar] [CrossRef] [PubMed]
  27. Junki, O.; Kazuo, T.; Yoshiki, T. Recent progress in the development of solid-state luminescent o-carboranes with stimuli responsivity. Angew. Chem. Int. Ed. 2020, 59, 9841–9855. [Google Scholar]
  28. Shi, C.; Sun, H.; Jiang, Q.; Zhao, Q.; Wang, J.; Huang, W.; Yan, H. Carborane tuning of photophysical properties of phosphorescent iridium(III) complexes. Chem. Commun. 2013, 49, 4746–4748. [Google Scholar] [CrossRef] [PubMed]
  29. Hawthorne, M.F.; Young, D.C.; Garret, P.M.; Owen, D.A.; Schwerin, S.G.; Tebbe, F.N.; Wegner, P.M. Preparation and characterization of the (3)-1,2-and (3)-1,7-dicarbadodecahydroundecaborate (−1) ions. J. Am. Chem. Soc. 1968, 90, 862–868. [Google Scholar] [CrossRef]
  30. Bennour, I.; Cioran, A.M.; Teixidor, F.; Viñas, C. 3, 2, 1 and stop! An innovative, straightforward and clean route for the flash synthesis of metallacarboranes. Green Chem. 2019, 21, 1925–1928. [Google Scholar] [CrossRef]
  31. Fuentes, I.; Andrio, A.; Teixidor, F.; Viñas, C.; Compan, V. Enhanced conductivity of sodium versus lithium salts measured by impedance spectroscopy. Sodium cobaltacarboranes as electrolytes of choice. Phys. Chem. Chem. Phys. 2017, 19, 15177–15186. [Google Scholar] [CrossRef]
  32. Stoica, A.-I.; Viñas, C.; Teixidor, F. Cobaltabisdicarbollide anion receptor for enantiomer-selective membrane electrodes. Chem. Commun. 2009, 4988–4990. [Google Scholar] [CrossRef] [PubMed]
  33. Fuentes, I.; Pujols, J.; Viñas, C.; Ventura, S.; Texidor, F. Dual binding mode of metallacarborane produces a robust shield on proteins. Chem. Eur. J. 2019, 25, 12820–12829. [Google Scholar] [CrossRef] [PubMed]
  34. Pazderová, L.; Tüzün, E.Z.; Bavol, D.; Litecká, M.; Fojt, L.; Grüner, B. Chemistry of Carbon-Substituted Derivatives of Cobalt Bis(dicarbollide)(1−) Ion and Recent Progress in Boron Substitution. Molecules 2023, 28, 6971. [Google Scholar] [CrossRef] [PubMed]
  35. Bauduin, P.; Prevost, S.; Farràs, P.; Teixidor, F.; Diat, O.; Zemb, T. A theta-shaped amphiphilic cobaltabisdicarbollide anion: Transition from monolayer vesicles to micelles. Angew. Chem. Int. Ed. 2011, 50, 5298–5300. [Google Scholar] [CrossRef] [PubMed]
  36. Uchman, M.; Ďorďovič, V.; Tošner, Z.; Matějíček, P. Classical amphiphilic behavior of nonclassical amphiphiles: A comparison of metallacarborane self-assembly with SDS micellization. Angew. Chem. Int. Ed. 2015, 54, 14113–14117. [Google Scholar] [CrossRef] [PubMed]
  37. Zaulet, A.; Teixidor, F.; Bauduin, P.; Diat, O.; Hirva, P.; Ofori, A.; Viñas, C. Deciphering the role of the cation in anionic cobaltabisdicarbollide clusters. J. Organomet. Chem. 2018, 865, 214–225. [Google Scholar] [CrossRef]
  38. Guerrero, I.; Kelemen, Z.; Viñas, C.; Romero, I.; Teixidor, F. Metallacarboranes as photoredox catalysts in water. Chem. Eur. J. 2020, 26, 5027–5036. [Google Scholar] [CrossRef] [PubMed]
  39. Guerrero, I.; Saha, A.; Xavier, J.A.M.; Viñas, C.; Romero, I.; Teixidor, F. Noncovalently linked metallacarboranes on functionalized magnetic nanoparticles as highly efficient, robust, and reusable photocatalysts in aqueous medium. ACS Appl. Mater. Interfaces 2020, 12, 56372–56384. [Google Scholar] [CrossRef] [PubMed]
  40. Guerrero, I.; Fontrodona, X.; Viñas, C.; Romero, I.; Teixidor, F. Aqueous persistent noncovalent ion-pair cooperative coupling in a ruthenium cobaltabis (dicarbollide) system as a highly efficient photoredox oxidation catalyst. Inorg. Chem. 2021, 60, 8898–8907. [Google Scholar] [CrossRef]
  41. Rodríguez, M.; Romero, I.; Sens, C.; Llobet, A. Ru=O complexes as catalysts for oxidative transformations, including the oxidation of water to molecular dioxygen. J. Mol. Catal. A Chem. 2006, 251, 215–220. [Google Scholar] [CrossRef]
  42. Takeuchi, K.J.; Tompson, M.S.; Pipes, D.V.; Meyer, T.J. Redox and spectral properties of monooxo polypyridyl complexes of ruthenium and osmium in aqueous media. Inorg. Chem. 1984, 23, 1845–1851. [Google Scholar] [CrossRef]
  43. Mátel, L.; Macášek, F.; Rajec, P.; Heřmánek, S.; Plešek, J. B-Halogen derivatives of the bis (1,2-dicarbollyl) cobalt (III) anion. Polyhedron 1982, 1, 511–519. [Google Scholar] [CrossRef]
  44. Rojo, I.; Teixidor, F.; Viñas, C.; Kivekäs, R.; Sillanpää, R. Relevance of the electronegativity of boron in η5-coordinating ligands: Regioselective monoalkylation and monoarylation in cobaltabisdicarbollide [3,3′-Co(1,2-C2B9H11)2]− clusters. Chem. Eur. J. 2003, 9, 4311–4323. [Google Scholar] [CrossRef] [PubMed]
  45. Cerný, V.; Pavlík, J.; Kustková-Maxová, E. Ligand field theory, d-d spectra of ferrocene and other d6-metallocenes. Collect. Czechoslov. Chem. Commun. 1976, 41, 3232–3244. [Google Scholar] [CrossRef]
  46. Balzani, V.; Juris, M.; Campagna, S.; Serroni, S. Luminiscent and redox-active polynuclear transition metal complexes. Chem. Rev. 1996, 96, 759–834. [Google Scholar] [CrossRef] [PubMed]
  47. Moyer, B.A.; Thompson, M.S.; Meyer, T.J. Chemically catalyzed net electrochemical oxidation of alcohols, aldehydes, and unsaturated hydrocarbons using the system (trpy)(bpy)Ru(OH2)2+/(trpy)(bpy)RuO2+. J. Am. Chem. Soc. 1980, 102, 2310–2312. [Google Scholar] [CrossRef]
  48. Behr, A.; Westfechtel, A.; Pérez Gomes, J. Catalytic processes for the technical use of natural fats and oils. Chem. Eng. Technol. 2008, 31, 700–714. [Google Scholar] [CrossRef]
  49. Sullivan, B.P.; Calvert, J.M.; Meyer, T.J. Cis-trans isomerism in (trpy)(PPh3)RuC12. Comparisons between the chemical and physical properties of a cis-trans isomeric pair. Inorg. Chem. 1980, 19, 1404–1407. [Google Scholar] [CrossRef]
Molecules 29 02378 ch001

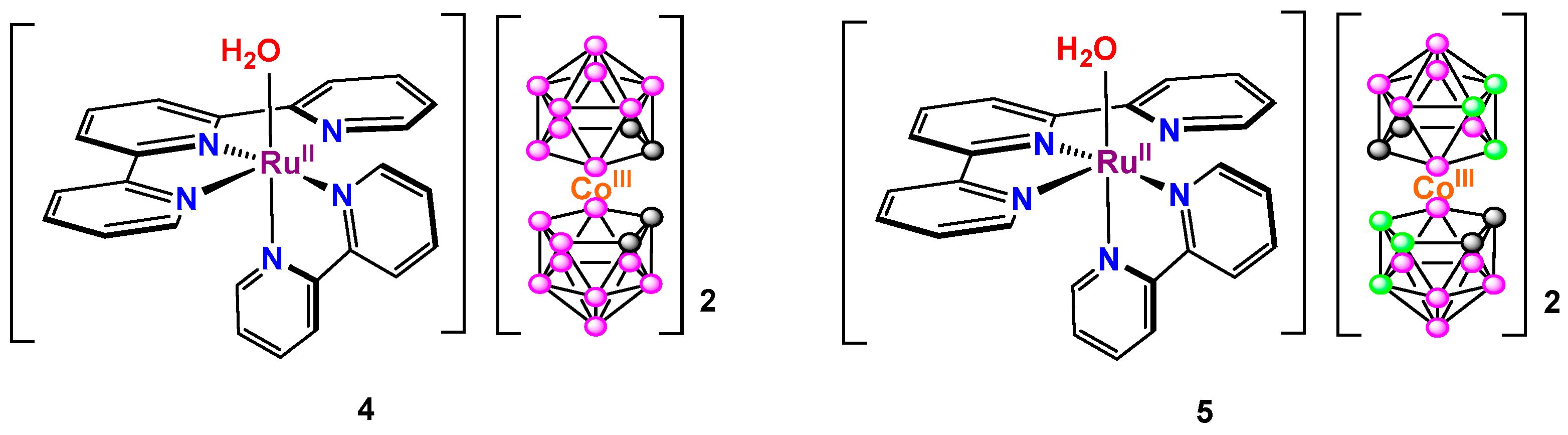

Chart 1. Schematic representation of ruthenium-cobaltabis(dicarbollide) complexes 4 (left) and 5 (right).
Chart 1. Schematic representation of ruthenium-cobaltabis(dicarbollide) complexes 4 (left) and 5 (right).
Molecules 29 02378 ch001
Molecules 29 02378 sch001
Scheme 1. Synthetic strategy for preparation of 4 and 5. (a) Synthesis of 2 obtained following method described in [42]. (b) Synthesis of Ag [1] following method described in [40] and Ag[Cl6-1]. (c) Synthesis of compounds 4 and 5 by reaction between 2 and Ag [1] and Ag[Cl6-1], respectively.
Scheme 1. Synthetic strategy for preparation of 4 and 5. (a) Synthesis of 2 obtained following method described in [42]. (b) Synthesis of Ag [1] following method described in [40] and Ag[Cl6-1]. (c) Synthesis of compounds 4 and 5 by reaction between 2 and Ag [1] and Ag[Cl6-1], respectively.
Molecules 29 02378 sch001
Molecules 29 02378 g001
Figure 1. IR spectra of complexes 4 (blue) and 5 (green).
Figure 1. IR spectra of complexes 4 (blue) and 5 (green).
Molecules 29 02378 g001
Molecules 29 02378 g002

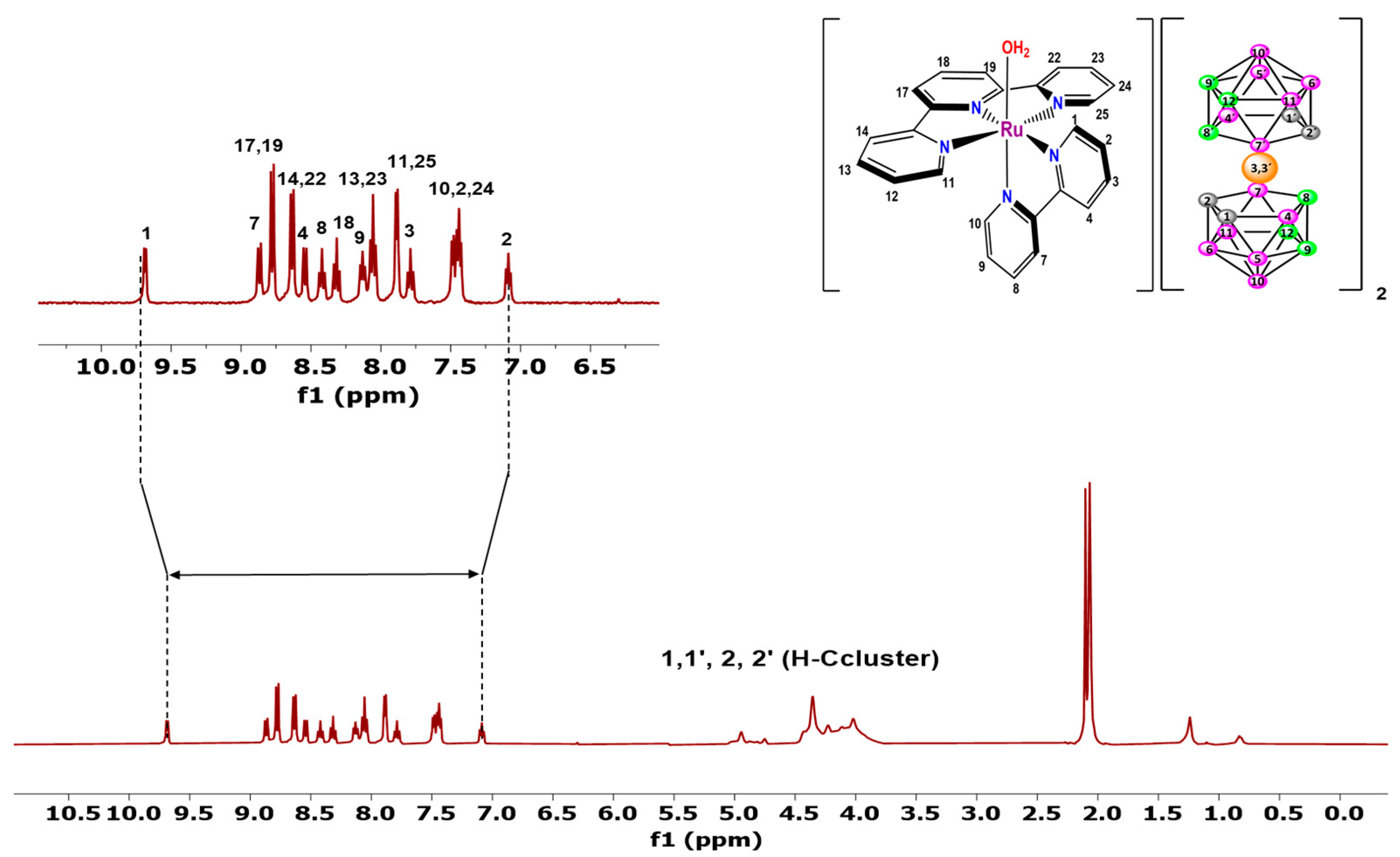

Figure 2. 1H NMR spectrum of 5 in acetone-d6.
Figure 2. 1H NMR spectrum of 5 in acetone-d6.
Molecules 29 02378 g002
Molecules 29 02378 g003

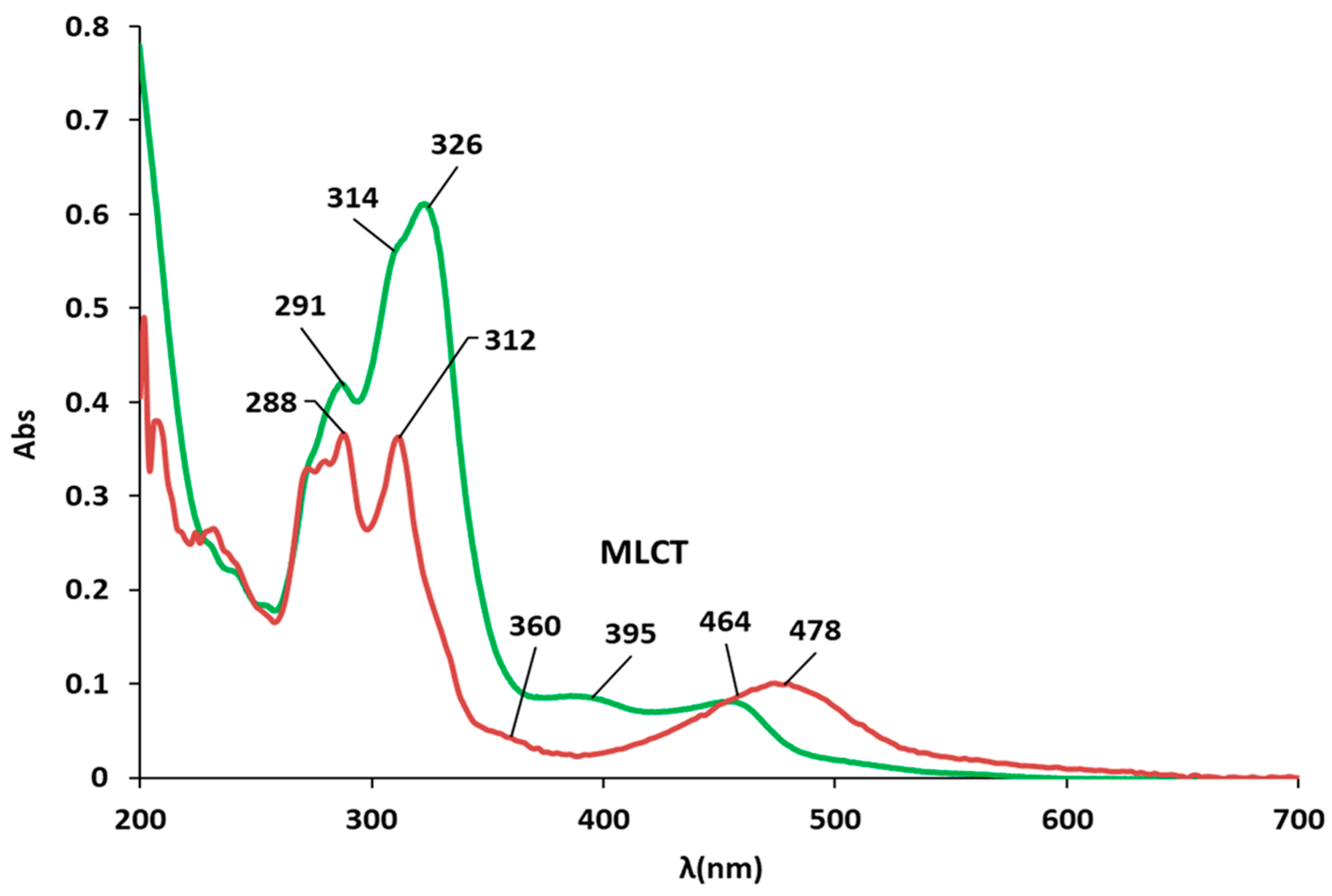

Figure 3. UV-vis spectrum of 5 (green line) and 2 (brown line) in dichlorometane.
Figure 3. UV-vis spectrum of 5 (green line) and 2 (brown line) in dichlorometane.
Molecules 29 02378 g003
Molecules 29 02378 g004

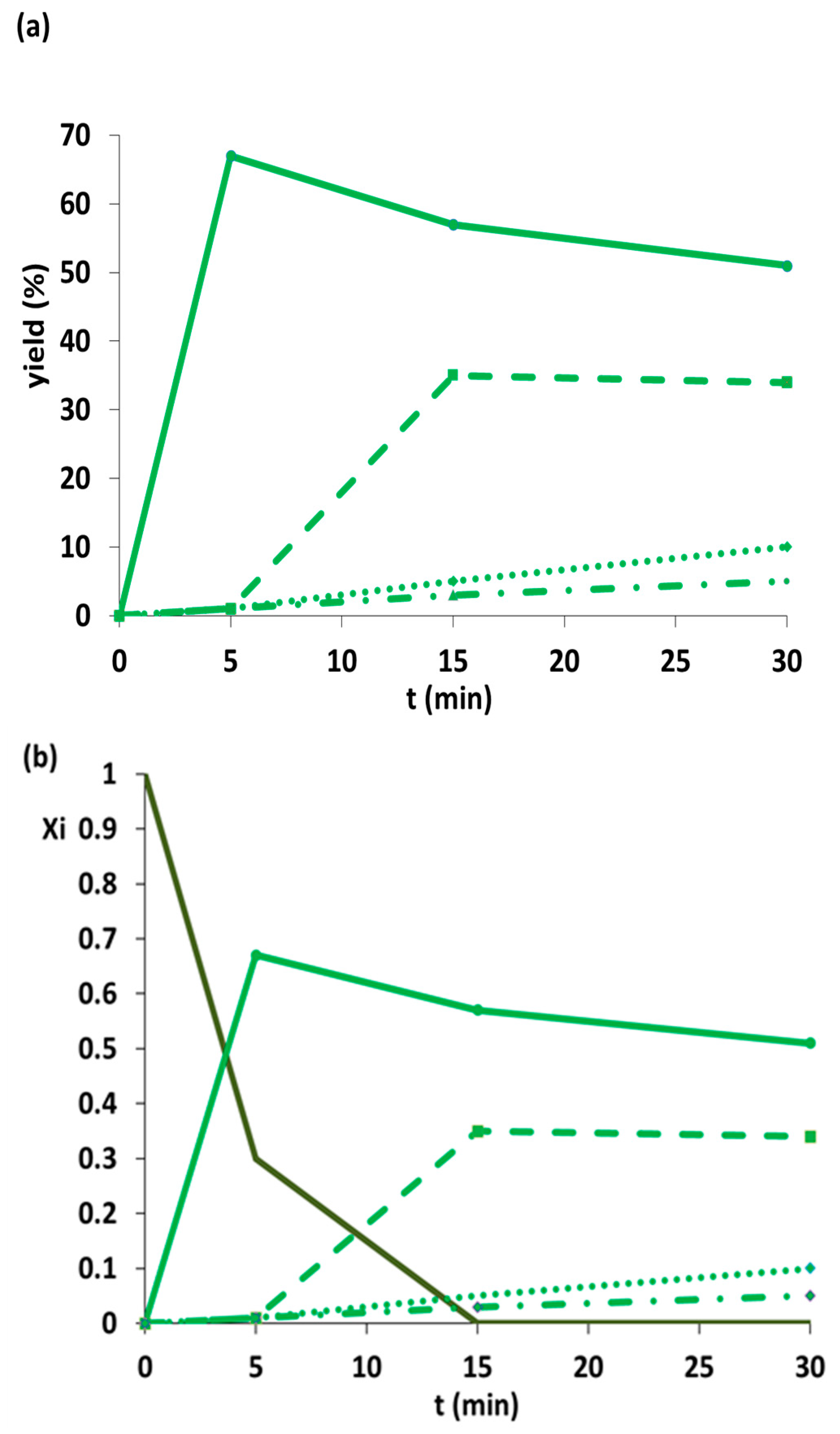

Figure 4. (a) Plot of yield as function of time and (b) plot of molar fractions (XM) as function of time for photoredox catalysis of styrene. Dark green line: styrene; green line: styrene oxide; dashed line: 1-phenyl-1,2-ethanediol; dash dotted line: benzaldehyde; dotted line: benzoic acid. Conditions: [RuII(terpy)(bpy)(H2O)][(3,3′-Co(1,2-C2B9H11)2]2 (0.01 mM), styrene (20 mM), Na2S2O8 (26 mM), 5 mL aqueous solution at pH = 7, light irradiation (2.2 W, λ ~ 300 nm).
Figure 4. (a) Plot of yield as function of time and (b) plot of molar fractions (XM) as function of time for photoredox catalysis of styrene. Dark green line: styrene; green line: styrene oxide; dashed line: 1-phenyl-1,2-ethanediol; dash dotted line: benzaldehyde; dotted line: benzoic acid. Conditions: [RuII(terpy)(bpy)(H2O)][(3,3′-Co(1,2-C2B9H11)2]2 (0.01 mM), styrene (20 mM), Na2S2O8 (26 mM), 5 mL aqueous solution at pH = 7, light irradiation (2.2 W, λ ~ 300 nm).
Molecules 29 02378 g004
Molecules 29 02378 g005

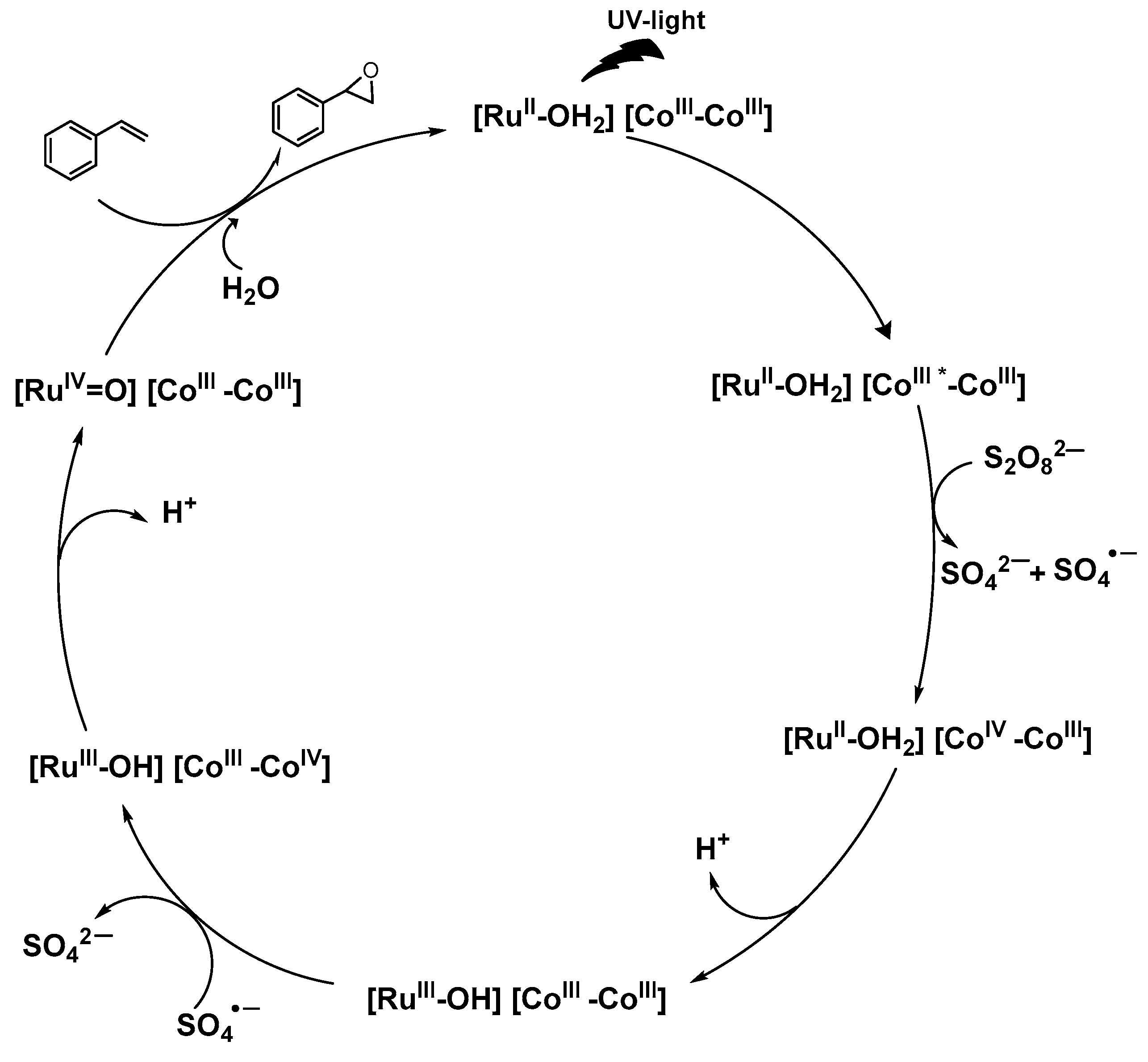

Figure 5. Proposed mechanism for alkene photooxidation.
Figure 5. Proposed mechanism for alkene photooxidation.
Molecules 29 02378 g005
Table 1. Photooxidation tests performed with ruthenium cobaltabis(dicarbollide) complex 4.
Table 1. Photooxidation tests performed with ruthenium cobaltabis(dicarbollide) complex 4.
EntrySubstrateConv.(selec.)%ProductTON
0.05 mol%0.005 mol%0.05 mol%0.005 mol%
1Molecules 29 02378 i00170(96) [a] Molecules 29 02378 i0021344 [a]
≥99(57) [b]73(56) [b]1140 [b]8200 [b]
≥99(51) [c]≥99(61) [c]1020 [c]12,200 [c]
2Molecules 29 02378 i00396(79) [b] Molecules 29 02378 i0041520 [b]
≥99(69) [c]91(≥99) [c]1380 [c]18,200 [c]
3Molecules 29 02378 i00589(96) [b]80(≥99) [b]Molecules 29 02378 i0061700 [b]16,000 [b]
97(54) [c]≥99(71) [c]1040 [c]14,200 [c]
4Molecules 29 02378 i007≥99(91) [b]61(≥99) [b]Molecules 29 02378 i0081820 (59%,cis) [b]12,200 (46%,cis) [b]
≥99(60) [c]73(≥99) [c]1200 (36%,cis) [c]14,600 (27%,cis) [c]
5Molecules 29 02378 i009≥99(67) [b]68(66) [b]Molecules 29 02378 i0101340 [b]9000 [b]
≥99(55) [c]85(41) [c]1100 [c]6970 [c]
6Molecules 29 02378 i011≥99(69) [b]58(≥99) [b]Molecules 29 02378 i0121380 [b]11,600 [b]
≥99(35) [c]95(≥99) [c]700 [c]19,000 [c]
Conditions: 4 (0.01 or 0.001 mM), substrate (20 mM), Na2S2O8 (26 mM), 5 mL aqueous solution at pH = 7. [a] 5 min of reaction, [b] 15 min and [c] 30 min of reaction.
Table 2. Photooxidation tests performed with ruthenium cobaltabis(dicarbollide) complexes 4 and 5.
Table 2. Photooxidation tests performed with ruthenium cobaltabis(dicarbollide) complexes 4 and 5.
EntrySubstrateConv.(selec.)%ProductTON
4545
1Molecules 29 02378 i01373(56) [a]75(31) [a]Molecules 29 02378 i0148200 [a]4600 [a]
≥99(61) [b] 12,200 [b]
2Molecules 29 02378 i01591(≥99) [b]87(≥99) [b]Molecules 29 02378 i01618,200 [b]17,400 [b]
3Molecules 29 02378 i01780(≥99) [a]≥99(86) [a]Molecules 29 02378 i01816,000 [a]17,200 [a]
≥99(71) [b]≥99(83) [b]14,200 [b]16,600 [b]
4Molecules 29 02378 i01961(≥99) [a]88(57) [a]Molecules 29 02378 i02012,200 (46%,cis) [a]10,000 (50%,trans) [a]
73(≥99) [b]89(57) [b]14,600 (73%,trans) [b]10,100 (51%,trans) [b]
5Molecules 29 02378 i02168(66) [a]92(≥99) [a]Molecules 29 02378 i0229000 [a]18,400 [a]
85(41) [b]96(55) [b]6970 [b]10,600 [b]
Conditions: 4 or 5 (0.001 mM), substrate (20 mM), Na2S2O8 (26 mM), 5 mL aqueous solution at pH = 7. Ratio 1:2000:2600 or 1:20,000:26,000, [a] 15 min of reaction, [b] 30 min of reaction.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Guerrero, I.; Viñas, C.; Teixidor, F.; Romero, I. Unveiling Non-Covalent Interactions in Novel Cooperative Photoredox Systems for Efficient Alkene Oxidation in Water. Molecules 2024, 29, 2378. https://doi.org/10.3390/molecules29102378

AMA Style

Guerrero I, Viñas C, Teixidor F, Romero I. Unveiling Non-Covalent Interactions in Novel Cooperative Photoredox Systems for Efficient Alkene Oxidation in Water. Molecules. 2024; 29(10):2378. https://doi.org/10.3390/molecules29102378

Chicago/Turabian Style

Guerrero, Isabel, Clara Viñas, Francesc Teixidor, and Isabel Romero. 2024. "Unveiling Non-Covalent Interactions in Novel Cooperative Photoredox Systems for Efficient Alkene Oxidation in Water" Molecules 29, no. 10: 2378. https://doi.org/10.3390/molecules29102378

APA Style

Guerrero, I., Viñas, C., Teixidor, F., & Romero, I. (2024). Unveiling Non-Covalent Interactions in Novel Cooperative Photoredox Systems for Efficient Alkene Oxidation in Water. Molecules, 29(10), 2378. https://doi.org/10.3390/molecules29102378

Article Metrics

Back to TopTop
